RADAR

Radar, derived from the term Radio Detection and Ranging, represents a groundbreaking digital technology designed to hit upon items at a distance by using making use of radio waves. This transformative device measures the time taken for radio waves to bounce off gadgets, presenting important information together with an object's role, speed, and different traits. The effect of radar generation spans across numerous domains, revolutionizing navigation and surveillance applications in fields ranging from meteorology to army operations.

What is a Radar System?

A radar machine is a sophisticated mixture of a transmitter and a receiver. The transmitter generates and emits radio waves, even as the receiver detects echoes produced while those waves come upon gadgets. By studying the time postpone among wave transmission and echo reception, a radar machine can determine the variety, attitude, and speed of gadgets, making it an essential device for tracking and identifying numerous objectives.

Who Invented Radar?

As radar system is a huge invention so can't give credit to the single inventor, actually it is a fruitful result of multiple great inventors. The journey of inventions firstly started from the origination of  electromagnetic radiation and then get introduced privacy features into it to implement military or defense authentication.

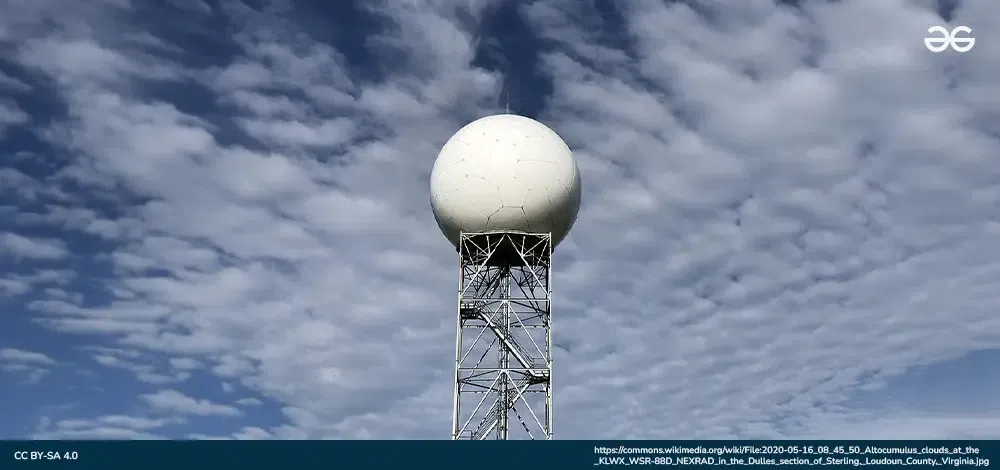

Working Principles of Radar Operation

The essential precept underlying radar operation involves the transmission of a burst of radio strength, observed by using the analysis of echoes from items inside the environment. The time delay between the transmission and reception of echoes is applied to calculate the distance to the object, forming the inspiration for radar's ability to parent and symbolize objects at a distance.

Here's an in depth explanation of the radar operation:

Transmitter Operation

• Generation of Electromagnetic Waves: The radar machine starts off evolved by using generating quick pulses of electromagnetic waves, commonly within the radio frequency (RF) variety. The radar transmitter produces those pulses using a high-energy RF oscillator.
• Transmission of Pulses: The transmitter then sends those pulses through the radar antenna, which shapes and directs the waves. The antenna emits the pulses into area in a managed way.

Propagation through Space

• Free-Space Propagation: The electromagnetic pulses journey through area at the speed of mild. In a vacuum, the velocity of mild is approximately 299,792 kilometers consistent with 2nd.
• Interaction with Objects: When these pulses encounter gadgets of their direction (targets), they interact with the gadgets' surfaces. The interplay consists of reflection, scattering, and absorption of the radar waves.

Echo Reception

• Radar Echoes: Targets replicate a portion of the transmitted electricity back towards the radar gadget. These meditated signals, referred to as radar echoes, comprise information about the space, course, and characteristics of the objectives.
• Antenna Reception: The radar antenna, which may be the same as the transmitting antenna or a separate one, captures the meditated signals. The antenna focuses on receiving echoes from a selected course.
• Signal Reception: The obtained radar echoes are converted into electric indicators via the radar receiver. These indicators are then sent to the sign processing unit for in addition evaluation.

Signal Processing

• Amplification: The acquired alerts are often susceptible due to the spreading of power over distance and different losses. Signal amplification is implemented to beautify the vulnerable radar echoes, improving the signal-to-noise ratio.
• Filtering: Filtering strategies are used to split indicators of hobby from undesirable noise or clutter. Filtering allows in setting apart the radar echoes from the focused gadgets.
• Pulse Compression (Pulse Radar): In pulse radar systems, pulse compression techniques can be hired to enhance range resolution and mitigate the results of interference.
• Doppler Processing (Doppler Radar): If the radar system is designed to locate shifting goals, Doppler processing is carried out to analyze frequency shifts in the radar echoes, imparting facts approximately the velocity of the goals.
• Target Extraction and Tracking: Advanced algorithms are used to extract target statistics from the radar echoes and track the positions of detected items through the years.

Display and Interpretation

• Data Presentation: The processed radar statistics is offered on a show, permitting operators to visualize the detected objectives, their positions, and other relevant facts.
• Decision-Making: Operators interpret the displayed facts to make decisions primarily based on the radar statistics. This can also encompass air visitors control, military surveillance, weather monitoring, or other programs.

Fundamentals of Radar

A radar machine includes numerous critical components

• Transmitter: This aspect generates the radio sign with the vital electricity degree for powerful transmission.
• Antenna: Responsible for radiating the radio sign into space and receiving echoes from items. The antenna performs a essential function in directing and capturing radio waves.
• Receiver: Detects the back echoes and amplifies them for in addition analysis. It is a pivotal component for extracting facts approximately the detected objects.
• Processor: Analyzes the acquired signals, extracting valuable information about the item. The processor is answerable for translating uncooked statistics into actionable insights.

Radar Frequency Bands

Radar, or Radio Detection and Ranging, is a era that makes use of radio waves to detect and locate gadgets. The frequency bands used in radar systems can vary depending at the application and the unique requirements of the device. Radar frequency bands are classified based at the frequency range of the radio waves they use.

Here is an outline of a few commonplace radar frequency bands

VHF (Very High Frequency)

• Frequency Range: 30 MHz to 300 MHz
• Characteristics: VHF radar is frequently used for lengthy-range air surveillance. It has the capacity to discover huge items at an extended distance but can also lack the decision for smaller targets.

UHF (Ultra High Frequency)

• Frequency Range: 300 MHz to 3 GHz
• Characteristics: UHF radar is commonly used for each air and maritime surveillance. It presents higher resolution than VHF radar, making it appropriate for monitoring smaller objectives.

L-Band

• Frequency Range: 1 GHz to two GHz
• Characteristics: L-band radar is frequently employed in various applications, which includes air visitors manage, climate monitoring, and surveillance. It moves a balance between variety and resolution.

S-Band

• Frequency Range: 2 GHz to 4 GHz
• Characteristics: S-band radar is usually used in army and climate radar systems. It gives progressed decision compared to decrease-frequency bands, making it appropriate for tracking smaller targets.

C-Band

• Frequency Range: four GHz to 8 GHz
• Characteristics: C-band radar is extensively used for weather tracking, air site visitors manage, and surveillance. It offers top decision and is less stricken by atmospheric conditions.

Types of Radar Systems

Various sorts of radar structures cater to unique applications:

Pulse Radar

• Operation: Pulse radar transmits short bursts or pulses of radiofrequency electricity and then listens for the echoes. The time put off among the transmitted pulse and the received echo is used to calculate the gap to the goal.
• Applications: Commonly utilized in air site visitors manipulate, weather tracking, and navy surveillance. Pulse radar can provide variety records and may be adapted for numerous functions based totally at the specific pulse traits.

Continuous Wave Radar

• Operation: Continuous Wave (CW) radar emits a non-stop waveform with out interruptions. It operates by using measuring the frequency shift (Doppler shift) inside the contemplated signal as a result of a transferring target. Unlike pulse radar, CW radar does not offer range information immediately.
• Applications: CW radar is regularly utilized in applications where pace records is important, which include velocity weapons for traffic enforcement, radar altimeters, and a few varieties of missile steering systems.

Doppler Radar

• Operation: Doppler radar utilizes the Doppler effect to degree the speed of moving gadgets. It detects modifications within the frequency of the radar sign because of the motion of the goal in the direction of or far from the radar device.
• Applications: Commonly used in weather radar to come across precipitation and determine wind styles. Doppler radar is likewise hired in navy packages for target detection and tracking.

Synthetic Aperture Radar (SAR)

• Operation: SAR is a kind of radar that uses a shifting antenna to create high-decision snap shots of the Earth's surface. It achieves excessive decision by way of synthesizing a big antenna aperture thru the movement of the radar platform (satellite tv for pc or plane).
• Applications: SAR is broadly utilized in far flung sensing for Earth observation.

Radar Signal Processing

Radar sign processing includes the extraction of precious information from the received radar alerts to apprehend and interpret the characteristics of the detected objectives. The technique can be complicated and entails diverse steps.

Here's an in depth explanation of radar signal processing

• Signal Reception: Radar systems emit waves, and receiving antennas seize pondered indicators, changing them into electrical alerts.
• Signal Amplification: Weak obtained alerts are amplified to enhance signal-to-noise ratio for simpler detection.
• Down conversion: Received RF signals are down converted to intermediate frequencies for simplified processing.
• Range Measurement (Pulse Radar): Pulse radar measures time delay among transmitted pulse and acquired echo to decide goal distance.
• Doppler Processing (Continuous Wave Radar): CW radar systems use Doppler processing to degree goal pace primarily based on frequency shifts.
• Pulse Compression (Pulse Radar): Pulse compression strategies are carried out to improve range decision and decrease fake alarms.
• Filtering and Doppler Filtering: Filtering isolates signals of interest and Doppler filtering separates signals based totally on Doppler frequencies.
• Clutter Rejection: Clutter rejection techniques, like MTI, clear out unwanted signals from desk bound gadgets.
• Target Tracking: Tracking algorithms, such as Kalman filters, estimate and predict target positions over the years.
• Image Formation (Synthetic Aperture Radar): SAR processing algorithms create high-resolution pics from acquired radar information.
• Data Display and Interpretation: Processed radar facts is displayed for interpretation and selection-making in numerous applications.

Radar Antennas

Radar antennas play a important position within the transmission and reception of radiofrequency (RF) alerts in radar systems. They are answerable for shaping and directing the electromagnetic waves to gain desired characteristics together with beam width, advantage, and directivity. Here's a detailed rationalization of radar antennas:

Antenna Types

• Parabolic Reflector Antennas: These antennas use a curved reflector floor (parabola) to awareness incoming or outgoing electromagnetic waves. They are commonly utilized in excessive-gain radar systems for long-range packages.
• Horn Antennas: Horn antennas have a flared shape and are used for extensive-angle coverage. They are often hired in brief to medium-range radar structures.
• Phased Array Antennas: Phased array antennas encompass multiple individual radiating factors, each with its personal segment manipulate. By adjusting the phases, the antenna can steer the beam electronically without moving parts.
• Microstrip Patch Antennas: These planar antennas are lightweight, compact, and smooth to manufacture. They are usually utilized in radar programs wherein length and weight are vital elements.

Applications of Radar

The versatility of radar era is clear in its huge variety of applications:

• Air Traffic Control: Monitoring and guiding aircraft.
• Weather Forecasting: Tracking storms, precipitation, and atmospheric situations.
• Military Surveillance: Detecting and tracking enemy objectives for countrywide safety.
• Maritime Navigation: Assisting ships in navigation and collision avoidance.

Difference Between Pulse Radar and Continuous Wave Radar

A specified evaluation between Pulse Radar and Continuous Wave Radar well-known shows wonderful functions.

Conclusion

In end, radar systems stand as a cornerstone of modern era, supplying imperative information for protection, protection, and scientific research. Their extraordinary ability to detect and track gadgets has solidified their significance throughout various fields, making sure their endured evolution in an ever-advancing technological landscape.
