checkpoint

VPN-1/FireWall-1 NG
Management I

VPN-1/FireWall-1 NG
Management I
Course Description
Objectives
 Identify the basic components of VPN-1/FireWall-1
NG
 Successfully configure VPN-1/FireWall-1 NG (NT
and/or Solaris)
 Identify the VPN-1/FireWall-1 NG elements that you
will need to manage
 Successfully create and manage management
objects
 Demonstrate how to use the: Security Policy, Log
Viewer, and System Status
 Successfully apply NAT rules
 Successfully demonstrate the ability to authenticate
users

VPN-1/FireWall-1 NG
Management I
Course Layout
Course Requirements
Prerequisites
Check Point Certified Security
Administrator (CCSA)

Course Requirements

The course is geared towards
System administators
Support analysts
Network engineers

Pre-requisites

Each delegate should have :

General knowledge of tcp/ip
Working knowledge of Windows and/or
Unix
Working knowledge of network
technology
Working knowledge of the Internet

Checkpoint Certified Security
Administator (CCSA)
The exam is wide ranging and covers
all aspects of Checkpoint Firewall 1
NG. Some of the topics can be found
on pages 2-3, however all
documentation covered on the course
CD should be reviewed including
PDFs

VPN-1/FireWall-1 NG
Management I
Course Map
Module 1: VPN-1/FireWall-1 NG
Architecture
Module 2: Security Policy Rule Base and
Properties Setup
Module 3: Advanced Security Policy

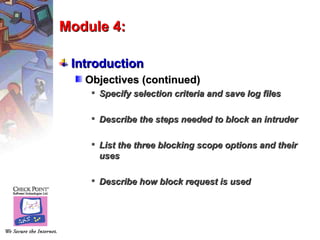

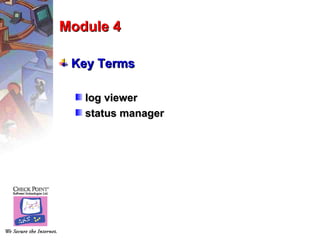

Module 4: Log Management

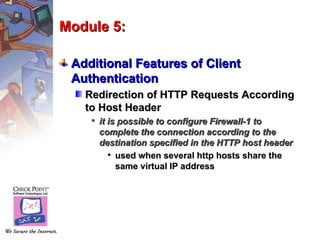

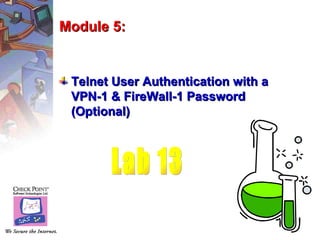

Module 5: Authentication Parameters:
User, Client, and Session Authentication

VPN-1/FireWall-1 NG
Management I
Course Map-continued

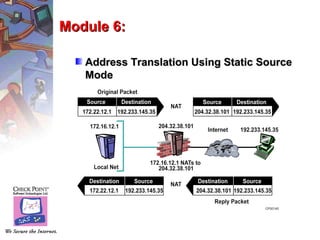

Module 6: Network Address Translation

VPN-1/FireWall-1 NG
Management I
Lab Setup
Lab Topology
IP Addresses
Lab Terms
Lab Stations

VPN-1/FireWall-1 NG
Management I
Lab Topology

VPN-1/FireWall-1 NG
Management I
VPN-1/FireWall-1 NG System
Requirements
Management Client
 Platform : Windows 9x, ME, NT 4.0,
Windows 2000 Pro.
 Disk Space : 40 Mbytes
 Memory : 128 Mbytes
 Network I/f : All interfaces supported
: by Operating System

VPN-1/FireWall-1 NG
Management I
Requirements
Firewall-1 NG FP2 Modules on Windows
Platform
 OS : Windows NT and
Windows 2000
 Processor : Intel Pentium II 300+ MHz
or equivalent
 Network I/F : All interfaces supported
: by Operating System

VPN-1/FireWall-1 NG
Management I
VPN-1/FireWall-1 NG System Requirements
Management Server or Firewall-1 Module on
Solaris
 OS : Solaris 7 (SunOS 5.7)
Solaris 8 (SunOS 5.8)
 CPU Architecture Solaris 7 - 32 Bit mode
Solaris 8 – 32 Bit & 64 Bit
mode
 Disk Space : 40Mbytes (software
installation only)
 CPU : 360 MHz
 Required OS : Check latest release notes
Patches for requd. patches

VPN-1/FireWall-1 NG
Management I
Requirements
Management Server or Firewall-1 Module
on a Linux Platform
 OS : Red Hat Linux 6.2 and 7.0
 CPU Architecture 32 bit and 64 bit
 CPU : Intel Pentium II 300+ MHz

Module 1:

VPN-1/FireWall-1 NG Architecture

Module 1:

Introduction
Objectives
 Describe the purpose of a firewall

 Describe and compare firewall architectures

 Identify the different components of
VPN-1/FireWall-1 NG

Module 1

Key Terms
Firewall
Packet Filtering
Application Layer Gateway (Proxy)
Client/Server Model
Stateful Inspection
Management Client
Secure Internal Communication (SIC)
Virtual Private Network (VPN)
Secure Virtual Network (SVN)

Module 1:

Check Point Product Overview
 Securing the Internet
 An emerging requirement
 Securing Networks, Systems, Application and
Users

Module 1

Secure Virtual Network (SVN) is a true
security architecture
Integrates multiple capabilities, including
 firewall security, VPNs, IP address
management etc, all within a common
management framework
enables security to be defined and
enforced in a single policy incorporating
all aspects of network security

Module 1

Emerging requirements
To enjoy benefits of an eBusiness model
a robust security infrastructure needs to
be deployed
Integrating the security infrastructure
with application environment
 providing full security for eBusiness
 allowing easily established and maintained
trusted relationships

Module 1

SVN Architecture designed to meet
the challenges of eBusiness
connects the four elements common to
any enterprise network
 Networks
 Systems
 Applications
 Use

Module 1:

VPN-1/FireWall-1
Key component of SVN architecture
 Access Control
 User Authentication
 Network Address Translation (NAT)
 Virtual Private Networking
 High Availability
 Content Security
 Auditing and Reporting
 LDAP-based user management

Module 1:

VPN-1/FireWall-1-continued
 Intrusion Detection
 Malicious Activity Detection
 Third-party Device Management
 High Availability and Load
Sharing

Module 1:

Internet Firewall Technologies
A firewall is a system designed to
 prevent unauthorised access to or from a
secured network
 act as a locked security door between internal
and external networks
 data meeting certain criteria will be allowed
through
However, note that a firewall can only
protect a network from traffic filtered
through it

Module 1

Stateful Inspection Technology
invented by CheckPoint Software
Technologies
utilises the INSPECT Engine
 Programmable using the INSPECT language
 Provides for system extensibility
 Dynamically loaded into the OS kernel
 Intercepts and inspects all inbound and
outbound packets on all interfaces
 Verifies that packets comply with the security
policy

Module 1:

Firewall Technologies
Packet Filters
Application-Layer Gateway
Stateful Inspection
VPN-1/FireWall-1 NG Enforcement Module
INSPECT Language
VPN-1/FireWall-1 NG Advantages

Module 1:

Packet Filtering Path in the OSI Model

Module 1:

Packet Filter FTP Example

Module 1:

Application-Layer Gateway Path

Module 1:


Module 1:

How VPN-1/FireWall-1 NG FP-1 Works
INSPECT Allowing Packets
 if a packet passes inspection,the Firewall
Module passes packets through the TCP/IP
stack to their destination
 if packets are destined for the OS local
processes, are inspected then passed through
the TCP/IP stack
 if packets do not pass inspection, they are
rejected, or dropped and logged.

Module 1:

INSPECT Module Flow

Module 1:

VPN-1/FireWall-1 NG Architecture
The Policy Editor
Management Module
SVN Foundation

Module 1:

Check Point Policy Editor

Module 1

Management Module
security policy is defined using the policy
editor on the Management client
it is then saved to the Management
module
Management Module maintains FW-1 NG
databases including
 network object definitions
 user definitions
 security policy
 log files

Module 1

VPN-1/Firewall-1 NG Enforcement
Module
deployed on the Internet gateway
an Inspection script written in INSPECT is
generated from the security policy
inspection code is compiled from the
script and downloaded to the
enforcement module

Module 1

SVN Foundation
CheckPoint SVN Foundation NG (CPShared) is
the Operating System integrated with every
CheckPoint product
All CheckPoint products use the CPOS services
via CPShared
The SVN Foundation includes :
 Secure Internal Communications (SIC)
 CheckPoint registry
 CPShared daemon
 Watch Dog for critical services
 Cpconfig
 License utilities
 SNMP daemon

Module 1:

Secure Internal Communication (SIC)
Communication Components
Security Benefits
SIC Certificates
Communication Between Management
Modules and Components
Communication Between Management
Modules and Management Clients

Module 1

Communication Components
SIC secures communication between
CheckPoint SVN components such as
 management modules
 management clients
 VPN-1/Firewall 1 NG modules
 customer log modules
 SecureConnect modules
 policy servers
 OPSEC applications

Module 1

Security Benefits of SIC
confirms a management client
connecting to a management modules is
authorised
verifies that a security policy loaded on a
firewall module came from an authorised
management module
SIC ensures that data privacy and
integrity is maintained

Module 1

SIC Certificates
SIC for CheckPoint VPN uses certificates
for authentication and standards-based
SSL for encryption
enables each CheckPoint enabled
machine to be uniquely identified
certificates are generated by the Internal
Certificate of Authority (ICA) on the
Management module
a unique certificate is generated for each
physical machine

Module 1

Communication between Management
Modules and Components
the ICA automatically creates a certificate
for the Management module during
installation
certificates for other modules are created
via a simple initialisation from the
Management Client
upon initialisation, the ICA creates, signs
and delivers a certificate to the
communication component

Module 1

Communication between Management
Modules and Management Clients
the management client must be defined as
authorised
when invoking the Policy Editor on the
Management client, the user is asked :
 to identify themselves
 specify the IP address of the Management Module
the Management Client then initiates an SSL
based connection
the Management Module verifies the Client’s IP
address
Management Module sends back it’s certificate

Module 1:

Distributed VPN-1/FireWall-1 NG
configuration showing the components
with certificates

Module 1:

Distributed Client/Server Configuration

Module 1:

Review
Summary
Review Questions

Module 1:

Review Question #1:
What is Stateful Inspection?

Class Discussion

Module 1:

Review Question #2:
Why is Stateful Inspection more reliable
than packet filtering and application layer
gateways for protecting networks?

Class Discussion

Module 1:

Review Question #3:
What process does VPN-1/FireWall-1 NG
use to accept, drop, or reject packets?

The NG Enforcement Module

Module 1:

Review Question #4:
What three components make up
VPN-1/FireWall-1 NG?

The Policy Editor
The Management Server
The Enforcement Point

Module 1a

Installation of VPN-1/Firewall-1
module
Installation of Management Module
Installation of Management Client

Module 1a:

Pre-installation Configuration
Network Configuration
 ensure network is properly configured
(especially, routing)
 on WinNT & Solaris enable IP
routing/forwarding
 for WinNT, disable the NetBUI protocol (not an
IP protocol so not intercepted by Firewall-1)
 environment variables are set automatically
(via the installation wrapper) on WinNT,
Win2000 & Solaris

Module 1a:

VPN-1/FireWall-1 NG Client-Server
Configuration
 a distributed installation is supported

Module 1a:

Installing VPN-1/FireWall-1 NG
Enforcement Module and
Management Module on Windows NT
Server

Module 1a:

Enforcement Module and
Management Module on Sun Solaris

Module 1a:

Management Client on Windows NT

Module 2:

Security Policy Rule Base and
Properties Setup

Module 2:

Introduction
Objectives
 Explain the function and operation of a
Security Policy.
 Demonstrate the creation of network objects
and groups, using the Management Client.
 Demonstrate the setup of anti-spoofing on the
firewall.
 Demonstrate the setup and operation of an
active Security Policy.

Module 2

Key Terms
Security Policy
Rule Base
Rule Base Elements
spoofing
anti-spoofing
implicit rules
explicit rules
implicit-drop rule

Module 2:

Security Policy Defined
What is a Security Policy?
 a set of rules that defines network security
Considerations
 what kind of services, including customised
services and sessions are allowed across the
network
 what users’ permissions and authentication
schemes are needed
 what objects are in the network e.g. gateways,
hosts, networks, routers and domains

Module 2:

Check Point Policy Editor
enables administrators to define security
policy

Module 2:

Access Control for Administrators
Concurrent Sessions
 only one administrator with read/write
permissions can be logged in at any one time
Management Module Fingerprint
 at the first log-on to a management server, the
management client will receive the
management server’s fingerprint
 this can be checked against a copy of the
fingerprint for verification

Module 2:

Rule Base Defined
Rule Base Elements
 the individual components that make up a rule
 No.
 Source
 Destination
 If/Via
 Services
 Action
 Track
 Install on
 Time
 Comment

Module 2

Rule Base Defined Ctd.
Rule Base Element Options
 to customise the element options in
the rule base

Module 2:

Example Policy Editor

Module 2:

Lab 1: Launching the Policy Editor

Module 2:

VPN-1/FireWall-1 NG Licensing
License Types
 central – the license is linked to the IP number
of the management server
 local – tied to the IP number to which the
license will be applied
Obtaining Licenses
 locate certificate key on the CD cover of the
CP CD
 contact www.checkpoint.com - selecting User
Center to obtain eval or permanent license
Check Point User Center

Module 2:

SecureUpdate
Made up of two components – Installation
Manager and License Manager
 allows tracking of currently installed versions
of CP and OPSEC products
 updating of installed CP and OPSEC software
remotely from a centralised location
 centrally managing licenses

Module 2:

SecureUpdate Architecture, Distributed
Configuration

Module 2:

Defining Basic Objects

Module 2:

Detecting Spoofing
Spoofing is a technique used by intruders
attempting to gain unauthorised access
 a packet’s source IP address is altered to
appear to come from a part of the network with
higher privileges
Anti-spoofing verifies that packets are
coming from, and going to, the correct
interfaces on the gateway
 i.e. packets claiming to originate in the internal
network, actually DO come from that network

Module 2

Detecting Spoofing
Configuring Anti-Spoofing
 networks reachable from an interface need to
be defined appropriately
 should be configured on all interfaces
 spoof tracking is recommended
 anti-spoofing rules are enforced before any
rule in the Security Policy rule base

Module 2:

Creating the Rule Base
Basic Rule Base Concepts
 each rule in a rule base defines the packets
that match the rule based on Source,
Destination, Service and the Time the packet is
inspected
 the first rule that matches a packet is applied

Module 2

The default rule
added when you add a rule to the Rule
Base

Module 2:

The Basic Rules
Cleanup Rule
 CP follows the principle “that which is not
expressly permitted, is prohibited”
 all communication attempts not matching a
rule will be dropped
 the cleanup rule drops all the communication
but allows specific logging

Module 2

The Basic Rules
The Stealth Rule
 prevents users from connecting directly to the
firewall

Module 2:

Defining Basic Rules

Module 2:

Implicit and Explicit Rules
Completing the Rule Base
 Firewall-1 NG creates implicit rules derived
from the policy properties and includes
explicit rules created by the user in the Policy
Editor
Understanding Rule Base Order
 viewing implied rules will show both sets of
rules merged in the correct sequence

Module 2:

Verifying and Installing a Security
Policy

Module 2:

Command Line Options for the
Security Policy
Basic Options
 cpstart/cpstop starts and stops all CP
applications running on the machine
 cplic print displays the details of the Firewall
licenses
 fwstart/fwstop starts and stops the Firewall
NG module, firewall daemon (fwd),
management module (fwm), SNMP daemon
(snmpd) and authentication deamons

Module 2:

Review
Summary
Review Questions

Module 2:

Review Question #1:
What are the steps for creating and
enforcing a Security Policy?

Name your policy, add rules with objects,
install the policy

Module 2:

Review Question #2:
What is the difference between implicit
and explicit rules?

Implicit (or pseudo) rules are created by
VPN-1/FireWall-1 NG, and are derived
from the security properties.
Explicit rules are created by the user.

Module 2:

Review Question #3:
What order are policies and rules
matched?

Policies and rules are matched in order
on the Rule Base, one rule at a time.

Module 3:

Advanced Security Policy

Module 3:

Introduction
Objectives
 Demonstrate how to perform the following:
 Hide and unhide rules
 View hidden rules
 Define a rule mask
 Apply rule masks

 Show how to install and uninstall a Security
Policy

Module 3:

Introduction
Objectives (continued)
 List the guidelines for improving
VPN-1/FireWall-1 NG performance, using a
Security Policy

Key Term
 masking rules

Module 3:

Masking Rules
Overview
 rules in a rule base can be hidden to allow
easier reading of a complex rulebase (masking
rules)
 all other rules will be visible however their
numbers wont change
 hidden rules are still enforced on the gateway

Module 3

Masking Rules
Viewing Hidden Rules
 if View Hidden in the Rules>Hide menu is
checked, all rules set as hidden are displayed
Unhiding Hidden Rules
 select Unhide All from the Rules>hide menu

Module 3:

Disabling Rules
Disabling Rules
 a disabled rule will only take effect after the
security policy is reinstalled
 the rule will still be displayed in the policy
editor rulebase
Enabling a Disabled Rule
 select the disabled rule and right click
 select Disable Rule to deselect
 remember to reinstall the policy

Module 3:

Uninstalling a Security Policy
Steps for Uninstalling a Security Policy
 select Policy>Uninstall from the Security
Policy Editor main screen
 click Select All to select all items on the
screen (specific items may be deselected)
 click OK

Module 3:

Guidelines for Improving
VPN-1/FireWall-1 NG Performance via
a Security Policy
Management Module
 listing machine names and IP addresses in a
hosts file will decrease installation time for
created network objects
 /etc/hosts (Solaris)
 winntsystem32drivershosts (Windows)

Module 3

Guidelines for Improving
VPN-1/FireWall-1 NG Performance via
a Security Policy
Enforcement Module
 keep the rulebase simple
 position the most frequently used rules at the
top of the rulebase
 don’t log unnecessary connections
 use a network object in place of many
workstation objects
 use IP address ranges in rules instead of a set
of workstations

Module 3:

Review
Summary
Review Questions

Module 3:

Review Question #1:
If a rule is masked or hidden, is it
disabled and no longer part of the Rule
Base?

No, masked or hidden rules are still part of
the Rule Base, and are installed when a
Security Policy is installed.

Module 3:

Review Question #2:
When you select a rule, and then select
“Disable Rule(s)” from the menu, what
must you also do before the rule is
actually disabled?
Install the Security Policy

Module 3:

Review Question #3:
How does masking help you maintain a
Rule Base?

Discussion

Module 3:

Review Question #4:
Define some guidelines for improving
VPN-1/FireWall-1 NG’s performance via a
Security Policy.

Discussion

Module 4:

Introduction
Objectives
 Identify the three display modes of the Log
Viewer

 Identify and define Status Manager icons

 Assign network objects to display in Status
Manager

 Enable automatic updating of Status Manager

Module 4:

Introduction
 Specify selection criteria and save log files

 Describe the steps needed to block an intruder

 List the three blocking scope options and their
uses

 Describe how block request is used

Module 4

Key Terms

log viewer
status manager

Module 4:

Log Viewer
provides visual tracking, monitoring and
accounting information
provides control over the log files display
allows quick access to information
any event which causes an alert is
logged, including some system events
such as an install of a policy

Module 4

Log Viewer
Kernel Side
 FWD merges log fragments producted the
FW-1 Kernel components into one log record
 each log record is stamped with a Log
Unificiation Unique ID (LUUID)
Server Side
 FWD transfers the log record to the log
database (fw.log) on the log
server/management module
 a single connection is represented by one
entry in the log viewer

Module 4

Log Viewer
Log Viewer Logon
 Select Window>Log Viewer from the security
policy main menu
Data (Column) Fields
 the administrator can specify which of the
available data fields (columns) to display
Column Menu
 right clicking anywhere in the column of the
log viewer will invoke the column menu

Module 4

Log Viewer
Log Viewer Toolbar Buttons

Module 4

Log Viewer
Log Types
 there are seven types of log which can be
displayed from the toolbar
 general predefined selection
 firewall-1 predefined selection
 account predefined selection
 FloodGate-1 predefined selection
 SecureClient predefined selection
 UA Webaccess predefined selection

Module 4

Log Viewer
Log Viewer Mode
 there are three different predefined selection
views
 log mode
 active mode
 audit mode

Module 4:

Log Viewer (continued)
Log File Management
 the File menu allows the administrator to
perform the following tasks :
 Log Switch
 Open
 Save as
 Purge
 Print
 Export

Module 4:

Configuring the Security Policy for
Logging
System-wide logging and alerting
 Global Properties window allows an
administrator to define system-wide logging
and alert parameters for options such as
 VPN successful key exchange
 VPN packet handling errors
 VPN configuration and key exchange
errors etc.

Module 4:

Blocking Connections
Terminating a Connection with Block
Intruder
 it is possible to block an active connection
using the source IP address
 the scope of the blocked connection can be
 block only this connection
 block access from this source
 block access to this destination

Module 4:

Status Manager
Status Manager Logon
Working with the Status Manager
Interface
Modules View
Module Status
Product Details Windows
Critical Notifications

Module 4:

Checking VPN-1/FireWall-1 NG Status
in the Status Manager

Module 4:

Review
Summary
Review Questions

Module 4:

Review Question #1:
What are the three display modes of Log
Viewer?

Log
Audit
Active

Module 4:

Review Question #2:
What are the three blocking scope
options and their uses?

Block only this connection
Block access from this source IP
Block access to this destination

Module 4:

Review Question #3:
What option could you use to block an
intruder whose connection ID is known?

Block request

Module 5:

Authentication Parameters: User,
Client, and Session Authentication

Module 5:

Introduction
Objectives
 Demonstrate how to implement authentication.

 Demonstrate the process of creating users
and groups.

 Demonstrate the setup of authentication
parameters.

Module 5:

Introduction
 Demonstrate how to implement user authentication,
using various authentication schemes.

 List types of services supported by
VPN-1/FireWall-1 NG requiring user name and
password.

 Demonstrate how to implement client
authentication.

 Demonstrate how to implement session
authentication.

Module 5

Key Terms
User Authentication
Client Authentication
Session Authentication
Session Authentication Agent

Module 5:

Understanding Authentication
User Authentication
 grants access on a per user basis
 can be used for Telnet, FTP, RLOGIN, HTTP
 requires separate authentication for each
connection

Module 5:

 requires authentication for each connection
 can be used with any service
 requires a Session Authentication Agent

Module 5

 grants access on a per host basis
 allows connections for a specific IP address
after successful authentication
 can be used for any number of connections
 can be used for any service
 most commonly used authentication method

Module 5

Authentication Schemes
 skey
 OS Password
 VPN-1/Firewall-1 Password
 SecurID
 Radius
 Axent Defender
 TACACS

Module 5:

User Authentication Overview
user authentication provided by the
security servers on the gateway
when a rule specifies user authentication
the corresponding security server is
invoked (TELNET, FTP, HTTP and
RLOGIN
if authentication is successful the
security server opens a separate
connection to target server

Module 5:

Defining User Templates

Module 5:

Defining Users from Templates

Module 5:

Set Up Authentication Parameters

Module 5:

HTTP User Authentication with a
VPN-1 & FireWall-1 Password

Module 5:

Telnet User Authentication with a
(Optional)

Module 5:

FTP User Authentication with a
(Optional)

Module 5:

How Client Authentication Works
 enables administrators to grant access
privileges to a specific IP address
 authentication is by username and password,
but access is granted to the host machine (IP)
 can be used for any number of connections,
for any service, for any length of time

Module 5:


Module 5:

Sign On Methods
Source Field
 sources field in the User Properties window
may specify that the user is not allowed
access from the source address – but the rule
allows access. This field specifies how to
resolve the problem
Destination Field
 destination field in the User Properties window
may specify that that the user is now allowed
access to the destination address. This field
specifies how to resolve that problem

Module 5

Sign On Methods
Required Sign On
 Standard Sign On – user is allowed to use all
the services permitted by the rule for the
authorisation period
Specific Sign On
 only connections that match the original
connection are allowed without additional
authentication

Module 5

Sign on Methods
Sign On Method
 Manual – the user has to initiate Client
Authentication by
 telnet to port 259
 http to port 900
 Partially Automatic Client Authentication
 Fully Automatic Client Authentication
 Agent Automatic Sign On
 Single sign on

Module 5

Sign on Methods
Successful Authentication Tracking
 logging option for Client Authentication
attempts for the session

Module 5:

Additional Features of Single Sign On
Single Sign On For Multiple Users
 privileged user can sign on and off on behalf
of other users
User Authority SecureAgent
 extends UA capabilities to the LAN by having
the SecureAgent on the desktop

Module 5:

Single Sign On Example Network

User on Localnet would normally TELNET to port 259 on London and
authenticate then request access to BigBen. With the single sign on system
extension anther user can open the connection to BigBen in advance on behalf
of a user on Localnet

Module 5:

Additional Features of Client
Authentication
Redirection of HTTP Requests According
to Host Header
 it is possible to configure Firewall-1 to
complete the connection according to the
destination specified in the HTTP host header
 used when several http hosts share the
same virtual IP address

Module 5

Additional Features of Client
Authentication
Authorizing All Standard Sign on Rules
 Firewall-1 will automatically open all standard
rules after successful authentication through
partial or fully automatic sign on
 if user successfully authenticates according to
an automatic sign on rule all standard sign on
rules which specify that user and source are
opened.

Module 5:

Session Authentication Overview
How Session Authentication Works
 based on a pre-session authentication method
 can be integrated with any application
 CP Session Agent must be loaded on the
client machine
 authentication performed by the daemon
module

Module 5:

1. User initiates a
connection directly to
the server
2. Firewall-1 Inspection
module intercepts the
connection and
connects to
agent
3. Session agent prompts
for authentication data
and returns this to the
inspection module
4. if successful, Firewall-1
module allows the
connection to pass
through the gateway

Module 5:


Module 5:

Review
Summary
Review Questions

Module 5:

Review Question #1:
What are the three types of
VPN-1/FireWall-1 NG authentication?

User Authentication

Module 5:

Review Question #2:
When you want a user to authenticate
once, and then be able to use any service
until logging off, which authentication
type would you use?


Module 5:

Review Question #3:
When defining user authentication, where
do you add the authentication rule-above
or below the stealth rule?

Below the stealth rule

Module 5:

Review Question #4:
What is the advantage of using session
authentication, over client authentication
and user authentication?
The advantage session authentication has over
user authentication is that session authentication
can be used with any service.
The advantage session authentication has over
client authentication is that the user is prompted
automatically with session authentication, where
client authentication encompasses a manual
process the user has to remember.

Module 5:

Review Question #5:
Why would the client authentication rule
need to be placed above the stealth rule?

Client authentication requires a connection made
to the firewall, that the stealth rule prevents, so
either the client rule must be above the stealth
rule to allow the connection, or a rule must be
placed above the client authentication rule that
allows connections to port 259/900 on the
firewall.

Module 6:

Network Address Translation

Module 6:
Introduction
Objectives
 List the reasons and methods for Network
Address Translation

 Demonstrate how to set up Static NAT

 Demonstrate how to set up Dynamic (Hide)
NAT

 Describe basic network configurations using
NAT

Module 6

Key Terms
Network Address Translation (NAT)
Static Source NAT
Static Destination NAT
Dynamic (Hide) NAT
Automatic and Manual NAT rules
Address Resolution Protocol (ARP)

Module 6

Network Address Translation
NAT conceals internal computers from
outside networks
as a component of VPN-1/Firewall-1 it is
used for three things :
 to make use of private IP addresses on the
internal network
 to limit external network access for security
reasons
 to give ease and flexibility to network
administration

Module 6:

NAT
IP Addressing
 RFC 1918 details the reserved address groups
 Class A network numbers
– 10.0.0.0 – 10.255.255.255
 Class B network numbers
– 172.16.0.0 – 172.31.255.255
 Class C network numbers
– 192.168.0.0 – 192.168.255.255

Module 6

Network Security
 additional benefit of NAT is increased network
security
 internal host can connect both inside and
outside intranet
 external unknown host outside the
network cannot connect to internal host
 external connections with a spoofed
internal address will be recognised and
prevented from gaining access
 internal public servers are made available
with inbound mapping of well know TCP
ports to specific internal addresses

Module 6

Network Administration
 VPN-1/Firewall-1 supports two types of NAT
 Static NAT
 Dynamic (Hide) NAT
Static NAT
 translates each private address to a
corresponding public address
 two modes, static source and static
destination

Module 6

Static Source NAT
 translates private internal source IP addresses
to a public external source IP address
 initiated by internal clients with private IP
address

Module 6:

Static Source NAT

Module 6:

Address Translation Using Static Source
Mode

Module 6

Static Destination NAT
 translates public addresses to private
addresses
 initiated by external clients

Module 6:

Address Translation Using Static
Destination Mode

Module 6

Dynamic (Hide) NAT
used for connections initiated by hosts in
an internal network where the hosts’ IP
addresses are private
private internal addresses are hidden
behind a single public external address
uses dynamically assigned port numbers
to distinguish between them

Module 6

Dynamic (Hide) NAT Ctd.
hide mode packets’ source port numbers are
modified
destination of a packet is determined by the port
number
port numbers are dynamically assigned from two
pools of numbers :
 from 600 to 1023
 from 10,000 to 60,000
hide mode cannot be used for protocols where
the port number cannot be changed or where the
destination IP address is required

Module 6:

Hide Mode Address Translation

Module 6

Hiding behind 0.0.0.0
 if the administrator specifies 0.0.0.0 as the
hide address, all clients will be hidden behind
the firewall’s server side interface

Module 6:

Hiding Behind 0.0.0.0

Module 6:

Automatic and Manual NAT Rules
NAT Rules
 NAT rules consist of two elements
 the conditions that specify when the rule is
to be applied
 the action to be taken when the rule is
applied
 each section in the NAT Rule Base Editor is
divided into Source, Destination and Service

Module 6

Automatic and Manual NAT Rules
NAT Rules
 the action is always the same
 translate source under original packet to
source under translated packet
 translate destination under original packet
to destination under translated packet
 translate service under original packet to
service under translated packet

Module 6

Network Address Translation Properties
 several properties can be applied to
automatically generated NAT rules
 these are enabled by default in new
installations however disabled by default when
upgrading from previous versions
 these properties can be configured in the
network address translation page of the Global
Properties window
IP Pools
IP Pool NAT Track
Address Translation and Routing

Module 6

(Ctd)
 Allow Bi-directional NAT
 the firewall will check all of the rules to see
if a source in one rule and destination in
another rule match
 firewall will take the first source rule and
the first destination rule that are found to
match, applying both rules concurrently

Module 6

(Ctd)
 Translate destination on client side
 prior versions of Firewall performed NAT
on the server side, requiring special anti
spoofing and internal routing
 Automatic ARP configuration
 ARP tables on the gateway are
automatically configured, enabling ARP
requests for a NATed machines, network
or address range are answered by the
gateway

Module 6

IP Pools
 a range of IP addresses routable to a gateway
 encrypted connections opened to a host will
have a substituted IP address from the IP Pool
for the source IP address
 must be routable back to the gateway

Module 6:

Address Translation Example-
Gateway with Two Interfaces
Routing
 the router routes IP addresses in the network
199.203.73.0 to the gateway
 the gateway routes IP address 192.203.73.3 to
the internal interface (10.0.0.1)
 the gateway routes IP addresses 199.203.73.64
through 199.203.73.80 to the internal interface
(10.0.0.1)

Module 6:

Gateway with Two Interfaces

Module 6:

Address Translation Example-
Gateway with Three Interfaces
Routing
 ensure router routes IP address in the network
192.45.125.0 to the gateway
 the gateway should be able to route IP address
172.45.125.209 to the internal interface
(195.9.200.1)

Module 6:

Gateway with Three Interfaces

Module 6:

Address Translation Example Two
Networks Statically Translated

Module 6:

Two Networks Statically Translated

Module 6:

Address Translation and
Anti-Spoofing
anti spoofing is performed correctly for
automatically generated NAT rules
(provided it is allowed in the Global
Properties)
there will be a conflict between anti-
spoofing and NAT if NAT takes place at
the server side
to correct the problem, add the translated
(i.e the Valid address) is added to the
public addresses on the Internal Interface

Module 6:

Review
Summary
Review Questions

Module 6:

Review Question #1:
What is NAT?

Replacing one IP address in a packet with
a different IP address.

Module 6:

Review Question #2:
What is the reason for using NAT, as
related to IP addressing?

To conceal the network’s internal IP
addresses from the Internet
To translate private addresses to public
addresses, and back

Module 6:

Review Question #3:
What is the NAT Rule Base?

Automatically generated and manually
entered NAT rules

checkpoint

More Related Content

What's hot (20)

Similar to checkpoint (20)

More from Mayank Dhingra (6)

Recently uploaded (20)

checkpoint
