Reactive programming with spring web flux
0 likes114 views
Spring WebFlux is a reactive web framework that uses Reactive Streams and non-blocking behavior to provide better scalability than traditional Spring MVC. It uses a small number of threads to handle requests asynchronously through reactive programming. Spring WebFlux supports both annotation-based and functional programming models for building reactive server-side web applications that can handle HTTP requests and WebSockets in a non-blocking manner through reactive streams. Router functions route incoming requests to handler functions based on matching predicates.
Reactive programming with spring web flux

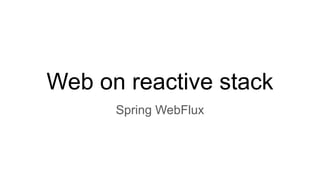

- 1. Web on reactive stack Spring WebFlux

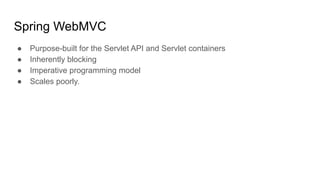

- 2. Spring WebMVC ● Purpose-built for the Servlet API and Servlet containers ● Inherently blocking ● Imperative programming model ● Scales poorly.
- 3. Reactive Programming ● Based on events - reacting to changes : network components reacting to I/O events, UI controllers reacting to mouse events ● non-blocking back pressure ● require a small number of threads to scale vertically ● Forgo raw performance in favor of scalability data repository (Publisher) HTTP Server (Subscriber)Response
- 4. Spring Web Flux ● Support for reactive HTTP and WebSocket clients ● Supports reactive server web applications including REST and WebSocket style interactions ● Uses ReactiveStreams underneath ● Extends the basic Reactive Streams Publisher contract with the Flux and Mono composable API types
- 5. Spring Web Flux - Server Side supports 2 distinct programming models: ● Annotation-based with @Controller and the other annotations supported also with Spring MVC ● Functional, Java 8 lambda style routing and handling
- 6. Router Functions ● Routes incoming requests to Handler Functions ● If a request matches a particular route, a handler function is returned; otherwise it returns an empty Mono ● If the predicate applies, the request is routed to the given handler function; otherwise no routing is performed, resulting in a 404 response ● Source code: https://github.com/ravindraranwala/reactive-webflux-demo
- 7. Concurrency Model ● Servlet Applications - Current thread can be blocked, so a large thread pool is used to absorb potential blocking. ● non-blocking servers use a small, fixed-size thread pool to handle requests
