JMS is a Java specification that defines a common way for Java programs to create and send asynchronous, reliable messages. It uses concepts like queues for point-to-point and topics for publish-subscribe messaging. The JMS API allows clients to connect to a JMS provider to produce and consume messages and can integrate with other Java technologies like EJB and JNDI.
Jms
- 1. Java Message Service (JMS) CS 595 Web Services Aysu Betin-Can
- 2. What is JMS? A specification that describes a common way for Java programs to create, send, receive and read distributed enterprise messages loosely coupled communication Asynchronous messaging Reliable delivery A message is guaranteed to be delivered once and only once. Outside the specification Security services Management services
- 3. A JMS Application JMS Clients Java programs that send/receive messages Messages Administered Objects preconfigured JMS objects created by an admin for the use of clients ConnectionFactory, Destination (queue or topic) JMS Provider messaging system that implements JMS and administrative functionality
- 4. JMS Administration Administrative Tool JNDI Namespace JMS Client JMS Provider Bind Lookup Logical Connection
- 5. JMS Messaging Domains Point-to-Point (PTP) built around the concept of message queues each message has only one consumer Publish-Subscribe systems uses a “topic” to send and receive messages each message has multiple consumers

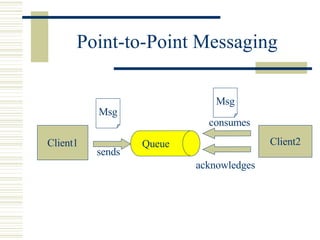

- 6. Point-to-Point Messaging Client1 Client2 Queue sends acknowledges consumes Msg Msg
- 7. Publish/Subscribe Messaging Client1 Client2 publishes subscribes subscribes Msg Topic Client3 delivers delivers
- 8. Message Consumptions Synchronously A subscriber or a receiver explicitly fetches the message from the destination by calling the receive method. The receive method can block until a message arrives or can time out if a message does not arrive within a specified time limit. Asynchronously A client can register a message listener with a consumer. Whenever a message arrives at the destination, the JMS provider delivers the message by calling the listener's onMessage() method.
- 9. JMS API Programming Model Connection creates creates creates Msg Destination receives from sends to Connection Factory Destination Message Consumer Session Message Producer creates
- 10. JMS Client Example Setting up a connection and creating a session InitialContext jndiContext=new InitialContext(); //look up for the connection factory ConnectionFactory cf=jndiContext.lookup(connectionfactoryname); //create a connection Connection connection=cf.createConnection(); //create a session Session session=connection.createSession(false,Session.AUTO_ACKNOWLEDGE); //create a destination object Destination dest1=(Queue) jndiContext.lookup(“/jms/myQueue”); //for PointToPoint Destination dest2=(Topic)jndiContext.lookup(“/jms/myTopic”); //for publish-subscribe
- 11. Producer Sample Setup connection and create a session Creating producer MessageProducer producer=session.createProducer(dest1); Send a message Message m=session.createTextMessage(); m.setText(“just another message”); producer.send(m); Closing the connection connection.close();
- 12. Consumer Sample (Synchronous) Setup connection and create a session Creating consumer MessageConsumer consumer=session.createConsumer(dest1); Start receiving messages connection.start(); Message m=consumer.receive();
- 13. Consumer Sample (Asynchronous) Setup the connection, create a session Create consumer Registering the listener MessageListener listener=new myListener(); consumer.setMessageListener(listener); myListener should have onMessage() public void onMessage(Message msg){ //read the massage and do computation }
- 14. Listener Example public void onMessage(Message message) { TextMessage msg = null; try { if (message instanceof TextMessage) { msg = (TextMessage) message; System.out.println("Reading message: " + msg.getText() ); } else { System.out.println("Message of wrong type: " + message.getClass().getName()); } } catch (JMSException e) { System.out.println("JMSException in onMessage(): " + e.toString()); } catch (Throwable t) { System.out.println("Exception in onMessage():" + t.getMessage()); } }
- 15. JMS Messages Message Header used for identifying and routing messages contains vendor-specified values, but could also contain application-specific data typically name/value pairs Message Properties (optional) Message Body(optional) contains the data five different message body types in the JMS specification
- 16. JMS Message Types setObject,getObject serialize object ObjectMessage writeString,writeDouble,writeLong,readString stream of primitive values StreamMessage writeBytes,readBytes stream of uninterpreted bytes BytesMessage setString,setDouble,setLong,getDouble,getString set of name/value pairs MapMessage getText,setText String TextMessage Some Methods Contains Message Type
- 17. More JMS Features Durable subscription by default a subscriber gets only messages published on a topic while a subscriber is alive durable subscription retains messages until a they are received by a subscriber or expire Request/Reply by creating temporary queues and topics Session.createTemporaryQueue() producer=session.createProducer(msg.getJMSReplyTo()); reply= session.createTextMessage(“reply”); reply.setJMSCorrelationID(msg.getJMSMessageID); producer.send(reply);
- 18. More JMS Features Transacted sessions session=connection.createSession(true,0) combination of queue and topic operation in one transaction is allowed void onMessage(Message m) { try { Message m2=processOrder(m); publisher.publish(m2); session.commit(); } catch(Exception e) { session.rollback(); }
- 19. More JMS Features Persistent/nonpersistent delivery producer.setDeliveryMethod(DeliveryMode.NON_PERSISTENT); producer.send(mesg, DeliveryMode.NON_PERSISTENT ,3,1000); Message selectors SQL-like syntax for accessing header: subscriber = session.createSubscriber(topic, “priority > 6 AND type = ‘alert’ ”); Point to point: selector determines single recipient Pub-sub: acts as filter
- 20. JMS API in a J2EE Application Since the J2EE1.3 , the JMS API has been an integral part of the platform J2EE components can use the JMS API to send messages that can be consumed asynchronously by a specialized Enterprise Java Bean message-driven bean
- 21. Enterprise Java Beans EJB is a server-side component that encapsulates the business logic of an application EJB simplifies the development of large, distributed applications EJB Container provides system-level services e.g. transaction management, authorization Beans have the control logic thin client applications Portable components can run on any compliant J2EE server
- 22. Message–Driven Bean acts as a listener for the JMS, processing messages asynchronously specialized adaptation of the JMS API used in the context of J2EE applications
- 23. JMS with EJB Example
- 24. MDB Example public class MB implements MessageDrivenBean, MessageListener{ public void ejbCreate(){} public void ejbRemove(){} public void setMessageDrivenContext(MessageDrivenContext mdc){} pubic void onMessage(Message m){ //do computation on the incoming message try{ if (m instanceof TextMessage) System.out.println(“MBean: message”+m.getText()); }catch(JMSException exp){ ...} } }
- 25. JMS and JNDI JMS does not define a standard address syntax by which clients communicate with each other Instead JMS utilizes Java Naming & Directory Interface(JNDI). Using JNDI provides the following advantages: It hides provider-specific details from JMS clients. It abstracts JMS administrative information into Java objects that are easily organized and administrated from a common management console. Since there will be JNDI providers for all popular naming services, this means JMS providers can deliver one implementation of administered objects that will run everywhere. Thereby eliminating deployment and configuration issues.
- 26. SOAP and JMS Use JMS as a transportation layer for SOAP Example: Sun™ ONE Message Queue enables to send JMS messages that contain a SOAP payload allowing transportation of SOAP messages reliably and publishing SOAP messages to JMS subscribers http://docs.sun.com/source/817-0355-10/SOAP.html
- 27. SOAP and JMS (using Sun™ ONE MQ) Send a SOAP message Create a JMS session Create a SOAP message Transfer the SOAP message into JMS message Message myMsg= MessageTransformer.SOAPMessageIntoJMSMessage (SOAPMessage, Session); Send the JMS message
- 28. SOAP and JMS (using Sun™ ONE MQ) Receive a SOAP message Create a JMS session Receive the JMS message Transfer the JMS message into SOAP message SOAPMessage myMsg= MessageTransformer.SOAPMessageFromJMSMessage (Message, MessageFactory);
- 29. SOAP and JMS (using Sun™ ONE MQ) Deferring SOAP Processing
- 30. Publishing a SOAP message
- 31. JMS Providers SunONE Message Queue (SUN) a JMS provider integrated with the SunONE Application Server http://www.sun.com MQ JMS (IBM) MQSeries is another messaging technology can configure MQ as a JMS provider (http://www7b.software.ibm.com/wsdd/library/techtip/0112_cox.html)
- 32. JMS Providers WebLogic JMS (BEA) enterprise-class messaging system integrated into WebLogic Server http://dev2dev.bea.com/technologies/jms/index.jsp JMSCourier (Codemesh) merging C++ applications into a JMS environment http://www.codemesh.com/en/AlignTechnologyCaseStudy.html
- 33. More JMS Vendors Fiorano Software http://www.fiorano.com JRUN Server http://www.allaire.com GemStone http://www.gemstone.com Nirvana http://www.pcbsys.com Oracle http://www.oracle.com A more exhaustive listing is available at http://java.sun.com/products/jms/vendors.html
