Samsung SSD
Data Migration v.3.1
User Manual

2
Legal Disclaimer
SAMSUNG ELECTRONICS RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND
SPECIFICATIONS WITHOUT NOTICE.
Products and specifications discussed herein are for reference purposes only.
All information discussed herein is provided on an “AS IS” basis, without warranties of any kind.
This document and all information discussed herein remain the sole and exclusive property of
Samsung Electronics. No license of any patent, copyright, mask work, trademark or any other
intellectual property right is granted by one party to the other party under this document, by
implication, estoppels or otherwise.
Samsung products are not intended for use in life support, critical care, medical, safety equipment,
or similar applications where product failure could result in loss of life or personal or physical harm,
or any military or defense application, or any governmental procurement to which special terms or
provisions may apply. For updates or additional information about Samsung products, contact your
nearest Samsung office.
Copyright © 2018
This material is copyrighted by Samsung Electronics.
Any unauthorized reproductions, use or disclosure of this material, or any part thereof, is strictly
prohibited and is a violation under copyright law.
Trademarks & Service Marks
The Samsung Logo is the trademark of Samsung Electronics.
All other company and product names may be trademarks of the respective companies with which
they are associated.

3
Introduction
The Samsung Data Migration software is designed to help users quickly, easily, and safely migrate all
of their data – including their current operating system, application software, and user data – from
their existing storage device (e.g. HDD) to their new Samsung SSD.
Samsung Data Migration software is developed and distributed exclusively for owners of Samsung
Solid State Drives (SSDs).
Precautions
1. When cloning the content of the source drive (e.g. HDD), all data on the Target Disk (Samsung
SSD) will be deleted and is impossible to recover. Therefore, if you have stored any data that you
would like to keep on the Target Disk, please back it up in advance.
※ This software is not a data backup solution.
2. Samsung Electronics assumes no responsibility for any loss of data that may occur on the Target
Disk in the course of using this software and will not be held liable for data recovery services.
Even if the migration process fails, data contained on the Source Disk is not affected.
Improvements
1. Support for new models
2. Improvements to the cloning compatibility

4
System Requirements
Component Requirement
Operating System
Windows XP SP2 (32bit)
Windows Vista (32/64bit)
Windows 7 (32/64bit)
Windows 8.1 (32/64bit)
PC Memory (RAM) 1 GB or more
Disk Space 30 MB required for installation
Supported Partition Types MBR, GPT
Source Disk
The Source Disk (HDD or SSD) must contain the
operating system installation
Target Disk
Samsung SSD 970 PRO Series
Samsung SSD 970 EVO Plus Series
Samsung SSD 970 EVO Series
Samsung SSD 860 QVO Series
Samsung SSD 840 Series

5
Limitations
1. This software only supports the Windows operating systems listed in the User Manual.
2. This software only supports the Samsung SSDs listed in the User Manual. OEM storage devices
provided through a computer manufacturer or supplied through another channel are not
supported.
3. This software will run only if the operating system is installed on the Source Disk. It will not
function on disks that lack an operating system installation.
4. On systems with two (2) drives or more (e.g. “C:”, “D:”, and “E:” drives) with the operating system
installed on the “C:” drive, only the first two drives will be cloned. The “System” partition that is
created during Windows installation is automatically replicated.
5. The OEM Recovery partition created by the computer manufacturer as a factory setting will not
be cloned. However, it will be automatically cloned if the manufacturer is Samsung and SRS
(Samsung Recovery Solution) 5, SRS 6, or SRS 7 is installed. (Versions lower than SRS 5 are not
supported.)
6. A difference of a few GB of data capacity between the Source and Target Disks is normal after
cloning. The software does not copy the files Windows automatically generates to manage
virtual memory (page files and hibernation files).
7. This software cannot clone encrypted disks. In order to clone an encrypted disk, you must first
remove the password from the disk.
8. If the mainboard chipset drivers are not up to date when cloning, this software may not function
properly.
9. If there are multiple operating systems installed on the PC (e.g. Windows 7 is installed on the C
drive and Windows 8 is installed on the D drive), the cloned disk may not function properly.
10. If the Source Disk is damaged (e.g. the disk has bad sectors), the cloned disk may not function
properly.
11. When attempting to clone a disk using this software, it is recommended that you close all other
programs and free up sufficient memory before cloning.
12. If you have instant PC recovery software installed on your system, this software may not
function properly.
13. If a Source Disk is converted into a dynamic disk, the software may not function properly.
14. The files in the user's Library folder are listed by default on the screen for selecting files to
exclude during cloning.
15. To exclude files that are not in the Library folder, you can search for them by scanning folders.
Program Files, Windows files, and Recycle Bin files are not scanned.
16. Please note if you use a Samsung NVMe SSD as the Target Disk without installing the Samsung
NVMe Driver, this software may not function properly.
17. If the Target Disk is connected to a portable disk (an external hard drive via USB port) for
cloning the disk, the software may not function properly due to the USB adaptor (gender).

6
User Guide
(Normal Mode) If the Source Disk is smaller than the Target Disk1.
STEP 1. Start migration
STEP 2. Connect Target Disk
① If the Target Disk is connected, the status of the Target Disk is displayed on the screen.
※ You may need a separate M.2 PCIe/USB converter (connector) to connect an NVMe SSD.

7
STEP 3. Start cloning
STEP 4. Cloning in progress
STEP 5. Cloning complete

8

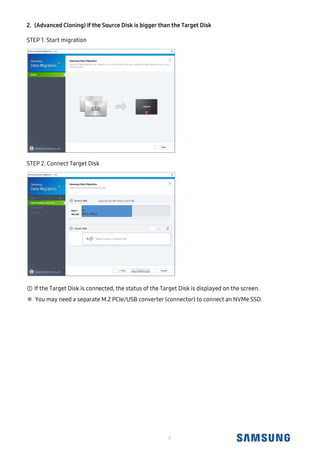

(Advanced Cloning) If the Source Disk is bigger than the Target Disk2.
STEP 1. Start migration
STEP 2. Connect Target Disk
① If the Target Disk is connected, the status of the Target Disk is displayed on the screen.
※ You may need a separate M.2 PCIe/USB converter (connector) to connect an NVMe SSD.

9
STEP 3. On the Disk Analysis and Cloning Settings screen, click [Next>>]
STEP 4. On the Disk Analysis Summary screen, click [Next>>]
STEP 5. Scan for files in the Library folder to exclude from cloning

10
STEP 6. If the list of files to be excluded is displayed, go to Step 10, If the list of files to be excluded is
not displayed, go to Step 7
STEP 7. Click Browse button
STEP 8. Set a new folder to scan for files to exclude from cloning
① Select “Scan selected folders” or “Scan all folders” and click [Search].
• Folder designation for scanning
- Scan selected folders: Scan only the selected folders
- Scan all folders: Scan all files on the disk

11
STEP 9. Scan for files to exclude from cloning in the newly set path
STEP 10. Select files to exclude from cloning
① Continue selecting files to exclude until the text below the Browse button changes to “Ready to
clone to the Target Disk”.
STEP 11. In the screen for selecting files to exclude, click [Next>>]

12
STEP 12. To clone everything except the selected file(s), go to Step 13.
To delete the selected file(s) and clone everything else, go to Step 14.
To save the selected file(s) to another storage device and continue cloning, go to Step 15.
STEP 13. Cloning everything except the selected files
① Select the [Clone everything except the selected file(s)] option and then click the [Next>>] button.
STEP 14. Clone after deleting the selected files
① Select the [Delete the selected file(s) and continue cloning] option and then click the [Next>>]
button.

13
STEP 15. Cloning after saving the selected files on another storage device
① Select the [Save the selected file(s) to another storage device and continue cloning] option.
② Select the storage device where you want to save the selected file(s).
③ Click the [Next>>] button.
STEP 16. Start cloning

14
STEP 17. Cloning in progress
STEP 18. Cloning complete

15
Reboot from the cloned Target Disk3.
3-1. If Target Disk is connected to USB port
STEP 1. Shut down the cloned PC
① Click the [Finish] button on the right bottom of the window.
② Shut down your computer by clicking the [Shut down the system] button.
STEP 2. Connect to Target Disk on PC
① Remove the USB cable that connects the Target Disk.
② Connect the cloned Target Disk.
※ If there is only one disc in the PC that can be connected, remove the Source Disk and connect the
cloned Target Disk.

16
STEP 3. Change the boot order to the cloned disk as first
① Turn on the computer power and use the BIOS entry key to enter the BIOS screen.
② Enter the [Boot] menu.
① Place the cloned Target Disk before the Source Disk in the boot order.
② Press the F10 key to save the change(s).
③ Press the ESC key to exit the BIOS screen.
※ Depending on the computer manufacturer or the motherboard specifications, the BIOS entry key
and the boot order setting may be different.
STEP 4. Boot the system from Target Disk
① Authorize the PC power and boot the system from the Target Disk.

17
3-2. If Target Disk is connected to SATA port
STEP 1. Shut down the cloned PC
① Click the [Finish] button on the right bottom of the window.
② Shut down your computer by clicking the [Shut down the system] button.

18
STEP 2. Change the boot order to the cloned disk as first
① Turn on the computer power and use the BIOS entry key to enter the BIOS screen.
② Enter the [Boot] menu.
③ Place the cloned Target Disk before the Source Disk in the boot order.
④ Press the F10 key to save the change(s).
⑤ Press the ESC key to exit the BIOS screen.
STEP 3. Boot the system from Target Disk
① Authorize the PC power and boot the system from the Target Disk.
※ Depending on the computer manufacturer or the motherboard specifications, the BIOS entry key
and the boot order setting may be different.
