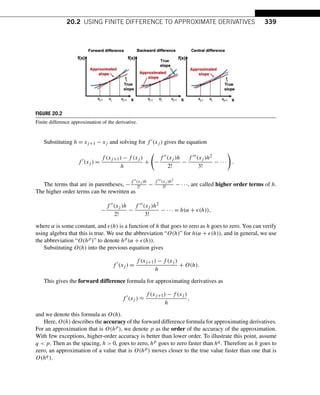

![Fig. 20.2 Finite difference approximation of the derivative. 339
Fig. 20.3 Illustration of the forward difference, the backward difference, and the central difference. Note
the difference in slopes depending on the method used. 341

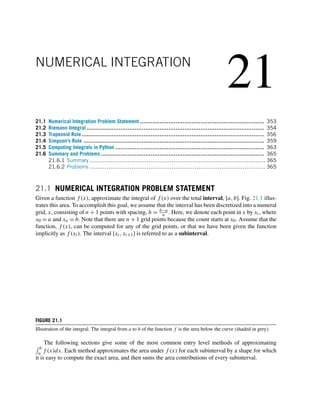

Fig. 21.1 Illustration of the integral. The integral from a to b of the function f is the area below the curve
(shaded in grey). 353
Fig. 21.2 Illustration of the trapezoid integral procedure. The area below the curve is approximated by a
sum of areas of trapezoids that approximate the function. 357
Fig. 21.3 Illustration of the Simpson integral formula. Discretization points are grouped by three, and a
parabola is fit between the three points. This can be done by a typical interpolation polynomial.
The area under the curve is approximated by the area under the parabola. 360
Fig. 21.4 Illustration of the accounting procedure to approximate the function f by the Simpson rule for
the entire interval [a,b]. 361

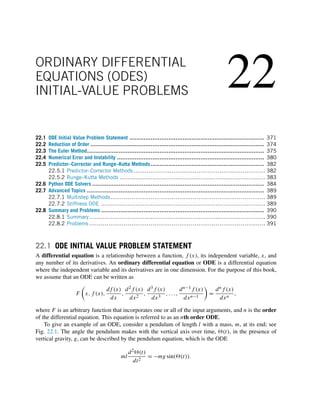

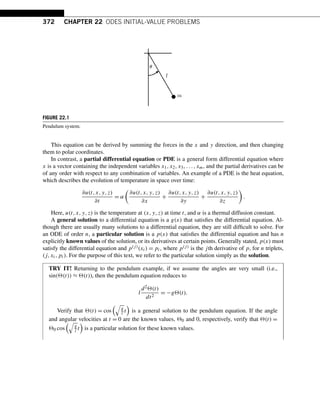

Fig. 22.1 Pendulum system. 372
Fig. 22.2 The illustration of the explicit Euler method. 376
Fig. 22.3 The illustration of the stiffness equation. 390
Fig. 23.1 Heat flow in a pin fin. The variable L is the length of the pin fin, which starts at x = 0 and
finishes at x = L. The temperatures at two ends are T0 and TL, with Ts being the surrounding
environment temperature. 400

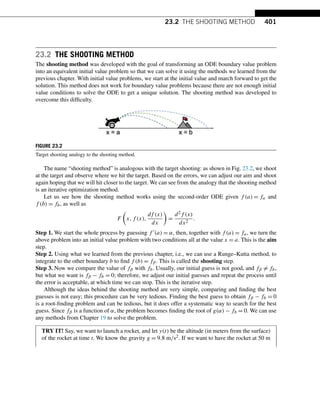

Fig. 23.2 Target shooting analogy to the shooting method. 401
Fig. 23.3 Illustration of the finite difference method. 406

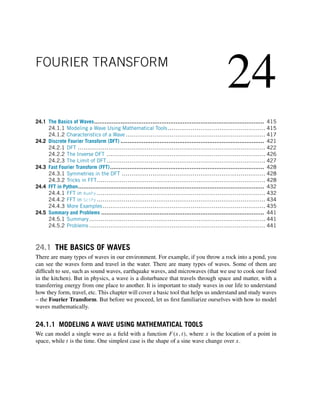

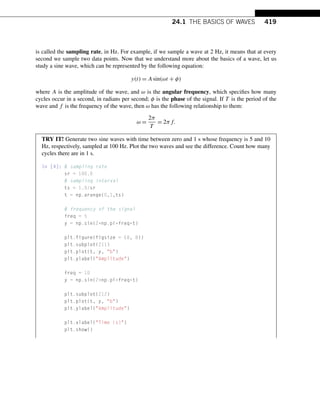

Fig. 24.1 Period and amplitude of a sine wave. 418

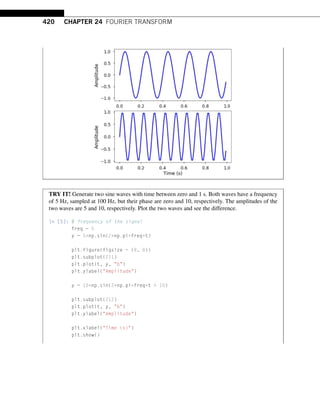

Fig. 24.2 Wavelength and amplitude of a sine wave. 418
Fig. 24.3 More general wave form. 422

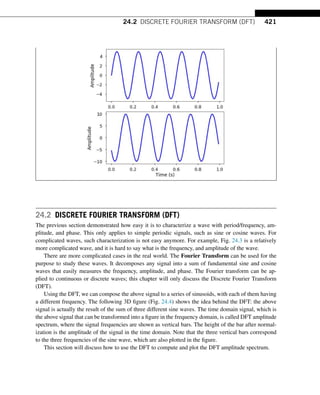

Fig. 24.4 Illustration of Fourier transform with time and frequency domain signal. 422

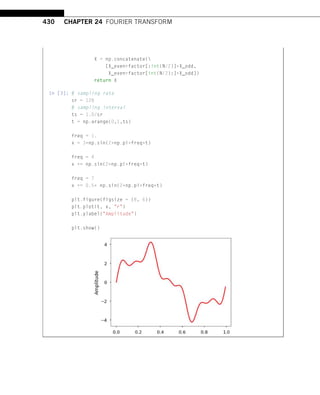

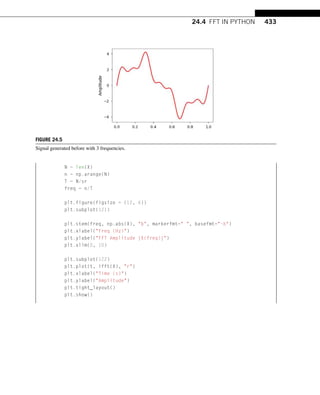

Fig. 24.5 Signal generated before with 3 frequencies. 433

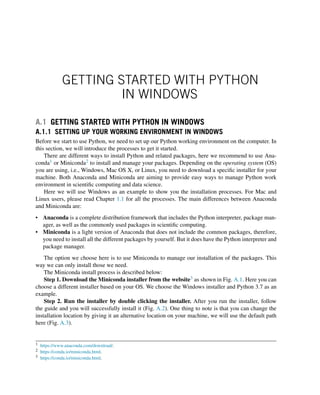

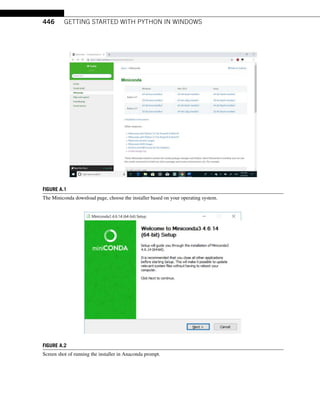

Fig. A.1 The Miniconda download page, choose the installer based on your operating system. 446
Fig. A.2 Screen shot of running the installer in Anaconda prompt. 446

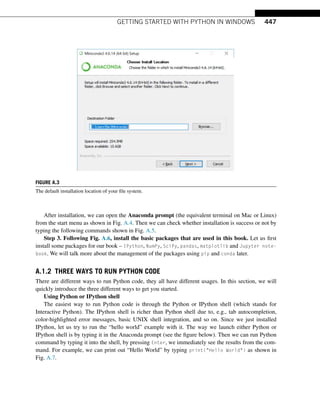

Fig. A.3 The default installation location of your file system. 447

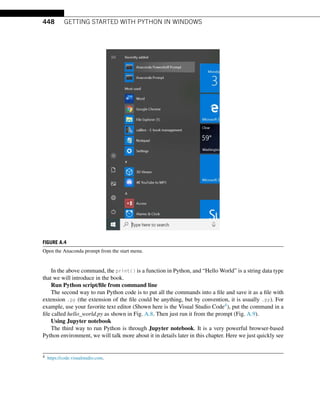

Fig. A.4 Open the Anaconda prompt from the start menu. 448
Fig. A.5 A quick way to check if your installed Miniconda runs properly. 449
Fig. A.6 Installation process for the packages that will be used in the rest of the book. 449
Fig. A.7 Run "Hello World" in IPython shell by typing the command, “print” is a function that we will
learn to print out anything within the parentheses. 450
Fig. A.8 A Python script file example using Visual Studio Code. You type in the commands you want to
execute and save the file with a proper name. 450
Fig. A.9 To run the Python script from command line, we can type “python hello_world.py”. This line
tells Python that we will execute the commands that were saved in this file. 451
Fig. A.10 To launch a Jupyter notebook server, type jupyter notebook in the command line, which
will open a browser page as shown here. Click “New” button at the top right corner, and choose
“Python3” which will create a Python notebook to run Python code. 451

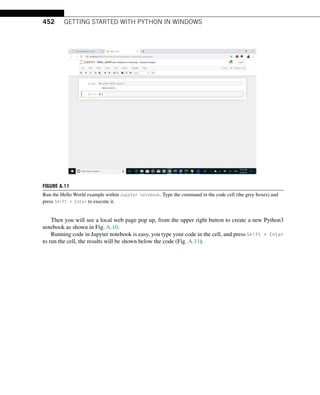

Fig. A.11 Run the Hello World example within Jupyter notebook. Type the command in the code cell
(the grey boxes) and press Shift + Enter to execute it. 452](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-13-320.jpg)
![1.2 PYTHON AS A CALCULATOR 9
FIGURE 1.9
To launch a Jupyter notebook server, type jupyter notebook in the command line, which will open a browser
page as shown here. Click the “New” button on the top right and choose “Python3”. This will create a Python
notebook from which to run Python code.
Using Jupyter Notebook. The third way to run Python is through Jupyter Notebook, which is a very
powerful browser-based Python environment. We will discuss this in details later in this chapter. The
example presented here is to demonstrate how quickly we can run the code using Jupyter notebook.
If you type jupyter notebook in the terminal, a local web page will pop up; use the upper right button
to create a new Python3 notebook, as shown in Fig. 1.9.
Running code in Jupyter notebook is easy. Type your code in the cell and press Shift + Enter
to run the cell; the results will be shown below the code (Fig. 1.10).
1.2 PYTHON AS A CALCULATOR
Python contains functions found in any standard graphing calculator. An arithmetic operation is either
addition, subtraction, multiplication, division, or powers between two numbers. An arithmetic opera-
tor is a symbol that Python has reserved to mean one of the aforementioned operations. These symbols
are + for addition, - for subtraction, * for multiplication, / for division, and ** for exponentiation.
An instruction or operation is executed when it is resolved by the computer. An instruction is
executed at the command prompt by typing it where you see the >>> symbol appears in the Python
shell (or the In [1]: sign in IPython) and then pressing Enter. In the case of the Jupyter notebook,
type the operation in the code cell and Shift + Enter. Since we will use Jupyter notebook for the
rest of the book, to familiarize yourself with all the different options, all examples in this section will
be shown in the IPython shell – see the previous section for how to begin working in IPython. For
Windows users, you will use the Anaconda prompt shown in the Appendix A instead of using the
terminal.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-24-320.jpg)
![10 CHAPTER 1 PYTHON BASICS
FIGURE 1.10
To run the Hello World example within Jupyter notebook, type the command in the code cell (the grey boxes) and
press Shift + Enter to execute it.
TRY IT! Compute the sum of 1 and 2.
In [1]: 1 + 2
Out[1]: 3
An order of operations is a standard order of precedence that different operations have in re-
lationship to one another. Python utilizes the same order of operations you learned in grade school.
Powers are executed before multiplication and division, which are executed before addition and
subtraction. Parentheses () can also be used in Python to supersede the standard order of opera-
tions.
TRY IT! Compute 3×4
(22+4/2)
.
In [2]: (3*4)/(2**2 + 4/2)
Out[2]: 2.0
TIP! Note that Out[2] is the resulting value of the last operation executed. Use the underscore
symbol _ to represent this result to break up complicated expressions into simpler commands.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-25-320.jpg)
![1.2 PYTHON AS A CALCULATOR 11
TRY IT! Compute 3 divided by 4, then multiply the result by 2, and then raise the result to the
3rd power.
In [3]: 3/4
Out[3]: 0.75
In [4]: _*2
Out[4]: 1.5
In [5]: _**3
Out[5]: 3.375
Python has many basic arithmetic functions like sin, cos, tan, asin, acos, atan, exp, log, log10,
and sqrt stored in a module (explained later in this chapter) called math. First, import this module to
access to these functions.
In [6]: import math
TIP! In Jupyter notebook and IPython, you can have a quick view of what is in the module
by typing the module name + dot + TAB. Furthermore, if you type the first few letters of the
function and press TAB, it will automatically complete the function, which is known as “TAB
completion” (an example is shown in Fig. 1.11).
These mathematical functions are executed via module.function. The inputs to them are always
placed inside of parentheses that are connected to the function name. For trigonometric functions, it is
useful to have the value of π available. You can call this value at any time by typing math.pi in the
IPython shell.
TRY IT! Find the square root of 4.
In [7]: math.sqrt(4)
Out[7]: 2.0
TRY IT! Compute the sin(π
2 ).
In [8]: math.sin(math.pi/2)
Out[8]: 1.0
Python composes functions as expected, with the innermost function being executed first. The same
holds true for function calls that are composed with arithmetic operations.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-26-320.jpg)

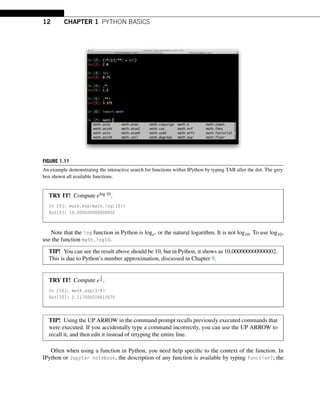

![12 CHAPTER 1 PYTHON BASICS
FIGURE 1.11
An example demonstrating the interactive search for functions within IPython by typing TAB after the dot. The grey
box shown all available functions.
TRY IT! Compute elog 10.
In [9]: math.exp(math.log(10))
Out[9]: 10.000000000000002
Note that the log function in Python is loge, or the natural logarithm. It is not log10. To use log10,
use the function math.log10.
TIP! You can see the result above should be 10, but in Python, it shows as 10.000000000000002.
This is due to Python’s number approximation, discussed in Chapter 9.
TRY IT! Compute e
3
4 .
In [10]: math.exp(3/4)
Out[10]: 2.117000016612675
TIP! Using the UP ARROW in the command prompt recalls previously executed commands that
were executed. If you accidentally type a command incorrectly, you can use the UP ARROW to
recall it, and then edit it instead of retyping the entire line.
Often when using a function in Python, you need help specific to the context of the function. In
IPython or Jupyter notebook, the description of any function is available by typing function?; the](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-27-320.jpg)
![1.2 PYTHON AS A CALCULATOR 13
question mark is a shortcut for help. If you see a function you are unfamiliar with, it is good practice
to use the question mark before asking your instructors what a specific function does.
TRY IT! Use the question mark to find the definition of the factorial function.
In [11]: math.factorial?
Signature: math.factorial(x, /)
Docstring:
Find x!.
Raise a ValueError if x is negative or non-integral.
Type: builtin_function_or_method
Python will raise an ZeroDivisionError when the expression 1/0 (which is infinity) appears, to
remind you.
TRY IT! 1/0.
In [12]: 1/0
----------------------------------------------------------------------
ZeroDivisionError Traceback (most recent call last)
<ipython-input-12-9e1622b385b6> in <module>()
----> 1 1/0
ZeroDivisionError: division by zero
You can type math.inf at the command prompt to denote infinity or math.nan to denote something
that is not a number that you wish to be handled as a number. If this is confusing, this distinction can be
skipped for now; it will be explained in detail later. Finally, Python can also handle imaginary numbers.
TRY IT! Type 1/∞, and ∞ ∗ 2 to verify that Python handles infinity as you would expect.
In [13]: 1/math.inf
Out[13]: 0.0
In [14]: math.inf * 2
Out[14]: inf
TRY IT! Compute ∞/∞.
In [15]: math.inf/math.inf
Out[15]: nan](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-28-320.jpg)
![14 CHAPTER 1 PYTHON BASICS
TRY IT! Compute sum 2 + 5i.
In [16]: 2 + 5j
Out[16]: (2+5j)
Note that in Python the imaginary part is represented by j instead of i.
Another way to represent a complex number in Python is to use the complex function.
In [17]: complex(2,5)
Out[17]: (2+5j)
Python can also handle scientific notation using the letter e between two numbers. For example,
1e6 = 1000000 and 1e − 3 = 0.001.
TRY IT! Compute the number of seconds in 3 years using scientific notation.
In [18]: 3e0*3.65e2*2.4e1*3.6e3
Out[18]: 94608000.0
TIP! Every time a function in math module is typed, it is always typed math.function_name.
Alternatively, there is a simpler way. For example, if we want to use sin and log from math
module, we can import them as follows: from math import sin, log. With this modified import
statement, when using these functions, use them directly, e.g., sin(20) or log(10).
The previous examples demonstrated how to use Python as a calculator to deal with different data
values. In Python, there are additional data types needed for numerical values: int, float, and complex
are the types associated with these values.
• int: Integers, such as 1,2,3,...
• float: Floating-point numbers, such as 3.2,6.4,...
• complex: Complex numbers, such as 2 + 5j,3 + 2j,...
Use function type to check the data type for different values.
TRY IT! Find out the data type for 1234.
In [19]: type(1234)
Out[19]: int](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-29-320.jpg)
![1.3 MANAGING PACKAGES 15
TRY IT! Find out the data type for 3.14.
In [20]: type(3.14)
Out[20]: float
TRY IT! Find out the data type for 2 + 5j.
In [21]: type(2 + 5j)
Out[21]: complex
Of course, there are other data types, such as boolean, string, and so on; these are introduced in
Chapter 2.
This section demonstrated how to use Python as a calculator by running commands in the IPython
shell. Before we move on to more complex coding, let us go ahead to learn more about the managing
packages, i.e., how to install, upgrade, and remove the packages.
1.3 MANAGING PACKAGES
One feature that makes Python really great is the various packages/modules developed by the user
community. Most of the time, when you want to apply some functions or algorithms, often you will
find multiple packages already available. All you need to do is to install the packages and use them
in your code. Managing packages is one of the most important skills you need to learn to take fully
advantage of Python. This section will show you how to manage packages in Python.
1.3.1 MANAGING PACKAGES USING PACKAGE MANAGERS
At the beginning of this book, we installed some packages using pip by typing pip install pack-
age_name. This is currently the most common and easy way to install Python packages. Pip is a package
manager that automates the process of installing, updating, and removing the packages. It can install
packages published on Python Package Index (PyPI).5 If you install Miniconda, pip will be available
for you to use as well.
Use pip help to get help for different commands, as shown in Fig. 1.12.
The most used commands usually include: installing, upgrading, and uninstalling a package.
Install a Package
To install the latest version of a package:
pip install package_name
To install a specific version, e.g., install version 1.5:
5 https://pypi.org/.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-30-320.jpg)
![1.5 LOGICAL EXPRESSIONS AND OPERATORS 21
In Python, a logical expression that is true will compute to the value True. A false expression
will compute to the value False. This is a new data type known as boolean, which has the built-in
values True and False. In this book, “True” is equivalent to 1, and “False” is equivalent to 0. Logical
expressions are used to pose questions to Python. For example, “3 < 4” is equivalent to, “Is 3 less than
4?” Since this statement is true, Python will compute it as 1; however, if we write 3 > 4, this is false,
and Python will compute it as 0.
Comparison operators compare the value of two numbers, which are used to build logical expres-
sions. Python reserves the symbols >,>=,<,<=,! =,==, to denote “greater than,” “greater than or
equal,” “less than,” “less than or equal,” “not equal,” and “equal,” respectively; see and Table 1.1. Let
us start with an example, a = 4,b = 2:
Table 1.1 Comparison operators.
Operator Description Example Results
> greather than a > b True
>= greater than or equal a >= b True
< less than a < b False
<= less than or equal a <= b False
!= not equal a != b True
== equal a == b False
TRY IT! Compute the logical expression for “Is 5 equal to 4?” and “Is 2 smaller than 3?”
In [1]: 5 == 4
Out[1]: False
In [2]: 2 < 3
Out[2]: True
Logical operators, as shown in Table 1.2, are operations between two logical expressions that, for
the sake of discussion, we will call P and Q. The fundamental logical operators we will use herein are
and, or, and not.
Table 1.2 Logical operators.
Operator Description Example Results
and greater than P and Q True if both P and Q are True. False otherwise
or greater than or equal P or Q True if either P or Q is True. False otherwise
not less than not P True if P is False. False if P is True
The truth table, as shown in Fig. 1.17, of a logical operator or expression gives the result of every
truth combination of P and Q. Fig. 1.17 shows the truth tables for “and” and “or”.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-36-320.jpg)
![22 CHAPTER 1 PYTHON BASICS
FIGURE 1.17
Truth tables for the logical and/or.
TRY IT! Assuming P is true, let us use Python to determine if the expression (P AND NOT(Q))
OR (P AND Q) is always true regardless of whether or not Q is true. Logically, can you see why
this is the case? First assume Q is true:
In [3]: (1 and not 1) or (1 and 1)
Out[3]: 1
Now assume Q is false
In [4]: (1 and not 0) or (1 and 0)
Out[4]: True
Just as with arithmetic operators, logical operators have an order of operations relative to each other
and in relation to arithmetic operators. All arithmetic operations will be executed before comparison
operations, which will be executed before logical operations. Parentheses can be used to change the
order of operations.
TRY IT! Compute (1 + 3) > (2 + 5)
In [5]: 1 + 3 > 2 + 5
Out[5]: False
TIP! Even when the order of operations is known, it is usually helpful for you and those reading
your code to use parentheses to make your intentions clearer. In the preceding example (1 + 3) >
(2 + 5) is clearer.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-37-320.jpg)
![1.6 SUMMARY AND PROBLEMS 23
WARNING! In Python’s implementation of logic, 1 is used to denote true and 0 for false. But
because 1 and 0 are still numbers, Python will allow abuses such as: (3 > 2) + (5 > 4), which will
resolve to 2.
In [6]: (3 > 2) + (5 > 4)
Out[6]: 2
WARNING! Although in formal logic 1 is used to denote true and 0 to denote false, Python’s
notation system is different, and it will take any number not equal to 0 to mean true when used
in a logical operation. For example, 3 and 1 will compute to true. Do not utilize this feature of
Python. Always use 1 to denote a true statement.
TIP! A fortnight is a length of time consisting of 14 days. Use a logical expression to determine
if there are more than 100,000 seconds in a fortnight.
In [7]: (14*24*60*60) > 100000
Out[7]: True
1.6 SUMMARY AND PROBLEMS
1.6.1 SUMMARY
1. You have now learned the basics of Python, which should enable you to set up the working envi-
ronment and experiment with ways to run Python.
2. Python can be used as a calculator. It has all the functions and arithmetic operations commonly used
with a scientific calculator.
3. You can manage the Python packages using package managers.
4. You learned how to interact with Jupyter notebook.
5. You can also use Python to perform logical operations.
6. You have now been introduced to int, float, complex, string, and boolean data types in Python.
1.6.2 PROBLEMS
1. Print “I love Python” using Python Shell.
2. Print “I love Python” by typing it into a .py file and run it from command line.
3. Type import antigravity in the IPython Shell, which will take you to xkcd and enable you to
see the awesome Python.
4. Launch a new Jupyter notebook server in a folder called “exercise” and create a new Python
notebook with the name “exercise_1.” Put the rest of the problems within this notebook.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-38-320.jpg)

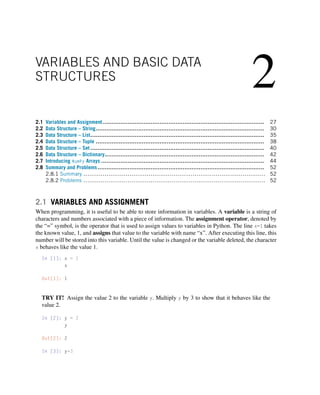

![2
VARIABLES AND BASIC DATA
STRUCTURES
2.1 Variables and Assignment ........................................................................................... 27
2.2 Data Structure – String............................................................................................... 30
2.3 Data Structure – List.................................................................................................. 35
2.4 Data Structure – Tuple ............................................................................................... 38
2.5 Data Structure – Set .................................................................................................. 40
2.6 Data Structure – Dictionary.......................................................................................... 42
2.7 Introducing NumPy Arrays ............................................................................................ 44
2.8 Summary and Problems.............................................................................................. 52
2.8.1 Summary ............................................................................................... 52
2.8.2 Problems ............................................................................................... 52
2.1 VARIABLES AND ASSIGNMENT
When programming, it is useful to be able to store information in variables. A variable is a string of
characters and numbers associated with a piece of information. The assignment operator, denoted by
the “=” symbol, is the operator that is used to assign values to variables in Python. The line x=1 takes
the known value, 1, and assigns that value to the variable with name “x”. After executing this line, this
number will be stored into this variable. Until the value is changed or the variable deleted, the character
x behaves like the value 1.
In [1]: x = 1
x
Out[1]: 1
TRY IT! Assign the value 2 to the variable y. Multiply y by 3 to show that it behaves like the
value 2.
In [2]: y = 2
y
Out[2]: 2
In [3]: y*3](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-41-320.jpg)

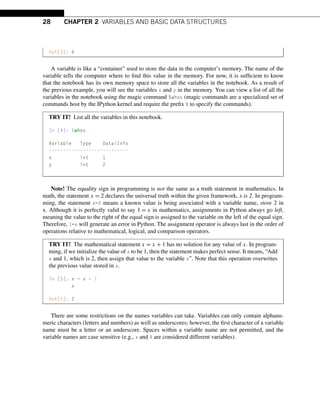

![28 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
Out[3]: 6
A variable is like a “container” used to store the data in the computer’s memory. The name of the
variable tells the computer where to find this value in the memory. For now, it is sufficient to know
that the notebook has its own memory space to store all the variables in the notebook. As a result of
the previous example, you will see the variables x and y in the memory. You can view a list of all the
variables in the notebook using the magic command %whos (magic commands are a specialized set of
commands host by the IPython kernel and require the prefix % to specify the commands).
TRY IT! List all the variables in this notebook.
In [4]: %whos
Variable Type Data/Info
----------------------------
x int 1
y int 2
Note! The equality sign in programming is not the same as a truth statement in mathematics. In
math, the statement x = 2 declares the universal truth within the given framework, x is 2. In program-
ming, the statement x=2 means a known value is being associated with a variable name, store 2 in
x. Although it is perfectly valid to say 1 = x in mathematics, assignments in Python always go left,
meaning the value to the right of the equal sign is assigned to the variable on the left of the equal sign.
Therefore, 1=x will generate an error in Python. The assignment operator is always last in the order of
operations relative to mathematical, logical, and comparison operators.
TRY IT! The mathematical statement x = x + 1 has no solution for any value of x. In program-
ming, if we initialize the value of x to be 1, then the statement makes perfect sense. It means, “Add
x and 1, which is 2, then assign that value to the variable x”. Note that this operation overwrites
the previous value stored in x.
In [5]: x = x + 1
x
Out[5]: 2
There are some restrictions on the names variables can take. Variables can only contain alphanu-
meric characters (letters and numbers) as well as underscores; however, the first character of a variable
name must be a letter or an underscore. Spaces within a variable name are not permitted, and the
variable names are case sensitive (e.g., x and X are considered different variables).](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-42-320.jpg)

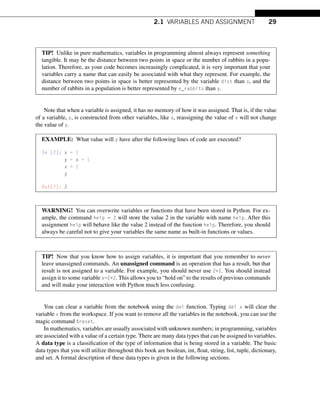

![2.1 VARIABLES AND ASSIGNMENT 29
TIP! Unlike in pure mathematics, variables in programming almost always represent something
tangible. It may be the distance between two points in space or the number of rabbits in a popu-
lation. Therefore, as your code becomes increasingly complicated, it is very important that your
variables carry a name that can easily be associated with what they represent. For example, the
distance between two points in space is better represented by the variable dist than x, and the
number of rabbits in a population is better represented by n_rabbits than y.
Note that when a variable is assigned, it has no memory of how it was assigned. That is, if the value
of a variable, y, is constructed from other variables, like x, reassigning the value of x will not change
the value of y.
EXAMPLE: What value will y have after the following lines of code are executed?
In [7]: x = 1
y = x + 1
x = 2
y
Out[7]: 2
WARNING! You can overwrite variables or functions that have been stored in Python. For ex-
ample, the command help = 2 will store the value 2 in the variable with name help. After this
assignment help will behave like the value 2 instead of the function help. Therefore, you should
always be careful not to give your variables the same name as built-in functions or values.
TIP! Now that you know how to assign variables, it is important that you remember to never
leave unassigned commands. An unassigned command is an operation that has a result, but that
result is not assigned to a variable. For example, you should never use 2+2. You should instead
assign it to some variable x=2+2. This allows you to “hold on” to the results of previous commands
and will make your interaction with Python much less confusing.
You can clear a variable from the notebook using the del function. Typing del x will clear the
variable x from the workspace. If you want to remove all the variables in the notebook, you can use the
magic command %reset.
In mathematics, variables are usually associated with unknown numbers; in programming, variables
are associated with a value of a certain type. There are many data types that can be assigned to variables.
A data type is a classification of the type of information that is being stored in a variable. The basic
data types that you will utilize throughout this book are boolean, int, float, string, list, tuple, dictionary,
and set. A formal description of these data types is given in the following sections.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-43-320.jpg)

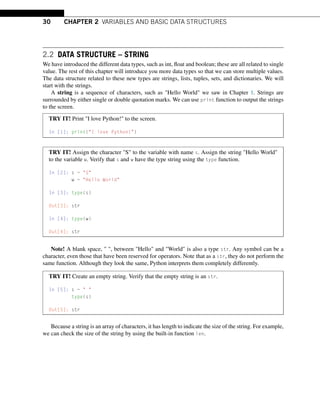

![30 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
2.2 DATA STRUCTURE – STRING
We have introduced the different data types, such as int, float and boolean; these are all related to single
value. The rest of this chapter will introduce you more data types so that we can store multiple values.
The data structure related to these new types are strings, lists, tuples, sets, and dictionaries. We will
start with the strings.
A string is a sequence of characters, such as Hello World we saw in Chapter 1. Strings are
surrounded by either single or double quotation marks. We can use print function to output the strings
to the screen.
TRY IT! Print I love Python! to the screen.
In [1]: print(I love Python!)
TRY IT! Assign the character S to the variable with name s. Assign the string Hello World
to the variable w. Verify that s and w have the type string using the type function.
In [2]: s = S
w = Hello World
In [3]: type(s)
Out[3]: str
In [4]: type(w)
Out[4]: str
Note! A blank space, , between Hello and World is also a type str. Any symbol can be a
character, even those that have been reserved for operators. Note that as a str, they do not perform the
same function. Although they look the same, Python interprets them completely differently.
TRY IT! Create an empty string. Verify that the empty string is an str.
In [5]: s =
type(s)
Out[5]: str
Because a string is an array of characters, it has length to indicate the size of the string. For example,
we can check the size of the string by using the built-in function len.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-44-320.jpg)
![2.2 DATA STRUCTURE – STRING 31
FIGURE 2.1
String index for the example of Hello World.
In [6]: len(w)
Out[6]: 11
Strings also have indexes that enables us to find the location of each character, as shown in Fig. 2.1.
The index of the position start with 0.
We can access a character by using a bracket and the index of the position. For example, if we want
to access the character W, then we type the following:
In [7]: w[6]
Out[7]: W
We can also select a sequence as well using string slicing. For example, if we want to access
World, we type the following command.
In [8]: w[6:11]
Out[8]: World
[6:11] means the start position is from index 6 and the end position is index 10. In the Python
string slicing range, the upper-bound is exclusive; this means that [6:11] will “slice” the characters
from index 6 to 10. The syntax for slicing in Python is [start:end:step], the third argument, step, is
optional. If you ignore the step argument, the default will be set to 1.
You can ignore the end position if you want to slice to the end of the string. For example, the
following command is the same as the above one:
In [9]: w[6:]
Out[9]: World
TRY IT! Retrieve the word Hello from string w.
In [10]: w[:5]
Out[10]: Hello](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-45-320.jpg)
![32 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
You can also use a negative index when slicing the strings, which means counting from the end of
the string. For example, -1 means the last character, -2 means the second to last and so on.
TRY IT! Slice the Wor within the word World.
In [11]: w[6:-2]
Out[11]: Wor
TRY IT! Retrieve every other character in the variable w
In [12]: w[::2]
Out[12]: HloWrd
Strings cannot be used in the mathematical operations.
TRY IT! Use + to add two numbers. Verify that + does not behave like the addition operator,
+.
In [13]: 1 + 2
File ipython-input-13-46b54f731e00, line 1
1 + 2
ˆ
SyntaxError: invalid syntax
WARNING! Numbers can also be expressed as str. For example, x = '123' means that x is the
string 123 not the number 123. However, strings represent words or text and so should not have
addition defined on them.
TIP! You may find yourself in a situation where you would like to use an apostrophe as an str.
This is problematic since an apostrophe is used to denote strings. Fortunately, an apostrophe can
be used in a string in the following way. The backslash () is a way to tell Python this is part of the
string, not to denote strings. The backslash character is used to escape characters that otherwise
have a special meaning, such as newline, backslash itself, or the quote character. If either single
or double quote is a part of the string itself, in Python, there is an easy way to do this, you can
just place the string in double or single quotes respectively, as shown in the following example.
In [14]: don't
Out[14]: don't
One string can be concatenated to another string. For example:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-46-320.jpg)

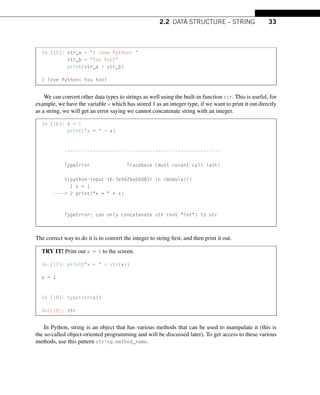

![2.2 DATA STRUCTURE – STRING 33
In [15]: str_a = I love Python!
str_b = You too!
print(str_a + str_b)
I love Python! You too!
We can convert other data types to strings as well using the built-in function str. This is useful, for
example, we have the variable x which has stored 1 as an integer type, if we want to print it out directly
as a string, we will get an error saying we cannot concatenate string with an integer.
In [16]: x = 1
print(x = + x)
-------------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-16-3e562ba0dd83 in module()
1 x = 1
---- 2 print(x = + x)
TypeError: can only concatenate str (not int) to str
The correct way to do it is to convert the integer to string first, and then print it out.
TRY IT! Print out x = 1 to the screen.
In [17]: print(x = + str(x))
x = 1
In [18]: type(str(x))
Out[18]: str
In Python, string is an object that has various methods that can be used to manipulate it (this is
the so-called object-oriented programming and will be discussed later). To get access to these various
methods, use this pattern string.method_name.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-47-320.jpg)
![34 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
TRY IT! Turn the variable w to upper case.
In [19]: w.upper()
Out[19]: HELLO WORLD
TRY IT! Count the number of occurrences for letter l in w.
In [20]: w.count(l)
Out[20]: 3
TRY IT! Replace the World in variable w to Berkeley.
In [21]: w.replace(World, Berkeley)
Out[21]: Hello Berkeley
There are different ways to preformat a string. Here we introduce two ways to do it. For example,
if we have two variables name and country, and we want to print them out in a sentence, but we do not
want to use the string concatenation we used before since it will use many + signs in the string, we
can do the following instead:
In [22]: name = UC Berkeley
country = USA
print(%s is a great school in %s!%(name, country))
UC Berkeley is a great school in USA!
WHAT IS HAPPENING? In the previous example, the %s in the double quotation marks is
telling Python that we want to insert some strings at this location (s stands for string in this case).
The %(name, country) is the location where the two strings should be inserted.
NEW! There is a different way that only introduced in Python 3.6 and above, it is called f-string,
which means formated-string. You can easily format a string with the following line:
In [23]: print(f{name} is a great school in {country}.)
UC Berkeley is a great school in USA.
You can even print out a numerical expression without converting the data type as we did before.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-48-320.jpg)

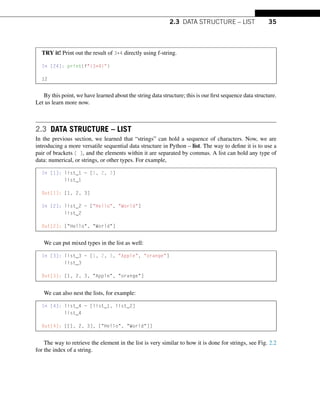

![2.3 DATA STRUCTURE – LIST 35
TRY it! Print out the result of 3*4 directly using f-string.
In [24]: print(f{3*4})
12
By this point, we have learned about the string data structure; this is our first sequence data structure.
Let us learn more now.
2.3 DATA STRUCTURE – LIST
In the previous section, we learned that “strings” can hold a sequence of characters. Now, we are
introducing a more versatile sequential data structure in Python – list. The way to define it is to use a
pair of brackets [ ], and the elements within it are separated by commas. A list can hold any type of
data: numerical, or strings, or other types. For example,
In [1]: list_1 = [1, 2, 3]
list_1
Out[1]: [1, 2, 3]
In [2]: list_2 = [Hello, World]
list_2
Out[2]: [Hello, World]
We can put mixed types in the list as well:
In [3]: list_3 = [1, 2, 3, Apple, orange]
list_3
Out[3]: [1, 2, 3, Apple, orange]
We can also nest the lists, for example:
In [4]: list_4 = [list_1, list_2]
list_4
Out[4]: [[1, 2, 3], [Hello, World]]
The way to retrieve the element in the list is very similar to how it is done for strings, see Fig. 2.2
for the index of a string.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-49-320.jpg)
![36 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
FIGURE 2.2
Example of list index.
TRY IT! Get the 3rd element in list_3
In [5]: list_3[2]
Out[5]: 3
TRY IT! Get the first 3 elements in list_3
In [6]: list_3[:3]
Out[6]: [1, 2, 3]
TRY IT! Get the last element in list_3
In [7]: list_3[-1]
Out[7]: orange
TRY IT! Get the first list from list_4.
In [8]: list_4[0]
Out[8]: [1, 2, 3]
Similarly, we can obtain the length of the list by using the len function.
In [9]: len(list_3)
Out[9]: 5
We can also concatenate two lists by simply using a + sign.
TRY IT! Add list_1 and list_2 to one list.
In [10]: list_1 + list_2](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-50-320.jpg)

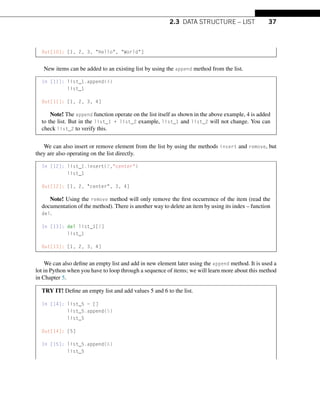

![2.3 DATA STRUCTURE – LIST 37
Out[10]: [1, 2, 3, Hello, World]
New items can be added to an existing list by using the append method from the list.
In [11]: list_1.append(4)
list_1
Out[11]: [1, 2, 3, 4]
Note! The append function operate on the list itself as shown in the above example, 4 is added
to the list. But in the list_1 + list_2 example, list_1 and list_2 will not change. You can
check list_2 to verify this.
We can also insert or remove element from the list by using the methods insert and remove, but
they are also operating on the list directly.
In [12]: list_1.insert(2,center)
list_1
Out[12]: [1, 2, center, 3, 4]
Note! Using the remove method will only remove the first occurrence of the item (read the
documentation of the method). There is another way to delete an item by using its index – function
del.
In [13]: del list_1[2]
list_1
Out[13]: [1, 2, 3, 4]
We can also define an empty list and add in new element later using the append method. It is used a
lot in Python when you have to loop through a sequence of items; we will learn more about this method
in Chapter 5.
TRY IT! Define an empty list and add values 5 and 6 to the list.
In [14]: list_5 = []
list_5.append(5)
list_5
Out[14]: [5]
In [15]: list_5.append(6)
list_5](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-51-320.jpg)
![38 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
Out[15]: [5, 6]
We can also quickly check if an element is in the list using the operator in.
TRY IT! Check if number 5 is in the list_5.
In [16]: 5 in list_5
Out[16]: True
Using the list function, we can turn other sequence items into a list.
TRY IT! Turn the string Hello World into a list of characters.
In [17]: list(Hello World)
Out[17]: [H, e, l, l, o, , W, o, r, l, d]
Lists are used frequently in Python when working with data, with many different possible applica-
tions as discussed in later sections.
2.4 DATA STRUCTURE – TUPLE
Let us learn one more different sequence data structure in Python – tuple. It is usually defined by using
a pair of parentheses ( ), and its elements are separated by commas. For example,
In [1]: tuple_1 = (1, 2, 3, 2)
tuple_1
Out[1]: (1, 2, 3, 2)
As with strings and lists, there is a way to index tuples, slicing the elements, and even some methods
are very similar to those we saw before.
TRY IT! Get the length of tuple_1.
In [2]: len(tuple_1)
Out[2]: 4](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-52-320.jpg)

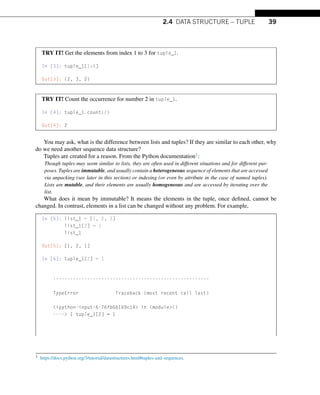

![2.4 DATA STRUCTURE – TUPLE 39
TRY IT! Get the elements from index 1 to 3 for tuple_1.
In [3]: tuple_1[1:4]
Out[3]: (2, 3, 2)
TRY IT! Count the occurrence for number 2 in tuple_1.
In [4]: tuple_1.count(2)
Out[4]: 2
You may ask, what is the difference between lists and tuples? If they are similar to each other, why
do we need another sequence data structure?
Tuples are created for a reason. From the Python documentation1:
Though tuples may seem similar to lists, they are often used in different situations and for different pur-
poses. Tuples are immutable, and usually contain a heterogeneous sequence of elements that are accessed
via unpacking (see later in this section) or indexing (or even by attribute in the case of named tuples).
Lists are mutable, and their elements are usually homogeneous and are accessed by iterating over the
list.
What does it mean by immutable? It means the elements in the tuple, once defined, cannot be
changed. In contrast, elements in a list can be changed without any problem. For example,
In [5]: list_1 = [1, 2, 3]
list_1[2] = 1
list_1
Out[5]: [1, 2, 1]
In [6]: tuple_1[2] = 1
-------------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-6-76fb6b169c14 in module()
---- 1 tuple_1[2] = 1
1 https://docs.python.org/3/tutorial/datastructures.html#tuples-and-sequences.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-53-320.jpg)
![40 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
TypeError: tuple object does not support item assignment
What does heterogeneous mean? Tuples usually contain a heterogeneous sequence of elements,
while lists usually contain a homogeneous sequence. For example, we have a list that contains different
fruits. Usually, the names of the fruits can be stored in a list, since they are homogeneous. Now we want
to have a data structure to store how many pieces of fruit we have of each type. This is usually where
the tuples comes in, since the name of the fruit and the number are heterogeneous. Such as (apple, 3)
which means we have 3 apples.
In [7]: # a fruit list
[apple, banana, orange, pear]
Out[7]: [apple, banana, orange, pear]
In [8]: # a list of (fruit, number) pairs
[(apple,3), (banana,4) , (orange,1), (pear,4)]
Out[8]: [(apple,3), (banana,4), (orange,1), (pear,4)]
Tuples or lists can be accessed by unpacking as shown in the following example, which requires that
the number of variables on the left-hand side of the equality sign be equal to the number of elements
in the sequence.
In [9]: a, b, c = list_1
print(a, b, c)
1 2 1
Note! The opposite operation to unpacking is packing, as shown in the following example. We
can see that we do not need the parentheses to define a tuple, but it is considered good practice to
do so.
In [10]: list_2 = 2, 4, 5
list_2
Out[10]: (2, 4, 5)
2.5 DATA STRUCTURE – SET
Another data type in Python is a set. It is a type that can store an unordered collection with no du-
plicate elements. It can also support mathematical operations like union, intersection, difference, and](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-54-320.jpg)
![2.5 DATA STRUCTURE – SET 41
symmetric difference. It is defined by using a pair of braces, { }, and its elements are separated by
commas.
In [1]: {3, 3, 2, 3, 1, 4, 5, 6, 4, 2}
Out[1]: {1, 2, 3, 4, 5, 6}
Using “sets” is a quick way to determine the unique elements in a string, list, or tuple.
TRY IT! Find the unique elements in list [1, 2, 2, 3, 2, 1, 2].
In [2]: set_1 = set([1, 2, 2, 3, 2, 1, 2])
set_1
Out[2]: {1, 2, 3}
TRY IT! Find the unique elements in tuple (2, 4, 6, 5, 2).
In [3]: set_2 = set((2, 4, 6, 5, 2))
set_2
Out[3]: {2, 4, 5, 6}
TRY IT! Find the unique character in string Banana.
In [4]: set(Banana)
Out[4]: {B, a, n}
We mentioned earlier that sets support the mathematical operations like union, intersection, differ-
ence, and symmetric difference.
TRY IT! Get the union of set_1 and set_2.
In [5]: print(set_1)
print(set_2)
{1, 2, 3}
{2, 4, 5, 6}
In [6]: set_1.union(set_2)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-55-320.jpg)
![42 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
Out[6]: {1, 2, 3, 4, 5, 6}
TRY IT! Get the intersection of set_1 and set_2.
In [7]: set_1.intersection(set_2)
Out[7]: {2}
TRY IT! Is set_1 a subset of {1, 2, 3, 3, 4, 5}?
In [8]: set_1.issubset({1, 2, 3, 3, 4, 5})
Out[8]: True
2.6 DATA STRUCTURE – DICTIONARY
We introduced several sequential data types in the previous sections. Now we will introduce to you a
new and useful type – dictionary, which is a totally different data type than those we introduced earlier.
Instead of using a sequence of numbers to index the elements (such as lists or tuples), dictionaries are
indexed by keys, which can be a string, number, or even tuple (but not list). A dictionary comprises
key-value pairs, and each key maps to a corresponding value. It is defined by using a pair of braces
{ }, while the elements are a list of comma-separated key:value pairs (note that the key:value pair is
separated by the colon, with key at front and value at the end).
In [1]: dict_1 = {apple:3, orange:4, pear:2}
dict_1
Out[1]: {apple: 3, orange: 4, pear: 2}
Within a dictionary, because elements are stored without order, you cannot access a dictionary
based on a sequence of index numbers. To access to a dictionary, we need to use the key of the element
– dictionary[key].
TRY IT! Get the element apple from dict_1.
In [2]: dict_1[apple]
Out[2]: 3
We can get all the keys in a dictionary by using the keys method, or all the values by using the method
values.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-56-320.jpg)
![2.6 DATA STRUCTURE – DICTIONARY 43
TRY IT! Get all the keys and values from dict_1.
In [3]: dict_1.keys()
Out[3]: dict_keys([apple, orange, pear])
In [4]: dict_1.values()
Out[4]: dict_values([3, 4, 2])
We can also get the size of a dictionary by using the len function.
In [5]: len(dict_1)
Out[5]: 3
We can define an empty dictionary and then fill in the element later. Or we can turn a list of tuples
with (key, value) pairs to a dictionary.
TRY IT! Define an empty dictionary named school_dict and add value UC Berkeley:USA.
In [6]: school_dict = {}
school_dict[UC Berkeley] = USA
school_dict
Out[6]: {UC Berkeley: USA}
TRY IT! Add another element Oxford:UK to school_dict.
In [7]: school_dict[Oxford] = UK
school_dict
Out[7]: {UC Berkeley: USA, Oxford: UK}
TRY IT! Turn the list of tuples [(UC Berkeley, USA), (Oxford, UK)] into a dictio-
nary.
In [8]: dict([(UC Berkeley, USA), (Oxford, UK)])
Out[8]: {UC Berkeley: USA, Oxford: UK}
We can also check if an element belongs to a dictionary using the operator in.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-57-320.jpg)
![44 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
TRY IT! Determine if UC Berkeley is in school_dict.
In [9]: UC Berkeley in school_dict
Out[9]: True
TRY IT! Determine whether Harvard is not in school_dict.
In [10]: Harvard not in school_dict
Out[10]: True
We can also use the list function to turn a dictionary with a list of keys. For example,
In [11]: list(school_dict)
Out[11]: [UC Berkeley, Oxford]
2.7 INTRODUCING NUMPY ARRAYS
The second part of this book introduced numerical methods by using Python. We will use the array/-
matrix construct a lot later in the book. So that you are prepared for this section, here we are going
to introduce the most common way to handle arrays in Python using the NumPy module.2 NumPy is
probably the most fundamental numerical computing module in Python.
NumPy is coded both in Python and C (for speed). On its website, a few important features for NumPy
are listed as follows:
• A powerful N-dimensional array object
• Sophisticated (broadcasting) functions
• Tools for integrating C/C++ and Fortran code
• Useful linear algebra, Fourier transform, and random number capabilities
Here, we will only introduce you the part of the NumPy array that is related to the data structure.
Gradually, we will touch on other aspects of NumPy in later chapters.
In order to use NumPy module, we need to import it first. A conventional way to import it is to use
np as a shortened name.
In [1]: import numpy as np
2 http://www.numpy.org.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-58-320.jpg)

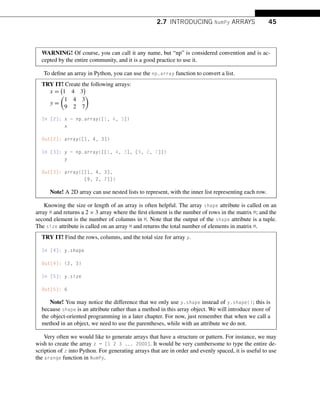

![2.7 INTRODUCING NumPy ARRAYS 45
WARNING! Of course, you can call it any name, but “np” is considered convention and is ac-
cepted by the entire community, and it is a good practice to use it.
To define an array in Python, you can use the np.array function to convert a list.
TRY IT! Create the following arrays:
x =
1 4 3
y =
1 4 3
9 2 7
In [2]: x = np.array([1, 4, 3])
x
Out[2]: array([1, 4, 3])
In [3]: y = np.array([[1, 4, 3], [9, 2, 7]])
y
Out[3]: array([[1, 4, 3],
[9, 2, 7]])
Note! A 2D array can use nested lists to represent, with the inner list representing each row.
Knowing the size or length of an array is often helpful. The array shape attribute is called on an
array M and returns a 2 × 3 array where the first element is the number of rows in the matrix M; and the
second element is the number of columns in M. Note that the output of the shape attribute is a tuple.
The size attribute is called on an array M and returns the total number of elements in matrix M.
TRY IT! Find the rows, columns, and the total size for array y.
In [4]: y.shape
Out[4]: (2, 3)
In [5]: y.size
Out[5]: 6
Note! You may notice the difference that we only use y.shape instead of y.shape(); this is
because shape is an attribute rather than a method in this array object. We will introduce more of
the object-oriented programming in a later chapter. For now, just remember that when we call a
method in an object, we need to use the parentheses, while with an attribute we do not.
Very often we would like to generate arrays that have a structure or pattern. For instance, we may
wish to create the array z = [1 2 3 ... 2000]. It would be very cumbersome to type the entire de-
scription of z into Python. For generating arrays that are in order and evenly spaced, it is useful to use
the arange function in NumPy.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-59-320.jpg)
![46 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
TRY IT! Create an array z from 1 to 2000 with an increment 1.
In [6]: z = np.arange(1, 2000, 1)
z
Out[6]: array([ 1, 2, 3, ... , 1997, 1998, 1999])
Using the np.arange, we can create z easily. The first two numbers are the start and end of the
sequence, and the last one is the increment. Since it is very common to have an increment of 1, if an
increment is not specified, Python will use a default value of 1. Therefore np.arange(1, 2000) will
have the same result as np.arange(1, 2000, 1). Negative or noninteger increments can also be used.
If the increment “misses” the last value, it will only extend until the value just before the ending value.
For example, x = np.arange(1,8,2) would be [1, 3, 5, 7].
TRY IT! Generate an array with [0.5, 1, 1.5, 2, 2.5].
In [7]: np.arange(0.5, 3, 0.5)
Out[7]: array([0.5, 1. , 1.5, 2. , 2.5])
Sometimes we want to guarantee a start and end point for an array but still have evenly spaced
elements. For instance, we may want an array that starts at 1, ends at 8, and has exactly 10 elements.
To do this, use the function np.linspace. The function linspace takes three input values separated
by commas; therefore, A = linspace(a,b,n) generates an array of n equally spaced elements starting
from a and ending at b.
TRY IT! Use linspace to generate an array starting at 3, ending at 9, and containing 10 elements.
In [8]: np.linspace(3, 9, 10)
Out[8]: array([3., 3.66666667, 4.33333333, 5., 5.66666667,
6.33333333, 7., 7.66666667, 8.33333333, 9.])
Getting access to the 1D NumPy array is similar to what we described for lists or tuples: it has an
index to indicate the location. For example,
In [9]: # get the 2nd element of x
x[1]
Out[9]: 4
In [10]: # get all the element after the 2nd element of x
x[1:]
Out[10]: array([4, 3])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-60-320.jpg)

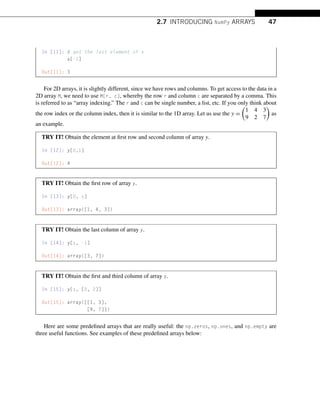

![2.7 INTRODUCING NumPy ARRAYS 47
In [11]: # get the last element of x
x[-1]
Out[11]: 3
For 2D arrays, it is slightly different, since we have rows and columns. To get access to the data in a
2D array M, we need to use M[r, c], whereby the row r and column c are separated by a comma. This
is referred to as “array indexing.” The r and c can be single number, a list, etc. If you only think about
the row index or the column index, then it is similar to the 1D array. Let us use the y =
1 4 3
9 2 7
as
an example.
TRY IT! Obtain the element at first row and second column of array y.
In [12]: y[0,1]
Out[12]: 4
TRY IT! Obtain the first row of array y.
In [13]: y[0, :]
Out[13]: array([1, 4, 3])
TRY IT! Obtain the last column of array y.
In [14]: y[:, -1]
Out[14]: array([3, 7])
TRY IT! Obtain the first and third column of array y.
In [15]: y[:, [0, 2]]
Out[15]: array([[1, 3],
[9, 7]])
Here are some predefined arrays that are really useful: the np.zeros, np.ones, and np.empty are
three useful functions. See examples of these predefined arrays below:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-61-320.jpg)
![48 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
TRY IT! Generate a 3 × 5 array with all the elements as 0.
In [16]: np.zeros((3, 5))
Out[16]: array([[0., 0., 0., 0., 0.],
[0., 0., 0., 0., 0.],
[0., 0., 0., 0., 0.]])
TRY IT! Generate a 5 × 3 array with all the elements as 1.
In [17]: np.ones((5, 3))
Out[17]: array([[1., 1., 1.],
[1., 1., 1.],
[1., 1., 1.],
[1., 1., 1.],
[1., 1., 1.]])
Note! The shape of the array is defined in a tuple with the number of rows as the first item,
and the number of columns as the second. If you only need a 1D array, then use only one number
as the input: np.ones(5).
TRY IT! Generate a 1D empty array with 3 elements.
In [18]: np.empty(3)
Out[18]: array([-3.10503618e+231, -3.10503618e+231,
-3.10503618e+231])
Note! The empty array is not really empty; it is filled with random very small numbers.
You can reassign a value of an array by using array indexing and the assignment operator. You can
reassign multiple elements to a single number using array indexing on the left-hand side. You can also
reassign multiple elements of an array as long as both the number of elements being assigned and the
number of elements assigned are the same. You can create an array using array indexing.
TRY IT! Let a = [1, 2, 3, 4, 5, 6]. Reassign the fourth element of A to 7. Reassign the first,
second, and third elements to 1. Reassign the second, third, and fourth elements to 9, 8, and 7.
In [19]: a = np.arange(1, 7)
a
Out[19]: array([1, 2, 3, 4, 5, 6])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-62-320.jpg)
![2.7 INTRODUCING NumPy ARRAYS 49
In [20]: a[3] = 7
a
Out[20]: array([1, 2, 3, 7, 5, 6])
In [21]: a[:3] = 1
a
Out[21]: array([1, 1, 1, 7, 5, 6])
In [22]: a[1:4] = [9, 8, 7]
a
Out[22]: array([1, 9, 8, 7, 5, 6])
TRY IT! Create a 2 × 2 zero array b, and set b =
1 2
3 4
using array indexing.
In [23]: b = np.zeros((2, 2))
b[0, 0] = 1
b[0, 1] = 2
b[1, 0] = 3
b[1, 1] = 4
b
Out[23]: array([[1., 2.],
[3., 4.]])
Arrays are defined using basic arithmetic; however, there are operations between a scalar (a single
number) and an array and operations between two arrays. We will start with operations between a
scalar and an array. To illustrate, let c be a scalar, and b be a matrix. Then b + c, b - c, b * c and
b / c adds a to every element of b, subtracts c from every element of b, multiplies every element of b
by c, and divides every element of b by c, respectively.
TRY IT! Let b =
1 2
3 4
. Add and subtract 2 from b. Multiply and divide b by 2. Square ev-
ery element of b. Let c be a scalar. On your own, verify the reflexivity of scalar addition and
multiplication: b + c = c + b and cb = bc.
In [24]: b + 2
Out[24]: array([[3., 4.],
[5., 6.]])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-63-320.jpg)

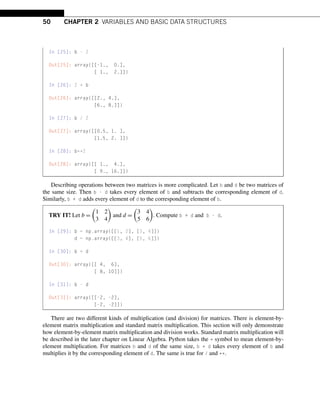

![50 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
In [25]: b - 2
Out[25]: array([[-1., 0.],
[ 1., 2.]])
In [26]: 2 * b
Out[26]: array([[2., 4.],
[6., 8.]])
In [27]: b / 2
Out[27]: array([[0.5, 1. ],
[1.5, 2. ]])
In [28]: b**2
Out[28]: array([[ 1., 4.],
[ 9., 16.]])
Describing operations between two matrices is more complicated. Let b and d be two matrices of
the same size. Then b - d takes every element of b and subtracts the corresponding element of d.
Similarly, b + d adds every element of d to the corresponding element of b.
TRY IT! Let b =
1 2
3 4
and d =
3 4
5 6
. Compute b + d and b - d.
In [29]: b = np.array([[1, 2], [3, 4]])
d = np.array([[3, 4], [5, 6]])
In [30]: b + d
Out[30]: array([[ 4, 6],
[ 8, 10]])
In [31]: b - d
Out[31]: array([[-2, -2],
[-2, -2]])
There are two different kinds of multiplication (and division) for matrices. There is element-by-
element matrix multiplication and standard matrix multiplication. This section will only demonstrate
how element-by-element matrix multiplication and division works. Standard matrix multiplication will
be described in the later chapter on Linear Algebra. Python takes the * symbol to mean element-by-
element multiplication. For matrices b and d of the same size, b * d takes every element of b and
multiplies it by the corresponding element of d. The same is true for / and **.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-64-320.jpg)
![2.7 INTRODUCING NumPy ARRAYS 51
TRY IT! Compute b * d, b / d, and b**d.
In [32]: b * d
Out[32]: array([[ 3, 8],
[15, 24]])
In [33]: b / d
Out[33]: array([[0.33333333, 0.5 ],
[0.6 , 0.66666667]])
In [34]: b**d
Out[34]: array([[ 1, 16],
[ 243, 4096]])
The transposition of an array, b, is an array, d, where b[i, j] = d[j, i]. In other words, the
transposition switches the rows and the columns of b. You can transpose an array in Python using the
array method T.
TRY IT! Compute the transpose of array b.
In [35]: b.T
Out[35]: array([[1, 3],
[2, 4]])
NumPy has many arithmetic functions, such as sin, cos, etc., that can take arrays as input arguments.
The output is the function evaluated for every element of the input array. A function that takes an array
as input and performs the function on it is said to be vectorized.
TRY IT! Compute np.sqrt for x = [1, 4, 9, 16].
In [36]: x = [1, 4, 9, 16]
np.sqrt(x)
Out[36]: array([1., 2., 3., 4.])
Logical operations are defined only between a scalar and an array and between two arrays of the
same size. Between a scalar and an array, the logical operation is conducted between the scalar and
each element of the array. Between two arrays, the logical operation is conducted element-by-element.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-65-320.jpg)
![52 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
TRY IT! Check which elements of the array x = [1, 2, 4, 5, 9, 3] are larger than 3. Check
which elements in x are larger than the corresponding element in y = [0, 2, 3, 1, 2, 3].
In [37]: x = np.array([1, 2, 4, 5, 9, 3])
y = np.array([0, 2, 3, 1, 2, 3])
In [38]: x 3
Out[38]: array([False, False, True, True, True, False])
In [39]: x y
Out[39]: array([ True, False, True, True, True, False])
Python can index elements of an array that satisfy a logical expression.
TRY IT! Let x be the same array as in the previous example. Create a variable y that contains all
the elements of x that are strictly bigger than 3. Assign all the values of x that are bigger than 3,
the value 0.
In [40]: y = x[x 3]
y
Out[40]: array([4, 5, 9])
In [41]: x[x 3] = 0
x
Out[41]: array([1, 2, 0, 0, 0, 3])
2.8 SUMMARY AND PROBLEMS
2.8.1 SUMMARY
1. Storing, retrieving, and manipulating information and data is important in any scientific and engi-
neering field.
2. Assigning variables is an important tool for handling data values.
3. There are different data types for storing information in Python: int, float, and boolean for single
values, and strings, lists, tuples, sets, and dictionaries for sequential data.
4. The NumPy array is a powerful data structure that used a lot in scientific computing.
2.8.2 PROBLEMS
1. Assign the value 2 to the variable x and the value 3 to the variable y. Clear just the variable x.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-66-320.jpg)
![2.8 SUMMARY AND PROBLEMS 53
2. Write a line of code that generates the following error:
NameError: name x is not defined
3. Let x = 10 and y = 3. Write a line of code that will make each of the following assignments.
u = x + y
v = xy
w = x/y
z = sin(x)
r = 8sin(x)
s = 5sin(xy)
p = x**y
4. Show all the variables in the Jupyter notebook after you finish Problem 3.
5. Assign string 123 to the variable S. Convert the string into a float type and assign the output to
the variable N. Verify that S is a string and N is a float using the type function.
6. Assign the string HELLO to the variable s1 and the string hello to the variable s2. Use the ==
operator to show that they are not equal. Use the == operator to show that s1 and s2 are equal if the
lower method is used on s1. Use the == operator to show that s1 and s2 are equal if upper method
is used on s2.
7. Use the print function to generate the following strings:
• The world Engineering has 11 letters.
• The word Book has 4 letters.
8. Check if Python is in Python is great!.
9. Get the last word great from Python is great!
10. Assign list [1, 8, 9, 15] to a variable list_a and insert 2 at index 1 using the insert method.
Append 4 to the list_a using the append method.
11. Sort the list_a in problem 10 in ascending order.
12. Turn Python is great! into a list.
13. Create one tuple with element One, 1 and assign it to tuple_a.
14. Get the second element in the tuple_a in Problem 13.
15. Get the unique element from (2, 3, 2, 3, 1, 2, 5).
16. Assign (2, 3, 2) to set_a, and (1, 2, 3) to set_b. Obtain the following:
• union of set_a and set_b
• intersection of set_a and set_b
• difference of set_a to set_b using difference method](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-67-320.jpg)
![54 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES
17. Create a dictionary that has the keys A, B, C with values a, b, c individually. Print all
the keys in the dictionary.
18. Check if key B is in the dictionary defined in Problem 17.
19. Create array x and y, where x = [1, 4, 3, 2, 9, 4] and y=[2, 3, 4, 1, 2, 3]. Compute the
assignments from Problem 3.
20. Generate an array with size 100 evenly spaced between −10 to 10 using linspace function in
NumPy.
21. Let array_a be an array [-1, 0, 1, 2, 0, 3]. Write a command that will return an array con-
sisting of all the elements of array_a that are larger than zero. Hint: Use logical expression as the
index of the array.
22. Create an array y =
⎛
⎝
3 5 3
2 2 5
3 8 9
⎞
⎠ and calculate its transpose.
23. Create a 2 × 4 zero array.
24. Change the second column in the above array to 1.
25. Write a magic command to clear all the variables in the Jupyter notebook.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-68-320.jpg)
![3
FUNCTIONS
3.1 Function Basics ....................................................................................................... 55
3.1.1 Built-In Functions in Python ........................................................................ 55
3.1.2 Define Your Own Function ........................................................................... 56
3.2 Local Variables and Global Variables ............................................................................. 63
3.3 Nested Functions...................................................................................................... 67
3.4 Lambda Functions..................................................................................................... 69
3.5 Functions as Arguments to Functions.............................................................................. 70
3.6 Summary and Problems.............................................................................................. 72
3.6.1 Summary ............................................................................................... 72
3.6.2 Problems ............................................................................................... 72
3.1 FUNCTION BASICS
In programming, a function is a sequence of instructions that performs a specific task. A function
is a block of code that can run when it is called. A function can have input arguments, which are
made available by the user (the entity calling the function). Functions also have output parameters.
These are the results of the function once it has completed its task. For example, the function math.sin
has one input argument—an angle in radians, and one output argument—an approximation to the sin
function computed at the input angle. The sequence of instructions to compute this approximation
constitutes the body of the function, which is being introduced here.
3.1.1 BUILT-IN FUNCTIONS IN PYTHON
Many built-in Python functions have been introduced already, such as type, len, etc. In addition, we
have introduced various functions available from different packages, for example, math.sin, np.array,
etc. Do you still remember how to call and use these functions?
TRY IT! Verify that len is a built-in function using the type function.
In [1]: type(len)
Out[1]: builtin_function_or_method](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-69-320.jpg)
![56 CHAPTER 3 FUNCTIONS
TRY it! Verify that np.linspace is a function using the type function. Next, figure out how to
use the function using the question mark.
In [2]: import numpy as np
type(np.linspace)
Out[2]: function
In [3]: np.linspace?
3.1.2 DEFINE YOUR OWN FUNCTION
We can define our own functions. A function can be specified in several ways. The most common way
to define a function is to call it using a keyword def, as shown below:
def function_name(parameter_1, parameter_2, ...):
Descriptive String
# comments about the statements
function_statements
return output_parameters (optional)
Defining a Python function requires the following two components:
1. Function header that starts with a keyword def, followed by a pair of parentheses with the input
parameters inside, and ends with a colon (:);
2. Function Body which is an indented block (usually four white spaces) indicating the main body of
the function. It consists of three parts:
• Descriptive string, which is string that describes the function that can be accessed by the help()
function or the question mark. The triple single or triple double quotes show where to put (or
locate) your descriptive strings. You can write any strings inside the quotes, either in one line or
multiple lines.
• Function statements, which are the step-by-step instructions the function will execute when
calling the function. Note that there is a line that starts with #; this is a single line comment,
which means that it is not part of the function and cannot be executed.
• Return statements, which may contain some parameters to be returned after the function is called.
As discussed in more detail later, any data type can be returned, even a function.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-70-320.jpg)
![3.1 FUNCTION BASICS 57
NOTE! Input parameter vs argument. A parameter is a variable defined by a function that receives
a value when the function is called. An argument is a value that is passed to a method when it
is invoked. For example, if we define a function hello(name), then name is an input parameter.
When we call the function, and pass in a value 'Qingkai', then this value is an input argument.
Due to the very subtle difference, in the rest of the book, we will use parameters and arguments
interchangeably.
TIP! When your code becomes longer and more complicated, comments can help you and those
reading your code to navigate through the commands and provide a logical “road map” to under-
stand what you are trying to do. Getting in the habit of commenting frequently will prevent coding
mistakes, understand where your code is going when you write it, and assist you in finding errors
when you make mistakes. Even though it is optional, it is also customary to put a description of
the function, author, and creation date in the descriptive string under the function header (you can
skip the descriptive string). We highly recommend that you comment heavily in your own code.
TRY IT! Define a function named my_adder that takes three numbers and sum them.
In [4]: def my_adder(a, b, c):
function to sum the 3 numbers
Input: 3 numbers a, b, c
Output: the sum of a, b, and c
author:
date:
# this is the summation
out = a + b + c
return out
WARNING! If you do not indent your code when defining a function, you will get an Indenta-
tionError.
In [5]: def my_adder(a, b, c):
function to sum the 3 numbers
Input: 3 numbers a, b, c
Output: the sum of a, b, and c
author:
date:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-71-320.jpg)
![58 CHAPTER 3 FUNCTIONS
# this is the summation
out = a + b + c
return out
File ipython-input-5-e6a61721f00e, line 8
ˆ
IndentationError: expected an indented block
TIP! Manually typing four white spaces is one level of indentation. Deeper levels of indentation
are required when you have nested functions or if-statements, which we will discuss in the next
chapter. Note that sometimes you need to indent or unindent a block of code. You can do this by
first selecting all the lines in the code block and then pressing Tab and Shift+Tab to increase or
decrease one level of indentation.
TIP! Build good coding practices by giving variables and functions descriptive names, comment-
ing often, and avoiding extraneous lines of code.
For contrast, consider the following function that performs the same task as my_adder but is not
constructed using best practices. As you can see, it is extremely difficult to follow the logic of the code
and the intentions of the author.
EXAMPLE: Poor representation of my_adder.
In [6]: def abc(a, s2, d):
z = a + s2
z = z + d
x = z
return x
Functions must conform to a naming scheme similar to variables. They can only contain alphanu-
meric characters and underscores, and the first character must be a letter.
TIP! As is the convention with variable names, function names should be lowercase, with words
separated by underscores as necessary to improve readability.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-72-320.jpg)
![3.1 FUNCTION BASICS 59
TIP! It is good programming practice to save often while writing your function. In fact, many
programmers save their code by using the shortcut Ctrl+s (PC) or cmd+s (Mac) every time they
stop typing!
TRY IT! Use your function my_adder to compute the sum of a few numbers. Verify that the result
is correct. Try calling the help function on my_adder.
In [7]: d = my_adder(1, 2, 3)
d
Out[7]: 6
In [8]: d = my_adder(4, 5, 6)
d
Out[8]: 15
In [9]: help(my_adder)
Help on function my_adder in module __main__:
my_adder(a, b, c)
function to sum the 3 numbers
Input: 3 numbers a, b, c
Output: the sum of a, b, and c
author:
date:
WHAT IS HAPPENING? First recall that the assignment operator works from right to left. This
means that my_adder(1,2,3) is resolved before the assignment to d.
1. Python finds the function my_adder.
2. my_adder takes the first input argument value 1 and assigns it to the variable with name a (first
variable name in input argument list).
3. my_adder takes the second input argument value 2 and assigns it to the variable with name b
(second variable name in input argument list).
4. my_adder takes the third input argument value 3 and assigns it to the variable with name c
(third variable name in input argument list).
5. my_adder computes the sum of a, b, and c, which is 1 + 2 + 3 = 6.
6. my_adder assigns the value 6 to the variable out.
7. my_adder outputs the value contained in the output variable out, which is 6.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-73-320.jpg)
![60 CHAPTER 3 FUNCTIONS
8. my_adder(1,2,3) is equivalent to the value 6, and this value is assigned to the variable with
name d.
Python gives the user tremendous freedom to assign variables to different data types. For example,
it is possible to give the variable x a dictionary or a float value. In other programming languages, this is
not always the case. In these programs, you must declare at the beginning of a session whether x will
be a dictionary or a float type, and once you decide which type it is, you cannot change it. This can
be both a benefit and a drawback. For instance, my_adder was built assuming that the input arguments
were numerical types, either int or float; however, the user may accidentally input a list or string into
my_adder, which is not correct. If you try to input a nonnumerical type input argument into my_adder,
Python will continue to execute the function until something goes wrong.
TRY IT! Use the string 1 as one of the input arguments to my_adder; in addition, use a list as
one of the input arguments to my_adder.
In [10]: d = my_adder(1, 2, 3)
-------------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-10-245d0f4254a9 in module
---- 1 d = my_adder(1, 2, 3)
ipython-input-4-72d064c3ba7a in my_adder(a, b, c)
9
10 # this is the summation
--- 11 out = a + b + c
12
13 return out
TypeError: must be str, not int
In [11]: d = my_adder(1, 2, [2, 3])
-------------------------------------------------------
TypeError Traceback (most recent call last)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-74-320.jpg)
![3.1 FUNCTION BASICS 61
ipython-input-11-04f0428ffc51 in module
---- 1 d = my_adder(1, 2, [2, 3])
ipython-input-4-72d064c3ba7a in my_adder(a, b, c)
9
10 # this is the summation
--- 11 out = a + b + c
12
13 return out
TypeError: unsupported operand type(s) for +: int
and list
TIP! Remember to read the error messages that Python provides. They usually tell you exactly
where the problem was. In this case, the error says --- 11 out = a + b + c, meaning there
was an error in my_adder on the 11th line. The reason there was an error is TypeError, because
unsupported operand type(s) for +: int and list, which means that we cannot add
int and list.
At this point, you do not have any control over what the user assigns your function as input ar-
guments and whether they correspond to what you intended those input arguments to be. So for the
moment, write your functions assuming that they will be used correctly. You can help yourself and
other users use your function correctly by providing comments detailing your code.
You can compose functions by assigning function calls as the input to other functions. In the order
of operations, Python will execute the innermost function call first. You can also assign mathematical
expressions as the input to functions. In this case, Python will execute the mathematical expressions
first.
TRY IT! Use the function my_adder to compute the sum of sin(π), cos(π), and tan(π). Use math-
ematical expressions as the input to my_adder and verify that the function performs the operations
correctly.
In [12]: d=my_adder(np.sin(np.pi), np.cos(np.pi), np.tan(np.pi))
d
Out[12]: -1.0
In [13]: d = my_adder(5 + 2, 3 * 4, 12 / 6)
d
Out[13]: 21.0](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-75-320.jpg)
![62 CHAPTER 3 FUNCTIONS
In [14]: d = (5 + 2) + 3 * 4 + 12 / 6
d
Out[14]: 21.0
Python functions can have multiple output parameters. When calling a function with multiple output
parameters, you can unpack the results with multiple variables, which you should separate by commas.
The function essentially will return the multiple result parameters in a tuple, which then allows you to
unpack the returned tuple. See the following example (note that it has multiple output parameters):
EXAMPLE: Compute the function my_trig_sum for a=2 and b=3. Assign the first output param-
eter to the variable c, the second output parameter to the variable d, and the third parameter to the
variable e.
In [15]: def my_trig_sum(a, b):
function to demo return multiple
author
date
out1 = np.sin(a) + np.cos(b)
out2 = np.sin(b) + np.cos(a)
return out1, out2, [out1, out2]
In [16]: c, d, e = my_trig_sum(2, 3)
print(fc ={c}, d={d}, e={e})
c =-0.0806950697747637, d=-0.2750268284872752,
e=[-0.0806950697747637, -0.2750268284872752]
If you assign the results to one variable, you will get a tuple that includes all the output parameters.
TRY IT! Compute the function my_trig_sum for a=2 and b=3. Verify the output is a tuple.
In [17]: c = my_trig_sum(2, 3)
print(fc={c}, and the returned type is {type(c)})
c=(-0.0806950697747637, -0.2750268284872752,
[-0.0806950697747637, -0.2750268284872752]),
and the returned type is class tuple
A function can be defined without an input argument and returning any value. For example,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-76-320.jpg)
![3.2 LOCAL VARIABLES AND GLOBAL VARIABLES 63
EXAMPLE: Function with no inputs and outputs.
In [18]: def print_hello():
print(Hello)
In [19]: print_hello()
Hello
Note! Even there is no input argument, when you call the function, you still need to include
the parentheses.
For the input of the argument, we can include the default value as well. See the following example:
EXAMPLE: Run the following function with and without an input:
In [20]: def print_greeting(day = Monday, name = Qingkai):
print(fGreetings, {name}, today is {day})
In [21]: print_greeting()
Greetings, Qingkai, today is Monday
In [22]: print_greeting(name = Timmy, day = Friday)
Greetings, Timmy, today is Friday
In [23]: print_greeting(name = Alex)
Greetings, Alex, today is Monday
We can see that if we assign a value to the argument when we define the function, this value will be
the default value of the function. If the user does not provide an input to this argument, then this default
value will be used during calling of the function. Note that the order of the argument is not important
when calling the function if you provide the name of the argument.
3.2 LOCAL VARIABLES AND GLOBAL VARIABLES
Chapter 2 introduced the idea of a memory block associated with the notebook, where variables created
in the notebook are stored. A function also has its own memory block that is reserved for variables
created within that function. This block of memory is not shared with the whole notebook memory
block. Therefore, a variable with a given name can be assigned within a function without changing a](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-77-320.jpg)
![64 CHAPTER 3 FUNCTIONS
variable with the same name outside of the function. The memory block associated with the function
is opened every time a function is used.
TRY IT! What will the value of out be after the following lines of code are executed? Note that
it is not 6, which is the value out was assigned inside of my_adder.
In [1]: def my_adder(a, b, c):
out = a + b + c
print(fThe value out within the function is {out})
return out
out = 1
d = my_adder(1, 2, 3)
print(fThe value out outside the function is {out})
The value out within the function is 6
The value out outside the function is 1
In my_adder, the variable out is a local variable. That is, because it is only defined in the function
of my_adder, it cannot affect variables outside of the function. Actions taken in the notebook outside
the function cannot affect it, even if they have the same name. So in the previous example, there is the
variable, out, which has been defined in the notebook cell. When my_adder is called on the next line,
Python opens a new memory block for that function’s variables. One of the variables created within the
function is another variable, out. Because they are located in different memory blocks, the assignment
to out inside my_adder does not change the value assigned to out outside the function.
Why have separate function memory blocks rather than a single memory block? Although it may
not seem logical for Python to separate memory blocks, it is very efficient for large projects consisting
of many functions working together. If one programmer is responsible for coding one function and
another is responsible for coding a different function, having separate memory blocks allows each
programmer to work independently and be confident that their coding will not produce errors when
considering another programmer’s code, and vice versa. Separate memory blocks protect a function
from outside influences. The only things from outside the function’s memory block that can affect
what happens inside a function are the input arguments, and the only things that can escape to the
outside world from a function’s memory block when the function terminates are the output arguments.
The next examples are designed to be exercises to gain experience with concept of local variables.
They are intentionally very confusing, but if you can untangle them, then you will have mastered the
concept of local variables within a function. Focus on exactly what Python is doing and in the order
Python does it.
EXAMPLE: Consider the following function:
In [2]: def my_test(a, b):
x = a + b](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-78-320.jpg)
![3.2 LOCAL VARIABLES AND GLOBAL VARIABLES 65
y = x * b
z = a + b
m = 2
print(fWithin function: x={x}, y={y}, z={z})
return x, y
TRY IT! What will the values of a, b, x, y, and z be after the following code is run?
In [3]: a = 2
b = 3
z = 1
y, x = my_test(b, a)
print(fOutside function: x={x}, y={y}, z={z})
Within function: x=5, y=10, z=5
Outside function: x=10, y=5, z=1
TRY IT! What will the values of a, b, x, y, and z be after the following code is run?
In [4]: x = 5
y = 3
b, a = my_test(x, y)
print(fOutside function: x={x}, y={y}, z={z})
Within function: x=8, y=24, z=8
Outside function: x=5, y=3, z=1
TRY IT! What will the value of m be if you print m outside of the function?
In [5]: m
------------------------------------------------------
NameError Traceback (most recent call last)
ipython-input-5-9a40b379906c in module
---- 1 m](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-79-320.jpg)
![66 CHAPTER 3 FUNCTIONS
NameError: name m is not defined
Note that the value m is not defined outside of the function because it is defined within the function.
The same is true if you define a variable outside a function, using it inside the function will change the
value, and the same error message will occur.
EXAMPLE: Try to use and change the value n within the function.
In [6]: n = 42
def func():
print(fWithin function: n is {n})
n = 3
print(fWithin function: change n to {n})
func()
print(fOutside function: Value of n is {n})
------------------------------------------------------
UnboundLocalError Traceback (most recent call last)
ipython-input-6-85f3215553ae in module
6 print(fWithin function: change n to {n})
7
---- 8 func()
9 print(fOutside function: Value of n is {n})
ipython-input-6-85f3215553ae in func()
2
3 def func():
---- 4 print(fWithin function: n is {n})
5 n = 3
6 print(fWithin function: change n to {n})
UnboundLocalError: local variable n referenced before
assignment
The solution is to use the keyword global to let Python know this variable is a global variable and
can be used both outside and inside the function.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-80-320.jpg)
![3.3 NESTED FUNCTIONS 67
EXAMPLE: Define n as the global variable, and then use and change the value n within the
function.
In [7]: n = 42
def func():
global n
print(fWithin function: n is {n})
n = 3
print(fWithin function: change n to {n})
func()
print(fOutside function: Value of n is {n})
Within function: n is 42
Within function: change n to 3
Outside function: Value of n is 3
3.3 NESTED FUNCTIONS
Once you have created and saved a new function, it behaves just like any other Python built-in function.
You can call the function from anywhere in the notebook, and any other function can call on the func-
tion as well. A nested function is a function that is defined within another function – parent function.
Only the parent function is able to call the nested function. Remember that the nested function retains
a separate memory block from its parent function.
TRY IT! Consider the following function and nested function:
In [1]: import numpy as np
def my_dist_xyz(x, y, z):
x, y, z are 2D coordinates contained in a tuple
output:
d - list, where
d[0] is the distance between x and y
d[1] is the distance between x and z
d[2] is the distance between y and z
def my_dist(x, y):](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-81-320.jpg)
![68 CHAPTER 3 FUNCTIONS
subfunction for my_dist_xyz
Output is the distance between x and y,
computed using the distance formula
out = np.sqrt((x[0]-y[0])**2+(x[1]-y[1])**2)
return out
d0 = my_dist(x, y)
d1 = my_dist(x, z)
d2 = my_dist(y, z)
return [d0, d1, d2]
Note that the variables x and y appear in both my_dist_xyz and my_dist. This is permissible be-
cause a nested function has a separate memory block from its parent function. Nested functions are
useful when a task must be performed many times within the function but not outside the function. In
this way, nested functions help the parent function perform its task while hiding in the parent function.
TRY IT! Call the function my_dist_xyz for x = (0, 0), y = (0, 1), z = (1, 1). Try to call
the nested function my_dist in the following cell:
In [2]: d = my_dist_xyz((0, 0), (0, 1), (1, 1))
print(d)
d = my_dist((0, 0), (0, 1))
[1.0, 1.4142135623730951, 1.0]
------------------------------------------------------
NameError Traceback (most recent call last)
ipython-input-2-1bec838581d7 in module
1 d = my_dist_xyz((0, 0), (0, 1), (1, 1))
2 print(d)
---- 3 d = my_dist((0, 0), (0, 1))
NameError: name my_dist is not defined
The following example is the code repeated without using nested function. Notice how much busier
and cluttered the function looks and how much more difficult it is to understand what is going on.
This version is much more prone to mistakes because you have three chances to mistype the distance](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-82-320.jpg)
![3.4 LAMBDA FUNCTIONS 69
formula. Note that this function can be written more compactly using vector operations. We leave this
as an exercise.
In [ ]: import numpy as np
def my_dist_xyz(x, y, z):
x, y, z are 2D coordinates contained in a tuple
output:
d - list, where
d[0] is the distance between x and y
d[1] is the distance between x and z
d[2] is the distance between y and z
d0 = np.sqrt((x[0]-y[0])**2+(x[1]-y[1])**2)
d1 = np.sqrt((x[0]-z[0])**2+(x[1]-z[1])**2)
d2 = np.sqrt((y[0]-z[0])**2+(y[1]-z[1])**2)
return [d0, d1, d2]
3.4 LAMBDA FUNCTIONS
Sometimes it is not optimal to define a function the usual way, especially if our function is just one
line. In this case, we use the anonymous function in Python, which is a function that is defined without
a name. These types of function are also called lambda function, since they are defined using the
lambda keyword. A typical lambda function is defined as follows:
CONSTRUCTION:
lambda arguments: expression
It can have any number of arguments but has only one expression.
TRY IT! Define a lambda function, which squares the input number; call the function with input
2 and 5.
In [1]: square = lambda x: x**2
print(square(2))
print(square(5))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-83-320.jpg)
![70 CHAPTER 3 FUNCTIONS
4
25
In the above lambda function, x is the argument and x**2 is the expression that gets evaluated and
returned. The function itself has no name, and it returns a function object (discussed in later chapter)
to square it. After it is defined, we can call it as a normal function. The lambda function is equivalent
to:
def square(x):
return x**2
TRY IT! Define a lambda function, which adds x and y.
In [2]: my_adder = lambda x, y: x + y
print(my_adder(2, 4))
6
Lambda functions can be useful in many cases, and we will provide other examples in later chapters.
Here we just show a common use case for the lambda function.
EXAMPLE: Sort [(1, 2), (2, 0), (4, 1)] based on the second item in the tuple.
In [3]: sorted([(1, 2), (2, 0), (4, 1)], key=lambda x: x[1])
Out[3]: [(2, 0), (4, 1), (1, 2)]
What happens? The function sorted has an argument key, where a custom key function can be supplied
to customize the sort order. We use the lambda function as a shortcut for this custom key function.
3.5 FUNCTIONS AS ARGUMENTS TO FUNCTIONS
Up until now, you have assigned various data structures to variable names. Being able to assign a
data structure to a variable allows for the passing of information to the various functions and retrieve
information back from them in a neat and orderly way. Sometimes it is useful to be able to pass a
function and have it act as a variable to another function. In other words, the input to some functions
may be other functions. In last section, we saw the lambda function returning a function object to the
variable. In this section, we will see additional examples of how the function object can be used as the
input to another function.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-84-320.jpg)
![3.5 FUNCTIONS AS ARGUMENTS TO FUNCTIONS 71
TRY IT! Assign the function max to the variable f. Verify the type of f.
In [1]: f = max
print(type(f))
class builtin_function_or_method
In the previous example, f is now equivalent to the max function. Because x = 1 means that x and
1 are interchangeable, f and max function are now interchangeable.
TRY IT! Get the maximum value from list [2, 3, 5] using f. Verify that the result is the same
as using max.
In [2]: print(f([2, 3, 5]))
print(max([2, 3, 5]))
5
5
TRY IT! Write a function my_fun_plus_one that takes a function object, f, and a float number x
as input arguments; my_fun_plus_one should return f evaluated at x, and the result added to the
value 1. Verify that it works for various functions and values of x.
In [3]: import numpy as np
def my_fun_plus_one(f, x):
return f(x) + 1
print(my_fun_plus_one(np.sin, np.pi/2))
print(my_fun_plus_one(np.cos, np.pi/2))
print(my_fun_plus_one(np.sqrt, 25))
2.0
1.0
6.0
In the above example, different functions are used as inputs into the function. Of course, we can
use the lambda functions as well.
In [4]: print(my_fun_plus_one(lambda x: x + 2, 2))
5](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-85-320.jpg)
![72 CHAPTER 3 FUNCTIONS
3.6 SUMMARY AND PROBLEMS
3.6.1 SUMMARY
1. A function is a self-contained set of instructions designed to perform a specific task.
2. A function has its own memory block for its variables. Information can be added to a function’s
memory block only through a function’s input variables. Information can leave the function’s mem-
ory block only through a function’s output variables.
3. A function can be defined within another function, which is called a nested function. This nested
function can be only accessed by the parent function.
4. You can define an anonymous function using the keyword lambda, which is the so-called lambda
function.
5. You can assign functions to variables using function handles.
3.6.2 PROBLEMS
1. Recall that the hyperbolic sine, denoted by sinh, is exp (x)−exp (−x)
2 . Write a function my_sinh(x)
where the output y is the hyperbolic sine computed on x. Assume that x is a 1 by 1 float.
Test Cases:
In: my_sinh(0)
Out: 0
In: my_sinh(1)
Out: 1.1752
In: my_sinh(2)
Out: 3.6269
2. Write a function my_checker_board(n) where the output m is an n × n array with the following
form:
m =
1 0 1 0 1
0 1 0 1 0
1 0 1 0 1
0 1 0 1 0
1 0 1 0 1
Note that the upper-left element should always be 1. Assume that n is a strictly positive integer.
Test Cases:
In: my_checker_board(1)
Out: 1
In: my_checker_board(2)
Out: array([[1, 0],](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-86-320.jpg)
![3.6 SUMMARY AND PROBLEMS 73
[0, 1]])
In: y = my_sinh(3)
Out: array([[1, 0, 1],
[0, 1, 0],
[1, 0, 1]])
In: y = my_sinh(5)
Out: array([[1, 0, 1, 0, 1],
[0, 1, 0, 1, 0],
[1, 0, 1, 0, 1],
[0, 1, 0, 1, 0],
[1, 0, 1, 0, 1]])
3. Write a function my_triangle(b,h) where the output is the area of a triangle with base, b, and
height, h. Recall that the area of a triangle is one-half the base times the height. Assume that b and
h are just 1 by 1 float numbers.
Test Cases:
In: my_triangle(1, 1)
Out: 0.5
In: my_triangle(2, 1)
Out: 1
In: my_triangle(12, 5)
Out: 30
4. Write a function my_split_matrix(m), where m is an array, the output is a list [m1, m2] where m1 is
the left half of m, and m2 is the right half of m. In the case where there is an odd number of columns,
the middle column should go to m1. Assume that m has at least two columns.
Test Cases:
In: m = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]])
In: m1, m2 = my_split_matrix(m)
Out: m1 = array([[1, 2],
[4, 5],
[7, 8]])
Out: m2 = array([3, 6, 9])
In: m = np.ones((5, 5))
In: m1, m2 = my_split_matrix(m)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-87-320.jpg)
![74 CHAPTER 3 FUNCTIONS
Out: m1 = array([[1., 1., 1.],
[1., 1., 1.],
[1., 1., 1.],
[1., 1., 1.],
[1., 1., 1.]])
Out: m2 = array([[1., 1.],
[1., 1.],
[1., 1.],
[1., 1.],
[1., 1.]])
5. Write a function my_cylinder(r,h), where r and h are the radius and height of a cylinder, respec-
tively, and the output is a list [s, v] where s and v are the surface area and volume of the same
cylinder, respectively. Recall that the surface area of a cylinder is 2πr2 + 2πrh, and the volume is
πr2h. Assume that r and h are 1 by 1 floats.
Test Cases:
In: my_cylinder(1,5)
Out: [37.6991, 15.7080]
In: my_cylinder(2,4)
Out: [62.8319, 37.6991]
6. Write a function my_n_odds(a), where a is a one-dimensional array of floats and the output is the
number of odd numbers in a.
Test Cases:
In: my_n_odds(np.arange(100))
Out: 50
In: my_n_odds(np.arange(2, 100, 2))
Out: 0
7. Write a function my_twos(m,n) where the output is an m × n array of twos. Assume that m and n
are strictly positive integers.
Test Cases:
In: my_twos(3, 2)
Out: array([[2, 2],
[2, 2],
[2, 2]])
In: my_twos(1, 4)
Out: array([2, 2, 2, 2])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-88-320.jpg)
![3.6 SUMMARY AND PROBLEMS 75
8. Write a lambda function that takes in input x and y, and the output is the value of x - y.
9. Write a function add_string(s1, s2) where the output is the concatenation of the strings s1 and
s2.
Test Cases:
In: s1 = add_string(Programming, )
In: s2 = add_string(is , fun!)
In: add_string(s1, s2)
Out: Programming is fun!
10. Generate the following errors:
• TypeError: fun() missing 1 required positional argument: a
• IndentationError: expected an indented block
11. Write a function greeting(name, age) where name is a string, age is a float, and the output is a
string Hi, my name is XXX and I am XXX years old. where XXX are the input name and age,
respectively.
Test Cases:
In: greeting(John, 26)
Out: Hi, my name is John and I am 26 years old.
In: greeting(Kate, 19)
Out: Hi, my name is Kate and I am 19 years old.
12. Let r1 and r2 be the radius of circles with the same center and let r2 r1. Write a function
my_donut_area(r1, r2) where the output is the area outside of the circle with radius r1 and
inside the circle with radius r2. Make sure that the function is vectorized. Assume that r1 and r2
are one-dimensional arrays of the same size.
Test Cases:
In: my_donut_area(np.arange(1, 4), np.arange(2, 7, 2))
Out: array([9.4248, 37.6991, 84.8230])
13. Write a function my_within_tolerance(A, a, tol) where the output is an array or list of the
indices in A such that |A − a| tol. Assume that A is a one-dimensional float list or array, and that
a and tol are 1 by 1 floats.
Test Cases:
In: my_within_tolerance([0, 1, 2, 3], 1.5, 0.75)
Out: [1, 2]
In: my_within_tolerance(np.arange(0, 1.01, 0.01), 0.5, 0.03)
Out: [47, 48, 49, 50, 51, 52]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-89-320.jpg)
![76 CHAPTER 3 FUNCTIONS
14. Write a function bounding_array(A, top, bottom) where the output is equal to the array A wher-
ever bottom A top, the output is equal to bottom wherever A = bottom, and the output is
equal to top wherever A = top. Assume that A is a one-dimensional float array and that top and
bottom are 1 by 1 floats.
Test Cases:
In: bounding_array(np.arange(-5, 6, 1), 3, -3)
Out: [-3, -3, -3, -2, -1, 0, 1, 2, 3, 3, 3]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-90-320.jpg)
![78 CHAPTER 4 BRANCHING STATEMENTS
Note! Python gives the same level of indentation to every line of code within a conditional state-
ment.
CONSTRUCTION: Extended If-Else Statement Syntax
if logical expression P:
code block 1
elif logical expression Q:
code block 2
elif logical expression R:
code block 3
else:
code block 4
In the previous code, Python will first check if P is true. If P is true, then code block 1 will be
executed, and then the if-statement will end. In other words, Python will not check the rest of the
statements once it reaches a true statement. If P is false, then Python will check if Q is true. If Q is true,
then code block 2 will be executed, and the if-statement will end. If it is false, then R will be executed,
and so forth. If P, Q, and R are all false, then code block 4 will be executed. You can have any number
of elif statements (or none) as long as there is at least one if-statement (the first statement). You
do not need an else statement, but you can have, at most, one else statement. The logical expressions
after the if and elif (i.e., such as P, Q, and R) will be referred to as conditional statements.
TRY IT! Write a function my_thermo_stat(temp, desired_temp). The return value of the func-
tion should be the string Heat if temp is less than desired_temp minus 5 degrees, AC if temp
is more than the desired_temp plus 5, and off otherwise.
In [1]: def my_thermo_stat(temp, desired_temp):
Changes the status of the thermostat based on
temperature and desired temperature
author
date
:type temp: Int
:type desiredTemp: Int
:rtype: String
if temp desired_temp - 5:
status = Heat
elif temp desired_temp + 5:
status = AC
else:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-92-320.jpg)
![4.1 IF-ELSE STATEMENTS 79
status = off
return status
In [2]: status = my_thermo_stat(65,75)
print(status)
Heat
In [3]: status = my_thermo_stat(75,65)
print(status)
AC
In [4]: status = my_thermo_stat(65,63)
print(status)
off
EXAMPLE: What will be the value of y after the following script is executed?
In [5]: x = 3
if x 1:
y = 2
elif x 2:
y = 4
else:
y = 0
print(y)
2
We can also insert more complicated conditional statements using logical operators.
EXAMPLE: What will be the value of y after the following code is executed?
In [6]: x = 3
if x 1 and x 2:
y = 2
elif x 2 and x 4:
y = 4
else:
y = 0
print(y)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-93-320.jpg)
![80 CHAPTER 4 BRANCHING STATEMENTS
4
Note that if you want the logical statement a x b, this is considered as two conditional state-
ments, a x and x b. Python allows you to type a x b as well. For example,
In [7]: x = 3
if 1 x 2:
y = 2
elif 2 x 4:
y = 4
else:
y = 0
print(y)
4
A statement is called nested if it is entirely contained within another statement of the same type as
itself. For example, a nested if-statement is an if-statement that is entirely contained within a clause
of another if-statement.
EXAMPLE: Think about what will happen when the following code is executed. What are all
the possible outcomes based on the input values of x and y?
In [8]: def my_nested_branching(x,y):
Nested Branching Statement Example
author
date
:type x: Int
:type y: Int
:rtype: Int
if x 2:
if y 2:
out = x + y
else:
out = x - y
else:
if y 2:
out = x*y
else:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-94-320.jpg)
![4.1 IF-ELSE STATEMENTS 81
out = 0
return out
Note! As before, Python gives the same level of indentation to every line of code within a condi-
tional statement. The nested if-statement should be indented by an additional four white spaces.
You will get an IndentationError if the indentation is not correct, as we saw earlier when dis-
cussing how to define functions.
In [9]: import numpy as np
In [10]: all([1, 1, 0])
Out[10]: False
There are many logical functions that are designed to help you build branching statements. For exam-
ple, you can ask if a variable has a certain data type with function isinstance. There are also functions
that can tell you information about arrays of logicals like any, which computes to true if any element
in an array is true, and false otherwise, and all, which computes to true only if all the elements in an
array are true.
Sometimes you want to design your function to check the inputs of a function to ensure that your
function will be used properly. For example, the function my_adder in the previous chapter expects
doubles as input. If the user inputs a list or a string as one of the input variables, then the function
will throw an error or have unexpected results. To prevent this, you can put a check to tell the user
the function has not been used properly. This and other techniques for controlling errors are explored
further in Chapter 10. For the moment, you only need to know that we can use the raise statement
with a TypeError exception to stop a function’s execution and throw an error with a specific text.
EXAMPLE: Modify my_adder to throw out a warning if the user does not input numerical values.
Try your function for nonnumerical inputs to show that the check works. When a statement is too
long, we can use the “” symbol to break a line into multiple lines.
In [11]: def my_adder(a, b, c):
Calculate the sum of three numbers
author
date
# Check for erroneous input
if not (isinstance(a, (int, float))
or isinstance(b, (int, float))
or isinstance(c, (int, float))):](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-95-320.jpg)
![82 CHAPTER 4 BRANCHING STATEMENTS
raise TypeError(Inputs must be numbers.)
# Return output
return a + b + c
In [12]: x = my_adder(1,2,3)
print(x)
6
In [13]: x = my_adder(1,2,3)
print(x)
------------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-13-c3e353c636b0 in module
---- 1 x = my_adder(1,2,3)
2 print(x)
ipython-input-11-0f3d29eecee0 in my_adder(a, b, c)
10 or isinstance(b, (int, float))
11 or isinstance(c, (int, float))):
--- 12 raise TypeError(Inputs must be numbers.)
13 # Return output
14 return a + b + c
TypeError: Inputs must be numbers.
There is a large variety of erroneous inputs that your function may encounter from users, and it is
unreasonable to expect that your function will catch them all. Therefore, unless otherwise stated, write
your functions assuming the functions will be used properly.
The remainder of the section gives a few more examples of branching statements.
TRY IT! Write a function called is_odd that returns odd if the input is an odd number and
even if it is even. You can assume that input will be a positive integer.
In [14]: def is_odd(number):
function returns odd if the input is odd,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-96-320.jpg)
![4.1 IF-ELSE STATEMENTS 83
even otherwise
author
date
:type number: Int
:rtype: String
# use modulo to check if the input divisible by 2
if number % 2 == 0:
# if divisible by 2, then input is not odd
return even
else:
return odd
In [15]: is_odd(11)
Out[15]: odd
In [16]: is_odd(2)
Out[16]: even
TRY IT! Write a function called my_circ_calc that takes a numerical number, r, and a string,
calc, as input arguments. You may assume that r is positive, and that calc is either the string
area or circumference. The function my_circ_calc should compute the area of a circle with
radius, r, if the string calc is the area, and the circumference of a circle with radius, r, if calc
is the circumference.
In [17]: np.pi
Out[17]: 3.141592653589793
In [18]: def my_circ_calc(r, calc):
Calculate various circle measurements
author
date
:type r: Int or Float
:type calc: String
:rtype: Int or Float
if calc == area:
return np.pi*r**2](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-97-320.jpg)
![84 CHAPTER 4 BRANCHING STATEMENTS
elif calc == circumference:
return 2*np.pi*r
In [19]: my_circ_calc(2.5, area)
Out[19]: 19.634954084936208
In [20]: my_circ_calc(3, circumference)
Out[20]: 18.84955592153876
Note! The function here is not limited to a single value input but can be executed using NumPy
arrays as well (i.e., the same operation will apply on each item of the array). See the following
example where we calculate the circumferences for radius as [2, 3, 4] using a NumPy array.
In [21]: my_circ_calc(np.array([2, 3, 4]), circumference)
Out[21]: array([12.56637061, 18.84955592, 25.13274123])
4.2 TERNARY OPERATORS
Most programming languages have ternary operators, which are usually known as conditional ex-
pressions, that provide a mechanism using a one-line code to evaluate the first expression if the
condition is true; otherwise, it evaluates the second expression. To implement the ternary operator
in Python, use the construction presented below:
CONSTRUCTION: ternary operator in Python
expression_if_true if condition else expression_if_false
EXAMPLE: Ternary operator
In [1]: is_student = True
person = student if is_student else not student
print(person)
student
From the above example, we can see this one-line code is equivalent to the following block of
codes.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-98-320.jpg)
![4.3 SUMMARY AND PROBLEMS 85
In [2]: is_student = True
if is_student:
person = student
else:
person = not student
print(person)
student
Ternary operators provide a simple way for branching and can make our codes concise. In the next
chapter, we introduce its role in list comprehensions, and will prove it is useful.
4.3 SUMMARY AND PROBLEMS
4.3.1 SUMMARY
1. Branching (if-else) statements allow functions to take different actions under different circum-
stances.
2. Ternary operators allow single line branching statements.
4.3.2 PROBLEMS
1. Write a function my_tip_calc(bill, party) where bill is the total cost of a meal and party is
the number of people in the group. The tip should be calculated as 15% for a party strictly less than
six people, 18% for a party strictly less than eight, 20% for a party less than 11, and 25% for a party
11 or more. A couple of test cases are given below.
In [ ]: def my_tip_calc(bill, party):
# write your function code here
return tips
In [ ]: # t = 16.3935
t = my_tip_calc(109.29,3)
print(t)
In [ ]: # t = 19.6722
t = my_tip_calc(109.29,7)
print(t)
In [ ]: # t = 21.8580
t = my_tip_calc(109.29,9)
print(t)
In [ ]: # t = 27.3225
t = my_tip_calc(109.29,12)
print(t)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-99-320.jpg)
![86 CHAPTER 4 BRANCHING STATEMENTS
2. Write a function my_mult_operation(a,b,operation). The input argument, operation, is a string
that is either plus, minus, mult, div, or pow, and the function should compute: a + b,
a − b, a ∗ b, a/b, and ab for the respective values for operation. A couple of test cases are given
below.
In [ ]: def my_mult_operation(a,b,operation):
# write your function code here
return out
In [ ]: x = np.array([1,2,3,4])
y = np.array([2,3,4,5])
In [ ]: # Output: [3,5,7,9]
my_mult_operation(x,y,plus)
In [ ]: # Output: [-1,-1,-1,-1]
my_mult_operation(x,y,minus)
In [ ]: # Output: [2,6,12,20]
my_mult_operation(x,y,mult)
In [ ]: # Output: [0.5,0.66666667,0.75,0.8]
my_mult_operation(x,y,div)
In [ ]: # Output: [1,8,81,1024]
my_mult_operation(x,y,pow)
3. Consider a triangle with vertices at (0,0), (1,0), and (0,1). Write a function with the name
my_inside_triangle(x,y) where the output is the string outside if the point (x,y) is outside
of the triangle, border if the point is exactly on the border of the triangle, and inside if the
point is on the inside of the triangle.
In [ ]: def my_inside_triangle(x,y):
# write your function code here
return position
In [ ]: # Output: border
my_inside_triangle(.5,.5)
In [ ]: # Output: inside
my_inside_triangle(.25,.25)
In [ ]: # Output: outside
my_inside_triangle(5,5)
4. Write a function my_make_size10(x) where x is an array, and output is the first 10 elements of x if
x has more than 10 elements, and output is the array x padded with enough zeros to make it length
10 if x has less than 10 elements.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-100-320.jpg)
![4.3 SUMMARY AND PROBLEMS 87
In [ ]: def my_make_size10(x):
# write your function code here
return size10
In [ ]: # Output: [1,2,0,0,0,0,0,0,0,0]
my_make_size10(range(1,2))
In [ ]: # Output: [1,2,3,4,5,6,7,8,9,10]
my_make_size10(range(1,15))
In [ ]: # Output: [3,6,13,4,0,0,0,0,0,0]
my_make_size10(5,5)
5. Can you write my_make_size10 without using if-statements (i.e., using only logical and array oper-
ations)?
6. Write a function my_letter_grader(percent) where the grade is the string A+ if percent is
greater than 97, A if percent is greater than 93, A- if percent is greater than 90, B+ if
percent is greater than 87, B if percent is greater than 83, B- if percent is greater than 80,
C+ if percent is greater than 77, C if percent is greater than 73, C- if percent is greater than
70, D+ if percent is greater than 67, D if percent is greater than 63, D- if percent is greater
than 60, and F for any percent less than 60. Grades exactly on the division should be included in
the higher grade category.
In [ ]: def my_letter_grader(percent):
# write your function code here
return grade
In [ ]: # Output: A+
my_letter_grader(97)
In [ ]: # Output: B
my_letter_grader(84)
7. Most engineering systems have a built-in redundancy. That is, an engineering system has fail-safes
incorporated into the design to accomplish its purpose. Consider a nuclear reactor whose tempera-
ture is monitored by three sensors. An alarm should go off if any two of the sensor readings disagree.
Write a function my_nuke_alarm(s1,s2,s3) where s1, s2, and s3 are the temperature readings for
sensor 1, sensor 2, and sensor 3, respectively. The output should be the string alarm! if any two
of the temperature readings disagree by strictly more than 10 degrees and normal otherwise.
In [ ]: def my_nuke_alarm(s1,s2,s3):
# write your function code here
return response
In [ ]: #Output: normal
my_nuke_alarm(94,96,90)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-101-320.jpg)
![88 CHAPTER 4 BRANCHING STATEMENTS
In [ ]: #Output: alarm!
my_nuke_alarm(94,96,80)
In [ ]: #Output: normal
my_nuke_alarm(100,96,90)
8. Let Q(x) be the quadratic equation Q(x) = ax2 + bx + c for some scalar values a, b, and c. A root
of Q(x) is an r such that Q(r) = 0. The two roots of a quadratic equation can be described by the
quadratic formula, which is
r =
−b ±
√
b2 − 4ac
2a
.
A quadratic equation has either two real roots (i.e., b2 4ac), two imaginary roots (i.e., b2 4ac),
or one root r = − b
2a .
Write a function my_n_roots(a,b,c), where a, b, and c are the coefficients of the quadratic Q(x).
The function should return two values: n_roots and r. Also n_roots is 2 if Q has two real roots, 1
if Q has one root, −2 if Q has two imaginary roots, and r is an array containing the roots of Q.
In [ ]: def my_n_roots(a,b,c):
# write your function code here
return n_roots, r
In [ ]: # Output: n_roots = 2, r = [3, -3]
n_roots, r = my_n_roots(1,0,-9)
print(n_roots, r)
In [ ]: # Output: n_roots = -2,
# r = [-0.6667 + 1.1055i, -0.6667 - 1.1055i]
my_n_roots(3,4,5)
In [ ]: # Output: n_roots = 1, r = [1]
my_n_roots(2,4,2)
9. Write a function my_split_function(f,g,a,b,x), where f and g are function objects f(x) and
g(x), respectively. The output should be f(x) if x ≤ a, g(x) if x ≥ b, and 0 otherwise. Assume
that b a.
In [ ]: def my_split_function(f,g,a,b,x):
if x=a:
return f(x)
elif x=b:
return g(x)
else:
return 0
In [ ]: # Output: 2.713
my_split_function(np.exp,np.sin,2,4,1)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-102-320.jpg)
![4.3 SUMMARY AND PROBLEMS 89
In [ ]: # Output: 0
my_split_function(np.exp,np.sin,2,4,3)
In [ ]: # Output: -0.9589
my_split_function(np.exp,np.sin,2,4,5)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-103-320.jpg)
![5
ITERATION
5.1 For-Loops ............................................................................................................... 91
5.2 While Loops............................................................................................................ 97
5.3 Comprehensions....................................................................................................... 100
5.3.1 List Comprehension................................................................................... 100
5.3.2 Dictionary Comprehension ........................................................................... 101
5.4 Summary and Problems.............................................................................................. 101
5.4.1 Summary ............................................................................................... 101
5.4.2 Problems ............................................................................................... 101
5.1 FOR-LOOPS
A for-loop is a set of instructions that is repeated, or iterated, for every value in a sequence. Sometimes
for-loops are referred to as definite loops because they have a predefined beginning and end as bounded
by the sequence.
The general syntax of a for-loop block is as follows.
CONSTRUCTION: For-loop
for looping variable in sequence:
code block
A for-loop assigns the looping variable to the first element of the sequence. It executes everything
in the code block. Then it assigns the looping variable to the next element of the sequence and executes
the code block again. It continues until there are no more elements in the sequence to assign.
TRY IT! What is the sum of every integer from 1 to 3?
In [1]: n = 0
for i in range(1, 4):
n = n + i
print(n)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-104-320.jpg)
![92 CHAPTER 5 ITERATION
6
WHAT IS HAPPENING?
0. First, the function range(1, 4) generates a sequence of numbers that begin at 1 and end at
3. Check the description of the function range and get familiar with how to use it. In a very
simple form, it is range(start, stop, step), and the step is optional with 1 as the default.
1. The variable n is assigned the value 0.
2. The variable i is assigned the value 1.
3. The variable n is assigned the value n + i (0 + 1 = 1).
4. The variable i is assigned the value 2.
5. The variable n is assigned the value n + i (1 + 2 = 3).
6. The variable i is assigned the value 3.
7. The variable n is assigned the value n + i (3 + 3 = 6).
8. With no more values to assign in the list, the for-loop is terminated with n = 6.
Below are several more examples to give you a sense of how for-loops work. Other examples of
sequences that we can iterate over include the elements of a tuple, the characters in a string, and other
sequential data types.
EXAMPLE: Print all the characters in the string banana.
In [2]: for c in banana:
print(c)
b
a
n
a
n
a
Alternatively, you can use the index to get each character, but it is not as concise as the previous
example. Recall that the length of a string can be determined by using the len function, and we can
ignore the start by only giving one number as the stop.
In [3]: s = banana
for i in range(len(s)):
print(s[i])
b
a
n
a](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-105-320.jpg)
![5.1 FOR-LOOPS 93
n
a
EXAMPLE: Given a list of integers, a, add all the elements of a.
In [4]: s = 0
a = [2, 3, 1, 3, 3]
for i in a:
s += i # note this is equivalent to s = s + i
print(s)
12
The Python function sum has already been written to handle the previous example. What if you
want to add the even indices numbers only? What change(s) would you make to the previous for-loop
block to handle this restriction?
In [5]: s = 0
for i in range(0, len(a), 2):
s += a[i]
print(s)
6
NOTE! We use step as 2 in the range function to get the even indexes for list a. A commonly
used Python shortcut is the operator +=. In Python and many other programming languages, a
statement like i += 1 is equivalent to i = i + 1 and is the same for other operators as -=, *=, /=.
EXAMPLE: Define a dictionary and loop through all the keys and values.
In [6]: dict_a = {One:1, Two:2, Three:3}
for key in dict_a.keys():
print(key, dict_a[key])
One 1
Two 2
Three 3
In the above example, we used the method keys first to retrieve all keys. Next, we used the key to get
access the value. Alternatively, we can use the items method in a dictionary, which returns an object
containing a list of key and value pairs in tuple. We can assign them simultaneously to two variables
(tuple assignment); see the example below.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-106-320.jpg)
![94 CHAPTER 5 ITERATION
In [7]: for key, value in dict_a.items():
print(key, value)
One 1
Two 2
Three 3
Note that we can assign two different looping variables at the same time. There are other cases where
we can assign tasks simultaneously. For example, if we have two lists with same length and we want
to loop through them simultaneously, we use the zip function. See the example below. This function
aggregates elements from two iterables and returns an iterator of tuples, where the ith tuple element
contains the ith element of each of the iterables.
In [8]: a = [One, Two, Three]
b = [1, 2, 3]
for i, j in zip(a, b):
print(i, j)
One 1
Two 2
Three 3
EXAMPLE: Let the function have_digits have a string as the input. The output out should take
the value 1 if the string contains digits, and 0 otherwise. You can apply the isdigit method of
the string to check if the character is a digit.
In [9]: def have_digits(s):
out = 0
# loop through the string
for c in s:
# check if the character is a digit
if c.isdigit():
out = 1
break
return out
In [10]: out = have_digits(only4you)
print(out)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-107-320.jpg)
![5.1 FOR-LOOPS 95
1
In [11]: out = have_digits(only for you)
print(out)
0
The first step in the function have_digits assumes that there are no digits in the string s (i.e., the
output is 0 or False).
Notice the new keyword break. If executed, the break keyword immediately stops the most imme-
diate for-loop that contains it; that is, if it is contained in a nested for-loop, then it will only stop
the innermost for-loop. In this particular case, the break command is executed if we ever find a digit in
the string. The code will still function properly without this statement, but since the task is to find out
if there are any digits in s, we do not have to keep looking if we find one. Similarly, if a human was
given the same task for a long string of characters, that person would not continue looking for digits
if he or she already found one. Break statements are used when anything happens in a for-loop that
would make you want to stop the run early. A less intrusive command is the keyword continue, which
skips the remaining code in the current iteration of the for-loop, and continues on to the next element
of the looping array. See the following example where we use the keyword continue to skip the print
function to print 2:
In [12]: for i in range(5):
if i == 2:
continue
print(i)
0
1
3
4
EXAMPLE: Let the function my_dist_2_points(xy_points, xy) where the input argument
xy_points is a list of x–y coordinates of a point in Euclidean space, xy is a list that contain an
x–y coordinate, and the output d is a list containing the distances from xy to the points contained
in each row of xy_points.
In [13]: import math
def my_dist_2_points(xy_points, xy):
Returns an array of distances between xy and the](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-108-320.jpg)
![96 CHAPTER 5 ITERATION
points contained in the rows of xy_points
author
date
d = []
for xy_point in xy_points:
dist = math.sqrt((xy_point[0]-xy[0])**2+(xy_point[1]-xy[1])**2)
d.append(dist)
return d
In [14]: xy_points = [[3,2], [2, 3], [2, 2]]
xy = [1, 2]
my_dist_2_points(xy_points, xy)
Out[14]: [2.0, 1.4142135623730951, 1.0]
Just like if-statements, for-loops can be nested.
EXAMPLE: Let x be a two-dimensional array, [5 6;7 8]. Use a nested for-loop to sum all the
elements in x.
In [15]: x = np.array([[5, 6], [7, 8]])
n, m = x.shape
s = 0
for i in range(n):
for j in range(m):
s += x[i, j]
print(s)
26
WHAT IS HAPPENING?
1. s, representing the running total sum, is set to 0.
2. The outer for-loop begins with looping variable, i, set to 0.
3. Inner for-loop begins with looping variable, j, set to 0.
4. s is incremented by x[i,j] = x[0,0] = 5. So s = 5.
5. Inner for-loop sets j = 1.
6. s is incremented by x[i,j] = x[0,1] = 6; therefore, s = 11.
7. Inner for-loop terminates.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-109-320.jpg)
![5.2 WHILE LOOPS 97
8. Outer for-loop sets i = 1.
9. Inner for-loop begins with looping variable, j, set to 0.
10. s is incremented by x[i,j] = x[1,0] = 7; therefore, s = 18.
11. Inner for-loop sets j = 1.
12. s is incremented by x[i,j] = x[1,1] = 8. So s = 26.
13. Inner for-loop terminates.
14. Outer for-loop terminates with s = 26.
WARNING! Although it is possible to do so, do not try to change the looping variable inside of
the for-loop. It will make your code very complicated and will likely result in errors.
5.2 WHILE LOOPS
A while-loop or indefinite loop is a set of instructions that is repeated as long as the associated logical
expression is true. The following is the abstract syntax of a while-loop block.
CONSTRUCTION: While Loop
while logical expression:
# Code block to be repeated until logical statement is false
code block
When Python reaches a while-loop block, it first determines if the logical expression of the while-
loop is true or false. If the expression is true, the code block will be executed. After it is executed, the
program returns to the logical expression at the beginning of the while statement. If it is false, then
the while-loop will terminate.
TRY IT! Determine the number of times 8 can be divided by 2 until the result is less than 1.
In [1]: i = 0
n = 8
while n = 1:
n /= 2
i += 1
print(fn = {n}, i = {i})
n = 0.5, i = 4](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-110-320.jpg)
![98 CHAPTER 5 ITERATION
WHAT IS HAPPENING?
1. First the variable i (running count of divisions of n by 2) is set to 0.
2. n is set to 8 and represents the current value we are dividing by 2.
3. The while-loop begins.
4. Python evaluates expression n ≥ 1 or 8 ≥ 1, which is true; therefore, the code block is exe-
cuted.
5. n is assigned n/2 = 8/2 = 4.
6. i is incremented to 1.
7. Python evaluates expression n ≥ 1 or 4 ≥ 1, which is true; therefore, the code block is exe-
cuted.
8. n is assigned n/2 = 4/2 = 2.
9. i is incremented to 2.
10. Python evaluates expression n ≥ 1 or 2 ≥ 1, which is true; therefore, the code block is exe-
cuted.
11. n is assigned n/2 = 2/2 = 1.
12. i is incremented to 3.
13. Python evaluates expression n ≥ 1 or 1 ≥ 1, which is true; therefore, the code block is exe-
cuted.
14. n is assigned n/2 = 1/2 = 0.5.
15. i is incremented to 4.
16. Python evaluates expression n ≥ 1 or 0.5 ≥ 1, which is false; therefore, the while-loop ends
with i = 4.
You may ask, “What if the logical expression is true and never changes?”; an excellent question.
If the logical expression is true and nothing in the while-loop code changes the expression, then the
result is known as an infinite loop. Infinite loops run forever, or until your computer breaks, or runs
out of memory.
EXAMPLE: Write a while-loop that causes an infinite loop.
In [ ]: n = 0
while n -1:
n += 1
Since n will always be bigger than -1 no matter how many times the loop is run, this code will never
end.
You can terminate the infinite while loop manually by pressing the interrupt the kernel – the
black square button in the tool bar above shown in Fig. 5.1, or the drop down menu - Kernel - In-
terrupt in the notebook. Or if you are using the Python shell, press cmd + c on Mac or Ctrl + c on
PC.
Can you change a single character so that the while-loop will run at least once but will not infinite
loop?](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-111-320.jpg)
![5.2 WHILE LOOPS 99
FIGURE 5.1
Interrupt the kernel by pressing the little square.
Infinite loops are not always easy to spot. Consider the next two examples: one performs infinite
loops and one does not. Can you determine which is which? As your code becomes more complicated,
it will become harder to detect.
EXAMPLE: Which while-loop causes an infinite loop?
In [ ]: # Example 1
n = 1
while n 0:
n /= 2
In [ ]: # Example 2
n = 2
while n 0:
if n % 2 == 0:
n += 1
else:
n -= 1
Answer: The first example will not infinite loop because eventually n will be so small that
Python cannot tell the difference between n and 0. This will be discussed in more detail in Chap-
ter 9. The second example will infinite loop because n will oscillate between 2 and 3 indefinitely.
Now we know two types of loops: for-loops and while-loops. In some cases, either are appropri-
ate, but sometimes one is better suited for the task than the other. In general, use for-loops when the
number of iterations to be performed is well-defined; use while-loops statements when the number of
iterations to be performed is indefinite or not well known.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-112-320.jpg)
![100 CHAPTER 5 ITERATION
5.3 COMPREHENSIONS
In Python, there are other ways to do iterations; list, dictionary, and set comprehensions are very
popular ways. Once you familiarize yourself with them, you will find yourself using them a lot. Com-
prehensions allow sequences to be created from other sequences using very compact syntax. Let us
first look at the list comprehension.
5.3.1 LIST COMPREHENSION
CONSTRUCTION: List comprehension
[Output Input_sequence Conditions]
EXAMPLE: If x = range(5), square each number in x, and store it in a list y.
If we do not use list comprehension, the code will look something like this:
In [1]: x = range(5)
y = []
for i in x:
y.append(i**2)
print(y)
[0, 1, 4, 9, 16]
Using the list comprehension, we can write just one line.
In [2]: y = [i**2 for i in x]
print(y)
[0, 1, 4, 9, 16]
In addition, we can also include conditions in the list comprehension. For example, if we just want
to store the even numbers in the above example, we just add a condition in the list comprehension.
In [3]: y = [i**2 for i in x if i%2 == 0]
print(y)
[0, 4, 16]
If we have two nested levels for loops, we can also use the list comprehensions. For example, we
have the following two levels for loops that we can perform using the list comprehension.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-113-320.jpg)
![5.4 SUMMARY AND PROBLEMS 101
In [4]: y = []
for i in range(5):
for j in range(2):
y.append(i + j)
print(y)
[0, 1, 1, 2, 2, 3, 3, 4, 4, 5]
In [5]: y = [i + j for i in range(5) for j in range(2)]
print(y)
[0, 1, 1, 2, 2, 3, 3, 4, 4, 5]
5.3.2 DICTIONARY COMPREHENSION
Similarly, we can do the dictionary comprehension as well. See the following example.
In [6]: x = {a: 1, b: 2, c: 3}
{key:v**3 for (key, v) in x.items()}
Out[6]: {a: 1, b: 8, c: 27}
Performing set comprehension is also possible in Python, but will not be explored here. This is a
task that you should explore on your own.
5.4 SUMMARY AND PROBLEMS
5.4.1 SUMMARY
1. Loops provide a mechanism for a code to perform repetitive tasks, that is, iteration.
2. There are two kinds of loops: for-loops and while-loops.
3. Loops are important for constructing iterative solutions to problems.
5.4.2 PROBLEMS
1. What will the value of y be after the following code is executed?
In [ ]: y = 0
for i in range(1000):
for j in range(1000):
if i == j:
y += 1
2. Write a function my_max(x) to return the maximum (largest) value in x. Do not use the built-in
Python function max.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-114-320.jpg)
![102 CHAPTER 5 ITERATION
3. Write a function my_n_max(x, n) to return a list consisting of the n largest elements of x. You may
use Python’s max function. You may also assume that x is a one-dimensional list with no duplicate
entries, and that n is a strictly positive integer smaller than the length of x
In [ ]: x = [7, 9, 10, 5, 8, 3, 4, 6, 2, 1]
def my_n_max(x, n):
# write your function code here
return out
In [ ]: # Output = [10, 9, 8]
out = my_n_max(x, n)
print(out)
4. Let m be a matrix of positive integers. Write a function my_trig_odd_even(m) to return an array q,
where q[i, j] = sin(m[i, j]) if m[i, j] is even, and q[i, j] = cos(m[i, j]) if m[i, j] is
odd.
5. Let P be an m × p array and Q be a p × n array. As you will find later in this book, M = P ×
Q is defined as M[i,j] =
p
k=1 P[i,k] · Q[k,j]. Write a function my_mat_mult(P, Q) that uses
for-loops to compute M, the matrix product of P * Q. Hint: You may need up to three nested
for-loops. Do not use the function np.dot.
In [ ]: import numpy as np
def my_mat_mult(P, Q):
# write your function code here
return M
In [ ]: # Output:
# array([[3., 3., 3.],
# [3., 3., 3.],
# [3., 3., 3.]])
P = np.ones((3, 3))
my_mat_mult(P, P)
In [ ]: # Output:
# array([[30, 30, 30],
# [70, 70, 70]])
P = np.array([[1, 2, 3, 4], [5, 6, 7, 8]])
Q = np.array([[1, 1, 1], [2, 2, 2], [3, 3, 3], [4, 4, 4]])
my_mat_mult(P, Q)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-115-320.jpg)
![5.4 SUMMARY AND PROBLEMS 103
6. The interest i on a principle, P0, is a payment for allowing the bank to use your money. Compound
interest is accumulated according to the formula Pn = (1 + i)Pn−1, where n is the compounding
period, usually in months or years. Write a function my_saving_plan(P0, i, goal) where the
output is the number of years it will take P0 to become goal at i% interest compounded annually.
In [ ]: def my_saving_plan(P0, i, goal):
# write your function code here
return years
In [ ]: # Output: 15
my_saving_plan(1000, 0.05, 2000)
In [ ]: # Output: 11
my_saving_plan(1000, 0.07, 2000)
In [ ]: # Output: 21
my_saving_plan(500, 0.07, 2000)
7. Write a function with my_find(M) where the output is a list of indices i and where M[i] is 1. You
may assume that M is a list of only ones and zeros. Do not use the built-in Python function find.
In [ ]: # Output: [0, 2, 3]
M = [1, 0, 1, 1, 0]
my_find(M)
8. Assume you are rolling two six-sided dice, with each side having an equal chance of occurring.
Write a function my_monopoly_dice() where the output is the sum of the values of the two dice
thrown but with the following extra rule: if the two dice rolls are the same, then another roll is
made, and the new sum added to the running total. For example, if the two dice show 3 and 4, then
the running total should be 7. If the two dice show 1 and 1, then the running total should be 2 plus
the total of another throw. Rolls stop when the dice rolls are different.
9. A number is prime if it is divisible without remainder only by itself and 1. The number 1 is not
a prime. Write a function my_is_prime(n) where the output is 1 if n is prime and 0 is otherwise.
Assume that n is a strictly positive integer.
10. Write a function my_n_primes(n) where prime is a list of the first n primes. Assume that n is a
strictly positive integer.
11. Write a function my_n_fib_primes(n) where the output fib_primes is a list of the first n numbers
that are both a Fibonacci number and a prime. Note that 1 is not prime. Hint: Do not use the
recursive implementation of Fibonacci numbers. A function to compute Fibonacci numbers is
presented in Section 6.1. You may use the code freely.
In [ ]: def my_n_fib_primes(n):
# write your function code here
return fib_primes](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-116-320.jpg)
![104 CHAPTER 5 ITERATION
In [ ]: # Output: [3, 5, 13, 89, 233, 1597, 28657, 514229]
my_n_fib_primes(3)
In [ ]: # Output: [3, 5, 13]
my_n_fib_primes(8)
12. Write a function my_trig_odd_even(M) where the output Q[i,j] = sin(π/M[i,j]) if M[i,j] is
odd, and Q[i,j] = cos(π/M[i,j]) if M[i,j] is even. Assume that M is a two-dimensional array
of strictly positive integers.
In [ ]: def my_trig_odd_even(M):
# write your function code here
return Q
In [ ]: # Output: [[0.8660, 0.7071], [0.8660, 0.4339]]
M = [[3, 4], [6, 7]]
my_trig_odd_even(M)
13. Let C be a square connectivity array containing zeros and ones. Point i has a connection to point
j or i is connected to j if C[i,j] = 1. Note that connections in this context are one-directional,
meaning C[i,j] is not necessarily the same as C[j,i]. For example, think of a one-way street
from point A to point B. If A is connected to B, then B is not necessarily connected to A.
Write a function my_connectivity_mat_2_dict(C, names) where C is a connectivity array and
names is a list of strings that denote the name of a point. That is, names[i] is the name of the name
of the ith point.
The output variable node should be a dictionary with the key as the string in names, and value is
a vector containing the indices j, such that C[i,j] = 1. In other words, it is a list of points that
point i is connected to.
In [ ]: def my_connectivity_mat_2_dict(C, names):
# write your function code here
return node
In [ ]: C = [[0, 1, 0, 1], [1, 0, 0, 1], [0, 0, 0, 1], [1, 1, 1, 0]]
names = [Los Angeles, New York, Miami, Dallas]
In [ ]: # Output: node[Los Angeles] = [2, 4]
# node[New York] = [1, 4]
# node[Miami] = [4]
# node[Dallas] = [1, 2, 3]
node = my_connectivity_mat_2_dict(C, names)
14. Turn the list words of lower case characters to upper case using the list comprehension.
In [ ]: words = [test, data, analyze]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-117-320.jpg)
![6
RECURSION
6.1 Recursive Functions .................................................................................................. 105
6.2 Divide-and-Conquer................................................................................................... 110
6.2.1 Tower of Hanoi......................................................................................... 110
6.2.2 Quicksort ............................................................................................... 113
6.3 Summary and Problems.............................................................................................. 114
6.3.1 Summary ............................................................................................... 114
6.3.2 Problems ............................................................................................... 114
6.1 RECURSIVE FUNCTIONS
A recursive function is a function that makes calls to itself. It works like the loops we described before.
In some cases, however, it is preferable to use recursion than loops.
Every recursive function has two components: a base case and a recursive step. The base case is
usually the smallest input and has an easily verifiable solution. This is also the mechanism that stops
the function from calling itself forever. The recursive step is the set of all cases where a recursive
call, or a function call to itself, is made.
As an example, we will demonstrate how recursion can be used to define and compute the factorial
of an integer number. The factorial of an integer n is 1 × 2 × 3 × ··· × (n − 1) × n. The recursive
definition can be written as follows:
f (n) =
1 if n = 1,
n × f (n − 1) otherwise.
(6.1)
The base case is n = 1, which is trivial to compute: f (1) = 1. In the recursive step, n is multiplied
by the result of a recursive call to the factorial of n − 1.
TRY IT! Write the factorial function using recursion. Use your function to compute the factorial
of 3.
In [1]: def factorial(n):
Computes and returns the factorial of n,
a positive integer.
if n == 1: # Base case!](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-118-320.jpg)
![106 CHAPTER 6 RECURSION
return 1
else: # Recursive step
return n * factorial(n - 1) # Recursive call
In [2]: factorial(3)
Out[2]: 6
WHAT IS HAPPENING? First recall that when Python executes a function, it creates a
workspace for the variables created in that function. Whenever a function calls another func-
tion, it will wait until that function returns an answer before continuing. In programming, this
workspace is called a stack. Similar to a stack of plates in our kitchen cabinet, elements in a stack
are added or removed from the top of the stack to the bottom, in a “last in, first out” order. For
example, in the np.sin(np.tan(x)), sin must wait for tan to return an answer before it can be
evaluated. Even though a recursive function makes calls to itself, the same rules apply.
1. A call is made to factorial(3), whereby a new workspace is opened to compute facto-
rial(3).
2. Input argument value 3 is compared to 1. Since they are not equal, the else statement is
executed.
3. 3*factorial(2) must be computed. A new workspace is opened to compute factorial(2).
4. Input argument value 2 is compared to 1. Since they are not equal, the else statement is
executed.
5. 2*factorial(1) must be computed. A new workspace is opened to compute factorial(1).
6. Input argument value 1 is compared to 1. Since they are equal, the if statement is executed.
7. The return variable is assigned the value 1. factorial(1) terminates with output 1.
8. 2*factorial(1) can be resolved to 2 × 1 = 2. The output is assigned the value 2. facto-
rial(2) terminates with output 2.
9. 3*factorial(2) can be resolved to 3 × 2 = 6. The output is assigned the value 6. Thus fac-
torial(3) terminates with output 6.
The order of recursive calls can be depicted by a recursion tree shown in Fig. 6.1 for factorial(3).
A recursion tree is a diagram of the function calls connected by numbered arrows to depict the order
in which the calls were made.
Fibonacci numbers were originally developed to model the idealized population growth of rabbits.
Since then, they have been found to be significant in any naturally occurring phenomena. The Fibonacci
numbers can be generated using the following recursive formula. Note that the recursive step contains
two recursive calls and that there are also two base cases (i.e., two cases that cause the recursion to
stop):
F(n) =
⎧
⎪
⎨
⎪
⎩
1 if n = 1,
1 if n = 2,
F(n − 1) + F(n − 2) otherwise.
(6.2)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-119-320.jpg)
![6.1 RECURSIVE FUNCTIONS 107
FIGURE 6.1
Recursion tree for factorial(3).
TRY IT! Write a recursive function for computing the nth Fibonacci number. Use your function
to compute the first five Fibonacci numbers. Draw the associated recursion tree.
In [3]: def fibonacci(n):
Computes and returns the Fibonacci of n,
a positive integer.
if n == 1: # first base case
return 1
elif n == 2: # second base case
return 1
else: # Recursive step
return fibonacci(n-1) + fibonacci(n-2)
In [4]: print(fibonacci(1))
print(fibonacci(2))
print(fibonacci(3))
print(fibonacci(4))
print(fibonacci(5))
1
1
2
3
5
As an exercise, consider the following modification to fibonacci, where the results of each recur-
sive call are displayed to the screen (see Fig. 6.2).](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-120-320.jpg)
![108 CHAPTER 6 RECURSION
FIGURE 6.2
Recursion tree for factorial(5).
EXAMPLE: Write a function fib_disp(5) based on modification of the fibonacci function.
Can you determine the order in which the Fibonacci numbers will appear on the screen for
fib_disp(5)?
In [5]: def fib_disp(n):
Computes and returns the Fibonacci of n,
a positive integer.
if n == 1: # first base case
out = 1
print(out)
return out
elif n == 2: # second base case
out = 1
print(out)
return out
else: # Recursive step
out = fib_disp(n-1) + fib_disp(n-2)
print(out)
return out # Recursive call
1
1
2
1
3
1
1](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-121-320.jpg)
![6.1 RECURSIVE FUNCTIONS 109
2
5
In [6]: fib_disp(5)
5
Note that the number of recursive calls becomes very large even for relatively small inputs for n. If
you do not agree, try to draw the recursion tree for fibonacci(10). If you try your unmodified function
for inputs around 35, you will experience significant computation times.
In [7]: fibonacci(35)
Out[7]: 9227465
There is an iterative method for computing the nth Fibonacci number that requires only one
workspace.
EXAMPLE: Iterative implementation for computing Fibonacci numbers.
In [8]: import numpy as np
def iter_fib(n):
fib = np.ones(n)
for i in range(2, n):
fib[i] = fib[i - 1] + fib[i - 2]
return fib
TRY IT! Compute the 25th Fibonacci number using iter_fib and fibonacci. Use the magic
command timeit to measure the run time for each. Note the large difference in running times.
In [9]: %timeit iter_fib(25)
7.22 µs ± 171 ns per loop (mean ± std. dev. of 7 runs, 100000 loops each)
In [10]: %timeit fibonacci(25)
16.7 ms ± 910 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)
You can see in the previous example that the iterative version runs much faster than the recursive
counterpart. In general, iterative functions are faster than recursive functions performing the same task.
So why use recursive functions at all? There are some solution methods that have a naturally recursive](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-122-320.jpg)
![110 CHAPTER 6 RECURSION
structure. In these cases, it is usually very hard to write a counterpart using loops. The primary value
of writing recursive functions is that they can usually be written much more compactly than iterative
functions. The cost of the improved compactness is added running time.
The relationship between the input arguments and the running time is discussed in more detail later
in the chapter on complexity.
TIP! Try to write functions iteratively whenever it is convenient to do so. Your functions will run
faster.
NOTE! When using a recursive call as shown above, we need to make sure that it can reach the
base case, otherwise, it enters infinite recursion. In Python, executing a recursive function on a
large output that cannot reach the base case will result in a “maximum recursion depth exceeded
error”. Try the following example to produce the RecursionError.
In []: factorial(5000)
We can work around the recursion limit using the sys module by setting a higher limit in Python.
If you run the following code, the error message won’t occur.
In []: import sys
sys.setrecursionlimit(10**5)
factorial(5000)
6.2 DIVIDE-AND-CONQUER
Divide-and-conquer is a useful strategy for solving difficult problems. Using divide-and-conquer,
difficult problems are solved from solutions to many similar easy problems. In this way, difficult prob-
lems are broken up so they are more manageable. This section will present two classical examples of
divide-and-conquer: the Tower of Hanoi Problem and the Quicksort algorithm.
6.2.1 TOWER OF HANOI
The Tower of Hanoi problem consists of three vertical rods (or towers) and N disks of different sizes,
each with a hole in the center so that the rod can slide through it. The original configuration of the disks
is that they are stacked on one of the towers in the order of descending size (i.e., the largest disc is on
the bottom). The goal of the problem is to move all the disks to a different rod while complying with
the following three rules:
1. Only one disk can be moved at a time.
2. Only the disk at the top of a stack may be moved.
3. A disk may not be placed on top of a smaller disk.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-123-320.jpg)
![112 CHAPTER 6 RECURSION
is a difficult task, so instead we make a recursive call that will make subsequent recursive calls, but
will, in the end, move the stack as desired. Then we move the bottom disk to the target “to_tower”.
Finally, we move the stack of size N − 1 to the target tower by making another recursive call.
TRY IT! Use the function my_towers to solve the Tower of Hanoi problem for N = 3. Verify the
solution is correct by inspection.
In [1]: def my_towers(N, from_tower, to_tower, alt_tower):
Displays the moves required to move a tower of size
N from the from_tower to the to_tower.
from_tower, to_tower and alt_tower are
either 1, 2, 3 referring to tower 1, 2, and 3.
if N != 0:
# recursive call that moves N-1 stack from
# starting tower to alternate tower
my_towers(N-1, from_tower, alt_tower, to_tower)
# display to screen movement of bottom disk from
# starting tower to final tower
print(Move disk %d from tower %d to tower %d.
%(N, from_tower, to_tower))
# recursive call that moves N-1 stack from
# alternate tower to final tower
my_towers(N-1, alt_tower, to_tower, from_tower)
In [2]: my_towers(3, 1, 3, 2)
Move disk 1 from tower 1 to tower 3.
Move disk 2 from tower 1 to tower 2.
Move disk 1 from tower 3 to tower 2.
Move disk 3 from tower 1 to tower 3.
Move disk 1 from tower 2 to tower 1.
Move disk 2 from tower 2 to tower 3.
Move disk 1 from tower 1 to tower 3.
By using divide-and-conquer, we have solved the Tower of Hanoi problem by making recursive
calls to the slightly smaller Tower of Hanoi problems that, in turn, make recursive calls to yet smaller
Tower of Hanoi problems. Together, the solutions form the solution to the whole problem. The actual
work done by a single function call is actually quite small: two recursive calls and moving one disk. In](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-125-320.jpg)
![6.2 DIVIDE-AND-CONQUER 113
other words, a function call does very little work (moving a disk), and then passes the rest of the work
onto other calls, a skill you will find very useful throughout your engineering career.
6.2.2 QUICKSORT
A list of numbers, A, is sorted if the elements are arranged in ascending or descending order. Although
there are many ways of sorting a list, quicksort is a divide-and-conquer approach, which is a very fast
algorithm for sorting using a single processor (there are faster algorithms for multiple processors).
The quicksort algorithm starts with the observation that although sorting a list is hard, a comparison
is relatively easy. So instead of sorting a list, we separate the list by comparing to a pivot. At each
recursive call to quicksort, the input list is divided into three parts: elements that are smaller than the
pivot, elements that are equal to the pivot, and elements that are larger than the pivot. Then a recursive
call to quicksort is made on the two subproblems: the list of elements smaller than the pivot and the list
of elements larger than the pivot. Eventually the subproblems are small enough (i.e., list size of length
1 or 0) so that sorting the list is now trivial.
Consider the following recursive implementation of quicksort.
In [3]: def my_quicksort(lst):
if len(lst) = 1:
# list of length 1 is easiest to sort
# because it is already sorted
sorted_list = lst
else:
# select pivot as the first element of the list
pivot = lst[0]
# initialize lists for bigger and smaller
# elements as well those equal to the pivot
bigger = []
smaller = []
same = []
# put elements into appropriate array
for item in lst:
if item pivot:
bigger.append(item)
elif item pivot:
smaller.append(item)
else:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-126-320.jpg)
![114 CHAPTER 6 RECURSION
same.append(item)
sorted_list = my_quicksort(smaller) + same +
my_quicksort(bigger)
return sorted_list
In [4]: my_quicksort([2, 1, 3, 5, 6, 3, 8, 10])
Out[4]: [1, 2, 3, 3, 5, 6, 8, 10]
As we did with the Tower of Hanoi problem, we have broken up the problem of sorting (hard) into
many comparisons (easy).
6.3 SUMMARY AND PROBLEMS
6.3.1 SUMMARY
1. A recursive function is a function that calls itself.
2. Recursive functions are useful when problems have a hierarchical structure rather than an iterative
structure.
3. Divide-and-conquer is a powerful problem-solving strategy that can be used to solve difficult prob-
lems.
6.3.2 PROBLEMS
1. Write a function my_sum(lst) where lst is a list, and the output is the sum of all the elements of
lst. You can use a recursion or iteration function to solve the problem, but do not use Python’s
sum function.
In [ ]: def my_sum(lst):
# Write your function code here
return out
In [ ]: # Output: 6
my_sum([1, 2, 3])
In [ ]: # Output: 5050
my_sum(range(1,101))
2. Chebyshev polynomials are defined recursively and separated into two kinds: first and second.
Chebyshev polynomials of the first kind, Tn(x), and of the second kind, Un(x), are defined by the](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-127-320.jpg)
![6.3 SUMMARY AND PROBLEMS 115
following recurrence relations:
Tn(x) =
⎧
⎪
⎨
⎪
⎩
1 if n = 0,
x if n = 1,
2xTn−1(x) − Tn−2(x) otherwise,
(6.3)
Un(x) =
⎧
⎪
⎨
⎪
⎩
1 if n = 0,
2x if n = 1,
2xUn−1(x) − Un−2(x) otherwise.
(6.4)
Write a function my_chebyshev_poly1(n,x) where the output y is the nth Chebyshev polynomial
of the first kind evaluated at x. Be sure your function can take list inputs for x. You may assume
that x is a list. The output variable, y, must be a list also.
In [ ]: def my_chebyshev_poly1(n,x):
# Write your function code here
return y
In [ ]: x = [1, 2, 3, 4, 5]
In [ ]: # Output: [1, 1, 1, 1, 1]
my_chebyshev_poly1(0,x)
In [ ]: # Output: [1, 2, 3, 4, 5]
my_chebyshev_poly1(1,x)
In [ ]: # Output: [1, 26, 99, 244, 485]
my_chebyshev_poly1(3,x)
3. The Ackermann function, A, is a function quickly growing in popularity that is defined by the
recursive relationship:
A(m,n) =
⎧
⎪
⎨
⎪
⎩
n + 1 if m = 0,
A(m − 1,1) if m 0 and n = 1,
A(m − 1,A(m,n − 1)) if m 0 and n 0.
(6.5)
Write a function my_ackermann(m,n) where the output is the Ackermann function computed for m
and n.
my_ackermann(4,4) is so large that it would be difficult to write down. Although the Ackermann
function does not have many practical uses, the inverse Ackermann function has several uses in
robotic motion planning.
In [ ]: def my_ackermann(m,n):
# write your own function code here
return out](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-128-320.jpg)
![116 CHAPTER 6 RECURSION
In [ ]: # Output: 3
my_ackermann(1,1)
In [ ]: # Output: 4
my_ackermann(1,2)
In [ ]: # Output: 9
my_ackermann(2,3)
In [ ]: # Output: 61
my_ackermann(3,3)
In [ ]: # Output: 125
my_ackermann(3,4)
4. The function, C(n,k), computes the number of different ways of uniquely choosing k objects from
n without repetition; it is commonly used in many statistics applications. For example, how many
three-flavored ice cream sundaes are there if there are 10 ice-cream flavors? To solve this problem
we would have to compute C(10,3), i.e., the number of ways of choosing three unique ice cream
flavors from 10. The function C is commonly called “n choose k.” You may assume that n and k
are integers.
If n = k, then clearly C(n,k) = 1 because there is only way to choose n objects from n objects.
If k = 1, then C(n,k) = n because choosing each of the n objects is a way of choosing one object
from n. For all other cases,
C(n,k) = C(n − 1,k) + C(n − 1,k − 1).
Can you see why?
Write a function my_n_choose_k(n,k) that computes the number of times k objects can be
uniquely chosen from n objects without repetition.
In [ ]: def my_n_choose_k(n,k):
# Write your own function code here
return out
In [ ]: # Output: 10
my_n_choose_k(10,1)
In [ ]: # Output: 1
my_n_choose_k(10,10)
In [ ]: # Output: 120
my_n_choose_k(10,3)
5. For any purchases paid in cash, the seller must return money that was overpaid. This is commonly
referred to as “giving change.” The bills and coins required to properly give change can be de-
fined by a recursive relationship. If the amount paid is more than $100 more than the cost, then a
100-dollar bill is returned, which is the result of a recursive call to the change function with $100
subtracted from the amount paid. If the amount paid is more than $50 over the cost of the item,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-129-320.jpg)
![6.3 SUMMARY AND PROBLEMS 117
then a 50-dollar bill is returned, along with the result of a recursive call to the change function
with $50 subtracted. Similar clauses can be given for every denomination of US currency. The
denominations of US currency, in dollars, are 100, 50, 20, 10, 5, 1, 0.25, 0.10, 0.05, and 0.01. For
this problem, we will ignore the 2-dollar bill, which is not in common circulation. Assume that
cost and paid are scalars and that paid ≥ cost. The output variable, change, must be a list, as
shown in the test case.
Use recursion to program a function my_change(cost, paid) where cost is the cost of the item,
paid is the amount paid, and the output change is a list of bills and coins that should be returned
to the seller. Watch out for the base case!
In [ ]: def my_change(cost, paid):
# Write your own function code here
return change
In [ ]: #Output:[50.0,20.0,1.0,1.0,0.25,0.10,0.05,0.01,0.01,0.01]
my_change(27.57, 100)
6. The golden ratio, φ, is the limit of F(n+1)
F(n) as n goes to infinity and F(n) is the nth Fibonacci
number, which can be shown to be exactly 1+
√
5
2 and is approximately 1.62. We say that G(n) =
F(n+1)
F(n) is the nth approximation of the golden ratio and G(1) = 1.
It can be shown that φ is also the limit of the continued fraction:
ϕ = 1 +
1
1 +
1
1 +
1
1 +
...
.
Write a recursive function with the header my_golden_ratio(n), where the output is the nth ap-
proximation of the golden ratio according to the continued fraction recursive relationship. Use the
continued fraction approximation for the golden ratio and not the G(n) = F(n + 1)/F(n) defini-
tion; however, for both definitions, G(1) = 1.
Studies have shown that rectangles with aspect ratio (i.e., length divided by width) close to the
golden ratio are more pleasing to the eye than rectangles that are not. What is the aspect ratio of
many wide-screen TVs and movie screens?
In [ ]: def my_golden_ratio(n):
# Write your own function code here
return out
In [ ]: # Output: 1.618181818181818
my_golden_ratio(10)
In [ ]: import numpy as np
(1 + np.sqrt(5))/2
7. The greatest common divisor of two integers a and b is the largest integer that divides both numbers
without remainder; the function to compute it is denoted by gcd(a,b). The gcd function can be](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-130-320.jpg)
![118 CHAPTER 6 RECURSION
written recursively. If b equals 0, then a is the greatest common divisor. Otherwise, gcd(a,b) =
gcd(b,a%b) where a%b is the remainder of a divided by b. Assume that a and b are integers.
Write a recursive function my_gcd(a,b) that computes the greatest common divisor of a and b.
Assume that a and b are integers.
In [ ]: def my_gcd(a, b):
# Write your own function code here
return gcd
In [ ]: # Output: 2
my_gcd(10, 4)
In [ ]: # Output: 11
my_gcd(33, 121)
In [ ]: # Output: 1
my_gcd(18, 1)
8. Pascal’s triangle is an arrangement of numbers such that each row is equivalent to the coefficients
of the binomial expansion of (x + y)p−1, where p is some positive integer more than or equal to
1. For example, (x + y)2 = 1x2 + 2xy + 1y2; therefore, the third row of Pascal’s triangle is 1 2 1.
Let Rm represent the mth row of Pascal’s triangle and Rm(n) be the nth element of the row. By
definition, Rm has m elements, and Rm(1) = Rm(n) = 1. The remaining elements are computed
using the following recursive relationship: Rm(i) = Rm−1(i − 1) + Rm−1(i) for i = 2,...,m − 1.
The first few rows of Pascal’s triangle are depicted in Fig. 6.5.
FIGURE 6.5
Pascal’s triangle.
Write a function with my_pascal_row(m) where output variable row is the mth row of the Pascal
triangle and must be a list. Assume that m is a strictly positive integer.
In [ ]: def my_pascal_row(m):
# Write your own function code here
return row
In [ ]: # Output: [1]
my_pascal_row(1)
In [ ]: # Output: [1, 1]
my_pascal_row(2)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-131-320.jpg)
![6.3 SUMMARY AND PROBLEMS 119
In [ ]: # Output: [1, 2, 1]
my_pascal_row(3)
In [ ]: # Output: [1, 3, 3, 1]
my_pascal_row(4)
In [ ]: # Output: [1, 4, 6, 4, 1]
my_pascal_row(5)
9. Consider an n × n matrix of the following form:
A =
⎡
⎢
⎢
⎢
⎢
⎣
1 1 1 1 1
1 0 0 0 0
1 0 1 1 0
1 0 0 1 0
1 1 1 1 0
⎤
⎥
⎥
⎥
⎥
⎦
where the ones form a right spiral. Write a function my_spiral_ones(n) that produces a n × n
matrix of the given form. Make sure that the recursive steps are in the correct order (i.e., the ones
go right, then down, then left, then up, then right, etc.).
In [ ]: def my_spiral_ones(n):
# Write your own function code here
return A
In [ ]: # Output: 1
my_spiral_ones(1)
In [ ]: # Output:
# array([[1, 1],
# [0, 1]])
my_spiral_ones(2)
In [ ]: # Output:
#array([[0, 1, 1],
# [0, 0, 1],
# [1, 1, 1]])
my_spiral_ones(3)
In [ ]: # Output:
#array([[1, 0, 0, 0],
# [1, 0, 1, 1],
# [1, 0, 0, 1],
# [1, 1, 1, 1]])
my_spiral_ones(4)
In [ ]: # Output:
#array([[1, 1, 1, 1, 1],
# [1, 0, 0, 0, 0],](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-132-320.jpg)
![120 CHAPTER 6 RECURSION
# [1, 0, 1, 1, 0],
# [1, 0, 0, 1, 0],
# [1, 1, 1, 1, 0]])
my_spiral_ones(5)
10. Rewrite my_spiral_ones without using recursion.
11. Draw the recursion tree for my_towers(4).
12. Rewrite the Tower of Hanoi function in this chapter without using recursion.
13. Draw the recursion tree for my_quicksort([5 4 6 2 9 1 7 3]).
14. Rewrite the quicksort function in this chapter without using recursion.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-133-320.jpg)
![122 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING
For example, a person named “Iron man” with age 35. Put it another way, a class is like a template
to define the needed information, and an object is one specific copy that filled in the template. Also,
objects instantiated from the same class are independent from each other. For example, if we have
another person, say, “Batman” with age 33, it can be instantiated from the people class, but it remains
an independent instance.
To implement the above example in Python, see the code below. Do not worry if you do not under-
stand the syntax; the next section provides more helpful examples.
In [1]: class People():
def __init__(self, name, age):
self.name = name
self.age = age
def greet(self):
print(Greetings, + self.name)
In [2]: person1 = People(name = Iron Man, age = 35)
person1.greet()
print(person1.name)
print(person1.age)
Greetings, Iron Man
Iron Man
35
In [3]: person2 = People(name = Batman, age = 33)
person2.greet()
print(person2.name)
print(person2.age)
Greetings, Batman
Batman
33
In the above code example, we first defined a class, People, with name and age as the data, and a
method greet. We then instantiated an object, person1 with the specific name and age. We can clearly
see that the class defines the whole structure, while the object is just an instance of the class.
The many benefits of using OOP are as follows: It provides a clear modular structure for pro-
grams that enhances code reusability. It provides a simple way to solve complex problems. It helps
define more abstract data types to model real-world scenarios. It hides implementation details, leaving
a clearly defined interface. It combines data and operations.
There are also other advantages of using OOP in a large project. We encourage you to search online
to find out more. At this point, you may still not fully understand OOP’s advantages until you are
involved in complex large projects. We will continue to learn more about OOP during the course of
this book, and its usefulness will become apparent.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-135-320.jpg)
![7.2 CLASS AND OBJECT 123
7.2 CLASS AND OBJECT
The previous section introduced the two main components of OOP: class, which is a blueprint used to
define a logical grouping of data and functions, and object, which is an instance of the defined class
with actual values. In this section, we will get into greater detail of both of these components.
7.2.1 CLASS
A class is a definition of the structure that we want. Similar to a function, it is defined as a block of
code, starting with the class statement. The syntax of defining a class is:
class ClassName(superclass):
def __init__(self, arguments):
# define or assign object attributes
def other_methods(self, arguments):
# body of the method
Note that the definition of a class is very similar to a function. It needs to be instantiated first before
you can use it. For the class name, it is standard convention to use CapWords. The superclass is used
when you want create a new class to inherit the attributes and methods from another already defined
class. We will talk more about inheritance in the next section. The __init__ is one of the special
methods in Python classes that is run as soon as an object of a class is instantiated (created). It assigns
initial values to the object before it is ready to be used. Note the two underscores at the beginning and
end of the init, indicating this is a special method reserved for special use in the language. In this init
method, you can assign attributes directly when you create the object. The other_methods functions
are used to define the instance methods that will be applied on the attributes, just like functions we
discussed before. You may notice that there is an argument self for defining this method in the class.
Why? A class instance method must have this extra argument as the first argument when you define
it. This particular argument refers to the object itself; conventionally, we use self to name it. Instance
methods can freely access attributes and other methods in the same object by using this self parameter.
See the example below.
EXAMPLE: Define a class named Student, with the attributes sid (student id), name, gender,
type in the init method, and a method called say_name to print out the student’s name. All
attributes will be passed in except type, which will have a value as learning.
In [1]: class Student():
def __init__(self, sid, name, gender):
self.sid = sid
self.name = name
self.gender = gender](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-136-320.jpg)
![124 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING
self.type = learning
def say_name(self):
print(My name is + self.name)
From the above example, we can see this simple class contains all the necessary parts mentioned
previously. The __init__ method will initialize the attributes when we create an object. We need to
pass in the initial value for sid, name, and gender, while the attribute type is a fixed value as learning.
These attributes can be accessed by all the other methods defined in the class with self.attribute, for
example, in the say_name method, we can use the name attribute with self.name. The methods defined
in the class can be accessed and used in other different methods as well using self.method. Let us see
the following example.
TRY IT! Add a method report that prints not only the student name, but also the student id. The
method will have another parameter, score, that will pass in a number between 0 and 100 as part
of the report.
In [2]: class Student():
def __init__(self, sid, name, gender):
self.sid = sid
self.name = name
self.gender = gender
self.type = learning
def say_name(self):
print(My name is + self.name)
def report(self, score):
self.say_name()
print(My id is: + self.sid)
print(My score is: + str(score))
7.2.2 OBJECT
As mentioned before, an object is an instance of the defined class with actual values. Many instances of
different values associated with the class are possible, and each of these instances will be independent
with each other (as seen previously). Also, after we create an object and call this instance method from
the object, we do not need to give value to the self parameter because Python automatically provides
it; see the following example.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-137-320.jpg)
![7.2 CLASS AND OBJECT 125
EXAMPLE: Create two objects (001, Susan, F) and (002, Mike, M), and call
the method say_name.
In [3]: student1 = Student(001, Susan, F)
student2 = Student(002, Mike, M)
student1.say_name()
student2.say_name()
print(student1.type)
print(student1.gender)
My name is Susan
My name is Mike
learning
F
In the above code, we created two objects, student1 and student2, with two different sets of values.
Each object is an instance of the Student class and has a different set of attributes. Type student1.+TAB
to see the defined attributes and methods. To get access to one attribute, type object.attribute, e.g.,
student1.type. In contrast, to call a method, you need the parentheses because you are calling a
function, such as student1.say_name().
TRY IT! Call method report for student1 and student2 with scores of 95 and 90, respectively.
Note that we do not need the “self” as an argument here.
In [4]: student1.report(95)
student2.report(90)
My name is Susan
My id is: 001
My score is: 95
My name is Mike
My id is: 002
My score is: 90
We can see both methods calling to print out the data associated with the two objects. Note that the
score value we passed in is only available to the method report (within the scope of this method). We
can also see that the method say_name call in the report also works, as long as you call the method
with the self in it.
7.2.3 CLASS VS INSTANCE ATTRIBUTES
The attributes we presented above are actually called instance attributes, which means that they are
only belong to a specific instance; when you use them, you need to use the self.attribute within](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-138-320.jpg)
![126 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING
the class. There are other attributes called class attributes, which will be shared with all the instances
created from this class. Let us see an example how to define and use a class attribute.
EXAMPLE: Modify the Student class to add a class attribute n, which will record how many
object we are creating. Also, add a method num_instances to print out the number.
In [5]: class Student():
n = 0
def __init__(self, sid, name, gender):
self.sid = sid
self.name = name
self.gender = gender
self.type = learning
Student.n += 1
def say_name(self):
print(My name is + self.name)
def report(self, score):
self.say_name()
print(My id is: + self.sid)
print(My score is: + str(score))
def num_instances(self):
print(fWe have {Student.n}-instance in total)
In defining a class attribute, we must define it outside of all the other methods without using
self. To use the class attributes, we use ClassName.attribute, which in this case is Student.n. This
attribute will be shared with all the instances that are created from this class. Let us see the following
code to show the idea.
In [6]: student1 = Student(001, Susan, F)
student1.num_instances()
student2 = Student(002, Mike, M)
student1.num_instances()
student2.num_instances()
We have 1-instance in total
We have 2-instance in total
We have 2-instance in total
As before, we created two objects, the instance attribute sid, name, but gender only belongs to the
specific object. For example, student1.name is “Susan” and student2.name is “Mike”. But when we](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-139-320.jpg)
![7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM 127
print the class attribute Student.n_instances out after we created object student2, the one in the
student1 changes as well. This is the expectation we have for the class attribute because it is shared
across all the created objects.
Now that we understand the difference between class and instance, we are in good shape to use basic
OOP in Python. Before we can take full advantage of OOP, we still need to understand the concept of
inheritance, encapsulation, and polymorphism. Let us start the next section!
7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM
We have already seen the modeling power of OOP using the class and object functions by combin-
ing data and methods. There are three more important concepts: (1) inheritance, which makes the
OOP code more modular, easier to reuse, and capable of building a relationship between classes;
(2) encapsulation, which can hide some of the private details of a class from other objects; and
(3) polymorphism, which allows us to use a common operation in different ways. A brief discussion
of how these concepts is discussed below.
7.3.1 INHERITANCE
Inheritance allows us to define a class that inherits all the methods and attributes from another class.
Convention denotes the new class as child class, and the one that it inherits from is called the parent
class or superclass. If we refer back to the definition of class structure, we can see the structure for
basic inheritance is class ClassName(superclass), which means the new class can access all the
attributes and methods from the superclass. Inheritance builds a relationship between the child and
parent classes. Usually, the parent class is a general type while the child class is a specific type. An
example is presented below.
TRY IT! Define a class named Sensor with attributes name, location, and record_date that pass
from the creation of an object and an attribute data as an empty dictionary to store data. Create
one method add_data with t and data as input parameters to take in timestamp and data arrays.
Within this method, assign t and data to the data attribute with “time” and “data” as the keys. In
addition, create one clear_data method to delete the data.
In [1]: class Sensor():
def __init__(self, name, location, record_date):
self.name = name
self.location = location
self.record_date = record_date
self.data = {}
def add_data(self, t, data):
self.data[time] = t](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-140-320.jpg)
![128 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING
self.data[data] = data
print(fWe have {len(data)} points saved)
def clear_data(self):
self.data = {}
print(Data cleared!)
Now we have a class to store general sensor information, we can create a sensor object to store data.
EXAMPLE: Create a sensor object.
In [2]: import numpy as np
sensor1 = Sensor(sensor1, Berkeley, 2019-01-01)
data = np.random.randint(-10, 10, 10)
sensor1.add_data(np.arange(10), data)
sensor1.data
We have 10 points saved
Out[2]: {time: array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9]),
data: array([ 3, 2, 5, -1, 2, -2, 6, -1, 5, 4])}
7.3.1.1 Inheriting and Extending New Method
Suppose we have one different type of sensor, an accelerometer. It shares the same attributes and
methods as Sensor class, but it also has different attributes or methods that need to be appended or
modified from the original class. What should we do? Do we create a different class from scratch? This
is where inheritance can be used to make life easier. This new class will inherit from the Sensor class
with all the attributes and methods. We can think whether we want to extend the attributes or methods.
Let us first create this new class, Accelerometer, and add a new method, show_type, to report what
kind of sensor it is.
In [3]: class Accelerometer(Sensor):
def show_type(self):
print(I am an accelerometer!)
acc = Accelerometer(acc1, Oakland, 2019-02-01)
acc.show_type()
data = np.random.randint(-10, 10, 10)
acc.add_data(np.arange(10), data)
acc.data](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-141-320.jpg)
![7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM 129
I am an accelerometer!
We have 10 points saved
Out[3]: {time: array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9]),
data: array([ -1, 4, 7, -10, -2, -6, 2, -8, 9, 3])}
Creating this new Accelerometer class is very simple. It inherits from Sensor (denoted as a su-
perclass), and the new class actually contains all the attributes and methods from the superclass. We
then add a new method, show_type, which does not exist in the Sensor class, but we can successfully
extend the child class by adding the new method. This shows the power of inheritance: we have reused
most part of the Sensor class in a new class, and extended the functionality. Basically, the inheritance
sets up a logical relationship for the modeling of the real-world entities: the Sensor class as the parent
class is more general and passes all the characteristics to the child class Accelerometer.
7.3.1.2 Inheriting and Method Overriding
When we inherit from a parent class, we can change the implementation of a method provided by the
parent class; this is called method overriding and is shown in the example below.
EXAMPLE: Create a class UCBAcc (a specific type of accelerometer that was created at UC
Berkeley) that inherits from Accelerometer but replaces the show_type method that also prints
out the name of the sensor.
In [4]: class UCBAcc(Accelerometer):
def show_type(self):
print(fI am {self.name}, created at Berkeley!)
acc2 = UCBAcc(UCBAcc, Berkeley, 2019-03-01)
acc2.show_type()
I am UCBAcc, created at Berkeley!
We see that our new UCBAcc class actually overrides the method show_type with new features. In
this example, we are not only inheriting features from our parent class, but we are also modifying/im-
proving some methods.
7.3.1.3 Inheriting and Updating Attributes With Super
Let us create a class NewSensor that inherits from Sensor class, but is updated the attributes by adding
a new attribute brand. Of course, we can redefine the whole __init__ method as shown below that is
capable of overriding the parent function.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-142-320.jpg)
![130 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING
In [5]: class NewSensor(Sensor):
def __init__(self,name,location,record_date,brand):
self.name = name
self.location = location
self.record_date = record_date
self.brand = brand
self.data = {}
new_sensor = NewSensor(OK, SF, 2019-03-01, XYZ)
new_sensor.brand
Out[5]: XYZ
There is a better way to achieve the same result. If we use the super method, we can avoid referring
to the parent class explicitly, as shown in the following example:
EXAMPLE: Redefine the attributes in inheritance.
In [6]: class NewSensor(Sensor):
def __init__(self,name,location,record_date,brand):
super().__init__(name, location, record_date)
self.brand = brand
new_sensor = NewSensor(OK, SF, 2019-03-01, XYZ)
new_sensor.brand
Out[6]: XYZ
Now we can see with the super method, we have avoided listing all of the definition of the attributes;
this helps keep your code maintainable for the foreseeable future. Because the child class does not
implicitly call the __init__ of the parent class, we must use super().__init__, as shown above.
7.3.2 ENCAPSULATION
Encapsulation is one of the fundamental concepts in OOP. It describes the idea of restricting access to
methods and attributes in a class. Encapsulation hides complex details from the users and prevents data
being modified by accident. In Python, this is achieved by using private methods or attributes using the
underscore as prefix, i.e., single “_” or double “__”, as shown the following example.
EXAMPLE:
In [7]: class Sensor():
def __init__(self, name, location):
self.name = name](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-143-320.jpg)
![7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM 131
self._location = location
self.__version = 1.0
# a getter function
def get_version(self):
print(fThe sensor version is {self.__version})
# a setter function
def set_version(self, version):
self.__version = version
In [8]: sensor1 = Sensor(Acc, Berkeley)
print(sensor1.name)
print(sensor1._location)
print(sensor1.__version)
Acc
Berkeley
--------------------------------------------------------
AttributeError Traceback (most recent call last)
ipython-input-8-ca9b481690ba in module
2 print(sensor1.name)
3 print(sensor1._location)
---- 4 print(sensor1.__version)
AttributeError: 'Sensor' object has no attribute '__version'
The above example shows how the encapsulation works. With single underscore, we defined a
private variable that should not be accessed directly. Note that this is convention and nothing stops you
from actually accessing it. With double underscores, we can see that the attribute __version cannot be
accessed or modified directly. To get access to the double underscore attributes, we need to use “getter”
and “setter” functions to access it internally. A “getter” function is shown in the following example.
In [9]: sensor1.get_version()
The sensor version is 1.0](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-144-320.jpg)
![132 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING
In [10]: sensor1.set_version(2.0)
sensor1.get_version()
The sensor version is 2.0
The single and double underscore(s) apply to private methods as well, which are not discussed
because they are similar to the private attributes.
7.3.3 POLYMORPHISM
Polymorphism is another fundamental concept in OOP, which means multiple forms. Polymorphism
allows the use of a single interface with different underlying forms, such as data types or classes. For
example, we can have commonly named methods across classes or child classes. We have already seen
one example above when we overrode the method show_type in the UCBAcc. Both the parent class
Accelerometer and child class UCBAcc have a method named show_type, but they are implemented
differently. This ability of using a single name with many forms acting differently in different situations
greatly reduces our complexities. We will not expand this discussion on polymorphism, if you are
interested, check more online to get a deeper understanding.
7.4 SUMMARY AND PROBLEMS
7.4.1 SUMMARY
1. OOP and POP are different. OOP has many benefits and is often more appropriate for use in large-
scale projects.
2. Class is the blueprint of the structure that allows us to group data and methods, while object is an
instance from the class.
3. The concept of “inheritance” is key to OOP, which allows us to refer attributes or methods from the
superclass.
4. The concept of “encapsulation” allows us to hide some of the private details of a class from other
objects.
5. The concept of “polymorphism” allows us to use a common operation in different ways for different
data input.
7.4.2 PROBLEMS
1. Describe the differences between classes and objects.
2. Describe why we use “self” as the first argument in a method.
3. What is a constructor? And why do we use it?
4. Describe the differences between class and instance attributes.
5. The following is a definition of the class Point that takes in the coordinates x, y. Add a method
plot_point that plots the position of a point.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-145-320.jpg)
![7.4 SUMMARY AND PROBLEMS 133
import matplotlib.pyplot as plt
class Point():
def __init__(self, x, y):
self.x = x
self.y = y
6. Use the class from Problem 5 and add a method calculate_dist which takes in x and y from
another point, and returns the distance calculated between the two points.
7. What’s inheritance?
8. How do we inherit from a superclass and add new methods?
9. When we inherit from a superclass, we need to replace a method with a new one; how do we do
that?
10. What’s the super method? Why do we need it?
11. Create a class to model some real world objects and create a new class to inherit from it. See the
example below. You should use a different example and incorporate as many of the concepts we’ve
learned so far as possible.
In [1]: class Car():
def __init__(self, brand, color):
self.brand = brand
self.color = color
def start_my_car(self):
print(I am ready to drive!)
class Truck(Car):
def __init__(self, brand, color, size):
super().__init__(brand, color)
self.size = size
def start_my_car(self, key):
if key == truck_key:
print(I am ready to drive!)
else:
print(Key is not right)
def stop_my_car(self, brake):
if brake:
print(The engine is stopped!)
else:
print(I am still running!)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-146-320.jpg)
![8
COMPLEXITY
8.1 Complexity and Big-O Notation ..................................................................................... 135
8.2 Complexity Matters ................................................................................................... 137
8.3 The Profiler............................................................................................................. 139
8.3.1 Using the Magic Command .......................................................................... 139
8.3.2 Use Python Profiler ................................................................................... 140
8.3.3 Use Line Profiler....................................................................................... 141
8.4 Summary and Problems.............................................................................................. 142
8.4.1 Summary ............................................................................................... 142
8.4.2 Problems ............................................................................................... 142
8.1 COMPLEXITY AND BIG-O NOTATION
The complexity of a function is the relationship between the size of the input and the difficulty of
running the function to completion. The size of the input is usually denoted by n. However, n usually
describes something more tangible, such as the length of an array. The difficulty of a problem can
be measured in several ways. One suitable way to describe the difficulty of the problem is to use
basic operations: additions, subtractions, multiplications, divisions, assignments, and function calls.
Although each basic operation takes different amount of time, the number of basic operations needed
to complete a function is sufficiently related to the running time to be useful, and it is much easier to
count.
TRY IT! Count the number of basic operations, in terms of n, required for the following function
to terminate:
In [1]: def f(n):
out = 0
for i in range(n):
for j in range(n):
out += i*j
return out
Let us calculate the number of operations:
n2 additions; 0 subtractions; n2 multiplications; 0 divisions; 2n2 + 1 assignments; 0 function calls;
4n2 + 1 in total.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-148-320.jpg)
![136 CHAPTER 8 COMPLEXITY
The number of assignments is 2n2 + n + 1 because the line out += i*j is evaluated n2 times, j is
assigned n2 times, i is assigned n times, and the line out = 0 is assigned once. So, the complexity of
the function f can be described as 4n2 + n + 1.
A common notation for complexity is called Big-O notation. Big-O notation establishes the rela-
tionship in the growth of the number of basic operations with respect to the size of the input as the input
size becomes very large. Because hardware may be different on every machine, we cannot accurately
calculate how long it will take to complete without also evaluating the hardware, which is only valid
for that specific machine. How long it takes to calculate a specific set of input on a specific machine is
not germane. What is germane is the “time to completion.” Because this type of analysis is hardware
independent, the basic operations grow in direct response to the increase in the size of the input. As n
gets large, the highest power dominates; therefore, only the highest power term is included in Big-O
notation. Additionally, coefficients are not required to characterize growth, and so coefficients are also
dropped. In the previous example, we counted 4n2 + n + 1 basic operations to complete the function.
In Big-O notation we would say that the function is O(n2) (pronounced “O of n-squared”). We say
that any algorithm with complexity O(nc) where c is some constant with respect to n is polynomial
time.
TRY IT! Determine the complexity of the iterative Fibonacci function in Big-O notation.
In [2]: def my_fib_iter(n):
out = [1, 1]
for i in range(2, n):
out.append(out[i - 1] + out[i - 2])
return out
Since the only lines of code that take more time as n grows are those in the for-loop, we can restrict
our attention to the for-loop and the code block within it. The code within the for-loop does not grow
with respect to n (i.e., it is constant). Therefore, the number of basic operations is Cn, where C is some
constant representing the number of basic operations that occur in the for-loop, and these C operations
run n times. This gives a complexity of O(n) for my_fib_iter.
Assessing the exact complexity of a function can be difficult. In these cases, it might be sufficient
to give an upper bound or even an approximation of the complexity.
TRY IT! Give an upper bound on the complexity of the recursive implementation of Fibonacci.
Do you think it is a good approximation of the upper bound? Do you think that recursive Fibonacci
can possibly be polynomial time?
In [3]: def my_fib_rec(n):
if n 2:
out = 1](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-149-320.jpg)
![8.2 COMPLEXITY MATTERS 137
else:
out = my_fib_rec(n-1) + my_fib_rec(n-2)
return out
As n gets large, we can say that the vast majority of function calls make two other function calls:
one addition and one assignment to the output. The addition and assignment do not grow with n per
function call, so we can ignore them in Big-O notation. However, the number of function calls grows
approximately by 2n , and so the complexity of my_fib_rec is upper bounded by O(2n).
There is an on-going debate whether or not O(2n) is a good approximation for the Fibonacci func-
tion.
Since the number of recursive calls grows exponentially with n, there is no way the recursive Fi-
bonacci function can be polynomial. That is, for any c, there is an n such that my_fib_rec takes more
than O(nc) basic operations to complete. Any function that is O(cn) for some constant c is said to be
exponential time.
TRY IT! What is the complexity of the following function in Big-O notation?
In [4]: def my_divide_by_two(n):
out = 0
while n 1:
n /= 2
out += 1
return out
Again, only the while-loop runs longer for larger n, so we can restrict our attention there. Within
the while-loop, there are two assignments: one division and one addition, both of which are constant
time with respect to n. So the complexity depends only on how many times the while-loop runs.
The while-loop cuts n in half in every iteration until n is less than 1. So the number of iterations,
I, is the solution to the equation n
2I = 1. With some manipulation, the solution is I = logn, so the
complexity of my_divide_by_two is O(logn). If we recall log rules, it does not matter what the base of
the log is because all logs are a scalar multiple of each other. Any function with complexity O(logn)
is said to be log-time.
8.2 COMPLEXITY MATTERS
So why does complexity matter? Because differing complexities require different amounts of time to
complete the task. Fig. 8.1 is a quick sketch showing you how the time changes with different input
size for complexity log(n), n, n2.
Let us look at another example. Assume you have an algorithm that runs in exponential time, say
O(2n), and let N be the largest problem you can solve with this algorithm using the computational](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-150-320.jpg)
![8.3 THE PROFILER 139
algorithms exist for these problems. Examples of NP-complete problems include the Traveling Sales-
man, Set Cover, and Set Packing problems. Although theoretical in construction, solutions to these
problems have numerous applications in logistics and operations research. In fact, some encryption
algorithms that keep web and bank applications secure rely on the NP-completeness of breaking them.
A further discussion of NP-complete problems and the theory of complexity is beyond the scope of
this book, but these problems are very interesting and important to many engineering applications.
8.3 THE PROFILER
8.3.1 USING THE MAGIC COMMAND
Even if it does not change the Big-O complexity of a program, many programmers will spend long
hours to make their code run twice as fast or to gain even smaller improvements.
There are ways to check the run time of the code in the Jupyter notebook. Introduced below are the
magic commands to do that:
• %time: Get the run time of a single statement.
• %timeit: Get the repeated run time of a single statement.
• %%time: Get the run time of all the code in the cell.
• %%timeit: Get the repeated run time of a cell.
Note that the double percent magic command will measure the run time for all the code in a cell,
while the single percent command only works for a single statement.
In [1]: %time sum(range(200))
CPU times: user 6 µs, sys: 1 µs, total: 7 µs, wall time: 9.06 µs
Out[1]: 19900
In [2]: %timeit sum(range(200))
1.24 µs ± 70.6 ns per loop (mean ± std. dev. of 7 runs, 1000000 loops each)
In [3]: %%time
s = 0
for i in range(200):
s += i
CPU times: user 15 µs, sys: 0 ns, total: 15 µs, wall time: 17.9 µs
In [4]: %%timeit
s = 0](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-152-320.jpg)
![140 CHAPTER 8 COMPLEXITY
for i in range(200):
s += i
7.06 µs ± 414 ns per loop (mean ± std. dev. of 7 runs, 100000 loops each)
WARNING! Sometimes it may not be proper to use the timeit, since it will run many loops for
the code, taking an inordinate amount of time to complete the task.
8.3.2 USE PYTHON PROFILER
You can also use the Python profiler (for additional discussion, read more in the Python documenta-
tion) to profile the code you write. In Jupyter notebook,
• %prun: Run a single statement through the Python code profiler.
• %%prun: Run a cell through the Python code profiler.
The following example sums random numbers over and over again:
In [6]: import numpy as np
In [7]: def slow_sum(n, m):
for i in range(n):
# we create a size m array of random numbers
a = np.random.rand(m)
s = 0
# in this loop we iterate through the array
# and add elements to the sum one by one
for j in range(m):
s += a[j]
In [8]: %prun slow_sum(1000, 10000)
The results are shown in Fig. 8.2.
The table shows the following columns (from Python profiler):
• ncalls is the number of calls;
• tottime is the total time spent in performing the given function (and excluding time made in calls
to subfunctions);
• percall is the quotient of dividing tottime by ncalls;
• cumtime is the total time spent in this and all subfunctions (from invocation till exit). This figure is
accurate even for recursive functions;
• percall is the quotient of dividing cumtime by primitive calls.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-153-320.jpg)
![8.3 THE PROFILER 141
FIGURE 8.2
The profiling result from prun.
8.3.3 USE LINE PROFILER
Many times we want to determine which line in a code script takes a long time so that we can rewrite
this line to make it more efficient. This can be done using the line_profiler, which will profile the
code line by line. This function is not shipped with Python; therefore, we need to install it, and then we
can use the magic command:
• %lprun: Run the line by line profile on a single statement.
In [9]: # Note, you only need run this once.
!conda install line_profiler
After you have installed this package, load the line_profiler extension:
In [10]: %load_ext line_profiler
The way we use the line_profiler to profile the code is shown as follows:
In [11]: %lprun -f slow_sum slow_sum(1000, 10000)
Running the above command will perform line by line profiling, as shown in Fig. 8.3.
The results include a summary for each line of the function. Note that lines 10 and 11 take the
majority of the total running time.
Usually when code takes longer to run than you would like, there is a bottleneck where a majority
of the time is being spent. That is, there is a line of code that is taking much longer to execute than
the other lines in the program. Addressing the bottleneck in a program will usually lead to the biggest
improvement in performance, even if there are other areas of your code that are more easily improved.
TIP! Start at the bottleneck when improving the performance of a code.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-154-320.jpg)
![8.4 SUMMARY AND PROBLEMS 143
halfway between the first word and the current word. Keep repeating this process until you find the
word. This algorithm is known as a binary search. It runs in log time because the search space is
cut in half at each iteration; therefore, it requires, at most, log2(n) iterations to find the word. Hence
the increase in run time is only a log in the length of the list.
There is a way to look up a word in O(1) or constant time. This means that no matter how long the
list is, it takes the same amount of time! Can you think of how this is done? Hint: Research hash
functions.
4. What is the complexity of the algorithms that compute the following recursive relationships? Clas-
sify the following algorithms as log time, polynomial time, or exponential time in terms of n given
that the implementation is (a) recursive and (b) iterative.
Tribonacci, T (n):
T (n) = T (n − 1) + T (n − 2) + T (n − 3)
T (1) = T (2) = T (3) = 1.
Timmynacci, t(n):
t(n) = t(n/2) + t(n/4)
t(n) = 1 if n 1.
5. What is the Big-O complexity of the Towers of Hanoi problem given in Chapter 6? Is the complexity
an upper bound or is it exact?
6. What is the Big-O complexity of the quicksort algorithm?
7. Run the following two iterative implementations of finding Fibonacci numbers in the line_pro-
filer as well as using the magic command to get the repeated run time. The first implementation
preallocates memory to an array that stores all the Fibonacci numbers. The second implementation
expands the list at each iteration of the for-loop.
In [ ]: import numpy as np
def my_fib_iter1(n):
out = np.zeros(n)
out[:2] = 1
for i in range(2, n):
out[i] = out[i-1] + out[i-2]
return out
def my_fib_iter2(n):
out = [1, 1]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-156-320.jpg)
![144 CHAPTER 8 COMPLEXITY
for i in range(2, n):
out.append(out[i-1]+out[i-2])
return np.array(out)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-157-320.jpg)
![9.2 FLOATING POINT NUMBERS 147
FIGURE 9.2
Binary multiplication.
9.2 FLOATING POINT NUMBERS
The number of bits is usually fixed for any given computer. Using binary representation gives us an
insufficient range and precision of numbers to do relevant engineering calculations. To achieve the
range of values needed with the same number of bits, we use floating point numbers, or floats for short.
Instead of utilizing each bit as the coefficient of a power of 2, floats allocate bits to three different parts:
the sign indicator, s, which says whether a number is positive or negative; characteristic or exponent,
e, which is the power of 2; and the fraction, f , which is the coefficient of the exponent. Almost all
platforms map Python floats to the IEEE754 double precision for a total of 64 bits. One bit is allocated
to the sign indicator, 11 bits are allocated to the exponent, and 52 bits are allocated to the fraction. With
11 bits allocated to the exponent; this makes 2048 values that this number can use. Since we want to
be able to make very precise numbers, we want some of these values to represent negative exponents
(i.e., to allow numbers that are between 0 and 1 (base10)). To accomplish this, 1023 is subtracted from
the exponent to normalize it. The value subtracted from the exponent is commonly referred to as the
bias. The fraction is a number between 1 and 2. In binary, this means that the leading term will always
be 1, and, therefore, it is a waste of bits to store it. To save space, the leading 1 is dropped. In Python,
we can obtain the float information using the sys package as shown below:
In [1]: import sys
sys.float_info
Out[1]: sys.float_info(max=1.7976931348623157e+308, max_exp=1024,
max_10_exp=308, min=2.2250738585072014e-308,
min_exp=-1021, min_10_exp=-307, dig=15,
mant_dig=53, epsilon=2.220446049250313e-16,
radix=2, rounds=1)
A float can then be represented as n = (−1)s2e−1023(1 + f ), for 64-bit.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-160-320.jpg)
![9.2 FLOATING POINT NUMBERS 149
Therefore, the IEEE754 number
0 10000000010 1110000000000000000000000000000000000000000000000000
not only represents the number 15.0, but also all real numbers halfway between its immediate
neighbors. So any computation that has a result within this interval will be assigned as “15.0”.
We call the distance from one number to the next the gap. Because the fraction is multiplied by
2e−1023, the gap grows as the number represented grows. The gap at a given number can be computed
using the function spacing in NumPy.
TRY IT! Use the spacing function to determine the gap at 1e9. Verify that adding a number to
1e9 that is less than half the gap at 1e9 results in the same number.
In [2]: import numpy as np
In [3]: np.spacing(1e9)
Out[3]: 1.1920928955078125e-07
In [4]: 1e9 == (1e9 + np.spacing(1e9)/3)
Out[4]: True
There are special cases for the value of a floating point number when e = 0 (i.e., e =
00000000000(base2)) and when e = 2047, i.e., e = 11111111111(base2), which are reserved. When
the exponent is 0, the leading 1 in the fraction takes the value 0 instead. The result is a subnormal
number, which is computed by n = (−1)s2−1022(0 + f ) (note that it is −1022 instead of −1023).
When the exponent is 2047 and f is nonzero, then the result is “Not a Number,” which means that
the number is undefined. When the exponent is 2047, then f = 0 and s = 0, and the result is positive
infinity. When the exponent is 2047, then f = 0, and s = 1, and the result is minus infinity.
TRY IT! Compute the base10 value for
0 11111111110 1111111111111111111111111111111111111111111111111111
(IEEE754), the largest defined number for 64 bits, and for
0 00000000001 000000000000000000000000000000000000000000000000000
(IEEE754), the smallest. Note that to comply with the previously stated rules, the exponent
is e = 2046 and e = 1, respectively. Verify that Python agrees with these calculations using
sys.float_info.max and sys.float_info.min.
In [5]: l = (2**(2046-1023))*((1 + sum(0.5**np.arange(1, 53))))
l
Out[5]: 1.7976931348623157e+308](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-162-320.jpg)
![150 CHAPTER 9 REPRESENTATION OF NUMBERS
In [6]: sys.float_info.max
Out[6]: 1.7976931348623157e+308
In [7]: s = (2**(1-1023))*(1+0)
s
Out[7]: 2.2250738585072014e-308
In [8]: sys.float_info.min
Out[8]: 2.2250738585072014e-308
Numbers that are larger than the largest floating point number capable of being represented result
in overflow; Python handles this case by assigning the result to inf. Numbers that are smaller than the
smallest subnormal number result in underflow; Python handles this case by assigning the result to
zero.
TRY IT! Show that adding the maximum 64-bit float number with 2 results in the same
number. Because the Python float does not have sufficient precision to store the + 2 for
sys.float_info.max, the operation is essentially equivalent to adding zero. Also show that
adding the maximum 64-bit float number with itself results in overflow, and that Python assigns
this overflow number to inf.
In [9]: sys.float_info.max + 2 == sys.float_info.max
Out[9]: True
In [10]: sys.float_info.max + sys.float_info.max
Out[10]: inf
TRY IT! The smallest subnormal number in a 64-bit number has
s = 0,e = 00000000000
and
f = 0000000000000000000000000000000000000000000000000001.
Using the special rules for subnormal numbers, this results in the subnormal number
(−1)021−10232−52 = 2−1074. Show that 2−1075 underflows to zero, and that the result cannot
be distinguished from zero. Show that 2−1074 does not.
In [11]: 2**(-1075)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-163-320.jpg)
![9.3 ROUND-OFF ERRORS 151
Out[11]: 0.0
In [12]: 2**(-1075) == 0
Out[12]: True
In [13]: 2**(-1074)
Out[13]: 5e-324
What have we gained by using IEEE754 versus binary? Using 64-bit binary gives us 264 numbers.
Since the number of bits does not change between binary and IEEE754, IEEE754 must also give us
264 numbers. In binary, numbers have a constant spacing between them. As a result, you cannot have
both range (i.e., large distance between minimum and maximum numbers capable of being represented)
and precision (i.e., small spacing between numbers). Controlling these parameters would depend on
where you put the decimal point in your number. IEEE754 overcomes this limitation by using very
high precision at small numbers and very low precision at large numbers. This limitation is usually
acceptable because the gap at large numbers is still small relative to the size of the number itself.
Therefore, even if the gap is millions large, it is irrelevant to normal calculations if the number under
consideration is in the trillions or higher.
This section introduced the representation of floating point numbers. This concept is described in
detail computer organization and design by David Patterson and John Hennessy.
9.3 ROUND-OFF ERRORS
In the previous section, we talked about how the floating-point numbers are represented in computers
as base2 fractions. This has a side effect that the floating-point numbers cannot be stored with perfect
precision; instead the numbers are approximated by a finite number of bytes. Therefore, the difference
between an approximation of a number used in computation and its correct (true) value is called a
round-off error. It is one of the common errors found usually in numerical calculations. The other
one is truncation error, which will be introduced in Chapter 18. The difference is that truncation
error is the error made by truncating an infinite sum and approximating it by a finite sum.
9.3.1 REPRESENTATION ERROR
The most common form of a round-off error is the representation error in the floating-point numbers.
A simple example will be how do we represent π? We know that π is an infinite number (i.e., has an
infinite number of digits); typically, we only use a finite number of digits. For example, if you only use
3.14159265, there will be an error between this approximation and the true infinite number. Another
example will be 1/3, the true value will be 0.333333333... No matter how many decimal digits we
choose, there is an round-off error as well.
When we round the numbers multiple times, the error will accumulate. For instance, if 4.845 is
rounded to two decimal places, it is 4.85. Then if we round it again to one decimal place, it is 4.9, the](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-164-320.jpg)
![152 CHAPTER 9 REPRESENTATION OF NUMBERS
total error will be 0.55. But if we only round one time to one decimal place, it is 4.8, and the error is
0.045.
9.3.2 ROUND-OFF ERROR BY FLOATING-POINT ARITHMETIC
From the above example, the error between 4.845 and 4.8 should be 0.055. But if you calculate it in
Python, you will see the 4.9 − 4.845 is not equal to 0.055.
In [1]: 4.9 - 4.845 == 0.055
Out[1]: False
Why does this happen? If we take a second look at 4.9 − 4.845, we actually get
0.055000000000000604. This is because the floating point cannot be represented by the exact number
because it is an approximation; when it is used in arithmetic, it causes a small error.
In [2]: 4.9 - 4.845
Out[2]: 0.055000000000000604
In [3]: 4.8 - 4.845
Out[3]: -0.04499999999999993
Another example shows below that 0.1 + 0.2 + 0.3 is not equal to 0.6; the error is due to the same
cause.
In [4]: 0.1 + 0.2 + 0.3 == 0.6
Out[4]: False
Though the numbers cannot be made closer to their intended exact values, the round function can be
useful for post-rounding so that results with inexact values become comparable to one another:
In [5]: round(0.1 + 0.2 + 0.3, 5) == round(0.6, 5)
Out[5]: True
9.3.3 ACCUMULATION OF ROUND-OFF ERRORS
When we are doing a sequence of calculations on an initial input with round-off errors due to inexact
representation, the errors can be magnified or accumulated. As an example, if we have the number 1,
add and then subtract 1/3, it should give us 1. But if we add 1/3 and subtract the same number of times
1/3 over several iterations, do we still get the same number 1? No, we don’t. In the example below, the
more times you do this, the additional accumulates.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-165-320.jpg)
![9.4 SUMMARY AND PROBLEMS 153
In [6]: # If we only do once
1 + 1/3 - 1/3
Out[6]: 1.0
In [7]: def add_and_subtract(iterations):
result = 1
for i in range(iterations):
result += 1/3
for i in range(iterations):
result -= 1/3
return result
In [8]: # If we do this 100 times
add_and_subtract(100)
Out[8]: 1.0000000000000002
In [9]: # If we do this 1000 times
add_and_subtract(1000)
Out[9]: 1.0000000000000064
In [10]: # If we do this 10000 times
add_and_subtract(10000)
Out[10]: 1.0000000000001166
9.4 SUMMARY AND PROBLEMS
9.4.1 SUMMARY
1. Numbers may be represented in several different ways, each representation scheme having advan-
tages and disadvantages.
2. Computers must represent numbers using a finite number of digits (i.e., bits).
3. Binary and IEEE754 are finite representations of numbers used by computers.
4. The round-off error is an important error associated with numerical methods.
9.4.2 PROBLEMS
1. Write a function my_bin_2_dec(b) where b is a binary number represented by a list of ones and
zeros. The last element of b represents the coefficient of 20, the second-to-last element of b repre-](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-166-320.jpg)
![154 CHAPTER 9 REPRESENTATION OF NUMBERS
sents the coefficient of 21, and so on. The output variable, d, should be the decimal representation
of b. Test cases are provided below.
In [ ]: def my_bin_2_dec(b):
# write your function code here
return d
In [ ]: # Output: 7
my_bin_2_dec([1, 1, 1])
In [ ]: # Output: 85
my_bin_2_dec([1, 0, 1, 0, 1, 0, 1])
In [ ]: # Output: 33554431
my_bin_2_dec([1]*25)
2. Write a function my_dec_2_bin(d) where d is a positive integer in decimal, and b is the binary
representation of d. The output b must be a list of ones and zeros, and the leading term must be a
1 unless the decimal input value is 0. Test cases are provided below.
In [ ]: def my_dec_2_bin(d):
# write your function code here
return b
In [ ]: # Output: [0]
my_dec_2_bin(0)
In [ ]: # Output: [1, 0, 1, 1, 1]
my_dec_2_bin(23)
In [ ]: # Output: [1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1]
my_dec_2_bin(2097)
3. Use the two functions you wrote in Problems 1 and 2 to compute
d = my_bin_2_dec(my_dec_2_bin(12654)). Do you get the same number?
4. Write a function my_bin_adder(b1,b2) where b1, b2 and the output variable b are binary numbers
represented as in Problem 1. The output variable should be computed as b = b1 + b2. Do not
use your functions from Problems 1 and 2 to write this function (i.e., do not convert b1 and b2
to decimals; add them and then convert the result back to binary). This function should be able
to accept inputs b1 and b2 of any length (i.e., very long binary numbers), and b1 and b2 may not
necessarily be of the same length.
In [ ]: def my_bin_adder(b1, b2):
# write your function code here
return b
In [ ]: # Output: [1, 0, 0, 0, 0, 0]
my_bin_adder([1, 1, 1, 1, 1], [1])
In [ ]: # Output: [1, 1, 1, 0, 0, 1, 1]
my_bin_adder([1, 1, 1, 1, 1], [1, 0, 1, 0, 1, 0, 0])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-167-320.jpg)
![9.4 SUMMARY AND PROBLEMS 155
In [ ]: # Output: [1, 0, 1, 1]
my_bin_adder([1, 1, 0], [1, 0, 1])
5. What is the effect of allocating more bits to the fraction versus the characteristic, and vice versa?
What is the effect of allocating more bits to the sign?
6. Write a function my_ieee_2_dec(ieee) where ieee is a string that contains 64 characters of ones
and zeros, representing a 64-bit IEEE754 number. The output should be d, which is the equivalent
decimal representation of ieee. The input variable ieee will always be a 64-element string of ones
and zeros defining a 64-bit float.
In [ ]: def my_ieee_2_dec(ieee):
# Write your function here
return d
In [ ]: # Output: -48
ieee =1100000001001000000000000000000000000000000000000000000000000000
my_ieee_2_dec(ieee)
In [ ]: # Output: 3.39999999999999991118215802999
ieee =0100000000001011001100110011001100110011001100110011001100110011
my_ieee_2_dec(ieee)
7. Write a function my_dec_2_ieee(d) where d is a number in decimal, and the output variable ieee
is a string with 64 characters of ones and zeros, representing the 64-bit IEEE754 closest to d.
Assume that d will not cause an overflow for 64-bit ieee numbers.
In [ ]: def my_dec_2_ieee(d):
# write your function code here
return ieee
In [ ]: #Output:0100000000101110010111101010001110011100001100011010010001101000
d = 1.518484199625
my_dec_2_ieee(d)
In [ ]: #Output:1100000001110011010100100100010010010001001010011000100010010000
d = -309.141740
my_dec_2_ieee(d)
In [ ]: #Output:1100000011011000101010010000000000000000000000000000000000000000
d = -25252
my_dec_2_ieee(d)
8. Define ieee_baby to be a representation of numbers using 6 bits, where the first bit is the sign bit,
the second and third bits are allocated to the characteristic, and the fourth, fifth, and sixth bits are
allocated to the fraction. The normalization for the characteristic is 1.
Write all the decimal numbers that can be represented by ieee_baby. What is the largest/smallest
gap in ieee_baby?](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-168-320.jpg)
![10
ERRORS, GOOD
PROGRAMMING PRACTICES,
AND DEBUGGING
10.1 Error Types ........................................................................................................... 157
10.2 Avoiding Errors ...................................................................................................... 160
10.2.1 Plan Your Program ................................................................................. 160
10.2.2 Test Everything Often ............................................................................. 161
10.2.3 Keep Your Code Clean ............................................................................ 161
10.3 Try/Except............................................................................................................. 163
10.4 Type Checking ....................................................................................................... 166
10.5 Debugging ............................................................................................................ 168
10.5.1 Activating Debugger After Running Into an Exception ....................................... 168
10.5.2 Activating Debugger Before Running the Code................................................ 171
10.5.3 Add a Breakpoint .................................................................................. 172
10.6 Summary and Problems ............................................................................................ 173
10.6.1 Summary............................................................................................ 173
10.6.2 Problems ............................................................................................ 173
10.1 ERROR TYPES
We have noted errors before but have not yet talked about them in detail. There are three basic types
of errors that programmers need to be concerned about: syntax errors, runtime errors, and logical
errors. Syntax is the set of rules that govern a language. In written and spoken language, rules can
be bent or even broken to accommodate the speaker or writer. However, in a programming language
the rules are rigid. A syntax error occurs when the programmer writes an instruction using incorrect
syntax; Python cannot understand what you are saying. For example, 1 = x is not legal in the Python
programming language because numbers cannot be assigned as variables. If the programmer tries to
execute one of these instructions or any other syntactically incorrect statement, Python will return
an error message to the programmer and point out the location where the error occurred. Note that
although Python can identify the location where the syntax error is detected by the parser, it is possible
that the syntax error causing the error may be far away from the specific line identified.
EXAMPLE: Syntax error examples.
In [1]: 1 = x](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-170-320.jpg)
![158 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING
File ipython-input-1-7a7b257d8e3d, line 1
1 = x
ˆ
SyntaxError: can’t assign to literal
In [2]: (1]
File ipython-input-2-800df0a5e99c, line 1
(1]
ˆ
SyntaxError: invalid syntax
In [3]: if True
print(Here)
File ipython-input-3-025e9fce1ee3, line 1
if True
ˆ
SyntaxError: invalid syntax
The last line of the error message shows what happened – SyntaxError, and the lines before in-
dicate where the error happens in the context of the code. Overall, syntax errors are usually easily
detectable, found, and fixed.
Even if all the syntax is correct in your code, it may still cause an error during execution of the
code. Errors that occur during execution are called exceptions or runtime errors. Exceptions are
more difficult to find and are only detectable when a program is run. Note that exceptions are not fatal.
We will learn later how to handle them in Python. If we do not handle them, Python will terminate the
program. Let us see some examples below.
In [4]: 1/0
------------------------------------------------------
ZeroDivisionError Traceback (most recent call last)
ipython-input-4-9e1622b385b6 in module
---- 1 1/0](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-171-320.jpg)
![10.1 ERROR TYPES 159
ZeroDivisionError: division by zero
In [5]: x = [2]
x + 2
-----------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-5-29a14b9fefb9 in module
1 x = [2]
---- 2 x + 2
TypeError: can only concatenate list (not int) to list
In [6]: print(a)
------------------------------------------------------
NameError Traceback (most recent call last)
ipython-input-6-bca0e2660b9f in module
---- 1 print(a)
NameError: name a is not defined
As shown in the examples above, there are different built-in exceptions: ZeroDivisionError,
TypeError, and NameError. You can find a complete list of built-in exceptions in the Python docu-
mentation.1 In addition, you can define your own exception types, but we will not deal with this herein;
if you are interested in how to define customized exceptions, check out the documentation.2
Most of the exceptions are easy to locate because Python will stop running and tell you where the
problem is. After programming a function, seasoned programmers will usually run the function several
times, allowing the function to “throw” any errors so that they can fix them. Note that no exception
does not mean the function works correctly.
1 https://docs.python.org/3/library/exceptions.html#bltin-exceptions.
2 https://docs.python.org/3/tutorial/errors.html#user-defined-exceptions.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-172-320.jpg)
![160 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING
One of the most difficult errors to find are called logic errors. A logic error does not throw an error.
Although the program will run smoothly, it is an error because the output obtained is not the solution
you expect. For example, consider the following incorrect implementation of the factorial function.
In [7]: def my_bad_factorial(n):
out = 0
for i in range(1, n+1):
out = out*i
return out
In [8]: my_bad_factorial(4)
Out[8]: 0
This function will not produce a runtime error for any input that is valid for a correctly implemented
factorial function; however, if you try using my_bad_factorial, you will find that the answer is always
0 because out is initialized to 0 instead of 1. Therefore, the line out = 0 is a logic error. It does not
produce a runtime error by Python, but it leads to an incorrect computation.
Although the logic errors seem unlikely to occur—or at least as easy to find as other kinds of
errors—when programs become longer and more complicated, such errors are very easy to generate
and notoriously difficult to find. When logic errors occur, you have no choice but to meticulously comb
through each line of your code until you find the problem. For these cases, it is important to know
exactly how Python will respond to every command you give and not make any assumptions. You can
also use Python’s debugger, which will be described in the last section of this chapter.
10.2 AVOIDING ERRORS
There are many techniques that can help prevent errors and make it easier for you to find them when
they occur. Because becoming familiar with the types of mistakes common in programming is a “learn-
ing as you go” process; we cannot possibly list them all here. That said, we present a few of them in
the following section to help you build good habits.
10.2.1 PLAN YOUR PROGRAM
When writing an essay, it is important to have a structure and a direction that you intend to follow. To
help make your structure more tangible, writing an essay usually starts with an outline containing the
main points you wish to address in your paper. This is even more important to do when programming
because computers do not interpret what you write. When coding complicated programs, you should
start with an outline of your program that addresses all the tasks you want your program to perform
and in the order in which it should perform them.
Many novice programmers, eager to finish their assignments, will rush to the programming part
without properly planning out the tasks needed to accomplish the given task. Haphazard planning](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-173-320.jpg)
![162 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING
y=x**2
y=y+2*x
y=y+1
Even if the outcome is the same, every character you type is a chance that you will make a mistake;
therefore, reducing how much code you write will reduce your risk of introducing errors. Additionally,
writing a complete expression will help you and other people understand what you are doing. In the
previous example, in the first case it is clear that you are computing the value of a quadratic at x, while
in the second case it is not clear. You can also keep your code “clean” by using variables rather than
values.
EXAMPLE: Poor implementation of adding 10 random numbers.
In [1]: import numpy as np
s = 0
a = np.random.rand(10)
for i in range(10):
s = s + a[i]
EXAMPLE: Good implementation of adding 10 random numbers.
In [2]: n = 10
s = 0
a = np.random.rand(n)
for i in range(n):
s = s + a[i]
The second implementation is better for two reasons: first, it is easier for anyone reading your code
that n represents the number of random numbers you want to add up, and it appears rationally where
it is supposed to in the code (i.e., when creating the array of random numbers and when indexing
the array in the for-loop); and second, if you ever wanted to change the number of random numbers
you wish to add up, you would only have to change it in one place at the beginning. This reduces the
chances of making mistakes while writing the code and when changing the value of n.
Again, this is not critical for such a small piece of code, but it will become very important when
your code becomes more complicated and values must be reused many times.
EXAMPLE: An even better implementation of adding 10 random numbers.
In [3]: s = sum(np.random.rand(10))
When you become more familiar with Python, you will want to use as few lines as possible to do
the same job; therefore, familiarity of the common functions and how to use them will make your code
more concise and efficient.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-175-320.jpg)
![10.3 TRY/EXCEPT 163
You can also keep your code clean by assigning your variables short, descriptive names. For exam-
ple, as noted earlier, n is a sufficient variable for such a simple task. The variable name x is probably a
good name since x usually holds value of position rather than a number; but theNumberOfRandomNum-
bersToBeAdded is a poor variable name even though it is descriptive.
Finally, you can keep your code clean by commenting frequently. Although no commenting is
certainly bad practice, over-commenting can be equally bad practice. Different programmers will dis-
agree on exactly how much commenting is appropriate. It will be up to you to decide what level of
commenting is appropriate.
10.3 TRY/EXCEPT
Often it is important to write programs that can handle certain types of errors or exceptions gracefully.
More specifically, the error or exception must not cause a critical error that makes your program shut
down. A Try-Except statement is a code block that allows your program to take alternative actions in
case an error occurs.
CONSTRUCTION: Try-Exception Statement
try:
code block 1
except ExceptionName:
code block 2
Python will first attempt to execute the code in the try statement (code block 1). If no exception
occurs, the except statement is skipped and the execution of the try statement is finished. If any
exception occurs, the rest of the clause is skipped. Then if the exception type matches the exception
named after the except keyword (ExceptionName), the code in the except statement will be executed
(code block 2). If nothing in this block stops the program, it will continue to execute the rest of the
code outside of the try-except code blocks. If the exception does not match the ExceptionName, it is
passed on to outer try statements. If no other handler is found, then the execution stops with an error
message.
EXAMPLE: Capture the exception.
In [1]: x = 6
try:
if x 3:
print(X is larger than 3)
except TypeError:
print(Oops! x is not a valid number. Try again...)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-176-320.jpg)
![164 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING
Oops! x is not a valid number. Try again...
EXAMPLE: If your handler is trying to capture another exception type that the except does not
capture, then an error occurs and the execution stops.
In [2]: x = 6
try:
if x 3:
print(X is larger than 3)
except ValueError:
print(Oops! x is not a valid number. Try again...)
------------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-2-899d928e7a1f in module
1 x = 6
2 try:
---- 3 if x 3:
4 print(X is larger than 3)
5 except ValueError:
TypeError: not supported between instances of str
and int
Of course, a try statement may have more than one except statement to handle different exceptions
or you cannot specify the exception type so that the except will catch any exception.
In [3]: x = s
try:
if x 3:
print(x)
except:
print(fSomething is wrong with x = {x})
Something is wrong with x = s](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-177-320.jpg)
![10.3 TRY/EXCEPT 165
EXAMPLE: Handling multiple exceptions.
In [4]: def test_exceptions(x):
try:
x = int(x)
if x 3:
print(x)
except TypeError:
print(x was not a valid number. Try again...)
except ValueError:
print(Cannot convert x to int. Try again...)
except:
print(Unexpected error)
In [5]: x = [1, 2]
test_exceptions(x)
x was not a valid number. Try again...
In [6]: x = s
test_exceptions(x)
Cannot convert x to int. Try again...
Another useful thing in Python is that we can raise some exceptions in certain cases using raise.
For example, if we need x to be less than or equal to 5, we can use the following code to raise an
exception if x is larger than 5. The program will display our exception and stop the execution.
In [7]: x = 10
if x 5:
raise(Exception(x should be = 5))
--------------------------------------------------------
Exception Traceback (most recent call last)
ipython-input-7-99b32b52c4f8 in module
2
3 if x 5:
---- 4 raise(Exception(x should be = 5))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-178-320.jpg)
![166 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING
Exception: x should be = 5
WARNING! Try-except statements should never be used in place of good programming prac-
tice. For example, you should not code sloppily and then encase your program in a try-except
statement until you have taken every measure you can think of to ensure that your function is
working properly.
10.4 TYPE CHECKING
Python is both a strongly and dynamically typed programming language. This means that any variable
can take on any data type at any time (this is dynamically typed part); however, once a variable is
assigned a type, it cannot change. For example, you can write x = 1 immediately followed by x = s
because Python is a dynamically typed language. You cannot run 3 + 5, because it is a strongly typed
language, i.e., the string 3 cannot convert in runtime to an integer. In statically typed programming
languages, you must declare what kind of data type your variable is to execute before you use it, and
the data type usage of your variable cannot change within the scope of a function.
In the case of Python, there is no way to ensure that the user of your function is inputting variables
of the data type you expect. For example, the function my_adder in Chapter 3 is designed to add three
numbers together. However, the user can input strings, lists, dictionaries, or functions, each of which
will cause different levels of problems. You can have your function type check the input variables
before continuing and force an error using the error function.
TRY IT! Modify my_adder to type check that the input variables are floats. If any of the input
variables are not floats, the function should return an appropriate error to the user using the raise
function. Try your function for erroneous input arguments to verify that they are checked.
In [1]: def my_adder(a, b, c):
# type check
if isinstance(a, float) and isinstance(b, float) and
isinstance(c, float):
pass
else:
raise(TypeError(Inputs must be floats))
out = a + b + c
return out
In [2]: my_adder(1.0, 2.0, 3.0)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-179-320.jpg)
![10.4 TYPE CHECKING 167
Out[2]: 6.0
In [3]: my_adder(1.0, 2.0, 3.0)
---------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-3-14e4b71b8c1d in module
---- 1 my_adder(1.0, 2.0, 3.0)
ipython-input-1-c2a54d39e3d9 in my_adder(a, b, c)
---- 6 raise(TypeError(Inputs must be floats))
7
8 out = a + b + c
9 return out
TypeError: Input arguments must be floats
In [4]: my_adder(1, 2, 3)
-----------------------------------------------------
Exception Traceback (most recent call last)
ipython-input-4-fc54adcab3d7 in module
---- 1 my_adder(1, 2, 3)
ipython-input-1-c2a54d39e3d9 in my_adder(a, b, c)
4 pass
5 else:
---- 6 raise(TypeError(Inputs must be floats))
7
8 out = a + b + c
TypeError: Inputs must be floats
Note that 1, 2, 3 are integers instead of floats, therefore, it raised an error message, and we need to
change the function to make sure that any numbers will be added.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-180-320.jpg)
![168 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING
In [5]: def my_adder(a, b, c):
# type check
if isinstance(a, (float, int, complex)) and
isinstance(b, (float, int, complex)) and
isinstance(c, (float, int, complex)):
pass
else:
raise(TypeError(Inputs must be numbers))
out = a + b + c
return out
In [6]: my_adder(1, 2, 3)
Out[6]: 6
In [7]: my_adder(1.0, 2, 3)
Out[7]: 6.0
In [8]: my_adder(1j, 2+2j, 3+2j)
Out[8]: (5+5j)
10.5 DEBUGGING
Debugging is the process of systematically removing errors, or bugs, from your code. Python has
functionalities that can assist you when debugging. The standard debugging tool in Python is pdb
(Python DeBugger) for interactive debugging. It lets you step through the code line by line to find out
what might be causing a difficult error. The IPython version of this is ipdb (IPython DeBugger). We
will not cover too much about it herein; check out the documentation3 for details. In this section, basic
debug steps in Jupyter notebook will be introduced. We will show you how to use two really useful
magic commands %debug and %pdb to find the code causing trouble.
There are two ways you can debug your code: (1) activate the debugger when you run into an
exception; and (2) activate debugger before running the code.
10.5.1 ACTIVATING DEBUGGER AFTER RUNNING INTO AN EXCEPTION
If we run the code which stops at an exception, we can call %debug. For example, we have a function
that squares the input number and then adds to itself, as shown below:
3 https://docs.python.org/3/library/pdb.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-181-320.jpg)
![10.5 DEBUGGING 169
In [1]: def square_number(x):
sq = x**2
sq += x
return sq
In [2]: square_number(10)
-----------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-2-e0b77a2957d5 in module
---- 1 square_number(10)
ipython-input-1-3fc6a3900214 in square_number(x)
1 def square_number(x):
2
---- 3 sq = x**2
4 sq += x
5
TypeError: unsupported operand type(s) for ** or pow():
str and int
After we locate this exception, we can activate the debugger by using the magic command %debug,
which opens an interactive debugger, at which point you can type in commands in the debugger to get
useful information.
In [3]: %debug
ipython-input-1-3fc6a3900214(3)square_number()
1 def square_number(x):
2
---- 3 sq = x**2
4 sq += x
5](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-182-320.jpg)
![10.5 DEBUGGING 171
10.5.2 ACTIVATING DEBUGGER BEFORE RUNNING THE CODE
We can also turn on the debugger before we run the code and then turn it off once we are finished
running the code.
In [4]: %pdb on
Automatic pdb calling has been turned ON
In [5]: square_number(10)
--------------------------------------------------------
TypeError Traceback (most recent call last)
ipython-input-5-e0b77a2957d5 in module
---- 1 square_number(10)
ipython-input-1-3fc6a3900214 in square_number(x)
1 def square_number(x):
2
---- 3 sq = x**2
4 sq += x
5
TypeError: unsupported operand type(s) for ** or pow():
str and int
ipython-input-1-3fc6a3900214(3)square_number()
1 def square_number(x):
2
---- 3 sq = x**2
4 sq += x
5
ipdb p x
10
ipdb c](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-184-320.jpg)
![172 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING
In [6]: # let’s turn off the debugger
%pdb off
Automatic pdb calling has been turned OFF
10.5.3 ADD A BREAKPOINT
It is often very useful to insert a breakpoint into your code. A breakpoint is a line in your code at which
Python will stop when the function is run.
In [7]: import pdb
In [8]: def square_number(x):
sq = x**2
# we add a breakpoint here
pdb.set_trace()
sq += x
return sq
In [9]: square_number(3)
ipython-input-8-e48ec2675aea(8)square_number()
- sq += x
(Pdb) l
3 sq = x**2
4
5 # we add a breakpoint here
6 pdb.set_trace()
7
8 - sq += x
9
10 return sq
[EOF]
(Pdb) p x
3
(Pdb) p sq
9](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-185-320.jpg)
![10.6 SUMMARY AND PROBLEMS 173
(Pdb) c
Out[9]: 12
After we added pdb.set_trace(), the program stopped at this line and activated the pdb debugger.
We can now check all the variable values that were assigned before this line and use the command c to
continue the execution.
Using the Python’s debugger can be extremely helpful in finding and fixing errors in your code. We
encourage you to use the debugger for large programs.
10.6 SUMMARY AND PROBLEMS
10.6.1 SUMMARY
1. Errors are inevitable when coding. Errors are important because they tell you that something is not
working the way you intended.
2. There are three types of errors: syntax errors, exceptions, and logical errors.
3. You can reduce the numbers of errors in your coding with good coding practice.
4. Try-except statements can be used to handle exceptions without stopping your code.
5. The Debugger is a Python tool for helping you find errors.
10.6.2 PROBLEMS
None, have fun with what we learned in this chapter.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-186-320.jpg)
![176 CHAPTER 11 READING AND WRITING DATA
f = open(filename, mode)
The f above is the returned file object. The filename takes a string that tells the computer the
location of the file you want to open, and mode is another string containing a few characters, which
describes the way in which the file will be used. The common modes are:
• r, this is the default mode, which opens a file for reading.
• w, this mode opens a file for writing. If the file does not exist, it creates a new file.
• a, opens a file in append mode, so that you can append data to end of file. If the file does not exist,
it creates a new file.
• b, opens a file in binary mode.
• r+, opens a file (does not create) for reading and writing.
• w+, opens or creates a file for writing and reading, discards existing contents.
• a+, opens or creates a file for reading and writing, and appends data to the end of file.
11.1.1 WRITING TO A FILE
TRY IT! Create a text file called test.txt and write a couple lines in it.
In [1]: f = open(test.txt, w)
for i in range(5):
f.write(fThis is line {i}n)
f.close()
In the above code, we first opened a file object f with the file name test.txt. We used w for
the mode, which indicates we want to write code. We wrote five lines (note the newline n at the end
of the string), and then we closed the file object. The content of the file is shown in Fig. 11.1.
NOTE! It is good practice to close the file using f.close() at the end of the file. If you do not
close them yourself, Python will eventually close them for you. Note that sometimes when writing
to a file, the data may not write to disk until you close the file. The longer you keep the file open,
the greater the chance you will lose your data.
11.1.2 APPENDING A FILE
Next, we will append a string to the test.txt file. It is very similar to how we write the file, with only
one difference: we change the mode to a instead. See the results in Fig. 11.2.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-188-320.jpg)
![11.1 TXT FILES 177
FIGURE 11.1
The content in the text file we write.
FIGURE 11.2
Append a line to the end of an existing file.
In [2]: f = open(test.txt, a)
f.write(fThis is another linen)
f.close()
11.1.3 READING A FILE
We can read a file from disk and store all the contents to a variable. Let us read in the test.txt file we
created above and store all the contents in the file to a variable content.
In [3]: f = open(./test.txt, r)
content = f.read()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-189-320.jpg)
![178 CHAPTER 11 READING AND WRITING DATA
f.close()
print(content)
This is line 0
This is line 1
This is line 2
This is line 3
This is line 4
This is another line
In this way, we can store all the lines in the file into a one-string variable. To prove that this is a string,
we can verify that variable content.
In [4]: type(content)
Out[4]: str
Sometimes we want to read in the contents in the files line by line and store it in a list: using
f.readlines() will achieve this.
In [5]: f = open(./test.txt, r)
contents = f.readlines()
f.close()
print(contents)
[This is line 0n,This is line 1n,This is line 2n,
This is line 3n,This is line 4n,This is another linen]
In [6]: type(contents)
Out[6]: list
11.1.4 DEALING WITH NUMBERS AND ARRAYS
Since we will be working with numerical methods later and will often work with numbers or arrays,
we can use the above methods to save the numbers or arrays to a file and read it back to the memory.
Although viable, it is a bit clumsy. Instead, programmers commonly use the NumPy package to directly
save/read an array. An example is presented below.
TRY IT! Store an array [[1.20, 2.20, 3.00], [4.14, 5.65, 6.42]] to a file named my_ar-
ray.txt and read it back to a variable called my_arr.
In [7]: import numpy as np](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-190-320.jpg)
![11.1 TXT FILES 179
In [8]: arr = np.array([[1.20, 2.20, 3.00], [4.14, 5.65, 6.42]])
arr
Out[8]: array([[1.2 , 2.2 , 3. ],
[4.14, 5.65, 6.42]])
In [9]: np.savetxt(my_arr.txt, arr, fmt=%.2f,
header = Col1 Col2 Col3)
The above example demonstrates how to save a 2D array into a text file using np.savetxt. The first
argument is the file name, the second argument is the object we wish to save, and the third argument
is to define the format for the output (we use %.2f to indicate we want the output numbers with two
decimals). The fourth argument is the header we wish to write into the file. See the results in Fig. 11.3.
FIGURE 11.3
The NumPy array we saved in the file.
In [10]: my_arr = np.loadtxt(my_arr.txt)
my_arr
Out[10]: array([[1.2 , 2.2 , 3. ],
[4.14, 5.65, 6.42]])
Reading the file directly into an array is very simple by using the np.loadtxt function, which skips
the first header. There are many different arguments that can control how a file is read. Additional
discussion on this topic will be explored in the next section; however, we are not going into much
detail herein beyond what is presented above. Check the documentation or use the question mark if
you need help.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-191-320.jpg)
![180 CHAPTER 11 READING AND WRITING DATA
11.2 CSV FILES
Often, scientific data are stored in the comma-separated values (CSV) file format, which is a delimited
text file that uses a comma to separate values. It is a very useful format that can store large tables of
data (numbers and text) in plain text. Each line (row) in the data is one data record, and each record
consists of one or more fields separated by commas. It also can be opened using Microsoft Excel to
visualize the rows and columns.
Python has its own CSV module to read and write a CSV file; we are not going to discuss this
further. Details on this module is available in the documentation.1 Instead, we will use the NumPy
package to deal with CSV files, because it is preferred to read a CSV file directly into a NumPy array.
11.2.1 WRITING AND OPENING A CSV FILE
Presented below is a simple example of generating 100 rows and 5 columns of data.
In [1]: import numpy as np
In [2]: data = np.random.random((100,5))
In [3]: np.savetxt(test.csv, data, fmt = %.2f,
delimiter=,, header = c1, c2, c3, c4, c5)
First, we generated some random data for 100 rows and 5 columns using the np.random function
and assigned it to a data variable, using the np.savetxt function to save the data to a CSV file. Note
that the first three arguments are the same as those used in the previous section, but in this case we set
the delimiter argument to ,, which indicates that we want to separate the data using a comma.
Now, we can open the CSV file using Microsoft Excel; see Fig. 11.4. We can also open the CSV
file using a text editor; note that the values are separated by commas (Fig. 11.5).
11.2.2 READING A CSV FILE
As before, we can read in the CSV file using the np.loadtxt function. If we read in the CSV file we
just saved to the disk to a variable my_csv and output the first 5 rows, we need to use the delimiter
again to specify that the data in the file is separated by commas.
In [4]: my_csv = np.loadtxt(./test.csv, delimiter=,)
my_csv[:5, :]
Out[4]: array([[0.84, 0.99, 0.56, 0.24, 0.71],
[0.33, 0.8 , 0.32, 0.28, 0.83],
[0.89, 0.19, 0.25, 0.63, 0.84],
[0.08, 0.49, 0.76, 0.34, 0.69],
[0.66, 0.65, 0.73, 0.48, 0.12]])
1 https://docs.python.org/3/library/csv.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-192-320.jpg)
![182 CHAPTER 11 READING AND WRITING DATA
11.3 PICKLE FILES
This section will introduce another way to store the data to the disk, namely pickle. We have talked
about saving data into text files or CSV files, but in certain cases, we want to store dictionaries, tuples,
lists, or any other data type to the disk and use them later or send them to colleagues. This is where
pickle comes in; it can serialize objects so that they can be saved into a file and loaded again later.
Pickle can be used to serialize Python object structures, which refers to the process of converting
an object in the memory to a byte stream that can be stored as a binary file on disk. When we load it
back to a Python program, this binary file can be deserialized back to a Python object.
11.3.1 WRITING TO A PICKLE FILE
TRY IT! Create a dictionary and save it to a pickle file on a disk. To use a pickle, we need to
import the module first.
In [1]: import pickle
In [2]: dict_a = {A:0, B:1, C:2}
pickle.dump(dict_a, open(test.pkl, wb))
To use pickle to serialize an object, we use the pickle.dump function which takes two arguments:
the first one is the object, and the second argument is a file object returned by the open function. Note
that the mode of the open function is wb which indicates it is writing to a binary file.
11.3.2 READING A PICKLE FILE
Next, we load the pickle file we just saved on the disk back using the pickle.load function.
In [3]: my_dict = pickle.load(open(./test.pkl, rb))
my_dict
Out[3]: {A: 0, B: 1, C: 2}
We can see the loading of a pickle file is very similar to the saving process, but here the mode of the
open function is rb, which indicates it is reading the binary file. This function deserializes the binary
file back to the original object, which in this case is a dictionary. This is also one of the reason that the
pickle format is popular; it is very easy to store and load a Python data structure without adding extra
code to change it.
11.3.3 READING IN PYTHON 2 PICKLE FILE
Sometimes, you may need to open a pickle file from some colleague who generated it using Python
2 instead of Python 3. You can either unpickle it using Python 2, or use Python 3 with the encod-
ing=latin1 in the pickle.load function.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-194-320.jpg)
![11.4 JSON FILES 183
infile = open(filename,rb)
new_dict = pickle.load(infile, encoding=latin1)
WARNING! One drawback of pickle files is that they are not in a universal file format, which
means that it is not easy for other programming languages to use it. TXT and CSV files can be
easily shared with other colleagues who are not using Python, and they can open them using R,
Matlab®, Java, and so on. But pickle files are specially designed for Python and the data is not
designed to work with other programming languages.
11.4 JSON FILES
JSON is another format we are introducing. It stands for JavaScript Object Notation. A JSON file
usually ends with the extension “.json”. Unlike pickle, which is Python dependent, JSON is a language-
independent data format, making it attractive to use. In addition, it usually takes up less space on the
disk, and manipulating a JSON file is faster compared to pickle; search online for more detail regarding
the advantages and disadvantages of using JSON versus pickle. Thus, it is a good practice to store your
data using JSON. This section briefly explores how to handle JSON files in Python.
11.4.1 JSON FORMAT
Text in JSON is represented using quoted strings that contain value in key-value pairs within {}; the
structure should appear very similar as it is nearly identical to the dictionary using in Python. For
example,
{
school: UC Berkeley,
address: {
city: Berkeley,
state: California,
postal: 94720
},
list:[
student 1,
student 2,
student 3
]
}](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-195-320.jpg)
![184 CHAPTER 11 READING AND WRITING DATA
11.4.2 WRITING A JSON FILE
The easiest way to handle JSON in Python is to use the json library. There are several other libraries
that are available, such as simplejson, jyson, etc. This section will be limited to using json, which is
natively supported by Python to enable you to write and load JSON files.
TRY IT! Create a dictionary and save it to a JSON file on the disk. We need to import the pickle
module first.
In [1]: import json
In [2]: school = {
school: UC Berkeley,
address: {
city: Berkeley,
state: California,
postal: 94720
},
list:[
student 1,
student 2,
student 3
],
array:[1, 2, 3]
}
json.dump(school, open(school.json, w))
To serialize an object using JSON, we use the json.dump function which takes two arguments: the
first one is the object, and the second argument is a file object returned by the open function. Note that
the mode of the open function is w, indicating that it is a “write” file.
11.4.3 READING A JSON FILE
Now we load the JSON file just saved on the disk after using the json.load function.
In [3]: my_school = json.load(open(./school.json, r))
my_school
We can see the use of json is actually very similar to pickle in the last section. JSON supports
strings and numbers, as well as nested lists, tuples, and objects. We suggest exploring these different
options on your own.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-196-320.jpg)
![11.5 HDF5 FILES 185
11.5 HDF5 FILES
Scientific computing often needs to store large amounts of data with quick access; the file formats we
introduced earlier are not applicable. To store large amounts of data, HDF5 (Hierarchical Data Format)
is the solution. It is a powerful binary data format with no limit on the file size. It provides parallel IO
(input/output) and carries out a bunch of low-level optimizations “under the hood” to speed up the
queries and minimize the storage requirements.
An HDF5 file saves two types of objects: datasets, which are array-like collections of data (like
NumPy arrays), and groups, which are folder-like containers that hold datasets and other groups. There
are also attributes that can be associated with the datasets and groups to describe some properties. The
so called hierarchical in HDF5 refers to the fact that the data can be saved like a file system, with
folder-like structures, such as folder, subfolder (in HDF5, it is called group, subgroup). Groups operate
like dictionaries with the keys and values: keys are names of the groups, and values are the subgroups
or datasets.
In order to use read/write HDF5 in Python, there are some packages or wrappers that serve this
purpose. The most common two packages are PyTables2 and h5py.3 We will only introduce the h5py
here. You can install h5py by using conda (refer back to Chapter 1 if you need a refresher).
Once h5py is installed, follow the Quick Start Guide in h5py documentation.4 For your information,
presented below is one example to demonstrate how to create and read an HDF5 file. We will import
the NumPy and h5py first.
In [1]: import numpy as np
import h5py
EXAMPLE: Assume we have deployed instruments to monitor the accelerations and GPS
location in San Francisco Bay Area, California. We have deployed two accelerometers at Berkeley
and Oakland, as well as one GPS station in San Francisco. They record data at different sampling
rates, with the accelerometer at Berkeley sampling the data every 0.04 s, and the sensor in Oakland
at every 0.01 s. The GPS samples the location every 60 s in San Francisco. We want to store the
two types of data into an HDF5, as well as some attributes to indicate where the data has been
recorded, the start time of the recording, station name, and the sampling interval.
In [2]: # Generate random data for recording
acc_1 = np.random.random(1000)
station_number_1 = 1
# unix timestamp
start_time_1 = 1542000276
# time interval for recording
dt_1 = 0.04
2 https://www.pytables.org.
3 https://www.h5py.org.
4 http://docs.h5py.org/en/latest/quick.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-197-320.jpg)
![186 CHAPTER 11 READING AND WRITING DATA
location_1 = Berkeley
acc_2 = np.random.random(500)
station_number_2 = 2
start_time_2 = 1542000576
dt_2 = 0.01
location_2 = Oakland
In [3]: hf = h5py.File(station.hdf5, w)
In [4]: hf[/acc/1/data] = acc_1
hf[/acc/1/data].attrs[dt] = dt_1
hf[/acc/1/data].attrs[start_time] = start_time_1
hf[/acc/1/data].attrs[location] = location_1
hf[/acc/2/data] = acc_2
hf[/acc/2/data].attrs[dt] = dt_2
hf[/acc/2/data].attrs[start_time] = start_time_2
hf[/acc/2/data].attrs[location] = location_2
hf[/gps/1/data] = np.random.random(100)
hf[/gps/1/data].attrs[dt] = 60
hf[/gps/1/data].attrs[start_time] = 1542000000
hf[/gps/1/data].attrs[location] = San Francisco
In [5]: hf.close()
The above code shows the core concepts in HDF5: the groups, datasets, and attributes. First, we
created an HDF5 object for writing: station.hdf5. Then we stored the data into two top-level groups:
acc and gps. Both of these top-levels groups contain subgroups labeled 1 or 2 to indicate the station
names. Each station will contain the next level subgroup, i.e., the data, which is used to store the array
data we collected. Next, we add attributes to the groups or the data. In this case, we have added the
dt, start_time, and location as the attributes to the datasets stored here. You can see that it is quite
similar to folder-like structure, with data acc_1 saved at /acc/1/data. Last, we close the file object.
Saving data in HDF5 is easy. We can also use the function create_dataset and create_group as
shown in the quick start.5
11.5.1 READING AN HDF5 FILE
Now suppose you send the station.hdf5 to a colleague, who wants to get access to the data. Here is
how he/she will do it.
5 http://docs.h5py.org/en/latest/quick.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-198-320.jpg)
![11.6 SUMMARY AND PROBLEMS 187
In [6]: hf_in = h5py.File(station.hdf5, r)
In [7]: list(hf_in.keys())
Out[7]: [acc, gps]
In [8]: acc = hf_in[acc]
In [9]: list(acc.keys())
Out[9]: [1, 2]
In [10]: data_1 = hf_in[acc/1/data]
In [11]: data_1.value[:10]
Out[11]: array([0.41820889, 0.89832446, 0.40229251, 0.41287538,
0.16173359, 0.75855904, 0.89288185, 0.82944522,
0.84228139, 0.50365515])
In [12]: list(data_1.attrs)
Out[12]: [dt, start_time, location]
In [13]: data_1.attrs[dt]
Out[13]: 0.04
In [14]: data_1.attrs[location]
Out[14]: Berkeley
Reading an HDF5 turns out to be easy as well using h5py. After we read in the HDF5 to hf_in,
we can see what groups are in the HDF5 using the keys function. Then we can get access to the group
members and see what is contained in the subgroups as the hf_in[acc], or directly specify the path
to the datasets as hf_in[acc/1/data] and get the array data. Remember that the attributes associated
with the data can also be accessed as a dictionary.
11.6 SUMMARY AND PROBLEMS
11.6.1 SUMMARY
1. Data must often be stored to a disk for a later Python session or for reading by other programs.
2. Data created by other programs may have to be read by Python.
3. Python has functions to read and write data in several standard forms: TXT, CSV, pickle, and HDF5.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-199-320.jpg)
![12
VISUALIZATION AND PLOTTING
12.1 2D Plotting............................................................................................................ 189
12.2 3D Plotting............................................................................................................ 199
12.3 Working With Maps ................................................................................................. 205
12.4 Animations and Movies............................................................................................. 212
12.5 Summary and Problems ............................................................................................ 215
12.5.1 Summary............................................................................................ 215
12.5.2 Problems ............................................................................................ 215
12.1 2D PLOTTING
In Python, the matplotlib is the most important package when plotting data. View the matplotlib
gallery1 to get a sense of what can be done. Usually, the first thing you should do is to import the
matplotlib package. In Jupyter notebook, we can show the figure directly within the notebook and
also have the interactive operations like pan, zoom in/out, and so on using the magic command –
%matplotlib notebook. Below are some examples.
In [1]: import numpy as np
import matplotlib.pyplot as plt
%matplotlib notebook
The basic plotting function is plot(x,y). The plot function takes in two lists/arrays, x and y, and
produces a visual display of the respective points in x and y.
TRY IT! Given the lists x = [0, 1, 2, 3] and y = [0, 1, 4, 9], use the plot function to
produce a plot of x versus y.
In [2]: x = [0, 1, 2, 3]
y = [0, 1, 4, 9]
plt.plot(x, y)
plt.show()
1 https://matplotlib.org/gallery/index.html#gallery.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-201-320.jpg)
![190 CHAPTER 12 VISUALIZATION AND PLOTTING
FIGURE 12.1
Plot of x versus y.
Note in Fig. 12.1 that by default, the plot function connects each point with a blue line. To make
the function look smooth, you can use finer discretization points. The plt.plot function did the main
job to plot the figure, and plt.show() is telling Python that we are done plotting and asks to show
the figure. The buttons beneath the plot allow you to move the line, zoom in or out, or save the figure.
Note that before you plot Fig. 12.2, you need to turn off the interactive plot by pressing the stop
interaction button on the top right of the figure, otherwise, the next figure will be plotted in the same
frame, or use the magic function %matplotlib inline to turn off the interactive features.
TRY IT! Make a plot of the function f (x) = x2 for −5 ≤ x ≤ 5.
In [3]: %matplotlib inline
In [4]: x = np.linspace(-5,5, 100)
plt.plot(x, x**2)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-202-320.jpg)
![12.1 2D PLOTTING 191
FIGURE 12.2
Plot of the function f (x) = x2 for −5 ≤ x ≤ 5.
To change the marker or line, add a third input argument into plot, which is a string that specifies
the color and line style to be used in the plot. For example, plot(x,y,ro) will plot the elements of
x against the elements of y using red, r, circles, o. The possible specifications are shown below in
the table (see also Fig. 12.3).
Symbol Description Symbol Description
b blue T T
g green s square
r red d diamond
c cyan v triangle (down)
m magenta ˆ triangle (up)
y yellow triangle (left)
k black triangle (right)
w white p pentagram
. point h hexagram
o circle - solid
x x-mark : dotted
+ plus -. dashed–dotted
* star - dashed
TRY IT! Make a plot of the function f (x) = x2 for −5 ≤ x ≤ 5 using a dashed green line.
In [5]: x = np.linspace(-5,5, 100)
plt.plot(x, x**2, g-)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-203-320.jpg)
![192 CHAPTER 12 VISUALIZATION AND PLOTTING
FIGURE 12.3
Plot of the function f (x) = x2 for −5 ≤ x ≤ 5 using dashed line.
Before the plt.show() statement, you can add in and plot more datasets within one figure (see also
Fig. 12.4).
TRY IT! Make a plot of the function f (x) = x2 and g(x) = x3 for −5 ≤ x ≤ 5. Use different
colors and markers for each function.
In [6]: x = np.linspace(-5,5,20)
plt.plot(x, x**2, ko)
plt.plot(x, x**3, r*)
plt.show()
FIGURE 12.4
Using different colors and markers.
It is customary in engineering and science to always provide your plot with both title and axis labels
so that people know what your plot is about. Sometimes you want to change the size of the figure as
well. You can add a title to your plot using the title function, which takes as input a string and puts](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-204-320.jpg)
![12.1 2D PLOTTING 193
that string as the title of the plot. The functions xlabel and ylabel work in the same way to name your
axis labels. To change the size of the figure, create a figure object and resize it. Note that every time
we call plt.figure function, we create a new figure object and draw on it.
TRY IT! Add a title and axis labels to the previous plot. Make the figure larger so that it is 10
inches wide and 6 inches high.
In [7]: plt.figure(figsize = (10,6))
x = np.linspace(-5,5,20)
plt.plot(x, x**2, ko)
plt.plot(x, x**3, r*)
plt.title(fPlot of Various Polynomials from {x[0]} to
{x[-1]})
plt.xlabel(X axis, fontsize = 18)
plt.ylabel(Y axis, fontsize = 18)
plt.show()
FIGURE 12.5
Adding title and axis labels to a figure.
As demonstrated in Fig. 12.5, we can change any part of the figure, such as the x and y axis label
size by specifying a fontsize argument in the plt.xlabel function. There are some predefined styles
that automatically change the style. Here is the list of the styles.
In [8]: print(plt.style.available)
[seaborn-dark, seaborn-darkgrid, seaborn-ticks,
fivethirtyeight, seaborn-whitegrid, classic,
_classic_test, fast, seaborn-talk,
seaborn-dark-palette, seaborn-bright,
seaborn-pastel, grayscale, seaborn-notebook,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-205-320.jpg)
![194 CHAPTER 12 VISUALIZATION AND PLOTTING
ggplot, seaborn-colorblind, seaborn-muted,
seaborn’, Solarize_Light2, seaborn-paper,
bmh, tableau-colorblind10, seaborn-white,
dark_background, seaborn-poster, seaborn-deep]
One of my favorite predefined styles is the seaborn style; we can change it using the plt.style.use
function. If we change it to seaborn-poster, it will make everything bigger (see also Fig. 12.6).
In [9]: plt.style.use(seaborn-poster)
In [10]: plt.figure(figsize = (10,6))
x = np.linspace(-5,5,20)
plt.plot(x, x**2, ko)
plt.plot(x, x**3, r*)
plt.title(fPlot of Various Polynomials from {x[0]} to
{x[-1]})
plt.xlabel(X axis)
plt.ylabel(Y axis)
plt.show()
FIGURE 12.6
Using seaborn-poster style.
You can create a legend for your plot by using the legend function, by adding the label argument in
the plot function. The legend function also takes argument of loc to indicate where to put the legend;
change it from 0 to 10 and see what happens (see also Fig. 12.7).
In [11]: plt.figure(figsize = (10,6))
x = np.linspace(-5,5,20)
plt.plot(x, x**2, ko, label = quadratic)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-206-320.jpg)
![12.1 2D PLOTTING 195
plt.plot(x, x**3, r*, label = cubic)
plt.title(fPlot of Various Polynomials from {x[0]} to
{x[-1]})
plt.xlabel(X axis)
plt.ylabel(Y axis)
plt.legend(loc = 2)
plt.show()
FIGURE 12.7
Using a legend in the figure.
Finally, you can further customize the appearance of your plots by changing the limits of each axis
using the xlim or ylim function. Using the grid function will turn on the grid of Fig. 12.8.
TRY IT! Change the limits of the plot so that x is visible from −6 to 6, and y is visible from −10
to 10. Turn on the grid.
In [12]: plt.figure(figsize = (10,6))
x = np.linspace(-5,5,100)
plt.plot(x, x**2, ko, label = quadratic)
plt.plot(x, x**3, r*, label = cubic)
plt.title(fPlot of Various Polynomials from {x[0]} to
{x[-1]})
plt.xlabel(X axis)
plt.ylabel(Y axis)
plt.legend(loc = 2)
plt.xlim(-6.6)
plt.ylim(-10,10)
plt.grid()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-207-320.jpg)
![196 CHAPTER 12 VISUALIZATION AND PLOTTING
FIGURE 12.8
Changing limits of the figure and turning on grid.
We can create a table of plots on a single figure using the subplot function. The subplot function
takes three inputs: the number of rows of plots, the number of columns of plots, and designating which
plot all calls to plotting functions should plot. You can move to a different subplot by calling the subplot
again with a different entry for the plot location.
There are several other plotting functions that plot x versus y data. Some of them are scatter,
bar, loglog, semilogx, and semilogy. Function scatter works exactly the same as plot except it
defaults to red circles (i.e., plot(x,y,ro) is equivalent to scatter(x,y)). The bar function plots
bars centered at x with height y. The loglog, semilogx, and semilogy functions plot the data in x and
y, with the x and y axis on a log-scale, the x axis on a log-scale and the y axis on a linear scale, and the
y axis on a log-scale and the x axis on a linear scale, respectively (see also Fig. 12.9).
TRY IT! Given the lists x = np.arange(11) and y = x2, create a 2 × 3 subplot where each subplot
plots x versus y using plot, scatter, bar, loglog, semilogx, and semilogy. Title and label each
plot appropriately. Use a grid, but a legend is not necessary here.
In [13]: x = np.arange(11)
y = x**2
plt.figure(figsize = (14, 8))
plt.subplot(2, 3, 1)
plt.plot(x,y)
plt.title(Plot)
plt.xlabel(X)
plt.ylabel(Y)
plt.grid()
plt.subplot(2, 3, 2)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-208-320.jpg)
![198 CHAPTER 12 VISUALIZATION AND PLOTTING
FIGURE 12.9
Different type of plots.
We can see that at the end of our plot, we used plt.tight_layout to ensure that the subfigures did
not overlap with each other. Rerun this plot and see the effect without this statement.
Sometimes, you want to save the figures in a specific format, such as pdf, jpeg, png, and so on. You
can do this with the function plt.savefig (see also Fig. 12.10).
In [14]: plt.figure(figsize = (8,6))
plt.plot(x,y)
plt.xlabel(X)
plt.ylabel(Y)
plt.savefig(image.pdf)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-210-320.jpg)
![12.2 3D PLOTTING 199
FIGURE 12.10
Saving a figure.
Finally, there are other functions for plotting data in 2D. The errorbar function plots x versus y
data but with error bars for each element. The polar function plots θ versus r rather than x versus
y. The stem function plots stems at x with height at y. The hist function makes a histogram of a
dataset; boxplot gives a statistical summary of a dataset; and pie makes a pie chart. The usage of these
functions are left for you to explore on your own. Remember to check the examples on the matplotlib
gallery.2
12.2 3D PLOTTING
To plot three-dimensional (3D) figures, first we need to import the mplot3d toolkit, which adds the
simple 3D plotting capabilities to matplotlib.
In [1]: import numpy as np
from mpl_toolkits import mplot3d
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
Once we have imported the mplot3d toolkit, we can create 3D axes and add data to the axes. Let us
first create 3D axes (see also Fig. 12.11).
2 https://matplotlib.org/gallery/index.html#gallery.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-211-320.jpg)
![200 CHAPTER 12 VISUALIZATION AND PLOTTING
In [2]: fig = plt.figure(figsize = (10,10))
ax = plt.axes(projection=3d)
plt.show()
FIGURE 12.11
3D axes.
The ax = plt.axes(projection=3d) created a 3D-axes object. To add data to it, use plot3D
function. It is possible to change the title, set the x,y,z labels for the plot as well.
TRY IT! Consider the parameterized dataset: t is a vector from 0 to 10π with a step π/50,
x = sin(t), and y = cos(t). Make a 3D plot of the (x,y,t) dataset using plot3. Turn on the grid,
make the axis equal, and add axis labels and a title. Activate the interactive plot using %matplotlib
notebook so that you can move and rotate the figure as well.
In [3]: %matplotlib notebook
In [4]: fig = plt.figure(figsize = (8,8))
ax = plt.axes(projection=3d)
ax.grid()
t = np.arange(0, 10*np.pi, np.pi/50)
x = np.sin(t)
y = np.cos(t)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-212-320.jpg)
![12.2 3D PLOTTING 201
ax.plot3D(x, y, t)
ax.set_title(3D Parametric Plot)
# Set axes label
ax.set_xlabel(x, labelpad=20)
ax.set_ylabel(y, labelpad=20)
ax.set_zlabel(t, labelpad=20)
plt.show()
See the interactive examples in the notebook.
Try to rotate the above figure to get a 3D view of the plot. You may notice that we also set the
labelpad=20 to the 3-axis labels, which will make it so that the label does not overlap with the tick
texts.
We can also plot a 3D scatter plot using the scatter function (see also Fig. 12.12).
TRY IT! Make a 3D scatter plot with randomly generated 50 data points for x, y, and z. Set the
point color as red and size of the point as 50.
In [5]: # Turn off the interactive plot
%matplotlib inline
In [6]: x = np.random.random(50)
y = np.random.random(50)
z = np.random.random(50)
fig = plt.figure(figsize = (10,10))
ax = plt.axes(projection=3d)
ax.grid()
ax.scatter(x, y, z, c = r, s = 50)
ax.set_title(3D Scatter Plot)
# Set axes label
ax.set_xlabel(x, labelpad=20)
ax.set_ylabel(y, labelpad=20)
ax.set_zlabel(z, labelpad=20)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-213-320.jpg)
![202 CHAPTER 12 VISUALIZATION AND PLOTTING
FIGURE 12.12
3D scatter plot.
When plotting in three dimensions, sometimes it is desirable to use a surface plot rather than a line
plot. In 3D surface plotting, we wish to make a graph of some relationship f (x,y). In surface plotting
all (x,y) pairs must be given. This is not straightforward to do using vectors; therefore, in surface
plotting, the first data structure you must create is called a mesh. Given lists/arrays of x and y values, a
mesh is a listing of all the possible combinations of x and y. In Python, the mesh is given as two arrays
X and Y, where X[i,j] and Y[i,j] that define the possible (x,y) pairs. A third array, Z, can then be
created such that Z[i,j]=f(X[i,j],Y[i,j]). A mesh can be created using the np.meshgrid function
in Python. The meshgrid function has the inputs x and y, which are lists containing the independent
dataset. The output variables X and Y were described earlier.
TRY IT! Create a mesh for x = [1, 2, 3, 4] and y = [3, 4, 5] using the meshgrid function.
In [7]: x = [1, 2, 3, 4]
y = [3, 4, 5]
X, Y = np.meshgrid(x, y)
print(X)
[[1 2 3 4]
[1 2 3 4]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-214-320.jpg)
![12.2 3D PLOTTING 203
[1 2 3 4]]
In [8]: print(Y)
[[3 3 3 3]
[4 4 4 4]
[5 5 5 5]]
In addition, we can plot 3D surfaces in Python: the function to plot 3D surfaces is
plot_surface(X,Y,Z), where X and Y are the output arrays from meshgrid, and Z=f(X,Y) or
Z[i,j]=f(X[i,j],Y[i,j]) (see Fig. 12.13).
TRY IT! Make a plot of the surface f (x,y) = sin(x) · cos(y) for −5 ≤ x ≤ 5,−5 ≤ y ≤ 5 using
the plot_surface function. Take care to use a sufficiently fine discretization in x and y so that the
plot looks smooth.
In [9]: fig = plt.figure(figsize = (12,10))
ax = plt.axes(projection=3d)
x = np.arange(-5, 5.1, 0.2)
y = np.arange(-5, 5.1, 0.2)
X, Y = np.meshgrid(x, y)
Z = np.sin(X)*np.cos(Y)
surf = ax.plot_surface(X, Y, Z, cmap = plt.cm.cividis)
# Set axes label
ax.set_xlabel(x, labelpad=20)
ax.set_ylabel(y, labelpad=20)
ax.set_zlabel(z, labelpad=20)
fig.colorbar(surf, shrink=0.5, aspect=8)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-215-320.jpg)
![204 CHAPTER 12 VISUALIZATION AND PLOTTING
FIGURE 12.13
3D surface plot.
Note that the surface plot shows different colors for different elevations, yellow for higher and
blue for lower (light grey for higher and dark grey for lower in print version); this is because we used
the colormap plt.cm.cividis in the surface plot. You can change to different color schemes for the
surface plot. These are left for you to complete as additional exercises. We also plotted a colorbar to
show the corresponding colors to different values.
We can have subplots of different 3D plots as well (see Fig. 12.14). To do that, use the add_subplot
function from the figure object we created to generate the subplots for 3D cases.
TRY IT! Make a 1 × 2 subplot to plot the above X, Y, Z data in a wireframe plot and a surface
plot.
In [10]: fig = plt.figure(figsize=(12,6))
ax = fig.add_subplot(1, 2, 1, projection=3d)
ax.plot_wireframe(X,Y,Z)
ax.set_title(Wireframe plot)
ax = fig.add_subplot(1, 2, 2, projection=3d)
ax.plot_surface(X,Y,Z)
ax.set_title(Surface plot)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-216-320.jpg)
![206 CHAPTER 12 VISUALIZATION AND PLOTTING
The package cartopy has very nice API to interact with matplotlib to plot a map; we only need
to tell the matplotlib to use a specific map projection, and then we can add other map features to the
plot (see also Fig. 12.15).
TRY IT! Plot a world map with cartopy using Plate Carree projection (Google it), and draw the
coastline on the map.
In [1]: import cartopy.crs as ccrs
import matplotlib.pyplot as plt
%matplotlib inline
In [2]: plt.figure(figsize = (12, 8))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.coastlines()
ax.gridlines(draw_labels=True)
plt.show()
FIGURE 12.15
Simple world map.
The above example plotted the map with the Plate Carree projection. In addition, we turned on
the grid lines and drew the labels on the maps. We suggest you check out other cartopy supported
projections.8
The map background we drew above is blank; however, we can easily add a nice map background
in cartopy using stock_img (see also Fig. 12.16).
8 https://scitools.org.uk/cartopy/docs/v0.16/crs/projections.html#cartopy-projections.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-218-320.jpg)
![12.3 WORKING WITH MAPS 207
In [3]: plt.figure(figsize = (12, 8))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.coastlines()
ax.stock_img()
ax.gridlines(draw_labels=True)
plt.show()
FIGURE 12.16
World map with background.
We can zoom in the map to any places on the Earth using the ax.set_extent function, which takes
a list with the first two numbers that are the x-axis limits and the last two numbers are the y-axis limits
(see also Fig. 12.17).
TRY IT! Zoom in the map to the United States.
In [4]: plt.figure(figsize = (10, 5))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.coastlines()
ax.set_extent([-125, -75, 25, 50])
ax.gridlines(draw_labels=True)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-219-320.jpg)
![208 CHAPTER 12 VISUALIZATION AND PLOTTING
FIGURE 12.17
Simple US map.
Did you notice that there are no features added on the map, such as the country boundary, state
boundary, lakes/water, etc.? In cartopy, these features must be specified if we want to add them to our
map (see also Fig. 12.18).
TRY IT! For the map of the United States we made above, add the following features: land,
ocean, states and country borders, lakes, and rivers.
In [5]: import cartopy.feature as cfeature
In [6]: plt.figure(figsize = (10, 5))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.coastlines()
ax.set_extent([-125, -75, 25, 50])
ax.add_feature(cfeature.LAND)
ax.add_feature(cfeature.OCEAN)
ax.add_feature(cfeature.STATES, linestyle=:)
ax.add_feature(cfeature.BORDERS)
ax.add_feature(cfeature.LAKES, alpha=0.5)
ax.add_feature(cfeature.RIVERS)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-220-320.jpg)
![12.3 WORKING WITH MAPS 209
FIGURE 12.18
US map with various features.
It is possible to zoom in further to a smaller area, but we would need to download and use the
high-resolution coastlines and land to have a decent-looking map (see also Fig. 12.19).
TRY IT! Plot the San Francisco Bay Area with the 10 m-resolution coastlines and land. Try to
change one of them to 50 m and see what happens.
In [7]: plt.figure(figsize = (10, 8))
ax = plt.axes(projection=ccrs.PlateCarree())
ax.coastlines(resolution=10m)
ax.set_extent([-122.8, -122, 37.3, 38.3])
# we can add high-resolution land and water
LAND =
cfeature.NaturalEarthFeature(physical, land, 10m,
edgecolor=face,
facecolor=cfeature.COLORS[land],
linewidth=.1)
OCEAN =
cfeature.NaturalEarthFeature(physical,ocean,10m,
edgecolor=face,
facecolor=cfeature.COLORS[water],
linewidth=.1)
ax.add_feature(LAND, zorder=0)
ax.add_feature(OCEAN, zorder=0)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-221-320.jpg)
![210 CHAPTER 12 VISUALIZATION AND PLOTTING
plt.show()
FIGURE 12.19
Bay area map with higher resolution.
In many cases, we want to plot our data onto the map and show the spatial location of different
entities. Data can be added to it in exactly the same way as with normal matplotlib axes. By default,
the coordinate system of any additional data is the same as the coordinate system of the axes we defined
at the beginning of the plot. Let us first try to add some data to the map above (see also Fig. 12.20).
TRY IT! Add the location of UC Berkeley and Stanford University on the Bay Area map above.
In [8]: plt.figure(figsize = (10, 8))
# plot the map related stuff
ax = plt.axes(projection=ccrs.PlateCarree())
ax.coastlines(resolution=10m)
ax.set_extent([-122.8, -122, 37.3, 38.3])
ax.add_feature(LAND, zorder=0)
ax.add_feature(OCEAN, zorder=0)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-222-320.jpg)
![12.3 WORKING WITH MAPS 211
# plot the data related stuff
berkeley_lon, berkeley_lat = -122.2585, 37.8719
stanford_lon, stanford_lat = -122.1661, 37.4241
# plot the two universities as blue dots
ax.plot([berkeley_lon, stanford_lon],
[berkeley_lat, stanford_lat],
color=blue, linewidth=2, marker=o)
# add labels for the two universities
ax.text(berkeley_lon + 0.16, berkeley_lat - 0.02,
UC Berkeley, horizontalalignment=right)
ax.text(stanford_lon + 0.02, stanford_lat - 0.02,
Stanford, horizontalalignment=left)
plt.show()
FIGURE 12.20
Add more entities on the map.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-223-320.jpg)
![212 CHAPTER 12 VISUALIZATION AND PLOTTING
The cartopy package is extremely versatile. The official example is available at the gallery online.9
We suggest exploring this on your own to augment your map-making abilities.
12.4 ANIMATIONS AND MOVIES
An animation is a sequence of still frames, or plots, that are displayed in fast enough succession to
create the illusion of continuous motion. Animations and movies often convey information better than
individual plots. You can create animations in Python by calling a plot function inside of a loop (usually
a for-loop). The main tools for making animations in Python is the matplotlib.animation.Animation
base class, which provides a framework around which the animation functionality is built. See the
example below.
TRY IT! Create an animation of a red circle following a blue sine wave.
In [1]: import numpy as np
import matplotlib.pyplot as plt
import matplotlib.animation as manimation
In [2]: n = 1000
x = np.linspace(0, 6*np.pi, n)
y = np.sin(x)
# Define the meta data for the movie
FFMpegWriter = manimation.writers[ffmpeg]
metadata = dict(title=Movie Test, artist=Matplotlib,
comment=a red circle following a blue sine wave)
writer = FFMpegWriter(fps=15, metadata=metadata)
# Initialize the movie
fig = plt.figure()
# plot the sine wave line
sine_line, = plt.plot(x, y, b)
red_circle, = plt.plot([], [], ro, markersize = 10)
plt.xlabel(x)
plt.ylabel(sin(x))
# Update the frames for the movie
with writer.saving(fig, writer_test.mp4, 100):
9 https://scitools.org.uk/cartopy/docs/latest/gallery/index.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-224-320.jpg)
![12.4 ANIMATIONS AND MOVIES 213
for i in range(n):
x0 = x[i]
y0 = y[i]
red_circle.set_data(x0, y0)
writer.grab_frame()
Before we make a movie, it is advised to first follow the next three steps:
• Define the meta data for the movie.
• Decide what in the background does not need changing.
• Decide which objects needs changing in each movie frame.
Once these parameters are determined, it is relatively easy to make the movie using Python follow-
ing the next three steps:
• Define the meta data for the movie.
• Initialize the movie background figure.
• Update the frames for the movie.
Using the example above, we can clearly see how the code relates to these three steps.
1. Defining the meta data for the movie
FFMpegWriter = manimation.writers[ffmpeg]
metadata = dict(title=Movie Test, artist=Matplotlib,
comment=a red circle following a blue sine wave)
writer = FFMpegWriter(fps=15, metadata=metadata)
This block of code is telling Python that we want to create a movie using a movie writer
and need to provide the title, artist, and any necessary commentary. In addition, we need to tell](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-225-320.jpg)
![214 CHAPTER 12 VISUALIZATION AND PLOTTING
Python the rate of the frames in the movie, that is, fps=15, which means that we want to display
15 consecutive frames within 1 s (fps stands for frames per second).
2. Initializing the movie background figure
fig = plt.figure()
# plot the sine wave line
sine_line, = plt.plot(x, y, b)
red_circle, = plt.plot([], [], ro, markersize = 10)
plt.xlabel(x)
plt.ylabel(sin(x))
First we need to initialize the background figure for the movie. The reason we call it the
background figure is that the graphics we plot here will not change during the movie. In this
example, the sine wave curve will not change. At the same time, we plot an empty red dot (which
will not appear on the figure). It serves as a place holder for the things that will change later in
the movie; this is equivalent to telling Python that we will have a red point and we will update the
location of the point later. In this case, the x and y axes labels will not change, and, therefore, are
plotted them here.
3. Updating the frames for the movie
with writer.saving(fig, writer_test.mp4, 100):
for i in range(n):
x0 = x[i]
y0 = y[i]
red_circle.set_data(x0, y0)
writer.grab_frame()
This block of code specifies the name of the output file, format, and resolution of the figure
(dpi – dots per inch). In this case, we want the output file to have a name writer_test with the
format mp4, and we want a dpi of 100 for this figure. Next we code the core part of the movie:
repeated updating of the figure, i.e., to create the “motion.” We use a for-loop to update the figure,
and in each loop, we change the location (x, y location) of the red circle. The writer.grab_frame
function will capture this change in each frame and display it based on the fps we set.
This is how to make a simple movie.
Numerous examples on how to make a movie are available in matplotlib movie tutorial.10 Run
through some of the examples to get a better understanding of how to make movies in Python.
10 https://matplotlib.org/api/animation_api.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-226-320.jpg)
![12.5 SUMMARY AND PROBLEMS 215
12.5 SUMMARY AND PROBLEMS
12.5.1 SUMMARY
1. Visualizing data is an essential tool in engineering and science applications.
2. Python has many different packages of plotting tools that can be used to visualize data.
3. Two- and three-dimensional plots and maps are usually used in engineering and science to commu-
nicate research results.
4. Videos are a sequence of static images that are displayed at a certain speed.
12.5.2 PROBLEMS
1. A cycloid is the curve traced by a point located on the edge of a wheel rolling along a flat surface.
The (x,y) coordinates of a cycloid generated from a wheel with radius, r, can be described by the
parametric equations:
x = r(φ − sinφ),
y = r(1 − cosφ),
where φ is the number of radians that the wheel has rolled through.
Generate a plot of the cycloid for 0 ≤ φ ≤ 2π using 1000 increments and r = 3. Give your plot a
title and labels. Turn on the grid and modify the axis limits to make the plot neat and attractive.
2. Consider the following function:
y(x) =
100(1 − 0.01x2)2 + 0.02x2
(1 − x2)2 + 0.1x2
.
Generate a 2 × 2 subplot of y(x) for 0 ≤ x ≤ 100 using plot, semilogx, semilogy, and loglog.
Use a fine enough discretization in x to make the plot appear smooth. Give each plot axis labels
and a title. Turn on the grid. Which plot seems to convey the most information?.
3. Plot the functions y1(x) = 3 + exp(−x)sin(6x) and y2(x) = 4 + exp(−x)cos(6x) for 0 ≤ x ≤ 5
on a single axis. Give the plot axis labels, a title, and a legend.
4. Generate 1000 normally distributed random numbers using the np.random.randn function. Look
up the help for the plt.hist function. Use the plt.hist function to plot a histogram of the
randomly generated numbers. Use the plt.hist function to distribute the randomly generated
numbers into 10 bins. Create a bar graph of the output using the plt.bar function. It should look
very similar to the plot produced by plt.hist.
Do you think that the np.random.randn function is a good approximation of a normally distributed
number?
5. Let the number of students with A’s, B’s, C’s, D’s, and F’s be contained in the list grade_dist =
[42, 85, 67, 20, 5]. Use the plt.pie function to generate a pie chart of grade_dist. Put a title
and legend on the pie chart.
6. Let −4 ≤ x ≤ 4,−3 ≤ y ≤ 3, and z(x,y) = xy(x2−y2)
x2+y2 . Create arrays x and y with 100 evenly
spaced points over the interval. Create meshgrids X and Y for x and y using the meshgrid func-](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-227-320.jpg)
![13.2 MULTIPROCESSING 227
variables or objects for multiple threads in a process are all shared. If you change one variable in one
thread, it will change for all the other threads. This is not the case for different processes. If you change
one variable in one process, it will not change that variable in other processes. Process and thread both
have advantages or disadvantages, and can be used in different tasks to maximize the benefits of each.
13.1.2 PYTHON’S GIL PROBLEM
Python was designed before the multicore processors were available on personal computers (this shows
you how old the language is). It contains an inherent limitation called Global Interpreter Lock (GIL),
whereby only one native thread can run at any time, i.e., it prevents multiple threads from running
simultaneously. Even though there are workarounds in Python to do multithreading, only multipro-
cessing library will be covered below.
13.1.3 DISADVANTAGES OF USING PARALLEL COMPUTING
There are disadvantages when using parallel computing: the code becomes more complicated because
of the overheads required to launch and maintain new processes. Thus, if your task is small, using
parallel computing will actually take longer since it takes time for the system to initialize new processes
and maintain them.
13.2 MULTIPROCESSING
The multiprocessing library, Python’s standard library to support its parallel computing using pro-
cesses, has many different features that are too numerous to discuss herein. We suggest you check out
the official documentation.1 Here, we are introducing only the basics to get you started with parallel
computing. Let us start by importing the library and printing out the total number of CPUs on your
machine that can be used for parallel computing.
In [1]: import multiprocessing as mp
In [2]: print(fNumber of cpu: {mp.cpu_count()})
Number of cpu: 12
The example below shows you how to use multiple cores in one machine to reduce the execution
time.
1 https://docs.python.org/3/library/multiprocessing.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-238-320.jpg)
![228 CHAPTER 13 PARALLELIZE YOUR PYTHON
EXAMPLE: Generate 10,000,000 random numbers between 0 and 10, and square them. Store
the results in a list.
Serial version
In [3]: import numpy as np
import time
def random_square(seed):
np.random.seed(seed)
random_num = np.random.randint(0, 10)
return random_num**2
In [4]: t0 = time.time()
results = []
for i in range(10000000):
results.append(random_square(i))
t1 = time.time()
print(fExecution time {t1 - t0} s)
Execution time 38.20956087112427 s
Parallel version
The simplest way to do parallel computing using the multiprocessing is to use the pool class. There
are four common methods in this class that are used often: apply, map, apply_async, and map_async.
Look at the documentation for the differences between them for your own edification. We will only use
the map function in parallel with the above example. The map(func, iterable) function takes in two
arguments. Apply the function func to each element in the iterable and then collect the results.
In [5]: t0 = time.time()
n_cpu = mp.cpu_count()
pool = mp.Pool(processes=n_cpu)
results = [pool.map(random_square, range(10000000))]
t1 = time.time()
print(fExecution time {t1 - t0} s)
Execution time 7.130078077316284 s
Using the above parallel version of the code reduced the run time from ~38 s to ~7 s. This is a big
gain in speed, especially if we were running a code that demanded a lot of computation.
The pool.apply function is similar except that it can accept more arguments. The pool.map and
pool.apply will lock the main program until all the processes are finished, which is quite useful if we](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-239-320.jpg)
![13.2 MULTIPROCESSING 229
want to obtain results in a particular order for some applications. In contrast, if we do not need the
results in a particular order, we can also use pool.apply_async or pool.map_async, which will submit
all processes at once and retrieve the results as soon as they are finished. Check online to learn more.
13.2.1 VISUALIZE THE EXECUTION TIME
Let us visualize the execution time changes versus the number of data points using both the serial and
parallel version. You will see that until a certain point, it is better to use the serial version.
In [6]: import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline
def serial(n):
t0 = time.time()
results = []
for i in range(n):
results.append(random_square(i))
t1 = time.time()
exec_time = t1 - t0
return exec_time
def parallel(n):
t0 = time.time()
n_cpu = mp.cpu_count()
pool = mp.Pool(processes=n_cpu)
results = [pool.map(random_square, range(n))]
t1 = time.time()
exec_time = t1 - t0
return exec_time
In [7]: n_run = np.logspace(1, 7, num = 7)
t_serial = [serial(int(n)) for n in n_run]
t_parallel = [parallel(int(n)) for n in n_run]
In [8]: plt.figure(figsize = (10, 6))
plt.plot(n_run, t_serial, -o, label = serial)
plt.plot(n_run, t_parallel, -o, label = parallel)
plt.loglog()
plt.legend()
plt.ylabel(Execution time (s))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-240-320.jpg)
![230 CHAPTER 13 PARALLELIZE YOUR PYTHON
plt.xlabel(Number of random points)
plt.show()
As shown in the figure, when the number of data points is small (below 10000), the execution
time for the serial version is faster due to the overhead of the parallel version necessary to launch and
maintain the new processes. After that point, the parallel version would be a better choice. For example,
when we have 107 data points, the parallel version uses less than 10 s to finish the task while the serial
version takes roughly 50 s.
13.3 USING JOBLIB
Python also has other third party packages that can make the parallel computing easier, especially for
some daily tasks, e.g., package joblib2 provides a simple way to perform parallel computing (and has
many other usages as well).
First, install this package by running pip install joblib; then run the previous example using
this new package.
In [1]: from joblib import Parallel, delayed
import numpy as np
def random_square(seed):
np.random.seed(seed)
random_num = np.random.randint(0, 10)
return random_num**2
2 https://joblib.readthedocs.io/en/latest/index.html.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-241-320.jpg)
![13.4 SUMMARY AND PROBLEMS 231
In [2]: results = Parallel(n_jobs=8)
(delayed(random_square)(i) for i in range(1000000))
Note that the parallel part of the code becomes one line by using the joblib package, which is
very convenient. Parallel is a helper class that essentially provides a convenient interface for the
multiprocessing module we saw earlier. The delayed function is used to capture the arguments of
the target function, which in this case is the random_square. We ran the above code with eight CPUs.
If you want to use all the computational power on your machine, you can use all available CPUs on
your machine by setting n_jobs=-1. If you set it to -2, all CPUs but one will be used. In addition, turn
on the verbose argument if you want to output the status messages.
In [3]: results = Parallel(n_jobs=-1, verbose=1)
(delayed(random_square)(i) for i in range(1000000))
[Parallel(n_jobs=-1)]: Using backend LokyBackend with 12
concurrent workers.
[Parallel(n_jobs=-1)]: Done 60 tasks | elapsed: 0.1s
[Parallel(n_jobs=-1)]: Done 176056 tasks | elapsed: 3.0s
[Parallel(n_jobs=-1)]: Done 787056 tasks | elapsed: 12.4s
[Parallel(n_jobs=-1)]: Done 1000000 out of 1000000 |
elapsed: 15.5s finished
There are multiple backends in joblib, which means using different ways to do the parallel computing.
If you set the backend as multiprocessing, i.e., under the hood, it creates a multiprocessing pool that
uses separate Python worker processes to execute tasks concurrently on separate CPUs.
In [4]: results =
Parallel(n_jobs=-1, backend=multiprocessing, verbose=1)
(delayed(random_square)(i) for i in range(1000000))
[Parallel(n_jobs=-1)]: Using backend MultiprocessingBackend
with 12 concurrent workers.
[Parallel(n_jobs=-1)]: Done 220 tasks | elapsed: 0.0s
[Parallel(n_jobs=-1)]: Done 457032 tasks | elapsed: 1.9s
[Parallel(n_jobs=-1)]: Done 1000000 out of 1000000 |
elapsed: 3.8s finished
13.4 SUMMARY AND PROBLEMS
13.4.1 SUMMARY
1. Parallel computing can reduce execution time by using multiple cores on your computer.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-242-320.jpg)
![14.1 BASICS OF LINEAR ALGEBRA 237
TRY IT! Create a row vector and a column vector, and show their shape.
In [1]: import numpy as np
vector_row = np.array([[1, -5, 3, 2, 4]])
vector_column = np.array([[1],[2],[3],[4]])
print(vector_row.shape)
print(vector_column.shape)
(1, 5)
(4, 1)
Note! In Python, the row and column vectors can be tricky. As shown in the example above, in order
to get the 1 row and 4 column or 4 row and 1 column vectors, we had to use a list of a list to specify
it. You can define np.array([1,2,3,4]), but you will soon notice that it does not contain information
about row or column.
TRY IT! Transpose the row vector defined above into a column vector and calculate its L1, L2,
and L∞ norm. Verify that the L∞ norm of a vector is equivalent to the maximum value of the
elements in the vector.
In [2]: from numpy.linalg import norm
new_vector = vector_row.T
print(new_vector)
norm_1 = norm(new_vector, 1)
norm_2 = norm(new_vector, 2)
norm_inf = norm(new_vector, np.inf)
print(L_1 is: %.1f%norm_1)
print(L_2 is: %.1f%norm_2)
print(L_inf is: %.1f%norm_inf)
[[ 1]
[-5]
[ 3]
[ 2]
[ 4]]
L_1 is: 15.0
L_2 is: 7.4
L_inf is: 5.0
Vector addition is defined as the pairwise addition of the elements of the added vectors. For exam-
ple, if v and w are vectors in Rn, then u = v + w is defined as having elements ui = vi + wi.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-246-320.jpg)
![238 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
Vector multiplication can be defined in several ways depending on the context. Scalar multipli-
cation of a vector is the product of a vector and a scalar (i.e., a number in R). Scalar multiplication is
defined as the product of each element of the vector by the scalar. More specifically, if α is a scalar and
v is a vector, then u = αv is defined as having elements ui = αvi. Note that this is exactly how Python
implements scalar multiplication with a vector.
TRY IT! Show that a(v + w) = av + aw (i.e., scalar multiplication of a vector distributes across
vector addition).
By vector addition, u = v + w is the vector with entries ui = vi + wi. By definition of scalar
multiplication of a vector, x = αu is the vector with elements xi = α(vi + wi). Since α,vi, and
wi are scalars, multiplication distributes and xi = αvi + αwi. Therefore, a(v + w) = av + aw.
The dot-product of two vectors is the sum of the products of the respective elements and is denoted
by ·, and v · w is read “v dot w.” Therefore for v,w ∈ Rn,d = v · w is defined as d =
n
i=1 viwi. The
angle between two vectors, θ, is defined by the formula:
v · w = v2w2 cosθ.
The dot-product is a measure of how similarly directed the two vectors are. For example, the vectors
(1,1) and (2,2) are parallel. If you compute the angle between them using the dot-product, you will
find that θ = 0. If the angle between the vectors is θ = π/2, then the vectors are said to be perpendicular
or orthogonal, and the dot-product is 0.
TRY IT! Compute the angle between the vectors v = [10,9,3] and w = [2,5,12].
In [3]: from numpy import arccos, dot
v = np.array([[10, 9, 3]])
w = np.array([[2, 5, 12]])
theta = arccos(dot(v, w.T)/(norm(v)*norm(w)))
print(theta)
[[0.97992471]]
Finally, the cross-product between two vectors, v and w, is written as v × w. It is defined by
v × w = v2w2 sin(θ)n, where θ is the angle between the v and w (which can be computed
from the dot-product), and n is a vector perpendicular to both v and w with unit length (i.e., its
length is one). The geometric interpretation of the cross-product is a vector perpendicular to both
v and w, with the length equal to the area enclosed by the parallelogram created by the two vec-
tors.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-247-320.jpg)
![14.1 BASICS OF LINEAR ALGEBRA 239
TRY IT! Given the vectors v = [0,2,0] and w = [3,0,0], use the NumPy function cross to com-
pute the cross-product of v and w.
In [4]: v = np.array([[0, 2, 0]])
w = np.array([[3, 0, 0]])
print(np.cross(v, w))
[[ 0 0 -6]]
Assuming that S is a set in which addition and scalar multiplication are defined, a linear combina-
tion of S is defined as
αisi,
where αi is any real number, and si is the ith object in S. Sometimes the αi values are called the
coefficients of si.
Linear combinations can be used to describe numerous things. For example, a grocery bill can be
written
cini, where ci is the cost of item i and ni is the number of items i purchased. Thus, the total
cost is a linear combination of the items purchased.
A set is called linearly independent if no object in the set can be written as a linear combination of
the other objects in the set. For the purposes of this book, we will only consider the linear independence
of a set of vectors. A set of vectors that is not linearly independent is linearly dependent.
TRY IT! Given the row vectors v = [0,3,2], w = [4,1,1], and u = [0,−2,0], write the vector
x = [−8,−1,4] as a linear combination of v, w, and u.
In [5]: v = np.array([[0, 3, 2]])
w = np.array([[4, 1, 1]])
u = np.array([[0, -2, 0]])
x = 3*v-2*w+4*u
print(x)
[[-8 -1 4]]
TRY IT! Determine by inspection whether the following set of vectors is linearly independent:
v = [1,1,0], w = [1,0,0], u = [0,0,1].
Clearly, u is linearly independent from v and w because only u has a nonzero third element.
The vectors v and w are also linearly independent because only v has a nonzero second element.
Therefore, v,w, and u are linearly independent.
14.1.3 MATRICES
An m × n matrix is a rectangular table of numbers consisting of m rows and n columns. The norm of
a matrix can be considered as a particular kind of vector norm. If we treat the m × n elements of M as](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-248-320.jpg)
![240 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
the elements of an mn-dimensional vector, then the p-norm of this vector can be written as
Mp = p
m
i
n
j
|aij |p.
It is possible to calculate the matrix norm using the same norm function in NumPy as that for a
vector.
Matrix addition and scalar multiplication for matrices work the same way as for vectors. However,
matrix multiplication between two matrices, P and Q, is defined when P is an m × p matrix and Q
is a p × n matrix. The result of M = PQ is a matrix M that is m × n. The dimension p is called the
inner matrix dimension, and the inner matrix dimensions must match (i.e., the number of columns
in P and the number of rows in Q must be the same) for matrix multiplication to be defined. The
dimensions m and n are called the outer matrix dimensions. Formally, if P is m × p and Q is p × n,
then M = PQ is defined as
Mij =
p
k=1
PikQkj .
The product of two matrices P and Q in Python is achieved by using the dot method in NumPy.
The transpose of a matrix is a reversal of its rows with its columns. The transpose is denoted by a
superscript, T , such as MT is the transpose of matrix M. In Python, the method T for a NumPy array is
used to get the transpose. For example, if M is a matrix, then M.T is its transpose.
TRY IT!
Let matrices P and Q be [[1,7],[2,3],[5,0]] and [[2,6,3,1],[1,2,3,4]], respectively. Com-
pute the Python matrix product of P and Q. Show that the product of Q and P will produce an
error.
In [6]: P = np.array([[1, 7], [2, 3], [5, 0]])
Q = np.array([[2, 6, 3, 1], [1, 2, 3, 4]])
print(P)
print(Q)
print(np.dot(P, Q))
np.dot(Q, P)
[[1 7]
[2 3]
[5 0]]
[[2 6 3 1]
[1 2 3 4]]
[[ 9 20 24 29]
[ 7 18 15 14]
[10 30 15 5]]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-249-320.jpg)
![242 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
TRY IT!
Find the determinant of matrix M = [[0,2,1,3],[3,2,8,1],[1,0,0,3],[0,3,2,1]]. Use the
np.eye function to produce a 4 × 4 identity matrix, I. Multiply M by I to show that the result is
M.
In [7]: from numpy.linalg import det
M = np.array([[0,2,1,3],
[3,2,8,1],
[1,0,0,3],
[0,3,2,1]])
print(M:n, M)
print(Determinant: %.1f%det(M))
I = np.eye(4)
print(I:n, I)
print(M*I:n, np.dot(M, I))
M:
[[0 2 1 3]
[3 2 8 1]
[1 0 0 3]
[0 3 2 1]]
Determinant: -38.0
I:
[[1. 0. 0. 0.]
[0. 1. 0. 0.]
[0. 0. 1. 0.]
[0. 0. 0. 1.]]
M*I:
[[0. 2. 1. 3.]
[3. 2. 8. 1.]
[1. 0. 0. 3.]
[0. 3. 2. 1.]]
The inverse of a square matrix M is a matrix of the same size, N, such that M · N = I. The inverse
of a matrix is analogous to the inverse of a real number. For example, the inverse of 3 is 1
3 because
(3)(1
3 ) = 1. A matrix is said to be invertible if it has an inverse. The inverse of a matrix is unique,
that is, for an invertible matrix, there is only one inverse for that matrix. If M is a square matrix, its
inverse is denoted by M−1 in mathematics, and it can be computed in Python using the function inv
from NumPy’s linalg package.
For a 2 × 2 matrix, the analytical solution of the matrix inverse is](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-251-320.jpg)
![14.1 BASICS OF LINEAR ALGEBRA 243
M−1
=
a b
c d
−1
=
1
|M|
d −b
−c a
.
Calculating the matrix inverse for the analytical solution becomes complicated as the dimension of
the matrix increases. There are many other methods which can make things easier, such as Gaussian
elimination, Newton’s method, eigendecomposition, etc. We will introduce some of these methods
after we learn how to solve a system of linear equations (as the process is essentially the same).
Recall that zero has no inverse for multiplication in the setting of real numbers. Similarly, there are
matrices that do not have inverses. These matrices are called singular. Matrices that do have an inverse
are called nonsingular.
One way to determine if a matrix is singular is by computing its determinant. If the determinant is
0, then the matrix is singular; if not, the matrix is non-singular.
TRY IT! The matrix M (in the previous example) has a nonzero determinant. Compute the inverse
of M. Show that the matrix P = [[0,1,0],[0,0,0],[1,0,1]] has a determinant value of zero, and
therefore has no inverse.
In [8]: from numpy.linalg import inv
print(Inv M:n, inv(M))
P = np.array([[0,1,0],
[0,0,0],
[1,0,1]])
print(det(p):n, det(P))
Inv M:
[[-1.57894737 -0.07894737 1.23684211 1.10526316]
[-0.63157895 -0.13157895 0.39473684 0.84210526]
[ 0.68421053 0.18421053 -0.55263158 -0.57894737]
[ 0.52631579 0.02631579 -0.07894737 -0.36842105]]
det(p):
0.0
A matrix that is close to being singular (i.e., the determinant is close to zero) is called ill-
conditioned. Although ill-conditioned matrices have inverses, they are problematic numerically in
the same way that dividing a number by a very, very small number is problematic. That is, it can result
in computations that result in overflow, underflow, or numbers small enough to result in significant
round-off errors. If you have forgotten any of these concepts, revisit Chapter 9. The condition number
is a measure of how ill-conditioned a matrix is: it is defined as the norm of the matrix times the norm
of the inverse of the matrix, that is, MM−1. In Python, it can be computed using NumPy’s function
cond from linalg. The higher the condition number, the closer the matrix to being singular.
The rank of an m × n matrix A is the number of linearly independent columns or rows of A
and is denoted by rank(A). It can be shown that the number of linearly independent rows is al-
ways equal to the number of linearly independent columns for any matrix. A matrix has full rank](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-252-320.jpg)
![244 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
if rank(A) = min(m,n). The matrix A is also of full rank if all of its columns are linearly inde-
pendent. An augmented matrix is a matrix A concatenated with a vector y and is written [A,y].
This is commonly read as “A augmented with y.” You can use np.concatenate to concatenate. If
rank([A,y]) = rank(A) + 1, then the vector y is “new” information. That is, it cannot be created as a
linear combination of the columns in A. Rank is an important characteristic of matrices because of its
relationship to solutions of linear equations, which is discussed in the last section of this chapter.
TRY IT! For the matrix A = [[1,1,0],[0,1,0],[1,0,1]], compute the condition number and
rank. If y = [[1],[2],[1]], get the augmented matrix [A,y].
In [9]: from numpy.linalg import cond, matrix_rank
A = np.array([[1,1,0],
[0,1,0],
[1,0,1]])
print(Condition number:n, cond(A))
print(Rank:n, matrix_rank(A))
y = np.array([[1], [2], [1]])
A_y = np.concatenate((A, y), axis = 1)
print(Augmented matrix:n, A_y)
Condition number:
4.048917339522305
Rank:
3
Augmented matrix:
[[1 1 0 1]
[0 1 0 2]
[1 0 1 1]]
14.2 LINEAR TRANSFORMATIONS
For any vectors x and y, and scalars a and b, we say that a function F is a linear transformation if
F(ax + by) = aF(x) + bF(y).
It can be shown that multiplying an m × n matrix A and an n × 1 vector v of compatible size is
a linear transformation of v. Therefore from this point forward, a matrix will be synonymous with a
linear transformation function.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-253-320.jpg)
![14.3 SYSTEMS OF LINEAR EQUATIONS 245
TRY IT! Let x be a vector and let F(x) be defined by F(x) = Ax, where A is a rectangular
matrix of appropriate size. Show that F(x) is a linear transformation.
Proof: Since F(x) = Ax, then for vectors v and w, and scalars a and b, F(av + bw) = A(av +
bw) (by definition of F)= aAv + bAw (by distributive property of matrix multiplication)=
aF(v) + bF(w) (by definition of F).
If A is an m × n matrix, then there are two important subspaces associated with A: one is Rn, and
the other is Rm. The domain of A is a subspace of Rn. It is the set of all vectors that can be multiplied
by A on the right. The range of A is a subspace of Rm. It is the set of all vectors y such that y = Ax.
It can be denoted as R(A), where R(A) = {y ∈ Rm : Ax = y}. Another way to think about the range
of A is as the set of all linear combinations of the columns in A, where xi is the coefficient of the ith
column in A. The null space N(A) = {x ∈ Rn : Ax = 0m} is the subset of vectors x in the domain of
A such that Ax = 0m, where 0m is the zero vector (i.e., a vector in Rm with all zeros).
TRY IT! Let A = [[1,0,0],[0,1,0],[0,0,0]] and let the domain of A be R3. Characterize the
range and nullspace of A.
Let v = [x,y,z] be a vector in R3; then u = Av is the vector u = [x,y,0]. Since x,y ∈ R, the
range of A is the x–y plane at z = 0.
Let v = [0,0,z] for z ∈ R. Then u = Av is the vector u = [0,0,0]. Therefore, the nullspace of
A is the z-axis (i.e., the set of vectors [0,0,z] z ∈ R).
Therefore, this linear transformation “flattens” any z-component from a vector.
14.3 SYSTEMS OF LINEAR EQUATIONS
A linear equation is an equality of the form
n
i=1
aixi = y,
where ai are scalars, xi are unknown variables in R, and y is a scalar.
TRY IT! Determine which of the following equations is linear and which is not. For the ones that
are not linear, can you manipulate them to make them linear?
1. 3x1 + 4x2 − 3 = −5x3,
2. −x1+x2
x3
= 2,
3. x1x2 + x3 = 5.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-254-320.jpg)
![14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 247
equations is an x in Rn that satisfies the matrix form equation. Depending on the values that populate
A and y, there are three distinct possible solutions for x. Either there is no solution for x, or there is
one unique solution for x, or there are infinitely many solutions for x. This fact is not shown in this
text.
Case 1: There is no solution for x. If rank([A,y]) = rank(A) + 1 then y is linearly independent
from the columns of A. Therefore, because y is not in the range of A, by definition there cannot
be an x that satisfies the equation. Thus, comparing rank([A,y]) and rank(A) provides an easy
way to check if there are no solutions to a system of linear equations.
Case 2: There is a unique solution for x. If rank([A,y]) = rank(A), then y can be written as a
linear combination of the columns of A, and there is at least one solution for the matrix equation.
For there to be only one solution, rank(A) = n must also be true. In other words, the number of
equations must be exactly equal to the number of unknowns. To see why this property results in a
unique solution, consider the following three relationships between m and n : m n,m = n, and
m n.
• For the case m n, rank(A) = n cannot possibly be true because this means we have a “fat”
matrix with fewer equations than unknowns. Thus, we do not need to consider this subcase.
• When m = n and rank(A) = n, A is square and invertible. Since the inverse of a matrix is
unique, the matrix equation Ax = y can be solved by multiplying each side of the equation on
the left by A−1. This results in A−1Ax = A−1y → Ix = A−1y → x = A−1y, which gives the
unique solution to the equation.
• If m n, then there are more equations than unknowns; however, if rank(A) = n, then it is
possible to choose n equations (i.e., rows of A) such that if these equations are satisfied, then
the remaining m − n equations will also be satisfied. In other words, they are redundant. If the
m − n redundant equations are removed from the system, then the resulting system has an A
matrix that is n × n and invertible. These facts are not proven in this text. The new system then
has a unique solution, which is valid for the whole system.
Case 3: There are infinitely many solutions for x. If rank([A,y]) = rank(A), then y is in the
range of A, and there is at least one solution for the matrix equation; however, if rank(A) n,
then there are infinitely many solutions. Although it is not shown here, if rank(A) n, then there
is at least one nonzero vector, n, that is in the null space of A (Actually, there are infinitely
many null space vectors under these conditions.). If n is in the nullspace of A, then An = 0 by
definition. Now if x∗ is a solution to the matrix equation Ax = y, then, necessarily, Ax∗ = y;
however, Ax∗ + An = y or A(x∗ + n) = y. Therefore, x∗ + n is also a solution for Ax = y. In
fact, since A is a linear transformation, x∗ + αn is a solution for any real number α (you should
try to show this on your own). Since there are infinitely many acceptable values for α, there are
infinitely many solutions for the matrix equation.
The rest of the chapter will discuss how to solve a system of equations which has a unique solution.
First, we will discuss some of the common methods that you will most likely come across in your work
and then we will show you how to solve systems in Python.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-256-320.jpg)
![14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 249
Step 1: Turn these equations to the matrix form Ax = y.
⎡
⎣
4 3 −5
−2 −4 5
8 8 0
⎤
⎦
⎡
⎣
x1
x2
x3
⎤
⎦ =
⎡
⎣
2
5
−3
⎤
⎦.
Step 2: Obtain the augmented matrix [A,y] as
[A,y] =
⎡
⎣
4 3 −5 2
−2 −4 5 5
8 8 0 −3
⎤
⎦.
Step 3: Start eliminating the elements in the matrix by choosing a pivot equation, which is
used to eliminate the elements in other equations. Choose the first equation as the pivot equation
and turn the second row’s first element to zero by multiplying the first row (pivot equation) by
−0.5 and subtracting it from the second row. The multiplier is m2,1 = −0.5, giving us
⎡
⎣
4 3 −5 2
0 −2.5 2.5 6
8 8 0 −3
⎤
⎦.
Step 4: Turn the third row’s first element to zero. As was done above, we multiply the first row
by 2 and subtract it from the third row. The multiplier is m3,1 = 2, giving us
⎡
⎣
4 3 −5 2
0 −2.5 2.5 6
0 2 10 −7
⎤
⎦.
Step 5: Turn the third row’s second element to zero. We multiply the second row by −4/5 and
subtract it from the third row. The multiplier is m3,2 = −0.8, giving us
⎡
⎣
4 3 −5 2
0 −2.5 2.5 6
0 0 12 −2.2
⎤
⎦.
Step 6: We then obtain x3 = −2.2/12 = −0.183.
Step 7: If we insert x3 into the second equation, we obtain x2 = −2.583.
Step 8: If we insert x2 and x3 into the first equation, we obtain x1 = 2.208.
Note! Sometimes the first element in the first row is zero. When this is the case, switch the first row
with a nonzero first element row, then follow the same procedure as outlined above.
We are using the “pivoting” Gauss elimination method here. Note that there is also a “naive” Gauss
elimination method which assumes that the pivot values will never be zero.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-258-320.jpg)
![250 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
14.4.2 GAUSS–JORDAN ELIMINATION METHOD
Gauss–Jordan elimination solves systems of equations. It is a procedure to turn A into a diagonal form
such that the matrix form of the equations becomes
⎡
⎢
⎢
⎣
1 0 0 0
0 1 0 0
0 0 1 0
0 0 0 1
⎤
⎥
⎥
⎦
⎡
⎢
⎢
⎣
x1
x2
x3
x4
⎤
⎥
⎥
⎦ =
⎡
⎢
⎢
⎢
⎣
y1
y2
y3
y4
⎤
⎥
⎥
⎥
⎦
.
Essentially, the equations become:
x1 + 0 + 0 + 0 = y1,
0 + x2 + 0 + 0 = y2,
0 + 0 + x3 + 0 = y3,
0 + 0 + 0 + x4 = y4.
Let us solve another equation system by using the above example as a blueprint.
TRY IT! Use Gauss–Jordan elimination to solve the following equations:
4x1 + 3x2 − 5x3 = 2,
−2x1 − 4x2 + 5x3 = 5,
8x1 + 8x2 = −3.
Step 1: Construct the augmented matrix [A,y],
[A,y] =
⎡
⎣
4 3 −5 2
−2 −4 5 5
8 8 0 −3
⎤
⎦.
Step 2: The first element in the first row should be 1, so we divide the row by 4:
⎡
⎣
1 3/4 −5/4 1/2
−2 −4 5 5
8 8 0 −3
⎤
⎦.
Step 3: To eliminate the first element in the second and third rows, we multiply the first row
by −2 and 8, respectively, and then subtract it from the second and third rows to get
⎡
⎣
1 3/4 −5/4 1/2
0 −5/2 5/2 6
0 2 10 −7
⎤
⎦.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-259-320.jpg)
![252 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
many times, since every time the [A,y] will change. Obviously, this is really inefficient. Is there a
method by which we only change the left side of A but not the right-hand side y?
The LU decomposition method changes the matrix A only, instead of y. It is ideal for solving the
system with the same coefficient matrices A but different constant vectors y. The LU decomposition
method aims to turn A into the product of two matrices L and U, where L is a lower triangular matrix
while U is an upper triangular matrix. With this decomposition, we convert the system of equations to
the following form:
LUx = y →
⎡
⎢
⎢
⎣
l1,1 0 0 0
l2,1 l2,2 0 0
l3,1 l3,2 l3,3 0
l4,1 l4,2 l4,3 l4,4
⎤
⎥
⎥
⎦
⎡
⎢
⎢
⎣
u1,1 u1,2 u1,3 u1,4
0 u2,2 u2,3 u2,4
0 0 u3,3 u3,4
0 0 0 u4,4
⎤
⎥
⎥
⎦
⎡
⎢
⎢
⎣
x1
x2
x3
x4
⎤
⎥
⎥
⎦ =
⎡
⎢
⎢
⎣
y1
y2
y3
y4
⎤
⎥
⎥
⎦.
If we define Ux = M, then the above equations become:
⎡
⎢
⎢
⎣
l1,1 0 0 0
l2,1 l2,2 0 0
l3,1 l3,2 l3,3 0
l4,1 l4,2 l4,3 l4,4
⎤
⎥
⎥
⎦M =
⎡
⎢
⎢
⎣
y1
y2
y3
y4
⎤
⎥
⎥
⎦.
We can easily solve the above problem by forward substitution (the opposite of the backward sub-
stitution as we saw in Gauss elimination method). After we solve for M, we can easily solve the rest
of the problem using backward substitution:
⎡
⎢
⎢
⎣
u1,1 u1,2 u1,3 u1,4
0 u2,2 u2,3 u2,4
0 0 u3,3 u3,4
0 0 0 u4,4
⎤
⎥
⎥
⎦
⎡
⎢
⎢
⎣
x1
x2
x3
x4
⎤
⎥
⎥
⎦ =
⎡
⎢
⎢
⎣
m1
m2
m3
m4
⎤
⎥
⎥
⎦.
But how do we obtain the L and U matrices? There are different ways to obtain the LU decompo-
sition. Below is one example that uses the Gauss elimination method. From the above, we know that
we obtain an upper triangular matrix after we conduct the Gauss elimination. At the same time, we
also obtain the lower triangular matrix even though it is never explicitly written out. During the Gauss
elimination procedure, the matrix A actually turns into the product of two matrices as shown below.
The right upper triangular matrix is the one we obtained earlier. The diagonal elements in the left lower
triangular matrix are 1, and the elements below the diagonal elements are the multipliers that multiply
the pivot equations to eliminate the elements during the calculation:
A =
⎡
⎢
⎢
⎣
1 0 0 0
m2,1 1 0 0
m3,1 m3,2 1 0
m4,1 m4,2 m4,3 1
⎤
⎥
⎥
⎦
⎡
⎢
⎢
⎣
u1,1 u1,2 u1,3 u1,4
0 u2,2 u2,3 u2,4
0 0 u3,3 u3,4
0 0 0 u4,4
⎤
⎥
⎥
⎦.
Note that we obtain both L and U at the same time when we perform the Gauss elimination. Using
the above example, where U is the one we used before to solve the equations, and L is composed of](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-261-320.jpg)
![14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 253
the multipliers (you can check the examples in the Gauss elimination section), we obtain:
L =
⎡
⎣
1 0 0
−0.5 1 0
2 −0.8 1
⎤
⎦,
U =
⎡
⎣
4 3 −5
0 −2.5 2.5
0 0 60
⎤
⎦.
TRY IT! Verify that the above L and U matrices are the LU decomposition of matrix A. The
result should be A = LU.
In [1]: import numpy as np
u = np.array([[4, 3, -5],
[0, -2.5, 2.5],
[0, 0, 12]])
l = np.array([[1, 0, 0],
[-0.5, 1, 0],
[2, -0.8, 1]])
print(LU=, np.dot(l, u))
LU= [[ 4. 3. -5.]
[-2. -4. 5.]
[ 8. 8. 0.]]
14.4.4 ITERATIVE METHODS – GAUSS–SEIDEL METHOD
The methods introduced above are all direct methods where the solution is computed using a finite
number of operations. This section introduces a different class of methods, namely the iterative meth-
ods, or indirect methods. They start with an initial guess of the solution and then repeatedly improve
the solution until the change of the solution is below a chosen threshold. In order to use this iterative
process, we first need to write the explicit form of a system of equations. If we have a system of linear
equations
⎡
⎢
⎢
⎢
⎣
a1,1 a1,2 ... a1,n
a2,1 a2,2 ... a2,n
.
.
.
.
.
.
...
.
.
.
am,1 am,2 ... am,n
⎤
⎥
⎥
⎥
⎦
⎡
⎢
⎢
⎢
⎣
x1
x2
.
.
.
xn
⎤
⎥
⎥
⎥
⎦
=
⎡
⎢
⎢
⎢
⎣
y1
y2
.
.
.
ym
⎤
⎥
⎥
⎥
⎦
,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-262-320.jpg)
![254 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
we can write its explicit form as
xi =
1
ai,i
yi −
j=n
j=1,j=i
ai,j xj
.
This is the basics of the iterative methods; we can assume initial values for all the x, and use it as
x(0). In the first iteration, we can substitute x(0) into the right-hand side of the explicit equation above
to obtain the first iteration solution x(1). By substituting x(1) into the equation, we obtain x(2), and the
iterations continue until the difference between x(k) and x(k−1) is smaller than some predefined value.
Iterative methods require having specific conditions for the solution to converge. A sufficient, but
not necessary, condition of the convergence is that the coefficient matrix a is diagonally dominant.
This means that in each row of the matrix of coefficients a, the absolute value of the diagonal element
is greater than the sum of the absolute values of the off-diagonal elements. If the coefficient matrix
satisfies this condition, the iterations will converge to the solution. Note that the solution process might
still converge even when this condition is not satisfied.
14.4.4.1 Gauss–Seidel Method
The Gauss–Seidel method is a specific iterative method that is always using the latest estimated value
for each element in x. For example, first assume that the initial values for x2,x3,...,xn (except for
x1) are given and calculate x1. Using the calculated x1 and the rest of the x (except for x2), we can
calculate x2. Continuing in the same manner and calculating all the elements in x will conclude the
first iteration. The unique part of the Gauss–Seidel method is the use of the latest value to calculate the
next value in x. Such iterations are continued until the value converges. Let us use this method to solve
the same problem we just solved above.
EXAMPLE: Solve the following system of linear equations using Gauss–Seidel method using a
predefined threshold = 0.01. Remember to check if the converge condition is satisfied or not.
8x1 + 3x2 − 3x3 = 14,
−2x1 − 8x2 + 5x3 = 5,
3x1 + 5x2 + 10x3 = −8.
Let us first check if the coefficient matrix is diagonally dominant or not.
In [2]: a = [[8, 3, -3], [-2, -8, 5], [3, 5, 10]]
# Find diagonal coefficients
diag = np.diag(np.abs(a))
# Find row sum without diagonal
off_diag = np.sum(np.abs(a), axis=1) - diag
if np.all(diag off_diag):](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-263-320.jpg)
![14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 255
print(matrix is diagonally dominant)
else:
print(NOT diagonally dominant)
matrix is diagonally dominant
Since it is guaranteed to converge, we can use Gauss–Seidel method to solve the system.
In [3]: x1 = 0
x2 = 0
x3 = 0
epsilon = 0.01
converged = False
x_old = np.array([x1, x2, x3])
print(Iteration results)
print( k, x1, x2, x3 )
for k in range(1, 50):
x1 = (14-3*x2+3*x3)/8
x2 = (5+2*x1-5*x3)/(-8)
x3 = (-8-3*x1-5*x2)/(-5)
x = np.array([x1, x2, x3])
# check if it is smaller than threshold
dx = np.sqrt(np.dot(x-x_old, x-x_old))
print(%d, %.4f, %.4f, %.4f%(k, x1, x2, x3))
if dx epsilon:
converged = True
print(Converged!)
break
# assign the latest x value to the old value
x_old = x
if not converged:
print(Not converged, increase the # of iterations)
Iteration results
k, x1, x2, x3
1, 1.7500, -1.0625, 1.5875
2, 2.7437, -0.3188, 2.9275
3, 2.9673, 0.4629, 3.8433](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-264-320.jpg)
![256 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
4, 3.0177, 1.0226, 4.4332
5, 3.0290, 1.3885, 4.8059
6, 3.0315, 1.6208, 5.0397
7, 3.0321, 1.7668, 5.1861
8, 3.0322, 1.8582, 5.2776
9, 3.0322, 1.9154, 5.3348
10, 3.0323, 1.9512, 5.3705
11, 3.0323, 1.9735, 5.3929
12, 3.0323, 1.9875, 5.4068
13, 3.0323, 1.9962, 5.4156
14, 3.0323, 2.0017, 5.4210
Converged!
14.5 SOLVING SYSTEMS OF LINEAR EQUATIONS IN PYTHON
The examples presented above demonstrated the various methods you can use to solve systems of linear
equations. This is also very easy to do in Python, as shown below. The easiest way to get a solution is
via the solve function in NumPy.
TRY IT! Use numpy.linalg.solve to solve the following equations:
4x1 + 3x2 − 5x3 = 2,
−2x1 − 4x2 + 5x3 = 5,
8x1 + 8x2 = −3.
In [1]: import numpy as np
A = np.array([[4, 3, -5],
[-2, -4, 5],
[8, 8, 0]])
y = np.array([2, 5, -3])
x = np.linalg.solve(A, y)
print(x)
[ 2.20833333 -2.58333333 -0.18333333]
We get the same results as those in the previous section when calculated by hand. Under the “hood,”
the solver is actually doing an LU decomposition to get the results. If you can check the help of
the function, you will see it needs the input matrix to be square and of full rank, i.e., all rows (or,
equivalently, columns) must be linearly independent.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-265-320.jpg)
![14.5 SOLVING SYSTEMS OF LINEAR EQUATIONS IN PYTHON 257
TRY IT! Try to solve the above equations using the matrix inversion approach.
In [2]: A_inv = np.linalg.inv(A)
x = np.dot(A_inv, y)
print(x)
[ 2.20833333 -2.58333333 -0.18333333]
We can also obtain the L and U matrices used in the LU decomposition using the SciPy
package.
TRY IT! Get the L and U for the above matrix A.
In [3]: from scipy.linalg import lu
P, L, U = lu(A)
print(P:n, P)
print(L:n, L)
print(U:n, U)
print(LU:n,np.dot(L, U))
P:
[[0. 0. 1.]
[0. 1. 0.]
[1. 0. 0.]]
L:
[[ 1. 0. 0. ]
[-0.25 1. 0. ]
[ 0.5 0.5 1. ]]
U:
[[ 8. 8. 0. ]
[ 0. -2. 5. ]
[ 0. 0. -7.5]]
LU:
[[ 8. 8. 0.]
[-2. -4. 5.]
[ 4. 3. -5.]]
Why do we obtain different L and U from those calculated by hand in the last section? You will
also see that there is a permutation matrix P that is returned by the lu function. This permutation
matrix records how it changes the order of the equations for easier calculation purposes. For example,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-266-320.jpg)
![258 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
if the first element in the first row is zero, it cannot be the pivot equation since you cannot turn the first
elements in other rows to zero; therefore, we need to switch the order of the equations to get a new
pivot equation. If you multiply P and A, you will see that this permutation matrix reverses the order of
the equations for this case.
TRY IT! Multiply P and A and see what is the effect of the permutation matrix on A.
In [4]: print(np.dot(P, A))
[[ 8. 8. 0.]
[-2. -4. 5.]
[ 4. 3. -5.]]
14.6 MATRIX INVERSION
We defined the inverse of a square matrix M as a matrix of the same size, M−1, such that M · M−1 =
M−1 · M = I. If the dimension of the matrix is high, the analytical solution for the matrix inversion
will be complicated. Therefore, we need some other efficient ways to obtain the inverse of the matrix.
Let us use a 4 × 4 matrix for illustration. Suppose we have
M =
⎡
⎢
⎢
⎣
m1,1 m1,2 m1,3 m1,4
m2,1 m2,2 m2,3 m2,4
m3,1 m3,2 m3,3 m3,4
m4,1 m4,2 m4,3 m4,4
⎤
⎥
⎥
⎦,
and the inverse of M is
X =
⎡
⎢
⎢
⎣
x1,1 x1,2 x1,3 x1,4
x2,1 x2,2 x2,3 x2,4
x3,1 x3,2 x3,3 x3,4
x4,1 x4,2 x4,3 x4,4
⎤
⎥
⎥
⎦.
Therefore, we will have:
M · X =
⎡
⎢
⎢
⎣
m1,1 m1,2 m1,3 m1,4
m2,1 m2,2 m2,3 m2,4
m3,1 m3,2 m3,3 m3,4
m4,1 m4,2 m4,3 m4,4
⎤
⎥
⎥
⎦
⎡
⎢
⎢
⎣
x1,1 x1,2 x1,3 x1,4
x2,1 x2,2 x2,3 x2,4
x3,1 x3,2 x3,3 x3,4
x4,1 x4,2 x4,3 x4,4
⎤
⎥
⎥
⎦ =
⎡
⎢
⎢
⎣
1 0 0 0
0 1 0 0
0 0 1 0
0 0 0 1
⎤
⎥
⎥
⎦.
We can rewrite the above equation as four separate equations, i.e.,
⎡
⎢
⎢
⎣
m1,1 m1,2 m1,3 m1,4
m2,1 m2,2 m2,3 m2,4
m3,1 m3,2 m3,3 m3,4
m4,1 m4,2 m4,3 m4,4
⎤
⎥
⎥
⎦
⎡
⎢
⎢
⎣
x1,1
x2,1
x3,1
x4,1
⎤
⎥
⎥
⎦ =
⎡
⎢
⎢
⎣
1
0
0
0
⎤
⎥
⎥
⎦,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-267-320.jpg)
![260 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
In summary, all we need to do is to convert
⎡
⎢
⎢
⎣
m1,1 m1,2 m1,3 m1,4 1 0 0 0
m2,1 m2,2 m2,3 m2,4 0 1 0 0
m3,1 m3,2 m3,3 m3,4 0 0 1 0
m4,1 m4,2 m4,3 m4,4 0 0 0 1
⎤
⎥
⎥
⎦
to
⎡
⎢
⎢
⎢
⎣
1 0 0 0 m1,1 m1,2 m1,3 m1,4
0 1 0 0 m2,1 m2,2 m2,3 m2,4
0 0 1 0 m3,1 m3,2 m3,3 m1,4
0 0 0 1 m4,1 m4,2 m4,3 m1,4
⎤
⎥
⎥
⎥
⎦
.
Then the matrix
⎡
⎢
⎢
⎢
⎣
m1,1 m1,2 m1,3 m1,4
m2,1 m2,2 m2,3 m2,4
m3,1 m3,2 m3,3 m1,4
m4,1 m4,2 m4,3 m1,4
⎤
⎥
⎥
⎥
⎦
is the inverse of M we are looking for.
Can you explain how to use LU decomposition to get the inverse of a matrix?
14.7 SUMMARY AND PROBLEMS
14.7.1 SUMMARY
1. Linear algebra is the foundation of many engineering fields.
2. Vectors can be considered as points in Rn; addition and multiplication are defined, although this is
not necessarily the case for scalars.
3. A set of vectors is linearly independent if none of the vectors can be written as a linear combination
of the others.
4. Matrices are tables of numbers. They have several important characteristics including the determi-
nant, rank, and inverse.
5. A system of linear equations can be represented by the matrix equation Ax = y.
6. The number of solutions to a system of linear equations is related to rank(A) and rank([A,y]). It
can be zero, one, or infinity.
7. We can solve the equations using Gauss elimination, Gauss–Jordan elimination, LU decomposition,
and the Gauss–Seidel method.
8. We introduced methods to find the matrix inverse.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-269-320.jpg)
![14.7 SUMMARY AND PROBLEMS 261
14.7.2 PROBLEMS
1. It is strongly recommended that you read a book on linear algebra, which will give you greater
mastery of the contents of this chapter. We strongly recommend reading the first part of book
Optimization Models by Giuseppe Calafiore and Laurent El Ghaoui to get you started.
2. Show that matrix multiplication distributes over matrix addition: show A(B + C) = AB + AC
assuming that A,B, and C are matrices of compatible size.
3. Write a function my_is_orthogonal(v1,v2,tol) where v1 and v2 are column vectors of the same
size, and tol is a scalar value strictly larger than zero. The output should be 1 if the angle between
v1 and v2 is within tol of π/2, that is, |π/2 − θ| tol, and zero otherwise. You may assume that
v1 and v2 are column vectors of the same size, and that tol is a positive scalar.
In [ ]: # Test cases for Problem 3
a = np.array([[1], [0.001]])
b = np.array([[0.001], [1]])
# output: 1
my_is_orthogonal(a,b, 0.01)
# output: 0
my_is_orthogonal(a,b, 0.001)
# output: 0
a = np.array([[1], [0.001]])
b = np.array([[1], [1]])
my_is_orthogonal(a,b, 0.01)
# output: 1
a = np.array([[1], [1]])
b = np.array([[-1], [1]])
my_is_orthogonal(a,b, 1e-10)
3. Write a function my_is_similar(s1,s2,tol) where s1 and s2 are strings, not necessarily of the
same size, and tol is a scalar value strictly larger than zero. From s1 and s2, the function should
construct two vectors, v1 and v2, where v1[0] is the number of a’s in s1, v1[1] is the number b’s
in s1, and so on until v1[25], which is the number of z’s in v1. The vector v2 should be similarly
constructed from s2. The output should be 1 if the absolute value of the angle between v1 and v2
is less than tol, that is, |θ| tol.
4. Write a function my_make_lin_ind(A) where A and B are matrices. Let rank(A) = n. Then B
should be a matrix containing the first n columns of A that are all linearly independent. Note that
this implies that B has full rank.
In [ ]: ## Test cases for Problem 4
A = np.array([[12,24,0,11,-24,18,15],
[19,38,0,10,-31,25,9],](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-270-320.jpg)
![262 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS
[1,2,0,21,-5,3,20],
[6,12,0,13,-10,8,5],
[22,44,0,2,-12,17,23]])
B = my_make_lin_ind(A)
# B = [[12,11,-24,15],
# [19,10,-31,9],
# [1,21,-5,20],
# [6,13,-10,5],
# [22,2,-12,23]]
5. Cramer’s rule is a method of computing the determinant of a matrix. Consider an n × n square
matrix M. Let M(i,j) be the element of M in the ith row and jth column of M, and let mi,j be
the minor of M created by removing the ith row and jth column from M. Cramer’s rule says that
det(M) =
n
i=1
(−1)i−1
M(1,i)det(mi,j ).
Write a function my_rec_det(M) where the output is det(M). Use Cramer’s rule to compute the
determinant, not NumPy’s function.
6. What is the complexity of my_rec_det in the previous problem? Do you think this is an effective
way of determining if a matrix is singular or not?
7. Let p be a vector with length L containing the coefficients of a polynomial of order L − 1. For
example, the vector p = [1,0,2] is a representation of the polynomial f (x) = 1x2 + 0x + 2. Write
a function my_poly_der_mat(p) where p is the aforementioned vector, and the output D is the
matrix that will return the coefficients of the derivative of p when p is left multiplied by D. For
example, the derivative of f (x) is f (x) = 2x; therefore, d = Dp should yield d = [2,0]. Note
this implies that the dimension of D is L − 1 × L. The point of this problem is to show that
differentiating polynomials is actually a linear transformation.
8. Use the Gauss elimination method to solve the following equations:
3x1 − x2 + 4x3 = 2,
17x1 + 2x2 + x3 = 14,
x1 + 12x2 − 7z = 54.
9. Use the Gauss–Jordan elimination method to solve the equations in Problem 8.
10. Obtain the lower triangular matrix L and upper triangular matrix U from the equations in Prob-
lem 8.
11. Show that the dot-product distributes across vector addition, that is, show that u · (v + w) = u ·
v + u · w.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-271-320.jpg)
![14.7 SUMMARY AND PROBLEMS 263
FIGURE 14.1
Graph for Problem 12.
12. Consider the following network shown in Fig. 14.1 consisting of two power supply stations de-
noted by S1 and S2 and five power recipient nodes denoted by N1 to N5. The nodes are connected
by power lines, which are denoted by arrows, and power can flow between nodes along these lines
in both directions.
Let di be a positive scalar denoting the power demand for node i; assume that this demand must be
met exactly. The capacity of the power supply stations is denoted by S. Power supply stations must
run at capacity. For each arrow, let fj be the power flow along that arrow. Negative flow implies
that power is running in the opposite direction of the arrow.
Write a function my_flow_calculator(S,d) where S is a 1 × 2 vector representing the capacity
of each power supply station, and d is a 1 × 5 row vector representing the demands at each node
(i.e., d[0] is the demand at node 1). The output argument, f, should be a 1 × 7 row vector denoting
the flows in the network (i.e., f[0] = f1 in the diagram). The flows contained in f should satisfy
all the constraints of the system, like power generation and demands. Note that there may be more
than one solution to the system of equations.
The total flow into a node must equal the total flow out of the node plus the demand; that is, for
each node i,finflow = foutflow + di. You may assume that
Sj =
di.
In [ ]: ## Test cases for Problem 12
s = np.array([[10, 10]])
d = np.array([[4, 4, 4, 4, 4]])
# f = [[10.0, 4.0, -2.0, 4.5, 5.5, 2.5, 1.5]]
f = my_flow_calculator(s, d)
s = np.array([[10, 10]])
d = np.array([[3, 4, 5, 4, 4]])
# f = [[10.0, 5.0, -1.0, 4.5, 5.5, 2.5, 1.5]]
f = my_flow_calculator(s, d)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-272-320.jpg)
![266 CHAPTER 15 EIGENVALUES AND EIGENVECTORS
TRY IT! Plot the vector x = [[1], [1]] and the vector b = Ax, where A = [[2, 0], [0, 1]]
In [1]: import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline
def plot_vect(x, b, xlim, ylim):
function to plot two vectors,
x - the original vector
b - the transformed vector
xlim - the limit for x
ylim - the limit for y
plt.figure(figsize = (10, 6))
plt.quiver(0,0,x[0],x[1],
color=k,angles=xy,
scale_units=xy,scale=1,
label=Original vector)
plt.quiver(0,0,b[0],b[1],
color=g,angles=xy,
scale_units=xy,scale=1,
label =Transformed vector)
plt.xlim(xlim)
plt.ylim(ylim)
plt.xlabel(X)
plt.ylabel(Y)
plt.legend()
plt.show()
In [2]: A = np.array([[2, 0],[0, 1]])
x = np.array([[1],[1]])
b = np.dot(A, x)
plot_vect(x,b,(0,3),(0,2))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-274-320.jpg)
![15.1 EIGENVALUES AND EIGENVECTORS PROBLEM STATEMENT 267
We can see from the generated figure that the original vector x is rotated and stretched longer after
being transformed by A. The vector [[1], [1]] is transformed to [[2], [1]]. Let us try to do the same
exercise with a different vector [[1], [0]].
TRY IT! Plot the vector x = [[1], [0]] and the vector b = Ax where A = [[2, 0], [0, 1]]
In [3]: x = np.array([[1], [0]])
b = np.dot(A, x)
plot_vect(x,b,(0,3),(-0.5,0.5))
With this new vector, the only change after the transformation is the length of the vector; it is
stretched. The new vector is [[2], [0]], therefore, the transform is
Ax = 2x](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-275-320.jpg)
![268 CHAPTER 15 EIGENVALUES AND EIGENVECTORS
with x = [[1], [0]] and λ = 2. The direction of the vector does not change at all (no rotation). You can
also check that [[0], [1]] is another eigenvector; try to verify this by yourself.
15.1.3 THE CHARACTERISTIC EQUATION
In order to get the eigenvalues and eigenvectors, from Ax = λx, we can use the following form:
(A − λI)x = 0,
where I is the identify matrix with the same dimensions as A. If matrix A − λI has an inverse and both
sides are multiplied by (A − λI)−1, we get a trivial solution x = 0. Therefore, the only interesting case
is when A − λI is singular (no inverse exists), and we have a nontrivial solution, which means that the
determinant is zero:
det(A − λI) = 0.
This equation is called the characteristic equation that will lead to a polynomial equation for λ,
which we can solve for the eigenvalues; see the example below.
TRY IT! Obtain the eigenvalues for matrix [[0, 2], [2, 3]]
The characteristic equation gives us
0 − λ 2
2 3 − λ
= 0.
Therefore, we have
−λ(3 − λ) − 4 = 0 ⇒ λ2
− 3λ − 4 = 0.
We obtain two eigenvalues:
λ1 = 4, λ2 = −1.
TRY IT! Obtain the eigenvectors for the above two eigenvalues.
If the first eigenvalue is λ1 = 4, we can simply insert it back to A − λI = 0, where we have:
−4 2
2 −1
x1
x2
=
0
0
.
Therefore, we have two equations −4x1 + 2x2 = 0 and 2x1 − x2 = 0, both indicating that x2 =
2x1. Therefore, the first eigenvector is
x1 = k1
1
2
.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-276-320.jpg)
![15.2 THE POWER METHOD 269
The symbol k1 is a scalar (k1 = 0); as long as we have the ratio between x2 and x1 as 2, it will
be an eigenvector. We can verify that the vector [[1], [2]] is an eigenvector by inserting it back:
0 2
2 3
1
2
=
4
8
= 4
1
2
.
By inserting λ2 = −1 as above, we obtain the other eigenvector as follows where k2 = 0:
x2 = k2
−2
1
.
The above example demonstrates how we can obtain the eigenvalues and eigenvectors from a matrix
A; the choice of the eigenvectors for a system is not unique. When you have a larger matrix A and try
to solve the nth order polynomial characteristic equation, the solution becomes more complicated.
Luckily, many different numerical methods have been developed to solve the eigenvalue problems for
larger matrices (with a few hundred to thousands of dimensions). We will introduce the power method
and the QR method in the next two sections.
15.2 THE POWER METHOD
15.2.1 FINDING THE LARGEST EIGENVALUE
Some problems only require finding the largest dominant eigenvalue and its corresponding eigenvector.
In this case, we can use the power method, which is an iterative method that will converge to the largest
eigenvalue; see the example below.
Consider an n × n matrix A that has n real eigenvalues λ1,λ2,...,λn and the corresponding lin-
early independent eigenvectors v1,v2,...,vn. Since the eigenvalues are scalars, we can rank them so
that
|λ1| |λ2| ≥ ··· ≥ |λn|.
Note that we only require |λ1| |λ2|; the other eigenvalues may be equal to each other.
Because the eigenvectors are assumed linearly independent, they are a set of basis vectors, which
means that any vector that is in the same space can be written as a linear combination of the basis
vectors. That is, for any vector x0 and can be written as:
x0 = c1v1 + c2v2 + ··· + cnvn
where c1 = 0 is the constraint. If it is zero, then we need to choose another initial vector so that c1 = 0.
Now let us multiply both sides by A:
Ax0 = c1Av1 + c2Av2 + ··· + cnAvn.
Since Avi = λivi,
Ax0 = c1λ1v1 + c2λ2v2 + ··· + cnλnvn.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-277-320.jpg)
![270 CHAPTER 15 EIGENVALUES AND EIGENVECTORS
We can change the above equation to:
Ax0 = c1λ1
v1 +
c2
c1
λ2
λ1
v2 + ··· +
cn
c1
λn
λ1
vn
= c1λ1x1,
where x1 is a new vector, x1 = v1 + c2
c1
λ2
λ1
v2 + ··· + cn
c1
λn
λ1
vn.
This finishes the first iteration. For the second iteration, we apply A to x1:
Ax1 = λ1v1 +
c2
c1
λ2
2
λ1
v2 + ··· +
cn
c1
λ2
n
λ1
vn.
Similarly, we can rearrange the above equation to get
Ax1 = λ1
v1 +
c2
c1
λ2
2
λ2
1
v2 + ··· +
cn
c1
λ2
n
λ2
1
vn
= λ1x2,
where x2 is a new vector, x2 = v1 + c2
c1
λ2
2
λ2
1
v2 + ··· + cn
c1
λ2
n
λ2
1
vn.
If we continue applying A to the new vector, we obtain from each iteration k:
Axk−1 = λ1
v1 +
c2
c1
λk
2
λk
1
v2 + ··· +
cn
c1
λk
n
λk
1
vn
= λ1xk.
Because λ1 is the largest eigenvalue, the ratio λi
λ1
1 for all i 1. When k is sufficiently large,
the factor (λn
λ1
)k will be close to zero, so that all terms that contain this factor can be neglected as k
increases:
Axk−1 ∼ λ1v1.
Essentially, if k is large enough, we will obtain the largest eigenvalue and its corresponding eigen-
vector. When implementing this power method, the resulting vector in each iteration is usually nor-
malized. This can be done by factoring out the largest element in the vector, which will make the
largest element in the vector equal to 1. This normalization will provide the largest eigenvalue and its
corresponding eigenvector at the same time; see the example below.
When should we stop the iteration? The basic stopping criterion should be one of these the follow-
ing: (1) the difference between eigenvalues is less than some specified tolerance; (2) the angle between
eigenvectors is smaller than a threshold; or (3) the norm of the residual vector is small enough.
TRY IT! We know from the last section that the largest eigenvalue is 4 for the matrix A =
0 2
2 3
.
Use the power method to find the largest eigenvalue and the associated eigenvector. You can use
the initial vector [1, 1] to start the iteration.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-278-320.jpg)
![15.2 THE POWER METHOD 271
First iteration:
0 2
2 3
1
1
=
2
5
= 5
0.4
1
.
Second iteration:
0 2
2 3
0.4
1
=
2
3.8
= 3.8
0.5263
1
.
Third iteration:
0 2
2 3
0.5263
1
=
2
4.0526
= 4.0526
0.4935
1
.
Fourth iteration:
0 2
2 3
0.4935
1
=
2
3.987
= 3.987
0.5016
1
.
Fifth iteration:
0 2
2 3
0.5016
1
=
2
4.0032
= 4.0032
0.4996
1
.
Sixth iteration:
0 2
2 3
0.4996
1
=
2
3.9992
= 3.9992
0.5001
1
.
Seventh iteration:
0 2
2 3
0.5001
1
=
2
4.0002
= 4.0002
0.5000
1
.
After seven iterations, the eigenvalue has converged to four, with [0.5, 1] as the corresponding
eigenvector.
TRY IT! Implement the power method in Python.
In [1]: import numpy as np
In [2]: def normalize(x):
fac = abs(x).max()
x_n = x / x.max()
return fac, x_n](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-279-320.jpg)
![272 CHAPTER 15 EIGENVALUES AND EIGENVECTORS
In [3]: x = np.array([1, 1])
a = np.array([[0, 2],
[2, 3]])
for i in range(8):
x = np.dot(a, x)
lambda_1, x = normalize(x)
print(Eigenvalue:, lambda_1)
print(Eigenvector:, x)
Eigenvalue: 3.999949137887188
Eigenvector: [0.50000636 1.]
15.2.2 THE INVERSE POWER METHOD
The eigenvalues of the inverse matrix A−1 are the reciprocals of the eigenvalues of A. By taking
advantage of this feature, as well as the power method, we are able to obtain the smallest eigenvalue of
A; this will be basis of the inverse power method. The steps are very simple: instead of applying A as
described above, we just apply A−1 for our iteration to find the largest value of 1
λ1
, which will be the
smallest value of the eigenvalues for A. In practice, we can use the methods we covered in the previous
chapter to calculate the inverse of the matrix. We will not go to greater detail here, but we present an
example below.
TRY IT! Find the smallest eigenvalue and eigenvector for A =
0 2
2 3
.
In [4]: from numpy.linalg import inv
In [5]: a_inv = inv(a)
for i in range(8):
x = np.dot(a_inv, x)
lambda_1, x = normalize(x)
print(Eigenvalue:, lambda_1)
print(Eigenvector:, x)
Eigenvalue: 0.20000000000003912
Eigenvector: [1. 1.]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-280-320.jpg)
![15.3 THE QR METHOD 273
15.2.3 THE SHIFTED POWER METHOD
In some cases, it is necessary to find all the eigenvalues and eigenvectors instead of just the largest and
smallest. One simple, but inefficient way is to use the shifted power method; we will introduce you a
more efficient method in the next section.
Given Ax = λ1x, and λ1 being the largest eigenvalue obtained by the power method, we have
[A − λ1I]x = αx,
where α’s are the eigenvalues of the shifted matrix A − λ1I, which will be 0,λ2 − λ1,λ3 −
λ1,...,λn − λ1.
Now if we apply the power method to the shifted matrix, we can determine the largest eigenvalue of
the shifted matrix, i.e., αk. Since αk = λk − λ1, we can obtain the eigenvalue λk easily. Repeating this
process many times will find the all the other eigenvalues, but you can see it is very labor intensive. A
better method for finding all the eigenvalues is to use the QR method, which we will introduced next.
15.3 THE QR METHOD
The QR method is the preferred iterative method to find all the eigenvalues of a matrix (but not the
eigenvectors at the same time). The idea is based on the following two concepts:
1. Similar matrices will have the same eigenvalues and associated eigenvectors. Two square ma-
trices A and B are similar if
A = C−1
BC
where C is an invertible matrix.
2. The QR method is a way to decompose a matrix into two matrices Q and R, where Q is
an orthogonal matrix, and R is an upper triangular matrix. An orthogonal matrix satisfies
Q−1 = QT , which means Q−1Q = QT Q = I.
How do we link these two concepts to find the eigenvalues? Say, we have a matrix A0 whose eigen-
values must be determined. At the kth step (starting with k = 0), we can perform the QR decomposition
and obtain
Ak = QkRk
where Qk is an orthogonal matrix, and Rk is an upper triangular matrix. We then form
Ak+1 = RkQk
to obtain
Ak+1 = RkQk = Q−1
k QkRkQk = Q−1
k AkQk.
Because all the Ak are similar, as we discussed above, they all have the same eigenvalues.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-281-320.jpg)
![274 CHAPTER 15 EIGENVALUES AND EIGENVECTORS
As the iteration continues, we will eventually converge to an upper triangular matrix with the form:
Ak = RkQk =
⎡
⎢
⎢
⎢
⎣
λ1 X ... X
0 λ2 ... X
.
.
.
.
.
.
...
.
.
.
0 0 ... λn
⎤
⎥
⎥
⎥
⎦
,
where the diagonal values are the eigenvalues of the matrix. In each iteration of the QR method, fac-
toring a matrix into an orthogonal and an upper triangular matrix can be done by using a special matrix
called Householder matrix. We will not go into the mathematical details how you get the Q and R
from the matrix. Instead, we will use the Python function to obtain the two matrices directly.
TRY IT! Use the qr function in numpy.linalg to decompose matrix A =
0 2
2 3
. Verify the
results.
In [1]: import numpy as np
from numpy.linalg import qr
In [2]: a = np.array([[0, 2],
[2, 3]])
q, r = qr(a)
print(Q:, q)
print(R:, r)
b = np.dot(q, r)
print(QR:, b)
Q: [[ 0. -1.]
[-1. 0.]]
R: [[-2. -3.]
[ 0. -2.]]
QR: [[0. 2.]
[2. 3.]]
TRY IT! Use the QR method to get the eigenvalues of matrix A =
0 2
2 3
. Do 20 iterations, and
print out the first, fifth, 10th, and 20th iteration.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-282-320.jpg)
![15.4 EIGENVALUES AND EIGENVECTORS IN PYTHON 275
In [3]: a = np.array([[0, 2],
[2, 3]])
p = [1, 5, 10, 20]
for i in range(20):
q, r = qr(a)
a = np.dot(r, q)
if i+1 in p:
print(fIteration {i+1}:)
print(a)
Iteration 1:
[[3. 2.]
[2. 0.]]
Iteration 5:
[[ 3.99998093 0.00976559]
[ 0.00976559 -0.99998093]]
Iteration 10:
[[ 4.00000000e+00 9.53674316e-06]
[ 9.53674316e-06 -1.00000000e+00]]
Iteration 20:
[[ 4.00000000e+00 9.09484250e-12]
[ 9.09494702e-12 -1.00000000e+00]]
Note that after the fifth iteration, the eigenvalues are converged to the correct ones. The next section
will demonstrate how to obtain the eigenvalues and eigenvectors in Python using the built-in function.
15.4 EIGENVALUES AND EIGENVECTORS IN PYTHON
The methods introduced above are fairly complicated to execute. The calculation of eigenvalues and
eigenvectors in Python is fairly easy. The main built-in function in Python to solve the eigenval-
ue/eigenvector problem for a square array is the eig function in numpy.linalg; see below for an
example in how to execute it.
TRY IT! Calculate the eigenvalues and eigenvectors for matrix A =
0 2
2 3
.
In [1]: import numpy as np
from numpy.linalg import eig
In [2]: a = np.array([[0, 2],
[2, 3]])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-283-320.jpg)
![276 CHAPTER 15 EIGENVALUES AND EIGENVECTORS
w,v=eig(a)
print(E-value:, w)
print(E-vector, v)
E-value: [-1. 4.]
E-vector [[-0.89442719 -0.4472136 ]
[ 0.4472136 -0.89442719]]
TRY IT! Compute the eigenvalues and eigenvectors for the matrix A =
⎡
⎣
2 2 4
1 3 5
2 3 4
⎤
⎦.
In [3]: a = np.array([[2, 2, 4],
[1, 3, 5],
[2, 3, 4]])
w,v=eig(a)
print(E-value:, w)
print(E-vector, v)
E-value: [ 8.80916362 0.92620912 -0.73537273]
E-vector [[-0.52799324 -0.77557092 -0.36272811]
[-0.604391 0.62277013 -0.7103262 ]
[-0.59660259 -0.10318482 0.60321224]]
15.5 SUMMARY AND PROBLEMS
15.5.1 SUMMARY
1. Eigenvalues and eigenvectors help us understand the characteristics of a linear transformation.
2. Eigenvectors of a matrix are the vectors that can only be scaled lengthwise without rotation after
applying the matrix transformation; the eigenvalues are the factors of the scaling.
3. We can use power method to get the largest eigenvalue and corresponding eigenvector of a matrix.
4. The inverse power method can help us get the smallest eigenvalue and corresponding eigenvector
of a matrix.
5. The shifted power method can get all the other eigenvectors/eigenvectors of a matrix.
6. The preferred method to get all the eigenvalues is the QR method.
15.5.2 PROBLEMS
1. Write down the characteristic equation for matrix A =
3 2
5 3
.
2. Use the above characteristic equation to solve for eigenvalues and eigenvectors of matrix A.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-284-320.jpg)
![15.5 SUMMARY AND PROBLEMS 277
3. Use the first eigenvector derived from Problem 2 to verify that Ax = λx.
4. Use the power method to obtain the largest eigenvalue and eigenvector for the matrix A =
⎡
⎣
2 1 2
1 3 2
2 4 1
⎤
⎦. Start with initial vector [1, 1, 1] and see the results after eight iterations.
5. Using the inverse power method to get the smallest eigenvalue and eigenvector for the matrix in
Problem 4, see how many iterations are needed for it to converge to the smallest eigenvalue.
6. Perform a QR decomposition for matrix A in Problem 4. Verify that A = QR and Q is an orthogonal
matrix.
7. Use the QR method to get all the eigenvalues for matrix A in Problem 4.
8. Obtain the eigenvalues and eigenvectors for matrix A in Problem 4 using the Python built-in func-
tion.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-285-320.jpg)
![282 CHAPTER 16 LEAST SQUARES REGRESSION
With some rearrangement, the previous expression can be manipulated as follows:
m
i=1
n
j=1
αj fj (xi)fk(xi) −
m
i=1
yifk(xi) = 0,
and upon further rearrangement (we take advantage of the fact that addition commutes) the result is
n
j=1
αj
m
i=1
fj (xi)fk(xi) =
m
i=1
yifk(xi).
Now let X be a column vector such that the ith element of X is xi and Y similarly constructed, and
let Fj (X) be a column vector such that the ith element of Fj (X) is fj (xi). Using this notation, the
previous expression can be rewritten in vector notation as
FT
k (X)F1(X),FT
k (X)F2(X),...,FT
k (X)Fj (X),...,FT
k (X)Fn(X)
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎣
α1
α2
.
.
.
αj
.
.
.
αn
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎦
= FT
k (X)Y.
If we repeat this equation for every k, we get the following system of linear equations in matrix form:
⎡
⎢
⎢
⎢
⎢
⎣
FT
1 (X)F1(X),FT
1 (X)F2(X),...,FT
1 (X)Fj (X),...,FT
1 (X)Fn(X)
FT
2 (X)F1(X),FT
2 (X)F2(X),...,FT
2 (X)Fj (X),...,FT
2 (X)Fn(X)
.
.
.
FT
n (X)F1(X),FT
n (X)F2(X),...,FT
n (X)Fj (X),...,FT
n (X)Fn(X)
⎤
⎥
⎥
⎥
⎥
⎦
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎣
α1
α2
.
.
.
αj
.
.
.
αn
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎦
=
⎡
⎢
⎢
⎢
⎢
⎣
FT
1 (X)Y
FT
2 (X)Y
.
.
.
FT
n (X)Y
⎤
⎥
⎥
⎥
⎥
⎦
.
If we let A = [F1(X),F2(X),...,Fj (X),...,Fn(X)] and β be a column vector such that the jth
element of β is αj , then the previous system of equations becomes
AT
Aβ = AT
Y,
and then solving this matrix equation for β gives β = (AT A)−1AT Y, which is exactly the same formula
as the previous derivation.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-289-320.jpg)
![16.4 LEAST SQUARES REGRESSION IN PYTHON 283
16.4 LEAST SQUARES REGRESSION IN PYTHON
Recall that enumerating the estimation of the data at each data point, xi, will give us the following
system of equations:
ŷ(x1) = α1f1(x1) + α2f2(x1) + ··· + αnfn(x1),
ŷ(x2) = α1f1(x2) + α2f2(x2) + ··· + αnfn(x2),
···
ŷ(xm) = α1f1(xm) + α2f2(xm) + ··· + αnfn(xm).
If the data were absolutely perfect (i.e., no noise), then the estimation function would go through
all the data points, resulting in the following system of equations:
y1 = α1f1(x1) + α2f2(x1) + ··· + αnfn(x1),
y2 = α1f1(x2) + α2f2(x2) + ··· + αnfn(x2),
···
ym = α1f1(xm) + α2f2(xm) + ··· + αnfn(xm).
If we were to take A as defined previously, this would result in the matrix equation
Y = Aβ.
Because the data is not perfect, there will not be an estimation function that can go through all the
data points, and this system will have no solution. Therefore, we need to use the least square regression
that we derived in the previous two sections to obtain a solution:
β = (AT
A)−1
AT
Y.
TRY IT! Consider the artificial data created by x = np.linspace(0, 1, 101) and y = 1 + x
+ x * np.random.random(len(x)). Do a least squares regression with an estimation function
defined by ŷ = α1x + α2. Plot the data points along with the least squares regression. Note that
we expect α1 = 1.5 and α2 = 1.0 based on this data. Due to the random noise we added into the
data, your results maybe slightly different. In the next few subsections, we will see how we solve
this problem using different approaches.
16.4.1 USING THE DIRECT INVERSE METHOD
In [1]: import numpy as np
from scipy import optimize
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-290-320.jpg)
![284 CHAPTER 16 LEAST SQUARES REGRESSION
In [2]: # generate x and y
x = np.linspace(0, 1, 101)
y = 1 + x + x * np.random.random(len(x))
In [3]: # assemble matrix A
A = np.vstack([x, np.ones(len(x))]).T
# turn y into a column vector
y = y[:, np.newaxis]
In [4]: # Direct least squares regression
alpha = np.dot((np.dot(np.linalg.inv(np.dot(A.T,A)),A.T)),y)
print(alpha)
[[1.459573 ]
[1.02952189]]
In [5]: # plot the results
plt.figure(figsize = (10,8))
plt.plot(x, y, b.)
plt.plot(x, alpha[0]*x + alpha[1], r)
plt.xlabel(x)
plt.ylabel(y)
plt.show()
Python has several packages and functions that can perform a least squares regression. These in-
clude NumPy, SciPy, statsmodels, and sklearn. Below are several examples of such applications. Feel
free to choose the one you like.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-291-320.jpg)
![16.4 LEAST SQUARES REGRESSION IN PYTHON 285
16.4.2 USING THE PSEUDO-INVERSE
We mentioned earlier that the matrix (AT A)−1AT is called the pseudo-inverse, therefore, we can use
the pinv function in NumPy to calculate it directly.
In [6]: pinv = np.linalg.pinv(A)
alpha = pinv.dot(y)
print(alpha)
[[1.459573 ]
[1.02952189]]
16.4.3 USING NUMPY.LINALG.LSTSQ
NumPy has already implemented the least squares methods, so we can just call the function to get a
solution. The function will return more data than the solution itself; please check the documentation
for details.
In [7]: alpha = np.linalg.lstsq(A, y, rcond=None)[0]
print(alpha)
[[1.459573 ]
[1.02952189]]
16.4.4 USING OPTIMIZE.CURVE_FIT FROM SCIPY
This SciPy function is very powerful. It is not only suitable for linear functions, but many different
function forms as well, such as nonlinear functions. Here we will only show the linear example from
above. Note that, when using this function, we do not need to turn y into a column vector.
In [8]: # generate x and y
x = np.linspace(0, 1, 101)
y = 1 + x + x * np.random.random(len(x))
In [9]: def func(x, a, b):
y = a*x + b
return y
alpha=optimize.curve_fit(func, xdata=x, ydata=y)[0]
print(alpha)
[1.44331612 1.0396133 ]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-292-320.jpg)
![286 CHAPTER 16 LEAST SQUARES REGRESSION
16.5 LEAST SQUARES REGRESSION FOR NONLINEAR FUNCTIONS
A least squares regression requires that the estimation function be a linear combination of basis func-
tions. There are some functions that cannot be put in this form, but where a least squares regression is
still appropriate.
Introduced below are several ways to deal with nonlinear functions.
• We can accomplish this by taking advantage of the properties of logarithms and transform the non-
linear function into a linear function.
• We can use the curve_fit function from SciPy to estimate directly the parameters for the nonlinear
function using least square.
16.5.1 LOG TRICKS FOR EXPONENTIAL FUNCTIONS
Assume you have a function in the form ŷ(x) = αeβx and data for x and y, and that you want to
perform least squares regression to find α and β. Clearly, the previous set of basis functions (linear)
would be inappropriate to describe ŷ(x); however, if we take the log of both sides, we get log(ŷ(x)) =
log(α) + βx. Now, we see that if ỹ(x) = log(ŷ(x)) and α̃ = log(α), then ỹ(x) = α̃ + βx. Thus, we can
perform a least squares regression on the linearized expression to find ỹ(x),α̃, and β, and then recover
α by using the expression α = eα̃.
For the example below, we will generate data using α = 0.1 and β = 0.3.
In [1]: import numpy as np
from scipy import optimize
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
In [2]: # let’s generate x and y, and add some noise into y
x = np.linspace(0, 10, 101)
y = 0.1*np.exp(0.3*x) + 0.1*np.random.random(len(x))
In [3]: # Let’s have a look of the data
plt.figure(figsize = (10,8))
plt.plot(x, y, b.)
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-293-320.jpg)
![16.5 LEAST SQUARES REGRESSION FOR NONLINEAR FUNCTIONS 287
Once the log trick has been applied, we can fit the data.
In [4]: A = np.vstack([x, np.ones(len(x))]).T
beta, log_alpha = np.linalg.lstsq(A, np.log(y), rcond = None)[0]
alpha = np.exp(log_alpha)
print(falpha={alpha}, beta={beta})
alpha=0.13973103064296616, beta=0.26307478591152406
In [5]: # Let’s have a look of the data
plt.figure(figsize = (10,8))
plt.plot(x, y, b.)
plt.plot(x, alpha*np.exp(beta*x), r)
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-294-320.jpg)
![288 CHAPTER 16 LEAST SQUARES REGRESSION
16.5.2 LOG TRICKS FOR POWER FUNCTIONS
The power function case is very similar. Assume we have a function in the form ŷ(x) = bxm and data
for x and y. Then we can turn this function into a linear form by taking log to both sides: log(ŷ(x)) =
mlog(x) + logb, solving this function as a linear regression. Since it is very similar to the above
example, we will not devote any more time on this.
16.5.3 POLYNOMIAL REGRESSION
We can also use polynomial and least squares to fit a nonlinear function. Previously, we had our func-
tions all in linear form, that is, y = ax + b. But “polynomials” are functions with the following form:
f (x) = anxn
+ an−1xn−1
+ ··· + a2x2
+ a1x1
+ a0
where an,an−1,...,a2,a1,a0 are the real number coefficients, and n, a non-negative integer, is the
order or degree of the polynomial. If we have a set of data points, we can use different orders of
polynomials to fit it. The coefficients of the polynomials can be estimated using the least squares
method as before, i.e., minimizing the error between the real data and the polynomial fitting results.
In Python, we can use numpy.polyfit to obtain the coefficients of different order polynomials with
the least squares. With the coefficients, we can get the specific values using numpy.polyval. Below is
an example of how to perform this in Python.
In [6]: x_d = np.array([0, 1, 2, 3, 4, 5, 6, 7, 8])
y_d=np.array([0,0.8,0.9,0.1,-0.6,-0.8,-1,-0.9,-0.4])
plt.figure(figsize = (12, 8))
for i in range(1, 7):](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-295-320.jpg)
![16.5 LEAST SQUARES REGRESSION FOR NONLINEAR FUNCTIONS 289
# get the polynomial coefficients
y_est = np.polyfit(x_d, y_d, i)
plt.subplot(2,3,i)
plt.plot(x_d, y_d, o)
# evaluate the values for a polynomial
plt.plot(x_d, np.polyval(y_est, x_d))
plt.title(fPolynomial order {i})
plt.tight_layout()
plt.show()
The figure above shows that we can use different orders of polynomials to fit the same data. The
higher the order, the more flexible the data curve required to fit the data. But what order to use is not a
simple question, it depends on the specific problems in science and engineering.
16.5.4 USING OPTIMIZE.CURVE_FIT FROM SCIPY
We can use the curve_fit function to fit any form function and estimate its parameters. We can solve
the above problem using the curve_fit function as follows:
In [7]: # let’s define the function form
def func(x, a, b):
y = a*np.exp(b*x)
return y
alpha, beta = optimize.curve_fit(func, xdata = x, ydata = y)[0]
print(falpha={alpha}, beta={beta})
alpha=0.12663549356730994, beta=0.27760076897453045](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-296-320.jpg)
![290 CHAPTER 16 LEAST SQUARES REGRESSION
In [8]: # Let’s have a look of the data
plt.figure(figsize = (10,8))
plt.plot(x, y, b.)
plt.plot(x, alpha*np.exp(beta*x), r)
plt.xlabel(x)
plt.ylabel(y)
plt.show()
16.6 SUMMARY AND PROBLEMS
16.6.1 SUMMARY
1. Mathematical models are used to understand, predict, and control engineering systems. These mod-
els consist of parameters that govern the way the model behaves.
2. Given a set of experimental data, a least squares regression is a method of finding a set of model
parameters that fits the data well. That is, it minimizes the squared error between the model, or
estimation function, and the data points.
3. In a linear least squares regression, the estimation function must be a linear combination of linearly
independent basis functions.
4. The set of parameters β can be determined by the least squares equation β = (AT A)−1AT Y, where
the jth column of A is the jth basis function evaluated at each X data point.
5. To estimate a nonlinear function, we transform it into a linear estimation function or use directly a
least squares regression to solve the nonlinear function using curve_fit from SciPy.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-297-320.jpg)
![16.6 SUMMARY AND PROBLEMS 291
16.6.2 PROBLEMS
1. Repeat the multivariate calculus derivation of the least squares regression formula for an estimation
function ŷ(x) = ax2 + bx + c, where a,b, and c are the parameters.
2. Write a function my_ls_params(f, x, y) where x and y are arrays of the same size containing
experimental data, and f is a list with each element a function object to a basis vector of the estima-
tion function. The output argument, beta, should be an array of the parameters of the least squares
regression for x, y, and f.
3. Write a function my_func_fit (x,y) where x and y are column vectors of the same size containing
experimental data, and the function returns alpha and beta are the parameters of the estimation
function ŷ(x) = αxβ.
4. Given four data points (xi,yi) and the parameters for a cubic polynomial ŷ(x) = ax3 + bx2 + cx +
d, what will be the total error associated with the estimation function ŷ(x)? Can we place another
data point (x,y) such that no additional error is incurred for the estimation function?
5. Write a function my_lin_regression(f, x, y) where f is a list containing function objects to
basis functions, and x and y are arrays containing noisy data. Assume that x and y are the same size.
Let an estimation function for the data contained in x and y be defined as ŷ(x) = β(1) · f1(x) +
β(2) · f2(x) + ··· + β(n) · fn(x), where n is the length of f. Your function should compute beta
according to the least squares regression formula.
Test Case: Note that your solution may vary by a little bit, depending on the random numbers
generated.
x = np.linspace(0, 2*np.pi, 1000)
y = 3*np.sin(x) - 2*np.cos(x) + np.random.random(len(x))
f = [np.sin, np.cos]
beta = my_lin_regression(f, x, y)
plt.figure(figsize = (10,8))
plt.plot(x,y,b., label = data)
plt.plot(x, beta[0]*f[0](x)+beta[1]*f[1](x)+beta[2], r, label=regression)
plt.xlabel(x)
plt.ylabel(y)
plt.title(Least Square Regression Example)
plt.legend()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-298-320.jpg)
![296 CHAPTER 17 INTERPOLATION
coordinates of a car over time. Since motion is restricted to the maneuvering physics of the car, we can
expect that the points between the (x,y) coordinates in our set will be “smooth” rather than jagged.
The following sections will present several common interpolation methods.
17.2 LINEAR INTERPOLATION
In linear interpolation, the estimated point is assumed to lie on the line joining the nearest points to
the left and right. Assume, without loss of generality, that the x-data points are in ascending order, that
is, xi xi+1, and let x be a point such that xi x xi+1. Then the linear interpolation at x is
ŷ(x) = yi +
(yi+1 − yi)(x − xi)
(xi+1 − xi)
.
TRY IT! Find the linear interpolation at x = 1.5 based on the data x = [0, 1, 2], y = [1, 3,
2]. Verify the result using SciPy’s function interp1d.
Since 1 x 2, we use the second and third data points to compute the linear interpolation.
Plugging in the corresponding values gives
ŷ(x) = yi +
(yi+1 − yi)(x − xi)
(xi+1 − xi)
= 3 +
(2 − 3)(1.5 − 1)
(2 − 1)
= 2.5.
In [1]: from scipy.interpolate import interp1d
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
In [2]: x = [0, 1, 2]
y = [1, 3, 2]
f = interp1d(x, y)
y_hat = f(1.5)
print(y_hat)
2.5
In [3]: plt.figure(figsize = (10,8))
plt.plot(x, y, -ob)
plt.plot(1.5, y_hat, ro)
plt.title(Linear Interpolation at x = 1.5)
plt.xlabel(x)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-302-320.jpg)
![298 CHAPTER 17 INTERPOLATION
Two more equations are required to compute the coefficients of Si(x). These last two constraints are
arbitrary; they can be chosen to fit the circumstances of the interpolation being performed. A common
set of final constraints is to assume that the second derivatives are zero at the endpoints. This means
that the curve is a “straight line” at the end points. Explicitly,
S
1 (x1) = 0,
S
n−1(xn) = 0.
In Python, we can use SciPy’s function CubicSpline to perform cubic spline interpolation. Note
that the above constraints are not the same as those used by SciPy’s CubicSpline as a default for
performing cubic splines. There are different ways to add the final two constraints in SciPy by setting
the bc_type argument (see help for CubicSpline to learn more).
TRY IT! Use CubicSpline to plot the cubic spline interpolation of the dataset x = [0, 1, 2]
and y = [1, 3, 2] for 0 ≤ x ≤ 2.
In [1]: from scipy.interpolate import CubicSpline
import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
In [2]: x = [0, 1, 2]
y = [1, 3, 2]
# use bc_type = natural adds the constraints
f = CubicSpline(x, y, bc_type=natural)
x_new = np.linspace(0, 2, 100)
y_new = f(x_new)
In [3]: plt.figure(figsize = (10,8))
plt.plot(x_new, y_new, b)
plt.plot(x, y, ro)
plt.title(Cubic Spline Interpolation)
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-304-320.jpg)
![300 CHAPTER 17 INTERPOLATION
For the constraints S
i (xi+1) = S
i+1(xi+1) we have:
6a1x2 + 2b1 − 6a2x2 − 2b2 = 0,
6a2x3 + 2b2 − 6a3x3 − 2b3 = 0,
...
6an−2xn−1 + 2bn−2 − 6an−1xn−1 − 2bn−1 = 0.
Finally, for the endpoint constraints S
1 (x1) = 0 and S
n−1(xn) = 0, we have:
6a1x1 + 2b1 = 0,
6an−1xn + 2bn−1 = 0.
These equations are linear in the unknown coefficients ai,bi,ci, and di. We can put them in matrix
form and solve for the coefficients of each spline by left division. Remember that whenever we solve
the matrix equation Ax = b for x, we must make sure that A is square and invertible. In the case of
finding cubic spline equations, the A matrix is always square and invertible as long as the xi values in
the dataset are unique.
TRY IT! Find the cubic spline interpolation at x = 1.5 based on the data x = [0, 1, 2], y =
[1, 3, 2].
First, we create the appropriate system of equations and find the coefficients of the cubic
splines by solving the system in matrix form.
The matrix form of the system of equations is
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎣
0 0 0 1 0 0 0 0
0 0 0 0 1 1 1 1
1 1 1 1 0 0 0 0
0 0 0 0 8 4 2 1
3 2 1 0 −3 −2 −1 0
6 2 0 0 −6 −2 0 0
0 2 0 0 0 0 0 0
0 0 0 0 12 2 0 0
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎦
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎣
a1
b1
c1
d1
a2
b2
c2
d2
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎦
=
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎢
⎣
1
3
3
2
0
0
0
0
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎥
⎦
.
In [4]: b = np.array([1, 3, 3, 2, 0, 0, 0, 0])
b = b[:, np.newaxis]
A = np.array([[0, 0, 0, 1, 0, 0, 0, 0],
[0, 0, 0, 0, 1, 1, 1, 1],
[1, 1, 1, 1, 0, 0, 0, 0],
[0, 0, 0, 0, 8, 4, 2, 1],
[3, 2, 1, 0, -3, -2, -1, 0],
[6, 2, 0, 0, -6, -2, 0, 0],
[0, 2, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 12, 2, 0, 0]])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-306-320.jpg)
![17.4 LAGRANGE POLYNOMIAL INTERPOLATION 301
In [5]: np.dot(np.linalg.inv(A), b)
Out[5]: array([[-0.75],
[ 0. ],
[ 2.75],
[ 1. ],
[ 0.75],
[-4.5 ],
[ 7.25],
[-0.5 ]])
The two cubic polynomials are
S1(x) = −0.75x3
+ 2.75x + 1 for 0 ≤ x ≤ 1, and (17.1)
S2(x) = 0.75x3
− 4.5x2
+ 7.25x − 0.5 for 1 ≤ x ≤ 2. (17.2)
So for x = 1.5, we evaluate S2(1.5) and obtain an estimated value of 2.7813.
17.4 LAGRANGE POLYNOMIAL INTERPOLATION
Rather than finding cubic polynomials between subsequent pairs of data points, Lagrange polynomial
interpolation finds a single polynomial that goes through all the data points. This polynomial is re-
ferred to as a Lagrange polynomial, L(x). As an interpolation function, it should have the property
L(xi) = yi for every point in the dataset. When computing Lagrange polynomials, it is useful to write
them as a linear combination of Lagrange basis polynomials, Pi(x), where
Pi(x) =
n
j=1,j=i
x − xj
xi − xj
,
and
L(x) =
n
i=1
yiPi(x).
Here, means “the product of” or “multiply out.” Note that, by construction, Pi(x) has the property
that Pi(xj ) = 1 when i = j and Pi(xj ) = 0 when i = j. Since L(x) is a sum of these polynomials,
observe that L(xi) = yi for every point, exactly as desired.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-307-320.jpg)
![302 CHAPTER 17 INTERPOLATION
TRY IT! Find the Lagrange basis polynomials for the dataset x = [0,1,2] and y = [1,3,2]. Plot
each polynomial and verify the property that Pi(xj ) = 1 when i = j and Pi(xj ) = 0 when i = j.
P1(x) =
(x − x2)(x − x3)
(x1 − x2)(x1 − x3)
=
(x − 1)(x − 2)
(0 − 1)(0 − 2)
=
1
2
(x2
− 3x + 2),
P2(x) =
(x − x1)(x − x3)
(x2 − x1)(x2 − x3)
=
(x − 0)(x − 2)
(1 − 0)(1 − 2)
= −x2
+ 2x,
P3(x) =
(x − x1)(x − x2)
(x3 − x1)(x3 − x2)
=
(x − 0)(x − 1)
(2 − 0)(2 − 1)
=
1
2
(x2
− x).
In [1]: import numpy as np
import numpy.polynomial.polynomial as poly
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
In [2]: x = [0, 1, 2]
y = [1, 3, 2]
P1_coeff = [1,-1.5,.5]
P2_coeff = [0, 2,-1]
P3_coeff = [0,-.5,.5]
# get the polynomial function
P1 = poly.Polynomial(P1_coeff)
P2 = poly.Polynomial(P2_coeff)
P3 = poly.Polynomial(P3_coeff)
x_new = np.arange(-1.0, 3.1, 0.1)
fig = plt.figure(figsize = (10,8))
plt.plot(x_new, P1(x_new), b, label = P1)
plt.plot(x_new, P2(x_new), r, label = P2)
plt.plot(x_new, P3(x_new), g, label = P3)
plt.plot(x, np.ones(len(x)), ko, x,np.zeros(len(x)), ko)
plt.title(Lagrange Basis Polynomials)
plt.xlabel(x)
plt.ylabel(y)
plt.grid()
plt.legend()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-308-320.jpg)
![17.4 LAGRANGE POLYNOMIAL INTERPOLATION 303
TRY IT! Using the previous example, compute and plot the Lagrange polynomial. Verify that it
goes through each of the data points.
In [3]: L = P1 + 3*P2 + 2*P3
fig = plt.figure(figsize = (10,8))
plt.plot(x_new, L(x_new), b, x, y, ro)
plt.title(Lagrange Polynomial)
plt.grid()
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-309-320.jpg)
![304 CHAPTER 17 INTERPOLATION
WARNING! Lagrange interpolation polynomials are defined outside the area of interpolation,
that is, outside of the interval [x1,xn], and will grow very fast and unbounded outside this region.
This is not a desirable feature because, in general, this does not agree with the behavior of the
underlying data. Thus, Lagrange interpolation should be used with caution outside the region of
interest.
17.4.1 USING THE LAGRANGE FUNCTION FROM SCIPY
Instead of calculating everything from scratch, in SciPy we can use the lagrange function directly to
interpolate the data. Let us use the above example to illustrate our point.
In [4]: from scipy.interpolate import lagrange
In [5]: f = lagrange(x, y)
In [6]: fig = plt.figure(figsize = (10,8))
plt.plot(x_new, f(x_new), b, x, y, ro)
plt.title(Lagrange Polynomial)
plt.grid()
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-310-320.jpg)
![306 CHAPTER 17 INTERPOLATION
If we insert data point (x2,y2), we can calculate a2, and it becomes
a2 =
y2−y1
x2−x1
− y1−y0
x1−x0
x2 − x0
.
Let us do one more data point (x3,y3) to calculate a3. After inserting the data point into the equa-
tion, we obtain
a3 =
y3−y2
x3−x2
−
y2−y1
x2−x1
x3−x1
−
y2−y1
x2−x1
−
y1−y0
x1−x0
x2−x0
x3 − x0
.
See the patterns? These are called divided differences. If we define
f [x1,x0] =
y1 − y0
x1 − x0
,
then
f [x2,x1,x0] =
y2−y1
x2−x1
− y1−y0
x1−x0
x2 − x0
=
f [x2,x1] − f [x1,x0]
x2 − x1
.
If we continue write this out, we will obtain the following iteration equation:
f [xk,xk−1,...,x1,x0] =
f [xk,xk−1,...,x2,x2] − f [xk−1,xk−2,...,x1,x0]
xk − x0
.
The advantage of using this method is that once the coefficients are determined, adding new data
points will not change the previously calculated coefficient; we only need to calculate the higher dif-
ferences in the same manner. The whole procedure for finding these coefficients can be summarized
into a divided difference table. An example using five data points is shown below:
x0 y0
f [x1,x0]
x1 y1 f [x2,x1,x0]
f [x2,x1] f [x3,x2,x1,x0]
x2 y2 f [x3,x2,x1] f [x4,x3,x2,x1,x0]
f [x3,x2] f [x4,x3,x2,x1]
x3 y3 f [x4,x3,x2]
f [x4,x3]
x4 y4
Each element in the table can be calculated using the two previous elements (to the left). In reality,
we can calculate all elements and store them in a diagonal matrix–that is, as the coefficient matrix–](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-312-320.jpg)
![17.5 NEWTON’S POLYNOMIAL INTERPOLATION 307
which can be written as
y0 f [x1,x0] f [x2,x1,x0] f [x3,x2,x1,x0] f [x4,x3,x2,x1,x0]
y1 f [x2,x1] f [x3,x2,x1] f [x4,x3,x2,x1] 0
y2 f [x3,x2] f [x4,x3,x2] 0 0
y3 f [x4,x3] 0 0 0
y4 0 0 0 0
Note that the first row in the matrix is actually all the coefficients that we need, i.e., a0,a1,a2,a3,
and a4. Shown below is an example of how to do this.
TRY IT! Calculate the divided difference table for x = [-5, -1, 0, 2], y = [-2, 6, 1, 3].
In [1]: import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline
In [2]: def divided_diff(x, y):
function to calculate the divided
difference table
n = len(y)
coef = np.zeros([n, n])
# the first column is y
coef[:,0] = y
for j in range(1,n):
for i in range(n-j):
coef[i][j] = (coef[i+1][j-1]-coef[i][j-1])/(x[i+j]-x[i])
return coef
def newton_poly(coef, x_data, x):
evaluate the Newton polynomial
at x
n = len(x_data) - 1
p = coef[n]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-313-320.jpg)
![308 CHAPTER 17 INTERPOLATION
for k in range(1,n+1):
p = coef[n-k] + (x -x_data[n-k])*p
return p
In [3]: x = np.array([-5, -1, 0, 2])
y = np.array([-2, 6, 1, 3])
# get the divided difference coef
a_s = divided_diff(x, y)[0, :]
# evaluate on new data points
x_new = np.arange(-5, 2.1, .1)
y_new = newton_poly(a_s, x, x_new)
plt.figure(figsize = (12, 8))
plt.plot(x, y, bo)
plt.plot(x_new, y_new)
Out[3]: [matplotlib.lines.Line2D at 0x11bd4e630]
We can see that the Newton’s polynomial goes through all the data points and fits the data.
17.6 SUMMARY AND PROBLEMS
17.6.1 SUMMARY
1. Given a set of reliable data points, interpolation is a method of estimating dependent variable values
for independent variable values not in the dataset.
2. Linear, Cubic Spline, Lagrange, and Newton’s polynomial interpolation are common interpolation
methods.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-314-320.jpg)
![17.6 SUMMARY AND PROBLEMS 309
17.6.2 PROBLEMS
1. Write a function my_lin_interp(x, y, X) where x and y are arrays that contain experimental data
points, and X is an array. Assume that x and X are in ascending order and have unique elements. The
output argument, Y, should be an array the same size as X, where Y[i] is the linear interpolation of
X[i]. Do not use interp from NumPy or interp1d from SciPy.
2. Write a function my_cubic_spline(x, y, X) where x and y are arrays that contain experimental
data points, and X is an array. Assume that x and X are in ascending order and have unique ele-
ments. The output argument, Y, should be an array the same size as X, where Y[i] is cubic spline
interpolation of X[i]. Do not use interp1d or CubicSpline.
3. Write a function my_nearest_neighbor(x, y, X) where x and y are arrays that contain experi-
mental data points, and X is an array. Assume that x and X are in ascending order and have unique
elements. The output argument, Y, should be an array the same size as X, where Y[i] is the near-
est neighbor interpolation of X[i]. That is, Y[i] should be the y[j] where x[j] is the closest
independent data point of X[i]. Do not use interp1d from SciPy.
4. Think of a circumstance where using the nearest neighbor interpolation would be superior to cubic
spline interpolation.
5. Write a function my_cubic_spline_flat(x, y, X) where x and y are arrays that contain experi-
mental data points, and X is an array. Assume that x and X are in ascending order and have unique
elements. The output argument, Y, should be an array the same size as X, where Y[i] is the cubic
spline interpolation of X[i]. Instead of the constraints introduced previously, use S
1(x1) = 0 and
S
n−1(xn) = 0.
6. Write a function my_quintic_spline(x, y, X) where x and y are arrays that contain experimental
data points, and X is an array. Assume that x and X are in ascending order and have unique elements.
The output argument, Y, should be an array the same size as X, where Y[i] is the quintic spline
interpolation of X[i]. You will need to use additional endpoint constraints to come up with enough
constraints. You may use endpoint constraints at your discretion.
7. Write a function my_interp_plotter(x, y, X, option) where x and y are arrays containing
experimental data points, and X is an array that contains the coordinates for which an interpolation
is desired. The input argument option should be a string, either “linear,” “spline,” or “nearest.”
Your function should produce a plot of the data points (x,y) marked as red circles. The points
(X,Y), where X is the input and Y is the interpolation at the points contained in X defined by the
input argument specified by option. The points (X,Y) should be connected by a blue line. Be sure
to include the title, axis labels, and a legend. Hint: You should use interp1d from SciPy, and
checkout the kind option.
Test cases:
x = np.array([0, .1, .15, .35, .6, .7, .95, 1])
y=np.array([1,0.8187,0.7408,0.4966,0.3012,0.2466,0.1496,0.1353])
my_interp_plotter(x, y, np.linspace(0, 1, 101), nearest)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-315-320.jpg)
![17.6 SUMMARY AND PROBLEMS 311
8. Write a function my_D_cubic_spline(x, y, X, D), where the output Y is the cubic spline in-
terpolation at X taken from the data points contained in x and y. Instead of the standard pinned
endpoint conditions (i.e., S
1 (x1) = 0 and S
n−1(xn) = 0), use the endpoint conditions S
1(x1) = D
and S
n−1(xn) = D (i.e., the slopes of the interpolating polynomials at the endpoints are D).
Test cases:
x = [0, 1, 2, 3, 4]
y = [0, 0, 1, 0, 0]
X = np.linspace(0, 4, 101)
# Solution: Y = 0.54017857
Y = my_D_cubic_spline(x, y, 1.5, 1)
plt.figure(figsize = (10, 8))
plt.subplot(221)
plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, 0), b)
plt.subplot(222)
plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, 1), b)
plt.subplot(223)
plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, -1), b)
plt.subplot(224)
plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, 4), b)
plt.tight_layout()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-317-320.jpg)
![312 CHAPTER 17 INTERPOLATION
9. Write a function my_lagrange(x, y, X) where the output Y is the Lagrange interpolation of the
data points contained in x and y computed at X. Hint: Use a nested for-loop, where the inner
for-loop computes the product for the Lagrange basis polynomial and the outer loop computes the
sum for the Lagrange polynomial. Don’t use the existing lagrange function from SciPy.
Test cases:
x = [0, 1, 2, 3, 4]
y = [2, 1, 3, 5, 1]
X = np.linspace(0, 4, 101)
plt.figure(figsize = (10,8 ))
plt.plot(X, my_lagrange(x, y, X), b, label = interpolation)
plt.plot(x, y, ro, label = data points)
plt.xlabel(x)
plt.ylabel(y)
plt.title(fLagrange Interpolation of Data Points)
plt.legend()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-318-320.jpg)
![17.6 SUMMARY AND PROBLEMS 313
10. Fit the data x = [0, 1, 2, 3, 4], y = [2, 1, 3, 5, 1] using Newton’s polynomial interpolation.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-319-320.jpg)
![18.2 APPROXIMATIONS USING TAYLOR SERIES 317
derivatives. For example, if we take the Taylor expansion of ex around a = 0, then f (n)(a) = 1 for all
n, and we do not have to compute the derivatives in the Taylor expansion to approximate ex!
TRY IT! Use Python to plot the sin function along with the first, third, fifth, and seventh order
Taylor series approximations. Note that this involves the zeroth to third terms in the formula given
earlier.
In [1]: import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
In [2]: x = np.linspace(-np.pi, np.pi, 200)
y = np.zeros(len(x))
labels = [First Order, Third Order,
Fifth Order, Seventh Order]
plt.figure(figsize = (10,8))
for n, label in zip(range(4), labels):
y=y+((-1)**n*(x)**(2*n+1))/np.math.factorial(2*n+1)
plt.plot(x,y, label = label)
plt.plot(x, np.sin(x), k, label = Analytic)
plt.grid()
plt.title(Taylor Series Approximations of Various Orders)
plt.xlabel(x)
plt.ylabel(y)
plt.legend()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-322-320.jpg)
![318 CHAPTER 18 TAYLOR SERIES
Obviously, the approximation approaches the analytic function quickly, even for x not near a = 0.
Note that in the above code, we also used a new function zip, which allows us to loop through two
parameters range(4) and labels to use in our plot.
TRY IT! Compute the seventh order Taylor series approximation for sin(x) around a = 0 at
x = π/2. Compare the value to the correct value, 1.
In [3]: x = np.pi/2
y = 0
for n in range(4):
y=y+((-1)**n *(x)**(2*n+1))/np.math.factorial(2*n+1)
print(y)
0.9998431013994987
The seventh order Taylor series approximation is very close to the theoretical value of the function
even if it is computed far from the point around which the Taylor series was computed (i.e., x = π/2
and a = 0).
The most common Taylor series approximation is the first order approximation, or linear approxi-
mation. Intuitively, for “smooth” functions the linear approximation of the function around a point, a,
is legitimate provided you stay sufficiently close to a. In other words, “smooth” functions look more
and more like a line the more you zoom into any point. In the figure below this has been plotted in
successive levels of zoom using a smooth function to illustrate the linear nature of functions locally.
Linear approximations are useful tools when analyzing “complicated” functions locally.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-323-320.jpg)
![18.2 APPROXIMATIONS USING TAYLOR SERIES 319
In [4]: x = np.linspace(0, 3, 30)
y = np.exp(x)
plt.figure(figsize = (14, 4.5))
plt.subplot(1, 3, 1)
plt.plot(x, y)
plt.grid()
plt.subplot(1, 3, 2)
plt.plot(x, y)
plt.grid()
plt.xlim(1.7, 2.3)
plt.ylim(5, 10)
plt.subplot(1, 3, 3)
plt.plot(x, y)
plt.grid()
plt.xlim(1.92, 2.08)
plt.ylim(6.6, 8.2)
plt.tight_layout()
plt.show()
TRY IT! Take the linear approximation for ex around point a = 0. Use the linear approximation
for ex to approximate the value of e1 and e0.01. Use the NumPy’s function exp to compute exp(1)
and exp(0.01) and compare the results.
The linear approximation of ex around a = 0 is 1 + x.
The NumPy’s exp function gives the following:
In [5]: np.exp(1)
Out[5]: 2.718281828459045
In [6]: np.exp(0.01)
Out[6]: 1.010050167084168](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-324-320.jpg)
![320 CHAPTER 18 TAYLOR SERIES
The linear approximation of e1 is 2, which is inaccurate, and the linear approximation of e0.01 is
1.01, which is very good. This example illustrates how the linear approximation becomes close to the
point from which the approximation is taken.
18.3 DISCUSSION ABOUT ERRORS
18.3.1 TRUNCATION ERRORS FOR TAYLOR SERIES
In numerical analysis, there are usually two sources of error, round-off and truncation. The round-off
errors are due to the inexactness in the representation of real numbers on a computer and the arithmetic
operations performed with them. Refer to Chapter 9 for additional discussion on this type of error.
The truncation errors are due to the approximate nature of the method used and usually arise when
using an approximation in place of an exact mathematical procedure, e.g., when we used Taylor series
to approximate a function. For example, if we use Taylor series to approximate the function ex, we
obtain
ex
= 1 + x +
x2
2!
+
x3
3!
+
x4
4!
+ ··· .
Since it takes an infinite sequence to approximate the function, using only a few terms will result in
an approximation (or truncation) error. For example, if we only use the first four terms to approximate
e2, we obtain
e2
≈ 1 + 2 +
22
2!
+
23
3!
= 6.3333.
There is obviously an error associated with such a solution, since we truncated the rest of the terms
in the Taylor series. Therefore the function f (x) can be written as the Taylor series approximation plus
a truncation error term
f (x) = fn(x) + En(x).
The more terms we use, the closer the approximation will be to the exact value. Let us use Python
to calculate the above example.
TRY IT! Approximate e2 using different order Taylor series and print out the results.
In [1]: import numpy as np
In [2]: exp = 0
x = 2
for i in range(10):
exp = exp + (x**i)/np.math.factorial(i)
print(fUsing {i}-term, {exp})](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-325-320.jpg)
![322 CHAPTER 18 TAYLOR SERIES
TRY IT! Estimate the remainder bound for the approximation using Taylor series for e2 using
n = 9.
To understand the basis of this error, when we use n = 9, we know that (ex) = ex, and a = 0;
therefore, the error related to x = 2 is
En(x) =
f (9+1)(z)(x)(9+1)
(9 + 1)!
=
ez210
10!
.
Recall that 0 ≤ z ≤ 2, and e 3; therefore,
|En(x)| ≤
32210
10!
= 0.00254.
If we use Taylor series with n = 9 to approximate e2, our absolute error should be less than
0.00254. We verify this below.
In [3]: abs(7.3887125220458545-np.exp(2))
Out[3]: 0.0003435768847959153
18.3.3 ROUND-OFF ERRORS FOR TAYLOR SERIES
Numerically, when adding many terms in a sum, we should be mindful of numerical accumulation of
errors that is due to floating point round-off errors; see the following example.
EXAMPLE: Approximate e−30 using different order Taylor series, and print out the results.
In [4]: exp = 0
x = -30
for i in range(200):
exp = exp + (x**i)/np.math.factorial(i)
print(fUsing {i}-term, our result is {exp})
print(fThe true e^2 is: {np.exp(x)})
Using 199-term, our result is -8.553016433669241e-05
The true eˆ2 is: 9.357622968840175e-14
From the above example, it is clear that our estimation using Taylor series is not close to the true
value anymore, no matter how many terms we include into the calculation, which is due to the round-off
errors we discussed earlier. To obtain a small result, when using negative large arguments, the Taylor
series requires alternating large numbers to cancel out. We need many digits for precision in the series
to capture both the large and small numbers with enough remaining digits to get the result in the desired
output precision. This is why the program threw an error message in the example above.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-327-320.jpg)
![19
ROOT FINDING
19.1 Root Finding Problem Statement.................................................................................. 325
19.2 Tolerance ............................................................................................................. 326
19.3 Bisection Method.................................................................................................... 327
19.4 Newton–Raphson Method .......................................................................................... 330
19.5 Root Finding in Python.............................................................................................. 332
19.6 Summary and Problems ............................................................................................ 333
19.6.1 Summary............................................................................................ 333
19.6.2 Problems ............................................................................................ 333
19.1 ROOT FINDING PROBLEM STATEMENT
The root or zero of a function, f (x), is an xr such that f (xr) = 0. For functions such as f (x) = x2 − 9,
the roots are clearly 3 and −3. However, for other functions, such as f (x) = cos(x) − x, determining
an analytic or exact solution for the roots of functions can be difficult. For these cases, it is useful to
generate numerical approximations of the roots of f and understand their limitations.
TRY IT! Use the fsolve function from SciPy to compute the root of f (x) = cos(x) − x near
−2. Verify that the solution is a root (or close enough).
In [1]: import numpy as np
from scipy import optimize
f = lambda x: np.cos(x) - x
r = optimize.fsolve(f, -2)
print(r =, r)
# Verify the solution is a root
result = f(r)
print(result=, result)
r = [0.73908513]
result= [0.]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-329-320.jpg)
![326 CHAPTER 19 ROOT FINDING
TRY IT! The function f (x) = 1
x has no root. Use the fsolve function to try to compute the root
of f (x) = 1
x . Turn on the full_output to see what is going on. Check the documentation for
details.
In [2]: f = lambda x: 1/x
r, infodict, ier, mesg =
optimize.fsolve(f, -2, full_output=True)
print(r =, r)
result = f(r)
print(result=, result)
print(mesg)
r = [-3.52047359e+83]
result= [-2.84052692e-84]
The number of calls to function has reached maxfev = 400.
The value r that was returned is not a root, even though the value of f (r) is a very small number.
Since we turned on the full_output, we can see more information. A message would have been
returned if no solution was found; we can see mesg details for the cause of failure: “The number of
calls to function has reached maxfev = 400.”
19.2 TOLERANCE
In engineering and science, error is a deviation from an expected or computed value. Tolerance is
the level of error that is acceptable for an engineering application. We say that a computer program
has converged to a solution when it has found a solution with an error smaller than the tolerance.
When computing roots numerically, or conducting any other kind of numerical analysis, it is important
to establish both a metric for error and a tolerance that is suitable for a given engineering/science
application.
For computing roots, we want an xr such that f (xr) is very close to zero. Therefore |f (x)| is a
possible choice for the measure of error since the smaller it is, the likelier we are to a root. Also, if we
assume that xi is the ith guess of an algorithm for finding a root, then |xi+1 − xi| is another possible
choice for measuring the error since we expect improvement between subsequent guesses to diminish
as it approaches a solution. As will be demonstrated in the following examples, these different choices
have their advantages and disadvantages.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-330-320.jpg)
![328 CHAPTER 19 ROOT FINDING
FIGURE 19.2
Illustration of the bisection method. The sign of f (m) is checked to determine if the root is contained in the interval
(a,m) or (m,b). This new interval is used in the next iteration of the bisection method; in the case depicted in the
figure, the root is in the interval (m,b).
TRY IT! Program a function my_bisection(f,a,b,tol) that approximates a root r of f, bounded
by a and b to within |f (a+b
2 )| tol.
In [1]: import numpy as np
def my_bisection(f, a, b, tol):
# approximates a root, R, of f bounded
# by a and b to within tolerance
# | f(m) | tol with m being the midpoint
# between a and b. Recursive implementation
# check if a and b bound a root
if np.sign(f(a)) == np.sign(f(b)):
raise Exception(
The scalars a and b do not bound a root)
# get midpoint
m = (a + b)/2
if np.abs(f(m)) tol:
# stopping condition, report m as root
return m
elif np.sign(f(a)) == np.sign(f(m)):
# case where m is an improvement on a.
# Make recursive call with a = m
return my_bisection(f, m, b, tol)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-332-320.jpg)
![19.3 BISECTION METHOD 329
elif np.sign(f(b)) == np.sign(f(m)):
# case where m is an improvement on b.
# Make recursive call with b = m
return my_bisection(f, a, m, tol)
TRY IT! The
√
2 can be computed as the root of the function f (x) = x2 − 2. Starting at a = 0 and
b = 2, use my_bisection to approximate the
√
2 to a tolerance of |f (x)| 0.1 and |f (x)| 0.01.
Verify that the results are close to a root by plugging the root back into the function.
In [2]: f = lambda x: x**2 - 2
r1 = my_bisection(f, 0, 2, 0.1)
print(r1 =, r1)
r01 = my_bisection(f, 0, 2, 0.01)
print(r01 =, r01)
print(f(r1) =, f(r1))
print(f(r01) =, f(r01))
r1 = 1.4375
r01 = 1.4140625
f(r1) = 0.06640625
f(r01) = -0.00042724609375
TRY IT! See what happens if you use a = 2 and b = 4 for the above function.
In [3]: my_bisection(f, 2, 4, 0.01)
--------------------------------------------------------
Exception Traceback (most recent call last)
ipython-input-3-4158b7a9ae67 in module
---- 1 my_bisection(f, 2, 4, 0.01)
ipython-input-1-36f06123e87c in my_bisection(f,a,b,tol)
10 if np.sign(f(a)) == np.sign(f(b)):
11 raise Exception(
--- 12 The scalars a and b do not bound a root)
13](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-333-320.jpg)
![19.4 NEWTON–RAPHSON METHOD 331
TRY IT! Again, the
√
2 is the root of the function f (x) = x2 − 2. Using x0 = 1.4 as a starting
point, use the previous equation to estimate
√
2. Compare this approximation with the value
computed by Python’s sqrt function.
x = 1.4 −
1.42 − 2
2(1.4)
= 1.4142857142857144.
In [1]: import numpy as np
f = lambda x: x**2 - 2
f_prime = lambda x: 2*x
newton_raphson = 1.4 - (f(1.4))/(f_prime(1.4))
print(newton_raphson =, newton_raphson)
print(sqrt(2) =, np.sqrt(2))
newton_raphson = 1.4142857142857144
sqrt(2) = 1.4142135623730951
TRY IT! Write a function my_newton(f,df,x0,tol) where the output is an estimate of the root
of f, f is a function object f (x), df is a function object f (x), x0 is an initial guess, and tol is
the error tolerance. The error measurement should be |f (x)|.
In [2]: def my_newton(f, df, x0, tol):
# output is an estimation of the root of f
# using the Newton-Raphson method
# recursive implementation
if abs(f(x0)) tol:
return x0
else:
return my_newton(f, df, x0 - f(x0)/df(x0), tol)
TRY IT! Use my_newton to compute
√
2 to within a tolerance of 1e-6 starting at x0 = 1.5.
In [3]: estimate = my_newton(f, f_prime, 1.5, 1e-6)
print(estimate =, estimate)
print(sqrt(2) =, np.sqrt(2))
estimate = 1.4142135623746899
sqrt(2) = 1.4142135623730951
If x0 is close to xr, then it can be proven that, in general, the Newton–Raphson method converges
to xr much faster than the bisection method; however, since xr is initially unknown, there is no way to](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-335-320.jpg)
![332 CHAPTER 19 ROOT FINDING
know if the initial guess is close enough to the root to obtain this behavior unless some special infor-
mation about the function is known a priori (e.g., the function has a root close to x = 0). In addition
to this initialization problem, the Newton–Raphson method has other serious limitations. For example,
if the derivative at a guess is close to zero, then the Newton step will be very large and probably lead
far away from the root. Also, depending on the behavior of the function derivative between x0 and xr,
the Newton–Raphson method may converge to a different root than xr which may not be useful for the
engineering application being considered.
TRY IT! Compute a single Newton step to get an improved approximation of the root of the
function f (x) = x3 + 3x2 − 2x − 5 and initial guess x0 = 0.29.
In [4]: x0 = 0.29
x1 = x0-(x0**3+3*x0**2-2*x0-5)/(3*x0**2+6*x0-2)
print(x1 =, x1)
x1 = -688.4516883116648
Note that f (x0) = −0.0077 (is close to zero), and the error at x1 is approximately 324880000
(very large).
TRY IT! Consider the polynomial f (x) = x3 − 100x2 − x + 100. This polynomial has a root at
x = 1 and x = 100. Use the Newton–Raphson method to find a root of f starting at x0 = 0.
At x0 = 0,f (x0) = 100, and f (x) = −1, the Newton step gives x1 = 0 − 100
−1 = 100, which is
a root of f . Note that this root is much farther from the initial guess than the other root at x = 1,
and it may not be the root you wanted from an initial guess of zero.
19.5 ROOT FINDING IN PYTHON
Unsurprisingly, Python has root-finding functions. The function we will use to find roots is f_solve
from the scipy.optimize.
The f_solve function takes in many arguments (study the documentation for addition information),
but the most important two are: (1) the function that you want to find the root and (2) the initial guess.
TRY IT! Compute the root of the function f (x) = x3 − 100x2 − x + 100 using f_solve.
In [1]: from scipy.optimize import fsolve
In [2]: f = lambda x: x**3-100*x**2-x+100
fsolve(f, [2, 80])](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-336-320.jpg)
![19.6 SUMMARY AND PROBLEMS 333
Out[2]: array([ 1., 100.])
19.6 SUMMARY AND PROBLEMS
19.6.1 SUMMARY
1. Roots are an important property of functions.
2. The bisection method is a way of finding roots based on divide-and-conquer. Although stable, it
might converge slowly compared to the Newton–Raphson method.
3. The Newton–Raphson method is a different way of finding roots based on an approximation of the
function. Although the Newton–Raphson method converges quickly and stops near to the actual
root, it can be unstable.
19.6.2 PROBLEMS
1. Write a function my_nth_root(x,n,tol) where x and tol are strictly positive scalars, and n is an
integer strictly greater than 1. The output argument, r, should be an approximation r = N
√
x, the
Nth root of x. This approximation should be computed by using the Newton–Raphson method to
find the root of the function f (y) = yN − x. The error metric should be |f (y)|.
2. Write a function my_fixed_point(f,g,tol,max_iter) where f and g are function objects, and
tol and max_iter are strictly positive scalars. The input argument, max_iter, is also an integer.
The output argument, X, should be a scalar satisfying |f (X) − g(X)| tol, that is, X is a point
that (almost) satisfies f (X) = g(X). To find X, you should use the bisection method with the error
metric, |F(m)| tol. The function my_fixed_point should “give up” after max_iter number of
iterations and return X = [] if this occurs.
3. Why does the bisection method fail for f (x) = 1/x with an error given by |b − a|? Hint: How does
f (x) violate the intermediate value theorem?
4. Write a function my_bisection(f,a,b,tol) that returns [R,E], where f is a function object, a and
b are scalars such that a b, and tol is a strictly positive scalar value. The function should return
an array, R, where R[i] is the estimation of the root of f defined by (a + b)/2 for the ith iteration
of the bisection method. Remember to include the initial estimate. The function should also return
an array, E, where E[i] is the value of |f (R[i])| for the ith iteration of the bisection method. The
function should terminate when E(i) tol. Assume that sign(f (a)) = sign(f (b)).
Clarification: The input a and b constitute the first iteration of bisection; therefore, R and E should
never be empty.
Test cases:
In: f = lambda x: x**2 - 2
[R, E] = my_bisection(f, 0, 2, 1e-1)
Out: R = [1, 1.5, 1.25, 1.375, 1.4375]
E = [1, 0.25, 0.4375, 0.109375, 0.06640625]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-337-320.jpg)
![334 CHAPTER 19 ROOT FINDING
In: f = lambda x: np.sin(x) - np.cos(x)
[R, E] = my_bisection(f, 0, 2, 1e-2)
Out: R = [1, 0.5, 0.75, 0.875, 0.8125, 0.78125]
E = [0.30116867893975674, 0.39815702328616975,
0.05005010885048666, 0.12654664407270177,
0.038323093040207645, 0.005866372111545948]
5. Write a function my_newton(f,df,x0,tol) that returns [R,E], where f is a function object, df is a
function object giving the derivative of f, x0 is an initial estimation of the root, and tol is a strictly
positive scalar. The function should return an array, R, where R[i] is the Newton–Raphson estimate
of the root of f for the ith iteration. Remember to include the initial estimate. The function should
also return an array, E, where E[i] is the value of |f (R[i])| for the ith iteration of the Newton–
Raphson method. The function should terminate when E(i) tol. Assume that the derivative of
f will not hit zero during any iteration for any of the test cases given.
Test cases:
In: f = lambda x: x**2 - 2
df = lambda x: 2*x
[R, E] = my_newton(f, df, 1, 1e-5)
Out: R = [1, 1.5, 1.4166666666666667, 1.4142156862745099]
E = [1, 0.25, 0.006944444444444642, 6.007304882871267e-06]
In: f = lambda x: np.sin(x) - np.cos(x)
df = lambda x: np.cos(x) + np.sin(x)
[R, E] = my_newton(f, df, 1, 1e-5)
Out: R = [1, 0.782041901539138, 0.7853981759997019]
E = [0.30116867893975674, 0.004746462127804163,
1.7822277875723103e-08]
6. Consider the problem of building a pipeline from an offshore oil platform, a distance H miles from
the shoreline, to an oil refinery station on land, a distance L miles along the shore. The cost of
building the pipe is Cocean/mile while the pipe is under the ocean, and Cland/mile while the pipe is on
land. The pipe will be built in a straight line toward the shore where it will make contact at some
point, x, between 0 and L. It will continue along the shore on land until it reaches the oil refinery.
See the following figure for clarification.
Write a function my_pipe_builder(C_ocean,C_land,L,H) where the input arguments are as de-
scribed earlier, and x is the x-value that minimizes the total cost of the pipeline. Use the bisection
method to determine this value to within a tolerance of 1 × 10−6, starting at an initial bound of
a = 0 and b = L.
Test cases:
In: my_pipe_builder(20, 10, 100, 50)
Out: 28.867512941360474
In: my_pipe_builder(30, 10, 100, 50)
Out: 17.677670717239380](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-338-320.jpg)
![342 CHAPTER 20 NUMERICAL DIFFERENTIATION
WARNING! When using the command np.diff, the size of the output is one less than the size
of the input since it needs two arguments to produce a difference.
EXAMPLE: Consider the function f (x) = cos(x). We know that the derivative of cos(x) is
−sin(x). Although in practice we may not know the underlying function we are finding the
derivative for, we use the simple example to illustrate the aforementioned numerical differen-
tiation methods and their accuracy. The following code computes the derivatives numerically.
In [1]: import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline
In [2]: # step size
h = 0.1
# define grid
x = np.arange(0, 2*np.pi, h)
# compute function
y = np.cos(x)
# compute vector of forward differences
forward_diff = np.diff(y)/h
# compute corresponding grid
x_diff = x[:-1:]
# compute exact solution
exact_solution = -np.sin(x_diff)
# Plot solution
plt.figure(figsize = (12, 8))
plt.plot(x_diff, forward_diff, -,
label = Finite difference approximation)
plt.plot(x_diff, exact_solution, label = Exact solution)
plt.legend()
plt.show()
# Compute max error between
# numerical derivative and exact solution
max_error = max(abs(exact_solution - forward_diff))
print(max_error)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-345-320.jpg)
![20.2 USING FINITE DIFFERENCE TO APPROXIMATE DERIVATIVES 343
0.049984407218554114
As the above figure shows, there is a small offset between the two curves, which results from the
numerical error in the evaluation of the numerical derivatives. The maximal error between the two
numerical results is of the order 0.05 and expected to decrease with the size of the step.
As illustrated in the previous example, the finite difference scheme contains a numerical error due
to the approximation of the derivative. This difference decreases with the size of the discretization step,
which is illustrated in the following example.
EXAMPLE: The following code computes the numerical derivative of f (x) = cos(x) using the
forward-difference formula for decreasing step size, h. It then plots the maximum error between
the approximated derivative and the true derivative versus h as shown in the generated figure.
In [3]: # define step size
h = 1
# define number of iterations to perform
iterations = 20
# list to store our step sizes
step_size = []
# list to store max error for each step size
max_error = []
for i in range(iterations):
# halve the step size
h /= 2
# store this step size
step_size.append(h)
# compute new grid
x = np.arange(0, 2 * np.pi, h)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-346-320.jpg)
![344 CHAPTER 20 NUMERICAL DIFFERENTIATION
# compute function value at grid
y = np.cos(x)
# compute vector of forward differences
forward_diff = np.diff(y)/h
# compute corresponding grid
x_diff = x[:-1]
# compute exact solution
exact_solution = -np.sin(x_diff)
# Compute max error between
# numerical derivative and exact solution
max_error.append(max(abs(exact_solution - forward_diff)))
# produce log-log plot of max error versus step size
plt.figure(figsize = (12, 8))
plt.loglog(step_size, max_error, v)
plt.show()
The slope of the line in log–log space is 1; therefore, the error is proportional to h1, which means
that, as expected, the forward-difference formula is O(h).
20.3 APPROXIMATING OF HIGHER ORDER DERIVATIVES
It also possible to use the Taylor series to approximate higher-order derivatives (e.g., f (xj ),f (xj ),
etc.). For example, taking the Taylor series around a = xj and then computing it at x = xj−1 and xj+1
gives
f (xj−1) = f (xj ) − hf
(xj ) +
h2f (xj )
2
−
h3f (xj )
6
+ ···](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-347-320.jpg)
![20.4 NUMERICAL DIFFERENTIATION WITH NOISE 345
and
f (xj+1) = f (xj ) + hf
(xj ) +
h2f (xj )
2
+
h3f (xj )
6
+ ··· .
If we add these two equations together, we get
f (xj−1) + f (xj+1) = 2f (xj ) + h2
f
(xj ) +
h4f (xj )
24
+ ··· ,
and, with some rearrangement, this gives the approximation
f
(xj ) ≈
f (xj+1) − 2f (xj ) + f (xj−1)
h2
,
which is O(h2).
20.4 NUMERICAL DIFFERENTIATION WITH NOISE
As stated earlier, sometimes f is given as a vector where f is the corresponding function value for
independent data values in another vector x, which is gridded. Sometimes data can be contaminated
with noise, meaning its value is off by a small amount from what it would be if it were computed from
a pure mathematical function. This can often occur in engineering due to inaccuracies in measurement
devices or the data itself can be slightly modified by perturbations outside the system of interest. For
example, you may be trying to listen to your friend talk in a crowded room. The signal f might be the
intensity and tonal values in your friend’s speech; however, because the room is crowded, noise from
other conversations is heard along with your friend’s speech, and he becomes difficult to understand.
To illustrate this point, we numerically compute the derivative of a simple cosine wave corrupted
by a small sin wave. Consider the following two functions:
f (x) = cos(x)
and
f,ω(x) = cos(x) + sin(ωx)
where 0 1 is a very small number, and ω is a large number. When is small, it is clear that
f f,ω. To illustrate this point, we plot f,ω(x) for = 0.01 and ω = 100, and we can see it is very
close to f (x), as shown in the following figure.
In [1]: import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-348-320.jpg)
![346 CHAPTER 20 NUMERICAL DIFFERENTIATION
In [2]: x = np.arange(0, 2*np.pi, 0.01)
# compute function
omega = 100
epsilon = 0.01
y = np.cos(x)
y_noise = y + epsilon*np.sin(omega*x)
# Plot solution
plt.figure(figsize = (12, 8))
plt.plot(x, y_noise, r-, label = cos(x) + noise)
plt.plot(x, y, b-, label = cos(x))
plt.xlabel(x)
plt.ylabel(y)
plt.legend()
plt.show()
The derivatives of our two test functions are
f
(x) = −sin(x)
and
f
,ω(x) = −sin(x) + ω cos(ωx).
Since ω may not be small when ω is large, the contribution of the noise to the derivative may
not be small. As a result, the derivative (analytic and numerical) may not be usable. For instance, the
following figure shows f (x) and f
,ω(x) for = 0.01 and ω = 100.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-349-320.jpg)
![20.5 SUMMARY AND PROBLEMS 347
In [3]: x = np.arange(0, 2*np.pi, 0.01)
# compute function
y = -np.sin(x)
y_noise = y + epsilon*omega*np.cos(omega*x)
# Plot solution
plt.figure(figsize = (12, 8))
plt.plot(x, y_noise, r-, label = Derivative cos(x) + noise)
plt.plot(x, y, b-, label = Derivative of cos(x))
plt.xlabel(x)
plt.ylabel(y)
plt.legend()
plt.show()
20.5 SUMMARY AND PROBLEMS
20.5.1 SUMMARY
1. Because explicit derivation of functions is sometimes cumbersome for engineering applications,
numerical approaches are preferable.
2. Numerical approximation of derivatives can be done using a grid on which the derivative is approx-
imated by finite differences.
3. Finite differences approximate the derivative by ratios of differences of the function values over
small intervals.
4. Finite difference schemes have different approximation orders depending on the method used.
5. When the data is noisy, there are issues using finite differences for approximating derivatives.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-350-320.jpg)
![348 CHAPTER 20 NUMERICAL DIFFERENTIATION
20.5.2 PROBLEMS
1. Write a function my_der_calc(f, a, b, N, option) with the output as [df,X], where f is a func-
tion object, a and b are scalars such that a b, N is an integer bigger than 10, and option is the
string forward, backward, or central. Let x be an array starting at a, ending at b, contain-
ing N evenly spaced elements, and let y be the array f(x). The output argument, df, should be the
numerical derivatives computed for x and y according to the method defined by the input argument,
option. The output argument X should be an array the same size as df, containing the points in x for
which df is valid. Specifically, the forward difference method “loses” the last point, the backward
difference method loses the first point, and the central difference method loses the first and last
points.
2. Write a function my_num_diff(f,a,b,n,option) with the output as [df,X], where f is a function
object. The function my_num_diff should compute the derivative of f numerically for n evenly
spaced points starting at a and ending at b, according to the method defined by option. The input
argument option is one of the following strings: forward, backward, and central. Note
that for the forward and backward method, the output argument, dy, should be a 1D array of length
n − 1, and for the central difference method dy it should be a 1D array of length n − 2. The function
should also output a vector X that is the same size as dy and denotes the x-values for which dy is
valid.
Test cases:
x = np.linspace(0, 2*np.pi, 100)
f = lambda x: np.sin(x)
[dyf, Xf] = my_num_diff(f, 0, 2*np.pi, 10, forward)
[dyb, Xb] = my_num_diff(f, 0, 2*np.pi, 10, backward)
[dyc, Xc] = my_num_diff(f, 0, 2*np.pi, 10, central)
plt.figure(figsize = (12, 8))
plt.plot(x, np.cos(x), label = analytic)
plt.plot(Xf, dyf, label = forward)
plt.plot(Xb, dyb, label = backward)
plt.plot(Xc, dyc, label = central)
plt.legend()
plt.title(Analytic and Numerical Derivatives of Sine)
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-351-320.jpg)
![20.5 SUMMARY AND PROBLEMS 349
x = np.linspace(0, np.pi, 1000)
f = lambda x: np.sin(np.exp(x))
[dy10, X10] = my_num_diff(f, 0, np.pi, 10, central)
[dy20, X20] = my_num_diff(f, 0, np.pi, 20, central)
[dy100, X100] = my_num_diff(f, 0, np.pi, 100, central)
plt.figure(figsize = (12, 8))
plt.plot(x, np.cos(np.exp(x)), label = analytic)
plt.plot(X10, dy10, label = 10 points)
plt.plot(X20, dy20, label = 20 points)
plt.plot(X100, dy100, label = 100 points)
plt.legend()
plt.title(Analytic and Numerical Derivatives of Sine)
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-352-320.jpg)
![350 CHAPTER 20 NUMERICAL DIFFERENTIATION
3. Write a function my_num_diff_w_smoothing(x,y,n) with output [dy,X], where x and y are a 1D
NumPy array of the same length, and n is a strictly positive scalar. The function should first create
a vector of “smoothed” y data points where y_smooth[i] = np.mean(y[i-n:i+n]). The func-
tion should then compute dy, the derivative of the smoothed y-vector, using the central difference
method. The function should also output a 1D array X that is the same size as dy and denotes the
x-values for which dy is valid.
Assume that the data contained in x is in ascending order with no duplicate entries; it is possible
that the elements of x will not be evenly spaced. Note that the output dy will have 2n + 2 fewer
points than y. Assume that the length of y is much bigger than 2n + 2.
Test cases:
x = np.linspace(0, 2*np.pi, 100)
y = np.sin(x) + np.random.randn(len(x))/100
[dy, X] = my_num_diff_w_smoothing(x, y, 4)
plt.figure(figsize = (12, 12))
plt.subplot(211)
plt.plot(x, y)
plt.title(Noisy Sine function)
plt.xlabel(x)
plt.ylabel(y)
plt.subplot(212)
plt.plot(x, np.cos(x), b, label = cosine)
plt.plot(x[:-1], (y[1:] - y[:-1])/(x[1]-x[0]), g,
label = unsmoothed forward diff)
plt.plot(X, dy, r, label = smoothed)
plt.title(Analytic Derivative and Smoothed Derivative)
plt.xlabel(x)
plt.ylabel(y)
plt.legend()
plt.tight_layout()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-353-320.jpg)
![21
NUMERICAL INTEGRATION
21.1 Numerical Integration Problem Statement ...................................................................... 353
21.2 Riemann Integral .................................................................................................... 354
21.3 Trapezoid Rule....................................................................................................... 356
21.4 Simpson’s Rule ...................................................................................................... 359
21.5 Computing Integrals in Python .................................................................................... 363
21.6 Summary and Problems ............................................................................................ 365
21.6.1 Summary............................................................................................ 365
21.6.2 Problems ............................................................................................ 365
21.1 NUMERICAL INTEGRATION PROBLEM STATEMENT
Given a function f (x), approximate the integral of f (x) over the total interval, [a,b]. Fig. 21.1 illus-
trates this area. To accomplish this goal, we assume that the interval has been discretized into a numeral
grid, x, consisting of n + 1 points with spacing, h = b−a
n . Here, we denote each point in x by xi, where
x0 = a and xn = b. Note that there are n + 1 grid points because the count starts at x0. Assume that the
function, f (x), can be computed for any of the grid points, or that we have been given the function
implicitly as f (xi). The interval [xi,xi+1] is referred to as a subinterval.
FIGURE 21.1
Illustration of the integral. The integral from a to b of the function f is the area below the curve (shaded in grey).
The following sections give some of the most common entry level methods of approximating
b
a f (x)dx. Each method approximates the area under f (x) for each subinterval by a shape for which
it is easy to compute the exact area, and then sums the area contributions of every subinterval.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-355-320.jpg)
![356 CHAPTER 21 NUMERICAL INTEGRATION
TRY IT! Use the left and right Riemann integral, as well as midpoint rule, to approximate
π
0 sin(x)dx with 11 evenly spaced grid points over the whole interval. Compare this value to
the exact value of 2.
In [1]: import numpy as np
a = 0
b = np.pi
n = 11
h = (b - a) / (n - 1)
x = np.linspace(a, b, n)
f = np.sin(x)
I_riemannL = h * sum(f[:n-1])
err_riemannL = 2 - I_riemannL
I_riemannR = h * sum(f[1::])
err_riemannR = 2 - I_riemannR
I_mid = h * sum(np.sin((x[:n-1] + x[1:])/2))
err_mid = 2 - I_mid
print(I_riemannL)
print(err_riemannL)
print(I_riemannR)
print(err_riemannR)
print(I_mid)
print(err_mid)
1.9835235375094546
0.01647646249054535
1.9835235375094546
0.01647646249054535
2.0082484079079745
-0.008248407907974542
21.3 TRAPEZOID RULE
The Trapezoid Rule fits a trapezoid into each subinterval and sums the areas of the trapezoids to
approximate the total integral. This approximation for the integral to an arbitrary function is shown](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-358-320.jpg)
![21.4 SIMPSON’S RULE 359
Since h
2 (f (xi+1) + f (xi)) is the trapezoid rule approximation for the integral over the subinterval,
it is O(h3) for a single subinterval and O(h2) over the whole interval.
TRY IT! Use the trapezoid rule to approximate
π
0 sin(x)dx with 11 evenly spaced grid points
over the whole interval. Compare this value to the exact value of 2.
In [1]: import numpy as np
a = 0
b = np.pi
n = 11
h = (b - a) / (n - 1)
x = np.linspace(a, b, n)
f = np.sin(x)
I_trap = (h/2)*(f[0] + 2 * sum(f[1:n-1]) + f[n-1])
err_trap = 2 - I_trap
print(I_trap)
print(err_trap)
1.9835235375094546
0.01647646249054535
21.4 SIMPSON’S RULE
Consider two consecutive subintervals, [xi−1,xi] and [xi,xi+1]. Simpson’s Rule approximates the
area under f (x) over these two subintervals by fitting a quadratic polynomial through the points
(xi−1,f (xi−1)),(xi,f (xi)), and (xi+1,f (xi+1)), which is a unique polynomial, and then integrates
the quadratic exactly. Fig. 21.3 shows this integral approximation for an arbitrary function.
First, we construct the quadratic polynomial approximation of the function over the two subinter-
vals. The easiest way to do this is to use Lagrange polynomials, which was discussed in Chapter 17.
By applying the formula for constructing Lagrange polynomials, we obtain
Pi(x) = f (xi−1)
(x − xi)(x − xi+1)
(xi−1 − xi)(xi−1 − xi+1)
+ f (xi)
(x − xi−1)(x − xi+1)
(xi − xi−1)(xi − xi+1)
+ f (xi+1)
(x − xi−1)(x − xi)
(xi+1 − xi−1)(xi+1 − xi)
,
and with substitutions for h results in
Pi(x) =
f (xi−1)
2h2
(x − xi)(x − xi+1) −
f (xi)
h2
(x − xi−1)(x − xi+1) +
f (xi+1)
2h2
(x − xi−1)(x − xi).](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-361-320.jpg)
![21.4 SIMPSON’S RULE 361
FIGURE 21.4
Illustration of the accounting procedure to approximate the function f by the Simpson rule for the entire interval
[a,b].
and
f (xi+1) = f (xi) + hf
(xi) +
h(xi)
2!
+
h3f (xi)
3!
+
h4f (xi)
4!
+ ··· .
Consider the expression f (xi−1)+4f (xi)+f (xi+1)
6 . Substituting the Taylor series for the respective nu-
merator values produces the equation
f (xi−1) + 4f (xi) + f (xi+1)
6
= f (xi) +
h2
6
f
(xi) +
h4
72
f
(xi) + ··· .
Note that the odd terms cancel out, implying
f (xi) =
f (xi−1) + 4f (xi) + f (xi+1)
6
−
h2
6
f
(xi) + O(h4
).
By substitution of the Taylor series for f (x), the integral of f (x) over two subintervals is then
xi+1
xi−1
f (x)dx =
xi+1
xi−1
f (xi) + f
(xi)(x − xi) +
f (xi)(x − xi)2
2!
+
f (xi)(x − xi)3
3!
+
f (xi)(x − xi)4
4!
+ ···
dx.
Again, we distribute the integral and, without showing it, drop the integrals of terms with odd
powers because they are zero to obtain
xi+1
xi−1
f (x)dx =
xi+1
xi−1
f (xi)dx +
xi+1
xi−1
f (xi)(x − xi)2
2!
dx
+
xi+1
xi−1
f (xi)(x − xi)4
4!
dx + ··· ,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-363-320.jpg)
![362 CHAPTER 21 NUMERICAL INTEGRATION
at which point we perform the integrations. As will soon be clear, computing the integral of the second
term exactly has benefits. The resulting equation is
xi+1
xi−1
f (x)dx = 2hf (xi) +
h3
3
f
(xi) + O(h5
).
Substituting the expression for f (xi) derived earlier, the right-hand side becomes
2h
f (xi−1) + 4f (xi) + f (xi+1)
6
−
h2
6
f
(xi) + O(h4
)
+
h3
3
f
(xi) + O(h5
),
which can be rearranged to
h
3
(f (xi−1) + 4f (xi) + f (xi+1)) −
h3
3
f
(xi) + O(h5
)
+
h3
3
f
(xi) + O(h5
).
Canceling and combining the appropriate terms results in the integral expression
xi+1
xi−1
f (x)dx =
h
3
(f (xi−1) + 4f (xi) + f (xi+1)) + O(h5
).
Recognizing that h
3 (f (xi−1) + 4f (xi) + f (xi+1)) is exactly the Simpson’s rule approximation for
the integral over this subinterval, this equation implies that Simpson’s rule is O(h5) over a subinterval
and O(h4) over the whole interval. Because the h3 terms cancel out exactly, Simpson’s rule gains
another two orders of accuracy!
TRY IT! Use Simpson’s rule to approximate
π
0 sin(x)dx with 11 evenly spaced grid points over
the whole interval. Compare this value to the exact value of 2.
In [1]: import numpy as np
a = 0
b = np.pi
n = 11
h = (b - a) / (n - 1)
x = np.linspace(a, b, n)
f = np.sin(x)
I_simp = (h/3) * (f[0] + 2*sum(f[:n-2:2]) + 4*sum(f[1:n-1:2]) + f[n-1])
err_simp = 2 - I_simp
print(I_simp)
print(err_simp)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-364-320.jpg)
![21.5 COMPUTING INTEGRALS IN PYTHON 363
2.0001095173150043
-0.00010951731500430384
21.5 COMPUTING INTEGRALS IN PYTHON
The scipy.integrate subpackage has several functions for computing integrals. The trapz takes as
input arguments an array of function values f computed on a numerical grid x.
TRY IT! Use the trapz function to approximate
π
0 sin(x)dx for 11 equally spaced points over
the whole interval. Compare this value to the one computed in the earlier example using the
trapezoid rule.
In [1]: import numpy as np
from scipy.integrate import trapz
a = 0
b = np.pi
n = 11
h = (b - a) / (n - 1)
x = np.linspace(a, b, n)
f = np.sin(x)
I_trapz = trapz(f,x)
I_trap = (h/2)*(f[0] + 2 * sum(f[1:n-1]) + f[n-1])
print(I_trapz)
print(I_trap)
1.9835235375094542
1.9835235375094546
Sometimes we need to know the approximated cumulative integral. That is, F(X) =
X
x0
f (x)dx.
For this purpose, it is useful to use the cumtrapz function, which takes the same input arguments as
trapz.
TRY IT! Use the cumtrapz function to approximate the cumulative integral of f (x) = sin(x)
from 0 to π, with a discretization step of 0.01. The exact solution of this integral is F(x) = sin(x).
Plot the results.
In [2]: from scipy.integrate import cumtrapz
import matplotlib.pyplot as plt](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-365-320.jpg)
![364 CHAPTER 21 NUMERICAL INTEGRATION
%matplotlib inline
plt.style.use(seaborn-poster)
x = np.arange(0, np.pi, 0.01)
F_exact = -np.cos(x)
F_approx = cumtrapz(np.sin(x), x)
plt.figure(figsize = (10,6))
plt.plot(x, F_exact)
plt.plot(x[1::], F_approx)
plt.grid()
plt.tight_layout()
plt.title($F(x) = int_0^{x} sin(y) dy$)
plt.xlabel(x)
plt.ylabel(f(x))
plt.legend([Exact with Offset, Approx])
plt.show()
The quad(f,a,b) function uses a different numerical differentiation scheme to approximate integrals;
quad integrates the function defined by the function object, f, from a to b.
TRY IT! Use the integrate.quad function to compute
π
0 sin(x)dx. Compare your answer with
the correct answer of 2.
In [3]: from scipy.integrate import quad
I_quad, est_err_quad = quad(np.sin, 0, np.pi)
print(I_quad)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-366-320.jpg)
![366 CHAPTER 21 NUMERICAL INTEGRATION
Test cases:
In: f = lambda x: x**2
my_num_int(f, 0, 1, 3, rect)
Out: 0.625
In: my_num_int(f, 0, 1, 3, trap)
Out: 0.375
In: my_num_int(f, 0, 1, 3, simp)
Out: 0.3333333333333333
In: f = lambda x: np.exp(x**2)
my_num_int(f, -1, 1, 101, simp)
Out: 2.9253035883926493
In: my_num_int(f, -1, 1, 10001, simp)
Out: 2.925303491814364
In: my_num_int(f, -1, 1, 100001, simp)
Out: 2.9253034918143634
5. An earlier chapter demonstrated that some functions can be expressed as an infinite sum of polyno-
mials (i.e., the Taylor series). Other functions, particularly periodic functions, can be written as an
infinite sum of sine and cosine waves. For these functions,
f (x) =
A0
2
+
∞
n=1
An cos(nx) + Bn sin(nx).
It can be shown that the values of An and Bn can be computed using the following formulas:
An =
1
π
π
−π
f (x)cos(nx) dx,
Bn =
1
π
π
−π
f (x)sin(nx) dx.
Just like the Taylor series, functions can be approximated by truncating the Fourier series at some
n = N. Fourier series can be used to approximate some particularly nasty functions, such as the
step function, and they form the basis of many engineering applications, such as signal processing.
Write a function my_fourier_coef(f,n) with output [An,Bn], where f is an function object that
is 2π-periodic. The function my_fourier_coef should compute the nth Fourier coefficients, An and
Bn, in the Fourier series for f defined by the two formulas given earlier. Use the quad function to
perform the integration.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-368-320.jpg)
![21.6 SUMMARY AND PROBLEMS 367
Test cases:
Use the following plotting function to plot the analytic and approximation of functions using the
Fourier series.
def plot_results(f, N):
x = np.linspace(-np.pi, np.pi, 10000)
[A0, B0] = my_fourier_coef(f, 0)
y = A0*np.ones(len(x))/2
for n in range(1, N):
[An, Bn] = my_fourier_coef(f, n)
y += An*np.cos(n*x)+Bn*np.sin(n*x)
plt.figure(figsize = (10,6))
plt.plot(x, f(x), label = analytic)
plt.plot(x, y, label = approximate)
plt.xlabel(x)
plt.ylabel(y)
plt.grid()
plt.legend()
plt.title(f{N}th Order Fourier Approximation)
plt.show()
f = lambda x: np.sin(np.exp(x))
N = 2
plot_results(f, N)
N = 2
plot_results(f, N)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-369-320.jpg)
![376 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
interval [t0,tf ] with spacing h. Without loss of generality, we assume that t0 = 0 and that tf = Nh for
some positive integer, N.
The linear approximation of S(t) around tj at tj+1 is
S(tj+1) = S(tj ) + (tj+1 − tj )
dS(tj )
dt
,
which can also be written
S(tj+1) = S(tj ) + hF(tj ,S(tj )).
This formula is called the Explicit Euler Formula. It allows us to compute an approximation for
the state at S(tj+1) given the state at S(tj ). This is actually based on the Taylor series we discussed in
Chapter 18, whereby we used only the first order item in Taylor series to linearly approximate the next
solution. Later in this chapter, we will present a formula using higher terms to increase the accuracy.
Starting from a given initial value of S0 = S(t0), we can use this formula to integrate the states up to
S(tf ); these S(t) values are then an approximation for the solution of the differential equation. The
explicit Euler formula is the simplest and most intuitive method for solving initial value problems. At
any state (tj ,S(tj )) it uses F at that state to “point” linearly toward the next state and then moves in
that direction a distance of h, as shown in Fig. 22.2.
FIGURE 22.2
The illustration of the explicit Euler method.
Although there are more sophisticated and accurate methods for solving these problems, they all
have the same fundamental structure. As such, we enumerate explicitly the steps for solving an initial
value problem using the explicit Euler formula.
WHAT IS HAPPENING? Assume we are given a function F(t,S(t)) that computes dS(t)
dt , a
numerical grid, t, of the interval, [t0,tf ], and an initial state value S0 = S(t0). We can compute
S(tj ) for every tj in t using the following steps:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-378-320.jpg)
![22.3 THE EULER METHOD 377
1. Store S0 = S(t0) in an array, S.
2. Compute S(t1) = S0 + hF(t0,S0).
3. Store S1 = S(t1) in S.
4. Compute S(t2) = S1 + hF(t1,S1).
5. Store S2 = S(t1) in S.
6. ...
7. Compute S(tf ) = Sf −1 + hF(tf −1,Sf −1).
8. Store Sf = S(tf ) in S.
9. S is an approximation of the solution to the initial value problem.
When using a method with this structure, we say the method integrates the solution of the ODE.
TRY IT! The differential equation df (t)
dt = e−t with initial condition f0 = −1 has the exact solu-
tion f (t) = −e−t . Approximate the solution to this initial value problem between zero and 1 in
increments of 0.1 using the explicit Euler formula. Plot the difference between the approximated
solution and the exact solution.
In [1]: import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline
# Define parameters
f = lambda t, s: np.exp(-t) # ODE
h = 0.1 # Step size
t = np.arange(0, 1 + h, h) # Numerical grid
s0 = -1 # Initial Condition
# Explicit Euler Method
s = np.zeros(len(t))
s[0] = s0
for i in range(0, len(t) - 1):
s[i + 1] = s[i] + h*f(t[i], s[i])
plt.figure(figsize = (12, 8))
plt.plot(t, s, b-, label=Approximate)
plt.plot(t, -np.exp(-t), g, label=Exact)
plt.title(Approximate and Exact Solution for Simple ODE)
plt.xlabel(t)
plt.ylabel(f(t))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-379-320.jpg)
![378 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
plt.grid()
plt.legend(loc=lower right)
plt.show()
In the above figure, each dot is one approximation based on the previous dot in a linear fashion.
From the initial value, we can eventually obtain an approximation of the solution on the numerical grid.
If we repeat the process for h = 0.01, we obtain a better approximation for the solution:
In [2]: h = 0.01 # Step size
t = np.arange(0, 1 + h, h) # Numerical grid
s0 = -1 # Initial Condition
# Explicit Euler Method
s = np.zeros(len(t))
s[0] = s0
for i in range(0, len(t) - 1):
s[i + 1] = s[i] + h*f(t[i], s[i])
plt.figure(figsize = (12, 8))
plt.plot(t, s, b-, label=Approximate)
plt.plot(t, -np.exp(-t), g, label=Exact)
plt.title(Approximate and Exact Solution for Simple ODE)
plt.xlabel(t)
plt.ylabel(f(t))
plt.grid()
plt.legend(loc=lower right)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-380-320.jpg)
![380 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
Similarly, we can plug the same expression into the implicit Euler formula to obtain
1 −h
gh
l 1
S(tj+1) = S(tj ),
and into the trapezoidal formula to obtain
1 −h
2
gh
2l 1
S(tj+1) =
1 h
2
−gh
2l 1
S(tj ).
With some rearrangement, these equations become respectively
S(tj+1) =
1 −h
gh
l 1
−1
S(tj ),
S(tj+1) =
1 −h
2
gh
2l 1
−1
1 h
2
−gh
2l 1
S(tj ).
These equations allow us to solve the initial value problem since at each state, S(tj ), we can com-
pute the next state at S(tj+1). In general, this is possible to do when an ODE is linear.
22.4 NUMERICAL ERROR AND INSTABILITY
There are two main issues to consider with regard to integration schemes for ODEs: accuracy and
stability. Accuracy refers to a scheme’s ability to get close to the exact solution, which is usually
unknown, as a function of the step size h. Previous chapters have referred to accuracy using the notation
O(hp). The same notation can be used to solve ODEs. The stability of an integration scheme is its
ability to keep the error from growing as it integrates forward in time. If the error does not grow, then
the scheme is stable; otherwise it is unstable. Some integration schemes are stable for certain choices
of h and unstable for others; these integration schemes are also referred to as unstable.
To illustrate issues of stability, we numerically solve the pendulum equation using the explicit and
implicit Euler, as well as trapezoidal, formulas.
TRY IT! Use the explicit and implicit Euler, as well as trapezoidal, formulas to solve the pen-
dulum equation over the time interval [0,5] in increments of 0.1, and for an initial solution of
S0 =
1
0
. For the model parameters using
g
l = 4, plot the approximate solution on a single
graph.
In [1]: import numpy as np
from numpy.linalg import inv](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-382-320.jpg)
![22.4 NUMERICAL ERROR AND INSTABILITY 381
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline
In [2]: # define step size
h = 0.1
# define numerical grid
t = np.arange(0, 5.1, h)
# oscillation freq. of pendulum
w = 4
s0 = np.array([[1], [0]])
m_e = np.array([[1, h],
[-w**2*h, 1]])
m_i = inv(np.array([[1, -h],
[w**2*h, 1]]))
m_t = np.dot(inv(np.array([[1, -h/2],
[w**2*h/2,1]])), np.array(
[[1,h/2], [-w**2*h/2, 1]]))
s_e = np.zeros((len(t), 2))
s_i = np.zeros((len(t), 2))
s_t = np.zeros((len(t), 2))
# do integrations
s_e[0, :] = s0.T
s_i[0, :] = s0.T
s_t[0, :] = s0.T
for j in range(0, len(t)-1):
s_e[j+1, :] = np.dot(m_e,s_e[j, :])
s_i[j+1, :] = np.dot(m_i,s_i[j, :])
s_t[j+1, :] = np.dot(m_t,s_t[j, :])
plt.figure(figsize = (12, 8))
plt.plot(t,s_e[:,0],b-)
plt.plot(t,s_i[:,0],g:)
plt.plot(t,s_t[:,0],r-)
plt.plot(t, np.cos(w*t), k)
plt.ylim([-3, 3])
plt.xlabel(t)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-383-320.jpg)
![382 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
plt.ylabel($Theta (t)$)
plt.legend([Explicit, Implicit, Trapezoidal, Exact])
plt.show()
The generated figure above compares the numerical solution to the pendulum problem. The exact
solution is a pure cosine wave. The explicit Euler scheme is clearly unstable. The implicit Euler scheme
decays exponentially, which is not correct. The trapezoidal method captures the solution correctly, with
a small phase shift as time increases.
22.5 PREDICTOR–CORRECTOR AND RUNGE–KUTTA METHODS
22.5.1 PREDICTOR–CORRECTOR METHODS
Given any time and state value, the function, F(t,S(t)), returns the change of state dS(t)
dt . The
predictor–corrector methods of solving initial value problems improve the approximation accuracy of
non-predictor–corrector methods by querying the F function several times at different locations (pre-
dictions). Then, using a weighted average of the results (corrections), updates the state. Essentially, it
uses two formulas: a predictor and a corrector. The predictor is an explicit formula and estimates
the solution at tj+1 first, i.e., we can use Euler method or some other methods to finish this step. Af-
ter obtaining the solution S(tj+1), we apply the corrector to improve the accuracy. Using the found
S(tj+1) on the right-hand side of an otherwise implicit formula, the corrector can calculate a new,
more accurate solution.
The midpoint method has a predictor step:
S
tj +
h
2
= S(tj ) +
h
2
F(tj ,S(tj )),
which is the prediction of the solution value halfway between tj and tj+1.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-384-320.jpg)
![22.5 PREDICTOR–CORRECTOR AND RUNGE–KUTTA METHODS 383
It then computes the corrector step:
S(tj+1) = S(tj ) + hF
tj +
h
2
,S
tj +
h
2
,
which computes the solution at S(tj+1) from S(tj ) but uses the derivative from S
tj + h
2
.
22.5.2 RUNGE–KUTTA METHODS
Runge–Kutta (RK) methods are among the most widely used methods for solving ODEs. Recall that
the Euler method uses the first two terms in Taylor series to approximate the numerical integration,
which is linear: S(tj+1) = S(tj + h) = S(tj ) + h · S(tj ).
We can greatly improve the accuracy of numerical integration if we keep more terms of the series
as
S(tj+1) = S(tj + h) = S(tj ) + S
(tj )h +
1
2!
S
(tj )h2
+ ··· +
1
n!
S(n)
(tj )hn
.
In order to obtain this more accurate solution, we need to derive the expressions of S(tj ),S(tj ),
...,S(n)(tj ). This extra work can be avoided using the RK methods, which are based on truncated
Taylor series but do not require computation of these higher derivatives.
22.5.2.1 Second-Order Runge–Kutta Method
Let us first derive the second order RK method. Let dS(t)
dt = F(t,S(t)). Then we assume an integration
formula the form of
S(t + h) = S(t) + c1F(t,S(t))h + c2F[t + ph,S(t) + qhF(t,S(t))]h. (22.1)
We can attempt to find these parameters c1,c2,p,q by matching the above equation to the second-
order Taylor series:
S(t + h) = S(t) + S
(t)h +
1
2!
S
(t)h2
= S(t) + F(t,S(t))h +
1
2!
F
(t,S(t))h2
. (22.2)
Note that
F
(t,s(t)) =
∂F
∂t
+
∂F
∂S
∂S
∂t
=
∂F
∂t
+
∂F
∂S
F. (22.3)
Therefore, Eq. (22.2) can be written as
S(t + h) = S + Fh +
1
2!
∂F
∂t
+
∂F
∂S
F
h2
. (22.4)
In Eq. (22.1), we rewrite the last term by applying Taylor series in several variables:
F[t + ph,S + qhF)] = F +
∂F
∂t
ph + qh
∂F
∂S
F,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-385-320.jpg)
![22.6 PYTHON ODE SOLVERS 385
CONSTRUCTION:
Let F be a function object to the function that computes
dS(t)
dt
= F(t,S(t)),
S(t0) = S0.
The variable t is a one-dimensional independent variable (time), S(t) is an n-dimensional
vector-valued function (state), and F(t,S(t)) defines the differential equations; S0 is an initial
value for S. The function F must have the form dS = F(t,S), although the name does not have
to be F. The goal is to find the S(t) that approximately satisfies the differential equations given
the initial value S(t0) = S0.
Using the solver to solve the differential equation is as follows:
solve_ivp(fun,t_span,s0,method RK45,t_eval=None)
where fun takes in the function in the right-hand side of the system; t_span is the interval of
integration (t0,tf ) where t0 is the start and tf is the end of the interval; s0 is the initial state. There
are a couple of methods to choose from: the default is “RK45”, which is the explicit Runge–Kutta
method of order 5(4). There are other methods you can use as well; see the end of this section for
more information; t_eval takes in the times at which to store the computed solution, and must be
sorted and lie within t_span.
Let us try one example below.
EXAMPLE: Consider the ODE
dS(t)
dt
= cos(t)
for an initial value of S0 = 0. The exact solution to this problem is S(t) = sin(t). Use solve_ivp to
approximate the solution to this initial value problem over the interval [0,π]. Plot the approximate
solution versus the exact solution and the relative error over time.
In [1]: import matplotlib.pyplot as plt
import numpy as np
from scipy.integrate import solve_ivp
plt.style.use(seaborn-poster)
%matplotlib inline
F = lambda t, s: np.cos(t)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-387-320.jpg)
![386 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
t_eval = np.arange(0, np.pi, 0.1)
sol = solve_ivp(F, [0, np.pi], [0], t_eval=t_eval)
plt.figure(figsize = (12, 4))
plt.subplot(121)
plt.plot(sol.t, sol.y[0])
plt.xlabel(t)
plt.ylabel(S(t))
plt.subplot(122)
plt.plot(sol.t, sol.y[0] - np.sin(sol.t))
plt.xlabel(t)
plt.ylabel(S(t) - sin(t))
plt.tight_layout()
plt.show()
The above left figure shows the integration of dS(t)
dt = cos(t) with solve_ivp. The right figure com-
putes the difference between the solution of the integration by solve_ivp and evaluates the analytical
solution to this ODE. As can be seen from the figure, the difference between the approximate and exact
solution to this ODE is small. Also, we can control the relative and absolute tolerances using the rtol
and atol arguments; the solver keeps the local error estimates less than atol + rtol*abs(S). The
default values are 1e-3 for rtol and 1e-6 for atol.
TRY IT! Using the rtol and atol to make the difference between the approximate and exact
solution less than 1e-7.
In [2]: sol = solve_ivp(F, [0, np.pi], [0], t_eval=t_eval,
rtol = 1e-8, atol = 1e-8)
plt.figure(figsize = (12, 4))
plt.subplot(121)
plt.plot(sol.t, sol.y[0])
plt.xlabel(t)
plt.ylabel(S(t))
plt.subplot(122)
plt.plot(sol.t, sol.y[0] - np.sin(sol.t))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-388-320.jpg)
![22.6 PYTHON ODE SOLVERS 387
plt.xlabel(t)
plt.ylabel(S(t) - sin(t))
plt.tight_layout()
plt.show()
EXAMPLE: Consider the ODE
dS(t)
dt
= −S(t),
with an initial value of S0 = 1. The exact solution to this problem is S(t) = e−t . Use solve_ivp to
approximate the solution to this initial value problem over the interval [0,1]. Plot the approximate
solution versus the exact solution, and the relative error over time.
In [3]: F = lambda t, s: -s
t_eval = np.arange(0, 1.01, 0.01)
sol = solve_ivp(F, [0, 1], [1], t_eval=t_eval)
plt.figure(figsize = (12, 4))
plt.subplot(121)
plt.plot(sol.t, sol.y[0])
plt.xlabel(t)
plt.ylabel(S(t))
plt.subplot(122)
plt.plot(sol.t, sol.y[0] - np.exp(-sol.t))
plt.xlabel(t)
plt.ylabel(S(t) - exp(-t))
plt.tight_layout()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-389-320.jpg)
![388 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
The above figure shows the corresponding numerical results. As in the previous example, the dif-
ference between the result of solve_ivp and the evaluation of the analytical solution by Python is very
small compared to the value of the function.
EXAMPLE: Let the state of a system be defined by S(t) =
x(t)
y(t)
, and let the evolution of the
system be defined by the ODE
dS(t)
dt
=
0 t2
−t 0
S(t).
Use solve_ivp to solve this ODE for the time interval [0,10] with an initial value of S0 =
1
1
. Plot the solution in (x(t),y(t)).
In [4]: F=lambda t, s: np.dot(np.array([[0, t**2], [-t,0]]),s)
t_eval = np.arange(0, 10.01, 0.01)
sol = solve_ivp(F, [0, 10], [1, 1], t_eval=t_eval)
plt.figure(figsize = (12, 8))
plt.plot(sol.y.T[:, 0], sol.y.T[:, 1])
plt.xlabel(x)
plt.ylabel(y)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-390-320.jpg)
![22.8 SUMMARY AND PROBLEMS 391
22.8.2 PROBLEMS
1. The logistic equation is a simple differential equation model that can be used to relate the change
in population dP
dt to the current population, P, given a growth rate, r, and a carrying capacity, K.
The logistic equation can be expressed by
dP
dt
= rP
1 −
P
K
.
Write a function my_logistic_eq(t, P, r, K) that represents the logistic equation with a return
of dP. Note that this format allows my_logistic_eq to be used as an input argument to solve_ivp.
Assume that the arguments dP, t, P, r, and K are all scalars, and dP is the value dP
dt given r, P,
and K. Note that the input argument, t, is obligatory if my_logistic_eq is to be used as an input
argument to solve_ivp, even though it is part of the differential equation.
Note that the logistic equation has an analytic solution defined by
P(t) =
KP0ert
K + P0(ert − 1)
where P0 is the initial population. Verify that this equation is a solution to the logistic equation.
Test cases:
In [1]: import numpy as np
from scipy.integrate import solve_ivp
import matplotlib.pyplot as plt
from functools import partial
plt.style.use(seaborn-poster)
%matplotlib inline
In [2]: def my_logistic_eq(t, P, r, K):
# put your code here
return dP
dP = my_logistic_eq(0, 10, 1.1, 15)
dP
Out[2]: 3.666666666666667
In [3]: from functools import partial
t0 = 0
tf = 20
P0 = 10
r = 1.1
K = 20
t = np.linspace(0, 20, 2001)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-393-320.jpg)
![392 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
f = partial(my_logistic_eq, r=r, K=K)
sol=solve_ivp(f,[t0,tf],[P0],t_eval=t)
plt.figure(figsize = (10, 8))
plt.plot(sol.t, sol.y[0])
plt.plot(t, K*P0*np.exp(r*t)/(K+P0*(np.exp(r*t)-1)),r:)
plt.xlabel(time)
plt.ylabel(population)
plt.legend([Numerical Solution, Exact Solution])
plt.grid(True)
plt.show()
2. The Lorenz attractor is a system of ordinary differential equations that was originally developed
to model convection currents in the atmosphere. The Lorenz equations can be written as fol-
lows:
dx
dt
= σ(y − x),
dy
dt
= x(ρ − z) − y,
dz
dt
= xy − βz,](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-394-320.jpg)
![22.8 SUMMARY AND PROBLEMS 393
where x, y, and z represent the position in three dimensions, and σ,ρ, and β are scalar parameters
of the system. Read more about the Lorenz attractor on Wikipedia1 or more details in the book
“Viability Theory – New Directions.” Write a function my_lorenz(t,S,sigma,rho,beta) where t
is a scalar denoting time, S is a 3D array denoting the position (x,y,z), and sigma, rho, and beta
are strictly positive scalars representing σ,ρ, and β. The output argument dS should be the same
size as S.
Test cases:
In [4]: def my_lorenz(t, S, sigma, rho, beta):
# put your code here
return dS
s = np.array([1, 2, 3])
dS = my_lorenz(0, s, 10, 28, 8/3)
dS
Out[4]: array([10., 23., -6.])
3. Write a function my_lorenz_solver(t_span,s0,sigma,rho,beta) solves the Lorenz equations us-
ing solve_ivp, the function returns [T,X,Y,Z]. The input argument t_span should be a list of the
form [t0,tf ], where t0 is the initial time, and tf is the final time of consideration. The input ar-
gument s0 should be a 3D array of the form [x0,y0,z0], where (x0,y0,z0) represents an initial
position. Finally, the input arguments sigma, rho, and β are the scalar parameters σ,ρ, and β of
the Lorenz system. The output argument T should be an array of times given as the output argu-
ment of solve_ivp. The output arguments, X, Y, and Z should be the numerically integrated solution
produced from my_lorenz in the previous problem and solve_ivp.
Test cases:
In [5]: def my_lorenz_solver(t_span, s0, sigma, rho, beta):
# put your code here
return [T, X, Y, Z]
sigma = 10
rho = 28
beta = 8/3
t0 = 0
tf = 50
s0 = np.array([0, 1, 1.05])
[T, X, Y, Z] = my_lorenz_solver([t0, tf], s0, sigma, rho, beta)
1 https://en.wikipedia.org/wiki/Lorenz_system.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-395-320.jpg)
![22.8 SUMMARY AND PROBLEMS 395
Let the state of the system be denoted by the vector S = [x;v] where x is the displacement of the
mass from its resting configuration, and v is its velocity. Rewrite the MSD equation as a first-order
differential equation in terms of the state, S. In other words, rewrite the MSD equation as dS/dt =
f (t,S).
Write a function my_msd(t,S,m,c,k) where t is a scalar denoting time, S is a 2D vector denoting
the state of the MSD system, and m, c, and k are the mass, damping, and stiffness coefficients of the
MSD equation, respectively.
Test cases:
In [6]: def my_msd(t, S, m, c, k):
# put your code here
return ds
my_msd(0, [1, -1], 10, 1, 100)
Out[6]: array([-1. , -9.9])
In [7]: m = 1
k = 10
f = partial(my_msd, m=m, c=0, k=k)
t_e = np.arange(0, 20, 0.1)
sol_1=solve_ivp(f,[0,20],[1,0],t_eval=t_e)
f = partial(my_msd, m=m, c=1, k=k)
sol_2=solve_ivp(f,[0,20],[1,0],t_eval=t_e)
f = partial(my_msd, m=m, c=10, k=k)
sol_3=solve_ivp(f,[0,20],[1,0],t_eval=t_e)
plt.figure(figsize = (10, 8))
plt.plot(sol_1.t, sol_1.y[0])
plt.plot(sol_2.t, sol_2.y[0])
plt.plot(sol_3.t, sol_3.y[0])
plt.title(Numerical Solution of MSD System with Varying Dampling)
plt.xlabel(time)
plt.ylabel(displacement)
plt.legend([no dampling, c=1, critically damped], loc=1)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-397-320.jpg)
![396 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
5. Write a function my_forward_euler(ds,t_span,s0) where ds is a function object, f (t,s), describ-
ing a first-order differential equation, t_span is an array of times for which numerical solutions of
the differential equation are desired, and s0 is the initial condition of the system. Assume that the
size of the state is one. The output argument should be a list of [t,s], such that t[i] = t_span[i]
for all i, and s should be the integrated values of ds at times t. Perform the integration using the
forward Euler method, s[ti] = s[ti−1] + (ti − ti−1)ds(ti−1,s[ti−1]). Note that s[0] should equal s0.
Test cases:
In [8]: def my_forward_euler(ds, t_span, s0):
# put your code here
return [t, s]
t_span = np.linspace(0, 1, 10)
s0 = 1
# Define parameters
f = lambda t, s: t*np.exp(-s)
t_eul, s_eul = my_forward_euler(f, t_span, s0)
print(t_eul)
print(s_eul)
[0. 0.11111111 0.22222222 0.33333333 0.44444444 0.55555556
0.66666667 0.77777778 0.88888889 1. ]
[1. 1. 1.00454172 1.013584 1.02702534 1.04470783
1.06642355 1.09192262 1.12092255 1.153118 ]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-398-320.jpg)
![22.8 SUMMARY AND PROBLEMS 397
In [9]: plt.figure(figsize = (10, 8))
# Exact solution
t = np.linspace(0, 1, 1000)
s = np.log(np.exp(s0) + (t**2-t[0])/2)
plt.plot(t, s, r, label=Exact)
# Forward Euler
plt.plot(t_eul, s_eul, g, label=Euler)
# Python solver
sol = solve_ivp(f, [0, 1], [s0], t_eval=t)
plt.plot(sol.t, sol.y[0], b-, label=Python Solver)
plt.xlabel(t)
plt.ylabel(f(t))
plt.grid()
plt.legend(loc=2)
plt.show()
6. Write a function myRK4(ds,t_span,s0), where the input and output arguments are the same as in
Problem 5. The function myRK4 should numerically integrate ds using the fourth-order Runge–Kutta
method.
Test cases:
In [10]: def myRK4(ds, t_span, s0):
# put your code here
return [t, s]](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-399-320.jpg)
![398 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS
f = lambda t, s: np.sin(np.exp(s))/(t+1)
t_span = np.linspace(0, 2*np.pi, 10)
s0 = 0
plt.figure(figsize = (10, 8))
# Runge-Kutta method
t, s = myRK4(f, t_span, s0)
plt.plot(t, s, r, label=RK4)
# Python solver
sol = solve_ivp(f, [0, 2*np.pi], [s0], t_eval=t)
plt.plot(sol.t, sol.y[0], b-, label=Python Solver)
plt.xlabel(t)
plt.ylabel(f(t))
plt.grid()
plt.legend(loc=2)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-400-320.jpg)
![23
BOUNDARY-VALUE PROBLEMS
FOR ORDINARY DIFFERENTIAL
EQUATIONS (ODES)
23.1 ODE Boundary Value Problem Statement ........................................................................ 399
23.2 The Shooting Method ............................................................................................... 401
23.3 The Finite Difference Method...................................................................................... 406
23.4 Numerical Error and Instability ................................................................................... 411
23.5 Summary and Problems ............................................................................................ 412
23.5.1 Summary............................................................................................ 412
23.5.2 Problems ............................................................................................ 412
23.1 ODE BOUNDARY VALUE PROBLEM STATEMENT
The previous chapter introduced ordinary differential equation initial-value problems. For initial value
problems, all the known values are specified at the same value of the independent variable, usually at
the lower boundary of the interval; this is where the term “initial” comes from. This chapter introduces
another type of problem, namely the boundary-value problem. As the name suggests, the known
values are specified at the extremes of the independent variable, i.e., the boundaries of the interval.
For example, if we have a simple second-order ordinary differential equation,
d2f (x)
dx2
=
df (x)
dx
+ 3
and if the independent variable varies over the domain of [0,20], the initial value problem will have
the two conditions at the value of zero: that is, we know the value of f (0) and f (0). In contrast,
boundary-value problems will specify the values at x = 0 and x = 20. Note that to solve a first-order
ODE to obtain a particular solution requires one constraint, while an nth-order ODE requires n con-
straints.
The boundary-value problem for an nth-order ordinary differential equation,
F
x,f (x),
df (x)
dx
,
d2f (x)
dx2
,
d3f (x)
dx3
,...,
dn−1f (x)
dxn−1
=
dnf (x)
dxn
,
specifies n known boundary conditions at a and b, to solve this equation on an interval of x ∈ [a,b].
For the second-order case, since the boundary condition can be either be a value of f (x) or a value of
the derivative f (x), we can have several different cases for the specified values. For example, we can
have the boundary condition values specified as:](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-401-320.jpg)
![402 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES
off the ground after 5 s after launch, what should be the velocity at launch? (Assuming we ignore
the drag of the air resistance.)
To answer this question, we can frame the problem as a boundary-value problem for a second-
order ODE. The ODE is
d2y
dt2
= −g,
and the two boundary conditions are y(0) = 0 and y(5) = 50. We want to answer the question:
What’s y(0) at launch?
This is a quite simple question and can be solved analytically quite easily; the correct answer
y(0) = 34.5. If we solve it using the shooting method, we need to reduce the order of the function
first, and the second-order ODE becomes:
dy
dt
= v,
dv
dt
= −g.
Therefore, we have S(t) =
y(t)
v(t)
which satisfies
dS(t)
dt
=
0 1
0 −g/v
S(t).
In [1]: import numpy as np
import matplotlib.pyplot as plt
from scipy.integrate import solve_ivp
plt.style.use(seaborn-poster)
%matplotlib inline
For our first guess, we take the velocity at launch as 25 m/s.
In [2]: F = lambda t, s: np.dot(np.array([[0,1],[0,-9.8/s[1]]]),s)
t_span = np.linspace(0, 5, 100)
y0 = 0
v0 = 25
t_eval = np.linspace(0, 5, 10)
sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval)
plt.figure(figsize = (10, 8))
plt.plot(sol.t, sol.y[0])
plt.plot(5, 50, ro)
plt.xlabel(time (s))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-404-320.jpg)
![23.2 THE SHOOTING METHOD 403
plt.ylabel(altitude (m))
plt.title(ffirst guess v={v0} m/s)
plt.show()
The figure shows that the first guess is a little too small, since after 5 s for the chosen initial
velocity, the altitude of the rocket is less than 10 m. The red dot in the figure is the target we want
to hit. If we adjust our guess and increase the velocity to 40 m/s, then we obtain:
In [3]: v0 = 40
sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval)
plt.figure(figsize = (10, 8))
plt.plot(sol.t, sol.y[0])
plt.plot(5, 50, ro)
plt.xlabel(time (s))
plt.ylabel(altitude (m))
plt.title(fsecond guess v={v0} m/s)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-405-320.jpg)
![404 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES
Here, we overestimated the velocity. Therefore, this random guessing is perhaps not the best
way to obtain the result. As we mentioned above, treating this procedure as a root-finding problem
will provide us with a better result. Let us use Python’s fsolve to find the root. The following
example will demonstrate how to find the correct answer directly.
In [4]: from scipy.optimize import fsolve
def objective(v0):
sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval)
y = sol.y[0]
return y[-1] - 50
v0, = fsolve(objective, 10)
print(v0)
34.499999999999986
In [5]: sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval)
plt.figure(figsize = (10, 8))
plt.plot(sol.t, sol.y[0])
plt.plot(5, 50, ro)
plt.xlabel(time (s))
plt.ylabel(altitude (m))](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-406-320.jpg)
![23.2 THE SHOOTING METHOD 405
plt.title(froot finding v={v0} m/s)
plt.show()
TRY IT! Let us change the initial guess and see if this changes the result.
In [6]: for v0_guess in range(1, 100, 10):
v0, = fsolve(objective, v0_guess)
print(Init: %d, Result: %.1f %(v0_guess, v0))
Init: 1, Result: 34.5
Init: 11, Result: 34.5
Init: 21, Result: 34.5
Init: 31, Result: 34.5
Init: 41, Result: 34.5
Init: 51, Result: 34.5
Init: 61, Result: 34.5
Init: 71, Result: 34.5
Init: 81, Result: 34.5
Init: 91, Result: 34.5
Note that changing the initial guesses does not change the result, which means that this method
is stable; see below regarding the problem of stability.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-407-320.jpg)
![406 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES
23.3 THE FINITE DIFFERENCE METHOD
Another way to solve the ODE boundary value problems is to use the finite difference method, where
we use finite difference formulas at evenly spaced grid points to approximate the differential equations,
which then transforms a differential equation into a system of algebraic equations to solve.
In the finite difference method, the derivatives in the differential equation are approximated using
the finite difference formulas (see Chapter 20 for more details). We can divide the interval of [a,b] into
n equal subintervals of length h as shown in Fig. 23.3.
FIGURE 23.3
Illustration of the finite difference method.
Usually, we use the central difference formulas in the finite difference methods because they yield
better accuracy. The differential equation is enforced only at the grid points, and the first and second
derivatives are:
dy
dx
=
yi+1 − yi−1
2h
,
d2y
dx2
=
yi−1 − 2yi + yi+1
h2
.
These finite difference expressions are used to replace the derivatives of y in the differential equa-
tion, leading to a system of n + 1 linear algebraic equations if the differential equation is linear. If the
differential equation is nonlinear, the algebraic equations will also be nonlinear.
EXAMPLE: Solve the rocket problem in the previous section using the finite difference method;
plot the altitude of the rocket after launch. The ODE is
d2y
dt2
= −g
with the boundary conditions y(0) = 0 and y(5) = 50. Let us take n = 10.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-408-320.jpg)
![23.3 THE FINITE DIFFERENCE METHOD 407
Since the time interval is [0,5] and we have n = 10, h = 0.5, using the finite difference ap-
proximated derivatives, we obtain
y0 = 0, yi−1 − 2yi + yi+1 = −gh2
, i = 1,2,...,n − 1, y10 = 50.
If we use matrix notation, we obtain
⎡
⎢
⎢
⎢
⎢
⎢
⎣
1 0
1 −2 1
...
...
...
1 −2 1
1
⎤
⎥
⎥
⎥
⎥
⎥
⎦
⎡
⎢
⎢
⎢
⎢
⎢
⎣
y0
y1
.
.
.
yn−1
yn
⎤
⎥
⎥
⎥
⎥
⎥
⎦
=
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎣
0
−gh2
.
.
.
−gh2
50
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎦
.
With 11 equations in the system, we can solve it using the method we presented in Chapter 14.
In [1]: import numpy as np
import matplotlib.pyplot as plt
plt.style.use(seaborn-poster)
%matplotlib inline
n = 10
h = (5-0) / n
# Get A
A = np.zeros((n+1, n+1))
A[0, 0] = 1
A[n, n] = 1
for i in range(1, n):
A[i, i-1] = 1
A[i, i] = -2
A[i, i+1] = 1
print(A)
# Get b
b = np.zeros(n+1)
b[1:-1] = -9.8*h**2
b[-1] = 50
print(b)
# solve the linear equations
y = np.linalg.solve(A, b)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-409-320.jpg)
![408 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES
t = np.linspace(0, 5, 11)
plt.figure(figsize=(10,8))
plt.plot(t, y)
plt.plot(5, 50, ro)
plt.xlabel(time (s))
plt.ylabel(altitude (m))
plt.show()
[[ 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.]
[ 1. -2. 1. 0. 0. 0. 0. 0. 0. 0. 0.]
[ 0. 1. -2. 1. 0. 0. 0. 0. 0. 0. 0.]
[ 0. 0. 1. -2. 1. 0. 0. 0. 0. 0. 0.]
[ 0. 0. 0. 1. -2. 1. 0. 0. 0. 0. 0.]
[ 0. 0. 0. 0. 1. -2. 1. 0. 0. 0. 0.]
[ 0. 0. 0. 0. 0. 1. -2. 1. 0. 0. 0.]
[ 0. 0. 0. 0. 0. 0. 1. -2. 1. 0. 0.]
[ 0. 0. 0. 0. 0. 0. 0. 1. -2. 1. 0.]
[ 0. 0. 0. 0. 0. 0. 0. 0. 1. -2. 1.]
[ 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]]
[0. -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 50.]
Let us solve for y(0). From the finite difference formula, we know that dy
dx = yi+1−yi−1
2h , which
means that y(0) = y1−y−1
2h ; but we do not know what is y−1. We can calculate y−1 since we know
the y values on each grid point. From the second derivative finite difference formula, we know](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-410-320.jpg)
![23.3 THE FINITE DIFFERENCE METHOD 409
that y−1−2y0+y1
h2 = −g; therefore, we can solve for y−1 to obtain the launching velocity. See the
calculation below.
In [2]: y_n1 = -9.8*h**2 + 2*y[0] - y[1]
(y[1] - y_n1) / (2*h)
Out[2]: 34.5
We obtain the correct launching velocity using the finite difference method. To given you
additional exposure to this concept, let us see another example.
TRY IT! Use the finite difference method to solve the following linear boundary value problem:
dy(t)
dt2
= −4y + 4x
with the boundary conditions as y(0) = 0 and y(π/2) = 0. The exact solution of the problem is
y = x − sin2x, plot the errors against the n grid points (n from 3 to 100) for the boundary point
y(π/2).
Using the finite difference approximated derivatives, we have
y0 = 0, yi−1 − 2yi + yi+1 − h2
(−4yi + 4xi) = 0, i = 1,2,...,n − 1,
2yn−1 − 2yn − h2
(−4yn + 4xn) = 0.
The last equation is derived from yn+1−yn−1
2h = 0 (the boundary condition y(π/2) = 0); there-
fore, yn+1 = yn−1.
If we use matrix notation, we will obtain:
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎣
1 0
1 −2 + 4h2 1
...
...
...
1 −2 + 4h2 1
2 −2 + 4h2
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎦
⎡
⎢
⎢
⎢
⎢
⎢
⎣
y0
y1
.
.
.
yn−1
yn
⎤
⎥
⎥
⎥
⎥
⎥
⎦
=
⎡
⎢
⎢
⎢
⎢
⎢
⎢
⎣
0
4h2x1
.
.
.
4h2xn−1
4h2xn
⎤
⎥
⎥
⎥
⎥
⎥
⎥
⎦
.
In [3]: def get_a_b(n):
h = (np.pi/2-0) / n
x = np.linspace(0, np.pi/2, n+1)
# Get A
A = np.zeros((n+1, n+1))
A[0, 0] = 1
A[n, n] = -2+4*h**2](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-411-320.jpg)
![410 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES
A[n, n-1] = 2
for i in range(1, n):
A[i, i-1] = 1
A[i, i] = -2+4*h**2
A[i, i+1] = 1
# Get b
b = np.zeros(n+1)
for i in range(1, n+1):
b[i] = 4*h**2*x[i]
return x, A, b
x = np.pi/2
v = x - np.sin(2*x)
n_s = []
errors = []
for n in range(3, 100, 5):
x, A, b = get_a_b(n)
y = np.linalg.solve(A, b)
n_s.append(n)
e = v - y[-1]
errors.append(e)
plt.figure(figsize = (10,8))
plt.plot(n_s, errors)
plt.yscale(log)
plt.xlabel(n gird points)
plt.ylabel(errors at x = $pi/2$)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-412-320.jpg)
![416 CHAPTER 24 FOURIER TRANSFORM
In [1]: import matplotlib.pyplot as plt
import numpy as np
plt.style.use(seaborn-poster)
%matplotlib inline
In [2]: x = np.linspace(0, 20, 201)
y = np.sin(x)
plt.figure(figsize = (8, 6))
plt.plot(x, y, b)
plt.ylabel(Amplitude)
plt.xlabel(Location (x))
plt.show()
A sine wave can change both in time and space. If we plot the changes at various locations, each
time snapshot will be a sine wave changing with location. See the following figure with a fixed point
at x = 2.5, showing as a red dot. Of course, you can see the changes over time at specific location as
well; plot this by yourself.
In [3]: fig = plt.figure(figsize = (8,8))
times = np.arange(5)
n = len(times)
for t in times:
plt.subplot(n, 1, t+1)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-418-320.jpg)
![24.1 THE BASICS OF WAVES 417
y = np.sin(x + t)
plt.plot(x, y, b)
plt.plot(x[25], y [25], ro)
plt.ylim(-1.1, 1.1)
plt.ylabel(y)
plt.title(ft = {t})
plt.xlabel(location (x))
plt.tight_layout()
plt.show()
24.1.2 CHARACTERISTICS OF A WAVE
Waves can be a continuous entity both in time and space. For numerical purposes, one needs to digitize
time and space at various points. For example, in the context of geophysics, one can use sensors such
as accelerometers (which measure the acceleration of a movement) at different locations on the Earth
to monitor earthquakes; this is called spatial discretization. Similarly, these sensors usually record
the data at certain times, which is called temporal discretization. For a single wave, it has different
characteristics. See Figs. 24.1 and 24.2.
Amplitude is used to describe the difference between the maximum values to the baseline value
(see the above figures). A sine wave is a periodic signal, which means it repeats itself after a certain
time and can be measured by period. The period of a wave is the time it takes to finish the complete
cycle. In the figure, the period can be measured from the two adjacent peaks. The wavelength measures](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-419-320.jpg)
![24.1 THE BASICS OF WAVES 419
is called the sampling rate, in Hz. For example, if we sample a wave at 2 Hz, it means that at every
second we sample two data points. Now that we understand more about the basics of a wave, let us
study a sine wave, which can be represented by the following equation:
y(t) = Asin(ωt + φ)
where A is the amplitude of the wave, and ω is the angular frequency, which specifies how many
cycles occur in a second, in radians per second; φ is the phase of the signal. If T is the period of the
wave and f is the frequency of the wave, then ω has the following relationship to them:
ω =
2π
T
= 2πf.
TRY IT! Generate two sine waves with time between zero and 1 s whose frequency is 5 and 10
Hz, respectively, sampled at 100 Hz. Plot the two waves and see the difference. Count how many
cycles there are in 1 s.
In [4]: # sampling rate
sr = 100.0
# sampling interval
ts = 1.0/sr
t = np.arange(0,1,ts)
# frequency of the signal
freq = 5
y = np.sin(2*np.pi*freq*t)
plt.figure(figsize = (8, 8))
plt.subplot(211)
plt.plot(t, y, b)
plt.ylabel(Amplitude)
freq = 10
y = np.sin(2*np.pi*freq*t)
plt.subplot(212)
plt.plot(t, y, b)
plt.ylabel(Amplitude)
plt.xlabel(Time (s))
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-421-320.jpg)
![420 CHAPTER 24 FOURIER TRANSFORM
TRY IT! Generate two sine waves with time between zero and 1 s. Both waves have a frequency
of 5 Hz, sampled at 100 Hz, but their phase are zero and 10, respectively. The amplitudes of the
two waves are 5 and 10, respectively. Plot the two waves and see the difference.
In [5]: # frequency of the signal
freq = 5
y = 5*np.sin(2*np.pi*freq*t)
plt.figure(figsize = (8, 8))
plt.subplot(211)
plt.plot(t, y, b)
plt.ylabel(Amplitude)
y = 10*np.sin(2*np.pi*freq*t + 10)
plt.subplot(212)
plt.plot(t, y, b)
plt.ylabel(Amplitude)
plt.xlabel(Time (s))
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-422-320.jpg)
![422 CHAPTER 24 FOURIER TRANSFORM
FIGURE 24.3
More general wave form.
FIGURE 24.4
Illustration of Fourier transform with time and frequency domain signal.
24.2.1 DFT
The DFT can transform a sequence of evenly spaced signals to the information about the frequency of
all the sine waves needed to sum to obtain the time-domain signal. It is defined as
Xk =
N−1
n=0
xn · e−i2πkn/N
=
N−1
n=0
xn[cos(2πkn/N) − i · sin(2πkn/N)]
• N = number of samples
• n = current sample
• k = current frequency, where k ∈ [0,N − 1]
• xn = the sine value at sample n
• Xk = the DFT that includes information of both amplitude and phase](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-424-320.jpg)
![24.2 DISCRETE FOURIER TRANSFORM (DFT) 423
Also, the last expression in the above equation is derived from the Euler’s formula, which links the
trigonometric functions to the complex exponential function: ei·x = cosx + i · sinx.
Due to the nature of the transform, X0 =
N−1
n=0 xn. If N is an odd number, the elements
X1,X2,...,X(N−1)/2 contain the positive frequency terms, and the elements X(N+1)/2,...,XN−1
contain the negative frequency terms, in order of decreasingly negative frequency. If N is even, the
elements X1,X2,...,XN/2−1 contain the positive frequency terms, and the elements XN/2,...,XN−1
contain the negative frequency terms, in order of decreasingly negative frequency. In the case here, our
input signal x is a real-valued sequence; therefore, the DFT output Xn for positive frequencies is the
conjugate of the values Xn for negative frequencies, and the spectrum will be symmetric. Usually, we
only plot the DFT corresponding to the positive frequencies.
Note that Xk is a complex number that encodes both the amplitude and phase information of a
complex sinusoidal component ei·2πkn/N of function xn. The amplitude and phase of the signal can be
calculated as
amp =
|Xk|
N
=
Re(Xk)2 + Im(Xk)2
N
phase = atan2(Im(Xk),Re(Xk))
where Im(Xk) and Re(Xk) are the imaginary and real parts of the complex number, and atan2 is the
two-argument form of the arctan function.
The amplitudes returned by DFT are equal to the amplitudes of the signals fed into the DFT if we
normalize them by the number of sample points. We mentioned previously that for a real-valued signal,
the output of the DFT will be mirrored about the half of the sampling rate (as shown in the following
examples). This half of the sampling rate is called the Nyquist frequency. This usually means that we
only need to look at one side of the DFT result and drop the duplicate information in the other half;
therefore, to obtain the amplitude corresponding to that of the time domain signal, we divide by N/2
instead of N.
Now that we have the basic knowledge of DFT, let us see how we can use it.
TRY IT! Generate three sine waves with frequencies 1, 4, and 7 Hz, amplitudes 3, 1, and 0.5, and
phases being all zeros. Add these three sine waves together with a sampling rate of 100 Hz; it is
the same signal shown at the beginning of the section.
In [1]: import matplotlib.pyplot as plt
import numpy as np
plt.style.use(seaborn-poster)
%matplotlib inline
In [2]: # sampling rate
sr = 100
# sampling interval
ts = 1.0/sr](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-425-320.jpg)
![424 CHAPTER 24 FOURIER TRANSFORM
t = np.arange(0,1,ts)
freq = 1.
x = 3*np.sin(2*np.pi*freq*t)
freq = 4
x += np.sin(2*np.pi*freq*t)
freq = 7
x += 0.5* np.sin(2*np.pi*freq*t)
plt.figure(figsize = (8, 6))
plt.plot(t, x, r)
plt.ylabel(Amplitude)
plt.show()
TRY IT! Write a function DFT(x) which takes in one argument, x, with a 1D real-valued signal.
The function will calculate the DFT of the signal and return the DFT values. Apply this function
to the signal we generated above and plot the result.
In [3]: def DFT(x):
Function to calculate the
discrete Fourier Transform
of a 1D real-valued signal x
N = len(x)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-426-320.jpg)
![24.2 DISCRETE FOURIER TRANSFORM (DFT) 425
n = np.arange(N)
k = n.reshape((N, 1))
e = np.exp(-2j * np.pi * k * n / N)
X = np.dot(e, x)
return X
In [4]: X = DFT(x)
# calculate the frequency
N = len(X)
n = np.arange(N)
T = N/sr
freq = n/T
plt.figure(figsize = (8, 6))
plt.stem(freq, abs(X), b, markerfmt= , basefmt=-b)
plt.xlabel(Freq (Hz))
plt.ylabel(DFT Amplitude |X(freq)|)
plt.show()
Note that the output of the DFT is symmetric at half of the sampling rate (try different sampling
rates for fun). As mentioned earlier, this half of the sampling rate is called the Nyquist frequency or
the folding frequency. It is named after the electrical engineer Harry Nyquist. He and Claude Shannon
formulated the Nyquist–Shannon sampling theorem, which states that a signal sampled at a rate can be
fully reconstructed if it contains only frequency components below half that sampling frequency; thus,
the highest frequency output from the DFT is half the sampling rate.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-427-320.jpg)
![426 CHAPTER 24 FOURIER TRANSFORM
In [5]: n_oneside = N//2
# get the one side frequency
f_oneside = freq[:n_oneside]
# normalize the amplitude
X_oneside =X[:n_oneside]/n_oneside
plt.figure(figsize = (12, 6))
plt.subplot(121)
plt.stem(f_oneside, abs(X_oneside), b, markerfmt= , basefmt=-b)
plt.xlabel(Freq (Hz))
plt.ylabel(DFT Amplitude |X(freq)|)
plt.subplot(122)
plt.stem(f_oneside, abs(X_oneside), b, markerfmt= , basefmt=-b)
plt.xlabel(Freq (Hz))
plt.xlim(0, 10)
plt.tight_layout()
plt.show()
Plotting the first half of the DFT results shows three clear peaks at frequency of 1, 4, and 7 Hz,
with amplitude 3, 1, 0.5, as expected. This is how we can use the DFT to analyze an arbitrary signal by
decomposing it into simple sine waves.
24.2.2 THE INVERSE DFT
We can easily compute the inverse transform of the DFT:
xn =
1
N
N−1
k=0
Xk · ei·2πkn/N
.
We will leave this as an exercise for you to write a function.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-428-320.jpg)
![24.2 DISCRETE FOURIER TRANSFORM (DFT) 427
24.2.3 THE LIMIT OF DFT
The main issue with the above DFT implementation is that it is not efficient if we have a signal with
many data points. It may take a long time to compute the DFT if the signal is large.
TRY IT Write a function to generate a simple signal with a different sampling rate, and see the
difference in computing time by varying the sampling rate.
In [6]: def gen_sig(sr):
function to generate
a simple 1D signal with
different sampling rate
ts = 1.0/sr
t = np.arange(0,1,ts)
freq = 1.
x = 3*np.sin(2*np.pi*freq*t)
return x
In [7]: # sampling rate =2000
sr = 2000
%timeit DFT(gen_sig(sr))
120 ms ± 8.27 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)
In [8]: # sampling rate 20000
sr = 20000
%timeit DFT(gen_sig(sr))
15.9 s ± 1.51 s per loop (mean ±std. dev. of 7 runs, 1 loop each)
The increasing number of data points will require a lot of computation time using this DFT. Luckily,
the Fast Fourier Transform (FFT), popularized by Cooley and Tukey in their 1965 paper,1 can solve
this problem efficiently. This is the topic for the next section.
1 http://www.ams.org/journals/mcom/1965-19-090/S0025-5718-1965-0178586-1/.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-429-320.jpg)
![24.3 FAST FOURIER TRANSFORM (FFT) 429
the problem into smaller ones. Let us first divide the whole series into two parts, i.e., the even and odd
number parts:
Xk =
N−1
n=0
xn · e−i2πkn/N
=
N/2−1
m=0
x2m · e−i2πk(2m)/N
+
N/2−1
m=0
x2m+1 · e−i2πk(2m+1)/N
=
N/2−1
m=0
x2m · e−i2πkm/(N/2)
+ e−i2πk/N
N/2−1
m=0
x2m+1 · e−i2πkm/(N/2)
.
As shown, the two smaller terms, which only have half of the size (N
2 ) in the above equation, are
two smaller DFTs. For each term, the 0 ≤ m ≤ N
2 , but 0 ≤ k ≤ N; therefore, half of the values will be
the same due to the symmetry properties described above. Thus, we only need to calculate half of the
fields in each term. Of course, we can continue to divide each term into half with the even and odd
values until it reaches the last two numbers, at which point the calculation will be really simple.
This is how FFT works using this recursive approach. Let us perform a quick and dirty implemen-
tation of the FFT. Note that the input signal to FFT should have a length of power of 2. If it is not, then
we need to fill up zeros to the next power of 2 size.
In [1]: import matplotlib.pyplot as plt
import numpy as np
plt.style.use(seaborn-poster)
%matplotlib inline
In [2]: def FFT(x):
A recursive implementation of
the 1D Cooley-Tukey FFT, the
input should have a length of
power of 2.
N = len(x)
if N == 1:
return x
else:
X_even = FFT(x[::2])
X_odd = FFT(x[1::2])
factor = np.exp(-2j*np.pi*np.arange(N)/ N)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-431-320.jpg)
![430 CHAPTER 24 FOURIER TRANSFORM
X = np.concatenate(
[X_even+factor[:int(N/2)]*X_odd,
X_even+factor[int(N/2):]*X_odd])
return X
In [3]: # sampling rate
sr = 128
# sampling interval
ts = 1.0/sr
t = np.arange(0,1,ts)
freq = 1.
x = 3*np.sin(2*np.pi*freq*t)
freq = 4
x += np.sin(2*np.pi*freq*t)
freq = 7
x += 0.5* np.sin(2*np.pi*freq*t)
plt.figure(figsize = (8, 6))
plt.plot(t, x, r)
plt.ylabel(Amplitude)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-432-320.jpg)
![24.3 FAST FOURIER TRANSFORM (FFT) 431
TRY IT! Use the FFT function to calculate the Fourier transform of the above signal. Plot the
amplitude spectrum for both the two- and one-sided frequencies.
In [4]: X=FFT(x)
# calculate the frequency
N = len(X)
n = np.arange(N)
T = N/sr
freq = n/T
plt.figure(figsize = (12, 6))
plt.subplot(121)
plt.stem(freq, abs(X), b, markerfmt= , basefmt=-b)
plt.xlabel(Freq (Hz))
plt.ylabel(FFT Amplitude |X(freq)|)
# Get the one-sided spectrum
n_oneside = N//2
# get the one side frequency
f_oneside = freq[:n_oneside]
# normalize the amplitude
X_oneside =X[:n_oneside]/n_oneside
plt.subplot(122)
plt.stem(f_oneside, abs(X_oneside), b, markerfmt= , basefmt=-b)
plt.xlabel(Freq (Hz))
plt.ylabel(Normalized FFT Amplitude |X(freq)|)
plt.tight_layout()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-433-320.jpg)
![432 CHAPTER 24 FOURIER TRANSFORM
TRY IT! Generate a simple signal of length 2048, and record the time it will take to run the FFT;
compare the speed with the DFT.
In [5]: def gen_sig(sr):
function to generate
a simple 1D signal with
different sampling rate
ts = 1.0/sr
t = np.arange(0,1,ts)
freq = 1.
x = 3*np.sin(2*np.pi*freq*t)
return x
In [6]: # sampling rate =2048
sr = 2048
%timeit FFT(gen_sig(sr))
16.9 ms ± 1.3 ms per loop (mean ± std. dev. of 7 runs, 100 loops each)
Thus, for a signal with length 2048 (about 2000), this implementation of FFT uses 16.9 ms instead
of 120 ms using DFT. Note that there are lots of ways to optimize the FFT implementation to make it
faster. The next section will introduce the Python built-in FFT functions, which will run much faster.
24.4 FFT IN PYTHON
Python has very mature FFT functions both in NumPy and SciPy. This section will take a look at both
packages and see how easily they can be incorporated in our work. Let us use the signal generated
above to run the test as shown in Fig. 24.5.
24.4.1 FFT IN NUMPY
EXAMPLE: Us the fft and ifft functions from NumPy to calculate the FFT amplitude spectrum
and inverse FFT to obtain the original signal. Plot both results. Time the fft function using this
2000-length signal.
In [3]: from numpy.fft import fft, ifft
X = fft(x)](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-434-320.jpg)
![434 CHAPTER 24 FOURIER TRANSFORM
In [4]: %timeit fft(x)
42.3 µs ± 5.03 µs per loop (mean ± std. dev. of 7 runs, 10000 loops each)
24.4.2 FFT IN SCIPY
EXAMPLE: Use fft and ifft functions from SciPy to calculate the FFT amplitude spectrum
and inverse FFT to obtain the original signal. Plot both results. Time the fft function using this
2000-length signal.
In [5]: from scipy.fftpack import fft, ifft
X = fft(x)
plt.figure(figsize = (12, 6))
plt.subplot(121)
plt.stem(freq, np.abs(X), b, markerfmt= , basefmt=-b)
plt.xlabel(Freq (Hz))
plt.ylabel(FFT Amplitude |X(freq)|)
plt.xlim(0, 10)
plt.subplot(122)
plt.plot(t, ifft(X), r)
plt.xlabel(Time (s))
plt.ylabel(Amplitude)
plt.tight_layout()
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-436-320.jpg)
![24.4 FFT IN PYTHON 435
In [6]: %timeit fft(x)
12.6 µs ± 222 ns per loop (mean ± std. dev. of 7 runs, 100000 loops each)
Note that the built-in FFT functions are much faster and easier to use, especially when using the
SciPy version. Here are the results for comparison:
• Implemented DFT: 120 ms
• Implemented FFT: 16.9 ms
• NumPy FFT: 42.3 µs
• SciPy FFT: 12.6 µs
24.4.3 MORE EXAMPLES
More examples how to use FFT in real-world applications are shown below.
24.4.3.1 Electricity Demand in California
First, we explore the electricity demand from California from 2019-11-30 to 2019-12-30. You can
download data from US Energy Information Administration.4 Herein, the data has been downloaded
for you.
The electricity demand data from California is stored in “930-data-export.csv” in 3 columns. Re-
member that we learned how to read CSV file using NumPy. Here, we will use another package, pandas,
which is a very popular package that deals with time series data. This package will not be discussed
herein. We highly recommend learning how to use it by yourself.
First, let us study the data.
In [7]: import pandas as pd
The read_csv function will read the CSV file. Pay attention to the parse_dates parameter, which
will find the date and time in column one. The data will be read into a panda DataFrame, and
4 https://www.eia.gov/beta/electricity/gridmonitor/dashboard/electric_overview/US48/US48.](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-437-320.jpg)
![436 CHAPTER 24 FOURIER TRANSFORM
we use df to store it. Then we will change the header in the original file to something easier to
use.
In [8]: df = pd.read_csv(./data/930-data-export.csv,
delimiter=,, parse_dates=[1])
df.rename(columns={Timestamp (Hour Ending):hour,
Total CAL Demand (MWh):demand},
inplace=True)
By plotting the data, we see how the electricity demand changes over time.
In [9]: plt.figure(figsize = (12, 6))
plt.plot(df[hour], df[demand])
plt.xlabel(Datetime)
plt.ylabel(California electricity demand (MWh))
plt.xticks(rotation=25)
plt.show()
From the plotted time series, it is hard to discern if there are any patterns behind the data. Let us
transform the data into frequency domain and see if there is anything interesting.
In [10]: X = fft(df[demand])
N = len(X)
n = np.arange(N)
# get the sampling rate
sr = 1 / (60*60)
T = N/sr
freq = n/T
# Get the one-sided spectrum
n_oneside = N//2](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-438-320.jpg)
![24.4 FFT IN PYTHON 437
# get the one side frequency
f_oneside = freq[:n_oneside]
plt.figure(figsize = (12, 6))
plt.plot(f_oneside, np.abs(X[:n_oneside]), b)
plt.xlabel(Freq (Hz))
plt.ylabel(FFT Amplitude |X(freq)|)
plt.show()
Note the clear peaks in the FFT amplitude figure, but it is hard to tell what they are in terms of
frequency. Let us plot the results using hours and highlight some of the hours associated with the
peaks.
In [11]: # convert frequency to hour
t_h = 1/f_oneside / (60 * 60)
plt.figure(figsize=(12,6))
plt.plot(t_h, np.abs(X[:n_oneside])/n_oneside)
plt.xticks([12, 24, 84, 168])
plt.xlim(0, 200)
plt.xlabel(Period ($hour$))
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-439-320.jpg)
![438 CHAPTER 24 FOURIER TRANSFORM
We can now see some interesting patterns, i.e., three peaks associated with 12, 24, and 84 hours.
These peaks mean that we see some repeating signal every 12, 24, and 84 hours. This makes sense
and corresponds to our human activity pattern. The FFT can help us understand some of the repeating
signals in our physical world.
24.4.3.2 Filtering a Signal in Frequency Domain
Filtering is a process in signal processing to remove unwanted parts of the signal within certain fre-
quency range. Low-pass filters remove all signals above certain cut-off frequency; high-pass filters do
the opposite. Combining low- and high-pass filters allows constructing a band-pass filter, which means
we only keep the signals within a pair of frequencies. Using FFT, we can easily do this. Let us play with
the following example to illustrate the basics of a band-pass filter. Note that we just want to show the
idea of filtering using very basic operations, in reality, filtering processes are much more sophisticated.
EXAMPLE: Use the signal generated at the beginning of this section (the mixed sine waves with
1, 4, and 7 Hz) and high-pass filter this signal at 6 Hz. Plot the filtered signal and the FFT amplitude
before and after filtering.
In [12]: from scipy.fftpack import fftfreq
In [13]: plt.figure(figsize = (8, 6))
plt.plot(t, x, r)
plt.ylabel(Amplitude)
plt.title(Original signal)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-440-320.jpg)
![24.4 FFT IN PYTHON 439
In [14]: # FFT the signal
sig_fft = fft(x)
# copy the FFT results
sig_fft_filtered = sig_fft.copy()
# obtain the frequencies using SciPy function
freq = fftfreq(len(x), d=1./2000)
# define the cut-off frequency
cut_off = 6
# high-pass filter by assign zeros to the
# FFT amplitudes where the absolute
# frequencies smaller than the cut-off
sig_fft_filtered[np.abs(freq) cut_off] = 0
# get the filtered signal in time domain
filtered = ifft(sig_fft_filtered)
# plot the filtered signal
plt.figure(figsize = (12, 6))
plt.plot(t, filtered)
plt.xlabel(Time (s))
plt.ylabel(Amplitude)
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-441-320.jpg)
![24.5 SUMMARY AND PROBLEMS 441
24.5 SUMMARY AND PROBLEMS
24.5.1 SUMMARY
1. We learned the basics of the waves: frequency, period, amplitude, and wavelength are characteristics
of the waves.
2. The Discrete Fourier Transform (DFT) is a way to transform a signal from the time domain to the
frequency domain using the sum of a sequence of sine waves.
3. The Fast Fourier Transform (FFT) is an algorithm used to calculate the DFTs efficiently by taking
advantage of the symmetry properties in DFT.
24.5.2 PROBLEMS
1. You are asked to measure the temperature of the room for 30 days. Every day at noon you measure
the temperature and record the value. What’s the frequency of the temperature signal you get?
2. What is the relationship between the frequency and the period of a wave?
3. What is the difference between period and wavelength? What are the similarities between them?
4. What are the time domain and frequency domain representation of a signal?
5. Generate two signals: signal 1 is a sine wave with 5 Hz, amplitude 3, and phase shift 3, and signal
2 is a sine wave with 2 Hz, amplitude 2, and phase shift −2. Plot the signal for 2 s.
Test cases:
In [1]: # sampling rate
sr = 100
# sampling interval
ts = 1.0/sr
t = np.arange(0,2,ts)
freq = 5.
x = 3*np.sin(2*np.pi*freq*t + 3)
freq = 2
x += 2*np.sin(2*np.pi*freq*t - 2)
plt.figure(figsize = (8, 6))
plt.plot(t, x, r)
plt.ylabel(Amplitude)
plt.xlabel(Time (s))
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-443-320.jpg)
![442 CHAPTER 24 FOURIER TRANSFORM
6. Sample the signal you generated in Problem 5 using a sampling rate 5, 10, 20, 50, and 100 Hz, and
see the differences between different sampling rates.
7. Given a signal t = [0,1,2,3], and y = [0,3,2,0], find the real DFT of X. Write the expression
for the inverse DFT. Do not use Python to find the results. Write out the equations and calculate
the values.
8. What are the amplitude and phase of the DFT values for a signal?
9. We implemented the DFT previously. Can you implement the inverse DFT in Python similarly?
10. Use the DFT function and inverse DFT we implemented, and generate the amplitude spectrum
for the signal you generated in Problem 5. Normalize the DFT amplitude to get the correct corre-
sponding time domain amplitude.
11. Can you describe the tricks used in FFT to make the computation faster?
12. Use the fft and ifft function from scipy to repeat Problem 10.
13. Add a random normal distribution noise into the signal in Problem 5 using NumPy and plot the FFT
amplitude spectrum. What do you see? The signal with noise will be shown in the following test
case.
Test case:
In [2]: np.random.seed(10)
x_noise = x + np.random.normal(0, 2, size = len(x))
plt.figure(figsize = (8, 6))
plt.plot(t, x_noise, r)
plt.ylabel(Amplitude)
plt.xlabel(Time (s))
plt.show()](https://image.slidesharecdn.com/pythonprogrammingandnumericalmethodsaguideforengineersand-231017183839-0fbc5295/85/Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and-pdf-444-320.jpg)
Python_Programming_and_Numerical_Methods_A_Guide_for_Engineers_and.pdf
- 1. Python Programming and Numerical Methods A Guide for Engineers and Scientists Qingkai Kong Timmy Siauw Alexandre M. Bayen
- 2. ISBN: 978-0-12-819549-9 © 2021 Elsevier Inc.
- 3. Contents List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xv Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xix PART 1 INTRODUCTION TO PYTHON PROGRAMMING CHAPTER 1 Python Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Getting Started With Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1.1 Setting Up Your Working Environment . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1.2 Three Ways to Run Python Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1.2 Python as a Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.3 Managing Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 1.3.1 Managing Packages Using Package Managers . . . . . . . . . . . . . . . . . . . 15 1.3.2 Install Packages From Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 1.4 Introduction to Jupyter Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 1.4.1 Starting the Jupyter Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 1.4.2 Within the Notebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 1.4.3 How Do I Close a Notebook? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 1.4.4 Shutting Down the Jupyter Notebook Server . . . . . . . . . . . . . . . . . . . . 20 1.5 Logical Expressions and Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 1.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 1.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 1.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 CHAPTER 2 Variables and Basic Data Structures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 2.1 Variables and Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 2.2 Data Structure – String . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 2.3 Data Structure – List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 2.4 Data Structure – Tuple . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 2.5 Data Structure – Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 2.6 Data Structure – Dictionary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 2.7 Introducing NumPy Arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 2.8 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 2.8.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 2.8.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 CHAPTER 3 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 3.1 Function Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 3.1.1 Built-In Functions in Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 3.1.2 Define Your Own Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 3.2 Local Variables and Global Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
- 4. 3.3 Nested Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 3.4 Lambda Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69 3.5 Functions as Arguments to Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 3.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 3.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 3.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 CHAPTER 4 Branching Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 4.1 If-Else Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 4.2 Ternary Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 4.3 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 4.3.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 4.3.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 CHAPTER 5 Iteration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 5.1 For-Loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 5.2 While Loops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 5.3 Comprehensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 5.3.1 List Comprehension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 5.3.2 Dictionary Comprehension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 5.4 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 5.4.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 5.4.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 CHAPTER 6 Recursion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 6.1 Recursive Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105 6.2 Divide-and-Conquer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 6.2.1 Tower of Hanoi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110 6.2.2 Quicksort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 6.3 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 6.3.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 6.3.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114 CHAPTER 7 Object-Oriented Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 7.1 Introduction to OOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 7.2 Class and Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 7.2.1 Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 7.2.2 Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 7.2.3 Class vs Instance Attributes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 7.3 Inheritance, Encapsulation, and Polymorphism . . . . . . . . . . . . . . . . . . . . . . . 127 7.3.1 Inheritance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 7.3.2 Encapsulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 7.3.3 Polymorphism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 7.4 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 7.4.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132 7.4.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
- 5. CHAPTER 8 Complexity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 8.1 Complexity and Big-O Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 8.2 Complexity Matters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 8.3 The Profiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 8.3.1 Using the Magic Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139 8.3.2 Use Python Profiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140 8.3.3 Use Line Profiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 8.4 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 8.4.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 8.4.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142 CHAPTER 9 Representation of Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 9.1 Base-N and Binary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145 9.2 Floating Point Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 9.3 Round-Off Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 9.3.1 Representation Error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151 9.3.2 Round-Off Error by Floating-Point Arithmetic . . . . . . . . . . . . . . . . . . 152 9.3.3 Accumulation of Round-Off Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . 152 9.4 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 9.4.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 9.4.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 CHAPTER 10 Errors, Good Programming Practices, and Debugging . . . . . . . . . . . . . . . . 157 10.1 Error Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157 10.2 Avoiding Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 10.2.1 Plan Your Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 10.2.2 Test Everything Often . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 10.2.3 Keep Your Code Clean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 10.3 Try/Except . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163 10.4 Type Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166 10.5 Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168 10.5.1 Activating Debugger After Running Into an Exception . . . . . . . . . . . 168 10.5.2 Activating Debugger Before Running the Code . . . . . . . . . . . . . . . . 171 10.5.3 Add a Breakpoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 10.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 10.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 10.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 CHAPTER 11 Reading and Writing Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 11.1 TXT Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 11.1.1 Writing to a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 11.1.2 Appending a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176 11.1.3 Reading a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 11.1.4 Dealing With Numbers and Arrays . . . . . . . . . . . . . . . . . . . . . . . . . 178 11.2 CSV Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 11.2.1 Writing and Opening a CSV File . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
- 6. 11.2.2 Reading a CSV File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 11.2.3 Beyond NumPy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181 11.3 Pickle Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 11.3.1 Writing to a Pickle File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 11.3.2 Reading a Pickle File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 11.3.3 Reading in Python 2 Pickle File . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182 11.4 JSON Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 11.4.1 JSON Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183 11.4.2 Writing a JSON File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 11.4.3 Reading a JSON File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 11.5 HDF5 Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 11.5.1 Reading an HDF5 File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 11.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 11.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 11.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188 CHAPTER 12 Visualization and Plotting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 12.1 2D Plotting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 12.2 3D Plotting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199 12.3 Working With Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 12.4 Animations and Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212 12.5 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 12.5.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 12.5.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 CHAPTER 13 Parallelize Your Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225 13.1 Parallel Computing Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225 13.1.1 Process and Thread . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 13.1.2 Python’s GIL Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227 13.1.3 Disadvantages of Using Parallel Computing . . . . . . . . . . . . . . . . . . . 227 13.2 Multiprocessing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227 13.2.1 Visualize the Execution Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229 13.3 Using Joblib . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 13.4 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 13.4.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231 13.4.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232 PART 2 INTRODUCTION TO NUMERICAL METHODS CHAPTER 14 Linear Algebra and Systems of Linear Equations . . . . . . . . . . . . . . . . . . . 235 14.1 Basics of Linear Algebra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235 14.1.1 Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235 14.1.2 Vectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236 14.1.3 Matrices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239 14.2 Linear Transformations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244 14.3 Systems of Linear Equations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
- 7. 14.4 Solutions to Systems of Linear Equations . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 14.4.1 Gauss Elimination Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248 14.4.2 Gauss–Jordan Elimination Method . . . . . . . . . . . . . . . . . . . . . . . . . 250 14.4.3 LU Decomposition Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 251 14.4.4 Iterative Methods – Gauss–Seidel Method . . . . . . . . . . . . . . . . . . . . 253 14.5 Solving Systems of Linear Equations in Python . . . . . . . . . . . . . . . . . . . . . . 256 14.6 Matrix Inversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258 14.7 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 14.7.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260 14.7.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261 CHAPTER 15 Eigenvalues and Eigenvectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265 15.1 Eigenvalues and Eigenvectors Problem Statement . . . . . . . . . . . . . . . . . . . . 265 15.1.1 Eigenvalues and Eigenvectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265 15.1.2 The Motivation Behind Eigenvalues and Eigenvectors . . . . . . . . . . . 265 15.1.3 The Characteristic Equation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268 15.2 The Power Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269 15.2.1 Finding the Largest Eigenvalue . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269 15.2.2 The Inverse Power Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 15.2.3 The Shifted Power Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 15.3 The QR Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 15.4 Eigenvalues and Eigenvectors in Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275 15.5 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276 15.5.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276 15.5.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276 CHAPTER 16 Least Squares Regression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279 16.1 Least Squares Regression Problem Statement . . . . . . . . . . . . . . . . . . . . . . . . 279 16.2 Least Squares Regression Derivation (Linear Algebra) . . . . . . . . . . . . . . . . . 280 16.3 Least Squares Regression Derivation (Multivariate Calculus) . . . . . . . . . . . . 281 16.4 Least Squares Regression in Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283 16.4.1 Using the Direct Inverse Method . . . . . . . . . . . . . . . . . . . . . . . . . . . 283 16.4.2 Using the Pseudo-Inverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285 16.4.3 Using numpy.linalg.lstsq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285 16.4.4 Using optimize.curve_fit From SciPy . . . . . . . . . . . . . . . . . . . . . 285 16.5 Least Squares Regression for Nonlinear Functions . . . . . . . . . . . . . . . . . . . . 286 16.5.1 Log Tricks for Exponential Functions . . . . . . . . . . . . . . . . . . . . . . . 286 16.5.2 Log Tricks for Power Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288 16.5.3 Polynomial Regression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288 16.5.4 Using optimize.curve_fit From SciPy . . . . . . . . . . . . . . . . . . . . . 289 16.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290 16.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290 16.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291 CHAPTER 17 Interpolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295 17.1 Interpolation Problem Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295
- 8. 17.2 Linear Interpolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296 17.3 Cubic Spline Interpolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 297 17.4 Lagrange Polynomial Interpolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301 17.4.1 Using the Lagrange Function From SciPy . . . . . . . . . . . . . . . . . . . . 304 17.5 Newton’s Polynomial Interpolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305 17.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308 17.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308 17.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309 CHAPTER 18 Taylor Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 315 18.1 Expressing Functions Using a Taylor Series . . . . . . . . . . . . . . . . . . . . . . . . . 315 18.2 Approximations Using Taylor Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316 18.3 Discussion About Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320 18.3.1 Truncation Errors for Taylor Series . . . . . . . . . . . . . . . . . . . . . . . . . 320 18.3.2 Estimating Truncation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 321 18.3.3 Round-Off Errors for Taylor Series . . . . . . . . . . . . . . . . . . . . . . . . . 322 18.4 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323 18.4.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323 18.4.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323 CHAPTER 19 Root Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325 19.1 Root Finding Problem Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325 19.2 Tolerance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 326 19.3 Bisection Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327 19.4 Newton–Raphson Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330 19.5 Root Finding in Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332 19.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333 19.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333 19.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333 CHAPTER 20 Numerical Differentiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337 20.1 Numerical Differentiation Problem Statement . . . . . . . . . . . . . . . . . . . . . . . 337 20.2 Using Finite Difference to Approximate Derivatives . . . . . . . . . . . . . . . . . . . 338 20.2.1 Using Finite Difference to Approximate Derivatives With Taylor Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338 20.3 Approximating of Higher Order Derivatives . . . . . . . . . . . . . . . . . . . . . . . . . 344 20.4 Numerical Differentiation With Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345 20.5 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347 20.5.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347 20.5.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 348 CHAPTER 21 Numerical Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353 21.1 Numerical Integration Problem Statement . . . . . . . . . . . . . . . . . . . . . . . . . . 353 21.2 Riemann Integral . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354 21.3 Trapezoid Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 356 21.4 Simpson’s Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 359 21.5 Computing Integrals in Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363
- 9. 21.6 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365 21.6.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365 21.6.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365 CHAPTER 22 Ordinary Differential Equations (ODEs) Initial-Value Problems . . . . . . . . . . 371 22.1 ODE Initial Value Problem Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371 22.2 Reduction of Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374 22.3 The Euler Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375 22.4 Numerical Error and Instability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380 22.5 Predictor–Corrector and Runge–Kutta Methods . . . . . . . . . . . . . . . . . . . . . . 382 22.5.1 Predictor–Corrector Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382 22.5.2 Runge–Kutta Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 383 22.6 Python ODE Solvers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384 22.7 Advanced Topics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389 22.7.1 Multistep Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389 22.7.2 Stiffness ODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389 22.8 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390 22.8.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390 22.8.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 391 CHAPTER 23 Boundary-Value Problems for Ordinary Differential Equations (ODEs) . . . . . 399 23.1 ODE Boundary Value Problem Statement . . . . . . . . . . . . . . . . . . . . . . . . . . 399 23.2 The Shooting Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 401 23.3 The Finite Difference Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406 23.4 Numerical Error and Instability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 411 23.5 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412 23.5.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412 23.5.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 412 CHAPTER 24 Fourier Transform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415 24.1 The Basics of Waves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415 24.1.1 Modeling a Wave Using Mathematical Tools . . . . . . . . . . . . . . . . . . 415 24.1.2 Characteristics of a Wave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 417 24.2 Discrete Fourier Transform (DFT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421 24.2.1 DFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 422 24.2.2 The Inverse DFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 426 24.2.3 The Limit of DFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 427 24.3 Fast Fourier Transform (FFT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428 24.3.1 Symmetries in the DFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428 24.3.2 Tricks in FFT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 428 24.4 FFT in Python . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432 24.4.1 FFT in NumPy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 432 24.4.2 FFT in SciPy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434 24.4.3 More Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 435 24.5 Summary and Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441 24.5.1 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441
- 10. 24.5.2 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 441 Appendix A Getting Started With Python in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . 445 A.1 Getting Started With Python in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445 A.1.1 Setting Up Your Working Environment in Windows . . . . . . . . . . . . . . 445 A.1.2 Three Ways to Run Python Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . 447 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 453
- 11. Fig. 1.1 The Miniconda download page; choose the installer based on your operating system. 4 Fig. 1.2 Screen shot of running the installer in a terminal. 5 Fig. 1.3 The default installation location of your file system. 5 Fig. 1.4 Quick way to check if Miniconda was installed successfully and the programs are run properly. 6 Fig. 1.5 Installation process for the packages that will be used in the rest of the book. 6 Fig. 1.6 Run “Hello World” in IPython shell by typing the command. “print” is a function that is discussed later in the book that will print out anything within the parentheses. 7 Fig. 1.7 Example of a Python script file example using Visual Studio Code. Type in the commands you want to execute and save the file with a proper name. 8 Fig. 1.8 To run the Python script from command line, type “python hello_world.py”. This line tells Python to execute the commands that saved in this file. 8 Fig. 1.9 To launch a Jupyter notebook server, type jupyter notebook in the command line, which will open a browser page as shown here. Click the “New” button on the top right and choose “Python3”. This will create a Python notebook from which to run Python code. 9 Fig. 1.10 To run the Hello World example within Jupyter notebook, type the command in the code cell (the grey boxes) and press Shift + Enter to execute it. 10 Fig. 1.11 An example demonstrating the interactive search for functions within IPython by typing TAB after the dot. The grey box shown all available functions. 12 Fig. 1.12 The help document of pip after executing pip help. 16 Fig. 1.13 Using pip list to show all the packages installed on your machine. 17 Fig. 1.14 Using pip show to get detailed information about a installed package. 17 Fig. 1.15 The Jupyter notebook dashboard after launching the server. Red arrows (light grey arrows in print version) are pointing to you the most common features in the dashboard. 19 Fig. 1.16 A quick view of a notebook. The Header of the notebook shows the name of the notebook. The menu has various drop-down lists that let you access to all the functionalities of the notebook. The tool bar provides you some shortcuts for the commonly used functionalities. 20 Fig. 1.17 Truth tables for the logical and/or. 22 Fig. 1.18 Truth tables for the logical XOR. 25 Fig. 2.1 String index for the example of "Hello World". 31 Fig. 2.2 Example of list index. 36 Fig. 5.1 Interrupt the kernel by pressing the little square. 99 Fig. 6.1 Recursion tree for factorial(3). 107 Fig. 6.2 Recursion tree for factorial(5). 108 Fig. 6.3 Illustration of the Tower of Hanoi: In eight steps, all disks are transported from pole 1 to pole 3, one at a time, by moving only the disk at the top of the current stack, and placing only smaller disks on top of larger disks. 111 Fig. 6.4 Breakdown of one iteration of the recursive solution of the Tower of Hanoi problem. 111 Fig. 6.5 Pascal’s triangle. 118 Fig. 8.1 Illustration of running time for complexity log(n), n, and n2. 138 Figures
- 12. Fig. 8.2 The profiling result from prun. 141 Fig. 8.3 The line by line profiling result from line_profiler. 142 Fig. 9.1 Binary addition. 146 Fig. 9.2 Binary multiplication. 147 Fig. 9.3 Illustration of −12.0 that is represented in computer with 64-bit. Each square is one bit, with the green square representing 1 and grey square as zero. 148 Fig. 11.1 The content in the text file we write. 177 Fig. 11.2 Append a line to the end of an existing file. 177 Fig. 11.3 The NumPy array we saved in the file. 179 Fig. 11.4 Open the csv file using Microsoft Excel. 181 Fig. 11.5 Open the csv file using a text editor. 181 Fig. 12.1 Plot of x versus y. 190 Fig. 12.2 Plot of the function f (x) = x2 for −5 ≤ x ≤ 5. 191 Fig. 12.3 Plot of the function f (x) = x2 for −5 ≤ x ≤ 5 using dashed line. 192 Fig. 12.4 Using different colors and markers. 192 Fig. 12.5 Adding title and axis labels to a figure. 193 Fig. 12.6 Using seaborn-poster style. 194 Fig. 12.7 Using a legend in the figure. 195 Fig. 12.8 Changing limits of the figure and turning on grid. 196 Fig. 12.9 Different type of plots. 198 Fig. 12.10 Saving a figure. 199 Fig. 12.11 3D axes. 200 Fig. 12.12 3D scatter plot. 202 Fig. 12.13 3D surface plot. 204 Fig. 12.14 3D wireframe and surface plot. 205 Fig. 12.15 Simple world map. 206 Fig. 12.16 World map with background. 207 Fig. 12.17 Simple US map. 208 Fig. 12.18 US map with various features. 209 Fig. 12.19 Bay area map with higher resolution. 210 Fig. 12.20 Add more entities on the map. 211 Fig. 13.1 Parallel computing vs. serial computing. 226 Fig. 13.2 The hardware on the author’s laptop with multicore processor. 226 Fig. 14.1 Graph for Problem 12. 263 Fig. 16.1 Illustration of the L2 projection of Y on the range of A. 281 Fig. 17.1 Illustration of the interpolation problem: estimate the value of a function in-between data points. 295 Fig. 19.1 Illustration of the intermediate value theorem. If sign(f (a)) and sign(f (b)) are not equal, then there exists a c in (a,b) such that f (c) = 0. 327 Fig. 19.2 Illustration of the bisection method. The sign of f (m) is checked to determine if the root is contained in the interval (a,m) or (m,b). This new interval is used in the next iteration of the bisection method; in the case depicted in the figure, the root is in the interval (m,b). 328 Fig. 19.3 Illustration of Newton step for a smooth function, g(x). 330 Fig. 20.1 Numerical grid used to approximate functions. 337
- 13. Fig. 20.2 Finite difference approximation of the derivative. 339 Fig. 20.3 Illustration of the forward difference, the backward difference, and the central difference. Note the difference in slopes depending on the method used. 341 Fig. 21.1 Illustration of the integral. The integral from a to b of the function f is the area below the curve (shaded in grey). 353 Fig. 21.2 Illustration of the trapezoid integral procedure. The area below the curve is approximated by a sum of areas of trapezoids that approximate the function. 357 Fig. 21.3 Illustration of the Simpson integral formula. Discretization points are grouped by three, and a parabola is fit between the three points. This can be done by a typical interpolation polynomial. The area under the curve is approximated by the area under the parabola. 360 Fig. 21.4 Illustration of the accounting procedure to approximate the function f by the Simpson rule for the entire interval [a,b]. 361 Fig. 22.1 Pendulum system. 372 Fig. 22.2 The illustration of the explicit Euler method. 376 Fig. 22.3 The illustration of the stiffness equation. 390 Fig. 23.1 Heat flow in a pin fin. The variable L is the length of the pin fin, which starts at x = 0 and finishes at x = L. The temperatures at two ends are T0 and TL, with Ts being the surrounding environment temperature. 400 Fig. 23.2 Target shooting analogy to the shooting method. 401 Fig. 23.3 Illustration of the finite difference method. 406 Fig. 24.1 Period and amplitude of a sine wave. 418 Fig. 24.2 Wavelength and amplitude of a sine wave. 418 Fig. 24.3 More general wave form. 422 Fig. 24.4 Illustration of Fourier transform with time and frequency domain signal. 422 Fig. 24.5 Signal generated before with 3 frequencies. 433 Fig. A.1 The Miniconda download page, choose the installer based on your operating system. 446 Fig. A.2 Screen shot of running the installer in Anaconda prompt. 446 Fig. A.3 The default installation location of your file system. 447 Fig. A.4 Open the Anaconda prompt from the start menu. 448 Fig. A.5 A quick way to check if your installed Miniconda runs properly. 449 Fig. A.6 Installation process for the packages that will be used in the rest of the book. 449 Fig. A.7 Run "Hello World" in IPython shell by typing the command, “print” is a function that we will learn to print out anything within the parentheses. 450 Fig. A.8 A Python script file example using Visual Studio Code. You type in the commands you want to execute and save the file with a proper name. 450 Fig. A.9 To run the Python script from command line, we can type “python hello_world.py”. This line tells Python that we will execute the commands that were saved in this file. 451 Fig. A.10 To launch a Jupyter notebook server, type jupyter notebook in the command line, which will open a browser page as shown here. Click “New” button at the top right corner, and choose “Python3” which will create a Python notebook to run Python code. 451 Fig. A.11 Run the Hello World example within Jupyter notebook. Type the command in the code cell (the grey boxes) and press Shift + Enter to execute it. 452
- 14. Preface PURPOSE Because programming has become an essential component of engineering, science, medicine, media, business, finance, and many other fields, it is important for scientists and engineers to have a basic foundation in computer programming to be competitive. This book introduces programming to students from a wide range of backgrounds and gives them programming and mathematical tools that will be useful throughout their careers. For the most part, this book follows the standard material taught at the University of California, Berkeley, in the class E7: Introduction to computer programming for scientists and engineers. This class is taken by most science and engineering freshmen in the College of Engineering, and by un- dergraduate students from other disciplines, including physics, biology, Earth, and cognitive sciences. The course was originally taught in Matlab, but with the recent trend of the data science movement at Berkeley, the Division of Data Sciences agreed on and supported the transform of this course into a Python-oriented course to prepare students from different fields for further data science courses. The course has two fundamental goals: • Teach Python programming to science and engineering students who do not have prior exposure to programming. • Introduce a variety of numerical analysis tools that are useful for solving science and engineering problems. These two goals are reflected in the two parts of this book: • Introduction to Programming for Scientists and Engineers • Introduction to Numerical Methods This book is written based on the book An Introduction to MATLAB® Programming and Numerical Methods for Engineers by Timmy Siauw and Alexandre Bayen. The current book was first written in Jupyter Notebook for interactive purposes, and then converted to LaTeX. Most of the codes showing in this book are from the Jupyter Notebook code cells, which can be run directly in the notebook cell. All the Jupyter Notebook codes can be found at pythonnumericalmethods.berkeley.edu. Because this book covers such a wide range of topics, no topic is covered in great depth. Each chapter has been designed to be covered in at most two lecture hours, even though there are entire semester courses dedicated to these same chapters. Rather than an in-depth treatment, this book is intended to give students a wide breadth of programming knowledge and mathematical vocabulary on which they can expand. We believe that just like learning a new foreign language, learning to program can be fun and illuminating. We hope that as you journey through this book, you will agree.
- 15. PREREQUISITES This book is designed to introduce programming and numerical methods to students who have abso- lutely no prior experience with computer programming. We hope this underlying concept is reflected in the pace, tone, and content of the text. For the purpose of programming, we assume the reader has the following prerequisite knowledge: • Understanding of the computer monitor and keyboard/mouse input devices • Understanding of the folder structure used to store files in most operating systems For the mathematical portions of the text, we assume the reader has the following prerequisite knowledge: • High school level algebra and trigonometry • Introductory, college-level calculus That’s it! Anything in the text that assumes more than this level of knowledge is our mistake, and we apologize in advance for any confusion of instances where concepts are unclear. ORGANIZATION Part 1 teaches the fundamental concepts of programming. Chapter 1 introduces the reader to Python and Jupyter Notebook. Chapters 2 through 7 teach the fundamentals of programming. Proficiency in the material from these chapters should provide enough background to enable you to program almost anything you imagine. Chapter 8 provides the theory that characterizes computer programs based on how fast they run, and Chapter 9 gives insights into how computers represent numbers and their effect on arithmetic. Chapter 10 provides useful tips on good programming practices to limit mistakes from popping up in computer code, and tells the user how to find them when they do. Chapter 11 explains how to store data over the long term and how to make results from Python useful outside of Python (i.e., for other programs). Chapter 12 introduces Python’s graphical features that allow you to produce plots and charts, which is a really useful feature for engineers and scientists to visualize results. Fi- nally, Chapter 13 introduces basics about the parallel programming in Python to take advantage of the multicore design of today’s computers. Part 2 gives an overview of a variety of numerical methods that are useful for engineers. Chapter 14 gives a crash course in linear algebra. Although theoretical in nature, linear algebra is the single most critical concept for understanding many advanced engineering topics. Chapter 15 discusses eigenval- ues and eigenvectors, which are important tools in engineering and science, and the ways we can utilize them. Chapter 16 is about regression, a mathematical term that is simply a method of fitting theoretical models to observed data. Chapter 17 is about inferring the value of a function between data points, a framework known as “interpolation.” Chapter 18 introduces the idea of approximating functions with polynomials, which can be useful for simplifying complicated functions. Chapter 19 teaches two algo- rithms for finding roots of functions, that is, finding an x such that f (x) = 0, where f is a function. Chapters 20 and 21 cover methods of approximating the derivative and integral of a function, respec- tively. Chapters 22 and Chapter 23 introduce a mathematical model type called “ordinary differential equations.” These two chapters focus on different problems, i.e., initial value problems and bound-
- 16. ary value problems, and present several methods for finding their solutions. Chapter 24 introduces the concepts of “discrete Fourier transform” and “fast Fourier transform” and their use in digital signal processing. HOW TO READ THIS BOOK? Learning to program is all about practice, practice, and practice. Just like learning a new language, there is no way to master computer programming without engaging with the material, internalizing it, and putting it into constant use. We suggest that as you go through the text, you should ideally have Jupyter Notebook open or the interactive website in front of you, and run all of the numerous examples that are provided. Go slowly. Taking the time to understand what Python is doing in every example will pay large dividends compared to “powering through” the text like a novel. In terms of the text itself, Chapters 1 through 5 should be read and understood first since they cover the fundamentals of programming. Chapters 6 through 11 can be covered in any order. Chapter 12 and 13 on plotting and parallel programming are must-read chapters if you wish to improve your problem-solving skills. In Part 2, Chapter 14 should be read first since subsequent chapters rely on linear algebraic concepts. The remaining chapters can be read in any order. We do suggest reading Chapters 17 and 18 before Chapters 19 and 20. Throughout the text, there are words written in boldface. When you encounter one of them, you should take the time to commit the word to memory and understand its meaning in the context of the material being presented. To keep the text from running on and overwhelming the reader, we have punctuated the material with smaller blocks of text. Different blocks of text have different functions. For example, TRY IT! This is the most common block in the text. It will usually have a short description of a problem and/or an activity. We strongly recommend that you actually “try” all of these in Python. TIP! This block gives some advice that we believe will make programming easier. Note that the blocks do not contain any new material that is essential for understanding the key concepts of the text. EXAMPLE: These sections are concrete examples of new concepts. They are designed to help you think about new concepts; however, they do not necessarily need to be tried. WARNING! Learning to program can have many pitfalls. These sections contain information that will help you avoid confusion, developing bad habits, or misunderstanding key concepts. WHAT IS HAPPENING? These sections follow Python in scrutinizing detail to help you under- stand what goes on when Python executes programs. CONSTRUCTION: In programming there are standard architectures that are reserved to perform common and important tasks. These sections outline these architectures and how to use them. There are two sections that end every chapter. The Summary section lists the main take-aways of the chapter. These points should be intuitive to you by the end of the chapter. The Problems section gives exercises that will reinforce concepts from the chapter. As one final note, there are many ways of doing the same thing in Python. Although at first this can seem like a useful feature, it can make learning Python confusing or overload the programming novice with possibilities when the task is actually straightforward. This book presents a single way of performing a task to provide structure for the new user’s learning experience and to keep that user on
- 17. track and from being inundated by extraneous information. You may discover solutions that differ from the text’s solutions but solve the problem just the same or even better! We encourage you to find these alternative methods, and use your own judgment to given the tools we have provided herein to decide which way is better. We hope you enjoy the book! WHY PYTHON? Python is a high-level and general-purpose computer language that lends itself to many applications. As it is beginner friendly, we hope that you will find it easy to learn and that it is fun to play with it. The language itself is very flexible, which means that there are no hard rules on how to build features, and you will find that there are several ways to solve the same problem. Perhaps its great strength is that it has a great user community that supports it, with lots of packages to essentially plug in and go with very little efforts. With the ongoing popular trend, Python suits the goals of data science today. Python is free (open source), and most of the packages are also free for use. The idea of an open source programming language makes a huge difference in the learning curve. Not only you can use these packages for free, but also you can learn many advanced skills from the source code of these packages developed by other users. We hope you can enjoy your learning of Python presented here and use it in your work and life. PYTHON AND PACKAGE VERSIONS This book was written using Python 3. Here is a list of packages with their versions that used in this book. As these packages are constantly under development, some features may be added, removed, or changed in the versions on your computer: • jupyter – 1.0.0 • IPython – 7.5.0 • NumPy – 1.16.4 • SciPy – 1.2.1 • h5py – 2.9.0 • matplotlib – 3.1.0 • cartopy – 0.17.0 • joblib – 0.13.2
- 18. 1 PYTHON BASICS 1.1 Getting Started With Python......................................................................................... 3 1.1.1 Setting Up Your Working Environment ............................................................. 3 1.1.2 Three Ways to Run Python Code .................................................................... 7 1.2 Python as a Calculator ............................................................................................... 9 1.3 Managing Packages.................................................................................................. 15 1.3.1 Managing Packages Using Package Managers .................................................... 15 Install a Package ............................................................................................. 15 Upgrade a Package.......................................................................................... 16 Uninstall a Package.......................................................................................... 16 Other Useful Commands ................................................................................... 16 1.3.2 Install Packages From Source ....................................................................... 18 1.4 Introduction to Jupyter Notebook................................................................................... 18 1.4.1 Starting the Jupyter Notebook....................................................................... 18 1.4.2 Within the Notebook .................................................................................. 19 1.4.3 How Do I Close a Notebook?......................................................................... 20 1.4.4 Shutting Down the Jupyter Notebook Server ...................................................... 20 1.5 Logical Expressions and Operators ................................................................................ 20 1.6 Summary and Problems.............................................................................................. 23 1.6.1 Summary ............................................................................................... 23 1.6.2 Problems ............................................................................................... 23 1.1 GETTING STARTED WITH PYTHON 1.1.1 SETTING UP YOUR WORKING ENVIRONMENT The first step in using Python is to set up the working environment on the computer. This section introduces the initial processes to get it started. There are different ways to install Python and related packages, and we recommend using Ana- conda1 or Miniconda2 to install and manage your packages. Depending on the operating system (OS) you are using (i.e., Windows, Mac OS X, or Linux), you will need to download a specific installer for your machine. Both Anaconda and Miniconda are aimed at providing easy ways to manage the Python work environment in scientific computing and data sciences. 1 https://www.anaconda.com/download/. 2 https://conda.io/miniconda.html.
- 19. 4 CHAPTER 1 PYTHON BASICS FIGURE 1.1 The Miniconda download page; choose the installer based on your operating system. In this example, we will use Mac OS X to show you how to install Miniconda (the process of which is very similar to installing on Linux). For Windows users, please skip the rest of this section and read Appendix A on the installation instructions. The main differences between Anaconda and Miniconda are as follows: • Anaconda is a complete distribution framework that includes the Python interpreter, package man- ager, and the commonly used packages in scientific computing. • Miniconda is a “light” version of Anaconda that does not include the commonly used packages. You need to install all the different packages yourself, but it does include the Python interpreter and package manager. The option we’ve chosen here is Miniconda, and we will install only those packages that we will need. The Miniconda install process is described below: Step 1. Download the Miniconda installer from the website.3 The download page is shown in Fig. 1.1. Here you can choose a different installer based on your OS. In this example, we choose Mac OS X and Python 3.7. Step 2. Open a terminal (on a Mac, you can search for “terminal” in Spotlight search). Run the installer from the terminal using the commands showing in Fig. 1.2. After you run the installer, follow the guide to finish the installation. Note that although you can change the installation location by giving it an alternative location on your machine, the default is your home directory (Fig. 1.3). After installation, you can check the installed packages by typing the commands shown in Fig. 1.4. 3 https://conda.io/miniconda.html.
- 20. 1.1 GETTING STARTED WITH PYTHON 5 FIGURE 1.2 Screen shot of running the installer in a terminal. FIGURE 1.3 The default installation location of your file system.
- 21. 6 CHAPTER 1 PYTHON BASICS FIGURE 1.4 Quick way to check if Miniconda was installed successfully and the programs are run properly. FIGURE 1.5 Installation process for the packages that will be used in the rest of the book.
- 22. 1.1 GETTING STARTED WITH PYTHON 7 Step 3. As shown in Fig. 1.5, install the basic packages used in this book: ipython, numpy, scipy, pandas, matplotlib, and jupyter notebook. In a later section, we will talk about the management of the packages using pip and conda. 1.1.2 THREE WAYS TO RUN PYTHON CODE There are different ways to run Python code and they all have different usages. This section will intro- duce the three different ways to get you started. Using the Python shell or IPython shell. The easiest way to run Python code is through the Python shell or IPython shell (which stands for Interactive Python). The IPython shell is more powerful than the Python shell, including features such as Tab autocompletion, color-highlighted error messages, ba- sic UNIX shell integration, and so on. Since we’ve just installed IPython, let us try to run the “Hello World” example using it. To launch the IPython shell, we begin by typing ipython in a terminal (see Fig. 1.6). Then we run a Python command by typing it into the shell and pressing Enter. We imme- diately see the results from the command. For example, we can print out “Hello World” by using the print function in Python, as shown in Fig. 1.6. Run a Python script/file from the command line. The second way to run Python code is to put all the commands into a file and save it as a file with the extension .py; the extension of the file can be anything, but by convention, it is usually .py. For example, use your favorite text editor (here we used FIGURE 1.6 Run “Hello World” in IPython shell by typing the command. “print” is a function that is discussed later in the book that will print out anything within the parentheses.
- 23. 8 CHAPTER 1 PYTHON BASICS FIGURE 1.7 Example of a Python script file example using Visual Studio Code. Type in the commands you want to execute and save the file with a proper name. FIGURE 1.8 To run the Python script from command line, type “python hello_world.py”. This line tells Python to execute the commands that saved in this file. Visual Studio Code4) to type the commands you wish to execute in a file called hello_world.py, as shown in Fig. 1.7, which is then run from terminal (see Fig. 1.8). 4 https://code.visualstudio.com.
- 24. 1.2 PYTHON AS A CALCULATOR 9 FIGURE 1.9 To launch a Jupyter notebook server, type jupyter notebook in the command line, which will open a browser page as shown here. Click the “New” button on the top right and choose “Python3”. This will create a Python notebook from which to run Python code. Using Jupyter Notebook. The third way to run Python is through Jupyter Notebook, which is a very powerful browser-based Python environment. We will discuss this in details later in this chapter. The example presented here is to demonstrate how quickly we can run the code using Jupyter notebook. If you type jupyter notebook in the terminal, a local web page will pop up; use the upper right button to create a new Python3 notebook, as shown in Fig. 1.9. Running code in Jupyter notebook is easy. Type your code in the cell and press Shift + Enter to run the cell; the results will be shown below the code (Fig. 1.10). 1.2 PYTHON AS A CALCULATOR Python contains functions found in any standard graphing calculator. An arithmetic operation is either addition, subtraction, multiplication, division, or powers between two numbers. An arithmetic opera- tor is a symbol that Python has reserved to mean one of the aforementioned operations. These symbols are + for addition, - for subtraction, * for multiplication, / for division, and ** for exponentiation. An instruction or operation is executed when it is resolved by the computer. An instruction is executed at the command prompt by typing it where you see the >>> symbol appears in the Python shell (or the In [1]: sign in IPython) and then pressing Enter. In the case of the Jupyter notebook, type the operation in the code cell and Shift + Enter. Since we will use Jupyter notebook for the rest of the book, to familiarize yourself with all the different options, all examples in this section will be shown in the IPython shell – see the previous section for how to begin working in IPython. For Windows users, you will use the Anaconda prompt shown in the Appendix A instead of using the terminal.
- 25. 10 CHAPTER 1 PYTHON BASICS FIGURE 1.10 To run the Hello World example within Jupyter notebook, type the command in the code cell (the grey boxes) and press Shift + Enter to execute it. TRY IT! Compute the sum of 1 and 2. In [1]: 1 + 2 Out[1]: 3 An order of operations is a standard order of precedence that different operations have in re- lationship to one another. Python utilizes the same order of operations you learned in grade school. Powers are executed before multiplication and division, which are executed before addition and subtraction. Parentheses () can also be used in Python to supersede the standard order of opera- tions. TRY IT! Compute 3×4 (22+4/2) . In [2]: (3*4)/(2**2 + 4/2) Out[2]: 2.0 TIP! Note that Out[2] is the resulting value of the last operation executed. Use the underscore symbol _ to represent this result to break up complicated expressions into simpler commands.
- 26. 1.2 PYTHON AS A CALCULATOR 11 TRY IT! Compute 3 divided by 4, then multiply the result by 2, and then raise the result to the 3rd power. In [3]: 3/4 Out[3]: 0.75 In [4]: _*2 Out[4]: 1.5 In [5]: _**3 Out[5]: 3.375 Python has many basic arithmetic functions like sin, cos, tan, asin, acos, atan, exp, log, log10, and sqrt stored in a module (explained later in this chapter) called math. First, import this module to access to these functions. In [6]: import math TIP! In Jupyter notebook and IPython, you can have a quick view of what is in the module by typing the module name + dot + TAB. Furthermore, if you type the first few letters of the function and press TAB, it will automatically complete the function, which is known as “TAB completion” (an example is shown in Fig. 1.11). These mathematical functions are executed via module.function. The inputs to them are always placed inside of parentheses that are connected to the function name. For trigonometric functions, it is useful to have the value of π available. You can call this value at any time by typing math.pi in the IPython shell. TRY IT! Find the square root of 4. In [7]: math.sqrt(4) Out[7]: 2.0 TRY IT! Compute the sin(π 2 ). In [8]: math.sin(math.pi/2) Out[8]: 1.0 Python composes functions as expected, with the innermost function being executed first. The same holds true for function calls that are composed with arithmetic operations.
- 27. 12 CHAPTER 1 PYTHON BASICS FIGURE 1.11 An example demonstrating the interactive search for functions within IPython by typing TAB after the dot. The grey box shown all available functions. TRY IT! Compute elog 10. In [9]: math.exp(math.log(10)) Out[9]: 10.000000000000002 Note that the log function in Python is loge, or the natural logarithm. It is not log10. To use log10, use the function math.log10. TIP! You can see the result above should be 10, but in Python, it shows as 10.000000000000002. This is due to Python’s number approximation, discussed in Chapter 9. TRY IT! Compute e 3 4 . In [10]: math.exp(3/4) Out[10]: 2.117000016612675 TIP! Using the UP ARROW in the command prompt recalls previously executed commands that were executed. If you accidentally type a command incorrectly, you can use the UP ARROW to recall it, and then edit it instead of retyping the entire line. Often when using a function in Python, you need help specific to the context of the function. In IPython or Jupyter notebook, the description of any function is available by typing function?; the
- 28. 1.2 PYTHON AS A CALCULATOR 13 question mark is a shortcut for help. If you see a function you are unfamiliar with, it is good practice to use the question mark before asking your instructors what a specific function does. TRY IT! Use the question mark to find the definition of the factorial function. In [11]: math.factorial? Signature: math.factorial(x, /) Docstring: Find x!. Raise a ValueError if x is negative or non-integral. Type: builtin_function_or_method Python will raise an ZeroDivisionError when the expression 1/0 (which is infinity) appears, to remind you. TRY IT! 1/0. In [12]: 1/0 ---------------------------------------------------------------------- ZeroDivisionError Traceback (most recent call last) <ipython-input-12-9e1622b385b6> in <module>() ----> 1 1/0 ZeroDivisionError: division by zero You can type math.inf at the command prompt to denote infinity or math.nan to denote something that is not a number that you wish to be handled as a number. If this is confusing, this distinction can be skipped for now; it will be explained in detail later. Finally, Python can also handle imaginary numbers. TRY IT! Type 1/∞, and ∞ ∗ 2 to verify that Python handles infinity as you would expect. In [13]: 1/math.inf Out[13]: 0.0 In [14]: math.inf * 2 Out[14]: inf TRY IT! Compute ∞/∞. In [15]: math.inf/math.inf Out[15]: nan
- 29. 14 CHAPTER 1 PYTHON BASICS TRY IT! Compute sum 2 + 5i. In [16]: 2 + 5j Out[16]: (2+5j) Note that in Python the imaginary part is represented by j instead of i. Another way to represent a complex number in Python is to use the complex function. In [17]: complex(2,5) Out[17]: (2+5j) Python can also handle scientific notation using the letter e between two numbers. For example, 1e6 = 1000000 and 1e − 3 = 0.001. TRY IT! Compute the number of seconds in 3 years using scientific notation. In [18]: 3e0*3.65e2*2.4e1*3.6e3 Out[18]: 94608000.0 TIP! Every time a function in math module is typed, it is always typed math.function_name. Alternatively, there is a simpler way. For example, if we want to use sin and log from math module, we can import them as follows: from math import sin, log. With this modified import statement, when using these functions, use them directly, e.g., sin(20) or log(10). The previous examples demonstrated how to use Python as a calculator to deal with different data values. In Python, there are additional data types needed for numerical values: int, float, and complex are the types associated with these values. • int: Integers, such as 1,2,3,... • float: Floating-point numbers, such as 3.2,6.4,... • complex: Complex numbers, such as 2 + 5j,3 + 2j,... Use function type to check the data type for different values. TRY IT! Find out the data type for 1234. In [19]: type(1234) Out[19]: int
- 30. 1.3 MANAGING PACKAGES 15 TRY IT! Find out the data type for 3.14. In [20]: type(3.14) Out[20]: float TRY IT! Find out the data type for 2 + 5j. In [21]: type(2 + 5j) Out[21]: complex Of course, there are other data types, such as boolean, string, and so on; these are introduced in Chapter 2. This section demonstrated how to use Python as a calculator by running commands in the IPython shell. Before we move on to more complex coding, let us go ahead to learn more about the managing packages, i.e., how to install, upgrade, and remove the packages. 1.3 MANAGING PACKAGES One feature that makes Python really great is the various packages/modules developed by the user community. Most of the time, when you want to apply some functions or algorithms, often you will find multiple packages already available. All you need to do is to install the packages and use them in your code. Managing packages is one of the most important skills you need to learn to take fully advantage of Python. This section will show you how to manage packages in Python. 1.3.1 MANAGING PACKAGES USING PACKAGE MANAGERS At the beginning of this book, we installed some packages using pip by typing pip install pack- age_name. This is currently the most common and easy way to install Python packages. Pip is a package manager that automates the process of installing, updating, and removing the packages. It can install packages published on Python Package Index (PyPI).5 If you install Miniconda, pip will be available for you to use as well. Use pip help to get help for different commands, as shown in Fig. 1.12. The most used commands usually include: installing, upgrading, and uninstalling a package. Install a Package To install the latest version of a package: pip install package_name To install a specific version, e.g., install version 1.5: 5 https://pypi.org/.
- 31. 16 CHAPTER 1 PYTHON BASICS FIGURE 1.12 The help document of pip after executing pip help. pip install package_name==1.5 Pip will install the package as well as the other dependent packages for you to use. Upgrade a Package To upgrade an installed package to the latest version from PyPI. pip install --upgrade package_name or simply pip install -U package_name Uninstall a Package pip uninstall package_name Other Useful Commands Other useful commands that provide information about the installed packages are available. As shown in Fig. 1.13, if you want to get a list of all the installed packages, you can use the command: pip list If you want to know more about an installed package, such as the location of the package, the required other dependent packages, etc., you can use the following command as shown in Fig. 1.14: pip show package_name
- 32. 1.3 MANAGING PACKAGES 17 FIGURE 1.13 Using pip list to show all the packages installed on your machine. FIGURE 1.14 Using pip show to get detailed information about a installed package. Other package managers exist, e.g., conda (which is included with the Anaconda distribution and is similar to pip in terms of its capability); therefore, it is not discussed further, and you can find more information by reading the documentation.6 6 https://conda.io/docs/user-guide/getting-started.html.
- 33. 18 CHAPTER 1 PYTHON BASICS 1.3.2 INSTALL PACKAGES FROM SOURCE Occasionally, you will need to download the source file for some project that is not in the PyPI. In that case, you need to install the package in a different way. In the standard install, after uncompressing the file you downloaded, usually you can see the folder contains a setup script setup.py, and a file named README, which documents how to build and install the module. For most cases, you just need to run one command from the terminal to install the package: python setup.py install Note that Windows users will need to run the following command from a command prompt window: setup.py install Now you know how to manage the packages in Python, which is a big step forward in using Python correctly. In the next section, we will talk more about the Jupyter notebook that we used for the rest of the book. 1.4 INTRODUCTION TO JUPYTER NOTEBOOK You have already used the IPython shell to run the code line by line. What if you have more lines and want to run it block by block, and share it easily with others? In this case, the IPython shell is not a good option. This section will introduce you another option, Jupyter notebook, which we will use for the rest of the book. From the Jupyter notebook website7: The Jupyter notebook is an open-source web application that allows you to create and share docu- ments that contain live code, equations, visualizations and narrative text. Uses include: data cleaning and transformation, numerical simulation, statistical modeling, data visualization, machine learning, and much more. Jupyter notebook runs using your browser; it can run locally on your machine as a local server or remotely on a server. The reason it is called notebook is because it can contain live code, rich text elements such as equations, links, images, tables, and so on. Therefore, you can have a very nice note- book to describe your idea and the live code all in one document. Thus Jupyter notebook has become a popular way to test ideas, write blogs, papers, and even books. In fact, this book was written entirely within Jupyter notebook and converted to LaTeX afterwards. Although the Jupyter notebook has many other advantages, to get you started we will only cover the basics here. 1.4.1 STARTING THE JUPYTER NOTEBOOK As seen earlier, we can start Jupyter notebook by typing the following command in our terminal (for Windows users, type this command in the Anaconda prompt) in the folder where you want to locate the notebooks: jupyter notebook 7 http://jupyter.org/.
- 34. 1.4 INTRODUCTION TO JUPYTER NOTEBOOK 19 FIGURE 1.15 The Jupyter notebook dashboard after launching the server. Red arrows (light grey arrows in print version) are pointing to you the most common features in the dashboard. The Jupyter notebook dashboard will appear in the browser as shown in Fig. 1.15. The default address is: http://localhost:8888, which is at the localhost with port 8888, as shown in Fig. 1.15 (if the port 8888 is taken by other Jupyter notebooks, then it will automatically use another port). This is essentially creating a local server to run in your browser. When you navigate to the browser, you will see a dashboard. In this dashboard, you will see some important features labeled in red (light grey in print version). To create a new Python notebook, select “Python 3,” which is usually called Python kernel. You can use Jupyter to run other kernels as well. For example, in Fig. 1.15, there are Bash and Julia kernels that you can run as a notebook, but you will need to install them first. We will use the Python kernel, so choose Python 3 kernel. 1.4.2 WITHIN THE NOTEBOOK After you create a new Python notebook, it will look like the one shown in Fig. 1.16. The toolbar and menu are self-explanatory. If you hover the cursor over the toolbar, it will show you the function of the tool. When you press the menu, it will show you the drop down list. Some important things to know about the Jupyter notebook are as follows: a cell is the place you can write your code or text in. If you run this cell, it only executes code within this cell block. Two important cell types are code and markdown: (a) the code cell is where to type your code and where to run the code; (b) the markdown cell is where to type the description in rich text format (see Fig. 1.16 as an example). Search for the “Markdown cheatsheet” to get a quick start with markdown. To run the code or render the markdown in the notebook is simple: press Shift + Enter. The notebook allows you to move the cell up or down, insert or delete the cell, etc. There are many other nice features available using Jupyter notebook, and we encourage you to access the many online tutorials available to broaden your knowledge.
- 35. 20 CHAPTER 1 PYTHON BASICS FIGURE 1.16 A quick view of a notebook. The Header of the notebook shows the name of the notebook. The menu has vari- ous drop-down lists that let you access to all the functionalities of the notebook. The tool bar provides you some shortcuts for the commonly used functionalities. 1.4.3 HOW DO I CLOSE A NOTEBOOK? When you close the notebook browser tab, the notebook actually is not closed; it is still running in the background. To completely close a notebook, go to the dashboard, and check the box before the notebook. There is a shutdown option in the toolbar above; this is the correct way you close a notebook completely. 1.4.4 SHUTTING DOWN THE JUPYTER NOTEBOOK SERVER Closing the browser will not shut down the notebook server since it is still running. You can reopen the previous address in a browser. To completely shut it down, we need to close the associated terminal that you used to launch the notebook. Now that you have the basic knowledge to launch and run a Jupyter notebook, you are equipped to continue learning Python. 1.5 LOGICAL EXPRESSIONS AND OPERATORS A logical expression is a statement that can either be true or false. For example, a < b is a logical expression. It can be true or false depending on what values of a and b are given. Note that this differs from a mathematical expression, which denotes a truth statement. In the previous example, the mathematical expression a < b means that a is less than b, and values of a and b where a ≥ b are not permitted. Logical expressions form the basis of computing. In this book all statements are assumed to be logical rather than mathematical unless otherwise indicated.
- 36. 1.5 LOGICAL EXPRESSIONS AND OPERATORS 21 In Python, a logical expression that is true will compute to the value True. A false expression will compute to the value False. This is a new data type known as boolean, which has the built-in values True and False. In this book, “True” is equivalent to 1, and “False” is equivalent to 0. Logical expressions are used to pose questions to Python. For example, “3 < 4” is equivalent to, “Is 3 less than 4?” Since this statement is true, Python will compute it as 1; however, if we write 3 > 4, this is false, and Python will compute it as 0. Comparison operators compare the value of two numbers, which are used to build logical expres- sions. Python reserves the symbols >,>=,<,<=,! =,==, to denote “greater than,” “greater than or equal,” “less than,” “less than or equal,” “not equal,” and “equal,” respectively; see and Table 1.1. Let us start with an example, a = 4,b = 2: Table 1.1 Comparison operators. Operator Description Example Results > greather than a > b True >= greater than or equal a >= b True < less than a < b False <= less than or equal a <= b False != not equal a != b True == equal a == b False TRY IT! Compute the logical expression for “Is 5 equal to 4?” and “Is 2 smaller than 3?” In [1]: 5 == 4 Out[1]: False In [2]: 2 < 3 Out[2]: True Logical operators, as shown in Table 1.2, are operations between two logical expressions that, for the sake of discussion, we will call P and Q. The fundamental logical operators we will use herein are and, or, and not. Table 1.2 Logical operators. Operator Description Example Results and greater than P and Q True if both P and Q are True. False otherwise or greater than or equal P or Q True if either P or Q is True. False otherwise not less than not P True if P is False. False if P is True The truth table, as shown in Fig. 1.17, of a logical operator or expression gives the result of every truth combination of P and Q. Fig. 1.17 shows the truth tables for “and” and “or”.
- 37. 22 CHAPTER 1 PYTHON BASICS FIGURE 1.17 Truth tables for the logical and/or. TRY IT! Assuming P is true, let us use Python to determine if the expression (P AND NOT(Q)) OR (P AND Q) is always true regardless of whether or not Q is true. Logically, can you see why this is the case? First assume Q is true: In [3]: (1 and not 1) or (1 and 1) Out[3]: 1 Now assume Q is false In [4]: (1 and not 0) or (1 and 0) Out[4]: True Just as with arithmetic operators, logical operators have an order of operations relative to each other and in relation to arithmetic operators. All arithmetic operations will be executed before comparison operations, which will be executed before logical operations. Parentheses can be used to change the order of operations. TRY IT! Compute (1 + 3) > (2 + 5) In [5]: 1 + 3 > 2 + 5 Out[5]: False TIP! Even when the order of operations is known, it is usually helpful for you and those reading your code to use parentheses to make your intentions clearer. In the preceding example (1 + 3) > (2 + 5) is clearer.
- 38. 1.6 SUMMARY AND PROBLEMS 23 WARNING! In Python’s implementation of logic, 1 is used to denote true and 0 for false. But because 1 and 0 are still numbers, Python will allow abuses such as: (3 > 2) + (5 > 4), which will resolve to 2. In [6]: (3 > 2) + (5 > 4) Out[6]: 2 WARNING! Although in formal logic 1 is used to denote true and 0 to denote false, Python’s notation system is different, and it will take any number not equal to 0 to mean true when used in a logical operation. For example, 3 and 1 will compute to true. Do not utilize this feature of Python. Always use 1 to denote a true statement. TIP! A fortnight is a length of time consisting of 14 days. Use a logical expression to determine if there are more than 100,000 seconds in a fortnight. In [7]: (14*24*60*60) > 100000 Out[7]: True 1.6 SUMMARY AND PROBLEMS 1.6.1 SUMMARY 1. You have now learned the basics of Python, which should enable you to set up the working envi- ronment and experiment with ways to run Python. 2. Python can be used as a calculator. It has all the functions and arithmetic operations commonly used with a scientific calculator. 3. You can manage the Python packages using package managers. 4. You learned how to interact with Jupyter notebook. 5. You can also use Python to perform logical operations. 6. You have now been introduced to int, float, complex, string, and boolean data types in Python. 1.6.2 PROBLEMS 1. Print “I love Python” using Python Shell. 2. Print “I love Python” by typing it into a .py file and run it from command line. 3. Type import antigravity in the IPython Shell, which will take you to xkcd and enable you to see the awesome Python. 4. Launch a new Jupyter notebook server in a folder called “exercise” and create a new Python notebook with the name “exercise_1.” Put the rest of the problems within this notebook.
- 39. 24 CHAPTER 1 PYTHON BASICS 5. Compute the area of a triangle with base 10 and height 12. Recall that the area of a triangle is half the base times the height. 6. Compute the surface area and volume of a cylinder with radius 5 and height 3. 7. Compute the slope between the points (3,4) and (5,9). Recall that the slope between points (x1,y1) and (x2,y2) is y2−y1 x2−x1 . 8. Compute the distance between the points (3,4) and (5,9). Recall that the distance between points in two dimensions is (x2 − x1)2 + (y2 − y1)2. 9. Use Python’s factorial function to compute 6! 10. Although a year is considered to be 365 days long, a more exact figure is 365.24 days. As a consequence, if we held to the standard 365-day year, we would gradually lose that fraction of the day over time, and seasons and other astronomical events would not occur as expected. To keep the timescale on tract, a leap year is a year that includes an extra day, February 29, to keep the timescale on track. Leap years occur on years that are exactly divisible by 4, unless it is exactly divisible by 100, unless it is divisible by 400. For example, the year 2004 is a leap year, the year 1900 is not a leap year, and the year 2000 is a leap year. Compute the number of leap years between the years 1500 and 2010. 11. A very powerful approximation for π was developed by a brilliant mathematician named Srinivasa Ramanujan. The approximation is the following: 1 π ≈ 2 √ 2 9801 N k=0 (4k)!(1103 + 26390k) (k!)43964k . Use Ramanujan’s formula for N = 0 and N = 1 to approximate π. Compare your approximation with Python’s stored value for π. Hint: 0! = 1 by definition. 12. The hyperbolic sin or sinh is defined in terms of exponentials as sinh(x) = exp(x)−exp(−x) 2 . Compute sinh for x = 2 using exponentials. Verify that the result is indeed the hyperbolic sin using Python’s function sinh in the math module. 13. Verify that sin2 (x) + cos2(x) = 1 for x = π, π 2 , π 4 , π 6 . 14. Compute the sin87°. 15. Write a Python statement that generates the following error: “AttributeError: module ‘math’ has no attribute ‘sni’.” Hint: sni is a misspelling of the function sin. 16. Write a Python statement that generates the following error: “TypeError: sin() takes exactly one argument (0 given).” Hint: Input arguments refers to the input of a function (any function); for example, the input in sin(π/2) is π/2. 17. If P is a logical expression, the law of noncontradiction states that P AND (NOT P) is always false. Verify this for P true and P false.
- 40. 1.6 SUMMARY AND PROBLEMS 25 FIGURE 1.18 Truth tables for the logical XOR. 18. Let P and Q be logical expressions. De Morgan’s rule states that NOT (P OR Q) = (NOT P) AND (NOT Q) and NOT (P AND Q) = (NOT P) OR (NOT Q). Generate the truth tables for each statement to show that De Morgan’s rule is always true. 19. Under what conditions for P and Q is (P AND Q) OR (P AND (NOT Q)) false? 20. Construct an equivalent logical expression for OR using only AND and NOT. 21. Construct an equivalent logical expression for AND using only OR and NOT. 22. The logical operator XOR has the following truth table: Construct an equivalent logical expression for XOR using only AND, OR, and NOT that has the same truth table (see Fig. 1.18). 23. Do the following calculation at the Python command prompt: e2 sinπ/6 + loge(3)cosπ/9 − 53 . 24. Do the following logical and comparison operations at the Python command prompt. You may assume that P and Q are logical expressions. For P = 1 and Q = 1, compute NOT(P) AND NOT(Q). For a = 10 and b = 25, compute (a b) AND (a = b).
- 41. 2 VARIABLES AND BASIC DATA STRUCTURES 2.1 Variables and Assignment ........................................................................................... 27 2.2 Data Structure – String............................................................................................... 30 2.3 Data Structure – List.................................................................................................. 35 2.4 Data Structure – Tuple ............................................................................................... 38 2.5 Data Structure – Set .................................................................................................. 40 2.6 Data Structure – Dictionary.......................................................................................... 42 2.7 Introducing NumPy Arrays ............................................................................................ 44 2.8 Summary and Problems.............................................................................................. 52 2.8.1 Summary ............................................................................................... 52 2.8.2 Problems ............................................................................................... 52 2.1 VARIABLES AND ASSIGNMENT When programming, it is useful to be able to store information in variables. A variable is a string of characters and numbers associated with a piece of information. The assignment operator, denoted by the “=” symbol, is the operator that is used to assign values to variables in Python. The line x=1 takes the known value, 1, and assigns that value to the variable with name “x”. After executing this line, this number will be stored into this variable. Until the value is changed or the variable deleted, the character x behaves like the value 1. In [1]: x = 1 x Out[1]: 1 TRY IT! Assign the value 2 to the variable y. Multiply y by 3 to show that it behaves like the value 2. In [2]: y = 2 y Out[2]: 2 In [3]: y*3
- 42. 28 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES Out[3]: 6 A variable is like a “container” used to store the data in the computer’s memory. The name of the variable tells the computer where to find this value in the memory. For now, it is sufficient to know that the notebook has its own memory space to store all the variables in the notebook. As a result of the previous example, you will see the variables x and y in the memory. You can view a list of all the variables in the notebook using the magic command %whos (magic commands are a specialized set of commands host by the IPython kernel and require the prefix % to specify the commands). TRY IT! List all the variables in this notebook. In [4]: %whos Variable Type Data/Info ---------------------------- x int 1 y int 2 Note! The equality sign in programming is not the same as a truth statement in mathematics. In math, the statement x = 2 declares the universal truth within the given framework, x is 2. In program- ming, the statement x=2 means a known value is being associated with a variable name, store 2 in x. Although it is perfectly valid to say 1 = x in mathematics, assignments in Python always go left, meaning the value to the right of the equal sign is assigned to the variable on the left of the equal sign. Therefore, 1=x will generate an error in Python. The assignment operator is always last in the order of operations relative to mathematical, logical, and comparison operators. TRY IT! The mathematical statement x = x + 1 has no solution for any value of x. In program- ming, if we initialize the value of x to be 1, then the statement makes perfect sense. It means, “Add x and 1, which is 2, then assign that value to the variable x”. Note that this operation overwrites the previous value stored in x. In [5]: x = x + 1 x Out[5]: 2 There are some restrictions on the names variables can take. Variables can only contain alphanu- meric characters (letters and numbers) as well as underscores; however, the first character of a variable name must be a letter or an underscore. Spaces within a variable name are not permitted, and the variable names are case sensitive (e.g., x and X are considered different variables).
- 43. 2.1 VARIABLES AND ASSIGNMENT 29 TIP! Unlike in pure mathematics, variables in programming almost always represent something tangible. It may be the distance between two points in space or the number of rabbits in a popu- lation. Therefore, as your code becomes increasingly complicated, it is very important that your variables carry a name that can easily be associated with what they represent. For example, the distance between two points in space is better represented by the variable dist than x, and the number of rabbits in a population is better represented by n_rabbits than y. Note that when a variable is assigned, it has no memory of how it was assigned. That is, if the value of a variable, y, is constructed from other variables, like x, reassigning the value of x will not change the value of y. EXAMPLE: What value will y have after the following lines of code are executed? In [7]: x = 1 y = x + 1 x = 2 y Out[7]: 2 WARNING! You can overwrite variables or functions that have been stored in Python. For ex- ample, the command help = 2 will store the value 2 in the variable with name help. After this assignment help will behave like the value 2 instead of the function help. Therefore, you should always be careful not to give your variables the same name as built-in functions or values. TIP! Now that you know how to assign variables, it is important that you remember to never leave unassigned commands. An unassigned command is an operation that has a result, but that result is not assigned to a variable. For example, you should never use 2+2. You should instead assign it to some variable x=2+2. This allows you to “hold on” to the results of previous commands and will make your interaction with Python much less confusing. You can clear a variable from the notebook using the del function. Typing del x will clear the variable x from the workspace. If you want to remove all the variables in the notebook, you can use the magic command %reset. In mathematics, variables are usually associated with unknown numbers; in programming, variables are associated with a value of a certain type. There are many data types that can be assigned to variables. A data type is a classification of the type of information that is being stored in a variable. The basic data types that you will utilize throughout this book are boolean, int, float, string, list, tuple, dictionary, and set. A formal description of these data types is given in the following sections.
- 44. 30 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES 2.2 DATA STRUCTURE – STRING We have introduced the different data types, such as int, float and boolean; these are all related to single value. The rest of this chapter will introduce you more data types so that we can store multiple values. The data structure related to these new types are strings, lists, tuples, sets, and dictionaries. We will start with the strings. A string is a sequence of characters, such as Hello World we saw in Chapter 1. Strings are surrounded by either single or double quotation marks. We can use print function to output the strings to the screen. TRY IT! Print I love Python! to the screen. In [1]: print(I love Python!) TRY IT! Assign the character S to the variable with name s. Assign the string Hello World to the variable w. Verify that s and w have the type string using the type function. In [2]: s = S w = Hello World In [3]: type(s) Out[3]: str In [4]: type(w) Out[4]: str Note! A blank space, , between Hello and World is also a type str. Any symbol can be a character, even those that have been reserved for operators. Note that as a str, they do not perform the same function. Although they look the same, Python interprets them completely differently. TRY IT! Create an empty string. Verify that the empty string is an str. In [5]: s = type(s) Out[5]: str Because a string is an array of characters, it has length to indicate the size of the string. For example, we can check the size of the string by using the built-in function len.
- 45. 2.2 DATA STRUCTURE – STRING 31 FIGURE 2.1 String index for the example of Hello World. In [6]: len(w) Out[6]: 11 Strings also have indexes that enables us to find the location of each character, as shown in Fig. 2.1. The index of the position start with 0. We can access a character by using a bracket and the index of the position. For example, if we want to access the character W, then we type the following: In [7]: w[6] Out[7]: W We can also select a sequence as well using string slicing. For example, if we want to access World, we type the following command. In [8]: w[6:11] Out[8]: World [6:11] means the start position is from index 6 and the end position is index 10. In the Python string slicing range, the upper-bound is exclusive; this means that [6:11] will “slice” the characters from index 6 to 10. The syntax for slicing in Python is [start:end:step], the third argument, step, is optional. If you ignore the step argument, the default will be set to 1. You can ignore the end position if you want to slice to the end of the string. For example, the following command is the same as the above one: In [9]: w[6:] Out[9]: World TRY IT! Retrieve the word Hello from string w. In [10]: w[:5] Out[10]: Hello
- 46. 32 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES You can also use a negative index when slicing the strings, which means counting from the end of the string. For example, -1 means the last character, -2 means the second to last and so on. TRY IT! Slice the Wor within the word World. In [11]: w[6:-2] Out[11]: Wor TRY IT! Retrieve every other character in the variable w In [12]: w[::2] Out[12]: HloWrd Strings cannot be used in the mathematical operations. TRY IT! Use + to add two numbers. Verify that + does not behave like the addition operator, +. In [13]: 1 + 2 File ipython-input-13-46b54f731e00, line 1 1 + 2 ˆ SyntaxError: invalid syntax WARNING! Numbers can also be expressed as str. For example, x = '123' means that x is the string 123 not the number 123. However, strings represent words or text and so should not have addition defined on them. TIP! You may find yourself in a situation where you would like to use an apostrophe as an str. This is problematic since an apostrophe is used to denote strings. Fortunately, an apostrophe can be used in a string in the following way. The backslash () is a way to tell Python this is part of the string, not to denote strings. The backslash character is used to escape characters that otherwise have a special meaning, such as newline, backslash itself, or the quote character. If either single or double quote is a part of the string itself, in Python, there is an easy way to do this, you can just place the string in double or single quotes respectively, as shown in the following example. In [14]: don't Out[14]: don't One string can be concatenated to another string. For example:
- 47. 2.2 DATA STRUCTURE – STRING 33 In [15]: str_a = I love Python! str_b = You too! print(str_a + str_b) I love Python! You too! We can convert other data types to strings as well using the built-in function str. This is useful, for example, we have the variable x which has stored 1 as an integer type, if we want to print it out directly as a string, we will get an error saying we cannot concatenate string with an integer. In [16]: x = 1 print(x = + x) ------------------------------------------------------- TypeError Traceback (most recent call last) ipython-input-16-3e562ba0dd83 in module() 1 x = 1 ---- 2 print(x = + x) TypeError: can only concatenate str (not int) to str The correct way to do it is to convert the integer to string first, and then print it out. TRY IT! Print out x = 1 to the screen. In [17]: print(x = + str(x)) x = 1 In [18]: type(str(x)) Out[18]: str In Python, string is an object that has various methods that can be used to manipulate it (this is the so-called object-oriented programming and will be discussed later). To get access to these various methods, use this pattern string.method_name.
- 48. 34 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES TRY IT! Turn the variable w to upper case. In [19]: w.upper() Out[19]: HELLO WORLD TRY IT! Count the number of occurrences for letter l in w. In [20]: w.count(l) Out[20]: 3 TRY IT! Replace the World in variable w to Berkeley. In [21]: w.replace(World, Berkeley) Out[21]: Hello Berkeley There are different ways to preformat a string. Here we introduce two ways to do it. For example, if we have two variables name and country, and we want to print them out in a sentence, but we do not want to use the string concatenation we used before since it will use many + signs in the string, we can do the following instead: In [22]: name = UC Berkeley country = USA print(%s is a great school in %s!%(name, country)) UC Berkeley is a great school in USA! WHAT IS HAPPENING? In the previous example, the %s in the double quotation marks is telling Python that we want to insert some strings at this location (s stands for string in this case). The %(name, country) is the location where the two strings should be inserted. NEW! There is a different way that only introduced in Python 3.6 and above, it is called f-string, which means formated-string. You can easily format a string with the following line: In [23]: print(f{name} is a great school in {country}.) UC Berkeley is a great school in USA. You can even print out a numerical expression without converting the data type as we did before.
- 49. 2.3 DATA STRUCTURE – LIST 35 TRY it! Print out the result of 3*4 directly using f-string. In [24]: print(f{3*4}) 12 By this point, we have learned about the string data structure; this is our first sequence data structure. Let us learn more now. 2.3 DATA STRUCTURE – LIST In the previous section, we learned that “strings” can hold a sequence of characters. Now, we are introducing a more versatile sequential data structure in Python – list. The way to define it is to use a pair of brackets [ ], and the elements within it are separated by commas. A list can hold any type of data: numerical, or strings, or other types. For example, In [1]: list_1 = [1, 2, 3] list_1 Out[1]: [1, 2, 3] In [2]: list_2 = [Hello, World] list_2 Out[2]: [Hello, World] We can put mixed types in the list as well: In [3]: list_3 = [1, 2, 3, Apple, orange] list_3 Out[3]: [1, 2, 3, Apple, orange] We can also nest the lists, for example: In [4]: list_4 = [list_1, list_2] list_4 Out[4]: [[1, 2, 3], [Hello, World]] The way to retrieve the element in the list is very similar to how it is done for strings, see Fig. 2.2 for the index of a string.
- 50. 36 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES FIGURE 2.2 Example of list index. TRY IT! Get the 3rd element in list_3 In [5]: list_3[2] Out[5]: 3 TRY IT! Get the first 3 elements in list_3 In [6]: list_3[:3] Out[6]: [1, 2, 3] TRY IT! Get the last element in list_3 In [7]: list_3[-1] Out[7]: orange TRY IT! Get the first list from list_4. In [8]: list_4[0] Out[8]: [1, 2, 3] Similarly, we can obtain the length of the list by using the len function. In [9]: len(list_3) Out[9]: 5 We can also concatenate two lists by simply using a + sign. TRY IT! Add list_1 and list_2 to one list. In [10]: list_1 + list_2
- 51. 2.3 DATA STRUCTURE – LIST 37 Out[10]: [1, 2, 3, Hello, World] New items can be added to an existing list by using the append method from the list. In [11]: list_1.append(4) list_1 Out[11]: [1, 2, 3, 4] Note! The append function operate on the list itself as shown in the above example, 4 is added to the list. But in the list_1 + list_2 example, list_1 and list_2 will not change. You can check list_2 to verify this. We can also insert or remove element from the list by using the methods insert and remove, but they are also operating on the list directly. In [12]: list_1.insert(2,center) list_1 Out[12]: [1, 2, center, 3, 4] Note! Using the remove method will only remove the first occurrence of the item (read the documentation of the method). There is another way to delete an item by using its index – function del. In [13]: del list_1[2] list_1 Out[13]: [1, 2, 3, 4] We can also define an empty list and add in new element later using the append method. It is used a lot in Python when you have to loop through a sequence of items; we will learn more about this method in Chapter 5. TRY IT! Define an empty list and add values 5 and 6 to the list. In [14]: list_5 = [] list_5.append(5) list_5 Out[14]: [5] In [15]: list_5.append(6) list_5
- 52. 38 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES Out[15]: [5, 6] We can also quickly check if an element is in the list using the operator in. TRY IT! Check if number 5 is in the list_5. In [16]: 5 in list_5 Out[16]: True Using the list function, we can turn other sequence items into a list. TRY IT! Turn the string Hello World into a list of characters. In [17]: list(Hello World) Out[17]: [H, e, l, l, o, , W, o, r, l, d] Lists are used frequently in Python when working with data, with many different possible applica- tions as discussed in later sections. 2.4 DATA STRUCTURE – TUPLE Let us learn one more different sequence data structure in Python – tuple. It is usually defined by using a pair of parentheses ( ), and its elements are separated by commas. For example, In [1]: tuple_1 = (1, 2, 3, 2) tuple_1 Out[1]: (1, 2, 3, 2) As with strings and lists, there is a way to index tuples, slicing the elements, and even some methods are very similar to those we saw before. TRY IT! Get the length of tuple_1. In [2]: len(tuple_1) Out[2]: 4
- 53. 2.4 DATA STRUCTURE – TUPLE 39 TRY IT! Get the elements from index 1 to 3 for tuple_1. In [3]: tuple_1[1:4] Out[3]: (2, 3, 2) TRY IT! Count the occurrence for number 2 in tuple_1. In [4]: tuple_1.count(2) Out[4]: 2 You may ask, what is the difference between lists and tuples? If they are similar to each other, why do we need another sequence data structure? Tuples are created for a reason. From the Python documentation1: Though tuples may seem similar to lists, they are often used in different situations and for different pur- poses. Tuples are immutable, and usually contain a heterogeneous sequence of elements that are accessed via unpacking (see later in this section) or indexing (or even by attribute in the case of named tuples). Lists are mutable, and their elements are usually homogeneous and are accessed by iterating over the list. What does it mean by immutable? It means the elements in the tuple, once defined, cannot be changed. In contrast, elements in a list can be changed without any problem. For example, In [5]: list_1 = [1, 2, 3] list_1[2] = 1 list_1 Out[5]: [1, 2, 1] In [6]: tuple_1[2] = 1 ------------------------------------------------------- TypeError Traceback (most recent call last) ipython-input-6-76fb6b169c14 in module() ---- 1 tuple_1[2] = 1 1 https://docs.python.org/3/tutorial/datastructures.html#tuples-and-sequences.
- 54. 40 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES TypeError: tuple object does not support item assignment What does heterogeneous mean? Tuples usually contain a heterogeneous sequence of elements, while lists usually contain a homogeneous sequence. For example, we have a list that contains different fruits. Usually, the names of the fruits can be stored in a list, since they are homogeneous. Now we want to have a data structure to store how many pieces of fruit we have of each type. This is usually where the tuples comes in, since the name of the fruit and the number are heterogeneous. Such as (apple, 3) which means we have 3 apples. In [7]: # a fruit list [apple, banana, orange, pear] Out[7]: [apple, banana, orange, pear] In [8]: # a list of (fruit, number) pairs [(apple,3), (banana,4) , (orange,1), (pear,4)] Out[8]: [(apple,3), (banana,4), (orange,1), (pear,4)] Tuples or lists can be accessed by unpacking as shown in the following example, which requires that the number of variables on the left-hand side of the equality sign be equal to the number of elements in the sequence. In [9]: a, b, c = list_1 print(a, b, c) 1 2 1 Note! The opposite operation to unpacking is packing, as shown in the following example. We can see that we do not need the parentheses to define a tuple, but it is considered good practice to do so. In [10]: list_2 = 2, 4, 5 list_2 Out[10]: (2, 4, 5) 2.5 DATA STRUCTURE – SET Another data type in Python is a set. It is a type that can store an unordered collection with no du- plicate elements. It can also support mathematical operations like union, intersection, difference, and
- 55. 2.5 DATA STRUCTURE – SET 41 symmetric difference. It is defined by using a pair of braces, { }, and its elements are separated by commas. In [1]: {3, 3, 2, 3, 1, 4, 5, 6, 4, 2} Out[1]: {1, 2, 3, 4, 5, 6} Using “sets” is a quick way to determine the unique elements in a string, list, or tuple. TRY IT! Find the unique elements in list [1, 2, 2, 3, 2, 1, 2]. In [2]: set_1 = set([1, 2, 2, 3, 2, 1, 2]) set_1 Out[2]: {1, 2, 3} TRY IT! Find the unique elements in tuple (2, 4, 6, 5, 2). In [3]: set_2 = set((2, 4, 6, 5, 2)) set_2 Out[3]: {2, 4, 5, 6} TRY IT! Find the unique character in string Banana. In [4]: set(Banana) Out[4]: {B, a, n} We mentioned earlier that sets support the mathematical operations like union, intersection, differ- ence, and symmetric difference. TRY IT! Get the union of set_1 and set_2. In [5]: print(set_1) print(set_2) {1, 2, 3} {2, 4, 5, 6} In [6]: set_1.union(set_2)
- 56. 42 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES Out[6]: {1, 2, 3, 4, 5, 6} TRY IT! Get the intersection of set_1 and set_2. In [7]: set_1.intersection(set_2) Out[7]: {2} TRY IT! Is set_1 a subset of {1, 2, 3, 3, 4, 5}? In [8]: set_1.issubset({1, 2, 3, 3, 4, 5}) Out[8]: True 2.6 DATA STRUCTURE – DICTIONARY We introduced several sequential data types in the previous sections. Now we will introduce to you a new and useful type – dictionary, which is a totally different data type than those we introduced earlier. Instead of using a sequence of numbers to index the elements (such as lists or tuples), dictionaries are indexed by keys, which can be a string, number, or even tuple (but not list). A dictionary comprises key-value pairs, and each key maps to a corresponding value. It is defined by using a pair of braces { }, while the elements are a list of comma-separated key:value pairs (note that the key:value pair is separated by the colon, with key at front and value at the end). In [1]: dict_1 = {apple:3, orange:4, pear:2} dict_1 Out[1]: {apple: 3, orange: 4, pear: 2} Within a dictionary, because elements are stored without order, you cannot access a dictionary based on a sequence of index numbers. To access to a dictionary, we need to use the key of the element – dictionary[key]. TRY IT! Get the element apple from dict_1. In [2]: dict_1[apple] Out[2]: 3 We can get all the keys in a dictionary by using the keys method, or all the values by using the method values.
- 57. 2.6 DATA STRUCTURE – DICTIONARY 43 TRY IT! Get all the keys and values from dict_1. In [3]: dict_1.keys() Out[3]: dict_keys([apple, orange, pear]) In [4]: dict_1.values() Out[4]: dict_values([3, 4, 2]) We can also get the size of a dictionary by using the len function. In [5]: len(dict_1) Out[5]: 3 We can define an empty dictionary and then fill in the element later. Or we can turn a list of tuples with (key, value) pairs to a dictionary. TRY IT! Define an empty dictionary named school_dict and add value UC Berkeley:USA. In [6]: school_dict = {} school_dict[UC Berkeley] = USA school_dict Out[6]: {UC Berkeley: USA} TRY IT! Add another element Oxford:UK to school_dict. In [7]: school_dict[Oxford] = UK school_dict Out[7]: {UC Berkeley: USA, Oxford: UK} TRY IT! Turn the list of tuples [(UC Berkeley, USA), (Oxford, UK)] into a dictio- nary. In [8]: dict([(UC Berkeley, USA), (Oxford, UK)]) Out[8]: {UC Berkeley: USA, Oxford: UK} We can also check if an element belongs to a dictionary using the operator in.
- 58. 44 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES TRY IT! Determine if UC Berkeley is in school_dict. In [9]: UC Berkeley in school_dict Out[9]: True TRY IT! Determine whether Harvard is not in school_dict. In [10]: Harvard not in school_dict Out[10]: True We can also use the list function to turn a dictionary with a list of keys. For example, In [11]: list(school_dict) Out[11]: [UC Berkeley, Oxford] 2.7 INTRODUCING NUMPY ARRAYS The second part of this book introduced numerical methods by using Python. We will use the array/- matrix construct a lot later in the book. So that you are prepared for this section, here we are going to introduce the most common way to handle arrays in Python using the NumPy module.2 NumPy is probably the most fundamental numerical computing module in Python. NumPy is coded both in Python and C (for speed). On its website, a few important features for NumPy are listed as follows: • A powerful N-dimensional array object • Sophisticated (broadcasting) functions • Tools for integrating C/C++ and Fortran code • Useful linear algebra, Fourier transform, and random number capabilities Here, we will only introduce you the part of the NumPy array that is related to the data structure. Gradually, we will touch on other aspects of NumPy in later chapters. In order to use NumPy module, we need to import it first. A conventional way to import it is to use np as a shortened name. In [1]: import numpy as np 2 http://www.numpy.org.
- 59. 2.7 INTRODUCING NumPy ARRAYS 45 WARNING! Of course, you can call it any name, but “np” is considered convention and is ac- cepted by the entire community, and it is a good practice to use it. To define an array in Python, you can use the np.array function to convert a list. TRY IT! Create the following arrays: x = 1 4 3 y = 1 4 3 9 2 7 In [2]: x = np.array([1, 4, 3]) x Out[2]: array([1, 4, 3]) In [3]: y = np.array([[1, 4, 3], [9, 2, 7]]) y Out[3]: array([[1, 4, 3], [9, 2, 7]]) Note! A 2D array can use nested lists to represent, with the inner list representing each row. Knowing the size or length of an array is often helpful. The array shape attribute is called on an array M and returns a 2 × 3 array where the first element is the number of rows in the matrix M; and the second element is the number of columns in M. Note that the output of the shape attribute is a tuple. The size attribute is called on an array M and returns the total number of elements in matrix M. TRY IT! Find the rows, columns, and the total size for array y. In [4]: y.shape Out[4]: (2, 3) In [5]: y.size Out[5]: 6 Note! You may notice the difference that we only use y.shape instead of y.shape(); this is because shape is an attribute rather than a method in this array object. We will introduce more of the object-oriented programming in a later chapter. For now, just remember that when we call a method in an object, we need to use the parentheses, while with an attribute we do not. Very often we would like to generate arrays that have a structure or pattern. For instance, we may wish to create the array z = [1 2 3 ... 2000]. It would be very cumbersome to type the entire de- scription of z into Python. For generating arrays that are in order and evenly spaced, it is useful to use the arange function in NumPy.
- 60. 46 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES TRY IT! Create an array z from 1 to 2000 with an increment 1. In [6]: z = np.arange(1, 2000, 1) z Out[6]: array([ 1, 2, 3, ... , 1997, 1998, 1999]) Using the np.arange, we can create z easily. The first two numbers are the start and end of the sequence, and the last one is the increment. Since it is very common to have an increment of 1, if an increment is not specified, Python will use a default value of 1. Therefore np.arange(1, 2000) will have the same result as np.arange(1, 2000, 1). Negative or noninteger increments can also be used. If the increment “misses” the last value, it will only extend until the value just before the ending value. For example, x = np.arange(1,8,2) would be [1, 3, 5, 7]. TRY IT! Generate an array with [0.5, 1, 1.5, 2, 2.5]. In [7]: np.arange(0.5, 3, 0.5) Out[7]: array([0.5, 1. , 1.5, 2. , 2.5]) Sometimes we want to guarantee a start and end point for an array but still have evenly spaced elements. For instance, we may want an array that starts at 1, ends at 8, and has exactly 10 elements. To do this, use the function np.linspace. The function linspace takes three input values separated by commas; therefore, A = linspace(a,b,n) generates an array of n equally spaced elements starting from a and ending at b. TRY IT! Use linspace to generate an array starting at 3, ending at 9, and containing 10 elements. In [8]: np.linspace(3, 9, 10) Out[8]: array([3., 3.66666667, 4.33333333, 5., 5.66666667, 6.33333333, 7., 7.66666667, 8.33333333, 9.]) Getting access to the 1D NumPy array is similar to what we described for lists or tuples: it has an index to indicate the location. For example, In [9]: # get the 2nd element of x x[1] Out[9]: 4 In [10]: # get all the element after the 2nd element of x x[1:] Out[10]: array([4, 3])
- 61. 2.7 INTRODUCING NumPy ARRAYS 47 In [11]: # get the last element of x x[-1] Out[11]: 3 For 2D arrays, it is slightly different, since we have rows and columns. To get access to the data in a 2D array M, we need to use M[r, c], whereby the row r and column c are separated by a comma. This is referred to as “array indexing.” The r and c can be single number, a list, etc. If you only think about the row index or the column index, then it is similar to the 1D array. Let us use the y = 1 4 3 9 2 7 as an example. TRY IT! Obtain the element at first row and second column of array y. In [12]: y[0,1] Out[12]: 4 TRY IT! Obtain the first row of array y. In [13]: y[0, :] Out[13]: array([1, 4, 3]) TRY IT! Obtain the last column of array y. In [14]: y[:, -1] Out[14]: array([3, 7]) TRY IT! Obtain the first and third column of array y. In [15]: y[:, [0, 2]] Out[15]: array([[1, 3], [9, 7]]) Here are some predefined arrays that are really useful: the np.zeros, np.ones, and np.empty are three useful functions. See examples of these predefined arrays below:
- 62. 48 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES TRY IT! Generate a 3 × 5 array with all the elements as 0. In [16]: np.zeros((3, 5)) Out[16]: array([[0., 0., 0., 0., 0.], [0., 0., 0., 0., 0.], [0., 0., 0., 0., 0.]]) TRY IT! Generate a 5 × 3 array with all the elements as 1. In [17]: np.ones((5, 3)) Out[17]: array([[1., 1., 1.], [1., 1., 1.], [1., 1., 1.], [1., 1., 1.], [1., 1., 1.]]) Note! The shape of the array is defined in a tuple with the number of rows as the first item, and the number of columns as the second. If you only need a 1D array, then use only one number as the input: np.ones(5). TRY IT! Generate a 1D empty array with 3 elements. In [18]: np.empty(3) Out[18]: array([-3.10503618e+231, -3.10503618e+231, -3.10503618e+231]) Note! The empty array is not really empty; it is filled with random very small numbers. You can reassign a value of an array by using array indexing and the assignment operator. You can reassign multiple elements to a single number using array indexing on the left-hand side. You can also reassign multiple elements of an array as long as both the number of elements being assigned and the number of elements assigned are the same. You can create an array using array indexing. TRY IT! Let a = [1, 2, 3, 4, 5, 6]. Reassign the fourth element of A to 7. Reassign the first, second, and third elements to 1. Reassign the second, third, and fourth elements to 9, 8, and 7. In [19]: a = np.arange(1, 7) a Out[19]: array([1, 2, 3, 4, 5, 6])
- 63. 2.7 INTRODUCING NumPy ARRAYS 49 In [20]: a[3] = 7 a Out[20]: array([1, 2, 3, 7, 5, 6]) In [21]: a[:3] = 1 a Out[21]: array([1, 1, 1, 7, 5, 6]) In [22]: a[1:4] = [9, 8, 7] a Out[22]: array([1, 9, 8, 7, 5, 6]) TRY IT! Create a 2 × 2 zero array b, and set b = 1 2 3 4 using array indexing. In [23]: b = np.zeros((2, 2)) b[0, 0] = 1 b[0, 1] = 2 b[1, 0] = 3 b[1, 1] = 4 b Out[23]: array([[1., 2.], [3., 4.]]) Arrays are defined using basic arithmetic; however, there are operations between a scalar (a single number) and an array and operations between two arrays. We will start with operations between a scalar and an array. To illustrate, let c be a scalar, and b be a matrix. Then b + c, b - c, b * c and b / c adds a to every element of b, subtracts c from every element of b, multiplies every element of b by c, and divides every element of b by c, respectively. TRY IT! Let b = 1 2 3 4 . Add and subtract 2 from b. Multiply and divide b by 2. Square ev- ery element of b. Let c be a scalar. On your own, verify the reflexivity of scalar addition and multiplication: b + c = c + b and cb = bc. In [24]: b + 2 Out[24]: array([[3., 4.], [5., 6.]])
- 64. 50 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES In [25]: b - 2 Out[25]: array([[-1., 0.], [ 1., 2.]]) In [26]: 2 * b Out[26]: array([[2., 4.], [6., 8.]]) In [27]: b / 2 Out[27]: array([[0.5, 1. ], [1.5, 2. ]]) In [28]: b**2 Out[28]: array([[ 1., 4.], [ 9., 16.]]) Describing operations between two matrices is more complicated. Let b and d be two matrices of the same size. Then b - d takes every element of b and subtracts the corresponding element of d. Similarly, b + d adds every element of d to the corresponding element of b. TRY IT! Let b = 1 2 3 4 and d = 3 4 5 6 . Compute b + d and b - d. In [29]: b = np.array([[1, 2], [3, 4]]) d = np.array([[3, 4], [5, 6]]) In [30]: b + d Out[30]: array([[ 4, 6], [ 8, 10]]) In [31]: b - d Out[31]: array([[-2, -2], [-2, -2]]) There are two different kinds of multiplication (and division) for matrices. There is element-by- element matrix multiplication and standard matrix multiplication. This section will only demonstrate how element-by-element matrix multiplication and division works. Standard matrix multiplication will be described in the later chapter on Linear Algebra. Python takes the * symbol to mean element-by- element multiplication. For matrices b and d of the same size, b * d takes every element of b and multiplies it by the corresponding element of d. The same is true for / and **.
- 65. 2.7 INTRODUCING NumPy ARRAYS 51 TRY IT! Compute b * d, b / d, and b**d. In [32]: b * d Out[32]: array([[ 3, 8], [15, 24]]) In [33]: b / d Out[33]: array([[0.33333333, 0.5 ], [0.6 , 0.66666667]]) In [34]: b**d Out[34]: array([[ 1, 16], [ 243, 4096]]) The transposition of an array, b, is an array, d, where b[i, j] = d[j, i]. In other words, the transposition switches the rows and the columns of b. You can transpose an array in Python using the array method T. TRY IT! Compute the transpose of array b. In [35]: b.T Out[35]: array([[1, 3], [2, 4]]) NumPy has many arithmetic functions, such as sin, cos, etc., that can take arrays as input arguments. The output is the function evaluated for every element of the input array. A function that takes an array as input and performs the function on it is said to be vectorized. TRY IT! Compute np.sqrt for x = [1, 4, 9, 16]. In [36]: x = [1, 4, 9, 16] np.sqrt(x) Out[36]: array([1., 2., 3., 4.]) Logical operations are defined only between a scalar and an array and between two arrays of the same size. Between a scalar and an array, the logical operation is conducted between the scalar and each element of the array. Between two arrays, the logical operation is conducted element-by-element.
- 66. 52 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES TRY IT! Check which elements of the array x = [1, 2, 4, 5, 9, 3] are larger than 3. Check which elements in x are larger than the corresponding element in y = [0, 2, 3, 1, 2, 3]. In [37]: x = np.array([1, 2, 4, 5, 9, 3]) y = np.array([0, 2, 3, 1, 2, 3]) In [38]: x 3 Out[38]: array([False, False, True, True, True, False]) In [39]: x y Out[39]: array([ True, False, True, True, True, False]) Python can index elements of an array that satisfy a logical expression. TRY IT! Let x be the same array as in the previous example. Create a variable y that contains all the elements of x that are strictly bigger than 3. Assign all the values of x that are bigger than 3, the value 0. In [40]: y = x[x 3] y Out[40]: array([4, 5, 9]) In [41]: x[x 3] = 0 x Out[41]: array([1, 2, 0, 0, 0, 3]) 2.8 SUMMARY AND PROBLEMS 2.8.1 SUMMARY 1. Storing, retrieving, and manipulating information and data is important in any scientific and engi- neering field. 2. Assigning variables is an important tool for handling data values. 3. There are different data types for storing information in Python: int, float, and boolean for single values, and strings, lists, tuples, sets, and dictionaries for sequential data. 4. The NumPy array is a powerful data structure that used a lot in scientific computing. 2.8.2 PROBLEMS 1. Assign the value 2 to the variable x and the value 3 to the variable y. Clear just the variable x.
- 67. 2.8 SUMMARY AND PROBLEMS 53 2. Write a line of code that generates the following error: NameError: name x is not defined 3. Let x = 10 and y = 3. Write a line of code that will make each of the following assignments. u = x + y v = xy w = x/y z = sin(x) r = 8sin(x) s = 5sin(xy) p = x**y 4. Show all the variables in the Jupyter notebook after you finish Problem 3. 5. Assign string 123 to the variable S. Convert the string into a float type and assign the output to the variable N. Verify that S is a string and N is a float using the type function. 6. Assign the string HELLO to the variable s1 and the string hello to the variable s2. Use the == operator to show that they are not equal. Use the == operator to show that s1 and s2 are equal if the lower method is used on s1. Use the == operator to show that s1 and s2 are equal if upper method is used on s2. 7. Use the print function to generate the following strings: • The world Engineering has 11 letters. • The word Book has 4 letters. 8. Check if Python is in Python is great!. 9. Get the last word great from Python is great! 10. Assign list [1, 8, 9, 15] to a variable list_a and insert 2 at index 1 using the insert method. Append 4 to the list_a using the append method. 11. Sort the list_a in problem 10 in ascending order. 12. Turn Python is great! into a list. 13. Create one tuple with element One, 1 and assign it to tuple_a. 14. Get the second element in the tuple_a in Problem 13. 15. Get the unique element from (2, 3, 2, 3, 1, 2, 5). 16. Assign (2, 3, 2) to set_a, and (1, 2, 3) to set_b. Obtain the following: • union of set_a and set_b • intersection of set_a and set_b • difference of set_a to set_b using difference method
- 68. 54 CHAPTER 2 VARIABLES AND BASIC DATA STRUCTURES 17. Create a dictionary that has the keys A, B, C with values a, b, c individually. Print all the keys in the dictionary. 18. Check if key B is in the dictionary defined in Problem 17. 19. Create array x and y, where x = [1, 4, 3, 2, 9, 4] and y=[2, 3, 4, 1, 2, 3]. Compute the assignments from Problem 3. 20. Generate an array with size 100 evenly spaced between −10 to 10 using linspace function in NumPy. 21. Let array_a be an array [-1, 0, 1, 2, 0, 3]. Write a command that will return an array con- sisting of all the elements of array_a that are larger than zero. Hint: Use logical expression as the index of the array. 22. Create an array y = ⎛ ⎝ 3 5 3 2 2 5 3 8 9 ⎞ ⎠ and calculate its transpose. 23. Create a 2 × 4 zero array. 24. Change the second column in the above array to 1. 25. Write a magic command to clear all the variables in the Jupyter notebook.
- 69. 3 FUNCTIONS 3.1 Function Basics ....................................................................................................... 55 3.1.1 Built-In Functions in Python ........................................................................ 55 3.1.2 Define Your Own Function ........................................................................... 56 3.2 Local Variables and Global Variables ............................................................................. 63 3.3 Nested Functions...................................................................................................... 67 3.4 Lambda Functions..................................................................................................... 69 3.5 Functions as Arguments to Functions.............................................................................. 70 3.6 Summary and Problems.............................................................................................. 72 3.6.1 Summary ............................................................................................... 72 3.6.2 Problems ............................................................................................... 72 3.1 FUNCTION BASICS In programming, a function is a sequence of instructions that performs a specific task. A function is a block of code that can run when it is called. A function can have input arguments, which are made available by the user (the entity calling the function). Functions also have output parameters. These are the results of the function once it has completed its task. For example, the function math.sin has one input argument—an angle in radians, and one output argument—an approximation to the sin function computed at the input angle. The sequence of instructions to compute this approximation constitutes the body of the function, which is being introduced here. 3.1.1 BUILT-IN FUNCTIONS IN PYTHON Many built-in Python functions have been introduced already, such as type, len, etc. In addition, we have introduced various functions available from different packages, for example, math.sin, np.array, etc. Do you still remember how to call and use these functions? TRY IT! Verify that len is a built-in function using the type function. In [1]: type(len) Out[1]: builtin_function_or_method
- 70. 56 CHAPTER 3 FUNCTIONS TRY it! Verify that np.linspace is a function using the type function. Next, figure out how to use the function using the question mark. In [2]: import numpy as np type(np.linspace) Out[2]: function In [3]: np.linspace? 3.1.2 DEFINE YOUR OWN FUNCTION We can define our own functions. A function can be specified in several ways. The most common way to define a function is to call it using a keyword def, as shown below: def function_name(parameter_1, parameter_2, ...): Descriptive String # comments about the statements function_statements return output_parameters (optional) Defining a Python function requires the following two components: 1. Function header that starts with a keyword def, followed by a pair of parentheses with the input parameters inside, and ends with a colon (:); 2. Function Body which is an indented block (usually four white spaces) indicating the main body of the function. It consists of three parts: • Descriptive string, which is string that describes the function that can be accessed by the help() function or the question mark. The triple single or triple double quotes show where to put (or locate) your descriptive strings. You can write any strings inside the quotes, either in one line or multiple lines. • Function statements, which are the step-by-step instructions the function will execute when calling the function. Note that there is a line that starts with #; this is a single line comment, which means that it is not part of the function and cannot be executed. • Return statements, which may contain some parameters to be returned after the function is called. As discussed in more detail later, any data type can be returned, even a function.
- 71. 3.1 FUNCTION BASICS 57 NOTE! Input parameter vs argument. A parameter is a variable defined by a function that receives a value when the function is called. An argument is a value that is passed to a method when it is invoked. For example, if we define a function hello(name), then name is an input parameter. When we call the function, and pass in a value 'Qingkai', then this value is an input argument. Due to the very subtle difference, in the rest of the book, we will use parameters and arguments interchangeably. TIP! When your code becomes longer and more complicated, comments can help you and those reading your code to navigate through the commands and provide a logical “road map” to under- stand what you are trying to do. Getting in the habit of commenting frequently will prevent coding mistakes, understand where your code is going when you write it, and assist you in finding errors when you make mistakes. Even though it is optional, it is also customary to put a description of the function, author, and creation date in the descriptive string under the function header (you can skip the descriptive string). We highly recommend that you comment heavily in your own code. TRY IT! Define a function named my_adder that takes three numbers and sum them. In [4]: def my_adder(a, b, c): function to sum the 3 numbers Input: 3 numbers a, b, c Output: the sum of a, b, and c author: date: # this is the summation out = a + b + c return out WARNING! If you do not indent your code when defining a function, you will get an Indenta- tionError. In [5]: def my_adder(a, b, c): function to sum the 3 numbers Input: 3 numbers a, b, c Output: the sum of a, b, and c author: date:
- 72. 58 CHAPTER 3 FUNCTIONS # this is the summation out = a + b + c return out File ipython-input-5-e6a61721f00e, line 8 ˆ IndentationError: expected an indented block TIP! Manually typing four white spaces is one level of indentation. Deeper levels of indentation are required when you have nested functions or if-statements, which we will discuss in the next chapter. Note that sometimes you need to indent or unindent a block of code. You can do this by first selecting all the lines in the code block and then pressing Tab and Shift+Tab to increase or decrease one level of indentation. TIP! Build good coding practices by giving variables and functions descriptive names, comment- ing often, and avoiding extraneous lines of code. For contrast, consider the following function that performs the same task as my_adder but is not constructed using best practices. As you can see, it is extremely difficult to follow the logic of the code and the intentions of the author. EXAMPLE: Poor representation of my_adder. In [6]: def abc(a, s2, d): z = a + s2 z = z + d x = z return x Functions must conform to a naming scheme similar to variables. They can only contain alphanu- meric characters and underscores, and the first character must be a letter. TIP! As is the convention with variable names, function names should be lowercase, with words separated by underscores as necessary to improve readability.
- 73. 3.1 FUNCTION BASICS 59 TIP! It is good programming practice to save often while writing your function. In fact, many programmers save their code by using the shortcut Ctrl+s (PC) or cmd+s (Mac) every time they stop typing! TRY IT! Use your function my_adder to compute the sum of a few numbers. Verify that the result is correct. Try calling the help function on my_adder. In [7]: d = my_adder(1, 2, 3) d Out[7]: 6 In [8]: d = my_adder(4, 5, 6) d Out[8]: 15 In [9]: help(my_adder) Help on function my_adder in module __main__: my_adder(a, b, c) function to sum the 3 numbers Input: 3 numbers a, b, c Output: the sum of a, b, and c author: date: WHAT IS HAPPENING? First recall that the assignment operator works from right to left. This means that my_adder(1,2,3) is resolved before the assignment to d. 1. Python finds the function my_adder. 2. my_adder takes the first input argument value 1 and assigns it to the variable with name a (first variable name in input argument list). 3. my_adder takes the second input argument value 2 and assigns it to the variable with name b (second variable name in input argument list). 4. my_adder takes the third input argument value 3 and assigns it to the variable with name c (third variable name in input argument list). 5. my_adder computes the sum of a, b, and c, which is 1 + 2 + 3 = 6. 6. my_adder assigns the value 6 to the variable out. 7. my_adder outputs the value contained in the output variable out, which is 6.
- 74. 60 CHAPTER 3 FUNCTIONS 8. my_adder(1,2,3) is equivalent to the value 6, and this value is assigned to the variable with name d. Python gives the user tremendous freedom to assign variables to different data types. For example, it is possible to give the variable x a dictionary or a float value. In other programming languages, this is not always the case. In these programs, you must declare at the beginning of a session whether x will be a dictionary or a float type, and once you decide which type it is, you cannot change it. This can be both a benefit and a drawback. For instance, my_adder was built assuming that the input arguments were numerical types, either int or float; however, the user may accidentally input a list or string into my_adder, which is not correct. If you try to input a nonnumerical type input argument into my_adder, Python will continue to execute the function until something goes wrong. TRY IT! Use the string 1 as one of the input arguments to my_adder; in addition, use a list as one of the input arguments to my_adder. In [10]: d = my_adder(1, 2, 3) ------------------------------------------------------- TypeError Traceback (most recent call last) ipython-input-10-245d0f4254a9 in module ---- 1 d = my_adder(1, 2, 3) ipython-input-4-72d064c3ba7a in my_adder(a, b, c) 9 10 # this is the summation --- 11 out = a + b + c 12 13 return out TypeError: must be str, not int In [11]: d = my_adder(1, 2, [2, 3]) ------------------------------------------------------- TypeError Traceback (most recent call last)
- 75. 3.1 FUNCTION BASICS 61 ipython-input-11-04f0428ffc51 in module ---- 1 d = my_adder(1, 2, [2, 3]) ipython-input-4-72d064c3ba7a in my_adder(a, b, c) 9 10 # this is the summation --- 11 out = a + b + c 12 13 return out TypeError: unsupported operand type(s) for +: int and list TIP! Remember to read the error messages that Python provides. They usually tell you exactly where the problem was. In this case, the error says --- 11 out = a + b + c, meaning there was an error in my_adder on the 11th line. The reason there was an error is TypeError, because unsupported operand type(s) for +: int and list, which means that we cannot add int and list. At this point, you do not have any control over what the user assigns your function as input ar- guments and whether they correspond to what you intended those input arguments to be. So for the moment, write your functions assuming that they will be used correctly. You can help yourself and other users use your function correctly by providing comments detailing your code. You can compose functions by assigning function calls as the input to other functions. In the order of operations, Python will execute the innermost function call first. You can also assign mathematical expressions as the input to functions. In this case, Python will execute the mathematical expressions first. TRY IT! Use the function my_adder to compute the sum of sin(π), cos(π), and tan(π). Use math- ematical expressions as the input to my_adder and verify that the function performs the operations correctly. In [12]: d=my_adder(np.sin(np.pi), np.cos(np.pi), np.tan(np.pi)) d Out[12]: -1.0 In [13]: d = my_adder(5 + 2, 3 * 4, 12 / 6) d Out[13]: 21.0
- 76. 62 CHAPTER 3 FUNCTIONS In [14]: d = (5 + 2) + 3 * 4 + 12 / 6 d Out[14]: 21.0 Python functions can have multiple output parameters. When calling a function with multiple output parameters, you can unpack the results with multiple variables, which you should separate by commas. The function essentially will return the multiple result parameters in a tuple, which then allows you to unpack the returned tuple. See the following example (note that it has multiple output parameters): EXAMPLE: Compute the function my_trig_sum for a=2 and b=3. Assign the first output param- eter to the variable c, the second output parameter to the variable d, and the third parameter to the variable e. In [15]: def my_trig_sum(a, b): function to demo return multiple author date out1 = np.sin(a) + np.cos(b) out2 = np.sin(b) + np.cos(a) return out1, out2, [out1, out2] In [16]: c, d, e = my_trig_sum(2, 3) print(fc ={c}, d={d}, e={e}) c =-0.0806950697747637, d=-0.2750268284872752, e=[-0.0806950697747637, -0.2750268284872752] If you assign the results to one variable, you will get a tuple that includes all the output parameters. TRY IT! Compute the function my_trig_sum for a=2 and b=3. Verify the output is a tuple. In [17]: c = my_trig_sum(2, 3) print(fc={c}, and the returned type is {type(c)}) c=(-0.0806950697747637, -0.2750268284872752, [-0.0806950697747637, -0.2750268284872752]), and the returned type is class tuple A function can be defined without an input argument and returning any value. For example,
- 77. 3.2 LOCAL VARIABLES AND GLOBAL VARIABLES 63 EXAMPLE: Function with no inputs and outputs. In [18]: def print_hello(): print(Hello) In [19]: print_hello() Hello Note! Even there is no input argument, when you call the function, you still need to include the parentheses. For the input of the argument, we can include the default value as well. See the following example: EXAMPLE: Run the following function with and without an input: In [20]: def print_greeting(day = Monday, name = Qingkai): print(fGreetings, {name}, today is {day}) In [21]: print_greeting() Greetings, Qingkai, today is Monday In [22]: print_greeting(name = Timmy, day = Friday) Greetings, Timmy, today is Friday In [23]: print_greeting(name = Alex) Greetings, Alex, today is Monday We can see that if we assign a value to the argument when we define the function, this value will be the default value of the function. If the user does not provide an input to this argument, then this default value will be used during calling of the function. Note that the order of the argument is not important when calling the function if you provide the name of the argument. 3.2 LOCAL VARIABLES AND GLOBAL VARIABLES Chapter 2 introduced the idea of a memory block associated with the notebook, where variables created in the notebook are stored. A function also has its own memory block that is reserved for variables created within that function. This block of memory is not shared with the whole notebook memory block. Therefore, a variable with a given name can be assigned within a function without changing a
- 78. 64 CHAPTER 3 FUNCTIONS variable with the same name outside of the function. The memory block associated with the function is opened every time a function is used. TRY IT! What will the value of out be after the following lines of code are executed? Note that it is not 6, which is the value out was assigned inside of my_adder. In [1]: def my_adder(a, b, c): out = a + b + c print(fThe value out within the function is {out}) return out out = 1 d = my_adder(1, 2, 3) print(fThe value out outside the function is {out}) The value out within the function is 6 The value out outside the function is 1 In my_adder, the variable out is a local variable. That is, because it is only defined in the function of my_adder, it cannot affect variables outside of the function. Actions taken in the notebook outside the function cannot affect it, even if they have the same name. So in the previous example, there is the variable, out, which has been defined in the notebook cell. When my_adder is called on the next line, Python opens a new memory block for that function’s variables. One of the variables created within the function is another variable, out. Because they are located in different memory blocks, the assignment to out inside my_adder does not change the value assigned to out outside the function. Why have separate function memory blocks rather than a single memory block? Although it may not seem logical for Python to separate memory blocks, it is very efficient for large projects consisting of many functions working together. If one programmer is responsible for coding one function and another is responsible for coding a different function, having separate memory blocks allows each programmer to work independently and be confident that their coding will not produce errors when considering another programmer’s code, and vice versa. Separate memory blocks protect a function from outside influences. The only things from outside the function’s memory block that can affect what happens inside a function are the input arguments, and the only things that can escape to the outside world from a function’s memory block when the function terminates are the output arguments. The next examples are designed to be exercises to gain experience with concept of local variables. They are intentionally very confusing, but if you can untangle them, then you will have mastered the concept of local variables within a function. Focus on exactly what Python is doing and in the order Python does it. EXAMPLE: Consider the following function: In [2]: def my_test(a, b): x = a + b
- 79. 3.2 LOCAL VARIABLES AND GLOBAL VARIABLES 65 y = x * b z = a + b m = 2 print(fWithin function: x={x}, y={y}, z={z}) return x, y TRY IT! What will the values of a, b, x, y, and z be after the following code is run? In [3]: a = 2 b = 3 z = 1 y, x = my_test(b, a) print(fOutside function: x={x}, y={y}, z={z}) Within function: x=5, y=10, z=5 Outside function: x=10, y=5, z=1 TRY IT! What will the values of a, b, x, y, and z be after the following code is run? In [4]: x = 5 y = 3 b, a = my_test(x, y) print(fOutside function: x={x}, y={y}, z={z}) Within function: x=8, y=24, z=8 Outside function: x=5, y=3, z=1 TRY IT! What will the value of m be if you print m outside of the function? In [5]: m ------------------------------------------------------ NameError Traceback (most recent call last) ipython-input-5-9a40b379906c in module ---- 1 m
- 80. 66 CHAPTER 3 FUNCTIONS NameError: name m is not defined Note that the value m is not defined outside of the function because it is defined within the function. The same is true if you define a variable outside a function, using it inside the function will change the value, and the same error message will occur. EXAMPLE: Try to use and change the value n within the function. In [6]: n = 42 def func(): print(fWithin function: n is {n}) n = 3 print(fWithin function: change n to {n}) func() print(fOutside function: Value of n is {n}) ------------------------------------------------------ UnboundLocalError Traceback (most recent call last) ipython-input-6-85f3215553ae in module 6 print(fWithin function: change n to {n}) 7 ---- 8 func() 9 print(fOutside function: Value of n is {n}) ipython-input-6-85f3215553ae in func() 2 3 def func(): ---- 4 print(fWithin function: n is {n}) 5 n = 3 6 print(fWithin function: change n to {n}) UnboundLocalError: local variable n referenced before assignment The solution is to use the keyword global to let Python know this variable is a global variable and can be used both outside and inside the function.
- 81. 3.3 NESTED FUNCTIONS 67 EXAMPLE: Define n as the global variable, and then use and change the value n within the function. In [7]: n = 42 def func(): global n print(fWithin function: n is {n}) n = 3 print(fWithin function: change n to {n}) func() print(fOutside function: Value of n is {n}) Within function: n is 42 Within function: change n to 3 Outside function: Value of n is 3 3.3 NESTED FUNCTIONS Once you have created and saved a new function, it behaves just like any other Python built-in function. You can call the function from anywhere in the notebook, and any other function can call on the func- tion as well. A nested function is a function that is defined within another function – parent function. Only the parent function is able to call the nested function. Remember that the nested function retains a separate memory block from its parent function. TRY IT! Consider the following function and nested function: In [1]: import numpy as np def my_dist_xyz(x, y, z): x, y, z are 2D coordinates contained in a tuple output: d - list, where d[0] is the distance between x and y d[1] is the distance between x and z d[2] is the distance between y and z def my_dist(x, y):
- 82. 68 CHAPTER 3 FUNCTIONS subfunction for my_dist_xyz Output is the distance between x and y, computed using the distance formula out = np.sqrt((x[0]-y[0])**2+(x[1]-y[1])**2) return out d0 = my_dist(x, y) d1 = my_dist(x, z) d2 = my_dist(y, z) return [d0, d1, d2] Note that the variables x and y appear in both my_dist_xyz and my_dist. This is permissible be- cause a nested function has a separate memory block from its parent function. Nested functions are useful when a task must be performed many times within the function but not outside the function. In this way, nested functions help the parent function perform its task while hiding in the parent function. TRY IT! Call the function my_dist_xyz for x = (0, 0), y = (0, 1), z = (1, 1). Try to call the nested function my_dist in the following cell: In [2]: d = my_dist_xyz((0, 0), (0, 1), (1, 1)) print(d) d = my_dist((0, 0), (0, 1)) [1.0, 1.4142135623730951, 1.0] ------------------------------------------------------ NameError Traceback (most recent call last) ipython-input-2-1bec838581d7 in module 1 d = my_dist_xyz((0, 0), (0, 1), (1, 1)) 2 print(d) ---- 3 d = my_dist((0, 0), (0, 1)) NameError: name my_dist is not defined The following example is the code repeated without using nested function. Notice how much busier and cluttered the function looks and how much more difficult it is to understand what is going on. This version is much more prone to mistakes because you have three chances to mistype the distance
- 83. 3.4 LAMBDA FUNCTIONS 69 formula. Note that this function can be written more compactly using vector operations. We leave this as an exercise. In [ ]: import numpy as np def my_dist_xyz(x, y, z): x, y, z are 2D coordinates contained in a tuple output: d - list, where d[0] is the distance between x and y d[1] is the distance between x and z d[2] is the distance between y and z d0 = np.sqrt((x[0]-y[0])**2+(x[1]-y[1])**2) d1 = np.sqrt((x[0]-z[0])**2+(x[1]-z[1])**2) d2 = np.sqrt((y[0]-z[0])**2+(y[1]-z[1])**2) return [d0, d1, d2] 3.4 LAMBDA FUNCTIONS Sometimes it is not optimal to define a function the usual way, especially if our function is just one line. In this case, we use the anonymous function in Python, which is a function that is defined without a name. These types of function are also called lambda function, since they are defined using the lambda keyword. A typical lambda function is defined as follows: CONSTRUCTION: lambda arguments: expression It can have any number of arguments but has only one expression. TRY IT! Define a lambda function, which squares the input number; call the function with input 2 and 5. In [1]: square = lambda x: x**2 print(square(2)) print(square(5))
- 84. 70 CHAPTER 3 FUNCTIONS 4 25 In the above lambda function, x is the argument and x**2 is the expression that gets evaluated and returned. The function itself has no name, and it returns a function object (discussed in later chapter) to square it. After it is defined, we can call it as a normal function. The lambda function is equivalent to: def square(x): return x**2 TRY IT! Define a lambda function, which adds x and y. In [2]: my_adder = lambda x, y: x + y print(my_adder(2, 4)) 6 Lambda functions can be useful in many cases, and we will provide other examples in later chapters. Here we just show a common use case for the lambda function. EXAMPLE: Sort [(1, 2), (2, 0), (4, 1)] based on the second item in the tuple. In [3]: sorted([(1, 2), (2, 0), (4, 1)], key=lambda x: x[1]) Out[3]: [(2, 0), (4, 1), (1, 2)] What happens? The function sorted has an argument key, where a custom key function can be supplied to customize the sort order. We use the lambda function as a shortcut for this custom key function. 3.5 FUNCTIONS AS ARGUMENTS TO FUNCTIONS Up until now, you have assigned various data structures to variable names. Being able to assign a data structure to a variable allows for the passing of information to the various functions and retrieve information back from them in a neat and orderly way. Sometimes it is useful to be able to pass a function and have it act as a variable to another function. In other words, the input to some functions may be other functions. In last section, we saw the lambda function returning a function object to the variable. In this section, we will see additional examples of how the function object can be used as the input to another function.
- 85. 3.5 FUNCTIONS AS ARGUMENTS TO FUNCTIONS 71 TRY IT! Assign the function max to the variable f. Verify the type of f. In [1]: f = max print(type(f)) class builtin_function_or_method In the previous example, f is now equivalent to the max function. Because x = 1 means that x and 1 are interchangeable, f and max function are now interchangeable. TRY IT! Get the maximum value from list [2, 3, 5] using f. Verify that the result is the same as using max. In [2]: print(f([2, 3, 5])) print(max([2, 3, 5])) 5 5 TRY IT! Write a function my_fun_plus_one that takes a function object, f, and a float number x as input arguments; my_fun_plus_one should return f evaluated at x, and the result added to the value 1. Verify that it works for various functions and values of x. In [3]: import numpy as np def my_fun_plus_one(f, x): return f(x) + 1 print(my_fun_plus_one(np.sin, np.pi/2)) print(my_fun_plus_one(np.cos, np.pi/2)) print(my_fun_plus_one(np.sqrt, 25)) 2.0 1.0 6.0 In the above example, different functions are used as inputs into the function. Of course, we can use the lambda functions as well. In [4]: print(my_fun_plus_one(lambda x: x + 2, 2)) 5
- 86. 72 CHAPTER 3 FUNCTIONS 3.6 SUMMARY AND PROBLEMS 3.6.1 SUMMARY 1. A function is a self-contained set of instructions designed to perform a specific task. 2. A function has its own memory block for its variables. Information can be added to a function’s memory block only through a function’s input variables. Information can leave the function’s mem- ory block only through a function’s output variables. 3. A function can be defined within another function, which is called a nested function. This nested function can be only accessed by the parent function. 4. You can define an anonymous function using the keyword lambda, which is the so-called lambda function. 5. You can assign functions to variables using function handles. 3.6.2 PROBLEMS 1. Recall that the hyperbolic sine, denoted by sinh, is exp (x)−exp (−x) 2 . Write a function my_sinh(x) where the output y is the hyperbolic sine computed on x. Assume that x is a 1 by 1 float. Test Cases: In: my_sinh(0) Out: 0 In: my_sinh(1) Out: 1.1752 In: my_sinh(2) Out: 3.6269 2. Write a function my_checker_board(n) where the output m is an n × n array with the following form: m = 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 Note that the upper-left element should always be 1. Assume that n is a strictly positive integer. Test Cases: In: my_checker_board(1) Out: 1 In: my_checker_board(2) Out: array([[1, 0],
- 87. 3.6 SUMMARY AND PROBLEMS 73 [0, 1]]) In: y = my_sinh(3) Out: array([[1, 0, 1], [0, 1, 0], [1, 0, 1]]) In: y = my_sinh(5) Out: array([[1, 0, 1, 0, 1], [0, 1, 0, 1, 0], [1, 0, 1, 0, 1], [0, 1, 0, 1, 0], [1, 0, 1, 0, 1]]) 3. Write a function my_triangle(b,h) where the output is the area of a triangle with base, b, and height, h. Recall that the area of a triangle is one-half the base times the height. Assume that b and h are just 1 by 1 float numbers. Test Cases: In: my_triangle(1, 1) Out: 0.5 In: my_triangle(2, 1) Out: 1 In: my_triangle(12, 5) Out: 30 4. Write a function my_split_matrix(m), where m is an array, the output is a list [m1, m2] where m1 is the left half of m, and m2 is the right half of m. In the case where there is an odd number of columns, the middle column should go to m1. Assume that m has at least two columns. Test Cases: In: m = np.array([[1, 2, 3], [4, 5, 6], [7, 8, 9]]) In: m1, m2 = my_split_matrix(m) Out: m1 = array([[1, 2], [4, 5], [7, 8]]) Out: m2 = array([3, 6, 9]) In: m = np.ones((5, 5)) In: m1, m2 = my_split_matrix(m)
- 88. 74 CHAPTER 3 FUNCTIONS Out: m1 = array([[1., 1., 1.], [1., 1., 1.], [1., 1., 1.], [1., 1., 1.], [1., 1., 1.]]) Out: m2 = array([[1., 1.], [1., 1.], [1., 1.], [1., 1.], [1., 1.]]) 5. Write a function my_cylinder(r,h), where r and h are the radius and height of a cylinder, respec- tively, and the output is a list [s, v] where s and v are the surface area and volume of the same cylinder, respectively. Recall that the surface area of a cylinder is 2πr2 + 2πrh, and the volume is πr2h. Assume that r and h are 1 by 1 floats. Test Cases: In: my_cylinder(1,5) Out: [37.6991, 15.7080] In: my_cylinder(2,4) Out: [62.8319, 37.6991] 6. Write a function my_n_odds(a), where a is a one-dimensional array of floats and the output is the number of odd numbers in a. Test Cases: In: my_n_odds(np.arange(100)) Out: 50 In: my_n_odds(np.arange(2, 100, 2)) Out: 0 7. Write a function my_twos(m,n) where the output is an m × n array of twos. Assume that m and n are strictly positive integers. Test Cases: In: my_twos(3, 2) Out: array([[2, 2], [2, 2], [2, 2]]) In: my_twos(1, 4) Out: array([2, 2, 2, 2])
- 89. 3.6 SUMMARY AND PROBLEMS 75 8. Write a lambda function that takes in input x and y, and the output is the value of x - y. 9. Write a function add_string(s1, s2) where the output is the concatenation of the strings s1 and s2. Test Cases: In: s1 = add_string(Programming, ) In: s2 = add_string(is , fun!) In: add_string(s1, s2) Out: Programming is fun! 10. Generate the following errors: • TypeError: fun() missing 1 required positional argument: a • IndentationError: expected an indented block 11. Write a function greeting(name, age) where name is a string, age is a float, and the output is a string Hi, my name is XXX and I am XXX years old. where XXX are the input name and age, respectively. Test Cases: In: greeting(John, 26) Out: Hi, my name is John and I am 26 years old. In: greeting(Kate, 19) Out: Hi, my name is Kate and I am 19 years old. 12. Let r1 and r2 be the radius of circles with the same center and let r2 r1. Write a function my_donut_area(r1, r2) where the output is the area outside of the circle with radius r1 and inside the circle with radius r2. Make sure that the function is vectorized. Assume that r1 and r2 are one-dimensional arrays of the same size. Test Cases: In: my_donut_area(np.arange(1, 4), np.arange(2, 7, 2)) Out: array([9.4248, 37.6991, 84.8230]) 13. Write a function my_within_tolerance(A, a, tol) where the output is an array or list of the indices in A such that |A − a| tol. Assume that A is a one-dimensional float list or array, and that a and tol are 1 by 1 floats. Test Cases: In: my_within_tolerance([0, 1, 2, 3], 1.5, 0.75) Out: [1, 2] In: my_within_tolerance(np.arange(0, 1.01, 0.01), 0.5, 0.03) Out: [47, 48, 49, 50, 51, 52]
- 90. 76 CHAPTER 3 FUNCTIONS 14. Write a function bounding_array(A, top, bottom) where the output is equal to the array A wher- ever bottom A top, the output is equal to bottom wherever A = bottom, and the output is equal to top wherever A = top. Assume that A is a one-dimensional float array and that top and bottom are 1 by 1 floats. Test Cases: In: bounding_array(np.arange(-5, 6, 1), 3, -3) Out: [-3, -3, -3, -2, -1, 0, 1, 2, 3, 3, 3]
- 91. 4 BRANCHING STATEMENTS 4.1 If-Else Statements..................................................................................................... 77 4.2 Ternary Operators ..................................................................................................... 84 4.3 Summary and Problems.............................................................................................. 85 4.3.1 Summary ............................................................................................... 85 4.3.2 Problems ............................................................................................... 85 4.1 IF-ELSE STATEMENTS A branching statement, If-Else Statement, or If-Statement for short, is a code construct that ex- ecutes blocks of code only if certain conditions are met. These conditions are represented as logical expressions. CONSTRUCTION: Simple If Statement Syntax if logical expression: code block CONSTRUCTION: Simple If-Else Statement Syntax if logical expression: code block 1 else: code block 2 The word “if” is a keyword. When Python sees an if-statement, it will determine if the associated logical expression is true. If it is true, then the code in code block will be executed. If it is false, then the code in the if-statement will not be executed. The way to read this is “If the logical expression is true then do code block.” Similarly, if the logical expression in the if-else-statement is true, then the code in code block1 will be executed. Otherwise, code block2 will be executed. When there are several conditions to consider, you can include elif statements; if you want a con- dition that covers any other case, then you may use an else statement. Let P, Q, and R be three logical expressions in Python. The following example shows multiple branches.
- 92. 78 CHAPTER 4 BRANCHING STATEMENTS Note! Python gives the same level of indentation to every line of code within a conditional state- ment. CONSTRUCTION: Extended If-Else Statement Syntax if logical expression P: code block 1 elif logical expression Q: code block 2 elif logical expression R: code block 3 else: code block 4 In the previous code, Python will first check if P is true. If P is true, then code block 1 will be executed, and then the if-statement will end. In other words, Python will not check the rest of the statements once it reaches a true statement. If P is false, then Python will check if Q is true. If Q is true, then code block 2 will be executed, and the if-statement will end. If it is false, then R will be executed, and so forth. If P, Q, and R are all false, then code block 4 will be executed. You can have any number of elif statements (or none) as long as there is at least one if-statement (the first statement). You do not need an else statement, but you can have, at most, one else statement. The logical expressions after the if and elif (i.e., such as P, Q, and R) will be referred to as conditional statements. TRY IT! Write a function my_thermo_stat(temp, desired_temp). The return value of the func- tion should be the string Heat if temp is less than desired_temp minus 5 degrees, AC if temp is more than the desired_temp plus 5, and off otherwise. In [1]: def my_thermo_stat(temp, desired_temp): Changes the status of the thermostat based on temperature and desired temperature author date :type temp: Int :type desiredTemp: Int :rtype: String if temp desired_temp - 5: status = Heat elif temp desired_temp + 5: status = AC else:
- 93. 4.1 IF-ELSE STATEMENTS 79 status = off return status In [2]: status = my_thermo_stat(65,75) print(status) Heat In [3]: status = my_thermo_stat(75,65) print(status) AC In [4]: status = my_thermo_stat(65,63) print(status) off EXAMPLE: What will be the value of y after the following script is executed? In [5]: x = 3 if x 1: y = 2 elif x 2: y = 4 else: y = 0 print(y) 2 We can also insert more complicated conditional statements using logical operators. EXAMPLE: What will be the value of y after the following code is executed? In [6]: x = 3 if x 1 and x 2: y = 2 elif x 2 and x 4: y = 4 else: y = 0 print(y)
- 94. 80 CHAPTER 4 BRANCHING STATEMENTS 4 Note that if you want the logical statement a x b, this is considered as two conditional state- ments, a x and x b. Python allows you to type a x b as well. For example, In [7]: x = 3 if 1 x 2: y = 2 elif 2 x 4: y = 4 else: y = 0 print(y) 4 A statement is called nested if it is entirely contained within another statement of the same type as itself. For example, a nested if-statement is an if-statement that is entirely contained within a clause of another if-statement. EXAMPLE: Think about what will happen when the following code is executed. What are all the possible outcomes based on the input values of x and y? In [8]: def my_nested_branching(x,y): Nested Branching Statement Example author date :type x: Int :type y: Int :rtype: Int if x 2: if y 2: out = x + y else: out = x - y else: if y 2: out = x*y else:
- 95. 4.1 IF-ELSE STATEMENTS 81 out = 0 return out Note! As before, Python gives the same level of indentation to every line of code within a condi- tional statement. The nested if-statement should be indented by an additional four white spaces. You will get an IndentationError if the indentation is not correct, as we saw earlier when dis- cussing how to define functions. In [9]: import numpy as np In [10]: all([1, 1, 0]) Out[10]: False There are many logical functions that are designed to help you build branching statements. For exam- ple, you can ask if a variable has a certain data type with function isinstance. There are also functions that can tell you information about arrays of logicals like any, which computes to true if any element in an array is true, and false otherwise, and all, which computes to true only if all the elements in an array are true. Sometimes you want to design your function to check the inputs of a function to ensure that your function will be used properly. For example, the function my_adder in the previous chapter expects doubles as input. If the user inputs a list or a string as one of the input variables, then the function will throw an error or have unexpected results. To prevent this, you can put a check to tell the user the function has not been used properly. This and other techniques for controlling errors are explored further in Chapter 10. For the moment, you only need to know that we can use the raise statement with a TypeError exception to stop a function’s execution and throw an error with a specific text. EXAMPLE: Modify my_adder to throw out a warning if the user does not input numerical values. Try your function for nonnumerical inputs to show that the check works. When a statement is too long, we can use the “” symbol to break a line into multiple lines. In [11]: def my_adder(a, b, c): Calculate the sum of three numbers author date # Check for erroneous input if not (isinstance(a, (int, float)) or isinstance(b, (int, float)) or isinstance(c, (int, float))):
- 96. 82 CHAPTER 4 BRANCHING STATEMENTS raise TypeError(Inputs must be numbers.) # Return output return a + b + c In [12]: x = my_adder(1,2,3) print(x) 6 In [13]: x = my_adder(1,2,3) print(x) ------------------------------------------------------ TypeError Traceback (most recent call last) ipython-input-13-c3e353c636b0 in module ---- 1 x = my_adder(1,2,3) 2 print(x) ipython-input-11-0f3d29eecee0 in my_adder(a, b, c) 10 or isinstance(b, (int, float)) 11 or isinstance(c, (int, float))): --- 12 raise TypeError(Inputs must be numbers.) 13 # Return output 14 return a + b + c TypeError: Inputs must be numbers. There is a large variety of erroneous inputs that your function may encounter from users, and it is unreasonable to expect that your function will catch them all. Therefore, unless otherwise stated, write your functions assuming the functions will be used properly. The remainder of the section gives a few more examples of branching statements. TRY IT! Write a function called is_odd that returns odd if the input is an odd number and even if it is even. You can assume that input will be a positive integer. In [14]: def is_odd(number): function returns odd if the input is odd,
- 97. 4.1 IF-ELSE STATEMENTS 83 even otherwise author date :type number: Int :rtype: String # use modulo to check if the input divisible by 2 if number % 2 == 0: # if divisible by 2, then input is not odd return even else: return odd In [15]: is_odd(11) Out[15]: odd In [16]: is_odd(2) Out[16]: even TRY IT! Write a function called my_circ_calc that takes a numerical number, r, and a string, calc, as input arguments. You may assume that r is positive, and that calc is either the string area or circumference. The function my_circ_calc should compute the area of a circle with radius, r, if the string calc is the area, and the circumference of a circle with radius, r, if calc is the circumference. In [17]: np.pi Out[17]: 3.141592653589793 In [18]: def my_circ_calc(r, calc): Calculate various circle measurements author date :type r: Int or Float :type calc: String :rtype: Int or Float if calc == area: return np.pi*r**2
- 98. 84 CHAPTER 4 BRANCHING STATEMENTS elif calc == circumference: return 2*np.pi*r In [19]: my_circ_calc(2.5, area) Out[19]: 19.634954084936208 In [20]: my_circ_calc(3, circumference) Out[20]: 18.84955592153876 Note! The function here is not limited to a single value input but can be executed using NumPy arrays as well (i.e., the same operation will apply on each item of the array). See the following example where we calculate the circumferences for radius as [2, 3, 4] using a NumPy array. In [21]: my_circ_calc(np.array([2, 3, 4]), circumference) Out[21]: array([12.56637061, 18.84955592, 25.13274123]) 4.2 TERNARY OPERATORS Most programming languages have ternary operators, which are usually known as conditional ex- pressions, that provide a mechanism using a one-line code to evaluate the first expression if the condition is true; otherwise, it evaluates the second expression. To implement the ternary operator in Python, use the construction presented below: CONSTRUCTION: ternary operator in Python expression_if_true if condition else expression_if_false EXAMPLE: Ternary operator In [1]: is_student = True person = student if is_student else not student print(person) student From the above example, we can see this one-line code is equivalent to the following block of codes.
- 99. 4.3 SUMMARY AND PROBLEMS 85 In [2]: is_student = True if is_student: person = student else: person = not student print(person) student Ternary operators provide a simple way for branching and can make our codes concise. In the next chapter, we introduce its role in list comprehensions, and will prove it is useful. 4.3 SUMMARY AND PROBLEMS 4.3.1 SUMMARY 1. Branching (if-else) statements allow functions to take different actions under different circum- stances. 2. Ternary operators allow single line branching statements. 4.3.2 PROBLEMS 1. Write a function my_tip_calc(bill, party) where bill is the total cost of a meal and party is the number of people in the group. The tip should be calculated as 15% for a party strictly less than six people, 18% for a party strictly less than eight, 20% for a party less than 11, and 25% for a party 11 or more. A couple of test cases are given below. In [ ]: def my_tip_calc(bill, party): # write your function code here return tips In [ ]: # t = 16.3935 t = my_tip_calc(109.29,3) print(t) In [ ]: # t = 19.6722 t = my_tip_calc(109.29,7) print(t) In [ ]: # t = 21.8580 t = my_tip_calc(109.29,9) print(t) In [ ]: # t = 27.3225 t = my_tip_calc(109.29,12) print(t)
- 100. 86 CHAPTER 4 BRANCHING STATEMENTS 2. Write a function my_mult_operation(a,b,operation). The input argument, operation, is a string that is either plus, minus, mult, div, or pow, and the function should compute: a + b, a − b, a ∗ b, a/b, and ab for the respective values for operation. A couple of test cases are given below. In [ ]: def my_mult_operation(a,b,operation): # write your function code here return out In [ ]: x = np.array([1,2,3,4]) y = np.array([2,3,4,5]) In [ ]: # Output: [3,5,7,9] my_mult_operation(x,y,plus) In [ ]: # Output: [-1,-1,-1,-1] my_mult_operation(x,y,minus) In [ ]: # Output: [2,6,12,20] my_mult_operation(x,y,mult) In [ ]: # Output: [0.5,0.66666667,0.75,0.8] my_mult_operation(x,y,div) In [ ]: # Output: [1,8,81,1024] my_mult_operation(x,y,pow) 3. Consider a triangle with vertices at (0,0), (1,0), and (0,1). Write a function with the name my_inside_triangle(x,y) where the output is the string outside if the point (x,y) is outside of the triangle, border if the point is exactly on the border of the triangle, and inside if the point is on the inside of the triangle. In [ ]: def my_inside_triangle(x,y): # write your function code here return position In [ ]: # Output: border my_inside_triangle(.5,.5) In [ ]: # Output: inside my_inside_triangle(.25,.25) In [ ]: # Output: outside my_inside_triangle(5,5) 4. Write a function my_make_size10(x) where x is an array, and output is the first 10 elements of x if x has more than 10 elements, and output is the array x padded with enough zeros to make it length 10 if x has less than 10 elements.
- 101. 4.3 SUMMARY AND PROBLEMS 87 In [ ]: def my_make_size10(x): # write your function code here return size10 In [ ]: # Output: [1,2,0,0,0,0,0,0,0,0] my_make_size10(range(1,2)) In [ ]: # Output: [1,2,3,4,5,6,7,8,9,10] my_make_size10(range(1,15)) In [ ]: # Output: [3,6,13,4,0,0,0,0,0,0] my_make_size10(5,5) 5. Can you write my_make_size10 without using if-statements (i.e., using only logical and array oper- ations)? 6. Write a function my_letter_grader(percent) where the grade is the string A+ if percent is greater than 97, A if percent is greater than 93, A- if percent is greater than 90, B+ if percent is greater than 87, B if percent is greater than 83, B- if percent is greater than 80, C+ if percent is greater than 77, C if percent is greater than 73, C- if percent is greater than 70, D+ if percent is greater than 67, D if percent is greater than 63, D- if percent is greater than 60, and F for any percent less than 60. Grades exactly on the division should be included in the higher grade category. In [ ]: def my_letter_grader(percent): # write your function code here return grade In [ ]: # Output: A+ my_letter_grader(97) In [ ]: # Output: B my_letter_grader(84) 7. Most engineering systems have a built-in redundancy. That is, an engineering system has fail-safes incorporated into the design to accomplish its purpose. Consider a nuclear reactor whose tempera- ture is monitored by three sensors. An alarm should go off if any two of the sensor readings disagree. Write a function my_nuke_alarm(s1,s2,s3) where s1, s2, and s3 are the temperature readings for sensor 1, sensor 2, and sensor 3, respectively. The output should be the string alarm! if any two of the temperature readings disagree by strictly more than 10 degrees and normal otherwise. In [ ]: def my_nuke_alarm(s1,s2,s3): # write your function code here return response In [ ]: #Output: normal my_nuke_alarm(94,96,90)
- 102. 88 CHAPTER 4 BRANCHING STATEMENTS In [ ]: #Output: alarm! my_nuke_alarm(94,96,80) In [ ]: #Output: normal my_nuke_alarm(100,96,90) 8. Let Q(x) be the quadratic equation Q(x) = ax2 + bx + c for some scalar values a, b, and c. A root of Q(x) is an r such that Q(r) = 0. The two roots of a quadratic equation can be described by the quadratic formula, which is r = −b ± √ b2 − 4ac 2a . A quadratic equation has either two real roots (i.e., b2 4ac), two imaginary roots (i.e., b2 4ac), or one root r = − b 2a . Write a function my_n_roots(a,b,c), where a, b, and c are the coefficients of the quadratic Q(x). The function should return two values: n_roots and r. Also n_roots is 2 if Q has two real roots, 1 if Q has one root, −2 if Q has two imaginary roots, and r is an array containing the roots of Q. In [ ]: def my_n_roots(a,b,c): # write your function code here return n_roots, r In [ ]: # Output: n_roots = 2, r = [3, -3] n_roots, r = my_n_roots(1,0,-9) print(n_roots, r) In [ ]: # Output: n_roots = -2, # r = [-0.6667 + 1.1055i, -0.6667 - 1.1055i] my_n_roots(3,4,5) In [ ]: # Output: n_roots = 1, r = [1] my_n_roots(2,4,2) 9. Write a function my_split_function(f,g,a,b,x), where f and g are function objects f(x) and g(x), respectively. The output should be f(x) if x ≤ a, g(x) if x ≥ b, and 0 otherwise. Assume that b a. In [ ]: def my_split_function(f,g,a,b,x): if x=a: return f(x) elif x=b: return g(x) else: return 0 In [ ]: # Output: 2.713 my_split_function(np.exp,np.sin,2,4,1)
- 103. 4.3 SUMMARY AND PROBLEMS 89 In [ ]: # Output: 0 my_split_function(np.exp,np.sin,2,4,3) In [ ]: # Output: -0.9589 my_split_function(np.exp,np.sin,2,4,5)
- 104. 5 ITERATION 5.1 For-Loops ............................................................................................................... 91 5.2 While Loops............................................................................................................ 97 5.3 Comprehensions....................................................................................................... 100 5.3.1 List Comprehension................................................................................... 100 5.3.2 Dictionary Comprehension ........................................................................... 101 5.4 Summary and Problems.............................................................................................. 101 5.4.1 Summary ............................................................................................... 101 5.4.2 Problems ............................................................................................... 101 5.1 FOR-LOOPS A for-loop is a set of instructions that is repeated, or iterated, for every value in a sequence. Sometimes for-loops are referred to as definite loops because they have a predefined beginning and end as bounded by the sequence. The general syntax of a for-loop block is as follows. CONSTRUCTION: For-loop for looping variable in sequence: code block A for-loop assigns the looping variable to the first element of the sequence. It executes everything in the code block. Then it assigns the looping variable to the next element of the sequence and executes the code block again. It continues until there are no more elements in the sequence to assign. TRY IT! What is the sum of every integer from 1 to 3? In [1]: n = 0 for i in range(1, 4): n = n + i print(n)
- 105. 92 CHAPTER 5 ITERATION 6 WHAT IS HAPPENING? 0. First, the function range(1, 4) generates a sequence of numbers that begin at 1 and end at 3. Check the description of the function range and get familiar with how to use it. In a very simple form, it is range(start, stop, step), and the step is optional with 1 as the default. 1. The variable n is assigned the value 0. 2. The variable i is assigned the value 1. 3. The variable n is assigned the value n + i (0 + 1 = 1). 4. The variable i is assigned the value 2. 5. The variable n is assigned the value n + i (1 + 2 = 3). 6. The variable i is assigned the value 3. 7. The variable n is assigned the value n + i (3 + 3 = 6). 8. With no more values to assign in the list, the for-loop is terminated with n = 6. Below are several more examples to give you a sense of how for-loops work. Other examples of sequences that we can iterate over include the elements of a tuple, the characters in a string, and other sequential data types. EXAMPLE: Print all the characters in the string banana. In [2]: for c in banana: print(c) b a n a n a Alternatively, you can use the index to get each character, but it is not as concise as the previous example. Recall that the length of a string can be determined by using the len function, and we can ignore the start by only giving one number as the stop. In [3]: s = banana for i in range(len(s)): print(s[i]) b a n a
- 106. 5.1 FOR-LOOPS 93 n a EXAMPLE: Given a list of integers, a, add all the elements of a. In [4]: s = 0 a = [2, 3, 1, 3, 3] for i in a: s += i # note this is equivalent to s = s + i print(s) 12 The Python function sum has already been written to handle the previous example. What if you want to add the even indices numbers only? What change(s) would you make to the previous for-loop block to handle this restriction? In [5]: s = 0 for i in range(0, len(a), 2): s += a[i] print(s) 6 NOTE! We use step as 2 in the range function to get the even indexes for list a. A commonly used Python shortcut is the operator +=. In Python and many other programming languages, a statement like i += 1 is equivalent to i = i + 1 and is the same for other operators as -=, *=, /=. EXAMPLE: Define a dictionary and loop through all the keys and values. In [6]: dict_a = {One:1, Two:2, Three:3} for key in dict_a.keys(): print(key, dict_a[key]) One 1 Two 2 Three 3 In the above example, we used the method keys first to retrieve all keys. Next, we used the key to get access the value. Alternatively, we can use the items method in a dictionary, which returns an object containing a list of key and value pairs in tuple. We can assign them simultaneously to two variables (tuple assignment); see the example below.
- 107. 94 CHAPTER 5 ITERATION In [7]: for key, value in dict_a.items(): print(key, value) One 1 Two 2 Three 3 Note that we can assign two different looping variables at the same time. There are other cases where we can assign tasks simultaneously. For example, if we have two lists with same length and we want to loop through them simultaneously, we use the zip function. See the example below. This function aggregates elements from two iterables and returns an iterator of tuples, where the ith tuple element contains the ith element of each of the iterables. In [8]: a = [One, Two, Three] b = [1, 2, 3] for i, j in zip(a, b): print(i, j) One 1 Two 2 Three 3 EXAMPLE: Let the function have_digits have a string as the input. The output out should take the value 1 if the string contains digits, and 0 otherwise. You can apply the isdigit method of the string to check if the character is a digit. In [9]: def have_digits(s): out = 0 # loop through the string for c in s: # check if the character is a digit if c.isdigit(): out = 1 break return out In [10]: out = have_digits(only4you) print(out)
- 108. 5.1 FOR-LOOPS 95 1 In [11]: out = have_digits(only for you) print(out) 0 The first step in the function have_digits assumes that there are no digits in the string s (i.e., the output is 0 or False). Notice the new keyword break. If executed, the break keyword immediately stops the most imme- diate for-loop that contains it; that is, if it is contained in a nested for-loop, then it will only stop the innermost for-loop. In this particular case, the break command is executed if we ever find a digit in the string. The code will still function properly without this statement, but since the task is to find out if there are any digits in s, we do not have to keep looking if we find one. Similarly, if a human was given the same task for a long string of characters, that person would not continue looking for digits if he or she already found one. Break statements are used when anything happens in a for-loop that would make you want to stop the run early. A less intrusive command is the keyword continue, which skips the remaining code in the current iteration of the for-loop, and continues on to the next element of the looping array. See the following example where we use the keyword continue to skip the print function to print 2: In [12]: for i in range(5): if i == 2: continue print(i) 0 1 3 4 EXAMPLE: Let the function my_dist_2_points(xy_points, xy) where the input argument xy_points is a list of x–y coordinates of a point in Euclidean space, xy is a list that contain an x–y coordinate, and the output d is a list containing the distances from xy to the points contained in each row of xy_points. In [13]: import math def my_dist_2_points(xy_points, xy): Returns an array of distances between xy and the
- 109. 96 CHAPTER 5 ITERATION points contained in the rows of xy_points author date d = [] for xy_point in xy_points: dist = math.sqrt((xy_point[0]-xy[0])**2+(xy_point[1]-xy[1])**2) d.append(dist) return d In [14]: xy_points = [[3,2], [2, 3], [2, 2]] xy = [1, 2] my_dist_2_points(xy_points, xy) Out[14]: [2.0, 1.4142135623730951, 1.0] Just like if-statements, for-loops can be nested. EXAMPLE: Let x be a two-dimensional array, [5 6;7 8]. Use a nested for-loop to sum all the elements in x. In [15]: x = np.array([[5, 6], [7, 8]]) n, m = x.shape s = 0 for i in range(n): for j in range(m): s += x[i, j] print(s) 26 WHAT IS HAPPENING? 1. s, representing the running total sum, is set to 0. 2. The outer for-loop begins with looping variable, i, set to 0. 3. Inner for-loop begins with looping variable, j, set to 0. 4. s is incremented by x[i,j] = x[0,0] = 5. So s = 5. 5. Inner for-loop sets j = 1. 6. s is incremented by x[i,j] = x[0,1] = 6; therefore, s = 11. 7. Inner for-loop terminates.
- 110. 5.2 WHILE LOOPS 97 8. Outer for-loop sets i = 1. 9. Inner for-loop begins with looping variable, j, set to 0. 10. s is incremented by x[i,j] = x[1,0] = 7; therefore, s = 18. 11. Inner for-loop sets j = 1. 12. s is incremented by x[i,j] = x[1,1] = 8. So s = 26. 13. Inner for-loop terminates. 14. Outer for-loop terminates with s = 26. WARNING! Although it is possible to do so, do not try to change the looping variable inside of the for-loop. It will make your code very complicated and will likely result in errors. 5.2 WHILE LOOPS A while-loop or indefinite loop is a set of instructions that is repeated as long as the associated logical expression is true. The following is the abstract syntax of a while-loop block. CONSTRUCTION: While Loop while logical expression: # Code block to be repeated until logical statement is false code block When Python reaches a while-loop block, it first determines if the logical expression of the while- loop is true or false. If the expression is true, the code block will be executed. After it is executed, the program returns to the logical expression at the beginning of the while statement. If it is false, then the while-loop will terminate. TRY IT! Determine the number of times 8 can be divided by 2 until the result is less than 1. In [1]: i = 0 n = 8 while n = 1: n /= 2 i += 1 print(fn = {n}, i = {i}) n = 0.5, i = 4
- 111. 98 CHAPTER 5 ITERATION WHAT IS HAPPENING? 1. First the variable i (running count of divisions of n by 2) is set to 0. 2. n is set to 8 and represents the current value we are dividing by 2. 3. The while-loop begins. 4. Python evaluates expression n ≥ 1 or 8 ≥ 1, which is true; therefore, the code block is exe- cuted. 5. n is assigned n/2 = 8/2 = 4. 6. i is incremented to 1. 7. Python evaluates expression n ≥ 1 or 4 ≥ 1, which is true; therefore, the code block is exe- cuted. 8. n is assigned n/2 = 4/2 = 2. 9. i is incremented to 2. 10. Python evaluates expression n ≥ 1 or 2 ≥ 1, which is true; therefore, the code block is exe- cuted. 11. n is assigned n/2 = 2/2 = 1. 12. i is incremented to 3. 13. Python evaluates expression n ≥ 1 or 1 ≥ 1, which is true; therefore, the code block is exe- cuted. 14. n is assigned n/2 = 1/2 = 0.5. 15. i is incremented to 4. 16. Python evaluates expression n ≥ 1 or 0.5 ≥ 1, which is false; therefore, the while-loop ends with i = 4. You may ask, “What if the logical expression is true and never changes?”; an excellent question. If the logical expression is true and nothing in the while-loop code changes the expression, then the result is known as an infinite loop. Infinite loops run forever, or until your computer breaks, or runs out of memory. EXAMPLE: Write a while-loop that causes an infinite loop. In [ ]: n = 0 while n -1: n += 1 Since n will always be bigger than -1 no matter how many times the loop is run, this code will never end. You can terminate the infinite while loop manually by pressing the interrupt the kernel – the black square button in the tool bar above shown in Fig. 5.1, or the drop down menu - Kernel - In- terrupt in the notebook. Or if you are using the Python shell, press cmd + c on Mac or Ctrl + c on PC. Can you change a single character so that the while-loop will run at least once but will not infinite loop?
- 112. 5.2 WHILE LOOPS 99 FIGURE 5.1 Interrupt the kernel by pressing the little square. Infinite loops are not always easy to spot. Consider the next two examples: one performs infinite loops and one does not. Can you determine which is which? As your code becomes more complicated, it will become harder to detect. EXAMPLE: Which while-loop causes an infinite loop? In [ ]: # Example 1 n = 1 while n 0: n /= 2 In [ ]: # Example 2 n = 2 while n 0: if n % 2 == 0: n += 1 else: n -= 1 Answer: The first example will not infinite loop because eventually n will be so small that Python cannot tell the difference between n and 0. This will be discussed in more detail in Chap- ter 9. The second example will infinite loop because n will oscillate between 2 and 3 indefinitely. Now we know two types of loops: for-loops and while-loops. In some cases, either are appropri- ate, but sometimes one is better suited for the task than the other. In general, use for-loops when the number of iterations to be performed is well-defined; use while-loops statements when the number of iterations to be performed is indefinite or not well known.
- 113. 100 CHAPTER 5 ITERATION 5.3 COMPREHENSIONS In Python, there are other ways to do iterations; list, dictionary, and set comprehensions are very popular ways. Once you familiarize yourself with them, you will find yourself using them a lot. Com- prehensions allow sequences to be created from other sequences using very compact syntax. Let us first look at the list comprehension. 5.3.1 LIST COMPREHENSION CONSTRUCTION: List comprehension [Output Input_sequence Conditions] EXAMPLE: If x = range(5), square each number in x, and store it in a list y. If we do not use list comprehension, the code will look something like this: In [1]: x = range(5) y = [] for i in x: y.append(i**2) print(y) [0, 1, 4, 9, 16] Using the list comprehension, we can write just one line. In [2]: y = [i**2 for i in x] print(y) [0, 1, 4, 9, 16] In addition, we can also include conditions in the list comprehension. For example, if we just want to store the even numbers in the above example, we just add a condition in the list comprehension. In [3]: y = [i**2 for i in x if i%2 == 0] print(y) [0, 4, 16] If we have two nested levels for loops, we can also use the list comprehensions. For example, we have the following two levels for loops that we can perform using the list comprehension.
- 114. 5.4 SUMMARY AND PROBLEMS 101 In [4]: y = [] for i in range(5): for j in range(2): y.append(i + j) print(y) [0, 1, 1, 2, 2, 3, 3, 4, 4, 5] In [5]: y = [i + j for i in range(5) for j in range(2)] print(y) [0, 1, 1, 2, 2, 3, 3, 4, 4, 5] 5.3.2 DICTIONARY COMPREHENSION Similarly, we can do the dictionary comprehension as well. See the following example. In [6]: x = {a: 1, b: 2, c: 3} {key:v**3 for (key, v) in x.items()} Out[6]: {a: 1, b: 8, c: 27} Performing set comprehension is also possible in Python, but will not be explored here. This is a task that you should explore on your own. 5.4 SUMMARY AND PROBLEMS 5.4.1 SUMMARY 1. Loops provide a mechanism for a code to perform repetitive tasks, that is, iteration. 2. There are two kinds of loops: for-loops and while-loops. 3. Loops are important for constructing iterative solutions to problems. 5.4.2 PROBLEMS 1. What will the value of y be after the following code is executed? In [ ]: y = 0 for i in range(1000): for j in range(1000): if i == j: y += 1 2. Write a function my_max(x) to return the maximum (largest) value in x. Do not use the built-in Python function max.
- 115. 102 CHAPTER 5 ITERATION 3. Write a function my_n_max(x, n) to return a list consisting of the n largest elements of x. You may use Python’s max function. You may also assume that x is a one-dimensional list with no duplicate entries, and that n is a strictly positive integer smaller than the length of x In [ ]: x = [7, 9, 10, 5, 8, 3, 4, 6, 2, 1] def my_n_max(x, n): # write your function code here return out In [ ]: # Output = [10, 9, 8] out = my_n_max(x, n) print(out) 4. Let m be a matrix of positive integers. Write a function my_trig_odd_even(m) to return an array q, where q[i, j] = sin(m[i, j]) if m[i, j] is even, and q[i, j] = cos(m[i, j]) if m[i, j] is odd. 5. Let P be an m × p array and Q be a p × n array. As you will find later in this book, M = P × Q is defined as M[i,j] = p k=1 P[i,k] · Q[k,j]. Write a function my_mat_mult(P, Q) that uses for-loops to compute M, the matrix product of P * Q. Hint: You may need up to three nested for-loops. Do not use the function np.dot. In [ ]: import numpy as np def my_mat_mult(P, Q): # write your function code here return M In [ ]: # Output: # array([[3., 3., 3.], # [3., 3., 3.], # [3., 3., 3.]]) P = np.ones((3, 3)) my_mat_mult(P, P) In [ ]: # Output: # array([[30, 30, 30], # [70, 70, 70]]) P = np.array([[1, 2, 3, 4], [5, 6, 7, 8]]) Q = np.array([[1, 1, 1], [2, 2, 2], [3, 3, 3], [4, 4, 4]]) my_mat_mult(P, Q)
- 116. 5.4 SUMMARY AND PROBLEMS 103 6. The interest i on a principle, P0, is a payment for allowing the bank to use your money. Compound interest is accumulated according to the formula Pn = (1 + i)Pn−1, where n is the compounding period, usually in months or years. Write a function my_saving_plan(P0, i, goal) where the output is the number of years it will take P0 to become goal at i% interest compounded annually. In [ ]: def my_saving_plan(P0, i, goal): # write your function code here return years In [ ]: # Output: 15 my_saving_plan(1000, 0.05, 2000) In [ ]: # Output: 11 my_saving_plan(1000, 0.07, 2000) In [ ]: # Output: 21 my_saving_plan(500, 0.07, 2000) 7. Write a function with my_find(M) where the output is a list of indices i and where M[i] is 1. You may assume that M is a list of only ones and zeros. Do not use the built-in Python function find. In [ ]: # Output: [0, 2, 3] M = [1, 0, 1, 1, 0] my_find(M) 8. Assume you are rolling two six-sided dice, with each side having an equal chance of occurring. Write a function my_monopoly_dice() where the output is the sum of the values of the two dice thrown but with the following extra rule: if the two dice rolls are the same, then another roll is made, and the new sum added to the running total. For example, if the two dice show 3 and 4, then the running total should be 7. If the two dice show 1 and 1, then the running total should be 2 plus the total of another throw. Rolls stop when the dice rolls are different. 9. A number is prime if it is divisible without remainder only by itself and 1. The number 1 is not a prime. Write a function my_is_prime(n) where the output is 1 if n is prime and 0 is otherwise. Assume that n is a strictly positive integer. 10. Write a function my_n_primes(n) where prime is a list of the first n primes. Assume that n is a strictly positive integer. 11. Write a function my_n_fib_primes(n) where the output fib_primes is a list of the first n numbers that are both a Fibonacci number and a prime. Note that 1 is not prime. Hint: Do not use the recursive implementation of Fibonacci numbers. A function to compute Fibonacci numbers is presented in Section 6.1. You may use the code freely. In [ ]: def my_n_fib_primes(n): # write your function code here return fib_primes
- 117. 104 CHAPTER 5 ITERATION In [ ]: # Output: [3, 5, 13, 89, 233, 1597, 28657, 514229] my_n_fib_primes(3) In [ ]: # Output: [3, 5, 13] my_n_fib_primes(8) 12. Write a function my_trig_odd_even(M) where the output Q[i,j] = sin(π/M[i,j]) if M[i,j] is odd, and Q[i,j] = cos(π/M[i,j]) if M[i,j] is even. Assume that M is a two-dimensional array of strictly positive integers. In [ ]: def my_trig_odd_even(M): # write your function code here return Q In [ ]: # Output: [[0.8660, 0.7071], [0.8660, 0.4339]] M = [[3, 4], [6, 7]] my_trig_odd_even(M) 13. Let C be a square connectivity array containing zeros and ones. Point i has a connection to point j or i is connected to j if C[i,j] = 1. Note that connections in this context are one-directional, meaning C[i,j] is not necessarily the same as C[j,i]. For example, think of a one-way street from point A to point B. If A is connected to B, then B is not necessarily connected to A. Write a function my_connectivity_mat_2_dict(C, names) where C is a connectivity array and names is a list of strings that denote the name of a point. That is, names[i] is the name of the name of the ith point. The output variable node should be a dictionary with the key as the string in names, and value is a vector containing the indices j, such that C[i,j] = 1. In other words, it is a list of points that point i is connected to. In [ ]: def my_connectivity_mat_2_dict(C, names): # write your function code here return node In [ ]: C = [[0, 1, 0, 1], [1, 0, 0, 1], [0, 0, 0, 1], [1, 1, 1, 0]] names = [Los Angeles, New York, Miami, Dallas] In [ ]: # Output: node[Los Angeles] = [2, 4] # node[New York] = [1, 4] # node[Miami] = [4] # node[Dallas] = [1, 2, 3] node = my_connectivity_mat_2_dict(C, names) 14. Turn the list words of lower case characters to upper case using the list comprehension. In [ ]: words = [test, data, analyze]
- 118. 6 RECURSION 6.1 Recursive Functions .................................................................................................. 105 6.2 Divide-and-Conquer................................................................................................... 110 6.2.1 Tower of Hanoi......................................................................................... 110 6.2.2 Quicksort ............................................................................................... 113 6.3 Summary and Problems.............................................................................................. 114 6.3.1 Summary ............................................................................................... 114 6.3.2 Problems ............................................................................................... 114 6.1 RECURSIVE FUNCTIONS A recursive function is a function that makes calls to itself. It works like the loops we described before. In some cases, however, it is preferable to use recursion than loops. Every recursive function has two components: a base case and a recursive step. The base case is usually the smallest input and has an easily verifiable solution. This is also the mechanism that stops the function from calling itself forever. The recursive step is the set of all cases where a recursive call, or a function call to itself, is made. As an example, we will demonstrate how recursion can be used to define and compute the factorial of an integer number. The factorial of an integer n is 1 × 2 × 3 × ··· × (n − 1) × n. The recursive definition can be written as follows: f (n) = 1 if n = 1, n × f (n − 1) otherwise. (6.1) The base case is n = 1, which is trivial to compute: f (1) = 1. In the recursive step, n is multiplied by the result of a recursive call to the factorial of n − 1. TRY IT! Write the factorial function using recursion. Use your function to compute the factorial of 3. In [1]: def factorial(n): Computes and returns the factorial of n, a positive integer. if n == 1: # Base case!
- 119. 106 CHAPTER 6 RECURSION return 1 else: # Recursive step return n * factorial(n - 1) # Recursive call In [2]: factorial(3) Out[2]: 6 WHAT IS HAPPENING? First recall that when Python executes a function, it creates a workspace for the variables created in that function. Whenever a function calls another func- tion, it will wait until that function returns an answer before continuing. In programming, this workspace is called a stack. Similar to a stack of plates in our kitchen cabinet, elements in a stack are added or removed from the top of the stack to the bottom, in a “last in, first out” order. For example, in the np.sin(np.tan(x)), sin must wait for tan to return an answer before it can be evaluated. Even though a recursive function makes calls to itself, the same rules apply. 1. A call is made to factorial(3), whereby a new workspace is opened to compute facto- rial(3). 2. Input argument value 3 is compared to 1. Since they are not equal, the else statement is executed. 3. 3*factorial(2) must be computed. A new workspace is opened to compute factorial(2). 4. Input argument value 2 is compared to 1. Since they are not equal, the else statement is executed. 5. 2*factorial(1) must be computed. A new workspace is opened to compute factorial(1). 6. Input argument value 1 is compared to 1. Since they are equal, the if statement is executed. 7. The return variable is assigned the value 1. factorial(1) terminates with output 1. 8. 2*factorial(1) can be resolved to 2 × 1 = 2. The output is assigned the value 2. facto- rial(2) terminates with output 2. 9. 3*factorial(2) can be resolved to 3 × 2 = 6. The output is assigned the value 6. Thus fac- torial(3) terminates with output 6. The order of recursive calls can be depicted by a recursion tree shown in Fig. 6.1 for factorial(3). A recursion tree is a diagram of the function calls connected by numbered arrows to depict the order in which the calls were made. Fibonacci numbers were originally developed to model the idealized population growth of rabbits. Since then, they have been found to be significant in any naturally occurring phenomena. The Fibonacci numbers can be generated using the following recursive formula. Note that the recursive step contains two recursive calls and that there are also two base cases (i.e., two cases that cause the recursion to stop): F(n) = ⎧ ⎪ ⎨ ⎪ ⎩ 1 if n = 1, 1 if n = 2, F(n − 1) + F(n − 2) otherwise. (6.2)
- 120. 6.1 RECURSIVE FUNCTIONS 107 FIGURE 6.1 Recursion tree for factorial(3). TRY IT! Write a recursive function for computing the nth Fibonacci number. Use your function to compute the first five Fibonacci numbers. Draw the associated recursion tree. In [3]: def fibonacci(n): Computes and returns the Fibonacci of n, a positive integer. if n == 1: # first base case return 1 elif n == 2: # second base case return 1 else: # Recursive step return fibonacci(n-1) + fibonacci(n-2) In [4]: print(fibonacci(1)) print(fibonacci(2)) print(fibonacci(3)) print(fibonacci(4)) print(fibonacci(5)) 1 1 2 3 5 As an exercise, consider the following modification to fibonacci, where the results of each recur- sive call are displayed to the screen (see Fig. 6.2).
- 121. 108 CHAPTER 6 RECURSION FIGURE 6.2 Recursion tree for factorial(5). EXAMPLE: Write a function fib_disp(5) based on modification of the fibonacci function. Can you determine the order in which the Fibonacci numbers will appear on the screen for fib_disp(5)? In [5]: def fib_disp(n): Computes and returns the Fibonacci of n, a positive integer. if n == 1: # first base case out = 1 print(out) return out elif n == 2: # second base case out = 1 print(out) return out else: # Recursive step out = fib_disp(n-1) + fib_disp(n-2) print(out) return out # Recursive call 1 1 2 1 3 1 1
- 122. 6.1 RECURSIVE FUNCTIONS 109 2 5 In [6]: fib_disp(5) 5 Note that the number of recursive calls becomes very large even for relatively small inputs for n. If you do not agree, try to draw the recursion tree for fibonacci(10). If you try your unmodified function for inputs around 35, you will experience significant computation times. In [7]: fibonacci(35) Out[7]: 9227465 There is an iterative method for computing the nth Fibonacci number that requires only one workspace. EXAMPLE: Iterative implementation for computing Fibonacci numbers. In [8]: import numpy as np def iter_fib(n): fib = np.ones(n) for i in range(2, n): fib[i] = fib[i - 1] + fib[i - 2] return fib TRY IT! Compute the 25th Fibonacci number using iter_fib and fibonacci. Use the magic command timeit to measure the run time for each. Note the large difference in running times. In [9]: %timeit iter_fib(25) 7.22 µs ± 171 ns per loop (mean ± std. dev. of 7 runs, 100000 loops each) In [10]: %timeit fibonacci(25) 16.7 ms ± 910 µs per loop (mean ± std. dev. of 7 runs, 100 loops each) You can see in the previous example that the iterative version runs much faster than the recursive counterpart. In general, iterative functions are faster than recursive functions performing the same task. So why use recursive functions at all? There are some solution methods that have a naturally recursive
- 123. 110 CHAPTER 6 RECURSION structure. In these cases, it is usually very hard to write a counterpart using loops. The primary value of writing recursive functions is that they can usually be written much more compactly than iterative functions. The cost of the improved compactness is added running time. The relationship between the input arguments and the running time is discussed in more detail later in the chapter on complexity. TIP! Try to write functions iteratively whenever it is convenient to do so. Your functions will run faster. NOTE! When using a recursive call as shown above, we need to make sure that it can reach the base case, otherwise, it enters infinite recursion. In Python, executing a recursive function on a large output that cannot reach the base case will result in a “maximum recursion depth exceeded error”. Try the following example to produce the RecursionError. In []: factorial(5000) We can work around the recursion limit using the sys module by setting a higher limit in Python. If you run the following code, the error message won’t occur. In []: import sys sys.setrecursionlimit(10**5) factorial(5000) 6.2 DIVIDE-AND-CONQUER Divide-and-conquer is a useful strategy for solving difficult problems. Using divide-and-conquer, difficult problems are solved from solutions to many similar easy problems. In this way, difficult prob- lems are broken up so they are more manageable. This section will present two classical examples of divide-and-conquer: the Tower of Hanoi Problem and the Quicksort algorithm. 6.2.1 TOWER OF HANOI The Tower of Hanoi problem consists of three vertical rods (or towers) and N disks of different sizes, each with a hole in the center so that the rod can slide through it. The original configuration of the disks is that they are stacked on one of the towers in the order of descending size (i.e., the largest disc is on the bottom). The goal of the problem is to move all the disks to a different rod while complying with the following three rules: 1. Only one disk can be moved at a time. 2. Only the disk at the top of a stack may be moved. 3. A disk may not be placed on top of a smaller disk.
- 124. 6.2 DIVIDE-AND-CONQUER 111 FIGURE 6.3 Illustration of the Tower of Hanoi: In eight steps, all disks are transported from pole 1 to pole 3, one at a time, by moving only the disk at the top of the current stack, and placing only smaller disks on top of larger disks. Fig. 6.3 shows the steps of the solution to the Tower of Hanoi problem with three disks. There is a legend saying that a group of Indian monks are in a monastery working to complete a Tower of Hanoi problem with 64 disks. When they complete the problem, the world will end. Fortu- nately, the number of moves required is 264 − 1, so even if they could move one disk per millisecond, it would take over 584 million years for them to finish. The key to the Tower of Hanoi problem is breaking it down into smaller, easier-to-manage problems that we will refer to as subproblems. For this problem, it is relatively easy to see that moving a disk is easy (which has only three rules), but moving a tower is difficult, and the solution is not obvious. So we will assign moving a stack of size N to several subproblems of moving a stack of size N − 1. Consider a stack of N disks that we wish to move from tower 1 to tower 3, and let my_tower(N) move a stack of size N to the desired tower (i.e., display the moves). How to write my_tower may not immediately be clear. If we think about the problem in terms of subproblems, we can see that we need to move the top N − 1 disks to the middle tower, then the bottom disk to the right tower, and then the N − 1 disks on the middle tower to the right tower. my_tower can display the instruction to move disk N and then make recursive calls to my_tower(N-1) to handle moving the smaller towers. The calls to my_tower(N-1) make recursive calls to my_tower(N-2), and so on. A breakdown of the three steps is depicted in Fig. 6.4. FIGURE 6.4 Breakdown of one iteration of the recursive solution of the Tower of Hanoi problem. The code reproduced below is a recursive solution to the Tower of Hanoi problem. Note its compact- ness and simplicity. The code exactly reflects our intuition about the recursive nature of the solution: First we move a stack of size N − 1 from the original “from_tower” to the alternative “alt_tower”. This
- 125. 112 CHAPTER 6 RECURSION is a difficult task, so instead we make a recursive call that will make subsequent recursive calls, but will, in the end, move the stack as desired. Then we move the bottom disk to the target “to_tower”. Finally, we move the stack of size N − 1 to the target tower by making another recursive call. TRY IT! Use the function my_towers to solve the Tower of Hanoi problem for N = 3. Verify the solution is correct by inspection. In [1]: def my_towers(N, from_tower, to_tower, alt_tower): Displays the moves required to move a tower of size N from the from_tower to the to_tower. from_tower, to_tower and alt_tower are either 1, 2, 3 referring to tower 1, 2, and 3. if N != 0: # recursive call that moves N-1 stack from # starting tower to alternate tower my_towers(N-1, from_tower, alt_tower, to_tower) # display to screen movement of bottom disk from # starting tower to final tower print(Move disk %d from tower %d to tower %d. %(N, from_tower, to_tower)) # recursive call that moves N-1 stack from # alternate tower to final tower my_towers(N-1, alt_tower, to_tower, from_tower) In [2]: my_towers(3, 1, 3, 2) Move disk 1 from tower 1 to tower 3. Move disk 2 from tower 1 to tower 2. Move disk 1 from tower 3 to tower 2. Move disk 3 from tower 1 to tower 3. Move disk 1 from tower 2 to tower 1. Move disk 2 from tower 2 to tower 3. Move disk 1 from tower 1 to tower 3. By using divide-and-conquer, we have solved the Tower of Hanoi problem by making recursive calls to the slightly smaller Tower of Hanoi problems that, in turn, make recursive calls to yet smaller Tower of Hanoi problems. Together, the solutions form the solution to the whole problem. The actual work done by a single function call is actually quite small: two recursive calls and moving one disk. In
- 126. 6.2 DIVIDE-AND-CONQUER 113 other words, a function call does very little work (moving a disk), and then passes the rest of the work onto other calls, a skill you will find very useful throughout your engineering career. 6.2.2 QUICKSORT A list of numbers, A, is sorted if the elements are arranged in ascending or descending order. Although there are many ways of sorting a list, quicksort is a divide-and-conquer approach, which is a very fast algorithm for sorting using a single processor (there are faster algorithms for multiple processors). The quicksort algorithm starts with the observation that although sorting a list is hard, a comparison is relatively easy. So instead of sorting a list, we separate the list by comparing to a pivot. At each recursive call to quicksort, the input list is divided into three parts: elements that are smaller than the pivot, elements that are equal to the pivot, and elements that are larger than the pivot. Then a recursive call to quicksort is made on the two subproblems: the list of elements smaller than the pivot and the list of elements larger than the pivot. Eventually the subproblems are small enough (i.e., list size of length 1 or 0) so that sorting the list is now trivial. Consider the following recursive implementation of quicksort. In [3]: def my_quicksort(lst): if len(lst) = 1: # list of length 1 is easiest to sort # because it is already sorted sorted_list = lst else: # select pivot as the first element of the list pivot = lst[0] # initialize lists for bigger and smaller # elements as well those equal to the pivot bigger = [] smaller = [] same = [] # put elements into appropriate array for item in lst: if item pivot: bigger.append(item) elif item pivot: smaller.append(item) else:
- 127. 114 CHAPTER 6 RECURSION same.append(item) sorted_list = my_quicksort(smaller) + same + my_quicksort(bigger) return sorted_list In [4]: my_quicksort([2, 1, 3, 5, 6, 3, 8, 10]) Out[4]: [1, 2, 3, 3, 5, 6, 8, 10] As we did with the Tower of Hanoi problem, we have broken up the problem of sorting (hard) into many comparisons (easy). 6.3 SUMMARY AND PROBLEMS 6.3.1 SUMMARY 1. A recursive function is a function that calls itself. 2. Recursive functions are useful when problems have a hierarchical structure rather than an iterative structure. 3. Divide-and-conquer is a powerful problem-solving strategy that can be used to solve difficult prob- lems. 6.3.2 PROBLEMS 1. Write a function my_sum(lst) where lst is a list, and the output is the sum of all the elements of lst. You can use a recursion or iteration function to solve the problem, but do not use Python’s sum function. In [ ]: def my_sum(lst): # Write your function code here return out In [ ]: # Output: 6 my_sum([1, 2, 3]) In [ ]: # Output: 5050 my_sum(range(1,101)) 2. Chebyshev polynomials are defined recursively and separated into two kinds: first and second. Chebyshev polynomials of the first kind, Tn(x), and of the second kind, Un(x), are defined by the
- 128. 6.3 SUMMARY AND PROBLEMS 115 following recurrence relations: Tn(x) = ⎧ ⎪ ⎨ ⎪ ⎩ 1 if n = 0, x if n = 1, 2xTn−1(x) − Tn−2(x) otherwise, (6.3) Un(x) = ⎧ ⎪ ⎨ ⎪ ⎩ 1 if n = 0, 2x if n = 1, 2xUn−1(x) − Un−2(x) otherwise. (6.4) Write a function my_chebyshev_poly1(n,x) where the output y is the nth Chebyshev polynomial of the first kind evaluated at x. Be sure your function can take list inputs for x. You may assume that x is a list. The output variable, y, must be a list also. In [ ]: def my_chebyshev_poly1(n,x): # Write your function code here return y In [ ]: x = [1, 2, 3, 4, 5] In [ ]: # Output: [1, 1, 1, 1, 1] my_chebyshev_poly1(0,x) In [ ]: # Output: [1, 2, 3, 4, 5] my_chebyshev_poly1(1,x) In [ ]: # Output: [1, 26, 99, 244, 485] my_chebyshev_poly1(3,x) 3. The Ackermann function, A, is a function quickly growing in popularity that is defined by the recursive relationship: A(m,n) = ⎧ ⎪ ⎨ ⎪ ⎩ n + 1 if m = 0, A(m − 1,1) if m 0 and n = 1, A(m − 1,A(m,n − 1)) if m 0 and n 0. (6.5) Write a function my_ackermann(m,n) where the output is the Ackermann function computed for m and n. my_ackermann(4,4) is so large that it would be difficult to write down. Although the Ackermann function does not have many practical uses, the inverse Ackermann function has several uses in robotic motion planning. In [ ]: def my_ackermann(m,n): # write your own function code here return out
- 129. 116 CHAPTER 6 RECURSION In [ ]: # Output: 3 my_ackermann(1,1) In [ ]: # Output: 4 my_ackermann(1,2) In [ ]: # Output: 9 my_ackermann(2,3) In [ ]: # Output: 61 my_ackermann(3,3) In [ ]: # Output: 125 my_ackermann(3,4) 4. The function, C(n,k), computes the number of different ways of uniquely choosing k objects from n without repetition; it is commonly used in many statistics applications. For example, how many three-flavored ice cream sundaes are there if there are 10 ice-cream flavors? To solve this problem we would have to compute C(10,3), i.e., the number of ways of choosing three unique ice cream flavors from 10. The function C is commonly called “n choose k.” You may assume that n and k are integers. If n = k, then clearly C(n,k) = 1 because there is only way to choose n objects from n objects. If k = 1, then C(n,k) = n because choosing each of the n objects is a way of choosing one object from n. For all other cases, C(n,k) = C(n − 1,k) + C(n − 1,k − 1). Can you see why? Write a function my_n_choose_k(n,k) that computes the number of times k objects can be uniquely chosen from n objects without repetition. In [ ]: def my_n_choose_k(n,k): # Write your own function code here return out In [ ]: # Output: 10 my_n_choose_k(10,1) In [ ]: # Output: 1 my_n_choose_k(10,10) In [ ]: # Output: 120 my_n_choose_k(10,3) 5. For any purchases paid in cash, the seller must return money that was overpaid. This is commonly referred to as “giving change.” The bills and coins required to properly give change can be de- fined by a recursive relationship. If the amount paid is more than $100 more than the cost, then a 100-dollar bill is returned, which is the result of a recursive call to the change function with $100 subtracted from the amount paid. If the amount paid is more than $50 over the cost of the item,
- 130. 6.3 SUMMARY AND PROBLEMS 117 then a 50-dollar bill is returned, along with the result of a recursive call to the change function with $50 subtracted. Similar clauses can be given for every denomination of US currency. The denominations of US currency, in dollars, are 100, 50, 20, 10, 5, 1, 0.25, 0.10, 0.05, and 0.01. For this problem, we will ignore the 2-dollar bill, which is not in common circulation. Assume that cost and paid are scalars and that paid ≥ cost. The output variable, change, must be a list, as shown in the test case. Use recursion to program a function my_change(cost, paid) where cost is the cost of the item, paid is the amount paid, and the output change is a list of bills and coins that should be returned to the seller. Watch out for the base case! In [ ]: def my_change(cost, paid): # Write your own function code here return change In [ ]: #Output:[50.0,20.0,1.0,1.0,0.25,0.10,0.05,0.01,0.01,0.01] my_change(27.57, 100) 6. The golden ratio, φ, is the limit of F(n+1) F(n) as n goes to infinity and F(n) is the nth Fibonacci number, which can be shown to be exactly 1+ √ 5 2 and is approximately 1.62. We say that G(n) = F(n+1) F(n) is the nth approximation of the golden ratio and G(1) = 1. It can be shown that φ is also the limit of the continued fraction: ϕ = 1 + 1 1 + 1 1 + 1 1 + ... . Write a recursive function with the header my_golden_ratio(n), where the output is the nth ap- proximation of the golden ratio according to the continued fraction recursive relationship. Use the continued fraction approximation for the golden ratio and not the G(n) = F(n + 1)/F(n) defini- tion; however, for both definitions, G(1) = 1. Studies have shown that rectangles with aspect ratio (i.e., length divided by width) close to the golden ratio are more pleasing to the eye than rectangles that are not. What is the aspect ratio of many wide-screen TVs and movie screens? In [ ]: def my_golden_ratio(n): # Write your own function code here return out In [ ]: # Output: 1.618181818181818 my_golden_ratio(10) In [ ]: import numpy as np (1 + np.sqrt(5))/2 7. The greatest common divisor of two integers a and b is the largest integer that divides both numbers without remainder; the function to compute it is denoted by gcd(a,b). The gcd function can be
- 131. 118 CHAPTER 6 RECURSION written recursively. If b equals 0, then a is the greatest common divisor. Otherwise, gcd(a,b) = gcd(b,a%b) where a%b is the remainder of a divided by b. Assume that a and b are integers. Write a recursive function my_gcd(a,b) that computes the greatest common divisor of a and b. Assume that a and b are integers. In [ ]: def my_gcd(a, b): # Write your own function code here return gcd In [ ]: # Output: 2 my_gcd(10, 4) In [ ]: # Output: 11 my_gcd(33, 121) In [ ]: # Output: 1 my_gcd(18, 1) 8. Pascal’s triangle is an arrangement of numbers such that each row is equivalent to the coefficients of the binomial expansion of (x + y)p−1, where p is some positive integer more than or equal to 1. For example, (x + y)2 = 1x2 + 2xy + 1y2; therefore, the third row of Pascal’s triangle is 1 2 1. Let Rm represent the mth row of Pascal’s triangle and Rm(n) be the nth element of the row. By definition, Rm has m elements, and Rm(1) = Rm(n) = 1. The remaining elements are computed using the following recursive relationship: Rm(i) = Rm−1(i − 1) + Rm−1(i) for i = 2,...,m − 1. The first few rows of Pascal’s triangle are depicted in Fig. 6.5. FIGURE 6.5 Pascal’s triangle. Write a function with my_pascal_row(m) where output variable row is the mth row of the Pascal triangle and must be a list. Assume that m is a strictly positive integer. In [ ]: def my_pascal_row(m): # Write your own function code here return row In [ ]: # Output: [1] my_pascal_row(1) In [ ]: # Output: [1, 1] my_pascal_row(2)
- 132. 6.3 SUMMARY AND PROBLEMS 119 In [ ]: # Output: [1, 2, 1] my_pascal_row(3) In [ ]: # Output: [1, 3, 3, 1] my_pascal_row(4) In [ ]: # Output: [1, 4, 6, 4, 1] my_pascal_row(5) 9. Consider an n × n matrix of the following form: A = ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ 1 1 1 1 1 1 0 0 0 0 1 0 1 1 0 1 0 0 1 0 1 1 1 1 0 ⎤ ⎥ ⎥ ⎥ ⎥ ⎦ where the ones form a right spiral. Write a function my_spiral_ones(n) that produces a n × n matrix of the given form. Make sure that the recursive steps are in the correct order (i.e., the ones go right, then down, then left, then up, then right, etc.). In [ ]: def my_spiral_ones(n): # Write your own function code here return A In [ ]: # Output: 1 my_spiral_ones(1) In [ ]: # Output: # array([[1, 1], # [0, 1]]) my_spiral_ones(2) In [ ]: # Output: #array([[0, 1, 1], # [0, 0, 1], # [1, 1, 1]]) my_spiral_ones(3) In [ ]: # Output: #array([[1, 0, 0, 0], # [1, 0, 1, 1], # [1, 0, 0, 1], # [1, 1, 1, 1]]) my_spiral_ones(4) In [ ]: # Output: #array([[1, 1, 1, 1, 1], # [1, 0, 0, 0, 0],
- 133. 120 CHAPTER 6 RECURSION # [1, 0, 1, 1, 0], # [1, 0, 0, 1, 0], # [1, 1, 1, 1, 0]]) my_spiral_ones(5) 10. Rewrite my_spiral_ones without using recursion. 11. Draw the recursion tree for my_towers(4). 12. Rewrite the Tower of Hanoi function in this chapter without using recursion. 13. Draw the recursion tree for my_quicksort([5 4 6 2 9 1 7 3]). 14. Rewrite the quicksort function in this chapter without using recursion.
- 134. 7 OBJECT-ORIENTED PROGRAMMING 7.1 Introduction to OOP ................................................................................................... 121 7.2 Class and Object ...................................................................................................... 123 7.2.1 Class .................................................................................................... 123 7.2.2 Object ................................................................................................... 124 7.2.3 Class vs Instance Attributes ......................................................................... 125 7.3 Inheritance, Encapsulation, and Polymorphism.................................................................. 127 7.3.1 Inheritance ............................................................................................. 127 7.3.1.1 Inheriting and Extending New Method ........................................................ 128 7.3.1.2 Inheriting and Method Overriding .............................................................. 129 7.3.1.3 Inheriting and Updating Attributes With Super .............................................. 129 7.3.2 Encapsulation.......................................................................................... 130 7.3.3 Polymorphism.......................................................................................... 132 7.4 Summary and Problems.............................................................................................. 132 7.4.1 Summary ............................................................................................... 132 7.4.2 Problems ............................................................................................... 132 7.1 INTRODUCTION TO OOP So far, all the codes we have written belong to the category of procedure-oriented programming (POP), which consists of a list of instructions to tell the computer what to do; these instructions are then organized into functions. The program is divided into a collection of variables, data structures, and routines to accomplish different tasks. Python is a multiparadigm programming language, that is, it supports different programming approaches. One way to program in Python is to use object-oriented programming (OOP). The learning curve is steeper, but it is extremely powerful and worth the time invested in mastering it. Note that you do not have to use OOP when programming in Python. You can still write very powerful programs using the POP. That said, the POP is good for simple and small programs, while the OOP is better suited for large programs. Let us take a closer look at object-oriented programming. The object-oriented programming breaks the programming task into objects, which combine data (known as attributes) and behaviors/functions (known as methods). Thus, there are two main compo- nents of the OOP: class and object. The class is a blueprint to define a logical grouping of data and functions. It provides a way to create data structures that model real-world entities. For example, we can create a people class that contains the data such as name, age, and some behavior functions to print out ages and genders of a group of people. While class is the blueprint, an object is an instance of the class with actual values.
- 135. 122 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING For example, a person named “Iron man” with age 35. Put it another way, a class is like a template to define the needed information, and an object is one specific copy that filled in the template. Also, objects instantiated from the same class are independent from each other. For example, if we have another person, say, “Batman” with age 33, it can be instantiated from the people class, but it remains an independent instance. To implement the above example in Python, see the code below. Do not worry if you do not under- stand the syntax; the next section provides more helpful examples. In [1]: class People(): def __init__(self, name, age): self.name = name self.age = age def greet(self): print(Greetings, + self.name) In [2]: person1 = People(name = Iron Man, age = 35) person1.greet() print(person1.name) print(person1.age) Greetings, Iron Man Iron Man 35 In [3]: person2 = People(name = Batman, age = 33) person2.greet() print(person2.name) print(person2.age) Greetings, Batman Batman 33 In the above code example, we first defined a class, People, with name and age as the data, and a method greet. We then instantiated an object, person1 with the specific name and age. We can clearly see that the class defines the whole structure, while the object is just an instance of the class. The many benefits of using OOP are as follows: It provides a clear modular structure for pro- grams that enhances code reusability. It provides a simple way to solve complex problems. It helps define more abstract data types to model real-world scenarios. It hides implementation details, leaving a clearly defined interface. It combines data and operations. There are also other advantages of using OOP in a large project. We encourage you to search online to find out more. At this point, you may still not fully understand OOP’s advantages until you are involved in complex large projects. We will continue to learn more about OOP during the course of this book, and its usefulness will become apparent.
- 136. 7.2 CLASS AND OBJECT 123 7.2 CLASS AND OBJECT The previous section introduced the two main components of OOP: class, which is a blueprint used to define a logical grouping of data and functions, and object, which is an instance of the defined class with actual values. In this section, we will get into greater detail of both of these components. 7.2.1 CLASS A class is a definition of the structure that we want. Similar to a function, it is defined as a block of code, starting with the class statement. The syntax of defining a class is: class ClassName(superclass): def __init__(self, arguments): # define or assign object attributes def other_methods(self, arguments): # body of the method Note that the definition of a class is very similar to a function. It needs to be instantiated first before you can use it. For the class name, it is standard convention to use CapWords. The superclass is used when you want create a new class to inherit the attributes and methods from another already defined class. We will talk more about inheritance in the next section. The __init__ is one of the special methods in Python classes that is run as soon as an object of a class is instantiated (created). It assigns initial values to the object before it is ready to be used. Note the two underscores at the beginning and end of the init, indicating this is a special method reserved for special use in the language. In this init method, you can assign attributes directly when you create the object. The other_methods functions are used to define the instance methods that will be applied on the attributes, just like functions we discussed before. You may notice that there is an argument self for defining this method in the class. Why? A class instance method must have this extra argument as the first argument when you define it. This particular argument refers to the object itself; conventionally, we use self to name it. Instance methods can freely access attributes and other methods in the same object by using this self parameter. See the example below. EXAMPLE: Define a class named Student, with the attributes sid (student id), name, gender, type in the init method, and a method called say_name to print out the student’s name. All attributes will be passed in except type, which will have a value as learning. In [1]: class Student(): def __init__(self, sid, name, gender): self.sid = sid self.name = name self.gender = gender
- 137. 124 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING self.type = learning def say_name(self): print(My name is + self.name) From the above example, we can see this simple class contains all the necessary parts mentioned previously. The __init__ method will initialize the attributes when we create an object. We need to pass in the initial value for sid, name, and gender, while the attribute type is a fixed value as learning. These attributes can be accessed by all the other methods defined in the class with self.attribute, for example, in the say_name method, we can use the name attribute with self.name. The methods defined in the class can be accessed and used in other different methods as well using self.method. Let us see the following example. TRY IT! Add a method report that prints not only the student name, but also the student id. The method will have another parameter, score, that will pass in a number between 0 and 100 as part of the report. In [2]: class Student(): def __init__(self, sid, name, gender): self.sid = sid self.name = name self.gender = gender self.type = learning def say_name(self): print(My name is + self.name) def report(self, score): self.say_name() print(My id is: + self.sid) print(My score is: + str(score)) 7.2.2 OBJECT As mentioned before, an object is an instance of the defined class with actual values. Many instances of different values associated with the class are possible, and each of these instances will be independent with each other (as seen previously). Also, after we create an object and call this instance method from the object, we do not need to give value to the self parameter because Python automatically provides it; see the following example.
- 138. 7.2 CLASS AND OBJECT 125 EXAMPLE: Create two objects (001, Susan, F) and (002, Mike, M), and call the method say_name. In [3]: student1 = Student(001, Susan, F) student2 = Student(002, Mike, M) student1.say_name() student2.say_name() print(student1.type) print(student1.gender) My name is Susan My name is Mike learning F In the above code, we created two objects, student1 and student2, with two different sets of values. Each object is an instance of the Student class and has a different set of attributes. Type student1.+TAB to see the defined attributes and methods. To get access to one attribute, type object.attribute, e.g., student1.type. In contrast, to call a method, you need the parentheses because you are calling a function, such as student1.say_name(). TRY IT! Call method report for student1 and student2 with scores of 95 and 90, respectively. Note that we do not need the “self” as an argument here. In [4]: student1.report(95) student2.report(90) My name is Susan My id is: 001 My score is: 95 My name is Mike My id is: 002 My score is: 90 We can see both methods calling to print out the data associated with the two objects. Note that the score value we passed in is only available to the method report (within the scope of this method). We can also see that the method say_name call in the report also works, as long as you call the method with the self in it. 7.2.3 CLASS VS INSTANCE ATTRIBUTES The attributes we presented above are actually called instance attributes, which means that they are only belong to a specific instance; when you use them, you need to use the self.attribute within
- 139. 126 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING the class. There are other attributes called class attributes, which will be shared with all the instances created from this class. Let us see an example how to define and use a class attribute. EXAMPLE: Modify the Student class to add a class attribute n, which will record how many object we are creating. Also, add a method num_instances to print out the number. In [5]: class Student(): n = 0 def __init__(self, sid, name, gender): self.sid = sid self.name = name self.gender = gender self.type = learning Student.n += 1 def say_name(self): print(My name is + self.name) def report(self, score): self.say_name() print(My id is: + self.sid) print(My score is: + str(score)) def num_instances(self): print(fWe have {Student.n}-instance in total) In defining a class attribute, we must define it outside of all the other methods without using self. To use the class attributes, we use ClassName.attribute, which in this case is Student.n. This attribute will be shared with all the instances that are created from this class. Let us see the following code to show the idea. In [6]: student1 = Student(001, Susan, F) student1.num_instances() student2 = Student(002, Mike, M) student1.num_instances() student2.num_instances() We have 1-instance in total We have 2-instance in total We have 2-instance in total As before, we created two objects, the instance attribute sid, name, but gender only belongs to the specific object. For example, student1.name is “Susan” and student2.name is “Mike”. But when we
- 140. 7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM 127 print the class attribute Student.n_instances out after we created object student2, the one in the student1 changes as well. This is the expectation we have for the class attribute because it is shared across all the created objects. Now that we understand the difference between class and instance, we are in good shape to use basic OOP in Python. Before we can take full advantage of OOP, we still need to understand the concept of inheritance, encapsulation, and polymorphism. Let us start the next section! 7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM We have already seen the modeling power of OOP using the class and object functions by combin- ing data and methods. There are three more important concepts: (1) inheritance, which makes the OOP code more modular, easier to reuse, and capable of building a relationship between classes; (2) encapsulation, which can hide some of the private details of a class from other objects; and (3) polymorphism, which allows us to use a common operation in different ways. A brief discussion of how these concepts is discussed below. 7.3.1 INHERITANCE Inheritance allows us to define a class that inherits all the methods and attributes from another class. Convention denotes the new class as child class, and the one that it inherits from is called the parent class or superclass. If we refer back to the definition of class structure, we can see the structure for basic inheritance is class ClassName(superclass), which means the new class can access all the attributes and methods from the superclass. Inheritance builds a relationship between the child and parent classes. Usually, the parent class is a general type while the child class is a specific type. An example is presented below. TRY IT! Define a class named Sensor with attributes name, location, and record_date that pass from the creation of an object and an attribute data as an empty dictionary to store data. Create one method add_data with t and data as input parameters to take in timestamp and data arrays. Within this method, assign t and data to the data attribute with “time” and “data” as the keys. In addition, create one clear_data method to delete the data. In [1]: class Sensor(): def __init__(self, name, location, record_date): self.name = name self.location = location self.record_date = record_date self.data = {} def add_data(self, t, data): self.data[time] = t
- 141. 128 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING self.data[data] = data print(fWe have {len(data)} points saved) def clear_data(self): self.data = {} print(Data cleared!) Now we have a class to store general sensor information, we can create a sensor object to store data. EXAMPLE: Create a sensor object. In [2]: import numpy as np sensor1 = Sensor(sensor1, Berkeley, 2019-01-01) data = np.random.randint(-10, 10, 10) sensor1.add_data(np.arange(10), data) sensor1.data We have 10 points saved Out[2]: {time: array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9]), data: array([ 3, 2, 5, -1, 2, -2, 6, -1, 5, 4])} 7.3.1.1 Inheriting and Extending New Method Suppose we have one different type of sensor, an accelerometer. It shares the same attributes and methods as Sensor class, but it also has different attributes or methods that need to be appended or modified from the original class. What should we do? Do we create a different class from scratch? This is where inheritance can be used to make life easier. This new class will inherit from the Sensor class with all the attributes and methods. We can think whether we want to extend the attributes or methods. Let us first create this new class, Accelerometer, and add a new method, show_type, to report what kind of sensor it is. In [3]: class Accelerometer(Sensor): def show_type(self): print(I am an accelerometer!) acc = Accelerometer(acc1, Oakland, 2019-02-01) acc.show_type() data = np.random.randint(-10, 10, 10) acc.add_data(np.arange(10), data) acc.data
- 142. 7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM 129 I am an accelerometer! We have 10 points saved Out[3]: {time: array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9]), data: array([ -1, 4, 7, -10, -2, -6, 2, -8, 9, 3])} Creating this new Accelerometer class is very simple. It inherits from Sensor (denoted as a su- perclass), and the new class actually contains all the attributes and methods from the superclass. We then add a new method, show_type, which does not exist in the Sensor class, but we can successfully extend the child class by adding the new method. This shows the power of inheritance: we have reused most part of the Sensor class in a new class, and extended the functionality. Basically, the inheritance sets up a logical relationship for the modeling of the real-world entities: the Sensor class as the parent class is more general and passes all the characteristics to the child class Accelerometer. 7.3.1.2 Inheriting and Method Overriding When we inherit from a parent class, we can change the implementation of a method provided by the parent class; this is called method overriding and is shown in the example below. EXAMPLE: Create a class UCBAcc (a specific type of accelerometer that was created at UC Berkeley) that inherits from Accelerometer but replaces the show_type method that also prints out the name of the sensor. In [4]: class UCBAcc(Accelerometer): def show_type(self): print(fI am {self.name}, created at Berkeley!) acc2 = UCBAcc(UCBAcc, Berkeley, 2019-03-01) acc2.show_type() I am UCBAcc, created at Berkeley! We see that our new UCBAcc class actually overrides the method show_type with new features. In this example, we are not only inheriting features from our parent class, but we are also modifying/im- proving some methods. 7.3.1.3 Inheriting and Updating Attributes With Super Let us create a class NewSensor that inherits from Sensor class, but is updated the attributes by adding a new attribute brand. Of course, we can redefine the whole __init__ method as shown below that is capable of overriding the parent function.
- 143. 130 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING In [5]: class NewSensor(Sensor): def __init__(self,name,location,record_date,brand): self.name = name self.location = location self.record_date = record_date self.brand = brand self.data = {} new_sensor = NewSensor(OK, SF, 2019-03-01, XYZ) new_sensor.brand Out[5]: XYZ There is a better way to achieve the same result. If we use the super method, we can avoid referring to the parent class explicitly, as shown in the following example: EXAMPLE: Redefine the attributes in inheritance. In [6]: class NewSensor(Sensor): def __init__(self,name,location,record_date,brand): super().__init__(name, location, record_date) self.brand = brand new_sensor = NewSensor(OK, SF, 2019-03-01, XYZ) new_sensor.brand Out[6]: XYZ Now we can see with the super method, we have avoided listing all of the definition of the attributes; this helps keep your code maintainable for the foreseeable future. Because the child class does not implicitly call the __init__ of the parent class, we must use super().__init__, as shown above. 7.3.2 ENCAPSULATION Encapsulation is one of the fundamental concepts in OOP. It describes the idea of restricting access to methods and attributes in a class. Encapsulation hides complex details from the users and prevents data being modified by accident. In Python, this is achieved by using private methods or attributes using the underscore as prefix, i.e., single “_” or double “__”, as shown the following example. EXAMPLE: In [7]: class Sensor(): def __init__(self, name, location): self.name = name
- 144. 7.3 INHERITANCE, ENCAPSULATION, AND POLYMORPHISM 131 self._location = location self.__version = 1.0 # a getter function def get_version(self): print(fThe sensor version is {self.__version}) # a setter function def set_version(self, version): self.__version = version In [8]: sensor1 = Sensor(Acc, Berkeley) print(sensor1.name) print(sensor1._location) print(sensor1.__version) Acc Berkeley -------------------------------------------------------- AttributeError Traceback (most recent call last) ipython-input-8-ca9b481690ba in module 2 print(sensor1.name) 3 print(sensor1._location) ---- 4 print(sensor1.__version) AttributeError: 'Sensor' object has no attribute '__version' The above example shows how the encapsulation works. With single underscore, we defined a private variable that should not be accessed directly. Note that this is convention and nothing stops you from actually accessing it. With double underscores, we can see that the attribute __version cannot be accessed or modified directly. To get access to the double underscore attributes, we need to use “getter” and “setter” functions to access it internally. A “getter” function is shown in the following example. In [9]: sensor1.get_version() The sensor version is 1.0
- 145. 132 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING In [10]: sensor1.set_version(2.0) sensor1.get_version() The sensor version is 2.0 The single and double underscore(s) apply to private methods as well, which are not discussed because they are similar to the private attributes. 7.3.3 POLYMORPHISM Polymorphism is another fundamental concept in OOP, which means multiple forms. Polymorphism allows the use of a single interface with different underlying forms, such as data types or classes. For example, we can have commonly named methods across classes or child classes. We have already seen one example above when we overrode the method show_type in the UCBAcc. Both the parent class Accelerometer and child class UCBAcc have a method named show_type, but they are implemented differently. This ability of using a single name with many forms acting differently in different situations greatly reduces our complexities. We will not expand this discussion on polymorphism, if you are interested, check more online to get a deeper understanding. 7.4 SUMMARY AND PROBLEMS 7.4.1 SUMMARY 1. OOP and POP are different. OOP has many benefits and is often more appropriate for use in large- scale projects. 2. Class is the blueprint of the structure that allows us to group data and methods, while object is an instance from the class. 3. The concept of “inheritance” is key to OOP, which allows us to refer attributes or methods from the superclass. 4. The concept of “encapsulation” allows us to hide some of the private details of a class from other objects. 5. The concept of “polymorphism” allows us to use a common operation in different ways for different data input. 7.4.2 PROBLEMS 1. Describe the differences between classes and objects. 2. Describe why we use “self” as the first argument in a method. 3. What is a constructor? And why do we use it? 4. Describe the differences between class and instance attributes. 5. The following is a definition of the class Point that takes in the coordinates x, y. Add a method plot_point that plots the position of a point.
- 146. 7.4 SUMMARY AND PROBLEMS 133 import matplotlib.pyplot as plt class Point(): def __init__(self, x, y): self.x = x self.y = y 6. Use the class from Problem 5 and add a method calculate_dist which takes in x and y from another point, and returns the distance calculated between the two points. 7. What’s inheritance? 8. How do we inherit from a superclass and add new methods? 9. When we inherit from a superclass, we need to replace a method with a new one; how do we do that? 10. What’s the super method? Why do we need it? 11. Create a class to model some real world objects and create a new class to inherit from it. See the example below. You should use a different example and incorporate as many of the concepts we’ve learned so far as possible. In [1]: class Car(): def __init__(self, brand, color): self.brand = brand self.color = color def start_my_car(self): print(I am ready to drive!) class Truck(Car): def __init__(self, brand, color, size): super().__init__(brand, color) self.size = size def start_my_car(self, key): if key == truck_key: print(I am ready to drive!) else: print(Key is not right) def stop_my_car(self, brake): if brake: print(The engine is stopped!) else: print(I am still running!)
- 147. 134 CHAPTER 7 OBJECT-ORIENTED PROGRAMMING truck1 = Truck(Toyota, Silver, Large) truck1.start_my_car(truck_key) truck1.stop_my_car(brake = False)
- 148. 8 COMPLEXITY 8.1 Complexity and Big-O Notation ..................................................................................... 135 8.2 Complexity Matters ................................................................................................... 137 8.3 The Profiler............................................................................................................. 139 8.3.1 Using the Magic Command .......................................................................... 139 8.3.2 Use Python Profiler ................................................................................... 140 8.3.3 Use Line Profiler....................................................................................... 141 8.4 Summary and Problems.............................................................................................. 142 8.4.1 Summary ............................................................................................... 142 8.4.2 Problems ............................................................................................... 142 8.1 COMPLEXITY AND BIG-O NOTATION The complexity of a function is the relationship between the size of the input and the difficulty of running the function to completion. The size of the input is usually denoted by n. However, n usually describes something more tangible, such as the length of an array. The difficulty of a problem can be measured in several ways. One suitable way to describe the difficulty of the problem is to use basic operations: additions, subtractions, multiplications, divisions, assignments, and function calls. Although each basic operation takes different amount of time, the number of basic operations needed to complete a function is sufficiently related to the running time to be useful, and it is much easier to count. TRY IT! Count the number of basic operations, in terms of n, required for the following function to terminate: In [1]: def f(n): out = 0 for i in range(n): for j in range(n): out += i*j return out Let us calculate the number of operations: n2 additions; 0 subtractions; n2 multiplications; 0 divisions; 2n2 + 1 assignments; 0 function calls; 4n2 + 1 in total.
- 149. 136 CHAPTER 8 COMPLEXITY The number of assignments is 2n2 + n + 1 because the line out += i*j is evaluated n2 times, j is assigned n2 times, i is assigned n times, and the line out = 0 is assigned once. So, the complexity of the function f can be described as 4n2 + n + 1. A common notation for complexity is called Big-O notation. Big-O notation establishes the rela- tionship in the growth of the number of basic operations with respect to the size of the input as the input size becomes very large. Because hardware may be different on every machine, we cannot accurately calculate how long it will take to complete without also evaluating the hardware, which is only valid for that specific machine. How long it takes to calculate a specific set of input on a specific machine is not germane. What is germane is the “time to completion.” Because this type of analysis is hardware independent, the basic operations grow in direct response to the increase in the size of the input. As n gets large, the highest power dominates; therefore, only the highest power term is included in Big-O notation. Additionally, coefficients are not required to characterize growth, and so coefficients are also dropped. In the previous example, we counted 4n2 + n + 1 basic operations to complete the function. In Big-O notation we would say that the function is O(n2) (pronounced “O of n-squared”). We say that any algorithm with complexity O(nc) where c is some constant with respect to n is polynomial time. TRY IT! Determine the complexity of the iterative Fibonacci function in Big-O notation. In [2]: def my_fib_iter(n): out = [1, 1] for i in range(2, n): out.append(out[i - 1] + out[i - 2]) return out Since the only lines of code that take more time as n grows are those in the for-loop, we can restrict our attention to the for-loop and the code block within it. The code within the for-loop does not grow with respect to n (i.e., it is constant). Therefore, the number of basic operations is Cn, where C is some constant representing the number of basic operations that occur in the for-loop, and these C operations run n times. This gives a complexity of O(n) for my_fib_iter. Assessing the exact complexity of a function can be difficult. In these cases, it might be sufficient to give an upper bound or even an approximation of the complexity. TRY IT! Give an upper bound on the complexity of the recursive implementation of Fibonacci. Do you think it is a good approximation of the upper bound? Do you think that recursive Fibonacci can possibly be polynomial time? In [3]: def my_fib_rec(n): if n 2: out = 1
- 150. 8.2 COMPLEXITY MATTERS 137 else: out = my_fib_rec(n-1) + my_fib_rec(n-2) return out As n gets large, we can say that the vast majority of function calls make two other function calls: one addition and one assignment to the output. The addition and assignment do not grow with n per function call, so we can ignore them in Big-O notation. However, the number of function calls grows approximately by 2n , and so the complexity of my_fib_rec is upper bounded by O(2n). There is an on-going debate whether or not O(2n) is a good approximation for the Fibonacci func- tion. Since the number of recursive calls grows exponentially with n, there is no way the recursive Fi- bonacci function can be polynomial. That is, for any c, there is an n such that my_fib_rec takes more than O(nc) basic operations to complete. Any function that is O(cn) for some constant c is said to be exponential time. TRY IT! What is the complexity of the following function in Big-O notation? In [4]: def my_divide_by_two(n): out = 0 while n 1: n /= 2 out += 1 return out Again, only the while-loop runs longer for larger n, so we can restrict our attention there. Within the while-loop, there are two assignments: one division and one addition, both of which are constant time with respect to n. So the complexity depends only on how many times the while-loop runs. The while-loop cuts n in half in every iteration until n is less than 1. So the number of iterations, I, is the solution to the equation n 2I = 1. With some manipulation, the solution is I = logn, so the complexity of my_divide_by_two is O(logn). If we recall log rules, it does not matter what the base of the log is because all logs are a scalar multiple of each other. Any function with complexity O(logn) is said to be log-time. 8.2 COMPLEXITY MATTERS So why does complexity matter? Because differing complexities require different amounts of time to complete the task. Fig. 8.1 is a quick sketch showing you how the time changes with different input size for complexity log(n), n, n2. Let us look at another example. Assume you have an algorithm that runs in exponential time, say O(2n), and let N be the largest problem you can solve with this algorithm using the computational
- 151. 138 CHAPTER 8 COMPLEXITY FIGURE 8.1 Illustration of running time for complexity log(n), n, and n2. resources you have, denoted by R. This R can be the amount of time you are willing to wait for the function to finish, or R can be the number of basic operations you watch the computer execute before you get sick of waiting. Using the same algorithm, how large of a problem can you solve given a new computer that is twice as fast? If we establish R = 2N , using our old computer, with our new computer we have 2R computational resources; therefore, we want to find N such that 2R = 2N . With some substitution, we can arrive at 2 × 2N = 2N → 2N+1 = 2N → N = N + 1. So with an exponential time algorithm, doubling your computational resources will allow you to solve a problem one unit larger than you can with your old computer. This is a very small difference. In fact, as N gets large, the relative improvement goes to 0. With a polynomial time algorithm, you can do much better. This time let us assume that R = Nc, where c is some constant larger than one. Then 2R = Nc , which, if you use similar substitutions as before, will result in N = 21/cN. So with a polynomial time algorithm with power c, you can solve a problem c √ 2 larger than you can with your old computer. When c is small, say less than 5, this is a much bigger difference than with the exponential algorithm. Finally, let us consider a log-time algorithm. Let R = logN. Then 2R = logN; again with some substitution we obtain N = N2. So with the double resources, we can square the size of the problem we can solve! The moral of the story is that exponential time algorithms do not scale well. That is, as you increase the size of the input, you will soon find that the function takes longer (much longer) than you are willing to wait. For one final example, my_fib_rec(100) would take on the order 2100 basic operations to complete the computation. If your computer can do 100 trillion basic operations per second (far faster than the fastest computer on earth), it would take your computer about 400 million years to complete; however, using my_fib_iter(100) would take less than 1 nanosecond to complete the same task. There is both an exponential time algorithm (recursion) and a polynomial time algorithm (iteration) for computing Fibonacci numbers. Given a choice, we would clearly pick the polynomial time algo- rithm. However, there is a class of problems for which no one has ever discovered a polynomial time algorithm. In other words, there are only exponential time algorithms known for them. These problems are known as NP-complete; an ongoing investigation is trying to determine whether polynomial time
- 152. 8.3 THE PROFILER 139 algorithms exist for these problems. Examples of NP-complete problems include the Traveling Sales- man, Set Cover, and Set Packing problems. Although theoretical in construction, solutions to these problems have numerous applications in logistics and operations research. In fact, some encryption algorithms that keep web and bank applications secure rely on the NP-completeness of breaking them. A further discussion of NP-complete problems and the theory of complexity is beyond the scope of this book, but these problems are very interesting and important to many engineering applications. 8.3 THE PROFILER 8.3.1 USING THE MAGIC COMMAND Even if it does not change the Big-O complexity of a program, many programmers will spend long hours to make their code run twice as fast or to gain even smaller improvements. There are ways to check the run time of the code in the Jupyter notebook. Introduced below are the magic commands to do that: • %time: Get the run time of a single statement. • %timeit: Get the repeated run time of a single statement. • %%time: Get the run time of all the code in the cell. • %%timeit: Get the repeated run time of a cell. Note that the double percent magic command will measure the run time for all the code in a cell, while the single percent command only works for a single statement. In [1]: %time sum(range(200)) CPU times: user 6 µs, sys: 1 µs, total: 7 µs, wall time: 9.06 µs Out[1]: 19900 In [2]: %timeit sum(range(200)) 1.24 µs ± 70.6 ns per loop (mean ± std. dev. of 7 runs, 1000000 loops each) In [3]: %%time s = 0 for i in range(200): s += i CPU times: user 15 µs, sys: 0 ns, total: 15 µs, wall time: 17.9 µs In [4]: %%timeit s = 0
- 153. 140 CHAPTER 8 COMPLEXITY for i in range(200): s += i 7.06 µs ± 414 ns per loop (mean ± std. dev. of 7 runs, 100000 loops each) WARNING! Sometimes it may not be proper to use the timeit, since it will run many loops for the code, taking an inordinate amount of time to complete the task. 8.3.2 USE PYTHON PROFILER You can also use the Python profiler (for additional discussion, read more in the Python documenta- tion) to profile the code you write. In Jupyter notebook, • %prun: Run a single statement through the Python code profiler. • %%prun: Run a cell through the Python code profiler. The following example sums random numbers over and over again: In [6]: import numpy as np In [7]: def slow_sum(n, m): for i in range(n): # we create a size m array of random numbers a = np.random.rand(m) s = 0 # in this loop we iterate through the array # and add elements to the sum one by one for j in range(m): s += a[j] In [8]: %prun slow_sum(1000, 10000) The results are shown in Fig. 8.2. The table shows the following columns (from Python profiler): • ncalls is the number of calls; • tottime is the total time spent in performing the given function (and excluding time made in calls to subfunctions); • percall is the quotient of dividing tottime by ncalls; • cumtime is the total time spent in this and all subfunctions (from invocation till exit). This figure is accurate even for recursive functions; • percall is the quotient of dividing cumtime by primitive calls.
- 154. 8.3 THE PROFILER 141 FIGURE 8.2 The profiling result from prun. 8.3.3 USE LINE PROFILER Many times we want to determine which line in a code script takes a long time so that we can rewrite this line to make it more efficient. This can be done using the line_profiler, which will profile the code line by line. This function is not shipped with Python; therefore, we need to install it, and then we can use the magic command: • %lprun: Run the line by line profile on a single statement. In [9]: # Note, you only need run this once. !conda install line_profiler After you have installed this package, load the line_profiler extension: In [10]: %load_ext line_profiler The way we use the line_profiler to profile the code is shown as follows: In [11]: %lprun -f slow_sum slow_sum(1000, 10000) Running the above command will perform line by line profiling, as shown in Fig. 8.3. The results include a summary for each line of the function. Note that lines 10 and 11 take the majority of the total running time. Usually when code takes longer to run than you would like, there is a bottleneck where a majority of the time is being spent. That is, there is a line of code that is taking much longer to execute than the other lines in the program. Addressing the bottleneck in a program will usually lead to the biggest improvement in performance, even if there are other areas of your code that are more easily improved. TIP! Start at the bottleneck when improving the performance of a code.
- 155. 142 CHAPTER 8 COMPLEXITY FIGURE 8.3 The line by line profiling result from line_profiler. 8.4 SUMMARY AND PROBLEMS 8.4.1 SUMMARY 1. The complexity of an algorithm is the relationship between the size of the input problem and the time it takes for the algorithm to terminate. 2. Big-O notation is a standard method of classifying algorithmic complexity in a way that is computer- and operating-system-independent. 3. Algorithms with log-complexity perform faster than algorithms with polynomial complexity, which are faster than algorithms with exponential complexity. 4. The Python profiler is a useful tool for determining where your code is running slowly so that you can improve its performance. 8.4.2 PROBLEMS 1. How would you define the size of the following tasks? • Solving a jigsaw puzzle. • Passing a handout to a class. • Walking to class. • Finding a name in a dictionary. 2. For the tasks given in the previous problem, what would you say is the Big-O complexity of the tasks in terms of the size definitions you gave? 3. You may be surprised to know that there is a log-time algorithm for finding a word in an n-word list. Instead of starting at the beginning of the list, you go to the middle. If this is the word you are looking for, then you are done. If the word comes after the word you are looking for, then look halfway between the current word and the end. If it is before the word you are looking for, then look
- 156. 8.4 SUMMARY AND PROBLEMS 143 halfway between the first word and the current word. Keep repeating this process until you find the word. This algorithm is known as a binary search. It runs in log time because the search space is cut in half at each iteration; therefore, it requires, at most, log2(n) iterations to find the word. Hence the increase in run time is only a log in the length of the list. There is a way to look up a word in O(1) or constant time. This means that no matter how long the list is, it takes the same amount of time! Can you think of how this is done? Hint: Research hash functions. 4. What is the complexity of the algorithms that compute the following recursive relationships? Clas- sify the following algorithms as log time, polynomial time, or exponential time in terms of n given that the implementation is (a) recursive and (b) iterative. Tribonacci, T (n): T (n) = T (n − 1) + T (n − 2) + T (n − 3) T (1) = T (2) = T (3) = 1. Timmynacci, t(n): t(n) = t(n/2) + t(n/4) t(n) = 1 if n 1. 5. What is the Big-O complexity of the Towers of Hanoi problem given in Chapter 6? Is the complexity an upper bound or is it exact? 6. What is the Big-O complexity of the quicksort algorithm? 7. Run the following two iterative implementations of finding Fibonacci numbers in the line_pro- filer as well as using the magic command to get the repeated run time. The first implementation preallocates memory to an array that stores all the Fibonacci numbers. The second implementation expands the list at each iteration of the for-loop. In [ ]: import numpy as np def my_fib_iter1(n): out = np.zeros(n) out[:2] = 1 for i in range(2, n): out[i] = out[i-1] + out[i-2] return out def my_fib_iter2(n): out = [1, 1]
- 157. 144 CHAPTER 8 COMPLEXITY for i in range(2, n): out.append(out[i-1]+out[i-2]) return np.array(out)
- 158. 9 REPRESENTATION OF NUMBERS 9.1 Base-N and Binary .................................................................................................... 145 9.2 Floating Point Numbers .............................................................................................. 147 9.3 Round-Off Errors....................................................................................................... 151 9.3.1 Representation Error.................................................................................. 151 9.3.2 Round-Off Error by Floating-Point Arithmetic..................................................... 152 9.3.3 Accumulation of Round-Off Errors.................................................................. 152 9.4 Summary and Problems.............................................................................................. 153 9.4.1 Summary ............................................................................................... 153 9.4.2 Problems ............................................................................................... 153 9.1 BASE-N AND BINARY The decimal system is a way of representing numbers that you were introduced to in elementary school. In the decimal system, a number is represented by a list of digits from 0 to 9, where each digit represents the coefficient for a power of 10. EXAMPLE: Show the decimal expansion for 147.3. 147.3 = 1 · 102 + 4 · 101 + 7 · 100 + 3 · 10−1. Since each digit is associated with a power of 10, the decimal system is also known as base10 because it is based on 10 digits (0 to 9). There is nothing special about base10 numbers other than you are more accustomed to using them. For example, in base3 we have the digits 0, 1, and 2 and the number 121(base3) = 1 · 32 + 2 · 31 + 1 · 30 = 9 + 6 + 1 = 16(base10) For the purpose of this chapter, it is useful to denote a number’s representation, i.e., every number will be followed by its representation in parentheses (e.g., 11(base10) means 11 in base10) unless the context is clear. For computers, numbers are often represented in base2 or binary numbers. In binary, the only available digits are 0 and 1, and each digit is the coefficient of a power of 2. Digits in a binary number are also known as bits. Note that binary numbers are still numbers, and the processes of adding and multiplying them are exactly as you learned in grade school.
- 159. 146 CHAPTER 9 REPRESENTATION OF NUMBERS TRY IT! Convert the number 11(base10) into binary. 11(base10) = 8 + 2 + 1 = 1 · 23 + 0 · 22 + 1 · 21 + 1 · 20 = 1011(base2) TRY IT! Convert 37(base10) and 17(base10) to binary. Add and multiply the resulting numbers in binary. Verify that the result is correct in base10. Converting to binary: 37(base10) = 32 + 4 + 1 = 1 · 25 + 0 · 24 + 0 · 23 + 1 · 22 + 0 · 21 + 1 · 20 = 100101(base2), 17(base10) = 16 + 1 = 1 · 24 + 0 · 23 + 0 · 22 + 0 · 21 + 1 · 20 = 10001(base2). Obtaining the results of addition and multiplication in decimal: 37 + 17 = 54, 37 × 17 = 629. Performing addition in binary (see Fig. 9.1). Performing multiplication in binary (see Fig. 9.2). FIGURE 9.1 Binary addition. Binary numbers are useful for computers because arithmetic operations on the digits 0 and 1 can be represented using AND, OR, and NOT, which can be computed quickly. Unlike humans, who can abstract numbers to arbitrarily large values, computers have a fixed num- ber of bits that they are capable of storing at one time. For example, a 32-bit computer can represent and process 32-digit binary numbers and no more. If all 32-bits are used to represent positive integer binary numbers, then this means that there are 31 n=0 2n = 4,294,967,296 numbers the computer can represent. This is not a lot of numbers at all and would be completely insufficient to perform any- thing more than basic calculations. For example, you can not compute the perfectly reasonable sum 0.5 + 1.25 using this representation because all the bits are dedicated to only integers.
- 160. 9.2 FLOATING POINT NUMBERS 147 FIGURE 9.2 Binary multiplication. 9.2 FLOATING POINT NUMBERS The number of bits is usually fixed for any given computer. Using binary representation gives us an insufficient range and precision of numbers to do relevant engineering calculations. To achieve the range of values needed with the same number of bits, we use floating point numbers, or floats for short. Instead of utilizing each bit as the coefficient of a power of 2, floats allocate bits to three different parts: the sign indicator, s, which says whether a number is positive or negative; characteristic or exponent, e, which is the power of 2; and the fraction, f , which is the coefficient of the exponent. Almost all platforms map Python floats to the IEEE754 double precision for a total of 64 bits. One bit is allocated to the sign indicator, 11 bits are allocated to the exponent, and 52 bits are allocated to the fraction. With 11 bits allocated to the exponent; this makes 2048 values that this number can use. Since we want to be able to make very precise numbers, we want some of these values to represent negative exponents (i.e., to allow numbers that are between 0 and 1 (base10)). To accomplish this, 1023 is subtracted from the exponent to normalize it. The value subtracted from the exponent is commonly referred to as the bias. The fraction is a number between 1 and 2. In binary, this means that the leading term will always be 1, and, therefore, it is a waste of bits to store it. To save space, the leading 1 is dropped. In Python, we can obtain the float information using the sys package as shown below: In [1]: import sys sys.float_info Out[1]: sys.float_info(max=1.7976931348623157e+308, max_exp=1024, max_10_exp=308, min=2.2250738585072014e-308, min_exp=-1021, min_10_exp=-307, dig=15, mant_dig=53, epsilon=2.220446049250313e-16, radix=2, rounds=1) A float can then be represented as n = (−1)s2e−1023(1 + f ), for 64-bit.
- 161. 148 CHAPTER 9 REPRESENTATION OF NUMBERS TRY IT! What is the number 1 10000000010 1000000000000000000000000000000000000000000000000000 (IEEE754) in base10? The exponent in decimal is 1 · 210 + 1 · 21 − 1023 = 3. The fraction is 1 · 1 21 + 0 · 1 22 + ··· = 0.5. Therefore, n = (−1)1 · 23 · (1 + 0.5) = −12.0 (base10). See Fig. 9.3 for details. FIGURE 9.3 Illustration of −12.0 that is represented in computer with 64-bit. Each square is one bit, with the green square representing 1 and grey square as zero. TRY IT! What is 15.0(base10) in IEEE754? What is the largest number smaller than 15.0? What is the smallest number larger than 15.0? Since the number is positive, s = 0. The largest power of 2 that is smaller than 15.0 is 8, so the exponent is 3, therefore: 3 + 1023 = 1026(base10) = 10000000010(base2). Then the fraction is: 15/8 − 1 = 0.875(base10) = 1 · 1 21 + 1 · 1 22 + 1 · 1 23 = 1110000000000000000000000000000000000000000000000000(base2). When combined, this produces the following conversion: 15.0(base10) = 0 10000000010 1110000000000000000000000000000000000000000000000000 (IEEE754) The next smallest number is 0 10000000010 1101111111111111111111111111111111111111111111111111 = 14.9999999999999982236431605997 The next largest number is 0 10000000010 1110000000000000000000000000000000000000000000000001 = 15.0000000000000017763568394003
- 162. 9.2 FLOATING POINT NUMBERS 149 Therefore, the IEEE754 number 0 10000000010 1110000000000000000000000000000000000000000000000000 not only represents the number 15.0, but also all real numbers halfway between its immediate neighbors. So any computation that has a result within this interval will be assigned as “15.0”. We call the distance from one number to the next the gap. Because the fraction is multiplied by 2e−1023, the gap grows as the number represented grows. The gap at a given number can be computed using the function spacing in NumPy. TRY IT! Use the spacing function to determine the gap at 1e9. Verify that adding a number to 1e9 that is less than half the gap at 1e9 results in the same number. In [2]: import numpy as np In [3]: np.spacing(1e9) Out[3]: 1.1920928955078125e-07 In [4]: 1e9 == (1e9 + np.spacing(1e9)/3) Out[4]: True There are special cases for the value of a floating point number when e = 0 (i.e., e = 00000000000(base2)) and when e = 2047, i.e., e = 11111111111(base2), which are reserved. When the exponent is 0, the leading 1 in the fraction takes the value 0 instead. The result is a subnormal number, which is computed by n = (−1)s2−1022(0 + f ) (note that it is −1022 instead of −1023). When the exponent is 2047 and f is nonzero, then the result is “Not a Number,” which means that the number is undefined. When the exponent is 2047, then f = 0 and s = 0, and the result is positive infinity. When the exponent is 2047, then f = 0, and s = 1, and the result is minus infinity. TRY IT! Compute the base10 value for 0 11111111110 1111111111111111111111111111111111111111111111111111 (IEEE754), the largest defined number for 64 bits, and for 0 00000000001 000000000000000000000000000000000000000000000000000 (IEEE754), the smallest. Note that to comply with the previously stated rules, the exponent is e = 2046 and e = 1, respectively. Verify that Python agrees with these calculations using sys.float_info.max and sys.float_info.min. In [5]: l = (2**(2046-1023))*((1 + sum(0.5**np.arange(1, 53)))) l Out[5]: 1.7976931348623157e+308
- 163. 150 CHAPTER 9 REPRESENTATION OF NUMBERS In [6]: sys.float_info.max Out[6]: 1.7976931348623157e+308 In [7]: s = (2**(1-1023))*(1+0) s Out[7]: 2.2250738585072014e-308 In [8]: sys.float_info.min Out[8]: 2.2250738585072014e-308 Numbers that are larger than the largest floating point number capable of being represented result in overflow; Python handles this case by assigning the result to inf. Numbers that are smaller than the smallest subnormal number result in underflow; Python handles this case by assigning the result to zero. TRY IT! Show that adding the maximum 64-bit float number with 2 results in the same number. Because the Python float does not have sufficient precision to store the + 2 for sys.float_info.max, the operation is essentially equivalent to adding zero. Also show that adding the maximum 64-bit float number with itself results in overflow, and that Python assigns this overflow number to inf. In [9]: sys.float_info.max + 2 == sys.float_info.max Out[9]: True In [10]: sys.float_info.max + sys.float_info.max Out[10]: inf TRY IT! The smallest subnormal number in a 64-bit number has s = 0,e = 00000000000 and f = 0000000000000000000000000000000000000000000000000001. Using the special rules for subnormal numbers, this results in the subnormal number (−1)021−10232−52 = 2−1074. Show that 2−1075 underflows to zero, and that the result cannot be distinguished from zero. Show that 2−1074 does not. In [11]: 2**(-1075)
- 164. 9.3 ROUND-OFF ERRORS 151 Out[11]: 0.0 In [12]: 2**(-1075) == 0 Out[12]: True In [13]: 2**(-1074) Out[13]: 5e-324 What have we gained by using IEEE754 versus binary? Using 64-bit binary gives us 264 numbers. Since the number of bits does not change between binary and IEEE754, IEEE754 must also give us 264 numbers. In binary, numbers have a constant spacing between them. As a result, you cannot have both range (i.e., large distance between minimum and maximum numbers capable of being represented) and precision (i.e., small spacing between numbers). Controlling these parameters would depend on where you put the decimal point in your number. IEEE754 overcomes this limitation by using very high precision at small numbers and very low precision at large numbers. This limitation is usually acceptable because the gap at large numbers is still small relative to the size of the number itself. Therefore, even if the gap is millions large, it is irrelevant to normal calculations if the number under consideration is in the trillions or higher. This section introduced the representation of floating point numbers. This concept is described in detail computer organization and design by David Patterson and John Hennessy. 9.3 ROUND-OFF ERRORS In the previous section, we talked about how the floating-point numbers are represented in computers as base2 fractions. This has a side effect that the floating-point numbers cannot be stored with perfect precision; instead the numbers are approximated by a finite number of bytes. Therefore, the difference between an approximation of a number used in computation and its correct (true) value is called a round-off error. It is one of the common errors found usually in numerical calculations. The other one is truncation error, which will be introduced in Chapter 18. The difference is that truncation error is the error made by truncating an infinite sum and approximating it by a finite sum. 9.3.1 REPRESENTATION ERROR The most common form of a round-off error is the representation error in the floating-point numbers. A simple example will be how do we represent π? We know that π is an infinite number (i.e., has an infinite number of digits); typically, we only use a finite number of digits. For example, if you only use 3.14159265, there will be an error between this approximation and the true infinite number. Another example will be 1/3, the true value will be 0.333333333... No matter how many decimal digits we choose, there is an round-off error as well. When we round the numbers multiple times, the error will accumulate. For instance, if 4.845 is rounded to two decimal places, it is 4.85. Then if we round it again to one decimal place, it is 4.9, the
- 165. 152 CHAPTER 9 REPRESENTATION OF NUMBERS total error will be 0.55. But if we only round one time to one decimal place, it is 4.8, and the error is 0.045. 9.3.2 ROUND-OFF ERROR BY FLOATING-POINT ARITHMETIC From the above example, the error between 4.845 and 4.8 should be 0.055. But if you calculate it in Python, you will see the 4.9 − 4.845 is not equal to 0.055. In [1]: 4.9 - 4.845 == 0.055 Out[1]: False Why does this happen? If we take a second look at 4.9 − 4.845, we actually get 0.055000000000000604. This is because the floating point cannot be represented by the exact number because it is an approximation; when it is used in arithmetic, it causes a small error. In [2]: 4.9 - 4.845 Out[2]: 0.055000000000000604 In [3]: 4.8 - 4.845 Out[3]: -0.04499999999999993 Another example shows below that 0.1 + 0.2 + 0.3 is not equal to 0.6; the error is due to the same cause. In [4]: 0.1 + 0.2 + 0.3 == 0.6 Out[4]: False Though the numbers cannot be made closer to their intended exact values, the round function can be useful for post-rounding so that results with inexact values become comparable to one another: In [5]: round(0.1 + 0.2 + 0.3, 5) == round(0.6, 5) Out[5]: True 9.3.3 ACCUMULATION OF ROUND-OFF ERRORS When we are doing a sequence of calculations on an initial input with round-off errors due to inexact representation, the errors can be magnified or accumulated. As an example, if we have the number 1, add and then subtract 1/3, it should give us 1. But if we add 1/3 and subtract the same number of times 1/3 over several iterations, do we still get the same number 1? No, we don’t. In the example below, the more times you do this, the additional accumulates.
- 166. 9.4 SUMMARY AND PROBLEMS 153 In [6]: # If we only do once 1 + 1/3 - 1/3 Out[6]: 1.0 In [7]: def add_and_subtract(iterations): result = 1 for i in range(iterations): result += 1/3 for i in range(iterations): result -= 1/3 return result In [8]: # If we do this 100 times add_and_subtract(100) Out[8]: 1.0000000000000002 In [9]: # If we do this 1000 times add_and_subtract(1000) Out[9]: 1.0000000000000064 In [10]: # If we do this 10000 times add_and_subtract(10000) Out[10]: 1.0000000000001166 9.4 SUMMARY AND PROBLEMS 9.4.1 SUMMARY 1. Numbers may be represented in several different ways, each representation scheme having advan- tages and disadvantages. 2. Computers must represent numbers using a finite number of digits (i.e., bits). 3. Binary and IEEE754 are finite representations of numbers used by computers. 4. The round-off error is an important error associated with numerical methods. 9.4.2 PROBLEMS 1. Write a function my_bin_2_dec(b) where b is a binary number represented by a list of ones and zeros. The last element of b represents the coefficient of 20, the second-to-last element of b repre-
- 167. 154 CHAPTER 9 REPRESENTATION OF NUMBERS sents the coefficient of 21, and so on. The output variable, d, should be the decimal representation of b. Test cases are provided below. In [ ]: def my_bin_2_dec(b): # write your function code here return d In [ ]: # Output: 7 my_bin_2_dec([1, 1, 1]) In [ ]: # Output: 85 my_bin_2_dec([1, 0, 1, 0, 1, 0, 1]) In [ ]: # Output: 33554431 my_bin_2_dec([1]*25) 2. Write a function my_dec_2_bin(d) where d is a positive integer in decimal, and b is the binary representation of d. The output b must be a list of ones and zeros, and the leading term must be a 1 unless the decimal input value is 0. Test cases are provided below. In [ ]: def my_dec_2_bin(d): # write your function code here return b In [ ]: # Output: [0] my_dec_2_bin(0) In [ ]: # Output: [1, 0, 1, 1, 1] my_dec_2_bin(23) In [ ]: # Output: [1, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1] my_dec_2_bin(2097) 3. Use the two functions you wrote in Problems 1 and 2 to compute d = my_bin_2_dec(my_dec_2_bin(12654)). Do you get the same number? 4. Write a function my_bin_adder(b1,b2) where b1, b2 and the output variable b are binary numbers represented as in Problem 1. The output variable should be computed as b = b1 + b2. Do not use your functions from Problems 1 and 2 to write this function (i.e., do not convert b1 and b2 to decimals; add them and then convert the result back to binary). This function should be able to accept inputs b1 and b2 of any length (i.e., very long binary numbers), and b1 and b2 may not necessarily be of the same length. In [ ]: def my_bin_adder(b1, b2): # write your function code here return b In [ ]: # Output: [1, 0, 0, 0, 0, 0] my_bin_adder([1, 1, 1, 1, 1], [1]) In [ ]: # Output: [1, 1, 1, 0, 0, 1, 1] my_bin_adder([1, 1, 1, 1, 1], [1, 0, 1, 0, 1, 0, 0])
- 168. 9.4 SUMMARY AND PROBLEMS 155 In [ ]: # Output: [1, 0, 1, 1] my_bin_adder([1, 1, 0], [1, 0, 1]) 5. What is the effect of allocating more bits to the fraction versus the characteristic, and vice versa? What is the effect of allocating more bits to the sign? 6. Write a function my_ieee_2_dec(ieee) where ieee is a string that contains 64 characters of ones and zeros, representing a 64-bit IEEE754 number. The output should be d, which is the equivalent decimal representation of ieee. The input variable ieee will always be a 64-element string of ones and zeros defining a 64-bit float. In [ ]: def my_ieee_2_dec(ieee): # Write your function here return d In [ ]: # Output: -48 ieee =1100000001001000000000000000000000000000000000000000000000000000 my_ieee_2_dec(ieee) In [ ]: # Output: 3.39999999999999991118215802999 ieee =0100000000001011001100110011001100110011001100110011001100110011 my_ieee_2_dec(ieee) 7. Write a function my_dec_2_ieee(d) where d is a number in decimal, and the output variable ieee is a string with 64 characters of ones and zeros, representing the 64-bit IEEE754 closest to d. Assume that d will not cause an overflow for 64-bit ieee numbers. In [ ]: def my_dec_2_ieee(d): # write your function code here return ieee In [ ]: #Output:0100000000101110010111101010001110011100001100011010010001101000 d = 1.518484199625 my_dec_2_ieee(d) In [ ]: #Output:1100000001110011010100100100010010010001001010011000100010010000 d = -309.141740 my_dec_2_ieee(d) In [ ]: #Output:1100000011011000101010010000000000000000000000000000000000000000 d = -25252 my_dec_2_ieee(d) 8. Define ieee_baby to be a representation of numbers using 6 bits, where the first bit is the sign bit, the second and third bits are allocated to the characteristic, and the fourth, fifth, and sixth bits are allocated to the fraction. The normalization for the characteristic is 1. Write all the decimal numbers that can be represented by ieee_baby. What is the largest/smallest gap in ieee_baby?
- 169. 156 CHAPTER 9 REPRESENTATION OF NUMBERS 9. Use the np.spacing function to determine the smallest number such that the gap is 1. 10. What are some of the advantages and disadvantages of using binary versus decimal? 11. Write the number 13(base10) in base1. How would you add and multiply in base1? 12. How high can you count on your fingers if you count in binary? 13. Let b be a binary number having n digits. Can you think of ways to multiply and divide b by 2 that does not involve any arithmetic? Hint: Think about how you multiply and divide a decimal number by 10.
- 170. 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING 10.1 Error Types ........................................................................................................... 157 10.2 Avoiding Errors ...................................................................................................... 160 10.2.1 Plan Your Program ................................................................................. 160 10.2.2 Test Everything Often ............................................................................. 161 10.2.3 Keep Your Code Clean ............................................................................ 161 10.3 Try/Except............................................................................................................. 163 10.4 Type Checking ....................................................................................................... 166 10.5 Debugging ............................................................................................................ 168 10.5.1 Activating Debugger After Running Into an Exception ....................................... 168 10.5.2 Activating Debugger Before Running the Code................................................ 171 10.5.3 Add a Breakpoint .................................................................................. 172 10.6 Summary and Problems ............................................................................................ 173 10.6.1 Summary............................................................................................ 173 10.6.2 Problems ............................................................................................ 173 10.1 ERROR TYPES We have noted errors before but have not yet talked about them in detail. There are three basic types of errors that programmers need to be concerned about: syntax errors, runtime errors, and logical errors. Syntax is the set of rules that govern a language. In written and spoken language, rules can be bent or even broken to accommodate the speaker or writer. However, in a programming language the rules are rigid. A syntax error occurs when the programmer writes an instruction using incorrect syntax; Python cannot understand what you are saying. For example, 1 = x is not legal in the Python programming language because numbers cannot be assigned as variables. If the programmer tries to execute one of these instructions or any other syntactically incorrect statement, Python will return an error message to the programmer and point out the location where the error occurred. Note that although Python can identify the location where the syntax error is detected by the parser, it is possible that the syntax error causing the error may be far away from the specific line identified. EXAMPLE: Syntax error examples. In [1]: 1 = x
- 171. 158 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING File ipython-input-1-7a7b257d8e3d, line 1 1 = x ˆ SyntaxError: can’t assign to literal In [2]: (1] File ipython-input-2-800df0a5e99c, line 1 (1] ˆ SyntaxError: invalid syntax In [3]: if True print(Here) File ipython-input-3-025e9fce1ee3, line 1 if True ˆ SyntaxError: invalid syntax The last line of the error message shows what happened – SyntaxError, and the lines before in- dicate where the error happens in the context of the code. Overall, syntax errors are usually easily detectable, found, and fixed. Even if all the syntax is correct in your code, it may still cause an error during execution of the code. Errors that occur during execution are called exceptions or runtime errors. Exceptions are more difficult to find and are only detectable when a program is run. Note that exceptions are not fatal. We will learn later how to handle them in Python. If we do not handle them, Python will terminate the program. Let us see some examples below. In [4]: 1/0 ------------------------------------------------------ ZeroDivisionError Traceback (most recent call last) ipython-input-4-9e1622b385b6 in module ---- 1 1/0
- 172. 10.1 ERROR TYPES 159 ZeroDivisionError: division by zero In [5]: x = [2] x + 2 ----------------------------------------------------- TypeError Traceback (most recent call last) ipython-input-5-29a14b9fefb9 in module 1 x = [2] ---- 2 x + 2 TypeError: can only concatenate list (not int) to list In [6]: print(a) ------------------------------------------------------ NameError Traceback (most recent call last) ipython-input-6-bca0e2660b9f in module ---- 1 print(a) NameError: name a is not defined As shown in the examples above, there are different built-in exceptions: ZeroDivisionError, TypeError, and NameError. You can find a complete list of built-in exceptions in the Python docu- mentation.1 In addition, you can define your own exception types, but we will not deal with this herein; if you are interested in how to define customized exceptions, check out the documentation.2 Most of the exceptions are easy to locate because Python will stop running and tell you where the problem is. After programming a function, seasoned programmers will usually run the function several times, allowing the function to “throw” any errors so that they can fix them. Note that no exception does not mean the function works correctly. 1 https://docs.python.org/3/library/exceptions.html#bltin-exceptions. 2 https://docs.python.org/3/tutorial/errors.html#user-defined-exceptions.
- 173. 160 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING One of the most difficult errors to find are called logic errors. A logic error does not throw an error. Although the program will run smoothly, it is an error because the output obtained is not the solution you expect. For example, consider the following incorrect implementation of the factorial function. In [7]: def my_bad_factorial(n): out = 0 for i in range(1, n+1): out = out*i return out In [8]: my_bad_factorial(4) Out[8]: 0 This function will not produce a runtime error for any input that is valid for a correctly implemented factorial function; however, if you try using my_bad_factorial, you will find that the answer is always 0 because out is initialized to 0 instead of 1. Therefore, the line out = 0 is a logic error. It does not produce a runtime error by Python, but it leads to an incorrect computation. Although the logic errors seem unlikely to occur—or at least as easy to find as other kinds of errors—when programs become longer and more complicated, such errors are very easy to generate and notoriously difficult to find. When logic errors occur, you have no choice but to meticulously comb through each line of your code until you find the problem. For these cases, it is important to know exactly how Python will respond to every command you give and not make any assumptions. You can also use Python’s debugger, which will be described in the last section of this chapter. 10.2 AVOIDING ERRORS There are many techniques that can help prevent errors and make it easier for you to find them when they occur. Because becoming familiar with the types of mistakes common in programming is a “learn- ing as you go” process; we cannot possibly list them all here. That said, we present a few of them in the following section to help you build good habits. 10.2.1 PLAN YOUR PROGRAM When writing an essay, it is important to have a structure and a direction that you intend to follow. To help make your structure more tangible, writing an essay usually starts with an outline containing the main points you wish to address in your paper. This is even more important to do when programming because computers do not interpret what you write. When coding complicated programs, you should start with an outline of your program that addresses all the tasks you want your program to perform and in the order in which it should perform them. Many novice programmers, eager to finish their assignments, will rush to the programming part without properly planning out the tasks needed to accomplish the given task. Haphazard planning
- 174. 10.2 AVOIDING ERRORS 161 results in equally haphazard code that is full of errors. Time spent planning out what you are trying to do is time well spent. Preplanning ensures that you will finish your program much faster than if you throw together a program without much thought. So what does planning a program consist of? Recall in Chapter 3 that a function is defined as a sequence of instructions designed to perform a certain task. A module is a function or group of functions that perform a certain task. It is important to design your program in terms of modules, especially for tasks that need to be repeated over and over again. Each module should accomplish a small, well-defined task and know as little information about other functions as possible (i.e., have a very limited set of inputs and outputs). A good rule of thumb is to plan from the top to bottom, and then program from the bottom to the top. That is, decide what the overall program is supposed to do, determine what code is necessary to complete the main tasks, and then break the main tasks into components until the module is small enough that you are confident you can write it without errors. 10.2.2 TEST EVERYTHING OFTEN When coding in modules, you should test each module using test cases for which you know the answer, and code enough cases to be confident that the function is working properly (including corner cases). For example, if you are writing a function that tells you whether a number is prime or not, you should test the function for inputs of 0 (corner case), 1 (corner case), 2 (simple yes), 4 (simple no), and 97 (complicated no). If all of your test cases proceed without error, you can move on to other modules, confident that the current module works correctly. This is especially important if subsequent mod- ules depend on or call the module you are working on. If you do not test your code and assume that your incorrect code is correct, when you begin to get error messages in later modules, you will not know whether the error is in the module you are working on or in a previous module; this will make finding the error exponentially more difficult. You should test often, even within a single module or function. When you are working on a partic- ular module that has several steps, you should perform intermediate tests to make sure it is correct up to that point. Then, if you ever get an error, it will probably be in the part of your code written since the last time you did test it. This tendency to rush one’s coding is a mistake even seasoned programmers are guilty of; they will write pages and pages of code without testing and then will spend hours trying to find a small error somewhere. 10.2.3 KEEP YOUR CODE CLEAN Just like good craftsmen keep their work area free of unnecessary clutter, so should you keep your code as clean as possible. There are many strategies you can implement to keep your code clean. First, you should write your code in the fewest instructions possible. For example, y = x**2 + 2*x+1 is better than
- 175. 162 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING y=x**2 y=y+2*x y=y+1 Even if the outcome is the same, every character you type is a chance that you will make a mistake; therefore, reducing how much code you write will reduce your risk of introducing errors. Additionally, writing a complete expression will help you and other people understand what you are doing. In the previous example, in the first case it is clear that you are computing the value of a quadratic at x, while in the second case it is not clear. You can also keep your code “clean” by using variables rather than values. EXAMPLE: Poor implementation of adding 10 random numbers. In [1]: import numpy as np s = 0 a = np.random.rand(10) for i in range(10): s = s + a[i] EXAMPLE: Good implementation of adding 10 random numbers. In [2]: n = 10 s = 0 a = np.random.rand(n) for i in range(n): s = s + a[i] The second implementation is better for two reasons: first, it is easier for anyone reading your code that n represents the number of random numbers you want to add up, and it appears rationally where it is supposed to in the code (i.e., when creating the array of random numbers and when indexing the array in the for-loop); and second, if you ever wanted to change the number of random numbers you wish to add up, you would only have to change it in one place at the beginning. This reduces the chances of making mistakes while writing the code and when changing the value of n. Again, this is not critical for such a small piece of code, but it will become very important when your code becomes more complicated and values must be reused many times. EXAMPLE: An even better implementation of adding 10 random numbers. In [3]: s = sum(np.random.rand(10)) When you become more familiar with Python, you will want to use as few lines as possible to do the same job; therefore, familiarity of the common functions and how to use them will make your code more concise and efficient.
- 176. 10.3 TRY/EXCEPT 163 You can also keep your code clean by assigning your variables short, descriptive names. For exam- ple, as noted earlier, n is a sufficient variable for such a simple task. The variable name x is probably a good name since x usually holds value of position rather than a number; but theNumberOfRandomNum- bersToBeAdded is a poor variable name even though it is descriptive. Finally, you can keep your code clean by commenting frequently. Although no commenting is certainly bad practice, over-commenting can be equally bad practice. Different programmers will dis- agree on exactly how much commenting is appropriate. It will be up to you to decide what level of commenting is appropriate. 10.3 TRY/EXCEPT Often it is important to write programs that can handle certain types of errors or exceptions gracefully. More specifically, the error or exception must not cause a critical error that makes your program shut down. A Try-Except statement is a code block that allows your program to take alternative actions in case an error occurs. CONSTRUCTION: Try-Exception Statement try: code block 1 except ExceptionName: code block 2 Python will first attempt to execute the code in the try statement (code block 1). If no exception occurs, the except statement is skipped and the execution of the try statement is finished. If any exception occurs, the rest of the clause is skipped. Then if the exception type matches the exception named after the except keyword (ExceptionName), the code in the except statement will be executed (code block 2). If nothing in this block stops the program, it will continue to execute the rest of the code outside of the try-except code blocks. If the exception does not match the ExceptionName, it is passed on to outer try statements. If no other handler is found, then the execution stops with an error message. EXAMPLE: Capture the exception. In [1]: x = 6 try: if x 3: print(X is larger than 3) except TypeError: print(Oops! x is not a valid number. Try again...)
- 177. 164 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING Oops! x is not a valid number. Try again... EXAMPLE: If your handler is trying to capture another exception type that the except does not capture, then an error occurs and the execution stops. In [2]: x = 6 try: if x 3: print(X is larger than 3) except ValueError: print(Oops! x is not a valid number. Try again...) ------------------------------------------------------ TypeError Traceback (most recent call last) ipython-input-2-899d928e7a1f in module 1 x = 6 2 try: ---- 3 if x 3: 4 print(X is larger than 3) 5 except ValueError: TypeError: not supported between instances of str and int Of course, a try statement may have more than one except statement to handle different exceptions or you cannot specify the exception type so that the except will catch any exception. In [3]: x = s try: if x 3: print(x) except: print(fSomething is wrong with x = {x}) Something is wrong with x = s
- 178. 10.3 TRY/EXCEPT 165 EXAMPLE: Handling multiple exceptions. In [4]: def test_exceptions(x): try: x = int(x) if x 3: print(x) except TypeError: print(x was not a valid number. Try again...) except ValueError: print(Cannot convert x to int. Try again...) except: print(Unexpected error) In [5]: x = [1, 2] test_exceptions(x) x was not a valid number. Try again... In [6]: x = s test_exceptions(x) Cannot convert x to int. Try again... Another useful thing in Python is that we can raise some exceptions in certain cases using raise. For example, if we need x to be less than or equal to 5, we can use the following code to raise an exception if x is larger than 5. The program will display our exception and stop the execution. In [7]: x = 10 if x 5: raise(Exception(x should be = 5)) -------------------------------------------------------- Exception Traceback (most recent call last) ipython-input-7-99b32b52c4f8 in module 2 3 if x 5: ---- 4 raise(Exception(x should be = 5))
- 179. 166 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING Exception: x should be = 5 WARNING! Try-except statements should never be used in place of good programming prac- tice. For example, you should not code sloppily and then encase your program in a try-except statement until you have taken every measure you can think of to ensure that your function is working properly. 10.4 TYPE CHECKING Python is both a strongly and dynamically typed programming language. This means that any variable can take on any data type at any time (this is dynamically typed part); however, once a variable is assigned a type, it cannot change. For example, you can write x = 1 immediately followed by x = s because Python is a dynamically typed language. You cannot run 3 + 5, because it is a strongly typed language, i.e., the string 3 cannot convert in runtime to an integer. In statically typed programming languages, you must declare what kind of data type your variable is to execute before you use it, and the data type usage of your variable cannot change within the scope of a function. In the case of Python, there is no way to ensure that the user of your function is inputting variables of the data type you expect. For example, the function my_adder in Chapter 3 is designed to add three numbers together. However, the user can input strings, lists, dictionaries, or functions, each of which will cause different levels of problems. You can have your function type check the input variables before continuing and force an error using the error function. TRY IT! Modify my_adder to type check that the input variables are floats. If any of the input variables are not floats, the function should return an appropriate error to the user using the raise function. Try your function for erroneous input arguments to verify that they are checked. In [1]: def my_adder(a, b, c): # type check if isinstance(a, float) and isinstance(b, float) and isinstance(c, float): pass else: raise(TypeError(Inputs must be floats)) out = a + b + c return out In [2]: my_adder(1.0, 2.0, 3.0)
- 180. 10.4 TYPE CHECKING 167 Out[2]: 6.0 In [3]: my_adder(1.0, 2.0, 3.0) --------------------------------------------------- TypeError Traceback (most recent call last) ipython-input-3-14e4b71b8c1d in module ---- 1 my_adder(1.0, 2.0, 3.0) ipython-input-1-c2a54d39e3d9 in my_adder(a, b, c) ---- 6 raise(TypeError(Inputs must be floats)) 7 8 out = a + b + c 9 return out TypeError: Input arguments must be floats In [4]: my_adder(1, 2, 3) ----------------------------------------------------- Exception Traceback (most recent call last) ipython-input-4-fc54adcab3d7 in module ---- 1 my_adder(1, 2, 3) ipython-input-1-c2a54d39e3d9 in my_adder(a, b, c) 4 pass 5 else: ---- 6 raise(TypeError(Inputs must be floats)) 7 8 out = a + b + c TypeError: Inputs must be floats Note that 1, 2, 3 are integers instead of floats, therefore, it raised an error message, and we need to change the function to make sure that any numbers will be added.
- 181. 168 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING In [5]: def my_adder(a, b, c): # type check if isinstance(a, (float, int, complex)) and isinstance(b, (float, int, complex)) and isinstance(c, (float, int, complex)): pass else: raise(TypeError(Inputs must be numbers)) out = a + b + c return out In [6]: my_adder(1, 2, 3) Out[6]: 6 In [7]: my_adder(1.0, 2, 3) Out[7]: 6.0 In [8]: my_adder(1j, 2+2j, 3+2j) Out[8]: (5+5j) 10.5 DEBUGGING Debugging is the process of systematically removing errors, or bugs, from your code. Python has functionalities that can assist you when debugging. The standard debugging tool in Python is pdb (Python DeBugger) for interactive debugging. It lets you step through the code line by line to find out what might be causing a difficult error. The IPython version of this is ipdb (IPython DeBugger). We will not cover too much about it herein; check out the documentation3 for details. In this section, basic debug steps in Jupyter notebook will be introduced. We will show you how to use two really useful magic commands %debug and %pdb to find the code causing trouble. There are two ways you can debug your code: (1) activate the debugger when you run into an exception; and (2) activate debugger before running the code. 10.5.1 ACTIVATING DEBUGGER AFTER RUNNING INTO AN EXCEPTION If we run the code which stops at an exception, we can call %debug. For example, we have a function that squares the input number and then adds to itself, as shown below: 3 https://docs.python.org/3/library/pdb.html.
- 182. 10.5 DEBUGGING 169 In [1]: def square_number(x): sq = x**2 sq += x return sq In [2]: square_number(10) ----------------------------------------------------- TypeError Traceback (most recent call last) ipython-input-2-e0b77a2957d5 in module ---- 1 square_number(10) ipython-input-1-3fc6a3900214 in square_number(x) 1 def square_number(x): 2 ---- 3 sq = x**2 4 sq += x 5 TypeError: unsupported operand type(s) for ** or pow(): str and int After we locate this exception, we can activate the debugger by using the magic command %debug, which opens an interactive debugger, at which point you can type in commands in the debugger to get useful information. In [3]: %debug ipython-input-1-3fc6a3900214(3)square_number() 1 def square_number(x): 2 ---- 3 sq = x**2 4 sq += x 5
- 183. 170 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING ipdb h Documented commands (type help topic): ======================================== EOF cl disable interact next psource rv unt a clear display j p q s until alias commands down jump pdef quit source up args condition enable l pdoc r step w b cont exit list pfile restart tbreak whatis break continue h ll pinfo return u where bt d help longlist pinfo2 retval unalias c debug ignore n pp run undisplay Miscellaneous help topics: ========================== exec pdb ipdb p x '10' ipdb type(x) class 'str' ipdb p locals() {'x': '10'} ipdb q You can see that after we activate the ipdb, we can type commands to get the information of the code. In the example above, we typed the following commands: • h to get a list of help functions • p x to print the value of x • type(x) to get the type of x • p locals() to print out all the local variables There are some most frequent commands you can type in the pdb, like: • n(ext) line and run this one • c(ontinue) running until next breakpoint • p(rint) print variables • l(ist) where you are • Enter repeat the previous command • s(tep) step into a subroutine • r(eturn) return out of a subroutine • h(elp) get help • q(uit) the debugger
- 184. 10.5 DEBUGGING 171 10.5.2 ACTIVATING DEBUGGER BEFORE RUNNING THE CODE We can also turn on the debugger before we run the code and then turn it off once we are finished running the code. In [4]: %pdb on Automatic pdb calling has been turned ON In [5]: square_number(10) -------------------------------------------------------- TypeError Traceback (most recent call last) ipython-input-5-e0b77a2957d5 in module ---- 1 square_number(10) ipython-input-1-3fc6a3900214 in square_number(x) 1 def square_number(x): 2 ---- 3 sq = x**2 4 sq += x 5 TypeError: unsupported operand type(s) for ** or pow(): str and int ipython-input-1-3fc6a3900214(3)square_number() 1 def square_number(x): 2 ---- 3 sq = x**2 4 sq += x 5 ipdb p x 10 ipdb c
- 185. 172 CHAPTER 10 ERRORS, GOOD PROGRAMMING PRACTICES, AND DEBUGGING In [6]: # let’s turn off the debugger %pdb off Automatic pdb calling has been turned OFF 10.5.3 ADD A BREAKPOINT It is often very useful to insert a breakpoint into your code. A breakpoint is a line in your code at which Python will stop when the function is run. In [7]: import pdb In [8]: def square_number(x): sq = x**2 # we add a breakpoint here pdb.set_trace() sq += x return sq In [9]: square_number(3) ipython-input-8-e48ec2675aea(8)square_number() - sq += x (Pdb) l 3 sq = x**2 4 5 # we add a breakpoint here 6 pdb.set_trace() 7 8 - sq += x 9 10 return sq [EOF] (Pdb) p x 3 (Pdb) p sq 9
- 186. 10.6 SUMMARY AND PROBLEMS 173 (Pdb) c Out[9]: 12 After we added pdb.set_trace(), the program stopped at this line and activated the pdb debugger. We can now check all the variable values that were assigned before this line and use the command c to continue the execution. Using the Python’s debugger can be extremely helpful in finding and fixing errors in your code. We encourage you to use the debugger for large programs. 10.6 SUMMARY AND PROBLEMS 10.6.1 SUMMARY 1. Errors are inevitable when coding. Errors are important because they tell you that something is not working the way you intended. 2. There are three types of errors: syntax errors, exceptions, and logical errors. 3. You can reduce the numbers of errors in your coding with good coding practice. 4. Try-except statements can be used to handle exceptions without stopping your code. 5. The Debugger is a Python tool for helping you find errors. 10.6.2 PROBLEMS None, have fun with what we learned in this chapter.
- 187. 11 READING AND WRITING DATA 11.1 TXT Files.............................................................................................................. 175 11.1.1 Writing to a File .................................................................................... 176 11.1.2 Appending a File................................................................................... 176 11.1.3 Reading a File...................................................................................... 177 11.1.4 Dealing With Numbers and Arrays .............................................................. 178 11.2 CSV Files.............................................................................................................. 180 11.2.1 Writing and Opening a CSV File ................................................................. 180 11.2.2 Reading a CSV File ................................................................................ 180 11.2.3 Beyond NumPy ....................................................................................... 181 11.3 Pickle Files........................................................................................................... 182 11.3.1 Writing to a Pickle File............................................................................ 182 11.3.2 Reading a Pickle File.............................................................................. 182 11.3.3 Reading in Python 2 Pickle File ................................................................. 182 11.4 JSON Files ............................................................................................................ 183 11.4.1 JSON Format ....................................................................................... 183 11.4.2 Writing a JSON File ............................................................................... 184 11.4.3 Reading a JSON File .............................................................................. 184 11.5 HDF5 Files ............................................................................................................ 185 11.5.1 Reading an HDF5 File ............................................................................ 186 11.6 Summary and Problems ............................................................................................ 187 11.6.1 Summary............................................................................................ 187 11.6.2 Problems ............................................................................................ 188 11.1 TXT FILES So far, we have used the print function to display the data to the screen. But there are many ways to store data onto your disk and share it with other programs or colleagues. For example, if we have some strings in this notebook but we want to use them in another notebook, the easiest way is to store the strings in a text file first, and then open it in another notebook. A text file, which often appears with an extension .txt, is a file containing only plain text, which is defined as a pure sequence of character codes. Note that programs that you write and programs that read your text files will usually expect the text file to be in a certain format, that is, organized in a specific way. To work with text files, we need to use the open function, which returns a file object. It is commonly used with two arguments:
- 188. 176 CHAPTER 11 READING AND WRITING DATA f = open(filename, mode) The f above is the returned file object. The filename takes a string that tells the computer the location of the file you want to open, and mode is another string containing a few characters, which describes the way in which the file will be used. The common modes are: • r, this is the default mode, which opens a file for reading. • w, this mode opens a file for writing. If the file does not exist, it creates a new file. • a, opens a file in append mode, so that you can append data to end of file. If the file does not exist, it creates a new file. • b, opens a file in binary mode. • r+, opens a file (does not create) for reading and writing. • w+, opens or creates a file for writing and reading, discards existing contents. • a+, opens or creates a file for reading and writing, and appends data to the end of file. 11.1.1 WRITING TO A FILE TRY IT! Create a text file called test.txt and write a couple lines in it. In [1]: f = open(test.txt, w) for i in range(5): f.write(fThis is line {i}n) f.close() In the above code, we first opened a file object f with the file name test.txt. We used w for the mode, which indicates we want to write code. We wrote five lines (note the newline n at the end of the string), and then we closed the file object. The content of the file is shown in Fig. 11.1. NOTE! It is good practice to close the file using f.close() at the end of the file. If you do not close them yourself, Python will eventually close them for you. Note that sometimes when writing to a file, the data may not write to disk until you close the file. The longer you keep the file open, the greater the chance you will lose your data. 11.1.2 APPENDING A FILE Next, we will append a string to the test.txt file. It is very similar to how we write the file, with only one difference: we change the mode to a instead. See the results in Fig. 11.2.
- 189. 11.1 TXT FILES 177 FIGURE 11.1 The content in the text file we write. FIGURE 11.2 Append a line to the end of an existing file. In [2]: f = open(test.txt, a) f.write(fThis is another linen) f.close() 11.1.3 READING A FILE We can read a file from disk and store all the contents to a variable. Let us read in the test.txt file we created above and store all the contents in the file to a variable content. In [3]: f = open(./test.txt, r) content = f.read()
- 190. 178 CHAPTER 11 READING AND WRITING DATA f.close() print(content) This is line 0 This is line 1 This is line 2 This is line 3 This is line 4 This is another line In this way, we can store all the lines in the file into a one-string variable. To prove that this is a string, we can verify that variable content. In [4]: type(content) Out[4]: str Sometimes we want to read in the contents in the files line by line and store it in a list: using f.readlines() will achieve this. In [5]: f = open(./test.txt, r) contents = f.readlines() f.close() print(contents) [This is line 0n,This is line 1n,This is line 2n, This is line 3n,This is line 4n,This is another linen] In [6]: type(contents) Out[6]: list 11.1.4 DEALING WITH NUMBERS AND ARRAYS Since we will be working with numerical methods later and will often work with numbers or arrays, we can use the above methods to save the numbers or arrays to a file and read it back to the memory. Although viable, it is a bit clumsy. Instead, programmers commonly use the NumPy package to directly save/read an array. An example is presented below. TRY IT! Store an array [[1.20, 2.20, 3.00], [4.14, 5.65, 6.42]] to a file named my_ar- ray.txt and read it back to a variable called my_arr. In [7]: import numpy as np
- 191. 11.1 TXT FILES 179 In [8]: arr = np.array([[1.20, 2.20, 3.00], [4.14, 5.65, 6.42]]) arr Out[8]: array([[1.2 , 2.2 , 3. ], [4.14, 5.65, 6.42]]) In [9]: np.savetxt(my_arr.txt, arr, fmt=%.2f, header = Col1 Col2 Col3) The above example demonstrates how to save a 2D array into a text file using np.savetxt. The first argument is the file name, the second argument is the object we wish to save, and the third argument is to define the format for the output (we use %.2f to indicate we want the output numbers with two decimals). The fourth argument is the header we wish to write into the file. See the results in Fig. 11.3. FIGURE 11.3 The NumPy array we saved in the file. In [10]: my_arr = np.loadtxt(my_arr.txt) my_arr Out[10]: array([[1.2 , 2.2 , 3. ], [4.14, 5.65, 6.42]]) Reading the file directly into an array is very simple by using the np.loadtxt function, which skips the first header. There are many different arguments that can control how a file is read. Additional discussion on this topic will be explored in the next section; however, we are not going into much detail herein beyond what is presented above. Check the documentation or use the question mark if you need help.
- 192. 180 CHAPTER 11 READING AND WRITING DATA 11.2 CSV FILES Often, scientific data are stored in the comma-separated values (CSV) file format, which is a delimited text file that uses a comma to separate values. It is a very useful format that can store large tables of data (numbers and text) in plain text. Each line (row) in the data is one data record, and each record consists of one or more fields separated by commas. It also can be opened using Microsoft Excel to visualize the rows and columns. Python has its own CSV module to read and write a CSV file; we are not going to discuss this further. Details on this module is available in the documentation.1 Instead, we will use the NumPy package to deal with CSV files, because it is preferred to read a CSV file directly into a NumPy array. 11.2.1 WRITING AND OPENING A CSV FILE Presented below is a simple example of generating 100 rows and 5 columns of data. In [1]: import numpy as np In [2]: data = np.random.random((100,5)) In [3]: np.savetxt(test.csv, data, fmt = %.2f, delimiter=,, header = c1, c2, c3, c4, c5) First, we generated some random data for 100 rows and 5 columns using the np.random function and assigned it to a data variable, using the np.savetxt function to save the data to a CSV file. Note that the first three arguments are the same as those used in the previous section, but in this case we set the delimiter argument to ,, which indicates that we want to separate the data using a comma. Now, we can open the CSV file using Microsoft Excel; see Fig. 11.4. We can also open the CSV file using a text editor; note that the values are separated by commas (Fig. 11.5). 11.2.2 READING A CSV FILE As before, we can read in the CSV file using the np.loadtxt function. If we read in the CSV file we just saved to the disk to a variable my_csv and output the first 5 rows, we need to use the delimiter again to specify that the data in the file is separated by commas. In [4]: my_csv = np.loadtxt(./test.csv, delimiter=,) my_csv[:5, :] Out[4]: array([[0.84, 0.99, 0.56, 0.24, 0.71], [0.33, 0.8 , 0.32, 0.28, 0.83], [0.89, 0.19, 0.25, 0.63, 0.84], [0.08, 0.49, 0.76, 0.34, 0.69], [0.66, 0.65, 0.73, 0.48, 0.12]]) 1 https://docs.python.org/3/library/csv.html.
- 193. 11.2 CSV FILES 181 FIGURE 11.4 Open the csv file using Microsoft Excel. FIGURE 11.5 Open the csv file using a text editor. 11.2.3 BEYOND NUMPY Although NumPy is very convenient when dealing with CSV files, there are numerous packages capable of handling CSV files. The Pandas package is popular and can easily deal with the tabular data in the Dataframe. We encourage you to explore on your own these different ways of handling CSV files.
- 194. 182 CHAPTER 11 READING AND WRITING DATA 11.3 PICKLE FILES This section will introduce another way to store the data to the disk, namely pickle. We have talked about saving data into text files or CSV files, but in certain cases, we want to store dictionaries, tuples, lists, or any other data type to the disk and use them later or send them to colleagues. This is where pickle comes in; it can serialize objects so that they can be saved into a file and loaded again later. Pickle can be used to serialize Python object structures, which refers to the process of converting an object in the memory to a byte stream that can be stored as a binary file on disk. When we load it back to a Python program, this binary file can be deserialized back to a Python object. 11.3.1 WRITING TO A PICKLE FILE TRY IT! Create a dictionary and save it to a pickle file on a disk. To use a pickle, we need to import the module first. In [1]: import pickle In [2]: dict_a = {A:0, B:1, C:2} pickle.dump(dict_a, open(test.pkl, wb)) To use pickle to serialize an object, we use the pickle.dump function which takes two arguments: the first one is the object, and the second argument is a file object returned by the open function. Note that the mode of the open function is wb which indicates it is writing to a binary file. 11.3.2 READING A PICKLE FILE Next, we load the pickle file we just saved on the disk back using the pickle.load function. In [3]: my_dict = pickle.load(open(./test.pkl, rb)) my_dict Out[3]: {A: 0, B: 1, C: 2} We can see the loading of a pickle file is very similar to the saving process, but here the mode of the open function is rb, which indicates it is reading the binary file. This function deserializes the binary file back to the original object, which in this case is a dictionary. This is also one of the reason that the pickle format is popular; it is very easy to store and load a Python data structure without adding extra code to change it. 11.3.3 READING IN PYTHON 2 PICKLE FILE Sometimes, you may need to open a pickle file from some colleague who generated it using Python 2 instead of Python 3. You can either unpickle it using Python 2, or use Python 3 with the encod- ing=latin1 in the pickle.load function.
- 195. 11.4 JSON FILES 183 infile = open(filename,rb) new_dict = pickle.load(infile, encoding=latin1) WARNING! One drawback of pickle files is that they are not in a universal file format, which means that it is not easy for other programming languages to use it. TXT and CSV files can be easily shared with other colleagues who are not using Python, and they can open them using R, Matlab®, Java, and so on. But pickle files are specially designed for Python and the data is not designed to work with other programming languages. 11.4 JSON FILES JSON is another format we are introducing. It stands for JavaScript Object Notation. A JSON file usually ends with the extension “.json”. Unlike pickle, which is Python dependent, JSON is a language- independent data format, making it attractive to use. In addition, it usually takes up less space on the disk, and manipulating a JSON file is faster compared to pickle; search online for more detail regarding the advantages and disadvantages of using JSON versus pickle. Thus, it is a good practice to store your data using JSON. This section briefly explores how to handle JSON files in Python. 11.4.1 JSON FORMAT Text in JSON is represented using quoted strings that contain value in key-value pairs within {}; the structure should appear very similar as it is nearly identical to the dictionary using in Python. For example, { school: UC Berkeley, address: { city: Berkeley, state: California, postal: 94720 }, list:[ student 1, student 2, student 3 ] }
- 196. 184 CHAPTER 11 READING AND WRITING DATA 11.4.2 WRITING A JSON FILE The easiest way to handle JSON in Python is to use the json library. There are several other libraries that are available, such as simplejson, jyson, etc. This section will be limited to using json, which is natively supported by Python to enable you to write and load JSON files. TRY IT! Create a dictionary and save it to a JSON file on the disk. We need to import the pickle module first. In [1]: import json In [2]: school = { school: UC Berkeley, address: { city: Berkeley, state: California, postal: 94720 }, list:[ student 1, student 2, student 3 ], array:[1, 2, 3] } json.dump(school, open(school.json, w)) To serialize an object using JSON, we use the json.dump function which takes two arguments: the first one is the object, and the second argument is a file object returned by the open function. Note that the mode of the open function is w, indicating that it is a “write” file. 11.4.3 READING A JSON FILE Now we load the JSON file just saved on the disk after using the json.load function. In [3]: my_school = json.load(open(./school.json, r)) my_school We can see the use of json is actually very similar to pickle in the last section. JSON supports strings and numbers, as well as nested lists, tuples, and objects. We suggest exploring these different options on your own.
- 197. 11.5 HDF5 FILES 185 11.5 HDF5 FILES Scientific computing often needs to store large amounts of data with quick access; the file formats we introduced earlier are not applicable. To store large amounts of data, HDF5 (Hierarchical Data Format) is the solution. It is a powerful binary data format with no limit on the file size. It provides parallel IO (input/output) and carries out a bunch of low-level optimizations “under the hood” to speed up the queries and minimize the storage requirements. An HDF5 file saves two types of objects: datasets, which are array-like collections of data (like NumPy arrays), and groups, which are folder-like containers that hold datasets and other groups. There are also attributes that can be associated with the datasets and groups to describe some properties. The so called hierarchical in HDF5 refers to the fact that the data can be saved like a file system, with folder-like structures, such as folder, subfolder (in HDF5, it is called group, subgroup). Groups operate like dictionaries with the keys and values: keys are names of the groups, and values are the subgroups or datasets. In order to use read/write HDF5 in Python, there are some packages or wrappers that serve this purpose. The most common two packages are PyTables2 and h5py.3 We will only introduce the h5py here. You can install h5py by using conda (refer back to Chapter 1 if you need a refresher). Once h5py is installed, follow the Quick Start Guide in h5py documentation.4 For your information, presented below is one example to demonstrate how to create and read an HDF5 file. We will import the NumPy and h5py first. In [1]: import numpy as np import h5py EXAMPLE: Assume we have deployed instruments to monitor the accelerations and GPS location in San Francisco Bay Area, California. We have deployed two accelerometers at Berkeley and Oakland, as well as one GPS station in San Francisco. They record data at different sampling rates, with the accelerometer at Berkeley sampling the data every 0.04 s, and the sensor in Oakland at every 0.01 s. The GPS samples the location every 60 s in San Francisco. We want to store the two types of data into an HDF5, as well as some attributes to indicate where the data has been recorded, the start time of the recording, station name, and the sampling interval. In [2]: # Generate random data for recording acc_1 = np.random.random(1000) station_number_1 = 1 # unix timestamp start_time_1 = 1542000276 # time interval for recording dt_1 = 0.04 2 https://www.pytables.org. 3 https://www.h5py.org. 4 http://docs.h5py.org/en/latest/quick.html.
- 198. 186 CHAPTER 11 READING AND WRITING DATA location_1 = Berkeley acc_2 = np.random.random(500) station_number_2 = 2 start_time_2 = 1542000576 dt_2 = 0.01 location_2 = Oakland In [3]: hf = h5py.File(station.hdf5, w) In [4]: hf[/acc/1/data] = acc_1 hf[/acc/1/data].attrs[dt] = dt_1 hf[/acc/1/data].attrs[start_time] = start_time_1 hf[/acc/1/data].attrs[location] = location_1 hf[/acc/2/data] = acc_2 hf[/acc/2/data].attrs[dt] = dt_2 hf[/acc/2/data].attrs[start_time] = start_time_2 hf[/acc/2/data].attrs[location] = location_2 hf[/gps/1/data] = np.random.random(100) hf[/gps/1/data].attrs[dt] = 60 hf[/gps/1/data].attrs[start_time] = 1542000000 hf[/gps/1/data].attrs[location] = San Francisco In [5]: hf.close() The above code shows the core concepts in HDF5: the groups, datasets, and attributes. First, we created an HDF5 object for writing: station.hdf5. Then we stored the data into two top-level groups: acc and gps. Both of these top-levels groups contain subgroups labeled 1 or 2 to indicate the station names. Each station will contain the next level subgroup, i.e., the data, which is used to store the array data we collected. Next, we add attributes to the groups or the data. In this case, we have added the dt, start_time, and location as the attributes to the datasets stored here. You can see that it is quite similar to folder-like structure, with data acc_1 saved at /acc/1/data. Last, we close the file object. Saving data in HDF5 is easy. We can also use the function create_dataset and create_group as shown in the quick start.5 11.5.1 READING AN HDF5 FILE Now suppose you send the station.hdf5 to a colleague, who wants to get access to the data. Here is how he/she will do it. 5 http://docs.h5py.org/en/latest/quick.html.
- 199. 11.6 SUMMARY AND PROBLEMS 187 In [6]: hf_in = h5py.File(station.hdf5, r) In [7]: list(hf_in.keys()) Out[7]: [acc, gps] In [8]: acc = hf_in[acc] In [9]: list(acc.keys()) Out[9]: [1, 2] In [10]: data_1 = hf_in[acc/1/data] In [11]: data_1.value[:10] Out[11]: array([0.41820889, 0.89832446, 0.40229251, 0.41287538, 0.16173359, 0.75855904, 0.89288185, 0.82944522, 0.84228139, 0.50365515]) In [12]: list(data_1.attrs) Out[12]: [dt, start_time, location] In [13]: data_1.attrs[dt] Out[13]: 0.04 In [14]: data_1.attrs[location] Out[14]: Berkeley Reading an HDF5 turns out to be easy as well using h5py. After we read in the HDF5 to hf_in, we can see what groups are in the HDF5 using the keys function. Then we can get access to the group members and see what is contained in the subgroups as the hf_in[acc], or directly specify the path to the datasets as hf_in[acc/1/data] and get the array data. Remember that the attributes associated with the data can also be accessed as a dictionary. 11.6 SUMMARY AND PROBLEMS 11.6.1 SUMMARY 1. Data must often be stored to a disk for a later Python session or for reading by other programs. 2. Data created by other programs may have to be read by Python. 3. Python has functions to read and write data in several standard forms: TXT, CSV, pickle, and HDF5.
- 200. 188 CHAPTER 11 READING AND WRITING DATA 11.6.2 PROBLEMS 1. Create a list and save it in a text file so that each of the items in the list will take one line. 2. Save the same list in Problem 1 to a CSV file. 3. Create a 2D NumPy array, then save it to a CSV file and read it back to a 2D array. 4. Save the same array in Problem 2 to a pickle file and load it back. 5. Create a dictionary and save it to a JSON file. 6. Create a 1D NumPy array, and save it to a JSON file with the key named “data.” Then load it back.
- 201. 12 VISUALIZATION AND PLOTTING 12.1 2D Plotting............................................................................................................ 189 12.2 3D Plotting............................................................................................................ 199 12.3 Working With Maps ................................................................................................. 205 12.4 Animations and Movies............................................................................................. 212 12.5 Summary and Problems ............................................................................................ 215 12.5.1 Summary............................................................................................ 215 12.5.2 Problems ............................................................................................ 215 12.1 2D PLOTTING In Python, the matplotlib is the most important package when plotting data. View the matplotlib gallery1 to get a sense of what can be done. Usually, the first thing you should do is to import the matplotlib package. In Jupyter notebook, we can show the figure directly within the notebook and also have the interactive operations like pan, zoom in/out, and so on using the magic command – %matplotlib notebook. Below are some examples. In [1]: import numpy as np import matplotlib.pyplot as plt %matplotlib notebook The basic plotting function is plot(x,y). The plot function takes in two lists/arrays, x and y, and produces a visual display of the respective points in x and y. TRY IT! Given the lists x = [0, 1, 2, 3] and y = [0, 1, 4, 9], use the plot function to produce a plot of x versus y. In [2]: x = [0, 1, 2, 3] y = [0, 1, 4, 9] plt.plot(x, y) plt.show() 1 https://matplotlib.org/gallery/index.html#gallery.
- 202. 190 CHAPTER 12 VISUALIZATION AND PLOTTING FIGURE 12.1 Plot of x versus y. Note in Fig. 12.1 that by default, the plot function connects each point with a blue line. To make the function look smooth, you can use finer discretization points. The plt.plot function did the main job to plot the figure, and plt.show() is telling Python that we are done plotting and asks to show the figure. The buttons beneath the plot allow you to move the line, zoom in or out, or save the figure. Note that before you plot Fig. 12.2, you need to turn off the interactive plot by pressing the stop interaction button on the top right of the figure, otherwise, the next figure will be plotted in the same frame, or use the magic function %matplotlib inline to turn off the interactive features. TRY IT! Make a plot of the function f (x) = x2 for −5 ≤ x ≤ 5. In [3]: %matplotlib inline In [4]: x = np.linspace(-5,5, 100) plt.plot(x, x**2) plt.show()
- 203. 12.1 2D PLOTTING 191 FIGURE 12.2 Plot of the function f (x) = x2 for −5 ≤ x ≤ 5. To change the marker or line, add a third input argument into plot, which is a string that specifies the color and line style to be used in the plot. For example, plot(x,y,ro) will plot the elements of x against the elements of y using red, r, circles, o. The possible specifications are shown below in the table (see also Fig. 12.3). Symbol Description Symbol Description b blue T T g green s square r red d diamond c cyan v triangle (down) m magenta ˆ triangle (up) y yellow triangle (left) k black triangle (right) w white p pentagram . point h hexagram o circle - solid x x-mark : dotted + plus -. dashed–dotted * star - dashed TRY IT! Make a plot of the function f (x) = x2 for −5 ≤ x ≤ 5 using a dashed green line. In [5]: x = np.linspace(-5,5, 100) plt.plot(x, x**2, g-) plt.show()
- 204. 192 CHAPTER 12 VISUALIZATION AND PLOTTING FIGURE 12.3 Plot of the function f (x) = x2 for −5 ≤ x ≤ 5 using dashed line. Before the plt.show() statement, you can add in and plot more datasets within one figure (see also Fig. 12.4). TRY IT! Make a plot of the function f (x) = x2 and g(x) = x3 for −5 ≤ x ≤ 5. Use different colors and markers for each function. In [6]: x = np.linspace(-5,5,20) plt.plot(x, x**2, ko) plt.plot(x, x**3, r*) plt.show() FIGURE 12.4 Using different colors and markers. It is customary in engineering and science to always provide your plot with both title and axis labels so that people know what your plot is about. Sometimes you want to change the size of the figure as well. You can add a title to your plot using the title function, which takes as input a string and puts
- 205. 12.1 2D PLOTTING 193 that string as the title of the plot. The functions xlabel and ylabel work in the same way to name your axis labels. To change the size of the figure, create a figure object and resize it. Note that every time we call plt.figure function, we create a new figure object and draw on it. TRY IT! Add a title and axis labels to the previous plot. Make the figure larger so that it is 10 inches wide and 6 inches high. In [7]: plt.figure(figsize = (10,6)) x = np.linspace(-5,5,20) plt.plot(x, x**2, ko) plt.plot(x, x**3, r*) plt.title(fPlot of Various Polynomials from {x[0]} to {x[-1]}) plt.xlabel(X axis, fontsize = 18) plt.ylabel(Y axis, fontsize = 18) plt.show() FIGURE 12.5 Adding title and axis labels to a figure. As demonstrated in Fig. 12.5, we can change any part of the figure, such as the x and y axis label size by specifying a fontsize argument in the plt.xlabel function. There are some predefined styles that automatically change the style. Here is the list of the styles. In [8]: print(plt.style.available) [seaborn-dark, seaborn-darkgrid, seaborn-ticks, fivethirtyeight, seaborn-whitegrid, classic, _classic_test, fast, seaborn-talk, seaborn-dark-palette, seaborn-bright, seaborn-pastel, grayscale, seaborn-notebook,
- 206. 194 CHAPTER 12 VISUALIZATION AND PLOTTING ggplot, seaborn-colorblind, seaborn-muted, seaborn’, Solarize_Light2, seaborn-paper, bmh, tableau-colorblind10, seaborn-white, dark_background, seaborn-poster, seaborn-deep] One of my favorite predefined styles is the seaborn style; we can change it using the plt.style.use function. If we change it to seaborn-poster, it will make everything bigger (see also Fig. 12.6). In [9]: plt.style.use(seaborn-poster) In [10]: plt.figure(figsize = (10,6)) x = np.linspace(-5,5,20) plt.plot(x, x**2, ko) plt.plot(x, x**3, r*) plt.title(fPlot of Various Polynomials from {x[0]} to {x[-1]}) plt.xlabel(X axis) plt.ylabel(Y axis) plt.show() FIGURE 12.6 Using seaborn-poster style. You can create a legend for your plot by using the legend function, by adding the label argument in the plot function. The legend function also takes argument of loc to indicate where to put the legend; change it from 0 to 10 and see what happens (see also Fig. 12.7). In [11]: plt.figure(figsize = (10,6)) x = np.linspace(-5,5,20) plt.plot(x, x**2, ko, label = quadratic)
- 207. 12.1 2D PLOTTING 195 plt.plot(x, x**3, r*, label = cubic) plt.title(fPlot of Various Polynomials from {x[0]} to {x[-1]}) plt.xlabel(X axis) plt.ylabel(Y axis) plt.legend(loc = 2) plt.show() FIGURE 12.7 Using a legend in the figure. Finally, you can further customize the appearance of your plots by changing the limits of each axis using the xlim or ylim function. Using the grid function will turn on the grid of Fig. 12.8. TRY IT! Change the limits of the plot so that x is visible from −6 to 6, and y is visible from −10 to 10. Turn on the grid. In [12]: plt.figure(figsize = (10,6)) x = np.linspace(-5,5,100) plt.plot(x, x**2, ko, label = quadratic) plt.plot(x, x**3, r*, label = cubic) plt.title(fPlot of Various Polynomials from {x[0]} to {x[-1]}) plt.xlabel(X axis) plt.ylabel(Y axis) plt.legend(loc = 2) plt.xlim(-6.6) plt.ylim(-10,10) plt.grid() plt.show()
- 208. 196 CHAPTER 12 VISUALIZATION AND PLOTTING FIGURE 12.8 Changing limits of the figure and turning on grid. We can create a table of plots on a single figure using the subplot function. The subplot function takes three inputs: the number of rows of plots, the number of columns of plots, and designating which plot all calls to plotting functions should plot. You can move to a different subplot by calling the subplot again with a different entry for the plot location. There are several other plotting functions that plot x versus y data. Some of them are scatter, bar, loglog, semilogx, and semilogy. Function scatter works exactly the same as plot except it defaults to red circles (i.e., plot(x,y,ro) is equivalent to scatter(x,y)). The bar function plots bars centered at x with height y. The loglog, semilogx, and semilogy functions plot the data in x and y, with the x and y axis on a log-scale, the x axis on a log-scale and the y axis on a linear scale, and the y axis on a log-scale and the x axis on a linear scale, respectively (see also Fig. 12.9). TRY IT! Given the lists x = np.arange(11) and y = x2, create a 2 × 3 subplot where each subplot plots x versus y using plot, scatter, bar, loglog, semilogx, and semilogy. Title and label each plot appropriately. Use a grid, but a legend is not necessary here. In [13]: x = np.arange(11) y = x**2 plt.figure(figsize = (14, 8)) plt.subplot(2, 3, 1) plt.plot(x,y) plt.title(Plot) plt.xlabel(X) plt.ylabel(Y) plt.grid() plt.subplot(2, 3, 2)
- 209. 12.1 2D PLOTTING 197 plt.scatter(x,y) plt.title(Scatter) plt.xlabel(X) plt.ylabel(Y) plt.grid() plt.subplot(2, 3, 3) plt.bar(x,y) plt.title(Bar) plt.xlabel(X) plt.ylabel(Y) plt.grid() plt.subplot(2, 3, 4) plt.loglog(x,y) plt.title(Loglog) plt.xlabel(X) plt.ylabel(Y) plt.grid(which=both) plt.subplot(2, 3, 5) plt.semilogx(x,y) plt.title(Semilogx) plt.xlabel(X) plt.ylabel(Y) plt.grid(which=both) plt.subplot(2, 3, 6) plt.semilogy(x,y) plt.title(Semilogy) plt.xlabel(X) plt.ylabel(Y) plt.grid() plt.tight_layout() plt.show()
- 210. 198 CHAPTER 12 VISUALIZATION AND PLOTTING FIGURE 12.9 Different type of plots. We can see that at the end of our plot, we used plt.tight_layout to ensure that the subfigures did not overlap with each other. Rerun this plot and see the effect without this statement. Sometimes, you want to save the figures in a specific format, such as pdf, jpeg, png, and so on. You can do this with the function plt.savefig (see also Fig. 12.10). In [14]: plt.figure(figsize = (8,6)) plt.plot(x,y) plt.xlabel(X) plt.ylabel(Y) plt.savefig(image.pdf)
- 211. 12.2 3D PLOTTING 199 FIGURE 12.10 Saving a figure. Finally, there are other functions for plotting data in 2D. The errorbar function plots x versus y data but with error bars for each element. The polar function plots θ versus r rather than x versus y. The stem function plots stems at x with height at y. The hist function makes a histogram of a dataset; boxplot gives a statistical summary of a dataset; and pie makes a pie chart. The usage of these functions are left for you to explore on your own. Remember to check the examples on the matplotlib gallery.2 12.2 3D PLOTTING To plot three-dimensional (3D) figures, first we need to import the mplot3d toolkit, which adds the simple 3D plotting capabilities to matplotlib. In [1]: import numpy as np from mpl_toolkits import mplot3d import matplotlib.pyplot as plt plt.style.use(seaborn-poster) Once we have imported the mplot3d toolkit, we can create 3D axes and add data to the axes. Let us first create 3D axes (see also Fig. 12.11). 2 https://matplotlib.org/gallery/index.html#gallery.
- 212. 200 CHAPTER 12 VISUALIZATION AND PLOTTING In [2]: fig = plt.figure(figsize = (10,10)) ax = plt.axes(projection=3d) plt.show() FIGURE 12.11 3D axes. The ax = plt.axes(projection=3d) created a 3D-axes object. To add data to it, use plot3D function. It is possible to change the title, set the x,y,z labels for the plot as well. TRY IT! Consider the parameterized dataset: t is a vector from 0 to 10π with a step π/50, x = sin(t), and y = cos(t). Make a 3D plot of the (x,y,t) dataset using plot3. Turn on the grid, make the axis equal, and add axis labels and a title. Activate the interactive plot using %matplotlib notebook so that you can move and rotate the figure as well. In [3]: %matplotlib notebook In [4]: fig = plt.figure(figsize = (8,8)) ax = plt.axes(projection=3d) ax.grid() t = np.arange(0, 10*np.pi, np.pi/50) x = np.sin(t) y = np.cos(t)
- 213. 12.2 3D PLOTTING 201 ax.plot3D(x, y, t) ax.set_title(3D Parametric Plot) # Set axes label ax.set_xlabel(x, labelpad=20) ax.set_ylabel(y, labelpad=20) ax.set_zlabel(t, labelpad=20) plt.show() See the interactive examples in the notebook. Try to rotate the above figure to get a 3D view of the plot. You may notice that we also set the labelpad=20 to the 3-axis labels, which will make it so that the label does not overlap with the tick texts. We can also plot a 3D scatter plot using the scatter function (see also Fig. 12.12). TRY IT! Make a 3D scatter plot with randomly generated 50 data points for x, y, and z. Set the point color as red and size of the point as 50. In [5]: # Turn off the interactive plot %matplotlib inline In [6]: x = np.random.random(50) y = np.random.random(50) z = np.random.random(50) fig = plt.figure(figsize = (10,10)) ax = plt.axes(projection=3d) ax.grid() ax.scatter(x, y, z, c = r, s = 50) ax.set_title(3D Scatter Plot) # Set axes label ax.set_xlabel(x, labelpad=20) ax.set_ylabel(y, labelpad=20) ax.set_zlabel(z, labelpad=20) plt.show()
- 214. 202 CHAPTER 12 VISUALIZATION AND PLOTTING FIGURE 12.12 3D scatter plot. When plotting in three dimensions, sometimes it is desirable to use a surface plot rather than a line plot. In 3D surface plotting, we wish to make a graph of some relationship f (x,y). In surface plotting all (x,y) pairs must be given. This is not straightforward to do using vectors; therefore, in surface plotting, the first data structure you must create is called a mesh. Given lists/arrays of x and y values, a mesh is a listing of all the possible combinations of x and y. In Python, the mesh is given as two arrays X and Y, where X[i,j] and Y[i,j] that define the possible (x,y) pairs. A third array, Z, can then be created such that Z[i,j]=f(X[i,j],Y[i,j]). A mesh can be created using the np.meshgrid function in Python. The meshgrid function has the inputs x and y, which are lists containing the independent dataset. The output variables X and Y were described earlier. TRY IT! Create a mesh for x = [1, 2, 3, 4] and y = [3, 4, 5] using the meshgrid function. In [7]: x = [1, 2, 3, 4] y = [3, 4, 5] X, Y = np.meshgrid(x, y) print(X) [[1 2 3 4] [1 2 3 4]
- 215. 12.2 3D PLOTTING 203 [1 2 3 4]] In [8]: print(Y) [[3 3 3 3] [4 4 4 4] [5 5 5 5]] In addition, we can plot 3D surfaces in Python: the function to plot 3D surfaces is plot_surface(X,Y,Z), where X and Y are the output arrays from meshgrid, and Z=f(X,Y) or Z[i,j]=f(X[i,j],Y[i,j]) (see Fig. 12.13). TRY IT! Make a plot of the surface f (x,y) = sin(x) · cos(y) for −5 ≤ x ≤ 5,−5 ≤ y ≤ 5 using the plot_surface function. Take care to use a sufficiently fine discretization in x and y so that the plot looks smooth. In [9]: fig = plt.figure(figsize = (12,10)) ax = plt.axes(projection=3d) x = np.arange(-5, 5.1, 0.2) y = np.arange(-5, 5.1, 0.2) X, Y = np.meshgrid(x, y) Z = np.sin(X)*np.cos(Y) surf = ax.plot_surface(X, Y, Z, cmap = plt.cm.cividis) # Set axes label ax.set_xlabel(x, labelpad=20) ax.set_ylabel(y, labelpad=20) ax.set_zlabel(z, labelpad=20) fig.colorbar(surf, shrink=0.5, aspect=8) plt.show()
- 216. 204 CHAPTER 12 VISUALIZATION AND PLOTTING FIGURE 12.13 3D surface plot. Note that the surface plot shows different colors for different elevations, yellow for higher and blue for lower (light grey for higher and dark grey for lower in print version); this is because we used the colormap plt.cm.cividis in the surface plot. You can change to different color schemes for the surface plot. These are left for you to complete as additional exercises. We also plotted a colorbar to show the corresponding colors to different values. We can have subplots of different 3D plots as well (see Fig. 12.14). To do that, use the add_subplot function from the figure object we created to generate the subplots for 3D cases. TRY IT! Make a 1 × 2 subplot to plot the above X, Y, Z data in a wireframe plot and a surface plot. In [10]: fig = plt.figure(figsize=(12,6)) ax = fig.add_subplot(1, 2, 1, projection=3d) ax.plot_wireframe(X,Y,Z) ax.set_title(Wireframe plot) ax = fig.add_subplot(1, 2, 2, projection=3d) ax.plot_surface(X,Y,Z) ax.set_title(Surface plot)
- 217. 12.3 WORKING WITH MAPS 205 plt.tight_layout() plt.show() FIGURE 12.14 3D wireframe and surface plot. Given there are many more functions related to plotting in Python, this is in no way an exhaustive list; however, it should be sufficient to get you started so that you can discover which plotting functions in Python suit you best and provide you with enough background to learn how to use them properly. You can find more examples of different types 3D plots on the mplot3d tutorial website.3 12.3 WORKING WITH MAPS Often in engineering and science, we have to interact with maps or use geographical representation of data. There are many different Python packages that can draw maps, such as basemap,4 cartopy,5 folium,6 etc. The folium package allows you to plot interactive maps for webpages. But most of the time, we only need to plot a static map to show spatial features, and basemap and cartopy will do the job. This section is a brief introduction into how to draw maps with data using cartopy. First, install the cartopy with conda install cartopy. The basics of a map are simple: it is a 2D plot with specific projections.7 The x-axis is the longitude ranging from −180 to 180, which specifies the east–west position of a point on the Earth’s surface. The y-axis is the latitude ranging from −90 to 90, which describes a point’s south–north position. If you specify a latitude and longitude pair, you can uniquely determine the location of the point on Earth. 3 https://matplotlib.org/mpl_toolkits/mplot3d/tutorial.html. 4 https://matplotlib.org/basemap/. 5 https://scitools.org.uk/cartopy/docs/latest/. 6 https://github.com/python-visualization/folium. 7 https://en.wikipedia.org/wiki/Map_projection.
- 218. 206 CHAPTER 12 VISUALIZATION AND PLOTTING The package cartopy has very nice API to interact with matplotlib to plot a map; we only need to tell the matplotlib to use a specific map projection, and then we can add other map features to the plot (see also Fig. 12.15). TRY IT! Plot a world map with cartopy using Plate Carree projection (Google it), and draw the coastline on the map. In [1]: import cartopy.crs as ccrs import matplotlib.pyplot as plt %matplotlib inline In [2]: plt.figure(figsize = (12, 8)) ax = plt.axes(projection=ccrs.PlateCarree()) ax.coastlines() ax.gridlines(draw_labels=True) plt.show() FIGURE 12.15 Simple world map. The above example plotted the map with the Plate Carree projection. In addition, we turned on the grid lines and drew the labels on the maps. We suggest you check out other cartopy supported projections.8 The map background we drew above is blank; however, we can easily add a nice map background in cartopy using stock_img (see also Fig. 12.16). 8 https://scitools.org.uk/cartopy/docs/v0.16/crs/projections.html#cartopy-projections.
- 219. 12.3 WORKING WITH MAPS 207 In [3]: plt.figure(figsize = (12, 8)) ax = plt.axes(projection=ccrs.PlateCarree()) ax.coastlines() ax.stock_img() ax.gridlines(draw_labels=True) plt.show() FIGURE 12.16 World map with background. We can zoom in the map to any places on the Earth using the ax.set_extent function, which takes a list with the first two numbers that are the x-axis limits and the last two numbers are the y-axis limits (see also Fig. 12.17). TRY IT! Zoom in the map to the United States. In [4]: plt.figure(figsize = (10, 5)) ax = plt.axes(projection=ccrs.PlateCarree()) ax.coastlines() ax.set_extent([-125, -75, 25, 50]) ax.gridlines(draw_labels=True) plt.show()
- 220. 208 CHAPTER 12 VISUALIZATION AND PLOTTING FIGURE 12.17 Simple US map. Did you notice that there are no features added on the map, such as the country boundary, state boundary, lakes/water, etc.? In cartopy, these features must be specified if we want to add them to our map (see also Fig. 12.18). TRY IT! For the map of the United States we made above, add the following features: land, ocean, states and country borders, lakes, and rivers. In [5]: import cartopy.feature as cfeature In [6]: plt.figure(figsize = (10, 5)) ax = plt.axes(projection=ccrs.PlateCarree()) ax.coastlines() ax.set_extent([-125, -75, 25, 50]) ax.add_feature(cfeature.LAND) ax.add_feature(cfeature.OCEAN) ax.add_feature(cfeature.STATES, linestyle=:) ax.add_feature(cfeature.BORDERS) ax.add_feature(cfeature.LAKES, alpha=0.5) ax.add_feature(cfeature.RIVERS) plt.show()
- 221. 12.3 WORKING WITH MAPS 209 FIGURE 12.18 US map with various features. It is possible to zoom in further to a smaller area, but we would need to download and use the high-resolution coastlines and land to have a decent-looking map (see also Fig. 12.19). TRY IT! Plot the San Francisco Bay Area with the 10 m-resolution coastlines and land. Try to change one of them to 50 m and see what happens. In [7]: plt.figure(figsize = (10, 8)) ax = plt.axes(projection=ccrs.PlateCarree()) ax.coastlines(resolution=10m) ax.set_extent([-122.8, -122, 37.3, 38.3]) # we can add high-resolution land and water LAND = cfeature.NaturalEarthFeature(physical, land, 10m, edgecolor=face, facecolor=cfeature.COLORS[land], linewidth=.1) OCEAN = cfeature.NaturalEarthFeature(physical,ocean,10m, edgecolor=face, facecolor=cfeature.COLORS[water], linewidth=.1) ax.add_feature(LAND, zorder=0) ax.add_feature(OCEAN, zorder=0)
- 222. 210 CHAPTER 12 VISUALIZATION AND PLOTTING plt.show() FIGURE 12.19 Bay area map with higher resolution. In many cases, we want to plot our data onto the map and show the spatial location of different entities. Data can be added to it in exactly the same way as with normal matplotlib axes. By default, the coordinate system of any additional data is the same as the coordinate system of the axes we defined at the beginning of the plot. Let us first try to add some data to the map above (see also Fig. 12.20). TRY IT! Add the location of UC Berkeley and Stanford University on the Bay Area map above. In [8]: plt.figure(figsize = (10, 8)) # plot the map related stuff ax = plt.axes(projection=ccrs.PlateCarree()) ax.coastlines(resolution=10m) ax.set_extent([-122.8, -122, 37.3, 38.3]) ax.add_feature(LAND, zorder=0) ax.add_feature(OCEAN, zorder=0)
- 223. 12.3 WORKING WITH MAPS 211 # plot the data related stuff berkeley_lon, berkeley_lat = -122.2585, 37.8719 stanford_lon, stanford_lat = -122.1661, 37.4241 # plot the two universities as blue dots ax.plot([berkeley_lon, stanford_lon], [berkeley_lat, stanford_lat], color=blue, linewidth=2, marker=o) # add labels for the two universities ax.text(berkeley_lon + 0.16, berkeley_lat - 0.02, UC Berkeley, horizontalalignment=right) ax.text(stanford_lon + 0.02, stanford_lat - 0.02, Stanford, horizontalalignment=left) plt.show() FIGURE 12.20 Add more entities on the map.
- 224. 212 CHAPTER 12 VISUALIZATION AND PLOTTING The cartopy package is extremely versatile. The official example is available at the gallery online.9 We suggest exploring this on your own to augment your map-making abilities. 12.4 ANIMATIONS AND MOVIES An animation is a sequence of still frames, or plots, that are displayed in fast enough succession to create the illusion of continuous motion. Animations and movies often convey information better than individual plots. You can create animations in Python by calling a plot function inside of a loop (usually a for-loop). The main tools for making animations in Python is the matplotlib.animation.Animation base class, which provides a framework around which the animation functionality is built. See the example below. TRY IT! Create an animation of a red circle following a blue sine wave. In [1]: import numpy as np import matplotlib.pyplot as plt import matplotlib.animation as manimation In [2]: n = 1000 x = np.linspace(0, 6*np.pi, n) y = np.sin(x) # Define the meta data for the movie FFMpegWriter = manimation.writers[ffmpeg] metadata = dict(title=Movie Test, artist=Matplotlib, comment=a red circle following a blue sine wave) writer = FFMpegWriter(fps=15, metadata=metadata) # Initialize the movie fig = plt.figure() # plot the sine wave line sine_line, = plt.plot(x, y, b) red_circle, = plt.plot([], [], ro, markersize = 10) plt.xlabel(x) plt.ylabel(sin(x)) # Update the frames for the movie with writer.saving(fig, writer_test.mp4, 100): 9 https://scitools.org.uk/cartopy/docs/latest/gallery/index.html.
- 225. 12.4 ANIMATIONS AND MOVIES 213 for i in range(n): x0 = x[i] y0 = y[i] red_circle.set_data(x0, y0) writer.grab_frame() Before we make a movie, it is advised to first follow the next three steps: • Define the meta data for the movie. • Decide what in the background does not need changing. • Decide which objects needs changing in each movie frame. Once these parameters are determined, it is relatively easy to make the movie using Python follow- ing the next three steps: • Define the meta data for the movie. • Initialize the movie background figure. • Update the frames for the movie. Using the example above, we can clearly see how the code relates to these three steps. 1. Defining the meta data for the movie FFMpegWriter = manimation.writers[ffmpeg] metadata = dict(title=Movie Test, artist=Matplotlib, comment=a red circle following a blue sine wave) writer = FFMpegWriter(fps=15, metadata=metadata) This block of code is telling Python that we want to create a movie using a movie writer and need to provide the title, artist, and any necessary commentary. In addition, we need to tell
- 226. 214 CHAPTER 12 VISUALIZATION AND PLOTTING Python the rate of the frames in the movie, that is, fps=15, which means that we want to display 15 consecutive frames within 1 s (fps stands for frames per second). 2. Initializing the movie background figure fig = plt.figure() # plot the sine wave line sine_line, = plt.plot(x, y, b) red_circle, = plt.plot([], [], ro, markersize = 10) plt.xlabel(x) plt.ylabel(sin(x)) First we need to initialize the background figure for the movie. The reason we call it the background figure is that the graphics we plot here will not change during the movie. In this example, the sine wave curve will not change. At the same time, we plot an empty red dot (which will not appear on the figure). It serves as a place holder for the things that will change later in the movie; this is equivalent to telling Python that we will have a red point and we will update the location of the point later. In this case, the x and y axes labels will not change, and, therefore, are plotted them here. 3. Updating the frames for the movie with writer.saving(fig, writer_test.mp4, 100): for i in range(n): x0 = x[i] y0 = y[i] red_circle.set_data(x0, y0) writer.grab_frame() This block of code specifies the name of the output file, format, and resolution of the figure (dpi – dots per inch). In this case, we want the output file to have a name writer_test with the format mp4, and we want a dpi of 100 for this figure. Next we code the core part of the movie: repeated updating of the figure, i.e., to create the “motion.” We use a for-loop to update the figure, and in each loop, we change the location (x, y location) of the red circle. The writer.grab_frame function will capture this change in each frame and display it based on the fps we set. This is how to make a simple movie. Numerous examples on how to make a movie are available in matplotlib movie tutorial.10 Run through some of the examples to get a better understanding of how to make movies in Python. 10 https://matplotlib.org/api/animation_api.html.
- 227. 12.5 SUMMARY AND PROBLEMS 215 12.5 SUMMARY AND PROBLEMS 12.5.1 SUMMARY 1. Visualizing data is an essential tool in engineering and science applications. 2. Python has many different packages of plotting tools that can be used to visualize data. 3. Two- and three-dimensional plots and maps are usually used in engineering and science to commu- nicate research results. 4. Videos are a sequence of static images that are displayed at a certain speed. 12.5.2 PROBLEMS 1. A cycloid is the curve traced by a point located on the edge of a wheel rolling along a flat surface. The (x,y) coordinates of a cycloid generated from a wheel with radius, r, can be described by the parametric equations: x = r(φ − sinφ), y = r(1 − cosφ), where φ is the number of radians that the wheel has rolled through. Generate a plot of the cycloid for 0 ≤ φ ≤ 2π using 1000 increments and r = 3. Give your plot a title and labels. Turn on the grid and modify the axis limits to make the plot neat and attractive. 2. Consider the following function: y(x) = 100(1 − 0.01x2)2 + 0.02x2 (1 − x2)2 + 0.1x2 . Generate a 2 × 2 subplot of y(x) for 0 ≤ x ≤ 100 using plot, semilogx, semilogy, and loglog. Use a fine enough discretization in x to make the plot appear smooth. Give each plot axis labels and a title. Turn on the grid. Which plot seems to convey the most information?. 3. Plot the functions y1(x) = 3 + exp(−x)sin(6x) and y2(x) = 4 + exp(−x)cos(6x) for 0 ≤ x ≤ 5 on a single axis. Give the plot axis labels, a title, and a legend. 4. Generate 1000 normally distributed random numbers using the np.random.randn function. Look up the help for the plt.hist function. Use the plt.hist function to plot a histogram of the randomly generated numbers. Use the plt.hist function to distribute the randomly generated numbers into 10 bins. Create a bar graph of the output using the plt.bar function. It should look very similar to the plot produced by plt.hist. Do you think that the np.random.randn function is a good approximation of a normally distributed number? 5. Let the number of students with A’s, B’s, C’s, D’s, and F’s be contained in the list grade_dist = [42, 85, 67, 20, 5]. Use the plt.pie function to generate a pie chart of grade_dist. Put a title and legend on the pie chart. 6. Let −4 ≤ x ≤ 4,−3 ≤ y ≤ 3, and z(x,y) = xy(x2−y2) x2+y2 . Create arrays x and y with 100 evenly spaced points over the interval. Create meshgrids X and Y for x and y using the meshgrid func-
- 228. 216 CHAPTER 12 VISUALIZATION AND PLOTTING tion. Compute the matrix Z from X and Y . Create a 1 × 2 subplot where the first figure is the 3D surface Z plotted using plt.plot_surface and the second figure is the 3D wireframe plot using plt.plot_wireframe, respectively. Give each axis a title and label the axes. 7. Write a function my_polygon(n) that plots a regular polygon with n sides and radius 1. Re- call that the radius of a regular polygon is the distance from its centroid to the vertices. Use plt.axis(equal) to make the polygon look regular. Remember to give the axes a label and a title. Use plt.title to title the plot according to the number of sides. Hint: This problem is sig- nificantly easier if you think in polar coordinates. Recall that a complete revolution around the unit circle is 2π radians. Note that the first and last point on the polygon should be the point associated with the polar coordinate angles, 0 and 2π, respectively. Test case: my_polygon(5) 8. Write a function my_fun_plotter(f, x) where f is a lambda function and x is an array. The function should plot f evaluated at x. Remember to label the x- and y-axes. Test case: my_fun_plotter(lambda x: np.sqrt(x) + np.exp(np.sin(x)), np.linspace(0, 2*np.pi, 100))
- 229. 12.5 SUMMARY AND PROBLEMS 217 9. Write a function with my_poly_plotter(n,x) that plots the polynomials pk(x) = xk for k = 1,...,n. Make sure your plot has axis labels and a title. Test case: my_poly_plotter(5, np.linspace(-1, 1, 200)) 10. Assume you have three points at the corner of an equilateral triangle, P1 = (0,0),P2 = (0.5, √ 2/2), and P3 = (1,0). Generate another set of points pi = (xi,yi) such that p1 = (0,0) and pi+1 is the midpoint between pi and P1 with 33% probability, the midpoint between pi and P2 with 33%
- 230. 218 CHAPTER 12 VISUALIZATION AND PLOTTING probability, and the midpoint between pi and P3 with 33% probability. Write a function my_sier- pinski(n) that generates the points pi for i = 1,...,n. The function should make a plot of the points using blue dots (i.e., b. as the third argument to the plt.plot function). Test cases: my_sierpinski(100) my_sierpinski(10000) 11. Assume you are generating a set of points (xi,yi) where x1 = 0 and y1 = 0. The points (xi,yi) for i = 2,...,n are generated according to the following probabilistic relationship:
- 231. 12.5 SUMMARY AND PROBLEMS 219 With 1% probability: xi = 0, yi = 0.16yi−1; With 7% probability: xi = 0.2xi−1 − 0.26yi−1, yi = 0.23xi−1 + 0.22yi−1 + 1.6; With 7% probability: xi = −0.15xi−1 + 0.28yi−1, yi = 0.26xi−1 + 0.24yi−1 + 0.44; With 85% probability: xi = 0.85xi−1 + 0.04yi−1, yi = −0.04xi−1 + 0.85yi−1 + 1.6. Write a function my_fern(n) that generates the points (xi,yi) for i = 1,...,n and plots them using blue dots. Also use plt.axis(equal) and plt.axis(off) to make the plot more attractive. Test cases: my_fern(100) Try your function for n = 10000. The image generated is called a stochastic fractal. Many times it is cheaper (i.e., requires less space) to store the fractal generating code rather than the image. This makes stochastic fractals useful for compressing images.
- 232. 220 CHAPTER 12 VISUALIZATION AND PLOTTING my_fern(10000) 12. Write a function my_parametric_plotter (x,y,t) where x and y are function objects x(t) and y(t), respectively, and t is a one-dimensional array. The function my_parametric_plotter should produce the curve (x(t),y(t),t) in a 3D plot. Be sure to give your plot a title and label your axes. Test case: from mpl_toolkits import mplot3d f = lambda t: np.sin(t) g = lambda t: t**2 my_parametric_plotter(f, g, np.linspace(0, 6*np.pi, 100))
- 233. 12.5 SUMMARY AND PROBLEMS 221 13. Write a function my_surface_plotter(f, x, y, option) where f is a function object f(x,y). The function my_surface_plotter should produce a 3D surface plot of f(x,y) using plot_sur- face if the option used is the string surface. It should produce a contour plot of f(x,y) if the option used is the string contour. Assume that x and y are one-dimensional arrays or lists. Remember to give the plot a title and label your axes. Test cases: from mpl_toolkits import mplot3d f = lambda x, y: np.cos(y)*np.sin(np.exp(x)) my_surface_plotter(f, np.linspace(-1, 1, 20), np.linspace(-2, 2, 40), surface) my_surface_plotter(f, np.linspace(-1, 1, 20), np.linspace(-2, 2, 40), contour)
- 234. 222 CHAPTER 12 VISUALIZATION AND PLOTTING 14. Write a line of code that generates the following error: ValueError: x and y must have the same first dimension, ... 15. We can make maps in cartopy using the online program Web Map Tile Service (WMTS) online. Plot an Earth-night map shown below for the main part of North America, with the extent latitude
- 235. 12.5 SUMMARY AND PROBLEMS 223 from 19.50139 to 64.85694 and longitude from −128.75583 to −68.01197. Hint: Check out the gallery on cartopy website.
- 236. 13 PARALLELIZE YOUR PYTHON 13.1 Parallel Computing Basics......................................................................................... 225 13.1.1 Process and Thread ............................................................................... 226 13.1.2 Python’s GIL Problem ............................................................................. 227 13.1.3 Disadvantages of Using Parallel Computing ................................................... 227 13.2 Multiprocessing ..................................................................................................... 227 13.2.1 Visualize the Execution Time..................................................................... 229 13.3 Using Joblib .......................................................................................................... 230 13.4 Summary and Problems ............................................................................................ 231 13.4.1 Summary............................................................................................ 231 13.4.2 Problems ............................................................................................ 232 13.1 PARALLEL COMPUTING BASICS We now have a working knowledge of Python, and soon we will start to use it to analyze data and numerical analysis. Before we go deeper, we need to cover parallel computing in Python. This means you will be able to run your code simultaneously on multiple cores on your CPU processor (or multiple CPU processors) or increase the speed by taking advantage of the wasted CPU cycles while your program is waiting for external resources (i.e., downloading files, API calls, etc.). The fundamental idea of parallel computing is rooted in doing multiple tasks at the same time to reduce the running time of your program. Fig. 13.1 illustrates the simple idea of doing parallel computing versus serial computing, which is what we have discussed so far. For example, if you have 1 million data files and need to apply the same operations to each one of them, you can do this one file at each time, or you can do it by multiple files at the same time; or if you are downloading 1 million websites, you can take advantage of downloading 10 at a time to reduce the total time of downloading. Therefore, learning the basics of parallel computing will help you design code that is more efficient. Most modern computers use a multicore design, which means that on a single computing com- ponent there are multiple independent processing units–the so-called cores–available to do different tasks. For example, on the author’s laptop, there is one CPU processor, with six physical cores on it (see Fig. 13.2). Each of them has two logical cores, which will bring the total number of cores to 12 (see the next section when we print out the total number of CPU on your machine). In Python, there are two basic approaches when you wish to perform parallel computing: you can employ the multiprocessing or threading library. Let us first take a look of the differences between a process and a thread.
- 237. 226 CHAPTER 13 PARALLELIZE YOUR PYTHON FIGURE 13.1 Parallel computing vs. serial computing. FIGURE 13.2 The hardware on the author’s laptop with multicore processor. 13.1.1 PROCESS AND THREAD A process is an instance of a program (such as the Python interpreter, Jupyter notebook, etc.). A pro- cess is created by the operating system to run a program, and each process has its own memory block. A thread is a subprocess that resides within the process. Each process can have multiple threads; these threads will share the same memory block within the process. Therefore, due to the shared memory, the
- 238. 13.2 MULTIPROCESSING 227 variables or objects for multiple threads in a process are all shared. If you change one variable in one thread, it will change for all the other threads. This is not the case for different processes. If you change one variable in one process, it will not change that variable in other processes. Process and thread both have advantages or disadvantages, and can be used in different tasks to maximize the benefits of each. 13.1.2 PYTHON’S GIL PROBLEM Python was designed before the multicore processors were available on personal computers (this shows you how old the language is). It contains an inherent limitation called Global Interpreter Lock (GIL), whereby only one native thread can run at any time, i.e., it prevents multiple threads from running simultaneously. Even though there are workarounds in Python to do multithreading, only multipro- cessing library will be covered below. 13.1.3 DISADVANTAGES OF USING PARALLEL COMPUTING There are disadvantages when using parallel computing: the code becomes more complicated because of the overheads required to launch and maintain new processes. Thus, if your task is small, using parallel computing will actually take longer since it takes time for the system to initialize new processes and maintain them. 13.2 MULTIPROCESSING The multiprocessing library, Python’s standard library to support its parallel computing using pro- cesses, has many different features that are too numerous to discuss herein. We suggest you check out the official documentation.1 Here, we are introducing only the basics to get you started with parallel computing. Let us start by importing the library and printing out the total number of CPUs on your machine that can be used for parallel computing. In [1]: import multiprocessing as mp In [2]: print(fNumber of cpu: {mp.cpu_count()}) Number of cpu: 12 The example below shows you how to use multiple cores in one machine to reduce the execution time. 1 https://docs.python.org/3/library/multiprocessing.html.
- 239. 228 CHAPTER 13 PARALLELIZE YOUR PYTHON EXAMPLE: Generate 10,000,000 random numbers between 0 and 10, and square them. Store the results in a list. Serial version In [3]: import numpy as np import time def random_square(seed): np.random.seed(seed) random_num = np.random.randint(0, 10) return random_num**2 In [4]: t0 = time.time() results = [] for i in range(10000000): results.append(random_square(i)) t1 = time.time() print(fExecution time {t1 - t0} s) Execution time 38.20956087112427 s Parallel version The simplest way to do parallel computing using the multiprocessing is to use the pool class. There are four common methods in this class that are used often: apply, map, apply_async, and map_async. Look at the documentation for the differences between them for your own edification. We will only use the map function in parallel with the above example. The map(func, iterable) function takes in two arguments. Apply the function func to each element in the iterable and then collect the results. In [5]: t0 = time.time() n_cpu = mp.cpu_count() pool = mp.Pool(processes=n_cpu) results = [pool.map(random_square, range(10000000))] t1 = time.time() print(fExecution time {t1 - t0} s) Execution time 7.130078077316284 s Using the above parallel version of the code reduced the run time from ~38 s to ~7 s. This is a big gain in speed, especially if we were running a code that demanded a lot of computation. The pool.apply function is similar except that it can accept more arguments. The pool.map and pool.apply will lock the main program until all the processes are finished, which is quite useful if we
- 240. 13.2 MULTIPROCESSING 229 want to obtain results in a particular order for some applications. In contrast, if we do not need the results in a particular order, we can also use pool.apply_async or pool.map_async, which will submit all processes at once and retrieve the results as soon as they are finished. Check online to learn more. 13.2.1 VISUALIZE THE EXECUTION TIME Let us visualize the execution time changes versus the number of data points using both the serial and parallel version. You will see that until a certain point, it is better to use the serial version. In [6]: import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline def serial(n): t0 = time.time() results = [] for i in range(n): results.append(random_square(i)) t1 = time.time() exec_time = t1 - t0 return exec_time def parallel(n): t0 = time.time() n_cpu = mp.cpu_count() pool = mp.Pool(processes=n_cpu) results = [pool.map(random_square, range(n))] t1 = time.time() exec_time = t1 - t0 return exec_time In [7]: n_run = np.logspace(1, 7, num = 7) t_serial = [serial(int(n)) for n in n_run] t_parallel = [parallel(int(n)) for n in n_run] In [8]: plt.figure(figsize = (10, 6)) plt.plot(n_run, t_serial, -o, label = serial) plt.plot(n_run, t_parallel, -o, label = parallel) plt.loglog() plt.legend() plt.ylabel(Execution time (s))
- 241. 230 CHAPTER 13 PARALLELIZE YOUR PYTHON plt.xlabel(Number of random points) plt.show() As shown in the figure, when the number of data points is small (below 10000), the execution time for the serial version is faster due to the overhead of the parallel version necessary to launch and maintain the new processes. After that point, the parallel version would be a better choice. For example, when we have 107 data points, the parallel version uses less than 10 s to finish the task while the serial version takes roughly 50 s. 13.3 USING JOBLIB Python also has other third party packages that can make the parallel computing easier, especially for some daily tasks, e.g., package joblib2 provides a simple way to perform parallel computing (and has many other usages as well). First, install this package by running pip install joblib; then run the previous example using this new package. In [1]: from joblib import Parallel, delayed import numpy as np def random_square(seed): np.random.seed(seed) random_num = np.random.randint(0, 10) return random_num**2 2 https://joblib.readthedocs.io/en/latest/index.html.
- 242. 13.4 SUMMARY AND PROBLEMS 231 In [2]: results = Parallel(n_jobs=8) (delayed(random_square)(i) for i in range(1000000)) Note that the parallel part of the code becomes one line by using the joblib package, which is very convenient. Parallel is a helper class that essentially provides a convenient interface for the multiprocessing module we saw earlier. The delayed function is used to capture the arguments of the target function, which in this case is the random_square. We ran the above code with eight CPUs. If you want to use all the computational power on your machine, you can use all available CPUs on your machine by setting n_jobs=-1. If you set it to -2, all CPUs but one will be used. In addition, turn on the verbose argument if you want to output the status messages. In [3]: results = Parallel(n_jobs=-1, verbose=1) (delayed(random_square)(i) for i in range(1000000)) [Parallel(n_jobs=-1)]: Using backend LokyBackend with 12 concurrent workers. [Parallel(n_jobs=-1)]: Done 60 tasks | elapsed: 0.1s [Parallel(n_jobs=-1)]: Done 176056 tasks | elapsed: 3.0s [Parallel(n_jobs=-1)]: Done 787056 tasks | elapsed: 12.4s [Parallel(n_jobs=-1)]: Done 1000000 out of 1000000 | elapsed: 15.5s finished There are multiple backends in joblib, which means using different ways to do the parallel computing. If you set the backend as multiprocessing, i.e., under the hood, it creates a multiprocessing pool that uses separate Python worker processes to execute tasks concurrently on separate CPUs. In [4]: results = Parallel(n_jobs=-1, backend=multiprocessing, verbose=1) (delayed(random_square)(i) for i in range(1000000)) [Parallel(n_jobs=-1)]: Using backend MultiprocessingBackend with 12 concurrent workers. [Parallel(n_jobs=-1)]: Done 220 tasks | elapsed: 0.0s [Parallel(n_jobs=-1)]: Done 457032 tasks | elapsed: 1.9s [Parallel(n_jobs=-1)]: Done 1000000 out of 1000000 | elapsed: 3.8s finished 13.4 SUMMARY AND PROBLEMS 13.4.1 SUMMARY 1. Parallel computing can reduce execution time by using multiple cores on your computer.
- 243. 232 CHAPTER 13 PARALLELIZE YOUR PYTHON 2. There is a difference between process and thread; it is easier to use a process-based approach in Python to achieve parallelism. 3. Using the multiprocessing package is an easy way to solve your problems when using multiple cores. 4. Using joblib will simplify parallel computing code for many common tasks. 13.4.2 PROBLEMS 1. What is parallel computing? 2. Please specify the difference between process and thread. 3. Find the number of processors on your computer using the multiprocessing package. 4. Use the multiprocessing package to parallelize the following code and record the running time: def plus_cube(x, y): return (x+y)**3 for x, y in zip(range(100), range(100)): results.append(plus_cube(x, y)) 5. Can you provide an example to illustrate the difference of pool.map and pool.map_async? 6. What is Python’s GIL? 7. Use joblib to parallelize the above example; use “multiprocessing” as the backend.
- 244. 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS 14.1 Basics of Linear Algebra ........................................................................................... 235 14.1.1 Sets .................................................................................................. 235 14.1.2 Vectors............................................................................................... 236 14.1.3 Matrices ............................................................................................. 239 14.2 Linear Transformations ............................................................................................. 244 14.3 Systems of Linear Equations....................................................................................... 245 14.4 Solutions to Systems of Linear Equations ....................................................................... 246 14.4.1 Gauss Elimination Method ....................................................................... 248 14.4.2 Gauss–Jordan Elimination Method .............................................................. 250 14.4.3 LU Decomposition Method ....................................................................... 251 14.4.4 Iterative Methods – Gauss–Seidel Method ..................................................... 253 14.5 Solving Systems of Linear Equations in Python ................................................................ 256 14.6 Matrix Inversion ..................................................................................................... 258 14.7 Summary and Problems ............................................................................................ 260 14.7.1 Summary............................................................................................ 260 14.7.2 Problems ............................................................................................ 261 14.1 BASICS OF LINEAR ALGEBRA First, we introduce some basics of linear algebra, which will be used to describe and solve linear equations. We will just cover the very basics of it in this chapter. If you wish additional guidance, we suggest studying a linear algebra textbook. 14.1.1 SETS We have discussed the set data structure in Chapter 2 before. Here we take a look at it from a math- ematics point of view. In mathematics, a set is a collection of objects. As defined earlier, sets are usually denoted by braces {}. For example, S = {orange,apple,banana} means S is the set containing “orange”, “apple”, and “banana.” The empty set is the set containing no objects and is typically denoted by empty braces such as {} or by ∅. Given two sets, A and B, the union of A and B is denoted by A ∪ B and is equal to the set containing all the elements of A and B. The intersection of A and B is denoted by A ∩ B and is equal to the set containing all the elements that belong to both A and B. In set notation, a colon is used
- 245. 236 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS to mean “such that.” The usage of these terms will become apparent shortly. The symbol ∈ is used to denote that an object is contained in a set. For example a ∈ A means “a is a member of A” or “a is in A.” A backslash, , in set notation means set minus. So if a ∈ A then Aa means “A minus the element, a.” There are several standard sets related to numbers, for example, natural numbers, whole num- bers, integers, rational numbers, irrational numbers, real numbers, and complex numbers. A description of each set and the symbol used to denote it is shown in the following table. Set Name Symbol Description Naturals N N = {1,2,3,4,...} Wholes W W = N ∪ {0} Integers Z Z = W ∪ {−1,−2,−3,...} Rationals Q Q = p q : p ∈ Z,q ∈ Z{0} Irrationals I I is the set of real numbers not expressible as a fraction of integers Reals R R = Q ∪ I Complex numbers C C = a + bi : a,b ∈ R,i = √ −1 TRY IT! Let S be the set of all real (x,y) pairs such that x2 + y2 = 1. Write S using set notation. S = {(x,y) : x,y ∈ R,x2 + y2 = 1} 14.1.2 VECTORS The set Rn is the set of all n-tuples of real numbers. In set notation, this is Rn = {(x1,x2,x3,...,xn) : x1,x2,x3,...,xn ∈ R}. For example, the set R3 represents the set of real triples, (x,y,z) coordinates, in 3D space. A vector in Rn is an n-tuple, or point, in Rn. Vectors can be written horizontally (i.e., with the elements of the vector next to each other) in a row vector, or vertically (i.e., with the elements of the vector on top of each other) in a column vector. If the context of a vector is ambiguous, it usually means the vector is a column vector. The ith element of a vector, v, is denoted by vi. The transpose of a column vector is a row vector of the same length, and the transpose of a row vector is a column vector. In mathematics, the transpose is denoted by a superscript T , or vT . The zero vector is the vector in Rn containing all zeros. The norm of a vector is a measure of its length. There are many ways of defining the length of a vector depending on the metric used (i.e., the distance formula chosen). The most common is called the L2 norm, which is computed according to the distance formula. The L2 norm of a vector v is denoted by v2 and v2 = i v2 i . This is sometimes also called Euclidean distance and refers to the “physical” length of a vector in 1, 2, or 3D space. The L1 norm, or “Manhattan distance,” is computed as v1 = i |vi|, and is named after the grid-like road structure in New York City. In general, the p-norm, Lp, of a vector is vp = p ( i v p i ). The L∞ norm is the p-norm, where p = ∞. The L∞ norm is written as ||v||∞ and is equal to the maximum absolute value in v.
- 246. 14.1 BASICS OF LINEAR ALGEBRA 237 TRY IT! Create a row vector and a column vector, and show their shape. In [1]: import numpy as np vector_row = np.array([[1, -5, 3, 2, 4]]) vector_column = np.array([[1],[2],[3],[4]]) print(vector_row.shape) print(vector_column.shape) (1, 5) (4, 1) Note! In Python, the row and column vectors can be tricky. As shown in the example above, in order to get the 1 row and 4 column or 4 row and 1 column vectors, we had to use a list of a list to specify it. You can define np.array([1,2,3,4]), but you will soon notice that it does not contain information about row or column. TRY IT! Transpose the row vector defined above into a column vector and calculate its L1, L2, and L∞ norm. Verify that the L∞ norm of a vector is equivalent to the maximum value of the elements in the vector. In [2]: from numpy.linalg import norm new_vector = vector_row.T print(new_vector) norm_1 = norm(new_vector, 1) norm_2 = norm(new_vector, 2) norm_inf = norm(new_vector, np.inf) print(L_1 is: %.1f%norm_1) print(L_2 is: %.1f%norm_2) print(L_inf is: %.1f%norm_inf) [[ 1] [-5] [ 3] [ 2] [ 4]] L_1 is: 15.0 L_2 is: 7.4 L_inf is: 5.0 Vector addition is defined as the pairwise addition of the elements of the added vectors. For exam- ple, if v and w are vectors in Rn, then u = v + w is defined as having elements ui = vi + wi.
- 247. 238 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS Vector multiplication can be defined in several ways depending on the context. Scalar multipli- cation of a vector is the product of a vector and a scalar (i.e., a number in R). Scalar multiplication is defined as the product of each element of the vector by the scalar. More specifically, if α is a scalar and v is a vector, then u = αv is defined as having elements ui = αvi. Note that this is exactly how Python implements scalar multiplication with a vector. TRY IT! Show that a(v + w) = av + aw (i.e., scalar multiplication of a vector distributes across vector addition). By vector addition, u = v + w is the vector with entries ui = vi + wi. By definition of scalar multiplication of a vector, x = αu is the vector with elements xi = α(vi + wi). Since α,vi, and wi are scalars, multiplication distributes and xi = αvi + αwi. Therefore, a(v + w) = av + aw. The dot-product of two vectors is the sum of the products of the respective elements and is denoted by ·, and v · w is read “v dot w.” Therefore for v,w ∈ Rn,d = v · w is defined as d = n i=1 viwi. The angle between two vectors, θ, is defined by the formula: v · w = v2w2 cosθ. The dot-product is a measure of how similarly directed the two vectors are. For example, the vectors (1,1) and (2,2) are parallel. If you compute the angle between them using the dot-product, you will find that θ = 0. If the angle between the vectors is θ = π/2, then the vectors are said to be perpendicular or orthogonal, and the dot-product is 0. TRY IT! Compute the angle between the vectors v = [10,9,3] and w = [2,5,12]. In [3]: from numpy import arccos, dot v = np.array([[10, 9, 3]]) w = np.array([[2, 5, 12]]) theta = arccos(dot(v, w.T)/(norm(v)*norm(w))) print(theta) [[0.97992471]] Finally, the cross-product between two vectors, v and w, is written as v × w. It is defined by v × w = v2w2 sin(θ)n, where θ is the angle between the v and w (which can be computed from the dot-product), and n is a vector perpendicular to both v and w with unit length (i.e., its length is one). The geometric interpretation of the cross-product is a vector perpendicular to both v and w, with the length equal to the area enclosed by the parallelogram created by the two vec- tors.
- 248. 14.1 BASICS OF LINEAR ALGEBRA 239 TRY IT! Given the vectors v = [0,2,0] and w = [3,0,0], use the NumPy function cross to com- pute the cross-product of v and w. In [4]: v = np.array([[0, 2, 0]]) w = np.array([[3, 0, 0]]) print(np.cross(v, w)) [[ 0 0 -6]] Assuming that S is a set in which addition and scalar multiplication are defined, a linear combina- tion of S is defined as αisi, where αi is any real number, and si is the ith object in S. Sometimes the αi values are called the coefficients of si. Linear combinations can be used to describe numerous things. For example, a grocery bill can be written cini, where ci is the cost of item i and ni is the number of items i purchased. Thus, the total cost is a linear combination of the items purchased. A set is called linearly independent if no object in the set can be written as a linear combination of the other objects in the set. For the purposes of this book, we will only consider the linear independence of a set of vectors. A set of vectors that is not linearly independent is linearly dependent. TRY IT! Given the row vectors v = [0,3,2], w = [4,1,1], and u = [0,−2,0], write the vector x = [−8,−1,4] as a linear combination of v, w, and u. In [5]: v = np.array([[0, 3, 2]]) w = np.array([[4, 1, 1]]) u = np.array([[0, -2, 0]]) x = 3*v-2*w+4*u print(x) [[-8 -1 4]] TRY IT! Determine by inspection whether the following set of vectors is linearly independent: v = [1,1,0], w = [1,0,0], u = [0,0,1]. Clearly, u is linearly independent from v and w because only u has a nonzero third element. The vectors v and w are also linearly independent because only v has a nonzero second element. Therefore, v,w, and u are linearly independent. 14.1.3 MATRICES An m × n matrix is a rectangular table of numbers consisting of m rows and n columns. The norm of a matrix can be considered as a particular kind of vector norm. If we treat the m × n elements of M as
- 249. 240 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS the elements of an mn-dimensional vector, then the p-norm of this vector can be written as Mp = p m i n j |aij |p. It is possible to calculate the matrix norm using the same norm function in NumPy as that for a vector. Matrix addition and scalar multiplication for matrices work the same way as for vectors. However, matrix multiplication between two matrices, P and Q, is defined when P is an m × p matrix and Q is a p × n matrix. The result of M = PQ is a matrix M that is m × n. The dimension p is called the inner matrix dimension, and the inner matrix dimensions must match (i.e., the number of columns in P and the number of rows in Q must be the same) for matrix multiplication to be defined. The dimensions m and n are called the outer matrix dimensions. Formally, if P is m × p and Q is p × n, then M = PQ is defined as Mij = p k=1 PikQkj . The product of two matrices P and Q in Python is achieved by using the dot method in NumPy. The transpose of a matrix is a reversal of its rows with its columns. The transpose is denoted by a superscript, T , such as MT is the transpose of matrix M. In Python, the method T for a NumPy array is used to get the transpose. For example, if M is a matrix, then M.T is its transpose. TRY IT! Let matrices P and Q be [[1,7],[2,3],[5,0]] and [[2,6,3,1],[1,2,3,4]], respectively. Com- pute the Python matrix product of P and Q. Show that the product of Q and P will produce an error. In [6]: P = np.array([[1, 7], [2, 3], [5, 0]]) Q = np.array([[2, 6, 3, 1], [1, 2, 3, 4]]) print(P) print(Q) print(np.dot(P, Q)) np.dot(Q, P) [[1 7] [2 3] [5 0]] [[2 6 3 1] [1 2 3 4]] [[ 9 20 24 29] [ 7 18 15 14] [10 30 15 5]]
- 250. 14.1 BASICS OF LINEAR ALGEBRA 241 -------------------------------------------------- ValueError Traceback (most recent call last) ipython-input-6-29a4b2da4cb8 in module 4 print(Q) 5 print(np.dot(P, Q)) ---- 6 np.dot(Q, P) ValueError: shapes (2,4) and (3,2) not aligned: 4 (dim 1) != 3 (dim 0) A square matrix is an n × n matrix, that is, it has the same number of rows as columns. The determinant is an important property of square matrices. It is a special number that can be calculated directly from a square matrix. The determinant is denoted by det, both in mathematics and in NumPy’s linalg package. Some examples of the use of determinant will be described later. In the case of a 2 × 2 matrix, the determinant is |M| = a b c d = ad − bc. Similarly, in the case of a 3 × 3 matrix, the determinant is: |M| = ⎡ ⎣ a b c d e f g h i ⎤ ⎦ = a ⎡ ⎣ e f h i ⎤ ⎦ − b ⎡ ⎣ d f g i ⎤ ⎦ + c ⎡ ⎣ d e g h ⎤ ⎦ = a e f h i − b d f g i + c d e g h = aei + bfg + cdh − ceg − bdi − af h. We can use a similar approach to calculate the determinant for a higher-dimensional matrix, but it is much easier to calculate using Python. See the example below to calculate the determinant in Python. The identity matrix is a square matrix with 1s on the diagonal and 0s elsewhere. The identity matrix is usually denoted by I and is analogous to the real number identity, 1. That is, multiplying any matrix by I (of compatible size) will produce the same matrix.
- 251. 242 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS TRY IT! Find the determinant of matrix M = [[0,2,1,3],[3,2,8,1],[1,0,0,3],[0,3,2,1]]. Use the np.eye function to produce a 4 × 4 identity matrix, I. Multiply M by I to show that the result is M. In [7]: from numpy.linalg import det M = np.array([[0,2,1,3], [3,2,8,1], [1,0,0,3], [0,3,2,1]]) print(M:n, M) print(Determinant: %.1f%det(M)) I = np.eye(4) print(I:n, I) print(M*I:n, np.dot(M, I)) M: [[0 2 1 3] [3 2 8 1] [1 0 0 3] [0 3 2 1]] Determinant: -38.0 I: [[1. 0. 0. 0.] [0. 1. 0. 0.] [0. 0. 1. 0.] [0. 0. 0. 1.]] M*I: [[0. 2. 1. 3.] [3. 2. 8. 1.] [1. 0. 0. 3.] [0. 3. 2. 1.]] The inverse of a square matrix M is a matrix of the same size, N, such that M · N = I. The inverse of a matrix is analogous to the inverse of a real number. For example, the inverse of 3 is 1 3 because (3)(1 3 ) = 1. A matrix is said to be invertible if it has an inverse. The inverse of a matrix is unique, that is, for an invertible matrix, there is only one inverse for that matrix. If M is a square matrix, its inverse is denoted by M−1 in mathematics, and it can be computed in Python using the function inv from NumPy’s linalg package. For a 2 × 2 matrix, the analytical solution of the matrix inverse is
- 252. 14.1 BASICS OF LINEAR ALGEBRA 243 M−1 = a b c d −1 = 1 |M| d −b −c a . Calculating the matrix inverse for the analytical solution becomes complicated as the dimension of the matrix increases. There are many other methods which can make things easier, such as Gaussian elimination, Newton’s method, eigendecomposition, etc. We will introduce some of these methods after we learn how to solve a system of linear equations (as the process is essentially the same). Recall that zero has no inverse for multiplication in the setting of real numbers. Similarly, there are matrices that do not have inverses. These matrices are called singular. Matrices that do have an inverse are called nonsingular. One way to determine if a matrix is singular is by computing its determinant. If the determinant is 0, then the matrix is singular; if not, the matrix is non-singular. TRY IT! The matrix M (in the previous example) has a nonzero determinant. Compute the inverse of M. Show that the matrix P = [[0,1,0],[0,0,0],[1,0,1]] has a determinant value of zero, and therefore has no inverse. In [8]: from numpy.linalg import inv print(Inv M:n, inv(M)) P = np.array([[0,1,0], [0,0,0], [1,0,1]]) print(det(p):n, det(P)) Inv M: [[-1.57894737 -0.07894737 1.23684211 1.10526316] [-0.63157895 -0.13157895 0.39473684 0.84210526] [ 0.68421053 0.18421053 -0.55263158 -0.57894737] [ 0.52631579 0.02631579 -0.07894737 -0.36842105]] det(p): 0.0 A matrix that is close to being singular (i.e., the determinant is close to zero) is called ill- conditioned. Although ill-conditioned matrices have inverses, they are problematic numerically in the same way that dividing a number by a very, very small number is problematic. That is, it can result in computations that result in overflow, underflow, or numbers small enough to result in significant round-off errors. If you have forgotten any of these concepts, revisit Chapter 9. The condition number is a measure of how ill-conditioned a matrix is: it is defined as the norm of the matrix times the norm of the inverse of the matrix, that is, MM−1. In Python, it can be computed using NumPy’s function cond from linalg. The higher the condition number, the closer the matrix to being singular. The rank of an m × n matrix A is the number of linearly independent columns or rows of A and is denoted by rank(A). It can be shown that the number of linearly independent rows is al- ways equal to the number of linearly independent columns for any matrix. A matrix has full rank
- 253. 244 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS if rank(A) = min(m,n). The matrix A is also of full rank if all of its columns are linearly inde- pendent. An augmented matrix is a matrix A concatenated with a vector y and is written [A,y]. This is commonly read as “A augmented with y.” You can use np.concatenate to concatenate. If rank([A,y]) = rank(A) + 1, then the vector y is “new” information. That is, it cannot be created as a linear combination of the columns in A. Rank is an important characteristic of matrices because of its relationship to solutions of linear equations, which is discussed in the last section of this chapter. TRY IT! For the matrix A = [[1,1,0],[0,1,0],[1,0,1]], compute the condition number and rank. If y = [[1],[2],[1]], get the augmented matrix [A,y]. In [9]: from numpy.linalg import cond, matrix_rank A = np.array([[1,1,0], [0,1,0], [1,0,1]]) print(Condition number:n, cond(A)) print(Rank:n, matrix_rank(A)) y = np.array([[1], [2], [1]]) A_y = np.concatenate((A, y), axis = 1) print(Augmented matrix:n, A_y) Condition number: 4.048917339522305 Rank: 3 Augmented matrix: [[1 1 0 1] [0 1 0 2] [1 0 1 1]] 14.2 LINEAR TRANSFORMATIONS For any vectors x and y, and scalars a and b, we say that a function F is a linear transformation if F(ax + by) = aF(x) + bF(y). It can be shown that multiplying an m × n matrix A and an n × 1 vector v of compatible size is a linear transformation of v. Therefore from this point forward, a matrix will be synonymous with a linear transformation function.
- 254. 14.3 SYSTEMS OF LINEAR EQUATIONS 245 TRY IT! Let x be a vector and let F(x) be defined by F(x) = Ax, where A is a rectangular matrix of appropriate size. Show that F(x) is a linear transformation. Proof: Since F(x) = Ax, then for vectors v and w, and scalars a and b, F(av + bw) = A(av + bw) (by definition of F)= aAv + bAw (by distributive property of matrix multiplication)= aF(v) + bF(w) (by definition of F). If A is an m × n matrix, then there are two important subspaces associated with A: one is Rn, and the other is Rm. The domain of A is a subspace of Rn. It is the set of all vectors that can be multiplied by A on the right. The range of A is a subspace of Rm. It is the set of all vectors y such that y = Ax. It can be denoted as R(A), where R(A) = {y ∈ Rm : Ax = y}. Another way to think about the range of A is as the set of all linear combinations of the columns in A, where xi is the coefficient of the ith column in A. The null space N(A) = {x ∈ Rn : Ax = 0m} is the subset of vectors x in the domain of A such that Ax = 0m, where 0m is the zero vector (i.e., a vector in Rm with all zeros). TRY IT! Let A = [[1,0,0],[0,1,0],[0,0,0]] and let the domain of A be R3. Characterize the range and nullspace of A. Let v = [x,y,z] be a vector in R3; then u = Av is the vector u = [x,y,0]. Since x,y ∈ R, the range of A is the x–y plane at z = 0. Let v = [0,0,z] for z ∈ R. Then u = Av is the vector u = [0,0,0]. Therefore, the nullspace of A is the z-axis (i.e., the set of vectors [0,0,z] z ∈ R). Therefore, this linear transformation “flattens” any z-component from a vector. 14.3 SYSTEMS OF LINEAR EQUATIONS A linear equation is an equality of the form n i=1 aixi = y, where ai are scalars, xi are unknown variables in R, and y is a scalar. TRY IT! Determine which of the following equations is linear and which is not. For the ones that are not linear, can you manipulate them to make them linear? 1. 3x1 + 4x2 − 3 = −5x3, 2. −x1+x2 x3 = 2, 3. x1x2 + x3 = 5.
- 255. 246 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS Equation 1 can be rearranged to be 3x1 + 4x2 + 5x3 = 3, which clearly has the form of a linear equation. Equation 2 is not linear, but it can be rearranged to be −x1 + x2 − 2x3 = 0, which is linear. Equation 3 is not linear. A system of linear equations is a set of linear equations that share the same variables. Consider the following system of linear equations: a1,1x1 + a1,2x2 + ··· + a1,n−1xn−1 + a1,nxn = y1, a2,1x1 + a2,2x2 + ··· + a2,n−1xn−1 + a2,nxn = y2, ··· ··· am−1,1x1 + am−1,2x2 + ··· + am−1,n−1xn−1 + am−1,nxn = ym−1, am,1x1 + am,2x2 + ··· + am,n−1xn−1 + am,nxn = ym, where ai,j and yi are real numbers. The matrix form of a system of linear equations is Ax = y, where A is an m × n matrix, A(i,j) = ai,j ,y is a vector in Rm, and x is an unknown vector in Rn. The matrix form is shown below: ⎡ ⎢ ⎢ ⎢ ⎣ a1,1 a1,2 ... a1,n a2,1 a2,2 ... a2,n . . . . . . ... . . . am,1 am,2 ... am,n ⎤ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎢ ⎣ x1 x2 . . . xn ⎤ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎣ y1 y2 . . . ym ⎤ ⎥ ⎥ ⎥ ⎦ . If you carry out the matrix multiplication, you will see that you arrive back at the original system of equations. TRY IT! Put the following system of equations into matrix form: 4x + 3y − 5z = 2, −2x − 4y + 5z = 5, 7x + 8y = −3, x + 2z = 1, 9 + y − 6z = 6, ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ 4 3 −5 −2 −4 5 7 8 0 1 0 2 9 1 −6 ⎤ ⎥ ⎥ ⎥ ⎥ ⎦ ⎡ ⎣ x y z ⎤ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ 2 5 −3 1 6 ⎤ ⎥ ⎥ ⎥ ⎥ ⎦ . 14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS Consider a system of linear equations in matrix form, Ax = y, where A is an m × n matrix. Recall that this means there are m equations and n unknowns in our system. A solution to this system of linear
- 256. 14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 247 equations is an x in Rn that satisfies the matrix form equation. Depending on the values that populate A and y, there are three distinct possible solutions for x. Either there is no solution for x, or there is one unique solution for x, or there are infinitely many solutions for x. This fact is not shown in this text. Case 1: There is no solution for x. If rank([A,y]) = rank(A) + 1 then y is linearly independent from the columns of A. Therefore, because y is not in the range of A, by definition there cannot be an x that satisfies the equation. Thus, comparing rank([A,y]) and rank(A) provides an easy way to check if there are no solutions to a system of linear equations. Case 2: There is a unique solution for x. If rank([A,y]) = rank(A), then y can be written as a linear combination of the columns of A, and there is at least one solution for the matrix equation. For there to be only one solution, rank(A) = n must also be true. In other words, the number of equations must be exactly equal to the number of unknowns. To see why this property results in a unique solution, consider the following three relationships between m and n : m n,m = n, and m n. • For the case m n, rank(A) = n cannot possibly be true because this means we have a “fat” matrix with fewer equations than unknowns. Thus, we do not need to consider this subcase. • When m = n and rank(A) = n, A is square and invertible. Since the inverse of a matrix is unique, the matrix equation Ax = y can be solved by multiplying each side of the equation on the left by A−1. This results in A−1Ax = A−1y → Ix = A−1y → x = A−1y, which gives the unique solution to the equation. • If m n, then there are more equations than unknowns; however, if rank(A) = n, then it is possible to choose n equations (i.e., rows of A) such that if these equations are satisfied, then the remaining m − n equations will also be satisfied. In other words, they are redundant. If the m − n redundant equations are removed from the system, then the resulting system has an A matrix that is n × n and invertible. These facts are not proven in this text. The new system then has a unique solution, which is valid for the whole system. Case 3: There are infinitely many solutions for x. If rank([A,y]) = rank(A), then y is in the range of A, and there is at least one solution for the matrix equation; however, if rank(A) n, then there are infinitely many solutions. Although it is not shown here, if rank(A) n, then there is at least one nonzero vector, n, that is in the null space of A (Actually, there are infinitely many null space vectors under these conditions.). If n is in the nullspace of A, then An = 0 by definition. Now if x∗ is a solution to the matrix equation Ax = y, then, necessarily, Ax∗ = y; however, Ax∗ + An = y or A(x∗ + n) = y. Therefore, x∗ + n is also a solution for Ax = y. In fact, since A is a linear transformation, x∗ + αn is a solution for any real number α (you should try to show this on your own). Since there are infinitely many acceptable values for α, there are infinitely many solutions for the matrix equation. The rest of the chapter will discuss how to solve a system of equations which has a unique solution. First, we will discuss some of the common methods that you will most likely come across in your work and then we will show you how to solve systems in Python.
- 257. 248 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS Let us say we have n equations with n variables, Ax = y, as follows: ⎡ ⎢ ⎢ ⎢ ⎣ a1,1 a1,2 ... a1,n a2,1 a2,2 ... a2,n . . . . . . ... . . . an,1 an,2 ... an,n ⎤ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎢ ⎣ x1 x2 . . . xn ⎤ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎣ y1 y2 . . . yn ⎤ ⎥ ⎥ ⎥ ⎦ . 14.4.1 GAUSS ELIMINATION METHOD The Gauss elimination method is a procedure that turns the matrix A into an upper-triangular form to solve the system of equations. Let us use a system of four equations and four variables to illustrate the idea. Gauss elimination essentially turns the system of equations into ⎡ ⎢ ⎢ ⎢ ⎣ a1,1 a1,2 a1,3 a1,4 0 a2,2 a2,3 a2,4 0 0 a3,3 a3,4 0 0 0 a4,4 ⎤ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1 x2 x3 x4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ y1 y2 y3 y4 ⎤ ⎥ ⎥ ⎦. By returning to the matrix form using this method, we can see the equations turn into: a1,1x1 + a1,2x2 + a1,3x3 + a1,4x4 = y1, a2,2x2 + a2,3x3 + a2,4x4 = y2, a3,3x3 + a3,4x4 = y3, a4,4x4 = y4. Now, x4 can be easily solved for by dividing both sides by a4,4, and then by substituting the result into the third equation to solve for x3. With x3 and x4, we can substitute them into the second equation to solve for x2, and we are now able to solve for all x. We solved the system of equations bottom-up; this is called backward substitution. Note that, if A were a lower-triangular matrix, we would solve the system top-down by forward substitution. To illustrate how we solve the equations using Gauss elimination, we use the example below. TRY IT! Use Gauss elimination to solve the following equations: 4x1 + 3x2 − 5x3 = 2, −2x1 − 4x2 + 5x3 = 5, 8x1 + 8x2 = −3.
- 258. 14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 249 Step 1: Turn these equations to the matrix form Ax = y. ⎡ ⎣ 4 3 −5 −2 −4 5 8 8 0 ⎤ ⎦ ⎡ ⎣ x1 x2 x3 ⎤ ⎦ = ⎡ ⎣ 2 5 −3 ⎤ ⎦. Step 2: Obtain the augmented matrix [A,y] as [A,y] = ⎡ ⎣ 4 3 −5 2 −2 −4 5 5 8 8 0 −3 ⎤ ⎦. Step 3: Start eliminating the elements in the matrix by choosing a pivot equation, which is used to eliminate the elements in other equations. Choose the first equation as the pivot equation and turn the second row’s first element to zero by multiplying the first row (pivot equation) by −0.5 and subtracting it from the second row. The multiplier is m2,1 = −0.5, giving us ⎡ ⎣ 4 3 −5 2 0 −2.5 2.5 6 8 8 0 −3 ⎤ ⎦. Step 4: Turn the third row’s first element to zero. As was done above, we multiply the first row by 2 and subtract it from the third row. The multiplier is m3,1 = 2, giving us ⎡ ⎣ 4 3 −5 2 0 −2.5 2.5 6 0 2 10 −7 ⎤ ⎦. Step 5: Turn the third row’s second element to zero. We multiply the second row by −4/5 and subtract it from the third row. The multiplier is m3,2 = −0.8, giving us ⎡ ⎣ 4 3 −5 2 0 −2.5 2.5 6 0 0 12 −2.2 ⎤ ⎦. Step 6: We then obtain x3 = −2.2/12 = −0.183. Step 7: If we insert x3 into the second equation, we obtain x2 = −2.583. Step 8: If we insert x2 and x3 into the first equation, we obtain x1 = 2.208. Note! Sometimes the first element in the first row is zero. When this is the case, switch the first row with a nonzero first element row, then follow the same procedure as outlined above. We are using the “pivoting” Gauss elimination method here. Note that there is also a “naive” Gauss elimination method which assumes that the pivot values will never be zero.
- 259. 250 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS 14.4.2 GAUSS–JORDAN ELIMINATION METHOD Gauss–Jordan elimination solves systems of equations. It is a procedure to turn A into a diagonal form such that the matrix form of the equations becomes ⎡ ⎢ ⎢ ⎣ 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1 x2 x3 x4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎣ y1 y2 y3 y4 ⎤ ⎥ ⎥ ⎥ ⎦ . Essentially, the equations become: x1 + 0 + 0 + 0 = y1, 0 + x2 + 0 + 0 = y2, 0 + 0 + x3 + 0 = y3, 0 + 0 + 0 + x4 = y4. Let us solve another equation system by using the above example as a blueprint. TRY IT! Use Gauss–Jordan elimination to solve the following equations: 4x1 + 3x2 − 5x3 = 2, −2x1 − 4x2 + 5x3 = 5, 8x1 + 8x2 = −3. Step 1: Construct the augmented matrix [A,y], [A,y] = ⎡ ⎣ 4 3 −5 2 −2 −4 5 5 8 8 0 −3 ⎤ ⎦. Step 2: The first element in the first row should be 1, so we divide the row by 4: ⎡ ⎣ 1 3/4 −5/4 1/2 −2 −4 5 5 8 8 0 −3 ⎤ ⎦. Step 3: To eliminate the first element in the second and third rows, we multiply the first row by −2 and 8, respectively, and then subtract it from the second and third rows to get ⎡ ⎣ 1 3/4 −5/4 1/2 0 −5/2 5/2 6 0 2 10 −7 ⎤ ⎦.
- 260. 14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 251 Step 4: To normalize the second element in the second row to 1, we divide both sides of the equation by −5/2: ⎡ ⎣ 1 3/4 −5/4 1/2 0 1 −1 −12/5 0 2 10 −7 ⎤ ⎦. Step 5: To eliminate the second element in the third row, we multiply the second row by 2 and then subtract it from the third row: ⎡ ⎣ 1 3/4 −5/4 1/2 0 1 −1 −12/5 0 0 12 −11/5 ⎤ ⎦. Step 6: Normalize the last row by dividing it by 8: ⎡ ⎣ 1 3/4 −5/4 1/2 0 1 −1 −12/5 0 0 1 −11/60 ⎤ ⎦. Step 7: To eliminate the third element in the second row, multiply the third row by −1 and subtract it from the second row: ⎡ ⎣ 1 3/4 −5/4 1/2 0 1 0 −155/60 0 0 1 −11/60 ⎤ ⎦. Step 8: To eliminate the third element in first row, multiply the third row by -5/4 and then subtract it from the first row. ⎡ ⎣ 1 3/4 0 13/48 0 1 0 −2.583 0 0 1 −0.183 ⎤ ⎦. Step 9: To eliminate the second element in first row, multiply the second row by 3/4 and then subtract it from the first row. ⎡ ⎣ 1 0 0 2.208 0 1 0 −2.583 0 0 1 −0.183 ⎤ ⎦. 14.4.3 LU DECOMPOSITION METHOD The two methods shown above involve changing both A and y at the same time while trying to turn A to an upper triangular or diagonal matrix form. Sometimes we may have same set of equations but different sets of y for different experiments. This is actually quite common in the real world, where we have different experiment observations ya,yb,yc,... Therefore, we must solve Ax = ya, Ax = yb,...
- 261. 252 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS many times, since every time the [A,y] will change. Obviously, this is really inefficient. Is there a method by which we only change the left side of A but not the right-hand side y? The LU decomposition method changes the matrix A only, instead of y. It is ideal for solving the system with the same coefficient matrices A but different constant vectors y. The LU decomposition method aims to turn A into the product of two matrices L and U, where L is a lower triangular matrix while U is an upper triangular matrix. With this decomposition, we convert the system of equations to the following form: LUx = y → ⎡ ⎢ ⎢ ⎣ l1,1 0 0 0 l2,1 l2,2 0 0 l3,1 l3,2 l3,3 0 l4,1 l4,2 l4,3 l4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ u1,1 u1,2 u1,3 u1,4 0 u2,2 u2,3 u2,4 0 0 u3,3 u3,4 0 0 0 u4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1 x2 x3 x4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ y1 y2 y3 y4 ⎤ ⎥ ⎥ ⎦. If we define Ux = M, then the above equations become: ⎡ ⎢ ⎢ ⎣ l1,1 0 0 0 l2,1 l2,2 0 0 l3,1 l3,2 l3,3 0 l4,1 l4,2 l4,3 l4,4 ⎤ ⎥ ⎥ ⎦M = ⎡ ⎢ ⎢ ⎣ y1 y2 y3 y4 ⎤ ⎥ ⎥ ⎦. We can easily solve the above problem by forward substitution (the opposite of the backward sub- stitution as we saw in Gauss elimination method). After we solve for M, we can easily solve the rest of the problem using backward substitution: ⎡ ⎢ ⎢ ⎣ u1,1 u1,2 u1,3 u1,4 0 u2,2 u2,3 u2,4 0 0 u3,3 u3,4 0 0 0 u4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1 x2 x3 x4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ m1 m2 m3 m4 ⎤ ⎥ ⎥ ⎦. But how do we obtain the L and U matrices? There are different ways to obtain the LU decompo- sition. Below is one example that uses the Gauss elimination method. From the above, we know that we obtain an upper triangular matrix after we conduct the Gauss elimination. At the same time, we also obtain the lower triangular matrix even though it is never explicitly written out. During the Gauss elimination procedure, the matrix A actually turns into the product of two matrices as shown below. The right upper triangular matrix is the one we obtained earlier. The diagonal elements in the left lower triangular matrix are 1, and the elements below the diagonal elements are the multipliers that multiply the pivot equations to eliminate the elements during the calculation: A = ⎡ ⎢ ⎢ ⎣ 1 0 0 0 m2,1 1 0 0 m3,1 m3,2 1 0 m4,1 m4,2 m4,3 1 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ u1,1 u1,2 u1,3 u1,4 0 u2,2 u2,3 u2,4 0 0 u3,3 u3,4 0 0 0 u4,4 ⎤ ⎥ ⎥ ⎦. Note that we obtain both L and U at the same time when we perform the Gauss elimination. Using the above example, where U is the one we used before to solve the equations, and L is composed of
- 262. 14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 253 the multipliers (you can check the examples in the Gauss elimination section), we obtain: L = ⎡ ⎣ 1 0 0 −0.5 1 0 2 −0.8 1 ⎤ ⎦, U = ⎡ ⎣ 4 3 −5 0 −2.5 2.5 0 0 60 ⎤ ⎦. TRY IT! Verify that the above L and U matrices are the LU decomposition of matrix A. The result should be A = LU. In [1]: import numpy as np u = np.array([[4, 3, -5], [0, -2.5, 2.5], [0, 0, 12]]) l = np.array([[1, 0, 0], [-0.5, 1, 0], [2, -0.8, 1]]) print(LU=, np.dot(l, u)) LU= [[ 4. 3. -5.] [-2. -4. 5.] [ 8. 8. 0.]] 14.4.4 ITERATIVE METHODS – GAUSS–SEIDEL METHOD The methods introduced above are all direct methods where the solution is computed using a finite number of operations. This section introduces a different class of methods, namely the iterative meth- ods, or indirect methods. They start with an initial guess of the solution and then repeatedly improve the solution until the change of the solution is below a chosen threshold. In order to use this iterative process, we first need to write the explicit form of a system of equations. If we have a system of linear equations ⎡ ⎢ ⎢ ⎢ ⎣ a1,1 a1,2 ... a1,n a2,1 a2,2 ... a2,n . . . . . . ... . . . am,1 am,2 ... am,n ⎤ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎢ ⎣ x1 x2 . . . xn ⎤ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎣ y1 y2 . . . ym ⎤ ⎥ ⎥ ⎥ ⎦ ,
- 263. 254 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS we can write its explicit form as xi = 1 ai,i yi − j=n j=1,j=i ai,j xj . This is the basics of the iterative methods; we can assume initial values for all the x, and use it as x(0). In the first iteration, we can substitute x(0) into the right-hand side of the explicit equation above to obtain the first iteration solution x(1). By substituting x(1) into the equation, we obtain x(2), and the iterations continue until the difference between x(k) and x(k−1) is smaller than some predefined value. Iterative methods require having specific conditions for the solution to converge. A sufficient, but not necessary, condition of the convergence is that the coefficient matrix a is diagonally dominant. This means that in each row of the matrix of coefficients a, the absolute value of the diagonal element is greater than the sum of the absolute values of the off-diagonal elements. If the coefficient matrix satisfies this condition, the iterations will converge to the solution. Note that the solution process might still converge even when this condition is not satisfied. 14.4.4.1 Gauss–Seidel Method The Gauss–Seidel method is a specific iterative method that is always using the latest estimated value for each element in x. For example, first assume that the initial values for x2,x3,...,xn (except for x1) are given and calculate x1. Using the calculated x1 and the rest of the x (except for x2), we can calculate x2. Continuing in the same manner and calculating all the elements in x will conclude the first iteration. The unique part of the Gauss–Seidel method is the use of the latest value to calculate the next value in x. Such iterations are continued until the value converges. Let us use this method to solve the same problem we just solved above. EXAMPLE: Solve the following system of linear equations using Gauss–Seidel method using a predefined threshold = 0.01. Remember to check if the converge condition is satisfied or not. 8x1 + 3x2 − 3x3 = 14, −2x1 − 8x2 + 5x3 = 5, 3x1 + 5x2 + 10x3 = −8. Let us first check if the coefficient matrix is diagonally dominant or not. In [2]: a = [[8, 3, -3], [-2, -8, 5], [3, 5, 10]] # Find diagonal coefficients diag = np.diag(np.abs(a)) # Find row sum without diagonal off_diag = np.sum(np.abs(a), axis=1) - diag if np.all(diag off_diag):
- 264. 14.4 SOLUTIONS TO SYSTEMS OF LINEAR EQUATIONS 255 print(matrix is diagonally dominant) else: print(NOT diagonally dominant) matrix is diagonally dominant Since it is guaranteed to converge, we can use Gauss–Seidel method to solve the system. In [3]: x1 = 0 x2 = 0 x3 = 0 epsilon = 0.01 converged = False x_old = np.array([x1, x2, x3]) print(Iteration results) print( k, x1, x2, x3 ) for k in range(1, 50): x1 = (14-3*x2+3*x3)/8 x2 = (5+2*x1-5*x3)/(-8) x3 = (-8-3*x1-5*x2)/(-5) x = np.array([x1, x2, x3]) # check if it is smaller than threshold dx = np.sqrt(np.dot(x-x_old, x-x_old)) print(%d, %.4f, %.4f, %.4f%(k, x1, x2, x3)) if dx epsilon: converged = True print(Converged!) break # assign the latest x value to the old value x_old = x if not converged: print(Not converged, increase the # of iterations) Iteration results k, x1, x2, x3 1, 1.7500, -1.0625, 1.5875 2, 2.7437, -0.3188, 2.9275 3, 2.9673, 0.4629, 3.8433
- 265. 256 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS 4, 3.0177, 1.0226, 4.4332 5, 3.0290, 1.3885, 4.8059 6, 3.0315, 1.6208, 5.0397 7, 3.0321, 1.7668, 5.1861 8, 3.0322, 1.8582, 5.2776 9, 3.0322, 1.9154, 5.3348 10, 3.0323, 1.9512, 5.3705 11, 3.0323, 1.9735, 5.3929 12, 3.0323, 1.9875, 5.4068 13, 3.0323, 1.9962, 5.4156 14, 3.0323, 2.0017, 5.4210 Converged! 14.5 SOLVING SYSTEMS OF LINEAR EQUATIONS IN PYTHON The examples presented above demonstrated the various methods you can use to solve systems of linear equations. This is also very easy to do in Python, as shown below. The easiest way to get a solution is via the solve function in NumPy. TRY IT! Use numpy.linalg.solve to solve the following equations: 4x1 + 3x2 − 5x3 = 2, −2x1 − 4x2 + 5x3 = 5, 8x1 + 8x2 = −3. In [1]: import numpy as np A = np.array([[4, 3, -5], [-2, -4, 5], [8, 8, 0]]) y = np.array([2, 5, -3]) x = np.linalg.solve(A, y) print(x) [ 2.20833333 -2.58333333 -0.18333333] We get the same results as those in the previous section when calculated by hand. Under the “hood,” the solver is actually doing an LU decomposition to get the results. If you can check the help of the function, you will see it needs the input matrix to be square and of full rank, i.e., all rows (or, equivalently, columns) must be linearly independent.
- 266. 14.5 SOLVING SYSTEMS OF LINEAR EQUATIONS IN PYTHON 257 TRY IT! Try to solve the above equations using the matrix inversion approach. In [2]: A_inv = np.linalg.inv(A) x = np.dot(A_inv, y) print(x) [ 2.20833333 -2.58333333 -0.18333333] We can also obtain the L and U matrices used in the LU decomposition using the SciPy package. TRY IT! Get the L and U for the above matrix A. In [3]: from scipy.linalg import lu P, L, U = lu(A) print(P:n, P) print(L:n, L) print(U:n, U) print(LU:n,np.dot(L, U)) P: [[0. 0. 1.] [0. 1. 0.] [1. 0. 0.]] L: [[ 1. 0. 0. ] [-0.25 1. 0. ] [ 0.5 0.5 1. ]] U: [[ 8. 8. 0. ] [ 0. -2. 5. ] [ 0. 0. -7.5]] LU: [[ 8. 8. 0.] [-2. -4. 5.] [ 4. 3. -5.]] Why do we obtain different L and U from those calculated by hand in the last section? You will also see that there is a permutation matrix P that is returned by the lu function. This permutation matrix records how it changes the order of the equations for easier calculation purposes. For example,
- 267. 258 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS if the first element in the first row is zero, it cannot be the pivot equation since you cannot turn the first elements in other rows to zero; therefore, we need to switch the order of the equations to get a new pivot equation. If you multiply P and A, you will see that this permutation matrix reverses the order of the equations for this case. TRY IT! Multiply P and A and see what is the effect of the permutation matrix on A. In [4]: print(np.dot(P, A)) [[ 8. 8. 0.] [-2. -4. 5.] [ 4. 3. -5.]] 14.6 MATRIX INVERSION We defined the inverse of a square matrix M as a matrix of the same size, M−1, such that M · M−1 = M−1 · M = I. If the dimension of the matrix is high, the analytical solution for the matrix inversion will be complicated. Therefore, we need some other efficient ways to obtain the inverse of the matrix. Let us use a 4 × 4 matrix for illustration. Suppose we have M = ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m3,4 m4,1 m4,2 m4,3 m4,4 ⎤ ⎥ ⎥ ⎦, and the inverse of M is X = ⎡ ⎢ ⎢ ⎣ x1,1 x1,2 x1,3 x1,4 x2,1 x2,2 x2,3 x2,4 x3,1 x3,2 x3,3 x3,4 x4,1 x4,2 x4,3 x4,4 ⎤ ⎥ ⎥ ⎦. Therefore, we will have: M · X = ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m3,4 m4,1 m4,2 m4,3 m4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1,1 x1,2 x1,3 x1,4 x2,1 x2,2 x2,3 x2,4 x3,1 x3,2 x3,3 x3,4 x4,1 x4,2 x4,3 x4,4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 ⎤ ⎥ ⎥ ⎦. We can rewrite the above equation as four separate equations, i.e., ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m3,4 m4,1 m4,2 m4,3 m4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1,1 x2,1 x3,1 x4,1 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ 1 0 0 0 ⎤ ⎥ ⎥ ⎦,
- 268. 14.6 MATRIX INVERSION 259 ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m3,4 m4,1 m4,2 m4,3 m4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1,2 x2,2 x3,2 x4,2 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ 0 1 0 0 ⎤ ⎥ ⎥ ⎦, ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m3,4 m4,1 m4,2 m4,3 m4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1,3 x2,3 x3,3 x4,3 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ 0 0 1 0 ⎤ ⎥ ⎥ ⎦, ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m3,4 m4,1 m4,2 m4,3 m4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1,4 x2,4 x3,4 x4,4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ 0 0 0 1 ⎤ ⎥ ⎥ ⎦. Solving the above four systems of equations will provide the inverse of the matrix. We can use any method introduced previously to solve these equations (such as Gauss elimination, Gauss–Jordan, and LU decomposition). Below is an example of matrix inversion using the Gauss–Jordan method. Recall that in the Gauss–Jordan method, we convert our problem from ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m3,4 m4,1 m4,2 m4,3 m4,4 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1 x2 x3 x4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎣ y1 y2 y3 y4 ⎤ ⎥ ⎥ ⎦ to ⎡ ⎢ ⎢ ⎣ 1 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 ⎤ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎣ x1 x2 x3 x4 ⎤ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎣ y1 y2 y3 y4 ⎤ ⎥ ⎥ ⎥ ⎦ to obtain the solution. Essentially, we are converting ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 y1 m2,1 m2,2 m2,3 m2,4 y2 m3,1 m3,2 m3,3 m3,4 y3 m4,1 m4,2 m4,3 m4,4 y4 ⎤ ⎥ ⎥ ⎦ to ⎡ ⎢ ⎢ ⎢ ⎣ 1 0 0 0 y1 0 1 0 0 y2 0 0 1 0 y3 0 0 0 1 y4 ⎤ ⎥ ⎥ ⎥ ⎦ .
- 269. 260 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS In summary, all we need to do is to convert ⎡ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 1 0 0 0 m2,1 m2,2 m2,3 m2,4 0 1 0 0 m3,1 m3,2 m3,3 m3,4 0 0 1 0 m4,1 m4,2 m4,3 m4,4 0 0 0 1 ⎤ ⎥ ⎥ ⎦ to ⎡ ⎢ ⎢ ⎢ ⎣ 1 0 0 0 m1,1 m1,2 m1,3 m1,4 0 1 0 0 m2,1 m2,2 m2,3 m2,4 0 0 1 0 m3,1 m3,2 m3,3 m1,4 0 0 0 1 m4,1 m4,2 m4,3 m1,4 ⎤ ⎥ ⎥ ⎥ ⎦ . Then the matrix ⎡ ⎢ ⎢ ⎢ ⎣ m1,1 m1,2 m1,3 m1,4 m2,1 m2,2 m2,3 m2,4 m3,1 m3,2 m3,3 m1,4 m4,1 m4,2 m4,3 m1,4 ⎤ ⎥ ⎥ ⎥ ⎦ is the inverse of M we are looking for. Can you explain how to use LU decomposition to get the inverse of a matrix? 14.7 SUMMARY AND PROBLEMS 14.7.1 SUMMARY 1. Linear algebra is the foundation of many engineering fields. 2. Vectors can be considered as points in Rn; addition and multiplication are defined, although this is not necessarily the case for scalars. 3. A set of vectors is linearly independent if none of the vectors can be written as a linear combination of the others. 4. Matrices are tables of numbers. They have several important characteristics including the determi- nant, rank, and inverse. 5. A system of linear equations can be represented by the matrix equation Ax = y. 6. The number of solutions to a system of linear equations is related to rank(A) and rank([A,y]). It can be zero, one, or infinity. 7. We can solve the equations using Gauss elimination, Gauss–Jordan elimination, LU decomposition, and the Gauss–Seidel method. 8. We introduced methods to find the matrix inverse.
- 270. 14.7 SUMMARY AND PROBLEMS 261 14.7.2 PROBLEMS 1. It is strongly recommended that you read a book on linear algebra, which will give you greater mastery of the contents of this chapter. We strongly recommend reading the first part of book Optimization Models by Giuseppe Calafiore and Laurent El Ghaoui to get you started. 2. Show that matrix multiplication distributes over matrix addition: show A(B + C) = AB + AC assuming that A,B, and C are matrices of compatible size. 3. Write a function my_is_orthogonal(v1,v2,tol) where v1 and v2 are column vectors of the same size, and tol is a scalar value strictly larger than zero. The output should be 1 if the angle between v1 and v2 is within tol of π/2, that is, |π/2 − θ| tol, and zero otherwise. You may assume that v1 and v2 are column vectors of the same size, and that tol is a positive scalar. In [ ]: # Test cases for Problem 3 a = np.array([[1], [0.001]]) b = np.array([[0.001], [1]]) # output: 1 my_is_orthogonal(a,b, 0.01) # output: 0 my_is_orthogonal(a,b, 0.001) # output: 0 a = np.array([[1], [0.001]]) b = np.array([[1], [1]]) my_is_orthogonal(a,b, 0.01) # output: 1 a = np.array([[1], [1]]) b = np.array([[-1], [1]]) my_is_orthogonal(a,b, 1e-10) 3. Write a function my_is_similar(s1,s2,tol) where s1 and s2 are strings, not necessarily of the same size, and tol is a scalar value strictly larger than zero. From s1 and s2, the function should construct two vectors, v1 and v2, where v1[0] is the number of a’s in s1, v1[1] is the number b’s in s1, and so on until v1[25], which is the number of z’s in v1. The vector v2 should be similarly constructed from s2. The output should be 1 if the absolute value of the angle between v1 and v2 is less than tol, that is, |θ| tol. 4. Write a function my_make_lin_ind(A) where A and B are matrices. Let rank(A) = n. Then B should be a matrix containing the first n columns of A that are all linearly independent. Note that this implies that B has full rank. In [ ]: ## Test cases for Problem 4 A = np.array([[12,24,0,11,-24,18,15], [19,38,0,10,-31,25,9],
- 271. 262 CHAPTER 14 LINEAR ALGEBRA AND SYSTEMS OF LINEAR EQUATIONS [1,2,0,21,-5,3,20], [6,12,0,13,-10,8,5], [22,44,0,2,-12,17,23]]) B = my_make_lin_ind(A) # B = [[12,11,-24,15], # [19,10,-31,9], # [1,21,-5,20], # [6,13,-10,5], # [22,2,-12,23]] 5. Cramer’s rule is a method of computing the determinant of a matrix. Consider an n × n square matrix M. Let M(i,j) be the element of M in the ith row and jth column of M, and let mi,j be the minor of M created by removing the ith row and jth column from M. Cramer’s rule says that det(M) = n i=1 (−1)i−1 M(1,i)det(mi,j ). Write a function my_rec_det(M) where the output is det(M). Use Cramer’s rule to compute the determinant, not NumPy’s function. 6. What is the complexity of my_rec_det in the previous problem? Do you think this is an effective way of determining if a matrix is singular or not? 7. Let p be a vector with length L containing the coefficients of a polynomial of order L − 1. For example, the vector p = [1,0,2] is a representation of the polynomial f (x) = 1x2 + 0x + 2. Write a function my_poly_der_mat(p) where p is the aforementioned vector, and the output D is the matrix that will return the coefficients of the derivative of p when p is left multiplied by D. For example, the derivative of f (x) is f (x) = 2x; therefore, d = Dp should yield d = [2,0]. Note this implies that the dimension of D is L − 1 × L. The point of this problem is to show that differentiating polynomials is actually a linear transformation. 8. Use the Gauss elimination method to solve the following equations: 3x1 − x2 + 4x3 = 2, 17x1 + 2x2 + x3 = 14, x1 + 12x2 − 7z = 54. 9. Use the Gauss–Jordan elimination method to solve the equations in Problem 8. 10. Obtain the lower triangular matrix L and upper triangular matrix U from the equations in Prob- lem 8. 11. Show that the dot-product distributes across vector addition, that is, show that u · (v + w) = u · v + u · w.
- 272. 14.7 SUMMARY AND PROBLEMS 263 FIGURE 14.1 Graph for Problem 12. 12. Consider the following network shown in Fig. 14.1 consisting of two power supply stations de- noted by S1 and S2 and five power recipient nodes denoted by N1 to N5. The nodes are connected by power lines, which are denoted by arrows, and power can flow between nodes along these lines in both directions. Let di be a positive scalar denoting the power demand for node i; assume that this demand must be met exactly. The capacity of the power supply stations is denoted by S. Power supply stations must run at capacity. For each arrow, let fj be the power flow along that arrow. Negative flow implies that power is running in the opposite direction of the arrow. Write a function my_flow_calculator(S,d) where S is a 1 × 2 vector representing the capacity of each power supply station, and d is a 1 × 5 row vector representing the demands at each node (i.e., d[0] is the demand at node 1). The output argument, f, should be a 1 × 7 row vector denoting the flows in the network (i.e., f[0] = f1 in the diagram). The flows contained in f should satisfy all the constraints of the system, like power generation and demands. Note that there may be more than one solution to the system of equations. The total flow into a node must equal the total flow out of the node plus the demand; that is, for each node i,finflow = foutflow + di. You may assume that Sj = di. In [ ]: ## Test cases for Problem 12 s = np.array([[10, 10]]) d = np.array([[4, 4, 4, 4, 4]]) # f = [[10.0, 4.0, -2.0, 4.5, 5.5, 2.5, 1.5]] f = my_flow_calculator(s, d) s = np.array([[10, 10]]) d = np.array([[3, 4, 5, 4, 4]]) # f = [[10.0, 5.0, -1.0, 4.5, 5.5, 2.5, 1.5]] f = my_flow_calculator(s, d)
- 273. 15 EIGENVALUES AND EIGENVECTORS 15.1 Eigenvalues and Eigenvectors Problem Statement ............................................................ 265 15.1.1 Eigenvalues and Eigenvectors ................................................................... 265 15.1.2 The Motivation Behind Eigenvalues and Eigenvectors ....................................... 265 15.1.3 The Characteristic Equation...................................................................... 268 15.2 The Power Method .................................................................................................. 269 15.2.1 Finding the Largest Eigenvalue .................................................................. 269 15.2.2 The Inverse Power Method ....................................................................... 272 15.2.3 The Shifted Power Method ....................................................................... 273 15.3 The QR Method....................................................................................................... 273 15.4 Eigenvalues and Eigenvectors in Python ........................................................................ 275 15.5 Summary and Problems ............................................................................................ 276 15.5.1 Summary............................................................................................ 276 15.5.2 Problems ............................................................................................ 276 15.1 EIGENVALUES AND EIGENVECTORS PROBLEM STATEMENT 15.1.1 EIGENVALUES AND EIGENVECTORS We learned from the previous chapter that matrix A applied to a column vector x, that is, Ax, is a linear transformation of x. There is a special transform in the following form: Ax = λx, where A is an n × n matrix, x is an n × 1 column vector (x = 0), and λ is a scalar. Any λ that satisfies the above equation is known as an eigenvalue of the matrix A, while the associated vector x is called an eigenvector corresponding to λ. 15.1.2 THE MOTIVATION BEHIND EIGENVALUES AND EIGENVECTORS The motivation behind eigenvalues and eigenvectors is that if we understand the characteristics of the linear transformation, it will help simplify the solutions to our problem. Say, we can multiply a vector A to another vector x, i.e., Ax. It essentially transforms the vector x into another vector, whereby the transformation represents a scale of the length of the vector and/or the rotation of the vector. The above equation points out that for some vectors, the effect of transformation Ax is only scaling (stretching, compressing, and flipping). The eigenvectors are the vectors having this property and the eigenvalues λ are the scale factors. Let us look at the following example.
- 274. 266 CHAPTER 15 EIGENVALUES AND EIGENVECTORS TRY IT! Plot the vector x = [[1], [1]] and the vector b = Ax, where A = [[2, 0], [0, 1]] In [1]: import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline def plot_vect(x, b, xlim, ylim): function to plot two vectors, x - the original vector b - the transformed vector xlim - the limit for x ylim - the limit for y plt.figure(figsize = (10, 6)) plt.quiver(0,0,x[0],x[1], color=k,angles=xy, scale_units=xy,scale=1, label=Original vector) plt.quiver(0,0,b[0],b[1], color=g,angles=xy, scale_units=xy,scale=1, label =Transformed vector) plt.xlim(xlim) plt.ylim(ylim) plt.xlabel(X) plt.ylabel(Y) plt.legend() plt.show() In [2]: A = np.array([[2, 0],[0, 1]]) x = np.array([[1],[1]]) b = np.dot(A, x) plot_vect(x,b,(0,3),(0,2))
- 275. 15.1 EIGENVALUES AND EIGENVECTORS PROBLEM STATEMENT 267 We can see from the generated figure that the original vector x is rotated and stretched longer after being transformed by A. The vector [[1], [1]] is transformed to [[2], [1]]. Let us try to do the same exercise with a different vector [[1], [0]]. TRY IT! Plot the vector x = [[1], [0]] and the vector b = Ax where A = [[2, 0], [0, 1]] In [3]: x = np.array([[1], [0]]) b = np.dot(A, x) plot_vect(x,b,(0,3),(-0.5,0.5)) With this new vector, the only change after the transformation is the length of the vector; it is stretched. The new vector is [[2], [0]], therefore, the transform is Ax = 2x
- 276. 268 CHAPTER 15 EIGENVALUES AND EIGENVECTORS with x = [[1], [0]] and λ = 2. The direction of the vector does not change at all (no rotation). You can also check that [[0], [1]] is another eigenvector; try to verify this by yourself. 15.1.3 THE CHARACTERISTIC EQUATION In order to get the eigenvalues and eigenvectors, from Ax = λx, we can use the following form: (A − λI)x = 0, where I is the identify matrix with the same dimensions as A. If matrix A − λI has an inverse and both sides are multiplied by (A − λI)−1, we get a trivial solution x = 0. Therefore, the only interesting case is when A − λI is singular (no inverse exists), and we have a nontrivial solution, which means that the determinant is zero: det(A − λI) = 0. This equation is called the characteristic equation that will lead to a polynomial equation for λ, which we can solve for the eigenvalues; see the example below. TRY IT! Obtain the eigenvalues for matrix [[0, 2], [2, 3]] The characteristic equation gives us 0 − λ 2 2 3 − λ = 0. Therefore, we have −λ(3 − λ) − 4 = 0 ⇒ λ2 − 3λ − 4 = 0. We obtain two eigenvalues: λ1 = 4, λ2 = −1. TRY IT! Obtain the eigenvectors for the above two eigenvalues. If the first eigenvalue is λ1 = 4, we can simply insert it back to A − λI = 0, where we have: −4 2 2 −1 x1 x2 = 0 0 . Therefore, we have two equations −4x1 + 2x2 = 0 and 2x1 − x2 = 0, both indicating that x2 = 2x1. Therefore, the first eigenvector is x1 = k1 1 2 .
- 277. 15.2 THE POWER METHOD 269 The symbol k1 is a scalar (k1 = 0); as long as we have the ratio between x2 and x1 as 2, it will be an eigenvector. We can verify that the vector [[1], [2]] is an eigenvector by inserting it back: 0 2 2 3 1 2 = 4 8 = 4 1 2 . By inserting λ2 = −1 as above, we obtain the other eigenvector as follows where k2 = 0: x2 = k2 −2 1 . The above example demonstrates how we can obtain the eigenvalues and eigenvectors from a matrix A; the choice of the eigenvectors for a system is not unique. When you have a larger matrix A and try to solve the nth order polynomial characteristic equation, the solution becomes more complicated. Luckily, many different numerical methods have been developed to solve the eigenvalue problems for larger matrices (with a few hundred to thousands of dimensions). We will introduce the power method and the QR method in the next two sections. 15.2 THE POWER METHOD 15.2.1 FINDING THE LARGEST EIGENVALUE Some problems only require finding the largest dominant eigenvalue and its corresponding eigenvector. In this case, we can use the power method, which is an iterative method that will converge to the largest eigenvalue; see the example below. Consider an n × n matrix A that has n real eigenvalues λ1,λ2,...,λn and the corresponding lin- early independent eigenvectors v1,v2,...,vn. Since the eigenvalues are scalars, we can rank them so that |λ1| |λ2| ≥ ··· ≥ |λn|. Note that we only require |λ1| |λ2|; the other eigenvalues may be equal to each other. Because the eigenvectors are assumed linearly independent, they are a set of basis vectors, which means that any vector that is in the same space can be written as a linear combination of the basis vectors. That is, for any vector x0 and can be written as: x0 = c1v1 + c2v2 + ··· + cnvn where c1 = 0 is the constraint. If it is zero, then we need to choose another initial vector so that c1 = 0. Now let us multiply both sides by A: Ax0 = c1Av1 + c2Av2 + ··· + cnAvn. Since Avi = λivi, Ax0 = c1λ1v1 + c2λ2v2 + ··· + cnλnvn.
- 278. 270 CHAPTER 15 EIGENVALUES AND EIGENVECTORS We can change the above equation to: Ax0 = c1λ1 v1 + c2 c1 λ2 λ1 v2 + ··· + cn c1 λn λ1 vn = c1λ1x1, where x1 is a new vector, x1 = v1 + c2 c1 λ2 λ1 v2 + ··· + cn c1 λn λ1 vn. This finishes the first iteration. For the second iteration, we apply A to x1: Ax1 = λ1v1 + c2 c1 λ2 2 λ1 v2 + ··· + cn c1 λ2 n λ1 vn. Similarly, we can rearrange the above equation to get Ax1 = λ1 v1 + c2 c1 λ2 2 λ2 1 v2 + ··· + cn c1 λ2 n λ2 1 vn = λ1x2, where x2 is a new vector, x2 = v1 + c2 c1 λ2 2 λ2 1 v2 + ··· + cn c1 λ2 n λ2 1 vn. If we continue applying A to the new vector, we obtain from each iteration k: Axk−1 = λ1 v1 + c2 c1 λk 2 λk 1 v2 + ··· + cn c1 λk n λk 1 vn = λ1xk. Because λ1 is the largest eigenvalue, the ratio λi λ1 1 for all i 1. When k is sufficiently large, the factor (λn λ1 )k will be close to zero, so that all terms that contain this factor can be neglected as k increases: Axk−1 ∼ λ1v1. Essentially, if k is large enough, we will obtain the largest eigenvalue and its corresponding eigen- vector. When implementing this power method, the resulting vector in each iteration is usually nor- malized. This can be done by factoring out the largest element in the vector, which will make the largest element in the vector equal to 1. This normalization will provide the largest eigenvalue and its corresponding eigenvector at the same time; see the example below. When should we stop the iteration? The basic stopping criterion should be one of these the follow- ing: (1) the difference between eigenvalues is less than some specified tolerance; (2) the angle between eigenvectors is smaller than a threshold; or (3) the norm of the residual vector is small enough. TRY IT! We know from the last section that the largest eigenvalue is 4 for the matrix A = 0 2 2 3 . Use the power method to find the largest eigenvalue and the associated eigenvector. You can use the initial vector [1, 1] to start the iteration.
- 279. 15.2 THE POWER METHOD 271 First iteration: 0 2 2 3 1 1 = 2 5 = 5 0.4 1 . Second iteration: 0 2 2 3 0.4 1 = 2 3.8 = 3.8 0.5263 1 . Third iteration: 0 2 2 3 0.5263 1 = 2 4.0526 = 4.0526 0.4935 1 . Fourth iteration: 0 2 2 3 0.4935 1 = 2 3.987 = 3.987 0.5016 1 . Fifth iteration: 0 2 2 3 0.5016 1 = 2 4.0032 = 4.0032 0.4996 1 . Sixth iteration: 0 2 2 3 0.4996 1 = 2 3.9992 = 3.9992 0.5001 1 . Seventh iteration: 0 2 2 3 0.5001 1 = 2 4.0002 = 4.0002 0.5000 1 . After seven iterations, the eigenvalue has converged to four, with [0.5, 1] as the corresponding eigenvector. TRY IT! Implement the power method in Python. In [1]: import numpy as np In [2]: def normalize(x): fac = abs(x).max() x_n = x / x.max() return fac, x_n
- 280. 272 CHAPTER 15 EIGENVALUES AND EIGENVECTORS In [3]: x = np.array([1, 1]) a = np.array([[0, 2], [2, 3]]) for i in range(8): x = np.dot(a, x) lambda_1, x = normalize(x) print(Eigenvalue:, lambda_1) print(Eigenvector:, x) Eigenvalue: 3.999949137887188 Eigenvector: [0.50000636 1.] 15.2.2 THE INVERSE POWER METHOD The eigenvalues of the inverse matrix A−1 are the reciprocals of the eigenvalues of A. By taking advantage of this feature, as well as the power method, we are able to obtain the smallest eigenvalue of A; this will be basis of the inverse power method. The steps are very simple: instead of applying A as described above, we just apply A−1 for our iteration to find the largest value of 1 λ1 , which will be the smallest value of the eigenvalues for A. In practice, we can use the methods we covered in the previous chapter to calculate the inverse of the matrix. We will not go to greater detail here, but we present an example below. TRY IT! Find the smallest eigenvalue and eigenvector for A = 0 2 2 3 . In [4]: from numpy.linalg import inv In [5]: a_inv = inv(a) for i in range(8): x = np.dot(a_inv, x) lambda_1, x = normalize(x) print(Eigenvalue:, lambda_1) print(Eigenvector:, x) Eigenvalue: 0.20000000000003912 Eigenvector: [1. 1.]
- 281. 15.3 THE QR METHOD 273 15.2.3 THE SHIFTED POWER METHOD In some cases, it is necessary to find all the eigenvalues and eigenvectors instead of just the largest and smallest. One simple, but inefficient way is to use the shifted power method; we will introduce you a more efficient method in the next section. Given Ax = λ1x, and λ1 being the largest eigenvalue obtained by the power method, we have [A − λ1I]x = αx, where α’s are the eigenvalues of the shifted matrix A − λ1I, which will be 0,λ2 − λ1,λ3 − λ1,...,λn − λ1. Now if we apply the power method to the shifted matrix, we can determine the largest eigenvalue of the shifted matrix, i.e., αk. Since αk = λk − λ1, we can obtain the eigenvalue λk easily. Repeating this process many times will find the all the other eigenvalues, but you can see it is very labor intensive. A better method for finding all the eigenvalues is to use the QR method, which we will introduced next. 15.3 THE QR METHOD The QR method is the preferred iterative method to find all the eigenvalues of a matrix (but not the eigenvectors at the same time). The idea is based on the following two concepts: 1. Similar matrices will have the same eigenvalues and associated eigenvectors. Two square ma- trices A and B are similar if A = C−1 BC where C is an invertible matrix. 2. The QR method is a way to decompose a matrix into two matrices Q and R, where Q is an orthogonal matrix, and R is an upper triangular matrix. An orthogonal matrix satisfies Q−1 = QT , which means Q−1Q = QT Q = I. How do we link these two concepts to find the eigenvalues? Say, we have a matrix A0 whose eigen- values must be determined. At the kth step (starting with k = 0), we can perform the QR decomposition and obtain Ak = QkRk where Qk is an orthogonal matrix, and Rk is an upper triangular matrix. We then form Ak+1 = RkQk to obtain Ak+1 = RkQk = Q−1 k QkRkQk = Q−1 k AkQk. Because all the Ak are similar, as we discussed above, they all have the same eigenvalues.
- 282. 274 CHAPTER 15 EIGENVALUES AND EIGENVECTORS As the iteration continues, we will eventually converge to an upper triangular matrix with the form: Ak = RkQk = ⎡ ⎢ ⎢ ⎢ ⎣ λ1 X ... X 0 λ2 ... X . . . . . . ... . . . 0 0 ... λn ⎤ ⎥ ⎥ ⎥ ⎦ , where the diagonal values are the eigenvalues of the matrix. In each iteration of the QR method, fac- toring a matrix into an orthogonal and an upper triangular matrix can be done by using a special matrix called Householder matrix. We will not go into the mathematical details how you get the Q and R from the matrix. Instead, we will use the Python function to obtain the two matrices directly. TRY IT! Use the qr function in numpy.linalg to decompose matrix A = 0 2 2 3 . Verify the results. In [1]: import numpy as np from numpy.linalg import qr In [2]: a = np.array([[0, 2], [2, 3]]) q, r = qr(a) print(Q:, q) print(R:, r) b = np.dot(q, r) print(QR:, b) Q: [[ 0. -1.] [-1. 0.]] R: [[-2. -3.] [ 0. -2.]] QR: [[0. 2.] [2. 3.]] TRY IT! Use the QR method to get the eigenvalues of matrix A = 0 2 2 3 . Do 20 iterations, and print out the first, fifth, 10th, and 20th iteration.
- 283. 15.4 EIGENVALUES AND EIGENVECTORS IN PYTHON 275 In [3]: a = np.array([[0, 2], [2, 3]]) p = [1, 5, 10, 20] for i in range(20): q, r = qr(a) a = np.dot(r, q) if i+1 in p: print(fIteration {i+1}:) print(a) Iteration 1: [[3. 2.] [2. 0.]] Iteration 5: [[ 3.99998093 0.00976559] [ 0.00976559 -0.99998093]] Iteration 10: [[ 4.00000000e+00 9.53674316e-06] [ 9.53674316e-06 -1.00000000e+00]] Iteration 20: [[ 4.00000000e+00 9.09484250e-12] [ 9.09494702e-12 -1.00000000e+00]] Note that after the fifth iteration, the eigenvalues are converged to the correct ones. The next section will demonstrate how to obtain the eigenvalues and eigenvectors in Python using the built-in function. 15.4 EIGENVALUES AND EIGENVECTORS IN PYTHON The methods introduced above are fairly complicated to execute. The calculation of eigenvalues and eigenvectors in Python is fairly easy. The main built-in function in Python to solve the eigenval- ue/eigenvector problem for a square array is the eig function in numpy.linalg; see below for an example in how to execute it. TRY IT! Calculate the eigenvalues and eigenvectors for matrix A = 0 2 2 3 . In [1]: import numpy as np from numpy.linalg import eig In [2]: a = np.array([[0, 2], [2, 3]])
- 284. 276 CHAPTER 15 EIGENVALUES AND EIGENVECTORS w,v=eig(a) print(E-value:, w) print(E-vector, v) E-value: [-1. 4.] E-vector [[-0.89442719 -0.4472136 ] [ 0.4472136 -0.89442719]] TRY IT! Compute the eigenvalues and eigenvectors for the matrix A = ⎡ ⎣ 2 2 4 1 3 5 2 3 4 ⎤ ⎦. In [3]: a = np.array([[2, 2, 4], [1, 3, 5], [2, 3, 4]]) w,v=eig(a) print(E-value:, w) print(E-vector, v) E-value: [ 8.80916362 0.92620912 -0.73537273] E-vector [[-0.52799324 -0.77557092 -0.36272811] [-0.604391 0.62277013 -0.7103262 ] [-0.59660259 -0.10318482 0.60321224]] 15.5 SUMMARY AND PROBLEMS 15.5.1 SUMMARY 1. Eigenvalues and eigenvectors help us understand the characteristics of a linear transformation. 2. Eigenvectors of a matrix are the vectors that can only be scaled lengthwise without rotation after applying the matrix transformation; the eigenvalues are the factors of the scaling. 3. We can use power method to get the largest eigenvalue and corresponding eigenvector of a matrix. 4. The inverse power method can help us get the smallest eigenvalue and corresponding eigenvector of a matrix. 5. The shifted power method can get all the other eigenvectors/eigenvectors of a matrix. 6. The preferred method to get all the eigenvalues is the QR method. 15.5.2 PROBLEMS 1. Write down the characteristic equation for matrix A = 3 2 5 3 . 2. Use the above characteristic equation to solve for eigenvalues and eigenvectors of matrix A.
- 285. 15.5 SUMMARY AND PROBLEMS 277 3. Use the first eigenvector derived from Problem 2 to verify that Ax = λx. 4. Use the power method to obtain the largest eigenvalue and eigenvector for the matrix A = ⎡ ⎣ 2 1 2 1 3 2 2 4 1 ⎤ ⎦. Start with initial vector [1, 1, 1] and see the results after eight iterations. 5. Using the inverse power method to get the smallest eigenvalue and eigenvector for the matrix in Problem 4, see how many iterations are needed for it to converge to the smallest eigenvalue. 6. Perform a QR decomposition for matrix A in Problem 4. Verify that A = QR and Q is an orthogonal matrix. 7. Use the QR method to get all the eigenvalues for matrix A in Problem 4. 8. Obtain the eigenvalues and eigenvectors for matrix A in Problem 4 using the Python built-in func- tion.
- 286. 16 LEAST SQUARES REGRESSION 16.1 Least Squares Regression Problem Statement ................................................................. 279 16.2 Least Squares Regression Derivation (Linear Algebra) ....................................................... 280 16.3 Least Squares Regression Derivation (Multivariate Calculus) ............................................... 281 16.4 Least Squares Regression in Python ............................................................................. 283 16.4.1 Using the Direct Inverse Method ................................................................ 283 16.4.2 Using the Pseudo-Inverse ........................................................................ 285 16.4.3 Using numpy.linalg.lstsq ....................................................................... 285 16.4.4 Using optimize.curve_fit From SciPy ......................................................... 285 16.5 Least Squares Regression for Nonlinear Functions............................................................ 286 16.5.1 Log Tricks for Exponential Functions ........................................................... 286 16.5.2 Log Tricks for Power Functions .................................................................. 288 16.5.3 Polynomial Regression ............................................................................ 288 16.5.4 Using optimize.curve_fit From SciPy ......................................................... 289 16.6 Summary and Problems ............................................................................................ 290 16.6.1 Summary............................................................................................ 290 16.6.2 Problems ............................................................................................ 291 16.1 LEAST SQUARES REGRESSION PROBLEM STATEMENT Given a set of independent data points xi and dependent data points yi,i = 1,...,m, we would like to find an estimation function, ŷ(x), that describes the data as accurately as possible. Note that ŷ can be a function of several variables, but for the sake of this discussion, we restrict the domain of ŷ to a single variable. In least squares regression, the estimation function must be a linear combination of basis functions, fi(x). That is, the estimation function must be of the form ŷ(x) = n i=1 αifi(x). The scalars αi are referred to as the parameters of the estimation function, and each basis function must be linearly independent from the others. In other words, in the proper “functional space,” no basis function should be expressible as a linear combination of the other functions. Note that, in general, there are significantly more data points, m, than basis functions, n (i.e., m n).
- 287. 280 CHAPTER 16 LEAST SQUARES REGRESSION TRY IT! Create an estimation function for the force–displacement relationship of a linear spring. Identify the basis function(s) and model parameters. The relationship between the force, F, and the displacement, x, can be described by the func- tion F(x) = kx, where k is the spring stiffness. The only basis function is the function f1(x) = x and the model parameter to determine is α1 = k. The goal of least squares regression is to find the parameters of the estimation function that mini- mize the total squared error, E, defined by E = m i=1(ŷ − yi)2. The individual errors or residuals are defined as ei = (ŷ − yi). If e is the vector containing all the individual errors, then we are also trying to minimize E = e2 2, which is the L2 norm defined in the previous chapter. In the next two sections, we will derive the least squares method of finding the desired parameters. The first derivation comes from linear algebra, and the second comes from multivariate calculus. Al- though they are different derivations, they lead to the same least squares formula. You are free to focus on the section with which you are most comfortable. 16.2 LEAST SQUARES REGRESSION DERIVATION (LINEAR ALGEBRA) First, we enumerate the estimation of the data at each data point xi as ŷ(x1) = α1f1(x1) + α2f2(x1) + ··· + αnfn(x1), ŷ(x2) = α1f1(x2) + α2f2(x2) + ··· + αnfn(x2), ··· ŷ(xm) = α1f1(xm) + α2f2(xm) + ··· + αnfn(xm). Let X ∈ Rn be a column vector such that the ith element of X contains the value of the ith x-data point, xi,Ŷ be a column vector with elements, Ŷi = ŷ(xi),β be a column vector such that βi = αi,Fi(x) be a function that returns a column vector of fi(x) computed on every element of x, and A be an m × n matrix such that the ith column of A is Fi(x). Given this notation, the previous system of equations becomes Ŷ = Aβ. Now if Y is a column vector such that Yi = yi, the total squared error is given by E = Ŷ − Y2 2. Verify this by substituting the definition of the L2 norm. Since we want to make E as small as possible and norms are a measure of distance, this previous expression is equivalent to saying that we want Ŷ and Y to be as “close as possible.” Note that, in general, Y will not be in the range of A and therefore E 0. Consider the following simplified depiction of the range of A; see Fig. 16.1. Note this is not a plot of the data points (xi,yi). From observation, the vector in the range of A, namely Ŷ which is closest to Y, is that which can point perpendicularly to Y; therefore, we want a vector Y − Ŷ that is perpendicular to the vector Ŷ. Recall from linear algebra that two vectors are perpendicular, or orthogonal, if their dot-product is 0. Noting that the dot-product between two vectors, v and w, can be written as dot(v,w) = vT w, we can state that Ŷ and Y − Ŷ are perpendicular if dot(Ŷ,Y − Ŷ) = 0; therefore, ŶT (Y − Ŷ) = 0, which is equivalent to (Aβ)T (Y − Aβ) = 0.
- 288. 16.3 LEAST SQUARES REGRESSION DERIVATION (MULTIVARIATE CALCULUS) 281 FIGURE 16.1 Illustration of the L2 projection of Y on the range of A. Noting that for the two matrices A and B we have (AB)T = BT AT and using distributive proper- ties of vector multiplication, this is equivalent to βT AT Y − βT AT Aβ = βT (AT Y − AT Aβ) = 0. The solution, β = 0, is a trivial solution, so we use AT Y − AT Aβ = 0 to find a more interesting solution. Solving this equation for β gives the least squares regression formula: β = (AT A)−1 AT Y. Note that (AT A)−1AT is called the pseudo-inverse of A and it exists when m n and A has linearly independent columns. Proving the invertibility of (AT A) is outside the scope of this book, but it is always invertible except for some specific cases. 16.3 LEAST SQUARES REGRESSION DERIVATION (MULTIVARIATE CALCULUS) Recall that the total error for m data points and n basis functions is: E = m i=1 e2 i = m i=1 (ŷ(xi) − yi)2 = m i=1 ⎛ ⎝ n j=1 αj fj (xi) − yi ⎞ ⎠ 2 , which is an n-dimensional paraboloid in αk. From calculus, we know that the minimum of a paraboloid is where all the partial derivatives equal zero. Taking the partial derivative of E with respect to the variable αk (remember that in this case the parameters are our variables) and setting these derivatives equal to 0, and then solving the system of equations for the αk’s should give the correct results. Computing the partial derivative with respect to αk and setting it equal to zero yields ∂E ∂αk = m i=1 2 ⎛ ⎝ n j=1 αj fj (xi) − yi ⎞ ⎠fk(xi) = 0.
- 289. 282 CHAPTER 16 LEAST SQUARES REGRESSION With some rearrangement, the previous expression can be manipulated as follows: m i=1 n j=1 αj fj (xi)fk(xi) − m i=1 yifk(xi) = 0, and upon further rearrangement (we take advantage of the fact that addition commutes) the result is n j=1 αj m i=1 fj (xi)fk(xi) = m i=1 yifk(xi). Now let X be a column vector such that the ith element of X is xi and Y similarly constructed, and let Fj (X) be a column vector such that the ith element of Fj (X) is fj (xi). Using this notation, the previous expression can be rewritten in vector notation as FT k (X)F1(X),FT k (X)F2(X),...,FT k (X)Fj (X),...,FT k (X)Fn(X) ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ α1 α2 . . . αj . . . αn ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ = FT k (X)Y. If we repeat this equation for every k, we get the following system of linear equations in matrix form: ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ FT 1 (X)F1(X),FT 1 (X)F2(X),...,FT 1 (X)Fj (X),...,FT 1 (X)Fn(X) FT 2 (X)F1(X),FT 2 (X)F2(X),...,FT 2 (X)Fj (X),...,FT 2 (X)Fn(X) . . . FT n (X)F1(X),FT n (X)F2(X),...,FT n (X)Fj (X),...,FT n (X)Fn(X) ⎤ ⎥ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ α1 α2 . . . αj . . . αn ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎢ ⎣ FT 1 (X)Y FT 2 (X)Y . . . FT n (X)Y ⎤ ⎥ ⎥ ⎥ ⎥ ⎦ . If we let A = [F1(X),F2(X),...,Fj (X),...,Fn(X)] and β be a column vector such that the jth element of β is αj , then the previous system of equations becomes AT Aβ = AT Y, and then solving this matrix equation for β gives β = (AT A)−1AT Y, which is exactly the same formula as the previous derivation.
- 290. 16.4 LEAST SQUARES REGRESSION IN PYTHON 283 16.4 LEAST SQUARES REGRESSION IN PYTHON Recall that enumerating the estimation of the data at each data point, xi, will give us the following system of equations: ŷ(x1) = α1f1(x1) + α2f2(x1) + ··· + αnfn(x1), ŷ(x2) = α1f1(x2) + α2f2(x2) + ··· + αnfn(x2), ··· ŷ(xm) = α1f1(xm) + α2f2(xm) + ··· + αnfn(xm). If the data were absolutely perfect (i.e., no noise), then the estimation function would go through all the data points, resulting in the following system of equations: y1 = α1f1(x1) + α2f2(x1) + ··· + αnfn(x1), y2 = α1f1(x2) + α2f2(x2) + ··· + αnfn(x2), ··· ym = α1f1(xm) + α2f2(xm) + ··· + αnfn(xm). If we were to take A as defined previously, this would result in the matrix equation Y = Aβ. Because the data is not perfect, there will not be an estimation function that can go through all the data points, and this system will have no solution. Therefore, we need to use the least square regression that we derived in the previous two sections to obtain a solution: β = (AT A)−1 AT Y. TRY IT! Consider the artificial data created by x = np.linspace(0, 1, 101) and y = 1 + x + x * np.random.random(len(x)). Do a least squares regression with an estimation function defined by ŷ = α1x + α2. Plot the data points along with the least squares regression. Note that we expect α1 = 1.5 and α2 = 1.0 based on this data. Due to the random noise we added into the data, your results maybe slightly different. In the next few subsections, we will see how we solve this problem using different approaches. 16.4.1 USING THE DIRECT INVERSE METHOD In [1]: import numpy as np from scipy import optimize import matplotlib.pyplot as plt plt.style.use(seaborn-poster)
- 291. 284 CHAPTER 16 LEAST SQUARES REGRESSION In [2]: # generate x and y x = np.linspace(0, 1, 101) y = 1 + x + x * np.random.random(len(x)) In [3]: # assemble matrix A A = np.vstack([x, np.ones(len(x))]).T # turn y into a column vector y = y[:, np.newaxis] In [4]: # Direct least squares regression alpha = np.dot((np.dot(np.linalg.inv(np.dot(A.T,A)),A.T)),y) print(alpha) [[1.459573 ] [1.02952189]] In [5]: # plot the results plt.figure(figsize = (10,8)) plt.plot(x, y, b.) plt.plot(x, alpha[0]*x + alpha[1], r) plt.xlabel(x) plt.ylabel(y) plt.show() Python has several packages and functions that can perform a least squares regression. These in- clude NumPy, SciPy, statsmodels, and sklearn. Below are several examples of such applications. Feel free to choose the one you like.
- 292. 16.4 LEAST SQUARES REGRESSION IN PYTHON 285 16.4.2 USING THE PSEUDO-INVERSE We mentioned earlier that the matrix (AT A)−1AT is called the pseudo-inverse, therefore, we can use the pinv function in NumPy to calculate it directly. In [6]: pinv = np.linalg.pinv(A) alpha = pinv.dot(y) print(alpha) [[1.459573 ] [1.02952189]] 16.4.3 USING NUMPY.LINALG.LSTSQ NumPy has already implemented the least squares methods, so we can just call the function to get a solution. The function will return more data than the solution itself; please check the documentation for details. In [7]: alpha = np.linalg.lstsq(A, y, rcond=None)[0] print(alpha) [[1.459573 ] [1.02952189]] 16.4.4 USING OPTIMIZE.CURVE_FIT FROM SCIPY This SciPy function is very powerful. It is not only suitable for linear functions, but many different function forms as well, such as nonlinear functions. Here we will only show the linear example from above. Note that, when using this function, we do not need to turn y into a column vector. In [8]: # generate x and y x = np.linspace(0, 1, 101) y = 1 + x + x * np.random.random(len(x)) In [9]: def func(x, a, b): y = a*x + b return y alpha=optimize.curve_fit(func, xdata=x, ydata=y)[0] print(alpha) [1.44331612 1.0396133 ]
- 293. 286 CHAPTER 16 LEAST SQUARES REGRESSION 16.5 LEAST SQUARES REGRESSION FOR NONLINEAR FUNCTIONS A least squares regression requires that the estimation function be a linear combination of basis func- tions. There are some functions that cannot be put in this form, but where a least squares regression is still appropriate. Introduced below are several ways to deal with nonlinear functions. • We can accomplish this by taking advantage of the properties of logarithms and transform the non- linear function into a linear function. • We can use the curve_fit function from SciPy to estimate directly the parameters for the nonlinear function using least square. 16.5.1 LOG TRICKS FOR EXPONENTIAL FUNCTIONS Assume you have a function in the form ŷ(x) = αeβx and data for x and y, and that you want to perform least squares regression to find α and β. Clearly, the previous set of basis functions (linear) would be inappropriate to describe ŷ(x); however, if we take the log of both sides, we get log(ŷ(x)) = log(α) + βx. Now, we see that if ỹ(x) = log(ŷ(x)) and α̃ = log(α), then ỹ(x) = α̃ + βx. Thus, we can perform a least squares regression on the linearized expression to find ỹ(x),α̃, and β, and then recover α by using the expression α = eα̃. For the example below, we will generate data using α = 0.1 and β = 0.3. In [1]: import numpy as np from scipy import optimize import matplotlib.pyplot as plt plt.style.use(seaborn-poster) In [2]: # let’s generate x and y, and add some noise into y x = np.linspace(0, 10, 101) y = 0.1*np.exp(0.3*x) + 0.1*np.random.random(len(x)) In [3]: # Let’s have a look of the data plt.figure(figsize = (10,8)) plt.plot(x, y, b.) plt.xlabel(x) plt.ylabel(y) plt.show()
- 294. 16.5 LEAST SQUARES REGRESSION FOR NONLINEAR FUNCTIONS 287 Once the log trick has been applied, we can fit the data. In [4]: A = np.vstack([x, np.ones(len(x))]).T beta, log_alpha = np.linalg.lstsq(A, np.log(y), rcond = None)[0] alpha = np.exp(log_alpha) print(falpha={alpha}, beta={beta}) alpha=0.13973103064296616, beta=0.26307478591152406 In [5]: # Let’s have a look of the data plt.figure(figsize = (10,8)) plt.plot(x, y, b.) plt.plot(x, alpha*np.exp(beta*x), r) plt.xlabel(x) plt.ylabel(y) plt.show()
- 295. 288 CHAPTER 16 LEAST SQUARES REGRESSION 16.5.2 LOG TRICKS FOR POWER FUNCTIONS The power function case is very similar. Assume we have a function in the form ŷ(x) = bxm and data for x and y. Then we can turn this function into a linear form by taking log to both sides: log(ŷ(x)) = mlog(x) + logb, solving this function as a linear regression. Since it is very similar to the above example, we will not devote any more time on this. 16.5.3 POLYNOMIAL REGRESSION We can also use polynomial and least squares to fit a nonlinear function. Previously, we had our func- tions all in linear form, that is, y = ax + b. But “polynomials” are functions with the following form: f (x) = anxn + an−1xn−1 + ··· + a2x2 + a1x1 + a0 where an,an−1,...,a2,a1,a0 are the real number coefficients, and n, a non-negative integer, is the order or degree of the polynomial. If we have a set of data points, we can use different orders of polynomials to fit it. The coefficients of the polynomials can be estimated using the least squares method as before, i.e., minimizing the error between the real data and the polynomial fitting results. In Python, we can use numpy.polyfit to obtain the coefficients of different order polynomials with the least squares. With the coefficients, we can get the specific values using numpy.polyval. Below is an example of how to perform this in Python. In [6]: x_d = np.array([0, 1, 2, 3, 4, 5, 6, 7, 8]) y_d=np.array([0,0.8,0.9,0.1,-0.6,-0.8,-1,-0.9,-0.4]) plt.figure(figsize = (12, 8)) for i in range(1, 7):
- 296. 16.5 LEAST SQUARES REGRESSION FOR NONLINEAR FUNCTIONS 289 # get the polynomial coefficients y_est = np.polyfit(x_d, y_d, i) plt.subplot(2,3,i) plt.plot(x_d, y_d, o) # evaluate the values for a polynomial plt.plot(x_d, np.polyval(y_est, x_d)) plt.title(fPolynomial order {i}) plt.tight_layout() plt.show() The figure above shows that we can use different orders of polynomials to fit the same data. The higher the order, the more flexible the data curve required to fit the data. But what order to use is not a simple question, it depends on the specific problems in science and engineering. 16.5.4 USING OPTIMIZE.CURVE_FIT FROM SCIPY We can use the curve_fit function to fit any form function and estimate its parameters. We can solve the above problem using the curve_fit function as follows: In [7]: # let’s define the function form def func(x, a, b): y = a*np.exp(b*x) return y alpha, beta = optimize.curve_fit(func, xdata = x, ydata = y)[0] print(falpha={alpha}, beta={beta}) alpha=0.12663549356730994, beta=0.27760076897453045
- 297. 290 CHAPTER 16 LEAST SQUARES REGRESSION In [8]: # Let’s have a look of the data plt.figure(figsize = (10,8)) plt.plot(x, y, b.) plt.plot(x, alpha*np.exp(beta*x), r) plt.xlabel(x) plt.ylabel(y) plt.show() 16.6 SUMMARY AND PROBLEMS 16.6.1 SUMMARY 1. Mathematical models are used to understand, predict, and control engineering systems. These mod- els consist of parameters that govern the way the model behaves. 2. Given a set of experimental data, a least squares regression is a method of finding a set of model parameters that fits the data well. That is, it minimizes the squared error between the model, or estimation function, and the data points. 3. In a linear least squares regression, the estimation function must be a linear combination of linearly independent basis functions. 4. The set of parameters β can be determined by the least squares equation β = (AT A)−1AT Y, where the jth column of A is the jth basis function evaluated at each X data point. 5. To estimate a nonlinear function, we transform it into a linear estimation function or use directly a least squares regression to solve the nonlinear function using curve_fit from SciPy.
- 298. 16.6 SUMMARY AND PROBLEMS 291 16.6.2 PROBLEMS 1. Repeat the multivariate calculus derivation of the least squares regression formula for an estimation function ŷ(x) = ax2 + bx + c, where a,b, and c are the parameters. 2. Write a function my_ls_params(f, x, y) where x and y are arrays of the same size containing experimental data, and f is a list with each element a function object to a basis vector of the estima- tion function. The output argument, beta, should be an array of the parameters of the least squares regression for x, y, and f. 3. Write a function my_func_fit (x,y) where x and y are column vectors of the same size containing experimental data, and the function returns alpha and beta are the parameters of the estimation function ŷ(x) = αxβ. 4. Given four data points (xi,yi) and the parameters for a cubic polynomial ŷ(x) = ax3 + bx2 + cx + d, what will be the total error associated with the estimation function ŷ(x)? Can we place another data point (x,y) such that no additional error is incurred for the estimation function? 5. Write a function my_lin_regression(f, x, y) where f is a list containing function objects to basis functions, and x and y are arrays containing noisy data. Assume that x and y are the same size. Let an estimation function for the data contained in x and y be defined as ŷ(x) = β(1) · f1(x) + β(2) · f2(x) + ··· + β(n) · fn(x), where n is the length of f. Your function should compute beta according to the least squares regression formula. Test Case: Note that your solution may vary by a little bit, depending on the random numbers generated. x = np.linspace(0, 2*np.pi, 1000) y = 3*np.sin(x) - 2*np.cos(x) + np.random.random(len(x)) f = [np.sin, np.cos] beta = my_lin_regression(f, x, y) plt.figure(figsize = (10,8)) plt.plot(x,y,b., label = data) plt.plot(x, beta[0]*f[0](x)+beta[1]*f[1](x)+beta[2], r, label=regression) plt.xlabel(x) plt.ylabel(y) plt.title(Least Square Regression Example) plt.legend() plt.show()
- 299. 292 CHAPTER 16 LEAST SQUARES REGRESSION 6. Write a function my_exp_regression (x,y) where x and y are arrays of the same size. Let an estimation function for the data contained in x and y be defined as ŷ(x) = αeβx. Your func- tion should compute α and β to solve the least squares regression formula. Test Cases: Note that your solution may vary slightly from the test case, depending on the random numbers generated. x = np.linspace(0, 1, 1000) y = 2*np.exp(-0.5*x) + 0.25*np.random.random(len(x)) alpha, beta = my_exp_regression(x, y) plt.figure(figsize = (10,8)) plt.plot(x,y,b., label = data) plt.plot(x, alpha*np.exp(beta*x), r, label=regression) plt.xlabel(x) plt.ylabel(y) plt.title(Least Square Regression on Exponential Model) plt.legend() plt.show()
- 300. 16.6 SUMMARY AND PROBLEMS 293
- 301. 17 INTERPOLATION 17.1 Interpolation Problem Statement ................................................................................. 295 17.2 Linear Interpolation ................................................................................................. 296 17.3 Cubic Spline Interpolation ......................................................................................... 297 17.4 Lagrange Polynomial Interpolation............................................................................... 301 17.4.1 Using the Lagrange Function From SciPy ...................................................... 304 17.5 Newton’s Polynomial Interpolation ............................................................................... 305 17.6 Summary and Problems ............................................................................................ 308 17.6.1 Summary............................................................................................ 308 17.6.2 Problems ............................................................................................ 309 17.1 INTERPOLATION PROBLEM STATEMENT Assume we have a dataset consisting of independent data values, xi, and dependent data values, yi, where i = 1,...,n. We would like to find an estimation function ŷ(x) such that ŷ(xi) = yi for every point in our dataset. This means the estimation function goes through our data points. Given a new x∗, we can interpolate its function value using ŷ(x∗). In this context, ŷ(x) is called an interpolation function. Fig. 17.1 shows the interpolation problem statement. FIGURE 17.1 Illustration of the interpolation problem: estimate the value of a function in-between data points. Unlike regression, interpolation does not require the user to have an underlying model for the data, especially when there are many reliable data points. However, the processes that underly the data must still inform the user about the quality of the interpolation. For example, our data may consist of (x,y)
- 302. 296 CHAPTER 17 INTERPOLATION coordinates of a car over time. Since motion is restricted to the maneuvering physics of the car, we can expect that the points between the (x,y) coordinates in our set will be “smooth” rather than jagged. The following sections will present several common interpolation methods. 17.2 LINEAR INTERPOLATION In linear interpolation, the estimated point is assumed to lie on the line joining the nearest points to the left and right. Assume, without loss of generality, that the x-data points are in ascending order, that is, xi xi+1, and let x be a point such that xi x xi+1. Then the linear interpolation at x is ŷ(x) = yi + (yi+1 − yi)(x − xi) (xi+1 − xi) . TRY IT! Find the linear interpolation at x = 1.5 based on the data x = [0, 1, 2], y = [1, 3, 2]. Verify the result using SciPy’s function interp1d. Since 1 x 2, we use the second and third data points to compute the linear interpolation. Plugging in the corresponding values gives ŷ(x) = yi + (yi+1 − yi)(x − xi) (xi+1 − xi) = 3 + (2 − 3)(1.5 − 1) (2 − 1) = 2.5. In [1]: from scipy.interpolate import interp1d import matplotlib.pyplot as plt plt.style.use(seaborn-poster) In [2]: x = [0, 1, 2] y = [1, 3, 2] f = interp1d(x, y) y_hat = f(1.5) print(y_hat) 2.5 In [3]: plt.figure(figsize = (10,8)) plt.plot(x, y, -ob) plt.plot(1.5, y_hat, ro) plt.title(Linear Interpolation at x = 1.5) plt.xlabel(x)
- 303. 17.3 CUBIC SPLINE INTERPOLATION 297 plt.ylabel(y) plt.show() 17.3 CUBIC SPLINE INTERPOLATION In cubic spline interpolation (as shown in the following figure), the interpolation function is a set of piecewise cubic functions. Specifically, we assume that the points (xi,yi) and (xi+1,yi+1) are joined by a cubic polynomial Si(x) = aix3 + bix2 + cix + di that is valid for xi ≤ x ≤ xi+1 for i = 1,...,n − 1. To find the interpolation function, we must first determine the coefficients ai,bi,ci,di for each of the cubic functions. For n points, there are n − 1 cubic functions to find, and each cubic function requires four coefficients. Therefore we have a total of 4(n − 1) unknowns, and so we need 4(n − 1) independent equations to find all the coefficients. First, the cubic functions must intersect the data the points on the left and the right: Si(xi) = yi, i = 1,...,n − 1, Si(xi+1) = yi+1, i = 1,...,n − 1, which gives us 2(n − 1) equations. Next, we want each cubic function to join as smoothly with its neighbors as possible, so we constrain the splines to have continuous first and second derivatives at the data points i = 2,...,n − 1: S i(xi+1) = S i+1(xi+1), i = 1,...,n − 2, S i (xi+1) = S i+1(xi+1), i = 1,...,n − 2, which gives us 2(n − 2) equations.
- 304. 298 CHAPTER 17 INTERPOLATION Two more equations are required to compute the coefficients of Si(x). These last two constraints are arbitrary; they can be chosen to fit the circumstances of the interpolation being performed. A common set of final constraints is to assume that the second derivatives are zero at the endpoints. This means that the curve is a “straight line” at the end points. Explicitly, S 1 (x1) = 0, S n−1(xn) = 0. In Python, we can use SciPy’s function CubicSpline to perform cubic spline interpolation. Note that the above constraints are not the same as those used by SciPy’s CubicSpline as a default for performing cubic splines. There are different ways to add the final two constraints in SciPy by setting the bc_type argument (see help for CubicSpline to learn more). TRY IT! Use CubicSpline to plot the cubic spline interpolation of the dataset x = [0, 1, 2] and y = [1, 3, 2] for 0 ≤ x ≤ 2. In [1]: from scipy.interpolate import CubicSpline import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) In [2]: x = [0, 1, 2] y = [1, 3, 2] # use bc_type = natural adds the constraints f = CubicSpline(x, y, bc_type=natural) x_new = np.linspace(0, 2, 100) y_new = f(x_new) In [3]: plt.figure(figsize = (10,8)) plt.plot(x_new, y_new, b) plt.plot(x, y, ro) plt.title(Cubic Spline Interpolation) plt.xlabel(x) plt.ylabel(y) plt.show()
- 305. 17.3 CUBIC SPLINE INTERPOLATION 299 To determine the coefficients of each cubic function, we write down the constraints explicitly as a system of linear equations with 4(n − 1) unknowns. For n data points, the unknowns are the coefficients ai,bi,ci,di of the cubic spline, Si, joining the points xi and xi+1. For the constraints Si(xi) = yi we have: a1x3 1 + b1x2 1 + c1x1 + d1 = y1, a2x3 2 + b2x2 2 + c2x2 + d2 = y2, ··· an−1x3 n−1 + bn−1x2 n−1 + cn−1xn−1 + dn−1 = yn−1. For the constraints Si(xi+1) = yi+1 we have: a1x3 2 + b1x2 2 + c1x2 + d1 = y2, a2x3 3 + b2x2 3 + c2x3 + d2 = y3, ··· an−1x3 n + bn−1x2 n + cn−1xn + dn−1 = yn. For the constraints S i(xi+1) = S i+1(xi+1) we have: 3a1x2 2 + 2b1x2 + c1 − 3a2x2 2 − 2b2x2 − c2 = 0, 3a2x2 3 + 2b2x3 + c2 − 3a3x2 3 − 2b3x3 − c3 = 0, ··· 3an−2x2 n−1 + 2bn−2xn−1 + cn−2 − 3an−1x2 n−1 − 2bn−1xn−1 − cn−1 = 0.
- 306. 300 CHAPTER 17 INTERPOLATION For the constraints S i (xi+1) = S i+1(xi+1) we have: 6a1x2 + 2b1 − 6a2x2 − 2b2 = 0, 6a2x3 + 2b2 − 6a3x3 − 2b3 = 0, ... 6an−2xn−1 + 2bn−2 − 6an−1xn−1 − 2bn−1 = 0. Finally, for the endpoint constraints S 1 (x1) = 0 and S n−1(xn) = 0, we have: 6a1x1 + 2b1 = 0, 6an−1xn + 2bn−1 = 0. These equations are linear in the unknown coefficients ai,bi,ci, and di. We can put them in matrix form and solve for the coefficients of each spline by left division. Remember that whenever we solve the matrix equation Ax = b for x, we must make sure that A is square and invertible. In the case of finding cubic spline equations, the A matrix is always square and invertible as long as the xi values in the dataset are unique. TRY IT! Find the cubic spline interpolation at x = 1.5 based on the data x = [0, 1, 2], y = [1, 3, 2]. First, we create the appropriate system of equations and find the coefficients of the cubic splines by solving the system in matrix form. The matrix form of the system of equations is ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 0 0 0 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 8 4 2 1 3 2 1 0 −3 −2 −1 0 6 2 0 0 −6 −2 0 0 0 2 0 0 0 0 0 0 0 0 0 0 12 2 0 0 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ a1 b1 c1 d1 a2 b2 c2 d2 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 1 3 3 2 0 0 0 0 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ . In [4]: b = np.array([1, 3, 3, 2, 0, 0, 0, 0]) b = b[:, np.newaxis] A = np.array([[0, 0, 0, 1, 0, 0, 0, 0], [0, 0, 0, 0, 1, 1, 1, 1], [1, 1, 1, 1, 0, 0, 0, 0], [0, 0, 0, 0, 8, 4, 2, 1], [3, 2, 1, 0, -3, -2, -1, 0], [6, 2, 0, 0, -6, -2, 0, 0], [0, 2, 0, 0, 0, 0, 0, 0], [0, 0, 0, 0, 12, 2, 0, 0]])
- 307. 17.4 LAGRANGE POLYNOMIAL INTERPOLATION 301 In [5]: np.dot(np.linalg.inv(A), b) Out[5]: array([[-0.75], [ 0. ], [ 2.75], [ 1. ], [ 0.75], [-4.5 ], [ 7.25], [-0.5 ]]) The two cubic polynomials are S1(x) = −0.75x3 + 2.75x + 1 for 0 ≤ x ≤ 1, and (17.1) S2(x) = 0.75x3 − 4.5x2 + 7.25x − 0.5 for 1 ≤ x ≤ 2. (17.2) So for x = 1.5, we evaluate S2(1.5) and obtain an estimated value of 2.7813. 17.4 LAGRANGE POLYNOMIAL INTERPOLATION Rather than finding cubic polynomials between subsequent pairs of data points, Lagrange polynomial interpolation finds a single polynomial that goes through all the data points. This polynomial is re- ferred to as a Lagrange polynomial, L(x). As an interpolation function, it should have the property L(xi) = yi for every point in the dataset. When computing Lagrange polynomials, it is useful to write them as a linear combination of Lagrange basis polynomials, Pi(x), where Pi(x) = n j=1,j=i x − xj xi − xj , and L(x) = n i=1 yiPi(x). Here, means “the product of” or “multiply out.” Note that, by construction, Pi(x) has the property that Pi(xj ) = 1 when i = j and Pi(xj ) = 0 when i = j. Since L(x) is a sum of these polynomials, observe that L(xi) = yi for every point, exactly as desired.
- 308. 302 CHAPTER 17 INTERPOLATION TRY IT! Find the Lagrange basis polynomials for the dataset x = [0,1,2] and y = [1,3,2]. Plot each polynomial and verify the property that Pi(xj ) = 1 when i = j and Pi(xj ) = 0 when i = j. P1(x) = (x − x2)(x − x3) (x1 − x2)(x1 − x3) = (x − 1)(x − 2) (0 − 1)(0 − 2) = 1 2 (x2 − 3x + 2), P2(x) = (x − x1)(x − x3) (x2 − x1)(x2 − x3) = (x − 0)(x − 2) (1 − 0)(1 − 2) = −x2 + 2x, P3(x) = (x − x1)(x − x2) (x3 − x1)(x3 − x2) = (x − 0)(x − 1) (2 − 0)(2 − 1) = 1 2 (x2 − x). In [1]: import numpy as np import numpy.polynomial.polynomial as poly import matplotlib.pyplot as plt plt.style.use(seaborn-poster) In [2]: x = [0, 1, 2] y = [1, 3, 2] P1_coeff = [1,-1.5,.5] P2_coeff = [0, 2,-1] P3_coeff = [0,-.5,.5] # get the polynomial function P1 = poly.Polynomial(P1_coeff) P2 = poly.Polynomial(P2_coeff) P3 = poly.Polynomial(P3_coeff) x_new = np.arange(-1.0, 3.1, 0.1) fig = plt.figure(figsize = (10,8)) plt.plot(x_new, P1(x_new), b, label = P1) plt.plot(x_new, P2(x_new), r, label = P2) plt.plot(x_new, P3(x_new), g, label = P3) plt.plot(x, np.ones(len(x)), ko, x,np.zeros(len(x)), ko) plt.title(Lagrange Basis Polynomials) plt.xlabel(x) plt.ylabel(y) plt.grid() plt.legend() plt.show()
- 309. 17.4 LAGRANGE POLYNOMIAL INTERPOLATION 303 TRY IT! Using the previous example, compute and plot the Lagrange polynomial. Verify that it goes through each of the data points. In [3]: L = P1 + 3*P2 + 2*P3 fig = plt.figure(figsize = (10,8)) plt.plot(x_new, L(x_new), b, x, y, ro) plt.title(Lagrange Polynomial) plt.grid() plt.xlabel(x) plt.ylabel(y) plt.show()
- 310. 304 CHAPTER 17 INTERPOLATION WARNING! Lagrange interpolation polynomials are defined outside the area of interpolation, that is, outside of the interval [x1,xn], and will grow very fast and unbounded outside this region. This is not a desirable feature because, in general, this does not agree with the behavior of the underlying data. Thus, Lagrange interpolation should be used with caution outside the region of interest. 17.4.1 USING THE LAGRANGE FUNCTION FROM SCIPY Instead of calculating everything from scratch, in SciPy we can use the lagrange function directly to interpolate the data. Let us use the above example to illustrate our point. In [4]: from scipy.interpolate import lagrange In [5]: f = lagrange(x, y) In [6]: fig = plt.figure(figsize = (10,8)) plt.plot(x_new, f(x_new), b, x, y, ro) plt.title(Lagrange Polynomial) plt.grid() plt.xlabel(x) plt.ylabel(y) plt.show()
- 311. 17.5 NEWTON’S POLYNOMIAL INTERPOLATION 305 17.5 NEWTON’S POLYNOMIAL INTERPOLATION Newton’s polynomial interpolation is another popular way to exactly fit a set of data points. The general form of the (n − 1)th order Newton’s polynomial that goes through n points is f (x) = a0 + a1(x − x0) + a2(x − x0)(x − x1) + ··· + an(x − x0)(x − x1)···(x − xn), which can be rewritten as f (x) = n i=0 aini(x) where ni(x) = i−1 j=0 (x − xj ). The special feature of the Newton’s polynomial is that the coefficients ai can be determined using a very simple mathematical procedure. For example, since the polynomial goes through each data point, for a data point (xi,yi), we will have f (xi) = yi, thus we have f (x0) = a0 = y0 and f (x1) = a0 + a1(x1 − x0) = y1. If we rearrange it to obtain a1, we have a1 = y1 − y0 x1 − x0 .
- 312. 306 CHAPTER 17 INTERPOLATION If we insert data point (x2,y2), we can calculate a2, and it becomes a2 = y2−y1 x2−x1 − y1−y0 x1−x0 x2 − x0 . Let us do one more data point (x3,y3) to calculate a3. After inserting the data point into the equa- tion, we obtain a3 = y3−y2 x3−x2 − y2−y1 x2−x1 x3−x1 − y2−y1 x2−x1 − y1−y0 x1−x0 x2−x0 x3 − x0 . See the patterns? These are called divided differences. If we define f [x1,x0] = y1 − y0 x1 − x0 , then f [x2,x1,x0] = y2−y1 x2−x1 − y1−y0 x1−x0 x2 − x0 = f [x2,x1] − f [x1,x0] x2 − x1 . If we continue write this out, we will obtain the following iteration equation: f [xk,xk−1,...,x1,x0] = f [xk,xk−1,...,x2,x2] − f [xk−1,xk−2,...,x1,x0] xk − x0 . The advantage of using this method is that once the coefficients are determined, adding new data points will not change the previously calculated coefficient; we only need to calculate the higher dif- ferences in the same manner. The whole procedure for finding these coefficients can be summarized into a divided difference table. An example using five data points is shown below: x0 y0 f [x1,x0] x1 y1 f [x2,x1,x0] f [x2,x1] f [x3,x2,x1,x0] x2 y2 f [x3,x2,x1] f [x4,x3,x2,x1,x0] f [x3,x2] f [x4,x3,x2,x1] x3 y3 f [x4,x3,x2] f [x4,x3] x4 y4 Each element in the table can be calculated using the two previous elements (to the left). In reality, we can calculate all elements and store them in a diagonal matrix–that is, as the coefficient matrix–
- 313. 17.5 NEWTON’S POLYNOMIAL INTERPOLATION 307 which can be written as y0 f [x1,x0] f [x2,x1,x0] f [x3,x2,x1,x0] f [x4,x3,x2,x1,x0] y1 f [x2,x1] f [x3,x2,x1] f [x4,x3,x2,x1] 0 y2 f [x3,x2] f [x4,x3,x2] 0 0 y3 f [x4,x3] 0 0 0 y4 0 0 0 0 Note that the first row in the matrix is actually all the coefficients that we need, i.e., a0,a1,a2,a3, and a4. Shown below is an example of how to do this. TRY IT! Calculate the divided difference table for x = [-5, -1, 0, 2], y = [-2, 6, 1, 3]. In [1]: import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline In [2]: def divided_diff(x, y): function to calculate the divided difference table n = len(y) coef = np.zeros([n, n]) # the first column is y coef[:,0] = y for j in range(1,n): for i in range(n-j): coef[i][j] = (coef[i+1][j-1]-coef[i][j-1])/(x[i+j]-x[i]) return coef def newton_poly(coef, x_data, x): evaluate the Newton polynomial at x n = len(x_data) - 1 p = coef[n]
- 314. 308 CHAPTER 17 INTERPOLATION for k in range(1,n+1): p = coef[n-k] + (x -x_data[n-k])*p return p In [3]: x = np.array([-5, -1, 0, 2]) y = np.array([-2, 6, 1, 3]) # get the divided difference coef a_s = divided_diff(x, y)[0, :] # evaluate on new data points x_new = np.arange(-5, 2.1, .1) y_new = newton_poly(a_s, x, x_new) plt.figure(figsize = (12, 8)) plt.plot(x, y, bo) plt.plot(x_new, y_new) Out[3]: [matplotlib.lines.Line2D at 0x11bd4e630] We can see that the Newton’s polynomial goes through all the data points and fits the data. 17.6 SUMMARY AND PROBLEMS 17.6.1 SUMMARY 1. Given a set of reliable data points, interpolation is a method of estimating dependent variable values for independent variable values not in the dataset. 2. Linear, Cubic Spline, Lagrange, and Newton’s polynomial interpolation are common interpolation methods.
- 315. 17.6 SUMMARY AND PROBLEMS 309 17.6.2 PROBLEMS 1. Write a function my_lin_interp(x, y, X) where x and y are arrays that contain experimental data points, and X is an array. Assume that x and X are in ascending order and have unique elements. The output argument, Y, should be an array the same size as X, where Y[i] is the linear interpolation of X[i]. Do not use interp from NumPy or interp1d from SciPy. 2. Write a function my_cubic_spline(x, y, X) where x and y are arrays that contain experimental data points, and X is an array. Assume that x and X are in ascending order and have unique ele- ments. The output argument, Y, should be an array the same size as X, where Y[i] is cubic spline interpolation of X[i]. Do not use interp1d or CubicSpline. 3. Write a function my_nearest_neighbor(x, y, X) where x and y are arrays that contain experi- mental data points, and X is an array. Assume that x and X are in ascending order and have unique elements. The output argument, Y, should be an array the same size as X, where Y[i] is the near- est neighbor interpolation of X[i]. That is, Y[i] should be the y[j] where x[j] is the closest independent data point of X[i]. Do not use interp1d from SciPy. 4. Think of a circumstance where using the nearest neighbor interpolation would be superior to cubic spline interpolation. 5. Write a function my_cubic_spline_flat(x, y, X) where x and y are arrays that contain experi- mental data points, and X is an array. Assume that x and X are in ascending order and have unique elements. The output argument, Y, should be an array the same size as X, where Y[i] is the cubic spline interpolation of X[i]. Instead of the constraints introduced previously, use S 1(x1) = 0 and S n−1(xn) = 0. 6. Write a function my_quintic_spline(x, y, X) where x and y are arrays that contain experimental data points, and X is an array. Assume that x and X are in ascending order and have unique elements. The output argument, Y, should be an array the same size as X, where Y[i] is the quintic spline interpolation of X[i]. You will need to use additional endpoint constraints to come up with enough constraints. You may use endpoint constraints at your discretion. 7. Write a function my_interp_plotter(x, y, X, option) where x and y are arrays containing experimental data points, and X is an array that contains the coordinates for which an interpolation is desired. The input argument option should be a string, either “linear,” “spline,” or “nearest.” Your function should produce a plot of the data points (x,y) marked as red circles. The points (X,Y), where X is the input and Y is the interpolation at the points contained in X defined by the input argument specified by option. The points (X,Y) should be connected by a blue line. Be sure to include the title, axis labels, and a legend. Hint: You should use interp1d from SciPy, and checkout the kind option. Test cases: x = np.array([0, .1, .15, .35, .6, .7, .95, 1]) y=np.array([1,0.8187,0.7408,0.4966,0.3012,0.2466,0.1496,0.1353]) my_interp_plotter(x, y, np.linspace(0, 1, 101), nearest)
- 316. 310 CHAPTER 17 INTERPOLATION my_interp_plotter(x, y, np.linspace(0, 1, 101), linear) my_interp_plotter(x, y, np.linspace(0, 1, 101), cubic)
- 317. 17.6 SUMMARY AND PROBLEMS 311 8. Write a function my_D_cubic_spline(x, y, X, D), where the output Y is the cubic spline in- terpolation at X taken from the data points contained in x and y. Instead of the standard pinned endpoint conditions (i.e., S 1 (x1) = 0 and S n−1(xn) = 0), use the endpoint conditions S 1(x1) = D and S n−1(xn) = D (i.e., the slopes of the interpolating polynomials at the endpoints are D). Test cases: x = [0, 1, 2, 3, 4] y = [0, 0, 1, 0, 0] X = np.linspace(0, 4, 101) # Solution: Y = 0.54017857 Y = my_D_cubic_spline(x, y, 1.5, 1) plt.figure(figsize = (10, 8)) plt.subplot(221) plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, 0), b) plt.subplot(222) plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, 1), b) plt.subplot(223) plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, -1), b) plt.subplot(224) plt.plot(x, y, ro, X, my_D_cubic_spline(x, y, X, 4), b) plt.tight_layout() plt.show()
- 318. 312 CHAPTER 17 INTERPOLATION 9. Write a function my_lagrange(x, y, X) where the output Y is the Lagrange interpolation of the data points contained in x and y computed at X. Hint: Use a nested for-loop, where the inner for-loop computes the product for the Lagrange basis polynomial and the outer loop computes the sum for the Lagrange polynomial. Don’t use the existing lagrange function from SciPy. Test cases: x = [0, 1, 2, 3, 4] y = [2, 1, 3, 5, 1] X = np.linspace(0, 4, 101) plt.figure(figsize = (10,8 )) plt.plot(X, my_lagrange(x, y, X), b, label = interpolation) plt.plot(x, y, ro, label = data points) plt.xlabel(x) plt.ylabel(y) plt.title(fLagrange Interpolation of Data Points) plt.legend() plt.show()
- 319. 17.6 SUMMARY AND PROBLEMS 313 10. Fit the data x = [0, 1, 2, 3, 4], y = [2, 1, 3, 5, 1] using Newton’s polynomial interpolation.
- 320. 18 TAYLOR SERIES 18.1 Expressing Functions Using a Taylor Series .................................................................... 315 18.2 Approximations Using Taylor Series ............................................................................. 316 18.3 Discussion About Errors............................................................................................ 320 18.3.1 Truncation Errors for Taylor Series .............................................................. 320 18.3.2 Estimating Truncation Errors..................................................................... 321 18.3.3 Round-Off Errors for Taylor Series............................................................... 322 18.4 Summary and Problems ............................................................................................ 323 18.4.1 Summary............................................................................................ 323 18.4.2 Problems ............................................................................................ 323 18.1 EXPRESSING FUNCTIONS USING A TAYLOR SERIES A sequence is an ordered set of numbers denoted by the list of numbers inside parentheses. For ex- ample, s = (s1,s2,s3,...) means s is the sequence s1,s2,s3,..., and so on. In this context, “ordered” means that s1 comes before s2, not that s1 s2. Many sequences have a more complicated structure. For example, s = (n2,n ∈ N) is the sequence 0, 1, 4, 9, ... A series is the sum of a sequence up to a certain element. An infinite sequence is a sequence with an infinite number of terms, and an infinite series is the sum of an infinite sequence. A Taylor series expansion is a representation of a function by an infinite series of polynomials around a point. Mathematically, the Taylor series of a function, f (x), is defined as f (x) = ∞ n=0 f (n)(a)(x − a)n n! , where f (n) is the nth derivative of f and f (0) is the function f . TRY IT! Compute a Taylor series expansion for f (x) = 5x2 + 3x + 5 around a = 0, and a = 1. Verify that f and its Taylor series expansions are identical.
- 321. 316 CHAPTER 18 TAYLOR SERIES First compute derivatives analytically: f (x) = 5x2 + 3x + 5, f (x) = 10x + 3, f (x) = 10. Around a = 0: f (x) = 5x0 0! + 3x1 1! + 10x2 2! + 0 + 0 + ··· = 5x2 + 3x + 5. Around a = 1: f (x) = 13(x − 1)0 0! + 13(x − 1)1 1! + 10(x − 1)2 2! + 0 + ··· = 13 + 13x − 13 + 5x2 − 10x + 5 = 5x2 + 3x + 5. Note that a Taylor series expansion of any polynomial has finitely many terms because the nth derivative of any polynomial is zero when n is large enough. TRY IT! Write Taylor series for sin(x) around the point a = 0. Let f (x) = sin(x). According to Taylor series expansion, f (x) = sin(0) 0! x0 + cos(0) 1! x1 + −sin(0) 2! x2 + −cos(0) 3! x3 + sin(0) 4! x4 + cos(0) 5! x5 + ··· . The expansion can be written compactly by the formula f (x) = ∞ n=0 (−1)nx2n+1 (2n + 1)! , which ignores the terms that contain sin(0) (i.e., the even terms). Because these terms are ignored, the terms in this series and the proper Taylor series expansion agree after renumbering. For ex- ample, the n = 0 term in the formula is the n = 1 term in the Taylor series, and the n = 1 term in the formula is the n = 3 term in the Taylor series. 18.2 APPROXIMATIONS USING TAYLOR SERIES Clearly, it is not useful to express functions as infinite sums because we cannot compute them. That said, it is often useful to approximate functions by using an Nth order Taylor series approximation of a function, which is a truncation of its Taylor expansion at some n = N. This technique is especially powerful especially when there is a point around which we have knowledge about a function and all its
- 322. 18.2 APPROXIMATIONS USING TAYLOR SERIES 317 derivatives. For example, if we take the Taylor expansion of ex around a = 0, then f (n)(a) = 1 for all n, and we do not have to compute the derivatives in the Taylor expansion to approximate ex! TRY IT! Use Python to plot the sin function along with the first, third, fifth, and seventh order Taylor series approximations. Note that this involves the zeroth to third terms in the formula given earlier. In [1]: import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) In [2]: x = np.linspace(-np.pi, np.pi, 200) y = np.zeros(len(x)) labels = [First Order, Third Order, Fifth Order, Seventh Order] plt.figure(figsize = (10,8)) for n, label in zip(range(4), labels): y=y+((-1)**n*(x)**(2*n+1))/np.math.factorial(2*n+1) plt.plot(x,y, label = label) plt.plot(x, np.sin(x), k, label = Analytic) plt.grid() plt.title(Taylor Series Approximations of Various Orders) plt.xlabel(x) plt.ylabel(y) plt.legend() plt.show()
- 323. 318 CHAPTER 18 TAYLOR SERIES Obviously, the approximation approaches the analytic function quickly, even for x not near a = 0. Note that in the above code, we also used a new function zip, which allows us to loop through two parameters range(4) and labels to use in our plot. TRY IT! Compute the seventh order Taylor series approximation for sin(x) around a = 0 at x = π/2. Compare the value to the correct value, 1. In [3]: x = np.pi/2 y = 0 for n in range(4): y=y+((-1)**n *(x)**(2*n+1))/np.math.factorial(2*n+1) print(y) 0.9998431013994987 The seventh order Taylor series approximation is very close to the theoretical value of the function even if it is computed far from the point around which the Taylor series was computed (i.e., x = π/2 and a = 0). The most common Taylor series approximation is the first order approximation, or linear approxi- mation. Intuitively, for “smooth” functions the linear approximation of the function around a point, a, is legitimate provided you stay sufficiently close to a. In other words, “smooth” functions look more and more like a line the more you zoom into any point. In the figure below this has been plotted in successive levels of zoom using a smooth function to illustrate the linear nature of functions locally. Linear approximations are useful tools when analyzing “complicated” functions locally.
- 324. 18.2 APPROXIMATIONS USING TAYLOR SERIES 319 In [4]: x = np.linspace(0, 3, 30) y = np.exp(x) plt.figure(figsize = (14, 4.5)) plt.subplot(1, 3, 1) plt.plot(x, y) plt.grid() plt.subplot(1, 3, 2) plt.plot(x, y) plt.grid() plt.xlim(1.7, 2.3) plt.ylim(5, 10) plt.subplot(1, 3, 3) plt.plot(x, y) plt.grid() plt.xlim(1.92, 2.08) plt.ylim(6.6, 8.2) plt.tight_layout() plt.show() TRY IT! Take the linear approximation for ex around point a = 0. Use the linear approximation for ex to approximate the value of e1 and e0.01. Use the NumPy’s function exp to compute exp(1) and exp(0.01) and compare the results. The linear approximation of ex around a = 0 is 1 + x. The NumPy’s exp function gives the following: In [5]: np.exp(1) Out[5]: 2.718281828459045 In [6]: np.exp(0.01) Out[6]: 1.010050167084168
- 325. 320 CHAPTER 18 TAYLOR SERIES The linear approximation of e1 is 2, which is inaccurate, and the linear approximation of e0.01 is 1.01, which is very good. This example illustrates how the linear approximation becomes close to the point from which the approximation is taken. 18.3 DISCUSSION ABOUT ERRORS 18.3.1 TRUNCATION ERRORS FOR TAYLOR SERIES In numerical analysis, there are usually two sources of error, round-off and truncation. The round-off errors are due to the inexactness in the representation of real numbers on a computer and the arithmetic operations performed with them. Refer to Chapter 9 for additional discussion on this type of error. The truncation errors are due to the approximate nature of the method used and usually arise when using an approximation in place of an exact mathematical procedure, e.g., when we used Taylor series to approximate a function. For example, if we use Taylor series to approximate the function ex, we obtain ex = 1 + x + x2 2! + x3 3! + x4 4! + ··· . Since it takes an infinite sequence to approximate the function, using only a few terms will result in an approximation (or truncation) error. For example, if we only use the first four terms to approximate e2, we obtain e2 ≈ 1 + 2 + 22 2! + 23 3! = 6.3333. There is obviously an error associated with such a solution, since we truncated the rest of the terms in the Taylor series. Therefore the function f (x) can be written as the Taylor series approximation plus a truncation error term f (x) = fn(x) + En(x). The more terms we use, the closer the approximation will be to the exact value. Let us use Python to calculate the above example. TRY IT! Approximate e2 using different order Taylor series and print out the results. In [1]: import numpy as np In [2]: exp = 0 x = 2 for i in range(10): exp = exp + (x**i)/np.math.factorial(i) print(fUsing {i}-term, {exp})
- 326. 18.3 DISCUSSION ABOUT ERRORS 321 print(fThe true e^2 is: n{np.exp(2)}) Using 0-term, 1.0 Using 1-term, 3.0 Using 2-term, 5.0 Using 3-term, 6.333333333333333 Using 4-term, 7.0 Using 5-term, 7.266666666666667 Using 6-term, 7.355555555555555 Using 7-term, 7.3809523809523805 Using 8-term, 7.387301587301587 Using 9-term, 7.3887125220458545 The true eˆ2 is: 7.38905609893065 18.3.2 ESTIMATING TRUNCATION ERRORS We can see that the higher the order used to approximate the function at a point, the closer we are to the true value. For each order we choose, there is an error associated with it, and the approximation is only useful if we have an idea of how accurate the approximation is. This is the motivation that we need to understand more about the errors. Using the Taylor series, if we use only the first n terms, we can see that f (x) = fn(x) + En(x) = n k=0 f (k)(a)(x − a)k k! + En(x). The En(x) is the remainder of the Taylor series, or the truncation error that measures how far off the approximation fn(x) is from f (x). We can estimate the error using the Taylor Remainder Estimation Theorem, which states: If the function f (x) has n + 1 derivatives for all x in an interval I containing a, then for each x in I there exists a z between x and a such that En(x) = f (n+1)(z)(x − a)n+1 (n + 1)! . If we know that M is the maximum value of |f (n+1)| in the interval, then we obtain |En(x)| ≤ M|x − a|n+1 (n + 1)! . This provides us with a bound for the truncation error using this theorem. See the example be- low.
- 327. 322 CHAPTER 18 TAYLOR SERIES TRY IT! Estimate the remainder bound for the approximation using Taylor series for e2 using n = 9. To understand the basis of this error, when we use n = 9, we know that (ex) = ex, and a = 0; therefore, the error related to x = 2 is En(x) = f (9+1)(z)(x)(9+1) (9 + 1)! = ez210 10! . Recall that 0 ≤ z ≤ 2, and e 3; therefore, |En(x)| ≤ 32210 10! = 0.00254. If we use Taylor series with n = 9 to approximate e2, our absolute error should be less than 0.00254. We verify this below. In [3]: abs(7.3887125220458545-np.exp(2)) Out[3]: 0.0003435768847959153 18.3.3 ROUND-OFF ERRORS FOR TAYLOR SERIES Numerically, when adding many terms in a sum, we should be mindful of numerical accumulation of errors that is due to floating point round-off errors; see the following example. EXAMPLE: Approximate e−30 using different order Taylor series, and print out the results. In [4]: exp = 0 x = -30 for i in range(200): exp = exp + (x**i)/np.math.factorial(i) print(fUsing {i}-term, our result is {exp}) print(fThe true e^2 is: {np.exp(x)}) Using 199-term, our result is -8.553016433669241e-05 The true eˆ2 is: 9.357622968840175e-14 From the above example, it is clear that our estimation using Taylor series is not close to the true value anymore, no matter how many terms we include into the calculation, which is due to the round-off errors we discussed earlier. To obtain a small result, when using negative large arguments, the Taylor series requires alternating large numbers to cancel out. We need many digits for precision in the series to capture both the large and small numbers with enough remaining digits to get the result in the desired output precision. This is why the program threw an error message in the example above.
- 328. 18.4 SUMMARY AND PROBLEMS 323 18.4 SUMMARY AND PROBLEMS 18.4.1 SUMMARY 1. Some functions can be perfectly represented by a Taylor series, which is an infinite sum of polyno- mials. 2. Functions that have a Taylor series expansion can be approximated by truncating its Taylor series. 3. The linear approximation is a common local approximation for functions. 4. The truncation error can be estimated using the Taylor Remainder Estimation Theorem. 5. Be mindful of the round-off error in the Taylor series. 18.4.2 PROBLEMS 1. Use Taylor series expansions to show that eix = cos(x) + i sin(x), where i = √ −1. 2. Use the linear approximation of sin(x) around a = 0 to show that sin(x) x ≈ 1 for small x. 3. Write the Taylor series expansion for ex2 around a = 0. Write a function my_double_exp(x, n), which computes an approximation of ex2 using the first n terms of the Taylor series expansion. Be sure that my_double_exp can take array inputs. 4. Write a function that gives the Taylor series approximation to the np.exp function around 0 for an order 1 through 7. Calculate the truncation error bound for order 7. 5. Compute the fourth order Taylor expansion for sin(x) and cos(x), and sin(x)cos(x) around 0, which produces a smaller error for x = π/2. Which is correct: computing separately Taylor expansion for sin and cos and then multiplying the result together, or computing the Taylor expansion for the product first and then plugging in x? 6. Use the fourth order Taylor series to approximate cos(0.2) and determine the truncation error bound. 7. Write a function my_cosh_approximator(x, n) where output is the nth order Taylor series approx- imation for cosh(x), the hyperbolic cosine of x taken around a = 0. You may assume that x is an array, and n is a positive integer (including zero). Recall that cosh(x) = (ex + e−x )/2. Warning: The approximations for n = 0 and n = 1 will be equivalent, and the approximations for n = 2 and n = 3 will be equivalent, etc.
- 329. 19 ROOT FINDING 19.1 Root Finding Problem Statement.................................................................................. 325 19.2 Tolerance ............................................................................................................. 326 19.3 Bisection Method.................................................................................................... 327 19.4 Newton–Raphson Method .......................................................................................... 330 19.5 Root Finding in Python.............................................................................................. 332 19.6 Summary and Problems ............................................................................................ 333 19.6.1 Summary............................................................................................ 333 19.6.2 Problems ............................................................................................ 333 19.1 ROOT FINDING PROBLEM STATEMENT The root or zero of a function, f (x), is an xr such that f (xr) = 0. For functions such as f (x) = x2 − 9, the roots are clearly 3 and −3. However, for other functions, such as f (x) = cos(x) − x, determining an analytic or exact solution for the roots of functions can be difficult. For these cases, it is useful to generate numerical approximations of the roots of f and understand their limitations. TRY IT! Use the fsolve function from SciPy to compute the root of f (x) = cos(x) − x near −2. Verify that the solution is a root (or close enough). In [1]: import numpy as np from scipy import optimize f = lambda x: np.cos(x) - x r = optimize.fsolve(f, -2) print(r =, r) # Verify the solution is a root result = f(r) print(result=, result) r = [0.73908513] result= [0.]
- 330. 326 CHAPTER 19 ROOT FINDING TRY IT! The function f (x) = 1 x has no root. Use the fsolve function to try to compute the root of f (x) = 1 x . Turn on the full_output to see what is going on. Check the documentation for details. In [2]: f = lambda x: 1/x r, infodict, ier, mesg = optimize.fsolve(f, -2, full_output=True) print(r =, r) result = f(r) print(result=, result) print(mesg) r = [-3.52047359e+83] result= [-2.84052692e-84] The number of calls to function has reached maxfev = 400. The value r that was returned is not a root, even though the value of f (r) is a very small number. Since we turned on the full_output, we can see more information. A message would have been returned if no solution was found; we can see mesg details for the cause of failure: “The number of calls to function has reached maxfev = 400.” 19.2 TOLERANCE In engineering and science, error is a deviation from an expected or computed value. Tolerance is the level of error that is acceptable for an engineering application. We say that a computer program has converged to a solution when it has found a solution with an error smaller than the tolerance. When computing roots numerically, or conducting any other kind of numerical analysis, it is important to establish both a metric for error and a tolerance that is suitable for a given engineering/science application. For computing roots, we want an xr such that f (xr) is very close to zero. Therefore |f (x)| is a possible choice for the measure of error since the smaller it is, the likelier we are to a root. Also, if we assume that xi is the ith guess of an algorithm for finding a root, then |xi+1 − xi| is another possible choice for measuring the error since we expect improvement between subsequent guesses to diminish as it approaches a solution. As will be demonstrated in the following examples, these different choices have their advantages and disadvantages.
- 331. 19.3 BISECTION METHOD 327 TRY IT! Let the error be measured by e = |f (x)| and tol be the acceptable level of error. The function f (x) = x2 + tol/2 has no real roots. Because |f (0)| = tol/2, it is acceptable as a solution for a root finding program. TRY IT! Let the error be measured by e = |xi+1 − xi| and tol be the acceptable level of error. The function f (x) = 1/x has no real roots, but the guesses xi = −tol/4 and xi+1 = tol/4 have an error of e = tol/2 and are an acceptable solution for a computer program. Based on these observations, the use of tolerance and convergence criteria must be done very care- fully and in the context of the program that uses them. 19.3 BISECTION METHOD The Intermediate Value Theorem says that if f (x) is a continuous function between a and b, and sign(f (a)) = sign(f (b)), then there must be a c, such that a c b and f (c) = 0. This is illustrated in Fig. 19.1. FIGURE 19.1 Illustration of the intermediate value theorem. If sign(f (a)) and sign(f (b)) are not equal, then there exists a c in (a,b) such that f (c) = 0. The bisection method uses the intermediate value theorem iteratively to find roots. Let f (x) be a continuous function, and a and b be real scalar values such that a b. Assume, without loss of generality, that f (a) 0 and f (b) 0. Then, by the intermediate value theorem, there must be a root in the open interval (a,b). Now let m = b+a 2 be the midpoint between and a and b. If f (m) = 0 or is close enough, then m is a root. If f (m) 0, then m is an improvement on the left bound, a, and it is guaranteed that there is a root in the open interval (m,b). If f (m) 0, then m is an improvement on the right bound, b, it is guaranteed that there is a root in the open interval (a,m). This scenario is depicted in Fig. 19.2. The process of updating a and b can be repeated until the error is acceptably low.
- 332. 328 CHAPTER 19 ROOT FINDING FIGURE 19.2 Illustration of the bisection method. The sign of f (m) is checked to determine if the root is contained in the interval (a,m) or (m,b). This new interval is used in the next iteration of the bisection method; in the case depicted in the figure, the root is in the interval (m,b). TRY IT! Program a function my_bisection(f,a,b,tol) that approximates a root r of f, bounded by a and b to within |f (a+b 2 )| tol. In [1]: import numpy as np def my_bisection(f, a, b, tol): # approximates a root, R, of f bounded # by a and b to within tolerance # | f(m) | tol with m being the midpoint # between a and b. Recursive implementation # check if a and b bound a root if np.sign(f(a)) == np.sign(f(b)): raise Exception( The scalars a and b do not bound a root) # get midpoint m = (a + b)/2 if np.abs(f(m)) tol: # stopping condition, report m as root return m elif np.sign(f(a)) == np.sign(f(m)): # case where m is an improvement on a. # Make recursive call with a = m return my_bisection(f, m, b, tol)
- 333. 19.3 BISECTION METHOD 329 elif np.sign(f(b)) == np.sign(f(m)): # case where m is an improvement on b. # Make recursive call with b = m return my_bisection(f, a, m, tol) TRY IT! The √ 2 can be computed as the root of the function f (x) = x2 − 2. Starting at a = 0 and b = 2, use my_bisection to approximate the √ 2 to a tolerance of |f (x)| 0.1 and |f (x)| 0.01. Verify that the results are close to a root by plugging the root back into the function. In [2]: f = lambda x: x**2 - 2 r1 = my_bisection(f, 0, 2, 0.1) print(r1 =, r1) r01 = my_bisection(f, 0, 2, 0.01) print(r01 =, r01) print(f(r1) =, f(r1)) print(f(r01) =, f(r01)) r1 = 1.4375 r01 = 1.4140625 f(r1) = 0.06640625 f(r01) = -0.00042724609375 TRY IT! See what happens if you use a = 2 and b = 4 for the above function. In [3]: my_bisection(f, 2, 4, 0.01) -------------------------------------------------------- Exception Traceback (most recent call last) ipython-input-3-4158b7a9ae67 in module ---- 1 my_bisection(f, 2, 4, 0.01) ipython-input-1-36f06123e87c in my_bisection(f,a,b,tol) 10 if np.sign(f(a)) == np.sign(f(b)): 11 raise Exception( --- 12 The scalars a and b do not bound a root) 13
- 334. 330 CHAPTER 19 ROOT FINDING 14 # get midpoint Exception: The scalars a and b do not bound a root 19.4 NEWTON–RAPHSON METHOD Let f (x) be a smooth function, and xr be an unknown root of f (x). Assume that x0 is a guess for xr. Unless x0 is a very lucky guess, f (x0) will not be a root. Given this scenario, we want to find an x1 that is an improvement on x0 (i.e., closer to xr than x0). If we assume that x0 is “close enough” to xr, then we can improve upon it by taking the linear approximation of f (x) around x0, which is a line, and finding the intersection of this line with the x-axis. Written out, the linear approximation of f (x) around x0 is f (x) ≈ f (x0) + f (x0)(x − x0). Using this approximation, we find x1 such that f (x1) = 0. Plugging these values into the linear approximation results in the following equation: 0 = f (x0) + f (x0)(x1 − x0), which when solved for x1 yields x1 = x0 − f (x0) f (x0) . An illustration of how this linear approximation improves an initial guess is shown in Fig. 19.3. FIGURE 19.3 Illustration of Newton step for a smooth function, g(x). Written generally, a Newton step computes an improved guess, xi, using a previous guess, xi−1, and is given by the equation xi = xi−1 − g(xi−1) g(xi−1) . The Newton–Raphson Method of finding roots iterates Newton steps from x0 until the error is less than the tolerance.
- 335. 19.4 NEWTON–RAPHSON METHOD 331 TRY IT! Again, the √ 2 is the root of the function f (x) = x2 − 2. Using x0 = 1.4 as a starting point, use the previous equation to estimate √ 2. Compare this approximation with the value computed by Python’s sqrt function. x = 1.4 − 1.42 − 2 2(1.4) = 1.4142857142857144. In [1]: import numpy as np f = lambda x: x**2 - 2 f_prime = lambda x: 2*x newton_raphson = 1.4 - (f(1.4))/(f_prime(1.4)) print(newton_raphson =, newton_raphson) print(sqrt(2) =, np.sqrt(2)) newton_raphson = 1.4142857142857144 sqrt(2) = 1.4142135623730951 TRY IT! Write a function my_newton(f,df,x0,tol) where the output is an estimate of the root of f, f is a function object f (x), df is a function object f (x), x0 is an initial guess, and tol is the error tolerance. The error measurement should be |f (x)|. In [2]: def my_newton(f, df, x0, tol): # output is an estimation of the root of f # using the Newton-Raphson method # recursive implementation if abs(f(x0)) tol: return x0 else: return my_newton(f, df, x0 - f(x0)/df(x0), tol) TRY IT! Use my_newton to compute √ 2 to within a tolerance of 1e-6 starting at x0 = 1.5. In [3]: estimate = my_newton(f, f_prime, 1.5, 1e-6) print(estimate =, estimate) print(sqrt(2) =, np.sqrt(2)) estimate = 1.4142135623746899 sqrt(2) = 1.4142135623730951 If x0 is close to xr, then it can be proven that, in general, the Newton–Raphson method converges to xr much faster than the bisection method; however, since xr is initially unknown, there is no way to
- 336. 332 CHAPTER 19 ROOT FINDING know if the initial guess is close enough to the root to obtain this behavior unless some special infor- mation about the function is known a priori (e.g., the function has a root close to x = 0). In addition to this initialization problem, the Newton–Raphson method has other serious limitations. For example, if the derivative at a guess is close to zero, then the Newton step will be very large and probably lead far away from the root. Also, depending on the behavior of the function derivative between x0 and xr, the Newton–Raphson method may converge to a different root than xr which may not be useful for the engineering application being considered. TRY IT! Compute a single Newton step to get an improved approximation of the root of the function f (x) = x3 + 3x2 − 2x − 5 and initial guess x0 = 0.29. In [4]: x0 = 0.29 x1 = x0-(x0**3+3*x0**2-2*x0-5)/(3*x0**2+6*x0-2) print(x1 =, x1) x1 = -688.4516883116648 Note that f (x0) = −0.0077 (is close to zero), and the error at x1 is approximately 324880000 (very large). TRY IT! Consider the polynomial f (x) = x3 − 100x2 − x + 100. This polynomial has a root at x = 1 and x = 100. Use the Newton–Raphson method to find a root of f starting at x0 = 0. At x0 = 0,f (x0) = 100, and f (x) = −1, the Newton step gives x1 = 0 − 100 −1 = 100, which is a root of f . Note that this root is much farther from the initial guess than the other root at x = 1, and it may not be the root you wanted from an initial guess of zero. 19.5 ROOT FINDING IN PYTHON Unsurprisingly, Python has root-finding functions. The function we will use to find roots is f_solve from the scipy.optimize. The f_solve function takes in many arguments (study the documentation for addition information), but the most important two are: (1) the function that you want to find the root and (2) the initial guess. TRY IT! Compute the root of the function f (x) = x3 − 100x2 − x + 100 using f_solve. In [1]: from scipy.optimize import fsolve In [2]: f = lambda x: x**3-100*x**2-x+100 fsolve(f, [2, 80])
- 337. 19.6 SUMMARY AND PROBLEMS 333 Out[2]: array([ 1., 100.]) 19.6 SUMMARY AND PROBLEMS 19.6.1 SUMMARY 1. Roots are an important property of functions. 2. The bisection method is a way of finding roots based on divide-and-conquer. Although stable, it might converge slowly compared to the Newton–Raphson method. 3. The Newton–Raphson method is a different way of finding roots based on an approximation of the function. Although the Newton–Raphson method converges quickly and stops near to the actual root, it can be unstable. 19.6.2 PROBLEMS 1. Write a function my_nth_root(x,n,tol) where x and tol are strictly positive scalars, and n is an integer strictly greater than 1. The output argument, r, should be an approximation r = N √ x, the Nth root of x. This approximation should be computed by using the Newton–Raphson method to find the root of the function f (y) = yN − x. The error metric should be |f (y)|. 2. Write a function my_fixed_point(f,g,tol,max_iter) where f and g are function objects, and tol and max_iter are strictly positive scalars. The input argument, max_iter, is also an integer. The output argument, X, should be a scalar satisfying |f (X) − g(X)| tol, that is, X is a point that (almost) satisfies f (X) = g(X). To find X, you should use the bisection method with the error metric, |F(m)| tol. The function my_fixed_point should “give up” after max_iter number of iterations and return X = [] if this occurs. 3. Why does the bisection method fail for f (x) = 1/x with an error given by |b − a|? Hint: How does f (x) violate the intermediate value theorem? 4. Write a function my_bisection(f,a,b,tol) that returns [R,E], where f is a function object, a and b are scalars such that a b, and tol is a strictly positive scalar value. The function should return an array, R, where R[i] is the estimation of the root of f defined by (a + b)/2 for the ith iteration of the bisection method. Remember to include the initial estimate. The function should also return an array, E, where E[i] is the value of |f (R[i])| for the ith iteration of the bisection method. The function should terminate when E(i) tol. Assume that sign(f (a)) = sign(f (b)). Clarification: The input a and b constitute the first iteration of bisection; therefore, R and E should never be empty. Test cases: In: f = lambda x: x**2 - 2 [R, E] = my_bisection(f, 0, 2, 1e-1) Out: R = [1, 1.5, 1.25, 1.375, 1.4375] E = [1, 0.25, 0.4375, 0.109375, 0.06640625]
- 338. 334 CHAPTER 19 ROOT FINDING In: f = lambda x: np.sin(x) - np.cos(x) [R, E] = my_bisection(f, 0, 2, 1e-2) Out: R = [1, 0.5, 0.75, 0.875, 0.8125, 0.78125] E = [0.30116867893975674, 0.39815702328616975, 0.05005010885048666, 0.12654664407270177, 0.038323093040207645, 0.005866372111545948] 5. Write a function my_newton(f,df,x0,tol) that returns [R,E], where f is a function object, df is a function object giving the derivative of f, x0 is an initial estimation of the root, and tol is a strictly positive scalar. The function should return an array, R, where R[i] is the Newton–Raphson estimate of the root of f for the ith iteration. Remember to include the initial estimate. The function should also return an array, E, where E[i] is the value of |f (R[i])| for the ith iteration of the Newton– Raphson method. The function should terminate when E(i) tol. Assume that the derivative of f will not hit zero during any iteration for any of the test cases given. Test cases: In: f = lambda x: x**2 - 2 df = lambda x: 2*x [R, E] = my_newton(f, df, 1, 1e-5) Out: R = [1, 1.5, 1.4166666666666667, 1.4142156862745099] E = [1, 0.25, 0.006944444444444642, 6.007304882871267e-06] In: f = lambda x: np.sin(x) - np.cos(x) df = lambda x: np.cos(x) + np.sin(x) [R, E] = my_newton(f, df, 1, 1e-5) Out: R = [1, 0.782041901539138, 0.7853981759997019] E = [0.30116867893975674, 0.004746462127804163, 1.7822277875723103e-08] 6. Consider the problem of building a pipeline from an offshore oil platform, a distance H miles from the shoreline, to an oil refinery station on land, a distance L miles along the shore. The cost of building the pipe is Cocean/mile while the pipe is under the ocean, and Cland/mile while the pipe is on land. The pipe will be built in a straight line toward the shore where it will make contact at some point, x, between 0 and L. It will continue along the shore on land until it reaches the oil refinery. See the following figure for clarification. Write a function my_pipe_builder(C_ocean,C_land,L,H) where the input arguments are as de- scribed earlier, and x is the x-value that minimizes the total cost of the pipeline. Use the bisection method to determine this value to within a tolerance of 1 × 10−6, starting at an initial bound of a = 0 and b = L. Test cases: In: my_pipe_builder(20, 10, 100, 50) Out: 28.867512941360474 In: my_pipe_builder(30, 10, 100, 50) Out: 17.677670717239380
- 339. 19.6 SUMMARY AND PROBLEMS 335 In: my_pipe_builder(30, 10, 100, 20) Out: 7.071067392826080 7. Find a function f (x) and guess the root of f , namely x0, such that the Newton–Raphson method will oscillate between x0 and −x0 indefinitely.
- 340. 20 NUMERICAL DIFFERENTIATION 20.1 Numerical Differentiation Problem Statement .................................................................. 337 20.2 Using Finite Difference to Approximate Derivatives ........................................................... 338 20.2.1 Using Finite Difference to Approximate Derivatives With Taylor Series.................... 338 20.3 Approximating of Higher Order Derivatives ..................................................................... 344 20.4 Numerical Differentiation With Noise............................................................................ 345 20.5 Summary and Problems ............................................................................................ 347 20.5.1 Summary............................................................................................ 347 20.5.2 Problems ............................................................................................ 348 20.1 NUMERICAL DIFFERENTIATION PROBLEM STATEMENT A numerical grid can be defined as an evenly spaced set of points over the domain of a function (i.e., the independent variable), over some interval. The spacing or step size of a numerical grid is the distance between adjacent points on the grid. For the purpose of this text, if x is a numerical grid, then xj is the jth point in the numerical grid, and h is the spacing between xj−1 and xj . Fig. 20.1 shows an example of a numerical grid. FIGURE 20.1 Numerical grid used to approximate functions. There are several functions in Python that can be used to generate numerical grids. For numerical grids in one dimension, it is sufficient to use the linspace function, which you have already used for creating regularly spaced arrays. In Python, a function f (x) can be represented over an interval by computing its value on a grid. Although the function itself may be continuous, this discrete or discretized representation is useful for numerical calculations and corresponds to datasets that may be acquired in engineering and science practice. Specifically, the function value may only be known at discrete points. For example, a temper- ature sensor may deliver temperature versus time pairs at regular time intervals. Although temperature is a smooth function of time, the sensor only provides values at discrete time intervals; in this particular case, the underlying function would not even be known.
- 341. 338 CHAPTER 20 NUMERICAL DIFFERENTIATION Whether f is an analytic function or a discrete representation of one, we would like to derive methods of approximating the derivative of f over a numerical grid and determine its accuracy. 20.2 USING FINITE DIFFERENCE TO APPROXIMATE DERIVATIVES The derivative f (x) of a function f (x) at the point x = a is defined as f (a) = lim x→a f (x) − f (a) x − a . The derivative at x = a is the slope at this point. In “finite difference” approximations of this slope, one uses values of the function in a neighborhood of the point x = a to achieve the goal. There are various finite difference formulas used in different applications, and three of these, where the derivative is calculated using the values at two points, are presented below. The forward difference estimates the slope of the function at xj using the line that connects (xj ,f (xj )) and (xj+1,f (xj+1)): f (xj ) = f (xj+1) − f (xj ) xj+1 − xj . The backward difference estimates the slope of the function at xj using the line that connects (xj−1,f (xj−1)) and (xj ,f (xj )): f (xj ) = f (xj ) − f (xj−1) xj − xj−1 . The central difference estimates the slope of the function at xj using the line that connects (xj−1,f (xj−1)) and (xj+1,f (xj+1)): f (xj ) = f (xj+1) − f (xj−1) xj+1 − xj−1 . Fig. 20.2 illustrates the three different formulas required to estimate the slope. 20.2.1 USING FINITE DIFFERENCE TO APPROXIMATE DERIVATIVES WITH TAYLOR SERIES To derive an approximation for the derivative of f , we return to the Taylor series. For an arbitrary function f (x), the Taylor series of f around a = xj is f (x) = f (xj )(x − xj )0 0! + f (xj )(x − xj )1 1! + f (xj )(x − xj )2 2! + f (xj )(x − xj )3 3! + ··· . If x is on a grid of points with spacing h, we can compute the Taylor series at x = xj+1 to obtain f (xj+1) = f (xj )(xj+1 − xj )0 0! + f (xj )(xj+1 − xj )1 1! + f (xj )(xj+1 − xj )2 2! + f (xj )(xj+1 − xj )3 3! + ··· .
- 342. 20.2 USING FINITE DIFFERENCE TO APPROXIMATE DERIVATIVES 339 FIGURE 20.2 Finite difference approximation of the derivative. Substituting h = xj+1 − xj and solving for f (xj ) gives the equation f (xj ) = f (xj+1) − f (xj ) h + − f (xj )h 2! − f (xj )h2 3! − ··· . The terms that are in parentheses, − f (xj )h 2! − f (xj )h2 3! − ···, are called higher order terms of h. The higher order terms can be rewritten as − f (xj )h 2! − f (xj )h2 3! − ··· = h(α + (h)), where α is some constant, and (h) is a function of h that goes to zero as h goes to zero. You can verify using algebra that this is true. We use the abbreviation “O(h)” for h(α + (h)), and in general, we use the abbreviation “O(hp)” to denote hp(α + (h)). Substituting O(h) into the previous equation gives f (xj ) = f (xj+1) − f (xj ) h + O(h). This gives the forward difference formula for approximating derivatives as f (xj ) ≈ f (xj+1) − f (xj ) h , and we denote this formula as O(h). Here, O(h) describes the accuracy of the forward difference formula for approximating derivatives. For an approximation that is O(hp), we denote p as the order of the accuracy of the approximation. With few exceptions, higher-order accuracy is better than lower order. To illustrate this point, assume q p. Then as the spacing, h 0, goes to zero, hp goes to zero faster than hq. Therefore as h goes to zero, an approximation of a value that is O(hp) moves closer to the true value faster than one that is O(hq).
- 343. 340 CHAPTER 20 NUMERICAL DIFFERENTIATION By computing the Taylor series around a = xj at x = xj−1 and again solving for f (xj ), we obtain the backward difference formula f (xj ) ≈ f (xj ) − f (xj−1) h , which is also O(h). Verify this result on your own. Intuitively, the forward and backward difference formulas for the derivative at xj are just the slopes between the point at xj and the points xj+1 and xj−1, respectively. We can construct an improved approximation of the derivative by a clever manipulation of Taylor series terms taken at different points. To illustrate, we can compute the Taylor series around a = xj at both xj+1 and xj−1. Written out, these equations are f (xj+1) = f (xj ) + f (xj )h + 1 2 f (xj )h2 + 1 6 f (xj )h3 + ··· and f (xj−1) = f (xj ) − f (xj )h + 1 2 f (xj )h2 − 1 6 f (xj )h3 + ··· . Subtracting the formulas above gives f (xj+1) − f (xj−1) = 2f (xj )h + 2 3 f (xj )h3 + ··· , which, when solved for f (xj ), gives the central difference formula f (xj ) ≈ f (xj+1) − f (xj−1) 2h . Because of how we subtracted the two equations, the h terms canceled out; therefore, the central difference formula is O(h2), even though it requires the same amount of computational effort as the forward and backward difference formulas! Thus the central difference formula gets an extra order of accuracy for free. In general, formulas that utilize symmetric points around xj , for example, xj−1 and xj+1, have better accuracy than asymmetric ones, such as the forward and background difference formulas. Fig. 20.3 shows the forward difference (line joining (xj ,yj ) and (xj+1,yj+1)), backward differ- ence (line joining (xj ,yj ) and (xj−1,yj−1)), and central difference (line joining (xj−1,yj−1) and (xj+1,yj+1)) approximation of the derivative of a function f . As can be seen, the difference in the value of the slope can be significantly different based on the size of the step h and the nature of the function. TRY IT! Take the Taylor series of f around a = xj and compute the series at x = xj−2,xj−1, xj+1,xj+2. Show that the resulting equations can be combined to form an approximation for f (xj ) which is O(h4).
- 344. 20.2 USING FINITE DIFFERENCE TO APPROXIMATE DERIVATIVES 341 FIGURE 20.3 Illustration of the forward difference, the backward difference, and the central difference. Note the difference in slopes depending on the method used. First, compute the Taylor series at the specified points. f (xj−2) = f (xj ) − 2hf (xj ) + 4h2f (xj ) 2 − 8h3f (xj ) 6 + 16h4f (xj ) 24 − 32h5f (xj ) 120 + ··· , f (xj−1) = f (xj ) − hf (xj ) + h2f (xj ) 2 − h3f (xj ) 6 + h4f (xj ) 24 − h5f (xj ) 120 + ··· , f (xj+1) = f (xj ) + hf (xj ) + h2f (xj ) 2 + h3f (xj ) 6 + h4f (xj ) 24 + h5f (xj ) 120 + ··· , f (xj+2) = f (xj ) + 2hf (xj ) + 4h2f (xj ) 2 + 8h3f (xj ) 6 + 16h4f (xj ) 24 + 32h5f (xj ) 120 + ··· . To make sure the h2,h3, and h4 terms cancel out, compute f (xj−2) − 8f (xj−1) + 8f (xj−1) − f (xj+2) = 12hf (xj ) − 48h5f (xj ) 120 , which can be rearranged to f (xj ) = f (xj−2) − 8f (xj−1) + 8f (xj−1) − f (xj+2) 12h + O(h4 ). This formula is a better approximation for the derivative at xj than the central difference formula, but requires twice as many calculations. TIP! Python has a command that can be used to compute finite differences directly: for a vector f , the command d=np.diff(f) produces an array d in which the entries are the differences of the adjacent elements in the initial array f . In other words, d(i) = f (i + 1) − f (i).
- 345. 342 CHAPTER 20 NUMERICAL DIFFERENTIATION WARNING! When using the command np.diff, the size of the output is one less than the size of the input since it needs two arguments to produce a difference. EXAMPLE: Consider the function f (x) = cos(x). We know that the derivative of cos(x) is −sin(x). Although in practice we may not know the underlying function we are finding the derivative for, we use the simple example to illustrate the aforementioned numerical differen- tiation methods and their accuracy. The following code computes the derivatives numerically. In [1]: import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline In [2]: # step size h = 0.1 # define grid x = np.arange(0, 2*np.pi, h) # compute function y = np.cos(x) # compute vector of forward differences forward_diff = np.diff(y)/h # compute corresponding grid x_diff = x[:-1:] # compute exact solution exact_solution = -np.sin(x_diff) # Plot solution plt.figure(figsize = (12, 8)) plt.plot(x_diff, forward_diff, -, label = Finite difference approximation) plt.plot(x_diff, exact_solution, label = Exact solution) plt.legend() plt.show() # Compute max error between # numerical derivative and exact solution max_error = max(abs(exact_solution - forward_diff)) print(max_error)
- 346. 20.2 USING FINITE DIFFERENCE TO APPROXIMATE DERIVATIVES 343 0.049984407218554114 As the above figure shows, there is a small offset between the two curves, which results from the numerical error in the evaluation of the numerical derivatives. The maximal error between the two numerical results is of the order 0.05 and expected to decrease with the size of the step. As illustrated in the previous example, the finite difference scheme contains a numerical error due to the approximation of the derivative. This difference decreases with the size of the discretization step, which is illustrated in the following example. EXAMPLE: The following code computes the numerical derivative of f (x) = cos(x) using the forward-difference formula for decreasing step size, h. It then plots the maximum error between the approximated derivative and the true derivative versus h as shown in the generated figure. In [3]: # define step size h = 1 # define number of iterations to perform iterations = 20 # list to store our step sizes step_size = [] # list to store max error for each step size max_error = [] for i in range(iterations): # halve the step size h /= 2 # store this step size step_size.append(h) # compute new grid x = np.arange(0, 2 * np.pi, h)
- 347. 344 CHAPTER 20 NUMERICAL DIFFERENTIATION # compute function value at grid y = np.cos(x) # compute vector of forward differences forward_diff = np.diff(y)/h # compute corresponding grid x_diff = x[:-1] # compute exact solution exact_solution = -np.sin(x_diff) # Compute max error between # numerical derivative and exact solution max_error.append(max(abs(exact_solution - forward_diff))) # produce log-log plot of max error versus step size plt.figure(figsize = (12, 8)) plt.loglog(step_size, max_error, v) plt.show() The slope of the line in log–log space is 1; therefore, the error is proportional to h1, which means that, as expected, the forward-difference formula is O(h). 20.3 APPROXIMATING OF HIGHER ORDER DERIVATIVES It also possible to use the Taylor series to approximate higher-order derivatives (e.g., f (xj ),f (xj ), etc.). For example, taking the Taylor series around a = xj and then computing it at x = xj−1 and xj+1 gives f (xj−1) = f (xj ) − hf (xj ) + h2f (xj ) 2 − h3f (xj ) 6 + ···
- 348. 20.4 NUMERICAL DIFFERENTIATION WITH NOISE 345 and f (xj+1) = f (xj ) + hf (xj ) + h2f (xj ) 2 + h3f (xj ) 6 + ··· . If we add these two equations together, we get f (xj−1) + f (xj+1) = 2f (xj ) + h2 f (xj ) + h4f (xj ) 24 + ··· , and, with some rearrangement, this gives the approximation f (xj ) ≈ f (xj+1) − 2f (xj ) + f (xj−1) h2 , which is O(h2). 20.4 NUMERICAL DIFFERENTIATION WITH NOISE As stated earlier, sometimes f is given as a vector where f is the corresponding function value for independent data values in another vector x, which is gridded. Sometimes data can be contaminated with noise, meaning its value is off by a small amount from what it would be if it were computed from a pure mathematical function. This can often occur in engineering due to inaccuracies in measurement devices or the data itself can be slightly modified by perturbations outside the system of interest. For example, you may be trying to listen to your friend talk in a crowded room. The signal f might be the intensity and tonal values in your friend’s speech; however, because the room is crowded, noise from other conversations is heard along with your friend’s speech, and he becomes difficult to understand. To illustrate this point, we numerically compute the derivative of a simple cosine wave corrupted by a small sin wave. Consider the following two functions: f (x) = cos(x) and f,ω(x) = cos(x) + sin(ωx) where 0 1 is a very small number, and ω is a large number. When is small, it is clear that f f,ω. To illustrate this point, we plot f,ω(x) for = 0.01 and ω = 100, and we can see it is very close to f (x), as shown in the following figure. In [1]: import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline
- 349. 346 CHAPTER 20 NUMERICAL DIFFERENTIATION In [2]: x = np.arange(0, 2*np.pi, 0.01) # compute function omega = 100 epsilon = 0.01 y = np.cos(x) y_noise = y + epsilon*np.sin(omega*x) # Plot solution plt.figure(figsize = (12, 8)) plt.plot(x, y_noise, r-, label = cos(x) + noise) plt.plot(x, y, b-, label = cos(x)) plt.xlabel(x) plt.ylabel(y) plt.legend() plt.show() The derivatives of our two test functions are f (x) = −sin(x) and f ,ω(x) = −sin(x) + ω cos(ωx). Since ω may not be small when ω is large, the contribution of the noise to the derivative may not be small. As a result, the derivative (analytic and numerical) may not be usable. For instance, the following figure shows f (x) and f ,ω(x) for = 0.01 and ω = 100.
- 350. 20.5 SUMMARY AND PROBLEMS 347 In [3]: x = np.arange(0, 2*np.pi, 0.01) # compute function y = -np.sin(x) y_noise = y + epsilon*omega*np.cos(omega*x) # Plot solution plt.figure(figsize = (12, 8)) plt.plot(x, y_noise, r-, label = Derivative cos(x) + noise) plt.plot(x, y, b-, label = Derivative of cos(x)) plt.xlabel(x) plt.ylabel(y) plt.legend() plt.show() 20.5 SUMMARY AND PROBLEMS 20.5.1 SUMMARY 1. Because explicit derivation of functions is sometimes cumbersome for engineering applications, numerical approaches are preferable. 2. Numerical approximation of derivatives can be done using a grid on which the derivative is approx- imated by finite differences. 3. Finite differences approximate the derivative by ratios of differences of the function values over small intervals. 4. Finite difference schemes have different approximation orders depending on the method used. 5. When the data is noisy, there are issues using finite differences for approximating derivatives.
- 351. 348 CHAPTER 20 NUMERICAL DIFFERENTIATION 20.5.2 PROBLEMS 1. Write a function my_der_calc(f, a, b, N, option) with the output as [df,X], where f is a func- tion object, a and b are scalars such that a b, N is an integer bigger than 10, and option is the string forward, backward, or central. Let x be an array starting at a, ending at b, contain- ing N evenly spaced elements, and let y be the array f(x). The output argument, df, should be the numerical derivatives computed for x and y according to the method defined by the input argument, option. The output argument X should be an array the same size as df, containing the points in x for which df is valid. Specifically, the forward difference method “loses” the last point, the backward difference method loses the first point, and the central difference method loses the first and last points. 2. Write a function my_num_diff(f,a,b,n,option) with the output as [df,X], where f is a function object. The function my_num_diff should compute the derivative of f numerically for n evenly spaced points starting at a and ending at b, according to the method defined by option. The input argument option is one of the following strings: forward, backward, and central. Note that for the forward and backward method, the output argument, dy, should be a 1D array of length n − 1, and for the central difference method dy it should be a 1D array of length n − 2. The function should also output a vector X that is the same size as dy and denotes the x-values for which dy is valid. Test cases: x = np.linspace(0, 2*np.pi, 100) f = lambda x: np.sin(x) [dyf, Xf] = my_num_diff(f, 0, 2*np.pi, 10, forward) [dyb, Xb] = my_num_diff(f, 0, 2*np.pi, 10, backward) [dyc, Xc] = my_num_diff(f, 0, 2*np.pi, 10, central) plt.figure(figsize = (12, 8)) plt.plot(x, np.cos(x), label = analytic) plt.plot(Xf, dyf, label = forward) plt.plot(Xb, dyb, label = backward) plt.plot(Xc, dyc, label = central) plt.legend() plt.title(Analytic and Numerical Derivatives of Sine) plt.xlabel(x) plt.ylabel(y) plt.show()
- 352. 20.5 SUMMARY AND PROBLEMS 349 x = np.linspace(0, np.pi, 1000) f = lambda x: np.sin(np.exp(x)) [dy10, X10] = my_num_diff(f, 0, np.pi, 10, central) [dy20, X20] = my_num_diff(f, 0, np.pi, 20, central) [dy100, X100] = my_num_diff(f, 0, np.pi, 100, central) plt.figure(figsize = (12, 8)) plt.plot(x, np.cos(np.exp(x)), label = analytic) plt.plot(X10, dy10, label = 10 points) plt.plot(X20, dy20, label = 20 points) plt.plot(X100, dy100, label = 100 points) plt.legend() plt.title(Analytic and Numerical Derivatives of Sine) plt.xlabel(x) plt.ylabel(y) plt.show()
- 353. 350 CHAPTER 20 NUMERICAL DIFFERENTIATION 3. Write a function my_num_diff_w_smoothing(x,y,n) with output [dy,X], where x and y are a 1D NumPy array of the same length, and n is a strictly positive scalar. The function should first create a vector of “smoothed” y data points where y_smooth[i] = np.mean(y[i-n:i+n]). The func- tion should then compute dy, the derivative of the smoothed y-vector, using the central difference method. The function should also output a 1D array X that is the same size as dy and denotes the x-values for which dy is valid. Assume that the data contained in x is in ascending order with no duplicate entries; it is possible that the elements of x will not be evenly spaced. Note that the output dy will have 2n + 2 fewer points than y. Assume that the length of y is much bigger than 2n + 2. Test cases: x = np.linspace(0, 2*np.pi, 100) y = np.sin(x) + np.random.randn(len(x))/100 [dy, X] = my_num_diff_w_smoothing(x, y, 4) plt.figure(figsize = (12, 12)) plt.subplot(211) plt.plot(x, y) plt.title(Noisy Sine function) plt.xlabel(x) plt.ylabel(y) plt.subplot(212) plt.plot(x, np.cos(x), b, label = cosine) plt.plot(x[:-1], (y[1:] - y[:-1])/(x[1]-x[0]), g, label = unsmoothed forward diff) plt.plot(X, dy, r, label = smoothed) plt.title(Analytic Derivative and Smoothed Derivative) plt.xlabel(x) plt.ylabel(y) plt.legend() plt.tight_layout() plt.show()
- 354. 20.5 SUMMARY AND PROBLEMS 351 4. Use Taylor series to show the following approximations and their accuracy: f (xj ) = −f (xj+3) + 4f (xj+2) − 5f (xj+1) + 2f (xj ) h2 + O(h2 ), f (xj ) = f (xj+3) − 3f (xj+2) + 3f (xj+1) − f (xj ) h3 + O(h).
- 355. 21 NUMERICAL INTEGRATION 21.1 Numerical Integration Problem Statement ...................................................................... 353 21.2 Riemann Integral .................................................................................................... 354 21.3 Trapezoid Rule....................................................................................................... 356 21.4 Simpson’s Rule ...................................................................................................... 359 21.5 Computing Integrals in Python .................................................................................... 363 21.6 Summary and Problems ............................................................................................ 365 21.6.1 Summary............................................................................................ 365 21.6.2 Problems ............................................................................................ 365 21.1 NUMERICAL INTEGRATION PROBLEM STATEMENT Given a function f (x), approximate the integral of f (x) over the total interval, [a,b]. Fig. 21.1 illus- trates this area. To accomplish this goal, we assume that the interval has been discretized into a numeral grid, x, consisting of n + 1 points with spacing, h = b−a n . Here, we denote each point in x by xi, where x0 = a and xn = b. Note that there are n + 1 grid points because the count starts at x0. Assume that the function, f (x), can be computed for any of the grid points, or that we have been given the function implicitly as f (xi). The interval [xi,xi+1] is referred to as a subinterval. FIGURE 21.1 Illustration of the integral. The integral from a to b of the function f is the area below the curve (shaded in grey). The following sections give some of the most common entry level methods of approximating b a f (x)dx. Each method approximates the area under f (x) for each subinterval by a shape for which it is easy to compute the exact area, and then sums the area contributions of every subinterval.
- 356. 354 CHAPTER 21 NUMERICAL INTEGRATION 21.2 RIEMANN INTEGRAL The simplest method for approximating integrals is by summing the area of rectangles that are defined for each subinterval. The width of the rectangle is xi+1 − xi = h, and the height is defined by a function value f (x) for some x in the subinterval. An obvious choice for the height is the function value at the left endpoint, xi, or the right endpoint, xi+1, because these values can be used even if the function itself is not known. This method gives the Riemann integral approximation, which is b a f (x)dx ≈ n−1 i=0 hf (xi), or b a f (x)dx ≈ n i=1 hf (xi), depending on whether the left or right endpoint is chosen. As with numerical differentiation, we want to characterize how the accuracy improves as h de- creases. To determine this characterizing, we first rewrite the integral of f (x) over an arbitrary subin- terval in terms of the Taylor series. The Taylor series of f (x) around a = xi is f (x) = f (xi) + f (xi)(x − xi) + ··· . Thus xi+1 xi f (x)dx = xi+1 xi (f (xi) + f (xi)(x − xi) + ···) dx by substitution of the Taylor series for the function. Since the integral distributes, we can rearrange the right-hand side into the following form: xi+1 xi f (xi)dx + xi+1 xi f (xi)(x − xi)dx + ··· . Computing each integral separately results in the approximation xi+1 xi f (x)dx = hf (xi) + h2 2 f (xi) + O(h3 ), which is xi+1 xi f (x)dx = hf (xi) + O(h2 ). Since the hf (xi) term is our Riemann integral approximation for a single subinterval, the Riemann integral approximation over a single interval is O(h2).
- 357. 21.2 RIEMANN INTEGRAL 355 If we sum the O(h2) error over the entire Riemann sum, we obtain nO(h2). The relationship be- tween n and h is h = b − a n , and so our total error becomes b−a h O(h2) = O(h) over the whole interval. Thus the overall accuracy is O(h). The Midpoint Rule takes the rectangle height of the rectangle at each subinterval to be the function value at the midpoint between xi and xi+1, which for compactness we denote by yi = xi+1+xi 2 . The midpoint rule says b a f (x)dx ≈ n−1 i=0 hf (yi). Similarly to the Riemann integral, we take the Taylor series of f (x) around yi, which is f (x) = f (yi) + f (yi)(x − yi) + f (yi)(x − yi)2 2! + ··· . Then the integral over a subinterval is xi+1 xi f (x)dx = xi+1 xi f (yi) + f (yi)(x − yi) + f (yi)(x − yi)2 2! + ··· dx, which distributes to xi+1 xi f (x)dx = xi+1 xi f (yi)dx + xi+1 xi f (yi)(x − yi)dx + xi+1 xi f (yi)(x − yi)2 2! dx + ··· . Recognizing that xi and xi+1 are symmetric around yi, we get xi+1 xi f (yi)(x − yi)dx = 0. This is true for the integral of (x − yi)p for any odd p. For the integral of (x − yi)p and with p even, xi+1 xi (x − yi)pdx = h 2 − h 2 xpdx, which will result in some multiple of hp+1 with no lower order powers of h. Utilizing these facts reduces the expression for the integral of f (x) to xi+1 xi f (x)dx = hf (yi) + O(h3 ). Since hf (yi) is the approximation of the integral over the subinterval, the midpoint rule is O(h3) for one subinterval; using similar arguments as those used for the Riemann integral, we get O(h2) over the whole interval. Since the midpoint rule requires the same number of calculations as the Riemann integral, we essentially get an extra order of accuracy for free; however, if f (xi) is given in the form of data points, then we will not be able to compute f (yi) for this integration scheme.
- 358. 356 CHAPTER 21 NUMERICAL INTEGRATION TRY IT! Use the left and right Riemann integral, as well as midpoint rule, to approximate π 0 sin(x)dx with 11 evenly spaced grid points over the whole interval. Compare this value to the exact value of 2. In [1]: import numpy as np a = 0 b = np.pi n = 11 h = (b - a) / (n - 1) x = np.linspace(a, b, n) f = np.sin(x) I_riemannL = h * sum(f[:n-1]) err_riemannL = 2 - I_riemannL I_riemannR = h * sum(f[1::]) err_riemannR = 2 - I_riemannR I_mid = h * sum(np.sin((x[:n-1] + x[1:])/2)) err_mid = 2 - I_mid print(I_riemannL) print(err_riemannL) print(I_riemannR) print(err_riemannR) print(I_mid) print(err_mid) 1.9835235375094546 0.01647646249054535 1.9835235375094546 0.01647646249054535 2.0082484079079745 -0.008248407907974542 21.3 TRAPEZOID RULE The Trapezoid Rule fits a trapezoid into each subinterval and sums the areas of the trapezoids to approximate the total integral. This approximation for the integral to an arbitrary function is shown
- 359. 21.3 TRAPEZOID RULE 357 in Fig. 21.2. For each subinterval, the trapezoid rule computes the area of a trapezoid with corners at (xi,0),(xi+1,0),(xi,f (xi)), and (xi+1,f (xi+1)), which is hf (xi)+f (xi+1) 2 . Thus, the trapezoid rule approximates integrals according to the expression b a f (x)dx ≈ n−1 i=0 h f (xi) + f (xi+1) 2 . FIGURE 21.2 Illustration of the trapezoid integral procedure. The area below the curve is approximated by a sum of areas of trapezoids that approximate the function. TRY IT! You may notice that the trapezoid rule “double-counts” most of the terms in the series. To illustrate this fact, consider the expansion of the trapezoid rule: n−1 i=0 hf (xi)+f (xi+1) 2 = h 2 (f (x0) + f (x1)) + (f (x1) + f (x2)) + (f (x2) +f (x3)) + ··· + (f (xn−1) + f (xn)) . Computationally, this is many extra additions and calls to f (x) than are really necessary. We can be made more computationally efficient using the following expression: b a f (x)dx ≈ h 2 f (x0) + 2 n−1 i=1 f (xi) + f (xn) . To determine the accuracy of the trapezoid rule approximation, we first take Taylor series expansion of f (x) around yi = xi+1+xi 2 , which is the midpoint between xi and xi+1. This Taylor series expansion is f (x) = f (yi) + f (yi)(x − yi) + f (yi)(x − yi)2 2! + ··· .
- 360. 358 CHAPTER 21 NUMERICAL INTEGRATION Computing the Taylor series at xi and xi+1 and noting that xi − yi = −h 2 and xi+1 − yi = h 2 results in the following expressions: f (xi) = f (yi) − hf (yi) 2 + h2f (yi) 8 − ··· and f (xi+1) = f (yi) + hf (yi) 2 + h2f (yi) 8 + ··· . Taking the average of these two expressions results in the new expression, f (xi+1) + f (xi) 2 = f (yi) + O(h2 ). Solving this expression for f (yi) yields f (yi) = f (xi+1) + f (xi) 2 + O(h2 ). Now returning to the Taylor expansion for f (x), the integral of f (x) over a subinterval is xi+1 xi f (x)dx = xi+1 xi f (yi) + f (yi)(x − yi) + f (yi)(x − yi)2 2! + ··· dx. Distributing the integral results in the expression xi+1 xi f (x)dx = xi+1 xi f (yi)dx + xi+1 xi f (yi)(x − yi)dx + xi+1 xi f (yi)(x − yi)2 2! dx + ··· . Since xi and xi+1 are symmetric around yi, the integrals of the odd powers of (x − yi)p disappear, and the even powers resolve to a multiple hp+1: xi+1 xi f (x)dx = hf (yi) + O(h3 ). If we substitute f (yi) with the expression derived explicitly in terms of f (xi) and f (xi+1), we obtain xi+1 xi f (x)dx = h f (xi+1) + f (xi) 2 + O(h2 ) + O(h3 ), which is equivalent to h f (xi+1) + f (xi) 2 + hO(h2 ) + O(h3 ) and xi+1 xi f (x)dx = h f (xi+1) + f (xi) 2 + O(h3 ).
- 361. 21.4 SIMPSON’S RULE 359 Since h 2 (f (xi+1) + f (xi)) is the trapezoid rule approximation for the integral over the subinterval, it is O(h3) for a single subinterval and O(h2) over the whole interval. TRY IT! Use the trapezoid rule to approximate π 0 sin(x)dx with 11 evenly spaced grid points over the whole interval. Compare this value to the exact value of 2. In [1]: import numpy as np a = 0 b = np.pi n = 11 h = (b - a) / (n - 1) x = np.linspace(a, b, n) f = np.sin(x) I_trap = (h/2)*(f[0] + 2 * sum(f[1:n-1]) + f[n-1]) err_trap = 2 - I_trap print(I_trap) print(err_trap) 1.9835235375094546 0.01647646249054535 21.4 SIMPSON’S RULE Consider two consecutive subintervals, [xi−1,xi] and [xi,xi+1]. Simpson’s Rule approximates the area under f (x) over these two subintervals by fitting a quadratic polynomial through the points (xi−1,f (xi−1)),(xi,f (xi)), and (xi+1,f (xi+1)), which is a unique polynomial, and then integrates the quadratic exactly. Fig. 21.3 shows this integral approximation for an arbitrary function. First, we construct the quadratic polynomial approximation of the function over the two subinter- vals. The easiest way to do this is to use Lagrange polynomials, which was discussed in Chapter 17. By applying the formula for constructing Lagrange polynomials, we obtain Pi(x) = f (xi−1) (x − xi)(x − xi+1) (xi−1 − xi)(xi−1 − xi+1) + f (xi) (x − xi−1)(x − xi+1) (xi − xi−1)(xi − xi+1) + f (xi+1) (x − xi−1)(x − xi) (xi+1 − xi−1)(xi+1 − xi) , and with substitutions for h results in Pi(x) = f (xi−1) 2h2 (x − xi)(x − xi+1) − f (xi) h2 (x − xi−1)(x − xi+1) + f (xi+1) 2h2 (x − xi−1)(x − xi).
- 362. 360 CHAPTER 21 NUMERICAL INTEGRATION FIGURE 21.3 Illustration of the Simpson integral formula. Discretization points are grouped by three, and a parabola is fit between the three points. This can be done by a typical interpolation polynomial. The area under the curve is approximated by the area under the parabola. You can confirm that the polynomial curve intersects the desired points. With some algebra and manipulation, the integral of Pi(x) over the two subintervals is xi+1 xi−1 Pi(x)dx = h 3 (f (xi−1) + 4f (xi) + f (xi+1)). To approximate the integral over (a,b), we must sum the integrals of Pi(x) over all pairs of subintervals since Pi(x) spans two subintervals. Substituting h 3 (f (xi−1) + 4f (xi) + f (xi+1)) for the integral of Pi(x) and regrouping the terms for efficiency leads to the formula b a f (x)dx ≈ h 3 ⎡ ⎣f (x0) + 4 n−1 i=1, i odd f (xi) + 2 n−2 i=2, i even f (xi) + f (xn) ⎤ ⎦. This regrouping is illustrated in Fig. 21.4: WARNING! Note that to use Simpson’s rule, you must have an even number of intervals and, therefore, an odd number of grid points. To compute the accuracy of the Simpson’s rule, we take the Taylor series approximation of f (x) as around xi, which is f (x) = f (xi) + f (xi)(x − xi) + f (xi)(x − xi)2 2! + f (xi)(x − xi)3 3! + f (xi)(x − xi)4 4! + ··· . Computing the Taylor series with xi−1 and xi+1, and substituting for h where appropriate, gives the expressions f (xi−1) = f (xi) − hf (xi) + h2f (xi) 2! − h3f (xi) 3! + h4f (xi) 4! − ···
- 363. 21.4 SIMPSON’S RULE 361 FIGURE 21.4 Illustration of the accounting procedure to approximate the function f by the Simpson rule for the entire interval [a,b]. and f (xi+1) = f (xi) + hf (xi) + h(xi) 2! + h3f (xi) 3! + h4f (xi) 4! + ··· . Consider the expression f (xi−1)+4f (xi)+f (xi+1) 6 . Substituting the Taylor series for the respective nu- merator values produces the equation f (xi−1) + 4f (xi) + f (xi+1) 6 = f (xi) + h2 6 f (xi) + h4 72 f (xi) + ··· . Note that the odd terms cancel out, implying f (xi) = f (xi−1) + 4f (xi) + f (xi+1) 6 − h2 6 f (xi) + O(h4 ). By substitution of the Taylor series for f (x), the integral of f (x) over two subintervals is then xi+1 xi−1 f (x)dx = xi+1 xi−1 f (xi) + f (xi)(x − xi) + f (xi)(x − xi)2 2! + f (xi)(x − xi)3 3! + f (xi)(x − xi)4 4! + ··· dx. Again, we distribute the integral and, without showing it, drop the integrals of terms with odd powers because they are zero to obtain xi+1 xi−1 f (x)dx = xi+1 xi−1 f (xi)dx + xi+1 xi−1 f (xi)(x − xi)2 2! dx + xi+1 xi−1 f (xi)(x − xi)4 4! dx + ··· ,
- 364. 362 CHAPTER 21 NUMERICAL INTEGRATION at which point we perform the integrations. As will soon be clear, computing the integral of the second term exactly has benefits. The resulting equation is xi+1 xi−1 f (x)dx = 2hf (xi) + h3 3 f (xi) + O(h5 ). Substituting the expression for f (xi) derived earlier, the right-hand side becomes 2h f (xi−1) + 4f (xi) + f (xi+1) 6 − h2 6 f (xi) + O(h4 ) + h3 3 f (xi) + O(h5 ), which can be rearranged to h 3 (f (xi−1) + 4f (xi) + f (xi+1)) − h3 3 f (xi) + O(h5 ) + h3 3 f (xi) + O(h5 ). Canceling and combining the appropriate terms results in the integral expression xi+1 xi−1 f (x)dx = h 3 (f (xi−1) + 4f (xi) + f (xi+1)) + O(h5 ). Recognizing that h 3 (f (xi−1) + 4f (xi) + f (xi+1)) is exactly the Simpson’s rule approximation for the integral over this subinterval, this equation implies that Simpson’s rule is O(h5) over a subinterval and O(h4) over the whole interval. Because the h3 terms cancel out exactly, Simpson’s rule gains another two orders of accuracy! TRY IT! Use Simpson’s rule to approximate π 0 sin(x)dx with 11 evenly spaced grid points over the whole interval. Compare this value to the exact value of 2. In [1]: import numpy as np a = 0 b = np.pi n = 11 h = (b - a) / (n - 1) x = np.linspace(a, b, n) f = np.sin(x) I_simp = (h/3) * (f[0] + 2*sum(f[:n-2:2]) + 4*sum(f[1:n-1:2]) + f[n-1]) err_simp = 2 - I_simp print(I_simp) print(err_simp)
- 365. 21.5 COMPUTING INTEGRALS IN PYTHON 363 2.0001095173150043 -0.00010951731500430384 21.5 COMPUTING INTEGRALS IN PYTHON The scipy.integrate subpackage has several functions for computing integrals. The trapz takes as input arguments an array of function values f computed on a numerical grid x. TRY IT! Use the trapz function to approximate π 0 sin(x)dx for 11 equally spaced points over the whole interval. Compare this value to the one computed in the earlier example using the trapezoid rule. In [1]: import numpy as np from scipy.integrate import trapz a = 0 b = np.pi n = 11 h = (b - a) / (n - 1) x = np.linspace(a, b, n) f = np.sin(x) I_trapz = trapz(f,x) I_trap = (h/2)*(f[0] + 2 * sum(f[1:n-1]) + f[n-1]) print(I_trapz) print(I_trap) 1.9835235375094542 1.9835235375094546 Sometimes we need to know the approximated cumulative integral. That is, F(X) = X x0 f (x)dx. For this purpose, it is useful to use the cumtrapz function, which takes the same input arguments as trapz. TRY IT! Use the cumtrapz function to approximate the cumulative integral of f (x) = sin(x) from 0 to π, with a discretization step of 0.01. The exact solution of this integral is F(x) = sin(x). Plot the results. In [2]: from scipy.integrate import cumtrapz import matplotlib.pyplot as plt
- 366. 364 CHAPTER 21 NUMERICAL INTEGRATION %matplotlib inline plt.style.use(seaborn-poster) x = np.arange(0, np.pi, 0.01) F_exact = -np.cos(x) F_approx = cumtrapz(np.sin(x), x) plt.figure(figsize = (10,6)) plt.plot(x, F_exact) plt.plot(x[1::], F_approx) plt.grid() plt.tight_layout() plt.title($F(x) = int_0^{x} sin(y) dy$) plt.xlabel(x) plt.ylabel(f(x)) plt.legend([Exact with Offset, Approx]) plt.show() The quad(f,a,b) function uses a different numerical differentiation scheme to approximate integrals; quad integrates the function defined by the function object, f, from a to b. TRY IT! Use the integrate.quad function to compute π 0 sin(x)dx. Compare your answer with the correct answer of 2. In [3]: from scipy.integrate import quad I_quad, est_err_quad = quad(np.sin, 0, np.pi) print(I_quad)
- 367. 21.6 SUMMARY AND PROBLEMS 365 err_quad = 2 - I_quad print(est_err_quad, err_quad) 2.0 2.220446049250313e-14 0.0 21.6 SUMMARY AND PROBLEMS 21.6.1 SUMMARY 1. Explicit integration of functions is often impossible or inconvenient, and numerical approaches must be used instead. 2. The Riemann integral, trapezoid rule, and Simpson’s rule are common methods of approximating integrals. 3. Each method has an order of accuracy that depends on the approximation of the area below the function. 21.6.2 PROBLEMS 1. Write a function my_int_calc(f,f0,a,b,N,option) where f is a function object, a and b are scalars such that a b, N is a positive integer, and option is the string rect, trap, or simp. Let x be an array starting at a, ending at b, and containing N evenly spaced elements. The output argument, I, should be an approximation to the integral of f(x), with initial condition f0 computed according to the input argument, option. 2. Write a function my_poly_int(x,y) where x and y are one-dimensional arrays of the same size, and the elements of x are unique and in ascending order. The function my_poly_int should (1) compute the Lagrange polynomial going through all the points defined by x and y; and (2) return an approximation to the area under the curve defined by x and y, I, defined as the analytic integral of the Lagrange interpolating polynomial. 3. When will my_poly_int work worse than the trapezoid method? 4. Write a function my_num_calc(f,a,b,n,option) where the output I is the numerical integral of f, a function object, computed on a grid of n evenly spaced points starting at a and ending at b. The in- tegration method used should be one of the following strings defined by the option: rect, trap, simp. For the rectangle method, the function value should be taken from the right endpoint of the interval. Assume that n is odd. Warning: When programming your loops note that the x subscripts start at x0 and not x1. The odd–even indices will be reversed. Also the n term given in Simpson’s rule denotes the number of subintervals, not the number of points as specified by the input argument, n.
- 368. 366 CHAPTER 21 NUMERICAL INTEGRATION Test cases: In: f = lambda x: x**2 my_num_int(f, 0, 1, 3, rect) Out: 0.625 In: my_num_int(f, 0, 1, 3, trap) Out: 0.375 In: my_num_int(f, 0, 1, 3, simp) Out: 0.3333333333333333 In: f = lambda x: np.exp(x**2) my_num_int(f, -1, 1, 101, simp) Out: 2.9253035883926493 In: my_num_int(f, -1, 1, 10001, simp) Out: 2.925303491814364 In: my_num_int(f, -1, 1, 100001, simp) Out: 2.9253034918143634 5. An earlier chapter demonstrated that some functions can be expressed as an infinite sum of polyno- mials (i.e., the Taylor series). Other functions, particularly periodic functions, can be written as an infinite sum of sine and cosine waves. For these functions, f (x) = A0 2 + ∞ n=1 An cos(nx) + Bn sin(nx). It can be shown that the values of An and Bn can be computed using the following formulas: An = 1 π π −π f (x)cos(nx) dx, Bn = 1 π π −π f (x)sin(nx) dx. Just like the Taylor series, functions can be approximated by truncating the Fourier series at some n = N. Fourier series can be used to approximate some particularly nasty functions, such as the step function, and they form the basis of many engineering applications, such as signal processing. Write a function my_fourier_coef(f,n) with output [An,Bn], where f is an function object that is 2π-periodic. The function my_fourier_coef should compute the nth Fourier coefficients, An and Bn, in the Fourier series for f defined by the two formulas given earlier. Use the quad function to perform the integration.
- 369. 21.6 SUMMARY AND PROBLEMS 367 Test cases: Use the following plotting function to plot the analytic and approximation of functions using the Fourier series. def plot_results(f, N): x = np.linspace(-np.pi, np.pi, 10000) [A0, B0] = my_fourier_coef(f, 0) y = A0*np.ones(len(x))/2 for n in range(1, N): [An, Bn] = my_fourier_coef(f, n) y += An*np.cos(n*x)+Bn*np.sin(n*x) plt.figure(figsize = (10,6)) plt.plot(x, f(x), label = analytic) plt.plot(x, y, label = approximate) plt.xlabel(x) plt.ylabel(y) plt.grid() plt.legend() plt.title(f{N}th Order Fourier Approximation) plt.show() f = lambda x: np.sin(np.exp(x)) N = 2 plot_results(f, N) N = 2 plot_results(f, N)
- 370. 368 CHAPTER 21 NUMERICAL INTEGRATION f = lambda x: np.mod(x, np.pi/2) N = 5 plot_results(f, N) N = 20 plot_results(f, N)
- 371. 21.6 SUMMARY AND PROBLEMS 369 f = lambda x: (x -np.pi/2) (x np.pi/2) N = 2 plot_results(f, N) N = 20 plot_results(f, N)
- 372. 370 CHAPTER 21 NUMERICAL INTEGRATION 6. For a numerical grid with spacing h, Boole’s rule for approximating integrals says that xi+4 xi f (x)dx ≈ 3h 90 7f (xi) + 32f (xi+1) + 12f (xi+2) + 32f (xi+3) + 7f (xi+4) . Show that Boole’s rule is O(h7) over a single subinterval.
- 373. 22 ORDINARY DIFFERENTIAL EQUATIONS (ODES) INITIAL-VALUE PROBLEMS 22.1 ODE Initial Value Problem Statement ............................................................................ 371 22.2 Reduction of Order .................................................................................................. 374 22.3 The Euler Method.................................................................................................... 375 22.4 Numerical Error and Instability ................................................................................... 380 22.5 Predictor–Corrector and Runge–Kutta Methods ................................................................ 382 22.5.1 Predictor–Corrector Methods..................................................................... 382 22.5.2 Runge–Kutta Methods ............................................................................ 383 22.6 Python ODE Solvers ................................................................................................. 384 22.7 Advanced Topics .................................................................................................... 389 22.7.1 Multistep Methods................................................................................. 389 22.7.2 Stiffness ODE ...................................................................................... 389 22.8 Summary and Problems ............................................................................................ 390 22.8.1 Summary............................................................................................ 390 22.8.2 Problems ............................................................................................ 391 22.1 ODE INITIAL VALUE PROBLEM STATEMENT A differential equation is a relationship between a function, f (x), its independent variable, x, and any number of its derivatives. An ordinary differential equation or ODE is a differential equation where the independent variable and its derivatives are in one dimension. For the purpose of this book, we assume that an ODE can be written as F x,f (x), df (x) dx , d2f (x) dx2 , d3f (x) dx3 ,..., dn−1f (x) dxn−1 = dnf (x) dxn , where F is an arbitrary function that incorporates one or all of the input arguments, and n is the order of the differential equation. This equation is referred to as an nth order ODE. To give an example of an ODE, consider a pendulum of length l with a mass, m, at its end; see Fig. 22.1. The angle the pendulum makes with the vertical axis over time, (t), in the presence of vertical gravity, g, can be described by the pendulum equation, which is the ODE ml d2(t) dt2 = −mg sin((t)).
- 374. 372 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS FIGURE 22.1 Pendulum system. This equation can be derived by summing the forces in the x and y direction, and then changing them to polar coordinates. In contrast, a partial differential equation or PDE is a general form differential equation where x is a vector containing the independent variables x1,x2,x3,...,xm, and the partial derivatives can be of any order with respect to any combination of variables. An example of a PDE is the heat equation, which describes the evolution of temperature in space over time: ∂u(t,x,y,z) ∂t = α ∂u(t,x,y,z) ∂x + ∂u(t,x,y,z) ∂y + ∂u(t,x,y,z) ∂z . Here, u(t,x,y,z) is the temperature at (x,y,z) at time t, and α is a thermal diffusion constant. A general solution to a differential equation is a g(x) that satisfies the differential equation. Al- though there are usually many solutions to a differential equation, they are still difficult to solve. For an ODE of order n, a particular solution is a p(x) that satisfies the differential equation and has n explicitly known values of the solution, or its derivatives at certain points. Generally stated, p(x) must satisfy the differential equation and p(j)(xi) = pi, where p(j) is the jth derivative of p, for n triplets, (j,xi,pi). For the purpose of this text, we refer to the particular solution simply as the solution. TRY IT! Returning to the pendulum example, if we assume the angles are very small (i.e., sin((t)) ≈ (t)), then the pendulum equation reduces to l d2(t) dt2 = −g(t). Verify that (t) = cos g l t is a general solution to the pendulum equation. If the angle and angular velocities at t = 0 are the known values, 0 and 0, respectively, verify that (t) = 0 cos g l t is a particular solution for these known values.
- 375. 22.1 ODE INITIAL VALUE PROBLEM STATEMENT 373 For the general solution, the derivatives of (t) are d(t) dt = − g l sin g l t and d2(t) dt2 = − g l cos g l t . By plugging the second derivative back into the differential equation on the left-hand side, it is easy to verify that (t) satisfies the equation; thus, it is considered a general solution. For the particular solution, the 0 coefficient will carry through the derivatives, and it can be verified that the equation is satisfied: (0) = 0 cos(0) = 0, and 0 = −0 g l sin(0) = 0, therefore the particular solution also has the known values. A pendulum swinging at small angles is a very uninteresting pendulum indeed. Unfortunately, there is no explicit solution for the pendulum equation with large angles that is as simple alge- braically. Since this system is much simpler than most practical engineering systems and has no obvious analytical solution, the need for numerical solutions to ODEs is clear. NOTE! An analytical solution of an ODE is a mathematical expression of the function f (x) that satisfies the differential equation and has the initial value. But in many cases, an analytical solution is impossible in engineering and science. A numerical solution of an ODE is a set of discrete points (numerical grid) that approximate the function f (x); we can obtain the solution using these grids. A common set of known values for an ODE solution is the initial value. For an ODE of or- der n, the initial value is a known value for the 0th to (n − 1)th derivatives at x = 0, namely f (0),f (1)(0),f (2)(0),...,f (n−1)(0). For a certain class of ordinary differential equations, the ini- tial value is sufficient to find a unique particular solution. Finding a solution to an ODE given an initial value is called the initial value problem. Although the name suggests we will only cover ODEs that evolve in time, initial value problems can also include systems that evolve in other dimensions such as space. Intuitively, the pendulum equation can be solved as an initial value problem because under only the force of gravity, an initial position and velocity should be sufficient to describe the motion of the pendulum for all time afterward. The remainder of this chapter covers several methods of numerically approximating the solution to initial value problems on a numerical grid. Although initial value problems encompass more than just differential equations in time, we use time as the independent variable. We use several notations for the derivative of f (t): f (t),f (1)(t), df (t) dt , and ˙ f , whichever is most convenient for the context.
- 376. 374 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS 22.2 REDUCTION OF ORDER Many numerical methods for solving initial value problems are designed specifically to solve first-order differential equations. To make these solvers useful for solving higher-order differential equations, we must often reduce the order of the differential equation to a first order problem. To reduce the order of a differential equation, consider a vector, S(t), which is the state of the system as a function of time. In general, the state of a system is a collection of all the dependent variables that are relevant to the behavior of the system. Recalling that the ODEs of interest in this book can be expressed as f (n) (t) = F t,f (t),f (1) (t),f (2) (t),f (3) (t),...,f (n−1) (t) , for initial value problems, it is useful to take the state to be S(t) = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ f (t) f (1)(t) f (2)(t) f (3)(t) . . . f (n−1)(t) ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ . Then the derivative of the state is dS(t) dt = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ f (1)(t) f (2)(t) f (3)(t) f (4)(t) . . . f (n)(t) ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ f (1)(t) f (2)(t) f (3)(t) f (4)(t) . . . F t,f (t),f (1)(t),...,f (n−1)(t) ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ S2(t) S3(t) S4(t) S5(t) . . . F (t,S1(t),S2(t),...,Sn−1(t)) ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ , where Si(t) is the ith element of S(t). With the state written in this way, dS(t) dt can be written using only S(t) (i.e., no f (t)) or its derivatives. In particular, dS(t) dt = F(t,S(t)), where F is a function that assembles the vector appropriately, describing the derivative of the state. This equation is in the form of a first-order differential equation in S. Essentially, what we have done is turn an nth order ODE into n first-order ODEs that are coupled together, meaning they share the same terms. TRY IT! Reduce the second-order pendulum equation to a first-order equation, where S(t) = (t) ˙ (t) .
- 377. 22.3 THE EULER METHOD 375 Taking the derivative of S(t) and substituting gives the correct expression: dS(t) dt = S2(t) −g l S1(t) . This ODE can be written in matrix form: dS(t) dt = 0 1 −g l 0 S(t). The ODEs that can be written in this way are said to be linear ODEs. Although reducing the order of an ODE to first-order results in an ODE with multiple variables, all the derivatives are still taken with respect to the same independent variable, t; therefore, the ordinari- ness of the differential equation is retained. Note that the state can hold multiple dependent variables and their derivatives as long as the deriva- tives are the same with respect to the independent variable. TRY IT! A very simple model to describe the change in the population of rabbits, r(t), due to wolves, w(t), might be dr(t) dt = 4r(t) − 2w(t) and dw(t) dt = r(t) + w(t). The first ODE says that the rate of growth of the rabbit population is four times its value minus twice the size of the population of wolves (who eat the rabbits). The second ODE says that the growth rate of the wolf population is equal to the value of the wolf population plus the rabbit population. Write this system of differential equations as an equivalent differential equation in S(t) where S(t) = r(t) w(t) . The following first-order ODE is equivalent to the pair of ODEs: dS(t) dt = 4 −2 1 1 S(t). 22.3 THE EULER METHOD Let dS(t) dt = F(t,S(t)) be an explicitly defined first order ODE, that is, F is a function that returns the derivative, or change, of a state given a time and state value. Also, let t be a numerical grid of the
- 378. 376 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS interval [t0,tf ] with spacing h. Without loss of generality, we assume that t0 = 0 and that tf = Nh for some positive integer, N. The linear approximation of S(t) around tj at tj+1 is S(tj+1) = S(tj ) + (tj+1 − tj ) dS(tj ) dt , which can also be written S(tj+1) = S(tj ) + hF(tj ,S(tj )). This formula is called the Explicit Euler Formula. It allows us to compute an approximation for the state at S(tj+1) given the state at S(tj ). This is actually based on the Taylor series we discussed in Chapter 18, whereby we used only the first order item in Taylor series to linearly approximate the next solution. Later in this chapter, we will present a formula using higher terms to increase the accuracy. Starting from a given initial value of S0 = S(t0), we can use this formula to integrate the states up to S(tf ); these S(t) values are then an approximation for the solution of the differential equation. The explicit Euler formula is the simplest and most intuitive method for solving initial value problems. At any state (tj ,S(tj )) it uses F at that state to “point” linearly toward the next state and then moves in that direction a distance of h, as shown in Fig. 22.2. FIGURE 22.2 The illustration of the explicit Euler method. Although there are more sophisticated and accurate methods for solving these problems, they all have the same fundamental structure. As such, we enumerate explicitly the steps for solving an initial value problem using the explicit Euler formula. WHAT IS HAPPENING? Assume we are given a function F(t,S(t)) that computes dS(t) dt , a numerical grid, t, of the interval, [t0,tf ], and an initial state value S0 = S(t0). We can compute S(tj ) for every tj in t using the following steps:
- 379. 22.3 THE EULER METHOD 377 1. Store S0 = S(t0) in an array, S. 2. Compute S(t1) = S0 + hF(t0,S0). 3. Store S1 = S(t1) in S. 4. Compute S(t2) = S1 + hF(t1,S1). 5. Store S2 = S(t1) in S. 6. ... 7. Compute S(tf ) = Sf −1 + hF(tf −1,Sf −1). 8. Store Sf = S(tf ) in S. 9. S is an approximation of the solution to the initial value problem. When using a method with this structure, we say the method integrates the solution of the ODE. TRY IT! The differential equation df (t) dt = e−t with initial condition f0 = −1 has the exact solu- tion f (t) = −e−t . Approximate the solution to this initial value problem between zero and 1 in increments of 0.1 using the explicit Euler formula. Plot the difference between the approximated solution and the exact solution. In [1]: import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline # Define parameters f = lambda t, s: np.exp(-t) # ODE h = 0.1 # Step size t = np.arange(0, 1 + h, h) # Numerical grid s0 = -1 # Initial Condition # Explicit Euler Method s = np.zeros(len(t)) s[0] = s0 for i in range(0, len(t) - 1): s[i + 1] = s[i] + h*f(t[i], s[i]) plt.figure(figsize = (12, 8)) plt.plot(t, s, b-, label=Approximate) plt.plot(t, -np.exp(-t), g, label=Exact) plt.title(Approximate and Exact Solution for Simple ODE) plt.xlabel(t) plt.ylabel(f(t))
- 380. 378 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS plt.grid() plt.legend(loc=lower right) plt.show() In the above figure, each dot is one approximation based on the previous dot in a linear fashion. From the initial value, we can eventually obtain an approximation of the solution on the numerical grid. If we repeat the process for h = 0.01, we obtain a better approximation for the solution: In [2]: h = 0.01 # Step size t = np.arange(0, 1 + h, h) # Numerical grid s0 = -1 # Initial Condition # Explicit Euler Method s = np.zeros(len(t)) s[0] = s0 for i in range(0, len(t) - 1): s[i + 1] = s[i] + h*f(t[i], s[i]) plt.figure(figsize = (12, 8)) plt.plot(t, s, b-, label=Approximate) plt.plot(t, -np.exp(-t), g, label=Exact) plt.title(Approximate and Exact Solution for Simple ODE) plt.xlabel(t) plt.ylabel(f(t)) plt.grid() plt.legend(loc=lower right) plt.show()
- 381. 22.3 THE EULER METHOD 379 The explicit Euler formula is called “explicit” because it only requires information at tj to compute the state at tj+1. That is, S(tj+1) can be written explicitly in terms of values we have (i.e., tj and S(tj )). The Implicit Euler Formula can be derived by taking the linear approximation of S(t) around tj+1 and computing it at tj : S(tj+1) = S(tj ) + hF(tj+1,S(tj+1)). This formula is peculiar because it requires that we know S(tj+1) in order to compute S(tj+1)! However, it happens that sometimes we can use this formula to approximate the solution to initial value problems. Before we provide details on how to solve these problems using the implicit Euler formula, we introduce another implicit formula called the Trapezoidal Formula, which is the average of the explicit and implicit Euler formulas: S(tj+1) = S(tj ) + h 2 (F(tj ,S(tj )) + F(tj+1,S(tj+1))). To illustrate how to solve these implicit schemes, consider again the pendulum equation, which has been reduced to a first-order equation: dS(t) dt = 0 1 −g l 0 S(t). For this equation, F(tj ,S(tj )) = 0 1 −g l 0 S(tj ). If we plug this expression into the explicit Euler formula, we obtain the following equation: S(tj+1) = S(tj ) + h 0 1 −g l 0 S(tj ) = 1 0 0 1 S(tj ) + h 0 1 −g l 0 S(tj ) = 1 h −gh l 1 S(tj ).
- 382. 380 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS Similarly, we can plug the same expression into the implicit Euler formula to obtain 1 −h gh l 1 S(tj+1) = S(tj ), and into the trapezoidal formula to obtain 1 −h 2 gh 2l 1 S(tj+1) = 1 h 2 −gh 2l 1 S(tj ). With some rearrangement, these equations become respectively S(tj+1) = 1 −h gh l 1 −1 S(tj ), S(tj+1) = 1 −h 2 gh 2l 1 −1 1 h 2 −gh 2l 1 S(tj ). These equations allow us to solve the initial value problem since at each state, S(tj ), we can com- pute the next state at S(tj+1). In general, this is possible to do when an ODE is linear. 22.4 NUMERICAL ERROR AND INSTABILITY There are two main issues to consider with regard to integration schemes for ODEs: accuracy and stability. Accuracy refers to a scheme’s ability to get close to the exact solution, which is usually unknown, as a function of the step size h. Previous chapters have referred to accuracy using the notation O(hp). The same notation can be used to solve ODEs. The stability of an integration scheme is its ability to keep the error from growing as it integrates forward in time. If the error does not grow, then the scheme is stable; otherwise it is unstable. Some integration schemes are stable for certain choices of h and unstable for others; these integration schemes are also referred to as unstable. To illustrate issues of stability, we numerically solve the pendulum equation using the explicit and implicit Euler, as well as trapezoidal, formulas. TRY IT! Use the explicit and implicit Euler, as well as trapezoidal, formulas to solve the pen- dulum equation over the time interval [0,5] in increments of 0.1, and for an initial solution of S0 = 1 0 . For the model parameters using g l = 4, plot the approximate solution on a single graph. In [1]: import numpy as np from numpy.linalg import inv
- 383. 22.4 NUMERICAL ERROR AND INSTABILITY 381 import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline In [2]: # define step size h = 0.1 # define numerical grid t = np.arange(0, 5.1, h) # oscillation freq. of pendulum w = 4 s0 = np.array([[1], [0]]) m_e = np.array([[1, h], [-w**2*h, 1]]) m_i = inv(np.array([[1, -h], [w**2*h, 1]])) m_t = np.dot(inv(np.array([[1, -h/2], [w**2*h/2,1]])), np.array( [[1,h/2], [-w**2*h/2, 1]])) s_e = np.zeros((len(t), 2)) s_i = np.zeros((len(t), 2)) s_t = np.zeros((len(t), 2)) # do integrations s_e[0, :] = s0.T s_i[0, :] = s0.T s_t[0, :] = s0.T for j in range(0, len(t)-1): s_e[j+1, :] = np.dot(m_e,s_e[j, :]) s_i[j+1, :] = np.dot(m_i,s_i[j, :]) s_t[j+1, :] = np.dot(m_t,s_t[j, :]) plt.figure(figsize = (12, 8)) plt.plot(t,s_e[:,0],b-) plt.plot(t,s_i[:,0],g:) plt.plot(t,s_t[:,0],r-) plt.plot(t, np.cos(w*t), k) plt.ylim([-3, 3]) plt.xlabel(t)
- 384. 382 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS plt.ylabel($Theta (t)$) plt.legend([Explicit, Implicit, Trapezoidal, Exact]) plt.show() The generated figure above compares the numerical solution to the pendulum problem. The exact solution is a pure cosine wave. The explicit Euler scheme is clearly unstable. The implicit Euler scheme decays exponentially, which is not correct. The trapezoidal method captures the solution correctly, with a small phase shift as time increases. 22.5 PREDICTOR–CORRECTOR AND RUNGE–KUTTA METHODS 22.5.1 PREDICTOR–CORRECTOR METHODS Given any time and state value, the function, F(t,S(t)), returns the change of state dS(t) dt . The predictor–corrector methods of solving initial value problems improve the approximation accuracy of non-predictor–corrector methods by querying the F function several times at different locations (pre- dictions). Then, using a weighted average of the results (corrections), updates the state. Essentially, it uses two formulas: a predictor and a corrector. The predictor is an explicit formula and estimates the solution at tj+1 first, i.e., we can use Euler method or some other methods to finish this step. Af- ter obtaining the solution S(tj+1), we apply the corrector to improve the accuracy. Using the found S(tj+1) on the right-hand side of an otherwise implicit formula, the corrector can calculate a new, more accurate solution. The midpoint method has a predictor step: S tj + h 2 = S(tj ) + h 2 F(tj ,S(tj )), which is the prediction of the solution value halfway between tj and tj+1.
- 385. 22.5 PREDICTOR–CORRECTOR AND RUNGE–KUTTA METHODS 383 It then computes the corrector step: S(tj+1) = S(tj ) + hF tj + h 2 ,S tj + h 2 , which computes the solution at S(tj+1) from S(tj ) but uses the derivative from S tj + h 2 . 22.5.2 RUNGE–KUTTA METHODS Runge–Kutta (RK) methods are among the most widely used methods for solving ODEs. Recall that the Euler method uses the first two terms in Taylor series to approximate the numerical integration, which is linear: S(tj+1) = S(tj + h) = S(tj ) + h · S(tj ). We can greatly improve the accuracy of numerical integration if we keep more terms of the series as S(tj+1) = S(tj + h) = S(tj ) + S (tj )h + 1 2! S (tj )h2 + ··· + 1 n! S(n) (tj )hn . In order to obtain this more accurate solution, we need to derive the expressions of S(tj ),S(tj ), ...,S(n)(tj ). This extra work can be avoided using the RK methods, which are based on truncated Taylor series but do not require computation of these higher derivatives. 22.5.2.1 Second-Order Runge–Kutta Method Let us first derive the second order RK method. Let dS(t) dt = F(t,S(t)). Then we assume an integration formula the form of S(t + h) = S(t) + c1F(t,S(t))h + c2F[t + ph,S(t) + qhF(t,S(t))]h. (22.1) We can attempt to find these parameters c1,c2,p,q by matching the above equation to the second- order Taylor series: S(t + h) = S(t) + S (t)h + 1 2! S (t)h2 = S(t) + F(t,S(t))h + 1 2! F (t,S(t))h2 . (22.2) Note that F (t,s(t)) = ∂F ∂t + ∂F ∂S ∂S ∂t = ∂F ∂t + ∂F ∂S F. (22.3) Therefore, Eq. (22.2) can be written as S(t + h) = S + Fh + 1 2! ∂F ∂t + ∂F ∂S F h2 . (22.4) In Eq. (22.1), we rewrite the last term by applying Taylor series in several variables: F[t + ph,S + qhF)] = F + ∂F ∂t ph + qh ∂F ∂S F,
- 386. 384 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS thus Eq. (22.1) becomes S(t + h) = S + (c1 + c2)Fh + c1 ∂F ∂t p + q ∂F ∂S F h2 . (22.5) Comparing Eqs. (22.4) and (22.5), we can easily obtain c1 + c2 = 1,c2p = 1 2 ,c2q = 1 2 . (22.6) Because (22.6) has four unknowns and only three equations, we assign any value to one of the parameters and get the rest of the parameters. One popular choice is: c1 = 1 2 , c2 = 1 2 , p = 1, q = 1. We can also define: k1 = F(tj ,S(tj )), k2 = F tj + ph,S(tj ) + qhk1 , where we obtain S(tj+1) = S(tj ) + 1 2 (k1 + k2)h. 22.5.2.2 Fourth-Order Runge–Kutta Method A classical method for integrating ODEs with a high order of accuracy is the Fourth Order Runge– Kutta (RK4) method. This method uses four points k1,k2,k3, and k4. A weighted average of these predictions is used to produce the approximation of the solution. The formula is as follows: k1 = F(tj ,S(tj )), k2 = F tj + h 2 ,S(tj ) + 1 2 k1h , k3 = F tj + h 2 ,S(tj ) + 1 2 k2h , k4 = F(tj + h,S(tj ) + k3h). Therefore, we will have S(tj+1) = S(tj ) + h 6 (k1 + 2k2 + 2k3 + k4). As indicated by its name, the RK4 method is fourth-order accurate, or O(h4). 22.6 PYTHON ODE SOLVERS In SciPy, there are several built-in functions for solving initial value problems. The most common function is the scipy.integrate.solve_ivp function. The function construction is shown below:
- 387. 22.6 PYTHON ODE SOLVERS 385 CONSTRUCTION: Let F be a function object to the function that computes dS(t) dt = F(t,S(t)), S(t0) = S0. The variable t is a one-dimensional independent variable (time), S(t) is an n-dimensional vector-valued function (state), and F(t,S(t)) defines the differential equations; S0 is an initial value for S. The function F must have the form dS = F(t,S), although the name does not have to be F. The goal is to find the S(t) that approximately satisfies the differential equations given the initial value S(t0) = S0. Using the solver to solve the differential equation is as follows: solve_ivp(fun,t_span,s0,method RK45,t_eval=None) where fun takes in the function in the right-hand side of the system; t_span is the interval of integration (t0,tf ) where t0 is the start and tf is the end of the interval; s0 is the initial state. There are a couple of methods to choose from: the default is “RK45”, which is the explicit Runge–Kutta method of order 5(4). There are other methods you can use as well; see the end of this section for more information; t_eval takes in the times at which to store the computed solution, and must be sorted and lie within t_span. Let us try one example below. EXAMPLE: Consider the ODE dS(t) dt = cos(t) for an initial value of S0 = 0. The exact solution to this problem is S(t) = sin(t). Use solve_ivp to approximate the solution to this initial value problem over the interval [0,π]. Plot the approximate solution versus the exact solution and the relative error over time. In [1]: import matplotlib.pyplot as plt import numpy as np from scipy.integrate import solve_ivp plt.style.use(seaborn-poster) %matplotlib inline F = lambda t, s: np.cos(t)
- 388. 386 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS t_eval = np.arange(0, np.pi, 0.1) sol = solve_ivp(F, [0, np.pi], [0], t_eval=t_eval) plt.figure(figsize = (12, 4)) plt.subplot(121) plt.plot(sol.t, sol.y[0]) plt.xlabel(t) plt.ylabel(S(t)) plt.subplot(122) plt.plot(sol.t, sol.y[0] - np.sin(sol.t)) plt.xlabel(t) plt.ylabel(S(t) - sin(t)) plt.tight_layout() plt.show() The above left figure shows the integration of dS(t) dt = cos(t) with solve_ivp. The right figure com- putes the difference between the solution of the integration by solve_ivp and evaluates the analytical solution to this ODE. As can be seen from the figure, the difference between the approximate and exact solution to this ODE is small. Also, we can control the relative and absolute tolerances using the rtol and atol arguments; the solver keeps the local error estimates less than atol + rtol*abs(S). The default values are 1e-3 for rtol and 1e-6 for atol. TRY IT! Using the rtol and atol to make the difference between the approximate and exact solution less than 1e-7. In [2]: sol = solve_ivp(F, [0, np.pi], [0], t_eval=t_eval, rtol = 1e-8, atol = 1e-8) plt.figure(figsize = (12, 4)) plt.subplot(121) plt.plot(sol.t, sol.y[0]) plt.xlabel(t) plt.ylabel(S(t)) plt.subplot(122) plt.plot(sol.t, sol.y[0] - np.sin(sol.t))
- 389. 22.6 PYTHON ODE SOLVERS 387 plt.xlabel(t) plt.ylabel(S(t) - sin(t)) plt.tight_layout() plt.show() EXAMPLE: Consider the ODE dS(t) dt = −S(t), with an initial value of S0 = 1. The exact solution to this problem is S(t) = e−t . Use solve_ivp to approximate the solution to this initial value problem over the interval [0,1]. Plot the approximate solution versus the exact solution, and the relative error over time. In [3]: F = lambda t, s: -s t_eval = np.arange(0, 1.01, 0.01) sol = solve_ivp(F, [0, 1], [1], t_eval=t_eval) plt.figure(figsize = (12, 4)) plt.subplot(121) plt.plot(sol.t, sol.y[0]) plt.xlabel(t) plt.ylabel(S(t)) plt.subplot(122) plt.plot(sol.t, sol.y[0] - np.exp(-sol.t)) plt.xlabel(t) plt.ylabel(S(t) - exp(-t)) plt.tight_layout() plt.show()
- 390. 388 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS The above figure shows the corresponding numerical results. As in the previous example, the dif- ference between the result of solve_ivp and the evaluation of the analytical solution by Python is very small compared to the value of the function. EXAMPLE: Let the state of a system be defined by S(t) = x(t) y(t) , and let the evolution of the system be defined by the ODE dS(t) dt = 0 t2 −t 0 S(t). Use solve_ivp to solve this ODE for the time interval [0,10] with an initial value of S0 = 1 1 . Plot the solution in (x(t),y(t)). In [4]: F=lambda t, s: np.dot(np.array([[0, t**2], [-t,0]]),s) t_eval = np.arange(0, 10.01, 0.01) sol = solve_ivp(F, [0, 10], [1, 1], t_eval=t_eval) plt.figure(figsize = (12, 8)) plt.plot(sol.y.T[:, 0], sol.y.T[:, 1]) plt.xlabel(x) plt.ylabel(y) plt.show()
- 391. 22.7 ADVANCED TOPICS 389 22.7 ADVANCED TOPICS This section discusses briefly some more advanced topics in IVP ODE. Although we will not go into great detail, we suggest you check out some great books such as Ordinary Differential Equations by Morris Tenenbaum and Harry Pollard, Numerical Methods for Engineers and Scientists by Amos Gi- lat and Vish Subramaniam, as well as Numerical Methods for Ordinary Differential Equations by J.C. Butcher, if you are interested. 22.7.1 MULTISTEP METHODS So far, most of the methods we discussed are called “one-step methods” because the approximation for the next point tj+1 is obtained by using information only from S(tj ) and tj at the previous point. Although some of the methods, such as RK methods, might use function-evaluation information at points between tj and tj+1, they do not retain the information for direct use in future approximations. In an attempt to gain more efficiency, the multistep methods use two or more previous points to approximate the solution at the next point tj+1. For linear multistep methods, a linear combination of the previous points and derivative values are used to approximate the next point. The coefficients can be determined using polynomial interpolation, as discussed in Chapter 17. There are three families of linear multistep methods commonly used: Adams–Bashforth methods, Adams–Moulton methods, and the backward differentiation formulas (BDFs). 22.7.2 STIFFNESS ODE Stiffness is a difficult and important concept in the numerical solution of ODEs. A stiff ODE equation will make the solution being sought vary slowly and will not be stable, i.e., if there are nearby solutions, the solution will change dramatically. This will force us into taking small steps to obtain reasonable results. Therefore, stiffness is usually an efficiency issue: if we do not care about computation cost, we would not be concerned about stiffness.
- 392. 390 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS In science and engineering, we often need to model physical phenomena with very different time scales or spatial scales. These applications usually lead to systems of ODEs, whose solution include several terms with magnitudes varying with time at a significantly different rate. For example, Fig. 22.3 shows a spring–mass system, whereby the mass swings from left to right, as well as oscillates up and down due to the spring. Thus, we have two different time scales, i.e., the time scale of the swinging motion and the oscillation motion. If the spring is really stiff, the oscillation motion time scale will be much smaller than that of the swinging motion. In order to study the system, we have to use a very tiny time step to obtain a good solution for the oscillation. FIGURE 22.3 The illustration of the stiffness equation. Depending on the properties of the ODE and the desired level of accuracy, you might need to use different methods for solve_ivp. There are many methods to choose from for the method argument in solve_ivp; browse through the documentation for additional information. As suggested by the documentation, use the RK45 or RK23 method for non-stiff problems and Radau or BDF for stiff problems. If not sure, first try to run RK45. Should this solution experience an unusually high number of iterations, diverge, or fail, this problem is likely to be stiff, and you should use Radau or BDF. LSODA can also be a good universal choice, but it might be somewhat less convenient to work with as it wraps old Fortran code. 22.8 SUMMARY AND PROBLEMS 22.8.1 SUMMARY 1. Ordinary differential equations (ODEs) are equations that relate a function to its derivatives, and initial value problems are a specific kind of ODE-solving problem. 2. Because most initial value problems cannot be integrated explicitly, they require numerical solu- tions. 3. There are explicit, implicit, and predictor–corrector methods for numerically solving initial value problems. 4. The accuracy of the scheme used depends on its order of approximation of the ODE. 5. The stability of the scheme used depends on the ODE, scheme, and choice of the integration pa- rameters.
- 393. 22.8 SUMMARY AND PROBLEMS 391 22.8.2 PROBLEMS 1. The logistic equation is a simple differential equation model that can be used to relate the change in population dP dt to the current population, P, given a growth rate, r, and a carrying capacity, K. The logistic equation can be expressed by dP dt = rP 1 − P K . Write a function my_logistic_eq(t, P, r, K) that represents the logistic equation with a return of dP. Note that this format allows my_logistic_eq to be used as an input argument to solve_ivp. Assume that the arguments dP, t, P, r, and K are all scalars, and dP is the value dP dt given r, P, and K. Note that the input argument, t, is obligatory if my_logistic_eq is to be used as an input argument to solve_ivp, even though it is part of the differential equation. Note that the logistic equation has an analytic solution defined by P(t) = KP0ert K + P0(ert − 1) where P0 is the initial population. Verify that this equation is a solution to the logistic equation. Test cases: In [1]: import numpy as np from scipy.integrate import solve_ivp import matplotlib.pyplot as plt from functools import partial plt.style.use(seaborn-poster) %matplotlib inline In [2]: def my_logistic_eq(t, P, r, K): # put your code here return dP dP = my_logistic_eq(0, 10, 1.1, 15) dP Out[2]: 3.666666666666667 In [3]: from functools import partial t0 = 0 tf = 20 P0 = 10 r = 1.1 K = 20 t = np.linspace(0, 20, 2001)
- 394. 392 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS f = partial(my_logistic_eq, r=r, K=K) sol=solve_ivp(f,[t0,tf],[P0],t_eval=t) plt.figure(figsize = (10, 8)) plt.plot(sol.t, sol.y[0]) plt.plot(t, K*P0*np.exp(r*t)/(K+P0*(np.exp(r*t)-1)),r:) plt.xlabel(time) plt.ylabel(population) plt.legend([Numerical Solution, Exact Solution]) plt.grid(True) plt.show() 2. The Lorenz attractor is a system of ordinary differential equations that was originally developed to model convection currents in the atmosphere. The Lorenz equations can be written as fol- lows: dx dt = σ(y − x), dy dt = x(ρ − z) − y, dz dt = xy − βz,
- 395. 22.8 SUMMARY AND PROBLEMS 393 where x, y, and z represent the position in three dimensions, and σ,ρ, and β are scalar parameters of the system. Read more about the Lorenz attractor on Wikipedia1 or more details in the book “Viability Theory – New Directions.” Write a function my_lorenz(t,S,sigma,rho,beta) where t is a scalar denoting time, S is a 3D array denoting the position (x,y,z), and sigma, rho, and beta are strictly positive scalars representing σ,ρ, and β. The output argument dS should be the same size as S. Test cases: In [4]: def my_lorenz(t, S, sigma, rho, beta): # put your code here return dS s = np.array([1, 2, 3]) dS = my_lorenz(0, s, 10, 28, 8/3) dS Out[4]: array([10., 23., -6.]) 3. Write a function my_lorenz_solver(t_span,s0,sigma,rho,beta) solves the Lorenz equations us- ing solve_ivp, the function returns [T,X,Y,Z]. The input argument t_span should be a list of the form [t0,tf ], where t0 is the initial time, and tf is the final time of consideration. The input ar- gument s0 should be a 3D array of the form [x0,y0,z0], where (x0,y0,z0) represents an initial position. Finally, the input arguments sigma, rho, and β are the scalar parameters σ,ρ, and β of the Lorenz system. The output argument T should be an array of times given as the output argu- ment of solve_ivp. The output arguments, X, Y, and Z should be the numerically integrated solution produced from my_lorenz in the previous problem and solve_ivp. Test cases: In [5]: def my_lorenz_solver(t_span, s0, sigma, rho, beta): # put your code here return [T, X, Y, Z] sigma = 10 rho = 28 beta = 8/3 t0 = 0 tf = 50 s0 = np.array([0, 1, 1.05]) [T, X, Y, Z] = my_lorenz_solver([t0, tf], s0, sigma, rho, beta) 1 https://en.wikipedia.org/wiki/Lorenz_system.
- 396. 394 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS from mpl_toolkits import mplot3d fig = plt.figure(figsize = (10,10)) ax = plt.axes(projection=3d) ax.grid() ax.plot3D(X, Y, Z) # Set axes label ax.set_xlabel(x, labelpad=20) ax.set_ylabel(y, labelpad=20) ax.set_zlabel(z, labelpad=20) plt.show() 4. Consider the following model of a mass–spring–damper (MSD) system in one dimension. In this figure, m denotes the mass of the block, c is called the damping coefficient, and k is the spring stiffness. A damper is a mechanism that dissipates energy in the system by resisting velocity. The MSD system is a simplistic model of several engineering applications, such as shock observers and structural systems. The relationship between acceleration, velocity, and displacement can be expressed by the following MSD differential equation: mẍ + cẋ + kx = 0, which can be rewritten as ẍ = −(cẋ + kx) m .
- 397. 22.8 SUMMARY AND PROBLEMS 395 Let the state of the system be denoted by the vector S = [x;v] where x is the displacement of the mass from its resting configuration, and v is its velocity. Rewrite the MSD equation as a first-order differential equation in terms of the state, S. In other words, rewrite the MSD equation as dS/dt = f (t,S). Write a function my_msd(t,S,m,c,k) where t is a scalar denoting time, S is a 2D vector denoting the state of the MSD system, and m, c, and k are the mass, damping, and stiffness coefficients of the MSD equation, respectively. Test cases: In [6]: def my_msd(t, S, m, c, k): # put your code here return ds my_msd(0, [1, -1], 10, 1, 100) Out[6]: array([-1. , -9.9]) In [7]: m = 1 k = 10 f = partial(my_msd, m=m, c=0, k=k) t_e = np.arange(0, 20, 0.1) sol_1=solve_ivp(f,[0,20],[1,0],t_eval=t_e) f = partial(my_msd, m=m, c=1, k=k) sol_2=solve_ivp(f,[0,20],[1,0],t_eval=t_e) f = partial(my_msd, m=m, c=10, k=k) sol_3=solve_ivp(f,[0,20],[1,0],t_eval=t_e) plt.figure(figsize = (10, 8)) plt.plot(sol_1.t, sol_1.y[0]) plt.plot(sol_2.t, sol_2.y[0]) plt.plot(sol_3.t, sol_3.y[0]) plt.title(Numerical Solution of MSD System with Varying Dampling) plt.xlabel(time) plt.ylabel(displacement) plt.legend([no dampling, c=1, critically damped], loc=1)
- 398. 396 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS 5. Write a function my_forward_euler(ds,t_span,s0) where ds is a function object, f (t,s), describ- ing a first-order differential equation, t_span is an array of times for which numerical solutions of the differential equation are desired, and s0 is the initial condition of the system. Assume that the size of the state is one. The output argument should be a list of [t,s], such that t[i] = t_span[i] for all i, and s should be the integrated values of ds at times t. Perform the integration using the forward Euler method, s[ti] = s[ti−1] + (ti − ti−1)ds(ti−1,s[ti−1]). Note that s[0] should equal s0. Test cases: In [8]: def my_forward_euler(ds, t_span, s0): # put your code here return [t, s] t_span = np.linspace(0, 1, 10) s0 = 1 # Define parameters f = lambda t, s: t*np.exp(-s) t_eul, s_eul = my_forward_euler(f, t_span, s0) print(t_eul) print(s_eul) [0. 0.11111111 0.22222222 0.33333333 0.44444444 0.55555556 0.66666667 0.77777778 0.88888889 1. ] [1. 1. 1.00454172 1.013584 1.02702534 1.04470783 1.06642355 1.09192262 1.12092255 1.153118 ]
- 399. 22.8 SUMMARY AND PROBLEMS 397 In [9]: plt.figure(figsize = (10, 8)) # Exact solution t = np.linspace(0, 1, 1000) s = np.log(np.exp(s0) + (t**2-t[0])/2) plt.plot(t, s, r, label=Exact) # Forward Euler plt.plot(t_eul, s_eul, g, label=Euler) # Python solver sol = solve_ivp(f, [0, 1], [s0], t_eval=t) plt.plot(sol.t, sol.y[0], b-, label=Python Solver) plt.xlabel(t) plt.ylabel(f(t)) plt.grid() plt.legend(loc=2) plt.show() 6. Write a function myRK4(ds,t_span,s0), where the input and output arguments are the same as in Problem 5. The function myRK4 should numerically integrate ds using the fourth-order Runge–Kutta method. Test cases: In [10]: def myRK4(ds, t_span, s0): # put your code here return [t, s]
- 400. 398 CHAPTER 22 ODES INITIAL-VALUE PROBLEMS f = lambda t, s: np.sin(np.exp(s))/(t+1) t_span = np.linspace(0, 2*np.pi, 10) s0 = 0 plt.figure(figsize = (10, 8)) # Runge-Kutta method t, s = myRK4(f, t_span, s0) plt.plot(t, s, r, label=RK4) # Python solver sol = solve_ivp(f, [0, 2*np.pi], [s0], t_eval=t) plt.plot(sol.t, sol.y[0], b-, label=Python Solver) plt.xlabel(t) plt.ylabel(f(t)) plt.grid() plt.legend(loc=2) plt.show()
- 401. 23 BOUNDARY-VALUE PROBLEMS FOR ORDINARY DIFFERENTIAL EQUATIONS (ODES) 23.1 ODE Boundary Value Problem Statement ........................................................................ 399 23.2 The Shooting Method ............................................................................................... 401 23.3 The Finite Difference Method...................................................................................... 406 23.4 Numerical Error and Instability ................................................................................... 411 23.5 Summary and Problems ............................................................................................ 412 23.5.1 Summary............................................................................................ 412 23.5.2 Problems ............................................................................................ 412 23.1 ODE BOUNDARY VALUE PROBLEM STATEMENT The previous chapter introduced ordinary differential equation initial-value problems. For initial value problems, all the known values are specified at the same value of the independent variable, usually at the lower boundary of the interval; this is where the term “initial” comes from. This chapter introduces another type of problem, namely the boundary-value problem. As the name suggests, the known values are specified at the extremes of the independent variable, i.e., the boundaries of the interval. For example, if we have a simple second-order ordinary differential equation, d2f (x) dx2 = df (x) dx + 3 and if the independent variable varies over the domain of [0,20], the initial value problem will have the two conditions at the value of zero: that is, we know the value of f (0) and f (0). In contrast, boundary-value problems will specify the values at x = 0 and x = 20. Note that to solve a first-order ODE to obtain a particular solution requires one constraint, while an nth-order ODE requires n con- straints. The boundary-value problem for an nth-order ordinary differential equation, F x,f (x), df (x) dx , d2f (x) dx2 , d3f (x) dx3 ,..., dn−1f (x) dxn−1 = dnf (x) dxn , specifies n known boundary conditions at a and b, to solve this equation on an interval of x ∈ [a,b]. For the second-order case, since the boundary condition can be either be a value of f (x) or a value of the derivative f (x), we can have several different cases for the specified values. For example, we can have the boundary condition values specified as:
- 402. 400 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES 1. Two values of f (x), that is, f (a) and f (b) are known. 2. Two derivatives of f (x), that is, f (a) and f (b) are known. 3. Mixed conditions from the above two cases are known: that is, either f (a) and f (b) are known, or f (a) and f (b) are known. To get the particular solution, we need two boundary conditions. The second-order ODE boundary- value problem is also called the “Two-Point Boundary-Value Problem.” The higher-order ODE prob- lems need additional boundary conditions, which are usually the values of higher derivatives of the independent variables. This chapter focuses on the two-point boundary-value problems. FIGURE 23.1 Heat flow in a pin fin. The variable L is the length of the pin fin, which starts at x = 0 and finishes at x = L. The temperatures at two ends are T0 and TL, with Ts being the surrounding environment temperature. Below is an example of a boundary-value problem and its solution. Fins are used in many applications to increase the heat transfer from surfaces. Usually, the design of cooling pin fins is encountered in many applications, e.g., the pin fin used as a heat sink for cooling an object. We can model the temperature distribution in a pin fin as shown in Fig. 23.1, where the length of the fin is L, and the start and end of the fin are x = 0 and x = L, respectively. The temperatures at the two ends are T0 and TL, while Ts is the temperature of the surrounding environment. If we consider both convection and radiation, the steady-state temperature distribution of the pin fin T (x) can be modeled as follows: d2T dx2 − α1(T − Ts) − α2(T 4 − T 4 s ) = 0 with the boundary conditions, T (0) = T0 and T (L) = TL; α1 and α2 are coefficients. This is a second- order ODE with two boundary conditions; therefore, we can solve it to get particular solutions. The remainder of this chapter covers two methods of numerically approximating the solution to boundary-value problems on a numerical grid. We will cover both the shooting and finite difference methods to solve ODE boundary-value problems.
- 403. 23.2 THE SHOOTING METHOD 401 23.2 THE SHOOTING METHOD The shooting method was developed with the goal of transforming an ODE boundary value problem into an equivalent initial value problem so that we can solve it using the methods we learned from the previous chapter. With initial value problems, we start at the initial value and march forward to get the solution. This method does not work for boundary value problems because there are not enough initial value conditions to solve the ODE to get a unique solution. The shooting method was developed to overcome this difficulty. FIGURE 23.2 Target shooting analogy to the shooting method. The name “shooting method” is analogous with the target shooting: as shown in Fig. 23.2, we shoot at the target and observe where we hit the target. Based on the errors, we can adjust our aim and shoot again hoping that we will hit closer to the target. We can see from the analogy that the shooting method is an iterative optimization method. Let us see how the shooting method works using the second-order ODE given f (a) = fa and f (b) = fb, as well as F x,f (x), df (x) dx = d2f (x) dx2 . Step 1. We start the whole process by guessing f (a) = α, then, together with f (a) = fa, we turn the above problem into an initial value problem with two conditions all at the value x = a. This is the aim step. Step 2. Using what we learned from the previous chapter, i.e., we can use a Runge–Kutta method, to integrate to the other boundary b to find f (b) = fβ. This is called the shooting step. Step 3. Now we compare the value of fβ with fb. Usually, our initial guess is not good, and fβ = fb, but what we want is fβ − fb = 0; therefore, we adjust our initial guesses and repeat the process until the error is acceptable, at which time we can stop. This is the iterative step. Although the ideas behind the shooting method are very simple, comparing and finding the best guesses is not easy; this procedure can be very tedious. Finding the best guess to obtain fβ − fb = 0 is a root-finding problem and can be tedious, but it does offer a systematic way to search for the best guess. Since fβ is a function of α, the problem becomes finding the root of g(α) − fb = 0. We can use any methods from Chapter 19 to solve the problem. TRY IT! Say, we want to launch a rocket, and let y(t) be the altitude (in meters from the surface) of the rocket at time t. We know the gravity g = 9.8 m/s2. If we want to have the rocket at 50 m
- 404. 402 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES off the ground after 5 s after launch, what should be the velocity at launch? (Assuming we ignore the drag of the air resistance.) To answer this question, we can frame the problem as a boundary-value problem for a second- order ODE. The ODE is d2y dt2 = −g, and the two boundary conditions are y(0) = 0 and y(5) = 50. We want to answer the question: What’s y(0) at launch? This is a quite simple question and can be solved analytically quite easily; the correct answer y(0) = 34.5. If we solve it using the shooting method, we need to reduce the order of the function first, and the second-order ODE becomes: dy dt = v, dv dt = −g. Therefore, we have S(t) = y(t) v(t) which satisfies dS(t) dt = 0 1 0 −g/v S(t). In [1]: import numpy as np import matplotlib.pyplot as plt from scipy.integrate import solve_ivp plt.style.use(seaborn-poster) %matplotlib inline For our first guess, we take the velocity at launch as 25 m/s. In [2]: F = lambda t, s: np.dot(np.array([[0,1],[0,-9.8/s[1]]]),s) t_span = np.linspace(0, 5, 100) y0 = 0 v0 = 25 t_eval = np.linspace(0, 5, 10) sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval) plt.figure(figsize = (10, 8)) plt.plot(sol.t, sol.y[0]) plt.plot(5, 50, ro) plt.xlabel(time (s))
- 405. 23.2 THE SHOOTING METHOD 403 plt.ylabel(altitude (m)) plt.title(ffirst guess v={v0} m/s) plt.show() The figure shows that the first guess is a little too small, since after 5 s for the chosen initial velocity, the altitude of the rocket is less than 10 m. The red dot in the figure is the target we want to hit. If we adjust our guess and increase the velocity to 40 m/s, then we obtain: In [3]: v0 = 40 sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval) plt.figure(figsize = (10, 8)) plt.plot(sol.t, sol.y[0]) plt.plot(5, 50, ro) plt.xlabel(time (s)) plt.ylabel(altitude (m)) plt.title(fsecond guess v={v0} m/s) plt.show()
- 406. 404 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES Here, we overestimated the velocity. Therefore, this random guessing is perhaps not the best way to obtain the result. As we mentioned above, treating this procedure as a root-finding problem will provide us with a better result. Let us use Python’s fsolve to find the root. The following example will demonstrate how to find the correct answer directly. In [4]: from scipy.optimize import fsolve def objective(v0): sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval) y = sol.y[0] return y[-1] - 50 v0, = fsolve(objective, 10) print(v0) 34.499999999999986 In [5]: sol = solve_ivp(F, [0, 5], [y0, v0], t_eval = t_eval) plt.figure(figsize = (10, 8)) plt.plot(sol.t, sol.y[0]) plt.plot(5, 50, ro) plt.xlabel(time (s)) plt.ylabel(altitude (m))
- 407. 23.2 THE SHOOTING METHOD 405 plt.title(froot finding v={v0} m/s) plt.show() TRY IT! Let us change the initial guess and see if this changes the result. In [6]: for v0_guess in range(1, 100, 10): v0, = fsolve(objective, v0_guess) print(Init: %d, Result: %.1f %(v0_guess, v0)) Init: 1, Result: 34.5 Init: 11, Result: 34.5 Init: 21, Result: 34.5 Init: 31, Result: 34.5 Init: 41, Result: 34.5 Init: 51, Result: 34.5 Init: 61, Result: 34.5 Init: 71, Result: 34.5 Init: 81, Result: 34.5 Init: 91, Result: 34.5 Note that changing the initial guesses does not change the result, which means that this method is stable; see below regarding the problem of stability.
- 408. 406 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES 23.3 THE FINITE DIFFERENCE METHOD Another way to solve the ODE boundary value problems is to use the finite difference method, where we use finite difference formulas at evenly spaced grid points to approximate the differential equations, which then transforms a differential equation into a system of algebraic equations to solve. In the finite difference method, the derivatives in the differential equation are approximated using the finite difference formulas (see Chapter 20 for more details). We can divide the interval of [a,b] into n equal subintervals of length h as shown in Fig. 23.3. FIGURE 23.3 Illustration of the finite difference method. Usually, we use the central difference formulas in the finite difference methods because they yield better accuracy. The differential equation is enforced only at the grid points, and the first and second derivatives are: dy dx = yi+1 − yi−1 2h , d2y dx2 = yi−1 − 2yi + yi+1 h2 . These finite difference expressions are used to replace the derivatives of y in the differential equa- tion, leading to a system of n + 1 linear algebraic equations if the differential equation is linear. If the differential equation is nonlinear, the algebraic equations will also be nonlinear. EXAMPLE: Solve the rocket problem in the previous section using the finite difference method; plot the altitude of the rocket after launch. The ODE is d2y dt2 = −g with the boundary conditions y(0) = 0 and y(5) = 50. Let us take n = 10.
- 409. 23.3 THE FINITE DIFFERENCE METHOD 407 Since the time interval is [0,5] and we have n = 10, h = 0.5, using the finite difference ap- proximated derivatives, we obtain y0 = 0, yi−1 − 2yi + yi+1 = −gh2 , i = 1,2,...,n − 1, y10 = 50. If we use matrix notation, we obtain ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 1 0 1 −2 1 ... ... ... 1 −2 1 1 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ y0 y1 . . . yn−1 yn ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 0 −gh2 . . . −gh2 50 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ . With 11 equations in the system, we can solve it using the method we presented in Chapter 14. In [1]: import numpy as np import matplotlib.pyplot as plt plt.style.use(seaborn-poster) %matplotlib inline n = 10 h = (5-0) / n # Get A A = np.zeros((n+1, n+1)) A[0, 0] = 1 A[n, n] = 1 for i in range(1, n): A[i, i-1] = 1 A[i, i] = -2 A[i, i+1] = 1 print(A) # Get b b = np.zeros(n+1) b[1:-1] = -9.8*h**2 b[-1] = 50 print(b) # solve the linear equations y = np.linalg.solve(A, b)
- 410. 408 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES t = np.linspace(0, 5, 11) plt.figure(figsize=(10,8)) plt.plot(t, y) plt.plot(5, 50, ro) plt.xlabel(time (s)) plt.ylabel(altitude (m)) plt.show() [[ 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.] [ 1. -2. 1. 0. 0. 0. 0. 0. 0. 0. 0.] [ 0. 1. -2. 1. 0. 0. 0. 0. 0. 0. 0.] [ 0. 0. 1. -2. 1. 0. 0. 0. 0. 0. 0.] [ 0. 0. 0. 1. -2. 1. 0. 0. 0. 0. 0.] [ 0. 0. 0. 0. 1. -2. 1. 0. 0. 0. 0.] [ 0. 0. 0. 0. 0. 1. -2. 1. 0. 0. 0.] [ 0. 0. 0. 0. 0. 0. 1. -2. 1. 0. 0.] [ 0. 0. 0. 0. 0. 0. 0. 1. -2. 1. 0.] [ 0. 0. 0. 0. 0. 0. 0. 0. 1. -2. 1.] [ 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1.]] [0. -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 -2.45 50.] Let us solve for y(0). From the finite difference formula, we know that dy dx = yi+1−yi−1 2h , which means that y(0) = y1−y−1 2h ; but we do not know what is y−1. We can calculate y−1 since we know the y values on each grid point. From the second derivative finite difference formula, we know
- 411. 23.3 THE FINITE DIFFERENCE METHOD 409 that y−1−2y0+y1 h2 = −g; therefore, we can solve for y−1 to obtain the launching velocity. See the calculation below. In [2]: y_n1 = -9.8*h**2 + 2*y[0] - y[1] (y[1] - y_n1) / (2*h) Out[2]: 34.5 We obtain the correct launching velocity using the finite difference method. To given you additional exposure to this concept, let us see another example. TRY IT! Use the finite difference method to solve the following linear boundary value problem: dy(t) dt2 = −4y + 4x with the boundary conditions as y(0) = 0 and y(π/2) = 0. The exact solution of the problem is y = x − sin2x, plot the errors against the n grid points (n from 3 to 100) for the boundary point y(π/2). Using the finite difference approximated derivatives, we have y0 = 0, yi−1 − 2yi + yi+1 − h2 (−4yi + 4xi) = 0, i = 1,2,...,n − 1, 2yn−1 − 2yn − h2 (−4yn + 4xn) = 0. The last equation is derived from yn+1−yn−1 2h = 0 (the boundary condition y(π/2) = 0); there- fore, yn+1 = yn−1. If we use matrix notation, we will obtain: ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 1 0 1 −2 + 4h2 1 ... ... ... 1 −2 + 4h2 1 2 −2 + 4h2 ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ y0 y1 . . . yn−1 yn ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ = ⎡ ⎢ ⎢ ⎢ ⎢ ⎢ ⎢ ⎣ 0 4h2x1 . . . 4h2xn−1 4h2xn ⎤ ⎥ ⎥ ⎥ ⎥ ⎥ ⎥ ⎦ . In [3]: def get_a_b(n): h = (np.pi/2-0) / n x = np.linspace(0, np.pi/2, n+1) # Get A A = np.zeros((n+1, n+1)) A[0, 0] = 1 A[n, n] = -2+4*h**2
- 412. 410 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES A[n, n-1] = 2 for i in range(1, n): A[i, i-1] = 1 A[i, i] = -2+4*h**2 A[i, i+1] = 1 # Get b b = np.zeros(n+1) for i in range(1, n+1): b[i] = 4*h**2*x[i] return x, A, b x = np.pi/2 v = x - np.sin(2*x) n_s = [] errors = [] for n in range(3, 100, 5): x, A, b = get_a_b(n) y = np.linalg.solve(A, b) n_s.append(n) e = v - y[-1] errors.append(e) plt.figure(figsize = (10,8)) plt.plot(n_s, errors) plt.yscale(log) plt.xlabel(n gird points) plt.ylabel(errors at x = $pi/2$) plt.show()
- 413. 23.4 NUMERICAL ERROR AND INSTABILITY 411 With denser grid points, we approach the exact solution at the boundary point. The finite difference method can be also applied to higher-order ODEs, but it needs approximation of the higher-order derivatives using a finite difference formula. For example, to solve a fourth-order ODE requires performing the following: d4y dx4 = yi−2 − 4yi−1 + 6yi − 4yi+1 + yi+2 h4 . We will not discuss higher-order ODEs, since the idea behind its solution is similar to the second- order ODE we presented above. 23.4 NUMERICAL ERROR AND INSTABILITY Boundary-value problems also exhibit two main issues discussed in Chapter 22: the numerical error (accuracy) and stability. Depending on the different methods used, keep in mind that the shooting and finite difference methods are different in terms of the errors they present. For the shooting method, the numerical error is similar to that described for initial-value problems as the shooting method essentially transforms the boundary-value problem into a series of initial value problems. In terms of the stability of the method, as shown in the example in Section 23.2, in terms of stability, even though our initial guesses were not close to the true answer, the method returned an accurate numerical solution. This is due to the adding of the right-most constraint, which keeps the errors from increasing unboundedly. In the case of finite difference method, the numerical error is determined by the order of accuracy of the numerical scheme used. The accuracy of the different scheme used for derivative approximations are discussed in Section 20.2. The accuracy of the finite difference method is determined by the larger of the two truncation errors: the difference scheme used for the differential equation or that of the
- 414. 412 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES difference scheme used to discretize the boundary conditions (we have seen that the step size strongly influences the accuracy of the finite difference method). Since the finite difference method essentially turns the BVP into solving a system of equations, it is dependent on the stability of the scheme used to solve the resulting system of equations simultaneously. 23.5 SUMMARY AND PROBLEMS 23.5.1 SUMMARY 1. Boundary-value problems are a specific kind of ODE-solving problem with boundary conditions specified at the start and end of the interval. 2. The shooting method can transform boundary-value problems to initial value problems, and we can use a root-finding method to solve them. 3. The finite difference method uses a finite difference scheme to approximate the derivatives and turns the problem into a set of equations to solve. 4. The accuracy and stability of the boundary-value problems have similarities and differences when compared to the initial-value problems. 23.5.2 PROBLEMS 1. Describe the difference between boundary-value problems and the initial-value problems in ODEs. 2. Try to describe the intuition behind the shooting method and its links to initial value problems. 3. What is the finite difference method for boundary value problems? How do we apply it? 4. Solve the following boundary value problem with y(0) = 0 and y(π/2) = 1: y + (1 − 0.2x)y2 = 0. 5. Solve the following ODE with y(0) = 0 and y(π) = 0: y + siny + 1 = 0. 6. Given the ODE with the boundary conditions y(0) = 0 and y(12) = 0, y + 0.5x2 − 6x = 0, what is the value of y(0)? 7. Solve the following ODE with boundary conditions y(1) = 0, y(1) = 0 and y(2) = 1: y + 1 x y − 1 x2 y − 0.1(y )3 = 0. 8. A flexible cable is suspended between two points, as shown in the following figure. The density of the cable is uniform. The shape of the cable y(x) is governed by the differential equation:
- 415. 23.5 SUMMARY AND PROBLEMS 413 d2y d2x = C 1 + dy dx 2 where C is a constant that equal to the ratio of the weight per unit length of the cable to the magnitude of the horizontal component of tension in the cable at its lowest point. The cable hangs between two points specified by y(0) = 8 m and y(10) = 10 m, and C = 0.039 m−1. Can you determine and plot the shape of the cable between x = 0 and x = 10? 9. Fins are used in many applications to increase the heat transfer from surfaces. The design of cooling pin fins is used for many applications, e.g., as a heat sink for cooling an object. We model the temperature distribution in a pin fin as shown in the following figure, where the length of the fin is L, and the start and end of the fin are x = 0 and x = L, respectively. The temperatures at the two ends are T0 and TL, while Ts is the temperature of the surrounding environment. If we consider both convection and radiation, the steady-state temperature distribution of the pin fin T (x) between x = 0 and x = L can be modeled with the following equation: d2T dx2 − α1(T − Ts) − α2(T 4 − T 4 s ) = 0 with the boundary conditions T (0) = T0 and T (L) = TL, and α1 and α2 being coefficients. They are defined as α1 = hcP kAc and α2 = σSB P kAc , where hc is the convective heat transfer coeffi- cient, P is the perimeter bounding the cross-section of the fin, is the radiative emissivity of the surface of the fin, k is the thermal conductivity of the fin material, Ac is the cross-sectional area of the fin, and σSB = 5.67 × 10−8 W/(m2 K2) is the Stefan–Boltzmann constant.
- 416. 414 CHAPTER 23 BOUNDARY-VALUE PROBLEMS FOR ODES Determine the temperature distribution if L = 0.2 m, T (0) = 475 K, T (0.1) = 290 K, and Ts = 290 K. Use the following values for the parameters: hc = 40 W/m2/K, P = 0.015 m, = 0.4, k = 240W/m/K, and Ac = 1.55 × 10−5 m2. 10. A simply supported beam carries a uniform load of intensity ω0 as shown in the following figure. The deflection of the beam, y, is governed by the following ODE: EI d2y dx2 = 1 2 ω0(Lx − x2 ) 1 + dy dx 23 2 where EI is the flexural rigidity. If L = 5 m, and the two boundary conditions are y(0) = 0 and y(L) = 0, EI = 1.8 × 107 N · m2, and ω0 = 15 × 103 N/m, determine and plot the deflection of the beam as a function of x.
- 417. 24 FOURIER TRANSFORM 24.1 The Basics of Waves................................................................................................ 415 24.1.1 Modeling a Wave Using Mathematical Tools................................................... 415 24.1.2 Characteristics of a Wave ......................................................................... 417 24.2 Discrete Fourier Transform (DFT) ................................................................................. 421 24.2.1 DFT .................................................................................................. 422 24.2.2 The Inverse DFT ................................................................................... 426 24.2.3 The Limit of DFT................................................................................... 427 24.3 Fast Fourier Transform (FFT)....................................................................................... 428 24.3.1 Symmetries in the DFT ........................................................................... 428 24.3.2 Tricks in FFT........................................................................................ 428 24.4 FFT in Python......................................................................................................... 432 24.4.1 FFT in NumPy ........................................................................................ 432 24.4.2 FFT in SciPy ........................................................................................ 434 24.4.3 More Examples..................................................................................... 435 24.5 Summary and Problems ............................................................................................ 441 24.5.1 Summary............................................................................................ 441 24.5.2 Problems ............................................................................................ 441 24.1 THE BASICS OF WAVES There are many types of waves in our environment. For example, if you throw a rock into a pond, you can see the waves form and travel in the water. There are many types of waves. Some of them are difficult to see, such as sound waves, earthquake waves, and microwaves (that we use to cook our food in the kitchen). But in physics, a wave is a disturbance that travels through space and matter, with a transferring energy from one place to another. It is important to study waves in our life to understand how they form, travel, etc. This chapter will cover a basic tool that helps us understand and study waves – the Fourier Transform. But before we proceed, let us first familiarize ourselves with how to model waves mathematically. 24.1.1 MODELING A WAVE USING MATHEMATICAL TOOLS We can model a single wave as a field with a function F(x,t), where x is the location of a point in space, while t is the time. One simplest case is the shape of a sine wave change over x.
- 418. 416 CHAPTER 24 FOURIER TRANSFORM In [1]: import matplotlib.pyplot as plt import numpy as np plt.style.use(seaborn-poster) %matplotlib inline In [2]: x = np.linspace(0, 20, 201) y = np.sin(x) plt.figure(figsize = (8, 6)) plt.plot(x, y, b) plt.ylabel(Amplitude) plt.xlabel(Location (x)) plt.show() A sine wave can change both in time and space. If we plot the changes at various locations, each time snapshot will be a sine wave changing with location. See the following figure with a fixed point at x = 2.5, showing as a red dot. Of course, you can see the changes over time at specific location as well; plot this by yourself. In [3]: fig = plt.figure(figsize = (8,8)) times = np.arange(5) n = len(times) for t in times: plt.subplot(n, 1, t+1)
- 419. 24.1 THE BASICS OF WAVES 417 y = np.sin(x + t) plt.plot(x, y, b) plt.plot(x[25], y [25], ro) plt.ylim(-1.1, 1.1) plt.ylabel(y) plt.title(ft = {t}) plt.xlabel(location (x)) plt.tight_layout() plt.show() 24.1.2 CHARACTERISTICS OF A WAVE Waves can be a continuous entity both in time and space. For numerical purposes, one needs to digitize time and space at various points. For example, in the context of geophysics, one can use sensors such as accelerometers (which measure the acceleration of a movement) at different locations on the Earth to monitor earthquakes; this is called spatial discretization. Similarly, these sensors usually record the data at certain times, which is called temporal discretization. For a single wave, it has different characteristics. See Figs. 24.1 and 24.2. Amplitude is used to describe the difference between the maximum values to the baseline value (see the above figures). A sine wave is a periodic signal, which means it repeats itself after a certain time and can be measured by period. The period of a wave is the time it takes to finish the complete cycle. In the figure, the period can be measured from the two adjacent peaks. The wavelength measures
- 420. 418 CHAPTER 24 FOURIER TRANSFORM FIGURE 24.1 Period and amplitude of a sine wave. FIGURE 24.2 Wavelength and amplitude of a sine wave. the distance between two successive crests or troughs of a wave. the frequency describes the number of waves that pass a fixed location in a given amount of time. Frequency can be measured by how many cycles pass within 1 s. Therefore, the unit of frequency is cycles/second, or more commonly used Hertz (abbreviated Hz). Frequency is different from period, but they are related to each other. Frequency refers to how often something happens while period refers to the time it takes to complete something, mathematically, period = 1 frequency . Note in the two figures the blue dots on the sine waves; these are the discretization points we plotted both in time and space; only at these dots did we sample the value of the wave. Usually when we record a wave, we need to specify how often we sample the wave in time; this is called sampling. This rate
- 421. 24.1 THE BASICS OF WAVES 419 is called the sampling rate, in Hz. For example, if we sample a wave at 2 Hz, it means that at every second we sample two data points. Now that we understand more about the basics of a wave, let us study a sine wave, which can be represented by the following equation: y(t) = Asin(ωt + φ) where A is the amplitude of the wave, and ω is the angular frequency, which specifies how many cycles occur in a second, in radians per second; φ is the phase of the signal. If T is the period of the wave and f is the frequency of the wave, then ω has the following relationship to them: ω = 2π T = 2πf. TRY IT! Generate two sine waves with time between zero and 1 s whose frequency is 5 and 10 Hz, respectively, sampled at 100 Hz. Plot the two waves and see the difference. Count how many cycles there are in 1 s. In [4]: # sampling rate sr = 100.0 # sampling interval ts = 1.0/sr t = np.arange(0,1,ts) # frequency of the signal freq = 5 y = np.sin(2*np.pi*freq*t) plt.figure(figsize = (8, 8)) plt.subplot(211) plt.plot(t, y, b) plt.ylabel(Amplitude) freq = 10 y = np.sin(2*np.pi*freq*t) plt.subplot(212) plt.plot(t, y, b) plt.ylabel(Amplitude) plt.xlabel(Time (s)) plt.show()
- 422. 420 CHAPTER 24 FOURIER TRANSFORM TRY IT! Generate two sine waves with time between zero and 1 s. Both waves have a frequency of 5 Hz, sampled at 100 Hz, but their phase are zero and 10, respectively. The amplitudes of the two waves are 5 and 10, respectively. Plot the two waves and see the difference. In [5]: # frequency of the signal freq = 5 y = 5*np.sin(2*np.pi*freq*t) plt.figure(figsize = (8, 8)) plt.subplot(211) plt.plot(t, y, b) plt.ylabel(Amplitude) y = 10*np.sin(2*np.pi*freq*t + 10) plt.subplot(212) plt.plot(t, y, b) plt.ylabel(Amplitude) plt.xlabel(Time (s)) plt.show()
- 423. 24.2 DISCRETE FOURIER TRANSFORM (DFT) 421 24.2 DISCRETE FOURIER TRANSFORM (DFT) The previous section demonstrated how easy it is to characterize a wave with period/frequency, am- plitude, and phase. This only applies to simple periodic signals, such as sine or cosine waves. For complicated waves, such characterization is not easy anymore. For example, Fig. 24.3 is a relatively more complicated wave, and it is hard to say what is the frequency, and amplitude of the wave. There are more complicated cases in the real world. The Fourier Transform can be used for the purpose to study these waves. It decomposes any signal into a sum of fundamental sine and cosine waves that easily measures the frequency, amplitude, and phase. The Fourier transform can be ap- plied to continuous or discrete waves; this chapter will only discuss the Discrete Fourier Transform (DFT). Using the DFT, we can compose the above signal to a series of sinusoids, with each of them having a different frequency. The following 3D figure (Fig. 24.4) shows the idea behind the DFT: the above signal is actually the result of the sum of three different sine waves. The time domain signal, which is the above signal that can be transformed into a figure in the frequency domain, is called DFT amplitude spectrum, where the signal frequencies are shown as vertical bars. The height of the bar after normal- ization is the amplitude of the signal in the time domain. Note that the three vertical bars correspond to the three frequencies of the sine wave, which are also plotted in the figure. This section will discuss how to use the DFT to compute and plot the DFT amplitude spectrum.
- 424. 422 CHAPTER 24 FOURIER TRANSFORM FIGURE 24.3 More general wave form. FIGURE 24.4 Illustration of Fourier transform with time and frequency domain signal. 24.2.1 DFT The DFT can transform a sequence of evenly spaced signals to the information about the frequency of all the sine waves needed to sum to obtain the time-domain signal. It is defined as Xk = N−1 n=0 xn · e−i2πkn/N = N−1 n=0 xn[cos(2πkn/N) − i · sin(2πkn/N)] • N = number of samples • n = current sample • k = current frequency, where k ∈ [0,N − 1] • xn = the sine value at sample n • Xk = the DFT that includes information of both amplitude and phase
- 425. 24.2 DISCRETE FOURIER TRANSFORM (DFT) 423 Also, the last expression in the above equation is derived from the Euler’s formula, which links the trigonometric functions to the complex exponential function: ei·x = cosx + i · sinx. Due to the nature of the transform, X0 = N−1 n=0 xn. If N is an odd number, the elements X1,X2,...,X(N−1)/2 contain the positive frequency terms, and the elements X(N+1)/2,...,XN−1 contain the negative frequency terms, in order of decreasingly negative frequency. If N is even, the elements X1,X2,...,XN/2−1 contain the positive frequency terms, and the elements XN/2,...,XN−1 contain the negative frequency terms, in order of decreasingly negative frequency. In the case here, our input signal x is a real-valued sequence; therefore, the DFT output Xn for positive frequencies is the conjugate of the values Xn for negative frequencies, and the spectrum will be symmetric. Usually, we only plot the DFT corresponding to the positive frequencies. Note that Xk is a complex number that encodes both the amplitude and phase information of a complex sinusoidal component ei·2πkn/N of function xn. The amplitude and phase of the signal can be calculated as amp = |Xk| N = Re(Xk)2 + Im(Xk)2 N phase = atan2(Im(Xk),Re(Xk)) where Im(Xk) and Re(Xk) are the imaginary and real parts of the complex number, and atan2 is the two-argument form of the arctan function. The amplitudes returned by DFT are equal to the amplitudes of the signals fed into the DFT if we normalize them by the number of sample points. We mentioned previously that for a real-valued signal, the output of the DFT will be mirrored about the half of the sampling rate (as shown in the following examples). This half of the sampling rate is called the Nyquist frequency. This usually means that we only need to look at one side of the DFT result and drop the duplicate information in the other half; therefore, to obtain the amplitude corresponding to that of the time domain signal, we divide by N/2 instead of N. Now that we have the basic knowledge of DFT, let us see how we can use it. TRY IT! Generate three sine waves with frequencies 1, 4, and 7 Hz, amplitudes 3, 1, and 0.5, and phases being all zeros. Add these three sine waves together with a sampling rate of 100 Hz; it is the same signal shown at the beginning of the section. In [1]: import matplotlib.pyplot as plt import numpy as np plt.style.use(seaborn-poster) %matplotlib inline In [2]: # sampling rate sr = 100 # sampling interval ts = 1.0/sr
- 426. 424 CHAPTER 24 FOURIER TRANSFORM t = np.arange(0,1,ts) freq = 1. x = 3*np.sin(2*np.pi*freq*t) freq = 4 x += np.sin(2*np.pi*freq*t) freq = 7 x += 0.5* np.sin(2*np.pi*freq*t) plt.figure(figsize = (8, 6)) plt.plot(t, x, r) plt.ylabel(Amplitude) plt.show() TRY IT! Write a function DFT(x) which takes in one argument, x, with a 1D real-valued signal. The function will calculate the DFT of the signal and return the DFT values. Apply this function to the signal we generated above and plot the result. In [3]: def DFT(x): Function to calculate the discrete Fourier Transform of a 1D real-valued signal x N = len(x)
- 427. 24.2 DISCRETE FOURIER TRANSFORM (DFT) 425 n = np.arange(N) k = n.reshape((N, 1)) e = np.exp(-2j * np.pi * k * n / N) X = np.dot(e, x) return X In [4]: X = DFT(x) # calculate the frequency N = len(X) n = np.arange(N) T = N/sr freq = n/T plt.figure(figsize = (8, 6)) plt.stem(freq, abs(X), b, markerfmt= , basefmt=-b) plt.xlabel(Freq (Hz)) plt.ylabel(DFT Amplitude |X(freq)|) plt.show() Note that the output of the DFT is symmetric at half of the sampling rate (try different sampling rates for fun). As mentioned earlier, this half of the sampling rate is called the Nyquist frequency or the folding frequency. It is named after the electrical engineer Harry Nyquist. He and Claude Shannon formulated the Nyquist–Shannon sampling theorem, which states that a signal sampled at a rate can be fully reconstructed if it contains only frequency components below half that sampling frequency; thus, the highest frequency output from the DFT is half the sampling rate.
- 428. 426 CHAPTER 24 FOURIER TRANSFORM In [5]: n_oneside = N//2 # get the one side frequency f_oneside = freq[:n_oneside] # normalize the amplitude X_oneside =X[:n_oneside]/n_oneside plt.figure(figsize = (12, 6)) plt.subplot(121) plt.stem(f_oneside, abs(X_oneside), b, markerfmt= , basefmt=-b) plt.xlabel(Freq (Hz)) plt.ylabel(DFT Amplitude |X(freq)|) plt.subplot(122) plt.stem(f_oneside, abs(X_oneside), b, markerfmt= , basefmt=-b) plt.xlabel(Freq (Hz)) plt.xlim(0, 10) plt.tight_layout() plt.show() Plotting the first half of the DFT results shows three clear peaks at frequency of 1, 4, and 7 Hz, with amplitude 3, 1, 0.5, as expected. This is how we can use the DFT to analyze an arbitrary signal by decomposing it into simple sine waves. 24.2.2 THE INVERSE DFT We can easily compute the inverse transform of the DFT: xn = 1 N N−1 k=0 Xk · ei·2πkn/N . We will leave this as an exercise for you to write a function.
- 429. 24.2 DISCRETE FOURIER TRANSFORM (DFT) 427 24.2.3 THE LIMIT OF DFT The main issue with the above DFT implementation is that it is not efficient if we have a signal with many data points. It may take a long time to compute the DFT if the signal is large. TRY IT Write a function to generate a simple signal with a different sampling rate, and see the difference in computing time by varying the sampling rate. In [6]: def gen_sig(sr): function to generate a simple 1D signal with different sampling rate ts = 1.0/sr t = np.arange(0,1,ts) freq = 1. x = 3*np.sin(2*np.pi*freq*t) return x In [7]: # sampling rate =2000 sr = 2000 %timeit DFT(gen_sig(sr)) 120 ms ± 8.27 ms per loop (mean ± std. dev. of 7 runs, 10 loops each) In [8]: # sampling rate 20000 sr = 20000 %timeit DFT(gen_sig(sr)) 15.9 s ± 1.51 s per loop (mean ±std. dev. of 7 runs, 1 loop each) The increasing number of data points will require a lot of computation time using this DFT. Luckily, the Fast Fourier Transform (FFT), popularized by Cooley and Tukey in their 1965 paper,1 can solve this problem efficiently. This is the topic for the next section. 1 http://www.ams.org/journals/mcom/1965-19-090/S0025-5718-1965-0178586-1/.
- 430. 428 CHAPTER 24 FOURIER TRANSFORM 24.3 FAST FOURIER TRANSFORM (FFT) The Fast Fourier Transform (FFT) is an efficient algorithm used to calculate the DFT of a sequence. First described in Cooley and Tukey’s classic paper in 1965, the idea can be traced back to Gauss’s unpublished work in 1805. It is a divide-and-conquer algorithm that recursively breaks the DFT into smaller DFTs to reduce the number of computations. As a result, it successfully reduces the complexity of the DFT from O(n2) to O(nlogn), where n is the size of the data. This reduction in computation time is significant, especially for data with large N, and FFT is widely used in engineering, science, and mathematics for this reason. This section will explore how using FFT reduces computation time. The content of this section is heavily based on this great tutorial2 put together by Jake VanderPlas.3 24.3.1 SYMMETRIES IN THE DFT The answer to how does the FFT speedup the computing of DFT lies in the exploitation of the symme- tries in the DFT. Let us study the symmetries in the DFT. From the definition of the DFT equation Xk = N−1 n=0 xn · e−i2πkn/N . We can calculate Xk+N = N−1 n=0 xn · e−i2π(k+N)n/N = N−1 n=0 xn · e−i2πn · e−i2πkn/N . Note that e−i2πn = 1; therefore, we have Xk+N = N−1 n=0 xn · e−i2πkn/N = Xk, with a little extension, we can have Xk+i·N = Xk, for any integer i. Thus, within the DFT, clearly there are some symmetries that we can use to reduce the computation. 24.3.2 TRICKS IN FFT Given that there are symmetries in the DFT, we can consider using it to reduce the computation, because if we need to calculate both Xk and Xk+N , we only need to do this once. This is exactly the idea behind the FFT. Cooley and Tukey showed that we can calculate DFT more efficiently if we continue to divide 2 https://jakevdp.github.io/blog/2013/08/28/understanding-the-fft/. 3 http://vanderplas.com.
- 431. 24.3 FAST FOURIER TRANSFORM (FFT) 429 the problem into smaller ones. Let us first divide the whole series into two parts, i.e., the even and odd number parts: Xk = N−1 n=0 xn · e−i2πkn/N = N/2−1 m=0 x2m · e−i2πk(2m)/N + N/2−1 m=0 x2m+1 · e−i2πk(2m+1)/N = N/2−1 m=0 x2m · e−i2πkm/(N/2) + e−i2πk/N N/2−1 m=0 x2m+1 · e−i2πkm/(N/2) . As shown, the two smaller terms, which only have half of the size (N 2 ) in the above equation, are two smaller DFTs. For each term, the 0 ≤ m ≤ N 2 , but 0 ≤ k ≤ N; therefore, half of the values will be the same due to the symmetry properties described above. Thus, we only need to calculate half of the fields in each term. Of course, we can continue to divide each term into half with the even and odd values until it reaches the last two numbers, at which point the calculation will be really simple. This is how FFT works using this recursive approach. Let us perform a quick and dirty implemen- tation of the FFT. Note that the input signal to FFT should have a length of power of 2. If it is not, then we need to fill up zeros to the next power of 2 size. In [1]: import matplotlib.pyplot as plt import numpy as np plt.style.use(seaborn-poster) %matplotlib inline In [2]: def FFT(x): A recursive implementation of the 1D Cooley-Tukey FFT, the input should have a length of power of 2. N = len(x) if N == 1: return x else: X_even = FFT(x[::2]) X_odd = FFT(x[1::2]) factor = np.exp(-2j*np.pi*np.arange(N)/ N)
- 432. 430 CHAPTER 24 FOURIER TRANSFORM X = np.concatenate( [X_even+factor[:int(N/2)]*X_odd, X_even+factor[int(N/2):]*X_odd]) return X In [3]: # sampling rate sr = 128 # sampling interval ts = 1.0/sr t = np.arange(0,1,ts) freq = 1. x = 3*np.sin(2*np.pi*freq*t) freq = 4 x += np.sin(2*np.pi*freq*t) freq = 7 x += 0.5* np.sin(2*np.pi*freq*t) plt.figure(figsize = (8, 6)) plt.plot(t, x, r) plt.ylabel(Amplitude) plt.show()
- 433. 24.3 FAST FOURIER TRANSFORM (FFT) 431 TRY IT! Use the FFT function to calculate the Fourier transform of the above signal. Plot the amplitude spectrum for both the two- and one-sided frequencies. In [4]: X=FFT(x) # calculate the frequency N = len(X) n = np.arange(N) T = N/sr freq = n/T plt.figure(figsize = (12, 6)) plt.subplot(121) plt.stem(freq, abs(X), b, markerfmt= , basefmt=-b) plt.xlabel(Freq (Hz)) plt.ylabel(FFT Amplitude |X(freq)|) # Get the one-sided spectrum n_oneside = N//2 # get the one side frequency f_oneside = freq[:n_oneside] # normalize the amplitude X_oneside =X[:n_oneside]/n_oneside plt.subplot(122) plt.stem(f_oneside, abs(X_oneside), b, markerfmt= , basefmt=-b) plt.xlabel(Freq (Hz)) plt.ylabel(Normalized FFT Amplitude |X(freq)|) plt.tight_layout() plt.show()
- 434. 432 CHAPTER 24 FOURIER TRANSFORM TRY IT! Generate a simple signal of length 2048, and record the time it will take to run the FFT; compare the speed with the DFT. In [5]: def gen_sig(sr): function to generate a simple 1D signal with different sampling rate ts = 1.0/sr t = np.arange(0,1,ts) freq = 1. x = 3*np.sin(2*np.pi*freq*t) return x In [6]: # sampling rate =2048 sr = 2048 %timeit FFT(gen_sig(sr)) 16.9 ms ± 1.3 ms per loop (mean ± std. dev. of 7 runs, 100 loops each) Thus, for a signal with length 2048 (about 2000), this implementation of FFT uses 16.9 ms instead of 120 ms using DFT. Note that there are lots of ways to optimize the FFT implementation to make it faster. The next section will introduce the Python built-in FFT functions, which will run much faster. 24.4 FFT IN PYTHON Python has very mature FFT functions both in NumPy and SciPy. This section will take a look at both packages and see how easily they can be incorporated in our work. Let us use the signal generated above to run the test as shown in Fig. 24.5. 24.4.1 FFT IN NUMPY EXAMPLE: Us the fft and ifft functions from NumPy to calculate the FFT amplitude spectrum and inverse FFT to obtain the original signal. Plot both results. Time the fft function using this 2000-length signal. In [3]: from numpy.fft import fft, ifft X = fft(x)
- 435. 24.4 FFT IN PYTHON 433 FIGURE 24.5 Signal generated before with 3 frequencies. N = len(X) n = np.arange(N) T = N/sr freq = n/T plt.figure(figsize = (12, 6)) plt.subplot(121) plt.stem(freq, np.abs(X), b, markerfmt= , basefmt=-b) plt.xlabel(Freq (Hz)) plt.ylabel(FFT Amplitude |X(freq)|) plt.xlim(0, 10) plt.subplot(122) plt.plot(t, ifft(X), r) plt.xlabel(Time (s)) plt.ylabel(Amplitude) plt.tight_layout() plt.show()
- 436. 434 CHAPTER 24 FOURIER TRANSFORM In [4]: %timeit fft(x) 42.3 µs ± 5.03 µs per loop (mean ± std. dev. of 7 runs, 10000 loops each) 24.4.2 FFT IN SCIPY EXAMPLE: Use fft and ifft functions from SciPy to calculate the FFT amplitude spectrum and inverse FFT to obtain the original signal. Plot both results. Time the fft function using this 2000-length signal. In [5]: from scipy.fftpack import fft, ifft X = fft(x) plt.figure(figsize = (12, 6)) plt.subplot(121) plt.stem(freq, np.abs(X), b, markerfmt= , basefmt=-b) plt.xlabel(Freq (Hz)) plt.ylabel(FFT Amplitude |X(freq)|) plt.xlim(0, 10) plt.subplot(122) plt.plot(t, ifft(X), r) plt.xlabel(Time (s)) plt.ylabel(Amplitude) plt.tight_layout() plt.show()
- 437. 24.4 FFT IN PYTHON 435 In [6]: %timeit fft(x) 12.6 µs ± 222 ns per loop (mean ± std. dev. of 7 runs, 100000 loops each) Note that the built-in FFT functions are much faster and easier to use, especially when using the SciPy version. Here are the results for comparison: • Implemented DFT: 120 ms • Implemented FFT: 16.9 ms • NumPy FFT: 42.3 µs • SciPy FFT: 12.6 µs 24.4.3 MORE EXAMPLES More examples how to use FFT in real-world applications are shown below. 24.4.3.1 Electricity Demand in California First, we explore the electricity demand from California from 2019-11-30 to 2019-12-30. You can download data from US Energy Information Administration.4 Herein, the data has been downloaded for you. The electricity demand data from California is stored in “930-data-export.csv” in 3 columns. Re- member that we learned how to read CSV file using NumPy. Here, we will use another package, pandas, which is a very popular package that deals with time series data. This package will not be discussed herein. We highly recommend learning how to use it by yourself. First, let us study the data. In [7]: import pandas as pd The read_csv function will read the CSV file. Pay attention to the parse_dates parameter, which will find the date and time in column one. The data will be read into a panda DataFrame, and 4 https://www.eia.gov/beta/electricity/gridmonitor/dashboard/electric_overview/US48/US48.
- 438. 436 CHAPTER 24 FOURIER TRANSFORM we use df to store it. Then we will change the header in the original file to something easier to use. In [8]: df = pd.read_csv(./data/930-data-export.csv, delimiter=,, parse_dates=[1]) df.rename(columns={Timestamp (Hour Ending):hour, Total CAL Demand (MWh):demand}, inplace=True) By plotting the data, we see how the electricity demand changes over time. In [9]: plt.figure(figsize = (12, 6)) plt.plot(df[hour], df[demand]) plt.xlabel(Datetime) plt.ylabel(California electricity demand (MWh)) plt.xticks(rotation=25) plt.show() From the plotted time series, it is hard to discern if there are any patterns behind the data. Let us transform the data into frequency domain and see if there is anything interesting. In [10]: X = fft(df[demand]) N = len(X) n = np.arange(N) # get the sampling rate sr = 1 / (60*60) T = N/sr freq = n/T # Get the one-sided spectrum n_oneside = N//2
- 439. 24.4 FFT IN PYTHON 437 # get the one side frequency f_oneside = freq[:n_oneside] plt.figure(figsize = (12, 6)) plt.plot(f_oneside, np.abs(X[:n_oneside]), b) plt.xlabel(Freq (Hz)) plt.ylabel(FFT Amplitude |X(freq)|) plt.show() Note the clear peaks in the FFT amplitude figure, but it is hard to tell what they are in terms of frequency. Let us plot the results using hours and highlight some of the hours associated with the peaks. In [11]: # convert frequency to hour t_h = 1/f_oneside / (60 * 60) plt.figure(figsize=(12,6)) plt.plot(t_h, np.abs(X[:n_oneside])/n_oneside) plt.xticks([12, 24, 84, 168]) plt.xlim(0, 200) plt.xlabel(Period ($hour$)) plt.show()
- 440. 438 CHAPTER 24 FOURIER TRANSFORM We can now see some interesting patterns, i.e., three peaks associated with 12, 24, and 84 hours. These peaks mean that we see some repeating signal every 12, 24, and 84 hours. This makes sense and corresponds to our human activity pattern. The FFT can help us understand some of the repeating signals in our physical world. 24.4.3.2 Filtering a Signal in Frequency Domain Filtering is a process in signal processing to remove unwanted parts of the signal within certain fre- quency range. Low-pass filters remove all signals above certain cut-off frequency; high-pass filters do the opposite. Combining low- and high-pass filters allows constructing a band-pass filter, which means we only keep the signals within a pair of frequencies. Using FFT, we can easily do this. Let us play with the following example to illustrate the basics of a band-pass filter. Note that we just want to show the idea of filtering using very basic operations, in reality, filtering processes are much more sophisticated. EXAMPLE: Use the signal generated at the beginning of this section (the mixed sine waves with 1, 4, and 7 Hz) and high-pass filter this signal at 6 Hz. Plot the filtered signal and the FFT amplitude before and after filtering. In [12]: from scipy.fftpack import fftfreq In [13]: plt.figure(figsize = (8, 6)) plt.plot(t, x, r) plt.ylabel(Amplitude) plt.title(Original signal) plt.show()
- 441. 24.4 FFT IN PYTHON 439 In [14]: # FFT the signal sig_fft = fft(x) # copy the FFT results sig_fft_filtered = sig_fft.copy() # obtain the frequencies using SciPy function freq = fftfreq(len(x), d=1./2000) # define the cut-off frequency cut_off = 6 # high-pass filter by assign zeros to the # FFT amplitudes where the absolute # frequencies smaller than the cut-off sig_fft_filtered[np.abs(freq) cut_off] = 0 # get the filtered signal in time domain filtered = ifft(sig_fft_filtered) # plot the filtered signal plt.figure(figsize = (12, 6)) plt.plot(t, filtered) plt.xlabel(Time (s)) plt.ylabel(Amplitude) plt.show()
- 442. 440 CHAPTER 24 FOURIER TRANSFORM # plot the FFT amplitude before and after plt.figure(figsize = (12, 6)) plt.subplot(121) plt.stem(freq, np.abs(sig_fft), b, markerfmt= , basefmt=-b) plt.title(Before filtering) plt.xlim(0, 10) plt.xlabel(Frequency (Hz)) plt.ylabel(FFT Amplitude) plt.subplot(122) plt.stem(freq, np.abs(sig_fft_filtered), b, markerfmt= , basefmt=-b) plt.title(After filtering) plt.xlim(0, 10) plt.xlabel(Frequency (Hz)) plt.ylabel(FFT Amplitude) plt.tight_layout() plt.show() In the above example, we assigned any absolute frequencies of the FFT amplitude to zero,and returned back to time domain signal; we achieved a very basic high-pass filter in a few steps. Therefore, FFT can help us get the signal we are interested in and remove the ones that are unwanted.
- 443. 24.5 SUMMARY AND PROBLEMS 441 24.5 SUMMARY AND PROBLEMS 24.5.1 SUMMARY 1. We learned the basics of the waves: frequency, period, amplitude, and wavelength are characteristics of the waves. 2. The Discrete Fourier Transform (DFT) is a way to transform a signal from the time domain to the frequency domain using the sum of a sequence of sine waves. 3. The Fast Fourier Transform (FFT) is an algorithm used to calculate the DFTs efficiently by taking advantage of the symmetry properties in DFT. 24.5.2 PROBLEMS 1. You are asked to measure the temperature of the room for 30 days. Every day at noon you measure the temperature and record the value. What’s the frequency of the temperature signal you get? 2. What is the relationship between the frequency and the period of a wave? 3. What is the difference between period and wavelength? What are the similarities between them? 4. What are the time domain and frequency domain representation of a signal? 5. Generate two signals: signal 1 is a sine wave with 5 Hz, amplitude 3, and phase shift 3, and signal 2 is a sine wave with 2 Hz, amplitude 2, and phase shift −2. Plot the signal for 2 s. Test cases: In [1]: # sampling rate sr = 100 # sampling interval ts = 1.0/sr t = np.arange(0,2,ts) freq = 5. x = 3*np.sin(2*np.pi*freq*t + 3) freq = 2 x += 2*np.sin(2*np.pi*freq*t - 2) plt.figure(figsize = (8, 6)) plt.plot(t, x, r) plt.ylabel(Amplitude) plt.xlabel(Time (s)) plt.show()
- 444. 442 CHAPTER 24 FOURIER TRANSFORM 6. Sample the signal you generated in Problem 5 using a sampling rate 5, 10, 20, 50, and 100 Hz, and see the differences between different sampling rates. 7. Given a signal t = [0,1,2,3], and y = [0,3,2,0], find the real DFT of X. Write the expression for the inverse DFT. Do not use Python to find the results. Write out the equations and calculate the values. 8. What are the amplitude and phase of the DFT values for a signal? 9. We implemented the DFT previously. Can you implement the inverse DFT in Python similarly? 10. Use the DFT function and inverse DFT we implemented, and generate the amplitude spectrum for the signal you generated in Problem 5. Normalize the DFT amplitude to get the correct corre- sponding time domain amplitude. 11. Can you describe the tricks used in FFT to make the computation faster? 12. Use the fft and ifft function from scipy to repeat Problem 10. 13. Add a random normal distribution noise into the signal in Problem 5 using NumPy and plot the FFT amplitude spectrum. What do you see? The signal with noise will be shown in the following test case. Test case: In [2]: np.random.seed(10) x_noise = x + np.random.normal(0, 2, size = len(x)) plt.figure(figsize = (8, 6)) plt.plot(t, x_noise, r) plt.ylabel(Amplitude) plt.xlabel(Time (s)) plt.show()
- 445. 24.5 SUMMARY AND PROBLEMS 443
- 446. GETTING STARTED WITH PYTHON IN WINDOWS A.1 GETTING STARTED WITH PYTHON IN WINDOWS A.1.1 SETTING UP YOUR WORKING ENVIRONMENT IN WINDOWS Before we start to use Python, we need to set up our Python working environment on the computer. In this section, we will introduce the processes to get it started. There are different ways to install Python and related packages, here we recommend to use Ana- conda1 or Miniconda2 to install and manage your packages. Depending on the operating system (OS) you are using, i.e., Windows, Mac OS X, or Linux, you need to download a specific installer for your machine. Both Anaconda and Miniconda are aiming to provide easy ways to manage Python work environment in scientific computing and data science. Here we will use Windows as an example to show you the installation processes. For Mac and Linux users, please read Chapter 1.1 for all the processes. The main differences between Anaconda and Miniconda are: • Anaconda is a complete distribution framework that includes the Python interpreter, package man- ager, as well as the commonly used packages in scientific computing. • Miniconda is a light version of Anaconda that does not include the common packages, therefore, you need to install all the different packages by yourself. But it does have the Python interpreter and package manager. The option we choose here is to use Miniconda to manage our installation of the packages. This way we can only install those we need. The Miniconda install process is described below: Step 1. Download the Miniconda installer from the website3 as shown in Fig. A.1. Here you can choose a different installer based on your OS. We choose the Windows installer and Python 3.7 as an example. Step 2. Run the installer by double clicking the installer. After you run the installer, follow the guide and you will successfully install it (Fig. A.2). One thing to note is that you can change the installation location by giving it an alternative location on your machine, we will use the default path here (Fig. A.3). 1 https://www.anaconda.com/download/. 2 https://conda.io/miniconda.html. 3 https://conda.io/miniconda.html.
- 447. 446 GETTING STARTED WITH PYTHON IN WINDOWS FIGURE A.1 The Miniconda download page, choose the installer based on your operating system. FIGURE A.2 Screen shot of running the installer in Anaconda prompt.
- 448. GETTING STARTED WITH PYTHON IN WINDOWS 447 FIGURE A.3 The default installation location of your file system. After installation, we can open the Anaconda prompt (the equivalent terminal on Mac or Linux) from the start menu as shown in Fig. A.4. Then we can check whether installation is success or not by typing the following commands shown in Fig. A.5. Step 3. Following Fig. A.6, install the basic packages that are used in this book. Let us first install some packages for our book – IPython, NumPy, SciPy, pandas, matplotlib and Jupyter note- book. We will talk more about the management of the packages using pip and conda later. A.1.2 THREE WAYS TO RUN PYTHON CODE There are different ways to run Python code, they all have different usages. In this section, we will quickly introduce the three different ways to get you started. Using Python or IPython shell The easiest way to run Python code is through the Python or IPython shell (which stands for Interactive Python). The IPython shell is richer than Python shell due to, e.g., tab autocompletion, color-highlighted error messages, basic UNIX shell integration, and so on. Since we just installed IPython, let us try to run the “hello world” example with it. The way we launch either Python or IPython shell is by typing it in the Anaconda prompt (see the figure below). Then we can run Python command by typing it into the shell, by pressing Enter, we immediately see the results from the com- mand. For example, we can print out “Hello World” by typing print(Hello World) as shown in Fig. A.7.
- 449. 448 GETTING STARTED WITH PYTHON IN WINDOWS FIGURE A.4 Open the Anaconda prompt from the start menu. In the above command, the print() is a function in Python, and “Hello World” is a string data type that we will introduce in the book. Run Python script/file from command line The second way to run Python code is to put all the commands into a file and save it as a file with extension .py (the extension of the file could be anything, but by convention, it is usually .py). For example, use your favorite text editor (Shown here is the Visual Studio Code4), put the command in a file called hello_world.py as shown in Fig. A.8. Then just run it from the prompt (Fig. A.9). Using Jupyter notebook The third way to run Python is through Jupyter notebook. It is a very powerful browser-based Python environment, we will talk more about it in details later in this chapter. Here we just quickly see 4 https://code.visualstudio.com.
- 450. GETTING STARTED WITH PYTHON IN WINDOWS 449 FIGURE A.5 A quick way to check if your installed Miniconda runs properly. FIGURE A.6 Installation process for the packages that will be used in the rest of the book. how we could run the code from a Jupyter notebook. Type the jupyter notebook in the bash command line: jupyter notebook
- 451. 450 GETTING STARTED WITH PYTHON IN WINDOWS FIGURE A.7 Run Hello World in IPython shell by typing the command, “print” is a function that we will learn to print out anything within the parentheses. FIGURE A.8 A Python script file example using Visual Studio Code. You type in the commands you want to execute and save the file with a proper name.
- 452. GETTING STARTED WITH PYTHON IN WINDOWS 451 FIGURE A.9 To run the Python script from command line, we can type “python hello_world.py”. This line tells Python that we will execute the commands that were saved in this file. FIGURE A.10 To launch a Jupyter notebook server, type jupyter notebook in the command line, which will open a browser page as shown here. Click “New” button at the top right corner, and choose “Python3” which will create a Python notebook to run Python code.
- 453. 452 GETTING STARTED WITH PYTHON IN WINDOWS FIGURE A.11 Run the Hello World example within Jupyter notebook. Type the command in the code cell (the grey boxes) and press Shift + Enter to execute it. Then you will see a local web page pop up, from the upper right button to create a new Python3 notebook as shown in Fig. A.10. Running code in Jupyter notebook is easy, you type your code in the cell, and press Shift + Enter to run the cell, the results will be shown below the code (Fig. A.11).
- 454. Index A Accuracy, 339, 380, 411 Amplitude, 417 Anaconda, 4 Analytic, 325 Analytical solution, 373 And, 21 Angle between two vectors, 238 Angular frequency, 419 Animation, 212 Arithmetic operation, 9 Arithmetic operator, 9 Assignment operator, 27 Assigns, 27 Augmented matrix, 244 B Backward difference, 338, 340 Backward substitution, 248 Base case, 105 Base10, 145 Basic operations, 135 Basis functions, 279 Bias, 147 Big-O notation, 136 Binary, 145 Bisection method, 327 Bit, 145 Body of the function, 55 Boolean, 21 Bottleneck, 141 Boundary-value problem, 399 Branching statement, 77 C Central difference, 338, 340 Characteristic, 147 Characteristic equation, 268 Child class, 127 Class, 121, 123 Coefficients, 239 Column vector, 236 Comma-separated values, 180 Comparison operators, 21 Complex, 14 Complex numbers, 236 Complexity, 135 Comprehensions, 100 Condition number, 243 Converged, 326 Coupled, 374 Cross product, 238 Cubic spline interpolation, 297 D Data type, 29 Decimal system, 145 Definite loops, 91 Determinant, 241 Dictionaries, 42 Dictionary comprehension, 101 Differential equation, 371 Discrete, 337 Discretized, 337 Divide and conquer, 110 Divided differences, 306 Domain, 245 Dot, 240 Dot product, 238 E Eigenvalue, 265 Eigenvector, 265 Empty set, 235 Encapsulation, 127 Error, 326 Estimation function, 279 Exceptions, 158 Executed, 9 Explicit Euler Formula, 376 Exponent, 147 Exponential time, 137 F F-String, 34 Fast Fourier Transform (FFT), 428
- 455. 454 Index Finite difference method, 406 Float, 14, 147 Floating point, 147 For-loop, 91 Forward difference, 338, 339 Forward substitution, 248 Fourier Transform, 415, 421 Fourth Order Runge Kutta, 384 Fraction, 147 Frequency, 418 Full rank, 243 Function, 55 G Gap, 149 Gauss Elimination, 248 Gauss-Seidel Method, 254 General solution, 372 Global Interpreter Lock, 227 Global variable, 66 H HDF5, 185 Hertz, 418 Heterogeneous, 39 Higher order terms, 339 Homogeneous, 39 I Identity matrix, 241 IEEE754, 147 If-Else Statement, 77 If-Statement, 77 Ill-conditioned, 243 Immutable, 39 Implicit Euler Formula, 379 In, 236 Indefinite loop, 97 Individual errors, 280 Infinite loop, 98 Infinite sequence, 315 Infinite series, 315 Inherit, 123 Inheritance, 123, 127 Initial value, 373 Initial value problem, 373 Inner matrix dimension, 240 Input arguments, 55 Install Python, 3 Int, 14 Integers, 236 Intermediate Value Theorem, 327 Interpolate, 295 Interpolation function, 295 Intersect, 235 Interval, 353 Inverse, 242 Inverse power method, 272 Invertible, 242 IPython shell, 7 Irrational numbers, 236 Iterative methods, 253 J Jupyter notebook, 9, 18 L L2 norm, 236 Lagrange basis polynomials, 301 Lagrange polynomial, 301 Lagrange polynomial interpolation, 301 Lambda function, 69 Least squares regression, 280 Least squares regression formula, 281 Linear approximation, 318 Linear combination, 239 Linear equation, 245 Linear interpolation, 296 Linear ODEs, 375 Linear transformation, 244 Linearly dependent, 239 Linearly independent, 239 List comprehension, 100 Lists, 35 Local variable, 64 Log time, 137 Logic error, 160 Logical errors, 157 Logical expression, 20 Logical operators, 21 Looping variable, 91 M Math, 11 Mathematical expression, 20 Matplotlib, 189 Matrix, 239
- 456. Index 455 Matrix form, 246 Matrix multiplication, 240 Midpoint method, 382 Midpoint Rule, 355 Miniconda, 4 Module, 15, 161 Multiprocessing, 225 Multistep methods, 389 Mutable, 39 N Natural numbers, 236 Nested, 80 Nested function, 67 Nested if-statement, 80 Newton step, 330 Newton-Raphson Method, 330 Newton’s polynomial interpolation, 305 Noise, 345 Nonsingular, 243 Norm, 236 Not, 21 Null space, 245 Numerical grid, 337 Nyquist frequency, 423, 425 O Object, 121, 124 Object-oriented programming, 121 ODE, 371 Or, 21 Order, 339 Order of operations, 10 Ordinary differential equation, 371 Orthogonal, 238 Outer matrix dimensions, 240 Output parameters, 55 Overflow, 150 P P-norm, 236 Packages, 15 Parallel computing, 225 Parameters, 279 Parent class, 127 Parent function, 67 Partial differential equation, 372 Particular solution, 372 PDE, 372 Period, 417 Permutation matrix, 257 Phase, 419 Pickle, 182 Pip, 15 Pivot, 113 Pivot equation, 249 Polymorphism, 127 Polynomial time, 136 Pool, 228 Power method, 269 Predictor-corrector, 382 Procedure-oriented programming, 121 Process, 226 Profiler, 140 Pseudo-inverse, 281 Python shell, 7 Q QR method, 273 Quicksort, 113 R Range, 245 Rank, 243 Rational numbers, 236 Real numbers, 236 Recursive, 105 Recursive call, 105 Recursive step, 105 Reduce the order, 374 Residuals, 280 Riemann Integral, 354 Root, 325 Round-off, 320 Round-off errors, 151 Row vector, 236 Runge Kutta, 383 Runtime errors, 157, 158 S Sampling, 418 Sampling rate, 419 Scalar, 238 Scalar multiplication, 238 Sequence, 315 Series, 315 Set, 40, 235
- 457. 456 Index Set minus, 236 Shifted power method, 273 Shooting methods, 401 Sign indicator, 147 Simpson’s Rule, 359 Singular, 243 Sorted, 113 Spacing, 337 Square matrix, 241 Stability, 380, 411 State, 374 Step size, 337 Stiffness, 389 String, 30 Subinterval, 353 Subnormal number, 149 Subproblems, 111 Superclass, 123, 127 Syntax, 157 Syntax errors, 157 System of linear equations, 246 T Taylor Remainder Estimation Theorem, 321 Taylor series expansion, 315 Text file, 175 Thread, 226 Threading, 225 Tolerance, 326 Total squared error, 280 Transpose, 240 Trapezoid Rule, 356 Trapezoidal Formula, 379 Truncation, 320 Truncation error, 151 Truth table, 21 Try-Except statement, 163 Tuples, 38 TypeError, 61 U Unassigned command, 29 Underflow, 150 Union, 235 Upper triangular, 248 V Variable, 27 Vector, 236 Vector addition, 237 Vector multiplication, 238 Vectorized, 51 W Wavelength, 417 While-loop, 97 Whole numbers, 236 Z Zero vector, 236, 245
