The document discusses time series anomaly detection using Azure data services and machine learning, focusing on practical implementations for .NET developers. It highlights tools, theories, and techniques for detecting anomalies in industrial applications, particularly in IoT scenarios. Additionally, it explores the use of Azure Cognitive Services for anomaly detection, providing a streamlined approach for developers without machine learning expertise.
![Spectrum Residual Cnn (SrCnn)
• To monitor the time-series continuously and alert for potential incidents on time
• The algorithm first computes the Fourier Transform of the original data. Then it computes
the spectral residual of the log amplitude of the transformed signal before applying the
Inverse Fourier Transform to map the sequence back from the frequency to the time domain.
This sequence is called the saliency map. The anomaly score is then computed as the relative
difference between the saliency map values and their moving averages. If the score is above
a threshold, the value at a specific timestep is flagged as an outlier.
• There are several parameters for SR algorithm. To obtain a model with good performance, we
suggest to tune windowSize and threshold at first, these are the most important parameters
to SR. Then you could search for an appropriate judgementWindowSize which is no larger
than windowSize. And for the remaining parameters, you could use the default value directly.
• Time-Series Anomaly Detection Service at Microsoft [https://arxiv.org/pdf/1906.03821.pdf]](https://image.slidesharecdn.com/2021-211103222914/85/Deep-Dive-Time-Series-Anomaly-Detection-in-Azure-with-dotnet-21-320.jpg)
Deep Dive Time Series Anomaly Detection in Azure with dotnet
- 1. DATA SATURDAY #10 Sofia, Oct 09th Deep Dive Time Series Anomaly Detection with different Azure data services Marco Parenzan
- 2. Marco Parenzan • Senion Solution Architect @ beanTech • 1nn0va Community Lead (Pordenone) • Microsoft Azure MVP • Profiles o Linkedin: https://www.linkedin.com/in/marcoparenzan/ o Slideshare: https://www.slideshare.net/marco.parenzan o GitHub: https://github.com/marcoparenzan
- 3. This is the journey of… • …a .NET developer… • …or an IoT developer… • …a one-man band (sometimes )… • …facing typical data science world topics… • …that wants to use .NET everywhere!
- 4. Thanks to our Sponsors
- 6. Scenario • In an industrial fridge, you monitor temperatures to check not the temperature «per se», but to check the healthy of the plant From real industrial fridges
- 7. With no any specific request... what is IoT all about? Efficiency Anomalies Batch Streaming
- 8. Storage Account IoT Hub Devices Events Ingest The batch point of view...
- 9. How can we implement processing? Ingest Process Storage Account Azure IoT Hub-Related Services Devices Events ? We explore some of them, probably the most Microsoft and Azure oriented
- 10. But….
- 11. I’m not a data scientist! Or a BI Analyst!
- 12. I’m a .NET Developer!
- 13. Make me think and work as a Data Scientist!
- 14. A (very little) bit of theory for Anomaly Detection in Time Series
- 15. Threshold anomalies? • Threshold alarms are not enough o Anomalies cannot be just «over a threshold for some time»... o Condenser or Evaporator with difficulties starting o Distinguish from Opening a door (that is also an anomaly) o Or also counting the number of times that there are peaks (too many times) • You can considering each of these events as anomalies that alter the temperature you measure in different part of the fridge
- 16. Anomaly Detection • Anomaly detection is the process of identifying unexpected items or events in data sets, which differ from the norm. • And anomaly detection is often applied on unlabeled data which is known as unsupervised anomaly detection. • Anomaly is not just a matter of time and scalar values. It can also be a matter of visual anomalies!
- 17. Time Series o Trend • is a general direction in which something is developing or changing. A trend can be upward(uptrend) or downward(downtrend). It is not always necessary that the increase or decrease is consistently in the same direction in a given period. o Seasonality • Predictable pattern that recurs or repeats over regular intervals. Seasonality is often observed within a year or less. o Irregular fluctuation • These are variations that occur due to sudden causes and are unpredictable. For example the rise in prices of food due to war, flood, earthquakes, farmers striking etc. • Definition o Time series is a sequence of data points recorded in time order, often taken at successive equally paced points in time. • Examples o Stock prices, Sales demand, website traffic, daily temperatures, quarterly sales • Time series is different from regression analysis because of its time-dependent nature.
- 18. Anomaly Detection in Time Series • In time series data, an anomaly or outlier can be termed as a data point which is not following the common collective trend or seasonal or cyclic pattern of the entire data and is significantly distinct from rest of the data. By significant, most data scientists mean statistical significance, which in order words, signify that the statistical properties of the data point is not in alignment with the rest of the series. • Anomaly detection has two basic assumptions: o Anomalies only occur very rarely in the data. o Their features differ from the normal instances significantly.
- 20. Helping no-data scientits developers (all! ) • Unsupervised Machine LearningNo labelling • Automated Training Set for Anomaly Detection Algorithms • the algorithms automatically generates a simulated training set based non your input data • Auto(mated) MLfind the best tuning for you with parameters and algorithms https://docs.microsoft.com/en-us/azure/machine-learning/algorithm-cheat-sheet
- 21. Spectrum Residual Cnn (SrCnn) • To monitor the time-series continuously and alert for potential incidents on time • The algorithm first computes the Fourier Transform of the original data. Then it computes the spectral residual of the log amplitude of the transformed signal before applying the Inverse Fourier Transform to map the sequence back from the frequency to the time domain. This sequence is called the saliency map. The anomaly score is then computed as the relative difference between the saliency map values and their moving averages. If the score is above a threshold, the value at a specific timestep is flagged as an outlier. • There are several parameters for SR algorithm. To obtain a model with good performance, we suggest to tune windowSize and threshold at first, these are the most important parameters to SR. Then you could search for an appropriate judgementWindowSize which is no larger than windowSize. And for the remaining parameters, you could use the default value directly. • Time-Series Anomaly Detection Service at Microsoft [https://arxiv.org/pdf/1906.03821.pdf]
- 22. Data Science for the .NET developer

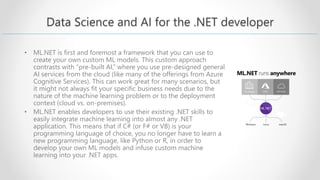

- 23. Data Science and AI for the .NET developer • ML.NET is first and foremost a framework that you can use to create your own custom ML models. This custom approach contrasts with “pre-built AI,” where you use pre-designed general AI services from the cloud (like many of the offerings from Azure Cognitive Services). This can work great for many scenarios, but it might not always fit your specific business needs due to the nature of the machine learning problem or to the deployment context (cloud vs. on-premises). • ML.NET enables developers to use their existing .NET skills to easily integrate machine learning into almost any .NET application. This means that if C# (or F# or VB) is your programming language of choice, you no longer have to learn a new programming language, like Python or R, in order to develop your own ML models and infuse custom machine learning into your .NET apps.
- 25. Some tools required • .NET 5 + WPF + ML.NET • Mandatory , the platform where we try to make experiments • Xplot.Ploty (soon you will understand I use this) https://fslab.org/XPlot/ • XPlot is a cross-platform data visualization package for the F# programming language powered by popular JavaScript charting libraries Plotly and Google Charts. The library provides a complete mapping for the configuration options of the underlying libraries and so you get a nice F# interface that gives you access to the full power of Plotly and Google Charts. The XPlot library can be used interactively from F# Interactive, but charts can equally easy be embedded in F# applications and in HTML reports. • WebView2 https://docs.microsoft.com/en-us/microsoft-edge/webview2/gettingstarted/wpf • The Microsoft Edge WebView2 control enables you to embed web technologies (HTML, CSS, and JavaScript) in your native apps. The WebView2 control uses Microsoft Edge (Chromium) as the rendering engine to display the web content in native apps. With WebView2, you may embed web code in different parts of your native app. Build all of the native app within a single WebView instance.
- 26. Experimenting with .NET and WPF
- 27. How Data Scientists work
- 28. Batch vs. Notebooks • Batch o Work on slow data stored into a Datalake o Submit a complete app in one single deploy o Receive the entire output • Notebook o «sketching» the code o Write/delete/rewrite continuously o Run cell by cell (but also all at once) interactive • In a world of Mathematica
- 29. Jupyter • Evolution and generalization of the seminal role of Mathematica • In web standards way o Web (HTTP+Markdown) o Python adoption (ipynb) • Written in Java • Python has an interop bridge...not native (if ever important)Python is a kernel for Jupyter
- 30. Python! • Simple to start (that why C# is pythonizing…) • “Open Source” • TensorFlow, Scikit-learn, Keras, Pandas, PyTorch • Remember one thing: o Often behind a Data Science framework there is a native library and Python binds that library o Spark is written in Java and there is a bridge for Python to Spark o Jupyter is written in Java and there is a bridge (kernel) for Python
- 31. Spark Unifies: Batch Processing Interactive SQL Real-time processing Machine Learning Deep Learning Graph Processing An unified, open source, parallel, data processing framework for Big Data Analytics Spark Core Engine Spark SQL Batch processing Spark Structured Streaming Stream processing Spark MLlib Machine Learning Yarn Spark MLlib Machine Learning Spark Streaming Stream processing GraphX Graph Computation http://spark.apache.org Apache Spark
- 32. .NET Interactive and Jupyter and Visual Studio Code • .NET Interactive gives C# and F# kernels to Jupyter • .NET Interactive gives all tools to create your hosting application independently from Jupyter • In Visual Studio Code, you have two different notebooks (looking similar but developed in parallel by different teams) o .NET Interactive Notebook (by the .NET Interactive Team) that can run also Python o Jupyter Notebook (by the Azure Data Studio Team – probably) that can run also C# and F# • There is a little confusion on that • .NET Interactive has a strong C#/F# Kernel... o ...a less mature infrastructure (compared to Jupiter)
- 33. .NET for Apache Spark 1.1.1 • .NET bindings (C# e F#) to Spark o Written on the Spark interop layer, designed to provide high performance bindings to multiple languages • Re-use knowledge, skills, code you have as a .NET developer o Compliant with .NET Standard • You can use .NET for Apache Spark anywhere you write .NET code • Original project Moebius o https://github.com/microsoft/Mobius
- 36. .NET (5) hosting in Azure Existing apps .NET web apps (on-premises) Cloud-Optimized PaaS Cloud-Native PaaS for microservices and serverless Monolithic / N-Tier architectures Monolithic / N-Tier architectures Microservices and serverless architectures Cloud Infrastructure-Ready Monolithic / N-Tier architectures Relational Database VMs Managed services On-premises Azure PaaS for containerized microservices + Serverless computing + Managed services And Windows Containers IaaS (Infrastructure as a Service) Azure Azure
- 37. Functions everywhere Platform App delivery OS On-premises Code App Service on Azure Stack Windows ●●● Non-Azure hosts ●●● ●●● + Azure Functions host runtime Azure Functions Core Tools Azure Functions base Docker image Azure Functions .NET Docker image Azure Functions Node Docker image ●●●
- 38. Logic Apps o Visually design workflows in the cloud o Express logic through powerful control flow o Connect disparate functions and APIs o Utilize declarative definition to work with CI/CD
- 40. Anomaly Detection As A Service in Azure
- 41. Azure Cognitive Services • Cognitive Services brings AI within reach of every developer—without requiring machine-learning expertise. All it takes is an API call to embed the ability to see, hear, speak, search, understand, and accelerate decision- making into your apps. Enable developers of all skill levels to easily add AI capabilities to their apps. • Five areas: • Decision • Language • Speech • Vision • Web search Anomaly Detector Identify potential problems early on. Content Moderator Detect potentially offensive or unwanted content. Metrics Advisor PREVIEW Monitor metrics and diagnose issues. Personalizer Create rich, personalized experiences for every user.
- 42. Anomaly Detector • Through an API, Anomaly Detector ingests time-series data of all types and selects the best-fitting detection model for your data to ensure high accuracy. Customize the service to detect any level of anomaly and deploy it where you need it most -- from the cloud to the intelligent edge with containers. Azure is the only major cloud provider that offers anomaly detection as an AI service.
- 44. Anomaly Detection with Big Data
- 45. Fully managed big data analytics service • Fully managed for efficiency Focus on insights, not the infra-structure for fast time to value • No infrastructure to manage; provision the service, choose the SKU for your workload, and create database. • Optimized for streaming data Get near-instant insights from fast-flowing data • Scale linearly up to 200 MB per second per node with highly performant, low latency ingestion. • Designed for data exploration • Run ad-hoc queries using the intuitive query language • Returns results from 1 Billion records < 1 second without modifying the data or metadata
- 46. •seconds freshness, days retention •in-mem aggregated data •pre-defined standing queries •split-seconds query performance •data viewing Hot •minutes freshness, months retention •raw data •ad-hoc queries •seconds-minutes query perf •data exploration Warm •hours freshness, years retention •raw data •programmatic batch processing •minutes-hours query perf •data manipulation Cold • in-mem cube • stream analytics • … • column store • Indexing • … • distributed file system • map reduce • … Multi-temperature data processing paths
- 47. Experimenting with Azure Data Explorer
- 48. Upcoming Events jsTalks (Bulgaria), 2021 Nov 19-20 http://jstalks.net/ Azure MVP Unplugged, 5th Edition October 21 Global AI Back Together Bulgaria 2021 19 of October
- 49. Thanks to our Sponsors
Editor's Notes
- #17: https://towardsdatascience.com/effective-approaches-for-time-series-anomaly-detection-9485b40077f1 https://towardsdatascience.com/anomaly-detection-for-dummies-15f148e559c1
- #18: https://towardsdatascience.com/time-series-analysis-for-beginners-8a200552e332
- #19: Anomaly detection is the process of identifying unexpected items or events in data sets, which differ from the norm. And anomaly detection is often applied on unlabeled data which is known as unsupervised anomaly detection. https://towardsdatascience.com/effective-approaches-for-time-series-anomaly-detection-9485b40077f1
- #22: The Spectral Residual outlier detector is based on the paper Time-Series Anomaly Detection Service at Microsoft and is suitable for unsupervised online anomaly detection in univariate time series data. The algorithm first computes the Fourier Transform of the original data. Then it computes the spectral residual of the log amplitude of the transformed signal before applying the Inverse Fourier Transform to map the sequence back from the frequency to the time domain. This sequence is called the saliency map. The anomaly score is then computed as the relative difference between the saliency map values and their moving averages. If the score is above a threshold, the value at a specific timestep is flagged as an outlier. For more details, please check out the paper.
- #37: What’s next? Modernize applications with .NET Core Today we focused on Cloud-optimized .NET Framework apps. However, many applications will benefit from modern architecture built on .NET Core – a much faster, modular, cross-platform, open source .NET. Websites can be modernized with ASP.NET Core to bring in better security, compliance, and much better performance than ASP.NET on .NET Framework. .NET Core also provides code patterns for building resilient, high-performance microservices on Linux and Windows.
- #39: Build 2015
- #46: WHAT is ADX EXACTLY? Is a Fully managed big data analytics service, based on an Analytical database. Analytical databases are optimized to query and run advanced analytics on large volumes of data with extremely low response times. Modern analytical databases are generally distributed, scalable, fault-tolerant They are columnar based databases that deal with compressed formats and with an intelligent softweare infrastructure composed by a blend of in-memory and disk caching technologies.
- #47: Hot is in terms of Instant results from a continuous dataflow Warm path mean analytical approach, not immediate but full of rough data to be modeled Cold doesn't mean unreachable So the question is: In a Multi Temperature situation, is there any Azure service that can be the answer to all the three data paths.
