Getting started with apache flink streaming api
Download as PPTX, PDF0 likes17 views
This document provides an overview of Apache Flink's streaming API. It first defines streaming data and common examples. It then discusses typical streaming data architectures involving data sources, collection, ingestion, processing, storage and visualization. The document also summarizes Flink's high-level design and components. Finally, it outlines the typical workflow for a Flink DataStream, including creating an execution environment, adding a source, creating a DataStream, partitioning, defining windows, applying business logic, and sending results to a sink.
Getting started with apache flink streaming api

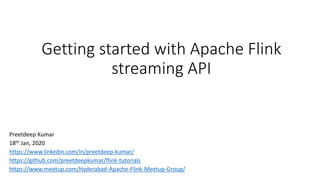

- 1. Getting started with Apache Flink streaming API Preetdeep Kumar 18th Jan, 2020 https://www.linkedin.com/in/preetdeep-kumar/ https://github.com/preetdeepkumar/flink-tutorials https://www.meetup.com/Hyderabad-Apache-Flink-Meetup-Group/
- 2. Agenda • Streaming • Introduction • Architecture • Flink • Design • Typical DataStreaming API workflow • Demo
- 3. Streaming – high level summary • Streaming refers to data that is continuously generated, usually at high velocity and in small sizes (KBs). • Common examples of streaming data include: • IoT Sensor events • Server logs • Click-stream data from apps and websites • GPS co-ordinates from a ride • Social media Batch data processing Stream data processing Data scope Queries or processing over all or most of the data in the dataset Queries or processing over data within a rolling time window, or on just the most recent data record Data size Large batches of data Individual records or micro batches consisting of a few records Latency Minutes to hours Seconds(near real time) or milliseconds (real time) Analysis Complex analytics Simple response functions, aggregates, and rolling metrics Source: https://aws.amazon.com/streaming-data/

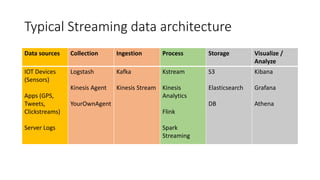

- 4. Typical Streaming data architecture Data sources Collection Ingestion Process Storage Visualize / Analyze IOT Devices (Sensors) Apps (GPS, Tweets, Clickstreams) Server Logs Logstash Kinesis Agent YourOwnAgent Kafka Kinesis Stream Kstream Kinesis Analytics Flink Spark Streaming S3 Elasticsearch DB Kibana Grafana Athena

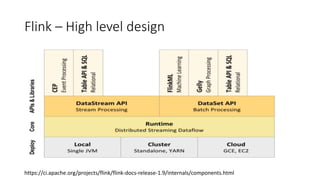

- 5. Flink – High level design https://ci.apache.org/projects/flink/flink-docs-release-1.9/internals/components.html
- 6. Flink’s DataStream typical workflow 1. Create a StreamExecutionEnvironment 2. Add a source which will produce data into Flink 3. Create a DataStream 4. Partition the stream using a key 5. Define a window 6. Provide business logic on the data within a Window 7. Send the result of a window to a source
