HP ALM 11.0 TRAINING
IT QA
Training for AMD Test Leads and
Testers
April 2011

Advanced Micro Devices Inc. (AMD) Proprietary 2011. AMD is a trademark of Advanced Micro Devices.

This document contains proprietary intellectual property of AMD and may not be copied, modified or otherwise duplicated,
reproduced or changed without the express written permission of AMD.

Objectives

 Provide Training on key ALM 11.0 Features and Functionality
based on Role
 Demonstrate Installation
 Show what has changed from QC 9.2 to ALM 11
 Review the ALM 11.0
Environment, UI, Menus, Components, Screens
 Demonstrate each module in ALM 11.0: Test Plan, Test
Lab, Defects
 Instruct on Best Practices to follow within each module

2 | QA Communications | February 2011

Training Outline
 Objectives
 Getting Started
 New Account Request
 New Project Request
 Installation Process
 Pre-requisites: ALM 11.0
 Installation Steps
 Logging in and Setting Passwords
 Changing Password
 What has Changed
 New Requirements Types and Workflow: Refer to RCoE Training
 User Interface has changed
 PMO Projects grouped by Business Domain
 Releases Functionality: Program/Project Release Folder/Structure
–

Training Outline Cont’d
 Reports Configuration has changed
 New Features: Libraries and Baselines
 Version Control
 TFS Synchronization
 Test Execution
 Tester Roles & Responsibilities
 Test Plan: Creating and Revising Scripts
 Test Lab: Executing and recording results; linking defects
 Defects
 Logging and retesting defects
* Also included in What has Changed Slide


Installation Process: ALM 11.0

c

ALM Client System Requirements

Windows 7 32 bit (Recommended)
Windows Vista (SP1) 32 bit
Operating System Windows XP (SP3) 32 bit

Notes:
If you are integrating ALM with other HP testing tools, you
must modify the DCOM permissions on your client machine.
For more information, see
_http://h20230._www2.hp.com/selfsolve/document/KM187
086.
You can work with the ALM client using a remote desktop.

Browser Microsoft Internet Explorer 7 or 8

Note: For customers who have restrictions on plug-ins
in their browsers, such as ActiveX, ALM can be loaded
in the HP ALM Explorer Add-in. For more information
on downloading and installing the add-in, refer to the
HP Application Lifecycle Management Installation
Guide.


Prerequisites: ALM 11.0 cont.d
ALM Client System Requirements

• Visual C++ 2005 SP1 ATL Security Update
Prerequisites Redistributable
• Microsoft .NET Framework 3.5 (SP1)
• Microsoft Office 2007 (SP2)


Installation Steps

1. You must log on to the browser as administrator. To do this, select Internet Explorer
from the Start Menu, and right click to Run as Administrator.
2. Type in ALM 11 or http://ausalmp00:8080/qcbin in the address bar of your browser,
Internet Explorer.
3. Log on to ALM 11.0. This is what you will see:


4. Click the Application Lifecycle Management link.
5. You will see the Security Warning shown below: “Do you want to install this software?”
Click Install.


6. On the screen that displays, you will be prompted to install Microsoft Visual C++ 2005
SP1 Security Update.

Note:
Since this is a generic update, if the machine already had the C++ update installed by
another windows or program update, this update will not be triggered. Then you will
automatically be taken to Step 8 instead.
If you chose the Install option, you will see the following screen while the Microsoft
Visual C++ install is initiated.


7. Next, the Microsoft Download Center displays:


8. The file-download options display on the next screen (shown below). The default option
will be that for X86 systems – third on the list: Click Download.


9. Click Run on the standard Security warning that displays next:


10. You may see a second warning with a similar message once you click Run the first
time. Click Run again.


•Click Yes on the window that pops up, to allow the program to make necessary changes to your computer.

11. Click Yes, on the screen that displays to accept the License Agreement


12. Click Yes on the window that pops up, subsequently to allow the program to make
necessary changes to your computer.


13. You will see the following screen while Windows configures the Microsoft C++
Redistributable:


14. The following screen will display as ALM 11.0 loads:


 You are now ready to log in, authenticate, and access your
project.
 Note: Please let all the components run before logging off.


Logging in and Setting Passwords
 In your browser window, type in ALM 11 or
– http://ausalmp00:8080/qcbin/
 you may try the alternate link
– http://ausalmp00.amd.com:8080/qcbin/start_a.htm
 On the first screen that displays, click on the Application Lifecycle
Management link.


ALM 11.0 Login Screen
1. Enter your ALM 11.0 User Name and Password, then select Authenticate
• Your new User Name is the same as your NT ID. Example: jsmith
• Your new Password is the same as your User Name.
• User Name and Password are all lower case characters.
• If you’re new to ALM 11.0, please change your Password once you successfully log in.
2. Enter the Domain and Project, and click the Login button
• Domain is: AMD_QA
• Project is: Current Project
Notes:
•Admin Rights on your workstations
are required.
•Listing the ALM 11.0 URL as a
trusted site in IE is also
recommended.
•The first time you launch ALM 11.0
you will see horizontal progress
bars as your workstation is being
configured for ALM


Changing Password
• Please keep your passwords private, and do not
share.
• On the ALM 11.0 home page, click on the
Forgot Password link.

• If logged in, click on Tools -> Customize - >User Properties -> Click on Change Password tab.
• On Change Password pop-up enter old password, new password twice, and click OK button.
• Click Save, then click on Return button.


What has changed from QC 9.2
 New Requirements Types and Workflow
– Specific Functionality is implemented as per the RCoE Training

 Changed User Interface: The Dashboard has a new look
and feel
 PMO Projects are now grouped by business domain
– 10 business domains with Programs - >Projects under the
business domains
 Releases functionality: Modified QC project creation strategy. We will
create 10 ALM 11.0 projects based on business domains. Each domain will have
multiple PMO projects.


What has changed from QC 9.2

 New Features: Libraries, Baselines New Features and Best Practices
to be rolled out in 2011.

 Reporting Configuration Changes: There is a new method for
changing parameters when configuring a report. A graph wizard may be used to
configure standard reports.

 Version Control (Test Plan, Requirements, Components section) -
> With the new Version Control it is necessary to check- out – check-in to prevent
locking files

 TFS Synchronization: New fields have been added when creating
requirements and logging defects, to enable synchronization
 The EDW/SAP flag is a key part of synchronization. It is also used to display custom
information for SAP and EDW.

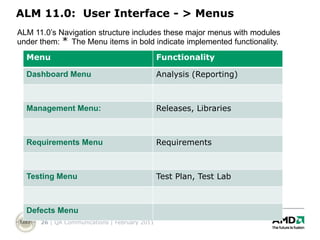

ALM 11.0: User Interface - > Menus
ALM 11.0’s Navigation structure includes these major menus with modules
under them: * The Menu items in bold indicate implemented functionality.
Menu Functionality

Dashboard Menu Analysis (Reporting)

Management Menu: Releases, Libraries

Requirements Menu Requirements

Testing Menu Test Plan, Test Lab

Defects Menu

ALM 11.0: Modules  ALM 11.0’s structure includes these major modules:
 Dashboard: Analysis View - To access reporting
functionality
 Releases – Tool to manage the Release Life Cycle
 Libraries - Tool to manage a set of entities in a
project and the relationships between them
 Requirements – A repository for requirements
 Business Models
 Business Components – Used by IT QA
Automation Team to create business components
(details not covered in this document)
 Test Plan – A repository for manual and automated
tests (Library of scripts)
 Test Lab –Tool for scheduling and executing manual
or automated tests (Record Test Run results)
 Defects– Defect management and tracking tool (log
defects)

Sections to be used: Test Lab and Defects
Standard icons : ALM 11.0 Toolbar


2

Business Domains – Why by Business Domains
 Projects will be created under Business Domains. Project fields will be
dependent on which Business Domain the project is mapped to. You will see
in ALM 11.0 fields for defects and requirements to select the pmo project and
application from a predefined list. This selection determines implications of
synchronization and other potential customizations
 Support alignment of the different systems
– Troux (Business Domains and Application Lists by Domain)
– HP Application Lifecycle Management (ALM 11.0)
– Team Foundation Server (TFS 2010)
– Project Resource Cost Table (PRCT)
 Support the synchronization hooks between ALM and TFS
 Balances the needs for reporting and the management of project,
requirements, testing, and development.
 Agreed upon by the PMO, RCOE, QA, and Dev.


Business Domains - List

Global
Corporate Information
Finance Operations
Services Technology
Engineering

PG
Manufacturing Marketing Sales
Engineering

Supply Chain TG
Management Engineering


Business Domains – what does this mean to
you
 All project requirements in HP ALM will be in a single business
domain to support requirements management, UAT testing, and
reporting. However, your project will be a sub-folder within a
business domain.
 In Troux, applications are aligned to business domains. Thus, in
order for us to manage requirements affecting an application in
different business domains, we require functional requirements to
have an application assignment.
– The application assignment is made during the hand-off to Dev.
Dev will be responsible for identifying the application. Business
Analysts are responsible for updating the requirements in ALM with
the application name and in some cases, splitting the requirements
so there is a single functional requirement to application.
 All requirements will require a PMO Project and if needed, the TFS
Sync flag or SAP/EDW flag.


Program/project release structure - folder

B C

A

D E


Program/project release structure - release

B

A


Program/Project release structures
Key User interface elements
UI Element Icon HP ALM Definition AMD Application

Release Folder A folder for organizing releases. AMD uses folders to organize
releases. Nesting of release folders
are used when a Release does not
represent a go-live distribution of
changes. (e.g. Multiple iterations
before a go-live implementation)
Release A release represents a group of AMD expands the use of releases to
changes in one or more applications include a group of changes that may
that will be available for distribution not be distributed.
at the same time. Each release can
contain a number of cycles.
Reschedule Opens the Reschedule dialog box, No change
enabling you to reschedule the start
and end date of a release, cycle, or
milestone
Cycle A cycle is a set of development and AMD’s QA organization uses cycles
quality assurance efforts performed to represent the different stages of
to achieve a common goal based on testing. (e.g. SIT, UAT). The QA
the release timeline. Analyst will create and assign the
cycles.
Delete Deletes selected release folders, AMD does not allow for deletion
releases, or cycles. Deleting a folder exception by HP ALM Administrators.
also deletes its releases and cycles.
Deleting a release also deletes its
cycles.
33 | QA Communications Deleting a release folder,
Note: | February 2011
release, or cycle also unassigns the
associated requirements, test set

Libraries and Baselines
Libraries - A library represents a
set of entities in a project and the
relationships between them. The
entities in a library can include
requirements, tests, test
resources, and business
components.

Baseline - A baseline is a
snapshot of the library at a
specific point in time. You can
compare baselines at all stages of
the application development
lifecycle.

Why Use Libraries and Baselines
Viewing baseline history enables you to track changes made to individual entities in your library over
time. As development continues, you can view and compare all versions of an entity that are stored in
a baseline. At AMD, we are leveraging the baselining capabilities to take a snapshot of the
requirements at each Phase Exit and after a Project Change Request is approved and the
requirements have been updated.
You can also import a library. Importing a library enables you to reuse and share an existing set of
entities. As development continues, you can compare and synchronize libraries.


Create a Library and a Baseline
1. From the Management module on the ALM sidebar, select Libraries.

2. In Libraries root folder, create your project’s folder by click on the Create Folder button . Creating
your project folder is important because there may be other projects using the ALM project container.

3. Name your folder with your Project Number and Project Name (e.g. Project 123 Sales Enhancement)
and click OK.

4. Select your project folder and click on the Create Library icon to create a library.

5. Name your library as Requirements.

6. If needed, Select Content from the sidebar. Click on your project folder. It is suggested that you
select all requirements for your baseline. It may be necessary to filter the view by Targeted
Release before you check the requirements. You can do the same with test cases.


Configuring Reports

Reporting Configuration is different in ALM 11.0, from QC 9.2:
This section describes how to:
• Add a new graph
• Apply a new filter to existing graph


Create a New graph in ALM 11.0
 ALM 11.0 has introduced a new module dedicated to store
and manage user reports and graphs
– There can be Private or Public entities
– The procedure to create a new graph is the same for both


3


1. Choose the folder for your graph and click on the

1

2. Select the type
2
of output (In this
case a New Graph)


3


2. Select the Entity that you want to graph
3. Select the Graph Type.
4. Enter the new Graph Name.

3

4

5



5. Once the new graph is created, click on the View Tab to access
the report:
6


Applying Filters to a New Graph

1. Select your graph and click on the View tab
2. Modify general graph parameters
3. Click on for data specific filters

1

2

3


4. Select your criteria from the filter screen, using the Filter tab, click OK.
5. Choose Create Filter, select settings. Click OK:


6. Click on the View tab to access the filtered graph


Tester Roles & Responsibilities by Module
• The three main modules that a Tester will interact with are:
1. Test Plan
2. Test Lab
3. Defects Module
Roles by module
Test Plan
• Creating test scripts
• Reviewing and updating existing test scripts
Test Lab
• Executing tests and documenting test results
• Adding and modifying test sets in Test Lab
• Reviewing and updating existing test scripts in Test Lab
Defects
• Logging defects
• Retesting after defect resolution


4

Tester Responsibilities
Tester Responsibilities
• Create TCP
• Executing tests and documenting test results
• Logging defects
• Retesting after defect resolution

Tester Permissions
 Approver
 Originator
 Business Components Manager


Test Plan – Best Practices
 The Application folder may have subfolders with folder names to help identify sub-groups.
 Tests should be included under the associated application/module folder.
 Script naming conventions should be consistent:
 The prefix BUS should be used to differentiate between IT scripts and Business scripts
(additions or revised copies). EX: BUS_HCM-IT-077
 The Test Name should be short and should deliver the objective of the test to some extent.
 Duplicate Tests should not be generated.
 Tests should be marked as Ready for Review only after all the steps are verified and no more
changes are to be made.
 Design Step Description should be precise so that the test executor does not face any issues
while executing even if he is not trained on the application or has not read the process
definition.
 Expected Results must be included in each step if applicable.
 Mock ups, screen shots, or other documents which carry information that is needed for running
the test should be attached to the test.
 Tests should be be generic so that they can be resued. For instance, homepage look and feel
needs to be tested for all environments then the URL mentioned in test should be:
http://(server).amd.com
 Mention any pre-conditions/post-conditions if applicable in the Description field in a highlighted
format.
 Enter test execution priority before sending for approvals.
 Test Case Procedure should be approved before the run
 Manual Test Case Procedure Review Process should be followed.

4

Test Plan Workflow
Status: Manual
Test Script is entered directly into Test – In Design
QC (Manual or Imported from MS-
Word or MS-Excel)
Test Plan
Originator

Status: Manual Test -
Ready for Review
Transition Rules For Test Plan Status
Transition Role For Test Plan Status
Field By Rules
Field By Role
Approved
No Test Plan Originator
Status:Manual
? Test – In Design
Test Plan
Approver From To
Yes
Status: Manual
Test PlanTest - In Design
Manual Originator Manual Test - Ready for Review
Test - Approved
Test Plan Approver
No
Need From To
Automation
?
Manual Test - Ready for Review Manual Test - In Design
Test Plan Approver Review
Manual Test - Ready for Manual Test - Approved
No
Yes Manual Test - Approved Ready for Automation
Status: Ready for Automation - Ready for Review Automation - In Design
Automation
Automation - Ready for Review Automation - Approved
Automation - Approved Manual Test - In Design

Fit for Business Component Dev
Automation
?
Business
Component Dev
From To
Yes Ready for Automation Manual Test - Approved
Status: Automation Ready for Automation Automation - In Design
Automation - In Component Dev
Business Design
– In Design
Automation - Ready for Review
Status: Automation –
Ready for Review
No

Approved
Roles: 1. Test Plan Originator 2. Test Plan Approver - IT
?
Test Plan
Lead 3. Business Component Dev
Approver
Yes
Status: Automation
4 - Approved

Navigate Test Plan Tree: Access the right folder

1. Click on the Test Plan icon in the column to the
left to bring the Test Plan Tree into the
foreground.
• Locate Functional Business Folder
(Functionality BB in the example)
• Additional folders can be added by your
test lead
2. Click on a folder, then Tests can be created by
clicking on this icon.


5

Create a Test Case
• Test ID is automatically assigned by Quality Center.
• Status - Imported (uploaded from an existing script) or Design (written directly in QC).
• Approver - Automatic E-mail sent to Approver when Status updated to Ready for Review.
• Test Name – Name of test
• Type – Select Manual
• Creation Date
• Execution Priority - High, low, medium; prioritize execution for limited test windows
• TCP Automation Priority – Not used
• Designer - Author
• Fields highlighted
in red are mandatory
iaac@iaac.us


5

Test Plan – Design Steps Tab
Step – Step number assigned by QC, Step column can be renumbered if steps are deleted, added, or rearranged

User Type – The type of account executing a section of test steps

T-Code – Used for R3 tests

Process Step – a category for a group of steps

Description – Detailed description of the test step

Data Input – Data entered or selected during execution of test step

Expected – Expected test result

Screen – Current application screen where test actions are executed

Tab – Specific tab of a screen where test actions are executed

*To link steps from another manual test choose the Called Test icon.


5

Test Plan – Create Design Steps
 Click on this icon to create a new Step.
 Use the yellow arrow keys to move back and forth between Design Steps.
 Click on the OK button to return to Design Step Grid.


5

Requirement Details: Link Test to Requirements From
Test Plan Tree
 Select the Requirements Tab
 Click on the Test Plan Tree tab to bring it into the foreground.
 Highlight a Test. Click on the green arrow to move it into the list under Entity Name
column.


5

Manual TCP Review Process
1. All new test cases procedures (tcp) must be assigned Status “Manual Test
– In Design”
“Manual
Test In 2. Approver must be selected from the dropdown menu.
Design”
3. Execution priority can stay blank

4. Automation priority should be blank for now
Not
Ready? 5. Once test case is ready, status should change from “Manual Test- In
design” to “Manual Test- Ready for Review”
Yes 6. The Test plan Approver group reviews TCPs in Status: “Manual Test-
“Manual Ready for Review” and inputs comments in the Comments field in ALM
Test Ready 11.0 with name and date stamp
for Review”
7. During review meetings TCP comments for all “Manual Test- Ready for
Review” TCPs are reviewed and TCP concerns are discussed in detail.

8. During review meetings the execution priority for TCPs are defined.

9. The TCP is then moved to “Manual Test- Approved” or “Manual Test- In
Yes
Comments? design” status as per the review session and comments
• Fields highlighted in red are mandatory
Not
– ** TCP names should be in format “application name_test case
“Manual name_version of requirement documents”.
Test
Approved”


5

Test Lab - Best Practices

 Responsible Tester should be selected while configuring Test Lab/Test Sets.

 Planned Execution Date should be selected while configuring Test Lab/Test Sets.

 Test Set Name should be as per defined standards.

 All tests pulled into a Test Lab/Test Set should be in “Manual Test - Approved” status

 Test Case Procedure marked as failed should have an associated defect.

 Scripts ready for execution will be marked No Run in the Status field.

 During Execution of a Test Set, the Actual Result field should be marked “As expected” if the test step passes
and in case of any failures. actual results should be precisely mentioned so that the Defect Fixer can have a clear
view of the scenario encountered at your end. Attach screen shot of the behavior if applicable.

 Mention the test data input at the time of execution if applicable, so that database can be checked if required. Test
Data would refer to: folder name, Asset name, content ID, etc.

 Use Tester Comments field to pass along information between testers during hand-offs.

 Dynamic data generated should be entered in the Expected Result field for the next tester to retrieve.

 Each test set folder must be associated to the corresponding cycle/release .


5

Test Lab: Create a New Test Set
• Click on the Test Lab icon in the
column to the left to bring the Test Lab
Tree into the foreground.
• Locate the desired folder
• Additional folders can be added
by your test lead
• Click on a folder, then Tests Sets can be
created by clicking on New Test Set
icon

• On the New Test Set pop-up, enter
the Test Set Name and a brief
Description. Click the OK button.


5

Test Lab: Add TCPs to Test Set
 Click on Test Plan Tree tab to bring it into the foreground.
 Highlight a TCP. Click on the green arrow to move it to the list under the Execution
Grid.


5

Assign Test Set Folders to Cycles
1. In the Test Sets tree, select the test set folder
that you want to assign to a cycle.
2. Click the Assign To Cycle button or choose
Test Sets > Assign To Cycle. Alternatively,
in the Details tab, click the browse button
next to the Assigned to cycle box. The
Assign To Cycle dialog box opens.
3. Expand the tree and select a cycle. Click OK to
close the Assign To Cycle dialog box. In the
test set tree, the test set folder icon
is replaced by the assigned test set folder icon


6

Test Lab – Adding TCPs to Test Set

• After adding the TCP to Test Set fill in the Required Test Set fields: Client and Test
Environment from the drop-down menus.

• You may include several TCPs in a Test Set


6

Run Tests & Record Results
1. In Test Lab:
• Select a folder.
• EX: Unit folder (test cycle)
• Select Test Set.
2. Select Test by highlighting that tab.
3. Click on the Run button to start a new run.

3.

2.
1.


6

4. First Manual Runner window will open.
Click on Begin Run button

Update Status Results End Run after updating


6

If you have a Failed Step: STOP
Link Defects to Failed steps RUN!!

1. Mark failed step:
1.
• Click on Defect dropdown.
• Click on New Defect to log a
new defect.
2. Screen will open to New Defect
module. 2.
• Log as usual.
3. To link an existing defect:
• Click on Linked Defects
option. A new window will
open. 3.
• Click on Select option and
the entire Defect list will
appear.
• Select your Defect and click
on Link.
4. Stop Run!!!
Window will close automatically and
you will return to the Execution Grid.


6

Test Run Execution Hand-Over Process: need
screen shot showing failed run
1. Tester 1 will mark a test step
• Tester 1 will Stop the run after completing this portion.
2. Tester 1 will be taken back to main Execution Grid. The Test status will be: Not Completed or Failed
3. Tester 1 will change the Responsible Tester field to Tester 2 (next tester to hand-off to) for the Test.

•An auto E-mail will be sent to new Responsible
Tester.


6

4. Tester 2 will highlight the test
script in Test Lab.
5. Click on Run button on the
menu bar: Continue Manual
Run.
6. Tester 2 will then be taken to
the Manual Runner screen
and continue with the normal
run process.
7. Tester 2 will stop the run after
completion.
• Manual Runner will close
automatically and return to the
Execution Grid.

Note: If tester 1 needs to pass
dynamic test data to tester 2,
add the data to the “Actual” field
in test step Run. Tester 2
should refer to the previous/last
executed step to retrieve any
such information.


6

Obtain Test Execution Report
1. Select the Test Set

2. From analysis, select Reports.

3. From the menu select Current Test Set


6

Obtain Test Execution Report - Cont’d
4. The report is displayed on the screen

5. Click Save.


Obtain Test Execution Report - Cont’d

5. Enter a Name for the report. Click Save.

6. The report will now display under Analysis View.

.

5. Click 69 | QA Communications | February 2011
on Save

Get Test Execution Report – Cont.d
8. To add filter criteria, click on the Configuration tab and the Filter icon:

9. Now it is available to be consulted under Dashboard module


Get Test Execution Report – Cont’d
a. Go to the Responsible Tester field
and click on the button with 3 dots.

b. On the Select Filter Condition
screen, enter tester name >>click
on binoculars to search>>choose.

c. Click on OK, then again OK to
close filters.

d. Click on Apply to generate report.


7

9. The test execution report is displayed by:
• Tester
• Ascending Planned Execution Date
10. To Print:
Click on the Print icon to print (**ALL PAGES).
You can also save the report to your desktop.
Repeat the process to change any filter criteria


7

Defects - Best Practices
 When logging a Defect, verify that similar defects do not already exist. If a similar defect does exist, link the Defect
to the script.
 In case the defect matches one with status Closed, create a brand new defect.
 The Summary of the defect should be precise, unique, and should convey the defect baseline.
 Defect Description should include complete and comprehensive information about the Defect.
 Screen shots (if applicable) should be attached to the Defect.
 Defect should be correctly linked to the test step at which it is encountered, so that the Defect Fixer can go back to
the Test Set and review the steps and duplicate the actual result.
 In case the Defect is to be fixed in the next cycle as per plan. The Target Release should be assigned to the new
one and the Target Cycle should be assigned to the next Cycle.
 In case the Defect is related to another Defect already logged into the system; create a defect link between the two.
 In case of reassigning, reopening or cancellation of a Defect, Comments field must be entered suggesting the
reason for the action.
 Assign all defects to Defect Reviewer for review followed by assignment to an IT Fixer.
 Once the Defect is fixed, the Defect Originator will rerun the tests from the Test Set.
 Before closing a Defect, a tester should go to Linked Entities and make sure that all test instances attached with
the Defects have the status Passed. In case any tests are in a Failed Status, then the Defect should not be closed.
 Entering Comments by team members at the time of changing any Defect field is a good practice. To do this, click
on the Add Comment button which generates a name/timestamp and add your comments.


7

ALM 11.0- Defect Workflow
Transition Rules For Defect
Current Status Field By Role

Defect Originator

Defect Reviewer

Defect Fixer

Defect Verifier


7

Defects Grid
• Click on Defects icon at bottom of column on the left to bring Defect Grid into the foreground.
• Click on the New Defects button to open the New Defect screen.

Detected in Release – release number detected by default, can
be changed.
Detected in Cycle - cycle number detected by default, can be
changed.
Detected on Date – defaults to today’s date, can be changed
Detected By – defaults to logged in ALM 11.0 user, can be
changed
System – list of systems used for testing
Assigned To – user assigned for next defect work stage, must be
a Defect Reviewer for New defects
Severity – 4 levels of severity, Show Stopper to Low
Functional Area – functional area specific to the defect
Test Cycle – current cycle of testing
Current Status – defect status, relates to workflow
Reproducible – Yes, No, or Intermittent
Priority – 5 levels, Urgent to Low
Change Request Number (2 fields) – cross-reference for
Remedy Ticket Numbers

7

New Defects

• When a New defect is created, the first assignment
must be an ALM 11.0 user with the assigned role of
Defect Reviewer.
• Functionality is built into the Assigned To field to
assist with your selection.
• Activate the drop-down list, and checkmark View by
Group.
• Then click on Group: Defect Reviewer. Click to
select from that list.

An automatic Defect E-mail is triggered
when Assigned To field is changed.


7

Modifying Defects

• Click on a Defect in the
Defect Grid to open up
Defect Details screen.

• To enter a Comment click
on the Add Comment
button to the right. This
will add the logged in user
name and a date.

• If you are a Defect Fixer,
remember to select Defect
Type.

• If you are closing a Defect,
complete Closing Date
field.


7

Defects - Linked Entities

• Click on Linked Entities icon in the column at the left.
• Click on Defects tab to bring it to the foreground.
• Click on this icon to open Link Existing Defect window.
• Enter an existing Defect ID, and click on Link button.


7

Defects – Test Set Instance

• Click on Others tab to bring it to the foreground.
• This Defect information originated when the Defect was created during a
manual test run.


8

ALM 11.0 Logout
To exit ALM 11.0, click on the Logout button in the upper right.


8

Reporting Functionality in ALM 11.0 - What’s
New


Trademark Attribution

AMD, the AMD Arrow logo and combinations thereof are trademarks of Advanced Micro Devices, Inc. in the
United States and/or other jurisdictions. Other names used in this presentation are for identification
purposes only and may be trademarks of their respective owners.

©2009 Advanced Micro Devices, Inc. All rights reserved.


Alm 11.0 qa training

More Related Content

What's hot (20)

Similar to Alm 11.0 qa training (20)

Recently uploaded (20)

Alm 11.0 qa training

Editor's Notes
