Class and object

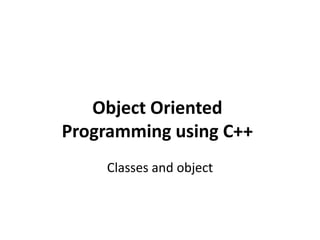

Object Oriented
Programming using C++
Classes and object

Topics to be covered…….
Classes
Objects
Static Data members and functions
Constructors and its types
Destructors
Function overloading
Friend Functions
Inline Functions
Const member functions

Creation Of Classes and Objects
Classes in C++ are also called abstract data types.
Generally , a class has two parts:
1. Class declaration
2. Class function definitions
The class declaration describes the type and scope
of its members. The class function definitions
describe how the class functions are implemented.

The general form of a class declaration is:
class class_name
{
private:
variable declaration;
function declaration;
public:
variable declaration;
function declaration;
};

Here, keywords are class, private and public. private and
public are called access specifiers. The class variables and
functions are collectively called class members. Variables are
called data members and functions are called member
functions. The class members declared as public, can be
accessed from outside the class with the help of objects.
Whereas, the members declared as private can only be
accessed from within the class. If no specifier is mentioned,
then by default its private.
The binding of data and functions together into a single class-
type variable is referred to as Encapsulation. Encapsulation
implements data hiding and hence security.

Sample Class Example
class item
{
int number;
float cost;
public:
void getdata(int a, float b);
void putdata(void);
};
Member function definition
void item : : getdata(int a, float b)
{
number=a;
cost=b;
}
void item : : putdata(void)
{
cout<< number << cost;

Object Creation Example
item x, y, z;
Here x, y and z are objects of class item. The necessary memory
space is allocated to an object at this stage.
Accessing Class Member Example
The following is the format for calling the member function:
Object-name . function-name (actual-arguments);
Eg: x . getdata(100,75.5);
x . putdata( );

Nesting of member function
An Example…
class student
{
int tot_marks, roll_no;
char name[20];
public:
void get();
void show();
void disp_division();
};
void student:: show()
{ cout<<“Name”<<name;
cout<<“ Roll”<<roll_no;
cout<< disp_division();
}
void student:: get(){}
void student:: disp_division(){}
int main()
{
student S;
S.get();
S.show();
Return 0;
}

Array of Objects
Class student{};
void main()
{
student S[10];
for(int i=0;i<10;i++)
{
cout <<“ Details of
students”<<i+1<<“n;
Student[i].getdata();
}
for(int i=0;i<10;i++)
{cout <<“ Details of
students”<<i+1<<“n;
Student[i].showdata();
}
getch();
}
S[0],S[1],S[2]…..S[49]

Static Data members and Static Member functions
The static data member of a class is similar to a C static variable
with certain characteristics:
•it is declared with the keyword static followed by the type and
name of the variable
•it is initialized to zero when the first object of its class is created.
•Only one copy of this data member is shared by all the objects of
this class therefore they are also called class variables.
•Scope is local to the class in which it is declared and the lifetime
is entire program.
•The type and initialization of this data member is done outside
the class with the help of scope resolution operator and class
name.
Syntax for defining and initializing the static data member outside
the class:
type class-name : : static data member name= initialization value;

Like static data member we also have static
member functions with following properties:
•Static functions can have access to only static
members of the same class.
•They can be called using classname and scope
resolution operator(instead of using object name).
Syntax for calling the static member function: class-
name : : function-name( );

Constructor
Constructor is a member function of a class that’s
used to create objects. Constructors have a special
property that their name is same as the class name
and they don’t return any value, not even void.
They are called automatically on the creation of
objects and allocate enough memory to the
objects. C++ supports various kinds of constructors.
These are:
1.Default constructor
2.Implicit constructor
3.Parameterized constructor
4.Copy constructor
5.Dynamic constructor

It’s not important to define a constructor in a class.
In that case an implicit constructor is called that
creates the objects. Every class has this constructor
by default. Default and Implicit constructors can be
overridden by other types so if other constructors
are defined then it becomes mandatory to define
default or implicit constructors explicitly.
Constructors must be defined in the public section
of the class. Having more than one type of
constructors in a class is called constructor
overloading.

Constructors must be defined in the public
section of the class. Having more than one type of
constructors in a class is called constructor
overloading.
Defining the types of constructors
1. Default constructor--- It takes no arguments
and initializes the data members of the class with
initial value zero at the time of creation.
Syntax: class-name( )
{
Datamember1=0;
Datamember2=0;
}

2.Implicit constructor--- It has no arguments and no body. It
just creates the object without initializing them. Present by-
default in the class.
Syntax : class-name( )
{
}
3.Parameterized constructor--- It has arguments as well as
body. It initializes the objects with desired values at the time
of creation.
Syntax: class-name( int a, float b)
{
Datamember1=a;
Datamember2=b;
}

4. Copy constructor --- It creates an object and
initializes it with the value of another object of
the same class.
Syntax: class-name( class-name & ob1)
{
Datamember1=ob1.
Datamember1;
}
Here, “&” is called reference operator and “ob1”
is the reference of the object passed to this
constructor as argument. Now the data members
of “ob1” will be copied to the data members of
calling object.

5.Dynamic constructor --- It creates the objects at rum time
by using the memory management operators new .
Syntax: class-name( char * s)
{
int len=strlen(s);
Datamember= new char[len+1];
strcpy (Datamember, s);
}

Destructor
Destructor is a member function like constructor that can
destroy the objects once they go out of scope or when the
program ends. A destructor is called automatically in any of
the above cases. However, we can define our own
destructor in a class.
A destructor has the same name as the class but it neither
takes nor return any arguments, not even void. Hence ,
destructor overloading is not possible. Destructor
declaration contains a ~ (tilde) sign before the name of the
class.
Syntax: ~class-name( )
{
cout<< “object destroyed”;
}

Program No.7
Create a class time with data members: ‘hrs’ and
‘mins’ and following member functions:
•default constructor
•parameterized constructor
•copy constructor
•sum() to add two time objects
•display() to display the time .

• Passing object as an argument to the
member function.
• Passing and retrieving of object into
the third variable.
• Will see them through one one
examples.

Friend function
Friend function is a non- member function of a class. It has the
ability of accessing the private members of the class. Friend
function can be used as a bridge between two classes by sharing
their private members.
Syntax for declaring friend function inside the class
class ABC
{
…………….
................
public:
……………
……………
friend void xyz( void);
};
Here, friend is a keyword. Its followed by the return type of the
function, its name and list of arguments.

Some important features of friend function:
1. A friend function is a non member function of a class. So its accessed
without an object.
2. A friend function is just declared in the class to which it has to be a friend
by using a keyword friend.
3. It is defined outside the class like a normal function ; without any class
name and scope resolution operator and without the keyword friend.
4. It has objects as arguments.
5. It can access the member names with the help of an object name and dot
membership operator.
6. It can be declared either in public or private part of a class without
affecting its meaning.

Example of using friend function as a
bridge between two classes
class Y; //forward declaration
class X
{
int a;
….
friend int fun1 ( X ob1, Y ob2);
….
};
class Y
{
Int b;
….
friend int fun1(X ob1, Y ob2);
};
int fun1( X ob1, Y ob2)
{
cout<< ob1.x <<ob2. y;
}
void main( )
{
X ob1; Y ob2;
………….
……………
fun1( ob1, ob2);
…
}
•
