How to use Request Reply Scope
29-05-2015

Abstract
• The main motto of this PPT is How to use
Request Reply Scope in our applications.

Introduction
• The Request-Reply scope enables you to embed
a "pocket" of asynchronous processing within a
Mule flow. This functionality enables you to
receive a response from an asynchronous flow
without hardcoding the destination of the
response. For example, you can use request-reply
to convert a one-way VM or JMS flow to
a request-response flow without having to
change it’s configuration. In other words, the
request-reply converts part of a synchronous
process into an asynchronous one.

.mflow
• <?xml version="1.0" encoding="UTF-8"?>
• <mule xmlns:http="http://www.mulesoft.org/schema/mule/http" xmlns:vm="http://www.mulesoft.org/schema/mule/vm"
xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
• xmlns:spring="http://www.springframework.org/schema/beans"
• xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
• xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
• http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
• http://www.mulesoft.org/schema/mule/vm http://www.mulesoft.org/schema/mule/vm/current/mule-vm.xsd
• http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">
• <http:listener-config name="HTTP_Listener_Configuration" host="0.0.0.0" port="8097" doc:name="HTTP Listener Configuration"/>
• <flow name="RequestReplyFlow">
• <http:listener config-ref="HTTP_Listener_Configuration" path="/" doc:name="HTTP"/>
• <set-payload doc:name="Set Payload" value="Request"/>
• <request-reply doc:name="Request-Reply">
• <vm:outbound-endpoint exchange-pattern="one-way" path="req" doc:name="VM"/>
• <vm:inbound-endpoint exchange-pattern="one-way" path="res" doc:name="VM"/>
• </request-reply>
• <logger message="--Final Payload is #[payload]--" level="INFO" doc:name="Logger"/>
• </flow>
• <flow name="RequestReplyFlow1">
• <vm:inbound-endpoint exchange-pattern="one-way" path="req" doc:name="VM"/>
• <logger message="--request flow--#[payload]--" level="INFO" doc:name="Logger"/>
• <set-payload doc:name="Set Payload" value="#[payload]_Reply"/>
• <logger message="--2--#[payload]--" level="INFO" doc:name="Logger"/>
• <vm:outbound-endpoint exchange-pattern="one-way" path="res" doc:name="VM"/>
• </flow>
• </mule>

• Output:
• INFO 2016-05-29 07:15:37,972 [[RequestReply].HTTP_Listener_Configuration.worker.01] org.mule.lifecycle.AbstractLifecycleManager: Initialising:
'connector.VM.mule.default.dispatcher.1445751667'. Object is: VMMessageDispatcher
• INFO 2016-05-29 07:15:37,973 [[RequestReply].HTTP_Listener_Configuration.worker.01] org.mule.lifecycle.AbstractLifecycleManager: Starting:
• INFO 2016-05-29 07:15:38,006 [[RequestReply].RequestReplyFlow1.stage1.02] org.mule.api.processor.LoggerMessageProcessor: --request flow--
Request--
• INFO 2016-05-29 07:15:38,008 [[RequestReply].RequestReplyFlow1.stage1.02] org.mule.api.processor.LoggerMessageProcessor: --2--
Request_Reply--
• INFO 2016-05-29 07:15:38,014 [[RequestReply].RequestReplyFlow1.stage1.02] org.mule.transport.DefaultReplyToHandler: reply to sent:
DefaultOutboundEndpoint{endpointUri=vm://res?connector=connector.VM.mule.default, connector=VMConnector
• {
• name=connector.VM.mule.default
• lifecycle=start
• this=705c6b57
• numberOfConcurrentTransactedReceivers=4
• createMultipleTransactedReceivers=true
• connected=true
• supportedProtocols=[vm]
• serviceOverrides=<none>
• }
• , name='endpoint.vm.res', mep=ONE_WAY, properties={connector=connector.VM.mule.default}, transactionConfig=Transaction{factory=null,
action=INDIFFERENT, timeout=0}, deleteUnacceptedMessages=false, initialState=started, responseTimeout=10000, endpointEncoding=UTF-8,
disableTransportTransformer=false}
• INFO 2016-05-29 07:15:38,015 [[RequestReply].connector.VM.mule.default.dispatcher.01] org.mule.lifecycle.AbstractLifecycleManager: Initialising:
• INFO 2016-05-29 07:15:38,015 [[RequestReply].connector.VM.mule.default.dispatcher.01] org.mule.lifecycle.AbstractLifecycleManager: Starting:
• INFO 2016-05-29 07:15:38,016 [[RequestReply].connector.VM.mule.default.dispatcher.02] org.mule.lifecycle.AbstractLifecycleManager: Initialising:
• INFO 2016-05-29 07:15:38,016 [[RequestReply].connector.VM.mule.default.dispatcher.02] org.mule.lifecycle.AbstractLifecycleManager: Starting:
• INFO 2016-05-29 07:15:38,022 [[RequestReply].HTTP_Listener_Configuration.worker.01] org.mule.api.processor.LoggerMessageProcessor: --Final
Payload is Request_Reply--

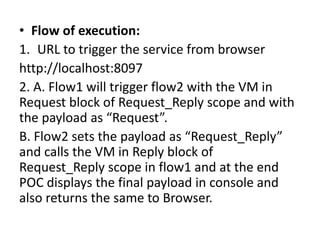

• Flow of execution:
1. URL to trigger the service from browser
http://localhost:8097
2. A. Flow1 will trigger flow2 with the VM in
Request block of Request_Reply scope and with
the payload as “Request”.
B. Flow2 sets the payload as “Request_Reply”
and calls the VM in Reply block of
Request_Reply scope in flow1 and at the end
POC displays the final payload in console and
also returns the same to Browser.

References
• https://docs.mulesoft.com/mule-user-
guide/v/3.6/request-reply-scope
