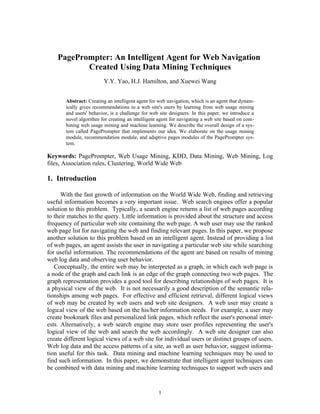

PagePrompter: An Intelligent Agent for Web Navigation
Created Using Data Mining Techniques
Y.Y. Yao, H.J. Hamilton, and Xuewei Wang

Abstract: Creating an intelligent agent for web navigation, which is an agent that dynam-
ically gives recommendations to a web site's users by learning from web usage mining
and users' behavior, is a challenge for web site designers. In this paper, we introduce a
novel algorithm for creating an intelligent agent for navigating a web site based on com-
bining web usage mining and machine learning. We describe the overall design of a sys-
tem called PagePrompter that implements our idea. We elaborate on the usage mining
module, recommendation module, and adaptive pages modules of the PagePrompter sys-
tem.

Keywords: PagePrompter, Web Usage Mining, KDD, Data Mining, Web Mining, Log
files, Association rules, Clustering, World Wide Web

1. Introduction

With the fast growth of information on the World Wide Web, finding and retrieving
useful information becomes a very important issue. Web search engines offer a popular
solution to this problem. Typically, a search engine returns a list of web pages according
to their matches to the query. Little information is provided about the structure and access
frequency of particular web site containing the web page. A web user may use the ranked
web page list for navigating the web and finding relevant pages. In this paper, we propose
another solution to this problem based on an intelligent agent. Instead of providing a list
of web pages, an agent assists the user in navigating a particular web site while searching
for useful information. The recommendations of the agent are based on results of mining
web log data and observing user behavior.
Conceptually, the entire web may be interpreted as a graph, in which each web page is
a node of the graph and each link is an edge of the graph connecting two web pages. The
graph representation provides a good tool for describing relationships of web pages. It is
a physical view of the web. It is not necessarily a good description of the semantic rela-
tionships among web pages. For effective and efficient retrieval, different logical views
of web may be created by web users and web site designers. A web user may create a
logical view of the web based on the his/her information needs. For example, a user may
create bookmark files and personalized link pages, which reflect the user's personal inter-
ests. Alternatively, a web search engine may store user profiles representing the user's
logical view of the web and search the web accordingly. A web site designer can also
create different logical views of a web site for individual users or distinct groups of users.
Web log data and the access patterns of a site, as well as user behavior, suggest informa-
tion useful for this task. Data mining and machine learning techniques may be used to
find such information. In this paper, we demonstrate that intelligent agent techniques can
be combined with data mining and machine learning techniques to support web users and

1

web site designers in creating logical views. For the user, an agent can be built to surf the
web and construct logical views that are of interest. For the designer of a web site, an
agent can be built to create various logic views of the site to assist users visiting it. The
latter type of agent is the focus of this paper.
We have implemented an agent, called PagePrompter, which gives the recommenda-
tions to a web site's users. The agent acts likes a tour guide by assisting a user in navigat-
ing the web site. It can help the visitors find information quickly and efficiently by offer-
ing different logical views of the web site and providing additional information not avail-
able on the web pages. Such an agent may improve the performance of a web site and
has great potential in E-commence. The knowledge of the PagePrompter is obtained
from the web site designer, user behavior analysis and web mining. The main contribu-
tion of this paper is the novel combination of research ideas concerning intelligent agents
and data mining. It demonstrates that data mining and machine learning can be used as
knowledge acquisition methods for building intelligent agents.
The rest of this paper is organized as follows: Section 2 introduces some related re-
search. We give the framework of PagePrompter in Section 3. Section 4 describes the us-
age module in PagePrompter. Section 5 describes the recommendation module in Page-
Prompter. In Section 6, we present the design of the adaptive pages module in Page-
Prompter. Section 7 gives conclusions.

2. Related research

Data mining is a step in the Knowledge Discovery in Databases (KDD) process con-
sisting of applying data analysis and discovery algorithms that, within acceptable compu-
tational efficiency constraints, produce a particular enumeration of patterns over the data
[22]. Data mining has been successfully applied in science, health, marketing, and fi-
nance. Web mining is the application of data mining techniques to large web data reposi-
tories [4]. Three major web mining methods are web content mining, web structure min-
ing and web usage mining. Web content mining is the application of data mining tech-
niques to unstructured data residing in web documents [19]. Web structure mining aims
to generate structural summaries about web sites and web pages [19]. Web usage mining
is the application of data mining techniques to discover usage patterns from web data
[11].
Commercial software packages for web log analysis, such as Analog [3], WUSAGE
[24], and Count Your Blessings [5] have been applied to many web servers. Common re-
ports are a list of the most requested URLs, a summary report, and a list of the browsers
used. Currently, these packages provide limited mechanisms for reporting user activity.
They usually cannot provide adequate analysis of data relationships among log files.
Research in web usage mining has focussed on discovering access patterns from log
files. A web access pattern is a recurring sequential pattern among the entries in a web
log. For example, if various users repeatedly access the same series of pages, a corre-
sponding series of log entries will appear in the web log file, and this series can be con-
sidered a web access pattern. Sequential pattern mining and clustering have been applied
to discover web access patterns from log files [8, 20]. The problem of finding sites visited
together is similar to finding associations among itemsets in transaction databases [17].
Therefore, many web usage mining techniques search for association rules [4].

2

Current web usage mining research can be classified into personalization, system im-
provement, site modification, business intelligence, and usage characterization [9]. Mak-
ing a dynamic recommendation to a web user, based on the user profile in addition to us-
age behavior, is called personalization. WebWatcher [21], SiteHelper [7], and analog
[20] provide personalization for web site users. Web usage data can be combined with
marketing data to give information about how visitors use a web site for E-commerce [1].
For usage characterization, some researchers focused on Xmosaic [12] and self-configur-
ing benchmarks [18]. Site modification is the automatic modification of a web site’s con-
tents and organization based on learning from web usage mining.

3. The PagePrompter System

3.1. Design Goal of PagePrompter
The main goal of PagePrompter is to generate a suitable and flexible intelligent agent
to help a user navigating a web site. By using several data mining techniques in the usage
mining module, PagePrompter provides a set of high quality recommendations for a web
site. With the help of the PagePrompter, a user can find useful information easily. This
greatly improves the web site's performance. In addition, a web site designer may use the
information and suggestions given by PagePrompter to redesign a web site to improve ac-
cessibility and performance.
By using the Apriori algorithms [17], leader clustering algorithm [10], and C4.5 [11],
PagePrompter can discovery association rules and page clusters from large web log files.
For example, PagePrompter can find the following relationships by using association
rules.
 50% of people who accessed the web page http://www.cs.uregina.ca/~xwang/study.htm,
also accessed http://www.cs.uregina.ca/~xwang/photo.htm.
 20% of people who accessed web page http://www.cs.uregina.ca/~xwang/study.htm, also
searched the web site by accessing http://www.cs.uregina.ca/~xwang/link.htm,
Since PagePrompter is accessible via any web browser, visitors to a web site can use it
at any time. In addition, its flexible graphical interface provides a friendly user interface.
By using CGI scripts, the PagePrompter provides the user with control over the data min-
ing process and allows users to extract relevant and useful rules.

3.2. Architecture of PagePrompter

As shown in Figure 3.1, PagePrompter has three main modules: the usage mining mod-
ule, the recommendation module, and the adaptive pages module. The usage mining
module performs data cleaning and transaction identification. It uses the Apriori algo-
rithm to generate the frequent itemsets and association rules. It also uses the leader clus-
tering algorithm and the C4.5 machine learning algorithm to generate page clusters. The
recommendation module captures the user’s action and connects to the database to ob-
tain suggestions. The adaptive pages module generate adaptive pages. It also manages
and queries the database, which contains all data in the system. PagePrompter consists of
a collection of data mining algorithms, web pages, CGI scripts, C language functions,
Perl programs, JAVA applications and JAVA Applets as well as a central database.

3

Log Web Site
file

Usage Mining Module

Database:
Log information
Statistical information
Clustering
Patterns
…

Recommendation Module Adaptive Pages Module

Figure 3.1. Architecture of PagePrompter

4. Usage Module

The two main tasks of the usage module are data preparation and usage mining.

4.1. Data Preparation
Web servers commonly record an entry in a web log file for every access; most acces-
sible information for web site usage exists in this log file. The relevant information for
web usage is stored in files that can be dissected in a variety of ways and can be used for
detailed analysis. Common components of a log file include: Internet Protocol (IP) ad-
dress or Domain Name for the user, host name, user authentication, date/time, request or
command, Universal Resource Locator (URL) path for the item, Hyper Text Transfer
Protocol (HTTP) method, completion code, and number of bytes transferred. A typical
log file looks like:
net-ppp65.cc.uregina.ca - - [10/Feb/2000:11:19:56 -0600]
"GET /~xwang/gif/but/b4a.gif HTTP/1.0" 304 -
net-ppp65.cc.uregina.ca - - [10/Feb/2000:11:19:56 -0600]
"GET/~xwang/gif/but/b4a.gif HTTP/1.0"
304- "http://www.cs.uregina.ca/~xwang/" "Mozilla/4.04 [en] (Win95; I)"

The server log files contain many entries that are irrelevant or redundant for the data
mining tasks. For example, all entries relating to image files and map files are irrelevant

4

to identifying user behavior. Therefore, PagePrompter cleans the raw data to remove un-
needed data.
After cleaning the data, PagePrompter identifies transactions. For usage mining, indi-
vidual entries for page accesses are grouped into meaningful transactions. The Page-
Prompter uses the IP address, time, web page, browser software, and operating system to
group entries. First, PagePrompter uses the IP address to identify unique users. Any ac-
cess from different IP addresses is identified as a different transaction. Secondly, as dif-
ferent users may use the same IP address, PagePrompter uses the browser software and
operating system to further classify the accesses. A different browser or operating system
is taken to indicate a different transaction. Finally, because the same user may visit the
web site at different times. PagePrompter uses a time period of 6 hours to further divide
the information into individual transactions.

4.2. Data Mining

During data mining, PagePrompter finds association rules, page clusters, and standard
statistics.

4.2.1. Association Rules
Once the user transactions have been identified, we search for association rules [17] to

procedure AprioriAlg()
begin
L1 := {Frequent 1-itemsets};
for ( k := 2; LK-1 ≠ 0; k++ ) {
Ck= Apriori-Gen(Lk-1) ; // new candidates
For all transactions t in the dataset {
Ct = subset(Ck, t);
for all candidates c ∈ Ck contained in t do
c:count++
}
Lk = { c ∈ Ck | c:count >= min-support}
}
Answer :=  LK
k
end

function Apriori-Gen( )
insert into Ck

select p.item1, p.item2, …p.itemk-1, q.itemk-1
from L p, L Q
k-1 k-1

where p.item = q.item ,… p.item = q.item , p.item < q.item
1 1 k-2 k-2 k-1 k-1

Figure 4.1. The Apriori Algorithm

5

find relationships among these data. The Apriori algorithm can find frequent itemsets,
which are groups of items occurring frequently together in many transactions.
The Apriori algorithm is given in Figure 4.1. With the Apriori algorithm, the problem
of mining association rules is decomposed into two parts: finding all frequent itemsets,
i.e., all combinations of items that have transaction support above a support threshold,
and generating the association rules from these frequent itemsets. Table 4.1 shows the
confidences of some association rules in one example.

For PagePrompter, the items are URLs, and the frequent itemsets are combinations of
pages that are often accessed together. The set U of n unique URLs appearing in the log
files:
U = { url1, url2, …, urln},
and the set of m user transactions is
T = {t1, t2, …, tm}.
The support of a set of URLs u ⊆ U is defined as:
|{t ∈ T: u ⊆ t}|
Support(urli) =
|T|

X ==> Y Support (X U Y) Support (X) Confidence
{/~xwang} ==> {/~xwang/photo.htm} 50% 100% 50%
{/~xwang} ==> {/~xwang/linc.htm} 25% 100% 25%
… … … …
{/~xwang, /~xwang/study.htm} ==> {/~xwang/R1.htm} 50% 50% 100%
… … … …
{/~xwang, /~xwang/study.htm, /~xwang/R1.htm} ==> {/~xwang/linkc.htm} 25% 50% 50%
… … … …
… … … …
… … … …

Table 4.1. Confidence Values for Selected Association Rules

4.2.2. Finding Page Clusters

• LCSA Algorithm Schema
To find suitable clusters, we propose the LCSA (Leader, C4.5, and web Structure for
Adaptive web site) algorithm to generate adaptive web pages. The LCSA algorithm is
shown in Figure 5.1.
In the LCSA algorithm, the leader algorithm is used to generate page clusters and C4.5
is used to generate rules. Clustering seeks to identify a finite set of categories or clusters
to describe the data. It divides a data set so that records with similar content are in the
same group, and groups are as different as possible from each other. We choose to use
clustering based on user navigation patterns, whereby site users with similar browsing
patterns are grouped in the same cluster.

6

Although we can use the clusters to generate adaptive web pages, preliminary experi-
ments showed that the quality of the resulting pages was poor. A typical cluster of pages
often had little in common. To give the users high quality suggestions, the clusters of
pages should be related by content or location in the web site’s structure as well. Page-
Prompter combines the clustering of pages with information about the contents and the
web site structure to generate the adaptive web site.

Input: log file L, web structure tree T, with description D for each node of T.
1 Run cleaning program on L and generate cleaned data CD.
2 Identify sessions in CD to produce the set of sessions S
3 Run Leader algorithm on S to generate a set C of clusters.
4 For each cluster c in C
(1) for each page P in c
A) Derive the complete set P' of prefixes from the pathname of page P.
B) Use k shortest prefixes in P' as condition attributes for a C4.5
training instance.
C) Use the name of c as decision attribute for the C4.5 training instance
6 Run C4.5 algorithm to generate decision tree DT.
7 Combine DT and D to form adaptive pages.

Figure 5.1. LCSA algorithm schema

• Clustering
The leader algorithm [10] for clustering is used because the number of entries in a web
log file is large and efficiency is essential. We adapted the Analog software package [20],
which uses the leader algorithm, to create our clustering module. The Leader algorithm is
given in Figure5.2. Beginning with no clusters, the input vectors are examined one by

Input: a set of vectors V. Output: a set of cluster C
set C to empty
for each v∈ V
if the cardinality of v is greater than
MinNumPages then
find cluster c in C such that the distance
between the median of c and v is the minimum
(set d to this minimum) among all clusters in C
if the distance d is less than MaxDistance then
add v to c
else add {v} to C
for each c in C
if the size of c is less than MinClusterSize
remove c from C
return C

Figure 5.2. The Leader Algorithm

7

one. Each vector is added to the closest cluster, if the distance is less than MaxDistance.
If no such cluster exists, the vector forms a new cluster. The output of this algorithm is a
set of page clusters that indicate the web pages frequently visited together by users. The
next step in PagePrompter is to find if the contents of these pages are related using C4.5.

• C4.5
The C4.5 software package implements the C4.5 concept learning algorithm for find-
ing decision trees or decision rules from attribute-value data [11]. The C4.5 algorithm
generates a classification-decision tree for the given data-set by recursively partitioning
the data into smaller subsets, based on the value of an attribute.
The task of PagePrompter is to generate a set of recommendations that should suit both
the access patterns and web page content. We already have the clusters of access patterns.
Therefore, we use the cluster id as the distance attribute for C4.5. The condition attributes
are described from the web site's structure, i.e., its arrangement in a series of
directories/folders of files. We create one training instance for C4.5 and generate a deci-
sion tree.
The resulting decision tree contains the access patterns and web structure information.
We combine it with web site content to produce a set of adaptive web pages, which we
call jump pages. Then we put those jump pages in our database.

4.2.3. Statistical methods
By analyzing the log entries, PagePrompter also provides statistic analysis analogous
to that provided by web site traffic analysis tools. The information generated include:
• Summary information, such as period of time, number of accesses, number of hits,
number of visitors, and number of hosts.
• Access information for each page.
• Visitor IP addresses.
• Information about visitors’ browser and operating system platforms.

5. Recommendation Modules

The recommendation module is the main part of PagePrompter. By using the data from
usage module, this module can give the user best assistant for web navigation. Figure 5.1
shows the structure of the recommendation module.
When a user enter the web site, his action is captured by PagePrompter and sent back
to the PagePrompter server. The server connects to a database and queries the database
for any relevant recommendations for the current page. If the PagePrompter find any rele-
vant information, it pops up a small window, which contains the recommendations.
As shown in Figure 5.2, the recommendation window include several parts: next
choice, group of related pages, hottest pages, recently created or modified pages, user
feedback, and some information about visitors.

6. Adaptive pages module

8

As data are generated, we store them in a relational database. The adaptive pages mod-
ule manages and queries this database and generates the adaptive web pages.

PagePrompter

Automatic Suggestion User Interactive

Common Grouped User Hot Page
Next Step Pages Feedback List

Association Rule Leader Cluster User Comment Statistical Analysis
Usage, URL C4.5, URL Usage, URL
Web Structure
Topic, Usage

Figure 5.1: Structure of Recommendation Module

9

Figure 5.2: Interface of PagePrompter
6.1. Database Querying and Management
Using a web browser, an end user can query and manage PagePrompter through
database querying and management part. We use a flexible graphical interface to provide
a friendly user interface. By using CGI scripts, the PagePrompter provides user control
over data mining process and allows users to extract only relevant and useful rules. The
main interface of PagePrompter is shown in Figure 6.1. As well, the adaptive pages mod-
ule also gives the user control over the data. The data is updated regularly.

Figure 6.1. Main interface of PagePrompter

6.2. Adaptive Web Page – Fresh Pages
PagePrompter creates an adaptive web site by generating fresh pages and a site usage
report. The site usage report provide web designers with a general description of visitors,
association rules, clusters, decision trees, and some simple statistical information.
A fresh page is a web page that is automatically created either for each visitor or peri-
odically, such as once a day, based on web usage mining. The fresh pages form the main
interface for the adaptive web site. They include three types: jump pages, access paths,
and frequently accessed web pages. A fresh page may become the favorite starting point
of site visitors.

10

A jump page lists the URLs of other pages, grouped under textual headings. Each
group contains web pages are on a common subject that have been frequently visited to-
gether by users recently. The jump pages are formed by the leader algorithm, C4.5 con-
cept learning algorithm, web site content, and web site structure. The jump pages are the
main parts of adaptive web pages. Figure 6.2 shows a part of jump pages.

Figure 6.2. Jump pages

An access path is an association rule describing the probability that a visitor will visit
one page given that he has visited another page. Access paths reveal relationships be-
tween the web pages that users access. Given the association rules in Table 4.1, the ac-
cess paths based on those association rules are as follows:

Path1: www.cs.uregina.ca/~xwang ¿www.cs.uregina.ca/~xwang/photo.html
Path2: www.cs.uregina.ca/~xwang ¿www.cs.uregina.ca/~xwang/linc.htm
Path3: www.cs.uregina.ca/~xwang ¿www.cs.uregina.ca/~xwang/study.htm
¿www.cs.uregina.ca/~xwang/R1.html
Path4: www.cs.uregina.ca/~xwang ¿www.cs.uregina.ca/~xwang/study.htm
¿www.cs.uregina.ca/~xwang/R1.html ¿www.cs.uregina.ca/~xwang/linc.htm

Frequently accessed web pages are web pages that are most frequently visited be
users. They will indicate what are the hottest pages in this web site. Frequently web pages
are created based on the usage statistics.

11

PagePrompter extracts data from database to dynamically generate the adaptive web
pages. The fresh pages are given to a web site visitor when he/she visits this web site.
The user can decide whether to use these suggestions or not. The site usage report is pro-
vided to web designers to allow redesign of the web site.

7. Conclusion

In this paper, we presented a practical framework for designing an intelligent agent that
dynamically gives the recommendations to the web site's users by learning from web us-
age data and users' behavior. Like a tour guide, the agent assists a user in navigating the
web site. Knowledge obtained by the agent may also be used to improve the design of
web sites.
A novel algorithm is introduced for creating an intelligent agent for navigating web
We introduce the LCSA algorithm to combine the leader cluster algorithm, C4.5 concept
learning algorithm, web site content, and web site structure.
PagePrompter can also be used as a tool by a web site designer for improving the de-
sign of web sites, analyzing system performance, understanding user behavior, and gener-
ating an adaptive web site without changing the original web site.

References

[1] A. Buchner and M. D. Mulvenna. "Discovering Internet Marketing Intelligence
through Online Analytical Web Usage Mining." SIGMOD Record, 27(4): 54-61, 1998.
[2] Analysis of Data Mining Algorithms
http://www.gl.umbc.edu/~kjoshi1/data-mine/proj_rpt.htm.
[3] Analog http://www.statslab.cam.ac.uk/~sret1/analog .
[4] B. Mobasher, N. Jain, J. Han, J. Srivastava. "Web Mining: Pattern Discovery From
World Wide Web Transaction." In International Conference on Tools with Artificial In-
telligence, pp 558-567, Newport Beach, 1997.
[5] Count Your Blessings http://www.internetworld.com/print/monthly/1997/06/iwlabs.html
[6] C.T. Tu. "A Clustering Algorithm Based on User Queries." Journal of the American
Society for the Information Science. July-August 1974.
[7] D. S. W. Ngu, and X. Wu. "SiteHelper: A Localized Agent that Helps Incremental
Exploration of the World Wide Web." In Proceedings of 6th International World Wide
Web Conference, Santa Clara, CA, 1997.
[8] D. Florescu, A.Y. Levy, and A.O. Mendelzon. "Database Techniques for the World-
Wide Web: A Survey." SIGMOD Record, 27(3): 59-74, 1998.
[9] J. Srivastava, R. Cooley, M. Deshpande, and P. N. Tan, "Web Usage Mining: Discov-
ery and Applications of Usage Patterns from Web Data." SIGKDD Explorations, Vol. 1,
Issue 2, 2000.
[10] J. Hartigan. Clustering Algorithms. John Wiley. 1975.
[11] J. R. Quinlan. C4.5: Programs for Machine Learning. Morgan Kaufmann. San Ma-
teo, CA, 1993.
[12] L. Catledge and J. Pitkow. "Characterizing Browsing Behaviors on the World Wide
Web." Computer Networks and ISDN Systems, 27(6), 1995.

12

[13] M. Perkowitz, and O. Etzioni. "Adaptive Web Sites: Automatically Synthesizing
Web Pages." In Proceedings of Fifteenth National Conference on Artificial Intelligence
(AAAI'98). Madison, WI, 1998.
[14] M. Perkowitz, and O. Etzioni. "Adaptive Web Sites: Conceptual Cluster Mining." In
Proceedings of Sixteenth International Conference on Artificial Intelligence (IJCAI'99),
Stockholm, Sweden, 1999.
[15] O. Zaiane, M. Xin, and J. Han. "Discovering Web Access Patterns and Trends by
Applying OLAP and Data Mining Technology on Web Logs." In Proc. Advances in Dig-
ital Libraries Conf. (ADL'98), Melbourne, Australia, pages 144-158, April 1998.
[16] R. Agrawal and R. Srikant. "Mining Sequential Patterns." In Proc. 1995 Internation-
al Conference Data Engineering, Taipei, Taiwan, pages 3-14, March 1995.
[17] R. Agrawal, and R. Srikant. "Fast Algorithms for Mining Association Rules." In
Proceedings of the 20th VLDB Conference, Santiago, Chile, pp. 487-499, 1994.
[18] S. L. Manley. An Analysis of Issues facing World Wide Web Servers. Undergraduate,
Harvard, 1997.
[19] S. K. Madria, S. S. Bhowmick, W. K. Ng, E. Lim: "Research Issues in Web Data
Mining." In First International Conference on Data Warehousing and Knowledge Dis-
covery, Florence, Italy, 1999: 303-312
[20] T. Yan, M. Jacobsen, H. Garcia-Molina, and U. Dayal. "From User Access Patterns
to Dynamic Hypertext Linking." In Proceedings of the 5th International World Wide Web
Conference, Paris, France, 1996.
[21] T. Joachims, D. Freitag, and T. Mitchell. "WebWatcher: A Tour Guide for the
World Wide Web." In The 15th International Conference on Artificial Intelligence,
Nagoya, Japan, 1997.
[22] U. M. Fayyad, G. Piatetsky-Shapiro, P. Smyth, and R. Uthurusamy. Advances in
Knowledge Discovery and Data Mining. AAAI/MIT Press, 1996.
[23] V. Almeida, A. Bestavros, M. Crovella, and A. D. Oliveira. Characterizing Refer-
ence Locality in the WWW. Technical Report TR-96-11, Boston University, 1996.
[24] WUSAGE http://www.boutell.com/wusage.

13

2000-08.doc

More Related Content

What's hot (18)

Similar to 2000-08.doc (20)

More from butest (20)

2000-08.doc
