This document discusses the Payment Card Industry Data Security Standards (PCI DSS) and provides an overview of some key requirements including firewall rule reviews, log reviews, penetration testing, and risk assessments. It notes that PCI DSS requirements focus on protecting credit card data and emphasizes security over mere compliance. Various approaches and best practices for conducting reviews, testing, and assessments according to the PCI standards are also outlined.
5 Under-utilized PCI Requirements and how you can leverage them
- 1. By – Praveen Joseph Vackayil Praveen Joseph Vackayil CISSP, CCNA, ISO 27001 LA, former PCI QSA, MS (Warwick), BE
- 2. By – Praveen Joseph Vackayil
- 3. • Mobile phones – you know what to do! • Questions are welcome • Share your knowledge By – Praveen Joseph Vackayil
- 4. By – Praveen Joseph Vackayil • Quick Introduction to PCI DSS –CHD and SAD –PCI Requirements • 5 Under-utilized PCI Requirements
- 5. By – Praveen Joseph Vackayil
- 6. The Payment Card Industry Data Security Standards are a set of security standards created to protect credit and debit card data. By – Praveen Joseph Vackayil
- 7. • One of the most precise and granular information security standards out there. • 12 broad requirements, 300+ sub-requirements • People (10%) – Processes (30%) – Technology (60%) By – Praveen Joseph Vackayil
- 8. Cardholder Data: • Card Number • Cardholder Name • Service Code (not shown in image) • Expiry Date By – Praveen Joseph Vackayil
- 9. Sensitive Authentication Data: • CVV • Track data (Magnetic Stripe data or Chip data) • PINs or PIN blocks By – Praveen Joseph Vackayil 123
- 10. By – Praveen Joseph Vackayil
- 11. Stored card numbers must be encrypted, truncated, hashed, or protected with one time pads. 4757 2828 9290 2929 1aM3fz9eo0F1idqKq2Z23i0F3a kdjl53f32F23k3qsaf By – Praveen Joseph Vackayil
- 12. CVV, Track/Chip and PIN data must never be stored. By – Praveen Joseph Vackayil “July_Customer_CVV.xlsx”
- 13. By – Praveen Joseph Vackayil Ref: PCI DSS v3.0
- 14. Firewall Rule Review By – Praveen Joseph Vackayil Formal Change Management Updated Network Diagram Firewall config vs Business Justification Document Check incoming packets for IP Spoofing NATting Internal Zone-> DMZ ->External Zone
- 15. By – Praveen Joseph Vackayil Change all vendor supplied defaults Remove all unnecessary scripts, drivers, servers and other functionalities One primary function per server Non-console admin access must be encrypted Hardening standards based on CIS, SANS, NIST, etc.
- 16. Minimize stored PAN By – Praveen Joseph Vackayil Do not store any SAD Mask PAN when displayed Render stored PAN un-readable Key Management Drive Awareness Review stored PAN via quarterly data discovery scans
- 17. Encrypt PAN sent over wireless. Eg. IEEE 802.11i (No WEP, SSL v2.0) By – Praveen Joseph Vackayil Encrypt PAN sent on open public networks Encrypt PAN if sent over email, chat, etc. Drive Awareness
- 18. By – Praveen Joseph Vackayil If AV exists, deploy it Do RA to identify threats for Mainframes or other systems without AV Periodic Scans Automatic Updates Anti-virus logs
- 19. By – Praveen Joseph Vackayil Identify new security vulnerabilities from external sources Patch Management Secure SDLC WAF or App VA for public facing web apps
- 20. By – Praveen Joseph Vackayil Access to CHD based on job-based need to know Default deny-all setting in access provisioning
- 21. By – Praveen Joseph Vackayil User ID settings Two-factor authentication for remote connections Password settings Session time-out settings
- 22. By – Praveen Joseph Vackayil Physical Access Controls: -CCTV and/or -Access control mechanism Visitor Management Media Management Physical Security of POS devices
- 23. By – Praveen Joseph Vackayil What should be logged What a log should contain Log Retention FIM on logs Log Review Time synchronization Access to Logs
- 24. Penetration Testing Wireless Scan IDS/IPS By – Praveen Joseph Vackayil Vulnerability Assessment Change Detection Software
- 25. By – Praveen Joseph Vackayil Risk Assessment Human Resources -NDA -BGV Service Provider Management Incident Management Policies and Procedures - Information Security - Acceptable Usage, etc.
- 26. By – Praveen Joseph Vackayil
- 27. By – Praveen Joseph Vackayil
- 28. By – Praveen Joseph Vackayil
- 29. By – Praveen Joseph Vackayil • Firewall Rule Review • Log Review • Penetration Testing • Risk Assessment • Service Provider Management
- 30. By – Praveen Joseph Vackayil
- 31. 1.1.7 Review firewall and router rule sets at least once every six months By – Praveen Joseph Vackayil
- 32. “Nipper gives a lot of false positives, you know?” “We need ICMP for troubleshooting” By – Praveen Joseph Vackayil -We ran a Nipper scan. -And? -That’s it!
- 33. • Re-validation of all business requirements (and nothing else) By – Praveen Joseph Vackayil being met through the firewall • Review/removal of ACLs which are convenient for firewall device management but not for network security. • Protection from new attack vectors (especially public facing firewalls) • Checking for incorrectly configured rules • Clean-up of obsolete rules and user ids on firewall • Revoke of “temporary” access requests on expiry • Firewall performance tuning • More accurate responses from network administrator during external audit.
- 34. By – Praveen Joseph Vackayil Prerequisites - Network Diagram - Device Inventory - Updated DFD - Firewall Rules Business Justification Document Shortlist the firewalls to be reviewed - eg. Internet FW, Internal FW - Review the network diagram, DFD - Validate the FW configuration against approved services, ports, protocols Remediation What to Look For: - Obsolete ACLs - Inconsistencies with BJD - Insecure services, ports, protocols - FTP, Telnet, SNMP.
- 35. Ref: SANS - Methodology for Firewall Reviews for PCI Compliance http://www.sans.org/reading-room/ whitepapers/auditing/met hodology-firewall-reviews-pci-compliance- 34195 By – Praveen Joseph Vackayil
- 36. By – Praveen Joseph Vackayil
- 37. By – Praveen Joseph Vackayil SCOPE 10.6 Review logs and security events for all system components FREQUENCY 10.6.1 Review the following at least daily: • All security events • Logs of all system components that store, process, or transmit CHD/SAD • Logs of all critical system components • Logs of security devices - firewalls, IPS, etc. 10.6.2 Review logs of all other system components periodically as determined by a risk assessment. REMEDIATION 10.6.3 Follow up anomalies identified during the review process.
- 38. “It is not possible to investigate all alerts. There are tons of false positives.” By – Praveen Joseph Vackayil -We manually review logs everyday. Surprisingly, we have no incidents so far. -You mean NOT surprisingly
- 39. By – Praveen Joseph Vackayil Central Log Storage for easy access and review Log Review Continuous and Automated Monitoring “Do Not Show Again” configuration to reduce false positives Timely Response Mechanism Qualified personnel who know what kind of logs to look for
- 40. By – Praveen Joseph Vackayil
- 41. Requirements for PT in PCI v2.0 11.3 Perform external and internal penetration testing at least once a year and after any significant infrastructure or application upgrade or modification. These penetration tests must also include application and network layer penetration tests. By – Praveen Joseph Vackayil
- 42. “We ran a PT scan. Here is the report.” “We fixed all the VA findings. So there are no vulnerabilities to exploit, meaning there is no point in a PT.” By – Praveen Joseph Vackayil (hence proved)
- 43. By – Praveen Joseph Vackayil • PT Methodology – A methodology will bring structure and consistency to the testing approach – Provide standardized documentation – Assist in training and KT between staff Eg. N/w PT – OSSTM (from Institute for Security and Open Methodologies), NIST SP 800-115 App PT - OWASP Testing Project for App PT • External and Internal PT Outside Inside Has no access to systems No knowledge about the systems Has at least general user access, may have some knowledge on the systems Begins with reconnaissance (public information) and enumeration (network discovery, port scanning) Begins with user privilege escalation (eg. General to admin user)
- 44. • PT must validate network segmentation methods used to isolate the CDE By – Praveen Joseph Vackayil – Router or Firewall ACLs – VLANs configured on L3 switches Eg. Port scanning to check for any open ports on the router through which one can connect from a trusted but non-CDE network. • PT must be on-going – Remediation must be validated by re-testing
- 45. SAMPLE TESTS • Database security audit • SQL injection techniques • Network traffic eavesdropping • Access control testing • Network intrusion testing • Network stress testing • DoS attacks • Manipulating user input data • Web application penetration By – Praveen Joseph Vackayil testing Induction Phase: - Decide on test timelines - Shortlist the tests to be done Interaction Phase: - Network Discovery -Select target systems for each test Inquest Phase: Find out as much data as possible about target systems Intervention Phase: Verify functionality of security and alerting mechanisms • Web server, DB Server • Firewall, etc. • Which ports are open • What services are running • Device configuration vulnerabilities • Log alerts • FIM alerts • IPS alerts
- 46. By – Praveen Joseph Vackayil
- 47. PCI Req 12.2 Implement a risk-assessment process that: Frequency: • Is performed at least annually and upon significant changes to the environment (for example, acquisition, merger, relocation, etc.) Entities: • Identifies critical assets, threats, and vulnerabilities, Methodology: • Results in a formal risk assessment By – Praveen Joseph Vackayil

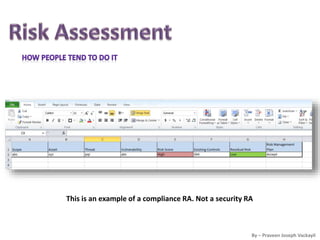

- 48. This is an example of a compliance RA. Not a security RA By – Praveen Joseph Vackayil
- 49. By – Praveen Joseph Vackayil A PCI Risk Assessment must be: • Formal: – Measurable – Comparable – Repeatable • Focusing on card data as the central asset • Emphasizing security and not compliance
- 50. Risk Assessment can be used to • Tailor the PCI requirement to the unique nature of the organization’s CDE • Reduce the overall cost of compliance and security maintenance • Assist in scope reduction By – Praveen Joseph Vackayil
- 51. By – Praveen Joseph Vackayil Scope Assets Threat Documentation Risk Score Vulnerability Treat: Firewall config to be reviewed every quarter by Security team. Corrective action to be taken by Network team. Risk Management -Treat, Transfer, Terminate, Tolerate E-Commerce Website Primary Asset – CHD Supporting Assets– People, Technology Disclosure of CHD via compromise of perimeter firewall by external entity No defined frequency for firewall rule review Medium
- 52. By – Praveen Joseph Vackayil
- 53. By – Praveen Joseph Vackayil No knowledge on – the extent to which service provider can access client’s systems and information – service provider’s information security controls and how effective they are – how they verify employees’ backgrounds No defined ownership of applicable PCI requirements Eg. Application hosted at client’s site, but developed remotely by a third party organization: – 6.4.1 Separate development/test environments from production environments ->Client – 6.4.2 Separation of duties between development/test and production -> Service Provider
- 54. 12.8: Maintain and implement policies and procedures to manage service providers with whom cardholder data is shared, or that could affect the security of cardholder data • Maintain a list of service providers • Due diligence in selecting service providers • MSA: Service providers are responsible for the security of cardholder data they possess or otherwise store, process or transmit on behalf of the customer • Annually monitor their PCI compliance • Classify PCI requirements as per client - service providers’ By – Praveen Joseph Vackayil responsibility and get mutual agreement
- 55. By – Praveen Joseph Vackayil
- 56. By – Praveen Joseph Vackayil Stay in Touch • www.linkedin.com/in/vackayil • praveen.jvc@gmail.com
