- 1. MICRO ELECTRONIC PILL PRESENTED BY: JISMA E P NO:66 S3 ECE
- 2. CONTENTS INTRODUCTION MICROELECTRONIC PILLMICRO ELECTRONIC PILL WORKINGWORKING COMPONENTS RANGE & ACCURACY ADVANTAGESAVANTAGES & DISADVANTAGES LIMITATION CONCLUSION REFERENCE
- 3. INTRODUCTION Our body is sensitive system . At some situation, doctors can’t easily detect diseases.Thus it become too late to cure it. Professor Jon Cooper and Dr Erik Johanessen from Glasgow University U.K has led to the development of a modern microelectronic pill in 1972. It is modern wireless type of endoscopic monitoring system.
- 4. MICROELECTRONIC PILL A “Micro electronic pill” is a basically a multichannel sensor used for remote biomedical measurements using micro technology. This has been developed for the internal study &detection of diseases in GI tract. The pill is 16mm in diameter& 55mm long weighing around 5 g. Record parameter like pH, temperature, conductivity & dissolved O2.
- 5. WORKING

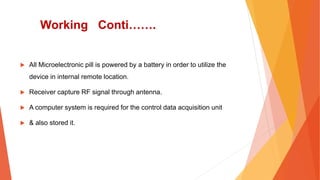

- 6. Working Conti……. All Microelectronic pill is powered by a battery in order to utilize the device in internal remote location. Receiver capture RF signal through antenna. A computer system is required for the control data acquisition unit & also stored it.
- 8. 1. RADIO TRANSMITTER Size of transmitter = 8 × 5 × 3 mm Modulation Scheme = Frequency Shift Keying (FSK) Data Transfer Rate = 1 kbps Frequency = 40.01 MHz at 20 °C Bandwidth of the signal generated 10 KHz It consumes 6.8 mW power at 2.2 mA of current.
- 9. 2. TWO SILVER OXIDE BATTERIES 2 SR44 Ag 2 O batteries are used Operating Time > 40 hours. Power Consumption = 12.1mW Corresponding current consumption = 3.9mA Supply Voltage = 3.1 V .
- 10. Observation on receiver computer
- 11. 3.CAPSULE
- 12. 3.1.SILICON DIODE It measures the body core temperature. Also compensates with the temperature induced signal changes in other sensors. It also identifies local changes associated with Tissue Inflammation & Ulcers 3.2.ISFET The ISFET measures pH. It can reveal pathological cnditions associated with abnormal pH levels These abnormalities include : 1. Pancreatic disease 2 . Hypertension 3. Inflammatory bowel disease…..
- 13. 3.3. ELECTODE ELECTROCHEMICAL CELL The three electrode electrochemical cell detects the level of dissolved oxygen in solution. It measures the oxygen gradient from the proximal to the distal GI Tract It investigates : Growth of aerobic or bacterial infection Formation of radicals causing cellular injury & pathophysiological conditions like inflammation & Gastric ulceration. It develops 1st generation enzymes linked with amperometric biosensors.
- 14. 3.4.DIRECT CONTACT GOLD ELECTODE The pair of direct contact Gold electrodes measures conductivity by, 1. measuring the contents of water & salt absorption, 2.bile secretion & the breakdown of organic components into charged colloids etc. the GI tract. Since the gold has best conductivity among all the elements, Therefore it gives true value of conductivity as measured.
- 15. 4.CONTROL CHIP The ASIC (Application Specific Integrated Circuit) is the control unit that connects together other components of the micro system. It contains an analogue signal –conditioning module operating the sensors, 10-bit ADC & DAC & digital data processing module. The temperature circuitry bias the diode at constant current so that change in temperature reflects a corresponding change in diode voltage. The pH ISFET sensor is biased as a simple source at constant current with the source voltage changing with threshold voltage & pH.
- 16. Conti….. The conductivity circuit operates at D.C. It measures the resistance across the electrode pair as an inverse function of solution conductivity. An incorporated potentiostat circuit operates the O2 sensor with a 10 bit DAC controlling the working electrode potential w.r.t the reference Analogue signals are sequenced through a multiplexer before being digitized by ADC. ASIC & sensors consume 5.3 mW power corresponding to 1.7 mA of current.
- 17. Sensor chips
- 18. Range & Accuracy RANGE : Temperature from 0 to 70°C pH from 1 to 13 Dissolved Oxygen up to 8.2 mg per liter Conductivity above 0.05 mScm-1 Full scale dynamic Range analogue signal = 2.8 V ACCURACY : pH channel is around 0.2 unit above the real value Oxygen Sensor is ±0.4 mgL. Temperature & Conductivity is within ±1%.
- 19. ADVANTAGES It is being beneficially used for disease detection & abnormalities in human body. Adaptable for use in corrosive & quiescent environment It can be used in industries in evaluation of water quality, Pollution Detection, fermentation process control & inspection of pipelines. Power consumption is very less. It has very small size, hence it is very easy for practical usage. High sensitivity, Good reliability & Life times. Less transmission length & hence has zero noise interference
- 20. LIMITATIONS(The Dark Side) It cannot perform ultrasound & impedance tomography. Cannot detect radiation abnormalities Cannot perform radiation treatment associated with cancer & chronic inflammation. Micro Electronic Pills are expensive & are not available in many countries. Still its size is not digestible to small babies. Further research are being carried out to remove its draw backs.
- 21. CONCLUSION microelectronic pill, designed to perform real-time in situ measurements of the GI tract, providing in vitro wireless transmitted multichannel recordings. Further work will focus on developing photo patternable gel electrolytes and oxygen and cation selective membranes. The pill is 16mm in diameter& 55mm long weighing around 5 g. Record parameter like pH, temperature, conductivity & dissolved O2.
- 22. REFERENCE WEB REFERENCE:- http://ubimon.doc.ic.ac.uk/bsn/public/Jon_Cooper.pdf http://citeseerx.ist.psu.edu http://www.forumsains.com
