This document proposes a tree kernel-based approach for clone detection that is able to detect type 3 code clones. It defines features to annotate nodes in abstract syntax trees, including instruction class, instruction, context, and lexemes. A kernel function is used to measure similarity between pairs of nodes based on their features. The technique then applies this node comparison recursively to compute similarity between entire subtrees and identify clones. An evaluation on artificially injected clones in a small Java system found the approach could detect all type 1 and 2 clones with no false positives, and achieved best results for type 3 clones with a similarity threshold of 0.7.
A tree kernel based approach for clone detection
- 1. A Tree Kernel Based Approach for Clone Detection 1) University of Naples Federico II 2) University of Basilicata Anna Corazza1 , Sergio Di Martino1 , Valerio Maggio1 , Giuseppe Scanniello2
- 2. Outline ►Background ○ Clone detection definition ○ State of the Art Techniques Taxonomy ►Our Abstract Syntax Tree based Proposal ○ A Tree Kernel based approach for clone detection ►A preliminary evaluation

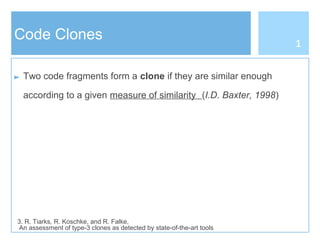

- 3. Code Clones ► Two code fragments form a clone if they are similar enough according to a given measure of similarity (I.D. Baxter, 1998) 3. R. Tiarks, R. Koschke, and R. Falke, An assessment of type-3 clones as detected by state-of-the-art tools 1
- 4. Code Clones ► Two code fragments form a clone if they are similar enough according to a given measure of similarity (I.D. Baxter, 1998) ► Similarity based on Program Text or on “Semantics” 3. R. Tiarks, R. Koschke, and R. Falke, An assessment of type-3 clones as detected by state-of-the-art tools 1
- 5. Code Clones ► Two code fragments form a clone if they are similar enough according to a given measure of similarity (I.D. Baxter, 1998) ► Similarity based on Program Text or on “Semantics” ► Program Text can be further distinguished by their degree of similarity1 ○ Type 1 Clone: Exact Copy ○ Type 2 Clone: Parameter Substituted Clone ○ Type 3 Clone: Modified/Structure Substituted Clone 1. R. Tiarks, R. Koschke, and R. Falke, An assessment of type-3 clones as detected by state-of-the-art tools 1
- 6. State of the Art Techniques ► Classified in terms of Program Text representation2 ○ String, token, syntax tree, control structures, metric vectors ► String/Token based Techniques ► Abstract Syntax Tree (AST) Techniques ► ... 2 2. Roy, Cordy, Koschke Comparison and Evaluation of Clone Detection Tools and Technique 2009
- 7. State of the Art Techniques ► String/Token based Techniques ► Abstract Syntax Tree (AST) Techniques ► ... ► Combined Techniques (a.k.a. Hybrid) ○Combine different representations ○Combine different techniques ○Combine different sources of information ●Tree Kernel based approach (Our approach :) 2
- 9. The Goal ► Define an AST based technique able to detect up to Type 3 Clones 3
- 10. The Goal ► Define an AST based technique able to detect up to Type 3 Clones ► The Key Ideas: ○ Improve the amount of information carried by ASTs by adding (also) lexical information ○ Define a proper measure to compute similarities among (sub)trees, exploiting such information 3
- 11. The Goal ► Define an AST based technique able to detect up to Type 3 Clones ► The Key Ideas: ○ Improve the amount of information carried by ASTs by adding (also) lexical information ○ Define a proper measure to compute similarities among (sub)trees, exploiting such information ► As a measure we propose the use of a (Tree) Kernel Function 3
- 12. Kernels for Structured Data ► Kernels are a class of functions with many appealing features: ○ Are based on the idea that a complex object can be described in terms of its constituent parts ○ Can be easily tailored to a specific domain ► There exist different classes of Kernels: ○ String Kernels ○ Graph Kernels ○ … ○ Tree Kernels ● Applied to NLP Parse Trees (Collins and Duffy 2004) 4
- 13. Defining a new Tree Kernel ► The definition of a new Tree Kernel requires the specification of: (1) A set of features to annotate nodes of compared trees 5
- 14. Defining a new Tree Kernel ► The definition of a new Tree Kernel requires the specification of: (1) A set of features to annotate nodes of compared trees (2) A (primitive) Kernel Function to measure the similarity of each pair of nodes 5
- 15. Defining a new Tree Kernel ► The definition of a new Tree Kernel requires the specification of: (1) A set of features to annotate nodes of compared trees (2) A (primitive) Kernel Function to measure the similarity of each pair of nodes (3) A proper Kernel Function to compare subparts of trees 5
- 16. (1) The defined features ► We annotate each node of AST by 4 features: 6
- 17. (1) The defined features ► We annotate each node of AST by 4 features: ○ Instruction Class ● i.e. LOOP, CONDITIONAL CONTROL, CONTROL FLOW CONTROL,... 6
- 18. (1) The defined features ► We annotate each node of AST by 4 features: ○ Instruction Class ● i.e. LOOP, CONDITIONAL CONTROL, CONTROL FLOW CONTROL,... ○ Instruction ● i.e. FOR, WHILE, IF, RETURN, CONTINUE,... 6
- 19. (1) The defined features ► We annotate each node of AST by 4 features: ○ Instruction Class ● i.e. LOOP, CONDITIONAL CONTROL, CONTROL FLOW CONTROL,... ○ Instruction ● i.e. FOR, WHILE, IF, RETURN, CONTINUE,... ○ Context ● Instruction class of statement in which node is enclosed 6
- 20. (1) The defined features ► We annotate each node of AST by 4 features: ○ Instruction Class ● i.e. LOOP, CONDITIONAL CONTROL, CONTROL FLOW CONTROL,... ○ Instruction ● i.e. FOR, WHILE, IF, RETURN, CONTINUE,... ○ Context ● Instruction class of statement in which node is enclosed ○ Lexemes ● Lexical information within the code 6
- 21. Context Feature ► Rationale: two nodes are more similar if they appear in the same Instruction class for (int i=0; i<10; i++) x += i+2; if (i<10) x += i+2; while (i<10) x += i+2; 7
- 22. Context Feature ► Rationale: two nodes are more similar if they appear in the same Instruction class for (int i=0; i<10; i++) x += i+2; if (i<10) x += i+2; while (i<10) x += i+2; 7
- 23. Context Feature ► Rationale: two nodes are more similar if they appear in the same Instruction class for (int i=0; i<10; i++) x += i+2; if (i<10) x += i+2; while (i<10) x += i+2; 7
- 24. Context Feature ► Rationale: two nodes are more similar if they appear in the same Instruction class for (int i=0; i<10; i++) x += i+2; if (i<10) x += i+2; while (i<10) x += i+2; 7
- 25. Context Feature ► Rationale: two nodes are more similar if they appear in the same Instruction class for (int i=0; i<10; i++) x += i+2; if (i<10) x += i+2; while (i<10) x += i+2; 7
- 26. Lexemes Feature ► For leaf nodes: ○ It is the lexeme associated to the node ► For internal nodes: ○ It is the set of lexemes that recursively comes from subtrees with minimum height 8
- 29. Lexemes Propagation x < 0 return yblock %= x y block while x x y y 0 x, 0 9
- 30. Lexemes Propagation x < 0 return yblock %= x y block while x x y y 0 x, 0 x, y x, y 9
- 31. Lexemes Propagation x < 0 return yblock %= x y block while x x y y 0 x, 0 x, y x, y x, 0, while y, return 9
- 32. Lexemes Propagation x < 0 return yblock %= x y block while x x y y 0 x, 0 x, y x, y x, 0, while y, return y, return 9
- 33. (2) Applying features in a Kernel We exploits these features to compute similarity among pairs of nodes, as follows: ► Instruction Class filters comparable nodes ○ We compare only nodes with the same Instruction Class ► Instruction, Context and Lexemes are used to define a value of similarity between compared nodes 10
- 34. (Primitive) Kernel Function between nodes 1.0 If two nodes have the same values of features 0.8 If two nodes differ in lexemes (same instruction and context) 0.7 If two nodes share lexemes and are the same instruction 0.5 If two nodes share lexemes and are enclosed in the same context 0.25 If two nodes have at least one feature in common 0.0 no match s(n1,n2)= 11
- 35. (3) Tree Kernel: Kernel on entire Tree Structures ►We apply nodes comparison recursively to compute similarity between subtrees ►We aim to identify the maximum isomorphic tree/subtree 12
- 36. Overall Process 1. Preprocessing 2. Extraction 3. Match Detection 4. Aggregation 13
- 38. Evaluation Description ► We considered a small Java software system ○ We choose to identify clones at method level ► We checked system against the presence of up to Type 3 clones ○ Removed all detected clones through refactoring operations ► We manually and randomly injected a set of artificially created clones ○ One set for each type of clones ► We applied our prototype and CloneDigger* to mutated systems ► We evaluated performances in terms of Precision, Recall and F1 *http://clonedigger.sourceforge.net/ 14
- 39. Results (1) ► Type 1 and Type 2 Clones: ○ We were able to detect all clones without any false positive ○ This was obtained also by CloneDigger ○ Both tools expressed the potential of AST-based approaches 15
- 40. Results (2) ► Type 3 clones: ○ We classified results as “true Type 3 clones” according to different thresholds on similarity values ○ We measured performance on different thresholds We get best results with threshold equals to 0.70 16
- 41. Conclusions and Future Works ► Measure performance on real systems and projects ○ Bellon's Benchmark ○ Investigate best results with 0.7 as threshold ○ Measure Time Performances ► Improve the scalability of the approach ○ Avoid to compare all pairs ► Improve similarity computation ○ Avoid manual weighting features ► Extend Supported Languages ○ Now we support Java, C, Python 17
- 42. Thank you for listening. Questions? 18
