Design for Scalability in ADAM
- 1. Design for Scalability in ADAM Frank Austin Nothaft UC Berkeley
- 2. What is ADAM? • An open source, high performance, distributed platform for genomic analysis • ADAM defines a: 1. Data schema and layout on disk* 2. A Scala API 3. A command line interface * Via Avro and Parquet
- 3. What’s the big picture? ADAM:! Core API + CLIs bdg-formats:! Data schemas RNAdam:! RNA analysis on ADAM avocado:! Distributed local assembler Guacamole:! Distributed somatic caller xASSEMBLEx:! GraphX-based de novo assembler bdg-services:! ADAM clusters
- 4. Implementation Overview • 27k LOC (99% Scala) • Apache 2 licensed OSS • 21 contributors across 8 institutions • Pushing for production 1.0 release towards end of year
- 5. Key Observations • Current genomics pipelines are I/O limited • Most genomics algorithms can be formulated as a data or graph parallel computation • These algorithms are heavy on iteration/pipelining • Data access pattern is write once, read many times • High coverage, whole genome will become main sequencing target (for human genetics)
- 6. Principles for Scalable Design in ADAM • Parallel FS and data representation (HDFS + Parquet) combined with in-memory computing eliminates disk bandwidth bottleneck • Spark allows efficient implementation of iterative/ pipelined Map-Reduce • Minimize data movement: send code to data
- 7. Data Format • Avro schema encoded by Parquet • Schema can be updated without breaking backwards compatibility • Read schema looks a lot like BAM, but renormalized • Actively removing tags • Variant schema is strictly biallelic, a “cell in the matrix” record AlignmentRecord { union { null, Contig } contig = null; union { null, long } start = null; union { null, long } end = null; union { null, int } mapq = null; union { null, string } readName = null; union { null, string } sequence = null; union { null, string } mateReference = null; union { null, long } mateAlignmentStart = null; union { null, string } cigar = null; union { null, string } qual = null; union { null, string } recordGroupName = null; union { int, null } basesTrimmedFromStart = 0; union { int, null } basesTrimmedFromEnd = 0; union { boolean, null } readPaired = false; union { boolean, null } properPair = false; union { boolean, null } readMapped = false; union { boolean, null } mateMapped = false; union { boolean, null } firstOfPair = false; union { boolean, null } secondOfPair = false; union { boolean, null } failedVendorQualityChecks = false; union { boolean, null } duplicateRead = false; union { boolean, null } readNegativeStrand = false; union { boolean, null } mateNegativeStrand = false; union { boolean, null } primaryAlignment = false; union { boolean, null } secondaryAlignment = false; union { boolean, null } supplementaryAlignment = false; union { null, string } mismatchingPositions = null; union { null, string } origQual = null; union { null, string } attributes = null; union { null, string } recordGroupSequencingCenter = null; union { null, string } recordGroupDescription = null; union { null, long } recordGroupRunDateEpoch = null; union { null, string } recordGroupFlowOrder = null; union { null, string } recordGroupKeySequence = null; union { null, string } recordGroupLibrary = null; union { null, int } recordGroupPredictedMedianInsertSize = null; union { null, string } recordGroupPlatform = null; union { null, string } recordGroupPlatformUnit = null; union { null, string } recordGroupSample = null; union { null, Contig} mateContig = null; }
- 8. Parquet • ASF Incubator project, based on Google Dremel • http://www.parquet.io • High performance columnar store with support for projections and push-down predicates • 3 layers of parallelism: • File/row group • Column chunk • Page Image from Parquet format definition: https://github.com/Parquet/parquet-format
- 9. Filtering • Parquet provides pushdown predication • Evaluate filter on a subset of columns • Only read full set of projected columns for passing records • Full primary/secondary indexing support in Parquet 2.0 • Very efficient if reading a small set of columns: • On disk, contig ID/start/end consume < 2% of space Image from Parquet format definition: https://github.com/Parquet/parquet-format
- 10. Compression • Parquet compresses at the column level: • RLE for repetitive columns • Dictionary encoding for quantized columns • ADAM uses a fully denormalized schema • Repetitive columns are RLE’d out • Delta encoding (Parquet 2.0) will aid with quality scores • ADAM is 5-25% smaller than compressed BAM
- 11. Parquet/Spark Integration • 1 row group in Parquet maps to 1 partition in Spark • We interact with Parquet via input/output formats • These apply projections and predicates, handle (de)compression • Spark builds and executes a computation DAG, manages data locality, errors/retries, etc. RG 1 RG 2 RG n… Parquet RG 1 RG 2 RG n… Parquet Spark Parquet Input Format Parquet Output Format Partition 1 Partition 2 Partition n …
- 12. Compatibility • Maintain full import/export compatibility with SAM/ BAM, VCF/BCF • Can use non-ADAM tools in pipeline:* * Via avocado: https://www.github.com/bigdatagenomics/avocado RG 1 RG 2 RG n … Part. 1 Part. 2 Part. n … Chr. 1 into Pipe Chr. 2 into Pipe Chr. M into Pipe … Repartition Repartition Part. 1 Part. 2 Part. n … RG 1 RG 2 RG n …
- 13. “Cloud” Optimizations • Emerging use case (?): processing data on public cloud provider machines, data stored in block store • E.g., Amazon EMR + S3 • We are optimizing Parquet for S3/other block stores: • Compact primary indices for slice lookup • Eliminate Parquet requirement on HDFS
- 14. • An in-memory data parallel computing framework • Optimized for iterative jobs —> unlike Hadoop • Data maintained in memory unless inter-node movement needed (e.g., on repartitioning) • Presents a functional programing API, along with support for iterative programming via REPL • Used at scale on clusters with >2k nodes, 4TB datasets
- 15. Why Spark? • Current leading map-reduce framework: • First in-memory map-reduce platform • Used at scale in industry, supported in major distros (Cloudera, HortonWorks, MapR) • The API: • Fully functional API • Main API in Scala, also support Java, Python, R • Manages node/job failures via lineage, data locality/job assignment • Downstream tools (GraphX, MLLib)

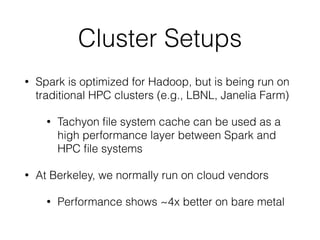

- 16. Cluster Setups • Spark is optimized for Hadoop, but is being run on traditional HPC clusters (e.g., LBNL, Janelia Farm) • Tachyon file system cache can be used as a high performance layer between Spark and HPC file systems • At Berkeley, we normally run on cloud vendors • Performance shows ~4x better on bare metal
- 17. Acknowledgements • UC Berkeley: Matt Massie, André Schumacher, Jey Kottalam, Christos Kozanitis! • Mt. Sinai: Arun Ahuja, Neal Sidhwaney, Michael Linderman, Jeff Hammerbacher! • GenomeBridge: Timothy Danford, Carl Yeksigian! • Cloudera: Uri Laserson! • Microsoft Research: Jeremy Elson, Ravi Pandya! • And many other open source contributors: 21 contributors to ADAM/BDG from >8 institutions
