Adapting data warehouse architecture to benefit from agile methodologies

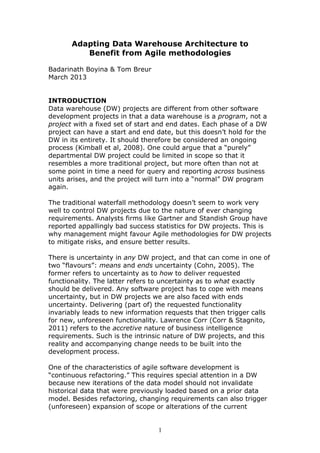

- 1. Adapting Data Warehouse Architecture to Benefit from Agile methodologies Badarinath Boyina & Tom Breur March 2013 INTRODUCTION Data warehouse (DW) projects are different from other software development projects in that a data warehouse is a program, not a project with a fixed set of start and end dates. Each phase of a DW project can have a start and end date, but this doesn’t hold for the DW in its entirety. It should therefore be considered an ongoing process (Kimball et al, 2008). One could argue that a “purely” departmental DW project could be limited in scope so that it resembles a more traditional project, but more often than not at some point in time a need for query and reporting across business units arises, and the project will turn into a “normal” DW program again. The traditional waterfall methodology doesn’t seem to work very well to control DW projects due to the nature of ever changing requirements. Analysts firms like Gartner and Standish Group have reported appallingly bad success statistics for DW projects. This is why management might favour Agile methodologies for DW projects to mitigate risks, and ensure better results. There is uncertainty in any DW project, and that can come in one of two “flavours”: means and ends uncertainty (Cohn, 2005). The former refers to uncertainty as to how to deliver requested functionality. The latter refers to uncertainty as to what exactly should be delivered. Any software project has to cope with means uncertainty, but in DW projects we are also faced with ends uncertainty. Delivering (part of) the requested functionality invariably leads to new information requests that then trigger calls for new, unforeseen functionality. Lawrence Corr (Corr & Stagnito, 2011) refers to the accretive nature of business intelligence requirements. Such is the intrinsic nature of DW projects, and this reality and accompanying change needs to be built into the development process. One of the characteristics of agile software development is “continuous refactoring.” This requires special attention in a DW because new iterations of the data model should not invalidate historical data that were previously loaded based on a prior data model. Besides refactoring, changing requirements can also trigger (unforeseen) expansion of scope or alterations of the current 1

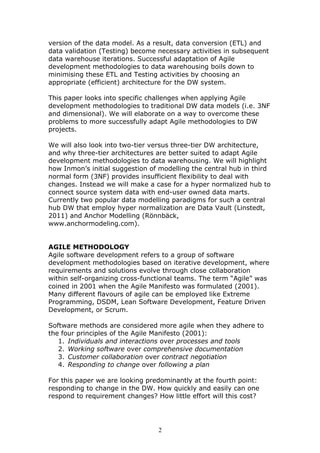

- 2. version of the data model. As a result, data conversion (ETL) and data validation (Testing) become necessary activities in subsequent data warehouse iterations. Successful adaptation of Agile development methodologies to data warehousing boils down to minimising these ETL and Testing activities by choosing an appropriate (efficient) architecture for the DW system. This paper looks into specific challenges when applying Agile development methodologies to traditional DW data models (i.e. 3NF and dimensional). We will elaborate on a way to overcome these problems to more successfully adapt Agile methodologies to DW projects. We will also look into two-tier versus three-tier DW architecture, and why three-tier architectures are better suited to adapt Agile development methodologies to data warehousing. We will highlight how Inmon’s initial suggestion of modelling the central hub in third normal form (3NF) provides insufficient flexibility to deal with changes. Instead we will make a case for a hyper normalized hub to connect source system data with end-user owned data marts. Currently two popular data modelling paradigms for such a central hub DW that employ hyper normalization are Data Vault (Linstedt, 2011) and Anchor Modelling (Rönnbäck, www.anchormodeling.com). AGILE METHODOLOGY Agile software development refers to a group of software development methodologies based on iterative development, where requirements and solutions evolve through close collaboration within self-organizing cross-functional teams. The term “Agile” was coined in 2001 when the Agile Manifesto was formulated (2001). Many different flavours of agile can be employed like Extreme Programming, DSDM, Lean Software Development, Feature Driven Development, or Scrum. Software methods are considered more agile when they adhere to the four principles of the Agile Manifesto (2001): 1. Individuals and interactions over processes and tools 2. Working software over comprehensive documentation 3. Customer collaboration over contract negotiation 4. Responding to change over following a plan For this paper we are looking predominantly at the fourth point: responding to change in the DW. How quickly and easily can one respond to requirement changes? How little effort will this cost? 2

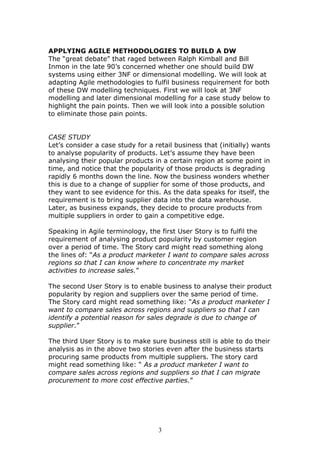

- 3. APPLYING AGILE METHODOLOGIES TO BUILD A DW The “great debate” that raged between Ralph Kimball and Bill Inmon in the late 90’s concerned whether one should build DW systems using either 3NF or dimensional modelling. We will look at adapting Agile methodologies to fulfil business requirement for both of these DW modelling techniques. First we will look at 3NF modelling and later dimensional modelling for a case study below to highlight the pain points. Then we will look into a possible solution to eliminate those pain points. CASE STUDY Let’s consider a case study for a retail business that (initially) wants to analyse popularity of products. Let’s assume they have been analysing their popular products in a certain region at some point in time, and notice that the popularity of those products is degrading rapidly 6 months down the line. Now the business wonders whether this is due to a change of supplier for some of those products, and they want to see evidence for this. As the data speaks for itself, the requirement is to bring supplier data into the data warehouse. Later, as business expands, they decide to procure products from multiple suppliers in order to gain a competitive edge. Speaking in Agile terminology, the first User Story is to fulfil the requirement of analysing product popularity by customer region over a period of time. The Story card might read something along the lines of: “As a product marketer I want to compare sales across regions so that I can know where to concentrate my market activities to increase sales.” The second User Story is to enable business to analyse their product popularity by region and suppliers over the same period of time. The Story card might read something like: “As a product marketer I want to compare sales across regions and suppliers so that I can identify a potential reason for sales degrade is due to change of supplier.” The third User Story is to make sure business still is able to do their analysis as in the above two stories even after the business starts procuring same products from multiple suppliers. The story card might read something like: “ As a product marketer I want to compare sales across regions and suppliers so that I can migrate procurement to more cost effective parties.” 3

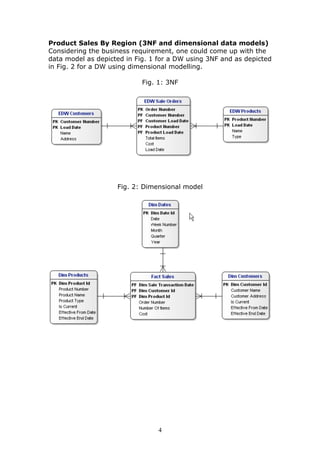

- 4. Product Sales By Region (3NF and dimensional data models) Considering the business requirement, one could come up with the data model as depicted in Fig. 1 for a DW using 3NF and as depicted in Fig. 2 for a DW using dimensional modelling. Fig. 1: 3NF Fig. 2: Dimensional model 4
- 5. Product Sales By Region and Supplier (3NF and dimensional data models) Considering the business requirement of being able to analyse their sales by supplier, one needs to bring the supplier data into the DW. The expanded data model (including suppliers) for a 3NF DW would look like Fig. 3 and for a dimensional would look like Fig. 4. Fig. 3: 3NF with Supplier data This implies all the child tables of Supplier were impacted, and as a result the following activities need to be considered: ETL for all impacted tables has to be changed. Data needs to be reloaded, provided the (valid) history is still present in source systems. Data marts or reports on the basis of this structure are impacted. Testing needs to be done from start to end deliverables. Considering the size of the data model here, it may look like it’s easy to do all those activities, but just imagine the amount of effort needed in doing above activities for this small change in a DW system containing Terabytes of data, or where a lot of time has passed since the change in requirements: it would require considerable (re)processing. When it comes to dimensional modelling one could think of solving this in one of two ways, as the grain of the fact table hasn’t changed. One way to solve this is to have a separate supplier dimension table; this means that not only is there new ETL for the supplier dimension, but also changed ETL for the fact table. As a result, testing needs to be done on existing reports and ETLs. A second way of solving this problem is to attach the supplier details to the product dimension. As a result it only impacts the product dimension ETL. 5
- 6. We would imagine that this second option would be the preferred choice for Agile practitioners as it impacts the existing system (much) less. So the dimensional model would look like depicted in Fig. 4 to bring supplier data into the model. Fig. 4: Dimensional model with Supplier data This means the only change here is in the product dimension. So the ETL for the product dimension needs to be modified and all existing depending objects need to be retested. However, the impact of change is less painful in comparison to 3NF. The reason for this being that in a 3NF model, any change in a parent table cascades down to all of its child (and grandchildren) tables. 6
- 7. Product Sales By Region and Supplier with a many to many relationship between product and supplier (3NF and dimensional data models) Considering that the business has expanded and started procuring products from multiple suppliers, one has to make sure this many to many relationship between supplier and product is taken care of in data storage and respective report/dashboard presentation. This means no change in the data model for a 3NF DW as shown in Fig. 5. However, the impact on the dimensional model DW is significant, as the grain of the fact table has now changed. The dimensional data model would look like Fig. 6. Fig. 5: 3NF This means there is little impact on the 3NF data model; however one may have to test the reports/dashboard due to the business change. 7
- 8. Fig. 6: Dimensional model As the grain changes, one has to rebuild the fact table which involves changing the ETL for this fact table, reloading the historical data, handling the impact of these changes on depending reports, and as a result one has to do end to end testing. CASE STUDY CONCLUSION In both 3NF and dimensional modelling there is a challenge to respond to requirement changes as it impacts the data structure from a previous iteration and hence affects ETLs and reports. Consequently, the time line for delivering changes increases exponentially as the DW expands in scope and time. Considering the challenges in implementing data warehouses in a more Agile way using traditional data models, it makes sense to look for alternatives to 3NF and dimensional models. The objective here would be to implement the DW in such a way that it can accept 8
- 9. changes more gracefully. It reminds us of the Chinese proverb: “Unless you change direction, you are apt to end up where you are headed.” A HYPER NORMALIZED DATA MODELLING ALTERNATIVE: DATA VAULT In the search for an alternative approach, we came across Data Vault data modelling as originally promoted by Dan Linstedt for DW systems (Linstedt, 2011, or Hultgren, 2012). Data Vault (DV) has the concept of separating business keys from descriptive attributes. Business keys are generally static, whereas descriptive attributes tend to be dynamic. A business key is the information that the business (not IT) uses to uniquely identify an important entity like “Customer”, “Sale”, “Shipment”, etc. This suggests keeping the history of all descriptive attributes at an atomic level to be able to meet changing demands inexpensively, irrespective of business requirements. End-user requirements are reporting requests, not storage directives. The Data Vault approach to data warehousing is similar to Bill Inmon’s approach of a three-tiered architecture (3NF), but (vastly) different in the way source system facts get stored in the central hub. Among others, the choice to connect Hub tables via many-to- many Link tables provides an “insulation” to altering requirements (data model changes/expansions) that prevents change from cascading from parent to child tables. In Data Vault modelling you decompose 3NF tables into a set of flexible component parts. Business keys are stored independently from descriptive context and history, and independent from relations. This practice is called Unified Decomposition (Hultgren, 2012). The business key joins tables that are grouped together. Generically, the practice of hyper normalizing by breaking out business keys from descriptive attributes (and history), and from relations, is called Ensemble Modelling. Hultgren (2012): “… data vault modeling will result in more tables and more joins. While this is largely mitigated by repeating patterns, templates, selective joins, and automation, the truth is that these things must be built and maintained.” The highly standardized data model components make for straightforward and maintainable ETL that is amenable to automation. Such meta data (model) driven development dramatically improves speed of delivery and code hygiene. 9
- 10. If we think about it that is what data warehouse systems are for: to record every single event that happens in source systems. Also, this approach eliminates in part the need for doing preliminary business requirement gathering to find out for which attributes history is to be tracked. By “simply” tracking history for every descriptive attribute, you wind up with a smaller number of highly standardized loading patterns and therefore ETL that is easier to maintain. Later, reports can be developed with or without reference to historical changes (Type I or II Slowly Changing Dimensions, SCD’s). If one has to build the DW using a DV data model, it would look like Fig. 7 for User Story 1, like Fig. 8 for User Story 2 and like Fig. 9 for User Story 3 that is identical to the data model from User Story 2. DV Model for User Story 1: Fig. 7 DV model for User Story 1 10
- 11. DV model for User Story 2: Fig. 8: DV model with Supplier data As you can see in Fig. 8, the changes are not impacting the existing structure. Rather, adding Supplier data extends the existing structure. This example also shows why this architecture provides superior support to incremental development in tiny iterations (without triggering prohibitive overhead). As a result the changes remain local and hence the additional ETL and testing effort merely grows linearly over time. This demonstrates that the response to changes is more graceful than would have been experienced in traditional DW data models. The impact on the existing data model as we progress form User Story 1 to User Story 2 is negligible. 11
- 12. DV model for User Story 3: Fig. 9: DV model for User Story 3 The impact of business change as we progress from User Story 2 to User Story 3 on the existing DV data model is non-existent, the models are identical. 12

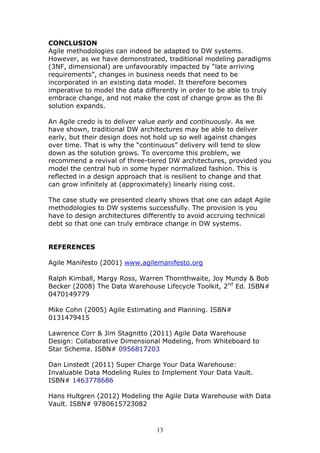

- 13. CONCLUSION Agile methodologies can indeed be adapted to DW systems. However, as we have demonstrated, traditional modeling paradigms (3NF, dimensional) are unfavourably impacted by “late arriving requirements”, changes in business needs that need to be incorporated in an existing data model. It therefore becomes imperative to model the data differently in order to be able to truly embrace change, and not make the cost of change grow as the Bi solution expands. An Agile credo is to deliver value early and continuously. As we have shown, traditional DW architectures may be able to deliver early, but their design does not hold up so well against changes over time. That is why the “continuous” delivery will tend to slow down as the solution grows. To overcome this problem, we recommend a revival of three-tiered DW architectures, provided you model the central hub in some hyper normalized fashion. This is reflected in a design approach that is resilient to change and that can grow infinitely at (approximately) linearly rising cost. The case study we presented clearly shows that one can adapt Agile methodologies to DW systems successfully. The provision is you have to design architectures differently to avoid accruing technical debt so that one can truly embrace change in DW systems. REFERENCES Agile Manifesto (2001) www.agilemanifesto.org Ralph Kimball, Margy Ross, Warren Thornthwaite, Joy Mundy & Bob Becker (2008) The Data Warehouse Lifecycle Toolkit, 2nd Ed. ISBN# 0470149779 Mike Cohn (2005) Agile Estimating and Planning. ISBN# 0131479415 Lawrence Corr & Jim Stagnitto (2011) Agile Data Warehouse Design: Collaborative Dimensional Modeling, from Whiteboard to Star Schema. ISBN# 0956817203 Dan Linstedt (2011) Super Charge Your Data Warehouse: Invaluable Data Modeling Rules to Implement Your Data Vault. ISBN# 1463778686 Hans Hultgren (2012) Modeling the Agile Data Warehouse with Data Vault. ISBN# 9780615723082 13
