What You Should Already Know
Before you continue you should have a basic understanding of the following:
HTML / XHTML
CSS
JavaScript / DOM
What is AJAX?
AJAX = Asynchronous JavaScript and XML.
AJAX is a technique for creating fast and dynamic web pages.
AJAX allows web pages to be updated asynchronously by exchanging small amounts of data
with the server behind the scenes. This means that it is possible to update parts of a web page,
without reloading the whole page.
Classic web pages, (which do not use AJAX) must reload the entire page if the content should
change.
Examples of applications using AJAX: Google Maps, Gmail, Youtube, and Facebook tabs.
How AJAX Works

AJAX is Based on Internet Standards
AJAX is based on internet standards, and uses a combination of:
XMLHttpRequest object (to exchange data asynchronously with a server)
JavaScript/DOM (to display/interact with the information)
CSS (to style the data)
XML (often used as the format for transferring data)
AJAX applications are browser- and platform-independent!
Start Using AJAX Today
AJAX is based on existing standards. These standards have been used by developers for several
years. Read our next chapters to see how it works!
AJAX Example Explained
The AJAX application above contains one div section and one button.
The div section will be used to display information returned from a server. The button calls a
function named loadXMLDoc(), if it is clicked:
<html>
<body>
<div id="myDiv"><h2>Let AJAX change this text</h2></div>
<button type="button" onclick="loadXMLDoc()">Change Content</button>
</body>
</html>
Next, add a <script> tag to the page's head section. The script section contains the
loadXMLDoc() function:
<head>
<script type="text/javascript">
function loadXMLDoc()
{
.... AJAX script goes here ...

}
</script>
</head>
The next chapters will explain how AJAX works
The XMLHttpRequest Object
All modern browsers support the XMLHttpRequest object (IE5 and IE6 uses an ActiveXObject).
The XMLHttpRequest object is used to exchange data with a server behind the scenes. This
means that it is possible to update parts of a web page, without reloading the whole page.
Create an XMLHttpRequest Object
All modern browsers (IE7+, Firefox, Chrome, Safari, and Opera) have a built-in
XMLHttpRequest object.
Syntax for creating an XMLHttpRequest object:
variable=new XMLHttpRequest();
Old versions of Internet Explorer (IE5 and IE6) uses an ActiveX Object:
variable=new ActiveXObject("Microsoft.XMLHTTP");
To handle all modern browsers, including IE5 and IE6, check if the browser supports the
XMLHttpRequest object. If it does, create an XMLHttpRequest object, if not, create an
ActiveXObject:
Example
var xmlhttp;
if (window.XMLHttpRequest)
{// code for IE7+, Firefox, Chrome, Opera, Safari
xmlhttp=new XMLHttpRequest();
}
else
{// code for IE6, IE5
xmlhttp=new ActiveXObject("Microsoft.XMLHTTP");
}

Send a Request To a Server
To send a request to a server, we use the open() and send() methods of the XMLHttpRequest
object:
xmlhttp.open("GET","ajax_info.txt",true);
xmlhttp.send();
Method Description
open(method,url,async)
Specifies the type of request, the URL, and if the request should be
handled asynchronously or not.
method: the type of request: GET or POST
url: the location of the file on the server
async: true (asynchronous) or false (synchronous)
send(string)
Sends the request off to the server.
string: Only used for POST requests
GET or POST?
GET is simpler and faster than POST, and can be used in most cases.
However, always use POST requests when:
A cached file is not an option (update a file or database on the server)
Sending a large amount of data to the server (POST has no size limitations)
Sending user input (which can contain unknown characters), POST is more robust and
secure than GET
GET Requests
A simple GET request:
Example
xmlhttp.open("GET","demo_get.asp",true);
xmlhttp.send();

In the example above, you may get a cached result.
To avoid this, add a unique ID to the URL:
Example
xmlhttp.open("GET","demo_get.asp?t=" + Math.random(),true);
xmlhttp.send();
If you want to send information with the GET method, add the information to the URL:
Example
xmlhttp.open("GET","demo_get2.asp?fname=Henry&lname=Ford",true);
xmlhttp.send();
POST Requests
A simple POST request:
Example
xmlhttp.open("POST","demo_post.asp",true);
xmlhttp.send();
To POST data like an HTML form, add an HTTP header with setRequestHeader(). Specify the
data you want to send in the send() method:
Example
xmlhttp.open("POST","ajax_test.asp",true);
xmlhttp.setRequestHeader("Content-type","application/x-www-form-urlencoded");
xmlhttp.send("fname=Henry&lname=Ford");

Method Description
setRequestHeader(header,value)
Adds HTTP headers to the request.
header: specifies the header name
value: specifies the header value
The url - A File On a Server
The url parameter of the open() method, is an address to a file on a server:
xmlhttp.open("GET","ajax_test.asp",true);
The file can be any kind of file, like .txt and .xml, or server scripting files like .asp and .php
(which can perform actions on the server before sending the response back).
Asynchronous - True or False?
AJAX stands for Asynchronous JavaScript and XML, and for the XMLHttpRequest object to
behave as AJAX, the async parameter of the open() method has to be set to true:
xmlhttp.open("GET","ajax_test.asp",true);
Sending asynchronous requests is a huge improvement for web developers. Many of the tasks
performed on the server are very time consuming. Before AJAX, this operation could cause the
application to hang or stop.
With AJAX, the JavaScript does not have to wait for the server response, but can instead:
execute other scripts while waiting for server response
deal with the response when the response ready
Async=true
When using async=true, specify a function to execute when the response is ready in the
onreadystatechange event:

Example
xmlhttp.onreadystatechange=function()
{
if (xmlhttp.readyState==4 && xmlhttp.status==200)
{
document.getElementById("myDiv").innerHTML=xmlhttp.responseText;
}
}
xmlhttp.open("GET","ajax_info.txt",true);
xmlhttp.send();
You will learn more about onreadystatechange in a later chapter.
Async=false
To use async=false, change the third parameter in the open() method to false:
xmlhttp.open("GET","ajax_info.txt",false);
Using async=false is not recommended, but for a few small requests this can be ok.
Remember that the JavaScript will NOT continue to execute, until the server response is ready. If
the server is busy or slow, the application will hang or stop.
Note: When you use async=false, do NOT write an onreadystatechange function - just put the
code after the send() statement:
Example
xmlhttp.open("GET","ajax_info.txt",false);
xmlhttp.send();
Server Response
To get the response from a server, use the responseText or responseXML property of the
XMLHttpRequest object.

Property Description
responseText get the response data as a string
responseXML get the response data as XML data
The responseText Property
If the response from the server is not XML, use the responseText property.
The responseText property returns the response as a string, and you can use it accordingly:
Example
The responseXML Property
If the response from the server is XML, and you want to parse it as an XML object, use the
responseXML property:
Example
xmlDoc=xmlhttp.responseXML;
txt="";
x=xmlDoc.getElementsByTagName("ARTIST");
for (i=0;i<x.length;i++)
{
txt=txt + x[i].childNodes[0].nodeValue + "<br />";
}
document.getElementById("myDiv").innerHTML=txt;
The onreadystatechange event
When a request to a server is sent, we want to perform some actions based on the response.
The onreadystatechange event is triggered every time the readyState changes.
The readyState property holds the status of the XMLHttpRequest.
Three important properties of the XMLHttpRequest object:

Property Description
onreadystatechange
Stores a function (or the name of a function) to be called automatically each
time the readyState property changes
readyState
Holds the status of the XMLHttpRequest. Changes from 0 to 4:
0: request not initialized
1: server connection established
2: request received
3: processing request
4: request finished and response is ready
status
200: "OK"
404: Page not found
In the onreadystatechange event, we specify what will happen when the server response is ready
to be processed.
When readyState is 4 and status is 200, the response is ready:
Example
{
{
}
}
Note: The onreadystatechange event is triggered four times, one time for each change in
readyState.
Using a Callback Function
A callback function is a function passed as a parameter to another function.
If you have more than one AJAX task on your website, you should create ONE standard function
for creating the XMLHttpRequest object, and call this for each AJAX task.
The function call should contain the URL and what to do on onreadystatechange (which is
probably different for each call):
Example

}
else
}
{
{
document.getElementById("txtHint").innerHTML=xmlhttp.responseText;
}
}
xmlhttp.open("GET","gethint.asp?q="+str,true);
xmlhttp.send();
}
Source code explanation:
If the input field is empty (str.length==0), the function clears the content of the txtHint
placeholder and exits the function.
If the input field is not empty, the showHint() function executes the following:
Create an XMLHttpRequest object
Create the function to be executed when the server response is ready
Send the request off to a file on the server
Notice that a parameter (q) is added to the URL (with the content of the input field)
The AJAX Server Page - ASP and PHP
The page on the server called by the JavaScript above is an ASP file called "gethint.asp".
Below we have created two versions of the server file, one written in ASP and one in PHP.
The ASP File
The source code in "gethint.asp" checks an array of names, and returns the corresponding
name(s) to the browser:
<%

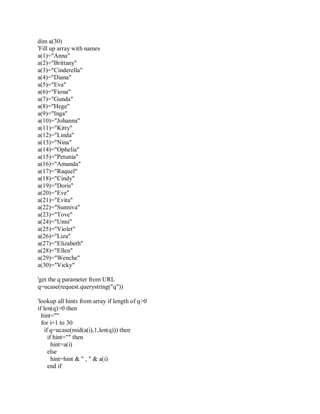

response.expires=-1

dim a(30)
'Fill up array with names
a(1)="Anna"
a(2)="Brittany"
a(3)="Cinderella"
a(4)="Diana"
a(5)="Eva"
a(6)="Fiona"
a(7)="Gunda"
a(8)="Hege"
a(9)="Inga"
a(10)="Johanna"
a(11)="Kitty"
a(12)="Linda"
a(13)="Nina"
a(14)="Ophelia"
a(15)="Petunia"
a(16)="Amanda"
a(17)="Raquel"
a(18)="Cindy"
a(19)="Doris"
a(20)="Eve"
a(21)="Evita"
a(22)="Sunniva"
a(23)="Tove"
a(24)="Unni"
a(25)="Violet"
a(26)="Liza"
a(27)="Elizabeth"
a(28)="Ellen"
a(29)="Wenche"
a(30)="Vicky"
'get the q parameter from URL
q=ucase(request.querystring("q"))
'lookup all hints from array if length of q>0
if len(q)>0 then
hint=""
for i=1 to 30
if q=ucase(mid(a(i),1,len(q))) then
if hint="" then
hint=a(i)
else
hint=hint & " , " & a(i)
end if

end if
next
end if
'Output "no suggestion" if no hint were found
'or output the correct values
if hint="" then
response.write("no suggestion")
else
response.write(hint)
end if
%>

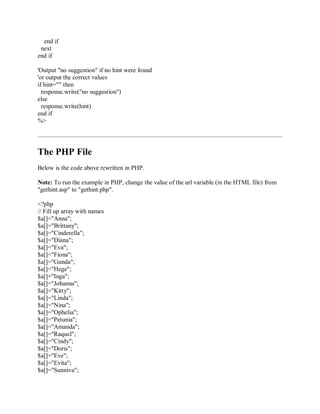

The PHP File
Below is the code above rewritten in PHP.
Note: To run the example in PHP, change the value of the url variable (in the HTML file) from
"gethint.asp" to "gethint.php".
<?php
// Fill up array with names
$a[]="Anna";
$a[]="Brittany";
$a[]="Cinderella";
$a[]="Diana";
$a[]="Eva";
$a[]="Fiona";
$a[]="Gunda";
$a[]="Hege";
$a[]="Inga";
$a[]="Johanna";
$a[]="Kitty";
$a[]="Linda";
$a[]="Nina";
$a[]="Ophelia";
$a[]="Petunia";
$a[]="Amanda";
$a[]="Raquel";
$a[]="Cindy";
$a[]="Doris";
$a[]="Eve";
$a[]="Evita";
$a[]="Sunniva";

$a[]="Tove";
$a[]="Unni";
$a[]="Violet";
$a[]="Liza";
$a[]="Elizabeth";
$a[]="Ellen";
$a[]="Wenche";
$a[]="Vicky";
//get the q parameter from URL
$q=$_GET["q"];
//lookup all hints from array if length of q>0
if (strlen($q) > 0)
{
$hint="";
for($i=0; $i<count($a); $i++)
{
if (strtolower($q)==strtolower(substr($a[$i],0,strlen($q))))
{
if ($hint=="")
{
$hint=$a[$i];
}
else
{
$hint=$hint." , ".$a[$i];
}
}
}
}
// Set output to "no suggestion" if no hint were found
// or to the correct values
if ($hint == "")
{
$response="no suggestion";
}
else
{
$response=$hint;
}
//output the response
echo $response;
?>

AJAX Database Example
The following example will demonstrate how a web page can fetch information from a database
with AJAX:
Example Explained - The showCustomer() Function
When a user selects a customer in the dropdown list above, a function called "showCustomer()"
is executed. The function is triggered by the "onchange" event:
function showCustomer(str)
{
var xmlhttp;
if (str=="")
{
document.getElementById("txtHint").innerHTML="";
return;
}
}
else
}
{
{
document.getElementById("txtHint").innerHTML=xmlhttp.responseText;
}
}
xmlhttp.open("GET","getcustomer.asp?q="+str,true);
xmlhttp.send();
}
The showCustomer() function does the following:
Check if a customer is selected
Create an XMLHttpRequest object
Create the function to be executed when the server response is ready
Send the request off to a file on the server

Notice that a parameter (q) is added to the URL (with the content of the dropdown list)
The AJAX Server Page
The page on the server called by the JavaScript above is an ASP file called "getcustomer.asp".
The source code in "getcustomer.asp" runs a query against a database, and returns the result in an
HTML table:
<%
response.expires=-1
sql="SELECT * FROM CUSTOMERS WHERE CUSTOMERID="
sql=sql & "'" & request.querystring("q") & "'"
set conn=Server.CreateObject("ADODB.Connection")
conn.Provider="Microsoft.Jet.OLEDB.4.0"
conn.Open(Server.Mappath("/db/northwind.mdb"))
set rs=Server.CreateObject("ADODB.recordset")
rs.Open sql,conn
response.write("<table>")
do until rs.EOF
for each x in rs.Fields
response.write("<tr><td><b>" & x.name & "</b></td>")
response.write("<td>" & x.value & "</td></tr>")
next
rs.MoveNext
loop
response.write("</table>")
%>
AJAX XML Example
The following example will demonstrate how a web page can fetch information from an XML
file with AJAX:
Example

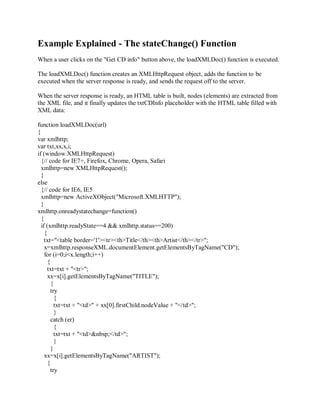

Example Explained - The stateChange() Function
When a user clicks on the "Get CD info" button above, the loadXMLDoc() function is executed.
The loadXMLDoc() function creates an XMLHttpRequest object, adds the function to be
executed when the server response is ready, and sends the request off to the server.
When the server response is ready, an HTML table is built, nodes (elements) are extracted from
the XML file, and it finally updates the txtCDInfo placeholder with the HTML table filled with
XML data:
function loadXMLDoc(url)
{
var xmlhttp;
var txt,xx,x,i;
}
else
}
{
{
txt="<table border='1'><tr><th>Title</th><th>Artist</th></tr>";
x=xmlhttp.responseXML.documentElement.getElementsByTagName("CD");
for (i=0;i<x.length;i++)
{
txt=txt + "<tr>";
xx=x[i].getElementsByTagName("TITLE");
{
try
{
txt=txt + "<td>" + xx[0].firstChild.nodeValue + "</td>";
}
catch (er)
{
txt=txt + "<td> </td>";
}
}
xx=x[i].getElementsByTagName("ARTIST");
{
try

{
txt=txt + "<td>" + xx[0].firstChild.nodeValue + "</td>";
}
catch (er)
{
txt=txt + "<td> </td>";
}
}
txt=txt + "</tr>";
}
txt=txt + "</table>";
document.getElementById('txtCDInfo').innerHTML=txt;
}
}
xmlhttp.open("GET",url,true);
xmlhttp.send();
}

Core Java tutorial at Unit Nexus

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to Core Java tutorial at Unit Nexus (20)

Recently uploaded (20)

Core Java tutorial at Unit Nexus
