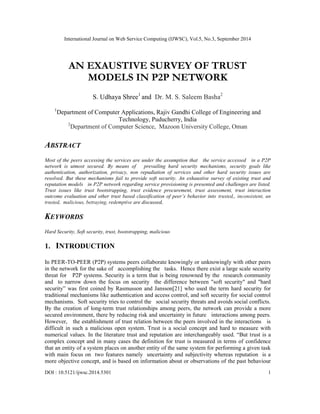

AN EXAUSTIVE SURVEY OF TRUST MODELS IN P2P NETWORK

International Journal on Web Service Computing (IJWSC), Vol.5, No.3, September 2014
DOI : 10.5121/ijwsc.2014.5301 1
AN EXAUSTIVE SURVEY OF TRUST
MODELS IN P2P NETWORK
S. Udhaya Shree1
and Dr. M. S. Saleem Basha2
1
Department of Computer Applications, Rajiv Gandhi College of Engineering and
Technology, Puducherry, India
2
Department of Computer Science, Mazoon University College, Oman
ABSTRACT
Most of the peers accessing the services are under the assumption that the service accessed in a P2P
network is utmost secured. By means of prevailing hard security mechanisms, security goals like
authentication, authorization, privacy, non repudiation of services and other hard security issues are
resolved. But these mechanisms fail to provide soft security. An exhaustive survey of existing trust and
reputation models in P2P network regarding service provisioning is presented and challenges are listed.
Trust issues like trust bootstrapping, trust evidence procurement, trust assessment, trust interaction
outcome evaluation and other trust based classification of peer’s behavior into trusted,, inconsistent, un
trusted, malicious, betraying, redemptive are discussed,
KEYWORDS
Hard Security, Soft security, trust, bootstrapping, malicious
1. INTRODUCTION
In PEER-TO-PEER (P2P) systems peers collaborate knowingly or unknowingly with other peers
in the network for the sake of accomplishing the tasks. Hence there exist a large scale security
threat for P2P systems. Security is a term that is being renowned by the research community
and to narrow down the focus on security the difference between "soft security" and "hard
security” was first coined by Rasmusson and Jansson[21] who used the term hard security for
traditional mechanisms like authentication and access control, and soft security for social control
mechanisms. Soft security tries to control the social security threats and avoids social conflicts.
By the creation of long-term trust relationships among peers, the network can provide a more
secured environment, there by reducing risk and uncertainty in future interactions among peers.
However, the establishment of trust relation between the peers involved in the interactions is
difficult in such a malicious open system. Trust is a social concept and hard to measure with
numerical values. In the literature trust and reputation are interchangeably used. “But trust is a
complex concept and in many cases the definition for trust is measured in terms of confidence
that an entity of a system places on another entity of the same system for performing a given task
with main focus on two features namely uncertainty and subjectivity whereas reputation is a
more objective concept, and is based on information about or observations of the past behaviour

2
of an entity. Both concepts are very related, and in fact, reputation can be used as a means to
determine whether an entity can trust another entity” [22]
*Benefits of application of trust and soft security include the following :
• More Trusted customer service ,
• Build trust relationship between trading partners,
• Effective use of technologies,
• Providing soft security and
• Increase companies’ reputation.
This survey provides an exhaustive study of existing trust models by means of literature survey in
section 2 security risks in section 3 analysis of trust models in section 4 and conclusion and
future work in section 5 and references in section 6.
2. RELATED WORK
There is a continuous effort in the research community to explore the challenges of trust and
reputation models. This can be seen from the existing trust models. Still there are several issues or
challenges yet to be tackled which can be seen from the following survey on trust and reputations
models as presented in the literature. The table 2.1 depicts the different trust evaluation models in
the P2P or multi agent environment. This table provides trust evaluation models in the following
order:
1-Cuboid trust, 2- Eigen trust, 3- BNBTM, 4 – GroupRep, 5- AntRep, 6 - Semantic Web, 7- Global
Trust, 8- Peer Trust, 9- PATROL – F, 10 – Trust evolution, 11- TDTM, 12- TACS, 13- SORT.
In this article, we have studied several trust and reputation models and issues such as trust
bootstrapping, trust evidence, trust assessment, second order issues, interaction outcome
evaluation, punishment, reputation propagation, redemption, context awareness, rewarding,
dynamic nature and trust type value are being analyzed. Trust bootstrapping deals with the
initial trust value assignment which is the value a truster assigns to trustee. ‘First impression is
the best impression’ and a wrong judgment results in bad transaction result. Trust evidence can
involve direct or indirect interaction between truster and trustee. Second order issues are security
threats that are prevailing in the P2P as well as other network environments, namely individual
malicious person attack or group of persons with bad intention, collusion attack, sybil attack or
impersonation, camafluage attack or on/off attack, trusted peer changing nature etc.There have
been several solutions for each of these attacks. In some of the existing trust models wide
coverage of all attacks not being carried out. Trust interaction evaluation is done by watch dog,
centralized or de centralized node, Public key infrastructure (PKI), monitoring node, etc. The
trust evaluation may be performed locally or globally. In certain models, good service or
transaction is rewarded by providing weightage to the satisfaction factor or if trust level crosses
threshold value. Diminishing effect deals with trust decay over a period. In trust models it has
become necessary to include context awareness. Trust evolves over a period of time, hence the
trust model should be a dynamic one. The trust value can be discrete or continuous, but
continuous trust value is preferable over the discrete. Survey papers taken into account are
described below as in the same order given in Table 2.1.

3

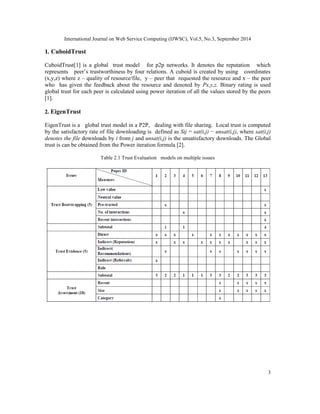

1. CuboidTrust
CuboidTrust[1] is a global trust model for p2p networks. It denotes the reputation which
represents peer’s trustworthiness by four relations. A cuboid is created by using coordinates
(x,y,z) where z – quality of resource/file, y – peer that requested the resource and x – the peer
who has given the feedback about the resource and denoted by Px,y,z. Binary rating is used
global trust for each peer is calculated using power iteration of all the values stored by the peers
[1].
2. EigenTrust
EigenTrust is a global trust model in a P2P, dealing with file sharing. Local trust is computed
by the satisfactory rate of file downloading is defined as Sij = sat(i,j) − unsat(i,j), where sat(i,j)
denotes the file downloads by i from j and unsat(i,j) is the unsatisfactory downloads. The Global
trust is can be obtained from the Power iteration formula [2].

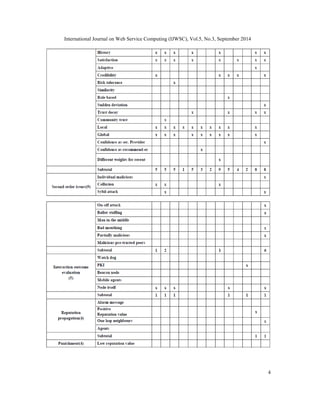

Table 2.1 Trust Evaluation models on multiple issues

4

5
3. BAYESIAN NETWORK BASED TRUST MANAGEMENT
(BNBTM)
BNBTM considers multiple features of an applications to denote the trust in various factors and
evaluates by a single Bayesian network. Beta probability distribution functions uses past
experiences to evaluate the trust [3].
4. GROUPREP
GroupRep is representing the trust among group members. This includes three levels of trust
namely, trust between groups, trust developed between groups and peer trust for another peer
[4].
5. ANTREP
AntRep algorithm is based on bio inspired swarm intelligence algorithm. Every peer maintains a
reputation table giving reputation of ‘n’ number of peers in the network. The reputation table
slightly differs from the routing table in the sense that (i) instead of distance between peers
reputation of the peer is stored; (ii) The reputation value is used as the metric for the selection of
peer. Two types of ants used namely forward ants and backward ants are used for finding
reputation values of peers and to propagate these reputation value over the network. Initially from
the reputation table a peer with the highest reputation value is selected a unicast ant is sent to
that peer for transaction. If no such highest value exist in the table then broadcast ants are sent
along all the paths [5]. After the transaction is over, a backward ant is used to update all the
reputation values of all the nodes/peer on its way.

6
6. SEMANTIC WEB
Zhang et al.[6], have presented a trust model for multi agent system. The final trust value on the
path connecting two agents is assigned by adding the trust of individual edges multiplied by
corresponding weights associated with each edge.
7. GLOBAL TRUST
Instead of concentrating local trust value of a node, by accumulating the local trust values, the
global trust value of a node is evaluated as given in [5,6,7]
8. PEER TRUST
This work is a reputation-based trust model. Based on three factors namely number of
transactions, credibility of the peer and the feedback a peer receives from other peers to
calculate the adaptive trust.[8].
9. PATROL-F (comPrehensive reputAtion-based TRust mOdeL- Fuzzy)
PATROL-F includes many important concepts direct experiences, reputation values, credibility,
time based decay of information, first impressions and a node system hierarchy for the purpose of
computing peer reputation. This model uses fuzzy logic for the categorizing the peer based on
trust level into “good” or “better” and “bad” or “worse” [9].
10. TRUST EVOLUTION
Wang et al., have developed a trust model for P2P networks. It uses direct trust and
recommendation from other peers and also considers context and trust lies within the interval
[0,1] [10].
11. TIME-BASED DYNAMIC TRUST MODEL (TDTM)
TDTM is a bio inspired technique using ant colony algorithm that represents trust between the
nodes as the pheromone value on the edge connecting the two nodes in the network. [1].
12. TRUST ANT COLONY SYSTEM (TACS)
TACS is based on the ant colony system.. In this model the most trustworthy node is selected for
service request based on the pheromone traces on the path. Every link is associated with
pheromone value representing the trust one peer has over the other. Ants travel along every path
depositing pheromone and finds the most trustworthy path leading to the most reputable server
[12].

7
13. SORT
In SORT[13], to evaluate interactions and recommendations in a better way, importance,
recentness, peer satisfaction, recommender’s trustworthiness and confidence about
recommendation are considered. Additionally, service and recommendation contexts are
separated. Taking into account real-life factors, simulations are carried out more realistically.
14. PATROL (comPrehensive reputAtion-based TRust mOdeL)
PATROL is a reputation based trust model for distributed computing, considering multiple
factors such as reputation values, direct experiences, credibility, time based trust, first
impressions, similarity, popularity, activity, cooperation between hosts, role based trust
consistency and confidence. PATROL takes into account different weightage for different factors.
[14].
15. META-TACS
META-TACS is an extension of the TACS algorithm developed by the Felix et.al. [12]. They
have extended the TACS model by optimizing the working parameters of the algorithm using
genetic algorithms [15].
3. SECURITY RISKS
In an open network, individuals or peers are to be identified as benevolent peers or malicious one
based on the trust value. There is a possibility of change in behaviors of an individual. These
behavioral changes are subjective in nature.
Figure 1. Security Threats

8
The above mentioned risks are to be taken care by the trust and reputation models and there
should be comprehensive model to identify, mitigate, provide and recover from all types of
attacks .In the existing works only some of the issues are provided with a solution and demands
some additional effort to accomplish a more secured environment
4. ANALYSIS OF TRUST MODELS
From the survey, it is known that only 25 % of trust based issues or challenges have been covered
in current P2P network.
Figure. 2. Trust influencing factors
In the above graph paper-id is given on the X axis and the coverage trust assessment factors in
each of the papers is given along the Y axis. From the survey it can be seen that trust can be
assessed by 18 different attributes of an entity or environment. Only 50 % of the trust sources
are utilised for the assessment while there still 50% sources that are yet to be tackled. Risk
tolerance, Similarity, role based trust, sudden behaviour change, trust decay communityRisk
tolerance nature , Similarity among the peers, Role played by the peer, Sudden deviation in
bevaiour, Trust decay, community based trust, confidence as provider and requetor etc. are the
other elements which should be given due weightage while computing trust. In order to arrive at
a more comprehensive trust and reputation model, some more attempts have to be taken for
establishing an effective trustworthynvironment in P2P network.

9
Figure 3. Trust on multiple factors
In the above figure 3, the main issues in the trust and reputation model explored in various
articles has been given along the X axis and the issues along the Y axis. It can be seen from the
above graph that trust factors like context awareness, redemption, reputation propagation have not
been tackled in many of the trust and reputation models. Context depicts the environment.
Different situations results in different behaviours of the peers. Consistent good behviour should
be given more weightage. A chance should also be given for a malicious person to become a
benovalent one. Some means of reputation propagation should be encouraged to identify the
trusted group. But at the same time measures should be taken to curb the badmouthing peers. So
understanding soft trust based attacks helps a peer to be more vigilant and continue to leverage
the available services in the network. Hence the second order isssues have been analysed in the
above models and figure 4. Presents the issues by means of pie chart. The graph given in figure
4. shows the coverage of various security attacks explored in different articles as depicted in
figure 1. and it is known that issues like are not being tackled in all the trust models taken in
literature survey. Hence, these issues shoule be effectively handled in the forthcoming trust
models to provide a smooth trust worthy transactions or interactions in P2P networking
environment. It can be seen that SORT[13], has covered 78 % of trust issues paving way to
explore further in this direction.

10
Figure 4. Second order issues
5. CONCLUSION AND FUTURE WORK
P2P network provides an efficient means of data communication. In this survey, the trust issues
explored in the existing trust and reputation models have been analyzed. Our intention is to
provide and execute a trustworthy P2P model. We emphasis that solution to multiple soft security
based threats should be given more effectively taking into account multifaceted approach and
trust mechanism entrust a healthy and smooth data transfer and services between peers. It is
known that from figure 3. Out of 18 trust issues, context awareness, redemption, reputation
propagation, second order issues and trust bootstrapping are the areas one has to perform
intensive exploration considering trust as a subjective trust and must resolve with dynamic and
innovative solutions. The survey paper SORT[13] covers 67% of trust issues but it has started
the trust bootstrapping process with low value and pre trusted peer’s value But in the case of no
pre trusted peers available, this model cannot solve the bootstrapping issue. In case of trust
assessment it has not categorized the peers into similar peers or role based peers, local, global,
community trusted peers and adaptively is missing. When considering the indirect trust
experience, referrals are not taken into account and weightage for confidence as recommender is
not used. While considering second order issues collusion attack, man in the middle attack, pre
trusted peers changing into malicious category are not being explored. When interaction
outcome evaluation is done by the node itself, there is possibility of misjudgment. It also does
not cover the trust decay and punishment activity. Changing into benevolent one is not being
rewarded and hence dynamic and context awareness factors are missing. Hence in our future
work we like to provide an efficient dynamic trust worthy framework for service provisioning
and leveraging taking into account the subjective nature of trust and giving much importance for
the issues like bootstrapping, redemption, context awareness and reinforcement.
11
22 0 0
0
0
0
11 0
0
0
0
67
Second order (9)issues
1
2
3
4
5
6
7
8

11
REFERENCES
[1] Ruichuan Chen, Xuan Zhao, Liyong Tang, Jianbin Hu, and Zhong Chen, (2007)"CuboidTrust: A
Global Reputation-Based Trust Model in Peer-to-Peer Networks", Autonomic and Trusted
Computing. Berlin / Heidelberg: Springer, vol. 4610, pp. 203-215.
[2] Sepandar D Kamvar, Mario T Schlosser, and Hector Garcia-Molina, (2003) "The EigenTrust
Algorithm for Reputation Management in P2P Networks", Proceedings of the 12th international
conference on World Wide Web (WWW '03), Budapest, Hungary, pp. 640-651.
[3] Yong Wang, Vinny Cahill, Elizabeth Gray, Colin Harris, and Lejian Liao, (2006) "Bayesian Network
Based Trust Management(BNBTM)", Autonomic and Trusted Computing. Berlin / Heidelberg:
Springer, pp. 246-257.
[4] Huirong Tian, Shihong Zou, Wendong Wang, and Shiduan Cheng, (2006)"A Group Based Reputation
System for P2P Networks" Autonomic and Trusted Computing. Berlin / Heidelberg: Springer, pp.
342-351.
[5] Wei Wang, Guosun Zeng, and Lulai Yuan, (2006)"Ant-based Reputation Evidence Distribution in
P2P Networks", Fifth International Conference Grid and Cooperative Computing (GCC 2006),
Hunan, China, pp. 129 - 132.
[6] Yu Zhang, Huajun Chen, and Zhaohui Wu, (2006)"A Social Network-Based Trust Model for the
Semantic Web", Autonomic and Trusted Computing. Berlin / Heidelberg: Springer, pp. 183-192.
[7] Fajiang Yu, Huanguo Zhang, Fei Yan, and Song Gao( 2006) "An Improved Global Trust Value
Computing Method in P2P System," Autonomic and Trusted Computing. Berlin / Heidelberg:
Springer pp. 258-267.
[8] Xiong Li and Liu Ling, ( 2004)"PeerTrust: supporting reputation-based trust for peer-to-peer
electronic communities," IEEE Transactions on Knowledge and Data Engineering, vol. 16, no. 7, pp.
843-857,
[9] Ayman Tajeddine, Ayman Kayssi, Ali Chehab, and Hassan Artail, (2006)"PATROL-F - A
Comprehensive Reputation-Based Trust Model with Fuzzy Subsystems," in Autonomic and Trusted
Computing. Berlin / Heidelberg: Springer, pp. 205-216.
[10] Yuan Wang, Ye Tao, Ping Yu, Feng Xu, and Jian Lü,( 2007) "A Trust Evolution Model for P2P
Networks," in Autonomic and Trusted Computing. Berlin / Heidelberg: Springer, pp. 216-225.
[11] Zhuo Tang, Zhengding Lu, and Kai Li, (2006) "Time-based Dynamic Trust Model using Ant Colony
Algorithm," Wuhan University Journal of Natural Sciences, vol. 11, no. 6, pp. 1462-1466.
[12] Felix Gomez Marmol, Gregorio Martinez Perez, and Antonio F Gomez Skarmeta,(2009) "TACS, a
Trust Model for P2P Networks," Wireless Personal Communications, vol. 51, no. 1, pp. 153-164,
[13] Ahmet Burak Can, Member, IEEE, and Bharat Bhargava, Fellow, IEEE, (2013) “SORT: A Self-
ORganizing Trust Model for Peer-to-Peer Systems”, IEEE Transactions On Dependable And Secure
Computing, Vol. 10, No. 1, January/February
[14] Ayman Tajeddine, Ayman Kayssi, Ali Chehab, and Hassan Artail, (2007)"PATROL: A
Comprehensive Reputation-based Trust Model," International Journal of Internet Technology and
Secured Transactions, vol. 1, no. 1/2, pp. 108-131.
[15] Felix Gomez Marmol, Gregorio Mrtinez Perez, and Javier G Marin-Blazquez, (2009)"META-TACS:
A Trust Model Demonstration of Robustness through a Genetic Algorithm," Autosof Journal of
Intelligent Automation and Soft Computing, vol. 16, no. X, pp. 1-19.
[16] Felix Gomez Marmol, Gregorio Mrtinez Perez((2009))” Security threats scenarios in trust and
reputation models for distributed systems”, Elsevier- Science Direct computers & security 545 – 556
[17] Y. Wang and E.-P. Lim. (2008)”The evaluation of situational transaction trust in eservice
environments”, pages 265–272, 2008.
[18] Y. Wang and K.-J. Lin.( 2008) Reputation-oriented trustworthy computing in ecommerce
environments. IEEE Internet Computing, 12(4):55–59
[19] H. Yu, M. Kaminsky, P. B. Gibbons, and A. D. Flaxman(2008) “Sybilguard: defending against sybil
attacks via social networks”. IEEE/ACM Trans. Netw., 16(3):576–589

12
[20] H. Yu, C. Shi, M. Kaminsky, P. B. Gibbons, and F. Xiao. Dsybil: (2009)”Optimal Sybil resistance for
recommendation systems” IEEE Symposium on Security and Privacy, pages 283–298
[21] Lars Rasmusson and Sverker Jansson.(1996)” Simulated Social Control for Secure Internet
Commerce”. Catherine Meadows, editor, Proceedings of the 1996 New Security Paradigms
Workshop. ACM
[22] Audun J_sang, Roslan Ismail, and Colin Boyd. (2007)”A survey of trust and reputation systems for
online service provision”. Decision Support Systems, 43(2):618{644}
Authors
S. Udhaya Shree is working as Assistant Professor in the Department of Computer
Applications, Rajiv Gandhi College of Engineering, Pondicherry. Currently, she is pursuing
Ph.D. in Computer Science and Engineering at Pondicherry University, Pondicherry. She
has obtained M.Sc. (Maths) and M.C.A. degree from Madras University, Chennai, India.
She has done M.Tech. in Computer Science and Engineering from Manomanium
Sundaranar University, Tirunelveli, India. Currently she is pursuing Ph.D. in Computer
Science and Engineering at Pondicherry University, Puducherry, under the guidance of
Dr. Saleem Basha M.S. Her areas of interest are formal verification of QoS of Web Services using
Timed Automata, Web Service Composition using Bio inspired Optimization Techniques. She has
published more than 12 papers in National and International Conferences.
Dr. Saleem Basha.M.S is working as Assistant Professor & Research Director in the
Department of Computer Science, Mazoon University College, Muscat, Sultanate of
Oman. He has obtained B.E in the field of Electrical and Electronics Engineering,
Bangalore University, Bangalore, India and M.E in the field of Computer Science and
Engineering, Anna University, Chennai, India and Ph.D. in the field of Computer Science
and Engineering in Pondicherry University, India. He is currently working in the area of
Hackers psychology, SDLC specific effort estimation models and web service modeling
systems. He has published more than 70 research papers in National and International journals and
conferences.

AN EXAUSTIVE SURVEY OF TRUST MODELS IN P2P NETWORK

More Related Content

Similar to AN EXAUSTIVE SURVEY OF TRUST MODELS IN P2P NETWORK (20)

Recently uploaded (20)

AN EXAUSTIVE SURVEY OF TRUST MODELS IN P2P NETWORK
