Annotation-Based Spring Portlet MVC
- 1. Annotation-Based Spring Portlet MVC John A. Lewis Chief Software Architect Unicon, Inc. Jasig 2010 Conference 8 March 2010 © Copyright Unicon, Inc., 2010. Some rights reserved. This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 United States License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-sa/3.0/us/

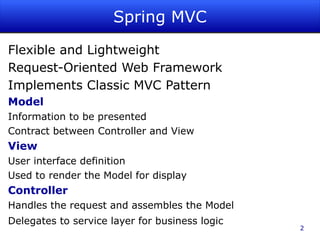

- 2. Spring MVC Flexible and Lightweight
- 4. Implements Classic MVC Pattern Model Information to be presented
- 5. Contract between Controller and View View User interface definition
- 6. Used to render the Model for display Controller Handles the request and assembles the Model
- 7. Delegates to service layer for business logic

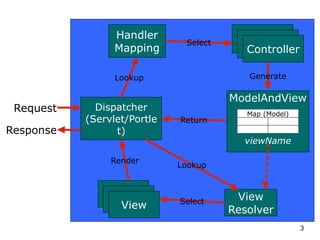

- 8. Dispatcher (Servlet/Portlet) Request Handler Mapping View Resolver Response Controller View ModelAndView Map (Model) viewName

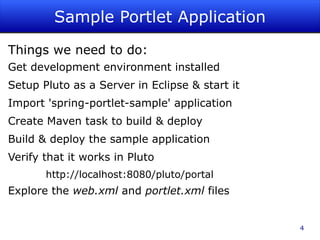

- 9. Sample Portlet Application Things we need to do: Get development environment installed
- 10. Setup Pluto as a Server in Eclipse & start it
- 12. Create Maven task to build & deploy
- 13. Build & deploy the sample application
- 14. Verify that it works in Pluto http://localhost:8080/pluto/portal Explore the web.xml and portlet.xml files
- 15. Annotation-Based Controllers Where to put the logic

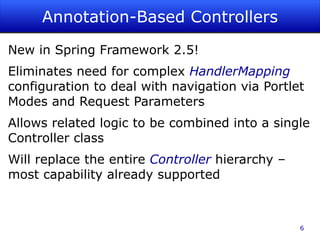

- 16. Annotation-Based Controllers New in Spring Framework 2.5!
- 17. Eliminates need for complex HandlerMapping configuration to deal with navigation via Portlet Modes and Request Parameters
- 18. Allows related logic to be combined into a single Controller class
- 19. Will replace the entire Controller hierarchy – most capability already supported

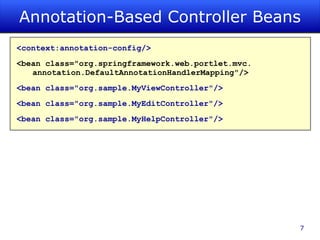

- 20. Annotation-Based Controller Beans <context:annotation-config/> <bean class="org.springframework.web.portlet.mvc. annotation.DefaultAnnotationHandlerMapping"/> <bean class="org.sample.MyViewController"/> <bean class="org.sample.MyEditController"/> <bean class="org.sample.MyHelpController"/>
- 21. Spring MVC Controller Annotations @Controller – class stereotype for controller classes so they can be found and mapped
- 22. @SessionAttributes – list model attributes to be stored in the session (command object)
- 23. @RequestMapping – class/method mapping to requests (mode, parameters, etc.)
- 24. @RequestParam – bind method params to request params
- 25. @ModelAttribute – bind method params or return values to model attributes
- 26. @InitBinder – method to setup binder for putting form submission into command obj

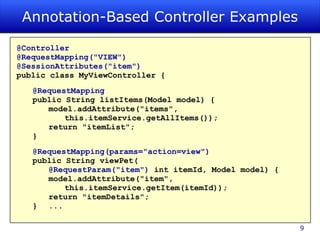

- 27. Annotation-Based Controller Examples @Controller @RequestMapping("VIEW") @SessionAttributes("item") public class MyViewController { @RequestMapping public String listItems(Model model) { model.addAttribute("items", this.itemService.getAllItems()); return "itemList"; } @RequestMapping(params="action=view") public String viewPet( @RequestParam("item") int itemId, Model model) { model.addAttribute("item", this.itemService.getItem(itemId)); return "itemDetails"; } ...
- 28. Annotation-Based Controller Examples ... @ModelAttribute("dateFormat") protected String dateFormat(PortletPreferences prefs) { return preferences.getValue("dateFormat", itemService.DEFAULT_DATE_FORMAT); } @InitBinder public void initBinder(PortletRequestDataBinder binder, PortletPreferences preferences) { String format = preferences.getValue("dateFormat", ItemService.DEFAULT_DATE_FORMAT); SimpleDateFormat dateFormat = new SimpleDateFormat(formatString); binder.registerCustomEditor(Date.class, new CustomDateEditor(dateFormat, true)); } ...
- 29. Annotation-Based Controller Sample src/main/java/ sample/portlet/MyBooksController.java
- 31. Portlet 2.0 (JSR 286) Support The next generation portlet framework
- 32. Major Changes in Portlet 2.0 Portlet Events (New lifecycle phase!)
- 33. Resource Serving (New lifecycle phase!)
- 35. Portlet Filters
- 36. Caching Changes Lots of other minor changes...

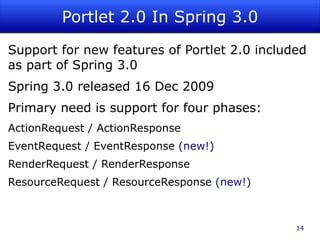

- 37. Portlet 2.0 In Spring 3.0 Support for new features of Portlet 2.0 included as part of Spring 3.0
- 38. Spring 3.0 released 16 Dec 2009
- 39. Primary need is support for four phases: ActionRequest / ActionResponse
- 40. EventRequest / EventResponse (new!)
- 42. ResourceRequest / ResourceResponse (new!)

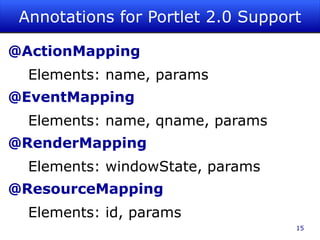

- 43. Annotations for Portlet 2.0 Support @ActionMapping Elements: name, params @EventMapping Elements: name, qname, params @RenderMapping Elements: windowState, params @ResourceMapping Elements: id, params

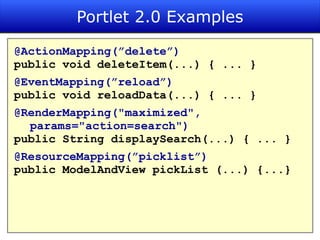

- 44. Portlet 2.0 Examples @ActionMapping(”delete”) public void deleteItem(...) { ... } @EventMapping(”reload”) public void reloadData(...) { ... } @RenderMapping("maximized", params="action=search") public String displaySearch(...) { ... } @ResourceMapping(”picklist”) public ModelAndView pickList (...) {...}
- 45. Questions & Answers John A. Lewis Chief Software Architect Unicon, Inc. [email_address] www.unicon.net
