Apache Pulsar Development 101 with Python

Pulsar Summit
San Francisco
Hotel Nikko
August 18 2022
Timothy Spann
Developer Advocate, StreamNative
Apache Pulsar
Development 101
with Python

Tim Spann
Developer Advocate
StreamNative
FLiP(N) Stack = Flink, Pulsar and NiFi Stack
Streaming Systems & Data Architecture Expert
Experience
15+ years of experience with streaming
technologies including Pulsar, Flink, Spark, NiFi, Big
Data, Cloud, MXNet, IoT, Python and more.
Today, he helps to grow the Pulsar community
sharing rich technical knowledge and experience at
both global conferences and through individual
conversations.
https://streamnative.io/pulsar-python/

FLiP Stack Weekly
This week in Apache Flink, Apache Pulsar, Apache
NiFi, Apache Spark and open source friends.
https://bit.ly/32dAJft

Python Application for ADS-B Data
Diagram
Python App REST CALL
LOGGING
ANALYTICS
SEND TO
PULSAR
https://github.com/tspannhw/FLiP-Py-ADS-B

Apache Pulsar Training
● Instructor-led courses
○ Pulsar Fundamentals
○ Pulsar Developers
○ Pulsar Operations
● On-demand learning with labs
● 300+ engineers, admins and architects trained!
StreamNative Academy
Now Available
FREE On-Demand
Pulsar Training
Academy.StreamNative.io

What is Apache Pulsar?
Uniﬁed
Messaging
Platform
Guaranteed
Message Delivery Resiliency Inﬁnite
Scalability

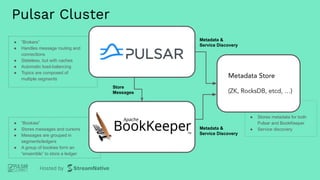

● “Bookies”
● Stores messages and cursors
● Messages are grouped in
segments/ledgers
● A group of bookies form an
“ensemble” to store a ledger
● “Brokers”
● Handles message routing and
connections
● Stateless, but with caches
● Automatic load-balancing
● Topics are composed of
multiple segments
●
● Stores metadata for both
Pulsar and BookKeeper
● Service discovery
Store
Messages
Metadata &
Service Discovery
Metadata &
Service Discovery
Pulsar Cluster
Metadata Store
(ZK, RocksDB, etcd, …)

Pulsar’s Publish-Subscribe model
Broker
Subscription
Consumer 1
Consumer 2
Consumer 3
Topic
Producer 1
Producer 2
● Producers send messages.
● Topics are an ordered, named channel that
producers use to transmit messages to
subscribed consumers.
● Messages belong to a topic and contain an
arbitrary payload.
● Brokers handle connections and routes
messages between producers /
consumers.
● Subscriptions are named configuration
rules that determine how messages are
delivered to consumers.
● Consumers receive messages.

Subscription Modes
Different subscription modes have
different semantics:
Exclusive/Failover - guaranteed
order, single active consumer
Shared - multiple active consumers,
no order
Key_Shared - multiple active
consumers, order for given key
Producer 1
Producer 2
Pulsar Topic
Subscription D
Consumer D-1
Consumer D-2
Key-Shared
<
K
1,
V
10
>
<
K
1,
V
11
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
2
,V
2
1>
<
K
2
,V
2
2
>
Subscription C
Consumer C-1
Consumer C-2
Shared
<
K
1,
V
10
>
<
K
2,
V
21
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
1,
V
11
>
<
K
2
,V
2
2
>
Subscription A Consumer A
Exclusive
Subscription B
Consumer B-1
Consumer B-2
In case of failure in
Consumer B-1
Failover

Messages - the Basic Unit of Pulsar
Component Description
Value / data payload The data carried by the message. All Pulsar messages contain raw bytes, although message data
can also conform to data schemas.
Key Messages are optionally tagged with keys, used in partitioning and also is useful for things like
topic compaction.
Properties An optional key/value map of user-defined properties.
Producer name The name of the producer who produces the message. If you do not specify a producer name, the
default name is used.
Sequence ID Each Pulsar message belongs to an ordered sequence on its topic. The sequence ID of the
message is its order in that sequence.

Connectivity
• Functions - Lightweight Stream
Processing (Java, Python, Go)
• Connectors - Sources & Sinks
(Cassandra, Kafka, …)
• Protocol Handlers - AoP (AMQP), KoP
(Kafka), MoP (MQTT), RoP (RocketMQ)
• Processing Engines - Flink, Spark,
Presto/Trino via Pulsar SQL
• Data Oﬄoaders - Tiered Storage - (S3)
hub.streamnative.io

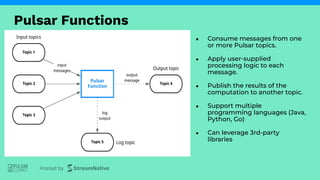

● Consume messages from one
or more Pulsar topics.
● Apply user-supplied
processing logic to each
message.
● Publish the results of the
computation to another topic.
● Support multiple
programming languages (Java,
Python, Go)
● Can leverage 3rd-party
libraries
Pulsar Functions

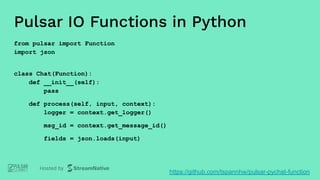

#!/usr/bin/env python
from pulsar import Function
import json
class Chat(Function):
def __init__(self):
pass
def process(self, input, context):
logger = context.get_logger()
logger.info("Message Content: {0}".format(input))
msg_id = context.get_message_id()
row = { }
row['id'] = str(msg_id)
json_string = json.dumps(row)
return json_string
Entire Function
Pulsar
Functions

Function Mesh
Pulsar Functions, along with Pulsar IO/Connectors, provide a powerful API for ingesting,
transforming, and outputting data.
Function Mesh, another StreamNative project, makes it easier for developers to create entire
applications built from sources, functions, and sinks all through a declarative API.

Spark + Pulsar
https://pulsar.apache.org/docs/en/adaptors-spark/
val dfPulsar = spark.readStream.format("
pulsar")
.option("
service.url", "pulsar://pulsar1:6650")
.option("
admin.url", "http://pulsar1:8080
")
.option("
topic", "persistent://public/default/airquality").load()
val pQuery = dfPulsar.selectExpr("*")
.writeStream.format("
console")
.option("truncate", false).start()
____ __
/ __/__ ___ _____/ /__
_ / _ / _ `/ __/ '_/
/___/ .__/_,_/_/ /_/_ version 3.2.0
/_/
Using Scala version 2.12.15
(OpenJDK 64-Bit Server VM, Java 11.0.11)

● Uniﬁed computing engine
● Batch processing is a special case of stream processing
● Stateful processing
● Massive Scalability
● Flink SQL for queries, inserts against Pulsar Topics
● Streaming Analytics
● Continuous SQL
● Continuous ETL
● Complex Event Processing
● Standard SQL Powered by Apache Calcite
Apache Flink?

SQL
select aqi, parameterName, dateObserved, hourObserved, latitude,
longitude, localTimeZone, stateCode, reportingArea from
airquality
select max(aqi) as MaxAQI, parameterName, reportingArea from
airquality group by parameterName, reportingArea
select max(aqi) as MaxAQI, min(aqi) as MinAQI, avg(aqi) as
AvgAQI, count(aqi) as RowCount, parameterName, reportingArea
from airquality group by parameterName, reportingArea

● Buffer
● Batch
● Route
● Filter
● Aggregate
● Enrich
● Replicate
● Dedupe
● Decouple
● Distribute

Schema Registry
Schema Registry
schema-1 (value=Avro/Protobuf/JSON) schema-2 (value=Avro/Protobuf/JSON) schema-3
(value=Avro/Protobuf/JSON)
Schema
Data
ID
Local Cache
for Schemas
+
Schema
Data
ID +
Local Cache
for Schemas
Send schema-1
(value=Avro/Protobuf/JSON) data
serialized per schema ID
Send (register)
schema (if not in
local cache)
Read schema-1
(value=Avro/Protobuf/JSON) data
deserialized per schema ID
Get schema by ID (if
not in local cache)
Producers Consumers

Streaming FLiP-Py Apps
StreamNative Hub
StreamNative Cloud
Uniﬁed Batch and Stream COMPUTING
Batch
(Batch + Stream)
Uniﬁed Batch and Stream STORAGE
Offload
(Queuing + Streaming)
Tiered Storage
Pulsar
---
KoP
---
MoP
---
Websocket
Pulsar
Sink
Streaming
Edge Gateway
Protocols
CDC
Apps

Pulsar Functions
● Lightweight computation
similar to AWS Lambda.
● Speciﬁcally designed to use
Apache Pulsar as a message
bus.
● Function runtime can be
located within Pulsar Broker.
● Python Functions
A serverless event streaming
framework

● Consume messages from one or
more Pulsar topics.
● Apply user-supplied processing
logic to each message.
● Publish the results of the
computation to another topic.
● Support multiple programming
languages (Java, Python, Go)
● Can leverage 3rd-party libraries
to support the execution of ML
models on the edge.
Pulsar Functions

Python 3 Coding
Code Along With Tim
<<DEMO>>

Run a Local Standalone Bare Metal
wget
https://archive.apache.org/dist/pulsar/pulsar-2.9.1/apache-pulsar-2.9.1-bi
n.tar.gz
tar xvfz apache-pulsar-2.9.1-bin.tar.gz
cd apache-pulsar-2.9.1
bin/pulsar standalone
(For Pulsar SQL Support)
bin/pulsar sql-worker start
https://pulsar.apache.org/docs/en/standalone/

<or> Run in StreamNative Cloud
Scan the QR code to earn
$200 in cloud credit

Building Tenant, Namespace, Topics
bin/pulsar-admin tenants create conference
bin/pulsar-admin namespaces create conference/pythonweb
bin/pulsar-admin tenants list
bin/pulsar-admin namespaces list conference
bin/pulsar-admin topics create persistent://conference/pythonweb/first
bin/pulsar-admin topics list conference/pythonweb

Install Python 3 Pulsar Client
pip3 install pulsar-client=='2.9.1[all]'
# Depending on Platform May Need to Build C++ Client

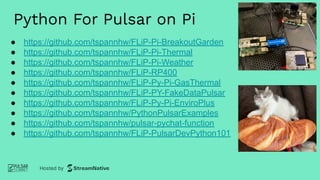

For Python on Pulsar on Pi https://github.com/tspannhw/PulsarOnRaspberryPi
https://pulsar.apache.org/docs/en/client-libraries-python/

Building a Python 3 Producer
import pulsar
client = pulsar.Client('pulsar://localhost:6650')
producer = client.create_producer('persistent://conference/pythonweb/first')
producer.send(('Simple Text Message').encode('utf-8'))
client.close()

Building a Python 3 Cloud Producer Oath
python3 prod.py -su pulsar+ssl://name1.name2.snio.cloud:6651 -t
persistent://public/default/pyth --auth-params
'{"issuer_url":"https://auth.streamnative.cloud", "private_key":"my.json",
"audience":"urn:sn:pulsar:name:myclustr"}'
from pulsar import Client, AuthenticationOauth2
parse = argparse.ArgumentParser(prog=prod.py')
parse.add_argument('-su', '--service-url', dest='service_url', type=str,
required=True)
args = parse.parse_args()
client = pulsar.Client(args.service_url,
authentication=AuthenticationOauth2(args.auth_params))
https://github.com/streamnative/examples/blob/master/cloud/python/OAuth2Producer.py
https://github.com/tspannhw/FLiP-Pi-BreakoutGarden

Example Avro Schema Usage
import pulsar
from pulsar.schema import *
from pulsar.schema import AvroSchema
class thermal(Record):
uuid = String()
client = pulsar.Client('pulsar://pulsar1:6650')
thermalschema = AvroSchema(thermal)
producer =
client.create_producer(topic='persistent://public/default/pi-thermal-avro',
schema=thermalschema,properties={"producer-name": "thrm" })
thermalRec = thermal()
thermalRec.uuid = "unique-name"
producer.send(thermalRec,partition_key=uniqueid)
https://github.com/tspannhw/FLiP-Pi-Thermal

Example Json Schema Usage
import pulsar
from pulsar.schema import *
from pulsar.schema import JsonSchema
class weather(Record):
uuid = String()
client = pulsar.Client('pulsar://pulsar1:6650')
wschema = JsonSchema(thermal)
producer =
client.create_producer(topic='persistent://public/default/weathe
r,schema=wschema,properties={"producer-name": "wthr" })
weatherRec = weather()
weatherRec.uuid = "unique-name"
producer.send(weatherRec,partition_key=uniqueid)
https://github.com/tspannhw/FLiP-Pi-Weather

Building a Python3 Consumer
import pulsar
client = pulsar.Client('pulsar://localhost:6650')
consumer =
client.subscribe('persistent://conference/pythonweb/first',subscription_na
me='my-sub')
while True:
msg = consumer.receive()
print("Received message: '%s'" % msg.data())
consumer.acknowledge(msg)
client.close()

MQTT from Python
pip3 install paho-mqtt
import paho.mqtt.client as mqtt
client = mqtt.Client("rpi4-iot")
row = { }
row['gasKO'] = str(readings)
json_string = json_string.strip()
client.connect("pulsar-server.com", 1883, 180)
client.publish("persistent://public/default/mqtt-2",
payload=json_string,qos=0,retain=True)
https://www.slideshare.net/bunkertor/data-minutes-2-apache-pulsar-with-mqtt-for-edge-computing-lightning-2022

Web Sockets from Python
pip3 install websocket-client
import websocket, base64, json
topic = 'ws://server:8080/ws/v2/producer/persistent/public/default/webtopic1'
ws = websocket.create_connection(topic)
message = "Hello Python Web Conference"
message_bytes = message.encode('ascii')
base64_bytes = base64.b64encode(message_bytes)
base64_message = base64_bytes.decode('ascii')
ws.send(json.dumps({'payload' : base64_message,'properties': {'device' :
'jetson2gb','protocol' : 'websockets'},'context' : 5}))
response = json.loads(ws.recv())
https://pulsar.apache.org/docs/en/client-libraries-websocket/
https://github.com/tspannhw/FLiP-IoT/blob/main/wspulsar.py
https://github.com/tspannhw/FLiP-IoT/blob/main/wsreader.py

Kafka from Python
pip3 install kafka-python
from kafka import KafkaProducer
from kafka.errors import KafkaError
row = { }
row['gasKO'] = str(readings)
json_string = json_string.strip()
producer = KafkaProducer(bootstrap_servers='pulsar1:9092',retries=3)
producer.send('topic-kafka-1', json.dumps(row).encode('utf-8'))
producer.flush()
https://github.com/streamnative/kop
https://docs.streamnative.io/platform/v1.0.0/concepts/kop-concepts

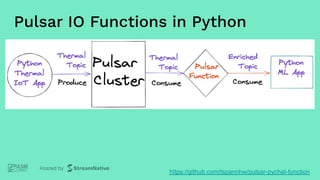

Pulsar IO Functions in Python
https://github.com/tspannhw/pulsar-pychat-function

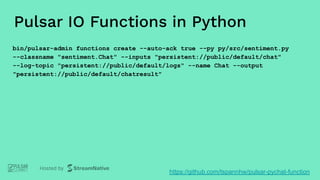

bin/pulsar-admin functions create --auto-ack true --py py/src/sentiment.py
--classname "sentiment.Chat" --inputs "persistent://public/default/chat"
--log-topic "persistent://public/default/logs" --name Chat --output
"persistent://public/default/chatresult"

from pulsar import Function
import json
class Chat(Function):
def __init__(self):
pass
def process(self, input, context):
logger = context.get_logger()
msg_id = context.get_message_id()
fields = json.loads(input)

Python For Pulsar on Pi
● https://github.com/tspannhw/FLiP-Pi-BreakoutGarden
● https://github.com/tspannhw/FLiP-Pi-Thermal
● https://github.com/tspannhw/FLiP-Pi-Weather
● https://github.com/tspannhw/FLiP-RP400
● https://github.com/tspannhw/FLiP-Py-Pi-GasThermal
● https://github.com/tspannhw/FLiP-PY-FakeDataPulsar
● https://github.com/tspannhw/FLiP-Py-Pi-EnviroPlus
● https://github.com/tspannhw/PythonPulsarExamples
● https://github.com/tspannhw/pulsar-pychat-function
● https://github.com/tspannhw/FLiP-PulsarDevPython101

Let’s Keep in Touch
Tim Spann
Developer Advocate
@PassDev
https://www.linkedin.com/in/timothyspann
https://github.com/tspannhw
https://streamnative.io/pulsar-python/

Pulsar Summit
San Francisco
Hotel Nikko
August 18 2022
Tim Spann
Thank you!
tim@streamnative.io
@PaaSDev
github.com/tspannhw

Apache Pulsar Development 101 with Python

More Related Content

What's hot (20)

Similar to Apache Pulsar Development 101 with Python (20)

More from Timothy Spann (20)

Recently uploaded (20)

Apache Pulsar Development 101 with Python
