This document outlines an agenda for an API-led connectivity meetup organized by Avenue Code in São Paulo, Brazil. The agenda includes introductions, a presentation on API-led connectivity, and several sessions on related topics like event architecture, file uploads in REST APIs, MuleSoft's Anypoint Platform, and a Q&A period. The presentation on API-led connectivity discusses how it differs from point-to-point integration by using reusable APIs across system, process, and experience layers to improve reusability, decrease time to market for new clients, and reduce integration costs. Advantages include faster development, reduced bugs through testing of reusable APIs, and cost savings of around 70% over traditional integration approaches.
![[12th August, 2017]: API-Led Connectivity
[SÃO PAULO]](https://image.slidesharecdn.com/apiledconnectivitybrazil-170814160227/85/Api-led-connectivity_brazil-1-320.jpg)
Api led connectivity_brazil

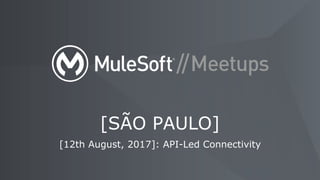

- 1. [12th August, 2017]: API-Led Connectivity [SÃO PAULO]

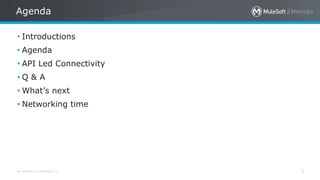

- 2. All contents © MuleSoft Inc. Agenda 2 • Introductions • Agenda • API Led Connectivity • Q & A • What’s next • Networking time
- 3. All contents © MuleSoft Inc. Introductions 3 About the organizer Anupam Gogoi Integration Developer Avenue Code São Paulo, Brazil Email: agogoi@avenuecode.com A SHOW OF HANDS: Who is new to this MeetUp?
- 4. All contents © MuleSoft Inc. Agenda 4 • What we gonna have today ? – API Led Connectivity – Q & A – Event Architecture - by Victor Souza – Q & A – File Upload in REST API by Thiago Santana – Q & A – Mule 4 and Anypoint 7 by Cristiano Piccin – Q & A – Wrap up Agenda
- 5. All contents © MuleSoft Inc. API Led Connectivity 5 • One basic question ? - How many of you heard of API Led Connectivity ? • So what it is basically ? - It's a new Business Model.Today, in the age of APIs, an API is not just a technical interface on top of a database. On the contrary, your API is your new business model. In the past, APIs were just seen as tools for developers. But nowadays, their scope is not limited to internal use; API makers are exposing their APIs for external users around the globe. For example, Google Maps APIs use the Uber APIs to calculate fare and travel time to destination. API Led Connectivity
- 6. All contents © MuleSoft Inc. API Led Connectivity - How it is different ? 6 P2P Integrations P2P Integrations

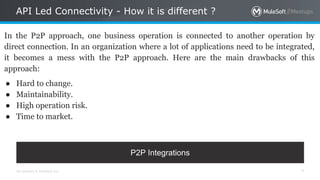

- 7. All contents © MuleSoft Inc. API Led Connectivity - How it is different ? 7 In the P2P approach, one business operation is connected to another operation by direct connection. In an organization where a lot of applications need to be integrated, it becomes a mess with the P2P approach. Here are the main drawbacks of this approach: ● Hard to change. ● Maintainability. ● High operation risk. ● Time to market. P2P Integrations
- 8. All contents © MuleSoft Inc. API Led Connectivity - How it is different ? 8 E2E Integrations E2E Integrations
- 9. All contents © MuleSoft Inc. API Led Connectivity - How it is different ? 9 E2E Integrations
- 10. All contents © MuleSoft Inc. API Led Connectivity - Pace Layers 10 Building Architecture API-Led Connectivity is based on Pace Layers. Now what is a Pace Layer ? ● The Building Structure: It is not going to change for at least 100 years. ● The Exterior: The Skin or Exterior of the building can be redone in every 20-25 years. ● The Interior: The interior plumbing, air conditioner , heating, ventilation, electrical wiring can be replaced or updated in every 15 years.
- 11. All contents © MuleSoft Inc. API Led Connectivity - API Layers 11 API Layers APIs are based on three distinct layers: 1. Experience Layer 2. Process Layer 3. System Layer
- 12. All contents © MuleSoft Inc. API Led Connectivity - System Layer 12 System Layer ● They can be defined for various domains of an organization, for example, ERP, key customer and billing systems, proprietary databases, etc. ● These APIs will change more infrequently and will be governed by Central IT given the importance of the underlying systems. ● These APIs should be maintained privately inside the enterprise because it they provide access to many sensitive informations.
- 13. All contents © MuleSoft Inc. API Led Connectivity - System Layer 13 System Layer Advantages Advantage of System API One can modify the System API logic without affecting the other APIs (Process and Experience). For example, if a System API is using SAP and, in the future, SAP needs to be replaced with Salesforce, this replacement can be done easily modifying only the System API without touching anything in Process and Experience layers.
- 14. All contents © MuleSoft Inc. API Led Connectivity - Process Layer 14 Process Layer ● Responsible for shaping the data by orchestrating and choreographing various data by calling multiple System APIs.The orchestration involves the aggregating, splitting, and routing of data. ● The main purpose of Process APIs is to strictly encapsulate the business process independent of the source systems (System APIs) from which the data originates. ● The Process APIs should be held privately inside the organization as per recommendation and should not be exposed for public use.
- 15. All contents © MuleSoft Inc. API Led Connectivity - Process Layer 15 Process Layer Advantages Advantages of Process API ● Process APIs allow you to define a common process which the organization can share. Rather than Order Fulfillment being implemented multiple times across the organization, it is defined once and published for all to utilize. ● Rapidly transform data formats for a partner or app.
- 16. All contents © MuleSoft Inc. API Led Connectivity - Experience Layer 16 Experience Layer ● The business process data is consumed across a broad range of clients/channels with different formats. For example, our Order Purchase API (Process Layer) has exposed data in the JSON format, but we have a client application that accepts only XML format, or vice versa. ● Data can be reconfigured easily to meet the needs of multiple audiences. Also, we can remove the unnecessary methods and expose only the necessary methods in Experience APIs in a simple way.
- 17. All contents © MuleSoft Inc. API Led Connectivity - Experience Layer 17 Experience Layer New Clients A Situation Let's assume that we have two new clients Partner 1 and Partner 2 that communicate via XML and CSV formats respectively. Solution Since the Process API is expecting JSON, you’re simply creating an experience API for each partner to handle to data transformation between each partner.This also allows the API owner to establish SLAs and apply policies on a per partner basis.
- 18. All contents © MuleSoft Inc. API Led Connectivity - Experience Layer 18 Experience Layer Advantages Advantages of Experience API ● Experience APIs are simple. Basically, they involve only the transformation of data. So, to meet a wide range of clients that accept data in diverse formats, the Experience APIs do this rapidly, decreasing the time to market. ● Security Policies can be applied in the Experience APIs. ● And the best part is one can monetize the Experience APIs.
- 19. All contents © MuleSoft Inc. API Led Connectivity - Advantages 19 Advantages Research shows that the API-led connectivity approach makes the development process 3 times faster. Because, ● One does not need to reinvent the wheel, decreasing the time to market. ● As the reusable APIs are already tested, the use of them makes the new implementations bug-free. ● The reduced development time reduces the integration costs by around 70% (as per the statistics).
- 20. All contents © MuleSoft Inc. API Led Connectivity - Next ? 20 Next ?
- 21. All contents © MuleSoft Inc. API Led Connectivity - Example 21 Example - Order Fulfillment Let's implement the Order Fulfillment example. Traditionally we would have opted for this monolithic approach. (A hypothetical flow). Let's assume we are exposing our response in JSON format.
- 22. All contents © MuleSoft Inc. API Led Connectivity - Problems 22 Problems with the Approach Main problems with this approach: ● Reusability ● New Client ● Time To Market
- 23. All contents © MuleSoft Inc. API Led Connectivity - Identify the Layers 23 Identify the Layers ● Identify the System Layers. ● Create API for them and expose them to be consumed and reused by others.
- 24. All contents © MuleSoft Inc. API Led Connectivity - Add Process Layer 24 Add Process Layer Call System APIs in the Process Layer
- 25. All contents © MuleSoft Inc. API Led Connectivity - Add Experience Layer 25 Add Experience Layer Call the Process APIs in Experience Layer
- 26. All contents © MuleSoft Inc. API Led Connectivity - Anypoint Platform 26 Anypoint Platform
- 27. All contents © MuleSoft Inc. API Led Connectivity - Q & A 27 Q & A
