![26 Chapter 2 ARM Processor Fundamentals
Table 2.1 Processor mode.
Mode Abbreviation Privileged Mode[4:0]
Abort abt yes 10111
Fast interrupt request fiq yes 10001
Interrupt request irq yes 10010
Supervisor svc yes 10011
System sys yes 11111
Undefined und yes 11011
User usr no 10000
Another important feature to note is that the cpsr is not copied into the spsr when a
mode change is forced due to a program writing directly to the cpsr. The saving of the cpsr
only occurs when an exception or interrupt is raised.

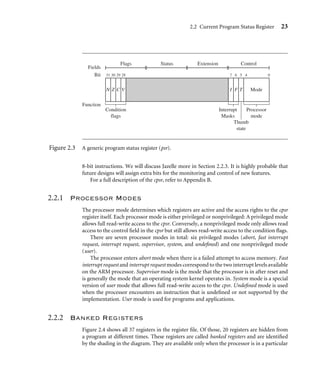

Figure 2.3 shows that the current active processor mode occupies the five least significant
bits of the cpsr. When power is applied to the core, it starts in supervisor mode, which is
privileged. Starting in a privileged mode is useful since initialization code can use full access
to the cpsr to set up the stacks for each of the other modes.
Table 2.1 lists the various modes and the associated binary patterns. The last column of
the table gives the bit patterns that represent each of the processor modes in the cpsr.
2.2.3 State and Instruction Sets
The state of the core determines which instruction set is being executed. There are three
instruction sets: ARM, Thumb, and Jazelle. The ARM instruction set is only active when
the processor is in ARM state. Similarly the Thumb instruction set is only active when
the processor is in Thumb state. Once in Thumb state the processor is executing purely
Thumb 16-bit instructions. You cannot intermingle sequential ARM, Thumb, and Jazelle
instructions.
The Jazelle J and Thumb T bits in the cpsr reflect the state of the processor. When both
J and T bits are 0, the processor is in ARM state and executes ARM instructions. This is the
case when power is applied to the processor. When the T bit is 1, then the processor is in
Thumb state. To change states the core executes a specialized branch instruction. Table 2.2
compares the ARM and Thumb instruction set features.
The ARM designers introduced a third instruction set called Jazelle. Jazelle executes
8-bit instructions and is a hybrid mix of software and hardware designed to speed up the
execution of Java bytecodes.
To execute Java bytecodes, you require the Jazelle technology plus a specially modified
version of the Java virtual machine. It is important to note that the hardware portion of
Jazelle only supports a subset of the Java bytecodes; the rest are emulated in software.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-41-320.jpg)
![2.3 Pipeline 29
Table 2.5 Condition mnemonics.
Mnemonic Name Condition flags
EQ equal Z
NE not equal z
CS HS carry set/unsigned higher or same C
CC LO carry clear/unsigned lower c
MI minus/negative N
PL plus/positive or zero n
VS overflow V
VC no overflow v
HI unsigned higher zC
LS unsigned lower or same Z or c
GE signed greater than or equal NV or nv
LT signed less than Nv or nV
GT signed greater than NzV or nzv
LE signed less than or equal Z or Nv or nV
AL always (unconditional) ignored
can see from the figure the processor is in supervisor (SVC) mode since the mode[4:0] is
equal to binary 10011.
2.2.6 Conditional Execution
Conditional execution controls whether or not the core will execute an instruction.
Most instructions have a condition attribute that determines if the core will execute it
based on the setting of the condition flags. Prior to execution, the processor compares the
condition attribute with the condition flags in the cpsr. If they match, then the instruction
is executed; otherwise the instruction is ignored.
The condition attribute is postfixed to the instruction mnemonic, which is encoded
into the instruction. Table 2.5 lists the conditional execution code mnemonics. When a
condition mnemonic is not present, the default behavior is to set it to always (AL) execute.
2.3 Pipeline
A pipeline is the mechanism a RISC processor uses to execute instructions. Using a pipeline
speeds up execution by fetching the next instruction while other instructions are being
decoded and executed. One way to view the pipeline is to think of it as an automobile
assembly line, with each stage carrying out a particular task to manufacture the vehicle.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-44-320.jpg)
![32 Chapter 2 ARM Processor Fundamentals
MSR
Execute
Decode
Fetch
cpsr
IFt_SVC
cpsr
IFt_SVC
cpsr
iFt_SVC
MSR
ADD
MSR
ADD
AND
Cycle 1
Cycle 2
Time
Cycle 3
ADD
AND
SUB
Cycle 4
Figure2.11 ARM instruction sequence.
LDR
NOP
DCD
Execute
pc + 8
(0x8000 + 8)
Decode
Fetch
0x8000 LDR pc, [pc,#0]
0x8004 NOP
0x8008 DCD jumpAddress
Time
Figure2.12 Example: pc = address + 8.
architectural characteristic across all the pipelines. Note when the processor is in Thumb
state the pc is the instruction address plus 4.
There are three other characteristics of the pipeline worth mentioning. First, the exe-
cution of a branch instruction or branching by the direct modification of the pc causes the
ARM core to flush its pipeline.
Second, ARM10 uses branch prediction, which reduces the effect of a pipeline flush by
predicting possible branches and loading the new branch address prior to the execution of
the instruction.
Third, an instruction in the execute stage will complete even though an interrupt has
been raised. Other instructions in the pipeline will be abandoned, and the processor will
start filling the pipeline from the appropriate entry in the vector table.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-47-320.jpg)

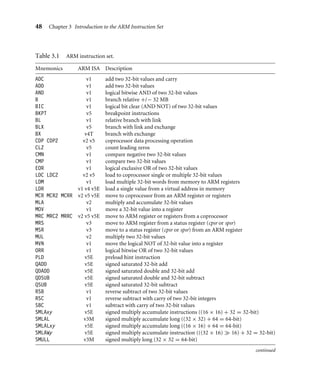

![Chapter 3 Introduction to the ARM Instruction Set 49
Table 3.1 ARM instruction set. (Continued)
Mnemonics ARM ISA Description
SMULxy v5E signed multiply instructions (16 × 16 = 32-bit)
SMULWy v5E signed multiply instruction ((32 × 16) 16 = 32-bit)
STC STC2 v2 v5 store to memory single or multiple 32-bit values from coprocessor
STM v1 store multiple 32-bit registers to memory
STR v1 v4 v5E store register to a virtual address in memory
SUB v1 subtract two 32-bit values
SWI v1 software interrupt
SWP v2a swap a word/byte in memory with a register, without interruption
TEQ v1 test for equality of two 32-bit values
TST v1 test for bits in a 32-bit value
UMLAL v3M unsigned multiply accumulate long ((32 × 32) + 64 = 64-bit)
UMULL v3M unsigned multiply long (32 × 32 = 64-bit)
executed. We will represent hexadecimal numbers with the prefix 0x and binary numbers
with the prefix 0b. The examples follow this format:
PRE pre-conditions
instruction/s
POST post-conditions
In the pre- and post-conditions, memory is denoted as
memdata_size[address]
This refers to data_size bits of memory starting at the given byte address. For example,
mem32[1024] is the 32-bit value starting at address 1 KB.
ARM instructions process data held in registers and only access memory with load and
store instructions. ARM instructions commonly take two or three operands. For instance
the ADD instruction below adds the two values stored in registers r1 and r2 (the source
registers). It writes the result to register r3 (the destination register).
Instruction
Syntax
Destination
register (Rd)
Source
register 1 (Rn)
Source
register 2 (Rm)
ADD r3, r1, r2 r3 r1 r2
In the following sections we examine the function and syntax of the ARM
instructions by instruction class—data processing instructions, branch instructions,](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-64-320.jpg)
![3.1 Data Processing Instructions 57
N is the result of the shifter operation. The syntax of shifter operation is shown in
Table 3.3.
Example
3.10
This example shows a CMP comparison instruction. You can see that both registers, r0 and
r9, are equal before executing the instruction. The value of the z flag prior to execution is 0
and is represented by a lowercase z. After execution the z flag changes to 1 or an uppercase
Z. This change indicates equality.
PRE cpsr = nzcvqiFt_USER
r0 = 4
r9 = 4
CMP r0, r9
POST cpsr = nZcvqiFt_USER
The CMP is effectively a subtract instruction with the result discarded; similarly the TST
instruction is a logical AND operation, and TEQ is a logical exclusive OR operation. For
each, the results are discarded but the condition bits are updated in the cpsr. It is important
to understand that comparison instructions only modify the condition flags of the cpsr and
do not affect the registers being compared. ■
3.1.7 Multiply Instructions
The multiply instructions multiply the contents of a pair of registers and, depending upon
the instruction, accumulate the results in with another register. The long multiplies accu-
mulate onto a pair of registers representing a 64-bit value. The final result is placed in
a destination register or a pair of registers.
Syntax: MLA{cond}{S} Rd, Rm, Rs, Rn
MUL{cond}{S} Rd, Rm, Rs
MLA multiply and accumulate Rd = (Rm∗Rs) + Rn
MUL multiply Rd = Rm∗Rs
Syntax: instruction{cond}{S} RdLo, RdHi, Rm, Rs
SMLAL signed multiply accumulate long [RdHi, RdLo] = [RdHi, RdLo] + (Rm ∗Rs)
SMULL signed multiply long [RdHi, RdLo] = Rm ∗Rs
UMLAL unsigned multiply accumulate [RdHi, RdLo] = [RdHi, RdLo] + (Rm ∗Rs)
long
UMULL unsigned multiply long [RdHi, RdLo] = Rm ∗Rs](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-72-320.jpg)

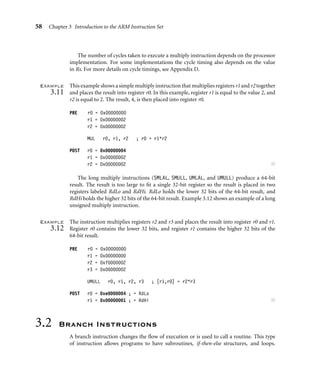

![58 Chapter 3 Introduction to the ARM Instruction Set
The number of cycles taken to execute a multiply instruction depends on the processor
implementation. For some implementations the cycle timing also depends on the value
in Rs. For more details on cycle timings, see Appendix D.
Example
3.11
This example shows a simple multiply instruction that multiplies registers r1 and r2 together
and places the result into register r0. In this example, register r1 is equal to the value 2, and
r2 is equal to 2. The result, 4, is then placed into register r0.
PRE r0 = 0x00000000
r1 = 0x00000002
r2 = 0x00000002
MUL r0, r1, r2 ; r0 = r1*r2
POST r0 = 0x00000004
r1 = 0x00000002
r2 = 0x00000002 ■
The long multiply instructions (SMLAL, SMULL, UMLAL, and UMULL) produce a 64-bit
result. The result is too large to fit a single 32-bit register so the result is placed in two
registers labeled RdLo and RdHi. RdLo holds the lower 32 bits of the 64-bit result, and
RdHi holds the higher 32 bits of the 64-bit result. Example 3.12 shows an example of a long
unsigned multiply instruction.
Example
3.12
The instruction multiplies registers r2 and r3 and places the result into register r0 and r1.
Register r0 contains the lower 32 bits, and register r1 contains the higher 32 bits of the
64-bit result.
PRE r0 = 0x00000000
r1 = 0x00000000
r2 = 0xf0000002
r3 = 0x00000002
UMULL r0, r1, r2, r3 ; [r1,r0] = r2*r3
POST r0 = 0xe0000004 ; = RdLo
r1 = 0x00000001 ; = RdHi ■
3.2 Branch Instructions
A branch instruction changes the flow of execution or is used to call a routine. This type
of instruction allows programs to have subroutines, if-then-else structures, and loops.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-73-320.jpg)
![60 Chapter 3 Introduction to the ARM Instruction Set
Example
3.14
The branch with link, or BL, instruction is similar to the B instruction but overwrites the
link register lr with a return address. It performs a subroutine call. This example shows
a simple fragment of code that branches to a subroutine using the BL instruction. To return
from a subroutine, you copy the link register to the pc.
BL subroutine ; branch to subroutine
CMP r1, #5 ; compare r1 with 5
MOVEQ r1, #0 ; if (r1==5) then r1 = 0
:
subroutine
subroutine code
MOV pc, lr ; return by moving pc = lr
The branch exchange (BX) and branch exchange with link (BLX) are the third type of
branch instruction. The BX instruction uses an absolute address stored in register Rm. It
is primarily used to branch to and from Thumb code, as shown in Chapter 4. The T bit
in the cpsr is updated by the least significant bit of the branch register. Similarly the BLX
instruction updates the T bit of the cpsr with the least significant bit and additionally sets
the link register with the return address. ■
3.3 Load-Store Instructions
Load-store instructions transfer data between memory and processor registers. There are
three types of load-store instructions: single-register transfer, multiple-register transfer,
and swap.
3.3.1 Single-Register Transfer
These instructions are used for moving a single data item in and out of a register. The
datatypes supported are signed and unsigned words (32-bit), halfwords (16-bit), and bytes.
Here are the various load-store single-register transfer instructions.
Syntax: LDR|STR{cond}{B} Rd,addressing1
LDR{cond}SB|H|SH Rd, addressing2
STR{cond}H Rd, addressing2
LDR load word into a register Rd - mem32[address]
STR save byte or word from a register Rd - mem32[address]
LDRB load byte into a register Rd - mem8[address]
STRB save byte from a register Rd - mem8[address]](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-75-320.jpg)
![3.3 Load-Store Instructions 61
LDRH load halfword into a register Rd - mem16[address]
STRH save halfword into a register Rd - mem16[address]
LDRSB load signed byte into a register Rd - SignExtend
(mem8[address])
LDRSH load signed halfword into a register Rd - SignExtend
(mem16[address])
Tables 3.5 and 3.7, to be presented is Section 3.3.2, describe the addressing1 and addressing2
syntax.
Example
3.15
LDR and STR instructions can load and store data on a boundary alignment that is the same
as the datatype size being loaded or stored. For example, LDR can only load 32-bit words on
a memory address that is a multiple of four bytes—0, 4, 8, and so on. This example shows
a load from a memory address contained in register r1, followed by a store back to the same
address in memory.
;
; load register r0 with the contents of
; the memory address pointed to by register
; r1.
;
LDR r0, [r1] ; = LDR r0, [r1, #0]
;
; store the contents of register r0 to
; the memory address pointed to by
; register r1.
;
STR r0, [r1] ; = STR r0, [r1, #0]
The first instruction loads a word from the address stored in register r1 and places it into
register r0. The second instruction goes the other way by storing the contents of register
r0 to the address contained in register r1. The offset from register r1 is zero. Register r1 is
called the base address register. ■
3.3.2 Single-Register Load-Store Addressing Modes
The ARM instruction set provides different modes for addressing memory. These modes
incorporate one of the indexing methods: preindex with writeback, preindex, and postindex
(see Table 3.4).](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-76-320.jpg)

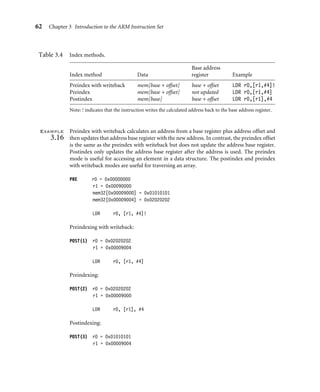

![62 Chapter 3 Introduction to the ARM Instruction Set
Table 3.4 Index methods.
Base address
Index method Data register Example
Preindex with writeback mem[base + offset] base + offset LDR r0,[r1,#4]!
Preindex mem[base + offset] not updated LDR r0,[r1,#4]
Postindex mem[base] base + offset LDR r0,[r1],#4
Note: ! indicates that the instruction writes the calculated address back to the base address register.
Example
3.16
Preindex with writeback calculates an address from a base register plus address offset and
then updates that address base register with the new address. In contrast, the preindex offset
is the same as the preindex with writeback but does not update the address base register.
Postindex only updates the address base register after the address is used. The preindex
mode is useful for accessing an element in a data structure. The postindex and preindex
with writeback modes are useful for traversing an array.
PRE r0 = 0x00000000
r1 = 0x00090000
mem32[0x00009000] = 0x01010101
mem32[0x00009004] = 0x02020202
LDR r0, [r1, #4]!
Preindexing with writeback:
POST(1) r0 = 0x02020202
r1 = 0x00009004
LDR r0, [r1, #4]
Preindexing:
POST(2) r0 = 0x02020202
r1 = 0x00009000
LDR r0, [r1], #4
Postindexing:
POST(3) r0 = 0x01010101
r1 = 0x00009004](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-77-320.jpg)
![3.3 Load-Store Instructions 63
Table 3.5 Single-register load-store addressing, word or unsigned byte.
Addressing1 mode and index method Addressing1 syntax
Preindex with immediate offset [Rn, #+/-offset_12]
Preindex with register offset [Rn, +/-Rm]
Preindex with scaled register offset [Rn, +/-Rm, shift #shift_imm]
Preindex writeback with immediate offset [Rn, #+/-offset_12]!
Preindex writeback with register offset [Rn, +/-Rm]!
Preindex writeback with scaled register offset [Rn, +/-Rm, shift #shift_imm]!
Immediate postindexed [Rn], #+/-offset_12
Register postindex [Rn], +/-Rm
Scaled register postindex [Rn], +/-Rm, shift #shift_imm
Example 3.15 used a preindex method. This example shows how each indexing method
effects the address held in register r1, as well as the data loaded into register r0. Each
instruction shows the result of the index method with the same pre-condition. ■
The addressing modes available with a particular load or store instruction depend on
the instruction class. Table 3.5 shows the addressing modes available for load and store of
a 32-bit word or an unsigned byte.
A signed offset or register is denoted by “+/−”, identifying that it is either a positive or
negative offset from the base address register Rn. The base address register is a pointer to
a byte in memory, and the offset specifies a number of bytes.
Immediate means the address is calculated using the base address register and a 12-bit
offset encoded in the instruction. Register means the address is calculated using the base
address register and a specific register’s contents. Scaled means the address is calculated
using the base address register and a barrel shift operation.
Table 3.6 provides an example of the different variations of the LDR instruction. Table 3.7
shows the addressing modes available on load and store instructions using 16-bit halfword
or signed byte data.
These operations cannot use the barrel shifter. There are no STRSB or STRSH instructions
since STRH stores both a signed and unsigned halfword; similarly STRB stores signed and
unsigned bytes. Table 3.8 shows the variations for STRH instructions.
3.3.3 Multiple-Register Transfer
Load-store multiple instructions can transfer multiple registers between memory and the
processorinasingleinstruction. ThetransferoccursfromabaseaddressregisterRnpointing
into memory. Multiple-register transfer instructions are more efficient from single-register
transfers for moving blocks of data around memory and saving and restoring context and
stacks.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-78-320.jpg)

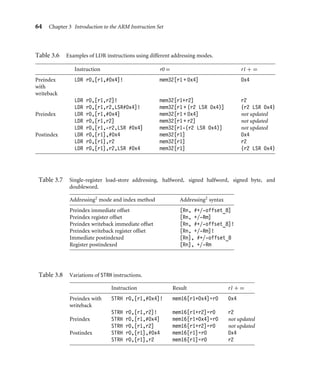

![64 Chapter 3 Introduction to the ARM Instruction Set
Table 3.6 Examples of LDR instructions using different addressing modes.
Instruction r0 = r1 + =
Preindex LDR r0,[r1,#0x4]! mem32[r1 + 0x4] 0x4
with
writeback
LDR r0,[r1,r2]! mem32[r1+r2] r2
LDR r0,[r1,r2,LSR#0x4]! mem32[r1 + (r2 LSR 0x4)] (r2 LSR 0x4)
Preindex LDR r0,[r1,#0x4] mem32[r1 + 0x4] not updated
LDR r0,[r1,r2] mem32[r1 + r2] not updated
LDR r0,[r1,-r2,LSR #0x4] mem32[r1-(r2 LSR 0x4)] not updated
Postindex LDR r0,[r1],#0x4 mem32[r1] 0x4
LDR r0,[r1],r2 mem32[r1] r2
LDR r0,[r1],r2,LSR #0x4 mem32[r1] (r2 LSR 0x4)
Table 3.7 Single-register load-store addressing, halfword, signed halfword, signed byte, and
doubleword.
Addressing2 mode and index method Addressing2 syntax
Preindex immediate offset [Rn, #+/-offset_8]
Preindex register offset [Rn, +/-Rm]
Preindex writeback immediate offset [Rn, #+/-offset_8]!
Preindex writeback register offset [Rn, +/-Rm]!
Immediate postindexed [Rn], #+/-offset_8
Register postindexed [Rn], +/-Rm
Table 3.8 Variations of STRH instructions.
Instruction Result r1 + =
Preindex with STRH r0,[r1,#0x4]! mem16[r1+0x4]=r0 0x4
writeback
STRH r0,[r1,r2]! mem16[r1+r2]=r0 r2
Preindex STRH r0,[r1,#0x4] mem16[r1+0x4]=r0 not updated
STRH r0,[r1,r2] mem16[r1+r2]=r0 not updated
Postindex STRH r0,[r1],#0x4 mem16[r1]=r0 0x4
STRH r0,[r1],r2 mem16[r1]=r0 r2](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-79-320.jpg)
![3.3 Load-Store Instructions 65
Load-store multiple instructions can increase interrupt latency. ARM implementations
do not usually interrupt instructions while they are executing. For example, on an ARM7
a load multiple instruction takes 2 + Nt cycles, where N is the number of registers to load
and t is the number of cycles required for each sequential access to memory. If an interrupt
has been raised, then it has no effect until the load-store multiple instruction is complete.
Compilers, such as armcc, provide a switch to control the maximum number of registers
being transferred on a load-store, which limits the maximum interrupt latency.
Syntax: LDM|STM{cond}addressing mode Rn{!},registers{ˆ}
LDM load multiple registers {Rd}∗N - mem32[start address + 4∗N] optional Rn updated
STM save multiple registers {Rd}∗N - mem32[start address + 4∗N] optional Rn updated
Table 3.9 shows the different addressing modes for the load-store multiple instructions.
Here N is the number of registers in the list of registers.
Any subset of the current bank of registers can be transferred to memory or fetched
from memory. The base register Rn determines the source or destination address for a load-
store multiple instruction. This register can be optionally updated following the transfer.
This occurs when register Rn is followed by the ! character, similiar to the single-register
load-store using preindex with writeback.
Table 3.9 Addressing mode for load-store multiple instructions.
Addressing
mode Description Start address End address Rn!
IA increment after Rn Rn + 4∗N − 4 Rn + 4∗N
IB increment before Rn + 4 Rn + 4∗N Rn + 4∗N
DA decrement after Rn − 4∗N + 4 Rn Rn − 4∗N
DB decrement before Rn − 4∗N Rn − 4 Rn − 4∗N
Example
3.17
In this example, register r0 is the base register Rn and is followed by !, indicating that the
register is updated after the instruction is executed. You will notice within the load multiple
instruction that the registers are not individually listed. Instead the “-” character is used to
identify a range of registers. In this case the range is from register r1 to r3 inclusive.
Each register can also be listed, using a comma to separate each register within
“{” and “}” brackets.
PRE mem32[0x80018] = 0x03
mem32[0x80014] = 0x02](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-80-320.jpg)
![66 Chapter 3 Introduction to the ARM Instruction Set
mem32[0x80010] = 0x01
r0 = 0x00080010
r1 = 0x00000000
r2 = 0x00000000
r3 = 0x00000000
LDMIA r0!, {r1-r3}
POST r0 = 0x0008001c
r1 = 0x00000001
r2 = 0x00000002
r3 = 0x00000003
Figure 3.3 shows a graphical representation.
The base register r0 points to memory address 0x80010 in the PRE condition. Memory
addresses 0x80010, 0x80014, and 0x80018 contain the values 1, 2, and 3 respectively. After
the load multiple instruction executes registers r1, r2, and r3 contain these values as shown
in Figure 3.4. The base register r0 now points to memory address 0x8001c after the last
loaded word.
Now replace the LDMIA instruction with a load multiple and increment before LDMIB
instruction and use the same PRE conditions. The first word pointed to by register r0 is
ignored and register r1 is loaded from the next memory location as shown in Figure 3.5.
After execution, register r0 now points to the last loaded memory location. This is in
contrast with the LDMIA example, which pointed to the next memory location. ■
The decrement versions DA and DB of the load-store multiple instructions decrement the
start address and then store to ascending memory locations. This is equivalent to descending
memory but accessing the register list in reverse order. With the increment and decrement
load multiples, you can access arrays forwards or backwards. They also allow for stack push
and pull operations, illustrated later in this section.
0x80020
0x8001c
0x80018
0x80014
0x80010
0x8000c
0x00000005
0x00000004
0x00000003
0x00000002
0x00000001
0x00000000
r3 = 0x00000000
r2 = 0x00000000
r1 = 0x00000000
r0 = 0x80010
Memory
address
Address pointer Data
Figure 3.3 Pre-condition for LDMIA instruction.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-81-320.jpg)
![72 Chapter 3 Introduction to the ARM Instruction Set
When handling a checked stack there are three attributes that need to be preserved: the
stack base, the stack pointer, and the stack limit. The stack base is the starting address of the
stack in memory. The stack pointer initially points to the stack base; as data is pushed onto
the stack, the stack pointer descends memory and continuously points to the top of stack.
If the stack pointer passes the stack limit, then a stack overflow error has occurred. Here is
a small piece of code that checks for stack overflow errors for a descending stack:
; check for stack overflow
SUB sp, sp, #size
CMP sp, r10
BLLO _stack_overflow ; condition
ATPCS defines register r10 as the stack limit or sl. This is optional since it is only used when
stack checking is enabled. The BLLO instruction is a branch with link instruction plus the
condition mnemonic LO. If sp is less than register r10 after the new items are pushed onto
the stack, then stack overflow error has occurred. If the stack pointer goes back past the
stack base, then a stack underflow error has occurred.
3.3.4 Swap Instruction
The swap instruction is a special case of a load-store instruction. It swaps the contents of
memory with the contents of a register. This instruction is an atomic operation—it reads
and writes a location in the same bus operation, preventing any other instruction from
reading or writing to that location until it completes.
Syntax: SWP{B}{cond} Rd,Rm,[Rn]
SWP swap a word between memory and a register tmp = mem32[Rn]
mem32[Rn] = Rm
Rd = tmp
SWPB swap a byte between memory and a register tmp = mem8[Rn]
mem8[Rn] = Rm
Rd = tmp
Swap cannot be interrupted by any other instruction or any other bus access. We say
the system “holds the bus” until the transaction is complete.
Example
3.22
The swap instruction loads a word from memory into register r0 and overwrites the memory
with register r1.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-87-320.jpg)
![3.4 Software Interrupt Instruction 73
PRE mem32[0x9000] = 0x12345678
r0 = 0x00000000
r1 = 0x11112222
r2 = 0x00009000
SWP r0, r1, [r2]
POST mem32[0x9000] = 0x11112222
r0 = 0x12345678
r1 = 0x11112222
r2 = 0x00009000
This instruction is particularly useful when implementing semaphores and mutual
exclusion in an operating system. You can see from the syntax that this instruction can also
have a byte size qualifier B, so this instruction allows for both a word and a byte swap. ■
Example
3.23
This example shows a simple data guard that can be used to protect data from being written
by another task. The SWP instruction “holds the bus” until the transaction is complete.
spin
MOV r1, =semaphore
MOV r2, #1
SWP r3, r2, [r1] ; hold the bus until complete
CMP r3, #1
BEQ spin
The address pointed to by the semaphore either contains the value 0 or 1. When the
semaphore equals 1, then the service in question is being used by another process. The
routine will continue to loop around until the service is released by the other process—in
other words, when the semaphore address location contains the value 0. ■
3.4 Software Interrupt Instruction
Asoftwareinterruptinstruction(SWI)causesasoftwareinterruptexception, whichprovides
a mechanism for applications to call operating system routines.
Syntax: SWI{cond} SWI_number
SWI software interrupt lr_svc = address of instruction following the SWI
spsr_svc = cpsr
pc = vectors + 0x8
cpsr mode = SVC
cpsr I = 1 (mask IRQ interrupts)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-88-320.jpg)

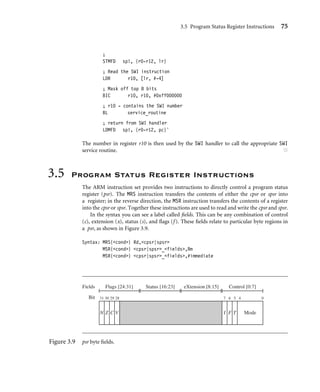

![3.5 Program Status Register Instructions 75
;
STMFD sp!, {r0-r12, lr}
; Read the SWI instruction
LDR r10, [lr, #-4]
; Mask off top 8 bits
BIC r10, r10, #0xff000000
; r10 - contains the SWI number
BL service_routine
; return from SWI handler
LDMFD sp!, {r0-r12, pc}ˆ
The number in register r10 is then used by the SWI handler to call the appropriate SWI
service routine. ■
3.5 Program Status Register Instructions
The ARM instruction set provides two instructions to directly control a program status
register (psr). The MRS instruction transfers the contents of either the cpsr or spsr into
a register; in the reverse direction, the MSR instruction transfers the contents of a register
into the cpsr or spsr. Together these instructions are used to read and write the cpsr and spsr.
In the syntax you can see a label called fields. This can be any combination of control
(c), extension (x), status (s), and flags (f ). These fields relate to particular byte regions in
a psr, as shown in Figure 3.9.
Syntax: MRS{cond} Rd,cpsr|spsr
MSR{cond} cpsr|spsr_fields,Rm
MSR{cond} cpsr|spsr_fields,#immediate
Fields
Bit 31 30 29 28
N Z C V
7 6 5 4 0
I F T Mode
Flags [24:31] Status [16:23] eXtension [8:15] Control [0:7]
Figure 3.9 psr byte fields.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-90-320.jpg)
![76 Chapter 3 Introduction to the ARM Instruction Set
MRS copy program status register to a general-purpose register Rd = psr
MSR move a general-purpose register to a program status register psr[field] = Rm
MSR move an immediate value to a program status register psr[field] = immediate
The c field controls the interrupt masks, Thumb state, and processor mode.
Example 3.26 shows how to enable IRQ interrupts by clearing the I mask. This opera-
tion involves using both the MRS and MSR instructions to read from and then write to
the cpsr.
Example
3.26
The MSR first copies the cpsr into register r1. The BIC instruction clears bit 7 of r1. Register
r1 is then copied back into the cpsr, which enables IRQ interrupts. You can see from this
example that this code preserves all the other settings in the cpsr and only modifies the I bit
in the control field.
PRE cpsr = nzcvqIFt_SVC
MRS r1, cpsr
BIC r1, r1, #0x80 ; 0b01000000
MSR cpsr_c, r1
POST cpsr = nzcvqiFt_SVC
This example is in SVC mode. In user mode you can read all cpsr bits, but you can only
update the condition flag field f. ■
3.5.1 Coprocessor Instructions
Coprocessor instructions are used to extend the instruction set. A coprocessor can either
provide additional computation capability or be used to control the memory subsystem
including caches and memory management. The coprocessor instructions include data
processing, register transfer, and memory transfer instructions. We will provide only a short
overview since these instructions are coprocessor specific. Note that these instructions are
only used by cores with a coprocessor.
Syntax: CDP{cond} cp, opcode1, Cd, Cn {, opcode2}
MRC|MCR{cond} cp, opcode1, Rd, Cn, Cm {, opcode2}
LDC|STC{cond} cp, Cd, addressing](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-91-320.jpg)
![78 Chapter 3 Introduction to the ARM Instruction Set
The first term, CP15, defines it as coprocessor 15. The second term, after the separating
colon, is the primary register. The primary register X can have a value between 0 and 15.
The third term is the secondary or extended register. The secondary register Y can have
a value between 0 and 15. The last term, opcode2, is an instruction modifier and can have
a value between 0 and 7. Some operations may also use a nonzero value w of opcode1. We
write these as CP15:w:cX:cY:Z.
3.6 Loading Constants
You might have noticed that there is no ARM instruction to move a 32-bit constant into
a register. Since ARM instructions are 32 bits in size, they obviously cannot specify a general
32-bit constant.
To aid programming there are two pseudoinstructions to move a 32-bit value into
a register.
Syntax: LDR Rd, =constant
ADR Rd, label
LDR load constant pseudoinstruction Rd = 32-bit constant
ADR load address pseudoinstruction Rd = 32-bit relative address
The first pseudoinstruction writes a 32-bit constant to a register using whatever instruc-
tions are available. It defaults to a memory read if the constant cannot be encoded using
other instructions.
The second pseudoinstruction writes a relative address into a register, which will be
encoded using a pc-relative expression.
Example
3.28
This example shows an LDR instruction loading a 32-bit constant 0xff00ffff into
register r0.
LDR r0, [pc, #constant_number-8-{PC}]
:
constant_number
DCD 0xff00ffff
This example involves a memory access to load the constant, which can be expensive for
time-critical routines. ■
Example 3.29 shows an alternative method to load the same constant into register r0 by
using an MVN instruction.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-93-320.jpg)
![3.7 ARMv5E Extensions 79
Table 3.12 LDR pseudoinstruction conversion.
Pseudoinstruction Actual instruction
LDR r0, =0xff MOV r0, #0xff
LDR r0, =0x55555555 LDR r0, [pc, #offset_12]
Example
3.29
Loading the constant 0xff00ffff using an MVN.
PRE none...
MVN r0, #0x00ff0000
POST r0 = 0xff00ffff ■
As you can see, there are alternatives to accessing memory, but they depend upon the
constant you are trying to load. Compilers and assemblers use clever techniques to avoid
loading a constant from memory. These tools have algorithms to find the optimal number
of instructions required to generate a constant in a register and make extensive use of
the barrel shifter. If the tools cannot generate the constant by these methods, then it is
loaded from memory. The LDR pseudoinstruction either inserts an MOV or MVN instruction
to generate a value (if possible) or generates an LDR instruction with a pc-relative address
to read the constant from a literal pool—a data area embedded within the code.
Table 3.12 shows two pseudocode conversions. The first conversion produces a simple
MOV instruction; the second conversion produces a pc-relative load. We recommended that
you use this pseudoinstruction to load a constant. To see how the assembler has handled
a particular load constant, you can pass the output through a disassembler, which will list
the instruction chosen by the tool to load the constant.
Another useful pseudoinstruction is the ADR instruction, or address relative. This instruc-
tion places the address of the given label into register Rd, using a pc-relative add or
subtract.
3.7 ARMv5E Extensions
The ARMv5E extensions provide many new instructions (see Table 3.13). One of the most
important additions is the signed multiply accumulate instructions that operate on 16-bit
data. These operations are single cycle on many ARMv5E implementations.
ARMv5E provides greater flexibility and efficiency when manipulating 16-bit values,
which is important for applications such as 16-bit digital audio processing.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-94-320.jpg)
![82 Chapter 3 Introduction to the ARM Instruction Set
Table 3.15 Signed multiply and multiply accumulate instructions.
Signed Multiply Signed Q flag
Instruction [Accumulate] result updated Calculation
SMLAxy (16-bit *16-bit)+ 32-bit 32-bit yes Rd = (Rm.x *Rs.y) + Rn
SMLALxy (16-bit *16-bit)+ 64-bit 64-bit — [RdHi, RdLo] + = Rm.x * Rs.y
SMLAWy ((32-bit *16-bit) 16)+ 32-bit 32-bit yes Rd = ((Rm * Rs.y) 16) + Rn
SMULxy (16-bit *16-bit) 32-bit — Rd = Rm.x * Rs.y
SMULWy ((32-bit *16-bit) 16) 32-bit — Rd = (Rm * Rs.y) 16
operands, respectively. These fields are set to a letter T for the top 16-bits, or the letter
B for the bottom 16 bits. For multiply accumulate operations with a 32-bit result, the Q flag
indicates if the accumulate overflowed a signed 32-bit value.
Example
3.33
This example shows how you use these operations. The example uses a signed multiply
accumulate instruction, SMLATB.
PRE r1 = 0x20000001
r2 = 0x20000001
r3 = 0x00000004
SMLATB r4, r1, r2, r3
POST r4 = 0x00002004
The instruction multiplies the top 16 bits of register r1 by the bottom 16 bits of register r2.
It adds the result to register r3 and writes it to destination register r4. ■
3.8 Conditional Execution
Most ARM instructions are conditionally executed—you can specify that the instruction
only executes if the condition code flags pass a given condition or test. By using conditional
execution instructions you can increase performance and code density.
The condition field is a two-letter mnemonic appended to the instruction mnemonic.
The default mnemonic is AL, or always execute.
Conditional execution reduces the number of branches, which also reduces the number
of pipeline flushes and thus improves the performance of the executed code. Conditional
execution depends upon two components: the condition field and condition flags. The
condition field is located in the instruction, and the condition flags are located in the cpsr.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-97-320.jpg)
![4.2 ARM-Thumb Interworking 91
BX Thumb version branch exchange pc = Rn 0xfffffffe
T = Rn[0]
BLX Thumb version of the branch exchange lr = (instruction address after the BLX) + 1
with link pc = label, T = 0
pc = Rm 0xfffffffe, T = Rm[0]
Unlike the ARM version, the Thumb BX instruction cannot be conditionally executed.
Example
4.1
This example shows a small code fragment that uses both the ARM and Thumb versions of
the BX instruction. You can see that the branch address into Thumb has the lowest bit set.
This sets the T bit in the cpsr to Thumb state.
The return address is not automatically preserved by the BX instruction. Rather the code
sets the return address explicitly using a MOV instruction prior to the branch:
; ARM code
CODE32 ; word aligned
LDR r0, =thumbCode+1 ; +1 to enter Thumb state
MOV lr, pc ; set the return address
BX r0 ; branch to Thumb code mode
; continue here
; Thumb code
CODE16 ; halfword aligned
thumbCode
ADD r1, #1
BX lr ; return to ARM code state
A branch exchange instruction can also be used as an absolute branch providing bit 0
isn’t used to force a state change:
; address(thumbCode) = 0x00010000
; cpsr = nzcvqIFt_SVC
; r0 = 0x00000000
0x00009000 LDR r0, =thumbCode+1
; cpsr = nzcvqIFt_SVC
; r0 = 0x00010001
0x00009008 BX r0](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-106-320.jpg)
![94 Chapter 4 Introduction to the Thumb Instruction Set
AND logical bitwise AND of two 32-bit values Rd = Rd Rm
ASR arithmetic shift right Rd = Rm immediate,
C flag = Rm[immediate − 1]
Rd = Rd Rs, C flag = Rd[Rs - 1]
BIC logical bit clear (AND NOT) of two 32-bit Rd = Rd AND NOT(Rm)
values
CMN compare negative two 32-bit values Rn + Rm sets flags
CMP compare two 32-bit integers Rn − immediate sets flags
Rn − Rm sets flags
EOR logical exclusive OR of two 32-bit values Rd = Rd EOR Rm
LSL logical shift left Rd = Rm immediate,
C flag = Rm[32 − immediate]
Rd = Rd Rs, C flag = Rd[32 − Rs]
LSR logical shift right Rd = Rm immediate,
C flag = Rd[immediate − 1]
Rd = Rd Rs, C flag = Rd[Rs − 1]
MOV move a 32-bit value into a register Rd = immediate
Rd = Rn
Rd = Rm
MUL multiply two 32-bit values Rd = (Rm ∗ Rd)[31:0]
MVN move the logical NOT of a 32-bit value
into a register
Rd = NOT(Rm)
NEG negate a 32-bit value Rd = 0 − Rm
ORR logical bitwise OR of two 32-bit values Rd = Rd OR Rm
ROR rotate right a 32-bit value Rd = Rd RIGHT_ROTATE Rs,
C flag = Rd[Rs−1]
SBC subtract with carry a 32-bit value Rd = Rd − Rm − NOT(C flag)
SUB subtract two 32-bit values Rd = Rn − immediate
Rd = Rd − immediate
Rd = Rn − Rm
sp = sp − (immediate 2)
TST test bits of a 32-bit value Rn AND Rm sets flags](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-109-320.jpg)
![96 Chapter 4 Introduction to the Thumb Instruction Set
4.5 Single-Register Load-Store Instructions
The Thumb instruction set supports load and storing registers, or LDR and STR. These
instructions use two preindexed addressing modes: offset by register and offset by
immediate.
Syntax: LDR|STR{B|H} Rd, [Rn,#immediate]
LDR{H|SB|SH} Rd,[Rn,Rm]
STR{B|H} Rd,[Rn,Rm]
LDR Rd,[pc,#immediate]
LDR|STR Rd,[sp,#immediate]
LDR load word into a register Rd - mem32[address]
STR save word from a register Rd - mem32[address]
LDRB load byte into a register Rd - mem8[address]
STRB save byte from a register Rd - mem8[address]
LDRH load halfword into a register Rd - mem16[address]
STRH save halfword into a register Rd - mem16[address]
LDRSB load signed byte into a register Rd - SignExtend(mem8[address])
LDRSH load signed halfword into a register Rd - SignExtend(mem16[address])
You can see the different addressing modes in Table 4.3. The offset by register uses
a base register Rn plus the register offset Rm. The second uses the same base register Rn
plus a 5-bit immediate or a value dependent on the data size. The 5-bit offset encoded in
the instruction is multiplied by one for byte accesses, two for 16-bit accesses, and four for
32-bit accesses.
Table 4.3 Addressing modes.
Type Syntax
Load/store register [Rn, Rm]
Base register + offset [Rn, #immediate]
Relative [pc|sp, #immediate]
Example
4.5
This example shows two Thumb instructions that use a preindex addressing mode. Both
use the same pre-condition.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-111-320.jpg)

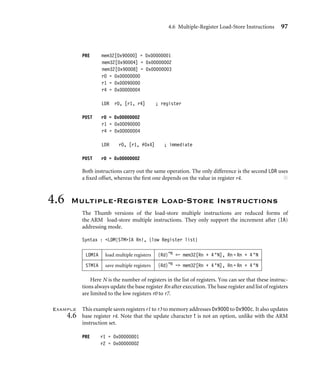

![4.6 Multiple-Register Load-Store Instructions 97
PRE mem32[0x90000] = 0x00000001
mem32[0x90004] = 0x00000002
mem32[0x90008] = 0x00000003
r0 = 0x00000000
r1 = 0x00090000
r4 = 0x00000004
LDR r0, [r1, r4] ; register
POST r0 = 0x00000002
r1 = 0x00090000
r4 = 0x00000004
LDR r0, [r1, #0x4] ; immediate
POST r0 = 0x00000002
Both instructions carry out the same operation. The only difference is the second LDR uses
a fixed offset, whereas the first one depends on the value in register r4. ■
4.6 Multiple-Register Load-Store Instructions
The Thumb versions of the load-store multiple instructions are reduced forms of
the ARM load-store multiple instructions. They only support the increment after (IA)
addressing mode.
Syntax : LDM|STMIA Rn!, {low Register list}
LDMIA load multiple registers {Rd}*N - mem32[Rn + 4 ∗N], Rn = Rn + 4 ∗N
STMIA save multiple registers {Rd}*N - mem32[Rn + 4 ∗N], Rn = Rn + 4 ∗N
Here N is the number of registers in the list of registers. You can see that these instruc-
tions always update the base register Rn after execution. The base register and list of registers
are limited to the low registers r0 to r7.
Example
4.6
This example saves registers r1 to r3 to memory addresses 0x9000 to 0x900c. It also updates
base register r4. Note that the update character ! is not an option, unlike with the ARM
instruction set.
PRE r1 = 0x00000001
r2 = 0x00000002](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-112-320.jpg)

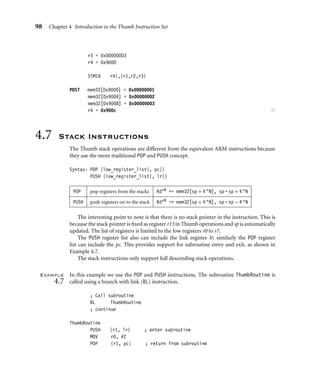

![98 Chapter 4 Introduction to the Thumb Instruction Set
r3 = 0x00000003
r4 = 0x9000
STMIA r4!,{r1,r2,r3}
POST mem32[0x9000] = 0x00000001
mem32[0x9004] = 0x00000002
mem32[0x9008] = 0x00000003
r4 = 0x900c ■
4.7 Stack Instructions
The Thumb stack operations are different from the equivalent ARM instructions because
they use the more traditional POP and PUSH concept.
Syntax: POP {low_register_list{, pc}}
PUSH {low_register_list{, lr}}
POP pop registers from the stacks Rd∗N - mem32[sp + 4 ∗N], sp = sp + 4 ∗N
PUSH push registers on to the stack Rd∗N - mem32[sp + 4 ∗N], sp = sp − 4 ∗N
The interesting point to note is that there is no stack pointer in the instruction. This is
because the stack pointer is fixed as register r13 in Thumb operations and sp is automatically
updated. The list of registers is limited to the low registers r0 to r7.
The PUSH register list also can include the link register lr; similarly the POP register
list can include the pc. This provides support for subroutine entry and exit, as shown in
Example 4.7.
The stack instructions only support full descending stack operations.
Example
4.7
In this example we use the POP and PUSH instructions. The subroutine ThumbRoutine is
called using a branch with link (BL) instruction.
; Call subroutine
BL ThumbRoutine
; continue
ThumbRoutine
PUSH {r1, lr} ; enter subroutine
MOV r0, #2
POP {r1, pc} ; return from subroutine](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-113-320.jpg)
![5.2 Basic C Data Types 107
Table 5.2 C compiler datatype mappings.
C Data Type Implementation
char unsigned 8-bit byte
short signed 16-bit halfword
int signed 32-bit word
long signed 32-bit word
long long signed 64-bit double word
5.2.1 Local Variable Types
ARMv4-based processors can efficiently load and store 8-, 16-, and 32-bit data. However,
most ARM data processing operations are 32-bit only. For this reason, you should use
a 32-bit datatype, int or long, for local variables wherever possible. Avoid using char and
short as local variable types, even if you are manipulating an 8- or 16-bit value. The one
exception is when you want wrap-around to occur. If you require modulo arithmetic of the
form 255 + 1 = 0, then use the char type.
To see the effect of local variable types, let’s consider a simple example. We’ll look in
detail at a checksum function that sums the values in a data packet. Most communication
protocols (such as TCP/IP) have a checksum or cyclic redundancy check (CRC) routine to
check for errors in a data packet.
The following code checksums a data packet containing 64 words. It shows why you
should avoid using char for local variables.
int checksum_v1(int *data)
{
char i;
int sum = 0;
for (i = 0; i 64; i++)
{
sum += data[i];
}
return sum;
}
At first sight it looks as though declaring i as a char is efficient. You may be thinking
that a char uses less register space or less space on the ARM stack than an int. On the
ARM, both these assumptions are wrong. All ARM registers are 32-bit and all stack entries
are at least 32-bit. Furthermore, to implement the i++ exactly, the compiler must account
for the case when i = 255. Any attempt to increment 255 should produce the answer 0.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-122-320.jpg)
![108 Chapter 5 Efficient C Programming
Consider the compiler output for this function. We’ve added labels and comments to
make the assembly clear.
checksum_v1
MOV r2,r0 ; r2 = data
MOV r0,#0 ; sum = 0
MOV r1,#0 ; i = 0
checksum_v1_loop
LDR r3,[r2,r1,LSL #2] ; r3 = data[i]
ADD r1,r1,#1 ; r1 = i+1
AND r1,r1,#0xff ; i = (char)r1
CMP r1,#0x40 ; compare i, 64
ADD r0,r3,r0 ; sum += r3
BCC checksum_v1_loop ; if (i64) loop
MOV pc,r14 ; return sum
Now compare this to the compiler output where instead we declare i as an unsigned int.
checksum_v2
MOV r2,r0 ; r2 = data
MOV r0,#0 ; sum = 0
MOV r1,#0 ; i = 0
checksum_v2_loop
LDR r3,[r2,r1,LSL #2] ; r3 = data[i]
ADD r1,r1,#1 ; r1++
CMP r1,#0x40 ; compare i, 64
ADD r0,r3,r0 ; sum += r3
BCC checksum_v2_loop ; if (i64) goto loop
MOV pc,r14 ; return sum
In the first case, the compiler inserts an extra AND instruction to reduce i to the range 0 to
255 before the comparison with 64. This instruction disappears in the second case.
Next, suppose the data packet contains 16-bit values and we need a 16-bit checksum. It
is tempting to write the following C code:
short checksum_v3(short *data)
{
unsigned int i;
short sum = 0;
for (i = 0; i 64; i++)
{
sum = (short)(sum + data[i]);](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-123-320.jpg)

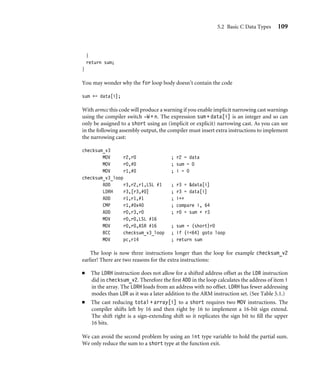

![5.2 Basic C Data Types 109
}
return sum;
}
You may wonder why the for loop body doesn’t contain the code
sum += data[i];
With armcc this code will produce a warning if you enable implicit narrowing cast warnings
using the compiler switch -W + n. The expression sum + data[i] is an integer and so can
only be assigned to a short using an (implicit or explicit) narrowing cast. As you can see
in the following assembly output, the compiler must insert extra instructions to implement
the narrowing cast:
checksum_v3
MOV r2,r0 ; r2 = data
MOV r0,#0 ; sum = 0
MOV r1,#0 ; i = 0
checksum_v3_loop
ADD r3,r2,r1,LSL #1 ; r3 = data[i]
LDRH r3,[r3,#0] ; r3 = data[i]
ADD r1,r1,#1 ; i++
CMP r1,#0x40 ; compare i, 64
ADD r0,r3,r0 ; r0 = sum + r3
MOV r0,r0,LSL #16
MOV r0,r0,ASR #16 ; sum = (short)r0
BCC checksum_v3_loop ; if (i64) goto loop
MOV pc,r14 ; return sum
The loop is now three instructions longer than the loop for example checksum_v2
earlier! There are two reasons for the extra instructions:
■ The LDRH instruction does not allow for a shifted address offset as the LDR instruction
did in checksum_v2. Therefore the first ADD in the loop calculates the address of item i
in the array. The LDRH loads from an address with no offset. LDRH has fewer addressing
modes than LDR as it was a later addition to the ARM instruction set. (See Table 5.1.)
■ The cast reducing total + array[i] to a short requires two MOV instructions. The
compiler shifts left by 16 and then right by 16 to implement a 16-bit sign extend.
The shift right is a sign-extending shift so it replicates the sign bit to fill the upper
16 bits.
We can avoid the second problem by using an int type variable to hold the partial sum.
We only reduce the sum to a short type at the function exit.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-124-320.jpg)
![110 Chapter 5 Efficient C Programming
However, the first problem is a new issue. We can solve it by accessing the array by
incrementing the pointer data rather than using an index as in data[i]. This is efficient
regardless of array type size or element size. All ARM load and store instructions have
a postincrement addressing mode.
Example
5.1
The checksum_v4 code fixes all the problems we have discussed in this section. It uses int
type local variables to avoid unnecessary casts. It increments the pointer data instead of
using an index offset data[i].
short checksum_v4(short *data)
{
unsigned int i;
int sum=0;
for (i=0; i64; i++)
{
sum += *(data++);
}
return (short)sum;
}
The *(data++) operation translates to a single ARM instruction that loads the data and
increments the data pointer. Of course you could write sum += *data; data++; or even
*data++ instead if you prefer. The compiler produces the following output. Three instruc-
tions have been removed from the inside loop, saving three cycles per loop compared to
checksum_v3.
checksum_v4
MOV r2,#0 ; sum = 0
MOV r1,#0 ; i = 0
checksum_v4_loop
LDRSH r3,[r0],#2 ; r3 = *(data++)
ADD r1,r1,#1 ; i++
CMP r1,#0x40 ; compare i, 64
ADD r2,r3,r2 ; sum += r3
BCC checksum_v4_loop ; if (sum64) goto loop
MOV r0,r2,LSL #16
MOV r0,r0,ASR #16 ; r0 = (short)sum
MOV pc,r14 ; return r0
The compiler is still performing one cast to a 16-bit range, on the function return. You
could remove this also by returning an int result as discussed in Section 5.2.2. ■](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-125-320.jpg)
![114 Chapter 5 Efficient C Programming
Here is the last version of the 64-word packet checksum routine we studied in
Section 5.2. This shows how the compiler treats a loop with incrementing count i++.
int checksum_v5(int *data)
{
unsigned int i;
int sum=0;
for (i=0; i64; i++)
{
sum += *(data++);
}
return sum;
}
This compiles to
checksum_v5
MOV r2,r0 ; r2 = data
MOV r0,#0 ; sum = 0
MOV r1,#0 ; i = 0
checksum_v5_loop
LDR r3,[r2],#4 ; r3 = *(data++)
ADD r1,r1,#1 ; i++
CMP r1,#0x40 ; compare i, 64
ADD r0,r3,r0 ; sum += r3
BCC checksum_v5_loop ; if (i64) goto loop
MOV pc,r14 ; return sum
It takes three instructions to implement the for loop structure:
■ An ADD to increment i
■ A compare to check if i is less than 64
■ A conditional branch to continue the loop if i 64
This is not efficient. On the ARM, a loop should only use two instructions:
■ A subtract to decrement the loop counter, which also sets the condition code flags on
the result
■ A conditional branch instruction
The key point is that the loop counter should count down to zero rather than counting
up to some arbitrary limit. Then the comparison with zero is free since the result is stored](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-129-320.jpg)
![5.3 C Looping Structures 115
in the condition flags. Since we are no longer using i as an array index, there is no problem
in counting down rather than up.
Example
5.2
This example shows the improvement if we switch to a decrementing loop rather than an
incrementing loop.
int checksum_v6(int *data)
{
unsigned int i;
int sum=0;
for (i=64; i!=0; i--)
{
sum += *(data++);
}
return sum;
}
This compiles to
checksum_v6
MOV r2,r0 ; r2 = data
MOV r0,#0 ; sum = 0
MOV r1,#0x40 ; i = 64
checksum_v6_loop
LDR r3,[r2],#4 ; r3 = *(data++)
SUBS r1,r1,#1 ; i-- and set flags
ADD r0,r3,r0 ; sum += r3
BNE checksum_v6_loop ; if (i!=0) goto loop
MOV pc,r14 ; return sum
The SUBS and BNE instructions implement the loop. Our checksum example now has
the minimum number of four instructions per loop. This is much better than six for
checksum_v1 and eight for checksum_v3. ■
For an unsigned loop counter i we can use either of the loop continuation conditions
i!=0 or i0. As i can’t be negative, they are the same condition. For a signed loop counter,
it is tempting to use the condition i0 to continue the loop. You might expect the compiler
to generate the following two instructions to implement the loop:
SUBS r1,r1,#1 ; compare i with 1, i=i-1
BGT loop ; if (i+11) goto loop](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-130-320.jpg)
![5.3 C Looping Structures 117
checksum_v7_loop
LDR r3,[r0],#4 ; r3 = *(data++)
SUBS r1,r1,#1 ; N-- and set flags
ADD r2,r3,r2 ; sum += r3
BNE checksum_v7_loop ; if (N!=0) goto loop
checksum_v7_end
MOV r0,r2 ; r0 = sum
MOV pc,r14 ; return r0
Notice that the compiler checks that N is nonzero on entry to the function. Often this
check is unnecessary since you know that the array won’t be empty. In this case a do-while
loop gives better performance and code density than a for loop.
Example
5.3
This example shows how to use a do-while loop to remove the test for N being zero that
occurs in a for loop.
int checksum_v8(int *data, unsigned int N)
{
int sum=0;
do
{
sum += *(data++);
} while (--N!=0);
return sum;
}
The compiler output is now
checksum_v8
MOV r2,#0 ; sum = 0
checksum_v8_loop
LDR r3,[r0],#4 ; r3 = *(data++)
SUBS r1,r1,#1 ; N-- and set flags
ADD r2,r3,r2 ; sum += r3
BNE checksum_v8_loop ; if (N!=0) goto loop
MOV r0,r2 ; r0 = sum
MOV pc,r14 ; return r0
Compare this with the output for checksum_v7 to see the two-cycle saving. ■
5.3.3 Loop Unrolling
We saw in Section 5.3.1 that each loop iteration costs two instructions in addition to
the body of the loop: a subtract to decrement the loop count and a conditional branch.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-132-320.jpg)
![118 Chapter 5 Efficient C Programming
We call these instructions the loop overhead. On ARM7 or ARM9 processors the
subtract takes one cycle and the branch three cycles, giving an overhead of four cycles
per loop.
You can save some of these cycles by unrolling a loop—repeating the loop body several
times, and reducing the number of loop iterations by the same proportion. For example,
let’s unroll our packet checksum example four times.
Example
5.4
The following code unrolls our packet checksum loop by four times. We assume that the
number of words in the packet N is a multiple of four.
int checksum_v9(int *data, unsigned int N)
{
int sum=0;
do
{
sum += *(data++);
sum += *(data++);
sum += *(data++);
sum += *(data++);
N -= 4;
} while ( N!=0);
return sum;
}
This compiles to
checksum_v9
MOV r2,#0 ; sum = 0
checksum_v9_loop
LDR r3,[r0],#4 ; r3 = *(data++)
SUBS r1,r1,#4 ; N -= 4 set flags
ADD r2,r3,r2 ; sum += r3
LDR r3,[r0],#4 ; r3 = *(data++)
ADD r2,r3,r2 ; sum += r3
LDR r3,[r0],#4 ; r3 = *(data++)
ADD r2,r3,r2 ; sum += r3
LDR r3,[r0],#4 ; r3 = *(data++)
ADD r2,r3,r2 ; sum += r3
BNE checksum_v9_loop ; if (N!=0) goto loop
MOV r0,r2 ; r0 = sum
MOV pc,r14 ; return r0](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-133-320.jpg)
![124 Chapter 5 Efficient C Programming
This compiles to
queue_bytes_v1
STR r14,[r13,#-4]! ; save lr on the stack
LDR r12,[r13,#4] ; r12 = N
queue_v1_loop
LDRB r14,[r3],#1 ; r14 = *(data++)
STRB r14,[r2],#1 ; *(Q_ptr++) = r14
CMP r2,r1 ; if (Q_ptr == Q_end)
MOVEQ r2,r0 ; {Q_ptr = Q_start;}
SUBS r12,r12,#1 ; --N and set flags
BNE queue_v1_loop ; if (N!=0) goto loop
MOV r0,r2 ; r0 = Q_ptr
LDR pc,[r13],#4 ; return r0
Compare this with a more structured approach using three function arguments.
Example
5.6
The following code creates a Queue structure and passes this to the function to reduce the
number of function arguments.
typedef struct {
char *Q_start; /* Queue buffer start address */
char *Q_end; /* Queue buffer end address */
char *Q_ptr; /* Current queue pointer position */
} Queue;
void queue_bytes_v2(Queue *queue, char *data, unsigned int N)
{
char *Q_ptr = queue-Q_ptr;
char *Q_end = queue-Q_end;
do
{
*(Q_ptr++) = *(data++);
if (Q_ptr == Q_end)
{
Q_ptr = queue-Q_start;
}
} while (--N);
queue-Q_ptr = Q_ptr;
}](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-139-320.jpg)
![5.5 Function Calls 125
This compiles to
queue_bytes_v2
STR r14,[r13,#-4]! ; save lr on the stack
LDR r3,[r0,#8] ; r3 = queue-Q_ptr
LDR r14,[r0,#4] ; r14 = queue-Q_end
queue_v2_loop
LDRB r12,[r1],#1 ; r12 = *(data++)
STRB r12,[r3],#1 ; *(Q_ptr++) = r12
CMP r3,r14 ; if (Q_ptr == Q_end)
LDREQ r3,[r0,#0] ; Q_ptr = queue-Q_start
SUBS r2,r2,#1 ; --N and set flags
BNE queue_v2_loop ; if (N!=0) goto loop
STR r3,[r0,#8] ; queue-Q_ptr = r3
LDR pc,[r13],#4 ; return ■
The queue_bytes_v2 is one instruction longer than queue_bytes_v1, but it is in fact
more efficient overall. The second version has only three function arguments rather than
five. Each call to the function requires only three register setups. This compares with four
register setups, a stack push, and a stack pull for the first version. There is a net saving
of two instructions in function call overhead. There are likely further savings in the callee
function, as it only needs to assign a single register to the Queue structure pointer, rather
than three registers in the nonstructured case.
There are other ways of reducing function call overhead if your function is very small
and corrupts few registers (uses few local variables). Put the C function in the same C file as
the functions that will call it. The C compiler then knows the code generated for the callee
function and can make optimizations in the caller function:
■ The caller function need not preserve registers that it can see the callee doesn’t corrupt.
Therefore the caller function need not save all the ATPCS corruptible registers.
■ If the callee function is very small, then the compiler can inline the code in the caller
function. This removes the function call overhead completely.
Example
5.7
The function uint_to_hex converts a 32-bit unsigned integer into an array of eight hexa-
decimal digits. It uses a helper function nybble_to_hex, which converts a digit d in the
range 0 to 15 to a hexadecimal digit.
unsigned int nybble_to_hex(unsigned int d)
{
if (d10)
{
return d + ’0’;](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-140-320.jpg)
![126 Chapter 5 Efficient C Programming
}
return d - 10 + ’A’;
}
void uint_to_hex(char *out, unsigned int in)
{
unsigned int i;
for (i=8; i!=0; i--)
{
in = (in 4) | (in 28); /* rotate in left by 4 bits */
*(out++) = (char)nybble_to_hex(in 15);
}
}
When we compile this, we see that uint_to_hex doesn’t call nybble_to_hex at all!
In the following compiled code, the compiler has inlined the uint_to_hex code. This is
more efficient than generating a function call.
uint_to_hex
MOV r3,#8 ; i = 8
uint_to_hex_loop
MOV r1,r1,ROR #28 ; in = (in 4)|(in 28)
AND r2,r1,#0xf ; r2 = in 15
CMP r2,#0xa ; if (r2=10)
ADDCS r2,r2,#0x37 ; r2 +=’A’-10
ADDCC r2,r2,#0x30 ; else r2 +=’0’
STRB r2,[r0],#1 ; *(out++) = r2
SUBS r3,r3,#1 ; i-- and set flags
BNE uint_to_hex_loop ; if (i!=0) goto loop
MOV pc,r14 ; return ■
The compiler will only inline small functions. You can ask the compiler to inline
a function using the __inline keyword, although this keyword is only a hint and the
compiler may ignore it (see Section 5.12 for more on inline functions). Inlining large
functions can lead to big increases in code size without much performance improvement.
Summary Calling Functions Efficiently
■ Try to restrict functions to four arguments. This will make them more efficient to
call. Use structures to group related arguments and pass structure pointers instead of
multiple arguments.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-141-320.jpg)
![5.6 Pointer Aliasing 127
■ Define small functions in the same source file and before the functions that call them.
The compiler can then optimize the function call or inline the small function.
■ Critical functions can be inlined using the __inline keyword.
5.6 Pointer Aliasing
Two pointers are said to alias when they point to the same address. If you write to one
pointer, it will affect the value you read from the other pointer. In a function, the compiler
often doesn’t know which pointers can alias and which pointers can’t. The compiler must
be very pessimistic and assume that any write to a pointer may affect the value read from
any other pointer, which can significantly reduce code efficiency.
Let’s start with a very simple example. The following function increments two timer
values by a step amount:
void timers_v1(int *timer1, int *timer2, int *step)
{
*timer1 += *step;
*timer2 += *step;
}
This compiles to
timers_v1
LDR r3,[r0,#0] ; r3 = *timer1
LDR r12,[r2,#0] ; r12 = *step
ADD r3,r3,r12 ; r3 += r12
STR r3,[r0,#0] ; *timer1 = r3
LDR r0,[r1,#0] ; r0 = *timer2
LDR r2,[r2,#0] ; r2 = *step
ADD r0,r0,r2 ; r0 += r2
STR r0,[r1,#0] ; *timer2 = t0
MOV pc,r14 ; return
Note that the compiler loads from step twice. Usually a compiler optimization called
common subexpression elimination would kick in so that *step was only evaluated once,
and the value reused for the second occurrence. However, the compiler can’t use this
optimization here. The pointers timer1 and step might alias one another. In other words,
the compiler cannot be sure that the write to timer1 doesn’t affect the read from step.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-142-320.jpg)
![5.6 Pointer Aliasing 129
data = get_next_packet(N);
do
{
sum += *(data++);
} while (--N);
return sum;
}
Here get_next_packet is a function returning the address and size of the next data packet.
The previous code compiles to
checksum_next_packet
STMFD r13!,{r4,r14} ; save r4, lr on the stack
SUB r13,r13,#8 ; create two stacked variables
ADD r0,r13,#4 ; r0 = N, N stacked
MOV r4,#0 ; sum = 0
BL get_next_packet ; r0 = data
checksum_loop
LDR r1,[r0],#4 ; r1 = *(data++)
ADD r4,r1,r4 ; sum += r1
LDR r1,[r13,#4] ; r1 = N (read from stack)
SUBS r1,r1,#1 ; r1-- set flags
STR r1,[r13,#4] ; N = r1 (write to stack)
BNE checksum_loop ; if (N!=0) goto loop
MOV r0,r4 ; r0 = sum
ADD r13,r13,#8 ; delete stacked variables
LDMFD r13!,{r4,pc} ; return r0
Note how the compiler reads and writes N from the stack for every N--. Once you
take the address of N and pass it to get_next_packet, the compiler needs to worry about
aliasing because the pointers data and N may alias. To avoid this, don’t take the address
of local variables. If you must do this, then copy the value into another local variable
before use.
You may wonder why the compiler makes room for two stacked variables when it only
uses one. This is to keep the stack eight-byte aligned, which is required for LDRD instructions
available in ARMv5TE. The example above doesn’t actually use an LDRD, but the compiler
does not know whether get_next_packet will use this instruction.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-144-320.jpg)
![130 Chapter 5 Efficient C Programming
Summary Avoiding Pointer Aliasing
■ Do not rely on the compiler to eliminate common subexpressions involving memory
accesses. Instead create new local variables to hold the expression. This ensures the
expression is evaluated only once.
■ Avoid taking the address of local variables. The variable may be inefficient to access
from then on.
5.7 Structure Arrangement
The way you lay out a frequently used structure can have a significant impact on its perfor-
mance and code density. There are two issues concerning structures on the ARM: alignment
of the structure entries and the overall size of the structure.
For architectures up to and including ARMv5TE, load and store instructions are only
guaranteed to load and store values with address aligned to the size of the access width.
Table 5.4 summarizes these restrictions.
For this reason, ARM compilers will automatically align the start address of a structure
to a multiple of the largest access width used within the structure (usually four or eight
bytes) and align entries within structures to their access width by inserting padding.
For example, consider the structure
struct {
char a;
int b;
char c;
short d;
}
For a little-endian memory system the compiler will lay this out adding padding to ensure
that the next object is aligned to the size of that object:
Address +3 +2 +1 +0
+0 pad pad pad a
+4 b[31,24] b[23,16] b[15,8] b[7,0]
+8 d[15,8] d[7,0] pad c
Table 5.4 Load and store alignment restrictions for ARMv5TE.
Transfer size Instruction Byte address
1 byte LDRB, LDRSB, STRB any byte address alignment
2 bytes LDRH, LDRSH, STRH multiple of 2 bytes
4 bytes LDR, STR multiple of 4 bytes
8 bytes LDRD, STRD multiple of 8 bytes](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-145-320.jpg)
![5.7 Structure Arrangement 131
To improve the memory usage, you should reorder the elements
struct {
char a;
char c;
short d;
int b;
}
This reduces the structure size from 12 bytes to 8 bytes, with the following new layout:
Address +3 +2 +1 +0
+0 d[15,8] d[7,0] c a
+4 b[31,24] b[23,16] b[15,8] b[7,0]
Therefore, it is a good idea to group structure elements of the same size, so that the
structure layout doesn’t contain unnecessary padding. The armcc compiler does include
a keyword __packed that removes all padding. For example, the structure
__packed struct {
char a;
int b;
char c;
short d;
}
will be laid out in memory as
Address +3 +2 +1 +0
+0 b[23,16] b[15,8] b[7,0] a
+4 d[15,8] d[7,0] c b[31,24]
However, packed structures are slow and inefficient to access. The compiler emulates
unaligned load and store operations by using several aligned accesses with data operations
to merge the results. Only use the __packed keyword where space is far more important
than speed and you can’t reduce padding by rearragement. Also use it for porting code that
assumes a certain structure layout in memory.
The exact layout of a structure in memory may depend on the compiler vendor and
compiler version you use. In API (Application Programmer Interface) definitions it is often](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-146-320.jpg)
![134 Chapter 5 Efficient C Programming
if (stages-stageB)
{
dostageB();
}
if (stages-stageC)
{
dostageC();
}
}
Here, we use three bit-field flags to enable three possible stages of processing. The example
compiles to
dostages_v1
STMFD r13!,{r4,r14} ; stack r4, lr
MOV r4,r0 ; move stages to r4
LDR r0,[r0,#0] ; r0 = stages bitfield
TST r0,#1 ; if (stages-stageA)
BLNE dostageA ; {dostageA();}
LDR r0,[r4,#0] ; r0 = stages bitfield
MOV r0,r0,LSL #30 ; shift bit 1 to bit 31
CMP r0,#0 ; if (bit31)
BLLT dostageB ; {dostageB();}
LDR r0,[r4,#0] ; r0 = stages bitfield
MOV r0,r0,LSL #29 ; shift bit 2 to bit 31
CMP r0,#0 ; if (!bit31)
LDMLTFD r13!,{r4,r14} ; return
BLT dostageC ; dostageC();
LDMFD r13!,{r4,pc} ; return
Note that the compiler accesses the memory location containing the bit-field three times.
Because the bit-field is stored in memory, the dostage functions could change the value.
Also, the compiler uses two instructions to test bit 1 and bit 2 of the bit-field, rather than
a single instruction.
You can generate far more efficient code by using an integer rather than a bit-field. Use
enum or #define masks to divide the integer type into different fields.
Example
5.9
The following code implements the dostages function using logical operations rather than
bit-fields:
typedef unsigned long Stages_v2;
#define STAGEA (1ul 0)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-149-320.jpg)
![5.8 Bit-fields 135
#define STAGEB (1ul 1)
#define STAGEC (1ul 2)
void dostages_v2(Stages_v2 *stages_v2)
{
Stages_v2 stages = *stages_v2;
if (stages STAGEA)
{
dostageA();
}
if (stages STAGEB)
{
dostageB();
}
if (stages STAGEC)
{
dostageC();
}
}
Now that a single unsigned long type contains all the bit-fields, we can keep a copy of
their values in a single local variable stages, which removes the memory aliasing problem
discussed in Section 5.6. In other words, the compiler must assume that the dostageX
(where X is A, B, or C) functions could change the value of *stages_v2.
The compiler generates the following code giving a saving of 33% over the previous
version using ANSI bit-fields:
dostages_v2
STMFD r13!,{r4,r14} ; stack r4, lr
LDR r4,[r0,#0] ; stages = *stages_v2
TST r4,#1 ; if (stage STAGEA)
BLNE dostageA ; {dostageA();}
TST r4,#2 ; if (stage STAGEB)
BLNE dostageB ; {dostageB();}
TST r4,#4 ; if (!(stage STAGEC))
LDMNEFD r13!,{r4,r14} ; return;
BNE dostageC ; dostageC();
LDMFD r13!,{r4,pc} ; return ■
You can also use the masks to set and clear the bit-fields, just as easily as for testing
them. The following code shows how to set, clear, or toggle bits using the STAGE masks:
stages |= STAGEA; /* enable stage A */](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-150-320.jpg)
![142 Chapter 5 Efficient C Programming
p.y = offset / bytes_per_line;
p.x = offset - p.y * bytes_per_line;
return p;
}
It appears that we have saved a division by using a subtract and multiply to calculate p.x,
but in fact, it is often more efficient to write the function with the modulus or remainder
operation.
Example
5.12
In getxy_v2, the quotient and remainder operation only require a single call to a division
routine:
point getxy_v2(unsigned int offset, unsigned int bytes_per_line)
{
point p;
p.x = offset % bytes_per_line;
p.y = offset / bytes_per_line;
return p;
}
There is only one division call here, as you can see in the following compiler output. In
fact, this version is four instructions shorter than getxy_v1. Note that this may not be the
case for all compilers and C libraries.
getxy_v2
STMFD r13!,{r4, r14} ; stack r4, lr
MOV r4,r0 ; move p to r4
MOV r0,r2 ; r0 = bytes_per_line
BL __rt_udiv ; (r0,r1) = (r1/r0, r1%r0)
STR r0,[r4,#4] ; p.y = offset / bytes_per_line
STR r1,[r4,#0] ; p.x = offset % bytes_per_line
LDMFD r13!,{r4,pc} ; return ■
5.10.1 Repeated Unsigned Division with Remainder
Often the same denominator occurs several times in code. In the previous example,
bytes_per_line will probably be fixed throughout the program. If we project from three
to two cartesian coordinates, then we use the denominator twice:
(x, y, z) → (x/z, y/z)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-157-320.jpg)
![152 Chapter 5 Efficient C Programming
ADDS a, a, i /* accumulate */
EORVS a, mask, a, ASR 31 /* saturate the accumulate */
}
#endif
#ifdef __GNUC__ /* check for the gcc compiler */
asm(ADDS % 0, % 1, % 2 :=r (i):r (i) ,r (i):cc);
asm(EORVS % 0, % 1, % 2,ASR#31:=r (i):r (mask),r (i):cc);
asm(ADDS % 0, % 1, % 2 :=r (a):r (a) ,r (i):cc);
asm(EORVS % 0, % 1, % 2,ASR#31:=r (a):r (mask),r (a):cc);
#endif
return a;
}
This inlined code reduces the main loop of sat_correlate from 19 instructions to
9 instructions. ■
Example
5.17
Now suppose that we are using an ARM9E processor with the ARMv5E extensions. We can
rewrite qmac again so that the compiler uses the new ARMv5E instructions:
__inline int qmac(int a, int x, int y)
{
int i;
__asm
{
SMULBB i, x, y /* multiply */
QDADD a, a, i /* double + saturate + accumulate + saturate */
}
return a;
}
This time the main loop compiles to just six instructions:
sat_correlate_v3
STR r14,[r13,#-4]! ; stack lr
MOV r12,#0 ; a = 0
sat_v3_loop
LDRSH r3,[r0],#2 ; r3 = *(x++)
LDRSH r14,[r1],#2 ; r14 = *(y++)
SUBS r2,r2,#1 ; N-- and set flags](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-167-320.jpg)
![5.13 Portability Issues 153
SMULBB r3,r3,r14 ; r3 = r3 * r14
QDADD r12,r12,r3 ; a = sat(a+sat(2*r3))
BNE sat_v3_loop ; if (N!=0) goto loop
MOV r0,r12 ; r0 = a
LDR pc,[r13],#4 ; return r0 ■
Other instructions that are not usually available from C include coprocessor
instructions. Example 5.18 shows how to access these.
Example
5.18
This example writes to coprocessor 15 to flush the instruction cache. You can use similar
code to access other coprocessor numbers.
void flush_Icache(void)
{
#ifdef __ARMCC_VERSION /* armcc */
__asm {MCR p15, 0, 0, c7, c5, 0}
#endif
#ifdef __GNUC__ /* gcc */
asm ( MCR p15, 0, r0, c7, c5, 0 );
#endif
} ■
Summary Inline Functions and Assembly
■ Use inline functions to declare new operations or primitives not supported by the
C compiler.
■ Use inline assembly to access ARM instructions not supported by the C compiler.
Examples are coprocessor instructions or ARMv5E extensions.
5.13 Portability Issues
Here is a summary of the issues you may encounter when porting C code to the ARM.
■ The char type. On the ARM, char is unsigned rather than signed as for many other
processors. A common problem concerns loops that use a char loop counter i and
the continuation condition i ≥ 0, they become infinite loops. In this situation, armcc](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-168-320.jpg)
![6.3 Instruction Scheduling 165
Fetch Decode ALU LS1 LS2
Instruction address
Action
pc pc_4 pc_8 pc_12 pc_16
Figure 6.1 ARM9TDMI pipeline executing in ARM state.
■ LS1: Load or store the data specified by a load or store instruction. If the instruction is
not a load or store, then this stage has no effect.
■ LS2: Extract and zero- or sign-extend the data loaded by a byte or halfword load
instruction. If the instruction is not a load of an 8-bit byte or 16-bit halfword item,
then this stage has no effect.
Figure 6.1 shows a simplified functional view of the five-stage ARM9TDMI pipeline.
Note that multiply and register shift operations are not shown in the figure.
After an instruction has completed the five stages of the pipeline, the core writes the
result to the register file. Note that pc points to the address of the instruction being fetched.
The ALU is executing the instruction that was originally fetched from address pc − 8 in
parallel with fetching the instruction at address pc.
How does the pipeline affect the timing of instructions? Consider the following
examples. These examples show how the cycle timings change because an earlier instruc-
tion must complete a stage before the current instruction can progress down the pipeline.
To work out how many cycles a block of code will take, use the tables in Appendix D that
summarize the cycle timings and interlock cycles for a range of ARM cores.
If an instruction requires the result of a previous instruction that is not available, then
the processor stalls. This is called a pipeline hazard or pipeline interlock.
Example
6.5
This example shows the case where there is no interlock.
ADD r0, r0, r1
ADD r0, r0, r2
This instruction pair takes two cycles. The ALU calculates r0 + r1 in one cycle. Therefore
this result is available for the ALU to calculate r0 + r2 in the second cycle. ■
Example
6.6
This example shows a one-cycle interlock caused by load use.
LDR r1, [r2, #4]
ADD r0, r0, r1
This instruction pair takes three cycles. The ALU calculates the address r2 + 4 in the first
cycle while decoding the ADD instruction in parallel. However, the ADD cannot proceed on](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-180-320.jpg)
![166 Chapter 6 Writing and Optimizing ARM Assembly Code
Fetch
...
Decode
ADD
...
...
ALU
LDR
ADD
ADD
LS1
...
LDR
—
LS2
...
LDR
Pipeline
Cycle 1
Cycle 2
Cycle 3
Figure 6.2 One-cycle interlock caused by load use.
the second cycle because the load instruction has not yet loaded the value of r1. Therefore the
pipeline stalls for one cycle while the load instruction completes the LS1 stage. Now that r1
is ready, the processor executes the ADD in the ALU on the third cycle.
Figure 6.2 illustrates how this interlock affects the pipeline. The processor stalls the
ADD instruction for one cycle in the ALU stage of the pipeline while the load instruction
completes the LS1 stage. We’ve denoted this stall by an italic ADD. Since the LDR instruction
proceeds down the pipeline, but the ADD instruction is stalled, a gap opens up between them.
This gap is sometimes called a pipeline bubble. We’ve marked the bubble with a dash. ■
Example
6.7
This example shows a one-cycle interlock caused by delayed load use.
LDRB r1, [r2, #1]
ADD r0, r0, r2
EOR r0, r0, r1
This instruction triplet takes four cycles. Although the ADD proceeds on the cycle following
the load byte, the EOR instruction cannot start on the third cycle. The r1 value is not ready
until the load instruction completes the LS2 stage of the pipeline. The processor stalls the
EOR instruction for one cycle.
Note that the ADD instruction does not affect the timing at all. The sequence takes four
cycles whether it is there or not! Figure 6.3 shows how this sequence progresses through the
processor pipeline. The ADD doesn’t cause any stalls since the ADD does not use r1, the result
of the load. ■
Fetch
EOR
...
Decode
ADD
EOR
...
...
ALU
LDRB
ADD
EOR
EOR
LS1
...
LDRB
ADD
—
LS2
...
LDRB
ADD
Pipeline
Cycle 1
Cycle 2
Cycle 3
Cycle 4
Figure 6.3 One-cycle interlock caused by delayed load use.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-181-320.jpg)
![168 Chapter 6 Writing and Optimizing ARM Assembly Code
void str_tolower(char *out, char *in)
{
unsigned int c;
do
{
c = *(in++);
if (c=’A’ c=’Z’)
{
c = c + (’a’ -’A’);
}
*(out++) = (char)c;
} while (c);
}
The ADS1.1 compiler generates the following compiled output. Notice that the compiler
optimizes the condition (c=‘A’ c=‘Z’) to the check that 0=c-‘A’=‘Z’-‘A’.
The compiler can perform this check using a single unsigned comparison.
str_tolower
LDRB r2,[r1],#1 ; c = *(in++)
SUB r3,r2,#0x41 ; r3 = c -‘A’
CMP r3,#0x19 ; if (c =‘Z’-‘A’)
ADDLS r2,r2,#0x20 ; c +=‘a’-‘A’
STRB r2,[r0],#1 ; *(out++) = (char)c
CMP r2,#0 ; if (c!=0)
BNE str_tolower ; goto str_tolower
MOV pc,r14 ; return
Unfortunately, the SUB instruction uses the value of c directly after the LDRB instruction
that loads c. Consequently, the ARM9TDMI pipeline will stall for two cycles. The compiler
can’t do any better since everything following the load of c depends on its value. However,
there are two ways you can alter the structure of the algorithm to avoid the cycles by using
assembly. We call these methods load scheduling by preloading and unrolling.
6.3.1.1 Load Scheduling by Preloading
In this method of load scheduling, we load the data required for the loop at the end of
the previous loop, rather than at the beginning of the current loop. To get performance
improvement with little increase in code size, we don’t unroll the loop.
Example
6.9
This assembly applies the preload method to the str_tolower function.
out RN 0 ; pointer to output string
in RN 1 ; pointer to input string](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-183-320.jpg)
![6.3 Instruction Scheduling 169
c RN 2 ; character loaded
t RN 3 ; scratch register
; void str_tolower_preload(char *out, char *in)
str_tolower_preload
LDRB c, [in], #1 ; c = *(in++)
loop
SUB t, c, #’A’ ; t = c-’A’
CMP t, #’Z’-’A’ ; if (t = ’Z’-’A’)
ADDLS c, c, #’a’-’A’ ; c += ’a’-’A’;
STRB c, [out], #1 ; *(out++) = (char)c;
TEQ c, #0 ; test if c==0
LDRNEB c, [in], #1 ; if (c!=0) { c=*in++;
BNE loop ; goto loop; }
MOV pc, lr ; return
The scheduled version is one instruction longer than the C version, but we save two
cycles for each inner loop iteration. This reduces the loop from 11 cycles per character to
9 cycles per character on an ARM9TDMI, giving a 1.22 times speed improvement. ■
The ARM architecture is particularly well suited to this type of preloading because
instructions can be executed conditionally. Since loop i is loading the data for loop i + 1
there is always a problem with the first and last loops. For the first loop, we can preload data
by inserting extra load instructions before the loop starts. For the last loop it is essential that
the loop does not read any data, or it will read beyond the end of the array. This could cause
a data abort! With ARM, we can easily solve this problem by making the load instruction
conditional. In Example 6.9, the preload of the next character only takes place if the loop
will iterate once more. No byte load occurs on the last loop.
6.3.1.2 Load Scheduling by Unrolling
This method of load scheduling works by unrolling and then interleaving the body of the
loop. For example, we can perform loop iterations i, i + 1, i + 2 interleaved. When the result
of an operation from loop i is not ready, we can perform an operation from loop i + 1 that
avoids waiting for the loop i result.
Example
6.10
The assembly applies load scheduling by unrolling to the str_tolower function.
out RN 0 ; pointer to output string
in RN 1 ; pointer to input string
ca0 RN 2 ; character 0
t RN 3 ; scratch register](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-184-320.jpg)
![170 Chapter 6 Writing and Optimizing ARM Assembly Code
ca1 RN 12 ; character 1
ca2 RN 14 ; character 2
; void str_tolower_unrolled(char *out, char *in)
str_tolower_unrolled
STMFD sp!, {lr} ; function entry
loop_next3
LDRB ca0, [in], #1 ; ca0 = *in++;
LDRB ca1, [in], #1 ; ca1 = *in++;
LDRB ca2, [in], #1 ; ca2 = *in++;
SUB t, ca0, #’A’ ; convert ca0 to lower case
CMP t, #’Z’-’A’
ADDLS ca0, ca0, #’a’-’A’
SUB t, ca1, #’A’ ; convert ca1 to lower case
CMP t, #’Z’-’A’
ADDLS ca1, ca1, #’a’-’A’
SUB t, ca2, #’A’ ; convert ca2 to lower case
CMP t, #’Z’-’A’
ADDLS ca2, ca2, #’a’-’A’
STRB ca0, [out], #1 ; *out++ = ca0;
TEQ ca0, #0 ; if (ca0!=0)
STRNEB ca1, [out], #1 ; *out++ = ca1;
TEQNE ca1, #0 ; if (ca0!=0 ca1!=0)
STRNEB ca2, [out], #1 ; *out++ = ca2;
TEQNE ca2, #0 ; if (ca0!=0 ca1!=0 ca2!=0)
BNE loop_next3 ; goto loop_next3;
LDMFD sp!, {pc} ; return;
This loop is the most efficient implementation we’ve looked at so far. The implemen-
tation requires seven cycles per character on ARM9TDMI. This gives a 1.57 times speed
increase over the original str_tolower. Again it is the conditional nature of the ARM
instructions that makes this possible. We use conditional instructions to avoid storing
characters that are past the end of the string. ■
However, the improvement in Example 6.10 does have some costs. The routine is
more than double the code size of the original implementation. We have assumed that
you can read up to two characters beyond the end of the input string, which may not
be true if the string is right at the end of available RAM, where reading off the end
will cause a data abort. Also, performance can be slower for very short strings because
(1) stacking lr causes additional function call overhead and (2) the routine may process
up to two characters pointlessly, before discovering that they lie beyond the end of the
string.
You should use this form of scheduling by unrolling for time-critical parts of an appli-
cation where you know the data size is large. If you also know the size of the data at compile
time, you can remove the problem of reading beyond the end of the array.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-185-320.jpg)
![176 Chapter 6 Writing and Optimizing ARM Assembly Code
nested_loops
STMFD sp!, {r4-r11, lr}
; set up loop 1
loop1
STMFD sp!, {loop1 registers}
; set up loop 2
loop2
STMFD sp!, {loop2 registers}
; set up loop 3
loop3
; body of loop 3
B{cond} loop3
LDMFD sp!, {loop2 registers}
; body of loop 2
B{cond} loop2
LDMFD sp!, {loop1 registers}
; body of loop 1
B{cond} loop1
LDMFD sp!, {r4-r11, pc} ■
You may find that there are insufficient registers for the innermost loop even using the
construction in Example 6.12. Then you need to swap inner loop variables out to the stack.
Since assembly code is very hard to maintain and debug if you use numbers as stack address
offsets, the assembler provides an automated procedure for allocating variables to the
stack.
Example
6.13
This example shows how you can use the ARM assembler directives MAP (alias ∧) and FIELD
(alias #) to define and allocate space for variables and arrays on the processor stack. The
directives perform a similar function to the struct operator in C.
MAP 0 ; map symbols to offsets starting at offset 0
a FIELD 4 ; a is 4 byte integer (at offset 0)
b FIELD 2 ; b is 2 byte integer (at offset 4)
c FIELD 2 ; c is 2 byte integer (at offset 6)
d FIELD 64 ; d is an array of 64 characters (at offset 8)
length FIELD 0 ; length records the current offset reached
example
STMFD sp!, {r4-r11, lr} ; save callee registers
SUB sp, sp, #length ; create stack frame
; ...
STR r0, [sp, #a] ; a = r0;
LDRSH r1, [sp, #b] ; r1 = b;](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-191-320.jpg)
![6.4 Register Allocation 177
ADD r2, sp, #d ; r2 = d[0]
; ...
ADD sp, sp, #length ; restore the stack pointer
LDMFD sp!, {r4-r11, pc} ; return ■
6.4.3 Making the Most of Available Registers
On a load-store architecture such as the ARM, it is more efficient to access values held in
registers than values held in memory. There are several tricks you can use to fit several
sub-32-bit length variables into a single 32-bit register and thus can reduce code size and
increase performance. This section presents three examples showing how you can pack
multiple variables into a single ARM register.
Example
6.14
Suppose we want to step through an array by a programmable increment. A common
example is to step through a sound sample at various rates to produce different pitched
notes. We can express this in C code as
sample = table[index];
index += increment;
Commonly index and increment are small enough to be held as 16-bit values. We can
pack these two variables into a single 32-bit variable indinc:
indinc = (index16) + increment = index increment
Bit 31 16 15 0
The C code translates into assembly code using a single register to hold indinc:
LDRB sample, [table, indinc, LSR#16] ; table[index]
ADD indinc, indinc, indinc, LSL#16 ; index+=increment
Note that if index and increment are 16-bit values, then putting index in the top
16 bits of indinc correctly implements 16-bit-wrap-around. In other words, index =
(short)(index + increment). This can be useful if you are using a buffer where you want
to wrap from the end back to the beginning (often known as a circular buffer). ■
Example
6.15
When you shift by a register amount, the ARM uses bits 0 to 7 as the shift amount. The
ARM ignores bits 8 to 31 of the register. Therefore you can use bits 8 to 31 to hold a second
variable distinct from the shift amount.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-192-320.jpg)
![178 Chapter 6 Writing and Optimizing ARM Assembly Code
This example shows how to combine a register-specified shift shift and loop counter
count to shift an array of 40 entries right by shift bits. We define a new variable cntshf
that combines count and shift:
cntshf = (count8) + shift = count shift
Bit 31 8 7 0
out RN 0 ; address of the output array
in RN 1 ; address of the input array
cntshf RN 2 ; count and shift right amount
x RN 3 ; scratch variable
; void shift_right(int *out, int *in, unsigned shift);
shift_right
ADD cntshf, cntshf, #39 8 ; count = 39
shift_loop
LDR x, [in], #4
SUBS cntshf, cntshf, #1 8 ; decrement count
MOV x, x, ASR cntshf ; shift by shift
STR x, [out], #4
BGE shift_loop ; continue if count=0
MOV pc, lr ■
Example
6.16
If you are dealing with arrays of 8-bit or 16-bit values, it is sometimes possible to manipulate
multiple values at a time by packing several values into a single 32-bit register. This is called
single issue multiple data (SIMD) processing.
ARM architecture versions up to ARMv5 do not support SIMD operations explicitly.
However, there are still areas where you can achieve SIMD type compactness. Section 6.6
shows how you can store multiple loop values in a single register. Here we look at a graphics
example of how to process multiple 8-bit pixels in an image using normal ADD and MUL
instructions to achieve some SIMD operations.
Suppose we want to merge two images X and Y to produce a new image Z. Let xn, yn,
and zn denote the nth 8-bit pixel in these images, respectively. Let 0 ≤ a ≤ 256 be a scaling
factor. To merge the images, we set
zn = (axn + (256 − a)yn)/256 (6.1)
In other words image Z is image X scaled in intensity by a/256 added to image Y scaled by
1 − (a/256). Note that
zn = wn/256, where wn = a(xn − yn) + 256yn (6.2)
Therefore each pixel requires a subtract, a multiply, a shifted add, and a right
shift. To process multiple pixels at a time, we load four pixels at once using a](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-193-320.jpg)
![6.4 Register Allocation 179
word load. We use a bracketed notation to denote several values packed into the
same word:
[x3, x2, x1, x0] = x3224 + x2216 + x128 + x0 = x3 x2 x1 x0
Bit 24 16 8 0
We then unpack the 8-bit data and promote it to 16-bit data using an AND with a mask
register. We use the notation
[x2, x0] = x2216 + x0 = x2 x0
Bit 31 16 15 0
Note that even for signed values [a, b] + [c, d] = [a + b, c + d] if we interpret [a, b] using
the mathematical equation a216 + b. Therefore we can perform SIMD operations on these
values using normal arithmetic instructions.
The following code shows how you can process four pixels at a time using only two
multiplies. The code assumes a 176 × 144 sized quarter CIF image.
IMAGE_WIDTH EQU 176 ; QCIF width
IMAGE_HEIGHT EQU 144 ; QCIF height
pz RN 0 ; pointer to destination image (word aligned)
px RN 1 ; pointer to first source image (word aligned)
py RN 2 ; pointer to second source image (word aligned)
a RN 3 ; 8-bit scaling factor (0-256)
xx RN 4 ; holds four x pixels [x3, x2, x1, x0]
yy RN 5 ; holds four y pixels [y3, y2, y1, y0]
x RN 6 ; holds two expanded x pixels [x2, x0]
y RN 7 ; holds two expanded y pixels [y2, y0]
z RN 8 ; holds four z pixels [z3, z2, z1, z0]
count RN 12 ; number of pixels remaining
mask RN 14 ; constant mask with value 0x00ff00ff
; void merge_images(char *pz, char *px, char *py, int a)
merge_images
STMFD sp!, {r4-r8, lr}
MOV count, #IMAGE_WIDTH*IMAGE_HEIGHT
LDR mask, =0x00FF00FF ; [ 0, 0xFF, 0, 0xFF ]
merge_loop
LDR xx, [px], #4 ; [ x3, x2, x1, x0 ]
LDR yy, [py], #4 ; [ y3, y2, y1, y0 ]
AND x, mask, xx ; [ 0, x2, 0, x0 ]
AND y, mask, yy ; [ 0, y2, 0, y0 ]
SUB x, x, y ; [ (x2-y2), (x0-y0) ]](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-194-320.jpg)
![180 Chapter 6 Writing and Optimizing ARM Assembly Code
MUL x, a, x ; [ a*(x2-y2), a*(x0-y0) ]
ADD x, x, y, LSL#8 ; [ w2, w0 ]
AND z, mask, x, LSR#8 ; [ 0, z2, 0, z0 ]
AND x, mask, xx, LSR#8 ; [ 0, x3, 0, x1 ]
AND y, mask, yy, LSR#8 ; [ 0, y3, 0, y1 ]
SUB x, x, y ; [ (x3-y3), (x1-y1) ]
MUL x, a, x ; [ a*(x3-y3), a*(x1-y1) ]
ADD x, x, y, LSL#8 ; [ w3, w1 ]
AND x, mask, x, LSR#8 ; [ 0, z3, 0, z1 ]
ORR z, z, x, LSL#8 ; [ z3, z2, z1, z0 ]
STR z, [pz], #4 ; store four z pixels
SUBS count, count, #4
BGT merge_loop
LDMFD sp!, {r4-r8, pc}
The code works since
0 ≤ wn ≤ 255a + 255(256 − a) = 256 × 255 = 0xFF00 (6.3)
Therefore it is easy to separate the value [w2, w0] into w2 and w0 by taking the most signif-
icant and least significant 16-bit portions, respectively. We have succeeded in processing
four 8-bit pixels using 32-bit load, stores, and data operations to perform operations in
parallel. ■
Summary Register Allocation
■ ARM has 14 available registers for general-purpose use: r0 to r12 and r14. The
stack pointer r13 and program counter r15 cannot be used for general-purpose data.
Operating system interrupts often assume that the user mode r13 points to a valid stack,
so don’t be tempted to reuse r13.
■ If you need more than 14 local variables, swap the variables out to the stack, working
outwards from the innermost loop.
■ Use register names rather than physical register numbers when writing assembly
routines. This makes it easier to reallocate registers and to maintain the code.
■ To ease register pressure you can sometimes store multiple values in the same register.
For example, you can store a loop counter and a shift in one register. You can also store
multiple pixels in one register.
6.5 Conditional Execution
The processor core can conditionally execute most ARM instructions. This conditional
execution is based on one of 15 condition codes. If you don’t specify a condition, the](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-195-320.jpg)
![6.6 Looping Constructs 185
Example
6.20
This example shows the unrolled memset routine. We’ve separated the three sections corre-
sponding to the preceding paragraphs with rows of dashes. The routine isn’t finished until
we’ve decided the best values for T1 and T2.
s RN 0 ; current string pointer
c RN 1 ; the character to fill with
N RN 2 ; the number of bytes to fill
c_1 RN 3 ; copies of c
c_2 RN 4
c_3 RN 5
c_4 RN 6
c_5 RN 7
c_6 RN 8
c_7 RN 12
; void my_memset(char *s, unsigned int c, unsigned int N)
my_memset
;-----------------------------------------------
; First section aligns the array
CMP N, #T_1 ; We know that T_1=3
BCC memset_1ByteBlk ; if (NT_1) goto memset_1ByteBlk
ANDS c_1, s, #3 ; find the byte alignment of s
BEQ aligned ; branch if already aligned
RSB c_1, c_1, #4 ; number of bytes until alignment
SUB N, N, c_1 ; number of bytes after alignment
CMP c_1, #2
STRB c, [s], #1
STRGEB c, [s], #1 ; if (c_1=2) then output byte
STRGTB c, [s], #1 ; if (c_1=3) then output byte
aligned ;the s array is now aligned
ORR c, c, c, LSL#8 ; duplicate the character
ORR c, c, c, LSL#16 ; to fill all four bytes of c
;-----------------------------------------------
; Second section writes blocks of 128 bytes
CMP N, #T_2 ; We know that T_2 = 128
BCC memset_4ByteBlk ; if (NT_2) goto memset_4ByteBlk
STMFD sp!, {c_2-c_6} ; stack scratch registers
MOV c_1, c
MOV c_2, c
MOV c_3, c
MOV c_4, c
MOV c_5, c
MOV c_6, c](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-200-320.jpg)
![186 Chapter 6 Writing and Optimizing ARM Assembly Code
MOV c_7, c
SUB N, N, #128 ; bytes left after next block
loop128 ; write 32 words = 128 bytes
STMIA s!, {c, c_1-c_6, c_7} ; write 8 words
STMIA s!, {c, c_1-c_6, c_7} ; write 8 words
STMIA s!, {c, c_1-c_6, c_7} ; write 8 words
STMIA s!, {c, c_1-c_6, c_7} ; write 8 words
SUBS N, N, #128 ; bytes left after next block
BGE loop128
ADD N, N, #128 ; number of bytes left
LDMFD sp!, {c_2-c_6} ; restore corrupted registers
;--------------------------------------------
; Third section deals with left over bytes
memset_4ByteBlk
SUBS N, N, #4 ; try doing 4 bytes
loop4 ; write 4 bytes
STRGE c, [s], #4
SUBGES N, N, #4
BGE loop4
ADD N, N, #4 ; number of bytes left
memset_1ByteBlk
SUBS N, N, #1
loop1 ; write 1 byte
STRGEB c, [s], #1
SUBGES N, N, #1
BGE loop1
MOV pc, lr ; finished so return
It remains to find the best values for the thresholds T1 and T2. To determine these we
need to analyze the cycle counts for different ranges of N. Since the algorithm operates on
blocks of size 128 bytes, 4 bytes, and 1 byte, respectively, we start by decomposing N with
respect to these block sizes:
N = 128Nh + 4Nm + Nl, where 0 ≤ Nm 32 and 0 ≤ Nl 4
We now partition into three cases. To follow the details of these cycle counts, you will
need to refer to the instruction cycle timings in Appendix D.
■ Case 0 ≤ N T1: The routine takes 5N + 6 cycles on an ARM9TDMI including the
return.
■ Case T1 ≤ N T2: The first algorithm block takes 6 cycles if the s array is word aligned
and 10 cycles otherwise. Assuming each alignment is equally likely, this averages to
(6 + 10 + 10 + 10)/4 = 9 cycles. The second algorithm block takes 6 cycles. The final](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-201-320.jpg)
![188 Chapter 6 Writing and Optimizing ARM Assembly Code
We represent each matrix by a lowercase pointer of the same name, pointing to an array
of words organized by row. For example, the element at row i, column j, A[i, j], is at the
byte address
A[i,j] = a + 4*(i*T+j)
A simple C implementation of the matrix multiply uses three nested loops i, j, and k:
#define R 40
#define S 40
#define T 40
void ref_matrix_mul(int *a, int *b, int *c)
{
unsigned int i,j,k;
int sum;
for (i=0; iR; i++)
{
for (j=0; jT; j++)
{
/* calculate a[i,j] */
sum = 0;
for (k=0; kS; k++)
{
/* add b[i,k]*c[k,j] */
sum += b[i*S+k]*c[k*T+j];
}
a[i*T+j] = sum;
}
}
}
There are many ways to improve the efficiency here, starting by removing the address
indexing calculations, but we will concentrate on the looping structure. We allocate
a register counter count containing all three loop counters i, j, k:
count = 0 S−1−k T−1−j R−1−i
Bit 31 24 23 16 15 8 7 0
Note that S − 1 − k counts from S − 1 down to 0 rather than counting from 0 to S − 1 as k
does. The following assembly implements the matrix multiply using this single counter in
register count:
R EQU 40
S EQU 40](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-203-320.jpg)
![6.6 Looping Constructs 189
T EQU 40
a RN 0 ; points to an R rows × T columns matrix
b RN 1 ; points to an R rows × S columns matrix
c RN 2 ; points to an S rows × T columns matrix
sum RN 3
bval RN 4
cval RN 12
count RN 14
; void matrix_mul(int *a, int *b, int *c)
matrix_mul
STMFD sp!, {r4, lr}
MOV count, #(R-1) ; i=0
loop_i
ADD count, count, #(T-1) 8 ; j=0
loop_j
ADD count, count, #(S-1) 16 ; k=0
MOV sum, #0
loop_k
LDR bval, [b], #4 ; bval = B[i,k], b=B[i,k+1]
LDR cval, [c], #4*T ; cval = C[k,j], c=C[k+1,j]
SUBS count, count, #1 16 ; k++
MLA sum, bval, cval, sum ; sum += bval*cval
BPL loop_k ; branch if k=S-1
STR sum, [a], #4 ; A[i,j] = sum, a=A[i,j+1]
SUB c, c, #4*S*T ; c = C[0,j]
ADD c, c, #4 ; c = C[0,j+1]
ADDS count, count, #(1 16)-(1 8) ; zero (S-1-k), j++
SUBPL b, b, #4*S ; b = B[i,0]
BPL loop_j ; branch if j=T-1
SUB c, c, #4*T ; c = C[0,0]
ADDS count, count, #(1 8)-1 ; zero (T-1-j), i++
BPL loop_i ; branch if i=R-1
LDMFD sp!, {r4, pc}
The preceding structure saves two registers over a naive implementation. First, we
decrement the count at bits 16 to 23 until the result is negative. This implements the k loop,
counting down from S − 1 to 0 inclusive. Once the result is negative, the code adds 216
to clear bits 16 to 31. Then we subtract 28 to decrement the count stored at bits 8 to 15,
implementing the j loop. We can encode the constant 216 − 28 = 0xFF00 efficiently using
a single ARM instruction. Bits 8 to 15 now count down from T − 1 to 0. When the result](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-204-320.jpg)
![194 Chapter 6 Writing and Optimizing ARM Assembly Code
codebits RN 5 ; length in bits of current code
bitbuffer RN 6 ; 32-bit output big-endian bitbuffer
bitsfree RN 7 ; number of bits free in the bitbuffer
tmp RN 8 ; scratch register
mask RN 12 ; endian reversal mask 0xFFFF00FF
bitstream_write_start
MOV bitbuffer, #0
MOV bitsfree, #32
align_loop
TST bitstream, #3
LDRNEB code, [bitstream, #-1]!
SUBNE bitsfree, bitsfree, #8
ORRNE bitbuffer, code, bitbuffer, ROR #8
BNE align_loop
MOV bitbuffer, bitbuffer, ROR #8
MOV pc, lr
bitstream_write_code
SUBS bitsfree, bitsfree, codebits
BLE full_buffer
ORR bitbuffer, bitbuffer, code, LSL bitsfree
MOV pc, lr
full_buffer
RSB bitsfree, bitsfree, #0
ORR bitbuffer, bitbuffer, code, LSR bitsfree
IF {ENDIAN}=little
; byte reverse the bit buffer prior to storing
EOR tmp, bitbuffer, bitbuffer, ROR #16
AND tmp, mask, tmp, LSR #8
EOR bitbuffer, tmp, bitbuffer, ROR #8
ENDIF
STR bitbuffer, [bitstream], #4
RSB bitsfree, bitsfree, #32
MOV bitbuffer, code, LSL bitsfree
MOV pc, lr
bitstream_write_flush
RSBS bitsfree, bitsfree, #32
flush_loop
MOVGT bitbuffer, bitbuffer, ROR #24
STRGTB bitbuffer, [bitstream], #1
SUBGTS bitsfree, bitsfree, #8
BGT flush_loop
MOV pc, lr ■](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-209-320.jpg)
![6.7 Bit Manipulation 195
6.7.3 Variable-Width Bitstream Unpacking
It is much harder to unpack a bitstream of variable-width codes than to pack it. The
problem is that we usually don’t know the width of the codes we are unpacking! For
Huffman-encoded bitstreams you must derive the length of each code by looking at the
next sequence of bits and working out which code it can be.
Here we will use a lookup table to speed up the unpacking process. The idea is to take
the next N bits of the bitstream and perform a lookup in two tables, look_codebits[] and
look_code[], each of size 2N entries. If the next N bits are sufficient to determine the code,
then the tables tell us the code length and the code value, respectively. If the next N bits
are insufficient to determine the code, then the look_codebits table will return an escape
value of 0xFF. An escape value is just a flag to indicate that this case is exceptional.
In a sequence of Huffman codes, common codes are short and rare codes are long. So,
we expect to decode most common codes quickly, using the lookup tables. In the following
example we assume that N = 8 and use 256-entry lookup tables.
Example
6.25
This example provides three functions to unpack a big-endian bitstream stored in a
bytestream. As with Example 6.24, these functions are not ATPCS compliant and will
normally be inlined. The function bitstream_read_start initializes the process, start-
ing to decode a bitstream at byte address bitstream. Each call to bitstream_read_code
returns the next code in register code. The function only handles short codes that can
be read from the lookup table. Long codes are trapped at the label long_code, but the
implementation of this function depends on the codes you are decoding.
The code uses a register bitbuffer that contains N + bitsleft code bits starting at the
most significant bit (see Figure 6.7).
bitstream RN 0 ; current byte address in the input bitstream
look_code RN 2 ; lookup table to convert next N bits to a code
look_codebits RN 3 ; lookup table to convert next N bits to a code length
code RN 4 ; code read
codebits RN 5 ; length of code read
bitbuffer RN 6 ; 32-bit input buffer (big endian)
bitsleft RN 7 ; number of valid bits in the buffer - N
N bits
bitbuffer =
31
bitsleft bits
0
0
Figure 6.7 Format of bitbuffer.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-210-320.jpg)
![196 Chapter 6 Writing and Optimizing ARM Assembly Code
tmp RN 8 ; scratch
tmp2 RN 9 ; scratch
mask RN 12 ; N-bit extraction mask (1 N)-1
N EQU 8 ; use a lookup table on 8 bits (N must be = 9)
bitstream_read_start
MOV bitsleft, #32
read_fill_loop
LDRB tmp, [bitstream], #1
ORR bitbuffer, tmp, bitbuffer, LSL#8
SUBS bitsleft, bitsleft, #8
BGT read_fill_loop
MOV bitsleft, #(32-N)
MOV mask, #(1 N)-1
MOV pc, lr
bitstream_read_code
LDRB codebits, [look_codebits, bitbuffer, LSR# (32-N)]
AND code, mask, bitbuffer, LSR#(32-N)
LDR code, [look_code, code, LSL#2]
SUBS bitsleft, bitsleft, codebits
BMI empty_buffer_or_long_code
MOV bitbuffer, bitbuffer, LSL codebits
MOV pc, lr
empty_buffer_or_long_code
TEQ codebits, #0xFF
BEQ long_code
; empty buffer - fill up with 3 bytes
; as N = 9, we can fill 3 bytes without overflow
LDRB tmp, [bitstream], #1
LDRB tmp2, [bitstream], #1
MOV bitbuffer, bitbuffer, LSL codebits
LDRB codebits, [bitstream], #1
ORR tmp, tmp2, tmp, LSL#8
RSB bitsleft, bitsleft, #(8-N)
ORR tmp, codebits, tmp, LSL#8
ORR bitbuffer, bitbuffer, tmp, LSL bitsleft
RSB bitsleft, bitsleft, #(32-N)
MOV pc, lr
long_code
; handle the long code case depending on the application
; here we just return a code of -1
MOV code, #-1
MOV pc, lr](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-211-320.jpg)
![198 Chapter 6 Writing and Optimizing ARM Assembly Code
case 1: return method_1();
case 2: return method_2();
case 3: return method_3();
case 4: return method_4();
case 5: return method_5();
case 6: return method_6();
case 7: return method_7();
default: return method_d();
}
}
There are two ways to implement this structure efficiently in ARM assembly. The first
method uses a table of function addresses. We load pc from the table indexed by x.
Example
6.26
The switch_absolute code performs a switch using an inlined table of function pointers:
x RN 0
; int switch_absolute(int x)
switch_absolute
CMP x, #8
LDRLT pc, [pc, x, LSL#2]
B method_d
DCD method_0
DCD method_1
DCD method_2
DCD method_3
DCD method_4
DCD method_5
DCD method_6
DCD method_7
The code works because the pc register is pipelined. The pc points to the method_0 word
when the ARM executes the LDR instruction. ■
The method above is very fast, but has one drawback: The code is not position
independentsinceitstoresabsoluteaddressestothemethodfunctionsinmemory. Position-
independent code is often used in modules that are installed into a system at run time. The
next example shows how to solve this problem.
Example
6.27
The code switch_relative is slightly slower compared to switch_absolute, but it is
position independent:
; int switch_relative(int x)
switch_relative](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-213-320.jpg)
![6.9 Handling Unaligned Data 201
■ Use the switch value to index a table of function pointers or to branch to short
sections of code at regular intervals. The second technique is position independent;
the first isn’t.
6.9 Handling Unaligned Data
Recall that a load or store is unaligned if it uses an address that is not a multiple of the data
transfer width. For code to be portable across ARM architectures and implementations,
you must avoid unaligned access. Section 5.9 introduced unaligned accesses and ways of
handling them in C. In this section we look at how to handle unaligned accesses in assembly
code.
The simplest method is to use byte loads and stores to access one byte at a time. This
is the recommended method for any accesses that are not speed critical. The following
example shows how to access word values in this way.
Example
6.30
This example shows how to read or write a 32-bit word using the unaligned address p. We
use three scratch registers t0, t1, t2 to avoid interlocks. All unaligned word operations
take seven cycles on an ARM9TDMI. Note that we need separate functions for 32-bit words
stored in big- or little-endian format.
p RN 0
x RN 1
t0 RN 2
t1 RN 3
t2 RN 12
; int load_32_little(char *p)
load_32_little
LDRB x, [p]
LDRB t0, [p, #1]
LDRB t1, [p, #2]
LDRB t2, [p, #3]
ORR x, x, t0, LSL#8
ORR x, x, t1, LSL#16
ORR r0, x, t2, LSL#24
MOV pc, lr
; int load_32_big(char *p)
load_32_big
LDRB x, [p]
LDRB t0, [p, #1]
LDRB t1, [p, #2]](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-216-320.jpg)
![202 Chapter 6 Writing and Optimizing ARM Assembly Code
LDRB t2, [p, #3]
ORR x, t0, x, LSL#8
ORR x, t1, x, LSL#8
ORR r0, t2, x, LSL#8
MOV pc, lr
; void store_32_little(char *p, int x)
store_32_little
STRB x, [p]
MOV t0, x, LSR#8
STRB t0, [p, #1]
MOV t0, x, LSR#16
STRB t0, [p, #2]
MOV t0, x, LSR#24
STRB t0, [p, #3]
MOV pc, lr
; void store_32_big(char *p, int x)
store_32_big
MOV t0, x, LSR#24
STRB t0, [p]
MOV t0, x, LSR#16
STRB t0, [p, #1]
MOV t0, x, LSR#8
STRB t0, [p, #2]
STRB x, [p, #3]
MOV pc, lr ■
If you require better performance than seven cycles per access, then you can write
several variants of the routine, with each variant handling a different address alignment.
This reduces the cost of the unaligned access to three cycles: the word load and the two
arithmetic instructions required to join values together.
Example
6.31
This example shows how to generate a checksum of N words starting at a possibly unaligned
address data. The code is written for a little-endian memory system. Notice how we can
use the assembler MACRO directive to generate the four routines checksum_0, checksum_1,
checksum_2, and checksum_3. Routine checksum_a handles the case where data is an
address of the form 4q + a.
Using a macro saves programming effort. We need only write a single macro and
instantiate it four times to implement our four checksum routines.
sum RN 0 ; current checksum
N RN 1 ; number of words left to sum](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-217-320.jpg)
![6.9 Handling Unaligned Data 203
data RN 2 ; word aligned input data pointer
w RN 3 ; data word
; int checksum_32_little(char *data, unsigned int N)
checksum_32_little
BIC data, r0, #3 ; aligned data pointer
AND w, r0, #3 ; byte alignment offset
MOV sum, #0 ; initial checksum
LDR pc, [pc, w, LSL#2] ; switch on alignment
NOP ; padding
DCD checksum_0
DCD checksum_1
DCD checksum_2
DCD checksum_3
MACRO
CHECKSUM $alignment
checksum_$alignment
LDR w, [data], #4 ; preload first value
10 ; loop
IF $alignment0
ADD sum, sum, w, LSR#8*$alignment
LDR w, [data], #4
SUBS N, N, #1
ADD sum, sum, w, LSL#32-8*$alignment
ELSE
ADD sum, sum, w
LDR w, [data], #4
SUBS N, N, #1
ENDIF
BGT %BT10
MOV pc, lr
MEND
; generate four checksum routines
; one for each possible byte alignment
CHECKSUM 0
CHECKSUM 1
CHECKSUM 2
CHECKSUM 3
You can now unroll and optimize the routines as in Section 6.6.2 to achieve the fastest
speed. Due to the additional code size, only use the preceding technique for time-critical
routines. ■](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-218-320.jpg)
![208 Chapter 7 Optimized Primitives
See Section A.4 in Appendix for help on the assembler format. You could equally well use
the GNU assembler gas. See Section A.5 for help on the gas assembler format.
YouwillalsonoticethatweusetheCkeyword__value_in_regs. OntheARMcompiler
armcc this indicates that a function argument, or return value, should be passed in registers
rather than by reference. In practical applications this is not an issue because you will inline
the operations for efficiency.
We use the notation Qk throughout this chapter to denote a fixed-point representation
with binary point between bits k − 1 and k. For example, 0.75 represented at Q15 is the
integer value 0x6000. See Section 8.1 for more details of the Qk representation and fixed-
point arithmetic. We say “d 0. 5 at Q15” to mean that d represents the value d2−15 and
that this is less than one half.
7.1 Double-Precision Integer Multiplication
You can multiply integers up to 32 bits wide using the UMULL and SMULL instructions.
The following routines multiply 64-bit signed or unsigned integers, giving a 64-bit or
128-bit result. They can be extended, using the same ideas, to multiply any lengths of
integer. Longer multiplication is useful for handling the long long C type, emulating
double-precision fixed- or floating-point operations, and in the long arithmetic required
by public-key cryptography.
We use a little-endian notation for multiword values. If a 128-bit integer is stored in four
registers a3, a2, a1, a0, then these store bits [127:96], [95:64], [63:32], [31:0], respectively
(see Figure 7.1).
7.1.1 long long Multiplication
Use the following three-instruction sequence to multiply two 64-bit values (signed or
unsigned) b and c to give a new 64-bit long long value a. Excluding the ARM Thumb
Procedure Call Standard (ATPCS) wrapper and with worst-case inputs, this operation
takes 24 cycles on ARM7TDMI and 25 cycles on ARM9TDMI. On ARM9E the operation
takes 8 cycles. One of these cycles is a pipeline interlock between the first UMULL and MLA,
which you could remove by interleaving with other code.
a3
127 96
a2
95 64
a1
63 32
a0
31 0
Figure 7.1 Representation of a 128-bit value as four 32-bit values.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-223-320.jpg)
![7.1 Double-Precision Integer Multiplication 209
b_0 RN 0 ; b bits [31:00] (b low)
b_1 RN 1 ; b bits [63:32] (b high)
c_0 RN 2 ; c bits [31:00] (c low)
c_1 RN 3 ; c bits [63:32] (c high)
a_0 RN 4 ; a bits [31:00] (a low-low)
a_1 RN 5 ; a bits [63:32] (a low-high)
a_2 RN 12 ; a bits [95:64] (a high-low)
a_3 RN lr ; a bits [127:96] (a high-high)
; long long mul_64to64 (long long b, long long c)
mul_64to64
STMFD sp!, {r4,r5,lr}
; 64-bit a = 64-bit b * 64-bit c
UMULL a_0, a_1, b_0, c_0 ; low*low
MLA a_1, b_0, c_1, a_1 ; low*high
MLA a_1, b_1, c_0, a_1 ; high*low
; return wrapper
MOV r0, a_0
MOV r1, a_1
LDMFD sp!, {r4,r5,pc}
7.1.2 Unsigned 64-Bit by 64-Bit Multiply
with 128-Bit Result
There are two slightly different implementations for an unsigned 64- by 64-bit multiply
with 128-bit result. The first is faster on an ARM7M. Here multiply accumulate instruc-
tions take an extra cycle compared to the nonaccumulating version. The ARM7M version
requires four long multiplies and six adds, a worst-case performance of 30 cycles.
; __value_in_regs struct { unsigned a0,a1,a2,a3; }
; umul_64to128_arm7m(unsigned long long b,
; unsigned long long c)
umul_64to128_arm7m
STMFD sp!, {r4,r5,lr}
; unsigned 128-bit a = 64-bit b * 64-bit c
UMULL a_0, a_1, b_0, c_0 ; low*low
UMULL a_2, a_3, b_0, c_1 ; low*high
UMULL c_1, b_0, b_1, c_1 ; high*high
ADDS a_1, a_1, a_2
ADCS a_2, a_3, c_1
ADC a_3, b_0, #0
UMULL c_0, b_0, b_1, c_0 ; high*low](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-224-320.jpg)
![7.2 Integer Normalization and Count Leading Zeros 213
CLZ shift, x ; left shift to normalize
MOV x, x, LSL shift ; normalize
MOV pc, lr
; __value_in_regs struct { signed x; int shift; }
; unorm_arm9e(signed x)
snorm_arm9e ; [ s s s 1-s x x ... ]
EOR shift, x, x, LSL#1 ; [ 0 0 1 x x x ... ]
CLZ shift, shift ; left shift to normalize
MOV x, x, LSL shift ; normalize
MOV pc, lr
Note that we reduce the signed norm to an unsigned norm using a logical exclusive OR.
If x is signed, then x∧(x 1) has the leading one in the position of the first sign bit in x.
7.2.2 Normalization on ARMv4
If you are using an ARMv4 architecture processor such as ARM7TDMI or ARM9TDMI,
then there is no CLZ instruction available. Instead we can synthesize the same functionality.
The simple divide-and-conquer method in unorm_arm7m gives a good trade-off between
performance and code size. We successively test to see if we can shift x left by 16, 8, 4, 2,
and 1 places in turn.
; __value_in_regs struct { unsigned x; int shift; }
; unorm_arm7m(unsigned x)
unorm_arm7m
MOV shift, #0 ; shift=0;
CMP x, #1 16 ; if (x (1 16))
MOVCC x, x, LSL#16 ; { x = x 16;
ADDCC shift, shift, #16 ; shift+=16; }
TST x, #0xFF000000 ; if (x (1 24))
MOVEQ x, x, LSL#8 ; { x = x 8;
ADDEQ shift, shift, #8 ; shift+=8; }
TST x, #0xF0000000 ; if (x (1 28))
MOVEQ x, x, LSL#4 ; { x = x 4;
ADDEQ shift, shift, #4 ; shift+=4; }
TST x, #0xC0000000 ; if (x (1 30))
MOVEQ x, x, LSL#2 ; { x = x 2;
ADDEQ shift, shift, #2 ; shift+=2; }
TST x, #0x80000000 ; if (x (1 31))
ADDEQ shift, shift, #1 ; { shift+=1;
MOVEQS x, x, LSL#1 ; x =1;](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-228-320.jpg)
![7.2 Integer Normalization and Count Leading Zeros 215
unorm_arm7m_hash
ORR shift, x, x, LSR#1
ORR shift, shift, shift, LSR#2
ORR shift, shift, shift, LSR#4
ORR shift, shift, shift, LSR#8
BIC shift, shift, shift, LSR#16
RSB shift, shift, shift, LSL#9 ; *(2∧9-1)
RSB shift, shift, shift, LSL#11 ; *(2∧11-1)
RSB shift, shift, shift, LSL#14 ; *(2∧14-1)
ADR table, unorm_arm7m_hash_table
LDRB shift, [table, shift, LSR#26]
MOV x, x, LSL shift
MOV pc, lr
unorm_arm7m_hash_table
DCB 0x20, 0x14, 0x13, 0xff, 0xff, 0x12, 0xff, 0x07
DCB 0x0a, 0x11, 0xff, 0xff, 0x0e, 0xff, 0x06, 0xff
DCB 0xff, 0x09, 0xff, 0x10, 0xff, 0xff, 0x01, 0x1a
DCB 0xff, 0x0d, 0xff, 0xff, 0x18, 0x05, 0xff, 0xff
DCB 0xff, 0x15, 0xff, 0x08, 0x0b, 0xff, 0x0f, 0xff
DCB 0xff, 0xff, 0xff, 0x02, 0x1b, 0x00, 0x19, 0xff
DCB 0x16, 0xff, 0x0c, 0xff, 0xff, 0x03, 0x1c, 0xff
DCB 0x17, 0xff, 0x04, 0x1d, 0xff, 0xff, 0x1e, 0x1f
7.2.3 Counting Trailing Zeros
Count trailing zeros is a related operation to count leading zeros. It counts the number of
zeros below the least significant set bit in an integer. Equivalently, this detects the highest
power of two that divides the integer. Therefore you can count trailing zeros to express an
integer as a product of a power of two and an odd integer. If the integer is zero, then there
is no lowest bit so the count trailing zeros returns 32.
There is a trick to finding the highest power of two dividing an integer n, for nonzero n.
The trick is to see that the expression (n (−n)) has a single bit set in position of the lowest
bit set in n. Figure 7.2 shows how this works. The x represents wildcard bits.
n = xxxxxxxxxxxxxxxxxx10000000000000
−n = yyyyyyyyyyyyyyyyyyy10000000000000 where y = 1 − x
n (−n) = 0000000000000000010000000000000
Figure 7.2 Identifying the least significant bit.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-230-320.jpg)
![216 Chapter 7 Optimized Primitives
Using this trick, we can convert a count trailing zeros to a count leading zeros. The
following code implements count trailing zeros on an ARM9E. We handle the zero-input
case without extra overhead by using conditional instructions.
; unsigned ctz_arm9e(unsigned x)
ctz_arm9e
RSBS shift, x, #0 ; shift=-x
AND shift, shift, x ; isolate trailing 1 of x
CLZCC shift, shift ; number of zeros above last 1
RSC r0, shift, #32 ; number of zeros below last 1
MOV pc, lr
For processors without the CLZ instruction, a hashing method similar to that of
Section 7.2.2 gives good performance:
; unsigned ctz_arm7m(unsigned x)
ctz_arm7m
RSB shift, x, #0
AND shift, shift, x ; isolate lowest bit
ADD shift, shift, shift, LSL#4 ; *(2∧4+1)
ADD shift, shift, shift, LSL#6 ; *(2∧6+1)
RSB shift, shift, shift, LSL#16 ; *(2∧16-1)
ADR table, ctz_arm7m_hash_table
LDRB r0, [table, shift, LSR#26]
MOV pc, lr
ctz_arm7m_hash_table
DCB 0x20, 0x00, 0x01, 0x0c, 0x02, 0x06, 0xff, 0x0d
DCB 0x03, 0xff, 0x07, 0xff, 0xff, 0xff, 0xff, 0x0e
DCB 0x0a, 0x04, 0xff, 0xff, 0x08, 0xff, 0xff, 0x19
DCB 0xff, 0xff, 0xff, 0xff, 0xff, 0x15, 0x1b, 0x0f
DCB 0x1f, 0x0b, 0x05, 0xff, 0xff, 0xff, 0xff, 0xff
DCB 0x09, 0xff, 0xff, 0x18, 0xff, 0xff, 0x14, 0x1a
DCB 0x1e, 0xff, 0xff, 0xff, 0xff, 0x17, 0xff, 0x13
DCB 0x1d, 0xff, 0x16, 0x12, 0x1c, 0x11, 0x10
7.3 Division
ARM cores don’t have hardware support for division. To divide two numbers you must
call a software routine that calculates the result using standard arithmetic operations. If
you can’t avoid a division (see Section 5.10 for how to avoid divisions and fast division by](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-231-320.jpg)
![222 Chapter 7 Optimized Primitives
SUBCC r, r, m
ADCS r, m, r, LSL #1
SUBCC r, r, m
; extract answer and remainder (if required)
ADC r0, r, r ; insert final answer bit
MOV r, r0, LSR #15 ; extract remainder
BIC r0, r0, r, LSL #15 ; extract quotient
MOV pc, lr ; return { r0, r }
overflow_15 ; quotient oveflows 15 bits
LDR r0, =0x7fff ; maximum quotient
MOV r1, r0 ; maximum remainder
MOV pc, lr ; return { 0x7fff, 0x7fff }
We start by setting m = −d214. Instead of subtracting a shifted version of the denomin-
ator from the remainder, we add the negated denominator to the shifted remainder. After
the kth trial subtraction step, the bottom k bits of r hold the k top bits of the quotient.
The upper 32 − k bits of r hold the remainder. Each ADC instruction performs three
functions:
■ It shifts the remainder left by one.
■ It inserts the next quotient bit from the last trial subtraction.
■ It subtracts d 14 from the remainder.
After 15 steps the bottom 15 bits of r contain the quotient and the top 17 bits contain
the remainder. We separate these into r0 and r1, respectively. Excluding the return, the
division takes 35 cycles on ARM7TDMI.
7.3.1.3 Unsigned 64/31-Bit Divide by Trial Subtraction
ThisoperationisusefulwhenyouneedtodivideQ31fixed-pointintegers(seeSection8.1.5).
It doubles the precision of the division in Section 7.3.1.2. The numerator n is an unsigned
64-bit integer. The denominator d is an unsigned 31-bit integer. The following routine
returns a structure containing the 32-bit quotient q and remainder r. The result overflows
if n ≥ d232. In this case we return the maximum possible quotient of 0xffffffff. The
routines takes 99 cycles on ARM7TDMI using a three-bit-per-cycle trial subtraction. In the
code comments we use the notation [r, q] to mean a 64-bit value with upper 32 bits r and
lower 32 bits q.
m RN 0 ; input denominator d, -d
r RN 1 ; input numerator (low), remainder (high)
t RN 2 ; input numerator (high)
q RN 3 ; result quotient and remainder (low)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-237-320.jpg)
![7.3 Division 223
; __value_in_regs struct { unsigned q, r; }
; udiv_64by32_arm7m(unsigned d, unsigned long long n)
udiv_64by32_arm7m
CMP t, m ; if (n = (d 32))
BCS overflow_32 ; goto overflow_32;
RSB m, m, #0 ; m = -d
ADDS q, r, r ; { [r,q] = 2*[r,q]-[d,0];
ADCS r, m, t, LSL#1 ; C = ([r,q]=0); }
SUBCC r, r, m ; if (C==0) [r,q] += [d,0]
GBLA k ; the next 32 steps are the same
k SETA 1 ; so we generate them using an
WHILE k32 ; assembler while loop
ADCS q, q, q ; { [r,q] = 2*[r,q]+C - [d,0];
ADCS r, m, r, LSL#1 ; C = ([r,q]=0); }
SUBCC r, r, m ; if (C==0) [r,q] += [d,0]
k SETA k+1
WEND
ADCS r0, q, q ; insert final answer bit
MOV pc, lr ; return { r0, r1 }
overflow_32
MOV r0, #-1
MOV r1, #-1
MOV pc, lr ; return { -1, -1 }
The idea is similar to the 32/15-bit division. After the kth trial subtraction the 64-bit
value [r, q] contains the remainder in the top 64 − k bits. The bottom k bits contain the
top k quotient bits. After 32 trial subtractions, r holds the remainder and q the quotient.
The two ADC instructions shift [r, q] left by one, inserting the last answer bit in the bottom
and subtracting the denominator from the upper 32 bits. If the subtraction overflows, we
correct r by adding back the denominator.
7.3.2 Unsigned Integer Newton-Raphson Division
Newton-Raphson iteration is a powerful technique for solving equations numerically. Once
we have a good approximation of a solution to an equation, the iteration converges very
rapidly on that solution. In fact, convergence is usually quadratic with the number of valid
fractional bits roughly doubling with each iteration. Newton-Raphson is widely used for
calculating high-precision reciprocals and square roots. We will use the Newton-Raphson
method to implement 16- and 32-bit integer and fractional divides, although the ideas we
will look at generalize to any size of division.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-238-320.jpg)
![7.3 Division 225
The equation f (x) = 0 has a solution at x = 2N d−1 and derivative f (x) = 2N x−2.
By substitution, the Newton-Raphson iteration is given by
xn+1 = xn −
d − 2N x−1
n
2N x−2
n
= 2xn −
dx2
n
2N
(7.4)
In one sense the iteration has turned our division upside-down. Instead of multiplying
by 2N and dividing by d, we are now multiplying by d and dividing by 2N . There are two
cases that are particularly useful:
■ N = 32 and d is an integer. In this case we can approximate 232d−1 quickly and use
this approximation to calculate n/d, the ratio of two unsigned 32-bit numbers. See
Section 7.3.2.1 for iterations using N = 32.
■ N = 0 and d is a fraction represented in fixed-point format with 0. 5 ≤ d 1. In
this case we can calculate d−1 using the iteration, which is useful to calculate nd−1 for
a range of fixed-point values n. See Section 7.3.3 for iterations using N = 0.
7.3.2.1 Unsigned 32/32-Bit Divide by Newton-Raphson
This section gives you an alterative to the routine of Section 7.3.1.1. The following routine
has very good worst-case performance and makes use of the faster multiplier on ARM9E.
We use Newton-Raphson iteration with N = 32 and integral d to approximate the integer
232/d. We then multiply this approximation by n and divide by 232 to get an estimate of the
quotient q = n/d. Finally, we calculate the remainder r = n − qd and correct quotient and
remainder for any rounding error.
q RN 0 ; input denominator d, output quotient q
r RN 1 ; input numerator n, output remainder r
s RN 2 ; scratch register
m RN 3 ; scratch register
a RN 12 ; scratch register
; __value_in_regs struct { unsigned q, r; }
; udiv_32by32_arm9e(unsigned d, unsigned n)
udiv_32by32_arm9e ; instruction number : comment
CLZ s, q ; 01 : find normalizing shift
MOVS a, q, LSL s ; 02 : perform a lookup on the
ADD a, pc, a, LSR#25 ; 03 : most significant 7 bits
LDRNEB a, [a, #t32-b32-64] ; 04 : of divisor
b32 SUBS s, s, #7 ; 05 : correct shift
RSB m, q, #0 ; 06 : m = -d
MOVPL q, a, LSL s ; 07 : q approx (1 32)/d
; 1st Newton iteration follows
MULPL a, q, m ; 08 : a = -q*d](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-240-320.jpg)
![7.3 Division 227
; table[0] = 255
; table[i] = (1 14)/(64+i) for i=1,2,3,...,63
t32 DCB 0xff, 0xfc, 0xf8, 0xf4, 0xf0, 0xed, 0xea, 0xe6
DCB 0xe3, 0xe0, 0xdd, 0xda, 0xd7, 0xd4, 0xd2, 0xcf
DCB 0xcc, 0xca, 0xc7, 0xc5, 0xc3, 0xc0, 0xbe, 0xbc
DCB 0xba, 0xb8, 0xb6, 0xb4, 0xb2, 0xb0, 0xae, 0xac
DCB 0xaa, 0xa8, 0xa7, 0xa5, 0xa3, 0xa2, 0xa0, 0x9f
DCB 0x9d, 0x9c, 0x9a, 0x99, 0x97, 0x96, 0x94, 0x93
DCB 0x92, 0x90, 0x8f, 0x8e, 0x8d, 0x8c, 0x8a, 0x89
DCB 0x88, 0x87, 0x86, 0x85, 0x84, 0x83, 0x82, 0x81
Proof
7.2
The proof that the code works is rather involved. To make the proof and explanation
simpler, we comment each line with a line number for the instruction. Note that some
of the instructions are conditional, and the comments only apply when the instruction is
executed.
Execution follows several different paths through the code depending on the size of the
denominator d. We treat these cases separately. We’ll use Ik as shorthand notation for the
instruction numbered k in the preceding code.
Case 1 d = 0: 27 cycles on ARM9E, including return
We check for this case explicitly. We avoid the table lookup at I04 by making the load
conditional on q](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-242-320.jpg)
![= 0. This ensures we don’t read off the start of the table. Since I01 sets
s = 32, there is no branch at I09. I06 sets m = 0, and so I11 sets the Z flag and clears the
carry flag. We branch at I15 to special case code.
Case 2 d = 1: 27 cycles on ARM9E, including return
This case is similar to the d = 0 case. The table lookup at I05 does occur, but we ignore the
result. I06 sets m = −1, and so I11 sets the Z and carry flags. The special code at I37 returns
the trivial result of q = n, r = 0.
Case 3 2 ≤ d 225: 36 cycles on ARM9E, including return
This is the hardest case. First we use a table lookup on the leading bits of d to generate an
estimate for 232/d. I01 finds a shift s such that 231 ≤ d2s 232. I02 sets a = d2s. I03 and
I04 perform a table lookup on the top seven bits of a, which we will call i0. i0 is an index
between 64 and 127. Truncating d to seven bits introduces an error f0:
i0 = 2s−25
d − f0, where 0 ≤ f0 1 (7.5)
We set a to the lookup value a0 = table[i0 − 64] = 214i−1
0 − g0, where 0 ≤ g0 ≤ 1 is
the table truncation error. Then,
a0 =
214
i0
− g0 =
214
i0
1 −
g0i0
214
=
214
i0 + f0
1 +
f0
i0
− g0
i0 + f0
214
(7.6)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-243-320.jpg)
![7.3 Division 231
7.3.3.1 Theory: The Initial Estimate for Newton-Raphson Division
If you are not interested in Newton-Raphson theory, then skip the next two sections and
jump to Section 7.3.3.3.
We use a lookup table on the most significant bits of d to determine the initial estimate
x0 to d−1. For a good trade-off between table size and estimate accuracy, we index by the
leading eight fractional bits of d, returning a nine-bit estimate x0. Since the leading bits of
d and x0 are both one, we only need a lookup table consisting of 128 eight-bit entries.
Let a be the integer formed by the seven bits following the leading one of d. Then d is in
the range (128 + a)2−8 ≤ d (129 + a)2−8. Choosing c = (128. 5 + a)2−8, the midpoint,
we define the lookup table by
table[a] = round(256.0/c) - 256;
This is a floating-point formula, where round rounds to the nearest integer. We can reduce
this to an integer formula that is easier to calculate if you don’t have floating-point support:
table[a] = (511*(128-a))/(257+2*a);
Clearly, all the table entries are in the range 0 to 255. To start the Newton-Raphson
iteration we set x0 = 1 + table[a]2−8 and k0 = 9. Now we cheat slightly by looking ahead
to Section 7.3.3.3. We will be interested in the value of the following error term:
E = d2
e2
0 + d2−16
(7.19)
First let’s look at d|e0|. If e0 ≤ 0, then
d|e0| = x0d − 1 x0(129 + a)2−8
− 1 (7.20)
d|e0|
(256 + table[a])(129 + a) − 2−16
2−16
(7.21)
If e0 ≥ 0, then
d|e0| = 1 − x0d ≤ 1 − x0(128 + a)2−8
(7.22)
d|e0| ≤
216
− (256 + table[a])(128 + a)
2−16
(7.23)
Running through the possible values of a, we find that d|e0| 299 × 2−16. This is the best
possible bound. Take d = (133 − e)2−16, and the smaller e 0, the closer to the bound
you will get! The same trick works for finding a sharp bound on E:
E232
(256 + table[a])(129 + a) − 216
2
+ (129 + a)28
if e0 ≤ 0 (7.24)
E232
216
− (256 + table[a])(128 + a)
2
+ (129 + a)28
if e0 ≥ 0 (7.25)
Running over the possible values of a gives us the sharp bound E 2−15. Finally we need
to check that x0 ≤ 2 − 2−7. This follows as the largest table entry is 254.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-247-320.jpg)
![7.3 Division 233
7.3.3.3 Q15 Fixed-Point Division by Newton-Raphson
We calculate a Q15 representation of the ratio nd−1, where n and d are 16-bit positive
integers in the range 0 ≤ n d 215. In other words, we calculate
q = (n 15)/d;
You can use the routine udiv_32by16_arm7m in Section 7.3.1.2 to do this by trial
subtraction. However, the following routine calculates exactly the same result but uses
fewer cycles on an ARMv5E core. If you only need an estimate of the result, then you can
remove instructions I15 to I18, which correct the error of the initial estimate.
The routine veers perilously close to being inaccurate in many places, so it is followed by
a proof that it is correct. The proof uses the theory of Section 7.3.3.2. The proof is a useful
reference if the code requires adaptation or optimizing for another ARM core. The routine
takes 24 cycles on an ARM9E including the return instruction. If d ≤ n 215, then we
return the saturated value 0x7fff.
q RN 0 ; input denominator d, quotient estimate q
r RN 1 ; input numerator n, remainder r
s RN 2 ; normalisation shift, scratch
d RN 3 ; Q15 normalised denominator 2∧14=d2∧15
; unsigned udiv_q15_arm9e(unsigned d, unsigned q)
udiv_q15_arm9e ; instruction number : comment
CLZ s, q ; 01 : choose a shift s to
SUB s, s, #17 ; 02 : normalize d to the
MOVS d, q, LSL s ; 03 : range 0.5=d1 at Q15
ADD q, pc, d, LSR#7 ; 04 : look up q, a Q8
LDRNEB q, [q, #t15-b15-128] ; 05 : approximation to 1//d
b15 MOV r, r, LSL s ; 06 : normalize numerator
ADD q, q, #256 ; 07 : part of table lookup
; q is now a Q8, 9-bit estimate to 1//d
SMULBB s, q, q ; 08 : s = q*q at Q16
CMP r, d ; 09 : check for overflow
MUL s, d, s ; 10 : s = q*q*d at Q31
MOV q, q, LSL#9 ; 11 : change q to Q17
SBC q, q, s, LSR#15 ; 12 : q = 2*q-q*q*d at Q16
; q is now a Q16, 17-bit estimate to 1//d
SMULWB q, q, r ; 13 : q approx n//d at Q15
BCS overflow_15 ; 14 : trap overflow case
SMULBB s, q, d ; 15 : s = q*d at Q30
RSB r, d, r, LSL#15 ; 16 : r = n-d at Q30
CMP r, s ; 17 : if (r=s)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-249-320.jpg)
![234 Chapter 7 Optimized Primitives
ADDPL q, q, #1 ; 18 : q++
BX lr ; 19 : return q
overflow_15
LDR q, =0x7FFF ; 20 : q = 0x7FFF
BX lr ; 21 : return q
; table for fractional Newton-Raphson division
; table[a] = (int)((511*(128-a))/(257+2*a)) 0=a128
t15 DCB 0xfe, 0xfa, 0xf6, 0xf2, 0xef, 0xeb, 0xe7, 0xe4
DCB 0xe0, 0xdd, 0xd9, 0xd6, 0xd2, 0xcf, 0xcc, 0xc9
DCB 0xc6, 0xc2, 0xbf, 0xbc, 0xb9, 0xb6, 0xb3, 0xb1
DCB 0xae, 0xab, 0xa8, 0xa5, 0xa3, 0xa0, 0x9d, 0x9b
DCB 0x98, 0x96, 0x93, 0x91, 0x8e, 0x8c, 0x8a, 0x87
DCB 0x85, 0x83, 0x80, 0x7e, 0x7c, 0x7a, 0x78, 0x75
DCB 0x73, 0x71, 0x6f, 0x6d, 0x6b, 0x69, 0x67, 0x65
DCB 0x63, 0x61, 0x5f, 0x5e, 0x5c, 0x5a, 0x58, 0x56
DCB 0x54, 0x53, 0x51, 0x4f, 0x4e, 0x4c, 0x4a, 0x49
DCB 0x47, 0x45, 0x44, 0x42, 0x40, 0x3f, 0x3d, 0x3c
DCB 0x3a, 0x39, 0x37, 0x36, 0x34, 0x33, 0x32, 0x30
DCB 0x2f, 0x2d, 0x2c, 0x2b, 0x29, 0x28, 0x27, 0x25
DCB 0x24, 0x23, 0x21, 0x20, 0x1f, 0x1e, 0x1c, 0x1b
DCB 0x1a, 0x19, 0x17, 0x16, 0x15, 0x14, 0x13, 0x12
DCB 0x10, 0x0f, 0x0e, 0x0d, 0x0c, 0x0b, 0x0a, 0x09
DCB 0x08, 0x07, 0x06, 0x05, 0x04, 0x03, 0x02, 0x01
Proof
7.3
The routine starts by normalizing d and n so that 214 ≤ d 215 in instructions I01, I02, I03,
I06. This doesn’t affect the result since we shift the numerator and denominator left by the
same number of places. Considering d as a Q15 format fixed-point fraction, 0. 5 ≤ d 1.
I09 and I14 are overflow traps that catch the case that n ≥ d. This includes the case d = 0.
Assuming from now on that there is no overflow, I04, I05, I07 set q to the 9-bit Q8 initial
estimate x0 to d−1 as described in Section 7.3.1.1. Since d is in the range 0. 5 ≤ d 1, we
subtract 128 on the table lookup so that 0.5 corresponds to the first entry of the table.
Next we perform one Newton-Raphson iteration. I08 sets a to the exact Q16 square of
x0, and I10 sets a to the exact Q31 value of dx2
0 . There is a subtlety here. We need to check
that this value will not overflow an unsigned Q31 representation. In fact:
dx2
0 =
x2
0
x0 + e0
=
1 + x0 −
e0
x0 + e0
(7.34)
This term reaches its maximum value when x0 is as large as possible and e0 as negative
as possible, which occurs when d = 0. 5 + 2−8 − 2−15, where x0 = 2 − 2−7 and dx2
0
2 − 2−13 2.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-250-320.jpg)
![236 Chapter 7 Optimized Primitives
CLZ s, q ; 01 : choose a shift s to
CMP r, q ; 02 : normalize d to the
MOVCC d, q, LSL s ; 03 : range 0.5=d1 at Q32
ADDCC q, pc, d, LSR#24 ; 04 : look up q, a Q8
LDRCCB q, [q, #t15-b31-128] ; 05 : approximation to 1//d
b31 MOVCC r, r, LSL s ; 06 : normalize numerator
ADDCC q, q, #256 ; 07 : part of table lookup
; q is now a Q8, 9-bit estimate to 1//d
SMULBBCC a, q, q ; 08 : a = q*q at Q16
MOVCS q, #0x7FFFFFFF ; 09 : overflow case
UMULLCC s, a, d, a ; 10 : a = q*q*d at Q16
BXCS lr ; 11 : exit on overflow
RSB q, a, q, LSL#9 ; 12 : q = 2*q-q*q*d at Q16
; q is now a Q16, 17-bit estimate to 1//d
UMULL a, s, q, q ; 13 : [s,a] = q*q at Q32
MOVS a, a, LSR#1 ; 14 : now halve [s,a] and
ADC a, a, s, LSL#31 ; 15 : round so [N,a]=q*q at
MOVS s, s, LSL#30 ; 16 : Q31, C=0
UMULL s, a, d, a ; 17 : a = a*d at Q31
ADDMI a, a, d ; 18 : if (N) a+=2*d at Q31
RSC q, a, q, LSL#16 ; 19 : q = 2*q-q*q*d at Q31
; q is now a Q31 estimate to 1/d
UMULL s, q, r, q ; 20 : q approx n//d at Q31
; q is now a Q31 estimate to num/den, remainder3*d
UMULL s, a, d, q ; 21 : [a,s] = d*q at Q62
RSBS s, s, #0 ; 22 : [r,s] = n-d*q
RSC r, a, r, LSR#1 ; 23 : at Q62
; [r,s]=(r 32)+s is now the positive remainder3*d
SUBS s, s, d ; 24 : [r,s] = n-(d+1)*q
SBCS r, r, #0 ; 25 : at Q62
ADDPL q, q, #1 ; 26 : if ([r,s]=0) q++
SUBS s, s, d ; 27 : [r,s] = [r,s]-d
SBCS r, r, #0 ; 28 : at Q62
ADDPL q, q, #1 ; 29 : if ([r,s]=0) q++
BX lr ; 30 : return q
Proof
7.4
We first check that n d. If not, then a sequence of conditional instructions occur that
return the saturated value 0x7fffffff at I11. Otherwise d and n are normalized to Q31
representations, 230 ≤ d 231. I07 sets q to a Q8 representation of x0, the initial
approximation, as in Section 7.3.3.3.
I08, I10, and I12 implement the first Newton-Raphson iteration. I08 sets a to the Q16
representation of x2
0 . I10 sets a to the Q16 representation of dx2
0 − g0, where the rounding](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-252-320.jpg)
![238 Chapter 7 Optimized Primitives
STMFD sp!, {lr}
ANDS sign, d, #1 31 ; sign=(d0 ? 1 31 : 0);
RSBMI d, d, #0 ; if (d0) d=-d;
EORS sign, sign, r, ASR#32 ; if (r0) sign=∼sign;
RSBCS r, r, #0 ; if (r0) r=-r;
BL udiv_32by32_arm7m ; (d,r)=(r/d,r%d)
MOVS sign, sign, LSL#1 ; C=sign[31], N=sign[30]
RSBCS d, d, #0 ; if (sign[31]) d=-d;
RSBMI r, r, #0 ; if (sign[30]) r=-r;
LDMFD sp!, {pc}
We use r12 to hold the signs of the quotient and remainder as udiv_32by32_arm7m
preserves r12 (see Section 7.3.1.1).
7.4 Square Roots
Square roots can be handled by the same techniques we used for division. You have a choice
between trial subtraction and Newton-Raphson iteration based implementations. Use trial
subtraction for a low-precision result less than 16 bits, but switch to Newton-Raphson
for higher-precision results. Sections 7.4.1 and 7.4.2 cover trial subtraction and Newton-
Raphson, respectively.
7.4.1 Square Root by Trial Subtraction
We calculate the square root of a 32-bit unsigned integer d. The answer is a 16-bit unsigned
integer q and a 17-bit unsigned remainder r such that
d = q2
+ r and 0 ≤ r ≤ 2q. (7.43)
We start by setting q = 0 and r = d. Next we try and set each bit of q in turn, counting
down from the highest possible bit, bit 15. We can set the bit if the new remainder is
positive. Specifically if we set bit n by adding 2n to q, then the new remainder is
rnew = d − (q + 2n
)2
= (d − q2
) − 2n+1
q − 22n
= rold − 2n
(2q + 2n
) (7.44)
So, to calculate the new remainder we try to subtract the value 2n(2q + 2n). If the
subtraction succeeds with a nonnegative result, then we set bit n of q. The follow-
ing C code illustrates the algorithm, calculating the N-bit square root q of a 2N-bit
input d:
unsigned usqr_simple(unsigned d, unsigned N)
{](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-254-320.jpg)
![240 Chapter 7 Optimized Primitives
7.4.2 Square Root by Newton-Raphson Iteration
The Newton-Raphson iteration for a square root actually calculates the value of d−0.5. You
may find this is a more useful result than the square root itself. For example, to normalize
a vector (x, y) you will multiply by
1
x2 + y2
(7.45)
If you do require
√
d, then simply multiply d−0.5 by d. The equation f (x) = d−x−2 = 0
has positive solution x = d−0.5. The Newton-Raphson iteration to solve this equation is
(see Section 7.3.2)
xn+1 = 0. 5xn(3 − dx2
n) (7.46)
To implement this you can use the same methods we looked at in Section 7.3.2. First
normalize d to the range 0. 25 ≤ d 1. Then generate an initial estimate x0 using a table
lookup on the leading digits of d. Iterate the above formula until you’ve achieved the
precision required for your application. Each iteration will roughly double the number of
significant answer bits.
The following code calculates a Q31 representation of the value d−0.5 for an input
integer d. It uses a table lookup followed by two Newton-Raphson iterations and is accurate
to a maximum error of 2−29. On an ARM9E the code takes 34 cycles including the return.
q RN 0 ; input value, estimated reciprocal root
b RN 1 ; scratch register
s RN 2 ; normalization shift
d RN 3 ; normalized input value
a RN 12 ; scratch register/accumulator
rsqr_32 ; unsigned rsqr_32(unsigned q)
CLZ s, q ; choose shift s which is
BIC s, s, #1 ; even such that d=(q s)
MOVS d, q, LSL s ; is 0.25=d1 at Q32
ADDNE q, pc, d, LSR#25 ; table lookup on top 7 bits
LDRNEB q, [q, #tab-base-32] ; of d in range 32 to 127
base BEQ div_by_zero ; divide by zero trap
ADD q, q, #0x100 ; table stores only bottom 8 bits
; q is now a Q8, 9-bit estimate to 1/sqrt(d)
SMULBB a, q, q ; a = q*q at Q16
MOV b, d, LSR #17 ; b = d at Q15
SMULWB a, a, b ; a = d*q*q at Q15
MOV b, q, LSL #7 ; b = q at Q15
RSB a, a, #3 15 ; a = (3-d*q*q) at Q15](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-256-320.jpg)
![7.5 Transcendental Functions: log, exp, sin, cos 241
MUL q, a, b ; q = q*(3-d*q*q)/2 at Q31
; q is now a Q31 estimate to 1/sqrt(d)
UMULL b, a, d, q ; a = d*q at Q31
MOV s, s, LSR #1 ; square root halves the shift
UMULL b, a, q, a ; a = d*q*q at Q30
RSB s, s, #15 ; reciprocal inverts the shift
RSB a, a, #3 30 ; a = (3-d*q*q) at Q30
UMULL b, q, a, q ; q = q*(3-d*q*q)/2 at Q31
; q is now a good Q31 estimate to 1/sqrt(d)
MOV q, q, LSR s ; undo the normalization shift
BX lr ; return q
div_by_zero
MOV q, #0x7FFFFFFF ; maximum positive answer
BX lr ; return q
tab ; tab[k] = round(256.0/sqrt((k+32.3)/128.0)) - 256
DCB 0xfe, 0xf6, 0xef, 0xe7, 0xe1, 0xda, 0xd4, 0xce
DCB 0xc8, 0xc3, 0xbd, 0xb8, 0xb3, 0xae, 0xaa, 0xa5
DCB 0xa1, 0x9c, 0x98, 0x94, 0x90, 0x8d, 0x89, 0x85
DCB 0x82, 0x7f, 0x7b, 0x78, 0x75, 0x72, 0x6f, 0x6c
DCB 0x69, 0x66, 0x64, 0x61, 0x5e, 0x5c, 0x59, 0x57
DCB 0x55, 0x52, 0x50, 0x4e, 0x4c, 0x49, 0x47, 0x45
DCB 0x43, 0x41, 0x3f, 0x3d, 0x3b, 0x3a, 0x38, 0x36
DCB 0x34, 0x32, 0x31, 0x2f, 0x2d, 0x2c, 0x2a, 0x29
DCB 0x27, 0x26, 0x24, 0x23, 0x21, 0x20, 0x1e, 0x1d
DCB 0x1c, 0x1a, 0x19, 0x18, 0x16, 0x15, 0x14, 0x13
DCB 0x11, 0x10, 0x0f, 0x0e, 0x0d, 0x0b, 0x0a, 0x09
DCB 0x08, 0x07, 0x06, 0x05, 0x04, 0x03, 0x02, 0x01
Similarly, to calculate d
−1
k you can use the Newton-Raphson iteration for the equation
f (x) = d − x−k = 0.
7.5 Transcendental Functions:
log, exp, sin, cos
You can implement transcendental functions by using a combination of table lookup and
series expansion. We examine how this works for the most common four transcendental
operations: log, exp, sin, and cos. DSP applications use logarithm and exponentiation
functions to convert between linear and logarithmic formats. The trigonometric functions
sine and cosine are useful in 2D and 3D graphics and mapping calculations.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-257-320.jpg)
![242 Chapter 7 Optimized Primitives
All the example routines of this section produce an answer accurate to 32 bits, which
is excessive for many applications. You can accelerate performance by curtailing the series
expansions with some loss in accuracy.
7.5.1 The Base-Two Logarithm
Suppose we have a 32-bit integer n, and we want to find the base-two logarithm s = log2(n)
such that n = 2s. Since s is in the range 0 ≤ s 32, we will actually find a Q26 representation
q of the logarithm so that q = s226. We can easily calculate the integer part of s using CLZ
or the alternatives of Section 7.2. This reduces us to a number in the range 1 ≤ n 2. First
we perform a table lookup on an approximation a to n to find log2(a) and a−1. Since
log2(n) = log2(a) + log2
n
a
(7.47)
we’ve reduced the problem to finding log2(na−1). As na−1 is close to one, we can use the
series expansion of log2(1 + x) to improve the result accuracy:
log2(1 + x) =
ln(1 + x)
ln(2)
=
1
ln(2)
x −
x2
2
+
x3
3
− · · ·
(7.48)
where ln is the natural logarithm to base e. To summarize, we calculate the logarithm in
three stages as illustrated in Figure 7.4:
■ We use CLZ to find bits [31:26] of the result.
■ We use a table lookup of the first five fractional bits to find an estimate.
■ We use series expansion to calculate the estimate error more accurately.
YoucanusethefollowingcodetoimplementthisonanARM9Eprocessorusing31cycles
excluding the return. The answer is accurate to an error of 2−25.
n RN 0 ; Q0 input, Q26 log2 estimate
d RN 1 ; normalize input Q32
r RN 2
CLZ
result =
31 26
Lookup
25
Series
0
Figure 7.4 The three stages of the logarithm calculation.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-258-320.jpg)
![7.5 Transcendental Functions: log, exp, sin, cos 243
q RN 3
t RN 12
; int ulog2_32(unsigned n)
ulog2_32
CLZ r, n
MOV d, n, LSL#1
MOV d, d, LSL r ; 1=d2 at Q32
RSB n, r, #31 ; integer part of the log
MOV r, d, LSR#27 ; estimate e=1+(r/32)+(1/64)
ADR t, ulog2_table
LDR r, [t, r, LSL#3]! ; r=log2(e) at Q26
LDR q, [t, #4] ; q=1/e at Q32
MOV t, #0
UMLAL t, r, d, r ; r=(d/e)-1 at Q32
LDR t, =0x55555555 ; round(2∧32/3)
ADD n, q, n, LSL#26 ; n+log2(e) at Q26
SMULL t, q, r, t ; q = r/3 at Q32
LDR d, =0x05c551d9 ; round(2∧26/ln(2))
SMULL t, q, r, q ; q = r∧2/3 at Q32
MOV t, #0
SUB q, q, r, ASR#1 ; q = -r/2+r∧2/3 at Q32
SMLAL t, r, q, r ; r - r∧2/2 + r∧3/3 at Q32
MOV t, #0
SMLAL t, n, d, r ; n += r/log(2) at Q26
MOV pc, lr
ulog2_table
; table[2*i] =round(2∧32/a) where a=1+(i+0.5)/32
; table[2*i+1]=round(2∧26*log2(a)) and 0=i32
DCD 0xfc0fc0fc, 0x0016e797, 0xf4898d60, 0x0043ace2
DCD 0xed7303b6, 0x006f2109, 0xe6c2b448, 0x0099574f
DCD 0xe070381c, 0x00c2615f, 0xda740da7, 0x00ea4f72
DCD 0xd4c77b03, 0x0111307e, 0xcf6474a9, 0x0137124d
DCD 0xca4587e7, 0x015c01a4, 0xc565c87b, 0x01800a56
DCD 0xc0c0c0c1, 0x01a33761, 0xbc52640c, 0x01c592fb
DCD 0xb81702e0, 0x01e726aa, 0xb40b40b4, 0x0207fb51
DCD 0xb02c0b03, 0x0228193f, 0xac769184, 0x0247883b
DCD 0xa8e83f57, 0x02664f8d, 0xa57eb503, 0x02847610
DCD 0xa237c32b, 0x02a20231, 0x9f1165e7, 0x02bef9ff
DCD 0x9c09c09c, 0x02db632d, 0x991f1a51, 0x02f7431f
DCD 0x964fda6c, 0x03129ee9, 0x939a85c4, 0x032d7b5a
DCD 0x90fdbc09, 0x0347dcfe, 0x8e78356d, 0x0361c825](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-259-320.jpg)
![7.5 Transcendental Functions: log, exp, sin, cos 245
LDR q, [t, q, LSL#2] ; q = exp2(a) at Q31
ADDS r, d, r, ASR#1 ; r = d+d∧2/2+d∧3/6 at Q32
UMULL t, r, q, r ; r = exp2(a)*r at Q31 if r0
RSB n, n, #31 ; 31-(integer part of exponent)
ADDPL r, r, q ; correct if r0
MOV n, r, LSR n ; result at Q0
MOV pc, lr
negative
MOV r0, #0 ; 2∧(-ve)=0
MOV pc, lr
uexp2_table
; table[i]=round(2∧31*exp2(a)) where a=(i+0.5)/32
DCD 0x8164d1f4, 0x843a28c4, 0x871f6197, 0x8a14d575
DCD 0x8d1adf5b, 0x9031dc43, 0x935a2b2f, 0x96942d37
DCD 0x99e04593, 0x9d3ed9a7, 0xa0b05110, 0xa43515ae
DCD 0xa7cd93b5, 0xab7a39b6, 0xaf3b78ad, 0xb311c413
DCD 0xb6fd91e3, 0xbaff5ab2, 0xbf1799b6, 0xc346ccda
DCD 0xc78d74c9, 0xcbec14ff, 0xd06333db, 0xd4f35aac
DCD 0xd99d15c2, 0xde60f482, 0xe33f8973, 0xe8396a50
DCD 0xed4f301f, 0xf281773c, 0xf7d0df73, 0xfd3e0c0d
7.5.3 Trigonometric Operations
If you need low-precision trigonometric operations (typically the case when generating sine
waves and other audio signals, or for graphics processing), use a lookup table. For high-
precision graphics or global positioning, greater precision may be required. The routines
we look at here generate sine and cosine accurate to 32 bits.
The standard C library functions sin and cos specify the angle in radians. Radians are
an awkward choice of units when dealing with optimized fixed-point functions. First, on
any angle addition you need to perform arithmetic modulo 2π. Second, it requires range
checking involving π to find out which quadrant of the circle an angle lies in. Rather than
operate modulo 2π, we will operate modulo 232, a very easy operation on any processor.
Let’s define new base-two trigonometric functions s and c, where the angle is specified
on a scale such that 232 is one revolution (2π radians or 360 degrees). To add these angles
we use standard modular integer addition:
s(x) = sin(2πx2−32
) = sin(πx2−31
) and c(x) = cos(πx2−31
) (7.51)
In this form, x is the Q32 representation of the proportion of a revolution represented
by the angle. The top two bits of x tell us which quadrant of the circle the angle lies in.
First we use the top three bits of x to reduce s(x) or c(x) to the sine or cosine of an angle
between zero and one eighth of a revolution. Then we choose an approximation a to x and](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-261-320.jpg)
![246 Chapter 7 Optimized Primitives
use a table to look up s(a) and c(a). The addition formula for sine and cosine reduces the
problem to finding the sine and cosine of a small angle:
s(x) = s(a) cos
π(x − a)2−31
+ c(a) sin
π(x − a)2−31
(7.52)
c(x) = c(a) cos
π(x − a)2−31
− s(a) sin
π(x − a)2−31
(7.53)
Next, we calculate the small angle n = π(x − a)2−31 in radians and use the following
series expansions to improve accuracy further:
sin(x) = x −
x3
6
+ · · · and cos(x) = 1 −
x2
2
+ · · · (7.54)
You can use the following assembly to implement the preceding algorithm for sine and
cosine. The answer is returned at Q30 and has a maximum error of 4 × 2−30. The routine
takes 31 cycles on an ARM9E excluding the return.
n RN 0 ; the input angle in revolutions at Q32, result Q30
s RN 1 ; the output sign
r RN 2
q RN 3
t RN 12
cos_32 ; int cos_32(int n)
EOR s, n, n, LSL#1 ; cos is -ve in quadrants 1,2
MOVS n, n, LSL#1 ; angle in revolutions at Q33
RSBMI n, n, #0 ; in range 0-1/4 of a revolution
CMP n, #1 30 ; if angle 1/8 of a revolution
BCC cos_core ; take cosine
SUBEQ n, n, #1 ; otherwise take sine of
RSBHI n, n, #1 31 ; (1/4 revolution)-(angle)
sin_core ; take sine of Q33 angle n
MOV q, n, LSR#25 ; approximation a=(q+0.5)/32
SUB n, n, q, LSL#25 ; n = n-(q/32) at Q33
SUB n, n, #1 24 ; n = n-(1/64) at Q33
LDR t, =0x6487ed51 ; round(2*PI*2∧28)
MOV r, n, LSL#3 ; r = n at Q36
SMULL t, n, r, t ; n = (x-a)*PI/2∧31 at Q32
ADR t, cossin_tab
LDR q, [t, q, LSL#3]! ; c(a) at Q30
LDR t, [t, #4] ; s(a) at Q30
EOR q, q, s, ASR#31 ; correct c(a) sign
EOR s, t, s, ASR#31 ; correct s(a) sign
SMULL t, r, n, n ; n∧2 at Q32
SMULL t, q, n, q ; n*c(a) at Q30](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-262-320.jpg)
![7.5 Transcendental Functions: log, exp, sin, cos 247
SMULL t, n, r, s ; n∧2*s(a) at Q30
LDR t, =0xd5555556 ; round(-2∧32/6)
SUB n, s, n, ASR#1 ; n = s(a)*(1-n∧2/2) at Q30
SMULL t, s, r, t ; s=-n∧2/6 at Q32
ADD n, n, q ; n += c(a)*n at Q30
MOV t, #0
SMLAL t, n, q, s ; n += -c(a)*n∧3/6 at Q30
MOV pc, lr ; return n
sin_32;int sin_32(int n)
AND s, n, #1 31 ; sin is -ve in quadrants 2,3
MOVS n, n, LSL#1 ; angle in revolutions at Q33
RSBMI n, n, #0 ; in range 0-1/4 of a revolution
CMP n, #1 30 ; if angle 1/8 revolution
BCC sin_core ; take sine
SUBEQ n, n, #1 ; otherwise take cosine of
RSBHI n, n, #1 31 ; (1/4 revolution)-(angle)
cos_core ; take cosine of Q33 angle n
MOV q, n, LSR#25 ; approximation a=(q+0.5)/32
SUB n, n, q, LSL#25 ; n = n-(q/32) at Q33
SUB n, n, #1 24 ; n = n-(1/64) at Q33
LDR t, =0x6487ed51 ; round(2*PI*2∧28)
MOV r, n, LSL#3 ; r = n at Q26
SMULL t, n, r, t ; n = (x-a)*PI/2∧31 at Q32
ADR t, cossin_tab
LDR q, [t, q, LSL#3]! ; c(a) at Q30
LDR t, [t, #4] ; s(a) at Q30
EOR q, q, s, ASR#31 ; correct c(a) sign
EOR s, t, s, ASR#31 ; correct s(a) sign
SMULL t, r, n, n ; n∧2 at Q32
SMULL t, s, n, s ; n*s(a) at Q30
SMULL t, n, r, q ; n∧2*c(a) at Q30
LDR t, =0x2aaaaaab ; round(+2∧23/6)
SUB n, q, n, ASR#1 ; n = c(a)*(1-n∧2/2) at Q30
SMULL t, q, r, t ; n∧2/6 at Q32
SUB n, n, s ; n += -sin*n at Q30
MOV t, #0
SMLAL t, n, s, q ; n += sin*n∧3/6 at Q30
MOV pc, lr ; return n
cossin_tab
; table[2*i] =round(2∧30*cos(a)) where a=(PI/4)*(i+0.5)/32
; table[2*i+1]=round(2∧30*sin(a)) and 0 = i 32](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-263-320.jpg)
![248 Chapter 7 Optimized Primitives
DCD 0x3ffec42d, 0x00c90e90, 0x3ff4e5e0, 0x025b0caf
DCD 0x3fe12acb, 0x03ecadcf, 0x3fc395f9, 0x057db403
DCD 0x3f9c2bfb, 0x070de172, 0x3f6af2e3, 0x089cf867
DCD 0x3f2ff24a, 0x0a2abb59, 0x3eeb3347, 0x0bb6ecef
DCD 0x3e9cc076, 0x0d415013, 0x3e44a5ef, 0x0ec9a7f3
DCD 0x3de2f148, 0x104fb80e, 0x3d77b192, 0x11d3443f
DCD 0x3d02f757, 0x135410c3, 0x3c84d496, 0x14d1e242
DCD 0x3bfd5cc4, 0x164c7ddd, 0x3b6ca4c4, 0x17c3a931
DCD 0x3ad2c2e8, 0x19372a64, 0x3a2fcee8, 0x1aa6c82b
DCD 0x3983e1e8, 0x1c1249d8, 0x38cf1669, 0x1d79775c
DCD 0x3811884d, 0x1edc1953, 0x374b54ce, 0x2039f90f
DCD 0x367c9a7e, 0x2192e09b, 0x35a5793c, 0x22e69ac8
DCD 0x34c61236, 0x2434f332, 0x33de87de, 0x257db64c
DCD 0x32eefdea, 0x26c0b162, 0x31f79948, 0x27fdb2a7
DCD 0x30f8801f, 0x29348937, 0x2ff1d9c7, 0x2a650525
DCD 0x2ee3cebe, 0x2b8ef77d, 0x2dce88aa, 0x2cb2324c
7.6 Endian Reversal and Bit Operations
This section presents optimized algorithms for manipulating the bits within a register.
Section 7.6.1 looks at endian reversal, a useful operation when you are reading data from
a big-endian file on a little-endian memory system. Section 7.6.2 looks at permuting bits
within a word, for example, reversing the bits. We show how to support a wide variety of bit
permutations. See also Section 6.7 for a discussion on packing and unpacking bitstreams.
7.6.1 Endian Reversal
To use the ARM core’s 32-bit data bus to maximum efficiency, you will want to load and
store 8- and 16-bit arrays four bytes at a time. However, if you load multiple bytes at once,
then the processor endianness affects the order they will appear in the register. If this does
not match the order you want, then you will need to reverse the byte order.
You can use the following code sequences to reverse the order of the bytes within a word.
The first sequence uses two temporary registers and takes three cycles per word reversed
after a constant setup cycle. The second code sequence only uses one temporary register
and is useful for reversing a single word.
n RN 0 ; input, output words
t RN 1 ; scratch 1
m RN 2 ; scratch 2
byte_reverse ; n = [ a , b , c , d ]](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-264-320.jpg)
![7.6 Endian Reversal and Bit Operations 249
MVN m, #0x0000FF00 ; m = [0xFF,0xFF,0x00,0xFF ]
EOR t, n, n, ROR #16 ; t = [ a∧c, b∧d, a∧c, b∧d ]
AND t, m, t, LSR#8 ; t = [ 0 , a∧c, 0 , a∧c ]
EOR n, t, n, ROR #8 ; n = [ d , c , b , a ]
MOV pc, lr
byte_reverse_2reg ; n = [ a , b , c, d ]
EOR t, n, n, ROR#16 ; t = [ a∧c, b∧d, a∧c, b∧d ]
MOV t, t, LSR#8 ; t = [ 0 , a∧c, b∧d, a∧c ]
BIC t, t, #0xFF00 ; t = [ 0 , a∧c, 0 , a∧c ]
EOR n, t, n, ROR #8 ; n = [ d , c , b , a ]
MOV pc, lr
Halfword reversing within a word is provided free by the ARM barrel shifter since it is
the same as a rotate right by 16 places.
7.6.2 Bit Permutations
The byte reversal of Section 7.6.1 is a special case of a bit permutation. There are many
other important bit permutations that you might come across (see Table 7.3):
■ Bit reversal. Exchanging the value of bits k and 31 − k.
■ Bit spreading. Spacing out the bits so that bit k moves to bit 2k for k 16 and bit 2k −31
for k ≥ 16.
■ DES initial permutation. DES stands for the Data Encryption Standard, a common
algorithm for bulk data encryption. The algorithm applies a 64-bit permutation to the
data before and after the encryption rounds.
Writing optimized code to implement such permutations is simple when you have at
hand a toolbox of bit permutation primitives like the ones we will develop in this section
(see Table 7.4). They are much faster than a loop that examines each bit in turn, since they
process 32 bits at a time.
Table 7.3 Table of common permutations.
Permutation name Permutation action
Byte reversal [b4, b3,b2, b1, b0] → [1 − b4, 1 − b3, b2, b1, b0]
Bit reversal [b4, b3,b2, b1, b0] → [1 − b4, 1 − b3, 1 − b2, 1 − b1, 1 − b0]
Bit spread [b4, b3,b2, b1, b0] → [b3, b2, b1, b0, b4]
DES permutation [b5, b4, b3,b2, b1, b0] → [1 − b0, b2, b1, 1 − b5, 1 − b4, 1 − b3]](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-265-320.jpg)
![250 Chapter 7 Optimized Primitives
Table 7.4 Permutation primitives.
Primitive name Permutation action
A (bit index complement) [. . . , bk, . . .] → [. . . , 1 − bk, . . .]
B (bit index swap) [. . . , bj, . . . , bk, . . .] → [. . . , bk, . . . , bj, . . .]
C (bit index complement+swap) [. . . , bj, . . . , bk, . . .] → [. . . , 1 − bk, . . . , 1 − bj, . . .]
Let’s start with some notation. Suppose we are dealing with a 2k-bit value n and we want
to permute the bits of n. Then we can refer to each bit position in n using a k-bit index
bk−12k−1 + · · · + b12 + b0. So, for permuting the bits within 32-bit values, we take k = 5.
We will look at permutations that move the bit at position bk−12k−1 + · · · + b12 + b0 to
position ck−12k−1 + · · · + c12 + c0, where each ci is either a bj or a 1 − bj. We will denote
this permutation by
[bk−1, . . . , b1, b0] → [ck−1, . . . , c1, c0] (7.55)
For example, Table 7.3 shows the notation and action for the permutations we’ve talked
about so far.
What’s the point of this? Well, we can achieve any of these permutations using a series
of the three basic permutations in Table 7.4. In fact, we only need the first two since C is B
followed by A twice. However, we can implement C directly for a faster result.
7.6.2.1 Bit Permutation Macros
The following macros implement the three permutation primitives for a 32-bit word n.
They need only four cycles per permutation if the constant values are already set up in
registers. For larger or smaller width permutations, the same ideas apply.
mask0 EQU 0x55555555 ; set bit positions with b0=0
mask1 EQU 0x33333333 ; set bit positions with b1=0
mask2 EQU 0x0F0F0F0F ; set bit positions with b2=0
mask3 EQU 0x00FF00FF ; set bit positions with b3=0
mask4 EQU 0x0000FFFF ; set bit positions with b4=0
MACRO
PERMUTE_A $k
; [ ... b_k ... ]-[ ... 1-b_k ... ]
IF $k=4
MOV n, n, ROR#16
ELSE
LDR m, =mask$k](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-266-320.jpg)
![7.6 Endian Reversal and Bit Operations 251
AND t, m, n, LSR#(1 $k) ; get bits with index b_k=1
AND n, n, m ; get bits with index b_k=0
ORR n, t, n, LSL#(1 $k) ; swap them over
ENDIF
MEND
MACRO
PERMUTE_B $j, $k
; [ .. b_j .. b_k .. ] - [ .. b_k .. b_j .. ] and jk
LDR m, =(mask$j:AND::NOT:mask$k) ; set when b_j=0 b_k=1
EOR t, n, n, LSR#(1 $j)-(1 $k)
AND t, t, m ; get bits where b_j!=b_k
EOR n, n, t, LSL#(1 $j)-(1 $k) ; change if bj=1 bk=0
EOR n, n, t ; change when b_j=0 b_k=1
MEND
MACRO
PERMUTE_C $j, $k
; [ .. b_j .. b_k .. ] - [ .. 1-b_k .. 1-b_j .. ] and jk
LDR m, =(mask$j:AND:mask$k) ; set when b_j=0 b_k=0
EOR t, n, n, LSR#(1 $j)+(1 $k)
AND t, t, m ; get bits where b_j==b_k
EOR n, n, t, LSL#(1 $j)+(1 $k) ; change if bj=1 bk=1
EOR n, n, t ; change when b_j=0 b_k=0
MEND
7.6.2.2 Bit Permutation Examples
Now, let’s see how these macros will help us in practice. Bit reverse moves the bit at
position b to position 31 − b; in other words, it inverts each bit of the five-bit position
index b. We can use five type A transforms to implement bit reversal, logically inverting
each bit index position in turn.
bit_reverse ; n= [ b4 b3 b2 b1 b0 ]
PERMUTE_A 0 ; - [ b4 b3 b2 b1 1-b0 ]
PERMUTE_A 1 ; - [ b4 b3 b2 1-b1 1-b0 ]
PERMUTE_A 2 ; - [ b4 b3 1-b2 1-b1 1-b0 ]
PERMUTE_A 3 ; - [ b4 1-b3 1-b2 1-b1 1-b0 ]
PERMUTE_A 4 ; - [ 1-b4 1-b3 1-b2 1-b1 1-b0 ]
MOV pc, lr](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-267-320.jpg)
![252 Chapter 7 Optimized Primitives
We can implement the more difficult bit spreading permutation using four type B
transforms. This is only 16 cycles ignoring the constant setups—much faster than any loop
testing each bit one at a time.
bit_spread ; n= [ b4 b3 b2 b1 b0 ]
PERMUTE_B 4,3 ; - [ b3 b4 b2 b1 b0 ]
PERMUTE_B 3,2 ; - [ b3 b2 b4 b1 b0 ]
PERMUTE_B 2,1 ; - [ b3 b2 b1 b4 b0 ]
PERMUTE_B 1,0 ; - [ b3 b2 b1 b0 b4 ]
MOV pc, lr
Finally, type C permutations allow us to perform bit reversal and bit spreading at the
same time and with the same number of cycles.
bit_rev_spread ; n= [ b4 b3 b2 b1 b0 ]
PERMUTE_C 4,3 ; - [ 1-b3 1-b4 b2 b1 b0 ]
PERMUTE_C 3,2 ; - [ 1-b3 1-b2 b4 b1 b0 ]
PERMUTE_C 2,1 ; - [ 1-b3 1-b2 1-b1 1-b4 b0 ]
PERMUTE_C 1,0 ; - [ 1-b3 1-b2 1-b1 1-b0 b4 ]
MOV pc, lr
7.6.3 Bit Population Count
A bit population count finds the number of bits set within a word. For example, this is
useful if you need to find the number of interrupts set in an interrupt mask. A loop testing
each bit is slow, since ADD instructions can be used to sum bits in parallel provided that the
sums do not interfere with each other. The idea of the divide by three and conquer method
is to split the 32-bit word into bit triplets. The sum of each bit triplet is a 2-bit number in
the range 0 to 3. We calculate these in parallel and then sum them in a logarithmic fashion.
Use the following code for bit population counts of a single word. The operation is
10 cycles plus 2 cycles for setup of constants.
bit_count ; input n = xyzxyzxyzxyzxyzxyzxyzxyzxyzxyzxy
LDR m, =0x49249249 ; 01001001001001001001001001001001
AND t, n, m, LSL #1 ; x00x00x00x00x00x00x00x00x00x00x0
SUB n, n, t, LSR #1 ; uuzuuzuuzuuzuuzuuzuuzuuzuuzuuzuu
AND t, n, m, LSR #1 ; 00z00z00z00z00z00z00z00z00z00z00
ADD n, n, t ; vv0vv0vv0vv0vv0vv0vv0vv0vv0vv0vv
; triplets summed, uu=x+y, vv=x+y+z
LDR m, =0xC71C71C7 ; 11000111000111000111000111000111
ADD n, n, n, LSR #3 ; ww0vvwww0vvwww0vvwww0vvwww0vvwww
AND n, n, m ; ww000www000www000www000www000www](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-268-320.jpg)
![260 Chapter 8 Digital Signal Processing
Table 8.1 Multiply accumulate timings by processor.
16- × 16-bit multiply with 32- × 32-bit multiply with
Processor (architecture) 32-bit accumulate (cycles) 64-bit accumulate (cycles)
ARM7 (ARMv3) ∼12 ∼44
ARM7TDMI (ARMv4T) 4 7
ARM9TDMI (ARMv4T) 4 7
StrongARM (ARMv4) 2 or 3 4 or 5
ARM9E (ARMv5TE) 1 3
XScale (ARMv5TE) 1 2–4
ARM1136 (ARMv6) 0.5 2 (result top half)
Due to their high data bandwidth and performance requirements, you will often need to
code DSP algorithms in hand-written assembly. You need fine control of register allocation
and instruction scheduling to achieve the best performance. We cannot cover implemen-
tations of all DSP algorithms in this chapter, so we will concentrate on common examples
and general rules that can be applied to a whole range of DSP algorithms.
Section 8.1 looks at the basic problem of how to represent a signal on the ARM so that
we can process it. Section 8.2 looks at general rules on writing DSP algorithms for the ARM.
Filtering is probably the most commonly used signal processing operation. It can be
used to remove noise, to analyze signals, or in signal compression. We look at audio
filtering in detail in Sections 8.3 and 8.4. Another very common algorithm is the Discrete
Fourier Transform (DFT), which converts a signal from a time representation to a frequency
representation or vice versa. We look at the DFT in Section 8.5.
8.1 Representing a Digital Signal
Before you can process a digital signal, you need to choose a representation of the signal.
How can you describe a signal using only the integer types available on ARM processors?
This is an important problem that will affect the design of the DSP software. Throughout
this chapter we will use the notations xt and x[t] to denote the value of a signal x at time t.
The first notation is often clearer in equations and formulae. The second notation is used
in programming examples as it is closer to the C style of array notation.
8.1.1 Choosing a Representation
In an analogue signal x[t], the index t and the value x are both continuous real variables.
To convert an analogue signal to a digital signal, we must choose a finite number of
sampling points ti and a digital representation for the sample values x[ti].](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-276-320.jpg)
![8.1 Representing a Digital Signal 261
1
0.5
0
−0.5
−1
0 2
x[t] = sin(2πt/8)
x[0] x[1] x[2] x[3] x[4] x[5] x[6] x[7] x[8] x[9] x[10]
4 6 8 10
Figure 8.1 Digitizing an analogue signal.
Figure 8.1 shows a sine wave signal digitized at the sampling points 0, 1, 2, 3, and so on.
Signals like this are typical in audio processing, where x[t] represents the tth audio sample.
For example, in a CD player, the sampling rate is 44,100 Hz (that is, 44,100 samples
per second). Therefore t represents the time in units of a sample period of 1/44,100 Hz =
22.7 microseconds. In this application x[t] represents the signed voltage applied to the
loudspeaker at time t.
There are two things to worry about when choosing a representation of x[t]:
1. The dynamic range of the signal—the maximum fluctuation in the signal defined by
Equation (8.1). For a signed signal we are interested in the maximum absolute value M
possible. For this example, let’s take M = 1 volt.
M = max|x[t]| over all t = 0, 1, 2, 3 . . . (8.1)
2. The accuracy required in the representation, sometimes given as a proportion of the
maximum range. For example, an accuracy of 100 parts per million means that each
x[t] needs to be represented within an error of
E = M × 0. 0001 = 0. 0001 volts (8.2)
Let’s work out the best way of storing x[t] subject to the given dynamic range and accuracy
constraints.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-277-320.jpg)
![262 Chapter 8 Digital Signal Processing
We could use a floating-point representation for x[t]. This would certainly meet our
dynamic range and accuracy constraints, and it would also be easy to manipulate using the
C type float. However, most ARM cores do not support floating point in hardware, and
so a floating-point representation would be very slow.
A better choice for fast code is a fixed-point representation. A fixed-point representation
uses an integer to represent a fractional value by scaling the fraction. For example, for
a maximum error of 0.0001 volts, we only require a step of 0.0002 volts between each
representable value. This suggests that we represent x[t] by the integer X[t] defined as
X[t] = round_to_nearest_integer(5000 × x[t]) (8.3)
In practice we would rather scale by a power of two. Then we can implement multipli-
cation and division by the scale using shifts. In this case, the smallest power of two greater
than 5000 is 213 = 8192. We say that X[t] is a Qk fixed-point representation of x[t] if
X[t] = round_to_nearest_integer(2k
x[t]) (8.4)
In our example we can use a Q13 representation to meet the accuracy required. Since
x[t] ranges between −1 and +1 volt, X[t] will range between the integers −8192 and +8192.
This range will fit in a 16-bit C variable of type short. Signals that vary between −1 and +1
are often stored as Q15 values because this scales them to the maximum range of a short
type integer: −32,768 to +32,767. Note that +1 does not have an exact representation, and
we approximate it by +32,767 representing 1 − 2−15. However, we will see in Section 8.1.2
that scaling up to the maximum range is not always a good idea. It increases the probability
of overflow when manipulating the fixed-point representations.
In a fixed-point representation we represent each signal value by an integer and use the
same scaling for the whole signal. This differs from a floating-point representation, where
each signal value x[t] has its own scaling called the exponent dependent upon t.
A common error is to think that floating point is more accurate than fixed point. This is
false! For the same number of bits, a fixed-point representation gives greater accuracy. The
floating-point representation gives higher dynamic range at the expense of lower absolute
accuracy. For example, if you use a 32-bit integer to hold a fixed-point value scaled to
full range, then the maximum error in a representation is 2−32. However, single-precision
32-bit floating-point values give a relative error of 2−24. The single-precision floating-point
mantissa is 24 bits. The leading 1 of the mantissa is not stored, so 23 bits of storage are
actually used. For values near the maximum, the fixed-point representation is 232−24 =
256 times more accurate! The 8-bit floating-point exponent is of little use when you are
interested in maximum error rather than relative accuracy.
To summarize, a fixed-point representation is best when there is a clear bound to the
strength of the signal and when maximum error is important. When there is no clear bound
and you require a large dynamic range, then floating point is better. You can also use the
other following representations, which give more dynamic range than fixed point while still
being more efficient to implement than floating point.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-278-320.jpg)
![8.1 Representing a Digital Signal 263
8.1.1.1 Saturating Fixed-Point Representation
Suppose the maximum value of the signal is not known, but there is a clear range in which
the vast majority of samples lie. In this case you can use a fixed-point representation based
on the common range. You then saturate or clip any out-of-range samples to the closest
available sample in the normal range. This approach gives greater accuracy at the expense
of some distortion of very loud signals. See Section 7.7 for hints on efficient saturation.
8.1.1.2 Block-Floating Representation
When small sample values are close to large sample values, they are usually less important.
In this case, you can divide the signal into blocks or frames of samples. You can use
a different fixed-point scaling on each block or frame according to the strength of the signal
in that block or frame.
This is similar to floating point except that we associate a single exponent with a whole
frame rather than a single sample. You can use efficient fixed-point operations to operate
on the samples within the frame, and you only need costly, exponent-related operations
when comparing values among frames.
8.1.1.3 Logarithmic Representation
Suppose your signal x[t] has a large dynamic range. Suppose also that multiplication
operations are far more frequent than addition. Then you can use a base-two logarithmic
representation. For this representation we consider the related signal y[t]:
y[t] = log2(x[t]) (8.5)
Represent y[t] using a fixed-point format. Replace operations of the form
x[a] = x[b] × x[c] by y[a] = y[b] + y[c] (8.6)
and operations of the form
x[a] = x[b] + x[c] by y[a] = y[b] + log2
1 + 2y[c]−y[b]
(8.7)
In the second case we arrange that y[c] ≤ y[b]. Calculate the function f (x) = log2(1 + 2x)
by using lookup tables and/or interpolation. See Section 7.5 for efficient implementations
of log2(x) and 2x.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-279-320.jpg)
![264 Chapter 8 Digital Signal Processing
8.1.2 Operating on Values Stored in Fixed-Point Format
Suppose now that we have chosen a Qk fixed-point representation for the signal x[t].
In other words, we have an array of integers X[t] such that
X[t] = the closet integer to
2k
x[t]
(8.8)
Equivalently, if we write the integer X[t] in binary notation, and insert a binary point
between bits k and k − 1, then we have the value of x[t]. For example, in Figure 8.2, the
fixed-point value 0x6000 at Q15 represents 0.11 in binary, or 3/4 = 0.75 in decimal.
The following subsections cover the basic operations of addition, subtraction, multipli-
cation, division, and square root as applied to fixed-point signals. There are several concepts
that apply to all fixed-point operations:
■ Rounding on right shift. When you perform a right shift to divide by a power of two,
the shift rounds towards −∞ rather than rounding to the nearest integer. For a more
accurate answer use the operation y = (x + (1 (shift − 1))) shift instead. This
will round to the nearest integer with 0.5 rounded up. To implement this efficiently,
see Section 7.7.3.
■ Rounding on divide. For an unsigned divide, calculate y = (x + (d 1))/d rather than
y = x/d. This gives a rounded result.
■ Headroom. The headroom of a fixed point representation is the ratio of the maximum
magnitude that can be stored in the integer to the maximum magnitude that will occur.
For example, suppose you use a 16-bit integer to store a Q13 representation of an audio
signal that can range between −1 and +1. Then there is a headroom of four times or
two bits. You can double a sample value twice without risk of overflowing the 16-bit
container integer.
■ Conversion of Q representation. If X[t] is a Qn representation of x[t], then
X[t] k is a Q(n + k) representation of x[t] (8.9)
X[t] k is a Q(n − k) representation of x[t] (8.10)
For the following sections we fix signals x[t], c[t], and y[t]. Let X[t], C[t], Y [t] denote
their Qn, Qm, Qd fixed-point representations, respectively.
Bit
0x6000 =
15
0.
14
1
13
1
12
0
11
0
10
0
9
0
8
0
7
0
6
0
5
0
4
0
3
0
2
0
1
0
0
0
Figure 8.2 Representation of 3/4 in Q15 fixed-point arithmetic.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-280-320.jpg)
![8.1 Representing a Digital Signal 265
8.1.3 Addition and Subtraction of Fixed-Point Signals
The general case is to convert the signal equation
y[t] = x[t] + c[t] (8.11)
into fixed-point format; that is, approximately:
Y [t] = 2d
y[t] = 2d
(x[t] + c[t]) = 2d−n
X[t] + 2d−m
C[t] (8.12)
or in integer C:
Y[t] = (X[t] (d-n)) + (C[t] (d-m));
Here we use the convention that you should interpret a negative left shift value as a rounded
right shift. In other words, we first convert x[t] and c[t] to Qd representations, then add to
give Y [t].
We know the values of d, n, and m, at compile time, and so there is no prob-
lem in determining the shift direction, or whether there is a shift at all! In practice we
usually arrange that n = m = d. Therefore normal integer addition gives a fixed-point
addition:
Y[t] = X[t] + C[t];
Provided d = m or d = n, we can perform the operation in a single cycle using the ARM
barrel shifter:
Y[t] = X[t] + (C[t] (d-m)); /* d==n case */
Y[t] = C[t] + (X[t] (d-n)); /* d==m case */
We must be careful though. The preceding equations are only meaningful if the shifted
values and the result do not overflow. For example, if Y [t] = X[t] + C[t], then the
dynamic range of Y [t] is the sum of the dynamic ranges of X[t] and C[t]. This is liable to
overflow the integer container.
There are four common ways you can prevent overflow:
1. Ensure that the X[t] and C[t] representations have one bit of spare headroom each; in
other words, each use up only half the range of their integer container. Then there can
be no overflow on the addition.
2. Use a larger container type for Y than for X and C. For example, if X[t] and C[t] are
stored as 16-bit integers, use a 32-bit integer for Y [t]. This will ensure that there can be
no overflow. In fact, Y [t] then has 15 bits of headroom, so you can add many 16-bit
values to Y [t] without the possibility of overflow.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-281-320.jpg)
![266 Chapter 8 Digital Signal Processing
3. Use a smaller Q representation for y[t]. For example, if d = n − 1 = m − 1, then the
operation becomes
Y[t] = (X[t] + X[t-1]) 1;
This operation takes two cycles rather than one since the shift follows the add. However,
the operation result cannot overflow.
4. Use saturation. If the value of X[t] + C[t] is outside the range of the integer storing
Y[t], then clip it to the nearest possible value that is in range. Section 7.7 shows how to
implement saturating arithmetic efficiently.
8.1.4 Multiplication of Fixed-Point Signals
The general case is to convert the signal equation
y[t] = x[t]c[t] (8.13)
into fixed point format; that is, approximately:
Y [t] = 2d
y[t] = 2d
x[t]c[t] = 2d−n−m
X[t]C[t] (8.14)
or in integer C:
Y[t] = (X[t]*C[t]) (n+m-d);
You should interpret a negative right shift as a left shift. The product X[t]C[t] is a Q(n + m)
representation of Y[t] and the shift converts representation. There are two common uses:
1. We want to accumulate a whole series of products. In this case we set d = n + m, using
a wider integer to store Y[t] than X[t] and C[t]. The multiply and multiply accumulate
operations are then just
Y[t] = X[t] ∗ C[t]; /* multiply */
Y[t] += X[t] ∗ C[t]; /* multiply accumulate */
2. The signal Y[t] is the signal X[t] with pointwise multiplication by some scaling
coefficients. In this case, use d = n so that the operation is
Y[t] = (X[t] ∗ C[t]) m;
For audio DSP applications, a 16-bit × 16-bit multiply is usually used. Common values
for n and m are 14 and 15. As with addition and subtraction it is important to check each
operation to make sure that it cannot overflow.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-282-320.jpg)
![8.1 Representing a Digital Signal 267
Example
8.1
Suppose X[t] is a 16-bit signed representation for an audio signal x[t]. Suppose we need to
reduce the power of the signal by a half. To do this we must scale each sample by 1/(
√
2),
so c[t] = 2−0.5 = 0. 70710678 . . . .
Since we are using a 16-bit representation for X[t], a 16-bit multiply will suffice. The
largest power of two that we can multiply c[t] by and have it remain a 16-bit integer is 15.
So take n = d, m = 15, and C[t] = 215/(
√
2) = 23, 710 = 0x5A82. Therefore we can scale
using the integer operation
X[t] = (X[t] ∗ 0x5A82) 15; ■
8.1.5 Division of Fixed-Point Signals
The general case is to convert the signal equation
y[t] =
x[t]
c[t]
(8.15)
into fixed point format; that is, approximately:
Y [t] = 2d
y[t] =
2dx[t]
c[t]
= 2d−n+m X[t]
C[t]
(8.16)
or in integer C:
Y[t] = (X[t] (d-n+m)) / C[t];
Again a negative left shift indicates a right shift. You must take care that the left shift does
not cause an overflow. In typical applications, n = m. Then the preceding operation gives
a Qd result accurate to d places of binary fraction:
Y[t] = (X[t] d) / C[t];
See Section 7.3.3 for efficient implementations of fixed-point division.
8.1.6 Square Root of a Fixed-Point Signal
The general case is to convert the signal equation
y[t] =
x[t] (8.17)
into fixed point format; that is, approximately:
Y [t] = 2d
y[t] = 2d
x[t] =
22d−nX[t] (8.18)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-283-320.jpg)
![268 Chapter 8 Digital Signal Processing
or in integer C:
Y[t] = isqrt( X[t] (2*d-n) );
The function isqrt finds the nearest integer to the square root of the integer. See Section 7.4
for efficient implementation of square root operations.
8.1.7 Summary: How to Represent a Digital Signal
To choose a representation for a signal value, use the following criteria:
■ Use a floating-point representation for prototyping algorithms. Do not use floating
pointinapplicationswherespeediscritical. MostARMimplementationsdonotinclude
hardware floating-point support.
■ Use a fixed-point representation for DSP applications where speed is critical with mod-
erate dynamic range. The ARM cores provide good support for 8-, 16- and 32-bit
fixed-point DSP.
■ For applications requiring speed and high dynamic range, use a block-floating or
logarithmic representation.
Table 8.2 summarizes how you can implement standard operations in fixed-point
arithmetic. It assumes there are three signals x[t], c[t], y[t], that have Qn, Qm, Qd
representations X[t], C[t], Y[t], respectively. In other words:
X[t] = 2n
x[t], C[t] = 2m
c[t], Y [t] = 2d
y[t] (8.19)
to the nearest integer.
To make the table more concise, we use as shorthand for an operation that is either
a left or right shift according to the sign of the shift amount. Formally:
x s :=
x s if s=0
Table 8.2 Summary of standard fixed-point operations.
Signal operation Integer fixed-point equivalent
y[t]=x[t] Y[t]=X[t] (d-n);
y[t]=x[t]+c[t] Y[t]=(X[t] (d-n))+(C[t] (d-m));
y[t]=x[t]-c[t] Y[t]=(X[t] (d-n))-(C[t] (d-m));
y[t]=x[t]*c[t] Y[t]=(X[t]*C[t]) (d-n-m);
y[t]=x[t]/c[t] Y[t]=(X[t] (d-n+m))/C[t];
y[t]=sqrt(x[t]) Y[t]=isqrt(X[t] (2*d-n));](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-284-320.jpg)
![270 Chapter 8 Digital Signal Processing
■ Design the DSP algorithm to minimize loads and stores. Once you load a data item,
then perform as many operations that use the datum as possible. You can often do
this by calculating several output results at once. Another way of increasing reuse is
to concatenate several operations. For example, you could perform a dot product and
signal scale at the same time, while only loading the data once.
■ Write ARM assembly to avoid processor interlocks. The results of load and multiply
instructions are often not available to the next instruction without adding stall cycles.
Sometimes the results will not be available for several cycles. Refer to Appendix D for
details of instruction cycle timings.
■ There are 14 registers available for general use on the ARM, r0 to r12 and r14. Design
the DSP algorithm so that the inner loop will require 14 registers or fewer.
In the following sections we look at each of the standard ARM cores in turn. We implement
a dot-product example for each core. A dot-product is one of the simplest DSP operations
and highlights the difference among different ARM implementations. A dot-product
combines N samples from two signals xt and ct to produce a correlation value a:
a =
N−1
i=0
cixi (8.20)
The C interface to the dot-product function is
int dot_product(sample *x, coefficient *c, unsigned int N);
where
■ sample is the type to hold a 16-bit audio sample, usually a short
■ coefficient is the type to hold a 16-bit coefficient, usually a short
■ x[i] and c[i] are two arrays of length N (the data and coefficients)
■ the function returns the accumulated 32-bit integer dot product a
8.2.1 DSP on the ARM7TDMI
The ARM7TDMI has a 32-bit by 8-bit per cycle multiply array with early termination. It
takes four cycles for a 16-bit by 16-bit to 32-bit multiply accumulate. Load instructions
take three cycles and store instructions two cycles for zero-wait-state memory or cache. See
Section D.2 in Appendix D for details of cycle timings for ARM7TDMI instructions.
Summary Guidelines for Writing DSP Code for the ARM7TDMI
■ Load instructions are slow, taking three cycles to load a single value. To access mem-
ory efficiently use load and store multiple instructions LDM and STM. Load and store](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-286-320.jpg)
![8.2 Introduction to DSP on the ARM 271
multiples only require a single cycle for each additional word transferred after the first
word. This often means it is more efficient to store 16-bit data values in 32-bit words.
■ The multiply instructions use early termination based on the second operand in the
product Rs. For predictable performance use the second operand to specify constant
coefficients or multiples.
■ Multiply is one cycle faster than multiply accumulate. It is sometimes useful to split an
MLA instruction into separate MUL and ADD instructions. You can then use a barrel shift
with the ADD to perform a scaled accumulate.
■ You can often multiply by fixed coefficients faster using arithmetic instructions with
shifts. For example, 240x = (x 8) − (x 4). For any fixed coefficient of the form
±2a ± 2b ± 2c , ADD and SUB with shift give a faster multiply accumulate than MLA.
Example
8.2
This example shows a 16-bit dot-product optimized for the ARM7TDMI. Each MLA takes
a worst case of four cycles. We store the 16-bit input samples in 32-bit words so that we
can use the LDM instruction to load them efficiently.
x RN 0 ; input array x[]
c RN 1 ; input array c[]
N RN 2 ; number of samples (a multiple of 5)
acc RN 3 ; accumulator
x_0 RN 4 ; elements from array x[]
x_1 RN 5
x_2 RN 6
x_3 RN 7
x_4 RN 8
c_0 RN 9 ; elements from array c[]
c_1 RN 10
c_2 RN 11
c_3 RN 12
c_4 RN 14
; int dot_16by16_arm7m(int *x, int *c, unsigned N)
dot_16by16_arm7m
STMFD sp!, {r4-r11, lr}
MOV acc, #0
loop_7m ; accumulate 5 products
LDMIA x!, {x_0, x_1, x_2, x_3, x_4}
LDMIA c!, {c_0, c_1, c_2, c_3, c_4}
MLA acc, x_0, c_0, acc
MLA acc, x_1, c_1, acc
MLA acc, x_2, c_2, acc
MLA acc, x_3, c_3, acc](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-287-320.jpg)
![8.2 Introduction to DSP on the ARM 273
x RN 0 ; input array x[]
c RN 1 ; input array c[]
N RN 2 ; number of samples (a multiple of 4)
acc RN 3 ; accumulator
x_0 RN 4 ; elements from array x[]
x_1 RN 5
c_0 RN 9 ; elements from array c[]
c_1 RN 10
; int dot_16by16_arm9m(short *x, short *c, unsigned N)
dot_16by16_arm9m
STMFD sp!, {r4-r5, r9-r10, lr}
MOV acc, #0
LDRSH x_0, [x], #2
LDRSH c_0, [c], #2
loop_9m ; accumulate 4 products
SUBS N, N, #4
LDRSH x_1, [x], #2
LDRSH c_1, [c], #2
MLA acc, x_0, c_0, acc
LDRSH x_0, [x], #2
LDRSH c_0, [c], #2
MLA acc, x_1, c_1, acc
LDRSH x_1, [x], #2
LDRSH c_1, [c], #2
MLA acc, x_0, c_0, acc
LDRGTSH x_0, [x], #2
LDRGTSH c_0, [c], #2
MLA acc, x_1, c_1, acc
BGT loop_9m
MOV r0, acc
LDMFD sp!, {r4-r5, r9-r10, pc}
We have assumed that the number of samples N is a multiple of four. Therefore we can
unroll the loop four times to increase performance. The code is scheduled so that there
are four instructions between a load and the use of the loaded value. This uses the preload
tricks of Section 6.3.1.1:
■ The loads are double buffered. We use x0, c0 while we are loading x1, c1 and vice versa.
■ We load the initial values x0, c0, before the inner loop starts. This initiates the double
buffer process.
■ We are always loading one pair of values ahead of the ones we are using. Therefore we
must avoid the last pair of loads or we will read off the end of the arrays. We do this](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-289-320.jpg)
![274 Chapter 8 Digital Signal Processing
by having a loop counter that counts down to zero on the last loop. Then we can make
the final loads conditional on N 0.
The inner loop requires 28 cycles per loop, giving 28/4 = 7 cycles per tap. See Section 8.3
for more efficient block filter implementations. ■
8.2.3 DSP on the StrongARM
The StrongARM core SA-1 has a 32-bit by 12-bit per cycle signed multiply array with early
termination. If you attempt to use a multiply result in the following instruction, or start
a new multiply, then the core will stall for one cycle. Load instructions take one cycle,
except for signed byte and halfword loads, which take two cycles. There is a one-cycle
delay before you can use the loaded value. See Section D.4 in Appendix D for details of the
StrongARM instruction cycle timings.
Summary Writing DSP Code for the StrongARM
■ Avoid signed byte and halfword loads. Schedule the code to avoid using the loaded
value for one cycle. There is no advantage to using load multiples.
■ The multiply instructions use early termination based on the second operand in the
product Rs. For predictable performance use the second operand to specify constant
coefficients or multiples.
■ Multiply is the same speed as multiply accumulate. Try to use the MLA instruction rather
than a separate multiply and add.
Example
8.4
This example shows a 16-bit dot-product. Since a signed 16-bit load requires two cycles, it
is more efficient to use 32-bit data containers for the StrongARM. To schedule StrongARM
code, one trick is to interleave loads and multiplies.
x RN 0 ; input array x[]
c RN 1 ; input array c[]
N RN 2 ; number of samples (a multiple of 4)
acc RN 3 ; accumulator
x_0 RN 4 ; elements from array x[]
x_1 RN 5
c_0 RN 9 ; elements from array c[]
c_1 RN 10
; int dot_16by16_SA1(int *x, int *c, unsigned N)
dot_16by16_SA1
STMFD sp!, {r4-r5, r9-r10, lr}](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-290-320.jpg)
![8.2 Introduction to DSP on the ARM 275
MOV acc, #0
LDR x_0, [x], #4
LDR c_0, [c], #4
loop_sa ; accumulate 4 products
SUBS N, N, #4
LDR x_1, [x], #4
LDR c_1, [c], #4
MLA acc, x_0, c_0, acc
LDR x_0, [x], #4
LDR c_0, [c], #4
MLA acc, x_1, c_1, acc
LDR x_1, [x], #4
LDR c_1, [c], #4
MLA acc, x_0, c_0, acc
LDRGT x_0, [x], #4
LDRGT c_0, [c], #4
MLA acc, x_1, c_1, acc
BGT loop_sa
MOV r0, acc
LDMFD sp!, {r4-r5, r9-r10, pc}
We have assumed that the number of samples N is a multiple of four and so have
unrolled by four times. For worst-case 16-bit coefficients, each multiply requires two cycles.
We have scheduled to remove all load and multiply use interlocks. The inner loop uses
19 cycles to process 4 taps, giving a rating of 19/4 = 4.75 cycles per tap. ■
8.2.4 DSP on the ARM9E
The ARM9E core has a very fast pipelined multiplier array that performs a 32-bit by 16-bit
multiply in a single issue cycle. The result is not available on the next cycle unless you
use the result as the accumulator in a multiply accumulate operation. The load and store
operations are the same speed as on the ARM9TDMI. See Section D.5 in Appendix D for
details of the ARM9E instruction cycle times.
To access the fast multiplier, you will need to use the multiply instructions defined in the
ARMv5TE architecture extensions. For 16-bit by 16-bit products use SMULxy and SMLAxy.
See Appendix A for a full list of ARM multiply instructions.
Summary Writing DSP Code for the ARM9E
■ The ARMv5TE architecture multiply operations are capable of unpacking 16-bit halves
from 32-bit words and multiplying them. For best load bandwidth you should use word
load instructions to load packed 16-bit data items. As for the ARM9TDMI you should
schedule code to avoid load use interlocks.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-291-320.jpg)
![276 Chapter 8 Digital Signal Processing
■ The multiply operations do not early terminate. Therefore you should only use MUL and
MLA for multiplying 32-bit integers. For 16-bit values use SMULxy and SMLAxy.
■ Multiply is the same speed as multiply accumulate. Try to use the SMLAxy instruction
rather than a separate multiply and add.
Example
8.5
This example shows the dot-product for the ARM9E. It assumes that the ARM is configured
for a little-endian memory system. If the ARM is configured for a big-endian memory
system, then you need to swap the B and T instruction suffixes. You can use macros to do
this for you automatically as in Example 8.11. We use the naming convention x_10 to mean
that the top 16 bits of the register holds x1 and the bottom 16 bits x0.
x RN 0 ; input array x[]
c RN 1 ; input array c[]
N RN 2 ; number of samples (a multiple of 8)
acc RN 3 ; accumulator
x_10 RN 4 ; packed elements from array x[]
x_32 RN 5
c_10 RN 9 ; packed elements from array c[]
c_32 RN 10
; int dot_16by16_arm9e(short *x, short *c, unsigned N)
dot_16by16_arm9e
STMFD sp!, {r4-r5, r9-r10, lr}
MOV acc, #0
LDR x_10, [x], #4
LDR c_10, [c], #4
loop_9e ; accumulate 8 products
SUBS N, N, #8
LDR x_32, [x], #4
SMLABB acc, x_10, c_10, acc
LDR c_32, [c], #4
SMLATT acc, x_10, c_10, acc
LDR x_10, [x], #4
SMLABB acc, x_32, c_32, acc
LDR c_10, [c], #4
SMLATT acc, x_32, c_32, acc
LDR x_32, [x], #4
SMLABB acc, x_10, c_10, acc
LDR c_32, [c], #4
SMLATT acc, x_10, c_10, acc
LDRGT x_10, [x], #4
SMLABB acc, x_32, c_32, acc
LDRGT c_10, [c], #4](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-292-320.jpg)
![8.2 Introduction to DSP on the ARM 277
SMLATT acc, x_32, c_32, acc
BGT loop_9e
MOV r0, acc
LDMFD sp!, {r4-r5, r9-r10, pc}
We have unrolled eight times, assuming that N is a multiple of eight. Each load instruc-
tion reads two 16-bit values, giving a high memory bandwidth. The inner loop requires
20 cycles to accumulate 8 products, a rating of 20/8 = 2.5 cycles per tap. A block filter gives
even greater efficiency. ■
8.2.5 DSP on the ARM10E
Like ARM9E, the ARM10E core also implements ARM architecture ARMv5TE. The range
and speed of multiply operations is the same as for the ARM9E, except that the 16-bit
multiply accumulate requires two cycles rather than one. For details of the ARM10E core
cycle timings, see Section D.6 in Appendix D.
The ARM10E implements a background loading mechanism to accelerate load and store
multiples. A load or store multiple instruction issues in one cycle. The operation will run in
the background, and if you attempt to use the value before the background load completes,
then the core will stall. ARM10E uses a 64-bit-wide data path that can transfer two registers
on every background cycle. If the address isn’t 64-bit aligned, then only 32 bits can be
transferred on the first cycle.
Summary Writing DSP Code for the ARM10E
■ Load and store multiples run in the background to give a high memory bandwidth. Use
load and store multiples whenever possible. Be careful to schedule the code so that it
does not use data before the background load has completed.
■ Ensure data arrays are 64-bit aligned so that load and store multiple operations can
transfer two words per cycle.
■ The multiply operations do not early terminate. Therefore you should only use MUL and
MLA for multiplying 32-bit integers. For 16-bit values use SMULxy and SMLAxy.
■ The SMLAxy instruction takes one cycle more than SMULxy. It may be useful to split
a multiply accumulate into a separate multiply and add.
Example
8.6
In the example code the number of samples N is a multiple of 10.
x RN 0 ; input array x[]
c RN 1 ; input array c[]
N RN 2 ; number of samples (a multiple of 10)
acc RN 3 ; accumulator](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-293-320.jpg)
![278 Chapter 8 Digital Signal Processing
x_10 RN 4 ; packed elements from array x[]
x_32 RN 5
x_54 RN 6
x_76 RN 7
x_98 RN 8
c_10 RN 9 ; packed elements from array c[]
c_32 RN 10
c_54 RN 11
c_76 RN 12
c_98 RN 14
; int dot_16by16_arm10(short *x, short *c, int n)
dot_16by16_arm10
STMFD sp!, {r4-r11, lr}
LDMIA x!, {x_10, x_32}
MOV acc, #0
LDMIA c!, {c_10, c_32}
loop_10 ; accumulate 10 products
SUBS N, N, #10
LDMIA x!, {x_54, x_76, x_98}
SMLABB acc, x_10, c_10, acc
SMLATT acc, x_10, c_10, acc
LDMIA c!, {c_54, c_76, c_98}
SMLABB acc, x_32, c_32, acc
SMLATT acc, x_32, c_32, acc
LDMGTIA x!, {x_10, x_32}
SMLABB acc, x_54, c_54, acc
SMLATT acc, x_54, c_54, acc
SMLABB acc, x_76, c_76, acc
LDMGTIA c!, {c_10, c_32}
SMLATT acc, x_76, c_76, acc
SMLABB acc, x_98, c_98, acc
SMLATT acc, x_98, c_98, acc
BGT loop_10
MOV r0, acc
LDMFD sp!, {r4-r11, pc}
The inner loop requires 25 cycles to process 10 samples, or 2.5 cycles per tap. ■
8.2.6 DSP on the Intel XScale
The Intel XScale implements version ARMv5TE of the ARM architecture like ARM9E and
ARM10E. The timings of load and multiply instructions are similar to the ARM9E, and](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-294-320.jpg)
![8.2 Introduction to DSP on the ARM 279
code you’ve optimized for the ARM9E should run efficiently on XScale. See Section D.7 in
Appendix D for details of the XScale core cycle timings.
Summary Writing DSP Code for the Intel XScale
■ TheloaddoublewordinstructionLDRDcantransfertwowordsinasinglecycle. Schedule
the code so that you do not use the first loaded register for two cycles and the second
for three cycles.
■ Ensure data arrays are 64-bit aligned so that you can use the 64-bit load instruction
LDRD.
■ The result of a multiply is not available immediately. Following a multiply with
another multiply may introduce stalls. Schedule code so that multiply instructions
are interleaved with load instructions to prevent processor stalls.
■ The multiply operations do not early terminate. Therefore you should only use MUL and
MLA for multiplying 32-bit integers. For 16-bit values use SMULxy and SMLAxy.
Example
8.7
In this example we use LDRD instructions to improve load bandwidth. The input arrays
must be 64-bit aligned. The number of samples N is a multiple of eight.
x RN 0 ; input array x[] (64-bit aligned)
c RN 1 ; input array c[] (64-bit aligned)
N RN 2 ; number of samples (a multiple of 8)
acc0 RN 3 ; accumulators
acc1 RN 14
x_10 RN 4 ; packed elements from array x[]
x_32 RN 5
x_54 RN 6
x_76 RN 7
c_10 RN 8 ; packed elements from array c[]
c_32 RN 9
c_54 RN 10
c_76 RN 11
dot_16by16_xscale
STMFD sp!, {r4-r11, lr}
LDRD x_10, [x], #8 ; preload x_10, x_32
LDRD c_10, [c], #8 ; preload c_10, c_32
MOV acc0, #0
MOV acc1, #0
loop_xscale
; accumulate 8 products
SUBS N, N, #8](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-295-320.jpg)
![280 Chapter 8 Digital Signal Processing
LDRD x_54, [x], #8 ; load x_54, x_76
SMLABB acc0, x_10, c_10, acc0
SMLATT acc1, x_10, c_10, acc1
LDRD c_54, [c], #8 ; load c_54, c_76
SMLABB acc0, x_32, c_32, acc0
SMLATT acc1, x_32, c_32, acc1
LDRGTD x_10, [x], #8 ; load x_10, x_32
SMLABB acc0, x_54, c_54, acc0
SMLATT acc1, x_54, c_54, acc1
LDRGTD c_10, [c], #8 ; load c_10, c_32
SMLABB acc0, x_76, c_76, acc0
SMLATT acc1, x_76, c_76, acc1
BGT loop_xscale
ADD r0, acc0, acc1
LDMFD sp!, {r4-r11, pc}
The inner loop requires 14 cycles to accumulate 8 products, a rating of 1.75 cycles
per tap. ■
8.3 FIR filters
The finite impulse response (FIR) filter is a basic building block of many DSP applications
and worth investigating in some detail. You can use a FIR filter to remove unwanted fre-
quency ranges, boost certain frequencies, or implement special effects. We will concentrate
on efficient implementation of the filter on the ARM. The FIR filter is the simplest type of
digital filter. The filtered sample yt depends linearly on a fixed, finite number of unfiltered
samples xt . Let M be the length of the filter. Then for some filter coefficients, ci:
yt =
M−1
i=0
cixt−i (8.21)
Some books refer to the coefficients ci as the impulse response. If you feed the impulse
signal x = (1, 0, 0, 0, . . .) into the filter, then the output is the signal of filter coefficients
y = (c0, c1, c2, . . .).
Let’s look at the issue of dynamic range and possible overflow of the output signal.
Suppose that we are using Qn and Qm fixed-point representations X[t] and C[i] for xt and
ci, respectively. In other words:
X[t] = round(2n
xt ) and C[i] = round(2m
ci) (8.22)
We implement the filter by calculating accumulated values A[t]:
A[t] = C[0]X[t] + C[1]X[t − 1] + · · · + C[M − 1]X[t − M + 1] (8.23)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-296-320.jpg)
![8.3 FIR filters 281
Then A[t] is a Q(n+m) representation of yt . But, how large is A[t]? How many bits
of precision do we need to ensure that A[t] does not overflow its integer container and
give a meaningless filter result? There are two very useful inequalities that answer these
questions:
|A[t]| ≤ max{|X[t − i]|, 0 ≤ i M} ×
M−1
i=0
|C[i]| (8.24)
|A[t]| ≤](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-297-320.jpg)
![M−1
i=0
|X[t − i]|2 ×](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-298-320.jpg)
![M−1
i=0
|C[i]|2 (8.25)
Equation (8.24) says that if you know the dynamic range of X[t], then the maximum
gain of dynamic range is bounded by the sum of the absolute values of the filter coefficients
C[i]. Equation (8.25) says that if you know the power of the signal X[t], then the dynamic
range of A[t] is bounded by the product of the input signal and coefficient powers. Both
inequalities are the best possible. Given fixed C[t], we can choose X[t] so that there is
equality. They are special cases of the more general Holder inequalities. Let’s illustrate with
an example.
Example
8.8
Consider the simple, crude, high-pass filter defined by Equation (8.26). The filter allows
through high-frequency signals, but attenuates low-frequency ones.
yt = −0. 45xt + 0. 9xt−1 − 0. 45xt−2 (8.26)
Suppose we represent xi and ci by Qn, Qm 16-bit fixed-point signals X[t] and C[i].
Then,
C[0] = −0. 45 × 2m
, C[1] = 0. 90 × 2m
, C[2] = −0. 45 × 2m
(8.27)
Since X[t] is a 16-bit integer, |X[t]| ≤ 215, and so, using the first inequality above,
|A[t]| ≤ 215
× 1. 8 × 2m
= 1. 8 × 215+m
(8.28)
A[t] will not overflow a 32-bit integer, provided that m ≤ 15. So, take m = 15 for greatest
coefficient accuracy. The following integer calculation implements the filter with 16-bit Qn
input X[t] and 32-bit Q(n + 15) output A[t]:
A[t] = -0x399A*X[t] + 0x7333*X[t-1] - 0x399A*X[t-2];
For a Qn output Y [t] we need to set Y [t] = A[t] 15. However, this could overflow
a 16-bit integer. Therefore you either need to saturate the result, or store the result using
a Q(n − 1) representation. ■](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-299-320.jpg)
![282 Chapter 8 Digital Signal Processing
8.3.1 Block FIR filters
Example 8.8 shows that we can usually implement filters using integer sums of products,
without the need to check for saturation or overflow:
A[t] = C[0]*X[t] + C[1]*X[t-1] + ... + C[M-1]*X[t-M+1];
Generally X[t] and C[i] are k-bit integers and A[t] is a 2k-bit integer, where k = 8, 16,
or 32. Table 8.3 shows the precision for some typical applications.
We will look at detailed examples of long 16-bit and 32-bit filters. By a long filter, we
mean that M is so large that you can’t hold the filter coefficients in registers. You should
optimize short filters such as Example 8.8 on a case-by-case basis. For these you can hold
many coefficients in registers.
For a long filter, each result A[t] depends on M data values and M coefficients that we
must read from memory. These loads are time consuming, and it is inefficient to calculate
just a single result A[t]. While we are loading the data and coefficients, we can calculate
A[t + 1] and possibly A[t + 2] at the same time.
An R-way block filter implementation calculates the R values A[t], A[t + 1], . . . ,
A[t + R − 1] using a single pass of the data X[t] and coefficients C[i]. This reduces
the number of memory accesses by a factor of R over calculating each result separately. So
R should be as large as possible. On the other hand, the larger R is, the more registers we
require to hold accumulated values and data or coefficients. In practice we choose R to be
the largest value such that we do not run out of registers in the inner loop. On ARM R can
range from 2 to 6, as we will show in the following code examples.
An R × S block filter is an R-way block filter where we read S data and coefficient values
at a time for each iteration of the inner loop. On each loop we accumulate R × S products
onto the R accumulators.
Figure 8.3 shows a typical 4 × 3 block filter implementation. Each accumulator on
the left is the sum of products of the coefficients on the right multiplied by the signal
value heading each column. The diagram starts with the oldest sample Xt−M+1 since the
filter routine will load samples in increasing order of memory address. Each inner loop of
a 4 × 3 filter accumulates the 12 products in a 4 × 3 parallelogram. We’ve shaded the first
parallelogram and the first sample of the third parallelogram.
As you can see from Figure 8.3, an R × S block filter implementation requires R accu-
mulator registers and a history of R − 1 input samples. You also need a register to hold the
Table 8.3 Filter precision for different applications.
Application X[t] precision (bits) C[t] precision (bits) A[t] precision (bits)
Video 8 8 16
Telecoms audio 16 16 32
High-quality audio 32 32 64](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-300-320.jpg)
![8.3 FIR filters 283
Xt−M+1
At
At+1
At+2
At+3
Xt−M+2 Xt−M+3 Xt−M+4 Xt−M+5 Xt−M+6 Xt−M+7
CM−1 CM−2 CM−3 CM−4 CM−5 CM−6 CM−7
CM−1 CM−2 CM−3 CM−4 CM−5 CM−6
CM−1 CM−2 CM−3 CM−4 CM−5
CM−1 CM−2 CM−3 CM−4
Figure 8.3 A 4 × 3 block filter implementation.
next coefficient. The loop repeats after adding S products to each accumulator. Therefore
we must allocate X[t] and X[t − S] to the same register. We must also keep the history of
length at least R − 1 samples in registers. Therefore S ≥ R − 1. For this reason, block filters
are usually of size R × (R − 1) or R × R.
The following examples give optimized block FIR implementations. We select the best
values for R and S for different ARM implementations. Note that for these implementations,
we store the coefficients in reverse order in memory. Figure 8.3 shows that we start from
coefficient C[M − 1] and work backwards.
Example
8.9
As with the ARM7TDMI dot product, we store 16-bit and 32-bit data items in 32- bit words.
Then we can use load multiples for maximum load efficiency. This example implements a
4 × 3 block filter for 16-bit input data. The array pointers a, x, and c point to output and
input arrays of the formats given in Figure 8.4.
Note that the x array holds a history of M −1 samples and that we reverse the coefficient
array. We hold the coefficient array pointer c and length M in a structure, which limits the
function to four register arguments. We also assume that N is a multiple of four and M
a multiple of three.
Array First Second Third Last Array
name element element element ... element length
a At At+1 At+2 ... At+N−1 N
x Xt−M+1 Xt−M+2 Xt−M+3 ... Xt+N−1 N + M − 1
c CM−1 CM−2 CM−3 ... C0 M
Figure 8.4 Formats of arrays a, x, and c.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-301-320.jpg)
![284 Chapter 8 Digital Signal Processing
a RN 0 ; array for output samples a[]
x RN 1 ; array of input samples x[]
c RN 2 ; array of coefficients c[]
N RN 3 ; number of outputs (a multiple of 4)
M RN 4 ; number of coefficients (a multiple of 3)
c_0 RN 3 ; coefficient registers
c_1 RN 12
c_2 RN 14
x_0 RN 5 ; data registers
x_1 RN 6
x_2 RN 7
a_0 RN 8 ; output accumulators
a_1 RN 9
a_2 RN 10
a_3 RN 11
; void fir_16by16_arm7m
; (int *a,
; int *x,
; struct { int *c; unsigned int M; } *c,
; unsigned int N)
fir_16by16_arm7m
STMFD sp!, {r4-r11, lr}
LDMIA c, {c, M} ; load coefficient array and length
next_sample_arm7m
STMFD sp!, {N, M}
LDMIA x!, {x_0, x_1, x_2}
MOV a_0, #0 ; zero accumulators
MOV a_1, #0
MOV a_2, #0
MOV a_3, #0
next_tap_arm7m
; perform next block of 4x3=12 taps
LDMIA c!, {c_0, c_1, c_2}
MLA a_0, x_0, c_0, a_0
MLA a_0, x_1, c_1, a_0
MLA a_0, x_2, c_2, a_0
MLA a_1, x_1, c_0, a_1
MLA a_1, x_2, c_1, a_1
MLA a_2, x_2, c_0, a_2
LDMIA x!, {x_0, x_1, x_2}
MLA a_1, x_0, c_2, a_1
MLA a_2, x_0, c_1, a_2](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-302-320.jpg)
![8.3 FIR filters 285
MLA a_2, x_1, c_2, a_2
MLA a_3, x_0, c_0, a_3
MLA a_3, x_1, c_1, a_3
MLA a_3, x_2, c_2, a_3
SUBS M, M, #3 ; processed 3 coefficents
BGT next_tap_arm7m
LDMFD sp!, {N, M}
STMIA a!, {a_0, a_1, a_2, a_3}
SUB c, c, M, LSL#2 ; restore coefficient pointer
SUB x, x, M, LSL#2 ; restore data pointer
ADD x, x, #(4-3)*4 ; advance data pointer
SUBS N, N, #4 ; filtered four samples
BGT next_sample_arm7m
LDMFD sp!, {r4-r11, pc}
Each iteration of the inner loop processes the next three coefficients and updates four
filter outputs. Assuming the coefficients are 16-bit, each multiply accumulate requires
4 cycles. Therefore it processes 12 filter taps in 62 cycles, giving a block FIR rating of
5.17 cycles/tap.
Note that it is cheaper to reset the coefficient and input pointers c and x using
a subtraction, rather than save their values on the stack. ■
Example
8.10
This example gives an optimized block filter for the ARM9TDMI. First, the ARM9TDMI
has a single-cycle 16-bit load, so there is no advantage in using load multiples. We can
save memory by storing the data and coefficients in 16-bit halfwords. Second, we can use
a 4 × 4 block filter implementation rather than a 4 × 3 implementation. This reduces the
loop overhead and is useful if the number of coefficients is a multiple of four rather than a
multiple of three.
The input and output arrays have the same format as Example 8.9, except that the input
arrays are now 16-bit. The number of outputs and coefficients, N and M, must be multiples
of four.
a RN 0 ; array for output samples a[]
x RN 1 ; array of input samples x[]
c RN 2 ; array of coefficients c[]
N RN 3 ; number of outputs (a multiple of 4)
M RN 4 ; number of coefficients (a multiple of 4)
c_0 RN 3 ; coefficient registers
c_1 RN 12
x_0 RN 5 ; data registers
x_1 RN 6
x_2 RN 7
x_3 RN 14](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-303-320.jpg)
![286 Chapter 8 Digital Signal Processing
a_0 RN 8 ; output accumulators
a_1 RN 9
a_2 RN 10
a_3 RN 11
; void fir_16by16_arm9m
; (int *a,
; short *x,
; struct { short *c; unsigned int M; } *c,
; unsigned int N)
fir_16by16_arm9m
STMFD sp!, {r4-r11, lr}
LDMIA c, {c, M}
next_sample_arm9m
STMFD sp!, {N, M}
LDRSH x_0, [x], #2
LDRSH x_1, [x], #2
LDRSH x_2, [x], #2
LDRSH x_3, [x], #2
MOV a_0, #0
MOV a_1, #0
MOV a_2, #0
MOV a_3, #0
next_tap_arm9m
; perform next block of 4x4=16 taps
LDRSH c_0, [c], #2
LDRSH c_1, [c], #2
SUBS M, M, #4
MLA a_0, x_0, c_0, a_0
LDRSH x_0, [x], #2
MLA a_1, x_1, c_0, a_1
MLA a_2, x_2, c_0, a_2
MLA a_3, x_3, c_0, a_3
LDRSH c_0, [c], #2
MLA a_0, x_1, c_1, a_0
LDRSH x_1, [x], #2
MLA a_1, x_2, c_1, a_1
MLA a_2, x_3, c_1, a_2
MLA a_3, x_0, c_1, a_3
LDRSH c_1, [c], #2
MLA a_0, x_2, c_0, a_0
LDRSH x_2, [x], #2
MLA a_1, x_3, c_0, a_1
MLA a_2, x_0, c_0, a_2](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-304-320.jpg)
![8.3 FIR filters 287
MLA a_3, x_1, c_0, a_3
MLA a_0, x_3, c_1, a_0
LDRSH x_3, [x], #2
MLA a_1, x_0, c_1, a_1
MLA a_2, x_1, c_1, a_2
MLA a_3, x_2, c_1, a_3
BGT next_tap_arm9m
LDMFD sp!, {N, M}
STMIA a!, {a_0, a_1, a_2, a_3}
SUB c, c, M, LSL#1 ; restore coefficient pointer
SUB x, x, M, LSL#1 ; advance data pointer
SUBS N, N, #4 ; filtered four samples
BGT next_sample_arm9m
LDMFD sp!, {r4-r11, pc}
The code is scheduled so that we don’t use a loaded value on the following two cycles.
We’ve moved the loop counter decrement to the start of the loop to fill a load delay slot.
Each iteration of the inner loop processes the next four coefficients and updates four
filter outputs. Assuming the coefficients are 16 bits, each multiply accumulate requires
4 cycles. Therefore it processes 16 filter taps in 76 cycles, giving a block FIR rating of
4.75 cycles/tap.
This code also works well for other ARMv4 architecture processors such as the
StrongARM. On StrongARM the inner loop requires 61 cycles, or 3.81 cycles/tap. ■
Example
8.11
The ARM9E has a faster multiplier than previous ARM processors. The ARMv5TE 16-bit
multiply instructions also unpack 16-bit data when two 16-bit values are packed into
a single 32-bit word. Therefore we can store more data and coefficients in registers and use
fewer load instructions.
This example implements a 6 × 6 block filter for ARMv5TE processors. The routine
is rather long because it is optimized for maximum speed. If you don’t require as much
performance, you can reduce code size by using a 4 × 4 block implementation.
The input and output arrays have the same format as Example 8.9, except that the
input arrays are now 16-bit values. The number of outputs and coefficients, N and M,
must be multiples of six. The input arrays must be 32-bit aligned and the memory system
little-endian. If you need to write endian-neutral routines, then you should replace SMLAxy
instructions by macros that change the T and B settings according to endianness. For
example the following macro, SMLA00, evaluates to SMLABB or SMLATT for little- or big-
endian memory systems, respectively. If b and c are read as arrays of 16-bit values, then
SMLA00 always multiplies b[0] by c[0] regardless of endianness.
MACRO
SMLA00 $a, $b, $c, $d](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-305-320.jpg)
![288 Chapter 8 Digital Signal Processing
IF {ENDIAN}=big
SMLATT $a, $b, $c, $d
ELSE
SMLABB $a, $b, $c, $d
ENDIF
MEND
To keep the example simple, we haven’t used macros like this. The following code only
works on a little-endian memory system.
a RN 0 ; array for output samples a[]
x RN 1 ; array of input samples x[] (32-bit aligned)
c RN 2 ; array of coefficients c[] (32-bit aligned)
N RN 3 ; number of outputs (a multiple of 6)
M RN 4 ; number of coefficients (a multiple of 6)
c_10 RN 0 ; coefficient pairs
c_32 RN 3
x_10 RN 5 ; sample pairs
x_32 RN 6
x_54 RN 7
a_0 RN 8 ; output accumulators
a_1 RN 9
a_2 RN 10
a_3 RN 11
a_4 RN 12
a_5 RN 14
; void fir_16by16_arm9e
; (int *a,
; short *x,
; struct { short *c; unsigned int M; } *c,
; unsigned int N)
fir_16by16_arm9e
STMFD sp!, {r4-r11, lr}
LDMIA c, {c, M}
next_sample_arm9e
STMFD sp!, {a, N, M}
LDMIA x!, {x_10, x_32, x_54} ; preload six samples
MOV a_0, #0 ; zero accumulators
MOV a_1, #0
MOV a_2, #0
MOV a_3, #0
MOV a_4, #0](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-306-320.jpg)
![8.3 FIR filters 289
MOV a_5, #0
next_tap_arm9e
; perform next block of 6x6=36 taps
LDMIA c!, {c_10, c_32} ; load four coefficients
SUBS M, M, #6
SMLABB a_0, x_10, c_10, a_0
SMLATB a_1, x_10, c_10, a_1
SMLABB a_2, x_32, c_10, a_2
SMLATB a_3, x_32, c_10, a_3
SMLABB a_4, x_54, c_10, a_4
SMLATB a_5, x_54, c_10, a_5
SMLATT a_0, x_10, c_10, a_0
LDR x_10, [x], #4 ; load two coefficients
SMLABT a_1, x_32, c_10, a_1
SMLATT a_2, x_32, c_10, a_2
SMLABT a_3, x_54, c_10, a_3
SMLATT a_4, x_54, c_10, a_4
SMLABT a_5, x_10, c_10, a_5
LDR c_10, [c], #4
SMLABB a_0, x_32, c_32, a_0
SMLATB a_1, x_32, c_32, a_1
SMLABB a_2, x_54, c_32, a_2
SMLATB a_3, x_54, c_32, a_3
SMLABB a_4, x_10, c_32, a_4
SMLATB a_5, x_10, c_32, a_5
SMLATT a_0, x_32, c_32, a_0
LDR x_32, [x], #4
SMLABT a_1, x_54, c_32, a_1
SMLATT a_2, x_54, c_32, a_2
SMLABT a_3, x_10, c_32, a_3
SMLATT a_4, x_10, c_32, a_4
SMLABT a_5, x_32, c_32, a_5
SMLABB a_0, x_54, c_10, a_0
SMLATB a_1, x_54, c_10, a_1
SMLABB a_2, x_10, c_10, a_2
SMLATB a_3, x_10, c_10, a_3
SMLABB a_4, x_32, c_10, a_4
SMLATB a_5, x_32, c_10, a_5
SMLATT a_0, x_54, c_10, a_0
LDR x_54, [x], #4
SMLABT a_1, x_10, c_10, a_1
SMLATT a_2, x_10, c_10, a_2
SMLABT a_3, x_32, c_10, a_3](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-307-320.jpg)
![290 Chapter 8 Digital Signal Processing
Table 8.4 ARMv5TE 16-bit block filter timings.
Processor Inner loop cycles Filter rating cycles/tap
ARM9E 46 46/36 = 1.28
ARM10E 78 78/36 = 2.17
XScale 46 46/36 = 1.28
SMLATT a_4, x_32, c_10, a_4
SMLABT a_5, x_54, c_10, a_5
BGT next_tap_arm9e
LDMFD sp!, {a, N, M}
STMIA a!, {a_0, a_1, a_2, a_3, a_4, a_5}
SUB c, c, M, LSL#1 ; restore coefficient pointer
SUB x, x, M, LSL#1 ; advance data pointer
SUBS N, N, #6
BGT next_sample_arm9e
LDMFD sp!, {r4-r11, pc}
Each iteration of the inner loop updates the next six filter outputs, accumulating six
products to each output. Table 8.4 shows the cycle timings for ARMv5TE architecture
processors. ■
Example
8.12
Sometimes 16-bit data items do not give a large enough dynamic range. The ARMv5TE
architecture adds an instruction SMLAWx that allows for efficient filtering of 32-bit data by
16-bit coefficients. The instruction multiplies a 32-bit data item by a 16-bit coefficient,
extracts the top 32 bits of the 48-bit result, and adds it to a 32-bit accumulator.
This example implements a 5×4 block FIR filter with 32-bit data and 16-bit coefficients.
The input and output arrays have the same format as Example 8.9, except that the coefficient
array is 16-bit. The number of outputs must be a multiple of five and the number of
coefficients a multiple of four. The input coefficient array must be 32-bit aligned and the
memory system little-endian. As described in Example 8.11, you can write endian-neutral
code by using macros.
If the input samples and coefficients use Qn and Qm representations, respectively, then
the output is Q(n + m − 16). The SMLAWx shifts down by 16 to prevent overflow.
a RN 0 ; array for output samples a[]
x RN 1 ; array of input samples x[]
c RN 2 ; array of coefficients c[] (32-bit aligned)
N RN 3 ; number of outputs (a multiple of 5)
M RN 4 ; number of coefficients (a multiple of 4)
c_10 RN 0 ; coefficient pair](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-308-320.jpg)
![292 Chapter 8 Digital Signal Processing
Table 8.5 ARMv5TE 32 × 16 filter timings.
Processor Inner loop cycles Filter rating cycles/tap
ARM9E 30 30/20 = 1.5
ARM10E 44 44/20 = 2.2
XScale 34 34/20 = 1.7
SMLAWB a_4, x_0, c_10, a_4
SMLAWT a_3, x_0, c_10, a_3
SMLAWT a_4, x_1, c_10, a_4
SMLAWB a_2, x_0, c_32, a_2
SMLAWB a_3, x_1, c_32, a_3
SMLAWB a_4, x_2, c_32, a_4
SMLAWT a_1, x_0, c_32, a_1
SMLAWT a_2, x_1, c_32, a_2
SMLAWT a_3, x_2, c_32, a_3
SMLAWT a_4, x_3, c_32, a_4
BGT next_tap32_arm9e
LDMFD sp!, {a, N, M}
STMIA a!, {a_0, a_1, a_2, a_3, a_4}
SUB c, c, M, LSL#1
SUB x, x, M, LSL#2
ADD x, x, #(5-4)*4
SUBS N, N, #5
BGT next_sample32_arm9e
LDMFD sp!, {r4-r11, pc}
Each iteration of the inner loop updates five filter outputs, accumulating four products
to each. Table 8.5 gives cycle counts for architecture ARMv5TE processors. ■
Example
8.13
High-quality audio applications often require intermediate sample precision at greater
than 16-bit. On the ARM we can use the long multiply instruction SMLAL to implement an
efficient filter with 32-bit input data and coefficients. The output values are 64-bit. This
makes the ARM very competitive for CD audio quality applications.
The output and input arrays have the same format as in Example 8.9. We implement
a 3 × 2 block filter so N must be a multiple of three and M a multiple of two. The filter
works well on any ARMv4 implementation.
a RN 0 ; array for output samples a[]
x RN 1 ; array of input samples x[]
c RN 2 ; array of coefficients c[]](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-310-320.jpg)
![296 Chapter 8 Digital Signal Processing
The coefficient b0 controls the amplitude of the biquad. We can assume that b0 = 1
when performing a series of biquads, and use a single multiply or shift at the end to correct
the signal amplitude. So, to summarize, we have reduced an IIR to filtering by a series of
biquads of the form
st = xt − a1st−1 − a2st−2, yt = st + b1st−1 + b2st−2 (8.36)
To implement each biquad, we need to store fixed-point representations of the six values
−a1, −a2, b1, b2, st−1, st−2 in ARM registers. To load a new biquad requires six loads; to
load a new sample, only one load. Therefore it is much more efficient for the inner loop to
loop over samples rather than loop over biquads.
For a block IIR, we split the input signal xt into large frames of N samples. We make
multiple passes over the signal, filtering by as many biquads as we can hold in registers
on each pass. Typically for ARMv4 processors we filter by one biquad on each pass; for
ARMv5TE processors, by two biquads. The following examples give IIR code for different
ARM processors.
Example
8.14
This example implements a 1 × 2 block IIR filter on the ARM7TDMI. Each inner loop
applies one biquad filter to the next two input samples. The input arrays have the format
given in Figure 8.5.
Each biquad Bk is a list of six values (−a1, −a2, b1, b2, st−1, st−2). As with previous
implementations for the ARM7TDMI, we store the 16-bit input values in 32-bit integers so
we can use load multiples. We store the biquad coefficients at Q14 fixed-point format. The
number of samples N must be even.
y RN 0 ; address for output samples y[]
x RN 1 ; address of input samples x[]
b RN 2 ; address of biquads
N RN 3 ; number of samples to filter (a multiple of 2)
M RN 4 ; number of biquads to apply
x_0 RN 2 ; input samples
Array First Second Third Last Array
name element element element element length
x Xt Xt+1 Xt+2 ... Xt+N−1 N
y Yt Yt+1 Yt+2 ... Yt+N−1 N
b B0 B1 B2 ... BM−1 M
Figure 8.5 Formats of the arrays x, y, and b.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-314-320.jpg)
![8.4 IIR Filters 297
x_1 RN 4
a_1 RN 6 ; biquad coefficient -a[1] at Q14
a_2 RN 7 ; biquad coefficient -a[2] at Q14
b_1 RN 8 ; biquad coefficient +b[1] at Q14
b_2 RN 9 ; biquad coefficient +b[2] at Q14
s_1 RN 10 ; s[t-1] then s[t-2] (alternates)
s_2 RN 11 ; s[t-2] then s[t-1] (alternates)
acc0 RN 12 ; accumulators
acc1 RN 14
; typedef struct {
; int a1,a2; /* coefficients -a[1],-a[2] at Q14 */
; int b1,b2; /* coefficients +b[1],+b[2] at Q14 */
; int s1,s2; /* s[t-1], s[t-2] */
; } biquad;
;
; void iir_q14_arm7m
; (int *y,
; int *x,
; struct { biquad *b; unsigned int M; } *b,
; unsigned int N);
iir_q14_arm7m
STMFD sp!, {r4-r11, lr}
LDMIA b, {b, M}
next_biquad_arm7m
LDMIA b!, {a_1, a_2, b_1, b_2, s_1, s_2}
STMFD sp!, {b, N, M}
next_sample_arm7m
; use a 2x1 block IIR
LDMIA x!, {x_0, x_1}
; apply biquad to sample 0 (x_0)
MUL acc0, s_1, a_1
MLA acc0, s_2, a_2, acc0
MUL acc1, s_1, b_1
MLA acc1, s_2, b_2, acc1
ADD s_2, x_0, acc0, ASR #14
ADD x_0, s_2, acc1, ASR #14
; apply biquad to sample 1 (x_1)
MUL acc0, s_2, a_1
MLA acc0, s_1, a_2, acc0
MUL acc1, s_2, b_1
MLA acc1, s_1, b_2, acc1
ADD s_1, x_1, acc0, ASR #14](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-315-320.jpg)
![298 Chapter 8 Digital Signal Processing
ADD x_1, s_1, acc1, ASR #14
STMIA y!, {x_0, x_1}
SUBS N, N, #2
BGT next_sample_arm7m
LDMFD sp!, {b, N, M}
STMDB b, {s_1, s_2}
SUB y, y, N, LSL#2
MOV x, y
SUBS M, M, #1
BGT next_biquad_arm7m
LDMFD sp!, {r4-r11, pc}
Each inner loop requires a worst case of 44 cycles to apply one biquad to two samples.
ThisgivestheARM7TDMIanIIRratingof22cycles/biquad-sampleforageneralbiquad. ■
Example
8.15
On the ARM9TDMI we can use halfword load instructions rather than load multiples.
Therefore we can store samples in 16-bit short integers. This example implements a load
scheduled IIR suitable for the ARM9TDMI. The interface is the same as in Example 8.14,
except that we use 16-bit data items.
y RN 0 ; address for output samples y[]
x RN 1 ; address of input samples x[]
b RN 2 ; address of biquads
N RN 3 ; number of samples to filter (a multiple of 2)
M RN 4 ; number of biquads to apply
x_0 RN 2 ; input samples
x_1 RN 4
round RN 5 ; rounding value (1 13)
a_1 RN 6 ; biquad coefficient -a[1] at Q14
a_2 RN 7 ; biquad coefficient -a[2] at Q14
b_1 RN 8 ; biquad coefficient +b[1] at Q14
b_2 RN 9 ; biquad coefficient +b[2] at Q14
s_1 RN 10 ; s[t-1] then s[t-2] (alternates)
s_2 RN 11 ; s[t-2] then s[t-1] (alternates)
acc0 RN 12 ; accumulators
acc1 RN 14
; typedef struct {
; short a1,a2; /* coefficients -a[1],-a[2] at Q14 */
; short b1,b2; /* coefficients +b[1],+b[2] at Q14 */
; short s1,s2; /* s[t-1], s[t-2] */
; } biquad;
;
; void iir_q14_arm9m](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-316-320.jpg)
![8.4 IIR Filters 299
; (short *y,
; short *x,
; struct { biquad *b; unsigned int M; } *b,
; unsigned int N);
iir_q14_arm9m
STMFD sp!, {r4-r11, lr}
LDMIA b, {b, M}
MOV round, #1 13
iir_next_biquad
LDRSH a_1, [b], #2
LDRSH a_2, [b], #2
LDRSH b_1, [b], #2
LDRSH b_2, [b], #2
LDRSH s_1, [b], #2
LDRSH s_2, [b], #2
STMFD sp!, {b, N, M}
iir_inner_loop
; use a 2x1 block IIR
; apply biquad to x_0
MLA acc0, s_1, a_1, round
LDRSH x_0, [x], #2
MLA acc0, s_2, a_2, acc0
MLA acc1, s_1, b_1, round
MLA acc1, s_2, b_2, acc1
ADD s_2, x_0, acc0, ASR #14
ADD x_0, s_2, acc1, ASR #14
STRH x_0, [y], #2
; apply biquad to x_1
MLA acc0, s_2, a_1, round
LDRSH x_1, [x], #2
MLA acc0, s_1, a_2, acc0
MLA acc1, s_2, b_1, round
MLA acc1, s_1, b_2, acc1
ADD s_1, x_1, acc0, ASR #14
ADD x_1, s_1, acc1, ASR #14
STRH x_1, [y], #2
SUBS N, N, #2
BGT iir_inner_loop
LDMFD sp!, {b, N, M}
STRH s_1, [b, #-4]
STRH s_2, [b, #-2]
SUB y, y, N, LSL#1
MOV x, y
SUBS M, M, #1
BGT iir_next_biquad
LDMFD sp!, {r4-r11, pc}](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-317-320.jpg)
![300 Chapter 8 Digital Signal Processing
Table 8.7 ARMv4T IIR timings.
Processor Cycles per loop Cycles per biquad-sample
ARM9TDMI 44 22
StrongARM 33 16.5
The timings on ARM9TDMI and StrongARM are shown in Table 8.7. ■
Example
8.16
With ARMv5TE processors, we can pack two 16-bit values into each register. This means
we can store the state and coefficients for two biquads in registers at the same time. This
example implements a 2 × 2 block IIR filter. Each iteration of the inner loop applies two
biquad filters to the next two input samples.
The format of the input arrays is the same as for Example 8.14, except that we use
16-bit arrays. The biquad array must be 32-bit aligned. The number of samples N and
number of biquads M must be even.
As with the ARM9E FIR, the routine only works for a little-endian memory system. See
the discussion in Example 8.11 on how to write endian-neutral DSP code using macros.
y RN 0 ; address for output samples y[]
x RN 1 ; address of input samples x[]
b RN 2 ; address of biquads (32-bit aligned)
N RN 3 ; number of samples to filter (a multiple of 2)
M RN 4 ; number of biquads to apply (a multiple of 2)
x_0 RN 2 ; input samples
x_1 RN 4
s_0 RN 5 ; new state
b0_a21 RN 6 ; biquad 0, packed -a[2], -a[1]
b0_b21 RN 7 ; biquad 0, packed +b[2], +b[1]
b0_s_1 RN 8 ; biquad 0, s[t-1]
b0_s_2 RN 9 ; biquad 0, s[t-2]
b1_a21 RN 10 ; biquad 1, packed -a[2], -a[1]
b1_b21 RN 11 ; biquad 1, packed +b[2], +b[1]
b1_s_1 RN 12 ; biquad 1, s[t-1]
b1_s_2 RN 14 ; biquad 1, s[t-2]
; typedef struct {
; short a1,a2; /* coefficients -a[1],-a[2] at Q14 */
; short b1,b2; /* coefficients +b[1],+b[2] at Q14 */
; short s1,s2; /* s[t-1], s[t-2] */
; } biquad;
;](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-318-320.jpg)
![8.4 IIR Filters 301
; void iir_q14_arm9e
; (short *y,
; short *x,
; struct { biquad *b; unsigned int M; } *b,
; unsigned int N);
iir_q14_arm9e
STMFD sp!, {r4-r11, lr}
LDMIA b, {b, M}
next_biquad_arm9e
LDMIA b!, {b0_a21, b0_b21}
LDRSH b0_s_1, [b], #2
LDRSH b0_s_2, [b], #2
LDMIA b!, {b1_a21, b1_b21}
LDRSH b1_s_1, [b], #2
LDRSH b1_s_2, [b], #2
STMFD sp!, {b, N, M}
next_sample_arm9e
; use a 2 x 2 block IIR
LDRSH x_0, [x], #2
LDRSH x_1, [x], #2
SUBS N, N, #2
MOV x_0, x_0, LSL #14
MOV x_1, x_1, LSL #14
; apply biquad 0 to sample 0
SMLABB x_0, b0_s_1, b0_a21, x_0
SMLABT s_0, b0_s_2, b0_a21, x_0
SMLABB x_0, b0_s_1, b0_b21, s_0
SMLABT x_0, b0_s_2, b0_b21, x_0
MOV b0_s_2, s_0, ASR #14
; apply biquad 0 to sample 1
SMLABB x_1, b0_s_2, b0_a21, x_1
SMLABT s_0, b0_s_1, b0_a21, x_1
SMLABB x_1, b0_s_2, b0_b21, s_0
SMLABT x_1, b0_s_1, b0_b21, x_1
MOV b0_s_1, s_0, ASR #14
; apply biquad 1 to sample 0
SMLABB x_0, b1_s_1, b1_a21, x_0
SMLABT s_0, b1_s_2, b1_a21, x_0
SMLABB x_0, b1_s_1, b1_b21, s_0
SMLABT x_0, b1_s_2, b1_b21, x_0
MOV b1_s_2, s_0, ASR #14
; apply biquad 1 to sample 1
SMLABB x_1, b1_s_2, b1_a21, x_1](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-319-320.jpg)
![302 Chapter 8 Digital Signal Processing
Table 8.8 ARMv5E IIR timings.
Processor Cycles per loop Cycles per biquad-sample
ARM9E 32 8.0
ARM10E 45 11.2
XScale 30 7.7
SMLABT s_0, b1_s_1, b1_a21, x_1
SMLABB x_1, b1_s_2, b1_b21, s_0
SMLABT x_1, b1_s_1, b1_b21, x_1
MOV b1_s_1, s_0, ASR #14
MOV x_0, x_0, ASR #14
MOV x_1, x_1, ASR #14
STRH x_0, [y], #2
STRH x_1, [y], #2
BGT next_sample_arm9e
LDMFD sp!, {b, N, M}
STRH b0_s_1, [b, #-12-4]
STRH b0_s_2, [b, #-12-2]
STRH b1_s_1, [b, #-4]
STRH b1_s_2, [b, #-2]
SUB y, y, N, LSL#1
MOV x, y
SUBS M, M, #2
BGT next_biquad_arm9e
LDMFD sp!, {r4-r11, pc}
The timings on ARM9E, ARM10E, and XScale are shown in Table 8.8. ■
Summary Implementing 16-bit IIR Filters
■ Factorize the IIR into a series of biquads. Choose the data precision so there can be no
overflow during the IIR calculation. To compute the maximum gain of an IIR, apply the
IIR to an impulse to generate the impulse response. Apply the equations of Section 8.3
to the impulse response c[j].
■ Use a block IIR algorithm, dividing the signal to be filtered into large frames.
■ On each pass of the sample frame, filter by M biquads. Choose M to be the largest
number of biquads so that you can hold the state and coefficients in the 14 available
registers on the ARM. Ensure that the total number of biquads is a multiple of M.
■ As always, schedule code to avoid load and multiply use interlocks.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-320-320.jpg)
![= 1 for k N.
8.5.1 The Fast Fourier Transform
The idea of the FFT is to break down the transform by factorizing N. Suppose for example
that N = R × S. Split the output into S blocks of size R and the input into R blocks of
size S. In other words:
k = nR + m for n = 0, 1, . . . , S − 1 and m = 0, 1, . . . , R − 1 (8.39)
t = rS + s for r = 0, 1, . . . , R − 1 and s = 0, 1, . . . , S − 1 (8.40)
Then,
y[nR + m] =
R−1
r=0
S−1
s=0
x[rS + s]w(nR+m)(rS+s)
N (8.41)
y[nR + m] =
S−1
s=0
wns
S wms
N
R−1
r=0
x[rS + s]wmr
R
(8.42)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-322-320.jpg)
![304 Chapter 8 Digital Signal Processing
Equation (8.42) reduces the N-point DFT to S sets of R-point DFTs, N multiplications
by coefficients of the form wms
N , and R sets of S-point DFTs. Specifically, if we set in turn:
(u[sR], u[sR + 1], . . . , u[sR + R − 1]) = DFTR(x[s], x[s + S], . . . , x[s + (R − 1)S])
(8.43)
v[sR + m] = wms
N u[sR + m] (8.44)
Then y[nR + m] =
S−1
s=0
wns
S v[sR + m], and so
(y[m], y[R + m], . . . , y[(S − 1)R + m]) = DFTS(v[m], v[R + m], . . . , v[(S − 1)R + m])
(8.45)
In practice we then repeat this process to calculate the R- and S-point DFTs efficiently. This
works well when N has many small factors. The most useful case is when N is a power of 2.
8.5.1.1 The Radix-2 Fast Fourier Transform
Suppose N = 2a. Take R = 2a−1 and S = 2 and apply the reduction of the DFT. Since
DFT2(v[m], v[R + m]) = (v[m] + v[R + m], v[m] − v[R + m]), we have
y[m] = u[m] + wm
N u[R + m] and y[R + m] = u[m] − wm
N u[R + m] (8.46)
This pair of operations is called the decimation-in-time radix-2 butterfly. The N-point DFT
reduces to two R-point DFTs followed by N/2 butterfly operations. We repeat the process
decomposing R = 2a−2 × 2, and so on for each factor of 2. The result is an algorithm
consisting of a stages, each stage calculating N/2 butterflies.
You will notice that the data order must be changed when we calculate u[sR + m] from
x[rS +s]. We can avoid this if we store x[t] in a transposed order. For a radix-2 Fast Fourier
Transform, all the butterfly operations may be performed in place provided that the input
array x[t] is stored in bit-reversed order—store x[t] at x[s], where the a bits of the index s
are the reverse of the a bits of the index t.
There is another way to apply the FFT reduction. We could choose R = 2 and S = 2a−1
and iterate by decomposing the second factor instead. This generates the decimation-
in-frequency radix-2 transform. For the decimation-in-frequency transformation, the
butterfly is
v[2s] = x[s] + x[S + s] and v[2s + 1] = ws
N (x[s] − x[S + s]) (8.47)
From an ARM optimization point of view, the important difference is the position of the
complex multiply. The decimation-in-time algorithm multiplies by wm
N before the addition
and subtraction. The decimation-in-frequency algorithm multiplies by ws
N after the addi-
tion and subtraction. A fixed-point multiply involves a multiply followed by a right shift.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-323-320.jpg)
![8.5 The Discrete Fourier Transform 305
The ARM barrel shifter is positioned before the add or subtract in ARM instruction
operations, so the ARM is better suited to the decimation-in-time algorithm.
We won’t go into the details of coding a radix-2 FFT, since a radix-4 FFT gives better
performance. We look at this in the next section.
8.5.1.2 The Radix-4 Fast Fourier Transform
This is very similar to the radix-2 transform except we treat N as a power of four, N = 4b.
We use the decimation-in-time decomposition, R = 4b−1 and S = 4. Then the radix-4
butterfly is
(y[m], y[R + m], y[2R + m], y[3R + m])
= DFT4(u[m], wm
N u[R + m], w2m
N u[2R + m], w3m
N u[3R + m]) (8.48)
The four-point DFT does not require any complex multiplies. Therefore, the decimation-
in-time radix-4 algorithm requires bN/4 radix-4 butterflies with three complex multiplies in
each. The radix-2 algorithm requires 2bN/2 radix-2 butterflies with one complex multiply
in each. Therefore, the radix-4 algorithm saves 25% of the multiplies.
It is tempting to consider a radix-8 transform. However, you can only save a small
percentage of the multiplies. This gain will usually be outweighed by the extra load and
store overhead required. The ARM has too few registers to support the general radix-8
butterfly efficiently. The radix-4 butterfly is at a sweet spot: It saves a large number of
multiplies and will fit neatly into the 14 available ARM registers.
To implement the radix-4 butterfly efficiently, we use a radix-2 FFT to calculate DFT4.
Provided that the input is bit-reversed, we can calculate a four-point DFT in place, in eight
ARM registers. The following C_FFT4 macro lies at the heart of our FFT implementations.
It performs the four-point DFT and input scale at the same time, which makes good use of
the ARM barrel shifter. To prevent overflow, we also divide the answer by four.
x0_r RN 4 ; data register (real part)
x0_i RN 5 ; data register (imaginary part)
x1_r RN 6
x1_i RN 7
x2_r RN 8
x2_i RN 9
x3_r RN 10
x3_i RN 11
y3_r RN x3_i
y3_i RN x3_r
; Four-point complex Fast Fourier Transform
;
; (x0,x1,x2,y3)=DFT4(x0,x2 s,x1 s,x3 s)/4](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-324-320.jpg)
![306 Chapter 8 Digital Signal Processing
;
; x0 = (x0 + (x2 s) + (x1 s) + (x3 s))/4
; x1 = (x0 - i*(x2 s) - (x1 s) + i*(x3 s))/4
; x2 = (x0 - (x2 s) + (x1 s) - (x3 s))/4
; y3 = (x0 + i*(x2 s) - (x1 s) - i*(x3 s))/4
;
MACRO
C_FFT4 $s
; (x2,x3) = (x2+x3, x2-x3)
ADD x2_r, x2_r, x3_r
ADD x2_i, x2_i, x3_i
SUB x3_r, x2_r, x3_r, LSL#1
SUB x3_i, x2_i, x3_i, LSL#1
; (x0,x1) = (x0+(x1 s), x0-(x1 s))/4
MOV x0_r, x0_r, ASR#2
MOV x0_i, x0_i, ASR#2
ADD x0_r, x0_r, x1_r, ASR#(2+$s)
ADD x0_i, x0_i, x1_i, ASR#(2+$s)
SUB x1_r, x0_r, x1_r, ASR#(1+$s)
SUB x1_i, x0_i, x1_i, ASR#(1+$s)
; (x0,x2) = (x0+(x2 s)/4, x0-(x2 s)/4)
ADD x0_r, x0_r, x2_r, ASR#(2+$s)
ADD x0_i, x0_i, x2_i, ASR#(2+$s)
SUB x2_r, x0_r, x2_r, ASR#(1+$s)
SUB x2_i, x0_i, x2_i, ASR#(1+$s)
; (x1,y3) = (x1-i*(x3 s)/4, x1+i*(x3 s)/4)
ADD x1_r, x1_r, x3_i, ASR#(2+$s)
SUB x1_i, x1_i, x3_r, ASR#(2+$s)
SUB y3_r, x1_r, x3_i, ASR#(1+$s)
ADD y3_i, x1_i, x3_r, ASR#(1+$s)
MEND
We will also use the following macros, C_LDR and C_STR, to load and store complex
values. This will clarify the FFT code listing in Examples 8.17 and 8.18.
; complex load, x=[a], a+=offset
MACRO
C_LDR $x, $a, $offset
LDRSH $x._i, [$a, #2]
LDRSH $x._r, [$a], $offset
MEND
; complex store, [a]=x, a+=offset](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-325-320.jpg)
![8.5 The Discrete Fourier Transform 307
MACRO
C_STR $x, $a, $offset
STRH $x._i, [$a, #2]
STRH $x._r, [$a], $offset
MEND
Example
8.17
This example implements a 16-bit radix-4 FFT for any ARMv4 architecture processor. We
assume that the number of points is n = 4b. If N is an odd power of two, then you will need
to alter the routine to start with a radix-2 stage, or a radix-8 stage, rather than the radix-4
stage we show.
The code uses a trick to perform a complex multiply using only three real multiplies. If
a + ib is a complex data item, and c + is a complex coefficient, then
(a + ib)(c − is) = [(b − a)s + a(c + s)] + i[(b − a)s + b(c − s)] (8.49)
(a + ib)(c + is) = [(a − b)s + a(c − s)] + i[(a − b)s + b(c + s)] (8.50)
When c + is = e2πi/N , these are the complex multiplies required for the forward and
inverse transform radix-4 butterflies, respectively. Given inputs c − s, s, c + s, a, b, you can
calculate either of the above using a subtract, multiply, and two multiply accumulates. In
the coefficient lookup table we store (c − s, s) and calculate c + s on the fly. We can use the
same table for both forward and inverse transforms.
Use the following code to perform the radix-4 transform on ARMv4. The number of
points N must be a power of four. The algorithm actually calculates DFTN (x)/N, the extra
scaling by N preventing overflow. The algorithm uses the C_FFT4 and load-store macros
defined previously.
; Complex conjugate multiply a=(xr+i*xi)*(cr-i*ci)
; x = xr + i*xi
; w = (cr-ci) + i*ci
MACRO
C_MUL9m $a, $x, $w
SUB t1, $x._i, $x._r ; (xi-xr)
MUL t0, t1, $w._i ; (xi-xr)*ci
ADD t1, $w._r, $w._i, LSL#1 ; (cr+ci)
MLA $a._i, $x._i, $w._r, t0 ; xi*cr-xr*ci
MLA $a._r, $x._r, t1, t0 ; xr*cr+xi*ci
MEND
y RN 0 ; output complex array y[]
c RN 0 ; coefficient array
x RN 1 ; input complex array x[]
N RN 2 ; number of samples (a power of 2)
S RN 2 ; the number of blocks](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-326-320.jpg)
![8.5 The Discrete Fourier Transform 311
Example 8.17 to reduce a complex multiply to three real multiplies. With the single-cycle
16-bit × 16-bit multiplier it is faster to implement the complex multiply in the normal way.
This also means that we can use a Q15 coefficient table of (c, s) values, and so the transform
is slightly more accurate than in Example 8.17. We have omitted the register allocation
because it is the same as for Example 8.17.
; Complex conjugate multiply a=(xr+i*xi)*(cr-i*ci)
; x = xr + i*xi (two 16-bits packed in 32-bit)
; w = cr + i*ci (two 16-bits packed in 32-bit)
MACRO
C_MUL9e $a, $x, $w
SMULBT t0, $x, $w ; xr*ci
SMULBB $a._r, $x, $w ; xr*cr
SMULTB $a._i, $x, $w ; xi*cr
SMLATT $a._r, $x, $w, $a._r ; xr*cr+xi*ci
SUB $a._i, $a._i, t0 ; xi*cr-xr*ci
MEND
; void fft_16_arm9e(short *y, short *x, unsigned int N)
fft_16_arm9e
STMFD sp!, {r4-r11, lr}
MOV t0, #0 ; bit-reversed counter
MVN R, #0x80000000 ; R=0x7FFFFFFF
first_stage_arm9e
; first stage load and bit reverse
ADDS t1, x, t0, LSL#2 ; t1=x[t0] and clear carry
C_LDR x0, t1, N
C_LDR x2, t1, N
C_LDR x1, t1, N
C_LDR x3, t1, N
C_FFT4 0
C_STR x0, y, #4
C_STR x1, y, #4
C_STR x2, y, #4
C_STR y3, y, #4
; bit reversed increment modulo (N/4)
RSC t0, t0, N, LSR #2 ; t0 = (N/4)-t0-1
CLZ t1, t0 ; find leading 1
EORS t0, t0, R, ASR t1 ; toggle bits below leading 1
BNE first_stage_arm9e ; loop if count nonzero
; finished the first stage
SUB x, y, N, LSL #2 ; x = working buffer
MOV R, #16](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-330-320.jpg)
![312 Chapter 8 Digital Signal Processing
MOVS S, N, LSR#4
LDMEQFD sp!, {r4-r11, pc}
ADR c, fft_table_arm9e
next_stage_arm9e
; S = the number of blocks
; R = the number of samples in each block
STMFD sp!, {x, S}
ADD t0, R, R, LSL#1
ADD x, x, t0
SUB S, S, #1 16
next_block_arm9e
ADD S, S, R, LSL#(16-2)
next_butterfly_arm9e
; S=((number butterflies left-1) 16)
; + (number of blocks left)
LDR x2_r, [x], -R ; packed data
LDR x2_i, [c], #4 ; packed coefficients
LDR x1_r, [x], -R
LDR x1_i, [c], #4
LDR x0_r, [x], -R
LDR x0_i, [c], #4
C_MUL9e x3, x2_r, x2_i
C_MUL9e x2, x1_r, x1_i
C_MUL9e x1, x0_r, x0_i
C_LDR x0, x, #0
C_FFT4 15 ; coefficients are Q15
C_STR x0, x, R
C_STR x1, x, R
C_STR x2, x, R
C_STR y3, x, #4
SUBS S, S, #1 16
BGE next_butterfly_arm9e
ADD t0, R, R, LSL#1
ADD x, x, t0
SUB S, S, #1
MOVS t1, S, LSL#16
SUBNE c, c, t0
BNE next_block_arm9e
LDMFD sp!, {x, S}
MOV R, R, LSL#2 ; quadruple block size
MOVS S, S, LSR#2 ; quarter number of blocks
BNE next_stage_arm9e
LDMFD sp!, {r4-r11, pc}](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-331-320.jpg)
![9.1 Exception Handling 319
Reset
Data Abort
FIQ
IRQ
Prefetch Abort
SWI
Undefined
Exceptions
Undefined IRQ FIQ Abort SVC
Modes
Figure 9.1 Exceptions and associated modes.
■ sets the cpsr to the exception mode
■ sets pc to the address of the exception handler
Figure 9.1 shows a simplified view of exceptions and associated modes. Note that when
an exception occurs the ARM processor always switches to ARM state.
9.1.2 Vector Table
Chapter 2 introduced the vector table—a table of addresses that the ARM core branches to
when an exception is raised. These addresses commonly contain branch instructions of one
of the following forms:
■ B address—This branch instruction provides a branch relative from the pc.
■ LDR pc, [pc, #offset]—Thisloadregisterinstructionloadsthehandleraddressfrom
memory to the pc. The address is an absolute 32-bit value stored close to the vector
table. Loading this absolute literal value results in a slight delay in branching to a specific
handler due to the extra memory access. However, you can branch to any address in
memory.
■ LDR pc, [pc, #-0xff0]—This load register instruction loads a specific interrupt ser-
vice routine address from address 0xfffff030 to the pc. This specific instruction is
only used when a vector interrupt controller is present (VIC PL190).](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-338-320.jpg)
![320 Chapter 9 Exception and Interrupt Handling
Table 9.2 Vector table and processor modes.
Exception Mode Vector table offset
Reset SVC +0x00
Undefined Instruction UND +0x04
Software Interrupt (SWI) SVC +0x08
Prefetch Abort ABT +0x0c
Data Abort ABT +0x10
Not assigned — +0x14
IRQ IRQ +0x18
FIQ FIQ +0x1c
■ MOV pc, #immediate—This move instruction copies an immediate value into the pc.
It lets you span the full address space but at limited alignment. The address must be an
8-bit immediate rotated right by an even number of bits.
You can also have other types of instructions in the vector table. For example, the FIQ
handler might start at address offset +0x1c. Thus, the FIQ handler can start immediately
at the FIQ vector location, since it is at the end of the vector table. The branch instructions
cause the pc to jump to a specific location that can handle the specific exception.
Table 9.2 shows the exception, mode, and vector table offset for each exception.
Example
9.1
Figure 9.2 shows a typical vector table. The Undefined Instruction entry is a branch instruc-
tion to jump to the undefined handler. The other vectors use an indirect address jump with
the LDR load to pc instruction.
Notice that the FIQ handler also uses the LDR load to pc instruction and does not take
advantage of the fact that the handler can be placed at the FIQ vector entry location. ■
0x00000000: 0xe59ffa38 RESET: ldr pc, [pc, #reset]
0x00000004: 0xea000502 UNDEF: b undInstr
0x00000008: 0xe59ffa38 SWI : ldr pc, [pc, #swi]
0x0000000c: 0xe59ffa38 PABT : ldr pc, [pc, #prefetch]
0x00000010: 0xe59ffa38 DABT : ldr pc, [pc, #data]
0x00000014: 0xe59ffa38 - : ldr pc, [pc, #notassigned]
0x00000018: 0xe59ffa38 IRQ : ldr pc, [pc, #irq]
0x0000001c: 0xe59ffa38 FIQ : ldr pc, [pc, #fiq]
Figure 9.2 Example vector table.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-339-320.jpg)
![328 Chapter 9 Exception and Interrupt Handling
Changing to FIQ mode means there is no requirement to save registers r8 to r12 since
these registers are banked in FIQ mode. These registers can be used to hold temporary
data, such as buffer pointers or counters. This makes FIQ ideal for servicing a single-source,
high-priority, low-latency interrupt. ■
9.2.3.1 Enabling and Disabling FIQ and IRQ Exceptions
The ARM processor core has a simple procedure to manually enable and disable interrupts
that involves modifying the cpsr when the processor is in a privileged mode.
Table 9.5 shows how IRQ and FIQ interrupts are enabled. The procedure uses three
ARM instructions.
The first instruction MRS copies the contents of the cpsr into register r1. The second
instruction clears the IRQ or FIQ mask bit. The third instruction then copies the updated
contents in register r1 back into the cpsr, enabling the interrupt request. The postfix _c iden-
tifies that the bit field being updated is the control field bit [7:0] of the cpsr. (For more details
see Chapter 2.) Table 9.6 shows a similar procedure to disable or mask an interrupt request.
It is important to understand that the interrupt request is either enabled or disabled
only once the MSR instruction has completed the execution stage of the pipeline. Interrupts
can still be raised or masked prior to the MSR completing this stage.
Table 9.5 Enabling an interrupt.
cpsr value IRQ FIQ
Pre nzcvqjIFt_SVC nzcvqjIFt_SVC
Code enable_irq
MRS r1, cpsr
BIC r1, r1, #0x80
MSR cpsr_c, r1
enable_fiq
MRS r1, cpsr
BIC r1, r1, #0x40
MSR cpsr_c, r1
Post nzcvqjiFt_SVC nzcvqjIft_SVC
Table 9.6 Disabling an interrupt.
cpsr IRQ FIQ
Pre nzcvqjift_SVC nzcvqjift_SVC
Code disable_irq
MRS r1, cpsr
ORR r1, r1, #0x80
MSR cpsr_c, r1
disable_fiq
MRS r1, cpsr
ORR r1, r1, #0x40
MSR cpsr_c, r1
Post nzcvqjIft_SVC nzcvqjiFt_SVC](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-347-320.jpg)
![336 Chapter 9 Exception and Interrupt Handling
STMFD sp!,{r0-r3,r12,r14} ; save context
LDR r0,=IRQStatus ; interrupt status addr
LDR r0,[r0] ; get interrupt status
TST r0,#0x0080 ; if counter timer
BNE timer_isr ; then branch to ISR
TST r0,#0x0001 ; else if button press
BNE button_isr ; then call button ISR
LDMFD sp!,{r0-r3,r12,r14} ; restore context
LDR pc,=debug_monitor ; else debug monitor
In the preceding code there are two ISRs: timer_isr and button_isr. They are
mapped to specific bits in the IRQStatus register, 0x0080 and 0x0001, respectively. ■
Summary Simple Nonnested Interrupt Handler
■ Handles and services individual interrupts sequentially.
■ High interrupt latency; cannot handle further interrupts occurring while an interrupt
is being serviced.
■ Advantages: relatively easy to implement and debug.
■ Disadvantage: cannot be used to handle complex embedded systems with multiple
priority interrupts.
9.3.2 Nested Interrupt Handler
A nested interrupt handler allows for another interrupt to occur within the currently called
handler. This is achieved by reenabling the interrupts before the handler has fully serviced
the current interrupt.
For a real-time system this feature increases the complexity of the system but also
improves its performance. The additional complexity introduces the possibility of subtle
timing issues that can cause a system failure, and these subtle problems can be extremely
difficult to resolve. A nested interrupt method is designed carefully so as to avoid these
types of problems. This is achieved by protecting the context restoration from interruption,
so that the next interrupt will not fill the stack (cause stack overflow) or corrupt any of the
registers.
The first goal of any nested interrupt handler is to respond to interrupts quickly so the
handler neither waits for asynchronous exceptions, nor forces them to wait for the handler.
The second goal is that execution of regular synchronous code is not delayed while servicing
the various interrupts.
The increase in complexity means that the designers have to balance efficiency with
safety, by using a defensive coding style that assumes problems will occur. The handler has
to check the stack and protect against register corruption where possible.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-355-320.jpg)
![9.3 Interrupt Handling Schemes 339
CMP r0,#0 ; 3 : if processing?
LDMNEIA r13!,{r0-r3,r12,pc}ˆ ; 4 : else return
MRS r2,spsr ; 5 : copy spsr_irq
MOV r0,r13 ; 5 : copy r13_irq
ADD r13,r13,#6*4 ; 5 : reset stack
MRS r1,cpsr ; 6 : copy cpsr
BIC r1,r1,#Maskmd ; 6 :
ORR r1,r1,#SVC32md ; 6 :
MSR cpsr_c,r1 ; 6 : change to SVC
SUB r13,r13,#FRAME_SIZE-FRAME_R4 ; 7 : make space
STMIA r13,{r4-r11} ; 7 : save r4-r11
LDMIA r0,{r4-r9} ; 7 : restore r4-r9
BIC r1,r1,#I_Bit ; 8 :
MSR cpsr_c,r1 ; 8 : enable IRA
STMDB r13!,{r4-r7} ; 9 : save r4-r7 SVC
STR r2,[r13,#FRAME_PSR] ; 9 : save PSR
STR r8,[r13,#FRAME_R12] ; 9 : save r12
STR r9,[r13,#FRAME_PC] ; 9 : save pc
STR r14,[r13,#FRAME_LR] ; 9 : save lr
complete interrupt service routine
LDMIA r13!,{r0-r12,r14} ; 11 : restore context
MSR spsr_cxsf,r14 ; 11 : restore spsr
LDMIA r13!,{r14,pc}ˆ ; 11 : return
This example uses a stack frame structure. All registers are saved onto the frame except
for the stack register r13. The order of the registers is unimportant except that FRAME_LR
and FRAME_PC should be the last two registers in the frame because we will return with a
single instruction:
LDMIA r13!, {r14, pc}ˆ
There may be other registers that are required to be saved onto the stack frame,
depending upon the operating system or application being used. For example:
■ Registers r13_usr and r14_usr are saved when there is a requirement by the operating
system to support both user and SVC modes.
■ Floating-point registers are saved when the system uses hardware floating point.
There are a number of defines declared in this example. These defines map various
cpsr/spsr changes to a particular label (for example, the I_Bit).
A set of defines is also declared that maps the various frame register references with
frame pointer offsets. This is useful when the interrupts are reenabled and registers have to
be stored into the stack frame. In this example we store the stack frame on the SVC stack.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-358-320.jpg)
![344 Chapter 9 Exception and Interrupt Handling
It is paramount to prioritize interrupts in a reentrant interrupt handler. If the interrupts
are not prioritized, the system latency degrades to that of a nested interrupt handler because
lower-priority interrupts will be able to preempt the servicing of a higher-priority interrupt.
This in turn leads to the locking out of higher-priority interrupts for the duration of the
servicing of a lower-priority interrupt.
Example
9.10
It is assumed that register r13_irq has been set up to point to a 12-byte data structure and
does not point to a standard IRQ stack. Offsets such as IRQ_SPSR are used to point into the
data structure. As with all interrupt handlers, there are some standard definitions that are
required to modify the cpsr and spsr registers.
IRQ_R0 EQU 0
IRQ_spsr EQU 4
IRQ_R14 EQU 8
Maskmd EQU 0x1f ; mask mode
SVC32md EQU 0x13 ; SVC mode
I_Bit EQU 0x80 ; IRQ bit
ic_Base EQU 0x80000000
IRQStatus EQU 0x0
IRQRawStatus EQU 0x4
IRQEnable EQU 0x8
IRQEnableSet EQU 0x8
IRQEnableClear EQU 0xc
IRQ_Entry ; instruction state : comment
SUB r14, r14, #4 ; 2 : r14_irq-=4
STR r14, [r13, #IRQ_R14] ; 2 : save r14_irq
MRS r14, spsr ; 2 : copy spsr
STR r14, [r13, #IRQ_spsr] ; 2 : save spsr
STR r0, [r13, #IRQ_R0] ; 2 : save r0
MOV r0, r13 ; 2 : copy r13_irq
MRS r14, cpsr ; 3 : copy cpsr
BIC r14, r14, #Maskmd ; 3 :
ORR r14, r14, #SVC32md ; 3 :
MSR cpsr_c, r14 ; 3 : enter SVC mode
STR r14, [r13, #-8]! ; 4 : save r14
LDR r14, [r0, #IRQ_R14] ; 4 : r14_svc=r14_irq
STR r14, [r13, #4] ; 4 : save r14_irq
LDR r14, [r0, #IRQ_spsr] ; 4 : r14_svc=spsr_irq
LDR r0, [r0, #IRQ_R0] ; 4 : restore r0
STMDB r13!, {r0-r3,r8,r12,r14} ; 4 : save context](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-363-320.jpg)
![9.3 Interrupt Handling Schemes 345
LDR r14, =ic_Base ; 5 : int crtl address
LDR r8, [r14, #IRQStatus] ; 5 : get int status
STR r8, [r14, #IRQEnableClear] ; 5 : clear interrupts
MRS r14, cpsr ; 6 : r14_svc=cpsr
BIC r14, r14, #I_Bit ; 6 : clear I-Bit
MSR cpsr_c, r14 ; 6 : enable IRQ int
BL process_interrupt ; 7 : call ISR
LDR r14, =ic_Base ; 9 : int ctrl address
STR r8, [r14, #IRQEableSet] ; 9 : enable ints
BL read_RescheduleFlag ; 9 : more processing
CMP r0, #0 ; 8 : if processing
LDMNEIA r13!, {r0-r3,r8,r12,r14} ; 8 : then load context
MSRNE spsr_cxsf, r14 ; 8 : update spsr
LDMNEIA r13!, {r14, pc}ˆ ; 8 : return
LDMIA r13!, {r0-r3, r8} ; 10 : else load reg
STMDB r13!, {r0-r11} ; 10 : save context
BL continue_servicing ; 11 : continue service
LDMIA r13!, {r0-r12, r14} ; 12 : restore context
MSR spsr_cxsf, r14 ; 12 : update spsr
LDMIA r13!, {r14, pc}ˆ ; 12 : return
The start of the handler includes a normal interrupt entry point, with four being
subtracted from the register r14_irq.
It is now important to assign values to the various fields in the data structure pointed to
by register r13_irq. The registers that are recorded are r14_irq, spsr_irq, and r0. The register
r0 is used to transfer a pointer to the data structure when swapping to SVC mode since
register r0 will not be banked. This is why register r13_irq cannot be used for this purpose:
it is not visible from SVC mode.
The pointer to the data structure is saved by copying register r13_irq into r0.
Offset (from r13_irq) Value
+0 r0 (on entry)
+4 spsr_irq
+8 r14_irq
The handler will now set the processor into SVC mode using the standard procedure
of manipulating the cpsr. The link register r14 for SVC mode is saved on the SVC stack.
Subtracting 8 provides room on the stack for two 32-bit words.
Register r14_irq is then recovered and stored on the SVC stack. Now both the link
registers r14 for IRQ and SVC are stored on the SVC stack.
The rest of the IRQ context is recovered from the data structure passed into the SVC
mode. Register r14_svc will now contain the spsr for IRQ mode.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-364-320.jpg)
![9.3 Interrupt Handling Schemes 349
Table 9.10 Interrupt controller registers.
Register Offset R/W Description
IRQRawStatus +0x04 r represents status of the interrupt sources
IRQEnable +0x08 r masks the interrupt sources that generate IRQ/FIQ to the CPU
IRQStatus +0x00 r represents interrupt sources after masking
IRQEnableSet +0x08 w sets bits in the interrupt enable register
IRQEnableClear +0x0c w clears bits in the interrupt enable register
IRQ_Handler ; instruction state : comment
SUB r14, r14, #4 ; 2 : r14_irq -= 4
STMFD r13!, {r14} ; 2 : save r14_irq
MRS r14, spsr ; 2 : copy spsr_irq
STMFD r13!, {r10,r11,r12,r14} ; 2 : save context
LDR r14, =ic_Base ; 3 : int crtl addr
MOV r11, #PRIORITY_3 ; 3 : default priority
LDR r10, [r14, #IRQStatus] ; 3 : load IRQ status
TST r10, #BINARY_3 ; 4 : if Timer 2
MOVNE r11, #PRIORITY_3 ; 4 : then P3(lo)
TST r10, #BINARY_2 ; 4 : if Timer 1
MOVNE r11, #PRIORITY_2 ; 4 : then P2
TST r10, #BINARY_1 ; 4 : if Comm Tx
MOVNE r11, #PRIORITY_1 ; 4 : then P1
TST r10, #BINARY_0 ; 4 : if Comm Rx
MOVNE r11, #PRIORITY_0 ; 4 : then P0(hi)
LDR r12, [r14,#IRQEnable] ; 4 : IRQEnable reg
ADR r10, priority_masks ; 4 : mask address
LDR r10, [r10,r11,LSL #2] ; 4 : priority value
AND r12, r12,r10 ; 4 : AND enable reg
STR r12, [r14,#IRQEnableClear] ; 4 : disable ints
MRS r14, cpsr ; 4 : copy cpsr
BIC r14, r14, #I_Bit ; 4 : clear I-bit
MSR cpsr_c, r14 ; 4 : enable IRQ ints
LDR pc, [pc, r11, LSL#2] ; 5 : jump to an ISR
NOP ;
DCD service_timer1 ; timer1 ISR
DCD service_commtx ; commtx ISR
DCD service_commrx ; commrx ISR
DCD service_timer2 ; timer2 ISR
priority_masks
DCD MASK_2 ; priority mask 2](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-368-320.jpg)
![350 Chapter 9 Exception and Interrupt Handling
DCD MASK_1 ; priority mask 1
DCD MASK_0 ; priority mask 0
DCD MASK_3 ; priority mask 3
...
service_timer1
STMFD r13!, {r0-r9} ; 6 : save context
service routine
LDMFD r13!, {r0-r10} ; 7 : restore context
MRS r11, cpsr ; 8 : copy cpsr
ORR r11, r11, #I_Bit ; 8 : set I-bit
MSR cpsr_c, r11 ; 8 : disable IRQ
LDR r11, =ic_Base ; 8 : int ctrl addr
STR r12, [r11, #IRQEnableSet] ; 8 : enable ints
LDMFD r13!, {r11, r12, r14} ; 9 : restore context
MSR spsr_cxsf, r14 ; 9 : set spsr
LDMFD r13!, {pc}ˆ ; 9 : return
Most interrupt controllers also have a corresponding set of registers for the FIQ excep-
tions and even allow individual interrupt sources to be attached to a particular interrupt
signal going to the core. Thus, by programming the controller, a particular interrupt source
can be made to cause either an IRQ or FIQ exception.
The registers are offset from a base address in memory. Table 9.10 shows all the offsets
for the various registers from interrupt controller base address ic_Base. Note that offset
0x08 is used for both IRQEnable and IRQEnableSet.
In the interrupt controller each bit is associated with a particular interrupt source
(see Figure 9.12). For example, bit 2 is associated with a receive interrupt source for serial
communication.
Binary
Bit position
8 4 2 u
0
1
2
3
31
t2 rx tx t1
t1—timer 1
t2—timer 2
tx—serial transmit
rx—serial receive
Figure9.12 32-bit interrupt control register.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-369-320.jpg)
![354 Chapter 9 Exception and Interrupt Handling
I_Bit EQU 0x80
PRIORITY_0 EQU 2 ; Comms Rx
PRIORITY_1 EQU 1 ; Comms Tx
PRIORITY_2 EQU 0 ; Timer 1
PRIORITY_3 EQU 3 ; Timer 2
BINARY_0 EQU 1 PRIORITY_0 ; 1 2 0x00000004
BINARY_1 EQU 1 PRIORITY_1 ; 1 1 0x00000002
BINARY_2 EQU 1 PRIORITY_2 ; 1 0 0x00000001
BINARY_3 EQU 1 PRIORITY_3 ; 1 3 0x00000008
MASK_3 EQU BINARY_3
MASK_2 EQU MASK_3+BINARY_2
MASK_1 EQU MASK_2+BINARY_1
MASK_0 EQU MASK_1+BINARY_0
ic_Base EQU 0x80000000
IRQStatus EQU 0x0
IRQRawStatus EQU 0x4
IRQEnable EQU 0x8
IRQEnableSet EQU 0x8
IRQEnableClear EQU 0xc
IRQ_Handler ; instruction state : comment
SUB r14, r14, #4 ; 2 : r14_irq -= 4
STMFD r13!, {r14} ; 2 : save r14_irq
MRS r14, spsr ; 2 : copy spsr_irq
STMFD r13!,{r10,r11,r12,r14} ; 2 : save context
LDR r14, =ic_Base ; 3 : int crtl addr
LDR r10, [r14, #IRQStatus] ; 3 : load IRQ status
MOV r11, pc ; 4 : copy pc
TST r10, #BINARY_0 ; 5 : if CommRx
BLNE disable_lower ; 5 : then branch
TST r10, #BINARY_1 ; 5 : if CommTx
BLNE disable_lower ; 5 : then branch
TST r10, #BINARY_2 ; 5 : if Timer1
BLNE disable_lower ; 5 : then branch
TST r10, #BINARY_3 ; 5 : if Timer2
BLNE disable_lower ; 5 : then branch
disable_lower
SUB r11, r14, r11 ; 5 : r11=r14-copy of pc
LDR r12,=priority_table ; 5 : priority table](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-373-320.jpg)
![9.3 Interrupt Handling Schemes 355
LDRB r11,[r12,r11,LSR #3] ; 5 : mem8[tbl+(r11 3)]
ADR r10, priority_masks ; 5 : priority mask
LDR r10, [r10,r11,LSL #2] ; 5 : load mask
LDR r14, =ic_Base ; 6 : int crtl addr
LDR r12, [r14,#IRQEnable] ; 6 : IRQ enable reg
AND r12, r12, r10 ; 6 : AND enable reg
STR r12, [r14,#IRQEnableClear] ; 6 : disable ints
MRS r14, cpsr ; 7 : copy cpsr
BIC r14, r14, #I_Bit ; 7 : clear I-bit
MSR cpsr_c, r14 ; 7 : enable IRQ
LDR pc, [pc, r11, LSL#2] ; 8 : jump to an ISR
NOP ;
DCD service_timer1 ; timer1 ISR
DCD service_commtx ; commtx ISR
DCD service_commrx ; commrx ISR
DCD service_timer2 ; timer2 ISR
priority_masks
DCD MASK_2 ; priority mask 2
DCD MASK_1 ; priority mask 1
DCD MASK_0 ; priority mask 0
DCD MASK_3 ; priority mask 3
priority_table
DCB PRIORITY_0 ; priority 0
DCB PRIORITY_1 ; priority 1
DCB PRIORITY_2 ; priority 2
DCB PRIORITY_3 ; priority 3
ALIGN
The interrupt source can now be tested by comparing the highest to the lowest priority.
The first priority level that matches the interrupt source determines the priority level of
the incoming interrupt because each interrupt has a preset priority level. Once a match
is achieved, then the handler can branch to the routine that masks off the lower-priority
interrupts.
To disable the equal- or lower-priority interrupts, the handler enters a routine that first
calculates the priority level using the base address in register r11 and link register r14.
Following the SUB instruction register r11 will now contain the value 4, 12, 20, or 28.
These values correspond to the priority level of the interrupt multiplied by eight plus four.
Register r11 is then divided by eight and added to the address of the priority_table. Following
the LDRB register r11 will equal one of the priority interrupt numbers (0, 1, 2, or 3).
The priority mask can now be determined, using the technique of shifting left by two
and adding that to the register r10, which contains the address of the priority_mask.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-374-320.jpg)
![9.3 Interrupt Handling Schemes 357
Once the context is saved, the base address of the ISR table has to be loaded into register
r12. This register is used to jump to the correct ISR once the priority has been established
for the interrupt source.
I_Bit EQU 0x80
PRIORITY_0 EQU 2 ; Comms Rx
PRIORITY_1 EQU 1 ; Comms Tx
PRIORITY_2 EQU 0 ; Timer 1
PRIORITY_3 EQU 3 ; Timer 2
BINARY_0 EQU 1 PRIORITY_0 ; 1 2 0x00000004
BINARY_1 EQU 1 PRIORITY_1 ; 1 1 0x00000002
BINARY_2 EQU 1 PRIORITY_2 ; 1 0 0x00000001
BINARY_3 EQU 1 PRIORITY_3 ; 1 3 0x00000008
MASK_3 EQU BINARY_3
MASK_2 EQU MASK_3+BINARY_2
MASK_1 EQU MASK_2+BINARY_1
MASK_0 EQU MASK_1+BINARY_0
ic_Base EQU 0x80000000
IRQStatus EQU 0x0
IRQRawStatus EQU 0x4
IRQEnable EQU 0x8
IRQEnableSet EQU 0x8
IRQEnableClear EQU 0xc
bit_timer1 EQU 0
bit_commtx EQU 1
bit_commrx EQU 2
bit_timer2 EQU 3
IRQ_Handler ; instruction comment
SUB r14, r14, #4 ; r14_irq-=4
STMFD r13!, {r14} ; save r14_irq
MRS r14, spsr ; copy spsr_irq
STMFD r13!,{r10,r11,r12,r14} ; save context
LDR r14, =ic_Base ; int crtl addr
LDR r10, [r14, #IRQStatus] ; load IRQ status
ADR r12, isr_table ; obtain ISR table
TST r10, #BINARY_0 ; if CommRx
LDRNE pc, [r12, #PRIORITY_0 2] ; then CommRx ISR](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-376-320.jpg)
![358 Chapter 9 Exception and Interrupt Handling
TST r10, #BINARY_1 ; if CommTx
LDRNE pc, [r12, #PRIORITY_1 2] ; then CommTx ISR
TST r10, #BINARY_2 ; if Timer1
LDRNE pc, [r12, #PRIORITY_2 2] ; then Timer1 ISR
TST r10, #BINARY_3 ; if Timer2
LDRNE pc, [r12, #PRIORITY_3 2] ; then Timer2 ISR
B service_none
isr_table
DCD service_timer1 ; timer1 ISR
DCD service_commtx ; commtx ISR
DCD service_commrx ; commrx ISR
DCD service_timer2 ; timer2 ISR
priority_masks
DCD MASK_2 ; priority mask 2
DCD MASK_1 ; priority mask 1
DCD MASK_0 ; priority mask 0
DCD MASK_3 ; priority mask 3
...
service_timer1
MOV r11, #bit_timer1 ; copy bit_timer1
LDR r14, =ic_Base ; int ctrl addr
LDR r12, [r14,#IRQEnable] ; IRQ enable register
ADR r10, priority_masks ; obtain priority addr
LDR r10, [r10,r11,LSL#2] ; load priority mask
AND r12, r12, r10 ; AND enable reg
STR r12, [r14, #IRQEnableClear] ; disable ints
MRS r14, cpsr ; copy cpsr
BIC r14, r14, #I_Bit ; clear I-bit
MSR cpsr_c, r14 ; enable IRQ
rest of the ISR
The priority interrupt is established by checking the highest-priority interrupt first and
then working down to the lowest. Once a priority interrupt is identified, the pc is then loaded
with the address of the appropriate ISR. The indirect address is stored at the address of the
isr_table plus the priority level shifted two bits to the left (multiplied by four). Alternatively
you could use a conditional branch BNE.
The ISR jump table isr_table is ordered with the highest-priority interrupt at the
beginning of the table.
The service_timer1 entry shows an example of an ISR used in a priority direct interrupt
handler. Each ISR is unique and depends upon the particular interrupt source.
A copy of the base address for the interrupt controller is placed into register r14_irq.
This address plus an offset is used to copy the IRQEnable register into register r12.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-377-320.jpg)
![360 Chapter 9 Exception and Interrupt Handling
Table 9.11 Group interrupt sources.
Group Interrupts
0 timer1, timer2
1 commtx, commrx
PRIORITY_1 EQU 1 ; Comms Tx
PRIORITY_2 EQU 0 ; Timer 1
PRIORITY_3 EQU 3 ; Timer 2
BINARY_0 EQU 1 PRIORITY_0 ; 1 2 0x00000004
BINARY_1 EQU 1 PRIORITY_1 ; 1 1 0x00000002
BINARY_2 EQU 1 PRIORITY_2 ; 1 0 0x00000001
BINARY_3 EQU 1 PRIORITY_3 ; 1 3 0x00000008
GROUP_0 EQU BINARY_2|BINARY_3
GROUP_1 EQU BINARY_0|BINARY_1
GMASK_1 EQU GROUP_1
GMASK_0 EQU GMASK_1+GROUP_0
MASK_TIMER1 EQU GMASK_0
MASK_COMMTX EQU GMASK_1
MASK_COMMRX EQU GMASK_1
MASK_TIMER2 EQU GMASK_0
ic_Base EQU 0x80000000
IRQStatus EQU 0x0
IRQRawStatus EQU 0x4
IRQEnable EQU 0x8
IRQEnableSet EQU 0x8
IRQEnableClear EQU 0xc
interrupt_handler
SUB r14, r14,#4 ; r14_irq-=4
STMFD r13!, {r14} ; save r14_irq
MRS r14, spsr ; copy spsr_irq
STMFD r13!, {r10,r11,r12,r14} ; save context
LDR r14, =ic_Base ; int ctrl addr
LDR r10, [r14, #IRQStatus] ; load IRQ status
ANDS r11, r10, #GROUP_0 ; belong to GROUP_0
ANDEQS r11, r10, #GROUP_1 ; belong to GROUP_1](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-379-320.jpg)
![9.3 Interrupt Handling Schemes 361
AND r10, r11, #0xf ; mask off top 24-bit
ADR r11, lowest_significant_bit ; load LSB addr
LDRB r11, [r11, r10] ; load byte
B disable_lower_priority ; jump to routine
lowest_significant_bit
; 0 1 2 3 4 5 6 7 8 9 a b c d e f
DCB 0xff,0,1,0,2,0,1,0,3,0,1,0,2,0,1,0
disable_lower_priority
CMP r11, #0xff ; if unknown
BEQ unknown_condition ; then jump
LDR r12, [r14, #IRQEnable] ; load IRQ enable reg
ADR r10, priority_mask ; load priority addr
LDR r10, [r10, r11, LSL #2] ; mem32[r10+r11 2]
AND r12, r12, r10 ; AND enable reg
STR r12, [r14, #IRQEnableClear] ; disable ints
MRS r14, cpsr ; copy cpsr
BIC r14, r14, #I_Bit ; clear I-bit
MSR cpsr_c, r14 ; enable IRQ ints
LDR pc, [pc, r11, LSL #2] ; jump to an ISR
NOP
DCD service_timer1 ; timer1 ISR
DCD service_commtx ; commtx ISR
DCD service_commrx ; commrx ISR
DCD service_timer2 ; timer2 ISR
priority_mask
DCD MASK_TIMER1 ; mask GROUP 0
DCD MASK_COMMTX ; mask GROUP 1
DCD MASK_COMMRX ; mask GROUP 1
DCD MASK_TIMER2 ; mask GROUP 0
The GROUP_x defines assign the various interrupt sources to their specific priority level
by using a binary OR operation on the binary patterns. The GMASK_x defines assign the
masks for the grouped interrupts. The MASK_x defines connect each GMASK_x to a specific
interrupt source, which can then be used in the priority mask table.
After the context has been saved the interrupt handler loads the IRQ status register using
an offset from the interrupt controller base address.
The handler then identifies the group to which the interrupt source belongs by using
the binary AND operation on the source. The letter S postfixed to the instructions means
update condition flags in the cpsr.
Register r11 will now contain the highest-priority group 0 or 1. The handler now masks
out the other interrupt sources by applying a binary AND operation with 0xf.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-380-320.jpg)
![9.3 Interrupt Handling Schemes 363
Summary Prioritized Grouped Interrupt Handler
■ Mechanism for handling interrupts that are grouped into different priority levels.
■ Low interrupt latency.
■ Advantage: useful when the embedded system has to handle a large number of inter-
rupts, and also reduces the response time since the determining of the priority level is
shorter.
■ Disadvantage: determining how the interrupts are grouped together.
9.3.8 VIC PL190 Based Interrupt Service Routine
To take advantage of the vector interrupt controller, the IRQvector entry has to be modified.
0x00000018 LDR pc,[pc,#-0xff0] ; IRQ pc=mem32[0xfffff030]
This instruction loads an ISR address from the memory mapped location 0xffffff030 into
the pc which bypasses any software interrupt handler since the interrupt source can be
obtained directly from the hardware. It also reduces interrupt latency since there is only a
single jump to a specific ISR.
Here is an example of VIC service routine:
INTON EQU 0x0000 ; enable interrupts
SYS32md EQU 0x1f ; system mode
IRQ32md EQU 0x12 ; IRQ mode
I_Bit EQU 0x80
VICBaseAddr EQU 0xfffff000 ; addr of VIC ctrl
VICVectorAddr EQU VICBaseAddr+0x30 ; isr address of int
vector_service_routine
SUB r14,r14,#4 ; r14-=4
STMFD r13!, {r0-r3,r12,r14} ; save context
MRS r12, spsr ; copy spsr
STMFD r13!,{r12} ; save spsr
clear the interrupt source
MSR cpsr_c, #INTON|SYS32md ; cpsr_c=ift_sys
interrupt service code
MSR cpsr_c, #I_Bit|IRQ32md ; cpsr_c=Ift_irq
LDMFD r13!, {r12} ; restore (spsr_irq)
MSR spsr_cxsf, r12 ; restore spsr
LDR r1,=VICVectorAddr ; load VectorAddress
STR r0, [r1] ; servicing complete
LDMFD r13!, {r0-r3,r12,pc}ˆ ; return](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-382-320.jpg)
![10.2 Example: Sandstone 373
[Sand]
makefile readme.txt [build] [payload]
[src]
sand.s
[obj] [image] [log]
slos.bin
Figure10.1 Standstone directory layout.
that we will continue to use in further chapters. The sandstone source file sand.s is located
under the sand/build/src directory.
The object file produced by the assembler is placed under the build/obj directory.
The object file is then linked, and the final Sandstone image is placed under the
sand/build/image directory. This image includes both the Sandstone code and the pay-
load. The payload image, the image that is loaded and booted by Sandstone, is found under
the sand/payload directory.
For information about the Sandstone build procedure, take a look at the readme.txt
file under the sand directory. This file contains a description of how to build the example
binary image for the ARM Evaluator-7T.
10.2.2 Sandstone Code Structure
Sandstone consists of a single assembly file. The file structure is broken down into a
number of steps, where each step corresponds to a stage in the execution flow of Sandstone
(see Table 10.3).
Table 10.3 Sandstone execution flow.
Step Description
1 Take the Reset exception
2 Start initializing the hardware
3 Remap memory
4 Initialize communication hardware
5 Bootloader—copy payload and relinquish control](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-392-320.jpg)
![10.2 Example: Sandstone 375
10.2.2.2 Step 2: Start Initializing the Hardware
The primary phase in initializing hardware is setting up system registers. These registers
have to be set up before accessing the hardware. For example, the ARM Evaluator-7T has a
seven-segment display, which we have chosen to be used as a feedback tool to indicate that
the firmware is active. Before we can set up the segment display, we have to position the
base address of the system registers to a known location. In this case, we have picked the
default address 0x03ff0000, since this places all the hardware system registers away from
both ROM and RAM, separating the peripherals and memory.
Consequently, all the microcontroller memory-mapped registers are located as an offset
from 0x03ff0000. This is achieved using the following code:
sandstone_init1
LDR r3, =SYSCFG ; where SYSCFG=0x03ff0000
LDR r4, =0x03ffffa0
STR r4, [r3]
Register r3 contains the default system register base address and is used to set the new
default address, as well as other specific attributes such as the cache. Register r4 contains
the new configuration. The top 16 bits contain the high address of the new system register
base address 0x03ff, and the lower 16 bits contain the new attribute settings 0xffa0.
After setting up the system register base address, the segment display can be configured.
The segment display hardware is used to show Sandstone’s progress. Note that the segment
display is not shown since it is hardware specific.
The results of executing step 2 are the following:
■ The system registers are set from a known base address—0x03ff0000.
■ The segment display is configured, so that it can be used to display progress.
10.2.2.3 Step 3: Remap Memory
One of the major activities of hardware initialization is to set up the memory environment.
Sandstone is designed to initialize SRAM and remap memory. This process occurs fairly
early on in the initialization of the system. The platform starts in a known memory state,
as shown in Table 10.4.
As you can see, when the platform is powered up, only flash ROM is assigned a location
in the memory map. The two SRAM banks (0 and 1) have not been initialized and are not
available. The next stage is to bring in the two SRAM banks and remap flash ROM to a new
location. This is achieved using the following code:
LDR r14, =sandstone_init2
LDR r4, =0x01800000 ; new flash ROM location](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-394-320.jpg)
![384 Chapter 11 Embedded Operating Systems
In this current configuration, SLOS includes three tasks and two service routines. Tasks
1 and 2 provide an example of mutual exclusion using a binary semaphore. The two
service routines implemented are the periodic timer (which is essential) and a push-button
interrupt (which is optional). Task 3 provides a simple command line interface through
one of the ARM Evaluator-7T’s serial ports.
Each task in SLOS requires its own stack. All the tasks operate in user mode; thus, a task
can read but not write to the cpsr. The only way a task can change to a privileged mode is
to use an SWI instruction call. This is the mechanism used to call a device driver function,
since a device driver may require full access to the cpsr.
The cpsr can be modified in a task, but only indirectly using an instruction that updates
the condition flags.
11.2.1 SLOS Directory Layout
SLOS can be found on our Web site under the Chapter 11 directory. The directory layout
for SLOS is similar to the Sandstone firmware layout (see Figures 10.1 and 11.1).
There are six subdirectories under slos/build/src that hold all the operating system source
files. The slos/build/src/core directory includes the miscellaneous utility files, as well as the
command line interpreter (CLI) sources.
Specific code for a platform is stored under a directory with the name of that platform.
For instance, the code for the Evaluator-7T is stored under directory e7t.
The slos/build/src/e7t/devices directory holds all the device driver files, and the
slos/build/src/e7t/events directory holds the files that handle services, exceptions,
and interrupts.
[slos]
makefile readme.txt [build]
[src] [obj] [image]
[apps] [core] [devices] [e7t] [events] [headers]
[devices] [events] [headers]
Figure11.1 SLOS directory layout.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-403-320.jpg)
![11.2 Example: Simple Little Operating System 387
Table 11.1 Process control block.
Offset Registers
0 —
−4 r14
−8 r13
−12 r12
−16 r11
−20 r10
−24 r9
−28 r8
−32 r7
−36 r6
−40 r5
−44 r4
−48 r3
−52 r2
−56 r1
−60 r0
−64 pc + 4
−68 spsr
There are four major parts of the PCB that have to be initialized: the program counter,
the link register, the user mode stack, and the saved processor status register (in other words
registers r13, r14, r15, and the spsr) for each task.
; void pcbSetUp(void *entryAddr, void *PCB, UINT offset);
pcbSetUp
STR r0,[r1,#-4] ; PCB[-4]=C_TaskEntry
STR r0,[r1,#-64] ; PCB[-64]=C_TaskEntry
SUB r0,sp,r2
STR r0,[r1,#-8] ; PCB[-8]=sp-offset
MOV r0,#0x50 ; cpsr_c
STR r0,[r1,#-68] ; PCB[-68]=iFt_User
MOV pc,lr
To help illustrate this, we have extracted the routine for initializing PCBs. The rou-
tine pcbSetUp is called to set up tasks 2 and 3. Register r0 is the task entry address—label
entryAddr. This is the execution address for a task. Register r1 is the PCB data struc-
ture address—label pcbAddr. This address points into a block of memory that stores the](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-406-320.jpg)
![388 Chapter 11 Embedded Operating Systems
PCB for a task. Register r2 is the stack offset and is used to position the stack in the mem-
ory map. Note that task 1 does not require initialization since it is the first task to be
executed.
The final part of setting up the PCBs is to set up the current task identifier, which is used
by the scheduling algorithm to determine which task is to be executed.
LDR r0,=PCB_CurrentTask
MOV r1,#0
STR r1,[r0]
LDR lr,=C_Entry
MOV pc,lr ; enter the CEntry world
At the end of the code fragment the first C routine—C_Entry—is called by setting the
pc to the start address of the routine.
The results of executing the PCB setup code are the following:
■ Initialize the PCB for all three tasks.
■ Set the current PCB to be executed as task 1 (identifier 0).
Initialization is now handed over to the C_Entry() routine, which can be found in
build/src/core/cinit.cfile. TheC_Entryroutinecallsanotherroutine, cinit_init().
This routine, shown here, initializes the device drivers, services, and finally the periodic
interrupt tick. The C code has been designed so it does not require the standard C library
to be initialized because it does not call any standard C library functions such as printf(),
fopen(), and so on.
void cinit_init(void)
{
eventIODeviceInit();
eventServicesInit();
eventTickInit(2);
}
The functions eventIODeviceInit, eventServicesInit, and eventTickInit are all
called to initialize the various specific parts of the operating system. You will notice that
eventTickInit has a single parameter with the value 2. This is used to set the number of
milliseconds between periodic tick events.
After initialization is complete, the periodic timer can be started, as shown here. This
means that task 1 needs to be called before the first timer interrupt. To allow for the periodic
event to interrupt the processor, the IRQ has to be enabled and the processor has to be
placed into user mode. Once this is accomplished, the address of the entry point for task 1,
C_EntryTask1, is then called.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-407-320.jpg)
![11.2 Example: Simple Little Operating System 391
The core SWI handler is shown here. The first action of the handler is to store registers r0
to r12 to the SVC stack.
The next action calculates the address of the SWI instruction and loads that instruction
into register r10. The SWI number is obtained by masking the top 8 bits. The address of the
SVC stack is then copied into register r1 and is used as the second parameter when calling
the SWI C handler.
The spsr is then copied to register r2 and stored on the stack. This is only required when
a nested SWI call occurs. The handler then jumps to the code that calls the C handler routine.
coreSWIHandler
STMFD sp!,{r0-r12,r14} ; save context
LDR r10,[r14,#-4] ; load SWI instruction
BIC r10,r10,#0xff000000 ; mask off the MSB 8 bits
MOV r1,r13 ; copy r13_svc to r1
MRS r2,spsr ; copy spsr to r2
STMFD r13!,{r2} ; save r2 onto the stack
BL swi_jumptable ; branch to the swi_jumptable
The code that follows the BL instruction returns back to the callee program as shown
here. This is achieved by restoring the spsr from the stack and loading all the user banked
registers back, including the pc.
LDMFD r13!,{r2} ; restore the r2 (spsr)
MSR spsr_cxsf,r2 ; copy r2 back to spsr
LDMFD r13!,{r0-r12,pc}ˆ ; restore context and return
The link register has been set in the BL instruction. This code is executed when the SWI
C handler is complete.
swi_jumptable
MOV r0,r10 ; move the SWI number to r0
B eventsSWIHandler ; branch to SWI handler
The C handler, eventsSWIHandler, shown in Figure 11.3, is called with register r0
containing the SWI number and register r1 pointing to the registers stored on the SVC
stack.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-410-320.jpg)
![392 Chapter 11 Embedded Operating Systems
void eventsSWIHandler(int swi_number, SwiRegs *r)
{
if (swi_number==SLOS)
{
if (r-r[0]==Event_IODeviceInit)
{
/* do not enable IRQ interrupts .... */
io_initialize_drivers ();
}
else
{
/* if not initializing change to system mode
and enable IRQs */
if (STATE!=1) {modifyControlCPSR (SYSTEM|IRQoN);}
switch (r-r[0])
{
case /* SWI */ Event_IODeviceOpen:
r-r[0] =
(unsigned int) io_open_driver
(
/*int *ID */ (UID *)r-r[1],
/*unsigned major_device */ r-r[2],
/*unsigned minor_device */ r-r[3]
);
break;
case /* SWI */ Event_IODeviceClose:
/* call io_open_driver */
break;
case /* SWI */ Event_IODeviceWriteByte:
/* call io_writebyte_driver */
break;
case /* SWI */ Event_IODeviceReadByte:
/* call io_readbyte_driver */
break;
case /* SWI */ Event_IODeviceWriteBit:
/* call io_writebit_driver */
break;
case /* SWI */ Event_IODeviceReadBit:
/* call io_readbit_driver */
break;
Figure11.3 SWI C handler.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-411-320.jpg)
![11.2 Example: Simple Little Operating System 393
case /* SWI */ Event_IODeviceWriteBlock:
/* call io_writeblock_driver */
break;
case /* SWI */ Event_IODeviceReadBlock:
/* call io_readblock_driver */
break;
}
/* if not initializing change back to svc mode
and disable IRQs */
if (STATE!=1) {modifyControlCPSR (SVC|IRQoFF);}
}
}
}
}
Figure11.3 SWI C handler. (Continued.)
11.2.4.3 IRQ Exception
The IRQ handler is a lot simpler than the SWI handler. It is implemented as a basic
nonnested interrupt handler. The handler first saves the context and then copies the
contents of the interrupt controller status register, INTPND, into register r0. Each service
routine then compares register r0 with a particular interrupt source. If the source and
interrupt match, then the service routine is called; otherwise the interrupt is treated as
being a phantom interrupt and ignored.
TICKINT EQU 0x400
BUTTONINT EQU 0x001
eventsIRQHandler
SUB r14, r14, #4 ; r14_irq-=4
STMFD r13!, {r0-r3, r12, r14} ; save context
LDR r0,INTPND ; r0=int pending reg
LDR r0,[r0] ; r0=memory[r0]
TST r0,#TICKINT ; if tick int
BNE eventsTickVeneer ; then tick ISR
TST r0,#BUTTONINT ; if button interrupt
BNE eventsButtonVeneer ; then button ISR
LDMFD r13!, {r0-r3, r12, pc}ˆ ; return to task
For a known interrupt source an interrupt veneer is called to service the event. The
followingcodeshowsanexampletimerveneer. Youcanseefromtheexamplethattheveneer](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-412-320.jpg)
![11.2 Example: Simple Little Operating System 395
Table 11.3 Labels used by the scheduler.
Label Description
PCB_CurrentTask contains the current task t
PCB_Table table of address pointers to each task PCB
PCB_PtrCurrentTask pointer to the current task t
PCB_PtrNextTask pointer to the next task t
PCB_IRQStack temporary storage for the IRQ stack (context switch)
4. Calculate the new task t ID using the round-robin algorithm.
5. Store the new task t ID into PCB_CurrentTask.
6. Find the address of the next task PCB by indexing into the PCB_Table using the updated
PCB_CurrentTask.
7. Store the next task PCB into PCB_PtrNextTask.
The code scheduling the next task tis:
MaxNumTasks EQU 3
FirstTask EQU 0
CurrentTask
LDR r3,=PCB_CurrentTask ; [1] r3=PCB_CurrentTask
LDR r0,[r3] ; r0= current Task ID
LDR r1,=PCB_Table ; [2] r1=PCB_Table address
LDR r1,[r1,r0,LSL#2] ; r1=mem32[r1+r0 2]
LDR r2,=PCB_PtrCurrentTask ; [3] r2=PCB_PtrCurrentTask
STR r1,[r2] ; mem32[r2]=r1 : task addr
; ** PCB_PtrCurrentTask - updated with the addr of the current task
; ** r2 = PCB_PtrCurrentTask address
; ** r1 = current task PCB address
; ** r0 = current task ID
NextTask
ADD r0,r0,#1 ; [4] r0 = (CurrentTaskID)+1
CMP r0,#MaxNumTasks ; if r0==MaxNumTasks
MOVEQ r0,#FirstTask ; then r0 = FirstTask (0)
STR r0,[r3] ; [5] mem32[r3]=next Task ID
LDR r1,=PCB_Table ; [6] r1=PCB_Table addr
LDR r1,[r1,r0,LSL#2] ; r1=memory[r1+r0 2]](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-414-320.jpg)
![396 Chapter 11 Embedded Operating Systems
LDR r0,=PCB_PtrNextTask ; [7] r0=PCB_PtrNextTask
STR r1,[r0] ; memory[r0]=next task addr
The results of executing the scheduler are the following:
■ PCB_PtrCurrentTask points to the address of the current active PCB.
■ PCB_PtrNextTask points to the address of the next active PCB.
■ PCB_CurrentTask holds the value of the next task identifier.
11.2.6 Context Switch
Using the updated information produced by the scheduler, the context switch then swaps
the active task t with the next task t. To achieve this, a context switch splits the activity into
two stages, as shown in Figure 11.4. The first stage involves saving the processor registers
into the current task t PCB pointed by PCB_PtrCurrentTask. The second stage loads the
registers with data from the next t PCB pointed by PCB_PtrNextTask.
We will now take you through the procedure and code of the two stages of the con-
text switch, detailing the saving of the current context first, followed by loading a new
context.
Save the current context
(a) (b)
PCB_PtrCurrentTask
Processor
Load the next context
PCB_PtrNextTask
Processor
Figure11.4 Context switch. (a) Save the Current Context (b) Load the Next Context](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-415-320.jpg)
![11.2 Example: Simple Little Operating System 397
11.2.6.1 Save the Current Context
The first stage is to save the current registers of the active task t. All tasks execute in user
mode, so the user mode registers have to be saved. Here is the procedure:
1. We must restore registers r0 to r3 and r14 from the stack. These registers belong to the
current task.
2. Register r13 is then used to point into the PCB of the current task PCB_CurrentTask
offset by −60. This offset allows two instructions to update the entire PCB.
3. The final action of the first stage is to store all the user bank registers r0 to r14. This occurs
in a single instruction. Remember that the ˆ symbol means that the store multiple acts
on the user mode registers. The second store instruction saves the spsr and the returning
link register.
The code for saving the registers to a PCB is
Offset15Regs EQU 15*4
handler_contextswitch
LDMFD r13!,{r0-r3,r12,r14} ; [1.1] restore registers
LDR r13,=PCB_PtrCurrentTask ; [1.2]
LDR r13,[r13] ; r13=mem32[r13]
SUB r13,r13,#Offset15Regs ; r13-=15*Reg:place r13
STMIA r13,{r0-r14}ˆ ; [1.3] save user mode registers
MRS r0, spsr ; copy spsr
STMDB r13,{r0,r14} ; save r0(spsr) r14(lr)
The results of saving the current context are the following:
■ The IRQ stack is reset and saved to PCB_IRQStack.
■ The user mode registers for task t are saved to the current PCB.
11.2.6.2 Load the Next Context
The second stage of the context switch involves transferring the PCB for t into the banked
user mode registers. Once complete, the routine then must hand over control to the new
task t. Here is the procedure:
1. Load and position register r13 at offset −60 from the start of the new PCB.
2. Load register spsr and the link register first. Then the next task registers r0 to r14 are
loaded. Register r14 is the user bank register r14, not the IRQ register r14 shown by ˆ in
the instruction.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-416-320.jpg)
![398 Chapter 11 Embedded Operating Systems
3. The IRQ stack is then restored from PCB_IRQStack.
4. The new task is resumed by copying the address held in register r14 into the pc and
updating the cpsr.
The code for loading the registers from a PCB is
LDR r13,=PCB_PtrNextTask ; [2.1] r13=PCB_PtrNextTask
LDR r13,[r13] ; r13=mem32[r13] : next PCB
SUB r13,r13,#Offset15Regs ; r13-=15*Registers
LDMDB r13,{r0,r14} ; [2.2] load r0 r14
MSR spsr_cxsf, r0 ; spsr = r0
LDMIA r13,{r0-r14}ˆ ; load r0_user-r14_user
LDR r13,=PCB_IRQStack ; [2.3] r13=IRQ stack addr
LDR r13,[r13] ; r13=mem32[r13] : reset IRQ
MOVS pc,r14 ; [2.4] return to next task
The results of loading the next context are the following:
■ The context switch is complete.
■ The next task’s registers are loaded into the user mode registers.
■ The IRQ stack is restored to the original setting before entering the IRQ handler.
11.2.7 Device Driver Framework
The device driver framework (DDF) is implemented using SWI instructions. The DDF
protects the operating system from applications accessing hardware directly and provides
a uniform standard interface for the tasks. For a task to access a particular device it must
first obtain a unique identification number (UID). This is achieved by calling the open
macro, or eventsIODeviceOpen. This macro is translated directly into a device driver SWI
instruction. The UID is used to check that another task has not already accessed the same
device.
The task code for opening a device driver is
device_treestr *host;
UID serial;](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-417-320.jpg)
![12.3 Cache Policy 421
int setcount, value;
volatile int *newstart;
volatile int *start = (int *)0x20000;
__asm
{
timesloop:
MOV newstart, start
MOV setcount, numset
setloop:
LDR value,[newstart,#0];
ADD newstart,newstart,#0x40;
SUBS setcount, setcount, #1;
BNE setloop;
SUBS times, times, #1;
BNE timesloop;
}
return value;
}
We wrote the readSet routine to fill a single set in the cache. There are two arguments
to the function. The first, times, is the number of times to run the test loop; this value
increases the time it takes to run the test. The second, numset, is the number of set values
to read; this value determines the number of cache lines the routine loads into the same
set. Filling the set with values is done in a loop using an LDR instruction that reads a value
from a memory location and then increments the address by 16 words (64 bytes) in each
pass through the loop. Setting the value of numset to 64 will fill all the available cache lines
in a set in an ARM940T. There are 16 words in a way and 64 cache lines per set in the
ARM940T.
Here are two calls to the round-robin test using two set sizes. The first reads and fills a
set with 64 entries; the second attempts to fill the set with 65 entries.
unsigned int times = 0x10000;
unsigned int numset = 64;
cache_RRtest(times, numset);
numset = 65;
cache_RRtest(times, numset);
The console output of the two tests follows. The tests were run on an ARM940T core
module simulated using the ARM ADS1.2 ARMulator with a core clock speed of 50 MHz
and a memory read access time of 100 ns nonsequential and 50 ns sequential. The thing to
notice is the change in timing for the round-robin test reading 65 set values.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-440-320.jpg)
![12.5 Flushing and Cleaning Cache Memory 437
IF {CPU} = XSCALE :LOR: {CPU} = SA-110
EXPORT cleanDCache
EXPORT cleanFlushDCache
EXPORT cleanFlushCache
INCLUDE cache.h
CleanAddressDcache EQU 0x8000 ;(32K block 0x8000-0x10000)
CleanAddressMiniDcache EQU 0x10000 ;(2K block 0x10000-0x10800)
adr RN 0 ; start address
nl RN 1 ; number of cache lines to process
tmp RN 12 ; scratch register
MACRO
CACHECLEANXSCALE $op
IF $op = Dclean
LDR adr, =CleanAddressDcache
MOV nl, #(1 (NWAY+NSET))
ENDIF
IF $op = DcleanMini
LDR adr, =CleanAddressMiniDcache
MOV nl, #(1 (MNWAY+NSET))
ENDIF
5
IF {CPU} = XSCALE :LAND: $op = Dclean
MCR p15, 0, adr, c7, c2, 5 ; allocate d-cline
ADD adr, adr, #32 ; +1 d-cline
ENDIF
IF {CPU} = SA-110 :LOR: $op= DcleanMini
LDR tmp,[adr],#32 ; Load data, +1 d-cline
ENDIF
SUBS nl, nl, #1 ; -1 loop count
BNE %BT5
IF {CPU} = XSCALE
CPWAIT
ENDIF
MEND
cleanDCache
CACHECLEANXSCALE Dclean
MOV pc, lr](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-456-320.jpg)
![444 Chapter 12 Caches
DataorcodelockedinanARMcachecoreisimmunefromreplacement. However, when
the cache is flushed, the information in lockdown is lost and the area remains unavailable
as cache memory. The cache lockdown routine must be rerun to restore the lockdown
information.
12.6.1 Locking Code and Data in Cache
This section presents a procedure to lock code and data in cache. A typical sequence of C
calls to lock code and data in cache is the following:
int interrupt_state; /* saves the state of the FIQ and IRQ bits */
int globalData[16];
unsigned int *vectortable = (unsigned int *)0x0;
int wayIndex;
int vectorCodeSize = 212; /* vector table FIQ handler in bytes*/
interrupt_state = disable_interrupts(); /* no code provided */
enableCache(); /* see Chapters 13(MPU) and 14(MMU) */
flushCache(); /* see code Example 12.2 */
/* Lock Global Data Block */
wayIndex = lockDcache((globalData, sizeof globalData);
/* Lock Vector table and FIQ Handler */
wayIndex = lockIcache((vectortable, vectorCodeSize);}
enable_interrupts(interrupt_state); /* no code provided */
To begin, interrupts are disabled and the cache enabled. The procedure that disables
interrupts is not shown. The flushCache procedure is one selected from the previous
examples; the actual call used depends on the cache configuration and may also include
cleaning the cache.
The function lockDCache locks a block of data in the D-cache; similarly, the function
lockIcache locks a code block in the I-cache.
The lockdown software routines themselves must be located in noncached main mem-
ory. The code and data locked in cache must be located in cached main memory. It is
important that the code and data locked in cache does not exist elsewhere in cache; in other
words, if the contents of the cache are unknown, then flush the cache before loading. If
the core is using a writeback D-cache, then clean the D-cache. Once the code and data are
loaded in cache, reenable interrupts.
We present the code for the two functions lockDCache and lockIcache three different
times because there are three different lockdown methods used to lock code in cache,
depending on the architectural implementation. The first method locks code and data in
the cache using way addressing techniques. The second uses a set of lock bits. In the third,](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-463-320.jpg)
![12.6 Cache Lockdown 449
ENDIF
10
IF $op = Icache
MCR p15, 0, c9f, c9, c0, 1 ; set victim
ENDIF
IF $op = Dcache
MCR p15, 0, c9f, c9, c0, 0 ; set victim
ENDIF
MOV count, #(1 NSET)-1
5
IF $op = Icache
MCR p15, 0, adr, c7, c13, 1 ; load code cacheline
ADD adr, adr, #1 CLINE ; cline addr =+ 1
ENDIF
IF $op = Dcache
LDR tmp1, [adr], #1 CLINE ; load data cacheline
ENDIF
SUBS count, count, #1
BNE %BT5
ADD c9f, c9f, #1 I9WAY ; victim pointer =+ 1
SUBS nw, nw, #1 ; way counter =- 1
BNE %BT10 ; repeat for # of ways
2
IF {CPU} = ARM940T :LOR: {CPU} = ARM946E-S
BIC r0, c9f, #1 31 ; clear lock bit r0=victim
ENDIF
IF $op = Icache
MCR p15, 0, r0, c9, c0, 1 ; set victim counter
ENDIF
IF $op = Dcache
MCR p15, 0, r0, c9, c0, 0 ; set victim counter
ENDIF
1
MOV pc, lr
MEND
lockDCache
CACHELOCKBYWAY Dcache
lockICache
CACHELOCKBYWAY Icache
ENDIF
Finally, the macro is used twice to create the lockDCache and lockICache functions. ■](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-468-320.jpg)
![452 Chapter 12 Caches
MOV tmp1, #1
TST c9f, tmp1 ; test lock bit 0
MOVNE tmp1, tmp1, LSL #1
TSTNE c9f, tmp1 ; test lock bit 1
MOVNE tmp1, tmp1, LSL #1
TSTNE c9f, tmp1 ; test lock bit 2
MOVNE tmp1, tmp1, LSL #1
BNE %FT1 ; ERROR: no available ways
CMP size, #0 ; no lockdown requested
BEQ %FT1 ; exit return size =0
MVN tmp1, tmp1 ; select L bit
AND tmp1, tmp1, #0xf ; mask off non L bits
BIC c9f, c9f, #0xf ; construct c9f
ADD c9f, c9f, tmp1
IF $op = Icache
MCR p15, 0, c9f, c9, c0, 1 ; set lock I page
ENDIF
IF $op = Dcache
MCR p15, 0, c9f, c9, c0, 0 ; set lock D page
ENDIF
5
IF $op = Icache
MCR p15, 0, adr, c7, c13, 1 ; load code cacheline
ADD adr, adr, #1 CLINE ; cline addr =+ 1
ENDIF
IF $op = Dcache
LDR tmp1, [adr], #1 CLINE ; load data cacheline
ENDIF
SUBS size, size, #1 ; cline =- 1
BNE %BT5 ; loop thru clines
MVN tmp1, c9f ; lock selected L-bit
AND tmp1, tmp1, #0xf ; mask off non L-bits
ORR tmp, tmp, tmp1 ; merge with orig L-bits
BIC c9f, c9f, #0xf ; clear all L-bits
ADD c9f, c9f, tmp ; set L-bits in c9f
IF $op = Icache
MCR p15, 0, adr, c9, c0, 1 ; set i-cache lock bits
ENDIF](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-471-320.jpg)
![12.6 Cache Lockdown 455
IF {CPU} = XSCALE
EXPORT lockICache
EXPORT lockDCache
EXPORT lockDCacheRAM
INCLUDE cache.h
adr RN 0 ; current address of code or data
size RN 1 ; memory size in bytes
tmp RN 2 ; cpc15:c9 31 (load 5:0 victim pointer)
tmp1 RN 3 ; scratch register for LDR instruction
MACRO
CACHELOCKREGION $op
ADD size, adr, size ; size = end address
BIC adr, adr, #(1 CLINE)-1 ; align to CLINE
MOV tmp, #(1 CLINE)-1 ; scratch CLINE mask
TST size, tmp ; CLINE end fragment ?
SUB size, size, adr ; add alignment bytes
MOV size, size, lsr #CLINE ; convert size 2 # CLINE
ADDNE size, size, #1 ; add CLINE to hold fragment
CMP size, #0 ; no lockdown requested
BEQ %FT1 ; exit return size =0
IF $op = Dcache :LOR: $op = DcacheRAM
MCR p15, 0, adr, c7, c10, 4 ; drain write buffer
MOV tmp, #1
MCR p15, 0, tmp, c9, c2, 0 ; unlock data cache
CPWAIT
MOV tmp, #0 ; even words to zero
ENDIF
IF $op = DcacheRAM
MOV tmp1, #0 ; init odd words to zero
ENDIF
5
IF $op = Icache
MCR p15, 0, adr, c9, c1, 0; lock ICache line
ADD adr, adr, #1 CLINE
ENDIF
IF $op = Dcache
MCR p15, 0, adr, c7, c10, 1 ; clean dirty line
MCR p15, 0, adr, c7, c6, 1 ; Flush d-cache line
LDR tmp, [adr], #1 CLINE ; load data cache line](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-474-320.jpg)
![456 Chapter 12 Caches
ENDIF
IF $op = DcacheRAM
MCR p15, 0, adr, c7, c2, 5 ; Allocate d-cache line
MCR p15, 0, adr, c7, c10, 4 ; drain write buffer
STRD tmp, [adr], #8 ; init 2 zero adr=+2
STRD tmp, [adr], #8 ; init 2 zero adr=+2
STRD tmp, [adr], #8 ; init 2 zero adr=+2
STRD tmp, [adr], #8 ; init 2 zero adr=+2
ENDIF
SUBS size, size, #1
BNE %BT5
IF $op = Dcache :LOR: $op = DcacheRAM
MCR p15, 0, adr, c7, c10, 4 ; drain write buffer
MCR p15, 0, tmp, c9, c2, 0 ; lock data cache
CPWAIT
ENDIF
1
MOV r0, #0
MOV pc, lr
MEND
lockICache
CACHELOCKREGION Icache
lockDCache
CACHELOCKREGION Dcache
lockDCacheRAM
CACHELOCKREGION DcacheRAM
ENDIF
Finally, the macro is used three times to create the lockICache, lockDCache, and
lockDCacheRAM functions. ■
12.7 Caches and Software Performance
Here are a few simple rules to help write code that takes advantage of cache architecture.
Most regions in a memory system are configured to have both the caches and write
buffer enabled, taking maximum advantage of the cache architecture to reduce average
memory access time. For more information on regions and the configuration of cache and
write buffers operation within them, refer to Chapter 13 if you are using an ARM processor
core with a memory protection unit and Chapter 14 if you are using an ARM processor
core with a memory management unit.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-475-320.jpg)
![13.2 Initializing the MPU, Caches, and Write Buffer 467
0
1
5
6
11
12
31
Base address N
SBZ E
Figure13.3 CP15:c6 register format setting size and location of a region.
Table 13.3 Bit field description of registers CP15:c6:c0 to CP15:c6:c7.
Field name Bit fields Comments
Base address [31:12] Address greater than 4 KB must be a
multiple of the size represented in [5:1]
SBZ [11:6] Value “should be zero”
N [5:1] Size of region is 2N+1, where 11 ≤ N ≤ 31
E [0] Region enable, 1 = enable, 0 = disable
The starting address for each region must be aligned on an address that is a multiple
of its size. For example, if a region is 128 KB in size, it can start at any address multiple of
0x20000. The size of a region can be any power of two from 4 KB to 4 GB.
The bit fields and the format of the eight secondary registers CP15:c6:c0 to CP15:c6:c7
are shown in Figure 13.3 and Table 13.3. The starting address is stored in the top bit field
[31:20] and must be a multiple of the size bit field [5:1]. The E field bit [0] enables or
disables the region; that is, a region can be defined and disabled so that its attributes are
not enforced until the enable bit is set. The unused bits in the CP15:c6 secondary registers
should be set to zero.
To define the size of a region, you can use the formula, size = 2N+1 or look up the
value in Table 13.4 . To set the size, place the exponent value N in the size bit field of the
CP15:c6 register. The value of N is limited by the hardware design to be any integer between
11 and 31, representing 4 KB to 4 GB. The binary value provides the exact bit field for the
size entry. Once you have determined the size of a region, the starting address of the region
can be any integer value times the size calculated from the formula, or if you like, taken
from Table 13.4. The region size and starting address are determined by the memory map
of your system and the areas the control system must protect. The demonstration system
at the end of this chapter shows how to set up regions given a system memory map.
The ARM740T, ARM946E-S, and ARM1026EJ-S processors each have eight regions. To
set the size and location of a region requires a write to a secondary register in CP15:c6:cX.
For example, the instruction syntax needed to set the location and size of region 3 to start](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-486-320.jpg)
![13.2 Initializing the MPU, Caches, and Write Buffer 471
Table 13.6 Bit field assignments for the standard and extended access permission registers CP15:c5.
Standard AP Extended AP
Region Field name Bit field Field name Bit field
0 AP0 [1:0] eAP0 [3:0]
1 AP1 [3:2] eAP1 [7:4]
2 AP2 [5:4] eAP2 [11:8]
3 AP3 [7:6] eAP3 [15:12]
4 AP4 [9:8] eAP4 [19:16]
5 AP5 [11:10] eAP5 [23:20]
6 AP6 [13:12] eAP6 [27:24]
7 AP7 [15:14] eAP7 [31:28]
1
5
6
11
12
31
AP0
2
3
4
7
8
9
10
13
14
15
16 0
AP7 AP6 AP5 AP4 AP3 AP2 AP1
CP15:c5:c0 standard instruction region AP
CP15:c5:c1 standard data region AP
11
12
31
eAP0
3
4
7
8
15
16 0
eAP7 eAP6 eAP5 eAP4 eAP3 eAP2 eAP1
19
20
23
24
28 27
CP15:c5:c2 extended instruction region AP
CP15:c5:c3 extended data region AP
Figure13.4 CP15 register 5 access permission register formats.
To assign access permission to a region requires a write to a secondary register in
CP15:c5. Secondary registers CP15:c5:c0:0 and CP15:c5:c0:1 configure standard AP, and
secondary registers CP15:c5:c0:2 or CP15:c5:c0:3 configure extended AP. Table 13.6 and
Figure 13.4 show the register’s permission bit assignments for the AP registers.
Processors that support extended permission can also run software written for standard
permission. The type of permission in effect depends on the last write to a CP15 AP register:
If the last written AP register was a standard AP register, then the core is using standard
permission; if the last written AP register was an extended AP register, then the core uses
extended permission. This works because a write to the standard AP registers also updates
the extended AP registers, meaning that the high bits [2:3] of the extended AP region entry
are cleared.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-490-320.jpg)
![13.2 Initializing the MPU, Caches, and Write Buffer 475
Table 13.7 Bit field assignments for CP15:c2 and CP15:c3 registers.
Region cache fields Region write buffer fields
Region Field name Bit fields Field name Bit fields
0 c0 [0] b0 [0]
1 c1 [1] b1 [1]
2 c2 [2] b2 [2]
3 c3 [3] b3 [3]
4 c4 [4] b4 [4]
5 c5 [5] b5 [5]
6 c6 [6] b6 [6]
7 c7 [7] b7 [7]
cache bit. If the controller finds a valid cache entry, it will use the cached data over data in
external memory.
Because of this cache behavior, you need to flush and possibly clean the cache in a region
where the cache policy changes from cached to noncached. Consequently, the MPU control
system must always flush the cache when changing the cache policy from writethrough to
noncached. It must always clean and flush the cache when changing the cache policy
from writeback to noncached. It must also clean the cache when changing the cache policy
from writeback to writethrough. See Chapter 12 for routines to clean and/or flush the cache.
In the ARM946E-S, if the cache bit is clear, information physically in cache will not be
returned from the cache, and an external memory access is performed instead. This design
lightens the requirement to flush the cache when it is disabled. However, the cleaning rules
for the old region still apply.
The eight region write buffer bits in the register CP15:c3:c0:0 enable or disable the write
buffer for each region (again see Figure 13.5).
When configuring data regions, the region cache and write buffer bits together deter-
mine the policy of the region. The write buffer bit has two uses; it enables or disables the
write buffer for a region and sets the region cache write policy. The region cache bit controls
the purpose of the write buffer bit. When the cache bit is zero, the buffer bit enables the
write buffer when its value is one and disables the write buffer when its value is zero. When
the cache bit is set to one, the cache and write buffer are both enabled and the buffer bit
determines the cache write policy. The region uses a writethrough policy if the buffer bit
is zero and a writeback policy if the buffer bit is set. Table 13.8 gives a tabular view of the
various states of the cache and write buffer bits and their meanings. For more details on
writeback and writethrough policies, see Section 12.3.1.
We supply two routines to demonstrate enabling and disabling the caches and write
buffer. The two routines use the inline assembler to read and write to the CP15 registers.
We combine control of the cache and write buffer into a single routine call to simplify
system configuration. We reference both the data cache and write buffer bits by the write](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-494-320.jpg)
![476 Chapter 13 Memory Protection Units
Table 13.8 Control of the cache and write buffer.
Instruction cache Data cache
Cache bit Region Cache bit Buffer bit Region attribute
CP15:c2:c0:1 attribute CP15:c2:c0:0 CP15:c3:c0:0
0 not cached 0 0 NCNB (not cached, not buffered)
1 cached 0 1 NCB (not cached, buffered)
1 0 WT (cached, writethrough)
1 1 WB (cached, writeback)
policy they control, and the instruction cache bit stands alone. From a system view, merging
the state of the caches and write buffer into a single value for each region makes it easier to
group region information into a region control block (discussed in Section 13.3.3).
The set cache and buffer routine, called regionSetCB, is shown in Example 13.4 and
has the following C function prototype:
void regionSetCB(unsigned region, unsigned CB);
The routine has two input parameters. The first parameter, region, is the region number,
and the second, CB, combines the region instruction cache attributes and the data cache
and write buffer attributes. The second parameter has a format that uses the lower three
bits of the unsigned integer: the instruction cache bit in bit [3], the data cache bit in bit [1],
and the data buffer bit in bit [0].
Example
13.4
The routine sequentially sets the data write buffer bit, the data cache bit, and the instruction
cache bit. To do this, for each bit it reads the CP15 register, clears the old bit value, sets the
new bit value, and writes the value back into the CP15 register.
void regionSetCB(unsigned region, unsigned CB)
{
unsigned c3f, tempCB;
tempCB = CB;
__asm{MRC p15, 0, c3f, c3, c0, 0 } /* load buffer register */
c3f = c3f ∼ (0x1 region); /* clear old buffer bit */
c3f = c3f | ((tempCB 0x1) region); /* set new buffer bit */
__asm{MCR p15, 0, c3f, c3, c0, 0 } /* store buffer info */
tempCB = CB 0x1; /* shift to D-cache bit */
__asm{MRC p15, 0, c3f, c2, c0, 0 } /* load D-cache register */](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-495-320.jpg)
![478 Chapter 13 Memory Protection Units
Table 13.9 Protection unit enable bits in CP15 control register 1.
Bit Function enabled Value
0 MPU 0 = disabled, 1 = enabled
2 data cache 0 = disabled, 1 = enabled
12 instruction cache 0 = disabled, 1 = enabled
bit in the control register, and a 0 leaves the bit value unchanged, regardless of the bit state
in the first parameter.
For example, to enable the MPU and I-cache, and disable the D-cache, set bit [12] to 1,
bit [2] to 0, and bit [0] to 1. The value of the first parameter should be 0x00001001; the
remaining unchanged bits should be zero. To select only bit [12], bit [2], and bit [0] as the
values to change, set the mask value to 0x00001005.
Example
13.5
This routine reads the control register and places the value in a holding register. Then it
clears all the changing bits using the mask input and assigns them the desired state using
the value input. The routine completes by writing the new control values to the CP15:c1:c0
register.
void controlSet(unsigned value, unsigned mask)
{
unsigned int c1f;
__asm{ MRC p15, 0, c1f, c1, c0, 0 } /* read control register */
c1f = c1f ∼ mask; /* mask off bit that change */
c1f = c1f | value; /* set bits that change */
__asm{ MCR p15, 0, c1f, c1, c0, 0 } /* write control register */
} ■
13.3 Demonstration of an MPU system
We have provided a set of routines to use as building blocks to initialize and control a
protected system. This section uses the routines described to initialize and control a simple
protected system using a fixed memory map.
Here is a demonstration that uses the examples presented in the previous sections of this
chapter to create a functional protection system. It provides an infrastructure that enables
the running of three tasks in a simple protected multi-tasking system. We believe it provides
a suitable demonstration of the concepts underlying the ARM MPU hardware. It is written
in C and uses standard access permission.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-497-320.jpg)
![484 Chapter 13 Memory Protection Units
#define SIZE_16K 13
#define SIZE_8K 12
#define SIZE_4K 11
/* CB = ICache[2], DCache[1], Write Buffer[0] */
/* ICache[2], WB[1:0] = writeback, WT[1:0] = writethrough */
#define CCB 7
#define CWB 7
#define CCb 6
#define CWT 6
#define CcB 5
#define Ccb 4
#define cCB 3
#define cWB 3
#define cCb 2
#define cWT 2
#define ccB 1
#define ccb 0
/* Region enable */
#define R_ENABLE 1
#define R_DISABLE 0
Figure13.8 Defined macros used in the demonstration example. (Continued.)
used as data inputs in the initialization process. The routine has the following C function
prototype:
void configRegion(Region *region);
Example
13.6
This example initializes the MPU, caches, and write buffer for the protected system. The
routines presented earlier in this chapter are used in the initialization process. We imple-
ment the steps first listed in Section 13.2 to initialize the MPU, caches, and write buffer.
The steps are labeled as comments in the example code. Executing this example initializes
the MPU.
void configRegion(Region *region)
{
/* Step 1 - Define the size and location of the instruction */
/* and data regions using CP15:c6 */](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-503-320.jpg)
![502 Chapter 14 Memory Management Units
Table 14.2 Page tables used by the MMU.
Memory consumed Number of page
Name Type by page table (KB) Page sizes supported (KB) table entries
Master/section level 1 16 1024 4096
Fine level 2 4 1, 4, or 64 1024
Coarse level 2 1 4 or 64 256
as both a page directory of L2 page tables and a page table translating 1 MB virtual pages
called sections. If the L1 table is acting as a directory, then the PTE contains a pointer to
either an L2 coarse or L2 fine page table that represents 1 MB of virtual memory. If the L1
master table is translating a 1 MB section, then the PTE contains the base address of the
1 MB page frame in physical memory. The directory entries and 1 MB section entries can
coexist in the master page table.
A coarse L2 page table has 256 entries consuming 1 KB of main memory. Each PTE in
a coarse page table translates a 4 KB block of virtual memory to a 4 KB block in physical
memory. A coarse page table supports either 4 or 64 KB pages. The PTE in a coarse page
contains the base address to either a 4 or 64 KB page frame; if the entry translates a 64 KB
page, an identical PTE must be repeated in the page table 16 times for each 64 KB page.
A fine page table has 1024 entries consuming 4 KB of main memory. Each PTE in a fine
page translates a 1 KB block of memory. A fine page table supports 1, 4, or 64 KB pages
in virtual memory. These entries contain the base address of a 1, 4, or 64 KB page frame
in physical memory. If the fine table translates a 4 KB page, then the same PTE must be
repeated 4 consecutive times in the page table. If the table translates a 64 KB page, then the
same PTE must be repeated 64 consecutive times in the page table.
Table 14.2 summarizes the characteristics of the three kinds of page table used in ARM
memory management units.
14.4.1 Level 1 Page Table Entries
The level 1 page table accepts four types of entry:
■ A 1 MB section translation entry
■ A directory entry that points to a fine L2 page table
■ A directory entry that points to a coarse L2 page table
■ A fault entry that generates an abort exception
The system identifies the type of entry by the lower two bits [1:0] in the entry field. The
format of the PTE requires the address of an L2 page table to be aligned on a multiple of its
page size. Figure 14.6 shows the format of each entry in the L1 page table.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-521-320.jpg)
![14.5 The Translation Lookaside Buffer 507
A TLB miss may take many extra cycles if the MMU generates an abort exception. The
extracyclesresultastheaborthandlermapsintherequestedvirtualmemory. TheARM720T
has a single TLB because it has a unified bus architecture. The ARM920T, ARM922T,
ARM926EJ-S, and ARM1026EJ-S have two Translation Lookaside Buffers because they
use a Harvard bus architecture: one TLB for instruction translation and one TLB for data
translation.
14.5.1 Single-Step Page Table Walk
If the MMU is searching for a 1 MB section page, then the hardware can find the entry in a
single-step search because 1 MB page table entries are found in the master L1 page table.
Figure 14.9 shows the table walk of an L1 table for a 1 MB section page translation. The
MMU uses the base portion of the virtual address, bits [31:20], to select one of the 4096
Virtual
address
L1 master page table
Page
table
entry
Translation table
base address
4095
0
1
2
3 0
1
4
5
Base
.
.
.
Offset
31 20 19 0
Physical
address
Base Offset
Copied to TLB
Selects
physical
memory
31 20 19 0
Figure14.9 L1 Page table virtual-to-physical memory translation using 1 MB sections.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-526-320.jpg)
![508 Chapter 14 Memory Management Units
entries in the L1 master page table. If the value in bits [1:0] is binary 10, then the PTE has a
valid 1 MB page available. The data in the PTE is transferred to the TLB, and the physical
address is translated by combining it with the offset portion of the virtual address.
If the lower two bits are 00, then a fault is generated. If it is either of the other two values,
the MMU performs a two-stage search.
14.5.2 Two-Step Page Table Walk
If the MMU ends its search for a page that is 1, 4, 16, or 64 KB in size, then the page
table walk will have taken two steps to find the address translation. Figure 14.10 details
Coarse
L2 page table
L2 page
table entry
L2 page table
base address
Translation table
base address
255
0
1
2
L2 offset
.
.
.
Page offset
19 12 11 0
Virtual
address
L1 offset
31 20
Physical
address
Physical base Page offset
Copied to TLB
Selects
physical
memory
31 12 11 0
L1 master page table
Step 1
Step 2
L1 page
table entry
4095
0
1
2
3 0 1
4
5
.
.
.
Figure14.10 Two-level virtual-to-physical address translation using coarse page tables and 4 KB pages.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-527-320.jpg)
![14.8 Coprocessor 15 and MMU Configuration 513
Table 14.7 Configuring the cache and write buffer for a page.
Instruction cache Data cache
Cache bit Page attribute Cache bit Buffer bit Page attribute
0 not cached 0 0 not cached, not buffered
1 cached 0 1 not cached, buffered
1 0 cached, writethrough
1 1 cached, writeback
cache bit determines cache operation. When the bit is set, the page is cached, and when the
bit is clear, the page is not cached.
When configuring data pages, the write buffer bit has two uses: it enables or disables the
write buffer for a page, and it sets the page cache write policy. The page cache bit controls
the meaning of the write buffer bit. When the cache bit is zero, the buffer bit enables the
write buffer when the buffer bit value is one, and disables the write buffer when the buffer
bit value is zero. When the cache bit is set to one, the write buffer is enabled, and the state of
the buffer bit determines the cache write policy. The page uses a writethrough policy if the
buffer bit is zero and a writeback policy if the buffer bit is set; refer to Table 14.7, which gives
a tabular view of the various states of the cache and write buffer bits and their meaning.
14.8 Coprocessor 15 and MMU Configuration
We first introduced the procedure changeControl in Chapter 12. Example 14.3 revisits the
procedure changeControl, which we use to enable the MMU, caches, and write buffer.
The control register values that control MMU operation are shown in Table 14.8 and
Figure 14.13. The ARM720T, ARM920T, and the ARM926EJ-S all have the MMU enable
bit[0]andcacheenablebit[2]inthesamelocationinthecontrolregister. TheARM720Tand
ARM1022E have a write buffer enable, bit[3]. The ARM920T, ARM922T, and ARM926EJS
have split instruction and data caches, requiring an extra bit to enable the I-cache, bit[12].
All processor cores with an MMU support changing the vector table to high memory at
address 0xffff0000, bit[13].
Enabling a configured MMU is very similar for the three cores. To enable the MMU,
caches, and write buffer, you need to change bit[12], bit[3], bit[2], and bit[0] in the control
register.
The procedure, changeControl, operates on register CP15:c1:c0:0 to change the values
in the control register c1. Example 14.3 gives a small C routine that sets bits in the control
register; it is called using the following function prototype:
void controlSet(unsigned int value, unsigned int mask)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-532-320.jpg)
![14.10 Demonstration: A Small Virtual Memory System 539
14.10.6.3 Activating a Page Table
A page table can reside in memory and not be used by the MMU hardware. This happens
when a task is dormant and its page tables are mapped out of active virtual memory.
However, the task remains resident in physical memory, so it is immediately available for
use when a context switch occurs to activate it.
The third part in initializing the MMU is to activate the page tables needed to execute
code located in the fixed regions.
Example
14.10
The routine mmuAttachPT either activates an L1 master page table by placing its address
into the TTB in the CP15:c2:c0 register, or activates an L2 page table by placing its base
address into an L1 master page table entry.
It can be called using the following function prototype:
int mmuAttachPT(Pagetable *pt);
The procedure takes a single argument, a pointer to the Pagetable to activate and add
new translations from virtual to physical virtual memory.
int mmuAttachPT(Pagetable *pt) /* attach L2 PT to L1 master PT */
{
unsigned int *ttb, PTE, offset;
ttb = (unsigned int *)pt-masterPtAddress; /* read ttb from PT */
offset = (pt-vAddress) 20; /* determine PTE from vAddress */
switch (pt-type)
{
case MASTER:
{
__asm{ MCR p15, 0, ttb, c2, c0, 0 } ; /* TTB - CP15:c2:c0 */
break;
}
case COARSE:
{
/* PTE = addr L2 PT | domain | COARSE PT type*/
PTE = (pt-ptAddress 0xfffffc00);
PTE |= pt-dom 5;
PTE |= 0x11;
ttb[offset] = PTE;
break;
}](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-558-320.jpg)
![540 Chapter 14 Memory Management Units
#if defined(__TARGET_CPU_ARM920T)
case FINE:
{
/* PTE = addr L2 PT | domain | FINE PT type*/
PTE = (pt-ptAddress 0xfffff000);
PTE |= pt-dom 5;
PTE |= 0x13;
ttb[offset] = PTE;
break;
}
#endif
default:
{
printf(UNKNOWN page table typen);
return -1;
}
}
return 0;
}
The first thing the routine does is prepare two variables, the base address of the master
L1 page table, ttb, and an offset into the L1 page table, offset. The offset variable is created
from the virtual address of the page table. To calculate the offset, it takes the virtual address
and divides it by 1 MB by shifting the virtual address right by 20 bits. Adding this offset
to the master L1 base address generates a pointer to the address within the L1 master table
that represents the translation for the 1 MB section.
The procedure attaches the page table to the MMU hardware using the Pagetable type
pt-type variable to switch to the case that attaches the page table. The three possible cases
are described below.
The Master case attaches the master L1 page table. The routine attaches this special table
using an assembly language MCR instruction to set the CP15:c2:c0 register.
The Coarse case attaches a coarse page table to the master L1 page table. This case takes
the address of the L2 page table stored in the Pagetable structure and combines it with
the Domain and the coarse table type, to build a PTE. The PTE is then written into the L1
page table using the previously calculated offset. The format of the coarse PTE is shown in
Figure 14.6.
The Fine case attaches a fine L2 page table to the master L1 page table. This routine takes
the address of the L2 page table stored in the Pagetable structure and combines it with the
Domain and fine table type to build a PTE. The PTE is then written into the L1 page table
using the previously calculated offset. ■
The previous sections presented the routines that condition, load, and activate the page
tables while initializing the MMU. The last two parts set the domain access rights and enable
the MMU.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-559-320.jpg)
![15.1 Advanced DSP and SIMD Support in ARMv6 551
Table 15.1 8-bit SIMD arithmetic operations.
Instruction Description
SADD8{cond} Rd, Rn, Rm Signed 8-bit SIMD add
SSUB8{cond} Rd, Rn, Rm Signed 8-bit SIMD subtract
UADD8{cond} Rd, Rn, Rm Unsigned 8-bit SIMD add
USUB8{cond} Rd, Rn, Rm Unsigned 8-bit SIMD subtract
QADD8{cond} Rd, Rn, Rm Signed saturating 8-bit SIMD add
QSUB8{cond} Rd, Rn, Rm Signed saturating 8-bit SIMD subtract
UQADD8{cond} Rd, Rn, Rm Unsigned saturating 8-bit SIMD add
UQSUB8{cond} Rd, Rn, Rm Unsigned saturating 8-bit SIMD subtract
Table 15.2 16-bit SIMD arithmetic operations.
Instruction Description
SADD16{cond} Rd, Rn, Rm Signed add of the 16-bit pairs
SSUB16{cond} Rd, Rn, Rm Signed subtract of the 16-bit pairs
UADD16{cond} Rd, Rn, Rm Unsigned add of the 16-bit pairs
USUB16{cond} Rd, Rn, Rm Unsigned subtract of the 16-bit pairs
QADD16{cond} Rd, Rn, Rm Signed saturating add of the 16-bit pairs
QSUB16{cond} Rd, Rn, Rm Signed saturating subtract of the 16-bit pairs
UQADD16{cond} Rd, Rn, Rm Unsigned saturating add of the 16-bit pairs
UQSUB16{cond} Rd, Rn, Rm Unsigned saturating subtract of the 16-bit pairs
Operands for the SIMD instructions are not always found in the correct order within the
source registers; to improve the efficiency of dealing with these situations, there are 16-bit
SIMD operations that perform swapping of the 16-bit words of one operand register. These
operations allow a great deal of flexibility in dealing with halfwords that may be aligned in
different ways in memory and are particularly useful when working with 16-bit complex
number pairs that are packed into 32-bit registers. There are signed, unsigned, saturating
signed, and saturating unsigned versions of these operations, as shown in Table 15.3.
The X in the instruction mnemonic signifies that the two halfwords in Rm are swapped
before the operations are applied so that operations like the following take place:
Rd[15:0] = Rn[15:0] - Rm[31:16]
Rd[31:16] = Rn[31:16] + Rm[15:0]
The addition of the SIMD operations means there is now a need for some way of showing
an overflow or a carry from each SIMD slice through the datapath. The cpsr as originally](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-570-320.jpg)
![552 Chapter 15 The Future of the Architecture
Table 15.3 16-bit SIMD arithmetic operations with swap.
Instruction Description
SADDSUBX{cond} Rd, Rn, Rm Signed upper add, lower subtract, with a swap of
halfwords in Rm
UADDSUBX{cond} Rd, Rn, Rm Unsigned upper add, lower subtract, with swap of
halfwords in Rm
QADDSUBX{cond} Rd, Rn, Rm Signed saturating upper add, lower subtract, with
swap of halfwords in Rm
UQADDSUBX{cond} Rd, Rn, Rm Unsignedsaturatingupperadd, lowersubtract, with
swap of halfwords in Rm
SSUBADDX{cond} Rd, Rn, Rm Signed upper subtract, lower add, with a swap of
halfwords in Rm
USUBADDX{cond} Rd, Rn, Rm Unsigned upper subtract, lower add, with swap of
halfwords in Rm
QSUBADDX{cond} Rd, Rn, Rm Signed saturating upper subtract, lower add, with
swap of halfwords in Rm
UQSUBADDX{cond} Rd, Rn, Rm Unsignedsaturatinguppersubtract, loweradd, with
swap of halfwords in Rm
described in Section 2.2.5 is modified by adding four additional flag bits to represent each
8-bit slice of the data path. The newly modified cpsr register with the GE bits is shown in
Figure 15.1 and Table 15.4. The functionality of each GE bit is that of a “greater than or
equal” flag for each slice through the datapath.
Operating systems already save the cpsr register on a context switch. Adding these bits
to the cpsr has little effect on OS support for the architecture.
In addition to basic arithmetic operations on the SIMD data slices, there is considerable
use for operations that allow the picking of individual data elements within the datapath and
forming new ensembles of these elements. A select instruction SEL can independently select
each eight-bit field from one source register Rn or another source register Rm, depending
on the associated GE flag.
31 0
30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
N Z C V mode
Q J
Res Res Res E A I F T
GE [3:0]
Figure15.1 cpsr layout for ARMv6.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-571-320.jpg)
![15.1 Advanced DSP and SIMD Support in ARMv6 553
Table 15.4 cpsr fields for ARMv6.
Field Use
N Negative flag. Records bit 31 of the result of flag-setting operations.
Z Zero flag. Records if the result of a flag-setting operation is zero.
C Carry flag. Records unsigned overflow for addition, not-borrow for
subtraction, and is also used by the shifting circuit. See Table A.3.
V Overflow flag. Records signed overflows for flag-setting operations.
Q Saturation flag. Certain saturating operations set this flag on saturation. See for
example QADD in Appendix A (ARMv5E and above).
J J = 1 indicates Java execution (must have T = 0). Use the BXJ instruction to
change this bit (ARMv5J and above).
Res These bits are reserved for future expansion. Software should preserve the
values in these bits.
GE[3:0] The SIMD greater-or-equal flags. See SADD in Appendix A (ARMv6).
E Controls the data endianness. See SETEND in Appendix A (ARMv6).
A A = 1 disables imprecise data aborts (ARMv6).
I I = 1 disables IRQ interrupts.
F F = 1 disables FIQ interrupts.
T T = 1 indicates Thumb state. T = 0 indicates ARM state. Use the BX or BLX
instructions to change this bit (ARMv4T and above).
mode The current processor mode. See Table B.4.
SEL Rd, Rn, Rm
Rd[31:24] = GE[3] ? Rn[31:24] : Rm[31:24]
Rd[23:16] = GE[2] ? Rn[23:16] : Rm[23:16]
Rd[15:08] = GE[1] ? Rn[15:08] : Rm[15:08]
Rd[07:00] = GE[0] ? Rn[07:00] : Rm[07:00]
These instructions, together with the other SIMD operations, can be used very effec-
tively to implement the core of the Viterbi algorithm, which is used extensively for symbol
recovery in communication systems. Since the Viterbi algorithm is essentially a statistical
maximum likelihood selection algorithm, it is also used in such areas as speech and hand-
writing recognition engines. The core of Viterbi is an operation that is commonly known as
add-compare-select (ACS), and in fact many DSP processors have customized ACS instruc-
tions. With its parallel (SIMD) add, subtract (which can be used to compare), and selection
instructions, ARMv6 can implement an extremely efficient add-compare-select:
ADD8 Rp1, Rs1, Rb1 ; path 1 = state 1 + branch 1 (metric update)
ADD8 Rp2, Rs2, Rb2 ; path 2 = state 2 + branch 2 (mteric update)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-572-320.jpg)
![15.1 Advanced DSP and SIMD Support in ARMv6 557
Rn
Rm Rs
Rd
absdiff absdiff absdiff absdiff
+
Figure15.2 Sum-of-absolute-differences operation.
To implement this using the new instructions, use the following sequence to compute the
sum-of-absolute differences of four pixels:
LDR p1,[p1Ptr],#4 ; load 4 pixels from p1
LDR p2,[p2Ptr],#4 ; load 4 pixels from p2
;load delay-slot
;load delay-slot
USADA8 acc, p1, p2 ; accumlate sum abs diff
There is a tremendous performance advantage for this algorithm over an ARMv5TE
implementation. There is a four times improvement in performance from the eight-bit
SIMD alone. Additionally the USADA8 operation includes the accumulation operation. The
USAD8 operation will typically be used to carry out the setup into the loop before there is an
existing accumulated value.
15.1.6 Dual 16-Bit Multiply Instructions
ARMv5TE introduced considerable DSP performance to ARM, but ARMv6 takes this much
further. Implementations of ARMv6 (such as ARM1136J) have a dual 16 × 16 multiply
capability, which is comparable with many high-end dedicated DSP devices. Table 15.9 lists
these instructions.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-576-320.jpg)
![562 Chapter 15 The Future of the Architecture
Table15.13 Exception processing operations.
Instruction Description
SRSaddressing_mode, #mode{!} Save return state (lr and spsr) on the stack
addressed by sp in the specified mode.
RFE addressing_mode, Rn{!} Return from exception. Loads the pc and cpsr
from the stack pointed to by Rn.
CPSeffect iflags {,#mode} Change processor state with interrupt enable
or disable.
CPS #mode Change processor state only.
The ARM architecture has always had the SWP instruction for implementing semaphores to
ensure consistency in such environments. As the SoC has become more complex, however,
certain aspects of SWP cause a performance bottleneck in some instances. Recall that SWP is
basically a “blocking” primitive that locks the external bus of the processor and uses most of
its bandwidth just to wait for a resource to be released. In this sense the SWP instruction is
considered “pessimistic”—no computation can continue until SWP returns with the freed
resource.
New instructions LDREX and STREX (load and store exclusive) were added to the
ARMv6 architecture to solve this problem. These instructions, listed in Table 15.14, are
very straightforward in use and are implemented by having a system monitor out in the
memory system. LDREX optimistically loads a value from memory into a register assuming
that nothing else will change the value in memory while we are working on it. STREX stores
a value back out to memory and returns an indication of whether the value in memory
was changed or not between the original LDREX operation and this store. In this way the
primitives are “optimistic”—you continue processing the data you loaded with LDREX
even though some external device may also be modifying the value. Only if a modification
actually took place externally is the value thrown away and reloaded.
The big difference for the system is that the processor no longer waits around on the
systembusforasemaphoretobefree, andthereforeleavesmostofthesystembusbandwidth
available for other processes or processors.
Table15.14 Load and store exclusive operations.
Instructions Description
LDREX{cond} Rd, [Rn] Load from address in Rn and set memory monitor
STREX{cond} Rd, Rm, [Rn] Store to address in Rn and flag if successful in Rd
(Rd = 0 if successful)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-581-320.jpg)
![A.2 Syntax 571
■ Hd, Hn, Hm, Hs represent high-numbered ARM registers in the range r8 to r15.
■ Cd, Cn, Cm represent coprocessor registers in the range c0 to c15.
■ sp, lr, pc are names for r13, r14, r15, respectively.
■ Rn[a] denotes bit a of register Rn. Therefore Rn[a] = (Rn a) 1.
■ Rn[a:b] denotes the a + 1 − b bit value stored in bits a to b of Rn inclusive.
■ RdHi:RdLo represents the 64-bit value with high 32 RDHi bits and low 32 bits RdLo.
A.2.3 Values Stored as Immediates
■ immedN is any unsigned N-bit immediate. For example, immed8 represents any
integerintherange0to255. immed5*4representsanyintegerinthelist0, 4, 8, …,124.
■ addressN is an address or label stored as a relative offset. The address must be in the
range pc − 2N ≤ address pc + 2N . Here, pc is the address of the instruction plus
eight for ARM state, or the address of the instruction plus four for Thumb state. The
address must be four-byte aligned if the destination is an ARM instruction or two-byte
aligned if the destination is a Thumb instruction.
■ A-B represents any integer in the range A to B inclusive.
■ rotated_immed is any 32-bit immediate that can be represented as an eight-
bit unsigned value rotated right (or left) by an even number of bit positions. In
otherwords, rotated_immed = immed8 ROR (2*immed4). Forexample0xff,
0x104, 0xe0000005, and0x0bc00000arepossiblevaluesforrotated_immed. How-
ever, 0x101 and 0x102 are not. When you use a rotated immediate, shifter_C is
set according to Table A.3 (discussed in Section A.2.5). A nonzero rotate may cause
a change in the carry flag. For this reason, you can also specify the rotation explicitly,
using the assembly syntax immed8, 2*immed4.
A.2.4 Condition Codes and Flags
■ cond represents any of the standard ARM condition codes. Table A.2 shows the
possible values for cond.
■ SignedOverflow is a flag indicating that the result of an arithmetic operation suf-
fered from a signed overflow. For example, 0x7fffffff + 1 = 0x80000000 produces
a signed overflow because the sum of two positive 32-bit signed integers is a negative
32- bit signed integer. The V flag in the cpsr typically records signed overflows.
■ UnsignedOverflow is a flag indicating that the result of an arithmetic operation
suffered from an unsigned overflow. For example, 0xffffffff + 1 = 0 produces an
overflow in unsigned 32-bit arithmetic. The C flag in the cpsr typically records unsigned
overflows.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-590-320.jpg)
![572 Appendix A ARM and Thumb Assembler Instructions
Table A.2 ARM condition mnemonics.
cond Instruction is executed when cpsr condition
{|AL} ALways TRUE
EQ EQual (last result zero) Z==1
NE Not Equal (last result nonzero) Z==0
{CS|HS} Carry Set, unsigned Higher or Same (following a compare) C==1
{CC|LO} Carry Clear, unsigned LOwer (following a comparison) C==0
MI MInus (last result negative) N==1
PL PLus (last result greater than or equal to zero) N==0
VS V flag Set (signed overflow on last result) V==1
VC V flag Clear (no signed overflow on last result) V==0
HI unsigned HIgher (following a comparison) C==1 Z==0
LS unsigned Lower or Same (following a comparison) C==0 || Z==1
GE signed Greater than or Equal N==V
LT signed Less Than N!=V
GT signed Greater Than N==V Z==0
LE signed Less than or Equal N!=V || Z==1
NV NeVer—ARMv1 and ARMv2 only—DO NOT USE FALSE
■ NoUnsignedOverflow is the same as 1 − UnsignedOverflow.
■ Zero is a flag indicating that the result of an arithmetic or logical operation is zero.
The Z flag in the cpsr typically records the zero condition.
■ Negative is a flag indicating that the result of an arithmetic or logical operation is
negative. In other words, Negative is bit 31 of the result. The N flag in the cpsr
typically records this condition.
A.2.5 Shift Operations
■ imm_shift represents a shift by an immediate specified amount. The possible shifts
are LSL #0-31, LSR #1-32, ASR #1-32, ROR #1-31, and RRX. See Table A.3
for the actions of each shift.
■ reg_shift represents a shift by a register-specified amount. The possible shifts are
LSL Rs, LSR Rs, ASR Rs, and ROR Rs. Rs must not be pc . The bottom eight bits of Rs
are used as the shift value k in Table A.3. Bits Rs[31:8] are ignored.
■ shift is shorthand for imm_shift or reg_shift.
■ shifted_Rm is shorthand for the value of Rm after the specified shift has been applied.
See Table A.3.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-591-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 573
Table A.3 Barrel shifter circuit outputs for different shift types.
Shift k range shifted_Rm shifter_C
LSL k k = 0 Rm C (from cpsr)
LSL k 1 ≤ k ≤ 31 Rm k Rm[32-k]
LSL k k = 32 0 Rm[0]
LSL k k ≥ 33 0 0
LSR k k = 0 Rm C
LSR k 1 ≤ k ≤ 31 (unsigned)Rm k Rm[k-1]
LSR k k = 32 0 Rm[31]
LSR k k ≥ 33 0 0
ASR k k = 0 Rm C
ASR k 1 ≤ k ≤ 31 (signed)Rm k Rm[k-1]
ASR k k ≥ 32 −Rm[31] Rm[31]
ROR k k = 0 Rm C
ROR k 1 ≤ k ≤ 31 ((unsigned)Rm k)|(Rm (32-k)) Rm[k-1]
ROR k k ≥ 32 Rm ROR (k 31) Rm[(k-1)31]
RRX (C 31) | ((unsigned)Rm 1) Rm[0]
■ shifter_C is shorthand for the carry value output by the shifting circuit. See
Table A.3.
A.3 Alphabetical List of ARM
and Thumb Instructions
Instructions are listed in alphabetical order. However, where signed and unsigned variants
of the same operation exist, the main entry is under the signed variant.
ADC Add two 32-bit values and carry
1. ADCcond{S} Rd, Rn, #rotated_immed ARMv1
2. ADCcond{S} Rd, Rn, Rm {, shift} ARMv1
3. ADC Ld, Lm THUMBv1
Action Effect on the cpsr
1. Rd = Rn + rotated_immed + C Updated if S suffix specified](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-592-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 577
Action Effect on the cpsr
1. Ld = Lm ASR #immed5 Updated (see Notes below)
2. Ld = Ld ASR Ls[7:0] Updated
Note
■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3).
B Branch relative
1. Bcond address25 ARMv1
2. Bcond address8 THUMBv1
3. B address11 THUMBv1
Branches to the given address or label. The address is stored as a relative offset.
Examples
B label ; branch unconditionally to a label
BGT loop ; conditionally continue a loop
BIC Logical bit clear (AND NOT) of two 32-bit values
1. BICcond{S} Rd, Rn, #rotated_immed ARMv1
2. BICcond{S} Rd, Rn, Rm {, shift} ARMv1
3. BIC Ld, Lm THUMBv1
Action Effect on the cpsr
1. Rd = Rn ∼rotated_immed Updated if S suffix specified
2. Rd = Rn ∼shifted_Rm Updated if S suffix specified
3. Ld = Ld ∼Lm Updated (see Notes below)
Notes
■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero,
C = shifter_C (see Table A.3), V is preserved.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-596-320.jpg)
![582 Appendix A ARM and Thumb Assembler Instructions
implemented as the add x + ∼y + 1. The carry flag is one if x + ∼y + 1 overflows. This
happens when x ≥ y (equivalently when x − y doesn’t overflow).
■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes
for ARM instructions, or plus four bytes for Thumb instructions.
Example
CMP r0, r1, LSR#2 ; compare r0 with (r1/4)
BHS label ; if (r0 = (r1/4)) goto label;
CPS Change processor state; modifies selected bits in the cpsr
1. CPS #mode ARMv6
2. CPSID flags {, #mode} ARMv6
3. CPSIE flags {, #mode} ARMv6
4. CPSID flags THUMBv3
5. CPSIE flags THUMBv3
Action
1. cpsr[4:0] = mode
2. cpsr = cpsr | mask; { cpsr[4:0]=mode }
3. cpsr = cpsr ∼mask; { cpsr[4:0]=mode }
4. cpsr = cpsr | mask
5. cpsr = cpsr ∼mask
Bits are set in mask according to letters in the flags value as in Table A.4. The ID
(interrupt disable) variants mask interrupts by setting cpsr bits. The IE (interrupt enable)
variants unmask interrupts by clearing cpsr bits.
Table A.4 CPS flags characters.
Character cpsr bit affected Bit set in mask
a imprecise data Abort mask bit 0x100 = 1 8
i IRQ mask bit 0x080 = 1 7
f FIQ mask bit 0x040 = 1 6](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-601-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 583
CPY Copy one ARM register to another without affecting the cpsr.
1. CPYcond Rd, Rm ARMv6
2. CPY Rd, Rm THUMBv3
This assembles to MOVcond Rd, Rm except in the case of Thumb where Rd and Rm
are low registers in the range r0 to r7. Then it is a new operation that sets Rd=Rm without
affecting the cpsr.
EOR Logical exclusive OR of two 32-bit values
1. EORcond{S} Rd, Rn, #rotated_immed ARMv1
2. EORcond{S} Rd, Rn, Rm {, shift} ARMv1
3. EOR Ld, Lm THUMBv1
Action Effect on the cpsr
1. Rd = Rn ˆ rotated_immed Updated if S suffix specified
2. Rd = Rn ˆ shifted_Rm Updated if S suffix specified
3. Ld = Ld ˆ Lm Updated (see Notes below)
Notes
■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero,
C = shifter_C (see Table A.3), V is preserved.
■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation
updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set
to the value of the spsr.
■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes.
Example
EOR r0, r0, #1 16 ; toggle bit 16
LDC Load to coprocessor single or multiple 32-bit values
1. LDCcond{L} copro, Cd, [Rn {, #{-}immed8∗4}]{!} ARMv2
2. LDCcond{L} copro, Cd, [Rn], #{-}immed8∗4 ARMv2
3. LDCcond{L} copro, Cd, [Rn], option ARMv2](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-602-320.jpg)
![584 Appendix A ARM and Thumb Assembler Instructions
Table A.5 LDC addressing modes.
Addressing format Address accessed Value written back to Rn
[Rn {,# {-}immed}] Rn + {{-}immed} Rn preserved
[Rn {,# {-}immed}]! Rn + {{-}immed} Rn + {{-}immed}
[Rn], # {-}immed Rn Rn + {-}immed
[Rn], option Rn Rn preserved
4. LDC2{L} copro, Cd, [Rn {, #{-}immed8∗4}]{!} ARMv5
5. LDC2{L} copro, Cd, [Rn], #{-}immed8∗4 ARMv5
6. LDC2{L} copro, Cd, [Rn], option ARMv5
These instructions initiate a memory read, transferring data to the given coprocessor.
coproisthenumberofthecoprocessorintherangep0 top15. Thecoretakesanundefined
instruction trap if the coprocessor is not present. The memory read consists of a sequence
of words from sequentially increasing addresses. The initial address is specified by the
addressing mode in Table A.5. The coprocessor controls the number of words transferred,
up to a maximum limit of 16 words. The fields {L} and Cd are interpreted by the coprocessor
and ignored by the ARM. Typically Cd specifies the destination coprocessor register for the
transfer. The option field is an eight-bit integer enclosed in {}. Its interpretation is
coprocessor dependent.
If the address is not a multiple of four, then the access is unaligned. The restrictions on
unaligned accesses are the same as for LDM.
LDM Load multiple 32-bit words from memory to ARM registers
1. LDMcondamode Rn{!}, register_list{∧} ARMv1
2. LDMIA Rn!, register_list THUMBv1
These instructions load multiple words from sequential memory addresses. The
register_list specifies a list of registers to load, enclosed in curly brackets{}. Although
the assembler allows you to specify the registers in the list in any order, the order is not
stored in the instruction, so it is good practice to write the list in increasing order of register
number because this is the usual order of the memory transfer.
The following pseudocode shows the normal action of LDM. We use register_
list[i] to denote the register appearing at position i in the list, starting at 0 for the
first register. This assumes that the list is in order of increasing register number.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-603-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 585
Table A.6 LDM addressing modes.
Addressing Lowest address Highest address Value written back
mode accessed accessed to Rn if ! specified
{IA|FD} Rn Rn + N*4 - 4 Rn + N*4
{IB|ED} Rn + 4 Rn + N*4 Rn + N*4
{DA|FA} Rn - N*4 + 4 Rn Rn - N*4
{DB|EA} Rn - N*4 Rn - 4 Rn - N*4
N = the number of registers in register_list
start = the lowest address accessed given in Table A.6
for (i=0; iN; i++)
register_list[i] = memory(start+i*4, 4);
if (! specified) then update Rn according to Table A.6
Note that memory(a, 4) returns the four bytes at address a packed according to the
current processor data endianness. If a is not a multiple of four, then the load is unaligned.
Because the behavior of an unaligned load depends on the architecture revision, memory
system, and system coprocessor (CP15) configuration, it’s best to avoid unaligned loads if
possible. Assuming that the external memory system does not abort unaligned loads, then
the following rules usually apply:
■ If the core has a system coprocessor and bit 1 (A-bit) or bit 22 (U-bit) of CP15:c1:c0:0
is set, then unaligned load multiples cause an alignment fault data abort exception.
■ Otherwise the access ignores the bottom two address bits.
Table A.6 lists the possible addressing modes specified by amode. If you specify the !,
then the base address register is updated according to Table A.6; otherwise it is preserved.
Note that the lowest register number is always read from the lowest address.
The first half of the addressing mode mnemonics stands for Increment After, Increment
Before, Decrement After, and Decrement Before, respectively. Increment modes load
the registers sequentially forward, starting from address Rn (increment after) or Rn + 4
(increment before). Decrement modes have the same effect as if you loaded the regis-
ter list backwards from sequentially descending memory addresses, starting from address
Rn (decrement after) or Rn − 4 (decrement before).
The second half of the addressing mode mnemonics stands for the stack type you can
implement with that address mode: Full Descending, Empty Descending, Full Ascending,
and Empty Ascending, With a full stack, Rn points to the last stacked value; with an empty
stack, Rn points to the first unused stack location. ARM stacks are usually full descending.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-604-320.jpg)
![586 Appendix A ARM and Thumb Assembler Instructions
You should use full descending or empty ascending stacks by preference, since LDC also
supports these addressing modes.
Notes
■ For Thumb (format 2), Rn and the register list registers must be in the range r0 to r7.
■ The number of registers N in the list must be nonzero.
■ Rn must not be pc.
■ Rn must not appear in the register list if ! (writeback) is specified.
■ If pc appears in the register list, then on ARMv5 and above the processor performs a BX
to the loaded address. For ARMv4 and below, the processor branches to the loaded
address.
■ If ∧ is specified, then the operation is modified. The processor must not be in user or
system mode. If pc is not in the register list, then the registers appearing in the register
list refer to the user mode versions of the registers and writeback must not be specified.
If pc is in the register list, then the spsr is copied to the cpsr in addition to the standard
operation.
■ The time order of the memory accesses may depend on the implementation. Be careful
when using a load multiple to access I/O locations where the access order matters. If
the order matters, then check that the memory locations are marked as I/O in the page
tables, do not cross page boundaries, and do not use pc in the register list.
Examples
LDMIA r4!, {r0, r1} ; r0=∗r4, r1=∗(r4+4), r4+=8
LDMDB r4!, {r0, r1} ; r1=∗(r4-4), r0=∗(r4-8), r4-=8
LDMEQFD sp!, {r0, pc} ; if (result zero) then unstack r0, pc
LDMFD sp, {sp}∧ ; load sp_usr from sp_current
LDMFD sp!, {r0-pc}∧ ; return from exception, restore cpsr
LDR Load a single value from a virtual address in memory
1. LDRcond{|B} Rd, [Rn {, #{-}immed12}]{!} ARMv1
2. LDRcond{|B} Rd, [Rn, {-}Rm {,imm_shift}]{!} ARMv1
3. LDRcond{|B}{T} Rd, [Rn], #{-}immed12 ARMv1
4. LDRcond{|B}{T} Rd, [Rn], {-}Rm {,imm_shift} ARMv1
5. LDRcond{H|SB|SH} Rd, [Rn, {, #{-}immed8}]{!} ARMv4
6. LDRcond{H|SB|SH} Rd, [Rn, {-}Rm]{!} ARMv4
7. LDRcond{H|SB|SH} Rd, [Rn], #{-}immed8 ARMv4](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-605-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 587
8. LDRcond{H|SB|SH} Rd, [Rn], {-}Rm ARMv4
9. LDRcondD Rd, [Rn, {, #{-}immed8}]{!} ARMv5E
10. LDRcondD Rd, [Rn, {-}Rm]{!} ARMv5E
11. LDRcondD Rd, [Rn], #{-}immed8 ARMv5E
12. LDRcondD Rd, [Rn], {-}Rm ARMv5E
13. LDREXcond Rd, [Rn] ARMv6
14. LDR{|B|H} Ld, [Ln, #immed5*size] THUMBv1
15. LDR{|B|H|SB|SH} Ld, [Ln, Lm] THUMBv1
16. LDR Ld, [pc, #immed8*4] THUMBv1
17. LDR Ld, [sp, #immed8*4] THUMBv1
18. LDRcondtype Rd, label MACRO
19. LDRcond Rd, =32-bit-value MACRO
Formats 1 to 17 load a single data item of the type specified by the opcode suffix, using
a preindexed or postindexed addressing mode. Tables A.7 and A.8 show the different
addressing modes and data types.
InTableA.8memory(a, n)readsnsequentialbytesfromaddressa. Thebytesarepacked
according to the configured processor data endianness. The function memoryT(a, n) per-
forms the same access but with user mode privileges, regardless of the current processor
mode. The function memoryEx(a, n) used by LDREX performs the access and marks the
access as exclusive. If address a has the shared TLB attribute, then this marks address a as
exclusive to the current processor and clears any other exclusive addresses for this processor.
Table A.7 LDR Addressing Modes.
Addressing format Address a accessed Value written back to Rn
[Rn {,#{-}immed}] Rn + {{-}immed} Rn preserved
[Rn {,#{-}immed}]! Rn + {{-}immed} Rn + {{-}immed}
[Rn, {-}Rm {,shift}] Rn + {-}shifted_Rm Rn preserved
[Rn, {-}Rm {,shift}]! Rn + {-}shifted_Rm Rn + {-}shifted_Rm
[Rn], #{-}immed Rn Rn + {-}immed
[Rn], {-}Rm {,shift} Rn Rn + {-}shifted_Rm](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-606-320.jpg)
![588 Appendix A ARM and Thumb Assembler Instructions
Table A.8 LDR datatypes.
Load Datatype size (bytes) Action
LDR word 4 Rd = memory(a, 4)
LDRB unsigned Byte 1 Rd = (zero-extend)memory(a, 1)
LDRBT Byte Translated 1 Rd = (zero-extend)memoryT(a, 1)
LDRD Double word 8 Rd = memory(a, 4)
R(d+1) = memory(a+4, 4)
LDREX word EXclusive 4 Rd = memoryEx(a, 4)
LDRH unsigned Halfword 2 Rd = (zero-extend)memory(a, 2)
LDRSB Signed Byte 1 Rd = (sign-extend)memory(a, 1)
LDRSH Signed Halfword 2 Rd = (sign-extend)memory(a, 2)
LDRT word Translated 4 Rd = memoryT(a, 4)
Otherwisetheprocessorremembersthatthereisanoutstandingexclusiveaccess. Exclusivity
only affects the action of the STREX instruction.
If address a is not a multiple of size, then the load is unaligned. Because the behavior
of an unaligned load depends on the architecture revision, memory system, and system
coprocessor (CP15) configuration, it’s best to avoid unaligned loads if possible. Assuming
that the external memory system does not abort unaligned loads, then the following rules
usually apply. In the rules, A is bit 1 of system coprocessor register CP15:c1:c0:0, and U
is bit 22 of CP15:c1:c0:0, introduced in ARMv6. If there is no system coprocessor, then
A = U = 0.
■ If A = 1, then unaligned loads cause an alignment fault data abort exception except
that word-aligned double-word loads are supported if U = 1.
■ If A = 0 and U = 1, then unaligned loads are supported for LDR{|T|H|SH}. Word-
aligned loads are supported for LDRD. A non-word-aligned LDRD generates an alignment
fault data abort.
■ If A = 0 and U = 0, then LDR and LDRT return the value memory(a ∼3, 4) ROR
((a3)*8). All other unaligned operations are unpredictable but do not generate an
alignment fault.
Format 18 generates a pc-relative load accessing the address specified by label.
In other words, it assembles to LDRcondtype Rd, [pc, #offset] whenever this
instruction is supported and offset=label-pc is in range.
Format 19 generates an instruction to move the given 32-bit value to the register Rd.
Usually the instruction is LDRcond Rd, [pc, #offset], where the 32-bit value is
stored in a literal pool at address pc+offset.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-607-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 589
Notes
■ For double-word loads (formats 9 to 12), Rd must be even and in the range r0 to r12.
■ If the addressing mode updates Rn, then Rd and Rn must be distinct.
■ If Rd is pc, then size must be 4. Up to ARMv4, the core branches to the loaded
address. For ARMv5 and above, the core performs a BX to the loaded address.
■ If Rn is pc, then the addressing mode must not update Rn . The value used for Rn is the
address of the instruction plus eight bytes for ARM or four bytes for Thumb.
■ Rm must not be pc.
■ For ARMv6 use LDREX and STREX to implement semaphores rather than SWP.
Examples
LDR r0, [r0] ; r0 = *(int*)r0;
LDRSH r0, [r1], #4 ; r0 = *(short*)r1; r1 += 4;
LDRB r0, [r1, #-8]! ; r1 -= 8; r0 = *(char*)r1;
LDRD r2, [r1] ; r2 =* (int*)r1; r3 =* (int*)(r1+4);
LDRSB r0, [r2, #55] ; r0 = *(signed char*)(r2+55);
LDRCC pc, [pc, r0, LSL #2] ; if (C==0) goto *(pc+4*r0);
LDRB r0, [r1], -r2, LSL #8 ; r0 = *(char*)r1; r1 -= 256*r2;
LDR r0, =0x12345678 ; r0 = 0x12345678;
LSL Logical shift left for Thumb (see MOV for the ARM equivalent)
1. LSL Ld, Lm, #immed5 THUMBv1
2. LSL Ld, Ls THUMBv1
Action Effect on the cpsr
1. Ld = Lm LSL #immed5 Updated (see Note below)
2. Ld = Ld LSL Ls[7:0] Updated
Note
■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3).
LSR Logical shift right for Thumb (see MOV for the ARM equivalent)
1. LSR Ld, Lm, #immed5 THUMBv1
2. LSR Ld, Ls THUMBv1](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-608-320.jpg)
![590 Appendix A ARM and Thumb Assembler Instructions
Action Effect on the cpsr
1. Ld = Lm LSR #immed5 Updated (see Note below)
2. Ld = Ld LSR Ls[7:0] Updated
Note
■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3).
MCR
MCRR
Move to coprocessor from an ARM register
1. MCRcond copro, op1, Rd, Cn, Cm {, op2} ARMv2
2. MCR2 copro, op1, Rd, Cn, Cm {, op2} ARMv5
3. MCRRcond copro, op1, Rd, Rn, Cm ARMv5E
4. MCRR2 copro, op1, Rd, Rn, Cm ARMv6
These instructions transfer the value of ARM register Rd to the indicated coprocessor.
Formats 3 and 4 also transfer a second register Rn. copro is the number of the coprocessor
in the range p0 to p15. The core takes an undefined instruction trap if the coprocessor is
not present. The coprocessor operation specifiers op1 and op2, and the coprocessor
register numbers Cn, Cm, are interpreted by the coprocessor, and ignored by the ARM.
Rd and Rn must not be pc. Coprocessor p15 controls memory management options. See
Chapters 13 and 14 for descriptions of the MPU and MMU memory management units.
For example, the following code sequence enables alignment fault checking:
MRC p15, 0, r0, c1, c0, 0 ; read the MMU register, c1
ORR r0, r0, #2 ; set the A bit
MCR p15, 0, r0, c1, c0, 0 ; write the MMU register, c1
MLA Multiply with accumulate
1. MLAcond{S} Rd, Rm, Rs, Rn ARMv2
Action Effect on the cpsr
1. Rd = Rn + Rm*Rs Updated if S suffix supplied
Notes
■ Rd is set to the lower 32 bits of the result.
■ Rd, Rm, Rs, Rn must not be pc.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-609-320.jpg)
![596 Appendix A ARM and Thumb Assembler Instructions
Notes
■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero,
C = shifter_C (see Table A.3), and V is preserved.
■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation
updates the cpsr, then the processor mode must have an spsr, in this case, the cpsr is set
to the value of the spsr.
■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes.
Example
ORR r0, r0,#1 13 ; set bit 13 of r0
PKH Pack 16-bit halfwords into a 32-bit word
1. PKHBTcond Rd, Rn, Rm {, LSL #0-31} ARMv6
2. PKHTBcond Rd, Rn, Rm {, ASR #1-32} ARMv6
Action
1. Rd[15:00] = Rn[15:00]; Rd[31:16]=shifted_Rm[31:16]
2. Rd[31:16] = Rn[31:16]; Rd[15:00]=shifted_Rm[15:00]
Note
■ Rd, Rn, Rm must not be pc. cpsr is not affected.
Examples
PKHBT r0, r1, r2, LSL#16 ; r0 = (r2[15:00] 16) | r1[15:00]
PKHTB r0, r2, r1, ASR#16 ; r0 = (r2[31:15] 16) | r1[31:15]
PLD Preload hint instruction
1. PLD [Rn {, #{-}immed12}] ARMv5E
2. PLD [Rn, {-}Rm {,imm_shift}] ARMv5E
Action
1. Preloads from address (Rn + {{-}immed12})
2. Preloads from address (Rn + {-}shifted_Rm)](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-615-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 597
This instruction does not affect the processor registers (other than advancing pc). It merely
hints that the programmer is likely to read from the given address in future. A cached
processor may take this as a hint to load the cache line containing the address into the
cache. The instruction should not generate a data abort or any other memory system error.
If Rn is pc, then the value used for Rn is the address of the instruction plus eight. Rm
must not be pc.
Examples
PLD [r0, #7] ; Preload from r0+7
PLD [r0, r1, LSL#2] ; Preload from r0+4*r1
POP Pops multiple registers from the stack in Thumb state (for ARM state use LDM)
1. POP regster_list THUMBv1
Action
1. equivalent to the ARM instruction LDMFD sp!, register_list
The register_list can contain registers in the range r0 to r7 and pc. The following
example restores the low-numbered ARM registers and returns from a subroutine:
POP {r0-r7,pc}
PUSH Pushes multiple registers to the stack in Thumb state (for ARM state use STM)
1. PUSH regster_list THUMBv1
Action
1. equivalent to the ARM instruction STMFD sp!, register_list
The register_list can contain registers in the range r0 to r7 and lr. The following
example saves the low-numbered ARM registers and link register.
PUSH {r0-r7,lr}
QADD
QDADD
QDSUB
QSUB
Saturated signed and unsigned arithmetic
1. QADDcond Rd, Rm, Rn ARMv5E
2. QDADDcond Rd, Rm, Rn ARMv5E](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-616-320.jpg)
![598 Appendix A ARM and Thumb Assembler Instructions
3. QSUBcond Rd, Rm, Rn ARMv5E
4. QDSUBcond Rd, Rm, Rn ARMv5E
5. {U}QADD16cond Rd, Rn, Rm ARMv6
6. {U}QADDSUBXcond Rd, Rn, Rm ARMv6
7. {U}QSUBADDXcond Rd, Rn, Rm ARMv6
8. {U}QSUB16cond Rd, Rn, Rm ARMv6
9. {U}QADD8cond Rd, Rn, Rm ARMv6
10. {U}QSUB8cond Rd, Rn, Rm ARMv6
Action
1. Rd = sat32(Rm+Rn)
2. Rd = sat32(Rm+sat32(2*Rn))
3. Rd = sat32(Rm-Rn)
4. Rd = sat32(Rm-sat32(2*Rn))
5. Rd[31:16] = sat16(Rn[31:16] + Rm[31:16]);
Rd[15:00] = sat16(Rn[15:00] + Rm[15:00])
6. Rd[31:16] = sat16(Rn[31:16] + Rm[15:00]);
Rd[15:00] = sat16(Rn[15:00] - Rm[31:16])
7. Rd[31:16] = sat16(Rn[31:16] - Rm[15:00]);
Rd[15:00] = sat16(Rn[15:00] + Rm[31:16])
8. Rd[31:16] = sat16(Rn[31:16] - Rm[31:16]);
Rd[15:00] = sat16(Rn[15:00] - Rm[15:00])
9. Rd[31:24] = sat8(Rn[31:24] + Rm[31:24]);
Rd[23:16] = sat8(Rn[23:16] + Rm[23:16]);
Rd[15:08] = sat8(Rn[15:08] + Rm[15:08]);
Rd[07:00] = sat8(Rn[07:00] + Rm[07:00])
10. Rd[31:24] = sat8(Rn[31:24] - Rm[31:24]);
Rd[23:16] = sat8(Rn[23:16] - Rm[23:16]);](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-617-320.jpg)
![A.3 Alphabetical List of ARM and Thumb Instructions 599
Rd[15:08] = sat8(Rn[15:08] - Rm[15:08]);
Rd[07:00] = sat8(Rn[07:00] - Rm[07:00])
Notes
■ The operations are signed unless the U prefix is present. For signed operations, satN(x)
saturates x to the range −2N−1 ≤ x 2N−1. For unsigned operations, satN(x)
saturates x to the range 0 ≤ x 2N .
■ The cpsr Q-flag is set if saturation occurred; otherwise it is preserved.
■ Rd, Rn, Rm must not be pc.
■ The X operations are useful for packed complex numbers. The following examples
assume bits [15:00] hold the real part and [31:16] the imaginary part.
Examples
QDADD r0, r0, r2 ; add Q30 value r2 to Q31 accumulator r0
QADD16 r0, r1, r2 ; SIMD saturating add
QADDSUBX r0, r1, r2 ; r0=r1+i*r2 in packed complex arithmetic
QSUBADDX r0, r1, r2 ; r0=r1-i*r2 in packed complex arithmetic
REV Reverse bytes within a word or halfword.
1. REVcond Rd, Rm ARMv6/THUMBv3
2. REV16cond Rd, Rm ARMv6/THUMBv3
3. REVSHcond Rd, Rm ARMv6/THUMBv3
Action
1. Rd[31:24] = Rm[07:00]; Rd[23:16] = Rm[15:08];
Rd[15:08] = Rm[23:16]; Rd[07:00] = Rm[31:24]
2. Rd[31:24] = Rm[23:16]; Rd[23:16] = Rm[31:24];
Rd[15:08] = Rm[07:00]; Rd[07:00] = Rm[15:08]
3. Rd[31:08] = sign-extend(Rm[07:00]); Rd[07:00] = Rm[15:08]
Notes
■ Rd and Rm must not be pc.
■ For Thumb, Rd, Rm must be in the range r0 to r7 and cond cannot be specified.](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-618-320.jpg)
![600 Appendix A ARM and Thumb Assembler Instructions
■ These instructions are useful to convert big-endian data to little-endian and vice
versa.
Examples
REV r0, r0 ; switch endianness of a word
REV16 r0, r0 ; switch endianness of two packed halfwords
REVSH r0, r0 ; switch endianness of a signed halfword
RFE Return from exception
1. RFEamode Rn! ARMv6
This performs the operation that LDMamode Rn{!}, {pc, cpsr} would perform if LDM
allowed a register list of {pc, cpsr}. See the entry for LDM.
ROR Rotate right for Thumb (see MOV for the ARM equivalent)
1. ROR Ld, Ls THUMBv1
Action Effect on the cpsr
1. Ld = Ld ROR Ls[7:0] Updated
Notes
■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3).
RSB Reverse subtract of two 32-bit integers
1. RSBcond{S} Rd, Rn, #rotated_immed ARMv1
2. RSBcond{S} Rd, Rn, Rm {, shift} ARMv1
Action Effect on the cpsr
1. Rd = rotated_immed - Rn Updated if S suffix present
2. Rd = shifted_Rm - Rn Updated if S suffix present
Notes
■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero,
C = NoUnsignedOverflow, and V = SignedOverflow. The carry flag is set this way](https://image.slidesharecdn.com/armsystemdevelopersguide-designingandoptimizingsystemsoftware-220720165939-a89d25de/85/ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software-pdf-619-320.jpg)
ARM_System_Developers_Guide-Designing_and_Optimizing_System_Software.pdf
- 1. For more Free E-books Visit http://ali-almukhtar.blogspot.com
- 3. ARM System Developer’s Guide Designing and Optimizing System Software
- 4. About the Authors Andrew N. Sloss Andrew Sloss received a B.Sc. in Computer Science from the University of Herefordshire (UK) in 1992 and was certified as a Chartered Engineer by the British Computer Society (C.Eng, MBCS). He has worked in the computer industry for over 16 years and has been involved with the ARM processor since 1987. He has gained extensive experience developing a wide range of applications running on the ARM processor. He designed the first editing systems for both Chinese and Egyptian Hieroglyphics executing on the ARM2 and ARM3 processors for Emerald Publishing (UK). Andrew Sloss has worked at ARM Inc. for over six years. He is currently a Technical Sales Engineer advising and supporting companies developing new products. He works within the U.S. Sales Organization and is based in Los Gatos, California. Dominic Symes Dominic Symes is currently a software engineer at ARM Ltd. in Cambridge, England, where he has worked on ARM-based embedded software since 1995. He received his B.A. and D.Phil. in Mathematics from Oxford University. He first programmed the ARM in 1989 and is particularly interested in algorithms and optimization techniques. Before joining ARM, he wrote commercial and public domain ARM software. Chris Wright Chris Wright began his embedded systems career in the early 80s at Lockheed Advanced Marine Systems. While at Advanced Marine Systems he wrote small software control systems for use on the Intel 8051 family of microcontrollers. He has spent much of his career working at the Lockheed Palo Alto Research Laboratory and in a software development group at Dow Jones Telerate. Most recently, Chris Wright spent several years in the Customer Support group at ARM Inc., training and supporting partner companies developing new ARM-based products. Chris Wright is currently the Director of Customer Support at Ultimodule Inc. in Sunnyvale, California. John Rayfield John Rayfield, an independent consultant, was formerly Vice President of Marketing, U.S., at ARM. In this role he was responsible for setting ARM’s strategic marketing direction in the U.S., and identifying opportunities for new technologies to serve key market segments. John joined ARM in 1996 and held various roles within the company, including Director of Technical Marketing and R&D, which were focused around new product/technology development. Before joining ARM, John held several engineering and management roles in the field of digital signal processing, software, hardware, ASIC and system design. John holds an M.Sc. in Signal Processing from the University of Surrey (UK) and a B.Sc.Hons. in Electronic Engineering from Brunel University (UK).
- 5. ARM System Developer’s Guide Designing and Optimizing System Software Andrew N. Sloss Dominic Symes Chris Wright With a contribution by John Rayfield AMSTERDAM • BOSTON • HEIDELBERG • LONDON NEW YORK • OXFORD • PARIS • SAN DIEGO SAN FRANCISCO • SINGAPORE • SYDNEY • TOKYO Morgan Kaufmann is an imprint of Elsevier
- 6. Senior Editor Denise E.M. Penrose Publishing Services Manager Simon Crump Project Manager Sarah M. Hajduk Developmental Editor Belinda Breyer Editorial Assistant Summer Block Cover Design Dick Hannus Cover Image Red Wing No.6 by Charles Biederman Collection Walker Art Center, Minneapolis Gift of the artist through the Ford Foundation Purchase Program, 1964 Technical Illustration Dartmouth Publishing Composition Cepha Imaging, Ltd. Copyeditor Ken Dellapenta Proofreader Jan Cocker Indexer Ferreira Indexing Interior printer The Maple-Vail Book Manufacturing Group Cover printer Phoenix Color Morgan Kaufmann Publishers is an imprint of Elsevier. 500 Sansome Street, Suite 400, San Francisco, CA 94111 This book is printed on acid-free paper. © 2004 by Elsevier Inc. All rights reserved. The programs, examples, and applications presented in this book and on the publisher’s Web site have been included for their instructional value. The publisher and the authors offer no warranty implied or express, including but not limited to implied warranties of fitness or merchantability for any particular purpose and do not accept any liability for any loss or damage arising from the use of any information in this book, or any error or omission in such information, or any incorrect use of these programs, procedures, and applications. Designations used by companies to distinguish their products are often claimed as trademarks or registered trademarks. In all instances in which Morgan Kaufmann Publishers is aware of a claim, the product names appear in initial capital or all capital letters. Readers, however, should contact the appropriate companies for more complete information regarding trademarks and registration. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means—electronic, mechanical, photocopying, scanning, or otherwise—without prior written permission of the publisher. Permissions may be sought directly from Elsevier’s Science & Technology Rights Department in Oxford, UK: phone: (+44) 1865 843830, fax: (+44) 1865 853333, e-mail: permissions@elsevier.com.uk. You may also complete your request on-line via the Elsevier homepage (http://elsevier.com) by selecting “Customer Support” and then “Obtaining Permissions.” Library of Congress Cataloging-in-Publication Data Sloss, Andrew N. ARM system developer’s guide: designing and optimizing system software/Andrew N. Sloss, Dominic Symes, Chris Wright. p. cm. Includes bibliographical references and index. ISBN 1-55860-874-5 (alk. paper) 1. Computer software–Development. 2. RISC microprocessors. 3. Computer architecture. I. Symes, Dominic. II. Wright, Chris, 1953- III. Title. QA76.76.D47S565 2004 005.1–dc22 2004040366 ISBN: 1-55860-874-5 For information on all Morgan Kaufmann publications, visit our Web site at www.mkp.com. Printed in the United States of America 08 07 06 05 04 5 4 3 2 1
- 7. Contents About the Authors ii Preface xi Chapter 1 ARM Embedded Systems 3 1.1 The RISC Design Philosophy 4 1.2 The ARM Design Philosophy 5 1.3 Embedded System Hardware 6 1.4 Embedded System Software 12 1.5 Summary 15 Chapter 2 ARM Processor Fundamentals 19 2.1 Registers 21 2.2 Current Program Status Register 22 2.3 Pipeline 29 2.4 Exceptions, Interrupts, and the Vector Table 33 2.5 Core Extensions 34 2.6 Architecture Revisions 37 2.7 ARM Processor Families 38 2.8 Summary 43 Chapter 3 Introduction to the ARM Instruction Set 47 3.1 Data Processing Instructions 50 3.2 Branch Instructions 58 3.3 Load-Store Instructions 60 3.4 Software Interrupt Instruction 73 3.5 Program Status Register Instructions 75 3.6 Loading Constants 78 3.7 ARMv5E Extensions 79 3.8 Conditional Execution 82 3.9 Summary 84 v
- 8. vi Contents Chapter 4 Introduction to the Thumb Instruction Set 87 4.1 Thumb Register Usage 89 4.2 ARM-Thumb Interworking 90 4.3 Other Branch Instructions 92 4.4 Data Processing Instructions 93 4.5 Single-Register Load-Store Instructions 96 4.6 Multiple-Register Load-Store Instructions 97 4.7 Stack Instructions 98 4.8 Software Interrupt Instruction 99 4.9 Summary 100 Chapter 5 Efficient C Programming 103 5.1 Overview of C Compilers and Optimization 104 5.2 Basic C Data Types 105 5.3 C Looping Structures 113 5.4 Register Allocation 120 5.5 Function Calls 122 5.6 Pointer Aliasing 127 5.7 Structure Arrangement 130 5.8 Bit-fields 133 5.9 Unaligned Data and Endianness 136 5.10 Division 140 5.11 Floating Point 149 5.12 Inline Functions and Inline Assembly 149 5.13 Portability Issues 153 5.14 Summary 155 Chapter 6 Writing and Optimizing ARM Assembly Code 157 6.1 Writing Assembly Code 158 6.2 Profiling and Cycle Counting 163 6.3 Instruction Scheduling 163 6.4 Register Allocation 171 6.5 Conditional Execution 180 6.6 Looping Constructs 183 6.7 Bit Manipulation 191 6.8 Efficient Switches 197
- 9. Contents vii 6.9 Handling Unaligned Data 201 6.10 Summary 204 Chapter 7 Optimized Primitives 207 7.1 Double-Precision Integer Multiplication 208 7.2 Integer Normalization and Count Leading Zeros 212 7.3 Division 216 7.4 Square Roots 238 7.5 Transcendental Functions: log, exp, sin, cos 241 7.6 Endian Reversal and Bit Operations 248 7.7 Saturated and Rounded Arithmetic 253 7.8 Random Number Generation 255 7.9 Summary 256 Chapter 8 Digital Signal Processing 259 8.1 Representing a Digital Signal 260 8.2 Introduction to DSP on the ARM 269 8.3 FIR filters 280 8.4 IIR Filters 294 8.5 The Discrete Fourier Transform 303 8.6 Summary 314 Chapter 9 Exception and Interrupt Handling 317 9.1 Exception Handling 318 9.2 Interrupts 324 9.3 Interrupt Handling Schemes 333 9.4 Summary 364 Chapter 10 Firmware 367 10.1 Firmware and Bootloader 367 10.2 Example: Sandstone 372 10.3 Summary 379
- 10. viii Contents Chapter 11 Embedded Operating Systems 381 11.1 Fundamental Components 381 11.2 Example: Simple Little Operating System 383 11.3 Summary 400 Chapter 12 Caches 403 12.1 The Memory Hierarchy and Cache Memory 404 12.2 Cache Architecture 408 12.3 Cache Policy 418 12.4 Coprocessor 15 and Caches 423 12.5 Flushing and Cleaning Cache Memory 423 12.6 Cache Lockdown 443 12.7 Caches and Software Performance 456 12.8 Summary 457 Chapter 13 Memory Protection Units 461 13.1 Protected Regions 463 13.2 Initializing the MPU, Caches, and Write Buffer 465 13.3 Demonstration of an MPU system 478 13.4 Summary 487 Chapter 14 Memory Management Units 491 14.1 Moving from an MPU to an MMU 492 14.2 How Virtual Memory Works 493 14.3 Details of the ARM MMU 501 14.4 Page Tables 501 14.5 The Translation Lookaside Buffer 506 14.6 Domains and Memory Access Permission 510 14.7 The Caches and Write Buffer 512 14.8 Coprocessor 15 and MMU Configuration 513 14.9 The Fast Context Switch Extension 515 14.10 Demonstration: A Small Virtual Memory System 520 14.11 The Demonstration as mmuSLOS 545 14.12 Summary 545
- 11. Contents ix Chapter 15 The Future of the Architecture by John Rayfield 549 15.1 Advanced DSP and SIMD Support in ARMv6 550 15.2 System and Multiprocessor Support Additions to ARMv6 560 15.3 ARMv6 Implementations 563 15.4 Future Technologies beyond ARMv6 563 15.5 Summary 566 Appendix A ARM and Thumb Assembler Instructions 569 A.1 Using This Appendix 569 A.2 Syntax 570 A.3 Alphabetical List of ARM and Thumb Instructions 573 A.4 ARM Assembler Quick Reference 620 A.5 GNU Assembler Quick Reference 631 Appendix B ARM and Thumb Instruction Encodings 637 B.1 ARM Instruction Set Encodings 637 B.2 Thumb Instruction Set Encodings 638 B.3 Program Status Registers 645 Appendix C Processors and Architecture 647 C.1 ARM Naming Convention 647 C.2 Core and Architectures 647 Appendix D Instruction Cycle Timings 651 D.1 Using the Instruction Cycle Timing Tables 651 D.2 ARM7TDMI Instruction Cycle Timings 653 D.3 ARM9TDMI Instruction Cycle Timings 654 D.4 StrongARM1 Instruction Cycle Timings 655 D.5 ARM9E Instruction Cycle Timings 656 D.6 ARM10E Instruction Cycle Timings 658 D.7 Intel XScale Instruction Cycle Timings 659 D.8 ARM11 Cycle Timings 661
- 12. x Contents Appendix E Suggested Reading 667 E.1 ARM References 667 E.2 Algorithm References 667 E.3 Memory Management and Cache Architecture (Hardware Overview and Reference) 667 E.4 Operating System References 668 Index 669
- 13. Preface Increasingly, embedded systems developers and system-on-chip designers select specific microprocessor cores and a family of tools, libraries, and off-the-shelf components to quickly develop new microprocessor-based products. A major player in this industry is ARM. Over the last 10 years, the ARM architecture has become the most pervasive 32-bit architecture in the world, with more than 2 billion ARM-based processors shipped at the time of this writing. ARM processors are embedded in products ranging from cell/mobile phones to automotive braking systems. A worldwide community of ARM partners and third-party vendors has developed among semiconductor and product design companies, including hardware engineers, system designers, and software developers. To date, no book has directly addressed their need to develop the system and software for an ARM-based embedded design. This text fills that gap. Our goal has been to describe the operation of the ARM core from a product developer’s perspective with a clear emphasis on software. Because we have written this book specifically for engineers who are experienced with embedded systems development but who may be unfamiliar with the ARM architecture, we have assumed no previous ARM experience. To help our readers become productive as quickly as possible, we have included a suite of ARM software examples that can be integrated into commercial products or used as templates for the quick creation of productive software. The examples are numbered so that readers can easily locate the source code on the publisher’s Web site. The examples are also valuable to people with ARM design experience who want to make the most efficient use of an ARM-based embedded system. Organization of the Book The book begins by briefly noting the ARM processor design philosophy and discussing how and why it differs from the traditional RISC philosophy. The first chapter also introduces a simple embedded system based on the ARM processor. Chapter 2 digs more deeply into the hardware, focusing on the ARM processor core and presenting an overview of the ARM cores currently in the marketplace. The ARM and Thumb instruction sets are the focus of Chapters 3 and 4, respectively, and form the fundamental basis for the rest of the book. Explanations of key instructions include complete examples, so these chapters also serve as a tutorial on the instruction sets. Chapters 5 and 6 demonstrate how to write efficient code with scores of example that we have developed while working with ARM customers. Chapter 5 teaches proven techniques xi
- 14. xii Preface and rules for writing C code that will compile efficiently on the ARM architecture, and it helps determine which code should be optimized. Chapter 6 details best practices for writing and optimizing ARM assembly code—critical for improving performance by reducing system power consumption and clock speed. Because primitives are basic operations used in a wide range of algorithms, it’s worth- while to learn how they can be optimized. Chapter 7 discusses how to optimize primitives for specific ARM processors. It presents optimized reference implementations of com- mon primitives as well as of more complicated mathematical operations for those who wish to take a quick reference approach. We have also included the theory behind each implementation for those who wish to dig deeper. Audio and video embedded systems applications are increasingly in demand. They require digital signal processing (DSP) capability that until recently would have been pro- vided by a separate DSP processor. Now, however, the ARM architecture offers higher memory bandwidths and faster multiply accumulate operations, permitting a single ARM core design to support these applications. Chapter 8 examines how to maximize the per- formance of the ARM for digital processing applications and how to implement DSP algorithms. At the heart of an embedded system lie the exception handlers. Efficient handlers can dramatically improve system performance. Chapter 9 covers the theory and prac- tice of handling exceptions and interrupts on the ARM processor through a set of detailed examples. Firmware, an important part of any embedded system, is described in Chapter 10 by means of a simple firmware package we designed, called Sandstone. The chapter also reviews popular industry firmware packages that are available for the ARM. Chapter 11 demonstrates the implementation of embedded operating systems through an example operating system we designed, called Simple Little Operating System. Chapters 12, 13, and 14 focus on memory issues. Chapter 12 examines the various cache technologies that surround the ARM cores, demonstrating routines for controlling the cache on specific cache-enabled ARM processors. Chapter 13 discusses the memory protection unit, and Chapter 14 discusses the memory management unit. Finally, in Chapter 15, we consider the future of the ARM architecture, highlighting new directions in the instruction set and new technologies that ARM is implementing in the next few years. The appendices provide detailed references on the instruction sets, cycle timing, and specific ARM products. Examples on the Web As we noted earlier, we have created an extensive set of tested practical examples to reinforce concepts and methods. These are available on the publisher’s Web site at www.mkp.com/companions/1558608745.
- 15. Preface xiii Acknowledgments First, of course, are our wives—Shau Chin Symes and Yulian Yang—and families who have been very supportive and have put up with us spending a large proportion of our home time on this project. This book has taken many years to complete, and many people have contributed with encouragement and technical advice. We would like to personally thank all the people involved. Writing a technical book involves a lot of painstaking attention to detail, so a big thank you to all the reviewers who spent time and effort reading and providing feedback—a difficultactivitythatrequiresaspecialskill. Reviewerswhoworkedwiththepublisherduring the developmental process were Jim Turley (Silicon-Insider), Peter Maloy (CodeSprite), Chris Larsen, Peter Harrod (ARM, Ltd.), Gary Thomas (MLB Associates), Wayne Wolf (Princeton University), Scott Runner (Qualcomm, Inc.), Niall Murphy (PanelSoft), and Dominic Sweetman (Algorithmics, Ltd.). A special thanks to Wilco Dijkstra, Edward Nevill, and David Seal for allowing us to include selected examples within the book. Thanks also to Rod Crawford, Andrew Cum- mins, Dave Flynn, Jamie Smith, William Rees, and Anne Rooney for helping throughout with advice. Thanks to the ARM Strategic Support Group—Howard Ho, John Archibald, Miguel Echavarria, Robert Allen, and Ian Field—for reading and providing quick local feedback. We would like to thank John Rayfield for initiating this project and contributing Chapter 15. We would also like to thank David Brash for reviewing the manuscript and allowing us to include ARMv6 material in this book. Lastly, we wish to thank Morgan Kaufmann Publishers, especially Denise Penrose and Belinda Breyer for their patience and advice throughout the project.
- 16. This Page Intentionally Left Blank
- 17. 1.1 The RISC design philosophy 1.2 The ARM Design Philosophy 1.2.1 Instruction Set for Embedded Systems 1.3 Embedded System Hardware 1.3.1 ARM Bus Technology 1.3.2 AMBA Bus Protocol 1.3.3 Memory 1.3.4 Peripherals 1.4 Embedded System Software 1.4.1 Initialization (Boot) Code 1.4.2 Operating System 1.4.3 Applications 1.5 Summary
- 18. C h a p t e r ARM Embedded Systems 1 The ARM processor core is a key component of many successful 32-bit embedded systems. You probably own one yourself and may not even realize it! ARM cores are widely used in mobile phones, handheld organizers, and a multitude of other everyday portable consumer devices. ARM’s designers have come a long way from the first ARM1 prototype in 1985. Over one billion ARM processors had been shipped worldwide by the end of 2001. The ARM company bases their success on a simple and powerful original design, which continues to improve today through constant technical innovation. In fact, the ARM core is not a single core, but a whole family of designs sharing similar design principles and a common instruction set. For example, one of ARM’s most successful cores is the ARM7TDMI. It provides up to 120 Dhrystone MIPS1 and is known for its high code density and low power consumption, making it ideal for mobile embedded devices. In this first chapter we discuss how the RISC (reduced instruction set computer) design philosophywasadaptedbyARMtocreateaflexibleembeddedprocessor. Wethenintroduce an example embedded device and discuss the typical hardware and software technologies that surround an ARM processor. 1. Dhrystone MIPS version 2.1 is a small benchmarking program. 3
- 19. 4 Chapter 1 ARM Embedded Systems 1.1 The RISC design philosophy The ARM core uses a RISC architecture. RISC is a design philosophy aimed at delivering simple but powerful instructions that execute within a single cycle at a high clock speed. The RISC philosophy concentrates on reducing the complexity of instructions performed by the hardware because it is easier to provide greater flexibility and intelligence in software rather than hardware. As a result, a RISC design places greater demands on the compiler. In contrast, the traditional complex instruction set computer (CISC) relies more on the hardware for instruction functionality, and consequently the CISC instructions are more complicated. Figure 1.1 illustrates these major differences. The RISC philosophy is implemented with four major design rules: 1. Instructions—RISC processors have a reduced number of instruction classes. These classes provide simple operations that can each execute in a single cycle. The compiler or programmer synthesizes complicated operations (for example, a divide operation) by combining several simple instructions. Each instruction is a fixed length to allow the pipeline to fetch future instructions before decoding the current instruction. In contrast, in CISC processors the instructions are often of variable size and take many cycles to execute. 2. Pipelines—The processing of instructions is broken down into smaller units that can be executed in parallel by pipelines. Ideally the pipeline advances by one step on each cycle for maximum throughput. Instructions can be decoded in one pipeline stage. There is no need for an instruction to be executed by a miniprogram called microcode as on CISC processors. 3. Registers—RISC machines have a large general-purpose register set. Any register can contain either data or an address. Registers act as the fast local memory store for all data CISC RISC Compiler Compiler Processor Processor Code Generation Greater Complexity Greater Complexity Code Generation Figure 1.1 CISC vs. RISC. CISC emphasizes hardware complexity. RISC emphasizes compiler complexity.
- 20. 1.2 The ARM Design Philosophy 5 processing operations. In contrast, CISC processors have dedicated registers for specific purposes. 4. Load-store architecture—The processor operates on data held in registers. Separate load and store instructions transfer data between the register bank and external memory. Memory accesses are costly, so separating memory accesses from data processing pro- vides an advantage because you can use data items held in the register bank multiple times without needing multiple memory accesses. In contrast, with a CISC design the data processing operations can act on memory directly. These design rules allow a RISC processor to be simpler, and thus the core can operate at higher clock frequencies. In contrast, traditional CISC processors are more complex and operate at lower clock frequencies. Over the course of two decades, however, the distinction between RISC and CISC has blurred as CISC processors have implemented more RISC concepts. 1.2 The ARM Design Philosophy There are a number of physical features that have driven the ARM processor design. First, portable embedded systems require some form of battery power. The ARM processor has been specifically designed to be small to reduce power consumption and extend battery operation—essential for applications such as mobile phones and personal digital assistants (PDAs). High code density is another major requirement since embedded systems have lim- ited memory due to cost and/or physical size restrictions. High code density is useful for applications that have limited on-board memory, such as mobile phones and mass storage devices. In addition, embedded systems are price sensitive and use slow and low-cost memory devices. For high-volume applications like digital cameras, every cent has to be accounted for in the design. The ability to use low-cost memory devices produces substantial savings. Anotherimportantrequirementistoreducetheareaofthedietakenupbytheembedded processor. For a single-chip solution, the smaller the area used by the embedded processor, the more available space for specialized peripherals. This in turn reduces the cost of the design and manufacturing since fewer discrete chips are required for the end product. ARM has incorporated hardware debug technology within the processor so that software engineers can view what is happening while the processor is executing code. With greater visibility, software engineers can resolve issues faster, which has a direct effect on the time to market and reduces overall development costs. The ARM core is not a pure RISC architecture because of the constraints of its primary application—the embedded system. In some sense, the strength of the ARM core is that it does not take the RISC concept too far. In today’s systems the key is not raw processor speed but total effective system performance and power consumption.
- 21. 6 Chapter 1 ARM Embedded Systems 1.2.1 Instruction Set for Embedded Systems The ARM instruction set differs from the pure RISC definition in several ways that make the ARM instruction set suitable for embedded applications: ■ Variable cycle execution for certain instructions—Not every ARM instruction executes in a single cycle. For example, load-store-multiple instructions vary in the number of execution cycles depending upon the number of registers being transferred. The transfer can occur on sequential memory addresses, which increases performance since sequential memory accesses are often faster than random accesses. Code density is also improved since multiple register transfers are common operations at the start and end of functions. ■ Inline barrel shifter leading to more complex instructions—The inline barrel shifter is a hardware component that preprocesses one of the input registers before it is used by an instruction. This expands the capability of many instructions to improve core performance and code density. We explain this feature in more detail in Chapters 2, 3, and 4. ■ Thumb 16-bit instruction set—ARM enhanced the processor core by adding a second 16-bit instruction set called Thumb that permits the ARM core to execute either 16- or 32-bit instructions. The 16-bit instructions improve code density by about 30% over 32-bit fixed-length instructions. ■ Conditional execution—An instruction is only executed when a specific condition has been satisfied. This feature improves performance and code density by reducing branch instructions. ■ Enhanced instructions—The enhanced digital signal processor (DSP) instructions were added to the standard ARM instruction set to support fast 16×16-bit multiplier oper- ations and saturation. These instructions allow a faster-performing ARM processor in some cases to replace the traditional combinations of a processor plus a DSP. These additional features have made the ARM processor one of the most commonly used 32-bit embedded processor cores. Many of the top semiconductor companies around the world produce products based around the ARM processor. 1.3 Embedded System Hardware Embedded systems can control many different devices, from small sensors found on a production line, to the real-time control systems used on a NASA space probe. All these devices use a combination of software and hardware components. Each component is chosen for efficiency and, if applicable, is designed for future extension and expansion.
- 22. 1.3 Embedded System Hardware 7 ARM processor AHB arbiter Interrupt controller AHB-APB bridge Real-time clock Serial UARTs Memory controller AHB-external bridge Ethernet Counter/timers ROM SRAM FLASHROM DRAM External bus Ethernet physical driver Console ARM Controllers Peripherals Bus Figure 1.2 An example of an ARM-based embedded device, a microcontroller. Figure 1.2 shows a typical embedded device based on an ARM core. Each box represents a feature or function. The lines connecting the boxes are the buses carrying data. We can separate the device into four main hardware components: ■ The ARM processor controls the embedded device. Different versions of the ARM pro- cessor are available to suit the desired operating characteristics. An ARM processor comprises a core (the execution engine that processes instructions and manipulates data) plus the surrounding components that interface it with a bus. These components can include memory management and caches. ■ Controllers coordinate important functional blocks of the system. Two commonly found controllers are interrupt and memory controllers. ■ The peripherals provide all the input-output capability external to the chip and are responsible for the uniqueness of the embedded device. ■ A bus is used to communicate between different parts of the device.
- 23. 8 Chapter 1 ARM Embedded Systems 1.3.1 ARM Bus Technology Embeddedsystemsusedifferent bustechnologiesthanthosedesignedforx86PCs. Themost common PC bus technology, the Peripheral Component Interconnect (PCI) bus, connects such devices as video cards and hard disk controllers to the x86 processor bus. This type of technology is external or off-chip (i.e., the bus is designed to connect mechanically and electrically to devices external to the chip) and is built into the motherboard of a PC. In contrast, embedded devices use an on-chip bus that is internal to the chip and that allows different peripheral devices to be interconnected with an ARM core. There are two different classes of devices attached to the bus. The ARM processor core is a bus master—a logical device capable of initiating a data transfer with another device across the same bus. Peripherals tend to be bus slaves—logical devices capable only of responding to a transfer request from a bus master device. A bus has two architecture levels. The first is a physical level that covers the electrical characteristics and bus width (16, 32, or 64 bits). The second level deals with protocol—the logical rules that govern the communication between the processor and a peripheral. ARM is primarily a design company. It seldom implements the electrical characteristics of the bus, but it routinely specifies the bus protocol. 1.3.2 AMBA Bus Protocol The Advanced Microcontroller Bus Architecture (AMBA) was introduced in 1996 and has been widely adopted as the on-chip bus architecture used for ARM processors. The first AMBA buses introduced were the ARM System Bus (ASB) and the ARM Peripheral Bus (APB). Later ARM introduced another bus design, called the ARM High Performance Bus (AHB). Using AMBA, peripheral designers can reuse the same design on multiple projects. Because there are a large number of peripherals developed with an AMBA interface, hard- ware designers have a wide choice of tested and proven peripherals for use in a device. A peripheral can simply be bolted onto the on-chip bus without having to redesign an inter- face for each different processor architecture. This plug-and-play interface for hardware developers improves availability and time to market. AHB provides higher data throughput than ASB because it is based on a centralized multiplexed bus scheme rather than the ASB bidirectional bus design. This change allows the AHB bus to run at higher clock speeds and to be the first ARM bus to support widths of 64 and 128 bits. ARM has introduced two variations on the AHB bus: Multi-layer AHB and AHB-Lite. In contrast to the original AHB, which allows a single bus master to be active on the bus at any time, the Multi-layer AHB bus allows multiple active bus masters. AHB-Lite is a subset of the AHB bus and it is limited to a single bus master. This bus was developed for designs that do not require the full features of the standard AHB bus. AHB and Multi-layer AHB support the same protocol for master and slave but have different interconnects. The new interconnects in Multi-layer AHB are good for systems with multiple processors. They permit operations to occur in parallel and allow for higher throughput rates.
- 24. 1.3 Embedded System Hardware 9 The example device shown in Figure 1.2 has three buses: an AHB bus for the high- performance peripherals, an APB bus for the slower peripherals, and a third bus for external peripherals, proprietary to this device. This external bus requires a specialized bridge to connect with the AHB bus. 1.3.3 Memory An embedded system has to have some form of memory to store and execute code. You have to compare price, performance, and power consumption when deciding upon specific memory characteristics, such as hierarchy, width, and type. If memory has to run twice as fast to maintain a desired bandwidth, then the memory power requirement may be higher. 1.3.3.1 Hierarchy All computer systems have memory arranged in some form of hierarchy. Figure 1.2 shows a device that supports external off-chip memory. Internal to the processor there is an option of a cache (not shown in Figure 1.2) to improve memory performance. Figure 1.3 shows the memory trade-offs: the fastest memory cache is physically located nearer the ARM processor core and the slowest secondary memory is set further away. Generally the closer memory is to the processor core, the more it costs and the smaller its capacity. The cache is placed between main memory and the core. It is used to speed up data transfer between the processor and main memory. A cache provides an overall increase in performance but with a loss of predictable execution time. Although the cache increases the Performance/costs 1 MB Cache Main memory Secondary storage 1 GB Memory Size Figure 1.3 Storage trade-offs.
- 25. 10 Chapter 1 ARM Embedded Systems general performance of the system, it does not help real-time system response. Note that many small embedded systems do not require the performance benefits of a cache. The main memory is large—around 256 KB to 256 MB (or even greater), depending on the application—and is generally stored in separate chips. Load and store instructions access the main memory unless the values have been stored in the cache for fast access. Secondary storage is the largest and slowest form of memory. Hard disk drives and CD-ROM drives are examples of secondary storage. These days secondary storage may vary from 600 MB to 60 GB. 1.3.3.2 Width The memory width is the number of bits the memory returns on each access—typically 8, 16, 32, or 64 bits. The memory width has a direct effect on the overall performance and cost ratio. If you have an uncached system using 32-bit ARM instructions and 16-bit-wide memory chips, then the processor will have to make two memory fetches per instruction. Each fetch requires two 16-bit loads. This obviously has the effect of reducing system performance, but the benefit is that 16-bit memory is less expensive. In contrast, if the core executes 16-bit Thumb instructions, it will achieve better performance with a 16-bit memory. The higher performance is a result of the core making only a single fetch to memory to load an instruction. Hence, using Thumb instructions with 16-bit-wide memory devices provides both improved performance and reduced cost. Table 1.1 summarizes theoretical cycle times on an ARM processor using different memory width devices. 1.3.3.3 Types There are many different types of memory. In this section we describe some of the more popular memory devices found in ARM-based embedded systems. Read-only memory (ROM) is the least flexible of all memory types because it contains an image that is permanently set at production time and cannot be reprogrammed. ROMs are used in high-volume devices that require no updates or corrections. Many devices also use a ROM to hold boot code. Table 1.1 Fetching instructions from memory. Instruction size 8-bit memory 16-bit memory 32-bit memory ARM 32-bit 4 cycles 2 cycles 1 cycle Thumb 16-bit 2 cycles 1 cycle 1 cycle
- 26. 1.3 Embedded System Hardware 11 Flash ROM can be written to as well as read, but it is slow to write so you shouldn’t use it for holding dynamic data. Its main use is for holding the device firmware or storing long- term data that needs to be preserved after power is off. The erasing and writing of flash ROM are completely software controlled with no additional hardware circuity required, which reduces the manufacturing costs. Flash ROM has become the most popular of the read-only memory types and is currently being used as an alternative for mass or secondary storage. Dynamicrandomaccessmemory(DRAM)isthemostcommonlyusedRAMfordevices. It has the lowest cost per megabyte compared with other types of RAM. DRAM is dynamic— it needs to have its storage cells refreshed and given a new electronic charge every few milliseconds, so you need to set up a DRAM controller before using the memory. Static random access memory (SRAM) is faster than the more traditional DRAM, but requires more silicon area. SRAM is static—the RAM does not require refreshing. The access time for SRAM is considerably shorter than the equivalent DRAM because SRAM does not require a pause between data accesses. Because of its higher cost, it is used mostly for smaller high-speed tasks, such as fast memory and caches. Synchronous dynamic random access memory (SDRAM) is one of many subcategories of DRAM. It can run at much higher clock speeds than conventional memory. SDRAM synchronizes itself with the processor bus because it is clocked. Internally the data is fetched from memory cells, pipelined, and finally brought out on the bus in a burst. The old-style DRAM is asynchronous, so does not burst as efficiently as SDRAM. 1.3.4 Peripherals Embedded systems that interact with the outside world need some form of peripheral device. A peripheral device performs input and output functions for the chip by connecting to other devices or sensors that are off-chip. Each peripheral device usually performs a single function and may reside on-chip. Peripherals range from a simple serial communication device to a more complex 802.11 wireless device. All ARM peripherals are memory mapped—the programming interface is a set of memory-addressed registers. The address of these registers is an offset from a specific peripheral base address. Controllers are specialized peripherals that implement higher levels of functionality within an embedded system. Two important types of controllers are memory controllers and interrupt controllers. 1.3.4.1 Memory Controllers Memory controllers connect different types of memory to the processor bus. On power-up a memory controller is configured in hardware to allow certain memory devices to be active. These memory devices allow the initialization code to be executed. Some memory devices must be set up by software; for example, when using DRAM, you first have to set up the memory timings and refresh rate before it can be accessed.
- 27. 12 Chapter 1 ARM Embedded Systems 1.3.4.2 Interrupt Controllers When a peripheral or device requires attention, it raises an interrupt to the processor. An interrupt controller provides a programmable governing policy that allows software to determine which peripheral or device can interrupt the processor at any specific time by setting the appropriate bits in the interrupt controller registers. There are two types of interrupt controller available for the ARM processor: the standard interrupt controller and the vector interrupt controller (VIC). The standard interrupt controller sends an interrupt signal to the processor core when an external device requests servicing. It can be programmed to ignore or mask an individual device or set of devices. The interrupt handler determines which device requires servicing by reading a device bitmap register in the interrupt controller. The VIC is more powerful than the standard interrupt controller because it prioritizes interrupts and simplifies the determination of which device caused the interrupt. After associating a priority and a handler address with each interrupt, the VIC only asserts an interrupt signal to the core if the priority of a new interrupt is higher than the currently executing interrupt handler. Depending on its type, the VIC will either call the standard interrupt exception handler, which can load the address of the handler for the device from the VIC, or cause the core to jump to the handler for the device directly. 1.4 Embedded System Software An embedded system needs software to drive it. Figure 1.4 shows four typical software components required to control an embedded device. Each software component in the stack uses a higher level of abstraction to separate the code from the hardware device. Theinitializationcodeisthefirstcodeexecutedontheboardandisspecifictoaparticular target or group of targets. It sets up the minimum parts of the board before handing control over to the operating system. Application Operating system Initialization Device drivers Hardware device Figure 1.4 Software abstraction layers executing on hardware.
- 28. 1.4 Embedded System Software 13 The operating system provides an infrastructure to control applications and manage hardware system resources. Many embedded systems do not require a full operating system but merely a simple task scheduler that is either event or poll driven. The device drivers are the third component shown in Figure 1.4. They provide a consistent software interface to the peripherals on the hardware device. Finally, an application performs one of the tasks required for a device. For example, a mobile phone might have a diary application. There may be multiple applications running on the same device, controlled by the operating system. The software components can run from ROM or RAM. ROM code that is fixed on the device (for example, the initialization code) is called firmware. 1.4.1 Initialization (Boot) Code Initialization code (or boot code) takes the processor from the reset state to a state where the operating system can run. It usually configures the memory controller and processor caches and initializes some devices. In a simple system the operating system might be replaced by a simple scheduler or debug monitor. Theinitializationcodehandlesanumberofadministrativetaskspriortohandingcontrol over to an operating system image. We can group these different tasks into three phases: initial hardware configuration, diagnostics, and booting. Initial hardware configuration involves setting up the target platform so it can boot an image. Although the target platform itself comes up in a standard configuration, this configuration normally requires modification to satisfy the requirements of the booted image. For example, the memory system normally requires reorganization of the memory map, as shown in Example 1.1. Diagnostics are often embedded in the initialization code. Diagnostic code tests the system by exercising the hardware target to check if the target is in working order. It also tracks down standard system-related issues. This type of testing is important for manu- facturing since it occurs after the software product is complete. The primary purpose of diagnostic code is fault identification and isolation. Booting involves loading an image and handing control over to that image. The boot process itself can be complicated if the system must boot different operating systems or different versions of the same operating system. Booting an image is the final phase, but first you must load the image. Loading an image involves anything from copying an entire program including code and data into RAM, to just copying a data area containing volatile variables into RAM. Once booted, the system hands over control by modifying the program counter to point into the start of the image. Sometimes, to reduce the image size, an image is compressed. The image is then decompressed either when it is loaded or when control is handed over to it. Example 1.1 Initializing or organizing memory is an important part of the initialization code because many operating systems expect a known memory layout before they can start.
- 29. 14 Chapter 1 ARM Embedded Systems Before 0xffffffff 0x00000000 I/O Regs I/O Regs FAST SRAM FAST SRAM Boot ROM Boot ROM DRAM large contiguous block DRAM large contiguous block After Figure 1.5 Memory remapping. Figure 1.5 shows memory before and after reorganization. It is common for ARM-based embedded systems to provide for memory remapping because it allows the system to start the initialization code from ROM at power-up. The initialization code then redefines or remaps the memory map to place RAM at address 0x00000000—an important step because then the exception vector table can be in RAM and thus can be reprogrammed. We will discuss the vector table in more detail in Section 2.4. ■ 1.4.2 Operating System The initialization process prepares the hardware for an operating system to take control. An operating system organizes the system resources: the peripherals, memory, and processing time. With an operating system controlling these resources, they can be efficiently used by different applications running within the operating system environment. ARM processors support over 50 operating systems. We can divide operating systems into two main categories: real-time operating systems (RTOSs) and platform operating systems. RTOSs provide guaranteed response times to events. Different operating systems have different amounts of control over the system response time. A hard real-time application requires a guaranteed response to work at all. In contrast, a soft real-time application requires a good response time, but the performance degrades more gracefully if the response time overruns. Systems running an RTOS generally do not have secondary storage. Platform operating systems require a memory management unit to manage large, non- real-time applications and tend to have secondary storage. The Linux operating system is a typical example of a platform operating system.
- 30. 1.5 Summary 15 These two categories of operating system are not mutually exclusive: there are operat- ing systems that use an ARM core with a memory management unit and have real-time characteristics. ARM has developed a set of processor cores that specifically target each category. 1.4.3 Applications The operating system schedules applications—code dedicated to handling a particular task. An application implements a processing task; the operating system controls the environ- ment. An embedded system can have one active application or several applications running simultaneously. ARM processors are found in numerous market segments, including networking, auto- motive, mobile and consumer devices, mass storage, and imaging. Within each segment ARM processors can be found in multiple applications. For example, the ARM processor is found in networking applications like home gateways, DSL modems for high-speed Internet communication, and 802.11 wireless communication. The mobile device segment is the largest application area for ARM pro- cessors because of mobile phones. ARM processors are also found in mass storage devices such as hard drives and imaging products such as inkjet printers—applications that are cost sensitive and high volume. In contrast, ARM processors are not found in applications that require leading-edge high performance. Because these applications tend to be low volume and high cost, ARM has decided not to focus designs on these types of applications. 1.5 Summary Pure RISC is aimed at high performance, but ARM uses a modified RISC design philosophy that also targets good code density and low power consumption. An embedded system consists of a processor core surrounded by caches, memory, and peripherals. The system is controlled by operating system software that manages application tasks. The key points in a RISC design philosophy are to improve performance by reducing the complexity of instructions, to speed up instruction processing by using a pipeline, to provide a large register set to store data near the core, and to use a load-store architecture. The ARM design philosophy also incorporates some non-RISC ideas: ■ It allows variable cycle execution on certain instructions to save power, area, and code size. ■ It adds a barrel shifter to expand the capability of certain instructions. ■ It uses the Thumb 16-bit instruction set to improve code density.
- 31. 16 Chapter 1 ARM Embedded Systems ■ It improves code density and performance by conditionally executing instructions. ■ It includes enhanced instructions to perform digital signal processing type functions. An embedded system includes the following hardware components: ARM processors are found embedded in chips. Programmers access peripherals through memory-mapped registers. There is a special type of peripheral called a controller, which embedded systems use to configure higher-level functions such as memory and interrupts. The AMBA on-chip bus is used to connect the processor and peripherals together. An embedded system also includes the following software components: Initialization code configures the hardware to a known state. Once configured, operating systems can be loaded and executed. Operating systems provide a common programming environment for the use of hardware resources and infrastructure. Device drivers provide a standard interface to peripherals. An application performs the task-specific duties of an embedded system.
- 32. This Page Intentionally Left Blank
- 33. 2.1 Registers 2.2 Current Program Status Register 2.2.1 Processor Modes 2.2.2 Banked Registers 2.2.3 State and Instruction Sets 2.2.4 Interrupt Masks 2.2.5 Condition Flags 2.2.6 Conditional Execution 2.3 Pipeline 2.3.1 Pipeline Executing Characteristics 2.4 Exceptions, Interrupts, and the Vector Table 2.5 Core Extensions 2.5.1 Cache and Tightly Coupled Memory 2.5.2 Memory Management 2.5.3 Coprocessors 2.6 Architecture Revisions 2.6.1 Nomenclature 2.6.2 Architecture Evolution 2.7 ARM Processor Families 2.7.1 ARM7 Family 2.7.2 ARM9 Family 2.7.3 ARM10 Family 2.7.4 ARM11 Family 2.7.5 Specialized Processors 2.8 Summary
- 34. C h a p t e r ARM Processor Fundamentals 2 Chapter 1 covered embedded systems with an ARM processor. In this chapter we will focus on the actual processor itself. First, we will provide an overview of the processor core and describe how data moves between its different parts. We will describe the programmer’s model from a software developer’s view of the ARM processor, which will show you the functions of the processor core and how different parts interact. We will also take a look at the core extensions that form an ARM processor. Core extensions speed up and organize main memory as well as extend the instruction set. We will then cover the revisions to the ARM core architecture by describing the ARM core naming conventions used to identify them and the chronological changes to the ARM instruction set architecture. The final section introduces the architecture implementations by subdividing them into specific ARM processor core families. A programmer can think of an ARM core as functional units connected by data buses, as shown in Figure 2.1, where, the arrows represent the flow of data, the lines represent the buses, and the boxes represent either an operation unit or a storage area. The figure shows not only the flow of data but also the abstract components that make up an ARM core. Data enters the processor core through the Data bus. The data may be an instruction to execute or a data item. Figure 2.1 shows a Von Neumann implementation of the ARM— data items and instructions share the same bus. In contrast, Harvard implementations of the ARM use two different buses. The instruction decoder translates instructions before they are executed. Each instruction executed belongs to a particular instruction set. The ARM processor, like all RISC processors, uses a load-store architecture. This means it has two instruction types for transferring data in and out of the processor: load instructions copy data from memory to registers in the core, and conversely the store 19
- 35. 20 Chapter 2 ARM Processor Fundamentals Data Sign extend Write Read r15 pc Rd Rn Rm A A B Acc B N Result Register file r0–r15 ALU MAC Address register Address Incrementer Barrel shifter Instruction decoder Figure 2.1 ARM core dataflow model. instructions copy data from registers to memory. There are no data processing instructions that directly manipulate data in memory. Thus, data processing is carried out solely in registers. Data items are placed in the register file—a storage bank made up of 32-bit registers. Since the ARM core is a 32-bit processor, most instructions treat the registers as holding signed or unsigned 32-bit values. The sign extend hardware converts signed 8-bit and 16-bit numbers to 32-bit values as they are read from memory and placed in a register. ARM instructions typically have two source registers, Rn and Rm, and a single result or destination register, Rd. Source operands are read from the register file using the internal buses A and B, respectively. The ALU (arithmetic logic unit) or MAC (multiply-accumulate unit) takes the regis- ter values Rn and Rm from the A and B buses and computes a result. Data processing instructions write the result in Rd directly to the register file. Load and store instructions use the ALU to generate an address to be held in the address register and broadcast on the Address bus.
- 36. 2.1 Registers 21 One important feature of the ARM is that register Rm alternatively can be preprocessed in the barrel shifter before it enters the ALU. Together the barrel shifter and ALU can calculate a wide range of expressions and addresses. After passing through the functional units, the result in Rd is written back to the register file using the Result bus. For load and store instructions the incrementer updates the address register before the core reads or writes the next register value from or to the next sequential memory location. The processor continues executing instructions until an exception or interrupt changes the normal execution flow. Now that you have an overview of the processor core we’ll take a more detailed look at some of the key components of the processor: the registers, the current program status register (cpsr), and the pipeline. 2.1 Registers General-purpose registers hold either data or an address. They are identified with the letter r prefixed to the register number. For example, register 4 is given the label r4. Figure 2.2 shows the active registers available in user mode—a protected mode normally r0 r1 r2 r3 r4 r5 r6 r7 r8 r9 r10 r11 r12 r13 sp r14 lr r15 pc cpsr - Figure 2.2 Registers available in user mode.
- 37. 22 Chapter 2 ARM Processor Fundamentals used when executing applications. The processor can operate in seven different modes, which we will introduce shortly. All the registers shown are 32 bits in size. There are up to 18 active registers: 16 data registers and 2 processor status registers. The data registers are visible to the programmer as r0 to r15. The ARM processor has three registers assigned to a particular task or special function: r13, r14, and r15. They are frequently given different labels to differentiate them from the other registers. In Figure 2.2, the shaded registers identify the assigned special-purpose registers: ■ Register r13 is traditionally used as the stack pointer (sp) and stores the head of the stack in the current processor mode. ■ Register r14 is called the link register (lr) and is where the core puts the return address whenever it calls a subroutine. ■ Register r15 is the program counter (pc) and contains the address of the next instruction to be fetched by the processor. Depending upon the context, registers r13 and r14 can also be used as general-purpose registers, which can be particularly useful since these registers are banked during a processor mode change. However, it is dangerous to use r13 as a general register when the processor is running any form of operating system because operating systems often assume that r13 always points to a valid stack frame. In ARM state the registers r0 to r13 are orthogonal—any instruction that you can apply to r0 you can equally well apply to any of the other registers. However, there are instructions that treat r14 and r15 in a special way. In addition to the 16 data registers, there are two program status registers: cpsr and spsr (the current and saved program status registers, respectively). The register file contains all the registers available to a programmer. Which registers are visible to the programmer depend upon the current mode of the processor. 2.2 Current Program Status Register The ARM core uses the cpsr to monitor and control internal operations. The cpsr is a dedicated 32-bit register and resides in the register file. Figure 2.3 shows the basic layout of a generic program status register. Note that the shaded parts are reserved for future expansion. The cpsr is divided into four fields, each 8 bits wide: flags, status, extension, and control. In current designs the extension and status fields are reserved for future use. The control field contains the processor mode, state, and interrupt mask bits. The flags field contains the condition flags. Some ARM processor cores have extra bits allocated. For example, the J bit, which can be found in the flags field, is only available on Jazelle-enabled processors, which execute
- 38. 2.2 Current Program Status Register 23 Fields Bit Function Condition flags Interrupt Masks Processor mode Thumb state 31 30 29 28 N Z C V 7 6 5 4 0 I F T Mode Flags Status Extension Control Figure 2.3 A generic program status register (psr). 8-bit instructions. We will discuss Jazelle more in Section 2.2.3. It is highly probable that future designs will assign extra bits for the monitoring and control of new features. For a full description of the cpsr, refer to Appendix B. 2.2.1 Processor Modes The processor mode determines which registers are active and the access rights to the cpsr register itself. Each processor mode is either privileged or nonprivileged: A privileged mode allows full read-write access to the cpsr. Conversely, a nonprivileged mode only allows read access to the control field in the cpsr but still allows read-write access to the condition flags. There are seven processor modes in total: six privileged modes (abort, fast interrupt request, interrupt request, supervisor, system, and undefined) and one nonprivileged mode (user). The processor enters abort mode when there is a failed attempt to access memory. Fast interrupt request and interrupt request modes correspond to the two interrupt levels available on the ARM processor. Supervisor mode is the mode that the processor is in after reset and is generally the mode that an operating system kernel operates in. System mode is a special version of user mode that allows full read-write access to the cpsr. Undefined mode is used when the processor encounters an instruction that is undefined or not supported by the implementation. User mode is used for programs and applications. 2.2.2 Banked Registers Figure 2.4 shows all 37 registers in the register file. Of those, 20 registers are hidden from a program at different times. These registers are called banked registers and are identified by the shading in the diagram. They are available only when the processor is in a particular
- 39. 24 Chapter 2 ARM Processor Fundamentals User and system Fast interrupt request Interrupt request Supervisor Undefined Abort r0 r1 r2 r3 r4 r5 r6 r7 r8 r9 r10 r11 r12 r13 sp r14 lr r15 pc cpsr - r8_ fiq r9_ fiq r10_ fiq r11_ fiq r12_ fiq r13_ fiq r14_ fiq spsr_ fiq r13_irq r14_irq spsr_irq r13_svc r14_svc spsr_svc r13_undef r14_undef spsr_undef r13_abt r14_abt spsr_abt Figure 2.4 Complete ARM register set. mode; for example, abort mode has banked registers r13_abt, r14_abt and spsr_abt. Banked registers of a particular mode are denoted by an underline character post-fixed to the mode mnemonic or _mode. Every processor mode except user mode can change mode by writing directly to the mode bits of the cpsr. All processor modes except system mode have a set of associated banked registers that are a subset of the main 16 registers. A banked register maps one-to- one onto a user mode register. If you change processor mode, a banked register from the new mode will replace an existing register. For example, when the processor is in the interrupt request mode, the instructions you execute still access registers named r13 and r14. However, these registers are the banked registers r13_irq and r14_irq. The user mode registers r13_usr and r14_usr are not affected by the instruction referencing these registers. A program still has normal access to the other registers r0 to r12. The processor mode can be changed by a program that writes directly to the cpsr (the processor core has to be in privileged mode) or by hardware when the core responds to
- 40. 2.2 Current Program Status Register 25 User mode Interrupt request mode r0 r1 r2 r3 r4 r5 r6 r7 r8 r9 r10 r11 r12 r13 sp r14 lr r15 pc cpsr - r13_irq r14_irq spsr_irq Figure 2.5 Changing mode on an exception. an exception or interrupt. The following exceptions and interrupts cause a mode change: reset, interrupt request, fast interrupt request, software interrupt, data abort, prefetch abort, and undefined instruction. Exceptions and interrupts suspend the normal execution of sequential instructions and jump to a specific location. Figure 2.5 illustrates what happens when an interrupt forces a mode change. The figure shows the core changing from user mode to interrupt request mode, which happens when an interrupt request occurs due to an external device raising an interrupt to the processor core. This change causes user registers r13 and r14 to be banked. The user registers are replaced with registers r13_irq and r14_irq, respectively. Note r14_irq contains the return address and r13_irq contains the stack pointer for interrupt request mode. Figure 2.5 also shows a new register appearing in interrupt request mode: the saved program status register (spsr), which stores the previous mode’s cpsr. You can see in the diagram the cpsr being copied into spsr_irq. To return back to user mode, a special return instruction is used that instructs the core to restore the original cpsr from the spsr_irq and bank in the user registers r13 and r14. Note that the spsr can only be modified and read in a privileged mode. There is no spsr available in user mode.
- 41. 26 Chapter 2 ARM Processor Fundamentals Table 2.1 Processor mode. Mode Abbreviation Privileged Mode[4:0] Abort abt yes 10111 Fast interrupt request fiq yes 10001 Interrupt request irq yes 10010 Supervisor svc yes 10011 System sys yes 11111 Undefined und yes 11011 User usr no 10000 Another important feature to note is that the cpsr is not copied into the spsr when a mode change is forced due to a program writing directly to the cpsr. The saving of the cpsr only occurs when an exception or interrupt is raised. Figure 2.3 shows that the current active processor mode occupies the five least significant bits of the cpsr. When power is applied to the core, it starts in supervisor mode, which is privileged. Starting in a privileged mode is useful since initialization code can use full access to the cpsr to set up the stacks for each of the other modes. Table 2.1 lists the various modes and the associated binary patterns. The last column of the table gives the bit patterns that represent each of the processor modes in the cpsr. 2.2.3 State and Instruction Sets The state of the core determines which instruction set is being executed. There are three instruction sets: ARM, Thumb, and Jazelle. The ARM instruction set is only active when the processor is in ARM state. Similarly the Thumb instruction set is only active when the processor is in Thumb state. Once in Thumb state the processor is executing purely Thumb 16-bit instructions. You cannot intermingle sequential ARM, Thumb, and Jazelle instructions. The Jazelle J and Thumb T bits in the cpsr reflect the state of the processor. When both J and T bits are 0, the processor is in ARM state and executes ARM instructions. This is the case when power is applied to the processor. When the T bit is 1, then the processor is in Thumb state. To change states the core executes a specialized branch instruction. Table 2.2 compares the ARM and Thumb instruction set features. The ARM designers introduced a third instruction set called Jazelle. Jazelle executes 8-bit instructions and is a hybrid mix of software and hardware designed to speed up the execution of Java bytecodes. To execute Java bytecodes, you require the Jazelle technology plus a specially modified version of the Java virtual machine. It is important to note that the hardware portion of Jazelle only supports a subset of the Java bytecodes; the rest are emulated in software.
- 42. 2.2 Current Program Status Register 27 Table 2.2 ARM and Thumb instruction set features. ARM (cpsr T = 0) Thumb (cpsr T = 1) Instruction size 32-bit 16-bit Core instructions 58 30 Conditional executiona most only branch instructions Data processing instructions access to barrel shifter and ALU separate barrel shifter and ALU instructions Program status register read-write in privileged mode no direct access Register usage 15 general-purpose registers 8 general-purpose registers +pc +7 high registers +pc a See Section 2.2.6. Table 2.3 Jazelle instruction set features. Jazelle (cpsr T = 0, J = 1) Instruction size 8-bit Core instructions Over 60% of the Java bytecodes are implemented in hardware; the rest of the codes are implemented in software. The Jazelle instruction set is a closed instruction set and is not openly available. Table 2.3 gives the Jazelle instruction set features. 2.2.4 Interrupt Masks Interrupt masks are used to stop specific interrupt requests from interrupting the processor. There are two interrupt request levels available on the ARM processor core—interrupt request (IRQ) and fast interrupt request (FIQ). The cpsr has two interrupt mask bits, 7 and 6 (or I and F), which control the masking of IRQ and FIQ, respectively. The I bit masks IRQ when set to binary 1, and similarly the F bit masks FIQ when set to binary 1. 2.2.5 Condition Flags Condition flags are updated by comparisons and the result of ALU operations that specify the S instruction suffix. For example, if a SUBS subtract instruction results in a register value of zero, then the Z flag in the cpsr is set. This particular subtract instruction specifically updates the cpsr.
- 43. 28 Chapter 2 ARM Processor Fundamentals Table 2.4 Condition flags. Flag Flag name Set when Q Saturation the result causes an overflow and/or saturation V oVerflow the result causes a signed overflow C Carry the result causes an unsigned carry Z Zero the result is zero, frequently used to indicate equality N Negative bit 31 of the result is a binary 1 With processor cores that include the DSP extensions, the Q bit indicates if an overflow or saturation has occurred in an enhanced DSP instruction. The flag is “sticky” in the sense that the hardware only sets this flag. To clear the flag you need to write to the cpsr directly. In Jazelle-enabled processors, the J bit reflects the state of the core; if it is set, the core is in Jazelle state. The J bit is not generally usable and is only available on some processor cores. To take advantage of Jazelle, extra software has to be licensed from both ARM Limited and Sun Microsystems. Most ARM instructions can be executed conditionally on the value of the condition flags. Table 2.4 lists the condition flags and a short description on what causes them to be set. These flags are located in the most significant bits in the cpsr. These bits are used for conditional execution. Figure 2.6 shows a typical value for the cpsr with both DSP extensions and Jazelle. In this book we use a notation that presents the cpsr data in a more human readable form. When a bit is a binary 1 we use a capital letter; when a bit is a binary 0, we use a lowercase letter. For the condition flags a capital letter shows that the flag has been set. For interrupts a capital letter shows that an interrupt is disabled. In the cpsr example shown in Figure 2.6, the C flag is the only condition flag set. The rest nzvq flags are all clear. The processor is in ARM state because neither the Jazelle j or Thumb t bits are set. The IRQ interrupts are enabled, and FIQ interrupts are disabled. Finally, you nzCvq j iF SVC t 31 30 29 28 27 24 0 0 1 0 0 0 7 6 5 4 0 0 1 0 10011 Figure 2.6 Example: cpsr = nzCvqjiFt_SVC.
- 44. 2.3 Pipeline 29 Table 2.5 Condition mnemonics. Mnemonic Name Condition flags EQ equal Z NE not equal z CS HS carry set/unsigned higher or same C CC LO carry clear/unsigned lower c MI minus/negative N PL plus/positive or zero n VS overflow V VC no overflow v HI unsigned higher zC LS unsigned lower or same Z or c GE signed greater than or equal NV or nv LT signed less than Nv or nV GT signed greater than NzV or nzv LE signed less than or equal Z or Nv or nV AL always (unconditional) ignored can see from the figure the processor is in supervisor (SVC) mode since the mode[4:0] is equal to binary 10011. 2.2.6 Conditional Execution Conditional execution controls whether or not the core will execute an instruction. Most instructions have a condition attribute that determines if the core will execute it based on the setting of the condition flags. Prior to execution, the processor compares the condition attribute with the condition flags in the cpsr. If they match, then the instruction is executed; otherwise the instruction is ignored. The condition attribute is postfixed to the instruction mnemonic, which is encoded into the instruction. Table 2.5 lists the conditional execution code mnemonics. When a condition mnemonic is not present, the default behavior is to set it to always (AL) execute. 2.3 Pipeline A pipeline is the mechanism a RISC processor uses to execute instructions. Using a pipeline speeds up execution by fetching the next instruction while other instructions are being decoded and executed. One way to view the pipeline is to think of it as an automobile assembly line, with each stage carrying out a particular task to manufacture the vehicle.
- 45. 30 Chapter 2 ARM Processor Fundamentals Execute Decode Fetch Figure 2.7 ARM7 Three-stage pipeline. Figure 2.7 shows a three-stage pipeline: ■ Fetch loads an instruction from memory. ■ Decode identifies the instruction to be executed. ■ Execute processes the instruction and writes the result back to a register. Figure 2.8 illustrates the pipeline using a simple example. It shows a sequence of three instructions being fetched, decoded, and executed by the processor. Each instruction takes a single cycle to complete after the pipeline is filled. The three instructions are placed into the pipeline sequentially. In the first cycle the core fetches the ADD instruction from memory. In the second cycle the core fetches the SUB instruction and decodes the ADD instruction. In the third cycle, both the SUB and ADD instructions are moved along the pipeline. The ADD instruction is executed, the SUB instruction is decoded, and the CMP instruction is fetched. This procedure is called filling the pipeline. The pipeline allows the core to execute an instruction every cycle. As the pipeline length increases, the amount of work done at each stage is reduced, which allows the processor to attain a higher operating frequency. This in turn increases the performance. The system latency also increases because it takes more cycles to fill the pipeline before the core can execute an instruction. The increased pipeline length also means there can be data dependency between certain stages. You can write code to reduce this dependencybyusinginstructionscheduling(formoreinformationoninstructionscheduling take a look at Chapter 6). ADD Execute Decode Fetch ADD SUB ADD SUB CMP Cycle 1 Cycle 2 Time Cycle 3 Figure 2.8 Pipelined instruction sequence.
- 46. 2.3 Pipeline 31 Execute Memory Write Decode Fetch Figure 2.9 ARM9 five-stage pipeline. Decode Execute Memory Write Issue Fetch Figure2.10 ARM10 six-stage pipeline. The pipeline design for each ARM family differs. For example, The ARM9 core increases the pipeline length to five stages, as shown in Figure 2.9. The ARM9 adds a memory and writeback stage, which allows the ARM9 to process on average 1.1 Dhrystone MIPS per MHz—an increase in instruction throughput by around 13% compared with an ARM7. The maximum core frequency attainable using an ARM9 is also higher. The ARM10 increases the pipeline length still further by adding a sixth stage, as shown in Figure 2.10. The ARM10 can process on average 1.3 Dhrystone MIPS per MHz, about 34% more throughput than an ARM7 processor core, but again at a higher latency cost. Even though the ARM9 and ARM10 pipelines are different, they still use the same pipeline executing characteristics as an ARM7. Code written for the ARM7 will execute on an ARM9 or ARM10. 2.3.1 Pipeline Executing Characteristics The ARM pipeline has not processed an instruction until it passes completely through the execute stage. For example, an ARM7 pipeline (with three stages) has executed an instruction only when the fourth instruction is fetched. Figure 2.11 shows an instruction sequence on an ARM7 pipeline. The MSR instruction is used to enable IRQ interrupts, which only occurs once the MSR instruction completes the execute stage of the pipeline. It clears the I bit in the cpsr to enable the IRQ inter- rupts. Once the ADD instruction enters the execute stage of the pipeline, IRQ interrupts are enabled. Figure 2.12 illustrates the use of the pipeline and the program counter pc. In the execute stage, the pc always points to the address of the instruction plus 8 bytes. In other words, the pc always points to the address of the instruction being executed plus two instructions ahead. This is important when the pc is used for calculating a relative offset and is an
- 47. 32 Chapter 2 ARM Processor Fundamentals MSR Execute Decode Fetch cpsr IFt_SVC cpsr IFt_SVC cpsr iFt_SVC MSR ADD MSR ADD AND Cycle 1 Cycle 2 Time Cycle 3 ADD AND SUB Cycle 4 Figure2.11 ARM instruction sequence. LDR NOP DCD Execute pc + 8 (0x8000 + 8) Decode Fetch 0x8000 LDR pc, [pc,#0] 0x8004 NOP 0x8008 DCD jumpAddress Time Figure2.12 Example: pc = address + 8. architectural characteristic across all the pipelines. Note when the processor is in Thumb state the pc is the instruction address plus 4. There are three other characteristics of the pipeline worth mentioning. First, the exe- cution of a branch instruction or branching by the direct modification of the pc causes the ARM core to flush its pipeline. Second, ARM10 uses branch prediction, which reduces the effect of a pipeline flush by predicting possible branches and loading the new branch address prior to the execution of the instruction. Third, an instruction in the execute stage will complete even though an interrupt has been raised. Other instructions in the pipeline will be abandoned, and the processor will start filling the pipeline from the appropriate entry in the vector table.
- 48. 2.4 Exceptions, Interrupts, and the Vector Table 33 2.4 Exceptions, Interrupts, and the Vector Table When an exception or interrupt occurs, the processor sets the pc to a specific memory address. The address is within a special address range called the vector table. The entries in the vector table are instructions that branch to specific routines designed to handle a particular exception or interrupt. The memory map address 0x00000000 is reserved for the vector table, a set of 32-bit words. On some processors the vector table can be optionally located at a higher address in memory (starting at the offset 0xffff0000). Operating systems such as Linux and Microsoft’s embedded products can take advantage of this feature. When an exception or interrupt occurs, the processor suspends normal execution and starts loading instructions from the exception vector table (see Table 2.6). Each vector table entry contains a form of branch instruction pointing to the start of a specific routine: ■ Reset vector is the location of the first instruction executed by the processor when power is applied. This instruction branches to the initialization code. ■ Undefined instruction vector is used when the processor cannot decode an instruction. ■ Software interrupt vector is called when you execute a SWI instruction. The SWI instruction is frequently used as the mechanism to invoke an operating system routine. ■ Prefetch abort vector occurs when the processor attempts to fetch an instruction from an address without the correct access permissions. The actual abort occurs in the decode stage. ■ Data abort vector is similar to a prefetch abort but is raised when an instruction attempts to access data memory without the correct access permissions. ■ Interrupt request vector is used by external hardware to interrupt the normal execution flow of the processor. It can only be raised if IRQs are not masked in the cpsr. Table 2.6 The vector table. Exception/interrupt Shorthand Address High address Reset RESET 0x00000000 0xffff0000 Undefined instruction UNDEF 0x00000004 0xffff0004 Software interrupt SWI 0x00000008 0xffff0008 Prefetch abort PABT 0x0000000c 0xffff000c Data abort DABT 0x00000010 0xffff0010 Reserved — 0x00000014 0xffff0014 Interrupt request IRQ 0x00000018 0xffff0018 Fast interrupt request FIQ 0x0000001c 0xffff001c
- 49. 34 Chapter 2 ARM Processor Fundamentals ■ Fastinterruptrequestvectorissimilartotheinterruptrequestbutisreservedforhardware requiring faster response times. It can only be raised if FIQs are not masked in the cpsr. 2.5 Core Extensions The hardware extensions covered in this section are standard components placed next to the ARM core. They improve performance, manage resources, and provide extra functionality and are designed to provide flexibility in handling particular applications. Each ARM family has different extensions available. There are three hardware extensions ARM wraps around the core: cache and tightly coupled memory, memory management, and the coprocessor interface. 2.5.1 Cache and Tightly Coupled Memory The cache is a block of fast memory placed between main memory and the core. It allows for more efficient fetches from some memory types. With a cache the processor core can run for the majority of the time without having to wait for data from slow external memory. Most ARM-based embedded systems use a single-level cache internal to the processor. Of course, many small embedded systems do not require the performance gains that a cache brings. ARM has two forms of cache. The first is found attached to the Von Neumann–style cores. It combines both data and instruction into a single unified cache, as shown in Figure 2.13. For simplicity, we have called the glue logic that connects the memory system to the AMBA bus logic and control. ARM core Unified cache Logic and control On-chip AMBA bus Main memory AMBA bus interface unit Figure2.13 A simplified Von Neumann architecture with cache.
- 50. 2.5 Core Extensions 35 ARM core Data TCM Instruction TCM Logic and control On-chip AMBA bus D + I D I D I Main memory AMBA bus interface unit Figure2.14 A simplified Harvard architecture with TCMs. By contrast, the second form, attached to the Harvard-style cores, has separate caches for data and instruction. A cache provides an overall increase in performance but at the expense of predictable execution. But for real-time systems it is paramount that code execution is deterministic— the time taken for loading and storing instructions or data must be predictable. This is achieved using a form of memory called tightly coupled memory (TCM). TCM is fast SRAM located close to the core and guarantees the clock cycles required to fetch instructions or data—critical for real-time algorithms requiring deterministic behavior. TCMs appear as memory in the address map and can be accessed as fast memory. An example of a processor with TCMs is shown in Figure 2.14. By combining both technologies, ARM processors can have both improved performance and predictable real-time response. Figure 2.15 shows an example core with a combination of caches and TCMs. 2.5.2 Memory Management Embedded systems often use multiple memory devices. It is usually necessary to have a method to help organize these devices and protect the system from applications trying to make inappropriate accesses to hardware. This is achieved with the assistance of memory management hardware. ARMcoreshavethree differenttypesofmemorymanagementhardware—noextensions providing no protection, a memory protection unit (MPU) providing limited protection, and a memory management unit (MMU) providing full protection: ■ Nonprotected memory is fixed and provides very little flexibility. It is normally used for small, simple embedded systems that require no protection from rogue applications.
- 51. 36 Chapter 2 ARM Processor Fundamentals ARM core Data TCM Data cache Instruction cache Instruction TCM Logic and control On-chip AMBA bus D + I D I D I D I Main memory AMBA bus interface unit Figure2.15 A simplified Harvard architecture with caches and TCMs. ■ MPUs employ a simple system that uses a limited number of memory regions. These regions are controlled with a set of special coprocessor registers, and each region is defined with specific access permissions. This type of memory management is used for systems that require memory protection but don’t have a complex memory map. The MPU is explained in Chapter 13. ■ MMUs are the most comprehensive memory management hardware available on the ARM. The MMU uses a set of translation tables to provide fine-grained control over memory. These tables are stored in main memory and provide a virtual-to-physical address map as well as access permissions. MMUs are designed for more sophisti- cated platform operating systems that support multitasking. The MMU is explained in Chapter 14. 2.5.3 Coprocessors Coprocessors can be attached to the ARM processor. A coprocessor extends the processing features of a core by extending the instruction set or by providing configuration reg- isters. More than one coprocessor can be added to the ARM core via the coprocessor interface. The coprocessor can be accessed through a group of dedicated ARM instructions that provide a load-store type interface. Consider, for example, coprocessor 15: The ARM processor uses coprocessor 15 registers to control the cache, TCMs, and memory management. The coprocessor can also extend the instruction set by providing a specialized group of new instructions. For example, there are a set of specialized instructions that can
- 52. 2.6 Architecture Revisions 37 be added to the standard ARM instruction set to process vector floating-point (VFP) operations. These new instructions are processed in the decode stage of the ARM pipeline. If the decode stage sees a coprocessor instruction, then it offers it to the relevant coprocessor. But if the coprocessor is not present or doesn’t recognize the instruction, then the ARM takes an undefined instruction exception, which allows you to emulate the behavior of the coprocessor in software. 2.6 Architecture Revisions Every ARM processor implementation executes a specific instruction set architecture (ISA), although an ISA revision may have more than one processor implementation. The ISA has evolved to keep up with the demands of the embedded market. This evolution has been carefully managed by ARM, so that code written to execute on an earlier architecture revision will also execute on a later revision of the architecture. Before we go on to explain the evolution of the architecture, we must introduce the ARM processor nomenclature. The nomenclature identifies individual processors and provides basic information about the feature set. 2.6.1 Nomenclature ARM uses the nomenclature shown in Figure 2.16 to describe the processor implemen- tations. The letters and numbers after the word “ARM” indicate the features a processor ARM{x}{y}{z}{T}{D}{M}{I}{E}{J}{F}{-S} x—family y—memory management/protection unit z—cache T—Thumb 16-bit decoder D—JTAG debug M—fast multiplier I—EmbeddedICE macrocell E—enhanced instructions (assumes TDMI) J—Jazelle F—vector floating-point unit S—synthesizible version Figure2.16 ARM nomenclature.
- 53. 38 Chapter 2 ARM Processor Fundamentals may have. In the future the number and letter combinations may change as more features are added. Note the nomenclature does not include the architecture revision information. There are a few additional points to make about the ARM nomenclature: ■ All ARM cores after the ARM7TDMI include the TDMI features even though they may not include those letters after the “ARM” label. ■ The processor family is a group of processor implementations that share the same hardware characteristics. For example, the ARM7TDMI, ARM740T, and ARM720T all share the same family characteristics and belong to the ARM7 family. ■ JTAG is described by IEEE 1149.1 Standard Test Access Port and boundary scan archi- tecture. It is a serial protocol used by ARM to send and receive debug information between the processor core and test equipment. ■ EmbeddedICE macrocell is the debug hardware built into the processor that allows breakpoints and watchpoints to be set. ■ Synthesizable means that the processor core is supplied as source code that can be compiled into a form easily used by EDA tools. 2.6.2 Architecture Evolution The architecture has continued to evolve since the first ARM processor implementation was introduced in 1985. Table 2.7 shows the significant architecture enhancements from the original architecture version 1 to the current version 6 architecture. One of the most significant changes to the ISA was the introduction of the Thumb instruction set in ARMv4T (the ARM7TDMI processor). Table 2.8 summarizes the various parts of the program status register and the availabil- ity of certain features on particular instruction architectures. “All” refers to the ARMv4 architecture and above. 2.7 ARM Processor Families ARM has designed a number of processors that are grouped into different families according to the core they use. The families are based on the ARM7, ARM9, ARM10, and ARM11 cores. The postfix numbers 7, 9, 10, and 11 indicate different core designs. The ascending number equates to an increase in performance and sophistication. ARM8 was developed but was soon superseded. Table 2.9 shows a rough comparison of attributes between the ARM7, ARM9, ARM10, and ARM11 cores. The numbers quoted can vary greatly and are directly dependent upon the type and geometry of the manufacturing process, which has a direct effect on the frequency (MHz) and power consumption (watts).
- 54. 2.7 ARM Processor Families 39 Table 2.7 Revision history. Revision Example core implementation ISA enhancement ARMv1 ARM1 First ARM processor 26-bit addressing ARMv2 ARM2 32-bit multiplier 32-bit coprocessor support ARMv2a ARM3 On-chip cache Atomic swap instruction Coprocessor 15 for cache management ARMv3 ARM6 and ARM7DI 32-bit addressing Separate cpsr and spsr New modes—undefined instruction and abort MMU support—virtual memory ARMv3M ARM7M Signed and unsigned long multiply instructions ARMv4 StrongARM Load-store instructions for signed and unsigned halfwords/bytes New mode—system Reserve SWI space for architecturally defined operations 26-bit addressing mode no longer supported ARMv4T ARM7TDMI and ARM9T Thumb ARMv5TE ARM9E and ARM10E Superset of the ARMv4T Extra instructions added for changing state between ARM and Thumb Enhanced multiply instructions Extra DSP-type instructions Faster multiply accumulate ARMv5TEJ ARM7EJ and ARM926EJ Java acceleration ARMv6 ARM11 Improved multiprocessor instructions Unaligned and mixed endian data handling New multimedia instructions Within each ARM family, there are a number of variations of memory management, cache, and TCM processor extensions. ARM continues to expand both the number of families available and the different variations within each family. You can find other processors that execute the ARM ISA such as StrongARM and XScale. These processors are unique to a particular semiconductor company, in this case Intel. Table 2.10 summarizes the different features of the various processors. The next subsections describe the ARM families in more detail, starting with the ARM7 family.
- 55. 40 Chapter 2 ARM Processor Fundamentals Table 2.8 Description of the cpsr. Parts Bits Architectures Description Mode 4:0 all processor mode T 5 ARMv4T Thumb state I & F 7:6 all interrupt masks J 24 ARMv5TEJ Jazelle state Q 27 ARMv5TE condition flag V 28 all condition flag C 29 all condition flag Z 30 all condition flag N 31 all condition flag Table 2.9 ARM family attribute comparison. ARM7 ARM9 ARM10 ARM11 Pipeline depth three-stage five-stage six-stage eight-stage Typical MHz 80 150 260 335 mW/MHza 0.06 mW/MHz 0.19 mW/MHz 0.5 mW/MHz 0.4 mW/MHz (+ cache) (+ cache) (+ cache) MIPSb/MHz 0.97 1.1 1.3 1.2 Architecture Von Neumann Harvard Harvard Harvard Multiplier 8 × 32 8 × 32 16 × 32 16 × 32 a Watts/MHz on the same 0.13 micron process. b MIPS are Dhrystone VAX MIPS. 2.7.1 ARM7 Family The ARM7 core has a Von Neumann–style architecture, where both data and instructions use the same bus. The core has a three-stage pipeline and executes the architecture ARMv4T instruction set. The ARM7TDMI was the first of a new range of processors introduced in 1995 by ARM. It is currently a very popular core and is used in many 32-bit embedded processors. It provides a very good performance-to-power ratio. The ARM7TDMI processor core has been licensed by many of the top semiconductor companies around the world and is the first core to include the Thumb instruction set, a fast multiply instruction, and the EmbeddedICE debug technology.
- 56. 2.7 ARM Processor Families 41 Table 2.10 ARM processor variants. CPU core MMU/MPU Cache Jazelle Thumb ISA Ea ARM7TDMI none none no yes v4T no ARM7EJ-S none none yes yes v5TEJ yes ARM720T MMU unified—8K cache no yes v4T no ARM920T MMU separate—16K /16K D + I cache no yes v4T no ARM922T MMU separate—8K/8K D + I cache no yes v4T no ARM926EJ-S MMU separate—cache and TCMs configurable yes yes v5TEJ yes ARM940T MPU separate—4K/4K D + I cache no yes v4T no ARM946E-S MPU separate—cache and TCMs configurable no yes v5TE yes ARM966E-S none separate—TCMs configurable no yes v5TE yes ARM1020E MMU separate—32K/32K D + I cache no yes v5TE yes ARM1022E MMU separate—16K/16K D + I cache no yes v5TE yes ARM1026EJ-S MMU and MPU separate—cache and TCMs configurable yes yes v5TE yes ARM1136J-S MMU separate—cache and TCMs configurable yes yes v6 yes ARM1136JF-S MMU separate—cache and TCMs configurable yes yes v6 yes a E extension provides enhanced multiply instructions and saturation. One significant variation in the ARM7 family is the ARM7TDMI-S. The ARM7TDMI-S has the same operating characteristics as a standard ARM7TDMI but is also synthesizable. ARM720T is the most flexible member of the ARM7 family because it includes an MMU. The presence of the MMU means the ARM720T is capable of handling the Linux and Microsoft embedded platform operating systems. The processor also includes a unified 8K cache. The vector table can be relocated to a higher address by setting a coprocessor 15 register. Another variation is the ARM7EJ-S processor, also synthesizable. ARM7EJ-S is quite different since it includes a five-stage pipeline and executes ARMv5TEJ instructions. This version of the ARM7 is the only one that provides both Java acceleration and the enhanced instructions but without any memory protection.
- 57. 42 Chapter 2 ARM Processor Fundamentals 2.7.2 ARM9 Family The ARM9 family was announced in 1997. Because of its five-stage pipeline, the ARM9 processor can run at higher clock frequencies than the ARM7 family. The extra stages improve the overall performance of the processor. The memory system has been redesigned to follow the Harvard architecture, which separates the data D and instruction I buses. The first processor in the ARM9 family was the ARM920T, which includes a separate D + I cache and an MMU. This processor can be used by operating systems requiring virtual memory support. ARM922T is a variation on the ARM920T but with half the D + I cache size. The ARM940T includes a smaller D + I cache and an MPU. The ARM940T is designed for applications that do not require a platform operating system. Both ARM920T and ARM940T execute the architecture v4T instructions. The next processors in the ARM9 family were based on the ARM9E-S core. This core is a synthesizable version of the ARM9 core with the E extensions. There are two variations: the ARM946E-S and the ARM966E-S. Both execute architecture v5TE instructions. They also support the optional embedded trace macrocell (ETM), which allows a developer to trace instruction and data execution in real time on the processor. This is important when debugging applications with time-critical segments. The ARM946E-S includes TCM, cache, and an MPU. The sizes of the TCM and caches are configurable. This processor is designed for use in embedded control applications that require deterministic real-time response. In contrast, the ARM966E does not have the MPU and cache extensions but does have configurable TCMs. The latest core in the ARM9 product line is the ARM926EJ-S synthesizable processor core, announced in 2000. It is designed for use in small portable Java-enabled devices such as 3G phones and personal digital assistants (PDAs). The ARM926EJ-S is the first ARM processor core to include the Jazelle technology, which accelerates Java bytecode execution. It features an MMU, configurable TCMs, and D + I caches with zero or nonzero wait state memories. 2.7.3 ARM10 Family The ARM10, announced in 1999, was designed for performance. It extends the ARM9 pipeline to six stages. It also supports an optional vector floating-point (VFP) unit, which adds a seventh stage to the ARM10 pipeline. The VFP significantly increases floating-point performance and is compliant with the IEEE 754.1985 floating-point standard. The ARM1020E is the first processor to use an ARM10E core. Like the ARM9E, it includes the enhanced E instructions. It has separate 32K D + I caches, optional vector floating-point unit, and an MMU. The ARM1020E also has a dual 64-bit bus interface for increased performance. ARM1026EJ-S is very similar to the ARM926EJ-S but with both MPU and MMU. This processor has the performance of the ARM10 with the flexibility of an ARM926EJ-S.
- 58. 2.8 Summary 43 2.7.4 ARM11 Family The ARM1136J-S, announced in 2003, was designed for high performance and power- efficient applications. ARM1136J-S was the first processor implementation to execute architecture ARMv6 instructions. It incorporates an eight-stage pipeline with separate load- store and arithmetic pipelines. Included in the ARMv6 instructions are single instruction multiple data (SIMD) extensions for media processing, specifically designed to increase video processing performance. The ARM1136JF-S is an ARM1136J-S with the addition of the vector floating-point unit for fast floating-point operations. 2.7.5 Specialized Processors StrongARM was originally co-developed by Digital Semiconductor and is now exclusively licensed by Intel Corporation. It is has been popular for PDAs and applications that require performance with low power consumption. It is a Harvard architecture with separate D +I caches. StrongARM was the first high-performance ARM processor to include a five-stage pipeline, but it does not support the Thumb instruction set. Intel’s XScale is a follow-on product to the StrongARM and offers dramatic increases in performance. At the time of writing, XScale was quoted as being able to run up to 1 GHz. XScale executes architecture v5TE instructions. It is a Harvard architecture and is similar to the StrongARM, as it also includes an MMU. SC100 is at the other end of the performance spectrum. It is designed specifically for low-power security applications. The SC100 is the first SecurCore and is based on an ARM7TDMI core with an MPU. This core is small and has low voltage and current requirements, which makes it attractive for smart card applications. 2.8 Summary In this chapter we focused on the hardware fundamentals of the actual ARM processor. The ARM processor can be abstracted into eight components—ALU, barrel shifter, MAC, register file, instruction decoder, address register, incrementer, and sign extend. ARM has three instruction sets—ARM, Thumb, and Jazelle. The register file contains 37 registers, but only 17 or 18 registers are accessible at any point in time; the rest are banked according to processor mode. The current processor mode is stored in the cpsr. It holds the current status of the processor core as well interrupt masks, condition flags, and state. The state determines which instruction set is being executed. An ARM processor comprises a core plus the surrounding components that interface it with a bus. The core extensions include the following: ■ Caches are used to improve the overall system performance. ■ TCMs are used to improve deterministic real-time response.
- 59. 44 Chapter 2 ARM Processor Fundamentals ■ Memory management is used to organize memory and protect system resources. ■ Coprocessors are used to extend the instruction set and functionality. Coprocessor 15 controls the cache, TCMs, and memory management. An ARM processor is an implementation of a specific instruction set architecture (ISA). The ISA has been continuously improved from the first ARM processor design. Processors are grouped into implementation families (ARM7, ARM9, ARM10, and ARM11) with similar characteristics.
- 60. This Page Intentionally Left Blank
- 61. 3.1 Data Processing Instructions 3.1.1 Move Instructions 3.1.2 Barrel Shifter 3.1.3 Arithmetic Instructions 3.1.4 Using the Barrel Shifter with Arithmetic Instructions 3.1.5 Logical Instructions 3.1.6 Comparison Instructions 3.1.7 Multiply Instructions 3.2 Branch Instructions 3.3 Load-Store Instructions 3.3.1 Single-Register Transfer 3.3.2 Single-Register Load-Store Addressing Modes 3.3.3 Multiple-Register Transfer 3.3.4 Swap Instruction 3.4 Software Interrupt Instruction 3.5 Program Status Register Instructions 3.5.1 Coprocessor Instructions 3.5.2 Coprocessor 15 Instruction Syntax 3.6 Loading Constants 3.7 ARMv5E Extensions 3.7.1 Count Leading Zeros Instruction 3.7.2 Saturated Arithmetic 3.7.3 ARMv5E Multiply Instructions 3.8 Conditional Execution 3.9 Summary
- 62. C h a p t e r Introduction to the ARM Instruction Set 3 This introduction to the ARM instruction set is a fundamental chapter since the infor- mation presented here is used throughout the rest of the book. Consequently, it is placed here before we start going into any depth on optimization and efficient algo- rithms. This chapter introduces the most common and useful ARM instructions and builds on the ARM processor fundamentals covered in the last chapter. Chapter 4 introduces the Thumb instruction set, and Appendix A gives a complete description of all ARM instructions. Different ARM architecture revisions support different instructions. However, new revisions usually add instructions and remain backwardly compatible. Code you write for architecture ARMv4T should execute on an ARMv5TE processor. Table 3.1 provides a complete list of ARM instructions available in the ARMv5E instruction set architecture (ISA). This ISA includes all the core ARM instructions as well as some of the newer features in the ARM instruction set. The “ARM ISA” column lists the ISA revision in which the instruction was introduced. Some instructions have extended functionality in later archi- tectures; for example, the CDP instruction has an ARMv5 variant called CDP2. Similarly, instructions such as LDR have ARMv5 additions but do not require a new or extended mnemonic. We illustrate the processor operations using examples with pre- and post-conditions, describing registers and memory before and after the instruction or instructions are 47
- 63. 48 Chapter 3 Introduction to the ARM Instruction Set Table 3.1 ARM instruction set. Mnemonics ARM ISA Description ADC v1 add two 32-bit values and carry ADD v1 add two 32-bit values AND v1 logical bitwise AND of two 32-bit values B v1 branch relative +/− 32 MB BIC v1 logical bit clear (AND NOT) of two 32-bit values BKPT v5 breakpoint instructions BL v1 relative branch with link BLX v5 branch with link and exchange BX v4T branch with exchange CDP CDP2 v2 v5 coprocessor data processing operation CLZ v5 count leading zeros CMN v1 compare negative two 32-bit values CMP v1 compare two 32-bit values EOR v1 logical exclusive OR of two 32-bit values LDC LDC2 v2 v5 load to coprocessor single or multiple 32-bit values LDM v1 load multiple 32-bit words from memory to ARM registers LDR v1 v4 v5E load a single value from a virtual address in memory MCR MCR2 MCRR v2 v5 v5E move to coprocessor from an ARM register or registers MLA v2 multiply and accumulate 32-bit values MOV v1 move a 32-bit value into a register MRC MRC2 MRRC v2 v5 v5E move to ARM register or registers from a coprocessor MRS v3 move to ARM register from a status register (cpsr or spsr) MSR v3 move to a status register (cpsr or spsr) from an ARM register MUL v2 multiply two 32-bit values MVN v1 move the logical NOT of 32-bit value into a register ORR v1 logical bitwise OR of two 32-bit values PLD v5E preload hint instruction QADD v5E signed saturated 32-bit add QDADD v5E signed saturated double and 32-bit add QDSUB v5E signed saturated double and 32-bit subtract QSUB v5E signed saturated 32-bit subtract RSB v1 reverse subtract of two 32-bit values RSC v1 reverse subtract with carry of two 32-bit integers SBC v1 subtract with carry of two 32-bit values SMLAxy v5E signed multiply accumulate instructions ((16 × 16) + 32 = 32-bit) SMLAL v3M signed multiply accumulate long ((32 × 32) + 64 = 64-bit) SMLALxy v5E signed multiply accumulate long ((16 × 16) + 64 = 64-bit) SMLAWy v5E signed multiply accumulate instruction (((32 × 16) 16) + 32 = 32-bit) SMULL v3M signed multiply long (32 × 32 = 64-bit) continued
- 64. Chapter 3 Introduction to the ARM Instruction Set 49 Table 3.1 ARM instruction set. (Continued) Mnemonics ARM ISA Description SMULxy v5E signed multiply instructions (16 × 16 = 32-bit) SMULWy v5E signed multiply instruction ((32 × 16) 16 = 32-bit) STC STC2 v2 v5 store to memory single or multiple 32-bit values from coprocessor STM v1 store multiple 32-bit registers to memory STR v1 v4 v5E store register to a virtual address in memory SUB v1 subtract two 32-bit values SWI v1 software interrupt SWP v2a swap a word/byte in memory with a register, without interruption TEQ v1 test for equality of two 32-bit values TST v1 test for bits in a 32-bit value UMLAL v3M unsigned multiply accumulate long ((32 × 32) + 64 = 64-bit) UMULL v3M unsigned multiply long (32 × 32 = 64-bit) executed. We will represent hexadecimal numbers with the prefix 0x and binary numbers with the prefix 0b. The examples follow this format: PRE pre-conditions instruction/s POST post-conditions In the pre- and post-conditions, memory is denoted as memdata_size[address] This refers to data_size bits of memory starting at the given byte address. For example, mem32[1024] is the 32-bit value starting at address 1 KB. ARM instructions process data held in registers and only access memory with load and store instructions. ARM instructions commonly take two or three operands. For instance the ADD instruction below adds the two values stored in registers r1 and r2 (the source registers). It writes the result to register r3 (the destination register). Instruction Syntax Destination register (Rd) Source register 1 (Rn) Source register 2 (Rm) ADD r3, r1, r2 r3 r1 r2 In the following sections we examine the function and syntax of the ARM instructions by instruction class—data processing instructions, branch instructions,
- 65. 50 Chapter 3 Introduction to the ARM Instruction Set load-store instructions, software interrupt instruction, and program status register instructions. 3.1 Data Processing Instructions The data processing instructions manipulate data within registers. They are move instruc- tions, arithmetic instructions, logical instructions, comparison instructions, and multiply instructions. Most data processing instructions can process one of their operands using the barrel shifter. If you use the S suffix on a data processing instruction, then it updates the flags in the cpsr. Move and logical operations update the carry flag C, negative flag N, and zero flag Z. The carry flag is set from the result of the barrel shift as the last bit shifted out. The N flag is set to bit 31 of the result. The Z flag is set if the result is zero. 3.1.1 Move Instructions Move is the simplest ARM instruction. It copies N into a destination register Rd, where N is a register or immediate value. This instruction is useful for setting initial values and transferring data between registers. Syntax: instruction{cond}{S} Rd, N MOV Move a 32-bit value into a register Rd = N MVN move the NOT of the 32-bit value into a register Rd = ∼N Table 3.3, to be presented in Section 3.1.2, gives a full description of the values allowed for the second operand N for all data processing instructions. Usually it is a register Rm or a constant preceded by #. Example 3.1 This example shows a simple move instruction. The MOV instruction takes the contents of register r5 and copies them into register r7, in this case, taking the value 5, and overwriting the value 8 in register r7. PRE r5 = 5 r7 = 8 MOV r7, r5 ; let r7 = r5 POST r5 = 5 r7 = 5 ■
- 66. 3.1 Data Processing Instructions 51 3.1.2 Barrel Shifter In Example 3.1 we showed a MOV instruction where N is a simple register. But N can be more than just a register or immediate value; it can also be a register Rm that has been preprocessed by the barrel shifter prior to being used by a data processing instruction. Data processing instructions are processed within the arithmetic logic unit (ALU). A unique and powerful feature of the ARM processor is the ability to shift the 32-bit binary pattern in one of the source registers left or right by a specific number of positions before it enters the ALU. This shift increases the power and flexibility of many data processing operations. There are data processing instructions that do not use the barrel shift, for example, the MUL (multiply), CLZ (count leading zeros), and QADD (signed saturated 32-bit add) instructions. Pre-processing or shift occurs within the cycle time of the instruction. This is particularly useful for loading constants into a register and achieving fast multiplies or division by a power of 2. No pre-processing Pre-processing Rn Rm Barrel shifter Result N Rd Arithmetic logic unit Figure 3.1 Barrel shifter and ALU. To illustrate the barrel shifter we will take the example in Figure 3.1 and add a shift operation to the move instruction example. Register Rn enters the ALU without any pre- processing of registers. Figure 3.1 shows the data flow between the ALU and the barrel shifter. Example 3.2 We apply a logical shift left (LSL) to register Rm before moving it to the destination register. This is the same as applying the standard C language shift operator to the register. The MOV instruction copies the shift operator result N into register Rd. N represents the result of the LSL operation described in Table 3.2. PRE r5 = 5 r7 = 8
- 67. 52 Chapter 3 Introduction to the ARM Instruction Set MOV r7, r5, LSL #2 ; let r7 = r5*4 = (r5 2) POST r5 = 5 r7 = 20 The example multiplies register r5 by four and then places the result into register r7. ■ The five different shift operations that you can use within the barrel shifter are summarized in Table 3.2. Figure 3.2 illustrates a logical shift left by one. For example, the contents of bit 0 are shifted to bit 1. Bit 0 is cleared. The C flag is updated with the last bit shifted out of the register. This is bit (32 − y) of the original value, where y is the shift amount. When y is greater than one, then a shift by y positions is the same as a shift by one position executed y times. Table 3.2 Barrel shifter operations. Mnemonic Description Shift Result Shift amount y LSL logical shift left xLSL y x y #0–31 or Rs LSR logical shift right xLSR y (unsigned)x y #1–32 or Rs ASR arithmetic right shift xASR y (signed)x y #1–32 or Rs ROR rotate right xROR y ((unsigned)x y) | (x (32 − y)) #1–31 or Rs RRX rotate right extended xRRX (c flag 31) | ((unsigned)x 1) none Note: x represents the register being shifted and y represents the shift amount. Bit 31 Bit 2 31 nzcv 1 0 0 0 0 0 0 0 0 1 0 Bit 0 0 Condition ßags nzCv Condition ßags Condition flags updated when S is present 1 0 = 0x80000004 = 0x00000008 Figure 3.2 Logical shift left by one.
- 68. 3.1 Data Processing Instructions 53 Table 3.3 Barrel shift operation syntax for data processing instructions. N shift operations Syntax Immediate #immediate Register Rm Logical shift left by immediate Rm, LSL #shift_imm Logical shift left by register Rm, LSL Rs Logical shift right by immediate Rm, LSR #shift_imm Logical shift right with register Rm, LSR Rs Arithmetic shift right by immediate Rm, ASR #shift_imm Arithmetic shift right by register Rm, ASR Rs Rotate right by immediate Rm, ROR #shift_imm Rotate right by register Rm, ROR Rs Rotate right with extend Rm, RRX Example 3.3 This example of a MOVS instruction shifts register r1 left by one bit. This multiplies register r1 by a value 21. As you can see, the C flag is updated in the cpsr because the S suffix is present in the instruction mnemonic. PRE cpsr = nzcvqiFt_USER r0 = 0x00000000 r1 = 0x80000004 MOVS r0, r1, LSL #1 POST cpsr = nzCvqiFt_USER r0 = 0x00000008 r1 = 0x80000004 ■ Table 3.3 lists the syntax for the different barrel shift operations available on data processing instructions. The second operand N can be an immediate constant preceded by #, a register value Rm, or the value of Rm processed by a shift. 3.1.3 Arithmetic Instructions The arithmetic instructions implement addition and subtraction of 32-bit signed and unsigned values.
- 69. 54 Chapter 3 Introduction to the ARM Instruction Set Syntax: instruction{cond}{S} Rd, Rn, N ADC add two 32-bit values and carry Rd = Rn + N+ carry ADD add two 32-bit values Rd = Rn + N RSB reverse subtract of two 32-bit values Rd = N − Rn RSC reverse subtract with carry of two 32-bit values Rd = N − Rn − !(carry flag) SBC subtract with carry of two 32-bit values Rd = Rn − N− !(carry flag) SUB subtract two 32-bit values Rd = Rn − N N is the result of the shifter operation. The syntax of shifter operation is shown in Table 3.3. Example 3.4 This simple subtract instruction subtracts a value stored in register r2 from a value stored in register r1. The result is stored in register r0. PRE r0 = 0x00000000 r1 = 0x00000002 r2 = 0x00000001 SUB r0, r1, r2 POST r0 = 0x00000001 ■ Example 3.5 This reverse subtract instruction (RSB) subtracts r1 from the constant value #0, writing the result to r0. You can use this instruction to negate numbers. PRE r0 = 0x00000000 r1 = 0x00000077 RSB r0, r1, #0 ; Rd = 0x0 - r1 POST r0 = -r1 = 0xffffff89 ■ Example 3.6 The SUBS instruction is useful for decrementing loop counters. In this example we subtract the immediate value one from the value one stored in register r1. The result value zero is written to register r1. The cpsr is updated with the ZC flags being set. PRE cpsr = nzcvqiFt_USER r1 = 0x00000001 SUBS r1, r1, #1
- 70. 3.1 Data Processing Instructions 55 POST cpsr = nZCvqiFt_USER r1 = 0x00000000 ■ 3.1.4 Using the Barrel Shifter with Arithmetic Instructions The wide range of second operand shifts available on arithmetic and logical instructions is a very powerful feature of the ARM instruction set. Example 3.7 illustrates the use of the inline barrel shifter with an arithmetic instruction. The instruction multiplies the value stored in register r1 by three. Example 3.7 Register r1 is first shifted one location to the left to give the value of twice r1. The ADD instruction then adds the result of the barrel shift operation to register r1. The final result transferred into register r0 is equal to three times the value stored in register r1. PRE r0 = 0x00000000 r1 = 0x00000005 ADD r0, r1, r1, LSL #1 POST r0 = 0x0000000f r1 = 0x00000005 ■ 3.1.5 Logical Instructions Logical instructions perform bitwise logical operations on the two source registers. Syntax: instruction{cond}{S} Rd, Rn, N AND logical bitwise AND of two 32-bit values Rd = Rn N ORR logical bitwise OR of two 32-bit values Rd = Rn | N EOR logical exclusive OR of two 32-bit values Rd = Rn ∧ N BIC logical bit clear (AND NOT) Rd = Rn ∼N Example 3.8 This example shows a logical OR operation between registers r1 and r2. r0 holds the result. PRE r0 = 0x00000000 r1 = 0x02040608 r2 = 0x10305070
- 71. 56 Chapter 3 Introduction to the ARM Instruction Set ORR r0, r1, r2 POST r0 = 0x12345678 ■ Example 3.9 This example shows a more complicated logical instruction called BIC, which carries out a logical bit clear. PRE r1 = 0b1111 r2 = 0b0101 BIC r0, r1, r2 POST r0 = 0b1010 This is equivalent to Rd = Rn AND NOT(N) In this example, register r2 contains a binary pattern where every binary 1 in r2 clears a corresponding bit location in register r1. This instruction is particularly useful when clearing status bits and is frequently used to change interrupt masks in the cpsr. ■ The logical instructions update the cpsr flags only if the S suffix is present. These instructions can use barrel-shifted second operands in the same way as the arithmetic instructions. 3.1.6 Comparison Instructions The comparison instructions are used to compare or test a register with a 32-bit value. They update the cpsr flag bits according to the result, but do not affect other registers. After the bits have been set, the information can then be used to change program flow by using conditional execution. For more information on conditional execution take a look at Section 3.8. You do not need to apply the S suffix for comparison instructions to update the flags. Syntax: instruction{cond} Rn, N CMN compare negated flags set as a result of Rn + N CMP compare flags set as a result of Rn − N TEQ test for equality of two 32-bit values flags set as a result of Rn ∧ N TST test bits of a 32-bit value flags set as a result of Rn N
- 72. 3.1 Data Processing Instructions 57 N is the result of the shifter operation. The syntax of shifter operation is shown in Table 3.3. Example 3.10 This example shows a CMP comparison instruction. You can see that both registers, r0 and r9, are equal before executing the instruction. The value of the z flag prior to execution is 0 and is represented by a lowercase z. After execution the z flag changes to 1 or an uppercase Z. This change indicates equality. PRE cpsr = nzcvqiFt_USER r0 = 4 r9 = 4 CMP r0, r9 POST cpsr = nZcvqiFt_USER The CMP is effectively a subtract instruction with the result discarded; similarly the TST instruction is a logical AND operation, and TEQ is a logical exclusive OR operation. For each, the results are discarded but the condition bits are updated in the cpsr. It is important to understand that comparison instructions only modify the condition flags of the cpsr and do not affect the registers being compared. ■ 3.1.7 Multiply Instructions The multiply instructions multiply the contents of a pair of registers and, depending upon the instruction, accumulate the results in with another register. The long multiplies accu- mulate onto a pair of registers representing a 64-bit value. The final result is placed in a destination register or a pair of registers. Syntax: MLA{cond}{S} Rd, Rm, Rs, Rn MUL{cond}{S} Rd, Rm, Rs MLA multiply and accumulate Rd = (Rm∗Rs) + Rn MUL multiply Rd = Rm∗Rs Syntax: instruction{cond}{S} RdLo, RdHi, Rm, Rs SMLAL signed multiply accumulate long [RdHi, RdLo] = [RdHi, RdLo] + (Rm ∗Rs) SMULL signed multiply long [RdHi, RdLo] = Rm ∗Rs UMLAL unsigned multiply accumulate [RdHi, RdLo] = [RdHi, RdLo] + (Rm ∗Rs) long UMULL unsigned multiply long [RdHi, RdLo] = Rm ∗Rs
- 73. 58 Chapter 3 Introduction to the ARM Instruction Set The number of cycles taken to execute a multiply instruction depends on the processor implementation. For some implementations the cycle timing also depends on the value in Rs. For more details on cycle timings, see Appendix D. Example 3.11 This example shows a simple multiply instruction that multiplies registers r1 and r2 together and places the result into register r0. In this example, register r1 is equal to the value 2, and r2 is equal to 2. The result, 4, is then placed into register r0. PRE r0 = 0x00000000 r1 = 0x00000002 r2 = 0x00000002 MUL r0, r1, r2 ; r0 = r1*r2 POST r0 = 0x00000004 r1 = 0x00000002 r2 = 0x00000002 ■ The long multiply instructions (SMLAL, SMULL, UMLAL, and UMULL) produce a 64-bit result. The result is too large to fit a single 32-bit register so the result is placed in two registers labeled RdLo and RdHi. RdLo holds the lower 32 bits of the 64-bit result, and RdHi holds the higher 32 bits of the 64-bit result. Example 3.12 shows an example of a long unsigned multiply instruction. Example 3.12 The instruction multiplies registers r2 and r3 and places the result into register r0 and r1. Register r0 contains the lower 32 bits, and register r1 contains the higher 32 bits of the 64-bit result. PRE r0 = 0x00000000 r1 = 0x00000000 r2 = 0xf0000002 r3 = 0x00000002 UMULL r0, r1, r2, r3 ; [r1,r0] = r2*r3 POST r0 = 0xe0000004 ; = RdLo r1 = 0x00000001 ; = RdHi ■ 3.2 Branch Instructions A branch instruction changes the flow of execution or is used to call a routine. This type of instruction allows programs to have subroutines, if-then-else structures, and loops.
- 74. 3.2 Branch Instructions 59 The change of execution flow forces the program counter pc to point to a new address. The ARMv5E instruction set includes four different branch instructions. Syntax: B{cond} label BL{cond} label BX{cond} Rm BLX{cond} label | Rm B branch pc = label BL branch with link pc = label lr = address of the next instruction after the BL BX branch exchange pc = Rm 0xfffffffe, T = Rm 1 BLX branch exchange with link pc = label, T = 1 pc = Rm 0xfffffffe, T = Rm 1 lr = address of the next instruction after the BLX The address label is stored in the instruction as a signed pc-relative offset and must be within approximately 32 MB of the branch instruction. T refers to the Thumb bit in the cpsr. When instructions set T, the ARM switches to Thumb state. Example 3.13 This example shows a forward and backward branch. Because these loops are address specific, we do not include the pre- and post-conditions. The forward branch skips three instructions. The backward branch creates an infinite loop. B forward ADD r1, r2, #4 ADD r0, r6, #2 ADD r3, r7, #4 forward SUB r1, r2, #4 backward ADD r1, r2, #4 SUB r1, r2, #4 ADD r4, r6, r7 B backward Branches are used to change execution flow. Most assemblers hide the details of a branch instruction encoding by using labels. In this example, forward and backward are the labels. The branch labels are placed at the beginning of the line and are used to mark an address that can be used later by the assembler to calculate the branch offset. ■
- 75. 60 Chapter 3 Introduction to the ARM Instruction Set Example 3.14 The branch with link, or BL, instruction is similar to the B instruction but overwrites the link register lr with a return address. It performs a subroutine call. This example shows a simple fragment of code that branches to a subroutine using the BL instruction. To return from a subroutine, you copy the link register to the pc. BL subroutine ; branch to subroutine CMP r1, #5 ; compare r1 with 5 MOVEQ r1, #0 ; if (r1==5) then r1 = 0 : subroutine subroutine code MOV pc, lr ; return by moving pc = lr The branch exchange (BX) and branch exchange with link (BLX) are the third type of branch instruction. The BX instruction uses an absolute address stored in register Rm. It is primarily used to branch to and from Thumb code, as shown in Chapter 4. The T bit in the cpsr is updated by the least significant bit of the branch register. Similarly the BLX instruction updates the T bit of the cpsr with the least significant bit and additionally sets the link register with the return address. ■ 3.3 Load-Store Instructions Load-store instructions transfer data between memory and processor registers. There are three types of load-store instructions: single-register transfer, multiple-register transfer, and swap. 3.3.1 Single-Register Transfer These instructions are used for moving a single data item in and out of a register. The datatypes supported are signed and unsigned words (32-bit), halfwords (16-bit), and bytes. Here are the various load-store single-register transfer instructions. Syntax: LDR|STR{cond}{B} Rd,addressing1 LDR{cond}SB|H|SH Rd, addressing2 STR{cond}H Rd, addressing2 LDR load word into a register Rd - mem32[address] STR save byte or word from a register Rd - mem32[address] LDRB load byte into a register Rd - mem8[address] STRB save byte from a register Rd - mem8[address]
- 76. 3.3 Load-Store Instructions 61 LDRH load halfword into a register Rd - mem16[address] STRH save halfword into a register Rd - mem16[address] LDRSB load signed byte into a register Rd - SignExtend (mem8[address]) LDRSH load signed halfword into a register Rd - SignExtend (mem16[address]) Tables 3.5 and 3.7, to be presented is Section 3.3.2, describe the addressing1 and addressing2 syntax. Example 3.15 LDR and STR instructions can load and store data on a boundary alignment that is the same as the datatype size being loaded or stored. For example, LDR can only load 32-bit words on a memory address that is a multiple of four bytes—0, 4, 8, and so on. This example shows a load from a memory address contained in register r1, followed by a store back to the same address in memory. ; ; load register r0 with the contents of ; the memory address pointed to by register ; r1. ; LDR r0, [r1] ; = LDR r0, [r1, #0] ; ; store the contents of register r0 to ; the memory address pointed to by ; register r1. ; STR r0, [r1] ; = STR r0, [r1, #0] The first instruction loads a word from the address stored in register r1 and places it into register r0. The second instruction goes the other way by storing the contents of register r0 to the address contained in register r1. The offset from register r1 is zero. Register r1 is called the base address register. ■ 3.3.2 Single-Register Load-Store Addressing Modes The ARM instruction set provides different modes for addressing memory. These modes incorporate one of the indexing methods: preindex with writeback, preindex, and postindex (see Table 3.4).
- 77. 62 Chapter 3 Introduction to the ARM Instruction Set Table 3.4 Index methods. Base address Index method Data register Example Preindex with writeback mem[base + offset] base + offset LDR r0,[r1,#4]! Preindex mem[base + offset] not updated LDR r0,[r1,#4] Postindex mem[base] base + offset LDR r0,[r1],#4 Note: ! indicates that the instruction writes the calculated address back to the base address register. Example 3.16 Preindex with writeback calculates an address from a base register plus address offset and then updates that address base register with the new address. In contrast, the preindex offset is the same as the preindex with writeback but does not update the address base register. Postindex only updates the address base register after the address is used. The preindex mode is useful for accessing an element in a data structure. The postindex and preindex with writeback modes are useful for traversing an array. PRE r0 = 0x00000000 r1 = 0x00090000 mem32[0x00009000] = 0x01010101 mem32[0x00009004] = 0x02020202 LDR r0, [r1, #4]! Preindexing with writeback: POST(1) r0 = 0x02020202 r1 = 0x00009004 LDR r0, [r1, #4] Preindexing: POST(2) r0 = 0x02020202 r1 = 0x00009000 LDR r0, [r1], #4 Postindexing: POST(3) r0 = 0x01010101 r1 = 0x00009004
- 78. 3.3 Load-Store Instructions 63 Table 3.5 Single-register load-store addressing, word or unsigned byte. Addressing1 mode and index method Addressing1 syntax Preindex with immediate offset [Rn, #+/-offset_12] Preindex with register offset [Rn, +/-Rm] Preindex with scaled register offset [Rn, +/-Rm, shift #shift_imm] Preindex writeback with immediate offset [Rn, #+/-offset_12]! Preindex writeback with register offset [Rn, +/-Rm]! Preindex writeback with scaled register offset [Rn, +/-Rm, shift #shift_imm]! Immediate postindexed [Rn], #+/-offset_12 Register postindex [Rn], +/-Rm Scaled register postindex [Rn], +/-Rm, shift #shift_imm Example 3.15 used a preindex method. This example shows how each indexing method effects the address held in register r1, as well as the data loaded into register r0. Each instruction shows the result of the index method with the same pre-condition. ■ The addressing modes available with a particular load or store instruction depend on the instruction class. Table 3.5 shows the addressing modes available for load and store of a 32-bit word or an unsigned byte. A signed offset or register is denoted by “+/−”, identifying that it is either a positive or negative offset from the base address register Rn. The base address register is a pointer to a byte in memory, and the offset specifies a number of bytes. Immediate means the address is calculated using the base address register and a 12-bit offset encoded in the instruction. Register means the address is calculated using the base address register and a specific register’s contents. Scaled means the address is calculated using the base address register and a barrel shift operation. Table 3.6 provides an example of the different variations of the LDR instruction. Table 3.7 shows the addressing modes available on load and store instructions using 16-bit halfword or signed byte data. These operations cannot use the barrel shifter. There are no STRSB or STRSH instructions since STRH stores both a signed and unsigned halfword; similarly STRB stores signed and unsigned bytes. Table 3.8 shows the variations for STRH instructions. 3.3.3 Multiple-Register Transfer Load-store multiple instructions can transfer multiple registers between memory and the processorinasingleinstruction. ThetransferoccursfromabaseaddressregisterRnpointing into memory. Multiple-register transfer instructions are more efficient from single-register transfers for moving blocks of data around memory and saving and restoring context and stacks.
- 79. 64 Chapter 3 Introduction to the ARM Instruction Set Table 3.6 Examples of LDR instructions using different addressing modes. Instruction r0 = r1 + = Preindex LDR r0,[r1,#0x4]! mem32[r1 + 0x4] 0x4 with writeback LDR r0,[r1,r2]! mem32[r1+r2] r2 LDR r0,[r1,r2,LSR#0x4]! mem32[r1 + (r2 LSR 0x4)] (r2 LSR 0x4) Preindex LDR r0,[r1,#0x4] mem32[r1 + 0x4] not updated LDR r0,[r1,r2] mem32[r1 + r2] not updated LDR r0,[r1,-r2,LSR #0x4] mem32[r1-(r2 LSR 0x4)] not updated Postindex LDR r0,[r1],#0x4 mem32[r1] 0x4 LDR r0,[r1],r2 mem32[r1] r2 LDR r0,[r1],r2,LSR #0x4 mem32[r1] (r2 LSR 0x4) Table 3.7 Single-register load-store addressing, halfword, signed halfword, signed byte, and doubleword. Addressing2 mode and index method Addressing2 syntax Preindex immediate offset [Rn, #+/-offset_8] Preindex register offset [Rn, +/-Rm] Preindex writeback immediate offset [Rn, #+/-offset_8]! Preindex writeback register offset [Rn, +/-Rm]! Immediate postindexed [Rn], #+/-offset_8 Register postindexed [Rn], +/-Rm Table 3.8 Variations of STRH instructions. Instruction Result r1 + = Preindex with STRH r0,[r1,#0x4]! mem16[r1+0x4]=r0 0x4 writeback STRH r0,[r1,r2]! mem16[r1+r2]=r0 r2 Preindex STRH r0,[r1,#0x4] mem16[r1+0x4]=r0 not updated STRH r0,[r1,r2] mem16[r1+r2]=r0 not updated Postindex STRH r0,[r1],#0x4 mem16[r1]=r0 0x4 STRH r0,[r1],r2 mem16[r1]=r0 r2
- 80. 3.3 Load-Store Instructions 65 Load-store multiple instructions can increase interrupt latency. ARM implementations do not usually interrupt instructions while they are executing. For example, on an ARM7 a load multiple instruction takes 2 + Nt cycles, where N is the number of registers to load and t is the number of cycles required for each sequential access to memory. If an interrupt has been raised, then it has no effect until the load-store multiple instruction is complete. Compilers, such as armcc, provide a switch to control the maximum number of registers being transferred on a load-store, which limits the maximum interrupt latency. Syntax: LDM|STM{cond}addressing mode Rn{!},registers{ˆ} LDM load multiple registers {Rd}∗N - mem32[start address + 4∗N] optional Rn updated STM save multiple registers {Rd}∗N - mem32[start address + 4∗N] optional Rn updated Table 3.9 shows the different addressing modes for the load-store multiple instructions. Here N is the number of registers in the list of registers. Any subset of the current bank of registers can be transferred to memory or fetched from memory. The base register Rn determines the source or destination address for a load- store multiple instruction. This register can be optionally updated following the transfer. This occurs when register Rn is followed by the ! character, similiar to the single-register load-store using preindex with writeback. Table 3.9 Addressing mode for load-store multiple instructions. Addressing mode Description Start address End address Rn! IA increment after Rn Rn + 4∗N − 4 Rn + 4∗N IB increment before Rn + 4 Rn + 4∗N Rn + 4∗N DA decrement after Rn − 4∗N + 4 Rn Rn − 4∗N DB decrement before Rn − 4∗N Rn − 4 Rn − 4∗N Example 3.17 In this example, register r0 is the base register Rn and is followed by !, indicating that the register is updated after the instruction is executed. You will notice within the load multiple instruction that the registers are not individually listed. Instead the “-” character is used to identify a range of registers. In this case the range is from register r1 to r3 inclusive. Each register can also be listed, using a comma to separate each register within “{” and “}” brackets. PRE mem32[0x80018] = 0x03 mem32[0x80014] = 0x02
- 81. 66 Chapter 3 Introduction to the ARM Instruction Set mem32[0x80010] = 0x01 r0 = 0x00080010 r1 = 0x00000000 r2 = 0x00000000 r3 = 0x00000000 LDMIA r0!, {r1-r3} POST r0 = 0x0008001c r1 = 0x00000001 r2 = 0x00000002 r3 = 0x00000003 Figure 3.3 shows a graphical representation. The base register r0 points to memory address 0x80010 in the PRE condition. Memory addresses 0x80010, 0x80014, and 0x80018 contain the values 1, 2, and 3 respectively. After the load multiple instruction executes registers r1, r2, and r3 contain these values as shown in Figure 3.4. The base register r0 now points to memory address 0x8001c after the last loaded word. Now replace the LDMIA instruction with a load multiple and increment before LDMIB instruction and use the same PRE conditions. The first word pointed to by register r0 is ignored and register r1 is loaded from the next memory location as shown in Figure 3.5. After execution, register r0 now points to the last loaded memory location. This is in contrast with the LDMIA example, which pointed to the next memory location. ■ The decrement versions DA and DB of the load-store multiple instructions decrement the start address and then store to ascending memory locations. This is equivalent to descending memory but accessing the register list in reverse order. With the increment and decrement load multiples, you can access arrays forwards or backwards. They also allow for stack push and pull operations, illustrated later in this section. 0x80020 0x8001c 0x80018 0x80014 0x80010 0x8000c 0x00000005 0x00000004 0x00000003 0x00000002 0x00000001 0x00000000 r3 = 0x00000000 r2 = 0x00000000 r1 = 0x00000000 r0 = 0x80010 Memory address Address pointer Data Figure 3.3 Pre-condition for LDMIA instruction.
- 82. 3.3 Load-Store Instructions 67 0x80020 0x8001c 0x80018 0x80014 0x80010 0x8000c 0x00000005 0x00000004 0x00000003 0x00000002 0x00000001 0x00000000 r3 = 0x00000003 r2 = 0x00000002 r1 = 0x00000001 r0 = 0x8001c Memory address Address pointer Data Figure 3.4 Post-condition for LDMIA instruction. 0x80020 0x8001c 0x80018 0x80014 0x80010 0x8000c 0x00000005 0x00000004 0x00000003 0x00000002 0x00000001 0x00000000 r3 = 0x00000004 r2 = 0x00000003 r1 = 0x00000002 r0 = 0x8001c Memory address Address pointer Data Figure 3.5 Post-condition for LDMIB instruction. Table 3.10 Load-store multiple pairs when base update used. Store multiple Load multiple STMIA LDMDB STMIB LDMDA STMDA LDMIB STMDB LDMIA Table 3.10 shows a list of load-store multiple instruction pairs. If you use a store with base update, then the paired load instruction of the same number of registers will reload the data and restore the base address pointer. This is useful when you need to temporarily save a group of registers and restore them later.
- 83. 68 Chapter 3 Introduction to the ARM Instruction Set Example 3.18 This example shows an STM increment before instruction followed by an LDM decrement after instruction. PRE r0 = 0x00009000 r1 = 0x00000009 r2 = 0x00000008 r3 = 0x00000007 STMIB r0!, {r1-r3} MOV r1, #1 MOV r2, #2 MOV r3, #3 PRE(2) r0 = 0x0000900c r1 = 0x00000001 r2 = 0x00000002 r3 = 0x00000003 LDMDA r0!, {r1-r3} POST r0 = 0x00009000 r1 = 0x00000009 r2 = 0x00000008 r3 = 0x00000007 The STMIB instruction stores the values 7, 8, 9 to memory. We then corrupt register r1 to r3. The LDMDA reloads the original values and restores the base pointer r0. ■ Example 3.19 We illustrate the use of the load-store multiple instructions with a block memory copy example. This example is a simple routine that copies blocks of 32 bytes from a source address location to a destination address location. The example has two load-store multiple instructions, which use the same increment after addressing mode. ; r9 points to start of source data ; r10 points to start of destination data ; r11 points to end of the source loop ; load 32 bytes from source and update r9 pointer LDMIA r9!, {r0-r7}
- 84. 3.3 Load-Store Instructions 69 ; store 32 bytes to destination and update r10 pointer STMIA r10!, {r0-r7} ; and store them ; have we reached the end CMP r9, r11 BNE loop This routine relies on registers r9, r10, and r11 being set up before the code is executed. Registers r9 and r11 determine the data to be copied, and register r10 points to the desti- nation in memory for the data. LDMIA loads the data pointed to by register r9 into registers r0 to r7. It also updates r9 to point to the next block of data to be copied. STMIA copies the contents of registers r0 to r7 to the destination memory address pointed to by register r10. It also updates r10 to point to the next destination location. CMP and BNE compare pointers r9 and r11 to check whether the end of the block copy has been reached. If the block copy is complete, then the routine finishes; otherwise the loop repeats with the updated values of register r9 and r10. The BNE is the branch instruction B with a condition mnemonic NE (not equal). If the previous compare instruction sets the condition flags to not equal, the branch instruction is executed. Figure 3.6 shows the memory map of the block memory copy and how the routine moves through memory. Theoretically this loop can transfer 32 bytes (8 words) in two instructions, for a maximum possible throughput of 46 MB/second being transferred at 33 MHz. These numbers assume a perfect memory system with fast memory. ■ High memory Low memory r11 r9 r10 Source Destination Copy memory location Figure 3.6 Block memory copy in the memory map.
- 85. 70 Chapter 3 Introduction to the ARM Instruction Set 3.3.3.1 Stack Operations The ARM architecture uses the load-store multiple instructions to carry out stack operations. Thepopoperation(removingdatafromastack)usesaloadmultipleinstruction; similarly, the push operation (placing data onto the stack) uses a store multiple instruction. When using a stack you have to decide whether the stack will grow up or down in memory. A stack is either ascending (A) or descending (D). Ascending stacks grow towards higher memory addresses; in contrast, descending stacks grow towards lower memory addresses. When you use a full stack (F), the stack pointer sp points to an address that is the last used or full location (i.e., sp points to the last item on the stack). In contrast, if you use an empty stack (E) the sp points to an address that is the first unused or empty location (i.e., it points after the last item on the stack). There are a number of load-store multiple addressing mode aliases available to support stack operations (see Table 3.11). Next to the pop column is the actual load multiple instruction equivalent. For example, a full ascending stack would have the notation FA appended to the load multiple instruction—LDMFA. This would be translated into an LDMDA instruction. ARM has specified an ARM-Thumb Procedure Call Standard (ATPCS) that defines how routines are called and how registers are allocated. In the ATPCS, stacks are defined as being full descending stacks. Thus, the LDMFD and STMFD instructions provide the pop and push functions, respectively. Example 3.20 The STMFD instruction pushes registers onto the stack, updating the sp. Figure 3.7 shows a push onto a full descending stack. You can see that when the stack grows the stack pointer points to the last full entry in the stack. PRE r1 = 0x00000002 r4 = 0x00000003 sp = 0x00080014 STMFD sp!, {r1,r4} Table 3.11 Addressing methods for stack operations. Addressing mode Description Pop = LDM Push = STM FA full ascending LDMFA LDMDA STMFA STMIB FD full descending LDMFD LDMIA STMFD STMDB EA empty ascending LDMEA LDMDB STMEA STMIA ED empty descending LDMED LDMIB STMED STMDA
- 86. 3.3 Load-Store Instructions 71 0x80018 0x80014 0x80010 0x8000c 0x00000001 0x00000002 Empty Empty sp Address PRE Data 0x80018 0x80014 0x80010 0x8000c 0x00000001 0x00000002 0x00000003 0x00000002 sp Address POST Data Figure 3.7 STMFD instruction—full stack push operation. POST r1 = 0x00000002 r4 = 0x00000003 sp = 0x0008000c ■ Example 3.21 In contrast, Figure 3.8 shows a push operation on an empty stack using the STMED instruc- tion. The STMED instruction pushes the registers onto the stack but updates register sp to point to the next empty location. PRE r1 = 0x00000002 r4 = 0x00000003 sp = 0x00080010 STMED sp!, {r1,r4} POST r1 = 0x00000002 r4 = 0x00000003 sp = 0x00080008 ■ 0x80018 0x80014 0x80010 0x8000c 0x80008 0x00000001 0x00000002 Empty Empty Empty sp Address PRE Data 0x80018 0x80014 0x80010 0x8000c 0x80008 0x00000001 0x00000002 0x00000003 0x00000002 Empty sp Address POST Data Figure 3.8 STMED instruction—empty stack push operation.
- 87. 72 Chapter 3 Introduction to the ARM Instruction Set When handling a checked stack there are three attributes that need to be preserved: the stack base, the stack pointer, and the stack limit. The stack base is the starting address of the stack in memory. The stack pointer initially points to the stack base; as data is pushed onto the stack, the stack pointer descends memory and continuously points to the top of stack. If the stack pointer passes the stack limit, then a stack overflow error has occurred. Here is a small piece of code that checks for stack overflow errors for a descending stack: ; check for stack overflow SUB sp, sp, #size CMP sp, r10 BLLO _stack_overflow ; condition ATPCS defines register r10 as the stack limit or sl. This is optional since it is only used when stack checking is enabled. The BLLO instruction is a branch with link instruction plus the condition mnemonic LO. If sp is less than register r10 after the new items are pushed onto the stack, then stack overflow error has occurred. If the stack pointer goes back past the stack base, then a stack underflow error has occurred. 3.3.4 Swap Instruction The swap instruction is a special case of a load-store instruction. It swaps the contents of memory with the contents of a register. This instruction is an atomic operation—it reads and writes a location in the same bus operation, preventing any other instruction from reading or writing to that location until it completes. Syntax: SWP{B}{cond} Rd,Rm,[Rn] SWP swap a word between memory and a register tmp = mem32[Rn] mem32[Rn] = Rm Rd = tmp SWPB swap a byte between memory and a register tmp = mem8[Rn] mem8[Rn] = Rm Rd = tmp Swap cannot be interrupted by any other instruction or any other bus access. We say the system “holds the bus” until the transaction is complete. Example 3.22 The swap instruction loads a word from memory into register r0 and overwrites the memory with register r1.
- 88. 3.4 Software Interrupt Instruction 73 PRE mem32[0x9000] = 0x12345678 r0 = 0x00000000 r1 = 0x11112222 r2 = 0x00009000 SWP r0, r1, [r2] POST mem32[0x9000] = 0x11112222 r0 = 0x12345678 r1 = 0x11112222 r2 = 0x00009000 This instruction is particularly useful when implementing semaphores and mutual exclusion in an operating system. You can see from the syntax that this instruction can also have a byte size qualifier B, so this instruction allows for both a word and a byte swap. ■ Example 3.23 This example shows a simple data guard that can be used to protect data from being written by another task. The SWP instruction “holds the bus” until the transaction is complete. spin MOV r1, =semaphore MOV r2, #1 SWP r3, r2, [r1] ; hold the bus until complete CMP r3, #1 BEQ spin The address pointed to by the semaphore either contains the value 0 or 1. When the semaphore equals 1, then the service in question is being used by another process. The routine will continue to loop around until the service is released by the other process—in other words, when the semaphore address location contains the value 0. ■ 3.4 Software Interrupt Instruction Asoftwareinterruptinstruction(SWI)causesasoftwareinterruptexception, whichprovides a mechanism for applications to call operating system routines. Syntax: SWI{cond} SWI_number SWI software interrupt lr_svc = address of instruction following the SWI spsr_svc = cpsr pc = vectors + 0x8 cpsr mode = SVC cpsr I = 1 (mask IRQ interrupts)
- 89. 74 Chapter 3 Introduction to the ARM Instruction Set When the processor executes an SWI instruction, it sets the program counter pc to the offset 0x8 in the vector table. The instruction also forces the processor mode to SVC, which allows an operating system routine to be called in a privileged mode. Each SWI instruction has an associated SWI number, which is used to represent a particular function call or feature. Example 3.24 Here we have a simple example of an SWI call with SWI number 0x123456, used by ARM toolkits as a debugging SWI. Typically the SWI instruction is executed in user mode. PRE cpsr = nzcVqift_USER pc = 0x00008000 lr = 0x003fffff; lr = r14 r0 = 0x12 0x00008000 SWI 0x123456 POST cpsr = nzcVqIft_SVC spsr = nzcVqift_USER pc = 0x00000008 lr = 0x00008004 r0 = 0x12 Since SWI instructions are used to call operating system routines, you need some form of parameter passing. This is achieved using registers. In this example, register r0 is used to pass the parameter 0x12. The return values are also passed back via registers. ■ Code called the SWI handler is required to process the SWI call. The handler obtains the SWI number using the address of the executed instruction, which is calculated from the link register lr. The SWI number is determined by SWI_Number = SWI instruction AND NOT(0xff000000) Here the SWI instruction is the actual 32-bit SWI instruction executed by the processor. Example 3.25 This example shows the start of an SWI handler implementation. The code fragment deter- mines what SWI number is being called and places that number into register r10. You can see from this example that the load instruction first copies the complete SWI instruction into register r10. The BIC instruction masks off the top bits of the instruction, leaving the SWI number. We assume the SWI has been called from ARM state. SWI_handler ; ; Store registers r0-r12 and the link register
- 90. 3.5 Program Status Register Instructions 75 ; STMFD sp!, {r0-r12, lr} ; Read the SWI instruction LDR r10, [lr, #-4] ; Mask off top 8 bits BIC r10, r10, #0xff000000 ; r10 - contains the SWI number BL service_routine ; return from SWI handler LDMFD sp!, {r0-r12, pc}ˆ The number in register r10 is then used by the SWI handler to call the appropriate SWI service routine. ■ 3.5 Program Status Register Instructions The ARM instruction set provides two instructions to directly control a program status register (psr). The MRS instruction transfers the contents of either the cpsr or spsr into a register; in the reverse direction, the MSR instruction transfers the contents of a register into the cpsr or spsr. Together these instructions are used to read and write the cpsr and spsr. In the syntax you can see a label called fields. This can be any combination of control (c), extension (x), status (s), and flags (f ). These fields relate to particular byte regions in a psr, as shown in Figure 3.9. Syntax: MRS{cond} Rd,cpsr|spsr MSR{cond} cpsr|spsr_fields,Rm MSR{cond} cpsr|spsr_fields,#immediate Fields Bit 31 30 29 28 N Z C V 7 6 5 4 0 I F T Mode Flags [24:31] Status [16:23] eXtension [8:15] Control [0:7] Figure 3.9 psr byte fields.
- 91. 76 Chapter 3 Introduction to the ARM Instruction Set MRS copy program status register to a general-purpose register Rd = psr MSR move a general-purpose register to a program status register psr[field] = Rm MSR move an immediate value to a program status register psr[field] = immediate The c field controls the interrupt masks, Thumb state, and processor mode. Example 3.26 shows how to enable IRQ interrupts by clearing the I mask. This opera- tion involves using both the MRS and MSR instructions to read from and then write to the cpsr. Example 3.26 The MSR first copies the cpsr into register r1. The BIC instruction clears bit 7 of r1. Register r1 is then copied back into the cpsr, which enables IRQ interrupts. You can see from this example that this code preserves all the other settings in the cpsr and only modifies the I bit in the control field. PRE cpsr = nzcvqIFt_SVC MRS r1, cpsr BIC r1, r1, #0x80 ; 0b01000000 MSR cpsr_c, r1 POST cpsr = nzcvqiFt_SVC This example is in SVC mode. In user mode you can read all cpsr bits, but you can only update the condition flag field f. ■ 3.5.1 Coprocessor Instructions Coprocessor instructions are used to extend the instruction set. A coprocessor can either provide additional computation capability or be used to control the memory subsystem including caches and memory management. The coprocessor instructions include data processing, register transfer, and memory transfer instructions. We will provide only a short overview since these instructions are coprocessor specific. Note that these instructions are only used by cores with a coprocessor. Syntax: CDP{cond} cp, opcode1, Cd, Cn {, opcode2} MRC|MCR{cond} cp, opcode1, Rd, Cn, Cm {, opcode2} LDC|STC{cond} cp, Cd, addressing
- 92. 3.5 Program Status Register Instructions 77 CDP coprocessor data processing—perform an operation in a coprocessor MRC MCR coprocessor register transfer—move data to/from coprocessor registers LDC STC coprocessor memory transfer—load and store blocks of memory to/from a coprocessor In the syntax of the coprocessor instructions, the cp field represents the coprocessor number between p0 and p15. The opcode fields describe the operation to take place on the coprocessor. The Cn, Cm, and Cd fields describe registers within the coprocessor. The coprocessor operations and registers depend on the specific coprocessor you are using. Coprocessor 15 (CP15) is reserved for system control purposes, such as memory management, write buffer control, cache control, and identification registers. Example 3.27 This example shows a CP15 register being copied into a general-purpose register. ; transferring the contents of CP15 register c0 to register r10 MRC p15, 0, r10, c0, c0, 0 Here CP15 register-0 contains the processor identification number. This register is copied into the general-purpose register r10. ■ 3.5.2 Coprocessor 15 Instruction Syntax CP15 configures the processor core and has a set of dedicated registers to store configuration information, as shown in Example 3.27. A value written into a register sets a configuration attribute—for example, switching on the cache. CP15 is called the system control coprocessor. Both MRC and MCR instructions are used to read and write to CP15, where register Rd is the core destination register, Cn is the primary register, Cm is the secondary register, and opcode2 is a secondary register modifier. You may occasionally hear secondary registers called “extended registers.” As an example, here is the instruction to move the contents of CP15 control register c1 into register r1 of the processor core: MRC p15, 0, r1, c1, c0, 0 We use a shorthand notation for CP15 reference that makes referring to configuration registers easier to follow. The reference notation uses the following format: CP15:cX:cY:Z
- 93. 78 Chapter 3 Introduction to the ARM Instruction Set The first term, CP15, defines it as coprocessor 15. The second term, after the separating colon, is the primary register. The primary register X can have a value between 0 and 15. The third term is the secondary or extended register. The secondary register Y can have a value between 0 and 15. The last term, opcode2, is an instruction modifier and can have a value between 0 and 7. Some operations may also use a nonzero value w of opcode1. We write these as CP15:w:cX:cY:Z. 3.6 Loading Constants You might have noticed that there is no ARM instruction to move a 32-bit constant into a register. Since ARM instructions are 32 bits in size, they obviously cannot specify a general 32-bit constant. To aid programming there are two pseudoinstructions to move a 32-bit value into a register. Syntax: LDR Rd, =constant ADR Rd, label LDR load constant pseudoinstruction Rd = 32-bit constant ADR load address pseudoinstruction Rd = 32-bit relative address The first pseudoinstruction writes a 32-bit constant to a register using whatever instruc- tions are available. It defaults to a memory read if the constant cannot be encoded using other instructions. The second pseudoinstruction writes a relative address into a register, which will be encoded using a pc-relative expression. Example 3.28 This example shows an LDR instruction loading a 32-bit constant 0xff00ffff into register r0. LDR r0, [pc, #constant_number-8-{PC}] : constant_number DCD 0xff00ffff This example involves a memory access to load the constant, which can be expensive for time-critical routines. ■ Example 3.29 shows an alternative method to load the same constant into register r0 by using an MVN instruction.
- 94. 3.7 ARMv5E Extensions 79 Table 3.12 LDR pseudoinstruction conversion. Pseudoinstruction Actual instruction LDR r0, =0xff MOV r0, #0xff LDR r0, =0x55555555 LDR r0, [pc, #offset_12] Example 3.29 Loading the constant 0xff00ffff using an MVN. PRE none... MVN r0, #0x00ff0000 POST r0 = 0xff00ffff ■ As you can see, there are alternatives to accessing memory, but they depend upon the constant you are trying to load. Compilers and assemblers use clever techniques to avoid loading a constant from memory. These tools have algorithms to find the optimal number of instructions required to generate a constant in a register and make extensive use of the barrel shifter. If the tools cannot generate the constant by these methods, then it is loaded from memory. The LDR pseudoinstruction either inserts an MOV or MVN instruction to generate a value (if possible) or generates an LDR instruction with a pc-relative address to read the constant from a literal pool—a data area embedded within the code. Table 3.12 shows two pseudocode conversions. The first conversion produces a simple MOV instruction; the second conversion produces a pc-relative load. We recommended that you use this pseudoinstruction to load a constant. To see how the assembler has handled a particular load constant, you can pass the output through a disassembler, which will list the instruction chosen by the tool to load the constant. Another useful pseudoinstruction is the ADR instruction, or address relative. This instruc- tion places the address of the given label into register Rd, using a pc-relative add or subtract. 3.7 ARMv5E Extensions The ARMv5E extensions provide many new instructions (see Table 3.13). One of the most important additions is the signed multiply accumulate instructions that operate on 16-bit data. These operations are single cycle on many ARMv5E implementations. ARMv5E provides greater flexibility and efficiency when manipulating 16-bit values, which is important for applications such as 16-bit digital audio processing.
- 95. 80 Chapter 3 Introduction to the ARM Instruction Set Table 3.13 New instructions provided by the ARMv5E extensions. Instruction Description CLZ {cond} Rd, Rm count leading zeros QADD {cond} Rd, Rm, Rn signed saturated 32-bit add QDADD{cond} Rd, Rm, Rn signed saturated double 32-bit add QDSUB{cond} Rd, Rm, Rn signed saturated double 32-bit subtract QSUB{cond} Rd, Rm, Rn signed saturated 32-bit subtract SMLAxy{cond} Rd, Rm, Rs, Rn signed multiply accumulate 32-bit (1) SMLALxy{cond} RdLo, RdHi, Rm, Rs signed multiply accumulate 64-bit SMLAWy{cond} Rd, Rm, Rs, Rn signed multiply accumulate 32-bit (2) SMULxy{cond} Rd, Rm, Rs signed multiply (1) SMULWy{cond} Rd, Rm, Rs signed multiply (2) 3.7.1 Count Leading Zeros Instruction Thecountleadingzerosinstructioncountsthenumberofzerosbetweenthemostsignificant bit and the first bit set to 1. Example 3.30 shows an example of a CLZ instruction. Example 3.30 You can see from this example that the first bit set to 1 has 27 zeros preceding it. CLZ is useful in routines that have to normalize numbers. PRE r1 = 0b00000000000000000000000000010000 CLZ r0, r1 POST r0 = 27 ■ 3.7.2 Saturated Arithmetic Normal ARM arithmetic instructions wrap around when you overflow an integer value. For example, 0x7fffffff + 1 = -0x80000000. Thus, when you design an algorithm, you have to be careful not to exceed the maximum representable value in a 32-bit integer. Example 3.31 This example shows what happens when the maximum value is exceeded. PRE cpsr = nzcvqiFt_SVC r0 = 0x00000000 r1 = 0x70000000 (positive) r2 = 0x7fffffff (positive)
- 96. 3.7 ARMv5E Extensions 81 ADDS r0, r1, r2 POST cpsr = NzcVqiFt_SVC r0 = 0xefffffff (negative) In the example, registers r1 and r2 contain positive numbers. Register r2 is equal to 0x7fffffff, which is the maximum positive value you can store in 32 bits. In a per- fect world adding these numbers together would result in a large positive number. Instead the value becomes negative and the overflow flag, V, is set. ■ Incontrast, usingtheARMv5Einstructionsyoucansaturatetheresult—oncethehighest number is exceeded the results remain at the maximum value of 0x7fffffff. This avoids the requirement for any additional code to check for possible overflows. Table 3.14 lists all the ARMv5E saturation instructions. Table 3.14 Saturation instructions. Instruction Saturated calculation QADD Rd = Rn + Rm QDADD Rd = Rn + (Rm∗2) QSUB Rd = Rn − Rm QDSUB Rd = Rn − (Rm∗2) Example 3.32 This example shows the same data being passed into the QADD instruction. PRE cpsr = nzcvqiFt_SVC r0 = 0x00000000 r1 = 0x70000000 (positive) r2 = 0x7fffffff (positive) QADD r0, r1, r2 POST cpsr = nzcvQiFt_SVC r0 = 0x7fffffff You will notice that the saturated number is returned in register r0. Also the Q bit (bit 27 of the cpsr) has been set, indicating saturation has occurred. The Q flag is sticky and will remain set until explicitly cleared. ■ 3.7.3 ARMv5E Multiply Instructions Table 3.15 shows a complete list of the ARMv5E multiply instructions. In the table, x and y select which 16 bits of a 32-bit register are used for the first and second
- 97. 82 Chapter 3 Introduction to the ARM Instruction Set Table 3.15 Signed multiply and multiply accumulate instructions. Signed Multiply Signed Q flag Instruction [Accumulate] result updated Calculation SMLAxy (16-bit *16-bit)+ 32-bit 32-bit yes Rd = (Rm.x *Rs.y) + Rn SMLALxy (16-bit *16-bit)+ 64-bit 64-bit — [RdHi, RdLo] + = Rm.x * Rs.y SMLAWy ((32-bit *16-bit) 16)+ 32-bit 32-bit yes Rd = ((Rm * Rs.y) 16) + Rn SMULxy (16-bit *16-bit) 32-bit — Rd = Rm.x * Rs.y SMULWy ((32-bit *16-bit) 16) 32-bit — Rd = (Rm * Rs.y) 16 operands, respectively. These fields are set to a letter T for the top 16-bits, or the letter B for the bottom 16 bits. For multiply accumulate operations with a 32-bit result, the Q flag indicates if the accumulate overflowed a signed 32-bit value. Example 3.33 This example shows how you use these operations. The example uses a signed multiply accumulate instruction, SMLATB. PRE r1 = 0x20000001 r2 = 0x20000001 r3 = 0x00000004 SMLATB r4, r1, r2, r3 POST r4 = 0x00002004 The instruction multiplies the top 16 bits of register r1 by the bottom 16 bits of register r2. It adds the result to register r3 and writes it to destination register r4. ■ 3.8 Conditional Execution Most ARM instructions are conditionally executed—you can specify that the instruction only executes if the condition code flags pass a given condition or test. By using conditional execution instructions you can increase performance and code density. The condition field is a two-letter mnemonic appended to the instruction mnemonic. The default mnemonic is AL, or always execute. Conditional execution reduces the number of branches, which also reduces the number of pipeline flushes and thus improves the performance of the executed code. Conditional execution depends upon two components: the condition field and condition flags. The condition field is located in the instruction, and the condition flags are located in the cpsr.
- 98. 3.8 Conditional Execution 83 Example 3.34 This example shows an ADD instruction with the EQ condition appended. This instruction will only be executed when the zero flag in the cpsr is set to 1. ; r0 = r1 + r2 if zero flag is set ADDEQ r0, r1, r2 Only comparison instructions and data processing instructions with the S suffix appended to the mnemonic update the condition flags in the cpsr. ■ Example 3.35 To help illustrate the advantage of conditional execution, we will take the simple C code fragment shown in this example and compare the assembler output using nonconditional and conditional instructions. while (a!=b) { if (ab) a -= b; else b -= a; } Let register r1 represent a and register r2 represent b. The following code fragment shows the same algorithm written in ARM assembler. This example only uses conditional execution on the branch instructions: ; Greatest Common Divisor Algorithm gcd CMP r1, r2 BEQ complete BLT lessthan SUB r1, r1, r2 B gcd lessthan SUB r2, r2, r1 B gcd complete ... Now compare the same code with full conditional execution. As you can see, this dramatically reduces the number of instructions: gcd CMP r1, r2
- 99. 84 Chapter 3 Introduction to the ARM Instruction Set SUBGT r1, r1, r2 SUBLT r2, r2, r1 BNE gcd ■ 3.9 Summary In this chapter we covered the ARM instruction set. All ARM instructions are 32 bits in length. The arithmetic, logical, comparisons, and move instructions can all use the inline barrel shifter, which pre-processes the second register Rm before it enters into the ALU. The ARM instruction set has three types of load-store instructions: single-register load- store, multiple-register load-store, and swap. The multiple load-store instructions provide the push-pop operations on the stack. The ARM-Thumb Procedure Call Standard (ATPCS) defines the stack as being a full descending stack. The software interrupt instruction causes a software interrupt that forces the processor into SVC mode; this instruction invokes privileged operating system routines. The pro- gram status register instructions write and read to the cpsr and spsr. There are also special pseudoinstructions that optimize the loading of 32-bit constants. TheARMv5Eextensionsincludecountleadingzeros, saturation, andimprovedmultiply instructions. The count leading zeros instruction counts the number of binary zeros before the first binary one. Saturation handles arithmetic calculations that overflow a 32-bit integer value. The improved multiply instructions provide better flexibility in multiplying 16-bit values. Most ARM instructions can be conditionally executed, which can dramatically reduce the number of instructions required to perform a specific algorithm.
- 100. This Page Intentionally Left Blank
- 101. 4.1 Thumb Register Usage 4.2 ARM-Thumb Interworking 4.3 Other Branch Instructions 4.4 Data Processing Instructions 4.5 Single-Register Load-Store Instructions 4.6 Multiple-Register Load-Store Instructions 4.7 Stack Instructions 4.8 Software Interrupt Instruction 4.9 Summary
- 102. C h a p t e r Introduction to the Thumb Instruction Set 4 This chapter introduces the Thumb instruction set. Thumb encodes a subset of the 32-bit ARM instructions into a 16-bit instruction set space. Since Thumb has higher performance than ARM on a processor with a 16-bit data bus, but lower performance than ARM on a 32-bit data bus, use Thumb for memory-constrained systems. Thumb has higher code density—the space taken up in memory by an executable program—than ARM. For memory-constrained embedded systems, for example, mobile phones and PDAs, code density is very important. Cost pressures also limit memory size, width, and speed. On average, a Thumb implementation of the same code takes up around 30% less memory than the equivalent ARM implementation. As an example, Figure 4.1 shows the samedividecoderoutineimplementedinARMandThumbassemblycode. Eventhoughthe Thumb implementation uses more instructions, the overall memory footprint is reduced. Code density was the main driving force for the Thumb instruction set. Because it was also designed as a compiler target, rather than for hand-written assembly code, we recommend that you write Thumb-targeted code in a high-level language like C or C++. Each Thumb instruction is related to a 32-bit ARM instruction. Figure 4.2 shows a simple Thumb ADD instruction being decoded into an equivalent ARM ADD instruction. Table 4.1 provides a complete list of Thumb instructions available in the THUMBv2 architecture used in the ARMv5TE architecture. Only the branch relative instruction can be conditionally executed. The limited space available in 16 bits causes the barrel shift operations ASR, LSL, LSR, and ROR to be separate instructions in the Thumb ISA. 87
- 103. 88 Chapter 4 Introduction to the Thumb Instruction Set ARM code Thumb code ARMDivide ThumbDivide ; IN: r0(value),r1(divisor) ; IN: r0(value),r1(divisor) ; OUT: r2(MODulus),r3(DIVide) ; OUT: r2(MODulus),r3(DIVide) MOV r3,#0 MOV r3,#0 loop loop SUBS r0,r0,r1 ADD r3,#1 ADDGE r3,r3,#1 SUB r0,r1 BGE loop BGE loop ADD r2,r0,r1 SUB r3,#1 ADD r2,r0,r1 5 × 4 = 20 bytes 6 × 2 = 12 bytes Figure 4.1 Code density. Thumb 16-bit instruction ADD r0, #3 cpsr = nzcvqifT_SVC D E C O D E R ADDS r0, r0, #3 ARM 32-bit instruction Figure 4.2 Thumb instruction decoding. We only describe a subset of these instructions in this chapter since most code is compiled from a high-level language. See Appendix A for a complete list of Thumb instructions. This chapter covers Thumb register usage, ARM-Thumb interworking, branch instruc- tions, data processing instructions, load-store instructions, stack operations, and software interrupts.
- 104. 4.1 Thumb Register Usage 89 Table 4.1 Thumb instruction set. Mnemonics THUMB ISA Description ADC v1 add two 32-bit values and carry ADD v1 add two 32-bit values AND v1 logical bitwise AND of two 32-bit values ASR v1 arithmetic shift right B v1 branch relative BIC v1 logical bit clear (AND NOT) of two 32-bit values BKPT v2 breakpoint instructions BL v1 relative branch with link BLX v2 branch with link and exchange BX v1 branch with exchange CMN v1 compare negative two 32-bit values CMP v1 compare two 32-bit integers EOR v1 logical exclusive OR of two 32-bit values LDM v1 load multiple 32-bit words from memory to ARM registers LDR v1 load a single value from a virtual address in memory LSL v1 logical shift left LSR v1 logical shift right MOV v1 move a 32-bit value into a register MUL v1 multiply two 32-bit values MVN v1 move the logical NOT of 32-bit value into a register NEG v1 negate a 32-bit value ORR v1 logical bitwise OR of two 32-bit values POP v1 pops multiple registers from the stack PUSH v1 pushes multiple registers to the stack ROR v1 rotate right a 32-bit value SBC v1 subtract with carry a 32-bit value STM v1 store multiple 32-bit registers to memory STR v1 store register to a virtual address in memory SUB v1 subtract two 32-bit values SWI v1 software interrupt TST v1 test bits of a 32-bit value 4.1 Thumb Register Usage In Thumb state, you do not have direct access to all registers. Only the low registers r0 to r7 are fully accessible, as shown in Table 4.2. The higher registers r8 to r12 are only accessible with MOV, ADD, or CMP instructions. CMP and all the data processing instructions that operate on low registers update the condition flags in the cpsr.
- 105. 90 Chapter 4 Introduction to the Thumb Instruction Set Table 4.2 Summary of Thumb register usage. Registers Access r0–r7 fully accessible r8–r12 only accessible by MOV, ADD, and CMP r13 sp limited accessibility r14 lr limited accessibility r15 pc limited accessibility cpsr only indirect access spsr no access You may have noticed from the Thumb instruction set list and from the Thumb register usage table that there is no direct access to the cpsr or spsr. In other words, there are no MSR- and MRS-equivalent Thumb instructions. To alter the cpsr or spsr, you must switch into ARM state to use MSR and MRS. Similarly, there are no coprocessor instructions in Thumb state. You need to be in ARM state to access the coprocessor for configuring cache and memory management. 4.2 ARM-Thumb Interworking ARM-Thumb interworking is the name given to the method of linking ARM and Thumb code together for both assembly and C/C++. It handles the transition between the two states. Extra code, called a veneer, is sometimes needed to carry out the transition. ATPCS defines the ARM and Thumb procedure call standards. To call a Thumb routine from an ARM routine, the core has to change state. This state change is shown in the T bit of the cpsr. The BX and BLX branch instructions cause a switch between ARM and Thumb state while branching to a routine. The BX lr instruction returns from a routine, also with a state switch if necessary. The BLX instruction was introduced in ARMv5T. On ARMv4T cores the linker uses a veneer to switch state on a subroutine call. Instead of calling the routine directly, the linker calls the veneer, which switches to Thumb state using the BX instruction. There are two versions of the BX or BLX instructions: an ARM instruction and a Thumb equivalent. The ARM BX instruction enters Thumb state only if bit 0 of the address in Rn is set to binary 1; otherwise it enters ARM state. The Thumb BX instruction does the same. Syntax: BX Rm BLX Rm | label
- 106. 4.2 ARM-Thumb Interworking 91 BX Thumb version branch exchange pc = Rn 0xfffffffe T = Rn[0] BLX Thumb version of the branch exchange lr = (instruction address after the BLX) + 1 with link pc = label, T = 0 pc = Rm 0xfffffffe, T = Rm[0] Unlike the ARM version, the Thumb BX instruction cannot be conditionally executed. Example 4.1 This example shows a small code fragment that uses both the ARM and Thumb versions of the BX instruction. You can see that the branch address into Thumb has the lowest bit set. This sets the T bit in the cpsr to Thumb state. The return address is not automatically preserved by the BX instruction. Rather the code sets the return address explicitly using a MOV instruction prior to the branch: ; ARM code CODE32 ; word aligned LDR r0, =thumbCode+1 ; +1 to enter Thumb state MOV lr, pc ; set the return address BX r0 ; branch to Thumb code mode ; continue here ; Thumb code CODE16 ; halfword aligned thumbCode ADD r1, #1 BX lr ; return to ARM code state A branch exchange instruction can also be used as an absolute branch providing bit 0 isn’t used to force a state change: ; address(thumbCode) = 0x00010000 ; cpsr = nzcvqIFt_SVC ; r0 = 0x00000000 0x00009000 LDR r0, =thumbCode+1 ; cpsr = nzcvqIFt_SVC ; r0 = 0x00010001 0x00009008 BX r0
- 107. 92 Chapter 4 Introduction to the Thumb Instruction Set ; cpsr = nzcvqIFT_SVC ; r0 = 0x00010001 ; pc = 0x00010000 You can see that the least significant bit of register r0 is used to set the T bit of the cpsr. The cpsr changes from IFt, prior to the execution of the BX, to IFT, after execution. The pc is then set to point to the start address of the Thumb routine. ■ Example 4.2 Replacing the BX instruction with BLX simplifies the calling of a Thumb routine since it sets the return address in the link register lr: CODE32 LDR r0, =thumbRoutine+1 ; enter Thumb state BLX r0 ; jump to Thumb code ; continue here CODE16 thumbRoutine ADD r1, #1 BX r14 ; return to ARM code and state ■ 4.3 Other Branch Instructions There are two variations of the standard branch instruction, or B. The first is similar to the ARM version and is conditionally executed; the branch range is limited to a signed 8-bit immediate, or −256 to +254 bytes. The second version removes the conditional part of the instruction and expands the effective branch range to a signed 11-bit immediate, or −2048 to +2046 bytes. The conditional branch instruction is the only conditionally executed instruction in Thumb state. Syntax: Bcond label B label BL label B branch pc = label BL branch with link pc = label lr = (instruction address after the BL) + 1 The BL instruction is not conditionally executed and has an approximate range of +/−4 MB. This range is possible because BL (and BLX) instructions are translated into a pair of 16-bit
- 108. 4.4 Data Processing Instructions 93 Thumb instructions. The first instruction in the pair holds the high part of the branch offset, and the second the low part. These instructions must be used as a pair. The code here shows the various instructions used to return from a BL subroutine call: MOV pc, lr BX lr POP {pc} To return, we set the pc to the value in lr. The stack instruction called POP will be discussed in more detail in Section 4.7. 4.4 Data Processing Instructions The data processing instructions manipulate data within registers. They include move instructions, arithmetic instructions, shifts, logical instructions, comparison instructions, and multiply instructions. The Thumb data processing instructions are a subset of the ARM data processing instructions. Syntax: ADC|ADD|AND|BIC|EOR|MOV|MUL|MVN|NEG|ORR|SBC|SUB Rd, Rm ADD|ASR|LSL|LSR|ROR|SUB Rd, Rn #immediate ADD|MOV|SUB Rd,#immediate ADD|SUB Rd,Rn,Rm ADD Rd,pc,#immediate ADD Rd,sp,#immediate ADD|SUB sp, #immediate ASR|LSL|LSR|ROR Rd,Rs CMN|CMP|TST Rn,Rm CMP Rn,#immediate MOV Rd,Rn ADC add two 32-bit values and carry Rd = Rd + Rm + C flag ADD add two 32-bit values Rd = Rn + immediate Rd = Rd + immediate Rd = Rd + Rm Rd = Rd + Rm Rd = (pc 0xfffffffc) + (immediate 2) Rd = sp + (immediate 2) sp = sp + (immediate 2)
- 109. 94 Chapter 4 Introduction to the Thumb Instruction Set AND logical bitwise AND of two 32-bit values Rd = Rd Rm ASR arithmetic shift right Rd = Rm immediate, C flag = Rm[immediate − 1] Rd = Rd Rs, C flag = Rd[Rs - 1] BIC logical bit clear (AND NOT) of two 32-bit Rd = Rd AND NOT(Rm) values CMN compare negative two 32-bit values Rn + Rm sets flags CMP compare two 32-bit integers Rn − immediate sets flags Rn − Rm sets flags EOR logical exclusive OR of two 32-bit values Rd = Rd EOR Rm LSL logical shift left Rd = Rm immediate, C flag = Rm[32 − immediate] Rd = Rd Rs, C flag = Rd[32 − Rs] LSR logical shift right Rd = Rm immediate, C flag = Rd[immediate − 1] Rd = Rd Rs, C flag = Rd[Rs − 1] MOV move a 32-bit value into a register Rd = immediate Rd = Rn Rd = Rm MUL multiply two 32-bit values Rd = (Rm ∗ Rd)[31:0] MVN move the logical NOT of a 32-bit value into a register Rd = NOT(Rm) NEG negate a 32-bit value Rd = 0 − Rm ORR logical bitwise OR of two 32-bit values Rd = Rd OR Rm ROR rotate right a 32-bit value Rd = Rd RIGHT_ROTATE Rs, C flag = Rd[Rs−1] SBC subtract with carry a 32-bit value Rd = Rd − Rm − NOT(C flag) SUB subtract two 32-bit values Rd = Rn − immediate Rd = Rd − immediate Rd = Rn − Rm sp = sp − (immediate 2) TST test bits of a 32-bit value Rn AND Rm sets flags
- 110. 4.4 Data Processing Instructions 95 These instructions follow the same style as the equivalent ARM instructions. Most Thumb data processing instructions operate on low registers and update the cpsr. The exceptions are MOV Rd,Rn ADD Rd,Rm CMP Rn,Rm ADD sp, #immediate SUB sp, #immediate ADD Rd,sp,#immediate ADD Rd,pc,#immediate which can operate on the higher registers r8–r14 and the pc. These instructions, except for CMP, do not update the condition flags in the cpsr when using the higher registers. The CMP instruction, however, always updates the cpsr. Example 4.3 This example shows a simple Thumb ADD instruction. It takes two low registers r1 and r2 and adds them together. The result is then placed into register r0, overwriting the original contents. The cpsr is also updated. PRE cpsr = nzcvIFT_SVC r1 = 0x80000000 r2 = 0x10000000 ADD r0, r1, r2 POST r0 = 0x90000000 cpsr = NzcvIFT_SVC ■ Example 4.4 Thumb deviates from the ARM style in that the barrel shift operations (ASR, LSL, LSR, and ROR) are separate instructions. This example shows the logical left shift (LSL) instruction to multiply register r2 by 2. PRE r2 = 0x00000002 r4 = 0x00000001 LSL r2, r4 POST r2 = 0x00000004 r4 = 0x00000001 ■ See Appendix A for a complete list of Thumb data processing instructions.
- 111. 96 Chapter 4 Introduction to the Thumb Instruction Set 4.5 Single-Register Load-Store Instructions The Thumb instruction set supports load and storing registers, or LDR and STR. These instructions use two preindexed addressing modes: offset by register and offset by immediate. Syntax: LDR|STR{B|H} Rd, [Rn,#immediate] LDR{H|SB|SH} Rd,[Rn,Rm] STR{B|H} Rd,[Rn,Rm] LDR Rd,[pc,#immediate] LDR|STR Rd,[sp,#immediate] LDR load word into a register Rd - mem32[address] STR save word from a register Rd - mem32[address] LDRB load byte into a register Rd - mem8[address] STRB save byte from a register Rd - mem8[address] LDRH load halfword into a register Rd - mem16[address] STRH save halfword into a register Rd - mem16[address] LDRSB load signed byte into a register Rd - SignExtend(mem8[address]) LDRSH load signed halfword into a register Rd - SignExtend(mem16[address]) You can see the different addressing modes in Table 4.3. The offset by register uses a base register Rn plus the register offset Rm. The second uses the same base register Rn plus a 5-bit immediate or a value dependent on the data size. The 5-bit offset encoded in the instruction is multiplied by one for byte accesses, two for 16-bit accesses, and four for 32-bit accesses. Table 4.3 Addressing modes. Type Syntax Load/store register [Rn, Rm] Base register + offset [Rn, #immediate] Relative [pc|sp, #immediate] Example 4.5 This example shows two Thumb instructions that use a preindex addressing mode. Both use the same pre-condition.
- 112. 4.6 Multiple-Register Load-Store Instructions 97 PRE mem32[0x90000] = 0x00000001 mem32[0x90004] = 0x00000002 mem32[0x90008] = 0x00000003 r0 = 0x00000000 r1 = 0x00090000 r4 = 0x00000004 LDR r0, [r1, r4] ; register POST r0 = 0x00000002 r1 = 0x00090000 r4 = 0x00000004 LDR r0, [r1, #0x4] ; immediate POST r0 = 0x00000002 Both instructions carry out the same operation. The only difference is the second LDR uses a fixed offset, whereas the first one depends on the value in register r4. ■ 4.6 Multiple-Register Load-Store Instructions The Thumb versions of the load-store multiple instructions are reduced forms of the ARM load-store multiple instructions. They only support the increment after (IA) addressing mode. Syntax : LDM|STMIA Rn!, {low Register list} LDMIA load multiple registers {Rd}*N - mem32[Rn + 4 ∗N], Rn = Rn + 4 ∗N STMIA save multiple registers {Rd}*N - mem32[Rn + 4 ∗N], Rn = Rn + 4 ∗N Here N is the number of registers in the list of registers. You can see that these instruc- tions always update the base register Rn after execution. The base register and list of registers are limited to the low registers r0 to r7. Example 4.6 This example saves registers r1 to r3 to memory addresses 0x9000 to 0x900c. It also updates base register r4. Note that the update character ! is not an option, unlike with the ARM instruction set. PRE r1 = 0x00000001 r2 = 0x00000002
- 113. 98 Chapter 4 Introduction to the Thumb Instruction Set r3 = 0x00000003 r4 = 0x9000 STMIA r4!,{r1,r2,r3} POST mem32[0x9000] = 0x00000001 mem32[0x9004] = 0x00000002 mem32[0x9008] = 0x00000003 r4 = 0x900c ■ 4.7 Stack Instructions The Thumb stack operations are different from the equivalent ARM instructions because they use the more traditional POP and PUSH concept. Syntax: POP {low_register_list{, pc}} PUSH {low_register_list{, lr}} POP pop registers from the stacks Rd∗N - mem32[sp + 4 ∗N], sp = sp + 4 ∗N PUSH push registers on to the stack Rd∗N - mem32[sp + 4 ∗N], sp = sp − 4 ∗N The interesting point to note is that there is no stack pointer in the instruction. This is because the stack pointer is fixed as register r13 in Thumb operations and sp is automatically updated. The list of registers is limited to the low registers r0 to r7. The PUSH register list also can include the link register lr; similarly the POP register list can include the pc. This provides support for subroutine entry and exit, as shown in Example 4.7. The stack instructions only support full descending stack operations. Example 4.7 In this example we use the POP and PUSH instructions. The subroutine ThumbRoutine is called using a branch with link (BL) instruction. ; Call subroutine BL ThumbRoutine ; continue ThumbRoutine PUSH {r1, lr} ; enter subroutine MOV r0, #2 POP {r1, pc} ; return from subroutine
- 114. 4.8 Software Interrupt Instruction 99 The link register lr is pushed onto the stack with register r1. Upon return, register r1 is popped off the stack, as well as the return address being loaded into the pc. This returns from the subroutine. ■ 4.8 Software Interrupt Instruction Similar to the ARM equivalent, the Thumb software interrupt (SWI) instruction causes a software interrupt exception. If any interrupt or exception flag is raised in Thumb state, the processor automatically reverts back to ARM state to handle the exception. Syntax: SWI immediate SWI software interrupt lr_svc = address of instruction following the SWI spsr_svc = cpsr pc = vectors + 0x8 cpsr mode = SVC cpsr I = 1 (mask IRQ interrupts) cpsr T = 0 (ARM state) The Thumb SWI instruction has the same effect and nearly the same syntax as the ARM equivalent. It differs in that the SWI number is limited to the range 0 to 255 and it is not conditionally executed. Example 4.8 This example shows the execution of a Thumb SWI instruction. Note that the processor goes from Thumb state to ARM state after execution. PRE cpsr = nzcVqifT_USER pc = 0x00008000 lr = 0x003fffff ; lr = r14 r0 = 0x12 0x00008000 SWI 0x45 POST cpsr = nzcVqIft_SVC spsr = nzcVqifT_USER pc = 0x00000008 lr = 0x00008002 r0 = 0x12 ■
- 115. 100 Chapter 4 Introduction to the Thumb Instruction Set 4.9 Summary In this chapter we covered the Thumb instruction set. All Thumb instructions are 16 bits in length. Thumb provides approximately 30% better code density over ARM code. Most code written for Thumb is in a high-level language such as C and C++. ATPCS defines how ARM and Thumb code call each other, called ARM-Thumb interworking. Interworking uses the branch exchange (BX) instruction and branch exchange with link (BLX) instruction to change state and jump to a specific routine. In Thumb, only the branch instructions are conditionally executed. The barrel shift operations (ASR, LSL, LSR, and ROR) are separate instructions. The multiple-register load-store instructions only support the increment after (IA) addressing mode. The Thumb instruction set includes POP and PUSH instructions as stack operations. These instructions only support a full descending stack. There are no Thumb instructions to access the coprocessors, cpsr, and spsr.
- 116. This Page Intentionally Left Blank
- 117. 5.1 Overview of C Compilers and Optimization 5.2 Basic C Data Types 5.2.1 Local Variable Types 5.2.2 Function Argument Types 5.2.3 Signed versus Unsigned Types 5.3 C Looping Structures 5.3.1 Loops with a Fixed Number of Iterations 5.3.2 Loops Using a Variable Number of Iterations 5.3.3 Loop Unrolling 5.4 Register Allocation 5.5 Function Calls 5.6 Pointer Aliasing 5.7 Structure Arrangement 5.8 Bit-fields 5.9 Unaligned Data and Endianness 5.10 Division 5.10.1 Repeated Unsigned Division with Remainder 5.10.2 Converting Divides into Multiplies 5.10.3 Unsigned Division by a Constant 5.10.4 Signed Division by a Constant 5.11 Floating Point 5.12 Inline Functions and Inline Assembly 5.13 Portability Issues 5.14 Summary
- 118. C h a p t e r Efficient C Programming 5 The aim of this chapter is to help you write C code in a style that will compile efficiently on the ARM architecture. We will look at many small examples to show how the compiler translates C source to ARM assembler. Once you have a feel for this translation process, you can distinguish fast C code from slow C code. The techniques apply equally to C++, but we will stick to plain C for these examples. We start with an overview of C compilers and optimization, which will give an idea of the problems the C compiler faces when optimizing your code. By understanding these problems you can write source code that will compile more efficiently in terms of increased speed and reduced code size. The following sections are grouped by topic. Sections 5.2 and 5.3 look at how to optimize a basic C loop. These sections use a data packet checksum as a simple example to illustrate the ideas. Sections 5.4 and 5.5 look at optimizing a whole C function body, including how the compiler allocates registers within a function and how to reduce the overhead of a function call. Sections 5.6 through 5.9 look at memory issues, including handling pointers and how to pack data and access memory efficiently. Sections 5.10 through 5.12 look at basic operations that are usually not supported directly by ARM instructions. You can add your own basic operations using inline functions and assembler. The final section summarizes problems you may face when porting C code from another architecture to the ARM architecture. 103
- 119. 104 Chapter 5 Efficient C Programming 5.1 Overview of C Compilers and Optimization This chapter assumes that you are familiar with the C language and have some knowledge of assembly programming. The latter is not essential, but is useful for following the compiler output examples. See Chapter 3 or Appendix A for details of ARM assembly syntax. Optimizing code takes time and reduces source code readability. Usually, it’s only worth optimizing functions that are frequently executed and important for performance. We recommend you use a performance profiling tool, found in most ARM simulators, to find these frequently executed functions. Document nonobvious optimizations with source code comments to aid maintainability. C compilers have to translate your C function literally into assembler so that it works for all possible inputs. In practice, many of the input combinations are not possible or won’t occur. Let’s start by looking at an example of the problems the compiler faces. The memclr function clears N bytes of memory at address data. void memclr(char *data, int N) { for (; N0; N--) { *data=0; data++; } } No matter how advanced the compiler, it does not know whether N can be 0 on input or not. Therefore the compiler needs to test for this case explicitly before the first iteration of the loop. The compiler doesn’t know whether the data array pointer is four-byte aligned or not. If it is four-byte aligned, then the compiler can clear four bytes at a time using an int store rather than a char store. Nor does it know whether N is a multiple of four or not. If N is a multiple of four, then the compiler can repeat the loop body four times or store four bytes at a time using an int store. The compiler must be conservative and assume all possible values for N and all possible alignments for data. Section 5.3 discusses these specific points in detail. To write efficient C code, you must be aware of areas where the C compiler has to be conservative, the limits of the processor architecture the C compiler is mapping to, and the limits of a specific C compiler. Most of this chapter covers the first two points above and should be applicable to any ARM C compiler. The third point will be very dependent on the compiler vendor and compiler revision. You will need to look at the compiler’s documentation or experiment with the compiler yourself.
- 120. 5.2 Basic C Data Types 105 To keep our examples concrete, we have tested them using the following specific C compilers: ■ armcc from ARM Developer Suite version 1.1 (ADS1.1). You can license this compiler, or a later version, directly from ARM. ■ arm-elf-gcc version 2.95.2. This is the ARM target for the GNU C compiler, gcc, and is freely available. We have used armcc from ADS1.1 to generate the example assembler output in this book. The following short script shows you how to invoke armcc on a C file test.c. You can use this to reproduce our examples. armcc -Otime -c -o test.o test.c fromelf -text/c test.o test.txt By default armcc has full optimizations turned on (the -O2 command line switch). The -Otime switch optimizes for execution efficiency rather than space and mainly affects the layout of for and while loops. If you are using the gcc compiler, then the following short script generates a similar assembler output listing: arm-elf-gcc -O2 -fomit-frame-pointer -c -o test.o test.c arm-elf-objdump -d test.o test.txt Full optimizations are turned off by default for the GNU compiler. The -fomit-frame- pointer switch prevents the GNU compiler from maintaining a frame pointer register. Frame pointers assist the debug view by pointing to the local variables stored on the stack frame. However, they are inefficient to maintain and shouldn’t be used in code critical to performance. 5.2 Basic C Data Types Let’s start by looking at how ARM compilers handle the basic C data types. We will see that some of these types are more efficient to use for local variables than others. There are also differences between the addressing modes available when loading and storing data of each type. ARM processors have 32-bit registers and 32-bit data processing operations. The ARM architecture is a RISC load/store architecture. In other words you must load values from memory into registers before acting on them. There are no arithmetic or logical instructions that manipulate values in memory directly. Early versions of the ARM architecture (ARMv1 to ARMv3) provided hardware support for loading and storing unsigned 8-bit and unsigned or signed 32-bit values.
- 121. 106 Chapter 5 Efficient C Programming Table 5.1 Load and store instructions by ARM architecture. Architecture Instruction Action Pre-ARMv4 LDRB load an unsigned 8-bit value STRB store a signed or unsigned 8-bit value LDR load a signed or unsigned 32-bit value STR store a signed or unsigned 32-bit value ARMv4 LDRSB load a signed 8-bit value LDRH load an unsigned 16-bit value LDRSH load a signed 16-bit value STRH store a signed or unsigned 16-bit value ARMv5 LDRD load a signed or unsigned 64-bit value STRD store a signed or unsigned 64-bit value These architectures were used on processors prior to the ARM7TDMI. Table 5.1 shows the load/store instruction classes available by ARM architecture. In Table 5.1 loads that act on 8- or 16-bit values extend the value to 32 bits before writing to an ARM register. Unsigned values are zero-extended, and signed values sign-extended. This means that the cast of a loaded value to an int type does not cost extra instructions. Similarly, a store of an 8- or 16-bit value selects the lowest 8 or 16 bits of the register. The cast of an int to smaller type does not cost extra instructions on a store. The ARMv4 architecture and above support signed 8-bit and 16-bit loads and stores directly, through new instructions. Since these instructions are a later addition, they do not support as many addressing modes as the pre-ARMv4 instructions. (See Section 3.3 for details of the different addressing modes.) We will see the effect of this in the example checksum_v3 in Section 5.2.1. Finally, ARMv5 adds instruction support for 64-bit load and stores. This is available in ARM9E and later cores. Prior to ARMv4, ARM processors were not good at handling signed 8-bit or any 16-bit values. Therefore ARM C compilers define char to be an unsigned 8-bit value, rather than a signed 8-bit value as is typical in many other compilers. Compilers armcc and gcc use the datatype mappings in Table 5.2 for an ARM target. The exceptional case for type char is worth noting as it can cause problems when you are porting code from another processor architecture. A common example is using a char type variable i as a loop counter, with loop continuation condition i ≥ 0. As i is unsigned for the ARM compilers, the loop will never terminate. Fortunately armcc produces a warning in this situation: unsigned comparison with 0. Compilers also provide an override switch to make char signed. For example, the command line option -fsigned-char will make char signed on gcc. The command line option -zc will have the same effect with armcc. For the rest of this book we assume that you are using an ARMv4 processor or above. This includes ARM7TDMI and all later processors.
- 122. 5.2 Basic C Data Types 107 Table 5.2 C compiler datatype mappings. C Data Type Implementation char unsigned 8-bit byte short signed 16-bit halfword int signed 32-bit word long signed 32-bit word long long signed 64-bit double word 5.2.1 Local Variable Types ARMv4-based processors can efficiently load and store 8-, 16-, and 32-bit data. However, most ARM data processing operations are 32-bit only. For this reason, you should use a 32-bit datatype, int or long, for local variables wherever possible. Avoid using char and short as local variable types, even if you are manipulating an 8- or 16-bit value. The one exception is when you want wrap-around to occur. If you require modulo arithmetic of the form 255 + 1 = 0, then use the char type. To see the effect of local variable types, let’s consider a simple example. We’ll look in detail at a checksum function that sums the values in a data packet. Most communication protocols (such as TCP/IP) have a checksum or cyclic redundancy check (CRC) routine to check for errors in a data packet. The following code checksums a data packet containing 64 words. It shows why you should avoid using char for local variables. int checksum_v1(int *data) { char i; int sum = 0; for (i = 0; i 64; i++) { sum += data[i]; } return sum; } At first sight it looks as though declaring i as a char is efficient. You may be thinking that a char uses less register space or less space on the ARM stack than an int. On the ARM, both these assumptions are wrong. All ARM registers are 32-bit and all stack entries are at least 32-bit. Furthermore, to implement the i++ exactly, the compiler must account for the case when i = 255. Any attempt to increment 255 should produce the answer 0.
- 123. 108 Chapter 5 Efficient C Programming Consider the compiler output for this function. We’ve added labels and comments to make the assembly clear. checksum_v1 MOV r2,r0 ; r2 = data MOV r0,#0 ; sum = 0 MOV r1,#0 ; i = 0 checksum_v1_loop LDR r3,[r2,r1,LSL #2] ; r3 = data[i] ADD r1,r1,#1 ; r1 = i+1 AND r1,r1,#0xff ; i = (char)r1 CMP r1,#0x40 ; compare i, 64 ADD r0,r3,r0 ; sum += r3 BCC checksum_v1_loop ; if (i64) loop MOV pc,r14 ; return sum Now compare this to the compiler output where instead we declare i as an unsigned int. checksum_v2 MOV r2,r0 ; r2 = data MOV r0,#0 ; sum = 0 MOV r1,#0 ; i = 0 checksum_v2_loop LDR r3,[r2,r1,LSL #2] ; r3 = data[i] ADD r1,r1,#1 ; r1++ CMP r1,#0x40 ; compare i, 64 ADD r0,r3,r0 ; sum += r3 BCC checksum_v2_loop ; if (i64) goto loop MOV pc,r14 ; return sum In the first case, the compiler inserts an extra AND instruction to reduce i to the range 0 to 255 before the comparison with 64. This instruction disappears in the second case. Next, suppose the data packet contains 16-bit values and we need a 16-bit checksum. It is tempting to write the following C code: short checksum_v3(short *data) { unsigned int i; short sum = 0; for (i = 0; i 64; i++) { sum = (short)(sum + data[i]);
- 124. 5.2 Basic C Data Types 109 } return sum; } You may wonder why the for loop body doesn’t contain the code sum += data[i]; With armcc this code will produce a warning if you enable implicit narrowing cast warnings using the compiler switch -W + n. The expression sum + data[i] is an integer and so can only be assigned to a short using an (implicit or explicit) narrowing cast. As you can see in the following assembly output, the compiler must insert extra instructions to implement the narrowing cast: checksum_v3 MOV r2,r0 ; r2 = data MOV r0,#0 ; sum = 0 MOV r1,#0 ; i = 0 checksum_v3_loop ADD r3,r2,r1,LSL #1 ; r3 = data[i] LDRH r3,[r3,#0] ; r3 = data[i] ADD r1,r1,#1 ; i++ CMP r1,#0x40 ; compare i, 64 ADD r0,r3,r0 ; r0 = sum + r3 MOV r0,r0,LSL #16 MOV r0,r0,ASR #16 ; sum = (short)r0 BCC checksum_v3_loop ; if (i64) goto loop MOV pc,r14 ; return sum The loop is now three instructions longer than the loop for example checksum_v2 earlier! There are two reasons for the extra instructions: ■ The LDRH instruction does not allow for a shifted address offset as the LDR instruction did in checksum_v2. Therefore the first ADD in the loop calculates the address of item i in the array. The LDRH loads from an address with no offset. LDRH has fewer addressing modes than LDR as it was a later addition to the ARM instruction set. (See Table 5.1.) ■ The cast reducing total + array[i] to a short requires two MOV instructions. The compiler shifts left by 16 and then right by 16 to implement a 16-bit sign extend. The shift right is a sign-extending shift so it replicates the sign bit to fill the upper 16 bits. We can avoid the second problem by using an int type variable to hold the partial sum. We only reduce the sum to a short type at the function exit.
- 125. 110 Chapter 5 Efficient C Programming However, the first problem is a new issue. We can solve it by accessing the array by incrementing the pointer data rather than using an index as in data[i]. This is efficient regardless of array type size or element size. All ARM load and store instructions have a postincrement addressing mode. Example 5.1 The checksum_v4 code fixes all the problems we have discussed in this section. It uses int type local variables to avoid unnecessary casts. It increments the pointer data instead of using an index offset data[i]. short checksum_v4(short *data) { unsigned int i; int sum=0; for (i=0; i64; i++) { sum += *(data++); } return (short)sum; } The *(data++) operation translates to a single ARM instruction that loads the data and increments the data pointer. Of course you could write sum += *data; data++; or even *data++ instead if you prefer. The compiler produces the following output. Three instruc- tions have been removed from the inside loop, saving three cycles per loop compared to checksum_v3. checksum_v4 MOV r2,#0 ; sum = 0 MOV r1,#0 ; i = 0 checksum_v4_loop LDRSH r3,[r0],#2 ; r3 = *(data++) ADD r1,r1,#1 ; i++ CMP r1,#0x40 ; compare i, 64 ADD r2,r3,r2 ; sum += r3 BCC checksum_v4_loop ; if (sum64) goto loop MOV r0,r2,LSL #16 MOV r0,r0,ASR #16 ; r0 = (short)sum MOV pc,r14 ; return r0 The compiler is still performing one cast to a 16-bit range, on the function return. You could remove this also by returning an int result as discussed in Section 5.2.2. ■
- 126. 5.2 Basic C Data Types 111 5.2.2 Function Argument Types We saw in Section 5.2.1 that converting local variables from types char or short to type int increases performance and reduces code size. The same holds for function arguments. Consider the following simple function, which adds two 16-bit values, halving the second, and returns a 16-bit sum: short add_v1(short a, short b) { return a + (b 1); } This function is a little artificial, but it is a useful test case to illustrate the problems faced by the compiler. The input values a, b, and the return value will be passed in 32-bit ARM registers. Should the compiler assume that these 32-bit values are in the range of a short type, that is, −32,768 to +32,767? Or should the compiler force values to be in this range by sign-extending the lowest 16 bits to fill the 32-bit register? The compiler must make compatible decisions for the function caller and callee. Either the caller or callee must perform the cast to a short type. We say that function arguments are passed wide if they are not reduced to the range of the type and narrow if they are. You can tell which decision the compiler has made by looking at the assembly output for add_v1. If the compiler passes arguments wide, then the callee must reduce function arguments to the correct range. If the compiler passes arguments narrow, then the caller must reduce the range. If the compiler returns values wide, then the caller must reduce the return value to the correct range. If the compiler returns values narrow, then the callee must reduce the range before returning the value. For armcc in ADS, function arguments are passed narrow and values returned narrow. In other words, the caller casts argument values and the callee casts return values. The compiler uses the ANSI prototype of the function to determine the datatypes of the function arguments. The armcc output for add_v1 shows that the compiler casts the return value to a short type, but does not cast the input values. It assumes that the caller has already ensured that the 32-bit values r0 and r1 are in the range of the short type. This shows narrow passing of arguments and return value. add_v1 ADD r0,r0,r1,ASR #1 ; r0 = (int)a + ((int)b 1) MOV r0,r0,LSL #16 MOV r0,r0,ASR #16 ; r0 = (short)r0 MOV pc,r14 ; return r0 The gcc compiler we used is more cautious and makes no assumptions about the range of argument value. This version of the compiler reduces the input arguments to the range
- 127. 112 Chapter 5 Efficient C Programming of a short in both the caller and the callee. It also casts the return value to a short type. Here is the compiled code for add_v1: add_v1_gcc MOV r0, r0, LSL #16 MOV r1, r1, LSL #16 MOV r1, r1, ASR #17 ; r1 = (int)b 1 ADD r1, r1, r0, ASR #16 ; r1 += (int)a MOV r1, r1, LSL #16 MOV r0, r1, ASR #16 ; r0 = (short)r1 MOV pc, lr ; return r0 Whatever the merits of different narrow and wide calling protocols, you can see that char or short type function arguments and return values introduce extra casts. These increase code size and decrease performance. It is more efficient to use the int type for function arguments and return values, even if you are only passing an 8-bit value. 5.2.3 Signed versus Unsigned Types The previous sections demonstrate the advantages of using int rather than a char or short type for local variables and function arguments. This section compares the efficiencies of signed int and unsigned int. If your code uses addition, subtraction, and multiplication, then there is no performance difference between signed and unsigned operations. However, there is a difference when it comes to division. Consider the following short example that averages two integers: int average_v1(int a, int b) { return (a+b)/2; } This compiles to average_v1 ADD r0,r0,r1 ; r0 = a + b ADD r0,r0,r0,LSR #31 ; if (r00) r0++ MOV r0,r0,ASR #1 ; r0 = r0 1 MOV pc,r14 ; return r0 Notice that the compiler adds one to the sum before shifting by right if the sum is negative. In other words it replaces x/2 by the statement: (x0) ? ((x+1) 1): (x 1)
- 128. 5.3 C Looping Structures 113 It must do this because x is signed. In C on an ARM target, a divide by two is not a right shift if x is negative. For example, −3 1 = −2 but −3/2 = −1. Division rounds towards zero, but arithmetic right shift rounds towards −∞. It is more efficient to use unsigned types for divisions. The compiler converts unsigned power of two divisions directly to right shifts. For general divisions, the divide routine in the C library is faster for unsigned types. See Section 5.10 for discussion on avoiding divisions completely. Summary The Efficient Use of C Types ■ For local variables held in registers, don’t use a char or short type unless 8-bit or 16-bit modular arithmetic is necessary. Use the signed or unsigned int types instead. Unsigned types are faster when you use divisions. ■ For array entries and global variables held in main memory, use the type with the smallest size possible to hold the required data. This saves memory footprint. The ARMv4 architecture is efficient at loading and storing all data widths provided you traverse arrays by incrementing the array pointer. Avoid using offsets from the base of the array with short type arrays, as LDRH does not support this. ■ Use explicit casts when reading array entries or global variables into local variables, or writing local variables out to array entries. The casts make it clear that for fast operation you are taking a narrow width type stored in memory and expanding it to a wider type in the registers. Switch on implicit narrowing cast warnings in the compiler to detect implicit casts. ■ Avoid implicit or explicit narrowing casts in expressions because they usually cost extra cycles. Casts on loads or stores are usually free because the load or store instruction performs the cast for you. ■ Avoid char and short types for function arguments or return values. Instead use the int type even if the range of the parameter is smaller. This prevents the compiler performing unnecessary casts. 5.3 C Looping Structures This section looks at the most efficient ways to code for and while loops on the ARM. We start by looking at loops with a fixed number of iterations and then move on to loops with a variable number of iterations. Finally we look at loop unrolling. 5.3.1 Loops with a Fixed Number of Iterations What is the most efficient way to write a for loop on the ARM? Let’s return to our checksum example and look at the looping structure.
- 129. 114 Chapter 5 Efficient C Programming Here is the last version of the 64-word packet checksum routine we studied in Section 5.2. This shows how the compiler treats a loop with incrementing count i++. int checksum_v5(int *data) { unsigned int i; int sum=0; for (i=0; i64; i++) { sum += *(data++); } return sum; } This compiles to checksum_v5 MOV r2,r0 ; r2 = data MOV r0,#0 ; sum = 0 MOV r1,#0 ; i = 0 checksum_v5_loop LDR r3,[r2],#4 ; r3 = *(data++) ADD r1,r1,#1 ; i++ CMP r1,#0x40 ; compare i, 64 ADD r0,r3,r0 ; sum += r3 BCC checksum_v5_loop ; if (i64) goto loop MOV pc,r14 ; return sum It takes three instructions to implement the for loop structure: ■ An ADD to increment i ■ A compare to check if i is less than 64 ■ A conditional branch to continue the loop if i 64 This is not efficient. On the ARM, a loop should only use two instructions: ■ A subtract to decrement the loop counter, which also sets the condition code flags on the result ■ A conditional branch instruction The key point is that the loop counter should count down to zero rather than counting up to some arbitrary limit. Then the comparison with zero is free since the result is stored
- 130. 5.3 C Looping Structures 115 in the condition flags. Since we are no longer using i as an array index, there is no problem in counting down rather than up. Example 5.2 This example shows the improvement if we switch to a decrementing loop rather than an incrementing loop. int checksum_v6(int *data) { unsigned int i; int sum=0; for (i=64; i!=0; i--) { sum += *(data++); } return sum; } This compiles to checksum_v6 MOV r2,r0 ; r2 = data MOV r0,#0 ; sum = 0 MOV r1,#0x40 ; i = 64 checksum_v6_loop LDR r3,[r2],#4 ; r3 = *(data++) SUBS r1,r1,#1 ; i-- and set flags ADD r0,r3,r0 ; sum += r3 BNE checksum_v6_loop ; if (i!=0) goto loop MOV pc,r14 ; return sum The SUBS and BNE instructions implement the loop. Our checksum example now has the minimum number of four instructions per loop. This is much better than six for checksum_v1 and eight for checksum_v3. ■ For an unsigned loop counter i we can use either of the loop continuation conditions i!=0 or i0. As i can’t be negative, they are the same condition. For a signed loop counter, it is tempting to use the condition i0 to continue the loop. You might expect the compiler to generate the following two instructions to implement the loop: SUBS r1,r1,#1 ; compare i with 1, i=i-1 BGT loop ; if (i+11) goto loop
- 131. 116 Chapter 5 Efficient C Programming In fact, the compiler will generate SUB r1,r1,#1 ; i-- CMP r1,#0 ; compare i with 0 BGT loop ; if (i0) goto loop The compiler is not being inefficient. It must be careful about the case when i = -0x80000000 because the two sections of code generate different answers in this case. For the first piece of code the SUBS instruction compares i with 1 and then decrements i. Since -0x80000000 1, the loop terminates. For the second piece of code, we decrement i and then compare with 0. Modulo arithmetic means that i now has the value +0x7fffffff, which is greater than zero. Thus the loop continues for many iterations. Of course, in practice, i rarely takes the value -0x80000000. The compiler can’t usu- ally determine this, especially if the loop starts with a variable number of iterations (see Section 5.3.2). Therefore you should use the termination condition i!=0 for signed or unsigned loop counters. It saves one instruction over the condition i0 for signed i. 5.3.2 Loops Using a Variable Number of Iterations Now suppose we want our checksum routine to handle packets of arbitrary size. We pass in a variable N giving the number of words in the data packet. Using the lessons from the last section we count down until N = 0 and don’t require an extra loop counter i. The checksum_v7 example shows how the compiler handles a for loop with a variable number of iterations N. int checksum_v7(int *data, unsigned int N) { int sum=0; for (; N!=0; N--) { sum += *(data++); } return sum; } This compiles to checksum_v7 MOV r2,#0 ; sum = 0 CMP r1,#0 ; compare N, 0 BEQ checksum_v7_end ; if (N==0) goto end
- 132. 5.3 C Looping Structures 117 checksum_v7_loop LDR r3,[r0],#4 ; r3 = *(data++) SUBS r1,r1,#1 ; N-- and set flags ADD r2,r3,r2 ; sum += r3 BNE checksum_v7_loop ; if (N!=0) goto loop checksum_v7_end MOV r0,r2 ; r0 = sum MOV pc,r14 ; return r0 Notice that the compiler checks that N is nonzero on entry to the function. Often this check is unnecessary since you know that the array won’t be empty. In this case a do-while loop gives better performance and code density than a for loop. Example 5.3 This example shows how to use a do-while loop to remove the test for N being zero that occurs in a for loop. int checksum_v8(int *data, unsigned int N) { int sum=0; do { sum += *(data++); } while (--N!=0); return sum; } The compiler output is now checksum_v8 MOV r2,#0 ; sum = 0 checksum_v8_loop LDR r3,[r0],#4 ; r3 = *(data++) SUBS r1,r1,#1 ; N-- and set flags ADD r2,r3,r2 ; sum += r3 BNE checksum_v8_loop ; if (N!=0) goto loop MOV r0,r2 ; r0 = sum MOV pc,r14 ; return r0 Compare this with the output for checksum_v7 to see the two-cycle saving. ■ 5.3.3 Loop Unrolling We saw in Section 5.3.1 that each loop iteration costs two instructions in addition to the body of the loop: a subtract to decrement the loop count and a conditional branch.
- 133. 118 Chapter 5 Efficient C Programming We call these instructions the loop overhead. On ARM7 or ARM9 processors the subtract takes one cycle and the branch three cycles, giving an overhead of four cycles per loop. You can save some of these cycles by unrolling a loop—repeating the loop body several times, and reducing the number of loop iterations by the same proportion. For example, let’s unroll our packet checksum example four times. Example 5.4 The following code unrolls our packet checksum loop by four times. We assume that the number of words in the packet N is a multiple of four. int checksum_v9(int *data, unsigned int N) { int sum=0; do { sum += *(data++); sum += *(data++); sum += *(data++); sum += *(data++); N -= 4; } while ( N!=0); return sum; } This compiles to checksum_v9 MOV r2,#0 ; sum = 0 checksum_v9_loop LDR r3,[r0],#4 ; r3 = *(data++) SUBS r1,r1,#4 ; N -= 4 set flags ADD r2,r3,r2 ; sum += r3 LDR r3,[r0],#4 ; r3 = *(data++) ADD r2,r3,r2 ; sum += r3 LDR r3,[r0],#4 ; r3 = *(data++) ADD r2,r3,r2 ; sum += r3 LDR r3,[r0],#4 ; r3 = *(data++) ADD r2,r3,r2 ; sum += r3 BNE checksum_v9_loop ; if (N!=0) goto loop MOV r0,r2 ; r0 = sum MOV pc,r14 ; return r0
- 134. 5.3 C Looping Structures 119 Wehavereducedtheloopoverheadfrom4Ncyclesto(4N)/4=Ncycles. OntheARM7TDMI, this accelerates the loop from 8 cycles per accumulate to 20/4 = 5 cycles per accumulate, nearly doubling the speed! For the ARM9TDMI, which has a faster load instruction, the benefit is even higher. ■ There are two questions you need to ask when unrolling a loop: ■ How many times should I unroll the loop? ■ What if the number of loop iterations is not a multiple of the unroll amount? For example, what if N is not a multiple of four in checksum_v9? To start with the first question, only unroll loops that are important for the overall performance of the application. Otherwise unrolling will increase the code size with little performance benefit. Unrolling may even reduce performance by evicting more important code from the cache. Suppose the loop is important, for example, 30% of the entire application. Suppose you unroll the loop until it is 0.5 KB in code size (128 instructions). Then the loop overhead is at most 4 cycles compared to a loop body of around 128 cycles. The loop overhead cost is 3/128, roughly 3%. Recalling that the loop is 30% of the entire application, overall the loop overhead is only 1%. Unrolling the code further gains little extra performance, but has a significant impact on the cache contents. It is usually not worth unrolling further when the gain is less than 1%. For the second question, try to arrange it so that array sizes are multiples of your unroll amount. If this isn’t possible, then you must add extra code to take care of the leftover cases. This increases the code size a little but keeps the performance high. Example 5.5 This example handles the checksum of any size of data packet using a loop that has been unrolled four times. int checksum_v10(int *data, unsigned int N) { unsigned int i; int sum=0; for (i=N/4; i!=0; i--) { sum += *(data++); sum += *(data++); sum += *(data++); sum += *(data++); } for (i=N3; i!=0; i--) {
- 135. 120 Chapter 5 Efficient C Programming sum += *(data++); } return sum; } The second for loop handles the remaining cases when N is not a multiple of four. Note that both N/4 and N3 can be zero, so we can’t use do-while loops. ■ Summary Writing Loops Efficiently ■ Use loops that count down to zero. Then the compiler does not need to allocate a register to hold the termination value, and the comparison with zero is free. ■ Use unsigned loop counters by default and the continuation condition i!=0 rather than i0. This will ensure that the loop overhead is only two instructions. ■ Use do-while loops rather than for loops when you know the loop will iterate at least once. This saves the compiler checking to see if the loop count is zero. ■ Unroll important loops to reduce the loop overhead. Do not overunroll. If the loop overhead is small as a proportion of the total, then unrolling will increase code size and hurt the performance of the cache. ■ Try to arrange that the number of elements in arrays are multiples of four or eight. You can then unroll loops easily by two, four, or eight times without worrying about the leftover array elements. 5.4 Register Allocation The compiler attempts to allocate a processor register to each local variable you use in a C function. It will try to use the same register for different local variables if the use of the variables do not overlap. When there are more local variables than available registers, the compiler stores the excess variables on the processor stack. These variables are called spilled or swapped out variables since they are written out to memory (in a similar way virtual memory is swapped out to disk). Spilled variables are slow to access compared to variables allocated to registers. To implement a function efficiently, you need to ■ minimize the number of spilled variables ■ ensure that the most important and frequently accessed variables are stored in registers First let’s look at the number of processor registers the ARM C compilers have avail- able for allocating variables. Table 5.3 shows the standard register names and usage when following the ARM-Thumb procedure call standard (ATPCS), which is used in code generated by C compilers.
- 136. 5.4 Register Allocation 121 Table 5.3 C compiler register usage. Alternate Register register number names ATPCS register usage r0 r1 r2 r3 a1 a2 a3 a4 Argument registers. These hold the first four function arguments on a function call and the return value on a function return. A function may corrupt these registers and use them as general scratch registers within the function. r4 r5 r6 r7 r8 v1 v2 v3 v4 v5 General variable registers. The function must preserve the callee values of these registers. r9 v6 sb General variable register. The function must preserve the callee value of this register except when compiling for read-write position independence (RWPI). Then r9 holds the static base address. This is the address of the read-write data. r10 v7 sl General variable register. The function must preserve the callee value of this register except when compiling with stack limit checking. Then r10 holds the stack limit address. r11 v8 fp General variable register. The function must preserve the callee value of this register except when compiling using a frame pointer. Only old versions of armcc use a frame pointer. r12 ip A general scratch register that the function can corrupt. It is useful as a scratch register for function veneers or other intraprocedure call requirements. r13 sp The stack pointer, pointing to the full descending stack. r14 lr The link register. On a function call this holds the return address. r15 pc The program counter. Provided the compiler is not using software stack checking or a frame pointer, then the C compiler can use registers r0 to r12 and r14 to hold variables. It must save the callee values of r4 to r11 and r14 on the stack if using these registers. In theory, the C compiler can assign 14 variables to registers without spillage. In practice, some compilers use a fixed register such as r12 for intermediate scratch working and do not assign variables to this register. Also, complex expressions require intermediate working registers to evaluate. Therefore, to ensure good assignment to registers, you should try to limit the internal loop of functions to using at most 12 local variables.
- 137. 122 Chapter 5 Efficient C Programming If the compiler does need to swap out variables, then it chooses which variables to swap out based on frequency of use. A variable used inside a loop counts multiple times. You can guide the compiler as to which variables are important by ensuring these variables are used within the innermost loop. The register keyword in C hints that a compiler should allocate the given variable to a register. However, different compilers treat this keyword in different ways, and different architectures have a different number of available registers (for example, Thumb and ARM). Therefore we recommend that you avoid using register and rely on the compiler’s normal register allocation routine. Summary Efficient Register Allocation ■ Try to limit the number of local variables in the internal loop of functions to 12. The compiler should be able to allocate these to ARM registers. ■ You can guide the compiler as to which variables are important by ensuring these variables are used within the innermost loop. 5.5 Function Calls The ARM Procedure Call Standard (APCS) defines how to pass function arguments and return values in ARM registers. The more recent ARM-Thumb Procedure Call Standard (ATPCS) covers ARM and Thumb interworking as well. The first four integer arguments are passed in the first four ARM registers: r0, r1, r2, and r3. Subsequent integer arguments are placed on the full descending stack, ascending in memory as in Figure 5.1. Function return integer values are passed in r0. This description covers only integer or pointer arguments. Two-word arguments such as long long or double are passed in a pair of consecutive argument registers and returned in r0, r1. The compiler may pass structures in registers or by reference according to command line compiler options. The first point to note about the procedure call standard is the four-register rule. Functions with four or fewer arguments are far more efficient to call than functions with five or more arguments. For functions with four or fewer arguments, the compiler can pass all the arguments in registers. For functions with more arguments, both the caller and callee must access the stack for some arguments. Note that for C++ the first argument to an object method is the this pointer. This argument is implicit and additional to the explicit arguments. If your C function needs more than four arguments, or your C++ method more than three explicit arguments, then it is almost always more efficient to use structures. Group related arguments into structures, and pass a structure pointer rather than mul- tiple arguments. Which arguments are related will depend on the structure of your software.
- 138. 5.5 Function Calls 123 Argument 8 … … Argument 7 Argument 6 Argument 5 Argument 4 sp + 16 sp + 12 sp + 8 sp + 4 sp Argument 3 Argument 2 Argument 1 Argument 0 Return value r3 r2 r1 r0 Figure 5.1 ATPCS argument passing. The next example illustrates the benefits of using a structure pointer. First we show a typicalroutinetoinsertNbytesfromarraydataintoaqueue. Weimplementthequeueusing a cyclic buffer with start address Q_start (inclusive) and end address Q_end (exclusive). char *queue_bytes_v1( char *Q_start, /* Queue buffer start address */ char *Q_end, /* Queue buffer end address */ char *Q_ptr, /* Current queue pointer position */ char *data, /* Data to insert into the queue */ unsigned int N) /* Number of bytes to insert */ { do { *(Q_ptr++) = *(data++); if (Q_ptr == Q_end) { Q_ptr = Q_start; } } while (--N); return Q_ptr; }
- 139. 124 Chapter 5 Efficient C Programming This compiles to queue_bytes_v1 STR r14,[r13,#-4]! ; save lr on the stack LDR r12,[r13,#4] ; r12 = N queue_v1_loop LDRB r14,[r3],#1 ; r14 = *(data++) STRB r14,[r2],#1 ; *(Q_ptr++) = r14 CMP r2,r1 ; if (Q_ptr == Q_end) MOVEQ r2,r0 ; {Q_ptr = Q_start;} SUBS r12,r12,#1 ; --N and set flags BNE queue_v1_loop ; if (N!=0) goto loop MOV r0,r2 ; r0 = Q_ptr LDR pc,[r13],#4 ; return r0 Compare this with a more structured approach using three function arguments. Example 5.6 The following code creates a Queue structure and passes this to the function to reduce the number of function arguments. typedef struct { char *Q_start; /* Queue buffer start address */ char *Q_end; /* Queue buffer end address */ char *Q_ptr; /* Current queue pointer position */ } Queue; void queue_bytes_v2(Queue *queue, char *data, unsigned int N) { char *Q_ptr = queue-Q_ptr; char *Q_end = queue-Q_end; do { *(Q_ptr++) = *(data++); if (Q_ptr == Q_end) { Q_ptr = queue-Q_start; } } while (--N); queue-Q_ptr = Q_ptr; }
- 140. 5.5 Function Calls 125 This compiles to queue_bytes_v2 STR r14,[r13,#-4]! ; save lr on the stack LDR r3,[r0,#8] ; r3 = queue-Q_ptr LDR r14,[r0,#4] ; r14 = queue-Q_end queue_v2_loop LDRB r12,[r1],#1 ; r12 = *(data++) STRB r12,[r3],#1 ; *(Q_ptr++) = r12 CMP r3,r14 ; if (Q_ptr == Q_end) LDREQ r3,[r0,#0] ; Q_ptr = queue-Q_start SUBS r2,r2,#1 ; --N and set flags BNE queue_v2_loop ; if (N!=0) goto loop STR r3,[r0,#8] ; queue-Q_ptr = r3 LDR pc,[r13],#4 ; return ■ The queue_bytes_v2 is one instruction longer than queue_bytes_v1, but it is in fact more efficient overall. The second version has only three function arguments rather than five. Each call to the function requires only three register setups. This compares with four register setups, a stack push, and a stack pull for the first version. There is a net saving of two instructions in function call overhead. There are likely further savings in the callee function, as it only needs to assign a single register to the Queue structure pointer, rather than three registers in the nonstructured case. There are other ways of reducing function call overhead if your function is very small and corrupts few registers (uses few local variables). Put the C function in the same C file as the functions that will call it. The C compiler then knows the code generated for the callee function and can make optimizations in the caller function: ■ The caller function need not preserve registers that it can see the callee doesn’t corrupt. Therefore the caller function need not save all the ATPCS corruptible registers. ■ If the callee function is very small, then the compiler can inline the code in the caller function. This removes the function call overhead completely. Example 5.7 The function uint_to_hex converts a 32-bit unsigned integer into an array of eight hexa- decimal digits. It uses a helper function nybble_to_hex, which converts a digit d in the range 0 to 15 to a hexadecimal digit. unsigned int nybble_to_hex(unsigned int d) { if (d10) { return d + ’0’;
- 141. 126 Chapter 5 Efficient C Programming } return d - 10 + ’A’; } void uint_to_hex(char *out, unsigned int in) { unsigned int i; for (i=8; i!=0; i--) { in = (in 4) | (in 28); /* rotate in left by 4 bits */ *(out++) = (char)nybble_to_hex(in 15); } } When we compile this, we see that uint_to_hex doesn’t call nybble_to_hex at all! In the following compiled code, the compiler has inlined the uint_to_hex code. This is more efficient than generating a function call. uint_to_hex MOV r3,#8 ; i = 8 uint_to_hex_loop MOV r1,r1,ROR #28 ; in = (in 4)|(in 28) AND r2,r1,#0xf ; r2 = in 15 CMP r2,#0xa ; if (r2=10) ADDCS r2,r2,#0x37 ; r2 +=’A’-10 ADDCC r2,r2,#0x30 ; else r2 +=’0’ STRB r2,[r0],#1 ; *(out++) = r2 SUBS r3,r3,#1 ; i-- and set flags BNE uint_to_hex_loop ; if (i!=0) goto loop MOV pc,r14 ; return ■ The compiler will only inline small functions. You can ask the compiler to inline a function using the __inline keyword, although this keyword is only a hint and the compiler may ignore it (see Section 5.12 for more on inline functions). Inlining large functions can lead to big increases in code size without much performance improvement. Summary Calling Functions Efficiently ■ Try to restrict functions to four arguments. This will make them more efficient to call. Use structures to group related arguments and pass structure pointers instead of multiple arguments.
- 142. 5.6 Pointer Aliasing 127 ■ Define small functions in the same source file and before the functions that call them. The compiler can then optimize the function call or inline the small function. ■ Critical functions can be inlined using the __inline keyword. 5.6 Pointer Aliasing Two pointers are said to alias when they point to the same address. If you write to one pointer, it will affect the value you read from the other pointer. In a function, the compiler often doesn’t know which pointers can alias and which pointers can’t. The compiler must be very pessimistic and assume that any write to a pointer may affect the value read from any other pointer, which can significantly reduce code efficiency. Let’s start with a very simple example. The following function increments two timer values by a step amount: void timers_v1(int *timer1, int *timer2, int *step) { *timer1 += *step; *timer2 += *step; } This compiles to timers_v1 LDR r3,[r0,#0] ; r3 = *timer1 LDR r12,[r2,#0] ; r12 = *step ADD r3,r3,r12 ; r3 += r12 STR r3,[r0,#0] ; *timer1 = r3 LDR r0,[r1,#0] ; r0 = *timer2 LDR r2,[r2,#0] ; r2 = *step ADD r0,r0,r2 ; r0 += r2 STR r0,[r1,#0] ; *timer2 = t0 MOV pc,r14 ; return Note that the compiler loads from step twice. Usually a compiler optimization called common subexpression elimination would kick in so that *step was only evaluated once, and the value reused for the second occurrence. However, the compiler can’t use this optimization here. The pointers timer1 and step might alias one another. In other words, the compiler cannot be sure that the write to timer1 doesn’t affect the read from step.
- 143. 128 Chapter 5 Efficient C Programming In this case the second value of *step is different from the first and has the value *timer1. This forces the compiler to insert an extra load instruction. The same problem occurs if you use structure accesses rather than direct pointer access. The following code also compiles inefficiently: typedef struct {int step;} State; typedef struct {int timer1, timer2;} Timers; void timers_v2(State *state, Timers *timers) { timers-timer1 += state-step; timers-timer2 += state-step; } The compiler evaluates state-step twice in case state-step and timers-timer1 are at the same memory address. The fix is easy: Create a new local variable to hold the value of state-step so the compiler only performs a single load. Example 5.8 In the code for timers_v3 we use a local variable step to hold the value of state-step. Now the compiler does not need to worry that state may alias with timers. void timers_v3(State *state, Timers *timers) { int step = state-step; timers-timer1 += step; timers-timer2 += step; } ■ You must also be careful of other, less obvious situations where aliasing may occur. When you call another function, this function may alter the state of memory and so change the values of any expressions involving memory reads. The compiler will evaluate the expressions again. For example suppose you read state-step, call a function and then read state-step again. The compiler must assume that the function could change the value of state-step in memory. Therefore it will perform two reads, rather than reusing the first value it read for state-step. Another pitfall is to take the address of a local variable. Once you do this, the variable is referenced by a pointer and so aliasing can occur with other pointers. The compiler is likely to keep reading the variable from the stack in case aliasing occurs. Consider the following example, which reads and then checksums a data packet: int checksum_next_packet(void) { int *data; int N, sum=0;
- 144. 5.6 Pointer Aliasing 129 data = get_next_packet(N); do { sum += *(data++); } while (--N); return sum; } Here get_next_packet is a function returning the address and size of the next data packet. The previous code compiles to checksum_next_packet STMFD r13!,{r4,r14} ; save r4, lr on the stack SUB r13,r13,#8 ; create two stacked variables ADD r0,r13,#4 ; r0 = N, N stacked MOV r4,#0 ; sum = 0 BL get_next_packet ; r0 = data checksum_loop LDR r1,[r0],#4 ; r1 = *(data++) ADD r4,r1,r4 ; sum += r1 LDR r1,[r13,#4] ; r1 = N (read from stack) SUBS r1,r1,#1 ; r1-- set flags STR r1,[r13,#4] ; N = r1 (write to stack) BNE checksum_loop ; if (N!=0) goto loop MOV r0,r4 ; r0 = sum ADD r13,r13,#8 ; delete stacked variables LDMFD r13!,{r4,pc} ; return r0 Note how the compiler reads and writes N from the stack for every N--. Once you take the address of N and pass it to get_next_packet, the compiler needs to worry about aliasing because the pointers data and N may alias. To avoid this, don’t take the address of local variables. If you must do this, then copy the value into another local variable before use. You may wonder why the compiler makes room for two stacked variables when it only uses one. This is to keep the stack eight-byte aligned, which is required for LDRD instructions available in ARMv5TE. The example above doesn’t actually use an LDRD, but the compiler does not know whether get_next_packet will use this instruction.
- 145. 130 Chapter 5 Efficient C Programming Summary Avoiding Pointer Aliasing ■ Do not rely on the compiler to eliminate common subexpressions involving memory accesses. Instead create new local variables to hold the expression. This ensures the expression is evaluated only once. ■ Avoid taking the address of local variables. The variable may be inefficient to access from then on. 5.7 Structure Arrangement The way you lay out a frequently used structure can have a significant impact on its perfor- mance and code density. There are two issues concerning structures on the ARM: alignment of the structure entries and the overall size of the structure. For architectures up to and including ARMv5TE, load and store instructions are only guaranteed to load and store values with address aligned to the size of the access width. Table 5.4 summarizes these restrictions. For this reason, ARM compilers will automatically align the start address of a structure to a multiple of the largest access width used within the structure (usually four or eight bytes) and align entries within structures to their access width by inserting padding. For example, consider the structure struct { char a; int b; char c; short d; } For a little-endian memory system the compiler will lay this out adding padding to ensure that the next object is aligned to the size of that object: Address +3 +2 +1 +0 +0 pad pad pad a +4 b[31,24] b[23,16] b[15,8] b[7,0] +8 d[15,8] d[7,0] pad c Table 5.4 Load and store alignment restrictions for ARMv5TE. Transfer size Instruction Byte address 1 byte LDRB, LDRSB, STRB any byte address alignment 2 bytes LDRH, LDRSH, STRH multiple of 2 bytes 4 bytes LDR, STR multiple of 4 bytes 8 bytes LDRD, STRD multiple of 8 bytes
- 146. 5.7 Structure Arrangement 131 To improve the memory usage, you should reorder the elements struct { char a; char c; short d; int b; } This reduces the structure size from 12 bytes to 8 bytes, with the following new layout: Address +3 +2 +1 +0 +0 d[15,8] d[7,0] c a +4 b[31,24] b[23,16] b[15,8] b[7,0] Therefore, it is a good idea to group structure elements of the same size, so that the structure layout doesn’t contain unnecessary padding. The armcc compiler does include a keyword __packed that removes all padding. For example, the structure __packed struct { char a; int b; char c; short d; } will be laid out in memory as Address +3 +2 +1 +0 +0 b[23,16] b[15,8] b[7,0] a +4 d[15,8] d[7,0] c b[31,24] However, packed structures are slow and inefficient to access. The compiler emulates unaligned load and store operations by using several aligned accesses with data operations to merge the results. Only use the __packed keyword where space is far more important than speed and you can’t reduce padding by rearragement. Also use it for porting code that assumes a certain structure layout in memory. The exact layout of a structure in memory may depend on the compiler vendor and compiler version you use. In API (Application Programmer Interface) definitions it is often
- 147. 132 Chapter 5 Efficient C Programming a good idea to insert any padding that you cannot get rid of into the structure manually. This way the structure layout is not ambiguous. It is easier to link code between compiler versions and compiler vendors if you stick to unambiguous structures. Another point of ambiguity is enum. Different compilers use different sizes for an enu- merated type, depending on the range of the enumeration. For example, consider the type typedef enum { FALSE, TRUE } Bool; The armcc in ADS1.1 will treat Bool as a one-byte type as it only uses the values 0 and 1. Bool will only take up 8 bits of space in a structure. However, gcc will treat Bool as a word and take up 32 bits of space in a structure. To avoid ambiguity it is best to avoid using enum types in structures used in the API to your code. Another consideration is the size of the structure and the offsets of elements within the structure. This problem is most acute when you are compiling for the Thumb instruction set. Thumb instructions are only 16 bits wide and so only allow for small element offsets from a structure base pointer. Table 5.5 shows the load and store base register offsets available in Thumb. Therefore the compiler can only access an 8-bit structure element with a single instruc- tion if it appears within the first 32 bytes of the structure. Similarly, single instructions can only access 16-bit values in the first 64 bytes and 32-bit values in the first 128 bytes. Once you exceed these limits, structure accesses become inefficient. The following rules generate a structure with the elements packed for maximum efficiency: ■ Place all 8-bit elements at the start of the structure. ■ Place all 16-bit elements next, then 32-bit, then 64-bit. ■ Place all arrays and larger elements at the end of the structure. ■ If the structure is too big for a single instruction to access all the elements, then group the elements into substructures. The compiler can maintain pointers to the individual substructures. Table 5.5 Thumb load and store offsets. Instructions Offset available from the base register LDRB, LDRSB, STRB 0 to 31 bytes LDRH, LDRSH, STRH 0 to 31 halfwords (0 to 62 bytes) LDR, STR 0 to 31 words (0 to 124 bytes)
- 148. 5.8 Bit-fields 133 Summary Efficient Structure Arrangement ■ Lay structures out in order of increasing element size. Start the structure with the smallest elements and finish with the largest. ■ Avoid very large structures. Instead use a hierarchy of smaller structures. ■ For portability, manually add padding (that would appear implicitly) into API structures so that the layout of the structure does not depend on the compiler. ■ Beware of using enum types in API structures. The size of an enum type is compiler dependent. 5.8 Bit-fields Bit-fields are probably the least standardized part of the ANSI C specification. The compiler can choose how bits are allocated within the bit-field container. For this reason alone, avoid using bit-fields inside a union or in an API structure definition. Different compilers can assign the same bit-field different bit positions in the container. It is also a good idea to avoid bit-fields for efficiency. Bit-fields are structure ele- ments and usually accessed using structure pointers; consequently, they suffer from the pointer aliasing problems described in Section 5.6. Every bit-field access is really a memory access. Possible pointer aliasing often forces the compiler to reload the bit-field several times. The following example, dostages_v1, illustrates this problem. It also shows that compilers do not tend to optimize bit-field testing very well. void dostageA(void); void dostageB(void); void dostageC(void); typedef struct { unsigned int stageA : 1; unsigned int stageB : 1; unsigned int stageC : 1; } Stages_v1; void dostages_v1(Stages_v1 *stages) { if (stages-stageA) { dostageA(); }
- 149. 134 Chapter 5 Efficient C Programming if (stages-stageB) { dostageB(); } if (stages-stageC) { dostageC(); } } Here, we use three bit-field flags to enable three possible stages of processing. The example compiles to dostages_v1 STMFD r13!,{r4,r14} ; stack r4, lr MOV r4,r0 ; move stages to r4 LDR r0,[r0,#0] ; r0 = stages bitfield TST r0,#1 ; if (stages-stageA) BLNE dostageA ; {dostageA();} LDR r0,[r4,#0] ; r0 = stages bitfield MOV r0,r0,LSL #30 ; shift bit 1 to bit 31 CMP r0,#0 ; if (bit31) BLLT dostageB ; {dostageB();} LDR r0,[r4,#0] ; r0 = stages bitfield MOV r0,r0,LSL #29 ; shift bit 2 to bit 31 CMP r0,#0 ; if (!bit31) LDMLTFD r13!,{r4,r14} ; return BLT dostageC ; dostageC(); LDMFD r13!,{r4,pc} ; return Note that the compiler accesses the memory location containing the bit-field three times. Because the bit-field is stored in memory, the dostage functions could change the value. Also, the compiler uses two instructions to test bit 1 and bit 2 of the bit-field, rather than a single instruction. You can generate far more efficient code by using an integer rather than a bit-field. Use enum or #define masks to divide the integer type into different fields. Example 5.9 The following code implements the dostages function using logical operations rather than bit-fields: typedef unsigned long Stages_v2; #define STAGEA (1ul 0)
- 150. 5.8 Bit-fields 135 #define STAGEB (1ul 1) #define STAGEC (1ul 2) void dostages_v2(Stages_v2 *stages_v2) { Stages_v2 stages = *stages_v2; if (stages STAGEA) { dostageA(); } if (stages STAGEB) { dostageB(); } if (stages STAGEC) { dostageC(); } } Now that a single unsigned long type contains all the bit-fields, we can keep a copy of their values in a single local variable stages, which removes the memory aliasing problem discussed in Section 5.6. In other words, the compiler must assume that the dostageX (where X is A, B, or C) functions could change the value of *stages_v2. The compiler generates the following code giving a saving of 33% over the previous version using ANSI bit-fields: dostages_v2 STMFD r13!,{r4,r14} ; stack r4, lr LDR r4,[r0,#0] ; stages = *stages_v2 TST r4,#1 ; if (stage STAGEA) BLNE dostageA ; {dostageA();} TST r4,#2 ; if (stage STAGEB) BLNE dostageB ; {dostageB();} TST r4,#4 ; if (!(stage STAGEC)) LDMNEFD r13!,{r4,r14} ; return; BNE dostageC ; dostageC(); LDMFD r13!,{r4,pc} ; return ■ You can also use the masks to set and clear the bit-fields, just as easily as for testing them. The following code shows how to set, clear, or toggle bits using the STAGE masks: stages |= STAGEA; /* enable stage A */
- 151. 136 Chapter 5 Efficient C Programming stages = ∼STAGEB; /* disable stage B */ stages ∧= STAGEC; /* toggle stage C */ These bit set, clear, and toggle operations take only one ARM instruction each, using ORR, BIC, and EOR instructions, respectively. Another advantage is that you can now manipulate several bit-fields at the same time, using one instruction. For example: stages |= (STAGEA | STAGEB); /* enable stages A and B */ stages = ∼(STAGEA | STAGEC); /* disable stages A and C */ Summary Bit-fields ■ Avoid using bit-fields. Instead use #define or enum to define mask values. ■ Test, toggle, and set bit-fields using integer logical AND, OR, and exclusive OR oper- ations with the mask values. These operations compile efficiently, and you can test, toggle, or set multiple fields at the same time. 5.9 Unaligned Data and Endianness Unaligned data and endianness are two issues that can complicate memory accesses and portability. Is the array pointer aligned? Is the ARM configured for a big-endian or little- endian memory system? The ARM load and store instructions assume that the address is a multiple of the type you are loading or storing. If you load or store to an address that is not aligned to its type, then the behavior depends on the particular implementation. The core may generate a data abort or load a rotated value. For well-written, portable code you should avoid unaligned accesses. C compilers assume that a pointer is aligned unless you say otherwise. If a pointer isn’t aligned, then the program may give unexpected results. This is sometimes an issue when you are porting code to the ARM from processors that do allow unaligned accesses. For armcc, the __packed directive tells the compiler that a data item can be positioned at any byte alignment. This is useful for porting code, but using __packed will impact performance. To illustrate this, look at the following simple routine, readint. It returns the integer at the address pointed to by data. We’ve used __packed to tell the compiler that the integer may possibly not be aligned. int readint(__packed int *data) { return *data; }
- 152. 5.9 Unaligned Data and Endianness 137 This compiles to readint BIC r3,r0,#3 ; r3 = data 0xFFFFFFFC AND r0,r0,#3 ; r0 = data 0x00000003 MOV r0,r0,LSL #3 ; r0 = bit offset of data word LDMIA r3,{r3,r12} ; r3, r12 = 8 bytes read from r3 MOV r3,r3,LSR r0 ; These three instructions RSB r0,r0,#0x20 ; shift the 64 bit value r12.r3 ORR r0,r3,r12,LSL r0 ; right by r0 bits MOV pc,r14 ; return r0 Notice how large and complex the code is. The compiler emulates the unaligned access using two aligned accesses and data processing operations, which is very costly and shows why you should avoid _packed. Instead use the type char * to point to data that can appear at any alignment. We will look at more efficient ways to read 32-bit words from a char * later. You are likely to meet alignment problems when reading data packets or files used to transfer information between computers. Network packets and compressed image files are good examples. Two- or four-byte integers may appear at arbitrary offsets in these files. Data has been squeezed as much as possible, to the detriment of alignment. Endianness (or byte order) is also a big issue when reading data packets or compressed files. The ARM core can be configured to work in little-endian (least significant byte at lowest address) or big-endian (most significant byte at lowest address) modes. Little-endian mode is usually the default. The endianness of an ARM is usually set at power-up and remains fixed thereafter. Tables 5.6 and 5.7 illustrate how the ARM’s 8-bit, 16-bit, and 32-bit load and store instruc- tions work for different endian configurations. We assume that byte address A is aligned to Table 5.6 Little-endian configuration. Instruction Width (bits) b31..b24 b23..b16 b15..b8 b7..b0 LDRB 8 0 0 0 B(A) LDRSB 8 S(A) S(A) S(A) B(A) STRB 8 X X X B(A) LDRH 16 0 0 B(A+1) B(A) LDRSH 16 S(A+1) S(A+1) B(A+1) B(A) STRH 16 X X B(A+1) B(A) LDR/STR 32 B(A+3) B(A+2) B(A+1) B(A)
- 153. 138 Chapter 5 Efficient C Programming Table 5.7 Big-endian configuration. Instruction Width (bits) b31..b24 b23..b16 b15..b8 b7..b0 LDRB 8 0 0 0 B(A) LDRSB 8 S(A) S(A) S(A) B(A) STRB 8 X X X B(A) LDRH 16 0 0 B(A) B(A+1) LDRSH 16 S(A) S(A) B(A) B(A+1) STRH 16 X X B(A) B(A+1) LDR/STR 32 B(A) B(A+1) B(A+2) B(A+3) Notes: B(A): The byte at address A. S(A): 0xFF if bit 7 of B(A) is set, otherwise 0x00. X: These bits are ignored on a write. the size of the memory transfer. The tables show how the byte addresses in memory map into the 32-bit register that the instruction loads or stores. What is the best way to deal with endian and alignment problems? If speed is not critical, then use functions like readint_little and readint_big in Example 5.10, which read a four-byte integer from a possibly unaligned address in memory. The address alignment is not known at compile time, only at run time. If you’ve loaded a file containing big- endian data such as a JPEG image, then use readint_big. For a bytestream containing little-endian data, use readint_little. Both routines will work correctly regardless of the memory endianness ARM is configured for. Example 5.10 These functions read a 32-bit integer from a bytestream pointed to by data. The bytestream contains little- or big-endian data, respectively. These functions are independent of the ARM memory system byte order since they only use byte accesses. int readint_little(char *data) { int a0,a1,a2,a3; a0 = *(data++); a1 = *(data++); a2 = *(data++); a3 = *(data++); return a0 | (a1 8) | (a2 16) | (a3 24); } int readint_big(char *data)
- 154. 5.9 Unaligned Data and Endianness 139 { int a0,a1,a2,a3; a0 = *(data++); a1 = *(data++); a2 = *(data++); a3 = *(data++); return (((((a0 8) | a1) 8) | a2) 8) | a3; } ■ If speed is critical, then the fastest approach is to write several variants of the critical routine. For each possible alignment and ARM endianness configuration, you call a separate routine optimized for that situation. Example 5.11 The read_samples routine takes an array of N 16-bit sound samples at address in. The sound samples are little-endian (for example from a.wav file) and can be at any byte alignment. The routine copies the samples to an aligned array of short type values pointed to by out. The samples will be stored according to the configured ARM memory endianness. The routine handles all cases in an efficient manner, regardless of input alignment and of ARM endianness configuration. void read_samples(short *out, char *in, unsigned int N) { unsigned short *data; /* aligned input pointer */ unsigned int sample, next; switch ((unsigned int)in 1) { case 0: /* the input pointer is aligned */ data = (unsigned short *)in; do { sample = *(data++); #ifdef __BIG_ENDIAN sample = (sample 8) | (sample 8); #endif *(out++) = (short)sample; } while (--N); break; case 1: /* the input pointer is not aligned */ data = (unsigned short *)(in-1); sample = *(data++);
- 155. 140 Chapter 5 Efficient C Programming #ifdef __BIG_ENDIAN sample = sample 0xFF; /* get first byte of sample */ #else sample = sample 8; /* get first byte of sample */ #endif do { next = *(data++); /* complete one sample and start the next */ #ifdef __BIG_ENDIAN *out++ = (short)((next 0xFF00) | sample); sample = next 0xFF; #else *out++ = (short)((next 8) | sample); sample = next 8; #endif } while (--N); break; } } The routine works by having different code for each endianness and alignment. Endianness is dealt with at compile time using the __BIG_ENDIAN compiler flag. Alignment must be dealt with at run time using the switch statement. You can make the routine even more efficient by using 32-bit reads and writes rather than 16-bit reads and writes, which leads to four elements in the switch statement, one for each possible address alignment modulo four. ■ Summary Endianness and Alignment ■ Avoid using unaligned data if you can. ■ Use the type char * for data that can be at any byte alignment. Access the data by reading bytes and combining with logical operations. Then the code won’t depend on alignment or ARM endianness configuration. ■ For fast access to unaligned structures, write different variants according to pointer alignment and processor endianness. 5.10 Division The ARM does not have a divide instruction in hardware. Instead the compiler implements divisions by calling software routines in the C library. There are many different types of
- 156. 5.10 Division 141 division routine that you can tailor to a specific range of numerator and denominator values. We look at assembly division routines in detail in Chapter 7. The standard integer division routine provided in the C library can take between 20 and 100 cycles, depending on implementation, early termination, and the ranges of the input operands. Division and modulus (/ and %) are such slow operations that you should avoid them as much as possible. However, division by a constant and repeated division by the same denominator can be handled efficiently. This section describes how to replace certain divisions by multiplications and how to minimize the number of division calls. Circular buffers are one area where programmers often use division, but you can avoid these divisions completely. Suppose you have a circular buffer of size buffer_size bytes and a position indicated by a buffer offset. To advance the offset by increment bytes you could write offset = (offset + increment) % buffer_size; Instead it is far more efficient to write offset += increment; if (offset=buffer_size) { offset -= buffer_size; } The first version may take 50 cycles; the second will take 3 cycles because it does not involve a division. We’ve assumed that increment buffer_size; you can always arrange this in practice. If you can’t avoid a division, then try to arrange that the numerator and denominator are unsigned integers. Signed division routines are slower since they take the absolute values of the numerator and denominator and then call the unsigned division routine. They fix the sign of the result afterwards. Many C library division routines return the quotient and remainder from the division. In other words a free remainder operation is available to you with each division operation and vice versa. For example, to find the (x, y) position of a location at offset bytes into a screen buffer, it is tempting to write typedef struct { int x; int y; } point; point getxy_v1(unsigned int offset, unsigned int bytes_per_line) { point p;
- 157. 142 Chapter 5 Efficient C Programming p.y = offset / bytes_per_line; p.x = offset - p.y * bytes_per_line; return p; } It appears that we have saved a division by using a subtract and multiply to calculate p.x, but in fact, it is often more efficient to write the function with the modulus or remainder operation. Example 5.12 In getxy_v2, the quotient and remainder operation only require a single call to a division routine: point getxy_v2(unsigned int offset, unsigned int bytes_per_line) { point p; p.x = offset % bytes_per_line; p.y = offset / bytes_per_line; return p; } There is only one division call here, as you can see in the following compiler output. In fact, this version is four instructions shorter than getxy_v1. Note that this may not be the case for all compilers and C libraries. getxy_v2 STMFD r13!,{r4, r14} ; stack r4, lr MOV r4,r0 ; move p to r4 MOV r0,r2 ; r0 = bytes_per_line BL __rt_udiv ; (r0,r1) = (r1/r0, r1%r0) STR r0,[r4,#4] ; p.y = offset / bytes_per_line STR r1,[r4,#0] ; p.x = offset % bytes_per_line LDMFD r13!,{r4,pc} ; return ■ 5.10.1 Repeated Unsigned Division with Remainder Often the same denominator occurs several times in code. In the previous example, bytes_per_line will probably be fixed throughout the program. If we project from three to two cartesian coordinates, then we use the denominator twice: (x, y, z) → (x/z, y/z)
- 158. 5.10 Division 143 In these situations it is more efficient to cache the value of 1/z in some way and use a mul- tiplication by 1/z instead of a division. We will show how to do this in the next subsection. We also want to stick to integer arithmetic and avoid floating point (see Section 5.11). The next description is rather mathematical and covers the theory behind this con- version of repeated divisions into multiplications. If you are not interested in the theory, then don’t worry. You can jump directly to Example 5.13, which follows. 5.10.2 Converting Divides into Multiplies We’ll use the following notation to distinguish exact mathematical divides from integer divides: ■ n/d = the integer part of n divided by d, rounding towards zero (as in C) ■ n%d = the remainder of n divided by d which is n − d(n / d) ■ n d = nd−1 = the true mathematical divide of n by d The obvious way to estimate d−1, while sticking to integer arithmetic, is to calculate 232/d. Then we can estimate n/d n(232 /d) /232 (5.1) We need to perform the multiplication by n to 64-bit accuracy. There are a couple of problems with this approach: ■ To calculate 232/d, the compiler needs to use 64-bit long long type arithmetic because 232 does not fit into an unsigned int type. We must specify the division as (1ull 32)/d. This 64-bit division is much slower than the 32-bit division we wanted to perform originally! ■ If d happens to be 1, then 232/d will not fit into an unsigned int type. It turns out that a slightly cruder estimate works well and fixes both these problems. Instead of 232/d, we look at (232 − 1)/d. Let s = 0xFFFFFFFFul / d; /* s = (2∧32-1)/d */ We can calculate s using a single unsigned int type division. We know that 232 − 1 = sd + t for some 0 ≤ t d (5.2) Therefore s = 232 d − e1, where 0 e1 = 1 + t d ≤ 1 (5.3)
- 159. 144 Chapter 5 Efficient C Programming Next, calculate an estimate q to n/d: q = (unsigned int)( ((unsigned long long)n * s) 32); Mathematically, the shift right by 32 introduces an error e2: q = ns2−32 − e2 for some 0 ≤ e2 1 (5.4) Substituting the value of s: q = n d − ne12−32 − e2 (5.5) So, q is an underestimate to n/d. Now 0 ≤ ne12−32 + e2 e1 + e2 2 (5.6) Therefore n/d − 2 q ≤ n/d (5.7) So q = n/d or q = (n/d) − 1. We can find out which quite easily, by calculating the remainder r = n − qd, which must be in the range 0 ≤ r 2d. The following code corrects the result: r = n - q * d; /* the remainder in the range 0 = r 2 * d */ if (r = d) /* if correction is required */ { r -= d; /* correct the remainder to the range 0 = r d */ q++; /* correct the quotient */ } /* now q = n / d and r = n % d */ Example 5.13 The following routine, scale, shows how to convert divisions to multiplications in practice. It divides an array of N elements by denominator d. We first calculate the value of s as above. Then we replace each divide by d with a multiplication by s. The 64-bit multiply is cheap because the ARM has an instruction UMULL, which multiplies two 32-bit values, giving a 64-bit result. void scale( unsigned int *dest, /* destination for the scale data */ unsigned int *src, /* source unscaled data */ unsigned int d, /* denominator to divide by */ unsigned int N) /* data length */ { unsigned int s = 0xFFFFFFFFu / d;
- 160. 5.10 Division 145 do { unsigned int n, q, r; n = *(src++); q = (unsigned int)(((unsigned long long)n * s) 32); r = n - q * d; if (r = d) { q++; } *(dest++) = q; } while (--N); } Here we have assumed that the numerator and denominator are 32-bit unsigned integers. Of course, the algorithm works equally well for 16-bit unsigned integers using a 32-bit multiply, or for 64-bit integers using a 128-bit multiply. You should choose the narrowest width for your data. If your data is 16-bit, then set s = (216 − 1)/d and estimate q using a standard integer C multiply. ■ 5.10.3 Unsigned Division by a Constant To divide by a constant c, you could use the algorithm of Example 5.13, precalculating s = (232 − 1)/c. However, there is an even more efficient method. The ADS1.2 compiler uses this method to synthesize divisions by a constant. The idea is to use an approximation to d−1 that is sufficiently accurate so that multiplying by the approximation gives the exact value of n/d. We use the following mathematical results:1 If 2N+k ≤ ds ≤ 2N+k + 2k , then n/d = (ns) (N + k) for 0 ≤ n 2N . (5.8) If 2N+k − 2k ≤ ds 2N+k , then n/d = (ns + s) (N + k) for 0 ≤ n 2N . (5.9) 1. For the first result see a paper by Torbjorn Granlund and Peter L. Montgomery, “Division by Invariant Integers Using Multiplication,” in proceedings of the SIG-PLAN PLDI’94 Conference, June 1994.
- 161. 146 Chapter 5 Efficient C Programming Since n = (n/d)d + r for 0 ≤ r ≤ d − 1, the results follow from the equations ns − (n/d)2N+k = ns − n − r d 2N+k = n ds − 2N+k d + r2N+k d (5.10) (n + 1)s − (n/d)2N+k = (n + 1) ds − 2N+k d + (r + 1)2N+k d (5.11) For both equations the right-hand side is in the range 0 ≤ x 2N+k. For a 32-bit unsigned integer n, we take N = 32, choose k such that 2k d ≤ 2k+1, and set s = (2N+k + 2k)/d. If ds ≥ 2N+k, then n/d = (ns) (N + k); otherwise, n/d = (ns + s) (N + k). As an extra optimization, if d is a power of two, we can replace the division with a shift. Example 5.14 The udiv_by_const function tests the algorithm described above. In practice d will be a fixed constant rather than a variable. You can precalculate s and k in advance and only include the calculations relevant for your particular value of d. unsigned int udiv_by_const(unsigned int n, unsigned int d) { unsigned int s,k,q; /* We assume d!=0 */ /* first find k such that (1 k) = d (1 (k+1)) */ for (k=0; d/2=(1u k); k++); if (d==1u k) { /* we can implement the divide with a shift */ return n k; } /* d is in the range (1 k) d (1 (k+1)) */ s = (unsigned int)(((1ull (32+k))+(1ull k))/d); if ((unsigned long long)s*d = (1ull (32+k))) { /* n/d = (n*s) (32+k) */ q = (unsigned int)(((unsigned long long)n*s) 32); return q k; } /* n/d = (n*s+s) (32+k) */
- 162. 5.10 Division 147 q = (unsigned int)(((unsigned long long)n*s + s) 32); return q k; } If you know that 0 ≤ n 231, as for a positive signed integer, then you don’t need to bother with the different cases. You can increase k by one without having to worry about s overflowing. Take N = 31, choosek suchthat2k−1 d ≤ 2k, andsets = (sN+k +2k −1)/d. Then n/d = (ns) (N + k). ■ 5.10.4 Signed Division by a Constant We can use ideas and algorithms similar to those in Section 5.10.3 to handle signed constants as well. If d 0, then we can divide by |d| and correct the sign later, so for now we assume that d 0. The first mathematical result of Section 5.10.3 extends to signed n. If d 0 and 2N+k ds ≤ 2N+k + 2k, then n/d = (ns) (N + k) for all 0 ≤ n 2N (5.12) n/d = ((ns) (N + k)) + 1 for all − 2N ≤ n 0 (5.13) For 32-bit signed n, we take N = 31 and choose k ≤ 31 such that 2k−1 d ≤ 2k. This ensures that we can find a 32-bit unsigned s = (2N+k + 2k)/d satisfying the preceding relations. We need to take special care multiplying the 32-bit signed n with the 32-bit unsigned s. We achieve this using a signed long long type multiply with a correction if the top bit of s is set. Example 5.15 The following routine, sdiv_by_const, shows how to divide by a signed constant d. In practice you will precalculate k and s at compile time. Only the operations involving n for your particular value of d need be executed at run time. int sdiv_by_const(int n, int d) { int s,k,q; unsigned int D; /* set D to be the absolute value of d, we assume d!=0 */ if (d0) { D=(unsigned int)d; /* 1 = D = 0x7FFFFFFF */ } else
- 163. 148 Chapter 5 Efficient C Programming { D=(unsigned int) - d; /* 1 = D = 0x80000000 */ } /* first find k such that (1 k) = D (1 (k+1)) */ for (k=0; D/2=(1u k); k++); if (D==1u k) { /* we can implement the divide with a shift */ q = n 31; /* 0 if n0, -1 if n0 */ q = n + ((unsigned)q (32-k)); /* insert rounding */ q = q k; /* divide */ if (d 0) { q = -q; /* correct sign */ } return q; } /* Next find s in the range 0=s=0xFFFFFFFF */ /* Note that k here is one smaller than the k in the equation */ s = (int)(((1ull (31+(k+1)))+(1ull (k+1)))/D); if (s=0) { q = (int)(((signed long long)n*s) 32); } else { /* (unsigned)s = (signed)s + (1 32) */ q = n + (int)(((signed long long)n*s) 32); } q = q k; /* if n0 then the formula requires us to add one */ q += (unsigned)n 31; /* if d was negative we must correct the sign */ if (d0) { q = -q; }
- 164. 5.12 Inline Functions and Inline Assembly 149 return q; } ■ Section 7.3 shows how to implement divides efficiently in assembler. Summary Division ■ Avoid divisions as much as possible. Do not use them for circular buffer handling. ■ If you can’t avoid a division, then try to take advantage of the fact that divide routines often generate the quotient n/d and modulus n%d together. ■ To repeatedly divide by the same denominator d, calculate s = (2k − 1)/d in advance. You can replace the divide of a k-bit unsigned integer by d with a 2k-bit multiply by s. ■ To divide unsigned n 2N by an unsigned constant d, you can find a 32-bit unsigned s and shift k such that n/d is either (ns) (N + k) or (ns + s) (N + k). The choice depends only on d. There is a similar result for signed divisions. 5.11 Floating Point The majority of ARM processor implementations do not provide hardware floating-point support, which saves on power and area when using ARM in a price-sensitive, embedded application. With the exceptions of the Floating Point Accelerator (FPA) used on the ARM7500FE and the Vector Floating Point accelerator (VFP) hardware, the C compiler must provide support for floating point in software. In practice, this means that the C compiler converts every floating-point operation into a subroutine call. The C library contains subroutines to simulate floating-point behavior using integer arithmetic. This code is written in highly optimized assembly. Even so, floating-point algorithms will execute far more slowly than corresponding integer algorithms. If you need fast execution and fractional values, you should use fixed-point or block- floating algorithms. Fractional values are most often used when processing digital signals such as audio and video. This is a large and important area of programming, so we have dedicated a whole chapter, Chapter 8, to the area of digital signal processing on the ARM. For best performance you need to code the algorithms in assembly (see the examples of Chapter 8). 5.12 Inline Functions and Inline Assembly Section 5.5 looked at how to call functions efficiently. You can remove the function call overhead completely by inlining functions. Additionally many compilers allow you to
- 165. 150 Chapter 5 Efficient C Programming include inline assembly in your C source code. Using inline functions that contain assembly you can get the compiler to support ARM instructions and optimizations that aren’t usually available. For the examples of this section we will use the inline assembler in armcc. Don’t confuse the inline assembler with the main assembler armasm or gas. The inline assembler is part of the C compiler. The C compiler still performs register allocation, function entry, and exit. The compiler also attempts to optimize the inline assembly you write, or deoptimize it for debug mode. Although the compiler output will be functionally equivalent to your inline assembly, it may not be identical. The main benefit of inline functions and inline assembly is to make accessible in C operations that are not usually available as part of the C language. It is better to use inline functions rather than #define macros because the latter doesn’t check the types of the function arguments and return value. Let’s consider as an example the saturating multiply double accumulate primitive used by many speech processing algorithms. This operation calculates a + 2xy for 16-bit signed operands x and y and 32-bit accumulator a. Additionally, all operations saturate to the nearest possible value if they exceed a 32-bit range. We say x and y are Q15 fixed-point integers because they represent the values x2−15 and y2−15, respectively. Similarly, a is a Q31 fixed-point integer because it represents the value a2−31. We can define this new operation using an inline function qmac: __inline int qmac(int a, int x, int y) { int i; i = x*y; /* this multiplication cannot saturate */ if (i=0) { /* x*y is positive */ i = 2*i; if (i0) { /* the doubling saturated */ i = 0x7FFFFFFF; } if (a + i a) { /* the addition saturated */ return 0x7FFFFFFF; } return a + i; } /* x*y is negative so the doubling can’t saturate */
- 166. 5.12 Inline Functions and Inline Assembly 151 if (a + 2*i a) { /* the accumulate saturated */ return - 0x80000000; } return a + 2*i; } We can now use this new operation to calculate a saturating correlation. In other words, we calculate a = 2x0y0 + · · · 2xN−1yN−1 with saturation. int sat_correlate(short *x, short *y, unsigned int N) { int a=0; do { a = qmac(a, *(x++), *(y++)); } while (--N); return a; } The compiler replaces each qmac function call with inline code. In other words it inserts the code for qmac instead of calling qmac. Our C implementation of qmac isn’t very efficient, requiring several if statements. We can write it much more efficiently using assembly. The inline assembler in the C compiler allows us to use assembly in our inline C function. Example 5.16 Thisexampleshowsanefficientimplementationofqmacusinginlineassembly. Theexample supports both armcc and gcc inline assembly formats, which are quite different. In the gcc format the cc informs the compiler that the instruction reads or writes the condition code flags. See the armcc or gcc manuals for further information. __inline int qmac(int a, int x, int y) { int i; const int mask = 0x80000000; i = x*y; #ifdef __ARMCC_VERSION /* check for the armcc compiler */ __asm { ADDS i, i, i /* double */ EORVS i, mask, i, ASR 31 /* saturate the double */
- 167. 152 Chapter 5 Efficient C Programming ADDS a, a, i /* accumulate */ EORVS a, mask, a, ASR 31 /* saturate the accumulate */ } #endif #ifdef __GNUC__ /* check for the gcc compiler */ asm(ADDS % 0, % 1, % 2 :=r (i):r (i) ,r (i):cc); asm(EORVS % 0, % 1, % 2,ASR#31:=r (i):r (mask),r (i):cc); asm(ADDS % 0, % 1, % 2 :=r (a):r (a) ,r (i):cc); asm(EORVS % 0, % 1, % 2,ASR#31:=r (a):r (mask),r (a):cc); #endif return a; } This inlined code reduces the main loop of sat_correlate from 19 instructions to 9 instructions. ■ Example 5.17 Now suppose that we are using an ARM9E processor with the ARMv5E extensions. We can rewrite qmac again so that the compiler uses the new ARMv5E instructions: __inline int qmac(int a, int x, int y) { int i; __asm { SMULBB i, x, y /* multiply */ QDADD a, a, i /* double + saturate + accumulate + saturate */ } return a; } This time the main loop compiles to just six instructions: sat_correlate_v3 STR r14,[r13,#-4]! ; stack lr MOV r12,#0 ; a = 0 sat_v3_loop LDRSH r3,[r0],#2 ; r3 = *(x++) LDRSH r14,[r1],#2 ; r14 = *(y++) SUBS r2,r2,#1 ; N-- and set flags
- 168. 5.13 Portability Issues 153 SMULBB r3,r3,r14 ; r3 = r3 * r14 QDADD r12,r12,r3 ; a = sat(a+sat(2*r3)) BNE sat_v3_loop ; if (N!=0) goto loop MOV r0,r12 ; r0 = a LDR pc,[r13],#4 ; return r0 ■ Other instructions that are not usually available from C include coprocessor instructions. Example 5.18 shows how to access these. Example 5.18 This example writes to coprocessor 15 to flush the instruction cache. You can use similar code to access other coprocessor numbers. void flush_Icache(void) { #ifdef __ARMCC_VERSION /* armcc */ __asm {MCR p15, 0, 0, c7, c5, 0} #endif #ifdef __GNUC__ /* gcc */ asm ( MCR p15, 0, r0, c7, c5, 0 ); #endif } ■ Summary Inline Functions and Assembly ■ Use inline functions to declare new operations or primitives not supported by the C compiler. ■ Use inline assembly to access ARM instructions not supported by the C compiler. Examples are coprocessor instructions or ARMv5E extensions. 5.13 Portability Issues Here is a summary of the issues you may encounter when porting C code to the ARM. ■ The char type. On the ARM, char is unsigned rather than signed as for many other processors. A common problem concerns loops that use a char loop counter i and the continuation condition i ≥ 0, they become infinite loops. In this situation, armcc
- 169. 154 Chapter 5 Efficient C Programming producesawarningofunsignedcomparisonwithzero. Youshouldeitheruseacompiler option to make char signed or change loop counters to type int. ■ The int type. Some older architectures use a 16-bit int, which may cause problems when moving to ARM’s 32-bit int type although this is rare nowadays. Note that expressions are promoted to an int type before evaluation. Therefore if i = -0x1000, the expression i == 0xF000 is true on a 16-bit machine but false on a 32- bit machine. ■ Unaligned data pointers. Some processors support the loading of short and int typed values from unaligned addresses. A C program may manipulate pointers directly so that they become unaligned, for example, by casting a char * to an int *. ARM architectures up to ARMv5TE do not support unaligned pointers. To detect them, run the program on an ARM with an alignment checking trap. For example, you can configure the ARM720T to data abort on an unaligned access. ■ Endian assumptions. C code may make assumptions about the endianness of a memory system, for example, by casting a char * to an int *. If you configure the ARM for the same endianness the code is expecting, then there is no issue. Otherwise, you must remove endian-dependent code sequences and replace them by endian-independent ones. See Section 5.9 for more details. ■ Function prototyping. The armcc compiler passes arguments narrow, that is, reduced to the range of the argument type. If functions are not prototyped correctly, then the function may return the wrong answer. Other compilers that pass arguments wide may give the correct answer even if the function prototype is incorrect. Always use ANSI prototypes. ■ Use of bit-fields. The layout of bits within a bit-field is implementation and endian dependent. If C code assumes that bits are laid out in a certain order, then the code is not portable. ■ Use of enumerations. Although enum is portable, different compilers allocate different numbers of bytes to an enum. The gcc compiler will always allocate four bytes to an enum type. The armcc compiler will only allocate one byte if the enum takes only eight-bit values. Therefore you can’t cross-link code and libraries between different compilers if you use enums in an API structure. ■ Inline assembly. Using inline assembly in C code reduces portability between architectures. You should separate any inline assembly into small inlined functions that can easily be replaced. It is also useful to supply reference, plain C implementations of these functions that can be used on other architectures, where this is possible. ■ The volatile keyword. Use the volatile keyword on the type definitions of ARM memory-mapped peripheral locations. This keyword prevents the compiler from opti- mizing away the memory access. It also ensures that the compiler generates a data access of the correct type. For example, if you define a memory location as a volatile short type, then the compiler will access it using 16-bit load and store instructions LDRSH and STRH.
- 170. 5.14 Summary 155 5.14 Summary By writing C routines in a certain style, you can help the C compiler to generate faster ARM code. Performance-critical applications often contain a few routines that dominate the performance profile; concentrate on rewriting these routines using the guidelines of this chapter. Here are the key performance points we covered: ■ Use the signed and unsigned int types for local variables, function arguments, and return values. This avoids casts and uses the ARM’s native 32-bit data processing instructions efficiently. ■ The most efficient form of loop is a do-while loop that counts down to zero. ■ Unroll important loops to reduce the loop overhead. ■ Do not rely on the compiler to optimize away repeated memory accesses. Pointer aliasing often prevents this. ■ Try to limit functions to four arguments. Functions are faster to call if their arguments are held in registers. ■ Lay structures out in increasing order of element size, especially when compiling for Thumb. ■ Don’t use bit-fields. Use masks and logical operations instead. ■ Avoid divisions. Use multiplications by reciprocals instead. ■ Avoid unaligned data. Use the char * pointer type if the data could be unaligned. ■ Use the inline assembler in the C compiler to access instructions or optimizations that the C compiler does not support.
- 171. 6.1 Writing Assembly Code 6.2 Profiling and Cycle Counting 6.3 Instruction Scheduling 6.3.1 Scheduling of Load Instructions 6.4 Register Allocation 6.4.1 Allocating Variables to Register Numbers 6.4.2 Using More than 14 Local Variables 6.4.3 Making the Most of Available Registers 6.5 Conditional Execution 6.6 Looping Constructs 6.6.1 Decremented Counted Loops 6.6.2 Unrolled Counted Loops 6.6.3 Multiple Nested Loops 6.6.4 Other Counted Loops 6.7 Bit Manipulation 6.7.1 Fixed-Width Bit-Field Packing and Unpacking 6.7.2 Variable-Width Bitstream Packing 6.7.3 Variable-Width Bitstream Unpacking 6.8 Efficient Switches 6.8.1 Switches on the Range 0 ≤ x N 6.8.2 Switches on a General Value x 6.9 Handling Unaligned Data 6.10 Summary
- 172. C h a p t e r Writing and Optimizing ARM Assembly Code 6 Embedded software projects often contain a few key subroutines that dominate system performance. By optimizing these routines you can reduce the system power consumption and reduce the clock speed needed for real-time operation. Optimization can turn an infeasible system into a feasible one, or an uncompetitive system into a competitive one. If you write your C code carefully using the rules given in Chapter 5, you will have a relatively efficient implementation. For maximum performance, you can optimize critical routines using hand-written assembly. Writing assembly by hand gives you direct control of three optimization tools that you cannot explicitly use by writing C source: ■ Instruction scheduling: Reordering the instructions in a code sequence to avoid processor stalls. Since ARM implementations are pipelined, the timing of an instruction can be affected by neighboring instructions. We will look at this in Section 6.3. ■ Register allocation: Deciding how variables should be allocated to ARM registers or stack locations for maximum performance. Our goal is to minimize the number of memory accesses. See Section 6.4. ■ Conditional execution: Accessing the full range of ARM condition codes and conditional instructions. See Section 6.5. It takes additional effort to optimize assembly routines so don’t bother to optimize noncritical ones. When you take the time to optimize a routine, it has the side benefit of giving you a better understanding of the algorithm, its bottlenecks, and dataflow. 157
- 173. 158 Chapter 6 Writing and Optimizing ARM Assembly Code Section 6.1 starts with an introduction to assembly programming on the ARM. It shows you how to replace a C function by an assembly function that you can then optimize for performance. We describe common optimization techniques, specific to writing ARM assembly. Thumb assembly is not covered specifically since ARM assembly will always give better performance when a 32-bit bus is available. Thumb is most useful for reducing the com- piled size of C code that is not critical to performance and for efficient execution on a 16-bit data bus. Many of the principles covered here apply equally well to Thumb and ARM. The best optimization of a routine can vary according to the ARM core used in your target hardware, especially for signal processing (covered in detail in Chapter 8). However, you can often code a routine that is reasonably efficient for all ARM implementations. To be consistent this chapter uses ARM9TDMI optimizations and cycle counts in the examples. However, the examples will run efficiently on all ARM cores from ARM7TDMI to ARM10E. 6.1 Writing Assembly Code This section gives examples showing how to write basic assembly code. We assume you are familiar with the ARM instructions covered in Chapter 3; a complete instruction reference is available in Appendix A. We also assume that you are familiar with the ARM and Thumb procedure call standard covered in Section 5.4. As with the rest of the book, this chapter uses the ARM macro assembler armasm for examples (see Section A.4 in Appendix A for armasm syntax and reference). You can also use the GNU assembler gas (see Section A.5 for details of the GNU assembler syntax). Example 6.1 This example shows how to convert a C function to an assembly function—usually the first stage of assembly optimization. Consider the simple C program main.c following that prints the squares of the integers from 0 to 9: #include stdio.h int square(int i); int main(void) { int i; for (i=0; i10; i++) { printf(Square of %d is %dn, i, square(i)); } } int square(int i)
- 174. 6.1 Writing Assembly Code 159 { return i*i; } Let’s see how to replace square by an assembly function that performs the same action. Remove the C definition of square, but not the declaration (the second line) to produce a new C file main1.c. Next add an armasm assembler file square.s with the following contents: AREA |.text|, CODE, READONLY EXPORT square ; int square(int i) square MUL r1, r0, r0 ; r1 = r0 * r0 MOV r0, r1 ; r0 = r1 MOV pc, lr ; return r0 END The AREA directive names the area or code section that the code lives in. If you use nonalphanumeric characters in a symbol or area name, then enclose the name in vertical bars. Many nonalphanumeric characters have special meanings otherwise. In the previous code we define a read-only code area called .text. The EXPORT directive makes the symbol square available for external linking. At line six we define the symbol square as a code label. Note that armasm treats nonindented text as a label definition. When square is called, the parameter passing is defined by the ATPCS (see Section 5.4). The input argument is passed in register r0, and the return value is returned in register r0. The multiply instruction has a restriction that the destination register must not be the same as the first argument register. Therefore we place the multiply result into r1 and move this to r0. The END directive marks the end of the assembly file. Comments follow a semicolon. The following script illustrates how to build this example using command line tools. armcc -c main1.c armasm square.s armlink -o main1.axf main1.o square.o ■ Example 6.1 only works if you are compiling your C as ARM code. If you compile your C as Thumb code, then the assembly routine must return using a BX instruction. Example 6.2 When calling ARM code from C compiled as Thumb, the only change required to the assembly in Example 6.1 is to change the return instruction to a BX. BX will return to ARM
- 175. 160 Chapter 6 Writing and Optimizing ARM Assembly Code or Thumb state according to bit 0 of lr. Therefore this routine can be called from ARM or Thumb. Use BX lr instead of MOV pc, lr whenever your processor supports BX (ARMv4T and above). Create a new assembly file square2.s as follows: AREA |.text|, CODE, READONLY EXPORT square ; int square(int i) square MUL r1, r0, r0 ; r1 = r0 * r0 MOV r0, r1 ; r0 = r1 BX lr ; return r0 END With this example we build the C file using the Thumb C compiler tcc. We assemble the assembly file with the interworking flag enabled so that the linker will allow the Thumb C code to call the ARM assembly code. You can use the following commands to build this example: tcc -c main1.c armasm -apcs /interwork square2.s armlink -o main2.axf main1.o square2.o ■ Example 6.3 This example shows how to call a subroutine from an assembly routine. We will take Example 6.1 and convert the whole program (including main) into assembly. We will call the C library routine printf as a subroutine. Create a new assembly file main3.s with the following contents: AREA |.text|, CODE, READONLY EXPORT main IMPORT |Lib$$Request$$armlib|, WEAK IMPORT __main ; C library entry IMPORT printf ; prints to stdout i RN 4 ; int main(void) main STMFD sp!, {i, lr} MOV i, #0
- 176. 6.1 Writing Assembly Code 161 loop ADR r0, print_string MOV r1, i MUL r2, i, i BL printf ADD i, i, #1 CMP i, #10 BLT loop LDMFD sp!, {i, pc} print_string DCB Square of %d is %dn, 0 END We have used a new directive, IMPORT, to declare symbols that are defined in other files. The imported symbol Lib$$Request$$armlib makes a request that the linker links with the standard ARM C library. The WEAK specifier prevents the linker from giving an error if the symbol is not found at link time. If the symbol is not found, it will take the value zero. The second imported symbol ___main is the start of the C library initialization code. You only need to import these symbols if you are defining your own main; a main defined in C code will import these automatically for you. Importing printf allows us to call that C library function. The RN directive allows us to use names for registers. In this case we define i as an alternate name for register r4. Using register names makes the code more readable. It is also easier to change the allocation of variables to registers at a later date. Recall that ATPCS states that a function must preserve registers r4 to r11 and sp. We corrupt i(r4), and calling printf will corrupt lr. Therefore we stack these two registers at the start of the function using an STMFD instruction. The LDMFD instruction pulls these registers from the stack and returns by writing the return address to pc. The DCB directive defines byte data described as a string or a comma-separated list of bytes. To build this example you can use the following command line script: armasm main3.s armlink -o main3.axf main3.o ■ Note that Example 6.3 also assumes that the code is called from ARM code. If the code can be called from Thumb code as in Example 6.2 then we must be capable of returning to Thumb code. For architectures before ARMv5 we must use a BX to return. Change the last instruction to the two instructions: LDMFD sp!, {i, lr} BX lr
- 177. 162 Chapter 6 Writing and Optimizing ARM Assembly Code Finally, let’s look at an example where we pass more than four parameters. Recall that ATPCS places the first four arguments in registers r0 to r3. Subsequent arguments are placed on the stack. Example 6.4 This example defines a function sumof that can sum any number of integers. The arguments are the number of integers to sum followed by a list of the integers. The sumof function is written in assembly and can accept any number of arguments. Put the C part of the example in a file main4.c: #include stdio.h /* N is the number of values to sum in list ... */ int sumof(int N, ...); int main(void) { printf(Empty sum=%dn, sumof(0)); printf(1=%dn, sumof(1,1)); printf(1+2=%dn, sumof(2,1,2)); printf(1+2+3=%dn, sumof(3,1,2,3)); printf(1+2+3+4=%dn, sumof(4,1,2,3,4)); printf(1+2+3+4+5=%dn, sumof(5,1,2,3,4,5)); printf(1+2+3+4+5+6=%dn, sumof(6,1,2,3,4,5,6)); } Next define the sumof function in an assembly file sumof.s: AREA |.text|, CODE, READONLY EXPORT sumof N RN 0 ; number of elements to sum sum RN 1 ; current sum ; int sumof(int N, ...) sumof SUBS N, N, #1 ; do we have one element MOVLT sum, #0 ; no elements to sum! SUBS N, N, #1 ; do we have two elements ADDGE sum, sum, r2 SUBS N, N, #1 ; do we have three elements ADDGE sum, sum, r3 MOV r2, sp ; top of stack loop SUBS N, N, #1 ; do we have another element LDMGEFD r2!, {r3} ; load from the stack
- 178. 6.3 Instruction Scheduling 163 ADDGE sum, sum, r3 BGE loop MOV r0, sum MOV pc, lr ; return r0 END The code keeps count of the number of remaining values to sum, N. The first three values are in registers r1, r2, r3. The remaining values are on the stack. You can build this example using the commands armcc -c main4.c armasm sumof.s armlink -o main4.axf main4.o sumof.o ■ 6.2 Profiling and Cycle Counting The first stage of any optimization process is to identify the critical routines and measure their current performance. A profiler is a tool that measures the proportion of time or processing cycles spent in each subroutine. You use a profiler to identify the most critical routines. A cycle counter measures the number of cycles taken by a specific routine. You can measure your success by using a cycle counter to benchmark a given subroutine before and after an optimization. The ARM simulator used by the ADS1.1 debugger is called the ARMulator and pro- vides profiling and cycle counting features. The ARMulator profiler works by sampling the program counter pc at regular intervals. The profiler identifies the function the pc points to and updates a hit counter for each function it encounters. Another approach is to use the trace output of a simulator as a source for analysis. Be sure that you know how the profiler you are using works and the limits of its accuracy. A pc-sampled profiler can produce meaningless results if it records too few samples. You can even implement your own pc-sampled profiler in a hardware system using timer interrupts to collect the pc data points. Note that the timing interrupts will slow down the system you are trying to measure! ARM implementations do not normally contain cycle-counting hardware, so to easily measure cycle counts you should use an ARM debugger with ARM simulator. You can configure the ARMulator to simulate a range of different ARM cores and obtain cycle count benchmarks for a number of platforms. 6.3 Instruction Scheduling The time taken to execute instructions depends on the implementation pipeline. For this chapter, we assume ARM9TDMI pipeline timings. You can find these in Section D.3 of
- 179. 164 Chapter 6 Writing and Optimizing ARM Assembly Code Appendix D. The following rules summarize the cycle timings for common instruction classes on the ARM9TDMI. Instructions that are conditional on the value of the ARM condition codes in the cpsr take one cycle if the condition is not met. If the condition is met, then the following rules apply: ■ ALU operations such as addition, subtraction, and logical operations take one cycle. This includes a shift by an immediate value. If you use a register-specified shift, then add one cycle. If the instruction writes to the pc, then add two cycles. ■ Load instructions that load N 32-bit words of memory such as LDR and LDM take N cycles to issue, but the result of the last word loaded is not available on the following cycle. The updated load address is available on the next cycle. This assumes zero-wait-state memory for an uncached system, or a cache hit for a cached system. An LDM of a single value is exceptional, taking two cycles. If the instruction loads pc, then add two cycles. ■ Load instructions that load 16-bit or 8-bit data such asLDRB, LDRSB, LDRH, and LDRSH take one cycle to issue. The load result is not available on the following two cycles. The updated load address is available on the next cycle. This assumes zero-wait-state memory for an uncached system, or a cache hit for a cached system. ■ Branch instructions take three cycles. ■ Store instructions that store N values take N cycles. This assumes zero-wait-state memory for an uncached system, or a cache hit or a write buffer with N free entries for a cached system. An STM of a single value is exceptional, taking two cycles. ■ Multiply instructions take a varying number of cycles depending on the value of the second operand in the product (see Table D.6 in Section D.3). To understand how to schedule code efficiently on the ARM, we need to understand the ARM pipeline and dependencies. The ARM9TDMI processor performs five operations in parallel: ■ Fetch: Fetch from memory the instruction at address pc. The instruction is loaded into the core and then processes down the core pipeline. ■ Decode: Decode the instruction that was fetched in the previous cycle. The processor also reads the input operands from the register bank if they are not available via one of the forwarding paths. ■ ALU: Executes the instruction that was decoded in the previous cycle. Note this instruc- tion was originally fetched from address pc − 8 (ARM state) or pc − 4 (Thumb state). Normally this involves calculating the answer for a data processing operation, or the address for a load, store, or branch operation. Some instructions may spend several cycles in this stage. For example, multiply and register-controlled shift operations take several ALU cycles.
- 180. 6.3 Instruction Scheduling 165 Fetch Decode ALU LS1 LS2 Instruction address Action pc pc_4 pc_8 pc_12 pc_16 Figure 6.1 ARM9TDMI pipeline executing in ARM state. ■ LS1: Load or store the data specified by a load or store instruction. If the instruction is not a load or store, then this stage has no effect. ■ LS2: Extract and zero- or sign-extend the data loaded by a byte or halfword load instruction. If the instruction is not a load of an 8-bit byte or 16-bit halfword item, then this stage has no effect. Figure 6.1 shows a simplified functional view of the five-stage ARM9TDMI pipeline. Note that multiply and register shift operations are not shown in the figure. After an instruction has completed the five stages of the pipeline, the core writes the result to the register file. Note that pc points to the address of the instruction being fetched. The ALU is executing the instruction that was originally fetched from address pc − 8 in parallel with fetching the instruction at address pc. How does the pipeline affect the timing of instructions? Consider the following examples. These examples show how the cycle timings change because an earlier instruc- tion must complete a stage before the current instruction can progress down the pipeline. To work out how many cycles a block of code will take, use the tables in Appendix D that summarize the cycle timings and interlock cycles for a range of ARM cores. If an instruction requires the result of a previous instruction that is not available, then the processor stalls. This is called a pipeline hazard or pipeline interlock. Example 6.5 This example shows the case where there is no interlock. ADD r0, r0, r1 ADD r0, r0, r2 This instruction pair takes two cycles. The ALU calculates r0 + r1 in one cycle. Therefore this result is available for the ALU to calculate r0 + r2 in the second cycle. ■ Example 6.6 This example shows a one-cycle interlock caused by load use. LDR r1, [r2, #4] ADD r0, r0, r1 This instruction pair takes three cycles. The ALU calculates the address r2 + 4 in the first cycle while decoding the ADD instruction in parallel. However, the ADD cannot proceed on
- 181. 166 Chapter 6 Writing and Optimizing ARM Assembly Code Fetch ... Decode ADD ... ... ALU LDR ADD ADD LS1 ... LDR — LS2 ... LDR Pipeline Cycle 1 Cycle 2 Cycle 3 Figure 6.2 One-cycle interlock caused by load use. the second cycle because the load instruction has not yet loaded the value of r1. Therefore the pipeline stalls for one cycle while the load instruction completes the LS1 stage. Now that r1 is ready, the processor executes the ADD in the ALU on the third cycle. Figure 6.2 illustrates how this interlock affects the pipeline. The processor stalls the ADD instruction for one cycle in the ALU stage of the pipeline while the load instruction completes the LS1 stage. We’ve denoted this stall by an italic ADD. Since the LDR instruction proceeds down the pipeline, but the ADD instruction is stalled, a gap opens up between them. This gap is sometimes called a pipeline bubble. We’ve marked the bubble with a dash. ■ Example 6.7 This example shows a one-cycle interlock caused by delayed load use. LDRB r1, [r2, #1] ADD r0, r0, r2 EOR r0, r0, r1 This instruction triplet takes four cycles. Although the ADD proceeds on the cycle following the load byte, the EOR instruction cannot start on the third cycle. The r1 value is not ready until the load instruction completes the LS2 stage of the pipeline. The processor stalls the EOR instruction for one cycle. Note that the ADD instruction does not affect the timing at all. The sequence takes four cycles whether it is there or not! Figure 6.3 shows how this sequence progresses through the processor pipeline. The ADD doesn’t cause any stalls since the ADD does not use r1, the result of the load. ■ Fetch EOR ... Decode ADD EOR ... ... ALU LDRB ADD EOR EOR LS1 ... LDRB ADD — LS2 ... LDRB ADD Pipeline Cycle 1 Cycle 2 Cycle 3 Cycle 4 Figure 6.3 One-cycle interlock caused by delayed load use.
- 182. 6.3 Instruction Scheduling 167 Fetch AND EOR SUB ... Decode B AND — SUB ... ALU MOV B — — SUB LS1 ... MOV B — — LS2 ... MOV B — Pipeline Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Figure 6.4 Pipeline flush caused by a branch. Example 6.8 This example shows why a branch instruction takes three cycles. The processor must flush the pipeline when jumping to a new address. MOV r1, #1 B case1 AND r0, r0, r1 EOR r2, r2, r3 ... case1 SUB r0, r0, r1 The three executed instructions take a total of five cycles. The MOV instruction executes on the first cycle. On the second cycle, the branch instruction calculates the destination address. This causes the core to flush the pipeline and refill it using this new pc value. The refill takes two cycles. Finally, the SUB instruction executes normally. Figure 6.4 illustrates the pipeline state on each cycle. The pipeline drops the two instructions following the branch when the branch takes place. ■ 6.3.1 Scheduling of load instructions Load instructions occur frequently in compiled code, accounting for approximately one- third of all instructions. Careful scheduling of load instructions so that pipeline stalls don’t occur can improve performance. The compiler attempts to schedule the code as best it can, but the aliasing problems of C that we looked at in Section 5.6 limits the available optimizations. The compiler cannot move a load instruction before a store instruction unless it is certain that the two pointers used do not point to the same address. Let’s consider an example of a memory-intensive task. The following function, str_tolower, copies a zero-terminated string of characters from in to out. It converts the string to lowercase in the process.
- 183. 168 Chapter 6 Writing and Optimizing ARM Assembly Code void str_tolower(char *out, char *in) { unsigned int c; do { c = *(in++); if (c=’A’ c=’Z’) { c = c + (’a’ -’A’); } *(out++) = (char)c; } while (c); } The ADS1.1 compiler generates the following compiled output. Notice that the compiler optimizes the condition (c=‘A’ c=‘Z’) to the check that 0=c-‘A’=‘Z’-‘A’. The compiler can perform this check using a single unsigned comparison. str_tolower LDRB r2,[r1],#1 ; c = *(in++) SUB r3,r2,#0x41 ; r3 = c -‘A’ CMP r3,#0x19 ; if (c =‘Z’-‘A’) ADDLS r2,r2,#0x20 ; c +=‘a’-‘A’ STRB r2,[r0],#1 ; *(out++) = (char)c CMP r2,#0 ; if (c!=0) BNE str_tolower ; goto str_tolower MOV pc,r14 ; return Unfortunately, the SUB instruction uses the value of c directly after the LDRB instruction that loads c. Consequently, the ARM9TDMI pipeline will stall for two cycles. The compiler can’t do any better since everything following the load of c depends on its value. However, there are two ways you can alter the structure of the algorithm to avoid the cycles by using assembly. We call these methods load scheduling by preloading and unrolling. 6.3.1.1 Load Scheduling by Preloading In this method of load scheduling, we load the data required for the loop at the end of the previous loop, rather than at the beginning of the current loop. To get performance improvement with little increase in code size, we don’t unroll the loop. Example 6.9 This assembly applies the preload method to the str_tolower function. out RN 0 ; pointer to output string in RN 1 ; pointer to input string
- 184. 6.3 Instruction Scheduling 169 c RN 2 ; character loaded t RN 3 ; scratch register ; void str_tolower_preload(char *out, char *in) str_tolower_preload LDRB c, [in], #1 ; c = *(in++) loop SUB t, c, #’A’ ; t = c-’A’ CMP t, #’Z’-’A’ ; if (t = ’Z’-’A’) ADDLS c, c, #’a’-’A’ ; c += ’a’-’A’; STRB c, [out], #1 ; *(out++) = (char)c; TEQ c, #0 ; test if c==0 LDRNEB c, [in], #1 ; if (c!=0) { c=*in++; BNE loop ; goto loop; } MOV pc, lr ; return The scheduled version is one instruction longer than the C version, but we save two cycles for each inner loop iteration. This reduces the loop from 11 cycles per character to 9 cycles per character on an ARM9TDMI, giving a 1.22 times speed improvement. ■ The ARM architecture is particularly well suited to this type of preloading because instructions can be executed conditionally. Since loop i is loading the data for loop i + 1 there is always a problem with the first and last loops. For the first loop, we can preload data by inserting extra load instructions before the loop starts. For the last loop it is essential that the loop does not read any data, or it will read beyond the end of the array. This could cause a data abort! With ARM, we can easily solve this problem by making the load instruction conditional. In Example 6.9, the preload of the next character only takes place if the loop will iterate once more. No byte load occurs on the last loop. 6.3.1.2 Load Scheduling by Unrolling This method of load scheduling works by unrolling and then interleaving the body of the loop. For example, we can perform loop iterations i, i + 1, i + 2 interleaved. When the result of an operation from loop i is not ready, we can perform an operation from loop i + 1 that avoids waiting for the loop i result. Example 6.10 The assembly applies load scheduling by unrolling to the str_tolower function. out RN 0 ; pointer to output string in RN 1 ; pointer to input string ca0 RN 2 ; character 0 t RN 3 ; scratch register
- 185. 170 Chapter 6 Writing and Optimizing ARM Assembly Code ca1 RN 12 ; character 1 ca2 RN 14 ; character 2 ; void str_tolower_unrolled(char *out, char *in) str_tolower_unrolled STMFD sp!, {lr} ; function entry loop_next3 LDRB ca0, [in], #1 ; ca0 = *in++; LDRB ca1, [in], #1 ; ca1 = *in++; LDRB ca2, [in], #1 ; ca2 = *in++; SUB t, ca0, #’A’ ; convert ca0 to lower case CMP t, #’Z’-’A’ ADDLS ca0, ca0, #’a’-’A’ SUB t, ca1, #’A’ ; convert ca1 to lower case CMP t, #’Z’-’A’ ADDLS ca1, ca1, #’a’-’A’ SUB t, ca2, #’A’ ; convert ca2 to lower case CMP t, #’Z’-’A’ ADDLS ca2, ca2, #’a’-’A’ STRB ca0, [out], #1 ; *out++ = ca0; TEQ ca0, #0 ; if (ca0!=0) STRNEB ca1, [out], #1 ; *out++ = ca1; TEQNE ca1, #0 ; if (ca0!=0 ca1!=0) STRNEB ca2, [out], #1 ; *out++ = ca2; TEQNE ca2, #0 ; if (ca0!=0 ca1!=0 ca2!=0) BNE loop_next3 ; goto loop_next3; LDMFD sp!, {pc} ; return; This loop is the most efficient implementation we’ve looked at so far. The implemen- tation requires seven cycles per character on ARM9TDMI. This gives a 1.57 times speed increase over the original str_tolower. Again it is the conditional nature of the ARM instructions that makes this possible. We use conditional instructions to avoid storing characters that are past the end of the string. ■ However, the improvement in Example 6.10 does have some costs. The routine is more than double the code size of the original implementation. We have assumed that you can read up to two characters beyond the end of the input string, which may not be true if the string is right at the end of available RAM, where reading off the end will cause a data abort. Also, performance can be slower for very short strings because (1) stacking lr causes additional function call overhead and (2) the routine may process up to two characters pointlessly, before discovering that they lie beyond the end of the string. You should use this form of scheduling by unrolling for time-critical parts of an appli- cation where you know the data size is large. If you also know the size of the data at compile time, you can remove the problem of reading beyond the end of the array.
- 186. 6.4 Register Allocation 171 Summary Instruction Scheduling ■ ARM cores have a pipeline architecture. The pipeline may delay the results of certain instructions for several cycles. If you use these results as source operands in a following instruction, the processor will insert stall cycles until the value is ready. ■ Load and multiply instructions have delayed results in many implementations. See Appendix D for the cycle timings and delay for your specific ARM processor core. ■ You have two software methods available to remove interlocks following load instruc- tions: You can preload so that loop i loads the data for loop i + 1, or you can unroll the loop and interleave the code for loops i and i + 1. 6.4 Register Allocation You can use 14 of the 16 visible ARM registers to hold general-purpose data. The other two registers are the stack pointer r13 and the program counter r15. For a function to be ATPCS compliant it must preserve the callee values of registers r4 to r11. ATPCS also specifies that the stack should be eight-byte aligned; therefore you must preserve this alignment if calling subroutines. Use the following template for optimized assembly routines requiring many registers: routine_name STMFD sp!, {r4-r12, lr} ; stack saved registers ; body of routine ; the fourteen registers r0-r12 and lr are available LDMFD sp!, {r4-r12, pc} ; restore registers and return Our only purpose in stacking r12 is to keep the stack eight-byte aligned. You need not stack r12 if your routine doesn’t call other ATPCS routines. For ARMv5 and above you can use the preceding template even when being called from Thumb code. If your routine may be called from Thumb code on an ARMv4T processor, then modify the template as follows: routine_name STMFD sp!, {r4-r12, lr} ; stack saved registers ; body of routine ; registers r0-r12 and lr available LDMFD sp!, {r4-r12, lr} ; restore registers BX lr ; return, with mode switch In this section we look at how best to allocate variables to register numbers for register- intensive tasks, how to use more than 14 local variables, and how to make the best use of the 14 available registers.
- 187. 172 Chapter 6 Writing and Optimizing ARM Assembly Code 6.4.1 Allocating Variables to Register Numbers When you write an assembly routine, it is best to start by using names for the variables, rather than explicit register numbers. This allows you to change the allocation of variables to register numbers easily. You can even use different register names for the same physical register number when their use doesn’t overlap. Register names increase the clarity and readability of optimized code. For the most part ARM operations are orthogonal with respect to register number. In other words, specific register numbers do not have specific roles. If you swap all occurrences of two registers Ra and Rb in a routine, the function of the routine does not change. However, there are several cases where the physical number of the register is important: ■ Argument registers. The ATPCS convention defines that the first four arguments to a function are placed in registers r0 to r3. Further arguments are placed on the stack. The return value must be placed in r0. ■ Registers used in a load or store multiple. Load and store multiple instructions LDM and STM operate on a list of registers in order of ascending register number. If r0 and r1 appear in the register list, then the processor will always load or store r0 using a lower address than r1 and so on. ■ Load and store double word. The LDRD and STRD instructions introduced in ARMv5E operate on a pair of registers with sequential register numbers, Rd and Rd + 1. Furthermore, Rd must be an even register number. For an example of how to allocate registers when writing assembly, suppose we want to shift an array of N bits upwards in memory by k bits. For simplicity assume that N is large and a multiple of 256. Also assume that 0 ≤ k 32 and that the input and output pointers are word aligned. This type of operation is common in dealing with the arithmetic of multiple precision numbers where we want to multiply by 2k. It is also useful to block copy from one bit or byte alignment to a different bit or byte alignment. For example, the C library function memcpy can use the routine to copy an array of bytes using only word accesses. The C routine shift_bits implements the simple k-bit shift of N bits of data. It returns the k bits remaining following the shift. unsigned int shift_bits(unsigned int *out, unsigned int *in, unsigned int N, unsigned int k) { unsigned int carry=0, x; do { x = *in++; *out++ = (x k) | carry;
- 188. 6.4 Register Allocation 173 carry = x (32-k); N -= 32; } while (N); return carry; } The obvious way to improve efficiency is to unroll the loop to process eight words of 256 bits at a time so that we can use load and store multiple operations to load and store eight words at a time for maximum efficiency. Before thinking about register numbers, we write the following assembly code: shift_bits STMFD sp!, {r4-r11, lr} ; save registers RSB kr, k, #32 ; kr = 32-k; MOV carry, #0 loop LDMIA in!, {x_0-x_7} ; load 8 words ORR y_0, carry, x_0, LSL k ; shift the 8 words MOV carry, x_0, LSR kr ORR y_1, carry, x_1, LSL k MOV carry, x_1, LSR kr ORR y_2, carry, x_2, LSL k MOV carry, x_2, LSR kr ORR y_3, carry, x_3, LSL k MOV carry, x_3, LSR kr ORR y_4, carry, x_4, LSL k MOV carry, x_4, LSR kr ORR y_5, carry, x_5, LSL k MOV carry, x_5, LSR kr ORR y_6, carry, x_6, LSL k MOV carry, x_6, LSR kr ORR y_7, carry, x_7, LSL k MOV carry, x_7, LSR kr STMIA out!, {y_0-y_7} ; store 8 words SUBS N, N, #256 ; N -= (8 words * 32 bits) BNE loop ; if (N!=0) goto loop; MOV r0, carry ; return carry; LDMFD sp!, {r4-r11, pc} Nowtotheregisterallocation. Sothattheinputargumentsdonothavetomoveregisters, we can immediately assign out RN 0 in RN 1
- 189. 174 Chapter 6 Writing and Optimizing ARM Assembly Code N RN 2 k RN 3 For the load multiple to work correctly, we must assign x0 through x7 to sequentially increasing register numbers, and similarly for y0 through y7. Notice that we finish with x0 before starting with y1. In general, we can assign xn to the same register as yn+1. Therefore, assign x_0 RN 5 x_1 RN 6 x_2 RN 7 x_3 RN 8 x_4 RN 9 x_5 RN 10 x_6 RN 11 x_7 RN 12 y_0 RN 4 y_1 RN x_0 y_2 RN x_1 y_3 RN x_2 y_4 RN x_3 y_5 RN x_4 y_6 RN x_5 y_7 RN x_6 We are nearly finished, but there is a problem. There are two remaining variables carry and kr, but only one remaining free register lr. There are several possible ways we can proceed when we run out of registers: ■ Reduce the number of registers we require by performing fewer operations in each loop. In this case we could load four words in each load multiple rather than eight. ■ Use the stack to store the least-used values to free up more registers. In this case we could store the loop counter N on the stack. (See Section 6.4.2 for more details on swapping registers to the stack.) ■ Alter the code implementation to free up more registers. This is the solution we consider in the following text. (For more examples, see Section 6.4.3.) We often iterate the process of implementation followed by register allocation several times until the algorithm fits into the 14 available registers. In this case we notice that the carry value need not stay in the same register at all! We can start off with the carry value in y0 and then move it to y1 when x0 is no longer required, and so on. We complete the routine by allocating kr to lr and recoding so that carry is not required.
- 190. 6.4 Register Allocation 175 Example 6.11 This assembly shows our final shift_bits routine. It uses all 14 available ARM registers. kr RN lr shift_bits STMFD sp!, {r4-r11, lr} ; save registers RSB kr, k, #32 ; kr = 32-k; MOV y_0, #0 ; initial carry loop LDMIA in!, {x_0-x_7} ; load 8 words ORR y_0, y_0, x_0, LSL k ; shift the 8 words MOV y_1, x_0, LSR kr ; recall x_0 = y_1 ORR y_1, y_1, x_1, LSL k MOV y_2, x_1, LSR kr ORR y_2, y_2, x_2, LSL k MOV y_3, x_2, LSR kr ORR y_3, y_3, x_3, LSL k MOV y_4, x_3, LSR kr ORR y_4, y_4, x_4, LSL k MOV y_5, x_4, LSR kr ORR y_5, y_5, x_5, LSL k MOV y_6, x_5, LSR kr ORR y_6, y_6, x_6, LSL k MOV y_7, x_6, LSR kr ORR y_7, y_7, x_7, LSL k STMIA out!, {y_0-y_7} ; store 8 words MOV y_0, x_7, LSR kr SUBS N, N, #256 ; N -= (8 words * 32 bits) BNE loop ; if (N!=0) goto loop; MOV r0, y_0 ; return carry; LDMFD sp!, {r4-r11, pc} ■ 6.4.2 Using More than 14 Local Variables If you need more than 14 local 32-bit variables in a routine, then you must store some variables on the stack. The standard procedure is to work outwards from the inner- most loop of the algorithm, since the innermost loop has the greatest performance impact. Example 6.12 This example shows three nested loops, each loop requiring state information inherited from the loop surrounding it. (See Section 6.6 for further ideas and examples of looping constructs.)
- 191. 176 Chapter 6 Writing and Optimizing ARM Assembly Code nested_loops STMFD sp!, {r4-r11, lr} ; set up loop 1 loop1 STMFD sp!, {loop1 registers} ; set up loop 2 loop2 STMFD sp!, {loop2 registers} ; set up loop 3 loop3 ; body of loop 3 B{cond} loop3 LDMFD sp!, {loop2 registers} ; body of loop 2 B{cond} loop2 LDMFD sp!, {loop1 registers} ; body of loop 1 B{cond} loop1 LDMFD sp!, {r4-r11, pc} ■ You may find that there are insufficient registers for the innermost loop even using the construction in Example 6.12. Then you need to swap inner loop variables out to the stack. Since assembly code is very hard to maintain and debug if you use numbers as stack address offsets, the assembler provides an automated procedure for allocating variables to the stack. Example 6.13 This example shows how you can use the ARM assembler directives MAP (alias ∧) and FIELD (alias #) to define and allocate space for variables and arrays on the processor stack. The directives perform a similar function to the struct operator in C. MAP 0 ; map symbols to offsets starting at offset 0 a FIELD 4 ; a is 4 byte integer (at offset 0) b FIELD 2 ; b is 2 byte integer (at offset 4) c FIELD 2 ; c is 2 byte integer (at offset 6) d FIELD 64 ; d is an array of 64 characters (at offset 8) length FIELD 0 ; length records the current offset reached example STMFD sp!, {r4-r11, lr} ; save callee registers SUB sp, sp, #length ; create stack frame ; ... STR r0, [sp, #a] ; a = r0; LDRSH r1, [sp, #b] ; r1 = b;
- 192. 6.4 Register Allocation 177 ADD r2, sp, #d ; r2 = d[0] ; ... ADD sp, sp, #length ; restore the stack pointer LDMFD sp!, {r4-r11, pc} ; return ■ 6.4.3 Making the Most of Available Registers On a load-store architecture such as the ARM, it is more efficient to access values held in registers than values held in memory. There are several tricks you can use to fit several sub-32-bit length variables into a single 32-bit register and thus can reduce code size and increase performance. This section presents three examples showing how you can pack multiple variables into a single ARM register. Example 6.14 Suppose we want to step through an array by a programmable increment. A common example is to step through a sound sample at various rates to produce different pitched notes. We can express this in C code as sample = table[index]; index += increment; Commonly index and increment are small enough to be held as 16-bit values. We can pack these two variables into a single 32-bit variable indinc: indinc = (index16) + increment = index increment Bit 31 16 15 0 The C code translates into assembly code using a single register to hold indinc: LDRB sample, [table, indinc, LSR#16] ; table[index] ADD indinc, indinc, indinc, LSL#16 ; index+=increment Note that if index and increment are 16-bit values, then putting index in the top 16 bits of indinc correctly implements 16-bit-wrap-around. In other words, index = (short)(index + increment). This can be useful if you are using a buffer where you want to wrap from the end back to the beginning (often known as a circular buffer). ■ Example 6.15 When you shift by a register amount, the ARM uses bits 0 to 7 as the shift amount. The ARM ignores bits 8 to 31 of the register. Therefore you can use bits 8 to 31 to hold a second variable distinct from the shift amount.
- 193. 178 Chapter 6 Writing and Optimizing ARM Assembly Code This example shows how to combine a register-specified shift shift and loop counter count to shift an array of 40 entries right by shift bits. We define a new variable cntshf that combines count and shift: cntshf = (count8) + shift = count shift Bit 31 8 7 0 out RN 0 ; address of the output array in RN 1 ; address of the input array cntshf RN 2 ; count and shift right amount x RN 3 ; scratch variable ; void shift_right(int *out, int *in, unsigned shift); shift_right ADD cntshf, cntshf, #39 8 ; count = 39 shift_loop LDR x, [in], #4 SUBS cntshf, cntshf, #1 8 ; decrement count MOV x, x, ASR cntshf ; shift by shift STR x, [out], #4 BGE shift_loop ; continue if count=0 MOV pc, lr ■ Example 6.16 If you are dealing with arrays of 8-bit or 16-bit values, it is sometimes possible to manipulate multiple values at a time by packing several values into a single 32-bit register. This is called single issue multiple data (SIMD) processing. ARM architecture versions up to ARMv5 do not support SIMD operations explicitly. However, there are still areas where you can achieve SIMD type compactness. Section 6.6 shows how you can store multiple loop values in a single register. Here we look at a graphics example of how to process multiple 8-bit pixels in an image using normal ADD and MUL instructions to achieve some SIMD operations. Suppose we want to merge two images X and Y to produce a new image Z. Let xn, yn, and zn denote the nth 8-bit pixel in these images, respectively. Let 0 ≤ a ≤ 256 be a scaling factor. To merge the images, we set zn = (axn + (256 − a)yn)/256 (6.1) In other words image Z is image X scaled in intensity by a/256 added to image Y scaled by 1 − (a/256). Note that zn = wn/256, where wn = a(xn − yn) + 256yn (6.2) Therefore each pixel requires a subtract, a multiply, a shifted add, and a right shift. To process multiple pixels at a time, we load four pixels at once using a
- 194. 6.4 Register Allocation 179 word load. We use a bracketed notation to denote several values packed into the same word: [x3, x2, x1, x0] = x3224 + x2216 + x128 + x0 = x3 x2 x1 x0 Bit 24 16 8 0 We then unpack the 8-bit data and promote it to 16-bit data using an AND with a mask register. We use the notation [x2, x0] = x2216 + x0 = x2 x0 Bit 31 16 15 0 Note that even for signed values [a, b] + [c, d] = [a + b, c + d] if we interpret [a, b] using the mathematical equation a216 + b. Therefore we can perform SIMD operations on these values using normal arithmetic instructions. The following code shows how you can process four pixels at a time using only two multiplies. The code assumes a 176 × 144 sized quarter CIF image. IMAGE_WIDTH EQU 176 ; QCIF width IMAGE_HEIGHT EQU 144 ; QCIF height pz RN 0 ; pointer to destination image (word aligned) px RN 1 ; pointer to first source image (word aligned) py RN 2 ; pointer to second source image (word aligned) a RN 3 ; 8-bit scaling factor (0-256) xx RN 4 ; holds four x pixels [x3, x2, x1, x0] yy RN 5 ; holds four y pixels [y3, y2, y1, y0] x RN 6 ; holds two expanded x pixels [x2, x0] y RN 7 ; holds two expanded y pixels [y2, y0] z RN 8 ; holds four z pixels [z3, z2, z1, z0] count RN 12 ; number of pixels remaining mask RN 14 ; constant mask with value 0x00ff00ff ; void merge_images(char *pz, char *px, char *py, int a) merge_images STMFD sp!, {r4-r8, lr} MOV count, #IMAGE_WIDTH*IMAGE_HEIGHT LDR mask, =0x00FF00FF ; [ 0, 0xFF, 0, 0xFF ] merge_loop LDR xx, [px], #4 ; [ x3, x2, x1, x0 ] LDR yy, [py], #4 ; [ y3, y2, y1, y0 ] AND x, mask, xx ; [ 0, x2, 0, x0 ] AND y, mask, yy ; [ 0, y2, 0, y0 ] SUB x, x, y ; [ (x2-y2), (x0-y0) ]
- 195. 180 Chapter 6 Writing and Optimizing ARM Assembly Code MUL x, a, x ; [ a*(x2-y2), a*(x0-y0) ] ADD x, x, y, LSL#8 ; [ w2, w0 ] AND z, mask, x, LSR#8 ; [ 0, z2, 0, z0 ] AND x, mask, xx, LSR#8 ; [ 0, x3, 0, x1 ] AND y, mask, yy, LSR#8 ; [ 0, y3, 0, y1 ] SUB x, x, y ; [ (x3-y3), (x1-y1) ] MUL x, a, x ; [ a*(x3-y3), a*(x1-y1) ] ADD x, x, y, LSL#8 ; [ w3, w1 ] AND x, mask, x, LSR#8 ; [ 0, z3, 0, z1 ] ORR z, z, x, LSL#8 ; [ z3, z2, z1, z0 ] STR z, [pz], #4 ; store four z pixels SUBS count, count, #4 BGT merge_loop LDMFD sp!, {r4-r8, pc} The code works since 0 ≤ wn ≤ 255a + 255(256 − a) = 256 × 255 = 0xFF00 (6.3) Therefore it is easy to separate the value [w2, w0] into w2 and w0 by taking the most signif- icant and least significant 16-bit portions, respectively. We have succeeded in processing four 8-bit pixels using 32-bit load, stores, and data operations to perform operations in parallel. ■ Summary Register Allocation ■ ARM has 14 available registers for general-purpose use: r0 to r12 and r14. The stack pointer r13 and program counter r15 cannot be used for general-purpose data. Operating system interrupts often assume that the user mode r13 points to a valid stack, so don’t be tempted to reuse r13. ■ If you need more than 14 local variables, swap the variables out to the stack, working outwards from the innermost loop. ■ Use register names rather than physical register numbers when writing assembly routines. This makes it easier to reallocate registers and to maintain the code. ■ To ease register pressure you can sometimes store multiple values in the same register. For example, you can store a loop counter and a shift in one register. You can also store multiple pixels in one register. 6.5 Conditional Execution The processor core can conditionally execute most ARM instructions. This conditional execution is based on one of 15 condition codes. If you don’t specify a condition, the
- 196. 6.5 Conditional Execution 181 assembler defaults to the execute always condition (AL). The other 14 conditions split into seven pairs of complements. The conditions depend on the four condition code flags N, Z, C, V stored in the cpsr register. See Table A.2 in Appendix A for the list of possible ARM conditions. Also see Sections 2.2.6 and 3.8 for an introduction to conditional execution. By default, ARM instructions do not update the N, Z, C, V flags in the ARM cpsr. For most instructions, to update these flags you append an S suffix to the instruction mnemonic. Exceptions to this are comparison instructions that do not write to a destination register. Their sole purpose is to update the flags and so they don’t require the S suffix. By combining conditional execution and conditional setting of the flags, you can imple- ment simple if statements without any need for branches. This improves efficiency since branches can take many cycles and also reduces code size. Example 6.17 The following C code converts an unsigned integer 0 ≤ i ≤ 15 to a hexadecimal character c: if (i10) { c = i + ‘0’; } else { c = i + ‘A’-10; } We can write this in assembly using conditional execution rather than conditional branches: CMP i, #10 ADDLO c, i, #‘0’ ADDHS c, i, #‘A’-10 The sequence works since the first ADD does not change the condition codes. The second ADD is still conditional on the result of the compare. Section 6.3.1 shows a similar use of conditional execution to convert to lowercase. ■ Conditional execution is even more powerful for cascading conditions. Example 6.18 The following C code identifies if c is a vowel: if (c==‘a’ || c==‘e’ || c==‘i’ || c==‘o’ || c==‘u’) { vowel++; }
- 197. 182 Chapter 6 Writing and Optimizing ARM Assembly Code In assembly you can write this using conditional comparisons: TEQ c, #‘a’ TEQNE c, #‘e’ TEQNE c, #‘i’ TEQNE c, #‘o’ TEQNE c, #‘u’ ADDEQ vowel, vowel, #1 As soon as one of the TEQ comparisons detects a match, the Z flag is set in the cpsr. The following TEQNE instructions have no effect as they are conditional on Z = 0. The next instruction to have effect is the ADDEQ that increments vowel. You can use this method whenever all the comparisons in the if statement are of the same type. ■ Example 6.19 Consider the following code that detects if c is a letter: if ((c=‘A’ c=‘Z’) || (c=‘a’ c=‘z’)) { letter++; } To implement this efficiently, we can use an addition or subtraction to move each range to the form 0 ≤ c ≤ limit. Then we use unsigned comparisons to detect this range and conditional comparisons to chain together ranges. The following assembly implements this efficiently: SUB temp, c, #‘A’ CMP temp, #‘Z’-‘A’ SUBHI temp, c, #‘a’ CMPHI temp, #‘z’-‘a’ ADDLS letter, letter, #1 For more complicated decisions involving switches, see Section 6.8. ■ Note that the logical operations AND and OR are related by the standard logical relations as shown in Table 6.1. You can invert logical expressions involving OR to get an expression involving AND, which can often be useful in simplifying or rearranging logical expressions. Summary Conditional Execution ■ You can implement most if statements with conditional execution. This is more efficient than using a conditional branch.
- 198. 6.6 Looping Constructs 183 Table 6.1 Inverted logical relations Inverted expression Equivalent !(a b) (!a) || (!b) !(a || b) (!a) (!b) ■ You can implement if statements with the logical AND or OR of several similar conditions using compare instructions that are themselves conditional. 6.6 Looping Constructs Most routines critical to performance will contain a loop. We saw in Section 5.3 that on the ARM loops are fastest when they count down towards zero. This section describes how to implement these loops efficiently in assembly. We also look at examples of how to unroll loops for maximum performance. 6.6.1 Decremented Counted Loops For a decrementing loop of N iterations, the loop counter i counts down from N to 1 inclusive. The loop terminates with i = 0. An efficient implementation is MOV i, N loop ; loop body goes here and i=N,N-1,...,1 SUBS i, i, #1 BGT loop The loop overhead consists of a subtraction setting the condition codes followed by a conditional branch. On ARM7 and ARM9 this overhead costs four cycles per loop. If i is an array index, then you may want to count down from N − 1 to 0 inclusive instead so that you can access array element zero. You can implement this in the same way by using a different conditional branch: SUBS i, N, #1 loop ; loop body goes here and i=N-1,N-2,...,0 SUBS i, i, #1 BGE loop
- 199. 184 Chapter 6 Writing and Optimizing ARM Assembly Code In this arrangement the Z flag is set on the last iteration of the loop and cleared for other iterations. If there is anything different about the last loop, then we can achieve this using the EQ and NE conditions. For example, if you preload data for the next loop (as discussed in Section 6.3.1.1), then you want to avoid the preload on the last loop. You can make all preload operations conditional on NE as in Section 6.3.1.1. There is no reason why we must decrement by one on each loop. Suppose we require N/3 loops. Rather than attempting to divide N by three, it is far more efficient to subtract three from the loop counter on each iteration: MOV i, N loop ; loop body goes here and iterates (round up)(N/3) times SUBS i, i, #3 BGT loop 6.6.2 Unrolled Counted Loops This brings us to the subject of loop unrolling. Loop unrolling reduces the loop overhead by executing the loop body multiple times. However, there are problems to overcome. What if the loop count is not a multiple of the unroll amount? What if the loop count is smaller than the unroll amount? We looked at these questions for C code in Section 5.3. In this section we look at how you can handle these issues in assembly. We’ll take the C library function memset as a case study. This function sets N bytes of memory at address s to the byte value c. The function needs to be efficient, so we will look at how to unroll the loop without placing extra restrictions on the input operands. Our version of memset will have the following C prototype: void my_memset(char *s, int c, unsigned int N); To be efficient for large N, we need to write multiple bytes at a time using STR or STM instructions. Therefore our first task is to align the array pointer s. However, it is only worth us doing this if N is sufficiently large. We aren’t sure yet what “sufficiently large” means, but let’s assume we can choose a threshold value T1 and only bother to align the array when N ≥ T1. Clearly T1 ≥ 3 as there is no point in aligning if we don’t have four bytes to write! Now suppose we have aligned the array s. We can use store multiples to set memory efficiently. For example, we can use a loop of four store multiples of eight words each to set 128 bytes on each loop. However, it will only be worth doing this if N ≥ T2 ≥ 128, where T2 is another threshold to be determined later on. Finally, we are left with N T2 bytes to set. We can write bytes in blocks of four using STR until N 4. Then we can finish by writing bytes singly with STRB to the end of the array.
- 200. 6.6 Looping Constructs 185 Example 6.20 This example shows the unrolled memset routine. We’ve separated the three sections corre- sponding to the preceding paragraphs with rows of dashes. The routine isn’t finished until we’ve decided the best values for T1 and T2. s RN 0 ; current string pointer c RN 1 ; the character to fill with N RN 2 ; the number of bytes to fill c_1 RN 3 ; copies of c c_2 RN 4 c_3 RN 5 c_4 RN 6 c_5 RN 7 c_6 RN 8 c_7 RN 12 ; void my_memset(char *s, unsigned int c, unsigned int N) my_memset ;----------------------------------------------- ; First section aligns the array CMP N, #T_1 ; We know that T_1=3 BCC memset_1ByteBlk ; if (NT_1) goto memset_1ByteBlk ANDS c_1, s, #3 ; find the byte alignment of s BEQ aligned ; branch if already aligned RSB c_1, c_1, #4 ; number of bytes until alignment SUB N, N, c_1 ; number of bytes after alignment CMP c_1, #2 STRB c, [s], #1 STRGEB c, [s], #1 ; if (c_1=2) then output byte STRGTB c, [s], #1 ; if (c_1=3) then output byte aligned ;the s array is now aligned ORR c, c, c, LSL#8 ; duplicate the character ORR c, c, c, LSL#16 ; to fill all four bytes of c ;----------------------------------------------- ; Second section writes blocks of 128 bytes CMP N, #T_2 ; We know that T_2 = 128 BCC memset_4ByteBlk ; if (NT_2) goto memset_4ByteBlk STMFD sp!, {c_2-c_6} ; stack scratch registers MOV c_1, c MOV c_2, c MOV c_3, c MOV c_4, c MOV c_5, c MOV c_6, c
- 201. 186 Chapter 6 Writing and Optimizing ARM Assembly Code MOV c_7, c SUB N, N, #128 ; bytes left after next block loop128 ; write 32 words = 128 bytes STMIA s!, {c, c_1-c_6, c_7} ; write 8 words STMIA s!, {c, c_1-c_6, c_7} ; write 8 words STMIA s!, {c, c_1-c_6, c_7} ; write 8 words STMIA s!, {c, c_1-c_6, c_7} ; write 8 words SUBS N, N, #128 ; bytes left after next block BGE loop128 ADD N, N, #128 ; number of bytes left LDMFD sp!, {c_2-c_6} ; restore corrupted registers ;-------------------------------------------- ; Third section deals with left over bytes memset_4ByteBlk SUBS N, N, #4 ; try doing 4 bytes loop4 ; write 4 bytes STRGE c, [s], #4 SUBGES N, N, #4 BGE loop4 ADD N, N, #4 ; number of bytes left memset_1ByteBlk SUBS N, N, #1 loop1 ; write 1 byte STRGEB c, [s], #1 SUBGES N, N, #1 BGE loop1 MOV pc, lr ; finished so return It remains to find the best values for the thresholds T1 and T2. To determine these we need to analyze the cycle counts for different ranges of N. Since the algorithm operates on blocks of size 128 bytes, 4 bytes, and 1 byte, respectively, we start by decomposing N with respect to these block sizes: N = 128Nh + 4Nm + Nl, where 0 ≤ Nm 32 and 0 ≤ Nl 4 We now partition into three cases. To follow the details of these cycle counts, you will need to refer to the instruction cycle timings in Appendix D. ■ Case 0 ≤ N T1: The routine takes 5N + 6 cycles on an ARM9TDMI including the return. ■ Case T1 ≤ N T2: The first algorithm block takes 6 cycles if the s array is word aligned and 10 cycles otherwise. Assuming each alignment is equally likely, this averages to (6 + 10 + 10 + 10)/4 = 9 cycles. The second algorithm block takes 6 cycles. The final
- 202. 6.6 Looping Constructs 187 Table 6.2 Cycles taken for each range of N values. N range Cycles taken 0 ≤ N T1 640Nh + 20Nm + 5Nl + 6 T1 ≤ N T2 160Nh + 5Nm + 5Nl + 17 + 5Zl T2 ≤ N 36Nh + 5Nm + 5Nl + 32 + 5Zl + 5Zm block takes 5(32Nh + Nm) + 5(Nl + Zl) + 2 cycles, where Zl is 1 if Nl = 0, and 0 otherwise. The total cycles for this case is 5(32Nh + Nm + Nl + Zl) + 17. ■ Case N ≥ T2: As in the previous case, the first algorithm block averages 9 cycles. The second algorithm block takes 36Nh + 21 cycles. The final algorithm block takes 5(Nm + Zm + Nl + Zl) + 2 cycles, where Zm is 1 if Nm is 0, and 0 otherwise. The total cycles for this case is 36Nh + 5(Nm + Zm + Nl + Zl) + 32. Table 6.2 summarizes these results. Comparing the three table rows it is clear that the second row wins over the first row as soon as Nm ≥ 1, unless Nm = 1 and Nl = 0. We set T1 = 5 to choose the best cycle counts from rows one and two. The third row wins over the second row as soon as Nh ≥ 1. Therefore take T2 = 128. This detailed example shows you how to unroll any important loop using threshold values and provide good performance over a range of possible input values. ■ 6.6.3 Multiple Nested Loops How many loop counters does it take to maintain multiple nested loops? Actually, one will suffice—or more accurately, one provided the sum of the bits needed for each loop count does not exceed 32. We can combine the loop counts within a single register, placing the innermost loop count at the highest bit positions. This section gives an example showing how to do this. We will ensure the loops count down from max − 1 to 0 inclusive so that the loop terminates by producing a negative result. Example 6.21 This example shows how to merge three loop counts into a single loop count. Suppose we wish to multiply matrix B by matrix C to produce matrix A, where A, B, C have the following constant dimensions. We assume that R, S, T are relatively large but less than 256. Matrix A: R rows × T columns Matrix B: R rows × S columns Matrix C: S rows × T columns
- 203. 188 Chapter 6 Writing and Optimizing ARM Assembly Code We represent each matrix by a lowercase pointer of the same name, pointing to an array of words organized by row. For example, the element at row i, column j, A[i, j], is at the byte address A[i,j] = a + 4*(i*T+j) A simple C implementation of the matrix multiply uses three nested loops i, j, and k: #define R 40 #define S 40 #define T 40 void ref_matrix_mul(int *a, int *b, int *c) { unsigned int i,j,k; int sum; for (i=0; iR; i++) { for (j=0; jT; j++) { /* calculate a[i,j] */ sum = 0; for (k=0; kS; k++) { /* add b[i,k]*c[k,j] */ sum += b[i*S+k]*c[k*T+j]; } a[i*T+j] = sum; } } } There are many ways to improve the efficiency here, starting by removing the address indexing calculations, but we will concentrate on the looping structure. We allocate a register counter count containing all three loop counters i, j, k: count = 0 S−1−k T−1−j R−1−i Bit 31 24 23 16 15 8 7 0 Note that S − 1 − k counts from S − 1 down to 0 rather than counting from 0 to S − 1 as k does. The following assembly implements the matrix multiply using this single counter in register count: R EQU 40 S EQU 40
- 204. 6.6 Looping Constructs 189 T EQU 40 a RN 0 ; points to an R rows × T columns matrix b RN 1 ; points to an R rows × S columns matrix c RN 2 ; points to an S rows × T columns matrix sum RN 3 bval RN 4 cval RN 12 count RN 14 ; void matrix_mul(int *a, int *b, int *c) matrix_mul STMFD sp!, {r4, lr} MOV count, #(R-1) ; i=0 loop_i ADD count, count, #(T-1) 8 ; j=0 loop_j ADD count, count, #(S-1) 16 ; k=0 MOV sum, #0 loop_k LDR bval, [b], #4 ; bval = B[i,k], b=B[i,k+1] LDR cval, [c], #4*T ; cval = C[k,j], c=C[k+1,j] SUBS count, count, #1 16 ; k++ MLA sum, bval, cval, sum ; sum += bval*cval BPL loop_k ; branch if k=S-1 STR sum, [a], #4 ; A[i,j] = sum, a=A[i,j+1] SUB c, c, #4*S*T ; c = C[0,j] ADD c, c, #4 ; c = C[0,j+1] ADDS count, count, #(1 16)-(1 8) ; zero (S-1-k), j++ SUBPL b, b, #4*S ; b = B[i,0] BPL loop_j ; branch if j=T-1 SUB c, c, #4*T ; c = C[0,0] ADDS count, count, #(1 8)-1 ; zero (T-1-j), i++ BPL loop_i ; branch if i=R-1 LDMFD sp!, {r4, pc} The preceding structure saves two registers over a naive implementation. First, we decrement the count at bits 16 to 23 until the result is negative. This implements the k loop, counting down from S − 1 to 0 inclusive. Once the result is negative, the code adds 216 to clear bits 16 to 31. Then we subtract 28 to decrement the count stored at bits 8 to 15, implementing the j loop. We can encode the constant 216 − 28 = 0xFF00 efficiently using a single ARM instruction. Bits 8 to 15 now count down from T − 1 to 0. When the result
- 205. 190 Chapter 6 Writing and Optimizing ARM Assembly Code of the combined add and subtract is negative, then we have finished the j loop. We repeat the same process for the i loop. ARM’s ability to handle a wide range of rotated constants in addition and subtraction instructions makes this scheme very efficient. ■ 6.6.4 Other Counted Loops You may want to use the value of a loop counter as an input to calculations in the loop. It’s not always desirable to count down from N to 1 or N − 1 to 0. For example, you may want to select bits out of a data register one at a time; in this case you may want a power-of-two mask that doubles on each iteration. The following subsections show useful looping structures that count in different patterns. They use only a single instruction combined with a branch to implement the loop. 6.6.4.1 Negative Indexing This loop structure counts from −N to 0 (inclusive or exclusive) in steps of size STEP. RSB i, N, #0 ; i=-N loop ; loop body goes here and i=-N,-N+STEP,..., ADDS i, i, #STEP BLT loop ; use BLT or BLE to exclude 0 or not 6.6.4.2 Logarithmic Indexing This loop structure counts down from 2N to 1 in powers of two. For example, if N = 4, then it counts 16, 8, 4, 2, 1. MOV i, #1 MOV i, i, LSL N loop ; loop body MOVS i, i, LSR#1 BNE loop The following loop structure counts down from an N-bit mask to a one-bit mask. For example, if N = 4, then it counts 15, 7, 3, 1. MOV i, #1 RSB i, i, i, LSL N ; i=(1 N)-1
- 206. 6.7 Bit Manipulation 191 loop ; loop body MOVS i, i, LSR#1 BNE loop Summary Looping Constructs ■ ARM requires two instructions to implement a counted loop: a subtract that sets flags and a conditional branch. ■ Unroll loops to improve loop performance. Do not overunroll because this will hurt cache performance. Unrolled loops may be inefficient for a small number of iterations. You can test for this case and only call the unrolled loop if the number of iterations is large. ■ Nested loops only require a single loop counter register, which can improve efficiency by freeing up registers for other uses. ■ ARM can implement negative and logarithmic indexed loops efficiently. 6.7 Bit Manipulation Compressed file formats pack items at a bit granularity to maximize the data density. The items may be of a fixed width, such as a length field or version field, or they may be of a variable width, such as a Huffman coded symbol. Huffman codes are used in compression to associate with each symbol a code of bits. The code is shorter for common symbols and longer for rarer symbols. In this section we look at methods to handle a bitstream efficiently. First we look at fixed-width codes, then variable width codes. See Section 7.6 for common bit manipulation routines such as endianness and bit reversal. 6.7.1 Fixed-Width Bit-Field Packing and Unpacking You can extract an unsigned bit-field from an arbitrary position in an ARM register in one cycle provided that you set up a mask in advance; otherwise you require two cycles. A signed bit-field always requires two cycles to unpack unless the bit-field lies at the top of a word (most significant bit of the bit-field is the most significant bit of the register). On the ARM we use logical operations and the barrel shifter to pack and unpack codes, as in the following examples. Example 6.22 The assembly code shows how to unpack bits 4 to 15 of register r0, placing the result in r1. ; unsigned unpack with mask set up in advance ; mask=0x00000FFF
- 207. 192 Chapter 6 Writing and Optimizing ARM Assembly Code AND r1, mask, r0, LSR#4 ; unsigned unpack with no mask MOV r1, r0, LSL#16 ; discard bits 16-31 MOV r1, r1, LSR#20 ; discard bits 0-3 and zero extend ; signed unpack MOV r1, r0, LSL#16 ; discard bits 16-31 MOV r1, r1, ASR#20 ; discard bits 0-3 and sign extend ■ Example 6.23 Packing the value r1 into the bit-packed register r0 requires one cycle if r1 is already restricted to the correct range and the corresponding field of r0 is clear. In this example, r1 is a 12-bit number to be inserted at bit 4 of r0. ; pack r1 into r0 ORR r0, r0, r1, LSL #4 Otherwise you need a mask register set up: ; pack r1 into r0 ; mask=0x00000FFF set up in advance AND r1, r1, mask ; restrict the r1 range BIC r0, r0, mask, LSL#4 ; clear the destination bits ORR r0, r0, r1, LSL#4 ; pack in the new data ■ 6.7.2 Variable-Width Bitstream Packing Our task here is to pack a series of variable-length codes to create a bitstream. Typically we are compressing a datastream and the variable-length codes represent Huffman or arithmetic coding symbols. However, we don’t need to make any assumptions about what the codes represent to pack them efficiently. We do need to be careful about the packing endianness. Many compressed file formats use a big-endian bit-packing order where the first code is placed at the most significant bits of the first byte. For this reason we will use a big-endian bit-packing order for our examples. This is sometimes known as network order. Figure 6.5 shows how we form a bytestream out of variable-length bitcodes using a big-endian packing order. High and low represent the most and least significant bit ends of the byte. To implement packing efficiently on the ARM we use a 32-bit register as a buffer to hold four bytes, in big-endian order. In other words we place byte 0 of the bytestream in the most significant 8 bits of the register. Then we can insert codes into the register one at a time, starting from the most significant bit and working down to the least significant bit.
- 208. 6.7 Bit Manipulation 193 Byte 0 Code 0 Code 1 Code 2 Code 3 Code 4 High Low Byte 1 High Low Byte 2 High Low Byte 3 High Low High Low ... ... Figure 6.5 Big-endian bitcodes packed into a bytestream. Code bits bitbuffer = 31 bitsfree 0 0 Figure 6.6 Format of bitbuffer. Once the register is full we can store 32 bits to memory. For a big-endian memory system we can store the word without modification. For a little-endian memory system we need to reverse the byte order in the word before storing. We call the 32-bit register we insert codes into bitbuffer. We need a second register bitsfree to record the number of bits that we haven’t used in bitbuffer. In other words, bitbuffer contains 32 − bitsfree code bits, and bitsfree zero bits, as in Figure 6.6. To insert a code of k bits into bitbuffer, we subtract k from bitsfree and then insert the code with a left shift of bitsfree. We also need to be careful about alignment. A bytestream need not be word aligned, and so we can’t use word accesses to write it. To allow word accesses we will start by backing up to the last word-aligned address. Then we fill the 32-bit register bitbuffer with the backed-up data. From then on we can use word (32-bit) read and writes. Example 6.24 Thisexampleprovidesthreefunctionsbitstream_write_start, bitstream_write_code, and bitstream_write_flush. These are not ATPCS-compliant functions because they assume registers such as bitbuffer are preserved between calls. In practice you will inline this code for efficiency, and so this is not a problem. The bitstream_write_start function aligns the bitstream pointer bitstream and initializes the 32-bit buffer bitbuffer. Each call to bitstream_write_code inserts a value code of bit-length codebits. Finally, the bitstream_write_flush function writes any remaining bytes to the bitstream to terminate the stream. bitstream RN 0 ; current byte address in the output bitstream code RN 4 ; current code
- 209. 194 Chapter 6 Writing and Optimizing ARM Assembly Code codebits RN 5 ; length in bits of current code bitbuffer RN 6 ; 32-bit output big-endian bitbuffer bitsfree RN 7 ; number of bits free in the bitbuffer tmp RN 8 ; scratch register mask RN 12 ; endian reversal mask 0xFFFF00FF bitstream_write_start MOV bitbuffer, #0 MOV bitsfree, #32 align_loop TST bitstream, #3 LDRNEB code, [bitstream, #-1]! SUBNE bitsfree, bitsfree, #8 ORRNE bitbuffer, code, bitbuffer, ROR #8 BNE align_loop MOV bitbuffer, bitbuffer, ROR #8 MOV pc, lr bitstream_write_code SUBS bitsfree, bitsfree, codebits BLE full_buffer ORR bitbuffer, bitbuffer, code, LSL bitsfree MOV pc, lr full_buffer RSB bitsfree, bitsfree, #0 ORR bitbuffer, bitbuffer, code, LSR bitsfree IF {ENDIAN}=little ; byte reverse the bit buffer prior to storing EOR tmp, bitbuffer, bitbuffer, ROR #16 AND tmp, mask, tmp, LSR #8 EOR bitbuffer, tmp, bitbuffer, ROR #8 ENDIF STR bitbuffer, [bitstream], #4 RSB bitsfree, bitsfree, #32 MOV bitbuffer, code, LSL bitsfree MOV pc, lr bitstream_write_flush RSBS bitsfree, bitsfree, #32 flush_loop MOVGT bitbuffer, bitbuffer, ROR #24 STRGTB bitbuffer, [bitstream], #1 SUBGTS bitsfree, bitsfree, #8 BGT flush_loop MOV pc, lr ■
- 210. 6.7 Bit Manipulation 195 6.7.3 Variable-Width Bitstream Unpacking It is much harder to unpack a bitstream of variable-width codes than to pack it. The problem is that we usually don’t know the width of the codes we are unpacking! For Huffman-encoded bitstreams you must derive the length of each code by looking at the next sequence of bits and working out which code it can be. Here we will use a lookup table to speed up the unpacking process. The idea is to take the next N bits of the bitstream and perform a lookup in two tables, look_codebits[] and look_code[], each of size 2N entries. If the next N bits are sufficient to determine the code, then the tables tell us the code length and the code value, respectively. If the next N bits are insufficient to determine the code, then the look_codebits table will return an escape value of 0xFF. An escape value is just a flag to indicate that this case is exceptional. In a sequence of Huffman codes, common codes are short and rare codes are long. So, we expect to decode most common codes quickly, using the lookup tables. In the following example we assume that N = 8 and use 256-entry lookup tables. Example 6.25 This example provides three functions to unpack a big-endian bitstream stored in a bytestream. As with Example 6.24, these functions are not ATPCS compliant and will normally be inlined. The function bitstream_read_start initializes the process, start- ing to decode a bitstream at byte address bitstream. Each call to bitstream_read_code returns the next code in register code. The function only handles short codes that can be read from the lookup table. Long codes are trapped at the label long_code, but the implementation of this function depends on the codes you are decoding. The code uses a register bitbuffer that contains N + bitsleft code bits starting at the most significant bit (see Figure 6.7). bitstream RN 0 ; current byte address in the input bitstream look_code RN 2 ; lookup table to convert next N bits to a code look_codebits RN 3 ; lookup table to convert next N bits to a code length code RN 4 ; code read codebits RN 5 ; length of code read bitbuffer RN 6 ; 32-bit input buffer (big endian) bitsleft RN 7 ; number of valid bits in the buffer - N N bits bitbuffer = 31 bitsleft bits 0 0 Figure 6.7 Format of bitbuffer.
- 211. 196 Chapter 6 Writing and Optimizing ARM Assembly Code tmp RN 8 ; scratch tmp2 RN 9 ; scratch mask RN 12 ; N-bit extraction mask (1 N)-1 N EQU 8 ; use a lookup table on 8 bits (N must be = 9) bitstream_read_start MOV bitsleft, #32 read_fill_loop LDRB tmp, [bitstream], #1 ORR bitbuffer, tmp, bitbuffer, LSL#8 SUBS bitsleft, bitsleft, #8 BGT read_fill_loop MOV bitsleft, #(32-N) MOV mask, #(1 N)-1 MOV pc, lr bitstream_read_code LDRB codebits, [look_codebits, bitbuffer, LSR# (32-N)] AND code, mask, bitbuffer, LSR#(32-N) LDR code, [look_code, code, LSL#2] SUBS bitsleft, bitsleft, codebits BMI empty_buffer_or_long_code MOV bitbuffer, bitbuffer, LSL codebits MOV pc, lr empty_buffer_or_long_code TEQ codebits, #0xFF BEQ long_code ; empty buffer - fill up with 3 bytes ; as N = 9, we can fill 3 bytes without overflow LDRB tmp, [bitstream], #1 LDRB tmp2, [bitstream], #1 MOV bitbuffer, bitbuffer, LSL codebits LDRB codebits, [bitstream], #1 ORR tmp, tmp2, tmp, LSL#8 RSB bitsleft, bitsleft, #(8-N) ORR tmp, codebits, tmp, LSL#8 ORR bitbuffer, bitbuffer, tmp, LSL bitsleft RSB bitsleft, bitsleft, #(32-N) MOV pc, lr long_code ; handle the long code case depending on the application ; here we just return a code of -1 MOV code, #-1 MOV pc, lr
- 212. 6.8 Efficient Switches 197 The counter bitsleft actually counts the number of bits remaining in the buffer bitbuffer less the N bits required for the next lookup. Therefore we can perform the next table lookup as long as bitsleft ≥ 0. As soon as bitsleft 0 there are two possibilities. One possibility is that we found a valid code but then have insufficient bits to look up the next code. Alternatively, codebits contains the escape value 0xFF to indicate that the code was longer than N bits. We can trap both these cases at once using a call to empty_buffer_or_long_code. If the buffer is empty, then we fill it with 24 bits. If we have detected a long code, then we branch to the long_code trap. The example has a best-case performance of seven cycles per code unpack on an ARM9TDMI. You can obtain faster results if you know the sizes of the packed bitfields in advance. ■ Summary Bit Manipulation ■ The ARM can pack and unpack bits efficiently using logical operations and the barrel shifter. ■ To access bitstreams efficiently use a 32-bit register as a bitbuffer. Use a second register to keep track of the number of valid bits in the bitbuffer. ■ To decode bitstreams efficiently, use a lookup table to scan the next N bits of the bitstream. The lookup table can return codes of length at most N bits directly, or return an escape character for longer codes. 6.8 Efficient Switches A switch or multiway branch selects between a number of different actions. In this section we assume the action depends on a variable x. For different values of x we need to per- form different actions. This section looks at assembly to implement a switch efficiently for different types of x. 6.8.1 Switches on the Range 0 ≤ x N The example C function ref_switch performs different actions according to the value of x. We are only interested in x values in the range 0 ≤ x 8. int ref_switch(int x) { switch (x) { case 0: return method_0();
- 213. 198 Chapter 6 Writing and Optimizing ARM Assembly Code case 1: return method_1(); case 2: return method_2(); case 3: return method_3(); case 4: return method_4(); case 5: return method_5(); case 6: return method_6(); case 7: return method_7(); default: return method_d(); } } There are two ways to implement this structure efficiently in ARM assembly. The first method uses a table of function addresses. We load pc from the table indexed by x. Example 6.26 The switch_absolute code performs a switch using an inlined table of function pointers: x RN 0 ; int switch_absolute(int x) switch_absolute CMP x, #8 LDRLT pc, [pc, x, LSL#2] B method_d DCD method_0 DCD method_1 DCD method_2 DCD method_3 DCD method_4 DCD method_5 DCD method_6 DCD method_7 The code works because the pc register is pipelined. The pc points to the method_0 word when the ARM executes the LDR instruction. ■ The method above is very fast, but has one drawback: The code is not position independentsinceitstoresabsoluteaddressestothemethodfunctionsinmemory. Position- independent code is often used in modules that are installed into a system at run time. The next example shows how to solve this problem. Example 6.27 The code switch_relative is slightly slower compared to switch_absolute, but it is position independent: ; int switch_relative(int x) switch_relative
- 214. 6.8 Efficient Switches 199 CMP x, #8 ADDLT pc, pc, x, LSL#2 B method_d B method_0 B method_1 B method_2 B method_3 B method_4 B method_5 B method_6 B method_7 ■ There is one final optimization you can make. If the method functions are short, then you can inline the instructions in place of the branch instructions. Example 6.28 Suppose each nondefault method has a four-instruction implementation. Then you can use code of the form CMP x, #8 ADDLT pc, pc, x, LSL#4 ; each method is 16 bytes long B method_d method_0 ; the four instructions for method_0 go here method_1 ; the four instructions for method_1 go here ; ... continue in this way ... ■ 6.8.2 Switches on a General Value x Now suppose that x does not lie in some convenient range 0 ≤ x N for N small enough to apply the methods of Section 6.8.1. How do we perform the switch efficiently, without having to test x against each possible value in turn? Averyusefultechnique inthesesituationsistousea hashingfunction. Ahashingfunction is any function y = f (x) that maps the values we are interested in into a continuous range of the form 0 ≤ y N. Instead of a switch on x, we can use a switch on y = f (x). There is a problem if we have a collision, that is, if two x values map to the same y value. In this case we need further code to test all the possible x values that could have led to the y value. For our purposes a good hashing function is easy to compute and does not suffer from many collisions. To perform the switch we apply the hashing function and then use the optimized switch code of Section 6.8.1 on the hash value y. Where two x values can map to the same hash, we need to perform an explicit test, but this should be rare for a good hash function.
- 215. 200 Chapter 6 Writing and Optimizing ARM Assembly Code Example 6.29 Suppose we want to call method_k when x = 2k for eight possible methods. In other words we want to switch on the values 1, 2, 4, 8, 16, 32, 64, 128. For all other values of x we need to call the default method method_d. We look for a hash function formed out of multiplying by powers of two minus one (this is an efficient operation on the ARM). By trying different multipliers we find that 15 × 31 × x has a different value in bits 9 to 11 for each of the eight switch values. This means we can use bits 9 to 11 of this product as our hash function. The following switch_hash assembly uses this hash function to perform the switch. Note that other values that are not powers of two will have the same hashes as the values we want to detect. The switch has narrowed the case down to a single power of two that we can test for explicitly. If x is not a power of two, then we fall through to the default case of calling method_d. x RN 0 hash RN 1 ; int switch_hash(int x) switch_hash RSB hash, x, x, LSL#4 ; hash=x*15 RSB hash, hash, hash, LSL#5 ; hash=x*15*31 AND hash, hash, #7 9 ; mask out the hash value ADD pc, pc, hash, LSR#6 NOP TEQ x, #0x01 BEQ method_0 TEQ x, #0x02 BEQ method_1 TEQ x, #0x40 BEQ method_6 TEQ x, #0x04 BEQ method_2 TEQ x, #0x80 BEQ method_7 TEQ x, #0x20 BEQ method_5 TEQ x, #0x10 BEQ method_4 TEQ x, #0x08 BEQ method_3 B method_d ■ Summary Efficient Switches ■ Make sure the switch value is in the range 0 ≤ x N for some small N. To do this you may have to use a hashing function.
- 216. 6.9 Handling Unaligned Data 201 ■ Use the switch value to index a table of function pointers or to branch to short sections of code at regular intervals. The second technique is position independent; the first isn’t. 6.9 Handling Unaligned Data Recall that a load or store is unaligned if it uses an address that is not a multiple of the data transfer width. For code to be portable across ARM architectures and implementations, you must avoid unaligned access. Section 5.9 introduced unaligned accesses and ways of handling them in C. In this section we look at how to handle unaligned accesses in assembly code. The simplest method is to use byte loads and stores to access one byte at a time. This is the recommended method for any accesses that are not speed critical. The following example shows how to access word values in this way. Example 6.30 This example shows how to read or write a 32-bit word using the unaligned address p. We use three scratch registers t0, t1, t2 to avoid interlocks. All unaligned word operations take seven cycles on an ARM9TDMI. Note that we need separate functions for 32-bit words stored in big- or little-endian format. p RN 0 x RN 1 t0 RN 2 t1 RN 3 t2 RN 12 ; int load_32_little(char *p) load_32_little LDRB x, [p] LDRB t0, [p, #1] LDRB t1, [p, #2] LDRB t2, [p, #3] ORR x, x, t0, LSL#8 ORR x, x, t1, LSL#16 ORR r0, x, t2, LSL#24 MOV pc, lr ; int load_32_big(char *p) load_32_big LDRB x, [p] LDRB t0, [p, #1] LDRB t1, [p, #2]
- 217. 202 Chapter 6 Writing and Optimizing ARM Assembly Code LDRB t2, [p, #3] ORR x, t0, x, LSL#8 ORR x, t1, x, LSL#8 ORR r0, t2, x, LSL#8 MOV pc, lr ; void store_32_little(char *p, int x) store_32_little STRB x, [p] MOV t0, x, LSR#8 STRB t0, [p, #1] MOV t0, x, LSR#16 STRB t0, [p, #2] MOV t0, x, LSR#24 STRB t0, [p, #3] MOV pc, lr ; void store_32_big(char *p, int x) store_32_big MOV t0, x, LSR#24 STRB t0, [p] MOV t0, x, LSR#16 STRB t0, [p, #1] MOV t0, x, LSR#8 STRB t0, [p, #2] STRB x, [p, #3] MOV pc, lr ■ If you require better performance than seven cycles per access, then you can write several variants of the routine, with each variant handling a different address alignment. This reduces the cost of the unaligned access to three cycles: the word load and the two arithmetic instructions required to join values together. Example 6.31 This example shows how to generate a checksum of N words starting at a possibly unaligned address data. The code is written for a little-endian memory system. Notice how we can use the assembler MACRO directive to generate the four routines checksum_0, checksum_1, checksum_2, and checksum_3. Routine checksum_a handles the case where data is an address of the form 4q + a. Using a macro saves programming effort. We need only write a single macro and instantiate it four times to implement our four checksum routines. sum RN 0 ; current checksum N RN 1 ; number of words left to sum
- 218. 6.9 Handling Unaligned Data 203 data RN 2 ; word aligned input data pointer w RN 3 ; data word ; int checksum_32_little(char *data, unsigned int N) checksum_32_little BIC data, r0, #3 ; aligned data pointer AND w, r0, #3 ; byte alignment offset MOV sum, #0 ; initial checksum LDR pc, [pc, w, LSL#2] ; switch on alignment NOP ; padding DCD checksum_0 DCD checksum_1 DCD checksum_2 DCD checksum_3 MACRO CHECKSUM $alignment checksum_$alignment LDR w, [data], #4 ; preload first value 10 ; loop IF $alignment0 ADD sum, sum, w, LSR#8*$alignment LDR w, [data], #4 SUBS N, N, #1 ADD sum, sum, w, LSL#32-8*$alignment ELSE ADD sum, sum, w LDR w, [data], #4 SUBS N, N, #1 ENDIF BGT %BT10 MOV pc, lr MEND ; generate four checksum routines ; one for each possible byte alignment CHECKSUM 0 CHECKSUM 1 CHECKSUM 2 CHECKSUM 3 You can now unroll and optimize the routines as in Section 6.6.2 to achieve the fastest speed. Due to the additional code size, only use the preceding technique for time-critical routines. ■
- 219. 204 Chapter 6 Writing and Optimizing ARM Assembly Code Summary Handling Unaligned Data ■ If performance is not an issue, access unaligned data using multiple byte loads and stores. This approach accesses data of a given endianness regardless of the pointer alignment and the configured endianness of the memory system. ■ If performance is an issue, then use multiple routines, with a different routine optimized for each possible array alignment. You can use the assembler MACRO directive to generate these routines automatically. 6.10 Summary For the best performance in an application you will need to write optimized assembly routines. It is only worth optimizing the key routines that the performance depends on. You can find these using a profiling or cycle counting tool, such as the ARMulator simulator from ARM. This chapter covered examples and useful techniques for optimizing ARM assembly. Here are the key ideas: ■ Schedule code so that you do not incur processor interlocks or stalls. Use Appendix D to see how quickly an instruction result is available. Concentrate particularly on load and multiply instructions, which often take a long time to produce results. ■ Hold as much data in the 14 available general-purpose registers as you can. Sometimes it is possible to pack several data items in a single register. Avoid stacking data in the innermost loop. ■ For small if statements, use conditional data processing operations rather than conditional branches. ■ Use unrolled loops that count down to zero for the maximum loop performance. ■ For packing and unpacking bit-packed data, use 32-bit register buffers to increase efficiency and reduce memory data bandwidth. ■ Use branch tables and hash functions to implement efficient switch statements. ■ To handle unaligned data efficiently, use multiple routines. Optimize each routine for a particular alignment of the input and output arrays. Select between the routines at run time.
- 220. This Page Intentionally Left Blank
- 221. 7.1 Double-Precision Integer Multiplication 7.1.1 long long Multiplication 7.1.2 Unsigned 64-Bit by 64-Bit Multiply with 128-Bit Result 7.1.3 Signed 64-Bit by 64-Bit Multiply with 128-Bit Result 7.2 Integer Normalization and Count Leading Zeros 7.2.1 Normalization on ARMv5 and Above 7.2.2 Normalization on ARMv4 7.2.3 Counting Trailing Zeros 7.3 Division 7.3.1 Unsigned Division by Trial Subtraction 7.3.2 Unsigned Integer Newton-Raphson Division 7.3.3 Unsigned Fractional Newton-Raphson Division 7.3.4 Signed Division 7.4 Square Roots 7.4.1 Square Root by Trial Subtraction 7.4.2 Square Root by Newton-Raphson Iteration 7.5 Transcendental Functions: log, exp, sin, cos 7.5.1 The Base-Two Logarithm 7.5.2 Base-Two Exponentiation 7.5.3 Trigonometric Operations 7.6 Endian Reversal and Bit Operations 7.6.1 Endian Reversal 7.6.2 Bit Permutations 7.6.3 Bit Population Count 7.7 Saturated and Rounded Arithmetic 7.7.1 Saturating 32 Bits to 16 Bits 7.7.2 Saturated Left Shift 7.7.3 Rounded Right Shift 7.7.4 Saturated 32-Bit Addition and Subtraction 7.7.5 Saturated Absolute 7.8 Random Number Generation 7.9 Summary
- 222. C h a p t e r Optimized Primitives 7 A primitive is a basic operation that can be used in a wide variety of different algorithms and programs. For example, addition, multiplication, division, and random number generation are all primitives. Some primitives are supported directly by the ARM instruction set, including 32-bit addition and multiplication. However, many primitives are not supported directly by instructions, and we must write routines to implement them (for example, division and random number generation). This chapter provides optimized reference implementations of common primitives. The first three sections look at multiplication and division. Section 7.1 looks at primitives to implement extended-precision multiplication. Section 7.2 looks at normalization, which is useful for the division algorithms in Section 7.3. The next two sections look at more complicated mathematical operations. Section 7.4 covers square root. Section 7.5 looks at the transcendental functions log, exp, sin, and cos. Section 7.6 looks at operations involving bit manipulation, and Section 7.7 at operations involvingsaturationandrounding. Finally, Section7.8looksatrandomnumbergeneration. You can use this chapter in two ways. First, it is useful as a straight reference. If you need a division routine, go to the index and find the routine, or find the section on division. You can copy the assembly from the book’s Web site. Second, this chapter provides the theory to explain why each implementation works, which is useful if you need to change or generalize the routine. For example, you may have different requirements about the precision or the format of the input and output operands. For this reason, the text necessarily contains many mathematical formulae and some tedious proofs. Please skip these as you see fit! We have designed the code examples so that they are complete functions that you can lift directly from the Web site. They should assemble immediately using the toolkit supplied by ARM. For constancy we use the ARM toolkit ADS1.1 for all the examples of this chapter. 207
- 223. 208 Chapter 7 Optimized Primitives See Section A.4 in Appendix for help on the assembler format. You could equally well use the GNU assembler gas. See Section A.5 for help on the gas assembler format. YouwillalsonoticethatweusetheCkeyword__value_in_regs. OntheARMcompiler armcc this indicates that a function argument, or return value, should be passed in registers rather than by reference. In practical applications this is not an issue because you will inline the operations for efficiency. We use the notation Qk throughout this chapter to denote a fixed-point representation with binary point between bits k − 1 and k. For example, 0.75 represented at Q15 is the integer value 0x6000. See Section 8.1 for more details of the Qk representation and fixed- point arithmetic. We say “d 0. 5 at Q15” to mean that d represents the value d2−15 and that this is less than one half. 7.1 Double-Precision Integer Multiplication You can multiply integers up to 32 bits wide using the UMULL and SMULL instructions. The following routines multiply 64-bit signed or unsigned integers, giving a 64-bit or 128-bit result. They can be extended, using the same ideas, to multiply any lengths of integer. Longer multiplication is useful for handling the long long C type, emulating double-precision fixed- or floating-point operations, and in the long arithmetic required by public-key cryptography. We use a little-endian notation for multiword values. If a 128-bit integer is stored in four registers a3, a2, a1, a0, then these store bits [127:96], [95:64], [63:32], [31:0], respectively (see Figure 7.1). 7.1.1 long long Multiplication Use the following three-instruction sequence to multiply two 64-bit values (signed or unsigned) b and c to give a new 64-bit long long value a. Excluding the ARM Thumb Procedure Call Standard (ATPCS) wrapper and with worst-case inputs, this operation takes 24 cycles on ARM7TDMI and 25 cycles on ARM9TDMI. On ARM9E the operation takes 8 cycles. One of these cycles is a pipeline interlock between the first UMULL and MLA, which you could remove by interleaving with other code. a3 127 96 a2 95 64 a1 63 32 a0 31 0 Figure 7.1 Representation of a 128-bit value as four 32-bit values.
- 224. 7.1 Double-Precision Integer Multiplication 209 b_0 RN 0 ; b bits [31:00] (b low) b_1 RN 1 ; b bits [63:32] (b high) c_0 RN 2 ; c bits [31:00] (c low) c_1 RN 3 ; c bits [63:32] (c high) a_0 RN 4 ; a bits [31:00] (a low-low) a_1 RN 5 ; a bits [63:32] (a low-high) a_2 RN 12 ; a bits [95:64] (a high-low) a_3 RN lr ; a bits [127:96] (a high-high) ; long long mul_64to64 (long long b, long long c) mul_64to64 STMFD sp!, {r4,r5,lr} ; 64-bit a = 64-bit b * 64-bit c UMULL a_0, a_1, b_0, c_0 ; low*low MLA a_1, b_0, c_1, a_1 ; low*high MLA a_1, b_1, c_0, a_1 ; high*low ; return wrapper MOV r0, a_0 MOV r1, a_1 LDMFD sp!, {r4,r5,pc} 7.1.2 Unsigned 64-Bit by 64-Bit Multiply with 128-Bit Result There are two slightly different implementations for an unsigned 64- by 64-bit multiply with 128-bit result. The first is faster on an ARM7M. Here multiply accumulate instruc- tions take an extra cycle compared to the nonaccumulating version. The ARM7M version requires four long multiplies and six adds, a worst-case performance of 30 cycles. ; __value_in_regs struct { unsigned a0,a1,a2,a3; } ; umul_64to128_arm7m(unsigned long long b, ; unsigned long long c) umul_64to128_arm7m STMFD sp!, {r4,r5,lr} ; unsigned 128-bit a = 64-bit b * 64-bit c UMULL a_0, a_1, b_0, c_0 ; low*low UMULL a_2, a_3, b_0, c_1 ; low*high UMULL c_1, b_0, b_1, c_1 ; high*high ADDS a_1, a_1, a_2 ADCS a_2, a_3, c_1 ADC a_3, b_0, #0 UMULL c_0, b_0, b_1, c_0 ; high*low
- 225. 210 Chapter 7 Optimized Primitives ADDS a_1, a_1, c_0 ADCS a_2, a_2, b_0 ADC a_3, a_3, #0 ; return wrapper MOV r0, a_0 MOV r1, a_1 MOV r2, a_2 MOV r3, a_3 LDMFD sp!, {r4,r5,pc} The second method works better on the ARM9TDMI and ARM9E. Here multiply accumulates are as fast as multiplies. We schedule the multiply instructions to avoid result-use interlocks on the ARM9E (see Section 6.2 for a description of pipelines and interlocks). ; __value_in_regs struct { unsigned a0,a1,a2,a3; } ; umul_64to128_arm9e(unsigned long long b, ; unsigned long long c) umul_64to128_arm9e STMFD sp!, {r4,r5,lr} ; unsigned 128-bit a = 64-bit b * 64-bit c UMULL a_0, a_1, b_0, c_0 ; low*low MOV a_2, #0 UMLAL a_1, a_2, b_0, c_1 ; low*high MOV a_3, #0 UMLAL a_1, a_3, b_1, c_0 ; high*low MOV b_0, #0 ADDS a_2, a_2, a_3 ADC a_3, b_0, #0 UMLAL a_2, a_3, b_1, c_1 ; high*high ; return wrapper MOV r0, a_0 MOV r1, a_1 MOV r2, a_2 MOV r3, a_3 LDMFD sp!, {r4,r5,pc} Excluding the function call and return wrapper, this implementation requires 33 cycles on ARM9TDMI and 17 cycles on ARM9E. The idea is that the operation ab + c + d cannot overflow an unsigned 64-bit integer if a, b, c, and d are unsigned 32-bit integers. Therefore you can achieve long multiplications with the normal schoolbook method of using the operation ab + c + d, where c and d are the horizontal and vertical carries.
- 226. 7.1 Double-Precision Integer Multiplication 211 7.1.3 Signed 64-Bit by 64-Bit Multiply with 128-Bit Result A signed 64-bit integer breaks down into a signed high 32 bits and an unsigned low 32 bits. To multiply the high part of b by the low part of c requires a signed by unsigned multiply instruction. Although the ARM does not have such an instruction, we can synthesize one using macros. The following macro USMLAL provides an unsigned-by-signed multiply accumulate operation. To multiply unsigned b by signed c, it first calculates the product bc consid- ering both values as signed. If the top bit of b is set, then this signed multiply multiplied by the value b − 232. In this case it corrects the result by adding c232. Similarly, SUMLAL performs a signed-by-unsigned multiply accumulate. MACRO USMLAL $al, $ah, $b, $c ; signed $ah.$al += unsigned $b * signed $c SMLAL $al, $ah, $b, $c ; a = (signed)b * c; TST $b, #1 31 ; if ((signed)b0) ADDNE $ah, $ah, $c ; a += (c 32); MEND MACRO SUMLAL $al, $ah, $b, $c ; signed $ah.$al += signed $b * unsigned $c SMLAL $al, $ah, $b, $c ; a = b * (signed)c; TST $c, #1 31 ; if ((signed)c0) ADDNE $ah, $ah, $b ; a += (b 32); MEND Using these macros it is relatively simple to convert the 64-bit multiply of Section 7.1.2 to a signed multiply. This signed version is four cycles longer than the corresponding unsigned version due to the signed-by-unsigned fix-up instructions. ; __value_in_regs struct { unsigned a0,a1,a2; signed a3; } ; smul_64to128(long long b, long long c) smul_64to128 STMFD sp!, {r4,r5,lr} ; signed 128-bit a = 64-bit b * 64-bit c UMULL a_0, a_1, b_0, c_0 ; low*low MOV a_2, #0 USMLAL a_1, a_2, b_0, c_1 ; low*high MOV a_3, #0 SUMLAL a_1, a_3, b_1, c_0 ; high*low
- 227. 212 Chapter 7 Optimized Primitives MOV b_0, a_2, ASR#31 ADDS a_2, a_2, a_3 ADC a_3, b_0, a_3, ASR#31 SMLAL a_2, a_3, b_1, c_1 ; high*high ; return wrapper MOV r0, a_0 MOV r1, a_1 MOV r2, a_2 MOV r3, a_3 LDMFD sp!, {r4,r5,pc} 7.2 Integer Normalization and Count Leading Zeros An integer is normalized when the leading one, or most significant bit, of the integer is at a known bit position. We will need normalization to implement Newton-Raphson division (see Section 7.3.2) or to convert to a floating-point format. Normalization is also useful for calculating logarithms (see Section 7.5.1) and priority decoders used by some dispatch routines. In these applications, we need to know both the normalized value and the shift required to reach this value. This operation is so important that an instruction is available from ARM architecture ARMv5E onwards to accelerate normalization. The CLZ instruction counts the number of leading zeros before the first significant one. It returns 32 if there is no one bit at all. The CLZ value is the left shift you need to apply to normalize the integer so that the leading one is at bit position 31. 7.2.1 Normalization on ARMv5 and Above On an ARMv5 architecture, use the following code to perform unsigned and signed nor- malization, respectively. Unsigned normalization shifts left until the leading one is at bit 31. Signed normalization shifts left until there is one sign bit at bit 31 and the leading bit is at bit 30. Both functions return a structure in registers of two values, the normalized integer and the left shift to normalize. x RN 0 ; input, output integer shift RN 1 ; shift to normalize ; __value_in_regs struct { unsigned x; int shift; } ; unorm_arm9e(unsigned x) unorm_arm9e
- 228. 7.2 Integer Normalization and Count Leading Zeros 213 CLZ shift, x ; left shift to normalize MOV x, x, LSL shift ; normalize MOV pc, lr ; __value_in_regs struct { signed x; int shift; } ; unorm_arm9e(signed x) snorm_arm9e ; [ s s s 1-s x x ... ] EOR shift, x, x, LSL#1 ; [ 0 0 1 x x x ... ] CLZ shift, shift ; left shift to normalize MOV x, x, LSL shift ; normalize MOV pc, lr Note that we reduce the signed norm to an unsigned norm using a logical exclusive OR. If x is signed, then x∧(x 1) has the leading one in the position of the first sign bit in x. 7.2.2 Normalization on ARMv4 If you are using an ARMv4 architecture processor such as ARM7TDMI or ARM9TDMI, then there is no CLZ instruction available. Instead we can synthesize the same functionality. The simple divide-and-conquer method in unorm_arm7m gives a good trade-off between performance and code size. We successively test to see if we can shift x left by 16, 8, 4, 2, and 1 places in turn. ; __value_in_regs struct { unsigned x; int shift; } ; unorm_arm7m(unsigned x) unorm_arm7m MOV shift, #0 ; shift=0; CMP x, #1 16 ; if (x (1 16)) MOVCC x, x, LSL#16 ; { x = x 16; ADDCC shift, shift, #16 ; shift+=16; } TST x, #0xFF000000 ; if (x (1 24)) MOVEQ x, x, LSL#8 ; { x = x 8; ADDEQ shift, shift, #8 ; shift+=8; } TST x, #0xF0000000 ; if (x (1 28)) MOVEQ x, x, LSL#4 ; { x = x 4; ADDEQ shift, shift, #4 ; shift+=4; } TST x, #0xC0000000 ; if (x (1 30)) MOVEQ x, x, LSL#2 ; { x = x 2; ADDEQ shift, shift, #2 ; shift+=2; } TST x, #0x80000000 ; if (x (1 31)) ADDEQ shift, shift, #1 ; { shift+=1; MOVEQS x, x, LSL#1 ; x =1;
- 229. 214 Chapter 7 Optimized Primitives MOVEQ shift, #32 ; if (x==0) shift=32; } MOV pc, lr The final MOVEQ sets shift to 32 when x is zero and can often be omitted. The imple- mentation requires 17 cycles on ARM7TDMI or ARM9TDMI and is sufficient for most purposes. However, it is not the fastest way to normalize on these processors. For maximum speed you can use a hash-based method. The hash-based method first reduces the input operand to one of 33 different pos- sibilities, without changing the CLZ value. We do this by iterating x = x | (xs) for shifts s = 1, 2, 4, 8. This replicates the leading one 16 positions to the right. Then we calculate x = x ∼(x16). This clears the 16 bits to the right of the 16 replicated ones. Table 7.1 illustrates the combined effect of these operations. For each possible input binary pattern we show the 32-bit code produced by these operations. Note that the CLZ value of the input pattern is the same as the CLZ value of the code. Now our aim is to get from the code value to the CLZ value using a hashing function followed by table lookup. See Section 6.8.2 for more details on hashing functions. For the hashing function, we multiply by a large value and extract the top six bits of the result. Values of the form 2a + 1 and 2a − 1 are easy to multiply by on the ARM using the barrel shifter. In fact, multiplying by (29 − 1)(211 − 1)(214 − 1) gives a different hash value for each distinct CLZ value. The authors found this multiplier using a computer search. You can use the code here to implement a fast hash-based normalization on ARMv4 processors. The implementation requires 13 cycles on an ARM7TDMI excluding setting up the table pointer. table RN 2 ; address of hash lookup table ;__value_in_regs struct { unsigned x; int shift; } ; unorm_arm7m_hash(unsigned x) Table 7.1 Code and CLZ values for different inputs. Input (in binary, x is a wildcard bit) 32-bit code CLZ value 1xxxxxxx xxxxxxxx xxxxxxxx xxxxxxxx 0xFFFF0000 0 01xxxxxx xxxxxxxx xxxxxxxx xxxxxxxx 0x7FFF8000 1 001xxxxx xxxxxxxx xxxxxxxx xxxxxxxx 0x3FFFC000 2 … … … 00000000 00000000 00000000 000001xx 0x00000007 29 00000000 00000000 00000000 0000001x 0x00000003 30 00000000 00000000 00000000 00000001 0x00000001 31 00000000 00000000 00000000 00000000 0x00000000 32
- 230. 7.2 Integer Normalization and Count Leading Zeros 215 unorm_arm7m_hash ORR shift, x, x, LSR#1 ORR shift, shift, shift, LSR#2 ORR shift, shift, shift, LSR#4 ORR shift, shift, shift, LSR#8 BIC shift, shift, shift, LSR#16 RSB shift, shift, shift, LSL#9 ; *(2∧9-1) RSB shift, shift, shift, LSL#11 ; *(2∧11-1) RSB shift, shift, shift, LSL#14 ; *(2∧14-1) ADR table, unorm_arm7m_hash_table LDRB shift, [table, shift, LSR#26] MOV x, x, LSL shift MOV pc, lr unorm_arm7m_hash_table DCB 0x20, 0x14, 0x13, 0xff, 0xff, 0x12, 0xff, 0x07 DCB 0x0a, 0x11, 0xff, 0xff, 0x0e, 0xff, 0x06, 0xff DCB 0xff, 0x09, 0xff, 0x10, 0xff, 0xff, 0x01, 0x1a DCB 0xff, 0x0d, 0xff, 0xff, 0x18, 0x05, 0xff, 0xff DCB 0xff, 0x15, 0xff, 0x08, 0x0b, 0xff, 0x0f, 0xff DCB 0xff, 0xff, 0xff, 0x02, 0x1b, 0x00, 0x19, 0xff DCB 0x16, 0xff, 0x0c, 0xff, 0xff, 0x03, 0x1c, 0xff DCB 0x17, 0xff, 0x04, 0x1d, 0xff, 0xff, 0x1e, 0x1f 7.2.3 Counting Trailing Zeros Count trailing zeros is a related operation to count leading zeros. It counts the number of zeros below the least significant set bit in an integer. Equivalently, this detects the highest power of two that divides the integer. Therefore you can count trailing zeros to express an integer as a product of a power of two and an odd integer. If the integer is zero, then there is no lowest bit so the count trailing zeros returns 32. There is a trick to finding the highest power of two dividing an integer n, for nonzero n. The trick is to see that the expression (n (−n)) has a single bit set in position of the lowest bit set in n. Figure 7.2 shows how this works. The x represents wildcard bits. n = xxxxxxxxxxxxxxxxxx10000000000000 −n = yyyyyyyyyyyyyyyyyyy10000000000000 where y = 1 − x n (−n) = 0000000000000000010000000000000 Figure 7.2 Identifying the least significant bit.
- 231. 216 Chapter 7 Optimized Primitives Using this trick, we can convert a count trailing zeros to a count leading zeros. The following code implements count trailing zeros on an ARM9E. We handle the zero-input case without extra overhead by using conditional instructions. ; unsigned ctz_arm9e(unsigned x) ctz_arm9e RSBS shift, x, #0 ; shift=-x AND shift, shift, x ; isolate trailing 1 of x CLZCC shift, shift ; number of zeros above last 1 RSC r0, shift, #32 ; number of zeros below last 1 MOV pc, lr For processors without the CLZ instruction, a hashing method similar to that of Section 7.2.2 gives good performance: ; unsigned ctz_arm7m(unsigned x) ctz_arm7m RSB shift, x, #0 AND shift, shift, x ; isolate lowest bit ADD shift, shift, shift, LSL#4 ; *(2∧4+1) ADD shift, shift, shift, LSL#6 ; *(2∧6+1) RSB shift, shift, shift, LSL#16 ; *(2∧16-1) ADR table, ctz_arm7m_hash_table LDRB r0, [table, shift, LSR#26] MOV pc, lr ctz_arm7m_hash_table DCB 0x20, 0x00, 0x01, 0x0c, 0x02, 0x06, 0xff, 0x0d DCB 0x03, 0xff, 0x07, 0xff, 0xff, 0xff, 0xff, 0x0e DCB 0x0a, 0x04, 0xff, 0xff, 0x08, 0xff, 0xff, 0x19 DCB 0xff, 0xff, 0xff, 0xff, 0xff, 0x15, 0x1b, 0x0f DCB 0x1f, 0x0b, 0x05, 0xff, 0xff, 0xff, 0xff, 0xff DCB 0x09, 0xff, 0xff, 0x18, 0xff, 0xff, 0x14, 0x1a DCB 0x1e, 0xff, 0xff, 0xff, 0xff, 0x17, 0xff, 0x13 DCB 0x1d, 0xff, 0x16, 0x12, 0x1c, 0x11, 0x10 7.3 Division ARM cores don’t have hardware support for division. To divide two numbers you must call a software routine that calculates the result using standard arithmetic operations. If you can’t avoid a division (see Section 5.10 for how to avoid divisions and fast division by
- 232. 7.3 Division 217 a repeated denominator), then you need access to very optimized division routines. This section provides some of these useful optimized routines. With aggressive optimization the Newton-Raphson division routines on an ARM9E run as fast as one bit per cycle hardware division implementations. Therefore ARM does not need the complexity of a hardware division implementation. This section describes the fastest division implementations that we know of. The sec- tion is unavoidably long as there are many different division techniques and precisions to consider. We will also prove that the routines actually work for all possible inputs. This is essential since we can’t try all possible input arguments for a 32-bit by 32-bit division! If you are not interested in the theoretical details, skip the proof and just lift the code from the text. Section 7.3.1 gives division implementations using trial subtraction, or binary search. Trial subtraction is useful when early termination is likely due to a small quotient, or on a processor core without a fast multiply instruction. Sections 7.3.2 and 7.3.3 give implemen- tations using Newton-Raphson iteration to converge to the answer. Use Newton-Raphson iteration when the worst-case performance is important, or fast multiply instructions are available. The Newton-Raphson implementations use the ARMv5TE extensions. Finally Section 7.3.4 looks at signed rather than unsigned division. We will need to distinguish between integer division and true mathematical division. Let’s fix the following notation: ■ n/d = the integer part of the result rounding towards zero (as in C) ■ n%d = the integer remainder n − d(n/d) (as in C) ■ n//d = nd−1 = n d = the true mathematical result of n divided by d 7.3.1 Unsigned Division by Trial Subtraction Suppose we need to calculate the quotient q = n/d and remainder r = n % d for unsigned integers n and d. Suppose also that we know the quotient q fits into N bits so that n/d 2N , or equivalently n (d N). The trial subtraction algorithm calculates the N bits of q by trying to set each bit in turn, starting at the most significant bit, bit N − 1. This is equivalent to a binary search for the result. We can set bit k if we can subtract (d k) from the current remainder without giving a negative result. The example udiv_simple gives a simple C implementation of this algorithm: unsigned udiv_simple(unsigned d, unsigned n, unsigned N) { unsigned q=0, r=n; do { /* calculate next quotient bit */
- 233. 218 Chapter 7 Optimized Primitives N--; /* move to next bit */ if ( (r N) = d ) /* if r=d*(1 N) */ { r -= (d N); /* update remainder */ q += (1 N); /* update quotient */ } } while (N); return q; } Proof 7.1 To prove that the answer is correct, note that before we decrement N, the invariants of Equation (7.1) hold: n = qd + r and 0 ≤ r d2N (7.1) At the start q = 0 and r = n, so the invariants hold by our assumption that the quotient fits into N bits. Assume now that the invariants hold for some N. If r d2N−1, then we need do nothing for the invariants to hold for N − 1. If r ≥ d2N−1, then we maintain the invariants by subtracting d2N−1 from r and adding 2N−1 to q. ■ The preceding implementation is called a restoring trial subtraction implementation. In a nonrestoring implementation, the subtraction always takes place. However, if r becomes negative, then we use an addition of (d N) on the next round, rather than a subtraction, to give the same result. Nonrestoring division is slower on the ARM so we won’t go into the details. The following subsections give you assembly implementations of the trial sub- traction method for different numerator and denominator sizes. They run on any ARM processor. 7.3.1.1 Unsigned 32-Bit/32-Bit Divide by Trial Subtraction This is the operation required by C compilers. It is called when the expression n/d or n%d occurs in C and d is not a power of 2. The routine returns a two-element structure consisting of the quotient and remainder. d RN 0 ; input denominator d, output quotient r RN 1 ; input numerator n, output remainder t RN 2 ; scratch register q RN 3 ; current quotient ; __value_in_regs struct { unsigned q, r; } ; udiv_32by32_arm7m(unsigned d, unsigned n) udiv_32by32_arm7m
- 234. 7.3 Division 219 MOV q, #0 ; zero quotient RSBS t, d, r, LSR#3 ; if ((r 3)=d) C=1; else C=0; BCC div_3bits ; quotient fits in 3 bits RSBS t, d, r, LSR#8 ; if ((r 8)=d) C=1; else C=0; BCC div_8bits ; quotient fits in 8 bits MOV d, d, LSL#8 ; d = d*256 ORR q, q, #0xFF000000 ; make div_loop iterate twice RSBS t, d, r, LSR#4 ; if ((r 4)=d) C=1; else C=0; BCC div_4bits ; quotient fits in 12 bits RSBS t, d, r, LSR#8 ; if ((r 8)=d) C=1; else C=0; BCC div_8bits ; quotient fits in 16 bits MOV d, d, LSL#8 ; d = d*256 ORR q, q, #0x00FF0000 ; make div_loop iterate 3 times RSBS t, d, r, LSR#8 ; if ((r 8)=d) MOVCS d, d, LSL#8 ; { d = d*256; ORRCS q, q, #0x0000FF00 ; make div_loop iterate 4 times} RSBS t, d, r, LSR#4 ; if ((r 4)d) BCC div_4bits ; r/d quotient fits in 4 bits RSBS t, d, #0 ; if (0 = d) BCS div_by_0 ; goto divide by zero trap ; fall through to the loop with C=0 div_loop MOVCS d, d, LSR#8 ; if (next loop) d = d/256 div_8bits ; calculate 8 quotient bits RSBS t, d, r, LSR#7 ; if ((r 7)=d) C=1; else C=0; SUBCS r, r, d, LSL#7 ; if (C) r -= d 7; ADC q, q, q ; q=(q 1)+C; RSBS t, d, r, LSR#6 ; if ((r 6)=d) C=1; else C=0; SUBCS r, r, d, LSL#6 ; if (C) r -= d 6; ADC q, q, q ; q=(q 1)+C; RSBS t, d, r, LSR#5 ; if ((r 5)=d) C=1; else C=0; SUBCS r, r, d, LSL#5 ; if (C) r -= d 5; ADC q, q, q ; q=(q 1)+C; RSBS t, d, r, LSR#4 ; if ((r 4)=d) C=1; else C=0; SUBCS r, r, d, LSL#4 ; if (C) r -= d 4; ADC q, q, q ; q=(q 1)+C; div_4bits ; calculate 4 quotient bits RSBS t, d, r, LSR#3 ; if ((r 3)=d) C=1; else C=0; SUBCS r, r, d, LSL#3 ; if (C) r -= d 3; ADC q, q, q ; q=(q 1)+C; div_3bits ; calculate 3 quotient bits RSBS t, d, r, LSR#2 ; if ((r 2)=d) C=1; else C=0; SUBCS r, r, d, LSL#2 ; if (C) r -= d 2;
- 235. 220 Chapter 7 Optimized Primitives ADC q, q, q ; q=(q 1)+C; RSBS t, d, r, LSR#1 ; if ((r 1)=d) C=1; else C=0; SUBCS r, r, d, LSL#1 ; if (C) r -= d 1; ADC q, q, q ; q=(q 1)+C; RSBS t, d, r ; if (r=d) C=1; else C=0; SUBCS r, r, d ; if (C) r -= d; ADCS q, q, q ; q=(q 1)+C; C=old q bit 31; div_next BCS div_loop ; loop if more quotient bits MOV r0, q ; r0 = quotient; r1=remainder; MOV pc, lr ; return { r0, r1 } structure; div_by_0 MOV r0, #-1 MOV r1, #-1 MOV pc, lr ; return { -1, -1 } structure; To see how this routine works, first look at the code between the labels div_8bits and div_next. This calculates the 8-bit quotient r/d, leaving the remainder in r and inserting the 8 bits of the quotient into the lower bits of q. The code works by using a trial subtraction algorithm. It attempts to subtract 128d, 64d, 32d, 16d, 8d, 4d, 2d, and d in turn from r. For each subtract it sets carry to one if the subtract is possible and zero otherwise. This carry forms the next bit of the result to insert into q. Next note that we can jump into this code at div_4bits or div_3bits if we only want to perform a 4-bit or 3-bit divide, respectively. Now look at the beginning of the routine. We want to calculate r/d, leaving the remain- der in r and writing the quotient to q. We first check to see if the quotient q will fit into 3 or 8 bits. If so, we can jump directly to div_3bits or div_8bits, respectively to calculate the answer. This early termination is useful in C where quotients are often small. If the quotient requires more than 8 bits, then we multiply d by 256 until r/d fits into 8 bits. We record how many times we have multiplied d by 256 using the high bits of q, setting 8 bits for each multiply. This means that after we have calculated the 8-bit r/d, we loop back to div_loop and divide d by 256 for each multiply we performed earlier. In this way we reduce the divide to a series of 8-bit divides. 7.3.1.2 Unsigned 32/15-Bit Divide by Trial Subtraction In the 32/32 divide of Section 7.3.1.1, each trial subtraction takes three cycles per bit of quotient. However, if we restrict the denominator and quotient to 15 bits, we can do a trial subtraction in only two cycles per bit of quotient. You will find this operation useful for 16-bit DSP, where the division of two positive Q15 numbers requires a 30/15-bit integer division (see Section 8.1.5).
- 236. 7.3 Division 221 In the following code, the numerator n is a 32-bit unsigned integer. The denominator d is a 15-bit unsigned integer. The routine returns a structure containing the 15-bit quotient q and remainder r. If n ≥ (d 15), then the result overflows and we return the maximum possible quotient of 0x7fff. m RN 0 ; input denominator d then (-d 14) r RN 1 ; input numerator n then remainder ; __value_in_regs struct { unsigned q, r; } ; udiv_32by16_arm7m(unsigned d, unsigned n) udiv_32by16_arm7m RSBS m, m, r, LSR#15 ; m = (n 15) - d BCS overflow_15 ; overflow if (n 15)=d SUB m, m, r, LSR#15 ; m = -d MOV m, m, LSL#14 ; m = -d 14 ; 15 trial division steps follow ADDS r, m, r ; r=r-(d 14); C=(r=0); SUBCC r, r, m ; if (C==0) r+=(d 14) ADCS r, m, r, LSL #1 ; r=(2*r+C)-(d 14); C=(r=0); SUBCC r, r, m ; if (C==0) r+=(d 14) ADCS r, m, r, LSL #1 ; ... and repeat ... SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ADCS r, m, r, LSL #1
- 237. 222 Chapter 7 Optimized Primitives SUBCC r, r, m ADCS r, m, r, LSL #1 SUBCC r, r, m ; extract answer and remainder (if required) ADC r0, r, r ; insert final answer bit MOV r, r0, LSR #15 ; extract remainder BIC r0, r0, r, LSL #15 ; extract quotient MOV pc, lr ; return { r0, r } overflow_15 ; quotient oveflows 15 bits LDR r0, =0x7fff ; maximum quotient MOV r1, r0 ; maximum remainder MOV pc, lr ; return { 0x7fff, 0x7fff } We start by setting m = −d214. Instead of subtracting a shifted version of the denomin- ator from the remainder, we add the negated denominator to the shifted remainder. After the kth trial subtraction step, the bottom k bits of r hold the k top bits of the quotient. The upper 32 − k bits of r hold the remainder. Each ADC instruction performs three functions: ■ It shifts the remainder left by one. ■ It inserts the next quotient bit from the last trial subtraction. ■ It subtracts d 14 from the remainder. After 15 steps the bottom 15 bits of r contain the quotient and the top 17 bits contain the remainder. We separate these into r0 and r1, respectively. Excluding the return, the division takes 35 cycles on ARM7TDMI. 7.3.1.3 Unsigned 64/31-Bit Divide by Trial Subtraction ThisoperationisusefulwhenyouneedtodivideQ31fixed-pointintegers(seeSection8.1.5). It doubles the precision of the division in Section 7.3.1.2. The numerator n is an unsigned 64-bit integer. The denominator d is an unsigned 31-bit integer. The following routine returns a structure containing the 32-bit quotient q and remainder r. The result overflows if n ≥ d232. In this case we return the maximum possible quotient of 0xffffffff. The routines takes 99 cycles on ARM7TDMI using a three-bit-per-cycle trial subtraction. In the code comments we use the notation [r, q] to mean a 64-bit value with upper 32 bits r and lower 32 bits q. m RN 0 ; input denominator d, -d r RN 1 ; input numerator (low), remainder (high) t RN 2 ; input numerator (high) q RN 3 ; result quotient and remainder (low)
- 238. 7.3 Division 223 ; __value_in_regs struct { unsigned q, r; } ; udiv_64by32_arm7m(unsigned d, unsigned long long n) udiv_64by32_arm7m CMP t, m ; if (n = (d 32)) BCS overflow_32 ; goto overflow_32; RSB m, m, #0 ; m = -d ADDS q, r, r ; { [r,q] = 2*[r,q]-[d,0]; ADCS r, m, t, LSL#1 ; C = ([r,q]=0); } SUBCC r, r, m ; if (C==0) [r,q] += [d,0] GBLA k ; the next 32 steps are the same k SETA 1 ; so we generate them using an WHILE k32 ; assembler while loop ADCS q, q, q ; { [r,q] = 2*[r,q]+C - [d,0]; ADCS r, m, r, LSL#1 ; C = ([r,q]=0); } SUBCC r, r, m ; if (C==0) [r,q] += [d,0] k SETA k+1 WEND ADCS r0, q, q ; insert final answer bit MOV pc, lr ; return { r0, r1 } overflow_32 MOV r0, #-1 MOV r1, #-1 MOV pc, lr ; return { -1, -1 } The idea is similar to the 32/15-bit division. After the kth trial subtraction the 64-bit value [r, q] contains the remainder in the top 64 − k bits. The bottom k bits contain the top k quotient bits. After 32 trial subtractions, r holds the remainder and q the quotient. The two ADC instructions shift [r, q] left by one, inserting the last answer bit in the bottom and subtracting the denominator from the upper 32 bits. If the subtraction overflows, we correct r by adding back the denominator. 7.3.2 Unsigned Integer Newton-Raphson Division Newton-Raphson iteration is a powerful technique for solving equations numerically. Once we have a good approximation of a solution to an equation, the iteration converges very rapidly on that solution. In fact, convergence is usually quadratic with the number of valid fractional bits roughly doubling with each iteration. Newton-Raphson is widely used for calculating high-precision reciprocals and square roots. We will use the Newton-Raphson method to implement 16- and 32-bit integer and fractional divides, although the ideas we will look at generalize to any size of division.
- 239. 224 Chapter 7 Optimized Primitives The Newton-Raphson technique applies to any equation of the form f (x) = 0, where f (x) is a differentiable function with derivative f (x). We start with an approximation xn to a solution x of the equation. Then we apply the following iteration, to give us a better approximation xn+1 xn+1 = xn − f (xn) f (xn) (7.2) Figure 7.3 illustrates the Newton-Raphson iteration to solve f (x) = 0. 8 − x−1 = 0, taking x0 = 1 as our initial approximation. The first two steps are x1 = 1. 2 and x2 = 1. 248, converging rapidly to the solution 1.25. For many functions f, the iteration converges rapidly to the solution x. Graphically, we place the estimate xn+1 where the tangent to the curve at estimate xn meets the x-axis. We will use Newton-Raphson iteration to calculate 2N d−1 using only integer multipli- cation operations. We allow the factor of 2N because this is useful when trying to estimate 232/d as used in Sections 7.3.2.1 and 5.10.2. Consider the following function: f (x) = d − 2N x (7.3) 0.1 0.05 0 −0.05 −0.1 −0.15 −0.2 −0.25 0.95 1 1.05 x0 = 1 x1 = 1.2 x2=1.248 x = 1.25 f(x) = 0.8 − 1/x 1.1 1.15 1.2 1.25 1.3 Figure 7.3 Newton-Raphson iteration for f (x) = 0. 8 − 1/x.
- 240. 7.3 Division 225 The equation f (x) = 0 has a solution at x = 2N d−1 and derivative f (x) = 2N x−2. By substitution, the Newton-Raphson iteration is given by xn+1 = xn − d − 2N x−1 n 2N x−2 n = 2xn − dx2 n 2N (7.4) In one sense the iteration has turned our division upside-down. Instead of multiplying by 2N and dividing by d, we are now multiplying by d and dividing by 2N . There are two cases that are particularly useful: ■ N = 32 and d is an integer. In this case we can approximate 232d−1 quickly and use this approximation to calculate n/d, the ratio of two unsigned 32-bit numbers. See Section 7.3.2.1 for iterations using N = 32. ■ N = 0 and d is a fraction represented in fixed-point format with 0. 5 ≤ d 1. In this case we can calculate d−1 using the iteration, which is useful to calculate nd−1 for a range of fixed-point values n. See Section 7.3.3 for iterations using N = 0. 7.3.2.1 Unsigned 32/32-Bit Divide by Newton-Raphson This section gives you an alterative to the routine of Section 7.3.1.1. The following routine has very good worst-case performance and makes use of the faster multiplier on ARM9E. We use Newton-Raphson iteration with N = 32 and integral d to approximate the integer 232/d. We then multiply this approximation by n and divide by 232 to get an estimate of the quotient q = n/d. Finally, we calculate the remainder r = n − qd and correct quotient and remainder for any rounding error. q RN 0 ; input denominator d, output quotient q r RN 1 ; input numerator n, output remainder r s RN 2 ; scratch register m RN 3 ; scratch register a RN 12 ; scratch register ; __value_in_regs struct { unsigned q, r; } ; udiv_32by32_arm9e(unsigned d, unsigned n) udiv_32by32_arm9e ; instruction number : comment CLZ s, q ; 01 : find normalizing shift MOVS a, q, LSL s ; 02 : perform a lookup on the ADD a, pc, a, LSR#25 ; 03 : most significant 7 bits LDRNEB a, [a, #t32-b32-64] ; 04 : of divisor b32 SUBS s, s, #7 ; 05 : correct shift RSB m, q, #0 ; 06 : m = -d MOVPL q, a, LSL s ; 07 : q approx (1 32)/d ; 1st Newton iteration follows MULPL a, q, m ; 08 : a = -q*d
- 241. 226 Chapter 7 Optimized Primitives BMI udiv_by_large_d ; 09 : large d trap SMLAWT q, q, a, q ; 10 : q approx q-(q*q*d 32) TEQ m, m, ASR#1 ; 11 : check for d=0 or d=1 ; 2nd Newton iteration follows MULNE a, q, m ; 12 : a = -q*d MOVNE s, #0 ; 13 : s = 0 SMLALNE s, q, a, q ; 14 : q = q-(q*q*d 32) BEQ udiv_by_0_or_1 ; 15 : trap d=0 or d=1 ; q now accurate enough for a remainder r, 0=r3*d UMULL s, q, r, q ; 16 : q = (r*q) 32 ADD r, r, m ; 17 : r = n-d MLA r, q, m, r ; 18 : r = n-(q+1)*d ; since 0 = n-q*d 3*d, thus -d = r 2*d CMN r, m ; 19 : t = r-d SUBCS r, r, m ; 20 : if (t-d || t=0) r=r+d ADDCC q, q, #1 ; 21 : if (-d=t t0) q=q+1 ADDPL r, r, m, LSL#1 ; 22 : if (t=0) { r=r-2*d ADDPL q, q, #2 ; 23 : q=q+2 } BX lr ; 24 : return {q, r} udiv_by_large_d ; at this point we know d = 2∧(31-6)=2∧25 SUB a, a, #4 ; 25 : set q to be an RSB s, s, #0 ; 26 : underestimate of MOV q, a, LSR s ; 27 : (1 32)/d UMULL s, q, r, q ; 28 : q = (n*q) 32 MLA r, q, m, r ; 29 : r = n-q*d ; q now accurate enough for a remainder r, 0=r4*d CMN m, r, LSR#1 ; 30 : if (r/2 = d) ADDCS r, r, m, LSL#1 ; 31 : { r=r-2*d; ADDCS q, q, #2 ; 32 : q=q+2; } CMN m, r ; 33 : if (r = d) ADDCS r, r, m ; 34 : { r=r-d; ADDCS q, q, #1 ; 35 : q=q+1; } BX lr ; 36 : return {q, r} udiv_by_0_or_1 ; carry set if d=1, carry clear if d=0 MOVCS q, r ; 37 : if (d==1) { q=n; MOVCS r, #0 ; 38 : r=0; } MOVCC q, #-1 ; 39 : if (d==0) { q=-1; MOVCC r, #-1 ; 40 : r=-1; } BX lr ; 41 : return {q,r} ; table for 32 by 32 bit Newton Raphson divisions
- 242. 7.3 Division 227 ; table[0] = 255 ; table[i] = (1 14)/(64+i) for i=1,2,3,...,63 t32 DCB 0xff, 0xfc, 0xf8, 0xf4, 0xf0, 0xed, 0xea, 0xe6 DCB 0xe3, 0xe0, 0xdd, 0xda, 0xd7, 0xd4, 0xd2, 0xcf DCB 0xcc, 0xca, 0xc7, 0xc5, 0xc3, 0xc0, 0xbe, 0xbc DCB 0xba, 0xb8, 0xb6, 0xb4, 0xb2, 0xb0, 0xae, 0xac DCB 0xaa, 0xa8, 0xa7, 0xa5, 0xa3, 0xa2, 0xa0, 0x9f DCB 0x9d, 0x9c, 0x9a, 0x99, 0x97, 0x96, 0x94, 0x93 DCB 0x92, 0x90, 0x8f, 0x8e, 0x8d, 0x8c, 0x8a, 0x89 DCB 0x88, 0x87, 0x86, 0x85, 0x84, 0x83, 0x82, 0x81 Proof 7.2 The proof that the code works is rather involved. To make the proof and explanation simpler, we comment each line with a line number for the instruction. Note that some of the instructions are conditional, and the comments only apply when the instruction is executed. Execution follows several different paths through the code depending on the size of the denominator d. We treat these cases separately. We’ll use Ik as shorthand notation for the instruction numbered k in the preceding code. Case 1 d = 0: 27 cycles on ARM9E, including return We check for this case explicitly. We avoid the table lookup at I04 by making the load conditional on q
- 243. = 0. This ensures we don’t read off the start of the table. Since I01 sets s = 32, there is no branch at I09. I06 sets m = 0, and so I11 sets the Z flag and clears the carry flag. We branch at I15 to special case code. Case 2 d = 1: 27 cycles on ARM9E, including return This case is similar to the d = 0 case. The table lookup at I05 does occur, but we ignore the result. I06 sets m = −1, and so I11 sets the Z and carry flags. The special code at I37 returns the trivial result of q = n, r = 0. Case 3 2 ≤ d 225: 36 cycles on ARM9E, including return This is the hardest case. First we use a table lookup on the leading bits of d to generate an estimate for 232/d. I01 finds a shift s such that 231 ≤ d2s 232. I02 sets a = d2s. I03 and I04 perform a table lookup on the top seven bits of a, which we will call i0. i0 is an index between 64 and 127. Truncating d to seven bits introduces an error f0: i0 = 2s−25 d − f0, where 0 ≤ f0 1 (7.5) We set a to the lookup value a0 = table[i0 − 64] = 214i−1 0 − g0, where 0 ≤ g0 ≤ 1 is the table truncation error. Then, a0 = 214 i0 − g0 = 214 i0 1 − g0i0 214 = 214 i0 + f0 1 + f0 i0 − g0 i0 + f0 214 (7.6)
- 244. 228 Chapter 7 Optimized Primitives Noting that i0 + f0 = 2s−25d from Equation 7.5 and collecting the error terms into e0: a0 = 239−s d (1 − e0) , where e0 = g0 i0 + f0 214 − f0 i0 (7.7) Since 64 ≤ i0 ≤ i0 + f0 128 by the choice of s it follows that −f02−6 ≤ e0 ≤ g02−7. As d 225, we know s ≥ 7. I05 and I07 calculate the following value in register q: q0 = 2s−7 a0 = 232 d (1 − e0) (7.8) This is a good initial approximation for 232d−1, and we now iterate Newton-Raphson twice to increase the accuracy of the approximation. I08 and I10 update the values of registers a and q to a1 and q1 according to Equation (7.9). I08 calculates a1 using m = −d. Since d ≥ 2, it follows that q0 231 for when d = 2, then f0 = 0, i0 = 64, g0 = 1, e0 = 2−8. Therefore we can use the signed multiply accumulate instruction SMLAWT at I10 to calculate q1. a1 = 232 − dq0 = 232 e0 and q1 = q0 + (((a1 16)q0) 16) (7.9) The right shifts introduce truncation errors 0 ≤ f1 1 and 0 ≤ g1 1, respectively: q1 = q0 + (a12−16 − f1)q02−16 − g1 = 232 d (1 − e2 0 − f1(1 − e0)2−16 ) − g1 (7.10) q1 = 232 d (1 − e1), where e1 = e2 0 + f1(1 − e0)2−16 + g1d2−32 (7.11) The new estimate q1 is more accurate with error e1 ≈ e2 0 . I12, I13, and I14 implement the second Newton-Raphson iteration, updating registers a and q to the values a2 and q2: a2 = 232 − dq1 = 232 e1 and q2 = q1 + ((a2q1) 32) (7.12) Again the shift introduces a truncation error 0 ≤ g2 1: q2 = q1 + a2q12−32 − g2 = 232 d (1 − e2), where e2 = e2 1 + g2d2−32 e2 1 + d2−32 (7.13) Our estimate of 232d−1 is now sufficiently accurate. I16 estimates n/d by setting q to the value q3 in Equation (7.14). The shift introduces a rounding error 0 ≤ g3 1. q3 = (nq2) 32 = nq22−32 − g3 = n d − e3, where e3 = n d e2 + g3 n d e2 1 + 2 (7.14)
- 245. 7.3 Division 229 The error e3 is certainly positive and small, but how small? We will show that 0 ≤ e3 3, by showing that e2 1 d2−32. We split into subcases: Case 3.1 2 ≤ d ≤ 16 Then f0 = f1 = g1 = 0 as the respective truncations do not drop any bits. So e1 = e2 0 and e0 = i0g02−14. We calculate i0 and g0 explicitly in Table 7.2. Case 3.2 16 d ≤ 256 Then f0 ≤ 0. 5 implies |e0| ≤ 2−7. As f1 = g1 = 0, it follows that e2 1 ≤ 2−28 d2−32. Case 3.3 256 d 512 Then f0 ≤ 1 implies |e0| ≤ 2−6. As f1 = g1 = 0, it follows that e2 1 ≤ 2−24 d2−32. Case 3.4 512 ≤ d 225 Then f0 ≤ 1 implies |e0| ≤ 2−6. Therefore, e1 2−12 + 2−15 + d2−32. Let D = √ d2−32. Then 2−11.5 ≤ D 2−3.5. So, e1 D(2−0.5 + 2−3.5 + 2−3.5) D, the required result. Now we know that e3 3, I16 to I23 calculate which of the three possible results q3, q3 + 1, q3 + 2, is the correct value for n/d. The instructions calculate the remainder r = n − dq3, and subtract d from the remainder, incrementing q, until 0 ≤ r d. Case 4 225 ≤ d: 32 cycles on ARM9E including return This case starts in the same way as Case 3. We have the same equation for i0 and a0. However, then we branch to I25, where we subtract four from a0 and apply a right shift of 7 − s. This gives the estimate q0 in Equation (7.15). The subtraction of four forces q0 to be an underestimate of 232d−1. For some truncation error 0 ≤ g0 1: q0 = 214 i0 − 4 (7 − s) = 2s+7 i0 − 2s−5 − g0 (7.15) Table 7.2 Error values for small d. d i0 g0 e0 232e2 1 2, 4, 8, 16 64 1 2−8 1 3, 6, 12 96 2//3 2−8 1 5, 10 80 4//5 2−8 1 7, 14 112 2//7 2−9 1 9 72 5//9 5 * 2−11 1 11 88 2//11 2−10 1 13 104 7//13 7 * 2−11 1 15 120 8//15 2−8 1
- 246. 230 Chapter 7 Optimized Primitives q0 = 232 d − e0, where e0 = 2s−5 + g0 − 232 d f0 i0 (7.16) Since (232d−1)(f0i−1 0 ) ≤ 2s+12−6 = 2s−5, it follows that 0 ≤ e0 3. I28 sets q to the approximated quotient g1. For some truncation error 0 ≤ g1 1: q1 = (nq0) 32 = nq0 232 − g1 = n d − n 232 e0 − g1 (7.17) Therefore q1 is an underestimate to n/d with error less than four. The final steps I28 to I35 use a two-step binary search to fix the exact answer. We have finished! ■ 7.3.3 Unsigned Fractional Newton-Raphson Division This section looks at Newton-Raphson techniques you can use to divide fractional values. Fractional values are represented using fixed-point arithmetic and are useful for DSP applications. For a fractional division, we first scale the denominator to the range 0. 5 ≤ d 1. 0. Then we use a table lookup to provide an estimate x0 to d−1. Finally we perform Newton-Raphson iterations with N = 0. From Section 7.3.2, the iteration is xi+1 = 2xi − dx2 i (7.18) As i increases, xi becomes more accurate. For fastest implementation, we use low-precision multiplications when i is small, increasing the precision with each iteration. The result is a short and fast routine. Section 7.3.3.3 gives a routine for 15-bit fractional division, and Section 7.3.3.4 a routine for 31-bit fractional division. Again, the hard part is to prove that we get the correct result for all possible inputs. For a 31-bit division we cannot test every combination of numerator and denominator. We must have a proof that the code works. Sections 7.3.3.1 and 7.3.3.2 cover the mathematical theory we require for the proofs in Sections 7.3.3.3 and 7.3.3.4. If you are not interested in this theory, then skip to Section 7.3.3.3. Throughout the analysis, we stick to the following notation: ■ d is a fractional value scaled so that 0. 5 ≤ d 1. ■ i is the stage number of the iteration. ■ ki is the number of bits of precision used for xi. We ensure that ki+1 ki ≥ 3. ■ xi is a ki-bit estimate to d−1 in the range 0 ≤ xi ≤ 2 − 22−ki . ■ xi is a multiple of 21−ki . ■ ei = 1 d − xi is the error in the approximation xi. We ensure |ei| ≤ 0. 5. With each iteration, we increase ki and reduce the error ei. First let’s see how to calculate a good initial estimate x0.
- 247. 7.3 Division 231 7.3.3.1 Theory: The Initial Estimate for Newton-Raphson Division If you are not interested in Newton-Raphson theory, then skip the next two sections and jump to Section 7.3.3.3. We use a lookup table on the most significant bits of d to determine the initial estimate x0 to d−1. For a good trade-off between table size and estimate accuracy, we index by the leading eight fractional bits of d, returning a nine-bit estimate x0. Since the leading bits of d and x0 are both one, we only need a lookup table consisting of 128 eight-bit entries. Let a be the integer formed by the seven bits following the leading one of d. Then d is in the range (128 + a)2−8 ≤ d (129 + a)2−8. Choosing c = (128. 5 + a)2−8, the midpoint, we define the lookup table by table[a] = round(256.0/c) - 256; This is a floating-point formula, where round rounds to the nearest integer. We can reduce this to an integer formula that is easier to calculate if you don’t have floating-point support: table[a] = (511*(128-a))/(257+2*a); Clearly, all the table entries are in the range 0 to 255. To start the Newton-Raphson iteration we set x0 = 1 + table[a]2−8 and k0 = 9. Now we cheat slightly by looking ahead to Section 7.3.3.3. We will be interested in the value of the following error term: E = d2 e2 0 + d2−16 (7.19) First let’s look at d|e0|. If e0 ≤ 0, then d|e0| = x0d − 1 x0(129 + a)2−8 − 1 (7.20) d|e0| (256 + table[a])(129 + a) − 2−16 2−16 (7.21) If e0 ≥ 0, then d|e0| = 1 − x0d ≤ 1 − x0(128 + a)2−8 (7.22) d|e0| ≤ 216 − (256 + table[a])(128 + a) 2−16 (7.23) Running through the possible values of a, we find that d|e0| 299 × 2−16. This is the best possible bound. Take d = (133 − e)2−16, and the smaller e 0, the closer to the bound you will get! The same trick works for finding a sharp bound on E: E232 (256 + table[a])(129 + a) − 216 2 + (129 + a)28 if e0 ≤ 0 (7.24) E232 216 − (256 + table[a])(128 + a) 2 + (129 + a)28 if e0 ≥ 0 (7.25) Running over the possible values of a gives us the sharp bound E 2−15. Finally we need to check that x0 ≤ 2 − 2−7. This follows as the largest table entry is 254.
- 248. 232 Chapter 7 Optimized Primitives 7.3.3.2 Theory: Accuracy of the Newton-Raphson Fraction Iteration This section analyzes the error introduced by each fractional Newton-Raphson iteration: xi+1 = 2xi − dx2 i (7.26) It is often slow to calculate this iteration exactly. As xi is only accurate to at most ki of precision, there is not much point in performing the calculation to more than 2ki bits of precision. The following steps give a practical method of calculating the iteration. The iterations preserve the limits for xi and ei that we defined in Section 7.3.3. 1. Calculate x2 i exactly: x2 i = 1 d − ei 2 and lies in the range 0 ≤ x2 i ≤ 4 − 24−ki + 24−2ki (7.27) 2. Calculate an underestimate di to d, usually d to around 2ki bits. We only actually require that 0. 5 ≤ di = d − fi and 0 ≤ fi ≤ 2−4 (7.28) 3. Calculate, yi, a ki+1 + 1 bit estimate to dix2 i in the range 0 ≤ yi 4. Make yi as accurate as possible. However, we only require that the error gi satisfy yi = dix2 i − gi and − 2−2 ≤ gi ≤ 23−2ki − 22−ki+1 (7.29) 4. Calculate the new estimate xi+1 = 2xi − yi using an exact subtraction. We will prove that 0 ≤ xi+1 2 and so the result fits in ki+1 bits. We must show that the new ki+1–bit estimate xi+1 satisfies the properties mentioned prior to Section 7.3.3.1 and calculate a formula for the new error ei+1. First, we check the range of xi+1: xi+1 = 2xi − dix2 i + gi ≤ 2xi − 0. 5x2 i + gi (7.30) The latter polynomial in xi has positive gradient for xi ≤ 2 and so reaches its maximum value when xi is maximum. Therefore, using our bound on gi, xi+1 ≤ 2 2 − 22−ki − 0. 5 4 − 24−ki + 24−2ki + gi ≤ 2 − 22−ki+1 (7.31) On the other hand, since |ei| ≤ 0. 5 and gi ≥ −0. 25, it follows that xi+1 ≥ 2xi − 1. 5xi + gi ≥ 0 (7.32) Finally, we calculate the new error: ei+1 = 1 d − xi+1 = 1 d − 2xi + (d − fi)x2 i − gi = de2 i − fix2 i − gi (7.33) It is easy to check that |ei+1| ≤ 0. 5.
- 249. 7.3 Division 233 7.3.3.3 Q15 Fixed-Point Division by Newton-Raphson We calculate a Q15 representation of the ratio nd−1, where n and d are 16-bit positive integers in the range 0 ≤ n d 215. In other words, we calculate q = (n 15)/d; You can use the routine udiv_32by16_arm7m in Section 7.3.1.2 to do this by trial subtraction. However, the following routine calculates exactly the same result but uses fewer cycles on an ARMv5E core. If you only need an estimate of the result, then you can remove instructions I15 to I18, which correct the error of the initial estimate. The routine veers perilously close to being inaccurate in many places, so it is followed by a proof that it is correct. The proof uses the theory of Section 7.3.3.2. The proof is a useful reference if the code requires adaptation or optimizing for another ARM core. The routine takes 24 cycles on an ARM9E including the return instruction. If d ≤ n 215, then we return the saturated value 0x7fff. q RN 0 ; input denominator d, quotient estimate q r RN 1 ; input numerator n, remainder r s RN 2 ; normalisation shift, scratch d RN 3 ; Q15 normalised denominator 2∧14=d2∧15 ; unsigned udiv_q15_arm9e(unsigned d, unsigned q) udiv_q15_arm9e ; instruction number : comment CLZ s, q ; 01 : choose a shift s to SUB s, s, #17 ; 02 : normalize d to the MOVS d, q, LSL s ; 03 : range 0.5=d1 at Q15 ADD q, pc, d, LSR#7 ; 04 : look up q, a Q8 LDRNEB q, [q, #t15-b15-128] ; 05 : approximation to 1//d b15 MOV r, r, LSL s ; 06 : normalize numerator ADD q, q, #256 ; 07 : part of table lookup ; q is now a Q8, 9-bit estimate to 1//d SMULBB s, q, q ; 08 : s = q*q at Q16 CMP r, d ; 09 : check for overflow MUL s, d, s ; 10 : s = q*q*d at Q31 MOV q, q, LSL#9 ; 11 : change q to Q17 SBC q, q, s, LSR#15 ; 12 : q = 2*q-q*q*d at Q16 ; q is now a Q16, 17-bit estimate to 1//d SMULWB q, q, r ; 13 : q approx n//d at Q15 BCS overflow_15 ; 14 : trap overflow case SMULBB s, q, d ; 15 : s = q*d at Q30 RSB r, d, r, LSL#15 ; 16 : r = n-d at Q30 CMP r, s ; 17 : if (r=s)
- 250. 234 Chapter 7 Optimized Primitives ADDPL q, q, #1 ; 18 : q++ BX lr ; 19 : return q overflow_15 LDR q, =0x7FFF ; 20 : q = 0x7FFF BX lr ; 21 : return q ; table for fractional Newton-Raphson division ; table[a] = (int)((511*(128-a))/(257+2*a)) 0=a128 t15 DCB 0xfe, 0xfa, 0xf6, 0xf2, 0xef, 0xeb, 0xe7, 0xe4 DCB 0xe0, 0xdd, 0xd9, 0xd6, 0xd2, 0xcf, 0xcc, 0xc9 DCB 0xc6, 0xc2, 0xbf, 0xbc, 0xb9, 0xb6, 0xb3, 0xb1 DCB 0xae, 0xab, 0xa8, 0xa5, 0xa3, 0xa0, 0x9d, 0x9b DCB 0x98, 0x96, 0x93, 0x91, 0x8e, 0x8c, 0x8a, 0x87 DCB 0x85, 0x83, 0x80, 0x7e, 0x7c, 0x7a, 0x78, 0x75 DCB 0x73, 0x71, 0x6f, 0x6d, 0x6b, 0x69, 0x67, 0x65 DCB 0x63, 0x61, 0x5f, 0x5e, 0x5c, 0x5a, 0x58, 0x56 DCB 0x54, 0x53, 0x51, 0x4f, 0x4e, 0x4c, 0x4a, 0x49 DCB 0x47, 0x45, 0x44, 0x42, 0x40, 0x3f, 0x3d, 0x3c DCB 0x3a, 0x39, 0x37, 0x36, 0x34, 0x33, 0x32, 0x30 DCB 0x2f, 0x2d, 0x2c, 0x2b, 0x29, 0x28, 0x27, 0x25 DCB 0x24, 0x23, 0x21, 0x20, 0x1f, 0x1e, 0x1c, 0x1b DCB 0x1a, 0x19, 0x17, 0x16, 0x15, 0x14, 0x13, 0x12 DCB 0x10, 0x0f, 0x0e, 0x0d, 0x0c, 0x0b, 0x0a, 0x09 DCB 0x08, 0x07, 0x06, 0x05, 0x04, 0x03, 0x02, 0x01 Proof 7.3 The routine starts by normalizing d and n so that 214 ≤ d 215 in instructions I01, I02, I03, I06. This doesn’t affect the result since we shift the numerator and denominator left by the same number of places. Considering d as a Q15 format fixed-point fraction, 0. 5 ≤ d 1. I09 and I14 are overflow traps that catch the case that n ≥ d. This includes the case d = 0. Assuming from now on that there is no overflow, I04, I05, I07 set q to the 9-bit Q8 initial estimate x0 to d−1 as described in Section 7.3.1.1. Since d is in the range 0. 5 ≤ d 1, we subtract 128 on the table lookup so that 0.5 corresponds to the first entry of the table. Next we perform one Newton-Raphson iteration. I08 sets a to the exact Q16 square of x0, and I10 sets a to the exact Q31 value of dx2 0 . There is a subtlety here. We need to check that this value will not overflow an unsigned Q31 representation. In fact: dx2 0 = x2 0 x0 + e0 = 1 + x0 − e0 x0 + e0 (7.34) This term reaches its maximum value when x0 is as large as possible and e0 as negative as possible, which occurs when d = 0. 5 + 2−8 − 2−15, where x0 = 2 − 2−7 and dx2 0 2 − 2−13 2.
- 251. 7.3 Division 235 Finally I11 and I12 set q to a new Q16 estimate x1. Since the carry flag is clear from I09, the SBC underestimates the reciprocal. x1 = 2x0 − dx2 0 + g0 for some − 2−16 ≤ g0 0 (7.35) Using Equation (7.33) for the new error: 0 ≤ e1 = de2 0 − g0 ≤ de2 0 + 2−16 (7.36) I13 calculates a Q15 estimate q1 to the quotient nd−1: q1 = nx1 − h1 = n d − e2 (7.37) where 0 ≤ h1 2−15 is the truncation error and e2 = ne1 + h1 de1 + h1 E + h1 2−14 (7.38) The bound on E is from Section 7.3.3.1. So, q1 is an underestimate to nd−1 of error less than 2−14. Finally I15, I16, I17, and I18 calculate the remainder n − qd and correct the estimate to Q15 precision. ■ 7.3.3.4 Q31 Fixed-Point Division by Newton-Raphson We calculate a Q31 representation of the ratio nd−1, where n and d are 32-bit positive integers in the range 0 ≤ n d 231. In other words we calculate q = (unsigned int)(((unsigned long long)n 31)/d); You can use the routine udiv_64by32_arm7m in Section 7.3.1.3 to do this by trial subtraction. However, the following routine calculates exactly the same result but uses fewer cycles on an ARM9E. If you only need an estimate of the result, then you can remove the nine instructions I21 to I29, which correct the error of the initial estimate. As with the previous section, we show the assembly code followed by a proof of accuracy. The routine uses 46 cycles, including return, on an ARM9E. The routine uses the same lookup table as for the Q15 routine in Section 7.3.3.3. q RN 0 ; input denominator d, quotient estimate q r RN 1 ; input numerator n, remainder high r s RN 2 ; normalization shift, scratch register d RN 3 ; Q31 normalized denominator 2∧30=d2∧31 a RN 12 ; scratch ; unsigned udiv_q31_arm9e(unsigned d, unsigned q) udiv_q31_arm9e ; instruction number : comment
- 252. 236 Chapter 7 Optimized Primitives CLZ s, q ; 01 : choose a shift s to CMP r, q ; 02 : normalize d to the MOVCC d, q, LSL s ; 03 : range 0.5=d1 at Q32 ADDCC q, pc, d, LSR#24 ; 04 : look up q, a Q8 LDRCCB q, [q, #t15-b31-128] ; 05 : approximation to 1//d b31 MOVCC r, r, LSL s ; 06 : normalize numerator ADDCC q, q, #256 ; 07 : part of table lookup ; q is now a Q8, 9-bit estimate to 1//d SMULBBCC a, q, q ; 08 : a = q*q at Q16 MOVCS q, #0x7FFFFFFF ; 09 : overflow case UMULLCC s, a, d, a ; 10 : a = q*q*d at Q16 BXCS lr ; 11 : exit on overflow RSB q, a, q, LSL#9 ; 12 : q = 2*q-q*q*d at Q16 ; q is now a Q16, 17-bit estimate to 1//d UMULL a, s, q, q ; 13 : [s,a] = q*q at Q32 MOVS a, a, LSR#1 ; 14 : now halve [s,a] and ADC a, a, s, LSL#31 ; 15 : round so [N,a]=q*q at MOVS s, s, LSL#30 ; 16 : Q31, C=0 UMULL s, a, d, a ; 17 : a = a*d at Q31 ADDMI a, a, d ; 18 : if (N) a+=2*d at Q31 RSC q, a, q, LSL#16 ; 19 : q = 2*q-q*q*d at Q31 ; q is now a Q31 estimate to 1/d UMULL s, q, r, q ; 20 : q approx n//d at Q31 ; q is now a Q31 estimate to num/den, remainder3*d UMULL s, a, d, q ; 21 : [a,s] = d*q at Q62 RSBS s, s, #0 ; 22 : [r,s] = n-d*q RSC r, a, r, LSR#1 ; 23 : at Q62 ; [r,s]=(r 32)+s is now the positive remainder3*d SUBS s, s, d ; 24 : [r,s] = n-(d+1)*q SBCS r, r, #0 ; 25 : at Q62 ADDPL q, q, #1 ; 26 : if ([r,s]=0) q++ SUBS s, s, d ; 27 : [r,s] = [r,s]-d SBCS r, r, #0 ; 28 : at Q62 ADDPL q, q, #1 ; 29 : if ([r,s]=0) q++ BX lr ; 30 : return q Proof 7.4 We first check that n d. If not, then a sequence of conditional instructions occur that return the saturated value 0x7fffffff at I11. Otherwise d and n are normalized to Q31 representations, 230 ≤ d 231. I07 sets q to a Q8 representation of x0, the initial approximation, as in Section 7.3.3.3. I08, I10, and I12 implement the first Newton-Raphson iteration. I08 sets a to the Q16 representation of x2 0 . I10 sets a to the Q16 representation of dx2 0 − g0, where the rounding
- 253. 7.3 Division 237 error satisfies 0 ≤ g0 2−16. I12 sets x to the Q16 representation of x1, the new estimate to d−1. Equation (7.33) tells us that the error in this estimate is e1 = de2 0 − g0. I13 to I19 implement the second Newton-Raphson iteration. I13 to I15 set a to the Q31 representation of a1 = x2 1 + b1 for some error b1. As we use the ADC instruction at I15, the calculation rounds up and so 0 ≤ b1 ≤ 2−32. The ADC instruction cannot overflow since 233 − 1 and 234 − 1 are not squares. However, a1 can overflow a Q31 representation. I16 clears the carry flag and records in the N flag if the overflow takes place so that a1 ≥ 2. I17 and I18 set a to the Q31 representation of y1 = da1 −c1 for a rounding error 0 ≤ c1 2−31. As the carry flag is clear, I19 sets q to a Q31 representation of the new underestimate: x2 = 2x1 − d(x2 1 + b1) + c1 − 2−31 = 1 d − e2, where (7.39) e2 = de2 1 − c1 + 2−31 + db1 de2 1 + d2−32 + 2−31 (7.40) I20 sets q to a Q31 representation of the quotient q2 = nx2 − b2 for some rounding error 0 ≤ b2 2−31. So: q2 = n d − e3, where e3 = ne2 + b2 d2 e2 1 + d2 2−32 + d2−31 + 2−31 (7.41) If e1 ≥ 0, then d2e2 1 ≤ d4e2 0 (2−15 − d2−16)2, using the bound on E of Section 7.3.3.1. e3 2−30 − d2−31 + d2 2−32 + 2−31 3 × 2−31 (7.42) If e1 0, then d2e2 1 ≤ d2g2 0 2−32. Again, e3 3 × 2−31. In either case, q is an underestimate to the quotient of error less than 3×2−31. I21 to I23 calculate the remainder, and I24 to I29 perform two conditional subtracts to correct the Q31 result q. ■ 7.3.4 Signed Division So far we have only looked at unsigned division implementations. If you need to divide signed values, then reduce them to unsigned divides and add the sign back into the result. The quotient is negative if and only if the numerator and denominator have opposite sign. The sign of the remainder is the sign of the numerator. The following example shows how to reduce a signed integer division to an unsigned division and how to calculate the sign of the quotient and remainder. d RN 0 ; input denominator, output quotient r RN 1 ; input numerator , output remainder sign RN 12 ; __value_in_regs struct { signed q, r; } ; udiv_32by32_arm7m(signed d, signed n) sdiv_32by32_arm7m
- 254. 238 Chapter 7 Optimized Primitives STMFD sp!, {lr} ANDS sign, d, #1 31 ; sign=(d0 ? 1 31 : 0); RSBMI d, d, #0 ; if (d0) d=-d; EORS sign, sign, r, ASR#32 ; if (r0) sign=∼sign; RSBCS r, r, #0 ; if (r0) r=-r; BL udiv_32by32_arm7m ; (d,r)=(r/d,r%d) MOVS sign, sign, LSL#1 ; C=sign[31], N=sign[30] RSBCS d, d, #0 ; if (sign[31]) d=-d; RSBMI r, r, #0 ; if (sign[30]) r=-r; LDMFD sp!, {pc} We use r12 to hold the signs of the quotient and remainder as udiv_32by32_arm7m preserves r12 (see Section 7.3.1.1). 7.4 Square Roots Square roots can be handled by the same techniques we used for division. You have a choice between trial subtraction and Newton-Raphson iteration based implementations. Use trial subtraction for a low-precision result less than 16 bits, but switch to Newton-Raphson for higher-precision results. Sections 7.4.1 and 7.4.2 cover trial subtraction and Newton- Raphson, respectively. 7.4.1 Square Root by Trial Subtraction We calculate the square root of a 32-bit unsigned integer d. The answer is a 16-bit unsigned integer q and a 17-bit unsigned remainder r such that d = q2 + r and 0 ≤ r ≤ 2q. (7.43) We start by setting q = 0 and r = d. Next we try and set each bit of q in turn, counting down from the highest possible bit, bit 15. We can set the bit if the new remainder is positive. Specifically if we set bit n by adding 2n to q, then the new remainder is rnew = d − (q + 2n )2 = (d − q2 ) − 2n+1 q − 22n = rold − 2n (2q + 2n ) (7.44) So, to calculate the new remainder we try to subtract the value 2n(2q + 2n). If the subtraction succeeds with a nonnegative result, then we set bit n of q. The follow- ing C code illustrates the algorithm, calculating the N-bit square root q of a 2N-bit input d: unsigned usqr_simple(unsigned d, unsigned N) {
- 255. 7.4 Square Roots 239 unsigned t, q=0, r=d; do { /* calculate next quotient bit */ N--; /* move down to next bit */ t = 2*q+(1 N); /* new r = old r - (t N) */ if ( (r N) = t ) /* if (r = (t N)) */ { r -= (t N); /* update remainder */ q += (1 N); /* update root */ } } while (N); return q; } Use the following optimized assembly to implement the preceding algorithm in only 50 cycles including the return. The trick is that register q holds the value (1 30)|(q (N + 1)) before calculating bit N of the answer. If we rotate this value left by 2N + 2 places, or equivalently right by 30 − 2N places, then we have the value t N, used earlier for the trial subtraction. q RN 0 ; input value, current square root estimate r RN 1 ; the current remainder c RN 2 ; scratch register usqr_32 ; unsigned usqr_32(unsigned q) SUBS r, q, #1 30 ; is q=(1 15)∧2? ADDCC r, r, #1 30 ; if not restore MOV c, #3 30 ; c is a constant ADC q, c, #1 31 ; set bit 15 of answer ; calculate bits 14..0 of the answer GBLA N N SETA 14 WHILE N -1 CMP r, q, ROR #(30-2*N) ; is r = t N ? SUBCS r, r, q, ROR #(30-2*N) ; if yes then r -= t N; ADC q, c, q, LSL#1 ; insert next bit of answer N SETA (N-1) WEND BIC q, q, #3 30 ; extract answer MOV pc, lr
- 256. 240 Chapter 7 Optimized Primitives 7.4.2 Square Root by Newton-Raphson Iteration The Newton-Raphson iteration for a square root actually calculates the value of d−0.5. You may find this is a more useful result than the square root itself. For example, to normalize a vector (x, y) you will multiply by 1 x2 + y2 (7.45) If you do require √ d, then simply multiply d−0.5 by d. The equation f (x) = d−x−2 = 0 has positive solution x = d−0.5. The Newton-Raphson iteration to solve this equation is (see Section 7.3.2) xn+1 = 0. 5xn(3 − dx2 n) (7.46) To implement this you can use the same methods we looked at in Section 7.3.2. First normalize d to the range 0. 25 ≤ d 1. Then generate an initial estimate x0 using a table lookup on the leading digits of d. Iterate the above formula until you’ve achieved the precision required for your application. Each iteration will roughly double the number of significant answer bits. The following code calculates a Q31 representation of the value d−0.5 for an input integer d. It uses a table lookup followed by two Newton-Raphson iterations and is accurate to a maximum error of 2−29. On an ARM9E the code takes 34 cycles including the return. q RN 0 ; input value, estimated reciprocal root b RN 1 ; scratch register s RN 2 ; normalization shift d RN 3 ; normalized input value a RN 12 ; scratch register/accumulator rsqr_32 ; unsigned rsqr_32(unsigned q) CLZ s, q ; choose shift s which is BIC s, s, #1 ; even such that d=(q s) MOVS d, q, LSL s ; is 0.25=d1 at Q32 ADDNE q, pc, d, LSR#25 ; table lookup on top 7 bits LDRNEB q, [q, #tab-base-32] ; of d in range 32 to 127 base BEQ div_by_zero ; divide by zero trap ADD q, q, #0x100 ; table stores only bottom 8 bits ; q is now a Q8, 9-bit estimate to 1/sqrt(d) SMULBB a, q, q ; a = q*q at Q16 MOV b, d, LSR #17 ; b = d at Q15 SMULWB a, a, b ; a = d*q*q at Q15 MOV b, q, LSL #7 ; b = q at Q15 RSB a, a, #3 15 ; a = (3-d*q*q) at Q15
- 257. 7.5 Transcendental Functions: log, exp, sin, cos 241 MUL q, a, b ; q = q*(3-d*q*q)/2 at Q31 ; q is now a Q31 estimate to 1/sqrt(d) UMULL b, a, d, q ; a = d*q at Q31 MOV s, s, LSR #1 ; square root halves the shift UMULL b, a, q, a ; a = d*q*q at Q30 RSB s, s, #15 ; reciprocal inverts the shift RSB a, a, #3 30 ; a = (3-d*q*q) at Q30 UMULL b, q, a, q ; q = q*(3-d*q*q)/2 at Q31 ; q is now a good Q31 estimate to 1/sqrt(d) MOV q, q, LSR s ; undo the normalization shift BX lr ; return q div_by_zero MOV q, #0x7FFFFFFF ; maximum positive answer BX lr ; return q tab ; tab[k] = round(256.0/sqrt((k+32.3)/128.0)) - 256 DCB 0xfe, 0xf6, 0xef, 0xe7, 0xe1, 0xda, 0xd4, 0xce DCB 0xc8, 0xc3, 0xbd, 0xb8, 0xb3, 0xae, 0xaa, 0xa5 DCB 0xa1, 0x9c, 0x98, 0x94, 0x90, 0x8d, 0x89, 0x85 DCB 0x82, 0x7f, 0x7b, 0x78, 0x75, 0x72, 0x6f, 0x6c DCB 0x69, 0x66, 0x64, 0x61, 0x5e, 0x5c, 0x59, 0x57 DCB 0x55, 0x52, 0x50, 0x4e, 0x4c, 0x49, 0x47, 0x45 DCB 0x43, 0x41, 0x3f, 0x3d, 0x3b, 0x3a, 0x38, 0x36 DCB 0x34, 0x32, 0x31, 0x2f, 0x2d, 0x2c, 0x2a, 0x29 DCB 0x27, 0x26, 0x24, 0x23, 0x21, 0x20, 0x1e, 0x1d DCB 0x1c, 0x1a, 0x19, 0x18, 0x16, 0x15, 0x14, 0x13 DCB 0x11, 0x10, 0x0f, 0x0e, 0x0d, 0x0b, 0x0a, 0x09 DCB 0x08, 0x07, 0x06, 0x05, 0x04, 0x03, 0x02, 0x01 Similarly, to calculate d −1 k you can use the Newton-Raphson iteration for the equation f (x) = d − x−k = 0. 7.5 Transcendental Functions: log, exp, sin, cos You can implement transcendental functions by using a combination of table lookup and series expansion. We examine how this works for the most common four transcendental operations: log, exp, sin, and cos. DSP applications use logarithm and exponentiation functions to convert between linear and logarithmic formats. The trigonometric functions sine and cosine are useful in 2D and 3D graphics and mapping calculations.
- 258. 242 Chapter 7 Optimized Primitives All the example routines of this section produce an answer accurate to 32 bits, which is excessive for many applications. You can accelerate performance by curtailing the series expansions with some loss in accuracy. 7.5.1 The Base-Two Logarithm Suppose we have a 32-bit integer n, and we want to find the base-two logarithm s = log2(n) such that n = 2s. Since s is in the range 0 ≤ s 32, we will actually find a Q26 representation q of the logarithm so that q = s226. We can easily calculate the integer part of s using CLZ or the alternatives of Section 7.2. This reduces us to a number in the range 1 ≤ n 2. First we perform a table lookup on an approximation a to n to find log2(a) and a−1. Since log2(n) = log2(a) + log2 n a (7.47) we’ve reduced the problem to finding log2(na−1). As na−1 is close to one, we can use the series expansion of log2(1 + x) to improve the result accuracy: log2(1 + x) = ln(1 + x) ln(2) = 1 ln(2) x − x2 2 + x3 3 − · · · (7.48) where ln is the natural logarithm to base e. To summarize, we calculate the logarithm in three stages as illustrated in Figure 7.4: ■ We use CLZ to find bits [31:26] of the result. ■ We use a table lookup of the first five fractional bits to find an estimate. ■ We use series expansion to calculate the estimate error more accurately. YoucanusethefollowingcodetoimplementthisonanARM9Eprocessorusing31cycles excluding the return. The answer is accurate to an error of 2−25. n RN 0 ; Q0 input, Q26 log2 estimate d RN 1 ; normalize input Q32 r RN 2 CLZ result = 31 26 Lookup 25 Series 0 Figure 7.4 The three stages of the logarithm calculation.
- 259. 7.5 Transcendental Functions: log, exp, sin, cos 243 q RN 3 t RN 12 ; int ulog2_32(unsigned n) ulog2_32 CLZ r, n MOV d, n, LSL#1 MOV d, d, LSL r ; 1=d2 at Q32 RSB n, r, #31 ; integer part of the log MOV r, d, LSR#27 ; estimate e=1+(r/32)+(1/64) ADR t, ulog2_table LDR r, [t, r, LSL#3]! ; r=log2(e) at Q26 LDR q, [t, #4] ; q=1/e at Q32 MOV t, #0 UMLAL t, r, d, r ; r=(d/e)-1 at Q32 LDR t, =0x55555555 ; round(2∧32/3) ADD n, q, n, LSL#26 ; n+log2(e) at Q26 SMULL t, q, r, t ; q = r/3 at Q32 LDR d, =0x05c551d9 ; round(2∧26/ln(2)) SMULL t, q, r, q ; q = r∧2/3 at Q32 MOV t, #0 SUB q, q, r, ASR#1 ; q = -r/2+r∧2/3 at Q32 SMLAL t, r, q, r ; r - r∧2/2 + r∧3/3 at Q32 MOV t, #0 SMLAL t, n, d, r ; n += r/log(2) at Q26 MOV pc, lr ulog2_table ; table[2*i] =round(2∧32/a) where a=1+(i+0.5)/32 ; table[2*i+1]=round(2∧26*log2(a)) and 0=i32 DCD 0xfc0fc0fc, 0x0016e797, 0xf4898d60, 0x0043ace2 DCD 0xed7303b6, 0x006f2109, 0xe6c2b448, 0x0099574f DCD 0xe070381c, 0x00c2615f, 0xda740da7, 0x00ea4f72 DCD 0xd4c77b03, 0x0111307e, 0xcf6474a9, 0x0137124d DCD 0xca4587e7, 0x015c01a4, 0xc565c87b, 0x01800a56 DCD 0xc0c0c0c1, 0x01a33761, 0xbc52640c, 0x01c592fb DCD 0xb81702e0, 0x01e726aa, 0xb40b40b4, 0x0207fb51 DCD 0xb02c0b03, 0x0228193f, 0xac769184, 0x0247883b DCD 0xa8e83f57, 0x02664f8d, 0xa57eb503, 0x02847610 DCD 0xa237c32b, 0x02a20231, 0x9f1165e7, 0x02bef9ff DCD 0x9c09c09c, 0x02db632d, 0x991f1a51, 0x02f7431f DCD 0x964fda6c, 0x03129ee9, 0x939a85c4, 0x032d7b5a DCD 0x90fdbc09, 0x0347dcfe, 0x8e78356d, 0x0361c825
- 260. 244 Chapter 7 Optimized Primitives DCD 0x8c08c08c, 0x037b40e4, 0x89ae408a, 0x03944b1c DCD 0x8767ab5f, 0x03acea7c, 0x85340853, 0x03c52286 DCD 0x83126e98, 0x03dcf68e, 0x81020408, 0x03f469c2 7.5.2 Base-Two Exponentiation This is the inverse of the operation of Section 7.5.1. Given a Q26 representation of 0 ≤ x 32, we calculate the base-two exponent 2x. We start by splitting x into an integer part, n, and fractional part, d. Then 2x = 2d × 2n. To calculate 2d, first find an approximation a to d and look up 2a. Now, 2d = 2a × exp((d − a) ln 2) (7.49) Calculate x = (d − a) ln 2 and use the series expansion for exp(x) to improve the estimate: exp(x) = 1 + x + x2 2 + x3 6 + · · · (7.50) You can use the following assembly code to implement the preceding algorithm. The answer has a maximum error of 4 in the result. The routine takes 31 cycles on an ARM9E excluding the return. n RN 0 ; input, integer part d RN 1 ; fractional part r RN 2 q RN 3 t RN 12 ; unsigned uexp2_32(int n) uexp2_32 MOV d, n, LSL#6 ; d = fractional part at Q32 MOV q, d, LSR#27 ; estimate a=(q+0.5)/32 LDR r, =0xb17217f8 ; round(2∧32*log(2)) BIC d, d, q, LSL#27 ; d = d - (q/32) at Q32 UMULL t, d, r, d ; d = d*log(2) at Q32 LDR t, =0x55555555 ; round(2∧32/3) SUB d, d, r, LSR#6 ; d = d - log(2)/64 at Q32 SMULL t, r, d, t ; r = d/3 at Q32 MOVS n, n, ASR#26 ; n = integer part of exponent SMULL t, r, d, r ; r = d∧2/3 at Q32 BMI negative ; catch negative exponent ADD r, r, d ; r = d+d∧2/3 SMULL t, r, d, r ; r = d∧2+d∧3/3 ADR t, uexp2_table
- 261. 7.5 Transcendental Functions: log, exp, sin, cos 245 LDR q, [t, q, LSL#2] ; q = exp2(a) at Q31 ADDS r, d, r, ASR#1 ; r = d+d∧2/2+d∧3/6 at Q32 UMULL t, r, q, r ; r = exp2(a)*r at Q31 if r0 RSB n, n, #31 ; 31-(integer part of exponent) ADDPL r, r, q ; correct if r0 MOV n, r, LSR n ; result at Q0 MOV pc, lr negative MOV r0, #0 ; 2∧(-ve)=0 MOV pc, lr uexp2_table ; table[i]=round(2∧31*exp2(a)) where a=(i+0.5)/32 DCD 0x8164d1f4, 0x843a28c4, 0x871f6197, 0x8a14d575 DCD 0x8d1adf5b, 0x9031dc43, 0x935a2b2f, 0x96942d37 DCD 0x99e04593, 0x9d3ed9a7, 0xa0b05110, 0xa43515ae DCD 0xa7cd93b5, 0xab7a39b6, 0xaf3b78ad, 0xb311c413 DCD 0xb6fd91e3, 0xbaff5ab2, 0xbf1799b6, 0xc346ccda DCD 0xc78d74c9, 0xcbec14ff, 0xd06333db, 0xd4f35aac DCD 0xd99d15c2, 0xde60f482, 0xe33f8973, 0xe8396a50 DCD 0xed4f301f, 0xf281773c, 0xf7d0df73, 0xfd3e0c0d 7.5.3 Trigonometric Operations If you need low-precision trigonometric operations (typically the case when generating sine waves and other audio signals, or for graphics processing), use a lookup table. For high- precision graphics or global positioning, greater precision may be required. The routines we look at here generate sine and cosine accurate to 32 bits. The standard C library functions sin and cos specify the angle in radians. Radians are an awkward choice of units when dealing with optimized fixed-point functions. First, on any angle addition you need to perform arithmetic modulo 2π. Second, it requires range checking involving π to find out which quadrant of the circle an angle lies in. Rather than operate modulo 2π, we will operate modulo 232, a very easy operation on any processor. Let’s define new base-two trigonometric functions s and c, where the angle is specified on a scale such that 232 is one revolution (2π radians or 360 degrees). To add these angles we use standard modular integer addition: s(x) = sin(2πx2−32 ) = sin(πx2−31 ) and c(x) = cos(πx2−31 ) (7.51) In this form, x is the Q32 representation of the proportion of a revolution represented by the angle. The top two bits of x tell us which quadrant of the circle the angle lies in. First we use the top three bits of x to reduce s(x) or c(x) to the sine or cosine of an angle between zero and one eighth of a revolution. Then we choose an approximation a to x and
- 262. 246 Chapter 7 Optimized Primitives use a table to look up s(a) and c(a). The addition formula for sine and cosine reduces the problem to finding the sine and cosine of a small angle: s(x) = s(a) cos π(x − a)2−31 + c(a) sin π(x − a)2−31 (7.52) c(x) = c(a) cos π(x − a)2−31 − s(a) sin π(x − a)2−31 (7.53) Next, we calculate the small angle n = π(x − a)2−31 in radians and use the following series expansions to improve accuracy further: sin(x) = x − x3 6 + · · · and cos(x) = 1 − x2 2 + · · · (7.54) You can use the following assembly to implement the preceding algorithm for sine and cosine. The answer is returned at Q30 and has a maximum error of 4 × 2−30. The routine takes 31 cycles on an ARM9E excluding the return. n RN 0 ; the input angle in revolutions at Q32, result Q30 s RN 1 ; the output sign r RN 2 q RN 3 t RN 12 cos_32 ; int cos_32(int n) EOR s, n, n, LSL#1 ; cos is -ve in quadrants 1,2 MOVS n, n, LSL#1 ; angle in revolutions at Q33 RSBMI n, n, #0 ; in range 0-1/4 of a revolution CMP n, #1 30 ; if angle 1/8 of a revolution BCC cos_core ; take cosine SUBEQ n, n, #1 ; otherwise take sine of RSBHI n, n, #1 31 ; (1/4 revolution)-(angle) sin_core ; take sine of Q33 angle n MOV q, n, LSR#25 ; approximation a=(q+0.5)/32 SUB n, n, q, LSL#25 ; n = n-(q/32) at Q33 SUB n, n, #1 24 ; n = n-(1/64) at Q33 LDR t, =0x6487ed51 ; round(2*PI*2∧28) MOV r, n, LSL#3 ; r = n at Q36 SMULL t, n, r, t ; n = (x-a)*PI/2∧31 at Q32 ADR t, cossin_tab LDR q, [t, q, LSL#3]! ; c(a) at Q30 LDR t, [t, #4] ; s(a) at Q30 EOR q, q, s, ASR#31 ; correct c(a) sign EOR s, t, s, ASR#31 ; correct s(a) sign SMULL t, r, n, n ; n∧2 at Q32 SMULL t, q, n, q ; n*c(a) at Q30
- 263. 7.5 Transcendental Functions: log, exp, sin, cos 247 SMULL t, n, r, s ; n∧2*s(a) at Q30 LDR t, =0xd5555556 ; round(-2∧32/6) SUB n, s, n, ASR#1 ; n = s(a)*(1-n∧2/2) at Q30 SMULL t, s, r, t ; s=-n∧2/6 at Q32 ADD n, n, q ; n += c(a)*n at Q30 MOV t, #0 SMLAL t, n, q, s ; n += -c(a)*n∧3/6 at Q30 MOV pc, lr ; return n sin_32;int sin_32(int n) AND s, n, #1 31 ; sin is -ve in quadrants 2,3 MOVS n, n, LSL#1 ; angle in revolutions at Q33 RSBMI n, n, #0 ; in range 0-1/4 of a revolution CMP n, #1 30 ; if angle 1/8 revolution BCC sin_core ; take sine SUBEQ n, n, #1 ; otherwise take cosine of RSBHI n, n, #1 31 ; (1/4 revolution)-(angle) cos_core ; take cosine of Q33 angle n MOV q, n, LSR#25 ; approximation a=(q+0.5)/32 SUB n, n, q, LSL#25 ; n = n-(q/32) at Q33 SUB n, n, #1 24 ; n = n-(1/64) at Q33 LDR t, =0x6487ed51 ; round(2*PI*2∧28) MOV r, n, LSL#3 ; r = n at Q26 SMULL t, n, r, t ; n = (x-a)*PI/2∧31 at Q32 ADR t, cossin_tab LDR q, [t, q, LSL#3]! ; c(a) at Q30 LDR t, [t, #4] ; s(a) at Q30 EOR q, q, s, ASR#31 ; correct c(a) sign EOR s, t, s, ASR#31 ; correct s(a) sign SMULL t, r, n, n ; n∧2 at Q32 SMULL t, s, n, s ; n*s(a) at Q30 SMULL t, n, r, q ; n∧2*c(a) at Q30 LDR t, =0x2aaaaaab ; round(+2∧23/6) SUB n, q, n, ASR#1 ; n = c(a)*(1-n∧2/2) at Q30 SMULL t, q, r, t ; n∧2/6 at Q32 SUB n, n, s ; n += -sin*n at Q30 MOV t, #0 SMLAL t, n, s, q ; n += sin*n∧3/6 at Q30 MOV pc, lr ; return n cossin_tab ; table[2*i] =round(2∧30*cos(a)) where a=(PI/4)*(i+0.5)/32 ; table[2*i+1]=round(2∧30*sin(a)) and 0 = i 32
- 264. 248 Chapter 7 Optimized Primitives DCD 0x3ffec42d, 0x00c90e90, 0x3ff4e5e0, 0x025b0caf DCD 0x3fe12acb, 0x03ecadcf, 0x3fc395f9, 0x057db403 DCD 0x3f9c2bfb, 0x070de172, 0x3f6af2e3, 0x089cf867 DCD 0x3f2ff24a, 0x0a2abb59, 0x3eeb3347, 0x0bb6ecef DCD 0x3e9cc076, 0x0d415013, 0x3e44a5ef, 0x0ec9a7f3 DCD 0x3de2f148, 0x104fb80e, 0x3d77b192, 0x11d3443f DCD 0x3d02f757, 0x135410c3, 0x3c84d496, 0x14d1e242 DCD 0x3bfd5cc4, 0x164c7ddd, 0x3b6ca4c4, 0x17c3a931 DCD 0x3ad2c2e8, 0x19372a64, 0x3a2fcee8, 0x1aa6c82b DCD 0x3983e1e8, 0x1c1249d8, 0x38cf1669, 0x1d79775c DCD 0x3811884d, 0x1edc1953, 0x374b54ce, 0x2039f90f DCD 0x367c9a7e, 0x2192e09b, 0x35a5793c, 0x22e69ac8 DCD 0x34c61236, 0x2434f332, 0x33de87de, 0x257db64c DCD 0x32eefdea, 0x26c0b162, 0x31f79948, 0x27fdb2a7 DCD 0x30f8801f, 0x29348937, 0x2ff1d9c7, 0x2a650525 DCD 0x2ee3cebe, 0x2b8ef77d, 0x2dce88aa, 0x2cb2324c 7.6 Endian Reversal and Bit Operations This section presents optimized algorithms for manipulating the bits within a register. Section 7.6.1 looks at endian reversal, a useful operation when you are reading data from a big-endian file on a little-endian memory system. Section 7.6.2 looks at permuting bits within a word, for example, reversing the bits. We show how to support a wide variety of bit permutations. See also Section 6.7 for a discussion on packing and unpacking bitstreams. 7.6.1 Endian Reversal To use the ARM core’s 32-bit data bus to maximum efficiency, you will want to load and store 8- and 16-bit arrays four bytes at a time. However, if you load multiple bytes at once, then the processor endianness affects the order they will appear in the register. If this does not match the order you want, then you will need to reverse the byte order. You can use the following code sequences to reverse the order of the bytes within a word. The first sequence uses two temporary registers and takes three cycles per word reversed after a constant setup cycle. The second code sequence only uses one temporary register and is useful for reversing a single word. n RN 0 ; input, output words t RN 1 ; scratch 1 m RN 2 ; scratch 2 byte_reverse ; n = [ a , b , c , d ]
- 265. 7.6 Endian Reversal and Bit Operations 249 MVN m, #0x0000FF00 ; m = [0xFF,0xFF,0x00,0xFF ] EOR t, n, n, ROR #16 ; t = [ a∧c, b∧d, a∧c, b∧d ] AND t, m, t, LSR#8 ; t = [ 0 , a∧c, 0 , a∧c ] EOR n, t, n, ROR #8 ; n = [ d , c , b , a ] MOV pc, lr byte_reverse_2reg ; n = [ a , b , c, d ] EOR t, n, n, ROR#16 ; t = [ a∧c, b∧d, a∧c, b∧d ] MOV t, t, LSR#8 ; t = [ 0 , a∧c, b∧d, a∧c ] BIC t, t, #0xFF00 ; t = [ 0 , a∧c, 0 , a∧c ] EOR n, t, n, ROR #8 ; n = [ d , c , b , a ] MOV pc, lr Halfword reversing within a word is provided free by the ARM barrel shifter since it is the same as a rotate right by 16 places. 7.6.2 Bit Permutations The byte reversal of Section 7.6.1 is a special case of a bit permutation. There are many other important bit permutations that you might come across (see Table 7.3): ■ Bit reversal. Exchanging the value of bits k and 31 − k. ■ Bit spreading. Spacing out the bits so that bit k moves to bit 2k for k 16 and bit 2k −31 for k ≥ 16. ■ DES initial permutation. DES stands for the Data Encryption Standard, a common algorithm for bulk data encryption. The algorithm applies a 64-bit permutation to the data before and after the encryption rounds. Writing optimized code to implement such permutations is simple when you have at hand a toolbox of bit permutation primitives like the ones we will develop in this section (see Table 7.4). They are much faster than a loop that examines each bit in turn, since they process 32 bits at a time. Table 7.3 Table of common permutations. Permutation name Permutation action Byte reversal [b4, b3,b2, b1, b0] → [1 − b4, 1 − b3, b2, b1, b0] Bit reversal [b4, b3,b2, b1, b0] → [1 − b4, 1 − b3, 1 − b2, 1 − b1, 1 − b0] Bit spread [b4, b3,b2, b1, b0] → [b3, b2, b1, b0, b4] DES permutation [b5, b4, b3,b2, b1, b0] → [1 − b0, b2, b1, 1 − b5, 1 − b4, 1 − b3]
- 266. 250 Chapter 7 Optimized Primitives Table 7.4 Permutation primitives. Primitive name Permutation action A (bit index complement) [. . . , bk, . . .] → [. . . , 1 − bk, . . .] B (bit index swap) [. . . , bj, . . . , bk, . . .] → [. . . , bk, . . . , bj, . . .] C (bit index complement+swap) [. . . , bj, . . . , bk, . . .] → [. . . , 1 − bk, . . . , 1 − bj, . . .] Let’s start with some notation. Suppose we are dealing with a 2k-bit value n and we want to permute the bits of n. Then we can refer to each bit position in n using a k-bit index bk−12k−1 + · · · + b12 + b0. So, for permuting the bits within 32-bit values, we take k = 5. We will look at permutations that move the bit at position bk−12k−1 + · · · + b12 + b0 to position ck−12k−1 + · · · + c12 + c0, where each ci is either a bj or a 1 − bj. We will denote this permutation by [bk−1, . . . , b1, b0] → [ck−1, . . . , c1, c0] (7.55) For example, Table 7.3 shows the notation and action for the permutations we’ve talked about so far. What’s the point of this? Well, we can achieve any of these permutations using a series of the three basic permutations in Table 7.4. In fact, we only need the first two since C is B followed by A twice. However, we can implement C directly for a faster result. 7.6.2.1 Bit Permutation Macros The following macros implement the three permutation primitives for a 32-bit word n. They need only four cycles per permutation if the constant values are already set up in registers. For larger or smaller width permutations, the same ideas apply. mask0 EQU 0x55555555 ; set bit positions with b0=0 mask1 EQU 0x33333333 ; set bit positions with b1=0 mask2 EQU 0x0F0F0F0F ; set bit positions with b2=0 mask3 EQU 0x00FF00FF ; set bit positions with b3=0 mask4 EQU 0x0000FFFF ; set bit positions with b4=0 MACRO PERMUTE_A $k ; [ ... b_k ... ]-[ ... 1-b_k ... ] IF $k=4 MOV n, n, ROR#16 ELSE LDR m, =mask$k
- 267. 7.6 Endian Reversal and Bit Operations 251 AND t, m, n, LSR#(1 $k) ; get bits with index b_k=1 AND n, n, m ; get bits with index b_k=0 ORR n, t, n, LSL#(1 $k) ; swap them over ENDIF MEND MACRO PERMUTE_B $j, $k ; [ .. b_j .. b_k .. ] - [ .. b_k .. b_j .. ] and jk LDR m, =(mask$j:AND::NOT:mask$k) ; set when b_j=0 b_k=1 EOR t, n, n, LSR#(1 $j)-(1 $k) AND t, t, m ; get bits where b_j!=b_k EOR n, n, t, LSL#(1 $j)-(1 $k) ; change if bj=1 bk=0 EOR n, n, t ; change when b_j=0 b_k=1 MEND MACRO PERMUTE_C $j, $k ; [ .. b_j .. b_k .. ] - [ .. 1-b_k .. 1-b_j .. ] and jk LDR m, =(mask$j:AND:mask$k) ; set when b_j=0 b_k=0 EOR t, n, n, LSR#(1 $j)+(1 $k) AND t, t, m ; get bits where b_j==b_k EOR n, n, t, LSL#(1 $j)+(1 $k) ; change if bj=1 bk=1 EOR n, n, t ; change when b_j=0 b_k=0 MEND 7.6.2.2 Bit Permutation Examples Now, let’s see how these macros will help us in practice. Bit reverse moves the bit at position b to position 31 − b; in other words, it inverts each bit of the five-bit position index b. We can use five type A transforms to implement bit reversal, logically inverting each bit index position in turn. bit_reverse ; n= [ b4 b3 b2 b1 b0 ] PERMUTE_A 0 ; - [ b4 b3 b2 b1 1-b0 ] PERMUTE_A 1 ; - [ b4 b3 b2 1-b1 1-b0 ] PERMUTE_A 2 ; - [ b4 b3 1-b2 1-b1 1-b0 ] PERMUTE_A 3 ; - [ b4 1-b3 1-b2 1-b1 1-b0 ] PERMUTE_A 4 ; - [ 1-b4 1-b3 1-b2 1-b1 1-b0 ] MOV pc, lr
- 268. 252 Chapter 7 Optimized Primitives We can implement the more difficult bit spreading permutation using four type B transforms. This is only 16 cycles ignoring the constant setups—much faster than any loop testing each bit one at a time. bit_spread ; n= [ b4 b3 b2 b1 b0 ] PERMUTE_B 4,3 ; - [ b3 b4 b2 b1 b0 ] PERMUTE_B 3,2 ; - [ b3 b2 b4 b1 b0 ] PERMUTE_B 2,1 ; - [ b3 b2 b1 b4 b0 ] PERMUTE_B 1,0 ; - [ b3 b2 b1 b0 b4 ] MOV pc, lr Finally, type C permutations allow us to perform bit reversal and bit spreading at the same time and with the same number of cycles. bit_rev_spread ; n= [ b4 b3 b2 b1 b0 ] PERMUTE_C 4,3 ; - [ 1-b3 1-b4 b2 b1 b0 ] PERMUTE_C 3,2 ; - [ 1-b3 1-b2 b4 b1 b0 ] PERMUTE_C 2,1 ; - [ 1-b3 1-b2 1-b1 1-b4 b0 ] PERMUTE_C 1,0 ; - [ 1-b3 1-b2 1-b1 1-b0 b4 ] MOV pc, lr 7.6.3 Bit Population Count A bit population count finds the number of bits set within a word. For example, this is useful if you need to find the number of interrupts set in an interrupt mask. A loop testing each bit is slow, since ADD instructions can be used to sum bits in parallel provided that the sums do not interfere with each other. The idea of the divide by three and conquer method is to split the 32-bit word into bit triplets. The sum of each bit triplet is a 2-bit number in the range 0 to 3. We calculate these in parallel and then sum them in a logarithmic fashion. Use the following code for bit population counts of a single word. The operation is 10 cycles plus 2 cycles for setup of constants. bit_count ; input n = xyzxyzxyzxyzxyzxyzxyzxyzxyzxyzxy LDR m, =0x49249249 ; 01001001001001001001001001001001 AND t, n, m, LSL #1 ; x00x00x00x00x00x00x00x00x00x00x0 SUB n, n, t, LSR #1 ; uuzuuzuuzuuzuuzuuzuuzuuzuuzuuzuu AND t, n, m, LSR #1 ; 00z00z00z00z00z00z00z00z00z00z00 ADD n, n, t ; vv0vv0vv0vv0vv0vv0vv0vv0vv0vv0vv ; triplets summed, uu=x+y, vv=x+y+z LDR m, =0xC71C71C7 ; 11000111000111000111000111000111 ADD n, n, n, LSR #3 ; ww0vvwww0vvwww0vvwww0vvwww0vvwww AND n, n, m ; ww000www000www000www000www000www
- 269. 7.7 Saturated and Rounded Arithmetic 253 ; each www is the sum of six adjacent bits ADD n, n, n, LSR #6 ; sum the w’s ADD n, n, n, LSR #12 ADD n, n, n, LSR #24 AND n, n, #63 ; mask out irrelevant bits MOV pc, lr 7.7 Saturated and Rounded Arithmetic Saturation clips a result to a fixed range to prevent overflow. You are most likely to need 16- and 32-bit saturation, defined by the following operations: ■ saturate16(x) = x clipped to the range −0x00008000 to +0x00007fff inclusive ■ saturate32(x) = x clipped to the range −0x80000000 to +0x7fffffff inclusive We’ll concentrate on these operations although you can easily convert the 16-bit satura- tion examples to 8-bit saturation or any other length. The following sections give standard implementations of basic saturating and rounding operations you may need. They use a standard trick: for a 32-bit signed integer x, x 31 = sign(x) = −1 if x 0 and 0 if x ≥ 0 7.7.1 Saturating 32 Bits to 16 Bits This operation crops up frequently in DSP applications. For example, sound samples are often saturated to 16 bits before storing to memory. This operation takes three cycles, provided a constant m is set up beforehand in a register. ; b=saturate16(b) LDR m, =0x00007FFF ; m = 0x7FFF maximum +ve MOV a, b, ASR#15 ; a = (b 15) TEQ a, b, ASR#31 ; if (a!=sign(b)) EORNE b, m, b, ASR#31 ; b = 0x7FFF ∧ sign(b) 7.7.2 Saturated Left Shift In signal processing left shifts that could overflow need to saturate the result. This operation requires three cycles for a constant shift or five cycles for a variable shift c. ; a=saturate32(b c) MOV m, #0x7FFFFFFF ; m = 0x7FFFFFFF max +ve MOV a, b, LSL c ; a = b c
- 270. 254 Chapter 7 Optimized Primitives TEQ b, a, ASR c ; if (b != (a c)) EORNE a, m, b, ASR#31 ; a = 0x7FFFFFFF∧sign(b) 7.7.3 Rounded Right Shift A rounded shift right requires two cycles for a constant shift or three cycles for a nonzero variable shift. Note that a zero variable shift will only work properly if carry is clear. ; a=round(b c) MOVS a, b, ASR c ; a = b c, carry=b bit c-1 ADC a, a, #0 ; if (carry) a++ to round 7.7.4 Saturated 32-Bit Addition and Subtraction On ARMv5TE cores, new instructions QADD and QSUB provide saturated addition and subtraction. If you have an ARMv4T or earlier core, then use the following code sequences instead. The code requires two cycles and a register held constant. ; a = saturate32(b+c) MOV m, #0x80000000 ; m = 0x80000000 max -ve ADDS a, b, c ; a = b+c, V records overflow EORVS a, m, a, ASR#31 ; if (V) a=0x80000000∧sign(a) ; a = saturate32(b-c) MOV m, #0x80000000 ; m = 0x80000000 max -ve SUBS a, b, c ; a = b-c, V records overflow EORVS a, m, a, ASR#31 ; if (V) a=0x80000000∧sign(a) 7.7.5 Saturated Absolute The absolute function overflows if the input argument is −0x80000000. The following two-cycle code sequence handles this case: ; a = saturate32(abs(b)) SUB a, b, b, LSR #31 ; a = b - (b0) EOR a, a, a, ASR #31 ; a = a ∧ sign(a) On a similar theme, an accumulated, unsaturated absolute also takes two cycles: ; a = b+abs(c) EORS a, c, c, ASR#32 ; a = c∧sign(c) = abs(c)-(c0) ADC a, b, a ; a = b + a + (c0)
- 271. 7.8 Random Number Generation 255 7.8 Random Number Generation To generate truly random numbers requires special hardware to act as a source of random noise. However, for many computer applications, such as games and modeling, speed of generation is more important than statistical purity. These applications usually use pseudorandom numbers. Pseudorandom numbers aren’t actually random at all; a repeating sequence generates the numbers. However, the sequence is so long, and so scattered, that the numbers appear to be random. Typically we obtain Rk, the kth element of a pseudorandom sequence, by iterating a simple function of Rk−1: Rk = f (Rk−1) (7.56) For a fast pseudorandom number generator we need to pick a function f (x) that is easy to compute and gives random-looking output. The sequence must also be very long before it repeats. For a sequence of 32-bit numbers the longest length achievable is clearly 232. A linear congruence generator uses a function of the following form. f(x) = (a*x+c) % m; These functions are studied in detail in Knuth, Seminumerical Algorithms, Sections 3.2.1 and 3.6. For fast computation, we would like to take m = 232. The theory in Knuth assures us that if a % 8 = 5 and c = a, then the sequence generated has maximum length of 232 and is likely to appear random. For example, suppose that a = 0x91e6d6a5. Then the following iteration generates a pseudorandom sequence: MLA r, a, r, a ; r_k = (a*r_(k-1) + a) mod 2∧32 Since m is a power of two, the low-order bits of the sequence are not very random. Use the high-order bits to derive pseudorandom numbers of a smaller range. For example, set s = r 28 to generate a four-bit random number s in the range 0–15. More generally, the following code generates a pseudorandom number between 0 and n: ; r is the current random seed ; a is the multiplier (eg 0x91E6D6A5) ; n is the random number range (0...n-1) ; t is a scratch register MLA r, a, r, a ; iterate random number generator UMULL t, s, r, n ; s = (r*n)/2∧32 ; r is the new random seed ; s is the random result in range 0 ... n-1
- 272. 256 Chapter 7 Optimized Primitives 7.9 Summary ARM instructions only implement simple primitives such as addition, subtraction, and multiplication. To perform more complex operations such as division, square root, and trigonometric functions, you need to use software routines. There are many useful tricks and algorithms to improve the performance of these complex operations. This chapter covered the algorithms and code examples for a number of standard operations. Standard tricks include ■ using binary search or trial subtraction to calculate small quotients ■ using Newton-Raphson iteration for fast calculation of reciprocals and extraction of roots ■ using a combination of table lookup followed by series expansion to calculate transcendental functions such as exp, log, sin, and cos ■ using logical operations with barrel shift to perform bit permutations, rather than testing bits individually ■ using multiply accumulate instructions to generate pseudorandom numbers
- 273. This Page Intentionally Left Blank
- 274. 8.1 Representing a Digital Signal 8.1.1 Choosing a Representation 8.1.2 Operating on Values Stored in Fixed-Point Format 8.1.3 Addition and Subtraction of Fixed-Point Signals 8.1.4 Multiplication of Fixed-Point Signals 8.1.5 Division of Fixed-Point Signals 8.1.6 Square Root of a Fixed-Point Signal 8.1.7 Summary: How to Represent a Digital Signal 8.2 Introduction to DSP on the ARM 8.2.1 DSP on the ARM7TDMI 8.2.2 DSP on the ARM9TDMI 8.2.3 DSP on the StrongARM 8.2.4 DSP on the ARM9E 8.2.5 DSP on the ARM10E 8.2.6 DSP on the Intel XScale 8.3 FIR filters 8.3.1 Block FIR filters 8.4 IIR Filters 8.5 The Discrete Fourier Transform 8.5.1 The Fast Fourier Transform 8.6 Summary
- 275. C h a p t e r Digital Signal Processing 8 Microprocessors now wield enough computational power to process real-time digitized signals. You are probably familiar with mp3 audio players, digital cameras, and digital mobile/cellular telephones. Processing digitized signals requires high memory bandwidths and fast multiply accumulate operations. In this chapter we will look at ways you can maximize the performance of the ARM for digital signal processing (DSP) applications. Traditionally an embedded or portable device would contain two types of processor: A microcontroller would handle the user interface, and a separate DSP processor would manipulate digitized signals such as audio. However, now you can often use a single microprocessor to perform both tasks because of the higher performance and clock fre- quencies available on microprocessors today. A single-core design can reduce cost and power consumption over a two-core solution. Additions to the ARM architecture mean that ARM is well suited for many DSP applications. The ARMv5TE extensions available in the ARM9E and later cores provide efficient multiply accumulate operations. With careful coding, the ARM9E processor will perform decently on the DSP parts of an application while outperforming a DSP on the control parts of the application. DSP applications are typically multiply and load-store intensive. A basic operation is a multiply accumulate multiplying two 16-bit signed numbers and accumulating onto a 32-bit signed accumulator. Table 8.1 shows the increase in performance available on different generations of the ARM core. The second column gives cycles for a signed 16-bit by 16-bit multiply with 32-bit accumulate; the third column, cycles for a signed 32-bit by 32-bit multiply with a 64-bit accumulate. The latter is especially useful for high-quality audio algorithms such as mp3. Table 8.1 assumes that you use the most efficient instruction for the task and that you can avoid any postmultiply interlocks. We cover this in detail in Section 8.2. 259
- 276. 260 Chapter 8 Digital Signal Processing Table 8.1 Multiply accumulate timings by processor. 16- × 16-bit multiply with 32- × 32-bit multiply with Processor (architecture) 32-bit accumulate (cycles) 64-bit accumulate (cycles) ARM7 (ARMv3) ∼12 ∼44 ARM7TDMI (ARMv4T) 4 7 ARM9TDMI (ARMv4T) 4 7 StrongARM (ARMv4) 2 or 3 4 or 5 ARM9E (ARMv5TE) 1 3 XScale (ARMv5TE) 1 2–4 ARM1136 (ARMv6) 0.5 2 (result top half) Due to their high data bandwidth and performance requirements, you will often need to code DSP algorithms in hand-written assembly. You need fine control of register allocation and instruction scheduling to achieve the best performance. We cannot cover implemen- tations of all DSP algorithms in this chapter, so we will concentrate on common examples and general rules that can be applied to a whole range of DSP algorithms. Section 8.1 looks at the basic problem of how to represent a signal on the ARM so that we can process it. Section 8.2 looks at general rules on writing DSP algorithms for the ARM. Filtering is probably the most commonly used signal processing operation. It can be used to remove noise, to analyze signals, or in signal compression. We look at audio filtering in detail in Sections 8.3 and 8.4. Another very common algorithm is the Discrete Fourier Transform (DFT), which converts a signal from a time representation to a frequency representation or vice versa. We look at the DFT in Section 8.5. 8.1 Representing a Digital Signal Before you can process a digital signal, you need to choose a representation of the signal. How can you describe a signal using only the integer types available on ARM processors? This is an important problem that will affect the design of the DSP software. Throughout this chapter we will use the notations xt and x[t] to denote the value of a signal x at time t. The first notation is often clearer in equations and formulae. The second notation is used in programming examples as it is closer to the C style of array notation. 8.1.1 Choosing a Representation In an analogue signal x[t], the index t and the value x are both continuous real variables. To convert an analogue signal to a digital signal, we must choose a finite number of sampling points ti and a digital representation for the sample values x[ti].
- 277. 8.1 Representing a Digital Signal 261 1 0.5 0 −0.5 −1 0 2 x[t] = sin(2πt/8) x[0] x[1] x[2] x[3] x[4] x[5] x[6] x[7] x[8] x[9] x[10] 4 6 8 10 Figure 8.1 Digitizing an analogue signal. Figure 8.1 shows a sine wave signal digitized at the sampling points 0, 1, 2, 3, and so on. Signals like this are typical in audio processing, where x[t] represents the tth audio sample. For example, in a CD player, the sampling rate is 44,100 Hz (that is, 44,100 samples per second). Therefore t represents the time in units of a sample period of 1/44,100 Hz = 22.7 microseconds. In this application x[t] represents the signed voltage applied to the loudspeaker at time t. There are two things to worry about when choosing a representation of x[t]: 1. The dynamic range of the signal—the maximum fluctuation in the signal defined by Equation (8.1). For a signed signal we are interested in the maximum absolute value M possible. For this example, let’s take M = 1 volt. M = max|x[t]| over all t = 0, 1, 2, 3 . . . (8.1) 2. The accuracy required in the representation, sometimes given as a proportion of the maximum range. For example, an accuracy of 100 parts per million means that each x[t] needs to be represented within an error of E = M × 0. 0001 = 0. 0001 volts (8.2) Let’s work out the best way of storing x[t] subject to the given dynamic range and accuracy constraints.
- 278. 262 Chapter 8 Digital Signal Processing We could use a floating-point representation for x[t]. This would certainly meet our dynamic range and accuracy constraints, and it would also be easy to manipulate using the C type float. However, most ARM cores do not support floating point in hardware, and so a floating-point representation would be very slow. A better choice for fast code is a fixed-point representation. A fixed-point representation uses an integer to represent a fractional value by scaling the fraction. For example, for a maximum error of 0.0001 volts, we only require a step of 0.0002 volts between each representable value. This suggests that we represent x[t] by the integer X[t] defined as X[t] = round_to_nearest_integer(5000 × x[t]) (8.3) In practice we would rather scale by a power of two. Then we can implement multipli- cation and division by the scale using shifts. In this case, the smallest power of two greater than 5000 is 213 = 8192. We say that X[t] is a Qk fixed-point representation of x[t] if X[t] = round_to_nearest_integer(2k x[t]) (8.4) In our example we can use a Q13 representation to meet the accuracy required. Since x[t] ranges between −1 and +1 volt, X[t] will range between the integers −8192 and +8192. This range will fit in a 16-bit C variable of type short. Signals that vary between −1 and +1 are often stored as Q15 values because this scales them to the maximum range of a short type integer: −32,768 to +32,767. Note that +1 does not have an exact representation, and we approximate it by +32,767 representing 1 − 2−15. However, we will see in Section 8.1.2 that scaling up to the maximum range is not always a good idea. It increases the probability of overflow when manipulating the fixed-point representations. In a fixed-point representation we represent each signal value by an integer and use the same scaling for the whole signal. This differs from a floating-point representation, where each signal value x[t] has its own scaling called the exponent dependent upon t. A common error is to think that floating point is more accurate than fixed point. This is false! For the same number of bits, a fixed-point representation gives greater accuracy. The floating-point representation gives higher dynamic range at the expense of lower absolute accuracy. For example, if you use a 32-bit integer to hold a fixed-point value scaled to full range, then the maximum error in a representation is 2−32. However, single-precision 32-bit floating-point values give a relative error of 2−24. The single-precision floating-point mantissa is 24 bits. The leading 1 of the mantissa is not stored, so 23 bits of storage are actually used. For values near the maximum, the fixed-point representation is 232−24 = 256 times more accurate! The 8-bit floating-point exponent is of little use when you are interested in maximum error rather than relative accuracy. To summarize, a fixed-point representation is best when there is a clear bound to the strength of the signal and when maximum error is important. When there is no clear bound and you require a large dynamic range, then floating point is better. You can also use the other following representations, which give more dynamic range than fixed point while still being more efficient to implement than floating point.
- 279. 8.1 Representing a Digital Signal 263 8.1.1.1 Saturating Fixed-Point Representation Suppose the maximum value of the signal is not known, but there is a clear range in which the vast majority of samples lie. In this case you can use a fixed-point representation based on the common range. You then saturate or clip any out-of-range samples to the closest available sample in the normal range. This approach gives greater accuracy at the expense of some distortion of very loud signals. See Section 7.7 for hints on efficient saturation. 8.1.1.2 Block-Floating Representation When small sample values are close to large sample values, they are usually less important. In this case, you can divide the signal into blocks or frames of samples. You can use a different fixed-point scaling on each block or frame according to the strength of the signal in that block or frame. This is similar to floating point except that we associate a single exponent with a whole frame rather than a single sample. You can use efficient fixed-point operations to operate on the samples within the frame, and you only need costly, exponent-related operations when comparing values among frames. 8.1.1.3 Logarithmic Representation Suppose your signal x[t] has a large dynamic range. Suppose also that multiplication operations are far more frequent than addition. Then you can use a base-two logarithmic representation. For this representation we consider the related signal y[t]: y[t] = log2(x[t]) (8.5) Represent y[t] using a fixed-point format. Replace operations of the form x[a] = x[b] × x[c] by y[a] = y[b] + y[c] (8.6) and operations of the form x[a] = x[b] + x[c] by y[a] = y[b] + log2 1 + 2y[c]−y[b] (8.7) In the second case we arrange that y[c] ≤ y[b]. Calculate the function f (x) = log2(1 + 2x) by using lookup tables and/or interpolation. See Section 7.5 for efficient implementations of log2(x) and 2x.
- 280. 264 Chapter 8 Digital Signal Processing 8.1.2 Operating on Values Stored in Fixed-Point Format Suppose now that we have chosen a Qk fixed-point representation for the signal x[t]. In other words, we have an array of integers X[t] such that X[t] = the closet integer to 2k x[t] (8.8) Equivalently, if we write the integer X[t] in binary notation, and insert a binary point between bits k and k − 1, then we have the value of x[t]. For example, in Figure 8.2, the fixed-point value 0x6000 at Q15 represents 0.11 in binary, or 3/4 = 0.75 in decimal. The following subsections cover the basic operations of addition, subtraction, multipli- cation, division, and square root as applied to fixed-point signals. There are several concepts that apply to all fixed-point operations: ■ Rounding on right shift. When you perform a right shift to divide by a power of two, the shift rounds towards −∞ rather than rounding to the nearest integer. For a more accurate answer use the operation y = (x + (1 (shift − 1))) shift instead. This will round to the nearest integer with 0.5 rounded up. To implement this efficiently, see Section 7.7.3. ■ Rounding on divide. For an unsigned divide, calculate y = (x + (d 1))/d rather than y = x/d. This gives a rounded result. ■ Headroom. The headroom of a fixed point representation is the ratio of the maximum magnitude that can be stored in the integer to the maximum magnitude that will occur. For example, suppose you use a 16-bit integer to store a Q13 representation of an audio signal that can range between −1 and +1. Then there is a headroom of four times or two bits. You can double a sample value twice without risk of overflowing the 16-bit container integer. ■ Conversion of Q representation. If X[t] is a Qn representation of x[t], then X[t] k is a Q(n + k) representation of x[t] (8.9) X[t] k is a Q(n − k) representation of x[t] (8.10) For the following sections we fix signals x[t], c[t], and y[t]. Let X[t], C[t], Y [t] denote their Qn, Qm, Qd fixed-point representations, respectively. Bit 0x6000 = 15 0. 14 1 13 1 12 0 11 0 10 0 9 0 8 0 7 0 6 0 5 0 4 0 3 0 2 0 1 0 0 0 Figure 8.2 Representation of 3/4 in Q15 fixed-point arithmetic.
- 281. 8.1 Representing a Digital Signal 265 8.1.3 Addition and Subtraction of Fixed-Point Signals The general case is to convert the signal equation y[t] = x[t] + c[t] (8.11) into fixed-point format; that is, approximately: Y [t] = 2d y[t] = 2d (x[t] + c[t]) = 2d−n X[t] + 2d−m C[t] (8.12) or in integer C: Y[t] = (X[t] (d-n)) + (C[t] (d-m)); Here we use the convention that you should interpret a negative left shift value as a rounded right shift. In other words, we first convert x[t] and c[t] to Qd representations, then add to give Y [t]. We know the values of d, n, and m, at compile time, and so there is no prob- lem in determining the shift direction, or whether there is a shift at all! In practice we usually arrange that n = m = d. Therefore normal integer addition gives a fixed-point addition: Y[t] = X[t] + C[t]; Provided d = m or d = n, we can perform the operation in a single cycle using the ARM barrel shifter: Y[t] = X[t] + (C[t] (d-m)); /* d==n case */ Y[t] = C[t] + (X[t] (d-n)); /* d==m case */ We must be careful though. The preceding equations are only meaningful if the shifted values and the result do not overflow. For example, if Y [t] = X[t] + C[t], then the dynamic range of Y [t] is the sum of the dynamic ranges of X[t] and C[t]. This is liable to overflow the integer container. There are four common ways you can prevent overflow: 1. Ensure that the X[t] and C[t] representations have one bit of spare headroom each; in other words, each use up only half the range of their integer container. Then there can be no overflow on the addition. 2. Use a larger container type for Y than for X and C. For example, if X[t] and C[t] are stored as 16-bit integers, use a 32-bit integer for Y [t]. This will ensure that there can be no overflow. In fact, Y [t] then has 15 bits of headroom, so you can add many 16-bit values to Y [t] without the possibility of overflow.
- 282. 266 Chapter 8 Digital Signal Processing 3. Use a smaller Q representation for y[t]. For example, if d = n − 1 = m − 1, then the operation becomes Y[t] = (X[t] + X[t-1]) 1; This operation takes two cycles rather than one since the shift follows the add. However, the operation result cannot overflow. 4. Use saturation. If the value of X[t] + C[t] is outside the range of the integer storing Y[t], then clip it to the nearest possible value that is in range. Section 7.7 shows how to implement saturating arithmetic efficiently. 8.1.4 Multiplication of Fixed-Point Signals The general case is to convert the signal equation y[t] = x[t]c[t] (8.13) into fixed point format; that is, approximately: Y [t] = 2d y[t] = 2d x[t]c[t] = 2d−n−m X[t]C[t] (8.14) or in integer C: Y[t] = (X[t]*C[t]) (n+m-d); You should interpret a negative right shift as a left shift. The product X[t]C[t] is a Q(n + m) representation of Y[t] and the shift converts representation. There are two common uses: 1. We want to accumulate a whole series of products. In this case we set d = n + m, using a wider integer to store Y[t] than X[t] and C[t]. The multiply and multiply accumulate operations are then just Y[t] = X[t] ∗ C[t]; /* multiply */ Y[t] += X[t] ∗ C[t]; /* multiply accumulate */ 2. The signal Y[t] is the signal X[t] with pointwise multiplication by some scaling coefficients. In this case, use d = n so that the operation is Y[t] = (X[t] ∗ C[t]) m; For audio DSP applications, a 16-bit × 16-bit multiply is usually used. Common values for n and m are 14 and 15. As with addition and subtraction it is important to check each operation to make sure that it cannot overflow.
- 283. 8.1 Representing a Digital Signal 267 Example 8.1 Suppose X[t] is a 16-bit signed representation for an audio signal x[t]. Suppose we need to reduce the power of the signal by a half. To do this we must scale each sample by 1/( √ 2), so c[t] = 2−0.5 = 0. 70710678 . . . . Since we are using a 16-bit representation for X[t], a 16-bit multiply will suffice. The largest power of two that we can multiply c[t] by and have it remain a 16-bit integer is 15. So take n = d, m = 15, and C[t] = 215/( √ 2) = 23, 710 = 0x5A82. Therefore we can scale using the integer operation X[t] = (X[t] ∗ 0x5A82) 15; ■ 8.1.5 Division of Fixed-Point Signals The general case is to convert the signal equation y[t] = x[t] c[t] (8.15) into fixed point format; that is, approximately: Y [t] = 2d y[t] = 2dx[t] c[t] = 2d−n+m X[t] C[t] (8.16) or in integer C: Y[t] = (X[t] (d-n+m)) / C[t]; Again a negative left shift indicates a right shift. You must take care that the left shift does not cause an overflow. In typical applications, n = m. Then the preceding operation gives a Qd result accurate to d places of binary fraction: Y[t] = (X[t] d) / C[t]; See Section 7.3.3 for efficient implementations of fixed-point division. 8.1.6 Square Root of a Fixed-Point Signal The general case is to convert the signal equation y[t] = x[t] (8.17) into fixed point format; that is, approximately: Y [t] = 2d y[t] = 2d x[t] = 22d−nX[t] (8.18)
- 284. 268 Chapter 8 Digital Signal Processing or in integer C: Y[t] = isqrt( X[t] (2*d-n) ); The function isqrt finds the nearest integer to the square root of the integer. See Section 7.4 for efficient implementation of square root operations. 8.1.7 Summary: How to Represent a Digital Signal To choose a representation for a signal value, use the following criteria: ■ Use a floating-point representation for prototyping algorithms. Do not use floating pointinapplicationswherespeediscritical. MostARMimplementationsdonotinclude hardware floating-point support. ■ Use a fixed-point representation for DSP applications where speed is critical with mod- erate dynamic range. The ARM cores provide good support for 8-, 16- and 32-bit fixed-point DSP. ■ For applications requiring speed and high dynamic range, use a block-floating or logarithmic representation. Table 8.2 summarizes how you can implement standard operations in fixed-point arithmetic. It assumes there are three signals x[t], c[t], y[t], that have Qn, Qm, Qd representations X[t], C[t], Y[t], respectively. In other words: X[t] = 2n x[t], C[t] = 2m c[t], Y [t] = 2d y[t] (8.19) to the nearest integer. To make the table more concise, we use as shorthand for an operation that is either a left or right shift according to the sign of the shift amount. Formally: x s := x s if s=0 Table 8.2 Summary of standard fixed-point operations. Signal operation Integer fixed-point equivalent y[t]=x[t] Y[t]=X[t] (d-n); y[t]=x[t]+c[t] Y[t]=(X[t] (d-n))+(C[t] (d-m)); y[t]=x[t]-c[t] Y[t]=(X[t] (d-n))-(C[t] (d-m)); y[t]=x[t]*c[t] Y[t]=(X[t]*C[t]) (d-n-m); y[t]=x[t]/c[t] Y[t]=(X[t] (d-n+m))/C[t]; y[t]=sqrt(x[t]) Y[t]=isqrt(X[t] (2*d-n));
- 285. 8.2 Introduction to DSP on the ARM 269 x (-s) if s0 and rounding is not required (x+round) (-s) if s0 and rounding is required round := (1 (-1-s)) if 0.5 should round up (1 (-1-s))-1 if 0.5 should round down You must always check the precision and dynamic range of the intermediate and output values. Ensure that there are no overflows or unacceptable losses of precision. These considerations determine the representations and size to use for the container integers. These equations are the most general form. In practice, for addition and subtraction we usually take d = n = m. For multiplication we usually take d = n + m or d = n. Since you know d, n, and m, at compile time, you can eliminate shifts by zero. 8.2 Introduction to DSP on the ARM This section begins by looking at the features of the ARM architecture that are useful for writing DSP applications. We look at each common ARM implementation in turn, highlighting its strengths and weaknesses for DSP. The ARM core is not a dedicated DSP. There is no single instruction that issues a multiply accumulate and data fetch in parallel. However, by reusing loaded data you can achieve a respectable DSP performance. The key idea is to use block algorithms that calcu- late several results at once, and thus require less memory bandwidth, increase performance, and decrease power consumption compared with calculating single results. The ARM also differs from a standard DSP when it comes to precision and saturation. In general, ARM does not provide operations that saturate automatically. Saturating versions of operations usually cost additional cycles. Section 7.7 covered saturating operations on the ARM. On the other hand, ARM supports extended-precision 32-bit multiplied by 32-bit to 64-bit operations very well. These operations are particularly important for CD-quality audio applications, which require intermediate precision at greater than 16 bits. From ARM9 onwards, ARM implementations use a multistage execute pipeline for loads and multiplies, which introduces potential processor interlocks. If you load a value and then use it in either of the following two instructions, the processor may stall for a number of cycles waiting for the loaded value to arrive. Similarly if you use the result of a multiply in the following instruction, this may cause stall cycles. It is particularly important to schedule code to avoid these stalls. See the discussion in Section 6.3 on instruction scheduling. Summary Guidelines for Writing DSP Code for ARM ■ Design the DSP algorithm so that saturation is not required because saturation will cost extra cycles. Use extended-precision arithmetic or additional scaling rather than saturation.
- 286. 270 Chapter 8 Digital Signal Processing ■ Design the DSP algorithm to minimize loads and stores. Once you load a data item, then perform as many operations that use the datum as possible. You can often do this by calculating several output results at once. Another way of increasing reuse is to concatenate several operations. For example, you could perform a dot product and signal scale at the same time, while only loading the data once. ■ Write ARM assembly to avoid processor interlocks. The results of load and multiply instructions are often not available to the next instruction without adding stall cycles. Sometimes the results will not be available for several cycles. Refer to Appendix D for details of instruction cycle timings. ■ There are 14 registers available for general use on the ARM, r0 to r12 and r14. Design the DSP algorithm so that the inner loop will require 14 registers or fewer. In the following sections we look at each of the standard ARM cores in turn. We implement a dot-product example for each core. A dot-product is one of the simplest DSP operations and highlights the difference among different ARM implementations. A dot-product combines N samples from two signals xt and ct to produce a correlation value a: a = N−1 i=0 cixi (8.20) The C interface to the dot-product function is int dot_product(sample *x, coefficient *c, unsigned int N); where ■ sample is the type to hold a 16-bit audio sample, usually a short ■ coefficient is the type to hold a 16-bit coefficient, usually a short ■ x[i] and c[i] are two arrays of length N (the data and coefficients) ■ the function returns the accumulated 32-bit integer dot product a 8.2.1 DSP on the ARM7TDMI The ARM7TDMI has a 32-bit by 8-bit per cycle multiply array with early termination. It takes four cycles for a 16-bit by 16-bit to 32-bit multiply accumulate. Load instructions take three cycles and store instructions two cycles for zero-wait-state memory or cache. See Section D.2 in Appendix D for details of cycle timings for ARM7TDMI instructions. Summary Guidelines for Writing DSP Code for the ARM7TDMI ■ Load instructions are slow, taking three cycles to load a single value. To access mem- ory efficiently use load and store multiple instructions LDM and STM. Load and store
- 287. 8.2 Introduction to DSP on the ARM 271 multiples only require a single cycle for each additional word transferred after the first word. This often means it is more efficient to store 16-bit data values in 32-bit words. ■ The multiply instructions use early termination based on the second operand in the product Rs. For predictable performance use the second operand to specify constant coefficients or multiples. ■ Multiply is one cycle faster than multiply accumulate. It is sometimes useful to split an MLA instruction into separate MUL and ADD instructions. You can then use a barrel shift with the ADD to perform a scaled accumulate. ■ You can often multiply by fixed coefficients faster using arithmetic instructions with shifts. For example, 240x = (x 8) − (x 4). For any fixed coefficient of the form ±2a ± 2b ± 2c , ADD and SUB with shift give a faster multiply accumulate than MLA. Example 8.2 This example shows a 16-bit dot-product optimized for the ARM7TDMI. Each MLA takes a worst case of four cycles. We store the 16-bit input samples in 32-bit words so that we can use the LDM instruction to load them efficiently. x RN 0 ; input array x[] c RN 1 ; input array c[] N RN 2 ; number of samples (a multiple of 5) acc RN 3 ; accumulator x_0 RN 4 ; elements from array x[] x_1 RN 5 x_2 RN 6 x_3 RN 7 x_4 RN 8 c_0 RN 9 ; elements from array c[] c_1 RN 10 c_2 RN 11 c_3 RN 12 c_4 RN 14 ; int dot_16by16_arm7m(int *x, int *c, unsigned N) dot_16by16_arm7m STMFD sp!, {r4-r11, lr} MOV acc, #0 loop_7m ; accumulate 5 products LDMIA x!, {x_0, x_1, x_2, x_3, x_4} LDMIA c!, {c_0, c_1, c_2, c_3, c_4} MLA acc, x_0, c_0, acc MLA acc, x_1, c_1, acc MLA acc, x_2, c_2, acc MLA acc, x_3, c_3, acc
- 288. 272 Chapter 8 Digital Signal Processing MLA acc, x_4, c_4, acc SUBS N, N, #5 BGT loop_7m MOV r0, acc LDMFD sp!, {r4-r11, pc} This code assumes that the number of samples N is a multiple of five. Therefore we can use a five-word load multiple to increase data bandwidth. The cost per load is 7/4 = 1.4 cycles compared to 3 cycles per load if we had used LDR or LDRSH. The inner loop requires a worst case of 7 + 7 + 5 ∗ 4 + 1 + 3 = 38 cycles to process each block of 5 products from the sum. This gives the ARM7TDMI a DSP rating of 38/5 = 7.6 cycles per tap for a 16-bit dot-product. The block filter algorithm of Section 8.3 gives a much better performance per tap if you are calculating multiple products. ■ 8.2.2 DSP on the ARM9TDMI The ARM9TDMI has the same 32-bit by 8-bit per cycle multiplier array with early termina- tion as the ARM7TDMI. However, load and store operations are much faster compared to the ARM7TDMI. They take one cycle provided that you do not attempt to use the loaded value for two cycles after the load instruction. See Section D.3 in Appendix D for cycle timings of ARM9TDMI instructions. Summary Writing DSP Code for the ARM9TDMI ■ Load instructions are fast as long as you schedule the code to avoid using the loaded value for two cycles. There is no advantage to using load multiples. Therefore you should store 16-bit data in 16-bit short type arrays. Use the LDRSH instruction to load the data. ■ The multiply instructions use early termination based on the second operand in the product Rs. For predictable performance use the second operand to specify constant coefficients or multiples. ■ Multiply is the same speed as multiply accumulate. Try to use the MLA instruction rather than a separate multiply and add. ■ You can often multiply by fixed coefficients faster using arithmetic instructions with shifts. For example, 240x = (x 8) − (x 4). For any fixed coefficient of the form ±2a ±2b ±2c , ADD and SUB with shift give a faster multiply accumulate than using MLA. Example 8.3 This example shows a 16-bit dot-product optimized for the ARM9TDMI. Each MLA takes a worst case of four cycles. We store the 16-bit input samples in 16-bit short integers, since there is no advantage in using LDM rather than LDRSH, and using LDRSH reduces the memory size of the data.
- 289. 8.2 Introduction to DSP on the ARM 273 x RN 0 ; input array x[] c RN 1 ; input array c[] N RN 2 ; number of samples (a multiple of 4) acc RN 3 ; accumulator x_0 RN 4 ; elements from array x[] x_1 RN 5 c_0 RN 9 ; elements from array c[] c_1 RN 10 ; int dot_16by16_arm9m(short *x, short *c, unsigned N) dot_16by16_arm9m STMFD sp!, {r4-r5, r9-r10, lr} MOV acc, #0 LDRSH x_0, [x], #2 LDRSH c_0, [c], #2 loop_9m ; accumulate 4 products SUBS N, N, #4 LDRSH x_1, [x], #2 LDRSH c_1, [c], #2 MLA acc, x_0, c_0, acc LDRSH x_0, [x], #2 LDRSH c_0, [c], #2 MLA acc, x_1, c_1, acc LDRSH x_1, [x], #2 LDRSH c_1, [c], #2 MLA acc, x_0, c_0, acc LDRGTSH x_0, [x], #2 LDRGTSH c_0, [c], #2 MLA acc, x_1, c_1, acc BGT loop_9m MOV r0, acc LDMFD sp!, {r4-r5, r9-r10, pc} We have assumed that the number of samples N is a multiple of four. Therefore we can unroll the loop four times to increase performance. The code is scheduled so that there are four instructions between a load and the use of the loaded value. This uses the preload tricks of Section 6.3.1.1: ■ The loads are double buffered. We use x0, c0 while we are loading x1, c1 and vice versa. ■ We load the initial values x0, c0, before the inner loop starts. This initiates the double buffer process. ■ We are always loading one pair of values ahead of the ones we are using. Therefore we must avoid the last pair of loads or we will read off the end of the arrays. We do this
- 290. 274 Chapter 8 Digital Signal Processing by having a loop counter that counts down to zero on the last loop. Then we can make the final loads conditional on N 0. The inner loop requires 28 cycles per loop, giving 28/4 = 7 cycles per tap. See Section 8.3 for more efficient block filter implementations. ■ 8.2.3 DSP on the StrongARM The StrongARM core SA-1 has a 32-bit by 12-bit per cycle signed multiply array with early termination. If you attempt to use a multiply result in the following instruction, or start a new multiply, then the core will stall for one cycle. Load instructions take one cycle, except for signed byte and halfword loads, which take two cycles. There is a one-cycle delay before you can use the loaded value. See Section D.4 in Appendix D for details of the StrongARM instruction cycle timings. Summary Writing DSP Code for the StrongARM ■ Avoid signed byte and halfword loads. Schedule the code to avoid using the loaded value for one cycle. There is no advantage to using load multiples. ■ The multiply instructions use early termination based on the second operand in the product Rs. For predictable performance use the second operand to specify constant coefficients or multiples. ■ Multiply is the same speed as multiply accumulate. Try to use the MLA instruction rather than a separate multiply and add. Example 8.4 This example shows a 16-bit dot-product. Since a signed 16-bit load requires two cycles, it is more efficient to use 32-bit data containers for the StrongARM. To schedule StrongARM code, one trick is to interleave loads and multiplies. x RN 0 ; input array x[] c RN 1 ; input array c[] N RN 2 ; number of samples (a multiple of 4) acc RN 3 ; accumulator x_0 RN 4 ; elements from array x[] x_1 RN 5 c_0 RN 9 ; elements from array c[] c_1 RN 10 ; int dot_16by16_SA1(int *x, int *c, unsigned N) dot_16by16_SA1 STMFD sp!, {r4-r5, r9-r10, lr}
- 291. 8.2 Introduction to DSP on the ARM 275 MOV acc, #0 LDR x_0, [x], #4 LDR c_0, [c], #4 loop_sa ; accumulate 4 products SUBS N, N, #4 LDR x_1, [x], #4 LDR c_1, [c], #4 MLA acc, x_0, c_0, acc LDR x_0, [x], #4 LDR c_0, [c], #4 MLA acc, x_1, c_1, acc LDR x_1, [x], #4 LDR c_1, [c], #4 MLA acc, x_0, c_0, acc LDRGT x_0, [x], #4 LDRGT c_0, [c], #4 MLA acc, x_1, c_1, acc BGT loop_sa MOV r0, acc LDMFD sp!, {r4-r5, r9-r10, pc} We have assumed that the number of samples N is a multiple of four and so have unrolled by four times. For worst-case 16-bit coefficients, each multiply requires two cycles. We have scheduled to remove all load and multiply use interlocks. The inner loop uses 19 cycles to process 4 taps, giving a rating of 19/4 = 4.75 cycles per tap. ■ 8.2.4 DSP on the ARM9E The ARM9E core has a very fast pipelined multiplier array that performs a 32-bit by 16-bit multiply in a single issue cycle. The result is not available on the next cycle unless you use the result as the accumulator in a multiply accumulate operation. The load and store operations are the same speed as on the ARM9TDMI. See Section D.5 in Appendix D for details of the ARM9E instruction cycle times. To access the fast multiplier, you will need to use the multiply instructions defined in the ARMv5TE architecture extensions. For 16-bit by 16-bit products use SMULxy and SMLAxy. See Appendix A for a full list of ARM multiply instructions. Summary Writing DSP Code for the ARM9E ■ The ARMv5TE architecture multiply operations are capable of unpacking 16-bit halves from 32-bit words and multiplying them. For best load bandwidth you should use word load instructions to load packed 16-bit data items. As for the ARM9TDMI you should schedule code to avoid load use interlocks.
- 292. 276 Chapter 8 Digital Signal Processing ■ The multiply operations do not early terminate. Therefore you should only use MUL and MLA for multiplying 32-bit integers. For 16-bit values use SMULxy and SMLAxy. ■ Multiply is the same speed as multiply accumulate. Try to use the SMLAxy instruction rather than a separate multiply and add. Example 8.5 This example shows the dot-product for the ARM9E. It assumes that the ARM is configured for a little-endian memory system. If the ARM is configured for a big-endian memory system, then you need to swap the B and T instruction suffixes. You can use macros to do this for you automatically as in Example 8.11. We use the naming convention x_10 to mean that the top 16 bits of the register holds x1 and the bottom 16 bits x0. x RN 0 ; input array x[] c RN 1 ; input array c[] N RN 2 ; number of samples (a multiple of 8) acc RN 3 ; accumulator x_10 RN 4 ; packed elements from array x[] x_32 RN 5 c_10 RN 9 ; packed elements from array c[] c_32 RN 10 ; int dot_16by16_arm9e(short *x, short *c, unsigned N) dot_16by16_arm9e STMFD sp!, {r4-r5, r9-r10, lr} MOV acc, #0 LDR x_10, [x], #4 LDR c_10, [c], #4 loop_9e ; accumulate 8 products SUBS N, N, #8 LDR x_32, [x], #4 SMLABB acc, x_10, c_10, acc LDR c_32, [c], #4 SMLATT acc, x_10, c_10, acc LDR x_10, [x], #4 SMLABB acc, x_32, c_32, acc LDR c_10, [c], #4 SMLATT acc, x_32, c_32, acc LDR x_32, [x], #4 SMLABB acc, x_10, c_10, acc LDR c_32, [c], #4 SMLATT acc, x_10, c_10, acc LDRGT x_10, [x], #4 SMLABB acc, x_32, c_32, acc LDRGT c_10, [c], #4
- 293. 8.2 Introduction to DSP on the ARM 277 SMLATT acc, x_32, c_32, acc BGT loop_9e MOV r0, acc LDMFD sp!, {r4-r5, r9-r10, pc} We have unrolled eight times, assuming that N is a multiple of eight. Each load instruc- tion reads two 16-bit values, giving a high memory bandwidth. The inner loop requires 20 cycles to accumulate 8 products, a rating of 20/8 = 2.5 cycles per tap. A block filter gives even greater efficiency. ■ 8.2.5 DSP on the ARM10E Like ARM9E, the ARM10E core also implements ARM architecture ARMv5TE. The range and speed of multiply operations is the same as for the ARM9E, except that the 16-bit multiply accumulate requires two cycles rather than one. For details of the ARM10E core cycle timings, see Section D.6 in Appendix D. The ARM10E implements a background loading mechanism to accelerate load and store multiples. A load or store multiple instruction issues in one cycle. The operation will run in the background, and if you attempt to use the value before the background load completes, then the core will stall. ARM10E uses a 64-bit-wide data path that can transfer two registers on every background cycle. If the address isn’t 64-bit aligned, then only 32 bits can be transferred on the first cycle. Summary Writing DSP Code for the ARM10E ■ Load and store multiples run in the background to give a high memory bandwidth. Use load and store multiples whenever possible. Be careful to schedule the code so that it does not use data before the background load has completed. ■ Ensure data arrays are 64-bit aligned so that load and store multiple operations can transfer two words per cycle. ■ The multiply operations do not early terminate. Therefore you should only use MUL and MLA for multiplying 32-bit integers. For 16-bit values use SMULxy and SMLAxy. ■ The SMLAxy instruction takes one cycle more than SMULxy. It may be useful to split a multiply accumulate into a separate multiply and add. Example 8.6 In the example code the number of samples N is a multiple of 10. x RN 0 ; input array x[] c RN 1 ; input array c[] N RN 2 ; number of samples (a multiple of 10) acc RN 3 ; accumulator
- 294. 278 Chapter 8 Digital Signal Processing x_10 RN 4 ; packed elements from array x[] x_32 RN 5 x_54 RN 6 x_76 RN 7 x_98 RN 8 c_10 RN 9 ; packed elements from array c[] c_32 RN 10 c_54 RN 11 c_76 RN 12 c_98 RN 14 ; int dot_16by16_arm10(short *x, short *c, int n) dot_16by16_arm10 STMFD sp!, {r4-r11, lr} LDMIA x!, {x_10, x_32} MOV acc, #0 LDMIA c!, {c_10, c_32} loop_10 ; accumulate 10 products SUBS N, N, #10 LDMIA x!, {x_54, x_76, x_98} SMLABB acc, x_10, c_10, acc SMLATT acc, x_10, c_10, acc LDMIA c!, {c_54, c_76, c_98} SMLABB acc, x_32, c_32, acc SMLATT acc, x_32, c_32, acc LDMGTIA x!, {x_10, x_32} SMLABB acc, x_54, c_54, acc SMLATT acc, x_54, c_54, acc SMLABB acc, x_76, c_76, acc LDMGTIA c!, {c_10, c_32} SMLATT acc, x_76, c_76, acc SMLABB acc, x_98, c_98, acc SMLATT acc, x_98, c_98, acc BGT loop_10 MOV r0, acc LDMFD sp!, {r4-r11, pc} The inner loop requires 25 cycles to process 10 samples, or 2.5 cycles per tap. ■ 8.2.6 DSP on the Intel XScale The Intel XScale implements version ARMv5TE of the ARM architecture like ARM9E and ARM10E. The timings of load and multiply instructions are similar to the ARM9E, and
- 295. 8.2 Introduction to DSP on the ARM 279 code you’ve optimized for the ARM9E should run efficiently on XScale. See Section D.7 in Appendix D for details of the XScale core cycle timings. Summary Writing DSP Code for the Intel XScale ■ TheloaddoublewordinstructionLDRDcantransfertwowordsinasinglecycle. Schedule the code so that you do not use the first loaded register for two cycles and the second for three cycles. ■ Ensure data arrays are 64-bit aligned so that you can use the 64-bit load instruction LDRD. ■ The result of a multiply is not available immediately. Following a multiply with another multiply may introduce stalls. Schedule code so that multiply instructions are interleaved with load instructions to prevent processor stalls. ■ The multiply operations do not early terminate. Therefore you should only use MUL and MLA for multiplying 32-bit integers. For 16-bit values use SMULxy and SMLAxy. Example 8.7 In this example we use LDRD instructions to improve load bandwidth. The input arrays must be 64-bit aligned. The number of samples N is a multiple of eight. x RN 0 ; input array x[] (64-bit aligned) c RN 1 ; input array c[] (64-bit aligned) N RN 2 ; number of samples (a multiple of 8) acc0 RN 3 ; accumulators acc1 RN 14 x_10 RN 4 ; packed elements from array x[] x_32 RN 5 x_54 RN 6 x_76 RN 7 c_10 RN 8 ; packed elements from array c[] c_32 RN 9 c_54 RN 10 c_76 RN 11 dot_16by16_xscale STMFD sp!, {r4-r11, lr} LDRD x_10, [x], #8 ; preload x_10, x_32 LDRD c_10, [c], #8 ; preload c_10, c_32 MOV acc0, #0 MOV acc1, #0 loop_xscale ; accumulate 8 products SUBS N, N, #8
- 296. 280 Chapter 8 Digital Signal Processing LDRD x_54, [x], #8 ; load x_54, x_76 SMLABB acc0, x_10, c_10, acc0 SMLATT acc1, x_10, c_10, acc1 LDRD c_54, [c], #8 ; load c_54, c_76 SMLABB acc0, x_32, c_32, acc0 SMLATT acc1, x_32, c_32, acc1 LDRGTD x_10, [x], #8 ; load x_10, x_32 SMLABB acc0, x_54, c_54, acc0 SMLATT acc1, x_54, c_54, acc1 LDRGTD c_10, [c], #8 ; load c_10, c_32 SMLABB acc0, x_76, c_76, acc0 SMLATT acc1, x_76, c_76, acc1 BGT loop_xscale ADD r0, acc0, acc1 LDMFD sp!, {r4-r11, pc} The inner loop requires 14 cycles to accumulate 8 products, a rating of 1.75 cycles per tap. ■ 8.3 FIR filters The finite impulse response (FIR) filter is a basic building block of many DSP applications and worth investigating in some detail. You can use a FIR filter to remove unwanted fre- quency ranges, boost certain frequencies, or implement special effects. We will concentrate on efficient implementation of the filter on the ARM. The FIR filter is the simplest type of digital filter. The filtered sample yt depends linearly on a fixed, finite number of unfiltered samples xt . Let M be the length of the filter. Then for some filter coefficients, ci: yt = M−1 i=0 cixt−i (8.21) Some books refer to the coefficients ci as the impulse response. If you feed the impulse signal x = (1, 0, 0, 0, . . .) into the filter, then the output is the signal of filter coefficients y = (c0, c1, c2, . . .). Let’s look at the issue of dynamic range and possible overflow of the output signal. Suppose that we are using Qn and Qm fixed-point representations X[t] and C[i] for xt and ci, respectively. In other words: X[t] = round(2n xt ) and C[i] = round(2m ci) (8.22) We implement the filter by calculating accumulated values A[t]: A[t] = C[0]X[t] + C[1]X[t − 1] + · · · + C[M − 1]X[t − M + 1] (8.23)
- 297. 8.3 FIR filters 281 Then A[t] is a Q(n+m) representation of yt . But, how large is A[t]? How many bits of precision do we need to ensure that A[t] does not overflow its integer container and give a meaningless filter result? There are two very useful inequalities that answer these questions: |A[t]| ≤ max{|X[t − i]|, 0 ≤ i M} × M−1 i=0 |C[i]| (8.24) |A[t]| ≤
- 298. M−1 i=0 |X[t − i]|2 ×
- 299. M−1 i=0 |C[i]|2 (8.25) Equation (8.24) says that if you know the dynamic range of X[t], then the maximum gain of dynamic range is bounded by the sum of the absolute values of the filter coefficients C[i]. Equation (8.25) says that if you know the power of the signal X[t], then the dynamic range of A[t] is bounded by the product of the input signal and coefficient powers. Both inequalities are the best possible. Given fixed C[t], we can choose X[t] so that there is equality. They are special cases of the more general Holder inequalities. Let’s illustrate with an example. Example 8.8 Consider the simple, crude, high-pass filter defined by Equation (8.26). The filter allows through high-frequency signals, but attenuates low-frequency ones. yt = −0. 45xt + 0. 9xt−1 − 0. 45xt−2 (8.26) Suppose we represent xi and ci by Qn, Qm 16-bit fixed-point signals X[t] and C[i]. Then, C[0] = −0. 45 × 2m , C[1] = 0. 90 × 2m , C[2] = −0. 45 × 2m (8.27) Since X[t] is a 16-bit integer, |X[t]| ≤ 215, and so, using the first inequality above, |A[t]| ≤ 215 × 1. 8 × 2m = 1. 8 × 215+m (8.28) A[t] will not overflow a 32-bit integer, provided that m ≤ 15. So, take m = 15 for greatest coefficient accuracy. The following integer calculation implements the filter with 16-bit Qn input X[t] and 32-bit Q(n + 15) output A[t]: A[t] = -0x399A*X[t] + 0x7333*X[t-1] - 0x399A*X[t-2]; For a Qn output Y [t] we need to set Y [t] = A[t] 15. However, this could overflow a 16-bit integer. Therefore you either need to saturate the result, or store the result using a Q(n − 1) representation. ■
- 300. 282 Chapter 8 Digital Signal Processing 8.3.1 Block FIR filters Example 8.8 shows that we can usually implement filters using integer sums of products, without the need to check for saturation or overflow: A[t] = C[0]*X[t] + C[1]*X[t-1] + ... + C[M-1]*X[t-M+1]; Generally X[t] and C[i] are k-bit integers and A[t] is a 2k-bit integer, where k = 8, 16, or 32. Table 8.3 shows the precision for some typical applications. We will look at detailed examples of long 16-bit and 32-bit filters. By a long filter, we mean that M is so large that you can’t hold the filter coefficients in registers. You should optimize short filters such as Example 8.8 on a case-by-case basis. For these you can hold many coefficients in registers. For a long filter, each result A[t] depends on M data values and M coefficients that we must read from memory. These loads are time consuming, and it is inefficient to calculate just a single result A[t]. While we are loading the data and coefficients, we can calculate A[t + 1] and possibly A[t + 2] at the same time. An R-way block filter implementation calculates the R values A[t], A[t + 1], . . . , A[t + R − 1] using a single pass of the data X[t] and coefficients C[i]. This reduces the number of memory accesses by a factor of R over calculating each result separately. So R should be as large as possible. On the other hand, the larger R is, the more registers we require to hold accumulated values and data or coefficients. In practice we choose R to be the largest value such that we do not run out of registers in the inner loop. On ARM R can range from 2 to 6, as we will show in the following code examples. An R × S block filter is an R-way block filter where we read S data and coefficient values at a time for each iteration of the inner loop. On each loop we accumulate R × S products onto the R accumulators. Figure 8.3 shows a typical 4 × 3 block filter implementation. Each accumulator on the left is the sum of products of the coefficients on the right multiplied by the signal value heading each column. The diagram starts with the oldest sample Xt−M+1 since the filter routine will load samples in increasing order of memory address. Each inner loop of a 4 × 3 filter accumulates the 12 products in a 4 × 3 parallelogram. We’ve shaded the first parallelogram and the first sample of the third parallelogram. As you can see from Figure 8.3, an R × S block filter implementation requires R accu- mulator registers and a history of R − 1 input samples. You also need a register to hold the Table 8.3 Filter precision for different applications. Application X[t] precision (bits) C[t] precision (bits) A[t] precision (bits) Video 8 8 16 Telecoms audio 16 16 32 High-quality audio 32 32 64
- 301. 8.3 FIR filters 283 Xt−M+1 At At+1 At+2 At+3 Xt−M+2 Xt−M+3 Xt−M+4 Xt−M+5 Xt−M+6 Xt−M+7 CM−1 CM−2 CM−3 CM−4 CM−5 CM−6 CM−7 CM−1 CM−2 CM−3 CM−4 CM−5 CM−6 CM−1 CM−2 CM−3 CM−4 CM−5 CM−1 CM−2 CM−3 CM−4 Figure 8.3 A 4 × 3 block filter implementation. next coefficient. The loop repeats after adding S products to each accumulator. Therefore we must allocate X[t] and X[t − S] to the same register. We must also keep the history of length at least R − 1 samples in registers. Therefore S ≥ R − 1. For this reason, block filters are usually of size R × (R − 1) or R × R. The following examples give optimized block FIR implementations. We select the best values for R and S for different ARM implementations. Note that for these implementations, we store the coefficients in reverse order in memory. Figure 8.3 shows that we start from coefficient C[M − 1] and work backwards. Example 8.9 As with the ARM7TDMI dot product, we store 16-bit and 32-bit data items in 32- bit words. Then we can use load multiples for maximum load efficiency. This example implements a 4 × 3 block filter for 16-bit input data. The array pointers a, x, and c point to output and input arrays of the formats given in Figure 8.4. Note that the x array holds a history of M −1 samples and that we reverse the coefficient array. We hold the coefficient array pointer c and length M in a structure, which limits the function to four register arguments. We also assume that N is a multiple of four and M a multiple of three. Array First Second Third Last Array name element element element ... element length a At At+1 At+2 ... At+N−1 N x Xt−M+1 Xt−M+2 Xt−M+3 ... Xt+N−1 N + M − 1 c CM−1 CM−2 CM−3 ... C0 M Figure 8.4 Formats of arrays a, x, and c.
- 302. 284 Chapter 8 Digital Signal Processing a RN 0 ; array for output samples a[] x RN 1 ; array of input samples x[] c RN 2 ; array of coefficients c[] N RN 3 ; number of outputs (a multiple of 4) M RN 4 ; number of coefficients (a multiple of 3) c_0 RN 3 ; coefficient registers c_1 RN 12 c_2 RN 14 x_0 RN 5 ; data registers x_1 RN 6 x_2 RN 7 a_0 RN 8 ; output accumulators a_1 RN 9 a_2 RN 10 a_3 RN 11 ; void fir_16by16_arm7m ; (int *a, ; int *x, ; struct { int *c; unsigned int M; } *c, ; unsigned int N) fir_16by16_arm7m STMFD sp!, {r4-r11, lr} LDMIA c, {c, M} ; load coefficient array and length next_sample_arm7m STMFD sp!, {N, M} LDMIA x!, {x_0, x_1, x_2} MOV a_0, #0 ; zero accumulators MOV a_1, #0 MOV a_2, #0 MOV a_3, #0 next_tap_arm7m ; perform next block of 4x3=12 taps LDMIA c!, {c_0, c_1, c_2} MLA a_0, x_0, c_0, a_0 MLA a_0, x_1, c_1, a_0 MLA a_0, x_2, c_2, a_0 MLA a_1, x_1, c_0, a_1 MLA a_1, x_2, c_1, a_1 MLA a_2, x_2, c_0, a_2 LDMIA x!, {x_0, x_1, x_2} MLA a_1, x_0, c_2, a_1 MLA a_2, x_0, c_1, a_2
- 303. 8.3 FIR filters 285 MLA a_2, x_1, c_2, a_2 MLA a_3, x_0, c_0, a_3 MLA a_3, x_1, c_1, a_3 MLA a_3, x_2, c_2, a_3 SUBS M, M, #3 ; processed 3 coefficents BGT next_tap_arm7m LDMFD sp!, {N, M} STMIA a!, {a_0, a_1, a_2, a_3} SUB c, c, M, LSL#2 ; restore coefficient pointer SUB x, x, M, LSL#2 ; restore data pointer ADD x, x, #(4-3)*4 ; advance data pointer SUBS N, N, #4 ; filtered four samples BGT next_sample_arm7m LDMFD sp!, {r4-r11, pc} Each iteration of the inner loop processes the next three coefficients and updates four filter outputs. Assuming the coefficients are 16-bit, each multiply accumulate requires 4 cycles. Therefore it processes 12 filter taps in 62 cycles, giving a block FIR rating of 5.17 cycles/tap. Note that it is cheaper to reset the coefficient and input pointers c and x using a subtraction, rather than save their values on the stack. ■ Example 8.10 This example gives an optimized block filter for the ARM9TDMI. First, the ARM9TDMI has a single-cycle 16-bit load, so there is no advantage in using load multiples. We can save memory by storing the data and coefficients in 16-bit halfwords. Second, we can use a 4 × 4 block filter implementation rather than a 4 × 3 implementation. This reduces the loop overhead and is useful if the number of coefficients is a multiple of four rather than a multiple of three. The input and output arrays have the same format as Example 8.9, except that the input arrays are now 16-bit. The number of outputs and coefficients, N and M, must be multiples of four. a RN 0 ; array for output samples a[] x RN 1 ; array of input samples x[] c RN 2 ; array of coefficients c[] N RN 3 ; number of outputs (a multiple of 4) M RN 4 ; number of coefficients (a multiple of 4) c_0 RN 3 ; coefficient registers c_1 RN 12 x_0 RN 5 ; data registers x_1 RN 6 x_2 RN 7 x_3 RN 14
- 304. 286 Chapter 8 Digital Signal Processing a_0 RN 8 ; output accumulators a_1 RN 9 a_2 RN 10 a_3 RN 11 ; void fir_16by16_arm9m ; (int *a, ; short *x, ; struct { short *c; unsigned int M; } *c, ; unsigned int N) fir_16by16_arm9m STMFD sp!, {r4-r11, lr} LDMIA c, {c, M} next_sample_arm9m STMFD sp!, {N, M} LDRSH x_0, [x], #2 LDRSH x_1, [x], #2 LDRSH x_2, [x], #2 LDRSH x_3, [x], #2 MOV a_0, #0 MOV a_1, #0 MOV a_2, #0 MOV a_3, #0 next_tap_arm9m ; perform next block of 4x4=16 taps LDRSH c_0, [c], #2 LDRSH c_1, [c], #2 SUBS M, M, #4 MLA a_0, x_0, c_0, a_0 LDRSH x_0, [x], #2 MLA a_1, x_1, c_0, a_1 MLA a_2, x_2, c_0, a_2 MLA a_3, x_3, c_0, a_3 LDRSH c_0, [c], #2 MLA a_0, x_1, c_1, a_0 LDRSH x_1, [x], #2 MLA a_1, x_2, c_1, a_1 MLA a_2, x_3, c_1, a_2 MLA a_3, x_0, c_1, a_3 LDRSH c_1, [c], #2 MLA a_0, x_2, c_0, a_0 LDRSH x_2, [x], #2 MLA a_1, x_3, c_0, a_1 MLA a_2, x_0, c_0, a_2
- 305. 8.3 FIR filters 287 MLA a_3, x_1, c_0, a_3 MLA a_0, x_3, c_1, a_0 LDRSH x_3, [x], #2 MLA a_1, x_0, c_1, a_1 MLA a_2, x_1, c_1, a_2 MLA a_3, x_2, c_1, a_3 BGT next_tap_arm9m LDMFD sp!, {N, M} STMIA a!, {a_0, a_1, a_2, a_3} SUB c, c, M, LSL#1 ; restore coefficient pointer SUB x, x, M, LSL#1 ; advance data pointer SUBS N, N, #4 ; filtered four samples BGT next_sample_arm9m LDMFD sp!, {r4-r11, pc} The code is scheduled so that we don’t use a loaded value on the following two cycles. We’ve moved the loop counter decrement to the start of the loop to fill a load delay slot. Each iteration of the inner loop processes the next four coefficients and updates four filter outputs. Assuming the coefficients are 16 bits, each multiply accumulate requires 4 cycles. Therefore it processes 16 filter taps in 76 cycles, giving a block FIR rating of 4.75 cycles/tap. This code also works well for other ARMv4 architecture processors such as the StrongARM. On StrongARM the inner loop requires 61 cycles, or 3.81 cycles/tap. ■ Example 8.11 The ARM9E has a faster multiplier than previous ARM processors. The ARMv5TE 16-bit multiply instructions also unpack 16-bit data when two 16-bit values are packed into a single 32-bit word. Therefore we can store more data and coefficients in registers and use fewer load instructions. This example implements a 6 × 6 block filter for ARMv5TE processors. The routine is rather long because it is optimized for maximum speed. If you don’t require as much performance, you can reduce code size by using a 4 × 4 block implementation. The input and output arrays have the same format as Example 8.9, except that the input arrays are now 16-bit values. The number of outputs and coefficients, N and M, must be multiples of six. The input arrays must be 32-bit aligned and the memory system little-endian. If you need to write endian-neutral routines, then you should replace SMLAxy instructions by macros that change the T and B settings according to endianness. For example the following macro, SMLA00, evaluates to SMLABB or SMLATT for little- or big- endian memory systems, respectively. If b and c are read as arrays of 16-bit values, then SMLA00 always multiplies b[0] by c[0] regardless of endianness. MACRO SMLA00 $a, $b, $c, $d
- 306. 288 Chapter 8 Digital Signal Processing IF {ENDIAN}=big SMLATT $a, $b, $c, $d ELSE SMLABB $a, $b, $c, $d ENDIF MEND To keep the example simple, we haven’t used macros like this. The following code only works on a little-endian memory system. a RN 0 ; array for output samples a[] x RN 1 ; array of input samples x[] (32-bit aligned) c RN 2 ; array of coefficients c[] (32-bit aligned) N RN 3 ; number of outputs (a multiple of 6) M RN 4 ; number of coefficients (a multiple of 6) c_10 RN 0 ; coefficient pairs c_32 RN 3 x_10 RN 5 ; sample pairs x_32 RN 6 x_54 RN 7 a_0 RN 8 ; output accumulators a_1 RN 9 a_2 RN 10 a_3 RN 11 a_4 RN 12 a_5 RN 14 ; void fir_16by16_arm9e ; (int *a, ; short *x, ; struct { short *c; unsigned int M; } *c, ; unsigned int N) fir_16by16_arm9e STMFD sp!, {r4-r11, lr} LDMIA c, {c, M} next_sample_arm9e STMFD sp!, {a, N, M} LDMIA x!, {x_10, x_32, x_54} ; preload six samples MOV a_0, #0 ; zero accumulators MOV a_1, #0 MOV a_2, #0 MOV a_3, #0 MOV a_4, #0
- 307. 8.3 FIR filters 289 MOV a_5, #0 next_tap_arm9e ; perform next block of 6x6=36 taps LDMIA c!, {c_10, c_32} ; load four coefficients SUBS M, M, #6 SMLABB a_0, x_10, c_10, a_0 SMLATB a_1, x_10, c_10, a_1 SMLABB a_2, x_32, c_10, a_2 SMLATB a_3, x_32, c_10, a_3 SMLABB a_4, x_54, c_10, a_4 SMLATB a_5, x_54, c_10, a_5 SMLATT a_0, x_10, c_10, a_0 LDR x_10, [x], #4 ; load two coefficients SMLABT a_1, x_32, c_10, a_1 SMLATT a_2, x_32, c_10, a_2 SMLABT a_3, x_54, c_10, a_3 SMLATT a_4, x_54, c_10, a_4 SMLABT a_5, x_10, c_10, a_5 LDR c_10, [c], #4 SMLABB a_0, x_32, c_32, a_0 SMLATB a_1, x_32, c_32, a_1 SMLABB a_2, x_54, c_32, a_2 SMLATB a_3, x_54, c_32, a_3 SMLABB a_4, x_10, c_32, a_4 SMLATB a_5, x_10, c_32, a_5 SMLATT a_0, x_32, c_32, a_0 LDR x_32, [x], #4 SMLABT a_1, x_54, c_32, a_1 SMLATT a_2, x_54, c_32, a_2 SMLABT a_3, x_10, c_32, a_3 SMLATT a_4, x_10, c_32, a_4 SMLABT a_5, x_32, c_32, a_5 SMLABB a_0, x_54, c_10, a_0 SMLATB a_1, x_54, c_10, a_1 SMLABB a_2, x_10, c_10, a_2 SMLATB a_3, x_10, c_10, a_3 SMLABB a_4, x_32, c_10, a_4 SMLATB a_5, x_32, c_10, a_5 SMLATT a_0, x_54, c_10, a_0 LDR x_54, [x], #4 SMLABT a_1, x_10, c_10, a_1 SMLATT a_2, x_10, c_10, a_2 SMLABT a_3, x_32, c_10, a_3
- 308. 290 Chapter 8 Digital Signal Processing Table 8.4 ARMv5TE 16-bit block filter timings. Processor Inner loop cycles Filter rating cycles/tap ARM9E 46 46/36 = 1.28 ARM10E 78 78/36 = 2.17 XScale 46 46/36 = 1.28 SMLATT a_4, x_32, c_10, a_4 SMLABT a_5, x_54, c_10, a_5 BGT next_tap_arm9e LDMFD sp!, {a, N, M} STMIA a!, {a_0, a_1, a_2, a_3, a_4, a_5} SUB c, c, M, LSL#1 ; restore coefficient pointer SUB x, x, M, LSL#1 ; advance data pointer SUBS N, N, #6 BGT next_sample_arm9e LDMFD sp!, {r4-r11, pc} Each iteration of the inner loop updates the next six filter outputs, accumulating six products to each output. Table 8.4 shows the cycle timings for ARMv5TE architecture processors. ■ Example 8.12 Sometimes 16-bit data items do not give a large enough dynamic range. The ARMv5TE architecture adds an instruction SMLAWx that allows for efficient filtering of 32-bit data by 16-bit coefficients. The instruction multiplies a 32-bit data item by a 16-bit coefficient, extracts the top 32 bits of the 48-bit result, and adds it to a 32-bit accumulator. This example implements a 5×4 block FIR filter with 32-bit data and 16-bit coefficients. The input and output arrays have the same format as Example 8.9, except that the coefficient array is 16-bit. The number of outputs must be a multiple of five and the number of coefficients a multiple of four. The input coefficient array must be 32-bit aligned and the memory system little-endian. As described in Example 8.11, you can write endian-neutral code by using macros. If the input samples and coefficients use Qn and Qm representations, respectively, then the output is Q(n + m − 16). The SMLAWx shifts down by 16 to prevent overflow. a RN 0 ; array for output samples a[] x RN 1 ; array of input samples x[] c RN 2 ; array of coefficients c[] (32-bit aligned) N RN 3 ; number of outputs (a multiple of 5) M RN 4 ; number of coefficients (a multiple of 4) c_10 RN 0 ; coefficient pair
- 309. 8.3 FIR filters 291 c_32 RN 3 x_0 RN 5 ; input samples x_1 RN 6 x_2 RN 7 x_3 RN 14 a_0 RN 8 ; output accumulators a_1 RN 9 a_2 RN 10 a_3 RN 11 a_4 RN 12 ; void fir_32by16_arm9e ; (int *a, ; int *x, ; struct { short *c; unsigned int M; } *c, ; unsigned int N) fir_32by16_arm9e STMFD sp!, {r4-r11, lr} LDMIA c, {c, M} next_sample32_arm9e STMFD sp!, {a, N, M} LDMIA x!, {x_0, x_1, x_2, x_3} MOV a_0, #0 MOV a_1, #0 MOV a_2, #0 MOV a_3, #0 MOV a_4, #0 next_tap32_arm9e ; perform next block of 5x4=20 taps LDMIA c!, {c_10, c_32} SUBS M, M, #4 SMLAWB a_0, x_0, c_10, a_0 SMLAWB a_1, x_1, c_10, a_1 SMLAWB a_2, x_2, c_10, a_2 SMLAWB a_3, x_3, c_10, a_3 SMLAWT a_0, x_1, c_10, a_0 LDMIA x!, {x_0, x_1} SMLAWT a_1, x_2, c_10, a_1 SMLAWT a_2, x_3, c_10, a_2 SMLAWB a_0, x_2, c_32, a_0 SMLAWB a_1, x_3, c_32, a_1 SMLAWT a_0, x_3, c_32, a_0 LDMIA x!, {x_2, x_3}
- 310. 292 Chapter 8 Digital Signal Processing Table 8.5 ARMv5TE 32 × 16 filter timings. Processor Inner loop cycles Filter rating cycles/tap ARM9E 30 30/20 = 1.5 ARM10E 44 44/20 = 2.2 XScale 34 34/20 = 1.7 SMLAWB a_4, x_0, c_10, a_4 SMLAWT a_3, x_0, c_10, a_3 SMLAWT a_4, x_1, c_10, a_4 SMLAWB a_2, x_0, c_32, a_2 SMLAWB a_3, x_1, c_32, a_3 SMLAWB a_4, x_2, c_32, a_4 SMLAWT a_1, x_0, c_32, a_1 SMLAWT a_2, x_1, c_32, a_2 SMLAWT a_3, x_2, c_32, a_3 SMLAWT a_4, x_3, c_32, a_4 BGT next_tap32_arm9e LDMFD sp!, {a, N, M} STMIA a!, {a_0, a_1, a_2, a_3, a_4} SUB c, c, M, LSL#1 SUB x, x, M, LSL#2 ADD x, x, #(5-4)*4 SUBS N, N, #5 BGT next_sample32_arm9e LDMFD sp!, {r4-r11, pc} Each iteration of the inner loop updates five filter outputs, accumulating four products to each. Table 8.5 gives cycle counts for architecture ARMv5TE processors. ■ Example 8.13 High-quality audio applications often require intermediate sample precision at greater than 16-bit. On the ARM we can use the long multiply instruction SMLAL to implement an efficient filter with 32-bit input data and coefficients. The output values are 64-bit. This makes the ARM very competitive for CD audio quality applications. The output and input arrays have the same format as in Example 8.9. We implement a 3 × 2 block filter so N must be a multiple of three and M a multiple of two. The filter works well on any ARMv4 implementation. a RN 0 ; array for output samples a[] x RN 1 ; array of input samples x[] c RN 2 ; array of coefficients c[]
- 311. 8.3 FIR filters 293 N RN 3 ; number of outputs (a multiple of 3) M RN 4 ; number of coefficients (a multiple of 2) c_0 RN 3 ; coefficient registers c_1 RN 12 x_0 RN 5 ; data registers x_1 RN 6 a_0l RN 7 ; accumulators (low 32 bits) a_0h RN 8 ; accumulators (high 32 bits) a_1l RN 9 a_1h RN 10 a_2l RN 11 a_2h RN 14 ; void fir_32by32 ; (long long *a, ; int *x, ; struct { int *c; unsigned int M; } *c, ; unsigned int N) fir_32by32 STMFD sp!, {r4-r11, lr} LDMIA c, {c, M} next_sample32 STMFD sp!, {N, M} LDMIA x!, {x_0, x_1} MOV a_0l, #0 MOV a_0h, #0 MOV a_1l, #0 MOV a_1h, #0 MOV a_2l, #0 MOV a_2h, #0 next_tap32 ; perform next block of 3x2=6 taps LDMIA c!, {c_0, c_1} SMLAL a_0l, a_0h, x_0, c_0 SMLAL a_1l, a_1h, x_1, c_0 SMLAL a_0l, a_0h, x_1, c_1 LDMIA x!, {x_0, x_1} SUBS M, M, #2 SMLAL a_2l, a_2h, x_0, c_0 SMLAL a_1l, a_1h, x_0, c_1 SMLAL a_2l, a_2h, x_1, c_1 BGT next_tap32 LDMFD sp!, {N, M}
- 312. 294 Chapter 8 Digital Signal Processing Table 8.6 32-bit by 32-bit filter timing. Processor Inner loop cycles Filter rating cycles/tap ARM7TDMI 54 54/6 = 9 ARM9TDMI 50 50/6 = 8.3 StrongARM 31 31/6 = 5.2 ARM9E 26 26/6 = 4.3 ARM10E 22 22/6 = 3.7 XScale 22 22/6 = 3.7 STMIA a!, {a_0l, a_0h, a_1l, a_1h, a_2l, a_2h} SUB c, c, M, LSL#2 SUB x, x, M, LSL#2 ADD x, x, #(3-2)*4 SUBS N, N, #3 BGT next_sample32 LDMFD sp!, {r4-r11, pc} Each iteration of the inner loop processes the next two coefficients and updates three filter outputs. Assuming the coefficients use the full 32-bit range, the multiply does not terminate early. The routine is optimal for most ARM implementations. Table 8.6 gives the cycle timings for a range of processors. ■ Summary Writing FIR Filters on the ARM ■ If the number of FIR coefficients is small enough, then hold the coefficients and history samples in registers. Often coefficients are repeated. This will save on the number of registers you need. ■ If the FIR filter length is long, then use a block filter algorithm of size R × (R − 1) or R × R. Choose the largest R possible given the 14 available general purpose registers on the ARM. ■ Ensure that the input arrays are aligned to the access size. This will be 64-bit when using LDRD. Ensure that the array length is a multiple of the block size. ■ Schedule to avoid all load-use and multiply-use interlocks. 8.4 IIR Filters An infinite impulse response (IIR) filter is a digital filter that depends linearly on a finite number of input samples and a finite number of previous filter outputs. In other words, it
- 313. 8.4 IIR Filters 295 combines a FIR filter with feedback from previous filter outputs. Mathematically, for some coefficients bi and aj: yt = M i=0 bixt−i − L j=1 ajyt−j (8.29) If you feed in the impulse signal x = (1, 0, 0, 0, . . .), then yt may oscillate forever. This is why it has an infinite impulse response. However, for a stable filter, yt will decay to zero. We will concentrate on efficient implementation of this filter. You can calculate the output signal yt directly, using Equation (8.29). In this case the code is similar to the FIR of Section 8.3. However, this calculation method may be numerically unstable. It is often more accurate, and more efficient, to factorize the filter into a series of biquads—an IIR filter with M = L = 2: yt = b0xt + b1xt−1 + b2xt−2 − a1yt−1 − a2yt−2 (8.30) We can implement any IIR filter by repeatedly filtering the data by a number of biquads. To see this, we use the z-transform. This transform associates with each signal xt , a polynomial x(z) defined as x(z) = t xt z−t (8.31) If we transform the IIR equation into z-coordinates, we obtain 1 + a1z−1 + · · · + aLz−L y(z) = b0 + b1z−1 + · · · + bM z−M x(z) (8.32) Equivalently, y(z) = H(z)x(z), where H(z) = b0 + b1z−1 + · · · + bM z−M 1 + a1z−1 + · · · + aLz−L (8.33) Next, consider H(z) as the ratio of two polynomials in z−1. We can factorize the polynomials into quadratic factors. Then we can express H(z) as a product of quadratic ratios Hi(z), each Hi(z) representing a biquad. So, now we only have to implement biquads efficiently. On the face of it, to calculate yt for a biquad, we need the current sample xt and four history elements xt−1, xt−2, yt−1, yt−2. However, there is a trick to reduce the number of history or state values we require from four to two. We define an intermediate signal st by st = xt − a1st−1 − a2st−2 (8.34) Then yt = b0st + b1st−1 + b2st−2 (8.35) In other words, we perform the feedback part of the filter before the FIR part of the filter. Equivalently we apply the denominator of H(z) before the numerator. Now each biquad filter requires a state of only two values, st−1 and st−2.
- 314. 296 Chapter 8 Digital Signal Processing The coefficient b0 controls the amplitude of the biquad. We can assume that b0 = 1 when performing a series of biquads, and use a single multiply or shift at the end to correct the signal amplitude. So, to summarize, we have reduced an IIR to filtering by a series of biquads of the form st = xt − a1st−1 − a2st−2, yt = st + b1st−1 + b2st−2 (8.36) To implement each biquad, we need to store fixed-point representations of the six values −a1, −a2, b1, b2, st−1, st−2 in ARM registers. To load a new biquad requires six loads; to load a new sample, only one load. Therefore it is much more efficient for the inner loop to loop over samples rather than loop over biquads. For a block IIR, we split the input signal xt into large frames of N samples. We make multiple passes over the signal, filtering by as many biquads as we can hold in registers on each pass. Typically for ARMv4 processors we filter by one biquad on each pass; for ARMv5TE processors, by two biquads. The following examples give IIR code for different ARM processors. Example 8.14 This example implements a 1 × 2 block IIR filter on the ARM7TDMI. Each inner loop applies one biquad filter to the next two input samples. The input arrays have the format given in Figure 8.5. Each biquad Bk is a list of six values (−a1, −a2, b1, b2, st−1, st−2). As with previous implementations for the ARM7TDMI, we store the 16-bit input values in 32-bit integers so we can use load multiples. We store the biquad coefficients at Q14 fixed-point format. The number of samples N must be even. y RN 0 ; address for output samples y[] x RN 1 ; address of input samples x[] b RN 2 ; address of biquads N RN 3 ; number of samples to filter (a multiple of 2) M RN 4 ; number of biquads to apply x_0 RN 2 ; input samples Array First Second Third Last Array name element element element element length x Xt Xt+1 Xt+2 ... Xt+N−1 N y Yt Yt+1 Yt+2 ... Yt+N−1 N b B0 B1 B2 ... BM−1 M Figure 8.5 Formats of the arrays x, y, and b.
- 315. 8.4 IIR Filters 297 x_1 RN 4 a_1 RN 6 ; biquad coefficient -a[1] at Q14 a_2 RN 7 ; biquad coefficient -a[2] at Q14 b_1 RN 8 ; biquad coefficient +b[1] at Q14 b_2 RN 9 ; biquad coefficient +b[2] at Q14 s_1 RN 10 ; s[t-1] then s[t-2] (alternates) s_2 RN 11 ; s[t-2] then s[t-1] (alternates) acc0 RN 12 ; accumulators acc1 RN 14 ; typedef struct { ; int a1,a2; /* coefficients -a[1],-a[2] at Q14 */ ; int b1,b2; /* coefficients +b[1],+b[2] at Q14 */ ; int s1,s2; /* s[t-1], s[t-2] */ ; } biquad; ; ; void iir_q14_arm7m ; (int *y, ; int *x, ; struct { biquad *b; unsigned int M; } *b, ; unsigned int N); iir_q14_arm7m STMFD sp!, {r4-r11, lr} LDMIA b, {b, M} next_biquad_arm7m LDMIA b!, {a_1, a_2, b_1, b_2, s_1, s_2} STMFD sp!, {b, N, M} next_sample_arm7m ; use a 2x1 block IIR LDMIA x!, {x_0, x_1} ; apply biquad to sample 0 (x_0) MUL acc0, s_1, a_1 MLA acc0, s_2, a_2, acc0 MUL acc1, s_1, b_1 MLA acc1, s_2, b_2, acc1 ADD s_2, x_0, acc0, ASR #14 ADD x_0, s_2, acc1, ASR #14 ; apply biquad to sample 1 (x_1) MUL acc0, s_2, a_1 MLA acc0, s_1, a_2, acc0 MUL acc1, s_2, b_1 MLA acc1, s_1, b_2, acc1 ADD s_1, x_1, acc0, ASR #14
- 316. 298 Chapter 8 Digital Signal Processing ADD x_1, s_1, acc1, ASR #14 STMIA y!, {x_0, x_1} SUBS N, N, #2 BGT next_sample_arm7m LDMFD sp!, {b, N, M} STMDB b, {s_1, s_2} SUB y, y, N, LSL#2 MOV x, y SUBS M, M, #1 BGT next_biquad_arm7m LDMFD sp!, {r4-r11, pc} Each inner loop requires a worst case of 44 cycles to apply one biquad to two samples. ThisgivestheARM7TDMIanIIRratingof22cycles/biquad-sampleforageneralbiquad. ■ Example 8.15 On the ARM9TDMI we can use halfword load instructions rather than load multiples. Therefore we can store samples in 16-bit short integers. This example implements a load scheduled IIR suitable for the ARM9TDMI. The interface is the same as in Example 8.14, except that we use 16-bit data items. y RN 0 ; address for output samples y[] x RN 1 ; address of input samples x[] b RN 2 ; address of biquads N RN 3 ; number of samples to filter (a multiple of 2) M RN 4 ; number of biquads to apply x_0 RN 2 ; input samples x_1 RN 4 round RN 5 ; rounding value (1 13) a_1 RN 6 ; biquad coefficient -a[1] at Q14 a_2 RN 7 ; biquad coefficient -a[2] at Q14 b_1 RN 8 ; biquad coefficient +b[1] at Q14 b_2 RN 9 ; biquad coefficient +b[2] at Q14 s_1 RN 10 ; s[t-1] then s[t-2] (alternates) s_2 RN 11 ; s[t-2] then s[t-1] (alternates) acc0 RN 12 ; accumulators acc1 RN 14 ; typedef struct { ; short a1,a2; /* coefficients -a[1],-a[2] at Q14 */ ; short b1,b2; /* coefficients +b[1],+b[2] at Q14 */ ; short s1,s2; /* s[t-1], s[t-2] */ ; } biquad; ; ; void iir_q14_arm9m
- 317. 8.4 IIR Filters 299 ; (short *y, ; short *x, ; struct { biquad *b; unsigned int M; } *b, ; unsigned int N); iir_q14_arm9m STMFD sp!, {r4-r11, lr} LDMIA b, {b, M} MOV round, #1 13 iir_next_biquad LDRSH a_1, [b], #2 LDRSH a_2, [b], #2 LDRSH b_1, [b], #2 LDRSH b_2, [b], #2 LDRSH s_1, [b], #2 LDRSH s_2, [b], #2 STMFD sp!, {b, N, M} iir_inner_loop ; use a 2x1 block IIR ; apply biquad to x_0 MLA acc0, s_1, a_1, round LDRSH x_0, [x], #2 MLA acc0, s_2, a_2, acc0 MLA acc1, s_1, b_1, round MLA acc1, s_2, b_2, acc1 ADD s_2, x_0, acc0, ASR #14 ADD x_0, s_2, acc1, ASR #14 STRH x_0, [y], #2 ; apply biquad to x_1 MLA acc0, s_2, a_1, round LDRSH x_1, [x], #2 MLA acc0, s_1, a_2, acc0 MLA acc1, s_2, b_1, round MLA acc1, s_1, b_2, acc1 ADD s_1, x_1, acc0, ASR #14 ADD x_1, s_1, acc1, ASR #14 STRH x_1, [y], #2 SUBS N, N, #2 BGT iir_inner_loop LDMFD sp!, {b, N, M} STRH s_1, [b, #-4] STRH s_2, [b, #-2] SUB y, y, N, LSL#1 MOV x, y SUBS M, M, #1 BGT iir_next_biquad LDMFD sp!, {r4-r11, pc}
- 318. 300 Chapter 8 Digital Signal Processing Table 8.7 ARMv4T IIR timings. Processor Cycles per loop Cycles per biquad-sample ARM9TDMI 44 22 StrongARM 33 16.5 The timings on ARM9TDMI and StrongARM are shown in Table 8.7. ■ Example 8.16 With ARMv5TE processors, we can pack two 16-bit values into each register. This means we can store the state and coefficients for two biquads in registers at the same time. This example implements a 2 × 2 block IIR filter. Each iteration of the inner loop applies two biquad filters to the next two input samples. The format of the input arrays is the same as for Example 8.14, except that we use 16-bit arrays. The biquad array must be 32-bit aligned. The number of samples N and number of biquads M must be even. As with the ARM9E FIR, the routine only works for a little-endian memory system. See the discussion in Example 8.11 on how to write endian-neutral DSP code using macros. y RN 0 ; address for output samples y[] x RN 1 ; address of input samples x[] b RN 2 ; address of biquads (32-bit aligned) N RN 3 ; number of samples to filter (a multiple of 2) M RN 4 ; number of biquads to apply (a multiple of 2) x_0 RN 2 ; input samples x_1 RN 4 s_0 RN 5 ; new state b0_a21 RN 6 ; biquad 0, packed -a[2], -a[1] b0_b21 RN 7 ; biquad 0, packed +b[2], +b[1] b0_s_1 RN 8 ; biquad 0, s[t-1] b0_s_2 RN 9 ; biquad 0, s[t-2] b1_a21 RN 10 ; biquad 1, packed -a[2], -a[1] b1_b21 RN 11 ; biquad 1, packed +b[2], +b[1] b1_s_1 RN 12 ; biquad 1, s[t-1] b1_s_2 RN 14 ; biquad 1, s[t-2] ; typedef struct { ; short a1,a2; /* coefficients -a[1],-a[2] at Q14 */ ; short b1,b2; /* coefficients +b[1],+b[2] at Q14 */ ; short s1,s2; /* s[t-1], s[t-2] */ ; } biquad; ;
- 319. 8.4 IIR Filters 301 ; void iir_q14_arm9e ; (short *y, ; short *x, ; struct { biquad *b; unsigned int M; } *b, ; unsigned int N); iir_q14_arm9e STMFD sp!, {r4-r11, lr} LDMIA b, {b, M} next_biquad_arm9e LDMIA b!, {b0_a21, b0_b21} LDRSH b0_s_1, [b], #2 LDRSH b0_s_2, [b], #2 LDMIA b!, {b1_a21, b1_b21} LDRSH b1_s_1, [b], #2 LDRSH b1_s_2, [b], #2 STMFD sp!, {b, N, M} next_sample_arm9e ; use a 2 x 2 block IIR LDRSH x_0, [x], #2 LDRSH x_1, [x], #2 SUBS N, N, #2 MOV x_0, x_0, LSL #14 MOV x_1, x_1, LSL #14 ; apply biquad 0 to sample 0 SMLABB x_0, b0_s_1, b0_a21, x_0 SMLABT s_0, b0_s_2, b0_a21, x_0 SMLABB x_0, b0_s_1, b0_b21, s_0 SMLABT x_0, b0_s_2, b0_b21, x_0 MOV b0_s_2, s_0, ASR #14 ; apply biquad 0 to sample 1 SMLABB x_1, b0_s_2, b0_a21, x_1 SMLABT s_0, b0_s_1, b0_a21, x_1 SMLABB x_1, b0_s_2, b0_b21, s_0 SMLABT x_1, b0_s_1, b0_b21, x_1 MOV b0_s_1, s_0, ASR #14 ; apply biquad 1 to sample 0 SMLABB x_0, b1_s_1, b1_a21, x_0 SMLABT s_0, b1_s_2, b1_a21, x_0 SMLABB x_0, b1_s_1, b1_b21, s_0 SMLABT x_0, b1_s_2, b1_b21, x_0 MOV b1_s_2, s_0, ASR #14 ; apply biquad 1 to sample 1 SMLABB x_1, b1_s_2, b1_a21, x_1
- 320. 302 Chapter 8 Digital Signal Processing Table 8.8 ARMv5E IIR timings. Processor Cycles per loop Cycles per biquad-sample ARM9E 32 8.0 ARM10E 45 11.2 XScale 30 7.7 SMLABT s_0, b1_s_1, b1_a21, x_1 SMLABB x_1, b1_s_2, b1_b21, s_0 SMLABT x_1, b1_s_1, b1_b21, x_1 MOV b1_s_1, s_0, ASR #14 MOV x_0, x_0, ASR #14 MOV x_1, x_1, ASR #14 STRH x_0, [y], #2 STRH x_1, [y], #2 BGT next_sample_arm9e LDMFD sp!, {b, N, M} STRH b0_s_1, [b, #-12-4] STRH b0_s_2, [b, #-12-2] STRH b1_s_1, [b, #-4] STRH b1_s_2, [b, #-2] SUB y, y, N, LSL#1 MOV x, y SUBS M, M, #2 BGT next_biquad_arm9e LDMFD sp!, {r4-r11, pc} The timings on ARM9E, ARM10E, and XScale are shown in Table 8.8. ■ Summary Implementing 16-bit IIR Filters ■ Factorize the IIR into a series of biquads. Choose the data precision so there can be no overflow during the IIR calculation. To compute the maximum gain of an IIR, apply the IIR to an impulse to generate the impulse response. Apply the equations of Section 8.3 to the impulse response c[j]. ■ Use a block IIR algorithm, dividing the signal to be filtered into large frames. ■ On each pass of the sample frame, filter by M biquads. Choose M to be the largest number of biquads so that you can hold the state and coefficients in the 14 available registers on the ARM. Ensure that the total number of biquads is a multiple of M. ■ As always, schedule code to avoid load and multiply use interlocks.
- 321. 8.5 The Discrete Fourier Transform 303 8.5 The Discrete Fourier Transform The Discrete Fourier Transform (DFT) converts a time domain signal xt to a frequency domain signal yk. The associated inverse transform (IDFT) reconstructs the time domain signal from the frequency domain signal. This tool is heavily used in signal analysis and compression. It is particularly powerful because there is an algorithm, the Fast Fourier Transform (FFT), that implements the DFT very efficiently. In this section we will look at some efficient ARM implementations of the FFT. The DFT acts on a frame of N complex time samples, converting them into N complex frequency coefficients. We will use Equations (8.37) and (8.38) as the definition. You may see slightly different equations in different texts because some authors may use a different scaling or a different definition of which is the forward and which the inverse transform. This doesn’t affect any of the important properties of the transform. y = DFTN (x) means yk = N−1 t=0 xt wkt N , where wN = e−2πi/N (8.37) x = IDFTN (y) means xt = 1 N N−1 k=0 ykwkt N , where wN = e2πi/N (8.38) As you can see, the transforms are the same except for scaling and choice of wN . Therefore we’ll only look at the forward transform. In fact the Fast Fourier Transform algorithm works for any wN such that wN N = 1. The algorithm is only invertible for principal roots of unity where wk N
- 322. = 1 for k N. 8.5.1 The Fast Fourier Transform The idea of the FFT is to break down the transform by factorizing N. Suppose for example that N = R × S. Split the output into S blocks of size R and the input into R blocks of size S. In other words: k = nR + m for n = 0, 1, . . . , S − 1 and m = 0, 1, . . . , R − 1 (8.39) t = rS + s for r = 0, 1, . . . , R − 1 and s = 0, 1, . . . , S − 1 (8.40) Then, y[nR + m] = R−1 r=0 S−1 s=0 x[rS + s]w(nR+m)(rS+s) N (8.41) y[nR + m] = S−1 s=0 wns S wms N R−1 r=0 x[rS + s]wmr R (8.42)
- 323. 304 Chapter 8 Digital Signal Processing Equation (8.42) reduces the N-point DFT to S sets of R-point DFTs, N multiplications by coefficients of the form wms N , and R sets of S-point DFTs. Specifically, if we set in turn: (u[sR], u[sR + 1], . . . , u[sR + R − 1]) = DFTR(x[s], x[s + S], . . . , x[s + (R − 1)S]) (8.43) v[sR + m] = wms N u[sR + m] (8.44) Then y[nR + m] = S−1 s=0 wns S v[sR + m], and so (y[m], y[R + m], . . . , y[(S − 1)R + m]) = DFTS(v[m], v[R + m], . . . , v[(S − 1)R + m]) (8.45) In practice we then repeat this process to calculate the R- and S-point DFTs efficiently. This works well when N has many small factors. The most useful case is when N is a power of 2. 8.5.1.1 The Radix-2 Fast Fourier Transform Suppose N = 2a. Take R = 2a−1 and S = 2 and apply the reduction of the DFT. Since DFT2(v[m], v[R + m]) = (v[m] + v[R + m], v[m] − v[R + m]), we have y[m] = u[m] + wm N u[R + m] and y[R + m] = u[m] − wm N u[R + m] (8.46) This pair of operations is called the decimation-in-time radix-2 butterfly. The N-point DFT reduces to two R-point DFTs followed by N/2 butterfly operations. We repeat the process decomposing R = 2a−2 × 2, and so on for each factor of 2. The result is an algorithm consisting of a stages, each stage calculating N/2 butterflies. You will notice that the data order must be changed when we calculate u[sR + m] from x[rS +s]. We can avoid this if we store x[t] in a transposed order. For a radix-2 Fast Fourier Transform, all the butterfly operations may be performed in place provided that the input array x[t] is stored in bit-reversed order—store x[t] at x[s], where the a bits of the index s are the reverse of the a bits of the index t. There is another way to apply the FFT reduction. We could choose R = 2 and S = 2a−1 and iterate by decomposing the second factor instead. This generates the decimation- in-frequency radix-2 transform. For the decimation-in-frequency transformation, the butterfly is v[2s] = x[s] + x[S + s] and v[2s + 1] = ws N (x[s] − x[S + s]) (8.47) From an ARM optimization point of view, the important difference is the position of the complex multiply. The decimation-in-time algorithm multiplies by wm N before the addition and subtraction. The decimation-in-frequency algorithm multiplies by ws N after the addi- tion and subtraction. A fixed-point multiply involves a multiply followed by a right shift.
- 324. 8.5 The Discrete Fourier Transform 305 The ARM barrel shifter is positioned before the add or subtract in ARM instruction operations, so the ARM is better suited to the decimation-in-time algorithm. We won’t go into the details of coding a radix-2 FFT, since a radix-4 FFT gives better performance. We look at this in the next section. 8.5.1.2 The Radix-4 Fast Fourier Transform This is very similar to the radix-2 transform except we treat N as a power of four, N = 4b. We use the decimation-in-time decomposition, R = 4b−1 and S = 4. Then the radix-4 butterfly is (y[m], y[R + m], y[2R + m], y[3R + m]) = DFT4(u[m], wm N u[R + m], w2m N u[2R + m], w3m N u[3R + m]) (8.48) The four-point DFT does not require any complex multiplies. Therefore, the decimation- in-time radix-4 algorithm requires bN/4 radix-4 butterflies with three complex multiplies in each. The radix-2 algorithm requires 2bN/2 radix-2 butterflies with one complex multiply in each. Therefore, the radix-4 algorithm saves 25% of the multiplies. It is tempting to consider a radix-8 transform. However, you can only save a small percentage of the multiplies. This gain will usually be outweighed by the extra load and store overhead required. The ARM has too few registers to support the general radix-8 butterfly efficiently. The radix-4 butterfly is at a sweet spot: It saves a large number of multiplies and will fit neatly into the 14 available ARM registers. To implement the radix-4 butterfly efficiently, we use a radix-2 FFT to calculate DFT4. Provided that the input is bit-reversed, we can calculate a four-point DFT in place, in eight ARM registers. The following C_FFT4 macro lies at the heart of our FFT implementations. It performs the four-point DFT and input scale at the same time, which makes good use of the ARM barrel shifter. To prevent overflow, we also divide the answer by four. x0_r RN 4 ; data register (real part) x0_i RN 5 ; data register (imaginary part) x1_r RN 6 x1_i RN 7 x2_r RN 8 x2_i RN 9 x3_r RN 10 x3_i RN 11 y3_r RN x3_i y3_i RN x3_r ; Four-point complex Fast Fourier Transform ; ; (x0,x1,x2,y3)=DFT4(x0,x2 s,x1 s,x3 s)/4
- 325. 306 Chapter 8 Digital Signal Processing ; ; x0 = (x0 + (x2 s) + (x1 s) + (x3 s))/4 ; x1 = (x0 - i*(x2 s) - (x1 s) + i*(x3 s))/4 ; x2 = (x0 - (x2 s) + (x1 s) - (x3 s))/4 ; y3 = (x0 + i*(x2 s) - (x1 s) - i*(x3 s))/4 ; MACRO C_FFT4 $s ; (x2,x3) = (x2+x3, x2-x3) ADD x2_r, x2_r, x3_r ADD x2_i, x2_i, x3_i SUB x3_r, x2_r, x3_r, LSL#1 SUB x3_i, x2_i, x3_i, LSL#1 ; (x0,x1) = (x0+(x1 s), x0-(x1 s))/4 MOV x0_r, x0_r, ASR#2 MOV x0_i, x0_i, ASR#2 ADD x0_r, x0_r, x1_r, ASR#(2+$s) ADD x0_i, x0_i, x1_i, ASR#(2+$s) SUB x1_r, x0_r, x1_r, ASR#(1+$s) SUB x1_i, x0_i, x1_i, ASR#(1+$s) ; (x0,x2) = (x0+(x2 s)/4, x0-(x2 s)/4) ADD x0_r, x0_r, x2_r, ASR#(2+$s) ADD x0_i, x0_i, x2_i, ASR#(2+$s) SUB x2_r, x0_r, x2_r, ASR#(1+$s) SUB x2_i, x0_i, x2_i, ASR#(1+$s) ; (x1,y3) = (x1-i*(x3 s)/4, x1+i*(x3 s)/4) ADD x1_r, x1_r, x3_i, ASR#(2+$s) SUB x1_i, x1_i, x3_r, ASR#(2+$s) SUB y3_r, x1_r, x3_i, ASR#(1+$s) ADD y3_i, x1_i, x3_r, ASR#(1+$s) MEND We will also use the following macros, C_LDR and C_STR, to load and store complex values. This will clarify the FFT code listing in Examples 8.17 and 8.18. ; complex load, x=[a], a+=offset MACRO C_LDR $x, $a, $offset LDRSH $x._i, [$a, #2] LDRSH $x._r, [$a], $offset MEND ; complex store, [a]=x, a+=offset
- 326. 8.5 The Discrete Fourier Transform 307 MACRO C_STR $x, $a, $offset STRH $x._i, [$a, #2] STRH $x._r, [$a], $offset MEND Example 8.17 This example implements a 16-bit radix-4 FFT for any ARMv4 architecture processor. We assume that the number of points is n = 4b. If N is an odd power of two, then you will need to alter the routine to start with a radix-2 stage, or a radix-8 stage, rather than the radix-4 stage we show. The code uses a trick to perform a complex multiply using only three real multiplies. If a + ib is a complex data item, and c + is a complex coefficient, then (a + ib)(c − is) = [(b − a)s + a(c + s)] + i[(b − a)s + b(c − s)] (8.49) (a + ib)(c + is) = [(a − b)s + a(c − s)] + i[(a − b)s + b(c + s)] (8.50) When c + is = e2πi/N , these are the complex multiplies required for the forward and inverse transform radix-4 butterflies, respectively. Given inputs c − s, s, c + s, a, b, you can calculate either of the above using a subtract, multiply, and two multiply accumulates. In the coefficient lookup table we store (c − s, s) and calculate c + s on the fly. We can use the same table for both forward and inverse transforms. Use the following code to perform the radix-4 transform on ARMv4. The number of points N must be a power of four. The algorithm actually calculates DFTN (x)/N, the extra scaling by N preventing overflow. The algorithm uses the C_FFT4 and load-store macros defined previously. ; Complex conjugate multiply a=(xr+i*xi)*(cr-i*ci) ; x = xr + i*xi ; w = (cr-ci) + i*ci MACRO C_MUL9m $a, $x, $w SUB t1, $x._i, $x._r ; (xi-xr) MUL t0, t1, $w._i ; (xi-xr)*ci ADD t1, $w._r, $w._i, LSL#1 ; (cr+ci) MLA $a._i, $x._i, $w._r, t0 ; xi*cr-xr*ci MLA $a._r, $x._r, t1, t0 ; xr*cr+xi*ci MEND y RN 0 ; output complex array y[] c RN 0 ; coefficient array x RN 1 ; input complex array x[] N RN 2 ; number of samples (a power of 2) S RN 2 ; the number of blocks
- 327. 308 Chapter 8 Digital Signal Processing R RN 3 ; the number of samples in each block x0_r RN 4 ; data register (real part) x0_i RN 5 ; data register (complex part) x1_r RN 6 x1_i RN 7 x2_r RN 8 x2_i RN 9 x3_r RN 10 x3_i RN 11 y3_r RN x3_i y3_i RN x3_r t0 RN 12 ; scratch register t1 RN 14 ; void fft_16_arm9m(short *y, short *x, unsigned int N) fft_16_arm9m STMFD sp!, {r4-r11, lr} MOV t0, #0 ; bit reversed counter first_stage_arm9m ; first stage load and bit reverse ADD t1, x, t0, LSL#2 C_LDR x0, t1, N C_LDR x2, t1, N C_LDR x1, t1, N C_LDR x3, t1, N C_FFT4 0 C_STR x0, y, #4 C_STR x1, y, #4 C_STR x2, y, #4 C_STR y3, y, #4 EOR t0, t0, N, LSR#3 ; increment third bit TST t0, N, LSR#3 ; from the top BNE first_stage_arm9m EOR t0, t0, N, LSR#4 ; increment fourth bit TST t0, N, LSR#4 ; from the top BNE first_stage_arm9m MOV t1, N, LSR#5 ; increment fifth bit_reversed_count_arm9m ; bits downward EOR t0, t0, t1 TST t0, t1 BNE first_stage_arm9m MOVS t1, t1, LSR#1 BNE bit_reversed_count_arm9m
- 328. 8.5 The Discrete Fourier Transform 309 ; finished the first stage SUB x, y, N, LSL#2 ; x = working buffer MOV R, #16 MOVS S, N, LSR#4 LDMEQFD sp!, {r4-r11, pc} ADR c, fft_table_arm9m next_stage_arm9m ; S = the number of blocks ; R = the number of samples in each block STMFD sp!, {x, S} ADD t0, R, R, LSL#1 ADD x, x, t0 SUB S, S, #1 16 next_block_arm9m ADD S, S, R, LSL#(16-2) next_butterfly_arm9m ; S=((number butterflies left-1) 16) ; + (number of blocks left) C_LDR x0, x, -R C_LDR x3, c, #4 C_MUL9m x3, x0, x3 C_LDR x0, x, -R C_LDR x2, c, #4 C_MUL9m x2, x0, x2 C_LDR x0, x, -R C_LDR x1, c, #4 C_MUL9m x1, x0, x1 C_LDR x0, x, #0 C_FFT4 14 ; coefficients are Q14 C_STR x0, x, R C_STR x1, x, R C_STR x2, x, R C_STR y3, x, #4 SUBS S, S, #1 16 BGE next_butterfly_arm9m ADD t0, R, R, LSL#1 ADD x, x, t0 SUB S, S, #1 MOVS t1, S, LSL#16 SUBNE c, c, t0 BNE next_block_arm9m LDMFD sp!, {x, S} MOV R, R, LSL#2 ; quadruple block size
- 329. 310 Chapter 8 Digital Signal Processing MOVS S, S, LSR#2 ; quarter number of blocks BNE next_stage_arm9m LDMFD sp!, {r4-r11, pc} fft_table_arm9m ; FFT twiddle table of triplets E(3t), E(t), E(2t) ; Where E(t)=(cos(t)-sin(t))+i*sin(t) at Q14 ; N=16 t=2*PI*k/N for k=0,1,2,..,N/4-1 DCW 0x4000,0x0000, 0x4000,0x0000, 0x4000,0x0000 DCW 0xdd5d,0x3b21, 0x22a3,0x187e, 0x0000,0x2d41 DCW 0xa57e,0x2d41, 0x0000,0x2d41, 0xc000,0x4000 DCW 0xdd5d,0xe782, 0xdd5d,0x3b21, 0xa57e,0x2d41 ; N=64 t=2*PI*k/N for k=0,1,2,..,N/4-1 DCW 0x4000,0x0000, 0x4000,0x0000, 0x4000,0x0000 DCW 0x2aaa,0x1294, 0x396b,0x0646, 0x3249,0x0c7c DCW 0x11a8,0x238e, 0x3249,0x0c7c, 0x22a3,0x187e DCW 0xf721,0x3179, 0x2aaa,0x1294, 0x11a8,0x238e DCW 0xdd5d,0x3b21, 0x22a3,0x187e, 0x0000,0x2d41 DCW 0xc695,0x3fb1, 0x1a46,0x1e2b, 0xee58,0x3537 DCW 0xb4be,0x3ec5, 0x11a8,0x238e, 0xdd5d,0x3b21 DCW 0xa963,0x3871, 0x08df,0x289a, 0xcdb7,0x3ec5 DCW 0xa57e,0x2d41, 0x0000,0x2d41, 0xc000,0x4000 DCW 0xa963,0x1e2b, 0xf721,0x3179, 0xb4be,0x3ec5 DCW 0xb4be,0x0c7c, 0xee58,0x3537, 0xac61,0x3b21 DCW 0xc695,0xf9ba, 0xe5ba,0x3871, 0xa73b,0x3537 DCW 0xdd5d,0xe782, 0xdd5d,0x3b21, 0xa57e,0x2d41 DCW 0xf721,0xd766, 0xd556,0x3d3f, 0xa73b,0x238e DCW 0x11a8,0xcac9, 0xcdb7,0x3ec5, 0xac61,0x187e DCW 0x2aaa,0xc2c1, 0xc695,0x3fb1, 0xb4be,0x0c7c ; N=256 t=2*PI*k/N for k=0,1,2,..,N/4-1 ;... continue as necessary ... The code is in two parts. The first stage does not require any complex multiplies. We read the data in a bit-reversed order from the source array x, and then we apply the radix-4 butterfly and write to the destination array y. We perform the remaining stages in place in the destination buffer. It is possible to implement the FFT without bit reversal, by alternating between the source and destination buffers at each stage. However, this requires more registers in the general stage loop, and there are none available. The bit-reversed increment is very cheap, costing less than 1.5 cycles per input sample in total. See Section 8.6 for the benchmark results for the preceding code. ■ Example 8.18 This example implements a radix-4 FFT on an ARMv5TE architecture processor such as the ARM9E. For the ARM9E we do not need to avail ourselves of the trick used in
- 330. 8.5 The Discrete Fourier Transform 311 Example 8.17 to reduce a complex multiply to three real multiplies. With the single-cycle 16-bit × 16-bit multiplier it is faster to implement the complex multiply in the normal way. This also means that we can use a Q15 coefficient table of (c, s) values, and so the transform is slightly more accurate than in Example 8.17. We have omitted the register allocation because it is the same as for Example 8.17. ; Complex conjugate multiply a=(xr+i*xi)*(cr-i*ci) ; x = xr + i*xi (two 16-bits packed in 32-bit) ; w = cr + i*ci (two 16-bits packed in 32-bit) MACRO C_MUL9e $a, $x, $w SMULBT t0, $x, $w ; xr*ci SMULBB $a._r, $x, $w ; xr*cr SMULTB $a._i, $x, $w ; xi*cr SMLATT $a._r, $x, $w, $a._r ; xr*cr+xi*ci SUB $a._i, $a._i, t0 ; xi*cr-xr*ci MEND ; void fft_16_arm9e(short *y, short *x, unsigned int N) fft_16_arm9e STMFD sp!, {r4-r11, lr} MOV t0, #0 ; bit-reversed counter MVN R, #0x80000000 ; R=0x7FFFFFFF first_stage_arm9e ; first stage load and bit reverse ADDS t1, x, t0, LSL#2 ; t1=x[t0] and clear carry C_LDR x0, t1, N C_LDR x2, t1, N C_LDR x1, t1, N C_LDR x3, t1, N C_FFT4 0 C_STR x0, y, #4 C_STR x1, y, #4 C_STR x2, y, #4 C_STR y3, y, #4 ; bit reversed increment modulo (N/4) RSC t0, t0, N, LSR #2 ; t0 = (N/4)-t0-1 CLZ t1, t0 ; find leading 1 EORS t0, t0, R, ASR t1 ; toggle bits below leading 1 BNE first_stage_arm9e ; loop if count nonzero ; finished the first stage SUB x, y, N, LSL #2 ; x = working buffer MOV R, #16
- 331. 312 Chapter 8 Digital Signal Processing MOVS S, N, LSR#4 LDMEQFD sp!, {r4-r11, pc} ADR c, fft_table_arm9e next_stage_arm9e ; S = the number of blocks ; R = the number of samples in each block STMFD sp!, {x, S} ADD t0, R, R, LSL#1 ADD x, x, t0 SUB S, S, #1 16 next_block_arm9e ADD S, S, R, LSL#(16-2) next_butterfly_arm9e ; S=((number butterflies left-1) 16) ; + (number of blocks left) LDR x2_r, [x], -R ; packed data LDR x2_i, [c], #4 ; packed coefficients LDR x1_r, [x], -R LDR x1_i, [c], #4 LDR x0_r, [x], -R LDR x0_i, [c], #4 C_MUL9e x3, x2_r, x2_i C_MUL9e x2, x1_r, x1_i C_MUL9e x1, x0_r, x0_i C_LDR x0, x, #0 C_FFT4 15 ; coefficients are Q15 C_STR x0, x, R C_STR x1, x, R C_STR x2, x, R C_STR y3, x, #4 SUBS S, S, #1 16 BGE next_butterfly_arm9e ADD t0, R, R, LSL#1 ADD x, x, t0 SUB S, S, #1 MOVS t1, S, LSL#16 SUBNE c, c, t0 BNE next_block_arm9e LDMFD sp!, {x, S} MOV R, R, LSL#2 ; quadruple block size MOVS S, S, LSR#2 ; quarter number of blocks BNE next_stage_arm9e LDMFD sp!, {r4-r11, pc}
- 332. 8.5 The Discrete Fourier Transform 313 fft_table_arm9e ; FFT twiddle table of triplets E(3t), E(t), E(2t) ; Where E(t)=cos(t)+i*sin(t) at Q15 ; N=16 t=2*PI*k/N for k=0,1,2,..,N/4-1 DCW 0x7fff,0x0000, 0x7fff,0x0000, 0x7fff,0x0000 DCW 0x30fc,0x7642, 0x7642,0x30fc, 0x5a82,0x5a82 DCW 0xa57e,0x5a82, 0x5a82,0x5a82, 0x0000,0x7fff DCW 0x89be,0xcf04, 0x30fc,0x7642, 0xa57e,0x5a82 ; N=64 t=2*PI*k/N for k=0,1,2,..,N/4-1 DCW 0x7fff,0x0000, 0x7fff,0x0000, 0x7fff,0x0000 DCW 0x7a7d,0x2528, 0x7f62,0x0c8c, 0x7d8a,0x18f9 DCW 0x6a6e,0x471d, 0x7d8a,0x18f9, 0x7642,0x30fc DCW 0x5134,0x62f2, 0x7a7d,0x2528, 0x6a6e,0x471d DCW 0x30fc,0x7642, 0x7642,0x30fc, 0x5a82,0x5a82 DCW 0x0c8c,0x7f62, 0x70e3,0x3c57, 0x471d,0x6a6e DCW 0xe707,0x7d8a, 0x6a6e,0x471d, 0x30fc,0x7642 DCW 0xc3a9,0x70e3, 0x62f2,0x5134, 0x18f9,0x7d8a DCW 0xa57e,0x5a82, 0x5a82,0x5a82, 0x0000,0x7fff DCW 0x8f1d,0x3c57, 0x5134,0x62f2, 0xe707,0x7d8a DCW 0x8276,0x18f9, 0x471d,0x6a6e, 0xcf04,0x7642 DCW 0x809e,0xf374, 0x3c57,0x70e3, 0xb8e3,0x6a6e DCW 0x89be,0xcf04, 0x30fc,0x7642, 0xa57e,0x5a82 DCW 0x9d0e,0xaecc, 0x2528,0x7a7d, 0x9592,0x471d DCW 0xb8e3,0x9592, 0x18f9,0x7d8a, 0x89be,0x30fc DCW 0xdad8,0x8583, 0x0c8c,0x7f62, 0x8276,0x18f9 ; N=256 t=2*PI*k/N for k=0,1,2,..,N/4-1 ; .... continue as required .... Once again, the routine actually calculates DFTN (x)/N, so that there is no possibility of overflow. Section 8.6 gives benchmark results for the preceding code. Note that we use the CLZ instruction in ARMv5E to accelerate the bit-reversed count required for the bit reversal. ■ Summary DFT Implementations ■ Use a radix-4, decimation-in-time-based FFT implementation. If the number of points is not a power of four, then use radix-2 or radix-8 first stage. ■ Perform bit reversal at the start of the algorithm, as you read data for the first stage. AlthoughyoucanperformanFFTwithoutbitreversal, thisoftenrequiresmoreregisters in the inner loop than are available. ■ If a scalar multiply requires more than one cycle, then reduce a complex multiply to three scalar multiplies using the trick of Example 8.17. This is the case for a 16-bit FFT on ARM9TDMI or a 32-bit FFT on ARM9E.
- 333. 314 Chapter 8 Digital Signal Processing ■ To prevent overflow, scale down by k in each radix-k stage. Alternatively ensure that the inputs to an N-point DFT have room to grow by N times. This is often the case when implementing a 32-bit FFT. 8.6 Summary Tables 8.9 and 8.10 summarize the performance obtained using the code examples of this chapter. It’s always possible to tune these routines further by unrolling, or coding for a specific application. However, these figures should give you a good idea of the sustained DSP performance obtainable in practice on an ARM system. The benchmarks include all load, store, and loop overheads assuming zero-wait-state memory or cache hits in the case of a cached core. In this chapter we have looked at efficient ways of implementing fixed-point DSP algo- rithms on the ARM. We’ve looked in detail at four common algorithms: dot-product, block FIR filter, block IIR filter, and Discrete Fourier Transform. We’ve also considered the differences between different ARM architectures and implementations. Table 8.9 ARM filtering benchmarks. 16-bit dot- 16-bit block 32-bit block 16-bit block product FIR filter FIR filter IIR filter Processor core (cycles/tap) (cycles/tap) (cycles/tap) (cycles/biquad) ARM7TDMI 7.6 5.2 9.0 22.0 ARM9TDMI 7.0 4.8 8.3 22.0 StrongARM 4.8 3.8 5.2 16.5 ARM9E 2.5 1.3 4.3 8.0 XScale 1.8 1.3 3.7 7.7 Table 8.10 ARM FFT benchmarks. 16-bit complex FFT (radix-4) ARM9TDMI (cycles/FFT) ARM9E (cycles/FFT) 64 point 3,524 2,480 256 point 19,514 13,194 1,024 point 99,946 66,196 4,096 point 487,632 318,878
- 334. This Page Intentionally Left Blank
- 335. 9.1 Exception Handling 9.1.1 ARM Processor Exceptions and Modes 9.1.2 Vector Table 9.1.3 Exception Priorities 9.1.4 Link Register Offsets 9.2 Interrupts 9.2.1 Assigning Interrupts 9.2.2 Interrupt Latency 9.2.3 IRQ and FIQ Exceptions 9.2.4 Basic Interrupt Stack Design and Implementation 9.3 Interrupt Handling Schemes 9.3.1 Nonnested Interrupt Handler 9.3.2 Nested Interrupt Handler 9.3.3 Reentrant Interrupt Handler 9.3.4 Prioritized Simple Interrupt Handler 9.3.5 Prioritized Standard Interrupt Handler 9.3.6 Prioritized Direct Interrupt Handler 9.3.7 Prioritized Grouped Interrupt Handler 9.3.8 VIC PL190 Based Interrupt Service Routine 9.4 Summary
- 336. C h a p t e r Exception and Interrupt Handling 9 At the heart of an embedded system lie the exception handlers. They are responsible for handling errors, interrupts, and other events generated by the external system. Efficient handlers can dramatically improve system performance. The process of determining a good handling method can be complicated, challenging, and fun. In this chapter we will cover the theory and practice of handling exceptions, and specif- ically the handling of interrupts on the ARM processor. The ARM processor has seven exceptions that can halt the normal sequential execution of instructions: Data Abort, Fast Interrupt Request, Interrupt Request, Prefetch Abort, Software Interrupt, Reset, and Undefined Instruction. This chapter is divided into three main sections: ■ Exception handling. Exception handling covers the specific details of how the ARM processor handles exceptions. ■ Interrupts. ARMdefinesaninterruptasaspecialtypeofexception. Thissectiondiscusses theuseofinterruptrequests, aswellasintroducingsomeofthecommonterms, features, and mechanisms surrounding interrupt handling. ■ Interrupt handling schemes. The final section provides a set of interrupt handling methods. Included with each method is an example implementation. 317
- 337. 318 Chapter 9 Exception and Interrupt Handling 9.1 Exception Handling An exception is any condition that needs to halt the normal sequential execution of instruc- tions. Examples are when the ARM core is reset, when an instruction fetch or memory access fails, when an undefined instruction is encountered, when a software interrupt instruction is executed, or when an external interrupt has been raised. Exception handling is the method of processing these exceptions. Most exceptions have an associated software exception handler—a software routine that executes when an exception occurs. For instance, a Data Abort exception will have a Data Abort handler. The handler first determines the cause of the exception and then services the exception. Servicing takes place either within the handler or by branching to a specific service routine. The Reset exception is a special case since it is used to initialize an embedded system. This section covers the following exception handling topics: ■ ARM processor mode and exceptions ■ Vector table ■ Exception priorities ■ Link register offsets 9.1.1 ARM Processor Exceptions and Modes Table 9.1 lists the ARM processor exceptions. Each exception causes the core to enter a specific mode. In addition, any of the ARM processor modes can be entered manually by changing the cpsr. User and system mode are the only two modes that are not entered by a corresponding exception, in other words, to enter these modes you must modify the cpsr. When an exception causes a mode change, the core automatically ■ saves the cpsr to the spsr of the exception mode ■ saves the pc to the lr of the exception mode Table 9.1 ARM processor exceptions and associated modes. Exception Mode Main purpose Fast Interrupt Request FIQ fast interrupt request handling Interrupt Request IRQ interrupt request handling SWI and Reset SVC protected mode for operating systems Prefetch Abort and Data Abort abort virtual memory and/or memory protection handling Undefined Instruction undefined software emulation of hardware coprocessors
- 338. 9.1 Exception Handling 319 Reset Data Abort FIQ IRQ Prefetch Abort SWI Undefined Exceptions Undefined IRQ FIQ Abort SVC Modes Figure 9.1 Exceptions and associated modes. ■ sets the cpsr to the exception mode ■ sets pc to the address of the exception handler Figure 9.1 shows a simplified view of exceptions and associated modes. Note that when an exception occurs the ARM processor always switches to ARM state. 9.1.2 Vector Table Chapter 2 introduced the vector table—a table of addresses that the ARM core branches to when an exception is raised. These addresses commonly contain branch instructions of one of the following forms: ■ B address—This branch instruction provides a branch relative from the pc. ■ LDR pc, [pc, #offset]—Thisloadregisterinstructionloadsthehandleraddressfrom memory to the pc. The address is an absolute 32-bit value stored close to the vector table. Loading this absolute literal value results in a slight delay in branching to a specific handler due to the extra memory access. However, you can branch to any address in memory. ■ LDR pc, [pc, #-0xff0]—This load register instruction loads a specific interrupt ser- vice routine address from address 0xfffff030 to the pc. This specific instruction is only used when a vector interrupt controller is present (VIC PL190).
- 339. 320 Chapter 9 Exception and Interrupt Handling Table 9.2 Vector table and processor modes. Exception Mode Vector table offset Reset SVC +0x00 Undefined Instruction UND +0x04 Software Interrupt (SWI) SVC +0x08 Prefetch Abort ABT +0x0c Data Abort ABT +0x10 Not assigned — +0x14 IRQ IRQ +0x18 FIQ FIQ +0x1c ■ MOV pc, #immediate—This move instruction copies an immediate value into the pc. It lets you span the full address space but at limited alignment. The address must be an 8-bit immediate rotated right by an even number of bits. You can also have other types of instructions in the vector table. For example, the FIQ handler might start at address offset +0x1c. Thus, the FIQ handler can start immediately at the FIQ vector location, since it is at the end of the vector table. The branch instructions cause the pc to jump to a specific location that can handle the specific exception. Table 9.2 shows the exception, mode, and vector table offset for each exception. Example 9.1 Figure 9.2 shows a typical vector table. The Undefined Instruction entry is a branch instruc- tion to jump to the undefined handler. The other vectors use an indirect address jump with the LDR load to pc instruction. Notice that the FIQ handler also uses the LDR load to pc instruction and does not take advantage of the fact that the handler can be placed at the FIQ vector entry location. ■ 0x00000000: 0xe59ffa38 RESET: ldr pc, [pc, #reset] 0x00000004: 0xea000502 UNDEF: b undInstr 0x00000008: 0xe59ffa38 SWI : ldr pc, [pc, #swi] 0x0000000c: 0xe59ffa38 PABT : ldr pc, [pc, #prefetch] 0x00000010: 0xe59ffa38 DABT : ldr pc, [pc, #data] 0x00000014: 0xe59ffa38 - : ldr pc, [pc, #notassigned] 0x00000018: 0xe59ffa38 IRQ : ldr pc, [pc, #irq] 0x0000001c: 0xe59ffa38 FIQ : ldr pc, [pc, #fiq] Figure 9.2 Example vector table.
- 340. 9.1 Exception Handling 321 9.1.3 Exception Priorities Exceptions can occur simultaneously, so the processor has to adopt a priority mechanism. Table 9.3 shows the various exceptions that occur on the ARM processor and their associ- ated priority level. For instance, the Reset exception is the highest priority and occurs when power is applied to the processor. Thus, when a reset occurs, it takes precedence over all other exceptions. Similarly, when a Data Abort occurs, it takes precedence over all other exceptions apart from a Reset exception. The lowest priority level is shared by two excep- tions, the Software Interrupt and Undefined Instruction exceptions. Certain exceptions also disable interrupts by setting the I or F bits in the cpsr, as shown in Table 9.3. Each exception is dealt with according to the priority level set out in Table 9.3. The following is a summary of the exceptions and how they should be handled, starting with the highest. The Reset exception is the highest priority exception and is always taken whenever it is signaled. The reset handler initializes the system, including setting up memory and caches. External interrupt sources should be initialized before enabling IRQ or FIQ interrupts to avoid the possibility of spurious interrupts occurring before the appropriate handler has been set up. The reset handler must also set up the stack pointers for all processor modes. During the first few instructions of the handler, it is assumed that no exceptions or interrupts will occur. The code should be designed to avoid SWIs, undefined instructions, and memory accesses that may abort, that is, the handler is carefully implemented to avoid further triggering of an exception. Data Abort exceptions occur when the memory controller or MMU indicates that an invalid memory address has been accessed (for example, if there is no physical memory for an address) or when the current code attempts to read or write to memory without the correct access permissions. An FIQ exception can be raised within a Data Abort handler since FIQ exceptions are not disabled. When the FIQ is completely serviced, control is returned back to the Data Abort handler. A Fast Interrupt Request (FIQ) exception occurs when an external peripheral sets the FIQ pin to nFIQ. An FIQ exception is the highest priority interrupt. The core disables Table 9.3 Exception priority levels. Exceptions Priority I bit F bit Reset 1 1 1 Data Abort 2 1 — Fast Interrupt Request 3 1 1 Interrupt Request 4 1 — Prefetch Abort 5 1 — Software Interrupt 6 1 — Undefined Instruction 6 1 —
- 341. 322 Chapter 9 Exception and Interrupt Handling both IRQ and FIQ exceptions on entry into the FIQ handler. Thus, no external source can interrupt the processor unless the IRQ and/or FIQ exceptions are reenabled by software. It is desirable that the FIQ handler (and also the abort, SWI, and IRQ handlers) is carefully designed to service the exception efficiently. An Interrupt Request (IRQ) exception occurs when an external peripheral sets the IRQ pin to nIRQ. An IRQ exception is the second-highest priority interrupt. The IRQ handler will be entered if neither an FIQ exception nor Data Abort exception occurs. On entry to the IRQ handler, the IRQ exceptions are disabled and should remain disabled until the current interrupt source has been cleared. A Prefetch Abort exception occurs when an attempt to fetch an instruction results in a memory fault. This exception is raised when the instruction is in the execute stage of the pipeline and if none of the higher exceptions have been raised. On entry to the handler, IRQ exceptions will be disabled, but the FIQ exceptions will remain unchanged. If FIQ is enabled and an FIQ exception occurs, it can be taken while servicing the Prefetch Abort. A Software Interrupt (SWI) exception occurs when the SWI instruction is executed and none of the other higher-priority exceptions have been flagged. On entry to the handler, the cpsr will be set to supervisor mode. If the system uses nested SWI calls, the link register r14 and spsr must be stored away before branching to the nested SWI to avoid possible corruption of the link register and the spsr. An Undefined Instruction exception occurs when an instruction not in the ARM or Thumb instruction set reaches the execute stage of the pipeline and none of the other exceptions have been flagged. The ARM processor “asks” the coprocessors if they can handle this as a coprocessor instruction. Since coprocessors follow the pipeline, instruction identification can take place in the execute stage of the core. If none of the coprocessors claims the instruction, an Undefined Instruction exception is raised. Both the SWI instruction and Undefined Instruction have the same level of priority, since they cannot occur at the same time (in other words, the instruction being executed cannot both be an SWI instruction and an undefined instruction). 9.1.4 Link Register Offsets When an exception occurs, the link register is set to a specific address based on the current pc. For instance, when an IRQ exception is raised, the link register lr points to the last executed instruction plus 8. Care has to be taken to make sure the exception handler does not corrupt lr because lr is used to return from an exception handler. The IRQ exception is taken only after the current instruction is executed, so the return address has to point to the next instruction, or lr − 4. Table 9.4 provides a list of useful addresses for the different exceptions. The next three examples show different methods of returning from an IRQ or FIQ exception handler.
- 342. 9.1 Exception Handling 323 Table 9.4 Useful link-register-based addresses. Exception Address Use Reset — lr is not defined on a Reset Data Abort lr − 8 points to the instruction that caused the Data Abort exception FIQ lr − 4 return address from the FIQ handler IRQ lr − 4 return address from the IRQ handler Prefetch Abort lr − 4 points to the instruction that caused the Prefetch Abort exception SWI lr points to the next instruction after the SWI instruction Undefined Instruction lr points to the next instruction after the undefined instruction Example 9.2 This example shows that a typical method of returning from an IRQ and FIQ handler is to use a SUBS instruction: handler handler code ... SUBS pc, r14, #4 ; pc=r14-4 Because there is an S at the end of the SUB instruction and the pc is the destination register, the cpsr is automatically restored from the spsr register. ■ Example 9.3 This example shows another method that subtracts the offset from the link register r14 at the beginning of the handler. handler SUB r14, r14, #4 ; r14-=4 ... handler code ... MOVS pc, r14 ; return After servicing is complete, return to normal execution occurs by moving the link register r14 into the pc and restoring cpsr from the spsr. ■ Example 9.4 The final example uses the interrupt stack to store the link register. This method first subtracts an offset from the link register and then stores it onto the interrupt stack. handler SUB r14, r14, #4 ; r14-=4
- 343. 324 Chapter 9 Exception and Interrupt Handling STMFD r13!,{r0-r3, r14} ; store context ... handler code ... LDMFD r13!,{r0-r3, pc}ˆ ; return To return to normal execution, the LDM instruction is used to load the pc. The ˆ symbol in the instruction forces the cpsr to be restored from the spsr. ■ 9.2 Interrupts There are two types of interrupts available on the ARM processor. The first type of interrupt causes an exception raised by an external peripheral—namely, IRQ and FIQ. The second type is a specific instruction that causes an exception—the SWI instruction. Both types suspend the normal flow of a program. In this section we will focus mainly on IRQ and FIQ interrupts. We will cover these topics: ■ Assigning interrupts ■ Interrupt latency ■ IRQ and FIQ exceptions ■ Basic interrupt stack design and implementation 9.2.1 Assigning Interrupts A system designer can decide which hardware peripheral can produce which interrupt request. This decision can be implemented in hardware or software (or both) and depends upon the embedded system being used. An interrupt controller connects multiple external interrupts to one of the two ARM interrupt requests. Sophisticated controllers can be programmed to allow an external interrupt source to cause either an IRQ or FIQ exception. When it comes to assigning interrupts, system designers have adopted a standard design practice: ■ Software Interrupts are normally reserved to call privileged operating system routines. For example, an SWI instruction can be used to change a program running in user mode to a privileged mode. For an SWI handler example, take a look at Chapter 11. ■ Interrupt Requests are normally assigned for general-purpose interrupts. For example, a periodic timer interrupt to force a context switch tends to be an IRQ exception. The IRQ exception has a lower priority and higher interrupt latency (to be discussed in the next section) than the FIQ exception.
- 344. 9.2 Interrupts 325 ■ Fast Interrupt Requests are normally reserved for a single interrupt source that requires a fast response time—for example, direct memory access specifically used to move blocks of memory. Thus, in an embedded operating system design, the FIQ exception is used for a specific application, leaving the IRQ exception for more general operating system activities. 9.2.2 Interrupt Latency Interrupt-driven embedded systems have to fight a battle with interrupt latency—the inter- val of time from an external interrupt request signal being raised to the first fetch of an instruction of a specific interrupt service routine (ISR). Interrupt latency depends on a combination of hardware and software. System architects must balance the system design to handle multiple simultaneous interrupt sources and minimize interrupt latency. If the interrupts are not handled in a timely manner, then the system will exhibit slow response times. Software handlers have two main methods to minimize interrupt latency. The first method is to use a nested interrupt handler, which allows further interrupts to occur even when currently servicing an existing interrupt (see Figure 9.3). This is achieved by reenabling the interrupts as soon as the interrupt source has been serviced (so it won’t generate more interrupts) but before the interrupt handling is complete. Once a nested interrupt has been serviced, then control is relinquished to the original interrupt service routine. Normal execution Interrupt (1) Interrupt (2) Interrupt (3) Interrupt handler Interrupt enabled Return Return Return Figure 9.3 A three-level nested interrupt.
- 345. 326 Chapter 9 Exception and Interrupt Handling The second method involves prioritization. You program the interrupt controller to ignore interrupts of the same or lower priority than the interrupt you are handling, so only a higher-priority task can interrupt your handler. You then reenable interrupts. The processor spends time in the lower-priority interrupts until a higher-priority inter- rupt occurs. Therefore higher-priority interrupts have a lower average interrupt latency than the lower-priority interrupts, which reduces latency by speeding up the completion time on the critical time-sensitive interrupts. 9.2.3 IRQ and FIQ Exceptions IRQ and FIQ exceptions only occur when a specific interrupt mask is cleared in the cpsr. The ARM processor will continue executing the current instruction in the execution stage of the pipeline before handling the interrupt—an important factor in designing a deterministic interrupt handler since some instructions require more cycles to complete the execution stage. An IRQ or FIQ exception causes the processor hardware to go through a standard procedure (provided the interrupts are not masked): 1. The processor changes to a specific interrupt request mode, which reflects the interrupt being raised. 2. The previous mode’s cpsr is saved into the spsr of the new interrupt request mode. 3. The pc is saved in the lr of the new interrupt request mode. 4. Interrupt/s are disabled—either the IRQ or both IRQ and FIQ exceptions are disabled in the cpsr. This immediately stops another interrupt request of the same type being raised. 5. The processor branches to a specific entry in the vector table. The procedure varies slightly depending upon the type of interrupt being raised. We will illustrate both interrupts with an example. The first example shows what happens when an IRQ exception is raised, and the second example shows what happens when an FIQ exception is raised. Example 9.5 Figure 9.4 shows what happens when an IRQ exception is raised when the processor is in user mode. The processor starts in state 1. In this example both the IRQ and FIQ exception bits in the cpsr are enabled. When an IRQ occurs the processor moves into state 2. This transition automatically sets the IRQ bit to one, disabling any further IRQ exceptions. The FIQ exception, however, remains enabled because FIQ has a higher priority and therefore does not get disabled when a low-priority IRQ exception is raised. The cpsr processor mode changes to IRQ mode. The user mode cpsr is automatically copied into spsr_irq.
- 346. 9.2 Interrupts 327 nzcvqjift_usr IRQ 1. 2. 3. Return to user mode code Software handler nzcvqjIft_irq spsr_irq=cpsr r14_irq=pc pc=0x18 Figure 9.4 Interrupt Request (IRQ). Register r14_irq is assigned the value of the pc when the interrupt was raised. The pc is then set to the IRQ entry +0x18 in the vector table. In state 3 the software handler takes over and calls the appropriate interrupt service routine to service the source of the interrupt. Upon completion, the processor mode reverts back to the original user mode code in state 1. ■ Example 9.6 Figure 9.5 shows an example of an FIQ exception. The processor goes through a similar procedure as with the IRQ exception, but instead of just masking further IRQ exceptions from occurring, the processor also masks out further FIQ exceptions. This means that both interrupts are disabled when entering the software handler in state 3. nzcvqjift_usr FIQ 1. 2. 3. Return to user mode code Software handler nzcvqjIFt_fiq spsr_fiq=cpsr r14_fiq=pc pc=0x1c Figure 9.5 Fast Interrupt Request (FIQ).
- 347. 328 Chapter 9 Exception and Interrupt Handling Changing to FIQ mode means there is no requirement to save registers r8 to r12 since these registers are banked in FIQ mode. These registers can be used to hold temporary data, such as buffer pointers or counters. This makes FIQ ideal for servicing a single-source, high-priority, low-latency interrupt. ■ 9.2.3.1 Enabling and Disabling FIQ and IRQ Exceptions The ARM processor core has a simple procedure to manually enable and disable interrupts that involves modifying the cpsr when the processor is in a privileged mode. Table 9.5 shows how IRQ and FIQ interrupts are enabled. The procedure uses three ARM instructions. The first instruction MRS copies the contents of the cpsr into register r1. The second instruction clears the IRQ or FIQ mask bit. The third instruction then copies the updated contents in register r1 back into the cpsr, enabling the interrupt request. The postfix _c iden- tifies that the bit field being updated is the control field bit [7:0] of the cpsr. (For more details see Chapter 2.) Table 9.6 shows a similar procedure to disable or mask an interrupt request. It is important to understand that the interrupt request is either enabled or disabled only once the MSR instruction has completed the execution stage of the pipeline. Interrupts can still be raised or masked prior to the MSR completing this stage. Table 9.5 Enabling an interrupt. cpsr value IRQ FIQ Pre nzcvqjIFt_SVC nzcvqjIFt_SVC Code enable_irq MRS r1, cpsr BIC r1, r1, #0x80 MSR cpsr_c, r1 enable_fiq MRS r1, cpsr BIC r1, r1, #0x40 MSR cpsr_c, r1 Post nzcvqjiFt_SVC nzcvqjIft_SVC Table 9.6 Disabling an interrupt. cpsr IRQ FIQ Pre nzcvqjift_SVC nzcvqjift_SVC Code disable_irq MRS r1, cpsr ORR r1, r1, #0x80 MSR cpsr_c, r1 disable_fiq MRS r1, cpsr ORR r1, r1, #0x40 MSR cpsr_c, r1 Post nzcvqjIft_SVC nzcvqjiFt_SVC
- 348. 9.2 Interrupts 329 To enable and disable both the IRQ and FIQ exceptions requires a slight modification to the second instruction. The immediate value on the data processing BIC or ORR instruction has to be changed to 0xc0 to enable or disable both interrupts. 9.2.4 Basic Interrupt Stack Design and Implementation Exceptions handlers make extensive use of stacks, with each mode having a dedicated register containing the stack pointer. The design of the exception stacks depends upon these factors: ■ Operating system requirements—Each operating system has its own requirements for stack design. ■ Target hardware—The target hardware provides a physical limit to the size and positioning of the stack in memory. Two design decisions need to be made for the stacks: ■ The location determines where in the memory map the stack begins. Most ARM-based systems are designed with a stack that descends downwards, with the top of the stack at a high memory address. ■ Stack size depends upon the type of handler, nested or nonnested. A nested interrupt handler requires more memory space since the stack will grow with the number of nested interrupts. A good stack design tries to avoid stack overflow—where the stack extends beyond the allocated memory—because it causes instability in embedded systems. There are soft- ware techniques that identify overflow and that allow corrective measures to take place to repair the stack before irreparable memory corruption occurs. The two main methods are (1) to use memory protection and (2) to call a stack check function at the start of each routine. The IRQ mode stack has to be set up before interrupts are enabled—normally in the initialization code for the system. It is important that the maximum size of the stack is known in a simple embedded system, since the stack size is reserved in the initial stages of boot-up by the firmware. Figure 9.6 shows two typical memory layouts in a linear address space. The first layout, A, shows a traditional stack layout with the interrupt stack stored underneath the code segment. The second layout, B, shows the interrupt stack at the top of the memory above the user stack. The main advantage of layout B over A is that B does not corrupt the vector table when a stack overflow occurs, and so the system has a chance to correct itself when an overflow has been identified.
- 349. 330 Chapter 9 Exception and Interrupt Handling A B 0x00008000 0x00000000 0x00000000 User stack Heap Interrupt stack Vector table Code User stack Heap Interrupt stack Vector table Code Figure 9.6 Typical memory layouts. Example 9.7 For each processor mode a stack has to be set up. This is carried out every time the processor is reset. Figure 9.7 shows an implementation using layout A. To help set up the memory layout, a set of defines are declared that map the memory region names with an absolute address. For instance, the User stack is given the label USR_Stack and is set to address 0x20000. The Supervisor stack is set to an address that is 128 bytes below the IRQ stack. USR_Stack EQU 0x20000 IRQ_Stack EQU 0x8000 SVC_Stack EQU IRQ_Stack-128 To help change to the different processor modes, we declare a set of defines that map each processor mode with a particular mode bit pattern. These labels can then be used to set the cpsr to a new mode. Usr32md EQU 0x10 ; User mode FIQ32md EQU 0x11 ; FIQ mode IRQ32md EQU 0x12 ; IRQ mode SVC32md EQU 0x13 ; Supervisor mode Abt32md EQU 0x17 ; Abort mode Und32md EQU 0x1b ; Undefined instruction mode Sys32md EQU 0x1f ; System mode
- 350. 9.2 Interrupts 331 0x20000 0x10000 0x8000 + code size 0x8000 0x8000 – 128 0x8000 – 640 0x20 0x00 User stack Unused Static data IRQ stack SVC stack Free space Vector table Code Figure 9.7 Example implementation using layout A. For safety reasons a define is declared to disable both the IRQ and FIQ exceptions in the cpsr: NoInt EQU 0xc0 ; Disable interrupts NoInt masks both interrupts by setting the masks to one. Initialization code starts by setting up the stack registers for each processor mode. The stack register r13 is one of the registers that is always banked when a mode change occurs. The code first initializes the IRQ stack. For safety reasons, it is always best to make sure that interrupts are disabled by using a bitwise OR between NoInt and the new mode.
- 351. 332 Chapter 9 Exception and Interrupt Handling Each mode stack must be set up. Here is an example of how to set up three different stacks when the processor core comes out of reset. Note that, since this is a basic example, we do not implement a stack for the abort, FIQ, and undefined instruction modes. If these stacks are required, then very similar code is used. ■ Supervisor mode stack—The processor core starts in supervisor mode so the SVC stack setup involves loading register r13_svc with the address pointed to by SVC_NewStack. For this example the value is SVC_Stack. LDR r13, SVC_NewStack ; r13_svc ... SVC_NewStack DCD SVC_Stack ■ IRQ mode stack—To set up the IRQ stack, the processor mode has to change to IRQ mode. This is achieved by storing a cpsr bit pattern into register r2. Register r2 is then copied into the cpsr, placing the processor into IRQ mode. This action immediately makes register r13_irq viewable, and it can then be assigned the IRQ_Stack value. MOV r2, #NoInt|IRQ32md MSR cpsr_c, r2 LDR r13, IRQ_NewStack ; r13_irq ... IRQ_NewStack DCD IRQ_Stack ■ User mode stack—It is common for the user mode stack to be the last to be set up because when the processor is in user mode there is no direct method to modify the cpsr. An alternative is to force the processor into system mode to set up the user mode stack since both modes share the same registers. MOV r2, #Sys32md MSR cpsr_c, r2 LDR r13, USR_NewStack ; r13_usr ... USR_NewStack DCD USR_Stack Using separate stacks for each mode rather than processing using a single stack has one main advantage: errant tasks can be debugged and isolated from the rest of the system. ■
- 352. 9.3 Interrupt Handling Schemes 333 9.3 Interrupt Handling Schemes In this final section we will introduce a number of different interrupt handling schemes, ranging from the simple nonnested interrupt handler to the more complex grouped prior- itized interrupt handler. Each scheme is presented as a reference with a general description plus an example implementation. The schemes covered are the following: ■ A nonnested interrupt handler handles and services individual interrupts sequentially. It is the simplest interrupt handler. ■ A nested interrupt handler handles multiple interrupts without a priority assignment. ■ A reentrant interrupt handler handles multiple interrupts that can be prioritized. ■ A prioritized simple interrupt handler handles prioritized interrupts. ■ A prioritized standard interrupt handler handles higher-priority interrupts in a shorter time than lower-priority interrupts. ■ A prioritized direct interrupt handler handles higher-priority interrupts in a shorter time and goes directly to a specific service routine. ■ A prioritized grouped interrupt handler is a mechanism for handling interrupts that are grouped into different priority levels. ■ A VIC PL190 based interrupt service routine shows how the vector interrupt controller (VIC) changes the design of an interrupt service routine. 9.3.1 Nonnested Interrupt Handler The simplest interrupt handler is a handler that is nonnested: the interrupts are disabled until control is returned back to the interrupted task or process. Because a nonnested interrupt handler can only service a single interrupt at a time, handlers of this form are not suitable for complex embedded systems that service multiple interrupts with differing priority levels. Figure 9.8 shows the various stages that occur when an interrupt is raised in a system that has implemented a simple nonnested interrupt handler: 1. Disable interrupt/s—When the IRQ exception is raised, the ARM processor will disable further IRQ exceptions from occurring. The processor mode is set to the appropri- ate interrupt request mode, and the previous cpsr is copied into the newly available spsr_{interrupt request mode}. The processor will then set the pc to point to the correct entry in the vector table and execute the instruction. This instruction will alter the pc to point to the specific interrupt handler. 2. Save context—On entry the handler code saves a subset of the current processor mode nonbanked registers.
- 353. 334 Chapter 9 Exception and Interrupt Handling Disable interrupts, pc = vector table entry spsr_{mode} = cpsr, 1. Enable interrupts pc = lr−4 cpsr = spsr_{mode} 6. 2. 3. 4. Return to task Interrupt handler Save context 5. Restore context Service interrupt routine Interrupt Figure 9.8 Simple nonnested interrupt handler. 3. Interrupt handler—The handler then identifies the external interrupt source and executes the appropriate interrupt service routine (ISR). 4. Interrupt service routine—The ISR services the external interrupt source and resets the interrupt. 5. Restore context—The ISR returns back to the interrupt handler, which restores the context. 6. Enable interrupts—Finally, to return from the interrupt handler, the spsr_{interrupt request mode} is restored back into the cpsr. The pc is then set to the next instruction after the interrupt was raised. Example 9.8 This IRQ handler example assumes that the IRQ stack has been correctly set up by the initialization code.
- 354. 9.3 Interrupt Handling Schemes 335 interrupt_handler SUB r14,r14,#4 ; adjust lr STMFD r13!,{r0-r3,r12,r14} ; save context interrupt service routine LDMFD r13!,{r0-r3,r12,pc}ˆ ; return The first instruction sets the link register r14_irq to return back to the correct location in the interrupted task or process. As described in Section 9.1.4, due to the pipeline, on entry to an IRQ handler the link register points four bytes beyond the return address, so the handler must subtract four from the link register to account for this discrepancy. The link register is stored on the stack. To return to the interrupted task, the link register contents are restored from the stack and moved into the pc. Notice registers r0 to r3 and register r12 are also preserved because of the ATPCS. This allows an ATPCS-compliant subroutine to be called within the handler. The STMFD instruction saves the context by placing a subset of the registers onto the stack. To reduce interrupt latency we save a minimum number of registers because the time taken to execute an STMFD or LDMFD instruction is proportional to the number of registers being transferred. The registers are saved to the stack pointed to by the register r13_{interrupt request mode}. If you are using a high-level language within your system it is important to understand thecompiler’sprocedure callingconventionbecauseitwillinfluenceboththeregisterssaved and the order they are saved onto the stack. For instance, the ARM compilers preserves registers r4 to r11 within a subroutine call so there is no need to preserve them unless they will be used by the interrupt handler. If no C routines are called, it may not be necessary to save all of the registers. It is safe to call a C function only when the registers have been saved onto the interrupt stack. Within a nonnested interrupt handler, it is not necessary to save the spsr because it will not be destroyed by any subsequent interrupt. At the end of the handler the LDMFD instruction will restore the context and return from the interrupt handler. The ˆ at the end of the LDMFD instruction means that the cpsr will be restored from the spsr, which is only valid if the pc is loaded at the same time. If the pc is not loaded, then ˆ will restore the user bank registers. In this handler all processing is handled within the interrupt handler, which returns directly to the application. Once the interrupt handler has been entered and the context has been saved, the handler must determine the interrupt source. The following code shows a simple example of how to determine the interrupt source. IRQStatus is the address of the interrupt status register. If the interrupt source is not determined, then control can pass to another handler. In this example we pass control to the debug monitor. Alternatively we could just ignore the interrupt. interrupt_handler SUB r14,r14,#4 ; r14-=4
- 355. 336 Chapter 9 Exception and Interrupt Handling STMFD sp!,{r0-r3,r12,r14} ; save context LDR r0,=IRQStatus ; interrupt status addr LDR r0,[r0] ; get interrupt status TST r0,#0x0080 ; if counter timer BNE timer_isr ; then branch to ISR TST r0,#0x0001 ; else if button press BNE button_isr ; then call button ISR LDMFD sp!,{r0-r3,r12,r14} ; restore context LDR pc,=debug_monitor ; else debug monitor In the preceding code there are two ISRs: timer_isr and button_isr. They are mapped to specific bits in the IRQStatus register, 0x0080 and 0x0001, respectively. ■ Summary Simple Nonnested Interrupt Handler ■ Handles and services individual interrupts sequentially. ■ High interrupt latency; cannot handle further interrupts occurring while an interrupt is being serviced. ■ Advantages: relatively easy to implement and debug. ■ Disadvantage: cannot be used to handle complex embedded systems with multiple priority interrupts. 9.3.2 Nested Interrupt Handler A nested interrupt handler allows for another interrupt to occur within the currently called handler. This is achieved by reenabling the interrupts before the handler has fully serviced the current interrupt. For a real-time system this feature increases the complexity of the system but also improves its performance. The additional complexity introduces the possibility of subtle timing issues that can cause a system failure, and these subtle problems can be extremely difficult to resolve. A nested interrupt method is designed carefully so as to avoid these types of problems. This is achieved by protecting the context restoration from interruption, so that the next interrupt will not fill the stack (cause stack overflow) or corrupt any of the registers. The first goal of any nested interrupt handler is to respond to interrupts quickly so the handler neither waits for asynchronous exceptions, nor forces them to wait for the handler. The second goal is that execution of regular synchronous code is not delayed while servicing the various interrupts. The increase in complexity means that the designers have to balance efficiency with safety, by using a defensive coding style that assumes problems will occur. The handler has to check the stack and protect against register corruption where possible.
- 356. 9.3 Interrupt Handling Schemes 337 Disable interrupt Enable interrupt 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. Save context Restore context Restore context Prepare stack Switch to mode Start constructing a frame Service interrupt Finish frame construction Complete servicing the interrupt Interrupt Enter interrupt handler Complete Not complete Interrupt Interrupt Return to task Return to task Figure 9.9 Nested interrupt handler. Figure 9.9 shows a nested interrupt handler. As can been seen from the diagram, the han- dler is quite a bit more complicated than the simple nonnested interrupt handler described in Section 9.3.1. The nested interrupt handler entry code is identical to the simple nonnested interrupt handler, except that on exit, the handler tests a flag that is updated by the ISR. The flag indicates whether further processing is required. If further processing is not required, then the interrupt service routine is complete and the handler can exit. If further processing is
- 357. 338 Chapter 9 Exception and Interrupt Handling required, the handler may take several actions: reenabling interrupts and/or performing a context switch. Reenabling interrupts involves switching out of IRQ mode to either SVC or system mode. Interrupts cannot simply be reenabled when in IRQ mode because this would lead to possible link register r14_irq corruption, especially if an interrupt occurred after the execution of a BL instruction. This problem will be discussed in more detail in Section 9.3.3. Performing a context switch involves flattening (emptying) the IRQ stack because the handler does not perform a context switch while there is data on the IRQ stack. All registers saved on the IRQ stack must be transferred to the task’s stack, typically on the SVC stack. The remaining registers must then be saved on the task stack. They are transferred to a reserved block of memory on the stack called a stack frame. Example 9.9 This nested interrupt handler example is based on the flow diagram in Figure 9.9. The rest of this section will walk through the handler and describe in detail the various stages. Maskmd EQU 0x1f ; processor mode mask SVC32md EQU 0x13 ; SVC mode I_Bit EQU 0x80 ; IRQ bit FRAME_R0 EQU 0x00 FRAME_R1 EQU FRAME_R0+4 FRAME_R2 EQU FRAME_R1+4 FRAME_R3 EQU FRAME_R2+4 FRAME_R4 EQU FRAME_R3+4 FRAME_R5 EQU FRAME_R4+4 FRAME_R6 EQU FRAME_R5+4 FRAME_R7 EQU FRAME_R6+4 FRAME_R8 EQU FRAME_R7+4 FRAME_R9 EQU FRAME_R8+4 FRAME_R10 EQU FRAME_R9+4 FRAME_R11 EQU FRAME_R10+4 FRAME_R12 EQU FRAME_R11+4 FRAME_PSR EQU FRAME_R12+4 FRAME_LR EQU FRAME_PSR+4 FRAME_PC EQU FRAME_LR+4 FRAME_SIZE EQU FRAME_PC+4 IRQ_Entry ; instruction state : comment SUB r14,r14,#4 ; 2 : STMDB r13!,{r0-r3,r12,r14} ; 2 : save context service interrupt BL read_RescheduleFlag ; 3 : more processing
- 358. 9.3 Interrupt Handling Schemes 339 CMP r0,#0 ; 3 : if processing? LDMNEIA r13!,{r0-r3,r12,pc}ˆ ; 4 : else return MRS r2,spsr ; 5 : copy spsr_irq MOV r0,r13 ; 5 : copy r13_irq ADD r13,r13,#6*4 ; 5 : reset stack MRS r1,cpsr ; 6 : copy cpsr BIC r1,r1,#Maskmd ; 6 : ORR r1,r1,#SVC32md ; 6 : MSR cpsr_c,r1 ; 6 : change to SVC SUB r13,r13,#FRAME_SIZE-FRAME_R4 ; 7 : make space STMIA r13,{r4-r11} ; 7 : save r4-r11 LDMIA r0,{r4-r9} ; 7 : restore r4-r9 BIC r1,r1,#I_Bit ; 8 : MSR cpsr_c,r1 ; 8 : enable IRA STMDB r13!,{r4-r7} ; 9 : save r4-r7 SVC STR r2,[r13,#FRAME_PSR] ; 9 : save PSR STR r8,[r13,#FRAME_R12] ; 9 : save r12 STR r9,[r13,#FRAME_PC] ; 9 : save pc STR r14,[r13,#FRAME_LR] ; 9 : save lr complete interrupt service routine LDMIA r13!,{r0-r12,r14} ; 11 : restore context MSR spsr_cxsf,r14 ; 11 : restore spsr LDMIA r13!,{r14,pc}ˆ ; 11 : return This example uses a stack frame structure. All registers are saved onto the frame except for the stack register r13. The order of the registers is unimportant except that FRAME_LR and FRAME_PC should be the last two registers in the frame because we will return with a single instruction: LDMIA r13!, {r14, pc}ˆ There may be other registers that are required to be saved onto the stack frame, depending upon the operating system or application being used. For example: ■ Registers r13_usr and r14_usr are saved when there is a requirement by the operating system to support both user and SVC modes. ■ Floating-point registers are saved when the system uses hardware floating point. There are a number of defines declared in this example. These defines map various cpsr/spsr changes to a particular label (for example, the I_Bit). A set of defines is also declared that maps the various frame register references with frame pointer offsets. This is useful when the interrupts are reenabled and registers have to be stored into the stack frame. In this example we store the stack frame on the SVC stack.
- 359. 340 Chapter 9 Exception and Interrupt Handling The entry point for this example handler uses the same code as for the simple nonnested interrupt handler. The link register r14 is first modified so that it points to the correct return address, and then the context plus the link register r14 are saved onto the IRQ stack. An interrupt service routine then services the interrupt. When servicing is complete or partially complete, control is passed back to the handler. The handler then calls a function called read_RescheduleFlag, which determines whether further processing is required. It returns a nonzero value in register r0 if no further processing is required; otherwise it returns a zero. Note we have not included the source for read_RescheduleFlag because it is implementation specific. The return flag in register r0 is then tested. If the register is not equal to zero, the handler restores context and returns control back to the suspended task. Registerr0issettozero, indicatingthatfurtherprocessingisrequired. Thefirstoperation is to save the spsr, so a copy of the spsr_irq is moved into register r2. The spsr can then be stored in the stack frame by the handler later on in the code. The IRQ stack address pointed to by register r13_irq is copied into register r0 for later use. The next step is to flatten (empty) the IRQ stack. This is done by adding 6 * 4 bytes to the top of the stack because the stack grows downwards and an ADD instruction can be used to set the stack. The handler does not need to worry about the data on the IRQ stack being corrupted by another nested interrupt because interrupts are still disabled and the handler will not reenable the interrupts until the data on the IRQ stack has been recovered. The handler then switches to SVC mode; interrupts are still disabled. The cpsr is copied into register r1 and modified to set the processor mode to SVC. Register r1 is then written back into the cpsr, and the current mode changes to SVC mode. A copy of the new cpsr is left in register r1 for later use. The next stage is to create a stack frame by extending the stack by the stack frame size. Registers r4 to r11 can be saved onto the stack frame, which will free up enough registers to allow us to recover the remaining registers from the IRQ stack still pointed to by register r0. At this stage the stack frame will contain the information shown in Table 9.7. The only registers that are not in the frame are the registers that are stored upon entry to the IRQ handler. Table 9.8 shows the registers in SVC mode that correspond to the existing IRQ registers. The handler can now retrieve all the data from the IRQ stack, and it is safe to reenable interrupts. IRQ exceptions are reenabled, and the handler has saved all the important registers. The handler can now complete the stack frame. Table 9.9 shows a completed stack frame that can be used either for a context switch or to handle a nested interrupt. At this stage the remainder of the interrupt servicing may be handled. A context switch may be performed by saving the current value of register r13 in the current task’s control block and loading a new value for register r13 from the new task’s control block. It is now possible to return to the interrupted task/handler, or to another task if a context switch occurred. ■
- 360. 9.3 Interrupt Handling Schemes 341 Table 9.7 SVC stack frame. Label Offset Register FRAME_R0 +0 — FRAME_R1 +4 — FRAME_R2 +8 — FRAME_R3 +12 — FRAME_R4 +16 r4 FRAME_R5 +20 r5 FRAME_R6 +24 r6 FRAME_R7 +28 r7 FRAME_R8 +32 r8 FRAME_R9 +36 r9 FRAME_R10 +40 r10 FRAME_R11 +44 r11 FRAME_R12 +48 — FRAME_PSR +52 — FRAME_LR +56 — FRAME_PC +60 — Table 9.8 Data retrieved from the IRQ stack. Registers (SVC) Retrieved IRQ registers r4 r0 r5 r1 r6 r2 r7 r3 r8 r12 r9 r14 (return address) Summary Nested Interrupt Handler ■ Handles multiple interrupts without a priority assignment. ■ Medium to high interrupt latency. ■ Advantage—can enable interrupts before the servicing of an individual interrupt is complete reducing interrupt latency. ■ Disadvantage—does not handle prioritization of interrupts, so lower priority interrupts can block higher priority interrupts.
- 361. 342 Chapter 9 Exception and Interrupt Handling Table 9.9 Complete frame stack. Label Offset Register FRAME_R0 +0 r0 FRAME_R1 +4 r1 FRAME_R2 +8 r2 FRAME_R3 +12 r3 FRAME_R4 +16 r4 FRAME_R5 +20 r5 FRAME_R6 +24 r6 FRAME_R7 +28 r7 FRAME_R8 +32 r8 FRAME_R9 +36 r9 FRAME_R10 +40 r10 FRAME_R11 +44 r11 FRAME_R12 +48 r12 FRAME_PSR +52 spsr_irq FRAME_LR +56 r14 FRAME_PC +60 r14_irq 9.3.3 Reentrant Interrupt Handler A reentrant interrupt handler is a method of handling multiple interrupts where interrupts are filtered by priority, which is important if there is a requirement that interrupts with higher priority have a lower latency. This type of filtering cannot be achieved using the conventional nested interrupt handler. The basic difference between a reentrant interrupt handler and a nested interrupt han- dler is that the interrupts are reenabled early on in the reentrant interrupt handler, which can reduce interrupt latency. There are a number of issues relating to reenabling interrupts early, which will be described in more detail later on in this section. All interrupts in a reentrant interrupt handler must be serviced in SVC, system, undefined instruction, or abort mode on the ARM processor. If interrupts are reenabled in an interrupt mode and the interrupt routine performs a BL subroutine call instruction, the subroutine return address will be set in the register r14_irq. This address would be subsequently destroyed by an interrupt, which would overwrite the return address into register r14_irq. To avoid this, the interrupt routine should swap into SVC or system mode. The BL instruction can then use register r14_svc to store the subroutine return address. The interrupts must be disabled at the source by setting a bit in the interrupt controller before reenabling interrupts via the cpsr. If interrupts are reenabled in the cpsr before processing is complete and the interrupt source is not disabled, an interrupt will be immediately regenerated, leading to an infinite interrupt sequence or race condition. Most interrupt controllers have an interrupt mask
- 362. 9.3 Interrupt Handling Schemes 343 Disable interrupt Enable interrupt 1. 2. 3. 4. Save partial context Change mode Reserve stack space and save complete context Resave context Interrupt Enter interrupt handler 8. 9. 10. 11. Restore context Return to task Servicing complete Servicing incomplete 12. Restore context Return to task Interrupt Clear external interrupt Enable external interrupt 5. 6. 7. Service interrupt Continue servicing interrupt Figure9.10 Reentrant interrupt handler. register that allows you to mask out one or more interrupts, but the remaining interrupts are still enabled. The interrupt stack is unused since interrupts are serviced in SVC mode (for example, on the task’s stack). Instead the IRQ stack register r13 is used to point to a 12-byte structure that will be used to store some registers temporarily on interrupt entry.
- 363. 344 Chapter 9 Exception and Interrupt Handling It is paramount to prioritize interrupts in a reentrant interrupt handler. If the interrupts are not prioritized, the system latency degrades to that of a nested interrupt handler because lower-priority interrupts will be able to preempt the servicing of a higher-priority interrupt. This in turn leads to the locking out of higher-priority interrupts for the duration of the servicing of a lower-priority interrupt. Example 9.10 It is assumed that register r13_irq has been set up to point to a 12-byte data structure and does not point to a standard IRQ stack. Offsets such as IRQ_SPSR are used to point into the data structure. As with all interrupt handlers, there are some standard definitions that are required to modify the cpsr and spsr registers. IRQ_R0 EQU 0 IRQ_spsr EQU 4 IRQ_R14 EQU 8 Maskmd EQU 0x1f ; mask mode SVC32md EQU 0x13 ; SVC mode I_Bit EQU 0x80 ; IRQ bit ic_Base EQU 0x80000000 IRQStatus EQU 0x0 IRQRawStatus EQU 0x4 IRQEnable EQU 0x8 IRQEnableSet EQU 0x8 IRQEnableClear EQU 0xc IRQ_Entry ; instruction state : comment SUB r14, r14, #4 ; 2 : r14_irq-=4 STR r14, [r13, #IRQ_R14] ; 2 : save r14_irq MRS r14, spsr ; 2 : copy spsr STR r14, [r13, #IRQ_spsr] ; 2 : save spsr STR r0, [r13, #IRQ_R0] ; 2 : save r0 MOV r0, r13 ; 2 : copy r13_irq MRS r14, cpsr ; 3 : copy cpsr BIC r14, r14, #Maskmd ; 3 : ORR r14, r14, #SVC32md ; 3 : MSR cpsr_c, r14 ; 3 : enter SVC mode STR r14, [r13, #-8]! ; 4 : save r14 LDR r14, [r0, #IRQ_R14] ; 4 : r14_svc=r14_irq STR r14, [r13, #4] ; 4 : save r14_irq LDR r14, [r0, #IRQ_spsr] ; 4 : r14_svc=spsr_irq LDR r0, [r0, #IRQ_R0] ; 4 : restore r0 STMDB r13!, {r0-r3,r8,r12,r14} ; 4 : save context
- 364. 9.3 Interrupt Handling Schemes 345 LDR r14, =ic_Base ; 5 : int crtl address LDR r8, [r14, #IRQStatus] ; 5 : get int status STR r8, [r14, #IRQEnableClear] ; 5 : clear interrupts MRS r14, cpsr ; 6 : r14_svc=cpsr BIC r14, r14, #I_Bit ; 6 : clear I-Bit MSR cpsr_c, r14 ; 6 : enable IRQ int BL process_interrupt ; 7 : call ISR LDR r14, =ic_Base ; 9 : int ctrl address STR r8, [r14, #IRQEableSet] ; 9 : enable ints BL read_RescheduleFlag ; 9 : more processing CMP r0, #0 ; 8 : if processing LDMNEIA r13!, {r0-r3,r8,r12,r14} ; 8 : then load context MSRNE spsr_cxsf, r14 ; 8 : update spsr LDMNEIA r13!, {r14, pc}ˆ ; 8 : return LDMIA r13!, {r0-r3, r8} ; 10 : else load reg STMDB r13!, {r0-r11} ; 10 : save context BL continue_servicing ; 11 : continue service LDMIA r13!, {r0-r12, r14} ; 12 : restore context MSR spsr_cxsf, r14 ; 12 : update spsr LDMIA r13!, {r14, pc}ˆ ; 12 : return The start of the handler includes a normal interrupt entry point, with four being subtracted from the register r14_irq. It is now important to assign values to the various fields in the data structure pointed to by register r13_irq. The registers that are recorded are r14_irq, spsr_irq, and r0. The register r0 is used to transfer a pointer to the data structure when swapping to SVC mode since register r0 will not be banked. This is why register r13_irq cannot be used for this purpose: it is not visible from SVC mode. The pointer to the data structure is saved by copying register r13_irq into r0. Offset (from r13_irq) Value +0 r0 (on entry) +4 spsr_irq +8 r14_irq The handler will now set the processor into SVC mode using the standard procedure of manipulating the cpsr. The link register r14 for SVC mode is saved on the SVC stack. Subtracting 8 provides room on the stack for two 32-bit words. Register r14_irq is then recovered and stored on the SVC stack. Now both the link registers r14 for IRQ and SVC are stored on the SVC stack. The rest of the IRQ context is recovered from the data structure passed into the SVC mode. Register r14_svc will now contain the spsr for IRQ mode.
- 365. 346 Chapter 9 Exception and Interrupt Handling Registers are then saved onto the SVC stack. Register r8 is used to hold the interrupt mask for the interrupts that have been disabled in the interrupt handler. They will be reenabled later. The interrupt source(s) are then disabled. An embedded system would at this point prioritize the interrupts and disable all interrupts lower than the current priority to prevent a low-priority interrupt from locking out a high-priority interrupt. Interrupt prioritizing will be discussed later on in this chapter. Since the interrupt source has been cleared, it is now safe to reenable IRQ exceptions. This is achieved by clearing the i bit in the cpsr. Note that the interrupt controller still has external interrupts disabled. It is now possible to process the interrupt. The interrupt processing should not attempt to do a context switch because the external source interrupt is disabled. If during the interrupt processing a context switch is needed, it should set a flag that could be picked up later by the interrupt handler. It is now safe to reenable external interrupts. The handler needs to check if further processing is required. If the returned value is nonzero in register r0, then no further processing is required. If zero, the handler restores the context and then returns control back to the suspended task. A stack frame now has to be created so that the service routine can complete. This is achieved by restoring parts of the context and then storing the complete context back on to the SVC stack. The subroutine continue_servicing, which will complete the servicing of the interrupt, is called. This routine is not provided because it is specific to an implementation. After the interrupt routine has been serviced, control can be given back to the suspended task. ■ Summary Reentrant Interrupt Handler ■ Handles multiple interrupts that can be prioritized. ■ Low interrupt latency. ■ Advantage: handles interrupts with differing priorities. ■ Disadvantage: tends to be more complex. 9.3.4 Prioritized Simple Interrupt Handler Both the nonnested interrupt handler and the nested interrupt handler service interrupts on a first-come-first-served basis. In comparison, the prioritized interrupt handler will associateaprioritylevelwithaparticularinterruptsource. Theprioritylevelisusedtodictate the order that the interrupts will be serviced. Thus, a higher-priority interrupt will take precedence over a lower-priority interrupt, which is a particularly desirable characteristic in many embedded systems.
- 366. 9.3 Interrupt Handling Schemes 347 Methods of handling prioritization can either be achieved in hardware or software. For hardware prioritization, the handler is simpler to design since the interrupt controller will provide the current highest-priority interrupt that requires servicing. These systems require more initialization code at startup since the interrupts and associated priority level tables have to be constructed before the system can be switched on; software prioritization, on the other hand, requires the additional assistance of an external interrupt controller. This interrupt controller has to provide a minimal set of functions that include being able to set and un-setmasks, and to read the interrupt status and source. The rest of this section will cover a software prioritization technique chosen because it is a general method and does not rely on a specialized interrupt controller. To help describe the priority interrupt handler, we will introduce a fictional interrupt controller based upon a standard interrupt controller from ARM. The controller takes multiple interrupt sources and generates an IRQ and/or FIQ signal depending upon whether a particular interrupt source is enabled or disabled. Figure 9.11 shows a flow diagram of a simple priority interrupt handler, based on a reentrant interrupt handler. Example 9.11 The interrupt controller has a register (IRQRawStatus) that holds the raw interrupt status— the state of the interrupt signals prior to being masked by the controller. The IRQEnable register determines which interrupts are masked from the processor. This register can only be set or cleared using IRQEnableSet and IRQEnableClear. Table 9.10 shows the interrupt controller register names, offsets from the controller’s base address, read/write operations, and a description of the registers. I_Bit EQU 0x80 PRIORITY_0 EQU 2 ; Comms Rx PRIORITY_1 EQU 1 ; Comms Tx PRIORITY_2 EQU 0 ; Timer 1 PRIORITY_3 EQU 3 ; Timer 2 BINARY_0 EQU 1 PRIORITY_0 ; 1 2 0x00000004 BINARY_1 EQU 1 PRIORITY_1 ; 1 1 0x00000002 BINARY_2 EQU 1 PRIORITY_2 ; 1 0 0x00000001 BINARY_3 EQU 1 PRIORITY_3 ; 1 3 0x00000008 MASK_3 EQU BINARY_3 MASK_2 EQU MASK_3+BINARY_2 MASK_1 EQU MASK_2+BINARY_1 MASK_0 EQU MASK_1+BINARY_0 ic_Base EQU 0x80000000 IRQStatus EQU 0x0
- 367. 348 Chapter 9 Exception and Interrupt Handling Disable interrupts 1. 2. 3. 4. Save minimum context Get external interrupt status Identify interrupt priority and mask off lower-priority interrupts and enable IRQs 5. Jump to service routine Switch on internal interrupts followed by external interrupt 6. Create a context Interrupt 9. 8. Restore context Return to task 7. Service interrupt Figure9.11 Priority interrupt handler. IRQRawStatus EQU 0x4 IRQEnable EQU 0x8 IRQEnableSet EQU 0x8 IRQEnableClear EQU 0xc
- 368. 9.3 Interrupt Handling Schemes 349 Table 9.10 Interrupt controller registers. Register Offset R/W Description IRQRawStatus +0x04 r represents status of the interrupt sources IRQEnable +0x08 r masks the interrupt sources that generate IRQ/FIQ to the CPU IRQStatus +0x00 r represents interrupt sources after masking IRQEnableSet +0x08 w sets bits in the interrupt enable register IRQEnableClear +0x0c w clears bits in the interrupt enable register IRQ_Handler ; instruction state : comment SUB r14, r14, #4 ; 2 : r14_irq -= 4 STMFD r13!, {r14} ; 2 : save r14_irq MRS r14, spsr ; 2 : copy spsr_irq STMFD r13!, {r10,r11,r12,r14} ; 2 : save context LDR r14, =ic_Base ; 3 : int crtl addr MOV r11, #PRIORITY_3 ; 3 : default priority LDR r10, [r14, #IRQStatus] ; 3 : load IRQ status TST r10, #BINARY_3 ; 4 : if Timer 2 MOVNE r11, #PRIORITY_3 ; 4 : then P3(lo) TST r10, #BINARY_2 ; 4 : if Timer 1 MOVNE r11, #PRIORITY_2 ; 4 : then P2 TST r10, #BINARY_1 ; 4 : if Comm Tx MOVNE r11, #PRIORITY_1 ; 4 : then P1 TST r10, #BINARY_0 ; 4 : if Comm Rx MOVNE r11, #PRIORITY_0 ; 4 : then P0(hi) LDR r12, [r14,#IRQEnable] ; 4 : IRQEnable reg ADR r10, priority_masks ; 4 : mask address LDR r10, [r10,r11,LSL #2] ; 4 : priority value AND r12, r12,r10 ; 4 : AND enable reg STR r12, [r14,#IRQEnableClear] ; 4 : disable ints MRS r14, cpsr ; 4 : copy cpsr BIC r14, r14, #I_Bit ; 4 : clear I-bit MSR cpsr_c, r14 ; 4 : enable IRQ ints LDR pc, [pc, r11, LSL#2] ; 5 : jump to an ISR NOP ; DCD service_timer1 ; timer1 ISR DCD service_commtx ; commtx ISR DCD service_commrx ; commrx ISR DCD service_timer2 ; timer2 ISR priority_masks DCD MASK_2 ; priority mask 2
- 369. 350 Chapter 9 Exception and Interrupt Handling DCD MASK_1 ; priority mask 1 DCD MASK_0 ; priority mask 0 DCD MASK_3 ; priority mask 3 ... service_timer1 STMFD r13!, {r0-r9} ; 6 : save context service routine LDMFD r13!, {r0-r10} ; 7 : restore context MRS r11, cpsr ; 8 : copy cpsr ORR r11, r11, #I_Bit ; 8 : set I-bit MSR cpsr_c, r11 ; 8 : disable IRQ LDR r11, =ic_Base ; 8 : int ctrl addr STR r12, [r11, #IRQEnableSet] ; 8 : enable ints LDMFD r13!, {r11, r12, r14} ; 9 : restore context MSR spsr_cxsf, r14 ; 9 : set spsr LDMFD r13!, {pc}ˆ ; 9 : return Most interrupt controllers also have a corresponding set of registers for the FIQ excep- tions and even allow individual interrupt sources to be attached to a particular interrupt signal going to the core. Thus, by programming the controller, a particular interrupt source can be made to cause either an IRQ or FIQ exception. The registers are offset from a base address in memory. Table 9.10 shows all the offsets for the various registers from interrupt controller base address ic_Base. Note that offset 0x08 is used for both IRQEnable and IRQEnableSet. In the interrupt controller each bit is associated with a particular interrupt source (see Figure 9.12). For example, bit 2 is associated with a receive interrupt source for serial communication. Binary Bit position 8 4 2 u 0 1 2 3 31 t2 rx tx t1 t1—timer 1 t2—timer 2 tx—serial transmit rx—serial receive Figure9.12 32-bit interrupt control register.
- 370. 9.3 Interrupt Handling Schemes 351 The PRIORITY_x defines the four interrupt sources, used in the example, to a cor- responding set of priority levels, where PRIORITY_0 is the highest-priority interrupt and PRIORITY_3 is the lowest-priority interrupt. TheBINARY_xdefinesprovidethebitpatternsforeachoftheprioritylevels. Forinstance, for a PRIORITY_0 interrupt the binary pattern would be 0x00000004 (or 1 2). For each priority level there is a corresponding mask that masks out all interrupts that are equal or lower in priority. For instance, MASK_2 will mask out interrupts from Timer2 (priority = 3) and CommRx (priority = 2). The defines for the interrupt controller registers are also listed. ic_Base is the base address, and the remaining defines (for instance, IRQStatus) are all offsets from that base address. The priority interrupt handler starts with a standard entry, but at first only the IRQ link register is stored onto the IRQ stack. Next the handler obtains the spsr and places the contents into register r14_irq and frees up a group of registers for use in processing the prioritization. The handler needs to obtain the status of the interrupt controller. This is achieved by loading in the base address of the interrupt controller into register r14 and loading register r10 with ic_Base (register r14) offset by IRQStatus (0x00). The handler now needs to determine the highest-priority interrupt by testing the status information. If a particular interrupt source matches a priority level, then the priority level is set in register r11. The method compares the interrupt source with all the set priority levels, starting first with the lowest priority and working to the highest priority. After this code fragment, register r14_irq will contain the base address of the interrupt controller, and register r11 will contain the bit number of the highest-priority interrupt. It is now important to disable the lower- and equal-priority interrupts so that the higher-priority interrupts can still interrupt the handler. Notice that this method is more deterministic since the time taken to discover the priority is always the same. To set the interrupt mask in the controller, the handler must determine the current IRQ enable register and also obtain the start address of the priority mask table. The priority_masks are defined at the end of the handler. Register r12 will now contain the current IRQ enable register, and register r10 will contain the start address of the priority table. To obtain the correct mask, register r11 is shifted left by two (using the barrel shifter LSL #2). This will multiply the address by four and add that to the start address of the priority table. Register r10 contains the new mask. The next step is to clear the lower-priority interrupts using the mask, by performing a binary AND with the mask and register r12 (IRQEnable register) and then clearing the bits by storing the new mask into IRQEnableClear register. It is now safe to enable IRQ exceptions by clearing the i bit in the cpsr. Lastly the handler needs to jump to the correct service routine, by modifying register r11 (which still contains the highest-priority interrupt) and the pc. Shifting register r11 left by two (multiplying by four) and adding it to the pc allows the handler to jump to the correct routine by loading the address of the service routine directly into the pc.
- 371. 352 Chapter 9 Exception and Interrupt Handling The jump table has to follow the instruction that loads the pc. There is an NOP in between thejumptableandtheinstructionthatmanipulatesthepcbecausethepcwillbepointingtwo instructions ahead (or eight bytes). The priority mask table is in interrupt source bit order. Each ISR follows the same entry style. The example given is for the timer1 interrupt service routine. The ISR is then inserted after the header above. Once the ISR is complete, the interrupt sources must be reset and control passed back to the interrupted task. The handler must disable the IRQs before the interrupts can be switched back on. The external interrupts can now be restored to their original value, which is possible because the service routine did not modify register r12 and so it still contains the original value. To return back to the interrupted task, context is restored and the original spsr is copied back into the spsr_irq. Summary Prioritized Simple Interrupt Handler ■ Handles prioritized interrupts. ■ Low interrupt latency. ■ Advantage: deterministic interrupt latency since the priority level is identified first and then the service is called after the lower-priority interrupts are masked. ■ Disadvantage: the time taken to get to a low-priority service routine is the same as for a high-priority routine. 9.3.5 Prioritized Standard Interrupt Handler Following on from the prioritized simple interrupt handler, the next handler adds an addi- tional level of complexity. The prioritized simple interrupt handler tested all the interrupts to establish the highest priority—an inefficient method of establishing the priority level but it does have the advantage of being deterministic since each interrupt priority will take the same length of time to be identified. An alternative approach is to jump early when the highest-priority interrupt has been identified (see Figure 9.13), by setting the pc and jumping immediately once the priority level has been established. This means that the identification section of the code for the prioritized standard interrupt handler is more involved than for the prioritized simple interrupt handler. The identification section will determine the priority level and jump immediately to a routine that will handle the masking of the lower-priority interrupts and then jump again via a jump table to the appropriate ISR. Example 9.12 A prioritized standard interrupt handler starts the same as a prioritized simple interrupt handler but intercepts the interrupts with a higher-priority earlier. Register r14 is assigned to point to the base of the interrupt controller and load register r10 with the interrupt controller status register. To allow the handler to be relocatable, the current address pointed to by the pc is recorded into register r11.
- 372. 9.3 Interrupt Handling Schemes 353 Obtain external interrupt status Is a priority 1 interrupt? Is a priority 2 interrupt? Disable lower- priority interrupts Enable external interrupts Enable internal interrupts Service interrupt 9. 8. 7. 6. 5. 3. 4. Restore context Return to task Interrupt Figure9.13 Part of a prioritized standard interrupt handler.
- 373. 354 Chapter 9 Exception and Interrupt Handling I_Bit EQU 0x80 PRIORITY_0 EQU 2 ; Comms Rx PRIORITY_1 EQU 1 ; Comms Tx PRIORITY_2 EQU 0 ; Timer 1 PRIORITY_3 EQU 3 ; Timer 2 BINARY_0 EQU 1 PRIORITY_0 ; 1 2 0x00000004 BINARY_1 EQU 1 PRIORITY_1 ; 1 1 0x00000002 BINARY_2 EQU 1 PRIORITY_2 ; 1 0 0x00000001 BINARY_3 EQU 1 PRIORITY_3 ; 1 3 0x00000008 MASK_3 EQU BINARY_3 MASK_2 EQU MASK_3+BINARY_2 MASK_1 EQU MASK_2+BINARY_1 MASK_0 EQU MASK_1+BINARY_0 ic_Base EQU 0x80000000 IRQStatus EQU 0x0 IRQRawStatus EQU 0x4 IRQEnable EQU 0x8 IRQEnableSet EQU 0x8 IRQEnableClear EQU 0xc IRQ_Handler ; instruction state : comment SUB r14, r14, #4 ; 2 : r14_irq -= 4 STMFD r13!, {r14} ; 2 : save r14_irq MRS r14, spsr ; 2 : copy spsr_irq STMFD r13!,{r10,r11,r12,r14} ; 2 : save context LDR r14, =ic_Base ; 3 : int crtl addr LDR r10, [r14, #IRQStatus] ; 3 : load IRQ status MOV r11, pc ; 4 : copy pc TST r10, #BINARY_0 ; 5 : if CommRx BLNE disable_lower ; 5 : then branch TST r10, #BINARY_1 ; 5 : if CommTx BLNE disable_lower ; 5 : then branch TST r10, #BINARY_2 ; 5 : if Timer1 BLNE disable_lower ; 5 : then branch TST r10, #BINARY_3 ; 5 : if Timer2 BLNE disable_lower ; 5 : then branch disable_lower SUB r11, r14, r11 ; 5 : r11=r14-copy of pc LDR r12,=priority_table ; 5 : priority table
- 374. 9.3 Interrupt Handling Schemes 355 LDRB r11,[r12,r11,LSR #3] ; 5 : mem8[tbl+(r11 3)] ADR r10, priority_masks ; 5 : priority mask LDR r10, [r10,r11,LSL #2] ; 5 : load mask LDR r14, =ic_Base ; 6 : int crtl addr LDR r12, [r14,#IRQEnable] ; 6 : IRQ enable reg AND r12, r12, r10 ; 6 : AND enable reg STR r12, [r14,#IRQEnableClear] ; 6 : disable ints MRS r14, cpsr ; 7 : copy cpsr BIC r14, r14, #I_Bit ; 7 : clear I-bit MSR cpsr_c, r14 ; 7 : enable IRQ LDR pc, [pc, r11, LSL#2] ; 8 : jump to an ISR NOP ; DCD service_timer1 ; timer1 ISR DCD service_commtx ; commtx ISR DCD service_commrx ; commrx ISR DCD service_timer2 ; timer2 ISR priority_masks DCD MASK_2 ; priority mask 2 DCD MASK_1 ; priority mask 1 DCD MASK_0 ; priority mask 0 DCD MASK_3 ; priority mask 3 priority_table DCB PRIORITY_0 ; priority 0 DCB PRIORITY_1 ; priority 1 DCB PRIORITY_2 ; priority 2 DCB PRIORITY_3 ; priority 3 ALIGN The interrupt source can now be tested by comparing the highest to the lowest priority. The first priority level that matches the interrupt source determines the priority level of the incoming interrupt because each interrupt has a preset priority level. Once a match is achieved, then the handler can branch to the routine that masks off the lower-priority interrupts. To disable the equal- or lower-priority interrupts, the handler enters a routine that first calculates the priority level using the base address in register r11 and link register r14. Following the SUB instruction register r11 will now contain the value 4, 12, 20, or 28. These values correspond to the priority level of the interrupt multiplied by eight plus four. Register r11 is then divided by eight and added to the address of the priority_table. Following the LDRB register r11 will equal one of the priority interrupt numbers (0, 1, 2, or 3). The priority mask can now be determined, using the technique of shifting left by two and adding that to the register r10, which contains the address of the priority_mask.
- 375. 356 Chapter 9 Exception and Interrupt Handling The base address for the interrupt controller is copied into register r14_irq and is used to obtain the IRQEnable register in the controller and place it into register r12. Register r10 contains the new mask. The next step is to clear the lower-priority interrupts using this mask by performing a binary AND with the mask and r12 (IRQEnable register) and storing the result into the IRQEnableClear register. It is now safe to enable IRQ exceptions by clearing the i bit in the cpsr. Lastly the handler needs to jump to the correct service routine, by modifying r11 (which still contains the highest-priority interrupt) and the pc. Shifting register r11 left by two (multiplying r11 by four) and adding it to the pc allows the handler to jump to the correct routine by loading the address of the service routine directly into the pc. The jump table must follow the instruction that loads the pc. There is an NOP between the jump table and the LDR instruction that modifies the pc because the pc is pointing two instructions ahead (or eight bytes). Note that the priority mask table is in interrupt bit order, and the priority table is in priority order. ■ Summary Prioritized Standard Interrupt Handler ■ Handles higher-priority interrupts in a shorter time than lower-priority interrupts. ■ Low interrupt latency. ■ Advantage: higher-priority interrupts treated with greater urgency with no duplication of code to set external interrupt masks. ■ Disadvantage: there is a time penalty since this handler requires two jumps, resulting in the pipeline being flushed each time a jump occurs. 9.3.6 Prioritized Direct Interrupt Handler One difference between the prioritized direct interrupt handler and the prioritized standard interrupt handler is that some of the processing is moved out of the handler into the individual ISRs. The moved code masks out the lower-priority interrupts. Each ISR will have to mask out the lower-priority interrupts for the particular priority level, which can be a fixed number since the priority level has already been previously determined. Theseconddifferenceisthattheprioritizeddirectinterrupthandlerjumpsdirectlytothe appropriate ISR. Each ISR is responsible for disabling the lower-priority interrupts before modifying the cpsr to reenable interrupts. This type of handler is relatively simple since the masking is done by the individual ISR, but there is a small amount of code duplication since each interrupt service routine is effectively carrying out the same task. Example 9.13 The bit_x defines associate an interrupt source with a bit position within the interrupt controller, which will be used to help mask the lower-priority interrupts within an ISR.
- 376. 9.3 Interrupt Handling Schemes 357 Once the context is saved, the base address of the ISR table has to be loaded into register r12. This register is used to jump to the correct ISR once the priority has been established for the interrupt source. I_Bit EQU 0x80 PRIORITY_0 EQU 2 ; Comms Rx PRIORITY_1 EQU 1 ; Comms Tx PRIORITY_2 EQU 0 ; Timer 1 PRIORITY_3 EQU 3 ; Timer 2 BINARY_0 EQU 1 PRIORITY_0 ; 1 2 0x00000004 BINARY_1 EQU 1 PRIORITY_1 ; 1 1 0x00000002 BINARY_2 EQU 1 PRIORITY_2 ; 1 0 0x00000001 BINARY_3 EQU 1 PRIORITY_3 ; 1 3 0x00000008 MASK_3 EQU BINARY_3 MASK_2 EQU MASK_3+BINARY_2 MASK_1 EQU MASK_2+BINARY_1 MASK_0 EQU MASK_1+BINARY_0 ic_Base EQU 0x80000000 IRQStatus EQU 0x0 IRQRawStatus EQU 0x4 IRQEnable EQU 0x8 IRQEnableSet EQU 0x8 IRQEnableClear EQU 0xc bit_timer1 EQU 0 bit_commtx EQU 1 bit_commrx EQU 2 bit_timer2 EQU 3 IRQ_Handler ; instruction comment SUB r14, r14, #4 ; r14_irq-=4 STMFD r13!, {r14} ; save r14_irq MRS r14, spsr ; copy spsr_irq STMFD r13!,{r10,r11,r12,r14} ; save context LDR r14, =ic_Base ; int crtl addr LDR r10, [r14, #IRQStatus] ; load IRQ status ADR r12, isr_table ; obtain ISR table TST r10, #BINARY_0 ; if CommRx LDRNE pc, [r12, #PRIORITY_0 2] ; then CommRx ISR
- 377. 358 Chapter 9 Exception and Interrupt Handling TST r10, #BINARY_1 ; if CommTx LDRNE pc, [r12, #PRIORITY_1 2] ; then CommTx ISR TST r10, #BINARY_2 ; if Timer1 LDRNE pc, [r12, #PRIORITY_2 2] ; then Timer1 ISR TST r10, #BINARY_3 ; if Timer2 LDRNE pc, [r12, #PRIORITY_3 2] ; then Timer2 ISR B service_none isr_table DCD service_timer1 ; timer1 ISR DCD service_commtx ; commtx ISR DCD service_commrx ; commrx ISR DCD service_timer2 ; timer2 ISR priority_masks DCD MASK_2 ; priority mask 2 DCD MASK_1 ; priority mask 1 DCD MASK_0 ; priority mask 0 DCD MASK_3 ; priority mask 3 ... service_timer1 MOV r11, #bit_timer1 ; copy bit_timer1 LDR r14, =ic_Base ; int ctrl addr LDR r12, [r14,#IRQEnable] ; IRQ enable register ADR r10, priority_masks ; obtain priority addr LDR r10, [r10,r11,LSL#2] ; load priority mask AND r12, r12, r10 ; AND enable reg STR r12, [r14, #IRQEnableClear] ; disable ints MRS r14, cpsr ; copy cpsr BIC r14, r14, #I_Bit ; clear I-bit MSR cpsr_c, r14 ; enable IRQ rest of the ISR The priority interrupt is established by checking the highest-priority interrupt first and then working down to the lowest. Once a priority interrupt is identified, the pc is then loaded with the address of the appropriate ISR. The indirect address is stored at the address of the isr_table plus the priority level shifted two bits to the left (multiplied by four). Alternatively you could use a conditional branch BNE. The ISR jump table isr_table is ordered with the highest-priority interrupt at the beginning of the table. The service_timer1 entry shows an example of an ISR used in a priority direct interrupt handler. Each ISR is unique and depends upon the particular interrupt source. A copy of the base address for the interrupt controller is placed into register r14_irq. This address plus an offset is used to copy the IRQEnable register into register r12.
- 378. 9.3 Interrupt Handling Schemes 359 The address of the priority mask table has to be copied into register r10 so it can be used to calculate the address of the actual mask. Register r11 is shifted left two positions, which gives an offset of 0, 4, 8, or 12. The offset plus the address of the priority mask table address is used to load the mask into register r10. The priority mask table is the same as for the priority interrupt handler in the previous section. Register r10 will contain the ISR mask, and register r12 will contain the current mask. A binary AND is used to merge the two masks. Then the new mask is used to configure the interrupt controller using the IRQEnableClear register. It is now safe to enable IRQ exceptions by clearing the i bit in the cpsr. The handler can continue servicing the current interrupt unless an interrupt with a higher priority occurs, in which case that interrupt will take precedence over the current interrupt. ■ Summary Prioritized Direct Interrupt Handler ■ Handles higher-priority interrupts in a shorter time. Goes directly to the specific ISR. ■ Low interrupt latency. ■ Advantage: uses a single jump and saves valuable cycles to go to the ISR. ■ Disadvantage: each ISR has a mechanism to set the external interrupt mask to stop lower-priority interrupts from halting the current ISR, which adds extra code to each ISR. 9.3.7 Prioritized Grouped Interrupt Handler Lastly, the prioritized grouped interrupt handler differs from the other prioritized interrupt handlers since it is designed to handle a large set of interrupts. This is achieved by grouping interrupts together and forming a subset, which can then be given a priority level. The designer of an embedded system must identify each subset of interrupt sources and assign a group priority level to that subset. It is important to be careful when selecting the subsets of interrupt sources since the groups can determine the characteristics of the system. Grouping the interrupt sources together tends to reduce the complexity of the handler since it is not necessary to scan through every interrupt to determine the priority level. If a prioritized grouped interrupt handler is well designed, it will dramatically improve overall system response times. Example 9.14 This handler has been designed to have two priority groups. Timer sources are grouped into group 0, and communication sources are grouped into group 1 (see Table 9.11.) Group 0 interrupts are given a higher priority than group 1 interrupts. I_Bit EQU 0x80 PRIORITY_0 EQU 2 ; Comms Rx
- 379. 360 Chapter 9 Exception and Interrupt Handling Table 9.11 Group interrupt sources. Group Interrupts 0 timer1, timer2 1 commtx, commrx PRIORITY_1 EQU 1 ; Comms Tx PRIORITY_2 EQU 0 ; Timer 1 PRIORITY_3 EQU 3 ; Timer 2 BINARY_0 EQU 1 PRIORITY_0 ; 1 2 0x00000004 BINARY_1 EQU 1 PRIORITY_1 ; 1 1 0x00000002 BINARY_2 EQU 1 PRIORITY_2 ; 1 0 0x00000001 BINARY_3 EQU 1 PRIORITY_3 ; 1 3 0x00000008 GROUP_0 EQU BINARY_2|BINARY_3 GROUP_1 EQU BINARY_0|BINARY_1 GMASK_1 EQU GROUP_1 GMASK_0 EQU GMASK_1+GROUP_0 MASK_TIMER1 EQU GMASK_0 MASK_COMMTX EQU GMASK_1 MASK_COMMRX EQU GMASK_1 MASK_TIMER2 EQU GMASK_0 ic_Base EQU 0x80000000 IRQStatus EQU 0x0 IRQRawStatus EQU 0x4 IRQEnable EQU 0x8 IRQEnableSet EQU 0x8 IRQEnableClear EQU 0xc interrupt_handler SUB r14, r14,#4 ; r14_irq-=4 STMFD r13!, {r14} ; save r14_irq MRS r14, spsr ; copy spsr_irq STMFD r13!, {r10,r11,r12,r14} ; save context LDR r14, =ic_Base ; int ctrl addr LDR r10, [r14, #IRQStatus] ; load IRQ status ANDS r11, r10, #GROUP_0 ; belong to GROUP_0 ANDEQS r11, r10, #GROUP_1 ; belong to GROUP_1
- 380. 9.3 Interrupt Handling Schemes 361 AND r10, r11, #0xf ; mask off top 24-bit ADR r11, lowest_significant_bit ; load LSB addr LDRB r11, [r11, r10] ; load byte B disable_lower_priority ; jump to routine lowest_significant_bit ; 0 1 2 3 4 5 6 7 8 9 a b c d e f DCB 0xff,0,1,0,2,0,1,0,3,0,1,0,2,0,1,0 disable_lower_priority CMP r11, #0xff ; if unknown BEQ unknown_condition ; then jump LDR r12, [r14, #IRQEnable] ; load IRQ enable reg ADR r10, priority_mask ; load priority addr LDR r10, [r10, r11, LSL #2] ; mem32[r10+r11 2] AND r12, r12, r10 ; AND enable reg STR r12, [r14, #IRQEnableClear] ; disable ints MRS r14, cpsr ; copy cpsr BIC r14, r14, #I_Bit ; clear I-bit MSR cpsr_c, r14 ; enable IRQ ints LDR pc, [pc, r11, LSL #2] ; jump to an ISR NOP DCD service_timer1 ; timer1 ISR DCD service_commtx ; commtx ISR DCD service_commrx ; commrx ISR DCD service_timer2 ; timer2 ISR priority_mask DCD MASK_TIMER1 ; mask GROUP 0 DCD MASK_COMMTX ; mask GROUP 1 DCD MASK_COMMRX ; mask GROUP 1 DCD MASK_TIMER2 ; mask GROUP 0 The GROUP_x defines assign the various interrupt sources to their specific priority level by using a binary OR operation on the binary patterns. The GMASK_x defines assign the masks for the grouped interrupts. The MASK_x defines connect each GMASK_x to a specific interrupt source, which can then be used in the priority mask table. After the context has been saved the interrupt handler loads the IRQ status register using an offset from the interrupt controller base address. The handler then identifies the group to which the interrupt source belongs by using the binary AND operation on the source. The letter S postfixed to the instructions means update condition flags in the cpsr. Register r11 will now contain the highest-priority group 0 or 1. The handler now masks out the other interrupt sources by applying a binary AND operation with 0xf.
- 381. 362 Chapter 9 Exception and Interrupt Handling Table 9.12 Lowest significant bit table. Binary pattern Value 0000 unknown 0001 0 0010 1 0011 0 0100 2 0101 0 0110 1 0111 0 1000 3 1001 0 1010 1 1011 0 1100 2 1101 0 1110 1 1111 0 The address of the lowest significant bit table is then loaded into register r11. A byte is loaded from the start of the table using the value in register r10 (0, 1, 2, or 3, see Table 9.12). Once the lowest significant bit position is loaded into register r11, the handler branches to a routine. The disable_lower_priority interrupt routine first checks for a spurious (no longer present) interrupt. If the interrupt is spurious, then the unknown_condition routine is called. The handler then loads the IRQEnable register and places the result in register r12. The priority mask is found by loading in the address of the priority mask table and then shifting the data in register r11 left by two. The result, 0, 4, 8, or 12, is added to the priority mask address. Register r10 then contains a mask to disable the lower-priority group interrupts from being raised. The next step is to clear the lower-priority interrupts using the mask by performing a binary AND with the mask in registers r10 and r12 (IRQEnable register) and then clearing the bits by saving the result into the IRQEnableClear register. At this point it is now safe to enable IRQ exceptions by clearing the i bit in the cpsr. Lastly the handler jumps to the correct interrupt service routine by modifying register r11 (which still contains the highest-priority interrupt) and the pc. By shifting register r11 left by two and adding the result to the pc the address of the ISR is determined. This address is then loaded directly into the pc. Note that the jump table must follow the LDR instruction. The NOP is present due to the ARM pipeline. ■
- 382. 9.3 Interrupt Handling Schemes 363 Summary Prioritized Grouped Interrupt Handler ■ Mechanism for handling interrupts that are grouped into different priority levels. ■ Low interrupt latency. ■ Advantage: useful when the embedded system has to handle a large number of inter- rupts, and also reduces the response time since the determining of the priority level is shorter. ■ Disadvantage: determining how the interrupts are grouped together. 9.3.8 VIC PL190 Based Interrupt Service Routine To take advantage of the vector interrupt controller, the IRQvector entry has to be modified. 0x00000018 LDR pc,[pc,#-0xff0] ; IRQ pc=mem32[0xfffff030] This instruction loads an ISR address from the memory mapped location 0xffffff030 into the pc which bypasses any software interrupt handler since the interrupt source can be obtained directly from the hardware. It also reduces interrupt latency since there is only a single jump to a specific ISR. Here is an example of VIC service routine: INTON EQU 0x0000 ; enable interrupts SYS32md EQU 0x1f ; system mode IRQ32md EQU 0x12 ; IRQ mode I_Bit EQU 0x80 VICBaseAddr EQU 0xfffff000 ; addr of VIC ctrl VICVectorAddr EQU VICBaseAddr+0x30 ; isr address of int vector_service_routine SUB r14,r14,#4 ; r14-=4 STMFD r13!, {r0-r3,r12,r14} ; save context MRS r12, spsr ; copy spsr STMFD r13!,{r12} ; save spsr clear the interrupt source MSR cpsr_c, #INTON|SYS32md ; cpsr_c=ift_sys interrupt service code MSR cpsr_c, #I_Bit|IRQ32md ; cpsr_c=Ift_irq LDMFD r13!, {r12} ; restore (spsr_irq) MSR spsr_cxsf, r12 ; restore spsr LDR r1,=VICVectorAddr ; load VectorAddress STR r0, [r1] ; servicing complete LDMFD r13!, {r0-r3,r12,pc}ˆ ; return
- 383. 364 Chapter 9 Exception and Interrupt Handling This routine saves the context and s psr_irq before clearing the interrupt source. Once this is complete, the IRQ exceptions can be reenabled by clearing the i bit, and the processor mode is set to system mode. The service routine can then process the interrupt in system mode. Once complete, the IRQ exceptions are disabled by setting the i bit, and the processor mode is switched back to IRQ mode. The spsr_irq is restored from the IRQ stack, preparing the routine to return to the interrupted task. The service routine then writes to the VICVectorAddr register in the controller. Writing to this address indicates to the priority hardware that the interrupt has been serviced. Note that since the VIC is basically a hardware interrupt handler, the array of ISR addresses must be preprogrammed into the VIC before it is activated. ■ 9.4 Summary An exception changes the normal sequential execution of instructions. There are seven exceptions: Data Abort, Fast Interrupt Request, Interrupt Request, Prefetch Abort, Soft- ware Interrupt, Reset, and Undefined Instruction. Each exception has an associated ARM processor mode. When an exception is raised, the processor goes into a specific mode and branches to an entry in the vector table. Each exception also has a priority level. Interrupts are a special type of exception that are caused by an external peripheral. The IRQ exception is used for general operating system activities. The FIQ exception is normally reserved for a single interrupt source. Interrupt latency is the interval of time from an external interrupt request signal being raised to the first fetch of an instruction of a specific interrupt service routine (ISR). We covered eight interrupt handling schemes, from a very simple nonnested interrupt handler that handles and services individual interrupts, to an advanced prioritized grouped interrupt handler that handles interrupts that are grouped into different priority levels.
- 384. This Page Intentionally Left Blank
- 385. 10.1 Firmware and Bootloader 10.1.1 ARM Firmware Suite 10.1.2 Red Hat RedBoot 10.2 Example: Sandstone 10.2.1 Sandstone Directory Layout 10.2.2 Sandstone Code Structure 10.3 Summary
- 386. C h a p t e r Firmware 10 This chapter discusses firmware for ARM-based embedded systems. Firmware is an impor- tant part of any embedded system since it is frequently the first code to be ported and executed on a new platform. Firmware can vary from being a complete software embedded system to just a simple initialization and bootloader routine. We have divided this chapter into two sections. The first section introduces firmware. In this section we define the term firmware and describe two popular industry standard firmware packages available for the ARM processor—ARM Firmware Suite and Red Hat’s RedBoot. These firmware packages are general purpose and can be ported to different ARM platforms relatively easily and quickly. The second section focuses on just the initialization and bootloader process. To help with this, we have developed a simple example called Sandstone. Sandstone is designed to initialize hardware, load an image into memory, and relinquish control of the pc over to that image. We start by first discussing firmware and introduce the two common ARM firmware packages. 10.1 Firmware and Bootloader We realize that the use of terms may differ among engineers, but we will use the following definitions: ■ The firmware is the deeply embedded, low-level software that provides an interface between the hardware and the application/operating system level software. It resides in the ROM and executes when power is applied to the embedded hardware system. Firmware can remain active after system initialization and supports basic 367
- 387. 368 Chapter 10 Firmware system operations. The choice of which firmware to use for a particular ARM-based system depends upon the specific application, which can range from loading and exe- cuting a sophisticated operating system to simply relinquishing control to a small microkernel. Consequently, requirements can vary greatly from one firmware imple- mentation to another. For example, a small system may require just minimal firmware support to boot a small operating system. One of the main purposes of firmware is to provide a stable mechanism to load and boot an operating system. ■ The bootloader is a small application that installs the operating system or application onto a hardware target. The bootloader only exists up to the point that the operating system or application is executing, and it is commonly incorporated into the firmware. To help understand the features of different firmware implementations, we have a common execution flow (see Table 10.1). Each stage is now discussed in more detail. The first stage is to set up the target platform—in other words, prepare the environ- ment to boot an operating system since an operating system expects a particular type of environment before it can operate. This step involves making sure that the platform is correctly initialized (for example, making sure that the control registers of a particular microcontroller are placed at a known address or changing the memory map to an expected layout). It is common for the same executable to operate on different cores and platforms. In this case, the firmware has to identify and discover the exact core and platform it is operating on. The core is normally recognized by reading register 0 in coprocessor 15, which holds both the processor type and the manufacturer name. There are multiple ways to identify the platform, from checking for the existence of a set of particular peripherals to simply reading a preprogrammed chip. Table 10.1 Firmware execution flow. Stage Features Set up target platform Program the hardware system registers Platform identification Diagnostics Debug interface Command line interpreter Abstract the hardware Hardware Abstraction Layer Device driver Load a bootable image Basic filing system Relinquish control Alter the pc to point into the new image
- 388. 10.1 Firmware and Bootloader 369 Diagnostics software provides a useful way for quickly identifying basic hardware malfunctions. Because of the nature of this type of software, it tends to be specific to a particular piece of hardware. Debug capabiliy is provided in the form of a module or monitor that provides software assistance for debugging code running on a hardware target. This assistance includes the following: ■ Setting up breakpoints in RAM. A breakpoint allows a program to be interrupted and the state of the processor core to be examined. ■ Listing and modifying memory (using peek and poke operations). ■ Showing current processor register contents. ■ Disassembling memory into ARM and Thumb instruction mnemonics. These are interactive functions: you can either send the commands through a command line interpreter (CLI) or through a dedicated host debugger attached to the target platform. Unless the firmware has access to the internal hardware debug circuitry, only RAM images can be debugged through a software debug mechanism. The CLI is commonly available on the more advanced firmware implementations. It allows you to change the operating system to be booted by altering the default configurations through typing commands at a command prompt. For embedded systems, the CLI is commonly controlled through a host terminal application. Communication between the host and the target is normally over a serial or network connection. The second stage is to abstract the hardware. The Hardware Abstraction Layer (HAL) is a software layer that hides the underlying hardware by providing a set of defined pro- gramming interfaces. When you move to a new target platform, these programming interfaces remain constant but the underlying implementation changes. For instance, two target platforms might use a different timer peripheral. Each peripheral would require new code to initialize and configure the device. The HAL programming interface would remain unaltered even though both the hardware and software may differ greatly between implementations. The HAL software that communicates with specific hardware peripherals is called a device driver. A device driver provides a standard application programming interface (API) to read and write to a specific peripheral. The third stage is to load a bootable image. The ability of firmware to carry out this activity depends upon the type of media used to store the image. Note that not all operating system images or application images need to be copied into RAM. The operating system image or application image can simply execute directly from ROM. ARMprocessorsarenormallyfoundinsmalldevicesthatincludeflashROM.Acommon feature is a simple flash ROM filing system (FFS), which allows multiple executable images to be stored. Other media devices, such as hard drives, require that the firmware incorporates a device driver that is suitable for accessing the hardware. Accessing the hardware requires
- 389. 370 Chapter 10 Firmware that the firmware has knowledge of the underlying filing system format, which gives the firmware the ability to read the filing system, find the file that contains the image, and copy the image into memory. Similarly, if the image is on the network, then the firmware must also understand the network protocol as well as the Ethernet hardware. The load process has to take into account the image format. The most basic image format is plain binary. A plain binary image does not contain any header or debug information. A popular image format for ARM-based systems is Executable and Linking Format (ELF). This format was originally developed for UNIX systems and replaced the older format called Common Object File Format (COFF). ELF files come in three forms: relocatable, executable, and shared object. Most firmware systems must deal with the executable form. Loading an ELF image involves deciphering the standard ELF header information (that is, execution address, type, size, and so on). The image may also be encrypted or compressed, in which case the load process would involve performing decryption or decompression on the image. The fourth stage is to relinquish control. This is where the firmware hands over control of the platform to an operating system or application. Note that not all firmware hands over control; instead the firmware can remain the controlling software on the platform. Firmware designed to pass control to an operating system may become inactive once the operating system has control. Alternatively, the Machine Independent Layer (MIL) or Hardware Abstraction Layer (HAL) part of the firmware can remain active. This layer exposes, through the SWI mechanism, a standard application interface for specific hardware devices. Relinquishing control on an ARM system means updating the vector table and modify- ing the pc. Updating the vector table involves modifying particular exception and interrupt vectors so that they point to specialized operating system handlers. The pc has to be modified so that it points to the operating system entry point address. For more sophisticated operating systems, such as Linux, relinquishing control requires that a standard data structure be passed to the kernel. This data structure explains the environment that the kernel will be running in. For example, one field may include the amount of available RAM on the platform, while another field includes the type of MMU being used. We use these definitions to describe two common firmware suites. 10.1.1 ARM Firmware Suite ARM has developed a firmware package called the ARM Firmware Suite (AFS). AFS is designed purely for ARM-based embedded systems. It provides support for a number of boards and processors including the Intel XScale and StrongARM processors. The pack- age includes two major pieces of technology, a Hardware Abstraction Layer called μHAL (pronounced micro-HAL) and a debug monitor called Angel. μHAL provides a low-level device driver framework that allows it to operate over dif- ferent communication devices (for example, USB, Ethernet, or serial). It also provides a
- 390. 10.1 Firmware and Bootloader 371 standard API. Consequently, when a port takes place, the various hardware-specific parts must be implemented in accordance with the various μHAL API functions. This has the advantage of making the porting process relatively straightforward since you have a standard function framework to work within. Once the firmware is ported, the task of moving an operating system over to the new target platform can take place. The speed of this activity depends upon whether the OS takes advantage of the ported μHAL API call to access the hardware. μHAL supports these main features: ■ System initialization—setting up the target platform and processor core. Depending upon the complexity of the target platform, this can either be a simple or complicated task. ■ Polled serial driver—used to provide a basic method of communication with a host. ■ LED support—allows control over the LEDs for simple user feedback. This provides an application the ability to display operational status. ■ Timer support—allows a periodic interrupt to be set up. This is essential for preemptive context switching operating systems that require this mechanism. ■ Interrupt controllers—support for different interrupt controllers. The boot monitor in μHAL contains a CLI. The second technology, Angel, allows communication between a host debugger and a target platform. It allows you to inspect and modify memory, download and execute images, set breakpoints, and display processor register contents. All this control is through the host debugger. The Angel debug monitor must have access to the SWI and IRQ or FIQ vectors. Angel uses SWI instructions to provides a set of APIs that allow a program to open, read, and write to a host filing system. IRQ/FIQ interrupts are used for communication purposes with the host debugger. 10.1.2 Red Hat RedBoot RedBoot is a firmware tool developed by Red Hat. It is provided under an open source license with no royalties or up front fees. RedBoot is designed to execute on different CPUs (for instance, ARM, MIPS, SH, and so on). It provides both debug capability through GNU Debugger (GDB), as well as a bootloader. The RedBoot software core is based on a HAL. RedBoot supports these main features: ■ Communication—configuration is over serial or Ethernet. For serial, X-Modem proto- col is used to communicate with the GNU Debugger (GDB). For Ethernet, TCP is used to communicate with GDB. RedBoot supports a range of network standards, such as bootp, telnet, and tftp.
- 391. 372 Chapter 10 Firmware ■ Flash ROM memory management—provides a set of filing system routines that can download, update, and erase images in flash ROM. In addition, the images can either be compressed or uncompressed. ■ Full operating system support—supports the loading and booting of Embedded Linux, Red Hat eCos, and many other popular operating systems. For Embedded Linux, RedBoot supports the ability to define parameters that are passed directly to the kernel upon booting. 10.2 Example: Sandstone We have designed Sandstone to be a minimal system. It carries out only the following tasks: set up target platform environment, load a bootable image into memory, and relinquish control to an operating system. It is, however, still a real working example. The implementation is specific to the ARM Evaluator-7T platform, which includes an ARM7TDMI processor. This example shows you exactly how a simple platform can be set up and a software payload can be loaded into memory and booted. The payload can either be an application or operating system image. Sandstone is a static design and cannot be configured after the build process is complete. Table 10.2 lists the basic characteristics of Sandstone. We will walk you through the directory layout and code structure. The directory layout shows you where the source code is located and where the different build files are placed. The code structure focuses more on the actual initialization and boot process. Note that Sandstone is written entirely in ARM assembler and is a working piece of code that can be used to intialize target hardware and boot any piece of software, within reason, on the ARM Evaluator-7T. 10.2.1 Sandstone Directory Layout Sandstone can be found on our Web site. If you take a look at Sandstone, you will see that the directory structure is as shown in Figure 10.1. The structure follows a standard style Table 10.2 Summary of Sandstone. Feature Configuration Code ARM instructions only Tool chain ARM Developer Suite 1.2 Image size 700 bytes Source 17 KB Memory remapped
- 392. 10.2 Example: Sandstone 373 [Sand] makefile readme.txt [build] [payload] [src] sand.s [obj] [image] [log] slos.bin Figure10.1 Standstone directory layout. that we will continue to use in further chapters. The sandstone source file sand.s is located under the sand/build/src directory. The object file produced by the assembler is placed under the build/obj directory. The object file is then linked, and the final Sandstone image is placed under the sand/build/image directory. This image includes both the Sandstone code and the pay- load. The payload image, the image that is loaded and booted by Sandstone, is found under the sand/payload directory. For information about the Sandstone build procedure, take a look at the readme.txt file under the sand directory. This file contains a description of how to build the example binary image for the ARM Evaluator-7T. 10.2.2 Sandstone Code Structure Sandstone consists of a single assembly file. The file structure is broken down into a number of steps, where each step corresponds to a stage in the execution flow of Sandstone (see Table 10.3). Table 10.3 Sandstone execution flow. Step Description 1 Take the Reset exception 2 Start initializing the hardware 3 Remap memory 4 Initialize communication hardware 5 Bootloader—copy payload and relinquish control
- 393. 374 Chapter 10 Firmware We will take you through these steps, trying to avoid as much as possible the platform- specific parts. You should note that some specific parts are unavoidable (for example, configuring system registers and memory remapping). The initial goal of Sandstone is to set up the target platform environment so that it can provide some form of feedback to indicate that the firmware is running and has control of the platform. 10.2.2.1 Step 1: Take the Reset Exception Execution begins with a Reset exception. Only the reset vector entry is required in the default vector table. It is the very first instruction executed. You can see from the code here that all the vectors, apart from the reset vector, branch to a unique dummy handler—a branch instruction that causes an infinite loop. It is assumed that no exception or interrupt will occur during the operation of Sandstone. The reset vector is used to move the execution flow to the second stage. AREA start,CODE,READONLY ENTRY sandstone_start B sandstone_init1 ; reset vector B ex_und ; undefined vector B ex_swi ; swi vector B ex_pabt ; prefetch abort vector B ex_dabt ; data abort vector NOP ; not used... B int_irq ; irq vector B int_fiq ; fiq vector ex_und B ex_und ; loop forever ex_swi B ex_swi ; loop forever ex_dabt B ex_dabt ; loop forever ex_pabt B ex_pabt ; loop forever int_irq B int_irq ; loop forever int_fiq B int_fiq ; loop forever sandstone_start is located at address 0x00000000. The results of executing step 1 are the following: ■ Dummy handlers are set up. ■ Control is passed to code to initialize the hardware.
- 394. 10.2 Example: Sandstone 375 10.2.2.2 Step 2: Start Initializing the Hardware The primary phase in initializing hardware is setting up system registers. These registers have to be set up before accessing the hardware. For example, the ARM Evaluator-7T has a seven-segment display, which we have chosen to be used as a feedback tool to indicate that the firmware is active. Before we can set up the segment display, we have to position the base address of the system registers to a known location. In this case, we have picked the default address 0x03ff0000, since this places all the hardware system registers away from both ROM and RAM, separating the peripherals and memory. Consequently, all the microcontroller memory-mapped registers are located as an offset from 0x03ff0000. This is achieved using the following code: sandstone_init1 LDR r3, =SYSCFG ; where SYSCFG=0x03ff0000 LDR r4, =0x03ffffa0 STR r4, [r3] Register r3 contains the default system register base address and is used to set the new default address, as well as other specific attributes such as the cache. Register r4 contains the new configuration. The top 16 bits contain the high address of the new system register base address 0x03ff, and the lower 16 bits contain the new attribute settings 0xffa0. After setting up the system register base address, the segment display can be configured. The segment display hardware is used to show Sandstone’s progress. Note that the segment display is not shown since it is hardware specific. The results of executing step 2 are the following: ■ The system registers are set from a known base address—0x03ff0000. ■ The segment display is configured, so that it can be used to display progress. 10.2.2.3 Step 3: Remap Memory One of the major activities of hardware initialization is to set up the memory environment. Sandstone is designed to initialize SRAM and remap memory. This process occurs fairly early on in the initialization of the system. The platform starts in a known memory state, as shown in Table 10.4. As you can see, when the platform is powered up, only flash ROM is assigned a location in the memory map. The two SRAM banks (0 and 1) have not been initialized and are not available. The next stage is to bring in the two SRAM banks and remap flash ROM to a new location. This is achieved using the following code: LDR r14, =sandstone_init2 LDR r4, =0x01800000 ; new flash ROM location
- 395. 376 Chapter 10 Firmware Table 10.4 Initial memory state. Memory type Start address End address Size Flash ROM 0x00000000 0x00080000 512K SRAM bank 0 Unavailable unavailable 256K SRAM bank 1 Unavailable unavailable 256K ADD r14, r14, r4 ADRL r0, memorymaptable_str LDMIA r0, {r1-r12} LDR r0, =EXTDBWTH ; =(SYSCFG + 0x3010) STMIA r0, {r1-r12} MOV pc, r14 ; jump to remapped memory sandstone_init2 ; Code after sandstone_init2 executes @ +0x1800000 The first part of the code calculates the absolute address of the routine sandstone_init2 before remapping takes place. This address is used by Sandstone to jump to the next routine in the new remapped environment. The second part carries out the memory remapping. The new memory map data is loaded into registers r1 to r12, from a structure pointed by memorymaptable_str. This structure, using the registers, is then written to the memory controller offset 0x3010 from system configuration register. Once this is complete, the new memory map as shown in Table 10.5 is active. You can see that the SRAM banks are now available, and the flash ROM is set to a higher address. The final part is to jump to the next routine, or stage, of the firmware. This jump is achieved by taking advantage of the ARM pipeline. Even though the new memory environment is active, the next instruction has already been loaded into the pipeline. The next routine can be called by moving the contents of register r14 (the address sandstone_init2) into the pc. We achieve this by using a single MOV instruction that follows immediately after the remap code. Table 10.5 Remapping. Type Start address End address Size Flash ROM 0x01800000 0x01880000 512K SRAM bank 0 0x00000000 0x00040000 256K SRAM bank 1 0x00040000 0x00080000 256K
- 396. 10.2 Example: Sandstone 377 The results of executing step 3 are the following: ■ Memory has been remapped as shown in Table 10.5. ■ pc now points to the next step. This address is located in the newly remapped flash ROM. 10.2.2.4 Step 4: Initialize Communication Hardware Communication initialization involves configuring a serial port and outputting a standard banner. The banner is used to show that the firmware is fully functional and memory has been successfully remapped. Again, because the code for initializing the serial port on the ARM Evaluator-7T is hardware specific, it is not shown. The serial port is set to 9600 baud, no parity, one stop bit, and no flow control. If a serial cable is attached to the board, then the host terminal has to be configured with these settings. The results of executing step 4 are the following: ■ Serial port initialized—9600 baud, no parity, one stop bit, and no flow control. ■ Sandstone banner sent out through the serial port: Sandstone Firmware (0.01) - platform ......... e7t - status ........... alive - memory ........... remapped + booting payload ... 10.2.2.5 Step 5: Bootloader—Copy Payload and Relinquish Control The final stage involves copying a payload and relinquishing control of the pc over to the copied payload. This is achieved using the code shown here. The first part of the code sets up the registers r12, r13, and r14 used in the block copy. The bootloader code assumes that the payload is a plain binary image that requires no deciphering or uncompressing. sandstone_load_and_boot MOV r13,#0 ; destination addr LDR r12,payload_start_address ; start addr LDR r14,payload_end_address ; end addr
- 397. 378 Chapter 10 Firmware _copy LDMIA r12!,{r0-r11} STMIA r13!,{r0-r11} CMP r12,r14 BLT _copy MOV pc,#0 payload_start_address DCD startAddress payload_end_address DCD endAddress Destination register r13 points to the beginning of SRAM, in this case 0x00000000. The source register r12 points to the start of the payload, and the source end register r14 points to the end of the payload. Using these registers, the payload is then copied into SRAM. Control of the pc is then relinquished to the payload by forcing the pc to the entry address of the copied payload. For this particular payload the entry point is address 0x00000000. The payload now has control of the system. The results of executing step 5 are the following: ■ Payload copied into SRAM, address 0x00000000. ■ Control of the pc is relinquished to the payload; pc = 0x00000000. ■ The system is completely booted. The following output is shown on the serial port: Sandstone Firmware (0.01) - platform ......... e7t - status ........... alive - memory ........... remapped + booting payload ... Simple Little OS (0.09) - initialized ...... ok - running on ....... e7t e7t:
- 398. 10.3 Summary 379 10.3 Summary This chapter covered the firmware. We defined firmware as the low-level code that interfaces the hardware with an application or operating system. We also defined the bootloader as the software that loads an operating system or application into memory and relinquishes control of the pc to that software. We introducted the ARM Firmware Suite and RedBoot. The ARM Firmware Suite is designed only for ARM-based systems. RedBoot, however, is more generic and can be used on other, non-ARM processors. Next we looked at a firmware example called Sandstone. Sandstone initializes the hardware and then loads and boots an image following this procedure: ■ Takes the Reset exception. ■ Starts initializing the hardware; sets the system register’s base address and initializes segment display hardware. ■ Remaps memory; ROM address = high addr and SRAM addr = 0x00000000. ■ Initializes the communication hardware output on the serial port. ■ Bootloader—loads an image into SRAM and relinquishes control of the pc to the image (pc = 0x00000000). We now have a fully initialized ARM7TDMI embedded system.
- 399. 11.1 Fundamental Components 11.2 Example: Simple Little Operating System 11.2.1 SLOS Directory Layout 11.2.2 Initialization 11.2.3 Memory Model 11.2.4 Interrupts and Exceptions Handling 11.2.5 Scheduler 11.2.6 Context Switch 11.2.7 Device Driver Framework 11.3 Summary
- 400. C h a p t e r Embedded Operating Systems 11 This chapter discusses the implementation of embedded operating systems (OS). Because embedded operating systems are designed for a specific purpose, historically embedded operating systems were simple, time constrained, and operated in limited memory. This distinctionhaschangedovertimeasthesophisticationofembeddedhardwarehasincreased. Features, traditionally found on desktop computers, such as virtual memory, have migrated into the embedded system world. Since this is a large subject, we have limited our scope to just the fundamental compo- nents that make up an embedded operating system. We also build on the firmware example shown in Chapter 10. This chapter is divided into two sections: The first section takes you through the funda- mental components that make up an embedded operating system and notes issues specific to ARM processors. The second section takes you through an example operating system called the Simple Little Operating System (SLOS). SLOS is designed to show an implementation of the fundamental components. 11.1 Fundamental Components There is a common set of low-level components, each carrying out a prescribed action, that form an operating system. It is how these components interact and function that determines the characteristics of a specific operating system. 381
- 401. 382 Chapter 11 Embedded Operating Systems Initialization is the first code of the operating system to execute and involves setting up internal data structures, global variables, and the hardware. Initialization starts after the firmwarehandsovercontrol. Forhardwareinitializationanoperatingsystemsetsupvarious control registers, initializes the device drivers, and, if the operating system is preemptive, sets up a periodic interrupt. Memory handling involves setting up the system and task stacks. The positioning of the stacks determines how much memory is available for either the tasks or the system. The decision as to where the system stack is placed is normally carried out during operating system initialization. Setting up the task stack depends upon whether the task is static or dynamic. A static task is defined at build time and is included in the operating system image. For these tasks the stack can be set up during operating system initialization. For example, SLOS is a static-task-based operating system. A dynamic task loads and executes after the operating system is installed and executing and is not part of the operating system image. The stack is set up when the task is created (for example, as in Linux). Memory handling varies in complexity from one operating system to another. It depends upon a number of factors, such as the ARM processor core selected, the capabilities of the microcontroller, and the physical memory layout of the end target hardware. The example operating system, SLOS, in Section 11.2 uses a static memory design. It simply configures a set of registers within the microcontroller and positions the stacks. Because there is no form of dynamic memory management, you will not find an imple- mentation of malloc() and free(). These functions are normally found in the standard C library. The method for handling interrupts and exceptions is part of the architecture design of the operating system. You have to decide how to handle the various exceptions: Data Abort, Fast Interrupt Request, Interrupt Request, Prefetch Abort, Reset, and Software Interrupt (SWI). Not all of the exceptions require a handler. For instance, if you have a target board that does not use the FIQ interrupt, then a specific FIQ handler is not required. It is always safer to provide an infinite loop as a default handler for unused exceptions. This approach makes it easy to debug: when you break, it is clear that you have trapped at a specific handler. It also protects the system from unexpected exceptions. A preemptive operating system like SLOS requires a periodic interrupt, which is normally produced by a counter/timer device on the target hardware. As part of the initialization stage, an operating system sets the periodic interrupt frequency. This is normally achieved by setting a specified value into one of the counter/timer memory-mapped registers. When activated, the counter/timer will start to decrement this value. Once the value reaches zero, an interrupt is raised. This interrupt is then handled by the appropriate ISR for periodic interrupts. The ISR first reinitializes the counter/timer with a new start value and then calls either a scheduler or another specialized routine. In contrast, a nonpreemptive operating system does not require a periodic interrupt and will use a different technique, for example, polling—the continuous checking for a state
- 402. 11.2 Example: Simple Little Operating System 383 change in a device. If the device state changes, then a specific action can be connected to a particular state change. The scheduler is an algorithm that determines which task is to be executed next. There are many scheduling algorithms available. One of the simplest is called a round-robin algorithm—it activates tasks in a fixed cyclic order. Scheduling algorithms have to balance efficiency and size with complexity. Once the scheduler is complete, the new and old tasks have to be swapped with a context switch. A context switch saves all the old task registers from the processor into a data structure. Data for the new task is then loaded into the processor’s registers. (For more details on this procedure, take a look at Section 11.2.6.) The last component is the device driver framework—the mechanism an operating system uses to provide a consistent interface between different hardware peripherals. The frame- work allows a standard and easy way of integrating new support for a particular peripheral into the operating system. For an application to access a particular peripheral there has to be a specific device driver available. The framework must provide a safe method of accessing the peripheral (for example, not allowing the simultaneous access of the same peripheral by more than one application). 11.2 Example: Simple Little Operating System We have developed a small operating system we call the Simple Little Operating System (SLOS). It shows how the fundamental components discussed earlier come together in a complete operating system. We have chosen the ARM7TDMI since it is the simplest core in the ARM family. For a development environment we use the ARM Developers’ Suite version 1.2, and for a target the Evaluator-7T from ARM. It should be relatively easy to modify SLOS to build in other development environments. SLOS is loaded and executed using the Sandstone firmware described in Chapter 10. SLOS is a preemptive operating system. A periodic interrupt activates a dormant task. For simplicity, all the tasks and device drivers are static; that is, they are created at build time and not while the system is running. SLOS also provides a device driver framework, discussed in Section 11.2.7. SLOS is designed to execute on an ARM7TDMI core with no memory management unit or protection unit. It is assumed that the memory map has already been configured by the initialization code (in this case, Sandstone, found in Chapter 10). SRAM is required to be located between 0x00000000 to 0x00080000, and the base configuration registers must be set to address 0x03ff0000. SLOS is loaded at address 0x00000000, where the vector table is located. This is the same address as the entry point into SLOS. It is important that the ARM processor is in SVC mode when the firmware hands over control because SVC mode is a privileged mode and hence allows the initialization code to change modes by accessing the cpsr. We take advantage of this to set up the stacks in IRQ and system mode.
- 403. 384 Chapter 11 Embedded Operating Systems In this current configuration, SLOS includes three tasks and two service routines. Tasks 1 and 2 provide an example of mutual exclusion using a binary semaphore. The two service routines implemented are the periodic timer (which is essential) and a push-button interrupt (which is optional). Task 3 provides a simple command line interface through one of the ARM Evaluator-7T’s serial ports. Each task in SLOS requires its own stack. All the tasks operate in user mode; thus, a task can read but not write to the cpsr. The only way a task can change to a privileged mode is to use an SWI instruction call. This is the mechanism used to call a device driver function, since a device driver may require full access to the cpsr. The cpsr can be modified in a task, but only indirectly using an instruction that updates the condition flags. 11.2.1 SLOS Directory Layout SLOS can be found on our Web site under the Chapter 11 directory. The directory layout for SLOS is similar to the Sandstone firmware layout (see Figures 10.1 and 11.1). There are six subdirectories under slos/build/src that hold all the operating system source files. The slos/build/src/core directory includes the miscellaneous utility files, as well as the command line interpreter (CLI) sources. Specific code for a platform is stored under a directory with the name of that platform. For instance, the code for the Evaluator-7T is stored under directory e7t. The slos/build/src/e7t/devices directory holds all the device driver files, and the slos/build/src/e7t/events directory holds the files that handle services, exceptions, and interrupts. [slos] makefile readme.txt [build] [src] [obj] [image] [apps] [core] [devices] [e7t] [events] [headers] [devices] [events] [headers] Figure11.1 SLOS directory layout.
- 404. 11.2 Example: Simple Little Operating System 385 Finally, the slos/build/src/apps directory holds all the applications/tasks for a par- ticular configuration. For instance, for the Evaluator-7T implementation, there are three applications/tasks. 11.2.2 Initialization There are three main stages of initializing SLOS—startup, executing process control block (PCB) setup code, and executing the C initialization code. The startup code sets up the FIQ registers and the system, SVC, and IRQ mode stacks. In the next stage, the PCB, which contains the state of each task, is set up, including all the ARM registers. It is used to store and restore task state during a context switch. The setup code sets the process control block to an initial start state. The final C initialization stage calls the device driver, event handler, and periodic timer initialization routines. Once complete, the first task can be invoked. Control is passed to SLOS through the reset vector. The vectorReset is a location in memory that holds the start address of the initialization code. It is assumed that the firmware has left the processor in SVC mode, which allows the operating system initialization code to have full access to the cpsr. The first operating system instruction loads the pc with the start address of the initialization code, or coreInitialization. You can see from the vector table, shown here, that this instruction loads a word using the load pc-relative instruction. The assembler tool has already calculated the offset value using the difference between the pc and the address of the vectorReset. AREA ENTRYSLOS,CODE,READONLY ENTRY LDR pc, vectorReset LDR pc, vectorUndefined LDR pc, vectorSWI LDR pc, vectorPrefetchAbort LDR pc, vectorDataAbort LDR pc, vectorReserved LDR pc, vectorIRQ LDR pc, vectorFIQ vectorReset DCD coreInitialize vectorUndefined DCD coreUndefinedHandler vectorSWI DCD coreSWIHandler vectorPrefetchAbort DCD corePrefetchAbortHandler vectorDataAbort DCD coreDataAbortHandler vectorReserved DCD coreReservedHandler vectorIRQ DCD coreIRQHandler vectorFIQ DCD coreFIQHandler
- 405. 386 Chapter 11 Embedded Operating Systems As part of the initialization process we have implemented a low-level debug system using the banked FIQ mode registers, as shown here. These registers are used to store status information. It is not always possible to use FIQ registers since they may be used for another purpose. bringupInitFIQRegisters MOV r2,r14 ; save r14 BL switchToFIQMode ; change FIQ mode MOV r8,#0 ; r8_fiq=0 MOV r9,#0 ; r9_fiq=0 MOV r10,#0 ; r10_fiq=0 BL switchToSVCMode ; change SVC mode MOV pc,r2 ; return coreInitialize BL bringupInitFIQRegisters The next stage is to set up the SVC, IRQ, and System base stack registers. For the SVC stack, this is straightforward since the processor is already in SVC mode. The code is MOV sp,#0x80000 ; SVC stack MSR cpsr_c,#NoInt|SYS32md MOV sp,#0x40000 ; user/system stack MSR cpsr_c,#NoInt|IRQ32md MOV sp,#0x9000 ; IRQ stack MSR cpsr_c,#NoInt|SVC32md As you can see from the code, once the stacks are set up, the processor is switched back into SVC mode, whichallowstherestoftheinitializationprocesstocontinue. Beinginprivileged mode allows the final initialization stage to unmask the IRQ interrupt by clearing the I bit and changing the processor to user mode. The results of executing the startup code are the following: ■ Low-level debug mechanism is initialized. ■ SVC, IRQ, and System base stacks are set. To start SLOS running, the PCB for each task has to be initialized. A PCB is a reserved data structure and holds a copy of the entire ARM register set (see Table 11.1). A task is made active by copying the appropriate task’s PCB data into the processor registers. The PCB of each task has to be set up prior to a context switch occurring since the switch will transfer the PCB data into registers r0 to r15 and cpsr. Left uninitialized, the context switch will copy garbage data into these registers.
- 406. 11.2 Example: Simple Little Operating System 387 Table 11.1 Process control block. Offset Registers 0 — −4 r14 −8 r13 −12 r12 −16 r11 −20 r10 −24 r9 −28 r8 −32 r7 −36 r6 −40 r5 −44 r4 −48 r3 −52 r2 −56 r1 −60 r0 −64 pc + 4 −68 spsr There are four major parts of the PCB that have to be initialized: the program counter, the link register, the user mode stack, and the saved processor status register (in other words registers r13, r14, r15, and the spsr) for each task. ; void pcbSetUp(void *entryAddr, void *PCB, UINT offset); pcbSetUp STR r0,[r1,#-4] ; PCB[-4]=C_TaskEntry STR r0,[r1,#-64] ; PCB[-64]=C_TaskEntry SUB r0,sp,r2 STR r0,[r1,#-8] ; PCB[-8]=sp-offset MOV r0,#0x50 ; cpsr_c STR r0,[r1,#-68] ; PCB[-68]=iFt_User MOV pc,lr To help illustrate this, we have extracted the routine for initializing PCBs. The rou- tine pcbSetUp is called to set up tasks 2 and 3. Register r0 is the task entry address—label entryAddr. This is the execution address for a task. Register r1 is the PCB data struc- ture address—label pcbAddr. This address points into a block of memory that stores the
- 407. 388 Chapter 11 Embedded Operating Systems PCB for a task. Register r2 is the stack offset and is used to position the stack in the mem- ory map. Note that task 1 does not require initialization since it is the first task to be executed. The final part of setting up the PCBs is to set up the current task identifier, which is used by the scheduling algorithm to determine which task is to be executed. LDR r0,=PCB_CurrentTask MOV r1,#0 STR r1,[r0] LDR lr,=C_Entry MOV pc,lr ; enter the CEntry world At the end of the code fragment the first C routine—C_Entry—is called by setting the pc to the start address of the routine. The results of executing the PCB setup code are the following: ■ Initialize the PCB for all three tasks. ■ Set the current PCB to be executed as task 1 (identifier 0). Initialization is now handed over to the C_Entry() routine, which can be found in build/src/core/cinit.cfile. TheC_Entryroutinecallsanotherroutine, cinit_init(). This routine, shown here, initializes the device drivers, services, and finally the periodic interrupt tick. The C code has been designed so it does not require the standard C library to be initialized because it does not call any standard C library functions such as printf(), fopen(), and so on. void cinit_init(void) { eventIODeviceInit(); eventServicesInit(); eventTickInit(2); } The functions eventIODeviceInit, eventServicesInit, and eventTickInit are all called to initialize the various specific parts of the operating system. You will notice that eventTickInit has a single parameter with the value 2. This is used to set the number of milliseconds between periodic tick events. After initialization is complete, the periodic timer can be started, as shown here. This means that task 1 needs to be called before the first timer interrupt. To allow for the periodic event to interrupt the processor, the IRQ has to be enabled and the processor has to be placed into user mode. Once this is accomplished, the address of the entry point for task 1, C_EntryTask1, is then called.
- 408. 11.2 Example: Simple Little Operating System 389 int C_Entry(void) { cinit_init(); eventTickStart(); __asm { MSR cpsr_c,#0x50 } C_EntryTask1(); return 0; } If everything is working correctly, the return at the end of C_Entry routine will never be executed. At this point all initialization is complete and the operating system is fully functional. The results of executing all the C initialization code are the following: ■ The device drivers are initialized. ■ The services are initialized. ■ The periodic timer tick is initialized and started. ■ The IRQ interrupts are enabled in the cpsr. ■ The processor is placed in user mode. ■ The entry point to task 1 is called (i.e., C_EntryTask1). 11.2.3 Memory Model We have adopted a simple memory model for SLOS. Figure 11.2 shows that the code portion of SLOS, including the tasks, are located in low memory, and the stacks for the IRQ and for each task are located in higher memory. The SVC stack is set at the top of memory. The arrows in the memory map show the direction of stack growth. 11.2.4 Interrupts and Exceptions Handling In this implementation of the operating system only three exceptions are actually used. The other exceptions are ignored by going to specific dummy handlers, which for safety reasons are implemented as infinite loops. For a complete implementation these dummy handlers should be replaced with full handlers. Table 11.2 shows the three exceptions and how they are used within the operating system.
- 409. 390 Chapter 11 Embedded Operating Systems 0x03ff0000 Microcontroller registers SVC stack System/User/Task1 stack base Task3 stack base Task2 stack base IRQ stack base Code 0x00080000 0x00040000 0x00020000 0x00010000 0x00009000 0x00000000 Figure11.2 Memory map. Table 11.2 Exception assignment. Exception Purpose Reset initialize the operating system SWI mechanism to access device drivers IRQ mechanism to service events 11.2.4.1 Reset Exception The reset vector is only called once during the initialization phase. In theory, it could be called again to reinitialize the system—for example, in response to a watchdog timer event resetting the processor. Watchdog timers are used to reset a system when prolonged inactivity occurs. 11.2.4.2 SWI Exception Wheneveradevicedriveriscalledfromanapplication, thecallgoesthroughtheSWIhandler mechanism. The SWI instruction forces the processor to change from user to SVC mode.
- 410. 11.2 Example: Simple Little Operating System 391 The core SWI handler is shown here. The first action of the handler is to store registers r0 to r12 to the SVC stack. The next action calculates the address of the SWI instruction and loads that instruction into register r10. The SWI number is obtained by masking the top 8 bits. The address of the SVC stack is then copied into register r1 and is used as the second parameter when calling the SWI C handler. The spsr is then copied to register r2 and stored on the stack. This is only required when a nested SWI call occurs. The handler then jumps to the code that calls the C handler routine. coreSWIHandler STMFD sp!,{r0-r12,r14} ; save context LDR r10,[r14,#-4] ; load SWI instruction BIC r10,r10,#0xff000000 ; mask off the MSB 8 bits MOV r1,r13 ; copy r13_svc to r1 MRS r2,spsr ; copy spsr to r2 STMFD r13!,{r2} ; save r2 onto the stack BL swi_jumptable ; branch to the swi_jumptable The code that follows the BL instruction returns back to the callee program as shown here. This is achieved by restoring the spsr from the stack and loading all the user banked registers back, including the pc. LDMFD r13!,{r2} ; restore the r2 (spsr) MSR spsr_cxsf,r2 ; copy r2 back to spsr LDMFD r13!,{r0-r12,pc}ˆ ; restore context and return The link register has been set in the BL instruction. This code is executed when the SWI C handler is complete. swi_jumptable MOV r0,r10 ; move the SWI number to r0 B eventsSWIHandler ; branch to SWI handler The C handler, eventsSWIHandler, shown in Figure 11.3, is called with register r0 containing the SWI number and register r1 pointing to the registers stored on the SVC stack.
- 411. 392 Chapter 11 Embedded Operating Systems void eventsSWIHandler(int swi_number, SwiRegs *r) { if (swi_number==SLOS) { if (r-r[0]==Event_IODeviceInit) { /* do not enable IRQ interrupts .... */ io_initialize_drivers (); } else { /* if not initializing change to system mode and enable IRQs */ if (STATE!=1) {modifyControlCPSR (SYSTEM|IRQoN);} switch (r-r[0]) { case /* SWI */ Event_IODeviceOpen: r-r[0] = (unsigned int) io_open_driver ( /*int *ID */ (UID *)r-r[1], /*unsigned major_device */ r-r[2], /*unsigned minor_device */ r-r[3] ); break; case /* SWI */ Event_IODeviceClose: /* call io_open_driver */ break; case /* SWI */ Event_IODeviceWriteByte: /* call io_writebyte_driver */ break; case /* SWI */ Event_IODeviceReadByte: /* call io_readbyte_driver */ break; case /* SWI */ Event_IODeviceWriteBit: /* call io_writebit_driver */ break; case /* SWI */ Event_IODeviceReadBit: /* call io_readbit_driver */ break; Figure11.3 SWI C handler.
- 412. 11.2 Example: Simple Little Operating System 393 case /* SWI */ Event_IODeviceWriteBlock: /* call io_writeblock_driver */ break; case /* SWI */ Event_IODeviceReadBlock: /* call io_readblock_driver */ break; } /* if not initializing change back to svc mode and disable IRQs */ if (STATE!=1) {modifyControlCPSR (SVC|IRQoFF);} } } } } Figure11.3 SWI C handler. (Continued.) 11.2.4.3 IRQ Exception The IRQ handler is a lot simpler than the SWI handler. It is implemented as a basic nonnested interrupt handler. The handler first saves the context and then copies the contents of the interrupt controller status register, INTPND, into register r0. Each service routine then compares register r0 with a particular interrupt source. If the source and interrupt match, then the service routine is called; otherwise the interrupt is treated as being a phantom interrupt and ignored. TICKINT EQU 0x400 BUTTONINT EQU 0x001 eventsIRQHandler SUB r14, r14, #4 ; r14_irq-=4 STMFD r13!, {r0-r3, r12, r14} ; save context LDR r0,INTPND ; r0=int pending reg LDR r0,[r0] ; r0=memory[r0] TST r0,#TICKINT ; if tick int BNE eventsTickVeneer ; then tick ISR TST r0,#BUTTONINT ; if button interrupt BNE eventsButtonVeneer ; then button ISR LDMFD r13!, {r0-r3, r12, pc}ˆ ; return to task For a known interrupt source an interrupt veneer is called to service the event. The followingcodeshowsanexampletimerveneer. Youcanseefromtheexamplethattheveneer
- 413. 394 Chapter 11 Embedded Operating Systems includes calling two routines: The first resets the timer, eventsTickService (platform- specific call), and the second, kernelScheduler, calls the scheduler, which in turn calls a context switch. eventsTickVeneer BL eventsTickService ; reset tick hardware B kernelScheduler ; branch to scheduler There is no requirement to have registers r4 to r12 on the IRQ stack, since the scheduling algorithm and the context switch handle all the register details. 11.2.5 Scheduler The low-level scheduler, or dispatcher, used in SLOS is a simple static round-robin algo- rithm as illustrated in the following pseudocode. “Static” in this case means that the tasks are only created when the operating system is initialized. Tasks in SLOS can neither be created nor destroyed when the operating system is active. task t=0,t’; scheduler() { t’ = t + 1; if t’ = MAX_NUMBER_OF_TASKS then t’ = 0 // the first task. end; ContextSwitch(t,t’) } As stated previously, the current active taskt, PCB_CurrentTask, is set to 0 during the ini- tialization phase. When the periodic tick interrupt occurs, the new task t is calculated from the current task t plus 1. If this task number equals the task limit, MAX_NUMBER_OF_TASKS, then task t is reset to the start 0. Table 11.3 is a list of the labels used by the scheduler and a description of how they are used in the algorithm. These labels are used in the following procedure and code for the scheduler: 1. Obtain the current task ID by loading the contents of PCB_CurrentTask. 2. Find the corresponding PCB address of the current task by using the PCB_CurrentTask as the index into the PCB_Table. 3. Use the address obtained in stage 2 to update the value in the PCB_PtrCurrentTask.
- 414. 11.2 Example: Simple Little Operating System 395 Table 11.3 Labels used by the scheduler. Label Description PCB_CurrentTask contains the current task t PCB_Table table of address pointers to each task PCB PCB_PtrCurrentTask pointer to the current task t PCB_PtrNextTask pointer to the next task t PCB_IRQStack temporary storage for the IRQ stack (context switch) 4. Calculate the new task t ID using the round-robin algorithm. 5. Store the new task t ID into PCB_CurrentTask. 6. Find the address of the next task PCB by indexing into the PCB_Table using the updated PCB_CurrentTask. 7. Store the next task PCB into PCB_PtrNextTask. The code scheduling the next task tis: MaxNumTasks EQU 3 FirstTask EQU 0 CurrentTask LDR r3,=PCB_CurrentTask ; [1] r3=PCB_CurrentTask LDR r0,[r3] ; r0= current Task ID LDR r1,=PCB_Table ; [2] r1=PCB_Table address LDR r1,[r1,r0,LSL#2] ; r1=mem32[r1+r0 2] LDR r2,=PCB_PtrCurrentTask ; [3] r2=PCB_PtrCurrentTask STR r1,[r2] ; mem32[r2]=r1 : task addr ; ** PCB_PtrCurrentTask - updated with the addr of the current task ; ** r2 = PCB_PtrCurrentTask address ; ** r1 = current task PCB address ; ** r0 = current task ID NextTask ADD r0,r0,#1 ; [4] r0 = (CurrentTaskID)+1 CMP r0,#MaxNumTasks ; if r0==MaxNumTasks MOVEQ r0,#FirstTask ; then r0 = FirstTask (0) STR r0,[r3] ; [5] mem32[r3]=next Task ID LDR r1,=PCB_Table ; [6] r1=PCB_Table addr LDR r1,[r1,r0,LSL#2] ; r1=memory[r1+r0 2]
- 415. 396 Chapter 11 Embedded Operating Systems LDR r0,=PCB_PtrNextTask ; [7] r0=PCB_PtrNextTask STR r1,[r0] ; memory[r0]=next task addr The results of executing the scheduler are the following: ■ PCB_PtrCurrentTask points to the address of the current active PCB. ■ PCB_PtrNextTask points to the address of the next active PCB. ■ PCB_CurrentTask holds the value of the next task identifier. 11.2.6 Context Switch Using the updated information produced by the scheduler, the context switch then swaps the active task t with the next task t. To achieve this, a context switch splits the activity into two stages, as shown in Figure 11.4. The first stage involves saving the processor registers into the current task t PCB pointed by PCB_PtrCurrentTask. The second stage loads the registers with data from the next t PCB pointed by PCB_PtrNextTask. We will now take you through the procedure and code of the two stages of the con- text switch, detailing the saving of the current context first, followed by loading a new context. Save the current context (a) (b) PCB_PtrCurrentTask Processor Load the next context PCB_PtrNextTask Processor Figure11.4 Context switch. (a) Save the Current Context (b) Load the Next Context
- 416. 11.2 Example: Simple Little Operating System 397 11.2.6.1 Save the Current Context The first stage is to save the current registers of the active task t. All tasks execute in user mode, so the user mode registers have to be saved. Here is the procedure: 1. We must restore registers r0 to r3 and r14 from the stack. These registers belong to the current task. 2. Register r13 is then used to point into the PCB of the current task PCB_CurrentTask offset by −60. This offset allows two instructions to update the entire PCB. 3. The final action of the first stage is to store all the user bank registers r0 to r14. This occurs in a single instruction. Remember that the ˆ symbol means that the store multiple acts on the user mode registers. The second store instruction saves the spsr and the returning link register. The code for saving the registers to a PCB is Offset15Regs EQU 15*4 handler_contextswitch LDMFD r13!,{r0-r3,r12,r14} ; [1.1] restore registers LDR r13,=PCB_PtrCurrentTask ; [1.2] LDR r13,[r13] ; r13=mem32[r13] SUB r13,r13,#Offset15Regs ; r13-=15*Reg:place r13 STMIA r13,{r0-r14}ˆ ; [1.3] save user mode registers MRS r0, spsr ; copy spsr STMDB r13,{r0,r14} ; save r0(spsr) r14(lr) The results of saving the current context are the following: ■ The IRQ stack is reset and saved to PCB_IRQStack. ■ The user mode registers for task t are saved to the current PCB. 11.2.6.2 Load the Next Context The second stage of the context switch involves transferring the PCB for t into the banked user mode registers. Once complete, the routine then must hand over control to the new task t. Here is the procedure: 1. Load and position register r13 at offset −60 from the start of the new PCB. 2. Load register spsr and the link register first. Then the next task registers r0 to r14 are loaded. Register r14 is the user bank register r14, not the IRQ register r14 shown by ˆ in the instruction.
- 417. 398 Chapter 11 Embedded Operating Systems 3. The IRQ stack is then restored from PCB_IRQStack. 4. The new task is resumed by copying the address held in register r14 into the pc and updating the cpsr. The code for loading the registers from a PCB is LDR r13,=PCB_PtrNextTask ; [2.1] r13=PCB_PtrNextTask LDR r13,[r13] ; r13=mem32[r13] : next PCB SUB r13,r13,#Offset15Regs ; r13-=15*Registers LDMDB r13,{r0,r14} ; [2.2] load r0 r14 MSR spsr_cxsf, r0 ; spsr = r0 LDMIA r13,{r0-r14}ˆ ; load r0_user-r14_user LDR r13,=PCB_IRQStack ; [2.3] r13=IRQ stack addr LDR r13,[r13] ; r13=mem32[r13] : reset IRQ MOVS pc,r14 ; [2.4] return to next task The results of loading the next context are the following: ■ The context switch is complete. ■ The next task’s registers are loaded into the user mode registers. ■ The IRQ stack is restored to the original setting before entering the IRQ handler. 11.2.7 Device Driver Framework The device driver framework (DDF) is implemented using SWI instructions. The DDF protects the operating system from applications accessing hardware directly and provides a uniform standard interface for the tasks. For a task to access a particular device it must first obtain a unique identification number (UID). This is achieved by calling the open macro, or eventsIODeviceOpen. This macro is translated directly into a device driver SWI instruction. The UID is used to check that another task has not already accessed the same device. The task code for opening a device driver is device_treestr *host; UID serial;
- 418. 11.2 Example: Simple Little Operating System 399 host = eventIODeviceOpen(serial,DEVICE_SERIAL_E7T,COM1); if (host==0) { /* ...error device driver not found...*/ } switch (serial) { case DEVICE_IN_USE: case DEVICE_UNKNOWN: /* ...problem with device... */ } The example shows a serial device being opened using the device driver framework. A set of macros translates the arguments into registers r1 to r3. These registers are then passed through the SWI mechanism to the device driver function. In the example, only the value pointed to by r1, serial, is actually updated. This value is used to return the UID. If the value returned is zero, then an error has occurred. The following code shows how the macro eventIODeviceOpen is transformed into a single SWI instruction call: PRE r0 = Event_IODeviceOpen (unsigned int) r1 = serial (UID *u) r2 = DEVICE_SERIAL_E7T (unsigned int major) r3 = COM1 (unsigned int minor) SWI 5075 POST r1 = The data pointed to by the UID pointer is updated The SWI interface is used as a method of changing to a privileged mode when the task executes in a nonprivileged mode. This allows the device driver to gain full access to the cpsr. Figure 11.5 shows the actual mode changes when a device driver function is called. You can see from the diagram that the device driver itself executes in system mode (which is privileged). Once an SWI instruction is executed, the processor enters SVC mode and IRQ interrupts are automatically disabled. Interrupts are only reenabled when the processor changes to system mode. The only exception to this is when a device driver function is called during the initialization phase; in this case, interrupts will remain disabled.
- 419. 400 Chapter 11 Embedded Operating Systems Task iFt_User SWI instruction Call device driver Return from device driver SWI handler IFt_SVC Device driver iFt_System SLOS kernel Figure11.5 Calling a device driver. 11.3 Summary The fundamental components that make up an embedded operating system executing on an ARM processor are the following: ■ The initialization sets up all of the internal variables, data structures, and hardware devices used by the operating system. ■ Memory handling organizes the memory to accommodate the kernel plus the various applications to be executed. ■ All interrupts and exceptions require a handler. For unused interrupts and exceptions, a dummy handler must be installed. ■ A periodic timer is required for preemptive operating systems. The timer produces an interrupt that causes the scheduler to be called. ■ A scheduler is an algorithm that determines the new task to be executed. ■ A context switch saves the state of the current task and loads the state of the next task. These components are exemplified in the operating system called the Simple Little Operating System (SLOS): ■ Initialization—The initialization sets up all the functions of SLOS, including the bank mode stacks, process control blocks (PCB) for each application, device drivers, and so on.
- 420. 11.3 Summary 401 ■ Memory model—The SLOS kernel is placed in lower memory, and each application has its own storage area and stack. The microcontroller system registers are placed away from the ROM and SRAM. ■ Interrupts and exceptions—SLOS makes use of only three events. These events are Reset, SWI, and IRQ. All the other unused interrupts and exceptions have a dummy handler installed. ■ Scheduler—SLOS implements a simple round-robin scheduler. ■ Context switch—First the current context is saved into a PCB, and then the next task context is loaded from a PCB. ■ Device driver framework—This protects the operating system from applications accessing hardware directly.
- 421. 12.1 The Memory Hierarchy and Cache Memory 12.1.1 Caches and Memory Management Units 12.2 Cache Architecture 12.2.1 Basic Architecture of a Cache Memory 12.2.2 Basic Operation of a Cache Controller 12.2.3 The Relationship between Cache and Main Memory 12.2.4 Set Associativity 12.2.5 Write Buffers 12.2.6 Measuring Cache Efficiency 12.3 Cache Policy 12.3.1 Write Policy—Writeback or Writethrough 12.3.2 Cache Line Replacement Policies 12.3.3 Allocation Policy on a Cache Miss 12.4 Coprocessor 15 and Caches 12.5 Flushing and Cleaning Cache Memory 12.5.1 Flushing ARM Cached Cores 12.5.2 Cleaning ARM Cached Cores 12.5.3 Cleaning the D-Cache 12.5.4 Cleaning the D-Cache Using Way and Set Index Addressing 12.5.5 Cleaning the D-Cache Using the Test-Clean Command 12.5.6 Cleaning the D-Cache in Intel XScale SA-110 and Intel StrongARM Cores 12.5.7 Cleaning and Flushing Portions of a Cache 12.6 Cache Lockdown 12.6.1 Locking Code and Data in Cache 12.6.2 Locking a Cache by Incrementing the Way Index 12.6.3 Locking a Cache Using Lock Bits 12.6.4 Locking Cache Lines in the Intel XScale SA-110 12.7 Caches and Software Performance 12.8 Summary
- 422. C h a p t e r Caches 12 A cache is a small, fast array of memory placed between the processor core and main memory that stores portions of recently referenced main memory. The processor uses cache memory instead of main memory whenever possible to increase system performance. The goal of a cache is to reduce the memory access bottleneck imposed on the processor core by slow memory. Often used with a cache is a write buffer—a very small first-in-first-out (FIFO) memory placed between the processor core and main memory. The purpose of a write buffer is to free the processor core and cache memory from the slow write time associated with writing to main memory. The word cache is a French word meaning “a concealed place for storage.” When applied to ARM embedded systems, this definition is very accurate. The cache memory and write buffer hardware when added to a processor core are designed to be transparent to software code execution, and thus previously written software does not need to be rewritten for use on a cached core. Both the cache and write buffer have additional control hardware that automatically handles the movement of code and data between the processor and main memory. However, knowing the details of a processor’s cache design can help you create programs that run faster on a specific ARM core. Since the majority of this chapter is about the wonderful things a cache can do to make programs run faster, the question arises, “Are there any drawbacks created by having a cache in your system?” The answer is yes. The main drawback is the difficulty of determining the execution time of a program. Why this is a problem will become evident shortly. Since cache memory only represents a very small portion of main memory, the cache fills quickly during program execution. Once full, the cache controller frequently evicts existing code or data from cache memory to make more room for the new code or data. This eviction process tends to occur randomly, leaving some data in cache and removing others. Thus, at any given instant in time, a value may or may not be stored in cache memory. 403
- 423. 404 Chapter 12 Caches Because data may or may not be present in cache at any given point in time, the execution time of a routine may vary slightly from run to run due to the difference between the time it takes to use data immediately out of cache memory and the time it takes to load a cache line from main memory. So, with that caveat, we begin by showing where caches fit in a standard memory hier- archy and introduce the principle of locality of reference to explain why a cache improves system performance. We then describe cache architectures in general and define a set of terms used by the ARM community. We end the chapter with example code showing how to clean and flush caches and to lock code and data segments in cache. 12.1 The Memory Hierarchy and Cache Memory In Chapter 1 we introduced the memory hierarchy in a computer system. Figure 12.1 reviews some of this information to show where a cache and write buffer fit in the hierarchy. Chip Processor core Tightly coupled memory Level 1 cache Write buffer Read path Write path SRAM DRAM Flash and other board-level nonvolatile memory Disk, tape, and network storage Board Main memory Secondary storage Device Register file Figure12.1 Memory hierarchy.
- 424. 12.1 The Memory Hierarchy and Cache Memory 405 The innermost level of the hierarchy is at the processor core. This memory is so tightly coupled to the processor that in many ways it is difficult to think of it as separate from the processor. This memory is known as a register file. These registers are integral to the processor core and provide the fastest possible memory access in the system. At the primary level, memory components are connected to the processor core through dedicated on-chip interfaces. It is at this level we find tightly coupled memory (TCM) and level 1 cache. We talk more about caches in a moment. Also at the primary level is main memory. It includes volatile components like SRAM and DRAM, and nonvolatile components like flash memory. The purpose of main memory is to hold programs while they are running on a system. The next level is secondary storage—large, slow, relatively inexpensive mass storage devices such as disk drives or removable memory. Also included in this level is data derived from peripheral devices, which are characterized by their extremely long access times. Secondary memory is used to store unused portions of very large programs that do not fit in main memory and programs that are not currently executing. It is useful to note that a memory hierarchy depends as much on architectural design as on the technology surrounding it. For example, TCM and SRAM are of the same technology yet differ in architectural placement: TCM is located on the chip, while SRAM is located on a board. A cache may be incorporated between any level in the hierarchy where there is a significant access time difference between memory components. A cache can improve system performance whenever such a difference exists. A cache memory system takes information stored in a lower level of the hierarchy and temporarily moves it to a higher level. Figure 12.1 includes a level 1 (L1) cache and write buffer. The L1 cache is an array of high-speed, on-chip memory that temporarily holds code and data from a slower level. A cache holds this information to decrease the time required to access both instructions and data. The write buffer is a very small FIFO buffer that supports writes to main memory from the cache. Not shown in the figure is a level 2 (L2) cache. An L2 cache is located between the L1 cache and slower memory. The L1 and L2 caches are also known as the primary and secondary caches. Figure 12.2 shows the relationship that a cache has with main memory system and the processor core. The upper half of the figure shows a block diagram of a system without a cache. Mainmemoryisaccesseddirectlybytheprocessorcoreusingthedatatypessupported by the processor core. The lower half of the diagram shows a system with a cache. The cache memory is much faster than main memory and thus responds quickly to data requests by the core. The cache’s relationship with main memory involves the transfer of small blocks of data between the slower main memory to the faster cache memory. These blocks of data are known as cache lines. The write buffer acts as a temporary buffer that frees available space in the cache memory. The cache transfers a cache line to the write buffer at high speed and then the write buffer drains it to main memory at slow speed.
- 425. 406 Chapter 12 Caches Processor core Main memory Slow Slow Fast Fast Slow Slow Word, byte access Block transfer Word, byte access Noncached system Cached system Processor core Cache Write buffer Main memory Word, byte access Figure12.2 Relationship that a cache has between the processor core and main memory. 12.1.1 Caches and Memory Management Units If a cached core supports virtual memory, it can be located between the core and the memory management unit (MMU), or between the MMU and physical memory. Placement of the cache before or after the MMU determines the addressing realm the cache operates in and how a programmer views the cache memory system. Figure 12.3 shows the difference between the two caches. A logical cache stores data in a virtual address space. A logical cache is located between the processor and the MMU. The processor can access data from a logical cache directly without going through the MMU. A logical cache is also known as a virtual cache. A physical cache stores memory using physical addresses. A physical cache is located between the MMU and main memory. For the processor to access memory, the MMU must first translate the virtual address to a physical address before the cache memory can provide data to the core. ARM cached cores with an MMU use logical caches for processor families ARM7 through ARM10, including the Intel StrongARM and Intel XScale processors. The ARM11 processor family uses a physical cache. See Chapter 14 for additional information on the operation of the MMU. The improvement a cache provides is possible because computer programs execute in nonrandom ways. Predictable program execution is the key to the success of cached systems. If a program’s accesses to memory were random, a cache would provide little
- 426. 12.1 The Memory Hierarchy and Cache Memory 407 Offset Translation base Virtual memory Physical memory Logical cache Processor Cache Main memory Data bus Address bus Offset Translation base Virtual memory Physical memory Physical cache Processor Cache Main memory Data bus Address bus MMU MMU Figure12.3 Logical and physical caches. improvement to overall system performance. The principle of locality of reference explains the performance improvement provided by the addition of a cache memory to a system. This principle states that computer software programs frequently run small loops of code that repeatedly operate on local sections of data memory. The repeated use of the same code or data in memory, or those very near, is the reason a cache improves performance. By loading the referenced code or data into faster memory when first accessed, each subsequent access will be much faster. It is the repeated access to the faster memory that improves performance.
- 427. 408 Chapter 12 Caches The cache makes use of this repeated local reference in both time and space. If the reference is in time, it is called temporal locality. If it is by address proximity, then it is called spatial locality. 12.2 Cache Architecture ARM uses two bus architectures in its cached cores, the Von Neumann and the Harvard. The Von Neumann and Harvard bus architectures differ in the separation of the instruction and data paths between the core and memory. A different cache design is used to support the two architectures. In processor cores using the Von Neumann architecture, there is a single cache used for instruction and data. This type of cache is known as a unified cache. A unified cache memory contains both instruction and data values. The Harvard architecture has separate instruction and data buses to improve overall system performance, but supporting the two buses requires two caches. In processor cores using the Harvard architecture, there are two caches: an instruction cache (I-cache) and a data cache (D-cache). This type of cache is known as a split cache. In a split cache, instructions are stored in the instruction cache and data values are stored in the data cache. We introduce the basic architecture of caches by showing a unified cache in Figure 12.4. The two main elements of a cache are the cache controller and the cache memory. The cache memory is a dedicated memory array accessed in units called cache lines. The cache controller uses different portions of the address issued by the processor during a memory request to select parts of cache memory. We will present the architecture of the cache memory first and then proceed to the details of the cache controller. 12.2.1 Basic Architecture of a Cache Memory A simple cache memory is shown on the right side of Figure 12.4. It has three main parts: a directory store, a data section, and status information. All three parts of the cache memory are present for each cache line. The cache must know where the information stored in a cache line originates from in main memory. It uses a directory store to hold the address identifying where the cache line was copied from main memory. The directory entry is known as a cache-tag. A cache memory must also store the data read from main memory. This information is held in the data section (see Figure 12.4). The size of a cache is defined as the actual code or data the cache can store from main memory. Not included in the cache size is the cache memory required to support cache-tags or status bits. There are also status bits in cache memory to maintain state information. Two common status bits are the valid bit and dirty bit. A valid bit marks a cache line as active, meaning it contains live data originally taken from main memory and is currently available to the
- 428. 12.2 Cache Architecture 409 Address issued by processor core Cache controller Cache memory Directory store Hit Miss Cache line Address/data bus Compare Tag Set index Data index 31 12 11 4 3 0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Status Data . . . Figure12.4 A 4 KB cache consisting of 256 cache lines of four 32-bit words. processor core on demand. A dirty bit defines whether or not a cache line contains data that is different from the value it represents in main memory. We explain dirty bits in more detail in Section 12.3.1. 12.2.2 Basic Operation of a Cache Controller The cache controller is hardware that copies code or data from main memory to cache memory automatically. It performs this task automatically to conceal cache operation from the software it supports. Thus, the same application software can run unaltered on systems with and without a cache. The cache controller intercepts read and write memory requests before passing them on to the memory controller. It processes a request by dividing the address of the request into three fields, the tag field, the set index field, and the data index field. The three bit fields are shown in Figure 12.4. First, the controller uses the set index portion of the address to locate the cache line within the cache memory that might hold the requested code or data. This cache line contains the cache-tag and status bits, which the controller uses to determine the actual data stored there.
- 429. 410 Chapter 12 Caches The controller then checks the valid bit to determine if the cache line is active, and compares the cache-tag to the tag field of the requested address. If both the status check and comparison succeed, it is a cache hit. If either the status check or comparison fails, it is a cache miss. On a cache miss, the controller copies an entire cache line from main memory to cache memory and provides the requested code or data to the processor. The copying of a cache line from main memory to cache memory is known as a cache line fill. On a cache hit, the controller supplies the code or data directly from cache memory to the processor. To do this it moves to the next step, which is to use the data index field of the address request to select the actual code or data in the cache line and provide it to the processor. 12.2.3 The Relationship between Cache and Main Memory Having a general understanding of basic cache memory architecture and how the cache controller works provides enough information to discuss the relationship that a cache has with main memory. Figure 12.5 shows where portions of main memory are temporarily stored in cache memory. The figure represents the simplest form of cache, known as a direct-mapped cache. In a direct-mapped cache each addressed location in main memory maps to a single location in cache memory. Since main memory is much larger than cache memory, there are many addresses in main memory that map to the same single location in cache memory. The figure shows this relationship for the class of addresses ending in 0x824. The three bit fields introduced in Figure 12.4 are also shown in this figure. The set index selects the one location in cache where all values in memory with an ending address of 0x824 are stored. The data index selects the word/halfword/byte in the cache line, in this case the second word in the cache line. The tag field is the portion of the address that is compared to the cache-tag value found in the directory store. In this example there are one million possible locations in main memory for every one location in cache memory. Only one of the possible one million values in the main memory can exist in the cache memory at any given time. The comparison of the tag with the cache-tag determines whether the requested data is in cache or represents another of the million locations in main memory with an ending address of 0x824. During a cache line fill the cache controller may forward the loading data to the core at the same time it is copying it to cache; this is known as data streaming. Streaming allows a processor to continue execution while the cache controller fills the remaining words in the cache line. If valid data exists in this cache line but represents another address block in main memory, the entire cache line is evicted and replaced by the cache line containing the requested address. This process of removing an existing cache line as part of servicing a cache miss is known as eviction—returning the contents of a cache line to main memory from the cache to make room for new data that needs to be loaded in cache.
- 430. 12.2 Cache Architecture 411 Main memory 4 KB cache memory (direct mapped) X X X X X 8 2 4 tag 31 12 0xFFF 0x820 0x000 Address issued by processor core 11 4 3 0 set index data index 0xFFFFFFFF 0xFFFFF000 0xFFFFE000 0x00003000 0x00002000 0x00001000 0x00000000 4 KB 0x00000824 0x00001824 0x00002824 . . . 0xFFFFE824 0xFFFFF824 Cache-tag v d word3 word2 word1 word0 Figure12.5 How main memory maps to a direct-mapped cache. A direct-mapped cache is a simple solution, but there is a design cost inherent in having a single location available to store a value from main memory. Direct-mapped caches are subject to high levels of thrashing—a software battle for the same location in cache memory. The result of thrashing is the repeated loading and eviction of a cache line. The loading and eviction result from program elements being placed in main memory at addresses that map to the same cache line in cache memory. Figure 12.6 takes Figure 12.5 and overlays a simple, contrived software procedure to demonstrate thrashing. The procedure calls two routines repeatedly in a do while loop. Each routine has the same set index address; that is, the routines are found at addresses in physical memory that map to the same location in cache memory. The first time through the loop, routine A is placed in the cache as it executes. When the procedure calls routine B, it evicts routine A a cache line at a time as it is loaded into cache and executed. On the second time through the loop, routine A replaces routine B, and then routine B replaces routine A.
- 431. 412 Chapter 12 Caches Main memory Software procedure Cache memory Data array Routine B Routine A 4 KB, direct-mapped unified cache 0xFFF 0x480 0x000 0x00002000 0x00001000 0x00000000 0x00000480 do { routineA(); routineB(); x--; } while (x0) 0x00001480 0x00002480 . . . Figure12.6 Thrashing: two functions replacing each other in a direct-mapped cache. Repeated cache misses result in continuous eviction of the routine that not running. This is cache thrashing. 12.2.4 Set Associativity Some caches include an additional design feature to reduce the frequency of thrashing (see Figure 12.7). This structural design feature is a change that divides the cache memory into smaller equal units, called ways. Figure 12.7 is still a four KB cache; however, the set index now addresses more than one cache line—it points to one cache line in each way. Instead of one way of 256 lines, the cache has four ways of 64 lines. The four cache lines with the same set index are said to be in the same set, which is the origin of the name “set index.”
- 432. 12.2 Cache Architecture 413 Address issued by processor core Cache controller Cache memory Hit Miss Way 3 Way 2 Way 1 Way 0 Compare Tag Set index Data index 31 10 9 4 3 0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 . . . Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 . . . Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 . . . Directory store 64 cache lines per way Address/data bus Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Cache-tag v d word3 word2 word1 word0 Status Data Cache-tag v d word3 word2 word1 word0 . . . Figure12.7 A 4 KB, four-way set associative cache. The cache has 256 total cache lines, which are separated into four ways, each containing 64 cache lines. The cache line contains four words.
- 433. 414 Chapter 12 Caches The set of cache lines pointed to by the set index are set associative. A data or code block from main memory can be allocated to any of the four ways in a set without affecting program behavior; in other words the storing of data in cache lines within a set does not affect program execution. Two sequential blocks from main memory can be stored as cache lines in the same way or two different ways. The important thing to note is that the data or code blocks from a specific location in main memory can be stored in any cache line that is a member of a set. The placement of values within a set is exclusive to prevent the same code or data block from simultaneously occupying two cache lines in a set. The mapping of main memory to a cache changes in a four-way set associative cache. Figure 12.8 shows the differences. Any single location in main memory now maps to four different locations in the cache. Although Figures 12.5 and 12.8 both illustrate 4 KB caches, here are some differences worth noting. The bit field for the tag is now two bits larger, and the set index bit field is two bits smaller. This means four million main memory addresses now map to one set of four cache lines, instead of one million addresses mapping to one location. The size of the area of main memory that maps to cache is now 1 KB instead of 4 KB. This means that the likelihood of mapping cache line data blocks to the same set is now four times higher. This is offset by the fact that a cache line is one fourth less likely to be evicted. If the example code shown in Figure 12.6 were run in the four-way set associative cache shown in Figure 12.8, the incidence of thrashing would quickly settle down as routine A, routine B, and the data array would establish unique places in the four available locations in a set. This assumes that the size of each routine and the data are less than the new smaller 1 KB area that maps from main memory. 12.2.4.1 Increasing Set Associativity As the associativity of a cache controller goes up, the probability of thrashing goes down. The ideal goal would be to maximize the set associativity of a cache by designing it so any main memory location maps to any cache line. A cache that does this is known as a fully associative cache. However, as the associativity increases, so does the complexity of the hardware that supports it. One method used by hardware designers to increase the set associativity of a cache includes a content addressable memory (CAM). A CAM uses a set of comparators to compare the input tag address with a cache-tag stored in each valid cache line. A CAM works in the opposite way a RAM works. Where a RAM produces data when given an address value, a CAM produces an address if a given data value exists in the memory. Using a CAM allows many more cache-tags to be compared simultaneously, thereby increasing the number of cache lines that can be included in a set. Using a CAM to locate cache-tags is the design choice ARM made in their ARM920T and ARM940T processor cores. The caches in the ARM920T and ARM940T are 64-way set associative. Figure 12.9 shows a block diagram of an ARM940T cache. The cache controller uses the address tag as the input to the CAM and the output selects the way containing the valid cache line.
- 434. 12.2 Cache Architecture 415 4G main memory 1 KB Way 0 X X X X X 2 2 4 tag 31 10 0x3FF 0x224 0x000 Address issued by processor core 9 4 3 0 set index data index 0xFFFFFFFF 0x00000C00 0x00000800 0x00000400 0x00000000 0x00000224 0x00000424 0x00000824 . . . cache-tag v d word3 word2 word1 word0 Way 1 0x3FF 0x224 0x000 cache-tag v d word3 word2 word1 word0 Way 2 0x3FF 0x224 0x000 cache-tag v d word3 word2 word1 word0 Way 3 0x3FF 0x224 0x000 cache-tag v d word3 word2 word1 word0 Figure12.8 Main memory mapping to a four-way set associative cache.
- 435. 416 Chapter 12 Caches Address issued by processor core Cache controller Cache memory Miss Tag Set index Data index 31 8 7 4 3 0 CAM set select logic 64 ways Address/data bus C o m p a r e l o g i c 4 cache lines per way Cache-tag v d Data Cam3 Cache-tag v d Data Cam2 Cache-tag v d Data Cam1 Cache-tag Cam0 v d Data Figure12.9 ARM940T—4 KB 64-way set associative D-cache using a CAM. The tag portion of the requested address is used as an input to the four CAMs that simultaneously compare the input tag with all cache-tags stored in the 64 ways. If there is a match, cache data is provided by the cache memory. If no match occurs, a miss signal is generated by the memory controller. The controller enables one of four CAMs using the set index bits. The indexed CAM then selects a cache line in cache memory and the data index portion of the core address selects the requested word, halfword, or byte within the cache line. 12.2.5 Write Buffers A write buffer is a very small, fast FIFO memory buffer that temporarily holds data that the processor would normally write to main memory. In a system without a write buffer, the processor writes directly to main memory. In a system with a write buffer, data is written at high speed to the FIFO and then emptied to slower main memory. The write buffer reduces the processor time taken to write small blocks of sequential data to main memory. The FIFO memory of the write buffer is at the same level in the memory hierarchy as the L1 cache and is shown in Figure 12.1.
- 436. 12.2 Cache Architecture 417 The efficiency of the write buffer depends on the ratio of main memory writes to the number of instructions executed. Over a given time interval, if the number of writes to main memory is low or sufficiently spaced between other processing instructions, the write buffer will rarely fill. If the write buffer does not fill, the running program continues to execute out of cache memory using registers for processing, cache memory for reads and writes, and the write buffer for holding evicted cache lines while they drain to main memory. A write buffer also improves cache performance; the improvement occurs during cache line evictions. If the cache controller evicts a dirty cache line, it writes the cache line to the write buffer instead of main memory. Thus the new cache line data will be available sooner, and the processor can continue operating from cache memory. Data written to the write buffer is not available for reading until it has exited the write buffer to main memory. The same holds true for an evicted cache line: it too cannot be read while it is in the write buffer. This is one of the reasons that the FIFO depth of a write buffer is usually quite small, only a few cache lines deep. Some write buffers are not strictly FIFO buffers. The ARM10 family, for example, supports coalescing—the merging of write operations into a single cache line. The write buffer will merge the new value into an existing cache line in the write buffer if they represent the same data block in main memory. Coalescing is also known as write merging, write collapsing, or write combining. 12.2.6 Measuring Cache Efficiency There are two terms used to characterize the cache efficiency of a program: the cache hit rate and the cache miss rate. The hit rate is the number of cache hits divided by the total number of memory requests over a given time interval. The value is expressed as a percentage: hit rate = cache hits memory requests × 100 The miss rate is similar in form: the total cache misses divided by the total number of memory requests expressed as a percentage over a time interval. Note that the miss rate also equals 100 minus the hit rate. The hit rate and miss rate can measure reads, writes, or both, which means that the terms can be used to describe performance information in several ways. For example, there is a hit rate for reads, a hit rate for writes, and other measures of hit and miss rates. Two other terms used in cache performance measurement are the hit time—the time it takes to access a memory location in the cache and the miss penalty—the time it takes to load a cache line from main memory into cache.
- 437. 418 Chapter 12 Caches 12.3 Cache Policy There are three policies that determine the operation of a cache: the write policy, the replacement policy, and the allocation policy. The cache write policy determines where data is stored during processor write operations. The replacement policy selects the cache line in a set that is used for the next line fill during a cache miss. The allocation policy determines when the cache controller allocates a cache line. 12.3.1 Write Policy—Writeback or Writethrough When the processor core writes to memory, the cache controller has two alternatives for its write policy. The controller can write to both the cache and main memory, updating the values in both locations; this approach is known as writethrough. Alternatively, the cache controller can write to cache memory and not update main memory, this is known as writeback or copyback. 12.3.1.1 Writethrough When the cache controller uses a writethrough policy, it writes to both cache and main memory when there is a cache hit on write, ensuring that the cache and main memory stay coherent at all times. Under this policy, the cache controller performs a write to main memory for each write to cache memory. Because of the write to main memory, a writethrough policy is slower than a writeback policy. 12.3.1.2 Writeback When a cache controller uses a writeback policy, it writes to valid cache data memory and not to main memory. Consequently, valid cache lines and main memory may contain different data. The cache line holds the most recent data, and main memory contains older data, which has not been updated. Caches configured as writeback caches must use one or more of the dirty bits in the cache line status information block. When a cache controller in writeback writes a value to cache memory, it sets the dirty bit true. If the core accesses the cache line at a later time, it knows by the state of the dirty bit that the cache line contains data not in main memory. If the cache controller evicts a dirty cache line, it is automatically written out to main memory. The controller does this to prevent the loss of vital information held in cache memory and not in main memory. One performance advantage a writeback cache has over a writethrough cache is in the frequent use of temporary local variables by a subroutine. These variables are transient in nature and never really need to be written to main memory. An example of one of these
- 438. 12.3 Cache Policy 419 transient variables is a local variable that overflows onto a cached stack because there are not enough registers in the register file to hold the variable. 12.3.2 Cache Line Replacement Policies On a cache miss, the cache controller must select a cache line from the available set in cache memory to store the new information from main memory. The cache line selected for replacement is known as a victim. If the victim contains valid, dirty data, the controller must write the dirty data from the cache memory to main memory before it copies new data into the victim cache line. The process of selecting and replacing a victim cache line is known as eviction. The strategy implemented in a cache controller to select the next victim is called its replacement policy. The replacement policy selects a cache line from the available associative memberset; thatis, itselectsthewaytouseinthenextcachelinereplacement. Tosummarize the overall process, the set index selects the set of cache lines available in the ways, and the replacement policy selects the specific cache line from the set to replace. ARM cached cores support two replacement policies, either pseudorandom or round-robin. ■ Round-robin or cyclic replacement simply selects the next cache line in a set to replace. The selection algorithm uses a sequential, incrementing victim counter that increments each time the cache controller allocates a cache line. When the victim counter reaches a maximum value, it is reset to a defined base value. ■ Pseudorandom replacement randomly selects the next cache line in a set to replace. The selection algorithm uses a nonsequential incrementing victim counter. In a pseudoran- dom replacement algorithm the controller increments the victim counter by randomly selecting an increment value and adding this value to the victim counter. When the victim counter reaches a maximum value, it is reset to a defined base value. Most ARM cores support both policies (see Table 12.1 for a comprehensive list of ARM cores and the policies they support). The round-robin replacement policy has greater pre- dictability, which is desirable in an embedded system. However, a round-robin replacement policy is subject to large changes in performance given small changes in memory access. To show this change in performance, we provide Example 12.1. Example 12.1 This example determines the time it takes to execute a software routine using the round- robin and random replacement policies. The test routine cache_RRtest collects timings using the clock function available in the C library header time.h. First, it enables a round robin policy and runs a timing test, and then enables the random policy and runs the same test. The test routine readSet is written specifically for an ARM940T and intentionally shows a worst-case abrupt change in cache behavior using a round-robin replacement policy.
- 439. 420 Chapter 12 Caches Table 12.1 ARM cached core policies. Core Write policy Replacement policy Allocation policy ARM720T writethrough random read-miss ARM740T writethrough random read-miss ARM920T writethrough, writeback random, round-robin read-miss ARM940T writethrough, writeback random read-miss ARM926EJS writethrough, writeback random, round-robin read-miss ARM946E writethrough, writeback random, round-robin read-miss ARM10202E writethrough, writeback random, round-robin read-miss ARM1026EJS writethrough, writeback random, round-robin read-miss Intel StrongARM writeback round-robin read-miss Intel XScale writethrough, writeback round-robin read-miss, write-miss #include stdio.h #include time.h void cache_RRtest(int times,int numset) { clock_t count; printf(Round Robin test size = %drn, numset); enableRoundRobin(); cleanFlushCache(); count = clock(); readSet(times,numset); count = clock() - count; printf(Round Robin enabled = %.2f secondsrn, (float)count/CLOCKS_PER_SEC); enableRandom(); cleanFlushCache(); count = clock(); readSet(times, numset); count = clock() - count; printf(Random enabled = %.2f secondsrnrn, (float)count/CLOCKS_PER_SEC); } int readSet( int times, int numset) {
- 440. 12.3 Cache Policy 421 int setcount, value; volatile int *newstart; volatile int *start = (int *)0x20000; __asm { timesloop: MOV newstart, start MOV setcount, numset setloop: LDR value,[newstart,#0]; ADD newstart,newstart,#0x40; SUBS setcount, setcount, #1; BNE setloop; SUBS times, times, #1; BNE timesloop; } return value; } We wrote the readSet routine to fill a single set in the cache. There are two arguments to the function. The first, times, is the number of times to run the test loop; this value increases the time it takes to run the test. The second, numset, is the number of set values to read; this value determines the number of cache lines the routine loads into the same set. Filling the set with values is done in a loop using an LDR instruction that reads a value from a memory location and then increments the address by 16 words (64 bytes) in each pass through the loop. Setting the value of numset to 64 will fill all the available cache lines in a set in an ARM940T. There are 16 words in a way and 64 cache lines per set in the ARM940T. Here are two calls to the round-robin test using two set sizes. The first reads and fills a set with 64 entries; the second attempts to fill the set with 65 entries. unsigned int times = 0x10000; unsigned int numset = 64; cache_RRtest(times, numset); numset = 65; cache_RRtest(times, numset); The console output of the two tests follows. The tests were run on an ARM940T core module simulated using the ARM ADS1.2 ARMulator with a core clock speed of 50 MHz and a memory read access time of 100 ns nonsequential and 50 ns sequential. The thing to notice is the change in timing for the round-robin test reading 65 set values.
- 441. 422 Chapter 12 Caches Round Robin test size = 64 Round Robin enabled = 0.51 seconds Random enabled = 0.51 seconds Round Robin test size = 65 Round Robin enabled = 2.56 seconds Random enabled = 0.58 seconds This is an extreme example, but it does shows a difference between using a round-robin policy and a random replacement policy. ■ Another common replacement policy is least recently used (LRU). This policy keeps track of cache line use and selects the cache line that has been unused for the longest time as the next victim. ARM’s cached cores do not support a least recently used replacement policy, although ARM’s semiconductor partners have taken noncached ARM cores and added their own cache to the chips they produce. So there are ARM-based products that use an LRU replacement policy. 12.3.3 Allocation Policy on a Cache Miss There are two strategies ARM caches may use to allocate a cache line after a the occurrence of a cache miss. The first strategy is known as read-allocate, and the second strategy is known as read-write-allocate. A read allocate on cache miss policy allocates a cache line only during a read from main memory. If the victim cache line contains valid data, then it is written to main memory before the cache line is filled with new data. Under this strategy, a write of new data to memory does not update the contents of the cache memory unless a cache line was allocated on a previous read from main memory. If the cache line contains valid data, then a write updates the cache and may update main memory if the cache write policy is writethrough. If the data is not in cache, the controller writes to main memory only. A read-write allocate on cache miss policy allocates a cache line for either a read or write to memory. Any load or store operation made to main memory, which is not in cache memory, allocates a cache line. On memory reads the controller uses a read-allocate policy. On a write, the controller also allocates a cache line. If the victim cache line contains valid data, then it is first written back to main memory before the cache controller fills the victim cache line with new data from main memory. If the cache line is not valid, it simply does a cache line fill. After the cache line is filled from main memory, the controller writes the data to the corresponding data location within the cache line. The cached core also updates main memory if it is a writethrough cache. The ARM7, ARM9, and ARM10 cores use a read-allocate on miss policy; the Intel XScale supports both read-allocate and write-allocate on miss. Table 12.1 provides a listing of the policies supported by each core.
- 442. 12.5 Flushing and Cleaning Cache Memory 423 12.4 Coprocessor 15 and Caches There are several coprocessor 15 registers used to specifically configure and control ARM cached cores. Table 12.2 lists the coprocessor 15 registers that control cache configuration. Primary CP15 registers c7 and c9 control the setup and operation of cache. Secondary CP15:c7 registers are write only and clean and flush cache. The CP15:c9 register defines the victim pointer base address, which determines the number of lines of code or data that are locked in cache. We discuss these commands in more detail in the sections that follow. To review the general use of coprocessor 15 instructions and syntax, see Section 3.5.2. ThereareotherCP15registersthataffectcacheoperation; thedefinitionoftheseregisters is core dependent. These other registers are explained in Chapter 13 in Sections 13.2.3 and 13.2.4 on initializing the MPU, and in Chapter 14 in Section 14.3.6 on initializing the MMU. In the next several sections we use the CP15 registers listed in Table 12.2 to provide example routines to clean and flush caches, and to lock code or data in cache. The control system usually calls these routines as part of its memory management activities. 12.5 Flushing and Cleaning Cache Memory ARM uses the terms flush and clean to describe two basic operations performed on a cache. To “flush a cache” is to clear it of any stored data. Flushing simply clears the valid bit in the affected cache line. All or just portions of a cache may need flushing to support changes in memory configuration. The term invalidate is sometimes used in place of the term flush. However, if some portion of the D-cache is configured to use a writeback policy, the data cache may also need cleaning. To “clean a cache” is to force a write of dirty cache lines from the cache out to main memory and clear the dirty bits in the cache line. Cleaning a cache reestablishes coherence between cached memory and main memory, and only applies to D-caches using a writeback policy. Table 12.2 Coprocessor 15 registers that configure and control cache operation. Function Primary register Secondary registers Opcode 2 Clean and flush cache c7 c5, c6, c7, c10, c13, c14 0, 1, 2 Drain write buffer c7 c10 4 Cache lockdown c9 c0 0, 1 Round-robin replacement c15 c0 0
- 443. 424 Chapter 12 Caches Changing the memory configuration of a system may require cleaning or flushing a cache. The need to clean or flush a cache results directly from actions like changing the access permission, cache, and buffer policy, or remapping virtual addresses. The cache may also need cleaning or flushing before the execution of self-modifying code in a split cache. Self-modifying code includes a simple copy of code from one location to another. The need to clean or flush arises from two possible conditions: First, the self- modifying code may be held in the D-cache and therefore be unavailable to load from main memory as an instruction. Second, existing instructions in the I-cache may mask new instructions written to main memory. If a cache is using a writeback policy and self-modifying code is written to main memory, the first step is to write the instructions as a block of data to a location in main memory. At a later time, the program will branch to this memory and begin executing from that area of memory as an instruction stream. During the first write of code to main memory as data, it may be written to cache memory instead; this occurs in an ARM cache if valid cache lines exist in cache memory representing the location where the self-modifying code is written. The cache lines are copied to the D-cache and not to main memory. If this is the case, then when the program branches to the location where the self-modifying code should be, it will execute old instructions still present because the self-modifying code is still in the D-cache. To prevent this, clean the cache, which forces the instructions stored as data into main memory, where they can be read as an instruction stream. IftheD-cachehasbeencleaned, newinstructionsarepresentinmainmemory. However, the I-cache may have valid cache lines stored for the addresses where the new data (code) was written. Consequently, a fetch of the instruction at the address of the copied code would retrieve the old code from the I-cache and not the new code from main memory. Flush the I-cache to prevent this from happening. 12.5.1 Flushing ARM Cached Cores Flushing a cache invalidates the contents of a cache. If the cache is using a writeback policy, care should be taken to clean the cache before flushing so data is not lost as a result of the flushing process. There are three CP15:c7 commands that perform flush operations on a cache. The first flushes the entire cache, the second flushes just the I-cache, and the third just the D-cache. The commands and cores that support them are shown in Table 12.3. The value of the processor core register Rd should be zero for all three MCR instructions. We provide Example 12.2 to show how to flush caches using these instructions. The example can be used “as is” or customized to suit the requirements of the system. The example contains a macro that produces three routines (for information on using macros, see Appendix A): ■ flushICache flushes the I-cache. ■ flushDCache flushes the D-cache.
- 444. 12.5 Flushing and Cleaning Cache Memory 425 Table 12.3 CP15:c7:Cm commands to flush the entire cache. Command MCR instruction Core support Flush cache MCR p15, 0, Rd, c7, c7, 0 ARM720T, ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Flush data cache MCR p15, 0, Rd, c7, c6, 0 ARM920T, ARM922T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Flush instruction cache MCR p15, 0, Rd, c7, c5, 0 ARM920T, ARM922T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale ■ flushCache flushes both the I-cache and D-cache. The routines have no input parameters and are called from C with the following prototypes: void flushCache(void); /* flush all cache */ void flushDCache(void); /* flush D-cache */ void flushICache(void); /* flush I-cache */ Example 12.2 This example begins by filtering the cores into groups based on the commands that they support. We use a macro called CACHEFLUSH to help in the creation of the routines. The macro starts by setting the core register written to the CP15:c7:Cm to zero. Then it inserts the specific MCR instruction depending on the type of cache operation needed and its availability within each core. IF {CPU} = ARM720T :LOR: {CPU} = ARM920T :LOR: {CPU} = ARM922T :LOR: {CPU} = ARM926EJ-S :LOR: {CPU} = ARM940T :LOR: {CPU} = ARM946E-S :LOR: {CPU} = ARM1022E :LOR: {CPU} = ARM1026EJ-S :LOR: {CPU} = SA-110 :LOR: {CPU} = XSCALE c7f RN 0 ; register in CP17:c7 format
- 445. 426 Chapter 12 Caches MACRO CACHEFLUSH $op MOV c7f, #0 IF $op = Icache MCR p15,0,c7f,c7,c5,0 ; flush I-cache ENDIF IF $op = Dcache MCR p15,0,c7f,c7,c6,0 ; flush D-cache ENDIF IF $op = IDcache IF {CPU} = ARM940T :LOR: {CPU} = ARM946E-S MCR p15,0,c7f,c7,c5,0 ; flush I-cache MCR p15,0,c7f,c7,c6,0 ; flush D-cache ELSE MCR p15,0,c7f,c7,c7,0 ; flush I-cache D-cache ENDIF ENDIF MOV pc, lr MEND IF {CPU} = ARM720T EXPORT flushCache flushCache CACHEFLUSH IDcache ELSE EXPORT flushCache EXPORT flushICache EXPORT flushDCache flushCache CACHEFLUSH IDcache flushICache CACHEFLUSH Icache flushDCache CACHEFLUSH Dcache ENDIF Finally, we use the macro several times to create the routines. The ARM720T has a unified cache so only the flushCache routine is available; otherwise, the routine uses the macro three times to create the routines. ■ This example contains a little more code than most implementations require. However, it is provided as an exhaustive routine that supports all current ARM processor cores.
- 446. 12.5 Flushing and Cleaning Cache Memory 427 You can use Example 12.2 to create simpler routines dedicated to the specific core you are using. We use an ARM926EJ-S as a model to show how the three routines can be extracted from Example 12.2. The rewritten version is EXPORT flushCache926 EXPORT flushICache926 EXPORT flushDCache926 c7f RN 0 ; register in CP15:c7 format flushCache926 MCR p15,0,c7f,c7,c7,0 ; flush I-cache D-cache MOV pc, lr flushICache926 MCR p15,0,c7f,c7,c5,0 ; flush I-cache MOV pc, lr flushDCache926 MCR p15,0,c7f,c7,c6,0 ; flush D-cache MOV pc, lr If you are writing in C, you might simplify this code even further and make them inline functions that can be collected and placed in an include file. The inline functions are __inline void flushCache926(void) { unsigned int c7format = 0; __asm{ MCR p15,0,c7format,c7,c7,0 }; /* flush ID-cache */ } __inline void flushDcache926(void) { unsigned int c7format = 0; __asm{MCR p15,0,c7format,c7,c6,0 } /* flush D-cache */ } __inline void flushIcache926(void) { unsigned int c7format = 0; __asm{MCR p15,0,c7format,c7,c5,0 } /* flush I-cache */ } The remainder of the examples in this chapter are presented in ARM assembler and support all current cores. The same extraction procedures can be applied to the routines provided.
- 447. 428 Chapter 12 Caches 12.5.2 Cleaning ARM Cached Cores To clean a cache is to issue commands that force the cache controller to write all dirty D-cache lines out to main memory. In the process the dirty status bits in the cache line are cleared. Cleaning a cache reestablishes coherence between cached memory and main memory and can only apply to D-caches using a writeback policy. The terms writeback and copyback are sometimes used in place of the term clean. So to force a writeback or copyback of cache to main memory is the same as cleaning the cache. The terms are similar to the adjectives used to describe cache write policy; however, in this case they describe an action performed on cache memory. In the non-ARM world the term flush may be used to mean what ARM calls clean. 12.5.3 Cleaning the D-Cache At the time of writing this book there are three methods used to clean the D-cache (see Table 12.4); the method used is processor dependent because different cores have different command sets to clean the D-cache. Although the method used to clean the cache may vary, in the examples we provide the same procedure call to provide a consistent interface across all cores. To do this we provide the same three procedures to clean the entire cache written once for each method: ■ cleanDCache cleans the entire D-cache. ■ cleanFlushDCache cleans and flushes the entire D-cache. ■ cleanFlushCache cleans and flushes both the I-cache and D-cache. The cleanDCache, cleanFlushDCache, and cleanFlushCache procedures do not take any input parameters and can be called from C using the following prototypes: void cleanDCache(void); /* clean D-cache */ void cleanFlushDCache(void); /* clean-and-flush D-cache */ void cleanFlushCache(void); /* clean-and-flush ID-cache */ Table 12.4 Procedural methods to clean the D-cache. Method Example Processor Way and set index addressing Example 12.3 ARM920T, ARM922T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S Test-clean Example 12.4 ARM926EJ-S, ARM1026EJ-S Special allocate command reading a dedicated block of memory Example 12.5 XScale, SA-110
- 448. 12.5 Flushing and Cleaning Cache Memory 429 The macros in these examples were written to support as many ARM cores as possible without major modification. This effort produced a common header file used in this exam- ple and several other examples presented in this chapter. The header file is named cache.h and is shown in Figure 12.10. IF {CPU} = ARM920T CSIZE EQU 14 ; cache size as 1 CSIZE (16 K assumed) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 6 ; set associativity = 1 NWAY (64 way) I7SET EQU 5 ; CP15 c7 set incrementer as 1 ISET I7WAY EQU 26 ; CP15 c7 way incrementer as 1 SSET I9WAY EQU 26 ; CP15 c9 way incrementer as 1 SSET ENDIF IF {CPU} = ARM922T CSIZE EQU 14 ; cache size as 1 CSIZE (16 K assumed) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 6 ; set associativity = 1 NWAY (64 way) I7SET EQU 5 ; CP15 c7 set incrementer as 1 ISET I7WAY EQU 26 ; CP15 c7 way incrementer as 1 SSET I9WAY EQU 26 ; CP15 c9 way incrementer as 1 SSET ENDIF IF {CPU} = ARM926EJ-S CSIZE EQU 14 ; cache size as 1 CSIZE (16 K assumed) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 2 ; set associativity = 1 NWAY (4 way) I7SET EQU 4 ; CP15 c7 set incrementer as 1 ISET I7WAY EQU 30 ; CP15 c7 way incrementer as 1 IWAY ENDIF IF {CPU} = ARM940T CSIZE EQU 12 ; cache size as 1 CSIZE (4K) CLINE EQU 4 ; cache line size in bytes as 1 CLINE NWAY EQU 6 ; set associativity = 1 NWAY (64 way) I7SET EQU 4 ; CP15 c7 set incrementer = 1 ISET I7WAY EQU 26 ; CP15 c7 way incrementer = 1 IWAY I9WAY EQU 0 ; CP15 c9 way incrementer = 1 IWAY ENDIF Figure12.10 The header file cache.h.
- 449. 430 Chapter 12 Caches IF {CPU} = ARM946E-S CSIZE EQU 12 ; cache size as 1 CSIZE (4 K assumed) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 2 ; set associativity = 1 NWAY (4 way) I7SET EQU 4 ; CP15 c7 set incrementer = 1 ISET I7WAY EQU 30 ; CP15 c7 way incrementer = 1 IWAY I9WAY EQU 0 ; CP15 c7 way incrementer = 1 IWAY ENDIF IF {CPU} = ARM1022E CSIZE EQU 14 ; cache size as 1 CSIZE (16 K) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 6 ; set associativity = 1 NWAY (64 way) I7SET EQU 5 ; CP15 c7 set incrementer as 1 ISET I7WAY EQU 26 ; CP15 c7 way incrementer as 1 SSET I9WAY EQU 26 ; CP15 c7 way incrementer = 1 IWAY ENDIF IF {CPU} = ARM1026EJ-S CSIZE EQU 14 ; cache size as 1 CSIZE (16 K assumed) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 2 ; set associativity = 1 NWAY (4 way) I7SET EQU 5 ; CP15 c7 set incrementer as 1 ISET I7WAY EQU 30 ; CP15 c7 way incrementer as 1 IWAY ENDIF IF {CPU} = SA-110 CSIZE EQU 14 ; cache size as 1 CSIZE (16 K) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 5 ; set associativity = 1 NWAY (4 way) CleanAddressDcache EQU 0x8000 ENDIF IF {CPU} = XSCALE CSIZE EQU 15 ; cache size as 1 CSIZE (32 K) CLINE EQU 5 ; cache line size in bytes as 1 CLINE NWAY EQU 5 ; set associativity = 1 NWAY (32 way) MNWAY EQU 1 ; set assoc mini D-cache = 1 NWAY (2 way) MCSIZE EQU 11 ; mini cache size as 1 CSIZE (2 K) ENDIF ; ---------------- SWAY EQU (CSIZE-NWAY) ; size of way = 1 SWAY NSET EQU (CSIZE-NWAY-CLINE) ; cache lines per way = 1 NSET Figure12.10 The header file cache.h. (Continued.)
- 450. 12.5 Flushing and Cleaning Cache Memory 431 All values in the header file are either a size expressed in log base two or a field locator. If the value is a locator, it represents the lowest bit in a bit field in a CP15 register. For exam- ple, the constant I7WAY points to the lowest bit in the way selection field in the CP15:c7:c5 register. Just to be clear, the value of I7WAY is 26 in an ARM920T, ARM922T, ARM940T, and ARM1022E, and the value is 30 in the ARM926EJ-S, ARM946E-S, and ARM1026EJ-S (see Figure 12.11). The values are stored in this format to support bit manipulation of the core register (Rm) moved into a CP15:Cd:Cm register when a clean command is issued using an MCR instruction. Thesixconstantsinthe headerfilethatdependonthecorearchitecturearethefollowing: ■ CSIZE is the log base two of the size of the cache in bytes; in other words, the cache size is (1CSIZE) bytes. ■ CLINE is the log base two of the length of a cache line in bytes; the cache line length would be (1CLINE) bytes. ■ NWAY is the number of ways and is the same as the set associativity. ■ I7SET is the number of bits that the set index is shifted to the left in the CP15:c7 command register. This value is also used to increment or decrement the set index portion of the CP15:c7 register when sequentially accessing the cache. ■ I7WAY is the number of bits that the way index is shifted to the left in the CP15:c7 command register. This value is also used to increment or decrement the way index portion of the CP15:c7 register when sequentially accessing the cache. ■ I9WAY is the number of bits that the way index is shifted to the left in the CP15:c9 command register. This value is also used to increment or decrement the way index portion of the CP15:c9 register when sequentially accessing the cache. There are two constants calculated from the core specific data: ■ SWAY is the log base two of the size of a way in bytes. The size of a way would be (1SWAY) bytes. ■ NSET is the number of cache lines per way. This is the log base two of the size of the set index. The number of sets would be (1NSET). 12.5.4 Cleaning the D-Cache Using Way and Set Index Addressing Some ARM cores support cleaning and flushing a single cache line using the way and set index to address its location in cache. The commands available to clean and flush a cache line by way are shown as MCR instructions in Table 12.5. Two commands flush a cache line, one flushes an instruction cache line, and another flushes a data cache line. The remaining two commands clean the D-cache: one cleans a cache line and another cleans and flushes a cache line.
- 451. 432 Chapter 12 Caches Table 12.5 CP15:c7 Commands to clean cache using way and set index addressing. Command MCR instruction Core support Flush instruction cache line MCR p15, 0, Rd, c7, c5, 2 ARM926EJ-S, ARM940T, ARM1026EJ-S Flush data cache line MCR p15, 0, Rd, c7, c6, 2 ARM926EJ-S, ARM940T, ARM1026EJ-S Clean data cache line MCR p15, 0, Rd, c7, c10, 2 ARM920T, ARM922T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S Clean and flush data cache line MCR p15, 0, Rd, c7, c14, 2 ARM920T, ARM922T ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S ARM920T 31 26 25 Way SBZ Set SBZ 8 7 5 4 0 ARM922T 31 26 25 Way SBZ Set SBZ 7 6 5 4 0 ARM940T 31 26 25 Way SBZ Set SBZ 6 5 4 3 0 ARM1022E 31 26 25 Way SBZ SBZ = should be zero SBZ Set WB 7 8 5 4 3 2 0 ARM926EJ-S, ARM946E-S, ARM1026EJ-S 3130 29 y x Way SBZ Set SBZ 5 4 0 Figure12.11 Format of CP15:c7:Cm register Rd when cleaning cache by way and set index addressing.
- 452. 12.5 Flushing and Cleaning Cache Memory 433 Each core listed selects an individual cache line by its way and set index address. When using these instructions the value in core register Rd is the same for all four commands within a single processor core; however, the format of the bit fields within the register varies from processor to processor. The CP15:c7:Cm register format for cores that support cleaning and flushing a cache line by way is shown in Figure 12.11. To execute the command, create a value in a core register (Rd) in the desired CP15:c7 register format. The general form of the register includes two bit fields: one selects the way and the other selects the set in the way. Once the register is created, execute the desired MCR instruction to move the core register (Rd) to the CP15:c7 register. The cleanDCache, cleanFlushDCache, and cleanFlushCache procedures for the ARM920T, ARM922T, ARM940T, ARM946E-S, and ARM1022E processors are shown in the following example. Example 12.3 We use a macro called CACHECLEANBYWAY to create the three procedures that clean, flush, or clean and flush the cache using way and set index addressing. The macro uses constants in the header file cache.h to build a processor register in CP15:C7 register format (c7f ) for the selected core. The first step is to set the c7f register to zero, which is used as the Rd input value in the MCR instruction to execute the selected operation. The macro then increments the c7f register according to the format in Figure 12.11, once for each written cache line. It increments the set index in the inner loop and the way index in the outer loop. Using these nested loops, it steps through and cleans all the cache lines in all the ways. AREA cleancachebyway , CODE, READONLY ; Start of Area block IF {CPU} = ARM920T :LOR: {CPU} = ARM922T :LOR: {CPU} = ARM940T :LOR: {CPU} = ARM946E-S :LOR: {CPU} = ARM1022E EXPORT cleanDCache EXPORT cleanFlushDCache EXPORT cleanFlushCache INCLUDE cache.h c7f RN 0 ; cp15:c7 register format MACRO CACHECLEANBYWAY $op MOV c7f, #0 ; create c7 format 5 IF $op = Dclean MCR p15, 0, c7f, c7, c10, 2 ; clean D-cline
- 453. 434 Chapter 12 Caches ENDIF IF $op = Dcleanflush MCR p15, 0, c7f, c7, c14, 2 ; cleanflush D-cline ENDIF ADD c7f, c7f, #1 I7SET ; +1 set index TST c7f, #1 (NSET+I7SET) ; test index overflow BEQ BIC c7f, c7f, #1 (NSET+I7SET) ; clear index overflow ADDS c7f, c7f, #1 I7WAY ; +1 victim pointer BCC %BT5 ; test way overflow MEND cleanDCache CACHECLEANBYWAY Dclean MOV pc, lr cleanFlushDCache CACHECLEANBYWAY Dcleanflush MOV pc, lr cleanFlushCache CACHECLEANBYWAY Dcleanflush MCR p15,0,r0,c7,c5,0 ; flush I-cache MOV pc, lr ENDIF ■ 12.5.5 Cleaning the D-Cache Using the Test-Clean Command TwoofthenewerARMcores, theARM926EJ-SandARM1026EJ-S,havecommandstoclean cache lines using a test-clean CP15:c7 register. The test clean command is a special clean instruction that can efficiently clean a cache when used in a software loop. The ARM926EJ-S and ARM1026EJ-S also support cleaning using set and way indexing; however, using the test clean command method of cleaning the D-cache is more efficient. We use the commands shown in Table 12.6 in the following routines to clean the ARM926EJ-S and ARM1026EJ-S cores. The cleanDCache, cleanFlushDCache, and Table 12.6 Commands to test clean a single D-cache line. Command MCR instruction Core Support Test, clean D-cache line by loop MCR p15, 0, r15, c7, c10, 3 ARM926EJ-S, ARM1026EJ-S Test, clean, and flush D-cache by loop MCR p15, 0, r15, c7, c14, 3 ARM926EJ-S, ARM1026EJ-S
- 454. 12.5 Flushing and Cleaning Cache Memory 435 cleanFlushCache procedures for the ARM926EJ-S and ARM1026EJ-S processors are shown in Example 12.4. Example 12.4 The test clean command finds the first dirty cache line and cleans it by transferring its contents to main memory. If another dirty cache exists in cache memory, then the Z flag will be zero. IF {CPU} = ARM926EJ-S :LOR: {CPU} = ARM1026EJ-S EXPORT cleanDCache EXPORT cleanFlushDCache EXPORT cleanFlushCache cleanDCache MRC p15, 0, pc, c7, c10, 3 ; test/clean D-cline BNE cleanDCache MOV pc, lr cleanFlushDCache MRC p15, 0, pc, c7, c14, 3 ; test/cleanflush D-cline BNE cleanFlushDCache MOV pc, lr cleanFlushCache MRC p15, 0, pc, c7, c14, 3 ; test/cleanflush D-cline BNE cleanFlushCache MCR p15, 0, r0, c7, c5, 0 ; flush I-cache MOV pc, lr ENDIF To clean the cache, a software loop is created that uses the test clean command. By testing the Z flag and branching back to repeat the test, the processor loops through the test until the D-cache is clean. Note that the test clean command uses the program counter (r15) as the Rd register input to the MCR instruction. ■ 12.5.6 Cleaning the D-Cache in Intel XScale SA-110 and Intel StrongARM Cores The Intel XScale and Intel StrongARM processors use a third method to clean their D-caches. The Intel XScale processors have a command to allocate a line in the D-cache without doing a line fill. When the processor executes the command, it sets the valid bit and fills the directory entry with the cache-tag provided in the Rd register. No data is transferred from main memory when the command executes. Thus, the data in the cache is not initial- ized until it is written to by the processor. The allocate command, shown in Table 12.7, has the beneficial feature of evicting a cache line if it is dirty.
- 455. 436 Chapter 12 Caches Table 12.7 Intel XScale CP15:c7 commands to allocate a D-cache line. Command MCR instruction Core supported Allocate line in data cache MCR p15, 0, Rd, c7, c2, 5 XScale The Intel StrongARM and Intel XScale processors require an additional technique to clean their caches. They need a dedicated area of unused cached main memory to clean the cache. By software design the memory block is dedicated to cleaning the cache only. The Intel StrongARM and Intel XScale processors can be cleaned by reading this fixed block of memory because they use a round-robin replacement policy. If a routine is executed that forces the core to sequentially read an area of cached main data memory equal to the size of the cache, then the series of reads will evict all current cache lines and replace them with data blocks from the dedicated scratch read area. When the read sequence completes, the cache will contain no important data because the dedicated read block has no useful information in it. At this point, the cache can be flushed without fear of losing valued cached data. We use this technique to clean the Intel StrongARM D-cache and the Intel XScale mini D-cache. The cleanDCache, cleanFlushDCache, and cleanFlushCache procedures for the Intel XScale and Intel StrongARM processors are shown in the following example. There is one additional procedure, called cleanMiniDCache, provided to clean the mini D-cache in the Intel XScale processor. Example 12.5 This example uses two macros, CPWAIT and CACHECLEANXSCALE. The CPWAIT macro is a three-instruction sequence used on Intel XScale processors to guarantee that CP15 oper- ations execute without side effects. The macro executes these instructions so that enough processor cycles have completed to ensure that the CP15 command has completed and that the pipeline is clear of instructions. The CPWAIT macro is MACRO CPWAIT MRC p15, 0, r12, c2, c0, 0 ; read any CP15 MOV r12, r12 SUB pc, pc, #4 ; branch to next instruction MEND The macro CACHECLEANXSCALE creates the procedures cleanDCache, cleanFlushD- Cache, and cleanFlushCache. The first part of the macro sets physical parameters for the routine. The first parameter, adr, is the starting virtual memory address of the dedicated area of memory used to clean the cache. The second parameter, nl is the total number of cache lines in the cache.
- 456. 12.5 Flushing and Cleaning Cache Memory 437 IF {CPU} = XSCALE :LOR: {CPU} = SA-110 EXPORT cleanDCache EXPORT cleanFlushDCache EXPORT cleanFlushCache INCLUDE cache.h CleanAddressDcache EQU 0x8000 ;(32K block 0x8000-0x10000) CleanAddressMiniDcache EQU 0x10000 ;(2K block 0x10000-0x10800) adr RN 0 ; start address nl RN 1 ; number of cache lines to process tmp RN 12 ; scratch register MACRO CACHECLEANXSCALE $op IF $op = Dclean LDR adr, =CleanAddressDcache MOV nl, #(1 (NWAY+NSET)) ENDIF IF $op = DcleanMini LDR adr, =CleanAddressMiniDcache MOV nl, #(1 (MNWAY+NSET)) ENDIF 5 IF {CPU} = XSCALE :LAND: $op = Dclean MCR p15, 0, adr, c7, c2, 5 ; allocate d-cline ADD adr, adr, #32 ; +1 d-cline ENDIF IF {CPU} = SA-110 :LOR: $op= DcleanMini LDR tmp,[adr],#32 ; Load data, +1 d-cline ENDIF SUBS nl, nl, #1 ; -1 loop count BNE %BT5 IF {CPU} = XSCALE CPWAIT ENDIF MEND cleanDCache CACHECLEANXSCALE Dclean MOV pc, lr
- 457. 438 Chapter 12 Caches cleanFlushDCache STMFD sp!, {lr} BL cleanDCache IF {CPU} = XSCALE BL cleanMiniDCache ENDIF MOV r0, #0 MCR p15,0,r0,c7,c6,0 ; flush D-cache IF {CPU} = XSCALE CPWAIT ENDIF LDMFD sp!, {pc} cleanFlushCache STMFD sp!, {lr} BL cleanDCache IF {CPU} = XSCALE BL cleanMiniDCache ENDIF MOV r0, #0 MCR p15,0,r0,c7,c7,0 ; flush I-cache D-cache IF {CPU} = XSCALE CPWAIT ENDIF LDMFD sp!, {pc} ENDIF IF {CPU} = XSCALE EXPORT cleanMiniDCache cleanMiniDCache CACHECLEANXSCALE DcleanMini MOV pc, lr ENDIF The macro then filters the needed commands to execute the clean operation for the two processor cores. The Intel XScale uses the allocate CP15:c7 command to clean the D-cache and reads a dedicated cached memory block to clean the mini D-cache. The Intel StrongARM reads from a dedicated area of memory to clean its D-cache. Finally, we use the macro several times to create the cleanDCache, cleanFlushDCache, cleanFlushCache, and cleanMiniDCache procedures. ■ 12.5.7 Cleaning and Flushing Portions of a Cache ARM cores support cleaning and flushing a single cache line by reference to the location it represents in main memory. We show these commands as MCR instructions in Table 12.8.
- 458. 12.5 Flushing and Cleaning Cache Memory 439 Table 12.8 Commands to clean and flush a cache line referenced by its location in main memory. Command MCR instruction Core support Flush instruction cache line MCR p15, 0, Rd, c7, c5, 1 ARM920T, ARM922T, ARM926EJ-S, ARM946E-S, ARM1022E, ARM1026EJ-S, XScale Flush data cache line MCR p15, 0, Rd, c7, c6, 1 ARM920T, ARM922T, ARM926EJ-S, ARM946E-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Clean data cache line MCR p15, 0, Rd, c7, c10, 1 ARM920T, ARM922T, ARM926EJ-S, ARM946E-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Clean and flush data cache line MCR p15, 0, Rd, c7, c14, 1 ARM920T, ARM922T, ARM926EJ-S, ARM946E-S, ARM1022E, ARM1026EJ-S, XScale Two of the commands flush a single cache line, one flushes the instruction cache, and the other flushes the data cache. There are also two commands to clean the data cache: one that cleans a single cache line and another that cleans and flushes a single cache line. When using these instructions the value in core register Rd is the same for all four commands within the same processor, and its contents must be the value needed to set the CP15:c7 register. However, the format of the bit values in the CP15:c7 register vary slightly from processor to processor. Figure 12.12 shows the register format for cores that support cleaning and flushing a cache line by its modified virtual address if the core has an MMU, or its physical address if it has an MPU. We use the four commands to create six routines, which clean and/or flush the cache lines in the cache that represent a region of memory: ■ flushICacheRegion flushes the cache lines from the I-cache representing a region of main memory. ■ flushDCacheRegion flushes the cache lines from the D-cache representing a region of main memory. ■ cleanDCacheRegion cleans the cache lines from the D-cache representing a region of main memory. ■ cleanFlushDcacheRegion cleans and flushes the cache lines from the D-cache representing a region of main memory. ■ flushCacheRegion flushes the cache lines representing a region of main memory from both the I-cache and D-cache. ■ cleanFlushCacheRegion cleans and flushes the D-cache and then flushes the I-cache.
- 459. 440 Chapter 12 Caches ARM920T, ARM922T, ARM926EJ-S, ARM1026EJ-S 31 SBZ Modified virtual address ARM946E-S 31 Physical address SBZ 5 4 5 4 0 0 ARM1022E 31 Modified virtual address WB SBZ 5 4 3 2 0 Intel StrongARM, Intel XScale 31 Modified virtual address SBZ 5 4 0 Figure12.12 CP15:c7 Register Format when cleaning and flushing a cache line referenced by its origin in main memory. All the procedures have two arguments passed to them, the starting address in main memory (adr) and the size of the region in bytes (b). The C function prototypes are void flushICacheRegion(int * adr, unsigned int b); void flushDCacheRegion(int * adr, unsigned int b); void cleanDCacheRegion(int * adr, unsigned int b); void cleanFlushDcacheRegion(int * adr, unsigned int b); void flushCacheRegion(int * adr, unsigned int b); void cleanFlushCacheRegion(int * adr, unsigned int b); Care should be taken when using the clean cache region procedures. The use of these procedures is most successful on small memory regions. If the size of the region is sev- eral times larger than the cache itself, it is probably more efficient to clean the entire cache using one of the clean cache procedures provided in Sections 12.5.4, 12.5.5, and 12.5.6. The region procedures are available on a limited set of ARM cores. Figure 12.12 lists the cores that support cleaning and flushing by address. They are also listed at the start of the code in the following example.
- 460. 12.5 Flushing and Cleaning Cache Memory 441 Example 12.6 The macro takes the input address and truncates it to a cache line boundary. This truncation always addresses the first double word in the cache line of an ARM1022E (see Figure 12.12). The macro then takes the size argument and converts it from bytes to cache lines. The macro uses the number of cache lines as a counter variable to loop through the selected flush or clean operation, incrementing the address by a cache line size at the end of each loop. It exits when the counter reaches zero. IF {CPU} = ARM920T :LOR: {CPU} = ARM922T :LOR: {CPU} = ARM946E-S :LOR: {CPU} = ARM926EJ-S :LOR: {CPU} = ARM1022E :LOR: {CPU} = ARM1026EJ-S :LOR: {CPU} = XSCALE :LOR: {CPU} = SA-110 INCLUDE cache.h adr RN 0 ; active address size RN 1 ; size of region in bytes nl RN 1 ; number of cache lines to clean or flush MACRO CACHEBYREGION $op BIC adr, adr, #(1 CLINE)-1 ; clip 2 cline adr MOV nl, size, lsr #CLINE ; bytes to cline 10 IF $op = IcacheFlush MCR p15, 0, adr, c7, c5, 1 ; flush I-cline@adr ENDIF IF $op = DcacheFlush MCR p15, 0, adr, c7, c6, 1 ; flush D-cline@adr ENDIF IF $op = IDcacheFlush MCR p15, 0, adr, c7, c5, 1 ; flush I-cline@adr MCR p15, 0, adr, c7, c6, 1 ; flush D-cline@adr ENDIF IF $op = DcacheClean MCR p15, 0, adr, c7, c10, 1 ; clean D-cline@adr ENDIF IF $op = DcacheCleanFlush IF {CPU} = XSCALE :LOR:
- 461. 442 Chapter 12 Caches {CPU} = SA-110 MCR p15, 0, adr, c7, c10, 1 ; clean D-cline@adr MCR p15, 0, adr, c7, c6, 1 ; flush D-cline@adr ELSE MCR p15, 0, adr, c7, c14, 1 ; cleanflush D-cline@adr ENDIF ENDIF IF $op = IDcacheCleanFlush IF {CPU} = ARM920T :LOR: {CPU} = ARM922T :LOR: {CPU} = ARM946E-S :LOR: {CPU} = ARM926EJ-S :LOR: {CPU} = ARM1022E :LOR: {CPU} = ARM1026EJ-S MCR p15, 0, adr, c7, c14, 1 ;cleanflush D-cline@adr MCR p15, 0, adr, c7, c5, 1 ; flush I-cline@adr ENDIF IF {CPU} = XSCALE MCR p15, 0, adr, c7, c10, 1 ; clean D-cline@adr MCR p15, 0, adr, c7, c6, 1 ; flush D-cline@adr MCR p15, 0, adr, c7, c5, 1 ; flush I-cline@adr ENDIF ENDIF ADD adr, adr, #1 CLINE ; +1 next cline adr SUBS nl, nl, #1 ; -1 cline counter BNE %BT10 ; flush # lines +1 IF {CPU} = XSCALE CPWAIT ENDIF MOV pc, lr MEND IF {CPU} = SA-110 EXPORT cleanDCacheRegion EXPORT flushDCacheRegion EXPORT cleanFlushDCacheRegion cleanDCacheRegion CACHEBYREGION DcacheClean flushDCacheRegion CACHEBYREGION DcacheFlush cleanFlushDCacheRegion CACHEBYREGION DcacheCleanFlush
- 462. 12.6 Cache Lockdown 443 ELSE EXPORT flushICacheRegion EXPORT flushDCacheRegion EXPORT flushCacheRegion EXPORT cleanDCacheRegion EXPORT cleanFlushDCacheRegion EXPORT cleanFlushCacheRegion flushICacheRegion CACHEBYREGION IcacheFlush flushDCacheRegion CACHEBYREGION DcacheFlush flushCacheRegion CACHEBYREGION IDcacheFlush cleanDCacheRegion CACHEBYREGION DcacheClean cleanFlushDCacheRegion CACHEBYREGION DcacheCleanFlush cleanFlushCacheRegion CACHEBYREGION IDcacheCleanFlush ENDIF ENDIF Finally, using the CACHEBYREGION macro, we either create three procedures if the core is an Intel StrongARM, which has a limited command set, or all six procedures for the remainder of the processors that have split caches. ■ 12.6 Cache Lockdown Cache lockdown is a feature that enables a program to load time-critical code and data into cache memory and mark it as exempt from eviction. Code or data in lockdown provides faster system response because it is held in the cache memory. Cache lockdown avoids the problem of unpredictable execution times that result from the cache line eviction process, a normal part of cache operation. Thepurposeoflockinginformationincacheistoavoidthecachemisspenalty. However, because any cache memory used for lockdown is unavailable for caching other parts of main memory, the useful cache size is reduced. The ARM core allocates fixed units of the cache for lockdown. The unit size that ARM cores allocate in lockdown is a way. For example, a four-way set associative cache allows locking code or data in units that are 1/4th of the cache size. The cached core always reserves at least one way for normal cache operation. Some instructions that are candidates for locking in cache are the vector interrupt table, interrupt service routines, or code for a critical algorithm that the system uses extensively. On the data side, frequently used global variables are good candidates for lockdown.
- 463. 444 Chapter 12 Caches DataorcodelockedinanARMcachecoreisimmunefromreplacement. However, when the cache is flushed, the information in lockdown is lost and the area remains unavailable as cache memory. The cache lockdown routine must be rerun to restore the lockdown information. 12.6.1 Locking Code and Data in Cache This section presents a procedure to lock code and data in cache. A typical sequence of C calls to lock code and data in cache is the following: int interrupt_state; /* saves the state of the FIQ and IRQ bits */ int globalData[16]; unsigned int *vectortable = (unsigned int *)0x0; int wayIndex; int vectorCodeSize = 212; /* vector table FIQ handler in bytes*/ interrupt_state = disable_interrupts(); /* no code provided */ enableCache(); /* see Chapters 13(MPU) and 14(MMU) */ flushCache(); /* see code Example 12.2 */ /* Lock Global Data Block */ wayIndex = lockDcache((globalData, sizeof globalData); /* Lock Vector table and FIQ Handler */ wayIndex = lockIcache((vectortable, vectorCodeSize);} enable_interrupts(interrupt_state); /* no code provided */ To begin, interrupts are disabled and the cache enabled. The procedure that disables interrupts is not shown. The flushCache procedure is one selected from the previous examples; the actual call used depends on the cache configuration and may also include cleaning the cache. The function lockDCache locks a block of data in the D-cache; similarly, the function lockIcache locks a code block in the I-cache. The lockdown software routines themselves must be located in noncached main mem- ory. The code and data locked in cache must be located in cached main memory. It is important that the code and data locked in cache does not exist elsewhere in cache; in other words, if the contents of the cache are unknown, then flush the cache before loading. If the core is using a writeback D-cache, then clean the D-cache. Once the code and data are loaded in cache, reenable interrupts. We present the code for the two functions lockDCache and lockIcache three different times because there are three different lockdown methods used to lock code in cache, depending on the architectural implementation. The first method locks code and data in the cache using way addressing techniques. The second uses a set of lock bits. In the third,
- 464. 12.6 Cache Lockdown 445 Table 12.9 Methods of cache lockdown. Example Procedural method Processor core Example 12.7 way addressing ARM920T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S Example 12.8 lock bits ARM926EJ-S, ARM1026EJ-S Example 12.9 special allocate command XScale code and data are locked in cache using a combination of a special allocate command and reading a dedicated block of main memory. Table 12.9 lists the three examples that implement the two procedures lockDcache and lockIcache, the methods used, and the associated processors. 12.6.2 Locking a Cache by Incrementing the Way Index The ARM920T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, and ARM1026EJ-S use way and set index addressing for lockdown. Two CP15:c9:c0 registers contain the victim counter reset registers described in Section 12.3.2. One of the registers controls the I-cache, and the other controls the D-cache. These registers are used to select the cache line within the way in which to lock the code or data. The value written to the CP15:c7 register sets the victim reset value—the value that the victim counter is reset to when it increments beyond the number of ways in the core. The reset value is zero at power-up and is only changed by software if some portion of the cache is used for lockdown. When a portion of the cache is used for lockdown, the number of cache lines for caching information decreases by the number of cache lines locked down. Reading the register returns the current victim reset value. The MRC and MCR instructions to read and write to the two registers are shown in Table 12.10. Table 12.10 Commands that lock data in cache by referencing its way. MRC and Command MCR instructions Processor core Read D-cache lockdown base MRC p15, 0, Rd, c9, c0, 0 ARM920T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S Write D-cache lockdown base MCR p15, 0, Rd, c9, c0, 0 ARM920T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S Read I-cache lockdown base MRC p15, 0, Rd, c9, c0, 1 ARM920T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S Write I-cache lockdown base MCR p15, 0, Rd, c9, c0, 1 ARM920T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S
- 465. 446 Chapter 12 Caches ARM920T, ARM1022E 31 26 25 SBZ Way ARM940T 31 6 5 0 SBZ Way L ARM946E-S 31 2 1 0 SBZ Way L Figure12.13 CP15:c9 register format used when locking data in cache by reference to its way. When reading or writing the lockdown base address, the format of the core register Rd used in the MCR and MRC instructions varies slightly from processor to processor. For each processor that uses these instructions, the format of the processor core Rd register is shown in Figure 12.13. To ensure that the command executes properly, be sure that the Rd register format matches that shown in the figure. A special load command is also needed to lock instructions in cache. This special load command copies a cache-line-sized block of main memory to a cache line in the I-cache. The command and the format for the Rd register used in the instruction are shown in Table 12.11 and Figure 12.14. The following example shows lockDCache and lockICache routines for processors supporting lockdown using incremented way addressing. The return value for the two routines is the next available victim pointer base address. Example 12.7 The first part of the routine defines the registers used in the macro CACHELOCKBYWAY. The macro also uses constants in the header file cache.h shown in Figure 12.10. Table 12.11 Command to lock a cache line in the I-cache. Command MCR instruction Processor core Prefetch I-cache line by address MCR p15, 0, Rd, c7, c13, 1 ARM920T, ARM922T, ARM926EJ-S, ARM940T, ARM946E-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale
- 466. 12.6 Cache Lockdown 447 ARM940T 31 4 3 0 SBZ Physical address ARM920T, ARM922T, ARM926EJ-S, ARM1026EJ-S 31 5 4 0 SBZ Modified virtual address ARM946E-S 31 5 4 0 SBZ Physical address ARM1022E 31 5 4 3 2 0 SBZ WB Modified virtual address Intel StrongARM, Intel XScale 31 5 4 0 SBZ Modified virtual address Figure12.14 CP15:c7:c13 register format to lock a cache line in I-cache. The first line in the macro aligns the address (adr) to a cache line. The next three lines use the code size in bytes to determine the number of ways it takes to hold the code. Then the I-cache or D-cache current victim pointer is read from CP15:c9:c0. The next few lines do some error checking to test for overfilling the cache and if the size of the code to load is zero. To lock code or data in the cache of an ARM940T or ARM946E-S, there is a lock bit that must be set before locking a memory block in a cache line. The next instruction sets this bit and writes the data back to CP15:c9:c0. At this point the code enters a nested loop, the outer loop selects the way, and the inner loop increments the cache lines within the way. At the center of the two loops a prefetch instruction or load data command is used to lock a cache line in cache memory. To lock instructions, the macro writes to a special CP15:c7:c13 register that preloads the code segment from main memory. To lock data, a read of the data using an LDR instruction is all that is required. The macro exits by clearing the lock bit in the CP15:c9:c0 register if it is an ARM940T or ARM946E-S. On all cores it sets the victim pointer to the next available way after the locked code or data.
- 467. 448 Chapter 12 Caches IF {CPU} = ARM920T :LOR: {CPU} = ARM922T :LOR: {CPU} = ARM940T :LOR: {CPU} = ARM946E-S :LOR: {CPU} = ARM1022E EXPORT lockDCache EXPORT lockICache INCLUDE cache.h adr RN 0 ; current address of code or data size RN 1 ; memory size in bytes nw RN 1 ; memory size in ways count RN 2 tmp RN 2 ; scratch register tmp1 RN 3 ; scratch register c9f RN 12 ; CP15:c9 register format MACRO CACHELOCKBYWAY $op BIC adr, adr, #(1 CLINE)-1 ; align to cline LDR tmp, =(1 SWAY)-1 ; scratch = size of way TST size, tmp ; way end fragment ? MOV nw, size, lsr #SWAY ; convert bytes to ways ADDNE nw, nw, #1 ; add way if fragment CMP nw, #0 ; no lockdown requested BEQ %FT2 ; exit return victim base IF $op = Icache MRC p15, 0, c9f, c9, c0, 1 ; get i-cache victim ENDIF IF $op = Dcache MRC p15, 0, c9f, c9, c0, 0 ; get d-cache victim ENDIF AND c9f, c9f, tmp ; mask high bits c9f = victim ADD tmp, c9f, nw ; temp = victim + way count CMP tmp, #(1 NWAY)-1 ; total ways ? MOVGT r0, #-1 ; return -1 if to many ways BGT %FT1 ; Error: cache way overrun IF {CPU} = ARM940T :LOR: {CPU} = ARM946E-S ORR c9f, c9f, #1 31 ; put cache in lockdown mode
- 468. 12.6 Cache Lockdown 449 ENDIF 10 IF $op = Icache MCR p15, 0, c9f, c9, c0, 1 ; set victim ENDIF IF $op = Dcache MCR p15, 0, c9f, c9, c0, 0 ; set victim ENDIF MOV count, #(1 NSET)-1 5 IF $op = Icache MCR p15, 0, adr, c7, c13, 1 ; load code cacheline ADD adr, adr, #1 CLINE ; cline addr =+ 1 ENDIF IF $op = Dcache LDR tmp1, [adr], #1 CLINE ; load data cacheline ENDIF SUBS count, count, #1 BNE %BT5 ADD c9f, c9f, #1 I9WAY ; victim pointer =+ 1 SUBS nw, nw, #1 ; way counter =- 1 BNE %BT10 ; repeat for # of ways 2 IF {CPU} = ARM940T :LOR: {CPU} = ARM946E-S BIC r0, c9f, #1 31 ; clear lock bit r0=victim ENDIF IF $op = Icache MCR p15, 0, r0, c9, c0, 1 ; set victim counter ENDIF IF $op = Dcache MCR p15, 0, r0, c9, c0, 0 ; set victim counter ENDIF 1 MOV pc, lr MEND lockDCache CACHELOCKBYWAY Dcache lockICache CACHELOCKBYWAY Icache ENDIF Finally, the macro is used twice to create the lockDCache and lockICache functions. ■
- 469. 450 Chapter 12 Caches 12.6.3 Locking a Cache Using Lock Bits The ARM926EJ-S and ARM1026EJ-S lock code and data in cache using a set of lock bits, as shown in Figure 12.15. These two processors have a different Rd format for the CP15:c9 instructions, shown in Table 12.12. The four bits from zero to three represent each way in the four-way set associative cache in the two processors. If the bit’s set, the way is locked and contains either code if it is the I-cache or data if it is the D-cache. A locked way does not evict a cache line until it is unlocked. Clearing one of the L bits unlocks its way. This form of locking the cache allows the system code to individually select the way to lock or unlock. The ability to individually select a way to lock allows code to be more easily locked and unlocked in a system. The example code in this section implements a procedure that has the same programming interface used to lock data in the other cached cores. The example lockDCache and lockICache procedures for the ARM926EJ-S and ARM1026EJ-S processors have the same input parameters. However, the code size is lim- ited to a maximum of the way size, and it can be called up to three times. In the example, L bit 3 is always dedicated to cache. This is not a limitation of the processor hardware, but simply a limit placed on the procedure call to meet the needs of the programming interface. The example procedure returns the L bit of the locked way if the size argument is one byte or greater. The procedure returns the next available L bit if the size is zero, and eight if there are no available ways for lockdown. ARM926EJ-S, ARM1026EJ-S 31 16 15 4 3 0 SBZ SBO L bits Figure12.15 CP15:c9 register format when locking cache using lockdown bits. Table12.12 CP15:c9 Commands to lock cache using lockdown bits. Command MRC and MCR instructions Read I-cache lock page register MRC p15, 0, c9f, c9, c0, 1 Read D-cache lock page register MRC p15, 0, c9f, c9, c0, 0 Write I-cache lock page register MCR p15, 0, c9f, c9, c0, 1 Write I-cache lock page register MCR p15, 0, c9f, c9, c0, 0 Load code cache line at address MCR p15, 0, Rd, c7, c13, 1
- 470. 12.6 Cache Lockdown 451 Example 12.8 A macro called CACHELOCKBYLBIT generates both the lockDCache and lockICache functions.The macro also uses constants in the header file cache.h shown in Figure 12.10. The macro starts by checking if the number of bytes to lock in cache is zero. Then it aligns the address adr to a cache line while determining the number of cache lines it takes to contain the code. If the procedure is locking data in the D-cache, then it reads the lock register CP15:c9:c0:0. If the procedure is locking code in the I-cache, then it reads the lock register CP15:c9:c0:1. The resulting value is placed in the core c9f register. The L bits are also stored in the tmp register for later use. IF {CPU} = ARM926EJ-S :LOR: {CPU} = ARM1026EJ-S EXPORT lockDCache EXPORT lockICache EXPORT bittest INCLUDE cache.h adr RN 0 ; current address of code or data size RN 1 ; memory size in bytes tmp RN 2 ; scratch register tmp1 RN 3 ; scratch register c9f RN 12 ; CP15:c9 register format MACRO CACHELOCKBYLBIT $op ADD size, adr, size ; size = end address BIC adr, adr, #(1 CLINE)-1 ; align to CLINE MOV tmp, #(1 CLINE)-1 ; scratch CLINE mask TST size, tmp ; CLINE end fragment ? SUB size, size, adr ; add alignment bytes MOV size, size, lsr #CLINE ; convert size 2 # CLINE ADDNE size, size, #1 ; add CLINE for fragment CMP size, #(1 NSET)-1 ; size to large ? BHI %FT1 ; exit return victim base IF $op = Icache MRC p15, 0, c9f, c9, c0, 1 ; get i-cache lock bits ENDIF IF $op = Dcache MRC p15, 0, c9f, c9, c0, 0 ; get d-cache lock bits ENDIF AND tmp, c9f, #0xf ; tmp = state of Lbits
- 471. 452 Chapter 12 Caches MOV tmp1, #1 TST c9f, tmp1 ; test lock bit 0 MOVNE tmp1, tmp1, LSL #1 TSTNE c9f, tmp1 ; test lock bit 1 MOVNE tmp1, tmp1, LSL #1 TSTNE c9f, tmp1 ; test lock bit 2 MOVNE tmp1, tmp1, LSL #1 BNE %FT1 ; ERROR: no available ways CMP size, #0 ; no lockdown requested BEQ %FT1 ; exit return size =0 MVN tmp1, tmp1 ; select L bit AND tmp1, tmp1, #0xf ; mask off non L bits BIC c9f, c9f, #0xf ; construct c9f ADD c9f, c9f, tmp1 IF $op = Icache MCR p15, 0, c9f, c9, c0, 1 ; set lock I page ENDIF IF $op = Dcache MCR p15, 0, c9f, c9, c0, 0 ; set lock D page ENDIF 5 IF $op = Icache MCR p15, 0, adr, c7, c13, 1 ; load code cacheline ADD adr, adr, #1 CLINE ; cline addr =+ 1 ENDIF IF $op = Dcache LDR tmp1, [adr], #1 CLINE ; load data cacheline ENDIF SUBS size, size, #1 ; cline =- 1 BNE %BT5 ; loop thru clines MVN tmp1, c9f ; lock selected L-bit AND tmp1, tmp1, #0xf ; mask off non L-bits ORR tmp, tmp, tmp1 ; merge with orig L-bits BIC c9f, c9f, #0xf ; clear all L-bits ADD c9f, c9f, tmp ; set L-bits in c9f IF $op = Icache MCR p15, 0, adr, c9, c0, 1 ; set i-cache lock bits ENDIF
- 472. 12.6 Cache Lockdown 453 IF $op = Dcache MCR p15, 0, adr, c9, c0, 0 ; set d-cache lock bits ENDIF 1 MOV r0, tmp1 ; return allocated way MOV pc, lr MEND lockDCache CACHELOCKBYLBIT Dcache lockICache CACHELOCKBYLBIT Icache ENDIF The next seven lines check the c9f register to see if there is a way available to store code or data; if not, the routine exits. If there is an available way, then the c9f format is modified in the next four lines to select the way in which to lock data. The c9f register is then used in the MCR instruction to select the way. At this point the code enters a loop that fills the cache with locked code or data. If the procedure is locking code in the I-cache, it executes a prefetch I-cache line command. If locking data from external memory, it cleans, flushes, and loads a new cache line into the D-cache. The macro exits by merging the saved L bits with the newly locked page and uses the result to create a new c9f register. The macro uses the c9f register in an MCR instruction to set the L bits in the CP15:c9:c0 cache lockdown register. Finally, the CACHELOCKBYLBIT macro is used twice to create the lockDCache and lockICache functions. ■ 12.6.4 Locking Cache Lines in the Intel XScale SA-110 The Intel XScale processor also has the capability to lock code and data into cache. This method requires the use of a set of CP15:c9 cache lockdown commands, shown in Table 12.13. The format of the CP15:c9:c2 register is shown in Figure 12.16. It also requires the CP15:c7 allocate D-cache line command we used to clean the D-cache in Example 12.5; this command is shown in Table 12.7. In the Intel XScale processor, each set in the cache has a dedicated round-robin pointer that is increased sequentially each time an additional cache line in the cache is locked. Up to 28 of the 32 cache lines within a set can be locked in cache. Attempting to lock more than 28 cache lines in a set results in the line being allocated but not locked in cache. The Intel XScale processor supports two uses for locking data in the D-cache. The first use simply locks main memory locations into the D-cache. In the second use, the allocate cache line command is used to reconfigure a portion of the cache as data RAM; in that case,
- 473. 454 Chapter 12 Caches Table12.13 Fetch and Allocate commands to lock code or data in cache on an Intel XScale processor. Command MRC and MCR instructions Fetch and lock I-cache line VA MCR p15, 0, Rd, c9, c1, 0 Unlock instruction cache MCR p15, 0, Rd, c9, c1, 1 Read data cache lock register MRC p15, 0, Rd, c9, c2, 0 Write data cache lock register and set/clear lock mode MCR p15, 0, Rd, c9, c2, 0 Unlock D-cache MCR p15, 0, Rd, c9, c2, 1 31 1 0 SBZ L Figure12.16 Format of the CP15:c9:c2 D-cache lock register. the portion of cache allocated is not initialized and needs a write from the processor core to contain valid data. In our example we initialize the memory to zero. Example 12.9 The first part of the routine defines the registers used in the macro CACHELOCKREGION. The macro also uses constants in the header file cache.h shown in Figure 12.10. The macro starts by aligning the address (adr) to a cache line and determining the number of cache lines it takes to contain the code. If the procedure is locking data in the D-cache, then the next few lines drain the write buffer and unlock the D-cache. Locking data in the D-cache requires an unlock command that must be issued prior to locking a D-cache line. The macro sets this bit by writing a one to the CP15:c9:c2:0 register. At this point the code enters a loop that fills the cache with locked code or data. If the procedure is locking code in the I-cache, it executes a lock I-cache line command. If it is locking data from external memory, it cleans, flushes, and loads a new cache line into the D-cache. If creating data RAM, it allocates a D-cache line and drains the write buffer to protect against errors that might result from trying to lock more than 28 sets. It then initializes the cache line to zero using STRD instructions. The macro exits by clearing the lock bit on cache load CP15 register if it is locking D-cache data.
- 474. 12.6 Cache Lockdown 455 IF {CPU} = XSCALE EXPORT lockICache EXPORT lockDCache EXPORT lockDCacheRAM INCLUDE cache.h adr RN 0 ; current address of code or data size RN 1 ; memory size in bytes tmp RN 2 ; cpc15:c9 31 (load 5:0 victim pointer) tmp1 RN 3 ; scratch register for LDR instruction MACRO CACHELOCKREGION $op ADD size, adr, size ; size = end address BIC adr, adr, #(1 CLINE)-1 ; align to CLINE MOV tmp, #(1 CLINE)-1 ; scratch CLINE mask TST size, tmp ; CLINE end fragment ? SUB size, size, adr ; add alignment bytes MOV size, size, lsr #CLINE ; convert size 2 # CLINE ADDNE size, size, #1 ; add CLINE to hold fragment CMP size, #0 ; no lockdown requested BEQ %FT1 ; exit return size =0 IF $op = Dcache :LOR: $op = DcacheRAM MCR p15, 0, adr, c7, c10, 4 ; drain write buffer MOV tmp, #1 MCR p15, 0, tmp, c9, c2, 0 ; unlock data cache CPWAIT MOV tmp, #0 ; even words to zero ENDIF IF $op = DcacheRAM MOV tmp1, #0 ; init odd words to zero ENDIF 5 IF $op = Icache MCR p15, 0, adr, c9, c1, 0; lock ICache line ADD adr, adr, #1 CLINE ENDIF IF $op = Dcache MCR p15, 0, adr, c7, c10, 1 ; clean dirty line MCR p15, 0, adr, c7, c6, 1 ; Flush d-cache line LDR tmp, [adr], #1 CLINE ; load data cache line
- 475. 456 Chapter 12 Caches ENDIF IF $op = DcacheRAM MCR p15, 0, adr, c7, c2, 5 ; Allocate d-cache line MCR p15, 0, adr, c7, c10, 4 ; drain write buffer STRD tmp, [adr], #8 ; init 2 zero adr=+2 STRD tmp, [adr], #8 ; init 2 zero adr=+2 STRD tmp, [adr], #8 ; init 2 zero adr=+2 STRD tmp, [adr], #8 ; init 2 zero adr=+2 ENDIF SUBS size, size, #1 BNE %BT5 IF $op = Dcache :LOR: $op = DcacheRAM MCR p15, 0, adr, c7, c10, 4 ; drain write buffer MCR p15, 0, tmp, c9, c2, 0 ; lock data cache CPWAIT ENDIF 1 MOV r0, #0 MOV pc, lr MEND lockICache CACHELOCKREGION Icache lockDCache CACHELOCKREGION Dcache lockDCacheRAM CACHELOCKREGION DcacheRAM ENDIF Finally, the macro is used three times to create the lockICache, lockDCache, and lockDCacheRAM functions. ■ 12.7 Caches and Software Performance Here are a few simple rules to help write code that takes advantage of cache architecture. Most regions in a memory system are configured to have both the caches and write buffer enabled, taking maximum advantage of the cache architecture to reduce average memory access time. For more information on regions and the configuration of cache and write buffers operation within them, refer to Chapter 13 if you are using an ARM processor core with a memory protection unit and Chapter 14 if you are using an ARM processor core with a memory management unit.
- 476. 12.8 Summary 457 Memory-mapped peripherals frequently fail if they are configured to use cache or the write buffer. It is best to configure them as noncached and nonbuffered memory, which forces the processor to read the peripheral device on every memory access, rather than use what would be stale data from cache. Try to place frequently accessed data sequentially in memory, remembering that the cost of fetching a new data value from main memory requires a cache line fill. If the data in the cache line is used only once before it is evicted, performance will be poor. Placing data in the same cache line has the effect of actively forcing more cache hits by packing data close together to take advantage of spatial locality. It is most important to keep the data accessed by a common routine close together in main memory. Try to organize data so reading, processing, and writing is done in cache-line-sized blocks whose lower main memory address matches the starting address of the cache line. The best general approach is to keep code routines small and to group related data close together. The smaller the code, the more likely it is to be cache efficient. Linked lists can reduce program performance when using a cache because searching the list results in a high number of cache misses. When accessing data from a linked list, a program fetches data in a more random fashion than it would if it were accessing the data from a sequential array. This hint really applies to searching any unordered list. The way you choose to search for data may require a performance analysis of your system. However, it is important to remember that there are other factors that play a greater role in system performance than writing code to efficiently use cache. See Chapters 5 and 6 for efficient programming techniques. 12.8 Summary A cache is a small, fast array of memory placed between the processor and main memory. It is a holding buffer that stores portions of recently referenced system memory. The processor uses cache memory in preference to system memory whenever possible to increase average system performance. A write buffer is a very small FIFO memory placed between the processor core and main memory, which helps free the processor core and cache memory from the slow write time associated with writing to main memory. The principle of locality of reference states that computer software programs frequently run small loops of code that repeatedly operate on local sections of data memory and explains why the average system performance increases significantly when using a cached processor core. There are many terms used by the ARM community to describe features of cache architecture. As a convenience we have created Table 12.14, which lists the features of all current ARM cached cores. The cache line is a fundamental component in a cache and contains three parts: a directory store, a data section, and status information. The cache-tag is a directory entry
- 477. 458 Chapter 12 Caches Table 12.14 ARM cached core features. Cache Cache Write Cache Cache size line size lockdown buffer size Core type (kilobytes) (words) Associativity Location support (words) ARM720T unified 8 4 4-way logical no 8 ARM740T unified 4 or 8 4 4-way yes 1/4 8 ARM920T split 16/16 D + I 8 64-way logical yes 1/64 16 ARM922T split 8/8 D + I 8 64-way logical yes 1/64 16 ARM940T split 4/4 D + I 4 64-way yes 1/64 8 ARM926EJ-S split 4–128/4–128 D + I 8 4-way logical yes 1/4 16 ARM946E-S split 4–128/4–128 D + I 4 4-way yes 1/4 4 ARM1022E split 16/16 D + I 8 64-way logical yes 1/64 16 ARM1026EJ-S split 4–128/4–128 D + I 8 4-way logical yes 1/4 8 Intel StrongARM split 16/16 D + I 4 32-way logical no 32 Intel XScale split 32/32 D + I 8 32-way logical yes 1/32 32 2 D 8 2-way logical no indicating where a cache line was loaded from main memory. There are two common status bits within the cache: the valid bit and the dirty bit. The valid bit is set when the associated cache line contains active memory. The dirty bit is active when the cache is using a writeback policy and new data has been written to cache memory. The placement of a cache before or after the MMU is either physical or logical. A logical cache is placed between the processor core and the MMU, and references code and data in a virtual address space. A physical cache is placed between the MMU and main memory, and references code and data memory using physical addresses. A direct-mapped cache is a very simple cache architecture where there is a single location in cache for a given main memory location. A direct-mapped cache is subject to thrashing. To reduce thrashing, a cache is divided into smaller equal units called ways. The use of ways provides multiple storage locations in cache for a single main memory address. These caches are known as set associative caches. The core bus architecture helps determine the design of a cached system. A Von Neumann architecture uses a unified cache to store code and data. A Harvard architecture uses a split cache: it has one cache for instructions and a separate cache for data. The cache replacement policy determines which cache line is selected for replacement on a cache miss. The configured policy defines the algorithm a cache controller uses to select a cache line from the available set in cache memory. The cache line selected for replacement is a victim. The two replacement policies available in ARM cached cores are pseudorandom and round-robin.
- 478. 12.8 Summary 459 There are two policies available when writing data to cache memory. If the controller only updates cache memory, it is a writeback policy. If the cache controller writes to both the cache and main memory, it is a writethrough policy. There are two policies a cache controller uses to allocate a cache line on a cache miss. A read-allocate policy allocates a cache line when data is read from main memory. A write-allocate policy allocates a cache line on a write to main memory. ARM uses the term clean to mean forcing a copyback of data in the D-cache to main memory. ARM uses the term flush to mean invalidating the contents of a cache. Cache lockdown is a feature provided by some ARM cores. The lockdown feature allows code and data to be loaded into cache and marked as exempt from eviction. We also provided example code showing how to clean and flush ARM cached cores, and to lock code and data in cache.
- 479. 13.1 Protected Regions 13.1.1 Overlapping Regions 13.1.2 Background Regions 13.2 Initializing the MPU, Caches, and Write Buffer 13.2.1 Defining Region Size and Location 13.2.2 Access Permission 13.2.3 Setting Region Cache and Write Buffer Attributes 13.2.4 Enabling Regions and the MPU 13.3 Demonstration of an MPU system 13.3.1 System Requirements 13.3.2 Assigning Regions Using a Memory Map 13.3.3 Initializing the MPU 13.3.4 Initializing and Configuring a Region 13.3.5 Putting It All Together, Initializing the MPU 13.3.6 A Protected Context Switch 13.3.7 mpuSLOS 13.4 Summary
- 480. C h a p t e r Memory Protection Units 13 Some embedded systems use a multitasking operating or control system and must ensure that a running task does not disrupt the operation of other tasks. The shielding of system resources and other tasks from unwanted access is called protection and is the subject of this chapter. There are two methods to control access to system resources, unprotected and protected. An unprotected system relies solely on software to protect the system resources. A protected system relies on both hardware and software to protect the system resources. The choice of method used by the control system depends on the capability of the processor and the requirements of the control system. An unprotected embedded system has no hardware dedicated to enforcing the use of memory and peripheral devices during operation. In these systems, each task must cooperate with all other tasks when accessing system resources because any task could corrupt the state of another task. This cooperative scheme may result in task failure when one task ignores the access limits of another task’s environment. An example of a task failure that might occur in an unprotected system involves reading and writing to a serial port register for communication. If one task is using the port, there is no way to prevent another task from using the same port. Successful use of the port must be coordinated through a system call that provides access to the port. An unauthorized access by a task working around these calls can easily disrupt communications through 461
- 481. 462 Chapter 13 Memory Protection Units the port. The undesirable use of the resource could be unintentional, or it could be hostile in nature. In contrast, a protected system has dedicated hardware to check and restrict access to system resources. It can enforce resource ownership. Tasks are required to behave by a set of rules defined by the operating environment and enforced by hardware, which grants special privileges to the programs that monitor and control resources at the hardware level. A protected system is proactive in preventing one task from using the resources of another. The use of hardware to actively monitor the system provides better protection than cooperatively enforced software routines. ARM provides several processors equipped with hardware that actively protects system resources, either through a memory protection unit (MPU) or a memory management unit (MMU). A processor core with an MPU, the subject of this chapter, provides hardware protection over several software-designated regions. A processor core with an MMU, the subject of the next chapter, provides hardware protection and adds a virtual memory capability. In a protected system, there are two major classes of resource that need monitoring: the memory system and peripheral devices. Since ARM peripherals are generally memory mapped, the MPU uses the same method to protect both resources. An ARM MPU uses regions to manage system protection. A region is a set of attributes associated with an area of memory. The processor core holds these attributes in several CP15 registers and identifies each region by a number, which ranges between zero and seven. A region’s memory boundaries are configured using two attributes, the starting address and its length, which can be any power of two between 4 KB and 4 GB. In addition, the operation system assigns additional attributes to these regions: access rights and the cache and write buffer policies. The access to a region in memory is set as read-write, read-only, or no access and is subject to additional rights based on the current processor mode, which is either privileged or user. A region also has a cache write policy, which controls cache and write buffer attributes. For example, one region can be set to access memory using a writethrough policy, while another operates as noncached and nonbuffered. When the processor accesses a region in main memory, the MPU compares the region’s access permission attributes with the current processor mode to determine what action it will take. If the request satisfies the region access criteria, the core is allowed to read or write to main memory. However, if the memory request results in a memory access violation, the MPU will generate an abort signal. The abort signal is routed to the processor core, where it responds to the abort signal by taking an exception and vectoring to the abort handler. The abort handler then determines the abort type as either a prefetch or data abort, and based on the abort type the handler branches to the appropriate service routine. To implement a protected system, the control system defines several regions to different areas in main memory. A region may be created once and last for the life of the embedded system or may be created temporarily to satisfy the needs of a specific operation and then removed. How to assign and create regions is the subject of the next section.
- 482. 13.1 Protected Regions 463 13.1 Protected Regions There are currently four ARM cores that contain an MPU; the ARM740T, ARM940T, ARM946E-S, and the ARM1026EJ-S. The ARM740T, ARM946E-S, and ARM1026EJ-S each contain 8 protection regions; the ARM940T contains 16 (see Table 13.1). The ARM740T, ARM946E-S, and ARM1026EJ-S have unified instruction and data regions—the data region and instruction region are defined using the same register that sets the size and starting address. The memory access permission and cache policies are config- ured independently for instruction and data access in the ARM946E-S and ARM1026EJ-S cores; in the ARM740T the same access permission and cache policies are assigned to both instruction and data memory. Regions are independent of whether the core has a Von Neumann or Harvard architecture. Each region is referenced by an identifying number between zero and seven. Because the ARM940T has separate regions to control instruction and data memory, the core can maintain different region sizes and starting addresses for instruction and data regions. The separation of instruction and data regions results in eight additional regions in this cached core. Although the identifying region numbers in an ARM940T still range from zero to seven, each region number has a pair of regions, one data region and one instruction region. There are several rules that govern regions: 1. Regions can overlap other regions. 2. Regions are assigned a priority number that is independent of the privilege assigned to the region. 3. When regions overlap, the attributes of the region with the highest priority number take precedence over the other regions. The priority only applies over the addresses within the areas that overlap. 4. A region’s starting address must be a multiple of its size. 5. A region’s size can be any power of two between 4 KB and 4 GB—in other words, any of the following values: 4 KB, 8 KB, 16 KB, 32 KB, 64 KB, . . . , 2 GB, 4 GB. Table 13.1 Summary of ARM cores with protection units. Number of Separate instruction Separate configuration of ARM core regions and data regions instruction and data regions ARM740T 8 no no ARM940T 16 yes yes ARM946E-S 8 no yes ARM1026EJ-S 8 no yes
- 483. 464 Chapter 13 Memory Protection Units 6. Accessing an area of main memory outside of a defined region results in an abort. The MPU generates a prefetch abort if the core was fetching an instruction or a data abort if the memory request was for data. 13.1.1 Overlapping Regions Overlapping regions occur when some portion of the memory space assigned to one region is also in the memory space assigned to another region. Overlapping regions provide a greater flexibility when assigning access permission than nonoverlapping regions. For an example of overlapping regions, suppose a small embedded system has 256 KB of available memory starting at address 0x00000000 and must protect a privileged system area from user mode reads and writes. The privileged area code, data, and stacks fit in a 32 KB region starting, with the vector table, at 0x00000000. The remaining memory is assigned to user space. With overlapping regions, the system uses two regions, a 256 KB user region and a 32 KB privileged region (see Figure 13.1). The privileged region 1 is given the higher number because its attributes must take precedence over the user region 0. 13.1.2 Background Regions Another useful feature provided by overlapping regions is a background region—a low- priority region used to assign the same attributes to a large memory area. Other regions with higher priority are then placed over this background region to change the attributes of a smaller subset of the defined background region. So the higher-priority region is changing a subset of the background region attributes. A background region can shield several dormant 256 KB 32 KB 0x0000 Region 0 Region 1 (Privileged access) (User access) Figure13.1 Creating regions that overlap.
- 484. 13.2 Initializing the MPU, Caches, and Write Buffer 465 Task 3 Task 2 Task 1 Region 3 Region 0 Task 1 running Task 2 running Task 3 running Task 3 Task 2 Task 1 Region 3 Region 0 Task 3 Task 2 Task 1 Region 3 Region 0 (Privileged access) (User access) Figure13.2 Using a background region to control task access. memory areas from unwanted access while another part of the background region is active under a different region’s control. For example, if an embedded system defines a large privileged background region, it can lay a smaller unprivileged region over this background. The location of the smaller region can be moved over different areas of the background region to reveal different user spaces. When the system moves the smaller user region from one location to another, the previously covered area becomes protected by the background region. So the user region is acting as a window allowing access to different parts of the privileged background but has user-level attributes (see Figure 13.2). Figure 13.2 shows a simple three-task protection scheme. Region 3 defines the protection attributes of the active task, and the background region 0 controls access to the other tasks when they are dormant. When task 1 is running, the background region protects tasks 2 and 3 from task 1. When task 2 is running, tasks 1 and 3 are protected. Finally, when Task 3 is running, tasks 1 and 2 are protected. The reason this works is that region 3 has higher priority than region 0, even though region 0 has higher privilege. We use a background region in the example code at the end of this chapter to demonstrate a simple multitasking protection scheme. 13.2 Initializing the MPU, Caches, and Write Buffer In order to initialize the MPU, caches, and write buffer, the control system must define the protection regions required during the target operation.
- 485. 466 Chapter 13 Memory Protection Units Table 13.2 Coprocessor registers that control the MPU. Function Primary register Secondary registers System control c1 c0 Region cache attributes c2 c0 Region write buffer attributes c3 c0 Region access permissions c5 c0 Region size and location c6 c0 to c7 At a minimum the control system must define at least one data region and one instruc- tion region before it can enable the protection unit. The protection unit must be enabled before or at the same time as the caches and write buffer are enabled. The control system configures the MPU by setting primary CP15 registers c1, c2, c3, c5, and c6. Table 13.2 lists the primary registers needed to control the operation of the MPU. Register c1 is the primary control register. Configuring registers c2 and c3 sets the cache and write buffer attributes of regions. Register c5 controls region access permissions. There are 8 or 16 secondary registers in register c6 that define the location and size of each region. There are other configuration registers in the ARM740T, ARM940T, ARM946E-S, and ARM1026EJ-S, but their use does not involve the basic operation of the MPU. To review the use of coprocessor 15 registers, refer to Section 3.5.2. The following steps are required to initialize the MPU, caches, and write buffer: 1. Define the size and location of the instruction and data regions using CP15:c6. 2. Set the access permission for each region using CP15:c5. 3. Set the cache and write buffer attributes for each region using CP15:c2 for cache and CP15:c3 for the write buffer. 4. Enable the caches and the MPU using CP15:c1. For each of these steps, there is a chapter section that follows describing the coprocessor 15 commands needed to configure each register. There is also example code showing the commands used in a routine that completes the step in the initialization process. 13.2.1 Defining Region Size and Location To define the size and address range of each region, the embedded system writes to one of the eight secondary registers, CP15:c6:c0:0 to CP15:c6:c7:0. Each secondary coprocessor register number maps to the corresponding region number identifier.
- 486. 13.2 Initializing the MPU, Caches, and Write Buffer 467 0 1 5 6 11 12 31 Base address N SBZ E Figure13.3 CP15:c6 register format setting size and location of a region. Table 13.3 Bit field description of registers CP15:c6:c0 to CP15:c6:c7. Field name Bit fields Comments Base address [31:12] Address greater than 4 KB must be a multiple of the size represented in [5:1] SBZ [11:6] Value “should be zero” N [5:1] Size of region is 2N+1, where 11 ≤ N ≤ 31 E [0] Region enable, 1 = enable, 0 = disable The starting address for each region must be aligned on an address that is a multiple of its size. For example, if a region is 128 KB in size, it can start at any address multiple of 0x20000. The size of a region can be any power of two from 4 KB to 4 GB. The bit fields and the format of the eight secondary registers CP15:c6:c0 to CP15:c6:c7 are shown in Figure 13.3 and Table 13.3. The starting address is stored in the top bit field [31:20] and must be a multiple of the size bit field [5:1]. The E field bit [0] enables or disables the region; that is, a region can be defined and disabled so that its attributes are not enforced until the enable bit is set. The unused bits in the CP15:c6 secondary registers should be set to zero. To define the size of a region, you can use the formula, size = 2N+1 or look up the value in Table 13.4 . To set the size, place the exponent value N in the size bit field of the CP15:c6 register. The value of N is limited by the hardware design to be any integer between 11 and 31, representing 4 KB to 4 GB. The binary value provides the exact bit field for the size entry. Once you have determined the size of a region, the starting address of the region can be any integer value times the size calculated from the formula, or if you like, taken from Table 13.4. The region size and starting address are determined by the memory map of your system and the areas the control system must protect. The demonstration system at the end of this chapter shows how to set up regions given a system memory map. The ARM740T, ARM946E-S, and ARM1026EJ-S processors each have eight regions. To set the size and location of a region requires a write to a secondary register in CP15:c6:cX. For example, the instruction syntax needed to set the location and size of region 3 to start
- 487. 468 Chapter 13 Memory Protection Units Table 13.4 Region size encoding. Size Decimal value Binary value 4 KB 11 01011 8 KB 12 01100 16 KB 13 01101 32 KB 14 01110 64 KB 15 01111 128 KB 16 10000 256 KB 17 10001 512 KB 18 10010 1 MB 19 10011 2 MB 20 10100 4 MB 21 10101 8 MB 22 10110 16 MB 23 10111 32 MB 24 11000 64 MB 25 11001 128 MB 26 11010 256 MB 27 11011 512 MB 28 11100 1 GB 29 11101 2 GB 30 11110 4 GB 31 11111 at 0x300000 with a size of 256 KB is MOV r1, #0x300000 ; set starting address ORR r1, r1, #0x11 1 ; set size to 256 KB MCR p15, 0, r1, c6, c3, 0 The core register r1 is filled with the required bit field data; then it is written to the CP15 secondary register using an MCR instruction. The ARM940T has eight instruction regions and eight data regions. The regions require an additional opcode2 modifier to select either the instruction or data region. Opcode2 is zero for data regions and one for instruction regions. For example, to read the size and location of data and instruction region 5 requires two MRC instructions, one for the instruction region and one for the data region. The instructions needed to read the size and starting location of the regions are MRC p15, 0, r2, c6, c5, 0 ; r2 = base/size Data Region 5 MRC p15, 0, r3, c6, c5, 1 ; r3 = base/size Inst Region 5
- 488. 13.2 Initializing the MPU, Caches, and Write Buffer 469 The first instruction loads core register r2 with the size and starting address of data region 5, and the second instruction loads core register r3 with the size and starting address of instruction region 5. The ARM940T is the only processor core that has separate instruction and data regions. Example 13.1 The following example code shows how to set the starting address, size of a region, and the enable bit. The routine regionSet has the following C prototype: void regionSet(unsigned region, unsigned address, unsigned sizeN, unsigned enable); The routine has four unsigned integer inputs: the region to configure, the starting address oftheregion, theencodedsizeNoftheregion, andwhethertheregionisenabledordisabled. It is a good idea to disable a region while changing its attributes and then reenabling it when the changes are complete. To make the routine work for all four available versions of an MPU processor, we unified the ARM940T region space by configuring the instruction and data regions with the size and starting address information. To do this, we wrote a macro called SET_REGION with two parts, one for the ARM940T and one for the other cores. This allows the same routine to support the four MPU cores. #if defined( __TARGET_CPU_ARM940T) #define SET_REGION(REGION) /* set Data region base size */ __asm{MCR p15, 0, c6f, c6, c ## REGION, 0 } /* set Instruction region base size */ __asm{MCR p15, 0, c6f, c6, c ## REGION, 1 } #endif #if defined(__TARGET_CPU_ARM946E_S) | defined(__TARGET_CPU_ARM1026EJ_S) #define SET_REGION(REGION_NUMBER) /* set region base size */ __asm{MCR p15, 0, c6f, c6, c ## REGION_NUMBER, 0 } #endif void regionSet(unsigned region, unsigned address, unsigned sizeN, unsigned enable) { unsigned int c6f; c6f = enable | (sizeN 1) | address; switch (region)
- 489. 470 Chapter 13 Memory Protection Units { case 0: { SET_REGION(0); break;} case 1: { SET_REGION(1); break;} case 2: { SET_REGION(2); break;} case 3: { SET_REGION(3); break;} case 4: { SET_REGION(4); break;} case 5: { SET_REGION(5); break;} case 6: { SET_REGION(6); break;} case 7: { SET_REGION(7); break;} default: { break; } } } The code starts by merging the region attributes of starting address, sizeN, and enable into an unsigned integer named c6f. The routine then branches to one of eight regionSet routines created using the macro SET_REGION, which sets the region’s starting address, size, and enable state by writing to CP15:c6 secondary register for the region defined. ■ 13.2.2 Access Permission There are two sets of access permission schemes available, a standard set and an extended set. All four cores support the standard set, which provides four levels of permission. The newer ARM946E-S and ARM1026EJ-S support an extended set, which adds an additional two levels of permission (see Table 13.5). The extended set AP (access permission) bit field encoding supports 12 additional permission values. Only two of these bits have been allocated to date. Using an undefined encoding results in unpredictable behavior. Table 13.5 CP15 register 5 access permissions. Supervisor User Standard AP value encoding Extended AP value encoding No access no access 00 0000 Read/write no access 01 0001 Read/write read only 10 0010 Read/write read/write 11 0011 Unpredictable unpredictable — 0100 Read only no access — 0101 Read only read only — 0110 Unpredictable unpredictable — 0111 Unpredictable unpredictable — 1000 to 1111
- 490. 13.2 Initializing the MPU, Caches, and Write Buffer 471 Table 13.6 Bit field assignments for the standard and extended access permission registers CP15:c5. Standard AP Extended AP Region Field name Bit field Field name Bit field 0 AP0 [1:0] eAP0 [3:0] 1 AP1 [3:2] eAP1 [7:4] 2 AP2 [5:4] eAP2 [11:8] 3 AP3 [7:6] eAP3 [15:12] 4 AP4 [9:8] eAP4 [19:16] 5 AP5 [11:10] eAP5 [23:20] 6 AP6 [13:12] eAP6 [27:24] 7 AP7 [15:14] eAP7 [31:28] 1 5 6 11 12 31 AP0 2 3 4 7 8 9 10 13 14 15 16 0 AP7 AP6 AP5 AP4 AP3 AP2 AP1 CP15:c5:c0 standard instruction region AP CP15:c5:c1 standard data region AP 11 12 31 eAP0 3 4 7 8 15 16 0 eAP7 eAP6 eAP5 eAP4 eAP3 eAP2 eAP1 19 20 23 24 28 27 CP15:c5:c2 extended instruction region AP CP15:c5:c3 extended data region AP Figure13.4 CP15 register 5 access permission register formats. To assign access permission to a region requires a write to a secondary register in CP15:c5. Secondary registers CP15:c5:c0:0 and CP15:c5:c0:1 configure standard AP, and secondary registers CP15:c5:c0:2 or CP15:c5:c0:3 configure extended AP. Table 13.6 and Figure 13.4 show the register’s permission bit assignments for the AP registers. Processors that support extended permission can also run software written for standard permission. The type of permission in effect depends on the last write to a CP15 AP register: If the last written AP register was a standard AP register, then the core is using standard permission; if the last written AP register was an extended AP register, then the core uses extended permission. This works because a write to the standard AP registers also updates the extended AP registers, meaning that the high bits [2:3] of the extended AP region entry are cleared.
- 491. 472 Chapter 13 Memory Protection Units When using standard AP, each region has two bits in registers CP15:c5:c0:0 and CP15:c5:c0:1. CP15:c5:c0:0 sets the AP for data, and CP15:c5:c0:1 sets the instruction region. To read the standard AP for instruction and data memory requires reading two registers. The following two MRC instruction sequence places AP information for data region memory in core register r1 and AP information for instruction region in register r2: MRC p15, 0, r1, c5, c0, 0 ; Std AP Data Regions MRC p15, 0, r2, c5, c0, 1 ; Std AP Inst Regions When using extended AP, each region uses four bits in registers CP15:c5:c0:2 and CP15:c5:c0:3. The core stores instruction information for the eight regions in a single register and the data information in another register. CP15:c5:c0:2 sets the AP for the data region, and CP15:c5:c0:3 sets the AP for the instruction region. Obtaining the instruction and data region extended AP requires reading two registers. The following two-instruction sequence places region data AP in core register r3 and region instruction AP in register r4: MRC p15, 0, r3, c5, c0, 2 ; Extended AP Data Regions MRC p15, 0, r4, c5, c0, 3 ; Extended AP Inst Regions We supply two examples to demonstrate using access permissions, one for standard AP and the other for extended AP. These examples use the inline assembler to read and write to the CP15 registers. We provide two standard AP routines, regionSetISAP and regionSetDSAP, to set the standard AP bits for a region. They are called from C using the following function prototype: void regionSetISAP(unsigned region, unsigned ap); void regionSetDSAP(unsigned region, unsigned ap); The first parameter is the region number, and the second is the two-bit value defining the standard AP for the instruction or data memory controlled by the region. Example 13.2 The two routines are identical with the exception that they read and write to different CP15:c5 secondary registers; one writes to the instruction register, and the other to the data register. The routine does a simple read-modify-write operation on the CP15:c5 register to set the AP of the specified region, leaving the remaining regions intact. void regionSetISAP(unsigned region, unsigned ap) { unsigned c5f, shift; shift = 2*region; __asm{ MRC p15, 0, c5f, c5, c0, 1 } /* load standard D AP */
- 492. 13.2 Initializing the MPU, Caches, and Write Buffer 473 c5f = c5f ∼ (0x3 shift); /* clear old AP bits */ c5f = c5f | (ap shift); /* set new AP bits */ __asm{ MCR p15, 0, c5f, c5, c0, 1 } /* store standard D AP */ } void regionSetDSAP(unsigned region, unsigned ap) { unsigned c5f, shift; shift = 2*region; /* set bit field width */ __asm { MRC p15, 0, c5f, c5, c0, 0 } /* load standard I AP */ c5f = c5f ∼ (0x3 shift); /* clear old AP bits */ c5f = c5f | (ap shift); /* set new AP bits */ __asm { MCR p15, 0, c5f, c5, c0, 0 } /* store standard I AP */ } The routine sets the specified region permissions by clearing its AP bits using a shifted mask value and then setting the AP bit field with the ap input parameter. The AP bit field location is calculated as the region size times the number of bits in the permission bit field; this is the shift variable. The value of the bit field is set by shifting the ap value and using an OR to modify the c5f core register. ■ We provide two extended AP routines, regionSetIEAP and regionSetDEAP, to set the extended AP bits for a region. They have the following C function prototypes: void regionSetIEAP(unsigned region, unsigned ap); void regionSetDEAP(unsigned region, unsigned ap); The first parameter is the region number, and the second is the four-bit value representing the extended AP for the instruction or data memory controlled by the region. Example 13.3 The two routines are identical to the standard AP routines with the exception that they read and write to different CP15:c5 secondary registers and they have a four-bit-wide AP bit field. void regionSetIEAP(unsigned region, unsigned ap) { unsigned c5f, shift; shift = 4*region; /* set bit field width */ __asm{ MRC p15, 0, c5f, c5, c0, 3 } /* load extended D AP */ c5f = c5f ∼ (0xfshift); /* clear old AP bits */ c5f = c5f | (apshift); /* set new AP bits */ __asm{ MCR p15, 0, c5f, c5, c0, 3 } /* store extended D AP */ }
- 493. 474 Chapter 13 Memory Protection Units void regionSetDEAP(unsigned region, unsigned ap) { unsigned c5f, shift; shift = 4*region; /* set bit field width */ __asm{ MRC p15, 0, c5f, c5, c0, 2 } /* load extended I AP */ c5f = c5f ∼ (0xf shift); /* clear old AP bits */ c5f = c5f | (ap shift); /* set new AP bits */ __asm{ MCR p15, 0, c5f, c5, c0, 2 } /* store extended I AP */ } Each routine sets the specified region permissions by clearing its AP bits using a shifted mask value and then setting the AP bit field with the ap input parameter. The AP bit field location is calculated as the region size times the number of bits in the permission bit field; this is the shift variable. The value of the bit field is set by shifting the ap value and using an OR to modify the c5f core register. ■ 13.2.3 Setting Region Cache and Write Buffer Attributes Three CP15 registers control the cache and write buffer attributes for each core. Two registers, CP15:c2:c0:0 and CP15:c2:c0:1, hold the D-cache and I-cache region attributes. A third, CP15:c3:c0:0, holds the region write buffer attributes and applies to memory data regions. (Refer to Figure 13.5 and Table 13.7 for details.) Register CP15:c2:c0:1 contains the cache configuration data for all eight instruction regions, and register CP15:c2:c0:0 contains all eight data regions. Both registers use the same bit field encoding. The cache bit determines if the cache is enabled for a given address within the region. In the ARM740T and ARM940T, the cache is always searched, regardless of the state of the c0 c7 c6 c5 c4 c3 c2 c1 CP15:c2:c0:0—D-cache b0 b7 b6 b5 b4 b3 b2 b1 CP15:c3:c0:0—write buffer 1 5 6 31 2 3 4 7 0 SBZ SBZ SBZ = “should be zero” CP15:c2:c0:1—I-cache 1 5 6 31 2 3 4 7 0 Figure13.5 CP15:c2 cache and CP15:c3 write buffer region registers.
- 494. 13.2 Initializing the MPU, Caches, and Write Buffer 475 Table 13.7 Bit field assignments for CP15:c2 and CP15:c3 registers. Region cache fields Region write buffer fields Region Field name Bit fields Field name Bit fields 0 c0 [0] b0 [0] 1 c1 [1] b1 [1] 2 c2 [2] b2 [2] 3 c3 [3] b3 [3] 4 c4 [4] b4 [4] 5 c5 [5] b5 [5] 6 c6 [6] b6 [6] 7 c7 [7] b7 [7] cache bit. If the controller finds a valid cache entry, it will use the cached data over data in external memory. Because of this cache behavior, you need to flush and possibly clean the cache in a region where the cache policy changes from cached to noncached. Consequently, the MPU control system must always flush the cache when changing the cache policy from writethrough to noncached. It must always clean and flush the cache when changing the cache policy from writeback to noncached. It must also clean the cache when changing the cache policy from writeback to writethrough. See Chapter 12 for routines to clean and/or flush the cache. In the ARM946E-S, if the cache bit is clear, information physically in cache will not be returned from the cache, and an external memory access is performed instead. This design lightens the requirement to flush the cache when it is disabled. However, the cleaning rules for the old region still apply. The eight region write buffer bits in the register CP15:c3:c0:0 enable or disable the write buffer for each region (again see Figure 13.5). When configuring data regions, the region cache and write buffer bits together deter- mine the policy of the region. The write buffer bit has two uses; it enables or disables the write buffer for a region and sets the region cache write policy. The region cache bit controls the purpose of the write buffer bit. When the cache bit is zero, the buffer bit enables the write buffer when its value is one and disables the write buffer when its value is zero. When the cache bit is set to one, the cache and write buffer are both enabled and the buffer bit determines the cache write policy. The region uses a writethrough policy if the buffer bit is zero and a writeback policy if the buffer bit is set. Table 13.8 gives a tabular view of the various states of the cache and write buffer bits and their meanings. For more details on writeback and writethrough policies, see Section 12.3.1. We supply two routines to demonstrate enabling and disabling the caches and write buffer. The two routines use the inline assembler to read and write to the CP15 registers. We combine control of the cache and write buffer into a single routine call to simplify system configuration. We reference both the data cache and write buffer bits by the write
- 495. 476 Chapter 13 Memory Protection Units Table 13.8 Control of the cache and write buffer. Instruction cache Data cache Cache bit Region Cache bit Buffer bit Region attribute CP15:c2:c0:1 attribute CP15:c2:c0:0 CP15:c3:c0:0 0 not cached 0 0 NCNB (not cached, not buffered) 1 cached 0 1 NCB (not cached, buffered) 1 0 WT (cached, writethrough) 1 1 WB (cached, writeback) policy they control, and the instruction cache bit stands alone. From a system view, merging the state of the caches and write buffer into a single value for each region makes it easier to group region information into a region control block (discussed in Section 13.3.3). The set cache and buffer routine, called regionSetCB, is shown in Example 13.4 and has the following C function prototype: void regionSetCB(unsigned region, unsigned CB); The routine has two input parameters. The first parameter, region, is the region number, and the second, CB, combines the region instruction cache attributes and the data cache and write buffer attributes. The second parameter has a format that uses the lower three bits of the unsigned integer: the instruction cache bit in bit [3], the data cache bit in bit [1], and the data buffer bit in bit [0]. Example 13.4 The routine sequentially sets the data write buffer bit, the data cache bit, and the instruction cache bit. To do this, for each bit it reads the CP15 register, clears the old bit value, sets the new bit value, and writes the value back into the CP15 register. void regionSetCB(unsigned region, unsigned CB) { unsigned c3f, tempCB; tempCB = CB; __asm{MRC p15, 0, c3f, c3, c0, 0 } /* load buffer register */ c3f = c3f ∼ (0x1 region); /* clear old buffer bit */ c3f = c3f | ((tempCB 0x1) region); /* set new buffer bit */ __asm{MCR p15, 0, c3f, c3, c0, 0 } /* store buffer info */ tempCB = CB 0x1; /* shift to D-cache bit */ __asm{MRC p15, 0, c3f, c2, c0, 0 } /* load D-cache register */
- 496. 13.2 Initializing the MPU, Caches, and Write Buffer 477 c3f = c3f ∼ (0x1 region); /* clear old D-cache bit */ c3f = c3f | ((tempCB 0x1) region); /* set new D-cache bit */ __asm{MCR p15, 0, c3f, c2, c0, 0 } /* store D-cache info */ tempCB = CB 0x2; /* shift to I-cache bit */ __asm{MRC p15, 0, c3f, c2, c0, 1 } /* load I-cache register */ c3f = c3f ∼ (0x1 region); /* clear old I-cache bit */ c3f = c3f | ((tempCB 0x1) region); /* set new I-cache bit */ __asm{MCR p15, 0, c3f, c2, c0, 1 } /* store I-cache info */ } ■ 13.2.4 Enabling Regions and the MPU There are two steps left in the initialization process. The first is to enable active regions, and the second is to turn on the protection unit hardware by enabling the MPU, caches, and write buffer. To enable a region, the control system can reuse the routine regionSet presented in Section 13.2.1. The multiple use of regionSet is shown in Example 13.6 at the end of the chapter. To enable the MPU, caches, and write buffer requires modifying bit values in CP15:c1:c0:0, the system control register. The location of the MPU, cache, and write buffer bits in CP15:c1:c0 are the same in the ARM940T, ARM946E-S, and ARM1026EJ-S processors, which makes enabling a configured MPU the same for the three cores. The enable bit locations are shown in Figure 13.6 and Table 13.9. The CP15:c1:c0 register has configuration bits not shown in Figure 13.6; the purpose and location of these bits are processor specific and are not a part of the protection system. We use the routine changeControl, shown in Example 13.5, to enable the MPU and caches. However, the routine changeControl can change any set of values in the CP15:c1:c0:0 register. It has the following C function prototype: void controlSet(unsigned value, unsigned mask); The first parameter passed is an unsigned integer containing the bit values to change. The second parameter is used to select the bits you want changed: A bit value of 1 changes the 1 5 6 11 12 31 2 3 4 7 8 9 10 0 I M C Figure13.6 Memory protection unit control bits in the CP15:c1:c0 control register.
- 497. 478 Chapter 13 Memory Protection Units Table 13.9 Protection unit enable bits in CP15 control register 1. Bit Function enabled Value 0 MPU 0 = disabled, 1 = enabled 2 data cache 0 = disabled, 1 = enabled 12 instruction cache 0 = disabled, 1 = enabled bit in the control register, and a 0 leaves the bit value unchanged, regardless of the bit state in the first parameter. For example, to enable the MPU and I-cache, and disable the D-cache, set bit [12] to 1, bit [2] to 0, and bit [0] to 1. The value of the first parameter should be 0x00001001; the remaining unchanged bits should be zero. To select only bit [12], bit [2], and bit [0] as the values to change, set the mask value to 0x00001005. Example 13.5 This routine reads the control register and places the value in a holding register. Then it clears all the changing bits using the mask input and assigns them the desired state using the value input. The routine completes by writing the new control values to the CP15:c1:c0 register. void controlSet(unsigned value, unsigned mask) { unsigned int c1f; __asm{ MRC p15, 0, c1f, c1, c0, 0 } /* read control register */ c1f = c1f ∼ mask; /* mask off bit that change */ c1f = c1f | value; /* set bits that change */ __asm{ MCR p15, 0, c1f, c1, c0, 0 } /* write control register */ } ■ 13.3 Demonstration of an MPU system We have provided a set of routines to use as building blocks to initialize and control a protected system. This section uses the routines described to initialize and control a simple protected system using a fixed memory map. Here is a demonstration that uses the examples presented in the previous sections of this chapter to create a functional protection system. It provides an infrastructure that enables the running of three tasks in a simple protected multi-tasking system. We believe it provides a suitable demonstration of the concepts underlying the ARM MPU hardware. It is written in C and uses standard access permission.
- 498. 13.3 Demonstration of an MPU system 479 13.3.1 System Requirements The demonstration system has the following hardware characteristics: ■ An ARM core with an MPU ■ 256 KB of physical memory starting at 0x0 and ending at 0x40000 ■ Several memory-mapped peripherals spaced over several megabytes from 0x10000000 to 0x12000000 In this demonstration, all the memory-mapped peripherals are considered a single area of memory that needs protection (see Table 13.10). The demonstration system has the following software components: ■ The system software is less than 64 KB in size. It includes the vector table, exception handlers, and data stacks to support the exceptions. The system software must be inaccessible from user mode; that is, a user mode task must make a system call to run code or access data in this region. ■ There is shared software that is less than 64 KB in size. It contains commonly used libraries and data space for messaging between user tasks. ■ There are three user tasks that control independent functions in the system. These tasks are less than 32 KB in size. When these tasks are running, they must be protected from access by the other two tasks. The software is linked to place the software components within the regions assigned to them. Table 13.10 shows the software memory map for the example. The system software has system-level access permission. The shared software area is accessible by the entire system. The task software areas contain user-level tasks. Table 13.10 Memory map of example protection system. Function Access level Starting address Size Region Protect memory-mapped peripheral devices system 0x10000000 2 MB 4 Protected system system 0x00000000 4 GB 1 Shared system user 0x00010000 64 KB 2 User task 1 user 0x00020000 32 KB 3 User task 2 user 0x00028000 32 KB 3 User task 3 user 0x00030000 32 KB 3
- 499. 480 Chapter 13 Memory Protection Units Task 3 Devices I/O Region 4 Task 2 Region 3 Running task is assigned region 3 Task 1 System protected System shared Region 2 Region 1 FIQ stack base IRQ stack base Supervisor stack base Undef stack base Abort stack base Task 1 stack base Task 2 stack base Task 3 stack base Privileged access User access 0x00000000 0x00010000 0x00020000 0x00028000 0x00030000 0x00038000 0x10000000 0x11000000 0xFFFFFFFF Figure13.7 Region assignment and memory map of demonstration protection system. 13.3.2 Assigning Regions Using a Memory Map The last column of Table 13.10 shows the four regions we assigned to the memory areas. The regions are defined using the starting address listed in the table and the size of the code and data blocks. A memory map showing the region layout is provided in Figure 13.7. Region 1 is a background region that covers the entire addressable memory space. It is a privileged region (i.e., no user mode access is permitted). The instruction cache is enabled, and the data cache operates with a writethrough policy. This region has the lowest region priority because it is the region with the lowest assigned number. The primary function of region 1 is to restrict access to the 64 KB space between 0x0 and 0x10000, the protected system area. Region 1 has two secondary functions: it acts as a background region and as a protection region for dormant user tasks. As a background region it ensures the entire memory space by default is assigned system-level access; this is done to prevent a user task from accessing spare or unused memory locations. As a user
- 500. 13.3 Demonstration of an MPU system 481 task protection region, it protects dormant tasks from misconduct by the running task (see Figure 13.7). Region 2 controls access to shared system resources. It has a starting address of 0x10000 and is 64 KB in length. It maps directly over the shared memory space of the shared system code. Region 2 lies on top of a portion of protected region 1 and will take precedence over protected region 1 because it has a higher region number. Region 2 permits both user and system level memory access. Region 3 controls the memory area and attributes of a running task. When control transfersfromonetasktoanother, asduringacontextswitch, theoperatingsystemredefines region 3 so that it overlays the memory area of the running task. When region 3 is relocated over the new task, it exposes the previous task to the attributes of region 1. The previous task becomes part of region 1, and the running task is a new region 3. The running task cannot access the previous task because it is protected by the attributes of region 1. Region 4 is the memory-mapped peripheral system space. The primary purpose of this region is to establish the area as not cached and not buffered. We don’t want input, output, or control registers subject to the stale data issues caused by caching, or the time or sequence issues involved when using buffered writes (see Chapter 12 for details on using I/O devices with caches and write buffers). 13.3.3 Initializing the MPU To organize the initialization process we created a datatype called Region; it is a structure whose members hold the attributes of a region used during system operation. This Region structure is not required when using the MPU; it is simply a design convenience created to support the demonstration software. For this demonstration, we call the set of these data structures a region control block (RCB). The initialization software uses the information stored in the RCB to configure the regions in the MPU. Note that there can be more Region structures defined in the RCB than physical regions. For example, region 3 is the only region used for tasks, yet there are three Region structures that use region 3, one for each user task. The typedef for the structure is typedef struct { unsigned int number; unsigned int type; unsigned int baseaddress; unsigned int size; unsigned int IAP; unsigned int DAP; unsigned int CB; } Region;
- 501. 482 Chapter 13 Memory Protection Units There are eight values in the Region structure. The first two values describe character- istics of the Region itself: they are the MPU region number assigned to the Region, and the type of access permission used, either STANDARD or EXTENDED. The remaining four members of the structure are attributes of the specified region: the region starting address, baseaddress; region size, SIZE; access permissions, IAP and DAP; and cache and buffer configuration, CB. The six Region structures in the RCB are /* REGION NUMBER, APTYPE */ /* START ADDRESS, SIZE, IAP, DAP, CB */ Region peripheralRegion = {PERIPH, STANDARD, 0x10000000, SIZE_1M, RONA, RWNA, ccb}; Region kernelRegion = {KERNEL, STANDARD, 0x00000000, SIZE_4G, RONA, RWNA, CWT}; Region sharedRegion = {SHARED, STANDARD, 0x00010000, SIZE_64K, RORO, RWRW, CWT}; Region task1Region = {TASK, STANDARD, 0x00020000, SIZE_32K, RORO, RWRW, CWT}; Region task2Region = {TASK, STANDARD, 0x00028000, SIZE_32K, RORO, RWRW, CWT}; Region task3Region = {TASK, STANDARD, 0x00030000, SIZE_32K, RORO, RWRW, CWT}; We created a set of macros to make entries in the RCB more humanly readable; they are shown in Figure 13.8. Most notably, we enter access permission to data and instruction memory using a simple combination of four letters. The first two letters represent system access permission, and the second two letters represent user access. The two letters for system and user access can be read/write (RW), read-only (RO), or no access (NA). We also mapped the cache and buffer information to an instruction cache and a data cache policy attribute. The first letter is C or c and enables or disables the instruction cache for the region. The last two letters determine the data cache policy and write buffer control. The values can be WT for writethrough or WB for writeback. The letters c and b are also supported and are manual configurations of the cache and buffer bits. Cb is an alias of WT, and CB is an alias of WB. cB means not cached and buffered, and finally cb means not cached and not buffered. 13.3.4 Initializing and Configuring a Region Next we provide the routine configRegion, which takes a single Region structure entry in the RCB to populate the CP15 registers with data describing the region. The routine follows the initialization steps listed in Section 13.3.3. The input to the routine is a pointer to the RCB of a region. Within the routine, members of the Region are
- 502. 13.3 Demonstration of an MPU system 483 /* Region Number Assignment */ #define BACKGROUND 0 #define KERNEL 1 #define TASK 2 #define SHARED 3 #define PERIPH 4 /* Region Type Assignment */ #define STANDARD 0 #define EXTENDED 1 #define DISABLE 0 /* Access Permissions */ #define NANA 0 #define RWNA 1 #define RWRO 2 #define RWRW 3 #define RONA 5 #define RORO 6 /* Region Size */ #define SIZE_4G 31 #define SIZE_2G 30 #define SIZE_1G 29 #define SIZE_512M 28 #define SIZE_256M 27 #define SIZE_128M 26 #define SIZE_64M 25 #define SIZE_32M 24 #define SIZE_16M 23 #define SIZE_8M 22 #define SIZE_4M 21 #define SIZE_2M 20 #define SIZE_1M 19 #define SIZE_512K 18 #define SIZE_256K 17 #define SIZE_128K 16 #define SIZE_64K 15 #define SIZE_32K 14 Figure13.8 Defined macros used in the demonstration example.
- 503. 484 Chapter 13 Memory Protection Units #define SIZE_16K 13 #define SIZE_8K 12 #define SIZE_4K 11 /* CB = ICache[2], DCache[1], Write Buffer[0] */ /* ICache[2], WB[1:0] = writeback, WT[1:0] = writethrough */ #define CCB 7 #define CWB 7 #define CCb 6 #define CWT 6 #define CcB 5 #define Ccb 4 #define cCB 3 #define cWB 3 #define cCb 2 #define cWT 2 #define ccB 1 #define ccb 0 /* Region enable */ #define R_ENABLE 1 #define R_DISABLE 0 Figure13.8 Defined macros used in the demonstration example. (Continued.) used as data inputs in the initialization process. The routine has the following C function prototype: void configRegion(Region *region); Example 13.6 This example initializes the MPU, caches, and write buffer for the protected system. The routines presented earlier in this chapter are used in the initialization process. We imple- ment the steps first listed in Section 13.2 to initialize the MPU, caches, and write buffer. The steps are labeled as comments in the example code. Executing this example initializes the MPU. void configRegion(Region *region) { /* Step 1 - Define the size and location of the instruction */ /* and data regions using CP15:c6 */
- 504. 13.3 Demonstration of an MPU system 485 regionSet(region-number, region-baseaddress, region-size, R_DISABLE); /* Step 2 - Set access permission for each region using CP15:c5 */ if (region-type == STANDARD) { regionSetISAP(region-number, region-IAP); regionSetDSAP(region-number, region-DAP); } else if (region-type == EXTENDED) { regionSetIEAP(region-number, region-IAP); regionSetDEAP(region-number, region-DAP); } /* Step 3 - Set the cache and write buffer attributes */ /* for each region using CP15:c2 for cache */ /* and CP15:c3 for the write buffer. */ regionSetCB(region-number, region-CB); /* Step 4 - Enable the caches, write buffer and the MPU */ /* using CP15:c6 and CP15:c1 */ regionSet(region-number, region-baseaddress, region-size, region-enable); } ■ 13.3.5 Putting It All Together, Initializing the MPU For the demonstration, we use the RCB to store data describing all regions. To initialize the MPU we use a top-level routine named initActiveRegions. The routine is called once for each active region when the system starts up. To complete the initialization, the routine also enables the MPU. The routine has the following C function prototype: void initActiveRegions(); The routine has no input parameters. Example 13.7 The routine first calls configRegion once for each region that is active at system startup: the kernelRegion, the sharedRegion, the peripheralRegion, and the task1Region. In this demonstration task 1 is the first task entered. The last routine called is controlSet, which enables the caches and MPU.
- 505. 486 Chapter 13 Memory Protection Units #define ENABLEMPU (0x1) #define ENABLEDCACHE (0x1 2) #define ENABLEICACHE (0x1 12) #define MASKMPU (0x1) #define MASKDCACHE (0x1 2) #define MASKICACHE (0x1 12) void initActiveRegions() { unsigned value,mask; configRegion(kernelRegion); configRegion(sharedRegion); configRegion(peripheralRegion); configRegion(task1Region); value = ENABLEMPU | ENABLEDCACHE | ENABLEICACHE; mask = MASKMPU | MASKDCACHE | MASKICACHE; controlSet(value, mask); } ■ 13.3.6 A Protected Context Switch The demonstration system is now initialized, and the control system has launched its first task. At some point, the system will make a context switch to run another task. The RCB contains the current task’s region context information, so there is no need to save region data from the CP15 registers during the context switch. To switch to the next task, for example task 2, the operating system would move region 3 over the task 2 memory area (see Figure 13.7). We reuse the routine configRegion to perform this function as part of the setup just prior to executing the code that per- forms the context switch between the current task and the next task. The input to configRegion would be a pointer to the task2Region. See the following assembly code sample: STMFD sp!, {r0-r3,r12,lr} BL configRegion LDMFD sp!, {r0-r3,r12,pc} ; return The same call in C is configRegion(task2Region);
- 506. 13.4 Summary 487 13.3.7 mpuSLOS Many of the concepts and the code examples have been incorporated into a functional control system we call mpuSLOS. mpuSLOS is the memory protection unit variant of SLOS that was described in Chapter 11. It can be found on the publisher’s Web site and implements the same functions as the base SLOS with a number of important differences. ■ mpuSLOS takes full advantage of the MPU. ■ Applications are compiled and built separately from the kernel and then combined as a single binary file. Each application is linked to execute out of a different memory area. ■ Each of the three applications are loaded into separate fixed regions 32 KB in size by a routine called the Static Application Loader. This address is the execution address of the application. The stack pointer is set at the top of the 32 KB since each region is 32 KB in size. ■ Applications can only access hardware via a device driver call. If an application attempts to access hardware directly, a data abort is raised. This differs from the base SLOS variant since a data abort will not be raised when a device is accessed directly from an application. ■ Jumping to an application involves setting up the spsr and then changing the pc to point to the entry point to task 1 using a MOVS instruction. ■ Each time the scheduler is called, the active region 2 is changed to reflect the new executing application. 13.4 Summary There are two methods to handle memory protection. The first method is known as unpro- tected and uses voluntarily enforced software control routines to manage rules for task interaction. The second method is known as protected and uses hardware and software to enforce rules for task interaction. In a protected system the hardware protects areas of memory by generating an abort when access permission is violated and software responds to handle the abort routines and manage control to memory-based resources. An ARM MPU uses regions as the primary construct for system protection. A region is a set of attributes associated with an area of memory. Regions can overlap, allowing the use of a background region to shield a dormant task’s memory areas from unwanted access by the current running task. Several steps are required to initialize the MPU, included are routines to set various region attributes. The first step sets the size and location of the instruction and data regions using CP15:c6. The second step sets the access permission for each region using CP15:c5. The third step sets the cache and write buffer attributes for each region using CP15:c2 for
- 507. 488 Chapter 13 Memory Protection Units cache and CP15:c3 for the write buffer. The last step enables active regions using CP15:c6 and the caches, write buffer, and MPU using CP15:c1. In closing, a demonstration system showed three tasks, each protected from the other, in a simple multitasking environment. The demonstration system defined a protected system and then showed how to initialize it. After initialization, the last step needed to run a protected system is to change the region assignments to the next task during a task switch. This demonstration system is incorporated into mpuSLOS to provide a functional example of a protected operating system.
- 508. This Page Intentionally Left Blank
- 509. 14.1 Moving from an MPU to an MMU 14.2 How Virtual Memory Works 14.2.1 Defining Regions Using Pages 14.2.2 Multitasking and the MMU 14.2.3 Memory Organization in a Virtual Memory System 14.3 Details of the ARM MMU 14.4 Page Tables 14.4.1 Level 1 Page Table Entries 14.4.2 The L1 Translation Table Base Address 14.4.3 Level 2 Page Table Entries 14.4.4 Selecting a Page Size for Your Embedded System 14.5 The Translation Lookaside Buffer 14.5.1 Single-Step Page Table Walk 14.5.2 Two-Step Page Table Walk 14.5.3 TLB Operations 14.5.4 TLB Lockdown 14.6 Domains and Memory Access Permission 14.6.1 Page-Table-Based Access Permissions 14.7 The Caches and Write Buffer 14.8 Coprocessor 15 and MMU Configuration 14.9 The Fast Context Switch Extension 14.9.1 How the FCSE Uses Page Tables and Domains 14.9.2 Hints for Using the FCSE 14.10 Demonstration: A Small Virtual Memory System 14.10.1 Step 1: Define the Fixed System Software Regions 14.10.2 Step 2: Define Virtual Memory Maps for Each Task 14.10.3 Step 3: Locate Regions in Physical Memory 14.10.4 Step 4: Define and Locate the Page Tables 14.10.5 Step 5: Define Page Table and Region Data Structures 14.10.6 Step 6: Initialize the MMU, Caches, and Write Buffer 14.10.7 Step 7: Establish a Context Switch Procedure 14.11 The Demonstration as mmuSLOS 14.12 Summary
- 510. C h a p t e r Memory Management Units 14 When creating a multitasking embedded system, it makes sense to have an easy way to write, load, and run independent application tasks. Many of today’s embedded systems use an operating system instead of a custom proprietary control system to simplify this process. More advanced operating systems use a hardware-based memory management unit (MMU). One of the key services provided by an MMU is the ability to manage tasks as indepen- dent programs running in their own private memory space. A task written to run under the control of an operating system with an MMU does not need to know the memory requirements of unrelated tasks. This simplifies the design requirements of individual tasks running under the control of an operating system. In Chapter 13 we introduced processor cores with memory protection units. These cores have a single addressable physical memory space. The addresses generated by the processor core while running a task are used directly to access main memory, which makes it impossible for two programs to reside in main memory at the same time if they are compiled using addresses that overlap. This makes running several tasks in an embedded system difficult because each task must run in a distinct address block in main memory. The MMU simplifies the programming of application tasks because it provides the resources needed to enable virtual memory—an additional memory space that is indepen- dent of the physical memory attached to the system. The MMU acts as a translator, which converts the addresses of programs and data that are compiled to run in virtual memory 491
- 511. 492 Chapter 14 Memory Management Units to the actual physical addresses where the programs are stored in physical main memory. This translation process allows programs to run with the same virtual addresses while being held in different locations in physical memory. This dual view of memory results in two distinct address types: virtual addresses and physical addresses. Virtual addresses are assigned by the compiler and linker when locating a program in memory. Physical addresses are used to access the actual hardware components of main memory where the programs are physically located. ARM provides several processor cores with integral MMU hardware that efficiently support multitasking environments using virtual memory. The goal of this chapter is to learn the basics of ARM memory management units and some basic concepts that underlie the use of virtual memory. We begin with a review of the protection features of an MPU and then present the additional features provided by an MMU. We introduce relocation registers, which hold the conversion data to translate virtual memory addresses to physical memory addresses, and the Translation Lookaside Buffer (TLB), which is a cache of recent address relocations. We then explain the use of pages and page tables to configure the behavior of the relocation registers. We then discuss how to create regions by configuring blocks of pages in virtual memory. We end the overview of the MMU and its support of virtual memory by showing how to manipulate the MMU and page tables to support multitasking. Next we present the details of configuring the MMU hardware by presenting a section for each of the following components in an ARM MMU: page tables, the Translation Lookaside Buffer (TLB), access permission, caches and write buffer, the CP15:c1 control register, and the Fast Context Switch Extension (FCSE). We end the chapter by providing demonstration software that shows how to set up an embeddedsystemusingvirtualmemory. Thedemonstrationsupportsthreetasksrunningin a multitasking environment and shows how to protect each task from the others running in thesystembycompilingthetaskstorunatacommonvirtualmemoryexecutionaddressand placing them in different locations in physical memory. The key part of the demonstration is showing how to configure the MMU to translate the virtual address of a task to the physical address of a task, and how to switch between tasks. The demonstration has been integrated into the SLOS operating system presented in Chapter 11 as a variant known as mmuSLOS. 14.1 Moving from an MPU to an MMU In Chapter 13, we introduced the ARM cores with a memory protection unit (MPU). More importantly, we introduced regions as a convenient way to organize and protect memory. Regions are either active or dormant: An active region contains code or data in current use by the system; a dormant region contains code or data that is not in current use, but is likely to become active in a short time. A dormant region is protected and therefore inaccessible to the current running task.
- 512. 14.2 How Virtual Memory Works 493 Table 14.1 Region attributes from the MPU example. Region attributes Configuration options Type instruction, data Start address multiple of size Size 4 KB to 4 GB Access permissions read, write, execute Cache copyback, writethrough Write buffer enabled, disabled The MPU has dedicated hardware that assigns attributes to regions. The attributes assigned to a region are shown in Table 14.1. In this chapter, we assume the concepts introduced in Chapter 13 regarding memory protection are understood and simply show how to configure the protection hardware on an MMU. The primary difference between an MPU and an MMU is the addition of hardware to support virtual memory. The MMU hardware also expands the number of available regions by moving the region attributes shown in Table 14.1 from CP15 registers to tables held in main memory. 14.2 How Virtual Memory Works In Chapter 13 we introduced the MPU and showed a multitasking embedded system that compiled and ran each task at distinctly different, fixed address areas in main memory. Each task ran in only one of the process regions, and none of the tasks could have overlapping addresses in main memory. To run a task, a protection region was placed over the fixed address program to enable access to an area of memory defined by the region. The placement of the protection region allowed the task to execute while the other tasks were protected. In an MMU, tasks can run even if they are compiled and linked to run in regions with overlapping addresses in main memory. The support for virtual memory in the MMU enables the construction of an embedded system that has multiple virtual memory maps and a single physical memory map. Each task is provided its own virtual memory map for the purpose of compiling and linking the code and data, which make up the task. A kernel layer then manages the placement of the multiple tasks in physical memory so they have a distinct location in physical memory that is different from the virtual location it is designed to run in. To permit tasks to have their own virtual memory map, the MMU hardware performs address relocation, translating the memory address output by the processor core before it reaches main memory. The easiest way to understand the translation process is to imagine a relocation register located in the MMU between the core and main memory.
- 513. 494 Chapter 14 Memory Management Units Task 1 region Virtual memory Page Offset Virtual address Physical address Base Offset 0x0400 0x0800 Translated address 00e3 00e3 MMU relocation register 0x04000000 0x040000e3 Task 1 Physical memory Page frame 0x08000000 0x080000e3 0x0800 Figure14.1 Mapping a task in virtual memory to physical memory using a relocation register. When the processor core generates a virtual address, the MMU takes the upper bits of the virtual address and replaces them with the contents of the relocation register to create a physical address, shown in Figure 14.1 The lower portion of the virtual address is an offset that translates to a specific address in physical memory. The range of addresses that can be translated using this method is limited by the maximum size of this offset portion of the virtual address. Figure 14.1 shows an example of a task compiled to run at a starting address of 0x4000000 in virtual memory. The relocation register translates the virtual addresses of Task 1 to physical addresses starting at 0x8000000. A second task compiled to run at the same virtual address, in this case 0x400000, can be placed in physical memory at any other multiple of 0x10000 (64 KB) and mapped to 0x400000 simply by changing the value in the relocation register. A single relocation register can only translate a single area of memory, which is set by the number of bits in the offset portion of the virtual address. This area of virtual memory is known as a page. The area of physical memory pointed to by the translation process is known as a page frame. The relationship between pages, the MMU, and page frames is shown in Figure 14.2. The ARM MMU hardware has multiple relocation registers supporting the translation of virtual memory to physical memory. The MMU needs many relocation registers to effectively support virtual memory because the system must translate many pages to many page frames.
- 514. 14.2 How Virtual Memory Works 495 Virtual memory Page tables Relocation register Page MMU Translation lookaside buffer Physical memory Page frame PTE . . . Figure14.2 The components of a virtual memory system. The set of relocation registers that temporarily store the translations in an ARM MMU are really a fully associative cache of 64 relocation registers. This cache is known as a Translation Lookaside Buffer (TLB). The TLB caches translations of recently accessed pages. In addition to having relocation registers, the MMU uses tables in main memory to store the data describing the virtual memory maps used in the system. These tables of translation data are known as page tables. An entry in a page table represents all the information needed to translate a page in virtual memory to a page frame in physical memory. Apagetableentry(PTE)inapagetablecontainsthefollowinginformationaboutavirtual page: the physical base address used to translate the virtual page to the physical page frame, the access permission assigned to the page, and the cache and write buffer configuration for the page. If you refer to Table 14.1, you can see that most of the region configuration data in an MPU is now held in a page table entry. This means access permission and cache and write buffer behavior are controlled at a granularity of the page size, which provides finer control over the use of memory. Regions in an MMU are created in software by grouping blocks of virtual pages in memory. 14.2.1 Defining Regions Using Pages In Chapter 13 we explained the use of regions to organize and control areas of memory used for specific functions such as task code and data, or memory input/output. In that
- 515. 496 Chapter 14 Memory Management Units explanation we showed regions as a hardware component of the MPU architecture. In an MMU, regions are defined as groups of page tables and are controlled completely in software as sequential pages in virtual memory. Since a page in virtual memory has a corresponding entry in a page table, a block of virtual memory pages map to a set of sequential entries in a page table. Thus, a region can be defined as a sequential set of page table entries. The location and size of a region can be held in a software data structure while the actual translation data and attribute information is held in the page tables. Figure 14.3 shows an example of a single task that has three regions: one for text, one for data, and a third to support the task stack. Each region in virtual memory is mapped to different areas in physical memory. In the figure, the executable code is located in flash memory, and the data and stack areas are located in RAM. This use of regions is typical of operating systems that support sharing code between tasks. With the exception of the master level 1 (L1) page table, all page tables represent 1 MB areas of virtual memory. If a region’s size is greater than 1 MB or crosses over the 1 MB boundary addresses that separate page tables, then the description of a region must also Virtual memory Page tables Stack Region 3 Region 2 Region 1 Data Text Physical memory RAM Flash Page Page frame PTE . . . . . . . . . . . . . Figure14.3 An example mapping pages to page frames in an ARM with an MMU.
- 516. 14.2 How Virtual Memory Works 497 include a list of page tables. The page tables for a region will always be derived from sequential page table entries in the master L1 page table. However, the locations of the L2 page tables in physical memory do not need to be located sequentially. Page table levels are explained more fully in Section 14.4. 14.2.2 Multitasking and the MMU Page tables can reside in memory and not be mapped to MMU hardware. One way to build a multitasking system is to create separate sets of page tables, each mapping a unique virtual memory space for a task. To activate a task, the set of page tables for the specific task and its virtual memory space are mapped into use by the MMU. The other sets of inactive page tables represent dormant tasks. This approach allows all tasks to remain resident in physical memory and still be available immediately when a context switch occurs to activate it. By activating different page tables during a context switch, it is possible to execute multiple tasks with overlapping virtual addresses. The MMU can relocate the execution address of a task without the need to move it in physical memory. The task’s physical memory is simply mapped into virtual memory by activating and deactivating page tables. Figure 14.4 shows three views of three tasks with their own sets of page tables running at a common execution virtual address of 0x0400000. In the first view, Task 1 is running, and Task 2 and Task 3 are dormant. In the second view, Task 2 is running, and Task 1 and Task 3 are dormant. In the third view, Task 3 is running, and Task 1 and Task 2 are dormant. The virtual memory in each of the three views represents memory as seen by the running task. The view of physical memory is the same in all views because it represents the actual state of real physical memory. The figure also shows active and dormant page tables where only the running task has an active set of page tables. The page tables for the dormant tasks remain resident in privileged physical memory and are simply not accessible to the running task. The result is that dormant tasks are fully protected from the active task because there is no mapping to the dormant tasks from virtual memory. When the page tables are activated or deactivated, the virtual-to-physical address map- pings change. Thus, accessing an address in virtual memory may suddenly translate to a different address in physical memory after the activation of a page table. As mentioned in Chapter 12, the ARM processor cores have a logical cache and store cached data in virtual memory. When this translation occurs, the caches will likely contain invalid virtual data from the old page table mapping. To ensure memory coherency, the caches may need cleaning and flushing. The TLB may also need flushing because it will have cached old translation data. The effect of cleaning and flushing the caches and the TLB will slow system operation. However, cleaning and flushing stale code or data from cache and stale translated physical addresses from the TLB keep the system from using invalid data and breaking. During a context switch, page table data is not moved in physical memory; only pointers to the locations of the page tables change.
- 517. 498 Chapter 14 Memory Management Units Virtual memory Page tables Physical memory Task 1 Task 3 Task 2 Task 1 0x400000 Task 3 Task 2 Task 1 Virtual memory Page tables Physical memory Task 2 Task 3 Task 2 Task 1 Task 3 Task 2 Task 1 Virtual memory Page tables Task 1 running Task 2 running Task 3 running Physical memory Task 3 Task 3 Task 2 Active Dormant Task 1 Task 3 Task 2 Task 1 0x400000 0x400000 Figure14.4 Virtual memory from a user task context.
- 518. 14.2 How Virtual Memory Works 499 To switch between tasks requires the following steps: 1. Save the active task context and place the task in a dormant state. 2. Flush the caches; possibly clean the D-cache if using a writeback policy. 3. Flush the TLB to remove translations for the retiring task. 4. Configure the MMU to use new page tables translating the virtual memory execution area to the awakening task’s location in physical memory. 5. Restore the context of the awakening task. 6. Resume execution of the restored task. Note: to reduce the time it takes to perform a context switch, a writethrough cache policy can be used in the ARM9 family. Cleaning the data cache can require hundreds of writes to CP15 registers. By configuring the data cache to use a writethrough policy, there is no need to clean the data cache during a context switch, which will provide better context switch performance. Using a writethrough policy distributes these writes over the life of the task. Although a writeback policy will provide better overall performance, it is simply easier to write code for small embedded systems using a writethrough policy. This simplification applies because most systems use flash memory for nonvolatile storage, and copy programs to RAM during system operation. If your system has a file system and uses dynamic paging then it is time to switch to a write-back policy because the access time to file system storage are tens to hundreds of thousands of times slower than access to RAM memory. If, after some performance analysis, the efficiency of a writethrough system is not adequate, then performance can be improved using a writeback cache. If you are using a disk drive or other very slow secondary storage, a writeback policy is almost mandatory. This argument only applies to ARM cores that use logical caches. If a physical cache is present, as in the ARM11 family, the information in cache remains valid when the MMU changes its virtual memory map. Using a physical cache eliminates the need to perform cache management activities when changing virtual memory addresses. For further information on caches, refer to Chapter 12. 14.2.3 Memory Organization in a Virtual Memory System Typically, page tables reside in an area of main memory where the virtual-to-physical address mapping is fixed. By “fixed,” we mean data in a page table doesn’t change during normal operation, as shown in Figure 14.5. This fixed area of memory also contains the operating system kernel and other processes. The MMU, which includes the TLB shown in Figure 14.5, is hardware that operates outside the virtual or physical memory space; its function is to translate addresses between the two memory spaces. The advantage of this fixed mapping is seen during a context switch. Placing system software at a fixed virtual memory location eliminates some memory management tasks
- 519. 500 Chapter 14 Memory Management Units Physical memory System software Page tables Task 1 Task 3 Task 2 Virtual memory Fixed address memory area Dynamic address memory area System software Task MMU hardware (TLB) Figure14.5 A general view of memory organization in a system using an MMU. and the pipeline effects that result if a processor is executing in a region of virtual memory that is suddenly remapped to a different location in physical memory. When a context switch occurs between two application tasks, the processor in reality makes many context switches. It changes from a user mode task to a kernel mode task to perform the actual movement of context data in preparation for running the next applica- tion task. It then changes from the kernel mode task to the new user mode task of the next context. By sharing the system software in a fixed area of virtual memory that is seen across all user tasks, a system call can branch directly to the system area and not worry about needing to change page tables to map in a kernel process. Making the kernel code and data map to the same virtual address in all tasks eliminates the need to change the memory map and the need to have an independent kernel process that consumes a time slice. Branching to a fixed kernel memory area also eliminates an artifact inherent in the pipeline architecture. If the processor core is executing code in a memory area that changes addresses, the core will have prefetched several instructions from the old physical memory space, which will be executed as the new instructions fill the pipeline from the newly mapped memory space. Unless special care is taken, executing the instructions still in the pipeline from the old memory map may corrupt program execution.
- 520. 14.4 Page Tables 501 We recommend activating page tables while executing system code at a fixed address region where the virtual-to-physical memory mapping never changes. This approach ensures a safe switch between user tasks. Many embedded systems do not use complex virtual memory but simply create a “fixed” virtual memory map to consolidate the use of physical memory. These systems usually collect blocks of physical memory spread over a large address space into a contiguous block of virtual memory. They commonly create a “fixed” map during the initialization process, and the map remains the same during system operation. 14.3 Details of the ARM MMU The ARM MMU performs several tasks: It translates virtual addresses into physical addresses, it controls memory access permission, and it determines the individual behav- ior of the cache and write buffer for each page in memory. When the MMU is disabled, all virtual addresses map one-to-one to the same physical address. If the MMU is unable to translate an address, it generates an abort exception. The MMU will only abort on translation, permission, and domain faults. The main software configuration and control components in the MMU are ■ Page tables ■ The Translation Lookaside Buffer (TLB) ■ Domains and access permission ■ Caches and write buffer ■ The CP15:c1 control register ■ The Fast Context Switch Extension We provide the details of operation and how to configure these components in the following sections. 14.4 Page Tables The ARM MMU hardware has a multilevel page table architecture. There are two levels of page table: level 1 (L1) and level 2 (L2). There is a single level 1 page table known as the L1 master page table that can contain two types of page table entry. It can hold pointers to the starting address of level 2 page tables, and page table entries for translating 1 MB pages. The L1 master table is also known as a section page table. The master L1 page table divides the 4 GB address space into 1 MB sections; hence the L1 page table contains 4096 page table entries. The master table is a hybrid table that acts
- 521. 502 Chapter 14 Memory Management Units Table 14.2 Page tables used by the MMU. Memory consumed Number of page Name Type by page table (KB) Page sizes supported (KB) table entries Master/section level 1 16 1024 4096 Fine level 2 4 1, 4, or 64 1024 Coarse level 2 1 4 or 64 256 as both a page directory of L2 page tables and a page table translating 1 MB virtual pages called sections. If the L1 table is acting as a directory, then the PTE contains a pointer to either an L2 coarse or L2 fine page table that represents 1 MB of virtual memory. If the L1 master table is translating a 1 MB section, then the PTE contains the base address of the 1 MB page frame in physical memory. The directory entries and 1 MB section entries can coexist in the master page table. A coarse L2 page table has 256 entries consuming 1 KB of main memory. Each PTE in a coarse page table translates a 4 KB block of virtual memory to a 4 KB block in physical memory. A coarse page table supports either 4 or 64 KB pages. The PTE in a coarse page contains the base address to either a 4 or 64 KB page frame; if the entry translates a 64 KB page, an identical PTE must be repeated in the page table 16 times for each 64 KB page. A fine page table has 1024 entries consuming 4 KB of main memory. Each PTE in a fine page translates a 1 KB block of memory. A fine page table supports 1, 4, or 64 KB pages in virtual memory. These entries contain the base address of a 1, 4, or 64 KB page frame in physical memory. If the fine table translates a 4 KB page, then the same PTE must be repeated 4 consecutive times in the page table. If the table translates a 64 KB page, then the same PTE must be repeated 64 consecutive times in the page table. Table 14.2 summarizes the characteristics of the three kinds of page table used in ARM memory management units. 14.4.1 Level 1 Page Table Entries The level 1 page table accepts four types of entry: ■ A 1 MB section translation entry ■ A directory entry that points to a fine L2 page table ■ A directory entry that points to a coarse L2 page table ■ A fault entry that generates an abort exception The system identifies the type of entry by the lower two bits [1:0] in the entry field. The format of the PTE requires the address of an L2 page table to be aligned on a multiple of its page size. Figure 14.6 shows the format of each entry in the L1 page table.
- 522. 14.4 Page Tables 503 Section entry 1 5 11 12 31 2 3 4 8 9 10 19 20 0 Base address 1 1 0 AP Domain 0 SBZ C B Fine page table Base address 1 1 1 1 5 11 12 31 2 3 4 8 9 0 Domain SBZ SBZ Coarse page table 1 5 31 2 3 4 8 9 10 0 Base address 1 0 1 0 Domain SBZ 1 31 2 0 0 0 Fault SBZ = should be zero Figure14.6 L1 page table entries. A section page table entry points to a 1 MB section of memory. The upper 12 bits of the page table entry replace the upper 12 bits of the virtual address to generate the physical address. A section entry also contains the domain, cached, buffered, and access permission attributes, which we discuss in Section 14.6. A coarse page entry contains a pointer to the base address of a second-level coarse page table. The coarse page table entry also contains domain information for the 1 MB section of virtual memory represented by the L1 table entry. For coarse pages, the tables must be aligned on an address multiple of 1 KB. A fine page table entry contains a pointer to the base address of a second-level fine page table. The fine page table entry also contains domain information for the 1 MB section of virtual memory represented by the L1 table entry. Fine page tables must be aligned on an address multiple of 4 KB. A fault page table entry generates a memory page fault. The fault condition results in either a prefetch or data abort, depending on the type of memory access attempted. The location of the L1 master page table in memory is set by writing to the CP15:c2 register. 14.4.2 The L1 Translation Table Base Address The CP15:c2 register holds the translation table base address (TTB)—an address pointing to the location of the master L1 table in virtual memory. Figure 14.7 shows the format of CP15:c2 register.
- 523. 504 Chapter 14 Memory Management Units 31 14 13 0 TTB SBZ SBZ = should be zero Figure14.7 Translation table base address CP15 register 2. Example 14.1 Here is a routine named ttbSet that sets the TTB of the master L1 page table. The ttbSet routine uses an MRC instruction to write to CP15:c2:c0:0. The routine is defined using the following function prototype: void ttbSet(unsigned int ttb); The only argument passed to the procedure is the base address of the translation table. The TTB address must be aligned on a 16 KB boundary in memory. void ttbSet(unsigned int ttb) { ttb = 0xffffc000; __asm{MRC p15, 0, ttb, c2, c0, 0 } /* set translation table base */ } ■ 14.4.3 Level 2 Page Table Entries There are four possible entries used in L2 page tables: ■ A large page entry defines the attributes for a 64 KB page frame. ■ A small page entry defines a 4 KB page frame. ■ A tiny page entry defines a 1 KB page frame. ■ A fault page entry generates a page fault abort exception when accessed. Figure 14.8 shows the format of the entries in an L2 page table. The MMU identifies the type of L2 page table entry by the value in the lower two bits of the entry field. A large PTE includes the base address of a 64 KB block of physical memory. The entry also has four sets of permission bit fields, as well as the cache and write buffer attributes for the page. Each set of access permission bit fields represents one-fourth of the page in virtual memory. These entries may be thought of as 16 KB subpages providing finer control of access permission within the 64 KB page.
- 524. 14.4 Page Tables 505 Large page 1 5 11 12 31 2 3 4 8 9 10 15 16 0 Base physical address SBZ 7 6 AP3 AP2 AP1 AP0 C B 0 1 Small page 1 5 11 12 31 2 3 4 8 9 10 0 Base physical address 7 6 AP3 AP2 AP1AP0 C B 1 0 Tiny page 1 5 31 2 3 4 8 9 10 0 Base physical address SBZ 7 6 AP C B 1 1 1 31 2 0 Page fault 0 0 SBZ = should be zero Figure14.8 L2 page table entries. A small PTE holds the base address of a 4 KB block of physical memory. The entry also includes four sets of permission bit fields and the cache and write buffer attributes for the page. Each set of permission bit fields represents one-fourth of the page in virtual memory. These entries may be thought of as 1 KB subpages providing finer control of access permission within the 4 KB page. A tiny PTE provides the base address of a 1 KB block of physical memory. The entry also includes a single access permission bit field and the cache and write buffer attributes for the page. The tiny page has not been incorporated in the ARMv6 architecture. If you are planning to create a system that is easily portable to future architectures, we recommend avoiding the use of tiny 1 KB pages in your system. A fault PTE generates a memory page access fault. The fault condition results in either a prefetch or data abort, depending on the type of memory access. 14.4.4 Selecting a Page Size for Your Embedded System Here are some tips and suggestions for setting the page size in your system: ■ The smaller the page size, the more page frames there will be in a given block of physical memory.
- 525. 506 Chapter 14 Memory Management Units ■ The smaller the page size, the less the internal fragmentation. Internal fragmentation is the unused memory area in a page. For example, a task 9 KB in size can fit in three 4 KB pages or one 64 KB page. In the first case, using 4 KB pages, there are 3 KB of unused space. In the case using 64 KB pages, there are 55 KB of unused page space. ■ The larger the page size, the more likely the system will load referenced code and data. ■ Large pages are more efficient as the access time to secondary storage increases. ■ As the page size increases, each TLB entry represents more area in memory. Thus, the system can cache more translation data, and the faster the TLB is loaded with all translation data for a task. ■ Each page table consumes 1 KB of memory if you use L2 coarse pages. Each L2 fine page table consumes 4 KB. Each L2 page table translates 1 MB of address space. Your maximum page table memory use, per task, is ((task size/1 megabyte) + 1) ∗ (L2 page table size) (14.1) 14.5 The Translation Lookaside Buffer The TLB is a special cache of recently used page translations. The TLB maps a virtual page to an active page frame and stores control data restricting access to the page. The TLB is a cache and therefore has a victim pointer and a TLB line replacement policy. In ARM processor cores the TLB uses a round-robin algorithm to select which relocation register to replace on a TLB miss. The TLB in ARM processor cores does not have many software commands available to control its operation. The TLB supports two types of commands: you can flush the TLB, and you can lock translations in the TLB. During a memory access, the MMU compares a portion of the virtual address to all the values cached in the TLB. If the requested translation is available, it is a TLB hit, and the TLB provides the translation of the physical address. If the TLB does not contain a valid translation, it is a TLB miss. The MMU automatically handles TLB misses in hardware by searching the page tables in main memory for valid translations and loading them into one of the 64 lines in the TLB. The search for valid translations in the page tables is known as a page table walk. If there is a valid PTE, the hardware copies the translation address from the PTE to the TLB and generates the physical address to access main memory. If, at the end of the search, there is a fault entry in the page table, then the MMU hardware generates an abort exception. During a TLB miss, the MMU may search up to two page tables before loading data to the TLB and generating the needed address translation. The cost of a miss is generally one or two main memory access cycles as the MMU translation table hardware searches the page tables. The number of cycles depends on which page table the translation data is found in. A single-stage page table walk occurs if the search ends with the L1 master page table; there is a two-stage page table walk if the search ends with an L2 page table.
- 526. 14.5 The Translation Lookaside Buffer 507 A TLB miss may take many extra cycles if the MMU generates an abort exception. The extracyclesresultastheaborthandlermapsintherequestedvirtualmemory. TheARM720T has a single TLB because it has a unified bus architecture. The ARM920T, ARM922T, ARM926EJ-S, and ARM1026EJ-S have two Translation Lookaside Buffers because they use a Harvard bus architecture: one TLB for instruction translation and one TLB for data translation. 14.5.1 Single-Step Page Table Walk If the MMU is searching for a 1 MB section page, then the hardware can find the entry in a single-step search because 1 MB page table entries are found in the master L1 page table. Figure 14.9 shows the table walk of an L1 table for a 1 MB section page translation. The MMU uses the base portion of the virtual address, bits [31:20], to select one of the 4096 Virtual address L1 master page table Page table entry Translation table base address 4095 0 1 2 3 0 1 4 5 Base . . . Offset 31 20 19 0 Physical address Base Offset Copied to TLB Selects physical memory 31 20 19 0 Figure14.9 L1 Page table virtual-to-physical memory translation using 1 MB sections.
- 527. 508 Chapter 14 Memory Management Units entries in the L1 master page table. If the value in bits [1:0] is binary 10, then the PTE has a valid 1 MB page available. The data in the PTE is transferred to the TLB, and the physical address is translated by combining it with the offset portion of the virtual address. If the lower two bits are 00, then a fault is generated. If it is either of the other two values, the MMU performs a two-stage search. 14.5.2 Two-Step Page Table Walk If the MMU ends its search for a page that is 1, 4, 16, or 64 KB in size, then the page table walk will have taken two steps to find the address translation. Figure 14.10 details Coarse L2 page table L2 page table entry L2 page table base address Translation table base address 255 0 1 2 L2 offset . . . Page offset 19 12 11 0 Virtual address L1 offset 31 20 Physical address Physical base Page offset Copied to TLB Selects physical memory 31 12 11 0 L1 master page table Step 1 Step 2 L1 page table entry 4095 0 1 2 3 0 1 4 5 . . . Figure14.10 Two-level virtual-to-physical address translation using coarse page tables and 4 KB pages.
- 528. 14.5 The Translation Lookaside Buffer 509 the two-stage process for a translation held in a coarse L2 page table. Note that the virtual address is divided into three parts. In the first step, the L1 offset portion is used to index into the master L1 page table and find the L1 PTE for the virtual address. If the lower two bits of the PTE contain the binary value 01, then the entry contains the L2 page table base address to a coarse page (see Figure 14.6). In the second step, the L2 offset is combined with the L2 page table base address found in the first stage; the resulting address selects the PTE that contains the translation for the page. The MMU transfers the data in the L2 PTE to the TLB, and the base address is combined with the offset portion of the virtual address to generate the requested address in physical memory. 14.5.3 TLB Operations If the operating system changes data in the page tables, translation data cached in the TLB may no longer be valid. To invalidate data in the TLB, the core has CP15 commands to flush the TLB. There are several commands available (see Table 14.3): one to flush all TLB data, one to flush the Instruction TLB, and another to flush the Data TLB. The TLB can also be flushed a line at a time. Table 14.3 CP15:c7 commands to flush the TLB. Command MCR instruction Value in Rd Core support Invalidate all TLBs MCR p15, 0, Rd, c8, c7, 0 should be zero ARM720T, ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Invalidate TLB by line MCR p15, 0, Rd, c8, c7, 1 virtual address to invalidate ARM720T Invalidate I TLB MCR p15, 0, Rd, c8, c5, 0 virtual address to invalidate ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Invalidate I TLB by line MCR p15, 0, Rd, c8, c5, 1 virtual address to invalidate ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Invalidate D TLB MCR p15, 0, Rd, c8, c6, 0 virtual address to invalidate ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Invalidate D TLB by line MCR p15, 0, Rd, c8, c6, 1 virtual address to invalidate ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale
- 529. 510 Chapter 14 Memory Management Units Example 14.2 Here is a small C routine that invalidates the TLB. void flushTLB(void) { unsigned int c8format = 0; __asm{MCR p15, 0, c8format, c8, c7, 0 } /* flush TLB */ } ■ 14.5.4 TLB Lockdown The ARM920T, ARM922T, ARM926EJ-S, ARM1022E, and ARM1026EJ-S support locking translations in the TLB. If a line is locked in the TLB, it remains in the TLB when a TLB flush command is issued. We list the available lockdown commands for the various ARM cores in Table 14.4. The format of the core register Rd used in the MCR instruction that locks data in the TLB in shown in Figure 14.11. 14.6 Domains and Memory Access Permission There are two different controls to manage a task’s access permission to memory: The primary control is the domain, and a secondary control is the access permission set in the page tables. Domains control basic access to virtual memory by isolating one area of memory from another when sharing a common virtual memory map. There are 16 different domains that Table 14.4 Commands to access the TLB lockdown registers. Command MCR instruction Value in Rd Core support Read D TLB lockdown MRC p15,0,Rd,c10,c0,0 TLB lockdown ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Write D TLB lockdown MCR p15,0,Rd,c10,c0,0 TLB lockdown ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Read I TLB lockdown MRC p15,0,Rd,c10,c0,1 TLB lockdown ARM920T, ARM922T, ARM926EJ-S, ARM1022E, ARM1026EJ-S, StrongARM, XScale Write I TLB lockdown MCR p15,0,Rd,c10,c0,1 TLB lockdown ARM920T, ARM922T,ARM926EJ-S, ARM1022E,ARM1026EJ-S, StrongARM, XScale
- 530. 14.6 Domains and Memory Access Permission 511 1 0 P 31 ARM920T, ARM922T, ARM926EJ-S, ARM1022E Base Victim 26 25 20 19 SBZ 1 0 P 31 ARM1026EJ-S SBZ Victim 29 28 26 25 SBZ SBZ = should be zero Figure14.11 Format of the CP15:c10:c0 register. can be assigned to 1 MB sections of virtual memory and are assigned to a section by setting the domain bit field in the master L1 PTE (see Figure 14.6). When a domain is assigned to a section, it must obey the domain access rights assigned to the domain. Domain access rights are assigned in the CP15:c3 register and control the processor core’s ability to access sections of virtual memory. The CP15:c3 register uses two bits for each domain to define the access permitted for each of the 16 available domains. Table 14.5 shows the value and meaning of a domain access bit field. Figure 14.12 gives the format of the CP15:c3:c0 register, which holds the domain access control information. The 16 available domains are labeled from D0 to D15 in the figure. Even if you don’t use the virtual memory capabilities provided by the MMU, you can still use these cores as simple memory protection units: first, by mapping virtual memory directly to physical memory, assigning a different domain to each task, then using domains to protect dormant tasks by assigning their domain access to “no access.” Table 14.5 Domain access bit assignments. Access Bit field value Comments Manager 11 access is uncontrolled, no permission aborts generated Reserved 10 unpredictable Client 01 access controlled by permission values set in PTE No access 00 generates a domain fault
- 531. 512 Chapter 14 Memory Management Units 6 12 D0 2 4 8 10 14 16 0 D7 D6 D5 D4 D3 D2 D1 D8 D15 D14 D13 D12 D11 D10 D9 20 18 22 24 28 26 30 Figure14.12 Format of the domain access control register CP15:c3. Table 14.6 Access permission and control bits. Privileged mode User mode AP bit field System bit Rom bit Read and write read and write 11 ignored ignored Read and write read only 10 ignored ignored Read and write no access 01 ignored ignored No access no access 00 0 0 Read only read only 00 0 1 Read only no access 00 1 0 Unpredictable unpredictable 00 1 1 14.6.1 Page-Table-Based Access Permissions The AP bits in a PTE determine the access permission for a page. The AP bits are shown in Figures 14.6 and 14.8. Table 14.6 shows how the MMU interprets the two bits in the AP bit field. In addition to the AP bits located in the PTE, there are two bits in the CP15:c1 control register that act globally to modify access permission to memory: the system (S) bit and the rom (R) bit. These bits can be used to reveal large blocks of memory from the system at different times during operation. Setting the S bit changes all pages with “no access” permission to allow read access for privileged mode tasks. Thus, by changing a single bit in CP15:c1, all areas marked as no access are instantly available without the cost of changing every AP bit field in every PTE. Changing the R bit changes all pages with “no access” permission to allow read access for both privileged and user mode tasks. Again, this bit can speed access to large blocks of memory without needing to change lots of PTEs. 14.7 The Caches and Write Buffer We presented the basic operation of caches and write buffers in Chapter 12. You configure the caches and write buffer for each page in memory using two bits in a PTE (see Figures 14.6 and 14.8). When configuring a page of instructions, the write buffer bit is ignored and the
- 532. 14.8 Coprocessor 15 and MMU Configuration 513 Table 14.7 Configuring the cache and write buffer for a page. Instruction cache Data cache Cache bit Page attribute Cache bit Buffer bit Page attribute 0 not cached 0 0 not cached, not buffered 1 cached 0 1 not cached, buffered 1 0 cached, writethrough 1 1 cached, writeback cache bit determines cache operation. When the bit is set, the page is cached, and when the bit is clear, the page is not cached. When configuring data pages, the write buffer bit has two uses: it enables or disables the write buffer for a page, and it sets the page cache write policy. The page cache bit controls the meaning of the write buffer bit. When the cache bit is zero, the buffer bit enables the write buffer when the buffer bit value is one, and disables the write buffer when the buffer bit value is zero. When the cache bit is set to one, the write buffer is enabled, and the state of the buffer bit determines the cache write policy. The page uses a writethrough policy if the buffer bit is zero and a writeback policy if the buffer bit is set; refer to Table 14.7, which gives a tabular view of the various states of the cache and write buffer bits and their meaning. 14.8 Coprocessor 15 and MMU Configuration We first introduced the procedure changeControl in Chapter 12. Example 14.3 revisits the procedure changeControl, which we use to enable the MMU, caches, and write buffer. The control register values that control MMU operation are shown in Table 14.8 and Figure 14.13. The ARM720T, ARM920T, and the ARM926EJ-S all have the MMU enable bit[0]andcacheenablebit[2]inthesamelocationinthecontrolregister. TheARM720Tand ARM1022E have a write buffer enable, bit[3]. The ARM920T, ARM922T, and ARM926EJS have split instruction and data caches, requiring an extra bit to enable the I-cache, bit[12]. All processor cores with an MMU support changing the vector table to high memory at address 0xffff0000, bit[13]. Enabling a configured MMU is very similar for the three cores. To enable the MMU, caches, and write buffer, you need to change bit[12], bit[3], bit[2], and bit[0] in the control register. The procedure, changeControl, operates on register CP15:c1:c0:0 to change the values in the control register c1. Example 14.3 gives a small C routine that sets bits in the control register; it is called using the following function prototype: void controlSet(unsigned int value, unsigned int mask)
- 533. 514 Chapter 14 Memory Management Units Table 14.8 Description of the bit fields in the control register CP15:c1 that control MMU operation. Bit Letter designator Function enabled Control 0 M MMU 0 = disabled, 1 = enabled 2 C (data) cache 0 = disabled, 1 = enabled 3 W write buffer 0 = disabled, 1 = enabled 8 S system shown in Table 14.6 9 R rom shown in Table 14.6 12 I instruction cache 0 = disabled, 1 = enabled 13 V high vector table 0 = vector table at 0x00000000 1 = vector table at 0xFFFF0000 1 5 6 12 2 3 4 7 8 9 10 0 M C W R S 31 ARM720T 1 6 11 12 2 3 7 8 9 10 0 I M C R S 31 ARM920T, ARM922T, ARM926EJ-S, ARM1026EJ-S 13 V 14 13 V 14 5 4 11 1 6 11 12 2 3 7 8 9 10 0 I M C R S 31 ARM1022E 13 V 14 5 4 W Figure14.13 CP15:c1 register control bits in the MMU. The first parameter passed to the procedure is an unsigned integer containing the state of the control values you want to change. The second parameter, mask, is a bit pattern that selects the bits that need changing. A bit set to one in the mask variable changes the bit in the CP15:c1c0 register to the value of the same bit in the value input parameter. A zero leaves the bit in the control register unchanged, regardless of the bit state in the value parameter.
- 534. 14.9 The Fast Context Switch Extension 515 Example 14.3 The routine controlSet sets the control bits register in CP15:c1. The routine first reads the CP15:r3 register and places it in the variable c1format. The routine then uses the input mask value to clear the bits in c1format that need updating. The update is done by ORing c1format with the value input parameter. The updated c1format is finally written back out to the CP15:c1 register to enable the MMU, caches, and write buffer. void controlSet(unsigned int value, unsigned int mask) { unsigned int c1format; __asm{MRC p15, 0, c1format, c1, c0, 0 } /* read control register */ c1format = ∼mask; /* clear bits that change */ c1format |= value; /* set bits that change */ __asm{MCR p15, 0, c1format, c1, c0, 0 } /* write control register */ } Hereisacodesequence thatcallsthe controlSet routinetoenabletheI-cache, D-cache, and the MMU in an ARM920T: #define ENABLEMMU 0x00000001 #define ENABLEDCACHE 0x00000004 #define ENABLEICACHE 0x00001000 #define CHANGEMMU 0x00000001 #define CHANGEDCACHE 0x00000004 #define CHANGEICACHE 0x00001000 unsigned int enable, change; #if defined(__TARGET_CPU_ARM920T) enable = ENABLEMMU | ENABLEICACHE | ENABLEDCACHE; change = CHANGEMMU | CHANGEICACHE | CHANGEDCACHE; #endif controlSet(enable, change); ■ 14.9 The Fast Context Switch Extension The Fast Context Switch Extension (FCSE) is additional hardware in the MMU that is considered an enhancement feature, which can improve system performance in an ARM embedded system. The FCSE enables multiple independent tasks to run in a fixed overlap- ping area of memory without the need to clean or flush the cache, or flush the TLB during a context switch. The key feature of the FCSE is the elimination of the need to flush the cache and TLB.
- 535. 516 Chapter 14 Memory Management Units Without the FCSE, switching from one task to the next requires a change in virtual memory maps. If the change involves two tasks with overlapping address ranges, the infor- mation stored in the caches and TLB become invalid, and the system must flush the caches and TLB. The process of flushing these components adds considerable time to the task switch because the core must not only clear the caches and TLB of invalid data, but it must also reload data to the caches and TLB from main memory. With the FCSE there is an additional address translation when managing virtual mem- ory. The FCSE modifies virtual addresses before it reaches the cache and TLB using a special relocation register that contains a value known as the process ID. ARM refers to the addresses in virtual memory before the first translation as a virtual address (VA), and those addresses after the first translation as a modified virtual address(MVA), shown in Figure 14.4. When using the FCSE, all modified virtual addresses are active. Tasks are protected by using the domain access facilities to block access to dormant tasks. We discuss this in more detail in the next section. Switching between tasks does not involve changing page tables; it simply requires writing the new task’s process ID into the FCSE process ID register located in CP15. Because a task switch does not require changing the page tables, the caches and TLB remain valid after the switch and do not need flushing. When using the FCSE, each task must execute in the fixed virtual address range from 0x00000000to0x1FFFFFFFandmustbelocatedinadifferent32MBareaofmodifiedvirtual memory. The system shares all memory addresses above 0x2000000, and uses domains to protect tasks from each other. The running task is identified by its current process ID. To utilize the FCSE, compile and link all tasks to run in the first 32 MB block of virtual memory (VA) and assign a unique process ID. Then place each task in a different 32 MB partition of modified virtual memory using the following relocation formula: MVA = VA + (0x2000000 ∗ process ID) (14.2) To calculate the starting address of a task partition in modified virtual memory, take a value of zero for the VA and the task’s process ID, and use these values in Equation (14.2). The value held in the CP15:c13:c0 register contains the current process ID. The process ID bit field in the register is seven bits wide and supports 128 process IDs. The format of the register is shown in Figure 14.15. 0 24 25 31 Process ID SBZ SBZ = should be zero Figure14.15 Fast context switch register CP15 register 13.
- 536. 14.9 The Fast Context Switch Extension 517 Virtual memory FCSE Domain access Kernel Task 2 alias Task 2 running Kernel Task 3 Task 2 Task 1 Process ID Special relocation register 0x6000000 0x4000000 0x2000000 (32 MB) Kernel client access Task 3 no access Task 2 client access Task 1 no access Modified virtual memory Caches and TLB Physical memory Task 3 Kernel Task 2 Task 1 Task 1 running Task 2 running Kernel Task 3 Task 1 Task 2 Virtual memory FCSE Domain access Kernel Task 1 alias Task 1 running Kernel Task 3 Task 2 Task 1 Process ID Special relocation register 0x6000000 0x4000000 0x2000000 (32 MB) Kernel client access Task 3 no access Task 1 client access Task 2 no access Modified virtual memory Caches and TLB Physical memory Task 3 Kernel Task 2 Task 1 Kernel Task 3 Task 1 Task 2 Figure14.14 Fast Context Switch Extension example showing task 1 before a context switch and task 2 running after a context switch in a three-task multitasking environment. Example 14.4 shows a small routine processIDSet that sets the process ID in the FCSE. It can be called using the following function prototype: void processIDSet(unsigned value);
- 537. 518 Chapter 14 Memory Management Units Example 14.4 This routine takes an unsigned integer as an input, clips it to seven bits, mod 128, by multiplying the value by 0x20000000 (32 MB), and then writing the result to the process ID register using an MCR instruction. void processIDSet(unsigned int value) { unsigned int PID; PID = value 25; __asm{MCR p15, 0, PID, c13, c0, 0 } /* write Process ID register */ } ■ 14.9.1 How the FCSE Uses Page Tables and Domains To use the FCSE efficiently, the system uses page tables to control region configuration and operation, and domains to isolate tasks from each other. Refer again to Figure 14.14, which shows the memory layout before and after a context switch from Task 1 to Task 2. Table 14.9 shows the numerical details used to create Figure 14.14. Figure 14.16 shows how to change the value in the domain access register of CP15:c3:c0 to switch from Task 1 to Task 2. Switching between tasks requires a change in the process ID and a new entry in the domain access register. Table 14.9 shows that Task 1 is assigned Domain 1, and Task 2 is assigned Domain 2. When changing from Task 1 to Task 2, change the domain access register to allow client access to Domain 2, and no access to Domain 1. This prevents Task 2 from accessing the memory space of Task 1. Note that client access remains the same for the kernel, Domain 0. This allows the page tables to control access to the system area of memory. Sharing memory between tasks can be accomplished by using a “sharing” domain, shown as Domain 15 in Figure 14.16 and Table 14.9. The sharing domain is not shown in Figure 14.15. Tasks can share a domain that allows client access to a partition in modified Table 14.9 Domain assignment in a simple three-task multiprogramming environment using the FSCE. Partition starting address in Region Domain Privileged AP User AP modified virtual memory Process ID Kernel 0 read write no access 0xFE000000 not assigned Task 3 3 read write read write 0x06000000 0x03 Task 2 2 read write read write 0x04000000 0x02 Task 1 1 read write read write 0x02000000 0x01 Shared 15 read write read write 0xF8000000 not assigned
- 538. 14.9 The Fast Context Switch Extension 519 D0 D7 D6 D5 D4 D3 D2 D1 D8 D15 D14 D13 D12 D11 D10 D9 01 00 00 00 00 00 01 00 00 01 00 00 00 00 00 00 D0 D7 D6 D5 D4 D3 D2 D1 D8 D15 D14 D13 D12 D11 D10 D9 01 00 00 00 00 00 00 01 00 01 00 00 00 00 00 00 Pre Post Task 1 running Task 2 running Figure14.16 Pre- and post-view of CP15 register 3 changing from Task 1 to Task 2 in a three-task multiprogramming environment. virtual memory. This shared memory can be seen by both tasks, and access is determined by the page table entries that map the memory space. Here are the steps needed to perform a context switch when using the FCSE: 1. Save the active task context and place the task in a dormant state. 2. Write the awakening task’s process ID to CP15:c13:c0. 3. Set the current task’s domain to no access, and the awakening task’s domain to client access, by writing to CP15:c3:c0. 4. Restore the context of the awakening task. 5. Resume execution of the restored task. 14.9.2 Hints for Using the FCSE ■ A task has a fixed 32 MB maximum limit on size. ■ The memory manager must use fixed 32 MB partitions with a fixed starting address that is a multiple of 32 MB. ■ Unless you want to manage an exception vector table for each task, place the exception vector table at virtual address 0xffff0000, using the V bit in CP15 register 1. ■ You must define and use an active domain control system. ■ The core fetches the two instructions following a change in process ID from the previous process space, if execution is taking place in the first 32 MB block. Therefore, it is wise to switch tasks from a “fixed” region in memory.
- 539. 520 Chapter 14 Memory Management Units ■ If you use domains to control task access, the running task also appears as an alias at VA + (0x2000000 ∗ process ID) in virtual memory. ■ If you use domains to protect tasks from each other, you are limited to a maximum of 16 concurrent tasks, unless you are willing to modify the domain fields in the level 1 page table and flush the TLB on a context switch. 14.10 Demonstration: A Small Virtual Memory System Here is a little demonstration that shows the fundamentals of a small embedded system using virtual memory. It is designed to run on an ARM720T or ARM920T core. The demonstration provides a static multitasking system showing the infrastructure needed to run three concurrent tasks. We wrote the demonstration using the ARM ADS1.2 developer suite. There are many ways to improve the demonstration, but its primary purpose is as an aid in understanding the underlying ARM MMU hardware. Paging or swapping to secondary storage is not demonstrated. The demonstration uses the same execution region for all user tasks, which simplifies the compiling and linking of those tasks. Each task is compiled as a standalone program containing text, data, and stack information in a single region. The hardware requirements are an ARM-based evaluation board, which includes an ARM720T or ARM920T processor core. The example requires 256 KB of RAM starting at address 0x00000000 and a method of loading code and data into memory. In addition there are also several memory-mapped peripherals spread over 256 MB from address 0x10000000 to 0x20000000. The software requirements are an operating system infrastructure such as SLOS, provided in earlier chapters. The system must support fixed partition multitasking. The example uses only 1 MB and 4 KB pages. However, the coded examples support all page sizes. Tasks are limited to less than 1 MB and therefore fit in a single L2 page table. Thus,ataskswitchcanbeperformedbychangingasingleL2PTEinthemasterL1pagetable. This approach is much simpler than trying to create and maintain a full sets of page tables for each task, and changing the TTB address during each context switch. Changing the TTB to change between task memory maps would require creating a master table and all the L2 system tables in three different sets of page tables. This would also require additional memory to store these additional page tables. The purpose for swapping out a single L2 table is to eliminate the duplication of system information in the multiple sets of page tables. The reduction in the number of duplicated page tables reduces the required memory to run the system. We use seven steps to set up the MMU for the demonstration: 1. Define the fixed system software regions; this fixed area is shown in Figure 14.5. 2. Define the three virtual memory maps for the three tasks; the general layout of these maps is shown in Figure 14.4.
- 540. 14.10 Demonstration: A Small Virtual Memory System 521 3. Locate the regions listed in steps 1 and 2 into the physical memory map; this is an implementation of what is shown on the right side of Figure 14.5. 4. Define and locate the page tables within the page table region. 5. Define the data structures needed to create and manage the regions and page tables. These structures are implementation dependent and are defined specifically for the example. However, the general form of the structures is a good starting point for most simple systems. 6. Initialize the MMU, caches, and write buffer. 7. Set up a context switch routine to gracefully transition from one task to the next. We present these steps in detail in the following sections. 14.10.1 Step 1: Define the Fixed System Software Regions There are four fixed system software regions used by the operating system: a dedicated 32 KB kernel region at 0x00000, a 32 KB shared memory region at 0x8000, a dedicated 32 KB page table region at 0x10000, and a 256 MB peripheral region at 0x10000000 (see Figure 14.17). We define these regions during the initialization process and never change their page tables again. The privileged kernel region stores the system software; it contains the operating system kernel code and data. The region uses fixed addressing to avoid the complexity of remapping when changing to a system mode context. It also contains the vector table and the stacks for handling FIQ, IRQ, SWI, UND, and ABT exceptions. The shared memory region is located at a fixed address in virtual memory. All tasks use this region to access shared system resources. The shared memory region contains shared libraries and the transition routines for switching from privileged mode to user mode during a context switch. The page table region contains five page tables. Although the page table region is 32 KB in size, the system uses only 20 KB: 16 KB for the master table and 1 KB each for the four L2 tables. The peripheral region controls the system device I/O space. The primary purpose of this region is to establish this area as a noncached, nonbuffered region. You don’t want to have input, output, or control registers subject to the stale data issues of caching or the time sequence delays involved in using the write buffer. This region also prevents user mode access to peripheral devices; thus, access to the devices must be made through device drivers. This region permits privileged access only; no user access is allowed. In the demonstration, this is a single region, but in a more refined system, there would be more regions defined to provide finer control over individual devices.
- 541. 522 Chapter 14 Memory Management Units Virtual memory Peripherals region Page table region Shared region Kernel region 0x10000000 0x00018000 0x00010000 0x00000000 Figure14.17 Fixed regions in virtual memory. 14.10.2 Step 2: Define Virtual Memory Maps for Each Task There are three user tasks that run during three time slice intervals. Each task has an identical virtual memory map. Each task sees two regions in its memory map: a dedicated 32 KB task region at 0x400000, and a 32 KB shared memory region at 0x8000 (see Figure 14.18). The task region contains the text, data, and stack of the running user task. When the scheduler transfers control from one task to another, it must remap the task region by changing the L1 page table entry to point to the upcoming task’s L2 page table. After the entry is made, the task region points to the physical location of the next running task. The shared region is a fixed system software region. Its function is described in Section 14.10.1. 14.10.3 Step 3: Locate Regions in Physical Memory The regions we defined for the demonstration must be located in physical memory at addresses that do not overlap or conflict. Table 14.10 shows where we located all the
- 542. 14.10 Demonstration: A Small Virtual Memory System 523 Virtual memory Task region Shared region 0x4000000 0x00010000 Figure14.18 Virtual memory as seen by the running task. Table14.10 Region placement in the MMU example. Region Virtual base Page Number Physical Region Addressing size address size of pages base address Kernel fixed 64 KB 0x00000000 4 KB 16 0x00000000 Shared fixed 32 KB 0x00010000 4 KB 8 0x00010000 Page table fixed 32 KB 0x00018000 4 KB 8 0x00018000 Peripheral fixed 256 MB 0x10000000 1 MB 256 0x10000000 Task 1 dynamic 32 KB 0x00400000 4 KB 8 0x00020000 Task 2 dynamic 32 KB 0x00400000 4 KB 8 0x00028000 Task 3 dynamic 32 KB 0x00400000 4 KB 8 0x00030000 regions in physical memory as well as their virtual addresses and size. The table also lists our choice of page size for each region and the number of pages that need to be translated to support the size of each region. Table 14.10 lists the four regions that use fixed page tables during system operation: the kernel, shared memory, page table, and peripheral regions.
- 543. 524 Chapter 14 Memory Management Units The task region dynamically changes page tables during system operation. The task region translates the same virtual address to a different physical address that depends on the running task. Figure 14.19 shows the placement of the regions in virtual and physical memory graph- ically. The kernel, shared and page table regions map directly to physical memory as blocks Virtual memory Physical memory User access Fault Operating system access Peripheral devices Not used Task 3 Task 2 Task 1 Task 3 Task 2 Task 1 System Master Fixed addresses Dynamic addresses Fixed addresses Page table region Shared region Shared code and data Page tables System code and data Task physical location Input/output devices Kernel region 0x10000000 0x20000000 0xFFFFFFFF 0x00020000 0x00028000 0x00030000 0x00038000 0x00040000 0x00018000 0x0001c000 0x0001c400 0x0001c800 0x0001cc00 0x00010000 0x0000000 0x00400000 Peripherals region Task region Figure14.19 Memory map of simple virtual memory example.
- 544. 14.10 Demonstration: A Small Virtual Memory System 525 of sequential page frames. Above this area are the page frames dedicated to the three user tasks. The tasks in physical memory are 32 KB fixed partitions, also sequential page frames. Sparsely scattered over 256 MB of physical memory are the memory-mapped peripheral I/O devices. 14.10.4 Step 4: Define and Locate the Page Tables We previously dedicated a region to hold the page tables in the system. The next step is to locate the actual page table within the region to physical memory. Figure 14.20 shows a close-up detail of where the page table region maps to physical memory. It is a blow-up of the page tables shown in Figure 14.19. We spread the memory out a little to show the relationship between the L1 master page table and the four L2 page tables. We also show where the translation data is located in the page tables. The one master L1 page table locates the L2 tables and translates the 1 MB sections of the peripheral region.The system L2 page table contains translation address data for three system regions: the kernel region, shared memory region, and page table region. There are three task L2 page tables that map to the physical addresses of the three concurrent tasks. Only three of the five page tables are active simultaneously during run time: the L1 master table, the L2 system table, and one of the three L2 task page tables. The scheduler controls which task is active and which tasks are dormant by remapping the task region during a context switch. Specifically, the master L1 page table entry at address 0x18010 is changed during the context switch to point to the L2 page table base address of the next active task. 14.10.5 Step 5: Define Page Table and Region Data Structures For the example, we define two data structures used to configure and control the system. These two data structures represent the actual code used to define and initialize the page tables and regions discussed in previous sections. We define two data types, a Pagetable type that contains the page table data, and a Region type that defines and controls each region in the system. The type definition for the Pagetable structure, with a description of the members in the Pagetable structure, is: typedef struct { unsigned int vAddress; unsigned int ptAddress; unsigned int masterPtAddress; unsigned int type; unsigned int dom; } Pagetable;
- 545. 526 Chapter 14 Memory Management Units Master L1 page table L2 page tables Task 3 page table 0x01cc00 0x18000 0x18010 0x18100 0x181fc 0x1bffc Fault Fault Fault Fault Fault Fault Fault Peripheral Peripheral Task System . . . . . . . . . Task 3 Task 2 page table 0x01c800 Task 2 Task 1 page table 0x01c400 Task 1 System page table 0x01c000 Kernel Shared Page table L2 page table base address Fault generates Abort exception Region translation data Figure14.20 Page table content in the simple virtual memory demonstration. ■ vAddress identifies the starting address of a 1 MB section of virtual memory controlled by either a section entry or an L2 page table. ■ ptAddress is the address where the page table is located in virtual memory. ■ masterPtAddress is the address of the parent master L1 page table. If the table is an L1 table, then the value is the same as ptAddress.
- 546. 14.10 Demonstration: A Small Virtual Memory System 527 ■ type identifies the type of the page table, it can be COARSE, FINE, or MASTER. ■ dom sets the domain assigned to the 1 MB memory blocks of an L1 table entry. We use the Pagetable type to define the five page tables used in the system. Together the Pagetable structures form a block of page table data that we use to manage, fill, locate, identify, and set the domain for all active and nonactive page tables. We refer to this block of Pagetables as the page table control block (PTCB) for the remainder of this demonstration. The five Pagetables described in previous sections and shown in Figure 14.20 with their initialization values, are #define FAULT 0 #define COARSE 1 #define MASTER 2 #define FINE 3 /* Page Tables */ /* VADDRESS, PTADDRESS, PTTYPE, DOM */ Pagetable masterPT = {0x00000000, 0x18000, 0x18000, MASTER, 3}; Pagetable systemPT = {0x00000000, 0x1c000, 0x18000, COARSE, 3}; Pagetable task1PT = {0x00400000, 0x1c400, 0x18000, COARSE, 3}; Pagetable task2PT = {0x00400000, 0x1c800, 0x18000, COARSE, 3}; Pagetable task3PT = {0x00400000, 0x1cc00, 0x18000, COARSE, 3}; The type definition for the Region structure, with a description of the members in the Region structure, is typedef struct { unsigned int vAddress; unsigned int pageSize; unsigned int numPages; unsigned int AP; unsigned int CB; unsigned int pAddress; Pagetable *PT; } Region; ■ vAddress is the starting address of the region in virtual memory. ■ pageSize is the size of a virtual page. ■ numPages is the number of pages in the region. ■ AP is the region access permissions. ■ CB is the cache and write buffer attributes for the region. ■ pAddress is the starting address of the region in virtual memory. ■ *PT is a pointer to the Pagetable in which the region resides.
- 547. 528 Chapter 14 Memory Management Units All of the Region data structures together form a second block of data that we use to define the size, location, access permission, cache and write buffer operation, and page table location for the regions used in the system. We refer to this block of regions as the region control block (RCB) for the remainder of this demonstration. There are the seven Region structures that define the regions described in previous sections and shown in Figure 14.19. Here are the initialization values for each of the four system software and three task Regions in the RCB: #define NANA 0x00 #define RWNA 0x01 #define RWRO 0x02 #define RWRW 0x03 /* NA = no access, RO = read only, RW = read/write */ #if defined(__TARGET_CPU_ARM920T) #define cb 0x0 #define cB 0x1 #define WT 0x2 #define WB 0x3 #endif /* 720 */ #if defined(__TARGET_CPU_ARM720T) #define cb 0x0 #define cB 0x1 #define Cb 0x2 #define WT 0x3 #endif /* cb = not cached/not buffered */ /* cB = not Cached/Buffered */ /* Cb = Cached/not Buffered */ /* WT = write through cache */ /* WB = write back cache */ /* REGION TABLES */ /* VADDRESS, PAGESIZE, NUMPAGES, AP, CB, PADDRESS, PT */ Region kernelRegion = {0x00000000, 4, 16, RWNA, WT, 0x00000000, systemPT}; Region sharedRegion = {0x00010000, 4, 8, RWRW, WT, 0x00010000, systemPT}; Region pageTableRegion = {0x00018000, 4, 8, RWNA, WT, 0x00018000, systemPT}; Region peripheralRegion = {0x10000000, 1024, 256, RWNA, cb, 0x10000000, masterPT};
- 548. 14.10 Demonstration: A Small Virtual Memory System 529 /* Task Process Regions */ Region t1Region = {0x00400000, 4, 8, RWRW, WT, 0x00020000, task1PT}; Region t2Region = {0x00400000, 4, 8, RWRW, WT, 0x00028000, task2PT}; Region t3Region = {0x00400000, 4, 8, RWRW, WT, 0x00030000, task3PT} 14.10.6 Step 6: Initialize the MMU, Caches, and Write Buffer Before the MMU and the caches and write buffer are activated, they must be initialized. The PTCB and RCB hold the configuration data for the three components. There are five parts to initialize the MMU: 1. Initialize the page tables in main memory by filling them with FAULT entries. 2. Fill in the page tables with translations that map regions to physical memory. 3. Activate the page tables. 4. Assign domain access rights. 5. Enable the memory management unit and cache hardware. The first four parts configure the system and the last part enables it. In the following sections we provide routines to perform the five parts to the initialization process; the routines are listed by function and example number in Figure 14.21. 14.10.6.1 Initializing the Page Tables in Memory The first part in initializing the MMU is to set the page tables to a known state. The easiest way to do this is to fill the page tables with FAULT page table entries. Using a FAULT entry makes sure that no valid translations exist outside those defined by the PTCB. By setting all the page table entries in all the active page tables to a FAULT, the system will generate an abort exception for an entry not later filled in using the PTCB. Example 14.5 The routine mmuInitPT initializes a page table by taking the memory area allocated for a page table and setting it with FAULT values. It is called using the following function prototype: void mmuInitPT(Pagetable *pt); The routine takes a single argument, which is a pointer to a Pagetable in the PTCB.
- 549. 530 Chapter 14 Memory Management Units 1. Initialize the page tables in memory by filling them with FAULT entries. mmuInitPT(Pagetable *); Example 14.5 2. Fill in the page tables with translations that map regions to physical memory. mmuMapRegion(Region *); Example 14.6 mmuMapSectionTableRegion(Region *region); Example 14.7 mmuMapCoarseTableRegion(Region *region); Example 14.8 mmuMapFineTableRegion(Region *region); Example 14.9 3. Activate the page tables. int mmuAttachPT(Pagetable *pt); Example 14.10 4. Assign domain access rights. domainAccessSet(unsigned int value, unsigned int mask); Example 14.11 5. Enable the memory management unit and cache hardware. controlSet (unsigned int, unsigned int); Example 14.3 Figure14.21 List of MMU initialization routines. void mmuInitPT(Pagetable *pt) { int index; /* number of lines in PT/entries written per loop*/ unsigned int PTE, *PTEptr; /* points to page table entry in PT */ PTEptr = (unsigned int *)pt-ptAddress; /* set pointer base PT */ PTE = FAULT; switch (pt-type) { case COARSE: {index = 256/32; break;} case MASTER: {index = 4096/32; break;} #if defined(__TARGET_CPU_ARM920T) case FINE: {index = 1024/32; break;} /* no FINE PT in 720T */ #endif default: { printf(mmuInitPT: UNKNOWN pagetable typen);
- 550. 14.10 Demonstration: A Small Virtual Memory System 531 return -1; } } __asm { mov r0, PTE mov r1, PTE mov r2, PTE mov r3, PTE } for (; index != 0; index--) { __asm { STMIA PTEptr!, {r0-r3} /* write 32 entries to table */ STMIA PTEptr!, {r0-r3} STMIA PTEptr!, {r0-r3} STMIA PTEptr!, {r0-r3} STMIA PTEptr!, {r0-r3} STMIA PTEptr!, {r0-r3} STMIA PTEptr!, {r0-r3} STMIA PTEptr!, {r0-r3} } } return 0; } mmuInitPT starts with the base page table address PTEptr and fills the page table with FAULT entries. The size of the table is determined by reading the type of Pagetable defined in pt-type. The table type can be the master L1 page table with 4096 entries, a coarse L2 page table with 256 entries, or a fine L2 page table with 1024 entries. The routine fills the table by writing small blocks to memory using a loop. The routine determines the number of blocks to write index from the number of entries in the page table divided by the number of entries written per loop. A switch statement selects the Pagetable type and branches to the case that sets the index size for the table. The procedure completes by executing the loop that fills the table. Note the __asm keyword to invoke the inline assembler; this reduces the execution time of the loop by using the stmia store multiple instruction. ■ 14.10.6.2 Filling Page Tables with Translations The second part in initializing the MMU is to convert the data held in the RCB into page table entries and to copy them into the page tables. We provide several routines
- 551. 532 Chapter 14 Memory Management Units to convert the data in the RCB to entries in a page table. The first high-level routine mmuMapRegion determines the type of page table and then calls one of three routines to create the page table entries: mmuMapSectionTableRegion, mmuMapCoarseTableRegion, or mmuMapFineTableRegion. To ease future porting of code, we advise not using tiny pages and the mmuMapFineTableRegion routine because the ARMv6 architecture doesn’t use the tiny page. The fine page table type has also been removed in the ARMv6 architecture because the need for it disappears without tiny pages. Here is a description of the four routines: ■ The mmuMapRegion routine determines the page table type and branches to one of the routines listed below; it is presented in Example 14.6. ■ mmuMapSectionTableRegion fills an L1 master table with section entries; it is presented in Example 14.7. ■ mmuMapCoarseTableRegion fills an L2 coarse page table with region entries; it is presented in Example 14.8 . ■ mmuMapFineTableRegion fills an L2 fine page table with region entries; it is presented in Example 14.9. Here is a list of the C function prototypes for the four routines: int mmuMapRegion(Region *region); void mmuMapSectionTableRegion(Region *region); int mmuMapCoarseTableRegion(Region *region); int mmuMapFineTableRegion(Region *region); The four procedures all have a single input parameter, which is a pointer to a Region structure that contains the configuration data needed to generate page table entries. Example 14.6 Here is the high-level routine that selects the page table type: int mmuMapRegion(Region *region) { switch (region-PT-type) { case SECTION: /* map section in L1 PT */ { mmuMapSectionTableRegion(region); break; } case COARSE: /* map PTE to point to COARSE L2 PT */
- 552. 14.10 Demonstration: A Small Virtual Memory System 533 { mmuMapCoarseTableRegion(region); break; } #if defined(__TARGET_CPU_ARM920T) case FINE: /* map PTE to point to FINE L2 PT */ { mmuMapFineTableRegion(region); break; } #endif default: { printf(UNKNOWN page table typen); return -1; } } return 0; } Within the Region is a pointer to a Pagetable in which the region translation data resides. The routine determines the page table type region-PT-type and calls a routine that maps the Region into the page table in the format of the specified page table type. There is a separate procedure for each of the three types of page table, section (L1 master), coarse, and fine (refer to Section 14.4). ■ Example 14.7 Here is the first of the three routines that convert the region data to page table entries: void mmuMapSectionTableRegion(Region *region) { int i; unsigned int *PTEptr, PTE; PTEptr = (unsigned int *)region-PT-ptAddress; /* base addr PT */ PTEptr += region-vAddress 20; /* set to first PTE in region */ PTEptr += region-numPages - 1; /* set to last PTE in region */ PTE = region-pAddress 0xfff00000; /* set physical address */ PTE |= (region-AP 0x3) 10; /* set Access Permissions */ PTE |= region-PT-dom 5; /* set Domain for section */ PTE |= (region-CB 0x3) 2; /* set Cache WB attributes */ PTE |= 0x12; /* set as section entry */ for (i =region-numPages - 1; i = 0; i--) /* fill PTE in region */
- 553. 534 Chapter 14 Memory Management Units { *PTEptr-- = PTE + (i 20); /* i = 1 MB section */ } } The mmuMapSectionTableRegion procedure begins by setting a local pointer variable PTEptr to the base address of the master L1 page table. It then uses the virtual starting address of the region to create an index into the page table where the region page table entries begin. This index is added to the variable PTEptr. The variable PTEptr now points to the start of the region entries in the page table. The next line calculates the size of the region and adds this value to PTEptr. The variable PTEptr now points to the last PTE for the region. The PTEptr variable is set to the end of the region so we can use a count-down counter in the loop that fills the page table with entries. Next the routine constructs a section page table entry using the values in the Region structure; the entry is held in the local variable PTE. A series of ORs constructs this PTE from the starting physical address, the access permission, the domain, and cache and write buffer attributes. The format of the PTE is shown in Figure 14.6. The PTE now contains a pointer to the first physical address of the region and its attributes. The counter variable i is used for two purposes: It is an offset into the page table, and it is added to the PTE variable to increment the physical address translation for the page frame. Remember, all regions in the demonstration map to sequential page frames in physical memory. The procedure concludes by writing all the PTEs for the region into the page table. It starts from the last translation entry and counts down to the first translation entry. ■ Example 14.8 The next two routines, mmuMapCoarseTableRegion and mmuMapFineTableRegion, are very similar, which makes the descriptive text of the routines very similar; after reading the coarse page table example, you can skip the other example if you are not using tiny pages. int mmuMapCoarseTableRegion(Region *region) { int i,j; unsigned int *PTEptr, PTE; unsigned int tempAP = region-AP 0x3; PTEptr = (unsigned int *)region-PT-ptAddress; /* base addr PT */ switch (region-pageSize) { case LARGEPAGE: { PTEptr += (region-vAddress 0x000ff000) 12; /* 1st PTE */ PTEptr += (region-numPages*16) - 1; /* region last PTE */
- 554. 14.10 Demonstration: A Small Virtual Memory System 535 PTE = region-pAddress 0xffff0000; /* set physical address */ PTE |= tempAP 10; /* set Access Permissions subpage 3 */ PTE |= tempAP 8; /* subpage 2 */ PTE |= tempAP 6; /* subpage 1 */ PTE |= tempAP 4; /* subpage 0 */ PTE |= (region-CB 0x3) 2; /* set cache WB attributes */ PTE |= 0x1; /* set as LARGE PAGE */ /* fill in table entries for region */ for (i = region-numPages-1; i = 0; i--) { for (j = 15 ; j = 0; j--) *PTEptr-- = PTE + (i 16); /* i = 64 KB large page */ } break; } case SMALLPAGE: { PTEptr += (region-vAddress 0x000ff000) 12; /* first */ PTEptr += (region-numPages - 1); /* last PTEptr */ PTE = region-pAddress 0xfffff000; /* set physical address */ PTE |= tempAP 10; /* set Access Permissions subpage 3 */ PTE |= tempAP 8; /* subpage 2 */ PTE |= tempAP 6; /* subpage 1 */ PTE |= tempAP 4; /* subpage 0 */ PTE |= (region-CB 0x3) 2; /* set cache WB attrib */ PTE |= 0x2; /* set as SMALL PAGE */ /* fill in table entries for region */ for (i = region-numPages - 1; i = 0; i--) { *PTEptr-- = PTE + (i 12); /* i = 4 KB small page */ } break; } default: { printf(mmuMapCoarseTableRegion: Incorrect page sizen); return -1; } } return 0; }
- 555. 536 Chapter 14 Memory Management Units The routine begins by setting a local variable tempAP that holds the access permission for pages or subpages in the region. Next, it sets the variable PTEptr to point to the base address of the page table that will hold the mapped region. The procedure then switches to handle either the case of a large or small page. The algorithms for the two cases are the same; only the format of the PTE and the way values are written into the page table are different. At this point the variable PTEptr contains the starting address of the L2 page table. The routine then uses the starting address of the region region-vAddress to calculate an index to the first entry of the region in the page table. This index value is added to the PTEptr. The next line calculates the size of the region and adds this value to PTEptr. PTEptr now points to the last PTE for the region. Next the routine constructs a page table entry variable PTE for either a large or a small entry from the values in the region passed into the routine. The routine uses a series of ORs to construct the PTE from the starting physical address, the access permission, and cache and write buffer attributes. See Figure 14.8 to review the formats of a large and small PTE. The PTE now contains a pointer to the physical address of the first page frame for the region. The counter variable i is used for two purposes: First, it is an offset into the page table. Second it is added to the PTE variable to modify the address translation bit field to point to the next lower page frame in physical memory. The routine finishes by writing all the PTEs for the region into the page table. Note that there is a nested loop in the LARGEPAGE case: the j loop writes the required identical PTE to map a large page in a coarse page table (refer to Section 14.4 for details). ■ Example 14.9 This example fills a fine page table with region translation information. Fine page tables are not available in the ARM720T and have been discontinued in the v6 architecture. For compatibility with these changes we would advise avoiding their use in new projects. #if defined(__TARGET_CPU_ARM920T) int mmuMapFineTableRegion(Region *region) { int i,j; unsigned int *PTEptr, PTE; unsigned int tempAP = region-AP 0x3; PTEptr = (unsigned int *)region-PT-ptAddress; /* base addr PT */ switch (region-pageSize) { case LARGEPAGE: { PTEptr += (region-vAddress 0x000ffc00) 10; /* first PTE*/ PTEptr += (region-numPages*64) - 1; /* last PTE */
- 556. 14.10 Demonstration: A Small Virtual Memory System 537 PTE = region-pAddress 0xffff0000; /* get physical address */ PTE |= tempAP 10; /* set Access Permissions subpage 3 */ PTE |= tempAP 8; /* subpage 2 */ PTE |= tempAP 6; /* subpage 1 */ PTE |= tempAP 4; /* subpage 0 */ PTE |= (region-CB 0x3) 2; /* set cache WB attrib */ PTE |= 0x1; /* set as LARGE PAGE */ /* fill in table entries for region */ for (i = region-numPages-1; i = 0; i--) { for (j = 63 ; j = 0; j--) *PTEptr-- = PTE + (i 16); /* i = 64 KB large page */ } break; } case SMALLPAGE: { PTEptr += (region-vAddress 0x000ffc00) 10; /* first PTE*/ PTEptr += (region-numPages*4) - 1; /* last PTE */ PTE = region-pAddress 0xfffff000; /* get physical address */ PTE |= tempAP 10; /* set Access Permissions subpage 3 */ PTE |= tempAP 8; /* subpage 2 */ PTE |= tempAP 6; /* subpage 1 */ PTE |= tempAP 4; /* subpage 0 */ PTE |= (region-CB 0x3) 2; /* set cache WB attrib */ PTE |= 0x2; /* set as SMALL PAGE */ /* fill in table entries for region */ for (i = region-numPages-1; i = 0; i--) { for (j = 3 ; j = 0; j--) *PTEptr-- = PTE + (i 12); /* i = 4 KB small page */ } break; } case TINYPAGE: { PTEptr += (region-vAddress 0x000ffc00) 10; /* first */ PTEptr += (region-numPages - 1); /* last PTEptr */ PTE = region-pAddress 0xfffffc00; /* get physical address */ PTE |= tempAP 4; /* set Access Permissions */
- 557. 538 Chapter 14 Memory Management Units PTE |= (region-CB 0x3) 2; /* set cache WB attribu */ PTE |= 0x3; /* set as TINY PAGE */ /* fill table with PTE for region; from last to first */ for (i =(region-numPages) - 1; i = 0; i--) { *PTEptr-- = PTE + (i 10); /* i = 1 KB tiny page */ } break; } default: { printf(mmuMapFineTableRegion: Incorrect page sizen); return -1; } } return 0; } #endif The routine begins by setting a local variable tempAP that holds the access permission for pages or subpages in the region. This routine does not support subpages with different access permissions. Next, the routine sets the variable PTEptr to point to the base of the page table that will hold the mapped fine-paged region. The routine then switches to handle the three cases of a large, small, or tiny page. The algorithm for each of the three cases is the same; only the format of the PTE and the way values are written into the page table differ. At this point the variable PTEptr contains the starting address of the L2 page table. The routine then takes the starting address of the region region-vAddress and calculates an index to the first region entry in the page table. This index value is added to the PTEptr. The next line determines the size of the region and adds this value to PTEptr. PTEptr now points to the last PTE for the region. Next the routine constructs the PTE for a either a large, small, or tiny entry from the values in the region. A series of ORs constructs the PTE from the starting physical address, the access permission, and cache and write buffer attributes. Figure 14.8 shows the formats for large, small, and tiny page table entries. The PTE now contains a pointer to the physical address of the first page frame and attributes for the region. A counter variable i is used for two purposes: It is an offset into the page table, and it is added to the PTE variable to change the address translation so it points to the next lower page frame in physical memory. The procedure concludes by looping until all the PTEs for the region are mapped in the page table. Note the nested loop in the LARGEPAGE and SMALLPAGE cases: the j loop writes the required identical PTE to properly map the given page in a fine page table. ■
- 558. 14.10 Demonstration: A Small Virtual Memory System 539 14.10.6.3 Activating a Page Table A page table can reside in memory and not be used by the MMU hardware. This happens when a task is dormant and its page tables are mapped out of active virtual memory. However, the task remains resident in physical memory, so it is immediately available for use when a context switch occurs to activate it. The third part in initializing the MMU is to activate the page tables needed to execute code located in the fixed regions. Example 14.10 The routine mmuAttachPT either activates an L1 master page table by placing its address into the TTB in the CP15:c2:c0 register, or activates an L2 page table by placing its base address into an L1 master page table entry. It can be called using the following function prototype: int mmuAttachPT(Pagetable *pt); The procedure takes a single argument, a pointer to the Pagetable to activate and add new translations from virtual to physical virtual memory. int mmuAttachPT(Pagetable *pt) /* attach L2 PT to L1 master PT */ { unsigned int *ttb, PTE, offset; ttb = (unsigned int *)pt-masterPtAddress; /* read ttb from PT */ offset = (pt-vAddress) 20; /* determine PTE from vAddress */ switch (pt-type) { case MASTER: { __asm{ MCR p15, 0, ttb, c2, c0, 0 } ; /* TTB - CP15:c2:c0 */ break; } case COARSE: { /* PTE = addr L2 PT | domain | COARSE PT type*/ PTE = (pt-ptAddress 0xfffffc00); PTE |= pt-dom 5; PTE |= 0x11; ttb[offset] = PTE; break; }
- 559. 540 Chapter 14 Memory Management Units #if defined(__TARGET_CPU_ARM920T) case FINE: { /* PTE = addr L2 PT | domain | FINE PT type*/ PTE = (pt-ptAddress 0xfffff000); PTE |= pt-dom 5; PTE |= 0x13; ttb[offset] = PTE; break; } #endif default: { printf(UNKNOWN page table typen); return -1; } } return 0; } The first thing the routine does is prepare two variables, the base address of the master L1 page table, ttb, and an offset into the L1 page table, offset. The offset variable is created from the virtual address of the page table. To calculate the offset, it takes the virtual address and divides it by 1 MB by shifting the virtual address right by 20 bits. Adding this offset to the master L1 base address generates a pointer to the address within the L1 master table that represents the translation for the 1 MB section. The procedure attaches the page table to the MMU hardware using the Pagetable type pt-type variable to switch to the case that attaches the page table. The three possible cases are described below. The Master case attaches the master L1 page table. The routine attaches this special table using an assembly language MCR instruction to set the CP15:c2:c0 register. The Coarse case attaches a coarse page table to the master L1 page table. This case takes the address of the L2 page table stored in the Pagetable structure and combines it with the Domain and the coarse table type, to build a PTE. The PTE is then written into the L1 page table using the previously calculated offset. The format of the coarse PTE is shown in Figure 14.6. The Fine case attaches a fine L2 page table to the master L1 page table. This routine takes the address of the L2 page table stored in the Pagetable structure and combines it with the Domain and fine table type to build a PTE. The PTE is then written into the L1 page table using the previously calculated offset. ■ The previous sections presented the routines that condition, load, and activate the page tables while initializing the MMU. The last two parts set the domain access rights and enable the MMU.
- 560. 14.10 Demonstration: A Small Virtual Memory System 541 14.10.6.4 Assigning Domain Access and Enabling the MMU The fourth part in initializing the MMU is to configure the domain access for the system. The demonstration does not use the FCSE, nor does it need to quickly expose and hide large blocks of memory, which eliminates the need to use the S and R access control bits in the CP:c1:c0 register. This means that the access permissions defined in the page tables are enough to protect the system, and there is reason to use Domains. However, the hardware requires all active memory areas to have a domain assignment and be granted domain access privileges. The minimum domain configuration places all regions in the same domain and sets the domain access to client access. This domain configuration makes the access permission entries in the page tables the only permission system active. In this demo, all regions are assigned Domain 3 and have client domain access. The other domains are unused and masked by the fault entry in the unused page table entries of the L1 master page table. Domains are assigned in the master L1 page table, and domain access is defined in the CP15:c3:c0 register. Example 14.11 domainAccessSet is a routine that sets the access rights for the 16 domains in the domain access control register CP15:c3:c0:0. It can be called from C using the following function prototype: void domainAccessSet(unsigned int value, unsigned int mask); The first argument passed to the procedure is an unsigned integer containing bit fields thatsettheDomainaccessforthe16domains. Thesecondparameterdefineswhichdomains need their access rights changed. The routine first reads the CP15:r3 register and places it in the variable c3format. The routine then uses the input mask value to clear the bits in c3format that need updating. The update is done by ORing c3format with value input parameter. The updated c3format is finally written back out to the CP15:c3 register to set the domain access. void domainAccessSet(unsigned int value, unsigned int mask) { unsigned int c3format; __asm{MRC p15, 0, c3format, c3, c0, 0 } /* read domain register */ c3format = ∼mask; /* clear bits that change */ c3format |= value; /* set bits that change */ __asm{MCR p15, 0, c3format, c3, c0, 0 } /* write domain register */ } ■
- 561. 542 Chapter 14 Memory Management Units Enabling the MMU is the fifth and final last part in the MMU initialization process. The routine controlSet, shown as Example 14.3, enables the MMU. It is advisable to call the controlSet procedure from a “fixed” address area. 14.10.6.5 Putting It All Together: Initializing the MMU for the Demonstration. The routine mmuInit calls the routines described in previous sections to initialize the MMU for the demonstration. While reading this section of code it will be helpful to review the control blocks shown in Section 14.10.5. The routine can be called using the following C function prototype: void mmuInit(void) Example 14.12 This example calls the routines previously described as the five parts in the process of initializing the MMU. The five parts are labeled as comments in the example code. The mmuInit begins by initializing the page tables and mapping regions in the privileged systemarea. ThefirstpartinitalizesthefixedsystemareawithcallstotheroutinemmuInitPT. These calls fill the L1 master and the L2 page tables with FAULT values. The routine calls mmuInitPT five times: once to initialize the L1 master page table, once to initialize the system L2 page table, and then calls mmuInitPT three more time to initialize the three task page tables: #define DOM3CLT 0x00000040 #define CHANGEALLDOM 0xffffffff #define ENABLEMMU 0x00000001 #define ENABLEDCACHE 0x00000004 #define ENABLEICACHE 0x00001000 #define CHANGEMMU 0x00000001 #define CHANGEDCACHE 0x00000004 #define CHANGEICACHE 0x00001000 #define ENABLEWB 0x00000008 #define CHANGEWB 0x00000008 void mmuInit() { unsigned int enable, change; /* Part 1 Initialize system (fixed) page tables */ mmuInitPT(masterPT); /* init master L1 PT with FAULT PTE */
- 562. 14.10 Demonstration: A Small Virtual Memory System 543 mmuInitPT(systemPT); /* init system L2 PT with FAULT PTE */ mmuInitPT(task3PT); /* init task 3 L2 PT with FAULT PTE */ mmuInitPT(task2PT); /* init task 2 L2 PT with FAULT PTE */ mmuInitPT(task1PT); /* init task 1 L2 PT with FAULT PTE */ /* Part 2 filling page tables with translation attribute data */ mmuMapRegion(kernelRegion); /* Map kernelRegion SystemPT */ mmuMapRegion(sharedRegion); /* Map sharedRegion SystemPT */ mmuMapRegion(pageTableRegion); /* Map pagetableRegion SystemPT */ mmuMapRegion(peripheralRegion);/* Map peripheralRegion MasterPT */ mmuMapRegion(t3Region); /* Map task3 PT with Region data */ mmuMapRegion(t2Region); /* Map task3 PT with Region data */ mmuMapRegion(t1Region); /* Map task3 PT with Region data */ /* Part 3 activating page tables */ mmuAttachPT(masterPT); /* load L1 TTB to cp15:c2:c0 register */ mmuAttachPT(systemPT); /* load L2 system PTE into L1 PT */ mmuAttachPT(task1PT); /* load L2 task 1 PTE into L1 PT */ /* Part 4 Set Domain Access */ domainAccessSet(DOM3CLT , CHANGEALLDOM); /* set Domain Access */ /* Part 5 Enable MMU, caches and write buffer */ #if defined(__TARGET_CPU_ARM720T) enable = ENABLEMMU | ENABLECACHE | ENABLEWB ; change = CHANGEMMU | CHANGECACHE | CHANGEWB ; #endif #if defined(__TARGET_CPU_ARM920T) enable = ENABLEMMU | ENABLEICACHE | ENABLEDCACHE ; change = CHANGEMMU | CHANGEICACHE | CHANGEDCACHE ; #endif controlSet(enable, change); /* enable cache and MMU */ } The second part then maps the seven Regions in the system into their page tables by calling mmuMapRegion seven times: four times to map the kernel, shared, page table, and peripheral regions, and three times to map the three task regions. mmuMapRegion converts the data from the control blocks into page table entries that are then written to a page table. The third part in initalizing the MMU is to activate the page tables necessary to start the system. This is done by calling mmuAttachPT three times. First, it activates the master L1 page table by loading its base address into the TTB entry in CP15:c2:c0. The routine then activates the L2 system page table. The peripheral region is comprised of 1 MB pages
- 563. 544 Chapter 14 Memory Management Units residing in the L1 master page table and is activated when the master L1 table is actived. The third part is completed by activating the first task that runs after the system is enabled with a call to mmuAttachPT. In the demo, the first task to run is Task 1. The fourth part in initializing the MMU is to set domain access by calling domainAccessSet. All regions are assigned to Domain 3 and the domain access for Domain 3 set to client access. The mmuInit completes part five by calling controlSet to enable the MMU and caches. ■ When the routine mmuInit completes, the MMU is initialized and enabled. The final task in setting up the multitasking demonstration system is to define the procedural steps needed to perform a context switch between two tasks. 14.10.7 Step 7: Establish a Context Switch Procedure A context switch in the demonstration system is relatively simple. There are six parts to performing a context switch: 1. Save the active task context and place the task in a dormant state. 2. Flush the caches; possibly clean the D-cache if using a writeback policy. 3. Flush the TLB to remove translations for the retiring task. 4. Configure the MMU to use new page tables translating the common virtual memory execution area to the awakening task’s location in physical memory. 5. Restore the context of the awakening task. 6. Resume execution of the restored task. The routines to perform all the parts just listed have been presented in previous sections. We list the procedure here. Parts 1, 5, and 6 were provided in Chapter 11; refer to that chapter for more details. Parts 2, 3, and 4 are the additions needed to support a context switch using an MMU and are shown here with the arguments needed to switch from task 1 to task 2 in the demonstration. SAVE retiring task context; /* part 1 shown in Chapter 11 */ flushCache(); /* part 2 shown in Chapter 12 */ flushTLB(); /* part 3 shown in Example 14.2 */ mmuAttachPT(task2PT); /* part 4 shown in Example 14.10 */ RESTORE awakening task context /* part 5 shown in Chapter 11 */ RESUME execution of restored task /* part 6 shown in Chapter 11 */
- 564. 14.12 Summary 545 14.11 The Demonstration as mmuSLOS Many of the concepts and the examples from the MMU demonstration code have been incorporated into a functional control system we call mmuSLOS. It is an extension of the control system called SLOS presented in Chapter 11. mpuSLOS is the memory protection unit extension to SLOS, and was described in Chapter 13. We use the mpuSLOS variant as the base source code for mmuSLOS. All three variants can be found on the publisher’s Web site. We changed three major parts of the mpuSLOS code: ■ The MMU tables are created during the mmuSLOS initialization stage. ■ The application tasks are built to execute at 0x400000, but are loaded at a different physical addresses. Each application task executes in a virtual memory starting at the execution address. The top of the stack is located as an 32 KB offset from the execution address. ■ Each time the scheduler is called, the active 32 KB page in the MMU table is changed to reflect the new active application/task. 14.12 Summary The chapter presented the basics of memory management and virtual memory systems. A key service of an MMU is the ability to manage tasks as independent programs running in their own private virtual memory space. An important feature of a virtual memory system is address relocation. Address reloca- tion is the translation of the address issued by the processor core to a different address in main memory. The translation is done by the MMU hardware. In a virtual memory system, virtual memory is commonly divided into parts as fixed areas and dynamic areas. In fixed areas the translation data mapped in a page table does not change during normal operation; in dynamic areas the memory mapping between virtual and physical memory frequently changes. Page tables contain descriptions of virtual page information. A page table entry (PTE) translates a page in virtual memory to a page frame in physical memory. Page table entries are organized by virtual address and contain the translation data to map a page to a page frame. The functions of an ARM MMU are to: ■ read level 1 and level 2 page tables and load them into the TLB ■ store recent virtual-to-physical memory address translations in the TLB ■ perform virtual-to-physical address translation ■ enforce access permission and configure the cache and write buffer
- 565. 546 Chapter 14 Memory Management Units An additional special feature in an ARM MMU is the Fast Context Switch Extension. The Fast Context Switch Extension improves performance in a multitasking environment because it does not require flushing the caches or TLB during a context switch. A working example of a small virtual memory system provided in-depth details to set up the MMU to support multitasking. The steps in setting up the demonstration are to define the regions used in the fixed system software of virtual memory, define the virtual memory maps for each task, locate the fixed and task regions into the physical memory map, define and locate the page tables within the page table region, define the data structures needed to create and manage the regions and page tables, initialize the MMU by using the defined region data to create page table entries and write them to the page tables, and establish a context switch procedure to transition from one task to the next.
- 566. This Page Intentionally Left Blank
- 567. 15.1 Advanced DSP and SIMD Support in ARMv6 15.1.1 SIMD Arithmetic Operations 15.1.2 Packing Instructions 15.1.3 Complex Arithmetic Support 15.1.4 Saturation Instructions 15.1.5 Sum of Absolute Differences Instructions 15.1.6 Dual 16-Bit Multiply Instructions 15.1.7 Most Significant Word Multiplies 15.1.8 Cryptographic Multiplication Extensions 15.2 System and Multiprocessor Support Additions to ARMv6 15.2.1 Mixed-Endianness Support 15.2.2 Exception Processing 15.2.3 Multiprocessing Synchronization Primitives 15.3 ARMv6 Implementations 15.4 Future Technologies beyond ARMv6 15.4.1 TrustZone 15.4.2 Thumb-2 15.5 Summary
- 568. C h a p t e r The Future of the Architecture 15 John Rayfield In October 1999, ARM began to consider the future direction of the architecture that would eventually become ARMv6, first implemented in a new product called ARM1136J-S. By this time, ARM already had designs for many different applications, and the future requirements of each of those designs needed to be evaluated, as well as the new application areas for which ARM would be used in the future. As system-on-chip designs have become more sophisticated, ARM processors have becomethecentralprocessorsinsystemswithmultipleprocessingelementsandsubsystems. In particular, the portable and mobile computing markets were introducing new software and performance challenges for ARM. Areas that needed addressing were digital signal processing (DSP) and video performance for portable devices, interworking mixed-endian systems such as TCP/IP, and efficient synchronization in multiprocessing environments. The challenge for ARM was to address all of these market requirements and yet maintain its competitive advantage in computational efficiency (computing power per mW) as the best in the industry. This chapter describes the components within ARMv6 introduced by ARM to address these market requirements, including enhanced DSP support and support for a multi- processing environment. The chapter also introduces the first high-performance ARMv6 implementations and, in addition to the ARMv6 technologies, one of ARM’s latest technologies—TrustZone. 549
- 569. 550 Chapter 15 The Future of the Architecture 15.1 Advanced DSP and SIMD Support in ARMv6 EarlyintheARMv6project, ARMconsideredhowtoimprovetheDSPandmediaprocessing capabilitiesofthearchitecturebeyondtheARMv5EextensionsdescribedinSection3.7. This work was carried out very closely with the ARM1136J-S engineering team, which was in the early stages of developing the microarchitecture for the product. SIMD (Single Instruction Multiple Data) is a popular technique used to garner considerable data parallelism and is particularly effective in very math-intensive routines that are commonly used in DSP, video and graphics processing algorithms. SIMD is attractive for high code density and low power since the number of instructions executed (and hence memory system accesses) is kept low. The price for this efficiency is the reduced flexibility of having to compute things arranged in certain blocked data patterns; this, however, works very well in many image and signal processing algorithms. Using the standard ARM design philosophy of computational efficiency with very low power, ARM came up with a simple and elegant way of slicing up the existing ARM 32-bit datapath into four 8-bit and two 16-bit slices. Unlike many existing SIMD architectures that add separate datapaths for the SIMD operations, this method allows the SIMD to be added to the base ARM architecture with very little extra hardware cost. The ARMv6 architecture includes this “lightweight” SIMD approach that costs virtually nothing in terms of extra complexity (gate count) and therefore power. At the same time the new instructions can improve the processing throughput of some algorithms by up to two times for 16-bit data or four times for 8-bit data. In common with most operations in the ARM instruction set architecture, all of these new instructions are executed conditionally, as described in Section 2.2.6. You can find a full description of all ARMv6 instructions in the instruction set tables of Appendix A. 15.1.1 SIMD Arithmetic Operations Table 15.1 shows a summary of the 8-bit SIMD operations. Each byte result is formed from the arithmetic operation on each of the corresponding byte slices through the source operands. The results of these 8-bit operations may require that up to 9 bits be represented, which either causes a wraparound or a saturation to take place, depending on the particular instruction used. In addition to the 8-bit SIMD operations, there are an extensive range of dual 16-bit operations, showninTable15.2. Eachhalfword(16-bit)resultisformedfromthearithmetic operation on each of the corresponding 16-bit slices through the source operands. The results may need 17 bits to be stored, and in this case they can either wrap around or are saturated to within the range of a 16-bit signed result with the saturating version of the instruction.
- 570. 15.1 Advanced DSP and SIMD Support in ARMv6 551 Table 15.1 8-bit SIMD arithmetic operations. Instruction Description SADD8{cond} Rd, Rn, Rm Signed 8-bit SIMD add SSUB8{cond} Rd, Rn, Rm Signed 8-bit SIMD subtract UADD8{cond} Rd, Rn, Rm Unsigned 8-bit SIMD add USUB8{cond} Rd, Rn, Rm Unsigned 8-bit SIMD subtract QADD8{cond} Rd, Rn, Rm Signed saturating 8-bit SIMD add QSUB8{cond} Rd, Rn, Rm Signed saturating 8-bit SIMD subtract UQADD8{cond} Rd, Rn, Rm Unsigned saturating 8-bit SIMD add UQSUB8{cond} Rd, Rn, Rm Unsigned saturating 8-bit SIMD subtract Table 15.2 16-bit SIMD arithmetic operations. Instruction Description SADD16{cond} Rd, Rn, Rm Signed add of the 16-bit pairs SSUB16{cond} Rd, Rn, Rm Signed subtract of the 16-bit pairs UADD16{cond} Rd, Rn, Rm Unsigned add of the 16-bit pairs USUB16{cond} Rd, Rn, Rm Unsigned subtract of the 16-bit pairs QADD16{cond} Rd, Rn, Rm Signed saturating add of the 16-bit pairs QSUB16{cond} Rd, Rn, Rm Signed saturating subtract of the 16-bit pairs UQADD16{cond} Rd, Rn, Rm Unsigned saturating add of the 16-bit pairs UQSUB16{cond} Rd, Rn, Rm Unsigned saturating subtract of the 16-bit pairs Operands for the SIMD instructions are not always found in the correct order within the source registers; to improve the efficiency of dealing with these situations, there are 16-bit SIMD operations that perform swapping of the 16-bit words of one operand register. These operations allow a great deal of flexibility in dealing with halfwords that may be aligned in different ways in memory and are particularly useful when working with 16-bit complex number pairs that are packed into 32-bit registers. There are signed, unsigned, saturating signed, and saturating unsigned versions of these operations, as shown in Table 15.3. The X in the instruction mnemonic signifies that the two halfwords in Rm are swapped before the operations are applied so that operations like the following take place: Rd[15:0] = Rn[15:0] - Rm[31:16] Rd[31:16] = Rn[31:16] + Rm[15:0] The addition of the SIMD operations means there is now a need for some way of showing an overflow or a carry from each SIMD slice through the datapath. The cpsr as originally
- 571. 552 Chapter 15 The Future of the Architecture Table 15.3 16-bit SIMD arithmetic operations with swap. Instruction Description SADDSUBX{cond} Rd, Rn, Rm Signed upper add, lower subtract, with a swap of halfwords in Rm UADDSUBX{cond} Rd, Rn, Rm Unsigned upper add, lower subtract, with swap of halfwords in Rm QADDSUBX{cond} Rd, Rn, Rm Signed saturating upper add, lower subtract, with swap of halfwords in Rm UQADDSUBX{cond} Rd, Rn, Rm Unsignedsaturatingupperadd, lowersubtract, with swap of halfwords in Rm SSUBADDX{cond} Rd, Rn, Rm Signed upper subtract, lower add, with a swap of halfwords in Rm USUBADDX{cond} Rd, Rn, Rm Unsigned upper subtract, lower add, with swap of halfwords in Rm QSUBADDX{cond} Rd, Rn, Rm Signed saturating upper subtract, lower add, with swap of halfwords in Rm UQSUBADDX{cond} Rd, Rn, Rm Unsignedsaturatinguppersubtract, loweradd, with swap of halfwords in Rm described in Section 2.2.5 is modified by adding four additional flag bits to represent each 8-bit slice of the data path. The newly modified cpsr register with the GE bits is shown in Figure 15.1 and Table 15.4. The functionality of each GE bit is that of a “greater than or equal” flag for each slice through the datapath. Operating systems already save the cpsr register on a context switch. Adding these bits to the cpsr has little effect on OS support for the architecture. In addition to basic arithmetic operations on the SIMD data slices, there is considerable use for operations that allow the picking of individual data elements within the datapath and forming new ensembles of these elements. A select instruction SEL can independently select each eight-bit field from one source register Rn or another source register Rm, depending on the associated GE flag. 31 0 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 N Z C V mode Q J Res Res Res E A I F T GE [3:0] Figure15.1 cpsr layout for ARMv6.
- 572. 15.1 Advanced DSP and SIMD Support in ARMv6 553 Table 15.4 cpsr fields for ARMv6. Field Use N Negative flag. Records bit 31 of the result of flag-setting operations. Z Zero flag. Records if the result of a flag-setting operation is zero. C Carry flag. Records unsigned overflow for addition, not-borrow for subtraction, and is also used by the shifting circuit. See Table A.3. V Overflow flag. Records signed overflows for flag-setting operations. Q Saturation flag. Certain saturating operations set this flag on saturation. See for example QADD in Appendix A (ARMv5E and above). J J = 1 indicates Java execution (must have T = 0). Use the BXJ instruction to change this bit (ARMv5J and above). Res These bits are reserved for future expansion. Software should preserve the values in these bits. GE[3:0] The SIMD greater-or-equal flags. See SADD in Appendix A (ARMv6). E Controls the data endianness. See SETEND in Appendix A (ARMv6). A A = 1 disables imprecise data aborts (ARMv6). I I = 1 disables IRQ interrupts. F F = 1 disables FIQ interrupts. T T = 1 indicates Thumb state. T = 0 indicates ARM state. Use the BX or BLX instructions to change this bit (ARMv4T and above). mode The current processor mode. See Table B.4. SEL Rd, Rn, Rm Rd[31:24] = GE[3] ? Rn[31:24] : Rm[31:24] Rd[23:16] = GE[2] ? Rn[23:16] : Rm[23:16] Rd[15:08] = GE[1] ? Rn[15:08] : Rm[15:08] Rd[07:00] = GE[0] ? Rn[07:00] : Rm[07:00] These instructions, together with the other SIMD operations, can be used very effec- tively to implement the core of the Viterbi algorithm, which is used extensively for symbol recovery in communication systems. Since the Viterbi algorithm is essentially a statistical maximum likelihood selection algorithm, it is also used in such areas as speech and hand- writing recognition engines. The core of Viterbi is an operation that is commonly known as add-compare-select (ACS), and in fact many DSP processors have customized ACS instruc- tions. With its parallel (SIMD) add, subtract (which can be used to compare), and selection instructions, ARMv6 can implement an extremely efficient add-compare-select: ADD8 Rp1, Rs1, Rb1 ; path 1 = state 1 + branch 1 (metric update) ADD8 Rp2, Rs2, Rb2 ; path 2 = state 2 + branch 2 (mteric update)
- 573. 554 Chapter 15 The Future of the Architecture Table 15.5 Packing instructions. Instruction Description PKHTB{cond} Rd, Rn, Rm {, ASR #shift_imm} Pack the top 16 bits of Rn with the bottom 16 bits of the shifted Rm into the destination Rd PKHBT{cond} Rd, Rn, Rm {, LSL #shift_imm} Pack the top 16 bits of the shifted Rm with the bottom 16 bits of Rn into the destination Rd USUB8 Rt, Rp1, Rp2 ; compare metrics - setting the SIMD flags SEL Rd, Rp2, Rp1 ; choose best (smallest) metric This kernel performs the ACS operation on four paths in parallel and takes a total of 4 cycles on the ARM1136J-S. The same sequence coded for the ARMv5TE instruction set must perform each of the operations serially, taking at least 16 cycles. Thus the add- compare-select function is four times faster on ARM1136J-S for eight-bit metrics. 15.1.2 Packing Instructions The ARMv6 architecture includes a new set of packing instructions, shown in Table 15.5, that are used to construct new 32-bit packed data from pairs of 16-bit values in different source registers. The second operand can be optionally shifted. Packing instructions are particularly useful for pairing 16-bit values so that you can make use of the 16-bit SIMD processing instructions described earlier. 15.1.3 Complex Arithmetic Support Complex arithmetic is commonly used in communication signal processing, and in partic- ular in the implementations of transform algorithms such as the Fast Fourier Transform as described in Chapter 8. Much of the implementation detail examined in that chapter con- cerns the efficient implementation of the complex multiplication using ARMv4 or ARMv5E instruction sets. ARMv6 adds new multiply instructions to accelerate complex multiplication, shown in Table 15.6. Both of these operations optionally swap the order of the two 16-bit halves of source operand Rs if you specify the X suffix. Example 15.1 In this example Ra and Rb hold complex numbers with 16-bit coefficients packed with their real parts in the lower half of a register and their imaginary part in the upper half.
- 574. 15.1 Advanced DSP and SIMD Support in ARMv6 555 Table 15.6 Instructions to support 16-bit complex multiplication. Instruction Description SMUAD{X}{cond} Rd, Rm, Rs Dual 16-bit signed multiply and add SMUSD{X}{cond} Rd, Rm, Rs Dual 16-bit signed multiply and subtract We multiply Ra and Rb to produce a new complex number Rc. The code assumes that the 16-bit values represent Q15 fractions. Here is the code for ARMv6: SMUSD Rt, Ra, Rb ; real*real–imag*imag at Q30 SMUADX Rc, Ra, Rb ; real*imag+imag*real at Q30 QADD Rt, Rt, Rt ; convert to Q31 saturate QADD Rc, Rc, Rc ; convert to Q31 saturate PKHTB Rc, Rc, Rt, ASR #16 ; pack results Compare this with an ARMv5TE implementation: SMULBB Rc, Ra, Rb ; real*real SMULTT Rt, Ra, Rb ; imag*imag QSUB Rt, Rc, Rt ; real*real-imag*imag at Q30 SMULTB Rc, Ra, Rb ; imag*real SMLABT Rc, Ra, Rb ; + real*imag at Q30 QADD Rt, Rt, Rt ; convert to Q31 saturate QADD Rc, Rc, Rc ; convert to Q31 saturate MOV Rc, Rc, LSR #16 MOV Rt, Rt, LSR #16 ORR Rt, Rt, Rc, LSL#16 ; pack results There are 10 cycles for ARMv5E versus 5 cycles for ARMv6. Clearly with any algorithm doing very intense complex maths, a two times improvement in performance can be gained for the complex multiply. ■ 15.1.4 Saturation Instructions Saturating arithmetic was first addressed with the E extensions that were added to the ARMv5TE architecture, which was introduced with the ARM966E and ARM946E products. ARMv6 takes this further with individual and more flexible saturation instructions that can operate on 32-bit words and 16-bit halfwords. In addition to these instructions, shown in Table 15.7, there are the new saturating arithmetic SIMD operations that have already been described in Section 15.1.1.
- 575. 556 Chapter 15 The Future of the Architecture Table 15.7 Saturation instructions. Instruction Description SSAT Rd, #BitPosition, Rm,{Shift} Signed 32-bit saturation at an arbitrary bit position. Shift can be an LSL or ASR. SSAT16{cond} Rd, #immed, Rm Dual 16-bit saturation at the same position in both halves. USAT Rd, #BitPosition, Rm,{Shift} Unsigned 32-bit saturation at an arbitrary bit position. Shift can be LSL or ASR. USAT16{cond} Rd, #immed, Rm Unsigned dual 16-bit saturation at the same position in both halves. Note that in the 32-bit versions of these saturation operations there is an optional arithmetic shift of the source register Rm before saturation, allowing scaling to take place in the same instruction. 15.1.5 Sum of Absolute Differences Instructions These two new instructions are probably the most application specific within the ARMv6 architecture—USAD8 and USADA8. They are used to compute the absolute difference betweeneight-bitvaluesandareparticularlyusefulinmotionvideocompressionalgorithms such as MPEG or H.263, including motion estimation algorithms that measure motion by comparing blocks using many sum-of-absolute-difference operations (see Figure 15.2). Table 15.8 lists these instructions. Table 15.8 Sum of absolute differences. Instruction Description USAD8{cond} Rd, Rm, Rs Sum of absolute differences USADA8{cond} Rd, Rm, Rs, Rn Accumulated sum of absolute differences To compare an N ×N square at (x, y) in image p1 with an N ×N square p2, we calculate the accumulated sum of absolute differences: a(x, y) = N−1 i=0 N−1 j=0 p1(x + i, y + j) − p2(i, j)
- 576. 15.1 Advanced DSP and SIMD Support in ARMv6 557 Rn Rm Rs Rd absdiff absdiff absdiff absdiff + Figure15.2 Sum-of-absolute-differences operation. To implement this using the new instructions, use the following sequence to compute the sum-of-absolute differences of four pixels: LDR p1,[p1Ptr],#4 ; load 4 pixels from p1 LDR p2,[p2Ptr],#4 ; load 4 pixels from p2 ;load delay-slot ;load delay-slot USADA8 acc, p1, p2 ; accumlate sum abs diff There is a tremendous performance advantage for this algorithm over an ARMv5TE implementation. There is a four times improvement in performance from the eight-bit SIMD alone. Additionally the USADA8 operation includes the accumulation operation. The USAD8 operation will typically be used to carry out the setup into the loop before there is an existing accumulated value. 15.1.6 Dual 16-Bit Multiply Instructions ARMv5TE introduced considerable DSP performance to ARM, but ARMv6 takes this much further. Implementations of ARMv6 (such as ARM1136J) have a dual 16 × 16 multiply capability, which is comparable with many high-end dedicated DSP devices. Table 15.9 lists these instructions.
- 577. 558 Chapter 15 The Future of the Architecture Table 15.9 Dual 16-bit multiply operations. Instruction Description SMLAD{X}{cond} Rd, Rm, Rs, Rn Dual signed multiply accumulate with 32-bit accumulation SMLALD{X}{cond} RdLo, RdHi, Rm, Rs Dual signed multiply accumulate with 64-bit accumulation SMLSD{X}{cond} Rd, Rm, Rs, Rn Dual signed multiply subtract with 32-bit accumulation SMLSLD{X}{cond} RdLo, RdHi, Rm, Rs Dual signed multiply subtract with 64-bit accumulation We demonstrate the use of SMLAD as a signed dual multiply in a dot-product inner loop: MOV R0, #0 ; zero accumulator Loop LDMIA R2!,{R4,R5,R6,R7} ; load 8 16-bit data items LDMIA R1!,{R8,R9,R10,R11} ; load 8 16-bit coefficients SUBS R3,R3,#8 ; subtract 8 from the loop counter SMLAD R0,R4,R8,R0 ; 2 multiply accumulates SMLAD R0,R5,R9,R0 SMLAD R0,R6,R10,R0 SMLAD R0,R7,R11,R0 BGT Loop ; loop if more coefficients This loop delivers eight 16 × 16 multiply accumulates in 10 cycles without using any data- blocking techniques. If a set of the operands for the dot-product is stored in registers, then performance approaches the true dual multiplies per cycle. 15.1.7 Most Significant Word Multiplies ARMv5TE added arithmetic operations that are used extensively in a very broad range of DSP algorithms including control and communications and that were designed to use the Q15 data format. However, in audio processing applications it is common for 16-bit processing to be insufficient to describe the quality of the signals. Typically 32-bit values are used in these cases, and ARMv6 adds some new multiply instructions that operate on Q31 formatted values. (Recall that Q-format arithmetic is described in detail in Chapter 8.) These new instructions are listed in Table 15.10.
- 578. 15.1 Advanced DSP and SIMD Support in ARMv6 559 Table15.10 Most significant word multiplies. Instruction Description SMMLA{R}{cond} Rd, Rm, Rs, Rn Signed 32 × 32 multiply with accumulation of the high 32 bits of the product to the 32-bit accumulator Rn SMMLS{R}{cond} Rd, Rm, Rs, Rn Signed 32 × 32 multiply subtracting from (Rn 32) and then taking the high 32 bits of the result SMMUL{R}{cond} Rd, Rm, Rs Signed 32 × 32 multiply with upper 32 bits of product only The optional {R} in the mnemonic allows the addition of the fixed constant 0x80000000 to the 64-bit product before producing the upper 32 bits. This allows for biased rounding of the result. 15.1.8 Cryptographic Multiplication Extensions In some cryptographic algorithms, very long multiplications are quite common. In order to maximize their throughput, a new 64 + 32 × 32 → 64 multiply accumulate operation has been added to complement the already existing 32 × 32 multiply operation UMULL (see Table 15.11). Here is an example of a very efficient 64-bit × 64-bit multiply using the new instructions: ; inputs: First 64-bit multiply operand in (RaHi,RaLo) ; Second 64-bit multiply operand in (RbHi, RbLo) umull64x64 UMULL R0, R2, RaLo, RbLo UMULL R1, R3, RaHi, RbLo UMAAL R1, R2, RaLo, RbHi UMAAL R2, R3, RaHi, RbHi ; output: 128-bit result in (R3, R2, R1, R0) Table15.11 Cryptographic multiply. UMAAL{cond} RdLo, RdHi, Rm, Rs Special crypto multiply (RdHi : RdLo) = Rm∗ Rs + RdHi + RdLo
- 579. 560 Chapter 15 The Future of the Architecture 15.2 System and Multiprocessor Support Additions to ARMv6 As systems become more complicated, they incorporate multiple processors and processing engines. These engines may share different views of memory and even use different endi- annesses (byte order). To support communication in these systems, ARMv6 adds support for mixed-endian systems, fast exception processing, and new synchronization primitives. 15.2.1 Mixed-Endianness Support Traditionally the ARM architecture has had a little-endian view of memory with a big- endian mode that could be switched at reset. This big-endian mode sets the memory system up as big-endian ordered instructions and data. As mentioned in the introduction to this chapter, ARM has found its cores integrated into very sophisticated system-on-chip devices dealing with mixed endianess, and often has to deal with both little- and big-endian data in software. ARMv6 adds a new instruction to set the data endianness for large code sequences (see Table 15.12), and also some indi- vidual manipulation instructions to increase the efficiency of dealing with mixed-endian environments. The endian_specifier is either BE for big-endian or LE for little endian. A program would typically use SETEND when there is a considerable chunk of code that is carrying out operations on data with a particular endianness. Figure 15.3 shows individual byte manipulation instructions. Table15.12 Setting data-endianness operation. SETEND endian_specifier Change the default data endianness based on the endian_specifier argument. 15.2.2 Exception Processing It is common for operating systems to save the return state of an interrupt or exception on a stack. ARMv6 adds the instructions in Table 15.13 to improve the efficiency of this operation, which can occur very frequently in interrupt/scheduler driven systems. 15.2.3 Multiprocessing Synchronization Primitives As system-on-chip (SoC) architectures have become more sophisticated, ARM cores are now often found in devices with many processing units that compete for shared resources.
- 580. 15.2 System and Multiprocessor Support Additions to ARMv6 561 REV {cond} Rd, Rm Reverse order of all four bytes in a 32-bit word REV16 {cond} Rd, Rm Reverse order of byte pairs in upper and lower half REVSH {cond} Rd, Rm Reverse byte order of the signed halfword B3 B2 B1 B0 B0 B1 B2 B3 31 24 16 8 0 31 24 16 8 0 31 24 16 8 0 31 24 16 8 0 31 24 16 8 0 31 24 16 8 0 B3 B2 B1 B0 B3 B2 B1 B0 B3 B2 B1 B0 S B1 B0 S Rm Rd Rm Rd Rm Rd Figure15.3 Reverse instructions in ARMv6.
- 581. 562 Chapter 15 The Future of the Architecture Table15.13 Exception processing operations. Instruction Description SRSaddressing_mode, #mode{!} Save return state (lr and spsr) on the stack addressed by sp in the specified mode. RFE addressing_mode, Rn{!} Return from exception. Loads the pc and cpsr from the stack pointed to by Rn. CPSeffect iflags {,#mode} Change processor state with interrupt enable or disable. CPS #mode Change processor state only. The ARM architecture has always had the SWP instruction for implementing semaphores to ensure consistency in such environments. As the SoC has become more complex, however, certain aspects of SWP cause a performance bottleneck in some instances. Recall that SWP is basically a “blocking” primitive that locks the external bus of the processor and uses most of its bandwidth just to wait for a resource to be released. In this sense the SWP instruction is considered “pessimistic”—no computation can continue until SWP returns with the freed resource. New instructions LDREX and STREX (load and store exclusive) were added to the ARMv6 architecture to solve this problem. These instructions, listed in Table 15.14, are very straightforward in use and are implemented by having a system monitor out in the memory system. LDREX optimistically loads a value from memory into a register assuming that nothing else will change the value in memory while we are working on it. STREX stores a value back out to memory and returns an indication of whether the value in memory was changed or not between the original LDREX operation and this store. In this way the primitives are “optimistic”—you continue processing the data you loaded with LDREX even though some external device may also be modifying the value. Only if a modification actually took place externally is the value thrown away and reloaded. The big difference for the system is that the processor no longer waits around on the systembusforasemaphoretobefree, andthereforeleavesmostofthesystembusbandwidth available for other processes or processors. Table15.14 Load and store exclusive operations. Instructions Description LDREX{cond} Rd, [Rn] Load from address in Rn and set memory monitor STREX{cond} Rd, Rm, [Rn] Store to address in Rn and flag if successful in Rd (Rd = 0 if successful)
- 582. 15.4 Future Technologies beyond ARMv6 563 15.3 ARMv6 Implementations ARM completed development of ARM1136J in December 2002, and at this writing con- sumer products are being designed with this core. The ARM1136J pipeline is the most sophisticated ARM implementation to date. As shown in Figure 15.4, it has an eight-stage pipeline with separate parallel pipelines for load/store and multiply/accumulate. The parallel load/store unit (LSU) with hit-under-miss capability allows load and store operations to be issued and execution to continue while the load or store is completing with the slower memory system. By decoupling the execution pipeline from the completion of loads or stores, the core can gain considerable extra performance since the memory system is typically many times slower than the core speed. Hit-under-miss extends this decoupling out to the L1-L2 memory interface so that an L1 cache miss can occur and an L2 transaction can be completing while other L1 hits are still going on. Another big change in microarchitecture is the move from virtually tagged caches to physically tagged caches. Traditionally, ARM has used virtually tagged caches where the MMU is between the caches and the outside L2 memory system. With ARMv6, this changes so that the MMU is now between the core and the L1 caches, so that all cache memory accesses are using physical (already translated) addresses. One of the big benefits of this approach is considerably reduced cache flushing on context switches when the ARM is running large operating systems. This reduced flushing will also reduce power consumption in the end system since cache flushing directly implies more external memory accesses. In some cases it is expected that this architectural change will deliver up to a 20% performance improvement. 15.4 Future Technologies beyond ARMv6 In 2003, ARM made further technology announcements including TrustZone and Thumb-2. While these technologies are very new, at this writing, they are being included in new microprocessor cores. The next sections briefly introduce these new technologies. 15.4.1 TrustZone TrustZone is an architectural extension targeting the security of transactions that may be carried out using consumer products such as cell phones and, in the future, perhaps online transactions to download music or video for example. It was first introduced in October 2003 when ARM announced the ARM1176JZ-S. The fundamental idea is that operating systems (even on embedded devices) are now so complex that it is very hard to verify security and correctness in the software. The ARM solution to this problem is to add new operating “states” to the architecture where only a small verifiable software kernel will run, and this will provide services to the larger operating system. The microprocessor core then takes a role in controlling system peripherals that
- 583. 564 Chapter 15 The Future of the Architecture 1st fetch stage 2nd fetch stage Instruction decode Register read and instruction issue Common decode pipeline Fe1 Fe2 De Iss ALU pipeline Sh ALU Sat MAC1 MAC2 MAC3 Ex1 Ex2 Ex3 Shifter operation 1st multiply stage 2nd multiply stage 3rd multiply stage Calculate writeback value Saturation Base register writeback Writeback from LSU ADD DC1 DC2 Multiply pipeline WBex WBIs Load/store pipeline Data address calculation First stage of data cache access Second stage of data cache access Hit under miss Load miss waits Figure15.4 ARM1136J pipeline. Source: ARM Limited, ARM 1136J, Technical Reference Manual, 2003.
- 584. 15.4 Future Technologies beyond ARMv6 565 may be only available to the secure “state” through some new exported signals on the bus interface. The system states are shown in Figure 15.5. TrustZone is most useful in devices that will be carrying out content downloads such as cell phones or other portable devices with network connections. Details of this architecture are not public at the time of writing. Platform OS Secure kernel Privileged User Normal Secure Trusted code base S - A p p S - A p p A p p A p p A p p A p p A p p Monitor Fixed entry points Fixed entry points Figure15.5 Modified security structure using TrustZone technology. Source: Richard York, A New Foundation for CPU Systems Security: Security Extensions to the ARM Architecture, 2003. 15.4.2 Thumb-2 Thumb-2 is an architectural extension designed to increase performance at high code density. It allows for a blend of 32-bit ARM-like instructions with 16-bit Thumb instruc- tions. This combination enables you to have the code density benefits of Thumb with the additional performance benefits of access to 32-bit instructions. Thumb-2 was announced in October 2003 and will be implemented in the ARM1156T2-S processor. Details of this architecture are not public at the time of writing.
- 585. 566 Chapter 15 The Future of the Architecture 15.5 Summary TheARMarchitectureisnotastaticconstantbutisbeingdevelopedandimprovedtosuitthe applications required by today’s consumer devices. Although the ARMv5TE architecture was very successful at adding some DSP support to the ARM, the ARMv6 architecture extends the DSP support as well as adding support for large multiprocessor systems. Table 15.15 shows how these new technologies map to different processor cores. ARM still concentrates on one of its key benefits—code density—and has recently announced the Thumb-2 extension to its popular Thumb architecture. The new focus on security with TrustZone gives ARM a leading edge in this area. Expect many more innovations over the years to come! Table15.15 Recently announced cores. Processor core Architecture version ARM1136J-S ARMv6J ARM1156T2-S ARMv6 + Thumb-2 ARM1176JZ-S ARMv6J + TrustZone
- 586. This Page Intentionally Left Blank
- 587. A.1 Using This Appendix A.2 Syntax A.2.1 Optional Expressions A.2.2 Register Names A.2.3 Values Stored as Immediates A.2.4 Condition Codes and Flags A.2.5 Shift Operations A.3 Alphabetical List of ARM and Thumb Instructions A.4 ARM Assembler Quick Reference A.4.1 ARM Assembler Variables A.4.2 ARM Assembler Labels A.4.3 ARM Assembler Expressions A.4.4 ARM Assembler Directives A.5 GNU Assembler Quick Reference A.5.1 GNU Assembler Directives
- 588. A p p e n d i x ARM and Thumb Assembler Instructions A This appendix lists the ARM and Thumb instructions available up to, and including, ARM architecture ARMv6, which was just released at the time of writing. We list the operations in alphabetical order for easy reference. Sections A.4 and A.5 give quick reference guides to the ARM and GNU assemblers armasm and gas. We have designed this appendix for practical programming use, both for writing assembly code and for interpreting disassembly output. It is not intended as a definitive architectural ARM reference. In particular, we do not list the exhaustive details of each instruction bitmap encoding and behavior. For this level of detail, see the ARM Architecture Reference Manual, edited by David Seal, published by Addison Wesley. We do give a summary of ARM and Thumb instruction set encodings in Appendix B. A.1 Using This Appendix Each appendix entry begins by enumerating the available instructions formats for the given instruction class. For example, the first entry for the instruction class ADD reads 1. ADDcond{S} Rd, Rn, #rotated_immed ARMv1 The fields cond and rotated_immed are two of a number of standard fields described in Section A.2. Rd and Rn denote ARM registers. The instruction is only executed if the 569
- 589. 570 Appendix A ARM and Thumb Assembler Instructions Table A.1 Instruction types. Type Meaning ARMvX 32-bit ARM instruction first appearing in ARM architecture version X THUMBvX 16-bit Thumb instruction first appearing in Thumb architecture version X MACRO Assembler pseudoinstruction condition cond is passed. Each entry also describes the action of the instruction if it is executed. The {S} denotes that you may apply an optional S suffix to the instruction. Finally, the right-hand column specifies that the instruction is available from the listed ARM architecture version onwards. Table A.1 shows the entries possible for this column. Note that there is no direct correlation between the Thumb architecture number and the ARM architecture number. The THUMBv1 architecture is used in ARMv4T processors; the THUMBv2 architecture, in ARMv5T processors; and the THUMBv3 architecture, in ARMv6 processors. Each instruction definition is followed by a notes section describing restrictions on the use of the instruction. When we make a statement such as “Rd must not be pc,” we mean that the description of the function only applies when this condition holds. If you break the condition, then the instruction may be unpredictable or have predictable effects that we haven’t had space to describe here. Well-written programs should not need to break these conditions. A.2 Syntax We use the following syntax and abbreviations throughout this appendix. A.2.1 Optional Expressions ■ {expr} is an optional expression. For example, LDR{B} is shorthand for LDR or LDRB. ■ {exp1|exp2|…|expN}, including at least one “|” divider, is a list of expressions. One of the listed expressions must appear. For example LDR{B|H} is shorthand for LDRB or LDRH. It does not include LDR. We would represent these three possibilities by LDR{|B|H}. A.2.2 Register Names ■ Rd, Rn, Rm, Rs, RdHi, RdLo represent ARM registers in the range r0 to r15. ■ Ld, Ln, Lm, Ls represent low-numbered ARM registers in the range r0 to r7.
- 590. A.2 Syntax 571 ■ Hd, Hn, Hm, Hs represent high-numbered ARM registers in the range r8 to r15. ■ Cd, Cn, Cm represent coprocessor registers in the range c0 to c15. ■ sp, lr, pc are names for r13, r14, r15, respectively. ■ Rn[a] denotes bit a of register Rn. Therefore Rn[a] = (Rn a) 1. ■ Rn[a:b] denotes the a + 1 − b bit value stored in bits a to b of Rn inclusive. ■ RdHi:RdLo represents the 64-bit value with high 32 RDHi bits and low 32 bits RdLo. A.2.3 Values Stored as Immediates ■ immedN is any unsigned N-bit immediate. For example, immed8 represents any integerintherange0to255. immed5*4representsanyintegerinthelist0, 4, 8, …,124. ■ addressN is an address or label stored as a relative offset. The address must be in the range pc − 2N ≤ address pc + 2N . Here, pc is the address of the instruction plus eight for ARM state, or the address of the instruction plus four for Thumb state. The address must be four-byte aligned if the destination is an ARM instruction or two-byte aligned if the destination is a Thumb instruction. ■ A-B represents any integer in the range A to B inclusive. ■ rotated_immed is any 32-bit immediate that can be represented as an eight- bit unsigned value rotated right (or left) by an even number of bit positions. In otherwords, rotated_immed = immed8 ROR (2*immed4). Forexample0xff, 0x104, 0xe0000005, and0x0bc00000arepossiblevaluesforrotated_immed. How- ever, 0x101 and 0x102 are not. When you use a rotated immediate, shifter_C is set according to Table A.3 (discussed in Section A.2.5). A nonzero rotate may cause a change in the carry flag. For this reason, you can also specify the rotation explicitly, using the assembly syntax immed8, 2*immed4. A.2.4 Condition Codes and Flags ■ cond represents any of the standard ARM condition codes. Table A.2 shows the possible values for cond. ■ SignedOverflow is a flag indicating that the result of an arithmetic operation suf- fered from a signed overflow. For example, 0x7fffffff + 1 = 0x80000000 produces a signed overflow because the sum of two positive 32-bit signed integers is a negative 32- bit signed integer. The V flag in the cpsr typically records signed overflows. ■ UnsignedOverflow is a flag indicating that the result of an arithmetic operation suffered from an unsigned overflow. For example, 0xffffffff + 1 = 0 produces an overflow in unsigned 32-bit arithmetic. The C flag in the cpsr typically records unsigned overflows.
- 591. 572 Appendix A ARM and Thumb Assembler Instructions Table A.2 ARM condition mnemonics. cond Instruction is executed when cpsr condition {|AL} ALways TRUE EQ EQual (last result zero) Z==1 NE Not Equal (last result nonzero) Z==0 {CS|HS} Carry Set, unsigned Higher or Same (following a compare) C==1 {CC|LO} Carry Clear, unsigned LOwer (following a comparison) C==0 MI MInus (last result negative) N==1 PL PLus (last result greater than or equal to zero) N==0 VS V flag Set (signed overflow on last result) V==1 VC V flag Clear (no signed overflow on last result) V==0 HI unsigned HIgher (following a comparison) C==1 Z==0 LS unsigned Lower or Same (following a comparison) C==0 || Z==1 GE signed Greater than or Equal N==V LT signed Less Than N!=V GT signed Greater Than N==V Z==0 LE signed Less than or Equal N!=V || Z==1 NV NeVer—ARMv1 and ARMv2 only—DO NOT USE FALSE ■ NoUnsignedOverflow is the same as 1 − UnsignedOverflow. ■ Zero is a flag indicating that the result of an arithmetic or logical operation is zero. The Z flag in the cpsr typically records the zero condition. ■ Negative is a flag indicating that the result of an arithmetic or logical operation is negative. In other words, Negative is bit 31 of the result. The N flag in the cpsr typically records this condition. A.2.5 Shift Operations ■ imm_shift represents a shift by an immediate specified amount. The possible shifts are LSL #0-31, LSR #1-32, ASR #1-32, ROR #1-31, and RRX. See Table A.3 for the actions of each shift. ■ reg_shift represents a shift by a register-specified amount. The possible shifts are LSL Rs, LSR Rs, ASR Rs, and ROR Rs. Rs must not be pc . The bottom eight bits of Rs are used as the shift value k in Table A.3. Bits Rs[31:8] are ignored. ■ shift is shorthand for imm_shift or reg_shift. ■ shifted_Rm is shorthand for the value of Rm after the specified shift has been applied. See Table A.3.
- 592. A.3 Alphabetical List of ARM and Thumb Instructions 573 Table A.3 Barrel shifter circuit outputs for different shift types. Shift k range shifted_Rm shifter_C LSL k k = 0 Rm C (from cpsr) LSL k 1 ≤ k ≤ 31 Rm k Rm[32-k] LSL k k = 32 0 Rm[0] LSL k k ≥ 33 0 0 LSR k k = 0 Rm C LSR k 1 ≤ k ≤ 31 (unsigned)Rm k Rm[k-1] LSR k k = 32 0 Rm[31] LSR k k ≥ 33 0 0 ASR k k = 0 Rm C ASR k 1 ≤ k ≤ 31 (signed)Rm k Rm[k-1] ASR k k ≥ 32 −Rm[31] Rm[31] ROR k k = 0 Rm C ROR k 1 ≤ k ≤ 31 ((unsigned)Rm k)|(Rm (32-k)) Rm[k-1] ROR k k ≥ 32 Rm ROR (k 31) Rm[(k-1)31] RRX (C 31) | ((unsigned)Rm 1) Rm[0] ■ shifter_C is shorthand for the carry value output by the shifting circuit. See Table A.3. A.3 Alphabetical List of ARM and Thumb Instructions Instructions are listed in alphabetical order. However, where signed and unsigned variants of the same operation exist, the main entry is under the signed variant. ADC Add two 32-bit values and carry 1. ADCcond{S} Rd, Rn, #rotated_immed ARMv1 2. ADCcond{S} Rd, Rn, Rm {, shift} ARMv1 3. ADC Ld, Lm THUMBv1 Action Effect on the cpsr 1. Rd = Rn + rotated_immed + C Updated if S suffix specified
- 593. 574 Appendix A ARM and Thumb Assembler Instructions 2. Rd = Rn + shifted_Rm + C Updated if S suffix specified 3. Ld = Ld + Lm + C Updated (see Notes below) Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = UnsignedOverflow, V = SignedOverflow. ■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set to the value of the spsr. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. Examples ADDS r0, r0, r2 ; first half of a 64-bit add ADC r1, r1, r3 ; second half of a 64-bit add ADCS r0, r0, r0 ; shift r0 left, inserting carry (RLX) ADD Add two 32-bit values 1. ADDcondS Rd, Rn, #rotated_immed ARMv1 2. ADDcondS Rd, Rn, Rm {, shift} ARMv1 3. ADD Ld, Ln, #immed3 THUMBv1 4. ADD Ld, #immed8 THUMBv1 5. ADD Ld, Ln, Lm THUMBv1 6. ADD Hd, Lm THUMBv1 7. ADD Ld, Hm THUMBv1 8. ADD Hd, Hm THUMBv1 9. ADD Ld, pc, #immed8*4 THUMBv1 10. ADD Ld, sp, #immed8*4 THUMBv1 11. ADD sp, #immed7*4 THUMBv1 Action Effect on the cpsr 1. Rd = Rn + rotated_immed Updated if S suffix specified
- 594. A.3 Alphabetical List of ARM and Thumb Instructions 575 2. Rd = Rn + shifted_Rm Updated if S suffix specified 3. Ld = Ln + immed3 Updated (see Notes below) 4. Ld = Ld + immed8 Updated (see Notes below) 5. Ld = Ln + Lm Updated (see Notes below) 6. Hd = Hd + Lm Preserved 7. Ld = Ld + Hm Preserved 8. Hd = Hd + Hm Preserved 9. Ld = pc + 4*immed8 Preserved 10. Ld = sp + 4*immed8 Preserved 11. sp = sp + 4*immed7 Preserved Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = UnsignedOverflow, V = SignedOverflow. ■ If Rd or Hd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set to the value of the spsr. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. ■ If Hd or Hm is pc, then the value used is the address of the instruction plus four bytes. Examples ADD r0, r1, #4 ; r0 = r1 + 4 ADDS r0, r2, r2 ; r0 = r2 + r2 and flags updated ADD r0, r0, r0, LSL #1 ; r0 = 3*r0 ADD pc, pc, r0, LSL #2 ; skip r0+1 instructions ADD r0, r1, r2, ROR r3 ; r0 = r1 + ((r2 r3)|(r2 (32-r3)) ADDS pc, lr, #4 ; jump to lr+4, restoring the cpsr ADR Address relative 1. ADR{L}cond Rd, address MACRO This is not an ARM instruction, but an assembler macro that attempts to set Rd to the value address using a pc-relative calculation. The ADR instruction macro always uses a single ARM (or Thumb) instruction. The long-version ADRL always uses two ARM instructions
- 595. 576 Appendix A ARM and Thumb Assembler Instructions and so can access a wider range of addresses. If the assembler cannot generate an instruction sequence reaching the address, then it will generate an error. The following example shows how to call the function pointed to by r9. We use ADR to set lr to the return address; in this case, it will assemble to ADD lr, pc, #4. Recall that pc reads as the address of the current instruction plus eight in this case. ADR lr, return_address ; set return address MOV r0, #0 ; set a function argument BX r9 ; call the function return_address ; resume AND Logical bitwise AND of two 32-bit values 1. ANDcond{S} Rd, Rn, #rotated_immed ARMv1 2. ANDcond{S} Rd, Rn, Rm {, shift} ARMv1 3. AND Ld, Lm THUMBv1 Action Effect on the cpsr 1. Rd = Rn rotated_immed Updated if S suffix specified 2. Rd = Rn shifted_Rm Updated if S suffix specified 3. Ld = Ld Lm Updated (see Notes below) Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = shifter_C (see Table A.3), V is preserved. ■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set to the value of the spsr. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. Examples AND r0, r0, #0xFF ; extract the lower 8 bits of a byte ANDS r0, r0, #1 31 ; extract sign bit ASR Arithmetic shift right for Thumb (see MOV for the ARM equivalent) 1. ASR Ld, Lm, #immed5 THUMBv1 2. ASR Ld, Ls THUMBv1
- 596. A.3 Alphabetical List of ARM and Thumb Instructions 577 Action Effect on the cpsr 1. Ld = Lm ASR #immed5 Updated (see Notes below) 2. Ld = Ld ASR Ls[7:0] Updated Note ■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3). B Branch relative 1. Bcond address25 ARMv1 2. Bcond address8 THUMBv1 3. B address11 THUMBv1 Branches to the given address or label. The address is stored as a relative offset. Examples B label ; branch unconditionally to a label BGT loop ; conditionally continue a loop BIC Logical bit clear (AND NOT) of two 32-bit values 1. BICcond{S} Rd, Rn, #rotated_immed ARMv1 2. BICcond{S} Rd, Rn, Rm {, shift} ARMv1 3. BIC Ld, Lm THUMBv1 Action Effect on the cpsr 1. Rd = Rn ∼rotated_immed Updated if S suffix specified 2. Rd = Rn ∼shifted_Rm Updated if S suffix specified 3. Ld = Ld ∼Lm Updated (see Notes below) Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = shifter_C (see Table A.3), V is preserved.
- 597. 578 Appendix A ARM and Thumb Assembler Instructions ■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set to the value of the spsr. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. Examples BIC r0, r0, #1 22 ; clear bit 22 of r0 BKPT Breakpoint instruction 1. BKPT immed16 ARMv5 2. BKPT immed8 THUMBv2 The breakpoint instruction causes a prefetch data abort, unless overridden by debug hardware. The ARM ignores the immediate value. This immediate can be used to hold debug information such as the breakpoint number. BL Relative branch with link (subroutine call) 1. BLcond address25 ARMv1 2. BL address22 THUMBv1 Action Effect on the cpsr 1. lr = ret+0; pc = address25 None 2. lr = ret+1; pc = address22 None Note ■ These instructions set lr to the address of the following instruction ret plus the current cpsr T-bit setting. Therefore you can return from the subroutine using BX lr to resume execution address and ARM or Thumb state. Examples BL subroutine ; call subroutine (return with MOV pc,lr) BLVS overflow ; call subroutine on an overflow
- 598. A.3 Alphabetical List of ARM and Thumb Instructions 579 BLX Branch with link and exchange (subroutine call with possible state switch) 1. BLX address25 ARMv5 2. BLXcond Rm ARMv5 3. BLX address22 THUMBv2 4. BLX Rm THUMBv2 Action Effect on the cpsr 1. lr = ret+0; pc = address25 T=1 (switch to Thumb state) 2. lr = ret+0; pc = Rm 0xfffffffe T=Rm 1 3. lr = ret+1; pc = address22 T=0 (switch to ARM state) 4. lr = ret+1; pc = Rm 0xfffffffe T=Rm 1 Notes ■ These instructions set lr to the address of the following instruction ret plus the current cpsr T-bit setting. Therefore you can return from the subroutine using BX lr to resume execution address and ARM or Thumb state. ■ Rm must not be pc. ■ Rm 3 must not be 2. This would cause a branch to an unaligned ARM instruction. Example BLX thumb_code ; call a Thumb subroutine from ARM state BLX r0 ; call the subroutine pointed to by r0 ; ARM code if r0 even, Thumb if r0 odd BX BXJ Branch with exchange (branch with possible state switch) 1. BXcond Rm ARMv4T 2. BX Rm THUMBv1 3. BXJcond Rm ARMv5J Action Effect on the cpsr 1. pc = Rm 0xfffffffe T=Rm 1
- 599. 580 Appendix A ARM and Thumb Assembler Instructions 2. pc = Rm 0xfffffffe T=Rm 1 3. Depends on JE configuration bit J,T affected Notes ■ If Rm is pc and the instruction is word aligned, then Rm takes the value of the current instruction plus eight in ARM state or plus four in Thumb state. ■ Rm 3 must not be 2. This would cause a branch to an unaligned ARM instruction. ■ If the JE (Java Enable) configuration bit is clear, then BXJ behaves as a BX. Otherwise, the behavior is defined by the architecture of the Java Extension hardware. Typically it sets J = 1 in the cpsr and starts executing Java instructions from a general purpose register designated as the Java program counter jpc. Examples BX lr ; return from ARM or Thumb subroutine BX r0 ; branch to ARM or Thumb function pointer r0 CDP Coprocessor data processing operation 1. CDPcond copro, op1, Cd, Cn, Cm, op2 ARMv2 2. CDP2 copro, op1, Cd, Cn, Cm, op2 ARMv5 These instructions initiate a coprocessor-dependent operation. copro is the number of the coprocessor in the range p0 to p15. The core takes an undefined instruction trap if the coprocessor is not present. The coprocessor operation specifiers op1 and op2, and the coprocessor register numbers Cd, Cn, Cm, are interpreted by the coprocessor and ignored by the ARM. CDP2 provides an additional set of coprocessor instructions. CLZ Count leading zeros 1. CLZcond Rd, Rm ARMv5 Rn is set to the maximum left shift that can be applied to Rm without unsigned overflow. Equivalently, this is the number of zeros above the highest one in the binary representation of Rm. If Rm = 0, then Rn is set to 32. The following example normalizes the value in r0 so that bit 31 is set. CLZ r1, r0 ; find normalization shift MOV r0, r0, LSL r1 ; normalize so bit 31 is set (if r0!=0) CMN Compare negative 1. CMNcond Rn, #rotated_immed ARMv1
- 600. A.3 Alphabetical List of ARM and Thumb Instructions 581 2. CMNcond Rn, Rm {, shift} ARMv1 3. CMN Ln, Lm THUMBv1 Action 1. cpsr flags set on the result of (Rn + rotated_immed) 2. cpsr flags set on the result of (Rn + shifted_Rm) 3. cpsr flags set on the result of (Ln + Lm) Notes ■ In the cpsr: N = Negative, Z = Zero, C = Unsigned-Overflow, V = SignedOverflow. These are the same flags as generated by CMP with the second operand negated. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. Example CMN r0, #3 ; compare r0 with -3 BLT label ; if (r0 - 3) goto label CMP Compare two 32-bit integers 1. CMPcond Rn, #rotated_immed ARMv1 2. CMPcond Rn, Rm {, shift} ARMv1 3. CMP Ln, #immed8 THUMBv1 4. CMP Rn, Rm THUMBv1 Action 1. cpsr flags set on the result of (Rn - rotated_immed) 2. cpsr flags set on the result of (Rn - shifted_Rm) 3. cpsr flags set on the result of (Ln - immed8) 4. cpsr flags set on the result of (Rn - Rm) Notes ■ In the cpsr: N = Negative, Z = Zero, C = NoUnsigned-Overflow, V = SignedOverflow. The carry flag is set this way because the subtract x − y is
- 601. 582 Appendix A ARM and Thumb Assembler Instructions implemented as the add x + ∼y + 1. The carry flag is one if x + ∼y + 1 overflows. This happens when x ≥ y (equivalently when x − y doesn’t overflow). ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes for ARM instructions, or plus four bytes for Thumb instructions. Example CMP r0, r1, LSR#2 ; compare r0 with (r1/4) BHS label ; if (r0 = (r1/4)) goto label; CPS Change processor state; modifies selected bits in the cpsr 1. CPS #mode ARMv6 2. CPSID flags {, #mode} ARMv6 3. CPSIE flags {, #mode} ARMv6 4. CPSID flags THUMBv3 5. CPSIE flags THUMBv3 Action 1. cpsr[4:0] = mode 2. cpsr = cpsr | mask; { cpsr[4:0]=mode } 3. cpsr = cpsr ∼mask; { cpsr[4:0]=mode } 4. cpsr = cpsr | mask 5. cpsr = cpsr ∼mask Bits are set in mask according to letters in the flags value as in Table A.4. The ID (interrupt disable) variants mask interrupts by setting cpsr bits. The IE (interrupt enable) variants unmask interrupts by clearing cpsr bits. Table A.4 CPS flags characters. Character cpsr bit affected Bit set in mask a imprecise data Abort mask bit 0x100 = 1 8 i IRQ mask bit 0x080 = 1 7 f FIQ mask bit 0x040 = 1 6
- 602. A.3 Alphabetical List of ARM and Thumb Instructions 583 CPY Copy one ARM register to another without affecting the cpsr. 1. CPYcond Rd, Rm ARMv6 2. CPY Rd, Rm THUMBv3 This assembles to MOVcond Rd, Rm except in the case of Thumb where Rd and Rm are low registers in the range r0 to r7. Then it is a new operation that sets Rd=Rm without affecting the cpsr. EOR Logical exclusive OR of two 32-bit values 1. EORcond{S} Rd, Rn, #rotated_immed ARMv1 2. EORcond{S} Rd, Rn, Rm {, shift} ARMv1 3. EOR Ld, Lm THUMBv1 Action Effect on the cpsr 1. Rd = Rn ˆ rotated_immed Updated if S suffix specified 2. Rd = Rn ˆ shifted_Rm Updated if S suffix specified 3. Ld = Ld ˆ Lm Updated (see Notes below) Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = shifter_C (see Table A.3), V is preserved. ■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set to the value of the spsr. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. Example EOR r0, r0, #1 16 ; toggle bit 16 LDC Load to coprocessor single or multiple 32-bit values 1. LDCcond{L} copro, Cd, [Rn {, #{-}immed8∗4}]{!} ARMv2 2. LDCcond{L} copro, Cd, [Rn], #{-}immed8∗4 ARMv2 3. LDCcond{L} copro, Cd, [Rn], option ARMv2
- 603. 584 Appendix A ARM and Thumb Assembler Instructions Table A.5 LDC addressing modes. Addressing format Address accessed Value written back to Rn [Rn {,# {-}immed}] Rn + {{-}immed} Rn preserved [Rn {,# {-}immed}]! Rn + {{-}immed} Rn + {{-}immed} [Rn], # {-}immed Rn Rn + {-}immed [Rn], option Rn Rn preserved 4. LDC2{L} copro, Cd, [Rn {, #{-}immed8∗4}]{!} ARMv5 5. LDC2{L} copro, Cd, [Rn], #{-}immed8∗4 ARMv5 6. LDC2{L} copro, Cd, [Rn], option ARMv5 These instructions initiate a memory read, transferring data to the given coprocessor. coproisthenumberofthecoprocessorintherangep0 top15. Thecoretakesanundefined instruction trap if the coprocessor is not present. The memory read consists of a sequence of words from sequentially increasing addresses. The initial address is specified by the addressing mode in Table A.5. The coprocessor controls the number of words transferred, up to a maximum limit of 16 words. The fields {L} and Cd are interpreted by the coprocessor and ignored by the ARM. Typically Cd specifies the destination coprocessor register for the transfer. The option field is an eight-bit integer enclosed in {}. Its interpretation is coprocessor dependent. If the address is not a multiple of four, then the access is unaligned. The restrictions on unaligned accesses are the same as for LDM. LDM Load multiple 32-bit words from memory to ARM registers 1. LDMcondamode Rn{!}, register_list{∧} ARMv1 2. LDMIA Rn!, register_list THUMBv1 These instructions load multiple words from sequential memory addresses. The register_list specifies a list of registers to load, enclosed in curly brackets{}. Although the assembler allows you to specify the registers in the list in any order, the order is not stored in the instruction, so it is good practice to write the list in increasing order of register number because this is the usual order of the memory transfer. The following pseudocode shows the normal action of LDM. We use register_ list[i] to denote the register appearing at position i in the list, starting at 0 for the first register. This assumes that the list is in order of increasing register number.
- 604. A.3 Alphabetical List of ARM and Thumb Instructions 585 Table A.6 LDM addressing modes. Addressing Lowest address Highest address Value written back mode accessed accessed to Rn if ! specified {IA|FD} Rn Rn + N*4 - 4 Rn + N*4 {IB|ED} Rn + 4 Rn + N*4 Rn + N*4 {DA|FA} Rn - N*4 + 4 Rn Rn - N*4 {DB|EA} Rn - N*4 Rn - 4 Rn - N*4 N = the number of registers in register_list start = the lowest address accessed given in Table A.6 for (i=0; iN; i++) register_list[i] = memory(start+i*4, 4); if (! specified) then update Rn according to Table A.6 Note that memory(a, 4) returns the four bytes at address a packed according to the current processor data endianness. If a is not a multiple of four, then the load is unaligned. Because the behavior of an unaligned load depends on the architecture revision, memory system, and system coprocessor (CP15) configuration, it’s best to avoid unaligned loads if possible. Assuming that the external memory system does not abort unaligned loads, then the following rules usually apply: ■ If the core has a system coprocessor and bit 1 (A-bit) or bit 22 (U-bit) of CP15:c1:c0:0 is set, then unaligned load multiples cause an alignment fault data abort exception. ■ Otherwise the access ignores the bottom two address bits. Table A.6 lists the possible addressing modes specified by amode. If you specify the !, then the base address register is updated according to Table A.6; otherwise it is preserved. Note that the lowest register number is always read from the lowest address. The first half of the addressing mode mnemonics stands for Increment After, Increment Before, Decrement After, and Decrement Before, respectively. Increment modes load the registers sequentially forward, starting from address Rn (increment after) or Rn + 4 (increment before). Decrement modes have the same effect as if you loaded the regis- ter list backwards from sequentially descending memory addresses, starting from address Rn (decrement after) or Rn − 4 (decrement before). The second half of the addressing mode mnemonics stands for the stack type you can implement with that address mode: Full Descending, Empty Descending, Full Ascending, and Empty Ascending, With a full stack, Rn points to the last stacked value; with an empty stack, Rn points to the first unused stack location. ARM stacks are usually full descending.
- 605. 586 Appendix A ARM and Thumb Assembler Instructions You should use full descending or empty ascending stacks by preference, since LDC also supports these addressing modes. Notes ■ For Thumb (format 2), Rn and the register list registers must be in the range r0 to r7. ■ The number of registers N in the list must be nonzero. ■ Rn must not be pc. ■ Rn must not appear in the register list if ! (writeback) is specified. ■ If pc appears in the register list, then on ARMv5 and above the processor performs a BX to the loaded address. For ARMv4 and below, the processor branches to the loaded address. ■ If ∧ is specified, then the operation is modified. The processor must not be in user or system mode. If pc is not in the register list, then the registers appearing in the register list refer to the user mode versions of the registers and writeback must not be specified. If pc is in the register list, then the spsr is copied to the cpsr in addition to the standard operation. ■ The time order of the memory accesses may depend on the implementation. Be careful when using a load multiple to access I/O locations where the access order matters. If the order matters, then check that the memory locations are marked as I/O in the page tables, do not cross page boundaries, and do not use pc in the register list. Examples LDMIA r4!, {r0, r1} ; r0=∗r4, r1=∗(r4+4), r4+=8 LDMDB r4!, {r0, r1} ; r1=∗(r4-4), r0=∗(r4-8), r4-=8 LDMEQFD sp!, {r0, pc} ; if (result zero) then unstack r0, pc LDMFD sp, {sp}∧ ; load sp_usr from sp_current LDMFD sp!, {r0-pc}∧ ; return from exception, restore cpsr LDR Load a single value from a virtual address in memory 1. LDRcond{|B} Rd, [Rn {, #{-}immed12}]{!} ARMv1 2. LDRcond{|B} Rd, [Rn, {-}Rm {,imm_shift}]{!} ARMv1 3. LDRcond{|B}{T} Rd, [Rn], #{-}immed12 ARMv1 4. LDRcond{|B}{T} Rd, [Rn], {-}Rm {,imm_shift} ARMv1 5. LDRcond{H|SB|SH} Rd, [Rn, {, #{-}immed8}]{!} ARMv4 6. LDRcond{H|SB|SH} Rd, [Rn, {-}Rm]{!} ARMv4 7. LDRcond{H|SB|SH} Rd, [Rn], #{-}immed8 ARMv4
- 606. A.3 Alphabetical List of ARM and Thumb Instructions 587 8. LDRcond{H|SB|SH} Rd, [Rn], {-}Rm ARMv4 9. LDRcondD Rd, [Rn, {, #{-}immed8}]{!} ARMv5E 10. LDRcondD Rd, [Rn, {-}Rm]{!} ARMv5E 11. LDRcondD Rd, [Rn], #{-}immed8 ARMv5E 12. LDRcondD Rd, [Rn], {-}Rm ARMv5E 13. LDREXcond Rd, [Rn] ARMv6 14. LDR{|B|H} Ld, [Ln, #immed5*size] THUMBv1 15. LDR{|B|H|SB|SH} Ld, [Ln, Lm] THUMBv1 16. LDR Ld, [pc, #immed8*4] THUMBv1 17. LDR Ld, [sp, #immed8*4] THUMBv1 18. LDRcondtype Rd, label MACRO 19. LDRcond Rd, =32-bit-value MACRO Formats 1 to 17 load a single data item of the type specified by the opcode suffix, using a preindexed or postindexed addressing mode. Tables A.7 and A.8 show the different addressing modes and data types. InTableA.8memory(a, n)readsnsequentialbytesfromaddressa. Thebytesarepacked according to the configured processor data endianness. The function memoryT(a, n) per- forms the same access but with user mode privileges, regardless of the current processor mode. The function memoryEx(a, n) used by LDREX performs the access and marks the access as exclusive. If address a has the shared TLB attribute, then this marks address a as exclusive to the current processor and clears any other exclusive addresses for this processor. Table A.7 LDR Addressing Modes. Addressing format Address a accessed Value written back to Rn [Rn {,#{-}immed}] Rn + {{-}immed} Rn preserved [Rn {,#{-}immed}]! Rn + {{-}immed} Rn + {{-}immed} [Rn, {-}Rm {,shift}] Rn + {-}shifted_Rm Rn preserved [Rn, {-}Rm {,shift}]! Rn + {-}shifted_Rm Rn + {-}shifted_Rm [Rn], #{-}immed Rn Rn + {-}immed [Rn], {-}Rm {,shift} Rn Rn + {-}shifted_Rm
- 607. 588 Appendix A ARM and Thumb Assembler Instructions Table A.8 LDR datatypes. Load Datatype size (bytes) Action LDR word 4 Rd = memory(a, 4) LDRB unsigned Byte 1 Rd = (zero-extend)memory(a, 1) LDRBT Byte Translated 1 Rd = (zero-extend)memoryT(a, 1) LDRD Double word 8 Rd = memory(a, 4) R(d+1) = memory(a+4, 4) LDREX word EXclusive 4 Rd = memoryEx(a, 4) LDRH unsigned Halfword 2 Rd = (zero-extend)memory(a, 2) LDRSB Signed Byte 1 Rd = (sign-extend)memory(a, 1) LDRSH Signed Halfword 2 Rd = (sign-extend)memory(a, 2) LDRT word Translated 4 Rd = memoryT(a, 4) Otherwisetheprocessorremembersthatthereisanoutstandingexclusiveaccess. Exclusivity only affects the action of the STREX instruction. If address a is not a multiple of size, then the load is unaligned. Because the behavior of an unaligned load depends on the architecture revision, memory system, and system coprocessor (CP15) configuration, it’s best to avoid unaligned loads if possible. Assuming that the external memory system does not abort unaligned loads, then the following rules usually apply. In the rules, A is bit 1 of system coprocessor register CP15:c1:c0:0, and U is bit 22 of CP15:c1:c0:0, introduced in ARMv6. If there is no system coprocessor, then A = U = 0. ■ If A = 1, then unaligned loads cause an alignment fault data abort exception except that word-aligned double-word loads are supported if U = 1. ■ If A = 0 and U = 1, then unaligned loads are supported for LDR{|T|H|SH}. Word- aligned loads are supported for LDRD. A non-word-aligned LDRD generates an alignment fault data abort. ■ If A = 0 and U = 0, then LDR and LDRT return the value memory(a ∼3, 4) ROR ((a3)*8). All other unaligned operations are unpredictable but do not generate an alignment fault. Format 18 generates a pc-relative load accessing the address specified by label. In other words, it assembles to LDRcondtype Rd, [pc, #offset] whenever this instruction is supported and offset=label-pc is in range. Format 19 generates an instruction to move the given 32-bit value to the register Rd. Usually the instruction is LDRcond Rd, [pc, #offset], where the 32-bit value is stored in a literal pool at address pc+offset.
- 608. A.3 Alphabetical List of ARM and Thumb Instructions 589 Notes ■ For double-word loads (formats 9 to 12), Rd must be even and in the range r0 to r12. ■ If the addressing mode updates Rn, then Rd and Rn must be distinct. ■ If Rd is pc, then size must be 4. Up to ARMv4, the core branches to the loaded address. For ARMv5 and above, the core performs a BX to the loaded address. ■ If Rn is pc, then the addressing mode must not update Rn . The value used for Rn is the address of the instruction plus eight bytes for ARM or four bytes for Thumb. ■ Rm must not be pc. ■ For ARMv6 use LDREX and STREX to implement semaphores rather than SWP. Examples LDR r0, [r0] ; r0 = *(int*)r0; LDRSH r0, [r1], #4 ; r0 = *(short*)r1; r1 += 4; LDRB r0, [r1, #-8]! ; r1 -= 8; r0 = *(char*)r1; LDRD r2, [r1] ; r2 =* (int*)r1; r3 =* (int*)(r1+4); LDRSB r0, [r2, #55] ; r0 = *(signed char*)(r2+55); LDRCC pc, [pc, r0, LSL #2] ; if (C==0) goto *(pc+4*r0); LDRB r0, [r1], -r2, LSL #8 ; r0 = *(char*)r1; r1 -= 256*r2; LDR r0, =0x12345678 ; r0 = 0x12345678; LSL Logical shift left for Thumb (see MOV for the ARM equivalent) 1. LSL Ld, Lm, #immed5 THUMBv1 2. LSL Ld, Ls THUMBv1 Action Effect on the cpsr 1. Ld = Lm LSL #immed5 Updated (see Note below) 2. Ld = Ld LSL Ls[7:0] Updated Note ■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3). LSR Logical shift right for Thumb (see MOV for the ARM equivalent) 1. LSR Ld, Lm, #immed5 THUMBv1 2. LSR Ld, Ls THUMBv1
- 609. 590 Appendix A ARM and Thumb Assembler Instructions Action Effect on the cpsr 1. Ld = Lm LSR #immed5 Updated (see Note below) 2. Ld = Ld LSR Ls[7:0] Updated Note ■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3). MCR MCRR Move to coprocessor from an ARM register 1. MCRcond copro, op1, Rd, Cn, Cm {, op2} ARMv2 2. MCR2 copro, op1, Rd, Cn, Cm {, op2} ARMv5 3. MCRRcond copro, op1, Rd, Rn, Cm ARMv5E 4. MCRR2 copro, op1, Rd, Rn, Cm ARMv6 These instructions transfer the value of ARM register Rd to the indicated coprocessor. Formats 3 and 4 also transfer a second register Rn. copro is the number of the coprocessor in the range p0 to p15. The core takes an undefined instruction trap if the coprocessor is not present. The coprocessor operation specifiers op1 and op2, and the coprocessor register numbers Cn, Cm, are interpreted by the coprocessor, and ignored by the ARM. Rd and Rn must not be pc. Coprocessor p15 controls memory management options. See Chapters 13 and 14 for descriptions of the MPU and MMU memory management units. For example, the following code sequence enables alignment fault checking: MRC p15, 0, r0, c1, c0, 0 ; read the MMU register, c1 ORR r0, r0, #2 ; set the A bit MCR p15, 0, r0, c1, c0, 0 ; write the MMU register, c1 MLA Multiply with accumulate 1. MLAcond{S} Rd, Rm, Rs, Rn ARMv2 Action Effect on the cpsr 1. Rd = Rn + Rm*Rs Updated if S suffix supplied Notes ■ Rd is set to the lower 32 bits of the result. ■ Rd, Rm, Rs, Rn must not be pc.
- 610. A.3 Alphabetical List of ARM and Thumb Instructions 591 ■ Rd and Rm must be different registers. ■ Implementations may terminate early on the value of the Rs operand. For this reason use small or constant values for Rs where possible. See Appendix D. ■ If the cpsr is updated, then N = Negative, Z = Zero, C is unpredictable, and V is preserved. Avoid using the instruction MLAS because implementations often impose penalty cycles for this operation. Instead use MLA followed by a compare, and schedule the compare to avoid multiply result use interlocks. MOV Move a 32-bit value into a register 1. MOVcond{S} Rd, #rotated_immed ARMv1 2. MOVcond{S} Rd, Rm {, shift} ARMv1 3. MOV Ld, #immed8 THUMBv1 4. MOV Ld, Ln THUMBv1 5. MOV Hd, Lm THUMBv1 6. MOV Ld, Hm THUMBv1 7. MOV Hd, Hm THUMBv1 Action Effect on the cpsr 1. Rd = rotated_immed Updated if S suffix specified 2. Rd = shifted_Rm Updated if S suffix specified 3. Ld = immed8 Updated (see Notes below) 4. Ld = Ln Updated (see Notes below) 5. Hd = Lm Preserved 6. Ld = Hm Preserved 7. Hd = Hm Preserved Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C= shifter_C (see Table A.3), and V is preserved. ■ If Rd or Hd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set to the value of the spsr.
- 611. 592 Appendix A ARM and Thumb Assembler Instructions ■ If Rm is pc, then the value used is the address of the instruction plus eight bytes. ■ If Hm is pc, then the value used is the address of the instruction plus four bytes. Examples MOV r0, #0x00ff0000 ; r0 = 0x00ff0000 MOV r0, r1, LSL#2 ; r0 = 4*r1 MOV pc, lr ; return from subroutine (pc=lr) MOVS pc, lr ; return from exception (pc=lr, cpsr=spsr) MRC MRRC Move to ARM register from a coprocessor 1. MRCcond copro, op1, Rd, Cn, Cm , op2 ARMv2 2. MRC2 copro, op1, Rd, Cn, Cm , op2 ARMv5 3. MRRCcond copro, op1, Rd, Rn, Cm ARMv5E 4. MRRC2 copro, op1, Rd, Rn, Cm ARMv6 Theseinstructionstransfera32-bitvaluefromtheindicatedcoprocessortotheARMregister Rd. Formats 3 and 4 also transfer a second 32-bit value to Rn. copro is the number of the coprocessor in the range p0 to p15. The core takes an undefined instruction trap if the coprocessor is not present. The coprocessor operation specifiers op1 and op2, and the coprocessor register numbers Cn, Cm, are interpreted by the coprocessor and ignored by the ARM. For formats 1 and 2, if Rd is pc, then the top four bits of the cpsr (the NZCV condition code flags) are set from the top four bits of the 32-bit value transferred; pc is not affected. For other formats, Rd and Rn must be distinct and not pc. Coprocessor p15 controls memory management options (see Chapters 12 and 13). For example, the following instruction reads the main ID register from p15: MRC p15, 0, r0, c0, c0 ; read the MMU ID register, c0 MRS Move to ARM register from status register (cpsr or spsr ) 1. MRScond Rd, cpsr ARMv3 2. MRScond Rd, spsr ARMv3 These instructions set Rd = cpsr and Rd = spsr, respectively. Rd must not be pc. MSR Move to status register (cpsr or spsr ) from an ARM register 1. MSRcond cpsr_fields, #rotated_immed ARMv3
- 612. A.3 Alphabetical List of ARM and Thumb Instructions 593 Table A.9 Format of the fields specifier. fields letter Meaning Bits set in mask c Control byte 0x000000ff x eXtension byte 0x0000ff00 s Status byte 0x00ff0000 f Flags byte 0xff000000 2. MSRcond cpsr_fields, Rm ARMv3 3. MSRcond spsr_fields, #rotated_immed ARMv3 4. MSRcond spsr_fields, Rm ARMv3 Action 1. cpsr = (cpsr ∼mask) | (rotated_immed mask) 2. cpsr = (cpsr ∼mask) | (Rm mask) 3. spsr = (spsr ∼mask) | (rotated_immed mask) 4. spsr = (spsr ∼mask) | (Rm mask) These instructions alter selected bytes of the cpsr or spsr according to the value of mask. The fields specifier is a sequence of one or more letters, determining which bytes of mask are set. See Table A.9. Some old ARM toolkits allowed cpsr or cpsr_all in place of cpsr_fsxc. They also used cpsr_flg and cpsr_ctl in place of cpsr_f and cpsr_c, respectively. These formats, and the spsr equivalents, are obsolete, so you should not use them. The following example changes to system mode and enables IRQ, which is useful in a reentrant interrupt handler: MRS r0, cpsr ; read cpsr state BIC r0, r0, #0x9f ; clear IRQ disable and mode bits ORR r0, r0, #0x1f ; set system mode MSR cpsr_c, r0 ; update control byte of the cpsr MUL Multiply 1. MULcond{S} Rd, Rm, Rs ARMv2 2. MUL Ld, Lm THUMBv1
- 613. 594 Appendix A ARM and Thumb Assembler Instructions Action Effect on the cpsr 1. Rd = Rm*Rs Updated if S suffix supplied 2. Ld = Lm*Ld Updated Notes ■ Rd or Ld is set to the lower 32 bits of the result. ■ Rd, Rm, Rs must not be pc. ■ Rd and Rm must be different registers. Similarly Ld and Lm must be different. ■ Implementations may terminate early on the value of the Rs or Ld operand. For this reason use small or constant values for Rs or Ld where possible. ■ If the cpsr is updated, then N = Negative, Z = Zero, C is unpredictable, and V is preserved. Avoid using the instruction MULS because implementations often impose penalty cycles for this operation. Instead use MUL followed by a compare, and schedule the compare, to avoid multiply result use interlocks. MVN Move the logical not of a 32-bit value into a register 1. MVNcond{S} Rd, #rotated_immed ARMv1 2. MVNcond{S} Rd, Rm {, shift} ARMv1 3. MVN Ld, Lm THUMBv1 Action Effect on the cpsr 1. Rd = ∼rotated_immed Updated if S suffix specified 2. Rd = ∼shifted_Rm Updated if S suffix specified 3. Ld = ∼Lm Updated (see Notes below) Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = shifter_C (see Table A.3), and V is preserved. ■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr; in this case, the cpsr is set to the value of the spsr. ■ If Rm is pc, then the value used is the address of the instruction plus eight bytes.
- 614. A.3 Alphabetical List of ARM and Thumb Instructions 595 Examples MVN r0, #0xff ; r0 = 0xffffff00 MVN r0, #0 ; r0 = -1 NEG Negate value in Thumb (use RSB to negate in ARM state) 1. NEG Ld, Lm THUMBv1 Action Effect on the cpsr 1. Ld = -Lm Updated (see Notes below) Notes ■ The cpsr is updated: N = Negative, Z = Zero, C = NoUnsignedOverflow, V = SignedOverflow. Note that Z = C and V = (Ld==0x80000000). ■ This is the same as the operation RSBS Ld, Lm, #0 in ARM state. NOP No operation 1. NOP MACRO This is not an ARM instruction. It is an assembly macro that produces an instruction having no effect other than advancing the pc as normal. In ARM state it assembles to MOV r0,r0. In Thumb state it assembles to MOV r8,r8. The operation is not guaranteed to take one processor cycle. In particular, if you use NOP after a load of r0, then the operation may cause pipeline interlocks. ORR Logical bitwise OR of two 32-bit values 1. ORRcond{S} Rd, Rn, #rotated_immed ARMv1 2. ORRcond{S} Rd, Rn, Rm {, shift} ARMv1 3. ORR Ld, Lm THUMBv1 Action Effect on the cpsr 1. Rd = Rn | rotated_immed Updated if S suffix specified 2. Rd = Rn | shifted_Rm Updated if S suffix specified 3. Ld = Ld | Lm Updated (see Notes below)
- 615. 596 Appendix A ARM and Thumb Assembler Instructions Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = shifter_C (see Table A.3), and V is preserved. ■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr, in this case, the cpsr is set to the value of the spsr. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. Example ORR r0, r0,#1 13 ; set bit 13 of r0 PKH Pack 16-bit halfwords into a 32-bit word 1. PKHBTcond Rd, Rn, Rm {, LSL #0-31} ARMv6 2. PKHTBcond Rd, Rn, Rm {, ASR #1-32} ARMv6 Action 1. Rd[15:00] = Rn[15:00]; Rd[31:16]=shifted_Rm[31:16] 2. Rd[31:16] = Rn[31:16]; Rd[15:00]=shifted_Rm[15:00] Note ■ Rd, Rn, Rm must not be pc. cpsr is not affected. Examples PKHBT r0, r1, r2, LSL#16 ; r0 = (r2[15:00] 16) | r1[15:00] PKHTB r0, r2, r1, ASR#16 ; r0 = (r2[31:15] 16) | r1[31:15] PLD Preload hint instruction 1. PLD [Rn {, #{-}immed12}] ARMv5E 2. PLD [Rn, {-}Rm {,imm_shift}] ARMv5E Action 1. Preloads from address (Rn + {{-}immed12}) 2. Preloads from address (Rn + {-}shifted_Rm)
- 616. A.3 Alphabetical List of ARM and Thumb Instructions 597 This instruction does not affect the processor registers (other than advancing pc). It merely hints that the programmer is likely to read from the given address in future. A cached processor may take this as a hint to load the cache line containing the address into the cache. The instruction should not generate a data abort or any other memory system error. If Rn is pc, then the value used for Rn is the address of the instruction plus eight. Rm must not be pc. Examples PLD [r0, #7] ; Preload from r0+7 PLD [r0, r1, LSL#2] ; Preload from r0+4*r1 POP Pops multiple registers from the stack in Thumb state (for ARM state use LDM) 1. POP regster_list THUMBv1 Action 1. equivalent to the ARM instruction LDMFD sp!, register_list The register_list can contain registers in the range r0 to r7 and pc. The following example restores the low-numbered ARM registers and returns from a subroutine: POP {r0-r7,pc} PUSH Pushes multiple registers to the stack in Thumb state (for ARM state use STM) 1. PUSH regster_list THUMBv1 Action 1. equivalent to the ARM instruction STMFD sp!, register_list The register_list can contain registers in the range r0 to r7 and lr. The following example saves the low-numbered ARM registers and link register. PUSH {r0-r7,lr} QADD QDADD QDSUB QSUB Saturated signed and unsigned arithmetic 1. QADDcond Rd, Rm, Rn ARMv5E 2. QDADDcond Rd, Rm, Rn ARMv5E
- 617. 598 Appendix A ARM and Thumb Assembler Instructions 3. QSUBcond Rd, Rm, Rn ARMv5E 4. QDSUBcond Rd, Rm, Rn ARMv5E 5. {U}QADD16cond Rd, Rn, Rm ARMv6 6. {U}QADDSUBXcond Rd, Rn, Rm ARMv6 7. {U}QSUBADDXcond Rd, Rn, Rm ARMv6 8. {U}QSUB16cond Rd, Rn, Rm ARMv6 9. {U}QADD8cond Rd, Rn, Rm ARMv6 10. {U}QSUB8cond Rd, Rn, Rm ARMv6 Action 1. Rd = sat32(Rm+Rn) 2. Rd = sat32(Rm+sat32(2*Rn)) 3. Rd = sat32(Rm-Rn) 4. Rd = sat32(Rm-sat32(2*Rn)) 5. Rd[31:16] = sat16(Rn[31:16] + Rm[31:16]); Rd[15:00] = sat16(Rn[15:00] + Rm[15:00]) 6. Rd[31:16] = sat16(Rn[31:16] + Rm[15:00]); Rd[15:00] = sat16(Rn[15:00] - Rm[31:16]) 7. Rd[31:16] = sat16(Rn[31:16] - Rm[15:00]); Rd[15:00] = sat16(Rn[15:00] + Rm[31:16]) 8. Rd[31:16] = sat16(Rn[31:16] - Rm[31:16]); Rd[15:00] = sat16(Rn[15:00] - Rm[15:00]) 9. Rd[31:24] = sat8(Rn[31:24] + Rm[31:24]); Rd[23:16] = sat8(Rn[23:16] + Rm[23:16]); Rd[15:08] = sat8(Rn[15:08] + Rm[15:08]); Rd[07:00] = sat8(Rn[07:00] + Rm[07:00]) 10. Rd[31:24] = sat8(Rn[31:24] - Rm[31:24]); Rd[23:16] = sat8(Rn[23:16] - Rm[23:16]);
- 618. A.3 Alphabetical List of ARM and Thumb Instructions 599 Rd[15:08] = sat8(Rn[15:08] - Rm[15:08]); Rd[07:00] = sat8(Rn[07:00] - Rm[07:00]) Notes ■ The operations are signed unless the U prefix is present. For signed operations, satN(x) saturates x to the range −2N−1 ≤ x 2N−1. For unsigned operations, satN(x) saturates x to the range 0 ≤ x 2N . ■ The cpsr Q-flag is set if saturation occurred; otherwise it is preserved. ■ Rd, Rn, Rm must not be pc. ■ The X operations are useful for packed complex numbers. The following examples assume bits [15:00] hold the real part and [31:16] the imaginary part. Examples QDADD r0, r0, r2 ; add Q30 value r2 to Q31 accumulator r0 QADD16 r0, r1, r2 ; SIMD saturating add QADDSUBX r0, r1, r2 ; r0=r1+i*r2 in packed complex arithmetic QSUBADDX r0, r1, r2 ; r0=r1-i*r2 in packed complex arithmetic REV Reverse bytes within a word or halfword. 1. REVcond Rd, Rm ARMv6/THUMBv3 2. REV16cond Rd, Rm ARMv6/THUMBv3 3. REVSHcond Rd, Rm ARMv6/THUMBv3 Action 1. Rd[31:24] = Rm[07:00]; Rd[23:16] = Rm[15:08]; Rd[15:08] = Rm[23:16]; Rd[07:00] = Rm[31:24] 2. Rd[31:24] = Rm[23:16]; Rd[23:16] = Rm[31:24]; Rd[15:08] = Rm[07:00]; Rd[07:00] = Rm[15:08] 3. Rd[31:08] = sign-extend(Rm[07:00]); Rd[07:00] = Rm[15:08] Notes ■ Rd and Rm must not be pc. ■ For Thumb, Rd, Rm must be in the range r0 to r7 and cond cannot be specified.
- 619. 600 Appendix A ARM and Thumb Assembler Instructions ■ These instructions are useful to convert big-endian data to little-endian and vice versa. Examples REV r0, r0 ; switch endianness of a word REV16 r0, r0 ; switch endianness of two packed halfwords REVSH r0, r0 ; switch endianness of a signed halfword RFE Return from exception 1. RFEamode Rn! ARMv6 This performs the operation that LDMamode Rn{!}, {pc, cpsr} would perform if LDM allowed a register list of {pc, cpsr}. See the entry for LDM. ROR Rotate right for Thumb (see MOV for the ARM equivalent) 1. ROR Ld, Ls THUMBv1 Action Effect on the cpsr 1. Ld = Ld ROR Ls[7:0] Updated Notes ■ The cpsr is updated: N = Negative, Z = Zero, C = shifter_C (see Table A.3). RSB Reverse subtract of two 32-bit integers 1. RSBcond{S} Rd, Rn, #rotated_immed ARMv1 2. RSBcond{S} Rd, Rn, Rm {, shift} ARMv1 Action Effect on the cpsr 1. Rd = rotated_immed - Rn Updated if S suffix present 2. Rd = shifted_Rm - Rn Updated if S suffix present Notes ■ If the operation updates the cpsr and Rd is not pc, then N = Negative, Z = Zero, C = NoUnsignedOverflow, and V = SignedOverflow. The carry flag is set this way
- 620. A.3 Alphabetical List of ARM and Thumb Instructions 601 because the subtract x − y is implemented as the add x + ∼y + 1. The carry flag is one if x + ∼y + 1 overflows. This happens when x ≥ y, when x − y doesn’t overflow. ■ If Rd is pc, then the instruction effects a jump to the calculated address. If the operation updates the cpsr, then the processor mode must have an spsr in this case, the cpsr is set to the value of the spsr. ■ If Rn or Rm is pc, then the value used is the address of the instruction plus eight bytes. Examples RSB r0, r0, #0
