BP206 It's Not Herculean: 12 Tasks Made Easier with IBM Domino XPages

BP206 It's Not Herculean: Twelve
Tasks Made Easier with IBM® Lotus
®
Domino XPages
Mike McGarel | Collaborative Solutions Developer
Czarnowski Display Services Inc
Paul Withers | IBM Collaboration Solutions Consultant
Intec Systems Ltd

© 2013 IBM Corporation

Agenda

 Introduction
 The Twelve Tasks
 Bonus
 Summary

2 © 2013 IBM Corporation

Mike McGarel

 Working with web technologies for over 13 years

 Working with Notes/Domino since version 4.6

 Corporate developer


 Site developer for MWLUG and SkiLUG


Paul Withers

 IBM Champion 2011-2012, 2013

 Co-Host The XCast

 Co-Author XPages Extension Library


Why This Session?

 XPages is renowned for:
● faster web development
● modern Web 2.0 user interface
● pre-built controls
● UI can be separated from business logic
● greater flexibility of development interface
●
gateway to JavaTM
● extensibility of development platform


 But what's in it for you?


Agenda

 Introduction
 Bonus
 Summary


Hercules

 Most popular classical Greco-Roman hero

 Hercules is Latinized form (Heracles or
Herakles in Greek)

 Son of Zeus and the Alcmene (a mortal)

 Originally called Alcaeus. Herakles means
“famed because of Hera” (Hera-kleos)

 Given “12 Labours” as punishment

Image by Bayreuth2009 (Own work) [CC-BY-3.0 (http://creativecommons.org/licenses/by/3.0)], via Wikimedia Commons


First Labour: Nemean Lion


Themes

 Contain resources for entire application, for example:
● style sheets
● JavaScript files

 Can inherit from other themes

 Help to standardize user interface (UI)


Benefits Over Classic Notes/Domino

 Easier to build consistent interfaces and business logic

 Single source of control

 Fewer inline styles means less code

 GOTCHA – cannot set properties required prior to rendering
● e.g. value property for a repeat control

 GOTCHA – can only override runtime bindings
● i.e. #{javascript:...} only, not ${javascript:...}


Sample Theme Code

<theme extends="oneuiv2.1_gold">
<resource>
<content-type>text/css</content-type>
<href>corporate.css</href>
</resource>
<control override=”true”>
<name>Button.Submit</name>
<property>
<name>style</name>
<value>background-color: #0000FF; color: #FFF;</value>
</property>
</control>
</theme>




 More consistent interfaces

 Single source for controlling formatting

 Fewer inline styles means less code

 GOTCHA – cannot set properties required prior to rendering
● e.g. value property for a repeat control

 GOTCHA – can only override runtime bindings
● i.e. #{javascript:...} only, not ${javascript:...}


Themes


Second Labour: Lernean Hydra


Repeat Controls

 Set datasource
● dominoView
● NotesDocumentCollection
● NotesViewEntryCollection
● Multi-value field
● JavaScript array
● Java collection

 Set number of iterations

 Set “var” and create template for a single iteration
● Compute rendered property for flexibility



 Easier than outputting HTML with @Transform, more flexible than HTML
in view columns

 Drag and drop to build up a complex layout

 Easier to build and debug than a LotusScript agent

 Allows greater flexibility for data model

 Pagination can easily be added

 GOTCHA – nothing shows if content is a single string


Repeat Controls


Third Labour – Ceryneian Hind


In View Edit


In View Edit

 Build “view” as normal

 Add link / button to edit a row, pass UNID / NoteID to scoped variable and
refresh

 Render read only version if UNID / NoteID is not for this document

 Render editable version if UNID / NoteID is for this document

 Look at In Place Form in Extension Library



 Web 2.0 style editing for small documents

 Less code than InViewEdit in Notes Client

 Easier than classic web (lots of AJAX, iFrames, JavaScript)

 With Repeat Controls, View Panels etc. quick to implement

 GOTCHA – NotesXspViewEntry cannot be edited. Use the
NotesDocument

 GOTCHA – for new documents set scope to request where possible
● Otherwise second edit updates the same NotesDocument


Fourth Labour – Erymanthian Boar


Design Properties



 All Properties panel on any control

 Copy and paste in Source pane

 Any property can be computed, for maximum flexibility
● Avoids code duplication
● Use dataContexts for further avoidance of code duplication

 GOTCHA – for eventHandler properties, need to use Outline / Source


Fifth Labour: The Auguean Stables


AJAX Partial Page Refresh

 Implemented with a single tick and selecting partial refresh ID

 “Changes” managed in design of XPage
● Rendered properties
● Computed properties
● Data definitions

 Minimal additional coding required

 For additional functionality, look at eventHandler properties – onStart,
onError, onComplete, execMode, execId



 Classical Domino would need a form with passthru HTML (div and button)
and JavaScript for an Ajax refresh.

 An alternate would be to call a LotusScript agent

 Notes Client has no partial refresh option
● NotesUIDocument methods can change specific components

 GOTCHA – validation triggers, be aware of JSF lifecycle
● Know what is sent to server, what runs on server, what is sent back


Ajax Partial Page Refresh


Sixth Labour: Stymphalian Birds


Pager Controls

 Many standard options and easily customizable
● Show page number easily with Page {0} of {1}
● Can allow users to select number of items per page
● Can calculate link to last page (starting with version 8.5.2)
● Pager Add Rows control
● Pager Save State control (easily returns to same page)


 Built into
● View Panels
● Repeat Controls
● Data Tables
● Dynamic View Panel (Extension Library)
● Data View (Extension Library)
● iNotes ListView (Extension Library)



 Traditional Domino web has nothing out of the box

 Better user experience

 More flexibility for developers


Pager Controls


Seventh Labour: The Cretan Bull


TODOs

 Eclipse editors allow managing of TODOs

 Window > Show Eclipse Views: Tasks

 Also can add FIXME or any other tag

 XPages, Custom Controls, Themes integrate
● SSJS Script Libraries not supported
● Style Sheets not supported
● Java classes supported

 No easy way of doing this in traditional Notes / Domino


Enabling TODOs


TODOs


Eighth Labour: The Horses of Diomedes


Labour 8.5.x: Rescue of Alcestis


Rescue Your Code From The Dead With Local History

 Eclipse-based functionality


 Restore From > Local History


 Compare With > Local History


Rescue Your Code With Source Control Management (SCM)

 Via plug-in on OpenNTF.org with Domino Designer 8.5.2


 Built into Domino Designer 8.5.3

 Your choice of Eclipse-based source control system
● Git
● Mercurial
● SVN



 Only available via third-party products

 Third-party tools may offer alternative functionality

 GOTCHA – local history specific to PC

 GOTCHA – be careful with round-tripping of DXL for traditional Notes
Client design elements


Rescue Code From The Dead


Ninth Labour: The Belt of Hippolyte


Custom Controls

 Reusable within the same XPage

 Custom properties can control instances of the control

 Keep design clean by using Design Definition

 Use Editable Areas as placeholder for content within the Custom Control



 More powerful than subforms


 Can contain other custom controls

 Properties are defined on Custom Control
● Cleaner design
● Easier to support


Custom Controls


Custom Control Property Definition Example


Using The Custom Control Property Definition

<xp:div id="divButtons" styleClass="divButtons"
style="#{javascript:compositeData.controlStyles}">

...

</xp:div>


Tenth Labour: Geryon's Cattle


Joining Views and Multiple Datasources

 Merge content from multiple documents in a single view

 Merge content from multiple databases

 Display and edit multiple documents on one XPage



 Minimize data stored on NotesDocuments

 Minimize views within the database

 More flexible reporting

 Better user-experience

 Build up complex layouts section by section

 GOTCHA – use ignoreRequestParams for secondary NotesDocuments


Joining Views


Eleventh Labour: Apples of The Hesperides


Display data on Mobile devices

 XPages can be displayed without any amendments on mobile devices

 Use responsive design for resolution-specific layout

 Use Extension Library mobile components for tailored content
● New redirect control available

 Third-party products for leveraging XPages skills for offline development



 Leverage existing skills

 Pre-built controls with OS-specific look and feel

 Access data sources as within normal XPages

 GOTCHA – connectivity is not necessarily the same as desktop browser

 GOTCHA – use reloadContent property judiciously

 GOTCHA – slide transitions only available within single XPage


Displaying on Mobile


Twelfth Labour: Cerberus


Inspecting Tools

 Debug Toolbar
● Displays variables and values
● Allows you to easily set timers
● In-built API inspector to test code
● Message logging
● http://www.openntf.org/internal/home.nsf/project.xsp?
action=openDocument&name=XPage%20Debug%20Toolbar

 XPages Log File Reader
● View console
● View logs
action=openDocument&name=XPages%20Log%20File%20Reader


Inspecting Tools

 XPages Toolbox
● CPU Profiler
● Runtime monitoring
● Session dumps
● And more...
action=openDocument&name=XPages%20Toolbox

 Server-Side JavaScript Debugging*

 Java Debugging*

*Useful session: Debug Server Side Javascript, Java, and XPages Apps
Using the SSJS Debugger (AD202) Wednesday 4:15pm - 5:15pm



 LotusScript debugger, but nothing easy for formula language

 No easy debugging for traditional Domino web


Agenda

 Introduction
 Bonus
 Summary


XPages and Social – With XPages You're Not Alone

 Community blog posts, books

 OpenNTF (http://openntf.org) resources
● Sample Applications
● Custom Controls
● XSnippets (http://openntf.org/XSnippets.nsf/home.xsp)
● OSGi plugins
● Libraries to extend Domino Designer

 Import and Export for Domino Designer Plugin
● Easily import resources from OpenNTF
● Easily export to file system or package for OpenNTF


XPages and Social – With XPages You're Not Alone

 Social controls in Extension Library for easy integration with
● IBM Connections
● Sametime
● Twitter
● Facebook
● Dropbox

 Social Plugins
● Like a single control
to start a Sametime
chat with any editor
of the current document


Agenda

 Introduction
 Bonus
 Summary


Summary

 Twelve examples of areas where XPages is
● Quicker
● Easier
● More flexible
● Extensible

● Build reusable skills within or beyond Domino

● The learning curve is worth it!


XPages Resources

 XPages.Info (http://xpages.info)
 XPages Forum (http://www-10.lotus.com/ldd/xpagesforum.nsf)
 Notes/Domino Application Development Wiki
(http://www-10.lotus.com/ldd/ddwiki.nsf)
 YouAtNotes XPages wiki (http://www.xpageswiki.com)
 Notes in 9 (http://www.notesin9.com)
 Stack Overflow (http://stackoverflow.com/questions/tagged/xpages)
 Mastering XPages (IBM Press)
 XPages Extension Library (IBM Press)
 XPages Portable Command Guide (IBM Press)


References (Classical Mythology / Greek Literature)

 Timeless Myths (http://www.timelessmyths.com)
 Family tree of descendants of Perseus, including Hercules (
http://timelessmyths.com/classical/family3c.html)
 Theoi Greek Mythology (http://www.theoi.com)
 Jason & Medea (http://jasonmedea.net)
 Euripides, Heracles – covers Hercules killing his wife Megara
 Euripides, Alcestis – covers Hercules rescue of Alcestis
 Sophocles, Women of Trachis (Trachiniae) – covers Hercules' death
 Seneca, Hercules Furens – Roman tragedy, covers Hercules killing his
wife Megara
 Hercules' life also covered in works of Ovid (Metamorphoses),
Apollodorus, Diodorus Siculus, Hesiod (The Shield of Herakles), Hyginus


References (Popular Culture)

 “Hercules” (Disney animated movie 1997)

 “Hercules: The Legendary Journeys” (TV show 1995 – 1999)

 “The Three Stooges Meet Hercules” (Movie 1962)

 “Jason and The Argonauts” (Movie 1963)

 Countless other movies, TV shows, comic books, and video games


Other Related Sessions
 Debug Server Side Javascript, Java, and XPages Apps Using the SSJS Debugger
(AD202)
 IBM Domino Designer: Tips and Tricks for Maximum Productivity (AD203)
 How To Develop Great Applications Using XPages Design Patterns (AD204)
 Successfully Delivering XPages Projects - All Things Considered (AD205)
 IBM Lotus Domino XPages: Embrace, Extend, Integrate (AD206)
 IBM Lotus Domino XPages: Beyond Domino Documents and Views (AD207)
 IBM Lotus Domino XPages Performance in a Nutshell (AD208)
 jQuery: The World's Most Popular JavaScript Library Comes to XPages (BP103)
 Deploying and Managing IBM Lotus Domino XPages Applications (BP201)
 XPages Development: Modernize Yourself! (BP202)
 Custom Controls: Powerful, But Not Rocket Science! (BP205)
 Meet the Java Application Server You Already Own - IBM Domino (BP207)
 XPages Blast (BP208)
 In The Land of Social Apps, the API is King (BP209)



Other Related Sessions (continued)
 Using a Mobile Approach: Strategies for Mobilizing Your IBM Domino Applications
(BP210)
 Lessons Learned from the World's Largest XPage Project (BP211)
 Apps, Apps, and More Apps: Meet the Very Best Open Source Apps from OpenNTF
(BP212)
 XPages Jumpstart (JMP101)
 Extending Your App Arsenal With OpenSocial (JMP102)
 Get the “Jump” on Mobilizing Your IBM Notes and Domino Applications Today! (JMP103)
 Master Class: XPages Performance - Inside Out (JMP401)
 Master Class: Managed Beans and XPages: Your Time Is Now (JMP402)
 Master Class: Reverse Engineering Notes Applications: Separating Truth from Fiction
(JMP403)
 Buried Treasure: Finding the Hidden Gold in Lotus Notes Data (SHOW104)
 XPages: No Experience Needed (SHOW111)
 Building Your First Mobile Application Using XPages (SHOW112)


“It's Better with XPages” Index
1. Themes
2. Repeat Controls
3. In View Edit
4. Design Properties
5. AJAX Partial Page Refresh
6. Pager Controls
7. TODOs
8. Local History / Source Control Management
9. Custom Controls
10. Joining Views
11. Mobile
12. Inspecting Tools

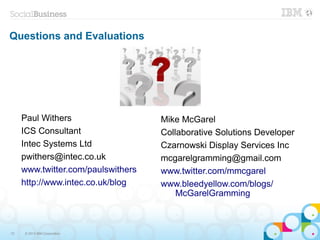

Questions and Evaluations

Paul Withers Mike McGarel
ICS Consultant Collaborative Solutions Developer
Intec Systems Ltd Czarnowski Display Services Inc
pwithers@intec.co.uk mcgarelgramming@gmail.com
www.twitter.com/paulswithers www.twitter.com/mmcgarel
http://www.intec.co.uk/blog www.bleedyellow.com/blogs/
McGarelGramming


Legal disclaimer

© IBM Corporation 2013. All Rights Reserved.
The information contained in this publication is provided for informational purposes only. While efforts were made to
verify the completeness and accuracy of the information contained in this publication, it is provided AS IS without
warranty of any kind, express or implied. In addition, this information is based on IBM’s current product plans and
strategy, which are subject to change by IBM without notice. IBM shall not be responsible for any damages arising
out of the use of, or otherwise related to, this publication or any other materials. Nothing contained in this
publication is intended to, nor shall have the effect of, creating any warranties or representations from IBM or its
suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of
IBM software.
References in this presentation to IBM products, programs, or services do not imply that they will be available in all
countries in which IBM operates. Product release dates and/or capabilities referenced in this presentation may
change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to
be a commitment to future product or feature availability in any way. Nothing contained in these materials is
intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any
specific sales, revenue growth or other results.
Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other
countries, or both.
All references refer to fictitious companies and persons and are used for illustration purposes only.


BP206 It's Not Herculean: 12 Tasks Made Easier with IBM Domino XPages

More Related Content

What's hot (12)

Similar to BP206 It's Not Herculean: 12 Tasks Made Easier with IBM Domino XPages (20)

More from Paul Withers (20)

Recently uploaded (20)

BP206 It's Not Herculean: 12 Tasks Made Easier with IBM Domino XPages
