Building resilient serverless systems with non-serverless components - Serverlessconf NYC 2019
4 likes880 views
The document discusses building resilient serverless systems while integrating non-serverless components, emphasizing the importance of understanding resiliency, database management, and API interactions. Key points include managing connections effectively, implementing caching strategies, and embracing asynchronous communication to handle the limitations of serverless infrastructure. It highlights tools like AWS Lambda, SQS, SNS, and EventBridge for decoupling services and ensuring system reliability.
Building resilient serverless systems with non-serverless components - Serverlessconf NYC 2019
- 1. Building Resilient Serverless Systems with Non-Serverless Components Jeremy Daly CTO, AlertMe.news @jeremy_daly
- 2. Jeremy Daly • CTO at AlertMe.news • Consult with companies building in the cloud • 20+ year veteran of technology startups • Started working with AWS in 2009 and started using Lambda in 2015 • Blogger (jeremydaly.com), OSS contributor, speaker • Publish the Off-by-none serverless newsletter • Host of the Serverless Chats podcast @jeremy_daly

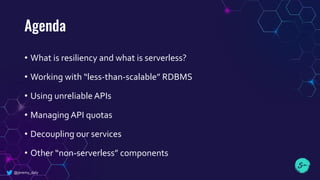

- 3. Agenda • What is resiliency and what is serverless? • Working with “less-than-scalable” RDBMS • Using unreliable APIs • Managing API quotas • Decoupling our services • Other “non-serverless” components @jeremy_daly
- 4. What is resiliency? “The ability of a software solution to absorb the impact of a problem in one or more parts of a system, while continuing to provide an acceptable service level to the business.” ~ IBM @jeremy_daly IT’S NOT ABOUT PREVENTING FAILURE IT’S UNDERSTANDING HOWTO GRACEFULLY DEAL WITH IT

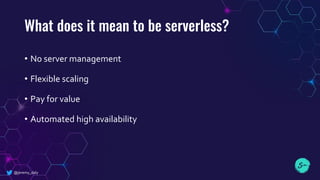

- 5. What does it mean to be serverless? • No server management • Flexible scaling • Pay for value • Automated high availability @jeremy_daly
- 6. Serverless versus non-serverless @jeremy_daly ElastiCache RDS EMR Amazon ES Redshift Fargate Anything “on EC2”Lambda Cognito Kinesis S3 DynamoDB SQS SNS API Gateway CloudWatch AppSync IoT Comprehend Serverless Managed Not Serverless DocumentDB (MongoDB) Managed Streaming for Kafka Definitely
- 7. Everything has limits! • Reserved Concurrency 🚦 • FunctionTimeouts ⏳ • Memory Limits 🧠 • NetworkThroughput 🚰 Some components are better than others @jeremy_daly Know Your Limits
- 8. Simple Serverless Web Service Client API Gateway Lambda DynamoDB @jeremy_daly Highly Scalable Highly Scalable Highly Scalable
- 9. “I want my, I want my, I want my SQL” ~ Dire Straits
- 10. Simple Serverless Web Service Client API Gateway Lambda @jeremy_daly Highly Scalable Highly Scalable NotThat Scalable 😳 RDS ^ not so RDBMS and FaaS don’t play nicely together: • Concurrency model doesn’t allow connection pooling • Limited number of DB connections available • Recycled containers create zombies
- 11. Ways to Manage DB Connections • Increase max_connections setting • Limit concurrent executions • Lower your connection timeouts • Limit connections per username • Close connection before function ends @jeremy_daly 🤞 😡 ⚠ 🎲 😱 👎

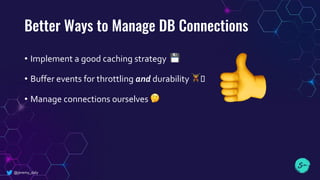

- 12. Better Ways to Manage DB Connections • Implement a good caching strategy 💾 • Buffer events for throttling and durability 🏋! " ♂ • Manage connections ourselves 🤔 @jeremy_daly 👎
- 13. hit Implement a good caching strategy Client API Gateway RDSLambda Elasticache Key Points: • Create new RDS connections ONLY on misses • Make sureTTLs are set appropriately • Include the ability to invalidate cache @jeremy_daly YOU STILL NEEDTO SIZEYOUR DATABASE CLUSTERS APPROPRIATELY
- 14. Do you really need immediate feedback? Synchronous Communication ⏳ Services can be invoked by other services and must wait for a reply. This is considered a blocking request, because the invoking service cannot finish executing until a response is received. Asynchronous Communication 🚀 This is a non-blocking request. A service can invoke (or trigger) another service directly or it can use another type of communication channel to queue information.The service typically only needs to wait for confirmation (ack) that the request was received. @jeremy_daly
- 15. RDS Buffer events for throttling and durability Client API Gateway SQS Queue SQS (DLQ) Lambda Lambda (throttled) ack “Asynchronous” Request Synchronous Request @jeremy_daly Key Points: • SQS adds durability • Throttled Lambdas reduce downstream pressure • Failed events are stored for further inspection/replay Limit the concurrency to match RDS throughput
- 16. Manage connections ourselves 1. Count open connections 2. Close connection if connection ratio threshold exceeded 3. Close sleeping connections with high time values 4. Retry connections with exponential back off @jeremy_daly

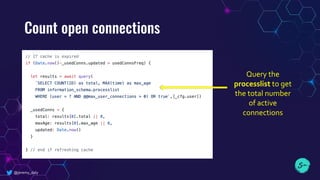

- 18. Count open connections @jeremy_daly Query the processlist to get the total number of active connections
- 19. Close connection if over ratio threshold @jeremy_daly If we exceed the connection ratio Calculate our timeout Try to kill zombies If no zombies, terminate connection Else, just try to kill zombies
- 20. Close sleeping connections with high time values @jeremy_daly Query processlist for zombies Kill zombies
- 21. Retry connections with exponential back off @jeremy_daly If error trying to connect Retry with Jitter
- 22. Does this really work? @jeremy_daly • Aurora Serverless (2 ACUs) • 90 connections available • 1,024 MB of memory • 500 users/sec for one minute • Avg. response time was 41 ms • ZERO ERRORS

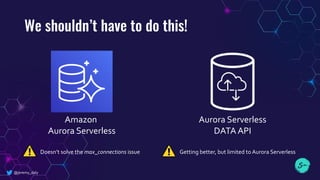

- 23. We shouldn’t have to do this! @jeremy_daly Amazon Aurora Serverless Aurora Serverless DATA API Doesn’t solve the max_connections issue Getting better, but limited to Aurora Serverless
- 24. Third-Party APIs
- 25. Manage calls to third-party APIs • Implement a good caching strategy • Buffer events for throttling and durability • Implement circuit breakers 🚦 @jeremy_daly
- 26. DynamoDB Stripe API The Circuit Breaker API Consumer API Gateway Lambda Key Points: • Cache your cache with warm functions • Use a reasonable failure count • Understand idempotency Status Check CLOSED OPEN Increment Failure Count HALF OPEN “Everything fails all the time.” ~WernerVogels @jeremy_daly 🔥 🔥 Elasticache or
- 27. What about quotas? • Concurrency has no effect on frequency ⏰ • Stateless functions are not coordinated 😿 • Step Functions would be very expensive 💰 • Adding state wouldn’t prevent needless invocations 🗑 @jeremy_daly
- 28. Can we build a better system? • 100% serverless • Cost effective • Scalable • Resilient • Efficient • Coordinated @jeremy_daly BUT I DON’T HAVE TIMETOTELLYOU ABOUT IT! YES!
- 29. Lambda Orchestrator (concurrency 1) The Lambda Orchestrator DynamoDB LambdaWorker LambdaWorker LambdaWorker Concurrent Executions of the SAME function SQS (DLQ) @jeremy_daly CloudWatch Rule (trigger every minute) SQS QueueSQS (DLQ) Status? Gmail API 250 Quota Units per minute jeremydaly.com/throttling-third-party-api-calls-with-aws-lambda
- 31. Multicasting with SNS Key Points: • SNS has a “well-defined API” • Decouples downstream processes • Allows multiple subscribers with message filters Client SNS “Asynchronous” Request ack Event Service @jeremy_daly HTTP SMS Lambda SQS Email
- 32. Multicasting with EventBridge Key Points: • Create up to 100 event buses per account • Allows multiple subscribers with RULES and EVENT PATTERNS • Forward events to other accounts @jeremy_daly Asynchronous “PutEvents” Request ack w/ event id Amazon EventBridge Lambda SQS Client Step Function Event Bus +13 others
- 33. Stripe API @jeremy_daly Distribute & Throttle ack SQS Queue Lambda (concurrency 25) SNS Topic Client API Gateway Lambda Order Service total > $0 Key Points: • SNS to SQS is “guaranteed” (100,010 retries) • Filter events to selectively trigger services • Manage throttling/quotas per service RDS SQS Queue Lambda (concurrency 10) SMS Alerting Service Twilio API SQS Queue Lambda (concurrency 5) Billing Service status == ”order_complete” Event Service
- 34. Other non-serverless components • Managed Services • Legacy Systems • Our own “serverless” APIs @jeremy_daly
- 35. “Non-serverless” components are inevitable • Know the limits of your components • Use a good caching strategy • Embrace asynchronous processes • Buffer and throttle events to distributed systems • Utilize eventual consistency @jeremy_daly 👈
- 36. Blog: jeremydaly.com Newsletter: Offbynone.io Podcast: ServerlessChats.com Lambda API: LambdaAPI.com GitHub: github.com/jeremydaly Twitter: @jeremy_daly @jeremy_daly
