- 2. 1G (<1Kbps) 1 Kbps 10 Kbps 100 Kbps 2 Mbps 1 Mbps Data Rates 1980 1990 2000 2010 2G (9.6Kbps) 2.5G (10-150Kbps) 3G (144Kbps to 2Mbps) Years Overview
- 3. Cellular networks: From 1G to 3G • 1G: First generation wireless cellular: Early 1980s – Analog transmission, primarily speech: AMPS (Advanced Mobile Phone Systems) and others • 2G: Second generation wireless cellular: Late 1980s – Digital transmission – Primarily speech and low bit-rate data (9.6 Kbps) – High-tier: GSM, IS-95 (CDMA), etc – Low-tier (PCS): Low-cost, low-power, low-mobility e.g. PACS • 2.5G: 2G evolved to medium rate (< 100kbps) data • 3G: future Broadband multimedia – 144 kbps - 384 kbps for high-mobility, high coverage – 2 Mbps for low-mobility and low coverage • Beyond 3G: research in 4G
- 4. •Frequency allocation •Licensed •Many providers •Multiple Access •Many users •Wide area of coverage •Traffic management •Location management •High mobility (in cars, trains) •Multiple suppliers •Handoff management, roaming •General principles • Handled differently by different generations Issues Vital to cellular
- 5. Multiple Access Techniques: How to allocate users Time Frequency Session1 Session2 Session3 Session4 Frequency Division Multiple Access (FDMA) 1G Cellular (AMPS) Time Frequency Time Division Multiple Access (TDMA) 2G TDMA 3G TDMA Session2 Session3 Session1 Session4 Time Frequency Code Division Multiple Access (CDMA) All sessions based on a code 2G CDMA (IS-95) 3G CDMA
- 6. A Cellular Network Public Switched Telephone Network (PSTN) Mobile Telephone Switching Center (MTSC) Base Transceiver Station (BTS) Mobile User Cell 1 Cell 2 Cordless connection Wired connection HLR VLR HLR = Home Location Register VLR = Visitor Location Register
- 7. Overview of Location Services Cell-id based location. assigned an id of the cell that you are in. cell-id is stored in a database. As you move from one cell to another, you are assigned a different cell-id and the location database is updated. most commonly used in cellular networks. (HLR, VLR) Neighborhood polling: Connected mobile units only move to adjacent cells Angle of arrival (AOA). the angle at which radio waves from your device "attack" an antenna is used to calculate the location of the device. Time taken. In this case, the time taken between the device and the antenna is used to calculate the location of the device. Network assisted Global Positioning System (GPS). a GPS chip is installed inside a phone and thus the location of the user is tracked.
- 8. Cellular System Handoffs (typically 30 mseconds): 1. At any time, mobile station (MS) is in one cell and under the control of a BS 2. When a MS leaves a cell, BS notices weak signal 3. BS asks surrounding BSs if they are getting a stronger signal 4. BS transfers ownership to one with strongest signal 5. MTSO assigns new channel to the MS and notifies MS of new boss Public Switched Telephone Network (PSTN) Mobile Telephone Switching Center (MTSC) Cell 1 Cell 2 HLR VLR
- 9. Frequency Reuse The concept of frequency reuse is based on assigning to each cell a group of radio channels used within a small geographic area Cells are assigned a group of channels that is completely different from neighbouring cells The coverage area of cells is called the footprint and is limited by a boundary so that the same group of channels can be used in cells that are far enough apart
- 10. Frequency Reuse • Cells with the same number have the same set of frequencies Frequency Reuse
- 11. Frequency Reuse using 7 frequencies allocations f4 f3 f2 f1 f6 f7 f5 f4 f3 f2 f1 f6 f7 f5 f4 f3 f2 f1 f6 f7 f5 f4 f3 f2 f1 f6 f7 f5 f4 f3 f2 f1 f6 f7 f5 Each cell is generally 4 to 8 miles in diameter with a lower limit around 2 miles.
- 13. Problem with Smaller Clustersize Interfering cells are closer by when clustersize is smaller.
- 16. 0G Wireless • Mobile radio telephones were used for military communications in early 20th century • Car-based telephones first introduced in mid 1940s – Single large transmitter on top of a tall building – Single channel used for sending and receiving – To talk, user pushed a button, enabled transmission and disabled reception – Became known as “push-to-talk” in 1950s – CB-radio, taxis, police cars use this technology • IMTS (Improved Mobile Telephone System) introduced in 1960s – Used two channels (one for sending, one for receiving) – No need for push-to-talk – Used 23 channels from 150 MHz to 450 MHz
- 17. First-Generation Cellular • Advanced Mobile Phone Service (AMPS) invented at Bell Labs and first installed in 1982 • Used in England (called TACS) and Japan (called MCS-L1) • Key ideas: – Exclusively analog – Geographical area divided into cells (typically 10-25km) – Cells are small: Frequency reuse exploited in nearby (not adjacent) cells – As compared to IMTS, could use 5 to 10 times more users in same area by using frequency re-use (divide area into cells) – Smaller cells also required less powerful, cheaper,smaller devices
- 19. E A D F G C B E A D F G C B E A D F G C B Cell Design •Cells grouped into a cluster of seven •Letters indicate frequency use •For each frequency, a buffer of two cells is used before reuse •To add more users, smaller cells (microcells) are used •Frequencies may not need to be different in CDMA (soft handoff)
- 20. Cellular Network Organization • Cell design (around 10 mile radius) – Served by base station consisting of transmitter, receiver, and control unit – Base station (BS) antenna is placed in high places (churches, high rise buildings) - • Operators pay around $500 per month for BS – 10 to 50 frequencies assigned to each cell – Cells set up such that antennas of all neighbors are equidistant (hexagonal pattern) • In North America, two 25-MHz bands allocated to AMPS – One for transmission from base to mobile unit – One for transmission from mobile unit to base
- 21. Approaches to Increase Capacity • Adding/reassigning channels - some channels are not used • Frequency borrowing – frequencies are taken from adjacent cells by congested cells • Cell splitting – cells in areas of high usage can be split into smaller cells • Microcells – antennas move to buildings, hills, and lamp posts
- 22. Security Issues with 1G • Analog cellular phones are insecure • Anyone with an all band radio receiver can listen in (many scandals) • Theft of airtime: – all band radio receiver connected to a computer – can record 32 bit serial number and phone number of subscribers when calling – can collect a large database by driving around – Thieves go into business - reprogram stolen phones and resell them
- 23. Second Generation Cellular • Based on digital transmission • Different approaches in US and Europe • US: divergence – Only one player (AMPS) in 1G – Became several players in 2G due to competition – Survivors • IS-54 and IS-135: backward compatible with AMPS frequency allocation (dual mode - analog and digital) • IS-95: uses spread spectrum • Europe: Convergence – 5 incompatible 1G systems (no clear winner) – European PTT development of GSM (uses new frequency and completely digital communication)

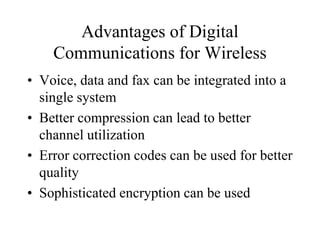

- 28. Advantages of Digital Communications for Wireless • Voice, data and fax can be integrated into a single system • Better compression can lead to better channel utilization • Error correction codes can be used for better quality • Sophisticated encryption can be used
- 29. Differences Between First and Second Generation Systems • Digital traffic channels – first-generation systems are almost purely analog; second-generation systems are digital • Encryption – all second generation systems provide encryption to prevent eavesdropping • Error detection and correction – second-generation digital traffic allows for detection and correction, giving clear voice reception • Channel access – second-generation systems allow channels to be dynamically shared by a number of users
- 30. Integrating Data Over Cellular • Direct access to digital channel • Voice and data using one handset • PCS 1900 (GSM-1900) – 9.6 kbps circuit switched data – 14.4 kbps under definition – Packet mode specified – Short message service • IS-95-based CDMA – 13 kbps circuit switched data – Packet mode specified – Short message service
- 31. GSM (Global System for Mobile Communications) • Completely designed from scratch (no backward compatability) • Uses 124 channels per cell, each channel can support 8 users through TDM (992 users max) • Some channels used for control signals, etc • Several flavors based on frequency: – GSM (900 MHz) – GSM 1800 (called DCS 1800) – GSM 1900 (called DCS 1900) - used in North America • GSM 1900 phone only works in North America. • In Europe, you can transfer your SIM (Subscriber Identity Module) card to a phone of the correct frequency. This is called SIM-roaming.
- 38. GSM (2G-TDMA) • Circuit mode data – Transparent mode – Non-transparent mode using radio link protocol – Data rate up to 9.6kb/s • Short message service – Limited to 160 characters • Packet mode data: Plans for GSM Phase 2+ • Architecture specification very detailed (500 pages) • Defines several interfaces for multiple suppliers
- 40. Mobile Station and Base Station Subsystem (BSS) Mobile station • Mobile station communicates across Um interface (air interface) with base station transceiver in same cell as mobile unit • Mobile equipment (ME) – physical terminal, such as a telephone or PCS – ME includes radio transceiver, digital signal processors and subscriber identity module (SIM) • GSM subscriber units are generic until SIM is inserted – SIMs roam, not necessarily the subscriber devices BSS • BSS consists of base station controller and one or more base transceiver stations (BTS) • BSC reserves radio frequencies, manages handoff of mobile unit from one cell to another within BSS, and controls paging
- 41. Network Subsystem Center Mobile Switching Center (MSC) is at core; consists of several databases • Home location register (HLR) database – stores information about each subscriber that belongs to it • Visitor location register (VLR) database – maintains information about subscribers currently physically in the region • Authentication center database (AuC) – used for authentication activities, holds encryption keys • Equipment identity register database (EIR) – keeps track of the type of equipment that exists at the mobile station
- 42. GSM Location Services Public Switched Telephone Network (PSTN) Gateway MTSC VLR HLR Terminating MSC 1 1. Call made to mobile unit (cellular phone) 2. Telephone network recognizes number and gives to gateway MSC 3. MSC can’t route further, interrogates user’s HLR 4. Interrogates VLR currently serving user (roaming number request) 5. Routing number returned to HLR and then to gateway MSC 2 3 4 5 5 6 6. Call routed to terminating MSC 7. MSC asks VLR to correlate call to the subscriber 8. VLR complies 9. Mobile unit is paged 10. Mobile unit responds, MSCs convey information back to telephone 7 8 9 BTS 9 10 10 10 10 10 Legend: MTSC= Mobile Telephone Service Center, BTS = Base Transceiver Station HLR=Home Location Register, VLR=Visiting Location Register

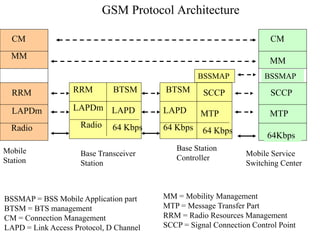

- 43. GSM Protocol Architecture BSSMAP = BSS Mobile Application part BTSM = BTS management CM = Connection Management LAPD = Link Access Protocol, D Channel Base Transceiver Station Mobile Station Radio LAPDm RRM Radio LAPDm RRM MM CM 64 Kbps LAPD BTSM 64 Kbps MTP SCCP Base Station Controller 64 Kbps LAPD BTSM BSSMAP 64Kbps MTP SCCP MM CM BSSMAP Mobile Service Switching Center MM = Mobility Management MTP = Message Transfer Part RRM = Radio Resources Management SCCP = Signal Connection Control Point
- 44. Functions Provided by Protocols • Protocols above the link layer of the GSM signaling protocol architecture provide specific functions: – Radio resource management: controls setup, termination and handoffs of radio channels – Mobility management: location and security (MTSO) – Connection management: connects end users – Mobile application part (MAP): between HLR,VLR – BTS management: management base system
- 45. 2G CDMA Cellular IS-95 is the best known example of 2G with CDMA Advantages of CDMA for Cellular • Frequency diversity – frequency-dependent transmission impairments have less effect on signal • Multipath resistance – chipping codes used for CDMA exhibit low cross correlation and low autocorrelation • Privacy – privacy is inherent since spread spectrum is obtained by use of noise-like signals • Graceful degradation – system only gradually degrades as more users access the system
- 46. Drawbacks of CDMA Cellular • Self-jamming – arriving transmissions from multiple users not aligned on chip boundaries unless users are perfectly synchronized • Near-far problem – signals closer to the receiver are received with less attenuation than signals farther away • Soft handoff – requires that the mobile acquires the new cell before it relinquishes the old; this is more complex than hard handoff used in FDMA and TDMA schemes
- 47. Types of Channels Supported by Forward Link • Pilot (channel 0) - allows the mobile unit to acquire timing information, provides phase reference and provides means for signal strength comparison • Synchronization (channel 32) - used by mobile station to obtain identification information about cellular system • Paging (channels 1 to 7) - contain messages for one or more mobile stations • Traffic (channels 8 to 31 and 33 to 63) – the forward channel supports 55 traffic channels
- 48. Forward Traffic Channel Processing Steps • Speech is encoded at a rate of 8550 bps • Additional bits added for error detection • Data transmitted in 2-ms blocks with forward error correction provided by a convolutional encoder • Data interleaved in blocks to reduce effects of errors • Data bits are scrambled, serving as a privacy mask • Power control information inserted into traffic channel • DS-SS function spreads the 19.2 kbps to a rate of 1.2288 Mbps using one row of 64 x 64 Walsh matrix • Digital bit stream modulated onto the carrier using QPSK modulation scheme
- 49. Wireless Network Evolution to 3rd Generation Enabling Technologies AMPS GSM IS-95 GPRS CDMA-2000 1XRTT EDGE CDMA2000 3XRTT (UMTS) 2.5G 3G 2G 2 Mbps 500 kbps 150 Kbps 100 Kbps 50 Kbps 10 Kbps 1999 2000 2001 2002 2003 TDMA Migration 1G-2G Migration CDMA Migration 1980 1G 1 Kbps W-CDMA (UMTS)
- 50. • Fig 8-13
- 51. • Table 8-3
- 52. 2G Technologies cdmaOne (IS-95) GSM, DCS-1900 IS-54/IS-136 PDC Uplink Frequencies (MHz) 824-849 (Cellular) 1850-1910 (US PCS) 890-915 MHz (Eurpe) 1850-1910 (US PCS) 800 MHz, 1500 Mhz (Japan) 1850-1910 (US PCS) Downlink Frequencies 869-894 MHz (US Cellular) 1930-1990 MHz (US PCS) 935-960 (Europa) 1930-1990 (US PCS) 869-894 MHz (Cellular) 1930-1990 (US PCS) 800 MHz, 1500 MHz (Japan) Deplexing FDD FDD FDD Multiple Access CDMA TDMA TDMA Modulation BPSK with Quadrature Spreading GMSK with BT=0.3 p/4 DQPSK Carrier Seperation 1.25 MHz 200 KHz 30 KHz (IS-136) (25 KHz PDC) Channel Data Rate 1.2288 Mchips/sec 270.833 Kbps 48.6 Kbps (IS-136) 42 Kbps (PDC) Voice Channels per carrier 64 8 3 Speech Coding CELP at 13Kbps EVRC at 8Kbps RPE-LTP at 13 Kbps VSELP at 7.95 Kbps
- 53. Alternatives to 3G Cellular • Major technical undertaking with many organizational and marketing overtones. • Questions about the need for the additional investment for 3G (happy with 2.5G) • Wireless LAN in public places such as shopping malls and airports offer options • Other high-speed wireless-data solutions compete with 3G – Mobitex low data rates (nominally 8 Kbps), it uses a narrowband (2.5KHz) as compared to 30 KHz (GSM) and 5 MHz (3G). – Ricochet: 40 -128 kbps data rates. Bankruptcy – Flash-OFDM: 1.5 Mbps (upto 3 Mbps)
- 54. Major Mobile Radio Standards USA Standard Type Year Intro Multiple Access Frequency Band (MHz) Modulation Channe l BW (KHz) AMPS Cellular 1983 FDMA 824-894 FM 30 USDC Cellular 1991 TDMA 824-894 DQPSK 30 CDPD Cellular 1993 FH/Packet 824-894 GMSK 30 IS-95 Cellular/PCS 1993 CDMA 824-894 1800-2000 QPSK/BPSK 1250 FLEX Paging 1993 Simplex Several 4-FSK 15 DCS-1900 (GSM) PCS 1994 TDMA 1850-1990 GMSK 200 PACS Cordless/PC S 1994 TDMA/FDMA 1850-1990 DQPSK 300
- 55. Major Mobile Radio Standards - Europe Standard Type Year Intro Multiple Access Frequency Band (MHz) Modulation Channe l BW (KHz) ETACS Cellular 1985 FDMA 900 FM 25 NMT-900 Cellular 1986 FDMA 890-960 FM 12.5 GSM Cellular/PCS 1990 TDMA 890-960 GMSK 200KHz C-450 Cellular 1985 FDMA 450-465 FM 20-10 ERMES Paging 1993 FDMA4 Several 4-FSK 25 CT2 Cordless 1989 FDMA 864-868 GFSK 100 DECT Cordless 1993 TDMA 1880-1900 GFSK 1728 DCS-1800 Cordless/PC S 1993 TDMA 1710-1880 GMSK 200
- 56. • IEEE 802.11 vs 3G Cellular
- 57. 4G Systems • Wireless networks with cellular data rates of 20 Mbits/second and beyond. • AT&T has began a two-phase upgrade of its wireless network on the way to 4G Access. • Nortel developing developing features for Internet protocol-based 4G networks • Alcatel, Ericsson, Nokia and Siemens found a new Wireless World Research Forum (WWRF) for research on wireless communications beyond 3G. • Many new technologies and techniques (multiplexing, intelligent antennas, digital signal processing) • Industry response is mixed (some very critical)
- 58. Engineering Issues • Steps in MTSO controlled call • TDMA design • CDMA design • Handoff • Power control • Traffic engineering
- 59. Steps in an MTSO Controlled Call between Mobile Users • Mobile unit initialization • Mobile-originated call • Paging • Call accepted • Ongoing call • Handoff • Call blocking • Call termination • Call drop • Calls to/from fixed and remote mobile subscriber
- 60. Mobile Wireless TDMA Design Considerations • Number of logical channels (number of time slots in TDMA frame): 8 • Maximum cell radius (R): 35 km • Frequency: region around 900 MHz • Maximum vehicle speed (Vm):250 km/hr • Maximum coding delay: approx. 20 ms • Maximum delay spread (m): 10 s • Bandwidth: Not to exceed 200 kHz (25 kHz per channel)
- 61. Mobile Wireless CDMA Design Considerations • Soft Handoff – mobile station temporarily connected to more than one base station simultaneously • RAKE receiver – when multiple versions of a signal arrive more than one chip interval apart, RAKE receiver attempts to recover signals from multiple paths and combine them – This method achieves better performance than simply recovering dominant signal and treating remaining signals as noise
- 62. What is WiMax? • Worldwide Interoperability for Microwave Access • Last mile wireless broadband access • Alternative to cable and DSL • Deliver data, voice, video • Support hundreds to thousands of homes/business
- 63. • Defined by IEEE as 802.16 • Typical target environment: • Targets fixed, portable, and mobile stations • Environments with and without line of sight • Cell radius of 3-10 kilometers • Capacities of up to 40 Mbps per channel • Mobile network deployments of up to 15 Mbps, 3 km radius
- 64. Builds on and Extends WiFi Technology • Advantages of WiFi are: • Easy to deploy, unlicensed spectrum, low cost • Supports (limited) mobility • But WiMax needs to address the following:
- 65. WiFi limitations • Susceptible to interference • 802.11 targets short-range indoor operation (mostly) • Security is a concern • Limited level of mobility • WiMax is intended to complement WiFi • WiMax Forum: promotes WiMax and looks after interoperability
- 66. WiMax Deployment
