Chapter14
- 1. Chapter 14 Enterprise Computing
- 2. Chapter 14 Objectives Discuss the special information requirements of an enterprise-sized corporation Identify information systems used in the functional units of an enterprise List general purpose and integrated information systems used throughout an enterprise List types of technologies used throughout an enterprise Describe the major types of e-commerce Discuss the computer hardware needs and solutions for an enterprise Determine why computer backup is important and how it is accomplished Discuss the steps in a disaster recovery plan Next
- 3. What is Enterprise Computing? What is an enterprise ? p. 714 Large organization such as multinational corporation, university, hospital, research laboratory, or government organization Requires special computing solutions because of its size Enterprise computing —use of computers in networks that encompass variety of operating systems, protocols, and network architectures Next

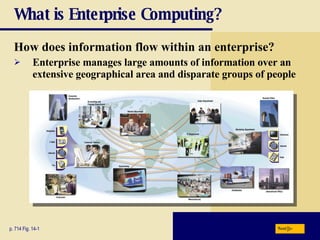

- 4. What is Enterprise Computing? How does information flow within an enterprise? Enterprise manages large amounts of information over an extensive geographical area and disparate groups of people p. 714 Fig. 14-1 Next
- 5. What is Enterprise Computing? How are enterprises organized? p. 716 - 717 Fig. 14-2 Most are organized in a hierarchy Next
- 6. What is Enterprise Computing? What are the four categories of users? p. 717 Fig. 14-3 Next
- 7. What is Enterprise Computing? What is enterprise information ? p. 718 Information gathered in ongoing operations of enterprise Allows managers to make better decisions Collected, combined, and analyzed over time Next
- 8. What is Enterprise Computing? What are the four management activities? p. 719 Fig. 14-4 Next 1. Planning objectives strategies tactics 2. Organizing money people management structure 3. Leading communications instructions motivation 4. Controlling performance measurement corrective action
- 9. Information Systems in the Enterprise What is an information system ? p. 719 - 720 Fig. 14-5 Set of hardware, software, data, people, and procedures that works together to produce information Procedures are instructions users follow to accomplish activities Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click Information Technology Departments below Chapter 14
- 10. Information Systems in the Enterprise What is a functional unit? p. 720 Individual operating entity, which can include departments, centers, and divisions Manufacturing Engineering or Product Development Human Resources (HR) Accounting and Finance Distribution Sales Marketing Information Technology Customer Service Next
- 11. Information Systems in the Enterprise What are the functions of accounting and finance systems? p. 721 Fig. 14-7 Next
- 12. Information Systems in the Enterprise What is a human resources information system (HRIS) ? p. 721 Fig. 14-8 Manages human resources functions Employee relationship management (ERM) system facilitates communication with employees Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click Employee Relationship Management below Chapter 14
- 13. Information Systems in the Enterprise What is computer-aided design (CAD) ? p. 722 Fig. 14-9 Uses special software to aid in product design Computer-aided engineering (CAE) uses computers to test product designs Next
- 14. Information Systems in the Enterprise What is computer-aided manufacturing (CAM) ? p. 722 - 723 Fig. 14-10 Use of computers to control production equipment Computer-integrated manufacturing (CIM) integrates operations of manufacturing process Next
- 15. Information Systems in the Enterprise What is Material Requirements Planning (MRP) ? p. 722 - 723 Uses software to monitor and control production processes Focuses on inventory of parts Manufacturing Resource Planning II (MRP II) is extension of MRP Helps in scheduling, tracking production, and monitoring product quality Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click MRP II below Chapter 14
- 16. Information Systems in the Enterprise What is a marketing information system? p. 723 Fig. 14-11 Central repository for marketing tasks Market research system analyzes data gathered from surveys Next
- 17. Information Systems in the Enterprise What is sales force automation (SFA) software? p. 724 Fig. 14-12 Tools for traveling salespeople Runs on notebook computers or other personal mobile devices Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click Sales Force Automation below Chapter 14
- 18. Information Systems in the Enterprise What are distribution systems? p. 724 Next Provide forecasting for inventory control, and manage and track shipping of products Provide information and analysis on inventory
- 19. Information Systems in the Enterprise What is customer interaction management (CIM) software? p. 724 - 725 Fig. 14-13 Manages interactions with customers Telephone calls E-mail Web interactions Instant Messaging sessions Next
- 20. Information Systems in the Enterprise What is information architecture? p. 725 Overall technology strategy for an enterprise IT department uses software to maintain hardware and software Next
- 21. Information Systems in the Enterprise What is an office information system (OIS) ? p. 726 Users create graphics and documents, send messages, schedule appointments, browse the Web, and publish Web pages Sometimes called office automation Enables employees to perform tasks using computers and other electronic devices instead of manually Next
- 22. Information Systems in the Enterprise What is a transaction processing system (TPS) ? p. 726 - 727 Fig. 14-14 Captures and processes data from day-to-day transactions Transaction— individual business activity Next
- 23. Information Systems in the Enterprise What is a management information system (MIS) ? p. 727 Fig. 14-15 Generates accurate, timely, and organized information so that managers can make decisions, solve problems, supervise activities, and track progress Next
- 24. Information Systems in the Enterprise What is a decision support system (DSS) ? p. 728 Fig. 14-16 Helps users analyze data and make decisions Uses data from internal and external sources, as needed Executive information system (EIS) supports needs of executive management Next
- 25. Information Systems in the Enterprise What is an expert system ? p. 729 Captures and stores knowledge of human experts and then imitates human reasoning and decision making Consists of two components knowledge base—combined subject knowledge and experiences of human experts inference rules—set of logical judgments applied to the knowledge base Next
- 26. Information Systems in the Enterprise What is an example of an expert system? p. 729 Fig. 14-17 Next Step 1. A user selects his or her gender Step 2. Select the location on the body where the problem is being experienced Step 3. Select the type of pain. Step 4. Select other information about the problem. Step 5. Review the possible diagnosis.
- 27. Information Systems in the Enterprise What are some common types of expert systems? p. 730 Next Knowledge management software (KMS) assists in the task of knowledge management Artificial intelligence is application of human intelligence to computers Knowledge management is process by which enterprise collects, archives, indexes, and retrieves knowledge
- 28. Information Systems in the Enterprise What is enterprise resource planning (ERP) ? p. 731 Fig. 14-18 Provides integrated software to coordinate activities of functional units Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click Enterprise Resource Planning below Chapter 14
- 29. Information Systems in the Enterprise What is a content management system (CMS) ? p. 732 Fig. 14-19 Combination of databases, software, and procedures Organizes and allows access to documents and other files Next
- 30. Enterprise-Wide Technologies and Methodologies What is a portal ? p. 733 Fig. 14-20 Collection of links, content, and services presented on Web page Designed to guide users to information they likely are to find interesting for a particular job function Next
- 31. Enterprise-Wide Technologies and Methodologies What is a data warehouse ? p. 734 Fig. 14-21 Huge database that stores data required to analyze historical and current transactions Next
- 32. Enterprise-Wide Technologies and Methodologies What is an extranet ? p. 735 Portion of network that allows customers or suppliers to access parts of enterprise’s intranet Replaces or supplements existing EDI systems EDI (electronic data interchange) —Set of standards that controls transfer of business data among computers Next
- 33. Enterprise-Wide Technologies and Methodologies What are Web services ? p. 735 Fig. 14-22 Technologies that allow businesses to create products and B2B (business-to-business) interactions over the Internet Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click Web Services below Chapter 14
- 34. Enterprise-Wide Technologies and Methodologies What is a workflow ? p. 736 Steps involved in completing project or business process Workflow application is a program that tracks process from start to finish Next
- 35. Enterprise-Wide Technologies and Methodologies What is a virtual private network (VPN) ? p. 736 Fig. 14-23 Provides secure connection for user connecting to company network server using Internet Next
- 36. E-Commerce What is e-retail ? p. 737 - 738 Transaction and financial data are verified electronically Also called e-tail Retailers use Web to sell products and services Next
- 37. E-Commerce What are online banking and online trading ? p. 738 Online banking allows users to pay bills and view their bank accounts and statements from their computers Online trading allows users to invest without using broker, often with a lower transaction fee Next
- 38. E-Commerce What entertainment, media, and travel services are on the Web? p. 738 - 739 Fig. 14-25 Music, videos, news, sporting events, and games Airline, hotel, and car reservations Shopping bot —searches for best price on product or service Next
- 39. E-Commerce Video: New Edge 2.0: Virtually Face to Face Next CLICK TO START
- 40. E-Commerce What health-related information can you find on the Web? p. 739 - 740 Fig. 14-26 Medical, fitness, nutrition, and exercise Databases of doctors and dentists, chat rooms, online pharmacies Next
- 41. Enterprise Hardware What is enterprise hardware ? p. 741 Allows large organizations to manage and store data Often includes levels of redundancy One goal is to maintain high level of availability Redundancy if one piece breaks, another part can assume tasks Availability how often hardware is online Next
- 42. Enterprise Hardware What is a RAID ? p. 741 Fig. 14-27 Redundant array of independent disks Group of two or more integrated hard disks More reliable than traditional hard disks Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click RAID below Chapter 14
- 43. Enterprise Hardware How does a RAID system work? p. 741 Fig. 14-28 Mirroring—writes data on two disks at same time Striping—splits data across multiple disks Enhances reliability Improves access time Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click RAID below Chapter 14
- 44. Enterprise Hardware What is network attached storage (NAS) ? p. 742 Fig. 14-29 Server that provides storage to users and information systems Storage area network (SAN) is a high-speed network that provides storage to other servers to which it is attached Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click NAS and SAN below Chapter 14
- 45. Enterprise Hardware What is an enterprise storage system ? p. 743 - 744 Fig. 14-30 Strategy that focuses on storage availability, protection, organization, and backup Uses combination of techniques CD server, or DVD server, holds hundreds of CDs or DVDs Next
- 46. Enterprise Hardware What is a blade server ? p. 744 Fig. 14-31 Sometimes called ultradense server Complete server on single card, or blade, rather than system unit Saves space, requires less maintenance, uses less energy, generates less heat, and is easily replaced or upgraded Blade server chassis holds many blades Next Click to view Web Link, click Chapter 14, Click Web Link from left navigation, then click Blade Servers below Chapter 14
- 47. Enterprise Hardware What is a thin client ? p. 744 Fig. 14-32 Small terminal-like computers Mostly rely on a server for data storage and processing Lack many components typically seen on a personal computer Next
- 48. Enterprise Hardware What are high-availability systems ? p. 745 Availability (uptime) of at least 99 percent Often includes hot-swapping Hot-swapping allows components to be replaced while rest of system continues to perform tasks May include redundant components Redundant component takes over task of similar component that fails Next
- 49. Enterprise Hardware What are scalability and interoperability ? p. 745 - 746 Scalability is measure of how well computer hardware, software, or information system can grow to meet increasing needs Interoperability is ability to share information with other information systems within enterprise Adding hardware is often easiest method to grow System that shares information easily is said to be open Next
- 50. Backup Procedures What are the five types of backups? p. 747 Fig. 14-33 Next
- 51. Backup Procedures What is a backup procedure ? p. 746 - 747 Fig. 14-34 Regular plan of copying and storing data and program files Can use combination of full backups and differential or incremental backups Next
- 52. Backup Procedures What is a disaster recovery plan ? p. 747 - 749 Written plan for restoring computer operations in event of disaster Next Recovery plan actions to be taken to restore full information processing operations Test plan simulates various levels of disasters and records ability to recover Emergency plan steps to be taken immediately after disaster Backup plan how backup files and equipment would be used to resume information processing
- 53. Summary of Enterprise Computing Special computing requirements present in an enterprise-sized organization E-retailing and types of businesses that use e-commerce Complex hardware including SANs, RAID, and blade servers Requirements for enterprise hardware including high-availability, scalability, and interoperability Backup procedures present in a large organization Chapter 14 Complete
