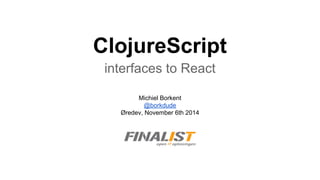

ClojureScript interfaces to React

ClojureScript
interfaces to React
Michiel Borkent
@borkdude
Øredev, November 6th 2014

Michiel Borkent (@borkdude)
● Clojure(Script) developer at
● Clojure since 2009
● Former lecturer, taught Clojure

Full Clojure stack example @ Finalist
Commercial app.
Fairly complex UI
● Menu: 2 "pages"
Page 1:
Dashboard. Create new or select
existing entity to work on.
Then:
● Wizard 1
○ Step 1..5
○ Each step has a
component
● Wizard 1 - Step2
○ Wizard 2
■ Step 1'
■ Step 2'

Full Clojure stack examples @ Finalist
Step 2 of inner wizard:
● Three dependent dropdowns
+ backing ajax calls
● Crud table of added items +
option to remove
● When done: create
something based on all of
this on server and reload
entire "model" based on
what server says
Because of React + Om we didn't
have to think about updating DOM
performantly or keeping "model" up
to date.

Agenda
● What is React?
● Om
● Reagent

React
● Developed by Facebook
● Helps building reusable and composable UI
components
● Unidirectional Data Flow
● Less need for re-rendering logic
● Leverages virtual DOM for performance
● Can render on server to make apps crawlable

/** @jsx React.DOM */
var Counter = React.createClass({
getInitialState: function() {
return {counter: this.props.initialCount};
},
inc: function() {
this.setState({counter: this.state.counter + 1});
},
render: function() {
return <div>
{this.state.counter}
<button onClick={this.inc}>x</button>
</div>;
}
});
React.renderComponent(<Counter initialCount={10}/>, document.body);

Prior knowledge
(def my-atom (atom 0))
@my-atom ;; 0
(reset! my-atom 1)
(reset! my-atom (inc @my-atom)) ;; bad idiom
(swap! my-atom (fn [old-value]
(inc old-value)))
(swap! my-atom inc) ;; same
@my-atom ;; 4

Before React: manual DOM edits
(add-watch greeting-form :form-change-key
(fn [k r o n]
(dispatch/fire :form-change {:old o :new n})))
(dispatch/react-to #{:form-change}
(fn [_ m]
(doseq [s (form-fields-status m)]
(render-form-field s))
(render-button [(-> m :old :status)
(-> m :new :status)] )))
source: http://clojurescriptone.com/documentation.html

ClojureScript interfaces
Quiescent - Luke vanderHart
Om - David Nolen
Reagent (was: Cloact) - Dan Holmsand

React + ClojureScript
Both Om and Reagent leverage:
● immutability for faster comparison in
shouldComponentUpdate
● Fewer redraws by batching updates with
requestAnimationFrame

Om
● Opinionated library by David Nolen
● One atom for app state
● Props: narrowed scope of app state (cursor)
(def app-state (atom {:counter1 {:count 10}
:counter2 {:count 11}}))
(defn main [app owner]
(om/component
(dom/div nil
(om/build counter (:counter1 app))
(om/build counter (:counter2 app)))))

Om
● Communication between components via
○ setting init-state / state (parent -> child)
○ callbacks (child -> parent)
○ app-state
○ core.async
● Explicit hooks into React lifecycle via ClojureScript
protocols
● Follows React semantics closely (e.g. local state
changes cause re-rendering)

(def app-state (atom {:counter 10}))
(defn app-state-counter [app owner]
(reify
om/IRender
(render [_]
(dom/div nil
(:counter app)
(dom/button
#js {:onClick
#(om/transact! app :counter inc)}
"x")))))
(om/root
app-state-counter
app-state
{:target (. js/document (getElementById "app"))})

Some catches
● Large vocabulary around cursors: app(-state), owner, build,
cursors, ref-cursors, root, update!, update-state!,
transact!, opts
● Cursor behaves differently depending on lifecycle
● Strong correspondence between component tree structure and app state
structure (ref-cursors are supposed to solve this)
● Heavy use of callbacks or core.async to make components reusable
(should not rely on app-state)
● Omission of #js reader literal, :className instead of :class, or nil if no
attributes used, fails silently or cryptic error messages

Reagent
Uses RAtoms for state management
Components are 'just functions'™ that
● must return something renderable by React
● can deref RAtom(s)
● can accept props as args
● may return a closure, useful for setting up initial state

Reagent
● Components should be called like
[component args] instead of
(component args)
● Components are re-rendered when
○ props (args) change
○ referred RAtoms change
● Hook into React lifecycle via metadata on component functions
(def component
(with-meta
(fn [x]
[:p "Hello " x ", it is " (:day @time-state)])
{:component-will-mount #(println "called before mounting")
:component-did-update #(js/alert "called after updating")} ))

(def count-state (atom 10))
(defn counter []
[:div
@count-state
[:button {:on-click #(swap! count-state inc)}
"x"]])
(reagent/render-component [counter]
(js/document.getElementById "app"))
RAtom

(defn local-counter [start-value]
(let [count-state (atom start-value)]
(fn []
[:div
@count-state
[:button {:on-click #(swap! count-state inc)}
"x"]])))
(reagent/render-component [local-counter 10]
(js/document.getElementById "app"))
local
RAtom

(def animals-state (atom #{}))
(go (let [response
(<! (http/get "/animals"))
data (:body response)]
(reset! animals-state (set data))))
RAtom with set containing
animal hash-maps
(...
{:id 2,
:type :animal,
:name "Yellow-backed duiker",
:species "Cephalophus silvicultor"}
{:id 1,
:type :animal,
:name "Painted-snipe",
:species "Rostratulidae"}

Render all animals from state
(defn animals []
[:div
[:table.table.table-striped
[:thead
[:tr
[:th "Name"] [:th "Species"] [:th ""] [:th ""]]]
[:tbody
(map (fn [a]
^{:key (str "animal-row-" (:id a))}
[animal-row a])
(sort-by :name @animals-state))
[animal-form]]]])
a row component
for each animal
form to create new animal
key needed for React to keep track of rows

ClojureScript interfaces to React

(defn animal-row [a]
(let [row-state (atom {:editing? false
:name (:name a)
:species (:species a)})
current-animal (fn []
(assoc a
:name (:name @row-state)
:species (:species @row-state)))]
(fn []
[:tr
[:td [editable-input row-state :name]]
[:td [editable-input row-state :species]]
[:td [:button.btn.btn-primary.pull-right
{:disabled (not (input-valid? row-state))
:onClick (fn []
(when (:editing? @row-state)
(update-animal! (current-animal)))
(swap! row-state update-in [:editing?] not))}
(if (:editing? @row-state) "Save" "Edit")]]
[:td [:button.btn.pull-right.btn-danger
{:onClick #(remove-animal! (current-animal))}
"u00D7"]]])))

(defn field-input-handler
"Returns a handler that updates value in atom map,
under key, with value from onChange event"
[atom key]
(fn [e]
(swap! atom
assoc key
(.. e -target -value))))
(defn input-valid? [atom]
(and (seq (-> @atom :name))
(seq (-> @atom :species))))
(defn editable-input [atom key]
(if (:editing? @atom)
[:input {:type "text"
:value (get @atom key)
:onChange (field-input-handler atom key)}]
[:p (get @atom key)]))

(defn remove-animal! [a]
(go (let [response
(<! (http/delete (str "/animals/"
(:id a))))]
(if (= (:status response)
200)
(swap! animals-state remove-by-id (:id a))))))
(defn update-animal! [a]
(go (let [response
(<! (http/put (str "/animals/" (:id a))
{:edn-params a}))
updated-animal (:body response)]
(swap! animals-state
(fn [old-state]
(conj
(remove-by-id old-state (:id a))
updated-animal))))))
replace updated
animal retrieved
from server
if server says:
"OK!", remove
animal from
CRUD table

Live demo
If you want to try yourself. Code and slides at:
https://github.com/borkdude/oredev2014

My experience with Om and Reagent
● Both awesome
● Added value to React
● Om encourages snapshot-able apps but:
○ surprises
○ large vocabulary
● Reagent
○ easy to learn and use
○ readable

ClojureScript interfaces to React
