GlusterFS with Swift API provides an alternative architecture to the original Swift by storing all metadata in GlusterFS using extended attributes instead of separate databases. The GlusterFS implementation allows for "all in one" servers that combine authentication, account, container, and object services for improved scalability. Requests are handled by directly accessing required metadata and data from locally mounted GlusterFS volumes rather than querying remote databases. This provides an alternative object storage solution using the familiar Swift API with GlusterFS for distributed storage and metadata management.
Comparing GlusterFS-SwiftAPI with Original Swift

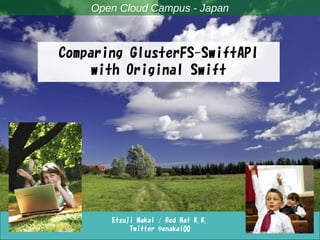

- 1. Open Cloud Campus - Japan Comparing GlusterFS-SwiftAPI with Original Swift Etsuji Nakai / Red Hat K.K. Twitter @enakai00
- 2. Architecture of Swift Account Servers Maintain mappings between Account Servers / Container Servers store accounts and containers metadata in separate databases. Authentication Server DB Container Servers Maintain lists and ACLs of objects Proxy Servers in each container. DB Object Servers Store object contents in file system. Handling REST request from clients File System Open Cloud Campus
- 3. Architecture of GlusterFS with Swift API - You can add “all in one” servers for scalability. Authentication Server - In Red Hat Storage 2.0, “all in one” servers are directly configured on GlusterFS storage nodes. GlusterFS manages scalability, redundancy TempAuth is the only and consistency. supported method now. GlusterFS Cluster Account/Container/Object Server modules retrieve required information directly from locally mounted volumes. Proxy / Account / Container / Object “all in one” server & GlusterFS client GlusterFS Volume Volume for each account is locally mounted at: One volume is used /mnt/gluster-object/AUTH_<account name> for one account Open Cloud Campus
- 4. How GlusterFS's Swift API works. It's just a modified versions of Swift components. – All metadata is stored in GlusterFS using extended attributes instead of dedicated metadata store. – For example, Container Server component works as below. Original Swift Requesting a list of objects in a specific container. Proxy Server Container Server Returning it by referring to the metadata in a local database. GlusterFS with Swift API Requesting a list of objects in a specific container. Proxy Server Container Server Returning it by searching a list of files in locally mounted directory: /mnt/gluster-object/AUTH_<account name>/<container name> Open Cloud Campus
- 5. Open Cloud Campus - Japan Thank you! Etsuji Nakai / Red Hat K.K. Twitter @enakai00
