Cost reconciliation in a post CMDB world
0 likes14 views
The document discusses cost reconciliation in a cloud infrastructure context, emphasizing the need for accurate resource tracking and the importance of a single source of truth. It suggests methods for managing vendor billing, automating the reconciliation process, and leveraging tools like CloudQuery and NetBox for effective resource management. The author also highlights best practices for tagging, region locking, and alerting on costs to ensure efficient operation and control over cloud expenses.
![Confidential and Proprietary
Count the # resources in your state file/code
terraform show -json | jq -r '.values[].resources[]
grep -nr "resource "google_compute_instance""](https://image.slidesharecdn.com/costreconciliationinapostcmdbworld-240215162341-7e514e63/85/Cost-reconciliation-in-a-post-CMDB-world-11-320.jpg)
![Confidential and Proprietary
Lock Vendor Regions Down
data "aws_iam_policy_document" "eu-central-1-only" {
statement {
actions = [
"ec2:RunInstances",
]
….
condition {
test = "StringEquals"
variable = "aws:RequestedRegion"
values = [
"eu-central-1",
]
}
}
}](https://image.slidesharecdn.com/costreconciliationinapostcmdbworld-240215162341-7e514e63/85/Cost-reconciliation-in-a-post-CMDB-world-26-320.jpg)
![Confidential and Proprietary
IPAM made easy
resource "netbox_prefix" "supplier_site" {
status = "active"
prefix = "${local.base_ip}/${local.base_bits}"
tags = [
"${local.supplier}-${var.supplier_site}"
]
}
data "netbox_prefix" "supplier_site" {
tag = "${local.supplier}-${var.supplier_site}"
}
resource "netbox_available_ip_address" "nebula_ip" {
prefix_id = data.netbox_prefix.supplier_site.id
dns_name = "${var.hostname}.${var.fqdn_suffix}"
}](https://image.slidesharecdn.com/costreconciliationinapostcmdbworld-240215162341-7e514e63/85/Cost-reconciliation-in-a-post-CMDB-world-34-320.jpg)
![Confidential and Proprietary
But that didn’t sounds very easy
resource "supplier_x_server" "vm" {
image_id = “Ubuntu 22.04”
hostname = "${var.hostname}.${var.fqdn_suffix}"
plan = var.supplier_type
location = var.supplier_site
user_data = module.cloud-init-vm.user_data
}
module "netbox_vm" {
source = "your.registry/record_node/supplier_x"
version = "1.0.0"
fqdn_suffix = var.fqdn_suffix
tags = [local.netbox_tag]
node_module = module.cloud-init-vm.user_data
supplier_x_instance = supplier_x_server.vm
}](https://image.slidesharecdn.com/costreconciliationinapostcmdbworld-240215162341-7e514e63/85/Cost-reconciliation-in-a-post-CMDB-world-35-320.jpg)
Cost reconciliation in a post CMDB world
- 1. Cost reconciliation in a post CMDB world Bram Vogelaar @attachmentgenie
- 2. Confidential and Proprietary ~ ❯ whoami • Used to be a Molecular Biologist • Then became a Dev, now an Ops • Currently Cloud Engineer @ Seaplane.io
- 3. Confidential and Proprietary Who has said this before? “If it isn’t in code (*), it doesn’t exist!” (*) puppet, chef, ansible, opentofu…..etc
- 4. Confidential and Proprietary And also said… “Just ignore that $17.63 on on the AWS bill”
- 5. Confidential and Proprietary And followed by…… “We don’t know what that is for …. but it has been there since forever”
- 6. Confidential and Proprietary And than said……… “ ¯_(ツ)_/¯ ”
- 7. Confidential and Proprietary And while the CISO said…
- 8. Confidential and Proprietary Because nobody told to the infra team(*) “Trust but verify” (*) {ops, sysadmin, infra, devops, sre, platform}
- 9. Confidential and Proprietary To understand why, we need to understand how
- 10. Confidential and Proprietary Let’s pretend it is data science

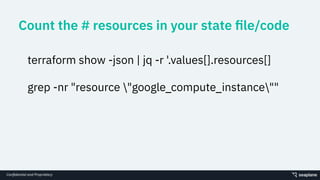

- 11. Confidential and Proprietary Count the # resources in your state file/code terraform show -json | jq -r '.values[].resources[] grep -nr "resource "google_compute_instance""
- 12. Confidential and Proprietary Count the # in your single source of truth

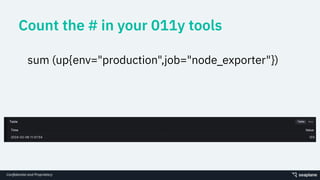

- 13. Confidential and Proprietary Count the # in your 011y tools sum (up{env="production",job="node_exporter"})
- 15. Confidential and Proprietary Check your DNS/IPAM entries
- 16. Confidential and Proprietary Count your CICD deploy targets
- 17. Confidential and Proprietary Observe vendor billing
- 18. Confidential and Proprietary The lack of signal is a singal
- 19. Confidential and Proprietary You ll need to become good friends with UIs
- 20. Confidential and Proprietary Compare your single source truth vs vendor billing SKUs applied === SKUs paid for cloud regions defined in .tf files === regions with resources
- 21. Confidential and Proprietary Observe volume metrics
- 22. Confidential and Proprietary Should I go crazy automating this?
- 23. Confidential and Proprietary Vendors as a SQL Schema SELECT * FROM aws_elbv2_load_balancers WHERE scheme = 'internet-facing'; https://www.cloudquery.io/
- 24. Confidential and Proprietary But what about… Ways to fix it keep up with life
- 25. Confidential and Proprietary “Make doing the right thing, the simplest thing to do”
- 26. Confidential and Proprietary Lock Vendor Regions Down data "aws_iam_policy_document" "eu-central-1-only" { statement { actions = [ "ec2:RunInstances", ] …. condition { test = "StringEquals" variable = "aws:RequestedRegion" values = [ "eu-central-1", ] } } }
- 27. Confidential and Proprietary Lock Vendor Regions Down resource "aws_organizations_policy" "eu-central-1-only" { name = "eu-central-1-only" content = data.aws_iam_policy_document.eu-central-1-only.json }
- 28. Confidential and Proprietary Tag everything
- 29. Confidential and Proprietary Tag everything provider "aws" { profile = "default" region = "eu-central-1" default_tags { tags = { Environment = "Test" Service = "Example" terraform = true } } }
- 30. Confidential and Proprietary Forcing labels / Decorating metrics global: scrape_interval: 10s external_labels: datacenter: "%{::trusted.extensions.pp_datacenter}" region: "%{::trusted.extensions.pp_region}" <- use ${IATA_CODES} env: "%{::trusted.extensions.pp_environment}"
- 31. Confidential and Proprietary But my system is Cloud native Alert on $THING that costs money
- 32. Confidential and Proprietary psst……… “You really should use a CMDB”
- 33. Confidential and Proprietary e.g Netbox https://netbox.dev/
- 34. Confidential and Proprietary IPAM made easy resource "netbox_prefix" "supplier_site" { status = "active" prefix = "${local.base_ip}/${local.base_bits}" tags = [ "${local.supplier}-${var.supplier_site}" ] } data "netbox_prefix" "supplier_site" { tag = "${local.supplier}-${var.supplier_site}" } resource "netbox_available_ip_address" "nebula_ip" { prefix_id = data.netbox_prefix.supplier_site.id dns_name = "${var.hostname}.${var.fqdn_suffix}" }
- 35. Confidential and Proprietary But that didn’t sounds very easy resource "supplier_x_server" "vm" { image_id = “Ubuntu 22.04” hostname = "${var.hostname}.${var.fqdn_suffix}" plan = var.supplier_type location = var.supplier_site user_data = module.cloud-init-vm.user_data } module "netbox_vm" { source = "your.registry/record_node/supplier_x" version = "1.0.0" fqdn_suffix = var.fqdn_suffix tags = [local.netbox_tag] node_module = module.cloud-init-vm.user_data supplier_x_instance = supplier_x_server.vm }
