DaoliName Key Management Solution

“Identity”-Based Cryptography
What it is NOT
+
Where is Money？
Lessons learned from near
half century for
Public Key Cryptography
DaoliName
January 2019

Executive Summary
• When public key crypto was invented, offline
authentication was a magic; now everyone hates offline
• When ID-based crypto was invented, non-interaction
was a magic, even though the cost for communications
was already much lowered
• In an era everybody is online, public key should feature
online too, and even ID based
• Domain Name Systems (DNS) as an extremely efficient
and successful online servicing hierarchy, can be
streamline secured if domain names are public keys
• PKC2.0: Registered bitstrings as authenticated public
keys to enable crypto capabilities for smart dusts
2DaoliName All Rights Reserved ©2019

Content
• Not very interesting technicalities on Identity
+ “Identity” Based Cryptography (IBC + “IBC”)
• Some slides, in particular those on IBCs, were pasted
from SlideShare; we did so in order to walk ourselves
away from pitfalls, historical ones even backdate to PKI
• Bla, bla, bla, ..., however none is PPT technology
• Jump to Slide entitled: “Fortunately Internet was NOT
Invented by Cryptographers”, that should be a good
way to review this slide set
• Money is never an issue, so technical reviewers do feel
free to skip anywhere money is mentioned :-)
Footnote: “Identity”, “ID”, “IBC”, “IBE”, “IBS”: Quotes to
eye-catch a key and unique difference from all known
Identity Based Crypto: We feature online & interaction

Problems with PKI
• Sender (or verifier)
must have recipient’s
(or signer's) certificate
• Complexity of certificate mgnt;
A real world hard truth: Daily-
in-use public key certificates
bind “Crypt32.dll” as “chained-
melody” to the Chinese Patent
Office website, forcing 2019
users to re-install WindowsXP
clients in order to run 32-bit MS
iExplorer (to sign patent filings)
e3eab
1253b
682fd
a7af15
3f6550
ccb6e

Identity-Based Cryptography (IBC)
• Non-Interactive:
Cryptography for unprepared
users (“Unprepared” is not very
meaningful. No surprise please.)
• Public key is the user's identity,
e.g., email address, phone
number, ... (We like domain
names, IP addresses, phone
numbers, ... to be public keys.)
• Sender only needs to know
recipient’s identity to send an
encrypted message (How?)

History of ID Based Crypto
• Seminally proposed by Shamir in 1984
Shamir came up with a working system for
identity-based signature (IBS), but no system
for identity-based encryption (IBE)
• First IBE system discovered in 2001 by Boneh
and Franklin, using Weil pairing
• Many many schemes followed, but few
application, unfortunately

Identity-Based Crypto (IBC)
Private Key Generator

“Fairy Tales” About IBC
When IBC was an ugly duckling,
how could it avoid merciless taunts?
1. Inherent key escrow
2. No key revocation
3. PKG requires extremely strong security
assurance, since it holds all private keys
and must remain online
Bla bla bla ...
None of these accusations make a good sense
We shall refute all and each one by one

Elliptic Curve Additive Group
y2 = x3 + ax + b (mod p)
• x, y, a, b in GF(p)
If 4a3 + 27b2 ≠ 0 (mod p),
then a group can be
formed:
• Points on the curve
plus the infinity point
• Additive operation “+”
being geometrically
defined

Bilinear Pairing: 1st Crypto Use
Burton Kaliski Jr., 1988
G, G1 : (sub)groups of prime order q | (p-1)
Bilinear pairing map ê: let P = ( x, y )  G2
• Bilinear: ê( [a]P, [b]P ) = ê( P, P )
ab
• Non-degenerate:
P generates G  ê( P, P ) generates G1
• Efficiently computable
___________________
Kaliski's Recounting the History: Victor Miller visited Ron Rivest when I was a
graduate student, and he met with me about my research. If I recall correctly,
I asked him if he knew a way to determine whether an elliptic curve group was
cyclic, and he suggested the Weil pairing. He also gave me a copy of his
algorithm for computing the Weil pairing, and agreed that I could implement it
for my thesis.

Diffie-Hellman Problem
Computation: Hard; Decision: Easy
Given < P, [a]P, [b]P, [c]P > for integers a, b, c
Deciding c =?= ab (mod q) use bilinear pairing:
ê( P, [c]P ) =?= ê( [a]P, [b]P )
Since this is equivalent to
ê( P, P )c =?= ê( P, P )ab
Evaluation: No need of knowing integers a, b, c
This is extremely important and useful for IBC

System Setup
For primes p, q and groups defined in
slides 9, 10, let a Private Key Generator, PKG,
set an arbitrary curve point in the order q subgroup:
P = ( x, y ) mod p
PKG picks a random integer s < q, and sets PPKG = [s]P
PKG chooses two hash functions:
G: {0,1}*→ ( x, y ): hash arbitrary bitstring to the curve
H: ê(P, Q) → {0,1}log2 q : hash GF(p) to log2q-bit strings
PKG publicizes system public parameters:
< p, q, P, PPKG, G, H >
PKG securely keeps secret “master_secret_key”: s

User Key Setting
Alice's key setting:
Her public key: RA = G( Alice )
Her private key is issued by PKG as: dA = [s]RA
Note: RA = ( x, y ) mod p, is a point on the curve
N.B. Hashing to elliptic curve is very very important!
Some authors, e.g., those who have proposed SM9,
choose to hash to discrete logarithm integers
We shall comment undesirable consequences in so
doing in a moment

ElGamal Encryption
Encryption: To send encrypted M to Alice,
Bob picks a random integer r < q, and computes
C = < [r]P, M⊕H( gA
r ) >
where gA = ê( PPKG, RA )
Decryption: ( for C = < U, V > )
V ⊕ H( ê( U, [s]RA ) ) = M
Decryption correctness:
ê( U, dA ) = ê( [r]P, [s]RA ) =
ê( [s]P, [r]RA ) = ê( PPKG, RA )r = gA
r
That is, Alice can use her private key to reproduce gA
r,
equal to Bob computed using Alice's IBC public key

Fairy Tale Refutation:
“Inherent Key Escrow”
Let PKG2 publicize point QPKG2 = [t]P, for a random
integer t < q as its “master” secret key
For RA = G(Alice), her private key dA = [s]RA + [t]RA
Then, to non-escrow ElGamal encrypt message M:
Bob picks a random integer r < q, and computes:
C = < [r]P, M⊕H( gA
r ) >, where
gA
r = ê( PPKG, RA )r * ê( QPKG2, RA )r Bob computes
= ê( [r]P, dA ) Alice computes in decryption

A Stronger Refutation
Let Alice play the role of “PKG2”: QA = [a]P,
for a < q being her “private_key_self”, kept secret from
PKG, Alice's “private_key_whole” is: dA = [s]RA + [a]RA
Then, to no-key-escrow ElGamal encrypt message M,
Bob picks a random integer r < q, and computes:
C = < [r]P, M⊕H( gA
r ) >, where
gA
r = ê( PPKG, RA )r * ê( QA, RA )r Bob computes
= ê( [r]P, dA ) Alice computes in decryption
This is an “IBE”, quoted as Bob needs to first get Alice's
non-ID based, yet authenticated, public key QA, we will
discuss absurdity for PKG to forge QA in a backup slide

Fairy Tale Refutation:
“No Key Revocation”
Lift version first:
To interact or not to
interact?
That is THE question!
Interaction can let Bob get
non-ID based, yet well
authenticated, public key
QA of Alice, and provide a
new usefulness to “IBC”
Rationale unfolding ...

History of Digital Signature
In 1976, Diffie-Hellman Open Question:
How to digitally sign a document, use or not use
( g, gx ) form of public key
In 1978, RSA answered so beautifully:
Md mod N
In 1984, ElGamal answered for public key being
( g, gx ): use a random r to cover the private key a,
the covered discrete log can be computed publicly

An “ID” Based Signature
Let Alice’s “private_key_PKG” be:
dA = [s]RA = [s]G( Alice )
Let Alice also have “private_key_self”: a < q, kept
secret from PKG as in no-key-escrow encryption
In registration, Alice signs the system public point P:
QA = [a]P
Alice's public key parameter:
< RA, QA >
“ID” quoted as the public key has a non-ID feature QA

An “ID” Based Signature
Alice to sign M:
SigA( M ) = dA + [a]G( M )
Public Verification:
ê( P, SigA( M ) ) =?= ê( PPKG, RA ) * ê( QA, G( M ) )
Staring at Alice's “private_key_self” longer:
• Integer a can be one-time and random, and thus,
QA = [a]P becomes part of randomized signature
• After signing with a, Alice can further sign a next
signature using a + b (mod q), with randomized
signature part being Q'A = [a + b]P, and so on ...

Tale Refutation for Signature:
“Inherent Key Escrow”
• Alice can publicize first QA = [a]P, where the first
“private_key_self” a is kept secret from any PKG;
she can use a + b as new “private_key_self”, for
Q'A = [b]P, let verifier use QA + Q'A in place of QA
• Alice's “private_key_PKG” dA can also easily be
issued by a distributed multiple of PKGs, exactly the
same as refutation to “inherent key escrow” tale for
ElGamal encryption; our usecase does feature so
• A verifier can also prevent PKGs from forgery by
challenging a multiplier to “private_key_self” of Alice
(detail provided in a backup slide)

Refutation to Fairy Tale 3:
Two Approaches to IBC
1. Hash to elliptic curve
G( Alice ), G( M ), are curve points ( x, y ) to make
use of beautiful ease of decision DH
2. Hash to discrete logarithm (e.g., SM9)
Signature follows ElGamal's old game of using a
random number to protect private key
Our “IBC” schemes all enjoy approach 1: PKGs can
be distributed, even Alice be one such, to refute Fairy
Tale 3: “Highly strong security requirement for PKG”
IBCs taking approach 2 seem to suffer all tale scorns

It's Open System, Stupid
Voltage Security Inc. (Boneh's company)
to sell ID-Based Crypto Email
Many (more likely, cryptographers) think Email is
the killer-app of ID-Based Crypto
Unfortunately, this killer-app is itself now almost
killed, e.g., colleagues & friends of DaoliName
have not been using it for ages
At any rate, even Email must also be an open
system, mustn't it?

Cryptographers' System View
Viral growth of a product/service/business by opening
system up shouldn't be cryptographers' job optimum
A crypto product should always be “hush-hush”
Make it open? What are you talking about?!
Private Key Generator

Fortunately Internet was NOT
Invented by Cryptographers
Internet has never been architect-ed to be a
product, or for an app, not even for an industry,
Internet is an Open System!
Crypto if vended as product (box) can hardly be
an open system
What is easily missing? Key management
Imagine Alice having bought an “IBC Email” box:
“Has Bob also bought this four-double-letter
fragment named gadget from Dan?” or “Is Bob's
ID based key still OK?”

PKI Certificate as a Product
Given key revocation can hardly be a sold
box, why to vend PKI certificates in the first
place? Our WindowsXP, 32-bit iExplorer using
Chinese patent filers are only 1 drop in an ocean of
govt services users who may be experiencing mental,
if not physical, fragmentation �
Making PKI an Open System shouldn't be very
difficult; it's the thought got stuck offline that is!
An offline box is “buy once use forever” (BOUF). To
vend smart BOUF, money is not enough to hire smart
makers. Now nearly century/2 elapsed: Who pays for
key revocation to have user experience cared for?

Has Public Key Ever
Well Done Key Management?
1976: Key agreement problem was suddenly solved,
key channel setup no longer need Kerberos-like online
1978: Offline CA PKI, then you go!
2000: Even OFF offline was discovered: ID is public key,
not even communication needed!
1997 (RFC 2065) to date: DNSSEC, Extremely efficient
online DNS hierarchy is bundled to same structured but
offline PKI hierarchy. Can, on Gods' green Earth, pull-
the-plug take so long no thanking to PKI burning energy?
2019: Everybody hates offline!

Domain Name System DNS:
An Awesome Online Service
Internet trade-mark registration of names +
online query for (registered name, IP addresses)
binding
Real-time query, if (DN, IP, TTL) with TTL being valid,
use the binding, otherwise, as if binding revoked
Both being pyramid hierarchies, online DNS is far far
more successful than offline CA PKI
It's Open, cross app, and cross industry!
DNS will be with us forever: Programmers can't hard-
wire code IPs

Bitstring Registration for
Streamline Key Mgnt Services
Global authenticated bitstring registration: “Is this
phone no., (IP addr, ...) registered as a public key?”
Use the existing DNS “trade-mark” reg hierarchy
Answer is small (see a backup slide) to be wrapped
in a 512-byte UDP packet, not only to penetrate
firewalls, but more importantly to provide value to
client users: streamline key mgnt service for dusts
User: “Is the private key behind this bitstring (DN, IP
addr, phone no) crypto-worthy (e.g., not revoked)?”
DaoliName: “Check TTL yourself! It's 'IBC' signed!”

Where IS Money?
PKI has never answered this question well,
in near half century proud of offline “magic” authentication
Worse for IBC: PKI can sell some certificates, i.e., service
We've never heard IBC made any servicing money
Open up online, like the Internet, is the key to success
From data plane: Billions of smart dusts shall appreciate
value of their “IBC” authenticated bitstring IDs to enjoy
crypto, e.g., an IP addr can run IPSec (reverse DN query)
From control plane: A new TLD “.mi” (sounding crypto in
Chinese) to sell secure name registration, as “IBC”
signature secured DNS (volume of DN squatting probable)

What for Sale
The following two well established
services have been very lucrative:
1. Trade-mark registration is a brand name (maybe
value add on, + logo binding) service, to sell,
physically, to a nation's businesses
2. DNS registration = Service 1 + IP address binding
service, to sell, digitally, to the globe's businesses
The new “IBC” enabled bitstring registration = Service 2
+ authenticated public key capability service, to sell,
digitally and securely, to the globe's businesses +
individual users + client dusts. Securely means
authenticated bitstring as public key bound to, e.g., IP
addresses

Summary
Historical rethinking of (not quoted, aka
non-interact or offline) ID Based Crypto, and PKI
Refutation to all nonsensical tales about IBC:
If you can’t fix it, feature it!
Crypto, in fact, key mgnt, vended as boxes, being too
smart, too conservative, too complex, and too fragment,
to be early to market, vending crypto boxes is hard, no
money, no progress, then chunks of century go by
Online is THE feature, never a problem
“IBC” is not non-interactive, not offline, not a product,
not for one industry. It is services for PKC 2.0

Backup Slides: “IBC” Signature
Authenticated Bitstrings
A registered bitstring suffices to provide public keys to
verify its bona-fide-ness as being signed authoritative answer
Upper level hierarchical nodes: delegated & distributed PKGs,
Commercial lower level nodes: authoritative servers
Upper level nodes colluding forging a non-ID point QA of a low
level node is as absurd as PKI CAs faking user certificates
“IBC” signatures of upper level nodes form “Compressed
Fingerprints” (CF) of theirs down the DNS hierarchy, and
these CFs are curve “+”ed to a single curve point
Final CF small enough (Barreto-Naehrig curves) for 512-byte
UDP packet to penetrate firewalls to reach clients & dusts

“IBC” CFs Secured DNSSEC
Feature Online and Interaction
A DNS Asker, e.g., client or ISP on behalf of
client, as CF verifier, queries DN to the DNS hierarchy
Each of the answering nodes upper in the DNS
hierarchy above a leaf node Auth (who has
“authoritative record binding”), computes a CF using
the “IBC” signature formula to answer Asker
Asker challenges Auth random v, requiring Auth to use
va as “private_key_self” to randomize CFAuth output
Asker verifies: ê(P, CFAuth(M)) = ...* ê(QAuth, G(M))v

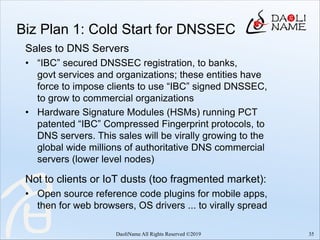

Biz Plan 1: Cold Start for DNSSEC
Sales to DNS Servers
• “IBC” secured DNSSEC registration, to banks,
govt services and organizations; these entities have
force to impose clients to use “IBC” signed DNSSEC,
to grow to commercial organizations
• Hardware Signature Modules (HSMs) running PCT
patented “IBC” Compressed Fingerprint protocols, to
DNS servers. This sales will be virally growing to the
global wide millions of authoritative DNS commercial
servers (lower level nodes)
Not to clients or IoT dusts (too fragmented market):
• Open source reference code plugins for mobile apps,
then for web browsers, OS drivers ... to virally spread

Biz Plan 1: Go to Market Strategy
Top level non-commercial nodes, i.e., root “”,
g-TLDs, cc-TLDs (“.com”, “.net”, “.org”, “.edu”, ...,
“.uk”, “.cn”, ...), are presumably hard to join “Cold Start”. Thus:
• Responsibly build their CFs for them. Responsibility means
to very carefully secure their “private_key_self”s, and
respectively their CFs, securely kept in HSMs on their behalf
• Sell DNSSEC registration to commercial levels of nodes as
descendants of the unsold top level non-registered names
• IETF RFCs, open source recursive resolvers, to make viral
spreading clients. If CF verification returns NO, re-query, e.g.,
DaoliName servers, for CF signed authoritative bindings
• Someday, top level nodes would appreciate value of “IBC”.
Then Their “private_key_self”s and CFs could be returned to
them as their due properties

Biz Plan 2: Dream of
A Cryptographer Turned Engineer
All smart phones, IP addresses, smart dusts, in
particular, those appearing 5G ones, and IPv6
route-able devices, may have cross app, cross
industry, cross social media, ..., PKC 2.0
Alice's query: Is this unique phone number (or IP
address) of Bob (of course should be anonymous)
registered with authentication to have “ID” Based
Crypto capability?
“IBC” signed answer can just use the existing 512-
byte UDP packet to transmit! No reinvention of
EDNS0, or TCP DNS, or any such new wheels!

Open System
Open Standard
Open Source
Open IETF RFCs
One World, One Dream
Only the World First to become better and better,
can China be also good as part of :-)
We want to work with the World to secure DNS, and
to pervade PKC 2.0
Money is never an issue, it can only be great return!

DaoliName Key Management Solution

DaoliName Key Management Solution

More Related Content

Similar to DaoliName Key Management Solution (20)

More from DaoliCloud Ltd (9)

Recently uploaded (20)

DaoliName Key Management Solution
