Revisiting Recursion
• Recursion occurs when a function calls itself
to solve a simpler version of the problem.
• Recursion involves the internal use of a stack

Properties of Recursive Functions
 Problems that can be solved by recursion have these
characteristics:
• One or more stopping cases (base case) have a simple,
nonrecursive solution
• The other cases of the problem can be reduced (using
recursion) to problems that are closer to stopping cases
• Eventually the problem can be reduced to only stopping
cases, which are relatively easy to solve
 Follow these steps to solve a recursive problem:
• Try to express the problem as a simpler version of itself
• Determine the stopping cases
• Determine the recursive steps

Contents of a Recursive Function
• Base case(s).
– Values of the input variables for which we perform no
recursive calls are called base cases (there should be at
least one base case).
– Every possible chain of recursive calls must eventually
reach a base case.
• Recursive calls.
– Calls to the current function.
– Each recursive call should be defined in such a way that
it makes progress towards a base case.

Operation Sequence in Recursive Functions
• When a recursive call is made, the current computation is
temporarily suspended and placed on the stack with all its current
information available required for later use.
• A completely new copy of the function is used to evaluate the
recursive call. When that is completed, the value returned by the
recursive call is used to complete the suspended computation. The
suspended computation is removed from the stack and its work
now proceeds.
• When the base case is encountered the recursion will now unwind
and result in a final answer. The expressions below should be read
from right to left.
fact(4) = 4 * fact(3) = 3 * fact(2) = 2 *
fact(1) = 1
24  4 * 6  3 * 2  2 * 1

Visualizing Recursion
Example recursion trace:
recursiveFactorial (4)
return 1
call
call
call
call
return 1*1 = 1
return 2*1 = 2
return 3*2 = 6
return 4*6 = 24 final answer
call

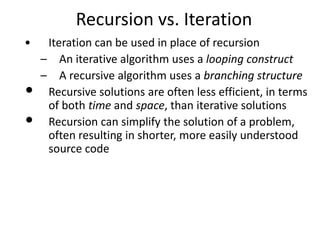

• Iteration can be used in place of recursion
– An iterative algorithm uses a looping construct
– A recursive algorithm uses a branching structure
• Recursive solutions are often less efficient, in terms
of both time and space, than iterative solutions
• Recursion can simplify the solution of a problem,
often resulting in shorter, more easily understood
source code
Recursion vs. Iteration

Deciding whether to use a Recursive Function ?
• When the depth of recursive calls is relatively
“shallow”
• The recursive version does about the same amount
of work as the nonrecursive version
• The recursive version is shorter and simpler than
the nonrecursive solution

Examples

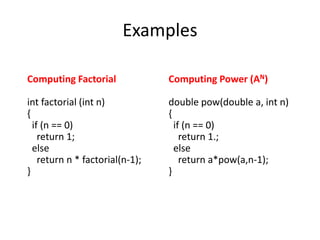

Computing Factorial
int factorial (int n)
{
if (n == 0)
return 1;
else
return n * factorial(n-1);
}
Computing Power (AN)
double pow(double a, int n)
{
if (n == 0)
return 1.;
else
return a*pow(a,n-1);
}

Examples

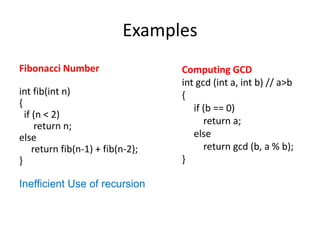

Fibonacci Number
int fib(int n)
{
if (n < 2)
return n;
else
return fib(n-1) + fib(n-2);
}
Inefficient Use of recursion
Computing GCD
int gcd (int a, int b) // a>b
{
if (b == 0)
return a;
else
return gcd (b, a % b);
}

Examples

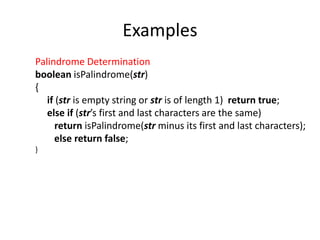

Palindrome Determination
boolean isPalindrome(str)
{
if (str is empty string or str is of length 1) return true;
else if (str’s first and last characters are the same)
return isPalindrome(str minus its first and last characters);
else return false;
}

Examples

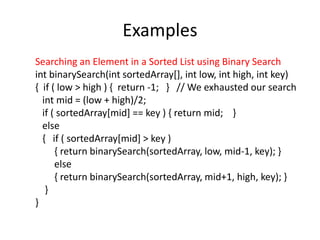

Searching an Element in a Sorted List using Binary Search
int binarySearch(int sortedArray[], int low, int high, int key)
{ if ( low > high ) { return -1; } // We exhausted our search
int mid = (low + high)/2;
if ( sortedArray[mid] == key ) { return mid; }
else
{ if ( sortedArray[mid] > key )
{ return binarySearch(sortedArray, low, mid-1, key); }
else
{ return binarySearch(sortedArray, mid+1, high, key); }
}
}

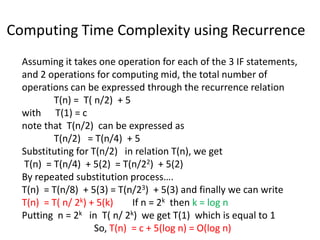

Computing Time Complexity using Recurrence
Assuming it takes one operation for each of the 3 IF statements,
and 2 operations for computing mid, the total number of
operations can be expressed through the recurrence relation
T(n) = T( n/2) + 5
with T(1) = c
note that T(n/2) can be expressed as
T(n/2) = T(n/4) + 5
Substituting for T(n/2) in relation T(n), we get
T(n) = T(n/4) + 5(2) = T(n/22) + 5(2)
By repeated substitution process….
T(n) = T(n/8) + 5(3) = T(n/23) + 5(3) and finally we can write
T(n) = T( n/ 2k) + 5(k) If n = 2k then k = log n
Putting n = 2k in T( n/ 2k) we get T(1) which is equal to 1
So, T(n) = c + 5(log n) = O(log n)

14
Data types
• A data type is characterized by:
– a set of values
– a data representation, which is common to all these
values, and
– a set of operations, which can be applied uniformly
to all these values

15

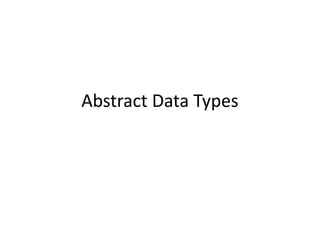

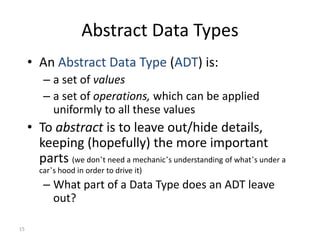

Abstract Data Types
• An Abstract Data Type (ADT) is:
– a set of values
– a set of operations, which can be applied
uniformly to all these values
• To abstract is to leave out/hide details,
keeping (hopefully) the more important
parts (we don’t need a mechanic’s understanding of what’s under a
car’s hood in order to drive it)
– What part of a Data Type does an ADT leave
out?

16

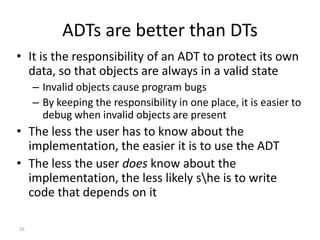

ADTs are better than DTs
• It is the responsibility of an ADT to protect its own
data, so that objects are always in a valid state
– Invalid objects cause program bugs
– By keeping the responsibility in one place, it is easier to
debug when invalid objects are present
• The less the user has to know about the
implementation, the easier it is to use the ADT
• The less the user does know about the
implementation, the less likely she is to write
code that depends on it

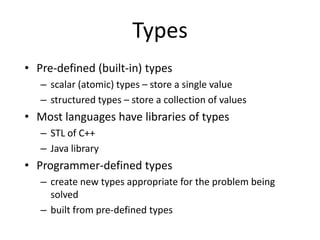

Types
• Pre-defined (built-in) types
– scalar (atomic) types – store a single value
– structured types – store a collection of values
• Most languages have libraries of types
– STL of C++
– Java library
• Programmer-defined types
– create new types appropriate for the problem being
solved
– built from pre-defined types

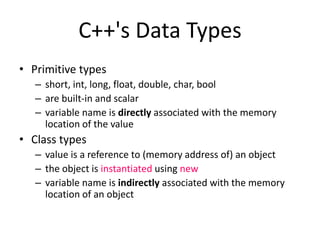

C++'s Data Types
• Primitive types
– short, int, long, float, double, char, bool
– are built-in and scalar
– variable name is directly associated with the memory
location of the value
• Class types
– value is a reference to (memory address of) an object
– the object is instantiated using new
– variable name is indirectly associated with the memory
location of an object

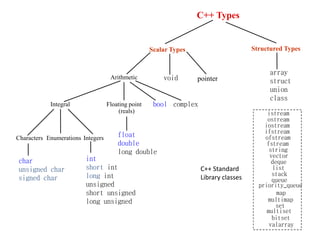

C++ Types
Characters
Integral Floating point
(reals)
Integers
Enumerations
Arithmetic void pointer
bool complex
Scalar Types Structured Types
priority_queue
valarray
vector
deque
list
set
map
multiset
multimap
stack
queue
string
bitset
istream
ostream
iostream
ifstream
ofstream
fstream
C++ Standard
Library classes
array
struct
union
class
int
short int
long int
unsigned
short unsigned
long unsigned
char
unsigned char
signed char
float
double
long double

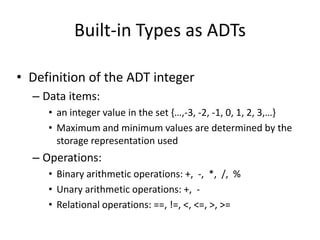

Built-in Types as ADTs
• Definition of the ADT integer
– Data items:
• an integer value in the set {…,-3, -2, -1, 0, 1, 2, 3,…}
• Maximum and minimum values are determined by the
storage representation used
– Operations:
• Binary arithmetic operations: +, -, *, /, %
• Unary arithmetic operations: +, -
• Relational operations: ==, !=, <, <=, >, >=

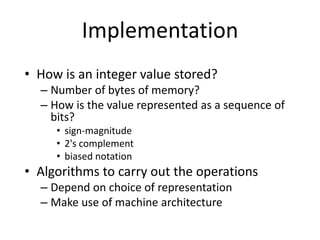

Implementation
• How is an integer value stored?
– Number of bytes of memory?
– How is the value represented as a sequence of
bits?
• sign-magnitude
• 2's complement
• biased notation
• Algorithms to carry out the operations
– Depend on choice of representation
– Make use of machine architecture

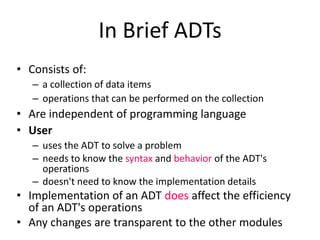

In Brief ADTs
• Consists of:
– a collection of data items
– operations that can be performed on the collection
• Are independent of programming language
• User
– uses the ADT to solve a problem
– needs to know the syntax and behavior of the ADT's
operations
– doesn't need to know the implementation details
• Implementation of an ADT does affect the efficiency
of an ADT's operations
• Any changes are transparent to the other modules

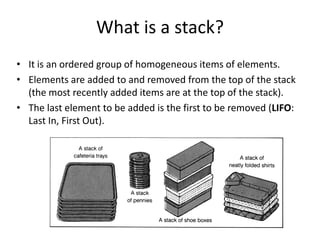

What is a stack?
• It is an ordered group of homogeneous items of elements.
• Elements are added to and removed from the top of the stack
(the most recently added items are at the top of the stack).
• The last element to be added is the first to be removed (LIFO:
Last In, First Out).

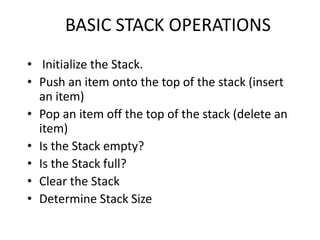

BASIC STACK OPERATIONS
• Initialize the Stack.
• Push an item onto the top of the stack (insert
an item)
• Pop an item off the top of the stack (delete an
item)
• Is the Stack empty?
• Is the Stack full?
• Clear the Stack
• Determine Stack Size

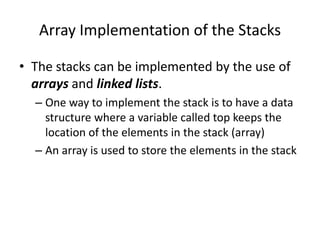

Array Implementation of the Stacks
• The stacks can be implemented by the use of
arrays and linked lists.
– One way to implement the stack is to have a data
structure where a variable called top keeps the
location of the elements in the stack (array)
– An array is used to store the elements in the stack

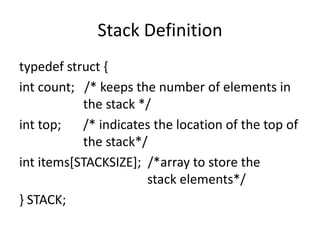

Stack Definition
typedef struct {
int count; /* keeps the number of elements in
the stack */
int top; /* indicates the location of the top of
the stack*/
int items[STACKSIZE]; /*array to store the
stack elements*/
} STACK;

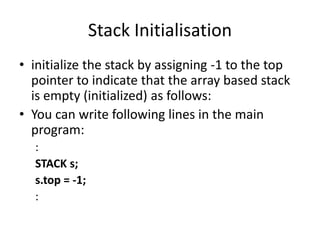

Stack Initialisation
• initialize the stack by assigning -1 to the top
pointer to indicate that the array based stack
is empty (initialized) as follows:
• You can write following lines in the main
program:
:
STACK s;
s.top = -1;
:

Stack Initialisation
• Alternatively you can use the following
function:
void StackInitialize(STACK *Sptr)
{
Sptr->top=-1;
}

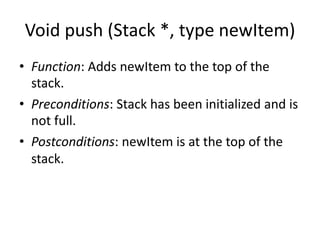

Push Operation

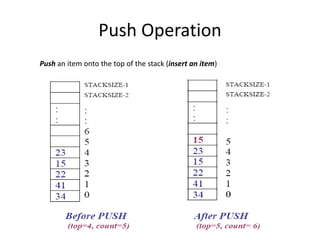

Push an item onto the top of the stack (insert an item)

Void push (Stack *, type newItem)
• Function: Adds newItem to the top of the
stack.
• Preconditions: Stack has been initialized and is
not full.
• Postconditions: newItem is at the top of the
stack.

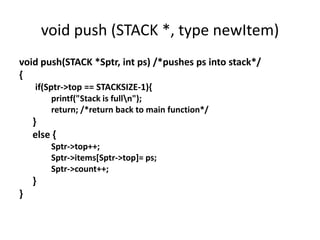

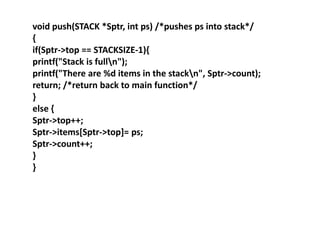

void push (STACK *, type newItem)
void push(STACK *Sptr, int ps) /*pushes ps into stack*/
{
if(Sptr->top == STACKSIZE-1){
printf("Stack is fulln");
return; /*return back to main function*/
}
else {
Sptr->top++;
Sptr->items[Sptr->top]= ps;
Sptr->count++;
}
}

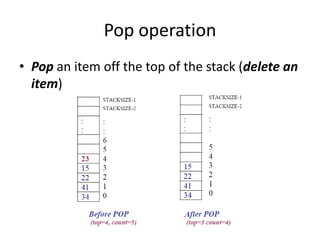

Pop operation
• Pop an item off the top of the stack (delete an
item)

type pop (STACK *)
• Function: Removes topItem from stack and
returns with topItem
• Preconditions: Stack has been initialized and is
not empty.
• Postconditions: Top element has been
removed from stack and the function returns
with the top element.

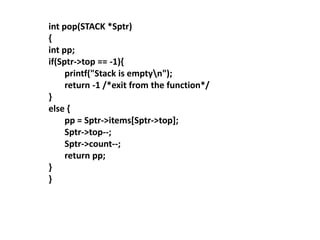

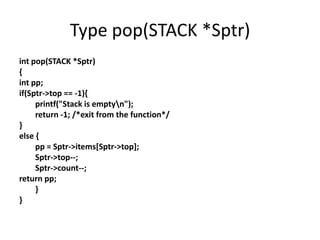

Type pop(STACK *Sptr)
int pop(STACK *Sptr)
{
int pp;
if(Sptr->top == -1){
printf("Stack is emptyn");
return -1; /*exit from the function*/
}
else {
pp = Sptr->items[Sptr->top];
Sptr->top--;
Sptr->count--;
return pp;
}
}

EXAMPLE
• The following program implements stack of
size 10 using array representation.
• The 10 elements entered by the user are
pushed into the stack and then the elements
are popped back and displayed.

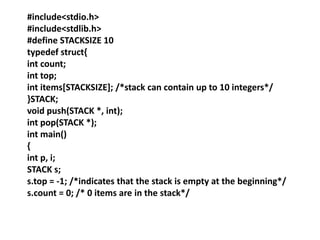

#include<stdio.h>
#include<stdlib.h>
#define STACKSIZE 10
typedef struct{
int count;
int top;
int items[STACKSIZE]; /*stack can contain up to 10 integers*/
}STACK;
void push(STACK *, int);
int pop(STACK *);
int main()
{
int p, i;
STACK s;
s.top = -1; /*indicates that the stack is empty at the beginning*/
s.count = 0; /* 0 items are in the stack*/

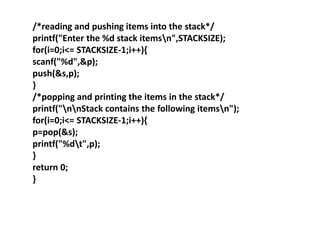

/*reading and pushing items into the stack*/
printf("Enter the %d stack itemsn",STACKSIZE);
for(i=0;i<= STACKSIZE-1;i++){
scanf("%d",&p);
push(&s,p);
}
/*popping and printing the items in the stack*/
printf("nnStack contains the following itemsn");
for(i=0;i<= STACKSIZE-1;i++){
p=pop(&s);
printf("%dt",p);
}
return 0;
}

void push(STACK *Sptr, int ps) /*pushes ps into stack*/
{
if(Sptr->top == STACKSIZE-1){
printf("Stack is fulln");
printf("There are %d items in the stackn", Sptr->count);
return; /*return back to main function*/
}
else {
Sptr->top++;
Sptr->items[Sptr->top]= ps;
Sptr->count++;
}
}

int pop(STACK *Sptr)
{
int pp;
if(Sptr->top == -1){
printf("Stack is emptyn");
return -1 /*exit from the function*/
}
else {
pp = Sptr->items[Sptr->top];
Sptr->top--;
Sptr->count--;
return pp;
}
}

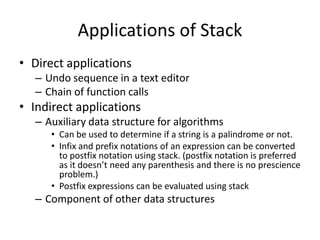

Applications of Stack
• Direct applications
– Undo sequence in a text editor
– Chain of function calls
• Indirect applications
– Auxiliary data structure for algorithms
• Can be used to determine if a string is a palindrome or not.
• Infix and prefix notations of an expression can be converted
to postfix notation using stack. (postfix notation is preferred
as it doesn’t need any parenthesis and there is no prescience
problem.)
• Postfix expressions can be evaluated using stack
– Component of other data structures

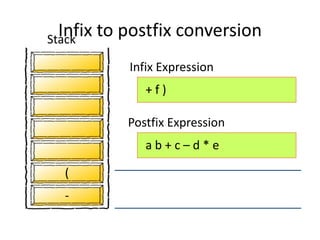

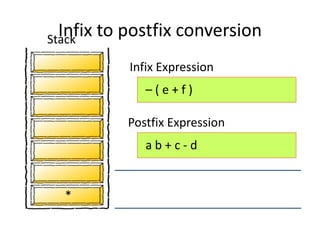

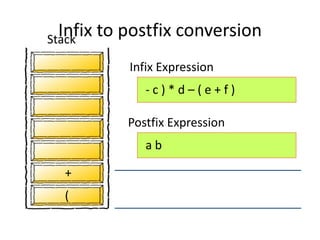

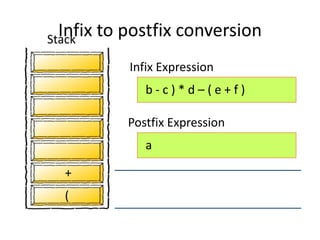

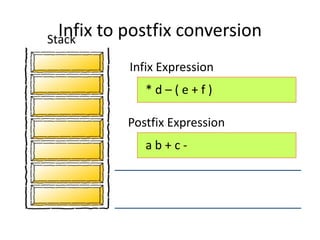

Infix to postfix conversion
Scan the Infix expression left to right
• If the character x is an operand
– Output the character into the Postfix Expression
• If the character x is a left or right parenthesis
– If the character is “(“ Push it into the stack
– if the character is “)” Repeatedly pop and output all the
operators/characters until “(“ is popped from the stack.
• If the character x is a is a regular operator
• Step 1: Check the character y currently at the top of the
stack.
• Step 2: If Stack is empty or y=‘(‘ or y is an operator of
lower precedence than x, then push x into stack.
• Step 3: If y is an operator of higher or equal precedence
than x, then pop and output y and push x into the stack.
When all characters in infix expression are processed repeatedly
pop the character(s) from the stack and output them until the
stack is empty.

Infix Expression
Postfix Expression

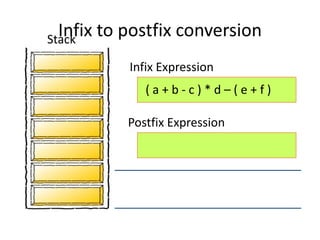

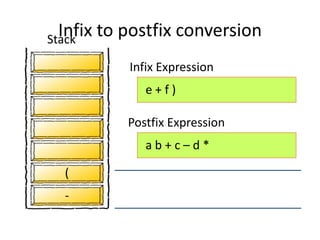

( a + b - c ) * d – ( e + f )
Stack

a + b - c ) * d – ( e + f )
(
Infix Expression
Postfix Expression
Stack

+ b - c ) * d – ( e + f )
(
a
Infix Expression
Postfix Expression
Stack

b - c ) * d – ( e + f )
(
a
+
Infix Expression
Postfix Expression
Stack

- c ) * d – ( e + f )
(
a b
+
Infix Expression
Postfix Expression
Stack

c ) * d – ( e + f )
(
a b +
-
Infix Expression
Postfix Expression
Stack

) * d – ( e + f )
(
a b + c
-
Infix Expression
Postfix Expression
Stack

* d – ( e + f )
a b + c -
Infix Expression
Postfix Expression
Stack

d – ( e + f )
a b + c -
*
Infix Expression
Postfix Expression
Stack

– ( e + f )
a b + c - d
*
Infix Expression
Postfix Expression
Stack

( e + f )
a b + c – d *
-
Infix Expression
Postfix Expression
Stack

e + f )
a b + c – d *
-
(
Infix Expression
Postfix Expression
Stack

+ f )
a b + c – d * e
-
(
Infix Expression
Postfix Expression
Stack

f )
a b + c – d * e
-
(
+
Infix Expression
Postfix Expression
Stack

)
a b + c – d * e f
-
(
+
Infix Expression
Postfix Expression
Stack

a b + c – d * e f +
-
Infix Expression
Postfix Expression
Stack

a b + c – d * e f + -
Infix Expression
Postfix Expression
Stack

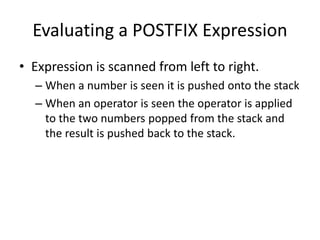

Evaluating a POSTFIX Expression
• Expression is scanned from left to right.
– When a number is seen it is pushed onto the stack
– When an operator is seen the operator is applied
to the two numbers popped from the stack and
the result is pushed back to the stack.

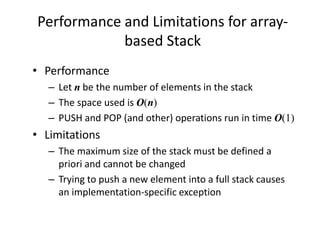

Performance and Limitations for array-
based Stack
• Performance
– Let n be the number of elements in the stack
– The space used is O(n)
– PUSH and POP (and other) operations run in time O(1)
• Limitations
– The maximum size of the stack must be defined a
priori and cannot be changed
– Trying to push a new element into a full stack causes
an implementation-specific exception

DEFINITION OF QUEUE
• An ordered collection of items
– from which items may be deleted at one end
(called the front of the queue) and
– into which items may be inserted at the other end
(the rear of the queue).
• FIFO Queue: The first element inserted into the
queue is the first element to be removed.

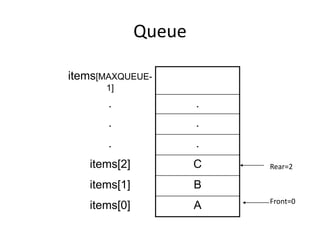

Queue
items[MAXQUEUE-
1]
. .
. .
. .
items[2] C
items[1] B
items[0] A Front=0
Rear=2

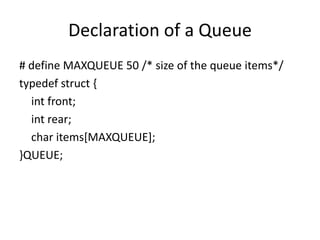

Declaration of a Queue
# define MAXQUEUE 50 /* size of the queue items*/
typedef struct {
int front;
int rear;
char items[MAXQUEUE];
}QUEUE;

QUEUE OPERATIONS
• Initialize the queue
• Insert to the rear of the queue
• Remove (Delete) from the front of the queue
• Is the Queue Empty
• Is the Queue Full
• What is the size of the Queue

INITIALIZE THE QUEUE
items[MAXQUEUE-1]
. .
. .
.
items[1]
items[0] front=0
rear=-1
•The queue is initialized by having the rear set to -1, and front
set to 0.

İnsert(Queue, ‘A’)
• an item (A) is inserted at the Rear of the queue
items[MAXQUEUE
-1]
. .
. .
items[3]
items[2]
items[1]
items[0] A Front=0,
Rear=0

İnsert(Queue, ‘B’)
• A new item (B) is inserted at the Rear of the queue
items[MAXQUEUE
-1]
. .
. .
items[3]
items[2]
items[1] B Rear=1
items[0] A Front=0

İnsert(Queue, ‘C’)
• A new item (C) is inserted at the Rear of the queue
items[MAXQUEUE
-1]
. .
. .
items[3]
items[2] C Rear=2
items[1] B
items[0] A Front=0

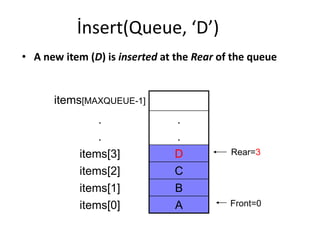

İnsert(Queue, ‘D’)
• A new item (D) is inserted at the Rear of the queue
items[MAXQUEUE-1]
. .
. .
items[3] D Rear=3
items[2] C
items[1] B
items[0] A Front=0

Insert Operation
void insert(QUEUE *qptr, char x)
{
if(qptr->rear == MAXQUEUE-1)
{
printf("Queue is full!");
exit(1);
}
else
{
qptr->rear++;
qptr->items[qptr->rear]=x;
}
}

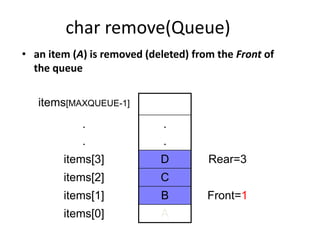

char remove(Queue)
• an item (A) is removed (deleted) from the Front of
the queue
items[MAXQUEUE-1]
. .
. .
items[3] D Rear=3
items[2] C
items[1] B Front=1
items[0] A

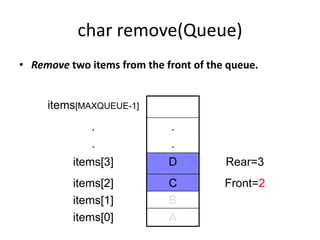

char remove(Queue)
• Remove two items from the front of the queue.
items[MAXQUEUE-1]
. .
. .
items[3] D Rear=3
items[2] C Front=2
items[1] B
items[0] A

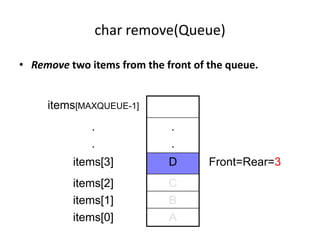

char remove(Queue)
• Remove two items from the front of the queue.
items[MAXQUEUE-1]
. .
. .
items[3] D Front=Rear=3
items[2] C
items[1] B
items[0] A

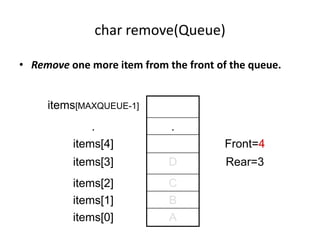

char remove(Queue)
• Remove one more item from the front of the queue.
items[MAXQUEUE-1]
. .
items[4] Front=4
items[3] D Rear=3
items[2] C
items[1] B
items[0] A

Remove Operation
char remove(struct queue *qptr)
{
char p;
if(qptr->front > qptr->rear){
printf("Queue is empty");
exit(1);
}
else
{p=qptr->items[qptr->front];
qptr->front++;
return p;
}
}

INSERT / REMOVE ITEMS
• Assume that the rear= MAXQUEUE-1
•What happens if we want to insert a new item into
the queue?
items[MAXQUEUE-1] X rear=MAXQUEUE-1
. .
. .
items[3] D front=3
items[2] C
items[1] B
items[0] A

• Although there is some empty space, but
indexes of queue show it to be full.
• Solution:
– One of the methods to overcome this problem is
to shift all the items to occupy the location of
deleted item.

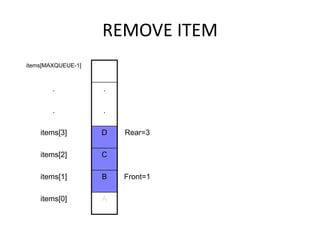

REMOVE ITEM
items[MAXQUEUE-1]
. .
. .
items[3] D Rear=3
items[2] C
items[1] B Front=1
items[0] A

REMOVE ITEM
items[MAXQUEUE-1]
. .
. .
items[3] D Rear=3
items[2] C
items[1] B Front=1
items[0] B

REMOVE ITEM
items[MAXQUEUE-1]
. .
. .
items[3] D Rear=3
items[2] C
items[1] C
items[0] B

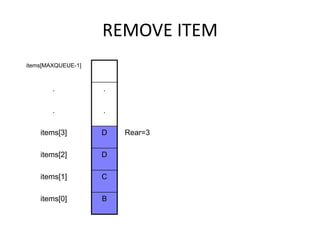

REMOVE ITEM
items[MAXQUEUE-1]
. .
. .
items[3] D Rear=3
items[2] D
items[1] C
items[0] B

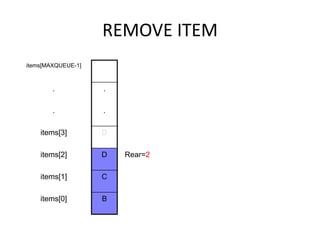

REMOVE ITEM
items[MAXQUEUE-1]
. .
. .
items[3] D
items[2] D Rear=2
items[1] C
items[0] B

Modified Remove Operation
{
char p;
int i;
if(qptr->front > qptr->rear){
printf("Queue is empty");
exit(1);
}
else
{p=qptr->items[qptr->front];
for(i=1;i<=qptr->rear;i++)
qptr->items[i-1]=qptr->items[i];
qptr->rear--
return p;
}
}

• Since all the items in the queue are required
to shift when an item is deleted, this method
is not preferred. We may move all items only once,
instead with every delete.
• The other method is circular queue.
• When rear = MAXQUEUE-1, the next element
is entered at items[0] in case that spot is free.

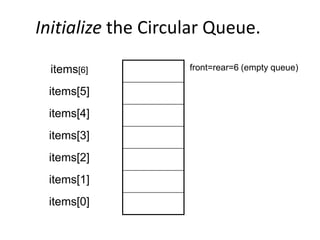

Initialize the Circular Queue.
items[6] front=rear=6 (empty queue)
items[5]
items[4]
items[3]
items[2]
items[1]
items[0]

Insert items into circular queue
items[6] front=6
items[5]
items[4]
items[3]
items[2]
items[1]
items[0] A rear=0

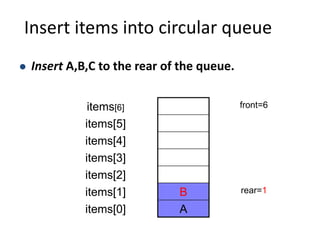

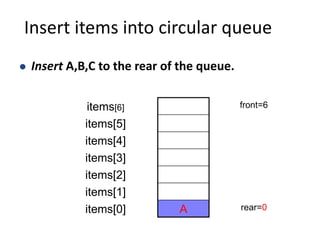

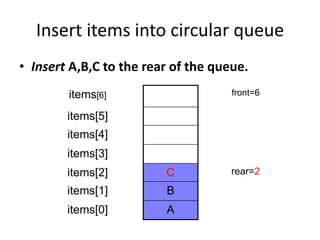

 Insert A,B,C to the rear of the queue.

items[6] front=6
items[5]
items[4]
items[3]
items[2]
items[1] B rear=1
items[0] A
 Insert A,B,C to the rear of the queue.

• Insert A,B,C to the rear of the queue.
items[6] front=6
items[5]
items[4]
items[3]
items[2] C rear=2
items[1] B
items[0] A

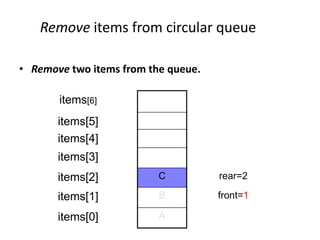

Remove items from circular queue
• Remove two items from the queue.
items[6]
items[5]
items[4]
items[3]
items[2] C rear=2
items[1] B front=1
items[0] A

Remove items from circular queue

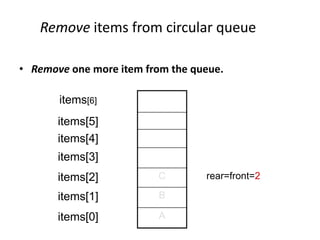

• Remove one more item from the queue.
items[6]
items[5]
items[4]
items[3]
items[2] C rear=front=2
items[1] B
items[0] A

• Insert D,E,F,G to the queue.
items[6] G rear=6
items[5] F
items[4] E
items[3] D
items[2] C front=2
items[1] B
items[0] A

• Insert H and I to the queue.
items[6] G
items[5] F
items[4] E
items[3] D
items[2] C front=2
items[1] B
items[0] H rear=0

• Insert H and I to the queue.
items[6] G
items[5] F
items[4] E
items[3] D
items[2] C front=2
items[1] I
items[0] H rear=0

• Insert J to the queue.
items[6] G
items[5] F
items[4] E
items[3] D
items[2] ?? front=rear=2
items[1] I
items[0] H

Declaration and Initialization of a Circular Queue.
#define MAXQUEUE 10 /* size of the queue items*/
typedef struct {
int front;
int rear;
int items[MAXQUEUE];
}QUEUE;
QUEUE q;
q.front = MAXQUEUE-1;
q.rear= MAXQUEUE-1;

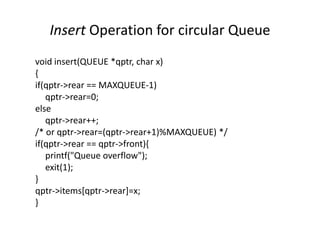

Insert Operation for circular Queue
void insert(QUEUE *qptr, char x)
{
if(qptr->rear == MAXQUEUE-1)
qptr->rear=0;
else
qptr->rear++;
/* or qptr->rear=(qptr->rear+1)%MAXQUEUE) */
if(qptr->rear == qptr->front){
printf("Queue overflow");
exit(1);
}
}

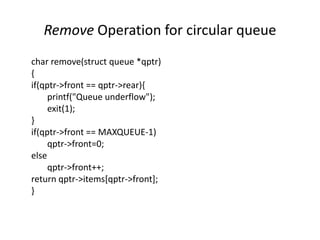

Remove Operation for circular queue
{
if(qptr->front == qptr->rear){
printf("Queue underflow");
exit(1);
}
if(qptr->front == MAXQUEUE-1)
qptr->front=0;
else
qptr->front++;
return qptr->items[qptr->front];
}

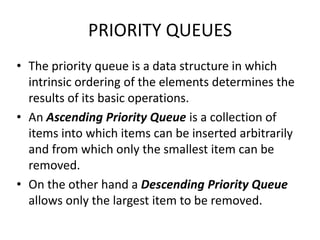

PRIORITY QUEUES
• The priority queue is a data structure in which
intrinsic ordering of the elements determines the
results of its basic operations.
• An Ascending Priority Queue is a collection of
items into which items can be inserted arbitrarily
and from which only the smallest item can be
removed.
• On the other hand a Descending Priority Queue
allows only the largest item to be removed.

Priority QUEUE Operations
• Insertion
– The insertion in Priority queues is the same as in non-priority
queues.
• Deletion
– Deletion requires a search for the element of highest priority
and deletes the element with highest priority. The following
methods can be used for deletion/removal from a given Priority
Queue:
• An empty indicator replaces deleted elements.
• After each deletion elements can be moved up in the array
decrementing the rear.
• The array in the queue can be maintained as an ordered
circular array

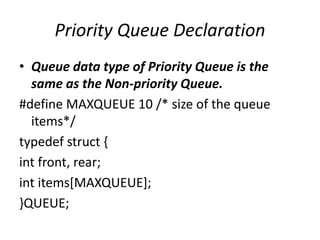

Priority Queue Declaration
• Queue data type of Priority Queue is the
same as the Non-priority Queue.
#define MAXQUEUE 10 /* size of the queue
items*/
typedef struct {
int front, rear;
int items[MAXQUEUE];
}QUEUE;

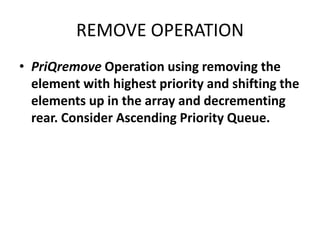

REMOVE OPERATION
• PriQremove Operation using removing the
element with highest priority and shifting the
elements up in the array and decrementing
rear. Consider Ascending Priority Queue.

int PRiQremove(QUEUE *qptr)
{
int smallest, loc, f, i;
f=qptr->front;
if(qptr->front == qptr->rear){
printf("Queue underflow");
exit(1);
}
smallest = qptr->items[(qptr->front+1)%MAXQUEUE];
loc = (qptr->front+1)%MAXQUEUE;
(qptr->front++)%MAXQUEUE; /* Circular increment*/
while(qptr->front != qptr->rear){
if(qptr->items[(qptr->front+1)%MAXQUEUE] <smallest){
smallest = qptr->items[(qptr->front+1)%MAXQUEUE];
loc = (qptr->front+1)%MAXQUEUE;
}
qptr->front =(qptr->front+1)%MAXQUEUE; /* Circular inc.*/
}

while(loc != qptr->rear){
qptr->items[loc] = qptr->items[(loc+1)%MAXQUEUE];
(loc++)%MAXQUEUE;
}
qptr->front=f;
if(qptr->rear == 0) /*Decrement rear after removing one
item*/
qptr->rear = MAXQUEUE -1;
else
qptr->rear--;
return smallest;
}

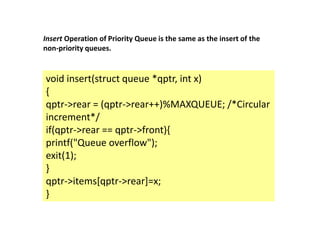

Insert Operation of Priority Queue is the same as the insert of the
non-priority queues.
void insert(struct queue *qptr, int x)
{
qptr->rear = (qptr->rear++)%MAXQUEUE; /*Circular
increment*/
if(qptr->rear == qptr->front){
printf("Queue overflow");
exit(1);
}
}

Queue Applications
• For routing of packets in Network Routers
• For establishing paths in Telephone Switches
• For scheduling of processes in Operating
Systems
• In Simulators for event scheduling
• In any reservation system to queue the
reservation requests

Data Structure - Lecture 2 - Recursion Stack Queue.pdf

More Related Content

Similar to Data Structure - Lecture 2 - Recursion Stack Queue.pdf (20)

Recently uploaded (20)

Data Structure - Lecture 2 - Recursion Stack Queue.pdf
