Deadlock

DEADLOCKS
Definition and example of deadlock
System Model
Deadlock Characterization
Methods for Handling Deadlocks
 Deadlock Prevention
Deadlock Avoidance
Deadlock Detection
Recovery from Deadlock
2

CHAPTER OBJECTIVES
To develop a description of deadlocks,
which prevent sets of concurrent
processes from completing their tasks.
To present a number of different
methods for preventing or avoiding
deadlocks in a computer system.
3

DEFINITION OF DEADLOCK
 A set of two or more processes are deadlocked if
they are blocked (i.e., in the waiting state) each
holding a resource and waiting to acquire a
resource held by another process in the set.
Or
 A process is deadlocked if it is waiting for an
event which is never going to happen.
 Deadlocks can occur via system calls, locking, etc.
4

EXAMPLE OF DEADLOCK
 Semaphores A and B, each initialized to 1:
P_0 P_1
---------- ----------
A.wait(); B.wait();
B.wait(); A.wait();
A.signal(); B.signal();
B.signal(); A.signal();
5

SYSTEM MODEL
 System consists of resources
 Resource types R1, R2, . . ., Rm
CPU cycles, memory space, I/O devices
 Each resource type Ri has Wi instances.
 Each process utilizes a resource as follows:
request
use
Release
7

DEADLOCK CHARACTERIZATION
 Mutual exclusion: only one process at a time can use a
resource
 Hold and wait: a process holding at least one resource
is waiting to acquire additional resources held by other
processes
 No preemption: a resource can be released only
voluntarily by the process holding it, after that process
has completed its task
 Circular wait: there exists a set {P0, P1, …, Pn} of
waiting processes such that P0 is waiting for a resource
that is held by P1, P1 is waiting for a resource that is held
by P2, …, Pn–1 is waiting for a resource that is held by Pn,
and Pn is waiting for a resource that is held by P0.
Deadlock can arise if four conditions hold simultaneously.
8

RESOURCE-ALLOCATION GRAPH
 V is partitioned into two types:
 P = {P1, P2, …, Pn}, the set consisting of all the
processes in the system
 R = {R1, R2, …, Rm}, the set consisting of all
resource types in the system
 request edge – directed edge Pi → Rj
 assignment edge – directed edge Rj → Pi
A set of vertices V and a set of edges E.
9

(CONT.)
 Process
 Resource Type with 4 instances
 Pi requests instance of Rj
 Pi is holding an instance of Rj
Pi
Pi
Rj
Rj 10

EXAMPLE OF A RESOURCE ALLOCATION
GRAPH
11

RESOURCE ALLOCATION GRAPH WITH A
DEADLOCK
12

GRAPH WITH A CYCLE BUT NO DEADLOCK
13

BASIC FACTS
 If graph contains no cycles ⇒ no deadlock
 If graph contains a cycle ⇒
if only one instance per resource type, then
deadlock
if several instances per resource type,
possibility of deadlock
14

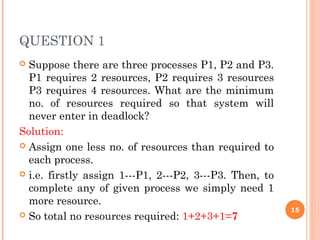

QUESTION 1
 Suppose there are three processes P1, P2 and P3.
P1 requires 2 resources, P2 requires 3 resources
P3 requires 4 resources. What are the minimum
no. of resources required so that system will
never enter in deadlock?
Solution:
 Assign one less no. of resources than required to
each process.
 i.e. firstly assign 1---P1, 2---P2, 3---P3. Then, to
complete any of given process we simply need 1
more resource.
 So total no resources required: 1+2+3+1=7
15

QUESTION 2
 Suppose there are three processes P1, P2 and P3.
P1 requires 3 resources, P2 requires 5 resources
P3 requires 7 resources. What are the minimum
no. of resources required so that system will
never enter in deadlock?
Answer: 13
The minimum 13 resources are required so that
system must be in safe state.
16

MINIMUM RESOURCES REQUIRED
 In general, minimum no. of resources required so
that system must be in safe state:
{(R1-1)+(R2-1)+(R3-1)+--------------+(Rn-1)}+1
(∑Ri-n)+1 where i is from 1 to n
17
(∑Ri-n)+1

QUESTION 3
 Suppose there are five processes P1, P2, P3, P4
and P5. P1 requires 4 resources, P2 requires 3
resources, P3 requires 2 resources, P4 requires 9
resources, P5 requires 8 resources. What are the
minimum no. of resources required so that
system will never enter in deadlock?
 Solution:
R=26, n=5.
Minimum no. of resources required: 26-5+1=22
18

MAXIMUM PROCESSES FOR SAFE
STATE
 If total no. of resources and need of each
process are given, then no. of process can also
be calculated.
 This can be calculated by using same concept.
19

QUESTION 4
 Suppose each process needs 5 units of resources
and total no. of resources are 15. What are the
maximum no. of process should run in safe state?
 Solution:
 (r-1)*n +1<=R where r is no. of resources
required, n is no. of processes, R is total no. of
process.
r=5, R=15
(5-1)*n+1<=15 => 4*n+1<=15
n<=14/4 => n<=3.5
So, no. of max. processes n=3 20

QUESTION 5
 Suppose each process needs 3 units of resources
and total no. of resources are 100. What are the
maximum no. of process should run in safe state?
Answer :49
21

METHODS FOR HANDLING
DEADLOCKS
 Ensure that the system will never enter a
deadlock state:
Deadlock prevention
Deadlock avoidence
 Allow the system to enter a deadlock state and
then recover
 Ignore the problem and pretend that deadlocks
never occur in the system; used by most
operating systems, including UNIX
22

DEADLOCK PREVENTION
 Mutual Exclusion – not required for
sharable resources (e.g., read-only files); must
hold for non-sharable resources
 Hold and Wait – must guarantee that
whenever a process requests a resource, it
does not hold any other resources
Require process to request and be allocated
all its resources before it begins execution,
or allow process to request resources only
when the process has none allocated to it.
Low resource utilization; starvation
possible
Restrain the ways request can be made
23

DEADLOCK PREVENTION (CONT.)
 No Preemption –
 If a process that is holding some resources
requests another resource that cannot be
immediately allocated to it, then all resources
currently being held are released
 Preempted resources are added to the list of
resources for which the process is waiting
 Process will be restarted only when it can regain
its old resources, as well as the new ones that it
is requesting
 Circular Wait – impose a total ordering of all
resource types, and require that each process
requests resources in an increasing order of
enumeration
24

DEADLOCK AVOIDANCE
 Simplest and most useful model requires
that each process declare the maximum
number of resources of each type that it
may need
 The deadlock-avoidance algorithm
dynamically examines the resource-
allocation state to ensure that there can
never be a circular-wait condition
 Resource-allocation state is defined by the
number of available and allocated resources,
and the maximum demands of the processes
Requires that the system has some additional a priori information
available
25

SAFE STATE
 When a process requests an available resource, system
must decide if immediate allocation leaves the system in a
safe state
 System is in safe state if there exists a sequence <P1, P2,
…, Pn> of ALL the processes in the systems such that for
each Pi, the resources that Pi can still request can be
satisfied by currently available resources + resources held
by all the Pj, with j < I
 That is:
 If Pi resource needs are not immediately available,
then Pi can wait until all Pj have finished
 When Pj is finished, Pi can obtain needed resources,
execute, return allocated resources, and terminate
 When Pi terminates, Pi +1 can obtain its needed
resources, and so on
26

BASIC FACTS
 If a system is in safe state ⇒ no deadlocks
 If a system is in unsafe state ⇒ possibility
of deadlock
 Avoidance ⇒ ensure that a system will
never enter an unsafe state.
27

SAFE, UNSAFE, DEADLOCK STATE
28

AVOIDANCE ALGORITHMS
 Single instance of a resource type
Use a resource-allocation graph
 Multiple instances of a resource type
 Use the banker’s algorithm
29

SCHEME
 Claim edge Pi → Rj indicated that process Pj
may request resource Rj; represented by a
dashed line
 Claim edge converts to request edge when a
process requests a resource
 Request edge converted to an assignment edge
when the resource is allocated to the process
 When a resource is released by a process,
assignment edge reconverts to a claim edge
 Resources must be claimed a priori in the
system
30

UNSAFE STATE IN RESOURCE-ALLOCATION
GRAPH
32

ALGORITHM
 Suppose that process Pi requests a resource Rj
 The request can be granted only if converting
the request edge to an assignment edge does
not result in the formation of a cycle in the
resource allocation graph
33

BANKER’S ALGORITHM
 Multiple instances
 Each process must a priori claim maximum
use
 When a process requests a resource it may
have to wait
 When a process gets all its resources it must
return them in a finite amount of time
34

DATA STRUCTURES FOR THE BANKER’S
ALGORITHM
 Available: Vector of length m. If available [j] = k, there are k
instances of resource type Rj available
 Max: n x m matrix. If Max [i,j] = k, then process Pi may
request at most k instances of resource type Rj
 Allocation: n x m matrix. If Allocation[i,j] = k then Pi is
currently allocated k instances of Rj
 Need: n x m matrix. If Need[i,j] = k, then Pi may need k more
instances of Rj to complete its task
Need [i,j] = Max[i,j] – Allocation [i,j]
Let n = number of processes, and m = number of resources types.
35

SAFETY ALGORITHM
1. Let Work and Finish be vectors of length m and n, respectively.
Initialize:
Work = Available
Finish [i] = false for i = 0, 1, …, n- 1
2. Find an i such that both:
(a) Finish [i] = false
(b) Needi ≤ Work
If no such i exists, go to step 4
3. Work = Work + Allocationi
Finish[i] = true
go to step 2
4. If Finish [i] == true for all i, then the system is in a safe state
36

RESOURCE-REQUEST ALGORITHM FOR
PROCESS PI
Requesti = request vector for process Pi. If Requesti [j] = k
then process Pi wants k instances of resource type Rj
1. If Requesti ≤ Needi go to step 2. Otherwise, raise error
condition, since process has exceeded its maximum claim
2. If Requesti ≤ Available, go to step 3. Otherwise Pi must
wait, since resources are not available
3. Pretend to allocate requested resources to Pi by modifying
the state as follows:
Available = Available – Requesti;
Allocationi = Allocationi + Requesti;
Needi = Needi – Requesti;
If safe ⇒ the resources are allocated to Pi
If unsafe ⇒ Pi must wait, and the old resource-allocation
state is restored
37

EXAMPLE OF BANKER’S ALGORITHM
 5 processes P0 through P4;
3 resource types:
A (10 instances), B (5instances), and C (7 instances)
 Snapshot at time T0:
Allocation Max Available
A B C A B C A B C
P0 0 1 0 7 5 3 3 3 2
P1 2 0 0 3 2 2
P2 3 0 2 9 0 2
P3 2 1 1 2 2 2
P4 0 0 2 4 3 3
38

EXAMPLE (CONT.)
 The content of the matrix Need is defined to be Max – Allocation
Need
A B C
P0 7 4 3
P1 1 2 2
P2 6 0 0
P3 0 1 1
P4 4 3 1
 The system is in a safe state since the sequence < P1, P3, P4, P2, P0>
satisfies safety criteria
39

EXAMPLE: P1 REQUEST (1,0,2)
 Check that Request ≤ Available (that is, (1,0,2) ≤ (3,3,2) ⇒ true
Allocation Need Available
A B C A B C A B C
P0 0 1 0 7 4 3 2 3 0
P1 3 0 2 0 2 0
P2 3 0 2 6 0 0
P3 2 1 1 0 1 1
P4 0 0 2 4 3 1
 Executing safety algorithm shows that sequence < P1, P3, P4, P0, P2>
satisfies safety requirement
 Can request for (3,3,0) by P4 be granted?
 Can request for (0,2,0) by P0 be granted? 40

DEADLOCK DETECTION
 Allow system to enter deadlock state
 Detection algorithm
 Recovery scheme
41

SINGLE INSTANCE OF EACH RESOURCE
TYPE
 Maintain wait-for graph
Nodes are processes
Pi → Pj if Pi is waiting for Pj
 Periodically invoke an algorithm that searches for
a cycle in the graph. If there is a cycle, there
exists a deadlock
 An algorithm to detect a cycle in a graph requires
an order of n2
operations, where n is the number
of vertices in the graph
42

RESOURCE-ALLOCATION GRAPH AND WAIT-
FOR GRAPH
Resource-Allocation Graph Corresponding wait-for graph
43

SEVERAL INSTANCES OF A
RESOURCE TYPE
 Available: A vector of length m indicates
the number of available resources of each
type
 Allocation: An n x m matrix defines the
number of resources of each type currently
allocated to each process
 Request: An n x m matrix indicates the
current request of each process. If Request
[i][j] = k, then process Pi is requesting k
more instances of resource type Rj. 44

DETECTION ALGORITHM
1.Let Work and Finish be vectors of length m and
n, respectively Initialize:
(a) Work = Available
(b)For i = 1,2, …, n, if Allocationi ≠ 0, then
Finish[i] = false; otherwise, Finish[i] = true
2.Find an index i such that both:
(a)Finish[i] == false
(b)Requesti ≤ Work
If no such i exists, go to step 4
45

DETECTION ALGORITHM (CONT.)
3.Work = Work + Allocationi
Finish[i] = true
go to step 2
4.If Finish[i] == false, for some i, 1 ≤ i ≤ n, then
the system is in deadlock state. Moreover, if
Finish[i] == false, then Pi is deadlocked
Algorithm requires an order of O(m x n2
)
operations to detect whether the system is in
deadlocked state
46

EXAMPLE OF DETECTION
ALGORITHM
 Five processes P0 through P4;three resource types
A (7 instances), B (2 instances), and C (6 instances)
 Snapshot at time T0:
Allocation Request Available
A B C A B C A B C
P0 0 1 0 0 0 0 0 0 0
P1 2 0 0 2 0 2
P2 3 0 3 0 0 0
P3 2 1 1 1 0 0
P4 0 0 2 0 0 2
 Sequence <P0, P2, P3, P1, P4> will result in Finish[i] = true for all i
47

EXAMPLE (CONT.)
 P2 requests an additional instance of type C
Request
A B C
P0 0 0 0
P1 2 0 2
P2 0 0 1
P3 1 0 0
P4 0 0 2
 State of system?
 Can reclaim resources held by process P0, but insufficient
resources to fulfill other processes; requests
 Deadlock exists, consisting of processes P1, P2, P3, and P4
48

DETECTION-ALGORITHM USAGE
 When, and how often, to invoke depends on:
 How often a deadlock is likely to occur?
 How many processes will need to be rolled
back?
 one for each disjoint cycle
 If detection algorithm is invoked arbitrarily,
there may be many cycles in the resource graph
and so we would not be able to tell which of the
many deadlocked processes “caused” the
deadlock.
49

RECOVERY FROM DEADLOCK: PROCESS
TERMINATION
 Abort all deadlocked processes
 Abort one process at a time until the deadlock cycle is eliminated
 In which order should we choose to abort?
1. Priority of the process
2. How long process has computed, and how much longer to
completion
3. Resources the process has used
4. Resources process needs to complete
5. How many processes will need to be terminated
6. Is process interactive or batch?
50

RECOVERY FROM DEADLOCK: RESOURCE
PREEMPTION
 Selecting a victim – minimize cost
 Rollback – return to some safe state, restart
process for that state
 Starvation – same process may always be picked
as victim, include number of rollback in cost factor
51

Deadlock

More Related Content

What's hot (20)

Similar to Deadlock (20)

More from Rajandeep Gill (7)

Recently uploaded (20)

Deadlock
