Deep learning for 3-D Scene Reconstruction and Modeling

Deep learning for 3-D Scene
Reconstruction and Modeling
Yu Huang
Yu.Huang07@gmail.com
Sunnyvale, CA
1

Outline
• Background
• LIFT: Learned Invariant Feature Transform
• Detect/Match Keypoints with Deep Architectures
• MatchNet
• Universal Correspondence Network
• Depth Prediction using a Multi-Scale Deep Network
• Deeper Depth Prediction with Fully Convol. ResNet
• Depth Estimation with Left-Right Consistency
• Depth Estimation: Geometry to the Rescue
• Deep Depth From Focus
• Deep Learning for Monocular Depth Map Prediction
• Scene Parsing with Perspective Understanding
• PoseNet
• Generate Object Models with CNNs
• 3D View Synthesis by Deep NN
• Multi-view 3D Models from Single Images
• View Synthesis by Appearance Flow
• Perspective Transformer Nets
• 3D-R2N2
• SurfNet
• Face reconstruction
• Deep3D
• DeepStereo
• Novel View Generation from Deep NN
• SfMNet
• DEMON
• Learning of Depth and Ego-Motion from Video
• CNN-SLAM
• Semantic scene completion from depth image
• Appendix: Introduction of Deep Learning

Background and Problems
• Low level vision: Feature description and matching;
• Image-based relocalization;
• 3-D geometric object modeling;
• Image-based modeling: view synthesis;
• 2D-to-3D: depth/disparity prediction;
• Structure from Motion and Scene Flow;
• Visual odometry: Pose estimation;
• Multiple view reconstruction: Depth fusion;
• SLAM;

LIFT: Learned Invariant Feature Transform
• A Deep Network architecture that implements the full feature point handling
pipeline, that is, detection, orientation estimation, and feature description.
• Learn to do all 3 in a unified manner while preserving end-to-end differentiability.
The integrated feature extraction pipeline. It consists of 3 major components: the
Detector, the Orientation Estimator, and the Descriptor. They are tied together with
differentiable operations to preserve end-to-end differentiability.

The Siamese training architecture with 4 branches, which takes as input a quadruplet of patches: Patches P 1 and P 2 correspond
to different views of the same physical point, and are used as positive examples to train the Descriptor; P 3 shows a different 3D
point, which serves as a negative example for the Descriptor; and P 4 contains no distinctive feature points and is only used as a
negative example to train the Detector. Given a patch P, the Detector, the softargmax, and the Spatial Transformer layer Crop
provide all together a smaller patch p inside P. p is then fed to the Orientation Estimator, which along with the Spatial Transformer
layer Rot, provides the rotated patch pθ that is processed by the Descriptor to obtain the final description vector d.

As the Orientation Estimator and the Descriptor only require evaluation at local
maxima, decouple the Detector and run it in scale space with traditional NMS
(non-maximal suppression) to obtain proposals for the two other components.

Learning to Detect and Match Keypoints
with Deep Architectures
• Learning to detect and describe keypoints from images leveraging deep architectures.
• The model learns from this vast dataset to identify and describe meaningful keypoints.
Given an image, a fully convolutional recursive network outputs a scale-
pyramid of keypoint responses, which are used to extract patches. Then,
the patches are described by a patch descriptor network.

Training architecture for multiscale keypoint detection network. First, patches pass through a
set of convolutions and pooling layers. Then, a recursive convolution is applied until the feature
map dimension is 1 × 1. A scale-dependent branch is chosen for each patch determining the
number of recursive convolutions. Finally, two FCLs lead into a binary keypoint classifier.

Inference architecture for multiscale keypoint detection network. First, an input image is
passed through a set of convolutions and pooling layers. Then, a recursive convolution is
applied until the feature map dimension is 1×1. After each recursive convolution, compute
the keypoint feature map. The output feature maps resemble a keypoint scale-space.

Convolutions later in the detection network
correspond to larger patch sizes. The keypoint
feature map with the highest response
indicates the best keypoint scale.
Training architecture of the keypoint description
triplet network. Three patches are passed through
channels which share weights to rank their euclidean
distances in the feature space.

MatchNet: Unifying Feature and Metric
Learning for Patch-Based Matching
• A unified approach to combining
both for training a patch
matching system, MatchNet;
• A deep convolutional network
that extracts features from
patches and a network of three
fully connected layers that
computes a similarity between
the extracted features.
• Train MatchNet on standard
datasets and employ an input
sampler to augment the training
set with synthetic exemplar pairs
that reduce overfitting.
A: The feature network used
for feature encoding, with an
optional bottleneck layer to
reduce feature dimension.
B: The metric network used for
feature comparison.
C: In training, the feature net is
applied as two “towers” on
pairs of patches with shared
parameters.
Output from the two towers
are concatenated as the metric
network’s input. The entire
network is jointly trained on
labeled patch-pairs generated
from the sampler to minimize
the cross-entropy loss. In
prediction, the two sub-
networks (A and B) are
conveniently used in a two-
stage pipeline.

MatchNet: Unifying Feature and Metric
Learning for Patch-Based Matching
MatchNet is disassembled during prediction

Universal Correspondence Network
• A deep learning framework for accurate visual correspondences for both
geometric and semantic matching, spanning across rigid motions to intra-class
shape or appearance variations.
• Deep metric learning directly learns a feature space that preserves either
geometric or semantic similarity.
• Fully convolutional architecture, along with a correspondence contrastive loss
allows faster training, accurate gradient computation through the use of
thousands of examples per image pair and faster testing with O(n) feed forward
passes for n keypoints, instead of O(n2) for typical patch similarity methods.
• A convolutional spatial transformer to mimic patch normalization in traditional
features like SIFT, which is shown to dramatically boost accuracy for semantic
correspondences across intra-class shape variations.

The Universal Correspondence Network accurately and efficiently learns a metric space
for geometric correspondences, dense trajectories or semantic correspondences.

The network is fully convolutional, consisting of a series of convolutions,
pooling, nonlinearities and a convolutional spatial transformer, followed
by channel-wise L2 normalization and correspondence contrastive loss.

Correspondence contrastive loss takes three inputs:
two dense features extracted from images and a
correspondence table for positive and negative pairs.

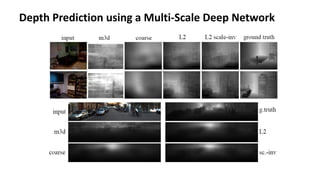

Depth Prediction using a Multi-Scale Deep Network
• Two deep network stacks: one that makes a coarse global prediction based on the
entire image, and another that refines this prediction locally;
• Apply a scale-invariant error to help measure depth relations rather than scale;
• Augment training data with online
random transformations (scale,
rotation, translation, flips, color).
• Baseline for comparison: Make3D.

(a) input, (b) output of coarse network, (c) refined
output of fine network, (d) ground truth.

Deeper Depth Prediction with Fully
Convolutional Residual Networks
 A fully convolutional architecture, encompassing residual learning, to model the ambiguous
mapping btw monocular images and depth maps, trained end-to-end.
 Efficiently learn feature map up-sampling within the network: For optimization, the reverse
Huber loss driven by the value distributions commonly present in depth maps.
 Not rely on post-processing techniques, such as CRFs or other additional refinement steps.
 Source codes: https://github.com/iro-cp/FCRN-DepthPrediction.
The reverse Huber (berHu) as loss function

From up-convolutions to up-projections.
Faster up-convolutions. Convolving the original
feature map with the 4 differently composed filters
and interleaving them to obtain the same output,
while avoiding zero multiplications.

Estimating Depth from Monocular Images as Classification
Using Deep Fully Convolutional Residual Networks
• Formulate depth estimation as a pixel-wise classification task.
• Specifically, discretize the continuous depth values into multiple bins and
label the bins according to their depth range.
• Train fully convolutional deep residual networks to predict the depth label
of each pixel.
• Performing discrete depth labeling instead of continuous depth value
regression allows to predict a confidence in the form of prob. distribution.
• Apply fully-connected conditional random fields (CRF) as a post processing
step to enforce local smoothness interactions, which improves the results.

An overview of depth estimation model. It takes as input an RGB image and output score
maps. Fully-connected CRFs are then applied to obtain the final depth estimation.

Network architecture. The input image is fed into a convolution layer, a max pooling layer and 4 convolution
blocks. The value of [n1, n2, n3, n4] is [2, 3, 22, 2] for the 101-layer network architecture and [2, 7, 35, 2] for the
152-layer network architecture. The last 3 layers are an average pooling layer, a full-connected layer with number
of channels equal to the number of labels and a softmax layer. The output map is downsampled by a factor of 8.

The energy function of the fully-connected CRF is the sum of unary potential U and
pairwise potential V :
Each ks is the Gaussian kernel depends on features (denoted as f) extracted for pixel i
and j and is weighted by parameter ws.

Unsupervised Monocular Depth
Estimation with Left-Right Consistency
 Replacing use of explicit depth data during training with easier-to-obtain binocular stereo footage;
 Training objective that enables CNN to learn to perform single image depth estimation, despite the
absence of ground truth depth data.
 Exploiting epipolar geometry constraints, generate disparity images by training the network with
an image reconstruction loss.
 A training loss that enforces consistency between the disparities produced relative to both the left
and right images, leading to improved performance and robustness compared to existing
approaches.
loss Cs at each output scale s photometric image reconstruction cost
disparity smoothness loss left-right disparity consistency penalty

The loss module outputs left and right
disparity maps, dl and dr. The loss combines
smoothness, reconstruction, and left-right
disparity consistency terms. This same
module is repeated at each of the 4 different
output scales.
C: Convolution
UC: Up-Convolution
S: Bilinear Sampling
US: Up-Sampling
SC: Skip Connection

Sampling strategies for backward mapping.
 With naıve sampling the CNN produces a
disparity map aligned with the target instead
of the input.
No LR corrects for this, but suffers from
artifacts.
Instead, this approach uses the left image to
produce disparities for both images,
improving quality by enforcing mutual
consistency.

Comparison between with and without the left-right consistency. The
consistency term produces better results on the object boundaries.
(Note: Both without post-processing).

Unsupervised CNN for Single View Depth
Estimation: Geometry to the Rescue
 A unsupervised framework to learn a deep convolutional neural network for single view depth
prediction, without requiring a pre-training stage or annotated ground-truth depths.
 Training the network in a manner analogous to an autoencoder: At training time apply a pair of
images, source and target, with small, known camera motion between the two such as a stereo pair.
 Train the convolutional encoder for the task of predicting the depth map for the source image.
 Explicitly generate an inverse warp of the target image using the predicted depth and known inter-
view displacement, to reconstruct the source image; the photometric error in the reconstruction is
the reconstruction loss for the encoder.
 The acquisition of this training data is considerably simpler than for equivalent systems, requiring
no manual annotation, nor calibration of depth sensor to camera.

Coarse-to-fine stereo with CNN with results on a sample validation instance: a convolution
based upsampling architecture proposed to mimic the coarse-to-fine stereo estimations.

Network architecture: The blocks C (red), P (yellow), L (dark blue), F (green), D (blue) correspond to convolution,
pooling, local response normalization, FCN and upsampling layers respectively. The FCN blocks F1 and F2 upsample
the predictions from layers (L7, L8) and combine it with the input of the pooling layers P3 and P2 respectively.

A stereopsis based auto-encoder setup: the encoder is a traditional convolutional neural network with
stacked convolutions and pooling layers and maps the left image of the rectified stereo pair into its depth
map. The decoder explicitly forces the encoder output to be disparities (scaled inverse depth) by
synthesizing a backward warp image by moving pixels from right image along the scan-line.

Deep Depth From Focus
 ‘Deep Depth From Focus (DDFF)’ as the end-to-end learning approach.
 A real-scene indoor benchmark composed of 4D light-field images obtained from a
plenoptic camera and ground truth depth obtained from a registered RGB-D sensor.
Experimental setup. RGB-D sensor on
top of a plenoptic camera in order to
capture calibrated ground truth depth
maps and light-field images from which
to create focal stacks. These two inputs
will be used to train DDFNet.

Deep Depth From Focus
DDFFNet. Proposed encoder-style architecture that takes in a focal stack and produces a disparity map.
Here several architectural modifications, namely CC connections, Upsample, i.e. Unpool, BL and UpConv.

Semi-Supervised Deep Learning for
Monocular Depth Map Prediction
 In the context of monocular depth map prediction, it is
barely possible to determine dense ground truth depth
images in realistic dynamic outdoor environments.
 When using LiDAR sensors, noise is present in the
distance measurements, calibration btw sensors
cannot be perfect, and measurements are typically
much sparser than the camera images.
 An approach to depth map prediction from monocular
images that learns in a semi-supervised way.
 While using sparse ground-truth depth for supervised
learning, also enforce the deep network to produce
photo-consistent dense depth maps in a stereo setup
using a direct image alignment loss. Concurrently train a CNN from unsupervised and supervised
depth cues to achieve state-of-the-art performance in single
image depth prediction.

Components and inputs of the semi-supervised loss function
Supervised loss
Unsupervised loss
Regularization loss

Illustration of the deep residual encoder-decoder architecture (c1, c3, mp1 abbreviate conv1,
conv3, and max pool1, respectively). Skip connections from corresponding encoder layers to the
decoder facilitate fine detailed depth map prediction.

Type 1 residual block resblock1
s with stride s = 1. The
residual is obtained from 3 successive convolutions. The
residual has the same number of channels as the input.
Type 2 residual block resblock2
s with stride s. The
residual is obtained from 3 successive convolutions,
while the 1st convolution applies stride s. An additional
convolution applies the same stride s and projects the
input to the number of channels of the residual.
Schematic illustration of the upprojection residual block.
It unpools the input by a factor of 2 and applies a residual
block which reduces number of channels by a factor of 2.

Recurrent Scene Parsing with Perspective
Understanding in the Loop
 A depth-aware gating module that adaptively chooses the pooling field size in a convol. net
architecture according to the object scale so that small details can be preserved for objects at
distance and a larger receptive field can be used for objects nearer to the camera.
 The depth gating signal is provided from stereo disparity or directly from a single image.
 A recurrent CNN trained in an end-to-end fashion to perform semantic segmentation.
 The recurrent module iteratively refines the segmentation results, leveraging the depth estimate
and output prediction from the previous loop.

Left: depth-aware gating module using the predicted depth map. Right: an example image with ground-
truth, segmentation result w/o the depth gating module. Rectangles overlayed on the image indicate
pooling field sizes which are adapted based on the local depth estimate. Using depth-gated pooling yields
more accurate segment label predictions by avoiding pooling across small multiple distant objects.

The input to our recurrent module is the concatenation
of the feature map from an intermediate layer of the
feed-forward pathway with the prior recurrent
prediction. The recurrent module utilizes depth-aware
gating which carries out both depth regression and
quantized prediction. Updated depth predictions at each
iteration gate pooling fields used for semantic
segmentation. This recurrent update of depth
estimation increases the flexibility and representation
power of the system yielding improved segmentation. It
illustrates the prediction prior to, and after two
recurrent iterations for a particular image. It visualizes
the difference in predictions between consecutive
iterations and note the gains in accuracy at each
iteration as measured by average intersection-over-
union (IoU) benchmark performance.

PoseNet: A Convolutional Network for
Real-Time 6-DOF Camera Relocalization
• PoseNet: A robust and real-time monocular 6 DOF relocalization system.
• It trains a CNN to regress 6-DOF camera pose from a RGB image in an end-to-
end manner with no need of additional engineering or graph optimisation.
• The algorithm can operate indoors and outdoors in real time, 5ms per frame.
• This is achieved by an efficient 23 layer deep convnet, image plane regression.
• It localizes from high level features and is robust to difficult lighting, motion
blur and different camera intrinsics where point based SIFT registration fails.
• The pose feature that is produced generalizes to other scenes allowing to
regress pose with only a few dozen training examples.

• To regress pose, train the convnet on Euclidean loss using stochastic gradient
descent with the following objective loss function:
where β is a scale factor chosen to keep the expected value of position and
orientation errors to be approximately equal.
• Use GoogLeNet as a basis for developing the pose regression network.
– Replace all 3 softmax classifiers with affine regressors.
– The softmax layers were removed and each final FCL was modified to output a pose vector of
7-dimensions representing position (3) and orientation (4).
– Insert another FCL before the final regressor of feature size 2048.
– This was to form a localization feature vector which may then be explored for generalisation.
– At test time also normalize the quaternion orientation vector to unit length.

Localization performance for both position and orientation as a cumulative histogram of errors.
The regression convnet outperforms the NN feature matching. Comparing to the RGB-D SCoRe
Forest approach shows that this CNN method is competitive, but outperformed by a more
expensive depth approach. The method does perform better on the hardest few frames, above
the 95th percentile, with the worst error lower than the worst error from the SCoRe approach.

VINet: Visual-Inertial Odometry as a
Sequence-to-Sequence Learning Problem
• On-manifold sequence-to-
sequence learning approach
to motion estimation using
visual and inertial sensors.
Comparison btw a standard visual-
inertial odometry framework and
the learning-based approach.

VINet: Visual-Inertial Odometry as a
Sequence-to-Sequence Learning Problem
VINet architecture for visual-inertial odometry. LSTM processing the pose output at
camera-rate and an IMU LSTM processing data at the IMU rate.

Learning to Generate Chairs, Tables and
Cars with Convolutional Networks
• Train generative ’up-convolutional’ neural networks which are able to generate
images of objects given object style, viewpoint, and color.
A 2-stream network

Weakly-supervised Disentangling with Recurrent
Transformations for 3D View Synthesis
• Train a neural network when restricting the attention to specific object
categories for which to gather ample training data.
• A recurrent convolutional encoder-decoder network that is trained end-to-
end on the task of rendering rotated objects starting from a single image.
• The recurrent structure allows the model to capture long-term dependencies
along a sequence of transformations.
Deep convolutional encoder-decoder
network for learning 3d rotation.

Weakly-supervised Disentangling with Recurrent
Transformations for 3D View Synthesis
Unrolled recurrent convolutional network for learning to rotate 3d objects. The convolutional
encoder and decoder have been abstracted out, represented here as vertical rectangles.

Multi-view 3D Models from Single Images with a
Convolutional Network
• A convolutional network capable of inferring a 3D representation of a previously
unseen object given a single image of this object.
• Concretely, the network can predict an RGB image and a depth map of the object as
seen from an arbitrary view.
• Several of these depth maps fused together give a full point cloud of the object.
• The point cloud can in turn be transformed into a surface mesh.
• The network is trained on renderings of synthetic 3D models of cars and chairs.
• It successfully deals with objects on cluttered background and generates reasonable
predictions for real images of cars.

Multi-view 3D Models from Single Images with a
Convolutional Network
Architecture of the network. The encoder turns an input image into an abstract 3D
representation. The decoder processes the angle, modifies the encoded hidden
representation accordingly, and renders the final image together with the depth map.

View Synthesis by Appearance Flow
• Novel view synthesis: given an input image, synthesizing new images of
the same object or scene observed from arbitrary viewpoints.
• A learning task, instead of learning to synthesize pixels from scratch, learn
to copy them from the input image.
• It exploits the observation that the visual appearance of different views of
the same instance is highly correlated, and such correlation could be
explicitly learned by training a CNN to predict appearance flows – 2-D
coordinate vectors specifying which pixels in the input view could be used
to reconstruct the target view.
• Furthermore, the framework easily generalizes to multiple input views by
learning how to optimally combine single-view predictions.

Overview of the single-view network architecture. An encoder-decoder framework where the input view
and the desired viewpoint transformation are first encoded via several convolution and fully-connected
layers, and then a decoder consisting of two fully-connected and six up-sampling convolution layers
outputs an appearance flow field, which in conjunction with the input view yields the synthesized view
through a bilinear sampling layer. All the layer weights are learned end-to-end through backpropagation.

Overview of the multi-view network architecture (⊗: per-pixel product, ⊕: per-
pixel normalized sum). For each input view, use a single-view CNN with shared
weights to independently predict the target view as well as a per-pixel
selection/confidence mask. The final target view prediction is obtained by linearly
combining the predictions from each view weighted by the selection masks.

View synthesis examples
using the multi-view
network. Typically, the final
prediction is more similar to
the ground-truth than any
independent prediction.

Perspective Transformer Nets: Learning
Single-View 3D Object Reconstruction
• Single-view 3D object reconstruction from a learning agent’s perspective.
• Formulate the learning process as an interaction btw 3D and 2D representations
and propose an encoder-decoder network with a novel projection loss defined by
the perspective transformation.
• The projection loss enables the unsupervised learning using 2D observation
without explicit 3D supervision.
• Generating 3D volume from a single 2D image: (1) learning from single-class
objects; (2) learning from multi-class objects and (3) testing on novel object classes.

(a) understanding 3D object from learning agent’s perspective; (b) single-view 3D
volume reconstruction with perspective transformation. (c) perspective projection.

Network Architecture: a 2D convol. encoder, a 3D up-convol. decoder and a perspective transformer networks.
The 2D convol. encoder consists of 3 convol. layers, followed by 3 FCLs(convol. layers have 64, 128 and 256
channels with fixed filter size of 5 × 5; the 3 FCLs have 1024, 1024 and 512 neurons, respectively). The 3D convol.
decoder consists of one FCL, followed by 3 convol. layers (the FCL have 3 × 3 × 3 × 512 neurons; convol. layers
have 256, 96 and 1 channels with filter size of 4 × 4 × 4, 5 × 5 × 5 and 6 × 6 × 6). For perspective transformer
networks, used perspective transformation to project 3D volume to 2D silhouette where the transformation
matrix is parametrized by 16 variables and sampling grid is set to 32 × 32 × 32.

3D-R2N2: A Unified Approach for Single and Multi-
view 3D Object Reconstruction
• A NN architecture, 3D Recurrent
Reconstruction Neural Network (3D-R2N2).
• The network learns a mapping from images
of objects to their underlying 3D shapes
from a large collection of synthetic data.
• The network takes in one or more images of
an object instance from arbitrary viewpoints
and outputs a reconstruction of the object
in the form of a 3D occupancy grid.
• It does not require any image annotations
or object class labels for training or testing.

Network architecture: Each 3D-R2N2 consists of an encoder, a recurrence unit and a decoder. After every
convolution layer, place a LeakyReLU nonlinearity. The encoder converts a 127 × 127 RGB image into a low-
dimensional feature which is then fed into the 3D-LSTM. The decoder then takes the 3D-LSTM hidden states
and transforms them to a final voxel occupancy map. After each convolution layer is a LeakyReLU. Two
versions of 3D-R2N2: (top) a shallow network and (bottom) a deep residual network.

(a) At each time step, each unit in the 3D-LSTM receives the same feature vector from the encoder
and the hidden states from its neighbors by a 3×3×3 convolution (Ws∗ht−1) as inputs. Two versions
of 3D-LSTMs: (b) 3D-LSTMs without output gates and (c) 3D Gated Recurrent Units (GRUs).

SurfNet: Generating 3D shape surfaces using
deep residual networks
• Lifting convolution operators from the traditional 2D to 3D results in high
computational overhead with little additional benefit as most of the
geometry information is contained on the surface boundary.
• Generate the 3D shape surface of rigid/non-rigid shapes using deep CNNs.
• Create consistent ‘geometry images’ as the shape surface of a category of
3D objects, then use it for category-specific shape surface generation from a
parametric representation or an image by developing novel extensions of
deep residual networks for the task of geometry image generation.
• It learns a meaningful representation of shape surfaces allowing it to
interpolate between shape orientations and poses, invent new shape
surfaces and reconstruct 3D shape surfaces from previously unseen images.

Correspondences btw mesh model and
exemplar shapes to create consistent
geometry images. The geometry image
created using correspondences btw central
mesh model and axillary shape on top right
shows best surface reconstruction lower
than a threshold error, and subsequently
used for training the neural network.

Architecture for generating a geometry image feature channel from an image.

The up and down residual building blocks of our network architecture composed
of upsampling, downsampling and standard residual blocks shown in center.

Network architecture for generating a geometry image feature channel for rigid shapes
from a one hot-encoded class label and view angle (in analogy to pose) parameters.

Pipeline for generating a surface plot of a rigid shape from class and view parameters by
summing the residual geometry image of x, y, z coordinates to the base geometry image.

Deep3D: Fully Automatic 2D-to-3D
Video Conversion with Deep CNN
 Use deep NNs for automatically converting 2D videos and images to stereoscopic 3D format.
 In contrast to previous automatic 2D-to-3D conversion algorithms, this approach is trained
end-to-end directly on stereo pairs extracted from 3D movies.
 This training scheme could exploit more data and significantly increases performance.

 Deep3D, a fully automatic 2D-to-3D conversion algorithm that takes 2D images or
video frames as input and outputs 3D stereo image pairs.
 The stereo images can be viewed with 3D glasses or head-mounted VR displays.
 Deep3D is trained directly on stereo pairs from a dataset of 3D movies to minimize
the pixel-wise reconstruction error of the right view when given the left view.
 Internally, the Deep3D network estimates a probabilistic disparity map that is used by
a differentiable depth image-based rendering layer to produce the right view.
 Thus Deep3D does not require collecting depth sensor data for supervision.

Deep3D model architecture. The
model combines information from
multiple levels and is trained end-to-
end to directly generate the right view
from the left view. The base network
predicts a probabilistic disparity
assignment which is then used by the
selection layer to model Depth Image-
Based Rendering (DIBR) in a
differentiable way. This also allows
implicit in-painting.

DeepStereo: Learning to Predict New Views from
the World’s Imagery
 This work performs new view synthesis directly from pixels, trained
from a large number of posed image sets.
 End-to-end learning: the pixels from neighboring views of a scene
are presented to the network, which then directly produces the pixels
of the unseen view;
 A set of 3D plane sweep volumes as input; a plane sweep volume
(PSV) consists of a stack of images reprojected to the target camera C;
 Each image Ik in the stack is reprojected into C at a set of varying
depths d Ξ {d1, d2, …dD} to form a plane sweep volume
where Pk
i refers to the reprojected image Ik at depth di.
 Create a separate plane sweep volume Vk
C for each input image Ik.
 Each voxel vk
i,j,z in each plane sweep volume Vk
C has RGB and A
(alpha) components.
 A given output pixel depends only on a small column of voxels from
each of the per-source PSVs.
},...,,{ 21
k
D
kkk
C PPPV 

DeepStereo: Learning to Predict New Views
from the World’s Imagery
Basic architecture with both
selection and color towers
The selection tower: compute features that are
independent of depth; model interactions btw
depth planes, connected across depth planes.

The color tower: learns to combine and
warp pixels across the sources.
Multi-resolution patches. Rather than predict a full image at a
time predict the output image patch-by-patch.
Four different resolutions: Each resolution is first
processed independently by several layers and then up-
sampled and concatenated before entering the final layers.
Training. Taking a posed set of images, leaving one image out,
and predicting it from the remaining ones.
Uses subsets of N+1 images during training;
The center image is used as the target and the other N are
used as input.
The network was trained to produce 8x8 patches from
overlapping input patches of size 30x30;
Trained by Adagrad with an initial learning rate of 0.0001.

Full network diagram: The initial stages of both the color and selection
towers are the same structure, but do not share parameters.

Efficient and Scalable View Generation from a Single
Image using Fully Convolutional Networks
• Exploit two FCN architectures for Single-image-based view generation (SIVG).
• To train the solutions, a large dataset of 2M stereoscopic images is built.
• DeepViewren: based on combination of an FCN and a view-rendering
network.
– It generates competitive accuracy to the state of the art, however, with the fastest processing
speed of all. That is x5 times faster speed and x24 times lower memory consumption
compared to the state of the art.
• DeepViewdec: consists of decoupled networks for luminance and
chrominance signals.
– It has much higher accuracy, but with x2.5 times faster speed and x12 times lower memory
consumption.

DeepViewgen architecture. The encoding network extracts low, middle and high level
features from the input image and transfers them to the decoding network. After decoding,
the rendering network generates probabilistic disparity maps and estimates the right-image.

The rendering network. The softmax layer normalizes the output of the decoding network to
probabilistic values over channels (Pi, i ∈ Ω). Here, # channels is identical to # values in a
disparity range Ω = {−N, −N + 1, ..., 0, 1, ..., N}. The final right-view image Rˆ is synthesized by
pixel-wise multiplication between P and their correspondingly-translated left-images L.

DeepViewdec architecture. Two decoupled networks having the same architecture, i.e.,
luminance (Y) and chrominance (Cb, Cr) network. Each network is trained separately.

Face Image Reconstruction from Deep Templates
• To what extent face templates derived from deep networks can be inverted to
obtain the original face image.
• Deep templates, extracted by deep networks under image reconstruction attack.
• A de-convolutional neural network (D-CNN) to reconstruct images of faces from
their deep templates.
• The reconstruction method was evaluated using type-I (comparing the
reconstructed images against the original face images used to generate the deep
template) and type-II (comparing the reconstructed images against a different
face image of the same subject) attacks.
• A three-trial attack for each target face image using three face images
reconstructed from three different D-CNNs.

Face recognition system vulnerability to image reconstruction attacks. Face image
of a target subject is reconstructed from a template to gain system access by either
(a) creating a fake face (for example, a 2D printed image or 3D mask) or (b)
inserting a reconstructed face into the feature extractor.

An overview of the
template security
study of deep network
based face recognition
systems under image
reconstruction attack.

The de-convolutional neural network (D-CNN) for reconstructing face images
from the corresponding face templates. The numbers (w × h × c) below each
layer denote its width, height, and number of channels, respectively.

SfM-Net: Learning of Structure and Motion
from Video
 SfM-Net, a geometry-aware NN for motion estimation in videos that decomposes frame pixel
motion in terms of scene and object depth, camera motion and 3D object rotations and
translations.
 Given a sequence of frames, SfM-Net predicts depth, segmentation, camera and rigid object
motions, converts those into a dense frame-to-frame motion field (optical flow), differentiably
warps frames in time to match pixels and back-propagates.
 The model can be trained with various degrees of supervision: 1) self-supervised by the
reprojection photometric error (completely unsupervised), 2) supervised by ego-motion
(camera motion), or 3) supervised by depth (e.g., as provided by RGBD sensors).

from Video
SfM-Net: Given a pair of frames
as input, the model
decomposes frame pixel
motion into 3D scene depth, 3D
camera rotation and
translation, a set of motion
masks and corresponding 3D
rigid rotations and translations.
It back-projects the resulting 3D
scene flow into 2D optical flow
and warps accordingly to match
pixels from one frame to the
next. Forward-backward
consistency checks constrain
the estimated depth.

from Video
SfM-Net architecture. For each pair of
consecutive frames, a conv/deconv
sub-network predicts depth while
another predicts a set of
segmentation masks. The coarsest
feature maps of the motion-mask
encoder are further decoded through
FCL towards 3D rotations and
translations for the camera and the K
segmentations. The predicted depth is
converted into a per frame point-cloud
using estimated or known camera
intrinsics.

DeMoN: Depth and Motion Network for
Learning Monocular Stereo
 Structure from motion as a learning problem: train a
convolutional network end-to-end to compute depth
and camera motion from successive, unconstrained
image pairs.
 The architecture is composed of multiple stacked
encoder-decoder networks, the core part being an
iterative network that is able to improve its own
predictions.
 The network estimates not only depth and motion, but
additionally surface normals, optical flow btw the
images and confidence of the matching.
 A training loss based on spatial relative differences.
 The architecture consists of 3 main components: the
bootstrap net, the iterative net and the refinement net.

 The first two components are pairs of encoder-decoder networks, where the first one computes
optical flow while the second one computes depth and camera motion.
 The bootstrap component gets the image pair as input and outputs the initial depth and motion
estimates.
 Internally, first an encoder-decoder network computes optical flow and a confidence map for the flow;
 The second encoder-decoder takes as input the optical flow, its confidence, the image pair, and the
second image warped with the estimated flow field.
 The iterative net is applied recursively to successively refine the estimates of the previous
iteration.
 The iterative net is trained to improve existing depth, normal, and motion estimates.
 The architecture of this encoder-decoder pair is identical to the bootstrap net, but it takes additional
inputs.
 The last is a encoder-decoder network that generates the final up-sampled and refined depth
map.
 The full resolution first image and the nearest-neighbor-upsampled depth and normal field as input, the
final refinement net upscales the predictions to the full input image resolution (256 × 192).

Encoder-decoder
architecture for
predicting optical flow

Encoder-decoder
architecture for predicting
depth and camera motion

Encoder-decoder architecture for refining the depth prediction

Unsupervised Learning of Depth and
Ego-Motion from Video
 Unsupervised learning framework for the task of monocular depth and camera motion estimation;
 End-to-end learning approach with view synthesis as the supervisory signal, requiring only
monocular video sequences for training.
 Single-view depth and multi-view pose networks, with a loss based on warping nearby views to the
target using the computed depth and pose.
 Coupled by the loss during training, but can be applied independently at test time.

The training procedure produces two
models that operate independently, one for
single-view depth prediction, and one for
multi-view camera pose estimation.
The training data to the system consists
solely of unlabeled image sequences
capturing scene appearance from
different viewpoints, where the poses
of the images are not provided.

Overview of the supervision pipeline based on view synthesis. The depth network takes only the target view as
input, and outputs a per-pixel depth map. The pose network takes both the target view and the nearby/source views
as input, and outputs the relative camera poses. The outputs of both networks are then used to inverse warp the
source views to reconstruct the target view, and the photometric reconstruction loss is used for training the CNNs.
By utilizing view synthesis as supervision, able to train the entire framework in an unsupervised manner from videos.

Illustration of the differentiable image warping process.
For each point pt in the target view, first project it onto
the source view based on the predicted depth and camera
pose, and then use bilinear interpolation to obtain the
value of the warped image at location pt.

Network architecture for depth/pose/explainability prediction modules. The
width and height of each rectangular block indicates the output channels and the
spatial dimension of the feature map at the corresponding layer respectively, and
each reduction/increase in size indicates a change by the factor of 2.

CNN-SLAM: Real-time dense monocular
SLAM with learned depth prediction
• Given the depth prediction from CNNs, it can be deployed for accurate and dense
monocular reconstruction.
• CNN-predicted dense depth maps are naturally fused together with depth
measurements obtained from direct monocular SLAM.
• The fusion scheme privileges depth prediction in image locations where mono
SLAM approaches tend to fail, e.g. along low-textured regions, and vice-versa.
• Depth prediction can estimate the absolute scale of the reconstruction,
overcoming one of the major limitations of monocular SLAM.
• Fuse semantic labels, obtained from a single frame, with dense SLAM, yielding
semantically coherent scene reconstruction from a single view.

CNN-SLAM: Real-time dense monocular
SLAM with learned depth prediction
depth estimation accuracy
CNN-SLAM Overview

A Point Set Generation Network for 3D
Object Reconstruction from a Single Image
• Address the problem of 3D reconstruction
from a single image, generating a straight-
forward form of output – point cloud coord.s
• Along with this problem arises a unique and
interesting issue, that the ground truth shape
for an input image may be ambiguous.
• The solution is a conditional shape sampler,
capable of predicting multiple plausible 3D
point clouds from an input image.

PointOutNet structure

Network for conditional VAE shape sampler P(S|X). Left: a training-time
conditional VAE implemented as a feed forward NN. Here, Y is the volumetric
form of the ground truth shape S, whereas f(z, X) is the point cloud form of
the predicted shape for S. Right: the same model at test time.

Semantic Scene Completion
from a Single Depth Image
• A task for producing a complete 3D voxel representation of volumetric
occupancy and semantic labels for a scene from a single-view depth map
observation.
• To leverage the coupled nature of scene completion and semantic labeling
of depth maps, design the semantic scene completion network (SSCNet),
an end-to-end 3D convolnet that takes a single depth image as input and
simultaneously outputs occupancy and semantic labels for all voxels in the
camera view frustum.
• A dilation-based 3D context module to efficiently expand the receptive
field and enable 3D context learning.
• To train our network, construct SUNCG - a manually created large-scale
dataset of synthetic 3D scenes with dense volumetric annotations.

Semantic scene completion. (a) Input
single-view depth map (b) Visible
surface from the depth map. (c)
Semantic scene completion result:
the model jointly predicts volumetric
occupancy and object categories for
each of the 3D voxels in the view
frustum. Note: the entire volume
occupied by the bed is predicted to
have the bed category.

SSCNet: Semantic scene completion network. Taking a single depth map as input, the
network predicts occupancy and object labels for each voxel in the view frustum. The
convolution parameters are shown as (number of filters, kernel size, stride, dilation).

Synthesizing Training Data. Collect a large-scale synthetic 3D scene dataset to train the
network. For each of the 3D scenes, select a set of camera positions and generate pairs
of rendered depth images and volumetric ground truth as training examples.

Deep Learning
• Representation learning attempts to automatically learn good features or representations;
• Deep learning algorithms attempt to learn multiple levels of representation of increasing
complexity/abstraction (intermediate and high level features);
• Become effective via unsupervised pre-training + supervised fine tuning;
– Deep networks trained with back propagation (without unsupervised pre-training) perform worse
than shallow networks.
• Deal with the curse of dimensionality (smoothing & sparsity) and over-fitting (unsupervised,
regularizer);
• Semi-supervised: structure of manifold assumption;
– labeled data is scarce and unlabeled data is abundant.

Why Deep Learning?
• Supervised training of deep models (e.g. many-layered Nets) is too hard (optimization problem);
• Learn prior from unlabeled data;
• Shallow models are not for learning high-level abstractions;
• Ensembles or forests do not learn features first;
• Graphical models could be deep net, but mostly not.
• Unsupervised learning could be “local-learning”;
• Resemble boosting with each layer being like a weak learner
• Learning is weak in directed graphical models with many hidden variables;
• Sparsity and regularizer.
• Traditional unsupervised learning methods aren’t easy to learn multiple levels of representation.
• Layer-wised unsupervised learning is the solution.
• Multi-task learning (transfer learning and self taught learning);
• Other issues: scalability & parallelism with the burden from big data.

Deep Feature Learning
• Hand-crafted features:
• Needs expert knowledge
• Requires time-consuming hand-tuning
• (Arguably) one limiting factor of computer vision systems
• Key idea of feature learning:
• Learn statistical structure or correlation from unlabeled data
• The learned representations used as features in supervised and semi-supervised settings
• Hierarchical feature learning
• Deep architectures can be representationally efficient.
• Natural progression from the low level to the high level structures.
• Can share the lower-level representations for multiple tasks in computer vision.

Feature Learning Architectures
Pixels /
Features
Filtering with Dictionary
(patch/tiled/convolutional)
Spatial/Feature
(Sum or Max)
Normalization between
feature responses
Features
+ Non-linearity
Local Contrast Normalization
(Subtractive & Divisive)
(Group)
Sparsity
Max
/
Softmax
Not an exact
separation

Multi Layer Neural Network
• A neural network = running several logistic regressions at the same time;
– Neuron=logistic regression or…
• Calculate error derivatives (gradients) to refine: back propagate the error derivative
through model (the chain rule)
– Online learning: stochastic/incremental gradient descent;
– Batch learning: conjugate gradient descent.

Convolutional Neural Networks (CNN)
• CNN is a special kind of multi-layer NNs applied to 2-d arrays (usually images), based on spatially
localized neural input;
– local receptive fields(shifted window), shared weights (weight averaging) across the hidden units, and often,
spatial or temporal sub-sampling;
– Related to generative MRF/discriminative CRF:
• CNN=Field of Experts MRF=ML inference in CRF;
– Generate ‘patterns of patterns’ for pattern recognition.
• Each layer combines (merge, smooth) patches from previous layers
– Pooling /Sampling (e.g., max or average) filter: compress and smooth the data.
– Convolution filters: (translation invariance) unsupervised;
– Local contrast normalization: increase sparsity, improve optimization/invariance.
C layers
convolutions,
S layers pool/sample

Convolutional Neural Networks (CNN)
• Convolutional Networks are trainable multistage architectures composed of multiple stages;
• Input and output of each stage are sets of arrays called feature maps;
• At output, each feature map represents a particular feature extracted at all locations on input;
• Each stage is composed of: a filter bank layer, a non-linearity layer, and a feature pooling layer;
• A ConvNet is composed of 1, 2 or 3 such 3-layer stages, followed by a classification module;
– A fully connected layer: softmax transfer function for posterior distribution.
• Filter: A trainable filter (kernel) in filter bank connects input feature map to output feature map;
• Nonlinearity: a pointwise sigmoid tanh() or a rectified sigmoid abs(gi•tanh()) function;
– In rectified function, gi is a trainable gain parameter, might be followed a contrast normalization N;
• Feature pooling: treats each feature map separately -> a reduced-resolution output feature map;
• Supervised training is performed using a form of SGD to minimize the prediction error;
– Gradients are computed with the back-propagation method.
• Unsupervised pre-training: predictive sparse decomposition (PSD), then supervised fine-tuning.
* is discrete convolution operator

Deep learning for 3-D Scene Reconstruction and Modeling

LeNet (LeNet-5)
• A layered model composed of convolution and subsampling operations followed by a
holistic representation and ultimately a classifier for handwritten digits;
• Local receptive fields (5x5) with local connections;
• Output via a RBF function, one for each class, with 84 inputs each;
• Learning by Graph Transformer Networks (GTN);

AlexNet
• A layered model composed of convol., subsample., followed by a holistic
representation and all-in-all a landmark classifier;
• Consists of 5 convolutional layers, some of which followed by max-pooling
layers, 3 fully-connected layers with a final 1000-way softmax;
• Fully-connected “FULL” layers: linear classifiers/matrix multiplications;
• ReLU are rectified-linear nonlinearities on layer output, can be trained
several times faster;
• Local normalization scheme aids generalization;
• Overlapping pooling slightly less prone to overfitting;
• Data augmentation: artificially enlarge the dataset using label-preserving
transformations;
• Dropout: setting to zero output of each hidden neuron with prob. 0.5;
• Trained by SGD with batch # 128, momentum 0.9, weight decay 0.0005.

The network’s input is 150,528-dimensional, and the number of neurons in the network’s
remaining layers is given by 253,440–186,624–64,896–64,896–43,264-4096–4096–1000.

MattNet
• Matthew Zeiler from the startup company “Clarifai”, winner of ImageNet Classification in 2013;
• Preprocessing: subtracting a per-pixel mean;
• Data augmentation: downsampled to 256 pixels and a random 224 pixel crop is taken out of the image and
randomly flipped horizontally to provide more views of each example;
• SGD with min-batch # 128, learning rate annealing, momentum 0.9 and dropout to prevent overfitting;
• 65M parameters trained for 12 days on a single Nvidia GPU;
• Visualization by layered DeconvNets: project the feature activations back to the input pixel space;
– Reveal input stimuli exciting individual feature maps at any layer;
– Observe evolution of features during training;
– Sensitivity analysis of the classifier output by occluding portions to reveal which parts of scenes are important;
• DeconvNet attached to each of ConvNet layer, unpooling uses locations of maxima to preserve structure;
• Multiple such models were averaged together to further boost performance;
• Supervised pre-training with AlexNet, then modify it to get better performance (error rate 14.8%).

Architecture of an eight layer ConvNet model. Input: 224 by 224 crop of an image (with 3
color planes). # 1-5 layers Convolution: 96 filters, 7x7, stride of 2 in both x and y. Feature
maps: (i) via a rectified linear function, (ii) 3x3 max pooled (stride 2), (iii) contrast normalized
55x55 feature maps. # 6-7 layers: fully connected, input in vector form (6x6x256 = 9216
dimensions). The final layer: a C-way softmax function, C - number of classes.

Top: A deconvnet layer (left) attached to
a convnet layer (right). The deconvnet
will reconstruct approximate version of
convnet features from the layer
beneath.
Bottom: Unpooling operation in the
deconvnet, using switches which record
the location of the local max in each
pooling region (colored zones) during
pooling in the convnet.

Stacked Denoising Auto-Encoder
• Denoising Auto-Encoder: Multilayer NNs with target output=input;
• Auto-encoder learns the salient variation like a nonlinear PCA;
• Stack many (may be sparse) auto-encoders in succession and train them using greedy layer-wise
unsupervised learning
• Drop the decode layer each time
• Performs better than stacking RBMs;
• Supervised training on the last layer using final features;
• (option) Supervised training on the entire network to fine- tune all weights of the neural net;
• Empirically not quite as accurate as DBNs.

RNN: Recurrent Neural Network
• A nonlinear dynamical system that maps sequences to sequences;
• Parameterized with three weight matrices and three bias vectors;
• RNNs are fundamentally difficult to train due to their nonlinear iterative nature;
– The derivative of the loss function can be exponentially large with respect to the hidden activations;
– RNN suffers also from the vanishing gradient problem.
• Back Propagation Through Time (BPTT):
– “Unfold” the recurrent network in time, by stacking identical copies of the RNN, and redirecting
connections within the network to obtain connections between subsequent copies;
– It’s hard to be used where online adaption is required as the entire time series must be used.
• Real-Time Recurrent Learning (RTRL) is a forward-pass only algorithm that computes the derivatives
of the RNN w.r.t. its parameters at each timestep;
– Unlike BPTT, RTRL maintains the exact derivative of the loss so far at each timestep of the forward pass,
without a backward pass and the need to store the past hidden states;
– However, the computational cost of RTRL is prohibitive and more memory than BPTT as well.
• Success in Application: Speech Recognition and Handwriting recognition.

LSTM: Long Short-Term Memory
• An RNN structure that elegantly addresses the vanishing gradients problem using “memory units”;
• These linear units have a self-connection of strength 1 and a pair of auxiliary “gating units” that control the flow
of information to and from the unit;
• Let N be the number of memory units of the LSTM. At each timestep t, the LSTM maintains a set of vectors as
below, whose evolution is governed by the following equations:
• Since the forward pass of the LSTM is relatively intricate, the equations for the correct derivatives of the LSTM
are highly complex, making them tedious to implement;
• Note: Theano has LSTM module.

Left: RNN with one fully connected hidden layer;
Right: LSTM with memory blocks in hidden layer.
From Simple RNN to BPTT
LSTM: Long Short-Term Memory

Gated Recurrent Unit
• GRU is a variation of RNN, adaptively capturing dependencies of different time scales with each recurrent unit;
• GRU uses gating units as well to modulate the flow of information inside the unit, but without a memory cells.
• GRU doesn’t control degree to which its state is exposed, but exposes the whole state each time;
• Different from LSTM:
– GRU expose its full content without control;
– GRU controls the information flow from the previous activation when computing the new, candidate activation, but does not
independently control the amount of the candidate activation being added (the control is tied via the update gate).
• Shared virtues with LSTM: the additive
component of their update from t to t + 1;
• Easy for each unit to remember the
existence of a specific feature in the input
stream for a long series of steps;
• Effectively creates shortcut paths that
bypass multiple temporal steps, which
allow the error to be back-propagated
easily without too quickly vanishing.

Stochastic Gradient Descent (SGD)
• The general class of estimators that arise as minimizers of sums are called M-
estimators;
• Where are stationary points of the likelihood function (or zeroes of its derivative, the score function)?
• Online gradient descent samples a subset of summand functions at every step;
• The true gradient of is approximated by a gradient at a single example;
• Shuffling of training set at each pass.
• There is a compromise between two forms, often called "mini-batches", where the
true gradient is approximated by a sum over a small number of training examples.
• STD converges almost surely to a global minimum when the objective function
is convex or pseudo-convex, and otherwise converges almost surely to a local
minimum.

Back Propagation
E (f(x0,w),y0) = -log (f(x0,w)- y0).

Loss function
• Euclidean loss is used for regressing to real-valued lables [-inf,inf];
• Sigmoid cross-entropy loss is used for predicting K independent probability values in
[0,1];
• Softmax (normalized exponential) loss is predicting a single class of K mutually exclusive
classes;
– Generalization of the logistic function that "squashes" a K-dimensional vector of
arbitrary real values z to a K-dimensional vector of real values σ(z) in the range (0, 1).
– The predicted probability for the j'th class given a sample vector x is
• Sigmoidal or Softmax normalization is a way of reducing the influence of extreme values
or outliers in the data without removing them from the dataset.

Variable Learning Rate
• Too large learning rate
– cause oscillation in searching for the minimal point
• Too slow learning rate
– too slow convergence to the minimal point
• Adaptive learning rate
– At the beginning, the learning rate can be large when the current point is far
from the optimal point;
– Gradually, the learning rate will decay as time goes by.
• Should not be too large or too small:
– annealing rate 𝛼(𝑡)=𝛼(0)/(1+𝑡/𝑇)
– 𝛼(𝑡) will eventually go to zero, but at the beginning it is almost a constant.

Data Augmentation for Overfitting
• The easiest and most common method to reduce overfitting on
image data is to artificially enlarge the dataset using label-
preserving transformations;
• Perturbing an image I by transformations that leave the
underlying class unchanged (e.g. cropping and flipping) in order
to generate additional examples of the class;
• Two distinct forms of data augmentation:
– image translation
– horizontal reflections
– changing RGB intensities

Weight Decay for Overfitting
• Weight decay or L2 regularization adds a penalty term to the error function, a term called the
regularization term: the negative log prior in Bayesian justification,
– Weight decay works as rescaling weights in the learning rule, but bias learning still the same;
– Prefer to learn small weights, and large weights allowed if improving the original cost function;
– A way of compromising btw finding small weights and minimizing the original cost function;
• In a linear model, weight decay is equivalent to ridge (Tikhonov) regression;
• L1 regularization: the weights not really useful shrink by a constant amount toward zero;
– Act like a form of feature selection;
– Make the input filters cleaner and easier to interpret;
• L2 regularization penalizes large values strongly while L1 regularization ;
• Markov Chain Monte Carlo (MCMC): simulating a Markov chain whose equilibrium distr. is the
posterior distribution for weights & hyper-parameters;
• Hybrid Monte Carlo: gradient and sampling.

Early Stopping for Overfitting
• Steps in early stopping:
– Divide the available data into training and validation sets.
– Use a large number of hidden units.
– Use very small random initial values.
– Use a slow learning rate.
– Compute the validation error rate periodically during training.
– Stop training when the validation error rate "starts to go up".
• Early stopping has several advantages:
– It is fast.
– It can be applied successfully to networks in which the number of weights far exceeds the sample
size.
– It requires only one major decision by the user: what proportion of validation cases to use.
• Practical issues in early stopping:
– How many cases do you assign to the training and validation sets?
– Do you split the data into training and validation sets randomly or by some systematic algorithm?
– How do you tell when the validation error rate "starts to go up"?

Dropout and Maxout for Overfitting
• Dropout: set the output of each hidden neuron to zero w.p. 0.5.
– Motivation: Combining many different models that share parameters succeeds in reducing
test errors by approximately averaging together the predictions, which resembles the
bagging.
– The units which are “dropped out” in this way do not contribute to the forward pass and do
not participate in back propagation.
– So every time an input is presented, the NN samples a different architecture, but all these
architectures share weights.
– This technique reduces complex co-adaptations of units, since a neuron cannot rely on the
presence of particular other units.
– It is, therefore, forced to learn more robust features that are useful in conjunction with many
different random subsets of the other units.
– Without dropout, the network exhibits substantial overfitting.
– Dropout roughly doubles the number of iterations required to converge.
• Maxout takes the maximum across multiple feature maps;

Deep learning for 3-D Scene Reconstruction and Modeling

More Related Content

What's hot (20)

Similar to Deep learning for 3-D Scene Reconstruction and Modeling (20)

More from Yu Huang (20)

Recently uploaded (20)

Deep learning for 3-D Scene Reconstruction and Modeling
