The document describes the Deployable Disaster Device (D3) Wind Turbine project. The project aimed to design a portable wind turbine powered generator that could produce electricity for 24 hours and be carried by one person. Key aspects of the project included choosing a NPower Marine turbine, designing a collapsible frame that fits in a Pelican case, and producing 250 watts of power while staying under budget at $2,070. The completed D3 Wind Turbine was lighter, more portable, and lower cost than the previous D3 Solar Turbine project while providing electricity generation anytime.
Deployable Disaster Device
- 1. Deployable Disaster Device D3 Wind Turbine PEEC/IKE (SEE3) June-Aug 2014 University of Hawaii at Manoa Department of Mechanical Engineering Advisor: Dr. Mehrdad Nejhad Mentors: Horton, Dave (UH) Minei, Brenden(UH) Wong, Kyle (UH) Team Members: Baker, Keanu (LCC) Carias, Zachary (KCC) Gabrick, Caton (KCC) Han, William (HCC) Kheradpey, Shireen (BU)
- 2. Overview ● Hurricane Iselle (Aug 7, 2014) ● Puna, Big Island
- 3. D3 Project- Solar Power (PEEC/SEE3 SU 2013) Budget: $10,000 Weight: 200+ lbs Output: 240 Watts
- 4. Goals - D3 Wind Turbine ● Improve on the previous design of the solar powered D3 ● Design a product that can produce power 24 hours a day ● Make it cheaper, lighter, and more reliable
- 5. Project objectives - Parameters ● Budget: $2,500 ● Size: Compacted into Pelican Box ● Weight: Carryable by a single person ● Power Output: 250 Watts
- 7. Budget Material / Component Estimated Budget Actual Cost NPower Marine Turbine $500 $600 Raw Materials $400 $360 PELICAN Box $650 $420 Battery $200 $300 Power inverter $50 $50 Suspension $90 $90 Electrical $200 $150 Hardware $100 $100 TOTAL $2,190 $2,070
- 8. Decision Making Matrix (Battery)
- 9. Wind Turbine Options NPower Turbine SunPower Turbine WindMax Turbine
- 10. Decision Making Matrix (Wind Turbine)
- 11. Project Design - Undeployed Switch Box BatteryWind Turbine Suspension (wire rope isolators) Base Chassis
- 12. Project Design - Deployed Tower BaseLegs Wind Turbine
- 13. Analysis ● Wind Speed Tolerance: 40 MPH ● Peak power: 28 MPH
- 14. Fabrication
- 15. Manufacturing
- 16. Assembly

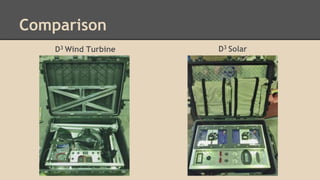

- 17. Comparison D3 SolarD3 Wind Turbine Turbine Turbine
- 18. Conclusion D3 Wind Turbine D3 Solar Cost $2,070 $10,000 Weight 60 lbs 200+ lbs Assembly Time 9 minutes 1 minute Power Output 250 Watts 240 Watts
- 19. Acknowledgments ● PEEC/ SEE3: Bubba Lipe, Josh Ka’akua, Kelly Ching ● Mechanical Engineering Departement ○ Professor Mehrdad Nejhad ○ Dave Horton ○ Kyle Wong ○ Brenden Minei ● Shireen Kheradpey (Boston University)
Editor's Notes
- #5: Specify what aspects of the design you are improving on: Comparable power, cheaper. - by a $2,500 budget. 150lbs. same power. more power generation. increase in money. 250 watt but possibility of 400 watts in perfect conditions. 240watt for solar power
- #6: PROJECT objectives - parameters
- #7: Continuous research? because… why? Figure out better way to phrase this “Did research and am continuously modifying” Top labels (week 24, week 25...week 33): crop out top section with weekly labels. Use photoshop put in own headings
- #8: say that red is where we went over budget but say that green is where you were under budget. and total is under budget
- #9: Explain the DMM- (logical projection) based on the parameters we named we looked at the values between options. Because we weighted x factors as more important we gave those parameters a higher weighting factor. Because the LiFe was the most favorable in these parameter aspects this alternative was chosen.
- #10: Insert slide showing pictures of the turbines and explain that structurally they are similar its the performance is where it differs
- #14: say what the power is at 28mph. Peak Power: 400 Watts at 28mph Convert chart into 2D chart. add y-axis label. keep entire chart, explain that turbine has internal dampening system to slow self down at higher wind speeds to prevent the instrument from braking. Specify that wind speed tolerance of 40mph is of the structure, not of the turbine itself. include free standing chart and tied down turbine chart.
- #15: Dont have two slides with same name. fabrication, manufacturing,
- #17: Intergration assembly chassis and base for tower
- #19: insert chart comparing wind turbine to solar panels. make it look like budget chart. use pictures of both (put pictures on another chart.) budget, weight, assmebly time, Power output,)
- #20: PEEC ike C3 first, josh baba kelly. still keep nejhad guys for acknowledgements Do you want to include other interns? any other names?
