Design and Analysis of Algorithms

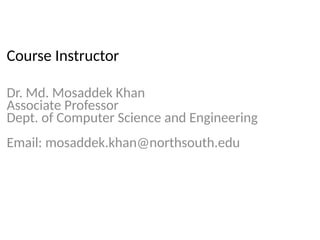

Course Instructor
Dr. Md. Mosaddek Khan
Associate Professor
Dept. of Computer Science and Engineering
Email: mosaddek.khan@northsouth.edu

Recommended Textbook
• Cormen, T.H., Leiserson, C.E., Rivest, R.L. and Stein, C., 2022.
Introduction to algorithms. MIT press.

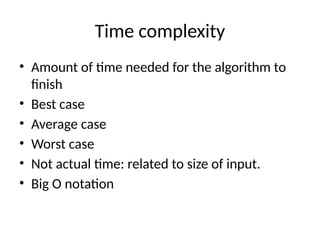

Time complexity
• Amount of time needed for the algorithm to
finish
• Best case
• Average case
• Worst case
• Not actual time: related to size of input.
• Big O notation

Graph
• Graph is probably the data structure that has
the closest resemblance to our daily life.
• There are many types of graphs describing
the relationships in real life.

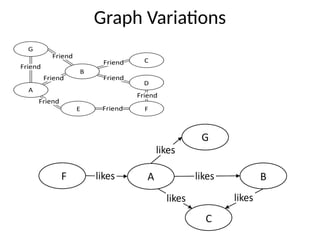

Graph Variations
• Variations:
– A connected graph has a path from every vertex to
every other
– In an undirected graph:
• Edge (u,v) = edge (v,u)
• No self-loops
– In a directed graph:
• Edge (u,v) goes from vertex u to vertex v, notated uv

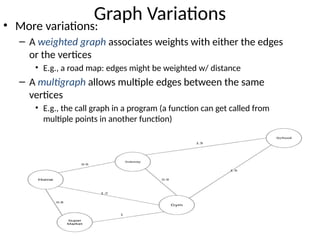

Graph Variations
• More variations:
– A weighted graph associates weights with either the edges
or the vertices
• E.g., a road map: edges might be weighted w/ distance
– A multigraph allows multiple edges between the same
vertices
• E.g., the call graph in a program (a function can get called from
multiple points in another function)

Graph - Definition
• A graph G=(V, E) consists a set of vertices, V, and a set of edges,
E.
• Each edge is a pair of (v, w), where v, w belongs to V
• If the pair is unordered, the graph is undirected; otherwise it is
directed
{c,f}
{a,c}
{a,b}
{b,d} {c,d}
{e,f}
{b,e}
An undirected graph

Definition
• Path: the sequence of vertices to go through from one vertex to
another.
– a path from A to C is [A, B, C], or [A, G, B, C], or [A, E, F, D, B, C].
• Path Length: the number of edges in a path.
• Cycle: a path where the starting point and endpoint are the same
vertex.
– [A, B, D, F, E] forms a cycle. Similarly, [A, G, B] forms another cycle.

Definition
• Degree of a Vertex: the term “degree” applies to unweighted graphs. The
degree of a vertex is the number of edges connecting the vertex.
– the degree of vertex A is 3 because three edges are connecting it.
• In-Degree: “in-degree” is a concept in directed graphs. If the in-degree of a
vertex is d, there are d directional edges incident to the vertex.
– In Figure 2, A’s indegree is 1, i.e., the edge from F to A.
• Out-Degree: “out-degree” is a concept in directed graphs. If the out-degree of a
vertex is d, there are d edges incident from the vertex.
– A’s outdegree is 3, i,e, the edges A to B, A to C, and A to G.

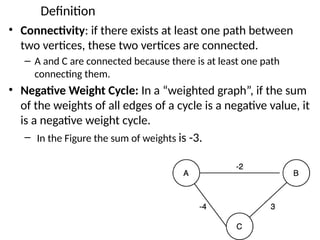

Definition
• Connectivity: if there exists at least one path between
two vertices, these two vertices are connected.
– A and C are connected because there is at least one path
connecting them.
• Negative Weight Cycle: In a “weighted graph”, if the sum
of the weights of all edges of a cycle is a negative value, it
is a negative weight cycle.
– In the Figure the sum of weights is -3.

Definition
• Complete Graph
– a complete graph is a simple undirected graph in which
every pair of distinct vertices is connected by a unique
edge.
– A complete digraph is a directed graph in which every pair
of distinct vertices is connected by a pair of unique edges
(one in each direction).
– How many edges are there in an N-vertex complete graph?

Definition
• Bipartite Graph
• a bipartite graph (or bigraph) is a graph whose vertices can
be divided into two disjoint and independent sets

Definition
• We will typically express running times in
terms of |E| and |V| (often dropping the |’s)
– If |E|  |V|2
the graph is dense
– If |E|  |V| the graph is sparse
• If you know you are dealing with dense or
sparse graphs, different data structures may
make sense

Graph Representation
• Two popular computer representations of a
graph. Both represent the vertex set and the
edge set, but in different ways.
1. Adjacency Matrix
Use a 2D matrix to represent the graph
2. Adjacency List
Use a 1D array of linked lists

Adjacency List
• If the graph is not dense, in other words, sparse, a better
solution is an adjacency list

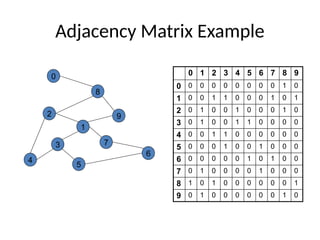

Adjacency Matrix Example
2
4
3
5
1
7
6
9
8
0 0 1 2 3 4 5 6 7 8 9
0 0 0 0 0 0 0 0 0 1 0
1 0 0 1 1 0 0 0 1 0 1
2 0 1 0 0 1 0 0 0 1 0
3 0 1 0 0 1 1 0 0 0 0
4 0 0 1 1 0 0 0 0 0 0
5 0 0 0 1 0 0 1 0 0 0
6 0 0 0 0 0 1 0 1 0 0
7 0 1 0 0 0 0 1 0 0 0
8 1 0 1 0 0 0 0 0 0 1
9 0 1 0 0 0 0 0 0 1 0

Adjacency List Example
2
4
3
5
1
7
6
9
8
0 0
1
2
3
4
5
6
7
8
9
2 3 7 9
8
1 4 8
1 4 5
2 3
3 6
5 7
1 6
0 2 9
1 8

Adjacency List vs. Matrix
• Adjacency List
– More compact than adjacency matrices if graph has few
edges
– Requires more time to find if an edge exists
• Adjacency Matrix
– Always require n2
space
• This can waste a lot of space if the number of edges are
sparse
– Can quickly find if an edge exists

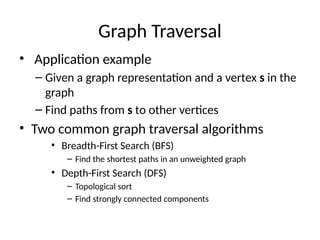

Graph Traversal
• Application example
– Given a graph representation and a vertex s in the
graph
– Find paths from s to other vertices
• Two common graph traversal algorithms
• Breadth-First Search (BFS)
– Find the shortest paths in an unweighted graph
• Depth-First Search (DFS)
– Topological sort
– Find strongly connected components

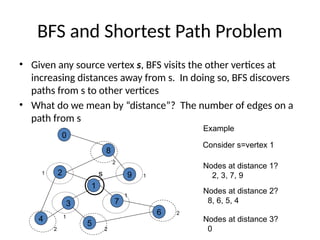

BFS and Shortest Path Problem
• Given any source vertex s, BFS visits the other vertices at
increasing distances away from s. In doing so, BFS discovers
paths from s to other vertices
• What do we mean by “distance”? The number of edges on a
path from s
2
4
3
5
1
7
6
9
8
0
Consider s=vertex 1
Nodes at distance 1?
2, 3, 7, 9
1
1
1
1
2
2
2
2
s
Example
8, 6, 5, 4
0

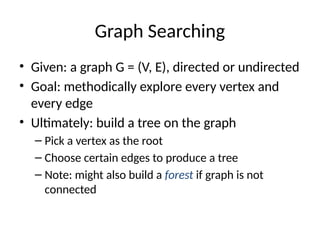

Graph Searching
• Given: a graph G = (V, E), directed or undirected
• Goal: methodically explore every vertex and
every edge
• Ultimately: build a tree on the graph
– Pick a vertex as the root
– Choose certain edges to produce a tree
– Note: might also build a forest if graph is not
connected

Breadth-First Search
• “Explore” a graph, turning it into a tree
– One vertex at a time
– Expand frontier of explored vertices across the
breadth of the frontier
• Builds a tree over the graph
– Pick a source vertex to be the root
– Find (“discover”) its children, then their children,
etc.

Breadth-First Search
• Every vertex of a graph contains a color at every
moment:
– White vertices have not been discovered
• All vertices start with white initially
– Grey vertices are discovered but not fully explored
• They may be adjacent to white vertices
– Black vertices are discovered and fully explored
• They are adjacent only to black and gray vertices
• Explore vertices by scanning adjacency list of grey
vertices

Breadth-First Search: The Code
Data: color[V], prev[V],d[V]
BFS(G) // starts from here
{
for each vertex u  V-
{s}
{
color[u]=WHITE;
prev[u]=NIL;
d[u]=inf;
}
color[s]=GRAY;
d[s]=0; prev[s]=NIL;
Q=empty;
ENQUEUE(Q,s);
While(Q not empty)
{
u = DEQUEUE(Q);
for each v  adj[u]{
if (color[v] == WHITE){
color[v] = GREY;
d[v] = d[u] + 1;
prev[v] = u;
Enqueue(Q, v);
}
}
color[u] = BLACK;
}
}

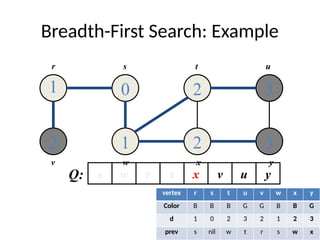

Breadth-First Search: Example








r s t u
v w x y
Vertex r s t u v w x y
color W W W W W W W W
d        
prev nil nil nil nil nil nil nil nil



0





r s t u
v w x y
s
Q:
vertex r s t u v w x y
Color W G W W W W W W
d  0      
prev nil nil nil nil nil nil nil nil

1

0
1




r s t u
v w x y
w r
s
Q:
Color G B W W W G W W
d 1 0    1  
prev s nil nil nil nil s nil nil

1

0
1
2
2


r s t u
v w x y
t x
w r
s
Q:
vertex r s t u V w X y
Color G B G W W B G W
d 1 0 2   1 2 
prev s nil w nil nil s w nil

1
2
0
1
2
2


r s t u
v w x y
v
t x
w r
s
Q:
Color B B G W G B G W
d 1 0 2  2 1 2 
prev s nil w nil r s w nil

1
2
0
1
2
2
3

r s t u
v w x y
u
v
t x
w r
s
Q:
Color B B B G G B G W
d 1 0 2 3 2 1 2 
prev s nil w t r s w nil

1
2
0
1
2
2
3
3
r s t u
v w x y
y
u
v
t x
w r
s
Q:
Color B B B G G B B G
d 1 0 2 3 2 1 2 3
prev s nil w t r s w x

1
2
0
1
2
2
3
3
r s t u
v w x y
y
u
v
t x
w r
s
Q:
Color B B B G B B B G
d 1 0 2 3 2 1 2 3

1
2
0
1
2
2
3
3
r s t u
v w x y
y
u
v
t x
w r
s
Q:
Color B B B B B B B G
d 1 0 2 3 2 1 2 3

1
2
0
1
2
2
3
3
r s t u
v w x y
y
u
v
t x
w r
s
Q:
Color B B B G B B B B
d 1 0 2 3 2 1 2 3

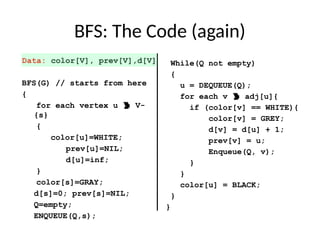

BFS: The Code (again)
{
{s}
{
color[u]=WHITE;
prev[u]=NIL;
d[u]=inf;
}
color[s]=GRAY;
Q=empty;
ENQUEUE(Q,s);
While(Q not empty)
{
u = DEQUEUE(Q);
if (color[v] == WHITE){
color[v] = GREY;
d[v] = d[u] + 1;
prev[v] = u;
Enqueue(Q, v);
}
}
color[u] = BLACK;
}
}

Breadth-First Search: Print Path
Print-Path(G, s, v)
{
if(v==s)
print(s)
else if(prev[v]==NIL)
print(No path);
else{
Print-Path(G,s,prev[v]);
print(v);
}
}

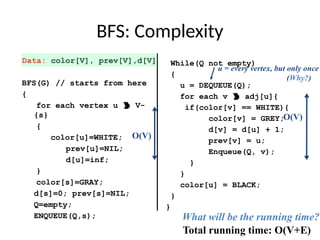

BFS: Complexity
{
{s}
{
color[u]=WHITE;
prev[u]=NIL;
d[u]=inf;
}
color[s]=GRAY;
Q=empty;
ENQUEUE(Q,s);
While(Q not empty)
{
u = DEQUEUE(Q);
if(color[v] == WHITE){
color[v] = GREY;
d[v] = d[u] + 1;
prev[v] = u;
Enqueue(Q, v);
}
}
color[u] = BLACK;
}
}
O(V)
O(V)
u = every vertex, but only once
(Why?)
What will be the running time?
Total running time: O(V+E)

Breadth-First Search: Properties
• BFS calculates the shortest-path distance to the
source node
– Shortest-path distance (s,v) = minimum number of
edges from s to v, or  if v not reachable from s
– Proof given in the book (p. 472-5)
• BFS builds breadth-first tree, in which paths to root
represent shortest paths in G
– Thus can use BFS to calculate shortest path from one
vertex to another in O(V+E) time

Application of BFS
• Find the shortest path in an
undirected/directed unweighted graph.
• Find the bipartite-ness of a graph.
• Find cycle in a graph.
• Find the connectedness of a graph.
• And many more.

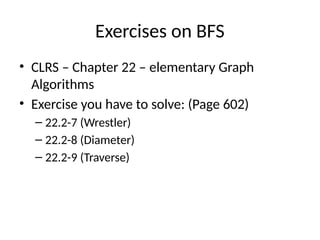

Exercises on BFS
• CLRS – Chapter 22 – elementary Graph
Algorithms
• Exercise you have to solve: (Page 602)
– 22.2-7 (Wrestler)
– 22.2-8 (Diameter)
– 22.2-9 (Traverse)

Depth-First Search
• Input:
– G = (V, E) (No source vertex given!)
• Goal:
– Explore the edges of G to “discover” every vertex in V starting at the most
current visited node
– Search may be repeated from multiple sources
• Output:
– 2 timestamps on each vertex:
• d[v] = discovery time
• f[v] = finishing time (done with examining v’s adjacency list)
– Depth-first forest
1 2
5 4
3

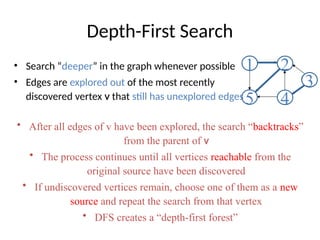

Depth-First Search
• Search “deeper” in the graph whenever possible
• Edges are explored out of the most recently
discovered vertex v that still has unexplored edges
• After all edges of v have been explored, the search “backtracks”
from the parent of v
• The process continues until all vertices reachable from the
original source have been discovered
• If undiscovered vertices remain, choose one of them as a new
source and repeat the search from that vertex
• DFS creates a “depth-first forest”
1 2
5 4
3

DFS Additional Data Structures
• Global variable: time-stamp
– Incremented when nodes are discovered or finished
• color[u] – similar to BFS
– White before discovery, gray while processing and black
when finished processing
• prev[u] – predecessor of u
• d[u], f[u] – discovery and finish times
GRAY
WHITE BLACK
0 2V
d[u] f[u]
1 ≤ d[u] < f [u] ≤ 2 |V|

Depth-First Search: The Code
Data: color[V], time,
prev[V],d[V], f[V]
DFS(G) // where prog starts
{
for each vertex u  V
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
if (color[u] == WHITE)
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
for each v  Adj[u]
{
prev[v]=u;
DFS_Visit(v);}
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
Initialize

prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
prev[v]=u;
DFS_Visit(v);}
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
What does d[u] represent?

prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
prev[v]=u;
DFS_Visit(v);}
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
What does f[u] represent?

prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
prev[v]=u;
DFS_Visit(v);
}}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
Will all vertices eventually be colored black?

DFS Example
source
vertex
S
A
B C
D
E
F
G

DFS Example
1 | | |
|
|
3 |
2 | |
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 | | |
|
|
3 | 4
2 | |
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 | | |
|
5 |
3 | 4
2 | |
source
vertex
d f
S
A
B C
D
E
F
G

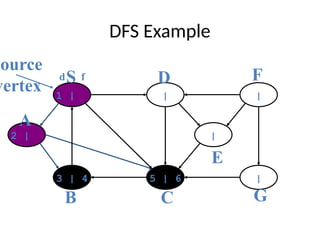

DFS Example
1 | | |
|
5 | 6
3 | 4
2 | |
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 | | |
|
5 | 6
3 | 4
2 | 7 |
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 | 8 | |
|
5 | 6
3 | 4
2 | 7 |
source
vertex
d f
S
A
B C
D
E
F
G

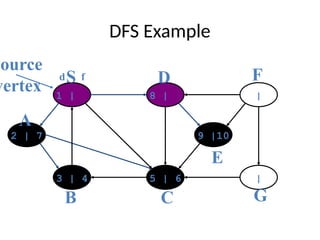

DFS Example
1 | 8 | |
|
5 | 6
3 | 4
2 | 7 9 |
source
vertex
d f
What is the structure of the grey vertices?
What do they represent?
S
A
B C
D
E
F
G

DFS Example
1 | 8 | |
|
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 | 8 |11 |
|
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 |12 8 |11 |
|
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
S
A
B C
D
E
F
G

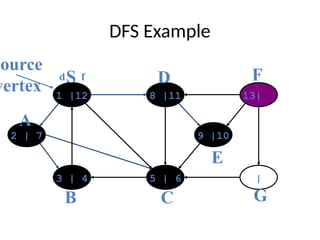

DFS Example
1 |12 8 |11 13|
|
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 |12 8 |11 13|
14|
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
S
A
B C
D
E
F
G

DFS Example
1 |12 8 |11 13|
14|15
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
S
A
B C
D
E
F
G

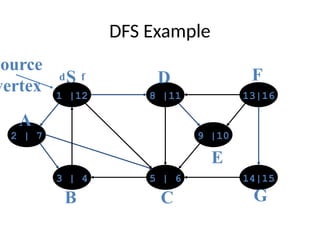

DFS Example
1 |12 8 |11 13|16
14|15
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
S
A
B C
D
E
F
G

prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
if (color[v] == WHITE)
prev[v]=u;
DFS_Visit(v);
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}

prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
prev[v]=u;
DFS_Visit(v);
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
Running time: O(V2
) because call DFS_Visit on each vertex,
and the loop over Adj[] can run as many as |V| times
O(V)
O(V)
O(V)

prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
prev[v]=u;
DFS_Visit(v);
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
BUT, there is actually a tighter bound.
How many times will DFS_Visit() actually be called?

prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
prev[v]=u;
DFS_Visit(v);
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
So, running time of DFS = O(V+E)

Depth-First Sort Analysis
• This running time argument is an informal
example of amortized analysis
– “Charge” the exploration of edge to the edge:
• Each loop in DFS_Visit can be attributed to an edge in the
graph
• Runs once per edge if directed graph, twice if undirected
• Thus loop will run in O(E) time, algorithm O(V+E)
– Considered linear for graph, b/c adj list requires O(V+E) storage
– Important to be comfortable with this kind of
reasoning and analysis

DFS: Kinds of edges
• DFS introduces an important distinction
among edges in the original graph:
– Tree edge: encounter new (white) vertex
• The tree edges form a spanning forest
• Can tree edges form cycles? Why or why not?
– No

DFS Example
1 |12 8 |11 13|16
14|15
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
Tree edges

DFS: Kinds of edges
– Back edge: from descendent to ancestor
• Encounter a grey vertex (grey to grey)
• Self loops are considered as to be back edge.

DFS Example
1 |12 8 |11 13|16
14|15
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
Tree edges Back edges

DFS: Kinds of edges
– Forward edge: from ancestor to descendent
• Not a tree edge, though
• From grey node to black node

DFS Example
1 |12 8 |11 13|16
14|15
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
Tree edges Back edges Forward edges

DFS: Kinds of edges
– Cross edge: between a tree or subtrees
• From a grey node to a black node

DFS Example
1 |12 8 |11 13|16
14|15
5 | 6
3 | 4
2 | 7 9 |10
source
vertex
d f
Tree edges Back edges Forward edges Cross edges

DFS: Kinds of edges
– Cross edge: between a tree or subtrees
• Note: tree & back edges are important; most
algorithms don’t distinguish forward & cross

More about the edges
• Let (u,v) is an edge.
– If (color[v] = WHITE) then (u,v) is a tree edge
– If (color[v] = GRAY) then (u,v) is a back edge
– If (color[v] = BLACK) then (u,v) is a forward/cross
edge
• Forward Edge: d[u]<d[v]
• Cross Edge: d[u]>d[v]

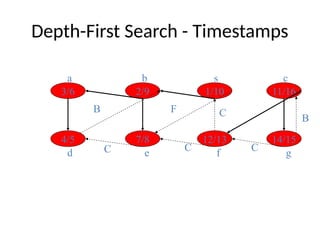

Depth-First Search - Timestamps
3/6
7/8
1/10
2/9
12/13
4/5
a b s
d e f
B F
11/16
14/15
c
g
C C
C
C
B

Depth-First Search - Timestamps
a e
s
b f
d
B
F
c
g
C
C
C
C
B

Depth-First Search: Detect Edge
prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf;
d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
detect edge type using “color[v]”
prev[v]=u;
DFS_Visit(v);
}}
color[u] = BLACK;
time = time+1;
f[u] = time;
}

DFS: Kinds Of Edges
• Thm 22.10: If G is undirected, a DFS produces
only tree and back edges
• Proof by contradiction:
– Assume there’s a forward edge
• But F? edge must actually be a
back edge (why?)
source
F?

DFS: Kinds Of Edges
• Thm 22.10: If G is undirected, a DFS produces only
tree and back edges
• Proof by contradiction:
– Assume there’s a cross edge
• But C? edge cannot be cross:
• must be explored from one of the
vertices it connects, becoming a tree
vertex, before other vertex is explored
• So in fact the picture is wrong…both
lower tree edges cannot in fact be
tree edges
source
C?

DFS And Graph Cycles
• Thm: An undirected graph is acyclic iff a DFS yields
no back edges
– If acyclic, no back edges (because a back edge implies a
cycle
– If no back edges, acyclic
• No back edges implies only tree edges (Why?)
• Only tree edges implies we have a tree or a forest
• Which by definition is acyclic
• Thus, can run DFS to find whether a graph has a
cycle

DFS And Cycles
prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf; d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
if (color[v]==WHITE){
prev[v]=u;
DFS_Visit(v);
}
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}
How would you modify the code to detect
cycles?

DFS And Cycles
prev[V],d[V], f[V]
{
{
color[u] = WHITE;
prev[u]=NIL;
f[u]=inf; d[u]=inf;
}
time = 0;
DFS_Visit(u);
}
DFS_Visit(u)
{
color[u] = GREY;
time = time+1;
d[u] = time;
{
if (color[v]==WHITE){
prev[v]=u;
DFS_Visit(v); }
else {cycle exists;}
}
color[u] = BLACK;
time = time+1;
f[u] = time;
}

DFS And Cycles
• What will be the running time for undirected
graph to detect cycle?
• A: O(V+E)
• We can actually determine if cycles exist in
O(V) time
– How??

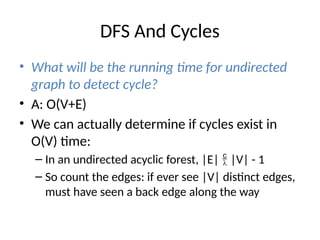

DFS And Cycles
• What will be the running time for undirected
• A: O(V+E)
• We can actually determine if cycles exist in
O(V) time:
– In an undirected acyclic forest, |E|  |V| - 1
– So count the edges: if ever see |V| distinct edges,
must have seen a back edge along the way

DFS And Cycles
• What will be the running time for directed
• A: O(V+E)

Exercises on DFS
• CLRS Chapter 22 (Elementary Graph
Algorithms)
• Exercise: (Page
– 22.3-5 –Detect edge using d[u], d[v], f[u], f[v]
– 22.3-12 – Connected Component
– 22.3-13 – Singly connected

Some applications of BFS and DFS
• Topological Sort (Topic of Next Lecture)
• Euler Path (Topic of Next Lecture)
• Dictionary Search
• Mathematical Problem
• Grid Traversal

The idea of State/Node
• Parameters describing a scenario
• Useless Parameters
– If value of the parameter change doesn’t affect
the outcome
– If value of the parameter can be derived from
other parameters
• Useful Parameter
– Not useless!!!

Example - States
• Grid Problem, direction change takes time
• Grid Problem, blocks alternating

Design and analysis of Algorithms Lecture 1 (BFS, DFS).ppsx

More Related Content

Similar to Design and analysis of Algorithms Lecture 1 (BFS, DFS).ppsx (20)

Recently uploaded (20)

Design and analysis of Algorithms Lecture 1 (BFS, DFS).ppsx
