Installation
You can download the DesignSpark PCB from www.designspark.com. In the home page,
click READ MORE button in the DesignSpark PCB section highlighted below:

It will bring you to below page (https://www.rs-online.com/designspark/pcb-software). Click
Download & Installation button to go to the download page.
Click the Download DSPCB 8.0 button to download the latest version of DesignSpark
PCB. Once installed the software, you can login with your DesignSpark account to use the
software or register an account if you don’t have a DesignSpark account.

Menu Bar Menu Toolbar Interaction Bar Window Control
Add Component tab
Find Item tab
Layers tab
(PCB only)
Properties dialog
PCB Design Editor
Status bar

GeneralToolbar
Schematic DesignToolbar
StartNewDesign
OpenExistingDesign
SaveCurrentDesign
Close
DesignLibraryManager
DesignTechnology
Grids
ViewAll
ZoomIn
ZoomOut
Colors
ToggleGrid
DisplayProperties
Undo
Redo
Cut
Copy
Paste
Delete
Select
CrossProbe
Add Component
Add Schematic
Connection
Sketch Connection
Add Bus
Add Text
Add Closed Shape
Add Open Shape
Add Shape Rectangle
Add Shape Circle
If you hover the mouse over the toolbar
buttons, a small tool tip is displayed showing
the button function and its keyboard shortcut if
one has been defined.
Add Component
Add Pad
Add Unrouted Connection
Add Track
Sketch Track
Add Text
Add Board
Add Area For Copper Pour
Add Copper Closed Shape
Add Closed Shape
Add Open Shape
Add Shape Rentangle
Add Shape Circle
Route All Nets
Measure Gap
Design Rule Check
Pour Copper
Clear Copper

Useful commands
Cancelling commands – clicking <ESC> button.
Generate the shortcut keys report from the Shortcut Keys option under Help menu.
If you want to define your own shortcut keys, go to Customize under Settings menu.
Define units and the precision from the Units option under Settings menu.
Define Grids from the Units option under Settings menu.
Working Grid Screen Grid
Undo - <Ctrl-Z> and <Alt-backspace>.
Redo - <Ctrl-Y>.

Snapping to Grid – Change snap mode setting by <Ctrl-G>.
Shortcut Menu – by the right hand mouse button <right-click>
during an operation.
Properties of items – can be viewed by selecting the item and
clicking on the Properties option from the shortcut menu, or
by shortcut key <Alt-Enter>.
Status bar – at the bottom of the design window. Display useful information about the
design item selected.

Dockable Windows and Browsers
The interaction Bar is available through the View menu and Interaction Bar <F9> or by
right clicking the mouse over one of the toolbar or menu bar.
Interaction Bar
You can access Layers (in PCB only), Component Bin (in
Schematics only), and Goto and Add Component options.

Schematic Design Tutorial

Starting a new Schematic
From the File menu, click New (shortcut key <Ctrl-N>).
Click the Schematic Design button and the UseTechnology File checkbox.
Choose default.stf template.
Click the OK button to start a new Schematic design.

Adding Components
Two methods for adding components: By Interaction bar or Add Component option.
Method 1: By Interaction Bar
Add component tab in the Interaction bar shows all the enabled libraries. Press <F9> or
enable the Interaction bar in View menu if you cannot find your Interaction bar in the right
hand side. If you need more symbols, you can download .epw file from Product Data Library
and then export the symbol using ECAD part wizard tool.
To enable previous and version 3 libraries, click Library Manager Button on the
toolbar or shortcut key <Ctrl+L>
Click Folder tab and select the library that you need to enable (In Win 7, previous libraries
are stored in “C:UsersPublicDocumentsDesignSpark PCB 8.0Library”). Tick Folder
Enabled option.

Choose a generic resistor by select Add component tab, from the list of available libraries,
select the DesignSpark.cml library. Scroll down and select the component Resistor. A
preview of both schematic and PCB symbol will be displayed.
Dragging from the preview windows or its name into
the design.
Method 2: By Add Component button on the toolbar, shortcut key <F3>
We need a LED, from the add components
dialog, click the Find button.

For Name, choose Contains from drop down list, type LED in text entry. Click Find button.
Select LED from the list and click Close button.
You can add the component to design by double-click or preview it in Add component
dialog, then following by an Add button.
You can also find the LED from DesignSpark library in the interaction bar.

Pan & Zoom in the design
<A> on the keyboard or from general toolbar to View All.
<Z> on the keyboard or from general toolbar to Zoom in.
<U> on the keyboard or from general toolbar to Zoom out.
Copy & paste of components
Select a component, e.g. Resistor R1, in the design. Press <Ctrl-C> keys at the same time
to copy it. Press <Ctrl-V> to paste a copy of the resistor into the design. An identical copy
of resistor had been made and is renaming to a new reference (e.g. R2).
Edit component Values
Double-click on the value field of (1K) on R1, the Component tab of the Properties dialog
is displayed.

Bill of Material list:
Ref Component Value Qty Library
Schematic
Symbol
Desc Label
R1 R 1K 1 Designspark.cml R Resistor 1
R2 R 2K 1 Designspark.cml R Resistor 2
LED1 C 10uF 1 Designspark.cml Capacitor_Pol Capacitor 3
LED2 C 100nF 1 Designspark.cml Capacitor Capacitor 4
BAT1 C 10uF 1 Designspark.cml Capacitor Capacitor 5
PL1 NE555N 1 st.cml NE555N Timer 6

Placing Components
Picking and dragging components in one move using the mouse.
 <R> on the keyboard to rotate the selected component 90 deg anti-clockwise.
 <Alt-R> on the keyboard to rotate the selected component 90 deg clockwise.
 <F> on the keyboard to flip the selected component.
Or
 Rotate or Flip selected component using shortcut menu by right clicking the
mouse.
Adding Connections
Three possible ways to add connections:
 Using Add Connection option from the Add menu or form the Schematic Toolbar.
 Double-clicking on a component pin to start a new connection.
 “Dragging” off an unconnected component pin to start a new connection.
Connecting Net without Physical Connections
First, double-click on a component pin to start and draw an open connection. Then, right
click and select Finish Here. The connection would be pink in color.
Click on the pink connection, then right click and select Display Net Name. Net name
would be displayed. Double click the net name to change it. For example, change the net
name to MCLK.

Schematic Buses Overview
A bus is a shape that represents a collection of signals on the Schematic
design. Instead of drawing all the connections across the design and
connecting them to every pin required, you can make the design less
cluttered by using busses. You can add connections from a component pin
to the bus that carries the signal.
Busses can be Open or Closed. A Closed Bus means that the collection of
net names running along the bus are predefined within the bus. Only those
nets can be used when connecting to the bus, whereas, an Open Bus can carry any net.
How to find this function?
We added a new shortcut icon in the Schematic view. Alternatively the Bus
function is available under CTRL+B shortcut.
How to Add a Bus?
From the Add menu select the Bus option, or use the Bus icon from the
Schematics Toolbar.
1. If you have not already done so, set up the Working Grid. The corners of the bus shape will be gridded
using a step size relative to the working grid. Use the 'Ctrl + G' shortcut key at any point to change
the step size relative to the working grid.
2. Click to define the start position of the bus. Some dynamic segments will be drawn from the start
position to the moving cursor. If a bus was not pre-selected, the line width is taken from the style
used when you were last in this option. Whatever is defined here will be used for the initial bus
outline. To change this at any point during the adding of the bus, right click to use the shortcut menu
to change the style (width).
3. Move the cursor to position the next corner, the gridded position of the moving corner will be shown
on the Status Bar.
4. Right click to use the shortcut menu options to modify the appearance of the segments being
inserted. It is recommended that you use the Segment Mode Mitre to add the mitred corners to the
bus shape.
5. Click to add a corner to the bus. The dynamic segments will become a fixed part of the bus and some
new dynamic segments will be added for you to define the next corner. Each subsequent click will
add another corner.
6. To finish the bus, double-click the left mouse button. At any point, if you want to exit or make a
mistake and need to start again, press the ESC key on the keyboard.

Translate to PCB
From the Tools menu, click Translate to PCB
This will display the New PCB Wizard
Press Next> to move to next
page, Technology page
This page allows you to predefine a Technology file and your design Units.
For our examples, select Choose
Technology File: 2sig2plane.ptf
For Units: select thou and 2
precision. If you prefer Metric
units, choose mm and 2 as the
precision.
Press Next> to proceed to Layer page
In Layers page, you can change the layer usage from that of the Technology file.

In this example, we make changes to the layers by the Define Layers button. You can also
connect a net to the inner layers.
Press Next> to proceed to Board page
In Board page, you should define the size and shape of the board outline.
You can also choose to Copy Board Outline From Another File. If using a PCB design for
the board outline, the PCB file must reside in the Technology file folder.
For our example, choose Define Board Size and set the Width to 3500 and Height to 2500.
Press Next> to proceed to Place and Route page

Select you Component Placement option and setting in the place.
Press Next> to proceed to Finish page.
Use Finish page to set your PCB Design Name and to save it to a file.
By default, the PCB Design Name will be the same as the Schematic Design name. It is
useful as some option like Forward Design Changes will look for the opposite design type
of the same name.
You can always change the PCB filename if you like.

Changing the Number of Layers
You can change the number of physical layers at any time.
From the Setting menu under DesignTechnology option, select Layers tab.

Placing Components
You can place components by automatic or manually process.
Method 1: Automatic Placement
Automatic Placement can be either during the conversion phase or using Auto Place
Components> option from the Tools Menu.
Auto Place Components Auto Place Components Setting
Before Auto Place Components After Auto Place Components

Method 2: Manual Placement
Use standard Microsoft Windows methodology, moving or placing components is a simple
case of picking and dragging the selected component.
Same as Schematic editor, you can pick and dragging components in one move using the
mouse in PCB design editor:
 <R> on the keyboard to rotate the selected component 90 deg anti-clockwise.
 <Alt-R> on the keyboard to rotate the selected component 90 deg clockwise.
 <F> on the keyboard to flip (mirror) components to the other side of the board.
Or
 Rotate or Flip selected component using shortcut menu by right clicking the mouse
to perform above actions.
Routing your design
Method 1: Automatic Routing
To use the autorouter, from the Tools menu under Auto Route Net>, select All Nets.

Enable MiterTrack in autorouter by check the box [MiterTrack].
Another dialog window will pop out to let you select the MITRE shape (Curved, any angle
or the default 45 deg) and specified the MITRE size.
Unrouting the design
The Unroute Nets> option is available on the Tools menu.
To unroute all nets, from Tools menu under Unroute Nets>, select All Nets.
You can always restore the routes using Undo<Ctrl-Z>.
Method 2: Manual Routing
Start routing track manually by double-click on the connection.
Single-Click, once editing, this will insert a corner to the change routing direction.
<L> followed by <Enter> will enable a layer change to the opposite side of the design. This
can be used during editing, or afterwards on selection of a track.

To change manual routing modes
During routing, the routing mode can be changed by selecting Segment Mode> from right-
click the shortcut menu.
Routing mode:
Free Orthogonal Right-Angle
Miter (45 deg) Fillet
You can also switch the routing mode by shortcut key <W>.
Change routing mode of a corner by double-clicks on it. You
can change the angle by moving the pointer or enter the value
by right-click.

To add via
When we have a close look at PCB board, you can easily notice these small holes, they are
via. The usage of such holes is to connect different layers.
When routing, we may meet the condition that we want two wires which located on
different layers to be connected together. Here we will need via.
First double-clicks on the pad to add connection.
Then left click once on the blank area, the wire we drew
before will be “locked”.
Then, change layer of the wire (L + enter).
We can see that via has been added automatically.
Wire on lower
layer
Via
Wire on upper
layer
Board

Delete vs Unroute
What should we do if we want to make some modification of the existing wire (an already
connected wire)? Sometimes we may follow the common sense, just select the wire and
Delete, however it is easy to make mistakes using such method if we are not careful
enough.
What is the difference between Delete and
Unroute? We will illustrate here.
For example, this is a connected wire. We want to
change it.
If we directly select the wire and Delete, you may
find the yellow instruction wire disappear. If you are
not careful enough, you may ignore the connection
and lead to unconnected net.
If we select the wire, then select Tools->
Unroute Nets->Selected Nets. After deleting
the old wire, the yellow instruction wire will
appear again to instruct you to connect the nets,
which may avoid some potential mistakes.

Some RoutingTips:
1. Refer to the schematic, place all the components wisely before starting to route. A good
layout may largely reduce your routing work and reduce the number of via. So we may refer
to the schematic for a clever placement. Eg. Some components with lots of common
connections can be placed closer in order to minimize the length of wires.
2. Consider the practical soldering requirement. We should not forget that designing a PCB
is for practical usage at final stage. So we should consider some practical issues. Eg. The
layout should be easy for soldering. For some full hole components, we should not place
other components too close to the hole. The size of the board, the position of screw holes
should all meet practical requirement.
3. Be careful about the width of the wire. Especially when you are dealing with the circuit
having large current. Wider wire can afford larger current. So the power wire or the wire for
motor will normally be wider.
The relationship between wire width and max current has been attached for your
reference.
Width(mm) Current(A)
0.2 0.5
0.3 0.75
0.5 1.25
1.25 2.5
2.5 4
5 7
8.12 10
4. Try to reduce the number of via, especially when you are dealing with signal wire. Via
will create extra delay for the signal due to parasitic effect. So we should avoid layer changing
when routing the signal wires so as to reduce the number of via.
5. It is acceptable for low frequency signal line to have 90 degree turn. But if you are dealing
with high frequency signals try to avoid having sharp corners when routing due to some
electromagnetic emission issues.

Cross Probe Overview
Cross Probe allows the user to simply click on the component in either view, which will then
immediately take them to the component in the counterpart view; the function works either
way from PCB to schematic or vice versa. This feature allows you to probe and locate items
in a known design. This enables better integration of design data between each stage of the
design process.
How to use Cross Probe
Cross Probe function is available from the Main Menu>Edit>Cross Probe or from the Cross
Probe Icon on Right-hand Toolbar. The shortcut key is <Shift X>. Cross probing is only
available in the PCB or Schematic design editors.
To use this option, a toolbar icon is available to put the application into the Cross Probe
'mode' prior to probing. There is also an entry on the Edit menu called Cross Probe which
selects the cross probe mode. Once this is selected the designs can be cross probed.
For more information about this function, please refer to this link: http://bit.ly/1tMbM1P

Pouring Copper into Area
Why copper pouring?
Copper pour is pouring copper into the blank area which don’t have wires or pads.
Copper pour is extremely useful for POWER-DND-separate board. By copper pouring, we
create a ground plane, which makes the area connected to GND larger, in this way we can
shield more noise. In our daily life, PCB working environment usually exists lots of
electronic signals. So it is necessary to use some method to reduce the noise. Pour copper
make the system connected to GND with larger area, when noises enter the system, they
are more likely to be imported to GND. This also applies to the noises produced inside the
system. Besides, copper may help heat dissipation.
However, copper pour may works like patch antenna, which may produce noise under
certain condition. Furthermore, too thick copper makes heat dissipation too fast, which lead
to the difficulty of soldering.
All in all, copper pour is not necessary for every design, it should be decided by the certain
condition.

To create a copper pour area, from the Add menu, select Copper Power Area> Rectangle.
Other pour area options are available.
1 Define copper pour area menu 2 Select pour copper from
shortcut
3 Select net associated (if any) 4 Poured copper had obeyed the spacing rule
Define the spacing when pour copper
You can change the spacing between the pour copper area and the pad, track and via, etc.
We change the space through Design Technology (Shift + T or General Toolbar), choose
Spacing in the Design Technology window.

Pour Keepout
There may exists some area we don’t what copper to be poured into such area. We can
define pour keepout area.
First, we add a Copper Pour Area which is exactly the same as what we did for pour
copper. Right click on the selected area, choose Properties. Tick the Pour Keepout. See
the figure below.

Checking the Design Integrity
To check the designs
 You can use the Schematics/PCB Check option on the Tools menu at any time.
To bring Schematic Change into the PCB
 Run Forward Design Changes option from the Tools menu will “push” Schematic
changes into PCB design.
To back annotate name changes to the Schematic
 Using Back Annotation option from the Tools menu can pass back the change
made in PCB back to the Schematic.

Design Rule Checking
To run Design Rule Check, select the Design Rule Check button option from the toolbar.
To locate DRC error markers, using
Goto browser on the Interaction
bar by pressing the <F9> key.
Viewing Power Plane Layer
From the View menu, select Powerplane> option, Select Show.
Select the layer required, e.g. GND plane.
If GND layer is selected, the plane will like this:

Reports, Part Lists and Net Lists
You can generate reports where all vital aspects of the design can be output in detail.
The reports are all available on the Output menu.
In Schematic editor: In PCB design editor:
Select the report you wanted and click Run button.

The Plotting Dialog
From the Output menu, select Manufacturing Plots option.
Plots : Choose the plots and the plot selection for output.
Output : Choose the output type, layer choice, plot contents and scale.
Plot-Gen : Select Auto-generation, add new plots, delete plots and align plots with each
other.
To generate plot for manufacturing, you need to plot Gerber plots for the electrical and non-
electrical layers and Excellon NC drill files for drilling the board.
Plot Generation Area
Plot Area Output Area

Creating plots
Once all the parameters have been set for each plot, you can output them.
Use the Run button the create plots of all the plots in the Plots: list, the ones that have a
“tick” next to them.
Choose Options button on this page will bring you to new dialog as below. You can direct
the plot to a specific folder under Where Plot Files Are Written.
You can check the plot’s position, size, contents etc by checking the Plot Preview check
box.

BOM Quote interface that links DesignSpark PCB to the RS-online eCommerce website.
 Instant price and availability, direct from your local RS website
 Quotes can be downloaded, saved or forwarded on to colleagues for approvals or
completion
 Leverages the world class ecommerce capabilities of rswww.com
On the upper right corner, click the BOM quote icon that connects us to the local RS
website.
All the components from your design listed with the information transferred from
DesignSpark PCB and the relevant component matches

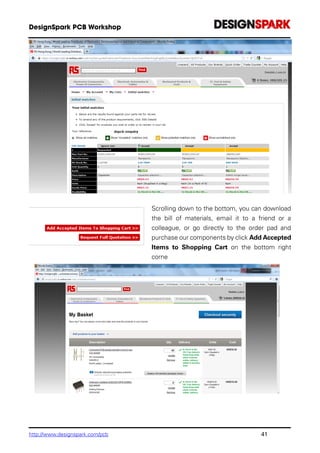

Scrolling down to the bottom, you can download
the bill of materials, email it to a friend or a
colleague, or go directly to the order pad and
purchase our components by click Add Accepted
Items to Shopping Cart on the bottom right
corne

DesignSpark PCB Workshop
The libraries are made up of three individual libraries. There is a Component library made-up
of elements from the Schematic Symbol library and the PCB Symbol (footprint) library.
Library Manager is used to create and manage all your libraries.

Create new Schematic Symbol
To open the library manager
From the File toolbar, select the Libraries icon (shortcut Ctrl+L).
To open the symbol editor
From the Library Manager dialog, select the Schematic Symbols tab. Click New Lib and
type name Tutorial. This will be the name of your new library.
To create new schematic symbol, click New item.

Draw symbol using Add Closed Shape Icon
Draw lines using Add Shape Single Line Icon
Adding Pins using Add Pad Icon
Information on the pins
Each Pin contains three pieces of information:
- the big cross marking the shape and location of the pin
- the Pin Number (1, 2, 3 etc.)
- the pin name position marker, N1, N2, N3 etc. which marks the location of the pin name
when used on the Component in the design
Moving the symbol origin
The Symbol origin is the Symbol’s reference point used when moving it in the Schematic
design (the small ‘S’ marker, usually on Pin 1 of the symbol.

Select and drag the symbol origin to Pin 1 as shown below.
Adding the reference origin
Without a Reference Origin, the component name (U1, IC1 etc.) used in the Schematic
design will automatically be placed on the Symbol Origin. By adding a specific Reference
Origin you can position the Component name where you like.
To add the Reference Origin, select Reference Origin from the Add menu.

Saving the symbol
From the File menu, select Save.
Viewing the symbol in the library
From the File toolbar, select Libraries, you can also use the <Ctrl-L> shortcut key. Ensure
the Preview box is checked. From the Library Contents: list, select the OPAMP symbol
that you’ve created, it should look like the one below:

Create new PCB Symbol
Start the Library Manager
From the File toolbar, select the Libraries icon (shortcut Ctrl-L).
From the Library manager dialog select the PCB Symbols tab. Click the New Lib button.
In the File name box, type New_PCB_LIB as your new PCB symbol library. Click Save to
accept this. The library manager is now ready to start entering new PCB symbols.

To start the PCB symbol wizard
From the Library Manager, click the Wizard button. Ensure that you are on the PCB
Symbols
Click Next to enter the wizard

Click Next> to move on. Choose a possible Technology file and the Units to be used.
Click Next> to move on. Choose the footprint you wish to create.
You can select the Origin and Component Name Position in this window.
Click Next> to move on. The Pads page is used to define the overall footprint layout.
This is probably the most important page of the wizard. The default page setup is shown
below, we need to change the parameters defined here.

The Pad Count should be set to a Total of 10, use the spinner or type in the number.
You must type in the name of the pad style that will get saved once you’ve edited the
dimensions.
Use Rec 65 30 for this tutorial example.
You can now define the position for Pin 1 to be the bottom left corner, to Hide Pin numbers
and the Pin Numbering to be Counter-clockwise.
Click Next> to move on. You should now define the Silkscreen outline.
Select Top Silkscreen in the Layer: drop down box.
The only parameter to change here is the Notch At End value, change this to 0.50

Click Next> to move on. We will use the placement shape and add it to the Top Assembly
layer. Select this layer from the drop down list.
Click Next> to move on. In the Footprint Name: box, type RM-10.
Check the Save the footprint to the library box.
Select your New_PCB_Lib.psl library from the drop down list.
Leave the Edit the footprint now check box unchecked.
Click Finish to complete the footprint creation.

Viewing the symbol in the library
Now that the symbol has been created and saved, let’s view it in the library manager.
Click <Ctrl-S> to save the footprint.
From the Libraries button on the File toolbar, select Libraries, shortcut key <F11>.
Select the newly created footprint from the contents list (RM-10). Check the Preview box
if not already selected so you can view the footprint. You can also edit it from here as well.

Create new Component Symbol
Using the Component Editor
This tutorial uses the Schematic Symbol and PCB Symbol (Footprint) created in the
previous sections, but equally applies to creating a component using other Schematic
Symbols and PCB Symbols.
To open the Component editor
On the File toolbar click Libraries <F11> or <Ctrl-L>.
From the Library manager dialog select the Components tab. Click the New Lib button.
In the File name box, type New_COMP_lib as your new component library. Click Save to
accept this. The library manager is now ready to start entering new components.

Click on New Item
The New Component dialog opens.
There are 8 pieces of information required:
 In the Component: box type the component name AD8592RM
 In the Package: box, type SOIC, this identifies the package type, multiple package
types can be used for selecting alternative footprints. This doesn’t appear in the list
until you type it in.
 In the Default Reference: box type U. This will be the component name used in
the actual design
 (U1, IC1, R1, C1 etc.)
 For Schematic Symbol, ensure that the library is set to New_sch_lib.psl.
 Select your Schematic Symbol previously created OPAMP from the list.
 The dialog will automatically show Pins: as 3 (3 pins on the gate created) and
Gates: as 1. Change the Gates: to 2.

 For PCB Symbol, ensure that the library is set to New_COMP_lib.ssl. Select your
PCB Symbol previously created RM-10.
Once it does, click OK to continue. The Component Editor opens showing the items
added from the New Component dialog.

Adding an extra gate
We need to add a power gate to the component.
Right click anywhere in the component grid. From the list, select Edit Gates.
From the Gates dialog, select the Add button. Notice your existing 2x OPAMP gates are
already
shown in the list as gates a & b.
From the Library: list select the AD.ssl library.
Scroll down the Name: list and select the AD-P2 gate symbol. Ensure that you only have 1
selected
in the Add 1 Gates box. Click the Add button.
The Power gate will appear at the bottom of the list. Click OK to add it to the component.

Map pins to pads
Click on the Assign Pins button on the Component toolbar.
Select Pin 3 on the Schematic Symbol. Select Pad 1 on the PCB Symbol.
The component grid will display the number 1 for Sch Terminal Number 3 on gate a, it
will also display a number 1 in the corresponding Component Pin Name/Number cell.
Adding Logic Names to your Component
To add or edit Logic Names to a Component in the editor (using our existing example
which should still be open), type in the names required into the Sch Symbol Terminal
Names field.

Adding Values to your Component
To add or edit values to a component in the editor, from the Edit menu select Values.
Click Add to create a new value.
From the Add dialog you can type the Name and Value: You do not have to add a value at
this stage, the name can be left ‘empty’ to be fulfilled at a later stage or during design.
Click OK to confirm the selection.
Saving your Component
From the File toolbar, select Save <Ctrl-S>. The Save To Library dialog opens. Choose the
New_COMP_lib.cml library from the list if not already selected.
Click OK to confirm the library name and component name. You have now saved the
Component in the Library. The component will still be visible in the editor.

Viewing the Component in the library
From the File toolbar, select Libraries, <F11> or <Ctrl-L>. The Libraries dialog opens.
Make sure the Preview box is checked. Select the Components tab. Select the AD8592RM
Component that you created, it should look like the one below.
A quick check to whether you have created is correctly is the existence of both the Schematic
and PCB Symbols in their respective Preview windows. At this stage, you would add this
component to a Schematic or PCB design and it would work.
DesignSpark PCB can be linked to industry standard Spice simulators to carry out circuit
simulation. By following a few simple rules you can create your Schematic circuit in
DesignSpark, then use a simulator to verify its operation before moving on to the next stage
of your project.
DesignSpark PCB currently supports four simulators : LTSpice, LSSpice, B2Spice and TINA.

To open the Spice Interface
From the Output toolbar, select the Spice Simulation Output
Select the Simulator Format, in the Run simulator : box, enter your simulator execute
path.
Enter your simulation parameter in each tabs, click OK to run your Simulator.

Shown here is the result of simulating the above circuit using LTSpice:

You can select tracks or vias in your design and perform basic electrical calculations on
them such as:
 width of a track required for a given current
 impedance of a selected track
 optimum copper density to use
 approximate temperature rise on a track
 resistance of a via given its physical characteristics
These useful calculators produce approximations of actual circuit performance to aid your
decision process in completing a successful layout.
To open the Design Calculators,
From the Tools toolbar, select the Design Calculators
You can use the Design Calculators to perform basic electrical calculations.

1. DesignSpark PCBTutorials (Pre-installed with DSPCB V4)
Forums
https://designspark.zendesk.com/hc/en-us/community/topics/200624545-DesignSpark-PCB-
Discussion
Tutorials and Support Centre
https://designspark.zendesk.com/hc/en-us/categories/201145765
Catalogue of Reference Designs
https://www.rs-online.com/designspark/reference-designs
Sparkfun Libraries including libraries of Arduino shields
http://bit.ly/15rEZox
Shared libraries in DesignSpark
http://www.neatinfo.com/designspark/
http://www.designspark.com/pcb
http://www.facebook.com/DesignSparkRS (Eng)
https://www.facebook.com/DSChinese (中文)
http://weibo.com/designsparkcn
http://www.youtube.com/user/DesignSpark
http://www.youtube.com/user/DesignSparkHK (HK Cantonese Channel)
http://www.tudou.com
http://i.youku.com/designsparkcn

Label Ref Component Value Qty Library
Schematic
Symbol
Desc
1 R1 R 1K 1 Designspark.cml R Resistor
2 R2 R 2K 1 Designspark.cml R Resistor
3 C1 C 10uF 1 Designspark.cml Capacitor_Pol Capacitor
4 C2 C 100nF 1 Designspark.cml Capacitor Capacitor
5 C3 C 10uF 1 Designspark.cml Capacitor Capacitor
6 U1 NE555N 1 st.cml NE555N Timer
7 U2 SN74ALS74AD 1 ti.cml SN74ALS74AD Flip Flop
8 PL1 Connectors 1 Designspark.cml CONN_SIL_2 2 pin header
9 PL2 Connectors 1 Designspark.cml CONN_SIL_3 3 pin header
10 Vcc Symbol 3 Designspark.cml Vcc Power
11 GND Symbol 3 Designspark.cml GND Power
12 MCLK 3 MCLK Net name
13 MCLK_2 2 MCLK_2 Net name
14 MCLK_4 2 MCLK_4 Net name
1
2
3
4
5
6
7
8 9
10
11
12
13
14

DesignSpark PCB Workshop Notes 2018

More Related Content

What's hot (10)

Similar to DesignSpark PCB Workshop Notes 2018 (20)

Recently uploaded (20)

DesignSpark PCB Workshop Notes 2018
