DeveloperWeekEnterprise2023 - Introduction to Kubernetes Operators for Databases
0 likes176 views
- The document discusses Kubernetes operators for databases and introduces the Oracle Database Operator for Kubernetes. - The Oracle Database Operator allows Kubernetes to manage Oracle databases through its custom resources and controllers, automating lifecycle operations like provisioning, scaling, backups and more. - It supports various Oracle database configurations like containerized databases, Autonomous Database and multitenant databases.
![Scale up an ADB
Copyright © 2023, Oracle and/or its affiliates
36
kubectl client
machine
Scale request sent
Set CPU count in the
earlier .yaml file for
scaling up/down ADB
Scaling in progress
Apply the .yaml file
kubectl apply –f bind_adb.yaml
Verify CPU count of the
database using oci cli
oci db autonomous-database list
--compartment-id $COMPARTMENT_ID
--output table
--query "data [*].{dbname:"display-name", ocpus:"cpu-core-count"}”](https://image.slidesharecdn.com/developerweekenterprise2023-dboperator-juarezjr-240215224310-8ecab4f1/85/DeveloperWeekEnterprise2023-Introduction-to-Kubernetes-Operators-for-Databases-36-320.jpg)
![Stop an ADB
Copyright © 2023, Oracle and/or its affiliates
37
kubectl client
machine
Stop request sent
Set lifecycle state in
the earlier .yaml file for
stopping ADB
Stopping in progress
Apply the .yaml file
kubectl apply –f bind_adb.yaml
To start/terminate the database, repeat the
steps above with lifecycle state
AVAILABLE/TERMINATED
Verify state of the database
using oci cli
oci db autonomous-database list
--compartment-id $COMPARTMENT_ID
--output table
--query "data [*].{dbname:"display-name", state:"lifecycle-state"}”](https://image.slidesharecdn.com/developerweekenterprise2023-dboperator-juarezjr-240215224310-8ecab4f1/85/DeveloperWeekEnterprise2023-Introduction-to-Kubernetes-Operators-for-Databases-37-320.jpg)

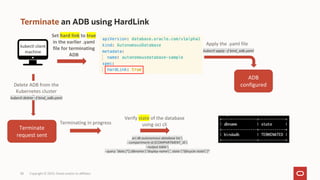

![Terminate an ADB using HardLink
Copyright © 2023, Oracle and/or its affiliates
38
kubectl client
machine
Terminate
request sent
Terminating in progress
Delete ADB from the
Kubernetes cluster
kubectl delete –f bind_adb.yaml
Set hard link to true
in the earlier .yaml
file for terminating
ADB
ADB
configured
Apply the .yaml file
kubectl apply –f bind_adb.yaml
Verify state of the database
using oci cli
oci db autonomous-database list
--compartment-id $COMPARTMENT_ID
--output table
--query "data [*].{dbname:"display-name", state:"lifecycle-state"}”](https://image.slidesharecdn.com/developerweekenterprise2023-dboperator-juarezjr-240215224310-8ecab4f1/85/DeveloperWeekEnterprise2023-Introduction-to-Kubernetes-Operators-for-Databases-38-320.jpg)
DeveloperWeekEnterprise2023 - Introduction to Kubernetes Operators for Databases
- 1. Introduction to Kubernetes Operators for Databases DeveloperWeek Enterprise 2023 Juarez Barbosa Junior - @juarezjunior November 2023 Copyright © 2023, Oracle and/or its affiliates
- 2. Juarez Barbosa Junior Sr. Principal Java Developer Evangelist - Oracle • Coming from Dublin, Ireland • Developer since 1995 (Java ☕️ 1997) • 28 years of experience in SW Engineering & DevRel • Microsoft, Oracle, IBM, Nokia, Unisys, Accenture, startups • Microsoft Azure Developer Relations Lead • IBM Watson Tech Evangelist & Cloud Rockstar • IBM Mobile Tech Evangelist & Global Thought Leader • Nokia Developers Global Champion • Java, Python, Cloud, DevOps, SRE, Cloud-native, IoT, AI, Blockchain, Rust • Speaker at conferences • Oracle CloudWorld, Oracle Code, Microsoft Ignite, Microsoft TechX, jPrime, JCON, GeeCon, DevConf.cz, DevOpsDays, DeveloperWeek, DevOps Institute, CloudLand, DWX, The Developer’s Conference (TDC), Sec4Dev, JSNation, NodeConf, Conf42, Shift Conf, Global Azure, Open-Source Lisbon, CodeFrenzy, Mêlée Numérique, React Summit, Test.js Summit, Pyjamas, JUGs, meetups, hackathons. @juarezjunior @juarezjunior
- 3. Copyright © 2023, Oracle and/or its affiliates Cloud Native Computing: Kubernetes at the Center Stage Kubernetes • Management of containerized applications, components and services • Declarative platform definition: YAML • Non-terminating Control loops • Service discovery and load balancing • State Maintenance • Self-healing & automation robustness • Storage orchestration • Automated rollouts and rollbacks • Secret and configuration management Observe Analyze Act

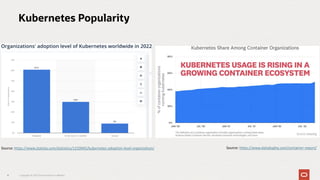

- 4. 4 Kubernetes Popularity Source: https://www.statista.com/statistics/1233945/kubernetes-adoption-level-organization/ Source: https://www.datadoghq.com/container-report/ Copyright © 2023 Oracle and/or its affiliates

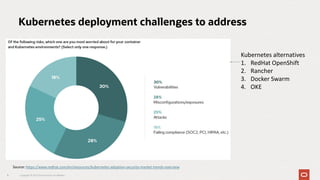

- 5. 5 Kubernetes deployment challenges to address Kubernetes alternatives 1. RedHat OpenShift 2. Rancher 3. Docker Swarm 4. OKE Source: https://www.redhat.com/en/resources/kubernetes-adoption-security-market-trends-overview Copyright © 2023 Oracle and/or its affiliates
- 6. 6 Container images running in Kubernetes Copyright © 2023 Oracle and/or its affiliates
- 7. Oracle’s Strategy for Cloud Native Application Development 7 Copyright © 2023 Oracle and/or its affiliates

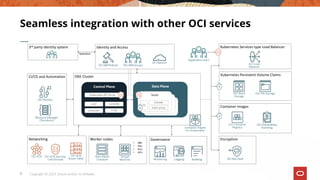

- 8. Governance OKE Cluster Data Plane Worker nodes Container images Kubernetes Persistent Volume Claims Identity and Access Networking Encryption Seamless integration with other OCI services 8 Copyright © 2023, Oracle and/or its affiliates Bare Metal Compute Virtual Machine OCI VCN OCI VCN Security Lists/Groups OCI Container Registry OCI VCN Route Table Auditing Logging OCI IAM Groups OCI Key Vault Monitoring OCI File Storage Container Engine For Kubernetes Kubernetes Services type Load Balancer OCI Block Storage OCI IAM Policies 3rd party identity system OCI Load Balancer Application users federation Control Plane Kubernetes API Server etcd Node kubelet kube-proxy OS • X86 • Flex • Arm • GPU OCI Vulnerability Scanning CI/CD and Automation OCI DevOps OCI Bastion Resource Manager (Terraform) controller scheduler CCM
- 9. OCI container-based platform for app development SECURITY & GOVERNANCE (Secure) OBSERVABILITY & MANAGEMENT (Operate) Bastions Certificates Vault VCN NSG Max Security Zones Identity & Access Mgmt. Cloud Guard Data Guard Logging Log Analytics Monitoring APM Java Mgmt. OS Mgmt. Operations Insights Cloud Advisor 3. Application Runtime (Run) STORAGE Block Storage Object Storage Caching APPLICATION RUNTIMES Functions Container Engine for Kubernetes (OKE) APEX Containerized Runtimes Low Code TRAFFIC MANAGEMENT API Gateway Load Balancer 1. Languages & Frameworks (Develop) 2. DevOps (Build & Deploy) DATA & ANALYTICS ATP ADW Oracle Analytics Cloud Argo Resource Manager GitHub DevOps Service Mesh 9 Copyright © 2023, Oracle and/or its affiliates | Oracle Confidential: Highly Restricted
- 10. Container Runtimes for Oracle Database 10 Docker Running Containers on Docker Engine Build Images (SI, Sharding, RAC & CMAN) Standalone Environments OL7 Support only Podman Alternative to Docker Secure than Docker Build Images (SI, Sharding, RAC & CMAN) Standalone Environments OL8 Support Kubernetes Container Orchestration solution Uses Software Defined Networking Provide Observability and Scaling SI & Sharding DB Operator (OraOperator) DB Specific Controller Software extension of the Kubernetes APIs ADB, BaseDB, SIDB, Sharding & Multitenant Database Observability Ansible Go Helm Podman Compose Docker Compose Configuration scripts Provisioning scripts Copyright © 2023 Oracle and/or its affiliates

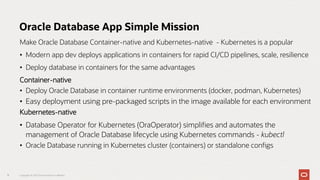

- 11. Make Oracle Database Container-native and Kubernetes-native - Kubernetes is a popular • Modern app dev deploys applications in containers for rapid CI/CD pipelines, scale, resilience • Deploy database in containers for the same advantages Container-native • Deploy Oracle Database in container runtime environments (docker, podman, Kubernetes) • Easy deployment using pre-packaged scripts in the image available for each environment Kubernetes-native • Database Operator for Kubernetes (OraOperator) simplifies and automates the management of Oracle Database lifecycle using Kubernetes commands - kubectl • Oracle Database running in Kubernetes cluster (containers) or standalone configs 11 Copyright © 2023 Oracle and/or its affiliates Oracle Database App Simple Mission
- 12. Container images Docker (OL7) Podman (OL8) Oracle Container Engine for Kubernetes (OKE), Oracle Cloud Native Env (OCNE) Single Instance DB (Includes XE, SE, and EE) 19.16c, 21.3c 19.3c, 21.3c 19.3c, 21.3c Sharded DB 19.16c, 21.3c 19.3c, 21.3c 19.3c, 21.3c Real Application Clusters (RAC) 19.16c, 21.3c 19.16c, 21.3c OCNE Planned for 23c GA Connection Manager (CMAN) 19.3c, 21.3c 19.3c, 21.3c Oracle Container Based Runtime Environments Production Database Release Copyright © 2023 Oracle and/or its affiliates

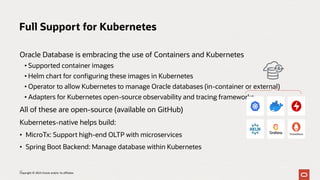

- 13. Oracle Database is embracing the use of Containers and Kubernetes • Supported container images • Helm chart for configuring these images in Kubernetes • Operator to allow Kubernetes to manage Oracle databases (in-container or external) • Adapters for Kubernetes open-source observability and tracing frameworks All of these are open-source (available on GitHub) Kubernetes-native helps build: • MicroTx: Support high-end OLTP with microservices • Spring Boot Backend: Manage database within Kubernetes Full Support for Kubernetes 13 Copyright © 2023 Oracle and/or its affiliates
- 14. Why a Kubernetes Operator for Stateful Applications? • Stateful Application • Replicas have own/unique state and identity • Configuration steps before deployment • Be in some special state for patching/upgrading • Complexity and order of special maintenance tasks (backup, restore, compression, and so on) • More handholding through the entire lifecycle • Helm charts are good for deploying stateless apps, templating/reuse; can’t handle the lifecycle of stateful applications • In-house scripts cannot fully automate stateful applications lifecycle • State management in Kubernetes is complex Oracle CloudWorld Copyright © 2022, Oracle and/or its affiliates | Confidential: Restricted
- 15. Copyright © 2022, Oracle and/or its affiliates 15 Pod Specification volumeMounts • name • mountPath volumes • name • PVC reference PVC Specification Storage Class Access Mode (rw/ro) Size File Storage Block Storage Physical Volume allocate Kubernetes: Managing States
- 16. Oracle Database Operator for Kubernetes: Architecture 16 Copyright © 2023 Oracle and/or its affiliates
- 17. Kubernetes Built-in Objects and Controllers • Deployment • StatefulSet • Endpoint • Service • ReplicaSet • Job • CronJob • DaemonSet • Node • Route • Authorization • Service Account • Tokens • … Declarative Spec of Deployments, Pods, Services, Volumes etc YAML Controller monitors objects and reconciles against Specs Deployments, Pods Copyright © 2023, Oracle and/or its affiliates
- 18. Master Node Kubernetes Cluster Kubernetes APIs Extended with Custom Objects and Controllers API Server Operator (Extends K8s API) Kubectl Custom Resources Specifications YAML Custom Resources Oracle CloudWorld Copyright © 2022, Oracle and/or its affiliates | Confidential: Restricted
- 19. Oracle Database Operator for Kubernetes Oracle CloudWorld Copyright © 2023, Oracle and/or its affiliates 19 Automation to manage an Oracle Database in a Kubernetes Cluster Supported Database Configurations 1. Containerized Database in Kubernetes 2. Multitenant Databases 3. Autonomous Database 4. BaseDB Service Supported Lifecycle Operations Provision / Bind / Start / Stop / Terminate Backup / Restore / Patch / Upgrade / Scale Support major K8s Distributions and Clouds Oracle DB Operator Kubernetes Cluster kubectl Autonomous DBs Multitenant DB Containerized Oracle DBs 1 3 2 Base DBs Oracle Cloud Infrastructure Controllers 4
- 20. Why a Kubernetes Operator for the Oracle Database? 1. The Oracle database images as supported on Containers (Docker, Podman) and deployable on Kubernetes (using Helm Chart and/or scripts) 2. We want to go further and make Oracle Database natively part of the Kubernetes infrastructure • Start, stop, monitor, patch, upgrade, and other life-cycle management operations from Kubernetes 3. Databases are Stateful Kubernetes Applications; Helm Charts and Kubernetes Deployments are not appropriate for managing states 4. Provide these capabilities whether the Oracle database is in the cloud, on-premises, in Kubernetes, or even outside of Kubernetes Oracle CloudWorld Copyright © 2022, Oracle and/or its affiliates | Confidential: Restricted
- 21. OraOperator: Why Should You Care? • Kubernetes is primordial for your DevOps & GitOps CI/CD pipeline • You have adopted the Kubernetes operator pattern for automating the lifecycle management of complex and/or stateful applications e.g., databases • You are using or plan to use Oracle databases in your DevOps • OraOperator eliminates the dependency on a human operator or administrator for the majority of Oracle database operations. • Oracle is resolute in making the Oracle database Kubernetes-native • The Oracle database Operator for Kubernetes is open-source Oracle CloudWorld Copyright © 2022, Oracle and/or its affiliates | Confidential: Restricted
- 22. Supported DBs Features / Lifecycle Operations Containerized DB on K8s clusters Single Instance DB (SE, EE, XE, 23c Free) Provision DB Clone DB Patch DB (in-place/ out-of-place) Delete DB Update DB config (FlashBack, Archivelog, Forcelog Update DB Init Params Setting up Data Guard Data Guard (Preview) Create Standby for SIDB Add DBs in DG Config Manual Switch over Connecting to the Primary Patching Primary and Secondary Sharded DB Deploy Shard Topology Add a Shard Delete a Shard Clone DB Shard OCI-Only DBs Autonomous DB (Shared & Dedicated) Provision ADB Bind ADB Start/ Stop ADB Terminate (Soft/Hard) Scale (Up/Down) Network access options On-demand Backup/Restore Base DB Provision Bind Scale shape Up/Down Scale UP the storage On Demand backup Terminate a Base DB Update License On-Premises and OCI DBs Multitenant DB (Exadata, PDB/CDB) Bind to a CDB Create a PDB Plug a PDB Unplug a PDB Delete a PDB Clone a PDB Open/Close PDB Oracle CloudWorld Copyright © 2023, Oracle and/or its affiliates 22 OraOperator v1.0.0 – Production (on July 6)
- 23. Oracle CloudWorld Copyright © 2023, Oracle and/or its affiliates 23 Roadmap – Next 12 Months • Integration in DevOps CI/CD Pipelines including support for database or schema change management tools (Flyway, Liquibase) • Oracle RAC Controller • OpenShift certification of v 1.0.0 (done for v0.2.x) • VMWare Tanzu certification • Verrazzano integration • Workflow deployment Integration on OKE Console • Operator image on GitHub Container Image Registry • Publishing on operatorhub.io • Testing on other major Kubernetes distributions/Clouds (AWS, Azure already done) • Operator Lifecycle Manager (OLM) support
- 24. A simplified example of the Oracle DB Operator integrated into feature- branching strategies. • The DB Operator is used to create and manage a Single-Instance Databases (SIDB) Looking into the integration with database/schema change frameworks e.g., Liquibase, Flyway 24 Oracle CloudWorld Copyright © 2023, Oracle and/or its affiliates Oracle Database Operator in DevOps Pipeline
- 25. Certified and Supported by Red Hat Copyright © 2023, Oracle and/or its affiliates 25 ` Oracle DB Operator certified on OpenShift Joint effort with Oracle Product Management and Product Development Operator managed from OpenShift registry and console All database flavours Autonomous Exadata On-Premise PaaS https://catalog.redhat.com/software/operators/detail/630dd7ead2868f23242cefea Copyright © 2023 Oracle and/or its affiliates
- 32. 32 OraOperator Add-on to OKE Console deployment Copyright © 2023 Oracle and/or its affiliates
- 33. Demo - steps 33 Copyright © 2023 Oracle and/or its affiliates
- 34. Use Cases shown • Binding to an existing ADB • Provisioning an ADB • Scaling up a database • Stopping a database • Terminating a database Managing the Autonomous Database (ADB) Lifecycle Copyright © 2023, Oracle and/or its affiliates 34 `
- 35. Bind to an existing ADB Copyright © 2023, Oracle and/or its affiliates 35 kubectl client machine Prepare .yaml file for binding to an ADB Login cloud console and click Autonomous Transaction Processing Click on the database name Copy database OCID ADB bound Use the OCID from above Apply the .yaml file kubectl apply –f bind_adb.yaml Verify the resource is available using kubectl kubectl get adb
- 36. Scale up an ADB Copyright © 2023, Oracle and/or its affiliates 36 kubectl client machine Scale request sent Set CPU count in the earlier .yaml file for scaling up/down ADB Scaling in progress Apply the .yaml file kubectl apply –f bind_adb.yaml Verify CPU count of the database using oci cli oci db autonomous-database list --compartment-id $COMPARTMENT_ID --output table --query "data [*].{dbname:"display-name", ocpus:"cpu-core-count"}”
- 37. Stop an ADB Copyright © 2023, Oracle and/or its affiliates 37 kubectl client machine Stop request sent Set lifecycle state in the earlier .yaml file for stopping ADB Stopping in progress Apply the .yaml file kubectl apply –f bind_adb.yaml To start/terminate the database, repeat the steps above with lifecycle state AVAILABLE/TERMINATED Verify state of the database using oci cli oci db autonomous-database list --compartment-id $COMPARTMENT_ID --output table --query "data [*].{dbname:"display-name", state:"lifecycle-state"}”
- 38. Terminate an ADB using HardLink Copyright © 2023, Oracle and/or its affiliates 38 kubectl client machine Terminate request sent Terminating in progress Delete ADB from the Kubernetes cluster kubectl delete –f bind_adb.yaml Set hard link to true in the earlier .yaml file for terminating ADB ADB configured Apply the .yaml file kubectl apply –f bind_adb.yaml Verify state of the database using oci cli oci db autonomous-database list --compartment-id $COMPARTMENT_ID --output table --query "data [*].{dbname:"display-name", state:"lifecycle-state"}”
- 39. Cloud Native Operator Observability ANY Oracle Database MetricsExport Controller & LogExporter Controller MetricsExporter ConfigMap, Deployment, Service, and ServiceMonitor LogExporter ConfigMap, Deployment Grafana, Prometheus, Loki, Promtail • MetricsExporter Controller generates all resources needed to export DB metrics in Prometheus for visualization in Grafana • LogExporter Controller generates all resources needed to export DB logs in Loki for visualization in Grafana • Custom Resource Definitions simply reference secrets/bindings. generates generates metrics scraped logs pushed Copyright © 2023 Oracle and/or its affiliates
- 40. Copyright © 2021, Oracle and/or its affiliates 40 Observability with EM DB Express console

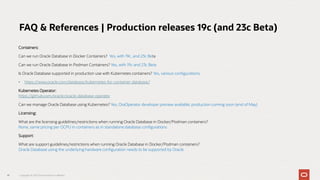

- 41. Containers: Can we run Oracle Database in Docker Containers? Yes, with 19c, and 23c Beta Can we run Oracle Database in Podman Containers? Yes, with 19c and 23c Beta Is Oracle Database supported in production use with Kubernetes containers? Yes, various configurations • https://www.oracle.com/database/kubernetes-for-container-database/ Kubernetes Operator: https://github.com/oracle/oracle-database-operator Can we manage Oracle Database using Kubernetes? Yes, OraOperator developer preview available; production coming soon (end of May) Licensing: What are the licensing guidelines/restrictions when running Oracle Database in Docker/Podman containers? None, same pricing per OCPU in containers as in standalone database configurations Support: What are support guidelines/restrictions when running Oracle Database in Docker/Podman containers? Oracle Database using the underlying hardware configuration needs to be supported by Oracle 41 FAQ & References | Production releases 19c (and 23c Beta) Copyright © 2023 Oracle and/or its affiliates
- 42. Oracle LiveLabs Showcasing how Oracle’s solutions can solve your business problems 500+ free workshops, available or in development 3.5 million people have already visited LiveLabs developer.oracle.com/livelabs learn something new …at your pace! 600+ events run using LiveLabs workshops Copyright © 2023 Oracle and/or its affiliates
- 43. Oracle Database Oracle Database 23c Free – Developer Edition available for download now • Oracle Database 23c accelerates Oracle’s mission to make it simple to develop and run all data-driven apps • Provides developers easy early access to 23c app dev features • Limited database size, memory, CPU threads (same limits as Express Edition) Free Developer Release http://oracle.com/23cFree http://oracle.com/23cFree
- 44. Create your FREE Cloud Account • Go to https://signup.cloud.oracle.com/ Copyright © 2023, Oracle and/or its affiliates
- 45. 3 membership tiers Connect: @oracleace facebook.com/OracleACEs aceprogram_ww@oracle.com 500+ technical experts & community leaders helping peers globally The Oracle ACE Program recognizes & rewards individuals for their technical & community contributions to the Oracle community Nominate yourself or a candidate: ace.oracle.com/nominate Learn more - ace.oracle.com blogs.oracle.com/ace
