Developing an Android REST client to determine POI using asynctask and integrating it with Google Map

SOM-ITSOLUTIONS
ANDROID
Developing a nearby POI REST Client
SOMENATH MUKHOPADHYAY
19-Dec-15
som-itsolutions
#A2 1/13 South Purbachal Hospital Road Kolkata 700078 Mob: +91 9748185282
Email: som@som-itsolutions.com / som.mukhopadhyay@gmail.com
Website: https://sites.google.com/a/som-itsolutions.com/som-itsolutions/
Blog: www.som-itsolutions.blogspot.com

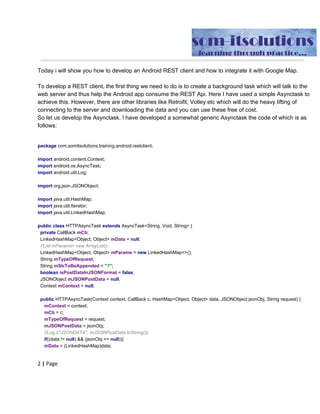

Today i will show you how to develop an Android REST client and how to integrate it with
Google Map.
To develop a REST client, the first thing we need to do is to create a background task which
will talk to the web server and thus help the Android app consume the REST Api. Here I
have used a simple Asynctask to achieve this. However, there are other libraries like
Retrofit, Volley etc which will do the heavy lifting of connecting to the server and
downloading the data and you can use these free of cost.
So let us develop the Asynctask. I have developed a somewhat generic Asynctask the code
of which is as follows:
import android.content.Context;
import android.os.AsyncTask;
import android.util.Log;
import org.apache.http.NameValuePair;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.LinkedHashMap;
import java.util.List;
public class HTTPAsyncTask extends AsyncTask<String, Void, String> {
private CallBack mCb;
LinkedHashMap<Object, Object> mData = null;
//List mParams= new ArrayList();
LinkedHashMap<Object, Object> mParams = new LinkedHashMap<>();
List<NameValuePair> mPostDataList = new ArrayList<>();
String mTypeOfRequest;
String mStrToBeAppended = "?";
boolean isPostDataInJSONFormat = false;
boolean JSonAndData = false;
//JSONObject mJSONPostData = null;
String JSONStringData = null;
Context mContext = null;
public HTTPAsyncTask(Context context, CallBack c, HashMap<Object, Object>
data, String jsonString, String request) {
mContext = context;
mCb = c;
mTypeOfRequest = request;
JSONStringData = jsonString;
//Log.i("JSONDATA", mJSONPostData.toString());
if((data != null) && (jsonString == null)){
mData = (LinkedHashMap)data;

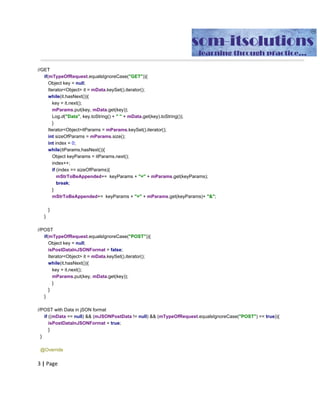

if(mTypeOfRequest.equalsIgnoreCase("GET")){

Object key = null;
Iterator<Object> it = mData.keySet().iterator();
while(it.hasNext()){
key = it.next();
mParams.put(key, mData.get(key));
Log.d("Data", key.toString() + " " +
mData.get(key).toString());
}
Iterator<Object>itParams = mParams.keySet().iterator();
int sizeOfParams = mParams.size();
int index = 0;
while(itParams.hasNext()){
Object keyParams = itParams.next();
index++;
if (index == sizeOfParams){
mStrToBeAppended+= keyParams + "=" +
mParams.get(keyParams);
break;
}
mStrToBeAppended+= keyParams + "=" +
mParams.get(keyParams)+ "&";
}
//add the last parameter without the "&"
//mStrToBeAppended+= "?" + key + "=" + mParams.get(key);
} //GET ENDS
if(mTypeOfRequest.equalsIgnoreCase("POST")){
Object key = null;
isPostDataInJSONFormat = false;
Iterator<Object> it = mData.keySet().iterator();
while(it.hasNext()){
key = it.next();
mParams.put(key, mData.get(key));
//mPostDataList.add(new
BasicNameValuePair(String(key),new String(mData.get(key)));
}
}
}
if ((mData == null) && (JSONStringData != null) &&
(mTypeOfRequest.equalsIgnoreCase("POST") == true)){
isPostDataInJSONFormat = true;
}
}
@Override

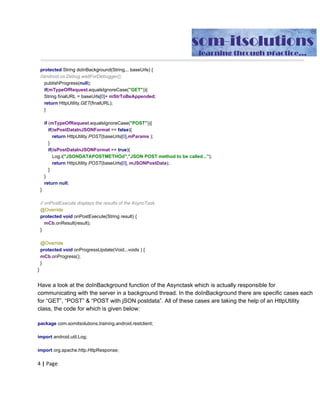

protected String doInBackground(String... baseUrls) {
//android.os.Debug.waitForDebugger();

publishProgress(null);
if(mTypeOfRequest.equalsIgnoreCase("GET")){
String finalURL = baseUrls[0]+ mStrToBeAppended;
return HttpUtility.GET(finalURL);
}
if (mTypeOfRequest.equalsIgnoreCase("POST") ){
if(isPostDataInJSONFormat == false ){
if( JSonAndData == false){
mParams = null;
}
Log.i("NONJSONDATAPOSTMETHOd","Non-JSON POST method to
be called...");
return HttpUtility.POST(baseUrls[0],mParams );
}
if(isPostDataInJSONFormat == true){
Log.i("JSONDATAPOSTMETHOd","JSON POST method to be
called...");
return HttpUtility.POST(baseUrls[0], JSONStringData);
}
}
if (mTypeOfRequest.equalsIgnoreCase("PUT") ){
if(isPostDataInJSONFormat == false ){
if( JSonAndData == false){
mParams = null;
}
Log.i("NONJSONDATAPUTMETHOd","Non-JSON PUT method to be
called...");
return HttpUtility.PUT(baseUrls[0],mParams );
}
if(isPostDataInJSONFormat == true){
Log.i("JSONDATAPUTMETHOd","JSON PUT method to be
called...");
return HttpUtility.PUT(baseUrls[0], JSONStringData);
}
}
return null;
}
// onPostExecute displays the results of the AsyncTask.
@Override
protected void onPostExecute(String result) {
mCb.onResult(result);

}
@Override
protected void onProgressUpdate(Void...voids ) {
mCb.onProgress();
}
}
Have a look at the doInBackground function of the Asynctask which is actually responsible
for communicating with the server in a background thread. In the doInBackground there are
specific cases each for “GET”, “POST” & “POST with jSON postdata”. All of these cases are
taking the help of an HttpUtility class, the code for which is given below:
import android.util.Base64;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.HttpClient;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.client.methods.HttpPut;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.DefaultHttpClient;
import org.apache.http.message.BasicHeader;
import org.apache.http.protocol.HTTP;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
public class HttpUtility {
public final static String base_URL =
"http://api.geonames.org/findNearbyPOIsOSMJSON";
private final static HttpClient mHhttpclient = new DefaultHttpClient();
public static String GET(String url){
Log.i("URL", url);
InputStream inputStream = null;
String result = "";
try {

HttpGet httpGet = new HttpGet(url);
// make GET request to the given URL
if(url.contains("@")){
String auth =new String(Base64.encode(( SignupOrLogIn.strLogInId +
":" + SignupOrLogIn.strPwd).getBytes(),Base64.URL_SAFE|Base64.NO_WRAP));
httpGet.addHeader("Authorization", "Basic " + auth);
}
HttpResponse httpResponse = mHhttpclient.execute(httpGet);
// receive response as inputStream
inputStream = httpResponse.getEntity().getContent();
// convert inputstream to string
if(inputStream != null){
result = convertInputStreamToString(inputStream);
}
else
result = "Did not work!";
} catch (Exception e) {
Log.d("InputStream", e.getLocalizedMessage());
}
return result;
}
public static String POST(String url, LinkedHashMap<Object, Object> mParams){
String result = "";
try{
HttpPost post = new HttpPost(url);
String auth =new String(Base64.encode(( SignupOrLogIn.strLogInId + ":"
+ SignupOrLogIn.strPwd).getBytes(),Base64.URL_SAFE|Base64.NO_WRAP));
post.addHeader("Authorization", "Basic " + auth);
}
if(mParams != null){
post.setEntity(new UrlEncodedFormEntity((List<? extends
NameValuePair>) mParams, "UTF-8"));
}
HttpResponse httpResponse = mHhttpclient.execute(post);

//inputStream.close();
}
else
}
catch (Exception e) {
}
return result;
}
public static String POST(String url, String jsonString){
String result = "";
Log.i("JSONSTRINPUTDATA", jsonString );
try{
HttpPost post = new HttpPost(url);
post.setHeader("Content-type", "application/json");
post.addHeader("Authorization", "Basic " + auth);
}
//StringEntity se = new StringEntity(obj.toString());
StringEntity se = new StringEntity(jsonString);
//se.setContentEncoding(new BasicHeader(HTTP.CONTENT_TYPE,
"application/json"));
post.setEntity(se);
HttpResponse httpResponse = mHhttpclient.execute(post);
}

else
}
Log.i("JSONPOSTEND", "End of JSON data post methos...");
Log.i("JSONPOSTDATARESULT", result);
return result;
}
public static String PUT(String url, String jsonString){
String result = "";
try{
HttpPut put = new HttpPut(url);
put.setHeader("Content-type", "application/json");
put.addHeader("Authorization", "Basic " + auth);
}
StringEntity se = new StringEntity(jsonString);
se.setContentEncoding(new BasicHeader(HTTP.CONTENT_TYPE,
"application/json"));
put.setEntity(se);
HttpResponse httpResponse = mHhttpclient.execute(put);
}
else
}
Log.i("JSONPUTEND", "End of JSON data put methos...");
return result;

}
public static String PUT(String url, LinkedHashMap<Object, Object> mParams){
String result = "";
try{
HttpPut put = new HttpPut(url);
put.addHeader("Authorization", "Basic " + auth);
}
HttpResponse httpResponse = mHhttpclient.execute(put);
}
else
}
Log.i("JSONPUTEND", "End of JSON data put methos...");
return result;
}

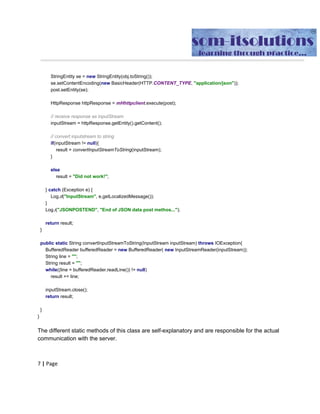

public static String convertInputStreamToString(InputStream inputStream) throws
IOException{
BufferedReader bufferedReader = new BufferedReader( new
InputStreamReader(inputStream));
String line = "";
String result = "";
while((line = bufferedReader.readLine()) != null)
result += line;
inputStream.close();
return result;

}
}
The different static methods of this class are self-explanatory and are responsible for the
actual communication with the server.

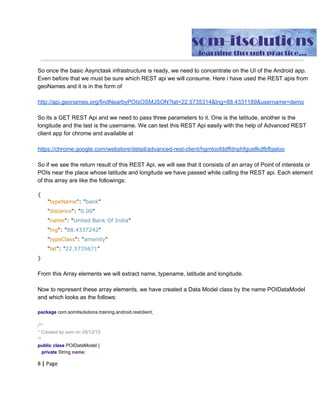

So once the basic Asynctask infrastructure is ready, we need to concentrate on the UI of the
Android app. Even before that we must be sure which REST api we will consume. Here i
have used the REST apis from geoNames and it is in the form of
http://api.geonames.org/findNearbyPOIsOSMJSON?lat=22.5735314&lng=88.4331189&user
name=demo
So its a GET REST Api and we need to pass three parameters to it. One is the latitude,
another is the longitude and the last is the username. We can test this REST Api easily with
the help of Advanced REST client app for chrome and available at
https://chrome.google.com/webstore/detail/advanced-rest-client/hgmloofddffdnphfgcellkdfbfb
jeloo
So if we see the return result of this REST Api, we will see that it consists of an array of
Point of interests or POIs near the place whose latitude and longitude we have passed while
calling the REST api. Each element of this array are like the followings:
{
"typeName": "bank"
"distance": "0.06"
"name": "United Bank Of India"
"lng": "88.4337242"
"typeClass": "amenity"
"lat": "22.5735671"
}
From this Array elements we will extract name, typename, latitude and longitude.
Now to represent these array elements, we have created a Data Model class by the name
POIDataModel and which looks as the follows:
package com.somitsolutions.training.android.restclient;
/**
* Created by som on 26/12/15.
*/
public class POIDataModel {
private String name;
private String typeName;

private double lat;
private double lng;
public POIDataModel(){
this.name = "";
this.typeName="";
}
public POIDataModel(String name, String typeName){
this.name = name;
this.typeName = typeName;
}
public String getName(){
return name;
}
public String getTypeName(){
return typeName;
}
public double getLat(){return lat;}
public double getLng(){return lng;}
public void setName(String name){
this.name = name;
}
public void setTypeName(String typeName){
this.typeName = typeName;
}
public void setLat(double lat){
this.lat = lat;
}
public void setlng(double lng){
this.lng = lng;
}
}
This class is simple and self explanatory.
Now once the REST api returns the data in the JSON format and after we extract the
necessary data from that response, we need to display them in a list.
So now creates another Activity called DisplayActivity extended from ListActivity.
import android.app.ListActivity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.ListView;
import org.json.JSONArray;

import org.json.JSONException;
import org.json.JSONObject;
public class DisplayActivity extends ListActivity implements View.OnClickListener{
ArrayList<POIDataModel> mDisplayArray = new ArrayList<POIDataModel>();
ListView mListView;
Button mBtnShowOnGoogleMap;
String displayData;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_display);
mListView = getListView();
mBtnShowOnGoogleMap = (Button)findViewById(R.id.showOnMap);
mBtnShowOnGoogleMap.setOnClickListener(this);
displayData = getIntent().getStringExtra("jsonArray");
try {
JSONArray jsonDisplayData = new JSONArray(displayData);
for (int i = 0; i <jsonDisplayData.length(); i++){
JSONObject jsonData = jsonDisplayData.getJSONObject(i);
POIDataModel dataModelTemp = new POIDataModel();
dataModelTemp.setName(jsonData.getString("name"));
dataModelTemp.setTypeName(jsonData.getString("typeName"));
mDisplayArray.add(dataModelTemp);
}
} catch (JSONException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
final POICustomAdapter customArrayAdapter = new POICustomAdapter(getApplicationContext(),
R.layout.singleitemlayout,mDisplayArray);
setListAdapter(customArrayAdapter);
}
@Override
public void onClick(View view) {
if(view.equals(mBtnShowOnGoogleMap)){
Intent displayMapIntent = new Intent(getApplicationContext(), MapsActivity.class);
displayMapIntent.putExtra("MapData",displayData);
startActivity(displayMapIntent);
}
}
}
The XML layout of this Activity is called activity_display and it is as follows

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context="com.somitsolutions.training.android.restclient.DisplayActivity">
<ListView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:id="@android:id/list"
android:layout_alignParentTop="true"
android:layout_alignParentLeft="true"
android:layout_alignParentStart="true"
android:layout_marginTop="50dp" />
<Button
android:layout_width="match_parent"
android:text="Show on Google Map"
android:id="@+id/showOnMap"
android:layout_alignParentLeft="true"
android:layout_alignParentBottom="true" />
</RelativeLayout>
Now as you are aware of that for a custom listview we need to create a custom adapter. Our
adapter class is called POICustomAdapter and it looks as follows:
import android.view.LayoutInflater;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.TextView;
/**
* Created by som on 26/12/15.
*/
public class POICustomAdapter extends ArrayAdapter<POIDataModel> {
private Context mContext;
List<POIDataModel> mDataList;
public POICustomAdapter(Context context, int resource,
List<POIDataModel> objects) {

super(context, R.layout.singleitemlayout, objects);
// TODO Auto-generated constructor stub
mContext = context;
mDataList = objects;
}
@Override
public View getView(int position, View convertView, ViewGroup parent) {
if (convertView == null) {
// This a new view we inflate the new layout
LayoutInflater inflater = (LayoutInflater)
mContext.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
convertView = inflater.inflate(R.layout.singleitemlayout, parent, false);
}
TextView name = (TextView)convertView.findViewById(R.id.name);
TextView typeName = (TextView)convertView.findViewById(R.id.typeName);
POIDataModel temp = mDataList.get(position);
name.setText(temp.getName());
typeName.setText(temp.getTypeName());
return convertView;
}
}
In the getView method, we inflate an XML layout which is responsible to display a single row
in the List is called singleitemlayout.xml and it is as follows:
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="horizontal" android:layout_width="match_parent"
android:layout_height="match_parent"
>
<TextView
android:text="Name"
android:id="@+id/name"
android:gravity="left"
android:layout_weight="2"
android:singleLine="false"
android:textColor="#FF33B5E5"/>
<TextView
android:text="Type"
android:id="@+id/typeName"
android:gravity="right"
android:layout_weight="1"

android:singleLine="false"
android:textColor="#FF33B5E5"
/>
</LinearLayout>
Once all of this infrastructure is ready, we can write the MainActivity class. The code of the
MainActivity class is as follows:
import android.app.Activity;
import android.app.ProgressDialog;
import android.location.Location;
import android.location.LocationListener;
import android.location.LocationManager;
import android.widget.Button;
import android.widget.Toast;
public class MainActivity extends Activity implements View.OnClickListener{
Button mButtonGetWeather;
Button mButtonGetPlace;
public static double lat;
public static double lng;
ProgressDialog mProgressDialog;
static Context mContext;
LocationManager lm;
private static MainActivity mainActivity;
@Override
setContentView(R.layout.activity_main);
mContext = this;
mainActivity = this;
mButtonGetPlace = (Button)findViewById(R.id.buttonPlace);
mProgressDialog = new ProgressDialog(this);
mProgressDialog.setTitle("Getting Data...Please wait...");
mButtonGetPlace.setOnClickListener(this);

lm = (LocationManager) getSystemService(Context.LOCATION_SERVICE);
////
class myLocationlistener implements LocationListener {
@Override
public void onLocationChanged(Location location) {
//int counter = 0;
if (location != null) {
lng = location.getLongitude();
lat = location.getLatitude();
}
}
public void onProviderDisabled(String provider) {
// TODO Auto-generated method stub
}
public void onProviderEnabled(String provider) {
}
public void onStatusChanged(String provider, int status, Bundle extras) {
}
}
Location location = null;
LocationListener ll = new myLocationlistener();
try {
// getting GPS status
boolean isGPSEnabled = lm.isProviderEnabled(LocationManager.GPS_PROVIDER);
// getting network status
boolean isNetworkEnabled = lm.isProviderEnabled(LocationManager.NETWORK_PROVIDER);
if (!isGPSEnabled && !isNetworkEnabled) {
// no network provider is enabled
} else {
// First get location from Network Provider
if (isNetworkEnabled) {
lm.requestLocationUpdates( LocationManager.NETWORK_PROVIDER, 35000, 0, ll);
Log.d("Network", "Network");
if (lm != null) {
location = lm.getLastKnownLocation(LocationManager.NETWORK_PROVIDER);
Log.i("Network Latitude :", Double.toString(lat));
}

}
}
//get the location by gps
if (isGPSEnabled) {
if (location == null) {
lm.requestLocationUpdates(LocationManager.GPS_PROVIDER,35000, 0, ll);
Log.d("GPS Enabled", "GPS Enabled");
if (lm != null) {location = lm.getLastKnownLocation(LocationManager.GPS_PROVIDER);
Log.i("GPS Location: ", Double.toString(lat));
}
}
}
}
}
}
}
public static MainActivity getMainActivity() {
return mainActivity;
}

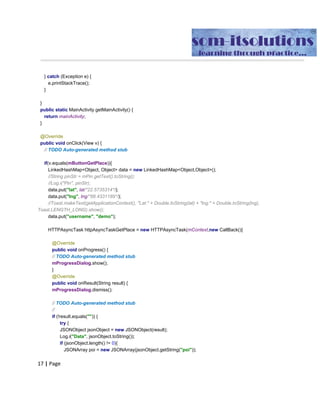

@Override
public void onClick(View v) {
if(v.equals(mButtonGetPlace)){
LinkedHashMap<Object, Object> data = new LinkedHashMap<Object,Object>();
//String pinStr = mPin.getText().toString();
//Log.i("Pin", pinStr);
data.put("lat", lat/*22.5735314*/);
data.put("lng", lng/*88.4331189*/);
//Toast.makeText(getApplicationContext(), "Lat:" + Double.toString(lat) + "lng:" + Double.toString(lng),
Toast.LENGTH_LONG).show();
data.put("username", "demo");
HTTPAsyncTask httpAsyncTaskGetPlace = new HTTPAsyncTask(mContext,new CallBack(){
@Override
public void onProgress() {
mProgressDialog.show();
}
@Override
public void onResult(String result) {
mProgressDialog.dismiss();
//

if (!result.equals("")) {
try {
JSONObject jsonObject = new JSONObject(result);
Log.i("Data", jsonObject.toString());
if (jsonObject.length() != 0){
JSONArray poi = new JSONArray(jsonObject.getString("poi"));
if(poi.length() != 0){
Intent intentDisplay = new Intent(getApplicationContext(), DisplayActivity.class);
intentDisplay.putExtra("jsonArray", poi.toString());
startActivity(intentDisplay);
}
else{
Toast.makeText(getApplicationContext(), "No Data Available...", Toast.LENGTH_LONG).show();
}
}
else{
Toast.makeText(getApplicationContext(), "No Data Available...", Toast.LENGTH_LONG).show();
}
}catch(JSONException e){
}
}
//no data available
}
@Override
public void onCancel() {
}
},data , null, "GET");
httpAsyncTaskGetPlace.execute("http://api.geonames.org/findNearbyPOIsOSMJSON");
}
}
}

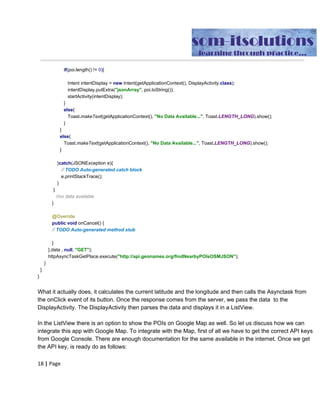

What it actually does, it calculates the current latitude and the longitude and then calls the
Asynctask from the onClick event of its button. Once the response comes from the server,
we pass the data to the DisplayActivity. The DisplayActivity then parses the data and
displays it in a ListView.
In the ListView there is an option to show the POIs on Google Map as well. So let us discuss
how we can integrate this app with Google Map. To integrate with the Map, first of all we
have to get the correct API keys from Google Console. There are enough documentation for
the same available in the internet. Once we get the API key, is ready do as follows:
● Right click on the package of the App
● Go to New->Google->Google Maps Activity
and create the new Activity.

Now change the Manifest file. Add the permission, meta-data section etc. The final Manifest
file will look like the following:
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.somitsolutions.training.android.restclient"
android:versionCode="1"
android:versionName="1.0">
<uses-sdk
android:minSdkVersion="8"
android:targetSdkVersion="21" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="com.google.android.providers.gsf.permission.READ_GSERVICES"
/>
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

<uses-feature
android:glEsVersion="0x00020000"
android:required="true" />
<application
android:allowBackup="true"
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme">
<activity
android:name=".MainActivity"
android:label="@string/app_name">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity
android:name=".DisplayActivity"
android:label="@string/title_activity_display" />
<!--
The API key for Google Maps-based APIs is defined as a string resource.
(See the file "res/values/google_maps_api.xml").
Note that the API key is linked to the encryption key used to sign the APK.
You need a different API key for each encryption key, including the release key that is used to

sign the APK for publishing.
You can define the keys for the debug and release targets in src/debug/ and src/release/.
-->
<meta-data
android:name="com.google.android.geo.API_KEY"
android:value="@string/google_maps_key" />
<activity
android:name=".MapsActivity"
android:label="@string/title_activity_maps"></activity>
</application>
</manifest>
In the second line of the meta-data section put the API Key that you have got.
Now this infrastructure is ready, change the MapsActivity class. Parse the data passed from
the DisplayActivity and extract the latitude and longitude and then display it by creating new
Markers for each of the POIs data. The MapsActivity class looks like the following:
import android.support.v4.app.FragmentActivity;
import com.google.android.gms.maps.CameraUpdate;
import com.google.android.gms.maps.CameraUpdateFactory;
import com.google.android.gms.maps.GoogleMap;
import com.google.android.gms.maps.OnMapReadyCallback;
import com.google.android.gms.maps.SupportMapFragment;
import com.google.android.gms.maps.model.LatLng;
import com.google.android.gms.maps.model.MarkerOptions;
public class MapsActivity extends FragmentActivity implements OnMapReadyCallback {
private GoogleMap mMap;
String mDisplayData;
List<POIDataModel> mapData = new ArrayList<POIDataModel>();
@Override
setContentView(R.layout.activity_maps);
// Obtain the SupportMapFragment and get notified when the map is ready to be used.

SupportMapFragment mapFragment = (SupportMapFragment) getSupportFragmentManager()
.findFragmentById(R.id.map);
mapFragment.getMapAsync(this);
Intent temp = getIntent();
mDisplayData = temp.getStringExtra("MapData");
try {
JSONArray jsonDisplayData = new JSONArray(mDisplayData);
for (int i = 0; i <jsonDisplayData.length(); i++){
JSONObject jsonData = jsonDisplayData.getJSONObject(i);
POIDataModel dataModelTemp = new POIDataModel();
dataModelTemp.setLat(jsonData.getDouble("lat"));
dataModelTemp.setlng(jsonData.getDouble("lng"));
dataModelTemp.setName(jsonData.getString("name"));
mapData.add(dataModelTemp);
}
} catch (JSONException e) {
}
}
/**
* Manipulates the map once available.
* This callback is triggered when the map is ready to be used.
* This is where we can add markers or lines, add listeners or move the camera. In this case,
* we just add a marker near Sydney, Australia.
* If Google Play services is not installed on the device, the user will be prompted to install
* it inside the SupportMapFragment. This method will only be triggered once the user has
* installed Google Play services and returned to the app.
*/

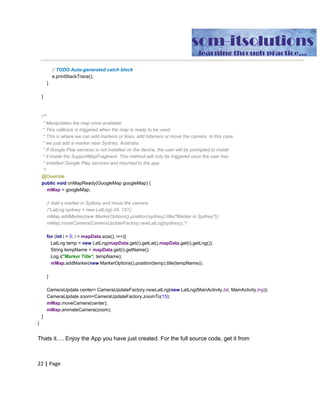

@Override
public void onMapReady(GoogleMap googleMap) {
mMap = googleMap;
// Add a marker in Sydney and move the camera
/*LatLng sydney = new LatLng(-34, 151);
mMap.addMarker(new MarkerOptions().position(sydney).title("Marker in Sydney"));
mMap.moveCamera(CameraUpdateFactory.newLatLng(sydney));*/
for (int i = 0; i < mapData.size(); i++){
LatLng temp = new LatLng(mapData.get(i).getLat(),mapData.get(i).getLng());
String tempName = mapData.get(i).getName();
Log.i("Marker Title", tempName);
mMap.addMarker(new MarkerOptions().position(temp).title(tempName));
}
CameraUpdate center= CameraUpdateFactory.newLatLng(new LatLng(MainActivity.lat, MainActivity.lng));
CameraUpdate zoom=CameraUpdateFactory.zoomTo(15);
mMap.moveCamera(center);
mMap.animateCamera(zoom);

}
}
Thats it…. Enjoy the App you have just created. For the full source code, get it from
https://github.com/sommukhopadhyay/AndroidRESTClient

Developing an Android REST client to determine POI using asynctask and integrating it with Google Map

More Related Content

What's hot (18)

Viewers also liked (17)

More from Somenath Mukhopadhyay (20)

Developing an Android REST client to determine POI using asynctask and integrating it with Google Map
