This document discusses developing components and extensions for Ext JS. It begins with introductions and an example of how the presenter first encountered and used Ext JS for an internal portal application. It then covers Ext JS terminology like components, containers, extensions, plugins and mixins. It provides examples of creating a simple clock component extension with steps like identifying a base class, creating class files, and adding interactivity with plugins. The document emphasizes that extensions allow reuse and customization for other developers, and provides advanced extension examples like Ext Calendar Pro and Ext Scheduler.
Developing components and extensions for ext js
- 1. Developing Components and Extensions for Ext JS2011 Mats Bryntse
- 2. About mepresenter = {name:”Mats Bryntse”, from:”Helsingborg, Sweden”,usingExtSince:2007,website : ”www.bryntum.com”,, twitter: ”@bryntum”};
- 3. Before we start...Let’s do a raise of hands
- 4. How many has heard of:jQuery?
- 5. Ext JS?If you haven’t seen/heardwww.sencha.com
- 6. How I met Ext JSStumbled upon Ext 2007 at SEMC
- 7. Mission: Internal portal application
- 9. Lots of data input, forms etc.
- 10. Lots of tables to display
- 11. Had to run on the best, most awesome browser in the worldCan you guess which one?
- 12. RequirementsSolid grid – Lots of data lists
- 13. Architechture – data stores, widgets
- 14. Polished UI without requiring deep HTMLor CSS knowledge.We prototypedMicrosoft AjaxjQueryExt JS
- 15. Scoreboard
- 16. ResultExt JS worked out well!
- 17. Customer happy
- 18. But... one feature we couldn’t solve using pure Ext JS at that time
- 19. A visual scheduling widgetCustomer wants:
- 20. Search beganFound a few flash ones, not allowed to use
- 21. No JavaScript based ones, hardly any web based either
- 22. But after serious Googling research we did find something...”WidgetX”Image blurred to protect you
- 23. Widget X reviewIs it JavaScript based?
- 24. So, is it interactive?
- 25. Is it at least beautiful?
- 26. Implement it anyway?ASP.NETNo, sirNoHell Yeah!
- 28. Fast forward to 2009>>

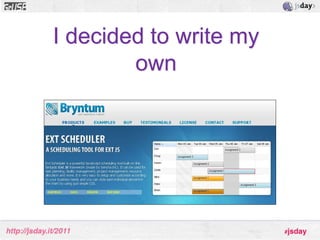

- 29. I decided to write my own
- 30. ConclusionWriting Ext JS components is a lot of fun (and addictive)

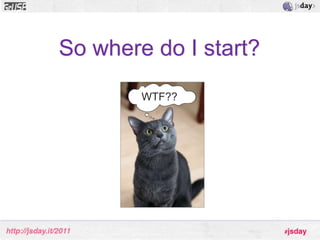

- 31. So where do I start?WTF??
- 32. Visit www.sencha.comGetExt JS SDKsencha.com/learn
- 33. Ext JS Terminology & ConceptsExt Component
- 34. Ext Container
- 35. Extension
- 36. Plugin

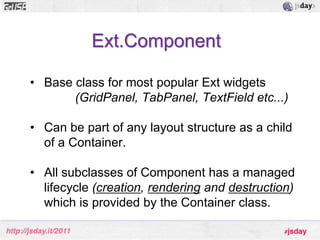

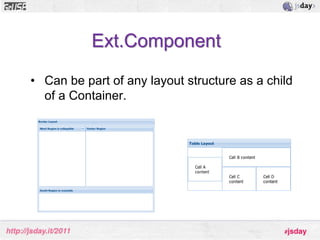

- 37. MixinExt.ComponentBase class for most popular Ext widgets (GridPanel, TabPanel, TextField etc...)Can be part of any layout structure as a child of a Container.
- 38. All subclasses of Component has a managed lifecycle (creation, rendering and destruction)which is provided by the Container class. Ext.Component: Base class for most popular Ext widgets
- 39. Ext.ComponentCan be part of any layout structure as a child of a Container.Ext.Component lifecycleAll subclasses of Component has a managed lifecycle (creation, rendering and destruction)which is provided by the Container class. ConstructorInitializeRenderDestroy
- 40. Ext.Component lifecycle and template methods* Initialization (constructor, initComponent) - Configuration, setup etc...* Rendering (onRender, afterRender) - Add additional elements and markup* Layout (afterLayout) - Executed after the component has been laid out* Destruction (onDestroy) - Clean up after yourself, destroy elements etc.
- 41. Ext.ContainerBase class for any Component that needs to contain other Components.
- 42. Handles the basic behavior of containing items: adding, inserting and removingitems.
- 43. The most commonly used Container classes are Panel, Window and TabPanel.What is an Ext JS extension??
- 44. Ext JS extensionSubclassing an Ext JS ”class”
- 45. Doesn’t have to be UI-related
- 46. Reusable throughout your appSimple extensionExt.define('MyClass', { extend: ’Ext.TabPanel’,constructor: function() { alert(”Look ma, I have tabs”);this.callParent(); }});
- 47. Class propertiesThe properties and methods you define for your class are added to the prototype of your class.Ext.define('MyClass', { extend: ’Ext.TabPanel’, favoriteTab : 3, someFunction : function() { ... }});console.log(MyClass.prototype.favoriteTab); // => 3
- 48. Instantiating your classvar foo = Ext.create('MyClass', {// Config properties}); // Or just use classic ’new’var bar = new MyClass({// Config properties});
- 49. Mixins
- 50. MixinsBrand new concept when it comes to Ext JS 4. A mixin is just a set of functions (and sometimes properties) that are merged into a class.

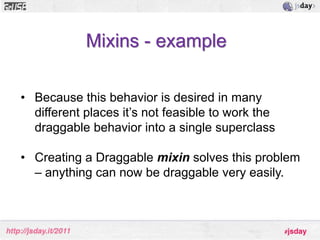

- 51. Mixins are really useful when a class needs to inherit multiple traits but can’t do so easily using a traditional single inheritance mechanismMixins - exampleExt.Windowis a draggable component, as are Sliders, Grid headers, and many others Mixins - exampleBecause this behavior is desired in many different places it’s not feasible to work the draggable behavior into a single superclass
- 52. Creating a Draggablemixin solves this problem – anything can now be draggable very easily.Mixins// We can define some mixins at definition timeExt.define('MyClass', { mixins: { observable: 'Ext.util.Observable' }}); // It’s easy to add more later tooMyClass.mixin('draggable', 'Ext.util.Draggable');
- 53. Plugins
- 54. PluginsA plugin augments a single instance of an Ext Component. Any object with an initmethod.
- 55. Used to add a feature to a component, for example adding cell-editing to a GridPanel.

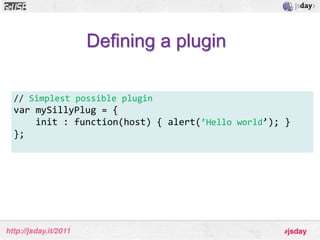

- 56. During its initialization phase, the host component calls the init method of all its plugins, and passes itself as the only argumentDefining a plugin// Simplest possible pluginvar mySillyPlug = { init : function(host) { alert(’Hello world’); }};

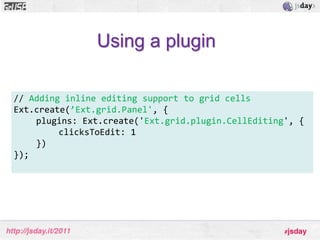

- 57. Using a plugin// Adding inline editing support to grid cellsExt.create(’Ext.grid.Panel',{ plugins: Ext.create('Ext.grid.plugin.CellEditing', { clicksToEdit: 1 })});
- 58. Let’s create a simple extension!
- 59. A simple CSS 3 clock component
- 60. Step 1. Identify suitable base class
- 61. Step 2. Create a simple HTML page and JS files

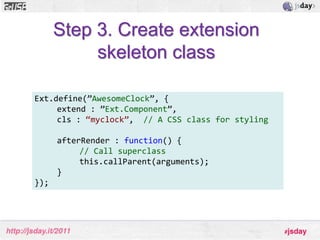

- 62. Step 3. Create extension skeleton classExt.define(”AwesomeClock”, {extend : ”Ext.Component”,cls: “myclock”, // A CSS class for styling afterRender : function() {// Call superclassthis.callParent(arguments);}});
- 63. Step 3.5: simple app.jsapplication filenewAwesomeClock({ width : 320, height : 320, renderTo : Ext.getBody()});
- 64. Step 3.99: HTML file<html><head><!-- Ext JS CSS --><linkrel="stylesheet"type="text/css"href="ext-4.0.0/ext-all.css"/><!-- Our CSS for the extension --><linkhref="css/awesomeclock.css"rel="stylesheet"type="text/css"/><!-- Ext JS Library --><scriptsrc="ext-4.0.0/bootstrap.js"type="text/javascript"></script><!--Our own classes--><scripttype="text/javascript"src="js/awesomeclock.js"></script><!--Simple Test App File--><scripttype="text/javascript"src="app.js"></script></head><body></body></html>
- 65. Step 4. Does it run?
- 66. Step 5. Let’s add some codeafterRender : function() {this.callParent(arguments);this.hourHand = this.el.createChild({...});this.minuteHand = this.el.createChild({...});this.date = new Date();setInterval(Ext.Function.bind(this.updateHands, this), 1000);Ext.Function.defer(this.updateHands, 100, this);},updateHands : function() { ... }
- 67. Step 6. Does it still run?

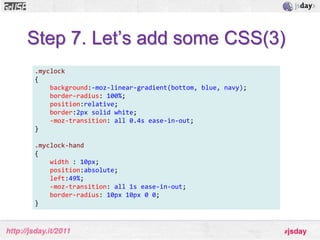

- 68. Step 7. Let’s add some CSS(3).myclock{background:-moz-linear-gradient(bottom, blue, navy);border-radius: 100%;position:relative;border:2pxsolidwhite;-moz-transition: all0.4sease-in-out;}.myclock-hand{width : 10px;position:absolute;left:49%;-moz-transition: all1sease-in-out;border-radius: 10px10px00;}
- 69. Step 8. Are we done?
- 70. Now another developer Bob can use this extension...As a child item in one of his Ext panels
- 71. He can also extend our extension to add his own custom features
- 72. He can create plugins to add functionalitySo what does Bob want to do?

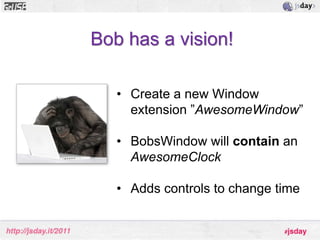

- 73. Bob has a vision!Create a new Window extension ”AwesomeWindow”
- 74. BobsWindow will contain an AwesomeClock
- 75. Adds controls to change timeLet’s make Bob happy!
- 76. Adding behaviour through a pluginPlugin

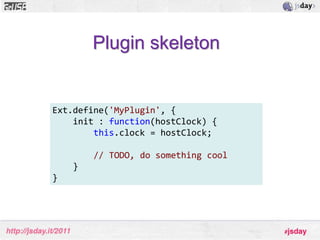

- 77. Plugin skeletonExt.define('MyPlugin', {init : function(hostClock) {this.clock = hostClock;// TODO, do something cool } }
- 78. Let’s write it!
- 79. To sum it up:We created our own AwesomeClock class
- 80. We could then include it in another class
- 81. We also wrote a simple plugin for our component

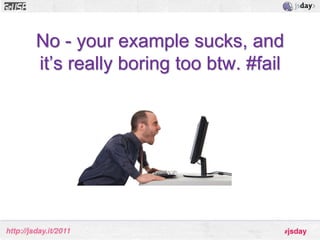

- 82. Was it cool?No - your example sucks, and it’s really boring too btw. #fail
- 83. We built a very ”low level” extension
- 84. Let’s see a few advanced extensions built with Ext JSExt Calendar Prowww.ext-calendar.com
- 85. Ext Scheduler
- 86. This is the nice thing about the Sencha products: if I can think of it I can build it
