DIY Your Amazon Echo
- 1. DIY Your Amazon Echo Victor Sue
- 2. Agenda • What is Amazon Echo • Amazon Alexa Voice Service • Alexa Service Flow • DIY your RPi Echo • Demo • Next Step?
- 3. What is Amazon Echo?
- 4. Amazon Alexa Voice Service
- 5. Amazon Alexa Voice Service (cont.)
- 7. Alexa Service Flow (cont.) Voice Text Intent Feedback Activity Device Cloud
- 8. Alexa Service Flow (cont.)
- 9. Amazon Alexa Voice Service (cont.) Voice Intent
- 10. Amazon Alexa Voice Service (cont.) Alexa Connected Home (CoHo) Skills WeMo Lighting Skills Intent Activity
- 11. Alexa Service Flow (cont.)
- 12. DIY Your RPi Echo • alexa-avs-sample-app https://github.com/alexa/alexa-avs-sample-app
- 13. DIY Your RPi Echo (cont.)
- 14. DIY Your RPi Echo (cont.) • Step 1: Setting up your Pi • Install Raspbian to SD card • Expand filesystem the SD card • Enable the Serial port • Install the related Software • sudo apt-get install openssh-server • sudo apt-get install git • sudo apt-get install vim • sudo apt-get install tightvncserver • sudo apt-get install nodejs npm • Step 2: • Register for an Amazon developer account • https://developer.amazon.com/login.html
- 15. DIY Your RPi Echo (cont.) • Step 3a: Create a device and security profile • Login to Amazon Developer Portal • https://developer.amazon.com/login.html • Click on Apps & Services tab -> Alexa -> Alexa Voice Service -> Get Started • In the Register a Product Type menu, select Device Type Info. • Device Type ID: my_device • Display Name: My Device • Click Next
- 16. DIY Your RPi Echo (cont.) • Step 3b: Create a device and security profile • In the Register a Product Type menu, select Security Profile. • Click on the Security Profile drop down and choose “Create a new profile” • Click the General Tab • Security Profile Name: Alexa Voice Service Sample App Security Profile • Security Profile Description: Alexa Voice Service Sample App Security Profile Description • Click Next • And Client ID and Client Secret will be generated for you.
- 17. DIY Your RPi Echo (cont.) • Step 3c: Create a device and security profile • Click the Web Settings Tab • Click the "Edit" button • Allowed Origins: Click "Add Another" and then enter https://localhost:3000 in the text field that appears. • Allowed Return URLs: Click "Add Another" and then enter https://localhost:3000/authresponse in the text field that appears. • Click Next
- 18. DIY Your RPi Echo (cont.) • Step 3d: Create a device and security profile • In the Register a Product Type menu, select Device Details. • Image: ANY test image from your own • Category: Other • Description: Alexa Voice Service sample app test • What is your expected timeline for commercialization?: Longer than 4 months / TBD • How many devices are you planning to commercialize?: 0 • Click Next
- 19. DIY Your RPi Echo (cont.) • Step 3e: Create a device and security profile • In the Register a Product Type menu, select Amazon Music • Enable Amazon Music?: No • Click the Submit button
- 20. DIY Your RPi Echo (cont.) • Step 4: Clone the sample app • In Raspberry Pi terminal cd ~/Desktop git clone https://github.com/alexa/alexa-avs-sample-app.git • Step 5: Update the install script with your credentials • In Raspberry Pi terminal cd ~/Desktop/alexa-avs-sample-app vim automated_install.sh • Changes these item from Step 3: • ProductID • ClientID • ClientSecret

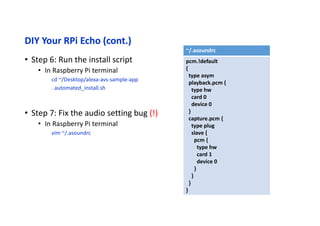

- 21. DIY Your RPi Echo (cont.) • Step 6: Run the install script • In Raspberry Pi terminal cd ~/Desktop/alexa-avs-sample-app . automated_install.sh • Step 7: Fix the audio setting bug (!) • In Raspberry Pi terminal vim ~/.asoundrc ~/.asoundrc pcm.!default { type asym playback.pcm { type hw card 0 device 0 } capture.pcm { type plug slave { pcm { type hw card 1 device 0 } } } }
- 22. DIY Your RPi Echo (cont.) • Step 8: Run Alexa sample application • Terminal 1 : Web Authentication cd ~/Desktop/alexa-avs-sample-app/samples cd companionService && npm start • Terminal 2 : AVS Client cd ~/Desktop/alexa-avs-sample-app/samples cd javaclient && mvn exec:exec • Terminal 3 : Wakeup Agent: kitt.ai cd ~/Desktop/alexa-avs-sample-app/samples/wakeWordAgent/src/ ./wakeWordAgent -e kitt_ai
- 23. Demo • Custom Skill • Control LED ON/OFF on Realtek Ameba board Voice Intent Trigger Skill MQTT
- 24. Next Step? • Alexa Pi • Full python framework for AVS • Turn a Raspberry Pi into a AVS client https://github.com/sammachin/AlexaPi
