The document discusses DNS (Domain Name System) servers and how they work. It explains that DNS servers translate human-readable domain names to machine-readable IP addresses in 7 steps: 1) A request is made, 2) recursive DNS servers are queried, 3) root nameservers are queried, 4) TLD nameservers are queried, 5) authoritative nameservers are queried, 6) the IP address record is retrieved, and 7) the answer is received. DNS servers act like a phone book to lookup domain names and allow the internet to function by linking names to IP addresses.
Dns server

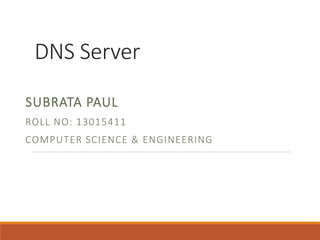

- 1. DNS Server SUBRATA PAUL ROLL NO: 13015411 COMPUTER SCIENCE & ENGINEERING
- 2. Question: What Is a DNS Server? The Domain Name System is a standard technology for managing public names of Web sites and other Internet domains. DNS service must translate the name into the corresponding IP address. For example, the domain name www.example.com might translate to 198.105.232.4.
- 4. Now the question is How DNS server works? When we visit a domain such as dyn.com, our computer follows a series of steps to turn the human-readable web address into a machine-readable IP address. Step 1: Request information The process begins when we ask our computer to resolve a hostname, such as visiting http://dyn.com. The first place our computer looks is its local DNS cache which stores information that our computer has recently retrieved.
- 5. Step 2: Ask the recursive DNS servers If the information is not stored locally, our computer queries (contacts) our ISP’s recursive DNS servers. Recursive servers have their own caches Step 3: Ask the root nameservers If the recursive servers don’t have the answer, they query the root nameservers. They don’t know the answer, but they can direct our query to someone that knows where to find it.
- 6. Step 4: Ask the TLD nameservers The root nameservers will look at the first part of our request, reading from right to left — www.dyn.com — and direct our query to the Top-Level Domain (TLD) nameservers for .com. Each TLD, such as .com, .org, and .us, have their own set of nameservers, which act like a receptionist for each TLD. Step 5: Ask the authoritative DNS servers The TLD nameservers review the next part of our request — www.dyn.com — and direct our query to the nameservers responsible for this specific domain.
- 7. Step 6: Retrieve the record The recursive server retrieves the A record fordyn.com from the authoritative nameservers and stores the record in its local cache. Step 7: Receive the answer Our computer stores the record in its cache, reads the IP address from the record, then passes this information toour browser. This entire process, from start to finish, takes only milliseconds to complete.
- 10. Why we use DNS server? We can think of DNS as being like a phone book. Those people we want to call frequently, we usually either know their numbers or have their numbers on speed dial/saved on our cells/etc. But sometimes we need to call someone that isn't in our speed dial or memory. That is where the Domain Name System comes in. When we, for example, type in google.com into our web browser, our service provider sends that address to a (usually our ISP's) DNS server, which then looks at the info "google.com" sent to it, looks it up and says, "it's IP address is 74.125.45.100," and sends that info back to your home computer. Your computer then knows where to find the Internet resource.
- 11. Benefits of DNS Server 1.Capable of providing security. 2.Errors are automatically checked. 3.Ease of using. 4.Flexibility of use. 5.Consistent to use. 6.Easy to maintain. 7.No need to memorise numbers. 8.Domain names makes / gives a kind of sense to hyper links when a name is given instead of a string of numbers .
- 12. Problems we face by using DNS server Breakdown of DNS would crash the world wide web though there are many root servers and backup servers targetting DNS servers at particular key locations would do lot of harm
- 13. Price of Domain and hosting in Bangladesh
- 14. But the price can be vary with the business issue and the location where we are using
- 16. Thank You
