Drone 1.0 Feature
4 likes8,212 views
The document details the Drone CI/CD platform, highlighting its container-native continuous delivery capabilities and support for multi-architecture and multi-cloud environments. It includes configurations for various pipelines, including backend and frontend build processes, secret management, and cron scheduling features. Additionally, it mentions automatic conversions for GitLab and Bitbucket pipelines, autoscaling capabilities, and integration with services like Slack and Prometheus.
![local pipeline = import 'pipeline.libsonnet';
local name = 'drone-ssh';
[
pipeline.test,
pipeline.build(name, 'linux', 'amd64'),
pipeline.build(name, 'linux', 'arm64'),
pipeline.build(name, 'linux', 'arm'),
pipeline.release,
pipeline.notifications(depends_on=[
'linux-amd64',
'linux-arm64',
'linux-arm',
'release-binary',
]),
]
Complex Configurations Simplified](https://image.slidesharecdn.com/drone-1-190422060106/85/Drone-1-0-Feature-12-320.jpg)
![# example when configuration
when:
cron: [ nightly ]
# example trigger configuration
trigger:
cron: [ nightly ]](https://image.slidesharecdn.com/drone-1-190422060106/85/Drone-1-0-Feature-17-320.jpg)
![global:
scrape_interval: 60s
scrape_configs:
- job_name: 'drone'
bearer_token: your_token
static_configs:
- targets: ['domain.com']](https://image.slidesharecdn.com/drone-1-190422060106/85/Drone-1-0-Feature-31-320.jpg)
Drone 1.0 Feature
- 1. Drone CI/CD Container-Native Continuous Delivery Platform https://github.com/drone/drone 2019/04/20
- 2. Bo-yi Wu (appleboy) Software Engineer in Mediatek https://blog.wu-boy.com https://github.com/appleboy appleboy appleboy46
- 3. Drone cloud free for the open source community https://cloud.drone.io/
- 4. --- kind: pipeline name: default steps: - name: backend image: golang commands: - go build - go test - name: frontend image: node commands: - npm install - npm test
- 9. --- kind: pipeline platform: arch: arm os: linux steps: - name: build image: golang commands: - go build - go test Linux amd64, Linux arm, Linux arm64 and Windows server
- 10. --- kind: pipeline name: backend platform: arch: arm os: linux steps: - name: build image: golang commands: - go build - go test --- kind: pipeline name: frontend platform: arch: amd64 os: linux steps: - name: build image: node commands: - npm install - npm test depends_on: - backend
- 11. --- kind: pipeline name: default steps: - name: backend image: golang commands: - go build - go test - name: frontend image: golang commands: - npm install - npm test - name: build image: plugins/slack settings: channel: general depends_on: - backend - frontend Faster Pipelines with Parallelization
- 12. local pipeline = import 'pipeline.libsonnet'; local name = 'drone-ssh'; [ pipeline.test, pipeline.build(name, 'linux', 'amd64'), pipeline.build(name, 'linux', 'arm64'), pipeline.build(name, 'linux', 'arm'), pipeline.release, pipeline.notifications(depends_on=[ 'linux-amd64', 'linux-arm64', 'linux-arm', 'release-binary', ]), ] Complex Configurations Simplified
- 14. --- kind: secret name: slack_webhook get: path: secret/data/slack name: webhook --- kind: pipeline name: default steps: - name: build image: golang commands: - go build - go test - name: notify image: plugins/slack settings: channel: general webhook: from_secret: slack_webhook
- 16. Cron Scheduling @hourly, @dailys, @weekly and @monthly
- 17. # example when configuration when: cron: [ nightly ] # example trigger configuration trigger: cron: [ nightly ]
- 18. Gitlab Pipelines image: ruby:2.2 services: - postgres:9.3 before_script: - bundle install test: script: - bundle exec rake spec --- kind: pipeline name: test platform: os: linux arch: amd64 steps: - name: test image: ruby:2.2 commands: - bundle install - bundle exec rake spec services: - name: postgres-9-3 image: postgres:9.3 ...$ drone convert .gitlab-ci.yml
- 20. Gitlab cache cache: untracked: true key: "$CI_BUILD_REF_NAME" paths: - node_modules/ stages: - setup - test setup: stage: setup script: - npm install test: stage: test script: - npm test --- kind: pipeline name: setup platform: os: linux arch: amd64 steps: - name: setup commands: - npm install - name: test commands: - npm test depends_on: - setup ...
- 21. Bitbucket Pipelines pipelines: default: - step: name: Build and test image: node:8.5.0 script: - npm install - npm test - npm build definitions: services: postgres: image: postgres:9.6.4 --- kind: pipeline name: default platform: os: linux arch: amd64 steps: - name: Build and test image: node:8.5.0 commands: - npm install - npm test - npm build services: - name: postgres image: postgres:9.6.4 ... $ drone convert bitbucket-pipelines.yml
- 23. Bitbucket cache pipelines: default: - step: caches: - node script: - npm install - npm test kind: pipeline name: default steps: - name: restore image: plugins/s3-cache settings: restore: true mount: - node_modules - name: build image: node commands: - npm install - npm test - name: rebuild image: plugins/s3-cache settings: rebuild: true mount: - node_modules
- 26. Task - Agent drone_server=server:9000 Task - Server port: 80/9000 ECS - Fargate ECS - Service Target Group Port: 80 Route 53 Service Discovery ALB / SSL Cloud Watch https://github.com/appleboy/drone-terraform-in-aws
- 28. Drone CI Infrastructure Agent Server Step 1 git clone Step 2 make build Step 3 deploy app work space extra service Agent

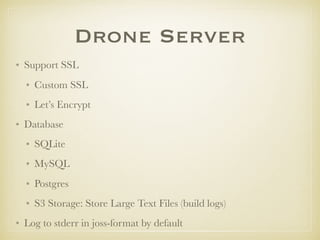

- 29. Drone Server • Support SSL • Custom SSL • Let’s Encrypt • Database • SQLite • MySQL • Postgres • S3 Storage: Store Large Text Files (build logs) • Log to stderr in joss-format by default
- 31. global: scrape_interval: 60s scrape_configs: - job_name: 'drone' bearer_token: your_token static_configs: - targets: ['domain.com']
- 32. Drone Agent • Linux amd64 • Linux arm • Linux arm64 • Windows 1803 • Windows 1809
- 33. route builds to specific agents CPU, Memory, GPUS
- 34. kind: pipeline name: default steps: - name: build image: golang commands: - go build - go test node: instance: highmem
- 35. Drone Plugin Any language you want
- 36. #!/bin/sh curl -X POST -H 'Content-type: application/json' -d '{"text":"hello"}' https://hooks.slack.com/services/...
- 37. #!/bin/sh curl -X POST -H 'Content-type: application/json' -d '{"text":"${PLUGIN_TEXT}"}' ${PLUGIN_WEBHOOK}
- 38. kind: pipeline name: default steps: - name: webhook image: janecitizen/slack settings: webhook: https://hooks.slack.com/... text: hello
