Développer avec un Simple Object Mapping Toolkit pour SQL Server

Simple Object Mapping
pour SQL Databases
Développer simplement et rapidement
dvoituron@outlook.com
www.dvoituron.com
@DenisVoituron

2
A propos…
Denis Voituron
1995 – Ingénieur Civil
1999 – Co-fondateur d’une société spécialisée dans les CMS
2007 – Microsoft Senior Architect chez Trasys / NRB
2
@DenisVoituron
dvoituron.com
.be

3
Agenda
• Background

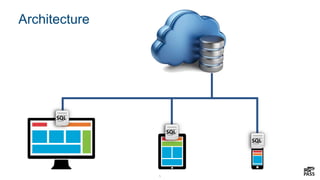

• SQL Architecture
• ADO.NET
• EntityFramework
• Comparaison
• Simple Object Mapping
• Dapper.NET
• SqlDatabaseCommand
• SQLite
• SQL Server CLR Stored Procedures
3

SCOTT Database
EMPNO ENAME JOB MGR HIREDATE SAL COMM DEPTNO
7839 KING PRESIDENT 17-NOV-81 5000 10
7698 BLAKE MANAGER 7839 01-MAY-81 2850 30
7756 CLARK MANAGER 7839 09-JUN-81 1500 10
... ...
... ...
7456 JONES MANAGER 7839 02-APR-81 2975 20
DEPTNO DNAME LOC
10 ACCOUNTING NEW YORK
20 RESEARCH DALLAS
30 SALES CHICAGO
40 OPERATIOS BOSTON

7

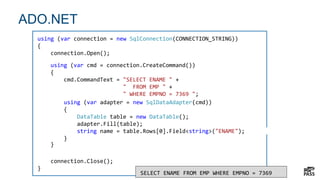

ADO.NET
7
using (var connection = new SqlConnection(CONNECTION_STRING))
{
connection.Open();
connection.Close();
}
SELECT ENAME FROM EMP WHERE EMPNO = 7369
using (var cmd = connection.CreateCommand())
{
cmd.CommandText = "SELECT ENAME " +
" FROM EMP " +
" WHERE EMPNO = 7369 ";
}
using (var adapter = new SqlDataAdapter(cmd))
{
DataTable table = new DataTable();
adapter.Fill(table);
string name = table.Rows[0].Field<string>("ENAME");
}

8

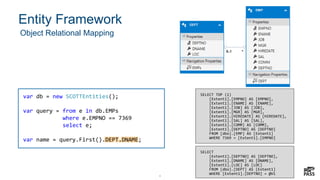

Entity Framework
8
Object Relational Mapping
var db = new SCOTTEntities();
var query = from e in db.EMPs
where e.EMPNO == 7369
select e;
var name = query.First().DEPT.DNAME;
SELECT TOP (1)
[Extent1].[EMPNO] AS [EMPNO],
[Extent1].[ENAME] AS [ENAME],
[Extent1].[JOB] AS [JOB],
[Extent1].[MGR] AS [MGR],
[Extent1].[HIREDATE] AS [HIREDATE],
[Extent1].[SAL] AS [SAL],
[Extent1].[COMM] AS [COMM],
[Extent1].[DEPTNO] AS [DEPTNO]
FROM [dbo].[EMP] AS [Extent1]
WHERE 7369 = [Extent1].[EMPNO]
SELECT
[Extent1].[DEPTNO] AS [DEPTNO],
[Extent1].[DNAME] AS [DNAME],
[Extent1].[LOC] AS [LOC]
FROM [dbo].[DEPT] AS [Extent1]
WHERE [Extent1].[DEPTNO] = @V1

9
ADO.NET vs Entity Framework
9
Performance
Speed of Development
Maintainable code (neat)
Flexibility
Scalability
http://stackoverflow.com/questions/2698151/entity-framework-vs-linq-to-sql-vs-ado-net-with-stored-procedures

10

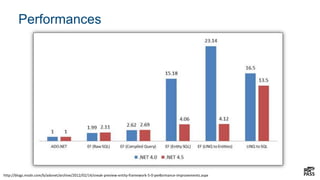

Performances
10http://blogs.msdn.com/b/adonet/archive/2012/02/14/sneak-preview-entity-framework-5-0-performance-improvements.aspx

12
Dapper.NET
Bibliothèque qui étend IDbConnection.
Besoin d’une connexion déjà ouverte.
using (var connection = new SqlConnection(CONNECTION_STRING))
{
connection.Open();
string sql = "SELECT * FROM EMP WHERE EMPNO = @Id";
var emp = connection.Query<EMP>(sql, new { Id = 7369 });
}

13
 Query
 Query Dynamic
 ExecuteScalar
 Execute
 Buffered
Dapper.NET
var emp = connection.Query<EMP>(sql, new { Id = 7369 });
var emp = connection.Query(sql, new { Id = 7369 });
string sql = "SELECT ENAME FROM EMP WHERE EMPNO = @Id";
var emp = connection.ExecuteScalar<string>(sql, new { Id = 7369 });
var n = connection.Execute(“DELETE FROM EMP");
var emp = connection.Query(sql, buffered: false);

14
SqlDatabaseCommand
Objets and Commandes
 Construction et destruction propres
 Optimisation des paramètres (éviter l’injection SQL) et SQL
 Conversion automatique d’objets C#
 Génération des entités C#
 Gestion des logs et traces
Méthodes d’extension de System.Data
 Transformation des propriétés C# en paramètres SQL
 DBNull
 ...

15
SqlDatabaseCommand
Exemple
using (var cmd = new SqlDatabaseCommand(CONNECTION_STRING))
{
}
cmd.CommandText.AppendLine(" SELECT * ");
cmd.CommandText.AppendLine(" FROM EMP ");
var emps = cmd.ExecuteTable<Employee>();
cmd.CommandText.AppendLine(" WHERE HIREDATE = @HireDate ");
cmd.Parameters.AddValues(new
{
HireDate = new DateTime(1980, 12, 17)
});

16
9876 NEW
SqlDatabaseCommand EMPNO ENAME
7839 KING
7698 BLAKE
7756 CLARK
...
...
7456 JONES
var emps = cmd.ExecuteTable<Employee>();
• ExecuteTable
var smith = cmd.ExecuteRow<Employee>();
• ExecuteRow
var name = cmd.ExecuteScalar<String>();
• ExecuteScalar
var n = cmd.ExecuteNonQuery();
• ExecuteQuery

17
SqlDatabaseCommand
Paramètres
cmd.CommandText.AppendLine(" SELECT ENAME ")
.AppendLine(" FROM EMP ")
.AppendLine(" WHERE EMPNO = @EmpNo ")
.AppendLine(" AND HIREDATE = @HireDate ");
cmd.Parameters.AddWithValue("@EmpNo", 7369);
cmd.Parameters.AddWithValue("@HireDate", new DateTime(1980, 12, 17));
var name = cmd.ExecuteScalar();
cmd.CommandText.AppendLine(" SELECT ENAME ")
.AppendLine(" FROM EMP ")
.AppendLine(" WHERE EMPNO = @EmpNo ")
.AppendLine(" AND HIREDATE = @HireDate ");
cmd.Parameters.AddValues(new
{
EmpNo = 7369,
HireDate = new DateTime(1980, 12, 17)
});
var name = cmd.ExecuteScalar();

18
SqlDatabaseCommand
Traces
 Logging
 Query Formatter
cmd.Log = Console.WriteLine;
cmd.Log = (message) =>
{
Console.WriteLine(message);
};
string formatted = cmd.GetCommandTextFormatted(QueryFormat.Text);
SELECT ENAME
FROM EMP
WHERE EMPNO = 7369
AND HIREDATE = '1970-05-04 14:15:16'
string formatted = cmd.GetCommandTextFormatted(QueryFormat.Html);
SELECT ENAME
FROM EMP
WHERE EMPNO = 7369
AND HIREDATE = '1970-05-04 14:15:16'

19
SqlDatabaseCommand
Générateur d’entités // *********************************************
// Code Generated with Apps72.Dev.Data.Generator
// *********************************************
using System;
namespace Data.Tests.Entities
{
/// <summary />
public partial class BONUS
{
/// <summary />
public virtual String ENAME { get; set; }
/// <summary />
public virtual String JOB { get; set; }
/// <summary />
public virtual Int32? SAL { get; set; }
/// <summary />
public virtual Int32? COMM { get; set; }
}
/// <summary />
public partial class DEPT
{
/// <summary />
public virtual Int32 DEPTNO { get; set; }
/// <summary />
public virtual String DNAME { get; set; }
/// <summary />
public virtual String LOC { get; set; }
}
var entitiesGenerator = new SqlEntitiesGenerator(CONNECTION_STRING);
foreach (var table in entitiesGenerator.Tables)
{
...
}

20
SqlDatabaseCommand
Bonnes pratiques
public class DataService : IDataService
{
public SqlDatabaseCommand GetDatabaseCommand()
{
return new SqlDatabaseCommand(CONNECTION_STRING);
}
public SqlDatabaseCommand GetDatabaseCommand(SqlTransaction trans)
{
return new SqlDatabaseCommand(trans.Connection, trans);
}
} using (var cmd = service.GetDatabaseCommand())
{
...
}

22
CLR Stored Procedures
Quoi ?
 Vous pouvez écrire des procédures stockées, des déclencheurs, des types, des fonctions,
des agrégats et des fonctions d’accès aux tables, à l'aide du langage .NET Framework
Pourquoi ?
 Performances
 Outils de développement (VS, GIT, …)
 Centralisation du code
 Déploiement

23
SqlDatabaseCommand
1. Créer une bibliothèque de classe
2. Ajouter le package NuGet SqlServerClr

24
SqlDatabaseCommand
[SqlFunction(DataAccess = DataAccessKind.Read)]
public static int GetMaximumAge()
{
using (var cmd = new SqlDatabaseCommand("context connection=true"))
{
...
}
}
CREATE FUNCTION GetMaximumAge()
RETURNS INT
AS EXTERNAL NAME SampleSqlDatabaseCommandClr.SampleCLR.GetMaximumAge

25
SqlDatabaseCommand
[SqlFunction()]
public static bool IsComparableTo(string text1, string text2)
{
return text1.ComparableTo(text2) == 0;
}
SELECT dbo.IsComparableTo('Maison', 'House') -- FALSE
SELECT dbo.IsComparableTo('St Ecole', 'Saint''école&') -- TRUE
SELECT dbo.IsComparableTo('A''&é', 'aE') -- TRUE

ADO.NET
EntityFramework
SQLite
Dapper.NET
SqlDatabaseCommand
CLR Stored Procedure
Conclusion & Questions

Merci de votre participation
dvoituron@outlook.com
www.dvoituron.com
@DenisVoituron
