Dynamic Actions, the Hard Parts

Developer Advocate @ Oracle
April 21, 2020
Dan McGhan
the Hard Parts
Dynamic Actions

Need to learn the basics?
https://bit.ly/intro2js4apex https://bit.ly/js-con-apex

3
2
1
Using and debugging Ajax
Leveraging JavaScript hooks
Understanding DOM events
What are the hard parts of Dynamic Actions?

3
2
1

• Hypertext Markup Language (HTML)
- Markup language that browsers understand to render web pages
• Document Object Model (DOM)
- In memory object representation of the HTML document (DOM tree)
- API for working with and manipulating the memory structure
HTML vs. DOM

HTML document
http://www.html5rocks.com/en/tutorials/internals/howbrowserswork

DOM Tree

What happens if you click an element in the DOM?

• Events are like triggers in the database
- Allow code to respond to user actions
• Browsers automatically trigger many events
• It’s possible to trigger custom events
- APEX makes use of this for framework and component events
What are events?

• on() typically binds event handlers directly on objects
Event binding with on()
$('.report-button').on('click', function() {
console.log('direct binding');
});

});
Document
Region container
Table
Row Button
Row Button

- Bindings are lost when elements are replaced
});
Document
Region container
Table
Row Button
Row Button

});
Document
Region container
Table
Row Button
Row Button
Document
Region container
Table
Row Button
Row Button

Event dispatching and DOM event flow
https://www.w3.org/TR/DOM-Level-3-Events/#event-flow

});
Document
Region container
Table
Row Button
Row Button
Document
Region container
Table
Row Button
Row Button

• on() accepts an optional selector for event delegation
- More efficient than many individual bindings; works if elements replaced
Event delegation with on()
});
$('#report').on('click', '.report-button', function() {
console.log('delegated binding');
});
Document
Region container
Table
Row Button
Row Button

• Dynamic Actions support event delegation too
• Look under the Dynamic Action’s Advanced settings
- Set Event Scope to Dynamic
- Static Container is optional (defaults to the document)
Event delegation with Dynamic Actions
Action
Dynamic Action

3
2
1

• Dynamic Actions can’t cover everything
• JavaScript hooks provide extended declarative capabilities
- Requires basic knowledge of JavaScript and jQuery to use
Learn to use the JavaScript hooks

• Dynamic Actions can’t cover everything
• JavaScript hooks provide extended declarative capabilities
- Requires basic knowledge of JavaScript and jQuery to use
Learn to use the JavaScript hooks
Action
Dynamic Action
When
+
Client-side Condition
Identification
+
Affected Elements

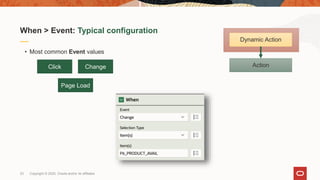

• Most common Event values
When > Event: Typical configuration
Action
Dynamic Action
Click Change
Page Load

• Most common Event values
When > Event: Typical configuration
Action
Dynamic Action
Click Change
Page Load
What if the event you
need isn’t listed?

• Set Event to Custom
- Exposes Custom Event
• Use Custom Event to
- Specify events not in the declarative list
- Bind to multiple events (space delimited)
When > Event: JavaScript hooks
Action
Dynamic Action

ButtonItem(s)
• Most common Selection Type values
When > Selection Type: Typical configuration
Action
Dynamic Action

ButtonItem(s)
• Most common Selection Type values
When > Selection Type: Typical configuration
Action
Dynamic Action
What if you want to select
something other than a
typical APEX component?

• Set Selection Type to jQuery Selector
- Exposes jQuery Selector
• Use jQuery Selector to
- Select elements not in the declarative list
- Can select multiple elements
When > Selection Type: JavaScript hooks
Action
Dynamic Action

• Set Selection Type to JavaScript Expression
- Exposes JavaScript Expression
• Use JavaScript Expression to
Action
Dynamic Action

Action
Dynamic Action
See the help for
useful info.

Action
Dynamic Action

• Most common Type values
Client-side Condition > Type: Typical configuration
Action
Dynamic Action
Item = Value Item != Value
Item is null Item is not null

• Most common Type values
Client-side Condition > Type: Typical configuration
Action
Dynamic Action
Item = Value Item != Value
Item is null Item is not null
What if your condition is more
complex than checking the
value of a single item?

• Set Type to JavaScript expression
• Use JavaScript expression to
- Work with any elements in the DOM
- Implement compound conditions
Client-side Condition > Type: JavaScript hooks
Action
Dynamic Action

Action
Dynamic Action
Can even be an IIFE!
🤪

Action
Dynamic Action
Or a global function call.
😐

• Declarative options are great for common interactions
- Hide/show, enable/disable, refresh, etc.
• Execute JavaScript can do anything not available out of the box
Action: Execute JavaScript
Action
Dynamic Action

3
2
1

• Short for Asynchronous JavaScript and XML
- Sometimes it’s not asynchronous and these days JSON is more popular
• It’s a technique to communicate with the server without a full-page refresh
What is Ajax?
Web Browser Web Server Database
HTTP GET Data
HTML fragment/JSON data
JS
Code

• Just like regular Ajax, only easier
- Oracle Database does the server-side processing
- Dynamic Actions can handle many use cases
- Programmatic options are provided for edge cases
• Must send correct data in to get correct data out
Ajax in APEX

• Three out-of-the-box actions do Ajax
- Refresh
- Set Value
- Execute PL/SQL
• Each provides a means of sending data to the server
- Look for “Items to Submit”
Ajax with Dynamic Actions

• Used to refresh several components
- Regions: Classic Report, Interactive Report, and Interactive Grid
- Items: those with Cascading LOV support
• Don’t forget to send in the correct data
- Page Items to Submit is part of the region definition
- Not necessary for items
Refresh

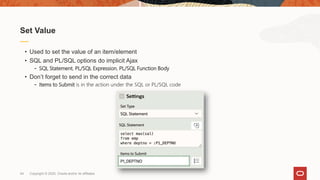

• Used to set the value of an item/element
• SQL and PL/SQL options do implicit Ajax
- SQL Statement, PL/SQL Expression, PL/SQL Function Body
• Don’t forget to send in the correct data
- Items to Submit is in the action under the SQL or PL/SQL code
Set Value

• Like Set Value but a bit more generic
• Has Wait For Result option to control flow through subsequent actions
• Don’t forget to send and retrieve in the correct data
- Items to Submit and Items to Return are in the action under the SQL or PL/SQL code
Execute PL/SQL

• Look for the data being sent to the server
Debug using the Network tab of your Developer Tools

Live Demo

Ready to learn more?
https://bit.ly/intro2js4apex https://bit.ly/js-con-apex
Follow me on Twitter
twitter.com/dmcghan
