Dynamic programing

Dynamic Programming
Alexander S. Kulikov
Competitive Programmer’s Core Skills
https://www.coursera.org/learn/competitive-programming-core-skills

Outline
1 1: Longest Increasing Subsequence
1.1: Warm-up
1.2: Subproblems and Recurrence Relation
1.3: Reconstructing a Solution
1.4: Subproblems Revisited

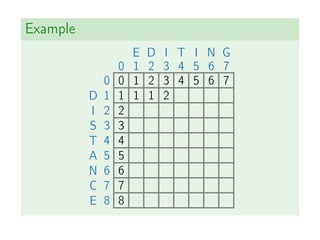

2 2: Edit Distance
2.1: Algorithm
2.2: Reconstructing a Solution
2.3: Final Remarks
3 3: Knapsack
3.1: Knapsack with Repetitions
3.2: Knapsack without Repetitions
3.3: Final Remarks
4 4: Chain Matrix Multiplication
4.1: Chain Matrix Multiplication
4.2: Summary

Dynamic Programming
Extremely powerful algorithmic technique with
applications in optimization, scheduling,
planning, economics, bioinformatics, etc

Dynamic Programming
At contests, probably the most popular type of
problems

Dynamic Programming
problems
A solution is usually not so easy to find, but
when found, is easily implementable

Dynamic Programming
problems
A solution is usually not so easy to find, but
when found, is easily implementable
Need a lot of practice!

Fibonacci numbers
Fibonacci numbers
Fn =
⎧
⎪
⎨
⎪
⎩
0, n = 0 ,
1, n = 1 ,
Fn−1 + Fn−2, n > 1 .
0, 1, 1, 2, 3, 5, 8, 13, 21, 34, . . .

Computing Fibonacci Numbers
Computing Fn
Input: An integer n ≥ 0.
Output: The n-th Fibonacci number Fn.

Computing Fibonacci Numbers
Computing Fn
Input: An integer n ≥ 0.
Output: The n-th Fibonacci number Fn.
1 def f i b (n ) :
2 i f n <= 1:
3 return n
4 return f i b (n − 1) + f i b (n − 2)

Recursion Tree
Fn
Fn−1
Fn−2
Fn−3 Fn−4
Fn−3
Fn−4 Fn−5
Fn−2
Fn−3
Fn−4 Fn−5
Fn−4
Fn−5 Fn−6
.
.
.

Running Time
Essentially, the algorithm computes Fn as the
sum of Fn 1’s

Running Time
sum of Fn 1’s
Hence its running time is O(Fn)

Running Time
sum of Fn 1’s
But Fibonacci numbers grow exponentially fast:
Fn ≈ 𝜑n
, where 𝜑 = 1.618 . . . is the golden ratio

Running Time
sum of Fn 1’s
Fn ≈ 𝜑n
E.g., F150 is already 31 decimal digits long

Running Time
sum of Fn 1’s
Fn ≈ 𝜑n
E.g., F150 is already 31 decimal digits long
The Sun may die before your computer returns
F150

Reason
Many computations are repeated

Reason
“Those who cannot remember the past are
condemned to repeat it.” (George Santayana)

Reason
“Those who cannot remember the past are
condemned to repeat it.” (George Santayana)
A simple, but crucial idea: instead of
recomputing the intermediate results, let’s store
them once they are computed

Memoization
1 def f i b (n ) :
2 i f n <= 1:
3 return n
4 return f i b (n − 1) + f i b (n − 2)

Memoization
1 def f i b (n ) :
2 i f n <= 1:
3 return n
4 return f i b (n − 1) + f i b (n − 2)
1 T = dict()
2
3 def f i b (n ) :
4 if n not in T:
5 i f n <= 1:
6 T[n] = n
7 else :
8 T[n] = f i b (n − 1) + f i b (n − 2)
9
10 return T[n]

Hm...
But do we really need all this fancy stuff
(recursion, memoization, dictionaries) to solve
this simple problem?

Hm...
After all, this is how you would compute F5 by
hand:

Hm...
hand:
1 F0 = 0, F1 = 1

Hm...
hand:
1 F0 = 0, F1 = 1
2 F2 = 0 + 1 = 1

Hm...
hand:
1 F0 = 0, F1 = 1
2 F2 = 0 + 1 = 1
3 F3 = 1 + 1 = 2

Hm...
hand:
1 F0 = 0, F1 = 1
2 F2 = 0 + 1 = 1
3 F3 = 1 + 1 = 2
4 F4 = 1 + 2 = 3

Hm...
hand:
1 F0 = 0, F1 = 1
2 F2 = 0 + 1 = 1
3 F3 = 1 + 1 = 2
4 F4 = 1 + 2 = 3
5 F5 = 2 + 3 = 5

Iterative Algorithm
1 def f i b (n ) :
2 T = [ None ] * (n + 1)
3 T[ 0 ] , T[ 1 ] = 0 , 1
4
5 for i in range (2 , n + 1 ) :
6 T[ i ] = T[ i − 1] + T[ i − 2]
7
8 return T[ n ]

Hm Again...
But do we really need to waste so much space?

Hm Again...
But do we really need to waste so much space?
1 def f i b (n ) :
2 i f n <= 1:
3 return n
4
5 previous , c u r r e n t = 0 , 1
6 for _ in range (n − 1 ) :
7 new_current = p r e v i o u s + c u r r e n t
8 previous , c u r r e n t = current , new_current
9
10 return c u r r e n t

Running Time
O(n) additions
On the other hand, recall that Fibonacci
numbers grow exponentially fast: the binary
length of Fn is O(n)

Running Time
O(n) additions
In theory: we should not treat such additions as
basic operations

Running Time
O(n) additions
In theory: we should not treat such additions as
basic operations
In practice: just F100 does not fit into a 64-bit
integer type anymore, hence we need bignum
arithmetic

Summary
The key idea of dynamic programming: avoid
recomputing the same thing again!

Summary
The key idea of dynamic programming: avoid
recomputing the same thing again!
At the same time, the case of Fibonacci
numbers is a slightly artificial example of
dynamic programming since it is clear from the
very beginning what intermediate results we
need to compute the final result

Longest Increasing Subsequence
Longest increasing subsequence
Input: An array A = [a0, a1, . . . , an−1].
Output: A longest increasing subsequence (LIS),
i.e., ai1
, ai2
, . . . , aik
such that
i1 < i2 < . . . < ik, ai1
< ai2
< · · · < aik
,
and k is maximal.

Example
Example
7 2 1 3 8 4 9 1 2 6 5 9 3 8 1

Analyzing an Optimal Solution
Consider the last element x of an optimal
increasing subsequence and its previous
element z:
z x

element z:
z x
First of all, z < x

element z:
z x
First of all, z < x
Moreover, the prefix of the IS ending at z must
be an optimal IS ending at z as otherwise the
initial IS would not be optimal:
z x

element z:
z x
First of all, z < x
Moreover, the prefix of the IS ending at z must
be an optimal IS ending at z as otherwise the
initial IS would not be optimal:
z x
Optimal substructure by “cut-and-paste” trick

Subproblems and Recurrence Relation
Let LIS(i) be the optimal length of a LIS ending
at A[i]

at A[i]
Then
LIS(i) = 1+max{LIS(j): j < i and A[j] < A[i]}

at A[i]
Then
Convention: maximum of an empty set is equal
to zero

at A[i]
Then
Convention: maximum of an empty set is equal
to zero
Base case: LIS(0) = 1

Algorithm
When we have a recurrence relation at hand,
converting it to a recursive algorithm with
memoization is just a technicality
We will use a table T to store the results:
T[i] = LIS(i)

Algorithm
T[i] = LIS(i)
Initially, T is empty. When LIS(i) is computed,
we store its value at T[i] (so that we will never
recompute LIS(i) again)

Algorithm
T[i] = LIS(i)
Initially, T is empty. When LIS(i) is computed,
we store its value at T[i] (so that we will never
recompute LIS(i) again)
The exact data structure behind T is not that
important at this point: it could be an array or
a hash table

Memoization
1 T = dict ()
2
3 def l i s (A, i ) :
4 i f i not in T:
5 T[ i ] = 1
6
7 for j in range ( i ) :
8 i f A[ j ] < A[ i ] :
9 T[ i ] = max(T[ i ] , l i s (A, j ) + 1)
10
11 return T[ i ]
12
13 A = [7 , 2 , 1 , 3 , 8 , 4 , 9 , 1 , 2 , 6 , 5 , 9 , 3]
14 print (max( l i s (A, i ) for i in range ( len (A) ) ) )

Running Time
The running time is quadratic (O(n2
)): there are n
“serious” recursive calls (that are not just table
look-ups), each of them needs time O(n) (not
counting the inner recursive calls)

Table and Recursion
We need to store in the table T the value of
LIS(i) for all i from 0 to n − 1

Table and Recursion
Reasonable choice of a data structure for T:
an array of size n

Table and Recursion
Reasonable choice of a data structure for T:
an array of size n
Moreover, one can fill in this array iteratively
instead of recursively

Iterative Algorithm
1 def l i s (A) :
2 T = [ None ] * len (A)
3
4 for i in range ( len (A ) ) :
5 T[ i ] = 1
7 i f A[ j ] < A[ i ] and T[ i ] < T[ j ] + 1:
8 T[ i ] = T[ j ] + 1
9
10 return max(T[ i ] for i in range ( len (A) ) )

Iterative Algorithm
1 def l i s (A) :
2 T = [ None ] * len (A)
3
5 T[ i ] = 1
7 i f A[ j ] < A[ i ] and T[ i ] < T[ j ] + 1:
8 T[ i ] = T[ j ] + 1
9
Crucial property: when computing T[i], T[j] for
all j < i have already been computed

Iterative Algorithm
1 def l i s (A) :
2 T = [ None ] * len (A)
3
5 T[ i ] = 1
7 i f A[ j ] < A[ i ] and T[ i ] < T[ j ] + 1:
8 T[ i ] = T[ j ] + 1
9
Crucial property: when computing T[i], T[j] for
all j < i have already been computed
Running time: O(n2
)

Reconstructing a Solution
How to reconstruct an optimal IS?

How to reconstruct an optimal IS?
In order to reconstruct it, for each subproblem
we will keep its optimal value and a choice
leading to this value

Adjusting the Algorithm
1 def l i s (A) :
2 T = [ None ] * len (A)
3 prev = [None] * len(A)
4
6 T[ i ] = 1
7 prev[i] = -1
9 i f A[ j ] < A[ i ] and T[ i ] < T[ j ] + 1:
10 T[ i ] = T[ j ] + 1
11 prev[i] = j

Example
Example
7
0
2
1
1
2
3
3
8
4
4
5
9
6
1
7
2
8
6
9
5
10
9
11
3
12
8
13
1
14
1 1 1 2 3 3 4 1 2 4 4 5 3 5 1
A
T
prev -1 -1 -1 1 3 3 4 -1 2 5 5 9 8 9 -1
-1 -1 -1 1 3 3 4 -1 2 5 5 9 8 9 -1

Unwinding Solution
1 l a s t = 0
2 for i in range (1 , len (A ) ) :
3 i f T[ i ] > T[ l a s t ] :
4 l a s t = i
5
6 l i s= [ ]
7 c u r r e n t = l a s t
8 while c u r r e n t >= 0:
9 l i s . append ( c u r r e n t )
10 c u r r e n t = prev [ c u r r e n t ]
11 l i s . r e v e r s e ()
12 return [A[ i ] for i in l i s ]

Reconstructing Again
Reconstructing without prev
7
0
2
1
1
2
3
3
8
4
4
5
9
6
1
7
2
8
6
9
5
10
9
11
3
12
8
13
1
14
1 1 1 2 3 3 4 1 2 4 4 5 3 5 1
A
T

Summary
Optimal substructure property: any prefix of an
optimal increasing subsequence must be a
longest increasing subsequence ending at this
particular element

Summary
particular element
Subproblem: the length of an optimal increasing
subsequence ending at i-th element

Summary
particular element
A recurrence relation for subproblems can be
immediately converted into a recursive algorithm
with memoization

Summary
particular element
with memoization
A recursive algorithm, in turn, can be converted
into an iterative one

Summary
particular element
with memoization
A recursive algorithm, in turn, can be converted
into an iterative one
An optimal solution can be recovered either by
using an additional bookkeeping info or by using
the computed solutions to all subproblems

The Most Creative Part
In most DP algorithms, the most creative part is
coming up with the right notion of a subproblem
and a recurrence relation

When a recurrence relation is written down, it
can be wrapped with memoization to get
a recursive algorithm

In the previous video, we arrived at a reasonable
subproblem by analyzing the structure of an
optimal solution

In the previous video, we arrived at a reasonable
subproblem by analyzing the structure of an
optimal solution
In this video, we’ll provide an alternative way of
arriving at subproblems: implement a naive
brute force solution, then optimize it

Brute Force: Plan
Need the longest increasing subsequence? No
problem! Just iterate over all subsequences and
select the longest one:

Brute Force: Plan
Start with an empty sequence

Brute Force: Plan
Extend it element by element recursively

Brute Force: Plan
Keep track of the length of the sequence

Brute Force: Plan
Keep track of the length of the sequence
This is going to be slow, but not to worry: we
will optimize it later

Brute Force: Code
1 def l i s (A, seq ) :
2 r e s u l t = len ( seq )
3
4 i f len ( seq ) == 0:
5 last_index = −1
6 last_element = float ( "−i n f " )
7 else :
8 last_index = seq [ −1]
9 last_element = A[ last_index ]
10
11 for i in range ( last_index + 1 , len (A ) ) :
12 i f A[ i ] > last_element :
13 r e s u l t = max( r e s u l t , l i s (A, seq + [ i ] ) )
14
15 return r e s u l t
16
17 print ( l i s (A=[7 , 2 , 1 , 3 , 8 , 4 , 9] , seq =[]))

Optimizing
At each step, we are trying to extend the
current sequence

Optimizing
current sequence
For this, we pass the current sequence to each
recursive call

Optimizing
current sequence
recursive call
At the same time, code inspection reveals that
we are not using all of the sequence: we are only
interested in its last element and its length

Optimizing
current sequence
recursive call
At the same time, code inspection reveals that
we are not using all of the sequence: we are only
interested in its last element and its length
Let’s optimize!

Optimized Code
1 def l i s (A, seq_len , last_index ) :
2 i f last_index == −1:
4 else :
6
7 r e s u l t = seq_len
8
11 r e s u l t = max( r e s u l t ,
12 l i s (A, seq_len + 1 , i ))
13
15
16 print ( l i s ( [ 3 , 2 , 7 , 8 , 9 , 5 , 8] , 0 , −1))

Optimizing Further
Inspecting the code further, we realize that
seq_len is not used for extending the current
sequence (we don’t need to know even the
length of the initial part of the sequence to
optimally extend it)

Optimizing Further
More formally, for any x,
extend(A, seq_len, i) is equal to
extend(A, seq_len - x, i) + x

Optimizing Further
Hence, can optimize the code as follows:
max(result, 1 + seq_len + extend(A, 0, i))

Optimizing Further
Hence, can optimize the code as follows:
max(result, 1 + seq_len + extend(A, 0, i))
Excludes seq_len from the list of parameters!

Resulting Code
1 def l i s (A, last_index ) :
4 else :
6
7 r e s u l t = 0
8
11 r e s u l t = max( r e s u l t , 1 + l i s (A, i ))
12
14
15 print ( l i s ( [ 8 , 2 , 3 , 4 , 5 , 6 , 7] , −1))

Resulting Code
1 def l i s (A, last_index ) :
4 else :
6
7 r e s u l t = 0
8
11 r e s u l t = max( r e s u l t , 1 + l i s (A, i ))
12
14
15 print ( l i s ( [ 8 , 2 , 3 , 4 , 5 , 6 , 7] , −1))
It remains to add memoization!

Summary
Subproblems (and recurrence relation on them)
is the most important ingredient of a dynamic
programming algorithm

Summary
Two common ways of arriving at the right
subproblem:

Summary
subproblem:
Analyze the structure of an optimal solution

Summary
subproblem:
Analyze the structure of an optimal solution
Implement a brute force solution and optimize it

Statement
Edit distance
Input: Two strings A[0 . . . n − 1] and
B[0 . . . m − 1].
Output: The minimal number of insertions,
deletions, and substitutions needed to
transform A to B. This number is known
as edit distance or Levenshtein distance.

Example: EDITING → DISTANCE
EDITING

EDITING
DITING
remove E

EDITING
DITING
DISTING
remove E
insert S

EDITING
DITING
DISTING
DISTANG
remove E
insert S
replace I with by A

EDITING
DITING
DISTING
DISTANG
DISTANC
remove E
insert S
replace I with by A
replace G with C

EDITING
DITING
DISTING
DISTANG
DISTANC
DISTANCE
remove E
insert S
replace I with by A
replace G with C
insert E

Example: alignment
E D I − T I N G −
− D I S T A N C E
cost: 5

Example: alignment
E D I − T I N G −
− D I S T A N C E
cost: 5
substitutions/mismatches
deletion insertions
matches

Analyzing an Optimal Alignment
A[0 . . . n − 1]
B[0 . . . m − 1]

A[0 . . . n − 1]
B[0 . . . m − 1]
A[0 . . . n − 1] −
B[0 . . . m − 2] B[m − 1]
insertion

A[0 . . . n − 1]
B[0 . . . m − 1]
A[0 . . . n − 1] −
B[0 . . . m − 2] B[m − 1]
insertion
A[0 . . . n − 2] A[n − 1]
B[0 . . . m − 1] −
deletion

A[0 . . . n − 1]
B[0 . . . m − 1]
A[0 . . . n − 1] −
B[0 . . . m − 2] B[m − 1]
insertion
A[0 . . . n − 2] A[n − 1]
B[0 . . . m − 1] −
deletion
A[0 . . . n − 2] A[n − 1]
B[0 . . . m − 2] B[m − 1]
match/mismatch

Subproblems
Let ED(i, j) be the edit distance of
A[0 . . . i − 1] and B[0 . . . j − 1].

Subproblems
A[0 . . . i − 1] and B[0 . . . j − 1].
We know for sure that the last column of an
optimal alignment is either an insertion, a
deletion, or a match/mismatch.

Subproblems
A[0 . . . i − 1] and B[0 . . . j − 1].
We know for sure that the last column of an
optimal alignment is either an insertion, a
deletion, or a match/mismatch.
What is left is an optimal alignment of the
corresponding two prefixes (by cut-and-paste).

Recurrence Relation
ED(i, j) = min
⎧
⎪
⎨
⎪
⎩
ED(i, j − 1) + 1
ED(i − 1, j) + 1
ED(i − 1, j − 1) + diff(A[i], B[j])

Recurrence Relation
ED(i, j) = min
⎧
⎪
⎨
⎪
⎩
ED(i, j − 1) + 1
ED(i − 1, j) + 1
ED(i − 1, j − 1) + diff(A[i], B[j])
Base case: ED(i, 0) = i, ED(0, j) = j

Recursive Algorithm
1 T = dict ()
2
3 def edit_distance (a , b , i , j ) :
4 i f not ( i , j ) in T:
5 i f i == 0: T[ i , j ] = j
6 e l i f j == 0: T[ i , j ] = i
7 else :
8 d i f f = 0 i f a [ i − 1] == b [ j − 1] else 1
9 T[ i , j ] = min(
10 edit_distance (a , b , i − 1 , j ) + 1 ,
11 edit_distance (a , b , i , j − 1) + 1 ,
12 edit_distance (a , b , i − 1 , j − 1) + d i f f )
13
14 return T[ i , j ]
15
16
17 print ( edit_distance ( a=" e d i t i n g " , b=" d i s t a n c e " ,
18 i =7, j =8))

Converting to a Recursive Algorithm
Use a 2D table to store the intermediate results

Converting to a Recursive Algorithm
Use a 2D table to store the intermediate results
ED(i, j) depends on ED(i − 1, j − 1),
ED(i − 1, j), and ED(i, j − 1):
0
n
i
0 m
j
(m
is)m
atch
insertion
deletion

Filling the Table
Fill in the table row by row or column by column:
0
n
i
0 m
j
0
n
i
0 m
j

Iterative Algorithm
1 def edit_distance (a , b ) :
2 T = [ [ f l o a t ( " i n f " ) ] * ( len (b) + 1)
3 for _ in range ( len ( a ) + 1 ) ]
4 for i in range ( len ( a ) + 1 ) :
5 T[ i ] [ 0 ] = i
6 for j in range ( len (b) + 1 ) :
7 T [ 0 ] [ j ] = j
8
9 for i in range (1 , len ( a ) + 1 ) :
10 for j in range (1 , len (b) + 1 ) :
11 d i f f = 0 i f a [ i − 1] == b [ j − 1] else 1
12 T[ i ] [ j ] = min(T[ i − 1 ] [ j ] + 1 ,
13 T[ i ] [ j − 1] + 1 ,
14 T[ i − 1 ] [ j − 1] + d i f f )
15
16 return T[ len ( a ) ] [ len (b ) ]
17
18
19 print ( edit_distance ( a=" d i s t a n c e " , b=" e d i t i n g " ))

Example
E D I T I N G
0 1 2 3 4 5 6 7
0 0 1 2 3 4 5 6 7
D 1 1
I 2 2
S 3 3
T 4 4
A 5 5
N 6 6
C 7 7
E 8 8

Example
E D I T I N G
0 1 2 3 4 5 6 7
0 0 1 2 3 4 5 6 7
D 1 1 1
I 2 2
S 3 3
T 4 4
A 5 5
N 6 6
C 7 7
E 8 8

Example
E D I T I N G
0 1 2 3 4 5 6 7
0 0 1 2 3 4 5 6 7
D 1 1 1 1
I 2 2
S 3 3
T 4 4
A 5 5
N 6 6
C 7 7
E 8 8

Example
E D I T I N G
0 1 2 3 4 5 6 7
0 0 1 2 3 4 5 6 7
D 1 1 1 1 2
I 2 2
S 3 3
T 4 4
A 5 5
N 6 6
C 7 7
E 8 8

Example
E D I T I N G
0 1 2 3 4 5 6 7
0 0 1 2 3 4 5 6 7
D 1 1 1 1 2 3 4 5 6
I 2 2 2 2 1 2 3 4 5
S 3 3 3 3 2 2 3 4 5
T 4 4 4 4 3 2 3 4 5
A 5 5 5 5 4 3 3 4 5
N 6 6 6 6 5 4 4 3 4
C 7 7 7 7 6 5 5 4 4
E 8 8 7 8 7 6 6 5 5

Brute Force
Recursively construct an alignment column by
column

Brute Force
Recursively construct an alignment column by
column
Then note, that for extending the partially
constructed alignment optimally, one only needs
to know the already used length of prefix of A
and the length of prefix of B

To reconstruct a solution, we go back from the
cell (n, m) to the cell (0, 0)

If ED(i, j) = ED(i − 1, j) + 1, then there exists
an optimal alignment whose last column is a
deletion

deletion
If ED(i, j) = ED(i, j − 1) + 1, then there exists
an optimal alignment whose last column is an
insertion

deletion
If ED(i, j) = ED(i, j − 1) + 1, then there exists
an optimal alignment whose last column is an
insertion
If ED(i, j) = ED(i − 1, j − 1) + diff(A[i], B[j]),
then match (if A[i] = B[j]) or mismatch (if
A[i] ̸= B[j])

Example
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
E
G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
C E
- G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
N C E
N - G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
A N C E
I N - G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
T A N C E
T I N - G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
S T A N C E
- T I N - G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
I S T A N C E
I - T I N - G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
D I S T A N C E
D I - T I N - G

Example
(m
is)m
atch
insertion
deletion
E D I T I N G
0 1 2 3 4 5 6 7
D 1 1 1 2 3 4 5 6
I 2 2 2 1 2 3 4 5
S 3 3 3 2 2 3 4 5
T 4 4 4 3 2 3 4 5
A 5 5 5 4 3 3 4 5
N 6 6 6 5 4 4 3 4
C 7 7 7 6 5 5 4 4
E 8 7 8 7 6 6 5 5
- D I S T A N C E
E D I - T I N - G

Saving Space
When filling in the matrix it is enough to keep
only the current column and the previous
column:
0
n
i
0 m
j
0
n
i
0 m
j

Saving Space
When filling in the matrix it is enough to keep
only the current column and the previous
column:
0
n
i
0 m
j
0
n
i
0 m
j
Thus, one can compute the edit distance of two
given strings A[1 . . . n] and B[1 . . . m] in time
O(nm) and space O(min{n, m}).

However we need the whole table to find an
actual alignment (we trace an alignment from
the bottom right corner to the top left corner)

However we need the whole table to find an
actual alignment (we trace an alignment from
the bottom right corner to the top left corner)
There exists an algorithm constructing an
optimal alignment in time O(nm) and space
O(n + m) (Hirschberg’s algorithm)

Weighted Edit Distance
The cost of insertions, deletions, and
substitutions is not necessarily identical
Spell checking: some substitutions are more
likely than others
Biology: some mutations are more likely than
others

Generalized Recurrence Relation
min
⎧
⎪
⎨
⎪
⎩
ED(i, j − 1) + inscost(B[j]),
ED(i − 1, j) + delcost(A[i]),
ED(i − 1, j − 1) + substcost(A[i], B[j])

Knapsack Problem
Goal
Maximize
value ($) while
limiting total
weight (kg)

Applications
Classical problem in combinatorial optimization
with applications in resource allocation,
cryptography, planning

Applications
Weights and values may mean various resources
(to be maximized or limited):

Applications
Select a set of TV commercials (each commercial
has duration and cost) so that the total revenue is
maximal while the total length does not exceed the
length of the available time slot

Applications
Select a set of TV commercials (each commercial
has duration and cost) so that the total revenue is
maximal while the total length does not exceed the
length of the available time slot
Purchase computers for a data center to achieve
the maximal performance under limited budget

Problem Variations
knapsack
fractional
knapsack
discrete
knapsack

Problem Variations
knapsack
fractional
knapsack
discrete
knapsack
can take fractions
of items
each item is either taken
or not

Problem Variations
knapsack
fractional
knapsack
discrete
knapsack
with
repetitions
without
repetitions
unlimited
quantities
one of each
item

Problem Variations
knapsack
fractional
knapsack
discrete
knapsack
with
repetitions
without
repetitions
unlimited
quantities
one of each
item
greedy algorithm

Problem Variations
knapsack
fractional
knapsack
discrete
knapsack
with
repetitions
without
repetitions
unlimited
quantities
one of each
item
greedy algorithm
greedy does not work for
discrete knapsack! will
design a dynamic program-
ming solution

Example
6
$30
3
$14
4
$16
2
$9
10
knapsack

Example
6
$30
3
$14
4
$16
2
$9
6
$30
4
$16
w/o repeats total: $46

Example
6
$30
3
$14
4
$16
2
$9
6
$30
4
$16
6
$30
2
$9
2
$9
w repeats total: $48

Example
6
$30
3
$14
4
$16
2
$9
6
$30
4
$16
6
$30
2
$9
2
$9
w repeats total: $48
fractional 6
$30
3 1
$4.5
$14
total: $48.5

Without repetitions:
one of each item
With repetitions:
unlimited quantities

Knapsack with repetitions problem
Input: Weights w0, . . . , wn−1 and values
v0, . . . , vn−1 of n items; total weight W
(vi’s, wi’s, and W are non-negative
integers).
Output: The maximum value of items whose
weight does not exceed W . Each item
can be used any number of times.

Consider an optimal solution and an item in it:
W
wi

Consider an optimal solution and an item in it:
W
wi
If we take this item out then we get an optimal
solution for a knapsack of total weight W − wi.

Subproblems
Let value(u) be the maximum value of knapsack
of weight u

Subproblems
of weight u
value(u) = max
i : wi ≤w
{value(u − wi) + vi}

Subproblems
of weight u
value(u) = max
i : wi ≤w
Base case: value(0) = 0

Subproblems
of weight u
value(u) = max
i : wi ≤w
Base case: value(0) = 0
This recurrence relation is transformed into
a recursive algorithm in a straightforward way

Recursive Algorithm
1 T = dict ()
2
3 def knapsack (w, v , u ) :
4 i f u not in T:
5 T[ u ] = 0
6
7 for i in range ( len (w) ) :
8 i f w[ i ] <= u :
9 T[ u ] = max(T[ u ] ,
10 knapsack (w, v , u − w[ i ] ) + v [ i ] )
11
12 return T[ u ]
13
14
15 print ( knapsack (w=[6 , 3 , 4 , 2] ,
16 v =[30 , 14 , 16 , 9] , u=10))

Recursive into Iterative
As usual, one can transform a recursive
algorithm into an iterative one

Recursive into Iterative
As usual, one can transform a recursive
algorithm into an iterative one
For this, we gradually fill in an array T:
T[u] = value(u)

Recursive Algorithm
1 def knapsack (W, w, v ) :
2 T = [ 0 ] * (W + 1)
3
4 for u in range (1 , W + 1 ) :
6 i f w[ i ] <= u :
7 T[ u ] = max(T[ u ] , T[ u − w[ i ] ] + v [ i ] )
8
9 return T[W]
10
11
12 print ( knapsack (W=10, w=[6 , 3 , 4 , 2] ,
13 v =[30 , 14 , 16 , 9 ] ) )

Example: W = 10
6
$30
3
$14
4
$16
2
$9
0 1 2 3 4 5 6 7 8 9 10
0 0 9 14 18 23 30 32 39 44

Example: W = 10
6
$30
3
$14
4
$16
2
$9
0 1 2 3 4 5 6 7 8 9 10
0 0 9 14 18 23 30 32 39 44
+30 +14 +9
+16

Example: W = 10
6
$30
3
$14
4
$16
2
$9
0 1 2 3 4 5 6 7 8 9 10
0 0 9 14 18 23 30 32 39 44 48
+30 +14 +9
+16

Subproblems Revisited
Another way of arriving at subproblems:
optimizing brute force solution

Another way of arriving at subproblems:
optimizing brute force solution
Populate a list of used items one by one

Brute Force: Knapsack with Repetitions
1 def knapsack (W, w, v , items ) :
2 weight = sum(w[ i ] for i in items )
3 value = sum( v [ i ] for i in items )
4
6 i f weight + w[ i ] <= W:
7 value = max( value ,
8 knapsack (W, w, v , items + [ i ] ) )
9
10 return value
11
13 v =[30 , 14 , 16 , 9] , items =[]))

Subproblems
It remains to notice that the only important
thing for extending the current set of items is
the weight of this set

Subproblems
It remains to notice that the only important
thing for extending the current set of items is
the weight of this set
One then replaces items by their weight in the
list of parameters

Knapsack without repetitions problem
Input: Weights w0, . . . , wn−1 and values
v0, . . . , vn−1 of n items; total weight W
(vi’s, wi’s, and W are non-negative
integers).
Output: The maximum value of items whose
weight does not exceed W . Each item
can be used at most once.

Same Subproblems?
W
wn−1
W − wn−1

Same Subproblems?
W
wn−1
W − wn−1
wn−1

Subproblems
If the last item is taken into an optimal solution:
W
wn−1
then what is left is an optimal solution for a
knapsack of total weight W − wn−1 using items
0, 1, . . . , n − 2.

Subproblems
If the last item is taken into an optimal solution:
W
wn−1
then what is left is an optimal solution for a
knapsack of total weight W − wn−1 using items
0, 1, . . . , n − 2.
If the last item is not used, then the whole
knapsack must be filled in optimally with items
0, 1, . . . , n − 2.

Subproblems
For 0 ≤ u ≤ W and 0 ≤ i ≤ n, value(u, i) is
the maximum value achievable using a knapsack
of weight u and the first i items.

Subproblems
Base case: value(u, 0) = 0, value(0, i) = 0

Subproblems
Base case: value(u, 0) = 0, value(0, i) = 0
For i > 0, the item i − 1 is either used or not:
value(u, i) is equal to
max{value(u−wi−1, i−1)+vi−1, value(u, i−1)}

Recursive Algorithm
1 T = dict ()
2
3 def knapsack (w, v , u , i ) :
4 i f (u , i ) not in T:
5 i f i == 0:
6 T[ u , i ] = 0
7 else :
8 T[ u , i ] = knapsack (w, v , u , i − 1)
9 i f u >= w[ i − 1 ] :
10 T[ u , i ] = max(T[ u , i ] ,
11 knapsack (w, v , u − w[ i − 1] , i − 1) + v [ i − 1 ]
12
13 return T[ u , i ]
14
15
16 print ( knapsack (w=[6 , 3 , 4 , 2] ,
17 v =[30 , 14 , 16 , 9] , u=10, i =4))

Iterative Algorithm
1 def knapsack (W, w, v ) :
2 T = [ [ None ] * ( len (w) + 1) for _ in range (W + 1 ) ]
3
4 for u in range (W + 1 ) :
5 T[ u ] [ 0 ] = 0
6
7 for i in range (1 , len (w) + 1 ) :
8 for u in range (W + 1 ) :
9 T[ u ] [ i ] = T[ u ] [ i − 1]
10 i f u >= w[ i − 1 ] :
11 T[ u ] [ i ] = max(T[ u ] [ i ] ,
12 T[ u − w[ i − 1 ] ] [ i − 1] + v [ i − 1 ] )
13
14 return T[W] [ len (w) ]
15
16
18 v =[30 , 14 , 16 , 9 ] ) )

Analysis
Running time: O(nW )
Space: O(nW )

Analysis
Running time: O(nW )
Space: O(nW )
Space can be improved to O(W ) in the iterative
version: instead of storing the whole table, store
the current column and the previous one

As it usually happens, an optimal solution can
be unwound by analyzing the computed
solutions to subproblems

Start with u = W , i = n

If value(u, i) = value(u, i − 1), then item i − 1
is not taken. Update i to i − 1

If value(u, i) = value(u, i − 1), then item i − 1
is not taken. Update i to i − 1
Otherwise
value(u, i) = value(u − wi−1, i − 1) + vi−1 and
the item i − i is taken. Update i to i − 1 and u
to u − wi−1

How to implement a brute force solution for the
knapsack without repetitions problem?

How to implement a brute force solution for the
knapsack without repetitions problem?
Process items one by one. For each item, either
take into a bag or not

1 def knapsack (W, w, v , items , l a s t ) :
2 weight = sum(w[ i ] for i in items )
3
4 i f l a s t == len (w) − 1:
5 return sum( v [ i ] for i in items )
6
7 value = knapsack (W, w, v , items , l a s t + 1)
8 i f weight + w[ l a s t + 1] <= W:
9 items . append ( l a s t + 1)
10 value = max( value ,
11 knapsack (W, w, v , items , l a s t + 1))
12 items . pop ()
13
14 return value
15
17 v =[30 , 14 , 16 , 9] ,
18 items =[] , l a s t =−1))

Recursive vs Iterative
If all subproblems must be solved then an
iterative algorithm is usually faster since it has
no recursion overhead

If all subproblems must be solved then an
iterative algorithm is usually faster since it has
no recursion overhead
There are cases however when one does not
need to solve all subproblems and the knapsack
problem is a good example: assume that W and
all wi’s are multiples of 100; then value(w) is
not needed if w is not divisible by 100

Polynomial Time?
The running time O(nW ) is not polynomial
since the input size is proportional to log W , but
not W

Polynomial Time?
not W
In other words, the running time is O(n2log W
).

Polynomial Time?
not W
).
E.g., for
W = 10 345 970 345 617 824 751
(twentу digits only!) the algorithm needs
roughly 1020
basic operations

Polynomial Time?
not W
).
E.g., for
W = 10 345 970 345 617 824 751
(twentу digits only!) the algorithm needs
roughly 1020
basic operations
Solving the knapsack problem in truly
polynomial time is the essence of the P vs NP
problem, the most important open problem in
Computer Science (with a bounty of $1M)

Chain matrix multiplication
Input: Chain of n matrices A0, . . . , An−1 to be
multiplied.
Output: An order of multiplication minimizing the
total cost of multiplication.

Clarifications
Denote the sizes of matrices A0, . . . , An−1 by
m0 × m1, m1 × m2, . . . , mn−1 × mn
respectively. I.e., the size of Ai is mi × mi+1

Clarifications
m0 × m1, m1 × m2, . . . , mn−1 × mn
Matrix multiplication is not commutative (in
general, A × B ̸= B × A), but it is associative:
A × (B × C) = (A × B) × C

Clarifications
m0 × m1, m1 × m2, . . . , mn−1 × mn
A × (B × C) = (A × B) × C
Thus A × B × C × D can be computed, e.g., as
(A × B) × (C × D) or (A × (B × C)) × D

Clarifications
m0 × m1, m1 × m2, . . . , mn−1 × mn
A × (B × C) = (A × B) × C
Thus A × B × C × D can be computed, e.g., as
(A × B) × (C × D) or (A × (B × C)) × D
The cost of multiplying two matrices of size
p × q and q × r is pqr

Example: A × ((B × C) × D)
A
50 × 20
B
20 × 1
C
1 × 10
D
10 × 100
× × ×
cost:

A
50 × 20
B × C
20 × 10
D
10 × 100
× ×
cost: 20 · 1 · 10

A
50 × 20
B × C × D
20 × 100
×
cost: 20 · 1 · 10 + 20 · 10 · 100

A × B × C × D
50 × 100
cost: 20 · 1 · 10 + 20 · 10 · 100 + 50 · 20 · 100 = 120 200

Example: (A × B) × (C × D)
A
50 × 20
B
20 × 1
C
1 × 10
D
10 × 100
× × ×
cost:

A × B
50 × 1
C
1 × 10
D
10 × 100
× ×
cost: 50 · 20 · 1

A × B
50 × 1
C × D
1 × 100
×
cost: 50 · 20 · 1 + 1 · 10 · 100

A × B × C × D
50 × 100
cost: 50 · 20 · 1 + 1 · 10 · 100 + 50 · 1 · 100 = 7 000

Order as a Full Binary Tree
D
C
A B
((A × B) × C) × D
A
D
B C
A × ((B × C) × D)
D
A
B C
(A × (B × C)) × D

Analyzing an Optimal Tree
A0, . . . , Ai−1
Ai, . . . , Aj−1
Aj, . . . , Ak−1
Ak, . . . , An−1
each subtree computes
the product of Ap, . . . , Aq for some p ≤ q

Subproblems
Let M(i, j) be the minimum cost of computing
Ai × · · · × Aj−1

Subproblems
Ai × · · · × Aj−1
Then
M(i, j) = min
i<k<j
{M(i, k)+M(k, j)+mi ·mk ·mj}

Subproblems
Ai × · · · × Aj−1
Then
M(i, j) = min
i<k<j
{M(i, k)+M(k, j)+mi ·mk ·mj}
Base case: M(i, i + 1) = 0

Recursive Algorithm
1 T = dict ()
2
3 def matrix_mult (m, i , j ) :
4 i f ( i , j ) not in T:
5 i f j == i + 1:
6 T[ i , j ] = 0
7 else :
8 T[ i , j ] = f l o a t ( " i n f " )
9 for k in range ( i + 1 , j ) :
10 T[ i , j ] = min(T[ i , j ] ,
11 matrix_mult (m, i , k ) +
12 matrix_mult (m, k , j ) +
13 m[ i ] * m[ j ] * m[ k ] )
14
15 return T[ i , j ]
16
17 print ( matrix_mult (m=[50 , 20 , 1 , 10 , 100] , i =0, j =4))

Converting to an Iterative Algorithm
We want to solve subproblems going from
smaller size subproblems to larger size ones
The size is the number of matrices needed to be
multiplied: j − i
A possible order:

Iterative Algorithm
1 def matrix_mult (m) :
2 n = len (m) − 1
3 T = [ [ f l o a t ( " i n f " ) ] * (n + 1) for _ in range (n + 1 ) ]
4
5 for i in range (n ) :
6 T[ i ] [ i + 1] = 0
7
8 for s in range (2 , n + 1 ) :
9 for i in range (n − s + 1 ) :
10 j = i + s
11 for k in range ( i + 1 , j ) :
12 T[ i ] [ j ] = min(T[ i ] [ j ] ,
13 T[ i ] [ k ] + T[ k ] [ j ] +
14 m[ i ] * m[ j ] * m[ k ] )
15
16 return T [ 0 ] [ n ]
17
18 print ( matrix_mult (m=[50 , 20 , 1 , 10 , 100]))

Final Remarks
Running time: O(n3
)

Final Remarks
Running time: O(n3
)
To unwind a solution, go from the cell (0, n) to
a cell (i, i + 1)

Final Remarks
Running time: O(n3
)
To unwind a solution, go from the cell (0, n) to
a cell (i, i + 1)
Brute force search: recursively enumerate all
possible trees

Step 1 (the most important step)
Define subproblems and write down a
recurrence relation (with a base case)
either by analyzing the structure
of an optimal solution, or
by optimizing a brute force
solution

Subproblems: Review
1 Longest increasing subsequence: LIS(i) is the
length of longest common subsequence ending
at element A[i]
2 Edit distance: ED(i, j) is the edit distance
between prefixes of length i and j
3 Knapsack: K(w) is the optimal value of
a knapsack of total weight w
4 Chain matrix multiplication M(i, j) is the
optimal cost of multiplying matrices through i
to j − 1

Step 2
Convert a recurrence relation into a
recursive algorithm:
store a solution to each
subproblem in a table
before solving a subproblem check
whether its solution is already
stored in the table

Step 3
Convert a recursive algorithm into an
iterative algorithm:
initialize the table
go from smaller subproblems to
larger ones
specify an order of subproblems

Step 4
Prove an upper bound on the running
time. Usually the product of the
number of subproblems and the time
needed to solve a subproblem is a
reasonable estimate.

Step 6
Exploit the regular structure of the
table to check whether space can be
saved

Advantages of iterative approach:
No recursion overhead
May allow saving space by exploiting a regular
structure of the table
Advantages of recursive approach:
May be faster if not all the subproblems need to be
solved
An order on subproblems is implicit

Dynamic programing

More Related Content

What's hot (20)

Similar to Dynamic programing (20)

Recently uploaded (20)

Dynamic programing
