Ejb intro
- 2. What are EJBs? They are components that can be connected to form a system They can represent data They can represent behavior Usually, EJBs fall into only one of these categories They are typically used in the server tier EJBs can be persisted EJBs can interact with other EJBs
- 3. Advantages of EJBs EJBs are reusable components Can be reused in different parts of the system Can be packaged into libraries and sold EJBs Can be combined visually using development IDEs E.g. Visual Age, Visual Café EJBs provide convenient abstractions so it do not require you to write: Multi-threaded, multiple access code Database access code (e.g. JDBC) Network communication code (i.e. it uses RMI) for client/server communication Network communication code for EJB to EJB communication Transaction management code EJBs from different businesses can interact easily This is because of their well-defined interfaces
- 4. EJB in the Big Picture of J2EE
- 6. EJB Communication EJBs use IIOP as the wire protocol Therefore, EJBs are compatible with RMI (i.e., RMI over IIOP) and CORBA libraries Thus, you could write an EJB client in any language that supports CORBA
- 7. EJB as Client/Server Middleware Think of EJBs as just another Client/Server middleware like RMI, CORBA, or Web Services The EJB instance itself is the server EJBs have clients (objects that call its methods) One complication is that EJB clients can be: Java Applets and Applications (using RMI or CORBA) Non-Java applications (using CORBA) JSPs and Servlets (using RMI or CORBA) Other EJBs (using RMI or CORBA)
- 8. EJBs & 3-Tiered Architectures Applet Web Page Servlets & JSPs EJBs Database Client Tier Server Tier Database Tier In enterprise systems, EJB clients are usually: Servlets, JSPs, or Other EJBs
- 9. EJBs & Multi-Tiered Architectures Applet Web Page Servlets & JSPs EJBs Database 3rd Party EJBs
- 10. How EJBs Change Things EJBs are most suitable for developing business logic and data manipulation If all of the business logic operations and data manipulations are done using EJBs, the JSPs and Servlets will be focused mainly on displaying the results of those operations Session EJBs: Used to represent system behavior (i.e. business logic) e.g. Storing products to purchase in the shopping cart Entity EJBs: Used to represent & manipulate system data e.g. Finding products that match a search term
- 11. Application Servers Containers where EJBs (and JSPs and servlets) are executed Provide EJB functionality, including: Persistence through databases (using JDBC) Transactions (using Java Transaction Service) Can provide advanced features, including: Load balancing Database connection pooling Here are the major application servers: SJS AP, WebLogic (BEA), Internet Application Server or iAS (Oracle), WebSphere (IBM)
- 12. Alternatives to EJBs Web Services are one of the technologies competing with EJBs Web services use the SOAP protocol to exchange information with some server SOAP uses an XML format to exchange request and response information via HTTP Due to SOAP's well-defined protocol, Web Services can be used to exchange information between businesses (B2B) Web services provide one or more remote method that can be accessed easily from other applications
- 13. Alternatives to EJBs CORBA objects provide some functionality similar to EJBs: Persistence (of CORBA object data) Transactions (between CORBA objects) Security (between CORBA objects) CORBA and EJBs are closely related, in fact, they use the same wire protocol: IIOP In some sense, EJBs can be considered to be an enhanced version of CORBA Except that EJBs can only be created in Java
- 14. EJB Types
- 15. Types of Enterprise Beans Session beans: Also called business process objects They represent the business logic of the system Their lifetime is usually an entire session When a session is done, the session bean expires i.e. Session bean instances exist as long as a specific user is using the system Entity beans: Also called business data objects They represent persistent data Often the data persistence is managed through a database, using JDBC
- 16. Subtypes of Session Beans Stateful: Used for operations that require multiple requests to be completed Maintain data between requests Stateless: Used for operations that can be performed in a single request Do not maintain persistent data between subsequent requests from a given client
- 17. Entity Beans Explained Entity beans represent data in the system In addition, entity beans are used to search for, modify, create and delete data Usually, this data resides in a relational database Each entity bean typically represents a single row in some database table An entity bean instance exists as long as the data is being used When the EJB client is done with the instance, the entity bean instance usually returns to a bean pool The client for an entity bean is typically a session bean, since behavior usually involves the manipulation of data
- 18. Subtypes of Entity Beans Bean-managed persistence: The entity bean handles its own persistence Often via JDBC (or SQL/J) to a database The bean author is required to write persistence- management code into the bean code itself Container-managed persistence: The entity beanâs persistence is automatically maintained by the EJB container This is the easiest way, and often EJB containers do a better job because they provide extra features like connection pooling, load balancing, etc. This method is known to be extremely reliable, since CMP code is usually well tested Persistence logic is kept in âdeclarative codeâ in the EJB deployment descriptor

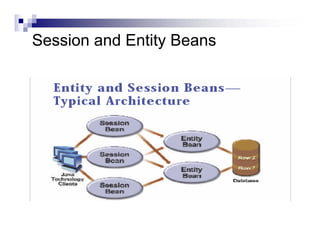

- 19. Session and Entity Beans
- 20. An EJB Autopsy The remote interface Describes the interface provided to EJB clients The enterprise bean class The implementation of the bean The home interface Describe how client can create, find, and remove EJB instances
- 21. EJP Autopsy
- 24. The Remote Interface Describes the interface provided to EJB clients Must extends javax.ejb.EJBObject This interface usually provides a number of accessor methods (getters and setters) for the beanâs fields, as well as all business methods
- 25. The Enterprise Bean Class The implementation of the bean This is where the methods exported in the remote interface are defined Business logic and data operations occur here EJB classes must implement one of the following interfaces: javax.ejb.SessionBean, javax.ejb.EntityBean
- 26. The Home Interface The home interface describes any methods not requiring access to a particular bean instance Methods for creating, finding, and deleting bean instances Must extend javax.ejb.EJBHome
- 27. EJB Naming Conventions Enterprise bean class: <name>Bean, e.g. CustomerBean Home interface: <name>Home, e.g. CustomerHome Remote interface: <name>, e.g. Customer
- 28. EJB Client Operation An EJB client uses an EJB by first locating its home object The methods on this home object are declared in the home interface The home object is located using JNDI The client tells JNDI what name the EJB goes by, and JNDI gives a home interface for that EJB Once a home object is obtained, the client calls some home methods to access the EJB e.g. The client may call âcreateâ to create a new instance, âremoveâ to delete an instance, âfindXYZâ to search for EJBs.
- 29. References Developing Enterprise Applications Using the J2EE Platform, http://java.sun.com/developer/onlineTraining/J2EE/Intro2/j2ee.html Sang Shin, EJB Overview, http://www.javapassion.com/j2ee
