- 1. Encoder and DecoderEncoding, Decoding
- 2. EncoderENCODER- a digital circuit that produces a binary output code depending on which of its inputs are activated.
- 3. DecoderDECODER- a digital circuit that converts an input binary code into a single numeric output.
- 4. ENCODERS AND DECODERSONLY ONE INPUT ACTIVATED AT A TIMEBINARY CODE INPUTONLY ONE OUTPUT ACTIVATED AT A TIMEBINARY CODE OUTPUT
- 5. THE 8421 BCD CODEBCD stands for Binary-Coded Decimal.A BCD number is a four-bit binary group that represents one of the ten decimal digits 0 through 9. Example:Decimal number 4926 4 9 2 68421 BCD coded number0100 10010010 0110
- 6. 3ELECTRONIC ENCODER - DECIMAL TO BCDBCD outputDecimal input0 0 0 00 1 0 10 1 1 10 0 1 1DecimaltoBCDEncoder750Encoders are available in IC form.

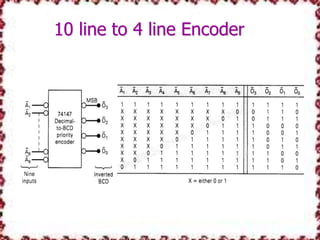

- 7. This encoder translates from decimal input to BCD output.10 line to 4 line Encoder
- 9. 10 line to 4 line Encoder
- 11. 4 line to 10 line Decoder
- 12. DECODERS: BCD TO 7-SEGMENT DECODER/DRIVERDecimal outputLEDBCD input0 0 0 00 0 0 10 0 1 00 0 1 10 1 0 0BCD-to-7-SegmentDecoder/DriverElectronic decoders are available in IC form.
- 13. This decoder translates from BCD to decimal.
- 14. Decimals are shown on an 7-segment LED display.
- 15. This IC also drives the 7-segment LED display.TEST Q #1- What is the decimal output from the decoder that appears on the 7-segment display? Q #2- What is the decimal output from the decoder that appears on the 7-segment display? Q #3- What is the decimal output from the decoder that appears on the 7-segment display? Q #4- What is the decimal output from the decoder that appears on the 7-segment display? Q #5- What is the decimal output from the decoder that appears on the 7-segment display?Answer: 3Answer: 0Answer: 9Answer: 7Answer: 6BCD inputDecimal output1 0 0 10 0 1 10 0 0 00 1 1 10 1 1 0BCD-to-7-SegmentDecoder/Driver?
- 18. TEST
- 19. TEST
- 20. TESTANSWER THE FOLLOWING QUESTIONS WITH ONE OR MORE OF THESE WORDS: MUX, DEMUX, ENCODER, DECODER.A. Has more inputs than outputs.ENCODER, MUXB. Uses select inputs.MUX, DEMUXC. Can be used in parallel-to-serial conversion.MUXD. Produces a binary code at its output.ENCODER
- 21. E. Only one of its outputs is activated at one time.DEMUX, DECODERF. Used to route input signals to one of several outputs.MUXG. Used to generate arbitrary logic functions. MUX, DEMUXH. 3 line-to-8 line or binary to octal.DECODERMUX.I. Data Selectors are also
- 22. The End ….. Thank you ….
