Innovative Systems Design and Engineering www.iiste.org
ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online)
Vol.5, No.10, 2014
65

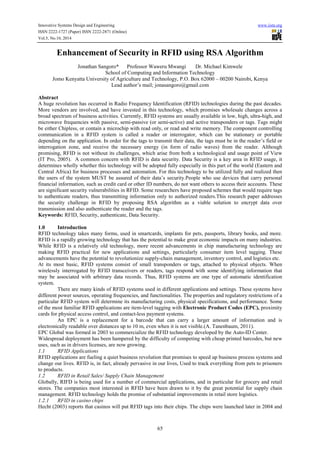

Enhancement of Security in RFID using RSA Algorithm
Jonathan Sangoro* Professor Waweru Mwangi Dr. Michael Kimwele
School of Computing and Information Technology
Jomo Kenyatta University of Agriculture and Technology, P.O. Box 62000 – 00200 Nairobi, Kenya
Lead author’s mail; jonasangoro@gmail.com
Abstract
A huge revolution has occurred in Radio Frequency Identification (RFID) technologies during the past decades.
More vendors are involved, and have invested in this technology, which promises wholesale changes across a
broad spectrum of business activities. Currently, RFID systems are usually available in low, high, ultra-high, and
microwave frequencies with passive, semi-passive (or semi-active) and active transponders or tags. Tags might
be either Chipless, or contain a microchip with read only, or read and write memory. The component controlling
communication in a RFID system is called a reader or interrogator, which can be stationary or portable
depending on the application. In order for the tags to transmit their data, the tags must be in the reader’s field or
interrogation zone, and receive the necessary energy (in form of radio waves) from the reader. Although
promising, RFID is not without its challenges, which arise from both a technological and usage point of View
(IT Pro, 2005). A common concern with RFID is data security. Data Security is a key area in RFID usage, it
determines wholly whether this technology will be adopted fully especially in this part of the world (Eastern and
Central Africa) for business processes and automation. For this technology to be utilized fully and realized then
the users of the system MUST be assured of their data’s security.People who use devices that carry personal
financial information, such as credit card or other ID numbers, do not want others to access their accounts. These
are significant security vulnerabilities in RFID. Some researchers have proposed schemes that would require tags
to authenticate readers, thus transmitting information only to authorized readers.This research paper addresses
the security challenge in RFID by proposing RSA algorithm as a viable solution to encrypt data over
transmission and also authenticate the reader and the tags.
Keywords: RFID, Security, authenticate, Data Security.
1.0 Introduction
RFID technology takes many forms, used in smartcards, implants for pets, passports, library books, and more.
RFID is a rapidly growing technology that has the potential to make great economic impacts on many industries.
While RFID is a relatively old technology, more recent advancements in chip manufacturing technology are
making RFID practical for new applications and settings, particularly consumer item level tagging. These
advancements have the potential to revolutionize supply-chain management, inventory control, and logistics etc.
At its most basic, RFID systems consist of small transponders or tags, attached to physical objects. When
wirelessly interrogated by RFID transceivers or readers, tags respond with some identifying information that
may be associated with arbitrary data records. Thus, RFID systems are one type of automatic identification
system.
There are many kinds of RFID systems used in different applications and settings. These systems have
different power sources, operating frequencies, and functionalities. The properties and regulatory restrictions of a
particular RFID system will determine its manufacturing costs, physical specifications, and performance. Some
of the most familiar RFID applications are item-level tagging with Electronic Product Codes (EPC), proximity
cards for physical access control, and contact-less payment systems.
An EPC is a replacement for a barcode that can carry a larger amount of information and is
electronically readable over distances up to 10 m, even when it is not visible.(A. Tanenbaum, 2011).
EPC Global was formed in 2003 to commercialize the RFID technology developed by the Auto-ID Center.
Widespread deployment has been hampered by the difficulty of competing with cheap printed barcodes, but new
uses, such as in drivers licenses, are now growing.
1.1 RFID Applications
RFID applications are fueling a quiet business revolution that promises to speed up business process systems and
change our lives. RFID is, in fact, already pervasive in our lives, Used to track everything from pets to prisoners
to products.
1.2 RFID in Retail Sales/ Supply Chain Management
Globally, RIFD is being used for a number of commercial applications, and in particular for grocery and retail
stores. The companies most interested in RFID have been drawn to it by the great potential for supply chain
management. RFID technology holds the promise of substantial improvements in retail store logistics.
1.2.1 RFID in casino chips
Hecht (2003) reports that casinos will put RFID tags into their chips. The chips were launched later in 2004 and
Innovative Systems Design and Engineering www.iiste.org
ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online)
Vol.5, No.10, 2014
66

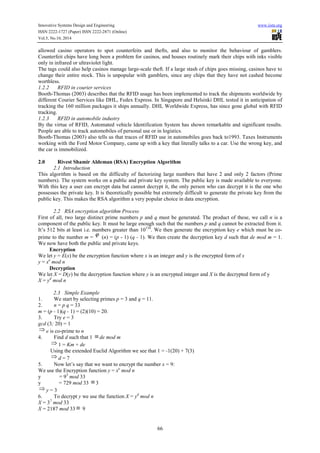

allowed casino operators to spot counterfeits and thefts, and also to monitor the behaviour of gamblers.
Counterfeit chips have long been a problem for casinos, and houses routinely mark their chips with inks visible
only in infrared or ultraviolet light.
The tags could also help casinos manage large-scale theft. If a large stash of chips goes missing, casinos have to
change their entire stock. This is unpopular with gamblers, since any chips that they have not cashed become
worthless.
1.2.2 RFID in courier services
Booth-Thomas (2003) describes that the RFID usage has been implemented to track the shipments worldwide by
different Courier Services like DHL, Fedex Express. In Singapore and Helsinki DHL tested it in anticipation of
tracking the 160 million packages it ships annually. DHL Worldwide Express, has since gone global with RFID
tracking.
1.2.3 RFID in automobile industry
By the virtue of RFID, Automated vehicle Identification System has shown remarkable and significant results.
People are able to track automobiles of personal use or in logistics.
Booth-Thomas (2003) also tells us that traces of RFID use in automobiles goes back to1993. Taxes Instruments
working with the Ford Motor Company, came up with a key that literally talks to a car. Use the wrong key, and
the car is immobilized.
2.0 Rivest Shamir Aldeman (RSA) Encryption Algorithm
2.1 Introduction
This algorithm is based on the difficulty of factorizing large numbers that have 2 and only 2 factors (Prime
numbers). The system works on a public and private key system. The public key is made available to everyone.
With this key a user can encrypt data but cannot decrypt it, the only person who can decrypt it is the one who
possesses the private key. It is theoretically possible but extremely difficult to generate the private key from the
public key. This makes the RSA algorithm a very popular choice in data encryption.
2.2 RSA encryption algorithm Process
First of all, two large distinct prime numbers p and q must be generated. The product of these, we call n is a
component of the public key. It must be large enough such that the numbers p and q cannot be extracted from it.
It’s 512 bits at least i.e. numbers greater than 10154
. We then generate the encryption key e which must be co-
prime to the number m = ϕ (n) = (p - 1) (q - 1). We then create the decryption key d such that de mod m = 1.
We now have both the public and private keys.
Encryption
We let y = E(x) be the encryption function where x is an integer and y is the encrypted form of x
y = xe
mod n
Decryption
We let X = D(y) be the decryption function where y is an encrypted integer and X is the decrypted form of y
X = yd
mod n
2.3 Simple Example
1. We start by selecting primes p = 3 and q = 11.
2. n = p q = 33
m = (p - 1)(q - 1) = (2)(10) = 20.
3. Try e = 3
gcd (3; 20) = 1
⇒ e is co-prime to n
4. Find d such that 1 ≡ de mod m
⇒ 1 = Km + de
Using the extended Euclid Algorithm we see that 1 = -1(20) + 7(3)
⇒ d = 7
5. Now let’s say that we want to encrypt the number x = 9:
We use the Encryption function y = xe
mod n
y = 93
mod 33
y = 729 mod 33 ≡ 3
⇒ y = 3
6. To decrypt y we use the function X = yd
mod n
X = 37
mod 33
X = 2187 mod 33 ≡ 9
Innovative Systems Design and Engineering www.iiste.org
ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online)
Vol.5, No.10, 2014
67
⇒ X = 9 = x
⇒ It Works!
2.4 Implementing RSA Algorithm in RFID Applications
In this proposal we intend to implement RSA algorithm inside the software application in the reader. We choose
to implement RSA in the reader since the reader is more technologically advanced than the tags and hence more
robust which makes it easier for it to handle the complexity of the software more easily. In addition encrypting
the software application in the reader is best since the tag has a very small memory in its integrated circuit and
cannot reliably store a large software application in addition to the RSA algorithm required for security.
2.4.1 Encryption over the Air Interface
Encryption over the air interface requires both, the tag and the reader, to implement a cryptographic processor.
Data is sent plainly to reader and there is where it is encrypted by RSA algorithm. Then the data is sent over the
air interface to the tag which decrypts the data and stores it in its memory. If data is sent from the tag to the
reader, the data are encrypted in the tag, and sent to the reader where they are decrypted again. The reader can
than forward the data plainly or encrypt them again to the network for transport.
In this procedure the selection of the session key is taken care of by the reader or the application once
both entities have been authenticated. During transfer the session key is encrypted with the authentication key.
From then on the session key is used to encrypt data over the air interface. Readers as well as tags have to
implement an asymmetric cipher, supporting encryption as well as decryption. RSA allows for some components
used in the encryption to be reused by the decryption process.
This will ensure that data cannot be intercepted while in transit and if it is, the hacker will only obtain
the ciphertext. Since the agenda of the hacker for interception of data was to obtain the plaintext most of the
hackers will give-up at this point since they don’t have the private key to decrypt the ciphertext back to plaintext.
This is because the ciphertext will not hold any value to the hacker and so he cannot modify it or alter it for his
own personal gain or malicious intentions.
But if the hacker wants to decrypt the ciphertext still, with no private key, the strength of the RSA
algorithm comes in to play. This is because RSA algorithm is based on the difficulty of factorizing large
numbers that have 2 and only 2 factors (Prime numbers). It is theoretically possible but extremely difficult to
generate the private key from the public key. This makes the RSA algorithm a very popular choice in data
encryption.
Also since RSA algorithm is a public key encryption it imposes a high computational burden, and tends
to be much slower, thus the hacker may take years to crack the ciphertext.
The diagrams below are used to further elaborate on encryption over the air interface above. To
accomplish this we must model a potential attacker. We differentiate between two basic types of attack. Attacker
1 behaves passively and tries to eavesdrop on the transmission to discover confidential information for wrongful
purposes. Attacker 2, on the other hand, behaves actively to manipulate the transmitted data and alter it to his
benefit.
Figure 1: In an authentication procedure based upon derived keys, a key unique to the transponder is first calculated in the reader from the
serial number (ID number) of the transponder. This key must then be used for authentication.
Innovative Systems Design and Engineering www.iiste.org
ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online)
Vol.5, No.10, 2014
68

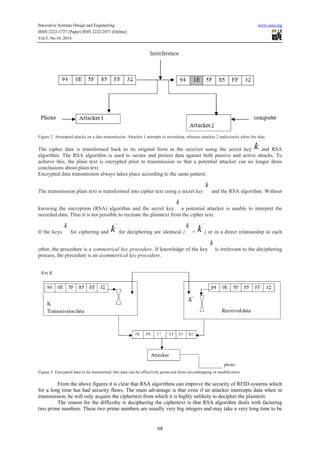

Figure 2: Attempted attacks on a data transmission. Attacker 1 attempts to eavesdrop, whereas attacker 2 maliciously alters the data
The cipher data is transformed back to its original form in the receiver using the secret key k
'
and RSA
algorithm. The RSA algorithm is used to secure and protect data against both passive and active attacks. To
achieve this, the plain text is encrypted prior to transmission so that a potential attacker can no longer draw
conclusions about plain text.
Encrypted data transmission always takes place according to the same pattern.
The transmission plain text is transformed into cipher text using a secret key
k
and the RSA algorithm. Without
knowing the encryption (RSA) algorithm and the secret key
k
a potential attacker is unable to interpret the
recorded data. Thus it is not possible to recreate the plaintext from the cipher text.
If the keys
k
for ciphering and k
'
for deciphering are identical (
k
= k
'
) or in a direct relationship to each
other, the procedure is a symmetrical key procedure. If knowledge of the key
k
is irrelevant to the deciphering
process, the procedure is an asymmetrical key procedure.
Figure 3: Encrypted data to be transmitted; this data can be effectively protected from eavesdropping or modification
From the above figures it is clear that RSA algorithms can improve the security of RFID systems which
for a long time has had security flaws. The main advantage is that even if an attacker intercepts data when in
transmission, he will only acquire the ciphertext from which it is highly unlikely to decipher the plaintext.
The reason for the difficulty is deciphering the ciphertext is that RSA algorithm deals with factoring
two prime numbers. These two prime numbers are usually very big integers and may take a very long time to be
Innovative Systems Design and Engineering www.iiste.org
ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online)
Vol.5, No.10, 2014
69
broken down so as to acquire the private key k
'
which will be used to decipher the ciphertext.
2.5 Test Data
This research paper is going to use the following example to encrypt a password using a public key and RSA
algorithm, then later decrypt the ciphertext using a private key.
If the resultant decrypted data matches the original plaintext that was encrypted then we would have proven
beyond doubt that our theory for using RSA algorithm to enhance data security in RFID applications is sound.
Example
Let U = 5 and V = 11. This gives R a value of 55, and:
Phi (55) = (5 - 1) * (11 - 1) = 4 * 10 = 40.
Now, we need to find numbers to fit the equation:
P * Q = 1 (mod 40).
Let P=7
7 * Q = 1 (mod 40).
What would that make Q? If we rewrite this equation to get rid of the unfamiliar modulus arithmetic, we have:
7 * Q = K * 40 + 1, where K can be any number.
The first value for Q that works is 23:
7 * 23 = 161 = 4 * 40 + 1.
So we have 7 for P, our public key, and 23 for Q, our private key.
To make our cipher work, you may recall that the values we use for T must be less than R, and also relatively
prime to R. We also don't want to use 1 for T, because 1 raised to any power whatsoever is going to remain 1.
2 3 4 6 7 8 9 12 13 14 16 17 1
A B C D E F G H I J K L M
19 21 23 24 26 27 28 29 31 32 34 36 37
N O P Q R S T U V W X Y Z
38 39 41 42 43 46 47 48 49 51 52 53
Sp 0 1 2 3 4 5 6 7 8 9 *
Table 1. Conversion table
The password we will encrypt is "VENIO"
V E N I O
31 7 19 13 21
Table 2. Conversion table
To encode it, we simply need to raise each number to the power of P modulo R.
V: 31^7 (mod 55) = 27512614111 (mod 55) = 26
E: 7^7 (mod 55) = 823543 (mod 55) = 28
N: 19^7 (mod 55) = 893871739 (mod 55) = 24
I: 13^7 (mod 55) = 62748517 (mod 55) = 7
O: 21^7 (mod 55) = 1801088541 (mod 55) = 21
So, our encrypted message is 26, 28, 24, 7, 21 -- or "RTQEO" in our personalized character set.
When the message "RTQEO" arrives on the other end of our insecure phone line, we can decrypt it simply by
repeating the process -- this time using Q, our private key, in place of P.
R: 26^23 (mod 55) = 350257144982200575261531309080576 (mod 55) = 31
T: 28^23 (mod 55) = 1925904380037276068854119113162752 (mod 55) = 7
Q: 24^23 (mod 55) = 55572324035428505185378394701824 (mod 55) = 19
E: 7^23 (mod 55) = 27368747340080916343 (mod 55) = 13
Innovative Systems Design and Engineering www.iiste.org
ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online)
Vol.5, No.10, 2014
70

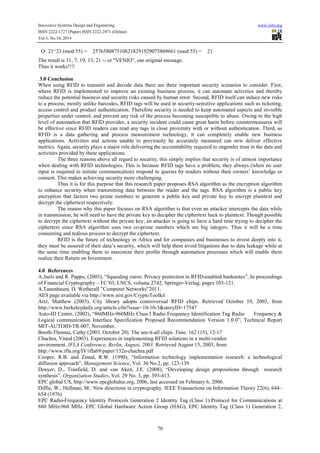

O: 21^23 (mod 55) = 2576580875108218291929075869661 (mod 55) = 21
The result is 31, 7, 19, 13, 21 -- or "VENIO", our original message.
Thus it works!!!!
3.0 Conclusion
When using RFID to transmit and decode data there are three important security scenarios to consider. First,
where RFID is implemented to improve an existing business process, it can automate activities and thereby
reduce the potential business and security risks caused by human error. Second, RFID itself can induce new risks
to a process; mostly unlike barcodes, RFID tags will be used in security-sensitive applications such as ticketing,
access control and product authentication. Therefore security is needed to keep automated aspects and invisible
properties under control, and prevent any risk of the process becoming susceptible to abuse. Owing to the high
level of automation that RFID provides, a security incident could cause great harm before countermeasures will
be effective since RFID readers can read any tags in close proximity with or without authentication. Third, as
RFID is a data gathering and process measurement technology, it can completely enable new business
applications. Activities and actions unable to previously be accurately measured can now deliver effective
metrics. Again, security plays a major role delivering the accountability required to engender trust in the data and
activities provided by these applications.
The three reasons above all regard to security, this simply implies that security is of utmost importance
when dealing with RFID technologies. This is because RFID tags have a problem, they always (when no user
input is required to initiate communication) respond to queries by readers without their owners’ knowledge or
consent. This makes achieving security more challenging.
Thus it is for this purpose that this research paper proposes RSA algorithm as the encryption algorithm
to enhance security when transmitting data between the reader and the tags. RSA algorithm is a public key
encryption that factors two prime numbers to generate a public key and private key to encrypt plaintext and
decrypt the ciphertext respectively.
The reason why this paper focuses on RSA algorithm is that even an attacker intercepts the data while
in transmission, he will need to have the private key to decipher the ciphertext back to plaintext. Though possible
to decrypt the ciphertext without the private key, an attacker is going to have a hard time trying to decipher the
ciphertext since RSA algorithm uses two co-prime numbers which are big integers. Thus it will be a time
consuming and tedious process to decrypt the ciphertext.
RFID is the future of technology in Africa and for companies and businesses to invest deeply into it,
they must be assured of their data’s security, which will help them avoid litigations due to data leakage while at
the same time enabling them to maximize their profits through automation processes which will enable them
realize their Return on Investment.
4.0 References
A.Juels and R. Pappu, (2003), “Squealing euros: Privacy protection in RFID-enabled banknotes”, In proceedings
of Financial Cryptography – FC’03, LNCS, volume 2742, Springer-Verlag, pages 103-121.
A.Tanenbaum, D. Wetherall ”Computer Networks”2011.
AES page available via http://www.nist.gov/CryptoToolkit
Artz, Matthew (2003). City library adopts controversial RFID chips. Retrieved October 10, 2003, from
http://www.berkeleydaily.org/article.cfm?issue=10-10-3&storyID=17547
Auto-ID Center, (2002), “860MHz-960MHz Class I Radio Frequency Identification Tag Radio Frequency &
Logical communication Interface Specification Proposed Recommendation Version 1.0.0”, Technical Report
MIT-AUTOID-TR-007, November.
Booth-Thomas, Cathy (2003, October 20). The see-it-all chips. Time, 162 (15), 12-17
Chachra, Vinod (2003). Experiences in implementing RFID solutions in a multi-vendor
environment. IFLA Conference, Berlin, August, 2003. Retrieved August 15, 2003, from
http://www.ifla.org/IV/ifla69/paper/132e-chachra.pdf
Cooper, R.B. and Zmud, R.W. (1990), “Information technology implementation research: a technological
diffusion approach”, Management Science, Vol. 36 No.2, pp. 123-139.
Denyer, D., Tranfield, D. and van Aken, J.E. (2008), “Developing design propositions through research
synthesis”, Organization Studies, Vol. 29 No. 3, pp. 393-413.
EPC global US, http://www.epcglobalus.org, 2006, last accessed on February 6, 2006.
Diffie, W., Hellman, M.: New directions in cryptography. IEEE Transactions on Information Theory 22(6), 644–
654 (1976)
EPC Radio-Frequency Identity Protocols Generation 2 Identity Tag (Class 1):Protocol for Communications at
860 MHz-960 MHz. EPC Global Hardware Action Group (HAG), EPC Identity Tag (Class 1) Generation 2,
Innovative Systems Design and Engineering www.iiste.org
ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online)
Vol.5, No.10, 2014
71
Last-call Working Draft Version 1.0.2, 2003-11-24.
FIPS 180-2. Secure Hash Standard, http://csrc.nist.gov/publications/, 2002
Gershenfeld, N., and Krikorian, R., and Cohen, D.: ‘‘The Internet of Things,’’Scientific American, vol. 291, pp.
76–81, Oct. 2004.
Gregor, S. and Jones, D. (2007), “The anatomy of a design theory”, Journal of the Association for Information
Systems, Vol. 8 No. 5, pp. 312-335.
H. Aljifri, and N. Tyrewalla, (2004), “Security model for Intra-Domain Mobility Management Protocol”, Int. J.
of Mobile Communications, Vol. 2, No.2, pp. 157 – 170.
Hecht, Jeff (2004). Casino chips to carry RFID tags. New Scientist. Retrieved September 02, 2004, from
http://www.newscientist.com/news/news.jsp?id=ns99994542
Holmström, J., Ketokivi, K., Hameri, A.-P. (2009b), “Bridging Practice and Theory: A Design Science
Approach”, Decision Sciences, Vol. 40 No. 1, pp. 65-87.
Juels, A., Weis, S.A. (2005). Authenticating Pervasive Devices with Human Protocols.
Advances in Cryptology – Crypto ’05. Lecture Notes in Computer Science. Volume 3621. Pages 293-308.
W. Küchlin, “Public key encryption,” ACM SIGSAM Bulletin, August 1987, pp. 69-73.
Mezrich, Ben (2002). Hacking Las Vegas. Wired Magazine, 10(09). Retrieved September 02,
2004, from http://www.wired.com/wired/archive/10.09/vegas.html
RFID Journal. (2003). Gillette Confirms RFID Purchase. RFID Journal. Available at:
http://www.rfidjournal.com/article/articleview/258/1/1/. (Last Accessed: March 11, 2006.)
R.Fishkin and B. Jiang “Some Methods for Privacy in RFID Communication,”, Intel Research; http://
www.intelresearch.net/Publications/Seattle/062420041517_243.pdf
Ronald L. Rivest, Adi Shamir, and Leonard M. Adleman. A method for obtaining digital signatures and public-
key cryptosystems. Commun. ACM, 21(2):120–126, 1978.
S.Weiss, “RFID Privacy Workshop:Concerns, Consensus, and Questions,” IEEE Security & Privacy,Mar.-Apr.
2004.
Sample, A., Yeager, D., Powledge, P., Mamishev, A., and Smith, J.: ‘‘Design of an RFID- Based Battery-Free
Programmable Sensing Platform,’’ IEEE Trans. On Instrumentation and Measurement, vol. 57, pp. 2608–2615,
Nov. 2008.
Simon, H.A. (1997), Administrative Behavior: A Study of Decision-Making Processes in Administrative
Organizations, 4th edition, The Free Press, NewYork, NY.
Van Aken, J.E. and Romme, G. (2009), “Reinventing the future: adding design science to the repertoire of
organization and management studies”, Organization Management Journal, Vol. 6 No. 1, pp. 5-12.
Van Dorp, K.-J. (2001), “Tracking and tracing: A structure for development and contemporary practices”,
Logistics Information Management, Vol. 15 No. 1/2, pp. 24-33.
Visich, J.K., Li, S., Khumawala, B.M. and Reyes, P.M. (2009), “Empirical evidence of RFID impacts on supply
chain performance”, International Journal of Operations & Production Management, Vol. 29 No. 12, pp. 1290-
1315.
Welbourne, E., Battle, L., Cole, G., Gould, K., Rector, K., Raymer, S.,Balazinska, M., and Borriello, G.:
‘‘Building the Internet of Things Using RFID,’’ IEEE Internet Computing, vol. 13, pp. 48–55, May 2009.
Yin, R.K. (1994), Case Study Research: Design and Methods. 2nd edition, Sage Publications, CA, USA.
Yin, R., 2002. Case Study Research: Design and Methods. SAGE Publications, Edition. 3.

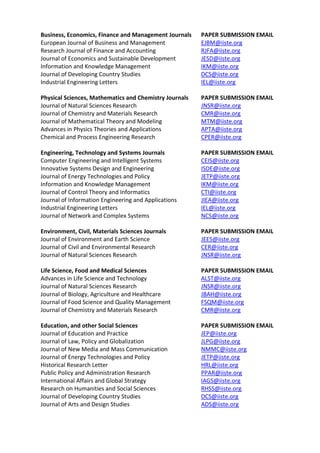

Business, Economics, Finance and Management Journals PAPER SUBMISSION EMAIL
European Journal of Business and Management EJBM@iiste.org
Research Journal of Finance and Accounting RJFA@iiste.org
Journal of Economics and Sustainable Development JESD@iiste.org
Information and Knowledge Management IKM@iiste.org
Journal of Developing Country Studies DCS@iiste.org
Industrial Engineering Letters IEL@iiste.org
Physical Sciences, Mathematics and Chemistry Journals PAPER SUBMISSION EMAIL
Journal of Natural Sciences Research JNSR@iiste.org
Journal of Chemistry and Materials Research CMR@iiste.org
Journal of Mathematical Theory and Modeling MTM@iiste.org
Advances in Physics Theories and Applications APTA@iiste.org
Chemical and Process Engineering Research CPER@iiste.org
Engineering, Technology and Systems Journals PAPER SUBMISSION EMAIL
Computer Engineering and Intelligent Systems CEIS@iiste.org
Innovative Systems Design and Engineering ISDE@iiste.org
Journal of Energy Technologies and Policy JETP@iiste.org
Information and Knowledge Management IKM@iiste.org
Journal of Control Theory and Informatics CTI@iiste.org
Journal of Information Engineering and Applications JIEA@iiste.org
Industrial Engineering Letters IEL@iiste.org
Journal of Network and Complex Systems NCS@iiste.org
Environment, Civil, Materials Sciences Journals PAPER SUBMISSION EMAIL
Journal of Environment and Earth Science JEES@iiste.org
Journal of Civil and Environmental Research CER@iiste.org
Journal of Natural Sciences Research JNSR@iiste.org
Life Science, Food and Medical Sciences PAPER SUBMISSION EMAIL
Advances in Life Science and Technology ALST@iiste.org
Journal of Natural Sciences Research JNSR@iiste.org
Journal of Biology, Agriculture and Healthcare JBAH@iiste.org
Journal of Food Science and Quality Management FSQM@iiste.org
Journal of Chemistry and Materials Research CMR@iiste.org
Education, and other Social Sciences PAPER SUBMISSION EMAIL
Journal of Education and Practice JEP@iiste.org
Journal of Law, Policy and Globalization JLPG@iiste.org
Journal of New Media and Mass Communication NMMC@iiste.org
Journal of Energy Technologies and Policy JETP@iiste.org
Historical Research Letter HRL@iiste.org
Public Policy and Administration Research PPAR@iiste.org
International Affairs and Global Strategy IAGS@iiste.org
Research on Humanities and Social Sciences RHSS@iiste.org
Journal of Developing Country Studies DCS@iiste.org
Journal of Arts and Design Studies ADS@iiste.org

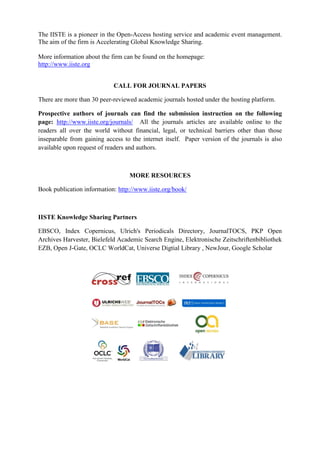

The IISTE is a pioneer in the Open-Access hosting service and academic event management.
The aim of the firm is Accelerating Global Knowledge Sharing.
More information about the firm can be found on the homepage:
http://www.iiste.org
CALL FOR JOURNAL PAPERS
There are more than 30 peer-reviewed academic journals hosted under the hosting platform.
Prospective authors of journals can find the submission instruction on the following
page: http://www.iiste.org/journals/ All the journals articles are available online to the
readers all over the world without financial, legal, or technical barriers other than those
inseparable from gaining access to the internet itself. Paper version of the journals is also
available upon request of readers and authors.
MORE RESOURCES
Book publication information: http://www.iiste.org/book/
IISTE Knowledge Sharing Partners
EBSCO, Index Copernicus, Ulrich's Periodicals Directory, JournalTOCS, PKP Open
Archives Harvester, Bielefeld Academic Search Engine, Elektronische Zeitschriftenbibliothek
EZB, Open J-Gate, OCLC WorldCat, Universe Digtial Library , NewJour, Google Scholar

More Related Content

PDF
Ijarcet vol-2-issue-3-867-869
PDF
RFID Protocols and Privacy Models for RFID
PPT
RFID tag - technology and scenarios
PDF
Zigbee Based Indoor Campus Inventory Tracking Using Rfid Module
PDF
5.[26 35] rfid security using mini des algorithm in deployment of bike rentin...
PDF
11. rfid security using mini des algorithm in deployment of bike renting system
PDF
Novel construction of Secure RFID Authentication Protocol
PPT
Ijarcet vol-2-issue-3-867-869
RFID Protocols and Privacy Models for RFID
RFID tag - technology and scenarios
Zigbee Based Indoor Campus Inventory Tracking Using Rfid Module
5.[26 35] rfid security using mini des algorithm in deployment of bike rentin...
11. rfid security using mini des algorithm in deployment of bike renting system
Novel construction of Secure RFID Authentication Protocol

What's hot (16)

PPT
My best effort
PDF
The Economics, Practical Applications and Constraints in Enterprise-Wide RFID...
PDF
Evolving Fast Fourier Transform and Deoxyribonucleic Acid for Security of RFI...
DOCX
A survey of mobile rfid and its security issues
PDF
3.[13 21]framework of smart mobile rfid networks
PDF
A Novel RFID Readers Employee Management System
PDF
Mikel_Berdufi_RFID_NFC_REPORT
PPTX
RFID AND LIBRARIES
PDF
Automatic Door Unit Radio Frequency Identification (RFID) Based Attendance Sy...
PDF
Rfid security workshop v0.9 -nahuel_grisolia
PDF
IRJET- RFID based Book Shelving System
PDF
NFiD: An NFC based system for Digital Business Cards
PPT
Rfid presentation
PPT
Technology and Libraries:RFID vs. Barcodes
PDF
Radio Frequency Identification (RFID) Security issues and possible solutions
PDF
2008 07 - ss - near field communication
My best effort
The Economics, Practical Applications and Constraints in Enterprise-Wide RFID...
Evolving Fast Fourier Transform and Deoxyribonucleic Acid for Security of RFI...
A survey of mobile rfid and its security issues
3.[13 21]framework of smart mobile rfid networks
A Novel RFID Readers Employee Management System
Mikel_Berdufi_RFID_NFC_REPORT
RFID AND LIBRARIES
Automatic Door Unit Radio Frequency Identification (RFID) Based Attendance Sy...
Rfid security workshop v0.9 -nahuel_grisolia
IRJET- RFID based Book Shelving System
NFiD: An NFC based system for Digital Business Cards
Rfid presentation
Technology and Libraries:RFID vs. Barcodes
Radio Frequency Identification (RFID) Security issues and possible solutions
2008 07 - ss - near field communication
Ad

Viewers also liked (12)

PPT
Ch03 block-cipher-and-data-encryption-standard
PPTX
Steganography with RSA Algorithm
PPTX
A NETWORK SECURITY APPROACH USING RSA.
PDF
Hash Functions, the MD5 Algorithm and the Future (SHA-3)
PPTX
Message Authentication using Message Digests and the MD5 Algorithm
PPTX
RSA & MD5 algorithm
PPT
Digital Signature Recognition using RSA Algorithm
PPT
Secure hashing algorithm
PPT
Chapter 3: Block Ciphers and the Data Encryption Standard
PPTX
Data Encryption Standard (DES)
PPT
Public Key Cryptography and RSA algorithm
PPT
Data encryption, Description, DES
Ch03 block-cipher-and-data-encryption-standard
Steganography with RSA Algorithm
A NETWORK SECURITY APPROACH USING RSA.
Hash Functions, the MD5 Algorithm and the Future (SHA-3)
Message Authentication using Message Digests and the MD5 Algorithm
RSA & MD5 algorithm
Digital Signature Recognition using RSA Algorithm
Secure hashing algorithm
Chapter 3: Block Ciphers and the Data Encryption Standard
Data Encryption Standard (DES)
Public Key Cryptography and RSA algorithm
Data encryption, Description, DES
Ad

Similar to Enhancement of security in rfid using rsa algorithm (20)

PDF
RSA Algorithm as a Data Security Control Mechanism in RFID
PDF
K010117074
PPTX
Tamper Detection & Discrimination in Passive RFID Systems using Steganography
PDF
ENHANCE RFID SECURITY AGAINST BRUTE FORCE ATTACK BASED ON PASSWORD STRENGTH A...
PDF
ENHANCE RFID SECURITY AGAINST BRUTE FORCE ATTACK BASED ON PASSWORD STRENGTH A...
PDF
A novel authenticated cipher for rfid systems
PPTX
RFID security ppt
PDF
RFID Privacy & Security Issues
PDF
5.[26 35] rfid security using mini des algorithm in deployment of bike rentin...
PDF
5.[26 35] rfid security using mini des algorithm in deployment of bike rentin...
PDF
Iaetsd near field
PPTX
PDF
[IJET-V1I4P5] Authors :Divya Lakshmi M , Dr. Ramesh R
PPTX
Rfid security and hospital applications
PDF
Secured authentication of radio-frequency identification system using PRESENT...
PDF
RFID BASED ACCESS CONTROL SYSTEM
DOCX
Sdfgh
PDF
Hacking Smartcards & RFID
PDF
Secured e-payment system based on automated authentication data and iterated ...
DOC
Security access control system using rfid
RSA Algorithm as a Data Security Control Mechanism in RFID
K010117074
Tamper Detection & Discrimination in Passive RFID Systems using Steganography
ENHANCE RFID SECURITY AGAINST BRUTE FORCE ATTACK BASED ON PASSWORD STRENGTH A...
ENHANCE RFID SECURITY AGAINST BRUTE FORCE ATTACK BASED ON PASSWORD STRENGTH A...
A novel authenticated cipher for rfid systems
RFID security ppt
RFID Privacy & Security Issues
5.[26 35] rfid security using mini des algorithm in deployment of bike rentin...
5.[26 35] rfid security using mini des algorithm in deployment of bike rentin...
Iaetsd near field
[IJET-V1I4P5] Authors :Divya Lakshmi M , Dr. Ramesh R
Rfid security and hospital applications
Secured authentication of radio-frequency identification system using PRESENT...
RFID BASED ACCESS CONTROL SYSTEM
Sdfgh
Hacking Smartcards & RFID
Secured e-payment system based on automated authentication data and iterated ...
Security access control system using rfid

More from Alexander Decker (20)

PDF
Abnormalities of hormones and inflammatory cytokines in women affected with p...
PDF
A validation of the adverse childhood experiences scale in
PDF
A usability evaluation framework for b2 c e commerce websites
PDF
A universal model for managing the marketing executives in nigerian banks
PDF
A unique common fixed point theorems in generalized d
PDF
A trends of salmonella and antibiotic resistance
PDF
A transformational generative approach towards understanding al-istifham
PDF
A time series analysis of the determinants of savings in namibia
PDF
A therapy for physical and mental fitness of school children
PDF
A theory of efficiency for managing the marketing executives in nigerian banks
PDF
A systematic evaluation of link budget for
PDF
A synthetic review of contraceptive supplies in punjab
PDF
A synthesis of taylor’s and fayol’s management approaches for managing market...
PDF
A survey paper on sequence pattern mining with incremental
PDF
A survey on live virtual machine migrations and its techniques
PDF
A survey on data mining and analysis in hadoop and mongo db
PDF
A survey on challenges to the media cloud
PDF
A survey of provenance leveraged
PDF
A survey of private equity investments in kenya
PDF
A study to measures the financial health of
Abnormalities of hormones and inflammatory cytokines in women affected with p...
A validation of the adverse childhood experiences scale in
A usability evaluation framework for b2 c e commerce websites
A universal model for managing the marketing executives in nigerian banks
A unique common fixed point theorems in generalized d
A trends of salmonella and antibiotic resistance
A transformational generative approach towards understanding al-istifham
A time series analysis of the determinants of savings in namibia
A therapy for physical and mental fitness of school children
A theory of efficiency for managing the marketing executives in nigerian banks
A systematic evaluation of link budget for
A synthetic review of contraceptive supplies in punjab
A synthesis of taylor’s and fayol’s management approaches for managing market...
A survey paper on sequence pattern mining with incremental
A survey on live virtual machine migrations and its techniques
A survey on data mining and analysis in hadoop and mongo db
A survey on challenges to the media cloud
A survey of provenance leveraged
A survey of private equity investments in kenya
A study to measures the financial health of

Enhancement of security in rfid using rsa algorithm

  • 1. Innovative Systems Design and Engineering www.iiste.org ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online) Vol.5, No.10, 2014 65 Enhancement of Security in RFID using RSA Algorithm Jonathan Sangoro* Professor Waweru Mwangi Dr. Michael Kimwele School of Computing and Information Technology Jomo Kenyatta University of Agriculture and Technology, P.O. Box 62000 – 00200 Nairobi, Kenya Lead author’s mail; jonasangoro@gmail.com Abstract A huge revolution has occurred in Radio Frequency Identification (RFID) technologies during the past decades. More vendors are involved, and have invested in this technology, which promises wholesale changes across a broad spectrum of business activities. Currently, RFID systems are usually available in low, high, ultra-high, and microwave frequencies with passive, semi-passive (or semi-active) and active transponders or tags. Tags might be either Chipless, or contain a microchip with read only, or read and write memory. The component controlling communication in a RFID system is called a reader or interrogator, which can be stationary or portable depending on the application. In order for the tags to transmit their data, the tags must be in the reader’s field or interrogation zone, and receive the necessary energy (in form of radio waves) from the reader. Although promising, RFID is not without its challenges, which arise from both a technological and usage point of View (IT Pro, 2005). A common concern with RFID is data security. Data Security is a key area in RFID usage, it determines wholly whether this technology will be adopted fully especially in this part of the world (Eastern and Central Africa) for business processes and automation. For this technology to be utilized fully and realized then the users of the system MUST be assured of their data’s security.People who use devices that carry personal financial information, such as credit card or other ID numbers, do not want others to access their accounts. These are significant security vulnerabilities in RFID. Some researchers have proposed schemes that would require tags to authenticate readers, thus transmitting information only to authorized readers.This research paper addresses the security challenge in RFID by proposing RSA algorithm as a viable solution to encrypt data over transmission and also authenticate the reader and the tags. Keywords: RFID, Security, authenticate, Data Security. 1.0 Introduction RFID technology takes many forms, used in smartcards, implants for pets, passports, library books, and more. RFID is a rapidly growing technology that has the potential to make great economic impacts on many industries. While RFID is a relatively old technology, more recent advancements in chip manufacturing technology are making RFID practical for new applications and settings, particularly consumer item level tagging. These advancements have the potential to revolutionize supply-chain management, inventory control, and logistics etc. At its most basic, RFID systems consist of small transponders or tags, attached to physical objects. When wirelessly interrogated by RFID transceivers or readers, tags respond with some identifying information that may be associated with arbitrary data records. Thus, RFID systems are one type of automatic identification system. There are many kinds of RFID systems used in different applications and settings. These systems have different power sources, operating frequencies, and functionalities. The properties and regulatory restrictions of a particular RFID system will determine its manufacturing costs, physical specifications, and performance. Some of the most familiar RFID applications are item-level tagging with Electronic Product Codes (EPC), proximity cards for physical access control, and contact-less payment systems. An EPC is a replacement for a barcode that can carry a larger amount of information and is electronically readable over distances up to 10 m, even when it is not visible.(A. Tanenbaum, 2011). EPC Global was formed in 2003 to commercialize the RFID technology developed by the Auto-ID Center. Widespread deployment has been hampered by the difficulty of competing with cheap printed barcodes, but new uses, such as in drivers licenses, are now growing. 1.1 RFID Applications RFID applications are fueling a quiet business revolution that promises to speed up business process systems and change our lives. RFID is, in fact, already pervasive in our lives, Used to track everything from pets to prisoners to products. 1.2 RFID in Retail Sales/ Supply Chain Management Globally, RIFD is being used for a number of commercial applications, and in particular for grocery and retail stores. The companies most interested in RFID have been drawn to it by the great potential for supply chain management. RFID technology holds the promise of substantial improvements in retail store logistics. 1.2.1 RFID in casino chips Hecht (2003) reports that casinos will put RFID tags into their chips. The chips were launched later in 2004 and
  • 2. Innovative Systems Design and Engineering www.iiste.org ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online) Vol.5, No.10, 2014 66 allowed casino operators to spot counterfeits and thefts, and also to monitor the behaviour of gamblers. Counterfeit chips have long been a problem for casinos, and houses routinely mark their chips with inks visible only in infrared or ultraviolet light. The tags could also help casinos manage large-scale theft. If a large stash of chips goes missing, casinos have to change their entire stock. This is unpopular with gamblers, since any chips that they have not cashed become worthless. 1.2.2 RFID in courier services Booth-Thomas (2003) describes that the RFID usage has been implemented to track the shipments worldwide by different Courier Services like DHL, Fedex Express. In Singapore and Helsinki DHL tested it in anticipation of tracking the 160 million packages it ships annually. DHL Worldwide Express, has since gone global with RFID tracking. 1.2.3 RFID in automobile industry By the virtue of RFID, Automated vehicle Identification System has shown remarkable and significant results. People are able to track automobiles of personal use or in logistics. Booth-Thomas (2003) also tells us that traces of RFID use in automobiles goes back to1993. Taxes Instruments working with the Ford Motor Company, came up with a key that literally talks to a car. Use the wrong key, and the car is immobilized. 2.0 Rivest Shamir Aldeman (RSA) Encryption Algorithm 2.1 Introduction This algorithm is based on the difficulty of factorizing large numbers that have 2 and only 2 factors (Prime numbers). The system works on a public and private key system. The public key is made available to everyone. With this key a user can encrypt data but cannot decrypt it, the only person who can decrypt it is the one who possesses the private key. It is theoretically possible but extremely difficult to generate the private key from the public key. This makes the RSA algorithm a very popular choice in data encryption. 2.2 RSA encryption algorithm Process First of all, two large distinct prime numbers p and q must be generated. The product of these, we call n is a component of the public key. It must be large enough such that the numbers p and q cannot be extracted from it. It’s 512 bits at least i.e. numbers greater than 10154 . We then generate the encryption key e which must be co- prime to the number m = ϕ (n) = (p - 1) (q - 1). We then create the decryption key d such that de mod m = 1. We now have both the public and private keys. Encryption We let y = E(x) be the encryption function where x is an integer and y is the encrypted form of x y = xe mod n Decryption We let X = D(y) be the decryption function where y is an encrypted integer and X is the decrypted form of y X = yd mod n 2.3 Simple Example 1. We start by selecting primes p = 3 and q = 11. 2. n = p q = 33 m = (p - 1)(q - 1) = (2)(10) = 20. 3. Try e = 3 gcd (3; 20) = 1 ⇒ e is co-prime to n 4. Find d such that 1 ≡ de mod m ⇒ 1 = Km + de Using the extended Euclid Algorithm we see that 1 = -1(20) + 7(3) ⇒ d = 7 5. Now let’s say that we want to encrypt the number x = 9: We use the Encryption function y = xe mod n y = 93 mod 33 y = 729 mod 33 ≡ 3 ⇒ y = 3 6. To decrypt y we use the function X = yd mod n X = 37 mod 33 X = 2187 mod 33 ≡ 9
  • 3. Innovative Systems Design and Engineering www.iiste.org ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online) Vol.5, No.10, 2014 67 ⇒ X = 9 = x ⇒ It Works! 2.4 Implementing RSA Algorithm in RFID Applications In this proposal we intend to implement RSA algorithm inside the software application in the reader. We choose to implement RSA in the reader since the reader is more technologically advanced than the tags and hence more robust which makes it easier for it to handle the complexity of the software more easily. In addition encrypting the software application in the reader is best since the tag has a very small memory in its integrated circuit and cannot reliably store a large software application in addition to the RSA algorithm required for security. 2.4.1 Encryption over the Air Interface Encryption over the air interface requires both, the tag and the reader, to implement a cryptographic processor. Data is sent plainly to reader and there is where it is encrypted by RSA algorithm. Then the data is sent over the air interface to the tag which decrypts the data and stores it in its memory. If data is sent from the tag to the reader, the data are encrypted in the tag, and sent to the reader where they are decrypted again. The reader can than forward the data plainly or encrypt them again to the network for transport. In this procedure the selection of the session key is taken care of by the reader or the application once both entities have been authenticated. During transfer the session key is encrypted with the authentication key. From then on the session key is used to encrypt data over the air interface. Readers as well as tags have to implement an asymmetric cipher, supporting encryption as well as decryption. RSA allows for some components used in the encryption to be reused by the decryption process. This will ensure that data cannot be intercepted while in transit and if it is, the hacker will only obtain the ciphertext. Since the agenda of the hacker for interception of data was to obtain the plaintext most of the hackers will give-up at this point since they don’t have the private key to decrypt the ciphertext back to plaintext. This is because the ciphertext will not hold any value to the hacker and so he cannot modify it or alter it for his own personal gain or malicious intentions. But if the hacker wants to decrypt the ciphertext still, with no private key, the strength of the RSA algorithm comes in to play. This is because RSA algorithm is based on the difficulty of factorizing large numbers that have 2 and only 2 factors (Prime numbers). It is theoretically possible but extremely difficult to generate the private key from the public key. This makes the RSA algorithm a very popular choice in data encryption. Also since RSA algorithm is a public key encryption it imposes a high computational burden, and tends to be much slower, thus the hacker may take years to crack the ciphertext. The diagrams below are used to further elaborate on encryption over the air interface above. To accomplish this we must model a potential attacker. We differentiate between two basic types of attack. Attacker 1 behaves passively and tries to eavesdrop on the transmission to discover confidential information for wrongful purposes. Attacker 2, on the other hand, behaves actively to manipulate the transmitted data and alter it to his benefit. Figure 1: In an authentication procedure based upon derived keys, a key unique to the transponder is first calculated in the reader from the serial number (ID number) of the transponder. This key must then be used for authentication.
  • 4. Innovative Systems Design and Engineering www.iiste.org ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online) Vol.5, No.10, 2014 68 Figure 2: Attempted attacks on a data transmission. Attacker 1 attempts to eavesdrop, whereas attacker 2 maliciously alters the data The cipher data is transformed back to its original form in the receiver using the secret key k ' and RSA algorithm. The RSA algorithm is used to secure and protect data against both passive and active attacks. To achieve this, the plain text is encrypted prior to transmission so that a potential attacker can no longer draw conclusions about plain text. Encrypted data transmission always takes place according to the same pattern. The transmission plain text is transformed into cipher text using a secret key k and the RSA algorithm. Without knowing the encryption (RSA) algorithm and the secret key k a potential attacker is unable to interpret the recorded data. Thus it is not possible to recreate the plaintext from the cipher text. If the keys k for ciphering and k ' for deciphering are identical ( k = k ' ) or in a direct relationship to each other, the procedure is a symmetrical key procedure. If knowledge of the key k is irrelevant to the deciphering process, the procedure is an asymmetrical key procedure. Figure 3: Encrypted data to be transmitted; this data can be effectively protected from eavesdropping or modification From the above figures it is clear that RSA algorithms can improve the security of RFID systems which for a long time has had security flaws. The main advantage is that even if an attacker intercepts data when in transmission, he will only acquire the ciphertext from which it is highly unlikely to decipher the plaintext. The reason for the difficulty is deciphering the ciphertext is that RSA algorithm deals with factoring two prime numbers. These two prime numbers are usually very big integers and may take a very long time to be
  • 5. Innovative Systems Design and Engineering www.iiste.org ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online) Vol.5, No.10, 2014 69 broken down so as to acquire the private key k ' which will be used to decipher the ciphertext. 2.5 Test Data This research paper is going to use the following example to encrypt a password using a public key and RSA algorithm, then later decrypt the ciphertext using a private key. If the resultant decrypted data matches the original plaintext that was encrypted then we would have proven beyond doubt that our theory for using RSA algorithm to enhance data security in RFID applications is sound. Example Let U = 5 and V = 11. This gives R a value of 55, and: Phi (55) = (5 - 1) * (11 - 1) = 4 * 10 = 40. Now, we need to find numbers to fit the equation: P * Q = 1 (mod 40). Let P=7 7 * Q = 1 (mod 40). What would that make Q? If we rewrite this equation to get rid of the unfamiliar modulus arithmetic, we have: 7 * Q = K * 40 + 1, where K can be any number. The first value for Q that works is 23: 7 * 23 = 161 = 4 * 40 + 1. So we have 7 for P, our public key, and 23 for Q, our private key. To make our cipher work, you may recall that the values we use for T must be less than R, and also relatively prime to R. We also don't want to use 1 for T, because 1 raised to any power whatsoever is going to remain 1. 2 3 4 6 7 8 9 12 13 14 16 17 1 A B C D E F G H I J K L M 19 21 23 24 26 27 28 29 31 32 34 36 37 N O P Q R S T U V W X Y Z 38 39 41 42 43 46 47 48 49 51 52 53 Sp 0 1 2 3 4 5 6 7 8 9 * Table 1. Conversion table The password we will encrypt is "VENIO" V E N I O 31 7 19 13 21 Table 2. Conversion table To encode it, we simply need to raise each number to the power of P modulo R. V: 31^7 (mod 55) = 27512614111 (mod 55) = 26 E: 7^7 (mod 55) = 823543 (mod 55) = 28 N: 19^7 (mod 55) = 893871739 (mod 55) = 24 I: 13^7 (mod 55) = 62748517 (mod 55) = 7 O: 21^7 (mod 55) = 1801088541 (mod 55) = 21 So, our encrypted message is 26, 28, 24, 7, 21 -- or "RTQEO" in our personalized character set. When the message "RTQEO" arrives on the other end of our insecure phone line, we can decrypt it simply by repeating the process -- this time using Q, our private key, in place of P. R: 26^23 (mod 55) = 350257144982200575261531309080576 (mod 55) = 31 T: 28^23 (mod 55) = 1925904380037276068854119113162752 (mod 55) = 7 Q: 24^23 (mod 55) = 55572324035428505185378394701824 (mod 55) = 19 E: 7^23 (mod 55) = 27368747340080916343 (mod 55) = 13
  • 6. Innovative Systems Design and Engineering www.iiste.org ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online) Vol.5, No.10, 2014 70 O: 21^23 (mod 55) = 2576580875108218291929075869661 (mod 55) = 21 The result is 31, 7, 19, 13, 21 -- or "VENIO", our original message. Thus it works!!!! 3.0 Conclusion When using RFID to transmit and decode data there are three important security scenarios to consider. First, where RFID is implemented to improve an existing business process, it can automate activities and thereby reduce the potential business and security risks caused by human error. Second, RFID itself can induce new risks to a process; mostly unlike barcodes, RFID tags will be used in security-sensitive applications such as ticketing, access control and product authentication. Therefore security is needed to keep automated aspects and invisible properties under control, and prevent any risk of the process becoming susceptible to abuse. Owing to the high level of automation that RFID provides, a security incident could cause great harm before countermeasures will be effective since RFID readers can read any tags in close proximity with or without authentication. Third, as RFID is a data gathering and process measurement technology, it can completely enable new business applications. Activities and actions unable to previously be accurately measured can now deliver effective metrics. Again, security plays a major role delivering the accountability required to engender trust in the data and activities provided by these applications. The three reasons above all regard to security, this simply implies that security is of utmost importance when dealing with RFID technologies. This is because RFID tags have a problem, they always (when no user input is required to initiate communication) respond to queries by readers without their owners’ knowledge or consent. This makes achieving security more challenging. Thus it is for this purpose that this research paper proposes RSA algorithm as the encryption algorithm to enhance security when transmitting data between the reader and the tags. RSA algorithm is a public key encryption that factors two prime numbers to generate a public key and private key to encrypt plaintext and decrypt the ciphertext respectively. The reason why this paper focuses on RSA algorithm is that even an attacker intercepts the data while in transmission, he will need to have the private key to decipher the ciphertext back to plaintext. Though possible to decrypt the ciphertext without the private key, an attacker is going to have a hard time trying to decipher the ciphertext since RSA algorithm uses two co-prime numbers which are big integers. Thus it will be a time consuming and tedious process to decrypt the ciphertext. RFID is the future of technology in Africa and for companies and businesses to invest deeply into it, they must be assured of their data’s security, which will help them avoid litigations due to data leakage while at the same time enabling them to maximize their profits through automation processes which will enable them realize their Return on Investment. 4.0 References A.Juels and R. Pappu, (2003), “Squealing euros: Privacy protection in RFID-enabled banknotes”, In proceedings of Financial Cryptography – FC’03, LNCS, volume 2742, Springer-Verlag, pages 103-121. A.Tanenbaum, D. Wetherall ”Computer Networks”2011. AES page available via http://www.nist.gov/CryptoToolkit Artz, Matthew (2003). City library adopts controversial RFID chips. Retrieved October 10, 2003, from http://www.berkeleydaily.org/article.cfm?issue=10-10-3&storyID=17547 Auto-ID Center, (2002), “860MHz-960MHz Class I Radio Frequency Identification Tag Radio Frequency & Logical communication Interface Specification Proposed Recommendation Version 1.0.0”, Technical Report MIT-AUTOID-TR-007, November. Booth-Thomas, Cathy (2003, October 20). The see-it-all chips. Time, 162 (15), 12-17 Chachra, Vinod (2003). Experiences in implementing RFID solutions in a multi-vendor environment. IFLA Conference, Berlin, August, 2003. Retrieved August 15, 2003, from http://www.ifla.org/IV/ifla69/paper/132e-chachra.pdf Cooper, R.B. and Zmud, R.W. (1990), “Information technology implementation research: a technological diffusion approach”, Management Science, Vol. 36 No.2, pp. 123-139. Denyer, D., Tranfield, D. and van Aken, J.E. (2008), “Developing design propositions through research synthesis”, Organization Studies, Vol. 29 No. 3, pp. 393-413. EPC global US, http://www.epcglobalus.org, 2006, last accessed on February 6, 2006. Diffie, W., Hellman, M.: New directions in cryptography. IEEE Transactions on Information Theory 22(6), 644– 654 (1976) EPC Radio-Frequency Identity Protocols Generation 2 Identity Tag (Class 1):Protocol for Communications at 860 MHz-960 MHz. EPC Global Hardware Action Group (HAG), EPC Identity Tag (Class 1) Generation 2,
  • 7. Innovative Systems Design and Engineering www.iiste.org ISSN 2222-1727 (Paper) ISSN 2222-2871 (Online) Vol.5, No.10, 2014 71 Last-call Working Draft Version 1.0.2, 2003-11-24. FIPS 180-2. Secure Hash Standard, http://csrc.nist.gov/publications/, 2002 Gershenfeld, N., and Krikorian, R., and Cohen, D.: ‘‘The Internet of Things,’’Scientific American, vol. 291, pp. 76–81, Oct. 2004. Gregor, S. and Jones, D. (2007), “The anatomy of a design theory”, Journal of the Association for Information Systems, Vol. 8 No. 5, pp. 312-335. H. Aljifri, and N. Tyrewalla, (2004), “Security model for Intra-Domain Mobility Management Protocol”, Int. J. of Mobile Communications, Vol. 2, No.2, pp. 157 – 170. Hecht, Jeff (2004). Casino chips to carry RFID tags. New Scientist. Retrieved September 02, 2004, from http://www.newscientist.com/news/news.jsp?id=ns99994542 Holmström, J., Ketokivi, K., Hameri, A.-P. (2009b), “Bridging Practice and Theory: A Design Science Approach”, Decision Sciences, Vol. 40 No. 1, pp. 65-87. Juels, A., Weis, S.A. (2005). Authenticating Pervasive Devices with Human Protocols. Advances in Cryptology – Crypto ’05. Lecture Notes in Computer Science. Volume 3621. Pages 293-308. W. Küchlin, “Public key encryption,” ACM SIGSAM Bulletin, August 1987, pp. 69-73. Mezrich, Ben (2002). Hacking Las Vegas. Wired Magazine, 10(09). Retrieved September 02, 2004, from http://www.wired.com/wired/archive/10.09/vegas.html RFID Journal. (2003). Gillette Confirms RFID Purchase. RFID Journal. Available at: http://www.rfidjournal.com/article/articleview/258/1/1/. (Last Accessed: March 11, 2006.) R.Fishkin and B. Jiang “Some Methods for Privacy in RFID Communication,”, Intel Research; http:// www.intelresearch.net/Publications/Seattle/062420041517_243.pdf Ronald L. Rivest, Adi Shamir, and Leonard M. Adleman. A method for obtaining digital signatures and public- key cryptosystems. Commun. ACM, 21(2):120–126, 1978. S.Weiss, “RFID Privacy Workshop:Concerns, Consensus, and Questions,” IEEE Security & Privacy,Mar.-Apr. 2004. Sample, A., Yeager, D., Powledge, P., Mamishev, A., and Smith, J.: ‘‘Design of an RFID- Based Battery-Free Programmable Sensing Platform,’’ IEEE Trans. On Instrumentation and Measurement, vol. 57, pp. 2608–2615, Nov. 2008. Simon, H.A. (1997), Administrative Behavior: A Study of Decision-Making Processes in Administrative Organizations, 4th edition, The Free Press, NewYork, NY. Van Aken, J.E. and Romme, G. (2009), “Reinventing the future: adding design science to the repertoire of organization and management studies”, Organization Management Journal, Vol. 6 No. 1, pp. 5-12. Van Dorp, K.-J. (2001), “Tracking and tracing: A structure for development and contemporary practices”, Logistics Information Management, Vol. 15 No. 1/2, pp. 24-33. Visich, J.K., Li, S., Khumawala, B.M. and Reyes, P.M. (2009), “Empirical evidence of RFID impacts on supply chain performance”, International Journal of Operations & Production Management, Vol. 29 No. 12, pp. 1290- 1315. Welbourne, E., Battle, L., Cole, G., Gould, K., Rector, K., Raymer, S.,Balazinska, M., and Borriello, G.: ‘‘Building the Internet of Things Using RFID,’’ IEEE Internet Computing, vol. 13, pp. 48–55, May 2009. Yin, R.K. (1994), Case Study Research: Design and Methods. 2nd edition, Sage Publications, CA, USA. Yin, R., 2002. Case Study Research: Design and Methods. SAGE Publications, Edition. 3.
  • 8. Business, Economics, Finance and Management Journals PAPER SUBMISSION EMAIL European Journal of Business and Management EJBM@iiste.org Research Journal of Finance and Accounting RJFA@iiste.org Journal of Economics and Sustainable Development JESD@iiste.org Information and Knowledge Management IKM@iiste.org Journal of Developing Country Studies DCS@iiste.org Industrial Engineering Letters IEL@iiste.org Physical Sciences, Mathematics and Chemistry Journals PAPER SUBMISSION EMAIL Journal of Natural Sciences Research JNSR@iiste.org Journal of Chemistry and Materials Research CMR@iiste.org Journal of Mathematical Theory and Modeling MTM@iiste.org Advances in Physics Theories and Applications APTA@iiste.org Chemical and Process Engineering Research CPER@iiste.org Engineering, Technology and Systems Journals PAPER SUBMISSION EMAIL Computer Engineering and Intelligent Systems CEIS@iiste.org Innovative Systems Design and Engineering ISDE@iiste.org Journal of Energy Technologies and Policy JETP@iiste.org Information and Knowledge Management IKM@iiste.org Journal of Control Theory and Informatics CTI@iiste.org Journal of Information Engineering and Applications JIEA@iiste.org Industrial Engineering Letters IEL@iiste.org Journal of Network and Complex Systems NCS@iiste.org Environment, Civil, Materials Sciences Journals PAPER SUBMISSION EMAIL Journal of Environment and Earth Science JEES@iiste.org Journal of Civil and Environmental Research CER@iiste.org Journal of Natural Sciences Research JNSR@iiste.org Life Science, Food and Medical Sciences PAPER SUBMISSION EMAIL Advances in Life Science and Technology ALST@iiste.org Journal of Natural Sciences Research JNSR@iiste.org Journal of Biology, Agriculture and Healthcare JBAH@iiste.org Journal of Food Science and Quality Management FSQM@iiste.org Journal of Chemistry and Materials Research CMR@iiste.org Education, and other Social Sciences PAPER SUBMISSION EMAIL Journal of Education and Practice JEP@iiste.org Journal of Law, Policy and Globalization JLPG@iiste.org Journal of New Media and Mass Communication NMMC@iiste.org Journal of Energy Technologies and Policy JETP@iiste.org Historical Research Letter HRL@iiste.org Public Policy and Administration Research PPAR@iiste.org International Affairs and Global Strategy IAGS@iiste.org Research on Humanities and Social Sciences RHSS@iiste.org Journal of Developing Country Studies DCS@iiste.org Journal of Arts and Design Studies ADS@iiste.org
  • 9. The IISTE is a pioneer in the Open-Access hosting service and academic event management. The aim of the firm is Accelerating Global Knowledge Sharing. More information about the firm can be found on the homepage: http://www.iiste.org CALL FOR JOURNAL PAPERS There are more than 30 peer-reviewed academic journals hosted under the hosting platform. Prospective authors of journals can find the submission instruction on the following page: http://www.iiste.org/journals/ All the journals articles are available online to the readers all over the world without financial, legal, or technical barriers other than those inseparable from gaining access to the internet itself. Paper version of the journals is also available upon request of readers and authors. MORE RESOURCES Book publication information: http://www.iiste.org/book/ IISTE Knowledge Sharing Partners EBSCO, Index Copernicus, Ulrich's Periodicals Directory, JournalTOCS, PKP Open Archives Harvester, Bielefeld Academic Search Engine, Elektronische Zeitschriftenbibliothek EZB, Open J-Gate, OCLC WorldCat, Universe Digtial Library , NewJour, Google Scholar
