Essential Guide-Tesys 2010

The essential guide
TeSys
for power control & protection
helping you easily
select the right product

2010

Motor control
The TeSys range provides more simplicity, compactness,
openness and ﬂexibility
... so many evolutions and new items to aid your productivity.

Accurate and reliable
control of motors

Increase your productivity, adopt our solutions which help to simplify
setting-up.

Motor starters
p Ready-to-use component combinations,
designed to work together in perfect harmony.
p Safe operation and level of coordination
guaranteed by a major manufacturer.

Power circuit control
p A wide range of components.
p Solutions for a variety of power control
applications: lighting, capacitor switching,
heating, changeover contactor pairs, resistive
loads, upstream protection.

Contents
Motor control components
New TeSys contactors .................................................................... 2 to 11
p Contactors, TeSys K, D, F, B
TeSys Motor starters p Variable composition contactors, TeSys CV
up to 65 A
TeSys protection components ........................................... 12 to 33
p Thermal-magnetic circuit-breakers
p Magnetic circuit-breakers
The new p Fuse carriers, switch-disconnector-fuses
TeSys GV3 p Thermal overload relays
circuit-breakers, p Electronic thermal overload relays
LC1D 40/50/65
contactors,
p Electronic overload relays
LRD3 p Starter-controller, TeSys T
thermal relays p Multifunction protection relays
are equipped with the p Switch disconnectors Mini Vario and Vario
new terminal block:

TeSys starters ..................................................................... 34 to 41
EverLink p Combination motor starters
p Starter-controller, TeSys U
Long lasting connection quality.
p Controller, TeSys U
Schneider Electric p Enclosed motor starters
patented technology.
TeSys installation system ................................................... 42 to 43
p For motor starter components with spring
terminals, TeSys Quickﬁt technology
TeSys T
Motor management system
Components for power
control applications ........................................ 44 to 50
p Lighting, capacitor switching, heating,
TeSys protected changeover contactor pairs

TeSys T is an advanced motor management and
protection system. It is able to guard against all motor
malfunctions: overland, current peak, excessive
consumption, etc.

TeSys U
Communication modules

With open communication across CANopen, Proﬁbus DP,
Modbus, AS-Interface, Advantys STB, DeviceNet and
Ethernet networks, TeSys U has openness in mind.

1

TeSys K Contactors
0.06…5.5 kW

Connections
■ screw clamp terminals
Rated operational current Ie max AC-3 (Ue ≤ 440 V) 6A 9A 12 A
Ie AC-1 (θ ≤ 40° C) - 20 A -
Rated operational power 220/240 V 1.5 kW 2.2 kW 3 kW
in category AC3 380/400 V…415/440 V 2.2 kW 4 kW 5.5 kW
660/690 V…500 V 3 kW 4 kW 4 kW
Contactor type (1)* a LC1-K06•• LC1-K09•• LC1-K12••
c LP1-K06•• or LP4-K06•• LP1-K09 or LP4-K09•• LP1-K12 or LP4-K12••
Reversing contactor type * a LC2-K06 LC2-K09 LC2-K12
with mechanical interlock c LP2-K06 or LP5-K06 LP2-K09 or LP5-K09 LP2-K12 or LP5-K12
b spring terminals
Add the ﬁgure 3 before the voltage code. Example: LC1-K0610•• becomes LC1-K06103••
b Faston connectors, 1 x 6.35 or 2 x 2.8
b solder pins for printed circuit boards
(1) Basic reference, to be completed by adding 01 for N/C auxiliary contact, or 10 for N/O auxiliary contact.
* Basic reference to be completed by adding the coil voltage code

Standard control circuit voltages
a supply
Contactors LC1-K (0.8…1.15 Uc) (0.85…1.1 Uc)
Volts 12 20 24 36 42 48 110 115 120 127 200/208 220/230 230 230/240
50/60 Hz J7 Z7 B7 C7 D7 E7 F7 FE7 G7 FC7 L7 M7 P7 U7
Volts 256 277 380/400 400 400/415 440 480 500 575 600 660/690
50/60 Hz W7 UE7 Q7 V7 N7 R7 T7 S7 SC7 X7 Y7
Example of complete reference: LC1-K0910P7
c supply
Contactors LP1-K (0.8…1.15 Uc)
Volts 12 20 24 36 48 60 72 100 110 125 155 174 200 220 230 240 250
Code JD ZD BD CD ED ND SD KD FD GD PD QD LD MD MPD MUD UD
Coil with integral suppression device available, add 3 to the code required. Example: JD3
Low consumption
Contactors LP4-K (0.7…1.30 Uc), coil suppression as standard
Volts 12 20 24 48 72 110 120
Code JW3 ZW3 BW3 EW3 SW3 FW3 GW3
Example of complete reference: LC1-K0910BD

Other versions: please consult your Schneider Electric agency.
2

Auxiliary contact blocks
■ instantaneous, screw clamp connections
■ for LC1, LP1-K, LP4 ■ for LC1, LP1-K
Composition 2N/O - 2N/C 1N/O 1N/C 4N/O 3N/O 1N/C 2N/C 2N/C 1N/O 3N/C - 4N/C
Reference LA1-KN20 LA1-KN02 LA1-KN11 LA1-KN40 LA1-KN31 LA1-KN22 LA1-KN13 LA1-KN04
■ electronic time delay

Relay outputs, with common point changeover contact, a or c 24…48, 2 A maximum
Control voltage 0.85…1.1 Uc
Maximum switching capacity 250 VA or 150 W
Operating temperature -10…+ 60°C
Reset time: 1.5 s during the time delay period, 0.5 s after time delay period
Type On-delay
Timing range 1…30 s
Composition 1
Voltage a or c 24…48 V a 110…240
Reference LA2-KT2E LA2-KT2U

Suppressor modules
For LC1, LP1-K
Type Varistor (a and c) Diode (c) + Zener RC (a)
Voltage 12…24 V 32…48 V 50…129 V 130…250 V 12…24 V 32…48 V 220…250 V
Reference LA4-KE1B LA4-KE1E LA4-KE1FC LA4-KE1UG LA4-KC1B LA4-KC1E LA4-KA1U

3

TeSys D Contactors
0.06…75 kW

Connections
■ screw clamp terminals or connectors
Rated operational voltage 690 V
Rated operational current Ie max AC-3 (Ue ≤ 440 V) 9A 12 A 18 A 25 A 32 A 38 A
Ie AC-1 (θ ≤ 60° C) 25 A 32 A 40 A 50 A
Rated operational power 220/240 V 2.2 kW 3 kW 4 kW 5.5 kW 7.5 kW 9 kW
in category AC3 380/400 V 4 kW 5.5 kW 7.5 kW 11 kW 15 kW 18.5 kW
415/440 V 4 kW 5.5 kW 9 kW 11 kW 15 kW 18.5 kW
500 V 5.5 kW 7.5 kW 10 kW 15 kW 18.5 kW 18.5 kW
660/690 V 5.5 kW 7.5 kW 10 kW 15 kW 18.5 kW 18.5 kW
1000 V – – – – – –
Contactor type * LC1-D09 LC1-D12 LC1-D18 LC1-D25 LC1-D32 LC1-D38
Reversing contactor type * with mechanical interlock LC2-D09 LC2-D12 LC2-D18 LC2-D25 LC2-D32 LC2-D38
■ spring terminals (1)
Add the figure 3 before the voltage code. Example: LC1-D09P7 becomes LC1-093P7
■ lug-clamps (2)
■ Faston connectors (3) 2 x 6.35 (power) and 1 x 6.35 (control) up to D12 only

(1) (2) (3)

a supply
Volts 24 42 48 110 115 220 230 240 380 400 415 440 500
Contactors LC1-D09…D150 (coils D115 and D150 with integral suppression device fitted as standard)
50/60 Hz B7 D7 E7 F7 FE7 M7 P7 U7 Q7 V7 N7 R7 S7
Contactors LC1-D80…D115
50 Hz B5 D5 E5 F5 FE5 M5 P5 U5 Q5 V5 N5 R5 S5
60 Hz B6 - E6 F6 - M6 - U6 Q6 - - R6 -
c supply
Volts 12 24 36 48 60 72 110 125 220 250 440
Contactors LC1-D09…D65A (coils with integral suppression device fitted as standard)
U 0.75…1.25 Uc JD BD CD ED ND SD FD GD MD UD RD
Contactors LC1-D80…D95
U 0.85…1.1 Uc JD BD CD ED ND SD FD GD MD UD RD
U 0.75…1.2 Uc JW BW CW EW - SW FW - MW - -
Contactors LC1-D115 and D150 (coils with integral suppression device fitted as standard)
U 0.75…1.2 Uc - BD - ED ND SD FD GD MD UD RD
Low consumption
Contactors LC1-D09…D38 (coils with integral suppression device fitted as standard)
Volts c 5 12 20 24 48 110 120 250
U 0.7…1.25 Uc AL JL ZL BL EL FL ML UL
Example of complete reference: LC1-D09P7
4

690 V 1000 V on a supply, 690 V on c supply
40 A 50 A 65 A 80 A 95 A 115 A 150 A
60 A 80 A 80 A 125 A 200 A
11 kW 15 kW 18.5 kW 22 kW 25 kW 30 kW 40 kW
18.5 kW 22 kW 30 kW 37 kW 45 kW 55 kW 75 kW
22 kW 25 kW 30 kW 45 kW 45 kW 59 kW 80 kW
22 kW 30 kW 37 kW 55 kW 55 kW 75 kW 90 kW
30 kW 33 kW 37 kW 45 kW 45 kW 80 kW 100 kW
– – – 45 kW 45 kW 75 kW 90 kW
LC1-D40A LC1-D50A LC1-D65A LC1-D80 LC1-D95 LC1-D115 LC1-D150
LC2-D40A LC2-D50A LC2-D65A LC2-D80 LC2-D95 LC2-D115 LC2-D150

Mounting accessories for 3-pole reversing contactors

2 identical contactors with screw clamp terminals or connectors, horizontally mounted
Mechanical interlock Set of connections Mechanical interlock
■ with an electrical interlocking kit for the contactors
LC1-D09…D38 LAD-9R1V included
■ with integral electrical interlocking
LC1-D80 and D95 (a) LA9-D8069 LA9-D4002
LC1-D80 and D95 (c) LA9-D8069 LA9-D8002
LC1-D115 and D150 LA9-D11569 LA9-D11502
■ without electrical interlocking
LC1-D09…D38 LA9-9R1 included
LC1-D40A…D65A LAD-9R3 included
LC1-D80 and D95 (a) LA9-D8069 LA9-D50978
LC1-D80 and D95 (c) LA9-D8069 LA9-D80978

Mechanical latch blocks

Clip-on front mounting, manual or electrical unlatching control
For use on contactor Reference Standard control circuit voltages
LC1-D09…D65A a or c, LC1-DT20…DT80 a or c LAD-6K10• BEFMQ
LC1-D80…D150 3P a, LC1-D80 and D115 3P a, LC1-D115 4P c LA6-DK20• BEFMQ

5

TeSys D Contactors
Auxiliary contacts

Contact type instantaneous, connection by screw terminals

Block mounting Front mounting Side mounting
References Contact 1 N/O LADN10 –
1 N/C LADN01 –
1 N/O + 1 N/C LADN11 LAD8N11
2 N/O LADN20 LAD8N20
2 N/C LADN02 LAD8N02
2 N/O + 2 N/C LADN22 –
1 N/O + 3 N/C LADN13 –
3 N/O + 1 N/C LADN31 –
4 N/O LADN40 –
4 N/C LADN04 –

Contact type Time delay, connection by screw terminals

Block mounting Front mounting
Temporisation 0.1…3 s 0.1…30 s 10…180 s
References On-delay LADT0 LADT2 LADT4
Off-delay LADR0 LADR2 LADR4

Maximum number of auxiliary contacts that can be ﬁtted

Instantaneous Time delay
Type Number of poles Side mounting Front mounting Front
and size on left side on right side 1 contact 2 contacts 4 contacts mounting
AC 3P LC1D09…D38 1 – and – 1 or 1 or 1
LC1D40A…D65A 1 or 1 and – 1 or 1 or 1
LC1D80…95 (50/60 Hz) 1 1 or 2 and 1 or 1 or 1
LC1D80…95 (50 or 60 Hz) 1 1 and 2 and 1 or 1 or 1
LC1D115 and D150 1 – and – 1 or 1 or 1
4P LC1DT20…DT40 1 – and – 1 or 1 or 1
LC1DT60A…D80A 1 or 1 and – 1 or 1 or 1
LC1D115 1 1 and 1 or 1 or 1 or 1
DC 3P LC1D09…D38 – – – 1 or 1 or 1
LC1D40A…D65A 1 or 1 and – 1 or 1 or 1
LC1D80 and 95 – – 1 or 1 or 1 or 1
LC1D115 and D150 1 – and – 1 or 1 or 1
4P LC1DT20…DT40 – – – 1 or 1 or 1
LC1DT60A…D80A – – – 1 or 1 or 1
LC1D115 1 1 – and 1 or 1 or 1
DC low 3P LC1D09…D38 – – – 1 – –
consumption 4P LC1DT20…DT40 – – – 1 – –

6

TeSys D Contactors
Suppressor modules

Type of module RC circuits (Resistor-Capacitor)

Mounting Side clip-on Front clip-on Screw ﬁxing
For use with contactor D09…D38(3P) DT20…DT40(4P) D40A…D65A(3P) DT60A…DT80A(4P) D80…D150(3P) D40…D115(4P)
References Voltage 24…48 VAC LAD4RCE LAD4RC3E LA4DA2E
50…127 VAC LAD4RCG LAD4RC3G LA4DA2G
110…240 VAC LAD4RCU LAD4RC3U LA4DA2U
380…415 VAC – LAD4RC3N LA4DA2N

Type of module Varistors (peak limiting)

References Voltage 24…48 VAC LAD4VE LAD4V3E LA4DE2E
50…127 VAC LAD4VG LAD4V3G LA4DE2G
110…240 VAC LAD4VU LAD4V3U LA4DE2U
24…48 VDC – – LAD4DE3E (AC and DC)
50…127 VDC – – LAD4DE3G (AC and DC)
110…240 VDC – – LAD4DE3U (AC and DC)

Type of module Flywheel diodes

References Voltage 24…250 VDC LAD4DDL LAD4D3U LAD4DC3U

Type of module Bidirectional peak limiting diode

References Voltage 24 VAC LAD4TB LAD4T3B LA4DB2B
24 VDC LAD4TBDL LAD4T3B LA4DB2S
72 VAC LAD4TS LAD4T3S LA4DB3B
72 VDC LAD4TSDL LAD4T3S LA4DB3S
125 VDC LAD4TGDL LAD4T3G (AC and DC) –
250 VDC LAD4TUDL LAD4T3U (AC and DC) –
600 VDC LAD4TXDL LAD4T3R (AC and DC) –

7

TeSys F Contactors
90…450 kW

Rated operational current Ie max AC-3 (Ue ≤ 440 V) 185 A 225 A 265 A 330 A
Ie AC-1 (θ ≤ 40° C) 275 A 315 V 350 A 400 A
Rated operational voltage 1 000 V 1 000 V 1 000 V 1 000 V
Number of poles 3 or 4 3 or 4 3 or 4 3 or 4
Rated operational power 220/240 V 55 kW 63 kW 75 kW 100 kW
in category AC3 380/400 V 90 kW 110 kW 132 kW 160 kW
415 V 100 kW 110 kW 140 kW 180 kW
440 V 100 kW 110 kW 140 kW 200 kW
500 V 110 kW 129 kW 160 kW 200 kW
660/690 V 110 kW 129 kW 160 kW 220 kW
1000 V 100 kW 100 kW 147 kW 160 kW
Contactor type* LC1-F185 LC1-F225 LC1-F265 LC1-F330
Reversing contactor type* LC2-F185 LC2-F225 LC2-F265

a supply
Volts 24 48 110 115 120 208 220 230 240 380 400 415 440
Contactors LC1-F115…F225 (0.85…1.1 Uc)
50 Hz (coil LX1) B5 E5 F5 FE5 - - M5 P5 U5 Q5 V5 N5 -
60 Hz (coil LX1) - E6 F6 - G6 L6 M6 - U6 Q6 - - R6U7
40…400 Hz (coil LX9) - E7 F7 FE7 G7 L7 M7 P7 U7 Q7 V7 N7 R7
Contactors LC1-F265…F330U7
40…400 Hz (coil LX1) B7 E7 F7 FE7 G7 L7 M7 P7 U7 Q7 V7 N7 R7
Contactors LC1-F400…F630U7
40…400 Hz (coil LX1) - E7 F7 FE7 G7 (1) L7 M7 P7 U7 Q7 V7 N7 R7
Contactor LC1-F780U7
40…400 Hz (coil LX1) - - F7 FE7 F7 L7 M7 P7 U7 Q7 V7 N7 R7
Contactor LC1-F800U7
40…400 Hz (coil LX1) - - FE7 FE7 FE7 - P7 P7 P7 V7 V7 V7 V7Y7
c supply
Volts 24 48 110 125 220 230 250 400 440
(coil LX4-F) BD ED FD GD MD MD UD - RD
(coil LX4-F) - ED FD GD MD - UD - RD
Contactor LC1-F780 (0.85…1.1 Uc)
(coil LX4-F) - - FD GD MD - UD - RD
Contactor LC1-F800 (0.85…1.1 Uc)
(coil LX4-F) - - FW FW MW MW - QW -
Example: For a 630 A contactor with a 110 V a coil, order LC1-F630F7
(1) F7 for LC1-F630

8

400 A 500 A 630 A 780 A 800 A
500 A 700 A 1 000 A 1 600 A 1 000 A
1 000 V 1 000 V 1 000 V 1 000 V 1 000 V
2, 3 or 4 2, 3 or 4 2, 3 or 4 3 or 4 3
110 kW 147 kW 200 kW 220 kW 250 kW
200 kW 250 kW 335 kW 400 kW 450 kW
220 kW 280 kW 375 kW 425 kW 450 kW
250 kW 295 kW 400 kW 425 kW 450 kW
257 kW 355 kW 400 kW 450 kW 450 kW
280 kW 335 kW 450 kW 475 kW 475 kW
185 kW 335 kW 450 kW 450 kW 450 kW
LC1-F400 LC1-F500 LC1-F630 LC1-F780 LC1-F800
For customer assembly

Auxiliary contact blocks
■ instantaneous dust & damp protected contacts ■ time delay 1 N/O + 1 N/C
Composition Reference Composition Reference Composition Reference Composition Reference Type Range Reference
N/O N/C N/O N/C N/O N/C N/O N/C
1 - LAD-N10 1 1 LAD-N11 2 2 LAD-N22 2 - - - LA1-DX20 On-delay 0.1…3 s LAD-T0
- 1 LAD-N01 2 - LAD-N20 1 3 LAD-N13 2 2 - - LA1-DY20 0.1…30 s LAD-T2
- 2 LAD-N02 4 - LAD-N40 2 - 2 - LA1-DZ40 10…180 s LAD-T4
- 4 LAD-N04 2 - 1 1 LA1-DZ31 1…30 s LAD-S2
3 1 LAD-N31 Off-delay 0.1…3 s LAD-R0
2 2 LAD-C22 0.1…30 s LAD-R2
10…180 s LAD-R4

Mounting accessories for 3-pole reversing contactors for motor control

2 identical contactors, horizontally mounted
Mechanical interlock with an electrical interlocking kit for the contactors
Contactor type Set of connections Mechanical interlock
LC1-F115 LA9-FF976 LA9-FF970
LC1-F150 LA9-F15076 LA9-FF970
LC1-F185 LA9-FG976 LA9-FG970
LC1-F225 LA9-F22576 LA9-FG970
LC1-F265 LA9-FH976 LA9-FJ970
LC1-F330 LA9-FJ976 LA9-FJ970
LC1-F400 LA9-FJ976 LA9-FJ970
LC1-F500 LA9-FK976 LA9-FJ970
LC1-F630 or LC1-F800 LA9-FL976 LA9-FL970

9

TeSys B Contactors
400…900 kW

Rated operational current Ie max AC-3 (Ue ≤ 440 V) 750 A 1000 A 1500 A 1800 A
Ie AC-1 (θ ≤ 40° C) 800 A 1250 V 2000 A 2750 A
Rated operational voltage 1 000 V 1 000 V 1 000 V 1 000 V
Number of poles 1 to 4 1 to 4 1 to 4 1 to 4
Rated operational power 220/240 V 220 kW 280 kW 425 kW 500 kW
in category AC3 380/400 V 400 kW 500 kW 750 kW 900 kW
415 V 425 kW 530 kW 800 kW 900 kW
440 V 450 kW 560 kW 800 kW 900 kW
500 V 500 kW 600 kW 700 kW 900 kW
660/690 V 560 kW 670 kW 750 kW 900 kW
1000 V 530 kW 530 kW 670 kW 750 kW
4 instantaneous contact configurations
2 N/C + 2 N/O, 3 N/O + 1 N/C, 1 N/O + 3 N/C or 4 N/O
Contactor type* LC1-BL LC1-BM LC1-BP LC1-BR
* Basic reference to be completed by adding the coil voltage code, followed by the instantaneous contact configuration.

Standard control circuit voltages (for other voltages, please consult your Regional Sales Office)
Volts 48 110 125 127 220 230 240 380 400 415 440 500
a 50…400 Hz - F - G M P U Q V N R S
c ED FD GD - MD - - - - - RD -
Example: To order a 1500 A contactor with 127 V c coil with 3 N/O + 1 N/C, select LC1-BP33G31

Mounting accessories

Description For contactor Reference
Bar support bracket LC1-BL to BR LA9-B103
for mounting on 120 or 150 mm centres
Mechanical interlock and locking device components LC1-B EZ2-LB0601

10

TeSys Contactors, variable composition
CV1-B, CV3-B CV1-B: 80…1000 A, CV3-B: 80…500 A

Reference to compiled by the customer

Contactor type, according to required use
a supply 690 V, c supply 220 V/pole CV1-B
a supply 1000 V, c supply 440 V/pole CV3-B
Contactor rating CV1: 80 A CV3: 80 A F
CV1: 200 A CV3: 170 A G
CV1: 300 A CV3: 250 A H
CV1: 470 A CV3: 320 A J
CV1: 630 A CV3: 500 A K
CV1: 1000 A L
Number of poles (PN1 main poles for CV1 and PA3 main poles for CV3)
Normally Open main poles 1 N/O 1
2 N/O 2
3 N/O 3
4 N/O 4
5 N/O 5
Normally Closed main poles 1 N/C 1
2 N/C 2
3 N/C 3
No main poles 0 Z 0 Z
Operational current 10 A E E
20 A N N
40 A P P
80 A F F
125 A R R
170 A W W
200 A G G
250 A S S
300 A H H
320 A T T
470 A J J
500 A V V
630 A K K
1000 A L L
Control circuit voltage 48 V E
110 V F
120 V K
208 V L
220 V M
230 V P
240 V U
380 V Q
400 V V
440 V R
Operating frequency 50 Hz 5
60 Hz 6
50/60 Hz 7
c D
c + economy resistor R
Instantaneous auxiliary contacts
Normally Open 1 N/O 1
2 N/O 2
3 N/O 3
4 N/O 4
Normally Closed 1 N/C 1
2 N/C 2
3 N/C 3
4 N/C 4
Without instantaneous contact 0 0
On-delay 1 C/O J
Off-delay 1 C/O N
Example 1/ for single-phase capacitor switching: 400 V - 80 A - 1 N/O pole - Control circuit 220 V / 50 Hz, 1 N/O and 1 N/C auxiliary contacts: CV1-BF1F0ZM511.
2/ for heating circuits, d.c. supply 800 V - 150 A - 2 N/O poles - Control circuit 48 V c , 1 N/O + 1 N/O On-delay auxiliary contacts: CV3-BG2W0ZED10J

11

TeSys Thermal-magnetic circuit-breakers
GV2-ME, GV2-P 0.06…15 kW

Thermal-magnetic circuit-breakers GV2-ME and GV2-P for connection by screw clamp terminals
GV2-ME with pushbutton control, GV2-P control by rotary knob
Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 Setting range Magnetic Reference
400/415 V 500 V 690 V of thermal tripping
P Icu Ics (1) P Icu Ics (1) P Icu Ics (1) trips current
kW kA kW kA kW kA A A (d ± 20%)
- - - - - - - - - 0.1…0.16 1.5 GV2-ME01 GV2-P01
0.06 ★ ★ - - - - - - 0.16…0.25 2.4 GV2-ME02 GV2-P02
0.09 ★ ★ - - - - - - 0.25…0.40 5 GV2-ME03 GV2-P03
0.12 ★ ★ - - - 0.37 ★ ★ 0.40…0.63 8 GV2-ME04 GV2-P04
0.18 ★ ★ - - - - - - 0.40…0.63 8 GV2-ME04 GV2-P04
0.25 ★ ★ - - - 0.55 ★ ★- 0.63…1 13 GV2-ME05 GV2-P05
0.37 ★ ★ 0.37 ★ ★ - - - 1…1.6 22.5 GV2-ME06 GV2-P06
0.55 ★ ★ 0.55 ★ ★ 0.75 ★ ★ 1…1.6 22.5 GV2-ME06 GV2-P06
- - - 0.75 ★ ★ 1.1 ★ ★ 1…1.6 22.5 GV2-ME06 GV2-P06
0.75 ★ ★ 1.1 ★ ★ 1.5 3 75 1.6…2.5 33.5 GV2-ME07
0.75 ★ ★ 1.1 ★ ★ 1.5 8 100 1.6…2.5 33.5 GV2-P07
1.1 ★ ★ 1.5 ★ ★ 2.2 3 75 2.5…4 51 GV2-ME08
1.1 ★ ★ 1.5 ★ ★ 2.2 8 100 2.5…4 51 GV2-P08
1.5 ★ ★ 2.2 ★ ★ 3 3 75 2.5…4 51 GV2-ME08
1.5 ★ ★ 2.2 ★ ★ 3 3 100 2.5…4 51 GV2-P08
2.2 ★ ★ 3 50 100 4 3 75 4…6.3 78 GV2-ME10
2.2 ★ ★ 3 ★ ★ 4 6 100 4…6.3 78 GV2-P10
3 ★ ★ 4 10 100 5.5 3 75 6…10 138 GV2-ME14
3 ★ ★ 4 50 100 5.5 6 100 6…10 138 GV2-P14
4 ★ ★ 5.5 10 100 7.5 3 75 6…10 138 GV2-ME14
4 ★ ★ 5.5 50 100 7.5 6 100 6…10 138 GV2-P14
5.5 15 50 7.5 6 75 9 3 75 9…14 170 GV2-ME16
5.5 ★ ★ 7.5 42 75 9 6 100 9…14 170 GV2-P16
- - - - - - 11 3 75 9…14 170 GV2-ME16
- - - - - - 11 6 100 9…14 170 GV2-P16
7.5 15 50 9 6 75 15 3 75 13…18 223 GV2-ME20
7.5 50 50 9 10 75 15 4 100 13…18 223 GV2-P20
9 15 40 11 4 75 18.5 3 75 17…23 327 GV2-ME21
9 50 50 11 10 75 18.5 4 100 17…23 327 GV2-P21
11 15 40 15 4 75 - - - 20…25 327 GV2-ME22 (2)
11 50 50 15 10 75 - - - 20…25 327 GV2-P22
15 10 50 18.5 4 75 22 3 75 24…32 416 GV2-ME32
15 50 50 18.5 10 75 22 4 100 24…32 416 GV2-P32
H > 100 kA
(1) as % of Icu
(2) combined with a recommended contactor

Thermal-magnetic circuit-breakers GV2-ME for connection by spring terminals
Add the ﬁgure 3 to the end of the reference. Example: GV2-ME22 becomes GV2-ME223

Thermal-magnetic circuit-breakers GV2-ME for connection by ring terminals
Add the ﬁgure 6 to the end of the reference. Example: GV2-ME32 becomes GV2-ME326

Common accessories GV2 / GV3, see page 5/15
12

TeSys Magnetic circuit-breakers
GV2-L, GV2-LE 0.06 to 15 kW

Magnetic circuit-breakers GV2-LE and GV2-L for connection by screw clamp terminals
GV2-LE control by rocker lever, GV2-L control by rotary knob
Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 Magnetic Tripping Use in association Reference
400/415 V 500 V 690 V protection current with thermal
P Icu Ics (1) P Icu Ics (1) P Icu Ics (1) rating d ± 20% overload relay
kW kA kW kA kW kA A A
0.06 ★ ★ - - - - - - 0.4 5 LR2-K0302 GV2-LE03
0.09 ★ ★ - - - - - - 0.4 5 LR2-K0304 GV2-LE03
or LRD-03 GV2-L03
0.12 ★ ★ - - - 0.37 ★ ★ 0.63 8 LR2-K0304 GV2-LE04
or LRD-04 GV2-L04
0.18 ★ ★ - - - - - - 0.63 8 LR2-K0305 GV2-LE04
or LRD-04 GV2-L04
- - - - - - 0.55 ★ ★ 1 13 LR2-K0305 GV2-LE05
or LRD-05 GV2-L05
0.25 ★ ★ - - - - - - 1 13 LR2-K0306 GV2-LE05
or LRD-05 GV2-L05
- - - - - - 0.75 ★ ★ 1 13 LR2-K0306 GV2-LE05
or LRD-06 GV2-L05
0.37 ★ ★ 0.37 ★ ★ - - - 1 13 LR2-K0306 GV2-LE05
or LRD-05 GV2-L05
0.55 ★ ★ 0.55 ★ ★ 1.1 ★ ★ 1.6 22.5 LR2-K0307 GV2-LE06
or LRD-06 GV2-L06
- - - 0.75 ★ ★ - - - 1.6 22.5 LR2-K0307 GV2-LE06
or LRD-06 GV2-L06
0.75 ★ ★ 1.1 ★ ★ 1.5 3 75 2.5 33.5 LR2-K0308 GV2-LE07
0.75 ★ ★ 1.1 ★ ★ 1.5 4 100 2.5 33.5 LRD-07 GV2-L07
1.1 ★ ★ - - - - - - 2.5 33.5 LR2-K0308 GV2-LE08
or LRD-08 GV2-L08
1.5 ★ ★ 1.5 ★ ★ 3 3 75 4 51 LR2-K0310 GV2-LE08
1.5 ★ ★ 1.5 ★ ★ 3 4 100 4 51 LRD-08 GV2-L08
- - - 2.2 ★ ★ - - - 4 51 LR2-K0312 GV2-LE08
or LRD-08 GV2-L08
2.2 ★ ★ 3 50 100 4 3 75 6.3 78 LR2-K0312 GV2-LE10
2.2 ★ ★ 3 ★ ★ 4 4 100 6.3 78 LRD-10 GV2-L10
3 ★ ★ 4 10 100 5.5 3 75 10 138 LR2-K0314 GV2-LE14
3 ★ ★ 4 10 100 5.5 4 100 10 138 LRD-12 GV2-L14
4 ★ ★ 5.5 10 100 - - - 10 138 LR2-K0316 GV2-LE14
or LRD-14 GV2-L14
- - - - - - 7.5 3 75 10 138 LRD-14 GV2-LE14
- - - - - - 7.5 4 100 10 138 LRD-14 GV2-L14
- - - - - - 9 3 75 14 170 LRD-16 GV2-LE16
- - - - - - 9 4 100 14 170 LRD-16 GV2-L16
5.5 15 50 7.5 6 75 11 3 75 14 170 LR2-K0321 GV2-LE16
5.5 50 50 7.5 10 75 11 4 100 14 170 LRD-16 GV2-L16
7.5 15 50 9 6 75 15 3 75 18 223 LRD-21 GV2-LE20
7.5 50 50 9 10 75 15 4 100 18 223 LRD-21 GV2-L20
9 15 40 11 4 75 18.5 3 75 25 327 LRD-22 GV2-LE22
9 50 50 11 10 75 18.5 4 100 25 327 LRD-22 GV2-L22
11 15 40 15 4 75 - - - 25 327 LRD-22 GV2-LE22
11 50 50 15 10 75 - - - 25 327 LRD-22 GV2-L22
15 10 50 18.5 4 75 22 3 75 32 416 LRD-32 GV2-LE32
15 50 50 18.5 10 75 22 4 100 32 416 LRD-32 GV2-L32
H > 100 kA
(1) as % of Icu
Common accessories GV2 / GV3, see page 5/15
13

TeSys Circuit-breakers
GV3-P/GV3-L Thermal-magnetic 5.5…30 kW
with EverLink terminal blocks

Thermal-magnetic circuit-breakers GV3-P for connection by EverLink terminal blocks (2)
Control by rotary knob
Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 Setting range Reference
400/415 V 500 V 660/690 V of thermal
P Icu Ics (1) P Icu Ics (1) P Icu Ics (1) trips
kW kA kW kA kW kA A
5.5 100 50 7.5 12 50 11 6 50 9…13 GV3-P13
7.5 100 50 11 12 50 15 6 50 12…18 GV3-P18
11 100 50 15 12 50 18.5 6 50 17…25 GV3-P25
15 100 50 18.5 12 50 22 6 50 23…32 GV3-P32
18.5 50 50 22 10 50 30 5 60 30…40 GV3-P40
22 50 50 30 10 50 37 5 60 37…50 GV3-P50
30 50 50 37 10 50 45 5 60 48…65 GV3-P65
(1) as % of lcu
Thermal-magnetic circuit-breakers GV3-P for connection by ring terminals
Add the figure 6 to the end of the reference. Example: GV3-P13 becomes GV3-P136
Thermal-magnetic circuit-breakers GV3-P for connection by only 1 EverLink terminal block
Add the figure 1 to the end of the reference. Example: GV3P65 becomes GV3P651

Magnetic 11…30 kW
with EverLink terminal blocks
Magnetic circuit-breakers GV3-L for connection by EverLink terminal blocks (2)
Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 Associated equipment Circuit-breaker
400/415 V 500 V 690 V Thermal Short-circuit
P Icu Ics P Icu Ics P Icu Ics overload protection
kW kA kW kA kW kA relay Rating A Reference
11 100 50 15 12 50 18.5 6 50 LRD-325 25 GV3-L25
15 100 50 18.5 12 50 22 6 50 LRD-332 32 GV3-L32
18.5 50 50 22 10 50 30 5 60 LRD-340 40 GV3-L40
22 50 50 30 10 50 45 5 60 LRD-350 50 GV3-L50
30 50 50 37 10 50 45 5 60 LRD-365 65 GV3-L65

Magnetic circuit-breakers GV3-L for connection by ring terminals
Add the figure 6 to the end of the reference. Example: GV3-L25 becomes GV3-L256
Magnetic circuit-breakers GV3-L for connection by only 1 EverLink terminal block
Add the figure 1 to the end of the reference. Example: GV3L65 becomes GV3L651
(2) 4 mm BTR screw

Add-on blocks and accessories (3)
Add-on blocks (front) Fault signalling contact + instantaneous auxiliary contact
Contact type N/O (fault) + N/C N/O (fault) + N/O
References (4) GV-AED011 GV-AED101

Accessories Cover Busbars
Type IP20 for lug IP20 for lug “Wide spacing” Set of 3-pole Set of 3-pole “S” form for side
type terminals type terminals UL 508 type E 115 A busbars 115 A busbars by side mounted
for 2 for 3
when used with circuit-breakers circuit-breakers circuit-breaker/
contactor contactor
References LAD96570 LAD96575 GV3G66 GV3G264 GV3G364 GV3S
(3) Common add-on blocks and accessories GV2 / GV3, see page 5/15
(4) For spring terminal version add 3 to the end of the reference. Example: GV-AED011 becomes GV-AED0113
14

TeSys Circuit-breakers
GV2/GV3 Accessories

Accessories GV2
Combination block
For mounting on LC1-K or LP1-K LC1-D09…D38 LAD-31 and LC1-D09…D38
GV2-AF01 GV2-AF3 GV2-AF4
Sets of 3-pole busbars
63 A Pitch 45 mm 54 mm 72 mm
Number of tap-offs 2 GV2-G245 GV2-G254 GV2-G272
3 GV2-G345 GV2-G354
4 GV2-G445 GV2-G454 GV2-G472
5 GV2-G554
Protective end cover
For unused busbar outlets GV1-G10
Terminal blocks
For supply to one or more GV2-G busbar sets connection from the top can be ﬁtted with current limiter GV1-L3 (GV2-ME and GV2-P)
GV1-G09 GV1-G05
Padlockable external operator for GV2 and GV3 (150 to 290 mm)
Padlocking In “On” and “Off” position In “Off” position
Handle black red
Legend plate blue yellow
IP 54 For GV2-ME/P/L GV2-AP01 GV2-AP02
For GV2-LE GV2-AP03 –
For GV3-P/L GV3-AP01 GV3-AP02

Add-on blocks common to GV2 / GV3
Contact blocks
Contact types N/O or N/C N/O + N/C N/O + N/O (fault) + N/C (fault) + N/O C/O common
Instantaneous auxiliary contacts point
Mounting front GV-AE1 GV-AE11 GV-AE20
LH side GV-AN11 GV-AN20
Fault signalling contact + instantaneous auxiliary contact
LH side N/O (fault) GV-AD1001 GV-AD1010
N/C (fault) GV-AD0101 GV-AD0110
Short-circuit signalling contact
LH side GV-AM11
Electric trips
Undervoltage or shunt trips (1)
Side mounting (1 block on RH side of circuit-breaker) 50 Hz 60 Hz
Voltage 24 V GV-A•025 GV-A•026
48 V GV-A•055 GV-A•056
100 V GV-A•107
100…110 V GV-A•107
110…115 V GV-A•115 GV-A•116
120…127 V GV-A•125
127 V GV-A•115
200 V GV-A•207
200…220 V GV-A•207
220…240 V GV-A•225 GV-A•226
380…400 V GV-A•385 GV-A•386
415…440 V GV-A•415
415 V GV-A•416
Padlocking device
For use with up to 4 padlocks (padlocks not supplied) Ø 6 mm shank max GV2-V03
(1) Undervoltage trips: replace the • with U, shunt trips: replace the • with S

15

GV7-R 0.75…90 kW

Thermal-magnetic circuit-breakers GV7-R for connection by screw clamp terminals
Control by rocker lever
400/415 V 500 V 660/690 V of thermal
kW kA kW kA kW kA A
7.5 25 100 9 18 100 11 8 100 12…20 GV7-RE20
9 25 100 11 18 100 15 8 100
7.5 70 100 9 50 100 11 10 100 12…20 GV7-RS20
9 70 100 11 50 100 15 10 100
9 25 100 11 18 100 15 8 100 15…25 GV7-RE25
11 25 100 15 18 100 18.5 8 100
9 70 100 11 50 100 15 10 100 15…25 GV7-RS25
11 70 50 15 50 100 18.5 10 100
18.5 25 100 18.5 18 100 22 8 100 25…40 GV7-RE40
22 18 100
18.5 70 100 18.5 50 100 22 10 100 25…40 GV7-RS40
22 25 100 30 18 100 30 8 100 30…50 GV7-RE50
37 25 100 45 18 100 55 8 100 48…80 GV7-RE80
55 18 100
37 70 100 45 50 100 55 10 100 48…80 GV7-RS80
55 50 100
45 25 100 - 18 100 75 8 100 60…100 GV7-RE100
45 70 100 - 50 100 75 10 100 60…100 GV7-RS100
55 35 100 75 30 100 90 8 100 90…150 GV7-RE150
75 70 100 90 30 100 110 8 100
55 70 100 75 50 100 90 10 100 90…150 GV7-RS150
75 70 100 90 50 100 110 10 100
90 35 100 110 30 100 160 8 100 132…220 GV7-RE220
110 35 100 132 30 100 200 8 100
160 30 100
90 70 100 110 50 100 160 10 100 132…220 GV7-RS220
(1) as % of Icu

16

Add-on blocks
Contact blocks
Auxiliary contacts
Contact type C/O
GV7-AE11
Thermal or magnetic fault discrimination
z 24…48 V or c 24…72 V z 110…240 V
GV7-AD111 GV7-AD112
Electric trips
Voltage 50/60 Hz 48 V 110… 130 V 200… 240 V 380…440 V
50 Hz 525 V
Undervoltage trip (1) GV7-AU055 GV7-AU107 GV7-AU207 GV7-AU387 GV7-AU525
Shunt trip (1) GV7-AS055 GV7-AS107 GV7-AS207 GV7-AS387 GV7-AS525
(1) For mounting of a GV7-AD or a GV7-AU or AS

Accessories

Terminal shields IP 405
Supplied with sealing accessory GV7-AC01
Phase barriers
Safety accessories GV7-AC04
used when ﬁtting of shields is impossible
Insulating screens
Ensure insulation between GV7-AC05
the connections and the backplate
Kit for combination with contactor
Allowing link between the circuit-breaker and the contactor LC1-F115 to F185 LC1-F225 and F26 LC1-D115 and D150
GV7-AC06 GV7-AC07 GV7-AC08
Rotary handles
Handle black red
Legend plate black yellow
■ direct IP 40 GV7-AP03 GV7-AP04
■ extended IP 55 GV7-AP01 GV7-AP02
Conversion accessory
for mounting on enclosure door IP 43 GV7-AP05
Locking device
For circuit-breaker not ﬁtted with a rotary handle GV7-V01

17

GV3-ME 37 kW

Thermal-magnetic circuit-breakers GV3-ME for connection by screw clamp terminals
Pushbutton control
400/415 V 500 V 660/690 V of thermal
kW kA kW kA kW kA A
37 15 50 45 4 100 55 2 100 56…80 GV3-ME80
(1) as % of Icu

Add-on blocks for GV3-ME
Contact blocks
Instantaneous auxiliary contacts (1 per breaker)
Normal early break type contacts N/C + N/O N/O + N/O N/C + N/O + N/O N/O + N/O + N/O N/O + N/O (1) N/C + N/O (1)
GV3-A01 GV3-A02 GV3-A03 GV3-A05 GV3-A06 GV3-A07
Fault signalling contact
Normal early break type contacts N/C N/O
GV3-A08 GV3-A09
Electric trips
Voltage 50 Hz 110, 120, 127 V 220, 240 V 380, 415 V
60 Hz 120, 127 V 277 V 440, 480 V
Undervoltage trip GV3-B11 GV3-B22 GV3-B38
Shunt trip GV3-D11 GV3-D22 GV3-D38
Padlocking device
Start button (for bare device) GV1-V02
(1) + 2 volt free terminals

18

TeSys Magnetic circuit-breakers
GK3-EF 37 kW

Magnetic circuit-breakers GK3-EF for connection by screw clamp terminals
Standard power ratings of 3-phase motors 50/60 Hz in category AC-3 Associated equipment Circuit-breaker
400/415 V 500 V 690 V Thermal Short-circuit
P Icu Ics P Icu Ics P Icu Ics overload relay protection
kW kA kW kA kW kA min. size Rating A Reference
37 35 25 45 15 30 - - - LRD-3363 80 GK3-EF80

Add-on blocks for GK3
Contact blocks
Contact type N/O N/O + N/O N/C + N/O N/C N/O
On-Off signalling contacts GK2-AX10 GK2-AX20 GK2-AX50
and “Control circuit test” function (1 or 2 blocks per device)
mounted on RH side of GK3-EF
Instantaneous fault signalling contacts GK2-AX12 GK2-AX22 GK2-AX52
(1 or 2 blocks per device) mounted on LH side of GK3-EF
Fault signalling contact (1) GV3-A08 GV3-A09
(1) 1 trip OR 1 fault signalling contact to be ﬁtted inside the circuit-breaker.

Accessories for GK3
Padlocking device
for padlocking the operator with up to 3 padlocks (padlocks not supplied) GK3-AV01
External operator
for mounting on enclosure door. GK3-AP03
Red Ø 40 pushbutton on yellow plate, can be locked in
position O by means of up to 3 padlocks with door locked in
position I, and door locked in position O when padlocked

19

TeSys DF Fuse carriers
0…125 A

Type Fuse carriers without “blown fuse” indicator

Rated insulation voltage (Ui) 500 V 690 V
Fuse size 8.5 x 31.5 mm 10 x 38 mm 14 x 51 mm 22 x 58 mm
Conventional thermal current (Ith) 25 A 32 A 50 A 125 A
References Number of poles 1P DF81 DF101 DF141 DF221
N DF10N DF10N DF14N DF22N
1P+N DF81N DF101N DF141N DF221N
2P DF82 DF102 DF142 DF222
3P DF83 DF103 DF143C DF223C
3P+N DF83N DF103N DF143NC DF223NC

Type Fuse carriers with “blown fuse” indicator

References Number of poles 1P DF81V DF101V DF141V DF221V
1P + N DF81NV DF10NV DF14NV DF22NV
2P DF82V DF102V DF142V DF222V
3P DF83V DF103V DF143VC DF223VC
3P + N DF83NV DF103NV DF143NVC DF223NVC

Accessories

Type Auxiliary early break and blown fuse signalling contacts
Fuse carrier to be equipped DF14 DF22
Fuse size 14 x 51 mm 22 x 58 mm
Number of poles 3P or 3P + N 3P or 3P + N
Number of contacts 1 2 1 2
References DF14AM1 DF14AM2 DF22AM1 DF22AM2

Type Fuse carrier assembly kits
Fuse carrier to be assembled DF8 DF10 DF14 DF22
Kit contents 1 pin, 2 clips 1 pin, 3 clips
References DF10AP DF14AP DF22AP

20

TeSys Fuse carriers
LS1, GK1 0…125 A

Type 3-pole fuse carriers

Rated insulation voltage (Ui) 690 V
Rating 25 A 32 A 50 A 125 A
Fuse size 10 x 38 10 x 38 14 x 51 22 x 58
Connection Spring terminals Screw clamp terminals or connectors
Single-phase protection device Without Without Without With Without With
Number of early break contacts – – 1 1
Reference LS1D323 LS1D32 GK1K GK1EV GK1FK GK1FV
Number of early break contacts 2 2
Reference GK1ES GK1EW GK1FS GK1FW

Type 4-pole fuse carriers

Rating 32 A 50 A 125 A
Fuse size 10 x 38 14 x 51 22 x 58
Connection Screw clamp terminals or connectors
Single-phase protection device Without Without With Without With
Number of early break contacts – 1 1
Reference LS1D32 + LA8-D324 GK1EM GK1EY GK1FM GK1FY
Number of early break contacts 2 2
Reference GK1ET GK1EX GK1FT GK1FX

21

TeSys Fuse carriers
LS1, GK1 Accessories

Type Early break auxiliary contact blocks

Fuse carrier rating 32 A 25 A
For use with fuse carrier LS1D32 LS1D323
Contact type N/O + N/C N/O + N/O N/O + N/C N/O + N/O
References GVAE11 GVAE20 GVAE113 GVAE203

Type Direct operator handle

Fuse carrier rating 125 A 32, 50, 125 A
For mounting on RH side LH side Front
References GK1AP07 GK1AP08 Fitted as standard

Type External operator handle

Fuse carrier rating 32 A 50 A 125 A
For mounting on RH side LH side RH side LH side RH side LH side
References LS1-D32005 LS1-D32006 GK1-AP05 GK1-AP06 GK1-AP07 GK1-AP08

Type Padlocking devices

Fuse carrier rating 32 A 50 A
Number of poles 3 or 4 3 4
Single-phase protection device Without Without With Without With
References Integrated GK1-AV07 GK1-AV08 GK1-AV08 GK1-AV09

Type Tubular link

Fuse carrier rating 32 A 50 A 125 A
References DK1-CB92 DK1-EB92 DK1-FA9

22

TeSys GS Switch-disconnector-fuses
Handles

Type IP65 handles for external front-mounted operators

Switch rating 32…63 A 100…400 A 630…800 A 1250 A
References Black/grey GS2AH510 (1) GS2AH530 (1) GS2AH550 GS2AH570
Red/yellow GS2AH520 (1) GS2AH540 (1) GS2AH560 GS2AH580
(1) For external front operators with Test facility, insert the letter T in the reference. Example: GS2AH510 becomes GS2AHT510

Type IP65 handles for external RH side-mounted operators (2)

Switch rating 32…63 A 100…400 A 630…1250 A
References Black/grey GS2AH210 GS2AH230 GS2AH250
Red/yellow GS2AH220 GS2AH240 GS2AH260
(2) For external LH side-mounted operators, replace the number 2 in the reference by 3. Example: GS2AH210 becomes GS2AH310

Type Shafts for external operators

Switch rating 32 A 50…400 A 630…1250 A
References Length of shaft 200 mm GS2AE82 GS2AE22 GS2AE52
320 mm GS2AE8 GS2AE2 GS2AE5
400 mm GS2AE81 GS2AE21 GS2AE51

Type Handles for direct operators

Switch rating 32 A 50 and 63 A 100…400 A 630 and 800 A 1250 A
Type of operator Front RH side RH side Front Front
References GS1AH103 GS1AH01 GS1AH02 GS2AH104 GS2AH105

23

TeSys GS Switch-disconnector-fuses
32…1250 A

Type Switch-disconnector-fuse switch bodies for use with NF C or DIN fuses
Handle to be ordered separately (see previous page)
Fuse size 10 x 38 14 x 51 Size 00C (1) 22 x 58
External front-mounted and 3-pole GS1DD3 GS2F3 GS2G3 GS2J3
RH side-mounted operator 4-pole GS1DD4 (2) GS2F4 GS2G4 GS2J4
External LH side-mounted 3-pole GS1DD3 GS2FG3 GS2GG3 GS2JG3
operator 4-pole GS1DD4 (2) GS2FG4 GS2GG4 GS2JG4
Direct RH side-mounted 3-pole GS1DD3 (3) GS1FD3 GS1GD3 GS1JD3
operator 4-pole GS1DD4 (2) (3) GS1FD4 GS1GD4 GS1JD4
(1) Compact fuse for German market
(2) 3-pole + switched neutral
(3) Direct front-mounted operator

Type Switch-disconnector-fuse switch bodies for use with BS fuses
Handle to be ordered separately (see previous page)
Fuse size A1 A1 A2-A3 A4 (Ø ≤ 31 mm)
External front-mounted and 3-pole GS1DDB3 GS2DB3 GS2GB3 GS2JB3
RH side-mounted operator 4-pole GS1DDB4 (2) GS2DB4 GS2GB4 GS2JB4

Accessories

Type Auxiliary contacts
Early break and/or O, I and Test signalling O and I signalling
Switch rating 32…1250 A 50…1250 A
Number of contacts 1 NO 1 NC 1 NO + NC 2 NO + 2 NC
Operator external front-mounted or RH side-mounted GS1AM110 GS1AM101 GS1AN11 GS1AN22
external LH side-mounted GS1AM110 GS1AM101 GS1AN11G GS1AN22G
direct RH side-mounted – – GS1AN11 GS1AN22
direct front-mounted – – – –

Type Auxiliary “blown fuse” signalling contacts for use with NF C and DIN fuses
Number of contacts 1 NO/NC
Switch rating 50 A 100 and 125 A 160 A 250 and 400 A
Fuse size 14 x 51 22 x 58 Size 0 Size 1 and Size 2
References 3-pole GS1AF1 GS1AF23 GS1AF33 GS1AF43
4-pole GS1AF1 GS1AF24 GS1AF34 GS1AF44

24

125 A 160 A 250 A 400 A 630 A 1250 A
22 x 58 Size 00 Size 00 Size 0 Size 1 Size 2 Size 3 Size 4
GS2K3 GS2KK3 GS2LL3 GS2L3 GS2N3 GS2QQ3 GS2S3 GS2V3
GS2K4 GS2KK4 GS2LL4 GS2L4 GS2N4 GS2QQ4 GS2S4 GS2V4
GS2KG3 GS2KKG3 GS2LLG3 GS2LG3 GS2NG3 GS2QQG3 GS2SG3 GS2VG3
GS2KG4 GS2KKG4 GS2LLG4 GS2LG4 GS2NG4 GS2QQG4 GS2SG4 GS2VG4
GS1KD3 GS1KKD3 GS1LLD3 GS1LD3 GS1ND3 GS1QQD3 GS2S3 (3) GS2V3 (3)
GS1KD4 GS1KKD4 GS1LLD4 GS1LD4 GS1ND4 GS1QQD4 GS2S4 (3) GS2V4 (3)

160 A 200 A 250 A 315 A 400 A 630 A 800 A 1250 A
A4 B1-B2 B1-B2 B1…B3 B1…B3 B1…B4 C1-C2 C1…C3 D1
GS2LLB3 GS2LB3 GS2MMB3 GS2NB3 GS2PPB3 GS2QQB3 GS2SB3 GS2TB3 GS2VB3
GS2LLB4 GS2LB4 GS2MMB4 GS2NB4 GS2PPB4 GS2QQB4 GS2SB4 GS2TB4 GS2VB4

O, I and Test signalling Early break and O and I signalling
50…400 A 32 A 50…400 A
1 NO + NC 2 NO + 2 NC 1 NO/NC 2 NO/NC 1 NO/NC 2 NO/NC
GS1ANT11 GS1ANT22 – – – –
– – – – – –
– – – – GS1AM1 GS1AM2
– – GS1AM111 GS1AM211 – –

2nd NO/NC
630 A 1250 A 50…1250 A
Size 3 Size 4 –
GS2AF63 GS2AF73 GS1AF
GS2AF64 GS2AF74 GS1AF

25

TeSys K Thermal overload relays
0.11…11.5 A

Thermal overload relays, TeSys K
adjustable from 0.11 to 12 A
Connection by screw clamp terminals, direct mounting on contactors LC1-K, manual or automatic reset
Relay setting range Fuses to be used with selected relay Reference
Class 10A aM gG BS88
0.11…0.16 A 0.25 A 0.5 A - LR2-K0301
0.16…0.23 A 0.25 A 0.5 A - LR2-K0302
0.23…0.36 A 0.5 A 1A - LR2-K0303
0.36…0.54 A 1A 1.6 A - LR2-K0304
0.54…0.8 A 1A 2A - LR2-K0305
0.8…1.2 A 2A 4A 6A LR2-K0306
1.2…1.8 A 2A 6A 6A LR2-K0307
1.8…2.6 A 2A 6A 10 A LR2-K0308
2.6…3.7 A 4A 10 A 16 A LR2-K0310
3.7…5.5 A 6A 16 A 16 A LR2-K0312
5.5…8 A 8A 20 A 20 A LR2-K0314
8…11.5 A 10 A 25 A 20 A LR2-K0316
Thermal overload relays for use on class 10A unbalanced loads: for above references LR2-K0305 to LR2-K0316 only, replace the prefix LR2 with LR7.
Example: LR7-K0310.

Accessories
Prewiring kit
Allowing direct connection of the N/C contact For use on
of relay LRD-01…35 or LR3-D01… D35 to the contactor LC1-D09…D18 LAD-7C1
LC1-D25…D38 LAD-7C2
Terminal blocks (1)
For clip-on mounting on 35 mm mounting rail (AM1-DP200) LRD-01…35 and LR3-D01…D35 LAD-7B10
or screw fixing LRD-3•••, LR3-D3•••, LRD-35•• LA7-D3064 (2)
For independent mounting of the relay LR2-K•••• LA7-K0064
EverLink Terminal blocks
Separate terminal block LRD-313… LRD-365 LAD-9R3
Terminal block adapter
For mounting a relay beneath an LC1-D115 or D150 contactor LRD-3•••, LR3-D3•••, LRD-35•• LA7-D3058
Stop or electrical reset
Remote (3) LRD-01…35 and LR3-D01…D35 LAD-703• (4)
Tripping or electrical reset device
Remote (3) All relays except LRD-01…35 and LR3-D01…D35 LA7-D03• (4)
(1) Terminal blocks are supplied with terminals protected against direct finger contact and screws in the open “ready-to-tighten” position.
(2) To order a terminal block for connection by lug-clamps, the reference becomes LA7-D30646.
(3) The time for which the coil of remote tripping or electrical resetting device LA7-D03 or LAD-703 can remain energised depends on its rest time: 1 s pulse duration with 9 s rest
time; maximum pulse duration of 20 s with a rest time of 300 s. Minimum pulse time 200 ms.
(4) Reference to be completed by adding the code indicating the control circuit voltage.

a supply
Volts 12 24 48 96 110 220/230 380/400 415/440
50/60 Hz. Consumption, inrush and sealed < 100 VA - B E - F M Q N
c supply
Consumption, inrush and sealed < 100 W J B E DD F M - -

26

TeSys D Thermal overload relays
0.1…140 A

Thermal overload relays, TeSys D
adjustable from 0.1 to 140 A
Compensated relays with manual or automatic reset, with relay trip indicator, for a.c. or d.c.
Relay setting range Fuses to be used with selected relay With contactor Reference
Connection by screw clamp terminals or connectors aM gG BS88
Class 10A 0.10…0.16 A 0.25 A 2A - LC1-D09…D38 LRD 01 (1)
0.16…0.25 A 0.5 A 2A - LC1-D09…D38 LRD 02 (1)
0.25…0.40 A 1A 2A - LC1-D09…D38 LRD 03 (1)
0.40…0.63 A 1A 1.6 A - LC1-D09…D38 LRD 04 (1)
0.63…1 A 2A 4A - LC1-D09…D38 LRD 05 (1)
1…1.7 A 2A 4A 6A LC1-D09…D38 LRD 06 (1)
1.6…2.5 A 4A 6A 10 A LC1-D09…D38 LRD 07 (1)
2.5…4 A 6A 10 A 16 A LC1-D09…D38 LRD 08 (1)
4…6 A 8A 16 A 16 A LC1-D09…D38 LRD 10 (1)
5.5…8 A 12 A 20 A 20 A LC1-D09…D38 LRD 12 (1)
7…10 A 12 A 20 A 20 A LC1-D09…D38 LRD 14 (1)
9…13 A 16 A 25 A 25 A LC1-D12…D38 LRD 16 (1)
12…18 A 20 A 35 A 32 A LC1-D18…D38 LRD 21 (1)
16…24 A 25 A 50 A 50 A LC1-D25…D38 LRD 22 (1)
23…32 A 40 A 63 A 63 A LC1-D25…D38 LRD 32 (1)
30…38 A 50 A 80 A 80 A LC1-D32 and D38 LRD 35 (1)
55…70 A 80 A 125 A 125 A D50…D95 LRD 3361 (1)
63…80 A 80 A 125 A 125 A D65…D95 LRD 3363 (1)
80…104 A 100 A 160 A 160 A D80 and D95 LRD 3365 (1)
80…104 A 125 A 200 A 160 A D115 and D150 LRD 4365 (1)
95…120 A 125 A 200 A 200 A D115 and D150 LRD 4367 (1)
110…140 A 160 A 250 A 200 A D150 LRD 4369 (1)
80…104 A 100 A 160 A 160 A Independent mtg. LRD 33656 (1)
Class 20 6A 10 A 16 A LC1-D09…D32 LRD 1508 (1)
4…6 A 8A 16 A 16 A LC1-D09…D32 LRD 1510 (1)
5.5…8 A 12 A 20 A 20 A LC1-D09…D32 LRD 1512 (1)
7…10 A 16 A 20 A 25 A LC1-D09…D32 LRD 1514 (1)
9…13 A 16 A 25 A 25 A LC1-D12…D32 LRD 1516 (1)
12…18 A 25 A 35 A 40 A LC1-D18…D32 LRD 1521 (1)
17…25 A 32 A 50 A 50 A LC1-D25 and D32 LRD 1522 (1)
23…28 A 40 A 63 A 63 A LC1-D25 and D32 LRD 1530 (1)
25…32 A 40 A 63 A 63 A LC1-D25 and D32 LRD 1532 (1)
55…70 A 100 A 125 A 125 A D65…D95 LR2 D3561 (1)
63…80 A 100 A 160 A 125 A D80 and D95 LR2 D3563 (1)
Connection by EverLink terminal blocks, with BTR screws
Class 10A 9…13 A 16 A 25 A 25 A LC1-D40A…D65A LRD 313 (2)
12…18 A 20 A 32 A 35 A LC1-D40A…D65A LRD 318 (2)
17…25 A 25 A 50 A 50 A LC1-D40A…D65A LRD 325 (2)
23…32 A 40 A 63 A 63 A LC1-D40A…D65A LRD 332 (2)
30…40 A 40 A 80 A 80 A LC1-D40A…D65A LRD 340 (2)
37…50 A 63 A 100 A 100 A LC1-D40A…D65A LRD 350 (2)
48…65 A 63 A 100 A 100 A LC1-D40A…D65A LRD 365 (2)
Class 20 9…13 A 20 A 32 A 35 A LC1-D40A…D65A LRD 313L (2)
12…18 A 25 A 40 A 40 A LC1-D40A…D65A LRD 318L (2)
17…25 A 32 A 50 A 50 A LC1-D40A…D65A LRD 325L (2)
23…32 A 40 A 63 A 63 A LC1-D40A…D65A LRD 332L (2)
30…40 A 50 A 80 A 80 A LC1-D40A…D65A LRD 340L (2)
37…50 A 63 A 100 A 100 A LC1-D40A…D65A LRD 350L (2)
48…65 A 80 A 125 A 125 A LC1-D40A…D65A LRD 365L (2)
Class 10A with connection by lug-clamps: Thermal overload relays for use with unbalanced loads Class 10A
Select overload relay with screw clamp terminals or connectors from the table above and add with connection by screw clamp terminals and lug-clamp terminals:
one of the following suffixes: In the reference selected above, change LRD (except LRD 4ppp) to LR3D
b ﬁgure 6 for relays LRD 01 to LRD 35 and LRD 313 to LRD 365. Example: LRD 01 becomes LR3D 01
b A66 for relays LRD 3361 to LRD 3365. Example with EverLink terminals: LRD 340 becomes LR3D 340
Relays LRD 43 are suitable as standard, for use with lug-clamps. Example with lug-clamp terminals: LRD 3406 becomes LR3D 3406
(1) For independent mounting on a DIN rail, order an EverLink LAD7B106 terminal block. (2) For independent mtg. on a DIN rail, order an EverLink LAD96560 terminal block.

27

TeSys Electronic thermal overload relays
LR9 60…630 A

For use with contactor LC1-D LC1-F
Motor current 60…150 A 30…630 A
Basic reference, to be completed LR9-D LR9-F

Relay setting range Fuse to be used with selected relay For mounting Compensated and differential With alarm
beneath contactor LC1-
aM gG Class 10 Class 20 Class 10 or 20
60…100 100 160 D115 and D150 LR9-D5367 LR9-D5567
90…150 160 250 D115 and D150 LR9-D5369 LR9-F5569
30…50 50 80 F115…F185 LR9-F5357 LR9-F5557 LR9-F57
48…80 80 125 F115…F185 LR9-F5363 LR9-F5563 LR9-F63
60…100 100 200 F115…F185 LR9-F5367 LR9-F5567 LR9-F67
90…150 160 250 F115…F185 LR9-F5369 LR9-F5569 LR9-F69
132…220 250 315 F185…F400 LR9-F5371 LR9-F5571 LR9-F71
200…330 400 500 F225…F500 LR9-F7375 LR9-F7575 LR9-F75
300…500 500 800 F225…F500 LR9-F7379 LR9-F7579 LR9-F79
380…630 630 800 F400…F630 and F800 LR9-F7381 LR9-F7581 LR9-F81

Accessories
Remote control
Function Reset Stop and/or Reset
Electrical reset (1) LA7-D03• (2)
Reset by ﬂexible cable (length 0.5 m) LA7-D305
Adapter for door interlock mechanism LA7-D1020
Operating head for pushbutton
Spring return ZA2-BL639 ZA2-BL432
Rod with snap-off end
Adjustable from 17 to 120 mm ZA2-BZ13
Insulated terminal blocks
For relays LR9-F5•57, F5•63, F5•67, F5•69, F57, F63, F67 and F69 Set of 2 blocks
LA9-F103
(1) The time for which the coil of remote electrical reset device LA7-D03 can remain energised depends on its rest time: 1 s pulse with 9 s rest time; 5 s pulse duration with 30 s
rest time; 10 s pulse duration with 90 s rest time: maximum pulse duration 20 s with rest time of 300 s. Minimum pulse time: 200 ms.
(2) Reference to be completed by adding the coil voltage code, see page 5/27

28

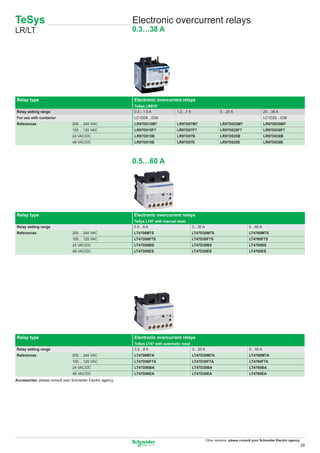

TeSys Electronic overcurrent relays
LR/LT 0.3…38 A

Relay type Electronic overcurrent relays
TeSys LR97D
Relay setting range 0.3…1.5 A 1.2…7 A 5…25 A 20…38 A
For use with contactor LC1D09…D38 LC1D25…D38
References 200… 240 VAC LR97D015M7 LR97D07M7 LR97D025M7 LR97D038M7
100… 120 VAC LR97D015F7 LR97D07F7 LR97D025F7 LR97D038F7
24 VAC/DC LR97D015B LR97D07B LR97D025B LR97D038B
48 VAC/DC LR97D015E LR97D07E LR97D025E LR97D038E

0.5…60 A

TeSys LT47 with manual reset
Relay setting range 0.5…6 A 3…30 A 5…60 A
References 200… 240 VAC LT4706M7S LT47D30M7S LT4760M7S
100… 120 VAC LT47D06F7S LT47D30F7S LT4760F7S
24 VAC/DC LT47D06BS LT47D30BS LT4760BS
48 VAC/DC LT47D06ES LT47D30ES LT4760ES

TeSys LT47 with automatic reset
Relay setting range 0.5…6 A 3…30 A 5…60 A
References 200… 240 VAC LT4706M7A LT47D30M7A LT4760M7A
100… 120 VAC LT47D06F7A LT47D30F7A LT4760F7A
24 VAC/DC LT47D06BA LT47D30BA LT4760BA
48 VAC/DC LT47D06EA LT47D30EA LT4760EA
Accessories: please consult your Schneider Electric agency.

29

TeSys T Motor management system
Controllers

Type of fieldbus Ethernet Modbus Profibus DP

Supply voltage 24 VDC 100…240 VAC 24 VDC 100…240 VAC 24 VDC 100…240 VAC
References Current range 0.4…8 A LTMR08EBD LTMR08EFM LTMR08MBD LTMR08MFM LTMR08PBD LTMR08PFM
1.35…27 A LTMR27EBD LTMR27EFM LTMR27MBD LTMR27MFM LTMR27PBD LTMR27PFM
5…100 A LTMR100EBD LTMR100EFM LTMR100MBD LTMR100MFM LTMR100PBD LTMR100PFM

Type of fieldbus CANopen DeviceNet

Supply voltage 24 VDC 100…240 VAC 24 VDC 100…240 VAC
References Current range 0.4…8 A LTMR08CBD LTMR08CFM LTMR08DBD LTMR08DFM
1.35…27 A LTMR27CBD LTMR27CFM LTMR27DBD LTMR27DFM
5…100 A LTMR100CBD LTMR100CFM LTMR100DBD LTMR100DFM

Extension module

Type of module Extension Ethernet external port
4 additional inputs + voltage measuring Modbus RTU / Modbus TCP/IP
Inputs voltage 24 VDC 100…240 VAC 24 VDC
References LTMEV40BD LTMEV40FM TCSEQM113M13M

Control unit

Type of terminal Compact display

Supply voltage 24 VDC
Reference LTMCU

30

TeSys T Motor management system
Current transformers

Type of transformer External

Operational current primary 100 A 200 A 400 A 800 A
secondary 1A
References LT6CT1001 LT6CT2001 LT6CT4001 LT6CT8001

Earth fault toroids
Type of toroid Closed Split

Maximum current 65 A 85 A 160 A 250 A 400 A 630 A 85 A 250 A
Internal diameter Ø 30 Ø 50 Ø 80 Ø 120 Ø 200 Ø 300 Ø 46 Ø 110
References TA30 PA50 IA80 MA120 SA200 GA300 POA GOA

PTC thermistor probe
Type of probe Triple

Operating temperature 90°C 110°C 120°C 130°C 140°C 150°C 160°C 170°C
References DA1TT090 DA1TT110 DA1TT120 DA1TT130 DA1TT140 DA1TT150 DA1TT160 DA1TT170

Accessories (1)

Type of accessory Connecting cable
Controller / Extension module
Length of cable 0.04 m 0.3 m 1m
References LTMCC004 LU9R03 LU9R10

Type of accessory Connecting cable Connection kit
Controller/ Display PC serial port
Length of cable 1m 3m 5m –
References VW3A1104R10 VW3A1104R30 VW3A1104R50 VW3A8106
(1) For other connection accessories, see www.schneider-electric.com

31

TeSys Electronic protection relays for use
LT3, LT6 with PTC thermistor probes
0…800 A

Relay type PTC thermistor probes

For use with contactor LC1-D or LC1-F LC1-D or LC1-F
Motor current No limit 1…5 A
Basic reference, to be completed LT3-S LT6-P0M0•5FM

Protection unit

Type with automatic reset with thermistor short-circuit detection
without fault memory
Connection Voltage Output contact Reference
by cage connectors a 50/60 Hz 115 V N/C LT3-SE00F
230 V N/C LT3-SE00M
c 24 V N/C LT3-SE00F
On front panel: fault and voltage signalling indicator
a 50/60 Hz 115/230 V N/C + N/O LT3-SA00M
c 24/48 V N/C + N/O LT3-SA00ED
a 50/60 Hz or c 24…230 V 2 C/O LT3-SA00MW
with fault memory
On front panel: fault and voltage signalling indicator, Test and Reset button
a 50/60 Hz 400 V N/C + N/O LT3-SM00V
24/48 V N/C + N/O LT3-SM00E
115/230 V N/C + N/O LT3-SM00M
c 24/48 V N/C + N/O LT3-SM00ED
a 50/60 Hz or c 24…230 V 2 C/O LT3-SM00MW

Accessories

Type PTC thermistor probes for LT3 relays

Normal operating temperature (NOT) 90 °C 110 °C 120 °C 130 °C 140 °C 150 °C 160 °C 170 °C
Integrated triple probes DA1-TT090 DA1-TT110 DA1-TT120 DA1-TT130 DA1-TT140 DA1-TT150 DA1-TT160 DA1-TT170
Normal operating temperature (NOT) 60 °C 70 °C 80 °C 90 °C 100 °C
Surface probes DA1-TS060 DA1-TS070 DA1-TS080 DA1-TS090 DA1-TS100

32

TeSys Switch disconnectors
Vario 12…175 A
1/L1

3/L2

5/L3
2/T1

4/T2

6/T3

Type Mini-Vario for standard applications
Door mounting Backplate mounting in enclosure
Colour: Handle / Front plate Red / Yellow Black / Black Red / Yellow
Front plate dimensions (mm) 60 x 60 60 x 60
Fixing Ø 22.5 mm Ø 22.5 mm
Degree of protection IP 20 IP 20
Thermal current in open air (Ith) 12 A VCDN12 VBDN12 VCCDN12
20 A VCDN20 VBDN20 VCCDN20
1/L1

3/L2

5/L3
2/T1

4/T2

6/T3

Type Vario for high performance applications
Door mounting Backplate mounting in enclosure
Colour: Handle / Front plate Red / Yellow Black / Black Red / Yellow Black / Black Red / Yellow Red / Yellow
Front plate dimensions (mm) 60 x 60 60 x 60 90 x 90 60 x 60 90 x 90
Fixing Ø 22.5 mm 4 screws 4 screws Ø 22.5 mm 4 screws 4 screws
Degree of protection IP 20 IP 20 IP 20 IP 20 IP 20 IP 20
Rated insulation voltage (Ui) 690 V 690 V 690 V 690 V 690 V 690 V
Thermal current in open air (Ith) 12 A VCD02 VBD02 VCF02 VBF02 – VCCD02 VCCF02 –
20 A VCD01 VBD01 VCF01 VBF01 – VCCD01 VCCF01 –
63 A – – VCF3 VBF3 – – VCCF3 –
80 A – – VCF4 VBF4 – – VCCF4 –
125 A – – – – VCF5 – – VCCF5
175 A – – – – VCF6 – – VCCF6

Add-on modules For mini-Vario For Vario
Main pole modules
Switch rating 12 A 20 A 12 A 20 A 25 A 32 A 40 A 63 A 80 A
References VZN12 VZN20 VZ02 VZ01 VZ0 VZ1 VZ2 VZ3 VZ4
Neutral pole module with early make and late break contacts
Switch rating 12…20 A 12…40 A 63 and 80 A 125 and 175 A
References VZN11 VZ11 VZ12 VZ13
Earthing module
Switch rating 12…20 A 12…40 A 63 and 80 A 125 and 175 A
References VZN14 VZ14 VZ15 VZ16
Auxiliary contact block modules
Contact type N/O N/C N/O + N/C N/O + N/O
References VZN05 VZN06 VZ7 VZ20

33

TeSys Combination motor starters
GV2, LC 0.06…15 kW

D.O.L. starters
with circuit-breaker with fuse protection
Level of service Coordination: Type 1 Type 2
Power at 400 V Up to: 5.5 kW 15 kW 37 kW
Type of components Combination automatic motor starter with overload protection Fuse carrier +
incorporated in the circuit-breaker plate-mounted contactor
Basic reference, to be completed GV2-ME GV2-DM GV2-DP LC4-D

Starters GV2-ME
Non-reversing Reversing
Standard power ratings Setting Fixed For customer assembly Factory assembled
of 3-phase motors range of magnetic Motor Contactor Basic reference, to be completed with
50/60 Hz in category AC-3 (kW) thermal trips tripping current circuit-breaker code indicating control circuit voltage
400/415 V 440 V 500 V 13 Irth
0.37 0.37 0.37 1…1.6 22.5 GV2-ME06 LC1-K06 GV2-ME06K1•• GV2-ME06K2••
0.55 0.55 0.55
- - 0.75
0.75 0.75 - 1.6…2.5 33.5 GV2-ME07 LC1-K06 GV2-ME07K1•• GV2-ME07K2••
- 1.1 1.1
1.1 - 1.5 2.5…4 51 GV2-ME08 LC1-K06 GV2-ME08K1•• GV2-ME08K2••
1.5 1.5 2.2
2.2 2.2 - 4…6.3 78 GV2-ME10 LC1-K06 GV2-ME10K1•• GV2-ME10K2••
- - 3
3 - 4 6…10 138 GV2-ME14 LC1-K09 GV2-ME14K1•• GV2-ME14K2••
4 4 5.5
5.5 5.5 7.5 9…14 170 GV2-ME16 LC1-K12 GV2-ME16K1•• GV2-ME16K2••

Volts 24 110 220/230 230 230/240 380/400
a 50…400 Hz B7 F7 M7 P7 U7 Q7
c (1) BW3 - - - - -
(1) Low consumption coil (1.5 W), wide range (0.7…1.3 Uc) and with integral suppression device as standard.

34

D.O.L. starters GV2-DM and GV3-DP
Standard power ratings Setting Fixed For customer assembly Factory assembled
of 3-phase motors range of magnetic Motor Contactor Basic reference, to be completed with
50/60 Hz in category AC-3 (kW) thermal trips tripping current circuit-breaker code indicating control circuit voltage
400/415 V 440 V 500 V 13 Irth
0.06 0.06 - 0.16…0.25 2.4 GV2-ME02 LC1-D09•• GV2-DM102•• GV2-DM202••
GV2-P02 LC1-D09•• GV2-DP102•• GV2-DP202••
0.09 0.09 - 0.25…0.40 5 GV2-ME03 LC1-D09•• GV2-DM103•• GV2-DM203••
- 0.12 - GV2-P03 LC1-D09•• GV2-DP103•• GV2-DP203••
0.12 - - 0.40…0.63 8 GV2-ME04 LC1-D09•• GV2-DM104•• GV2-DM204••
0.18 0.18 - GV2-P04 LC1-D09•• GV2-DP104•• GV2-DP204••
0.25 0.25 - 0.63…1 13 GV2-ME05 LC1-D09•• GV2-DM105•• GV2-DM205••
0.37 0.37 - GV2-P05 LC1-D09•• GV2-DP105•• GV2-DP205••
- - 0.37 1…1.6 22.5 GV2-ME06 LC1-D09•• GV2-DM106•• GV2-DM206••
0.55 0.55 0.55 GV2-P06 LC1-D09•• GV2-DP106•• GV2-DP206••
- - 0.75
0.75 0.75 - 1.6…2.5 33.5 GV2-ME07 LC1-D09•• GV2-DM107•• GV2-DM207••
- 1.1 1.1 GV2-P07 LC1-D09•• GV2-DP107•• GV2-DP207••
1.1 - 1.5 2.5…4 51 GV2-ME08 LC1-D09•• GV2-DM108•• GV2-DM208••
1.5 1.5 2.2 GV2-P08 LC1-D09•• GV2-DP108•• GV2-DP208••
2.2 2.2 - 4…6.3 78 GV2-ME10 LC1-D09•• GV2-DM110•• GV2-DM210••
- 3 3 GV2-P10 LC1-D09•• GV2-DP110•• GV2-DP210••
3 - 4 6…10 138 GV2-ME14 LC1-D09•• GV2-DM114•• GV2-DM214••
4 4 5.5 GV2-P14 LC1-D09•• GV2-DP114•• GV2-DP214••
5.5 5.5 7.5 9…14 170 GV2-ME16 LC1-D12•• GV2-DM116•• GV2-DM216••
- 7.5 9 GV2-P16 LC1-D25•• GV2-DP116•• GV2-DP216••
7.5 9 - 13…18 223 GV2-ME20 LC1-D18•• GV2-DM120•• GV2-DM220••
GV2-P20 LC1-D25•• GV2-DP120•• GV2-DP220••
9 11 11 17…23 327 GV2-ME21 LC1-D25•• GV2-DM121•• GV2-DM221••
GV2-P21 LC1-D25•• GV2-DP121•• GV2-DP221••
11 - 15 20…25 327 GV2-ME22 LC1-D25•• GV2-DM122•• GV2-DM222••
GV2-P22 LC1-D25•• GV2-DP122•• GV2-DP222••
15 15 18.5 24…32 416 GV2-ME32 LC1-D32•• GV2-DM132•• GV2-DM232••
GV2-P32 LC1-D32•• GV2-DP132•• GV2-DP232•

D.O.L. starters GV3 + LC1D
Standard power ratings Setting Fixed For customer assembly
of 3-phase motors range of magnetic Motor Contactor Reference of accessory to be ordered
50/60 Hz in category AC-3 (kW) thermal trips tripping current circuit-breaker for assembly of motor starter (2)
400/415 V 440 V 500 V 13 Irth
18,5 18,5 – 30…40 560 GV3-P401 (1) LC1-D40A•• – LAD9R3
– 22 22 30…40 560 GV3-P401 (1) LC1-D40A•• – LAD9R3
22 – 30 37…50 700 GV3-P501 (1) LC1-D50A•• – LAD9R3
30 30 37 48…65 910 GV3-P651 (1) LC1-D65A•• – LAD9R3
(1) Circuit-breaker GV3P without downstream EverLink terminal block. A standard GV3P can also be used by removing the downstream terminal block.
(2) For side by side circuit-breaker/contactor mounting, order accessory GV3S.

Volts 24 220 230
a 50…400 Hz B7 M7 P7
c (3) BD – –
(3) Low consumption coil, wide range (0.7 to 1.25 Uc) and with suppression device as standard (bidirectional peak limiting diode).

35

TeSys U Starter-controller for 3-phase motors
STANDARD motor starter

= +
Function characteristics, LUB… + LUCA… Maximum Power base Standard control unit
motor power Non-reversing Reversing Class 10 Setting range
< 400/415 V (1) (2)
- Thermal overload protection against: 0.09 kW LUB12 LU2B12pp LUCA6Xpp 0.15…0.6 A
short-circuit, overcurrent, 0.25 kW LUB12 LU2B12pp LUCA1Xpp 0.35…1.4 A
phase failure or imbalance, 1.5 kW LUB12 LU2B12pp LUCA05pp 1.25…5 A
insulation breaks (equipment only). 5.5 kW LUB12 LU2B12pp LUCA12pp 3…12 A
- Manual reset following thermal fault. 7.5 kW LUB32 LU2B32pp LUCA18pp 4.5…18 A
15 kW LUB32 LU2B32pp LUCA32pp 8…32 A

ADVANCED motor starter

Function characteristics, LUB… + LUCA… Maximum Power base Advanced control unit
motor power Non-reversing Reversing Class 10 Class 20 Setting range
< 400/415 V (1) (2) (3) (2)
- Thermal overload protection against: 0.09 kW LUB12 LU2B12pp LUCB6Xpp LUCD6Xpp 0.15…0.6 A
short-circuit, overcurrent, 0.25 kW LUB12 LU2B12pp LUCB1Xpp LUCD1Xpp 0.35…1.4 A
phase failure or imbalance, 1.5 kW LUB12 LU2B12pp LUCB05pp LUCD05pp 1.25…5 A
insulation breaks (equipment only). 5.5 kW LUB12 LU2B12pp LUCB12pp LUCD12pp 3…12 A
- Manual reset following thermal fault. 7.5 kW LUB32 LU2B32pp LUCB18pp LUCD18pp 4.5…18 A
- Thermal overload test function. 15 kW LUB32 LU2B32pp LUCB32pp LUCD32pp 8…32 A
(3) For single-phase-motors, replace LUCBpppp by LUCCpppp.

MULTIFUNCTION motor starter

Function characteristics, LUB… + LUCA… Maximum Power base Multifunction control unit
motor power Non-reversing Reversing Class 5 to 30 Setting range
< 400/415 V (1)
- Thermal overload protection against: 0.09 kW LUB12 LU2B12pp LUCM6XBL 0.15…0.6 A
short-circuit, overcurrent, 0.25 kW LUB12 LU2B12pp LUCM1XBL 0.35…1.4 A
phase failure or imbalance, 1.5 kW LUB12 LU2B12pp LUCM05BL 1.25…5 A
insulation breaks (equipment only). 5.5 kW LUB12 LU2B12pp LUCM12BL 3…12 A
- Manual, automatic or remote reset, 7.5 kW LUB32 LU2B32pp LUCM18BL 4.5…18 A
- Thermal overload test function, 15 kW LUB32 LU2B32pp LUCM32BL 8…32 A
- Overtorque and no-load running, alarm,
- Motor operation log,
- Motor parameters display on LUCM.., PC or HMI,
- Integrated Modbus communication.

(1) Complete the references of the power bases according to the following table. Example: LU2B12 pp
(2) Complete the references of the control units according to the following table. Example: LUCA/B/D/M6X pp
24 V DC BL
24 V AC B
48 V AC / 48…72 V DC ES
110…240 V AC / 110…220 V DC FU

36

TeSys U Starter-controller for 3-phase motors
Function modules

+ =
Type of optional function Thermal Thermal fault signalling Motor load
overload alarm indication
Compatible with LUCA NO NO NO NO NO
Compatible with LUCL NO NO NO NO NO
Compatible with LUCB, LUCD YES YES YES YES YES
Compatible with LUCM NO NO NO NO YES
Output signal 1 NO 1 NO +1 NC 1 NC 1 NO 4…20 mA
Reset NA Manual Automatic or remote NA
References LUFW10 LUFDH11 LUFDA01 LUFDA10 LUFV2


Type of communication Modbus Advantys Proﬁbus DP CANopen DeviceNet AS-Interface Parallel
STB wiring
Only compatible with 24 V DC control units YES YES YES YES YES YES YES
LUCA..BL, LUCB..BL, LUCD..BL, LUCM..BL
Transfer speed 19.2 Kbps Dpg. on NIM (1) 9.6…12 Mbps 20 K…1 Mbps 125…500 Kbaud 167 Kbps NA
Number of slaves 31 per Modbus Dpg. on Network 125 per Proﬁbus DP 128 per CANopen 63 per DeviceNet 62 per AS-Interface 8 per LU9GC02
master Interface Module module module module master splitter box
Pre-wired coil connection (A1 A2) LU9BN11C, LU9BN11L, LU9BN11L, LU9BN11L, LU9BN11L, LU9BN11C, LU9Rxx
LU9MRC LU9MRL LU9MRL LU9MRL LU9MRL LU9MRC
Connecting cable to PC VW3 A8 306 Rpp LU9RCDpp, TSXPBSCApp TSXCANCpp DeviceNet XZCG0142 TSXCDPppp
LU9RDDpp standard
References LUFC033 LULC15 LULC07 LULC08 LULC09 ASILUFC51 LUFC00
(1) Network Interface Module.
Information carried by the Modbus, Advantys STB or CANopen bus
Type of control unit LUCAppBL LUCBppBL, LUCDppBL LUCMppBL
Start and Stop commands X X X
Starter status (ready, running, fault) X X X
Thermal alarm X X
Remote reset via the bus X X
Indication of motor load X X
Signalling and fault differentiation X X
Alarms (overcurrent, …) X
Remote programming and monitoring of all the functions X
“Log” function X
Monitoring function X

Contact blocks

Type of contact block Add-on Auxiliary

Signalling contacts of any fault NC (95-96) NO (97-98) – – –
position of control handle NO (17-18) NO (17-18) – – –
2 auxiliary contacts module – – NO (33-34) NC (31-32) NC (31-32)
– – NO (43-44) NO (43-44) NC (41-42)
References Screw clamp terminals LUA1C11 LUA1C20 LUFN20 LUFN11 LUFN02
Without connections LUA1C110 LUA1C200 – – –

37

TeSys Controller for 3-phase motors
LUTM MULTIFUNCTION protection
TeSys GV3L
Circuit-breakers

TeSys LC1D
Contactor = +
Function characteristics Control base for use Multifunction
with contactors control unit
TeSys D (LC1D..) TeSys F (LC1F..) Class 5 to 35
- Thermal overload protection against: LUTM10BL LUTM20BL LUCMT1BL
short-circuit, overcurrent,
phase failure or imbalance,
insulation breaks (equipment only).
- Manual, automatic or remote reset,
- Thermal overload test function,
- Overtorque and no-load running, alarm,
- Motor operation log,
- Motor parameters display on LUCM.., PC or HMI,
- Integrated Modbus communication.

ADVANCED protection

Function characteristics Control base for use Advanced
with contactors control unit
TeSys D (LC1D..) TeSys F (LC1F..) Class 10 Class 20
- Thermal overload protection against: LUTM10BL LUTM20BL LUCBT1BL LUCDT1BL
short-circuit, overcurrent,
phase failure or imbalance,
insulation breaks (equipment only).
- Manual reset following thermal fault.
- Thermal overload test function.

Current transformers

Type of transformer

Supply voltage 24 V DC
Operating current Primary 30 A 50 A 100 A 200 A 400 A 800 A
Secondary 1A
References LUTC0301 LUTC0501 LUTC01001 LUTC02001 LUTC04001 LUTC05001
Above 32 A, the TeSys U controller provides a motor starter management system solution identical to that provided by the TeSys U starter-controller.
Used in conjunction with a short-circuit protection device and a contactor, it provides a motor starter whose functions are the same as those of a TeSys U starter-controller
and, in particular, provides the following functions: overload protection, motor starter control and application monitoring.
It comprises a control unit, whose adjustment range is compatible with the secondary of current transformers, and a control base that also enables the ﬁtting of a function module or
communication module.
It requires a 24 V DC external power supply.

38

TeSys Controller for 3-phase motors
LUTM Function modules

+ =
Type of optional function Thermal overload alarm Motor load indication

Compatible with LUCA NO NO
Compatible with LUCL NO NO
Compatible with LUCB, LUCD YES YES
Compatible with LUCM NO YES
Output signal 1 NO 4…20 mA
Reset NA NA
References LUFW10 LUFV2


Type of communication Modbus Advantys STB CANopen DeviceNet Parallel
wiring
Only compatible with 24 V DC control units YES YES YES YES YES
LUCA..BL, LUCB..BL, LUCD..BL, LUCM..BL
Transfer speed 19.2 Kbps Dpg. on NIM (1) 20 K…1 Mbps 125…500 Kbaud NA
Number of slaves 31 per Modbus Dpg. on Network 128 per CANopen 63 per DeviceNet 8 per LU9GC02
master Interface Module module module splitter box
Pre-wired coil connection (A1 A2) LU9BN11C, LU9BN11L, LU9BN11L, LU9BN11L, LU9Rxx
LU9MRC LU9MRL LU9MRL LU9MRL
Connecting cable to PC VW3 A8 306 Rpp LU9RCDpp TSXCANCpp DeviceNet TSXCDPppp
LU9RDDpp standard
References LUFC033 LULC15 LULC08 LULC09 LUFC00

Information carried by the Modbus, Advantys STB or CANopen bus
Type of control unit LUCBT1BL, LUCDT1BL LUCMT1BL
Start and Stop commands X X
Starter status (ready, running, fault) X X
Thermal alarm X X
Remote reset via the bus X X
Indication of motor load X X
Signalling and fault differentiation X X
Alarms (overcurrent, …) X
Remote programming and monitoring of all the functions X
“Log” function X
Monitoring function X

39

TeSys Enclosed motor starters
0.06…132 kW

Starters
■ D.O.L.
■ standard
Standard power ratings of 3-phase motors in category AC3 400/415 V 4…37 kW 0.06…37 kW 0.55…30 kW 0.37…5.5 kW 0.25…45 kW
Starters manual ● ● ● - -
auto - - - ● ●
Isolating device switch-disconnector-fuse ● - - - -
circuit-breaker - ● ● ● -
fuse carrier - - - - -
Protection short-circuit - ● ● ● -
overload - ● - ● ●
Communication - - - - -
Basic reference Non-reversing V•F•GE GV2-ME GV2-LC LE1-GVME LE1-M
VCFN•GE GV3-PC GV-NGC LE1-D
V•FXGE• GV3-CE
Reversing LE2-K

LE2-D

40

■ 2 stage
■ safety applications ■ AS-Interface bus standard star-delta
2.2…45 kW 0.06…11 kW 0.06…9 kW 0.06…9 kW 0.06…5.5 kW 5.5…132 kW 7.5…75 kW
- ● - - - - -
● - ● ● ● ● ●
- - ● - - - -
- ● ● ● ● - -
● - - - - - ●
● ● ● ● ● - ●
● ● ● ● ● ● ●
- - - - ● - -
LE4-K GV2-ME LG1-K LG7-K LF3-M LE3-K LE6-D
LE4-D LG1-D LG7-D LF3-P LE3-D LE3-D
LJ7-K LF7-P LE3-F
LE8-K LG8-K LF4-M
LE8-D LJ8-K LF4-P
LE2-D LF8-P

41

TeSys Installation system
Quickfit Presentation

TeSys Quickfit is a modular system which standardises and simplifies the implementation of motor start-
ers with its pre-wired control and power circuits.
Installation of a motor starter becomes quick, simple, safe and flexible.
In addition, this system:
b enables the motor starter to be customised at a later date,
b reduces maintenance time and
b optimises panel space by reducing the number of terminals and intermediate interfaces and the amount
of ducting.

The motor starters concerned are those created by combining:
– GV2 ME or GV3 P circuit-breakers, with an operating limit of 80% of the maximum current at an ambient
temperature of 60 °C, up to 690 V
– with 9 to 65 A TeSys D (LC1) contactors.

This offer comprises components for pre-wiring
b the power part,
b the control part.

Components for pre-wiring the power part
b a power kit comprising, for each starter, a plate for mounting the contactor and the circuit-breaker, and
two power connection modules,
b a power splitter box for 2 or 4 starters,
b an upstream terminal block for a power supply up to 60 A (16 mm2),
b a downstream terminal block for connecting the motor power supply cables and the earth cables
(6 mm2).

Components for pre-wiring the control part
b a control circuit connection module that mounts directly on the contactor and the circuit-breaker of
each starter. This module integrates the status and control information of this particular motor starter.
b a parallel wiring module enabling grouping of the information relating to each motor starter:
v HE 10, intended for centralised applications. The information is transmitted to the PLC via the Advantys
Telefast pre-wired system.
v STB, intended for decentralised automation architectures. This module is integrated in an Advantys STB
configuration for connection to the PLC via a fieldbus.

9…25 A power pre-wiring components

Type Terminal block 60 A power splitter box
Upstream Downstream Extension by LAD32p
Maximum c.s.a. of connection 16 mm2 6 mm2 – –
Use Splitter boxes supply Motor cables – –
Number of starters – – 2 4
Reference LAD3B1 LAD331 LAD322 LAD324

Type Connection kit Mounting plate for Power connection
For D.O.L. starter (1) GV2 ME & contactor module
Composition 1 mounting plate LAD311 for GV2ME For 1 motor starter
2 power connection modules LAD341
Reference LAD252 LAD311 LAD341
(1) For a reversing starter order 2 connection kits LAD252

42

Control-command pre-wiring components

Type Connection module

TeSys D coil voltage 12…250 V AC or 5…130 V DC 24 V DC
Type of coil control relay Electronic Without relay
Type of motor starter Direct Reversing Direct Reversing
Reference LAD9AP31 LAD9AP32 LAD9AP3D1 LAD9AP3D2

Type 24 V DC parallel wiring module
Splitter box Advantys STB parallel interface module
PLC/motor starter side connectors 2 x HE10/8 x RJ45 –/4 x RJ45
Reference LU9G02 STBEPI2145

Accessories

Type Connecting cables
(1) From splitter box LU9G02 to the PLC
Connectors 2 x RJ45 2 HE10 Bare wires and HE10
Gauge / c.s.a. – 22 / 0.324 mm2 28 / 0.080 mm2 22 / 0.324 mm2
Reference L = 0.3 m LU9R03 – – –
0.5 m – TSXCDP053 – –
1m LU9R10 TSXCDP103 ABFH20H100 –
2m – TSXCDP203 ABFH20H200 –
3m LU9R30 TSXCDP303 ABFH20H300 TSXCDP301
5m – TSXCDP503 – TSXCDP301
(1) From connection module LAD9AP3p to splitter box LU9G02 or module STBEPI2145

Type Connectors Connecting cable
Spring terminals Self-stripping
Use External contact, auxiliary power supply Between communication module APP1Cp and
splitter box LU9GG02
Reference APE1PRE21 APE1PAD21 APP2AH40H060

43

Components Lighting applications (AC5)

Sodium vapour lamps
■ low pressure
Non-corrected With parallel compensation
P (W) 3- 55 90 135 150 180 200 35 55 90 135 150 180 200
IB (A) 1.2 1.6 2.4 3.1 3.2 3.3 3.4 0.3 0.4 0.6 0.9 1 1.2 1.3
C (μF) - - - - - - - 17 17 25 36 36 36 36 LC1-
Max. number of lamps 6 5 3 2 2 2 2 - - - - - - - K09
according to P (W), per contactor 10 7 5 3 3 3 3 40 30 - - - - - D09, D12
12 9 6 4 4 4 4 50 37 25 - - - - D18
15 11 7 6 5 5 5 63 47 31 21 19 15 14 D25
21 16 10 8 8 7 7 86 65 43 28 26 21 20 D32, D38
27 20 13 10 10 10 9 110 82 55 36 33 27 25 D40A
35 26 17 13 13 12 12 140 105 70 46 42 35 32 D50A, D65A
50 37 25 19 18 18 17 200 150 100 66 60 50 46 D80, D95
100 75 50 38 36 36 34 400 300 200 132 120 100 92 D115, D150
140 104 70 54 52 50 48 560 420 280 186 168 140 128 F185
152 114 76 58 56 54 54 606 454 302 202 182 152 140 F225
174 130 88 68 66 64 62 700 524 350 232 210 174 162 F265
198 148 98 76 74 72 70 792 594 396 264 238 198 182 F330
250 188 124 96 94 90 88 1002 752 502 334 300 250 252 F400
338 254 168 130 126 122 118 1352 1014 676 450 406 338 312 F500
496 372 248 192 186 180 174 1982 1488 992 660 594 496 458 F600, F800
■ high pressure
P (W) 150 250 400 700 1000 150 250 400 700 1000
IB (A) 1.9 3.2 5 8.8 12.4 0.84 1.4 2.2 3.9 5.5
C (μF) - - - - - 20 32 48 96 120 LC1-
Max. number of lamps 4 2 1 - - - - - - - K09
according to P (W), per contactor 6 3 2 1 - - - - - - D09, D12
7 4 3 1 1 17 - - - - D18
10 5 3 2 1 22 13 8 - - D25
13 8 5 2 2 30 18 11 6 - D32, D38
17 10 6 3 2 39 23 15 8 6 D40A
22 13 8 4 3 50 30 19 10 7 D50A, D65A
31 18 12 6 4 71 42 27 15 10 D80, D95
62 36 24 12 8 142 84 54 30 20 D115, D150
88 52 34 18 14 200 120 76 42 30 F185
96 56 36 20 16 216 130 82 46 32 F225
110 66 42 24 18 250 150 94 54 38 F265
124 74 48 26 20 282 170 108 60 42 F330
158 94 60 34 24 358 214 136 76 54 F400
214 126 80 46 32 482 290 184 104 74 F500
312 186 118 68 48 708 424 270 152 108 F630, F800
Metal iodine vapour lamps

P (W) 250 400 1000 2000 250 400 1000 2000
IB (A) 2.5 3.6 9.5 20 1.4 2 5.3 11.2
C (μF) - - - - 32 32 64 140 LC1-
Max. number of lamps 3 2 - - - - - - K09
according to P (W), per contactor 4 3 1 - - - - - D09, D12
6 4 1 - - - - - D18
7 5 2 - 13 9 - - D25
10 7 2 1 18 13 4 - D32, D38
13 9 3 1 23 16 6 - D40A
16 11 4 2 30 21 7 - D50A, D65A
24 16 6 3 42 30 11 5 D80, D95
48 32 12 6 84 60 22 10 D115, D150
66 46 18 8 120 84 32 14 F185
72 50 20 10 130 90 34 16 F225
84 58 22 12 150 104 40 18 F265
94 66 24 14 170 118 44 20 F330
120 84 32 16 214 150 56 26 F400
162 112 42 20 290 202 76 36 F500
238 164 62 30 424 298 112 52 F630, F800

44

Incandescent and halogen lamps

P (W) 60 75 100 150 200 300 500 750 1000
IB (A) 0.27 0.34 0.45 0.68 0.91 1.40 2.30 3.40 4.60 LC1-
Max. number of lamps 35 28 21 14 10 6 4 2 2 K09
according to P (W), per contactor 59 47 35 23 17 11 7 4 3 D09, D12
77 61 46 30 23 15 9 6 4 D18
92 73 55 36 27 18 11 7 5 D25
129 103 77 51 38 25 15 10 7 D32, D38
163 129 97 64 48 31 19 13 9 D40A
207 164 124 82 62 40 24 16 12 D50A, D65A
296 235 177 117 88 57 34 23 17 D80, D95
430 340 256 170 126 82 50 34 24 D115
466 370 280 184 138 90 54 36 26 D150
710 564 426 282 210 136 82 56 40 F185
770 610 462 304 228 148 90 60 44 F225
888 704 532 352 262 170 104 70 52 F265
1006 800 604 400 298 194 118 80 58 F330
1274 1010 764 504 378 244 148 100 74 F400
1718 1364 1030 682 508 330 200 136 100 F500
2328 1850 1396 924 690 448 272 184 136 F600
2776 2204 1666 1102 824 534 326 220 162 F800
Fluorescent lamps with starter
■ single ﬁtting
Non-corrected With parallel correction
P (W) 20 40 65 80 110 20 40 65 80 110
IB (A) 0.39 0.45 0.70 0.80 1.2 0.17 0.26 0.42 0.52 0.72
C (μF) - - - - - 5 5 7 7 16 LC1-
Max. number of lamps 24 21 13 12 8 56 36 22 18 - K09
according to P (W), per contactor 41 35 22 20 13 94 61 38 30 22 D09, D12
53 46 30 26 17 123 80 50 40 29 D18
66 57 37 32 21 152 100 61 50 36 D25
89 77 50 43 29 205 134 83 67 48 D32, D38
112 97 62 55 36 258 169 104 84 61 D40A
143 124 80 70 46 329 215 133 107 77 D50A, D65A
205 177 114 100 66 470 367 190 153 111 D80, D95
410 354 228 200 132 940 614 380 306 222 D115, D150
492 426 274 240 160 1128 738 456 368 266 F185
532 462 296 260 172 1224 800 490 400 288 F225
614 532 342 300 200 1412 922 570 462 332 F265
696 604 388 340 226 1600 1046 648 522 378 F330
882 764 490 430 286 2024 1322 818 662 478 F400
1190 1030 662 580 386 2728 1724 1104 892 644 F500
1612 1398 698 786 524 3700 2418 1498 1210 874 F630, F800
■ twin ﬁtting
P (W) 2x20 2x40 2x65 2x80 2x110 2x20 2x40 2x65 2x80 2x110
IB (A) 2x0.22 2x0.41 2x0.67 2x0.82 2x1.1 2x0.13 2x0.24 2x0.39 2x0.48 2x0.65 LC1-
Max. number of lamps 2x21 2x11 2x7 2x5 2x4 2x36 2x20 2x12 2x10 2x7 K09
according to P (W), per contactor 2x36 2x18 2x10 2x8 2x6 2x60 2x32 2x20 2x16 2x12 D09, D12
2x46 2x24 2x14 2x12 2x8 2x80 2x42 2x26 2x20 2x16 D18
2x58 2x30 2x18 2x14 2x10 2x100 2x54 2x32 2x26 2x20 D25
2x78 2x42 2x26 2x20 2x14 2x134 2x72 2x44 2x36 2x26 D32, D38
2x100 2x52 2x32 2x26 2x18 2x168 2x90 2x56 2x44 2x32 D40A
2x126 2x68 2x40 2x34 2x24 2x214 2x116 2x70 2x58 2x42 D50A, D65A
2x180 2x96 2x58 2x48 2x36 2x306 2x166 2x102 2x82 2x60 D80, D95
2x360 2x194 2x118 2x96 2x72 2x614 2x332 2x204 2x166 2x122 D115, D150
2x436 2x234 2x142 2x116 2x86 2x738 2x400 2x246 2x200 2x148 F185
2x472 2x254 2x154 2x126 2x94 2x800 2x432 2x266 2x216 2x160 F225
2x544 2x292 2x178 2x146 2x108 2x922 2x500 2x308 2x250 2x184 F265
2x618 2x332 2x202 2x166 2x124 2x1046 2x566 2x348 2x282 2x208 F330
2x782 2x420 2x256 2x210 2x156 2x1322 2x716 2x440 2x358 2x264 F400
2x1054 2x566 2x346 2x282 2x210 2x1784 2x966 2x594 2x482 2x356 F500
2x1430 2x766 2x468 2x384 2x286 2x2418 2x1310 2x806 2x654 2x484 F630, F800

45

Components Capacitor switching
0…1000 kVAR

On-load capacitor switching
for bar-mounted contactors, a.c. control circuit
Without damping resistor With damping resistor
Rated operational voltage (V) Number of poles Max. operational Basic reference, Number of poles Max. operational Basic reference,
current (A) to be completed current (A) to be completed
50 Hz 180 Hz 50 Hz 180 Hz
1300 1 80 60 CE5-FB11•11 1 + 1 staggered pole 80 60 CE6-FB12•11
160 125 CE5-GB11•11 160 125 CE6-GB12•11
240 190 CE5-HB11•11 240 190 CE6-HB12•11
2 80x2 60x2 CE5-FB21•11
160x2 125x2 CE5-GB21•11
240x2 190x2 CE5-HB21•11 2 + 2 staggered poles 240x2 190x2 CE6-HB22•11
3 80x3 60x3 CE5-FB31•11
160x3 125x3 CE5-GB31•11
240x3 190x3 CE5-HB31•11 1 + 2 staggered poles
1500 2 poles in series 160 125 CE5-GB12•11 160 125 CE6-GB13•11
280 220 CE5-HB12•11 280 220 CE6-HB13•11
2 x 2 poles in series 280x2 220x2 CE5-HB22•11
2000 2 poles in series 240 190 CS5-HB12•11 1 + 2 staggered poles 240 190 CS6-HB13•11
2 x 2 poles in series 240x2 190x2 CS5-HB22•11
3000 3 poles in series 280 220 CS5-HB13•11 1 + 3 staggered poles 280 220 CS6-HB14•11

a supply
Volts 110 125 127 200 220 240 250 380 415 440 500
50 Hz (coil LX1) F - G L M U - Q N R S

46

Maximum operational power of contactors
■ standard contactors
Operational power at 50/60 Hz
θ ≥ 40 °C θ ≥ 55 °C Peak current Contactor
220 V 400 V 600 V 220 V 400 V 600 V size
240 V 440 V 690 V 240 V 440 V 690 V
kVAR kVAR kVAR kVAR kVAR kVAR A
6 11 15 6 11 15 560 LC1-D09, D12
9 15 20 9 15 20 850 LC1-D18
11 20 25 11 20 25 1600 LC1-D25
14 25 30 14 25 30 1900 LC1-D32, D38
17 30 37 17 30 37 2160 LC1-D40A
22 40 50 22 40 50 2160 LC1-D50A
22 40 50 22 40 50 3040 LC1-D65A
35 60 75 35 60 75 3040 LC1-D80, D95
50 90 125 38 75 80 3100 LC1-D115
60 110 135 40 85 90 3300 LC1-D150
70 125 160 50 100 100 3500 LC1-F185
80 140 190 60 110 110 4000 LC1-F225
90 160 225 75 125 125 5000 LC1-F265
100 190 275 85 140 165 6500 LC1-F330
125 220 300 100 160 200 8000 LC1-F400
180 300 400 125 220 300 10000 LC1-F500
250 400 600 190 350 500 12000 LC1-F630
250 400 600 190 350 500 14200 LC1-F800
200 350 500 180 350 500 25000 LC1-BL
300 550 650 250 500 600 25000 LC1-BM
500 8350 950 400 750 750 25000 LC1-BP
600 1100 1300 500 1000 1000 25000 LC1-BR
■ special contactors
Operational power at 50/60 Hz
θ ≥ 55 °C Instantaneous auxiliary contacts Tightening torque on cable end Basic reference,
220 V 400 V 660 V to be completed
240 V 440 V 690 V
kVAR kVAR kVAR N/O N/C N.m
6.7 12.5 18 1 1 1.2 LC1-DFK11••
- 2 1.2 LC1-DFK02••
8.5 16.7 24 1 1 1.7 LC1-DGK11••
- 2 1.7 LC1-DGK02••
10 20 30 1 1 1.9 LC1-DLK11••
- 2 1.9 LC1-DLK02••
15 25 36 1 1 2.5 LC1-DMK11••
- 2 2.5 LC1-DMK02••
20 33.3 48 1 2 5 LC1-DPK12••
25 40 58 1 2 5 LC1-DTK12••
40 60 92 1 2 9 LC1-DWK12••

a supply
Volts 24 42 48 110 115 220 230 240 380 400 415 440
50/60 Hz (coil LX1) B7 D7 E7 F7 FE7 M7 P7 U7 Q7 V7 N7 R7

47

Components Heating applications and changeover
contactor pairs
0…2750 A

Maximum operational current (device in open air)

Contactors LC1-/LP1- LC1-/LP1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1-
■ 3-pole K09 K12 D09 D12 D18 D25 D32 D38 D40A
■ 4-pole DT20 DT25 DT32 DT40
LC2- changeover contactor pairs, factory assembled K09004 K12004 DT20 DT25 DT32 DT40 DT60A
Operational current in AC-1, in A, ≤ 40°C A 20 20 25 20 25 32 40 50 50 60
according to ambient temperature ≤ 60°C A 20 20 25 20 25 32 40 50 50 60
≤ 70°C
Maximum operational 220/230 V kW 8 8 9 8 9 11 14 18 18 21
power ≤ 60°C 240 V kW 8 8 9 8 9 12 15 19 19 23
380/400 V kW 14 14 15 14 15 20 25 31 31 37
415 V kW 14 14 17 14 17 21 27 34 34 41
440 V kW 15 15 18 15 18 23 29 36 36 43
500 V kW 17 17 20 17 20 23 33 41 41 49
660/690 V kW 22 22 27 22 27 34 43 54 54 65

Increase in operational current
by parallel connection of poles
Apply the following coefﬁcients to the currents or powers above;
these coefﬁcients take into account an often unbalanced distribution
of current between the poles:
■ 2 poles in parallel K = 1.6

Connection accessories for heating applications

Paralleling links for: Reference
■ TeSys K 2 poles with screw clamp terminals LA9-E01
4 poles with screw clamp terminals LA9-E02
■ TeSys D 2 poles D09…D38 LA9-D2561
DT20 and DT25 (4P) LA9-D1261
DT32…DT40 (4P) LAD-D96061
D40A…D65A LAD-9P32
D80 LA9-D80961
3 poles D09…D38 LAD-9P3 (1)
D40A…D65A LAD-9P33
D80 LA9-D80962
4 poles DT20…DT25 LA9-D1263
D40A…D65A 2 x LAD-9P33
D80 LA9-D80963
■ TeSys F 2 to 2 LC1-F1154 LA9-FF602
LC1-F1504, F1854 LA9-FG602
LC1-F2254, F2654, F3304, F4004 LA9-FH602
LC1-F5004 LA9-FK602
LC1-F6304 LA9-FL602
(1) Link that can be split, allowing parallel connection of 2 poles

48

LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1- LC1-
D50A D65A D80 D115 F185 F225 F265 F330 F400 F500 F630 F780 F800 BL BM BP BR

DT80A D80004 D115004 F1854 F2254 F2654
80 80 125 250 275 315 350 400 500 700 1000 1600 1000 800 1250 2000 2750
80 80 125 200 275 280 300 360 430 580 850 1350 850 700 1100 1750 2400
180 200 250 290 340 500 700 1100 700 600 900 1500 2000
29 29 45 80 90 100 120 145 170 240 350 550 350 300 425 700 1000
31 31 49 83 100 110 125 160 180 255 370 570 370 330 450 800 1100
50 50 78 135 165 175 210 250 300 430 600 950 600 500 800 1200 1600
54 54 85 140 170 185 220 260 310 445 630 1000 630 525 825 1250 1700
58 58 90 150 180 200 230 290 330 370 670 1050 670 550 850 1400 2000
65 65 102 170 200 220 270 320 380 660 750 1200 750 600 900 1500 2100
86 86 135 235 280 300 370 400 530 740 1000 1650 1000 800 1100 1900 2700

49

Components Accessories for changeover contactor pairs
0…2750 A

Mounting accessories for changeover contactor pairs
(for customer assembly)
Contactor type Set of power connections Mechanical Contactor type Set of power connections Mechanical
interlock interlock
2 contactors, vertically mounted
■ 4-pole changeover pairs with locking device components
LC1-B – EZ2-LB0601 – – –
2 identical contactors, horizontally mounted
■ with electrical interlocking kit for the contactors
LC1-DT20…DT40 LAD-T9R1V (1) – – – –
■ mechanical interlock with integral electrical interlocking
LP1-D80004 LA9-D8070 LA9-D8002 LC1-D115004 LA9-D11570 LA9-D11502
■ without electrical interlocking (2)
LC1-DT20…DT40 LAD-T9R1 (2) – – – –
LC1DT60A & LC1DT80A – LAD4CM (3) LP1-D80004 LA9-D8070 LA9-D80978
2 contactors of identical rating, horizontally mounted
■ 4-pole changeover pairs
LC1-F1154 LA9-FF977 LA9-FF970 LC1-F1504 LA9-F15077 LA9-FF970
LC1-F1854 LA9-FG977 LA9-FG970 LC1-F2254 LA9-F22577 LA9-FG970
LC1-F2654 LA9-FH977 LA9-FJ970 LC1-F3304 LA9-FJ977 LA9-FJ970
LC1-F4004 LA9-FJ977 LA9-FJ970 LC1-F5004 LA9-FK977 LA9-FJ970
LC1-F6304 LA9-FL977 LA9-FL970 – – –
■ 3-pole changeover pairs with electrical interlocking
LC1-D115 et D150 LA9-D11571 LA9-D11502 – – –
reversers assembled using 2 contactors, vertically mounted
■ 4-pole changeover pairs using contactors of identical rating (3) ■ 3 or 4-pole changeover pairs using contactors of different rating
At bottom At top
LC1-F1154 or F1505 (3) LA9-FF4F LC1-F115 or F1154 LC1-F185 or F1854 LA9-FG4F
LC1-F1854 (3) LA9-FG4G or LC1-F150 or F1504 LC1-F225 or F2254 LA9-FG4F
LC1-F2254 (3) LA9-FG4G LC1-F265 or F2654 LA9-FH4F
LC1-F2654 or F3304 (3) LA9-FH4H LC1-F300 or F3304 LA9-FH4F
LC1-F4004 (3) LA9-FJ4J LC1-F400 or F4004 LA9-FJ4F
LC1-F5004 (3) LA9-FK4K LC1-F500 or F5004 LA9-FK4F
LC1-F6304 (3) LA9-FL4L LC1-F630, F6304 or F800 LA9-FL4F
LC1-F7804 (4) LA9-FX971 (4) LC1-F185 or F1854 LC1-F265 or F2654 LA9-FH4G
or LC1-F225 or F2254 LC1-F330 or F3304 LA9-FH4G
LC1-F400 or F4004 LA9-FJ4G
LC1-F500 or F5004 LA9-FK4G
LC1-F630, F6304 or F800 LA9-FL4G
LC1-F265 or F2654 LC1-F400 or F4004 LA9-FJ4H
or LC1-F330 or F3304 LC1-F500 or F5004 LA9-FK4H
LC1-F630, F6304 or F800 LA9-FL4H
LC1-F400 or F4004 LC1-F500 or F5004 LA9-FK4J
LC1-F630, F6304 or F800 LA9-FL4J
LC1-F500 or F5004 LC1-F630, F6304 or F800 LA9-FL4K
(1) Including mechanical interlock.
(2) Order separately 2 auxiliary contact blocks LAD-N•1 t o obtain electrical interlocking between the two contactors.
(3) Power connections to be made by the customer.
(4) Double mechanical interlock mechanism with 2 interlock connecting rods and 4 power connecting links.

50

TeSys Notes

51

Schneider Electric Industries SAS

Head Office The information provided in this documentation contains general descriptions and/or technical
35, rue Joseph Monier - CS 30323 characteristics of the performance of the products contained herein. This documentation is not
DIA1ED2040401EN

F92500 Rueil-Malmaison Cedex intended as a substitute for and is not to be used for determining suitability or reliability of these
France products for specific user applications. It is the duty of any such user or integrator to perform the
appropriate and complete risk analysis, evaluation and testing of the products with respect to the
relevant specific application or use thereof. Neither Schneider Electric nor any of its affiliates or
www.schneider-electric.com subsidiaries shall be responsible or liable for misuse of the information contained herein.

Design : IGS-CP
Photos : Schneider Electric
Print :

ART. 005006 01/2010 - V7.0

Essential Guide-Tesys 2010

More Related Content

What's hot (20)

Viewers also liked (7)

Similar to Essential Guide-Tesys 2010 (20)

Essential Guide-Tesys 2010
